Includes US and Canadian Models
BF115D
英
N HCAH
EM3
31ZX1600
00X31-ZX1-6000
300.2010.05
Printed in Japan
−
The engine exhaust from this
product contains chemicals
known to the State of California to
cause cancer, birth defects, or
other reproductive harm.
Keep this Owner’s Manual handy, so you can refer to it at any time. This Owner’s
Manual is considered a permanent part of the outboard motor and should remain with
the outboard motor if resold.
The information and specifications included in this publication were in effect at the
time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to
discontinue or change specifications or design at any time without notice and without
incurring any obligation whatever. No part of this publication may be reproduced
without written permission.
2010 Honda Motor Co., Ltd. All Rights Reserved
10/04/13 15:06:37 31ZX1600_001
1
INTRODUCTION
Congratulations on your selection of
a Honda outboard motor. We are
certain you will be pleased with your
purchase of one of the finest
outboard motors on the market.
We want to help you get the best
results from your new outboard
motor and to operate it safely. This
manual contains information on how
to do that; please read it carefully.
As you read this manual you will
find information preceded by a
symbol. That information
is intended to help you avoid damage
to your outboard motor, other
property, or the environment.
We suggest you read the warranty
policy to fully understand its
coverage and your responsibilities of
ownership.
When your outboard motor needs
scheduled maintenance, keep in mind
that your Honda Marine dealer is
specially trained in servicing Honda
outboard motors. Your Honda
Marine dealer is dedicated to your
satisfaction and will be pleased to
answer your questions and concerns.
Best Wishes,
Honda Motor Co., Ltd.
10/04/13 15:06:42 31ZX1600_002
−
−
−
−
−
−
2
A FEW WORDS ABOUT
SAFETY
INTRODUCTION
Safety Messages
Safety Headings
Safety Labels
Safety Section
Instructions
IMPORTANT SAFETY INFORMATION.
OUTBOARD MOTOR SAFETY.
Your safety and the safety of others
are very important. And using this
outboard motor safely is an important
responsibility.
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining an outboard motor. You
must use your own good judgment.
You will find important safety information in a variety of forms, including:
This entire book is filled with important safety information please read it
carefully.
preceded by a safety alert symbol and one of
three signal words, DANGER, WARNING, or CAUTION.
These signal words mean:
such as
on the outboard motor.
such as
how to use this outboard motor correctly and safely.
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
10/04/13 15:06:52 31ZX1600_003
3
CONTENTS
...................................OUTBOARD MOTOR SAFETY . 7
................IMPORTANT SAFETY INFORMATION . 7
..................................SAFETY LABEL LOCATION . 9
..................................CONTROLS AND FEATURES . 12
CONTROL AND FEATURE IDENTIFICATION
..................................................................CODES . 12
....COMPONENT AND CONTROL LOCATIONS . 13
..............................................................CONTROLS . 17
Side-Mount Type
......................................................Ignition Switch . 17
Emergency Stop Switch Clip and Emergency
.......................................................Stop Switch . 17
..........................Gearshift/Throttle Control Lever . 18
.......................................................Fast Idle Lever . 19
Panel-Mount Type
......................................................Ignition Switch . 20
Emergency Stop Switch Clip and Emergency
.......................................................Stop Switch . 21
..........................Gearshift/Throttle Control Lever . 22
.....................................................Fast Idle Button . 23
Top-Mount Type
......................................................Ignition Switch . 24
Emergency Stop Switch Clip and Emergency
.......................................................Stop Switch . 24
..........................Gearshift/Throttle Control Lever . 25
.....................................................Fast Idle Button . 27
Common Controls
........................................Power Trim/Tilt Switch . 28
..................................................Power Tilt Switch . 29
.............................................Manual Relief Valve . 29
.....................................................Tilt Lock Lever . 29
TRL (Trolling) Control Switch
.........................................(optional equipment) . 30
..............................................Engine Cover Latch . 30
................................................................Trim Tab . 30
.......................................................INSTRUMENTS . 31
.........................Trim Meter (optional equipment) . 31
.........................Tachometer (optional equipment) . 31
.............Digital Tachometer (optional equipment) . 31
...........Digital Speedometer (optional equipment) . 32
......................................NMEA Interface Coupler . 32
10/04/13 15:06:55 31ZX1600_004
4
CONTENTS
...........................................................INDICATORS . 33
...................................Alternator (ACG) Indicator . 33
...........................................Malfunction Indicator . 33
............................................Oil Pressure Indicator . 34
.................................................Overheat Indicator . 34
.....................................Cooling System Indicator . 35
................................................OTHER FEATURES . 35
........................................Water Separator Buzzer . 35
...........................................................Rev Limiter . 36
...................................................................Anodes . 36
.................................................Fuel Priming Bulb . 36
................................................BEFORE OPERATION . 37
.........ARE YOU READY TO GET UNDERWAY? . 37
IS YOUR OUTBOARD MOTOR
..................................................READY TO GO? . 37
................................................................OPERATION . 39
....................SAFE OPERATING PRECAUTIONS . 39
.......................................BREAK-IN PROCEDURE . 39
.......................................................FUEL PRIMING . 40
......................................STARTING THE ENGINE . 41
..................................................Side-Mount Type . 41
.................................................Panel-Mount Type . 44
...................................................Top-Mount Type . 46
.......................................STOPPING THE ENGINE . 49
................................Emergency Engine Stopping . 49
.......................................Normal Engine Stopping . 50
GEARSHIFT AND
..................................THROTTLE OPERATION . 51
...............................................................STEERING . 52
................................................................CRUISING . 53
.........................................Trolling Speed Control . 55
................................................................TRIM TAB . 56
........................SHALLOW WATER OPERATION . 56
...............MOORING, BEACHING, LAUNCHING . 57
10/04/13 15:06:59 31ZX1600_005
5
CONTENTS
..............SERVICING YOUR OUTBOARD MOTOR . 59
...........THE IMPORTANCE OF MAINTENANCE . 59
.....................................MAINTENANCE SAFETY . 60
...................TOOL KIT and OWNER’S MANUAL . 61
SPARE EMERGENCY STOP SWITCH CLIP
.............................................(optional equipment) . 61
...............................MAINTENANCE SCHEDULE . 62
....................................TRIM TAB ADJUSTMENT . 64
....................................MANUAL RELIEF VALVE . 65
ENGINE COVER REMOVAL AND
..................................................INSTALLATION . 65
............................................Engine Oil Level Check . 66
....................................................Engine Oil Change . 66
.......................................................Oil Filter Change . 68
..................................Engine Oil Recommendations . 69

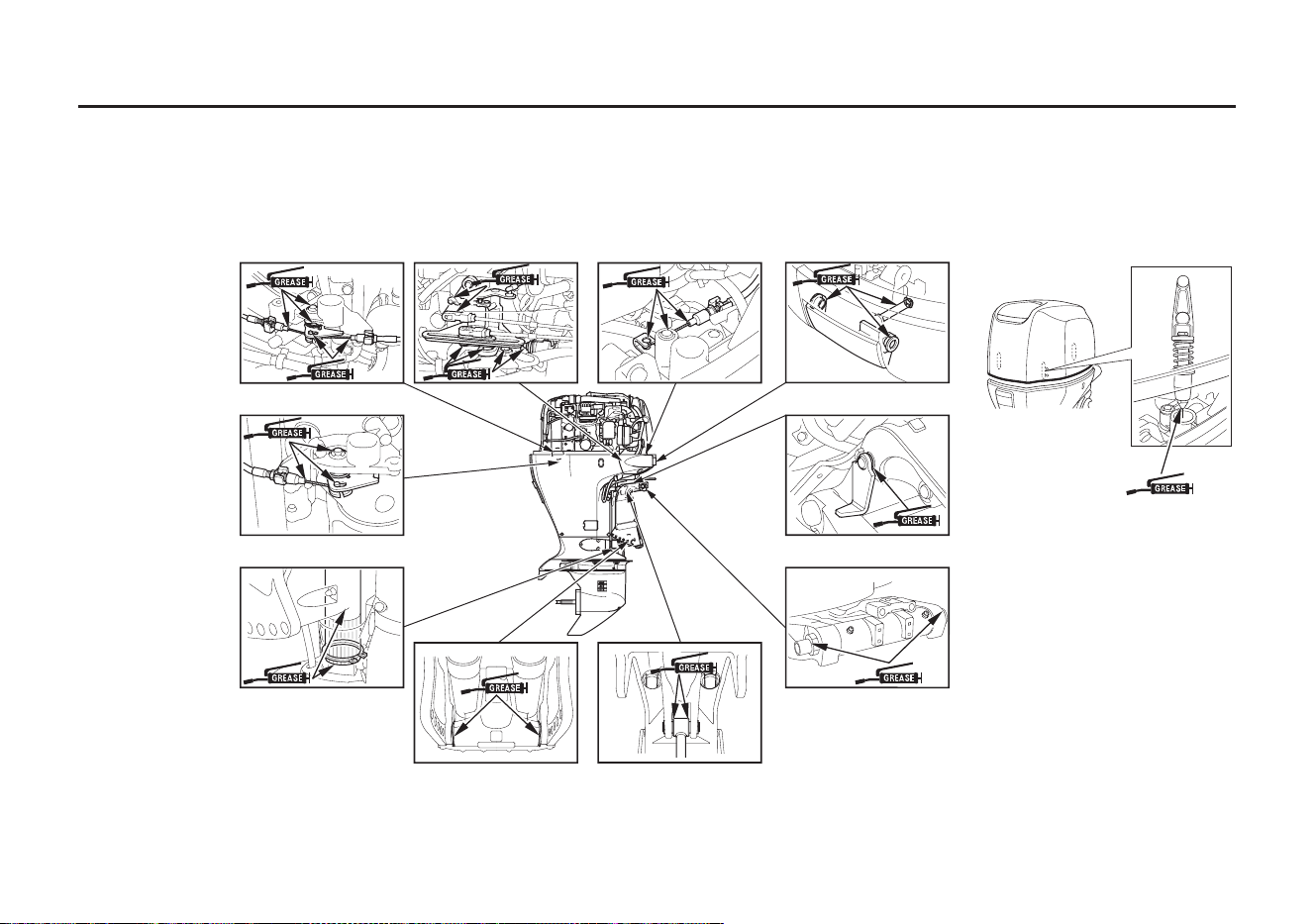

.....................................................Lubrication Points . 70
....................................................Spark Plug Service . 72
.............................................................REFUELING . 75
...............................FUEL RECOMMENDATIONS . 76
...................Fuel Filter Inspection and Replacement . 77
...................Water Separator Inspection and Service . 80
..................................................Anode Replacement . 82
..............................................Propeller Replacement . 82
....................................................................STORAGE . 84
...................................STORAGE PREPARATION . 84
..........................................Cleaning and Flushing . 84
........................................................................Fuel . 85
.............................................................Engine Oil . 87
................HOISTING THE OUTBOARD MOTOR . 88
...................................STORAGE PRECAUTIONS . 88
...............................REMOVAL FROM STORAGE . 89
10/04/13 15:07:02 31ZX1600_006
6
CONTENTS
........................................................TRANSPORTING . 90
WITH OUTBOARD MOTOR
......................................INSTALLED ON BOAT . 90
WITH OUTBOARD MOTOR
..................................REMOVED FROM BOAT . 90
....TAKING CARE OF UNEXPECTED PROBLEMS . 91
.....ELECTRIC STARTER WILL NOT OPERATE . 91
..................................ENGINE WILL NOT START . 92
HARD STARTING OR STALLS AFTER
...........................................................STARTING . 94
...........................................ENGINE OVERHEATS . 95
.......................................................................FUSES . 96
..........................Electric Starter Will Not Operate . 96
.......................................Battery Will Not Charge . 96
.................................................Fuse Replacement . 96
OIL PRESSURE INDICATOR GOES OFF AND
............................ENGINE SPEED IS LIMITED . 98
OVERHEAT INDICATOR COMES ON AND
............................ENGINE SPEED IS LIMITED . 99
........WATER SEPARATOR BUZZER SOUNDS . 101
...................WATER SEPARATOR INDICATOR . 101
.................SUBMERGED OUTBOARD MOTOR . 101
TECHNICAL AND CONSUMER
.................................................INFORMATION . 103
.............................TECHNICAL INFORMATION . 103
....................................Serial Number Locations . 103
.................................................................Battery . 104
...............Emission Control System Information . 104
............................................................Star Label . 107
......................................................Specifications . 109
.............................CONSUMER INFORMATION . 110
.............................................Honda Publications . 110
............................Customer Service Information . 110
...........................................Warranty Statements . 113
..........................Distributor’s Limited Warranty . 113
...................Emission Control System Warranty . 118
........................................Distributor’s Warranty . 122
.........................................................................INDEX . 125
10/04/13 15:07:05 31ZX1600_007
7
IMPORTANT SAFETY
INFORMATION
Operator Responsibility
OUTBOARD MOTOR SAFETY
It is the operator’s responsibility to
provide the necessary safeguards
to protect people and property.
Know how to stop the engine
quickly in case of emergency.
Understand the use of all controls.
Attach the emergency stop switch
lanyard securely to the operator.
Stop the engine immediately if
anyone falls overboard, and do not
run the engine while the boat is
near anyone in the water.
Always stop the engine if you
must leave the controls for any
reason.
Always wear a PFD (Personal
Flotation Device) while on the
boat.
Familiarize yourself with all laws
and regulations relating to boating
and the use of outboard motors.
Be sure that anyone who operates
the outboard motor receives proper
instruction.
Be sure the outboard motor is
properly mounted on the boat.
Do not remove the engine cover
while the engine is running.
The Honda BF115D outboard motor
is designed for use with boats that
have a suitable manufacturer’s power
recommendation. Other uses can
result in injury to the operator or
damage to the outboard motor and
other property.
Most injuries or property damage can
be prevented if you follow all
instructions in this manual and on the
outboard motor. The most common
hazards are discussed in this chapter,
along with the best way to protect
yourself and others.
10/04/13 15:07:13 31ZX1600_008
8
Carbon Monoxide HazardRefuel With Care
OUTBOARD MOTOR SAFETY
Gasoline is extremely flammable,
and gasoline vapor can explode.
Refuel outdoors, in a well-
ventilated area, with the engine
stopped. Never smoke near
gasoline, and keep other flames
and sparks away.
Refuel carefully to avoid spilling
fuel. Avoid overfilling the fuel
tank.
After refueling, tighten the filler
cap securely. If any fuel is spilled,
make sure the area is dry before
starting the engine.
Exhaust contains poisonous carbon
monoxide, a colorless, odorless gas.
Breathing carbon monoxide can
cause loss of consciousness and may
lead to death.
If you run the engine in an area that
is confined, or even partly enclosed,
the air you breathe could contain a
dangerous amount of exhaust gas.
Never run your outboard inside a
garage or other enclosure.
10/04/13 15:07:20 31ZX1600_009
9
SAFETY LABEL LOCATION
US, Puerto Rico, and US Virgin Islands Types
OUTBOARD MOTOR SAFETY
The label shown here contains important safety information. Please read it carefully. This label is considered a
permanent part of your outboard motor. If the label comes off or becomes hard to read, contact an authorized Honda
Marine dealer for a replacement.
10/04/13 15:07:25 31ZX1600_010
10
Canadian Types
OUTBOARD MOTOR SAFETY
READ OWNER’S MANUAL
The label shown here contains important safety information. Please read it carefully. This label is considered a
permanent part of your outboard motor. If the label comes off or becomes hard to read, contact an authorized Honda
Marine dealer for a replacement.
10/04/13 15:07:31 31ZX1600_011
Honda outboard motor is
designed to give safe and
dependable service if
operated according to
instructions.
Read and understand the
Owner’s Manual before
operating the outboard
motor. Failure to do so
could result in personal
injury or equipment
damage.
11
Canadian Types
OUTBOARD MOTOR SAFETY
10/04/13 15:07:34 31ZX1600_012
12
CONTROL AND FEATURE IDENTIFICATION CODES
CONTROLS AND FEATURES
Model
Transom Height
Type
Power Trim/Tilt
Standard Rotating Propeller Shaft
Counterrotating Propeller Shaft
BF115D
20.0 in (508 mm)
25.0 in (635 mm)
LA LC XA XC XCA
Refer to this chart for an explanation of the Type Codes used in this manual to identify control and feature applications.
TYPE CODE (example)
XCA
Destination
A: American, C: Canadian
Rotating direction of propeller shaft
C: Counterrotating propeller shaft
None: Standard rotating propeller shaft
Transom Height
L: 20.0 in (508 mm), X: 25.0 in (635 mm)
10/10/08 14:17:57 31ZX1600_013
13
COMPONENT AND CONTROL LOCATIONS
CONTROLS AND FEATURES
ENGINE COVER
ENGINE COVER
LATCH
STERN
BRACKET
MANUAL
RELIEF VALVE
ANODE
PROPELLER
(optional equipment)
EXHAUST PORT/WATER
OUTLET PORT
ANTIVENTILATION
PLATE
ANODE
COOLING SYSTEM
INDICATOR
OIL LEVEL DIPSTICK
FLUSH PORT
CONNECTOR
ENGINE OIL
DRAIN BOLT
(inside cover)
ANODE
TRIM TAB
GEAR OIL DRAIN/FILL SCREW
COOLING WATER
INTAKE PORT
PRODUCT
IDENTIFICATION
NUMBER
TILT LOCK
LEVER
SPARK PLUG
(under coil)
OIL FILLER CAP
NMEA INTERFACE
COUPLER
POWER TILT
SWITCH
GEAR OIL LEVEL
CHECK SCREW
JUNCTION BOX
(FUSES)
10/04/13 15:07:50 31ZX1600_014
14
Remote Controls (optional equipment)
Side-Mount Control Type Panel-Mount Control Type
Control Panel
(for Panel-Mount Type)
CONTROLS AND FEATURES
NEUTRAL RELEASE
LEVER
GEARSHIFT/THROTTLE
CONTROL LEVER
POWER TRIM/TILT
SWITCH
BUZZER
(inside)
CONTROL LEVER
FRICTION ADJUSTER
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP
SWITCH CLIP
EMERGENCY
STOP SWITCH
IGNITION
SWITCH
FAST IDLE
LEVER
BUZZER
IGNITION
SWITCH
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY
STOP SWITCH
IGNITION
SWITCH KEY
SPARE EMERGENCY
STOP SWITCH CLIP
NEUTRAL RELEASE LEVER
GEARSHIFT/THROTTLE
CONTROL LEVER
POWER TRIM/TILT
SWITCH
FAST IDLE BUTTON
INDICATORS
(Oil pressure, Overheat,
Alternator, Malfunction)
INDICATORS
(Oil pressure, Overheat,
Alternator, Malfunction)
10/04/13 15:07:57 31ZX1600_015
15
(for Top-Mount Dual Type)
Control Panel
(Top-Mount Single Type)
Top-Mount Type
(Single Outboard Motor Type)
(Dual Outboard Motor Type)
CONTROLS AND FEATURES
GEARSHIFT/THROTTLE
CONTROL LEVER
BUZZER
IGNITION
SWITCH
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY
STOP SWITCH
POWER TRIM/TILT
SWITCH (LEFT)
GEARSHIFT/THROTTLE
CONTROL LEVERS
INDICATORS
(Oil pressure, Overheat,
Alternator, Malfunction)
EMERGENCY STOP
SWITCH CLIP
POWER TRIM/TILT
SWITCH
FAST IDLE BUTTON
POWER TRIM/TILT
SWITCH (RIGHT)
FAST IDLE BUTTON
10/04/13 15:08:03 31ZX1600_016
16
Digital SpeedometerTachometer Trolling Control Switch Panel
Instruments
(optional equipment)
Trim Meter Digital Tachometer
CONTROLS AND FEATURES
TRL (Trolling) CONTROL SWITCH
10/04/13 15:08:11 31ZX1600_017
17
CONTROLS
Side-Mount Type
CONTROLS AND FEATURES
EMERGENCY STOP SWITCH
EMERGENCY
STOP SWITCH
LANYARD
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH CLIP
EMERGENCY
STOP SWITCH
LANYARD
IGNITION
SWITCH
OOFFFF
OONN
START
Ignition Switch
Emergency Stop Switch Clip and
Emergency Stop Switch
Turning the ignition switch key to the
START position operates the starter
motor. The key automatically returns
to the ON position when released
from the START position.
The ignition switch controls the
ignition system and the starter motor.
Turning the ignition switch to the
OFF position stops the engine.
The engine will not start unless the
gearshift/throttle control lever is in
the N (neutral) position (p. ) and
the emergency stop switch clip is in
the emergency stop switch.
41
10/04/13 15:08:20 31ZX1600_018
18
CONTROLS AND FEATURES
SPARE SWITCH CLIP
GEARSHIFT/THROTTLE
CONTROL LEVER
NEUTRAL RELEASE
LEVER
Gearshift/Throttle Control
Lever
The gearshift/throttle control lever
controls engine speed and selects F
(forward), N (neutral), or R (reverse)
gears.
The emergency stop switch clip must
be inserted in the emergency stop
switch in order for the engine to start
and run. The emergency stop switch
lanyard must be attached securely to
the operator or to the operator’s PFD
(Personal Flotation Device).
A spare switch clip is stored in a slot
in the control housing (optional
equipment).
When used as described, the
emergency stop switch clip and
emergency stop switch lanyard
system stops the engine if the
operator falls away from the controls.
10/04/13 15:08:26 31ZX1600_019
19
CONTROLS AND FEATURES
N (NEUTRAL)
FAST IDLE LEVER
F (FORWARD)
30° 30°
R (REVERSE)
SHIFT
SHIFT
MMIINNIIMMUUMM
MMIINNIIMMUUMM
TTHHRROOTTTTLLEE OOPPEENNIINNGG
MAXIMUM
TTHHRROOTTTTLLEE OOPPEENNIINNGG
MAXIMUM
GEARSHIFT/THROTTLE
CONTROL LEVER
Fast Idle Lever
Less friction allows easier control
lever movement. More friction helps
to hold a steady throttle setting while
cruising.
Moving the control lever 30° from N
(neutral) selects the gear, and further
movement increases engine speed.
The control lever automatically locks
itself in the N (neutral) position. To
move the lever out of the N (neutral)
position, you must squeeze the
neutral release lever on the underside
of the lever handle.
Use the fast idle lever to accelerate
engine warm-up after starting the
engine. Do not use the fast idle lever
when starting the engine.
See page for engine warm-up
instructions.
A friction adjuster near the base of
the control lever adjusts the operating
resistance of the control lever. Refer
to p. .52
43
10/04/13 15:08:34 31ZX1600_020
20
Panel-Mount Type
CONTROLS AND FEATURES
N (neutral)
MAXIMUM FAST IDLE
LOWEST
POSITION
FAST IDLE LEVER
IGNITION
SWITCH
OFF
ON
START
Ignition Switch
The fast idle lever allows you to
increase the idle speed only when the
control lever is in the N (neutral)
position. Place the fast idle lever in
its lowest position to cancel the fast
idle and return the control lever to
normal operation.
The ignition switch controls the
ignition system and the starter motor.
Turning the ignition switch key to the
START position operates the starter
motor. The key automatically returns
to the ON position when released
from the START position.
Turning the ignition switch to the
OFF position stops the engine.
The engine will not start unless the
gearshift/throttle control lever is in
the N (neutral) position (p. ) and
the emergency stop switch clip is in
the emergency stop switch.
44
10/04/13 15:08:43 31ZX1600_021
21
CONTROLS AND FEATURES
SPARE SWITCH CLIP
(optional equipment)
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY
STOP SWITCH
Emergency Stop Switch Clip and
Emergency Stop Switch
The emergency stop switch clip must
be inserted in the emergency stop
switch in order for the engine to start
and run. The emergency stop switch
lanyard must be attached securely to
the operator or to the operator’s PFD
(Personal Flotation Device).
A spare switch clip (optional
equipment) can be stored in the tool
bag.
When used as described, the
emergency stop switch clip and
emergency stop switch lanyard
system stops the engine if the
operator falls away from the controls.
10/04/13 15:08:49 31ZX1600_022
22
CONTROLS AND FEATURES
NEUTRAL
RELEASE
LEVER
GEARSHIFT/THROTTLE
CONTROL LEVER
N (NEUTRAL)
35°
35°
F (FORWARD)
R (REVERSE)
SHIFT
SHIFT
MMIINNIIMMUUMM
MMIINNIIMMUUMM
TTHHRROOTTTTLLEE OOPPEENNIINNGG
TTHHRROOTTTTLLEE OOPPEENNIINNGG
MAXIMUM
MAXIMUM
GEARSHIFT/THROTTLE
CONTROL LEVER
Gearshift/Throttle Control
Lever
Moving the control lever 35° from N
(neutral) selects the gear, and further
movement increases engine speed.
The control lever automatically locks
itself in the N (neutral) position. To
move the lever out of the N (neutral)
position, you must squeeze the
neutral release lever on the underside
of the lever handle.
A friction adjuster near the base of
the control lever adjusts the operating
resistance of the control lever. Refer
to p. .
Less friction allows easier control
lever movement. More friction helps
to hold a steady throttle setting while
cruising.
The gearshift/throttle control lever
controls engine speed and selects F
(forward), N (neutral), or R (reverse)
gears. 52
10/04/13 15:08:57 31ZX1600_023
23
CONTROLS AND FEATURES
FAST IDLE BUTTON
F(forward)
N (neutral)
R (reverse)
CONTROL
LEVER
PPuullll uupp
NEUTRAL
RELEASE
LEVER
Push
FAST IDLE BUTTON
Fast Idle Button
It is necessary to position the control
lever in the N (neutral) position to
push in the fast idle button.
The fast idle button allows you to
increase the idle speed without
engaging the drive gears. Move the
control lever forward or reverse after
pushing in the fast idle button to
increase the idle speed.
Return the control lever to N
(neutral) position to cancel the fast
idle operation.
Use the fast idle button to accelerate
engine warm-up after starting the
engine. Do not use the fast idle
button when starting the engine.
See page for engine warm-up
instructions.
45
10/04/13 15:09:04 31ZX1600_024
24
Top-Mount Type
CONTROLS AND FEATURES
OFF
ON
START
IGNITION
SWITCH
EMERGENCY
STOP SWITCH
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP
SWITCH CLIP
Ignition Switch
Emergency Stop Switch Clip and
Emergency Stop Switch
Turning the ignition switch key to the
START position operates the starter
motor. The key automatically returns
to the ON position when released
from the START position.
Turning the ignition switch to the
OFF position stops the engine.
The ignition switch controls the
ignition system and the starter motor.
The engine will not start unless the
gearshift/throttle control lever is in
the N (neutral) position (p. ) and
the emergency stop switch clip is in
the emergency stop switch.
47
10/04/13 15:09:13 31ZX1600_025
25
CONTROLS AND FEATURES
SPARE SWITCH CLIP
(optional equipment)
GEARSHIFT/THROTTLE
CONTROL LEVERS
GEARSHIFT/THROTTLE
CONTROL LEVER
SINGLE TYPE
DUAL TYPE
Gearshift/Throttle Control
Lever
The emergency stop switch clip must
be inserted in the emergency stop
switch in order for the engine to start
and run. The emergency stop switch
lanyard must be attached securely to
the operator or to the operator’s PFD
(Personal Flotation Device).
The gearshift/throttle control lever(s)
controls engine speed and selects F
(forward), N (neutral), or R (reverse)
gears.
A spare switch clip (optional
equipment) can be stored in the tool
bag.
When used as described, the
emergency stop switch clip and
emergency stop switch lanyard
system stops the engine if the
operator falls away from the controls.
10/04/13 15:09:19 31ZX1600_026
26
CONTROLS AND FEATURES
N (NEUTRAL)
35° 35°
F (FORWARD) R (REVERSE)
MMIINNIIMMUUMM
MMIINNIIMMUUMM
TTHHRROOTTTTLLEE OOPPEENNIINNGG
TTHHRROOTTTTLLEE OOPPEENNIINNGG MAXIMUM
MAXIMUM
GEARSHIFT/THROTTLE CONTROL LEVER
SHIFT
SHIFT
Moving the control lever 35° from N
(neutral) selects the gear, and further
movement increases engine speed.
A friction adjuster inside the control
box adjusts the operating resistance
of the control lever(s). Refer to
p. .
Less friction allows easier control
lever movement. More friction helps
to hold a steady throttle setting while
cruising.
52
10/04/13 15:09:25 31ZX1600_027
27
CONTROLS AND FEATURES
FAST IDLE BUTTON
N (neutral)
F(forward)
R (reverse)
CONTROL
LEVER
Push
FAST IDLE BUTTON
Fast Idle Button
The fast idle button allows you to
increase the idle speed without
engaging the drive gears. Move the
control lever forward or reverse after
pushing in the fast idle button to
increase the idle speed.
Use the fast idle button to accelerate
engine warm-up after starting the
engine. Do not use the fast idle
button when starting the engine.
See page for engine warm-up
instructions.
Return the control lever to N
(neutral) position to cancel the fast
idle operation.
It is necessary to position the control
lever in the N (neutral) position to
push in the fast idle button.
48
10/04/13 15:09:32 31ZX1600_028
28
Common Controls
Power Trim/Tilt Switch
CONTROLS AND FEATURES
CONTROL
LEVER
POWER TRIM/TILT SWITCH
CONTROL LEVER
SINGLE TYPE
POWER TRIM/TILT SWITCH
CONTROL
LEVER
DUAL TYPE
POWER TRIM/TILT SWITCH
(LEFT)
CCOONNTTRROOLL
LLEEVVEERRSS
(RIGHT)
(Side-Mount Type) (Top-Mount Type)
(Panel-Mount Type)
POWER TRIM/TILT
SWITCH
The power trim/tilt switch is located
on the control lever. It is a rocker
switch with UP and DN (down)
positions for changing the angle of
the outboard motor.
You can use the power trim/tilt
switch anytime whether the boat is
underway, stopped, or the ignition
switch is in the OFF position. It is
necessary for the ignition switch to
be in the ON position for the trim
meter to indicate the outboard motor
angle.
For dual mount outboard motors, tilt
them up at the same time.
Tilt the outboard motor for shallow
water operation, beaching, launching,
or mooring.
Trim the outboard motor to obtain
the best performance and stability
(p. ).53
10/04/13 15:09:41 31ZX1600_029
29
Power Tilt Switch Manual Relief Valve Tilt Lock Lever
CONTROLS AND FEATURES
POWER TILT SWITCH
MMAANNUUAALL RREELLIIEEFF VVAALLVVEE
FFRREEEE
LLOOCCKK
TILT LOCK LEVER
PPOOWWEERR
((TToo ffiixx))
MMAANNUUAALL
((TToo rreelleeaassee))
This switch is used with the engine
stopped to raise the outboard motor
for mooring, trailering, or
maintenance.
The power tilt switch will operate
without turning the ignition switch
ON.
The power tilt switch is located on
the engine pan. It is a rocker switch
with UP and DN (down) positions
for changing the angle of the
outboard motor. When the boat is to be moored for a
long time, tilt the outboard motor up
as far as it will go. Then move the tilt
lock lever to the LOCK position, and
gently lower the outboard motor until
the lever contacts the stern bracket.
The tilt lock lever is used to support
the outboard motor in the fully-raised
position.
Check that nobody is under the
outboard motor before opening the
manual relief valve. If the manual
relief valve is loosened (turned
counterclockwise) when the outboard
motor is tilted up, the outboard motor
will suddenly tilt down.
The outboard motor can be tilted
manually after opening the manual
relief valve. This allows the outboard
motor to be tilted up or down when
no battery is connected.
10/04/13 15:09:51 31ZX1600_030
30
Trim TabEngine Cover LatchTRL (Trolling) Control Switch
(optional equipment)
CONTROLS AND FEATURES
ENGINE COVER LATCH
TRIM TAB
TRIM TAB
BOLT
TRL (Trolling) CONTROL SWITCH
SWITCH
PANEL
UNLOCK
The trim tab compensates for
‘‘torque steer,’’ which is a reaction of
the outboard motor to propeller
rotation.
If uncompensated, torque steer would
make the outboard motor tend to turn
to one side.
The engine cover latch fastens the
engine cover to the outboard motor.
The Trolling Control Switch is a
rocker switch with UP and DN
(down) positions to adjust the trolling
speed up or down in 50 RPM
increments within the range of 650 to
900 RPM.
If you press and hold the TRL
control switch while cruising with the
throttle closed, the mode changes to
trolling mode (p. ).
When the trim tab is correctly
adjusted (p. ), steering effort is
equal in both directions.
6455
10/04/13 15:10:01 31ZX1600_031
31
Digital TachometerTachometer
(optional equipment)(optional equipment)
INSTRUMENTS
(optional equipment)
Trim Meter
CONTROLS AND FEATURES
Digital Tachometer includes the
following functions.
Tachometer
Hour Meter
Trim Meter
Oil Pressure Indicator
Overheat Indicator
ACG Indicator
Malfunction Indicator
Refer to the Operation Guide
included with the Digital Tachometer
for operation information.
The tachometer shows engine speed
in revolutions per minute.
Refer to the tachometer when using
the throttle and power trim/tilt
controls to achieve the best
performance from the boat.
The trim meter indicates the relative
trim angle of the outboard motor.
Refer to the trim meter when using
the power trim/tilt switch to achieve
the best performance from the boat.
10/04/13 15:10:15 31ZX1600_032
32
Digital Speedometer
(optional equipment)
NMEA Interface Coupler
CONTROLS AND FEATURES
NMEA INTERFACE COUPLER
(6 pin black)
Digital Speedometer includes the
following functions.
Speedometer
Fuel Level Meter
Voltmeter
Tripmeter
Fuel Integration Meter
Fuel Economy Meter
Fuel Flow Meter
Refer to the Operation Guide
included with the Digital
Speedometer for operation
information.
Water Separator Indicator
NMEA2000 based information on
engine speed, fuel consumption, and
various warnings can be read by
connecting to the motor with the
interface cable (optional equipment).
Contact your dealer for more
information.
10/04/13 15:10:26 31ZX1600_033
33
INDICATORS Malfunction IndicatorAlternator (ACG) Indicator
CONTROLS AND FEATURES
ACG INDICATOR
ACG INDICATOR
(RED)
(RED)
MALFUNCTION
INDICATOR
(RED)
MALFUNCTION
INDICATOR
(RED)
BUZZER
BUZZER
BUZZER
BUZZER
(side-mount type)
(panel-mount/top-mount types)
(side-mount type)
(panel-mount/top-mount types)
The indicator lights come on and the
buzzer sounds when you turn the
ignition switch ON, allowing you to
see that they are working. If an
indicator does not light during this
test, it cannot alert you if that system
develops a problem. Have your
Honda Marine dealer check for
burned-out bulbs or other problems.
Under normal conditions, the
following occur when the ignition
switch is turned ON:
The ACG, Malfunction, Oil
Pressure, and Overheat indicators
light.
The buzzer will beep twice.
The Malfunction, Oil Pressure,
and Overheat indicators will go out
after the second beep.
The ACG indicator will go out
after the engine starts.
The Oil Pressure indicator will
light again after the engine starts
and will stay lit to indicate the oil
pressure is normal.
When the engine control system
detects an engine control system
malfunction, the malfunction
indicator turns on and the buzzer
sounds at one-second intervals.
The ACG indicator turns on and the
buzzer sounds in one-second
intervals when the charging system is
faulty.
1.
2.
3.
4.
5.
10/04/13 15:10:39 31ZX1600_034
34
Overheat IndicatorOil Pressure Indicator
CONTROLS AND FEATURES
(side-mount type)
OIL PRESSURE
INDICATOR
(GREEN)
BUZZER
(panel-mount/top-mount types)
OIL PRESSURE
INDICATOR
(GREEN)
BUZZER
(side-mount type)
OVERHEAT
INDICATOR
(RED)
BUZZER
(panel-mount/top-mount types)
OVERHEAT
INDICATOR
(RED)
BUZZER
TAKING CARE OF
UNEXPECTED PROBLEMS,
When the oil pressure indicator is lit,
oil pressure is OK.
If oil pressure becomes low, the
indicator will go off, and the engine
protection system will limit engine
speed. Refer to
on p. .
All models are equipped with a
buzzer that sounds continuously
when the oil pressure indicator goes
off.
Low oil pressure indicates that the
engine oil level is low or that there is
a problem with the engine lubrication
system.
98
10/04/13 15:10:48 31ZX1600_035
35
OTHER FEATURES
Water Separator Buzzer
Cooling System Indicator
CONTROLS AND FEATURES
COOLING SYSTEM INDICATOR
WATER SEPARATOR
TAKING CARE OF
UNEXPECTED PROBLEMS
The water separator buzzer sounds a
rapid, repeating signal when water
has accumulated in the water
separator.
Water should flow from the cooling
system indicator while the engine is
running. This shows that water is
circulating through the cooling
system.
If water stops flowing while the
engine is running, it indicates a
cooling system problem, such as
clogged water intakes, which will
cause engine overheating.
The cooling system indicator
discharge port can also become
plugged.
When the alert triggers, the overheat
indicator comes on and the buzzer
sounds a steady tone as the engine
speed is reduced to 1,800 rpm. If the
condition persists for another 20
seconds, the engine shuts off. Refer
to
,on
p. .
All models are equipped with a
buzzer that sounds continuously
when the red light comes on.
Engine overheating may be the result
of clogged water intakes.
99
10/04/13 15:10:56 31ZX1600_036
36
Fuel Priming BulbAnodesRev Limiter
CONTROLS AND FEATURES
ANODE
(each side)
ANODE
(stern bracket)
PRIMING BULB
INLET END (tank side)
UP
OUTLET END
(outboard motor side)
A priming bulb is built into the fuel
hose that connects the fuel tank to the
outboard motor.
Before starting the engine, hold the
priming bulb up in the direction of
the arrow; then squeeze the priming
bulb until it feels firm. This will
ensure that fuel is supplied to the
engine (p. ).
The anodes are made of a sacrificial
material that helps to protect the
outboard motor from corrosion.
There are two anodes on the gear
case, one on the stern bracket and
two small anodes in the water
passages of the engine block.
The engine is equipped with a rev
limiter to prevent the possibility of
mechanical damage from excessive
engine speed.
The rev limiter may be activated
during operation, limiting engine
speed, if the outboard motor is
trimmed or tilted up excessively, or
when propeller ventilation occurs
during a sharp turn.
If the rev limiter is activated, check
the trim angle of the outboard motor.
Check to see if the correct propeller
is installed.
40
10/04/13 15:11:05 31ZX1600_037
Improperly maintaining
this outboard motor or
failing to correct a problem
before operation can cause
a malfunction in which you
could be seriously hurt or
killed.
Always perform a pre-
operation inspection before
each operation, and correct
any problem.
37
ARE YOU READY TO GET
UNDERWAY?
Safety
Knowledge
IS YOUR OUTBOARD
MOTOR READY TO GO?
BEFORE OPERATION
Your safety is your responsibility. A
little time spent in preparation will
significantly reduce your risk of
injury.
Read and understand this manual.
Know what the controls do and how
to operate them.
Familiarize yourself with the
outboard motor and its operation
before you get underway. Know
what to do in case of an emergency.
Familiarize yourself with all laws
and regulations relating to boating
and the use of outboard motors.
Always wear a PFD (Personal
Flotation Device) while on the boat.
Attach the emergency stop switch
lanyard securely to the operator or to
the operator’s PFD.
For your safety, and to maximize the
service life of your equipment, it is
very important to take a few
moments before you operate the
outboard motor to check its condition.
Be sure to take care of any problem
you find, or have your authorized
Honda Marine dealer correct it,
before you operate the outboard
motor.
Before beginning your pre-operation
checks, be sure the ignition switch is
in the OFF position.
10/04/13 15:11:15 31ZX1600_038
38
Safety Inspection
Maintenance Inspection
BEFORE OPERATION
Look around the outboard motor
for signs of oil or gasoline leaks.
Check that the fuel hose is
undamaged and properly
connected.
Wipe up any spills before starting
the engine.
Check the stern bracket to be sure
the outboard motor is securely
installed.
Check that all controls are
operating properly.
Replace any damaged parts.
Check that all fasteners are in
place and securely tightened.
Check the emergency stop switch
for proper operation. Start the
engine (p. , or ). Make
sure the engine stops by pulling
the emergency stop switch clip
from the emergency stop switch.
Check the engine oil level (p. ).
Running the engine with a low oil
level can cause engine damage.
Check to be sure the propeller is
undamaged and the castle nut is
secured with the cotter pin
(p. ).
Check that the anodes are securely
attached to the stern bracket and
the gear case (p. ) and are not
excessively worn. The anodes help
protect the outboard motor from
corrosion.
Make sure the tool kit is onboard
(p. ). Replace any missing items.
Check the fuel level in the fuel
tank (p. ).
Check that the battery fluid is
between the upper and lower levels,
and the battery leads are connected
securely.
Check the water separator for
water contamination (p. ).
41 44 46
66
83
82
61
75
80
10/04/13 15:11:26 31ZX1600_039
〜
〜
39
SAFE OPERATING
PRECAUTIONS
BREAK-IN PROCEDURE
Break-in period: 10 hours
Next 60 minutes:
Next 45 minutes:
First 15 minutes:
Next 8 hours:
OPERATION
IMPORTANT SAFETY
INFORMATION
BEFORE OPERATION.
To safely realize the full potential of
this outboard motor, you need a
complete understanding of its
operation and a certain amount of
practice with its controls.
Before operating the outboard motor
for the first time, please review the
on page and the
chapter titled
Proper break-in operation allows the
moving parts to wear in smoothly for
best performance and long service
life. Avoid continuous operation at a
steady speed.
Run the engine up to a maximum of
4,000 to 5,000 rpm, which is about
50% to 80% of maximum throttle
opening. Operating at maximum
4,000 5,000 rpm should be limited
to 50% of the 60 minutes.
For your safety, do not start or run
the engine in a confined or partly
enclosed area. Your engine’s exhaust
contains poisonous carbon monoxide,
a colorless, odorless gas that can
collect rapidly. Breathing carbon
monoxide can cause loss of
consciousness and may lead to death.
Run the engine up to a maximum of
2,000 to 3,000 rpm, which is about
10% to 30% of maximum throttle
opening. Operating at maximum
2,000 3,000 rpm should be limited
to 50% of the 45 minutes.
Run the engine at trolling speed. Use
the minimum throttle opening
necessary to operate the boat at a safe
trolling speed.
Do not run the engine at full throttle
for more than 5 minutes at a time.
For boats that plane easily, bring the
boat up on plane, and then reduce the
throttle opening to the recommended
rpm range.
30-second full-throttle bursts are OK,
but do not operate the engine
continuously at full throttle.
7
10/04/13 15:11:38 31ZX1600_040
Gasoline is highly
flammable and explosive.
You can be burned or
seriously injured when
handling fuel.
Stop the engine and keep
heat, sparks, and flame
away.
Handle fuel only
outdoors.
Wipe up spills
immediately.
40
FUEL PRIMING
OPERATION
UP
PRIMING BULB
INLET END
(tank side)
OUTLET END
(outboard motor side)
Check to be sure there are no fuel
leaks before starting the engine.
Hold the priming bulb up in the
direction of the arrow; then squeeze
the priming bulb several times until it
feels firm, indicating that fuel has
reached the engine.
Do not touch the priming bulb with
the engine running or when tilting up
the outboard motor. The vapor
separator could overflow.
10/04/13 15:11:47 31ZX1600_041
41
STARTING THE ENGINE
Side-Mount Type
OPERATION
EMERGENCY
STOP SWITCH
EMERGENCY STOP
SWITCH CLIP
EMERGENCY
STOP SWITCH
LANYARD
N (neutral)
CONTROL
LEVER
Set the control lever in the N
(neutral) position.
The engine will not start if the F
(forward) or R (reverse) gears are
engaged.
Put the emergency stop switch clip
in the emergency stop switch, and
attach the emergency stop switch
lanyard securely to the operator or
to the operator’s PFD (Personal
Flotation Device).
The engine will not start or run,
unless the emergency stop switch
clip is in the emergency stop
switch.
Before leaving the dock, check the
operation of the emergency stop
switch.
Always attach the emergency stop
switch lanyard securely to the
operator or to the operator’s PFD
before starting the engine.
The emergency stop switch clip
and emergency stop switch lanyard
system is a safety device that will
stop the engine if you fall away
from the controls while operating
the boat.
Control
......................Side-Mount Type . p. 41
....................Panel-Mount Type . p. 44
......................Top-Mount Type . p. 46
1.
2.
10/04/13 15:11:56 31ZX1600_042
42
OPERATION
LOWEST
POSITION
FAST IDLE LEVER
ON
OFF
START
IGNITION SWITCH KEY
Using the electric starter f or more
than 5 seconds at a time will
overheat the starter motor and can
damage it.
Turning the ignition switch key to
the START position while the
engine is running can damage the
starter motor and f lywheel.Leave the fast idle lever in the
OFF (fully lowered) position.
The fast idle lever cannot be raised
unless the control lever is in the N
(neutral) position.
The control lever cannot be moved
away from the N (neutral) position
unless the fast idle lever is lowered.
If the engine fails to start within 5
seconds, release the key and wait
at least 10 seconds before
operating the starter again.
Turn the ignition switch key to the
START position and hold it there
until the engine starts.
When the engine starts, release the
key, allowing it to return to the ON
position.
Turn the ignition switch key to the
ON position; the buzzer will sound
twice.
3. 4.
5.
10/04/13 15:12:04 31ZX1600_043
−
43
OPERATION
MAXIMUM FAST IDLE
FAST IDLE
RANGE
FAST IDLE LEVER
TAKING CARE OF
UNEXPECTED PROBLEMS
If the engine is not properly
warmed up before raising the
engine speed, the buzzer and
overheat indicator may activate
and the engine speed will be
automatically reduced.
The cooling system may f reeze in
areas where the temperature
reaches 32°F (0°C) or below.
Cruising at high speed without
warming the engine up may cause
engine damage.
Before getting underway, allow
the engine to warm-up sufficiently
to ensure good performance.
Above 41°F (5°C), warm-up the
engine for at least 3 minutes.
Below 41°F (5°C), warm-up the
engine for at least 5 minutes at
2,000 rpm. Raise the fast idle lever
to achieve approximately 2,000
rpm.
If the fast idle lever was used to
warm-up the engine, gradually
lower the lever as the engine
warms up.
When the fast idle lever is fully
lowered, the control lever can be
moved away from the N (neutral)
position.
During the warm-up period, check
the oil pressure indicator (p. ),
overheat indicator (p. ), and
cooling system indicator (p. ).
If the indicators show any
abnormal condition, immediately
stop the engine and determine the
cause of the problem. Refer to
on
p. .
6.
7.
34
34
35
98 101
10/04/13 15:12:16 31ZX1600_044
44
Panel-Mount Type
OPERATION
EMERGENCY STOP
SWITCH
EMERGENCY STOP
SWITCH CLIP
EMERGENCY
STOP SWITCH
LANYARD
N (neutral)
CONTROL
LEVER
Set the control lever in the N
(neutral) position.
The engine will not start if the F
(forward) or R (reverse) gears are
engaged.
Put the emergency stop switch clip
in the emergency stop switch, and
attach the emergency stop switch
lanyard securely to the operator or
to the operator’s PFD (Personal
Flotation Device).
The engine will not start or run,
unless the emergency stop switch
clip is in the emergency stop
switch.
The emergency stop switch clip
and emergency stop switch lanyard
system is a safety device that will
stop the engine if you fall away
from the controls while operating
the boat.
Always attach the emergency stop
switch lanyard securely to the
operator or to the operator’s PFD
before starting the engine.
Before leaving the dock, check the
operation of the emergency stop
switch.
1.
2.
10/04/13 15:12:24 31ZX1600_045
45
OPERATION
START
ON
OFF
IGNITION
SWITCH KEY
CONTROL
LEVER
FAST IDLE BUTTON
N (neutral)
Using the electric starter f or more
than 5 seconds at a time will
overheat the starter motor and can
damage it.
Turning the ignition switch key to
the START position while the
engine is running can damage the
starter motor and f lywheel. Before getting underway, allow
the engine to warm-up sufficiently
to ensure good performance.
Above 41°F (5°C), warm-up the
engine for at least 3 minutes.
Below 41°F (5°C), warm-up the
engine for at least 5 minutes at
2,000 rpm. Push the fast idle
button, and then move the control
lever forward or reverse to open
the throttle and achieve
approximately 2,000 rpm.
If the engine fails to start within 5
seconds, release the key and wait
at least 10 seconds before
operating the starter again.
Turn the ignition switch key to the
START position and hold it there
until the engine starts.
Turn the ignition switch key to the
ON position; the buzzer will sound
twice.
When the engine starts, release the
key, allowing it to return to the ON
position.
3.
4.
5.
10/04/13 15:12:33 31ZX1600_046
−
46
Top-Mount Type
OPERATION
EMERGENCY STOP
SWITCH
EMERGENCY STOP
SWITCH CLIP
EMERGENCY
STOP SWITCH
LANYARD
TAKING CARE OF
UNEXPECTED PROBLEMS
If the engine is not properly
warmed up before raising the
engine speed, the buzzer and
overheat indicator may activate
and the engine speed will be
automatically reduced.
The cooling system may f reeze in
areas where the temperature
reaches 32°F (0°C) or below.
Cruising at high speed without
warming the engine up may cause
engine damage.
Put the emergency stop switch clip
in the emergency stop switch, and
attach the emergency stop switch
lanyard securely to the operator or
to the operator’s PFD (Personal
Flotation Device).
During the warm-up period, check
the oil pressure indicator (p. ),
overheat indicator (p. ), and
cooling system indicator (p. ).
If the fast idle control was used to
warm-up the engine, gradually
return the control lever to the N
(neutral) position as the engine
warms up.
If the indicators show any
abnormal condition, immediately
stop the engine and determine the
cause of the problem. Refer to
on
p. .
1.
6.
34
34
35
98 101
10/04/13 15:12:40 31ZX1600_047
47
OPERATION
N (neutral)
CONTROL
LEVER
START
ON
OFF
IGNITION
SWITCH KEY
Set the control lever in the N
(neutral) position.
The engine will not start if the F
(forward) or R (reverse) gears are
engaged.
The emergency stop switch clip and
emergency stop switch lanyard
system is a safety device that will
stop the engine if you fall away from
the controls while operating the boat.
Always attach the emergency stop
switch lanyard securely to the
operator or to the operator’s PFD
before starting the engine.
The engine will not start or run,
unless the emergency stop switch clip
is in the emergency stop switch.
Turn the ignition switch key to the
ON position; the buzzer will sound
twice.
Turn the ignition switch key to the
START position and hold it there
until the engine starts.
When the engine starts, release the
key, allowing it to return to the ON
position.
Before leaving the dock, check the
operation of the emergency stop
switch.
2. 3.
4.
10/04/13 15:12:49 31ZX1600_048
48
OPERATION
N (neutral)
CONTROL
LEVER
FAST IDLE BUTTON
If the engine is not properly
warmed up before raising the
engine speed, the buzzer and
overheat indicator may activate
and the engine speed will be
automatically reduced.
The cooling system may f reeze in
areas where the temperature
reaches 32°F (0°C) or below.
Cruising at high speed without
warming the engine up may cause
engine damage.
Using the electric starter f or more
than 5 seconds at a time will
overheat the starter motor and can
damage it.
Turning the ignition switch key to
the START position while the
engine is running can damage the
starter motor and f lywheel. Before getting underway, allow
the engine to warm-up sufficiently
to ensure good performance.
Above 41°F (5°C), warm-up the
engine for at least 3 minutes.
Below 41°F (5°C), warm-up the
engine for at least 5 minutes at
2,000 rpm. Push the fast idle
button, and then move the control
lever forward or reverse to open
the throttle and achieve
approximately 2,000 rpm.
If the engine fails to start within 5
seconds, release the key and wait
at least 10 seconds before
operating the starter again.
5.
10/04/13 15:12:57 31ZX1600_049
−
49
STOPPING THE ENGINE
Emergency Engine Stopping
OPERATION
EMERGENCY STOP
SWITCH
EMERGENCY
STOP SWITCH
LANYARD
PULL
EMERGENCY STOP
SWITCH CLIP
EMERGENCY
STOP SWITCH
CONTROL PANEL
EMERGENCY
STOP SWITCH
LANYARD
PULL
EMERGENCY STOP SWITCH CLIP
Side-Mount Type
Panel-Mount/Top-Mount Types
TAKING CARE OF
UNEXPECTED PROBLEMS
During the warm-up period, check
the oil pressure indicator (p. ),
overheat indicator (p. ), and
cooling system indicator (p. ).
If the fast idle control was used to
warm-up the engine, gradually
return the control lever to the N
(neutral) position as the engine
warms up.
If the indicators show any
abnormal condition, immediately
stop the engine and determine the
cause of the problem. Refer to
on
p. .
To stop the engine in an emergency,
pull the emergency stop switch clip
out of the emergency stop switch by
pulling the emergency stop switch
lanyard.
We suggest that you stop the engine
this way occasionally to verify that
the emergency stop switch is
operating properly.
Before leaving the dock, check the
operation of the emergency stop
switch.
Turn the ignition switch key to the
OFF position after verifying the
emergency stop switch operation.
6.
34
34
35
98 101
10/04/13 15:13:07 31ZX1600_050
50
Normal Engine Stopping
OPERATION
IGNITION
SWITCH KEY
IGNITION
SWITCH KEY
OFF
N (neutral)
CONTROL
LEVER
N (neutral)
CONTROL
LEVER
N (neutral)
CONTROL
LEVER
OOFFFF
Side-Mount Type
Panel-Mount Type
Top-Mount Type Panel-Mount/Top-Mount Types
Side-Mount Type
Turn the ignition switch key to the
OFF position to stop the engine.
In the event that the engine does
not stop when the ignition switch
key is turned to OFF, press the
emergency stop switch until the
engine stops.
When the boat is not in use,
remove and store the ignition
switch key and the emergency stop
switch clip and lanyard.
Move the control lever(s) to the N
(neutral) position.
After cruising at full throttle, cool
down the engine by idling for a few
minutes before stopping the engine.
1. 2.
3.
10/04/13 15:13:19 31ZX1600_051
51
GEARSHIFT AND
THROTTLE OPERATION
OPERATION
CONTROL LEVER
NEUTRAL
RELEASE
LEVER
N (neutral)
F(forward)
R (reverse)
N (neutral)
F(forward)
R (reverse)
CONTROL
LEVER
NEUTRAL
RELEASE
LEVER
F(forward)
N (neutral)
R (reverse)
CONTROL
LEVER
Panel-Mount Type
Top-Mount Type
Side-Mount Type
To shift gears, move the control lever
to select the F (forward), N (neutral),
or R (reverse) gear.
The control lever cannot be moved
from the N (neutral) position unless
the neutral release lever is squeezed
(side-mount/panel-mount types).
Moving the control lever beyond the
gear selection range increases engine
speed.
10/04/13 15:13:28 31ZX1600_052
52
STEERING
OPERATION
TO INCREASE
FRICTION
TO DECREASE
FRICTION
CONTROL LEVER
FRICTION ADJUSTER
TO INCREASE
FRICTION
TO DECREASE
FRICTION
TO INCREASE
FRICTION
TO DECREASE
FRICTION
CONTROL LEVER
FRICTION ADJUSTER
CONTROL LEVER
FRICTION ADJUSTER
Top-Mount Type
Panel-Mount Type
Side-Mount Type
Steer the boat in the same manner as
an automobile.
Adjust the control lever friction
adjuster so the control lever will hold
a constant throttle setting while
cruising.
10/04/13 15:13:36 31ZX1600_053
53
CRUISING
Engine Speed
Trim
OPERATION
Excessive trim/tilt angle during
operation can cause propeller
ventilation, overheating, and water
pump damage.
For rough water conditions or large
waves, slow down to prevent the
propeller from rising out of the water.
Under normal conditions, the boat
will perform best when the
antiventilation plate is level with the
water surface.
When cruising into a high wind, trim
the outboard motor down slightly to
level the boat and improve stability.
With a tail wind, trim the outboard
motor up slightly.
For best fuel economy, limit the
throttle opening to 80%. Use the
throttle friction control (p. ) to
help you hold a steady speed.
Use the power trim/tilt switch to trim
the outboard motor for the best
performance and stability.
You can use the power trim/tilt
switch at any time, whether the boat
is underway or stopped.
Press the UP or DN (down) side of
the switch to adjust the angle of the
outboard motor.
It is necessary to trim the angle of the
outboard motor to compensate for
changes in boat load, weight
distribution, water conditions, or
propeller selection.
The engine is equipped with a rev
limiter to prevent the possibility of
mechanical damage from excessive
engine speed.
If, for example, the outboard motor
is tilted excessively or propeller
ventilation occurs during a sharp turn,
the engine may overrev, activating
the rev limiter.
If engine speed becomes unstable at
high speed due to activation of the
rev limiter, reduce speed and check
the trim angle of the outboard motor.
Refer to the trim meter (p. ) for an
indication of whether the outboard
motor is trimmed high or low.
52
31
10/04/13 15:13:46 31ZX1600_054
54
OPERATION
(single type)
(dual type)
POWER TRIM/TILT SWITCH
POWER TRIM/TILT SWITCH
POWER TRIM/TILT SWITCH
POWER TRIM/TILT SWITCH
(LEFT) (RIGHT)
1.
2.
1.
2.
OUTBOARD
MOTOR TRIMMED
TOO LOW
OUTBOARD
MOTOR TRIMMED
TOO HIGH
OUTBOARD MOTOR TRIMMED
CORRECTLY
BOW TOO LOW DUE TO
BOW TOO HIGH DUE TO
LOAD IN THE FRONT
OUTBOARD MOTOR TRIMMED
TOO LOW
LOAD IN THE REAR
OUTBOARD MOTOR TRIMMED
TOO HIGH
Top-Mount TypeSide-Mount Type
Panel-Mount Type
10/04/13 15:13:57 31ZX1600_055
55
Trolling Speed Control
(optional equipment)
OPERATION
SWITCH PANEL
TRL (Trolling) CONTROL SWITCH
DN: Reduce engine speed
UP: Increase engine speed
The engine must be fully warmed up
before you can activate the Trolling
Speed Control.
The throttle control will operate
when in the Trolling Speed Control
mode, but once the speed reaches
3,000 RPM, the Trolling Speed
Control is deactivated. If 3,000 RPM
is not reached and the throttle is
closed, the engine speed will
decrease to the Trolling Speed
Control setting.
In Trolling Speed Control mode, the
engine speed can be adjusted
between 650 and 900 RPM.
Continuing to press the switch when
at either of these limits will result in
two short sounds from the buzzer.
The engine speed can be adjusted in
50 RPM increments by pressing the
UP or DN side of the TRL control
switch. A short sound of the buzzer
occurs each time the engine speed is
adjusted.
The initial trolling speed is set at 650
RPM.
Place the outboard motor in-gear
with the throttle control in the fully
closed (idle) position. Press and hold
the UP or DN side of the TRL
control switch to activate the Trolling
Speed Control. The buzzer will make
one long sound indicating activation.
10/04/13 15:14:05 31ZX1600_056
−
56
SHALLOW WATER
OPERATION
TRIM TAB
OPERATION
TRIM TAB
BOLT
TRIM TAB
TRIM ANGLE
(when transom angle is 12°)
68°
16°
0°
(VERTICAL LINE)
4°
12°
TILT ANGLE
0°
TRIM TAB ADJUSTMENT
An excessive trim/tilt angle during
operation can cause propeller
ventilation, overheating, and water
pump damage. This type of damage
is not covered by the
(p. ).113
When operating in shallow water, use
the power trim/tilt switch (p. ) to
tilt the outboard motor so that the
propeller and gear case won’t hit the
bottom.
Proceed at low speed, and monitor
water flow from the cooling system
indicator (p. ) to be sure the
outboard motor is not tilted so high
that the water intakes are out of the
water.
Adjust the trim tab with the engine
stopped. Loosen the bolt above the
trim tab, turn the trim tab, and then
tighten the bolt securely.
When the trim tab is correctly
adjusted, steering effort will be equal
in both directions.
Refer to
on p. .
Distributor’s
Limited Warranty
If steering effort is not equal in both
directions, adjust the trim tab to
compensate for ‘‘torque steer,’’
which is the reaction of the outboard
motor to propeller rotation.
54
35
64
10/04/13 15:14:14 31ZX1600_057
57
MOORING, BEACHING,
LAUNCHING
OPERATION
POWER TILT SWITCH
TILT LOCK LEVER
(Lock position)
FFRREEEE
LLOOCCKK
STERN BRACKET
TRIM RODS
Do not attempt to use the power tilt
switch to tilt the outboard motor
down while the tilt lock lever is in the
LOCK position. Damage to the
power tilt system may occur.
To lower the outboard motor, tilt up
using the power tilt switch, then
move the tilt lock lever to the FREE
position, and then lower the outboard
motor to the desired position.
To raise the outboard motor out of
the water while the engine is stopped
and the boat is moored, or for
maximum clearance when beaching
or launching, use the power tilt
switch on the engine pan to tilt the
outboard motor up as far as it will go.
Move the tilt lock lever to the LOCK
position, and then gently lower the
outboard motor until the lever
contacts the stern bracket. Use the
power tilt switch to fully shorten the
trim rods.
Before tilting up, leave the outboard
motor in the running position for one
minute after stopping the engine to
drain the water from inside the
engine.
10/04/13 15:14:21 31ZX1600_058
58
OPERATION
MANUAL RELIEF VALVE
POWER
(To fix)
MANUAL
(To release)
The outboard motor can also be tilted
manually after opening the manual
relief valve. This feature enables the
outboard motor to be tilted up or
down when no battery is connected.
For manual tilting, use a screwdriver
to turn the valve counterclockwise 1
or 2 turns. Close the valve firmly
after positioning the engine.
Be sure the valve is closed before
operating the outboard motor. If the
valve is not closed, the outboard
motor will tilt up when operated in
reverse.
Check that nobody is under the
outboard motor before opening the
manual relief valve. If the manual
relief valve is loosened (turned
counterclockwise) when the outboard
motor is tilted up, the outboard motor
will suddenly tilt down.
10/04/13 15:14:26 31ZX1600_059
Improperly maintaining
this outboard motor or
failure to correct a problem
before operation can cause
a malfunction in which you
could be seriously hurt or
killed.
Always follow the
inspection and
maintenance
recommendations and
schedules in this Owner’s
Manual.
59
THE IMPORTANCE OF
MAINTENANCE
Maintenance, replacement, or
repair of the emission control
devices and systems may be
performed by any marine engine
repair establishment or individual,
using parts that are ‘‘certified’’ to
EPA standards.
SERVICING YOUR OUTBOARD MOTOR
Proper maintenance is essential for
safe, economical, and trouble-free
operation. It will also help reduce air
pollution.
To help you properly care for your
outboard motor, the following pages
include a maintenance schedule,
routine inspection procedures, and
simple maintenance procedures using
basic hand tools. Other service tasks
that are more difficult or require
special tools are best handled by
professionals and are normally
performed by a Honda technician or
other qualified mechanic.
The maintenance schedule applies to
normal operating conditions. If you
operate your outboard motor under
unusual conditions, consult an
authorized Honda Marine dealer for
recommendations applicable to your
individual needs and use.
Remember that your authorized
Honda Marine dealer knows your
outboard motor best and is fully
equipped to maintain and repair it.
To ensure the best quality and
reliability, use only new, Honda
Genuine parts or their equivalents for
repair and replacement.
10/04/13 15:14:33 31ZX1600_060
−
−
−
Failure to properly follow
maintenance instructions
and precautions can cause
you to be seriously hurt or
killed.
Always follow the
procedures and
precautions in the Owner’s
Manual.
60
MAINTENANCE SAFETY Safety Precautions
Burns from hot parts.
Injury from moving parts.
Carbon monoxide poisoning
from engine exhaust.
SERVICING YOUR OUTBOARD MOTOR
Some of the most important safety
precautions follow. However, we
cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you should
perform a given task.
Make sure the engine is off before
you begin any maintenance or
repairs. This will eliminate several
potential hazards:
Read the instructions before you
begin, and make sure you have the
tools and skills required.
To reduce the possibility of fire or
explosion, be careful when
working around gasoline. Use only
a nonflammable solvent, not
gasoline, to clean parts. Keep
cigarettes, sparks, and flames away
from all fuel-related parts.
Wear gloves when handling the
propeller to protect your hands
from sharp edges.Let the engine and exhaust
system cool before touching.
Do not run the engine unless
instructed to do so.
Do not start or run the engine in
a confined or partly enclosed
area.
10/04/13 15:14:42 31ZX1600_061
×
×
×
61
TOOL KIT and OWNER’S MANUAL SPARE EMERGENCY STOP
SWITCH CLIP
(optional equipment)
SERVICING YOUR OUTBOARD MOTOR
14 17 mm WRENCH
19 mm EYE WRENCH
10 12 mm WRENCH
SPARK PLUG WRENCH
8 mm WRENCH
16 17 mm BOX WRENCH
OIL CHECK
SCREWDRIVER
PLIERS
FLAT SCREWDRIVER
OWNER’S MANUAL
PHILLIPS
SCREWDRIVER
6 mm HEX. WRENCH
SCREWDRIVER HANDLE
TOOL BAG
Always carry a spare emergency stop
switch clip onboard. The spare clip
may either be stored in the tool bag
or in an easily accessible location on
the boat.
The tool kit can be used for simple maintenance procedures and emergency
repairs. Keep these items on the boat so that they will always be available if
you need them.
If your tool kit needs replacement, it is not available as a kit and each item
must be ordered individually.
10/04/13 15:14:49 31ZX1600_062
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
−
−
62
MAINTENANCE SCHEDULE
SERVICING YOUR OUTBOARD MOTOR
Distributor’s Limited Warranty
Follow the MAINTENANCE SCHEDULE table and service your outboard motor accordingly. Please note, a claim for
warranty coverage will not be denied simply because the maintenance schedule for your outboard motor was not
followed. However, any part(s) that fails specifically due to lack of maintenance, or improperly performed maintenance,
would not be covered under the .
ITEM
Perform at every indicated month or operating
hour interval, whichever comes first.
REGULAR SERVICE PERIOD
Engine oil
Engine oil filter
Gear case oil
ACG belt
Throttle linkage
Idle speed
Valve clearance
Spark plug
(Standard plug)
Propeller and cotter pin
Anode metal
Anode metal
Lubrication
Water separator
Check level
Change
Replace
Change
Check-adjust
Check-adjust
Check-adjust
Check-adjust
Check-adjust/Replace
Check
Check Outside engine
Check Inside engine
Grease
Check
Each use After use
First
month
or
20 hrs.
Every
6 months
or
100 hrs.
Every
year
or
200 hrs.
Every
2 years
or
400 hrs.
Refer to
page
(3)
(2)
(2)
(2)
(1)
(2)
(2)
(2)
(1)
(2)
(2)
(2)
(2) (6)
66
68
72 74
83
82
70 71
80
When there is 1/3 or more consumption, please exchange.
For professional commercial use, log hours of operation to determine proper maintenance intervals.
These items should be serviced by an authorized Honda Marine dealer, unless you have the proper tools and are mechanically proficient.
Refer to the Honda shop manual for service procedures.
Lubricate more frequently when used in salt water.(1)
(2)
(3)
(6)
10/04/13 15:15:01 31ZX1600_063
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
−
63
SERVICING YOUR OUTBOARD MOTOR
REGULAR SERVICE PERIOD
Perform at every indicated month or operating
hour interval, whichever comes first.
ITEM
Check
Replace
Replace
Check
Check
Replace
Check level-tightness
Check-tightness
Check
Clean
Check
Check
Check
Check
Check
Check
Check
Clean
Replace
Every 2 years (If necessary) (2)
Fuel filter
(Low pressure side)
Fuel filter
(High pressure side)
Thermostat
Fuel line
Battery and cable connection
Bolts and nuts
Crankcase breather tube
Cooling water passages
Water pump
Emergency stop switch
Engine oil leak
Each operation part
Engine condition (5)
Power Trim/Tilt
Spark plug
(Optional iridium plug)
Each use After use
First
month
or
20 hrs.
Every
6 months
or
100 hrs.
Every
year
or
200 hrs.
Every
2 years
or
400 hrs.
Refer to
page
(3)
(4)
(2) (2)
(2)
(2)
(2)
(2)
(2)
(2)
77 79
38
38
38
75
75
Upon starting, check for unusual engine sounds and cooling water flowing freely from the check hole.
When operating in salt water, turbid or muddy water, the engine should be flushed with clean water after each use.
For professional commercial use, log hours of operation to determine proper maintenance intervals.
These items should be serviced by an authorized Honda Marine dealer, unless you have the proper tools and are mechanically proficient.
Refer to the Honda shop manual for service procedures.
Lubricate more frequently when used in salt water.(1)
(2)
(3)
(4)
(5)
10/04/13 15:15:14 31ZX1600_064
64
TRIM TAB ADJUSTMENT
SERVICING YOUR OUTBOARD MOTOR
LEFT
TRIM TAB BOLT
LEFT
TRIM TAB
RIGHT
TRIM TAB BOLT
RIGHT
TRIM TAB
The trim tab compensates for
‘‘torque steer,’’ which is a reaction of
the outboard motor to propeller
rotation.
If uncompensated, torque steer would
make the outboard motor tend to turn
to one side.
When the trim tab is correctly
adjusted, steering effort is equal in
either direction.
If steering effort is unequal, loosen
the trim tab bolt and adjust the angle
of the trim tab. Retighten the trim tab
bolt securely.
If less effort is required to make left
turns, move the back of the trim tab
left.
Adjust the trim tab in small
increments, and retest steering effort
with the boat evenly loaded and
running at cruising speed.
If less effort is required to make right
turns, move the back of the trim tab
right.
10/04/13 15:15:24 31ZX1600_065
65
MANUAL RELIEF VALVE
ENGINE COVER REMOVAL
AND INSTALLATION
SERVICING YOUR OUTBOARD MOTOR
MANUAL RELIEF VALVE
UNLOCK
ENGINE COVER LATCH
ENGINE COVER
PPOOWWEERR
((TToo ffiixx))
MMAANNUUAALL
((TToo rreelleeaassee))
Be sure the valve is closed before
operating the outboard motor. If the
valve is not closed, the outboard
motor will tilt up when operated in
reverse.
For manual tilting, use a screwdriver
to turn the valve counterclockwise 1
or 2 turns. Close the valve firmly
after positioning the outboard motor.
The outboard motor can be tilted
manually after opening the manual
relief valve. This feature enables the
outboard motor to be tilted up or
down when no battery is connected.
The cover should be tight at the mid-
case point. If the cover is loose or
difficult to secure, an adjustment
may be necessary. Please see the
shop manual or your Honda Marine
dealer for adjustment.
To install the engine cover, place the
cover on the outboard motor, and
push down evenly.
To remove the engine cover, pull the
engine cover latch to the unlocked
position, then lift the engine cover
straight up from the outboard motor.
The engine cover latch fastens the
engine cover to the outboard motor.
Check that nobody is under the
outboard motor before opening the
manual relief valve. If the manual
relief valve is loosened (turned
counterclockwise) when the outboard
motor is tilted up, the outboard motor
will suddenly tilt down.
10/04/13 15:15:34 31ZX1600_066
66
Engine Oil Level Check Engine Oil Change
SERVICING YOUR OUTBOARD MOTOR
UPPER
LIMIT
LOWER
LIMIT
OIL LEVEL DIPSTICK
OIL FILLER CAP
DRAIN BOLT COVER
LEVER
Running the engine with a low oil
level can cause engine damage.
Check the engine oil level with the
engine stopped and the outboard
motor in the vertical position.
Unlock and remove the engine
cover (p. ).
Remove the dipstick and wipe it
clean.
Insert the dipstick all the way in,
then remove it and check the oil
level shown on the dipstick.
If the oil level is low, remove the
oil filler cap, and add oil to reach
the upper limit mark shown on the
dipstick. Use the oil recommended
on p. .
Install the oil filler cap and tighten
it securely. Do not overtighten.
Install and lock the engine cover.
An engine oil evacuation device may
be used to remove the engine oil.
Drain the used oil while the engine is
warm. Warm oil drains quickly and
completely.
Unlock and remove the engine
cover (p. ).
Push the drain bolt cover lever and
remove the cover while pulling the
cover backward at an angle.
1.
2.
3.
4.
5.
6.
1.
2.
65
69
65
10/04/13 15:15:46 31ZX1600_067
67
SERVICING YOUR OUTBOARD MOTOR
DRAIN BOLT COVER
GUIDE
DRAIN BOLT COVER
GUIDE
SEALING WASHER
GUIDE
DRAIN
BOLT
COVER
DRAIN BOLT COVER
UNDER COVER
PUSH
LOCKING LUG
DDRRAAIINN
BBOOLLTT
LEVER
PROJECTION
Improper disposal of engine oil can
be harmf ul to the environment. If
you change your own oil, please
dispose of the used oil properly. Put
it in a sealed container, and take it to
a recycling center. Do not throw it in
the trash, pour it on the ground or
downadrain.
Set the drain bolt cover under the
guide.
Place a suitable container below
the oil drain guide to catch the
used oil, and then remove the oil
filler cap, drain bolt, and sealing
washer.
Allow the used oil to drain
completely. Use a new sealing
washer, and then reinstall the
engine oil drain bolt and washer.
Tighten the drain bolt securely.
3.
4.
5.
10/04/13 15:15:54 31ZX1600_068
6.9 US qt (6.5 L)
7.1 US qt (6.7 L)
68
Oil Filter Change
SERVICING YOUR OUTBOARD MOTOR
FILTER WRENCH, 65 mm
OIL FILTER
OIL DRAIN GUIDE
RUBBER SEAL
With the outboard motor in a
vertical position, fill to the upper
limit mark on the dipstick (p. )
with the recommended oil.
Engine oil refill capacity:
Without oil filter change:
With oil filter change:
Install the oil filler cap and tighten
it securely.
Install and lock the engine cover.
Install the oil drain bolt cover.
Push the lever of the oil drain bolt
cover in the direction pointed by
the arrow mark of ‘‘LOCK’’, and
install the oil drain bolt cover so
that the locking lug securely sets
on the projection of the under
cover.
Use a suitable tool to remove the
oil filter, and thoroughly drain the
filter into the used oil container.
Tilt the outboard motor, and place
a suitable container below the oil
drain guide to catch the used oil.
Drain the engine oil, and then
reinstall the drain bolt and sealing
washer. Reinstall the drain bolt
cover (see Engine Oil Change
on p. ).
1.
2.
3.
6.
7.
8.
9.
66
66
10/04/13 15:16:04 31ZX1600_069
AMBIENT TEMPERATURE
9 lbf·ft (12 N·m , 1.2 kgf·m)
69
Engine Oil Recommendations
SERVICING YOUR OUTBOARD MOTOR
Use only a Honda Genuine oil
f ilter or a f ilter of equivalent
quality specif ied f or your model.
Using the wrong f ilter, or a non-
Honda f ilter which is not of
equivalent quality, may cause
engine damage.
Running the outboard motor
without suf f icient cooling water
will damage the water pump and
overheat the engine.
Oil is a major factor affecting
performance and service life. Use
4-stroke detergent oil.
Start the engine and check for
leaks (be sure the water level is at
least 2 inches (5 cm) above the
antiventilation plate).
OIL FILTER TIGHTENING
TORQUE:
Clean the oil filter mounting base,
and coat the rubber seal of the new
oil filter with clean engine oil.
If you are changing the oil filter
while the outboard motor is out of
the water, use commercially
available ear muffs and water hose
to supply water.
Stop the engine, and check the oil
level as described on page . If
necessary, add oil to bring the oil
level to the upper limit mark on the
dipstick.
Return the outboard motor to the
vertical position, and fill the
crankcase with the specified
amount of the recommended oil.
Screw on the new filter by hand
until it contacts the engine, then
use a suitable tool to tighten the
filter an additional 3/4 turn.
Honda 10W-30 FC-W outboard
motor oil is recommended for
general use.
If Honda 10W-30 FC-W oil is not
available, Honda recommends that
you use API service category SG, SH
or SJ oil. The SAE oil viscosity and
service category are in the API label
on the oil container.
7.
8.
4.
5.
6.
66
TM
10/04/13 15:16:15 31ZX1600_070
70
Lubrication Points
SERVICING YOUR OUTBOARD MOTOR
PTT THRUST RECEIVER
PROPELLER SHAFT SWIVEL CASE
TILT BRACKET
THROTTLE LINK/
PIVOT/PLATE
ENGINE COVER BRACKET
THROTTLE ROD/LINK
TILT SHAFT
Apply anticorrosion oil to pivot
surf aces where grease cannot penetrate.
Apply Honda Marine Corrosion Inhibitor (or equivalent) to all areas under the engine cover and any exposed metal
surfaces except the belts.
Apply Honda Marine waterproof grease
to the parts shown below:
10/04/13 15:16:21 31ZX1600_071
71
SERVICING YOUR OUTBOARD MOTOR
TILT SHAFT THREAD
ENGINE COVER LOCK
LEVER/OPEN SHAFT
COVER LOCK BOLTS
ENGINE COVER
LOCK CABLE
(RIGHT SIDE)
LOWER CYLINDER
BUSH/COLLAR
THROTTLE ARM/
SHIFT ARM/PIVOT
PLATE/NEUTRAL
SWITCH/CLICK
ARM ROLLER
ENGINE COVER
LOCK CABLE
(LEFT SIDE)
ENGINE COVER
CABLE (FRONT)
TILT LOCK LEVER
UPPER CYLINDER PIN/
BUSH
SWIVEL SHAFT
10/04/13 15:16:26 31ZX1600_072
〈〉
−
KJ20DR-M11 (DENSO)
ZFR6K-11 (NGK)
72
Spark Plug Service
Standard Spark Plug
SERVICING YOUR OUTBOARD MOTOR
CLIP
UNDER
COVER
CLIP (2)
IDLE PORT
UNDER COVER GROMMET
UNDER COVER
GROMMET
CLIP
Do not try to remove the clip with
f orce without raising the inner part
of the clip. Otherwise, it can damage
the clip and/or under cover.
Incorrect spark plugs can cause
engine damage.
Remove the two clips from the
upper part of the under cover
grommet.
To remove the clips, raise the inner
part of each clip with a
screwdriver, then pull out the clips.
Fold down the upper part of the
under cover grommet without
removing it from the idle port.
Unlock and remove the engine
cover (p. ).
Disconnect the battery negative
( ) terminal.
See page for instructions of
handling the Iridium spark plugs
(optional parts).
RECOMMENDED SPARK PLUGS:
1.
2.
3.
4.
65
75
10/04/13 15:16:37 31ZX1600_073
73
SERVICING YOUR OUTBOARD MOTOR
SPARK PLUG COVER
BOLTS
IGNITION COIL
WIRE CONNECTOR
BOLT
SPARK PLUG
WRENCH
19 mm EYE
WRENCH
Do not strike or drop the ignition
coil, or it may be damaged and
require replacement.
Remove the two bolts with the 6
mm hex wrench, and remove the
sparkplugcover.
Use a 6 mm hex. wrench to
remove the bolt holding the
ignition coil. Move the ignition
coil to a position that allows
removal of the wire connector
easily.
Disconnect the wire connector
from the ignition coil by pushing
on the lock tab and pulling on the
connector. Pull on the plastic
connector, not the wires.
Remove the ignition coil by
pulling it up slightly.
Remove the spark plugs with a
spark plug wrench and 19 mm eye
wrench.
5. 6.
7.
8.
9.
10/04/13 15:16:45 31ZX1600_074
−
−
−
−
−
0.039 0.043 in
(1.0 1.1 mm)
74
SERVICING YOUR OUTBOARD MOTOR
SEALING
WASHER
0.039 0.043 in
(1.0 1.1 mm)
SIDE ELECTRODE
INSULATOR
CLIP
UNDER
COVER
GROMMET
UNDER
COVER
Loose spark plugs can overheat
and damage the engine.
Overtightening the spark plugs
can damage the threads in the
cylinder head.
Inspect the spark plugs. Replace
them if the electrodes are worn, or
if the insulators are cracked or
chipped.
Measure the spark plug electrode
gap with a wire-type feeler gauge.
Correct the gap, if necessary, by
carefully bending the side
electrode.
Install the spark plugs carefully,
by hand, to avoid cross-threading.
After each spark plug seats, tighten
with the spark plug wrench
supplied in the tool kit to compress
the sealing washer.
If reinstalling used spark plugs,
tighten 1/8 1/4 turn after the
spark plugs seat.
If installing new spark plugs,
tighten 1/2 turn after the spark
plugs seat.
Install the ignition coil. Reinstall
the bolt.
Push the wire connector onto the
ignition coil. Make sure it locks in
place.
Repeat this procedure for the other
three spark plugs.
Reinstall the covers. When
reinstalling the covers, make sure
not to jam the wire harnesses
between the covers and engine
case.
Insert the clips with the inner part
raised off, then push in the inner
part securely until they click.
Press the under cover grommet and
under cover and be sure that they
adhere closely to each other.
Clip installation:
The gap should be:
10.
11.
12.
13.
14.
15.
16.
17.
10/04/13 15:16:59 31ZX1600_075
〈
〉
−
−
IZFR6K11 (NGK)
SKJ20DR-M11 (DENSO)
75
REFUELINGOptional Parts : Iridium
Spark Plug
SERVICING YOUR OUTBOARD MOTOR
Incorrect spark plugs can cause
engine damage.
Check the fuel level and refill if
necessary. Do not fill the fuel tank
above the UPPER LIMIT. Refer to
the boat manufacturer’s instructions.
RECOMMENDED SPARK PLUGS:
Installation and removal procedure of
the Iridium spark plugs are the same
as the standard spark plugs.
These spark plugs have an iridium
coated center electrode.
Be sure to observe the following
when servicing iridium spark plugs.
Do not clean the spark plugs. If an
electrode is contaminated with
accumulated objects or dirt,
replace the spark plug with a new
one.
Use only a ‘‘wire-type feeler
gauge’’ to check the spark plug
gap if necessary. To prevent
damaging the iridium coating of
the center electrode, never use a
‘‘leaf-type feeler gauge.’’
The gap should be 0.039 0.051
inches (1.0 1.3 mm).
Do not adjust the spark plug gap.
If the gap is out of specification,
replace the spark plug with a new
one.
10/04/13 15:17:08 31ZX1600_076
Gasoline is highly
flammable and explosive.
You can be burned or
seriously injured when
handling fuel.
Stop the engine and keep
heat, sparks, and flame
away.
Handle fuel only
outdoors.
Wipe up spills
immediately.
76
FUEL RECOMMENDATIONS
Use unleaded gasoline with a pump
octane rating of 86 or higher.
SERVICING YOUR OUTBOARD MOTOR
Fuel can damage paint and plastic.
Be caref ul not to spill f uel when
f illing your f uel tank. Damage
caused by spilled f uel is not covered
under warranty.
Never refill the fuel tank inside a
building where gasoline fumes may
reach flames or sparks. Keep
gasoline away from appliance pilot
lights, barbecues, electric appliances,
power tools, etc.
Spilled fuel is not only a fire hazard,
it causes environmental damage.
Wipe up spills immediately.
Your outboard motor is certified to
operate on unleaded gasoline.
Unleaded gasoline produces fewer
engine and spark plug deposits and
extends exhaust system life.
Never use stale or contaminated
gasoline or an oil/gasoline mixture.
Avoid getting dirt or water in the fuel
tank.
You may use unleaded gasoline
containing no more than 10% ethanol
(E10) or 5% methanol by volume. In
addition, methanol must contain
cosolvents and corrosion inhibitors.
Use of fuels with content of ethanol
or methanol greater than shown
above may cause starting and/or
performance problems. It may also
damage metal, rubber, and plastic
parts of the fuel system.
10/04/13 15:17:17 31ZX1600_077
Gasoline is highly
flammable and explosive.
You can be burned or
seriously injured when
handling fuel.
Stop the engine and keep
heat, sparks, and flame
away.
Handle fuel only
outdoors.
Wipe up spills
immediately.
77
Fuel Filter Inspection and
Replacement
SERVICING YOUR OUTBOARD MOTOR
Water or sediment accumulation in
the filter can cause loss of power or
hard starting. To prevent engine
malfunction, inspect the filter and
replace when necessary.
The fuel filter (inside the strainer
cup) is located below the intake
manifold.
Engine damage or performance
problems that result from using a fuel
with percentages of ethanol or
methanol greater than shown above
are not covered under warranty.
If your outboard motor will be used
on an infrequent or intermittent basis,
please refer to the fuel section of the
STORAGE chapter (p. ) for
additional information regarding fuel
deterioration.
85
10/04/13 15:17:25 31ZX1600_078
78
SERVICING YOUR OUTBOARD MOTOR
UNLOCK
ENGINE COVER LATCH
FUEL FILTER
(inside strainer cup)
STRAINER
ASSEMBLY
FUEL HOSES
SUSPENSION STRAP
ENGINE COVER
Looking through the translucent
strainer cup, check the fuel filter
for water accumulation or
sediment.
Remove the strainer assembly. If it
is difficult to remove the strainer
assembly by yourself, consult an
authorized Honda Marine dealer.
Remove the suspension strap from
the fuel filter bracket, and then
remove the strap from the fuel
filter assembly.
Before removing the fuel filter, to
prevent fuel leakage, place fuel
hose clamps on the fuel hoses on
each side of the fuel filter.
Remove the engine cover (p. ). 3.2.1.
4.
65
10/04/13 15:17:32 31ZX1600_079
2.5 lbf·ft (3.4 N·m , 0.35 kgf·m)
79
SERVICING YOUR OUTBOARD MOTOR
STRAINER BODY
STRAINER CUP
SCREW (3)
FUEL FILTER
STRAINER
BRACKET
ALIGNMENT
POSITION
SUSPENSION
STRAP
FUEL STRAINER ASSEMBLY
STRAINER CUP
Remove the three screws and
separate the fuel strainer cup from
the strainer body.
Reassemble the strainer body and
the cup.
STRAINER TIGHTENING
TORQUE:
Thoroughly clean the strainer cup,
and replace the fuel filter.
Align the center of suspension
strap with the screw position and
install the fuel strainer assembly.
Reinstall the strainer assembly in
the original position.
Prime the engine using the priming
bulb (refer to page ). Check for
fuel leaks.
Repair any fuel leaks if necessary.
If loss of power or hard starting are
found to be caused by excessive
water or sediment accumulation in
the fuel filter, inspect the fuel tank.
Clean the fuel tank and tank filter if
necessary. It may be necessary to
drain the fuel tank completely and
refill with fresh gasoline.
5.
6.
7.
8.
9.
10.
40
10/04/13 15:17:42 31ZX1600_080
Gasoline is highly
flammable and explosive.
You can be burned or
seriously injured when
handling fuel.
Stop the engine and keep
heat, sparks, and flame
away.
Handle fuel only
outdoors.
Wipe up spills
immediately.
80
Water Separator Inspection and
Service
SERVICING YOUR OUTBOARD MOTOR
WATER SEPARATOR
SEPARATOR
ASSEMBLY
FUEL TUBES
SUSPENSION STRAP
INTAKE MANIFOLD
The water separator is located below
the intake manifold. Water
accumulation in the water separator
can cause loss of power or hard
starting. Check the water separator
periodically. Clean it or consult with
an authorized Honda Marine dealer
for cleaning.
Remove the engine cover (p. ).
Remove the separator assembly. If
it is difficult to remove the
separator assembly by yourself,
consult an authorized Honda
Marine dealer.
Remove the suspension strap from
the water separator bracket; then
remove the strap from the
separator assembly.
During removal of the separator
assembly, take care not to damage
the wire harness with the separator
bracket.
Pinch the fuel tubes with tube
clamps to prevent fuel leakage.
1.
2.
3.
65
10/04/13 15:17:52 31ZX1600_081
2.5 lbf·ft (3.4 N·m , 0.35 kgf·m)
81
SERVICING YOUR OUTBOARD MOTOR
SUSPENSION
STRAP
BOWL
ALIGNMENT
POSITION
CUP
O-RING
BOWL SUSPENSION STRAP
WATER SEPARATOR BRACKET
WATER SEPARATOR
Squeeze and release the priming
bulb to fill the vapor separator, and
check for leaks.
If the buzzer sounds or water or
sediment accumulation are found to
be caused by excessive water or
sediment accumulation in the fuel
filter, inspect the fuel tank.
Clean the fuel tank and tank filter if
necessary. It may be necessary to
drain the fuel tank completely and
refill with fresh gasoline.
Align the center of suspension
strap with the screw position and
install the water separator
assembly.
Reinstall the water separator in the
reverse order of removal.
Remove the three screws and
separate the bowl from the body.
Thoroughly clean the bowl.
Reassemble the water separator
bowl, O-ring, and cup.
TIGHTENING TORQUE:
9.
8.
7.
6.
5.
4.
10/04/13 15:18:02 31ZX1600_082
82
Anode Replacement Propeller Replacement
SERVICING YOUR OUTBOARD MOTOR
ANODE
(each side)
ANODE
(stern bracket)
Removal
Painting or coating the anodes will
def eat their purpose and will lead to
rust and corrosion damage to the
outboard motor. The anodes must be
exposed to the water in order to
protect the outboard motor.
The anodes are located on each side
of the gear case and on the stern
bracket. They are made of a
sacrificial material that helps to
protect the outboard motor from
corrosion.
Before replacing the propeller,
remove the emergency stop switch
clip from the emergency stop switch
to prevent any possibility of the
engine being started while you are
working with the propeller.
Inspect the propeller shaft for any
fishing line or debris.
Remove the cotter pin, unscrew
the castle nut, remove the washer,
and then remove the propeller and
thrust washer.
Operating the outboard motor at
higher altitudes will reduce available
power. This may require decreasing
the propeller pitch to maintain correct
engine RPM.
The propeller blades may have sharp
edges, so wear heavy gloves to
protect your hands.
Replace the anodes when they have
been reduced to about one third their
original size, or if they are crumbling.
1.
2.
10/04/13 15:18:10 31ZX1600_083
33 lbf·ft (44 N·m , 4.5 kgf·m)
0.7 lbf·ft (1 N·m, 0.1 kgf·m)
83
SERVICING YOUR OUTBOARD MOTOR
MARINE GREASE
THRUST WASHER
PROPELLER
WASHER
CASTLE NUT
COTTER PIN
(stainless)
Installation
Do not tighten the castle nut above
the TIGHTENING TORQUE LIMIT,
or the propeller and shaf t may be
damaged.
TIGHTENING TORQUE LIMIT:
Apply marine grade grease to the
propeller shaft.
Install the thrust washer with the
grooved side toward the gear case.
Install the propeller.
Install the washer with as shown.
Lightly tighten the castle nut by
hand or wrench until the propeller
has no free play.
Tighten the castle nut using a
torque wrench.
Then, using a torque wrench,
tighten the castle nut until the first
available groove in the castle nut
aligns with the cotter pin hole. Do
not tighten past the first alignment
of the castle nut groove and the
cotter pin hole. Be sure to replace the cotter pin
with a new one.
Use a Honda Genuine stainless
steel cotter pin or equivalent
cotter pin and bend the pin ends
as shown.
Note that these wrenches are not
included with the tool set that comes
with the outboard motor. Contact
your authorized Honda Marine dealer
for additional tool information.
1.
2.
3.
4.
5.
8.
6.
7.
CASTLE NUT TIGHTENING
TORQUE:
10/04/13 15:18:21 31ZX1600_084
84
STORAGE PREPARATION
Cleaning and Flushing
STORAGE
FLUSH PORT
CONNECTOR
Cleaning
Flushing With a Garden Hose
(commercially available)
Do not apply water or corrosion
inhibitor directly to the electrical
components under the engine cover,
such as the AC generator, HO2S
sensor, or the AC generator belt. If
water or corrosion inhibitor
penetrates these components, they
may be damaged. Bef ore applying a
corrosion inhibitor, cover the AC
generator, belt and HO2S sensor
with a protective material to prevent
damage.
Do not run the engine when flushing
the outboard motor with a garden
hose or the outboard motor may be
damaged.
Proper storage preparation is
essential for keeping your outboard
motor trouble-free and looking good.
The following steps will help to keep
rust and corrosion from impairing
your outboard motor’s function and
appearance, and will make the engine
easier to start when you use the
outboard motor again.
Thoroughly clean and flush the
outboard motor with fresh water after
operation in dirty water or salt water.
Touch up any damaged paint, and
coat areas that may rust with Honda
Corrosion Inhibitor, or equivalent.
Lubricate controls with a silicone
spray lubricant.
Wash the outside of the outboard
motor with clean, fresh water, and
flush the cooling system as follows.
For safety, remove the emergency
stop switch clip so the engine cannot
be started while you are standing near
the propeller.
Tilt down the outboard motor.
Clean and wash the outside of the
outboard motor with fresh water.
Disconnect the flush port
connector.
1.
2.
3.
10/04/13 15:18:31 31ZX1600_085
85
Fuel
STORAGE
EXHAUST PORT
FLUSH PORT
CONNECTOR
GARDEN HOSE
GARDEN HOSE JOINT
(Commercially available)
Screw the flush port connector
onto the garden hose.
Turn on the fresh water supply and
flush the outboard motor for at
least 10 minutes.
After flushing, disconnect the
garden hose and reconnect the
flush port connector.
Gasoline will oxidize and deteriorate
in storage. Old gasoline will cause
hard starting, and it leaves gum
deposits that clog the fuel system. If
the gasoline in your fuel tank and
vapor separator deteriorates during
storage, you may need to have the
vapor separator and other fuel system
components serviced or replaced.
The length of time that gasoline can
be left in your fuel tank and vapor
separator without causing functional
problems will vary with such factors
as gasoline blend, your storage
temperatures, and whether the fuel
tank is partially or completely filled.
The air in a partially filled fuel tank
promotes fuel deterioration. Very
warm storage temperatures accelerate
fuel deterioration. Fuel deterioration
problems may occur within a few
months, or even less if the gasoline
was not fresh when you filled the
fuel tank.
Tilt up the outboard motor and
move the tilt lock lever to the
LOCK position.
4. 5.
6.
7.
10/04/13 15:18:39 31ZX1600_086
86
STORAGE
DRAIN SCREW
VAPOR SEPARATOR
FRONT BRACKET CLAMP
DRAIN HOSE
(Draining the fuel becomes easier
when the front end of the drain
hose is as low as possible)
Adding a Fuel Stabilizer Draining the Fuel System
Distributor’s Limited Warranty
When adding a fuel stabilizer, fill the
fuel tank with fresh gasoline. If only
partially filled, air in the tank will
promote fuel deterioration during
storage. If you keep an additional
container of gasoline for refueling,
be sure that it contains only fresh
gasoline.
Turn the engine OFF.
Add fuel stabilizer following the
manufacturer’s instructions.
Drain the vapor separator before
adding fuel stabilizer.
After adding a fuel stabilizer, run
the engine in water for 10 minutes
to be sure that the treated gasoline
has replaced the untreated gasoline
in the vapor separator.
You can extend fuel storage life by
adding a gasoline stabilizer that is
formulated for that purpose, or you
can avoid fuel deterioration problems
by draining all the fuel from the fuel
tank and vapor separator.
The
(p. ) does not cover fuel system
damage or engine performance
problems resulting from neglected
storage preparation.
You can avoid fuel deterioration
problems by draining the fuel tank
and vapor separator.
2.
3.
1.
4.
113
10/04/13 15:18:48 31ZX1600_087
−
−−
Wipe up spills
immediately.
Handle fuel only
outdoors.
Stop the engine and keep
heat, sparks, and flame
away.
You can be burned or
seriously injured when
handling fuel.
Gasoline is highly
flammable and explosive.
87
Engine Oil
STORAGE
Change the engine oil and the oil
filter (p. ).
Remove the spark plugs (p. ),
and remove the emergency stop
switch clip from the emergency
stop switch.
Unhook the drain hose from the
front bracket clamp.
Set the end of the hose toward the
outside of the engine undercase.
Tilt the outboard motor up all the
way. Leave the outboard motor
tilted up until the gasoline stops
flowing.
After thoroughly draining, tighten
the drain screw securely and return
the outboard motor to the vertical
position.
Clamp the drain hose on the front
bracket clamp.
Drain the fuel tank into an
approved gasoline container or, if
you need to store fuel in the fuel
tank, you can extend fuel storage
life by filling the fuel tank with
fresh gasoline and adding a fuel
stabilizer that is formulated for
that purpose.
Place an approved gasoline
container below the fuel drain
outlet, and use a funnel to avoid
spilling fuel.
Loosen the vapor separator drain
screw.
Reinstall the spark plugs (p. ).
Rotate the engine a few
revolutions to distribute the oil in
the cylinders.
Pour 1 2 teaspoons (5 10 cm )
(p. ) of clean engine oil into
each cylinder.
1.
2.
3.
4.
5.
4.
5.
6.
7.
1.
2.
3.
66 69
72
102
74
3
10/04/13 15:19:02 31ZX1600_088
88
STORAGE PRECAUTIONSHOISTING THE OUTBOARD
MOTOR
STORAGE
ENGINE COVER LATCH
UNLOCK
HOIST
HOOKS
LIFTING
EYES
ENGINE COVER
Select a well-ventilated storage area.
If possible, avoid storage areas with
high humidity.
If storing a container of gasoline,
store it away from any appliance that
operates with a flame, such as a
furnace, water heater, or clothes
dryer. Also avoid any area with a
spark producing electric motor, or
where power tools are operated.
Disconnect the outboard motor
from the boat, hoist the outboard
motor, and move it to the storage
area.
Attach the hoist hooks to the
lifting eyes.
After the outboard motor is placed
in storage and disconnected from
the hoist, install the engine cover.
Remove the engine cover (p. ). 2.
3.
4.
1. 65
10/04/13 15:19:10 31ZX1600_089
89
REMOVAL FROM STORAGE
STORAGE
PROTECTOR
OUTBOARD MOTOR STAND
BEFORE
OPERATION
Check your outboard motor as
described in the
chapter of this manual.
If the cylinders were coated with oil
during storage preparation, the
engine may smoke briefly at startup.
This is normal.
Cover the outboard motor to keep out
dust. Do not use plastic sheet as a
dust cover. A nonporous cover will
trap moisture, promoting rust and
corrosion.
Rest the outboard motor on a cushion
of protective material.
If it is necessary to store the outboard
motor horizontally as shown, drain
the vapor separator (p. ), and
drain the engine oil (p. ), before
removing the outboard motor from
the boat.
If the outboard motor will be
removed from the boat for storage,
we recommend storing it vertically
by mounting it on a commercially
available stand.
86
66
10/04/13 15:19:16 31ZX1600_090
90
WITH OUTBOARD MOTOR
INSTALLED ON BOAT
WITH OUTBOARD MOTOR
REMOVED FROM BOAT
TRANSPORTING
OUTBOARD MOTOR SUPPORT BAR
(commercially available)
When trailering a boat with the
outboard motor attached, leave the
outboard motor in the normal
running position, if possible.
Use an outboard motor support bar to
prevent the outboard motor from
moving while trailering the boat.
Refer to the manufacturer’s
instructions for using an outboard
motor support bar.
Secure the outboard motor in either
the vertical or horizontal position
shownonp. .89
10/04/13 15:19:22 31ZX1600_091
91
TAKING CARE OF UNEXPECTED PROBLEMS
Battery discharged. Recharge battery.
Check battery.
Check fuses.
Use starting procedure (p. ,
, ); if engine still will not
start, then take outboard motor
to an authorized Honda Marine
dealer, or refer to the shop
manual.
Battery connections loose or
corroded.
Fuse(s) blown.
Fuel system malfunction, fuel
pump failure, ignition malfunction,
stuck valves, starter malfunction,
switch malfunction, or electrical
problem in the starting circuit, etc.
Clean and tighten battery
connections.
Replace fuse(s) (p. ).
Replace or repair faulty
components as necessary.
ELECTRIC STARTER WILL
NOT OPERATE
Possible Cause Correction
1.
2.
3. 41
44 46
96
10/04/13 15:19:32 31ZX1600_092
92
TAKING CARE OF UNEXPECTED PROBLEMS
ENGINE WILL NOT START Possible Cause Correction
Check emergency stop switch
clip.
Check control positions.
Check fuel.
Clip not inserted in emergency
stop switch.
Control lever not in neutral
position.
Fast idle lever raised (side-mount
type).
Out of fuel.
Fuel hose not primed.
Fuel filter or fuel tank filter clogged.
Bad fuel; boat stored without
treating or draining gasoline, or
refueled with bad gasoline.
Insert clip in emergency stop
switch.
Shift to neutral.
Leave fast idle lever OFF (p. ).
Refuel (p. ).
Squeeze priming bulb (p. ).
Replace fuel filters (p. ).
Drain fuel tank and vapor
separator (p. ). Refill with
fresh gasoline (p. ).
1.
2.
3.
42
75
40
77
86
75
10/04/13 15:19:45 31ZX1600_093
93
TAKING CARE OF UNEXPECTED PROBLEMS
CorrectionPossible CauseENGINE WILL NOT START
(continued)
Check water separator. Water separator full of water
accumulation.
Clean water separator (p. ).
Spark plugs faulty, fouled, or
improperly gapped.
Spark plugs wet with fuel (flooded
engine).
Dry and reinstall spark plugs. Start
engine with the throttle open.
Take outboard motor to an
authorized Honda Marine dealer,
or refer to the shop manual.
Remove and inspect spark plugs.
Replace or repair faulty
components as necessary.
Fuel system malfunction, fuel
pump failure, ignition malfunction,
etc.
Gap (non-iridium type) or replace
spark plugs (p. ).
4.
5.
6.
80
72
10/04/13 15:19:55 31ZX1600_094
94
TAKING CARE OF UNEXPECTED PROBLEMS
CorrectionPossible CauseHARD STARTING OR STALLS
AFTER STARTING
Check control positions. Fast idle lever raised (side-mount
type).
Leave fast idle lever OFF (p. ).
Check fuel.
Bad fuel; boat stored without
treating or draining gasoline, or
refueled with bad fuel.
Squeeze priming bulb (p. ).
Replace fuel filters (p. ).
Drain fuel tank and vapor
separator (p. ). Refill with
fresh gasoline (p. ).
Check water separator. Clean water separator (p. ).Water separator full of water
accumulation.
Fuel hose not primed.
Fuel filter or fuel tank filter clogged.
1.
2.
3.
42
40
77
86
75
80
10/04/13 15:20:05 31ZX1600_095
95
TAKING CARE OF UNEXPECTED PROBLEMS
HARD STARTING OR STALLS
AFTER STARTING
(continued)
Take outboard motor to an
authorized Honda Marine dealer,
or refer to the shop manual.
Faulty thermostat or water pump. Replace or repair faulty
components as necessary.
Check water intake screens. Water intake screens clogged. Clean water intake screens.
ENGINE OVERHEATS Possible Cause Correction
Replace or repair faulty
components as necessary.
Take outboard motor to an
authorized Honda Marine dealer,
or refer to the shop manual.
Spark plugs faulty, fouled, or
improperly gapped.
Remove and inspect spark plugs.
Possible Cause Correction
Fuel system malfunction, fuel
pump failure, ignition malfunction,
etc.
Gap (non-iridium type) or replace
spark plugs (p. ).
2.
1.
4.
5.
72
10/04/13 15:20:16 31ZX1600_096
−
96
Fuse Replacement
Electric Starter Will Not
Operate
FUSES
Battery Will Not Charge
TAKING CARE OF UNEXPECTED PROBLEMS
FUSES (10A, 15A, 30A)
SPARE FUSES
(10A, 15A, 30A)
FUSE
HOLDER
FUSE PULLER
4455°°
JUNCTION
BOX LID
RELAYS
(Do not remove the relays)
Main Fuse
Disconnect the battery cable at the
battery negative ( ) terminal before
replacing the f use.
Failure to do so may cause a short
circuit.
The 10A, 15A, and 30A main fuses
protect the electric starter relay and
related circuits.
Remove the engine cover.
Stop the engine and disconnect the
battery cable.
The 10A main fuse protects the
ignition switch and related circuits. If
this fuse blows, the engine will not
start or run, and the power trim/tilt
switch will not activate the trim/tilt
mechanism.
A 100A ACG fuse protects the
alternator circuit. If the ACG fuse
blows, the engine will not charge the
battery. Refer to p. .
Remove the junction box lid.
1.
2.
3.
98
10/04/13 15:20:27 31ZX1600_097
10 A, 15 A, 30 A
97
TAKING CARE OF UNEXPECTED PROBLEMS
FUSE PULLER
BLOWN FUSE
Never use a f use with a rating
greater than specif ied. Serious
damage to the electrical system could
result.
Use the fuse puller from the fuse
holder to remove the fuses. If a
fuse is blown, install a replacement
fuse of the same specified rating.
The outboard motor is supplied
with spare fuses in the junction
box lid.
MAIN FUSE RATINGS:
Reconnect the battery.
If a blown fuse is found, try to
determine and correct the electrical
problem that caused the blown fuse.
An uncorrected electrical problem
may cause the fuse to blow again.
If fuses continue to blow, take the
outboard motor to an authorized
Honda Marine dealer for inspection
and service, or refer to the shop
manual.
Reinstall the junction box lid, and
the engine cover.
5.
6.
4.
10/04/13 15:20:34 31ZX1600_098
100 A
98
OIL PRESSURE INDICATOR
GOES OFF AND ENGINE
SPEED IS LIMITED
TAKING CARE OF UNEXPECTED PROBLEMS
BUZZER
BUZZER
(GREEN)
(GREEN)
OIL PRESSURE
INDICATOR
OIL PRESSURE
INDICATOR
FUSE (100A)SPARE FUSE (100A)
FUSE HOLDER
Side-Mount Type
Panel-Mount/Top-Mount Types
ACG Fuse
Remove the engine cover.
Stop the engine and disconnect the
battery cable.
Remove the junction box lid (see
page ).
Remove the old fuse by removing
two 5 mm screws.
Install a new fuse with the ‘‘100A.’’
ACG FUSE:
Reconnect the battery.
A spare fuse is located in the fuse
holder.
Reinstall the junction box lid, and
the engine cover.
6.
7.
5.
1.
2.
3.
4.
96
10/04/13 15:20:47 31ZX1600_099
99
Digital Tachometer OVERHEAT INDICATOR
COMES ON AND ENGINE
SPEED IS LIMITED
TAKING CARE OF UNEXPECTED PROBLEMS
BUZZER
BUZZER
(RED)
(RED)
OVERHEAT
INDICATOR
OVERHEAT
INDICATOR
Side-Mount Type
Panel-Mount/Top-Mount Types
If oil pressure becomes low, the oil
pressure indicator will go off, and the
engine protection system limits
engine speed. If you are at cruising
speed, engine speed will decrease
automatically.
The oil pressure indicator is also
equipped with a buzzer that sounds
when the oil pressure indicator goes
off.
Low oil pressure may be the result of
a low engine oil level, or there may
be a problem with the engine
lubrication system.
If the engine protection system
remains activated after 30 seconds,
return to the nearest boat landing, and
have the outboard motor inspected by
an authorized Honda Marine dealer.
With the engine oil at the
recommended level, restart the
engine. If the lubrication system is
OK, the oil pressure indicator should
come on within 30 seconds, and the
engine will respond normally to
throttle control lever operation.
If low oil pressure activates the
engine protection system, stop the
engine, check the engine oil level
(p. ), and add oil if needed.
If the throttle is closed suddenly after
full throttle operation, engine speed
may drop below the specified idle
rpm, and that could activate the
engine protection system
momentarily.Normal
Abnormal
66
10/04/13 15:20:58 31ZX1600_100
100
Digital Tachometer
TAKING CARE OF UNEXPECTED PROBLEMS
COOLING SYSTEM INDICATOR
Engine overheating may be the result
of restricted water intake screens, or
there may be a problem with the
cooling system thermostat or water
pump.
All types are equipped with a buzzer
that sounds when the overheat
indicator comes on.
If the engine overheats, the overheat
indicator will come on, and the
engine will stop in 20 seconds after
the engine protection system limits
engine speed. If you are at cruising
speed, engine speed will decrease
automatically.
If the engine is stopped after running
at full throttle, and then restarted
soon afterward, that could activate
the engine protection system
momentarily.
If overheating activates the engine
protection system, idle the engine in
neutral, and check the cooling system
indicator.
If water is flowing from the cooling
system indicator, continue idling for
30 seconds. If the cooling system is
OK, the overheat indicator should go
off within 30 seconds, and the engine
will respond normally to throttle
control lever operation.
If there is no water flowing from the
cooling system indicator, stop the
engine, and tilt the outboard motor to
inspect the water intake screens. If
restricted, clean the water intake
screens, return the outboard motor to
the running position, restart the
engine, and check the cooling system
indicator again.
If there is still no water flowing from
the cooling system indicator, or if the
engine protection system remains
activated after 30 seconds, return to
the nearest boat landing, and have the
outboard motor inspected by an
authorized Honda Marine dealer.
Normal
Abnormal
10/04/13 15:21:07 31ZX1600_101
101
SUBMERGED OUTBOARD
MOTOR
WATER SEPARATOR
BUZZER SOUNDS
WATER SEPARATOR
INDICATOR
Digital Speedometer
TAKING CARE OF UNEXPECTED PROBLEMS
WATER SEPARATOR
When the water separator buzzer
sounds (a rapid, repeating signal):
When the water separator indicator
blinks:
Check the water separator for water
contamination. If water is present,
stop the engine, and clean the water
separator following the instructions
on page , or consult with an
authorized Honda Marine dealer.
Check the water separator for water
contamination. If water is present,
stop the engine, and clean the water
separator following the instructions
on page , or consult with an
authorized Honda Marine dealer.
Drain the vapor separator as
described on p. .
Remove the engine cover, and
rinse the outboard motor with
fresh water to remove salt water,
sand, mud, etc.
If there is a Honda Marine dealership
nearby, take the outboard motor to
the dealer immediately. If you are far
from a dealership, proceed as
follows:
A submerged outboard motor must
be serviced immediately after it is
recovered from the water in order to
minimize corrosion.
1.
2.
Normal
Abnormal
8080
86
10/04/13 15:21:18 31ZX1600_102
−
102
TAKING CARE OF UNEXPECTED PROBLEMS
Running the outboard motor without
suf f icient cooling water will damage
the water pump and overheat the
engine.
Change the engine oil and oil filter
as described on p. . If
there was water in the engine
crankcase, or if the used engine oil
showed signs of water
contamination, then a second
engine oil change should be
performed after running the engine
for half an hour.
Remove the spark plugs (p. ).
Operate the starter to expel water
from the engine’s cylinder.
If the engine fails to start, remove
the spark plugs and dry them, then
reinstall the spark plugs and
attempt to start the engine again.
If the engine starts, and no
mechanical damage is evident,
continue to run the engine for a
half hour or longer. Be sure the
water level is at least 2 inches (5
cm) above the antiventilation plate
to avoid overheating and water
pump damage.
As soon as possible, take the
outboard motor to an authorized
Honda Marine dealer for
inspection and service.If you are changing the oil filter
while the outboard motor is out of
the water, use commercially available
ear muffs and water hose to supply
water.
Attempt to start the engine (be sure
the water level is at least 2 inches
above the antiventilation plate).
If the engine was running when it
submerged, there may be
mechanical damage, such as bent
connecting rods. If the engine
binds when cranked, do not
attempt to run the engine until it
has been repaired.
Pour a teaspoon (p. ) of engine
oil into each spark plug hole to
lubricate the inside of the cylinders.
Reinstall the spark plugs.
6.
7.
3.
4.
5.
72
66 69
87
10/04/13 15:21:27 31ZX1600_103
103
TECHNICAL INFORMATION
Serial Number Locations
TECHNICAL AND CONSUMER INFORMATION
PRODUCT
IDENTIFICATION
NUMBER
RIGHT STERN BRACKET
ENGINE SERIAL NUMBER
Product identification number: Engine serial number:
The product identification number is
stamped on a plate attached on the
right stern bracket.
The engine serial number is
stamped on the upper right side of
the engine.
Record the product identification
number, the engine serial number,
and the date of purchase in the space
provided on this page. You will need
these numbers when ordering parts,
and when making technical or
warranty inquiries (p. ).
Date of purchase:
110
10/04/13 15:21:34 31ZX1600_104
−12V 64Ah/5HR (80Ah/20HR)
(CCA622)
104
Battery
Minimum Requirements
Emission Control System
Information
TECHNICAL AND CONSUMER INFORMATION
WARNING:
Wash your
hands after handling.
Source of Emissions
Be caref ul to avoid connecting the
battery in reverse polarity, as this
will damage the battery-charging
system in the outboard motor.
Do not disconnect the battery
cables while the engine is running.
Disconnecting the cables while the
engine is running will damage the
outboard motor’s electrical system.
Battery cable extension: Extending
the original battery cable will
cause the battery voltage to drop
due to the increased length of the
cable and number of connections.
This voltage drop may cause the
buzzer to sound momentarily when
engaging the starter motor and
may prevent the engine f rom
starting. If the engine starts and
the buzzer sounds momentarily,
there may be barely suf f icient
voltage reaching the engine.
For complete information, refer to
the battery manufacturer’s
instructions.
Battery posts, terminals,
and related accessories contain lead
and lead compounds.
The combustion process produces
carbon monoxide, oxides of nitrogen,
and hydrocarbons. Control of
hydrocarbons and oxides of nitrogen
is very important because, under
certain conditions, they react to form
photochemical smog when subjected
to sunlight. Carbon monoxide does
not react in the same way, but it is
toxic.
Honda utilizes appropriate air/fuel
ratios and other emissions control
systems to reduce the emissions of
carbon monoxide, oxides of nitrogen,
and hydrocarbons.
10/04/13 15:21:42 31ZX1600_105
105
TECHNICAL AND CONSUMER INFORMATION
Tampering and AlteringPGM-FI System
Ignition Timing Control System
The U.S. and Calif ornia Clean
Air Acts
Tampering with or altering the
emission control system may increase
emissions beyond the legal limit.
Among those acts that constitute
tampering are:
Removal or alteration of any part
of the intake, fuel, or exhaust
systems.
Alterations that would cause the
engine to operate outside its design
parameters.
The PGM-FI system uses sequential
multiport fuel injection. It has three
subsystems: Air Intake, Engine
Control, and Fuel Control. The
Engine Control Module (ECM) uses
various sensors to determine how
much air is going into the engine. It
then controls how much fuel to inject
under all operating conditions.
The system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
EPA and California regulations
require all manufacturers to furnish
written instructions describing the
operation and maintenance of
emission control systems.
The following instructions and
procedures must be followed in order
to keep the emissions from your
Honda engine within the emission
standards.
10/04/13 15:21:50 31ZX1600_106
106
TECHNICAL AND CONSUMER INFORMATION
Replacement PartsProblems That May Af f ect
Emissions
Maintenance
If you are aware of any of the
following symptoms, have your
engine inspected and repaired by
your servicing dealer.
Hard starting or stalling after
starting.
Rough idle.
Misfiring or backfiring under load.
Afterburning (backfiring).
Black exhaust smoke or high fuel
consumption.
The emission control systems on
your Honda engine were designed,
built, and certified to conform with
EPA and California emission
regulations. We recommend the use
of Honda Genuine parts whenever
you have maintenance done. These
original-design replacement parts are
manufactured to the same standards
as the original parts, so you can be
confident of their performance. The
use of replacement parts that are not
of the original design and quality
may impair the effectiveness of your
emission control system.
A manufacturer of an aftermarket
part assumes the responsibility that
the part will not adversely affect
emission performance. The
manufacturer or rebuilder of the part
must certify that use of the part will
not result in a failure of the engine to
comply with emission regulations.
Follow the maintenance schedule on
(p. and ). Remember that this
schedule is based on the assumption
that your machine will be used for its
designed purpose. Sustained high-
load operation, or use in unusual
conditions, will require more
frequent service.
62 63
10/04/13 15:21:59 31ZX1600_107
107
Star Label
The Symbol for Cleaner Marine Engines:
Cleaner Air and Water -
Better Fuel Economy -
Longer Emission Warranty -
US, Puerto Rico, and US Virgin
Islands
TECHNICAL AND CONSUMER INFORMATION
The Star Label means Cleaner Marine Engine
for healthier lifestyle and environment.
burns up to 30 - 40 percent less gas and oil than
conventional carbureted two-stroke engines, saving money and resources.
protects consumer for worry-free operation.
This engine has been certified as a:
A Star label was applied to this
outboard motor in accordance with
the requirements of the California
Air Resources Board.
10/04/13 15:22:09 31ZX1600_108
108
One Star
Low
Emission
Two Stars
Very Low
Emission
Three Stars
Ultra Low
Emission
Four Stars
Super Ultra
Low Emission
TECHNICAL AND CONSUMER INFORMATION
The one-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2001 exhaust emission
standards. Engines meeting these standards have 75% lower emissions than
conventional carbureted two-stroke engines. These engines are equivalent
to the U.S. EPA’s 2006 standards for marine engines.
The two-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2004 exhaust emission
standards. Engines meeting these standards have 20% lower emissions than
One Star-Low Emission engines.
The three-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2008 exhaust emission
standards or the Sterndrive and Inboard marine engine 2003-2008 exhaust
emission standards. Engines meeting these standards have 65% lower
emissions than One Star-Low Emission engines.
The four-star label identifies engines that meet the Air Resources Board’s
Sterndrive and Inboard marine engine 2009 exhaust emission standards.
Personal Watercraft and Outboard marine engines may also comply with
these standards. Engines meeting these standards have 90% lower
emissions than One Star-Low Emission engines.
Cleaner Watercraft - Get the Facts
1-800-END-SMOG
www.arb.ca.gov
10/04/13 15:22:17 31ZX1600_109
−
−
±
±
±
−
−
−
−−
＊
＊
22.8 in (580 mm)
33.3 in (845 mm)
BF115D
4° to 16°
Stageless (72°)
Forward-Neutral-Reverse (dog type)
Unleaded gasoline
(86 pump octane or higher)
electrical type
mechanical type
ZFR6K-11 (NGK)
KJ20DR-M11 (DENSO)
Water exhaust
Water cooling with thermostat
12V 40A
ULTRA · LOW EMISSION
30° right and left
No other adjustment is needed
Intake: 0.23 0.02 mm
Exhaust: 0.30 0.02 mm
750 50 rpm
0.039 0.043 in
(1.0 1.1 mm)
Seepage74
See shop
manual
See shop
manual
BBHJ
70.5 in (1,790 mm)65.6 in (1,665 mm)
20.0 in (508 mm) 25.0 in (635 mm)
85.8 kW (115 HP)
4,500 6,000 rpm
4 stroke DOHC in-line 4-cylinder
143.6 cu-in (2,354 cm
)
0.039 0.043 in (1.0 1.1 mm)
Electric starter
Fully transistorized, battery ignition
Trochoid pump pressure lubrication
API standard (SG, SH, SJ) SAE 10W-30
API standard (GL-4) SAE 90 outboard
motor gear oil
6.9 US qt (6.5 L)
7.1 US qt (6.7 L)
1.04 US qt (0.98 L)
LA LC
478 lbs
(217 kg)
XA XC XCA
492 lbs
(223 kg)
485 lbs
(220 kg)
Engine:
Gear case:
Engine:
Gear case:
Low pressure side:
High pressure side:
without oil filter change
with oil filter change
109
Specifications
Tune Up
TECHNICAL AND CONSUMER INFORMATION
Overall height
Overall width
Overall length
Type
Description code
MODEL
Trim angle
(when transom
angle at 12°)
Tilt up angle
(when transom
angle at 12°)
Steering angle
Gear change
Fuel
Fuel pump
Spark plugs
Exhaust system
Cooling system
D.C. output
CARB star label
Valve clearance
(cold)
Idle speed
Sparkpluggap
Other specifications
Transom height
(when transom
angle at 12°)
Dry mass
[weight]
Rated power
Full throttle
range
Engine type
Displacement
Sparkpluggap
Starter system
Ignition system
Lubrication
system
Specified oil
Oil capacity
Without battery cable, with propeller
Honda outboard motors are power rated in accordance with NMMA procedures and using the ICOMIA standard 28/23.
10/10/12 10:16:33 31ZX1600_110
−
110
CONSUMER INFORMATION
Honda Publications
Customer Service Information
American Honda Motor Co., Inc.
Honda Canada Inc.
(United States, Puerto Rico, and
U.S. Virgin Islands)
TECHNICAL AND CONSUMER INFORMATION
Accessory Catalog
Parts Catalog
Shop Manual
Contacting Honda
This manual provides complete,
illustrated parts lists.
The catalog is available through your
Honda Marine dealer.
Available through your Honda
Marine dealer or through Helm Inc.
at
1 888-292-5395 or
visit www.Honda-marine.com
andclickonOWNERS’
RESOURCES.
This manual covers complete
maintenance and overhaul procedures.
It is intended to be used by a skilled
technician.
These publications will give you
additional information for
maintaining and repairing your
outboard motor.
Your authorized Honda Marine
dealer offers a wide selection of
accessories (optional equipment, oils,
and lubricants) to enhance your
boating experience.
Visit www.honda-marine.com and
click on PARTS & ACCESSORIES
to see the entire catalog of
accessories.
If you have a difference of opinion
with your dealer, please remember
that each dealership is independently
owned and operated. That’s why it’s
important to work to resolve any
differences at the dealership level. If
the service personnel are unable to
assist you, please discuss your
concerns with the dealer management
such as the Service Manager or the
dealership’s owner.
If you need to contact American
Honda regarding your experiences
with your Honda product or with
your dealer, please send your
comments to the following address:
Marine Division
Customer Relations Office
4900 Marconi Drive
Alpharetta, GA 30005-8847
Telephone (770) 497 6400
M-F 8:30 am-7:00 pm (Eastern Time
Zone)
Customer Relations Office
Visit www.honda.ca for contact
information
Tel: 1-888-946-6329 (Toll free)
Fax: 1-877-939-0909 (Toll free)
Your Owner’s Manual was written to
cover most of the questions you
might ask about your Honda. Any
questions not answered in the Owner’s
Manual can be answered by your
Honda dealer. If your dealer doesn’t
have an immediate answer, they
should be able to get it for you.
10/04/13 15:23:08 31ZX1600_111
111
TECHNICAL AND CONSUMER INFORMATION
Warranty Coverage
Please include the following
information in your communication:
Model and complete serial number
Date of purchase
Name and location of selling
dealer
Name and location of servicing
dealer (if different)
A detailed description of your
concerns
Your new Honda is covered by the
following warranties:
Distributor’s Limited Warranty
Emission Control System
Warranty
Your name, address and telephone
number (complete with area code)
To obtain warranty service you must
take your Honda outboard motor,
together with proof of original retail
purchase date, at your expense, to a
Honda engine dealer or distributor
authorized to sell that product in the
United States, Puerto Rico, the U.S.
Virgin Islands or Canada.
Please read the warranty statements
contained in this manual. There are
responsibilities, restrictions, and
exclusions that apply to these
warranties.
It is important to realize that your
warranty applies to defects in
material or workmanship of your
Honda. Your warranty coverage does
not apply to normal wear or
deterioration associated with using
your Honda outboard motor.
Your warranty coverage will not be
voided if you choose to perform your
own maintenance. However, you
should have the proper tools and
service information and be
mechanically qualified. Failures that
occur due to modifications, improper
maintenance, or service are not
covered.
10/04/13 15:23:19 31ZX1600_112
112
TECHNICAL AND CONSUMER INFORMATION
Warranty Service
As the owner of a Honda product,
your servicing dealer may ask you to
authorize an inspection. If the
problem is covered under warranty,
your dealer will perform any
warranty repairs for you at no cost.
However, you may be responsible for
additional non-warranty charges.
If you have questions about warranty
coverage or the nature of the repair, it
is best to talk to the service manager
of your Honda dealer.
Sometimes, in spite of the best
intentions of all concerned, a
misunderstanding may occur. If you
aren’t satisfied with your dealer’s
handling of the situation, we suggest
you discuss your problem with the
appropriate member of the
dealership’s management team. If the
problem has already been reviewed
with the appropriate manager of the
Service, Parts, or Sales department,
contact the owner of the dealership or
their designated representative.
Please remember that recommended
maintenance interval servicing is not
included in your warranty coverage.
Additionally, your warranty does not
apply to the normal wear of items
(such as spark plug(s), water pump,
etc.).
10/04/13 15:23:23 31ZX1600_113
113
United states, Puerto Rico and Virgin Islands
Warranty Statements
Distributor’s Limited Warranty
TECHNICAL AND CONSUMER INFORMATION
The American Honda Distributor’s Limited Warranty applies to outboards purchased in the United States, Puerto Rico,
or the U.S. Virgin Islands. The Honda Canada Distributor’s Warranty applies to outboards purchased in Canada.
The product warranty is only valid in the country where the product was purchased.
This warranty is limited to Honda Outboard Motors and related original equipment distributed by American Honda
Motor Co., Inc., Power Equipment Division, 4900 Marconi Drive, Alpharetta, Georgia 30005-8847.
Products Covered by Warranty: Length of Warranty: (from date of original retail purchase)
NONCOMMERCIAL/
NONRENTAL
COMMERCIAL/RENTAL STATE/LOCAL/FEDERAL
GOVERNMENT
The same duration as the outboard with which they were purchased.
36 months 12 months
12 months
24 months
24 months60 months
All models purchased before July 1, 2008
All Models purchased on or after July 1, 2008
Related original equipment items:
BF2 through BF30 models: Portable fuel tank
and original propeller.
All models: Primer bulb/fuel line assembly and
tiller handle.
Models purchased prior to July 1, 2008 (unless previously purchased with True-5 warranty from a participating dealer).
35, 65, & 105 Jet models: Jet pump assembly is a dealer installed option. Jet pump warranty is provided by Specialty Manufacturing Co. (Outboard Jets).
Portable fuel tanks: 24 months or the same duration as the outboard they were purchased with, whichever is longer.
(1)
(2)
(3)
(1) (2)
(2)
(3)
10/04/13 15:23:34 31ZX1600_114
114
To Qualify for This Warranty:
What American Honda Will Repair or Replace Under
Warranty:
To Obtain Warranty Service:
TECHNICAL AND CONSUMER INFORMATION
Contacting Honda
The Honda Outboard Motor must be purchased from
American Honda or a dealer authorized by American
Honda to sell Honda Outboard Motors in the United
States, Puerto Rico, or the U.S. Virgin Islands. This
limited warranty applies to the first retail purchaser and
each subsequent owner during the applicable warranty
time period.
American Honda will repair or replace, at its option, any
part that is proven to be defective in material or
workmanship under normal use during the applicable
warranty time period. Warranty repairs and replacements
will be made without charge for parts or labor. Anything
replaced under warranty becomes the property of
American Honda Motor Company, Inc.
All parts replaced under warranty will be considered as
part of the original product and any warranty on those
parts will expire coincidentally with the original product
warranty.
You must, at your expense, take your Honda Outboard
Motor and proof of the original purchase date to any
dealer who is authorized to service Honda Outboard
Motors in the United States, Puerto Rico, or the U.S.
Virgin Islands, during the dealer’s normal business hours.
If you are unable to obtain warranty service, or are
dissatisfied with the warranty service you receive, take
the following steps: First, contact the owner of the
dealership involved; normally this should resolve the
problem. However, if you should require further
assistance, write or call the Honda Marine Customer
Relations. Please see page 110 .
10/04/13 15:23:40 31ZX1600_115
‘‘ ’’
’
115
Exclusions:
Disclaimer of consequential damage and limitation of
implied warranties:
TECHNICAL AND CONSUMER INFORMATION
This warranty does not extend to the following:
Conditions caused by lack of routine maintenance or
improper storage (as outlined in the Owner’s Manual)
Conditions caused by the use of propeller (s) that do
not allow the outboard motor to run in its
recommended full throttle rpm range
Operation inconsistent with the recommended
operation/duty cycle (as outlined in the Owner’s
Manual)
Parts affected or damaged by an abuse, submersion
and/or collision
Normal wear and tear
Fuel contamination and water entering engine through
the fuel intake, air intake or exhaust system
Operation with fuels, oils, additives and lubricants
which are not suitable for use in the product
Use in an application for which the outboard motor
was not designed, such as racing or competitive use or
any other misuse or neglect
The unauthorized alteration, improper installation and/
or rigging, or any causes other than defects in material
or workmanship
Incorporation of unsuitable attachments or parts
Corrosion to steering system or electrical components,
corrosion due to electrolysis, water born foreign
chemicals, improper service or corrosion caused by
damage or abuse
Reimbursement for towing charges, in and out of
water charges, or technician travel time
Growth of marine organisms on outboard motor
surfaces, external or internal
Any product that has ever been declared a total loss or
sold for salvage by a financial institution or insurer, or
that has been issued a salvage or similar title under
any state s law.
American Honda disclaims any responsibility for loss of
time or use of the outboard, revenue, or the equipment in
which the outboard is installed, transportation,
commercial loss, or any other incidental or consequential
damage. Any implied warranties are limited to the
duration of this written limited warranty.
Some states do not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion
or limitation of incidental or consequential damages, so
the above exclusions and limitations may not apply to
you. This warranty gives you specific legal rights, and
you may also have other rights which vary from state to
state.
10/04/13 15:23:51 31ZX1600_116
116
TECHNICAL AND CONSUMER INFORMATION
To Qualify for This Warranty:
What American Honda Will Repair or Replace Under
Warranty:
Accessories and Replacement Parts
The accessories or replacement parts must be
purchased from American Honda or a dealer,
distributor, or distributor’s dealer authorized by
American Honda to sell those products in the United
States, Puerto Rico, and the U.S. Virgin Islands. Parts
and Accessories must be purchased for installation on
original Honda equipment or engines to be eligible for
warranty coverage. Installing parts and accessories on
non-Honda products or engines voids this warranty.
You must be the first retail purchaser. This warranty is
not transferable to subsequent owners.
American Honda will repair or replace, at its option, any
marine product accessories or replacement parts that are
proven to be defective in material or workmanship under
normal use during the applicable warranty time period.
Anything replaced under warranty becomes the property
of American Honda Motor Company, Inc. All parts
replaced under warranty will be considered as part of the
original product and any warranty on those parts will
expire coincidentally with the original product warranty.
Accessories and replacement parts, installed by a dealer
who is authorized by American Honda to sell them, will
be repaired or replaced under warranty without charge for
parts or labor. If installed by anyone else, accessories and
replacement parts will be repaired or replaced under
warranty without charge for parts, but any labor charges
will be the responsibility of the purchaser.
1.
2.
This warranty is limited to Honda Marine parts, accessories and apparel when distributed by American Honda Motor Co.,
Inc., 1919 Torrance Blvd., Torrance, California 90501-2746.
Products Covered by Warranty:
12 months 3 months 3 months
Non Commercial Commercial/Rental Local/State/Federal
Government
Length of Warranty: (from date of original retail purchase)
6 months 3 months 3 months
24 months24 months24 months
Accessories other than noted below
Emission related accessories:
Portable fuel tanks, fuel line assemblies, and
water/fuel separators
Replacement Parts
10/04/13 15:23:59 31ZX1600_117
117
Disclaimer of consequential damage and limitation of
implied warranties:
Exclusions:
To Obtain Warranty Service:
TECHNICAL AND CONSUMER INFORMATION
You must, at your expense, take the Honda Outboard
Motor product accessory or replacement part or the
outboard motor or boat on which the accessory or
replacement part is installed, and proof of purchase to
any Honda Marine authorized service facility or dealer in
the United States, Puerto Rico, or the U.S. Virgin Islands,
during normal business hours.
This warranty does not extend to accessories or parts
affected or damaged by collision, normal wear, use in an
application for which the product was not designed or
any other misuse, neglect, incorporation or use of
unsuitable attachments or parts, unauthorized alteration,
improper installation, or any causes other than defects in
material or workmanship of the product.
Installing parts and accessories on non-Honda products or
engines voids this warranty.
American Honda disclaims any responsibility for loss of
time or use of the outboard motor, or the boat on which
the product is installed, transportation, commercial loss,
or any other incidental or consequential damage. Any
implied warranties are limited to the duration of this
written warranty. Some states do not allow limitations on
how long an implied warranty lasts and/or do not allow
the exclusion or limitation of incidental or consequential
damages, so the above exclusions and limitations may not
apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary
from state to state.
10/04/13 15:24:04 31ZX1600_118
118
Emission Control System Warranty
YOUR WARRANTY RIGHTS AND OBLIGATION
California
MANUFACTURER’S EMISSION CONTROL
SYSTEM WARRANTY COVERAGE:
All States
TECHNICAL AND CONSUMER INFORMATION
Your new Honda outboard engine complies with both the
U.S. EPA and State of California emission regulations.
American Honda provides the same emission warranty
coverage for outboard engines sold in all 50 states.
The California Air Resources Board and American
Honda Motor Co., Inc. are pleased to explain the
emission control system warranty on your 2001 and later
Honda outboard engine. In California, new outboard
engines must be designed, built, and equipped to meet
California’s stringent anti-smog emission standards in
addition to the U.S. EPA emissions standards.
In all areas of the United States your outboard engine
must be designed, built, and equipped to meet the U.S.
EPA Emission Standard for spark ignited marine engines.
American Honda Motor Co., Inc. must warranty the
emission control system on your outboard engine for the
period of time listed below provided there has been no
abuse, neglect, or improper maintenance of your
outboard engine. Where a warranty condition exists,
American Honda Motor Co., Inc. will repair your
outboard engine at no cost to you including diagnosis,
parts and labor.
Your emission control system may include such parts as
the carburetor or fuel injection system and catalytic
converter. Also included may be hoses, connectors and
other emission-related assemblies.
Your 2010 and later outboard engine is warranted for a
minimum of five years or 250 hours of operation,
whichever comes first, or the length of Honda Marine
Distributor’s Limited warranty, whichever is longer.
However, warranty coverage based on the hourly period
is only permitted for outboard engines equipped with
appropriate hour meters. If any emission-related part on
your outboard engine is defective under warranty, the
part will be repaired or replaced by American Honda
Motor Co., Inc.
10/04/13 15:24:11 31ZX1600_119
119
WARRANTY COVERAGE:OWNER’S WARRANTY RESPONSIBILITY:
TECHNICAL AND CONSUMER INFORMATION
Contacting Honda
As the outboard engine owner, you are responsible for
the performance of the required maintenance listed in
your owner’s manual. American Honda Motor Co., Inc.
recommends that you retain all receipts covering
maintenance on your outboard engine, but American
Honda Motor Co., Inc. cannot deny warranty solely for
the lack of receipts or for your failure to ensure the
performance of all scheduled maintenance.
As the outboard engine owner, you should, however, be
aware that American Honda Motor Co., Inc. may deny
you warranty coverage if your outboard engine or a part
has failed due to abuse, neglect, improper maintenance,
or unapproved modifications.
You are responsible for presenting your outboard engine
to a Honda Marine dealer as soon as a problem exists.
The warranty repair should be completed in a reasonable
amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights
and responsibilities, you should contact American Honda
Motor Co., Inc., Marine Division Customer Relations
Office. Please see page 110 .
Honda outboard engines certified to the CARB and EPA
2010 regulations are covered by this warranty for a
minimum of five years or 250 hours of operation,
whichever comes first, or the length of the Honda Marine
Distributor’s Limited warranty, whichever is longer from
the date of delivery to the retail purchaser. This warranty
is transferred to each subsequent purchaser for the
duration of the warranty period.
Warranty repairs will be made without charge for
diagnosis, parts and labor. All defective parts replaced
under this warranty become the property of American
Honda Motor Co., Inc. A list of warranty parts is on page
121 . Normal maintenance items, such as spark plugs and
filters, that are on the warranted parts list are warranted
up to their required replacement interval only.
American Honda Motor Co., Inc. is also liable for
damages to other engine components caused by a failure
of any warranted part during the warranty period.
Only Honda approved replacement parts will be used in
the performance of any warranty repairs and they will be
provided without charge to the owner. The use of
replacement parts not equivalent to the original parts may
impair the effectiveness of your engine’s emission
control system. If such a replacement part is used in the
repair or maintenance of your engine, and an authorized
Honda Marine dealer determines it is defective or causes
a failure of a warranted part, your claim for your engine
10/04/13 15:24:16 31ZX1600_120
120
TO OBTAIN WARRANTY SERVICE:
EXCLUSIONS:
DISCLAIMER OF CONSEQUENTIAL DAMAGE
AND LIMITATION OF IMPLIED WARRANTIES:
TECHNICAL AND CONSUMER INFORMATION
may be denied. If the part in question is not related to the
reason that your engine requires repair, your claim will
not be denied.
You must take your Honda outboard engine, along with
your sales registration card or other proof of original
purchase date, at your expense, to any Honda Marine
dealer who is authorized by American Honda Motor Co.,
Inc. to sell and service that Honda Marine product during
his normal business hours. Claims for repair or
adjustment found to be caused solely by defects in
material or workmanship will not be denied because the
engine was not properly maintained and used.
If you are unable to obtain warranty service, or are
dissatisfied with the warranty service you received,
contact the owner of the dealership involved. Normally
this should resolve your problem. However, if you
require further assistance, write or call the Honda Marine
Customer Relations Office of American Honda Motor
Co., Inc.
Failures other than those resulting from defects in
material or workmanship are not covered by this warranty.
This warranty does not extend to emission control
systems or parts which are affected or damaged by owner
abuse, neglect, improper maintenance, misuse, misfueling,
improper storage, and/or collision, the incorporation of,
or use of, unsuitable attachments, or the unauthorized
alteration of any part.
This warranty does not cover replacement of expendable
maintenance items made in connection with required
maintenance service after the item’s first scheduled
replacement as listed in the maintenance section of the
product owner’s manual, such as: spark plugs and filters.
American Honda Motor Co., Inc. disclaims any
responsibility for incidental or consequential damages
such as loss of time or the use of outboard engine, or any
commercial loss due to the failure of the equipment; and
any implied warranties are limited to the duration of this
written warranty. This warranty is applicable only where
the California or U.S. EPA emission control system
warrantyregulationisineffect.
10/04/13 15:24:21 31ZX1600_121
＊
＊
121
EMISSION CONTROL SYSTEM WARRANTY PARTS:
TECHNICAL AND CONSUMER INFORMATION
PARTS DESCRIPTIONSYSTEMS COVERED BY THIS
WARRANTY:
Fuel Metering
Evaporative
Air Induction
Ignition
Lubrication system
Crankcase Emission Control
Exhaust
Valve Control System
Miscellaneous Parts
Carburetor assembly, Throttle body, Fuel injector, Fuel pump, Fuel pressure
regulator, Throttle position sensor, Intake air temperature sensor, Engine temperature
sensor, Manifold absolute pressure sensor, Idle air control valve, Barometric pressure
sensor, Fuel line solenoid valve, Intake manifold, Intake valves, and Oxygen sensor
or Air fuel ratio sensor
Portable fuel tank, Fuel cap, Fuel hoses, Primer bulb, Fuel hose joint
Air intake duct, Vapor separator, Intake manifold tuning valve (Intake air bypass
control valve)
Flywheel magneto, Ignition pulse generator, Ignition coil assembly, Ignition control
module, Engine control module, Crankshaft position sensor, Spark plug cap,
Spark plug , Knock sensor, and Camshaft position sensor
Oil pump and internal parts
Crankcase breather tube, Positive crankcase ventilation valve, Oil filler cap
Exhaust manifold and Exhaust valves
Rocker arm oil control valve
Tubing, fittings, seals, gaskets, and clamps associated with these listed systems.
Covered up to the first required replacement only. See the Maintenance Schedule on page 62.
10/04/13 15:24:30 31ZX1600_122
122
WARRANTY PERIOD RETAILED ON OR
AFTER APRIL 1, 2005:
THIS WARRANTY COVERS
Distributor’s Warranty
Canada
TECHNICAL AND CONSUMER INFORMATION
HONDA CANADA INC., for and on behalf of Honda
Motor Co. Ltd., Tokyo, Japan, gives the following
written warranty on each new marine product
manufactured by Honda Motor Co. Ltd., Japan,
distributed in Canada by Honda Canada Inc. and sold by
authorized Honda Marine dealers.
Whenever used herein, the word ‘‘Honda’’ refers to
Honda Canada Inc. and/or Honda Motor Co. Ltd., as
appropriate from the context.
HONDA WARRANTS THAT each new Honda marine
product will be free, under normal use and maintenance,
from any defects in material or workmanship for the
relevant warranty period set forth below. If any defects
should be found in a Honda marine product within the
relevant warranty period, necessary repairs and
replacements with a new part or the Honda equivalent
shall be made at no cost to the consumer for parts and
labour, when Honda acknowledges that such defects are
attributable to faulty material or workmanship at the time
of manufacture.
Any marine product on which required maintenance
services have been performed as prescribed in the
Owner’s Manual.
Any factory installed part (except normal maintenance
parts referred to in ‘‘THIS WARRANTY DOES NOT
COVER’’); and
Any Honda marine product purchased in Canada from
an authorized Honda dealer which has been registered
at the time of purchase on a form provided by Honda,
which has had set-up and pre-delivery service
performed by an authorized Honda dealer and which is
normally operated in Canada;
a)
b)
c)
All Honda Outboard
Models
Non-commercial
use
Commercial
use
36 Months 12 Months
10/04/13 15:24:40 31ZX1600_123
123
THIS WARRANTY DOES NOT COVER THE OWNER’S OBLIGATION
TO OBTAIN WARRANTY SERVICE
TECHNICAL AND CONSUMER INFORMATION
Any repairs required as a result of collision, accident,
striking any object, misuse or lack of required
maintenance;
Any repairs required as a result of any attachments,
parts or devices installed by or repairs done by a party
other than an authorized Honda dealer;
Any outboard that has been operated out of water,
(Run Dry) damaging the water pump and or engine
components due to insufficient cooling water.
Any marine products modified, altered, disassembled
or remodelled;
Normal maintenance services, including tightening of
nuts, bolts and fittings and engine tune-up and the
replacement of parts made in connection with normal
maintenance services including filters, spark plugs and
wires, fuses, belts, lubricants and other expendables
susceptible to natural wear;
Outboard propeller or shear pin.
All accessories or attachments.
In order to maintain the validity of this DISTRIBUTORS
WARRANTY, the required maintenance services as set
forth in the Owner’s Manual must be performed at the
proper intervals and detailed receipts and records retained
as proof.
You must take your Honda marine product, at your
expense, during normal service hours, to any authorized
Honda Marine dealership. If you are unable to obtain or
are dissatisfied with the warranty service you receive,
first contact the owner of the dealership involved; this
should resolve the problem. If you require further
assistance, contact Honda Canada’s Customer Relations
Department at:
HONDA CANADA INC.
Visit www.honda.ca for address/contact information.
TELEPHONE: 1-888-946-6329 TOLL FREE
FAX : 1-877-939-0909 TOLL FREE
a)
b)
c)
d)
e)
f)
g)
10/04/13 19:04:08 31ZX1600_124
124
REPLACEMENT PARTS AND ACCESSORY
WARRANTY
ENTIRE WRITTEN WARRANTY
DISCLAIMER
NOTICE TO CONSUMER
TECHNICAL AND CONSUMER INFORMATION
New genuine Honda replacement parts or accessories
sold to a consumer or installed by an authorized Honda
Marine dealer which are not covered by the
DISTRIBUTORS WARRANTY are warranted for a
period of one year from date of purchase, provided,
however, that this Replacement Parts and Accessory
Warranty does not apply to any replacement parts
modified, used with, or installed on a marine product for
which the replacement parts were not intended. Electrical
components that are not installed by the dealer (sold over
the counter) are not covered by warranty.
This DISTRIBUTORS WARRANTY and the
REPLACEMENT PARTS AND ACCESSORY
WARRANTY are the only and the entire written
warranties given by Honda for Marine engines. No dealer
or his agent or employee is authorized to extend or
enlarge on these warranties on behalf of Honda by any
written or verbal statement or advertisement.
To the extent the law permits, Honda disclaims any
responsibility for loss of time or use of the product,
transportation or towing costs or any other indirect,
incidental or consequential damage, inconvenience or
commercial loss.
The provisions contained in these written warranties are
not intended to limit, modify, take away from, disclaim
or exclude any warranties set forth in or the operation of
The Consumer Products Warranties Act, 1977
(Saskatchewan), The Consumer Product Warranty and
Liability Act (New Brunswick), The Consumer
Protection Act (Quebec), or any other similar provincial
or federal legislation.
10/04/13 15:24:57 31ZX1600_125
125
INDEX
...........................................Alternator (ACG) Indicator . 33
...........................................................................Anodes . 36
..............................................................Replacement . 82
.............ARE YOU READY TO GET UNDERWAY? . 37
.........................................................................Battery . 104
........................................................Will Not Charge . 96
................................................BEFORE OPERATION . 37
...........................................BREAK-IN PROCEDURE . 39
.........................................................Common Controls . 28
........COMPONENT AND CONTROL LOCATIONS . 13
.................................CONSUMER INFORMATION . 110
CONTROL AND FEATURE IDENTIFICATION
......................................................................CODES . 12
..................................................................CONTROLS . 17
..................................CONTROLS AND FEATURES . 12
..............................................Cooling System Indicator . 35
....................................................................CRUISING . 53
....................................Customer Service Information . 110
............................Electric Starter Will Not Operate . 91, 96
Emergency Stop Switch Clip and Emergency Stop
Switch
.....................................................Panel-Mount Type . 21
......................................................Side-Mount Type . 17
.......................................................Top-Mount Type . 24
.......................Emission Control System Information . 104
............................Emission Control System Warranty . 118
Engine
Cover
......................................................................Latch . 30
...................REMOVAL AND INSTALLATION . 65
Oil
...................................................................Change . 66
.........................................................Filter Change . 68
..........................................................Level Check . 66
.................................................Recommendations . 69
...........................................................OVERHEATS . 95
..................................................WILL NOT START . 92
...................Digital Speedometer (optional equipment) . 32
.....................Digital Tachometer (optional equipment) . 31
...................................Distributor’s Limited Warranty . 113
................................................Distributor’s Warranty . 122
10/04/13 15:25:02 31ZX1600_126
126
INDEX
Fast Idle Button
.....................................................Panel-Mount Type . 23
.......................................................Top-Mount Type . 27
...............................................................Fast Idle Lever . 19
Fuel
..................................................................PRIMING . 40
.............................................................Priming Bulb . 36
Fuel
..........................................RECOMMENDATIONS . 76
............................Filter Inspection and Replacement . 77
.........................................................Fuse Replacement . 96
...........................................................................FUSES . 96
HARD STARTING OR STALLS AFTER
...............................................................STARTING . 94
....................HOISTING THE OUTBOARD MOTOR . 88
.....................................................Honda Publications . 110
.........................................................Lubrication Points . 70
.........................................MAINTENANCE SAFETY . 60
...................................MAINTENANCE SCHEDULE . 62
..................................MANUAL RELIEF VALVE . 29, 65
...................................................Malfunction Indicator . 33
...................MOORING, BEACHING, LAUNCHING . 57
Gearshift/Throttle Control Lever
.....................................................Panel-Mount Type . 22
......................................................Side-Mount Type . 18
.......................................................Top-Mount Type . 25
.........GEARSHIFT AND THROTTLE OPERATION . 51
Ignition Switch
.....................................................Panel-Mount Type . 20
......................................................Side-Mount Type . 17
.......................................................Top-Mount Type . 24
....................IMPORTANT SAFETY INFORMATION . 7
...............................................................INDICATORS . 33
...........................................................INSTRUMENTS . 31
IS YOUR OUTBOARD MOTOR
......................................................READY TO GO? . 37
10/04/13 15:25:08 31ZX1600_127
127
INDEX
....................................................Oil Pressure Indicator . 34
OIL PRESSURE INDICATOR GOES OFF AND
................................ENGINE SPEED IS LIMITED . 98
................................................................OPERATION . 39
....................................................OTHER FEATURES . 35
...................................OUTBOARD MOTOR SAFETY . 7
.........................................................Overheat Indicator . 34
OVERHEAT INDICATOR COMES ON AND
................................ENGINE SPEED IS LIMITED . 99
..........................................................Power Tilt Switch . 29
................................................Power Trim/Tilt Switch . 28
..................................................Propeller Replacement . 82
.................................................................REFUELING . 75
...................................REMOVAL FROM STORAGE . 89
....................................................................Rev Limiter . 36
........................SAFE OPERATING PRECAUTIONS . 39
......................................SAFETY LABEL LOCATION . 9
.............................................Serial Number Locations . 103
..............SERVICING YOUR OUTBOARD MOTOR . 59
............................SHALLOW WATER OPERATION . 56
........................................................Spark Plug Service . 72
SPARE EMERGENCY STOP SWITCH CLIP
.................................................(optional equipment) . 61
..............................................................Specifications . 109
....................................................................Star Label . 107
..........................................STARTING THE ENGINE . 41
.....................................................Panel-Mount Type . 44
......................................................Side-Mount Type . 41
.......................................................Top-Mount Type . 46
....................................................................STEERING . 52
...........................................STOPPING THE ENGINE . 49
.....................................Emergency Engine Stopping . 49
...........................................Normal Engine Stopping . 50
....................................................................STORAGE . 84
........................................STORAGE PRECAUTIONS . 88
........................................STORAGE PREPARATION . 84
..............................................Cleaning and Flushing . 84
..................................................................Engine oil . 87
............................................................................Fuel . 85
.....................SUBMERGED OUTBOARD MOTOR . 101
10/04/13 15:25:12 31ZX1600_128
128
INDEX
.................................Tachometer (optional equipment) . 31
....TAKING CARE OF UNEXPECTED PROBLEMS . 91
TECHNICAL AND CONSUMER
.....................................................INFORMATION . 103
.................................TECHNICAL INFORMATION . 103
...............THE IMPORTANCE OF MAINTENANCE . 59
..............................................................Tilt Lock Lever . 29
........................TOOL KIT and OWNER’S MANUAL . 61
........................................................TRANSPORTING . 90
WITH OUTBOARD MOTOR INSTALLED
.............................................................ON BOAT . 90
WITH OUTBOARD MOTOR REMOVED
.......................................................FROM BOAT . 90
.................................Trim Meter (optional equipment) . 31
........................................................................Trim Tab . 30
........................................TRIM TAB ADJUSTMENT . 64
..TRL (Trolling) Control Switch (optional equipment) . 30
..................................................Trolling Speed Control . 55
...................................................Warranty Statements . 113
................................................Water Separator Buzzer . 35
............WATER SEPARATOR BUZZER SOUNDS . 101
.......................WATER SEPARATOR INDICATOR . 101
.......................Water Separator Inspection and Service . 80
10/04/13 15:25:15 31ZX1600_129
PANTONE288CVC
DICF101 BLACK
BF115AHOM表紙31ZX1600BF115AHOM表紙31ZX1600BF115AHOM表紙31ZX1600背幅5mm背幅5mm背幅5mm
Includes US and Canadian Models
BF115D
英
N HCAH
EM3
31ZX1601
00X31-ZX1-6010
300.2010.11
Printed in Japan
