Owner`s Manual
Includes US and Canadian Models
© 2024 Honda Motor Co., Ltd. - All Rights Reserved
0000.00AA.AA
Printed in Japan
AB
BF350A
31ZVP601
00X31-ZVP-6010
背幅3mm
BLACK
背幅3mm
Keep this Owner’s Manual handy, so you can refer to it at any time. This Owner’s
Manual is considered a permanent part of the outboard motor and should remain with
the outboard motor if resold.
The information and specifications included in this publication were in effect at the
time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to
discontinue or change specifications or design at any time without notice and without
incurring any obligation whatever. No part of this publication may be reproduced
without written permission.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects
or other reproductive harm.
Congratulations on your selection
of a Honda outboard motor. We
are certain you will be pleased
with your purchase of one of the
finest outboard motors on the
market.
We want to help you get the best
results from your new outboard
motor and to operate it safely.
This manual contains information
on how to do that; please read it
carefully.
As you read this manual you will
find information preceded by a
NOTICE
symbol. That information
is intended to help you avoid
damage to your outboard motor,
other property, or the
environment.
We suggest you read the
warranty policy to fully
understand its coverage and your
responsibilities of ownership.
When your outboard motor
needs scheduled maintenance,
keep in mind that your Honda
Marine dealer is specially trained
in servicing Honda outboard
motors. Your Honda Marine
dealer is dedicated to your
satisfaction and will be pleased to
answer your questions and
concerns.
For information regarding the
optional equipment, refer to the
owner's manual that came with it.
INTRODUCTION
1
A FEW WORDS ABOUT SAFETY
Your safety and the safety of others are very
important. And using this outboard motor safely is
an important responsibility.
To help you make informed decisions about safety,
we have provided operating procedures and other
information on labels and in this manual. This
information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you
about all the hazards associated with operating or
maintaining an outboard motor. You must use your
own good judgment.
You will find important safety information in a
variety of forms, including:
• Safety Labels – on the outboard motor
•
Safety Messages – preceded by a safety alert
symbol and one of three signal words,
DANGER, WARNING, or CAUTION.
These signal words mean:
You WILL be KILLED or
SERIOUSLY HURT if you don’t
follow instructions.
You CAN be KILLED or
SERIOUSLY HURT if you don’t
follow instructions.
You CAN be HURT if you don’t
follow instructions.
•
Safety Headings – such as IMPORTANT SAFETY
INFORMATION.
•
Safety Section – such as OUTBOARD MOTOR
SAFETY.
• Instructions – how to use this outboard motor
correctly and safely.
This entire manual is filled with important safety
information – please read it carefully.
INTRODUCTION
2
OUTBOARD MOTOR SAFETY .............................................7
IMPORTANT SAFETY INFORMATION .........................7
Operator Responsibility ...............................................7
Refuel With Care ............................................................ 8
Carbon Monoxide Hazard ..........................................8
SAFETY LABEL LOCATION ...............................................9
US, Puerto Rico, and US Virgin Islands Types .....9
Canadian Types ............................................................10
CONTROLS AND FEATURES ............................................ 11
CONTROL AND FEATURE IDENTIFICATION
CODES ..................................................................................11

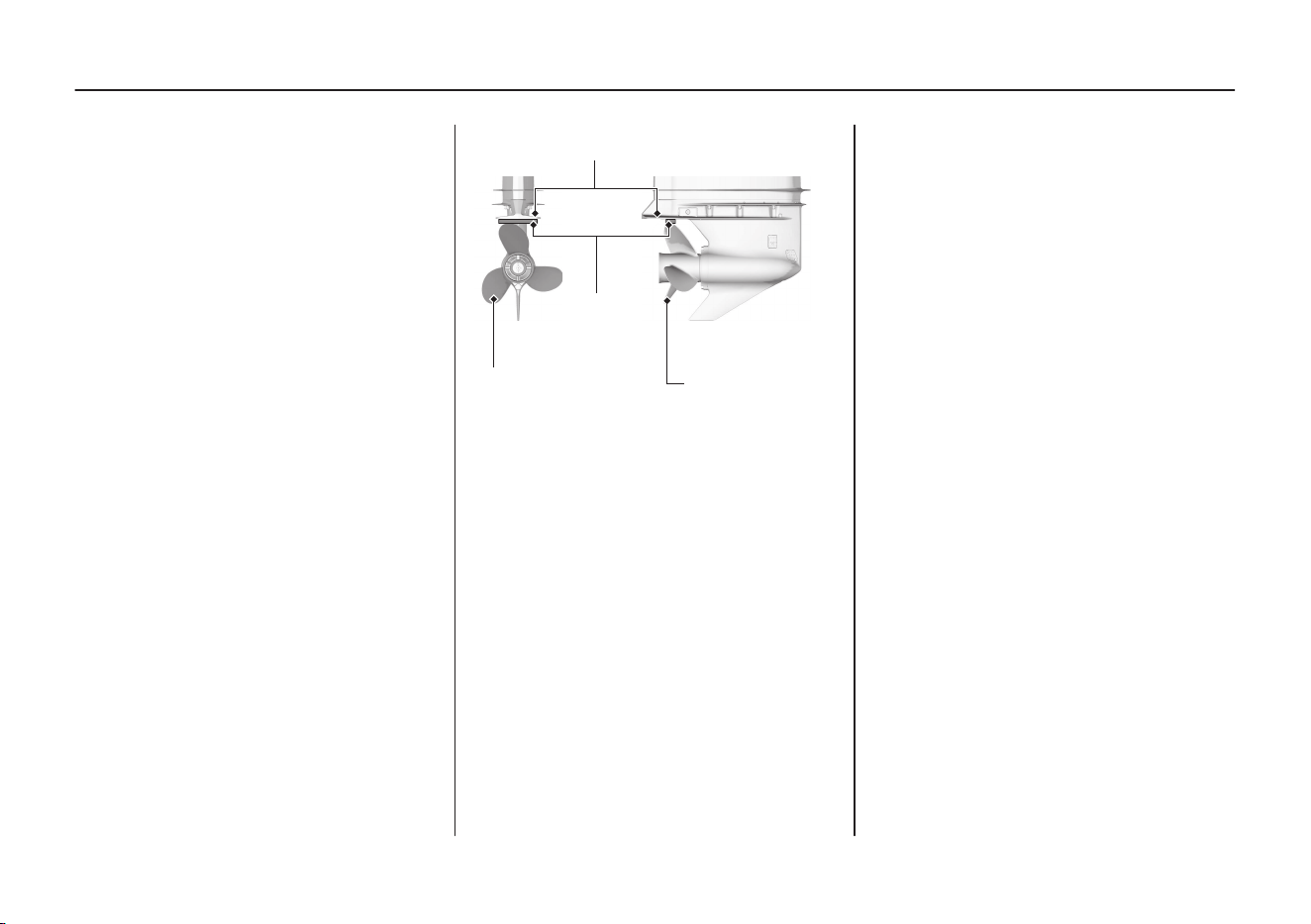

HOW TO DETERMINE WHICH DIRECTION
THE PROPELLER SHAFT ROTATES .............................12
COMPONENT AND CONTROL LOCATIONS ......... 13
Outboard Motor .......................................................... 13
Remote Control Box (optional equipment) .......16
Key Switch Panel (optional equipment) ............. 17

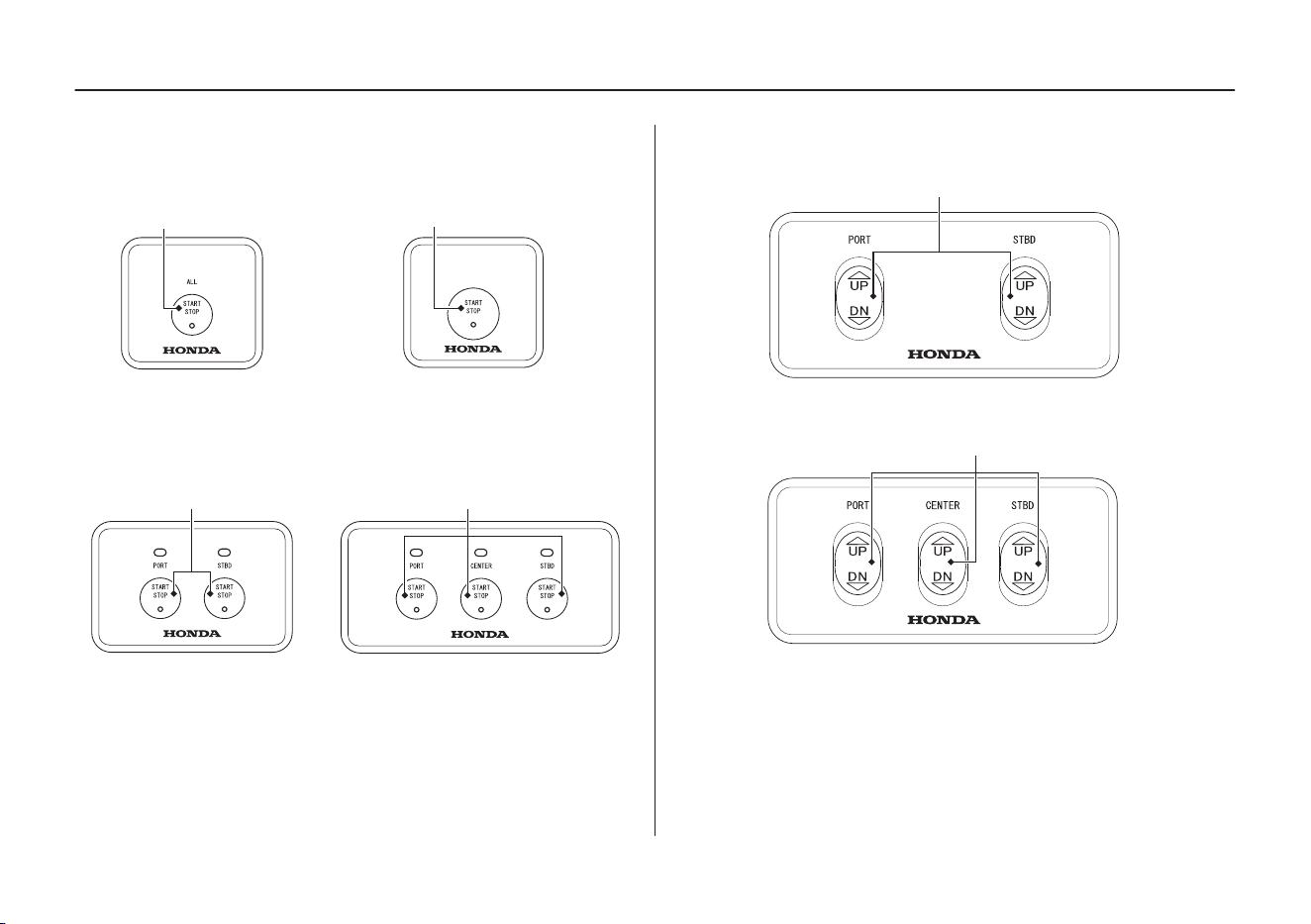

START/STOP Switch Panel
(optional equipment) .................................................18
PTT Switch Panel (optional equipment) ............. 18
Function Switch Panel (optional equipment) ... 19
Emergency Stop Switch Panel
(optional equipment) .................................................19
Multi-function Display
(optional equipment) .................................................19
CONTROLS .........................................................................20

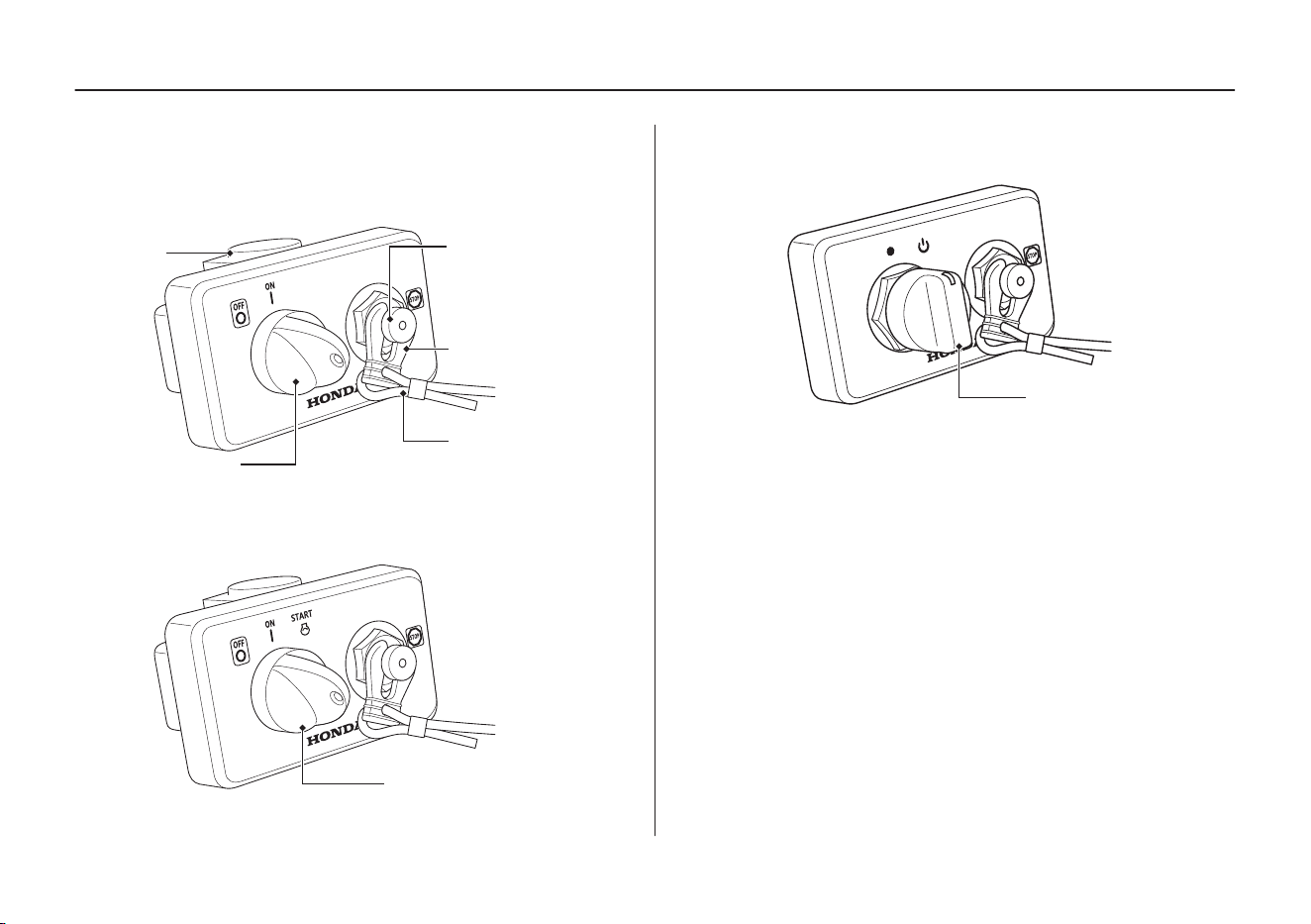

Ignition Switch
(without START/STOP switch) .................................20
Power Switch (with START/STOP switch) ........... 20
Honda Smart Key (optional equipment) ............ 21
START/STOP Switch ....................................................22

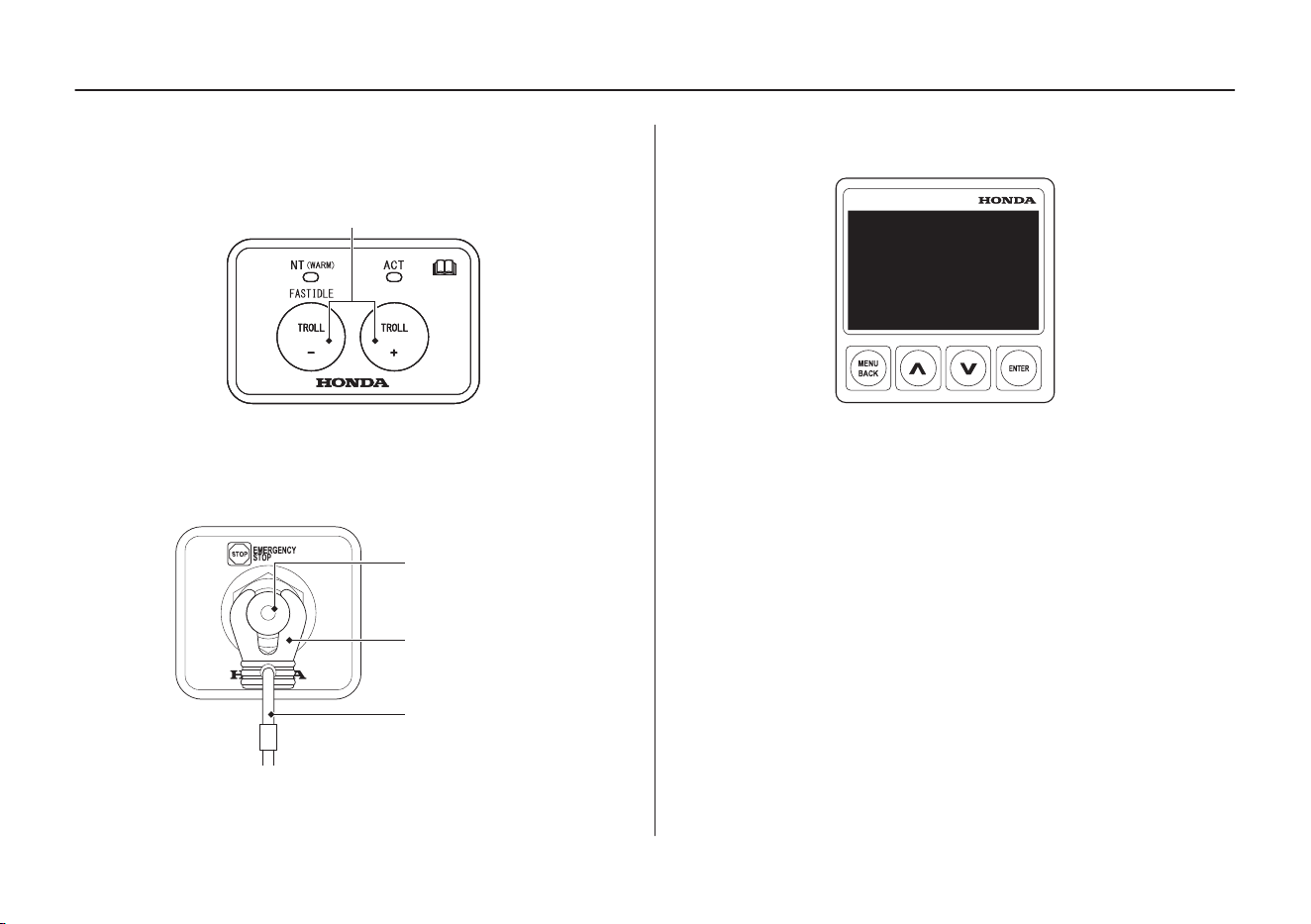

Emergency Stop Switch Clip and Emergency
Stop Switch ....................................................................23
Gearshift/Throttle Control Lever
(Flush-Mount type) .....................................................24
Gearshift/Throttle Control Lever
(Top-Mount type) ........................................................25
Function Switches (Flush-Mount type) ............... 27
Select Switches (Top-Mount type) ....................... 30
COMMON CONTROLS .................................................. 38
Power Trim/Tilt Switch .............................................. 38
PTT Switch Panel ..........................................................39
Power Tilt Switch ......................................................... 40
Manual Relief Valve ....................................................40
Tilt Lock Lever ...............................................................41

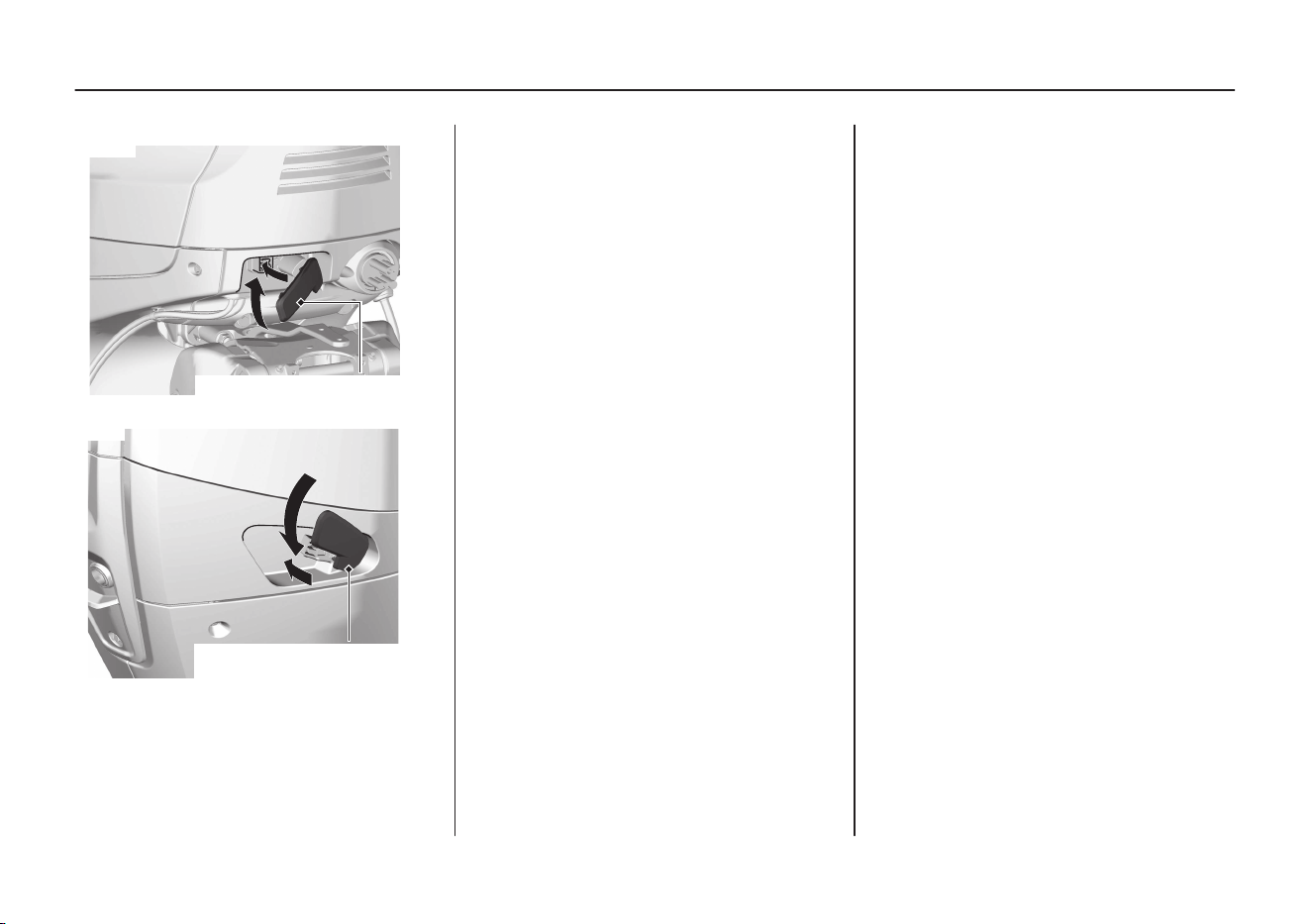

Engine Cover Latches .................................................43
NMEA Interface Coupler ...........................................43
CONTENTS
3
Operating Hour Notification System ...................43
INDICATORS ......................................................................46
Alternator (ACG) Indicator .......................................46
Malfunction Indicator ................................................ 46
Oil Pressure Warning Indicator ..............................47
Overheat Indicator ......................................................48
Cooling System Indicator .........................................48
OTHER FEATURES ............................................................49
Water Separator Buzzer ............................................49
Rev Limiter ..................................................................... 49
Anodes ............................................................................ 50
Fuel Priming Bulb ........................................................ 50
Battery Switch OFF Notification .............................51
Power Reduction ......................................................... 51
BEFORE OPERATION .......................................................... 52
ARE YOU READY TO GET UNDERWAY? ..................52
Knowledge ..................................................................... 52
Safety ............................................................................... 52
IS YOUR OUTBOARD MOTOR READY TO GO? ....52
Safety Inspection .........................................................53
Maintenance Inspection ........................................... 54
OPERATION ............................................................................55
SAFE OPERATING PRECAUTIONS ............................. 55
BREAK-IN PROCEDURE ................................................. 55
FUEL PRIMING .................................................................. 56
INFREQUENT OR OCCASIONAL USE ....................... 57
STARTING THE ENGINE .................................................57
Active Mode .................................................................. 61
STOPPING THE ENGINE ................................................ 62
Emergency Engine Stopping ...................................62
Normal Engine Stopping ..........................................63
GEARSHIFT AND THROTTLE OPERATION ..............65
Gearshift/Throttle Control Lever Friction ...........66
STEERING ............................................................................68
CRUISING ............................................................................69
Engine Speed ................................................................69
Trim ...................................................................................69
Trim Support Mode ....................................................72
TROLLING MODE .............................................................73
TROLLING CONTROL MODE .......................................74
ONE-LEVER MODE
(For multiple outboard motors type) .......................75
CRUISE CONTROL MODE .............................................76
SHALLOW WATER OPERATION ................................. 77
MOORING, BEACHING, LAUNCHING ...................... 78
Moorage ......................................................................... 80
Automatic Tilt Mode .................................................. 82
Power Tilt Switch (Outboard Motor Pan) ...........83
CONTENTS
4
Manual Relief Valve ....................................................83
MULTIPLE OUTBOARD MOTORS .............................. 84
SERVICING YOUR OUTBOARD MOTOR ......................85
THE IMPORTANCE OF MAINTENANCE ...................85
MAINTENANCE SAFETY ................................................ 86
Safety Precautions .......................................................86
TOOL KIT and OWNER'S MANUAL ...........................87
SPARE EMERGENCY STOP SWITCH CLIP
(optional equipment) .....................................................88
MAINTENANCE SCHEDULE ......................................... 88
ENGINE COVER REMOVAL AND
INSTALLATION ..................................................................91
Removal .......................................................................... 91
Installation ......................................................................92
ENGINE OIL LEVEL CHECK ............................................93
ENGINE OIL CHANGE .....................................................96
ENGINE OIL RECOMMENDATIONS ..........................97
LUBRICATION POINTS ...................................................97
SPARK PLUG SERVICE ..................................................100
Standard Spark Plug (Iridium) ..............................100
Optional Spark Plug (Nickel) ................................ 103
REFUELING .......................................................................104
FUEL RECOMMENDATIONS ......................................105

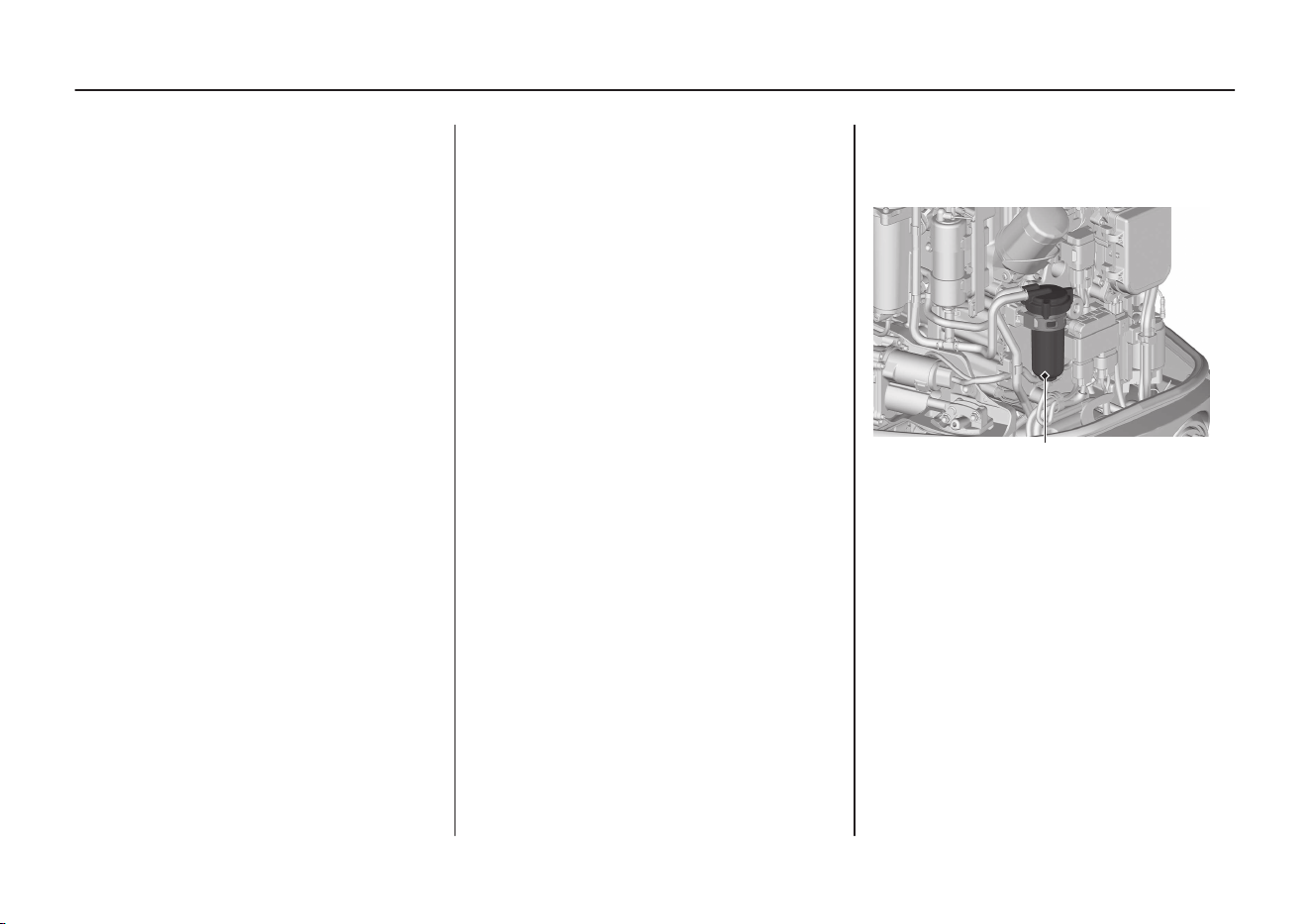

FUEL FILTER WITH WATER SEPARATOR
(LOW PRESSURE SIDE) INSPECTION AND
REPLACEMENT ............................................................... 106
Inspection .................................................................... 107
Replacement ...............................................................109
ANODE INSPECTTION .................................................111
Water Screen Removal/Installation ................... 111
PROPELLER REPLACEMENT .......................................112
Removal ........................................................................112
Installation ...................................................................112
CLEANING AND FLUSHING ...........................................114
CLEANING AND FLUSHING .......................................114
Cleaning ........................................................................114

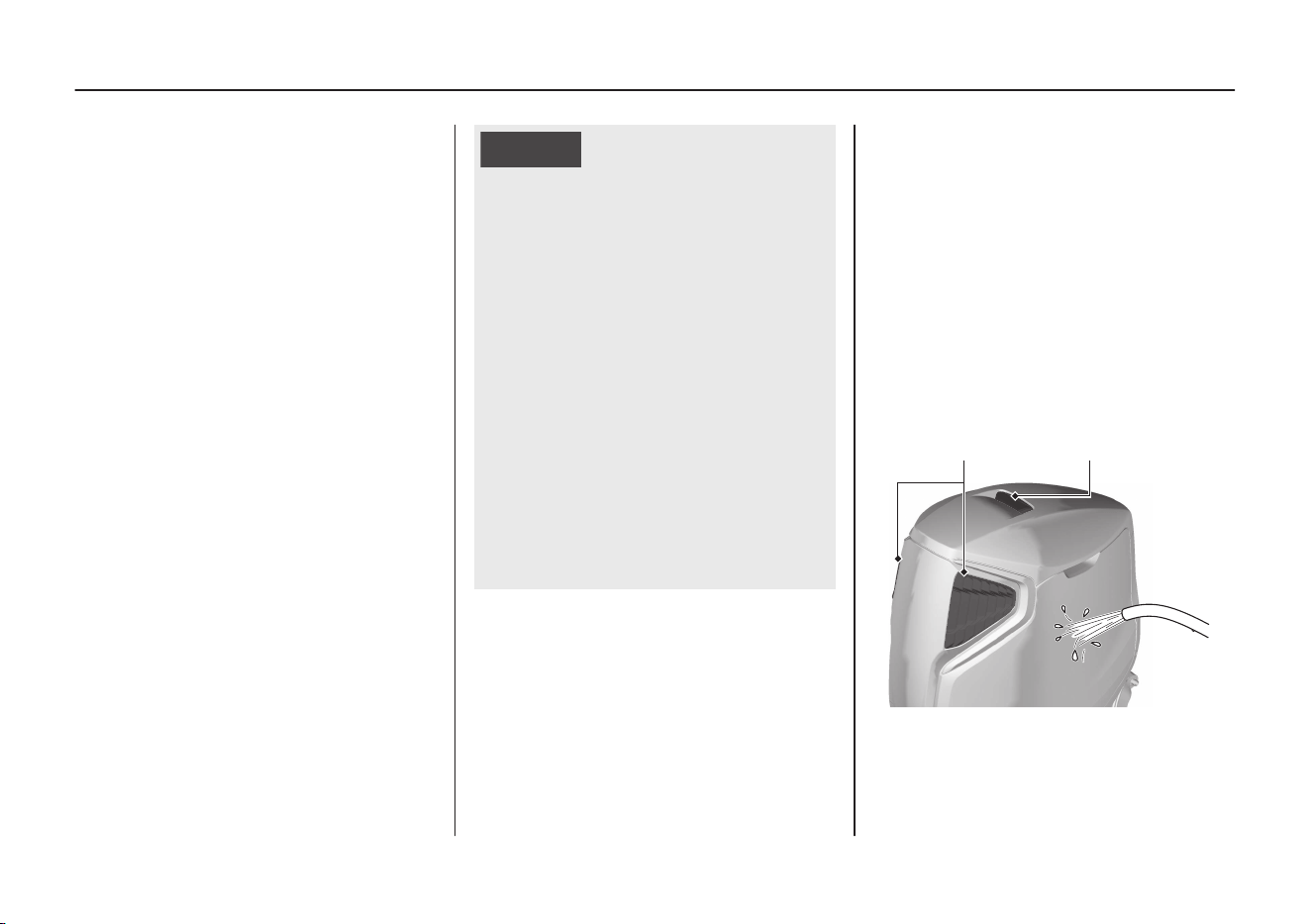

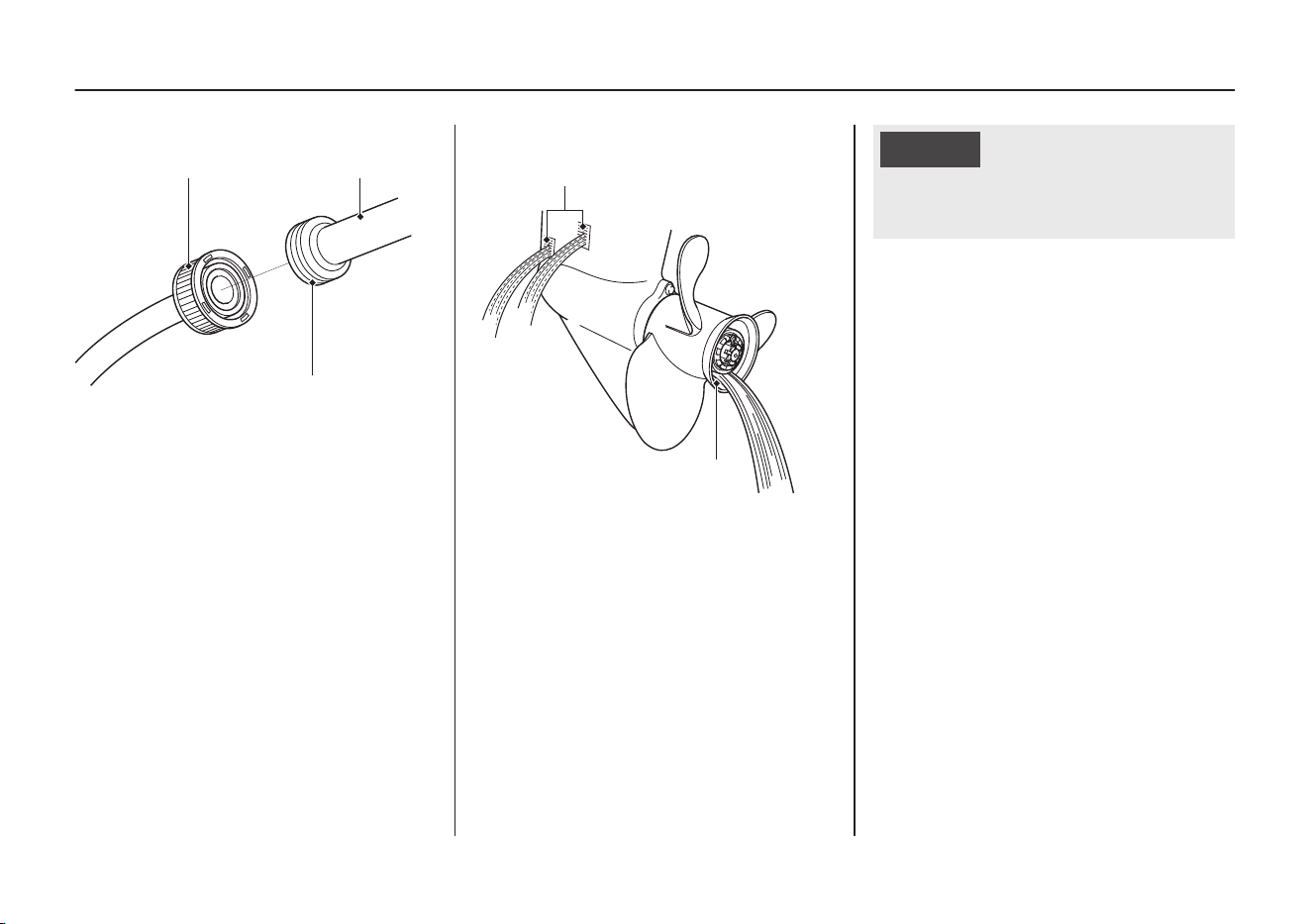

Flushing With a Garden Hose
(commercially available) .........................................115
STORAGE .............................................................................. 117
FUEL ....................................................................................117
Storage Procedure ....................................................118
Adding a Fuel Stabilizer ......................................... 119
Draining the Fuel System .......................................120
ENGINE OIL ..................................................................... 121
HOISTING THE OUTBOARD MOTOR .....................121
STORAGE PRECAUTIONS ...........................................122
REMOVAL FROM STORAGE ......................................122
CONTENTS
5
TRANSPORTING .................................................................123
WITH OUTBOARD MOTOR INSTALLED ON
BOAT ..................................................................................123
WITH OUTBOARD MOTOR REMOVED FROM
BOAT ..................................................................................123
TAKING CARE OF UNEXPECTED PROBLEMS .......... 124
ELECTRIC STARTER WILL NOT OPERATE ............. 124
ENGINE WILL NOT START ..........................................125
HARD STARTING OR STALLS AFTER
STARTING .........................................................................126
ENGINE OVERHEATS ................................................... 127

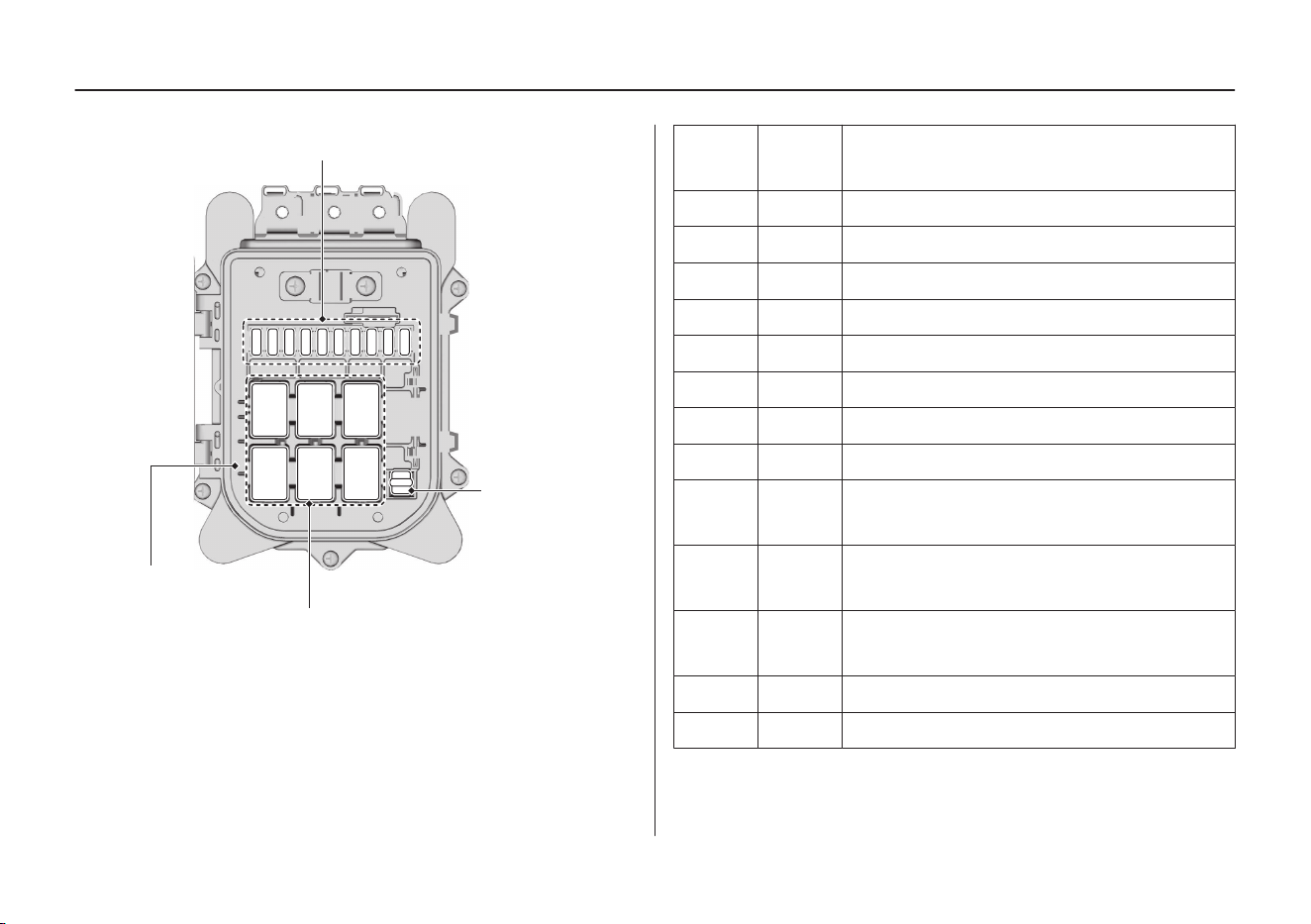

FUSES .................................................................................128
Electric Starter Will Not Operate ........................ 128
Battery Will Not Charge ......................................... 128

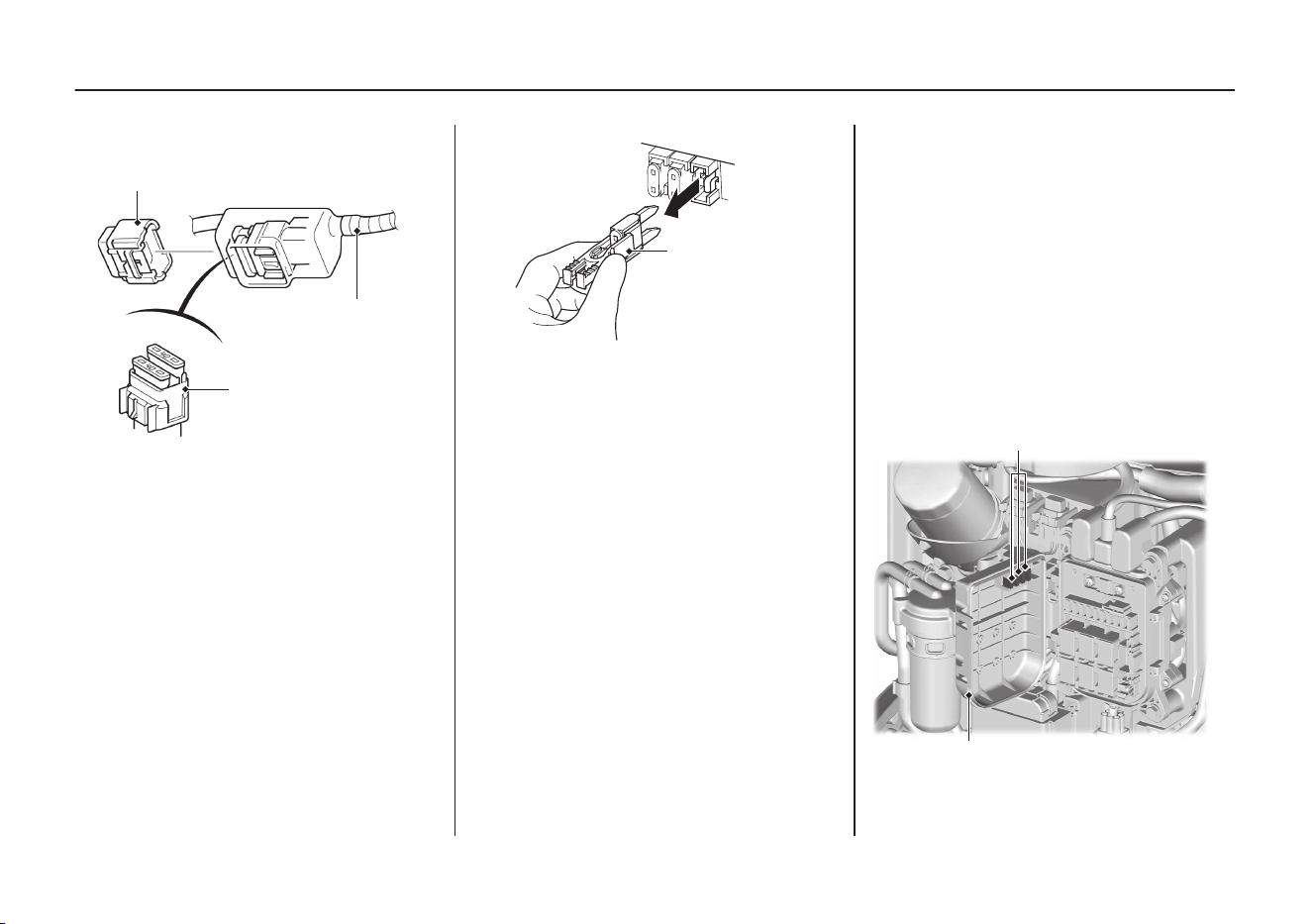

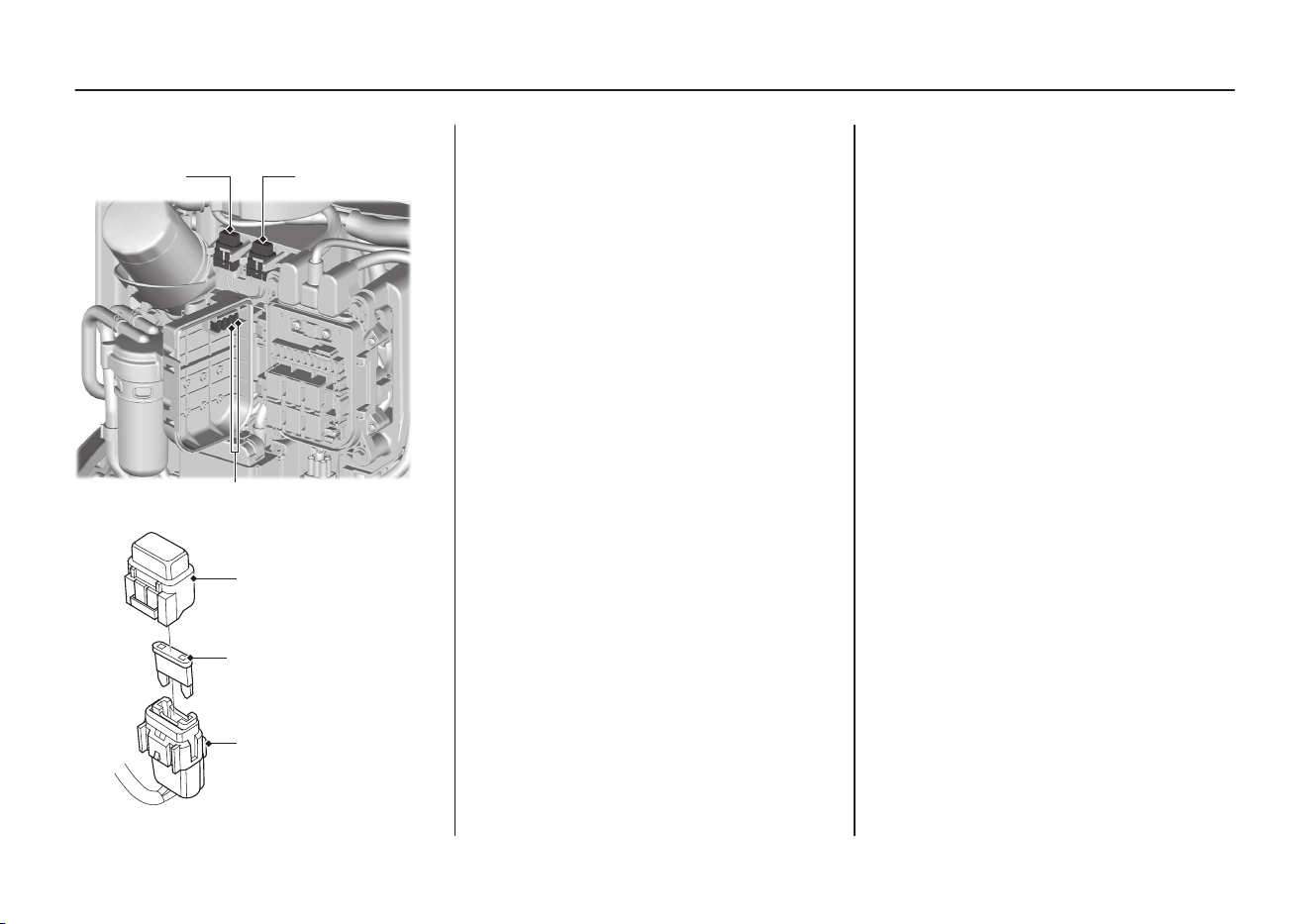

Fuse Replacement .................................................... 128

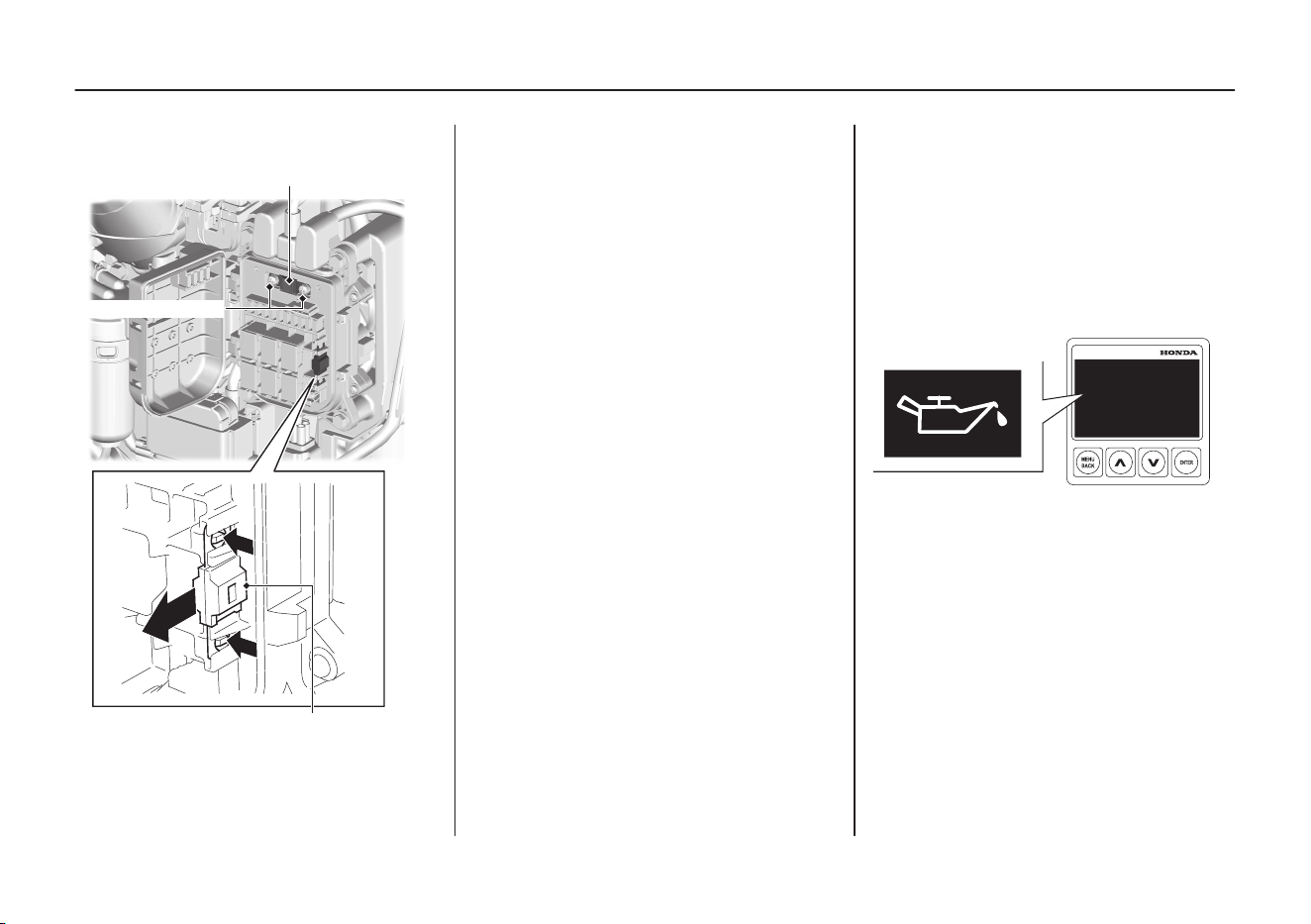

OIL PRESSURE WARNING INDICATOR COMES
ON AND ENGINE SPEED IS LIMITED ..................... 133
OVERHEAT INDICATOR COMES ON AND
ENGINE SPEED IS LIMITED ........................................ 135
WATER SEPARATOR BUZZER SOUNDS ................136
SUBMERGED OUTBOARD MOTOR ........................ 137

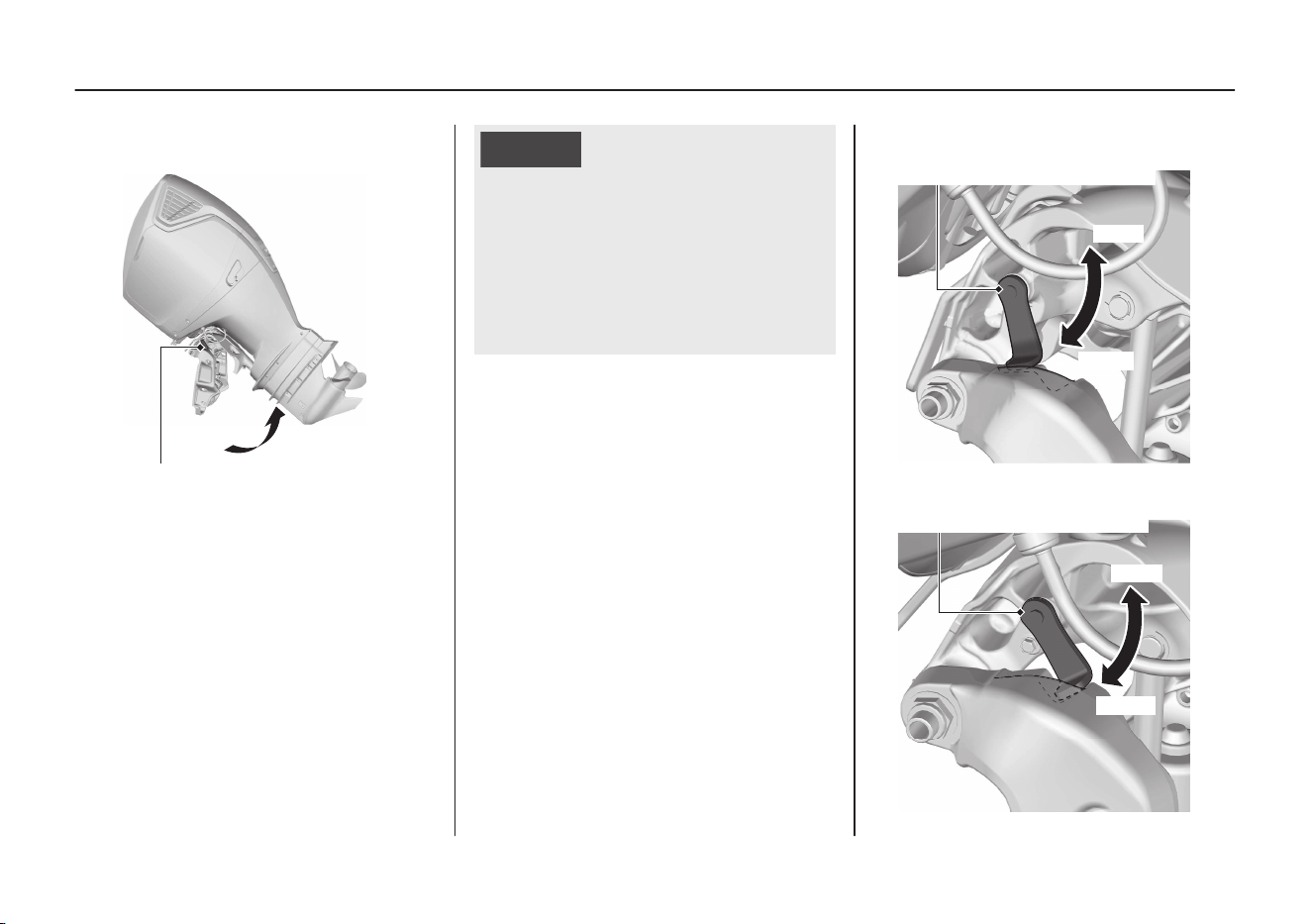

EMERGENCY GEAR SHIFTING .................................. 138
TECHNICAL INFORMATION ..........................................139

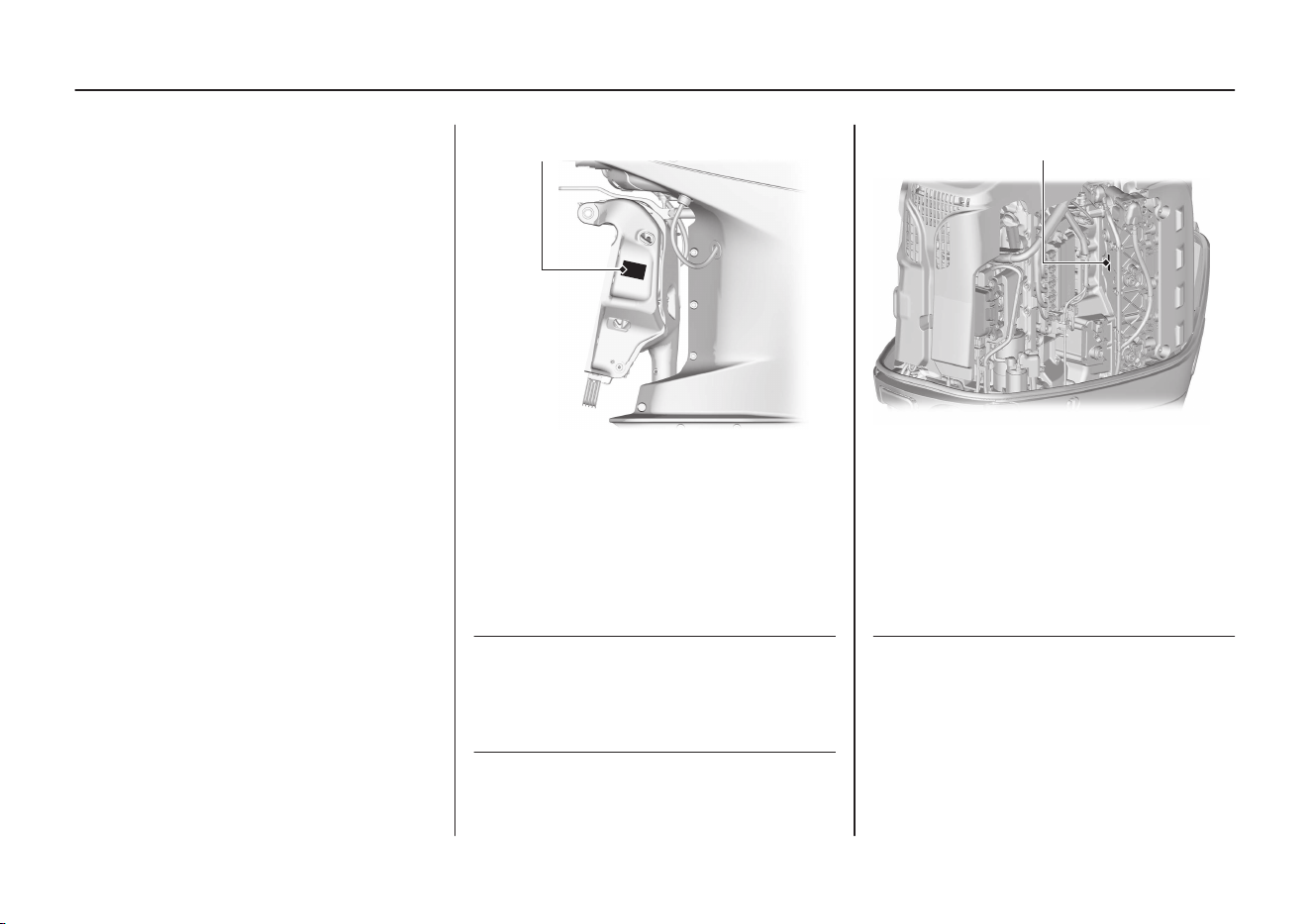

SERIAL NUMBER LOCATIONS .................................. 139
BATTERY ........................................................................... 140
Minimum Requirements ........................................ 140
EMISSION CONTROL SYSTEM
INFORMATION ...............................................................141

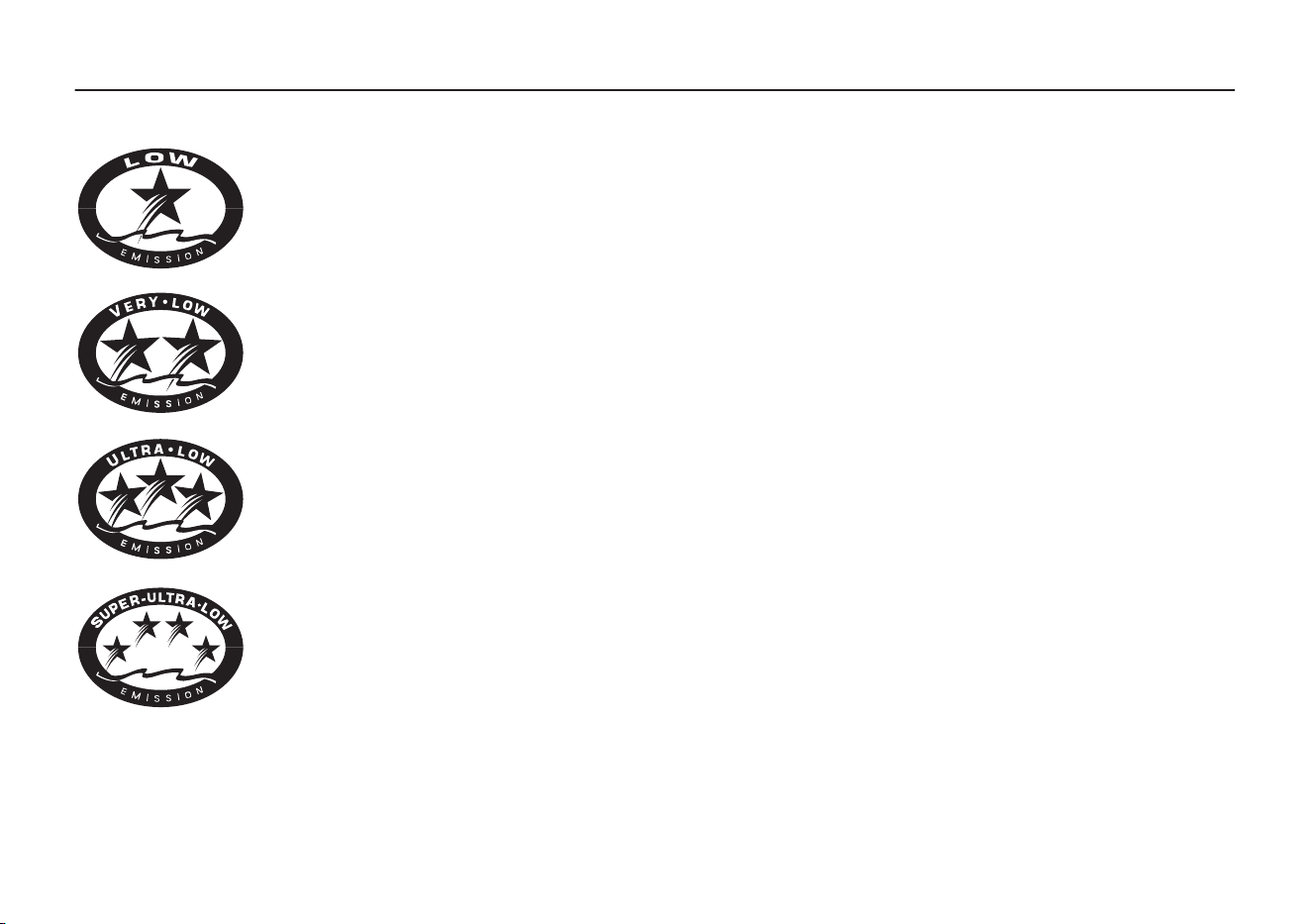

STAR LABEL ..................................................................... 144
US, Puerto Rico, and US Virgin Islands .............144
SPECIFICATIONS ............................................................146
CONSUMER INFORMATION .........................................147
Dealer Locator Information .......................................147
Honda Publications ......................................................147
Customer Service Information ................................. 148
Warranty Statements ...................................................151
Distributor’s Limited Warranty .................................151
Accessories and Replacement Parts ..................155
Emission Control System Warranty ........................158
Distributor’s Warranty .................................................164
INDEX .....................................................................................168
CONTENTS
6
IMPORTANT SAFETY
INFORMATION
Honda BF350A outboard motor is
designed for use with boats that
have a suitable manufacturer’s
power recommendation. Other
uses can result in injury to the
operator or damage to the
outboard motor and other
property.
Most injuries or property damage
can be prevented if you follow all
instructions in this manual and on
the outboard motor. The most
common hazards are discussed in
this chapter, along with the best
way to protect yourself and
others.
Operator Responsibility
• It is the operator’s
responsibility to provide the
necessary safeguards to
protect people and property.
Know how to stop the engine
quickly in case of emergency.
Understand the use of all
controls.
•
Stop the engine immediately
if anyone falls overboard, and
do not run the engine while
the boat is near anyone in the
water.
•
Always stop the engine if you
must leave the controls for
any reason.
• Attach the emergency stop
switch lanyard securely to the
operator.
• Always wear a PFD (Personal
Flotation Device) while on the
boat.
• Familiarize yourself with all
laws and regulations relating
to boating and the use of
outboard motors.
• Be sure that anyone who
operates the outboard motor
receives proper instruction.
•
Be sure the outboard motor is
properly mounted on the
boat.
• Do not remove the engine
cover while the engine is
running.
OUTBOARD MOTOR SAFETY
7
Refuel With Care
• Gasoline is extremely
flammable, and gasoline
vapor can explode. Refuel
outdoors, in a well-ventilated
area, with the engine stopped.
Never smoke near gasoline,
and keep other flames and
sparks away.
•
Refuel carefully to avoid
spilling fuel. Avoid overfilling
the fuel tank.
• After refueling, tighten the
filler cap securely. If any fuel is
spilled, make sure the area is
dry before starting the engine.
Carbon Monoxide Hazard
Exhaust contains poisonous
carbon monoxide, a colorless,
odorless gas. Breathing carbon
monoxide can cause loss of
consciousness and may lead to
death.
If you run the engine in an area
that is confined, or even partly
enclosed, the air you breathe
could contain a dangerous
amount of exhaust gas.
Never run your outboard inside a
garage or other enclosure.
WARNING
Running the engine of your
outboard while in an enclosed
or partially enclosed area can
cause a rapid build-up of toxic
carbon monoxide gas.
Breathing this colorless,
odorless gas can quickly cause
unconsciousness and lead to
death.
Only run your outboard engine
when it is located in a well-
ventilated area outdoors.
OUTBOARD MOTOR SAFETY
8

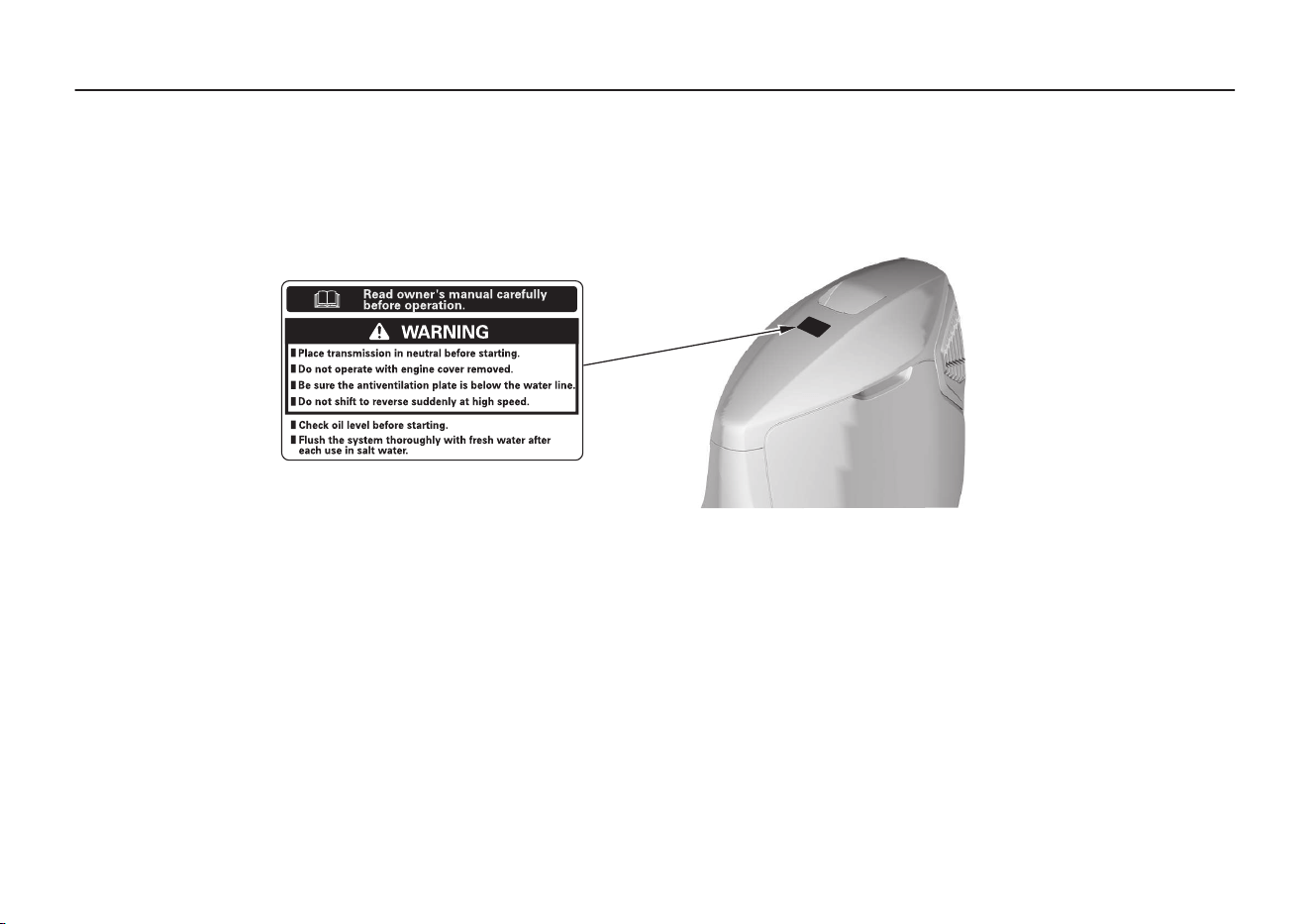

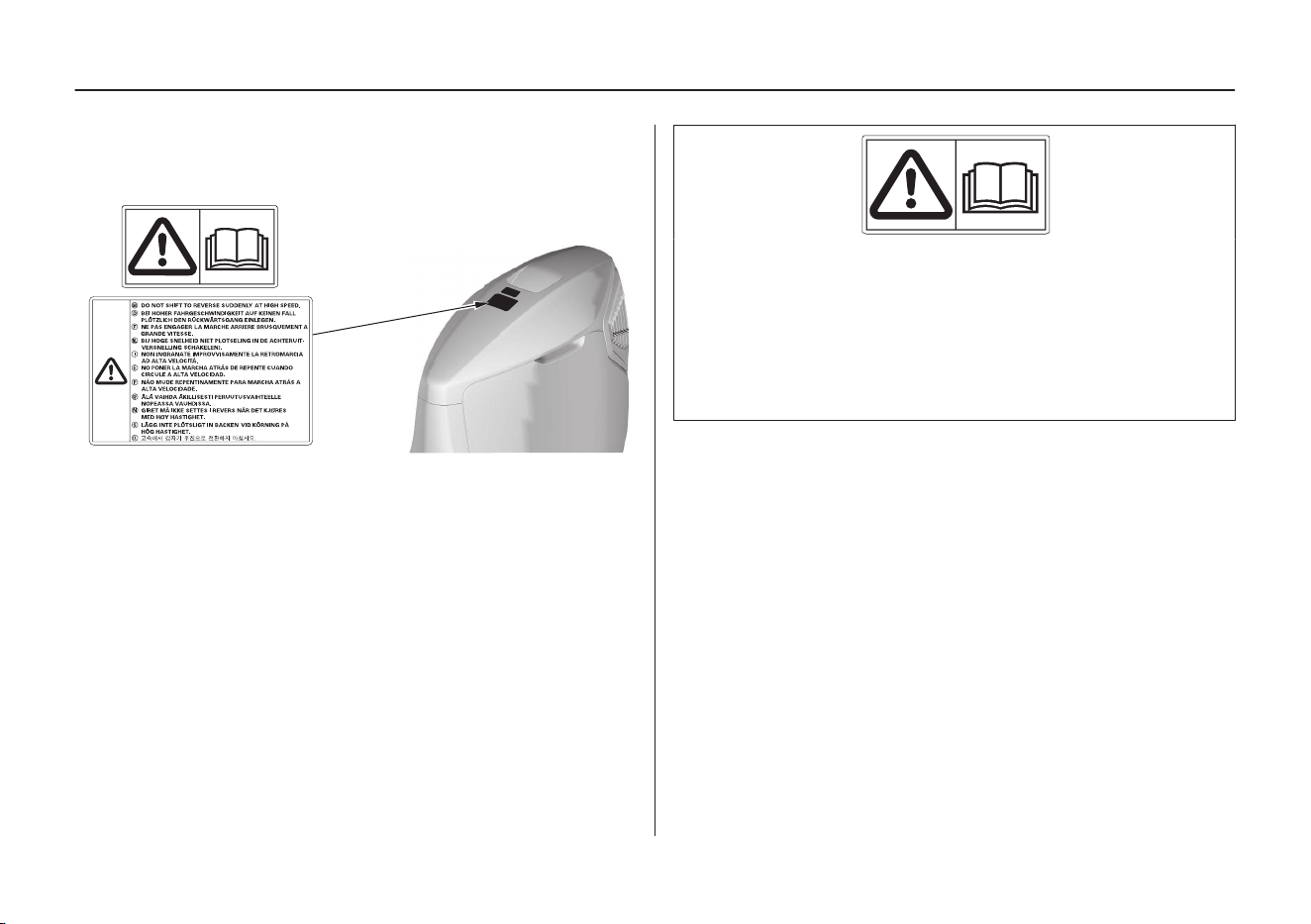

SAFETY LABEL LOCATION
US, Puerto Rico, and US Virgin Islands Types
The labels shown here contain important safety information. Please read them carefully. These labels are
considered permanent parts of your outboard motor.
If a label comes off or becomes hard to read, contact an authorized Honda Marine dealer for a replacement.
OUTBOARD MOTOR SAFETY
9
Canadian Types
The labels shown here contain important safety
information. Please read them carefully. These labels
are considered permanent parts of your outboard
motor.
If a label comes off or becomes hard to read,
contact an authorized Honda Marine dealer for a
replacement.
Honda outboard motors are designed to give safe
and dependable service if operated according to
instructions. Read and understand the Owner’s
Manual before operating the outboard motor.
Failure to do so could result in personal injury or
equipment damage.
OUTBOARD MOTOR SAFETY
10
READ OWNER'S MANUAL
CONTROL AND FEATURE IDENTIFICATION CODES
Model BF350A
Type XD□ UD□ XCD□ UCD□
Transom Height
25.1 in (638 mm) ● ●
30.1 in (765 mm) ● ●
Standard Rotating Propeller Shaft ● ●
Counter-Rotating Propeller Shaft ● ●
Refer to this chart for an explanation of the Type Codes used in this manual to identify control and feature
applications.
For the detailed equipment conditions of optional components, consult your Honda dealer.
CONTROLS AND FEATURES
11
TYPE CODE (example)
X C D
□
Destination
Remote Control
D: Drive by Wire (DBW)
Rotating Direction of Propeller Shaft
C: Counter-rotating propeller shaft is equipped.
None: Standard rotating propeller shaft is equipped.
Transom Height

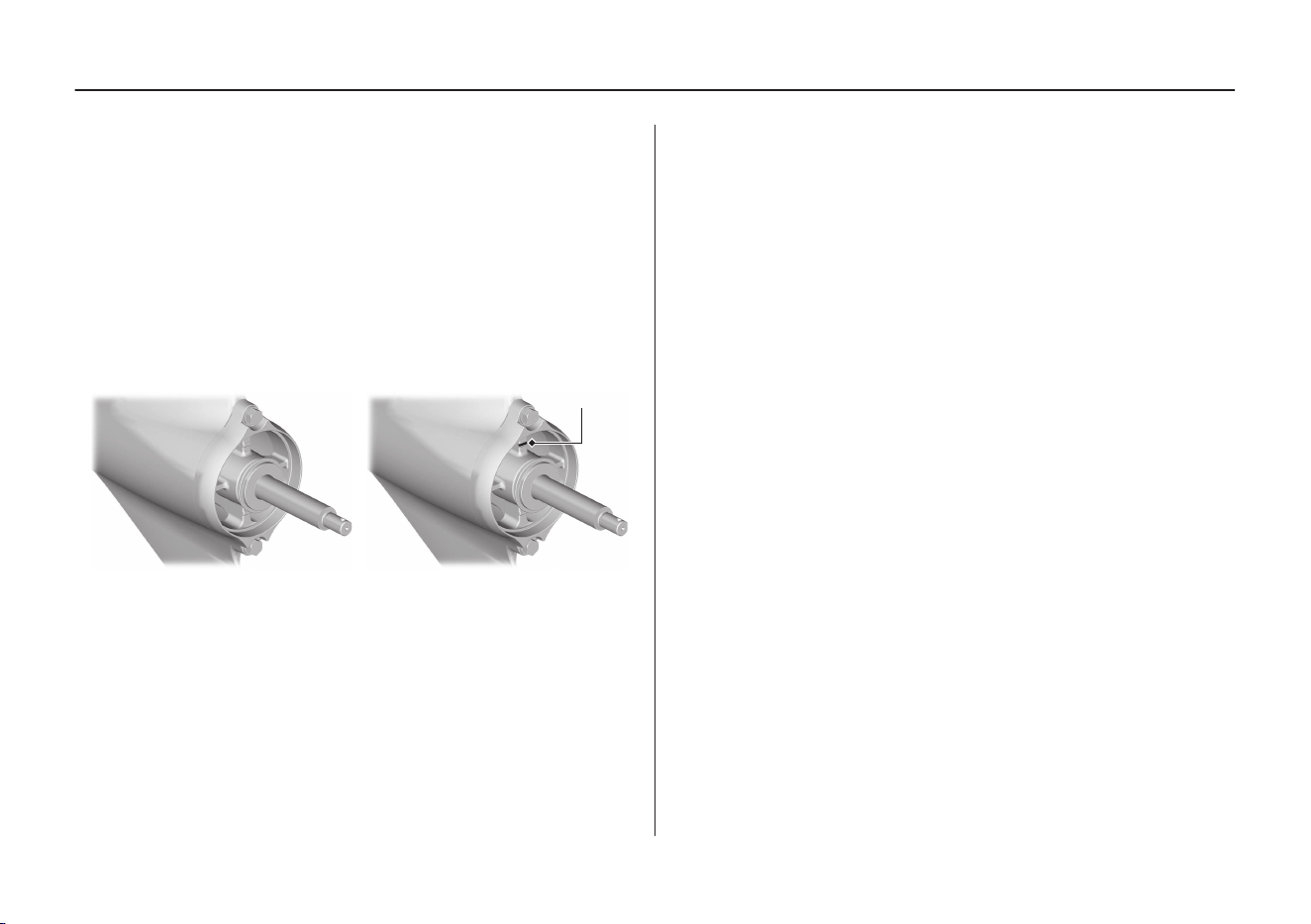

HOW TO DETERMINE WHICH DIRECTION
THE PROPELLER SHAFT ROTATES
The direction the propeller shaft rotates can be
determined based on whether or not the propeller
shaft holder has a groove.
● With groove: Counter-rotating
●
Without groove: Standard rotating
CONTROLS AND FEATURES
12
GROOVE
WITH GROOVEWITHOUT GROOVE

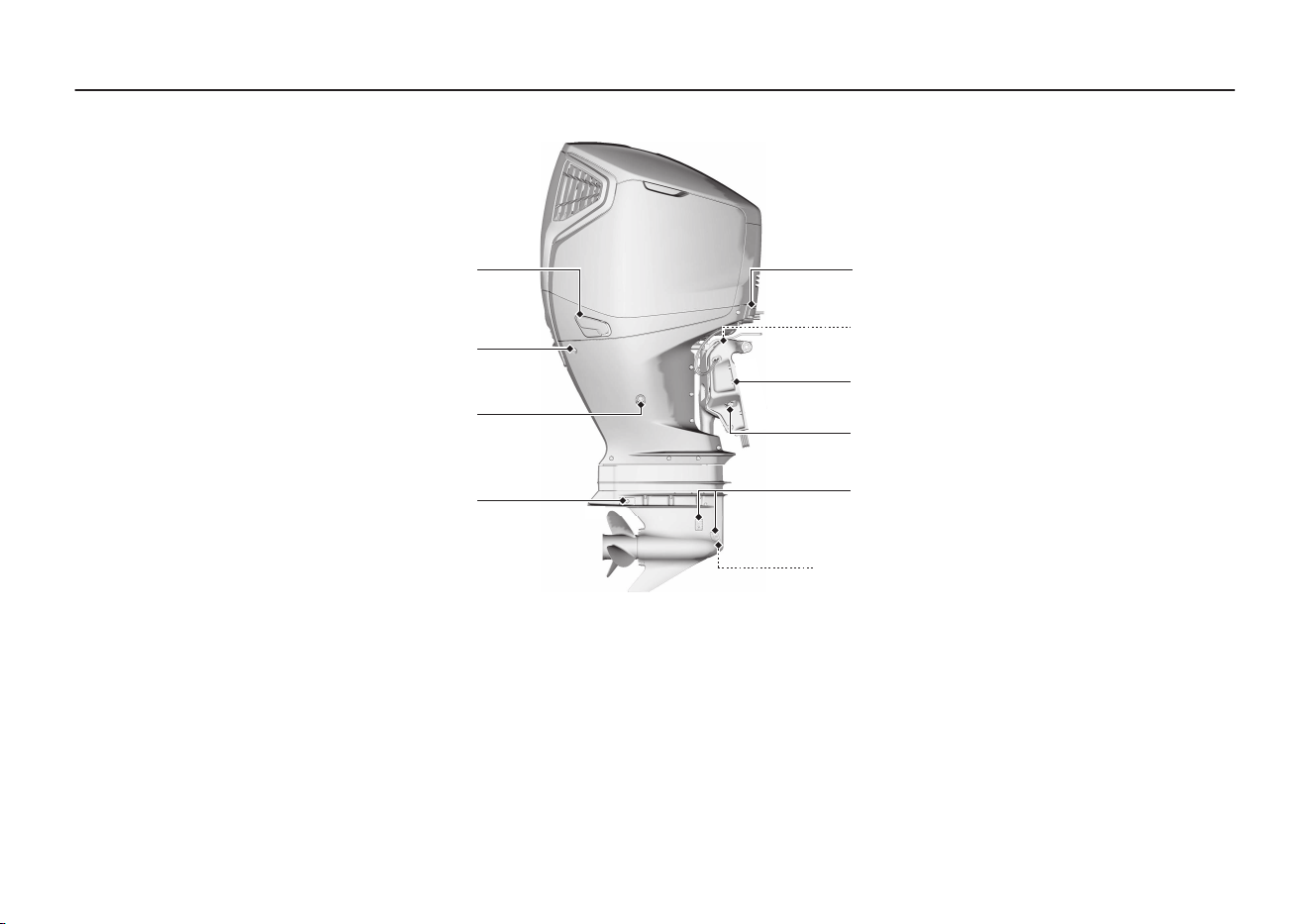

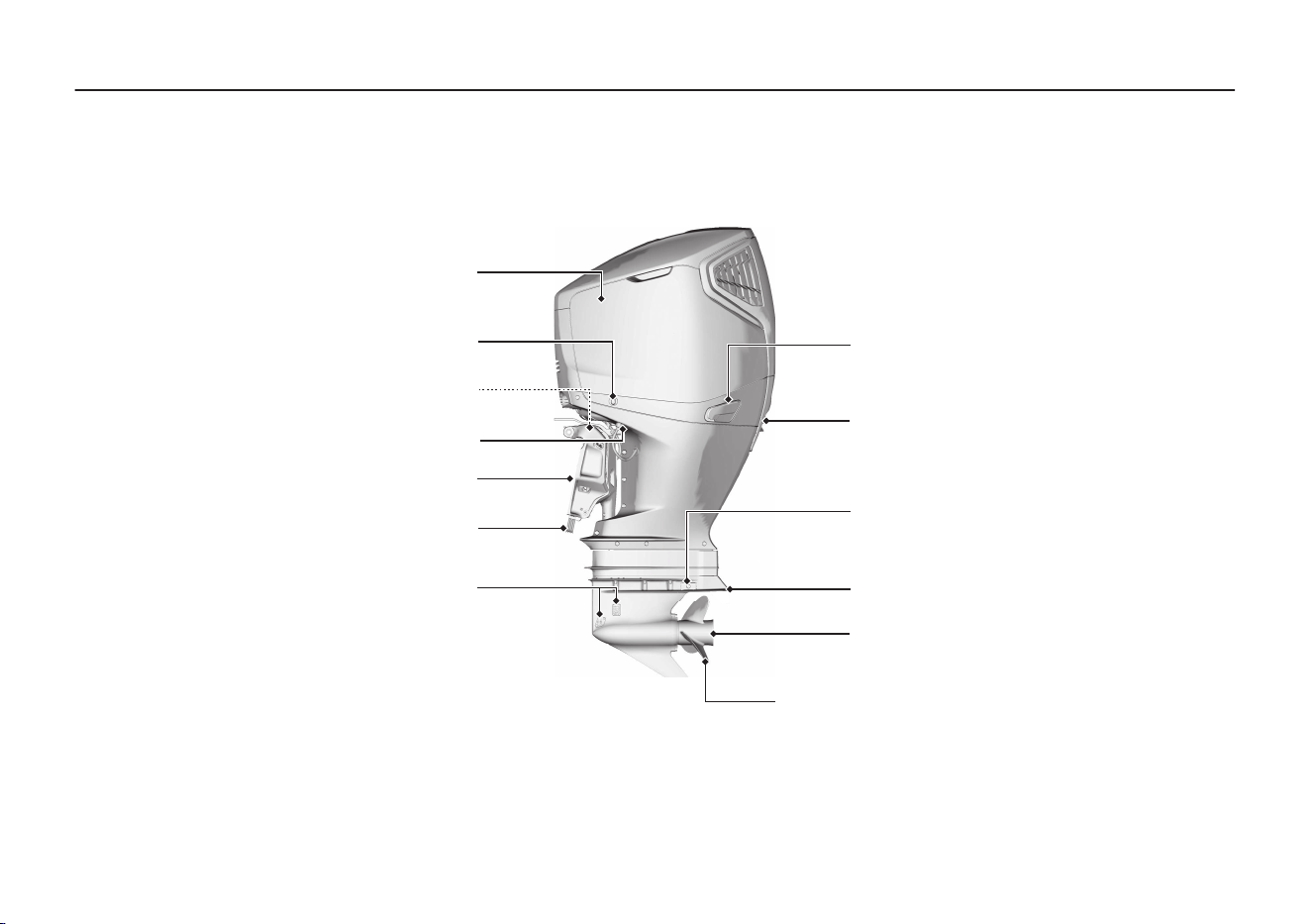

COMPONENT AND CONTROL LOCATIONS
Outboard Motor
CONTROLS AND FEATURES
13
ENGINE COVER
POWER TILT SWITCH
FLUSH PLUG CONNECTOR
ANODE
COOLING WATER INTAKE PORT
PROPELLER (sold separately)
EXHAUST PORT/WATER OUTLET PORT
ANTIVENTILATION PLATE
IDLE PORT

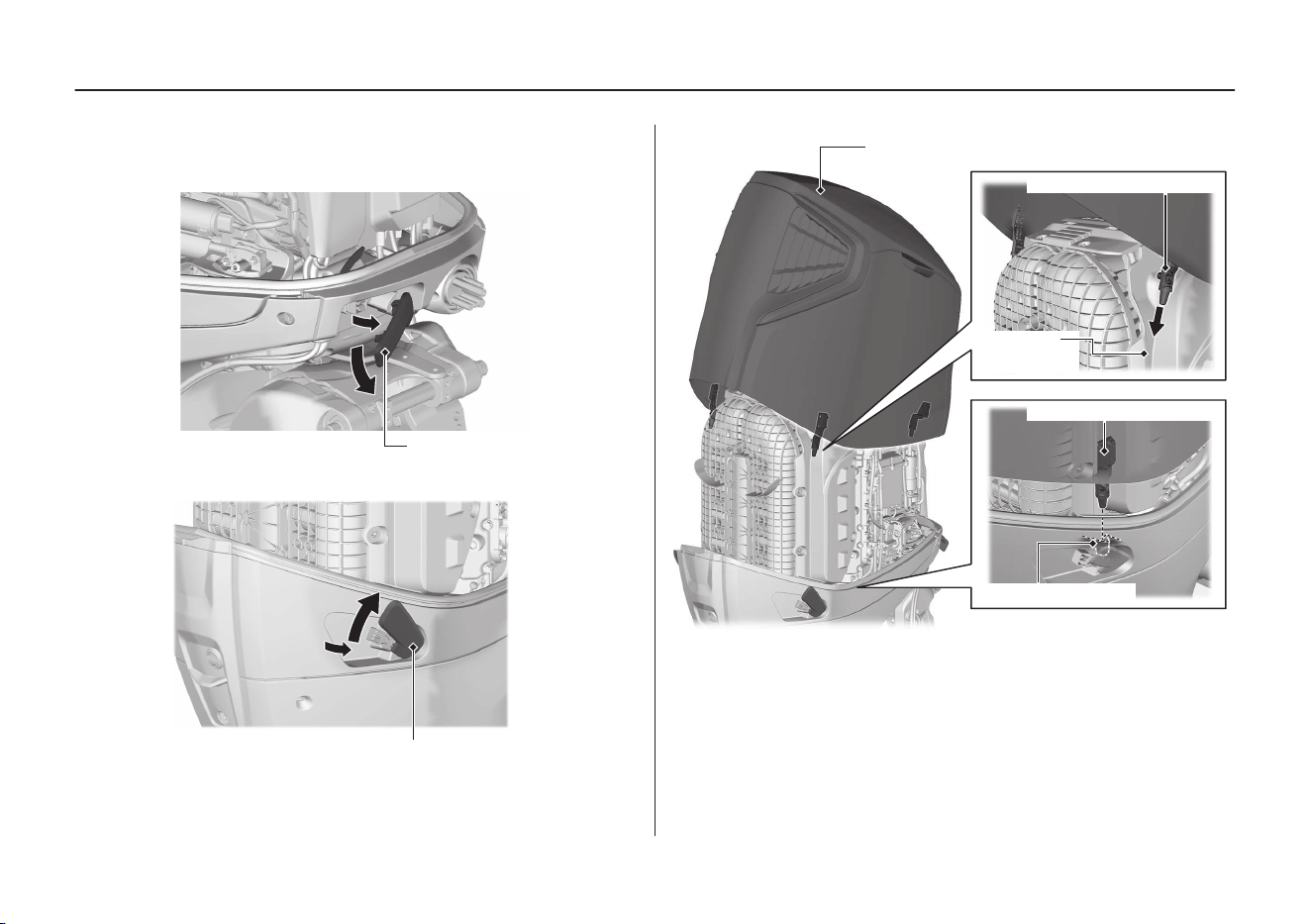

ENGINE COVER LATCH
ANODE
STERN BRACKET
TILT LOCK LEVER
CONTROLS AND FEATURES
14
ANODE
ENGINE COVER LATCH
TILT LOCK LEVER
STERN BRACKET
MANUAL RELIEF VALVE
ANODE
COOLING WATER INTAKE PORT

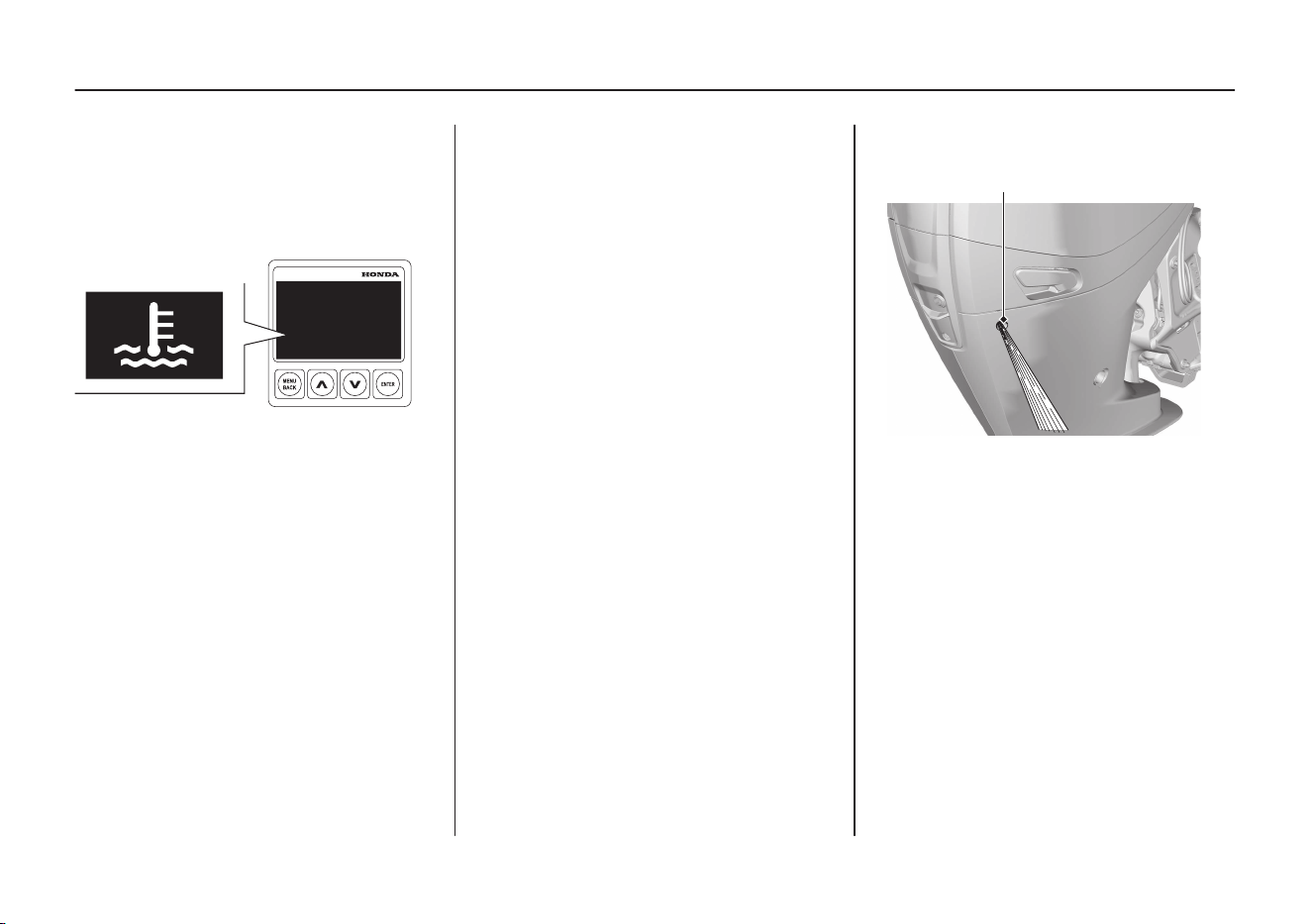

COOLING SYSTEM INDICATOR
ENGINE OIL DRAIN BOLT
ENGINE COVER LATCH
* The figure above shows the engine with the front striker cover and the rear striker cover removed.
CONTROLS AND FEATURES
15

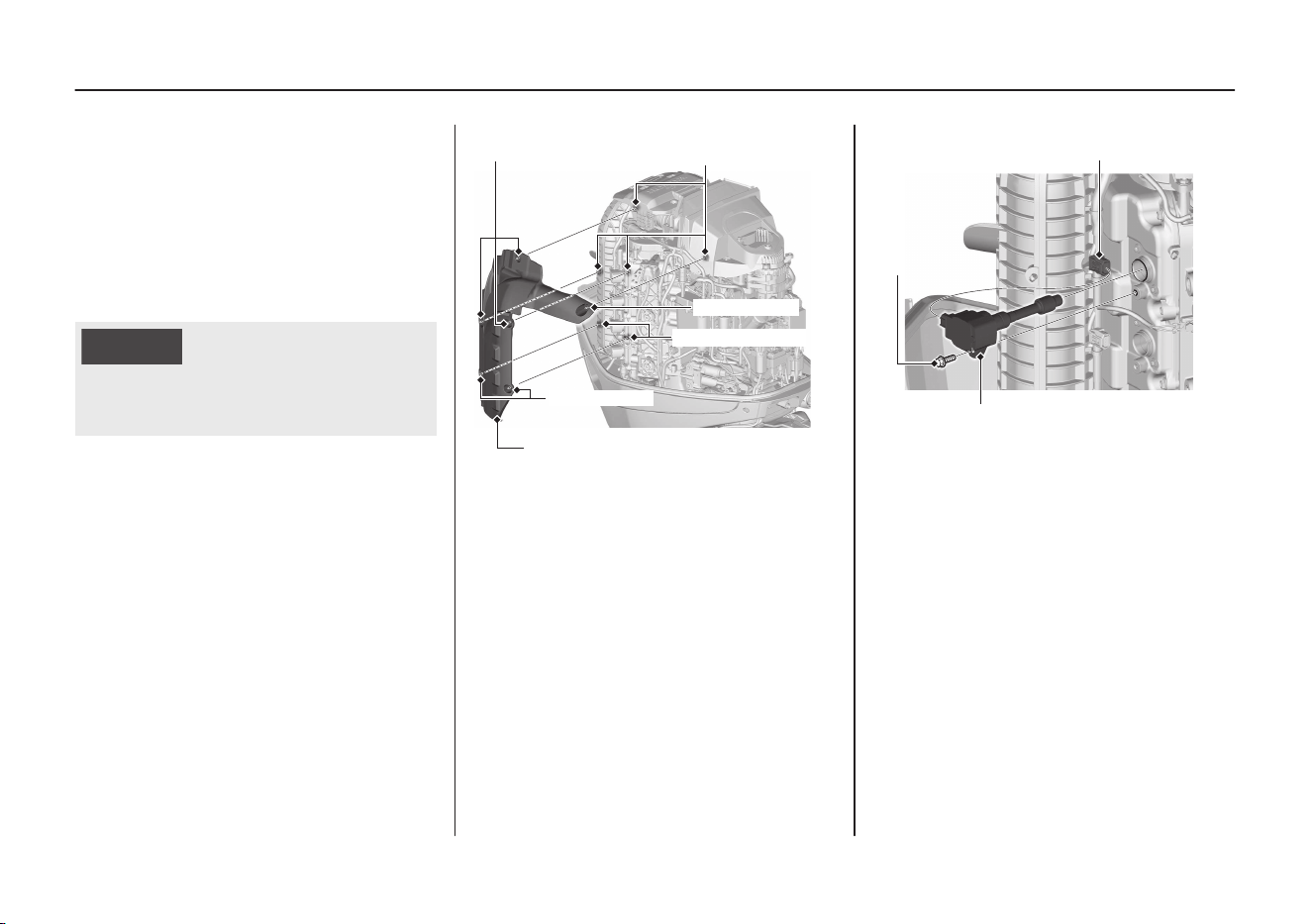

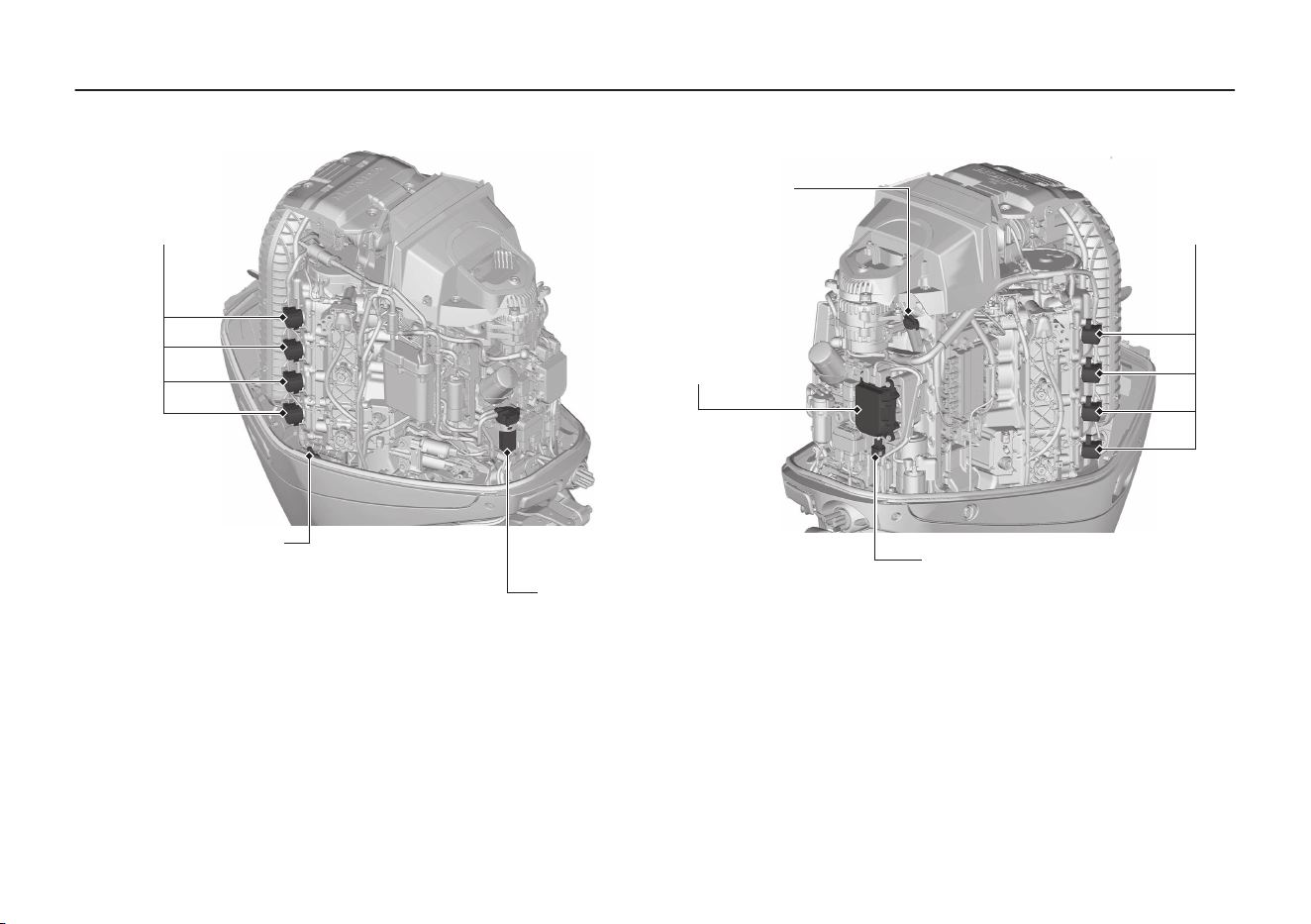

SPARK PLUGS
(under coil)
SPARK PLUGS
(under coil)
OIL LEVEL DIPSTICK

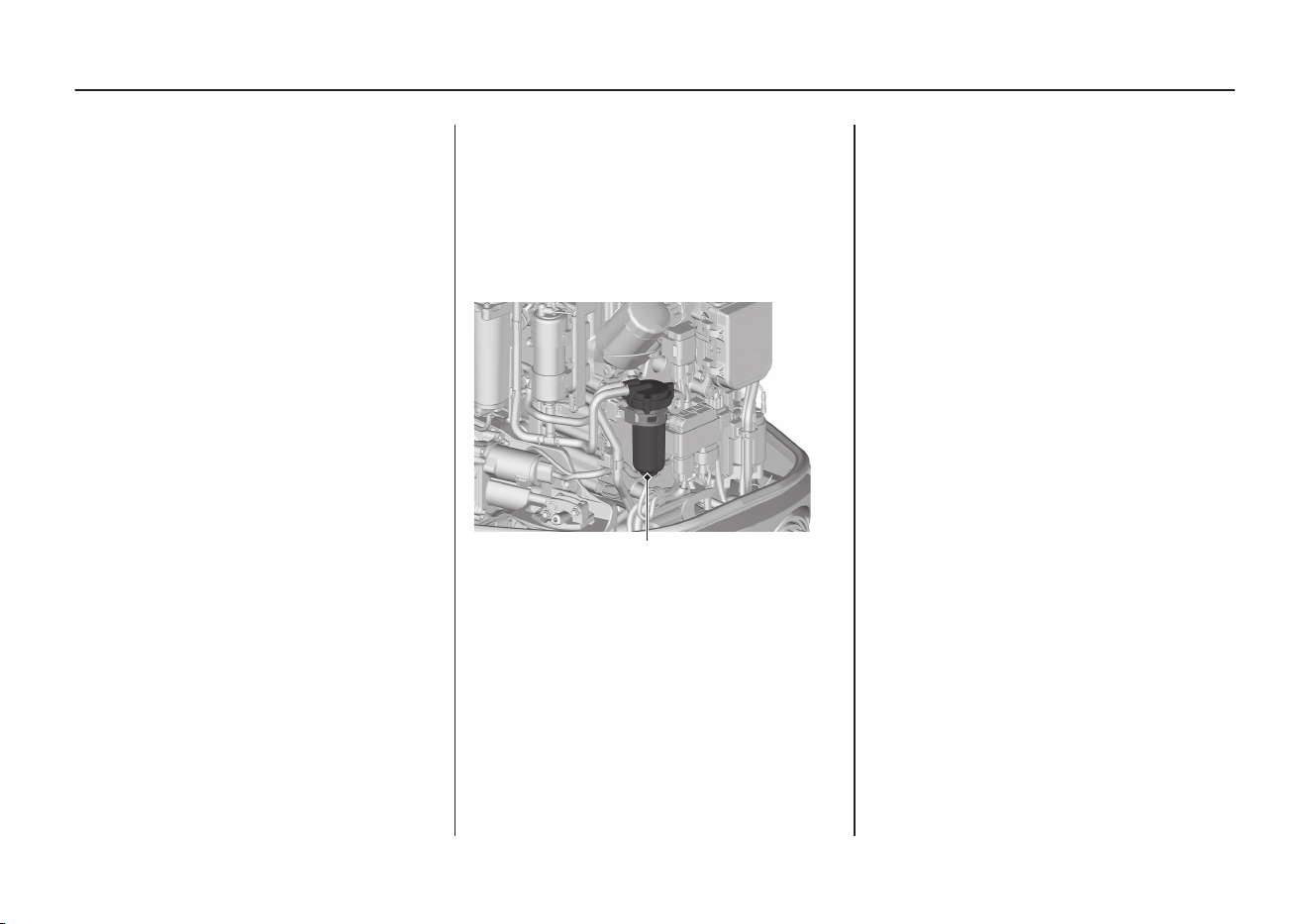

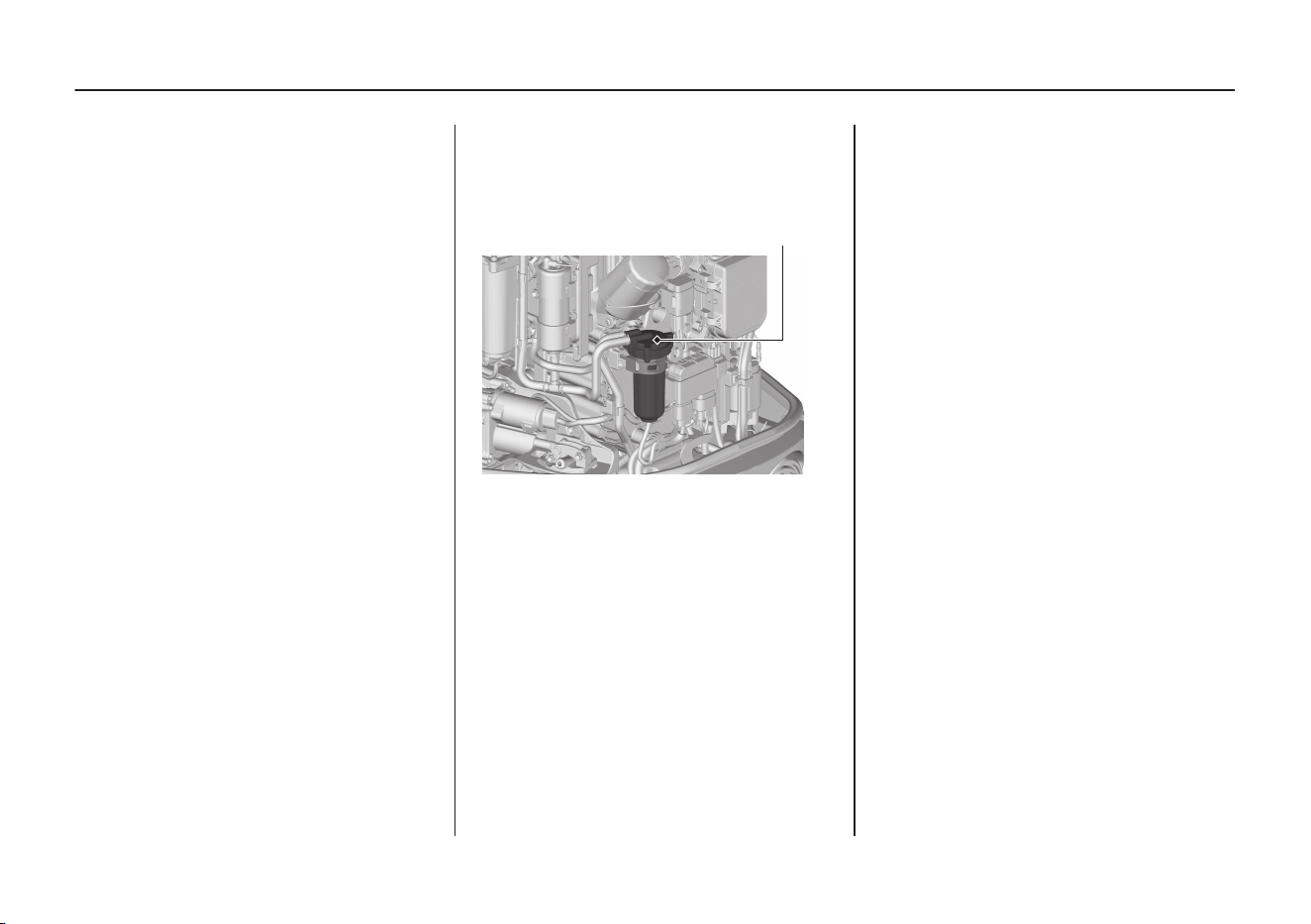

FUEL FILTER WITH
WATER SEPARATOR
(LOW PRESSURE SIDE)
OIL FILLER CAP
JUNCTION BOX
(FUSES)
NMEA INTERFACE COUPLER

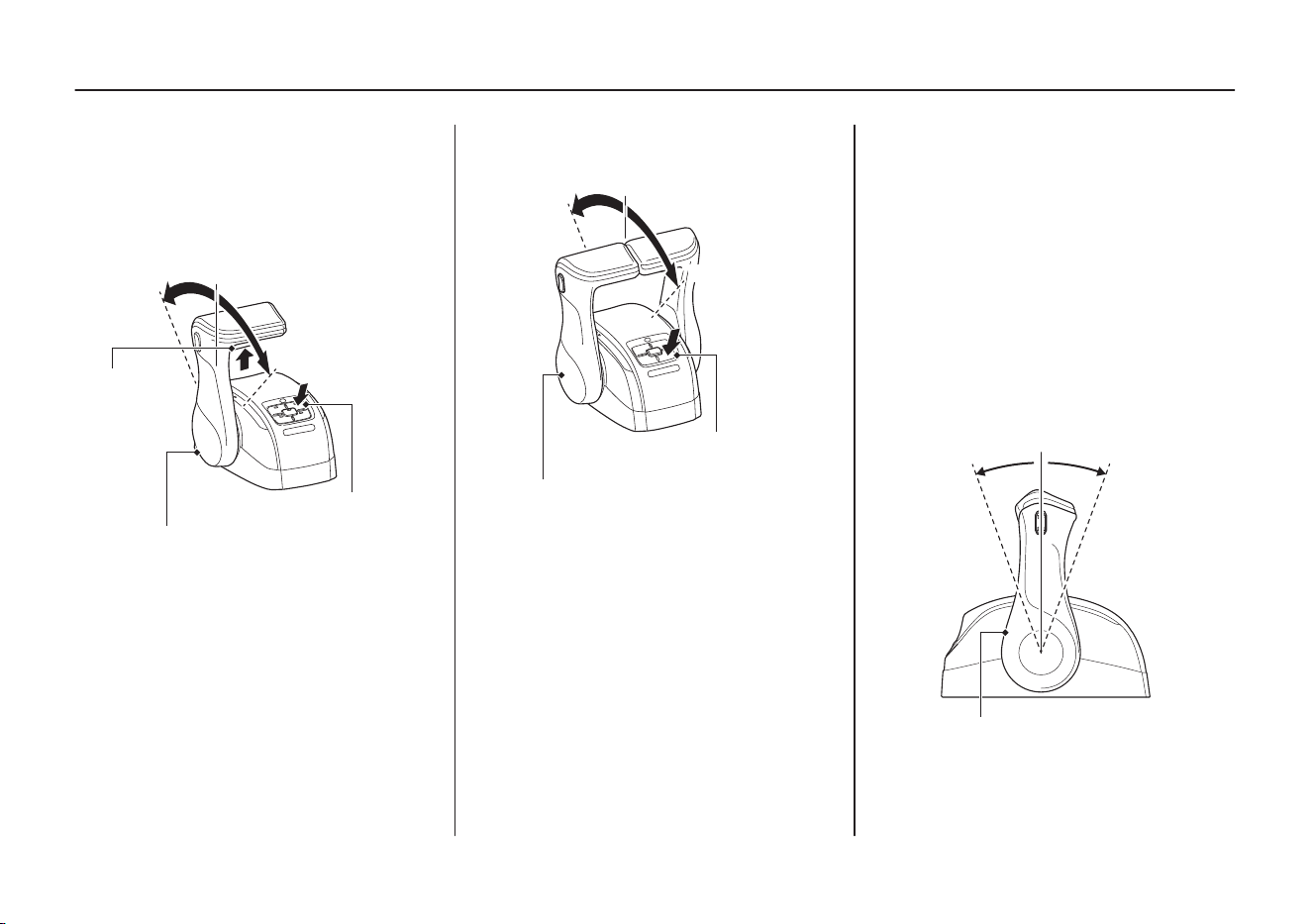

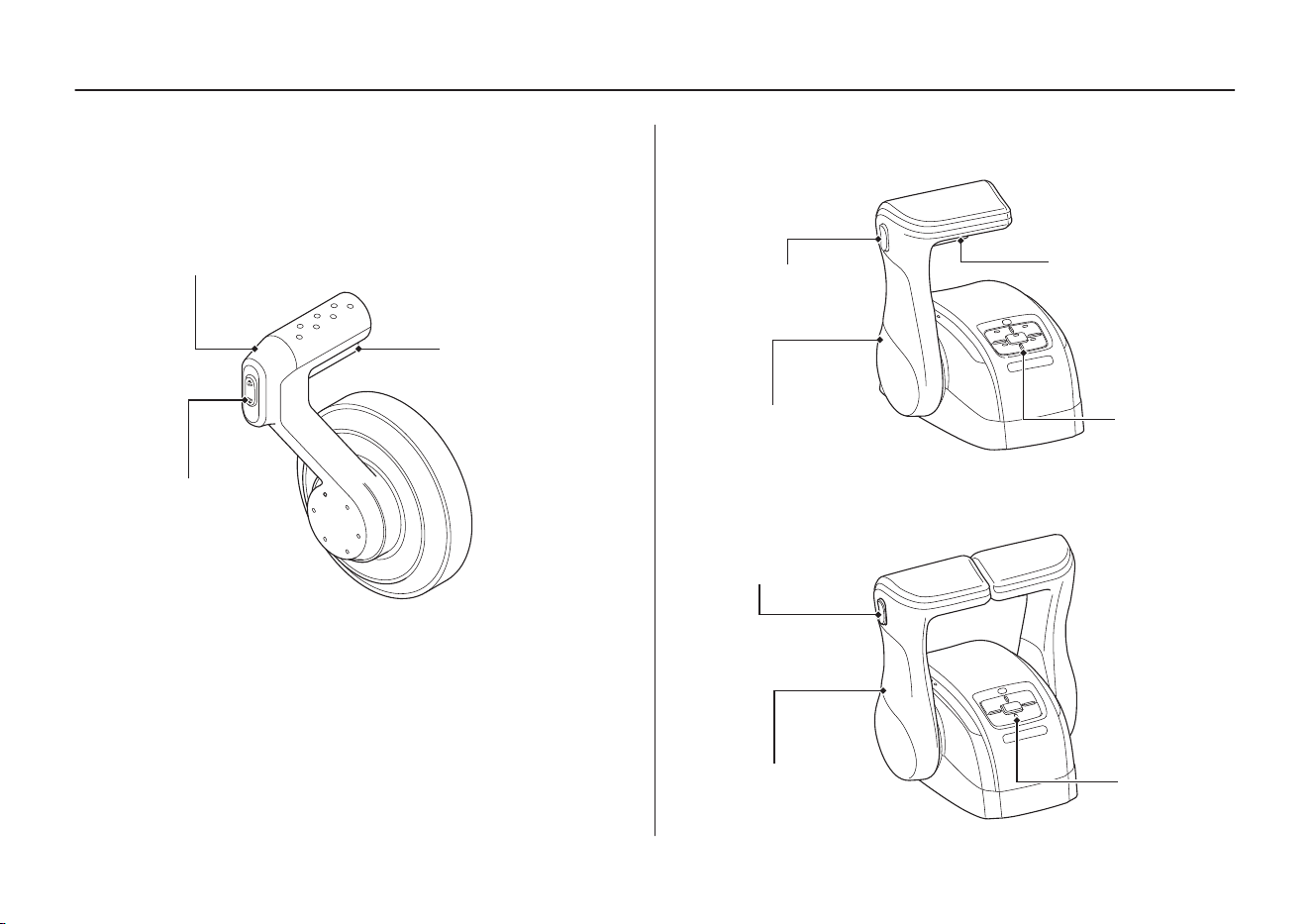

Remote Control Box (optional equipment)
FLUSH-MOUNT REMOTE CONTROL

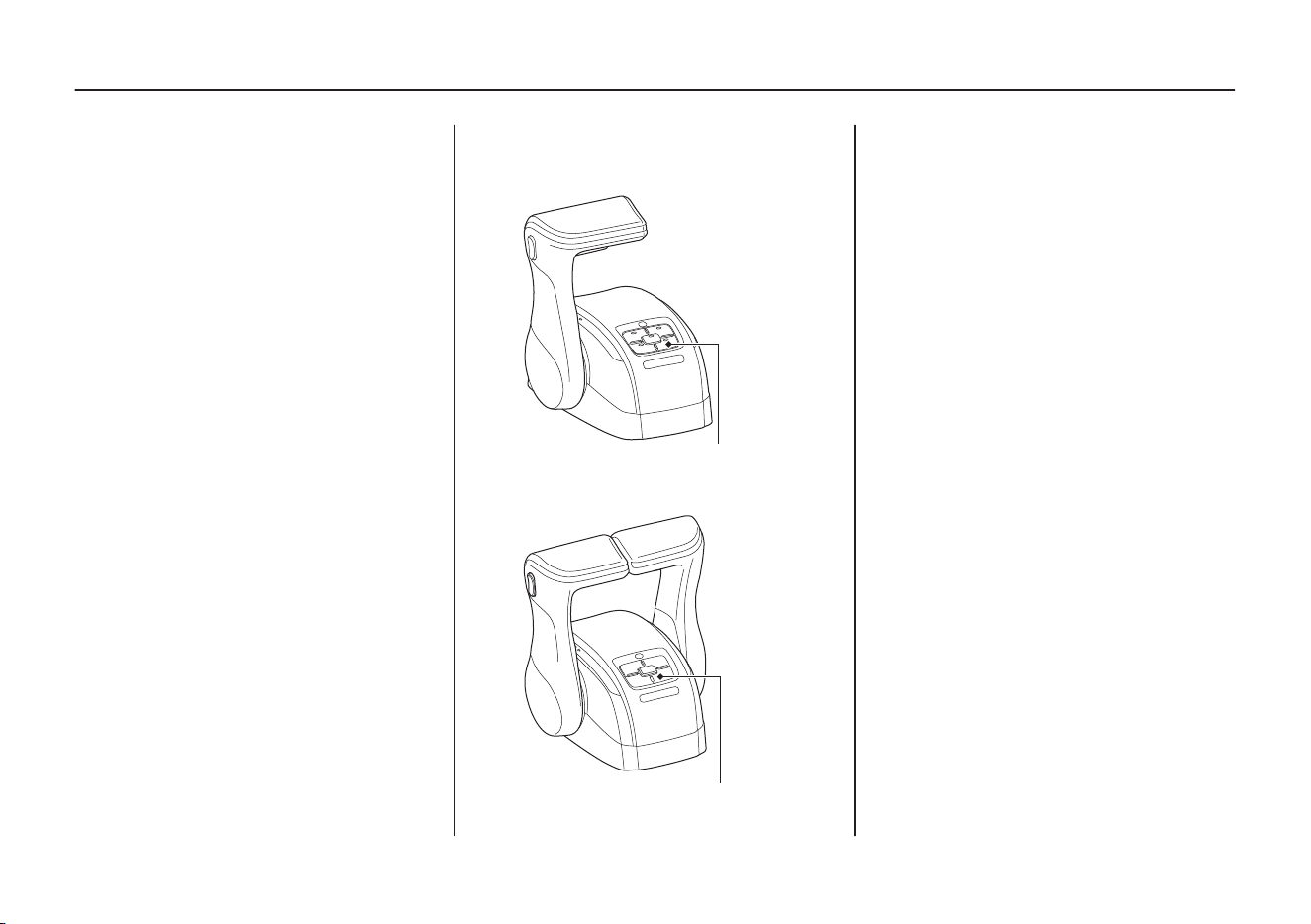

SINGLE TOP-MOUNT REMOTE CONTROL
DUAL TOP-MOUNT REMOTE CONTROL
CONTROLS AND FEATURES
16

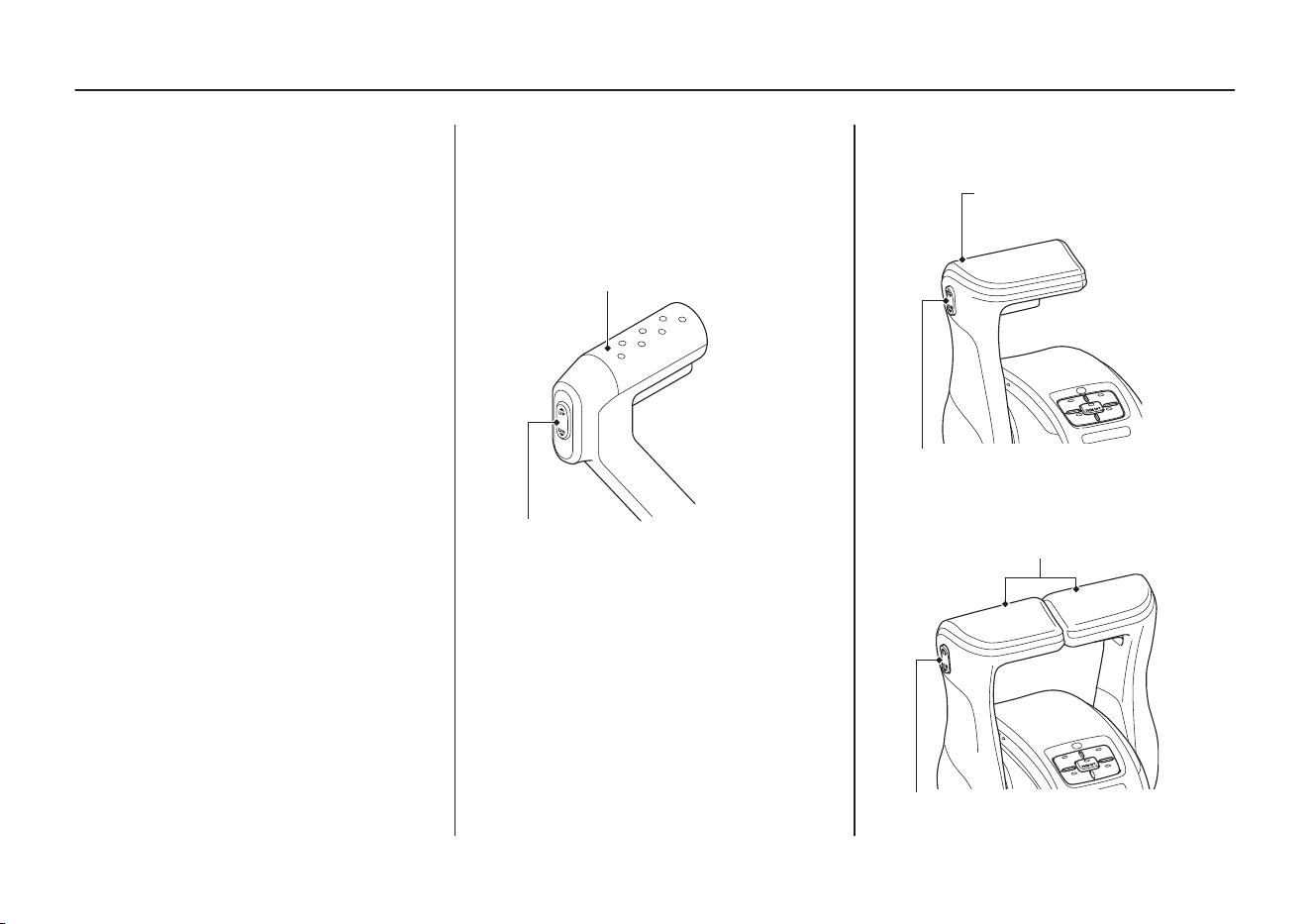

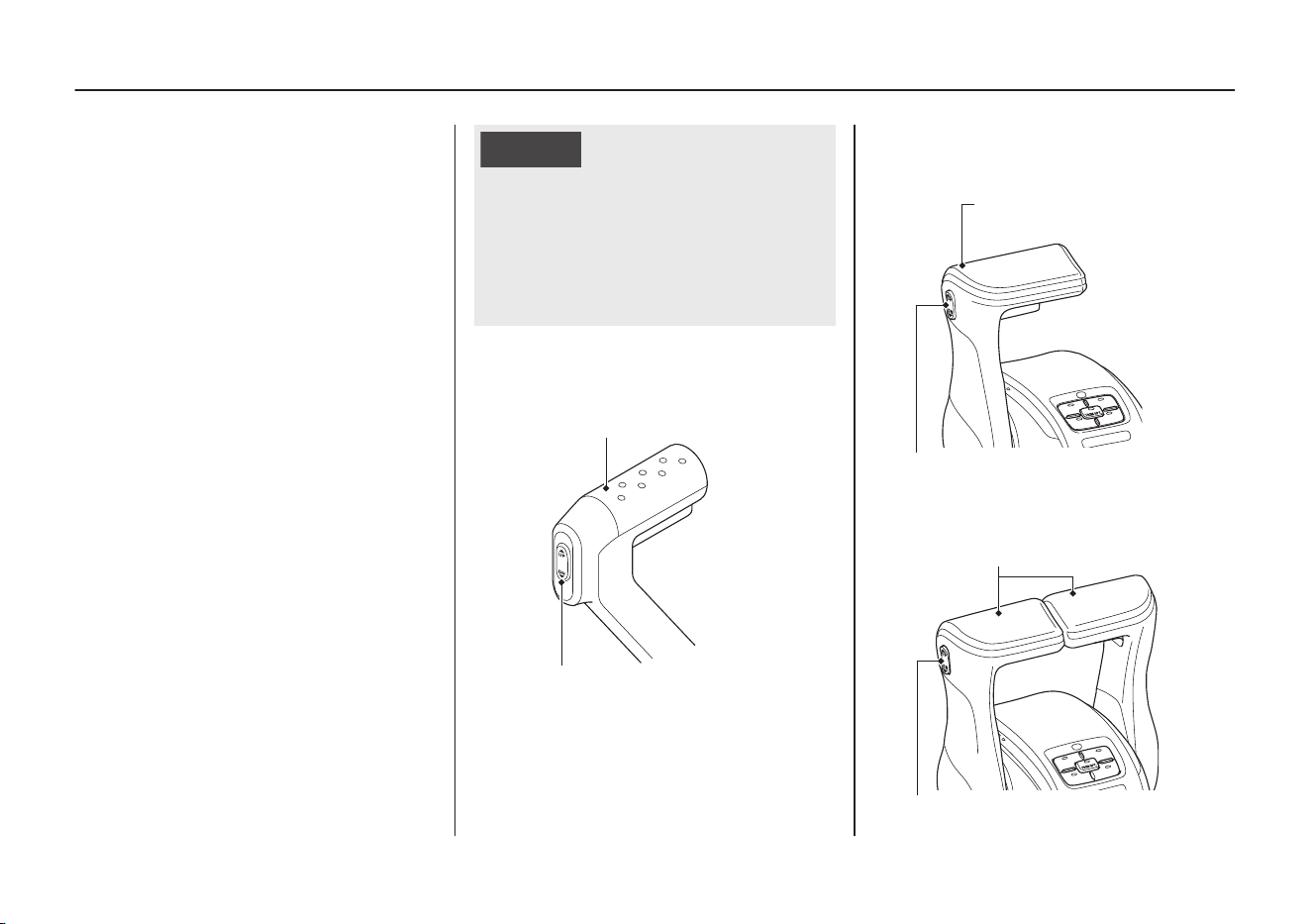

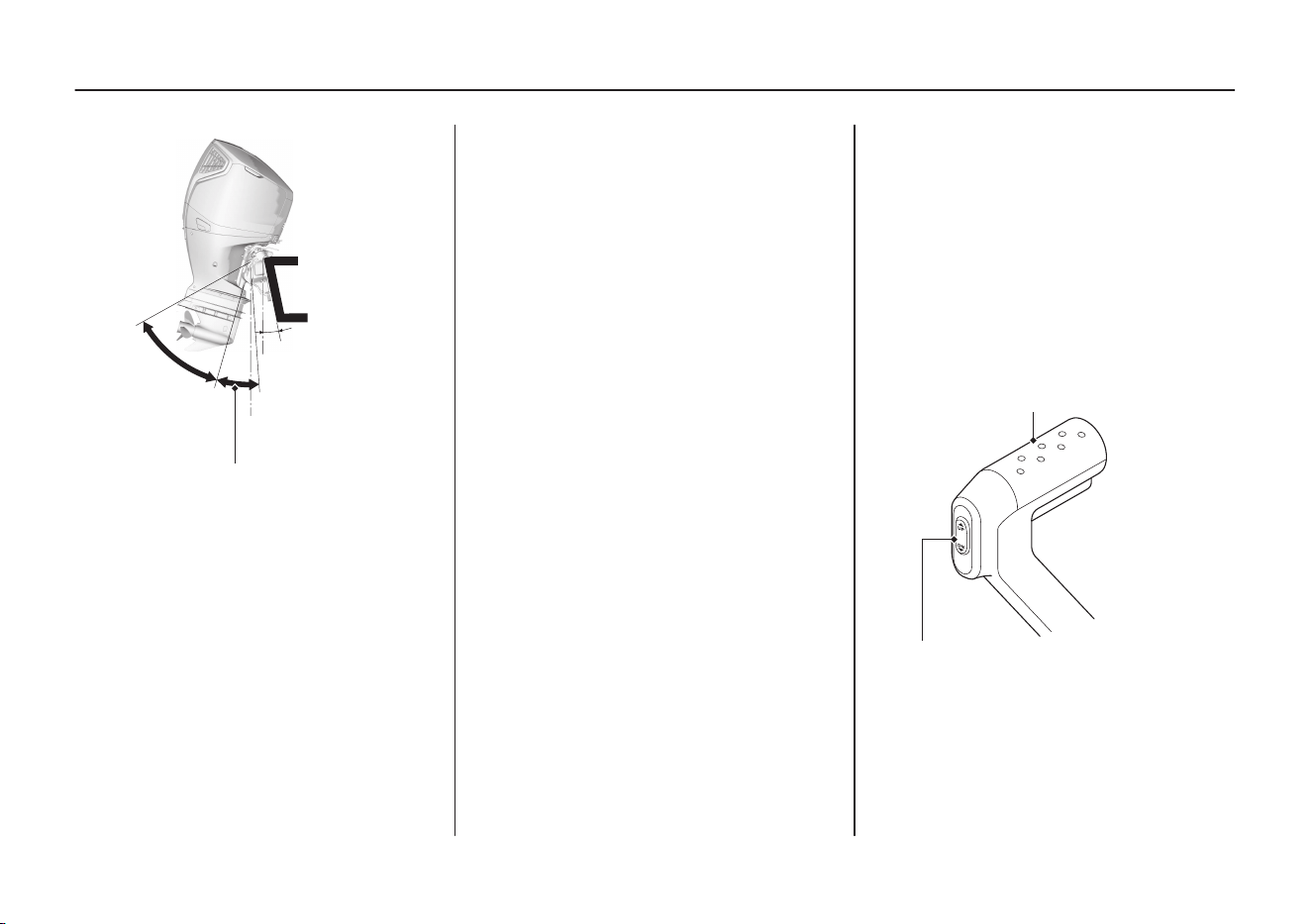

POWER TRIM/TILT
SWITCH
NEUTRAL
RELEASE LEVER
GEARSHIFT/THROTTLE
CONTROL LEVER
POWER TRIM/TILT
SWITCH
GEARSHIFT/THROTTLE
CONTROL LEVER
SELECT
SWITCHES
NEUTRAL
RELEASE LEVER
POWER TRIM/TILT
SWITCH
GEARSHIFT/THROTTLE
CONTROL LEVER
SELECT
SWITCHES
Key Switch Panel (optional equipment)
Normal Key with START/STOP switch type
Normal Key without START/STOP switch type
Honda Smart Key type
CONTROLS AND FEATURES
17

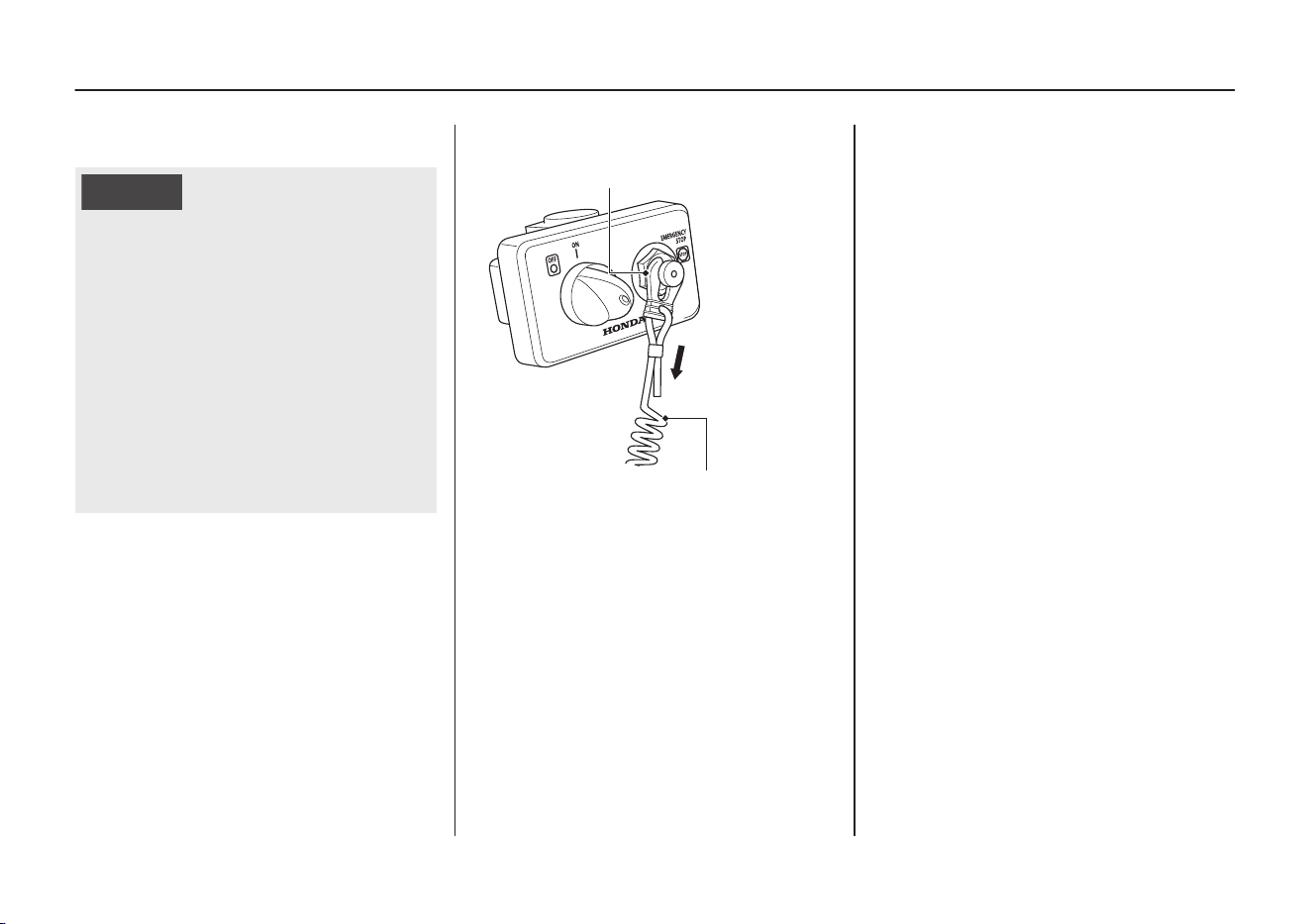

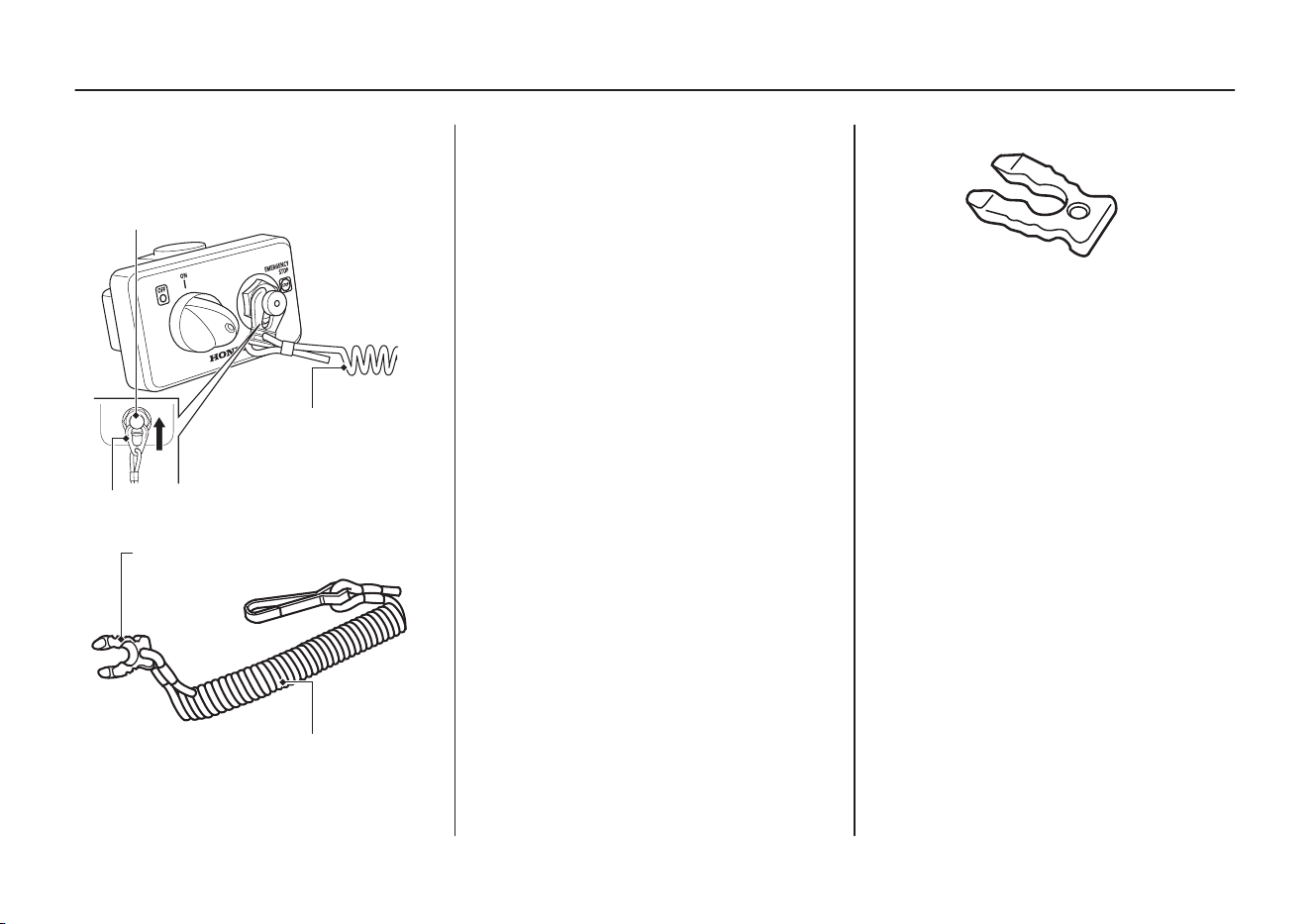

EMERGENCY STOP
SWITCH
BUZZER
POWER SWITCH
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP
SWITCH CLIP
(Horizontal type)
IGNITION SWITCH
(Horizontal type)
POWER SWITCH

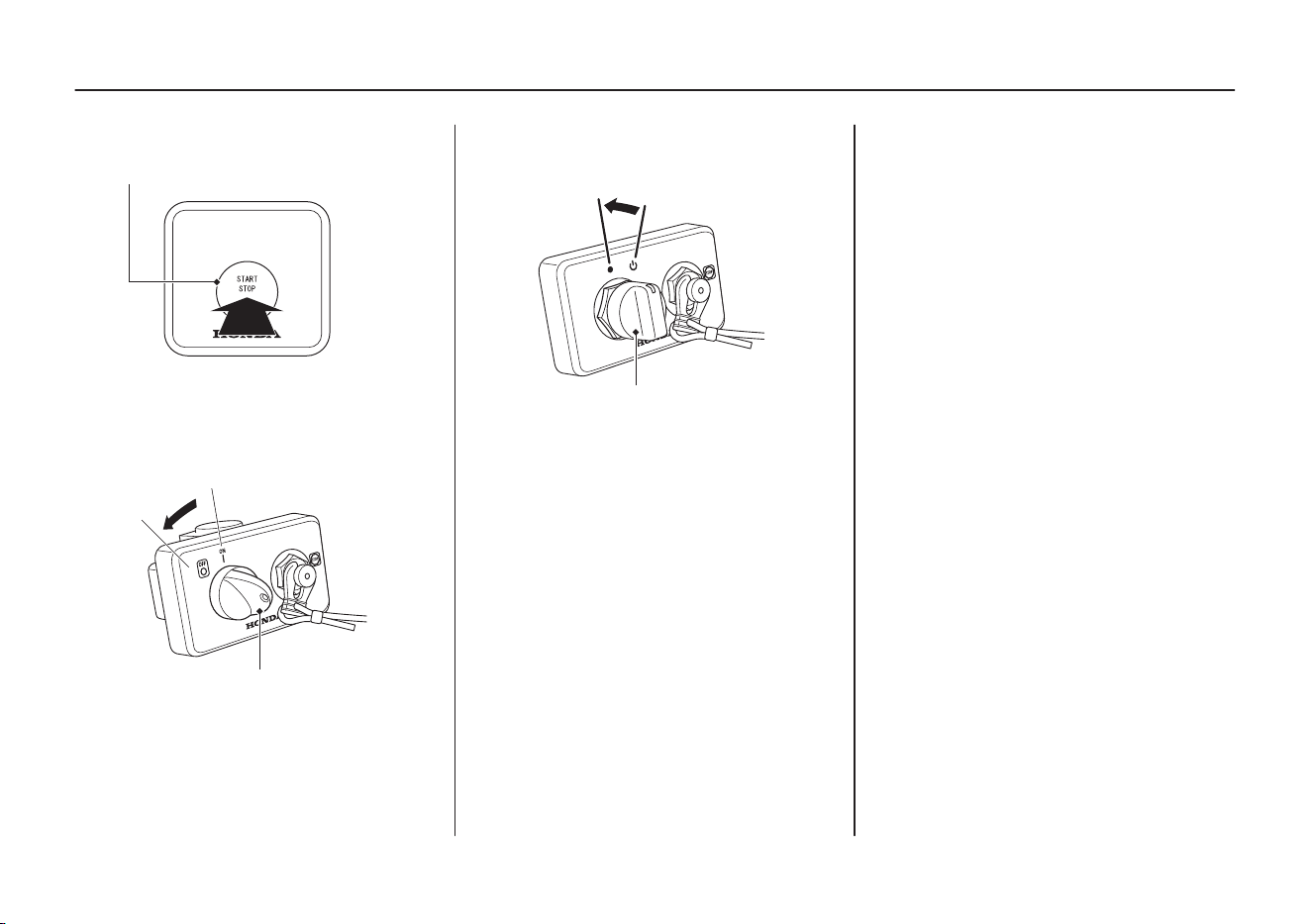

START/STOP Switch Panel (optional
equipment)
PTT Switch Panel (optional equipment)
CONTROLS AND FEATURES
18
START/STOP SWITCH START/STOP SWITCH
ALL ENGINE START
FOR MULTIPLE
OUTBOARD MOTORS
SINGLE TYPE
OUTBOARD MOTOR
TRIPLE TYPE
OUTBOARD MOTOR
DUAL TYPE
OUTBOARD MOTOR
START/STOP SWITCHESSTART/STOP SWITCHES
PORT: Port side engine
CENTER: Center engine
STBD: Starboard side engine

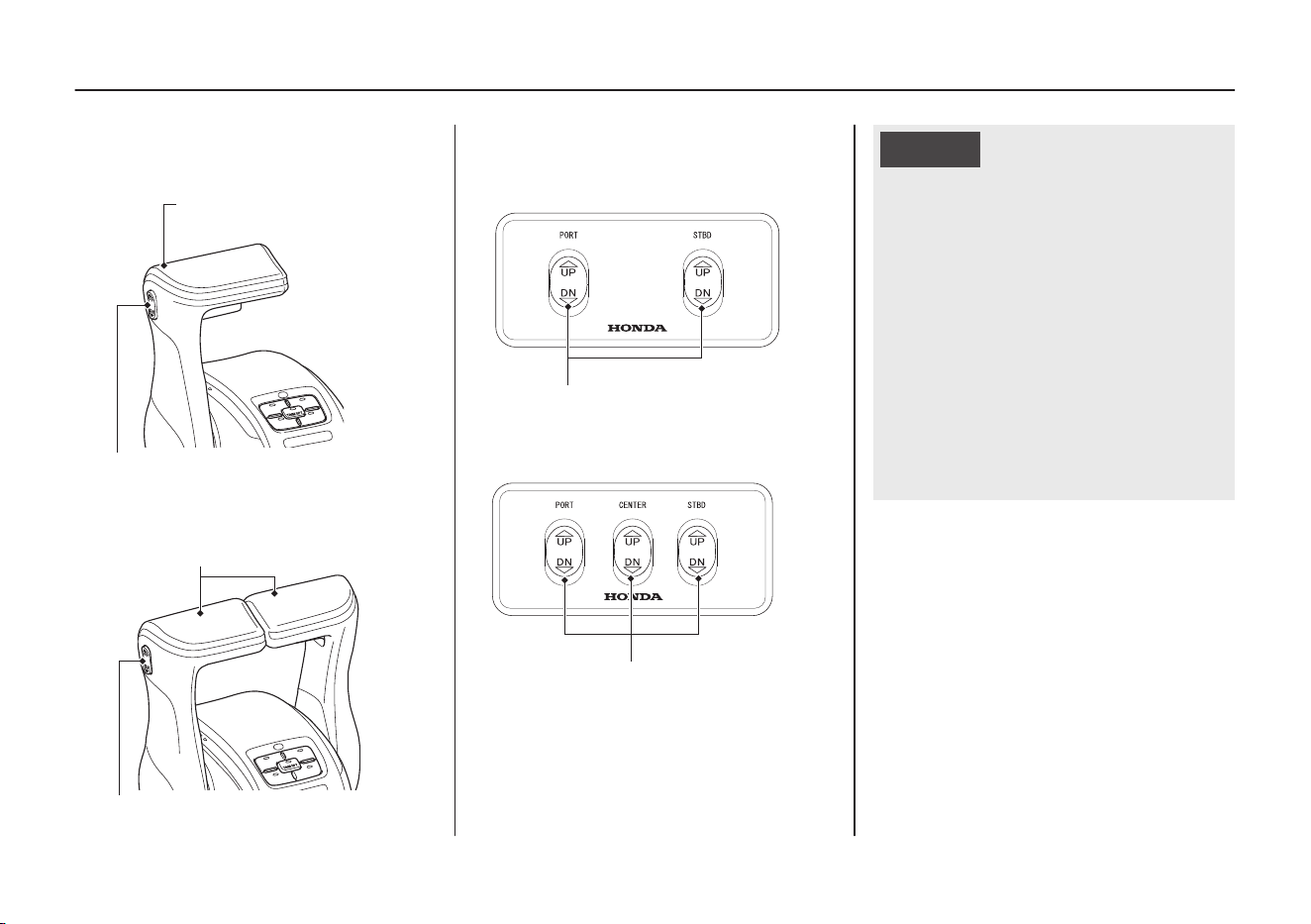

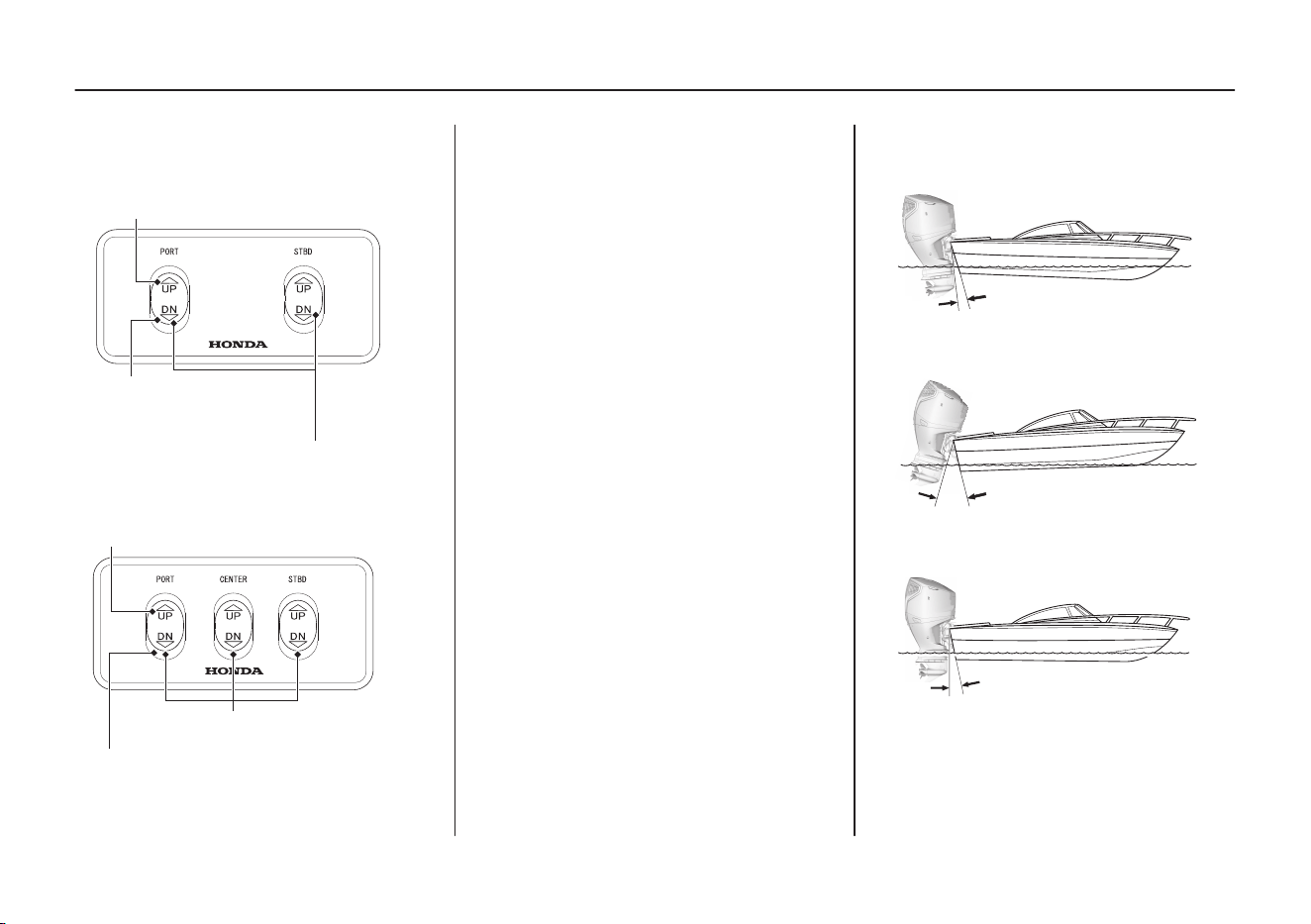

POWER TRIM/TILT SWITCHES
TRIPLE TYPE
DUAL TYPE
PORT: Port side engine
CENTER: Center engine
STBD: Starboard side engine
POWER TRIM/TILT SWITCHES

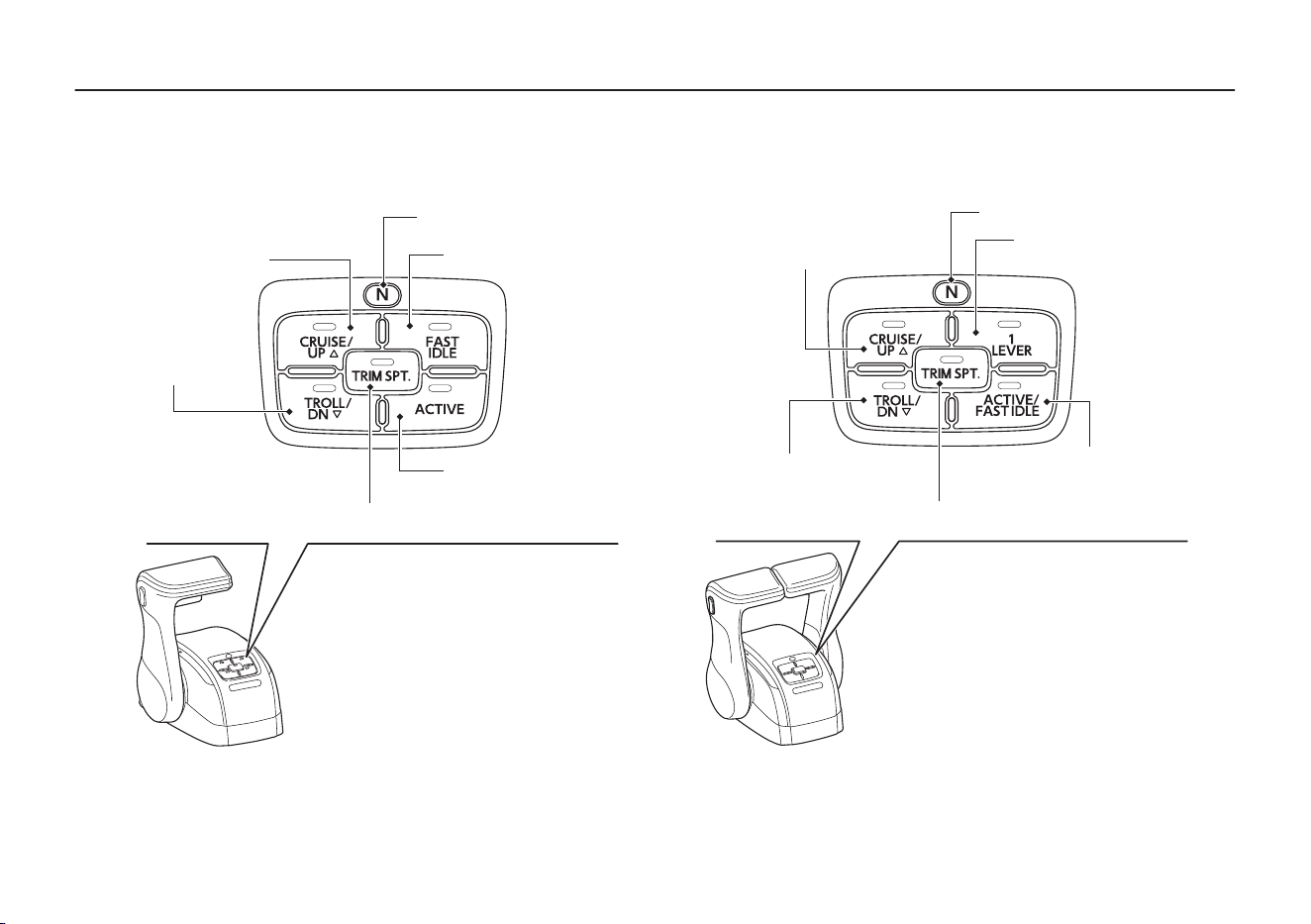

Function Switch Panel (optional equipment)
Emergency Stop Switch Panel (optional
equipment)
Multi-function Display (optional equipment)
CONTROLS AND FEATURES
19
(for FLUSH-MOUNT type)
FUNCTION SWITCHES
EMERGENCY STOP
SWITCH
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP
SWITCH CLIP
CONTROLS

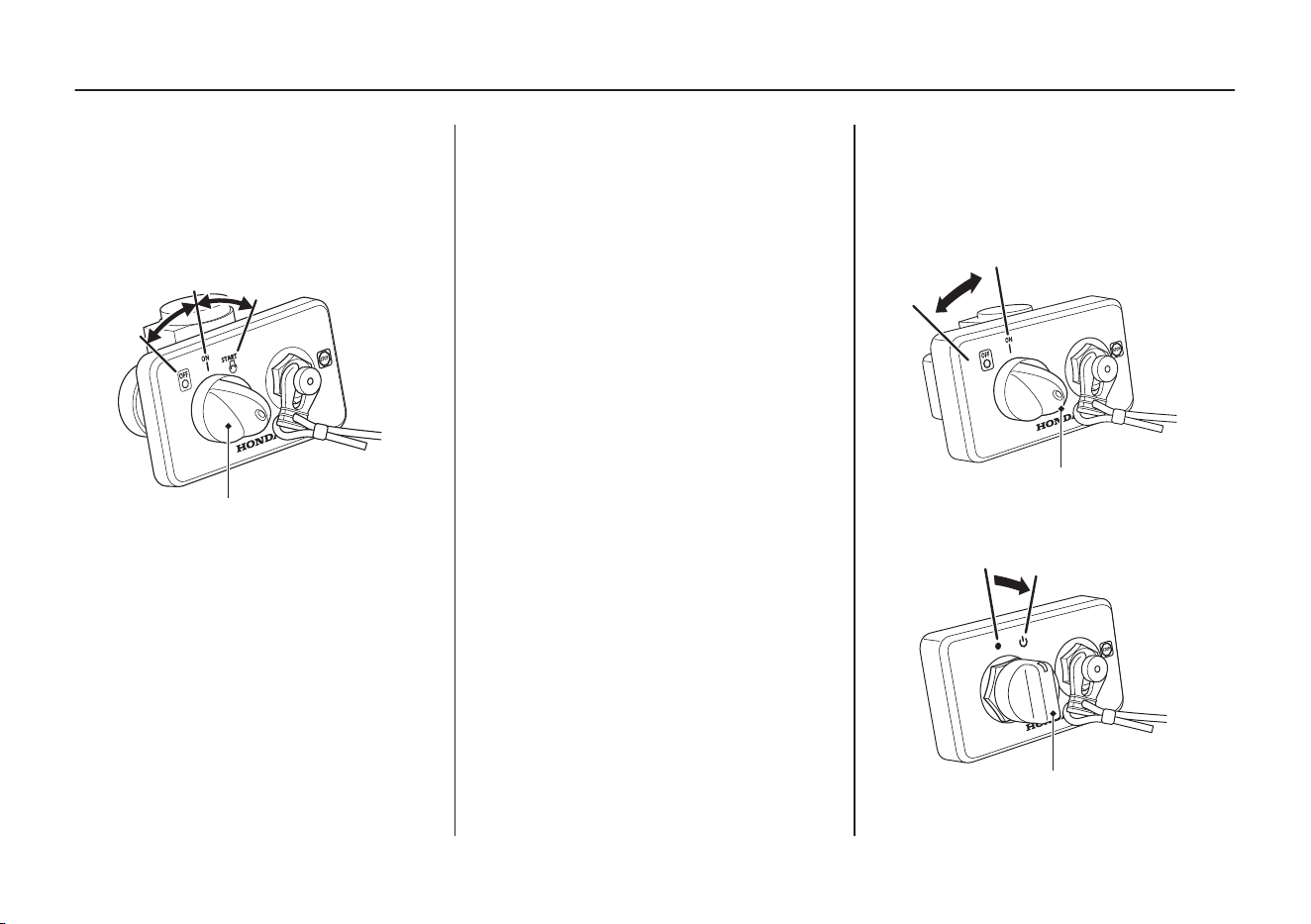

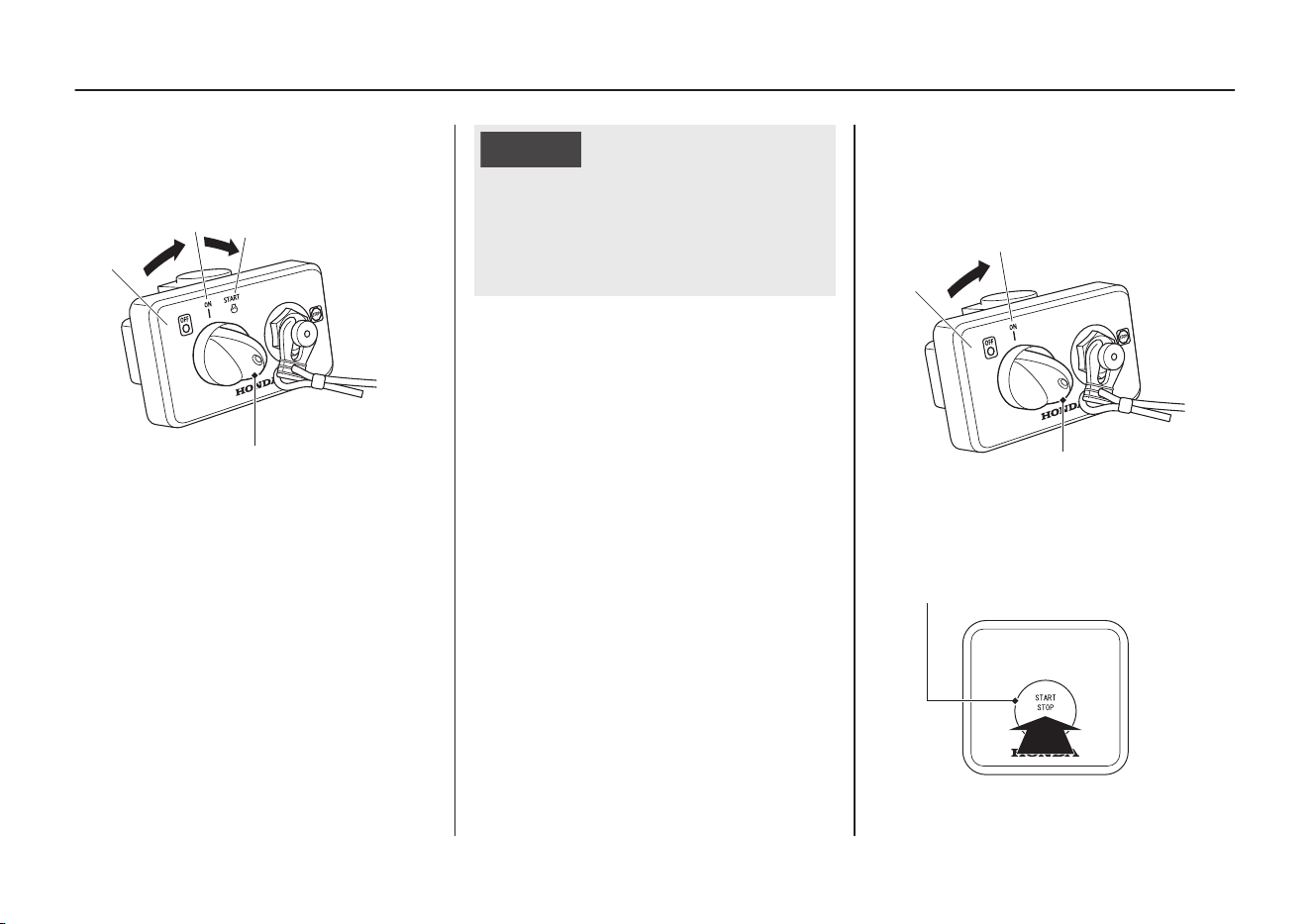

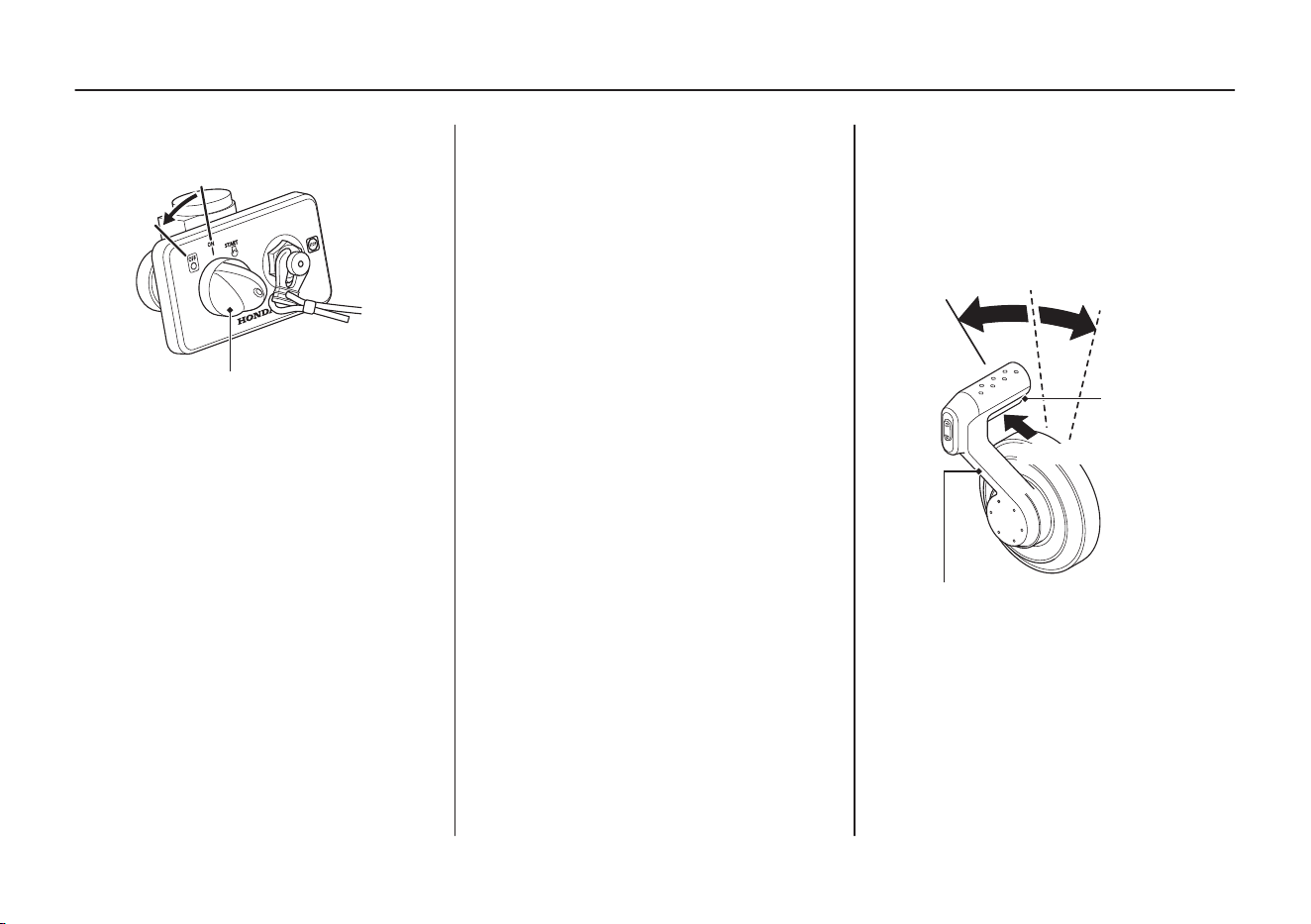

Ignition Switch (without
START/STOP switch)
The ignition switch controls the
ignition system and the starter
motor.
Turning the ignition switch key to
the START position starts the
engine. The key automatically
returns to the ON position when
released from the START position.
The engine will not start unless
the gearshift/throttle control
lever is in the NEUTRAL position
(P.58) and the emergency stop
switch clip is in the emergency
stop switch.
Turning the ignition switch to the
OFF position stops the engine.
Power Switch (with START/
STOP switch)
CONTROLS AND FEATURES
20
ON
OFF
START
IGNITION SWITCH KEY
(Normal key type)
ON
OFF
POWER SWITCH
(Honda Smart Key type)
ON
POWER SWITCH
This remote control is equipped
with a start/stop switch.
Normal Key Type
● ON: This position allows the
engine to start and run.
● OFF: This position stops the
engine (Ignition OFF).
Honda Smart Key Type
Turn the power switch clockwise
and then release to turn the
power ON. Turn and release the
power switch again to turn the
power OFF.
NOTICE
Turn the power off after the
engine is stopped. If the power
is not turned off after the
engine is stopped, the battery
will continue to drain until it is
depleted.
For the Honda Smart Key type,
electric power cannot be supplied
to the boat unless the Smart Key
and remote control are properly
paired (authenticated).
Honda Smart Key (optional
equipment)
The Honda Smart Key has an
immobilizer system. The
immobilizer system helps to
protect against boat theft. Refer
to the Honda Smart Key Owner's
Manual for complete information
on the Smart Key system.
The Honda Smart Key is available
in certain areas.
CONTROLS AND FEATURES
21
LOCK BUTTON
START/STOP Switch
To start the engine, be sure the power switch is in
the ON position, and then press the start/stop
switch button.
For boats with multiple outboard motors and
equipped with the ALL ENGINE START/STOP switch,
all motors can be started at the same time at the
press of one button.
For boats equipped with multiple outboard motors
and either the dual type or triple type start/stop
switches, each outboard on the boat may be started
individually and the corresponding indicator light
will turn on after the engine has started.
The starter motor will not work unless the gearshift/
throttle control lever is in the NEUTRAL position,
and the clip is in the emergency stop switch.
CONTROLS AND FEATURES
22
START/STOP SWITCH
START/STOP SWITCH
ALL ENGINE START/STOP
FOR MULTIPLE OUTBOARD
MOTORS
SINGLE TYPE
OUTBOARD MOTOR
TRIPLE TYPE
OUTBOARD MOTOR
DUAL TYPE (quad-type)
OUTBOARD MOTOR
START/STOP SWITCHESSTART/STOP SWITCHES
INDICATORS
INDICATORS

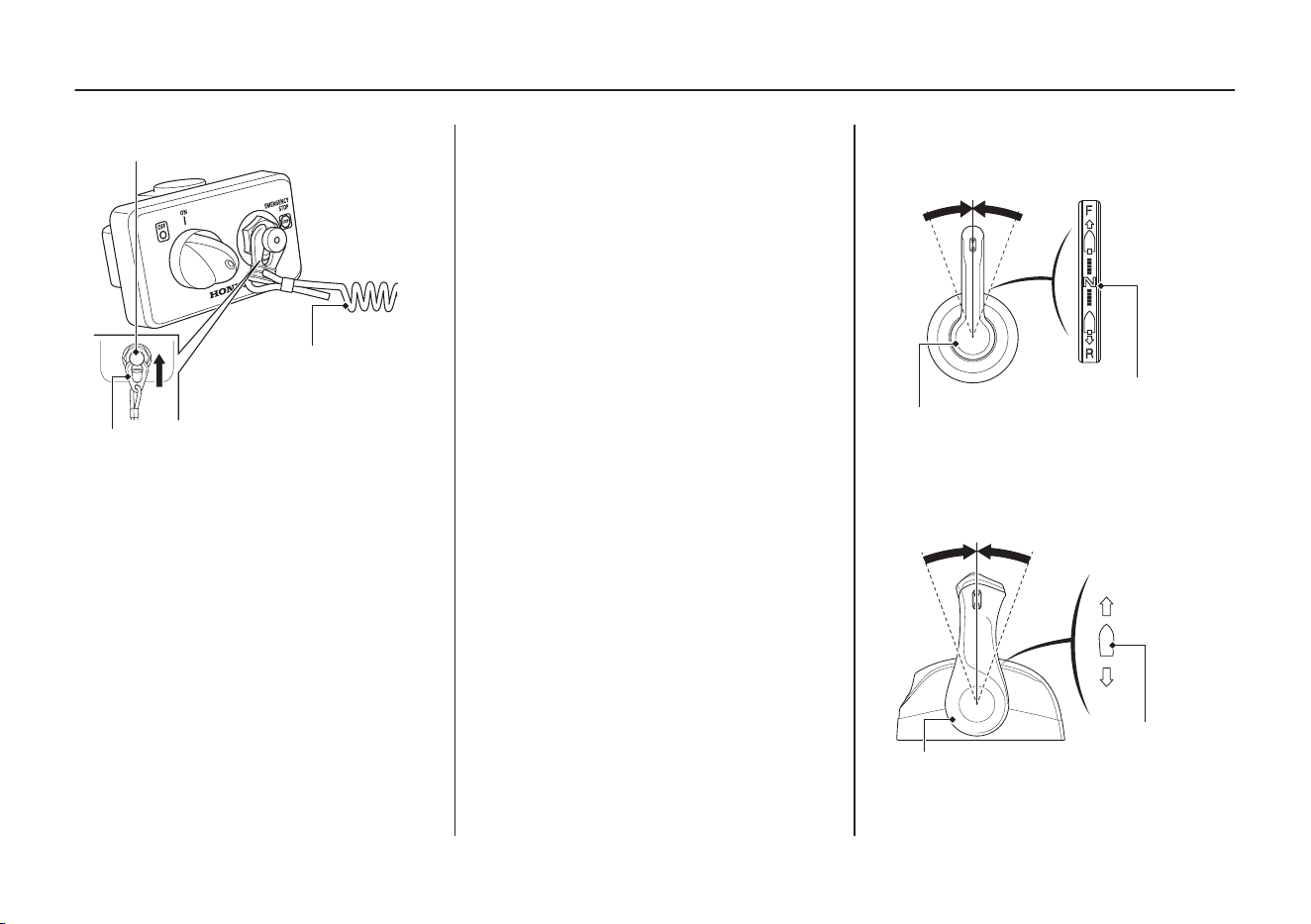

Emergency Stop Switch Clip
and Emergency Stop Switch
The emergency stop switch clip
must be inserted in the
emergency stop switch in order
for the engine to start and run.
The emergency stop switch
lanyard must be attached
securely to the operator or to the
operator’s PFD (Personal
Flotation Device).
When used as described, the
emergency stop switch clip and
emergency stop switch lanyard
system stops the engine if the
operator falls away from the
controls.
A spare switch clip should be
stored near the controls in case
the operator and primary switch
clip falls overboard and a
passenger needs to pilot the boat
during an emergency situation.
CONTROLS AND FEATURES
23
EMERGENCY STOP SWITCH
EMERGENCY STOP SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
SPARE SWITCH CLIP
(optional equipment)

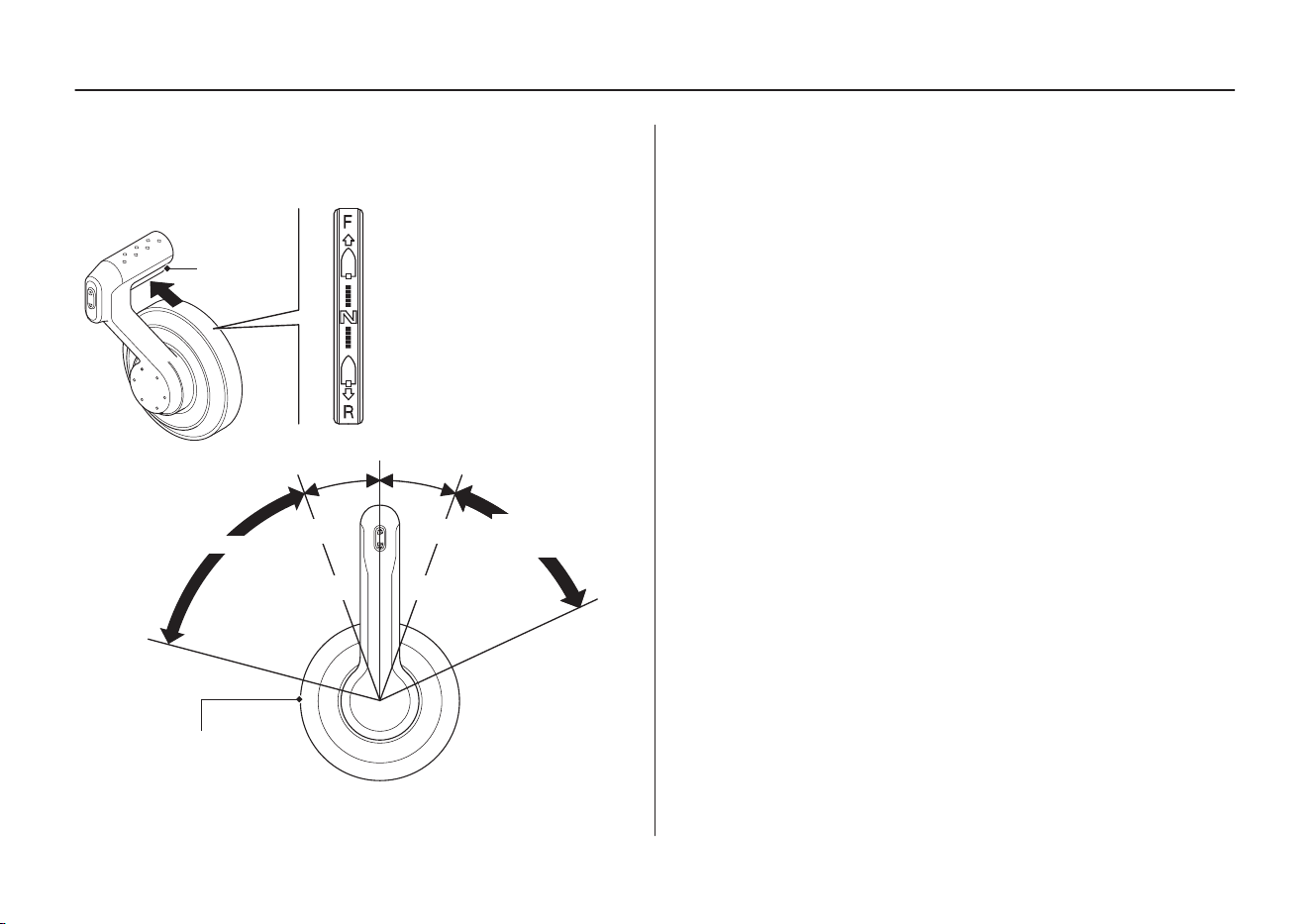

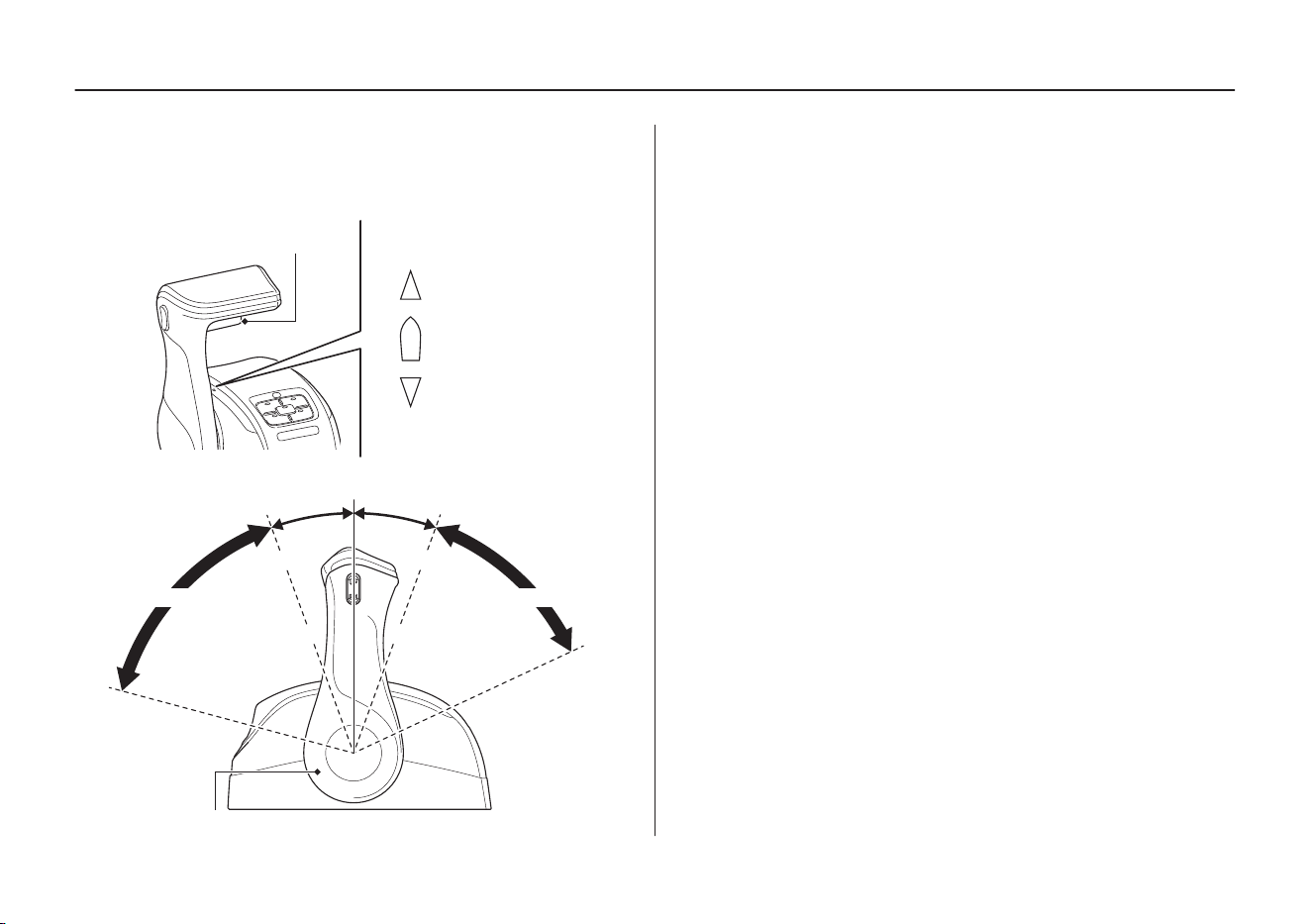

Gearshift/Throttle Control Lever (Flush-
Mount type)

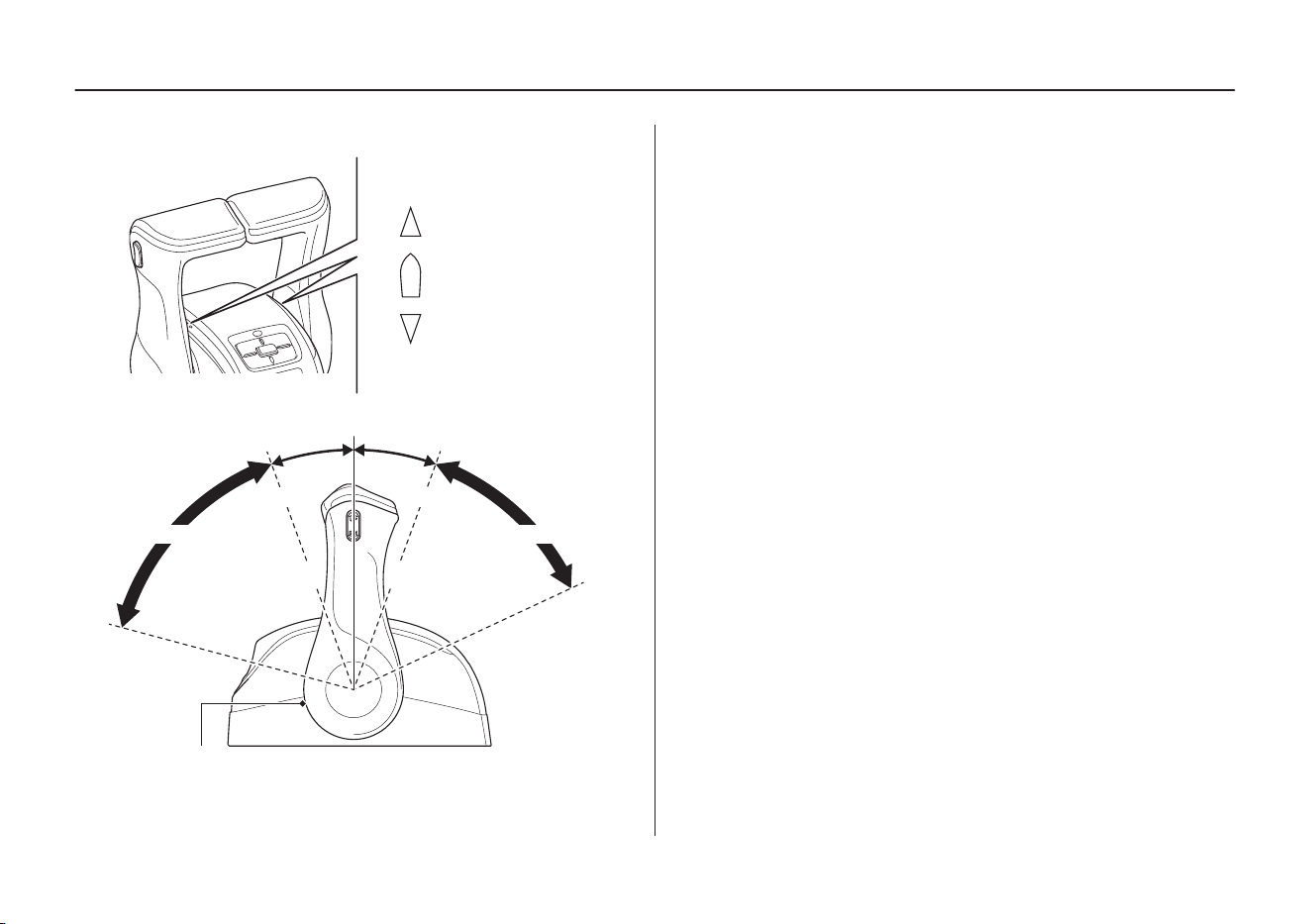

You can use the gearshift/throttle control lever to
shift gear into forward, reverse, or neutral, and to
adjust the engine speed.
It is necessary to pull up the neutral release lever to
operate the gearshift/throttle control lever.
FORWARD:
Moving the lever to the FORWARD position
(approximately 20° from the NEUTRAL position)
engages the gear into forward. Moving the lever
further from the FORWARD position will increase
the throttle opening and the boat's forward speed.
NEUTRAL:
Engine power is cut off from the propeller.
REVERSE:
Moving the lever to the REVERSE position
(approximately 20° from the NEUTRAL position)
engages the gear into reverse. Moving the lever
further from the REVERSE position will increase the
throttle opening and the boat's reverse speed.
CONTROLS AND FEATURES
24
GEAR SHIFT/THROTTLE
CONTROL LEVER
NEUTRAL
RELEASE
LEVER
FORWARD
NEUTRAL
REVERSE
REVERSE
NEUTRAL
FORWARD
THROTTLE
OPENING
MAXIMUM
MAXIMUM
MINIMUMMINIMUM
SHIFT
20°
20°
THROTTLE OPENING
SHIFT

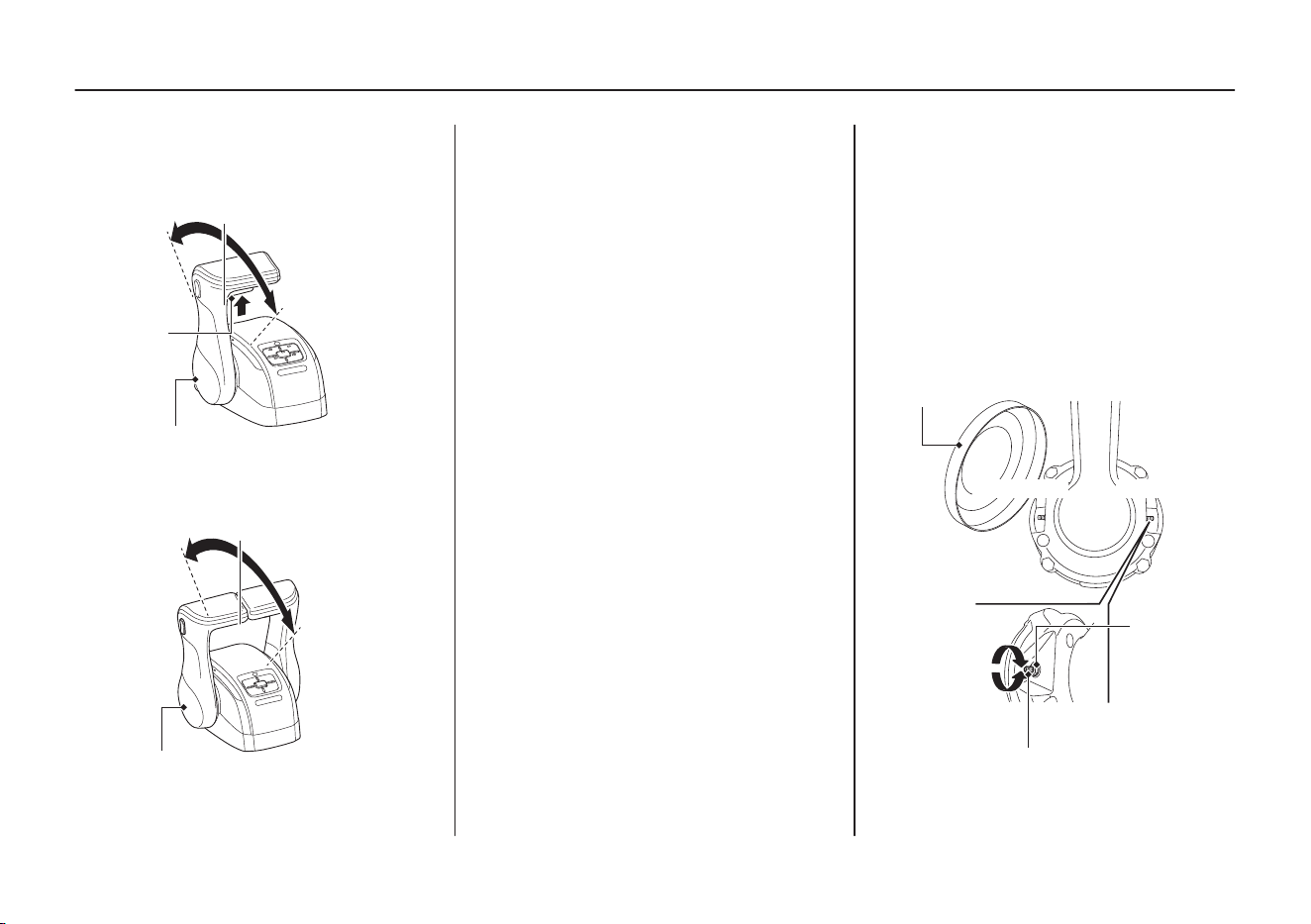

Gearshift/Throttle Control Lever (Top-Mount
type)
You can use the gearshift/throttle control lever to
shift gear into forward, reverse, or neutral, and to
adjust the engine speed.
FORWARD:
Moving the lever to the FORWARD position
(approximately 20° from the NEUTRAL position)
engages the gear into forward. Moving the lever
further from the FORWARD position will increase
the throttle opening and the boat's forward speed.
NEUTRAL:
Engine power is cut off from the propeller.
REVERSE:
Moving the lever to the REVERSE position
(approximately 20° from the NEUTRAL position)
engages the gear into reverse. Moving the lever
further from the REVERSE position will increase the
throttle opening and the boat's reverse speed.
CONTROLS AND FEATURES
25
GEAR SHIFT/THROTTLE CONTROL LEVER
NEUTRAL RELEASE LEVER
FORWARD
NEUTRAL
REVERSE
REVERSE
NEUTRAL
FORWARD
MAXIMUM
MAXIMUM
SHIFT
20°
SINGLE TYPE
THROTTLE OPENING THROTTLE OPENING
SHIFT
MINIMUMMINIMUM
20°
You can use the gearshift/throttle control lever to
shift gear into forward, reverse, or neutral, and to
adjust the engine speed.
FORWARD:
Moving the lever to the FORWARD position
(approximately 20° from the NEUTRAL position)
engages the gear into forward. Moving the lever
further from the FORWARD position will increase
the throttle opening and the boat's forward speed.
NEUTRAL:
Engine power is cut off from the propeller.
REVERSE:
Moving the lever to the REVERSE position
(approximately 20° from the NEUTRAL position)
engages the gear into reverse. Moving the lever
further from the REVERSE position will increase the
throttle opening and the boat's reverse speed.
CONTROLS AND FEATURES
26
GEAR SHIFT/THROTTLE CONTROL LEVER
FORWARD
NEUTRAL
REVERSE
REVERSE
NEUTRAL
FORWARD
MAXIMUM
MAXIMUM
SHIFT
20°
DUAL TYPE
THROTTLE OPENING THROTTLE OPENING
SHIFT
MINIMUMMINIMUM
20°

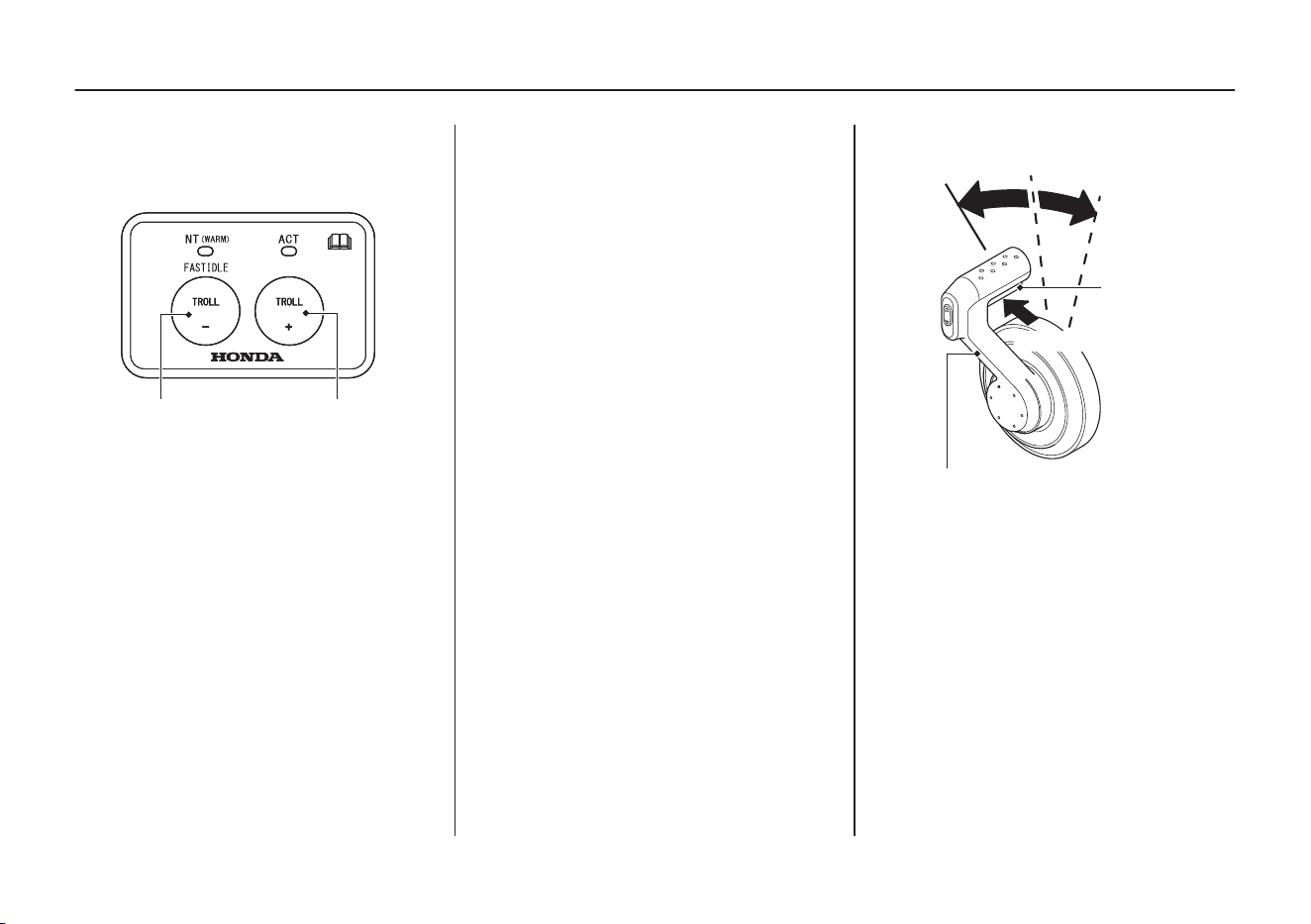

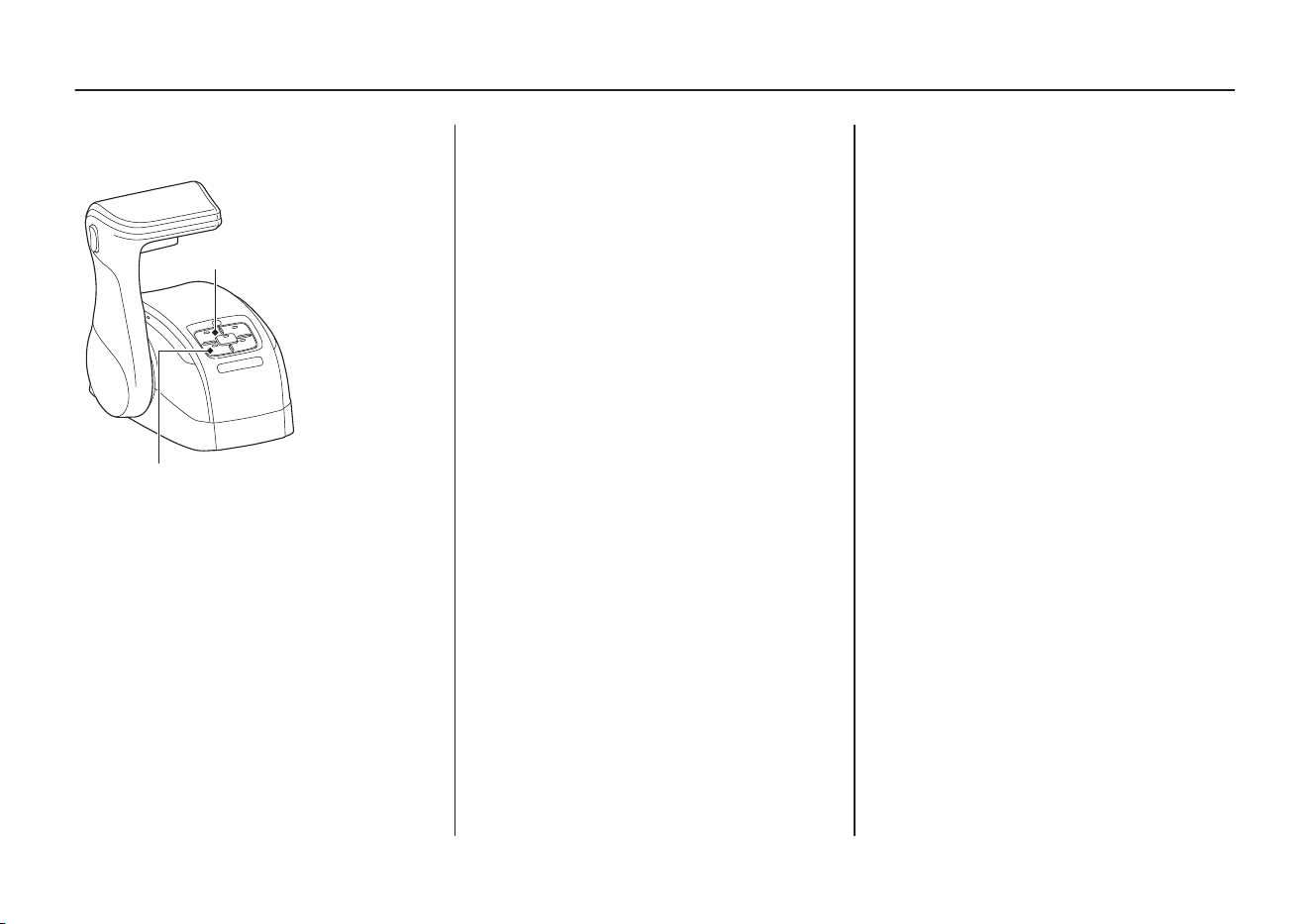

Function Switches (Flush-
Mount type)
Function switches are used for
operations in the fast idle mode
and trolling mode.
NT (WARM)
● Lights: The gearshift is in
neutral.
●
Blinks: It is in the fast idle
mode.
ACT
● Lights: The gearshift and
throttle operations are
possible.
● Off: The gearshift and throttle
operations are not possible.
Fast Idle Mode
The BF350A model uses
programmed fuel injection, so
this mode will not be needed for
starting.
After the engine starts and if the
outside temperature is below
41°F (5°C), the fast idle mode can
be used to accelerate engine
warm-up.
See page 60 for engine warm-
up instructions.
Use the [-] switch and the
gearshift/throttle control lever to
adjust the engine speed without
the gearshift when warming up
the engine.
CONTROLS AND FEATURES
27
[+] SWITCH[-] SWITCH
FORWARD
Pull up
GEARSHIFT/THROTTLE
CONTROL LEVER
NEUTRAL
NEUTRAL
RELEASE
LEVER
REVERSE
Keeping the [-] switch pressed
when the gearshift/throttle
control lever is in the NEUTRAL
position, turn the lever forward.
Keep turning the lever forward.
The throttle opens and the
engine speed increases after the
lever passes the shift point.
Note that the gearshift
mechanism does not function
when the [-] switch is pushed
once and then released after the
gearshift/throttle control lever is
moved.
The control lever does not
operate unless the neutral release
lever is pulled.
To release the fast idle mode,
press and hold the [-] switch with
the gearshift/throttle control
lever in the NEUTRAL position.

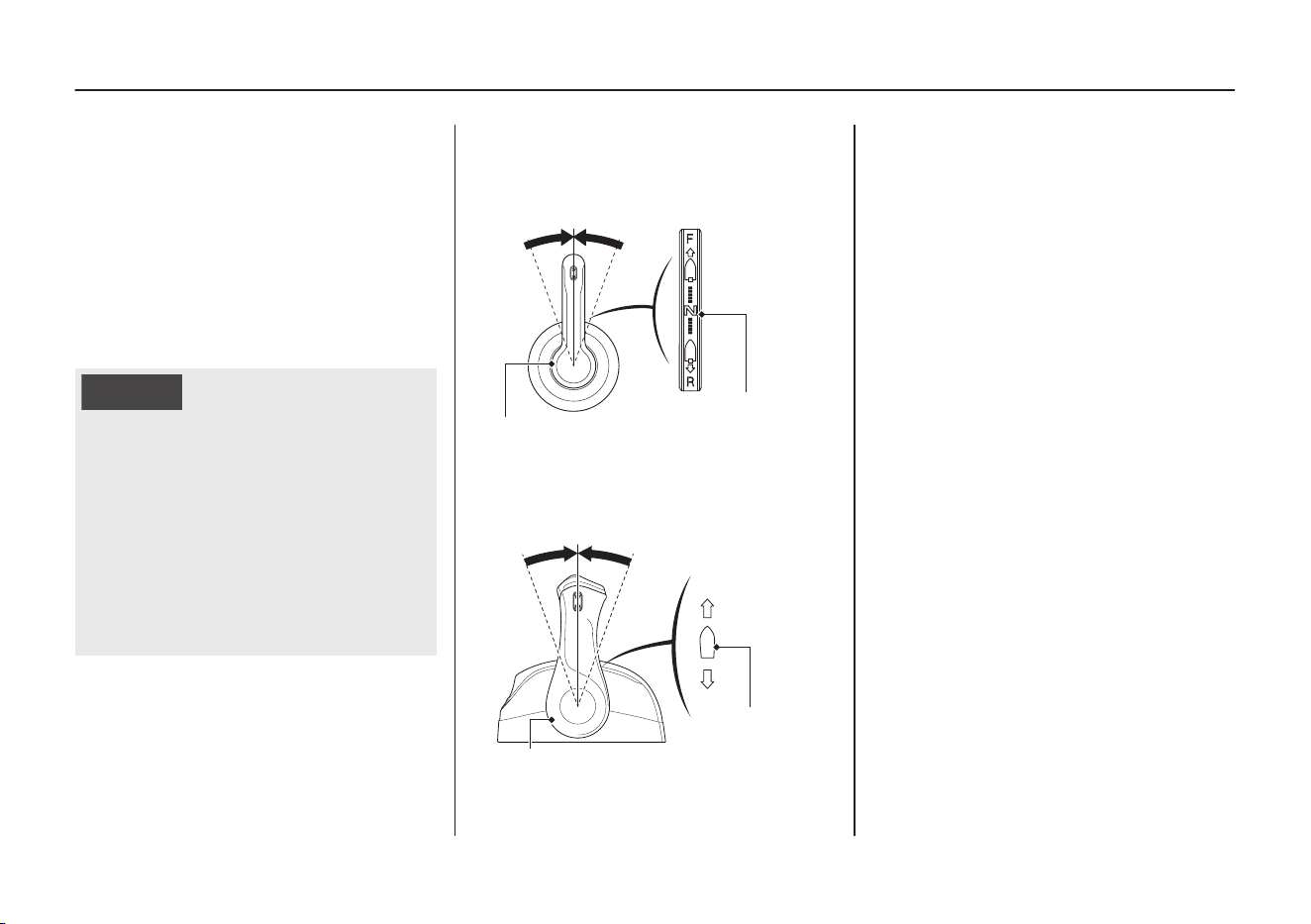

Trolling Mode
After the engine warms up, when
the gearshift/throttle control
lever is tilted from the NEUTRAL
position to the FORWARD or
REVERSE side by about 20° and
the [+] switch is pressed and
held, the mode changes to
trolling mode.
Engine speed adjusting range:
650 rpm – 1,000 rpm (every 50
rpm)
When in trolling mode, trolling
mode is not released even if you
put the gearshift/throttle control
lever in the NEUTRAL position. By
shifting from NEUTRAL to
FORWARD or REVERSE again, the
boat will cruise at the set engine
speed.
CONTROLS AND FEATURES
28
FORWARD
GEARSHIFT/THROTTLE
CONTROL LEVER
NEUTRAL
REVERSE
20° 20°
CAUTION
While in trolling mode, be
careful when shifting the
gearshift/throttle control lever
from the NEUTRAL position to
the FORWARD or REVERSE
position. Operating the
gearshift/throttle control lever
while trolling mode is ON
creates a risk of collision or
injury due to an unexpected
sudden start, which is caused
by the engine starting to cruise
at the speed set for trolling
mode, not by how far the
throttle is opened.
● If the engine is not finished
warming up, it cannot go into
trolling mode. So, warm up
the engine (P. 60).
● You can force the release of
trolling mode by using the
gearshift/throttle control lever
to increase the engine speed
to 3,000 rpm or higher.
● To release the trolling mode,
press and hold the [+] switch.
CONTROLS AND FEATURES
29
Select Switches (Top-Mount type)
Select switches are used for operations in the fast idle mode, trolling control mode, one-lever mode, active
mode, cruise control mode and trim support mode.
CONTROLS AND FEATURES
30
CRUISE/UP SWITCH
SINGLE TYPE DUAL TYPE
TROLL/DN SWITCH
FAST IDLE SWITCH
ACTIVE SWITCH
ACTIVE/FAST IDLE
SWITCH
1 LEVER SWITCH
TROLL/DN SWITCH
CRUISE/UP SWITCH
TRIM SPT. SWITCH
TRIM SPT. SWITCH
NEUTRAL INDICATOR
NEUTRAL INDICATOR
Indicators on select switches
Indicator On Flashing Off
NEUTRAL
The gearshift/throttle
control lever is in the
NEUTRAL position
-
The gearshift/throttle
control lever is in the
FORWARD or REVERSE
position
CRUISE/UP Cruise control mode is on
Cruise control mode is
paused
Cruise control mode is off
TROLL/DN Trolling control mode is on
Trolling control mode is
paused
Trolling control mode is off
TRIM SPT. Trim support mode is on
Trim support mode is
paused
Trim support mode is off
FAST IDLE - Fast idle mode is on Fast idle mode is off
ACTIVE Active mode is on - Active mode is off
1 LEVER One-lever mode is on - One-lever mode is off
ACTIVE/FAST IDLE
Active mode is on
And
Fast idle mode is off
Active mode is on
And
Fast idle mode is on
Active mode is off
And
Fast idle mode is off
CONTROLS AND FEATURES
31
ACTIVE Switch, ACTIVE/FAST
IDLE Switch
For multiple station type, use the
ACTIVE switch or ACTIVE/FAST
IDLE switch to change the
operating remote control (active
mode).
If you press the ACTIVE switch or
ACTIVE/FAST IDLE switch on the
remote control you want to
operate the outboard motors
when all gearshift/throttle control
levers are in the NEUTRAL
position, the mode changes to
active mode.
FAST IDLE Switch, ACTIVE/FAST
IDLE Switch
If you press the FAST IDLE switch
or ACTIVE/FAST IDLE switch on
the remote control in active
mode when the gearshift/throttle
control levers are in the NEUTRAL
position, the mode changes to
the fast idle mode. You can adjust
the engine speed by lowering the
gearshift/throttle control lever to
the FORWARD or REVERSE side.
In the case of dual top-mount
remote control, the mode
changes to the fast idle mode
only for an engine whose
gearshift/throttle control levers
are in the NEUTRAL position.
The BF350A model uses
programmed fuel injection, so
this mode will not be needed for
starting. After the engine starts
and if the outside temperature is
below 41°F (5°C), the fast idle
mode can be used to accelerate
engine warm-up.
● You cannot turn on the fast
idle mode without putting the
gearshift/throttle control lever
in the NEUTRAL position.
● If remote controls are
mounted at two places,
changing of fast idle mode
can be done only with the
remote control that is in active
mode (P.32).
●
To release the fast idle mode,
press the FAST IDLE switch or
ACTIVE/FAST IDLE switch with
all the gearshift/throttle
control levers put in the
NEUTRAL position.
CONTROLS AND FEATURES
32
● When fast idle mode is
released, a short buzz sounds
twice.
TROLL/DN Switch
After the engine warms up, when
the gearshift/throttle control
levers are tilted from the
NEUTRAL position to the
FORWARD or REVERSE side by
about 20° and the TROLL/DN
switch of the remote control is
pressed, the mode changes to
trolling control mode.
CONTROLS AND FEATURES
33
SINGLE TYPE
GEARSHIFT/THROTTLE
CONTROL LEVER
NEUTRALFORWARD
FAST IDLE SWITCH
NEUTRAL
RELEASE
LEVER
REVERSE
GEARSHIFT/THROTTLE
CONTROL LEVER
NEUTRAL
FORWARD
ACTIVE/FAST IDLE
SWITCH
DUAL TYPE
REVERSE
GEARSHIFT/THROTTLE
CONTROL LEVER
NEUTRAL
20° 20°
The engine speed can be
adjusted with the CRUISE/UP
switch and TROLL/DN switch
when in trolling control mode.
After the mode changes to the
trolling mode, the engine speed
is 650 rpm.
Engine speed adjusting range:
650 rpm to 1,000 rpm (in steps of
50 rpm)
When in trolling control mode,
trolling control mode is not
released even if you put the
gearshift/throttle control lever in
the NEUTRAL position. By shifting
from NEUTRAL to FORWARD or
REVERSE again, the boat will
cruise at the set engine speed.
CAUTION
While in trolling control mode,
check whether the mode
indicator is ON/OFF before
shifting the gearshift/throttle
control lever from the NEUTRAL
position to the FORWARD or
REVERSE position. Operating
the gearshift/throttle control
lever while trolling control
mode is ON creates a risk of
collision or injury due to an
unexpected sudden start, which
is caused by the engine starting
to cruise at the speed set for
trolling control mode, not by
how far the throttle is opened.
●
If the engine is not finished
warming up, it cannot go into
trolling mode. So, warm up
the engine (P. 60).
● If remote controls are
mounted at two places, the
changing of trolling control
mode can be done only with
the remote control that is in
active mode (P.61).
● You can force the release of
trolling control mode by using
the gearshift/throttle control
lever to increase the engine
speed to 3,000 rpm or higher.
●
To release the trolling control
mode, press and hold the
TROLL/DN switch.
●
When the trolling control
mode is released, a short buzz
sounds twice.
CONTROLS AND FEATURES
34
1 LEVER Switch (For multiple
outboard motors type)
Shifting gear and the engine
speed adjustment of all the
outboard motors can be
performed with one gearshift/
throttle control lever when in
one-lever mode.
If you press the 1 LEVER switch
on the remote control in active
mode when all gearshift/throttle
control levers are in the NEUTRAL
position, the mode changes to
one-lever mode.
●
If remote controls are
mounted at two places, the
changing of one-lever mode
can be done only with the
remote control that is in active
mode (P.32).
●
To release one-lever mode,
press and hold the 1 LEVER
switch with the gearshift/
throttle control lever in the
NEUTRAL position.
● When one-lever mode is
released, a short buzz sounds
twice.
● To use one-lever mode the
next time you are boating,
turn the engine switch or the
power switch off while in one-
lever mode so that the next
time you go boating the one-
lever mode will be on.
CRUISE/UP Switch
If you press the CRUISE/UP switch
during cruising with all the
gearshift/throttle control levers in
the FORWARD position, the
mode changes to the cruise
control mode, which lets the boat
cruise at a constant engine speed
or velocity.
● Speed can only be adjusted in
cruise control mode when
equipped with GPS.
NOTICE
• Operations may be
inconsistent, depending on
the GPS that you are using.
Consult your dealer for more
information about GPS.
CONTROLS AND FEATURES
35
In the cruise control mode,
pressing the CRUISE/UP switch
increases the engine speed or
velocity and pressing the
TROLL/DN switch decreases it.
Engine speed adjusting range:
Engine speed at mode change ±
500 rpm (in steps of 50 rpm)
Velocity adjusting range:
− Velocity at mode change ±10
km/h (in steps of 1.0 km/h)
−
Velocity at mode change ±5
miles/h (in steps of 0.5
miles/h)
−
Velocity at mode change ±5
knots (in steps of 0.5 knots)
●
To select whether to adjust
the engine speed or velocity
in the cruise control mode,
use a multi-function display.
● If remote controls are
mounted at two places, the
changing of cruise control
mode can be done only with
the remote control that is in
active mode (P.32).
● The mode does not change to
the cruise control mode in the
following cases.
● GPS has not been started
(Velocity adjustment is
selected in the multi-
function display)
●
The trolling control mode
is on
●
In the case of multiple
outboard engines, when
even one of the outboard
engines has stopped
●
The cruise control mode is
stopped temporarily if you
make a turn or turn the boat
continuously.
● To release the cruise control
mode, press and hold the
CRUISE/UP switch.
●
When the cruise control mode
is released, a short buzz
sounds twice.
● The cruise control mode is
released forcibly in the
following cases.
● GPS error or disconnection
(Velocity adjustment is
selected in the multi-
function display)
●
Engine stops or engine is
abnormal (overheating,
low oil pressure, etc.)
●
If the engine RPM or speed
is unstable
CONTROLS AND FEATURES
36
● Operate the gearshift/
throttle control lever a
certain amount from the
position for changing
modes.*
＊ Operation of a certain amount
●
If you put the engine speed at
3,000 rpm, switch to cruise
control mode, and use the
CRUISE/UP switch to adjust to
3,500 rpm
− The mode is forcibly
released by operating the
gearshift/throttle control
lever to the FORWARD
side to increase the engine
speed to 3,500 rpm or
more.
−
The mode is forcibly
released immediately if the
gearshift/throttle control
lever is operated to the
REVERSE side.
●
If you put the engine speed at
3,000 rpm, switch to cruise
control mode, and use the
TROLL/DN switch to adjust to
2,500 rpm
− When the gearshift/
throttle control lever is
operated to the REVERSE
side and the engine speed
exceeds 2,500 rpm, the
mode is forcibly released.
− The mode is forcibly
released immediately if the
gearshift/throttle control
lever is operated to the
FORWARD side.
● The mode is forcibly released
immediately by putting the
gearshift/throttle control lever
in NEUTRAL.
TRIM SPT. Switch
Pressing the TRIM SPT. switch
changes the mode to the trim
support mode, which
automatically does trim
operations according to the
speed or engine RPM.
The conditions that control the
trim operation (engine RPM and
speed) and the trim angle pattern
are set in the multi-function
display.
For information about how to use
the power trim/tilt switch, see
page 38.
● If remote controls are
mounted at two places, the
changing of trim support
mode can be done only with
the remote control that is in
active mode (P.32).
CONTROLS AND FEATURES
37
● To release the trim support
mode, press the TRIM SPT.
switch.
● When trim support mode is
released, a short buzz sounds
twice.
COMMON CONTROLS
Power Trim/Tilt Switch
CONTROLS AND FEATURES
38
(Flush-mount type)
GEARSHIFT/THROTTLE
CONTROL LEVER
POWER TRIM/TILT SWITCH
(Top-mount type)
POWER TRIM/TILT SWITCH
GEARSHIFT/THROTTLE
CONTROL LEVER
SINGLE TYPE
POWER TRIM/TILT SWITCH
GEARSHIFT/THROTTLE
CONTROL LEVERS
DUAL TYPE

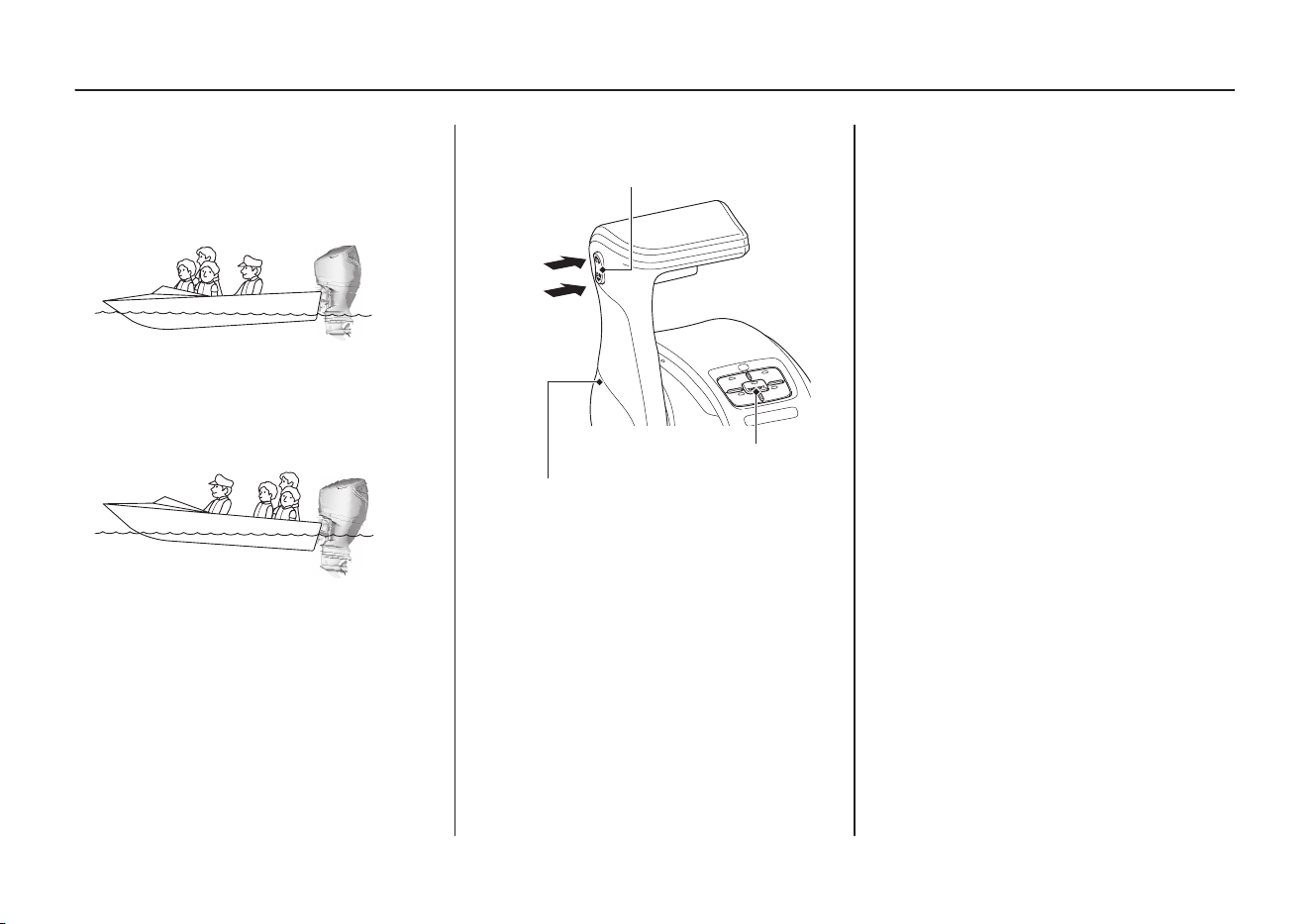

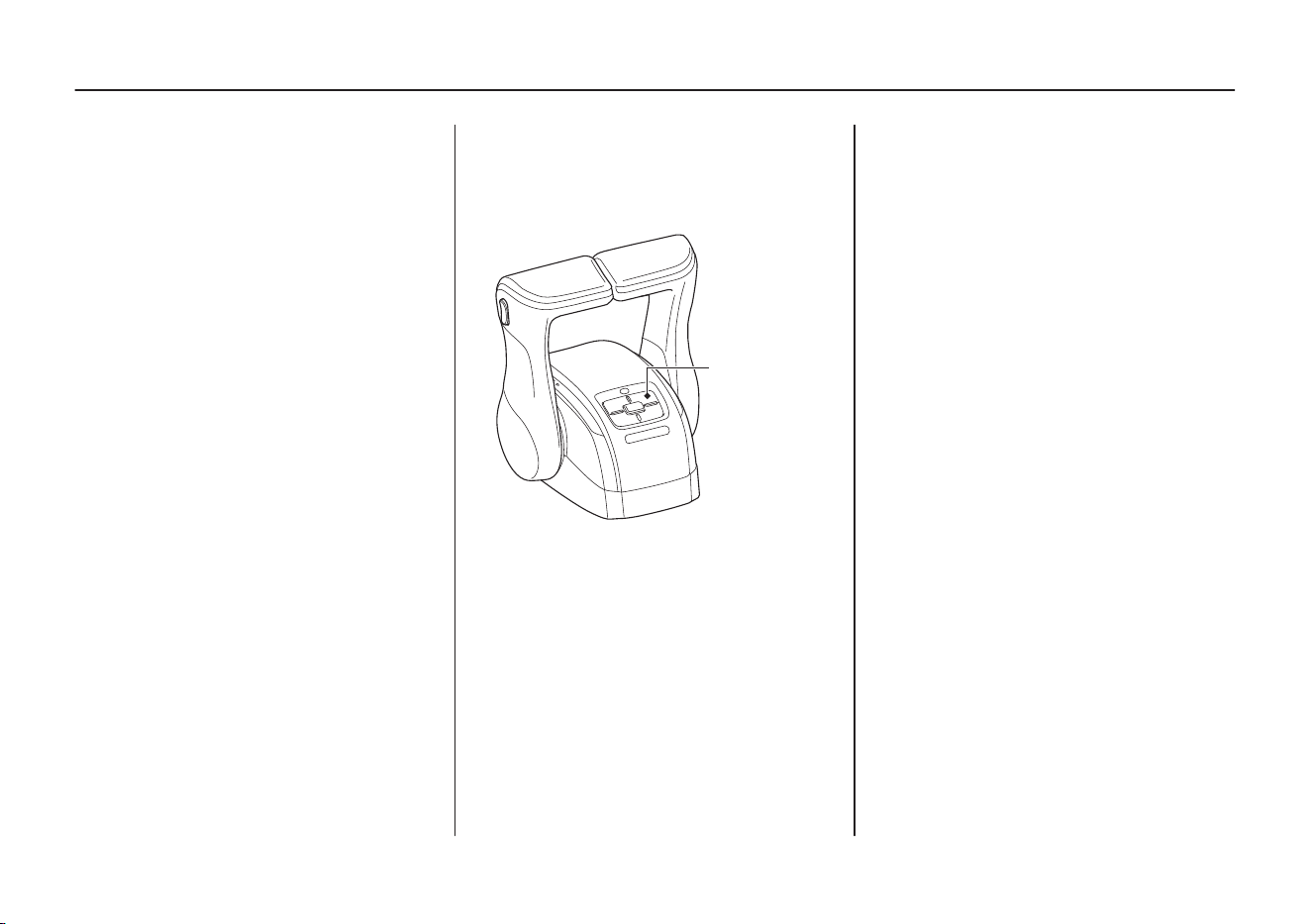

The power trim/tilt switch is
located on the gearshift/throttle
control lever. It is a rocker switch
with UP and DN (down) positions
for changing the angle of the
outboard motor.
You can use the power trim/tilt
switch anytime whether the boat
is underway, stopped, or the
ignition switch is in the OFF
position.
Trim the outboard motor to
obtain the best performance and
stability (P.69).
Tilt the outboard motor for
shallow water operation,
beaching, launching, or mooring.
For multiple outboard motors, tilt
them up at the same time.
PTT Switch Panel
For multiple outboard motors,
the trim/tilt angle of all outboard
motors is adjusted at the same
time by using the power trim/tilt
switch on the gearshift/throttle
control lever and the trim/tilt
angle of each outboard motor is
adjusted by using each power
trim/tilt switch on the panel.
CONTROLS AND FEATURES
39
POWER TRIM/TILT SWITCH PANEL
DUAL TYPE
POWER TRIM/TILT SWITCHES
TRIPLE TYPE
POWER TRIM/TILT SWITCHES

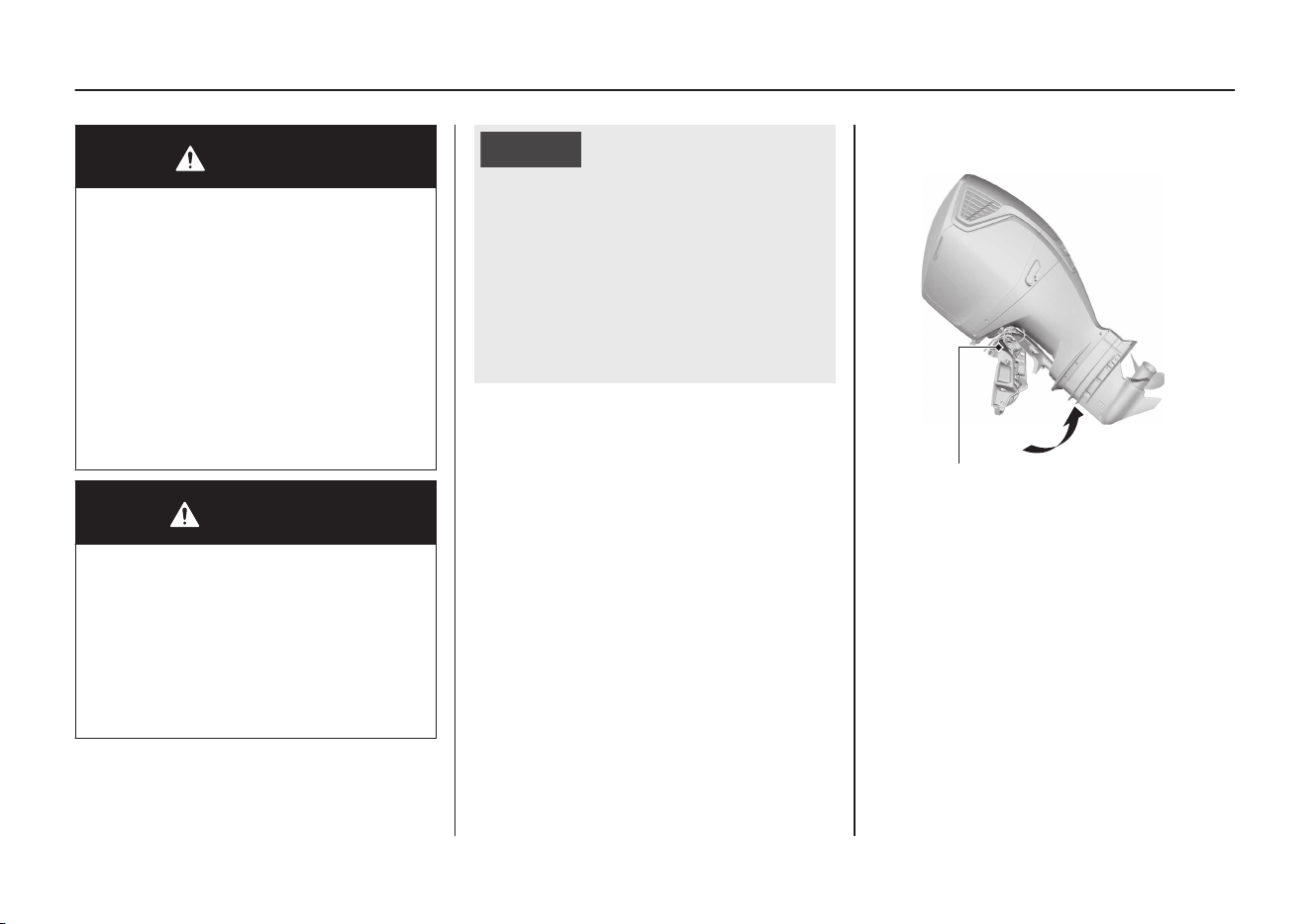

Power Tilt Switch
The power tilt switch is located
on the engine pan. It is a rocker
switch with UP and DN (down)
positions for changing the angle
of the outboard motor.
The power tilt switch operates
without turning the ignition
switch ON.
This switch is used, while the
engine is stopped, to raise the
outboard motor for mooring,
trailering, or maintenance.
CAUTION
Do not operate the power tilt
switch on the outboard motor
while cruising. You can lose
control of your balance, fall,
and be injured by the moving
outboard, propeller, or boat.
Always use the power trim/tilt
switch while under way.

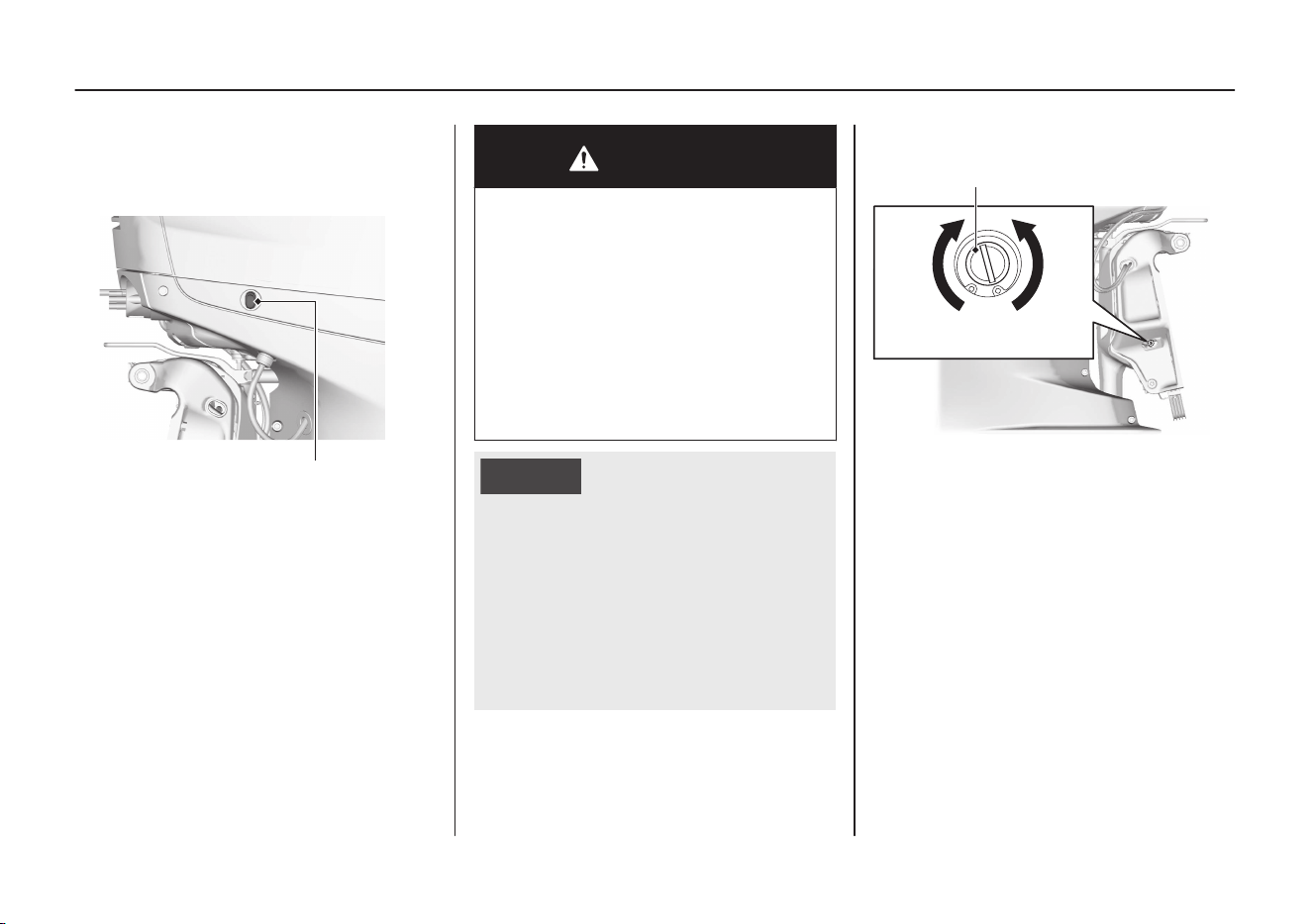

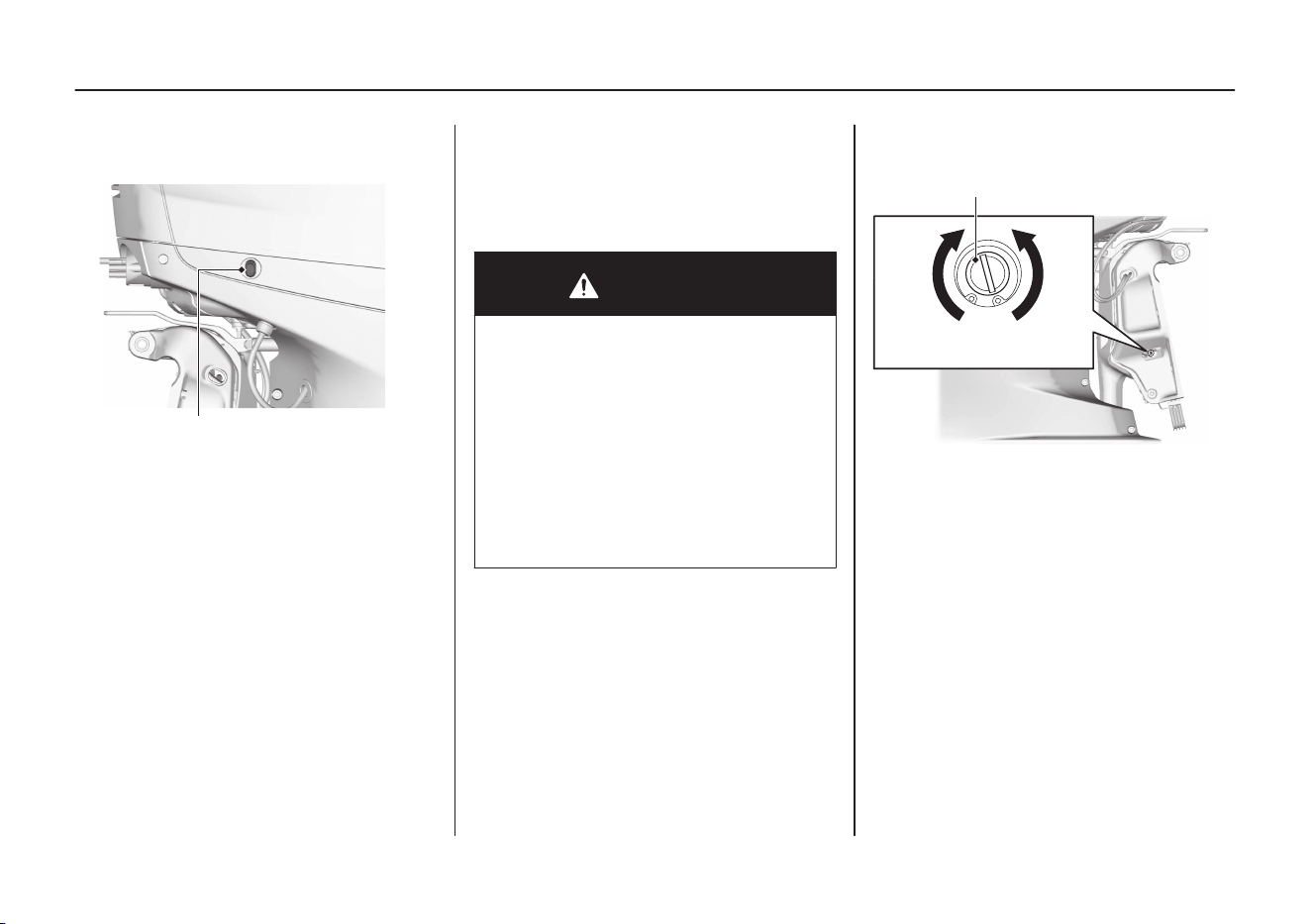

Manual Relief Valve
The outboard motor can be tilted
manually after opening the
manual relief valve. This allows
the outboard motor to be tilted
up or down when no battery is
connected.
CONTROLS AND FEATURES
40
POWER TILT SWITCH
MANUAL RELIEF VALVE
POWER
(To hold)
MANUAL
(To release)
DANGER
Check that nobody is under the
outboard motor before
opening the manual relief valve.
If the manual relief valve is
loosened (turned
counterclockwise) when the
outboard motor is tilted up, the
outboard motor will suddenly
tilt down.
CAUTION
The manual relief valve must be
tightened securely before
operating the outboard motor
otherwise the outboard motor
could tilt when operating in
reverse.
NOTICE
• If there is not enough
clearance between the
bottom of the outboard and
the ground, the outboard
may strike the ground and
be damaged if the manual
relief valve is opened.
Tilt Lock Lever
The tilt lock levers are used to
support the outboard motor in
the fully-raised position (P.78).
When the boat is to be moored
for a long time, tilt the outboard
motor up as far as it will go. Then
move the tilt lock levers to the
LOCK position, and gently lower
the outboard motor until the
lever contacts the stern bracket.
CONTROLS AND FEATURES
41
TILT LOCK LEVER (each side)
NOTICE
• Before tilting it up, leave the
outboard motor in the
running position for one
minute after stopping the
engine to drain the water
from inside the engine.
• Be careful that while the
outboard motor is tilted up
that it does not collide with
the pier or other boats.

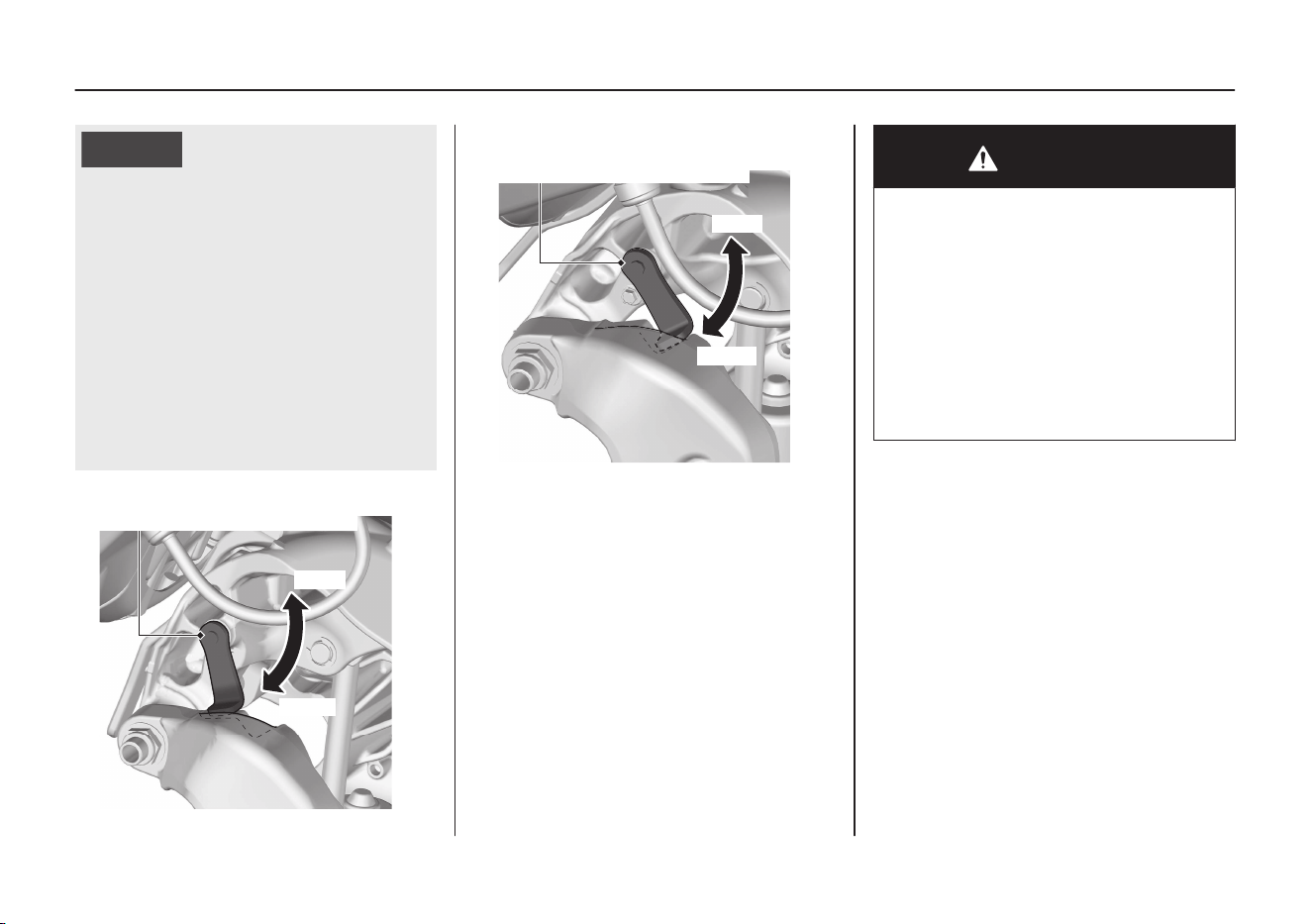

The tilt lock levers of the BF350A
can lock the outboard motor at
two tilt angles of 65° or 55°.
If it is not possible to tilt up to
65°, due to the hull, lock the
outboard motor at 55°.
CAUTION
If you do not secure the
outboard motor with the tilt
lock levers after you tilt up the
outboard motor by 55° or 65°
or more, then the hydraulic
pressure of the power trim/tilt
may drop and cause the
outboard motor to tilt down.
CONTROLS AND FEATURES
42
FREE
TILT LOCK LEVER (each side)
LOCK
When tilted up to 65°
FREE
LOCK
When tilted up to 55°
TILT LOCK LEVER (each side)

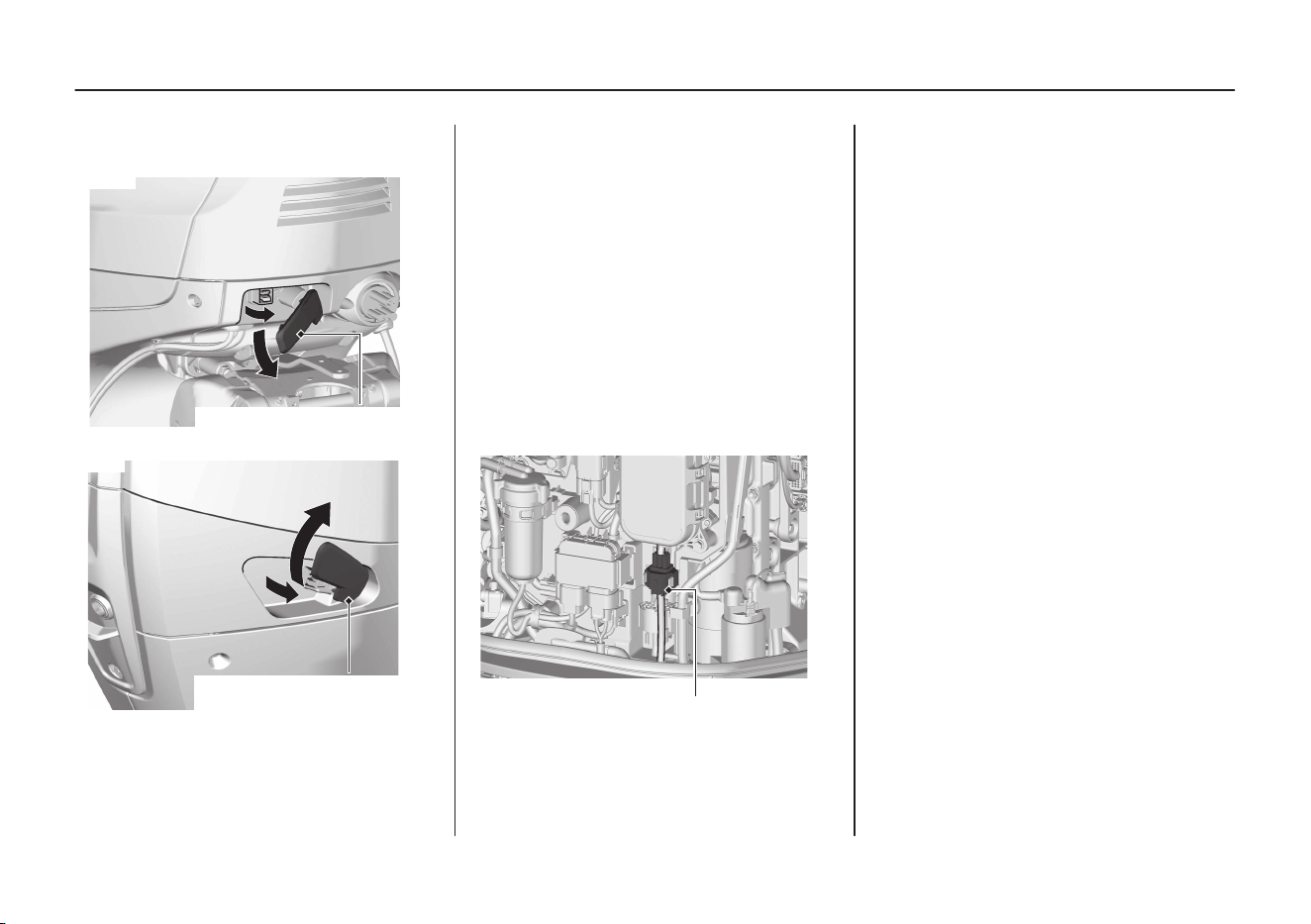

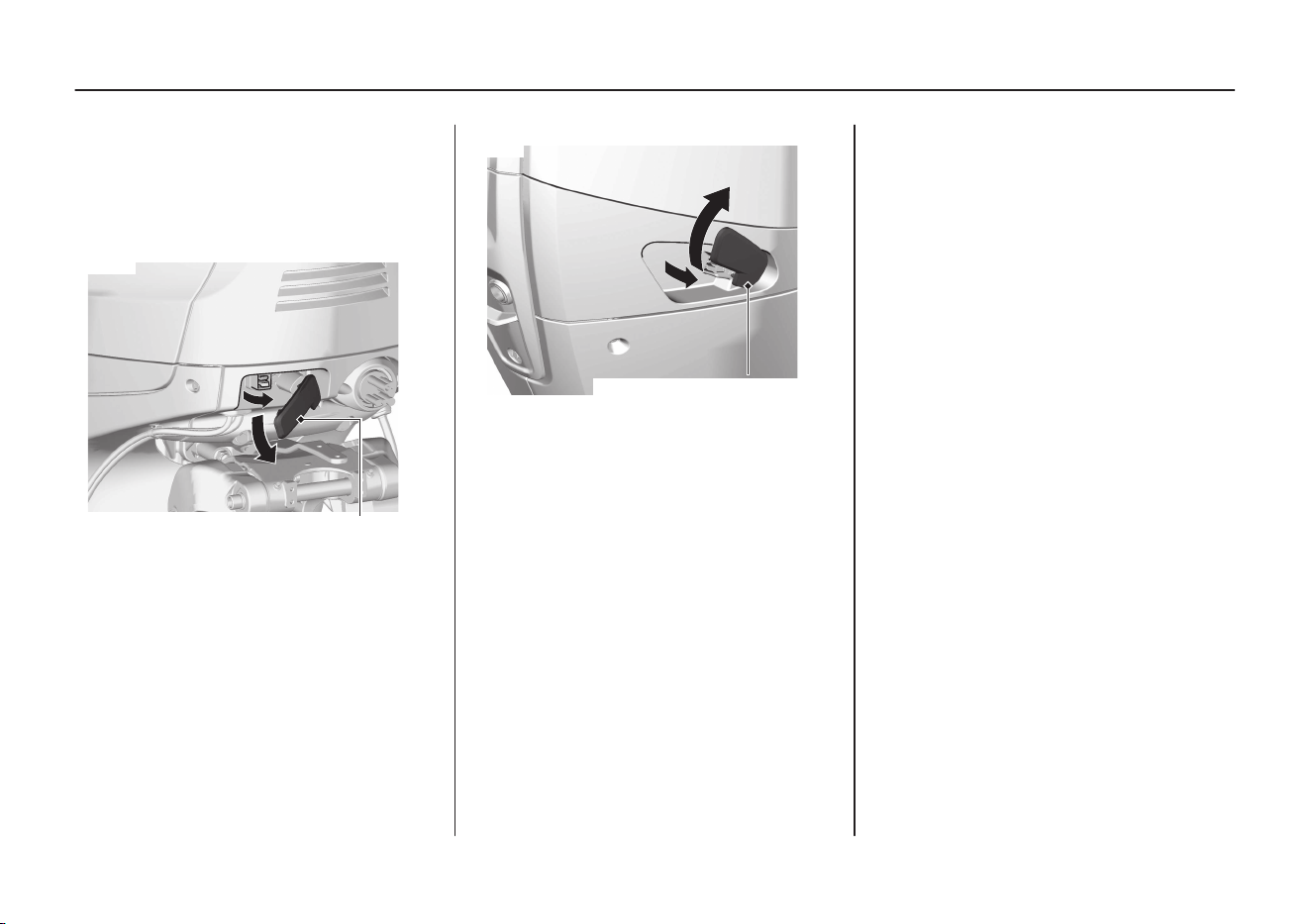

Engine Cover Latches
The engine cover latches fasten
the engine cover to the outboard
motor.
NMEA Interface Coupler
The NMEA2000
®
interface
coupler connects the outboard
motor to the boat's NMEA2000
®
network through an interface
cable and transmits information
such as engine information and
warnings to the control panel and
gauges. Contact your dealer for
more information.
Operating Hour Notification
System
This outboard motor engine
counts the number of operating
hours since the last periodic
maintenance. When the next
periodic maintenance is due, the
engine notifies the NMEA2000
network, and a maintenance
indication is displayed on an
NMEA2000-compatible device.
CONTROLS AND FEATURES
43
Front
ENGINE COVER LATCH
Side
ENGINE COVER LATCH
(each side)
NMEA INTERFACE COUPLER
After periodic maintenance is performed, reset the
hour counter by:
1. Turn ON the power switch or ignition switch.
(The buzzer will sound twice.)
2. Wait at least 1 second and then shift to the
FORWARD or REVERSE gear with the gearshift/
throttle control lever of the outboard motor.
3. Turn OFF the power switch or ignition switch.
4. Turn ON the power switch or ignition switch.
(The buzzer will sound twice.)
5. Insert and remove the emergency stop switch
clip five times within 20 seconds.
● When reset, the buzzer will sound once.
6. Set the gearshift/throttle control lever in the
NEUTRAL position.
7. Turn OFF the power switch or ignition switch.
Periodic maintenance is required when either the
operating hours or the time since last maintenance
reaches the prescribed limit. Therefore, periodic
maintenance may be required based on the number
of months since the last maintenance before the
alert based on engine operating hours appeared
(see MAINTENANCE SCHEDULE on page 88).
Reset the hour counter whenever maintenance is
performed, whether based on the time interval or
the number of operating hours.
Operating hour notification timing
CONTROLS AND FEATURES
44
NotifyNotifyNotifyStart of
operation
100 hours
after reset
80 hours
after reset
20
hours
Every 100 hours
Periodic maintenance display
● Notification about periodic
maintenance is displayed on
the multi-function display
when the power switch or the
engine switch is turned on.
● The notification for periodic
maintenance remains
displayed after the engine is
started.
● The display disappears when
the gearshift/throttle control
lever is put in the FORWARD
or REVERSE position.
NMEA2000-compatible display:
● Follow the instructions on the
display.
●
If the display allows selection
of notification to be preset,
select "Notify" (or equivalent).
●
Turn on the power supply to
the display before turning on
the ignition switch of the
outboard motor.
● The indication may differ,
depending on the type of
display.
When "Periodic Maintenance" is
indicated:
1. Have the periodic
maintenance performed
without delay after returning
to port.
2. Reset the hour counter. If not
reset, the maintenance
indication will remain in the
display, and the hour count
until the next maintenance will
be in error.
When the periodic maintenance
is conducted before "Periodic
Maintenance" is indicated, reset
the hour counter. If not reset, the
hour count until the next
maintenance will be in error.
CONTROLS AND FEATURES
45
INDICATORS
Check the indicators displayed on
the multi-function display. For
information about NMEA2000-
compatible device displays, refer
to the display device's manual.
Alternator (ACG) Indicator
Multi-function Display
The ACG indicator turns on and
the buzzer sounds in one-second
intervals when the charging
system is faulty.
Malfunction Indicator
Multi-function Display
When the engine control system
detects an engine control system
malfunction, the malfunction
indicator turns on.
CONTROLS AND FEATURES
46
ACG
INDICATOR
(RED)
MALFUNCTION
INDICATOR
(RED)
When the malfunction indicator
turns on, the buzzer sounds
continuously with an intermittent
long sound.
● If the malfunction indicator
lights and the buzzer does not
stop sounding: Return to port
immediately without
continuing your voyage. There
is a risk of shift operation
failure (see page 138), alert
detection failure, or engine
start failure.
● If the malfunction indicator
lights and the buzzer sounds
for only 10 seconds: Return to
port as soon as possible
because engine speed control
and other functions will be
limited.
Oil Pressure Warning
Indicator
Multi-function Display
If oil pressure becomes low, the
indicator comes on, and the
engine protection system limit
engine speed. Refer to TAKING
CARE OF UNEXPECTED
PROBLEMS, on P.133.
All models are equipped with a
buzzer that sounds continuously
when the oil pressure warning
indicator comes on.
Low oil pressure indicates that
the engine oil level is low or that
there is a problem with the
engine lubrication system.
CONTROLS AND FEATURES
47
OIL PRESSURE WARNING
INDICATOR
(RED)

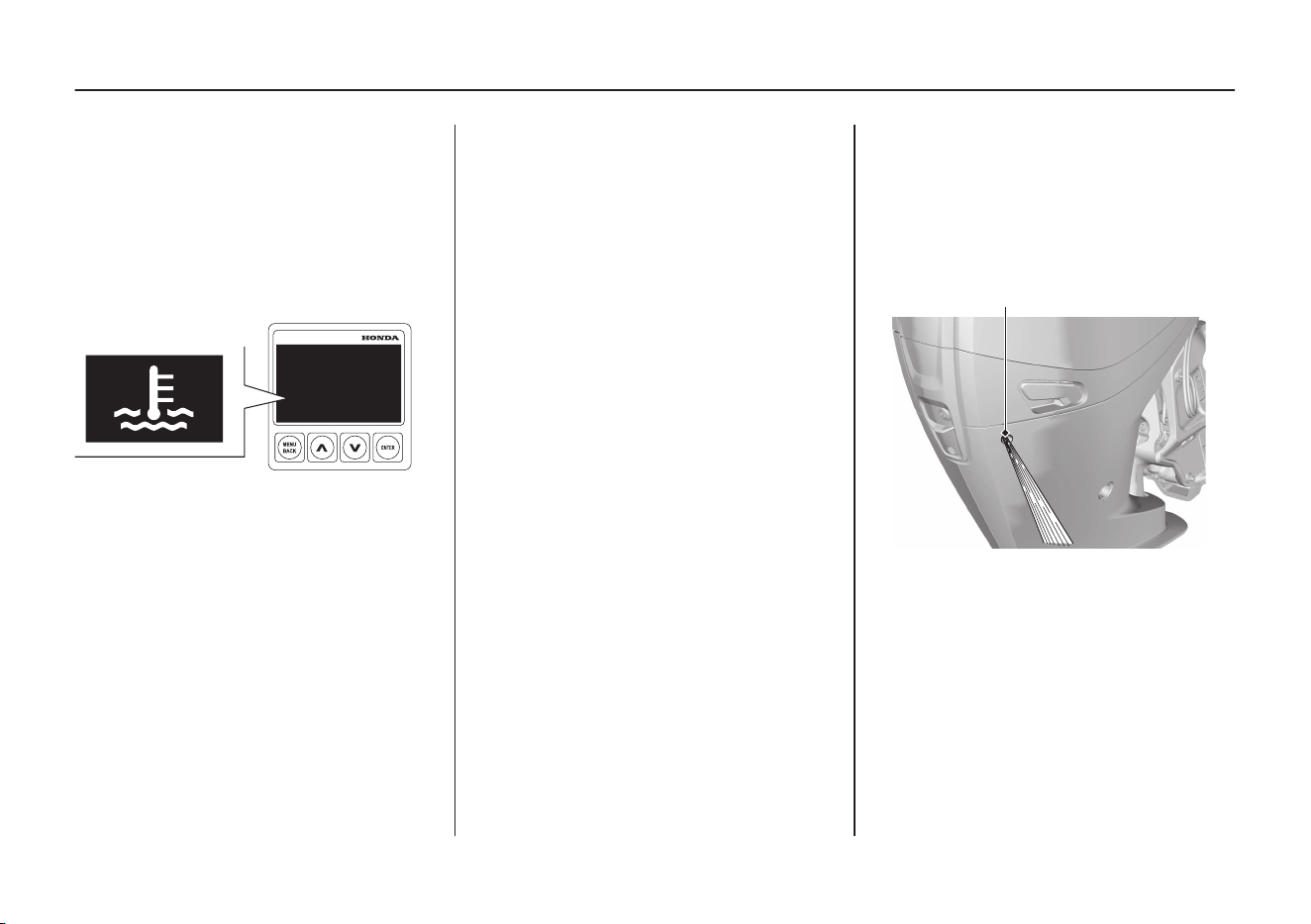

Overheat Indicator
Multi-function Display
When the alert triggers, the
overheat indicator comes on and
the buzzer sounds a steady tone
as the engine speed is reduced to
1,800 rpm. If the condition
persists for another 20 seconds,
the engine shuts off. Refer to
TAKING CARE OF UNEXPECTED
PROBLEMS, on P.124.
All models are equipped with a
buzzer that sounds continuously
when the red overheat indicator
light comes on.
Engine overheating may be the
result of clogged water intakes.
Cooling System Indicator
Water should flow from the
cooling system indicator while
the engine is running. This shows
that water is circulating through
the cooling system.
If water stops flowing while the
engine is running, it indicates a
cooling system problem, such as
clogged water intakes, which will
cause engine overheating.
CONTROLS AND FEATURES
48
OVERHEAT
INDICATOR
(RED)
COOLING SYSTEM INDICATOR
The cooling system indicator
discharge port can also become
plugged.
If this happens, shut off the
engine immediately and inspect
the intake screens.
OTHER FEATURES
Water Separator Buzzer
The water separator buzzer
sounds a rapid, repeating signal
when water has accumulated in
the water separator.
To check the water separator, you
need to remove the front striker
guide cover. (P.107)
Rev Limiter
The engine is equipped with a rev
limiter to prevent the possibility
of mechanical damage from
excessive engine speed.
The rev limiter may be activated
during operation, limiting engine
speed, if the outboard motor is
trimmed or tilted up excessively,
or when propeller ventilation
occurs during a sharp turn.
If the rev limiter is activated,
check the trim angle of the
outboard motor.
Check to see if the correct
propeller is installed.
CONTROLS AND FEATURES
49
WATER SEPARATOR

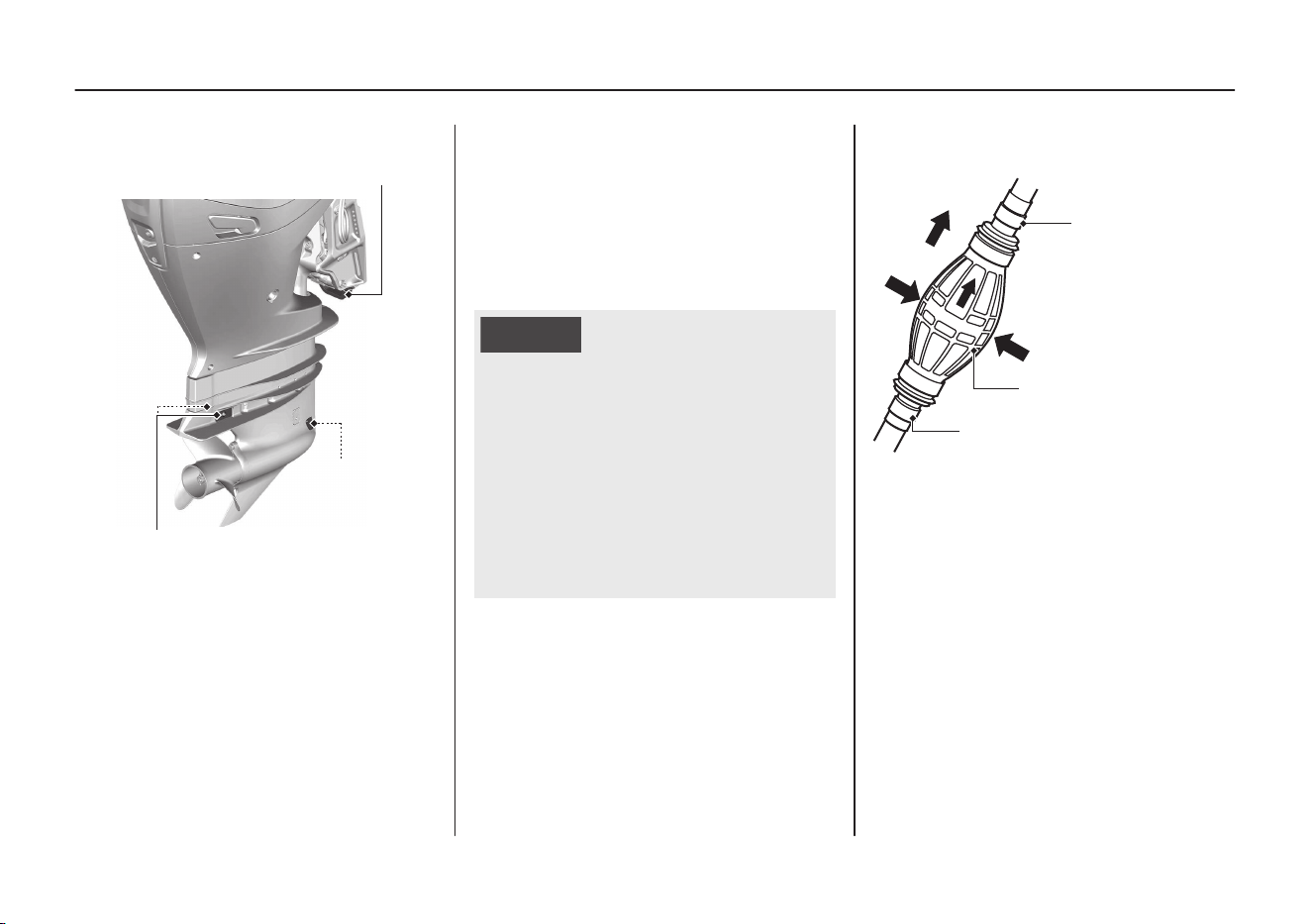

Anodes
The anodes are made of a
sacrificial material that helps to
protect the outboard motor from
corrosion.
There are three anodes on the
gear case, one on the stern
bracket (P.111).
Additional anodes are located
inside the engine and should be
serviced by an authorized Honda
Marine servicing dealer according
to the MAINTENANCE SCHEDULE
(P.88).
NOTICE
• Painting or coating the
anodes will defeat their
purpose and will lead to rust
and corrosion damage to the
outboard motor. The anodes
must be exposed to the
water in order to protect the
outboard motor.
Fuel Priming Bulb
A priming bulb is built into the
fuel hose that connects the fuel
tank to the outboard motor.
Before starting the engine, hold
the priming bulb up in the
direction of the arrow; then
squeeze the priming bulb until it
feels firm. This will ensure that
fuel is supplied to the engine (P.
56).
CONTROLS AND FEATURES
50
ANODE (stern bracket)
ANODE
ANODE (each side)
OUTLET END
(outboard
motor side)
UP
INLET END (tank side)
PRIMING BULB
Battery Switch OFF
Notification
This function alerts the operator
that the battery switch is OFF and
must be turned to the ON
position. If the battery switch is
OFF, a buzzer will sound three
times during the following
situations.
● When starting the engine
● When using the power trim/
tilt switch
● When turning the battery
switch OFF while the ignition
switch or power switch is ON
Power Reduction
This outboard motor is equipped
with the power reduction system
which activates when the
outboard motor has a serious
problem.
The power reduction system
decreases the engine speed to
protect the engine until the
malfunction is corrected.
When one of the two systems of
the remote control sensor is
faulty, the power reduction
system does not decrease the
engine speed.
CONTROLS AND FEATURES
51
ARE YOU READY TO GET
UNDERWAY?
Your safety is your responsibility.
A little time spent in preparation
will significantly reduce your risk
of injury.
Knowledge
Read and understand this
manual. Know what the controls
do and how to operate them.
Familiarize yourself with the
outboard motor and its operation
before you get underway. Know
what to do in case of an
emergency.
Familiarize yourself with all laws
and regulations relating to
boating and the use of outboard
motors.
Safety
Always wear a PFD (Personal
Flotation Device) while on the
boat.
Attach the emergency stop
switch lanyard securely to the
operator or to the PFD worn by
the operator.
IS YOUR OUTBOARD
MOTOR READY TO GO?
For your safety, and to maximize
the service life of your
equipment, it is very important to
take a few moments before you
operate the outboard motor to
check its condition. Be sure to
take care of any problem you
find, or have your authorized
Marine dealer correct it, before
you operate the outboard motor.
BEFORE OPERATION
52
WARNING
Failure to properly maintain this
outboard motor, or failing to
correct a problem before
operation, could result in a
significant malfunction.
Some malfunctions can cause
serious injuries or death.
Always perform a pre-operation
inspection before each
operation and correct any
problems.
Normal Key without START/
STOP Switch Type
Before beginning your pre-
operation checks, be sure the
IGNITION switch key is in the OFF
position.
Normal Key with START/STOP
Switch Type
Before beginning your pre-
operation checks, be sure the
power switch is in the OFF
position.
Honda Smart Key type
Before beginning your pre-
operation checks, be sure the
power switch is in the power OFF
position.
Safety Inspection
● Before each use, look around
and underneath the engine
for signs of oil or gasoline
leaks.
●
Check that the fuel hose is
undamaged and properly
connected.
● Wipe up any spills before
starting the engine.
● Check the stern bracket to be
sure the outboard motor is
securely installed.
● Check that all controls are
operating properly.
●
Replace any damaged parts.
● Check that all fasteners are in
place and securely tightened.
BEFORE OPERATION
53
● Check the emergency stop
switch for proper operation.
Start the engine (P.57). Make
sure the engine stops by
pulling the emergency stop
switch clip from the
emergency stop switch.
Maintenance Inspection
● Check the engine oil level (P.
93). Running the engine with
a low oil level can cause
engine damage. Overfilling
the engine can cause the
engine to smoke or have oil
leaks which can cause engine
damage.
●

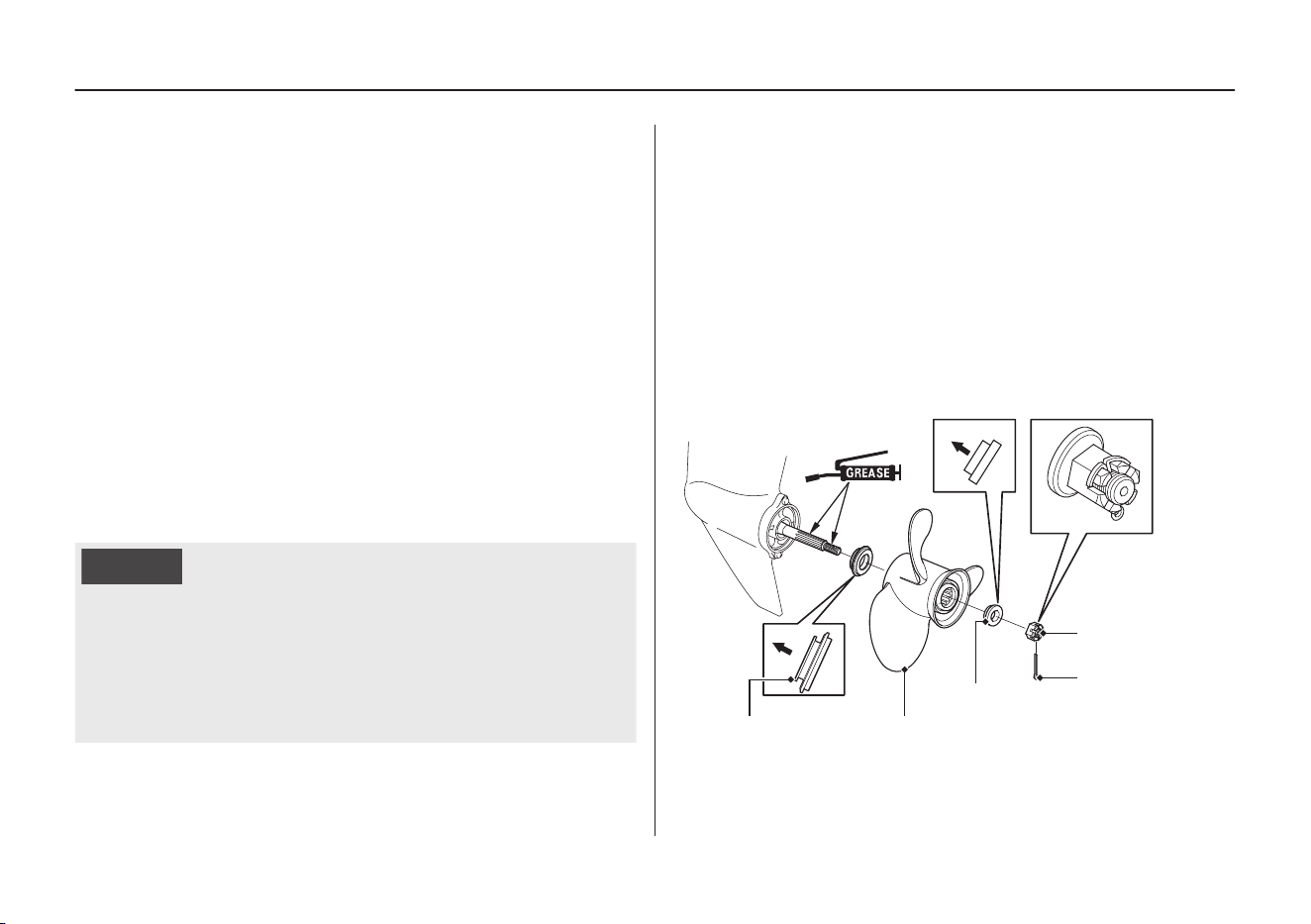

Check to be sure the propeller
is undamaged and the castle
nut is secured with the cotter
pin (P.112).

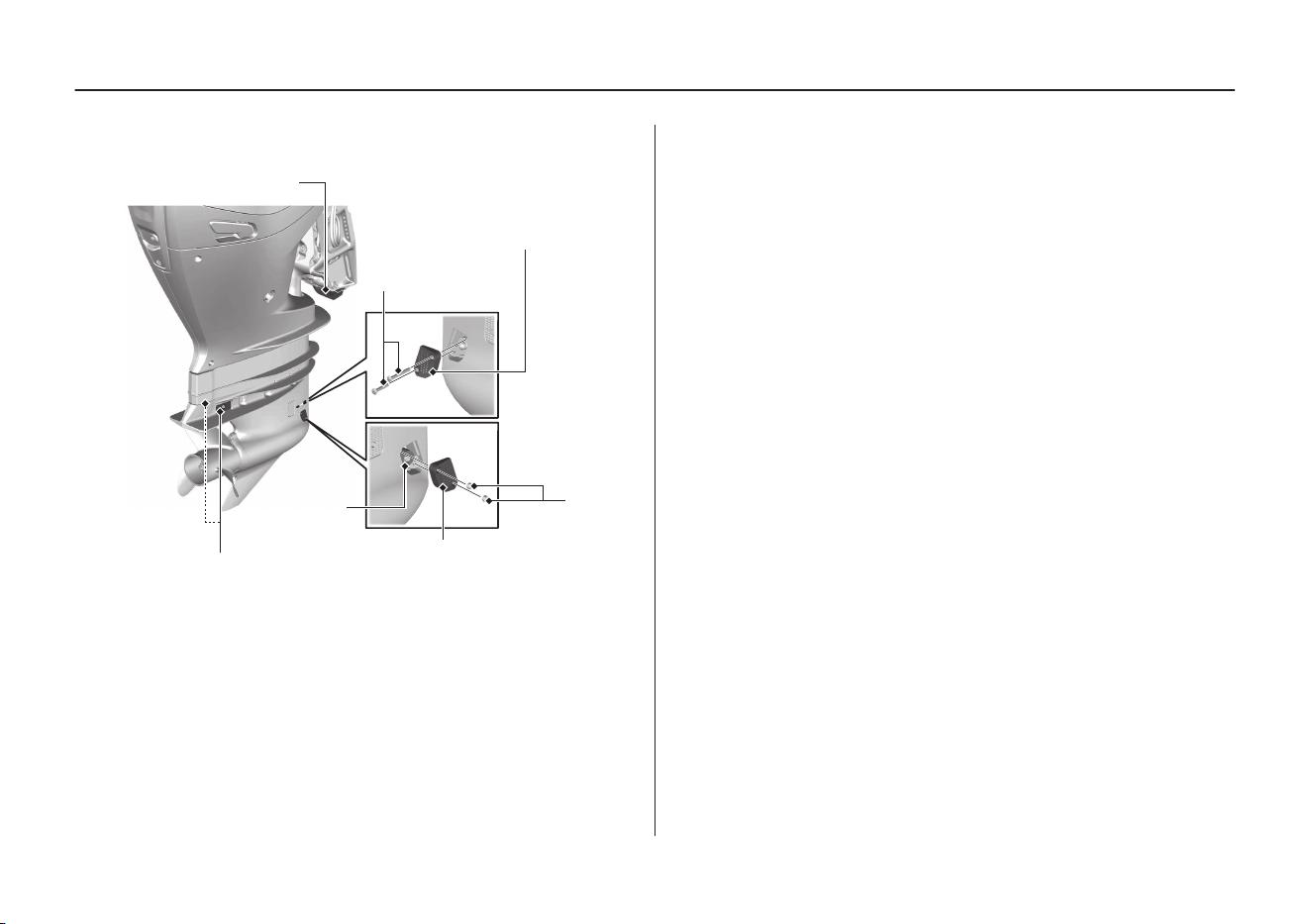

● Check that the anodes are
securely attached to the stern
bracket and the gear case (P.
111) and are not excessively
worn. The anodes help protect
the outboard motor from
corrosion.
● Make sure the tool kit is
onboard (P.87). Replace any
missing items.
● Check the fuel level in the fuel
tank (P.104).
●
Check that the battery fluid is
between the upper and lower
levels, and the battery leads
are connected securely.

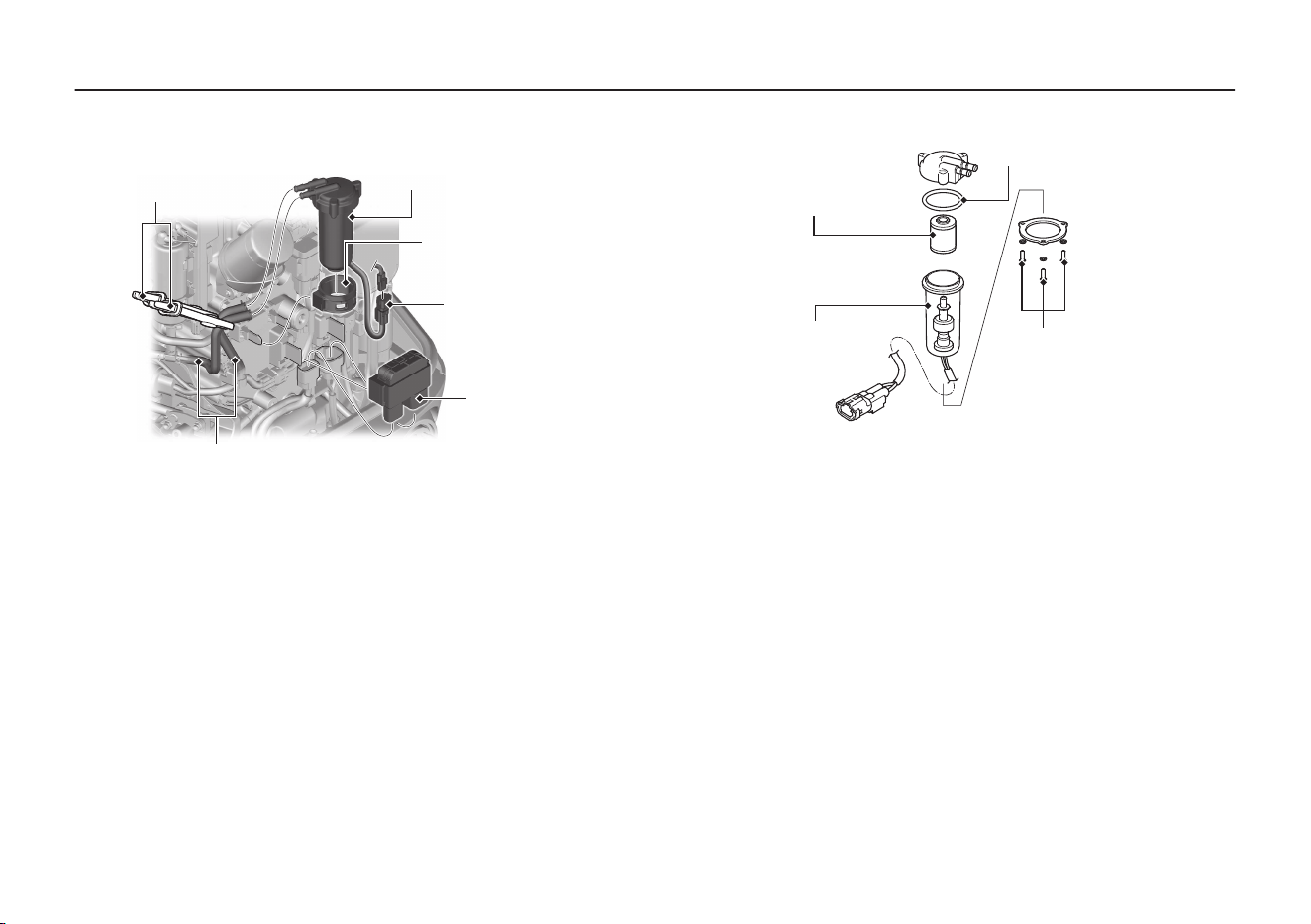

● Check the fuel filter for water
or sediment accumulation (P.
107).
BEFORE OPERATION
54
SAFE OPERATING
PRECAUTIONS
To safely realize the full potential
of this outboard motor, you need
a complete understanding of its
operation and a certain amount
of practice with its controls.
Before operating the outboard
motor for the first time, please
review the IMPORTANT SAFETY
INFORMATION on page 7 and
the chapter titled BEFORE
OPERATION.
For your safety, do not start or
run the engine in a confined or
partly enclosed area. Your
engine’s exhaust contains
poisonous carbon monoxide, a
colorless, odorless gas that can
collect rapidly. Breathing carbon
monoxide can cause loss of
consciousness and may lead to
death.
WARNING
Exhaust contains poisonous
carbon monoxide gas that can
build up to dangerous levels in
closed areas.
Breathing carbon monoxide
can cause unconsciousness or
death.
Never run this product's engine
in a closed, or even partly
closed area.
BREAK-IN PROCEDURE
Break-in period: 10 hours
Proper break-in operation allows
the moving parts to wear in
smoothly for best performance
and long service life. Avoid
continuous operation at a steady
speed.
First 15 minutes:
Run the engine at trolling speed.
Use the minimum throttle
opening necessary to operate the
boat at a safe trolling speed.
OPERATION
55
Next 45 minutes:
Run the engine up to a maximum
of 2,000 - 3,000 rpm, which is
about 10% to 30% of maximum
throttle opening. Operating at a
maximum of 2,000 - 3,000 rpm
should be limited to 50% of the
45 minutes.
Next 60 minutes:
Run the engine up to a maximum
of 4,000 - 5,000 rpm, which is
about 50% to 80% of maximum
throttle opening. Operating at a
maximum of 4,000 - 5,000 rpm
should be limited to 50% of the
60 minutes.
30-second full-throttle bursts are
OK, but do not operate the
engine continuously at full
throttle.
For boats that plane easily, bring
the boat up on plane, and then
reduce the throttle opening to
the recommended rpm range.
Next 8 hours:
Do not run the engine at full
throttle for more than 5 minutes
at a time.
FUEL PRIMING
Hold the priming bulb up in the
direction of the arrow; then
squeeze the priming bulb several
times until it feels firm, indicating
that fuel has reached the engine.
Check to be sure there are no
fuel leaks before starting the
engine.
OPERATION
56
OUTLET END
(outboard
motor side)
UP
INLET END (tank side)
PRIMING BULB
Do not touch the priming bulb
while the engine is running or
when tilting up the outboard
motor. The vapor separator could
overflow.
WARNING
Gasoline is highly flammable
and explosive.
You can be burned or seriously
injured when handling fuel.
● Stop the engine and let it
cool before handling fuel.
● Keep heat, sparks, and flame
away.
● Handle fuel only outdoors.
●
Keep away from your
vehicle.
● Wipe up spills immediately.
INFREQUENT OR
OCCASIONAL USE
If your outboard motor will be
used on an infrequent or
intermittent basis, please refer to
the fuel section of the STORAGE
chapter (P.117) for additional
information regarding fuel
deterioration.
STARTING THE ENGINE
NOTICE
• Make sure the battery switch
is ON before turning ON the
ignition switch or power
switch. If the battery switch is
OFF while attempting to start
the engine, the buzzer will
sound three times.
OPERATION
57
1. Put the emergency stop
switch clip in the emergency
stop switch, and attach the
emergency stop switch
lanyard securely to the
operator or to the operator’s
PFD (Personal Flotation
Device).
The engine will not start or
run unless the emergency
stop switch clip is in the
emergency stop switch.
The emergency stop switch
clip and emergency stop
switch lanyard system is a
safety device that will stop the
engine if you fall away from
the controls while operating
the boat.
Always attach the emergency
stop switch lanyard securely
to the operator or to the
operator’s PFD before starting
the engine.
2. Set the control lever in the
NEUTRAL position.
The engine will not start if the
FORWARD or REVERSE gears
are engaged.
OPERATION
58
EMERGENCY STOP SWITCH
EMERGENCY STOP SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
NEUTRAL
GEARSHIFT/THROTTLE
CONTROL LEVER
NEUTRAL
Flush-Mount Type
NEUTRAL
NEUTRAL
Top-Mount Type
GEARSHIFT/THROTTLE
CONTROL LEVER
(Normal Key without START/
STOP Switch Type)
3. Turn the ignition switch key to
the START position until the
engine starts.
When the engine starts,
release the key, allowing it to
return to the ON position.
Go to step 5.
NOTICE
• Do not turn the IGNITION
switch key to the START
position while the engine is
running.
(Normal Key with START/STOP
Switch Type)
3. Insert the key into the power
switch and turn it to the ON
position.
4. Push the start/stop switch.
OPERATION
59
ON
OFF
START
IGNITION SWITCH KEY
Normal Key Type
ON
OFF
POWER SWITCH
START/STOP SWITCH
(Honda Smart Key Type)
3. Turn the power switch to the
right. The power will not be
turned ON unless the Honda
Smart Key is authenticated.
4. Push the start/stop switch.
When the boat is equipped
with two outboard motors,
push the all engine start
switch.
5.
Before getting underway,
allow the engine to warm-up
sufficiently to ensure good
performance.
Above 41°F (5°C), warm-up
the engine for 2 or 3 minutes.
Below 41°F (5°C), warm-up the
engine for at least 10 minutes
at 2,000 rpm. Press the fast
idle button to activate it, and
then use the throttle lever to
achieve approximately 2,000
rpm.
NOTICE
• If the engine is not properly
warmed up before raising
the engine speed, the buzzer
and overheat indicator may
activate and the engine
speed will be automatically
reduced.
• The cooling system may
freeze in areas where the
temperature reaches 32°F
(0°C) or below. Cruising at
high speed without warming
the engine up may cause
engine damage.
OPERATION
60
Honda Smart Key Type
ON
POWER SWITCH
During the warm-up period,
check the oil pressure warning
indicator (P.47), overheat
indicator (P.48), and cooling
system indicator (P.48).
If the indicators show any
abnormal condition,
immediately stop the engine
and determine the cause of
the problem. Refer to TAKING
CARE OF UNEXPECTED
PROBLEMS on P.124.
Active Mode
For multiple station type, use the
ACTIVE switch or ACTIVE/FAST
IDLE switch to change the
operating remote control (active
mode).
If you press the ACTIVE switch or
ACTIVE/FAST IDLE switch on the
remote control you want to
operate the outboard motors
when all gearshift/throttle control
levers are in the NEUTRAL
position, the mode changes to
active mode.
OPERATION
61
ACTIVE SWITCH
SINGLE TYPE
ACTIVE/FAST IDLE SWITCH
DUAL TYPE
STOPPING THE ENGINE
NOTICE
• After stopping the engine,
be sure to turn OFF the
ignition switch or power
switch before turning OFF
the battery switch. If the
battery switch is turned OFF
while the ignition switch or
power switch is ON, the
buzzer will sound three times
briefly.
Emergency Engine Stopping
To stop the engine in an
emergency, pull the emergency
stop switch clip out of the
emergency stop switch by pulling
the emergency stop switch
lanyard.
If the emergency stop switch is
activated while the engine is
running, the engine will shut
down abruptly and the boat will
quickly decelerate, potentially
causing occupants and objects to
be thrown forward and/or
overboard.
If the emergency stop switch is
activated, the emergency stop
switch clip must be reinserted
before the engine can be
restarted.
We suggest that you stop the
engine this way occasionally to
verify that the emergency stop
switch is operating properly.
OPERATION
62
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP SWITCH CLIP
Before leaving the dock, check
the operation of the emergency
stop switch.
Turn the ignition switch key to
the OFF position after verifying
the emergency stop switch
operation.
NOTICE
• When you have stopped the
engine with the emergency
stop switch, be sure to turn
off the ignition switch key or
the power switch. Leaving
the ignition switch key or
power switch ON will drain
the battery.
Normal Engine Stopping
1. Move the control lever(s) to
the NEUTRAL position.
After cruising at full throttle,
cool down the engine by
idling for a few minutes
before stopping the engine.
OPERATION
63
NEUTRAL
GEARSHIFT/THROTTLE
CONTROL LEVER
NEUTRAL
Flush-Mount Type
NEUTRAL
NEUTRAL
Top-Mount Type
GEARSHIFT/THROTTLE
CONTROL LEVER
(with START/STOP switch)
2. Push the start/stop switch to
stop the engine.
3. Turn the power switch to the
OFF position, and then
remove and store it.
3. Turn the power switch to the
right or press the lock button
on the Honda Smart Key to
turn the power OFF.
In the event that the engine
does not stop when the power
switch is turned to the OFF
position, pull the emergency
stop switch clip out of the
emergency stop switch by
pulling the emergency stop
switch lanyard (P.62).
4.
When the boat is not in use,
remove and store the
emergency stop switch clip
and lanyard.
OPERATION
64
START/STOP SWITCH
POWER SWITCH
OFF
Normal Key Type
POWER SWITCH
OFF
Honda Smart Key Type
(without START/STOP switch)
2. Turn the ignition switch key to
the OFF position to stop the
engine.
In the event that the engine
does not stop when the
ignition switch key is turned
to the OFF position, pull the
emergency stop switch clip
out of the emergency stop
switch by pulling the
emergency stop switch
lanyard (P.62).
3.
When the boat is not in use,
remove and store the ignition
switch key and the emergency
stop switch clip and lanyard.
GEARSHIFT AND THROTTLE
OPERATION
Flush-Mount Type
OPERATION
65
OFF
IGNITION SWITCH KEY
FORWARD
Pull up
GEARSHIFT/THROTTLE
CONTROL LEVER
NEUTRAL
REVERSE
NEUTRAL
RELEASE
LEVER
Top-Mount Type
To shift gears, move the control
lever to select the FORWARD,
NEUTRAL, or REVERSE gear.
The control lever cannot be
moved from the NEUTRAL
position unless the neutral
release lever is squeezed (flush-
mount/single top-mount types).
Moving the control lever beyond
the gear selection range
increases engine speed.
Gearshift/Throttle Control
Lever Friction
Adjust the control lever friction
adjuster so the gearshift/throttle
control lever will hold a constant
throttle setting while cruising.
Flush-Mount Type
OPERATION
66
NEUTRAL
RELEASE
LEVER
Single
GEARSHIFT/THROTTLE
CONTROL LEVER
REVERSE
NEUTRAL
FORWARD
GEARSHIFT/THROTTLE
CONTROL LEVER
REVERSE
NEUTRAL
FORWARD
Dual
COVER
NUT
To increase
friction
Rear sideFront side
To decrease
friction
CONTROL LEVER FRICTION
ADJUSTER BOLT
1. Remove the cover of the
control lever.
2. Loosen the nut.
3. Adjust the lever friction when
increasing throttle opening
and boat speed by turning the
control lever friction adjuster
bolt right or left.
4. Tighten the nut to lock the
lever friction.
5. Reinstall the cover of the
control lever.
Top-Mount Type

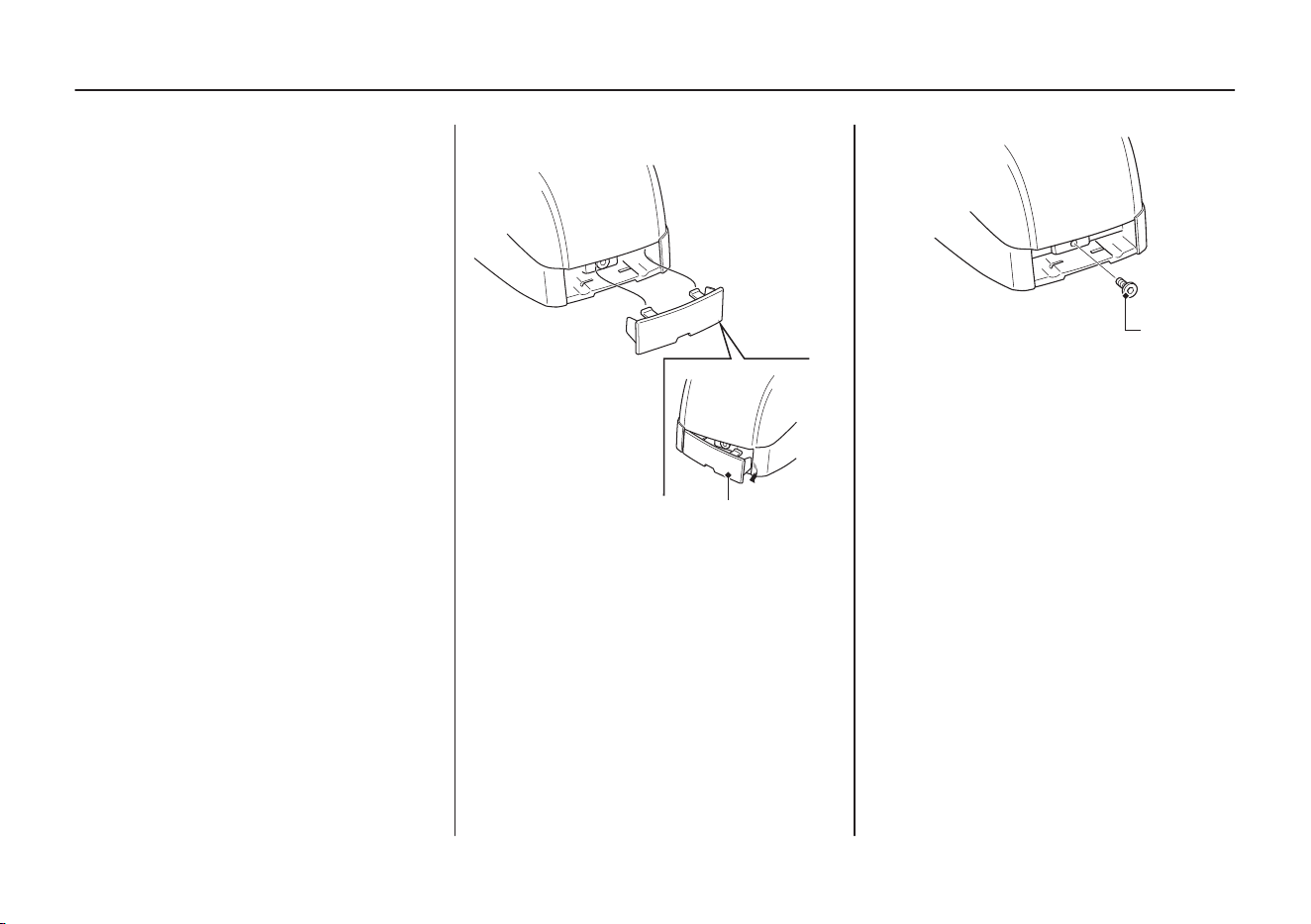

1. Remove the maintenance
cover.
2. Remove the bolt.
OPERATION
67
MAINTENANCE COVER
BOLT
3. Open the remote control
cover.
4. Loosen the nut.
5. Adjust the lever friction when
increasing throttle opening
and boat speed by turning the
control lever friction adjuster
bolt right or left.
6.
Tighten the nut to lock the
lever friction.
7. Reinstall the remote control
cover.
8. Install and tighten the bolt.
9. Reinstall the maintenance
cover.
STEERING
Steer the boat in the same
manner as an automobile.
Under normal conditions, turning
the steering wheel
counterclockwise will make the
boat turn left and turning the
steering wheel clockwise will
make the boat turn right.
OPERATION
68

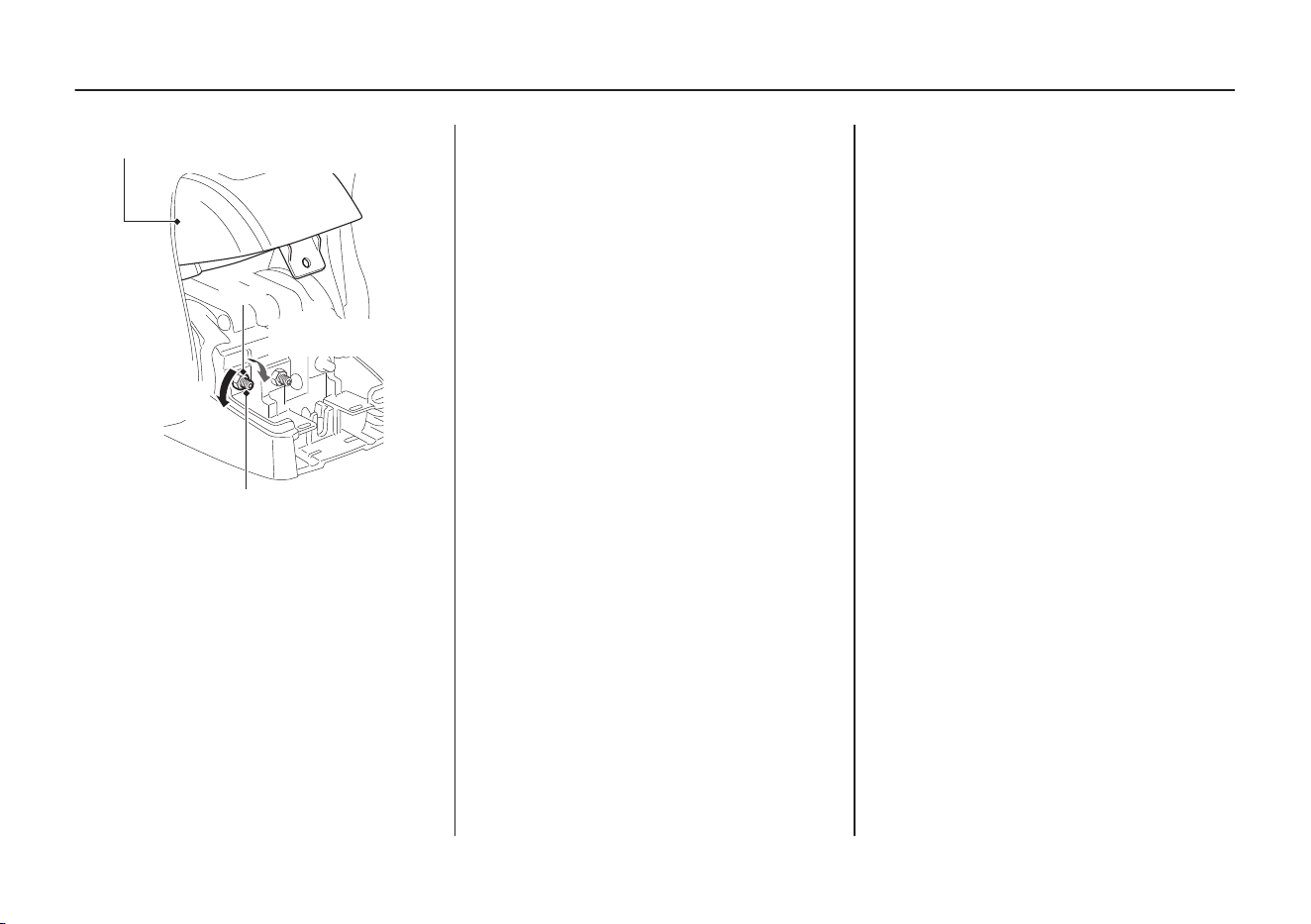

REMOTE CONTROL COVER
NUT
To increase
friction
CONTROL LEVER FRICTION
ADJUSTER BOLT
To decrease
friction
CRUISING
Engine Speed
For best fuel economy, limit the
throttle opening to 80%. Use the
throttle friction control (P.66) to
help you hold a steady speed.
For rough water conditions or
large waves, slow down to
prevent the propeller from rising
out of the water.
The engine is equipped with a rev
limiter to prevent the possibility
of mechanical damage from
excessive engine speed.
If, for example, the outboard
motor is tilted excessively or
propeller ventilation occurs
during a sharp turn, the engine
may overrev, activating the rev
limiter.
If engine speed becomes
unstable at high speed due to
activation of the rev limiter,
reduce speed and check the trim
angle of the outboard motor.
WARNING
Traveling at high speeds may
cause the boat to loss of
control in some water
conditions, which could result
in damage to the outboard
motor and injury to the
occupants.
Always travel at safe speeds for
the water conditions.
Trim
Use the power trim/tilt switch to
trim the outboard motor for the
best performance and stability.
You can use the power trim/tilt
switch at any time, whether the
boat is underway or stopped.
Press the UP or DN (down) side
of the switch to adjust the angle
of the outboard motor.
Refer to the multi-function
display or NMEA2000-compatible
display for an indication of
whether the outboard motor is
trimmed high or low.
OPERATION
69
It is necessary to trim the angle of
the outboard motor to
compensate for changes in boat
load, weight distribution, water
conditions, and propeller
selection.
Under normal conditions, the
boat will perform best when the
antiventilation plate is level with
the water surface.
When cruising into a high wind,
trim the outboard motor down
slightly to level the boat and
improve stability. With a tail wind,
trim the outboard motor up
slightly.
NOTICE
• Excessive trim/tilt angle
during operation can cause
propeller ventilation,
overheating, and water
pump damage.
Flush-Mount Type
Top-Mount Type
OPERATION
70
GEARSHIFT/THROTTLE
CONTROL LEVER
POWER TRIM/TILT SWITCH
POWER TRIM/TILT SWITCH
GEARSHIFT/THROTTLE
CONTROL LEVER
SINGLE TYPE
POWER TRIM/TILT SWITCH
GEARSHIFT/THROTTLE
CONTROL LEVERS
DUAL TYPE
PTT Switch Panel
For multiple outboard motors,
the trim/tilt angle of all outboard
motors is adjusted at the same
time by using the power trim/tilt
switch on the gearshift/throttle
control lever and the trim/tilt
angle of each outboard motor is
adjusted by using each power
trim/tilt switch on the panel.
OPERATION
71
POWER TRIM/TILT SWITCHES
DUAL TYPE
Press DN to lower bow.
Press UP to raise bow.
POWER TRIM/TILT SWITCHES
Press UP to raise bow.
Press DN to lower bow.
TRIPLE TYPE
OUTBOARD MOTOR TRIMMED
CORRECTLY
OUTBOARD MOTOR TRIMMED
TOO HIGH
OUTBOARD MOTOR TRIMMED
TOO LOW
Trim Support Mode
Pressing the TRIM SPT. switch
changes the mode to the trim
support mode, which
automatically does trim
operations according to the
speed or engine RPM.
Adjusting the trim angle to an
optimum position automatically
during acceleration or cruising
improves acceleration
performance, top speed, steering
stability, fuel efficiency, etc.
The conditions that control the
trim angle pattern is set in the
multi-function display.
The trim support switch (TRIM
SPT. switch) can be used
regardless of whether the boat is
stopped or cruising.
OPERATION
72
BOW TOO HIGH DUE TO
1. LOAD IN THE REAR
2. OUTBOARD MOTOR TRIMMED
TOO HIGH
2. OUTBOARD MOTOR TRIMMED
TOO LOW
1. LOAD IN THE FRONT
BOW TOO LOW DUE TO
Press DN to
lower bow.
Press UP to
raise bow.
TRIM SPT. SWITCH
GEARSHIFT/THROTTLE
CONTROL LEVER
POWER TRIM/TILT SWITCH
You can finely adjust the trim
angle manually while in trim
support mode.
In the case of a single outboard
motor, if you press the power
trim/tilt switch of the remote
control while in trim support
mode, you can fine-tune the trim
angle.
In the case of multiple outboard
motors, if you press the power
trim/tilt switch of the remote
control in the trim support mode,
you can fine-tune the trim angles
of all the outboard motors
simultaneously.
The finely adjusted angle is
temporarily overwritten with the
preset pattern, and returns to the
pattern before overwriting when
the engine switch or power
switch is turned off.
If you use the cruise control
mode while in the trim support
mode, the trim support mode is
temporarily stopped.
The trim support mode is forcibly
canceled in the following cases.
●
Trim angle is adjusted beyond
the trim area by the power
trim/tilt switch
● GPS error or disconnection
●
Engine malfunction
(overheating, low oil pressure,
etc.)
●
Trim operation abnormality
●
Accelerating or decelerating
so quickly as to put a load on
trim
TROLLING MODE
[-] Switch: Reduce engine speed
[+] Switch: Increase engine speed
After the engine warms up, when
the gearshift/throttle control
lever is tilted from the NEUTRAL
position to the FORWARD or
REVERSE side by about 20° and
the [+] switch is pressed and
held, the mode changes to
trolling mode.
OPERATION
73
[+] SWITCH[-] SWITCH
(ELECTRICAL REMOTE CONTROL
BOX and FLUSH-MOUNT type)
A long buzz sounds once.
When the mode is changed to
trolling mode, the engine speed
is 650 rpm.
You can adjust the engine speed
by 50 rpm every time you press
the switch once. You will hear a
short buzz.
The engine speed can be
adjusted within the range of 650
– 900 rpm.
Continuing to press the switch
will not decrease or increase the
engine speed beyond the lower
(650 rpm) or higher (900 rpm)
limit.
If you try to do this, a short buzz
sounds twice.
The throttle may be operated
while in trolling mode.
TROLLING CONTROL MODE
TROLL/DN Switch: Reduce engine
speed
CRUISE/UP Switch: Increase
engine speed
After the engine warms up, when
the gearshift/throttle control
levers are tilted from the
NEUTRAL position to the
FORWARD or REVERSE side by
about 20° and the TROLL/DN
switch of the remote control is
pressed, the mode changes to
trolling control mode.
A long buzz sounds once.
When the mode is changed to
trolling control mode, the engine
speed is 650 rpm.
You can adjust the engine speed
by 50 rpm every time you press
the switch once. You will hear a
short buzz.
The engine speed can be
adjusted within the range of 650
– 1,000 rpm.
OPERATION
74
TROLL/DN SWITCH
CRUISE/UP SWITCH
Continuing to press the switch
will not decrease or increase the
engine speed beyond the lower
(650 rpm) or higher (1,000 rpm)
limit.
If you try to do this, a short buzz
sounds twice.
The throttle may be operated
while in trolling control mode.
ONE-LEVER MODE (For
multiple outboard motors
type)
Shifting gear and the engine
speed adjustment of all the
outboard motors can be
performed with one gearshift/
throttle control lever when in
one-lever mode.
If you press the 1 LEVER switch
when all gearshift/throttle control
levers are in the NEUTRAL
position, the mode changes to
one-lever mode.
A long buzz sounds once.
OPERATION
75
1 LEVER
SWITCH
CRUISE CONTROL MODE
TROLL/DN Switch: Reduce engine
speed or velocity
CRUISE/UP Switch: Increase
engine speed or velocity
If you press the CRUISE/UP switch
during cruising with all the
gearshift/throttle control levers in
the FORWARD position, the
mode changes to the cruise
control mode, which lets the boat
cruise at a constant engine speed
or velocity.
A long buzz sounds once.
● Speed can only be adjusted in
cruise control mode when
equipped with GPS.
You can adjust the engine speed
or velocity by every time you
press the switch once. You will
hear a short buzz.
Continuing to press the switch
will not decrease or increase the
engine speed beyond the lower
or higher limit.
If you try to do this, a short buzz
sounds twice.
Engine speed adjusting range:
Engine speed at mode change
±500 rpm (in steps of 50 rpm)
Velocity adjusting range:
− Velocity at mode change ±10
km/h (in steps of 1.0 km/h)
− Velocity at mode change ±5
miles/h (in steps of 0.5
miles/h)
− Velocity at mode change ±5
knots (in steps of 0.5 knots)
The cruise control mode is
released forcibly in the following
cases.
● GPS error or disconnection
(Velocity adjustment is
selected in the multifunction
display)
●
Operate the gearshift/throttle
control lever a certain amount
from the position for
changing modes
OPERATION
76
TROLL/DN SWITCH
CRUISE/UP SWITCH
● Engine stops or engine is
abnormal (overheating, low oil
pressure, etc.)
● If the engine RPM or speed is
unstable
SHALLOW WATER
OPERATION
When operating in shallow water,
use the power trim/tilt switch (P.
70) to tilt the outboard motor so
that the propeller and gear case
won’t hit the bottom.
Proceed at low speed, and
monitor water flow from the
cooling system indicator (P.48) to
be sure the outboard motor is
not tilted so high that the water
intakes are out of the water.
NOTICE
• An excessive trim/tilt angle
during operation can cause
propeller ventilation,
overheating, and water
pump damage. This type of
damage is not covered by
the Distributor’s Limited
Warranty (U.S.) (P.151) /
Distributor’s Warranty (CA.)
(P.164).
OPERATION
77
MOORING, BEACHING,
LAUNCHING
Stop the engine before tilting the
outboard motor.
Before tilting an outboard motor
up, leave it in the running
position for one minute after
stopping the engine to drain the
water from inside the engine.
1. Move the gearshift/throttle
control lever to the NEUTRAL
position and stop the engine.
2. Press UP on the power trim/
tilt switch and tilt the
outboard motor to the best
position according to cruising
conditions.
Pressing UP on the power trim/
tilt switch on the gearshift/
throttle control lever or PTT
switch panel twice in succession
tilts up the outboard motor to
the set tilt angle automatically.
Flush-Mount Type
OPERATION
78
TILT
ANGLE
15°
12°
TRIM ANGLE
(when transom angle is 12°)
(VERTICAL LINE)
0°
0°
– 4°
68°
GEARSHIFT/THROTTLE
CONTROL LEVER
POWER TRIM/TILT SWITCH
Top-Mount Type PTT Switch Panel
NOTICE
• For multiple outboard
motors, the trim/tilt angle of
all outboard motors is
adjusted at the same time by
using the power trim/tilt
switch on the gearshift/
throttle control lever and the
trim/tilt angle of each
outboard motor is adjusted
by using each power trim/tilt
switch on the panel.
OPERATION
79
POWER TRIM/TILT SWITCH
GEARSHIFT/THROTTLE
CONTROL LEVER
SINGLE TYPE
POWER TRIM/TILT SWITCH
GEARSHIFT/THROTTLE
CONTROL LEVERS
DUAL TYPE
POWER TRIM/TILT SWITCHES
DUAL TYPE
POWER TRIM/TILT SWITCHES
TRIPLE TYPE
Moorage
Tilt up the outboard motor using
the tilt lock levers when mooring
the boat. Shift the gearshift/
throttle control lever into the
NEUTRAL position and stop the
engine before tilting up the
outboard motor.
NOTICE
• Before tilting it up, leave the
outboard motor in the
running position for one
minute after stopping the
engine to drain the water
from inside the engine.
Stop the engine before tilting the
outboard motor.
1. Tilt the outboard motor up to
its highest position using the
power trim/tilt switch (P.38).
2. Move the tilt lock levers to the
LOCK position and lower the
outboard motor until the lock
levers contact the stern
bracket.
OPERATION
80
TILT LOCK LEVER (each side)
FREE
TILT LOCK LEVER (each side)
LOCK
When tilted up to 65°
FREE
LOCK
When tilted up to 55°
TILT LOCK LEVER (each side)
If it is not possible to tilt up to
65°, due to the hull, lock the
outboard motor at 55°.
CAUTION
If you do not secure the
outboard motor with the tilt
lock levers after you tilt up the
outboard motor by 55° or 65°
or more, then the hydraulic
pressure of the power trim/tilt
may drop and cause the
outboard motor to tilt down.
3. Press DN (down) on the
power trim/tilt switch to fully
shorten the trim rods.
4. To tilt down, raise the
outboard motor as far as it
goes using the power trim/tilt
switch, move the tilt lock
levers to the FREE position,
and lower the outboard motor
to the designated position.
NOTICE
• Do not start the engine while
the tilt lock lever is locked.
There is a risk of damaging
the engine.
Pressing DN on the power trim/
tilt switch on the gearshift/
throttle control lever or PTT
switch panel twice in succession
tilts the outboard motor down to
the set tilt angle automatically (P.
82).
OPERATION
81

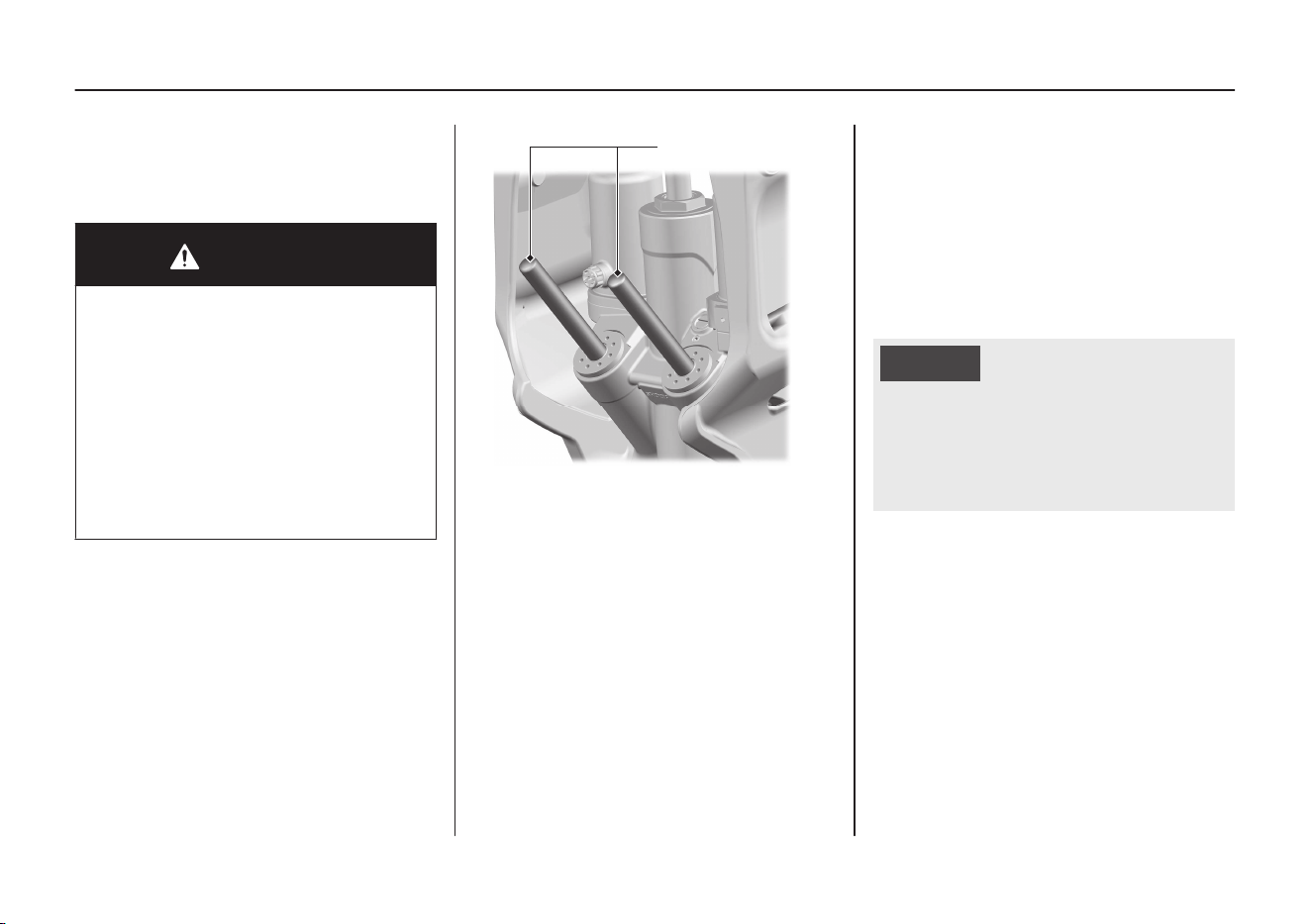

TRIM RODS
Automatic Tilt Mode
If you press the power trim/tilt
switch twice in succession while
the boat is stopped, the
automatic tilt mode is turned on,
automatically tilting the outboard
motor up or down.
When the "UP" side of the power
trim/tilt switch is pressed twice in
succession, the buzzer sounds
once at a long interval, and the
tilt is automatically raised to the
preset tilt limit position. The
buzzer continues to sound at
short intervals while the outboard
motor is tilted up.
When you press "DN" on the
power trim/tilt switch twice in
succession, the buzzer sounds
once at a long interval, and the
outboard motor is automatically
tilted down to the preset tilt limit
position. The buzzer continues to
sound at short intervals while the
outboard motor is tilted down.
Even during automatic tilting,
automatic tilt will be forcibly
canceled and the outboard motor
will stop being tilted in the
following cases.
●
The power trim/tilt switch is
pressed during automatic tilt
operations
●
The power tilt switch
(outboard motor pan) is
pressed and held in the
opposite direction of the tilt
direction during automatic tilt
operations
●
Any of the engines are started
● Any of the engines are
abnormal (overheating, low oil
pressure, etc.)
Before you can use the automatic
tilt function, you need to set it in
the multi-function display.
For multiple outboard motors,
the power trim/tilt switch on the
gearshift/throttle control lever
side can turn on the automatic tilt
mode for all the outboard motors
and the power trim/tilt switch on
the PTT switch panel can turn on
the automatic tilt mode for each
individual outboard motor.
The power trim/tilt switch on the
gearshift/throttle control lever
side turns on the automatic tilt
mode even if the power switch or
engine switch is off.
OPERATION
82
Power Tilt Switch (Outboard
Motor Pan)
When you are away from the
power trim/tilt switch on the
gearshift/throttle control lever,
you can operate the power tilt
switch on the outboard motor.
The switch operation is the same
as that of the power trim/tilt
switch on the gearshift/throttle
control lever.
CAUTION
Do not operate the power tilt
switch on the outboard motor
while cruising. You can lose
control of your balance, fall,
and be injured by the moving
outboard, propeller, or boat.
Always use the power trim/tilt
switch while under way.
NOTICE
• Do not attempt to use the
power tilt switch to tilt the
outboard motor down while
the tilt lock levers are in the
LOCK position. Damage to
the power tilt system may
occur.
Manual Relief Valve
The outboard motor can also be
tilted manually after opening the
manual relief valve. This feature
enables the outboard motor to
be tilted up or down when no
battery is connected.

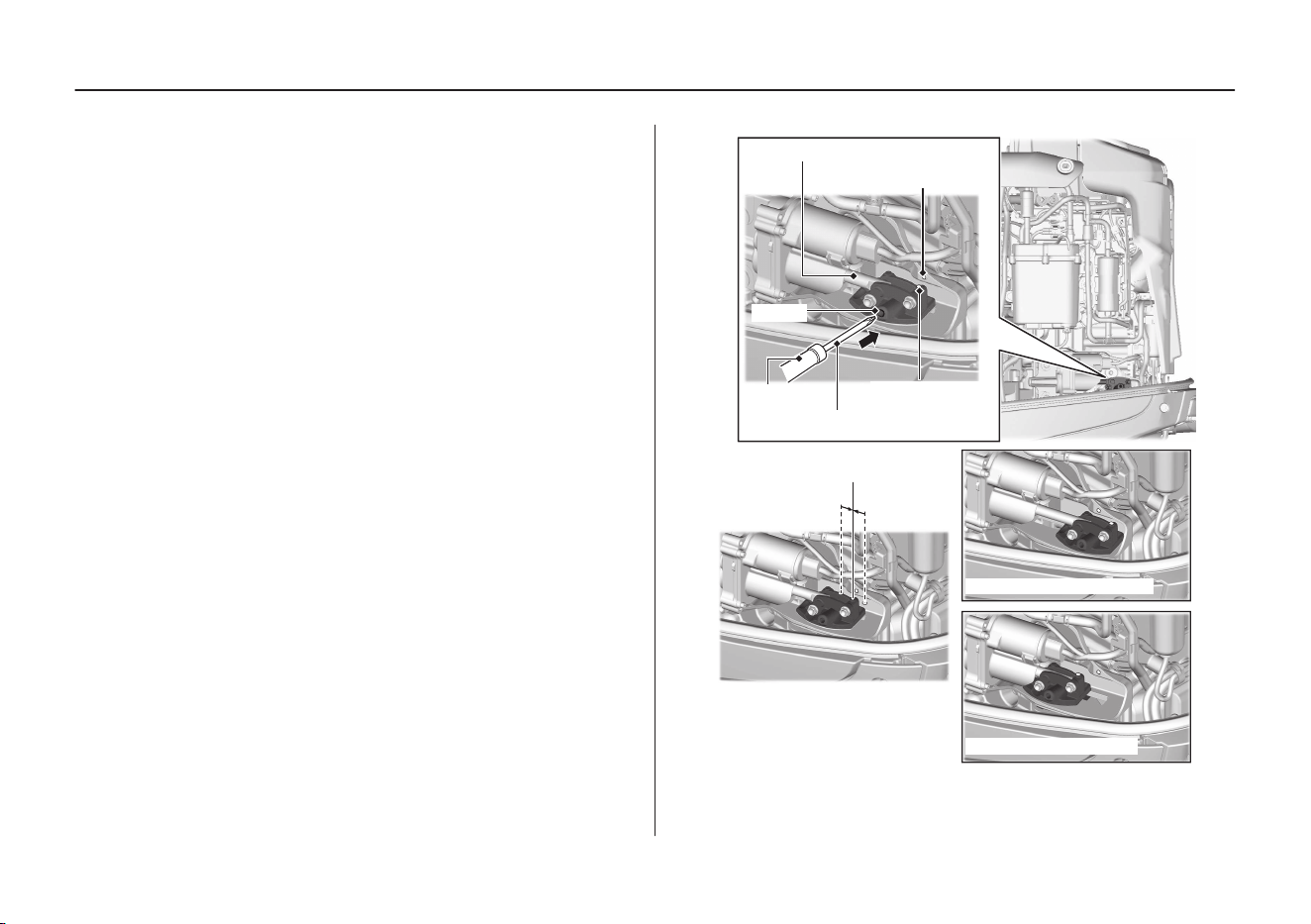

For manual tilting, use a
screwdriver to turn the valve
counterclockwise 1 or 2 turns.
Close the valve firmly after
positioning the engine.
OPERATION
83
POWER TILT SWITCH
MANUAL RELIEF VALVE
POWER
(To hold)
MANUAL
(To release)
Be sure the valve is closed before
operating the outboard motor. If
the valve is not closed, the
outboard motor will tilt up when
operated in reverse.
DANGER
Check that nobody is under the
outboard motor before
opening the manual relief valve.
If the manual relief valve is
loosened (turned
counterclockwise) when the
outboard motor is tilted up, the
outboard motor will suddenly
tilt down.
MULTIPLE OUTBOARD
MOTORS
On boats equipped with more
than one outboard motor, all
motors normally operate at the
same time.
If one or more motor(s) is
stopped while the other(s) is
running, put the stopped motor
in NEUTRAL and tilt it up so its
propeller is above the water’s
surface.
If the propeller of the stopped
motor is left in the water, it may
turn as the boat moves through
the water, causing a reverse flow
of water from the exhaust side.
Reverse flow can cause an engine
malfunction.
NOTICE
• If one outboard is down and
another outboard is tilted all
the way up, it may cause
extreme steering angles that
can cause the outboard
cowlings to touch and
damage each other.
• Never use the tilt lock lever if
a stopped motor is tilted up.
There is a risk of damaging
the motor if you use the tilt
lock lever while cruising.
OPERATION
84
THE IMPORTANCE OF
MAINTENANCE
Proper maintenance is essential
for safe, economical, and trouble-
free operation. It will also help
reduce air pollution.
WARNING
Failure to properly maintain this
outboard motor, or failing to
correct a problem before
operation, could result in a
significant malfunction.
Some malfunctions can cause
serious injuries or death.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner's
manual.
To help you properly care for
your outboard motor, the
following pages include a
maintenance schedule, routine
inspection procedures, and
simple maintenance procedures
using basic hand tools. Other
service tasks that are more
difficult or require special tools
are best handled by professionals
and are normally performed by a
Honda technician or other
qualified mechanic.
The maintenance schedule
applies to normal operating
conditions. If you operate your
outboard motor under unusual
conditions, consult an authorized
Honda Marine dealer for
recommendations applicable to
your individual needs and use.
Remember that your authorized
Honda Marine dealer knows your
outboard motor best and is fully
equipped to maintain and repair
it.
To ensure the best quality and
reliability, use only new, Honda
Genuine parts or their equivalents
for repair and replacement.
Maintenance, replacement, or
repair of the emission control
devices and systems may be
performed by any marine
engine repair establishment or
individual, using parts that are
"certified" to EPA standards.
SERVICING YOUR OUTBOARD MOTOR
85
MAINTENANCE SAFETY
Some of the most important
safety precautions follow.
However, we cannot warn you of
every conceivable hazard that can
arise in performing maintenance.
Only you can decide whether or
not you should perform a given
task.
WARNING
Improper maintenance can
cause an unsafe condition.
Failure to properly follow
maintenance instructions and
precautions can cause serious
injuries or death.
Always follow the procedures
and precautions in this owner’s
manual.
Safety Precautions
● Make sure the engine is off
before you begin any
maintenance or repairs. This
will eliminate several potential
hazards:
− Carbon monoxide
poisoning from engine
exhaust.
Do not start or run the
engine in a confined or
partly enclosed area.
− Burns from hot parts.
Let the engine and exhaust
system cool before
touching them.
− Injury from moving
parts.
Do not run the engine
unless instructed to do so.
● Read the instructions before
you begin, and make sure you
have the tools and skills
required.
● To reduce the possibility of
fire or explosion, be careful
when working around
gasoline. Use only a
nonflammable solvent, not
gasoline, to clean parts. Keep
cigarettes, sparks, and flames
away from all fuel-related
parts.
● Wear gloves when handling
the propeller to protect your
hands from sharp edges.
SERVICING YOUR OUTBOARD MOTOR
86
TOOL KIT and OWNER'S MANUAL
The tool kit can be used for simple maintenance
procedures and emergency repairs. Keep these
items on the boat so that they will always be
available if you need them.
If your tool kit needs replacement, it is not available
as a kit and each item must be ordered individually.
SERVICING YOUR OUTBOARD MOTOR
87
OWNER'S MANUAL
EYE WRENCH
SPARK PLUG WRENCH
6 mm HEX. WRENCH
PHILLIPS SCREWDRIVER
GRIP
TOOL BAG
10 mm BOX WRENCH
SPARE EMERGENCY STOP SWITCH CLIP
(optional equipment)
Always carry a spare emergency stop switch clip
onboard. The spare clip may either be stored in the
tool bag or near the controls in case the operator
and primary switch clip falls overboard and a
passenger needs to pilot the boat during an
emergency situation.
MAINTENANCE SCHEDULE
Follow the MAINTENANCE SCHEDULE table and
service your outboard motor accordingly. Please
note, a claim for warranty coverage will not be
denied simply because the maintenance schedule
for your outboard motor was not followed.
However, any part(s) that fails specifically due to
lack of maintenance, or improperly performed
maintenance, would not be covered under the
Distributor’s Limited Warranty (U.S.) / Distributor’s
Warranty (CA.).
SERVICING YOUR OUTBOARD MOTOR
88
REGULAR SERVICE PERIOD (3)
Perform at every indicated month or operating
hour interval, whichever comes first.
Each use After use
First month
or 20 hrs.
Every 6
months or
100 hrs.
Every year
or 200 hrs.
Every 2
years or
400 hrs.
Every 6
years or
1,200 hrs.
Refer to
page
ITEM
Engine oil
Check level o 93
Change o o 96
Engine oil filter Replace o (2) —
Gear case oil Change o (2) o (2) —
Timing belt Check-adjust o (2) —
ACG belt Check-adjust o (2) —
Valve clearance Check-adjust o (2) —

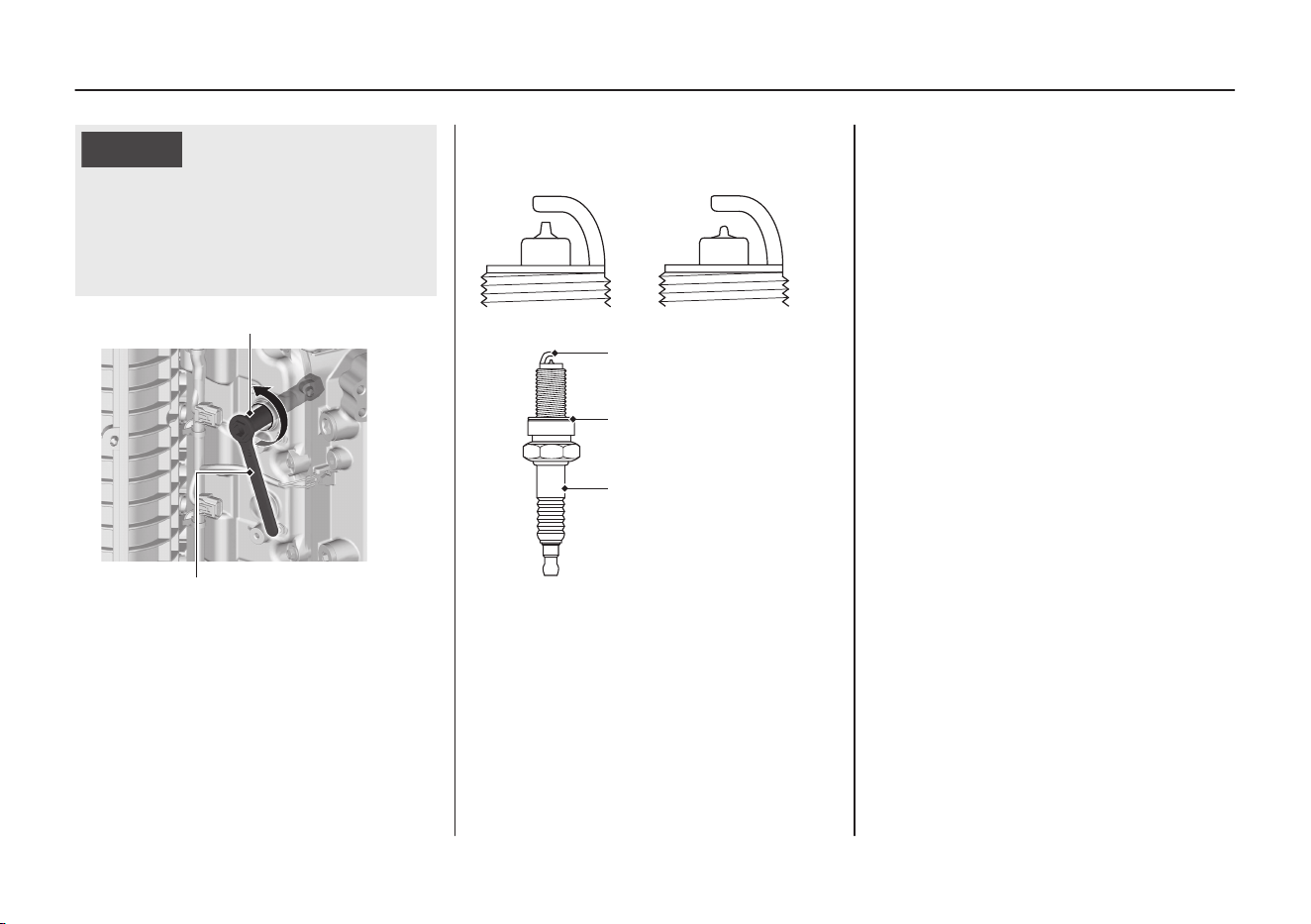

Spark plug (iridium) Check o (9) 100 - 103
Spark plug (nickel) (Optional
part)
Check-adjust/
Replace
o 103
Propeller and cotter pin Check o o 112
Anode metal (Outside engine) (6)
Stern bracket, Gear case Check o o
111
Water front screen Check o
Anode metal (Inside engine) (6)
Check o (2) —
Replace o (2) —
Idle speed Check-adjust o (2) o (2) —

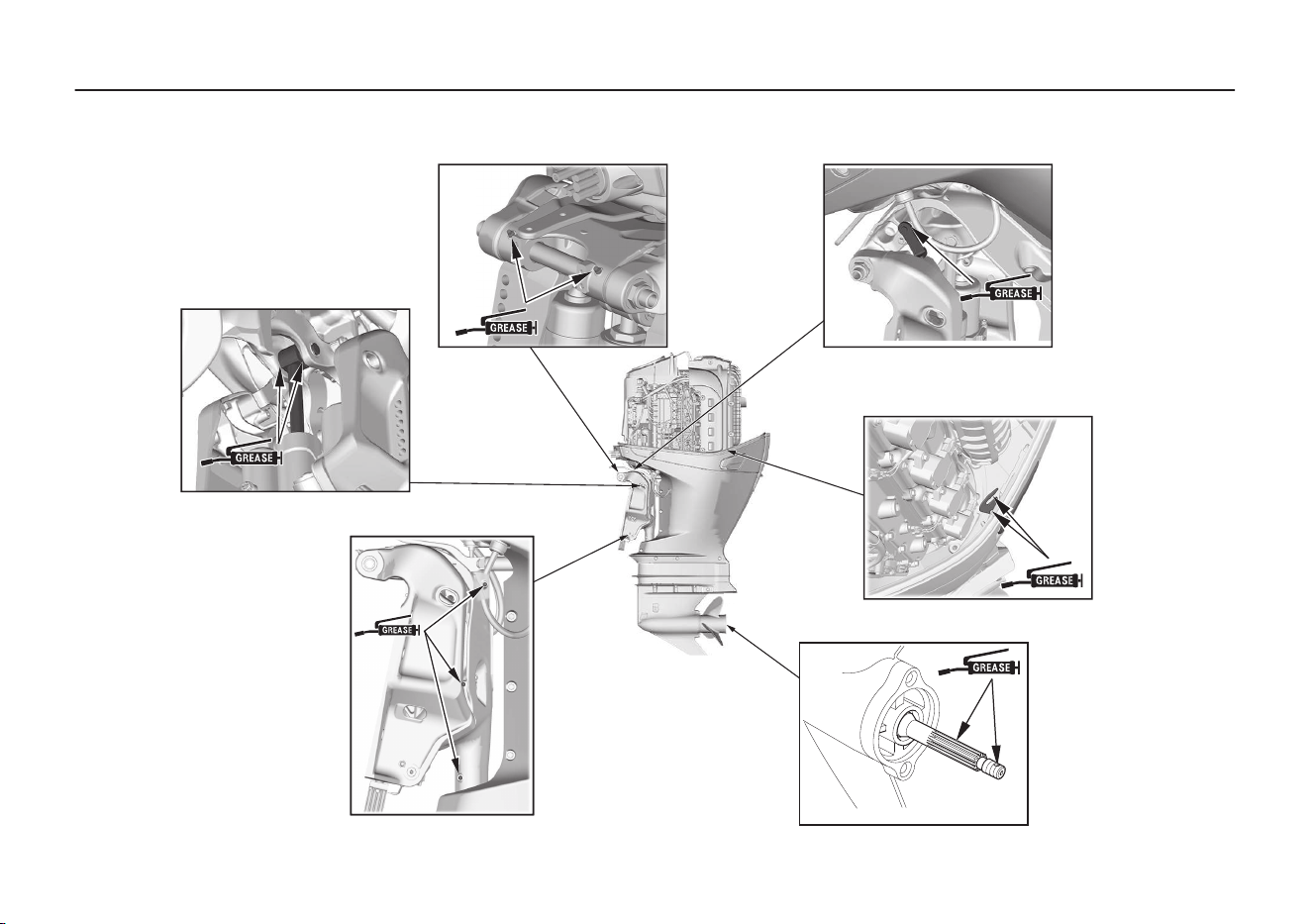

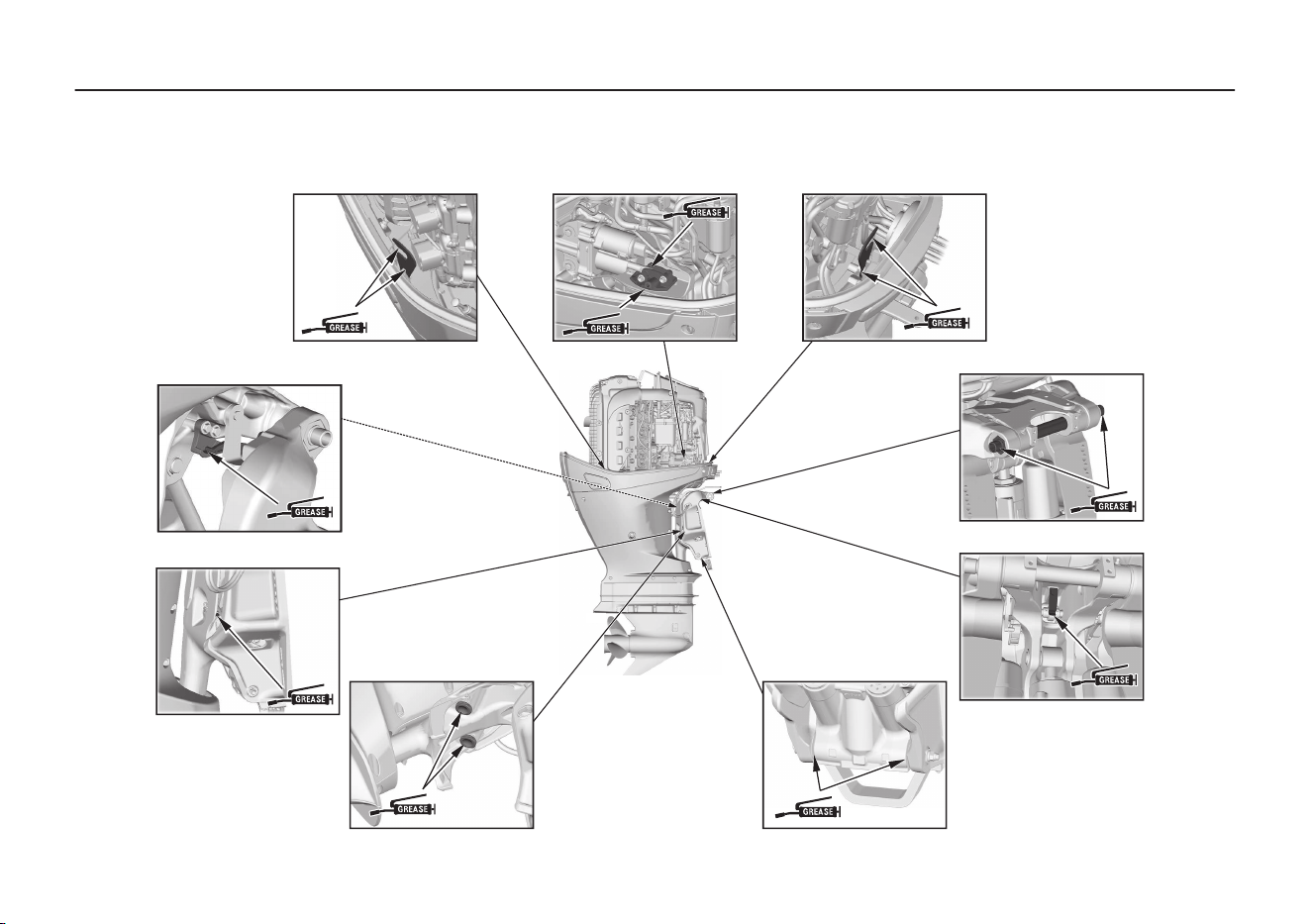

Lubrication Grease o (1) o (1) 97

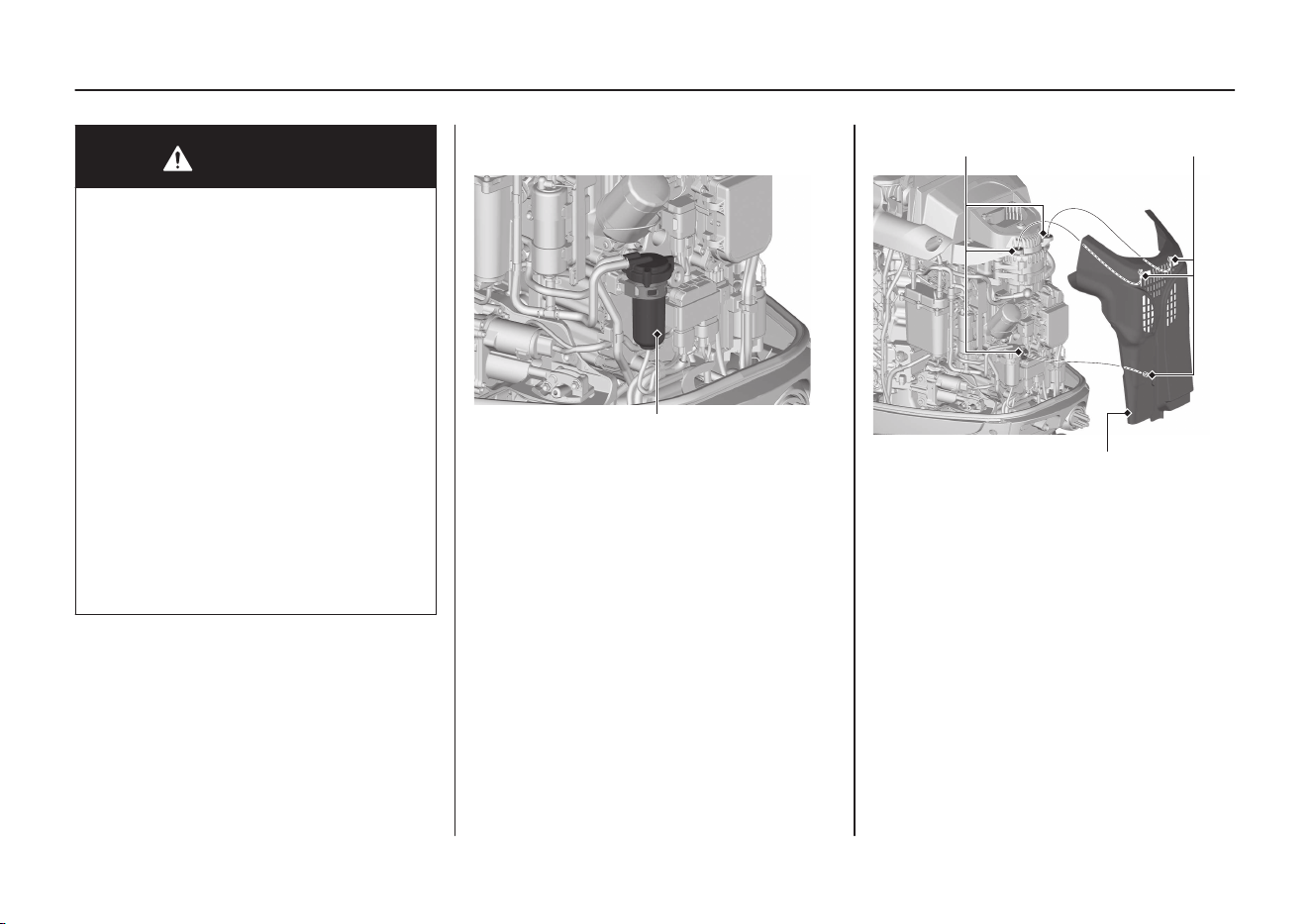

Fuel filter with water separator
(Low pressure side)
Check o o 107
Replace o 109
(1)
Lubricate more frequently when used in salt water.
(2)
These items should be serviced by your servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the Honda
Shop Manual for service procedures. See “Honda Publications” on P.147 for ordering information.
(3)
For professional commercial use, log hours of operation to determine proper maintenance intervals.
(6)
Replace the anodes when they have been reduced to about two-thirds of their original size,or if they are crumling.
(9)
Do not clean the spark plugs. If an electrode is contaminated with accumulated objects or dirt, replace the spark plug with a new one. Do not
adjust the spark plug gap. If the gap is out of specification, replace the spark plug with a new one.
SERVICING YOUR OUTBOARD MOTOR
89
REGULAR SERVICE PERIOD (3)
Perform at every indicated month or operating
hour interval, whichever comes first.
Each use After use
First month
or 20 hrs.
Every 6
months or
100 hrs.
Every year
or 200 hrs.
Every 2
years or
400 hrs.
Every 6
years or
1,200 hrs.
Refer to
page
ITEM
Fuel filter (High pressure side) Replace o (2) —
Thermostat and thermostat
cover
Check/Replace o (2) —
Fuel line
Check o (7) 54
Replace Every 2 years (if necessary) (2) (8) —
Battery and cable connection
Check level-
tightness
o 54
Bolts and nuts Check-tightness o (2) o (2) —
Crankcase breather tube Check o (2) —
Cooling water passages Clean o (4) o (4) 114
Coolant leak Check o —
Water pump, Woodruff key Check o (2) —
Impeller housing Check o (2) —
Emergency stop switch Check o 54
Engine oil leak Check o —
Each operating part Check o —
Engine condition (5) Check o —
Power Trim/Tilt Check o (2) —
(2)
These items should be serviced by your servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the Honda
Shop Manual for service procedures. See “Honda Publications” on P.147 for ordering information.
(3)
For professional commercial use, log hours of operation to determine proper maintenance intervals.
(4)
When operating in salt water, turbid or muddy water, the engine should be flushed with clean water after each use.
(5)
Upon starting, check for unusual engine sounds and cooling water flowing freely from the check hole.
(7)
Check the fuel line for leaks, cracks, or damage. If it is leaking, cracked, or damaged, take it to your servicing dealer for replacement before using
your outboard motor.
(8)
Replace the fuel line if there are signs of leaks, cracks, or damage.
SERVICING YOUR OUTBOARD MOTOR
90

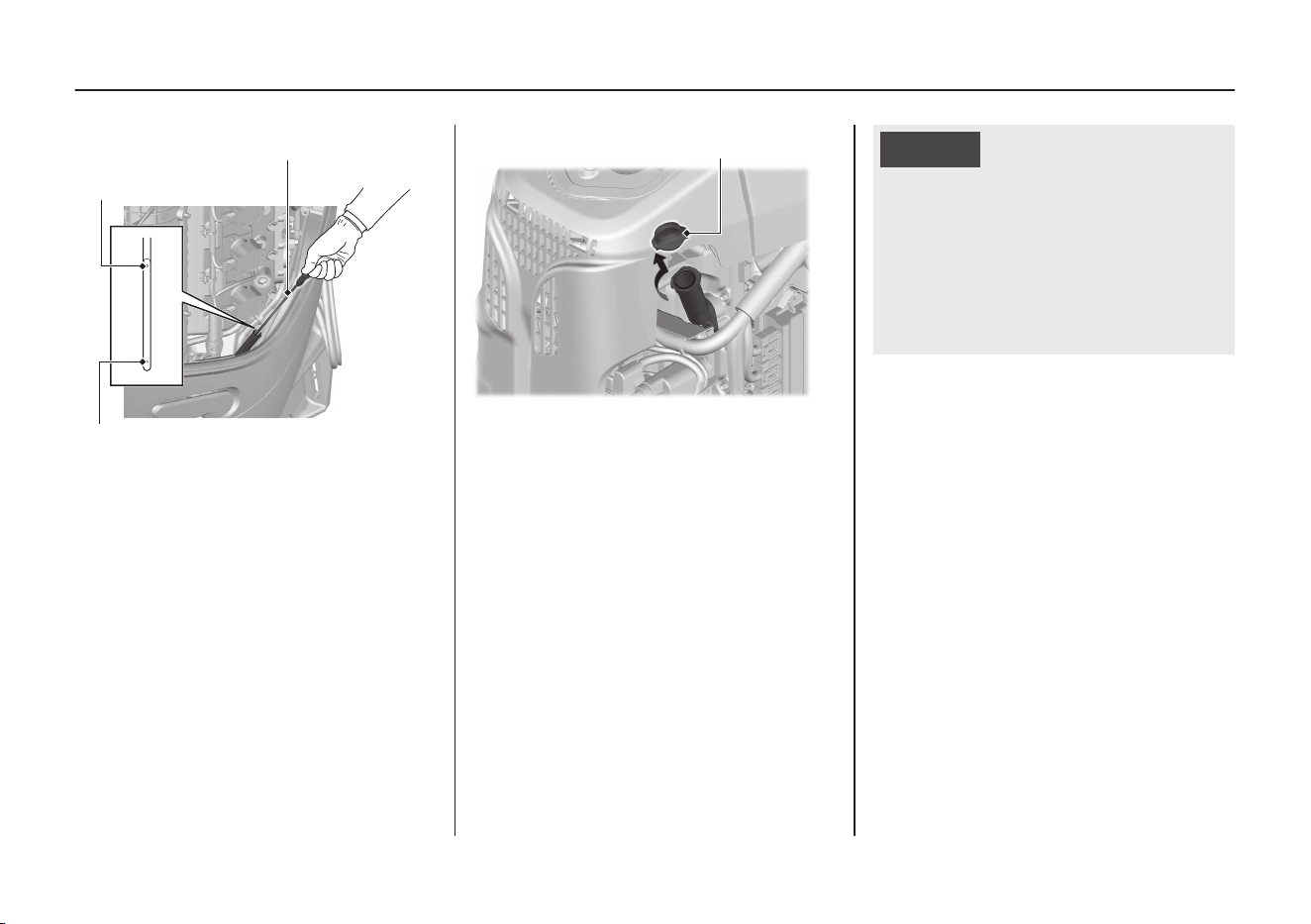

ENGINE COVER REMOVAL
AND INSTALLATION
Removal
1. Pull the latches and rotate
them as shown.
2. Remove the engine cover by
lifting it straight up from the
outboard motor.
SERVICING YOUR OUTBOARD MOTOR
91
Front
ENGINE COVER LATCH
Side
ENGINE COVER LATCH
(each side)
Installation
1. Rotate and hold the latches as shown.
2. Slide the strikers on the engine cover into the
grooves on the rear striker cover.
Align the strikers on the engine cover with the
holes on the main body to install the engine
cover.
SERVICING YOUR OUTBOARD MOTOR
92
Front
ENGINE COVER LATCH
Side
ENGINE COVER LATCH (each side)
ENGINE COVERSide
STRIKER (each side)
GROOVE
(each side)
STRIKER (each side)
HOLE (each side)
3. Push the engine cover until it
is fully seated.
4.
Rotate the latches as shown.
Push in on all the latches to
lock them.
Lubricate the tip of the striker
with silicone spray to make
installation easier.
The cover should be tight when
fully seated position. If the cover
is loose or difficult to secure, an
adjustment may be necessary.
Please see the shop manual or
your Marine dealer for
adjustment.
ENGINE OIL LEVEL CHECK
Check the engine oil level with
the engine stopped and the
outboard motor in the vertical
position.
1. Unlock and remove the
engine cover (P.91).
2. Remove the oil level dipstick
by pulling it. Wipe the oil level
dipstick clean.
SERVICING YOUR OUTBOARD MOTOR
93
Front
ENGINE COVER LATCH
Side
ENGINE COVER LATCH
(each side)
3. Insert the dipstick all the way
in, then remove it and check
the oil level shown on the
dipstick.
4. If the oil level is near or below
the lower limit mark on the
dipstick, remove the oil filler
cap, and add oil to reach the
upper limit mark shown on
the dipstick. Use the oil
recommended on P.97.
NOTICE
• Running the engine with a
low oil level can cause
engine damage.
• Do not overfill. Overfilling
the engine will cause it to
smoke or have oil leaks.
5. Insert the dipstick all the way
in. Install the oil filler cap and
tighten it securely. Do not
overtighten.
6. Install the front striker guide
cover in the reverse order of
removal.
7. Install and lock the engine
cover.
SERVICING YOUR OUTBOARD MOTOR
94
OIL LEVEL DIPSTICK
UPPER LIMIT
LOWER LIMIT
OIL FILLER CAP
When you check the oil level with the dipstick, you might notice the engine oil appears milky or the oil level
has increased. If you notice either condition, change the engine oil. See the following table for an
explanation of these conditions.
Operating Method Result Effect
Running the engine below 3,000
rpm for more than 30% of the time
so the engine does not warm-up.
● Water condenses in the engine
and mixes with the oil, resulting
in a milky appearance.
● Unburned fuel mixes with the
oil, increasing the volume of oil.
The engine oil deteriorates,
becomes less efficient as a
lubricant, and causes an engine
malfunction.
Frequent starting and stopping
without allowing the engine to
warm-up.
SERVICING YOUR OUTBOARD MOTOR
95
ENGINE OIL CHANGE
An engine oil evacuation/filling
device may be used to
remove/add the engine oil.
Drain the used oil while the
engine is warm. Warm oil drains
quickly and completely.
1. Unlock and remove the
engine cover (P.91).
2. Place a suitable container

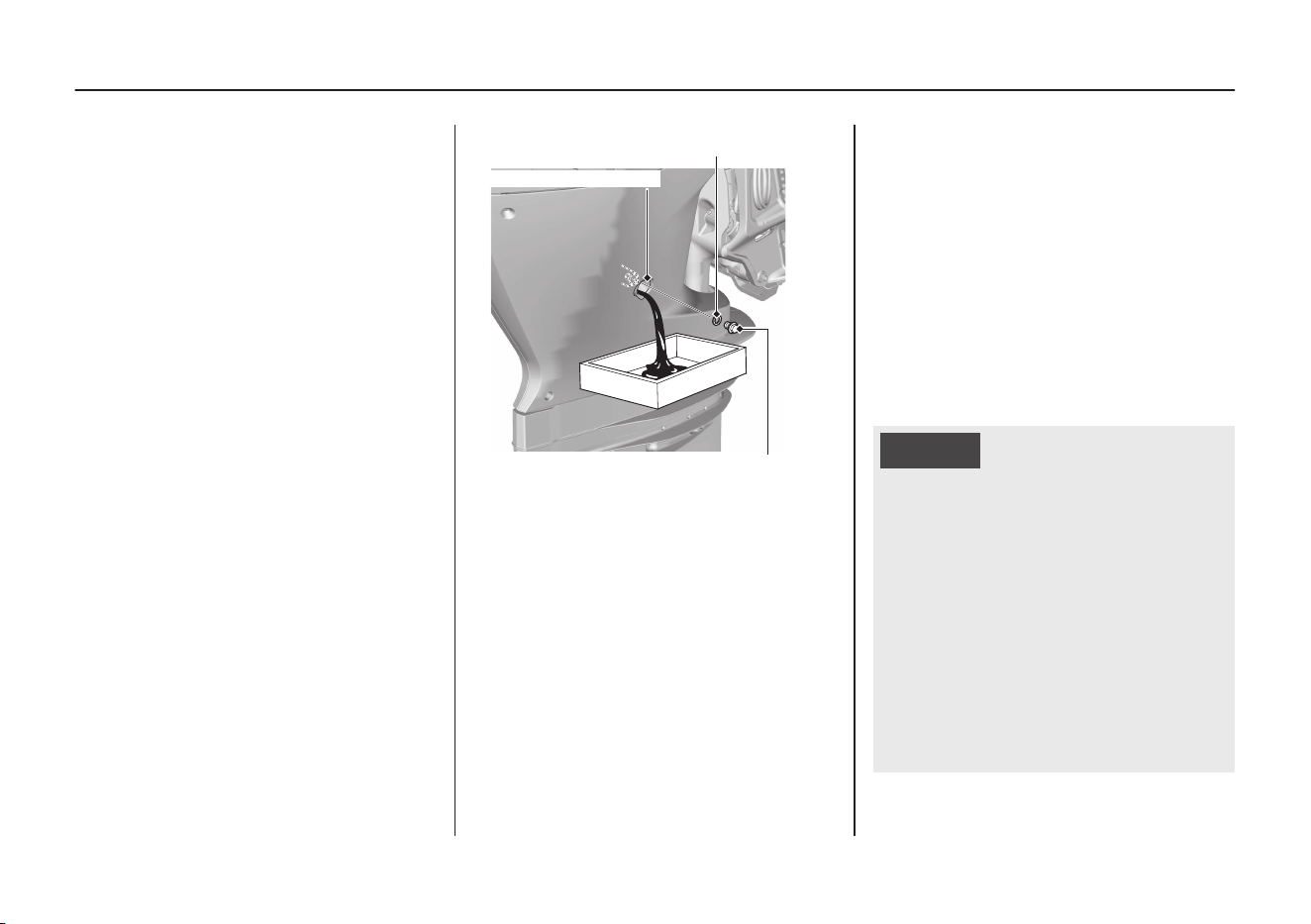

below the oil drain guide to
catch the used oil, and then
remove the oil filler cap, drain
bolt, and sealing washer.
3. Allow the used oil to drain
completely. Use a new sealing
washer, and then reinstall the
engine oil drain bolt using a
new washer.
Tighten the drain bolt
securely.
TIGHTENING TORQUE:
17 lbf·ft (23 N·m, 2.3 kgf·m)
NOTICE
• Improper disposal of engine
oil can be harmful to the
environment. If you change
your own oil, please dispose
of the used oil properly. Put
it in a sealed container, and
take it to a recycling center.
Do not throw it in the trash,
pour it on the ground or
down a drain.
SERVICING YOUR OUTBOARD MOTOR
96
SEALING WASHER (Replace)
OIL DRAIN GUIDE
DRAIN BOLT
4. With the outboard motor in a
vertical position, fill to the
upper limit mark on the
dipstick (P.93) with the
recommended oil.
Engine oil refill capacity:
● Without oil filter change:
10.8 US qt (10.2 L)
● With oil filter change: 11.0
US qt (10.4 L)
5. Install the oil filler cap and
tighten it securely.
6. Install and lock the engine
cover (P.92).
ENGINE OIL
RECOMMENDATIONS
Oil is a major factor affecting
performance and service life. Use
4-stroke detergent oil.
Honda 10W-30 FC-W
®
outboard
motor oil is recommended for
general use.
FC-W
®
is a registered trademark
of the National Marine
Manufacturers Association.
If Honda 10W-30 FC-W oil is not
available, Honda recommends
that you use API service category
SG, SH, SJ or SL oil. The SAE oil
viscosity and service category are
in the API label on the oil
container.
LUBRICATION POINTS
Apply Honda Marine waterproof
grease to the parts shown below:
NOTICE
• Apply anticorrosion oil to
pivot surfaces where grease
cannot penetrate.
Apply Honda Marine Corrosion
Inhibitor (or equivalent) to all
areas under the engine cover and
any exposed metal surfaces
except the belts.
SERVICING YOUR OUTBOARD MOTOR
97
AMBIENT TEMPERATURE
SERVICING YOUR OUTBOARD MOTOR
98
PROPELLER SHAFT
ENGINE COVER LOCK
PLATE (LEFT)
TILT LOCK LEVER (each side)
SWIVEL SHAFT
UPPER CYLINDER PIN/BUSH
TILT SHAFT
SERVICING YOUR OUTBOARD MOTOR
99
SHIFT PIVOT/
SHIFT LINK GUIDE
ENGINE COVER LOCK
PLATE (FRONT)
SWIVEL CASE
PTT THRUST
RECEIVER
LOWER CYLINDER
BUSH/COLLAR
TILT BRACKET
TILT SHAFT THREAD
ENGINE COVER LOCK
PLATE (RIGHT)
TRIM/TILT ANGLE SENSOR
SPARK PLUG SERVICE
Standard Spark Plug
(Iridium)
RECOMMENDED SPARK PLUGS:
ILZKAR7S11E (NGK)
NOTICE
• Incorrect spark plugs can
cause engine damage.
Inspection
1. Disconnect the battery
negative (–) terminal.
2. Unlock and remove the
engine cover (P.91).
3. Release the grommets on the
rear striker guide cover from
the projections and remove
the rear striker guide cover.
4. Remove the bolt from the
ignition coil. Move the
ignition coil to a position that
allows removal of the wire
connector easily.
5. Disconnect the wire connector
from the ignition coil by
pushing on the lock tab and
pulling on the connector. Pull
on the plastic connector, not
the wires.
6. Remove the ignition coil by
pulling it up slightly.
SERVICING YOUR OUTBOARD MOTOR
100
REAR STRIKER GUIDE COVER
PROJECTIONS
GROMMETS
PROJECTIONS
GROMMET
GROMMET
WIRE CONNECTOR
BOLT
IGNITION COIL
NOTICE
• Do not strike or drop the
ignition coil, or it may be
damaged and require
replacement.
7. Remove the spark plugs with
a spark plug wrench and eye
wrench.
8. Inspect the spark plugs.
1. If the electrodes are
heavily corroded or
carbon-soiled, replace the
spark plug with a new one.
2.
Replace a spark plug if the
center electrode is worn.
The spark plug can wear
out in different ways. If the
sealing washer shows signs
of wear, or if the insulators
are cracked or chipped,
replace the spark plug.
SERVICING YOUR OUTBOARD MOTOR
101
SPARK PLUG WRENCH
EYE WRENCH
New plug
Plug needing
replacement
SIDE ELECTRODE
SEALING WASHER
INSULATOR
Use a wire type plug
gauge to measure the gap
(spark gap) between the
center electrode and the
side electrode.
● Use a wire-type plug
gauge to prevent
damage to the iridium
center electrode.
Check that the Φ0.051 in
(1.3 mm) plug gauge does
not fit into the gap.
The gap should be 0.039 –
0.051 inches (1.0 – 1.3
mm).
9.
These spark plugs have an
iridium coated center
electrode.
Be sure to observe the
following when servicing
iridium spark plugs.
● Do not clean the spark
plugs. If an electrode is
contaminated with
accumulated material or
dirt, replace the spark plug
with a new one.
● Use only a "wire-type
feeler gauge" to check the
spark plug gap if
necessary. To prevent
damaging the iridium
coating of the center
electrode, never use a
"leaf-type feeler gauge."
●
Do not adjust the spark
plug gap. If the gap is out
of specification, replace
the spark plug with a new
one.
10.Install the spark plugs
carefully, by hand, to avoid
cross-threading.
SERVICING YOUR OUTBOARD MOTOR
102
11.After each spark plug is
seated, tighten it with the
spark plug wrench supplied in
the tool kit to compress the
sealing washer.
If reinstalling used spark
plugs, tighten 1/8 – 1/4 turn
after the spark plugs are
seated.
If installing new spark plugs,
tighten 1/2 turn after the
spark plugs are seated.
TIGHTENING TORQUE:
16 lbf·ft (22 N·m , 2.2 kgf·m)
NOTICE
• Loose spark plugs can
overheat and damage the
engine.
Overtightening the spark
plugs can damage the
threads in the cylinder head.
12.
Push the wire connector onto
the ignition coil. Make sure it
locks in place.
13.Install the ignition coil.
Reinstall the bolt.
14.Repeat this procedure for the
other seven spark plugs.
15.Reinstall the covers. When
reinstalling the covers, make
sure not to pinch the wire
harnesses between the covers
and engine case.
Optional Spark Plug (Nickel)
RECOMMENDED SPARK PLUGS:
LZKAR7F11E (NGK)
NOTICE
• Incorrect spark plugs can
cause engine damage.
Replacement
Installation and removal
procedure of the optional spark
plugs are the same as the
standard spark plugs.
SERVICING YOUR OUTBOARD MOTOR
103
Inspection and Cleaning
Measure the spark plug electrode
gap with a wire-type feeler
gauge.
Correct the gap, if necessary, by
carefully bending the side
electrode.
The gap should be:
0.039 – 0.043 in (1.0 – 1.1 mm)
REFUELING
If you do not anticipate cycling
through at least one complete
tank of fuel within a 30 day
period, we recommend adding
Honda Marine Fuel Stabilizer
each time you refuel.
Check the fuel level and refill it if
necessary. Do not fill the fuel tank
above the UPPER LIMIT. Refer to
the boat manufacturer’s
instructions.
WARNING
Gasoline is highly flammable
and explosive.
You can be burned or seriously
injured when handling fuel.
● Stop the engine and let it
cool before handling fuel.
● Keep heat, sparks, and flame
away.
● Handle fuel only outdoors.
●
Keep away from your
vehicle.
● Wipe up spills immediately.
SERVICING YOUR OUTBOARD MOTOR
104
SIDE ELECTRODE
0.039 – 0.043 in
(1.0 – 1.1 mm)
SEALING WASHER
INSULATOR
Never refill the fuel tank inside a
building where gasoline fumes
may reach flames or sparks. Keep
gasoline away from appliance
pilot lights, barbecues, electric
appliances, power tools, etc.
Spilled fuel is not only a fire
hazard, it also causes
environmental damage. Wipe up
spills immediately.
NOTICE
• Fuel can damage paint and
plastic. Be careful not to spill
fuel when filling your fuel
tank. Damage caused by
spilled fuel is not covered
under the Distributor’s
Limited Warranty (U.S.) /
Distributor’s Warranty (CA.).
FUEL RECOMMENDATIONS
Use unleaded gasoline with a
pump octane rating of 86 or
higher.
Your outboard motor is certified
to operate on unleaded gasoline.
Unleaded gasoline produces
fewer engine and spark plug
deposits and extends exhaust
system life.
Never use gasoline that is stale,
contaminated, or mixed with oil.
Avoid getting dirt or water in the
fuel tank.
You may use unleaded gasoline
containing no more than 10%
ethanol (E10) or 5% methanol by
volume. In addition, methanol
must contain cosolvents and
corrosion inhibitors.
Use of fuels with content of
ethanol or methanol greater than
shown above may cause starting
and/or performance problems. It
may also damage metal, rubber,
and plastic parts of the fuel
system.
Engine damage or performance
problems that result from using a
fuel with percentages of ethanol
or methanol greater than shown
above are not covered under
warranty.
SERVICING YOUR OUTBOARD MOTOR
105
If your outboard motor will be
used on an infrequent or
intermittent basis, please refer to
the fuel section of the STORAGE
chapter (P.117) for additional
information regarding fuel
deterioration.
FUEL FILTER WITH WATER
SEPARATOR (LOW
PRESSURE SIDE)
INSPECTION AND
REPLACEMENT
The fuel filter with water
separator is located below the
intake manifold.
Water or sediment accumulation
in the fuel filter with water
separator can cause loss of power
or hard starting.
To prevent engine malfunction,
inspect the fuel filter with water
separator and replace it when
necessary.
Clean it or consult with an
authorized Honda Marine dealer
for cleaning.
SERVICING YOUR OUTBOARD MOTOR
106
FUEL FILTER with WATER
SEPARATOR
(LOW PRESSURE SIDE)
WARNING
Gasoline is highly flammable
and explosive.
You can be burned or seriously
injured when handling fuel.
● Stop the engine and let it
cool before handling fuel.
● Keep heat, sparks, and flame
away.
● Handle fuel only outdoors.
●
Keep away from your
vehicle.
● Wipe up spills immediately.
Inspection
1. Remove the engine cover (P.
91).
2. Release the projection of the
front striker guide cover lower
side from the grommet, and
then release the projections of
the front striker guide cover
upper side from the
grommets.
Remove the front striker guide
cover.
SERVICING YOUR OUTBOARD MOTOR
107
FUEL FILTER with WATER
SEPARATOR
(LOW PRESSURE SIDE)
FRONT STRIKER GUIDE COVER
[1]
[2]
GROMMETS PROJECTIONS
3. Looking through the
translucent strainer cup, check
the fuel filter with water
separator for accumulation of
water or sediment.
If the fuel filter with water
separator is clogged, refer to fuel
filter with water separator
replacement procedure (P.109) to
remove the filter and clean it.
If water is present in the fuel filter
with water separator, refer to fuel
filter with water separator
replacement procedure to
remove the strainer cup and
empty the water from the inside
of the cup.
SERVICING YOUR OUTBOARD MOTOR
108
Replacement
1. Remove the engine cover (P.91).
2. Remove the front striker guide cover (P.107).
3. Remove the relay.
4. Disconnect the 2-pin coupler (blue).
5. Remove the suspension strap from the fuel filter
with water separator bracket, then remove the
suspension strap from the fuel filter with water
separator.
6. Bind the two fuel tubes with the tube clips to
prevent fuel leakage, disconnect the fuel tubes.
7. Remove the three screws holding the fuel filter
with water separator, empty the water or
deposits from the inside of the cup.
8. Thoroughly clean the cup. If the fuel filter is
clogged, or has reached the end of its
replacement period, replace it with a new one.
9. Reassemble the fuel filter with water separator in
the reverse order of removal. Use a new O-ring.
TIGHTENING TORQUE:
2.5 lbf·ft (3.4 N·m, 0.35 kgf·m)
SERVICING YOUR OUTBOARD MOTOR
109
HOSE CLIPS
FUEL HOSES
SUSPENSION STRAP
WATER SEPARATOR
2 PIN COUPLER
(BLUE)
RELAY
SCREWS
O-RING (Replace)
WATER SEPARATOR
CUP
FUEL FILTER
10.When installing the suspension strap to the fuel
filter with water separator, align the left end of
the suspension strap window hole with the screw
as shown in the figure.
11.Prime the engine using the priming bulb (P.56).
Check for fuel leaks. Repair any fuel leaks if
necessary.
If the buzzer sounds or water or sediment
accumulation is found in the fuel filter with water
separator, inspect the fuel tank.
Clean the fuel tank and tank filter if necessary. The
fuel tank may need to be drained completely and
refilled with fresh gasoline.
SERVICING YOUR OUTBOARD MOTOR
110
SCREW
SUSPENSION STRAP
WINDOW HOLE
ANODE INSPECTTION
The anodes are located on each side of the gear
case, on the right cooling water intake port and on
the stern bracket. They are made of a sacrificial
material that helps to protect the outboard motor
from corrosion.
Replace the anodes when they have been reduced
to about one third their original size, or if they are
crumbling.
Water Screen Removal/Installation
1. Loosen the screws and remove the nuts.
2. Remove the water screen (right).
3. Remove the water screen (left).
If the water inlet is clogged with waterweed or
mud, remove it.
4. Install the nuts and water screen (right) to the
gear case by holding the nuts.
5. Install the screws and water screen (left).
6. Be careful not to drop the nuts as you tighten
the screws.
TIGHTENING TORQUE:
0.7 lbf·ft (1.0 N·m, 0.1 kgf·m)
SERVICING YOUR OUTBOARD MOTOR
111
ANODE (stern bracket)
SCREWS
WATER SCREEN (LEFT)
NUTS
WATER SCREEN (RIGHT)
ANODE
ANODE (each side)
PROPELLER REPLACEMENT
Before replacing the propeller,
remove the emergency stop
switch clip from the emergency
stop switch to prevent any
possibility of the engine being
started while you are working
with the propeller.
The propeller blades may have
sharp edges, so wear heavy
gloves to protect your hands.
Operating the outboard motor at
higher altitudes will reduce
available power. This may require
decreasing the propeller pitch to
maintain correct engine RPM.
When replacing the propeller, put
a suitable block or piece of wood
between the propeller and the
antiventilation plate to prevent
the propeller from rotating.
Removal
1. Remove the cotter pin,
unscrew the castle nut,
remove the washer, and then
remove the propeller and
thrust washer.
2. Inspect the propeller shaft for
any fishing line or debris.
Installation
Some propeller brands require
specific mounting hardware.
Refer to your specific propeller
manufacturer’s instructions for
proper installation.
1. Apply marine grade grease to
the propeller shaft.
SERVICING YOUR OUTBOARD MOTOR
112
ANTIVENTILATION PLATE
A BLOCK
OR PIECE
OF WOOD
PROPELLER
PROPELLER
2. Install the thrust washer with the grooved side
toward the gear case.
3. Install the propeller.
4. Install the washer as shown below.
5. Lightly tighten the castle nut by hand or wrench
until the propeller has no free play.
6. Tighten the castle nut using a torque wrench.
TIGHTENING TORQUE:
41 lbf·ft (56 N·m, 5.7 kgf·m)
7. Then, using a torque wrench, tighten the castle
nut until the first available groove in the castle
nut aligns with the cotter pin hole. Do not
tighten past the first alignment of the castle nut
groove and the cotter pin hole.
NOTICE
• TIGHTENING TORQUE LIMIT:
94 lbf·ft (128 N·m, 13 kgf·m)
Do not tighten the castle nut above the
TIGHTENING TORQUE LIMIT, or the propeller
and shaft may be damaged.
8.
Be sure to replace the cotter pin with a new one.
● Use a Honda Genuine stainless steel cotter
pin or equivalent cotter pin and bend the pin
ends.
Note that the castle nut wrench is not included with
the tool set that comes with the outboard motor.
Contact your authorized Honda Marine dealer for
additional tool information.
SERVICING YOUR OUTBOARD MOTOR
113
WASHER
MARINE
GREASE
THRUST WASHER PROPELLER
COTTER PIN
CASTLE NUT
CLEANING AND FLUSHING
After each use in salt water or
dirty water, thoroughly clean and
rinse the outboard motor with
fresh water.
Touch up any damaged paint,
and coat areas that may rust with
Honda Corrosion Inhibitor, or
equivalent.
Lubricate controls with a silicone
spray lubricant.
NOTICE
• Do not apply water or
corrosion inhibitor directly to
the electrical components
under the engine cover, such
as the AC generator, O
2
sensor, or the AC generator
belt. If water or corrosion
inhibitor penetrates these
components, they may be
damaged. Before applying a
corrosion inhibitor, cover the
AC generator, belt and O
2
sensor with a protective
material to prevent damage.
Cleaning
Wash the outside of the outboard
motor with clean, fresh water,
and flush the cooling system as
follows.
Cleaning of the outside of the
outboard motor should be
performed with the engine cover
installed.
CLEANING AND FLUSHING
114
AIR INTAKES EXHAUST PORT
NOTICE
• Be careful not to spray water
into the air intakes and the
exhaust port. If water
penetrates inside the engine
cover from the air intakes
and the exhaust port, it may
cause malfunction.
Flushing With a Garden Hose
(commercially available)
NOTICE
• Do not run the engine when
flushing the outboard motor
with a garden hose or the
outboard motor may be
damaged.
For safety, remove the
emergency stop switch clip so the
engine cannot be started while
you are standing near the
propeller.
1. Tilt down the outboard motor.
2. Clean and wash the outside of
the outboard motor with fresh
water.

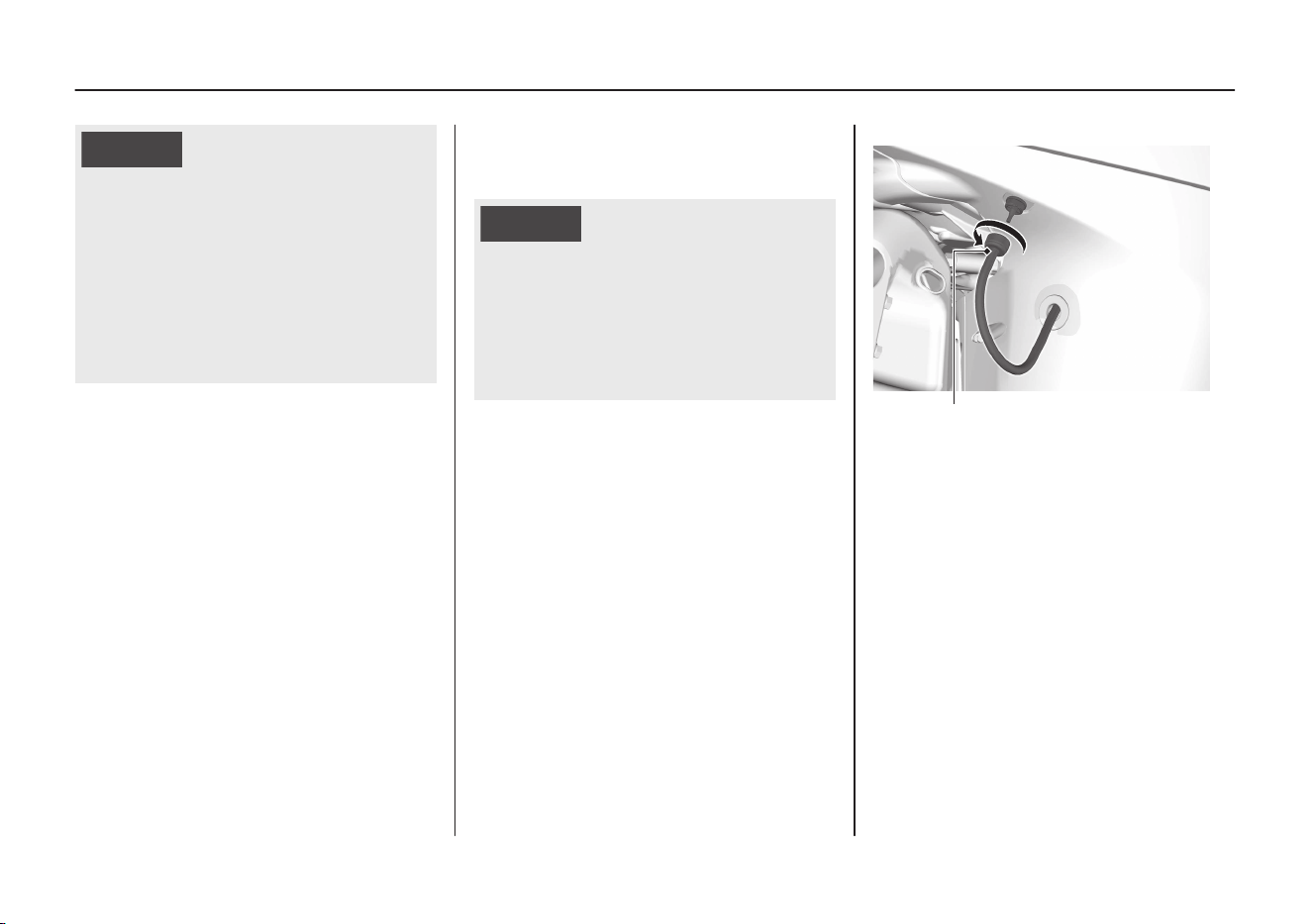

3. Disconnect the flush port
connector.
CLEANING AND FLUSHING
115
FLUSH PORT CONNECTOR
4. Screw the flush port
connector onto the garden
hose.
5. Turn on the fresh water supply
and flush the outboard motor
for at least 10 minutes.
Check that water is draining
from the cooling system
indicator, the cooling water
intake port and the exhaust
port.
NOTICE
• Do not start the engine while
flushing.
6. After flushing, disconnect the
garden hose and reconnect
the flush port connector.
7. Tilt up the outboard motor
and move the tilt lock levers
to the LOCK position (P.41).
CLEANING AND FLUSHING
116
FLUSH PORT
CONNECTOR
GARDEN HOSE
GARDEN HOSE JOINT
(Commercially available)
COOLING WATER INTAKE PORT
(each side)
EXHAUST PORT
FUEL
NOTICE
• Depending on the region
where you operate your
outboard, fuel formulations
may deteriorate and oxidize
rapidly. Fuel deterioration
and oxidation can occur in as
little as 15 days and may
cause damage to the fuel
system. Please check with
your servicing dealer for
local storage
recommendations.
Gasoline will oxidize and
deteriorate in storage. Old
gasoline will cause hard starting,
and it leaves gum deposits that
clog the fuel system. If the
gasoline in your fuel tank and
vapor separator deteriorates
during storage, you may need to
have the vapor separator and
other fuel system components
serviced or replaced.
The length of time that gasoline
can be left in your fuel tank and
vapor separator without causing
functional problems will vary with
such factors as gasoline blend,
your storage temperatures, and
whether the fuel tank is partially
or completely filled.
The air in a partially filled fuel
tank promotes fuel deterioration.
Very warm storage temperatures
accelerate fuel deterioration. Fuel
deterioration problems may
occur in less than 15 days, if the
gasoline was not fresh when you
filled the fuel tank.
You can extend fuel storage life
by adding a gasoline stabilizer
that is formulated for that
purpose, or you can avoid fuel
deterioration problems by
draining all the fuel from the fuel
tank and vapor separator.
STORAGE
117
The Distributor’s Limited
Warranty (U.S.) (P.151) /
Distributor’s Warranty (CA.) (P.
164) does not cover fuel system
damage or engine performance
problems resulting from
neglected storage preparation.
See page 105 for additional
information on fuel
recommendations.
Storage Procedure
WARNING
Gasoline is highly flammable
and explosive.
You can be burned or seriously
injured when handling fuel.
● Stop the engine and let it
cool before handling fuel.
● Keep heat, sparks, and flame
away.
● Handle fuel only outdoors.
●
Keep away from your
vehicle.
● Wipe up spills immediately.
1. Remove the engine cover (P.
91).
2. Inspect the fuel filter with
water separator (low-pressure
side).
If water has collected inside it
or there is a clog, such as
sediment in the cup, then
remove the water or replace
the filter. (P.109)
3. Drain the gasoline from the
drain screw of the vapor
separator. (P.120)
4. Confirm that there is no water
or dirt mixed in with the
gasoline that you remove.
5. Do the following operation if
you find water or dirt mixed in
with the gasoline that you
remove.
a Confirm that the drain
screw has been tightened.
b Keep the motor level as
you connect a gas tank
that has fresh gasoline.
STORAGE
118
c Use the primer bulb to
supply fresh gasoline to
the vapor separator.
CAUTION
Always operate the primer bulb
while the drain screw is tight. If
the drain screw is loose, then
gas will leak.
d Start the engine and run it
at idle for 1 minute.
NOTICE
• Always start the engine
under normal operating
conditions (while the
propeller is in the water).
Never start it while the
propeller is out of the water.
Doing so will damage the
engine.
e
Drain the gasoline from
the drain screw of the
vapor separator. (P.120)
f Confirm that there is no
water or dirt mixed in with
the gasoline that you
remove.
g If you find water or dirt in
the gasoline that you
remove, then repeat steps
a to f until you can
confirm there is no water
or dirt.
Adding a Fuel Stabilizer
When adding a fuel stabilizer, fill
the fuel tank with fresh gasoline.
If only partially filled, air in the
tank will promote fuel
deterioration during storage. If
you keep an additional container
of gasoline for refueling, be sure
that it contains only fresh
gasoline.
1. Drain the vapor separator
before adding fuel stabilizer.
2. Add Honda Marine fuel
stabilizer or equivalent
following the instructions on
the label.
3. After adding a fuel stabilizer,
run the engine in water for 10
minutes to be sure that the
treated gasoline has replaced
the untreated gasoline in the
vapor separator.
4. Turn the engine OFF.
STORAGE
119
Draining the Fuel System
WARNING
Gasoline is highly flammable
and explosive.
You can be burned or seriously
injured when handling fuel.
● Stop the engine and let it
cool before handling fuel.
● Keep heat, sparks, and flame
away.
● Handle fuel only outdoors.
●
Keep away from your
vehicle.
● Wipe up spills immediately.
You can avoid fuel deterioration
problems by draining the fuel
tank and vapor separator.
1. Remove the engine cover (P.
91)
2. Disconnect the drain hose of
the vapor separator, which is
anchored by the clamp on the
lower right, and put its end
out of the undercase.
3. Place an approved gasoline
container below the fuel drain
outlet.
4. Loosen the drain screw on the
vapor separator.
5. After draining thoroughly,
tighten the drain screw
securely.
TIGHTENING TORQUE:
1.7 lbf·ft (2.3 N·m, 0.23 kgf·m)
6. Clamp the drain hose on the
clamp.
STORAGE
120

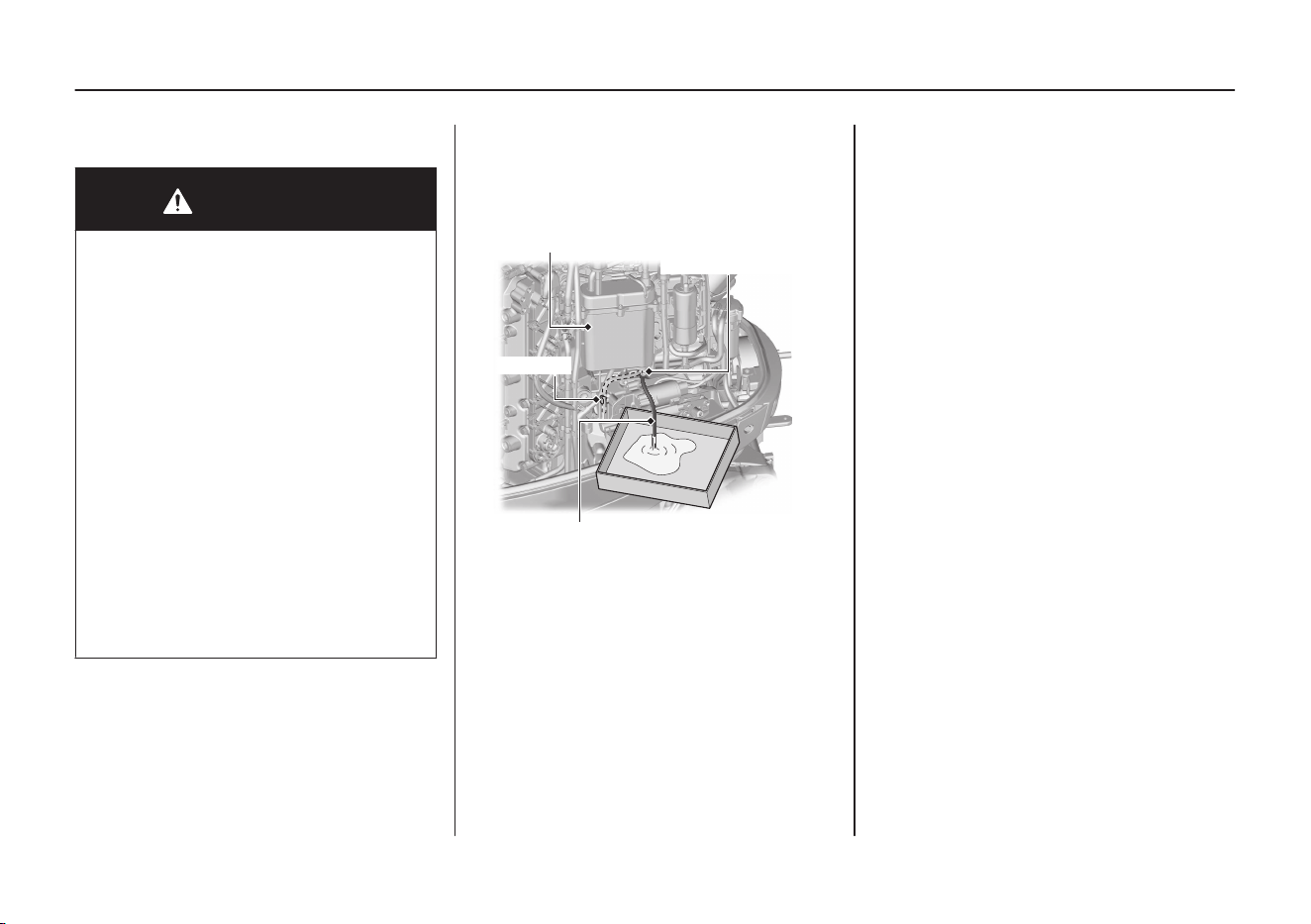

VAPOR SEPARATOR
DRAIN SCREW
DRAIN HOSE
CLAMP
(Draining the fuel becomes
easier when the front end of the
drain hose is as low as possible)
7. Drain the fuel tank into an
approved gasoline container,
or if you need to store fuel in
the fuel tank, you can extend
fuel storage life by filling the
fuel tank with fresh gasoline
and adding Honda Marine
fuel stabilizer or equivalent
following the directions on
the container.
ENGINE OIL
1. Change the engine oil (P.96).
2. Remove the emergency stop
switch clip from the
emergency stop switch, and
remove the spark plugs (P.
100).
3. Pour 1 – 2 teaspoons (5 – 10
cm
3
) of clean engine oil into
each cylinder.
4. Rotate the engine a few
revolutions to distribute the
oil in the cylinders.
5. Reinstall the spark plugs (P.
100).
HOISTING THE OUTBOARD
MOTOR
Consult an authorized Honda
Marine dealer when removing the
outboard motor from the hull.
STORAGE
121
STORAGE PRECAUTIONS
Select a well-ventilated storage
area. If possible, avoid storage
areas with high humidity.
If storing a container of gasoline,
store it away from any appliance
that operates with a flame, such
as a furnace, water heater, or
clothes dryer. Also avoid any area
with a spark producing electric
motor, or where power tools are
operated.
If the outboard motor will be
removed from the boat for
storage, store it vertically by
mounting it on a commercially
available stand.
Cover the outboard motor to
keep out dust. Do not use a
plastic sheet as a dust cover. A
nonporous cover will trap
moisture, promoting rust and
corrosion.
REMOVAL FROM STORAGE
Check your outboard motor as
described in the
BEFORE
OPERATION
chapter of this
manual.
If the cylinders were coated with
oil during storage preparation,
the engine may smoke briefly at
startup. This is normal.
STORAGE
122

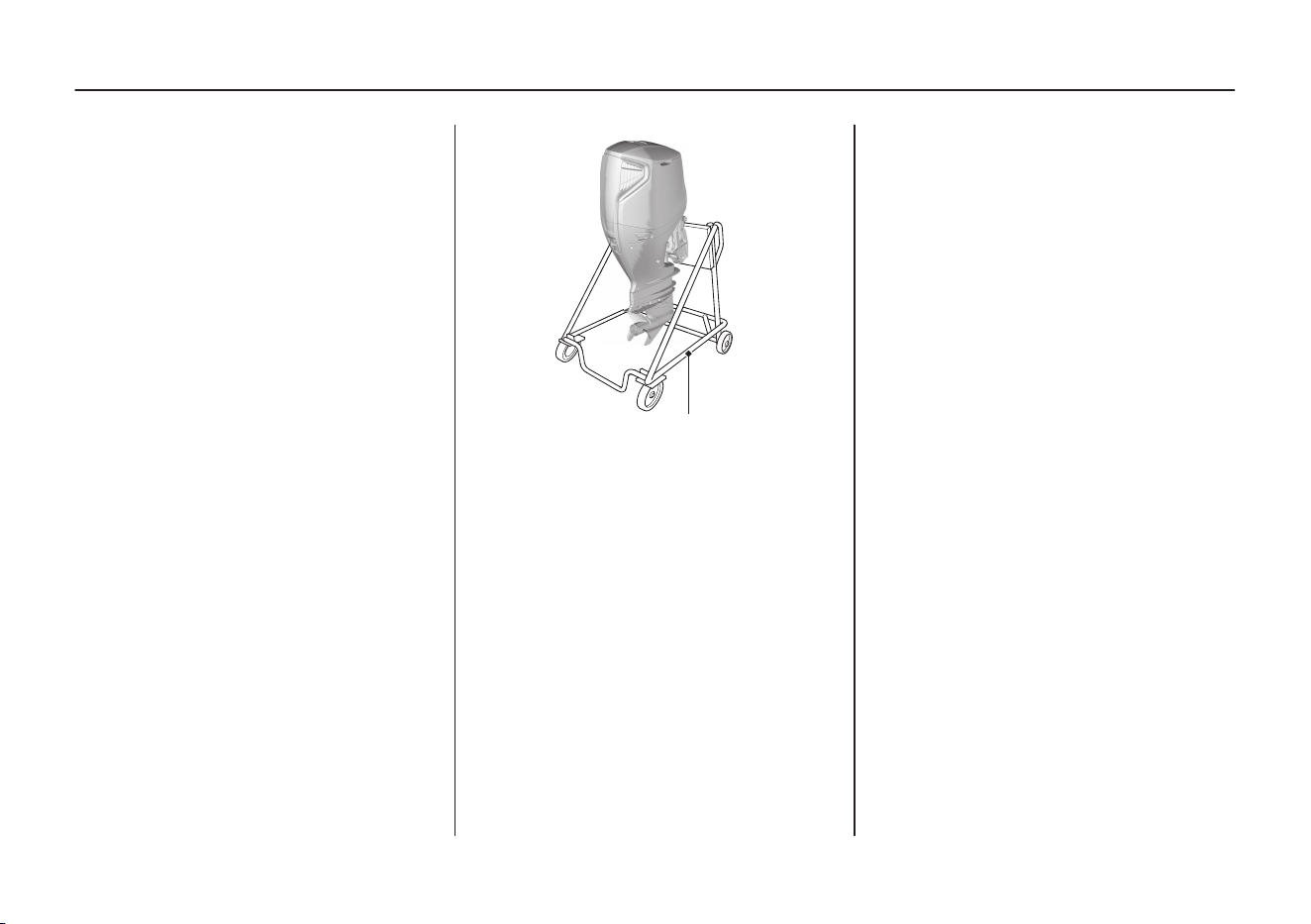

OUTBOARD MOTOR STAND
WITH OUTBOARD MOTOR
INSTALLED ON BOAT
Use an outboard motor support
bar to prevent the outboard
motor from moving while
trailering the boat.
Refer to the manufacturer’s
instructions for using an
outboard motor support bar.
The preferred method is to leave
the engine in the normal running
position, but if there is
insufficient road clearance, you
can tilt the outboard motor using
a commercially available
outboard motor support bar
available through your dealer.
Refer to the manufacturer’s
instructions for using an
outboard motor support bar.
WITH OUTBOARD MOTOR
REMOVED FROM BOAT
Secure the outboard motor in the
vertical position shown on P.122.
TRANSPORTING
123
OUTBOARD MOTOR SUPPORT
BAR (commercially available)
ELECTRIC STARTER WILL NOT OPERATE
Possible Cause Correction
Battery connections loose or corroded. Clean and tighten battery connections.
Battery discharged. Recharge battery.
Fuse(s) blown. Replace fuse(s) (P.128).
Fuel system malfunction, fuel pump failure, ignition
malfunction, stuck valves, starter malfunction, switch
malfunction, or electrical problem in the starting
circuit, etc.
Use starting procedure (P.57); if engine still will not
start, then take outboard motor to an authorized
Marine dealer, or refer to the shop manual.
TAKING CARE OF UNEXPECTED PROBLEMS
124
ENGINE WILL NOT START
Possible Cause Correction
Clip not inserted in emergency stop switch. Insert clip in emergency stop switch.
Control lever not in neutral position. Shift to neutral.
Out of fuel. Refuel (P.104).
Fuel hose not primed. Squeeze priming bulb (P.56).
Fuel filter with water separator or fuel tank filter
clogged.
Replace fuel filters (P.109).
Bad fuel; outboard motor stored without treating or
draining gasoline, or refueled with bad gasoline.
Drain fuel tank and vapor separator (P.120). Refill
with fresh gasoline (P.104).
Water separator full of accumulated water. Clean water separator (P.107).
Spark plugs faulty, fouled, or improperly gapped.
Gap (non-iridium type) or replace spark plugs (P.
100).
Spark plugs wet with fuel (flooded engine).
Dry and reinstall spark plugs. Start engine with the
throttle open.
Fuel system malfunction, fuel pump failure, ignition
malfunction, etc.
Take outboard motor to an authorized Marine
dealer, or refer to the shop manual.
TAKING CARE OF UNEXPECTED PROBLEMS
125
HARD STARTING OR STALLS AFTER STARTING
Possible Cause Correction
Fuel hose not primed. Squeeze priming bulb (P.56).
Fuel filter or fuel tank filter clogged. Replace fuel filters (P.109).
Bad fuel; outboard motor stored without treating or
draining gasoline, or refueled with bad fuel.
Drain fuel tank and vapor separator (P.120). Refill
with fresh gasoline (P.104).
Water separator full of accumulated water. Clean water separator (P.106).
TAKING CARE OF UNEXPECTED PROBLEMS
126
FUSES
Electric Starter Will Not
Operate
The 7.5 A, 15 A, and 30 A main
fuses protect the electric starter
relay and related circuits.
The main fuse protects the
ignition switch and related
circuits. If this fuse blows, the
engine will not start or run, and
the power trim/tilt switch will not
activate the trim/tilt mechanism.
The 40 A fuse is in the power
harness connected to the battery.
If this fuse blows, the engine will
not start or run.
Battery Will Not Charge
A 200 A ACG fuse protects the
alternator circuit. If the ACG fuse
blows, the engine will not charge
the battery. Refer to P.133.
Fuse Replacement
NOTICE
• Disconnect the battery cable
at the battery negative ( – )
terminal before replacing the
fuse.
Failure to do so may cause a
short circuit.
TAKING CARE OF UNEXPECTED PROBLEMS
128
Power Harness
1. Stop the engine.
2. Disconnect the battery cable
and the power harness.
3. Open the fuse holder cover.
4. Pull the old fuse out of the
clip with the fuse puller
supplied in the junction box
(P.131).
5. Push a new fuse (40A) into the
clip.
6. Close the fuse holder cover.
Main Fuse
A spare fuse is located on the
reverse side of the junction box
lid.
1. Stop the engine and
disconnect the battery cable.
2. Remove the engine cover. (P.
91)
3. Remove the front striker guide
cover (P.107).
4. Open the junction box lid.
TAKING CARE OF UNEXPECTED PROBLEMS
129
FUSE HOLDER COVER
SPARE FUSE
(40 A)
POWER
HARNESS
FUSE PULLER
SPARE FUSES (7.5 A, 15 A, 30 A)
JUNCTION BOX LID
5. Use the fuse puller from the
fuse holder to remove the
fuses (P.131). If a fuse is
blown, install a replacement
fuse of the same specified
rating.
The outboard motor is
supplied with spare fuses in
the junction box lid.
MAIN FUSE RATINGS:
7.5 A, 15 A, 30 A
6.
Close the junction box lid, and
install the front striker guide
cover and engine cover.
7. Reconnect the battery.
NOTICE
• Never use a fuse with a
rating greater than specified.
Serious damage to the
electrical system could result.
If a blown fuse is found, try to
determine and correct the
electrical problem that caused
the blown fuse. An uncorrected
electrical problem may cause the
fuse to blow again.
If fuses continue to blow, take the
outboard motor to an authorized
Marine dealer for inspection and
service, or refer to the shop
manual.
TAKING CARE OF UNEXPECTED PROBLEMS
130
BLOWN FUSE
Fuse
No.
Rating
Component(s) or Circuit(s)
Protected
1 200 A ACG, Battery
2 15 A GROUND
3 15 A Right throttle body
4 30 A Main relay, Starter relay
5 7.5 A Remote control box
6 30 A Shift actuator
7 15 A Left throttle body
8 15 A Fuel pump (High pressure side)
9 15 A
Fuel pump (Low pressure side),
sensors, ECU
10 15 A
Left side Injectors, Left side Ignition
coils
11 15 A
Right side Injectors, Right side
Ignition coils
3 A Battery switch OFF notification
7.5 A Accessory relay
TAKING CARE OF UNEXPECTED PROBLEMS
131
MAIN FUSES (7.5 A, 15 A, 30 A)
FUSE HOLDER
FUSE PULLER
RELAYS
(Do not remove the relays)
3 A Fuse, 7.5 A Fuse
A spare fuse is located on the
reverse side of the junction box
lid.
1. Stop the engine and
disconnect the battery cable.
2. Remove the engine cover. (P.
91)
3. Remove the front striker guide
cover (P.107).
4. Remove the fuse case lid.
5. Remove the old fuse out of
the fuse case with the fuse
puller supplied in the fuse
holder (P.131).
6. Install a new fuse. The
outboard motor is supplied
with spare fuse in the junction
box lid.
FUSE RATING:
3 A, 7.5 A
7. Be sure the fuse case lid is
securely locked.
8. Close the junction box lid, and
install the front striker guide
cover and engine cover.
9. Reconnect the battery.
TAKING CARE OF UNEXPECTED PROBLEMS
132
3 A FUSE
SPARE FUSES (3 A, 7.5 A)
7.5 A FUSE
FUSE CASE LID
FUSE
FUSE CASE
ACG Fuse
A spare fuse is located in the fuse
holder.
1. Stop the engine and
disconnect the battery cable.
2. Remove the engine cover. (P.
91)
3. Remove the front striker guide
cover (P.107).
4. Open the junction box lid.
5. Remove the old fuse by
removing two 5 mm screws.
6. Install a new fuse by
tightening two 5 mm screws.
ACG FUSE: 200 A
7. Close the junction box lid, and
install the front striker guide
cover and engine cover.
8. Reconnect the battery.
OIL PRESSURE WARNING
INDICATOR COMES ON AND
ENGINE SPEED IS LIMITED
Multi-function Display
For information about
NMEA2000-compatible device
displays, refer to the display
device's manual.
TAKING CARE OF UNEXPECTED PROBLEMS
133
ACG FUSE (200 A)
SPARE FUSE (200 A)
5 mm SCREWS
OIL PRESSURE
WARNING
INDICATOR
(RED)
If oil pressure becomes low, the
oil pressure warning indicator
comes on, and the engine
protection system limit engine
speed. If you are at cruising
speed, engine speed will
decrease automatically.
The oil pressure warning
indicator is also equipped with a
buzzer that sounds when the oil
pressure warning indicator comes
on.
Low oil pressure may be the
result of a low engine oil level, or
there may be a problem with the
engine lubrication system.
If the throttle is closed suddenly
after full throttle operation,
engine speed may drop below
the specified idle rpm, and that
could activate the engine
protection system momentarily.
If low oil pressure activates the
engine protection system, stop
the engine, check the engine oil
level (P.93), and add oil if needed.
With the engine oil at the
recommended level, restart the
engine. If the lubrication system
is OK, the oil pressure warning
indicator does not come on, and
the engine will respond normally
to throttle control lever
operation.
If the engine protection system
remains activated after 30
seconds, return to the nearest
boat landing, and have the
outboard motor inspected by an
authorized Marine dealer.
TAKING CARE OF UNEXPECTED PROBLEMS
134
OVERHEAT INDICATOR
COMES ON AND ENGINE
SPEED IS LIMITED
Multi-function Display
For information about
NMEA2000-compatible device
displays, refer to the display
device's manual.
If the engine overheats, the
overheat indicator will come on,
and the engine will stop in 20
seconds after the engine
protection system limits engine
speed. If you are at cruising
speed, engine speed will
decrease automatically.
All types are equipped with a
buzzer that sounds when the
overheat indicator comes on.
Engine overheating may be the
result of restricted water intake
screens, or there may be a
problem with the cooling system
thermostat or water pump.
If the engine is stopped after
running at full throttle, and then
restarted soon afterward, that
could activate the engine
protection system momentarily.
If overheating activates the
engine protection system, idle
the engine in neutral, and check
the cooling system indicator.
TAKING CARE OF UNEXPECTED PROBLEMS
135
OVERHEAT
INDICATOR
(RED)
COOLING SYSTEM INDICATOR
If water is flowing from the
cooling system indicator,
continue idling for 30 seconds. If
the cooling system is OK, the
overheat indicator should go off
within 30 seconds, and the
engine will respond normally to
throttle control lever operation.
If there is no water flowing from
the cooling system indicator, stop
the engine, and tilt the outboard
motor to inspect the water intake
screens. If restricted, clean the
water intake screens, return the
outboard motor to the running
position, restart the engine, and
check the cooling system
indicator again.
If there is still no water flowing
from the cooling system
indicator, or if the engine
protection system remains
activated after 30 seconds, return
to the nearest boat landing, and
have the outboard motor
inspected by an authorized
Marine dealer.
WATER SEPARATOR BUZZER
SOUNDS
When the water separator buzzer
sounds (a rapid, repeating signal):
Check the water separator for
water contamination. If water is
present, stop the engine, and
clean the water separator
following the instructions on P.
106, or consult with an
authorized Honda Marine dealer.
TAKING CARE OF UNEXPECTED PROBLEMS
136
WATER SEPARATOR
SUBMERGED OUTBOARD
MOTOR
A submerged outboard motor
must be serviced immediately
after it is recovered from the
water in order to minimize
corrosion.
As soon as possible, take the
outboard motor to an authorized
Marine dealer for inspection and
service.
TAKING CARE OF UNEXPECTED PROBLEMS
137
EMERGENCY GEAR SHIFTING
If the gear cannot be shifted, perform shift
operation manually according to the following
procedure and return to port at possible engine
speed.
1. Set the gearshift/throttle control lever in the
NEUTRAL position (P.24-26).
2. Stop the engine (P.62).
3. Remove the engine cover (P.91).
4. Insert the Phillips screwdriver with the grip from
the tool kit (P.87) into the hole of the shift pivot
to move the shaft. Shift gear into neutral by
aligning the neutral mark and projection of the
shift pivot.
Grasp the shaft of the inserted Phillips
screwdriver close to the shift pivot.
Operate in a stable posture that makes it easy to
apply force.
5. Start the engine (P.57).
6. Shift gear into FORWARD or REVERSE by moving
the shift pivot with the Phillips screwdriver with
the grip from the tool kit.
After returning to port, stop the engine and anchor
the boat.
TAKING CARE OF UNEXPECTED PROBLEMS
138
SHIFT PIVOT
NEUTRAL MARK
PHILLIPS SCREWDRIVER
REVERSE
FORWARD
NEUTRAL
NEUTRAL position:
REVERSE position:
FORWARD position:
HOLE
GRIP
PROJECTION
SERIAL NUMBER
LOCATIONS
Record the frame serial number,
the engine serial number, and the
date of purchase in the space
provided on this page.
You will need these numbers
when ordering parts, and when
making technical or warranty
inquiries (P.147).
The frame serial number is
stamped on a plate attached to
the left side of the stern bracket.
Frame Serial Number:
Date of purchase:
The engine serial number is
stamped on the upper left side of
the engine.
Engine serial number:
TECHNICAL INFORMATION
139
FRAME SERIAL NUMBER
ENGINE SERIAL NUMBER
BATTERY
WARNING
The battery contains sulfuric
acid (electrolyte), which is
highly corrosive and poisonous.
Getting electrolyte in your eyes
or on your skin can cause
serious burns.
Wear protective clothing and
eye protection when working
near the battery.
KEEP CHILDREN AWAY FROM
THE BATTERY.
For complete information, refer
to the battery manufacturer’s
instructions.
Minimum Requirements
12 V – 92 Ah/5 HR (110 Ah/20
HR) (CCA800)
NOTICE
• Be careful to avoid
connecting the battery in
reverse polarity, as this will
damage the battery-
charging system in the
outboard motor.
• Do not disconnect the
battery cables while the
engine is running.
Disconnecting the cables
while the engine is running
will damage the outboard
motor’s electrical system.
NOTICE
• Battery cable extension:
Extending the original
battery cable will cause the
battery voltage to drop due
to the increased length of
the cable and number of
connections. This voltage
drop may cause the buzzer
to sound momentarily when
engaging the starter motor
and may prevent the engine
from starting. If the engine
starts and the buzzer sounds
momentarily, there may be
barely sufficient voltage
reaching the engine.
TECHNICAL INFORMATION
140
WARNING
Battery posts, terminals, and
related accessories contain lead
and lead compounds.
Wash hands after handling.
EMISSION CONTROL
SYSTEM INFORMATION
Source of Emissions
The combustion process
produces carbon monoxide,
oxides of nitrogen, and
hydrocarbons. Control of
hydrocarbons and oxides of
nitrogen is very important
because, under certain
conditions, they react to form
photochemical smog when
subjected to sunlight. Carbon
monoxide does not react in the
same way, but it is toxic.
Honda utilizes appropriate air/
fuel ratios and other emissions
control systems to reduce the
emissions of carbon monoxide,
oxides of nitrogen, and
hydrocarbons.
PGM-FI System
The PGM-FI system uses
sequential multiport fuel
injection. It has three subsystems:
Air Intake, Engine Control, and
Fuel Control. The Engine Control
Module (ECM) uses various
sensors to determine how much
air is going into the engine. It
then controls how much fuel to
inject under all operating
conditions.
Ignition Timing Control System
The system constantly adjusts the
ignition timing, reducing the
amount of HC, CO, and NOx
produced.
TECHNICAL INFORMATION
141
The U.S., California Clean Air
Acts, and Canadian
Environmental Protection Act
EPA, California, and Canadian
regulations require all
manufacturers to furnish written
instructions describing the
operation and maintenance of
emission control systems.
The following instructions and
procedures must be followed in
order to keep the emissions from
your Honda engine within the
emission standards.
Tampering and Altering
NOTICE
• Tampering is a violation of
federal and California law.
Tampering with or altering the
emission control system may
increase emissions beyond the
legal limit. Among those acts that
constitute tampering are:
●
Alterations that would cause
the engine to operate outside
its design parameters.
●
Removal or alteration of any
part of the intake, fuel, or
exhaust systems.
Problems That May Affect
Emissions
If you are aware of any of the
following symptoms, have your
engine inspected and repaired by
your servicing dealer.
● Hard starting or stalling after
starting
● Rough idle
● Misfiring or backfiring under
load
● Afterburning (backfiring)
● Black exhaust smoke or high
fuel consumption
TECHNICAL INFORMATION
142
Replacement Parts
The emission control systems on
your Honda engine were
designed, built, and certified to
conform with EPA, California, and
Canadian emission regulations.
We recommend the use of Honda
Genuine parts whenever you have
maintenance done. These
original-design replacement parts
are manufactured to the same
standards as the original parts, so
you can be confident of their
performance.
Honda cannot deny coverage
under the emission warranty
solely for the use of non-Honda
replacement parts or service
performed at a location other
than an authorized Honda
dealership; you may use
comparable EPA certified parts,
and have service performed at
non-Honda locations. However,
the use of replacement parts that
are not of the original design and
quality may impair the
effectiveness of your emissions
control system.
A manufacturer of an aftermarket
part assumes the responsibility
that the part will not adversely
affect emission performance. The
manufacturer or rebuilder of the
part must certify that use of the
part will not result in a failure of
the engine to comply with
emission regulations.
Maintenance
As the outboard engine owner,
you are responsible for
completing all required
maintenance listed in your
owner's manual. Honda
recommends that you retain all
receipts covering maintenance on
your outboard engine, but Honda
cannot deny warranty coverage
solely for the lack of receipts or
for your failure to ensure that all
scheduled maintenance has been
completed.
Follow the MAINTENANCE
SCHEDULE on page 88.
Remember that this schedule is
based on the assumption that
your machine will be used for its
designed purpose. Sustained
high-load operation, or use in
unusual conditions, will require
more frequent service.
TECHNICAL INFORMATION
143
STAR LABEL
US, Puerto Rico, and US Virgin Islands
A Star label was applied to this outboard motor in
accordance with the requirements of the California
Air Resources Board.
The Star Label means Cleaner Marine Engine
The Symbol for Cleaner Marine Engines:
Cleaner Air and Water - for healthier lifestyle and
environment.
Better Fuel Economy - burns up to 30 - 40 percent
less gas and oil than conventional carbureted two-
stroke engines, saving money and resources.
Longer Emission Warranty - protects consumer for
worry-free operation.
TECHNICAL INFORMATION
144
This engine has been certified as a:
One Star
Low Emission
The one-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2001 exhaust emission
standards. Engines meeting these standards have 75% lower emissions
than conventional carbureted two-stroke engines. These engines are
equivalent to the U.S. EPA’s 2006 standards for marine engines.
Two Stars
Very Low
Emission
The two-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2004 exhaust emission
standards. Engines meeting these standards have 20% lower emissions
than One Star-Low Emission engines.
Three Stars
Ultra Low
Emission
The three-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2008 exhaust emission
standards or the Sterndrive and Inboard marine engine 2003-2008 exhaust
emission standards. Engines meeting these standards have 65% lower
emissions than One Star-Low Emission engines.
Four Stars
Super Ultra
Low Emission
The four-star label identifies engines that meet the Air Resources Board’s
Sterndrive and Inboard marine engine 2009 exhaust emission standards.
Personal Watercraft and Outboard marine engines may also comply with
these standards. Engines meeting these standards have 90% lower
emissions than One Star-Low Emission engines.
Cleaner Watercraft - Get the Facts
1-800-END-SMOG
www.arb.ca.gov
TECHNICAL INFORMATION
145
SPECIFICATIONS
MODEL BF350A
Description Code BBYJ
Type XD XCD UD UCD
Overall length 44.1 in (1,120 mm)
Overall width 25.6 in (650 mm)
Overall height 84.4 in (2,145 mm) 89.4 in (2,272 mm)
Transom height (when
transom angle at 12°)
25.1 in (638 mm) 30.1 in (765 mm)
Dry mass (weight)* 783 lbs (355 kg) 794 lbs (360 kg)
Rated power 260.9 kW (350 HP)
Full throttle range 5,000 – 6,000 rpm
Engine type 4 stroke OHC VTEC 8-cylinder (V8)
Displacement
302.1 cu-in (4,952 cm
3
)
Spark plug gap 0.039 – 0.043 in (1.0 – 1.1 mm)
Starter system Electric starter
Ignition system Fully transistorized, battery ignition
Lubrication system Trochoid pump pressure lubrication
Specified oil
Engine:
API standard (SG, SH, SJ, SL) SAE/FC-W
10W-30
Gear case:
API standard (GL-4) SAE 90 Hypoid gear
oil
MODEL BF350A
Oil capacity
Engine:
10.8 US qt (10.2 L) without oil filter
change
11.0 US qt (10.4 L) with oil filter change
Gear case:
1.82 US qt (1.72 L)
CARB star label ULTRA · LOW EMISSION
D.C. output 12V – 70A
Cooling system Water cooling with thermostat
Exhaust system Water exhaust
Spark plugs ILZKAR7S11E (NGK)
Fuel pump Electromagnetic type
Fuel
Unleaded gasoline
(86 pump octane or higher)
Gear change Forward-Neutral-Reverse (dog type)
Steering angle 30° right and left
Tilt angle (transom angle
at 12°)
Stageless (68°)
Trim angle (transom
angle at 12°)
– 4° to 15°
* Without battery cable, with propeller
Honda outboard motors are power rated in accordance with NMMA
procedures and using the ICOMIA standard 28/23.
TECHNICAL INFORMATION
146
Dealer Locator Information
To find an authorized Honda
Servicing Dealer
For USA:
Visit our website:
http://marine.honda.com and
click on Find a Dealer
For Canada:
Call 1-888-946-6329 or visit our
website:
English
http://marine.honda.ca/
dealerlocator
French
http://marine.honda.ca/trouver-
concessionaire
Honda Publications
These publications will give you
additional information for
maintaining and repairing your
outboard motor.
Shop Manual
This manual covers complete
maintenance and overhaul
procedures. It is intended to be
used by a skilled technician.
For USA:
Shop manuals are available
through your Honda Marine
dealer or visit http://
marine.honda.com /Service &
Support and click on Shop
Manuals
For Canada:
Contact your dealer for
information on the Shop Manual.
Parts Catalog
For USA:
This manual provides complete,
illustrated parts lists. The catalog
is available through your Honda
Marine dealer or visit http://
marine.honda.com/Parts &
Accessories and click on Look Up
Parts
For Canada:
Contact your dealer for
information on Parts.
Accessory Catalog
Your authorized Honda Marine
dealer offers a wide selection of
accessories (optional equipment,
oils, and lubricants) to enhance
your boating experience.
CONSUMER INFORMATION
147
For USA:
Visit http://marine.honda.com
and click on PARTS &
ACCESSORIES to see the entire
catalog of accessories.
For Canada:
Check with your dealer or visit
www.honda.ca and select the
Parts and Accessories tab under
the Honda Marine segment to
view the range of accessories
available.
Customer Service Information
Contacting Honda
Your Owner’s Manual was written
to cover most of the questions
you might ask about your Honda.
Any questions not answered in
the Owner’s Manual can be
answered by your Honda dealer.
If your dealer doesn’t have an
immediate answer, they should
be able to get it for you.
If you have a difference of
opinion with your dealer, please
remember that each dealership is
independently owned and
operated. That’s why it’s
important to work to resolve any
differences at the dealership
level. If the service personnel are
unable to assist you, please
discuss your concerns with the
dealer management such as the
Service Manager or the
dealership’s owner.
If you need to contact Honda
regarding your experiences with
your Honda product or with your
dealer, please contact the Honda
office in your region:
American Honda Motor Co.,
Inc.
Marine Division
Customer Relations Office
4900 Marconi Drive Alpharetta,
GA 30005-8847
Telephone (770) 497 – 6400
M-F 9:00 am-7:30 pm (Eastern
Time Zone)
CONSUMER INFORMATION
148
In Canada:
Honda Canada Inc.
Customer Relations Department
180 Honda Boulevard
Markham, Ontario L6C 0H9
Tel: 1-888-946-6329 (Toll free)
Fax: 1-877-939-0909 (Toll free)
Please include the following
information in your
communication:
●
Your name, address and
telephone number (complete
with area code)
●
Model and complete serial
number
● Date of purchase
●
Name and location of selling
dealer
●
Name and location of
servicing dealer (if different)
● A detailed description of your
concerns
We will likely ask your Honda
dealer to respond, or possibly
acknowledge your comments
directly.
Warranty Coverage
Your new Honda is covered by
the following warranties:
●
Distributor’s Limited Warranty
● Emission Control System
Warranty
Please read the warranty
statements contained in this
manual. There are responsibilities,
restrictions, and exclusions that
apply to these warranties.
To obtain warranty service you
must take your Honda outboard
motor, together with proof of
original retail purchase date, at
your expense, to a Honda engine
dealer or distributor authorized
to sell that product in the United
States, Puerto Rico, the U.S.
Virgin Islands or Canada.
It is important to realize that your
warranty applies to defects in
material or workmanship of your
Honda. Your warranty coverage
does not apply to normal wear or
deterioration associated with
using your Honda outboard
motor.
CONSUMER INFORMATION
149
Your warranty coverage will not
be voided if you choose to
perform your own maintenance.
However, you should have the
proper tools and service
information and be mechanically
qualified. Failures that occur due
to modifications, improper
maintenance, or service are not
covered.
Warranty Service
Please remember that
recommended maintenance
interval servicing is not included
in your warranty coverage.
Additionally, your warranty does
not apply to the normal wear of
items (such as spark plug(s),
water pump, etc.).
As the owner of a Honda
product, your servicing dealer
may ask you to authorize an
inspection. If the problem is
covered under warranty, your
dealer will perform any warranty
repairs for you at no cost.
However, you may be responsible
for additional non-warranty
charges.
If you have questions about
warranty coverage or the nature
of the repair, it is best to talk to
the service manager of your
Honda dealer.
Sometimes, in spite of the best
intentions of all concerned, a
misunderstanding may occur. If
you aren’t satisfied with your
dealer’s handling of the situation,
we suggest you discuss your
problem with the appropriate
member of the dealership’s
management team. If the
problem has already been
reviewed with the appropriate
manager of the Service, Parts, or
Sales department, contact the
owner of the dealership or their
designated representative.
CONSUMER INFORMATION
150
Warranty Statements
The American Honda Distributor’s Limited Warranty applies to outboards purchased in the United States,
Puerto Rico, or the U.S. Virgin Islands. The Honda Canada Distributor’s Warranty applies to outboards
purchased in Canada. The product warranty is only valid in the country where the product was purchased.
United States, Puerto Rico and U.S. Virgin Islands
Distributor’s Limited Warranty
This warranty is limited to Honda Outboard Motors and related original equipment distributed by American
Honda Motor Co., Inc., Power Sports and Products Division, 4900 Marconi Drive, Alpharetta, Georgia 30005-8847.
Products Covered by Warranty: Length of Warranty: (from date of original retail purchase)
NON-COMMERCIAL/NON-
RENTAL
COMMERCIAL/RENTAL STATE/LOCAL/FEDERAL
GOVERNMENT
All models purchased on or after Jan. 1, 2016 (2) 60 months 24 months 36 months
All models purchased between July 1, 2008 and
December 31, 2015 (2)
60 months 12 months 24 months
All models purchased on or before June 30, 2008 (1)(2) 36 months 12 months 24 months
Related original equipment items:
BF5 through BF20 models: Portable fuel tank and
original propeller.
All models: Primer bulb/fuel line assembly and tiller
handle.
The same duration as the outboard with which they were purchased.(3)
(1)
Models purchased prior to July 1, 2008 (unless previously purchased with True-5 warranty from a participating dealer).
(2)
40, 65, & 105 Jet models: Jet pump assembly is a dealer installed option. Jet pump warranty is provided by Specialty Manufacturing Co. (Outboard Jets).
(3)
Portable fuel tanks: 24 months or the same duration as the outboard they were purchased with, whichever is longer.
CONSUMER INFORMATION
151
To Qualify for This Warranty:
The Honda Outboard Motor must be purchased
from American Honda or a dealer authorized by
American Honda to sell Honda Outboard Motors in
the United States, Puerto Rico, or the U.S. Virgin
Islands. This limited warranty applies to the first
retail purchaser and each subsequent owner during
the applicable warranty time period.
What American Honda Will Repair or Replace
Under Warranty:
American Honda will repair or replace, at its option,
any part that is proven to be defective in material or
workmanship under normal use during the
applicable warranty time period. Warranty repairs
and replacements will be made without charge for
parts or labor. Anything replaced under warranty
becomes the property of American Honda Motor
Co., Inc. All parts replaced under warranty will be
considered as part of the original product and any
warranty on those parts will expire coincidentally
with the original product warranty.
To Obtain Warranty Service:
You must, at your expense, take your Honda
Outboard Motor and proof of the original purchase
date to any dealer who is authorized to service
Honda Outboard Motors in the United States,
Puerto Rico, or the U.S. Virgin Islands, during the
dealer’s normal business hours. If you are unable to
obtain warranty service, or are dissatisfied with the
warranty service you receive, take the following
steps: First, contact the owner of the dealership
involved; normally this should resolve the problem.
However, if you should require further assistance,
write or call the Honda Marine Customer Relations
Department of American Honda Motor Co., Inc.
Please see Contacting Honda on page 148.
CONSUMER INFORMATION
152
Exclusions:
This warranty does not extend to the following:
● Conditions caused by lack of routine
maintenance or improper storage (as outlined in
the Owner’s Manual)
● Conditions caused by the use of propeller (s) that
do not allow the outboard motor to run in its
recommended full throttle rpm range
● Operation inconsistent with the recommended
operation/duty cycle (as outlined in the Owner’s
Manual)
●
Parts affected or damaged by an abuse,
submersion and/or collision
● Fuel contamination and water entering the
engine through the fuel intake, air intake, or
exhaust system
● Operation with fuels, oils, additives and
lubricants which are not suitable for use in the
product
●
Use in an application for which the outboard
motor was not designed, such as racing or
competitive use or any other misuse or neglect
● Normal wear and tear
● Incorporation of unsuitable attachments or parts
●
The unauthorized alteration, improper
installation and/ or rigging, or any causes other
than defects in material or workmanship
● Corrosion to steering system or electrical
components, corrosion due to electrolysis, water
born foreign chemicals, improper service or
corrosion caused by damage or abuse
●
Reimbursement for towing charges, in and out of
water charges, or technician travel time
● Growth of marine organisms on motor surfaces,
external or internal
●
Any product that has ever been declared a total
loss or sold for salvage by a financial institution
or insurer, or that has been issued a "salvage" or
similar title under any state’s law.
CONSUMER INFORMATION
153
Disclaimer of consequential damage and
limitation of implied warranties:
American Honda disclaims any responsibility for loss
of time or use of the outboard, revenue, or the
equipment in which the outboard is installed,
transportation, commercial loss, or any other
incidental or consequential damage. Any implied
warranties are limited to the duration of this written
limited warranty.
Some states do not allow limitations on how long an
implied warranty lasts and/or do not allow the
exclusion or limitation of incidental or consequential
damages, so the above exclusions and limitations
may not apply to you.
This warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state.
CONSUMER INFORMATION
154
Accessories and Replacement Parts
This warranty is limited to Honda Marine parts, accessories and apparel when distributed by American
Honda Motor Co., Inc., 4900 Marconi Drive, Alpharetta, Georgia 30005-8847.
Products Covered by Warranty: Length of Warranty: (from date of original retail purchase)
NON-COMMERCIAL COMMERCIAL/RENTAL
STATE/LOCAL/FEDERAL
GOVERNMENT
Accessories other than noted below 12 months 3 months 3 months
Emission related accessories:
Portable fuel tanks, fuel line
assemblies, and water/fuel
separators
24 months 24 months 24 months
Replacement Parts 6 months 3 months 3 months
CONSUMER INFORMATION
155
To Qualify for This Warranty:
1. The accessories or replacement parts must be
purchased from American Honda or a dealer,
distributor, or distributor’s dealer authorized by
American Honda to sell those products in the
United States, Puerto Rico, and the U.S. Virgin
Islands. Parts and Accessories must be purchased
for installation on original Honda equipment or
engines to be eligible for warranty coverage.
Installing Parts and Accessories on non-Honda
products or engines voids this warranty.
2. You must be the first retail purchaser. This
warranty is not transferable to subsequent
owners.
What American Honda Will Repair or Replace
Under Warranty:
American Honda will repair or replace, at its option,
any marine product accessories or replacement
parts that are proven to be defective in material or
workmanship under normal use during the
applicable warranty time period.
Anything replaced under warranty becomes the
property of American Honda Motor Co., Inc. All
parts replaced under warranty will be considered as
part of the original product and any warranty on
those parts will expire coincidentally with the
original product warranty.
Accessories and replacement parts, installed by a
dealer who is authorized by American Honda to sell
them, will be repaired or replaced under warranty
without charge for parts or labor. If installed by
anyone else, accessories and replacement parts will
be repaired or replaced under warranty without
charge for parts, but any labor charges will be the
responsibility of the purchaser.
CONSUMER INFORMATION
156
To Obtain Warranty Service:
You must, at your expense, take the Honda
Outboard Motor product accessory or replacement
part or the outboard motor or boat on which the
accessory or replacement part is installed, and proof
of purchase to any Honda Marine authorized service
facility or dealer in the United States, Puerto Rico, or
the U.S. Virgin Islands, during normal business
hours.
Exclusions:
This warranty does not extend to accessories or
parts affected or damaged by collision, normal wear,
use in an application for which the product was not
designed or any other misuse, neglect,
incorporation or use of unsuitable attachments or
parts, unauthorized alteration, improper installation,
or any causes other than defects in material or
workmanship of the product.
Installing parts and accessories on non-Honda
products or engines voids this warranty.
Disclaimer of consequential damage and
limitation of implied warranties:
American Honda disclaims any responsibility for loss
of time or use of the outboard motor, or the boat
on which the product is installed, transportation,
commercial loss, or any other incidental or
consequential damage. Any implied warranties are
limited to the duration of this written warranty.
Some states do not allow limitations on how long an
implied warranty lasts and/or do not allow the
exclusion or limitation of incidental or consequential
damages, so the above exclusions and limitations
may not apply to you. This warranty gives you
specific legal rights, and you may also have other
rights, which vary from state to state.
CONSUMER INFORMATION
157
Emission Control System Warranty
Your new Honda outboard engine complies with
both the U.S. EPA and State of California emission
regulations.
American Honda provides the same emission
warranty coverage for outboard engines sold in all
50 states. In all areas of the United States your
outboard engine must be designed, built, and
equipped to meet the U.S. EPA and California Air
Resources Board emission standard for spark ignited
marine engines.
CALIFORNIA EMISSIONS CONTROL SYSTEM
WARRANTY STATEMENT YOUR WARRANTY
RIGHTS AND OBLIGATIONS
The California Air Resources Board (CARB) and
American Honda Motor Co., Inc. are pleased to
explain the emission control system warranty on
your 2024 Honda outboard engine. In California,
new outboard engines must be designed, built, and
equipped to meet the state’s stringent anti-smog
standards.
American Honda Motor Co., Inc. must warrant the
emission control system on your outboard engine
for the periods of time listed below provided there
has been no abuse, neglect, or improper
maintenance of your outboard engine.
Your emission control system may include parts
such as the carburetor or fuel injection system, the
ignition system, catalytic converter, canisters,
clamps, filters, fuel caps, fuel lines, fuel tanks, valves,
and vapor hoses. Also included may be hoses, belts,
connectors, and other emission-related assemblies.
Where a warrantable condition exists, American
Honda Motor Co., Inc. will repair your outboard
engine at no cost to you including diagnosis, parts,
and labor.
CONSUMER INFORMATION
158
MANUFACTURER’S WARRANTY COVERAGE:
Select emission control parts from model year 2010
and later outboard engines are warranted for five
years or 250 hours of use, whichever first occurs;
or the length of the Honda Marine Distributor’s
Limited Warranty, whichever is longer. The
evaporative emission control system from model
year 2010 and later outboard engines are warranted
for two years with no limit on hours of use, or the
length of the Honda Marine Distributor’s Limited
Warranty, whichever is longer, from the date of
delivery to the retail purchaser. However, warranty
coverage based on the hourly period is only
permitted for engines equipped with hour meters as
defined in § 2441(a)(13)* or their equivalent. If any
emission-related part on your engine is defective
under warranty, the part will be repaired or replaced
by American Honda Motor Co., Inc. See the Emission
Control System Warranty Parts table on P.163 for
parts description.
*
California Code of Regulations.
OWNER’S WARRANTY RESPONSIBILITIES:
As the outboard engine owner, you are responsible
for the performance of the required maintenance
listed in your owner’s manual. American Honda
Motor Co., Inc. recommends that you retain all
receipts covering maintenance on your outboard
engine, but American Honda Motor Co., Inc. cannot
deny warranty solely for the lack of receipts or your
failure to ensure the performance of all scheduled
maintenance.
As the outboard engine owner, you should,
however, be aware that American Honda Motor Co.,
Inc. may deny you warranty coverage if your
outboard engine or a part has failed due to abuse,
neglect, improper maintenance, or unapproved
modifications.
You are responsible for presenting your outboard
engine to a Honda Marine dealer as soon as a
problem exists. The warranty repairs will be
completed in a reasonable amount of time, not to
exceed 30 days.
CONSUMER INFORMATION
159
If you have any questions regarding your warranty
rights and responsibilities, you should contact
American Honda Motor Co., Inc.
Marine Division Customer Relations Office
4900 Marconi Drive
Alpharetta, Georgia 30005-8847
Telephone: (770) 497-6400
WARRANTY COVERAGE:
See Manufacturer’s Warranty Coverage above for
warranty coverage terms. This warranty is
transferred to each subsequent purchaser for the
duration of the warranty period.
Warranty repairs will be made without charge for
diagnosis, parts, and labor. All defective parts
replaced under this warranty become the property
of American Honda Motor Co., Inc. A list of warranty
parts is on page 161. Normal maintenance items,
such as spark plugs and filters, that are on the
warranted parts list are warranted up to their
required replacement interval only.
American Honda Motor Co., Inc. is also liable for
damages to other engine components caused by a
failure of any warranted part during the warranty
period.
CONSUMER INFORMATION
160
Only Honda approved replacement parts will be
used in the performance of any warranty repairs,
and they will be provided without charge to the
owner. You may use any replacement part as
defined in § 1900(b)(20)* in the performance of any
maintenance or repairs. Honda cannot deny
coverage under the emission warranty solely for use
of non-Honda replacement parts or service
performed at a location other than an authorized
Honda dealership; however, use of a part that is not
functionally identical to the original equipment part
in any respect that may in any way affect emissions
(including durability) could result in denial of
coverage. If a non-Honda replacement part is used
in the repair or maintenance of your engine, and an
authorized Honda Marine dealer determines it
causes the failure of a warranted part, your warranty
claim may be denied. If the part in question is not
related to the reason that your engine requires
repair, your claim will not be denied.
*
California Code of Regulations
TO OBTAIN WARRANTY SERVICE:
You must take your Honda outboard engine, along
with your sales registration card or other proof of
original purchase date, at your expense, to any
Honda Marine dealer that is authorized by American
Honda Motor Co., Inc. to sell and service that Honda
marine product during its normal business hours.
Claims for repair or adjustment found to be caused
solely by defects in material or workmanship will not
be denied because the engine was not properly
maintained and used.
If you are unable to obtain warranty service, or are
dissatisfied with the warranty service you received,
contact the owner of the dealership involved.
Normally this should resolve your problem.
However, if you require further assistance, write or
call the Honda Marine Customer Relations Office of
American Honda Motor Co., Inc.
CONSUMER INFORMATION
161
EXCLUSIONS:
Failures other than those resulting from defects in
material or workmanship are not covered by this
warranty. This warranty does not extend to emission
control systems or parts which are affected or
damaged by owner abuse, neglect, improper
maintenance, misuse, misfueling, improper storage,
and/or collision, the incorporation of, or use of,
unsuitable attachments, or the unauthorized
alteration of any part.
This warranty does not cover replacement of
expendable maintenance items made in connection
with required maintenance service after the items
first scheduled replacement as listed in the
maintenance section of the product owner’s manual,
such as: spark plugs and filters.
DISCLAIMER OF CONSEQUENTIAL DAMAGE AND
LIMITATION OF IMPLIED WARRANTIES:
American Honda Motor Co., Inc. disclaims any
responsibility for incidental or consequential
damages such as loss of time or the use of outboard
engine, or any commercial loss due to the failure of
the equipment; and any implied warranties are
limited to the duration of this written warranty. This
warranty is applicable only where the California or
U.S. EPA emission control system warranty
regulation is in effect.
CONSUMER INFORMATION
162
EMISSION CONTROL SYSTEM WARRANTY PARTS:
SYSTEMS COVERED BY
THIS WARRANTY:
PARTS DESCRIPTION: LENGTH OF WARRANTY:
Evaporative
Portable fuel tank, Outboard internal fuel tank, Fuel cap, Fuel hoses, Primer bulb, Fuel
hose joint, Vapor separator, and Carbon canister, All other parts not listed that may affect
the evaporative emissions control system
Two years, no limit on hours
of use; or the length of the
Honda Distributor’s Limited
Warranty, whichever is
longer.
Fuel Metering
Carburetor assembly, Throttle body, Fuel injector, Fuel pump, Fuel pressure regulator,
Throttle position sensor, Intake air temperature sensor, Engine temperature sensor,
Manifold absolute pressure sensor, Idle air control valve, Barometric pressure sensor, Fuel
line solenoid valve, Intake manifold, Intake valves, and Oxygen sensor or Air fuel ratio
sensor
Five years or 250 hours of
use, whichever first occurs; or
the length of the Honda
Distributor’s Limited
Warranty, whichever is
longer.
Air Induction Air intake duct, Intake manifold tuning valve (Intake air bypass control valve)
Ignition
Flywheel magneto, Ignition pulse generator, Ignition coil assembly, Ignition control
module, Engine control module, Crankshaft position sensor, Spark plug cap, Spark plug*,
Knock sensor, and Camshaft position sensor
Lubrication System Oil pump and internal parts
Crankcase Emission Control Crankcase breather tube, Positive crankcase ventilation valve, Oil filler cap
Exhaust Exhaust manifold and Exhaust valves
Valve Control System Rocker arm oil control valve
Miscellaneous Parts Tubing, fittings, seals, gaskets, and clamps associated with these listed systems.
* Covered up to the first required replacement only. See the Maintenance Schedule on page 88.
CONSUMER INFORMATION
163
Canada
Distributor’s Warranty
HONDA CANADA INC., for and on behalf of Honda
Motor Co. Ltd., Tokyo, Japan, gives the following
written warranty on each new marine product
manufactured by Honda Motor Co. Ltd., Japan,
distributed in Canada by Honda Canada Inc. and
sold by authorized Honda Marine dealers.
Whenever used herein, the word ‘‘Honda’’ refers to
Honda Canada Inc. and/or Honda Motor Co. Ltd., as
appropriate from the context.
HONDA WARRANTS THAT each new Honda Marine
product will be free, under normal use and
maintenance, from any defects in material or
workmanship for the relevant warranty period set
forth below. If any defects should be found in a
Honda Marine product within the relevant warranty
period, necessary repairs and replacements with a
new part or the Honda equivalent shall be made at
no cost to the consumer for parts and labour, when
Honda acknowledges that such defects are
attributable to faulty material or workmanship at the
time of manufacture.
CONSUMER INFORMATION
164
WARRANTY PERIOD RETAILED ON OR AFTER
APRIL 1, 2005:
Non-commercial
use
Commercial use
All Honda Outboard
Models
36 Months 12 Months
THIS WARRANTY COVERS
a) Any Honda Marine product purchased in Canada
from an authorized Honda dealer which has
been registered at the time of purchase on a
form provided by Honda, which has had set-up
and pre-delivery service performed by an
authorized Honda dealer and which is normally
operated in Canada;
b) Any factory installed part (except normal
maintenance parts referred to in ‘‘THIS
WARRANTY DOES NOT COVER’’); and
c) Any marine product on which required
maintenance services have been performed as
prescribed in the Owner’s Manual.
THIS WARRANTY DOES NOT COVER
a) Any repairs required as a result of collision,
accident, striking any object, misuse or lack of
required maintenance;
b) Any repairs required as a result of any
attachments, parts or devices installed by or
repairs done by a party other than an authorized
Honda dealer;
c) Any outboard that has been operated out of
water, (Run Dry) damaging the water pump and
or engine components due to insufficient
cooling water.
d) Any marine products modified, altered,
disassembled or remodelled;
e) Normal maintenance services, including
tightening of nuts, bolts and fittings and engine
tune-up and the replacement of parts made in
connection with normal maintenance services
including filters, spark plugs and wires, fuses,
belts, lubricants and other expendables
susceptible to natural wear;
f) Outboard propeller or shear pin; and
g) All accessories or attachments.
CONSUMER INFORMATION
165
THE OWNER’S OBLIGATION
In order to maintain the validity of this
DISTRIBUTORS WARRANTY, the required
maintenance services as set forth in the Owner’s
Manual must be performed at the proper intervals
and detailed receipts and records retained as proof.
TO OBTAIN WARRANTY SERVICE
You must take your Honda Marine product, at your
expense, during normal service hours, to any
authorized Honda Marine dealership. If you are
unable to obtain or are dissatisfied with the
warranty service you receive, first contact the owner
of the dealership involved; this should resolve the
problem. If you require further assistance, contact
Honda Canada’s Customer Relations Department at:
HONDA CANADA INC.
Customer Relations Office
180 Honda Boulevard
Markham, Ontario L6C 0H9
TELEPHONE: 1-888-946-6329 TOLL FREE
FAX : 1-877-939-0909 TOLL FREE
REPLACEMENT PARTS AND ACCESSORY
WARRANTY
New genuine Honda replacement parts or
accessories sold to a consumer or installed by an
authorized Honda Marine dealer which are not
covered by the DISTRIBUTORS WARRANTY are
warranted for a period of one year from date of
purchase, provided, however, that this Replacement
Parts and Accessory Warranty does not apply to any
replacement parts modified, used with, or installed
on a marine product for which the replacement
parts were not intended. Electrical components that
are not installed by the dealer (sold over the
counter) are not covered by warranty.
CONSUMER INFORMATION
166
ENTIRE WRITTEN WARRANTY
This DISTRIBUTORS WARRANTY and the
REPLACEMENT PARTS AND ACCESSORY
WARRANTY are the only and the entire written
warranties given by Honda for Marine engines. No
dealer or his agent or employee is authorized to
extend or enlarge on these warranties on behalf of
Honda by any written or verbal statement or
advertisement.
DISCLAIMER
To the extent the law permits, Honda disclaims any
responsibility for loss of time or use of the product,
transportation or towing costs or any other indirect,
incidental or consequential damage, inconvenience
or commercial loss.
NOTICE TO CONSUMER
The provisions contained in these written warranties
are not intended to limit, modify, take away from,
disclaim or exclude any warranties set forth in or the
operation of The Consumer Products Warranties
Act, 1977 (Saskatchewan), The Consumer Product
Warranty and Liability Act (New Brunswick), The
Consumer Protection Act (Quebec), or any other
similar provincial or federal legislation.
CONSUMER INFORMATION
167
A
ACG Fuse................................................................................133
Active Mode.....................................................................32, 61
ACTIVE Switch .................................................................32, 61
ACTIVE/FAST IDLE Switch...........................................32, 61
Alternator (ACG) Indicator.................................................46
ANODE......................................................................................50
Automatic Tilt Mode............................................................82
B
BATTERY.................................................................................140
Battery Switch OFF Notification ......................................51
BEFORE OPERATION............................................................52
BREAK-IN PROCEDURE.......................................................55
C
CLEANING AND FLUSHING............................................114
COMMON CONTROLS........................................................38
COMPONENT AND CONTROL LOCATIONS...............13
CONSUMER INFORMATION ..........................................147
CONTROL AND FEATURE IDENTIFICATION CODES.....
....................................................................................................11
CONTROLS ..............................................................................20
CONTROLS AND FEATURES..............................................11
Cooling System Indicator...................................................48
Cruise Control Mode ...........................................................76
CRUISE/UP Switch .........................................................35, 74
CRUISING .................................................................................69
Customer Service Information.......................................148
D
Dealer Locator Information ............................................147
Distributor’s Limited Warranty......................................151
Distributor’s Warranty ......................................................164
E
ELECTRIC STARTER WILL NOT OPERATE .........124, 128
Emergency Engine Stopping ............................................62
EMERGENCY GEAR SHIFTING........................................138
Emergency Stop Switch......................................................23
Emergency Stop Switch Clip.............................................23
EMISSION CONTROL SYSTEM INFORMATION.......141
Emission Control System Warranty .............................158
ENGINE COVER
Engine Cover Latch..........................................................43
REMOVAL AND INSTALLATION..................................91
ENGINE OIL
ENGINE OIL CHANGE .....................................................96
INDEX
168
ENGINE OIL LEVEL CHECK ............................................93
ENGINE OIL RECOMMENDATIONS...........................97
STORAGE...........................................................................121
ENGINE OVERHEATS.........................................................127
ENGINE WILL NOT START...............................................125
F
Fast Idle Mode
ACTIVE/FAST IDLE Switch..............................................32
FAST IDLE Switch ..............................................................32
Function Switch.................................................................27
FAST IDLE Switch...................................................................32
FUEL
Draining the Fuel System............................................120
FUEL PRIMING ...................................................................56
Fuel Priming Bulb .............................................................50
FUEL RECOMMENDATIONS ......................................105
REFUELING........................................................................104
STORAGE...........................................................................122
FUEL FILTER WITH WATER SEPARATOR (LOW
PRESSURE SIDE) ................................................................106
Function Switch .....................................................................27
FUSE.........................................................................................128
G
GEARSHIFT AND THROTTLE OPERATION ...................65
Gearshift/Throttle Control Lever
Flush-Mount Type............................................................24
Top-Mount Type...............................................................25
Gearshift/Throttle Control Lever Friction.....................66
H
HARD STARTING OR STALLS AFTER STARTING .....126
HOISTING THE OUTBOARD MOTOR ..........................121
Honda Publications............................................................147
Honda Smart Key..................................................................21
HOW TO DETERMINE WHICH DIRECTION THE
PROPELLER SHAFT ROTATES..........................................12
I
Ignition Switch .......................................................................20
IMPORTANT SAFETY INFORMATION ..............................7
INDICATORS ...........................................................................46
INFREQUENT OR OCCASIONAL USE.............................57
IS YOUR OUTBOARD MOTOR READY TO GO? .........52
L
LUBRICATION POINTS ........................................................97
INDEX
169
M
Main Fuse ..............................................................................129
MAINTENANCE SAFETY......................................................86
MAINTENANCE SCHEDULE...............................................88
Malfunction Indicator..........................................................46
Manual Relief Valve ...............................................40, 83, 84
MOORING, BEACHING, LAUNCHING............................78
N
NMEA 2000
®
Interface Coupler......................................43
Normal Engine Stopping ...................................................63
O
Oil Pressure Warning Indicator........................................47
OIL PRESSURE WARNING INDICATOR COMES ON
AND ENGINE SPEED IS LIMITED .................................133
One-lever Mode ....................................................................75
Operating Hour Notification System.............................43
OPERATION.............................................................................55
OTHER FEATURES .................................................................49
OUTBOARD MOTOR SAFETY..............................................7
Overheat Indicator................................................................48
OVERHEAT INDICATOR COMES ON AND ENGINE
SPEED IS LIMITED .............................................................135
OWNER'S MANUAL..............................................................87
P
Power Harness Fuse ..........................................................129
Power Reduction...................................................................51
Power Switch ..........................................................................20
Power Tilt Switch............................................................40, 83
Power Trim/Tilt Switch.................................................38, 69
PROPELLER REPLACEMENT ............................................112
R
REFUELING ............................................................................104
REMOVAL FROM STORAGE............................................122
Rev Limiter...............................................................................49
S
SAFE OPERATING PRECAUTIONS...................................55
SAFETY LABEL LOCATION ....................................................9
Select Switch...........................................................................30
SERIAL NUMBER LOCATIONS........................................139
SERVICING YOUR OUTBOARD MOTOR.......................85
SHALLOW WATER OPERATION.......................................77
SPARE EMERGENCY STOP SWITCH CLIP .....................88
SPARK PLUG SERVICE .......................................................100
SPECIFICATIONS .................................................................146
INDEX
170
STAR LABEL...........................................................................144
START/STOP Switch .............................................................22
STARTING THE ENGINE ......................................................57
STEERING .................................................................................68
STOPPING THE ENGINE......................................................62
STORAGE ...............................................................................117
SUBMERGED OUTBOARD MOTOR..............................137
T
TAKING CARE OF UNEXPECTED PROBLEMS ...........124
TECHNICAL INFORMATION ...........................................139
THE IMPORTANCE OF MAINTENANCE ........................85
Tilt Lock Lever .................................................................41, 80
TOOL KIT ..................................................................................87
TRANSPORTING..................................................................123
Trim ............................................................................................69
TRIM SPT. Switch...................................................................37
Trim Support Mode ......................................................37, 72
TROLL/DN Switch..................................................................33
Trolling Control Mode .................................................33, 74
Trolling Mode..................................................................28, 73
W
Warranty Statements ........................................................151
Water Separator Buzzer......................................................49
WATER SEPARATOR BUZZER SOUNDS .....................136
1
1 LEVER Switch................................................................35, 75
3
3 A Fuse..................................................................................132
7
7.5 A Fuse ..............................................................................132
INDEX
