INTRODUCTION
Congratulations on your selection of
a Honda outboard motor. We are
certain you will be pleased with your
purchase of one of the finest outboard
motors on the market.
We want to help you get the best
results from your new outboard motor
and to operate it safely. This manual
contains information on how to do
that; please read it carefully.
As you read this manual you will find
information preceded by a
symbol. That information is intended
to help you avoid damage to your
outboard motor, other property, or the
environment.
We suggest you read the warranty
policy to fully understand its
coverage and your responsibilities of
ownership.
When your outboard motor needs
scheduled maintenance, keep in mind
that your Honda Marine dealer is
specially trained in servicing Honda
outboard motors. Your Honda Marine
dealer is dedicated to your
satisfaction and will be pleased to
answer your questions and concerns.
31ZVA6120.book Page 1 Monday, October 16, 2023 10:33 AM
2
INTRODUCTION
A FEW WORDS ABOUT
SAFETY
Your safety and the safety of others
are very important. And using this
outboard motor safely is an important
responsibility.
To help you make informed decisions
about safety, we have provided
operating procedures and other
information on labels and in this
manual. This information alerts you
to potential hazards that could hurt
you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining an outboard motor. You
must use your own good judgment.
You will find important safety information in a variety of forms, including:
•Safety Labels – on the outboard motor.
• Safety Messages – preceded by a safety alert symbol and one of three
signal words, DANGER, WARNING, or CAUTION.
These signal words mean:
• Safety Headings – such as IMPORTANT SAFETY INFORMATION.
• Safety Section – such as OUTBOARD MOTOR SAFETY.
• Instructions – how to use this outboard motor correctly and safely.
This entire book is filled with important safety information – please read it
carefully.
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
31ZVA6120.book Page 2 Monday, October 16, 2023 10:33 AM
CONTENTS
3
OUTBOARD MOTOR SAFETY ................................... 6
IMPORTANT SAFETY INFORMATION .............. 6
SAFETY LABEL LOCATIONS .............................. 8
CONTROLS AND FEATURES ................................... 11
CONTROL AND FEATURE IDENTIFICATION
CODES ................................................................ 11
COMPONENT AND CONTROL LOCATIONS ... 12
CONTROLS ............................................................ 13
Emergency Stop Switch Clip and Emergency
Stop Switch ..................................................... 13
Choke Knob ........................................................ 13
Throttle Grip ........................................................ 14
Throttle Grip Friction Knob ................................ 14
Fuel Valve Lever ................................................. 14
Starter Grip .......................................................... 15
Engine Cover Retaining Strap ............................. 15
Transom Angle Adjusting Bolt ........................... 15
Tilt Lever ............................................................. 16
Steering Friction Bolt .......................................... 16
Clamp Screws ...................................................... 17
Fuel Filler Cap Vent Knob .................................. 17
OTHER FEATURES ...............................................17
Centrifugal Clutch ...............................................17
Oil Level Inspection Window ..............................18
Anode ...................................................................18
INSTALLATION ..........................................................19
POWER REQUIREMENTS ...................................19
INSTALLATION POSITION .................................19
ATTACHMENT ......................................................20
TRANSOM ANGLE ADJUSTMENT ....................21
BEFORE OPERATION .................................................22
ARE YOU READY TO GET UNDERWAY? ........22
IS YOUR OUTBOARD MOTOR
READY TO GO? .................................................22
31ZVA6120.book Page 3 Monday, October 16, 2023 10:33 AM
CONTENTS
4
OPERATION ................................................................ 24
SAFE OPERATING PRECAUTIONS ................... 24
BREAK-IN PROCEDURE ..................................... 24
TRANSOM ANGLE ADJUSTMENT .................... 24
INFREQUENT OR OCCASIONAL USE .............. 25
STARTING THE ENGINE .................................... 25
EMERGENCY STARTING ................................... 28
STOPPING THE ENGINE ..................................... 30
Emergency Engine Stopping ............................... 30
Normal Engine Stopping ..................................... 30
THROTTLE OPERATION ..................................... 31
REVERSING THE OUTBOARD MOTOR ........... 32
STEERING .............................................................. 33
CRUISING .............................................................. 34
MOORING, BEACHING, LAUNCHING ............. 35
SERVICING YOUR OUTBOARD MOTOR ...............37
THE IMPORTANCE OF MAINTENANCE ..........37
MAINTENANCE SAFETY ....................................38
TOOL KIT AND EMERGENCY STARTER
ROPE ...................................................................39
MAINTENANCE SCHEDULE ..............................40
ENGINE COVER REMOVAL AND
INSTALLATION ................................................42
Engine Oil Level Check ......................................42
Engine Oil Change ...............................................44
Engine Oil Recommendations .............................45
Gear Case Oil Change .........................................46
Lubrication Points ................................................47
Spark Plug Service ...............................................48
REFUELING ...........................................................50
FUEL RECOMMENDATIONS ..............................51
Recoil Starter Rope Inspection ............................52
Anode Replacement .............................................52
Propeller Replacement .........................................53
31ZVA6120.book Page 4 Monday, October 16, 2023 10:33 AM
CONTENTS
5
STORAGE ..................................................................... 54
STORAGE PREPARATION .................................. 54
Cleaning .............................................................. 54
Fuel ...................................................................... 54
Adding a Fuel Stabilizer ...................................... 55
Draining the Fuel Tank and Carburetor .............. 56
Engine Oil ........................................................... 56
STORAGE PRECAUTIONS .................................. 56
REMOVAL FROM STORAGE ............................. 57
TRANSPORTING ......................................................... 58
WITH OUTBOARD MOTOR INSTALLED
ON BOAT ........................................................... 58
WITH OUTBOARD MOTOR REMOVED
FROM BOAT ...................................................... 58
TAKING CARE OF UNEXPECTED PROBLEMS ..... 59
ENGINE WILL NOT START ................................ 59
HARD STARTING OR STALLS AFTER
STARTING ......................................................... 60
ENGINE WILL NOT DRIVE THE PROPELLER
.. 61
SUBMERGED OUTBOARD MOTOR .................. 62
TECHNICAL INFORMATION ....................................64
Serial Number Locations .....................................64
Carburetor Modification for High Altitude
Operation .........................................................65
Emission Control System Information ................66
Star Label .............................................................68
Specifications .......................................................70
CONSUMER INFORMATION ....................................71
Dealer Locator Information .................................71
Honda Publications ..............................................71
Customer Service Information .............................72
Warranty Statements ............................................74
Distributor’s Limited Warranty ...........................74
Emission Control System Warranty ....................79
Distributor’s Warranty .........................................84
INDEX ...........................................................................87
31ZVA6120.book Page 5 Monday, October 16, 2023 10:33 AM
6
OUTBOARD MOTOR SAFETY
IMPORTANT SAFETY
INFORMATION
The Honda BF2.3D outboard motor
is designed for use with boats that
have a suitable manufacturer’s power
recommendation. Other uses can
result in injury to the operator or
damage to the outboard motor and
other property.
Most injuries or property damage can
be prevented if you follow all
instructions in this manual and on the
outboard motor. The most common
hazards are discussed in this chapter,
along with the best way to protect
yourself and others.
Operator Responsibility
• It is the operator’s responsibility to
provide the necessary safeguards to
protect people and property.
Know how to stop the engine
quickly in case of emergency.
Understand the use of all controls.
• Stop the engine immediately if
anyone falls overboard, and do not
run the engine while the boat is
near anyone in the water.
• Always stop the engine if you must
leave the controls for any reason.
• Attach the emergency stop switch
lanyard securely to the operator.
• Always wear a PFD (Personal
Flotation Device) while on the
boat.
• Familiarize yourself with all laws
and regulations relating to boating
and the use of outboard motors.
• Be sure that anyone who operates
the outboard motor receives proper
instruction.
• Be sure the outboard motor is
properly mounted on the boat.
• Do not remove the engine cover
while the engine is running.
31ZVA6120.book Page 6 Monday, October 16, 2023 10:33 AM
7
OUTBOARD MOTOR SAFETY
Refuel With Care
• Gasoline is extremely flammable,
and gasoline vapor can explode.
Refuel outdoors, in a
well-ventilated area, with the
engine stopped. Never smoke near
gasoline, and keep other flames and
sparks away.
• Refuel carefully to avoid spilling
fuel. Avoid overfilling the fuel
tank.
• After refueling, tighten the filler
cap securely. If any fuel is spilled,
make sure the area is dry before
starting the engine.
Carbon Monoxide Hazard
Exhaust contains poisonous carbon
monoxide, a colorless, odorless gas.
Breathing carbon monoxide can
cause loss of consciousness and may
lead to death.
If you run the engine in an area that is
confined, or even partly enclosed, the
air you breathe could contain a
dangerous amount of exhaust gas.
Never run your outboard inside a
garage or other enclosure.
Running the engine of your
outboard while in an enclosed or
partially enclosed area can cause
a rapid build-up of toxic carbon
monoxide gas.
Breathing this colorless, odorless
gas can quickly cause
unconsciousness and lead to
death.
Only run your outboard engine
when it is located in a well
ventilated area outdoors.
31ZVA6120.book Page 7 Monday, October 16, 2023 10:33 AM
8
OUTBOARD MOTOR SAFETY

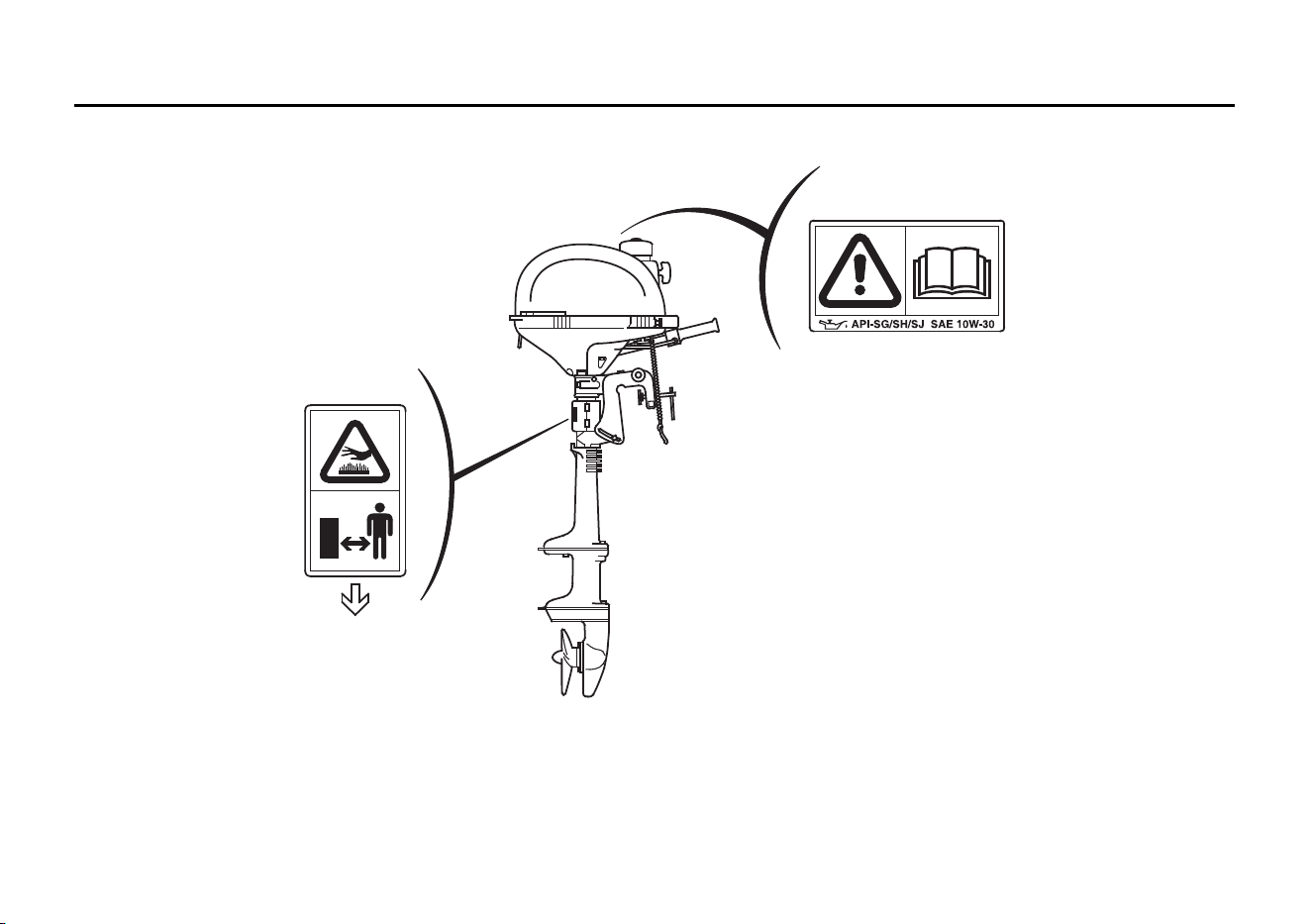

SAFETY LABEL LOCATIONS
US, Puerto Rico, and US Virgin Islands Types
The labels shown here contain important safety information. Please read them carefully. These labels are considered
permanent parts of your outboard motor. If a label comes off or becomes hard to read, contact an authorized Marine
dealer for a replacement.
31ZVA6120.book Page 8 Monday, October 16, 2023 10:33 AM
9
OUTBOARD MOTOR SAFETY
Canadian Types

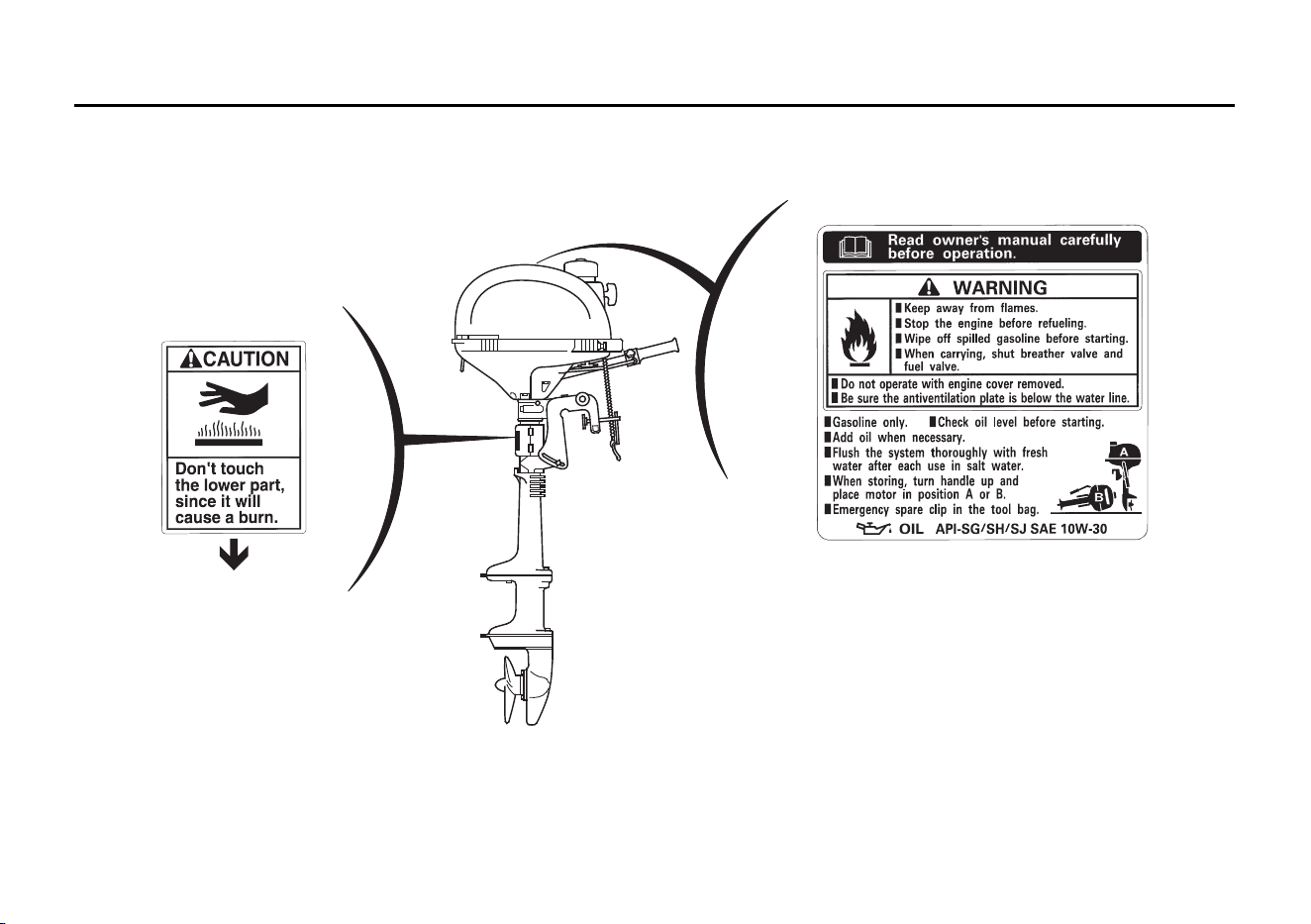

The labels shown here contain important safety information. Please read them carefully. These labels are considered
permanent parts of your outboard motor. If a label comes off or becomes hard to read, contact an authorized Marine
dealer for a replacement.
HOT CAUTION
READ OWNER’S MANUAL
31ZVA6120.book Page 9 Monday, October 16, 2023 10:33 AM
10
OUTBOARD MOTOR SAFETY
Canadian Types
• Honda outboard motor is
designed to give safe and
dependable service if operated
according to instructions.
Read and understand the
Owner’s Manual before
operating the outboard motor.
Failure to do so could result in
personal injury or equipment
damage.
• The engine system will be
heated during operation and
remain hot immediately after
stopping the engine.
31ZVA6120.book Page 10 Monday, October 16, 2023 10:33 AM
11
CONTROLS AND FEATURES
CONTROL AND FEATURE IDENTIFICATION CODES
Refer to this chart for an explanation of the Type Codes used in this manual to identify control and feature applications.
For the detailed equipment conditions of optional components, consult your Honda dealer.
TYPE CODE (example)
Model BF2.3D
Type SCH□ LCH□
Shaft Length
S
●
L
●
Throttle Grip
●●
Centrifugal Clutch
●●
SCH□
Destination
Throttle type
H=Throttle grip
Centrifugal clutch
C=With centrifugal clutch
Shaft length
S=Short shaft
L=Long shaft
31ZVA6120.book Page 11 Monday, October 16, 2023 10:33 AM
12
CONTROLS AND FEATURES

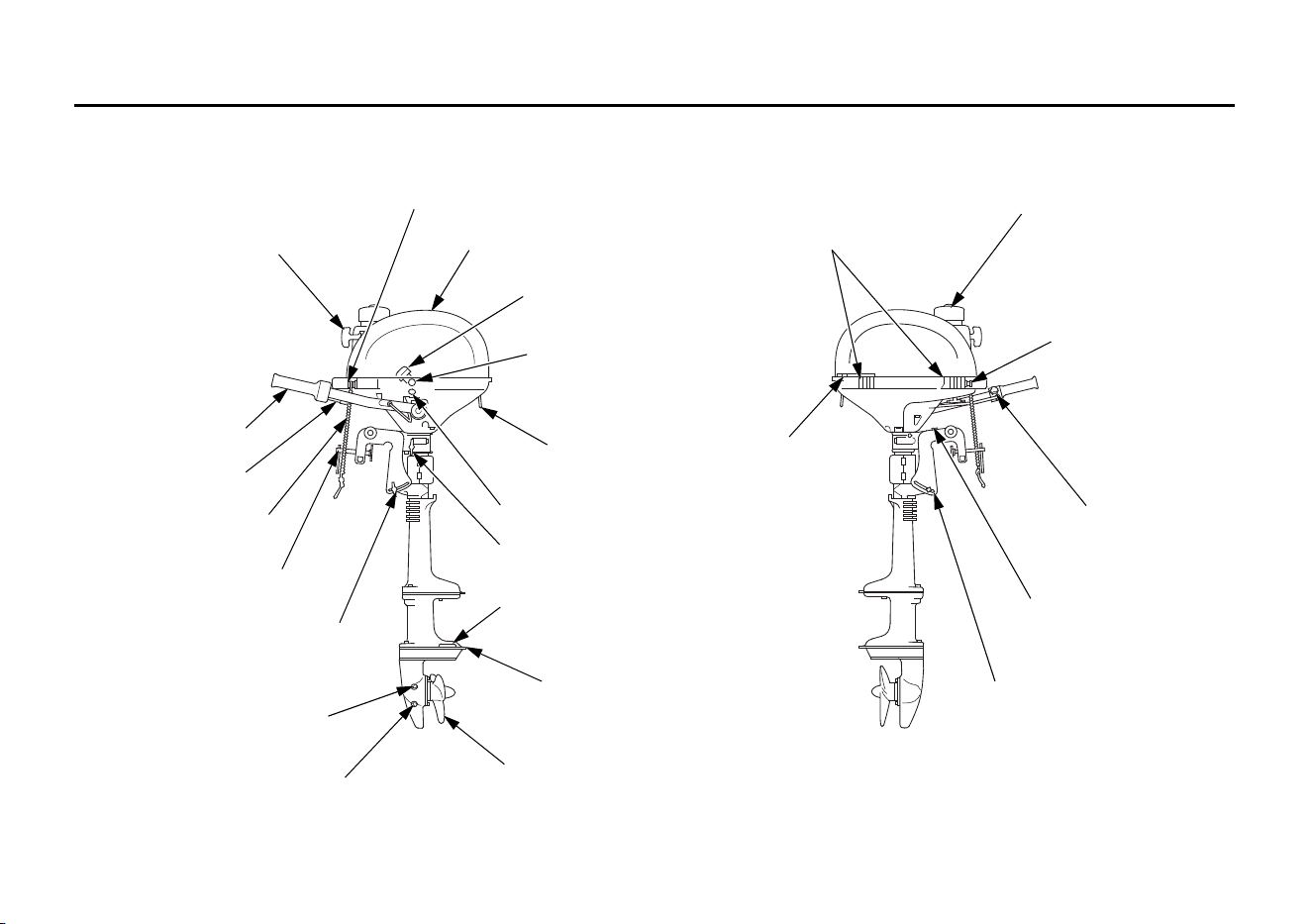

COMPONENT AND CONTROL LOCATIONS
[LCH type is shown]
EMERGENCY STOP SWITCH
STARTER GRIP
THROTTLE GRIP
TILLER HANDLE
EMERGENCY STOP
SWITCH LANYARD
CLAMP SCREW
TRANSOM ANGLE ADJUSTING
BOLT AND WING NUT
GEAR OIL LEVEL BOLT
GEAR OIL DRAIN/FILL BOLT
PROPELLER
ANTIVENTILATION
PLATE
ANODE
STEERING
FRICTION BOLT
ENGINE COVER
RETAINING STRAP
OIL LEVEL INSPECTION
WINDOW
OIL FILLER CAP
(inside the engine cover)
ENGINE COVER
FUEL FILLER CAP
FUEL VALVE
LEVER
CHOKE KNOB
THROTTLE GRIP
FRICTION KNOB
TILT LEVER
STERN BRACKET
CASE PROTECTOR
OIL DRAIN BOLT
31ZVA6120.book Page 12 Monday, October 16, 2023 10:33 AM
13
CONTROLS AND FEATURES
CONTROLS
Emergency Stop Switch Clip
and Emergency Stop Switch

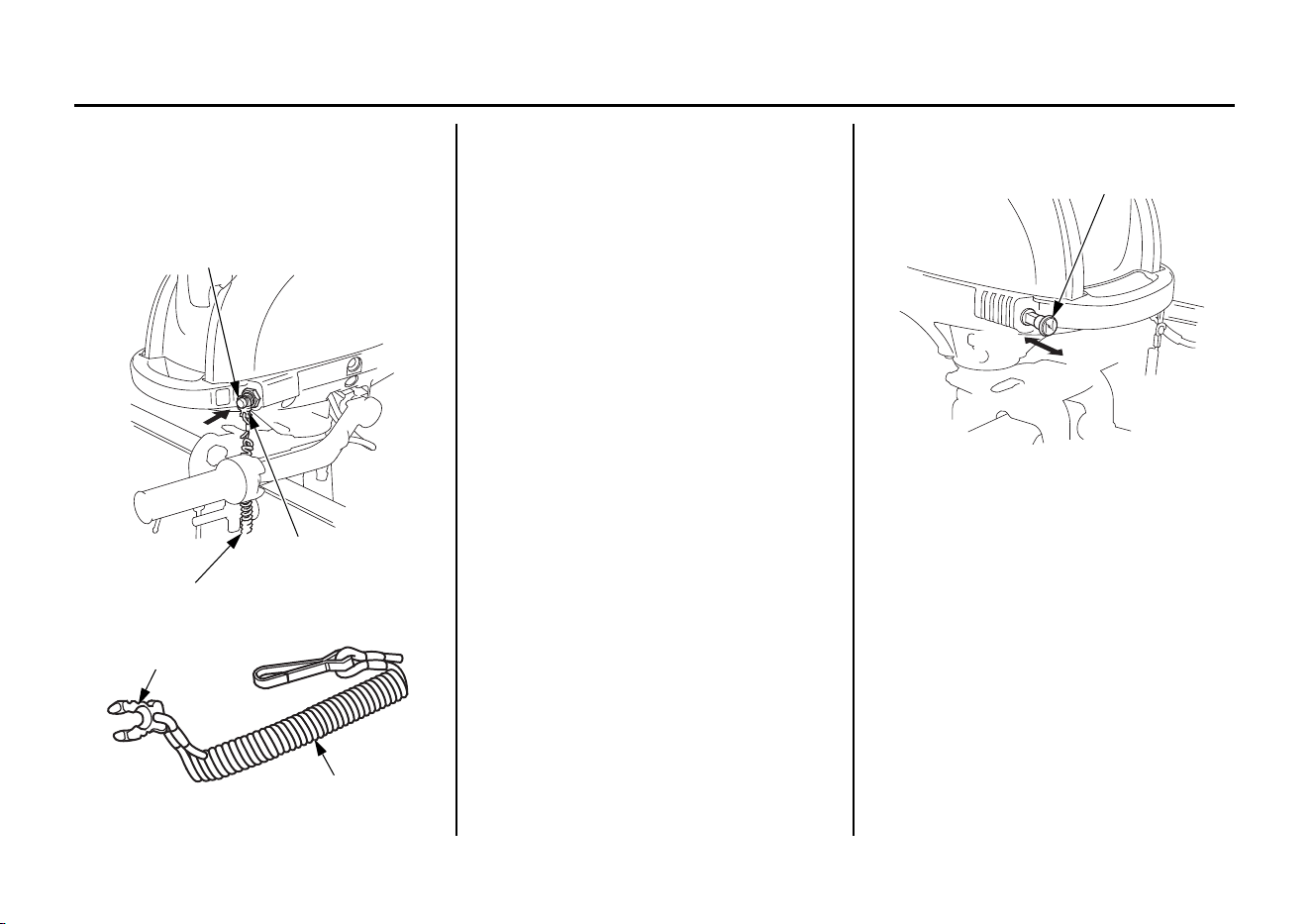

The emergency stop switch clip must
be inserted in the emergency stop
switch in order for the engine to start
and run. The emergency stop switch
lanyard must be attached securely to
the operator or to the operator’s PFD
(Personal Flotation Device).
When used as described, the
emergency stop switch and
emergency stop switch lanyard
system stops the engine if the
operator falls away from the controls.
A spare emergency stop switch clip is
provided in the tool bag (p. 39).
Choke Knob
The choke knob opens and closes the
choke valve in the carburetor.
The ON position enriches the fuel
mixture for starting a cold engine.
The OFF position provides the
correct fuel mixture for operation
after starting, and for restarting a
warm engine.
EMERGENCY STOP SWITCH
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP SWITCH LANYARD
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
CHOKE KNOB
ON
OFF
31ZVA6120.book Page 13 Monday, October 16, 2023 10:33 AM
14
CONTROLS AND FEATURES

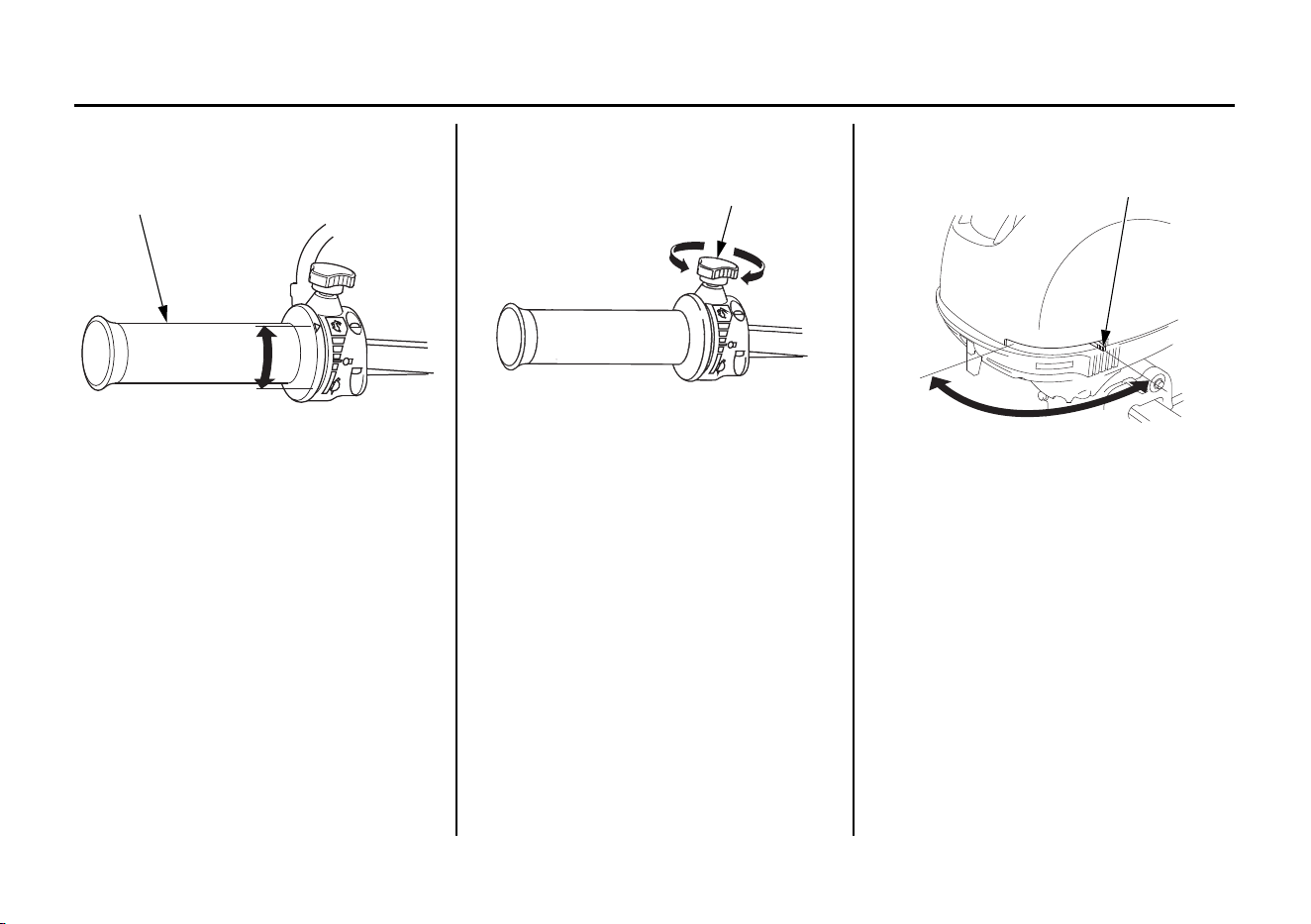

Throttle Grip
The throttle grip controls engine
speed.
An index mark on the tiller arm
shows throttle position and is helpful
for setting the throttle correctly when
starting (p. 26).
Throttle Grip Friction Knob
The throttle grip friction knob adjusts
resistance to throttle grip rotation.
Turn the knob clockwise to increase
friction for holding a throttle setting
while cruising.
Turn the knob counterclockwise to
decrease friction for easy throttle grip
rotation.
Fuel Valve Lever
The fuel valve opens and closes the
passage between the fuel tank and the
carburetor.
The fuel valve lever must be in the
ON position for the engine to run.
When the engine is not in use, leave
the fuel valve lever in the OFF
position to prevent carburetor
flooding and to reduce the possibility
of fuel leakage.
FAST
SLOW
THROTTLE GRIP
THROTTLE GRIP FRICTION KNOB
RELEASE
HOLD
FUEL VALVE LEVER
ON
OFF
31ZVA6120.book Page 14 Monday, October 16, 2023 10:33 AM
15
CONTROLS AND FEATURES

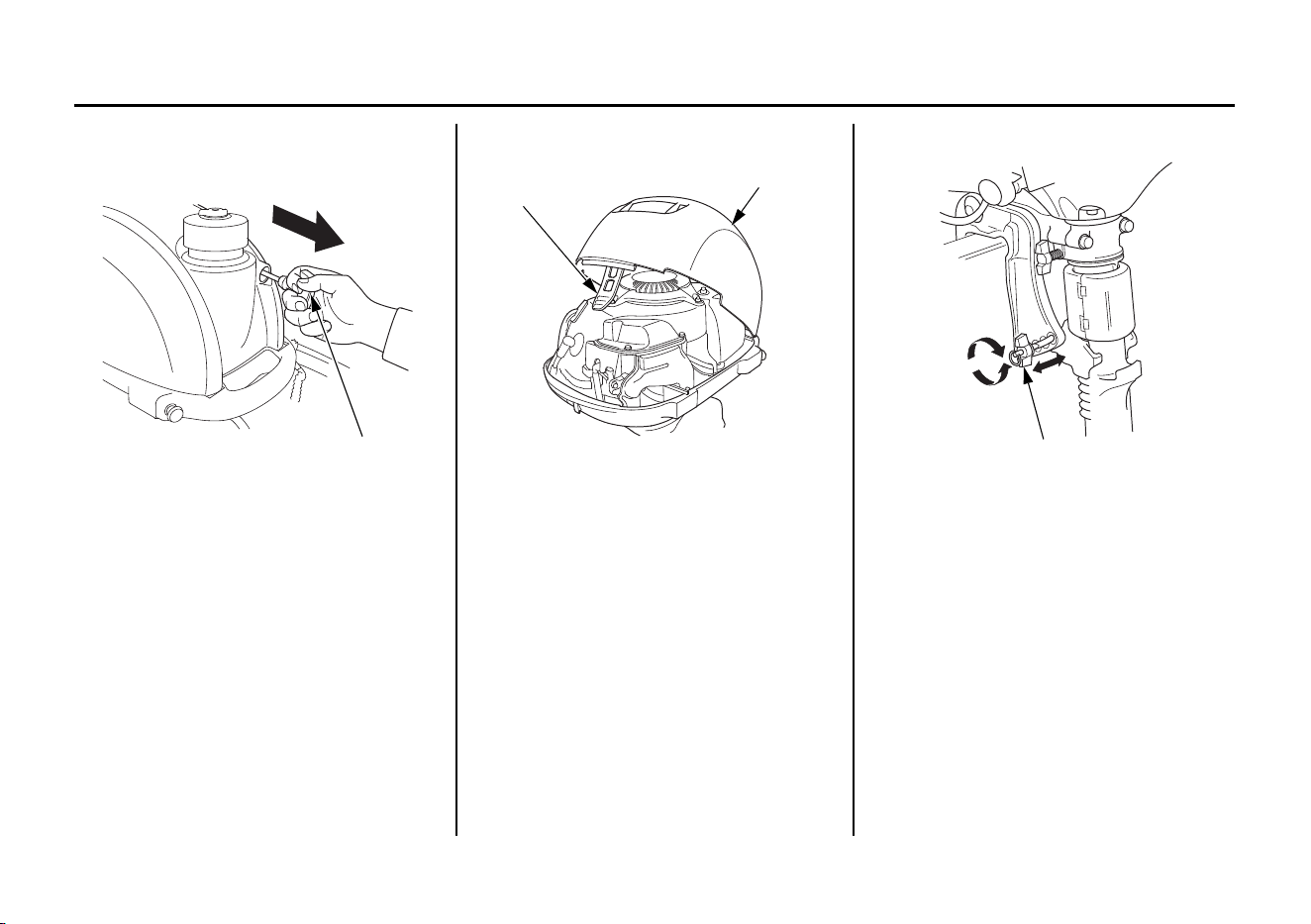

Starter Grip
Pulling the starter grip operates the
recoil starter to crank the engine for
starting.
Engine Cover Retaining Strap
Use the retaining strap to hold the
engine cover closed. Do not remove
the engine cover while the engine is
running.
Transom Angle Adjusting Bolt
The transom angle adjusting bolt is
used to adjust the angle of the
outboard motor in the normal
operating position (see page 34).
Loosen the wing nut to free the
adjusting bolt.
Adjust the angle of the outboard
motor, and tighten the wing nut. Be
sure that the bolt head and wing nut
are seated in one of the four recesses
in the adjustment slot.
STARTER GRIP
Direction to pull
RETAINING
STRAP
ENGINE COVER
ADJUSTING BOLT AND WING NUT
31ZVA6120.book Page 15 Monday, October 16, 2023 10:33 AM
16
CONTROLS AND FEATURES

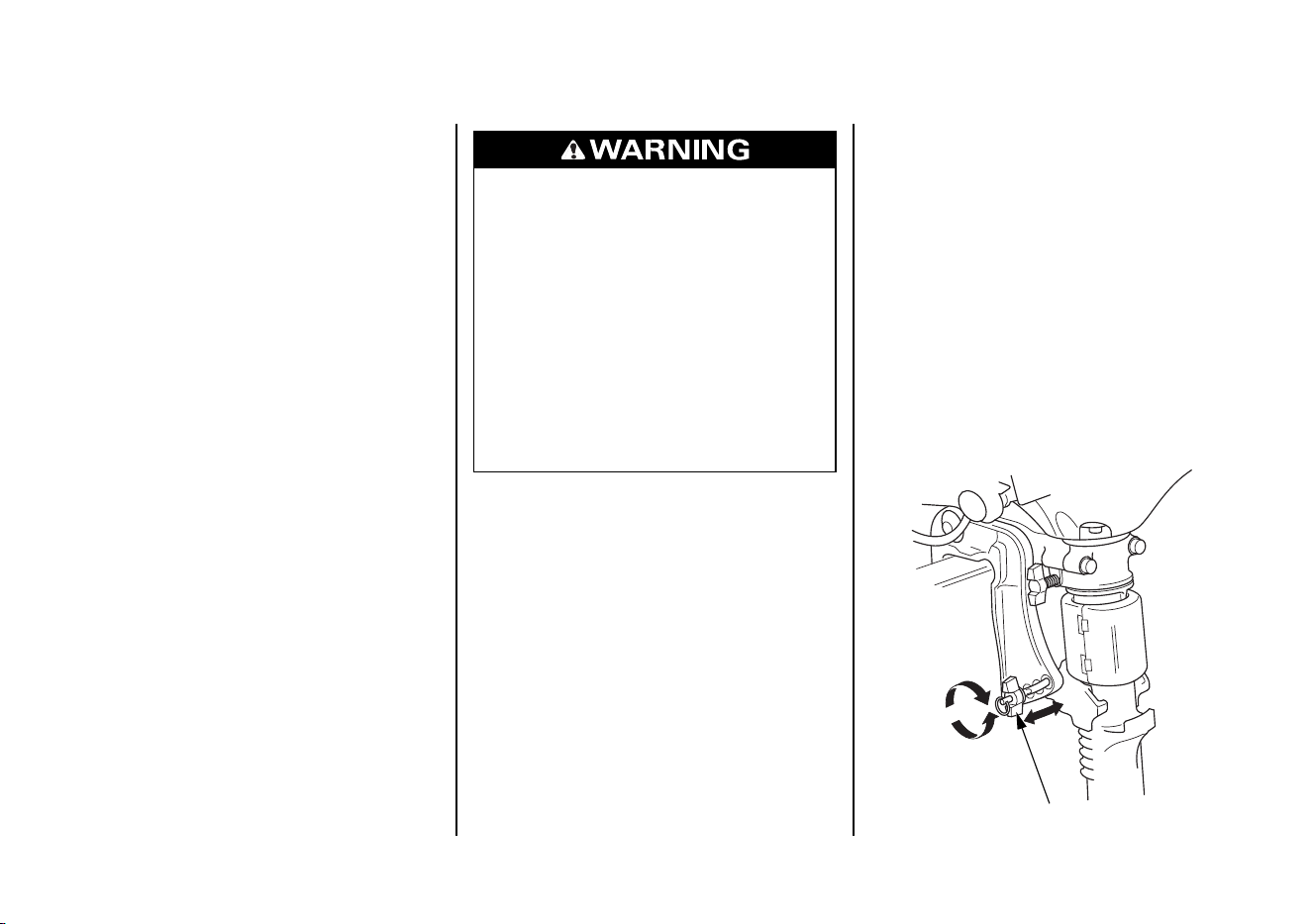

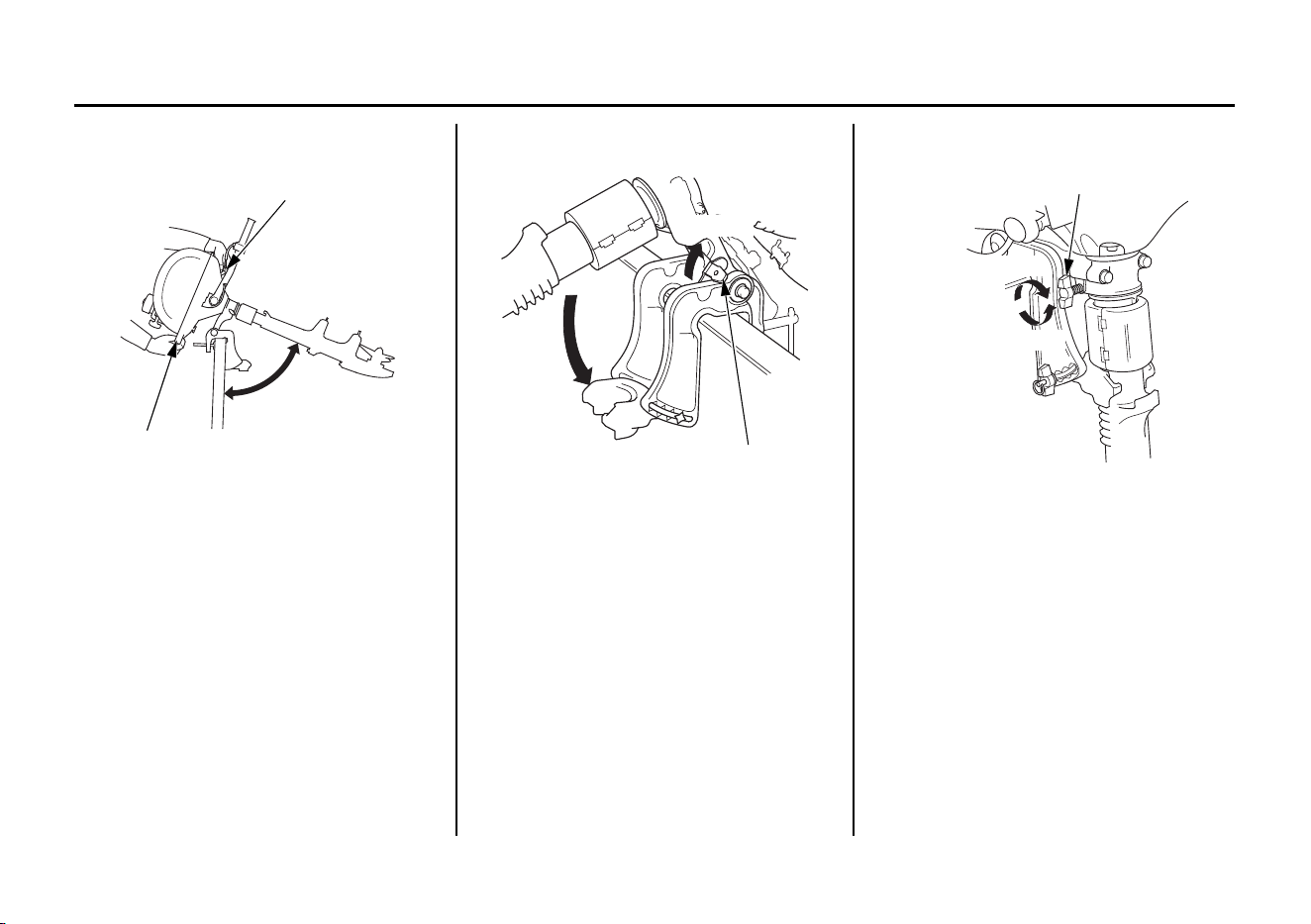

Tilt Lever
The tilt lever enables the outboard
motor to be tilted for beaching,
launching, or mooring.
Tilt the outboard motor by holding
the carrying handles, as shown. The
spring-loaded tilt lever will
automatically move into position and
hold the outboard motor when it
reaches approximately 75°.
To return the outboard motor to the
normal running position, hold the
outboard motor and pull the tilt lever,
then slowly lower the outboard
motor.
Steering Friction Bolt
The steering friction bolt adjusts
steering resistance.
Less friction allows the outboard
motor to turn more easily. More
friction helps to hold a steady course
while cruising or to prevent the
outboard motor from swinging while
trailering the boat.
FRONT CARRYING
HANDLE
REAR CARRYING HANDLE
75°
TILT LEVER
PULL
STEERING FRICTION BOLT
TO INCREASE
FRICTION
TO DECREASE
FRICTION
31ZVA6120.book Page 16 Monday, October 16, 2023 10:33 AM
17
CONTROLS AND FEATURES

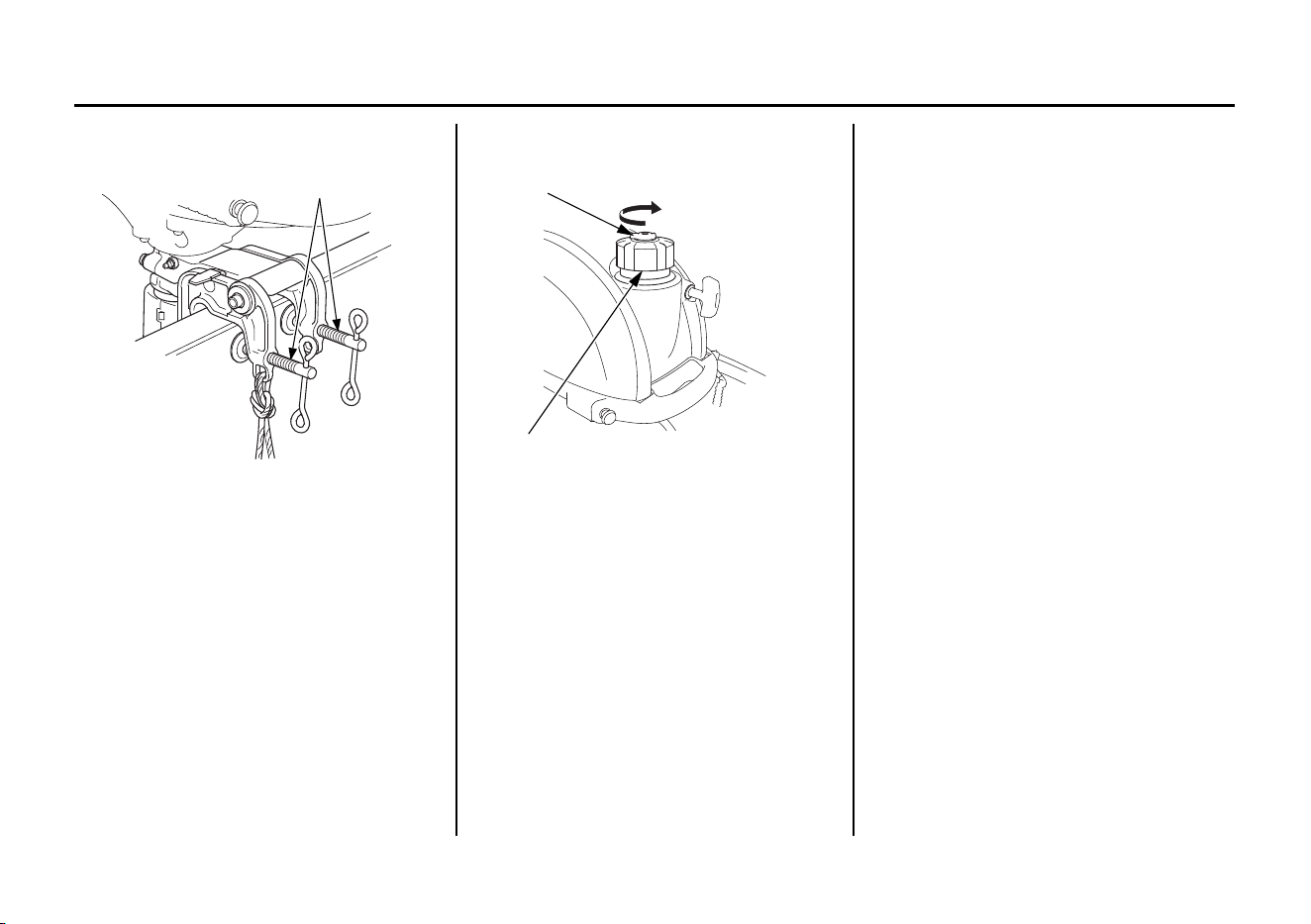

Clamp Screws
Use the clamp screws to secure the
outboard motor to the transom.
Fuel Filler Cap Vent Knob
The fuel filler cap is provided with a
vent knob to seal the fuel tank. Open
the vent by turning the vent knob to
the ON position before starting the
engine
(p. 25).
OTHER FEATURES
Centrifugal Clutch
The centrifugal clutch automatically
engages and transmits power when
engine speed is increased above
approximately 2,700 rpm. At idle
speed, the clutch is disengaged.
CLAMP SCREWS
VENT KNOB
OPEN
FUEL FILLER CAP
31ZVA6120.book Page 17 Monday, October 16, 2023 10:33 AM
18
CONTROLS AND FEATURES

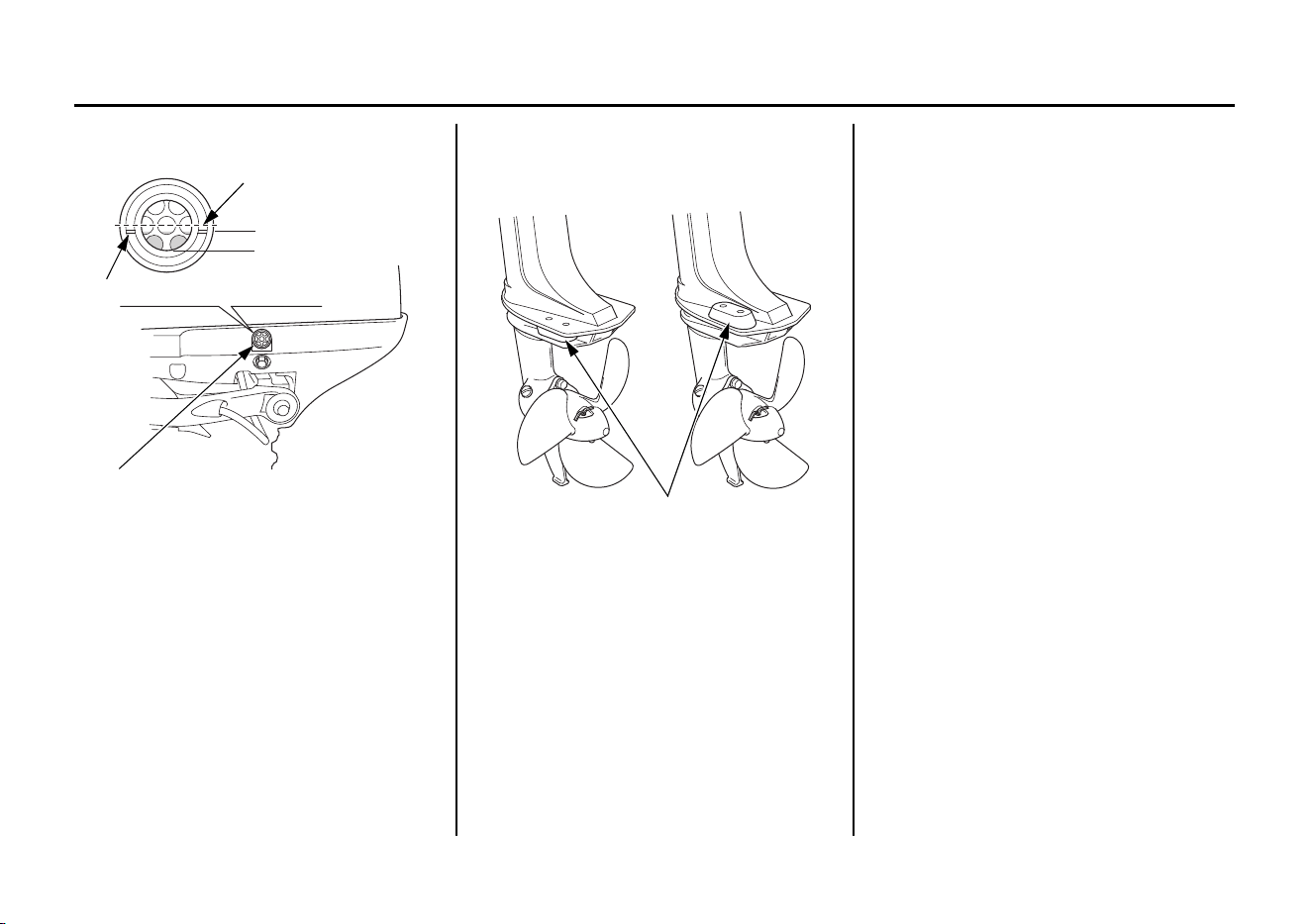

Oil Level Inspection Window
Use the oil level inspection window
to check the engine oil level with the
engine stopped and the outboard
motor in the upright position.
Anode
The anode is made of a sacrificial
material that helps to protect the
outboard motor from corrosion.
LOWER LIMIT
UPPER LIMIT
OIL LEVEL INSPECTION WINDOW
UPPER LIMIT MARKING
HALF-WAY POINT
ANODE
Short shaft type
Long shaft type
31ZVA6120.book Page 18 Monday, October 16, 2023 10:33 AM
19
INSTALLATION
Correct and secure installation is
essential for safe boating and good
performance. Follow the installation
instructions provided in this manual.
POWER REQUIREMENTS
Before installation, check to be sure
that the outboard motor does not
exceed the recommended maximum
horsepower for the boat on which it is
to be installed. Refer to the boat’s
certification plate for recommended
maximum horsepower. If the
certification plate information is not
available, contact the boat dealer or
manufacturer.
For most applications, the outboard
motor should have a horsepower
rating which provides 80% of the
maximum recommended horsepower
for the boat.

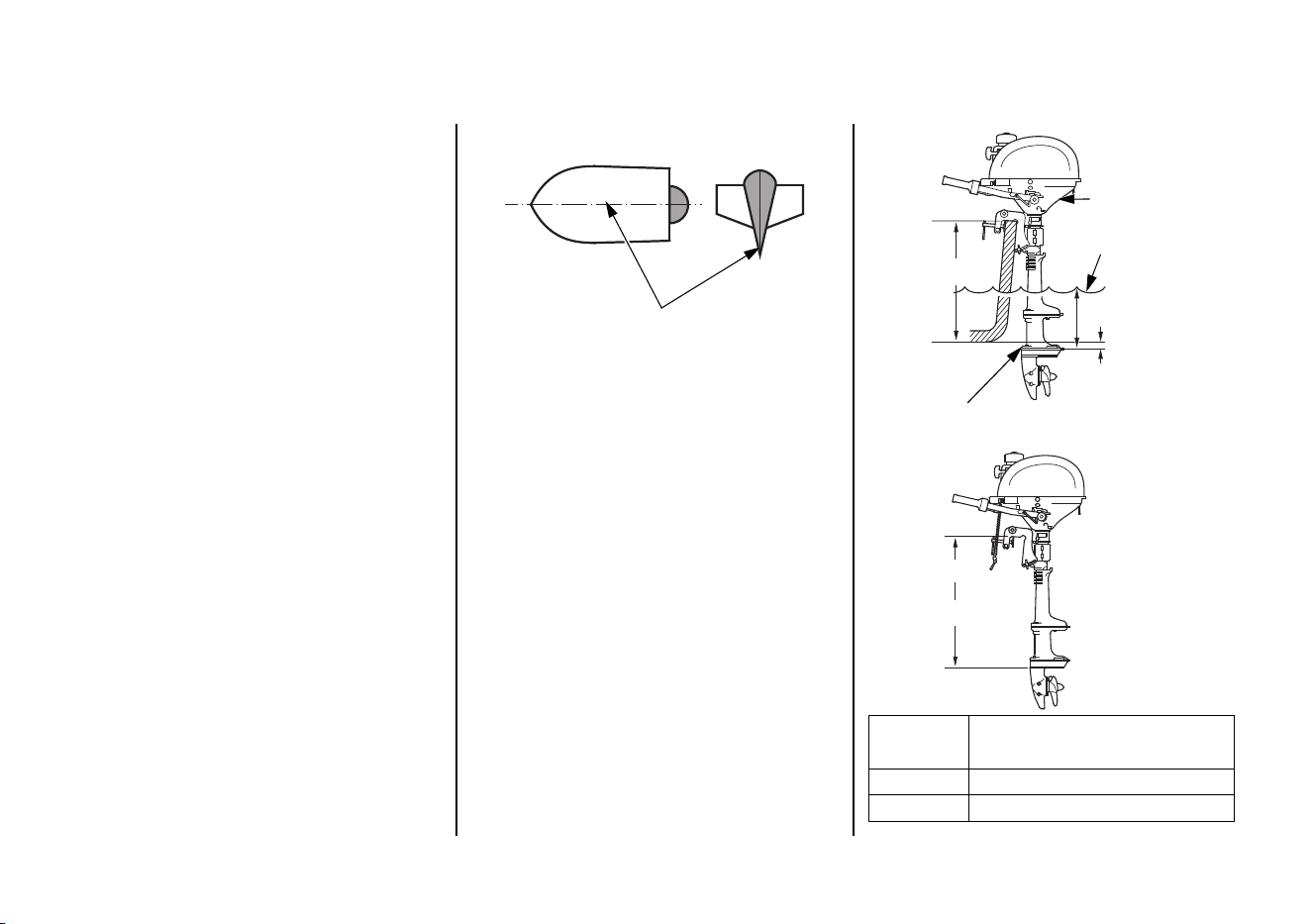

INSTALLATION POSITION
Install the outboard motor on the
center of the boat transom.
The antiventilation plate of the
outboard motor should be 0 – 2 in
(0 – 50 mm) below the bottom of the
boat. When the outboard motor is
mounted on a sailboat, the
antiventilation plate should be 6 in
(150 mm) or more below the surface
of the water. For unusual situations,
see your Honda Marine dealer for
advice.
The correct dimensions differ
according to the type of boat and the
configuration of the bottom of the
boat. Follow the manufacturer’s
recommended installation height.
CENTER LINE
Type: Outboard Motor
Transom Height
S: 16.5 in (418 mm)
L: 22.5 in (571 mm)
BOAT
TRANSOM
HEIGHT
ENGINE
UNDER CASE
WATER SURFACE
6 in (150 mm)
(for sailboat only)
0 – 2 in
(0 – 50 mm)
ANTIVENTILATION PLATE
OUTBOARD
MOTOR
TRANSOM
HEIGHT
31ZVA6120.book Page 19 Monday, October 16, 2023 10:33 AM
20
INSTALLATION
When the outboard motor is installed
extremely low, water may enter into
the engine under case and negatively
affect the performance and durability.
When installing, check that the
outboard motor is high enough from
the water level to keep the engine
under case from waves, splash, etc.
when the engine is stopped with the
boat fully loaded.
If the outboard motor is installed too
low, the boat will squat and be hard to
plane, and the outboard motor will
spray water that may enter the boat. It
will tend to porpoise, and high-speed
stability will be reduced.
Propeller ventilation will occur if the
outboard motor is installed too high
on the boat transom.
Optimum installation height varies
with boat type and bottom shape.
Contact the boat manufacturer for any
special recommendations that are
unique to a specific model of boat.
If the transom needs to be modified to
accommodate the outboard motor,
contact the boat manufacturer and
follow their recommendations for
corrective action.

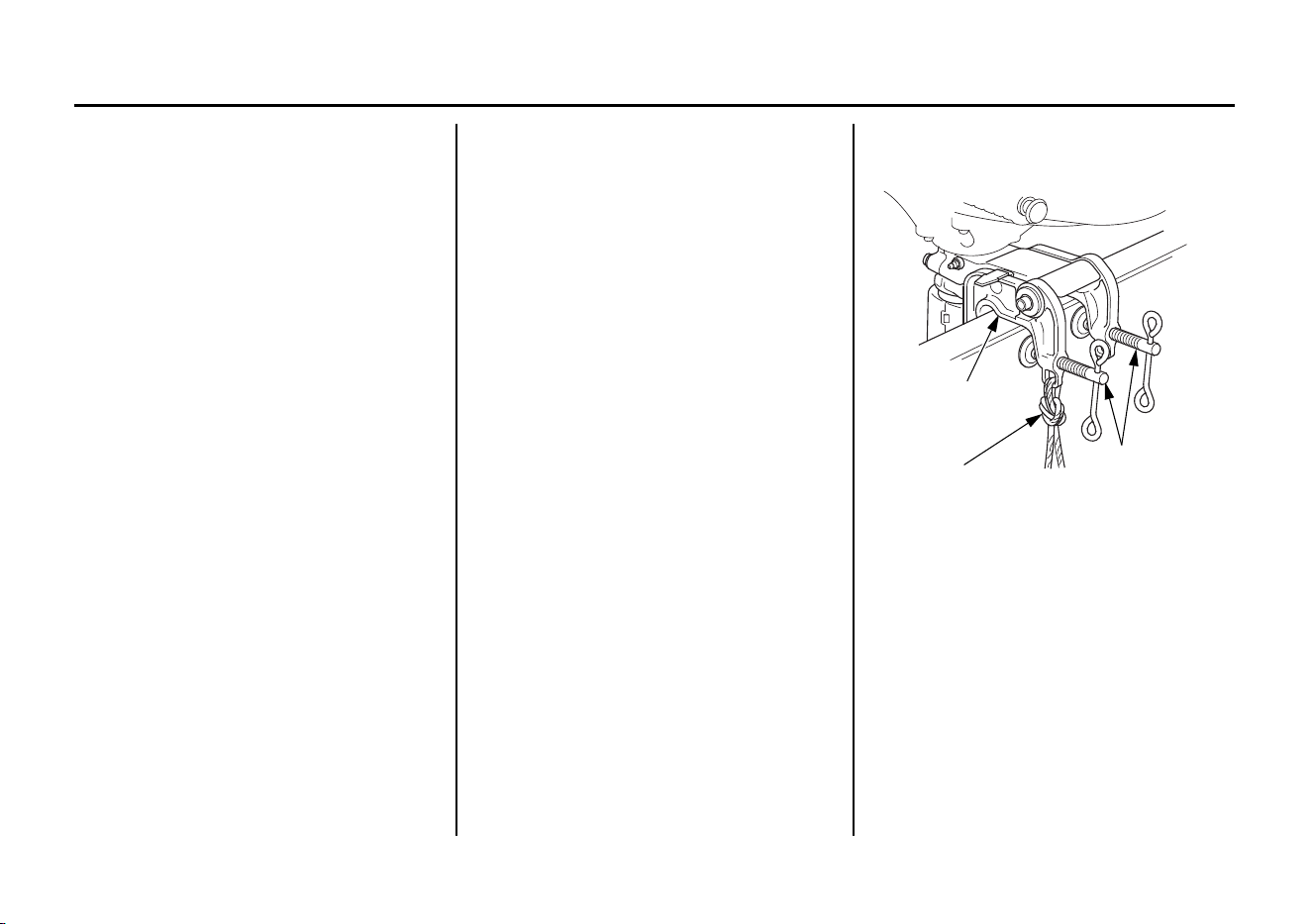

ATTACHMENT
Attach the stern bracket to the boat
transom by tightening the clamp
screws.
Attach a rope from the boat to the
hole in the stern bracket. This will
help to prevent accidental loss of the
outboard motor.
CLAMP SCREWS
STERN BRACKET
SAFETY ROPE
31ZVA6120.book Page 20 Monday, October 16, 2023 10:33 AM
22
BEFORE OPERATION
ARE YOU READY TO GET
UNDERWAY?
Your safety is your responsibility. A
little time spent in preparation will
significantly reduce your risk of
injury.
Knowledge
Read and understand this manual.
Know what the controls do and how
to operate them.
Familiarize yourself with the
outboard motor and its operation
before you get underway. Know what
to do in case of an emergency.
Familiarize yourself with all laws and
regulations relating to boating and the
use of outboard motors.
Safety
Always wear a PFD (Personal
Flotation Device) while on the boat.
Attach the emergency stop switch
lanyard securely to the operator or to
the operator’s PFD.
IS YOUR OUTBOARD
MOTOR READY TO GO?
For your safety, and to maximize the
service life of your equipment, it is
very important to take a few moments
before you operate the outboard
motor to check its condition. Be sure
to take care of any problem you find,
or have your authorized Marine
dealer correct it, before you operate
the outboard motor.
Before beginning your pre-operation
checks, be sure the emergency stop
switch clip is removed from the
emergency stop switch.
Failure to properly maintain this
outboard motor, or failing to
correct a problem before
operation, could result in a
significant malfunction.
Some malfunctions can cause
serious injuries or death.
Always perform a pre-operation
inspection before each operation
and correct any problems.
31ZVA6120.book Page 22 Monday, October 16, 2023 10:33 AM
23
BEFORE OPERATION
Maintenance Inspection
• Check the engine oil level (p. 42).
Running the engine with a low oil
level can cause engine damage.
Overfilling the engine can cause
the engine to smoke or have oil
leaks which can cause engine
damage.
• Check to be sure the propeller is
undamaged (p. 53).
• Check that the anode is securely
attached to the antiventilation plate
(p. 52) and is not excessively worn.
The anode helps to protect the
outboard motor from corrosion.
• Make sure the tool kit and
emergency starter rope are onboard
(p. 39). Replace any missing items.
• Check the fuel level in the fuel tank
(p. 50).
Safety Inspection
• Before each use, look around and
underneath the engine for signs of
oil or gasoline leaks.
• Wipe up any spills before starting
the engine.
• Check the stern bracket to be sure
the outboard motor is securely
installed.
• Check that all controls are
operating properly.
• Replace any damaged parts.
• Check that all fasteners are in place
and securely tightened.
• Check the emergency stop switch
for proper operation (p. 13, 25).
Start the engine. Make sure the
engine stops by pulling the
emergency stop switch clip from
the emergency stop switch (p. 30).
31ZVA6120.book Page 23 Monday, October 16, 2023 10:33 AM
24
OPERATION
SAFE OPERATING
PRECAUTIONS
To safely realize the full potential of
this outboard motor, you need a
complete understanding of its
operation and a certain amount of
practice with its controls.
Before operating the outboard motor
for the first time, please review the
IMPORTANT SAFETY
INFORMATION on page 6 and the
chapter titled BEFORE OPERATION.
For your safety, do not start or run the
engine in a confined or partly
enclosed area. Your engine’s exhaust
contains poisonous carbon monoxide,
a colorless, odorless gas that can
collect rapidly. Breathing carbon
monoxide can cause loss of
consciousness and may lead to death.
BREAK-IN PROCEDURE
Proper break-in procedure allows the
moving parts to wear in smoothly for
best performance and long service
life.
For the first 10 hours, run the
outboard motor at low speed, and
avoid full-throttle operation.
TRANSOM ANGLE
ADJUSTMENT
Exhaust contains poisonous
carbon monoxide gas that can
build up to dangerous levels in
closed areas.
Breathing carbon monoxide can
cause unconsciousness or death.
Never run this product's engine in
a closed, or even partially closed
area.
ADJUSTING BOLT AND WING NUT
31ZVA6120.book Page 24 Monday, October 16, 2023 10:33 AM
25
OPERATION
The transom angle adjusting bolt is
used to adjust the angle of the
outboard motor in the normal
operating position (p. 34).
1. To adjust, first tilt the outboard
motor so it is not resting on the
bolt.
There are four adjustment
positions.
2. Loosen the wing nut to free the
adjusting bolt.
3. Adjust the angle of the outboard
motor, and tighten the wing nut. Be
sure that the bolt head and wing nut
are seated in one of the four
adjustment positions.
To prevent damage to the outboard
motor or boat, make sure the transom
angle adjusting bolt is tight.
INFREQUENT OR
OCCASIONAL USE
If your outboard motor will be used
on an infrequent or intermittent basis,
please refer to the fuel section of the
STORAGE chapter (p. 54) for
additional information regarding fuel
deterioration.

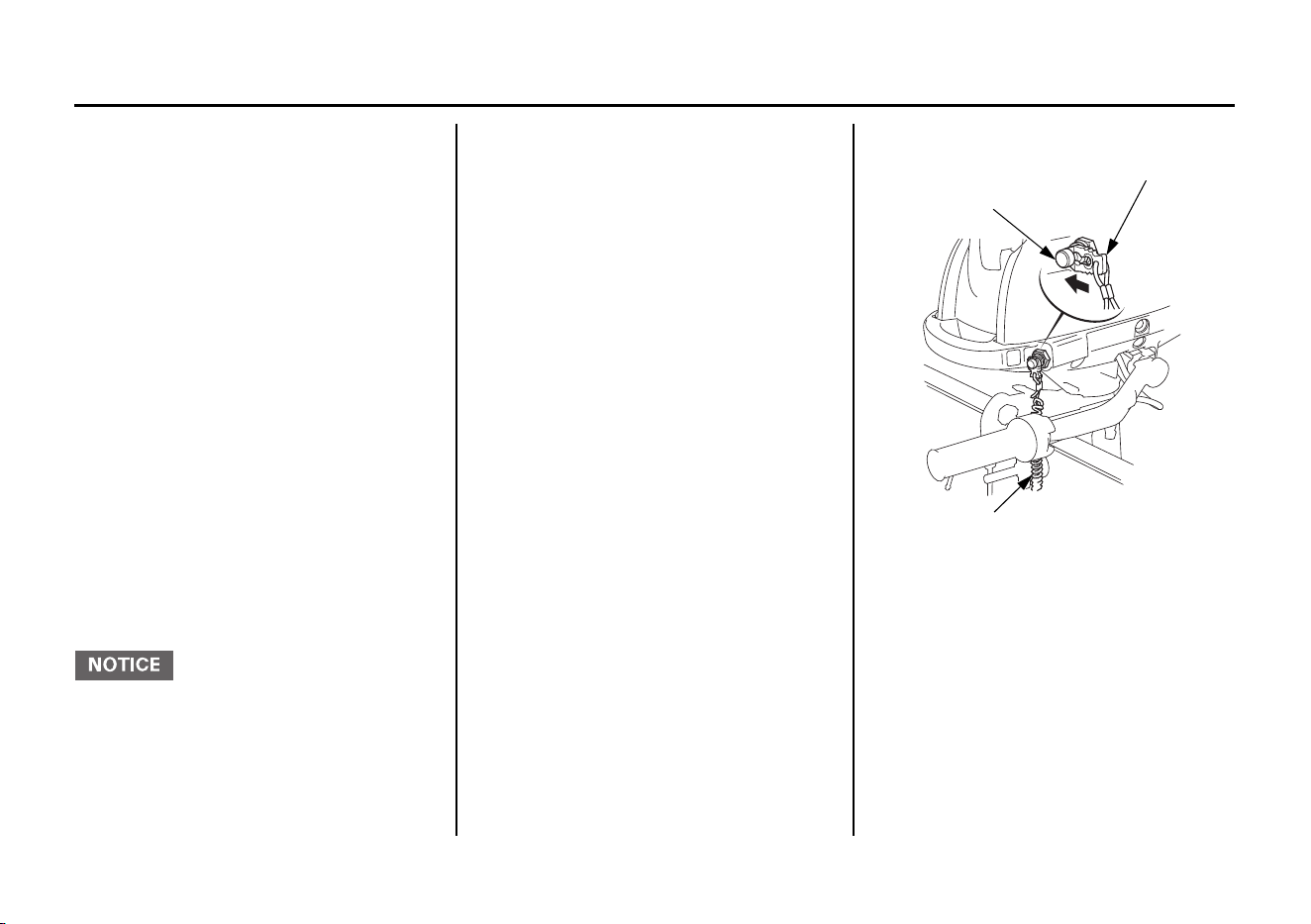

STARTING THE ENGINE
1. Put the emergency stop switch clip
in the emergency stop switch, and
attach the emergency stop switch
lanyard securely to the operator or
to the operator’s PFD (Personal
Flotation Device).
The engine will not start or run
unless the emergency stop switch
clip is in the emergency stop
switch.
EMERGENCY STOP
SWITCH
EMERGENCY STOP SWITCH CLIP
EMERGENCY STOP SWITCH
LANYARD
31ZVA6120.book Page 25 Monday, October 16, 2023 10:33 AM
26
OPERATION
The emergency stop switch clip
and emergency stop switch lanyard
system is a safety device that will
stop the engine if you fall away
from the controls while operating
the boat.
Always attach the emergency stop
switch lanyard securely to the
operator or to the operator’s PFD
before starting the engine.

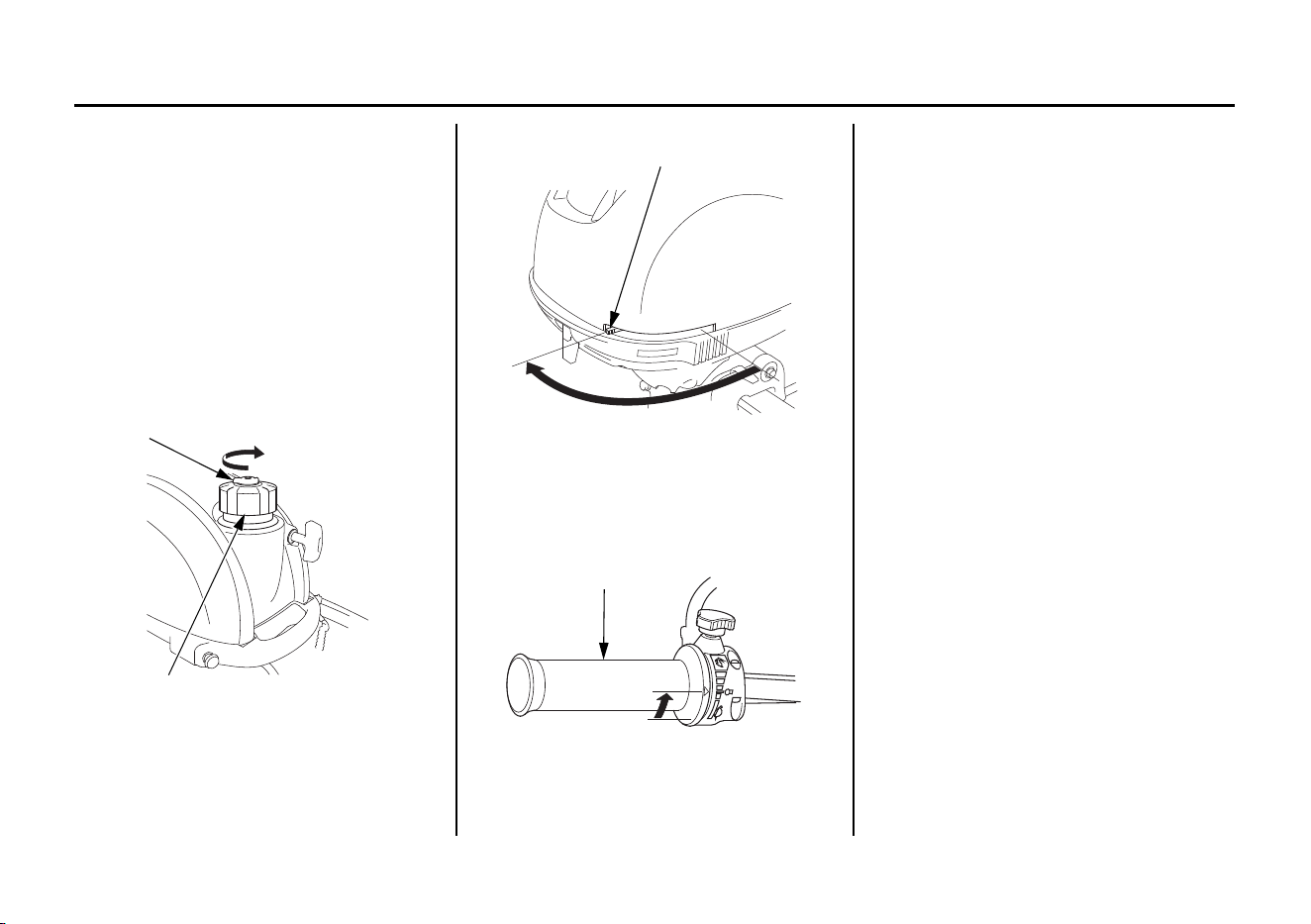

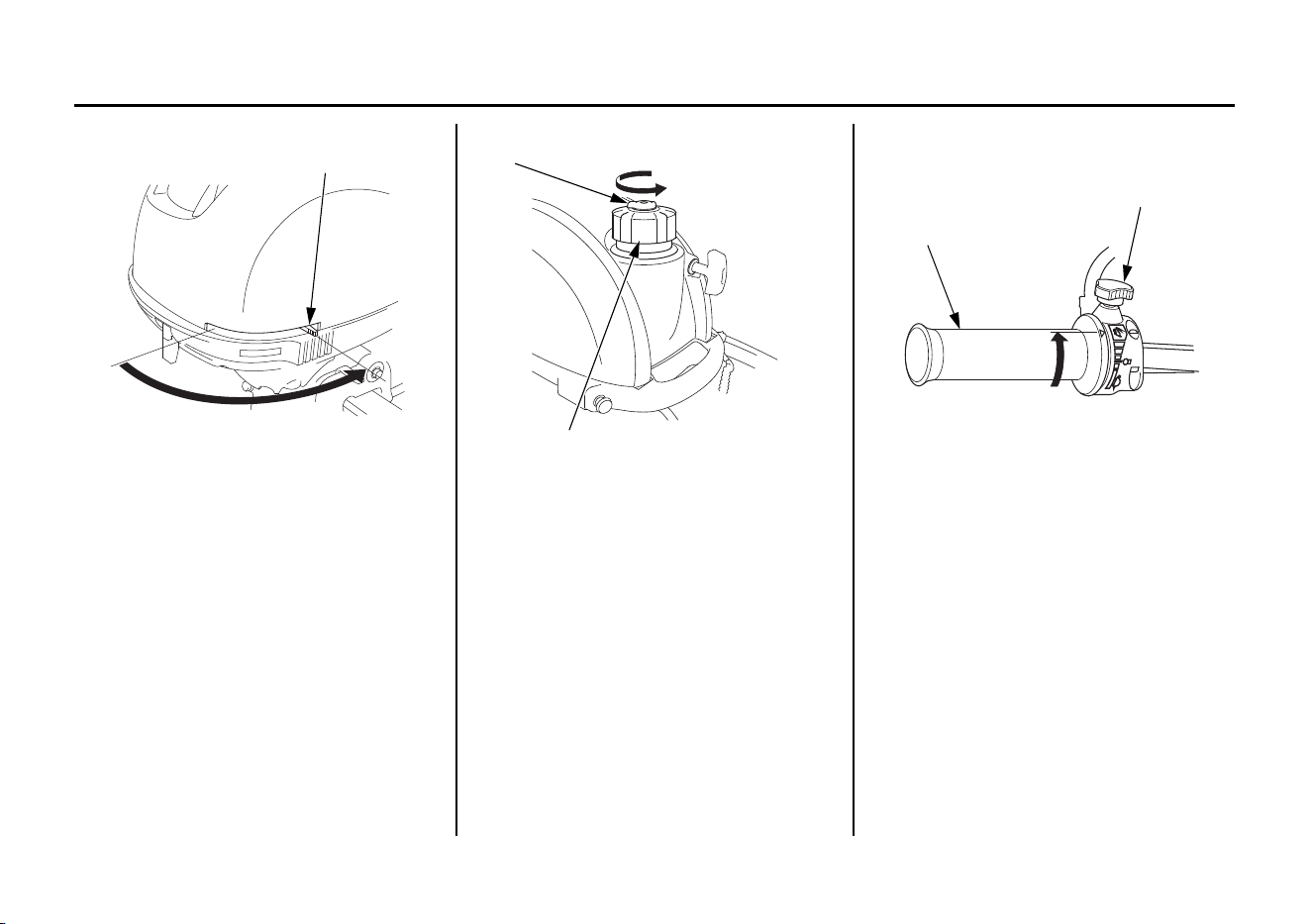

2. Open the fuel tank vent by turning
the vent knob to the ON position.
3. Move the fuel valve lever to the
ON position.
4. Move the throttle grip to the
START position.
Do not start the engine with the
throttle grip in any position other than
the START position, or the boat will
move suddenly when the engine
starts.
VENT KNOB
OPEN
FUEL FILLER CAP
FUEL VALVE LEVER
ON
THROTTLE GRIP
START
31ZVA6120.book Page 26 Monday, October 16, 2023 10:33 AM
27
OPERATION

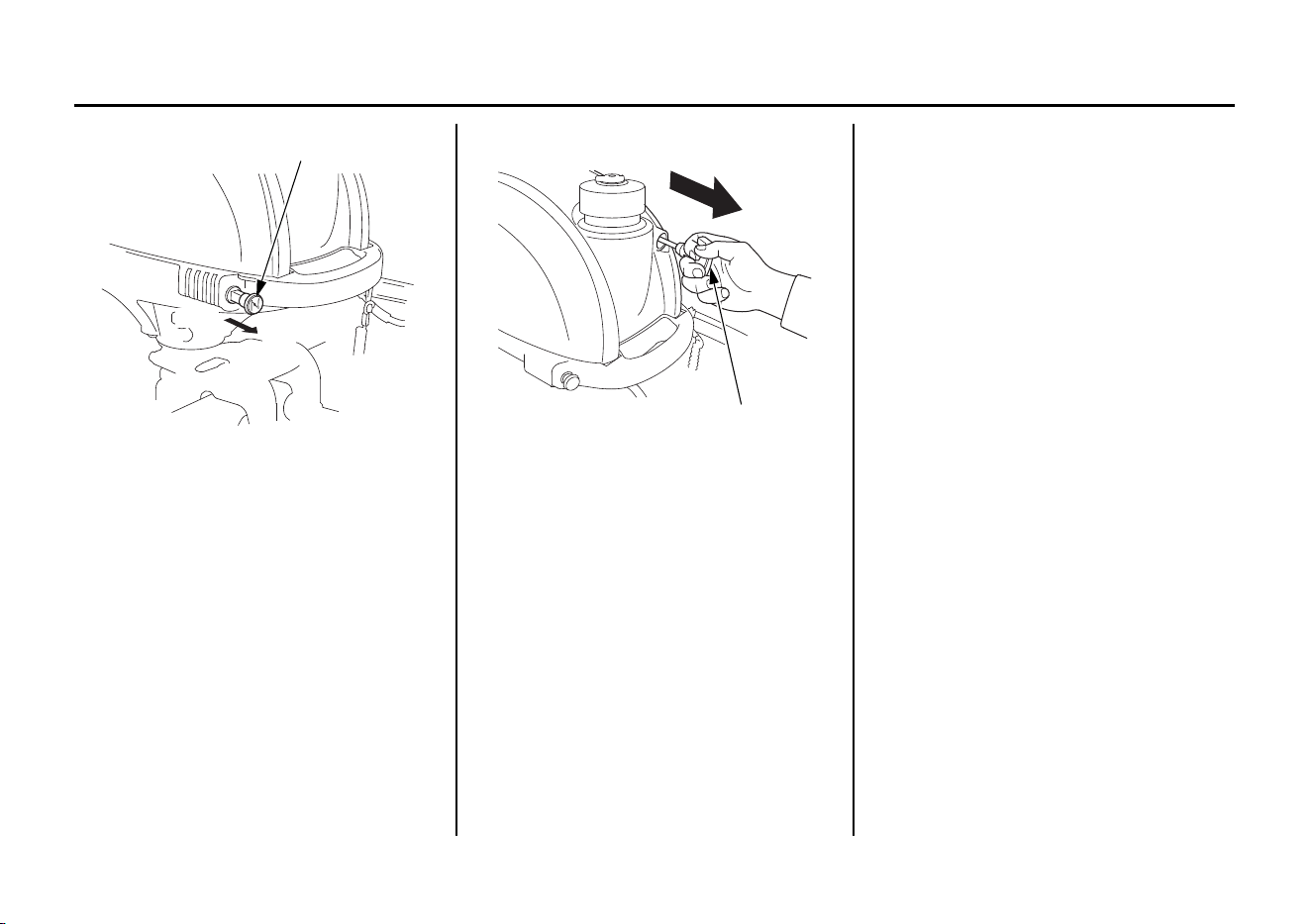

5. To start a cold engine, pull the
choke knob to the ON position. To
restart a warm engine, leave the
choke knob in the OFF position.
6. Pull the starter grip lightly until
you feel resistance, then pull
briskly in the direction of the arrow
as shown above.
Return the starter grip gently.
7. If the choke knob was pulled to the
ON position to start the engine,
gradually push it to the OFF
position as the engine warms up.
Also, as the engine warms up, the
throttle grip can be turned to the
SLOW position without stalling.
8. Before getting underway, allow the
engine to warm-up sufficiently to
ensure good performance.
CHOKE KNOB
ON
OFF
STARTER GRIP
Direction to pull
31ZVA6120.book Page 27 Monday, October 16, 2023 10:33 AM
28
OPERATION

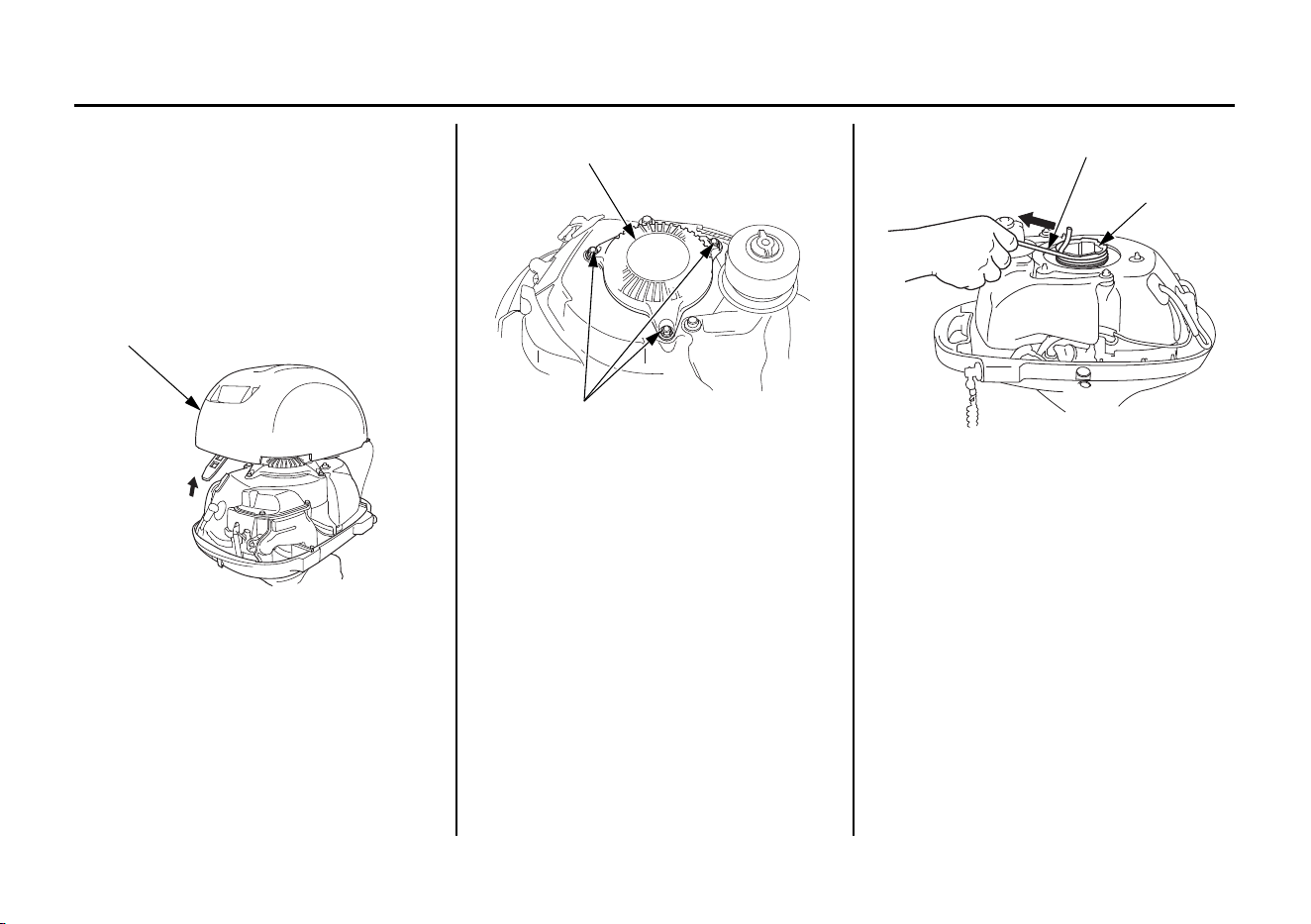

EMERGENCY STARTING
If the recoil starter is not working
properly, you can start the engine
manually using the emergency starter
rope that came with your outboard
motor.
1. Remove the engine cover.
2. Remove the three 5 mm nuts with
an 8 mm wrench and remove the
recoil starter.
3. Set the controls the same as for
normal starting (see pages 25 – 27).
Use the choke control if needed.
4. Set the knotted end of the
emergency starter rope in the notch
in the flywheel pulley. Wind the
rope clockwise around the flywheel
pulley, as shown.
ENGINE COVER
RECOIL STARTER
5 mm NUTS
EMERGENCY STARTER ROPE
FLYWHEEL
PULLEY
31ZVA6120.book Page 28 Monday, October 16, 2023 10:33 AM
29
OPERATION
5. Pull the emergency starter rope
slowly until resistance is felt, then
pull briskly.
Keep away from moving parts
while pulling the rope.
If necessary, rewind the rope and
pull again. If the engine does not
start after several attempts, refer to
TAKING CARE OF
UNEXPECTED PROBLEMS,
p. 59.
6. If the choke was used to start the
engine, return the knob to the
normal operating position as the
engine warms up.
7. Leave the recoil starter assembly
off, but install the engine cover
(p. 42).
8. If it was necessary to remove the
emergency stop switch lanyard
from you to perform the emergency
starting procedure, be sure the
lanyard is attached securely to
operator before operating the
outboard motor.
9. Have your closest authorized
Marine dealer check your recoil
starter system and correct the
problem, so you can use the recoil
starter.
The recoil starter assembly should
be reinstalled after the recoil starter
is working again. Install the recoil
starter assembly with the engine
stopped.
Exposed moving parts can cause
injury.
• Do not operate the outboard
motor without the engine
cover.
• Use extreme care when
installing the engine cover.
31ZVA6120.book Page 29 Monday, October 16, 2023 10:33 AM
30
OPERATION
STOPPING THE ENGINE
Emergency Engine Stopping
To stop the engine in an emergency,
pull the emergency stop switch clip out
of the emergency stop switch by pulling
the emergency stop switch lanyard.
If the emergency stop switch is
activated while the engine is running,
the engine will shut down abruptly
and the boat will quickly decelerate,
potentially causing occupants and
objects to be thrown forward and/or
overboard.
If the emergency stop switch is
activated, the emergency stop switch
clip must be reinserted before the
engine can be restarted.
We suggest that you stop the engine
this way occasionally to verify that
the engine and emergency stop switch
are operating properly.
Normal Engine Stopping
1. Move the throttle grip to the
SLOW position.
After cruising, cool down the
engine by idling for a few minutes
before stopping the engine.
2. Push the emergency stop switch
button until the engine stops.
In the event that the engine does
not stop when you push the
emergency stop switch, pull the
emergency stop switch lanyard. If
the engine continues to run, move
the fuel valve lever to the OFF
position and pull the choke knob to
stop the engine.
EMERGENCY STOP SWITCH
EMERGENCY STOP SWITCH CLIP
EMERGENCY
STOP SWITCH
LANYARD
THROTTLE GRIP
SLOW
EMERGENCY STOP SWITCH
PUSH
31ZVA6120.book Page 30 Monday, October 16, 2023 10:33 AM
31
OPERATION
3. Move the fuel valve lever to the
OFF position.
4. Close the fuel tank vent by turning
the vent knob to the OFF position.
THROTTLE OPERATION
Use the throttle grip friction knob to
help hold a constant throttle setting
while cruising.
Turn the knob clockwise to increase
throttle grip friction for holding a
constant speed.
Turn the knob counterclockwise to
decrease friction for easy grip
rotation.
FUEL VALVE LEVER
OFF
VENT KNOB
CLOSE
FUEL FILLER CAP
THROTTLE GRIP
THROTTLE GRIP FRICTION KNOB
FAST
31ZVA6120.book Page 31 Monday, October 16, 2023 10:33 AM
32
OPERATION

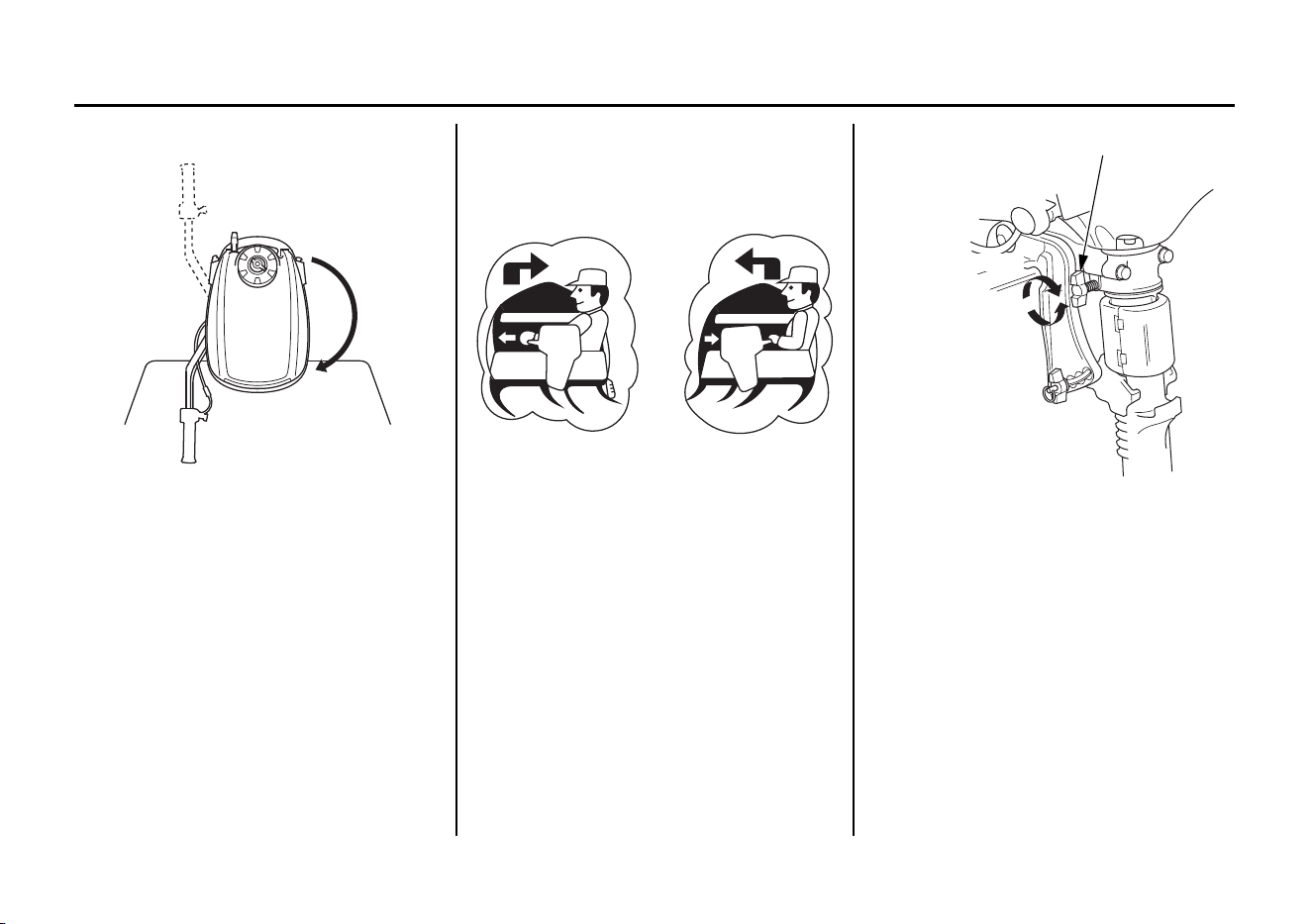

REVERSING THE
OUTBOARD MOTOR
Important Safety Precautions
• Before rotating the outboard motor
(from either forward to reverse or
from reverse to forward) reduce the
engine speed to SLOW, or the boat
could capsize.
• When operating in reverse, proceed
with caution to avoid hitting any
underwater obstructions with the
propeller.

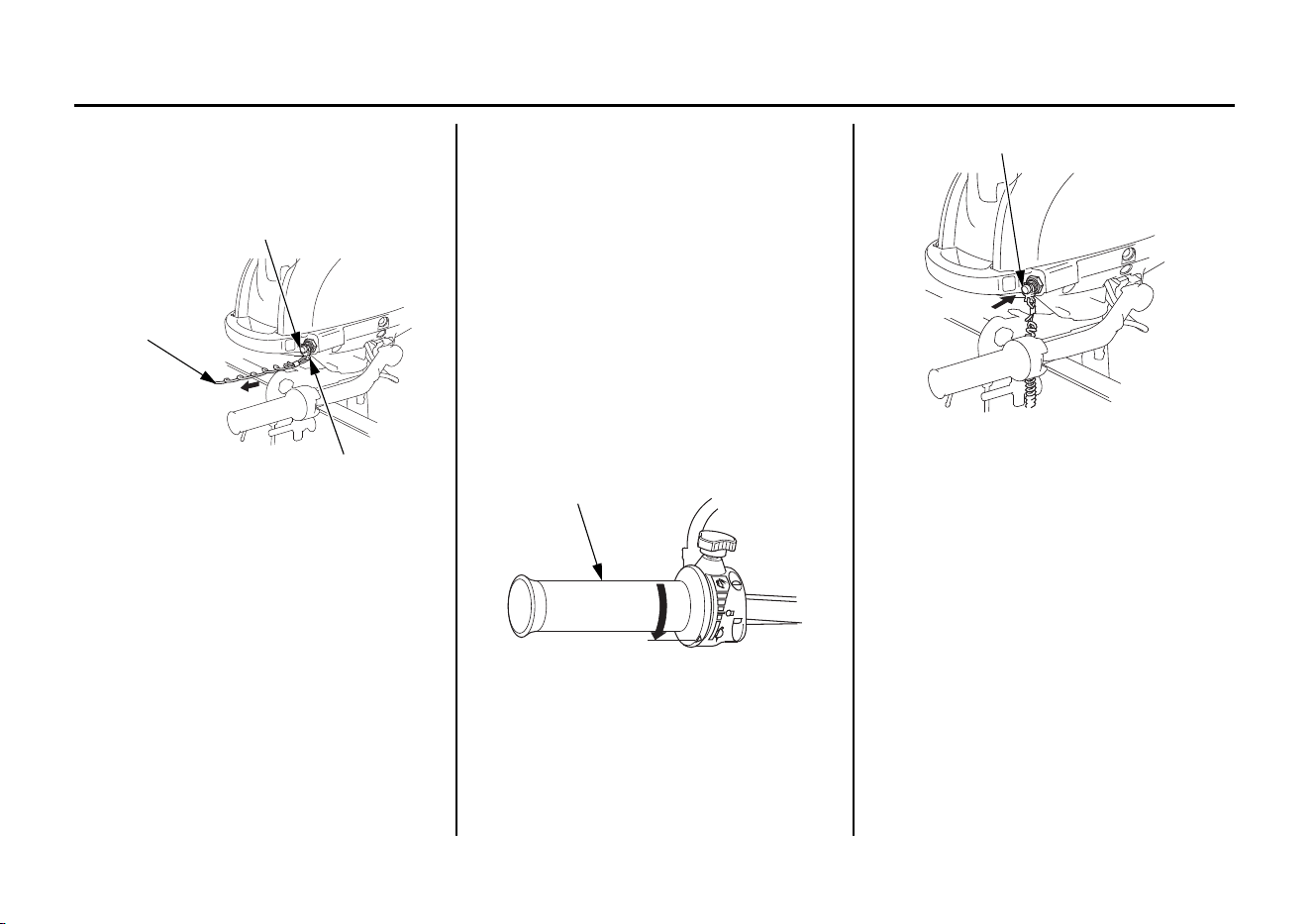

1. Move the throttle grip to the
SLOW position and hold it there by
turning the throttle grip friction
knob clockwise.
THROTTLE GRIP FRICTION KNOB
THROTTLE GRIP
SLOW
31ZVA6120.book Page 32 Monday, October 16, 2023 10:33 AM
33
OPERATION
2. To reverse direction, turn the
outboard motor 180°, and then
pivot the tiller handle as shown. Be
careful not to hold and move the
throttle grip when pivoting the
tiller handle.
STEERING
Steer by moving the tiller handle
opposite the direction you want the
boat to turn.
Use the steering friction bolt to help
hold a steady course while cruising.
Turn the bolt clockwise to increase
steering friction for holding a steady
course.
Turn the bolt counterclockwise to
decrease friction for easy turning.
STEERING FRICTION BOLT
TO DECREASE
FRICTION
TO INCREASE
FRICTION
31ZVA6120.book Page 33 Monday, October 16, 2023 10:33 AM
34
OPERATION
CRUISING
Engine Speed
For best fuel economy, limit the
throttle opening to 80%. Use the
throttle friction control (p. 32) to help
you hold a steady speed.
For rough water conditions or large
waves, slow down to prevent the
propeller from rising out of the water.
Transom Angle
Install the outboard motor at the best
transom angle for stable cruising and
maximum power. See page 24 for
adjustment procedure.
Transom angle too large: Causes boat
to ‘‘squat’’.
Transom angle too small: Causes boat
to ‘‘bow steer’’(Sprayed water may
enter the boat).
It is necessary to adjust the transom
angle to compensate for changes in
boat load, weight distribution, water
conditions, or propeller selection.
Under normal running conditions, the
boat will perform best when the
antiventilation plate (p. 19) is level
with the water surface.
When cruising into a high wind,
decrease the transom angle slightly to
level the boat and improve stability.
With a tail wind, increase the transom
angle slightly.
Excessive transom angle during
operation can cause propeller
ventilation and overheating.
Transom Angle (Cruising)
CORRECT
GIVES MAXIMUM PERFORMANCE
O.K.
31ZVA6120.book Page 34 Monday, October 16, 2023 10:33 AM
35
OPERATION

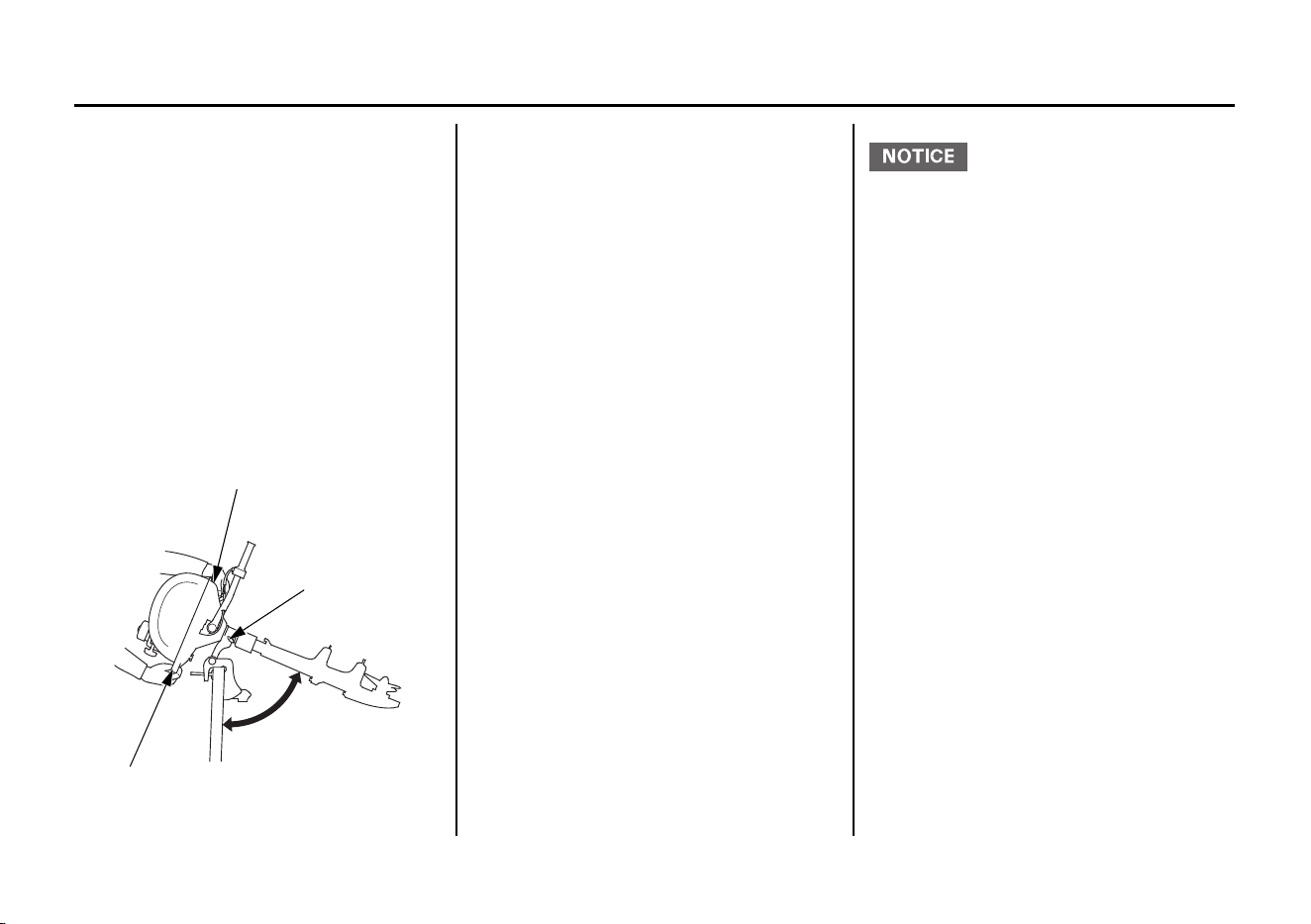

MOORING, BEACHING ,
LAUNCHING
To raise the outboard motor out of the
water while the boat is moored, or for
maximum clearance when beaching
or launching, tilt the outboard motor
to the 75° position.
Stop the engine before tilting the
outboard motor. The 75° position is
not an operating position.
1. Stop the engine and turn the fuel
valve lever to the OFF position.
2. Close the fuel tank vent by turning
the vent knob to the OFF position.
3. With the outboard motor in the
forward position, tilt the outboard
motor using the front and rear
carrying handles on the engine
cover. The spring-loaded tilt lever
will automatically move into
position and hold the outboard
motor when it reaches
approximately 75°.
4. Adjust the steering friction bolt to
keep the outboard motor from
moving.
• Do not use the tiller handle as a
lever to raise the outboard motor.
Applying excessive force to the
tiller handle can damage it.
• If the outboard motor is tilted in the
reverse position, crankcase oil will
enter the cylinder and may cause
difficult starting or may prevent the
engine from being cranked.
REAR CARRYING HANDLE
STEERING
FRICTION BOLT
FRONT CARRYING
HANDLE
75°
31ZVA6120.book Page 35 Monday, October 16, 2023 10:33 AM
36
OPERATION

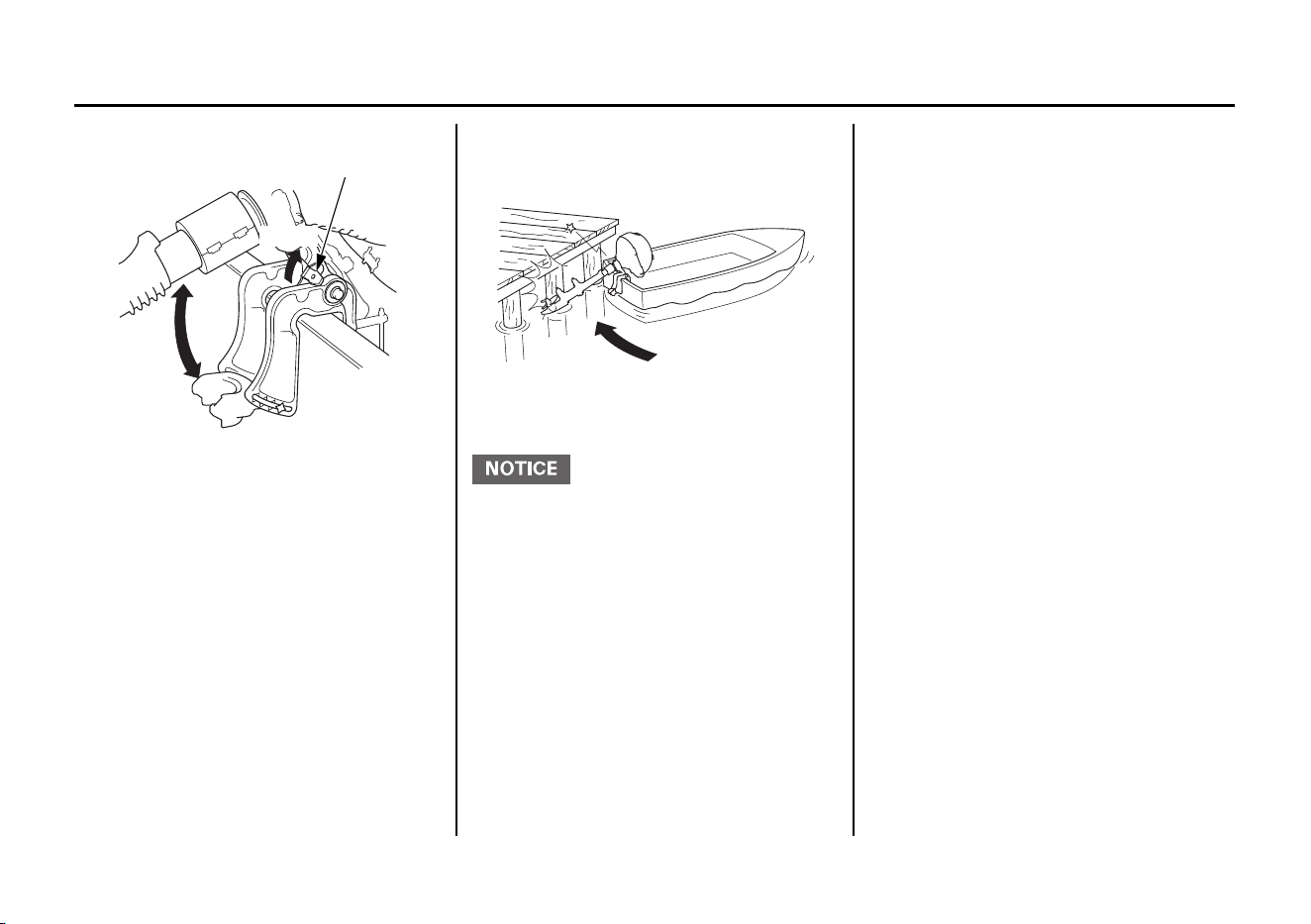

5. To return the outboard motor to the
normal running position, hold the
outboard motor by the front
carrying handle on the engine case
and pull the tilt level toward you,
and then lower the outboard motor
slowly.
To avoid damaging the outboard
motor, be very careful when mooring
a boat, especially when its outboard
motor is tilted up. Don’t allow the
outboard motor to strike against the
pier or other boats.
TILT LEVER
PULL
NO
31ZVA6120.book Page 36 Monday, October 16, 2023 10:33 AM
37
SERVICING YOUR OUTBOARD MOTOR
THE IMPORTANCE OF
MAINTENANCE
Proper maintenance is essential for
safe, economical, and trouble-free
operation. It will also help reduce air
pollution.
To help you properly care for your
outboard motor, the following pages
include a maintenance schedule,
routine inspection procedures, and
simple maintenance procedures using
basic hand tools. Other service tasks
that are more difficult or require
special tools are best handled by
professionals and are normally
performed by a Honda technician or
other qualified mechanic.
The maintenance schedule applies to
normal operating conditions. If you
operate your outboard motor under
unusual conditions, consult an
authorized Honda Marine dealer for
recommendations applicable to your
individual needs and use.
Remember that your authorized
Honda Marine dealer knows your
outboard motor best and is fully
equipped to maintain and repair it.
To ensure the best quality and
reliability, use only new, Honda
Genuine parts or their equivalents for
repair and replacement.
Maintenance, replacement, or
repair of the emission control
devices and systems may be
performed by any marine engine
repair establishment or individual,
using parts that are ‘‘certified’’ to
EPA standards.
Failure to properly maintain this
outboard motor, or failing to
correct a problem before
operation, could result in a
significant malfunction.
Some malfunctions can cause
serious injuries or death.
Always follow the inspection and
maintenance recommendations
and schedules in this owner’s
manual.
31ZVA6120.book Page 37 Monday, October 16, 2023 10:33 AM
38
SERVICING YOUR OUTBOARD MOTOR
MAINTENANCE SAFETY
Some of the most important safety
precautions follow. However, we
cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide
whether or not you should perform a
given task.
Safety Precautions
• Make sure the engine is off before
you begin any maintenance or
repairs. This will eliminate several
potential hazards:
─ Carbon monoxide poisoning
from engine exhaust.
Do not start or run the engine in
a confined or partly enclosed
area.
─ Burns from hot parts.
Let the engine and exhaust
system cool before touching.
─ Injury from moving parts.
Do not run the engine unless
instructed to do so.
• Read the instructions before you
begin, and make sure you have the
tools and skills required.
• To reduce the possibility of fire or
explosion, be careful when
working around gasoline. Use only
a nonflammable solvent, not
gasoline, to clean parts. Keep
cigarettes, sparks, and flames away
from all fuel-related parts.
• Wear gloves when handling the
propeller to protect your hands
from sharp edges.
Improper maintenance can cause
an unsafe condition.
Failure to properly follow
maintenance instructions and
precautions can cause serious
injuries or death.
Always follow the procedures
and precautions in this owner's
manual.
31ZVA6120.book Page 38 Monday, October 16, 2023 10:33 AM
39
SERVICING YOUR OUTBOARD MOTOR

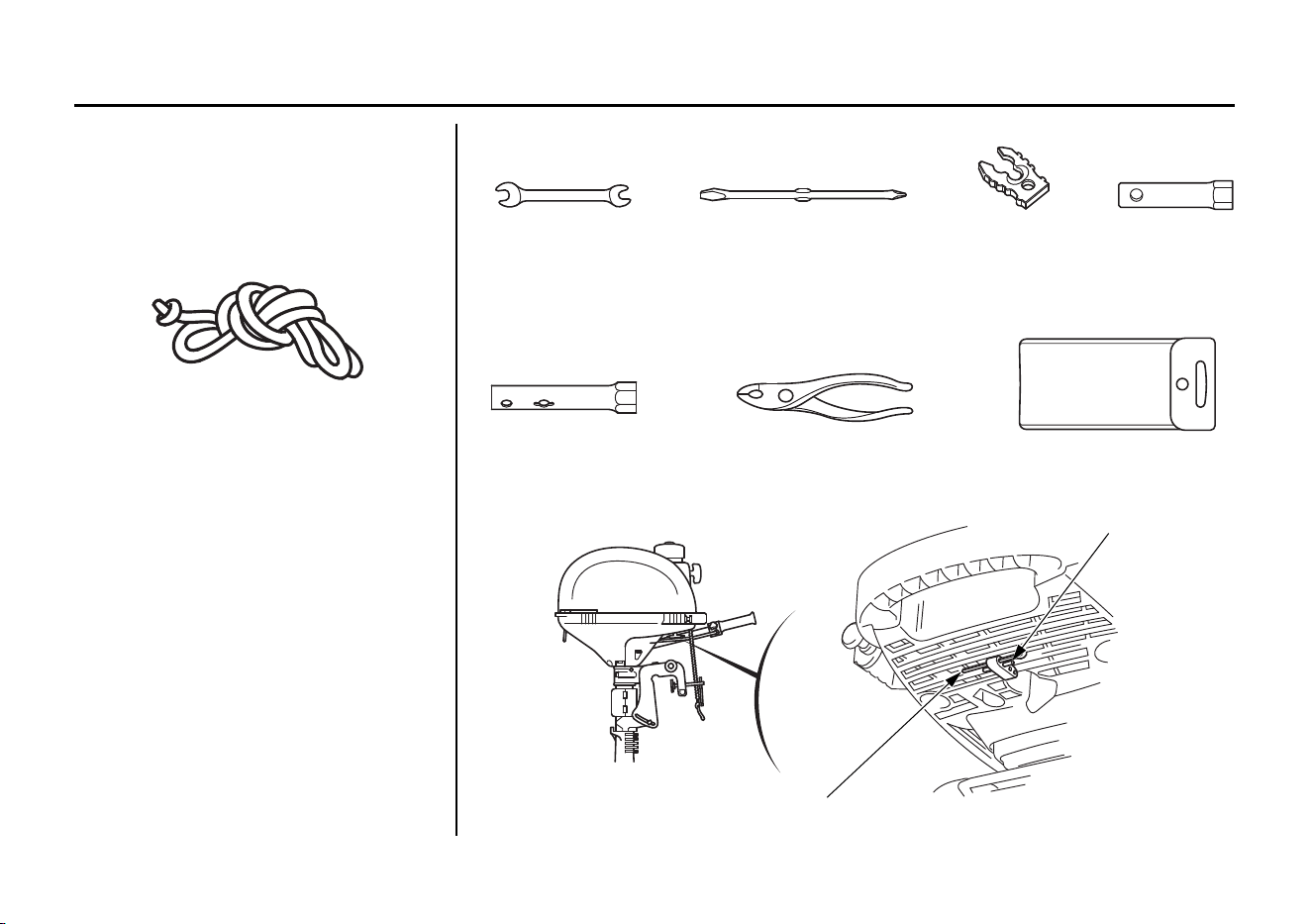

TOOL KIT AND
EMERGENCY STARTER
ROPE
The following tools are supplied with
the outboard motor for simple
maintenance procedures and
emergency repairs. An emergency
starter rope is also supplied. Keep
these items on the boat so that they
will always be available if you need
them.
If your tool kit needs replacement, it
is not available as a kit and each item
must be ordered individually.
EMERGENCY STARTER ROPE
8 × 10 mm WRENCH FLAT/PHILLIPS
SCREWDRIVER
EMERGENCY STOP
SWITCH CLIP
SPARK PLUG WRENCH PLIERS TOOL BAG
SHEAR PIN
COTTER PIN
BOX WRENCH
31ZVA6120.book Page 39 Monday, October 16, 2023 10:33 AM
40
SERVICING YOUR OUTBOARD MOTOR
MAINTENANCE SCHEDULE
Follow the MAINTENANCE SCHEDULE table and service your outboard motor accordingly. Please note, a claim for
warranty coverage will not be denied simply because the maintenance schedule for your outboard motor was not
followed. However, any part(s) that fails specifically due to lack of maintenance, or improperly performed maintenance,
would not be covered under the Distributor’s Limited Warranty (U.S.) / Distributor’s Warranty (CA.).
(2) These items should be serviced by an authorized marine dealer, unless you have the proper tools and are mechanically proficient. Refer to the
Honda shop manual for service procedures. See “Honda Publications” on page 71 for ordering information.
(3) For professional commercial use, log hours of operation to determine proper maintenance intervals.
Each use
First month
or
10 hrs.
Every 6 months
or
50 hrs.
Every year
or
150 hrs.
Engine oil Check level o
Change o o
Gear case oil Change o o
Starter rope Check o
Carburetor linkage Check-adjust o (2) o (2)
Valve clearance Check-adjust o (2)
Spark plug Check-adjust o
Propeller and Cotter pin Check o
Anode Check o
Idling speed Check-adjust o (2) o (2)
Clutch shoes and drum Check o (2)
REGULAR SERVICE PERIOD (3)
Perform at every indicated month or
operating hour interval, whichever
comes first.
ITEM
31ZVA6120.book Page 40 Monday, October 16, 2023 10:33 AM
41
SERVICING YOUR OUTBOARD MOTOR
(1) Lubricate more frequently when used in salt water.
(2) These items should be serviced by an authorized marine dealer, unless you have the proper tools and are mechanically proficient. Refer to the
Honda shop manual for service procedures. See “Honda Publications” on page 71 for ordering information.
(3) For professional commercial use, log hours of operation to determine proper maintenance intervals.
(4) Check the fuel line for leaks, cracks or damage. If it is leaking, cracked or damaged, take it to your servicing dealer for replacement before
using your outboard.
(5) Check the fuel line for leaks, cracks or damage. Replace the fuel line if there are signs of leaks, cracks or damage.
Each use
First month
or
10 hrs.
Every 6 months
or
50 hrs.
Every year
or
150 hrs.
Swivel case lining and
bush
Replace Every 3 years (2)
Water seal Replace Every 3 years (2)
Fuel line Check o (4)
Replace Every 2 years (If necessary) (2)(5)
Bolts and nuts Check-tightness o (2) o (2)
Lubrication Grease o (1) o (1)
Fuel tank and tank filter Clean o (2)
Crankcase breather tube Check o (2)
Emergency stop switch Check o
REGULAR SERVICE PERIOD (3)
Perform at every indicated month or
operating hour interval, whichever
comes first.
ITEM
31ZVA6120.book Page 41 Monday, October 16, 2023 10:33 AM
42
SERVICING YOUR OUTBOARD MOTOR

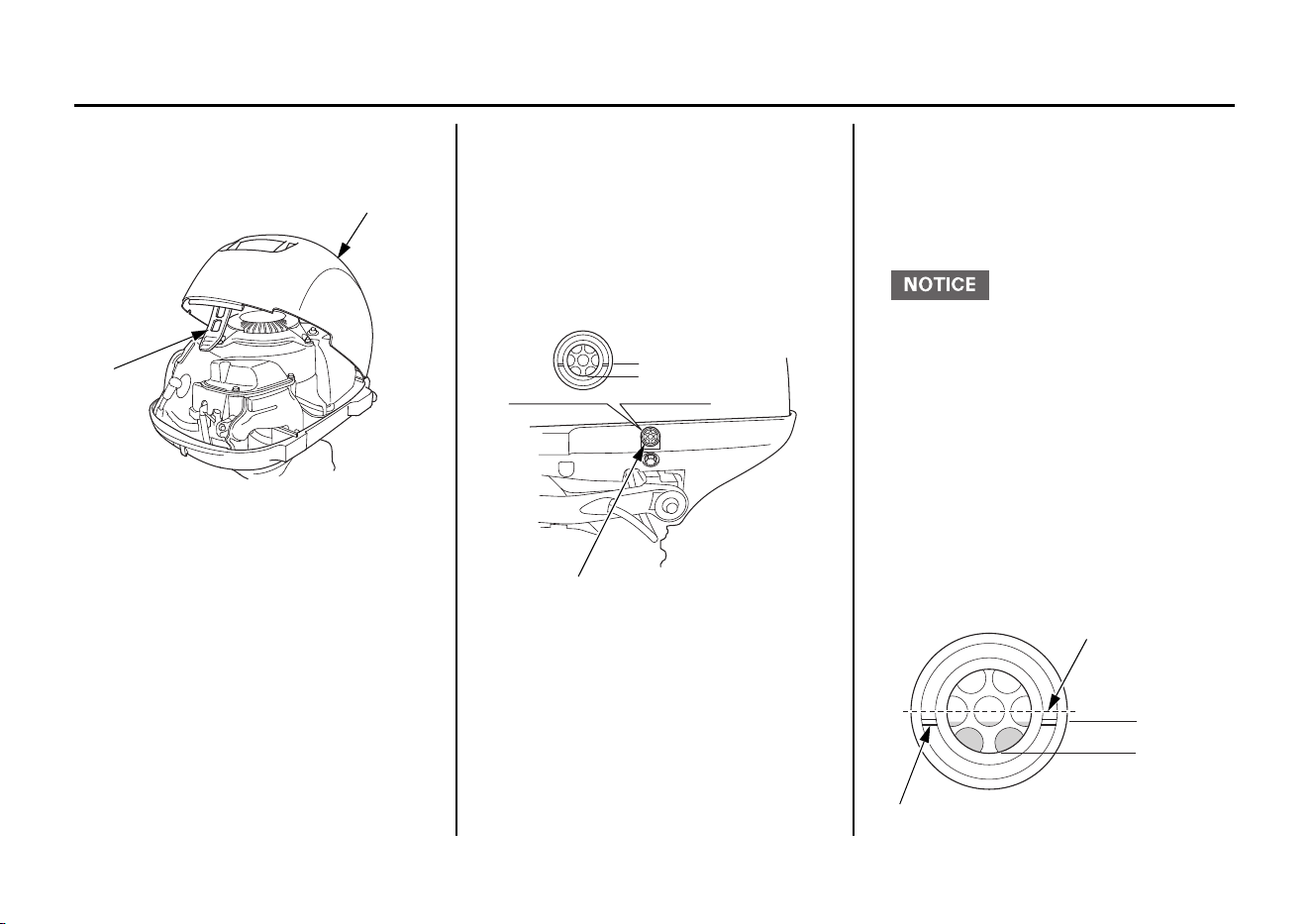

ENGINE COVER REMOVAL
AND INSTALLATION
The engine cover retaining strap
fastens the engine cover to the
outboard motor.
To remove the engine cover, unhook
the engine cover retaining strap, then
lift the engine cover off the outboard
motor.
To install the engine cover, place the
cover on the outboard motor, then
hook the engine cover retaining strap
securely.
Engine Oil Level Check
Check the engine oil level with the
engine stopped and the outboard
motor in the vertical position.
1. Check the oil level shown on the
oil level inspection window.
2. If the oil level is near or below the
lower limit mark on the window,
fill with the recommended oil to
the upper limit mark on the
window.
• Running the engine with a low
oil level can cause engine
damage.
• Do not overfill. Overfilling the
engine will cause it to smoke or
have oil leaks.
The upper limit mark is below
the half-way point in the window.
If the oil level reaches the middle
of the window, the engine is
overfilled with oil.
ENGINE COVER
STRAP
OIL LEVEL INSPECTION WINDOW
UPPER
LIMIT
LOWER
LIMIT
HALF-WAY POINT
UPPER LIMIT
LOWER LIMIT
UPPER LIMIT MARKING
31ZVA6120.book Page 42 Monday, October 16, 2023 10:33 AM
43
SERVICING YOUR OUTBOARD MOTOR
When you check the oil level in the oil level inspection window, you might
notice the engine oil appears milky or the oil level has increased. If you notice
either condition, change the engine oil. See the following table for an
explanation of these conditions.
Operating Method Result Effect
Running the engine below
3,000 rpm for more than
30% of the time so the
engine does not warm up.
• Water condenses in the
engine and mixes with the
oil, resulting in a milky
appearance.
The engine oil deteriorates,
becomes less efficient as a
lubricant, and causes an
engine malfunction.
Frequent starting and stop-
ping without allowing the
engine to warm up.
• Unburned fuel mixes with
the oil, increasing the vol-
ume of oil.
31ZVA6120.book Page 43 Monday, October 16, 2023 10:33 AM
44
SERVICING YOUR OUTBOARD MOTOR

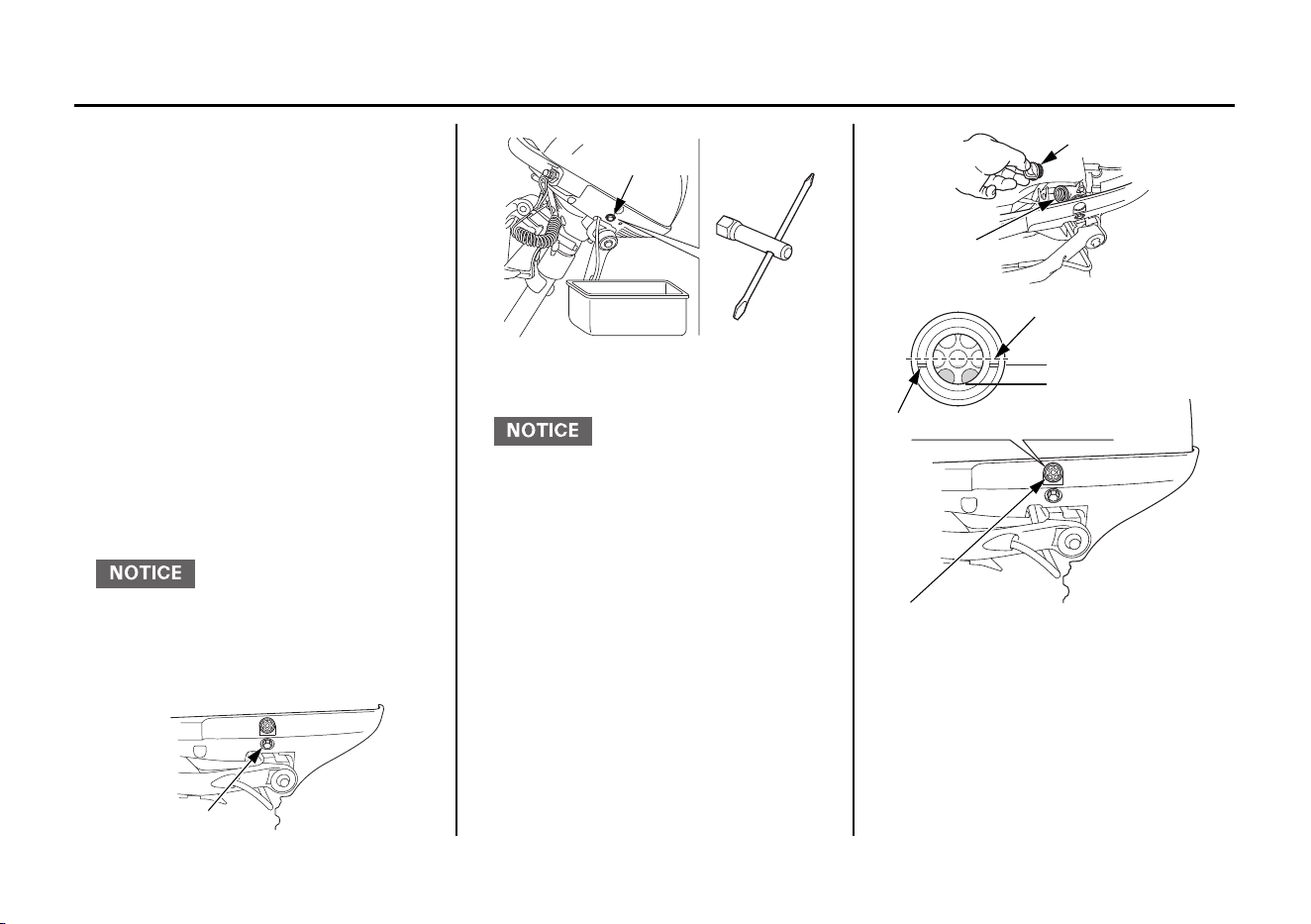

Engine Oil Change
An engine oil evacuation device may
be used to remove the engine oil, if
you do not wish to remove the
outboard from the boat.
Drain the used oil while the engine is
warm. Warm oil drains quickly and
completely.
1. Move the fuel valve lever to the OFF
position, and turn the vent knob to the
OFF position to close the fuel vent.
2. Remove the outboard from the boat.
3. Loosen the oil drain bolt, and turn
the outboard motor on its tiller
handle side.
If you remove the oil drain bolt
before turning the outboard motor
on its steering handle side, oil may
spill over the outboard motor.
4. Remove the oil drain bolt and
O-ring to drain the oil.
Improper disposal of engine oil can be
harmful to the environment. If you change
your own oil, please dispose of the used
oil properly. Put it in a sealed container,
and take it to a recycling center. Do not
discard it in a trash bin, dump it on the
ground, or pour it down a drain.
5. Install the oil drain bolt and a new
O-ring.
6. Stand the engine in upright position
and tighten the oil drain bolt securely.
OIL DRAIN BOLT TORQUE:
4.7 lbf·ft (6.5 N·m, 0.65 kgf·m)
7. Remove the engine cover.
OIL DRAIN BOLT
OIL DRAIN
BOLT
OIL FILLER CAP
OIL FILLER HOLE
LOWER LIMIT
UPPER LIMIT
OIL LEVEL INSPECTION WINDOW
UPPER LIMIT MARKING
HALF-WAY POINT
31ZVA6120.book Page 44 Monday, October 16, 2023 10:33 AM
45
SERVICING YOUR OUTBOARD MOTOR
8. Remove the oil filler cap and fill the
crankcase with the recommended
oil up to the upper limit mark on the
oil level inspection window (p.42).
Engine oil refill capacity:
0.26 US qt (0.25 L)
Do not overfill! Overfilling the
engine will cause it to smoke or
have oil leaks.
The upper limit mark is below the
half-way point in the window. If
the oil level reaches the middle of
the window, the engine is overfilled
with oil.
9. Recheck the oil level after shaking
the outboard motor several times.
10.Reinstall the oil filler cap securely.
11. Reinstall the engine cover.
12. Reinstall the outboard on the boat.
Engine Oil Recommendations
Oil is a major factor affecting
performance and service life.
Honda 10W-30 FC-W
®
outboard motor
oil is recommended for general use.
FC-W
®
is a registered trademark of
the National Marine Manufacturers
Association.
If Honda 10W-30 FC-W oil is not
available, Honda recommends that
you use API service category SG, SH
or SJ oil. The SAE oil viscosity and
service category are written in the
API label on the oil container.
AMBIENT TEMPERATURE
31ZVA6120.book Page 45 Monday, October 16, 2023 10:33 AM
46
SERVICING YOUR OUTBOARD MOTOR

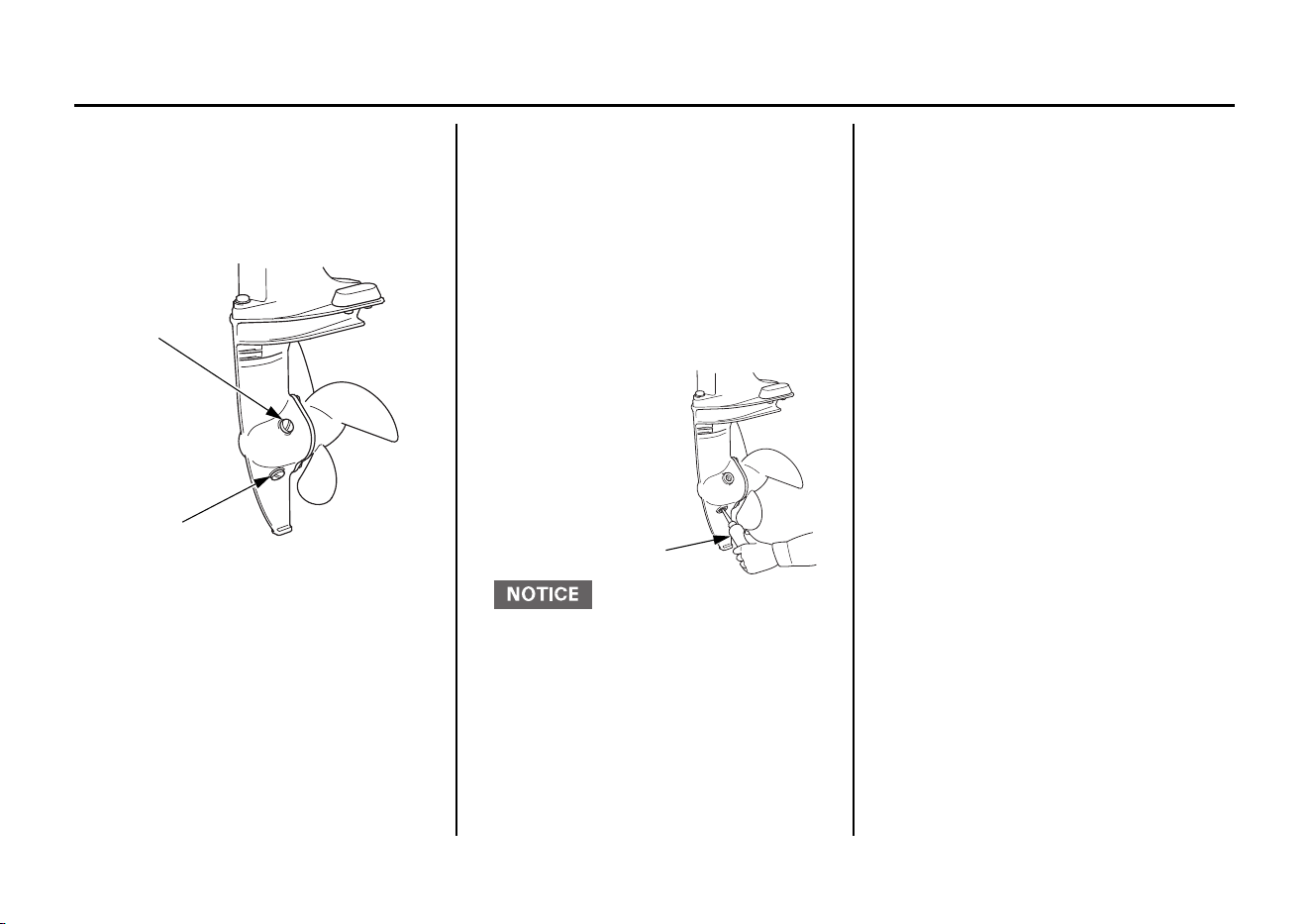

Gear Case Oil Change
Change the gear case oil with the
engine stopped and the outboard
motor in the vertical position.
1. Place a suitable container below the
oil drain hole to catch the used oil,
then remove the oil level bolt, oil
drain/fill bolt and washers.
2. Allow the used oil to drain
completely, then install an oil pump
adapter in the oil drain hole.
If water or contaminated
(milky-colored) oil flows out the
drain hole when the bolt is
removed, have the outboard motor
checked by an authorized Marine
dealer.
Improper disposal of gear case oil
can be harmful to the environment.
If you change your own oil, please
dispose of the used oil properly. Put
it in a sealed container, and take it
to a recycling center. Do not
discard it in a trash bin, dump it on
the ground, or pour it down the
drain.
3. Add oil through the oil drain hole
until it flows out the oil level hole,
and then install the oil level bolt
and a new washer. Remove the
pump adapter and install the oil
drain/fill bolt and a new washer.
GEAR OIL CAPACITY:
0.05 US qt (0.05 L)
Outboard motor SAE 90 hypoid
gear oil API Service category
(GL-4)
OIL LEVEL BOLT TORQUE:
2.5 lbf·ft (3.5 N·m, 0.35 kgf·m)
Avoid losing more than 1 fl oz
(30 cm
3
) while reinstalling the
drain/fill bolt.
OIL DRAIN /FILL BOLT
TORQUE:
2.5 lbf·ft (3.5 N·m, 0.35 kgf·m)
GEAR OIL
LEVEL BOLT
GEAR OIL DRAIN/
FILL BOLT
GEAR OIL BOTTLE
31ZVA6120.book Page 46 Monday, October 16, 2023 10:33 AM
47
SERVICING YOUR OUTBOARD MOTOR
Apply Honda Marine Corrosion Inhibitor (or equivalent) to all areas under the engine cover and any exposed metal
surfaces.

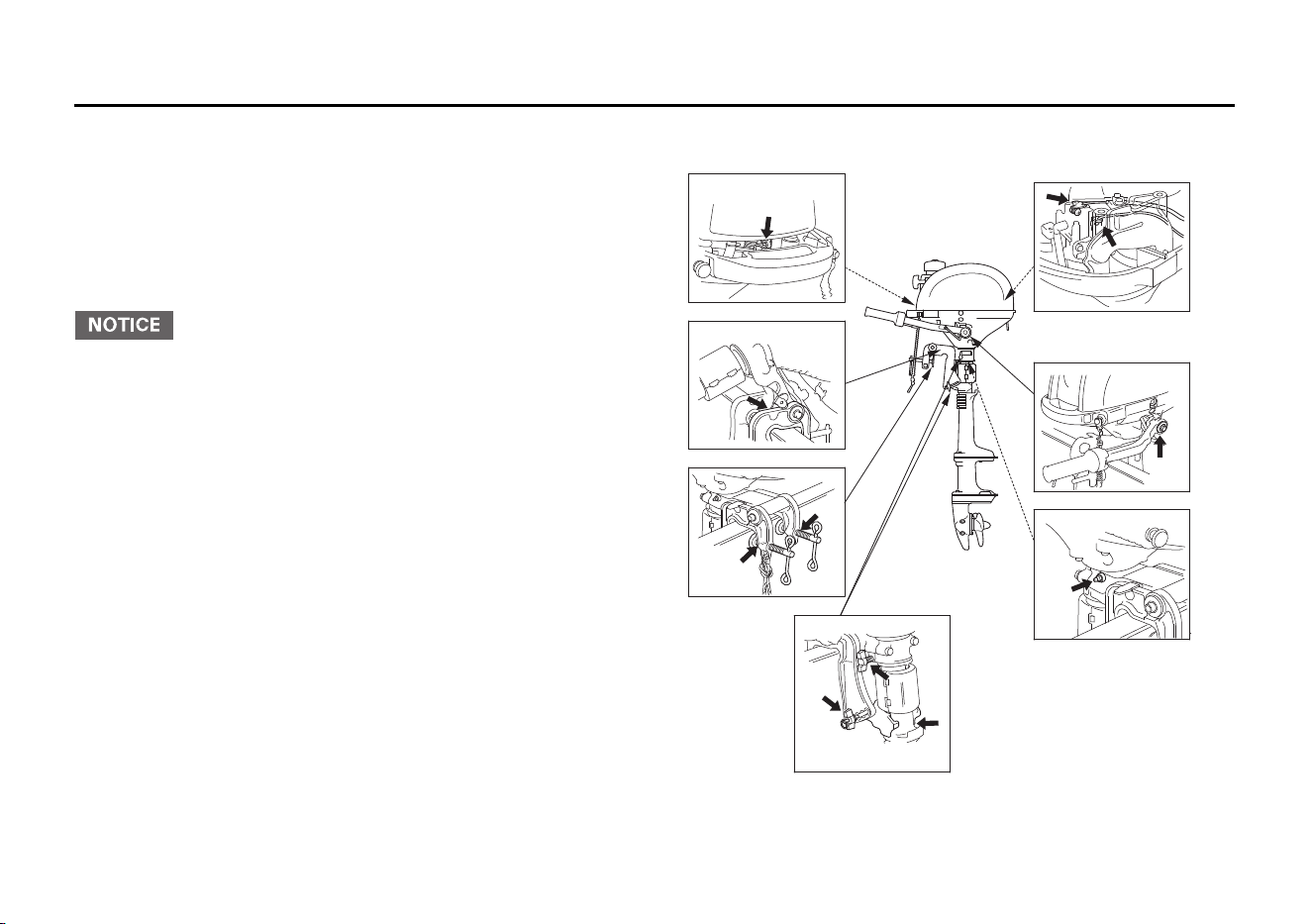

Lubrication Points
Apply Honda Marine waterproof grease to the parts shown
below:
Lubrication interval:
10 operating hours or one month after the date of purchase
or initial use, then every 50 operating hours or 6 months.
To prevent corrosion, apply anticorrosion oil to pivot
surfaces where grease cannot penetrate.
●THROTTLE ARM
●TILT LEVER
●CLAMP SCREW
●THROTTLE ARM
●CHOKE ARM
●STEERING HANDLE
●SWIVEL CASE
●STEERING FRICTION BOLT
●TRANSOM ANGLE
ADJUSTING BOLT
●THRUST RECEIVER
31ZVA6120.book Page 47 Monday, October 16, 2023 10:33 AM
48
SERVICING YOUR OUTBOARD MOTOR

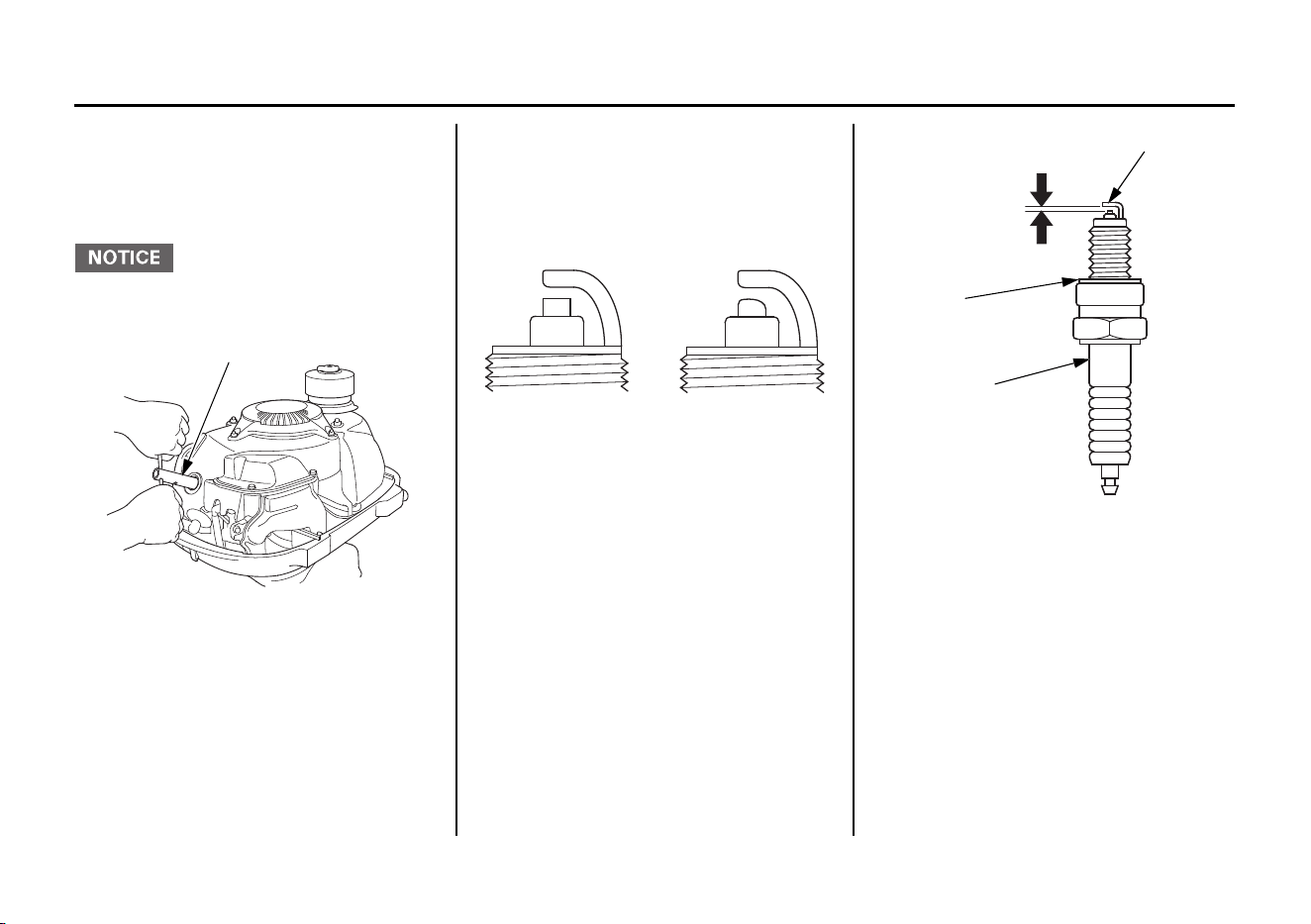

Spark Plug Service
RECOMMENDED SPARK PLUG:
LR4C-E (NGK)
Incorrect spark plug can cause
engine damage.
1. Remove the engine cover (p. 42).
2. Disconnect the spark plug cap from
the spark plug.
3. Make sure the engine is cool.
Remove the spark plug with the
spark plug wrench and screwdriver
provided in the tool.
4. Inspect the spark plug. Replace it if
the electrode is worn, or if the
insulator is cracked or chipped.
5. Measure the spark plug electrode
gap with a wire-type feeler gauge.
Correct the gap, if necessary, by
carefully bending the side
electrode.
The gap should be:
0.024 – 0.028 in
(0.6 – 0.7 mm)
SPARK PLUG WRENCH
New plug Plug needing
replacement
SIDE ELECTRODE
0.024 – 0.028 in
(0.6 – 0.7 mm)
SEALING
WA SH ER
INSULATOR
31ZVA6120.book Page 48 Monday, October 16, 2023 10:33 AM
49
SERVICING YOUR OUTBOARD MOTOR
6. Install the spark plug carefully, by
hand, to avoid cross-threading.
7. After the spark plug seats, tighten
with a spark plug wrench to
compress the sealing washer.
If reinstalling the used spark plug,
tighten 1/8 – 1/4 turn after the spark
plug seats.
If installing a new spark plug,
tighten 1/2 turn after the spark plug
seats.
SPARK PLUG TORQUE:
9 lbf·ft (12 N·m, 1.2 kgf·m)
A loose spark plug can overheat
and damage the engine.
Overtightening the spark plug can
damage the threads in the cylinder
head.
8. Attach the spark plug cap.
9. Install the engine cover.
31ZVA6120.book Page 49 Monday, October 16, 2023 10:33 AM
50
SERVICING YOUR OUTBOARD MOTOR

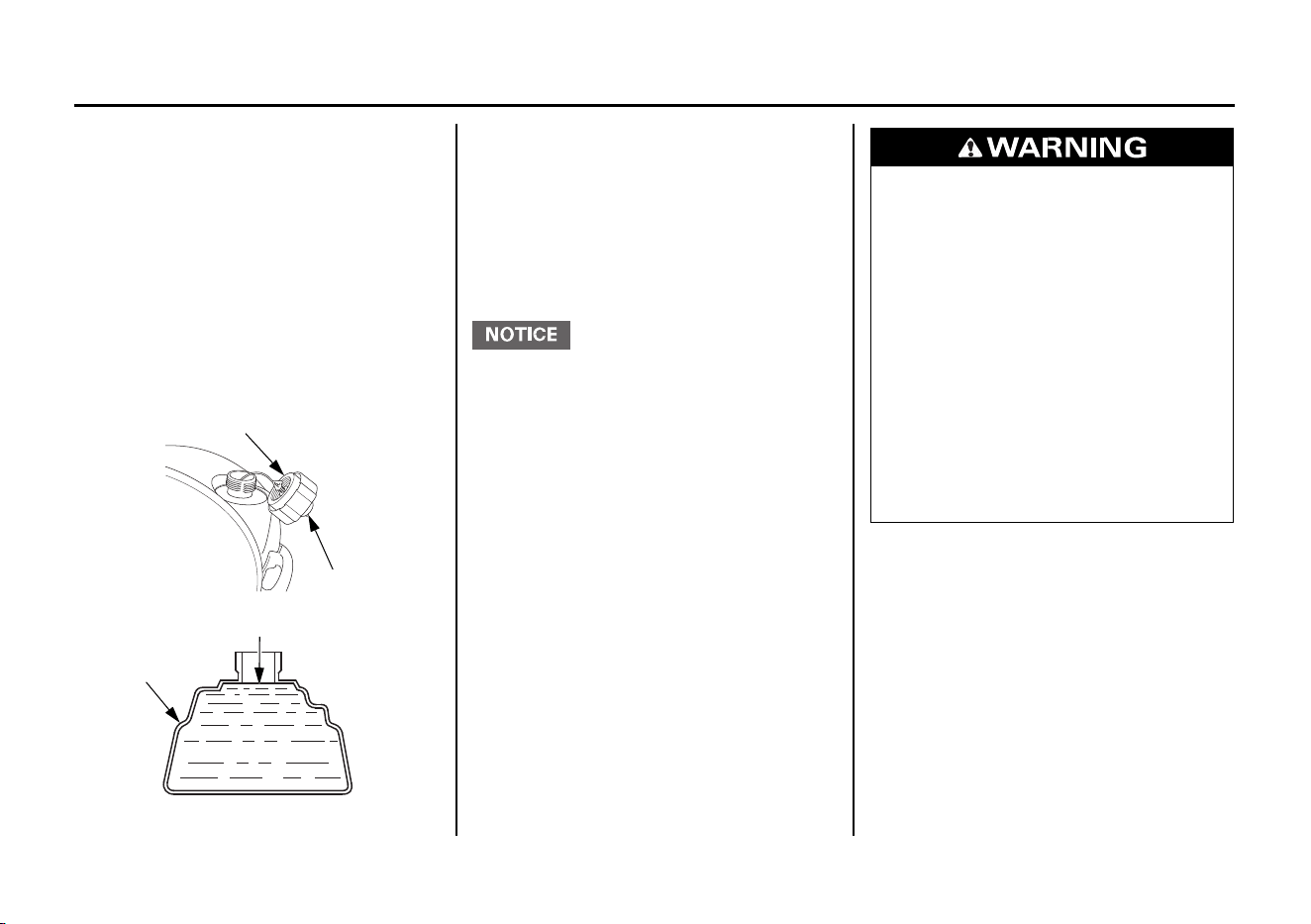

REFUELING
FUEL TANK CAPACITY:
0.29 US gal (1.1 L)
With the engine stopped, turn the
vent knob to the ON position, and
then remove the fuel filler cap.
Refill the fuel tank if the fuel level is
low.
Refuel in a well-ventilated area. Fill
the tank to the maximum fuel level.
After refueling, install the cap and
tighten it securely. Turn the vent knob
to the OFF position to close the fuel
tank vent.
Fuel can damage paint and plastic.
Be careful not to spill fuel when
filling your fuel tank. Damage caused
by spilled fuel is not covered under
the Distributor’s Limited Warranty
(U.S.) / Distributor’s Warranty (CA.).
Never refill the fuel tank inside a
building where gasoline fumes may
reach flames or sparks. Keep gasoline
away from appliance pilot lights,
barbecues, electric appliances, power
tools, etc.
Spilled fuel is not only a fire hazard,
it causes environmental damage.
Wipe up spills immediately.
FUEL FILLER CAP
VENT KNOB
MAXIMUM FUEL LEVEL
FUEL TANK
FUEL
Gasoline is highly flammable and
explosive.
You can be burned or seriously
injured when handling fuel.
• Stop the engine and let it cool
before handling fuel.
• Keep heat, sparks, and flame
away.
• Handle fuel only outdoors.
• Keep away from your vehicle.
• Wipe up spills immediately.
31ZVA6120.book Page 50 Monday, October 16, 2023 10:33 AM
51
SERVICING YOUR OUTBOARD MOTOR
FUEL RECOMMENDATIONS
Use unleaded gasoline with a pump
octane rating of 86 or higher.
Your outboard motor is certified to
operate on unleaded gasoline with an
octane rating of 86 or higher.
Never use gasoline that is stale,
contaminated, or mixed with oil.
Avoid getting dirt or water in the fuel
tank.
You may use unleaded gasoline
containing no more than 10% ethanol
(E10) or 5% methanol by volume. In
addition, methanol must contain
cosolvents and corrosion inhibitors.
Use of fuels with content of ethanol
or methanol greater than shown
above may cause starting and/or
performance problems. It may also
damage metal, rubber, and plastic
parts of the fuel system.
Engine damage or performance
problems that result from using a fuel
with percentages of ethanol or
methanol greater than shown above
are not covered under warranty.
If your outboard motor will be used
on an infrequent or intermittent basis,
please refer to the fuel section of the
STORAGE chapter (p. 54) for
additional information regarding fuel
deterioration.
31ZVA6120.book Page 51 Monday, October 16, 2023 10:33 AM
52
SERVICING YOUR OUTBOARD MOTOR

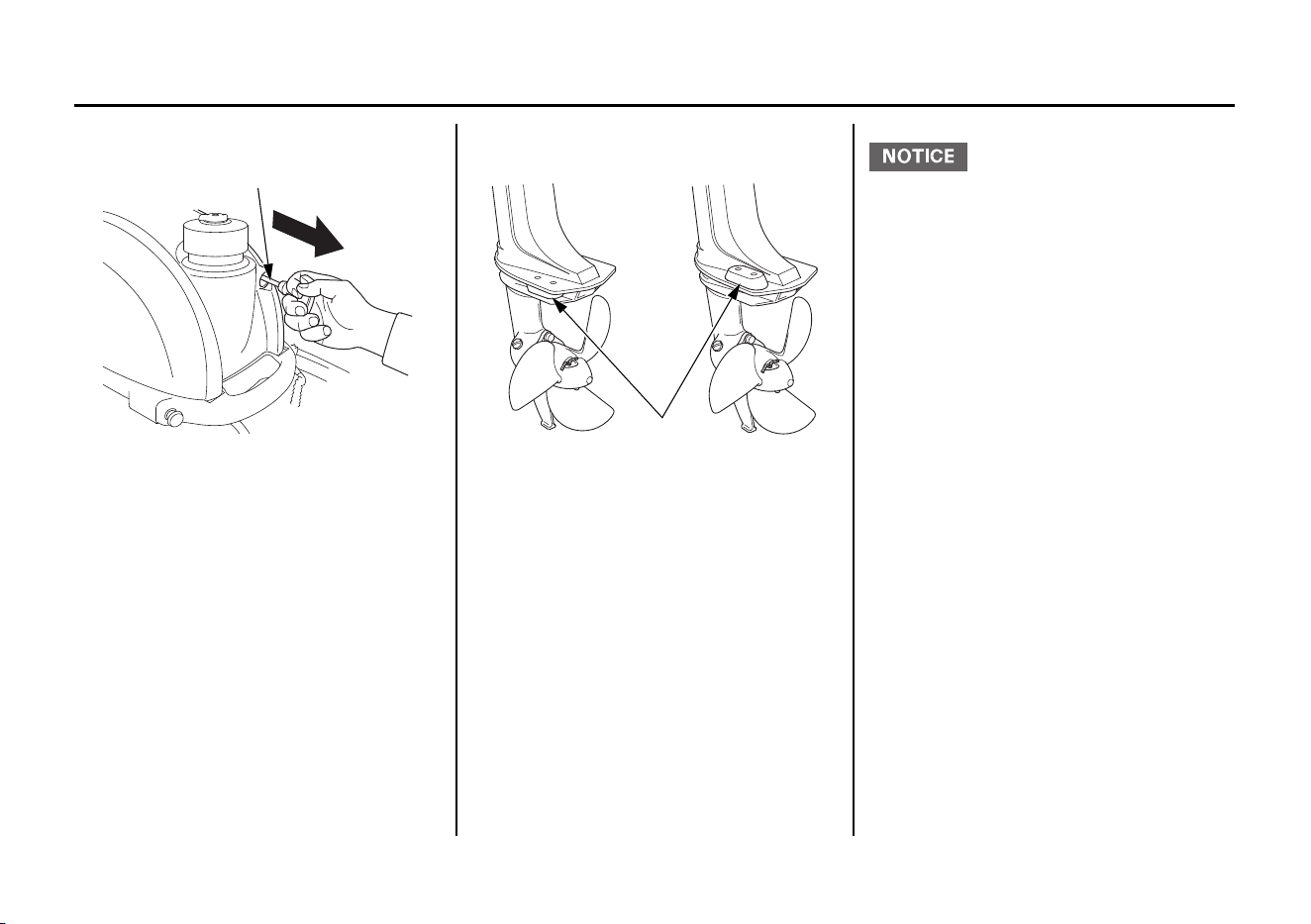

Recoil Starter Rope Inspection
Inspect the recoil starter rope, and
replace it if it becomes frayed.
Always keep the emergency starter
rope on the boat in case the recoil
starter rope fails.
Anode Replacement
The anode is made of a sacrificial
material that helps to protect the
outboard motor from corrosion.
Replace the anode when it has been
reduced to about two-thirds of the
original size, or if it is crumbling.
Painting or coating the anode will
defeat its purpose and will lead to
rust and corrosion damage to the
outboard motor. The anode must be
exposed to the water in order to
protect the outboard motor.
RECOIL STARTER ROPE
ANODE
Short shaft type
Long shaft type
31ZVA6120.book Page 52 Monday, October 16, 2023 10:33 AM
53
SERVICING YOUR OUTBOARD MOTOR

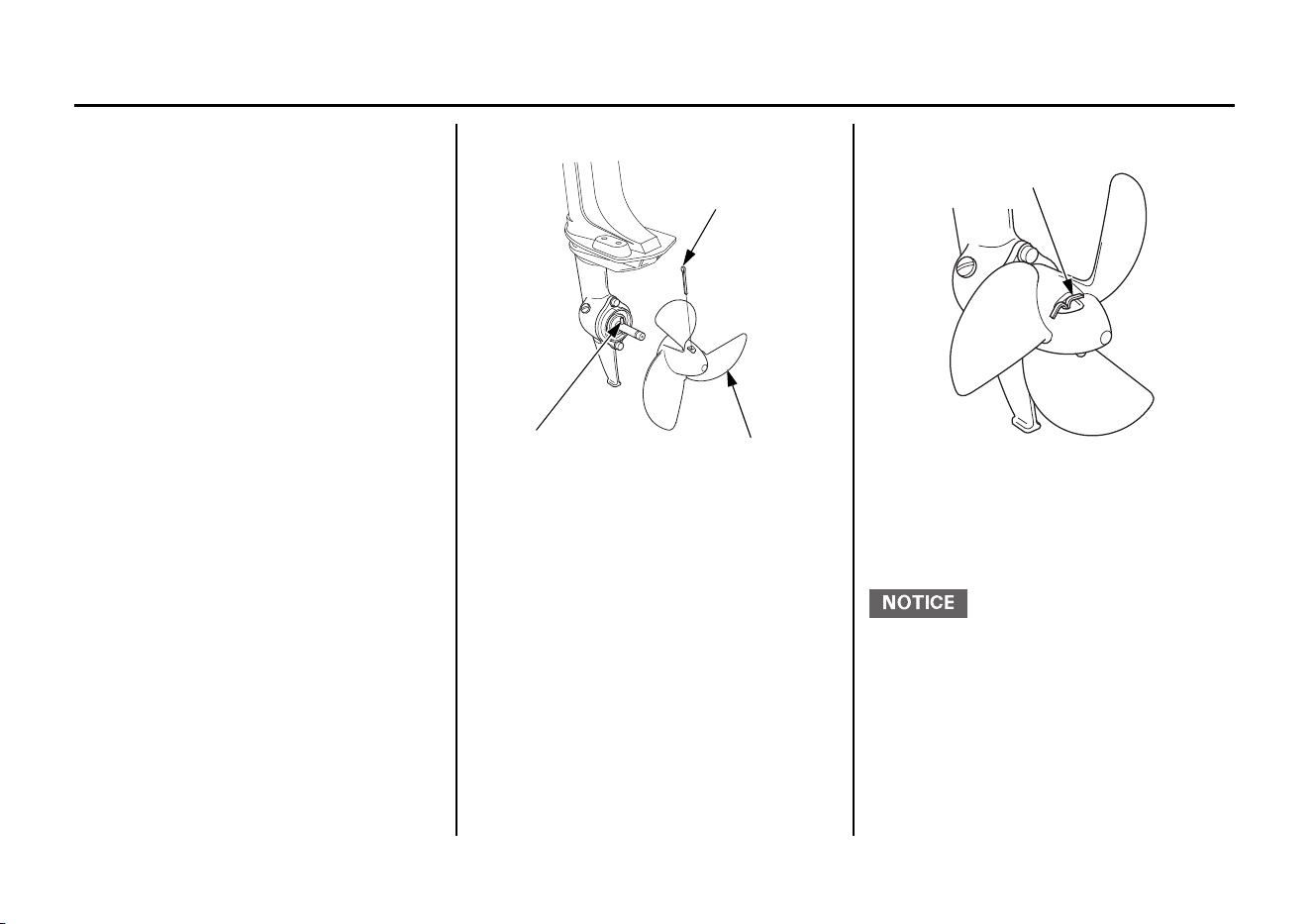

Propeller Replacement
Before replacing the propeller,
remove the emergency stop switch
clip from the emergency stop switch
to prevent any possibility of the
engine being started while you are
working with the propeller.
The propeller blades may have sharp
edges, so wear heavy gloves to
protect your hands.
Operating the outboard motor at
higher altitudes will reduce available
power. This may require decreasing
the propeller pitch to maintain correct
engine RPM.
Removal
Remove the cotter pin, then remove
the propeller and shear pin.
Installation
Install the propeller in the reverse
order of removal.
Be sure to replace the cotter pin with
a new one.
Use a Honda Genuine stainless steel
cotter pin and bend the pin ends as
shown. A non-stainless steel cotter pin
can deteriorate if used in saltwater.
Spare shear pin and cotter pin are
provided on the engine undercase
(p. 39).
PROPELLER
SHEAR PIN
COTTER PIN
COTTER PIN
31ZVA6120.book Page 53 Monday, October 16, 2023 10:33 AM
54
STORAGE
STORAGE PREPARATION
Proper storage preparation is essential
for keeping your outboard motor
trouble-free and looking good.
The following steps will help to keep
rust and corrosion from impairing
your outboard motor’s function and
appearance, and will make the engine
easier to start when you use the
outboard motor again.
Cleaning
After each use in salt water or dirty
water, thoroughly clean and rinse the
outboard motor with fresh water.
Touch up any damaged paint, and
coat areas that may rust with Honda
Corrosion Inhibitor, or equivalent.
Lubricate controls with a silicone
spray lubricant.
Wash the outside of the outboard
motor with clean, fresh water to
remove mud, salt, seaweed, etc.
Cleaning of the outside of the
outboard motor should be performed
with the engine cover installed.
Be careful not to spray water into the
air intake. If water penetrates inside
the engine cover from the air intake,
it may cause malfunction.
Fuel
Depending on the region where you
operate your outboard, fuel
formulations may deteriorate and
oxidize rapidly. Fuel deterioration
and oxidation can occur in as little as
15 days and may cause damage to the
carburetor and fuel system.
Please check with your servicing
dealer for local storage
recommendations.
Gasoline will oxidize and deteriorate
in storage. Deteriorated gasoline will
cause hard starting, and it leaves gum
deposits that clog the fuel system. If
the gasoline in your fuel tank and
carburetor deteriorates during storage,
you may need to have the carburetor
and other fuel system components
serviced or replaced.
The length of time that gasoline can
be left in your fuel tank and
carburetor without causing functional
AIR INTAKE
31ZVA6120.book Page 54 Monday, October 16, 2023 10:33 AM
55
STORAGE
problems will vary with such factors
as gasoline blend, your storage
temperatures, and whether the fuel
tank is partially or completely filled.
The air in a partially filled fuel tank
promotes fuel deterioration. Very
warm storage temperatures accelerate
fuel deterioration. Fuel deterioration
problems may occur in less than 15
days, if the gasoline was not fresh
when you filled the fuel tank.
The Distributor’s Limited Warranty
(U.S.) / Distributor’s Warranty (CA.)
(p. 74) does not cover fuel system
damage or engine performance
problems resulting from neglected
storage preparation. See page 51 for
additional information on fuel
recommendations.
You can extend fuel storage life by
adding a gasoline stabilizer that is
formulated for that purpose, or you
can avoid fuel deterioration problems
by draining all the fuel from the fuel
tank and carburetor.
Adding a Fuel Stabilizer
When adding a fuel stabilizer, fill the
fuel tank with fresh gasoline. If only
partially filled, air in the tank will
promote fuel deterioration during
storage. If you keep a container of
gasoline for refueling, be sure that it
contains only fresh gasoline. Contact
your authorized Honda Marine dealer
for stabilizer recommendations.
1. Add Honda Marine fuel stabilizer
or equivalent following the
instructions on the label.
2. After adding a fuel stabilizer, run
the engine outdoors for 10 minutes
to be sure that the treated gasoline
has replaced the untreated gasoline
in the carburetor.
Starting the engine on land:
For safety, remove the propeller from
the outboard motor (p. 53).
• Place a container under the
outboard motor, and fill it with
clean, fresh water. The water level
must be at least 6 inches (15 cm)
above the antiventilation plate.
Running the engine without water can
cause overheating and damage.
Damage caused by running the
outboard motor without water is not
covered by the Distributor’s Limited
Warranty (U.S.) / Distributor’s
Warranty (CA.).
3. Turn the engine OFF, turn the fuel
valve lever to the OFF position
(p. 31), and close the vent knob
(p. 31).
ANTIVENTILATION PLATE
31ZVA6120.book Page 55 Monday, October 16, 2023 10:33 AM
56
STORAGE

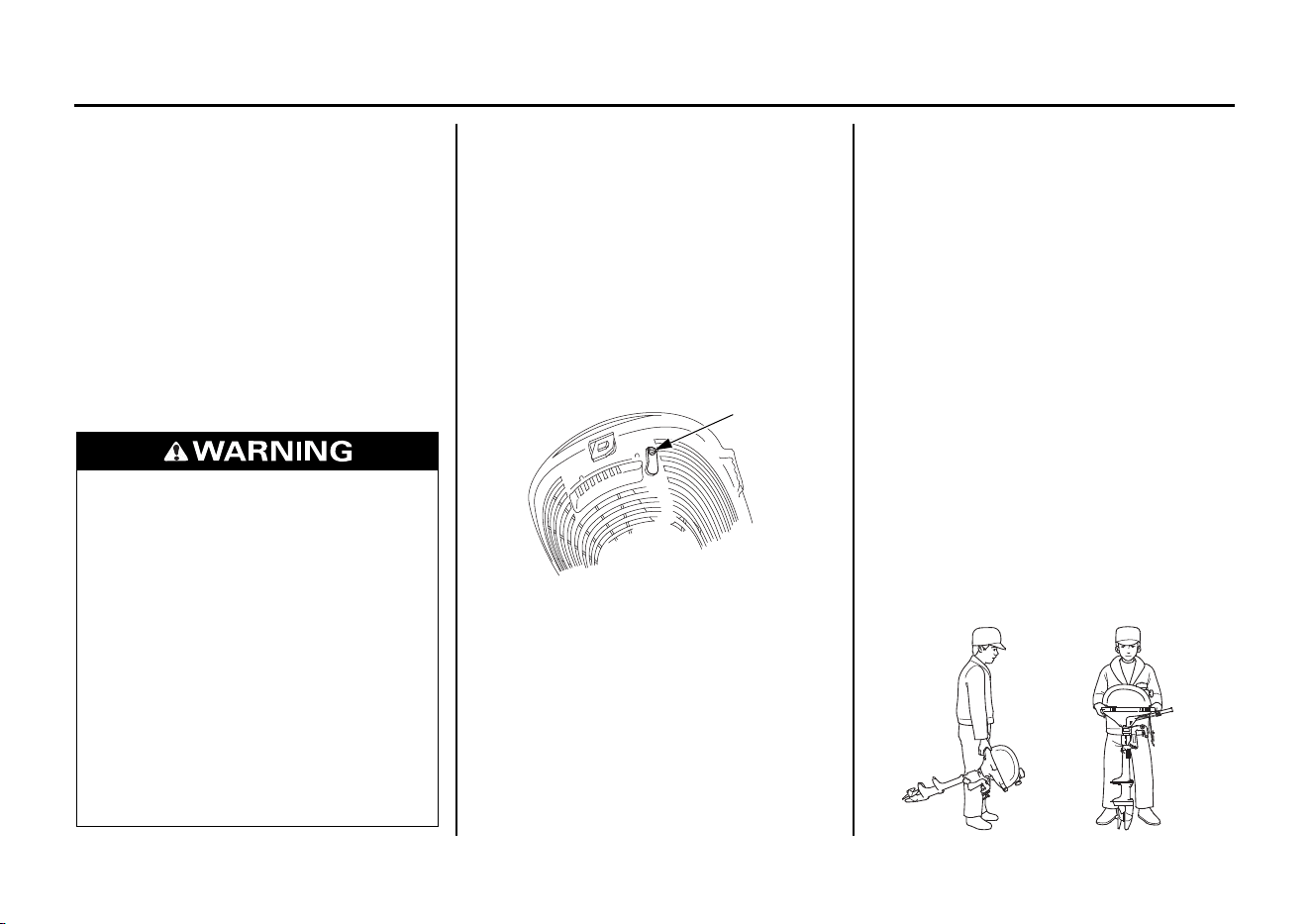

Draining the Fuel Tank and
Carburetor
You can avoid fuel deterioration
problems by draining the fuel tank
and carburetor.
1. With the outboard motor in a
vertical position, place an approved
gasoline container below the fuel
drain outlet, and use a funnel to
avoid spilling fuel.
2. With the engine stopped, turn the
fuel filler cap vent knob to the ON
position to open the fuel vent, and
then remove the fuel filler cap.
3. Loosen the carburetor drain screw
and move the fuel valve lever to the
ON position to drain the carburetor
and the fuel tank into an approved
gasoline container.
4. After draining is completed, tighten
the carburetor drain screw and turn
the fuel valve lever to the OFF
position.
5. Install the fuel filler cap and turn
the vent knob to the OFF position
to close the fuel vent.
Engine Oil
1. Change the engine oil
(p. 42 – 44).
2. Remove the spark plug (p. 48), and
remove the emergency stop switch
clip from the emergency stop
switch.
3. Pour 1 – 2 teaspoons (5 – 10 cm
3
)
of clean engine oil into the
cylinder.
4. Pull the starter grip slowly several
times to distribute the oil in the
cylinder.
5. Reinstall the spark plug (p. 49).
STORAGE PRECAUTIONS
Select a well-ventilated storage area.
If possible, avoid storage areas with
high humidity.
Gasoline is highly flammable and
explosive.
You can be burned or seriously
injured when handling fuel.
• Stop the engine and let it cool
before handling fuel.
• Keep heat, sparks, and flame
away.
• Handle fuel only outdoors.
• Keep away from your vehicle.
• Wipe up spills immediately.
DRAIN SCREW
31ZVA6120.book Page 56 Monday, October 16, 2023 10:33 AM
57
STORAGE

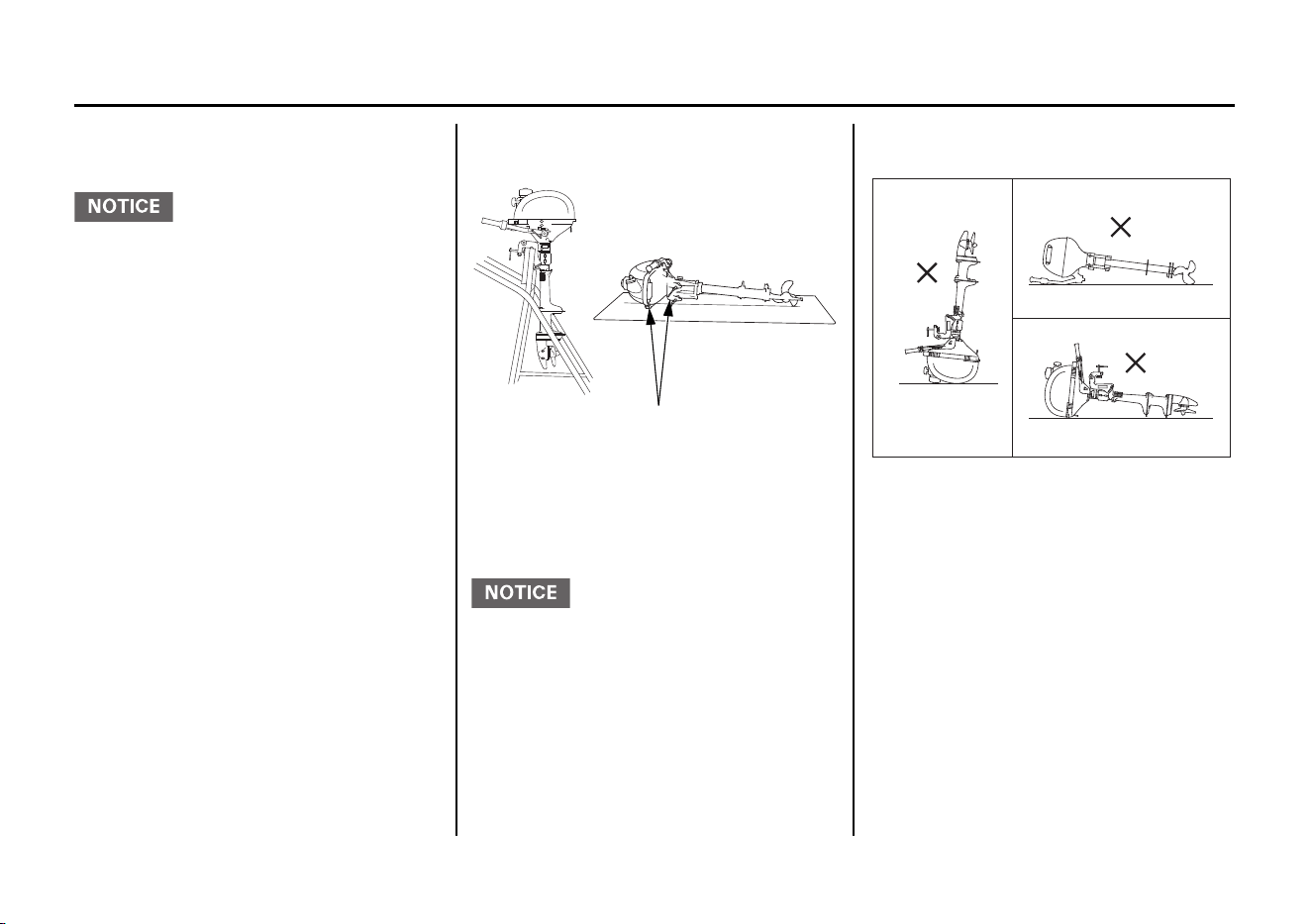

To carry the outboard motor, hold it
by the carrying handle, as shown.
Lifting the outboard motor by the
engine cover, or using the installed
outboard motor as a handle or lever
to move the boat, can damage the
outboard motor.
If your fuel tank contains gasoline,
store it away from any appliance that
operates with a flame, such as a
furnace, water heater, or clothes
dryer. Also avoid any area with a
spark-producing electric motor, or
where power tools are operated.
Store the outboard motor either
vertically or horizontally with the
tiller handle side up.
If storing horizontally, be sure to fold
the tiller handle, and rest the outboard
motor on its case protectors.
Any other horizontal storage position
may cause damage to the outboard
motor or oil leakage.
Cover the outboard motor to keep out
dust. Do not use a plastic sheet as a dust
cover. A nonporous cover will trap
moisture, promoting rust and corrosion.
REMOVAL FROM STORAGE
Check your outboard motor as
described in the BEFORE
OPERATION chapter of this manual.
If the cylinder was coated with oil during
storage preparation, the engine may
smoke briefly at startup. This is normal.
CORRECT
CASE PROTECTOR
INCORRECT
31ZVA6120.book Page 57 Monday, October 16, 2023 10:33 AM
58

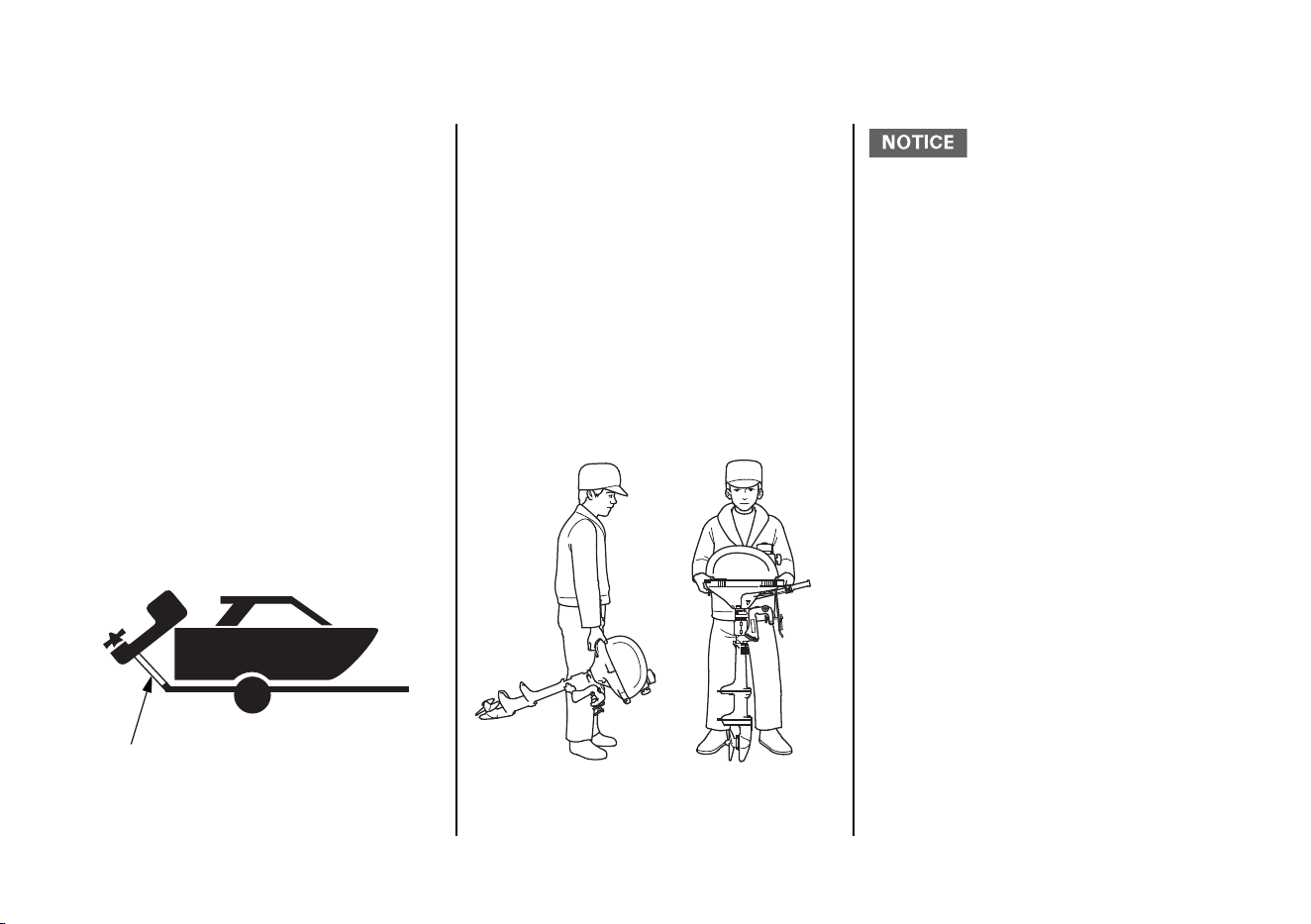

TRANSPORTING
WITH OUTBOARD MOTOR
INSTALLED ON BOAT
When trailering a boat with the
outboard motor attached, leave the
engine in the normal running
position, if possible, and tighten the
steering friction bolt securely (p. 33).
If there is insufficient road clearance
in the normal running position, then
tilt the outboard motor and use a
motor support bar, or remove the
outboard motor from the boat. Refer
to the manufacturer’s instructions for
using a motor support bar.
WITH OUTBOARD MOTOR
REMOVED FROM BOAT
Turn the fuel filler cap vent knob to
the OFF position and close the fuel
filler cap securely before transporting
the outboard motor.
Remove the outboard motor from the
boat and secure the outboard motor in
either the vertical or horizontal
position shown on p. 57.
To carry, hold the outboard motor by
the carrying handle, as shown.
Lifting the outboard motor by the
engine cover, or using the installed
outboard motor as a handle or lever
to move the boat, can damage the
outboard motor.
MOTOR SUPPORT BAR
(commercially available)
31ZVA6120.book Page 58 Monday, October 16, 2023 10:33 AM
59
TAKING CARE OF UNEXPECTED PROBLEMS
ENGINE WILL NOT START
Possible Cause Correction
Clip not inserted in emergency stop switch. Insert clip in emergency stop switch.
Choke knob in OFF position. Pull choke knob to the ON position, unless engine is
warm (p. 27).
Throttle grip not in START position. Turn throttle grip to the START position (p. 26).
Out of fuel. Refuel (p. 50).
Fuel vent closed. Move the vent knob to the ON position (p. 25).
Fuel valve lever in the OFF position. Move the fuel valve lever to the ON position (p. 26).
Bad fuel; outboard motor stored without treating or
draining gasoline, or refueled with bad gasoline.
Drain fuel tank and carburetor (p. 56). Refill with
fresh gasoline (p. 50).
Spark plug faulty, fouled, or improperly gapped. Gap or replace spark plug (p. 48).
Spark plug wet with fuel (flooded engine). Dry and reinstall spark plug. Start engine with choke
and throttle open.
Carburetor malfunction, ignition malfunction, stuck
valves, etc.
Take outboard motor to an authorized Marine dealer, or
refer to the shop manual.
31ZVA6120.book Page 59 Monday, October 16, 2023 10:33 AM
60
TAKING CARE OF UNEXPECTED PROBLEMS
HARD STARTING OR STALLS AFTER STARTING
Possible Cause Correction
Choke knob in OFF position. Pull choke knob to the ON position, unless engine is
warm (p. 27).
Throttle grip not in START position. Turn throttle grip to the START position (p. 26).
Fuel vent closed. Move the vent knob to the ON position (p. 25).
Bad fuel; outboard motor stored without treating or
draining gasoline, or refueled with bad fuel.
Drain fuel tank and carburetor (p. 56). Refill with
fresh gasoline (p. 50).
Spark plug faulty, fouled, or improperly gapped. Gap or replace spark plug (p. 48).
Carburetor malfunction, ignition malfunction, etc. Take outboard motor to an authorized Marine dealer, or
refer to the shop manual.
31ZVA6120.book Page 60 Monday, October 16, 2023 10:33 AM
61
TAKING CARE OF UNEXPECTED PROBLEMS
ENGINE WILL NOT DRIVE THE PROPELLER
Possible Cause Correction
Broken shear pin. Replace shear pin (p. 53).
Damaged clutch, drive train, or engagement mechanism. Take outboard motor to an authorized Marine dealer, or
refer to the shop manual.
31ZVA6120.book Page 61 Monday, October 16, 2023 10:33 AM
62
TAKING CARE OF UNEXPECTED PROBLEMS
SUBMERGED OUTBOARD
MOTOR
A submerged outboard motor must be
serviced immediately after it is
recovered from the water in order to
minimize corrosion.
If there is a Honda Marine dealership
nearby, take the outboard motor to the
dealer immediately. If you are far
from a dealer, proceed as follows:
1. Remove the engine cover, and rinse
the outboard motor with fresh
water to remove salt water, sand,
mud, etc.
2. Drain the carburetor as described
on p. 56.
3. Change the engine oil as described
on p. 42 – 44. If there was water in
the engine crankcase, or if the used
engine oil showed signs of water
contamination, then a second
engine oil change should be
performed after running the engine
for half an hour.
4. Remove the spark plug (p. 48),
and remove the emergency stop
switch clip from the emergency
stop switch. Pull the starter grip,
rotate the flywheel a few
revolutions to completely expel any
water from the cylinder.
If the engine was running when it
submerged, there may be
mechanical damage, such as a bent
connecting rod. If the engine binds
when cranked, do not attempt to
run the engine until it has been
repaired.

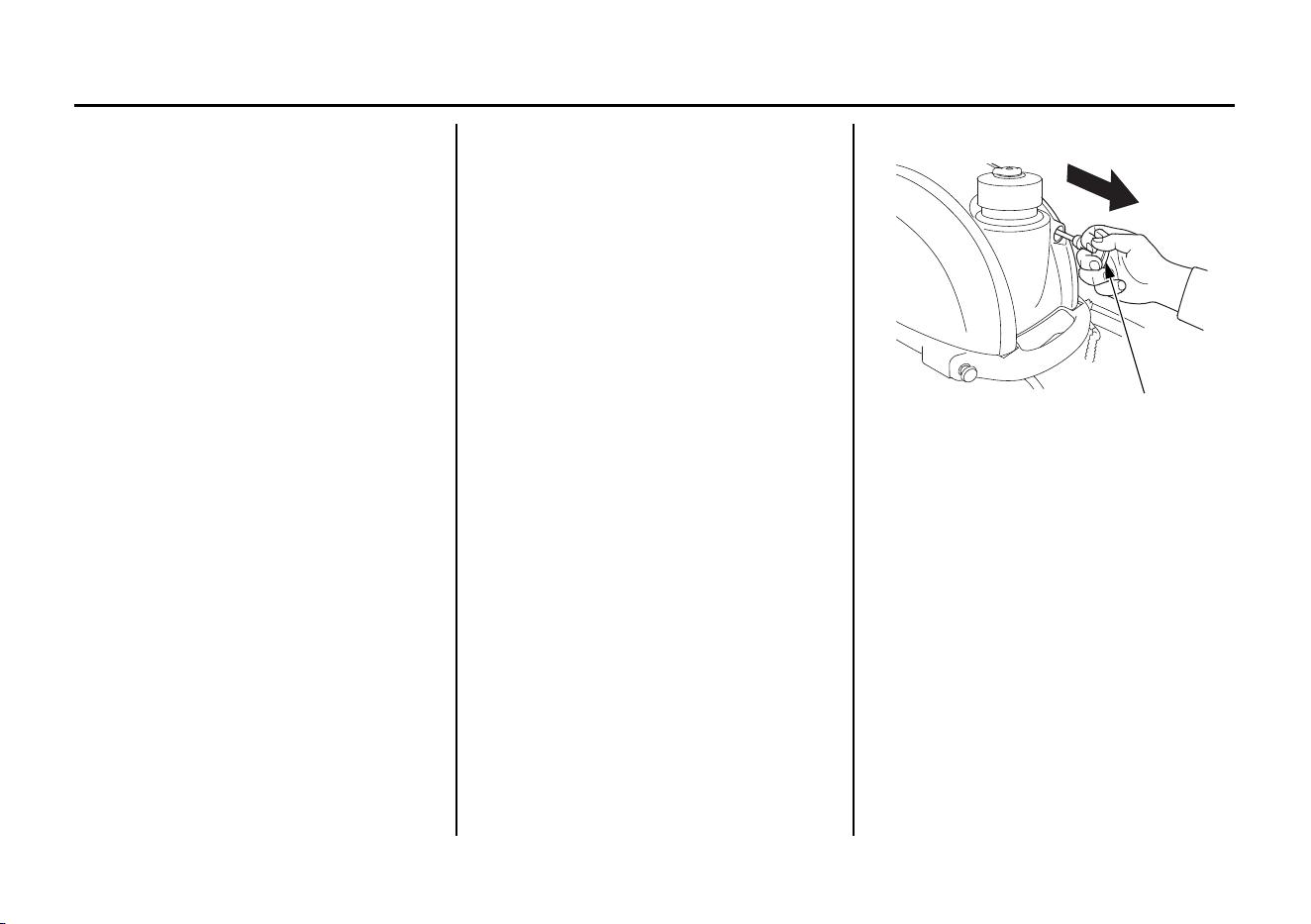

STARTER GRIP
Direction to pull
31ZVA6120.book Page 62 Monday, October 16, 2023 10:33 AM
63
TAKING CARE OF UNEXPECTED PROBLEMS

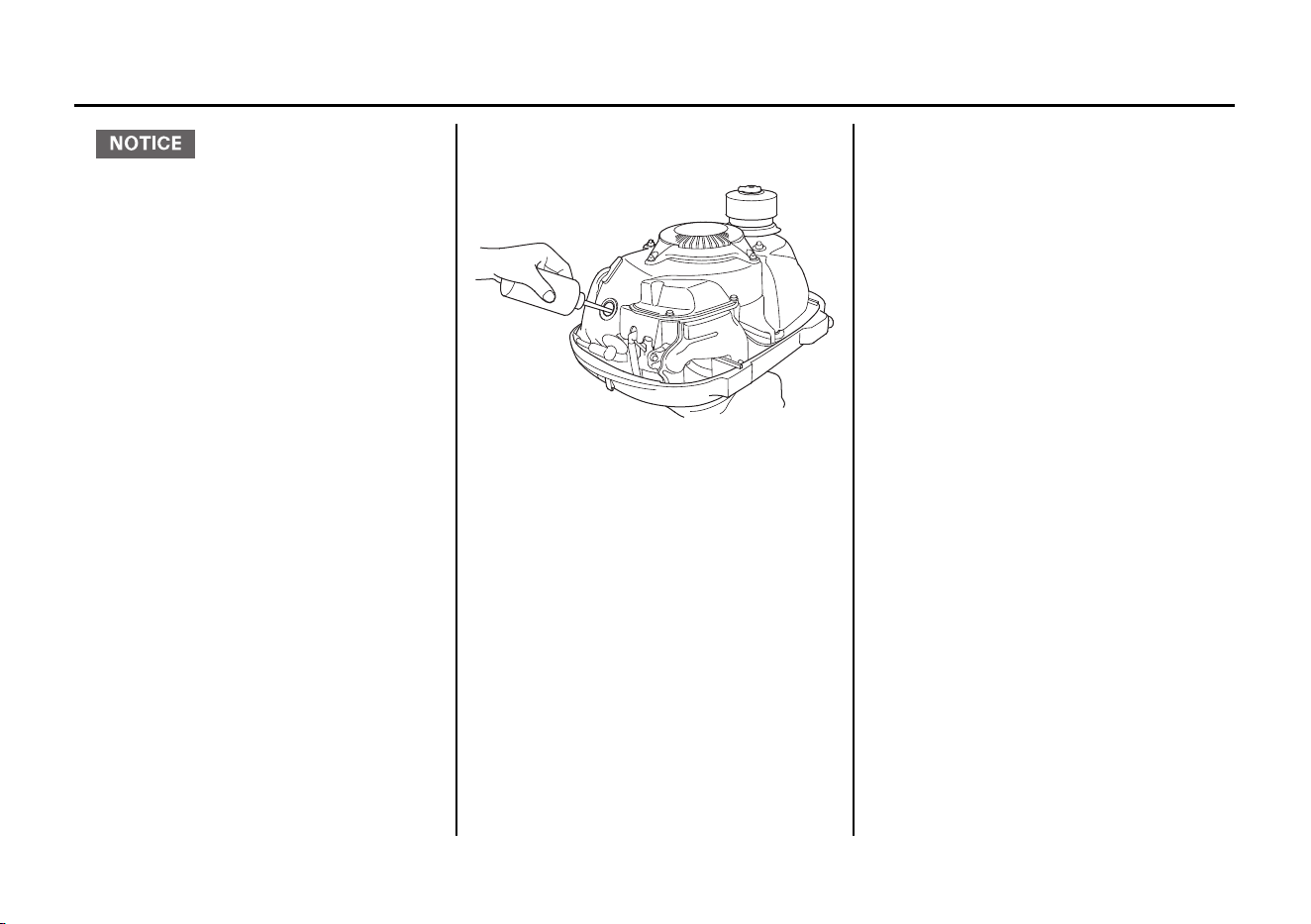

When cranking the engine with an
open ignition circuit (spark plug
removed from the ignition circuit),
remove the emergency stop switch
clip from the emergency stop switch
to prevent possible damage to the
ignition system.
5. Pour a teaspoon of engine oil into
the spark plug hole, and then pull
the starter grip several times to
lubricate the inside of the cylinder.
6. Reinstall the spark plug, and put
the emergency stop switch clip into
the emergency stop switch.
7. Attempt to start the engine.
If the engine fails to start, remove
the spark plug, and dry it, then
reinstall the spark plug and attempt
to start the engine again.
If the engine starts, and no
mechanical damage is evident,
continue to run the engine for a half
hour or longer.
8. As soon as possible, take the
outboard motor to an authorized
Marine dealer for inspection and
service.
31ZVA6120.book Page 63 Monday, October 16, 2023 10:33 AM
64
TECHNICAL INFORMATION
Serial Number Locations
Record the frame serial number, the
engine serial number, and the date of
purchase in the space provided on this
page. You will need these numbers
when ordering parts, and when
making technical or warranty
inquiries (p. 72).

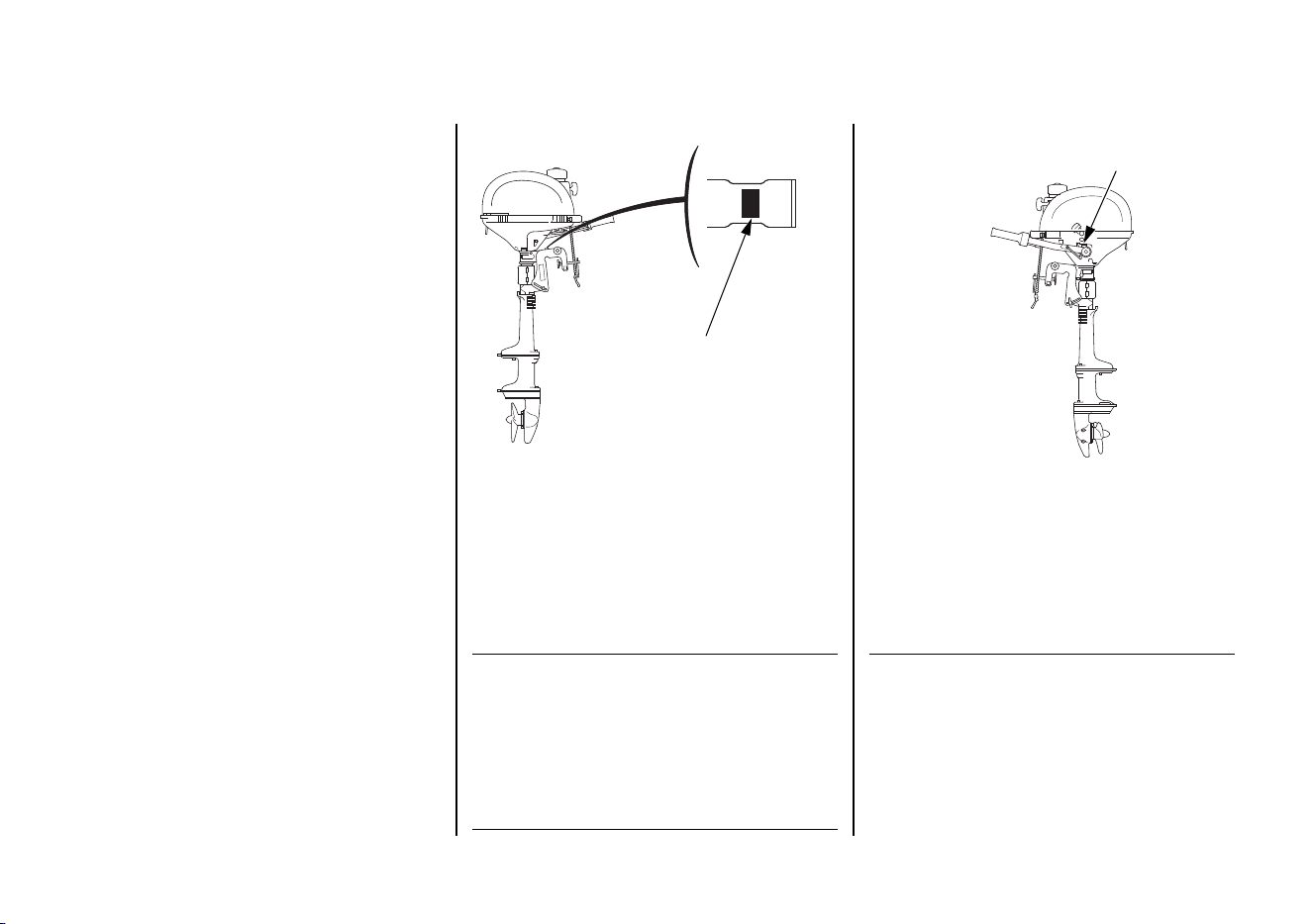

The frame serial number is stamped
on a plate attached on the upper part
of the swivel case.
Frame Serial Number:
Date of purchase:
The engine serial number is stamped
on a plate attached on the clutch
housing.
Engine serial number:
FRAME SERIAL NUMBER
ENGINE SERIAL NUMBER
31ZVA6120.book Page 64 Monday, October 16, 2023 10:33 AM
65
TECHNICAL INFORMATION
Carburetor Modification for
High Altitude Operation
At altitudes above 3,000 feet
(900 meters), the standard carburetor
air-fuel mixture will be too rich.
Performance will decrease, and fuel
consumption will increase. A very
rich mixture will also foul the spark
plug and cause hard starting.
Operation at an altitude that differs
from that at which this engine was
certified, for extended periods of
time, may increase emissions.
High altitude operation can be
improved by specific modifications
to the carburetor. If you usually
operate your outboard motor at 3,000
feet (900 meters) or above, consult
with your authorized Honda Marine
dealer.
Your dealer can determine the
appropriate carburetor settings for the
altitude at which you operate your
outboard motor.
Even with carburetor modification,
engine horsepower will decrease
about 3.5% for each 1,000-foot
(300-meter) increase in altitude. The
effect of altitude on horsepower will
be greater than this if no carburetor
modification is made.
When the carburetor has been
modified for operation at one of the
higher altitude ranges, the air-fuel
mixture will be too lean for operation
at a lower altitude.
Operation at altitudes below the
range for which the carburetor is set
may cause the engine to overheat and
result in serious engine damage.
For use at lower altitudes, have an
authorized Marine dealer modify the
carburetor for the correct altitude
range.
31ZVA6120.book Page 65 Monday, October 16, 2023 10:33 AM
66
TECHNICAL INFORMATION
Emission Control System
Information
Source of Emissions
The combustion process produces
carbon monoxide, oxides of nitrogen,
and hydrocarbons. Control of
hydrocarbons and oxides of nitrogen
is very important because, under
certain conditions, they react to form
photochemical smog when subjected
to sunlight. Carbon monoxide does
not react in the same way, but it is
toxic.
Honda utilizes appropriate air/fuel
ratios and other emissions control
systems to reduce the emissions of
carbon monoxide, oxides of nitrogen,
and hydrocarbons.
The U.S., California Clean Air
Acts, and Canadian
Environmental Protection Act
EPA, California, and Canadian
regulations require all manufacturers
to furnish written instructions
describing the operation and
maintenance of emission control
systems.
The following instructions and
procedures must be followed in order
to keep the emissions from your
Honda engine within the emission
standards.
Tampering and Altering
Tampering is a violation of Federal
and California law.
Tampering with or altering the
emission control system may increase
emissions beyond the legal limit.
Among those acts that constitute
tampering are:
• Removal or alteration of any part
of the intake, fuel, or exhaust
systems.
• Alterations that would cause the
engine to operate outside its design
parameters.
31ZVA6120.book Page 66 Monday, October 16, 2023 10:33 AM
67
TECHNICAL INFORMATION
Problems That May Affect
Emissions
If you are aware of any of the
following symptoms, have your
engine inspected and repaired by your
servicing dealer.
• Hard starting or stalling after
starting
• Rough idle
• Misfiring or backfiring under load
• Afterburning (backfiring)
• Black exhaust smoke or high fuel
consumption
Replacement Parts
The emission control systems on your
Honda engine were designed, built,
and certified to conform with EPA,
California, and Canadian emission
regulations. We recommend the use
of Honda Genuine parts whenever
you have maintenance done. These
original-design replacement parts are
manufactured to the same standards
as the original parts, so you can be
confident of their performance. The
use of replacement parts that are not
of the original design and quality may
impair the effectiveness of your
emission control system.
A manufacturer of an aftermarket part
assumes the responsibility that the
part will not adversely affect
emission performance. The
manufacturer or rebuilder of the part
must certify that use of the part will
not result in a failure of the engine to
comply with emission regulations.
Maintenance
Follow the maintenance schedule on
(p. 40 and 41). Remember that this
schedule is based on the assumption
that your machine will be used for
its designed purpose. Sustained
high-load operation, or use in unusual
conditions, will require more frequent
service.
31ZVA6120.book Page 67 Monday, October 16, 2023 10:33 AM
68
TECHNICAL INFORMATION

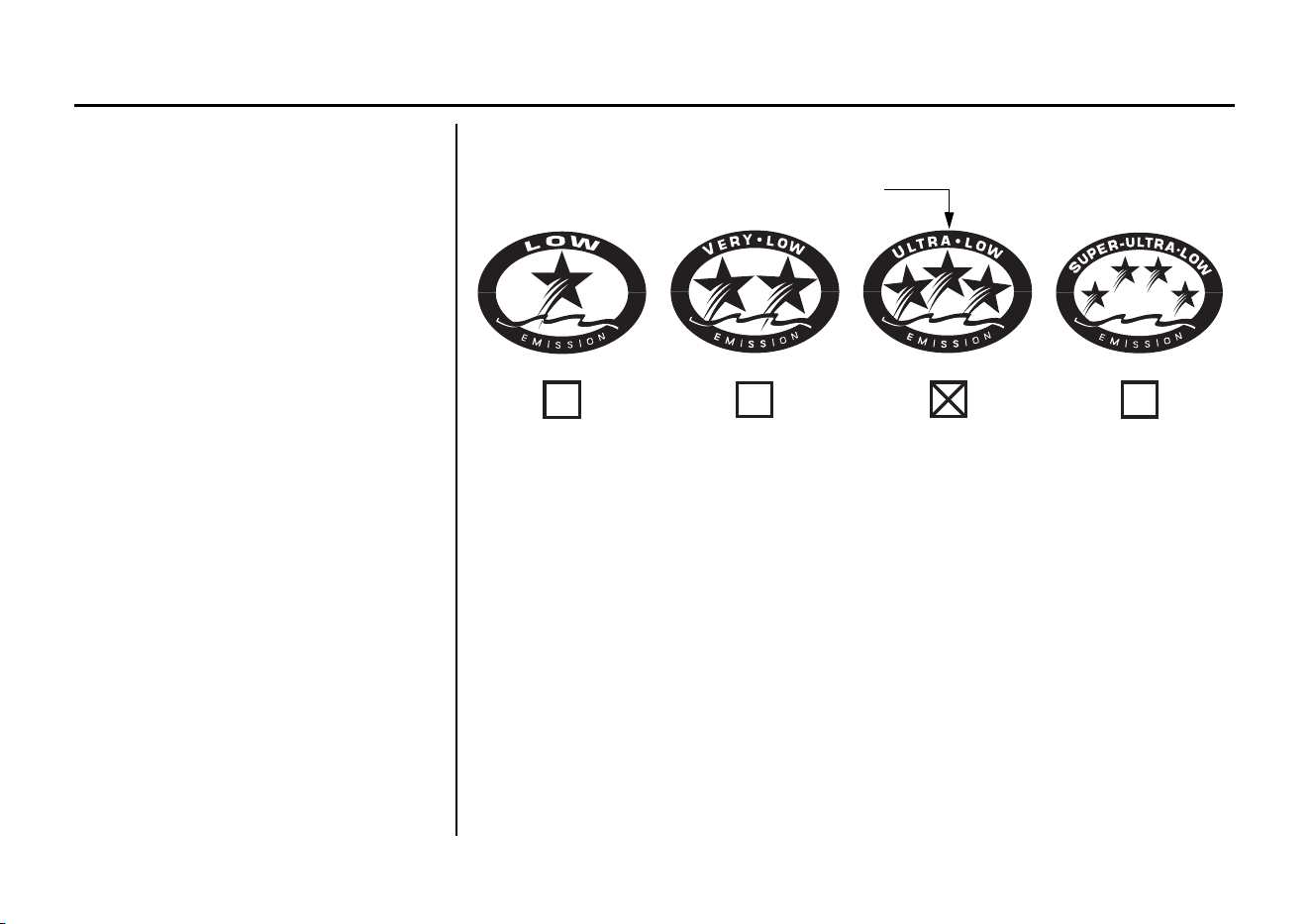

Star Label
US, Puerto Rico, and US Virgin
Islands
A Star label was applied to this
outboard motor in accordance with
the requirements of the California Air
Resources Board.
The Star Label means Cleaner Marine Engine
The Symbol for Cleaner Marine Engines:
Cleaner Air and Water - for healthier lifestyle and environment.
Better Fuel Economy - burns up to 30 - 40 percent less gas and oil than
conventional carbureted two-stroke engines, saving money and resources.
Longer Emission Warranty - protects consumer for worry-free operation.
This engine has been certified as a:
31ZVA6120.book Page 68 Monday, October 16, 2023 10:33 AM
69
TECHNICAL INFORMATION

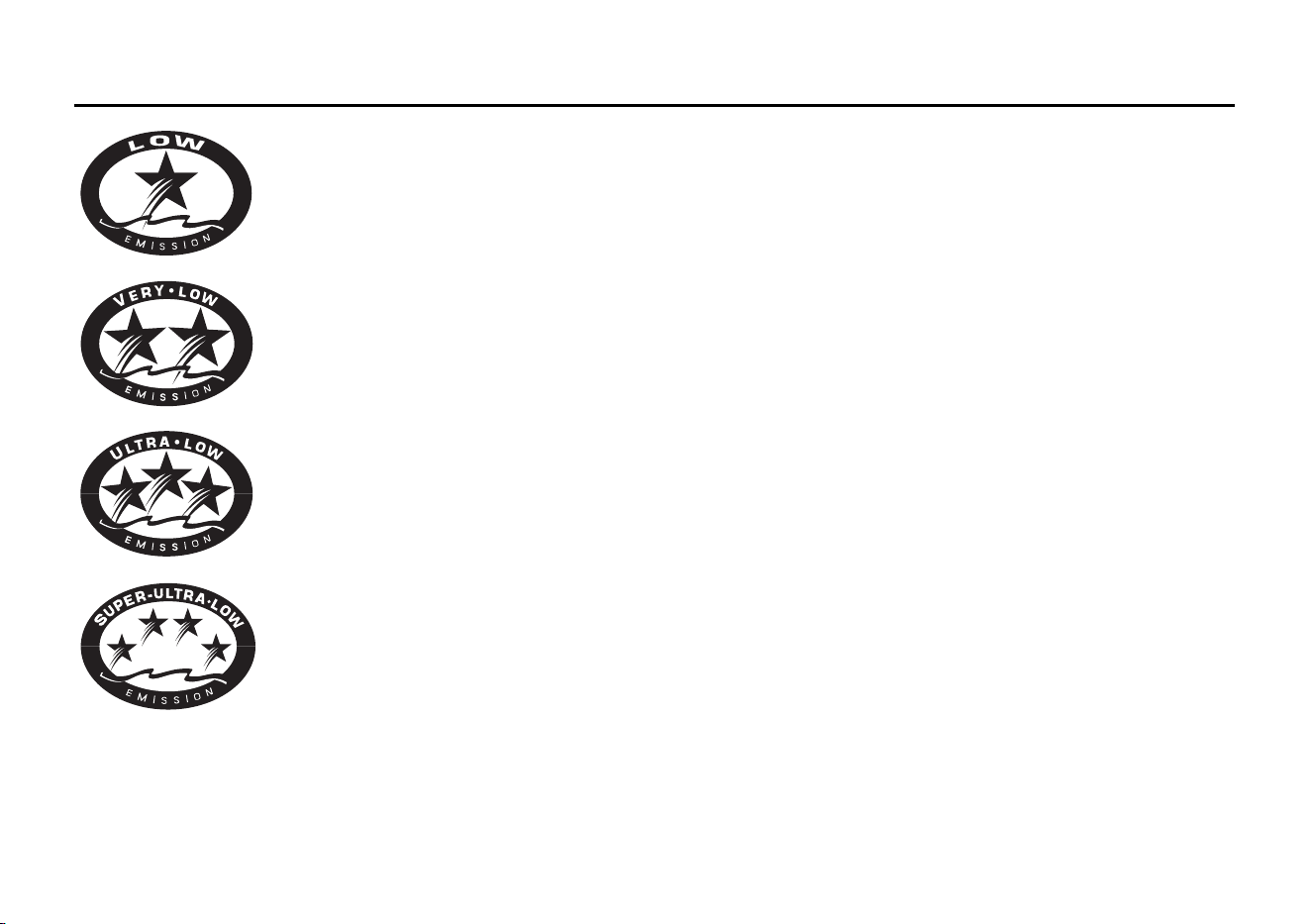

One Star
Low
Emission
Two Stars
Very Low
Emission
Three Stars
Ultra Low
Emission
Four Stars
Super Ultra
Low Emission
The one-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2001 exhaust emission
standards. Engines meeting these standards have 75% lower emissions than
conventional carbureted two-stroke engines. These engines are equivalent to
the U.S. EPA’s 2006 standards for marine engines.
The two-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2004 exhaust emission
standards. Engines meeting these standards have 20% lower emissions than
One Star-Low Emission engines.
The three-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2008 exhaust emission
standards or the Sterndrive and Inboard marine engine 2003-2008 exhaust
emission standards. Engines meeting these standards have 65% lower
emissions than One Star-Low Emission engines.
The four-star label identifies engines that meet the Air Resources Board’s
Sterndrive and Inboard marine engine 2009 exhaust emission standards.
Personal Watercraft and Outboard marine engines may also comply with these
standards. Engines meeting these standards have 90% lower emissions than
One Star-Low Emission engines.
Cleaner Watercraft - Get the Facts
1-800-END-SMOG
www.arb.ca.gov
31ZVA6120.book Page 69 Monday, October 16, 2023 10:33 AM
70
TECHNICAL INFORMATION
Specifications
Tuneup
MODEL BF2.3D
Description code BABC
Type SCH LCH
Overall length 16.2 in (412 mm)
Overall width 11.2 in (285 mm)
Overall height 38.0 in (964 mm) 44.0 in (1,117 mm)
Transom height
(when transom
angle at 5°)
16.5 in (418 mm) 22.5 in (571 mm)
Dry mass [weight]* 30.0 lbs (13.6 kg) 31.5 lbs (14.3 kg)
Rated power 1.7 kW (2.3 HP)
Full throttle range 5,000 – 6,000 rpm
Engine type 4 stroke OHV 1 cylinder
Displacement
3.49 cu-in (57.2 cm
3
)
Spark plug gap 0.024 – 0.028 in (0.6 – 0.7 mm)
Starter system Recoil starter
Ignition system Transistorized magneto
Lubrication system Oil slinger system
Specified oil Engine:
SAE/FC-W 10W-30
Gear case:
Hypoid gear oil
Oil capacity Engine:
Gear case:
CARB star label ULTRA LOW EMISSION
Cooling system Engine: Forced air cooling
Exhaust system Underwater exhaust
Spark plug LR4C-E (NGK)
Fuel Unleaded gasoline
(86 pump octane or higher)
Tank capacity 0.29 US gal (1.1 L)
Steering equipment Tiller handle
Steering angle 360°
Transom angle 4 stages (5°, 10°, 15°, 20°)
Tilt up angle
(when transom
angle at 5°)
75°
Clutch system Centrifugal clutch
Spark plug gap 0.024 – 0.028 in
(0.6 – 0.7 mm)
See page 48
Idle speed 2,000 ± 100 rpm See shop
manual
Valve clearance
(cold)
Intake: 0.08 ± 0.02 mm
Exhaust: 0.11 ± 0.02 mm
See shop
manual
Other specifications No other adjustment is needed
0.26 US qt (0.25 L)
0.05 US qt (0.05 L)
API standard (SG , SH or SJ oil)
API standard (GL-4) SAE 90
* With propeller
Honda outboard motors are power rated in accordance with NMMA procedures and using the ICOMIA standard 28/23.
31ZVA6120.book Page 70 Monday, October 16, 2023 10:33 AM
71
CONSUMER INFORMATION
Dealer Locator Information
To find an authorized Honda
Servicing Dealer
For USA:
Visit our website:
http://marine.honda.com and click on
Find a Dealer
For Canada:
Call 1-888-946-6329 or visit our
website:
English
http://marine.honda.ca/dealerlocator
French
http://marine.honda.ca/
trouver-concessionaire
Honda Publications
These publications will give you
additional information for
maintaining and repairing your
outboard motor.
Shop Manual
This manual covers complete
maintenance and overhaul procedures.
It is intended to be used by a skilled
technician.
For USA:
Shop manuals are available through
your Honda Marine dealer or visit
http://marine.honda.com /Service &
Support and click on Shop Manuals
For Canada:
Contact your dealer for information
on the Shop Manual.
Parts Catalog
For USA:
This manual provides complete,
illustrated parts lists.
The catalog is available through your
Honda Marine dealer or visit
http://marine.honda.com/Parts &
Accessories and click on Look Up
Parts
For Canada:
Contact your dealer for information
on Parts.
Accessory Catalog
Your authorized Honda Marine dealer
offers a wide selection of accessories
(optional equipment, oils, and
lubricants) to enhance your boating
experience.
For USA:
Visit http://marine.honda.com and
click on PARTS & ACCESSORIES
to see the entire catalog of
accessories.
For Canada:
Check with your dealer or visit
www.honda.ca and select the Parts
and Accessories tab under the Honda
Marine segment to view the range of
accessories available.
31ZVA6120.book Page 71 Monday, October 16, 2023 10:33 AM
72
CONSUMER INFORMATION
Customer Service Information
Contacting Honda
Your Owner’s Manual was written to
cover most of the questions you
might ask about your Honda. Any
questions not answered in the
Owner’s Manual can be answered by
your Honda dealer. If your dealer
doesn’t have an immediate answer,
they should be able to get it for you.
If you have a difference of opinion
with your dealer, please remember
that each dealership is independently
owned and operated. That’s why it’s
important to work to resolve any
differences at the dealership level. If
the service personnel are unable to
assist you, please discuss your
concerns with the dealer management
such as the Service Manager or the
dealership’s owner.
If you need to contact Honda
regarding your experiences with your
Honda product or with your dealer,
please contact the Honda office in
your region:
American Honda Motor Co., Inc.
Marine Division
Customer Relations Office
4900 Marconi Drive
Alpharetta, GA 30005-8847
Telephone: (770) 497-6400
M-F 9:00 am-7:30 pm (Eastern Time
Zone)
In Canada:
Honda Canada Inc.
Customer Relations Department
180 Honda Boulevard
Markham, Ontario L6C 0H9
Tel: 1-888-946-6329 (Toll free)
Fax: 1-877-939-0909 (Toll free)
Please include the following
information in your communication:
• Your name, address and telephone
number (complete with area code)
• Model and complete serial number
• Date of purchase
• Name and location of selling dealer
• Name and location of servicing
dealer (if different)
• A detailed description of your
concerns
We will likely ask your Honda dealer
to respond, or possibly acknowledge
your comments directly.
Warranty Coverage
Your new Honda is covered by the
following warranties:
• Distributor’s Limited Warranty
• Emission Control System Warranty
Please read the warranty statements
contained in this manual. There are
responsibilities, restrictions, and
exclusions that apply to these
warranties.
31ZVA6120.book Page 72 Monday, October 16, 2023 10:33 AM
73
CONSUMER INFORMATION
To obtain warranty service you must
take your Honda outboard motor,
together with proof of original retail
purchase date, at your expense, to a
Honda engine dealer or distributor
authorized to sell that product in the
United States, Puerto Rico, the U.S.
Virgin Islands or Canada.
It is important to realize that your
warranty applies to defects in
material or workmanship of your
Honda. Your warranty coverage does
not apply to normal wear or
deterioration associated with using
your Honda outboard motor.
Your warranty coverage will not be
voided if you choose to perform your
own maintenance. However, you
should have the proper tools and
service information and be
mechanically qualified. Failures that
occur due to modifications, improper
maintenance, or service are not
covered.
Warranty Service
Please remember that recommended
maintenance interval servicing is not
included in your warranty coverage.
Additionally, your warranty does not
apply to the normal wear of items
(such as spark plug(s), water pump,
etc.).
As the owner of a Honda product,
your servicing dealer may ask you to
authorize an inspection. If the
problem is covered under warranty,
your dealer will perform any
warranty repairs for you at no cost.
However, you may be responsible for
additional non-warranty charges.
If you have questions about warranty
coverage or the nature of the repair, it
is best to talk to the service manager
of your Honda dealer.
Sometimes, in spite of the best
intentions of all concerned, a
misunderstanding may occur. If you
aren’t satisfied with your dealer’s
handling of the situation, we suggest
you discuss your problem with the
appropriate member of the
dealership’s management team. If the
problem has already been reviewed
with the appropriate manager of the
Service, Parts, or Sales department,
contact the owner of the dealership or
their designated representative.
31ZVA6120.book Page 73 Monday, October 16, 2023 10:33 AM
74
CONSUMER INFORMATION
Warranty Statements
The American Honda Distributor’s Limited Warranty applies to outboards purchased in the United States, Puerto Rico,
or the U.S. Virgin Islands. The Honda Canada Distributor’s Warranty applies to outboards purchased in Canada.
The product warranty is only valid in the country where the product was purchased.
United States, Puerto Rico and U.S. Virgin Islands
Distributor’s Limited Warranty
This warranty is limited to Honda Outboard Motors and related original equipment distributed by American Honda
Motor Co., Inc., Power Sports and Products Division, 4900 Marconi Drive, Alpharetta, Georgia 30005-8847.
(1) Models purchased prior to July 1, 2008 (unless previously purchased with True-5 warranty from a participating dealer).
(2) 40, 65, & 105 Jet models: Jet pump assembly is a dealer installed option. Jet pump warranty is provided by Specialty Manufacturing Co. (Outboard Jets).
(3) Portable fuel tanks: 24 months or the same duration as the outboard they were purchased with, whichever is longer.
Products Covered by Warranty: Length of Warranty: (from date of original retail purchase)
NON-COMMERCIAL/
NON-RENTAL
COMMERCIAL/RENTAL STATE/LOCAL/FEDERAL
GOVERNMENT
All models purchased on or after Jan. 1, 2016
(2)
60 months 24 months 36 months
All models purchased between July 1, 2008 and
December 31, 2015
(2)
60 months 12 months 24 months
All models purchased on or before June 30,
2008
(1)(2)
36 months 12 months 24 months
Related original equipment items:
BF5 through BF20 models: Portable fuel tank
and original propeller.
All models: Primer bulb/fuel line assembly and
tiller handle.
The same duration as the outboard with which they were purchased.
(3)
31ZVA6120.book Page 74 Monday, October 16, 2023 10:33 AM
75
CONSUMER INFORMATION
To Qualify for This Warranty:
The Honda Outboard Motor must be purchased from
American Honda or a dealer authorized by American
Honda to sell Honda Outboard Motors in the United
States, Puerto Rico, or the U.S. Virgin Islands. This
limited warranty applies to the first retail purchaser and
each subsequent owner during the applicable warranty
time period.
What American Honda Will Repair or Replace Under
Warranty:
American Honda will repair or replace, at its option, any
part that is proven to be defective in material or
workmanship under normal use during the applicable
warranty time period. Warranty repairs and replacements
will be made without charge for parts or labor. Anything
replaced under warranty becomes the property of
American Honda Motor Co., Inc.
All parts replaced under warranty will be considered as
part of the original product and any warranty on those
parts will expire coincidentally with the original product
warranty.
To Obtain Warranty Service:
You must, at your expense, take your Honda Outboard
Motor and proof of the original purchase date to any
dealer who is authorized to service Honda Outboard
Motors in the United States, Puerto Rico, or the U.S.
Virgin Islands, during the dealer’s normal business hours.
If you are unable to obtain warranty service, or are
dissatisfied with the warranty service you receive, take the
following steps: First, contact the owner of the dealership
involved; normally this should resolve the problem.
However, if you should require further assistance, write or
call the Honda Marine Customer Relations Department of
American Honda Motor Co., Inc. Please see Contacting
Honda on page 72.
31ZVA6120.book Page 75 Monday, October 16, 2023 10:33 AM
76
CONSUMER INFORMATION
Exclusions:
This warranty does not extend to the following:
• Conditions caused by lack of routine maintenance or
improper storage (as outlined in the owner’s manual)
• Conditions caused by the use of propeller (s) that do not
allow the outboard motor to run in its recommended full
throttle rpm range
• Operation inconsistent with the recommended
operation/duty cycle (as outlined in the owner’s manual)
• Parts affected or damaged by an abuse, submersion
and/or collision
• Fuel contamination and water entering the engine
through the fuel intake, air intake, or exhaust system
• Operation with fuels, oils, additives and lubricants
which are not suitable for use in the product
• Use in an application for which the outboard motor was
not designed, such as racing or competitive use or any
other misuse or neglect
• Normal wear and tear
• Incorporation of unsuitable attachments or parts
• The unauthorized alteration, improper installation and/
or rigging, or any causes other than defects in material
or workmanship
• Corrosion to steering system or electrical components,
corrosion due to electrolysis, water born foreign
chemicals, improper service or corrosion caused by
damage or abuse
• Reimbursement for towing charges, in and out of water
charges, or technician travel time
• Growth of marine organisms on motor surfaces,
external or internal
• Any product that has ever been declared a total loss or
sold for salvage by a financial institution or insurer, or
that has been issued a ‘‘salvage’’ or similar title under
any state’s law.
Disclaimer of consequential damage and limitation of
implied warranties:
American Honda disclaims any responsibility for loss of
time or use of the outboard, revenue, or the equipment in
which the outboard is installed, transportation,
commercial loss, or any other incidental or consequential
damage. Any implied warranties are limited to the
duration of this written limited warranty.
Some states do not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion
or limitation of incidental or consequential damages, so
the above exclusions and limitations may not apply to you.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
31ZVA6120.book Page 76 Monday, October 16, 2023 10:33 AM
77
CONSUMER INFORMATION
To Qualify for This Warranty:
1. The accessories or replacement parts must be purchased
from American Honda or a dealer, distributor, or
distributor’s dealer authorized by American Honda to
sell those products in the United States, Puerto Rico,
and the U.S. Virgin Islands. Parts and Accessories must
be purchased for installation on original Honda
equipment or engines to be eligible for warranty
coverage. Installing Parts and Accessories on non-
Honda products or engines voids this warranty.
2. You must be the first retail purchaser. This warranty is
not transferable to subsequent owners.
What American Honda Will Repair or Replace Under
Warranty:
American Honda will repair or replace, at its option, any
marine product accessories or replacement parts that are
proven to be defective in material or workmanship under
normal use during the applicable warranty time period.
Anything replaced under warranty becomes the property
of American Honda Motor Co., Inc. All parts replaced
under warranty will be considered as part of the original
product and any warranty on those parts will expire
coincidentally with the original product warranty.
Accessories and replacement parts, installed by a dealer
who is authorized by American Honda to sell them, will
be repaired or replaced under warranty without charge for
parts or labor. If installed by anyone else, accessories and
replacement parts will be repaired or replaced under
warranty without charge for parts, but any labor charges
will be the responsibility of the purchaser.
Accessories and Replacement Parts
This warranty is limited to Honda Marine parts, accessories and apparel when distributed by American Honda Motor Co.,
Inc., 4900 Marconi Drive, Alpharetta, Georgia 30005-8847.
Products Covered by Warranty: Length of Warranty: (from date of original retail purchase)
NON-COMMERCIAL COMMERCIAL/RENTAL STATE/LOCAL/FEDERAL
GOVERNMENT
Accessories other than noted below
12 months 3 months 3 months
Emission related accessories:
Portable fuel tanks, fuel line assemblies, and
water/fuel separators
24 months 24 months 24 months
Replacement Parts
6 months 3 months 3 months
31ZVA6120.book Page 77 Monday, October 16, 2023 10:33 AM
78
CONSUMER INFORMATION
To Obtain Warranty Service:
You must, at your expense, take the Honda Outboard
Motor product accessory or replacement part or the
outboard motor or boat on which the accessory or
replacement part is installed, and proof of purchase to any
Honda Marine authorized service facility or dealer in the
United States, Puerto Rico, or the U.S. Virgin Islands,
during normal business hours.
Exclusions:
This warranty does not extend to accessories or parts
affected or damaged by collision, normal wear, use in an
application for which the product was not designed or any
other misuse, neglect, incorporation or use of unsuitable
attachments or parts, unauthorized alteration, improper
installation, or any causes other than defects in material or
workmanship of the product.
Installing parts and accessories on non-Honda products or
engines voids this warranty.
Disclaimer of consequential damage and limitation of
implied warranties:
American Honda disclaims any responsibility for loss of
time or use of the outboard motor, or the boat on which the
product is installed, transportation, commercial loss, or
any other incidental or consequential damage. Any
implied warranties are limited to the duration of this
written warranty. Some states do not allow limitations on
how long an implied warranty lasts and/or do not allow
the exclusion or limitation of incidental or consequential
damages, so the above exclusions and limitations may not
apply to you. This warranty gives you specific legal rights,
and you may also have other rights, which vary from state
to state.
31ZVA6120.book Page 78 Monday, October 16, 2023 10:33 AM
79
CONSUMER INFORMATION
Emission Control System Warranty
Your new Honda outboard engine complies with both the
U.S. EPA and State of California emission regulations.
American Honda provides the same emission warranty
coverage for outboard engines sold in all 50 states. In all
areas of the United States your outboard engine must be
designed, built, and equipped to meet the U.S. EPA and
California Air Resources Board emission standard for
spark ignited marine engines.
CALIFORNIA EMISSIONS CONTROL SYSTEM
WARRANTY STATEMENT YOUR WARRANTY
RIGHTS AND OBLIGATIONS
The California Air Resources Board (CARB) and
American Honda Motor Co., Inc. are pleased to explain
the emission control system warranty on your 2024 Honda
outboard engine. In California, new outboard engines
must be designed, built, and equipped to meet the state’s
stringent anti-smog standards.
American Honda Motor Co., Inc. must warrant the
emission control system on your outboard engine for the
periods of time listed below provided there has been no
abuse, neglect, or improper maintenance of your outboard
engine.
Your emission control system may include parts such as
the carburetor or fuel injection system, the ignition
system, catalytic converter, canisters, clamps, filters, fuel
caps, fuel lines, fuel tanks, valves, and vapor hoses. Also
included may be hoses, belts, connectors, and other
emission-related assemblies.
Where a warrantable condition exists, American Honda
Motor Co., Inc. will repair your outboard engine at no cost
to you including diagnosis, parts, and labor.
31ZVA6120.book Page 79 Monday, October 16, 2023 10:33 AM
80
CONSUMER INFORMATION
MANUFACTURER’S WARRANTY
COVERAGE:
Select emission control parts from model year 2010 and
later outboard engines are warranted for five years or 250
hours of use, whichever first occurs;
or the length of the Honda Marine Distributor’s Limited
Warranty, whichever is longer. The evaporative emission
control system from model year 2010 and later outboard
engines are warranted for two years with no limit on hours
of use, or the length of the Honda Marine Distributor’s
Limited Warranty, whichever is longer, from the date of
delivery to the retail purchaser. However, warranty
coverage based on the hourly period is only permitted for
engines equipped with hour meters as defined in §
2441(a)(13)* or their equivalent. If any emission-related
part on your engine is defective under warranty, the part
will be repaired or replaced by American Honda Motor
Co., Inc. See the Emission Control System Warranty Parts
table on page 83 for parts description.
* California Code of Regulations.
OWNER’S WARRANTY RESPONSIBILITIES:
As the outboard engine owner, you are responsible for the
performance of the required maintenance listed in your
owner’s manual. American Honda Motor Co., Inc.
recommends that you retain all receipts covering
maintenance on your outboard engine, but American
Honda Motor Co., Inc. cannot deny warranty solely for the
lack of receipts or your failure to ensure the performance
of all scheduled maintenance.
As the outboard engine owner, you should, however, be
aware that American Honda Motor Co., Inc. may deny
you warranty coverage if your outboard engine or a part
has failed due to abuse, neglect, improper maintenance, or
unapproved modifications.
You are responsible for presenting your outboard engine
to a Honda Marine dealer as soon as a problem exists. The
warranty repairs will be completed in a reasonable amount
of time, not to exceed 30 days.
If you have any questions regarding your warranty rights
and responsibilities, you should contact
American Honda Motor Co., Inc.
Marine Division Customer Relations Office
4900 Marconi Drive
Alpharetta, Georgia 30005-8847
Telephone: (770) 497-6400
31ZVA6120.book Page 80 Monday, October 16, 2023 10:33 AM
81
CONSUMER INFORMATION
WARRANTY COVERAGE:
See Manufacturer’s Warranty Coverage above for
warranty coverage terms. This warranty is transferred to
each subsequent purchaser for the duration of the warranty
period.
Warranty repairs will be made without charge for
diagnosis, parts, and labor. All defective parts replaced
under this warranty become the property of American
Honda Motor Co., Inc. A list of warranty parts is on page
83. Normal maintenance items, such as spark plugs and
filters, that are on the warranted parts list are warranted up
to their required replacement interval only.
American Honda Motor Co., Inc. is also liable for
damages to other engine components caused by a failure
of any warranted part during the warranty period.
Only Honda approved replacement parts will be used in
the performance of any warranty repairs, and they will be
provided without charge to the owner. You may use any
replacement part as defined in § 1900(b)(20)* in the
performance of any maintenance or repairs. Honda cannot
deny coverage under the emission warranty solely for use
of non-Honda replacement parts or service performed at a
location other than an authorized Honda dealership;
however, use of a part that is not functionally identical to
the original equipment part in any respect that may in any
way affect emissions (including durability) could result in
denial of coverage. If a non-Honda replacement part is
used in the repair or maintenance of your engine, and an
authorized Honda Marine dealer determines it causes the
failure of a warranted part, your warranty claim may be
denied. If the part in question is not related to the reason
that your engine requires repair, your claim will not be
denied.
* California Code of Regulations
31ZVA6120.book Page 81 Monday, October 16, 2023 10:33 AM
82
CONSUMER INFORMATION
TO OBTAIN WARRANTY SERVICE:
You must take your Honda outboard engine, along with
your sales registration card or other proof of original
purchase date, at your expense, to any Honda Marine
dealer that is authorized by American Honda Motor Co.,
Inc. to sell and service that Honda marine product during
its normal business hours. Claims for repair or adjustment
found to be caused solely by defects in material or
workmanship will not be denied because the engine was
not properly maintained and used.
If you are unable to obtain warranty service, or are
dissatisfied with the warranty service you received,
contact the owner of the dealership involved.
Normally this should resolve your problem. However, if
you require further assistance, write or call the Honda
Marine Customer Relations Office of American Honda
Motor Co., Inc.
EXCLUSIONS:
Failures other than those resulting from defects in material
or workmanship are not covered by this warranty. This
warranty does not extend to emission control systems or
parts which are affected or damaged by owner abuse,
neglect, improper maintenance, misuse, misfueling,
improper storage, and/or collision, the incorporation of, or
use of, unsuitable attachments, or the unauthorized
alteration of any part. This warranty does not cover
replacement of expendable maintenance items made in
connection with required maintenance service after the
items first scheduled replacement as listed in the
maintenance section of the product owner’s manual, such
as: spark plugs and filters.
DISCLAIMER OF CONSEQUENTIAL DAMAGE
AND LIMITATION OF IMPLIED WARRANTIES:
American Honda Motor Co., Inc. disclaims any
responsibility for incidental or consequential damages
such as loss of time or the use of outboard engine, or any
commercial loss due to the failure of the equipment; and
any implied warranties are limited to the duration of this
written warranty. This warranty is applicable only where
the California or U.S. EPA emission control system
warranty regulation is in effect.
31ZVA6120.book Page 82 Monday, October 16, 2023 10:33 AM
83
CONSUMER INFORMATION
EMISSION CONTROL SYSTEM WARRANTY PARTS:
SYSTEMS COVERED
BY THIS WARRANTY:
PARTS DESCRIPTION: LENGTH OF WARRANTY:
Evaporative
Portable fuel tank, Outboard internal fuel tank, Fuel cap, Fuel hoses, Primer
bulb, Fuel hose joint, Vapor separator, and Carbon canister,
All other parts not listed that may affect the evaporative
emissions control system
Two years, no limit on hours of
use; or the length of the Honda
Distributor’s Limited Warranty,
whichever is longer.
Fuel Metering
Carburetor assembly, Throttle body, Fuel injector, Fuel pump, Fuel pressure
regulator, Throttle position sensor, Intake air temperature sensor, Engine
temperature sensor, Manifold absolute pressure sensor, Idle air control valve,
Barometric pressure sensor, Fuel line solenoid valve, Intake manifold, Intake
valves, and Oxygen sensor or Air fuel ratio sensor
Five years or 250 hours of use,
whichever first occurs; or the
length of the
Honda
Distributor’s Limited Warranty
,
whichever is longer.
Air Induction
Air intake duct, Intake manifold tuning valve (Intake air bypass control valve)
Ignition
Flywheel magneto, Ignition pulse generator, Ignition coil assembly, Ignition
control module, Engine control module, Crankshaft position sensor, Spark
plug cap, Spark plug*, Knock sensor, and Camshaft position sensor
Lubrication System Oil pump and internal parts
Crankcase Emission Control Crankcase breather tube, Positive crankcase ventilation valve, Oil filler cap
Exhaust Exhaust manifold and Exhaust valves
Valve Control System Rocker arm oil control valve
Miscellaneous Parts
Tubing, fittings, seals, gaskets, and clamps associated with these listed systems.
* Covered up to the first required replacement only. See the Maintenance Schedule on page 40 and 41.
31ZVA6120.book Page 83 Monday, October 16, 2023 10:33 AM
84
CONSUMER INFORMATION
Canada
Distributor’s Warranty
HONDA CANADA INC., for and on behalf of Honda
Motor Co. Ltd., Tokyo, Japan, gives the following written
warranty on each new marine product manufactured by
Honda Motor Co. Ltd., Japan, distributed in Canada by
Honda Canada Inc. and sold by authorized Honda Marine
dealers.
Whenever used herein, the word ‘‘Honda’’ refers to Honda
Canada Inc. and/or Honda Motor Co. Ltd., as appropriate
from the context.
HONDA WARRANTS THAT each new Honda Marine
product will be free, under normal use and maintenance,
from any defects in material or workmanship for the
relevant warranty period set forth below. If any defects
should be found in a Honda Marine product within the
relevant warranty period, necessary repairs and
replacements with a new part or the Honda equivalent
shall be made at no cost to the consumer for parts and
labour, when Honda acknowledges that such defects are
attributable to faulty material or workmanship at the time
of manufacture.
WARRANTY PERIOD RETAILED ON OR
AFTER APRIL 1, 2005:
THIS WARRANTY COVERS
a) Any Honda Marine product purchased in Canada from
an authorized Honda dealer which has been registered at
the time of purchase on a form provided by Honda,
which has had set-up and pre-delivery service
performed by an authorized Honda dealer and which is
normally operated in Canada;
b)Any factory installed part (except normal maintenance
parts referred to in ‘‘THIS WARRANTY DOES NOT
COVER’’); and
c) Any marine product on which required maintenance
services have been performed as prescribed in the
Owner’s Manual.
Non-commercial
use
Commercial
use
All Honda Outboard
Models
36 Months 12 Months
31ZVA6120.book Page 84 Monday, October 16, 2023 10:33 AM
85
CONSUMER INFORMATION
THIS WARRANTY DOES NOT COVER
a) Any repairs required as a result of collision, accident,
striking any object, misuse or lack of required
maintenance;
b)Any repairs required as a result of any attachments,
parts or devices installed by or repairs done by a party
other than an authorized Honda dealer;
c) Any outboard that has been operated out of water,
(Run Dry) damaging the water pump and or engine
components due to insufficient cooling water.
d)Any marine products modified, altered, disassembled or
remodelled;
e) Normal maintenance services, including tightening of
nuts, bolts and fittings and engine tune-up and the
replacement of parts made in connection with normal
maintenance services including filters, spark plugs and
wires, fuses, belts, lubricants and other expendables
susceptible to natural wear;
f) Outboard propeller or shear pin.
g)All accessories or attachments.
THE OWNER’S OBLIGATION
In order to maintain the validity of this DISTRIBUTORS
WARRANTY, the required maintenance services as set
forth in the Owner’s Manual must be performed at the
proper intervals and detailed receipts and records retained
as proof.
TO OBTAIN WARRANTY SERVICE
You must take your Honda Marine product, at your
expense, during normal service hours, to any authorized
Honda Marine dealership. If you are unable to obtain or
are dissatisfied with the warranty service you receive,
first contact the owner of the dealership involved; this
should resolve the problem. If you require further
assistance, contact Honda Canada’s Customer Relations
Department at:
HONDA CANADA INC.
Customer Relations Department
180 Honda Boulevard
Markham, Ontario L6C 0H9
Tel: 1-888-946-6329 (Toll free)
Fax: 1-877-939-0909 (Toll free)
E-mail: [email protected]
31ZVA6120.book Page 85 Monday, October 16, 2023 10:33 AM
86
CONSUMER INFORMATION
REPLACEMENT PARTS AND ACCESSORY
WARRANTY
New genuine Honda replacement parts or accessories sold
to a consumer or installed by an authorized Honda Marine
dealer which are not covered by the DISTRIBUTORS
WARRANTY are warranted for a period of one year from
date of purchase, provided, however, that this
Replacement Parts and Accessory Warranty does not
apply to any replacement parts modified, used with, or
installed on a marine product for which the replacement
parts were not intended. Electrical components that are not
installed by the dealer (sold over the counter) are not
covered by warranty.
ENTIRE WRITTEN WARRANTY
This DISTRIBUTORS WARRANTY and the
REPLACEMENT PARTS AND ACCESSORY
WARRANTY are the only and the entire written
warranties given by Honda for Marine engines. No dealer
or his agent or employee is authorized to extend or enlarge
on these warranties on behalf of Honda by any written or
verbal statement or advertisement.
DISCLAIMER
To the extent the law permits, Honda disclaims any
responsibility for loss of time or use of the product,
transportation or towing costs or any other indirect,
incidental or consequential damage, inconvenience or
commercial loss.
NOTICE TO CONSUMER
The provisions contained in these written warranties are
not intended to limit, modify, take away from, disclaim or
exclude any warranties set forth in or the operation of The
Consumer Products Warranties Act, 1977 (Saskatchewan),
The Consumer Product Warranty and Liability Act (New
Brunswick), The Consumer Protection Act (Quebec), or
any other similar provincial or federal legislation.
31ZVA6120.book Page 86 Monday, October 16, 2023 10:33 AM
87
INDEX
Anode ............................................................................18
Replacement ..............................................................52
ARE YOU READY TO GET UNDERWAY? ...............22
ATTACHMENT ............................................................20
BEFORE OPERATION .................................................22
BREAK-IN PROCEDURE ...........................................24
Carburetor Modification for High Altitude
Operation ...................................................................65
Centrifugal Clutch .........................................................17
Choke Knob ...................................................................13
Clamp Screws ................................................................17
COMPONENT AND CONTROL LOCATIONS ..........12
CONSUMER INFORMATION ....................................71
CONTROL AND FEATURE IDENTIFICATION
CODES ......................................................................11
CONTROLS ..................................................................13
CONTROLS AND FEATURES ....................................11
CRUISING ....................................................................34
Customer Service Information ......................................72
Dealer Locator Information ...........................................71
Distributor’s Limited Warranty .....................................74
Distributor’s Warranty ...................................................84
EMERGENCY STARTING .......................................... 28
Emergency Stop Switch Clip and
Emergency Stop Switch ............................................ 13
Emission Control System Information .......................... 66
Emission Control System Warranty .............................. 79
Engine
Cover
REMOVAL AND INSTALLATION .................... 42
Retaining Strap ..................................................... 15
Oil
Change .................................................................. 44
Level Check .......................................................... 42
Level Inspection Window ..................................... 18
Recommendations ................................................. 45
ENGINE WILL NOT DRIVE THE PROPELLER ...... 61
ENGINE WILL NOT START ....................................... 59
Fuel
Filler Cap Vent Knob ................................................ 17
RECOMMENDATIONS .......................................... 51
Valve Lever ............................................................... 14
Gear Case Oil Change ................................................... 46
HARD STARTING OR STALLS AFTER
STARTING ............................................................... 60
Honda Publications ....................................................... 71
31ZVA6120.book Page 87 Monday, October 16, 2023 10:33 AM
88
INDEX
IMPORTANT SAFETY INFORMATION ......................6
INFREQUENT OR OCCASIONAL USE ....................25
INSTALLATION ...........................................................19
INSTALLATION POSITION ........................................19
IS YOUR OUTBOARD MOTOR
READY TO GO? .......................................................22
Lubrication Points .........................................................47
MAINTENANCE SAFETY ..........................................38
MAINTENANCE SCHEDULE ....................................40
MOORING, BEACHING, LAUNCHING ....................35
OPERATION .................................................................24
OTHER FEATURES .....................................................17
OUTBOARD MOTOR SAFETY ...................................6
POWER REQUIREMENTS .........................................19
Propeller Replacement ...................................................53
Recoil Starter Rope Inspection ......................................52
REFUELING .................................................................50
REMOVAL FROM STORAGE ....................................57
REVERSING THE OUTBOARD MOTOR .................32
SAFE OPERATING PRECAUTIONS ......................... 24
SAFETY LABEL LOCATIONS ..................................... 8
Serial Number Locations .............................................. 64
SERVICING YOUR OUTBOARD MOTOR ............... 37
Spark Plug Service ........................................................ 48
Specifications ................................................................ 70
Star Label ...................................................................... 68
Starter Grip .................................................................... 15
STARTING THE ENGINE ........................................... 25
STEERING ................................................................... 33
Steering Friction Bolt .................................................... 16
STOPPING THE ENGINE
Emergency Engine Stopping ..................................... 30
Normal Engine Stopping .......................................... 30
STORAGE .................................................................... 54
STORAGE PRECAUTIONS ........................................ 56
STORAGE PREPARATION ........................................ 54
Adding a Fuel Stabilizer ........................................... 55
Cleaning .................................................................... 54
Draining the Fuel Tank and Carburetor .................... 56
Engine Oil ................................................................. 56
Fuel ........................................................................... 54
SUBMERGED OUTBOARD MOTOR ....................... 62
31ZVA6120.book Page 88 Monday, October 16, 2023 10:33 AM
89
INDEX
TAKING CARE OF UNEXPECTED PROBLEMS .....59
TECHNICAL INFORMATION ....................................64
THE IMPORTANCE OF MAINTENANCE ................37
Throttle Grip ..................................................................14
Throttle Grip Friction Knob ..........................................14
THROTTLE OPERATION ...........................................31
Tilt Lever .......................................................................16
TOOL KIT AND EMERGENCY STARTER ROPE ....39
Transom Angle Adjusting Bolt ......................................15
TRANSOM ANGLE ADJUSTMENT ..........................24
TRANSPORTING .........................................................58
WITH OUTBOARD MOTOR INSTALLED
ON BOAT ..............................................................58
WITH OUTBOARD MOTOR REMOVED
FROM BOAT ........................................................58
Warranty Statements ......................................................74
31ZVA6120.book Page 89 Monday, October 16, 2023 10:33 AM
90
MEMO
31ZVA6120.book Page 90 Monday, October 16, 2023 10:33 AM
91
MEMO
31ZVA6120.book Page 91 Monday, October 16, 2023 10:33 AM
92
MEMO
31ZVA6120.book Page 92 Monday, October 16, 2023 10:33 AM
背幅3mm
31ZVA612
00X31-ZVA-6120
XXXX.XXXX.XX
背幅3mm
BF2.3DH
Owner`s Manual
Includes US and Canadian Models
© 2024 Honda Motor Co., Ltd. - All Rights Reserved
Printed in China
