XXXX.XXXX.XX
背幅3mm
Owner`s Manual
Includes US and Canadian Models
Printed in China
BF4A
•
BF5D
•
BF6A
© 2024 Honda Motor Co., Ltd. - All Rights Reserved
31ZVC615
00X31-ZVC-6150
背幅3mm
Keep this Owner’s Manual handy, so you can refer to it at any time. This Owner’s
Manual is considered a permanent part of the outboard motor and should remain with
the outboard motor if resold.
The information and specifications included in this publication were in effect at the
time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to
discontinue or change specifications or design at any time without notice and without
incurring any obligation whatsoever. No part of this publication may be reproduced
without written permission.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects
or other reproductive harm.
1
INTRODUCTION
Congratulations on your selection of
a Honda outboard motor. We are
certain you will be pleased with your
purchase of one of the finest outboard
motors on the market.
We want to help you get the best
results from your new outboard motor
and to operate it safely. This manual
contains information on how to do
that; please read it carefully.
As you read this manual you will find
information preceded by a
symbol. That information
is intended to help you avoid damage
to your outboard motor, other
property, or the environment.
We suggest you read the warranty
policy to fully understand its
coverage and your responsibilities of
ownership (see page 112).
When your outboard motor needs
scheduled maintenance, keep in mind
that your Honda Marine dealer is
specially trained in servicing Honda
outboard motors. Your Honda Marine
dealer is dedicated to your
satisfaction and will be pleased to
answer your questions and concerns.
31ZVC6150.book Page 1 Friday, October 13, 2023 1:41 PM
2
INTRODUCTION
A FEW WORDS ABOUT
SAFETY
Your safety and the safety of others
are very important. And using this
outboard motor safely is an important
responsibility.
To help you make informed decisions
about safety, we have provided
operating procedures and other
information on labels and in this
manual. This information alerts you
to potential hazards that could hurt
you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining an outboard motor. You
must use your own good judgment.
You will find important safety information in a variety of forms, including:
• Safety Labels – on the outboard motor.
• Safety Messages – preceded by a safety alert symbol and one of three
signal words, DANGER, WARNING, or CAUTION.
These signal words mean:
• Safety Headings – such as IMPORTANT SAFETY INFORMATION.
• Safety Section – such as OUTBOARD MOTOR SAFETY.
• Instructions – how to use this outboard motor correctly and safely.
This entire book is filled with important safety information – please read it
carefully.
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
31ZVC6150.book Page 2 Friday, October 13, 2023 1:41 PM
CONTENTS
3
OUTBOARD MOTOR SAFETY ................................... 6
IMPORTANT SAFETY INFORMATION .............. 6

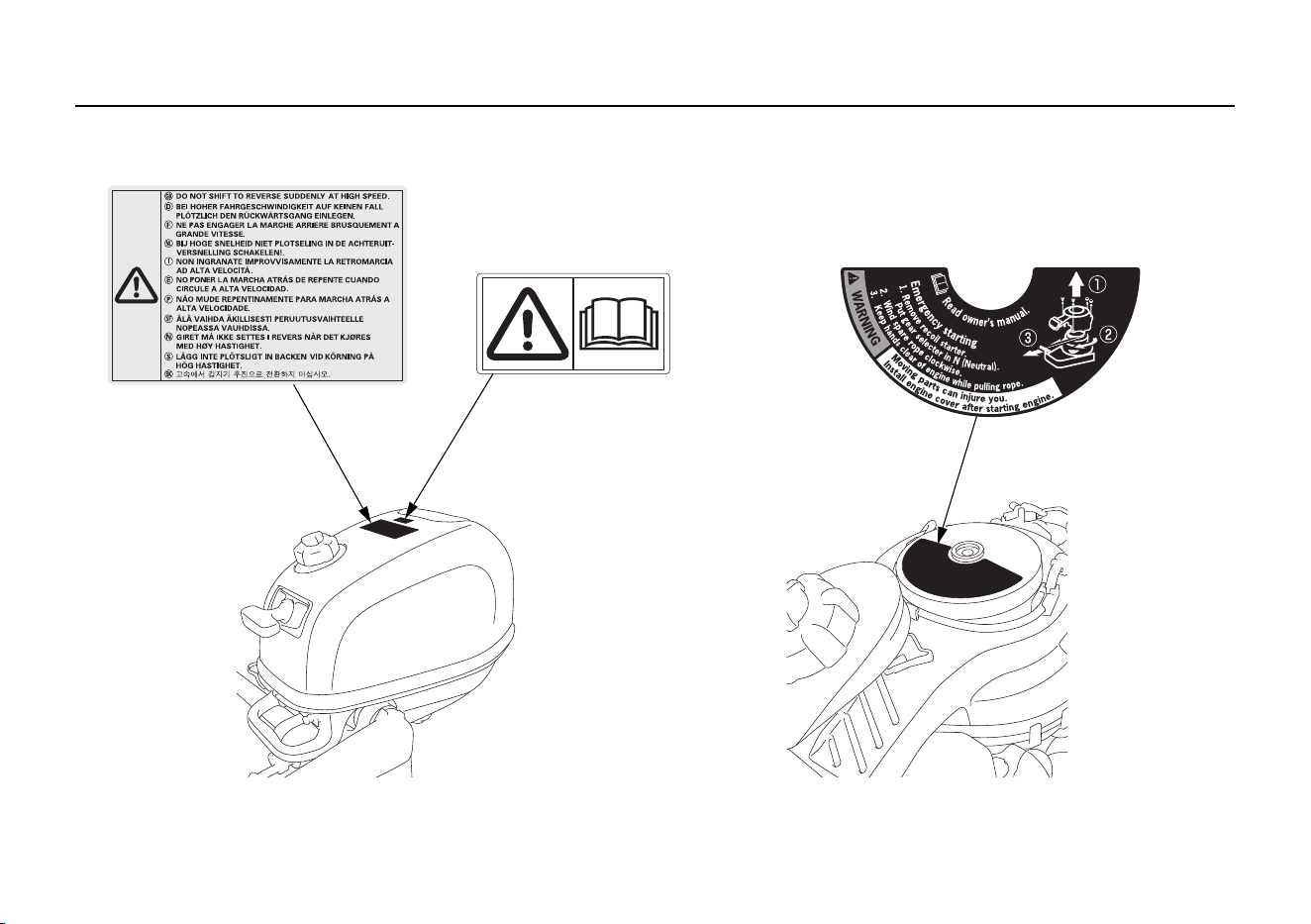

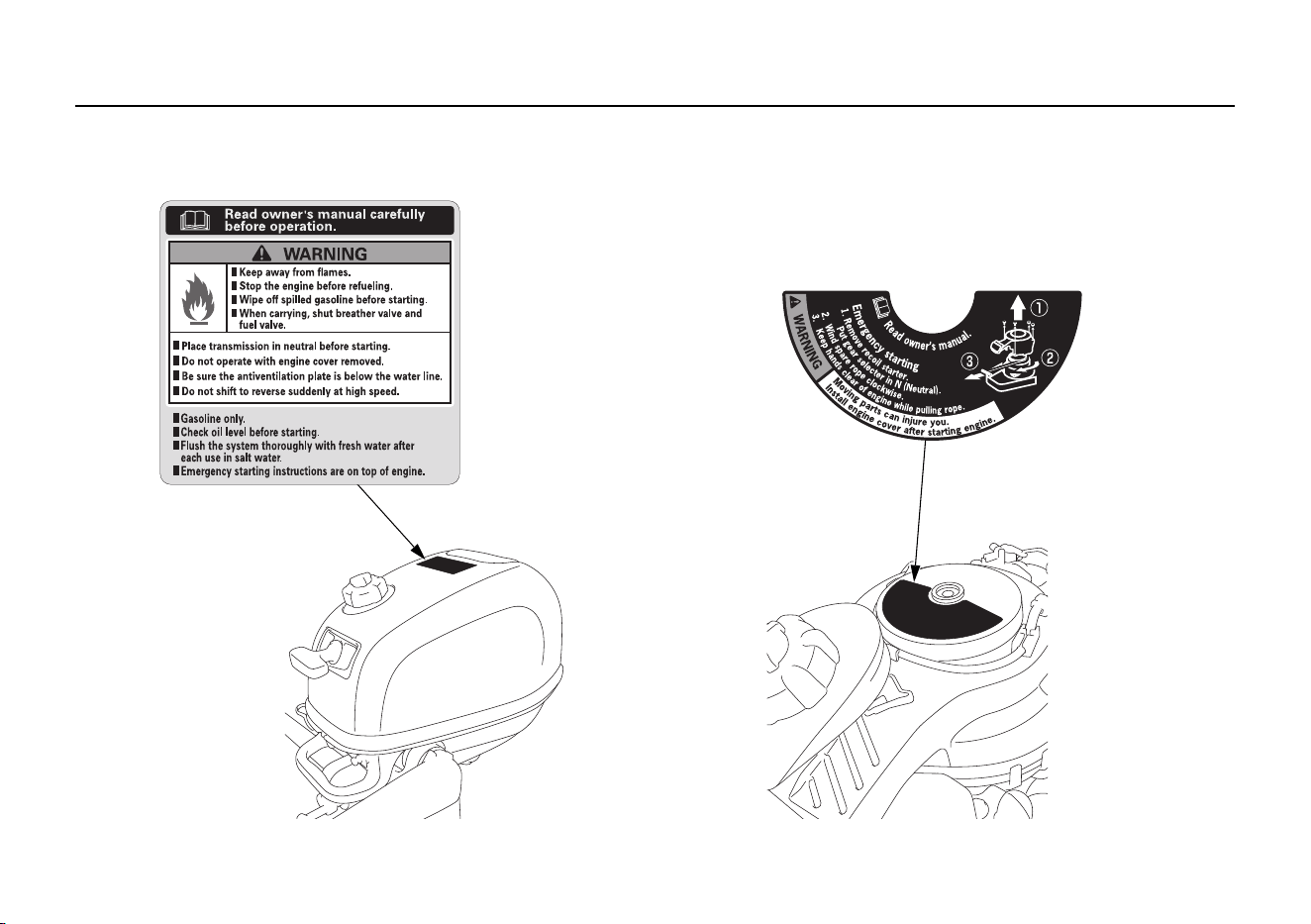

SAFETY LABEL LOCATIONS .............................. 8
CONTROLS AND FEATURES ................................... 14
CONTROL AND FEATURE
IDENTIFICATION CODES ............................... 14
COMPONENT AND CONTROL LOCATIONS ... 15
CONTROLS ............................................................ 17
Emergency Stop Switch Clip and Emergency
Stop Switch ..................................................... 17
Choke Knob ........................................................ 17

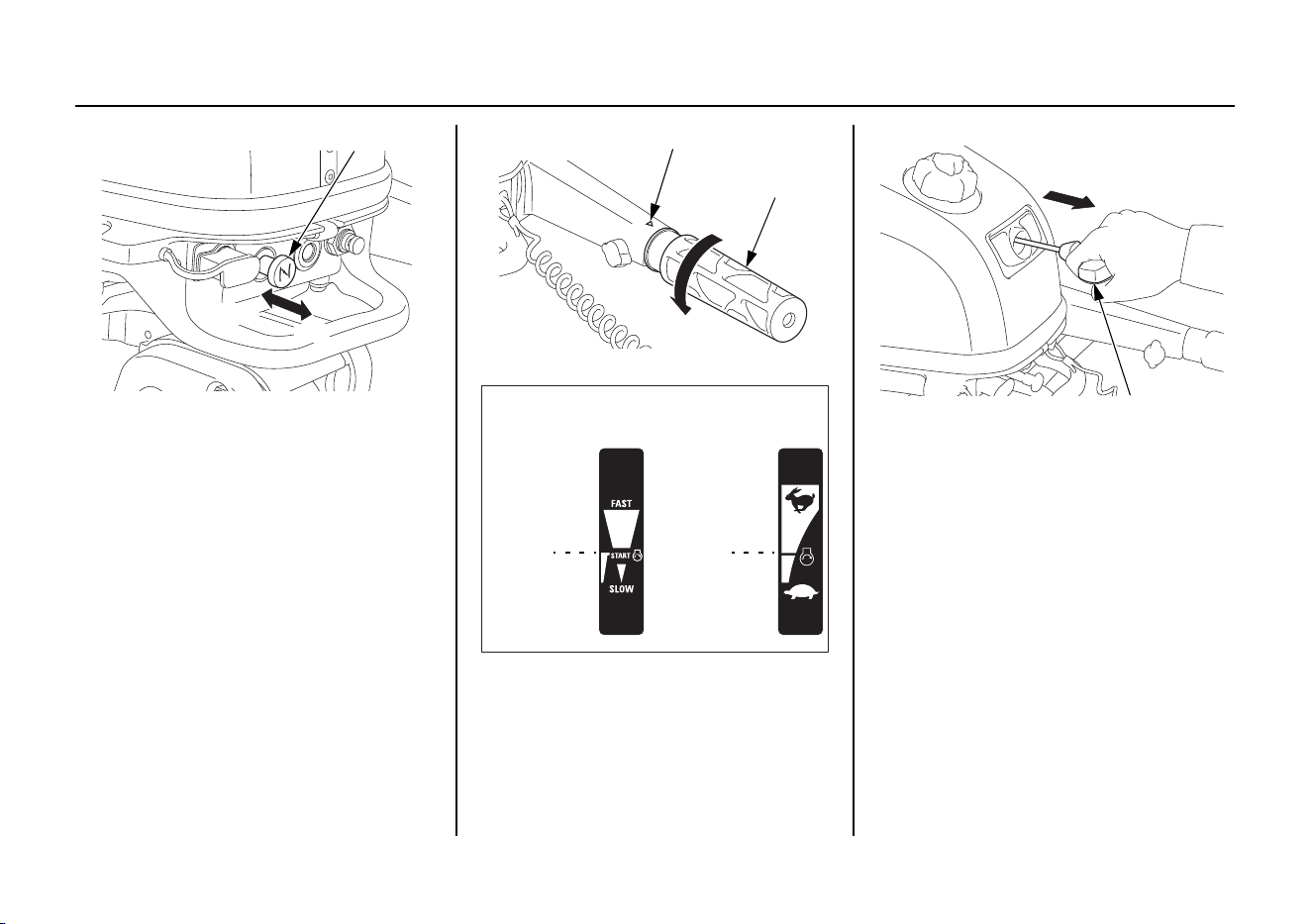

Throttle Grip ........................................................ 18

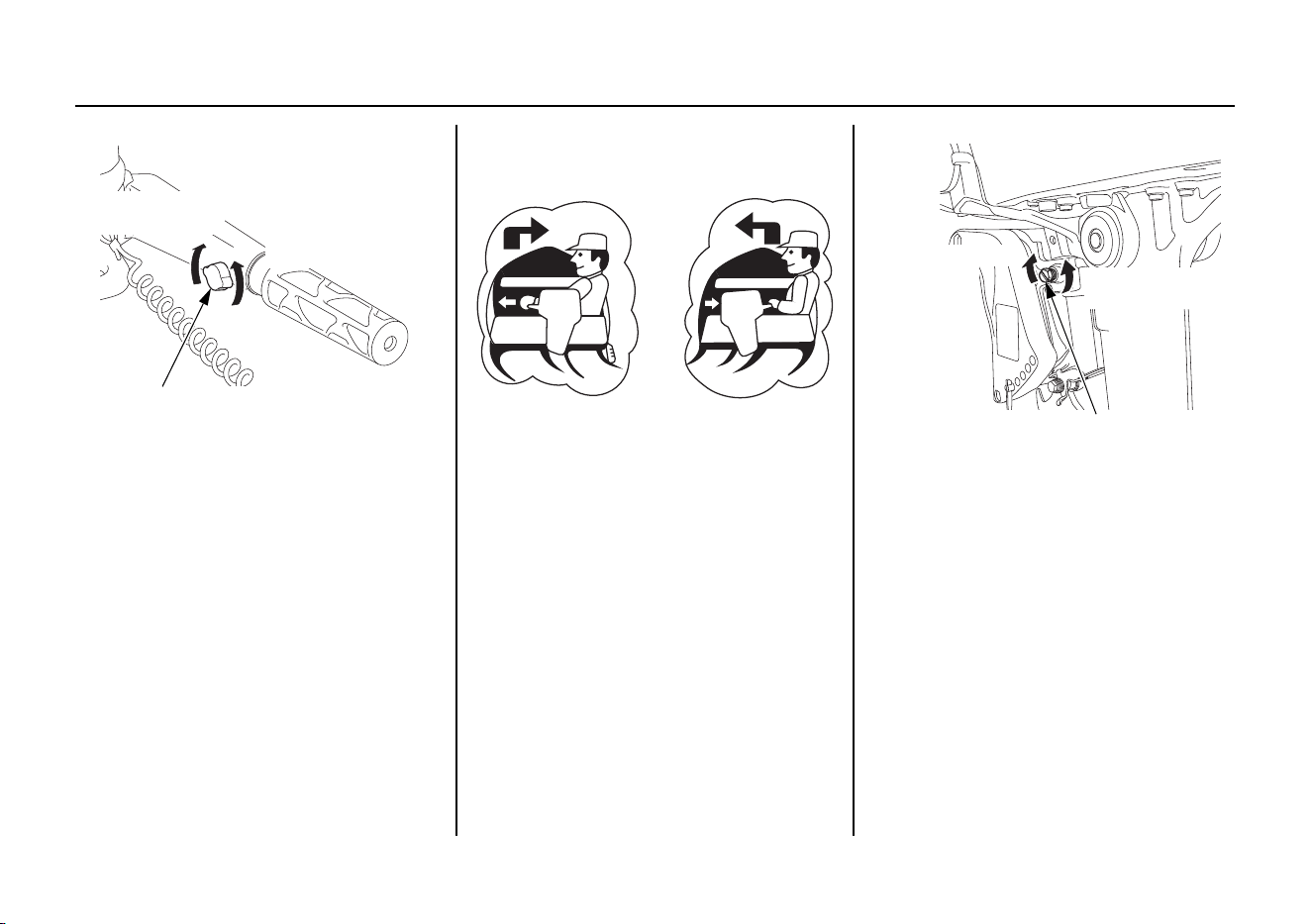

Throttle Friction Knob ........................................ 18

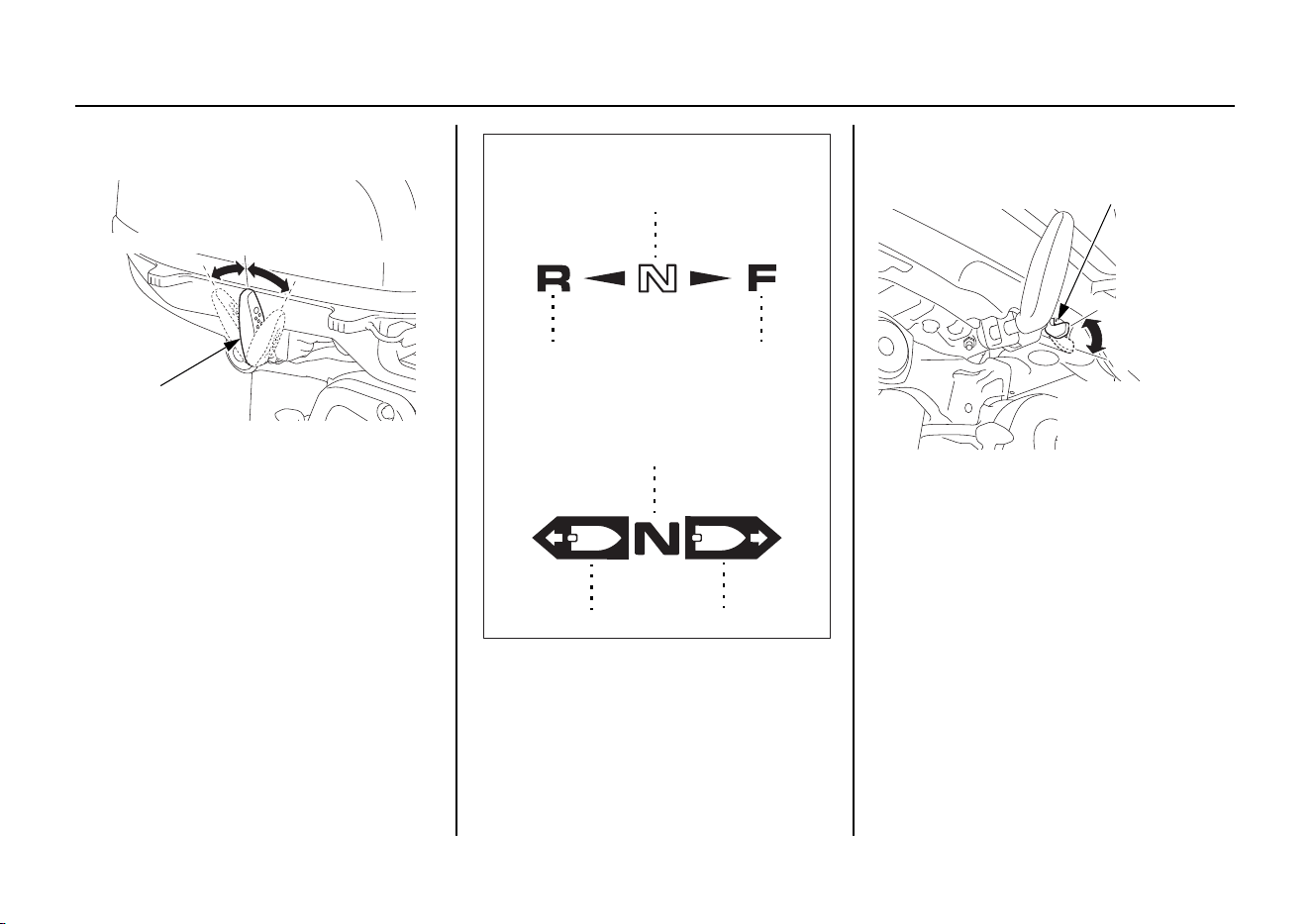

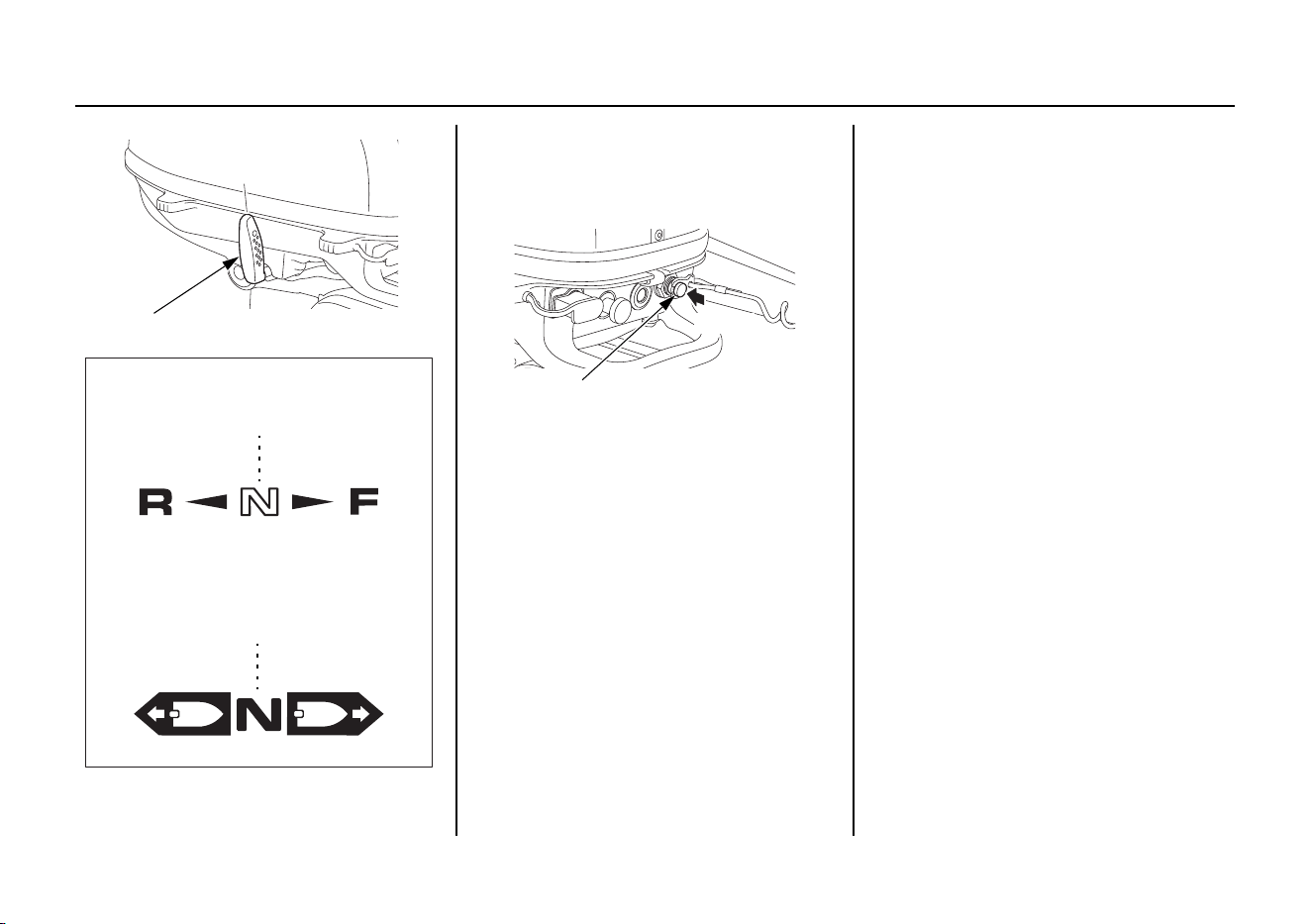

Gearshift Lever .................................................... 19
Fuel Valve Lever ................................................. 19
Fuel Filler Cap Vent Knob .................................. 21
Starter Grip .......................................................... 22
Engine Cover Latch ............................................. 22
Transom Angle Adjusting Rod ........................... 22
Steering Friction Bolt .......................................... 23

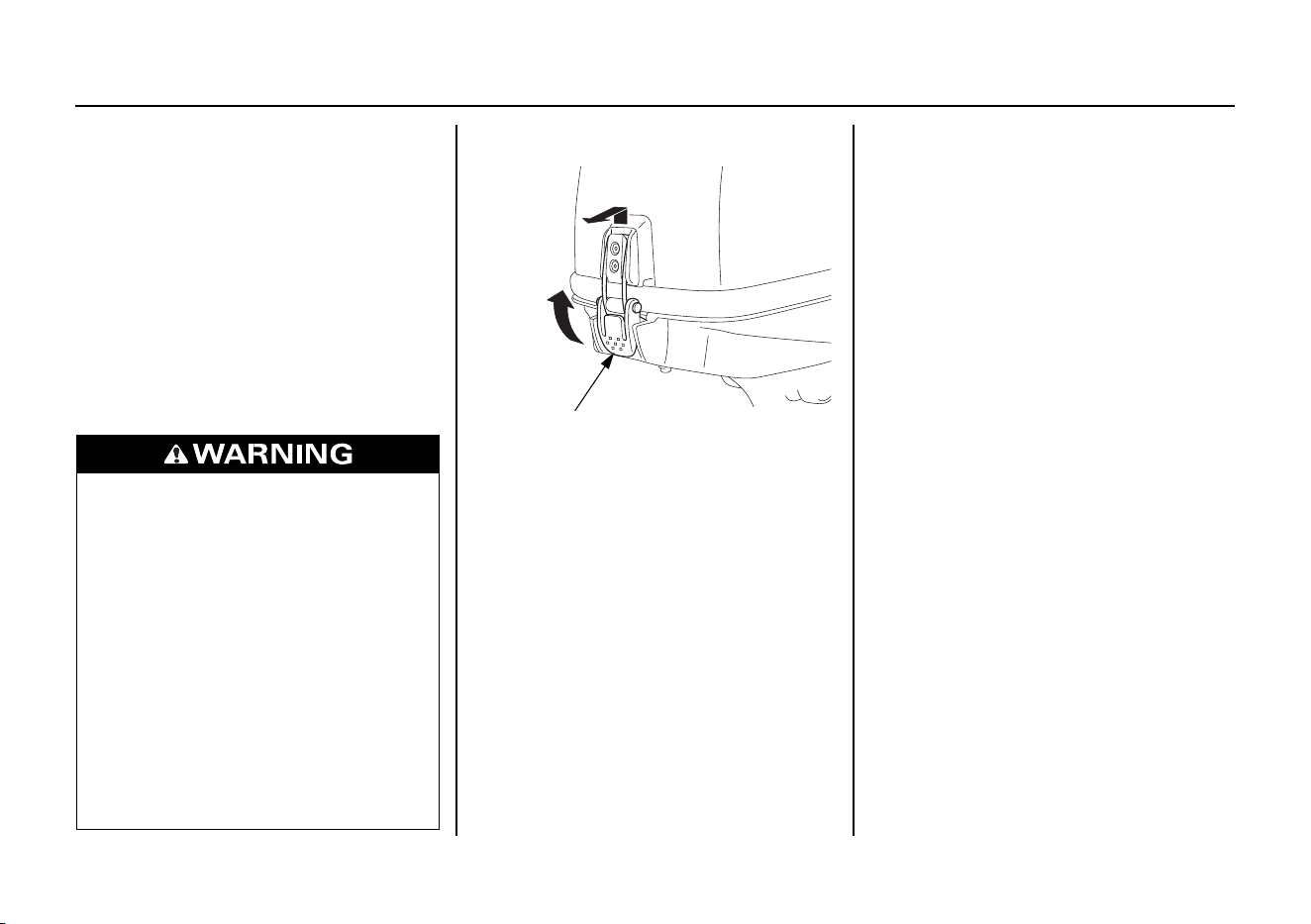

Tilt Lever ............................................................. 23
Handle Stopper .................................................... 23
INDICATORS .........................................................24
Oil Pressure Indicator ..........................................24
Cooling System Indicator ....................................25
OTHER FEATURES ...............................................25
Rev Limiter ..........................................................25
Anode ...................................................................25
Fuel Hose Connector Cap and Fuel Hose
Connector ........................................................26
Portable Fuel Tank ...............................................26

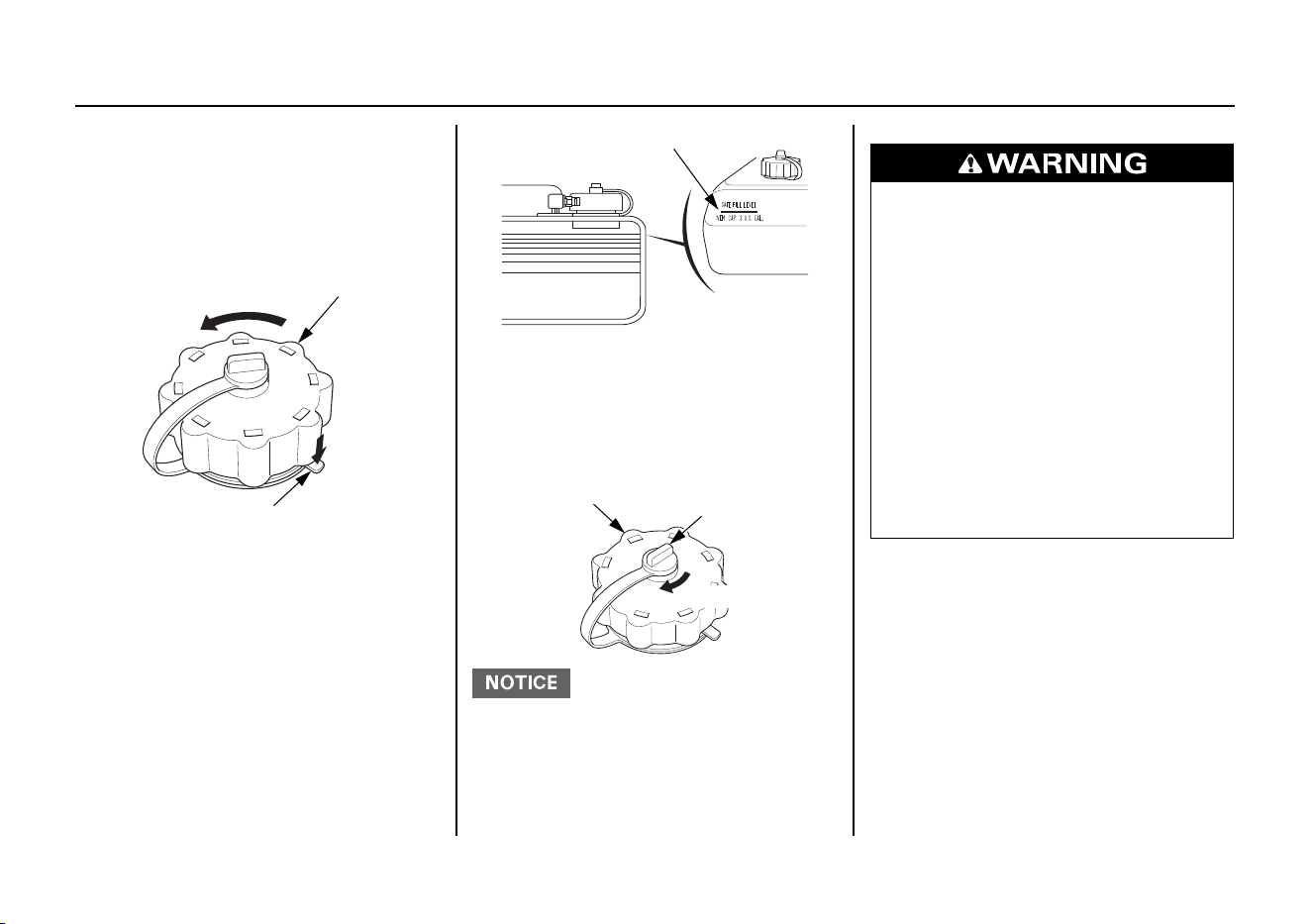

Fuel Filler Cap Vent Knob ..................................26

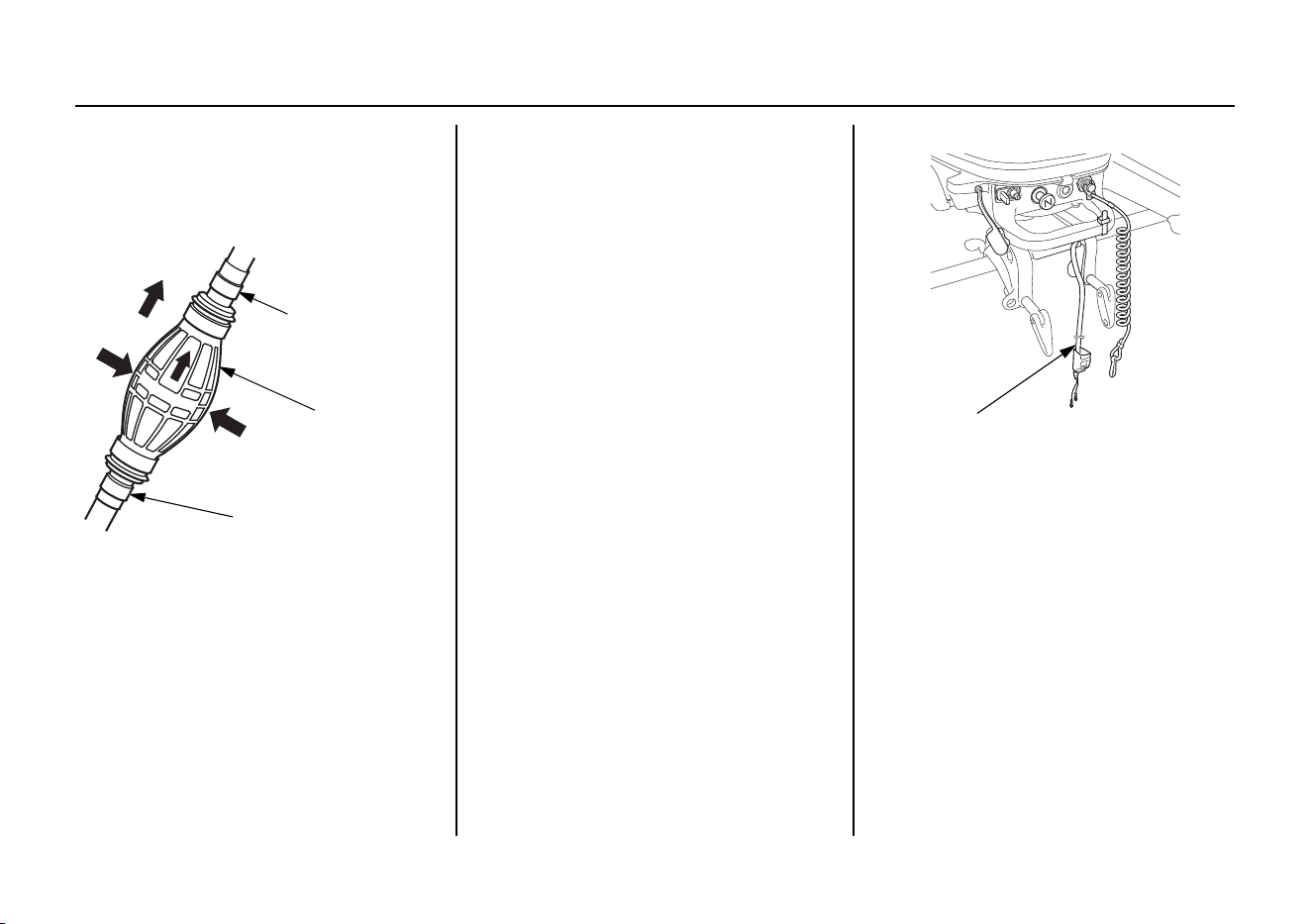

Fuel Priming Bulb ...............................................27

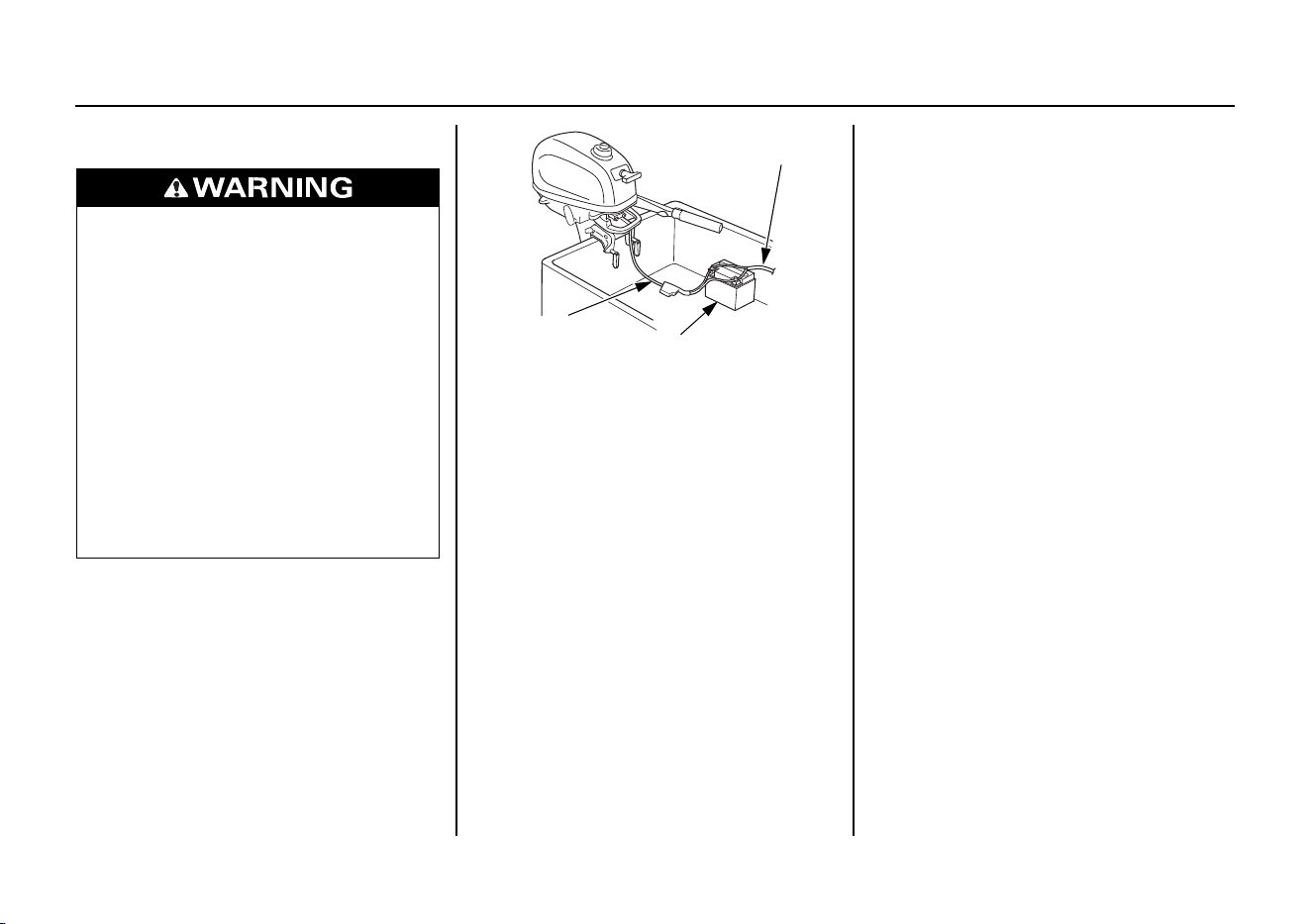

Battery Charge Cable ...........................................27
INSTALLATION ..........................................................30
POWER REQUIREMENTS ...................................30

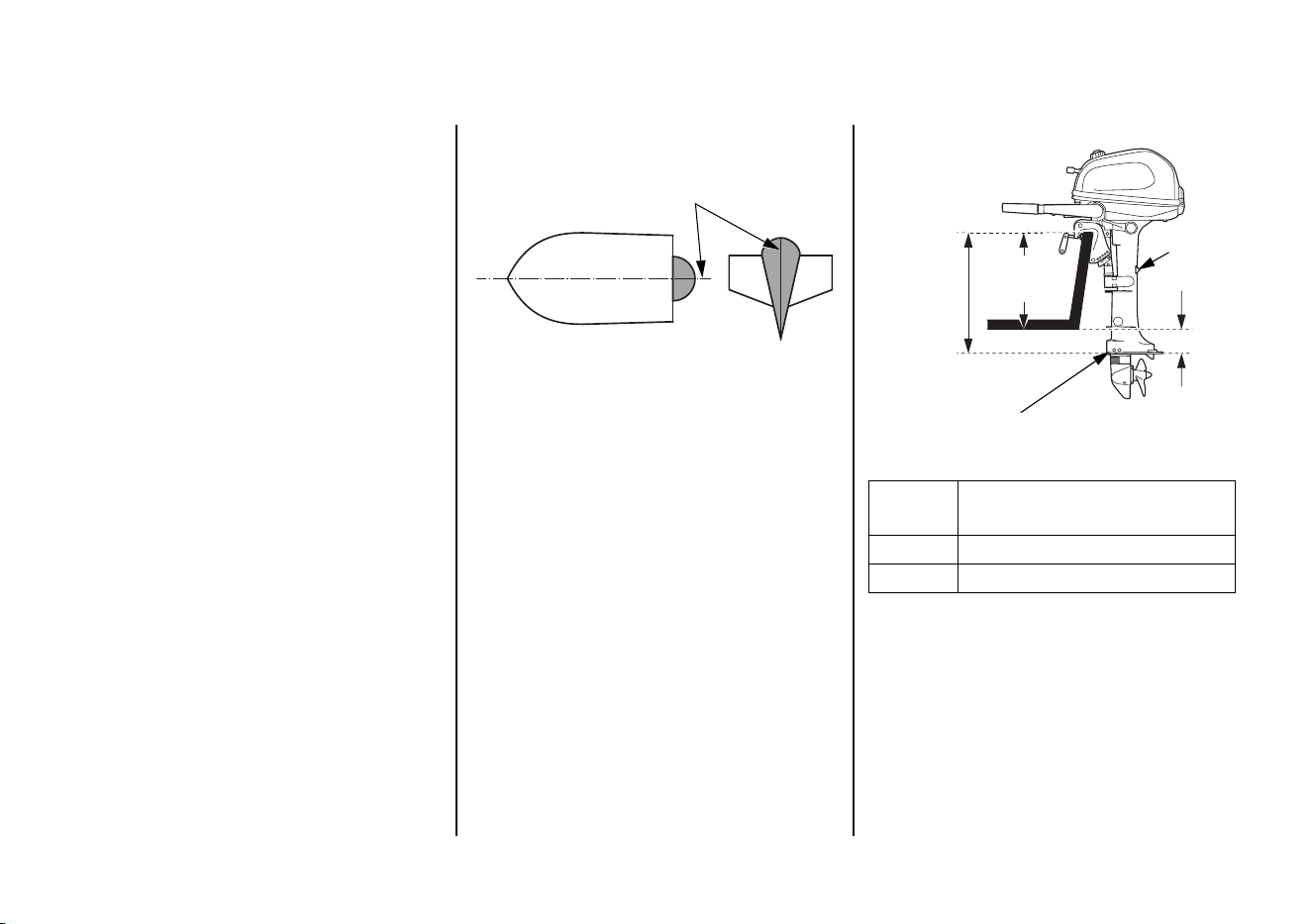

INSTALLATION POSITION .................................30
ATTACHMENT ......................................................31
TRANSOM ANGLE ADJUSTMENT ....................31
BATTERY CONNECTIONS ..................................32
Battery .................................................................32
Battery Terminals ................................................33
BEFORE OPERATION .................................................34
ARE YOU READY TO GET UNDERWAY? ........34
IS YOUR OUTBOARD MOTOR
READY TO GO? .................................................34
31ZVC6150.book Page 3 Friday, October 13, 2023 1:41 PM
CONTENTS
4
OPERATION ................................................................ 36
SAFE OPERATING PRECAUTIONS ................... 36
BREAK-IN PROCEDURE ..................................... 36
TRANSOM ANGLE ADJUSTMENT .................... 37
PRIMING THE CARBURETOR WITH
GASOLINE ......................................................... 37
PORTABLE FUEL TANK ..................................... 39
FUEL HOSE CONNECTIONS .............................. 40
FUEL PRIMING ..................................................... 40
INFREQUENT OR OCCASIONAL USE .............. 41
STARTING THE ENGINE .................................... 41

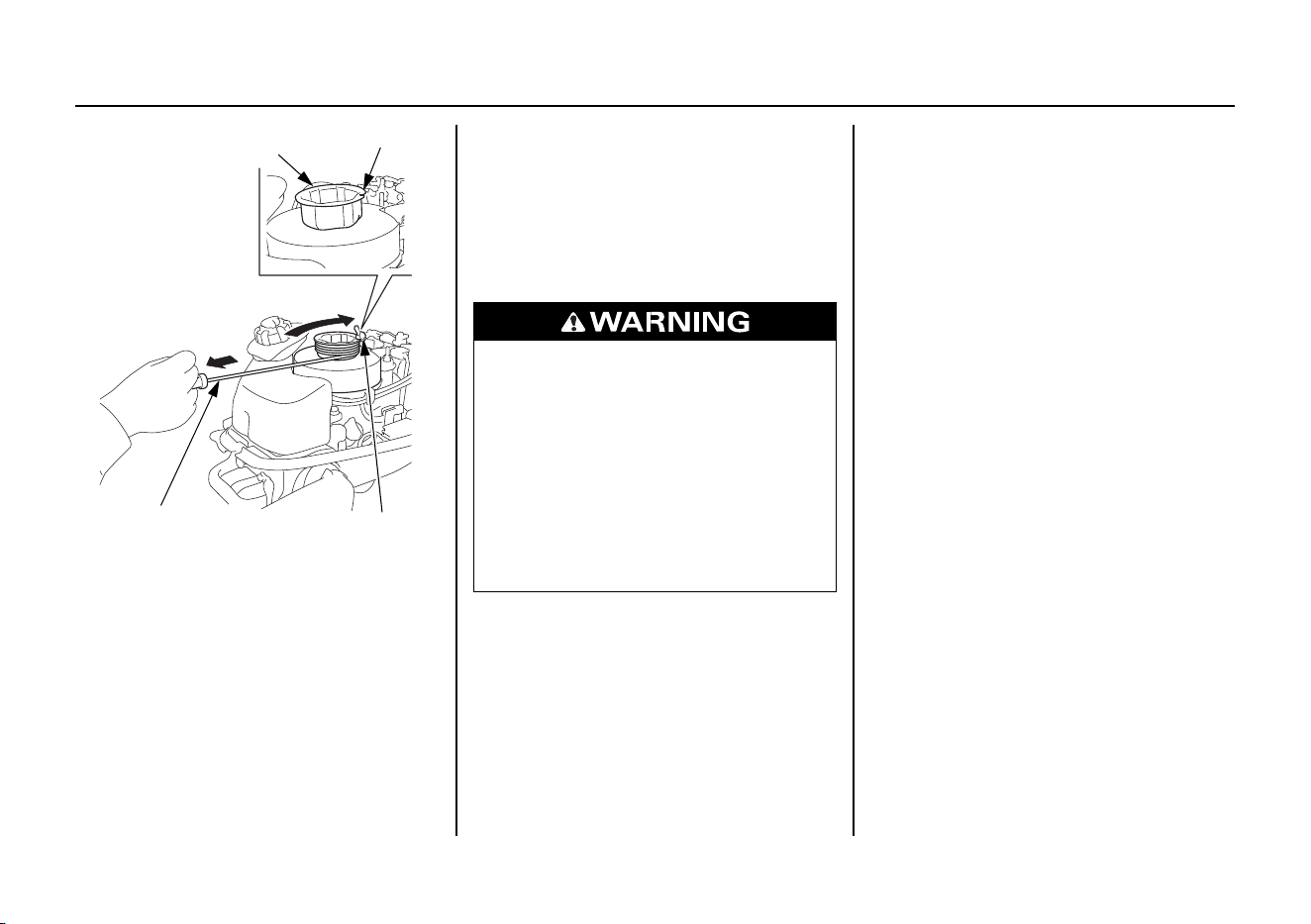

EMERGENCY STARTING ................................... 45
STOPPING THE ENGINE ..................................... 51
Emergency Engine Stopping ............................... 51
Normal Engine Stopping ..................................... 51
GEARSHIFTING AND THROTTLE
OPERATION ...................................................... 53
STEERING .............................................................. 54
CRUISING .............................................................. 55
SHALLOW WATER OPERATION ...................... 56
MOORING, BEACHING, LAUNCHING ............. 57
SERVICING YOUR OUTBOARD MOTOR ............... 58
THE IMPORTANCE OF MAINTENANCE .......... 58
MAINTENANCE SAFETY ................................... 59
TOOL KIT AND EMERGENCY STARTER
ROPE ...................................................................60
MAINTENANCE SCHEDULE ..............................61
ENGINE COVER REMOVAL AND
INSTALLATION ................................................63
Engine Oil Level Check ......................................64

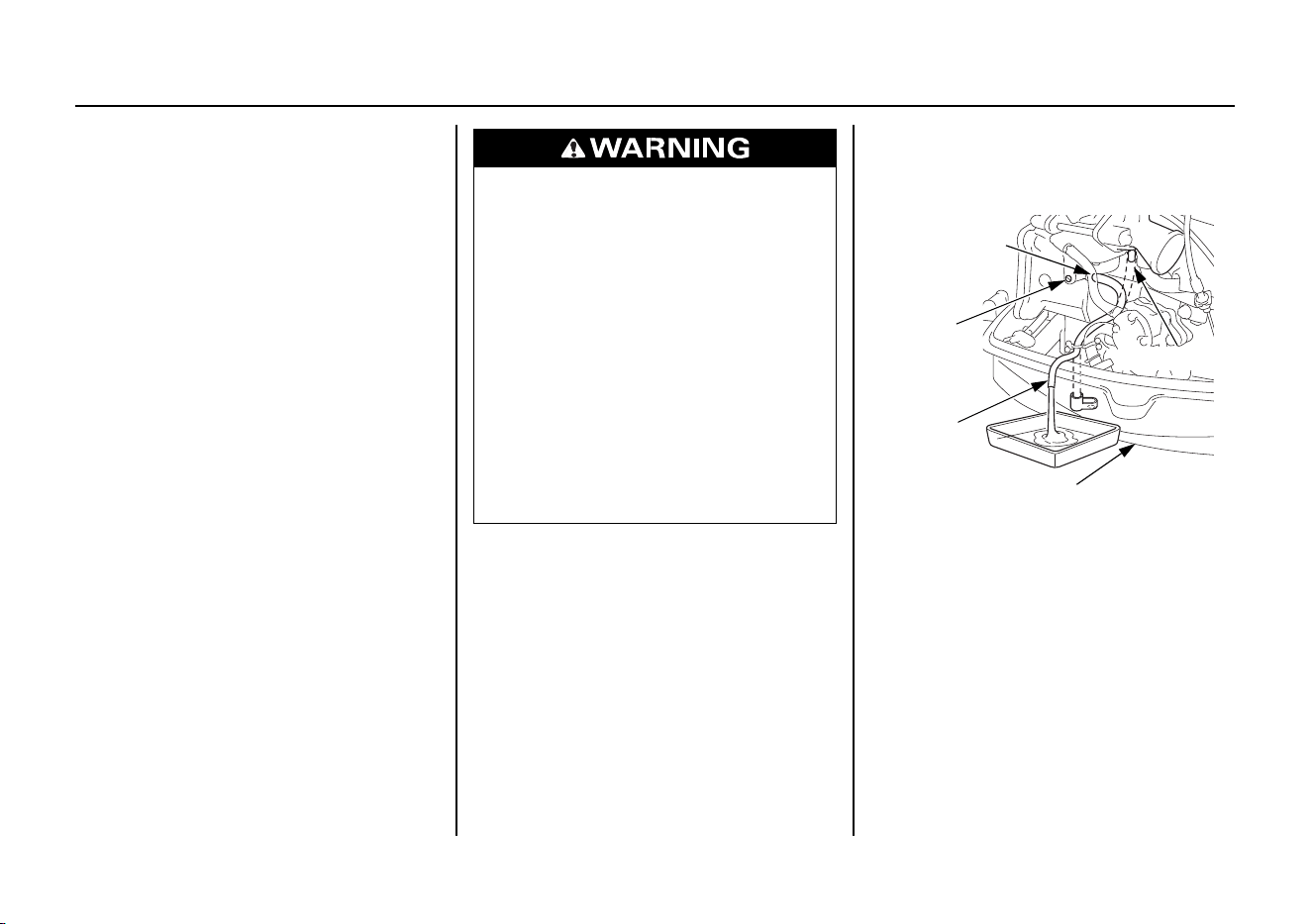

Engine Oil Change ...............................................65
Engine Oil Recommendations .............................67
Gear Case Oil Change .........................................67
Lubrication Points ................................................69
Spark Plug Service ...............................................70
REFUELING ...........................................................71
FUEL RECOMMENDATIONS ..............................74
Fuel Filter Inspection and Replacement ..............75
Portable Fuel Tank and Tank Filter Cleaning .....77
Recoil Starter Rope Inspection ............................78
Anode Replacement .............................................78

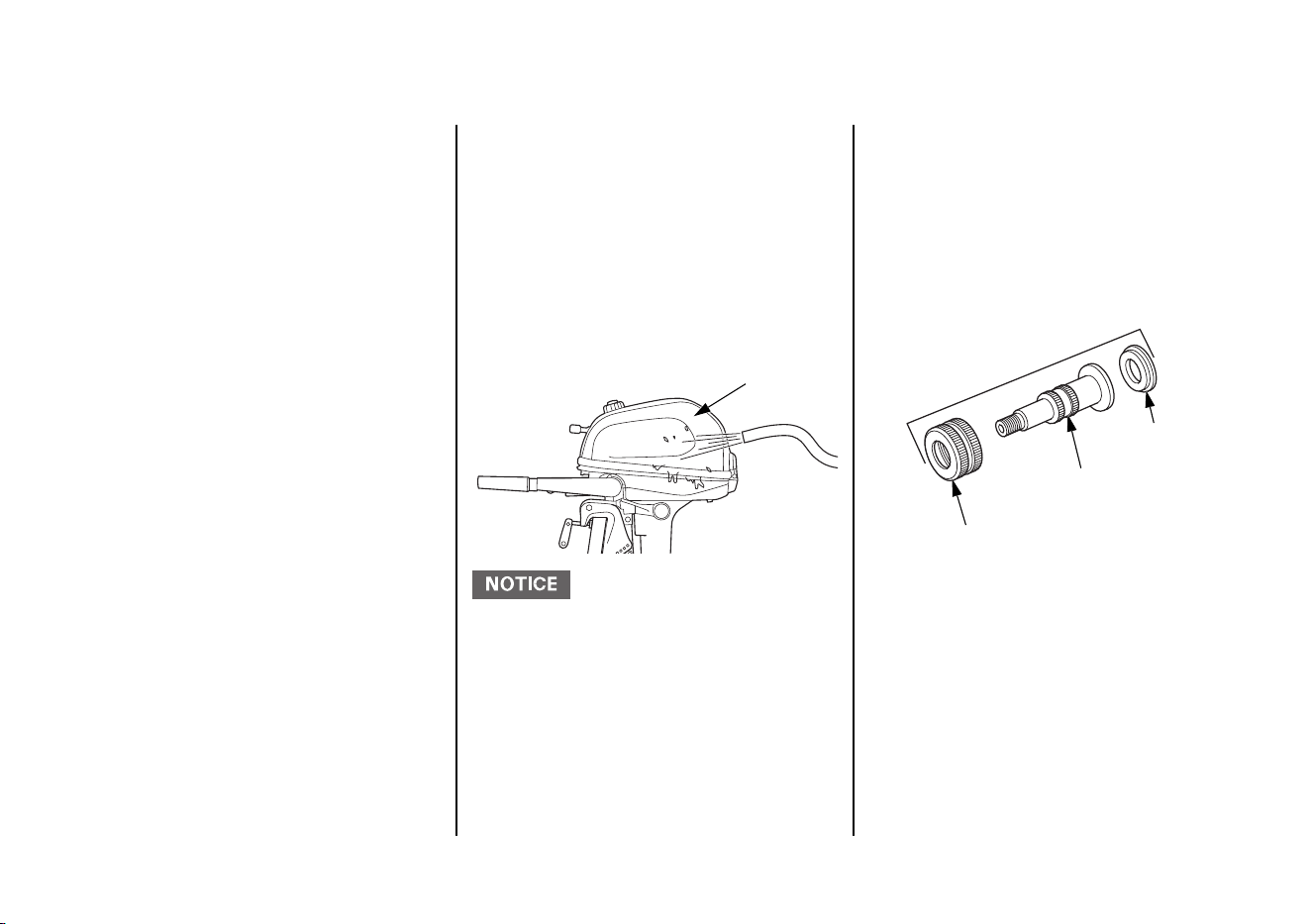

Propeller and Shear Pin Replacement .................79
31ZVC6150.book Page 4 Friday, October 13, 2023 1:41 PM
CONTENTS
5
CLEANING AND FLUSHING .................................... 81

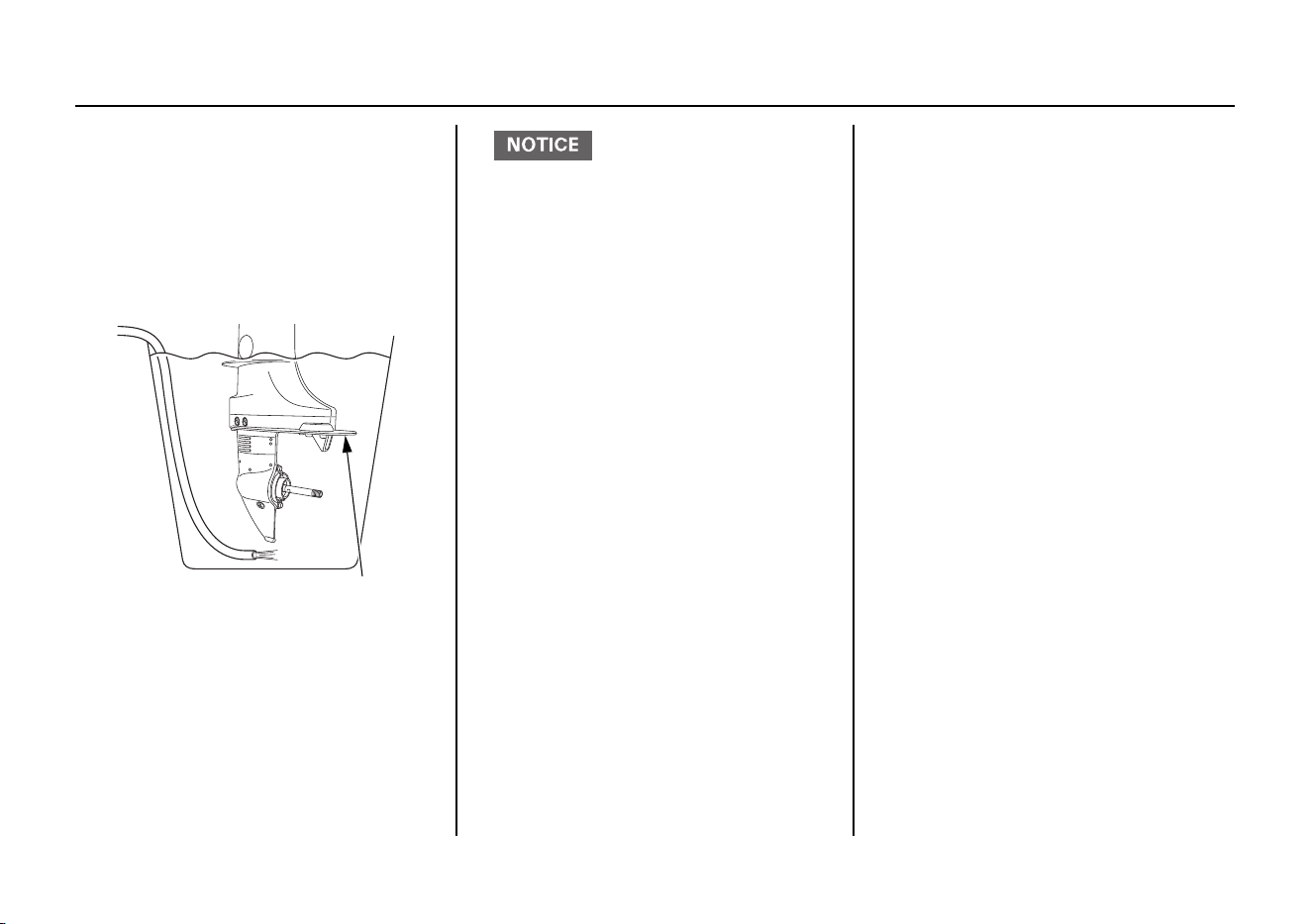

Cleaning and Flushing ......................................... 81
STORAGE ..................................................................... 84
Fuel ...................................................................... 84
Engine Oil ........................................................... 86
Engine Cylinder .................................................. 86
STORAGE PRECAUTIONS .................................. 87
REMOVAL FROM STORAGE ............................. 88
TRANSPORTING ......................................................... 89
WITH OUTBOARD MOTOR INSTALLED ON
BOAT .................................................................. 89
WITH OUTBOARD MOTOR REMOVED FROM
BOAT .................................................................. 90
TAKING CARE OF UNEXPECTED PROBLEMS ..... 91
ENGINE WILL NOT START ................................ 91
HARD STARTING OR STALLS AFTER
STARTING ......................................................... 93
ENGINE OVERHEATS ......................................... 94
ENGINE WILL NOT DRIVE THE
PROPELLER
....................................................... 95
BATTERY WILL NOT CHARGE
(Equipped type) ................................................... 96

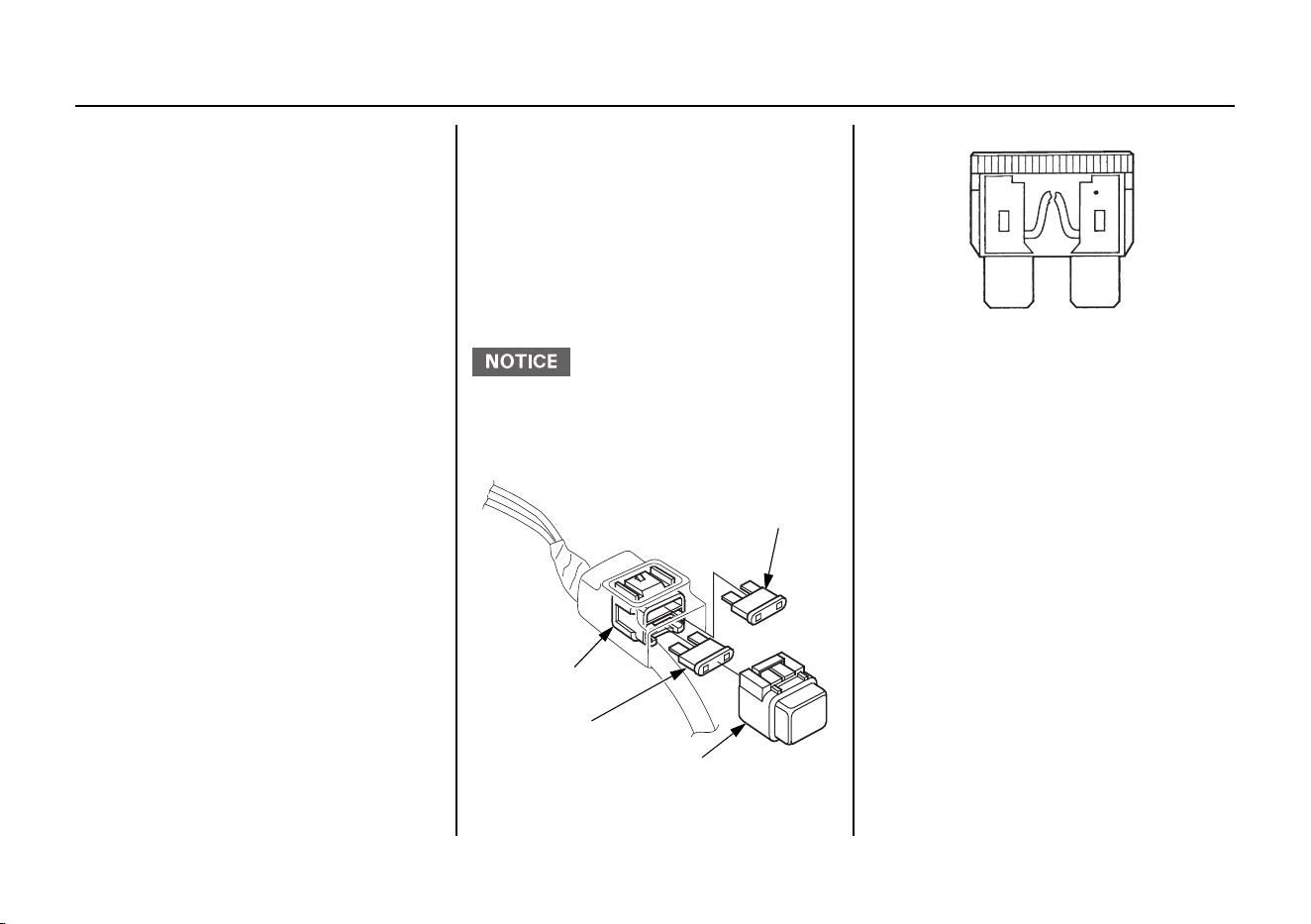

Fuse Replacement ............................................... 96
OIL PRESSURE INDICATOR GOES OFF AND
ENGINE SPEED IS LIMITED ...........................97
SUBMERGED OUTBOARD MOTOR ..................98
TECHNICAL INFORMATION ..................................100

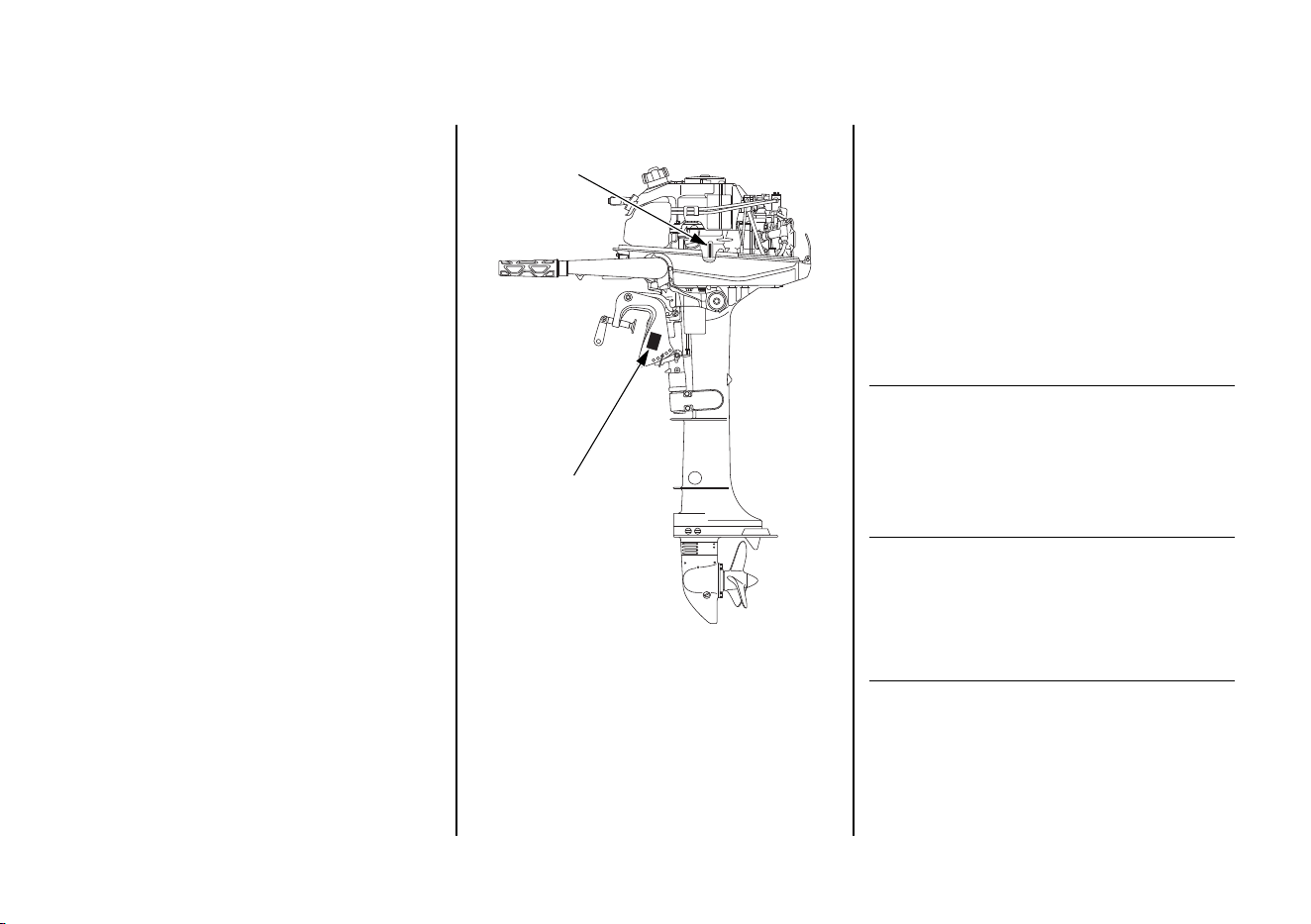

Serial Number Locations .......................................100
Carburetor Modification for High Altitude
Operation ...........................................................101
Battery ....................................................................101
Emission Control System Information ..................102
Star Label ...............................................................104
Specifications .........................................................106
Specifications .........................................................107
Specifications .........................................................108
CONSUMER INFORMATION ..................................109
Dealer Locator Information ...............................109
Honda Publications ............................................109
Customer Service Information ...........................110
Warranty Statements ..............................................112
Distributor’s Limited Warranty .............................112
Emission Control System Warranty ......................117
Distributor’s Warranty ...........................................122
INDEX .........................................................................125
31ZVC6150.book Page 5 Friday, October 13, 2023 1:41 PM
6
OUTBOARD MOTOR SAFETY
IMPORTANT SAFETY
INFORMATION
The Honda BF4A, BF5D and BF6A
outboard motors are designed for use
with boats that have a suitable
manufacturer’s power
recommendation. Other uses can
result in injury to the operator or
damage to the outboard motor and
other property.
Most injuries or property damage can
be prevented if you follow all
instructions in this manual and on the
outboard motor. The most common
hazards are discussed in this chapter,
along with the best way to protect
yourself and others.
Operator Responsibility
• It is the operator’s responsibility to
provide the necessary safeguards to
protect people and property.
Know how to stop the engine
quickly in case of emergency.
Understand the use of all controls.
• Stop the engine immediately if
anyone falls overboard, and do not
run the engine while the boat is
near anyone in the water.
• Always stop the engine if you must
leave the controls for any reason.
• Attach the emergency stop switch
lanyard securely to the operator.
• Always wear a PFD (Personal
Flotation Device) while on the
boat.
• Familiarize yourself with all laws
and regulations relating to boating
and the use of outboard motors.
• Be sure that anyone who operates
the outboard motor receives proper
instruction.
• Be sure the outboard motor is
properly mounted on the boat.
• Do not remove the engine cover
while the engine is running.
31ZVC6150.book Page 6 Friday, October 13, 2023 1:41 PM
7
OUTBOARD MOTOR SAFETY
Refuel With Care
• Gasoline is extremely flammable,
and gasoline vapor can explode.
Refuel outdoors, in a
well-ventilated area, with the
engine stopped. Never smoke near
gasoline, and keep other flames and
sparks away.
• Remove any portable fuel tank
from the boat for refueling. Keep
the portable fuel tank away from
the battery or other potential spark
sources.
• Refuel carefully to avoid spilling
fuel. Avoid overfilling the fuel
tank.
• After refueling, tighten the filler
cap securely. If any fuel is spilled,
make sure the area is dry before
starting the engine.
Carbon Monoxide Hazard
Exhaust contains poisonous carbon
monoxide, a colorless, odorless gas.
Breathing carbon monoxide can
cause loss of consciousness and may
lead to death.
If you run the engine in an area that is
confined, or even partly enclosed, the
air you breathe could contain a
dangerous amount of exhaust gas.
Never run your outboard inside a
garage or other enclosure.
Running the engine of your
outboard while in an enclosed or
partially enclosed area can cause
a rapid build-up of toxic carbon
monoxide gas.
Breathing this colorless, odorless
gas can quickly cause
unconsciousness and lead to
death.
Only run your outboard engine
when it is located in a well
ventilated area outdoors.
31ZVC6150.book Page 7 Friday, October 13, 2023 1:41 PM
8
OUTBOARD MOTOR SAFETY
SAFETY LABEL LOCATIONS
US, Puerto Rico, and US Virgin Islands Types
31ZVC6150.book Page 8 Friday, October 13, 2023 1:41 PM
9
OUTBOARD MOTOR SAFETY

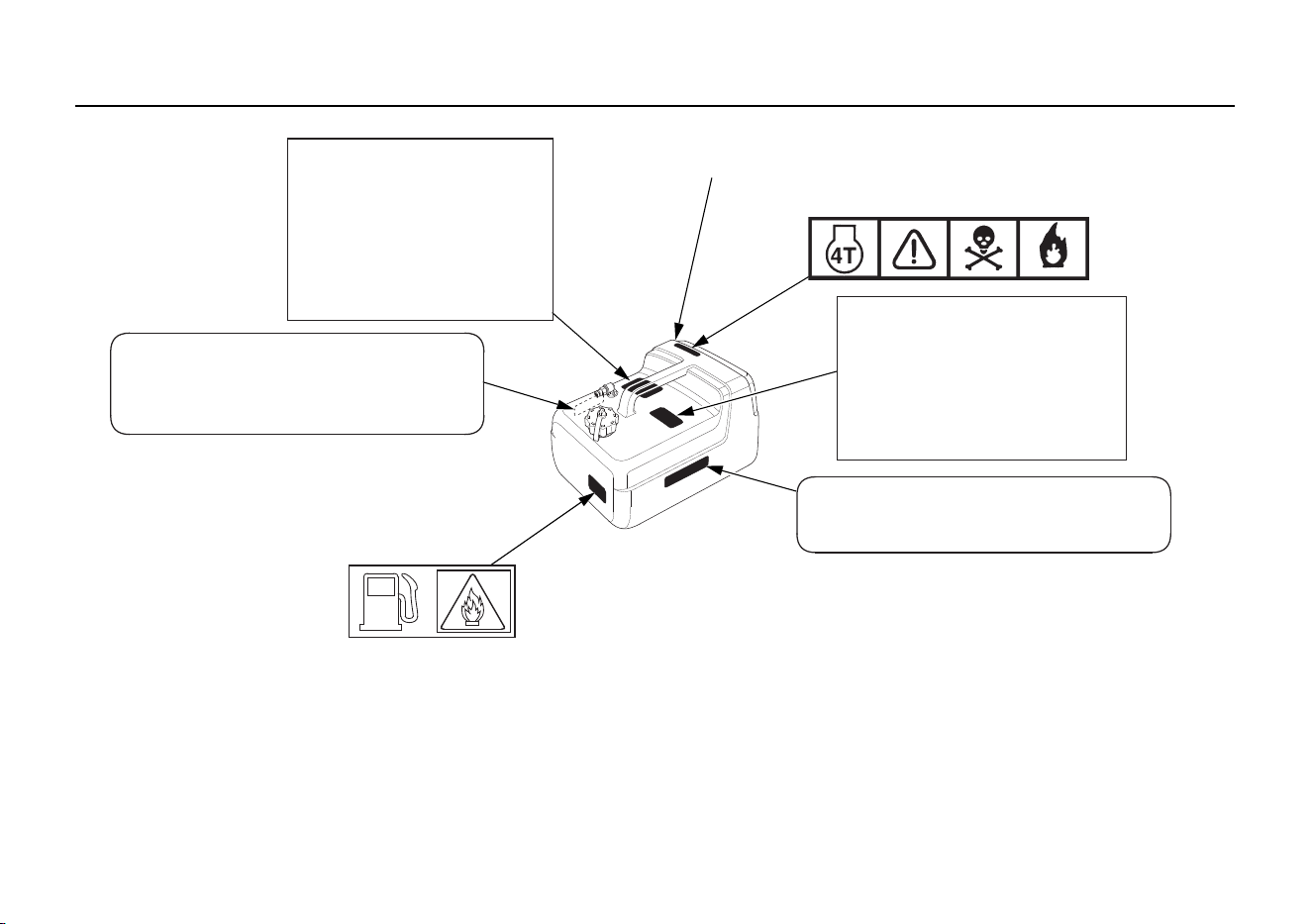

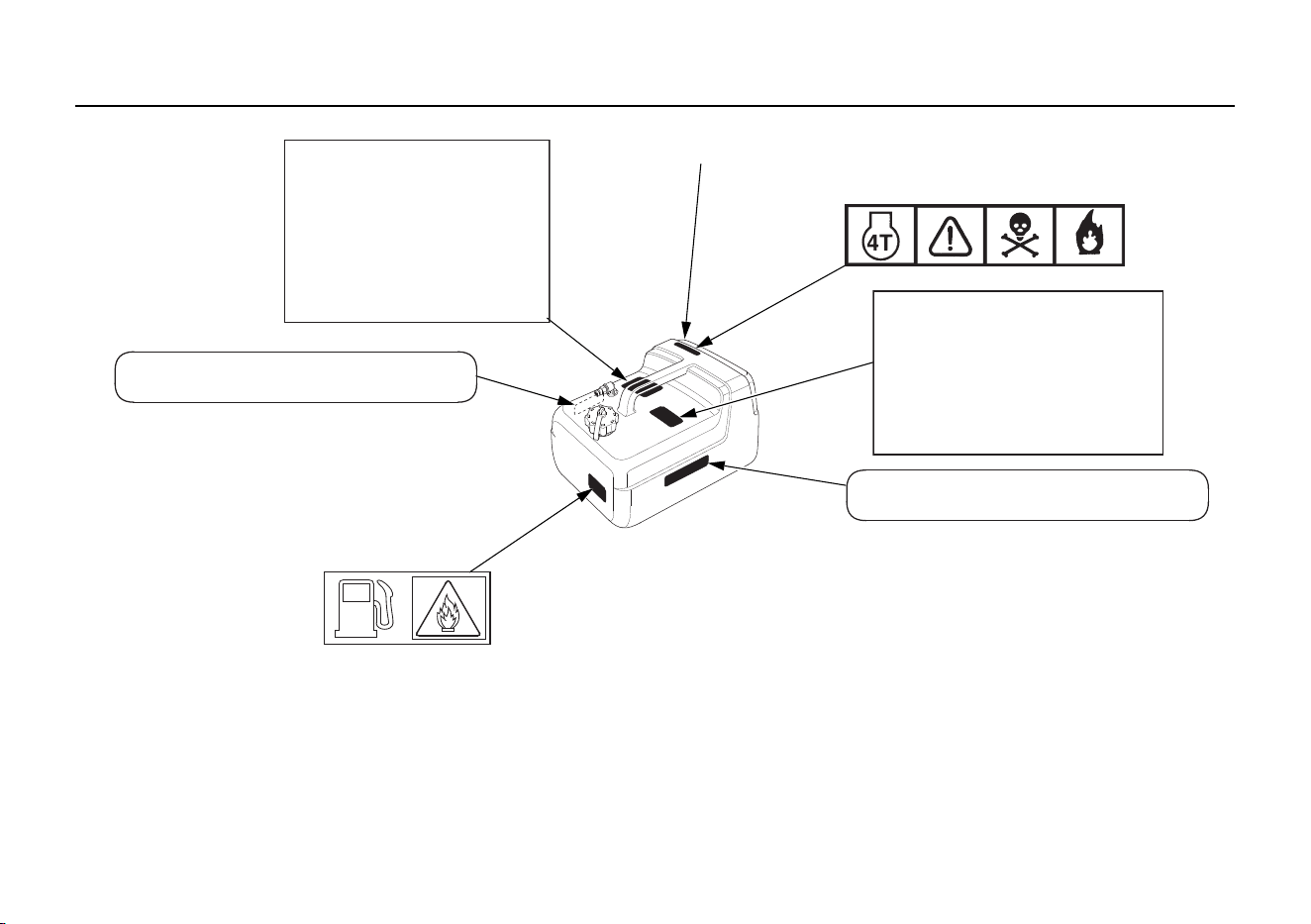

The labels shown here contain important safety information. Please read them carefully. These labels are considered
permanent parts of your outboard motor. If a label comes off or becomes hard to read, contact an authorized Marine
dealer for a replacement.
FUEL CAUTION
PORTABLE FUEL TANK
FUEL CAUTION
CAUTION
KEEP TOTALLY CLOSED WHEN
NOT IN USE. KEEP AWAY FROM
HEAT, SPARKS, AND OPEN FLAME.
SECURE ABOVE DECK IN WELL
VENTILATED AREA. DO NOT USE
FOR LONG TERM FUEL STORAGE.
DO NOT USE FUEL/OIL MIXTURE.
GASOLINE FLAMMABLE DANGER
DANGER
HARMFUL OR FATAL IF SWALLOWED.
KEEP OUT OF REACH OF CHILDREN.
IF SWALLOWED, DO NOT INDUCE
VOMITING. CALL A PHYSICIAN
IMMEDIATELY.
GASOLINE FLAMMABLE DANGER
31ZVC6150.book Page 9 Friday, October 13, 2023 1:41 PM
10
OUTBOARD MOTOR SAFETY
Canadian Types
31ZVC6150.book Page 10 Friday, October 13, 2023 1:41 PM
11
OUTBOARD MOTOR SAFETY
The labels shown here contain important safety information. Please read them carefully. These labels are considered
permanent parts of your outboard motor. If a label comes off or becomes hard to read, contact an authorized Marine
dealer for a replacement.
FUEL CAUTION
PORTABLE FUEL TANK
GASOLINE FLAMMABLE DANGER
GAZOLINE INFLAMMABLE DANGEREUX
DANGER
HARMFUL OR FATAL IF SWALLOWED.
KEEP OUT OF REACH OF CHILDREN.
IF SWALLOWED, DO NOT INDUCE
VOMITING. CALL A PHYSICIAN
IMMEDIATELY.
CAUTION
KEEP TOTALLY CLOSED WHEN
NOT IN USE. KEEP AWAY FROM
HEAT, SPARKS, AND OPEN FLAME.
SECURE ABOVE DECK IN WELL
VENTILATED AREA. DO NOT USE
FOR LONG TERM FUEL STORAGE.
DO NOT USE FUEL/OIL MIXTURE.
GASOLINE FLAMMABLE DANGER
GAZOLINE INFLAMMABLE DANGEREUX
GASOLINA PELIGRO FLAMABLE
FUEL CAUTION
31ZVC6150.book Page 11 Friday, October 13, 2023 1:41 PM
12
OUTBOARD MOTOR SAFETY
US, Puerto Rico, and US Virgin
Islands Types
• Gasoline is harmful or fatal if
swallowed. Keep the fuel tank
out of reach of children.
• Gasoline is extremely
flammable and is explosive
under certain conditions.
Refuel in a well-ventilated area
with the engine stopped.
• Do not smoke or allow flames
or sparks where the engine is
refueled or where gasoline is
stored.
• Do not overfill the fuel tank.
After refueling make sure that
the fuel filler cap is closed
properly and securely.
• Be careful not to spill any fuel
while refueling. Spilled fuel or
fuel vapor may ignite. If any
fuel is spilled, make sure that
the area is dry before starting
the engine.
31ZVC6150.book Page 12 Friday, October 13, 2023 1:41 PM
13
OUTBOARD MOTOR SAFETY
Canadian Types
• Honda outboard motor is
designed to give safe and
dependable service if operated
according to instructions.
Read and understand the
Owner’s Manual before
operating the outboard motor.
Failure to do so could result in
personal injury or equipment
damage.
• Gasoline is harmful or fatal if
swallowed. Keep the fuel tank
out of reach of children.
• Gasoline is extremely
flammable and is explosive
under certain conditions.
Refuel in a well-ventilated
area with the engine stopped.
• Do not smoke or allow flames
or sparks where the engine is
refueled or where gasoline is
stored.
• Do not overfill the fuel tank.
After refueling make sure that
the fuel filler cap is closed
properly and securely.
• Be careful not to spill any fuel
while refueling. Spilled fuel or
fuel vapor may ignite. If any
fuel is spilled, make sure that
the area is dry before starting
the engine.
31ZVC6150.book Page 13 Friday, October 13, 2023 1:41 PM
14
CONTROLS AND FEATURES
BF4A/BF5D/BF6A are provided with the
following types according to the shaft length
and charging system.
• Shaft Length
S: Short Shaft
L: Long Shaft
• Control System
H: Tiller Handle Type
•Charging System
N: Without System
(Optional Equipment)
(Example)
S
Destination
H
Charging System
N=Without System
(Optional Equipment)
N □
Throttle Type
H=Tiller Handle Type
Shaft Length
S=Short Shaft
L=Long Shaft
CONTROL AND FEATURE IDENTIFICATION CODES
Refer to this chart for an explanation of the Type Codes used in this manual to identify control and feature applications.
For the detailed equipment conditions of optional components, consult your Honda dealer.
Model BF4A BF5D BF6A
Type SHN□ LHN□ SHN□ SH□ LHN□ LH□ SHN□ SH□ LHN□ LH□
Shaft Length
S ●●● ●●
L ●●●●●
Fuel Tank (Internal fuel tank)
●●●●●●●●●●
Charging System
●●●●
31ZVC6150.book Page 14 Friday, October 13, 2023 1:41 PM
15
CONTROLS AND FEATURES

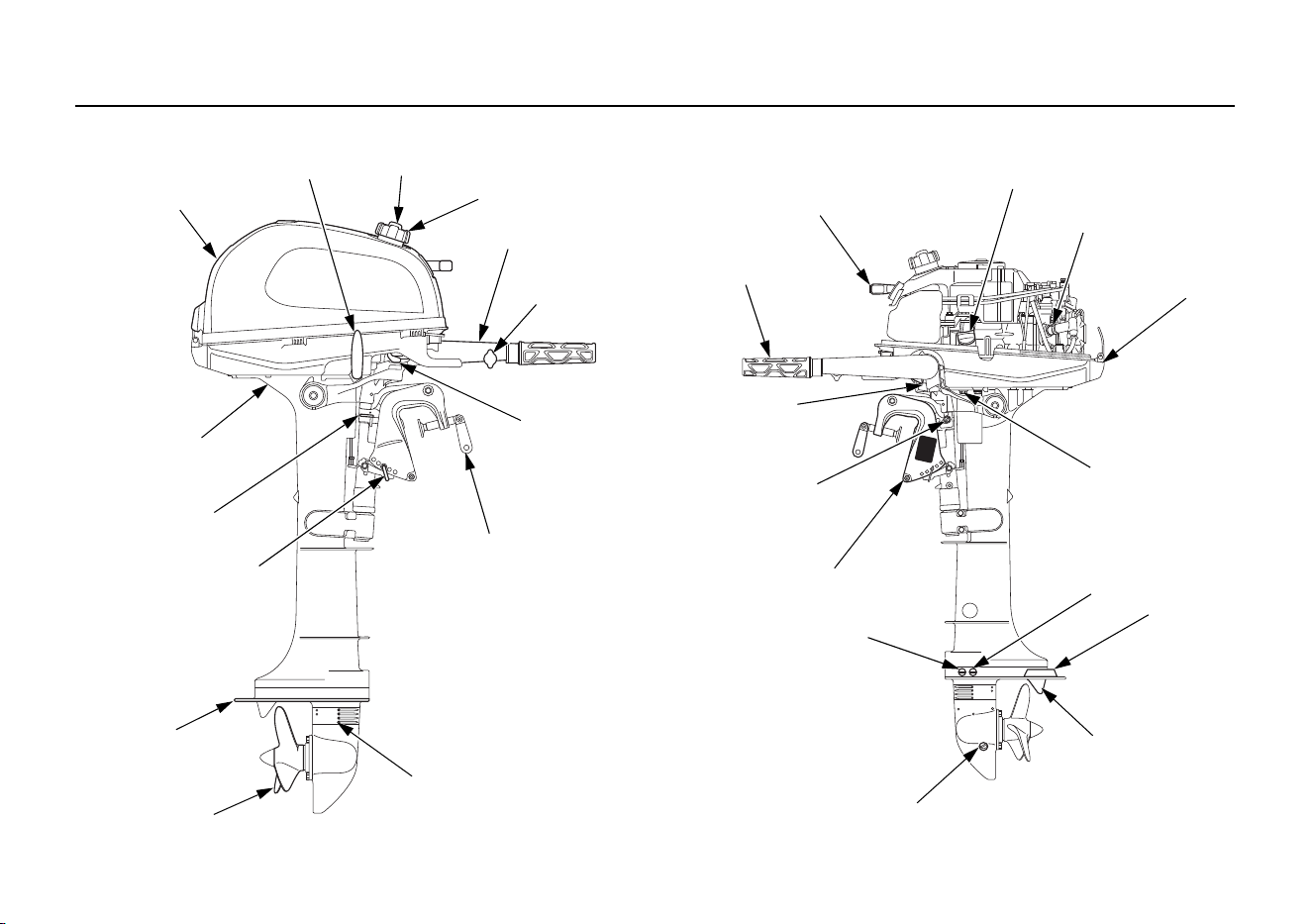

COMPONENT AND CONTROL LOCATIONS
GEARSHIFT LEVER
FUEL FILLER CAP
FUEL FILLER CAP VENT KNOB
TILLER HANDLE
FUEL VALVE
LEVER
CLAMP SCREW
WATER INTAKE PORT (each side)
PROPELLER
ANTIVENTILATION
PLATE
TRANSOM ANGLE
ADJUSTING ROD
COOLING SYSTEM
INDICATOR
ENGINE COVER
OIL FILLER CAP/DIPSTICK
SPARK PLUG
STARTER GRIP
THROTTLE
GRIP
THROTTLE
FRICTION KNOB
HANDLE STOPPER
STEERING FRICTION
BOLT
STERN BRACKET
GEAR OIL LEVEL SCREW
GEAR OIL DRAIN/FILL SCREW
EXHAUST PORT
ANODE
WASH SCREW
(FLUSH SCREW)
ENGINE OIL
DRAIN BOLT
ENGINE
COVER LATCH
TILT LEVER
31ZVC6150.book Page 15 Friday, October 13, 2023 1:41 PM

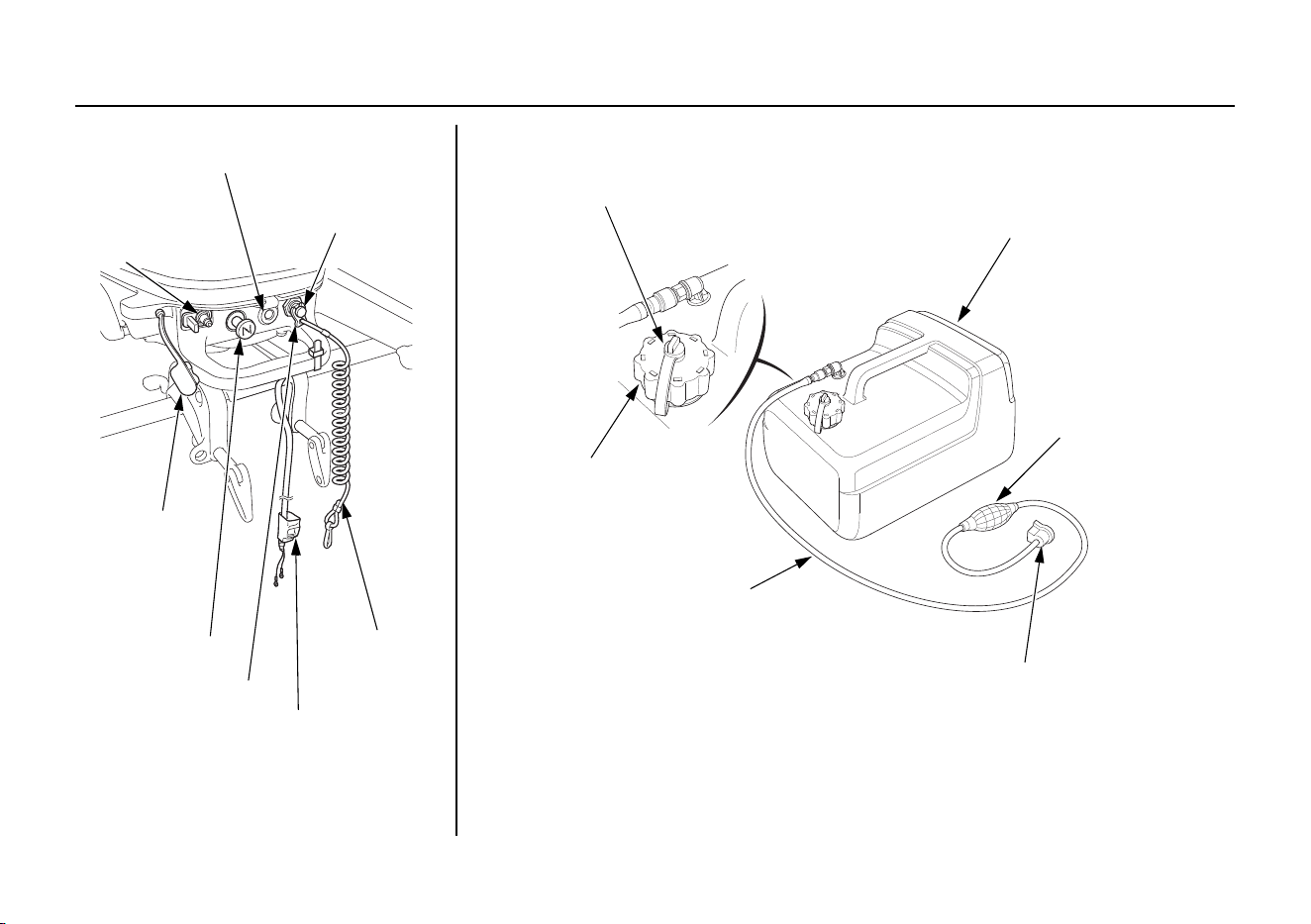

16
CONTROLS AND FEATURES

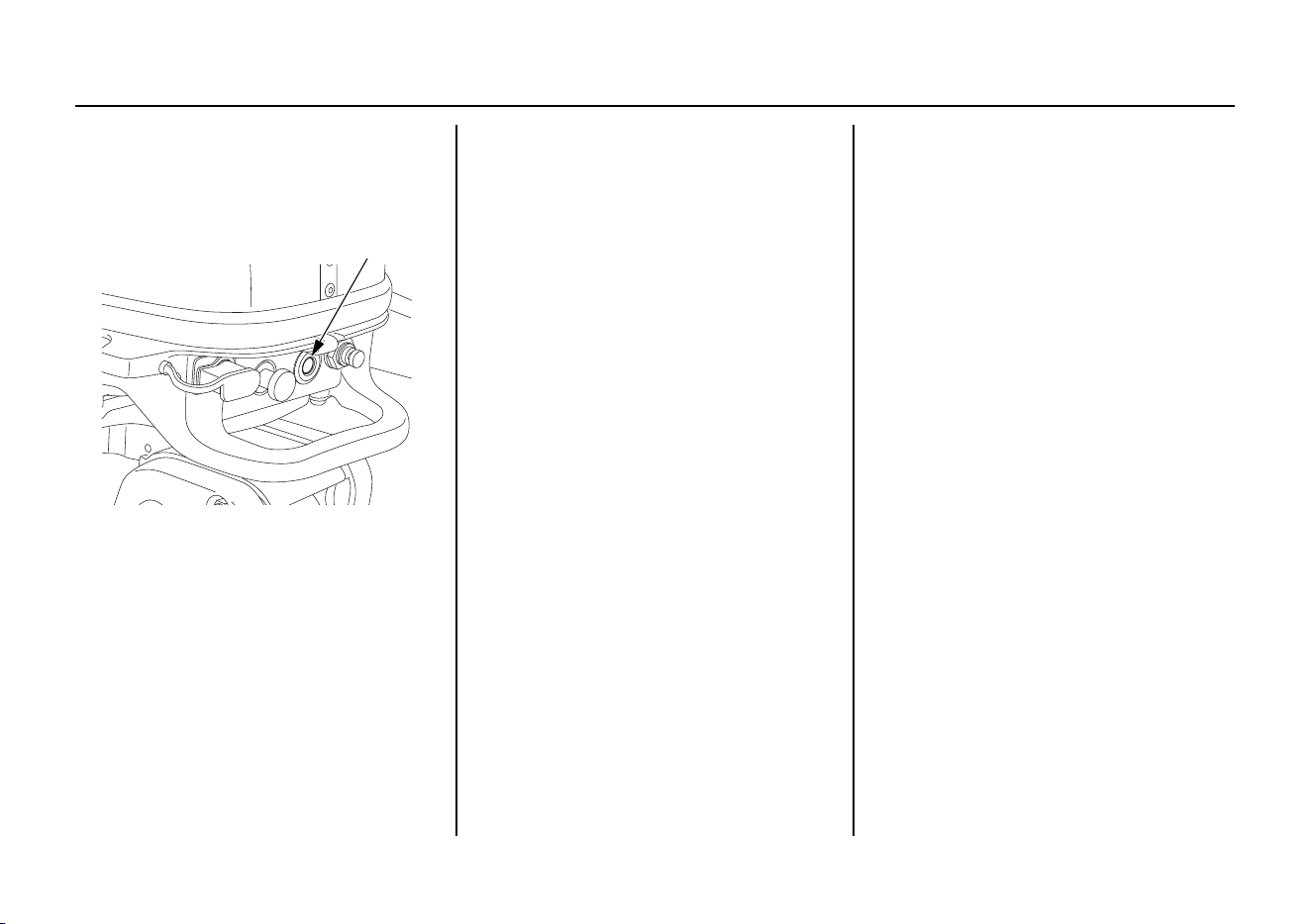

OIL PRESSURE
INDICATOR
FUEL HOSE
CONNECTOR
(MALE)
(BF5D and
BF6A only)
EMERGENCY STOP
SWITCH
FUEL HOSE
CONNECTOR
CAP
(BF5D and
BF6A only)
CHOKE KNOB
EMERGENCY STOP
SWITCH CLIP
EMERGENCY
STOP SWITCH
LANYARD
BATTERY
CHARGE CABLE
(equipped type)
Portable Fuel Tank (standard or optionally applicable equipment)
VENT KNOB
FUEL FILLER CAP
PORTABLE FUEL TANK
FUEL PRIMING
BULB
FUEL HOSE
FUEL HOSE CONNECTOR
(FEMALE)
31ZVC6150.book Page 16 Friday, October 13, 2023 1:41 PM
17
CONTROLS AND FEATURES
CONTROLS

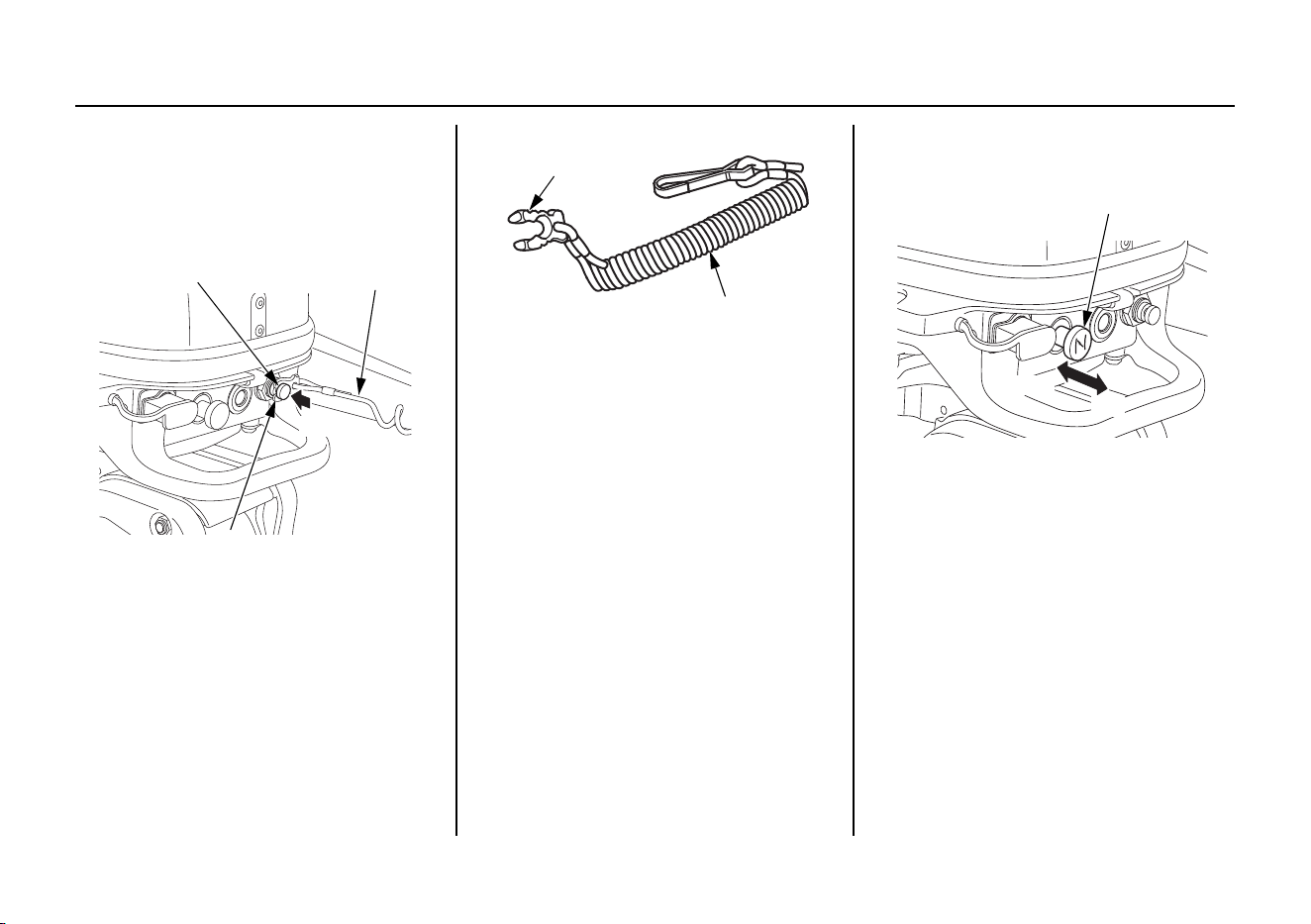

Emergency Stop Switch Clip
and Emergency Stop Switch
The emergency stop switch clip must
be inserted in the emergency stop
switch in order for the engine to start
and run. The emergency stop switch
lanyard must be attached securely to
the operator or to the PFD (Personal
Flotation Device) equipped to an
operator.
When used as described, the
emergency stop switch and
emergency stop switch lanyard
system stops the engine if the
operator falls away from the controls.
A spare emergency stop switch clip is
supplied with the tool kit.
Choke Knob
The choke knob opens and closes the
choke valve in the carburetor.
The ON position enriches the fuel
mixture for starting a cold engine.
The OFF position provides the correct
fuel mixture for operation after starting,
and for restarting a warm engine.
The choke knob is also used to restart
the engine after supplying fuel when
the internal fuel tank is out of fuel. For
more information, refer to page 44.
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP
SWITCH CLIP
EMERGENCY
STOP SWITCH
PUSH
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
CHOKE KNOB
OFF
ON
31ZVC6150.book Page 17 Friday, October 13, 2023 1:41 PM
18
CONTROLS AND FEATURES

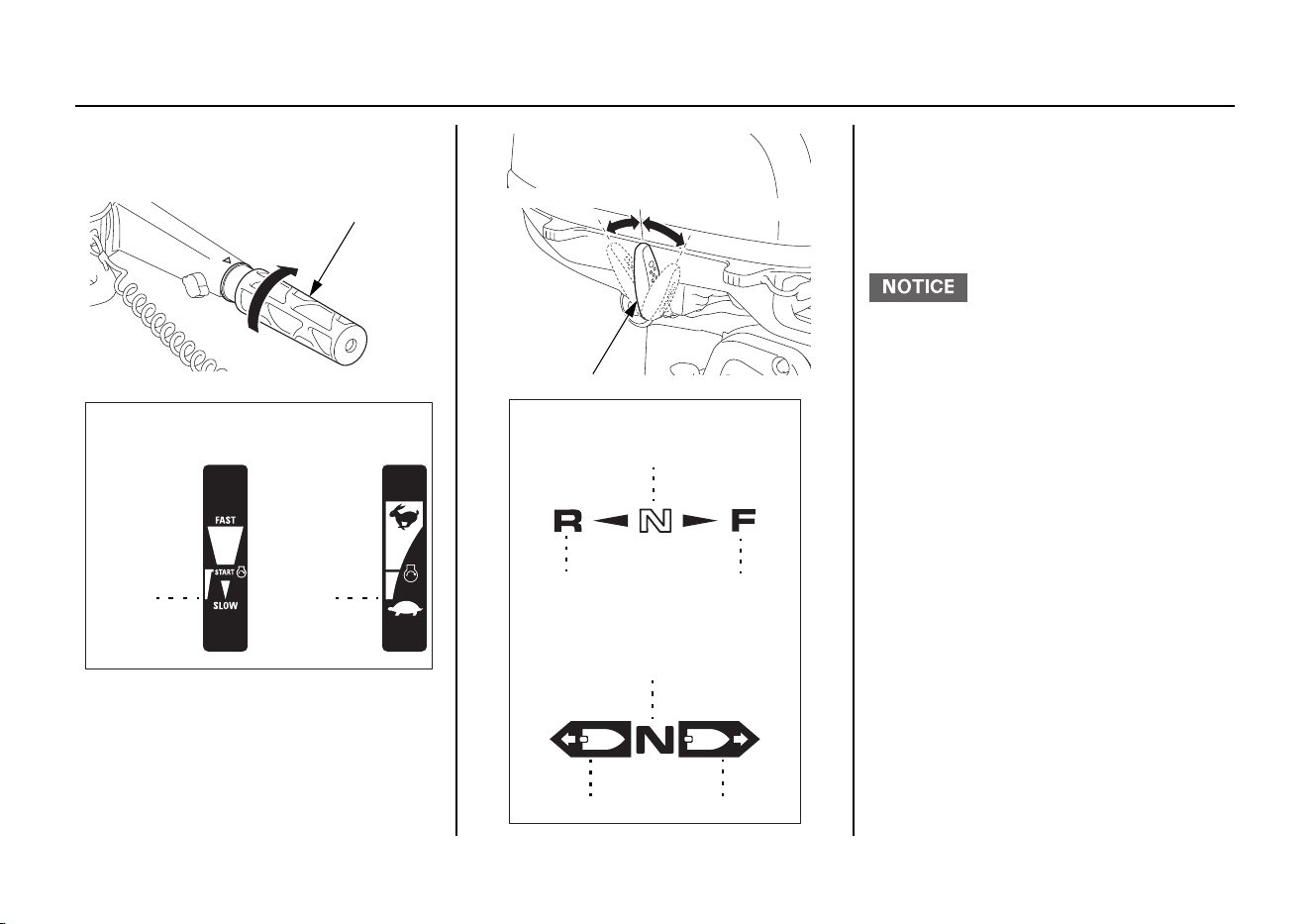

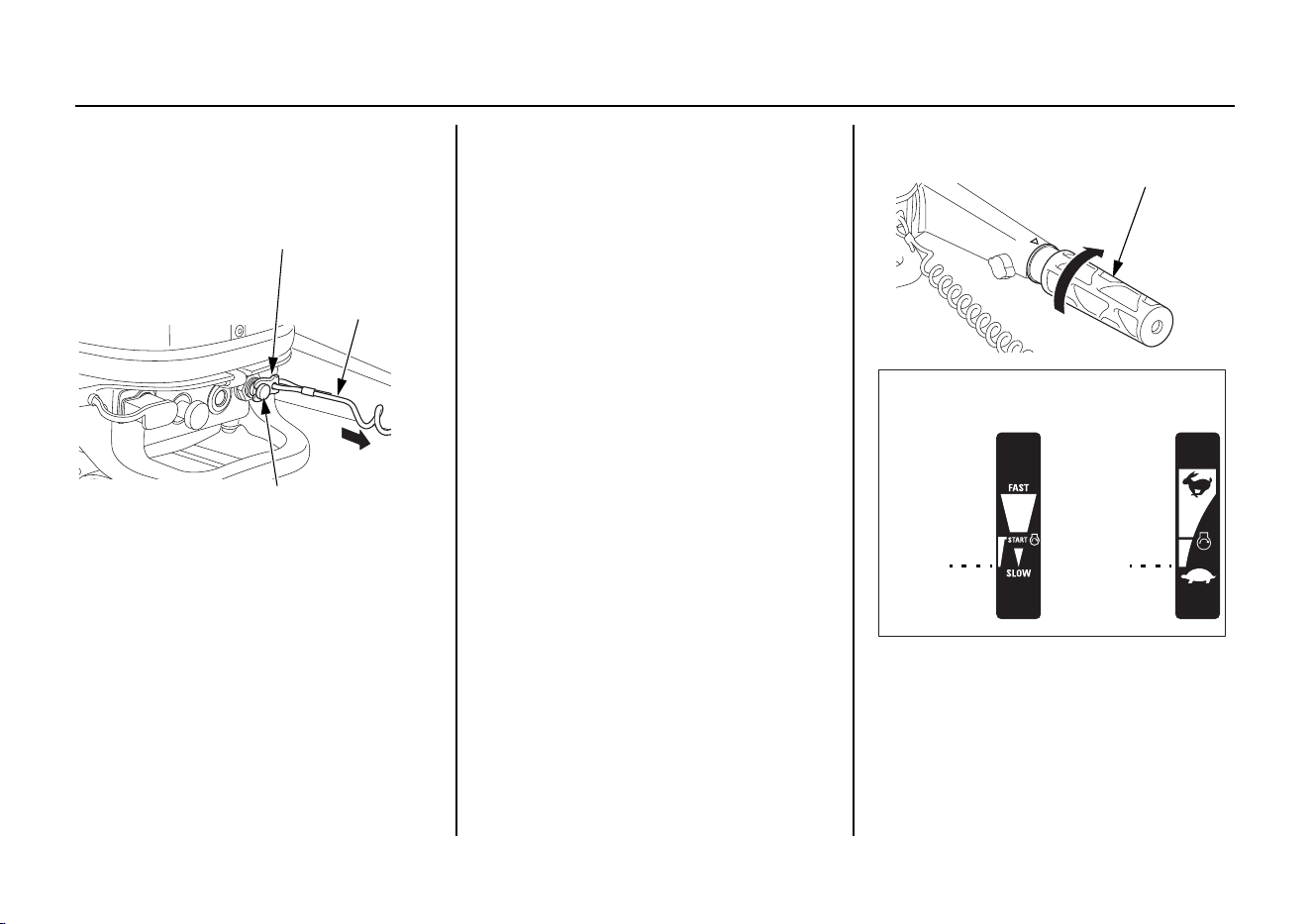

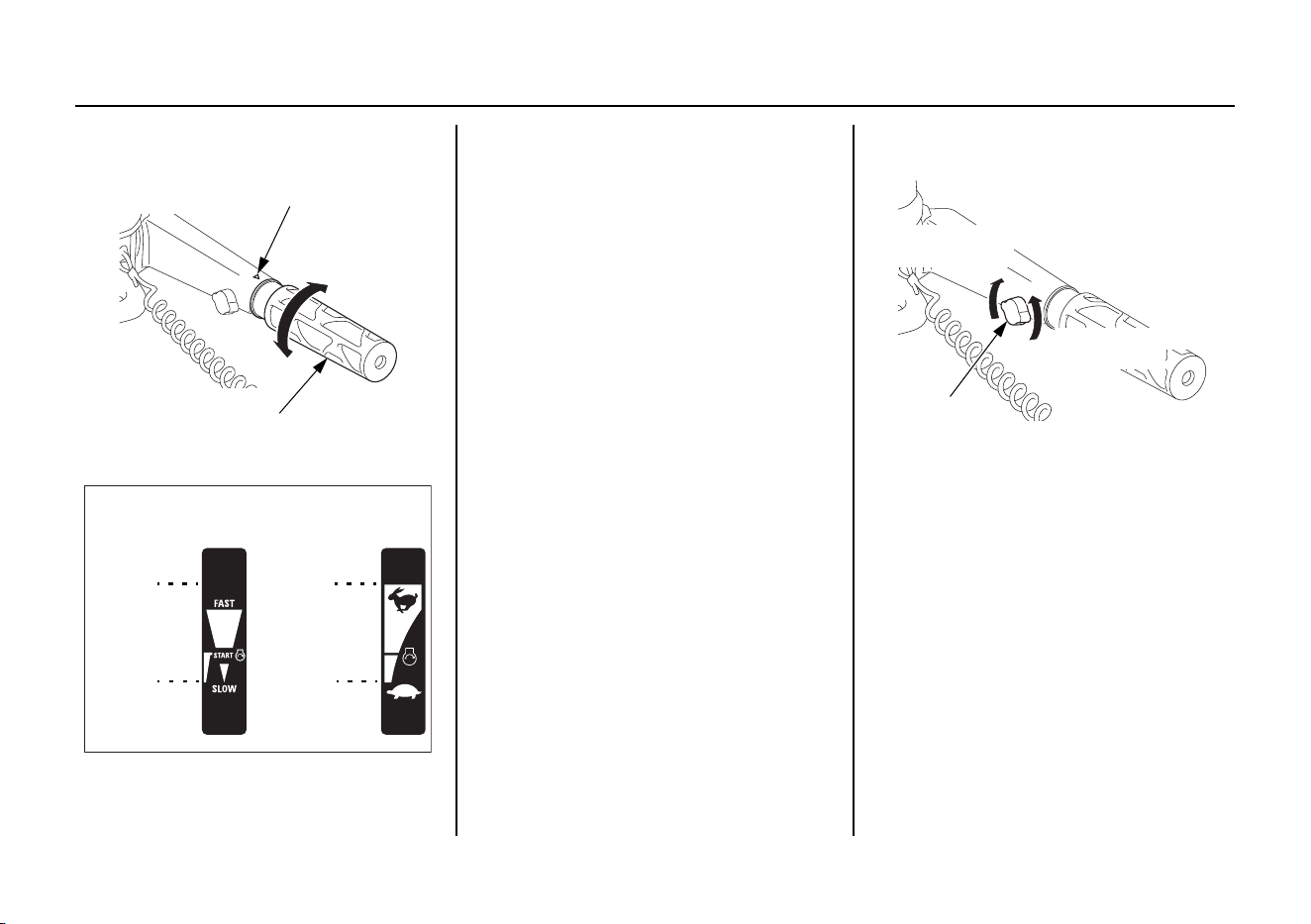

Throttle Grip
The throttle grip controls engine
speed.
An index mark on the tiller handle
shows throttle position and is helpful
for setting the throttle correctly when
starting (p. 44).
Throttle Friction Knob
The throttle friction knob adjusts
resistance to throttle grip rotation.
Turn the knob clockwise to increase
friction for holding a throttle setting
while cruising.
Turn the knob counterclockwise to
decrease friction for easy throttle grip
rotation.
INDEX MARK
THROTTLE GRIP
SLOW
FAST
[USA model]
[Canadian model]
FAST
FAST
SLOW
SLOW
THROTTLE
FRICTION KNOB
TO INCREASE
FRICTION
TO DECREASE
FRICTION
31ZVC6150.book Page 18 Friday, October 13, 2023 1:41 PM
19
CONTROLS AND FEATURES

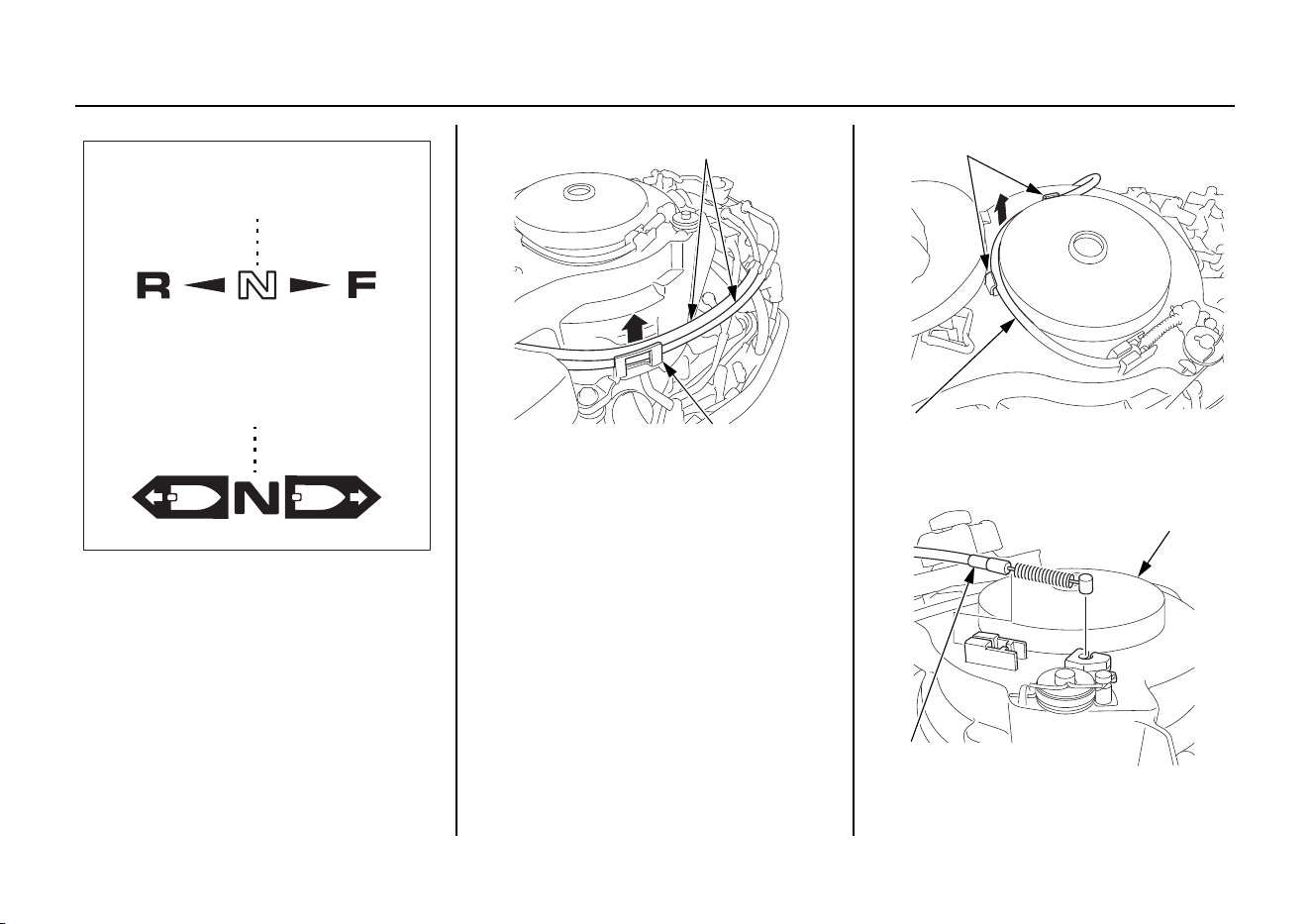

Gearshift Lever
The gearshift lever is used to select F
(forward), N (neutral), or R (reverse)
gears.
If the gearshift lever is in the F
(forward) or R (reverse) position, the
recoil starter will not operate.
Fuel Valve Lever
GEARSHIFT
LEVER
N (neutral)
R (reverse)
F (forward)
[USA model]
[Canadian model]
N (neutral)
R (reverse)
F (forward)
N (neutral)
R (reverse)
F (forward)
FUEL VALVE
LEVER
ON (BF4A)
or
INTERNAL
FUEL TANK
POSITION
(BF5D and
BF6A)
OFF (BF4A) or
PORTABLE FUEL
TANK POSITION
(BF5D and BF6A)
31ZVC6150.book Page 19 Friday, October 13, 2023 1:41 PM
20
CONTROLS AND FEATURES
(BF4A)
The fuel valve opens and closes the
passage between the internal fuel tank
and the carburetor.
The fuel valve lever must be in the
ON position for the engine to run.
When the engine is not in use, leave
the fuel valve lever in the OFF
position to prevent carburetor
flooding and to reduce the possibility
of fuel leakage.
(BF5D and BF6A)
The fuel valve lever has internal fuel
tank position and portable fuel tank
position.
When using the internal fuel tank,
turn the fuel valve lever to the
internal fuel tank position.
When not connecting the portable
fuel tank, fuel is shut off at the
portable fuel tank position.
When using the portable fuel tank,
turn the fuel valve lever all the way to
the portable fuel tank position.
[BF4A]
[BF5D and BF6A]
ON
OFF
INTERNAL
FUEL TANK
POSITION
PORTABLE
FUEL TANK
POSITION
31ZVC6150.book Page 20 Friday, October 13, 2023 1:41 PM
21
CONTROLS AND FEATURES
(BF4A)
(BF5D and BF6A)

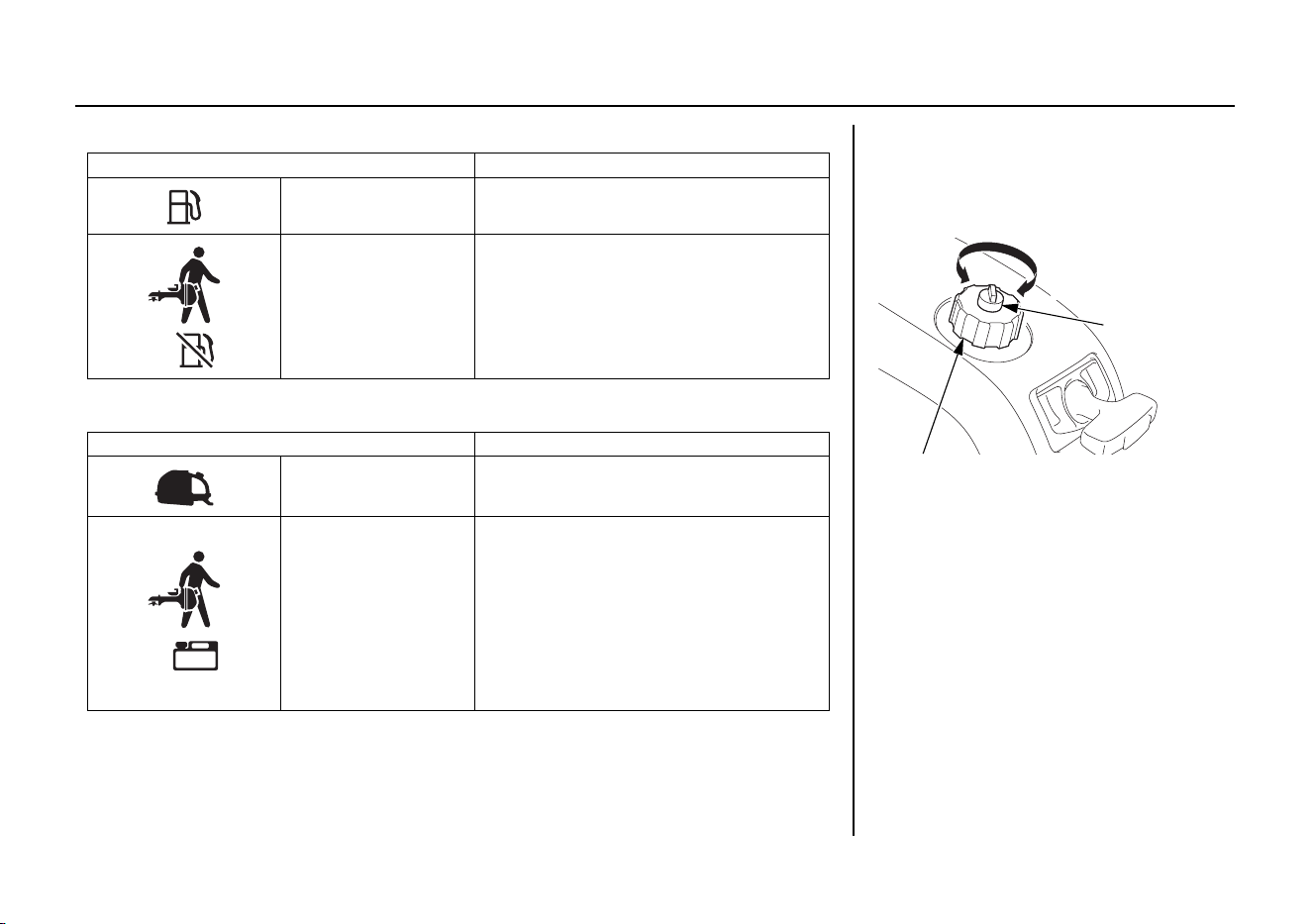

LEVER POSITION FUNCTION
ON Fuel from the internal fuel tank is supplied.
OFF Fuel supply is shut off.
Set the fuel valve lever to the “OFF”
position during transporting or storing the
outboard motor.
LEVER POSITION FUNCTION
INTERNAL FUEL
TANK
Fuel from the internal fuel tank is supplied.
PORTABLE FUEL
TANK
• Fuel from the portable fuel tank is
supplied.
• If the portable fuel tank is not
connected, fuel supply is shut off.
Set the fuel valve lever to the
“PORTABLE FUEL TANK” position
during transporting or storing the
outboard motor.

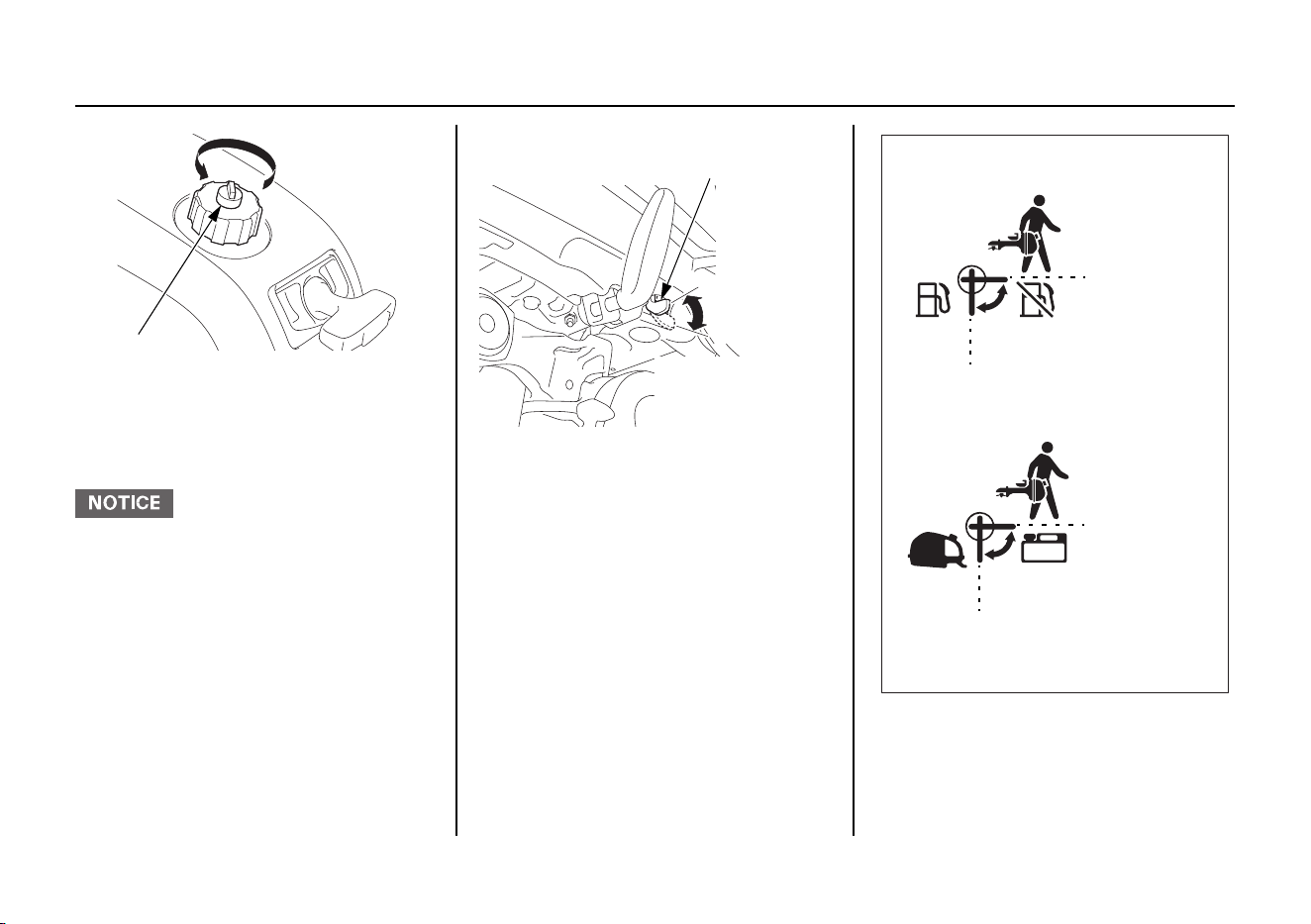

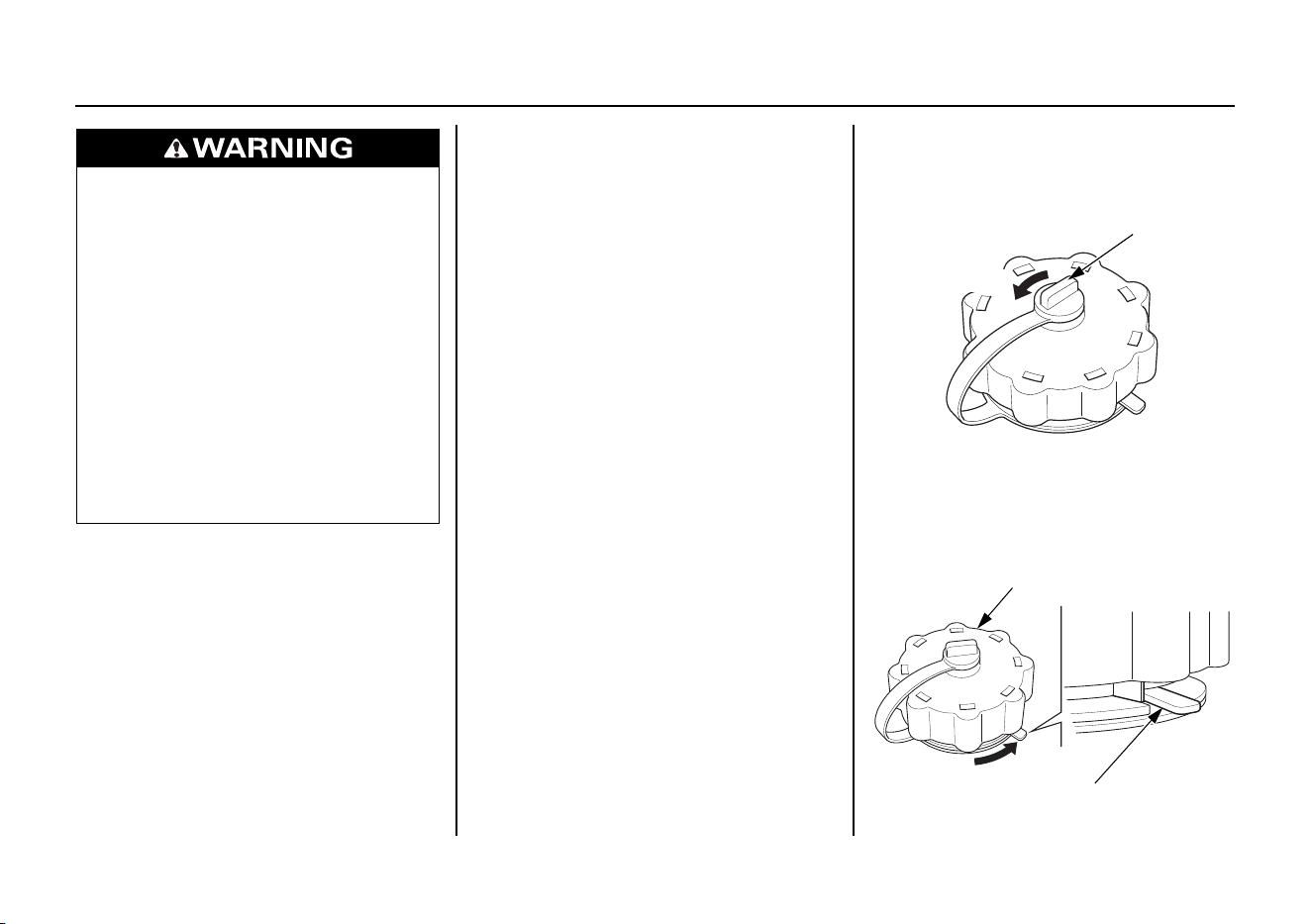

Fuel Filler Cap Vent Knob
(Internal Fuel Tank)
The fuel filler cap is provided with a
vent knob to seal the fuel tank. Open
the vent by turning the vent knob
counterclockwise all the way before
starting the engine. Close the vent by
turning the vent knob clockwise all
the way after stopping the engine.
CLOSE
VENT KNOB
OPEN
FUEL FILLER CAP
31ZVC6150.book Page 21 Friday, October 13, 2023 1:41 PM
22
CONTROLS AND FEATURES

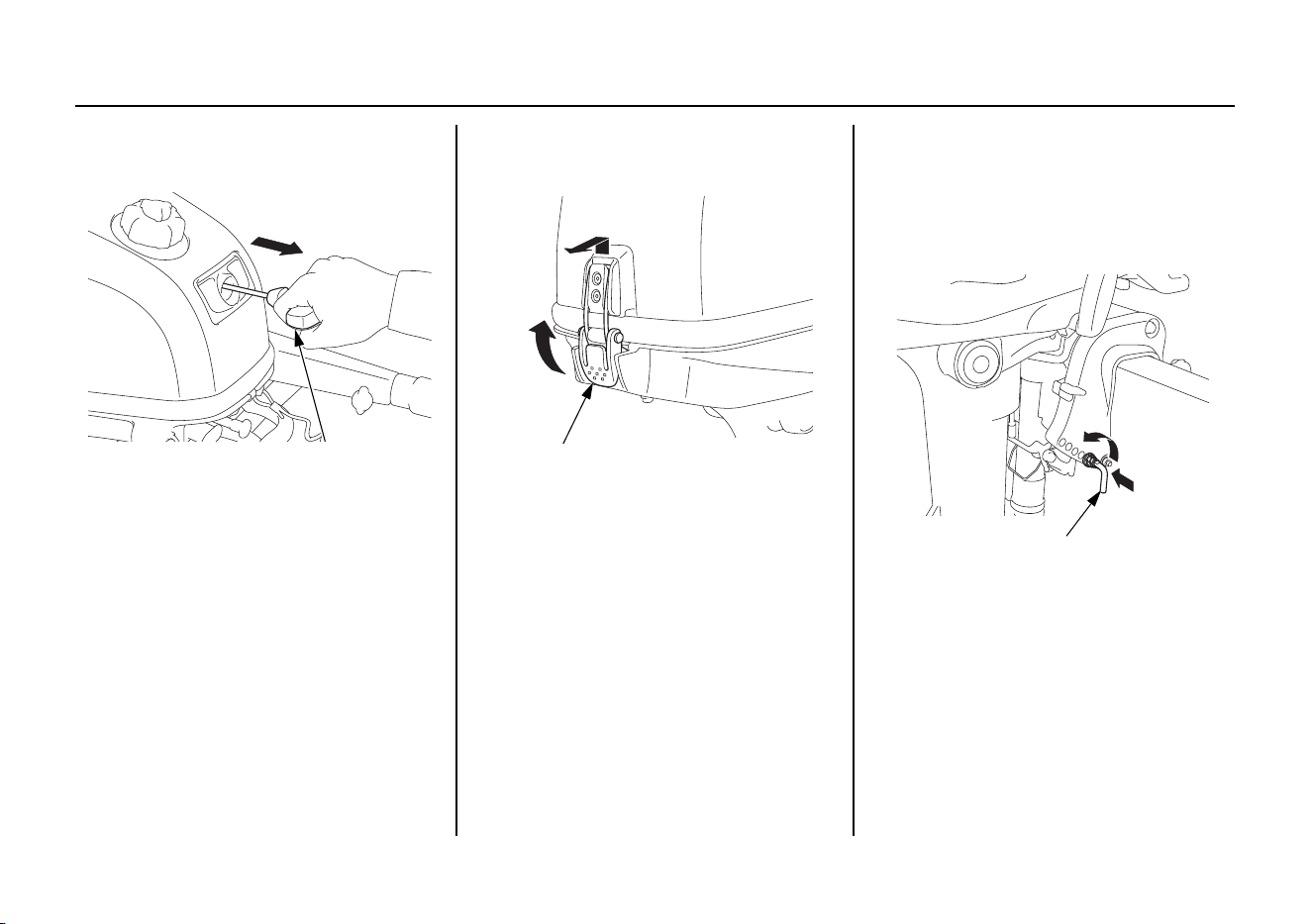

Starter Grip
Pulling the starter grip operates the
recoil starter to crank the engine for
starting.
The “Neutral Starting System”
prevents the starter rope from being
pulled out for starting the engine
unless the gearshift lever (P.19) is set
in the N (neutral) position.
The engine will start only when the
emergency stop switch clip is in the
emergency stop switch.
Engine Cover Latch
The engine cover latch fastens the
engine cover to the outboard motor.
Do not remove the engine cover
while the engine is running.
Transom Angle Adjusting Rod
The transom angle adjusting rod
adjusts the transom angle of the
outboard motor when fully lowered.
Proper adjustment prevents the
outboard motor from being adjusted
too low (p. 55).
Direction to pull
STARTER GRIP
ENGINE COVER LATCH
UNLOCK
TRANSOM ANGLE
ADJUSTING ROD
31ZVC6150.book Page 22 Friday, October 13, 2023 1:41 PM
23
CONTROLS AND FEATURES

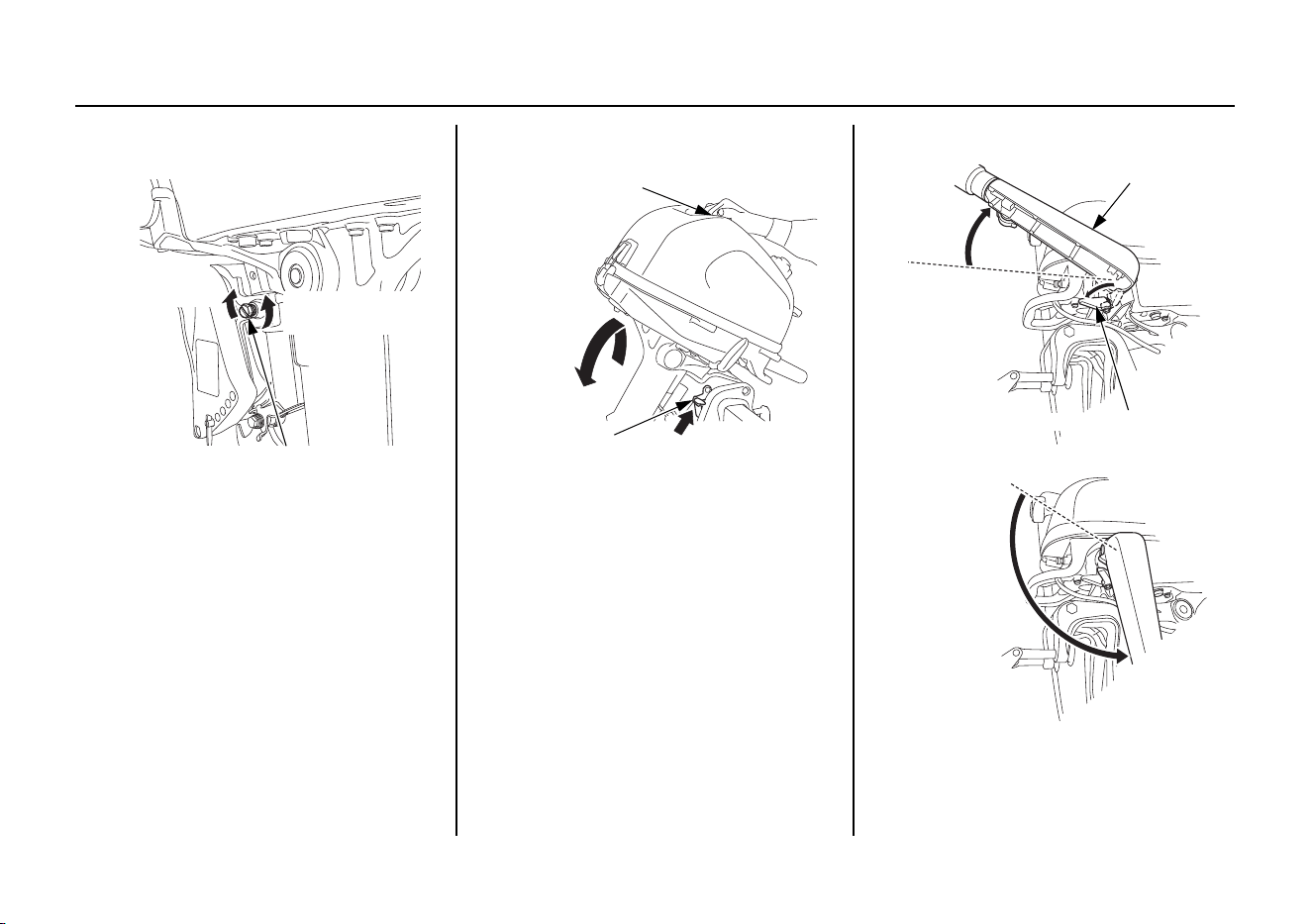

Steering Friction Bolt
The steering friction bolt adjusts
steering resistance.
Less friction allows the outboard
motor to turn more easily. More
friction helps to hold a steady course
while cruising or to prevent the
outboard motor from swinging while
trailering the boat.
Tilt Lever
The tilt lever enables the outboard
motor to be raised for shallow water
operation, beaching, launching, or
mooring.
To tilt, raise the outboard motor by
pulling on the engine cover grip until
the tilt mechanism engages at 18°,
34°, or 58° (p. 56 and 57).
Handle Stopper
The tiller handle can be moved to the
bottom direction by turning the
handle stopper.
STEERING FRICTION BOLT
TO DECREASE
FRICTION
TO INCREASE
FRICTION
ENGINE COVER GRIP
TILT LEVER
HANDLE STOPPER
TILLER HANDLE
31ZVC6150.book Page 23 Friday, October 13, 2023 1:41 PM
24
CONTROLS AND FEATURES
INDICATORS

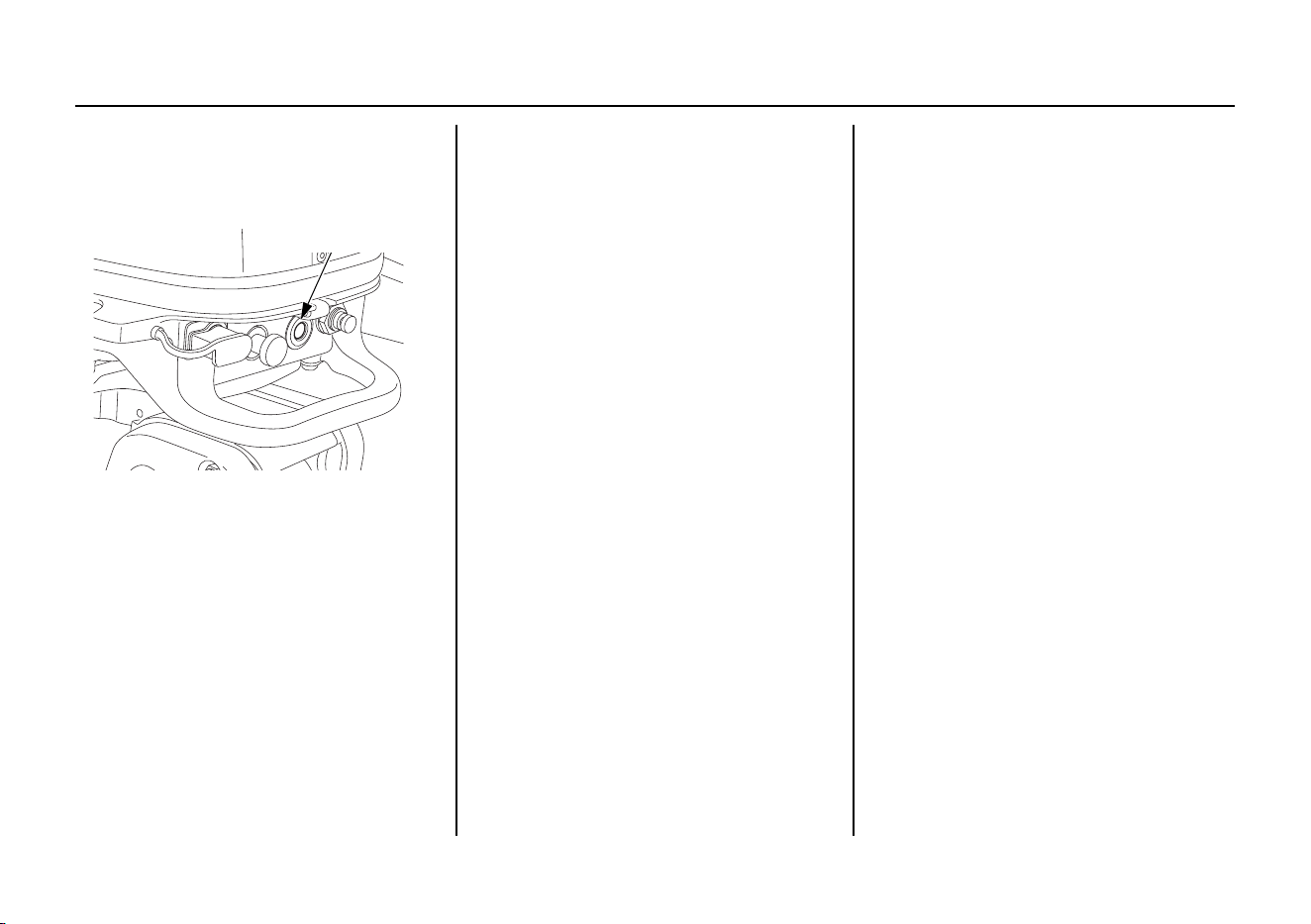

Oil Pressure Indicator
When the oil pressure indicator is lit,
oil pressure is OK.
If oil pressure becomes low, the oil
pressure indicator will go off, and the
engine protection system will limit
engine speed. Refer to TAKING
CARE OF UNEXPECTED
PROBLEMS, p. 97.
Low oil pressure indicates that the
engine oil level is low or that there is
a problem with the engine lubrication
system.
OIL PRESSURE
INDICATOR
31ZVC6150.book Page 24 Friday, October 13, 2023 1:41 PM
25
CONTROLS AND FEATURES

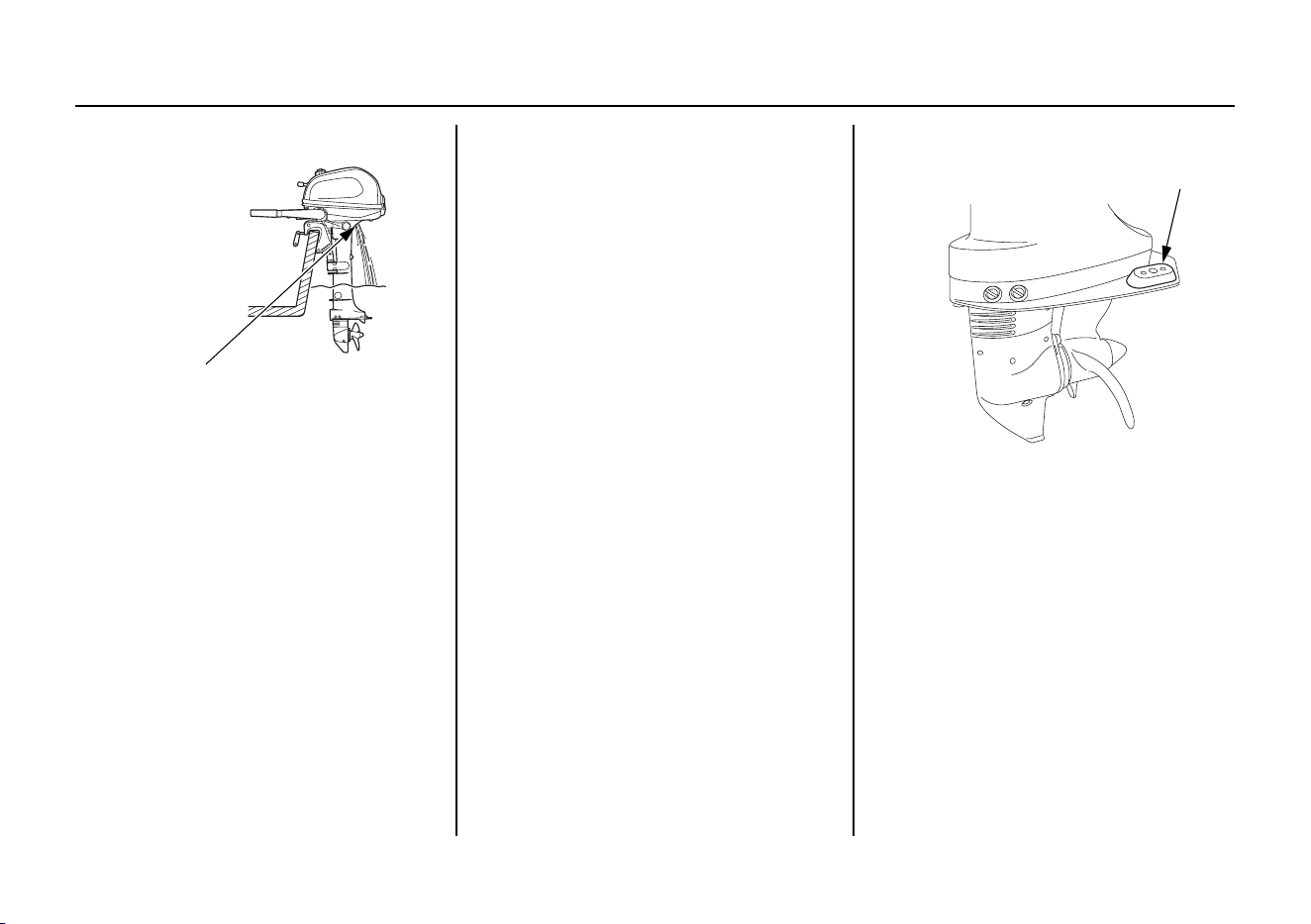

Cooling System Indicator
Water should flow from the cooling
system indicator while the engine is
running. This shows that water is
circulating through the cooling
system.
If water stops flowing while the
engine is running, that indicates a
cooling system problem, such as
clogged water intakes, which will
cause engine overheating.
OTHER FEATURES
Rev Limiter
The engine is equipped with a rev
limiter to prevent the possibility of
mechanical damage from excessive
engine speed.
The rev limiter may be activated
during operation, limiting engine
speed, if the outboard motor is tilted
excessively, or when propeller
ventilation occurs during a sharp turn.
If the rev limiter is activated, check
the tilt angle of the outboard motor.
Improper propeller selection may also
cause the rev limiter to activate.
Check to see if the correct propeller is
installed.
Anode
The anode is made of a sacrificial
material that helps to protect the
outboard motor from corrosion.
There is an anode on the
antiventilation plate.
COOLING SYSTEM
INDICATOR
ANODE
31ZVC6150.book Page 25 Friday, October 13, 2023 1:41 PM
26
CONTROLS AND FEATURES

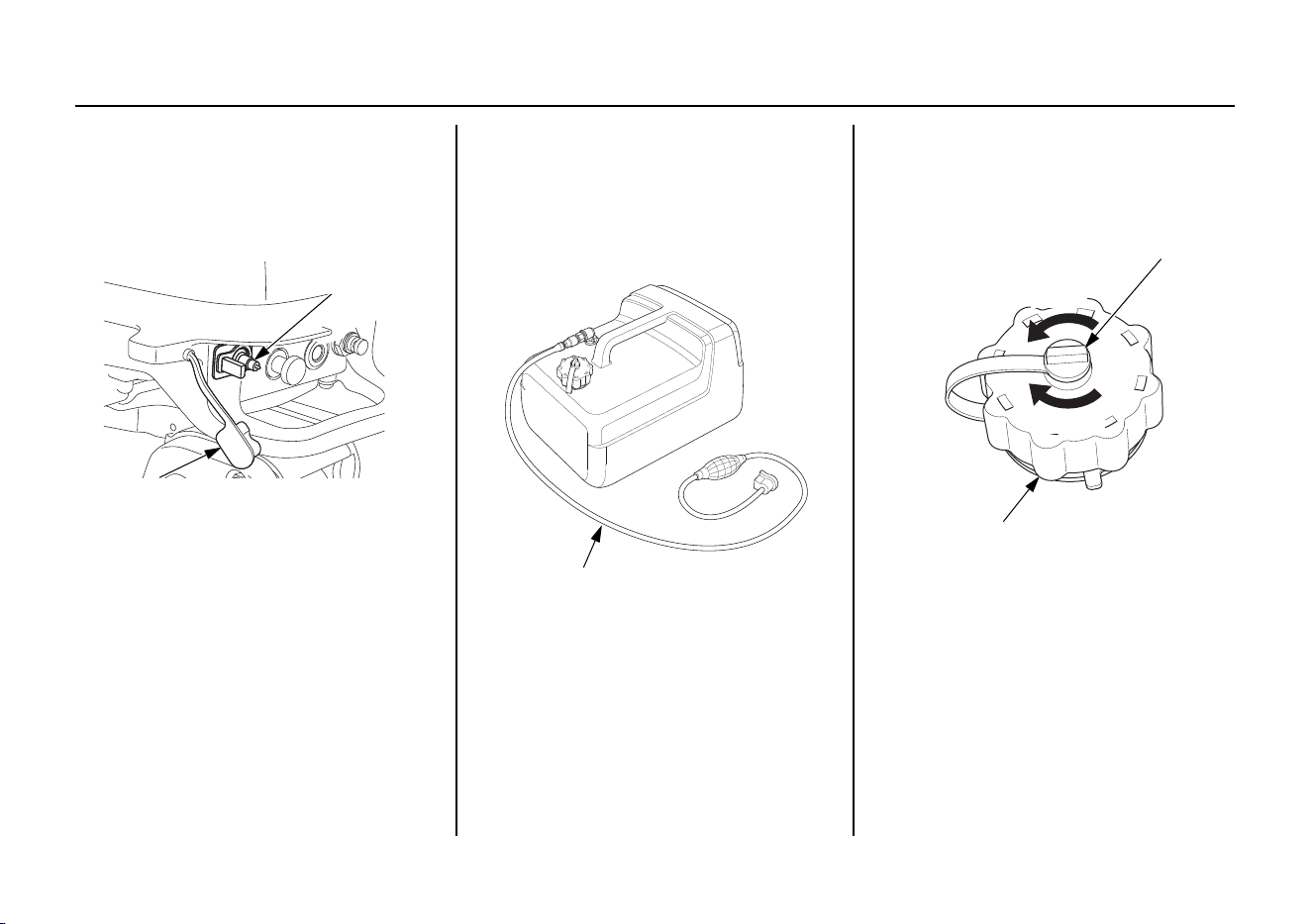

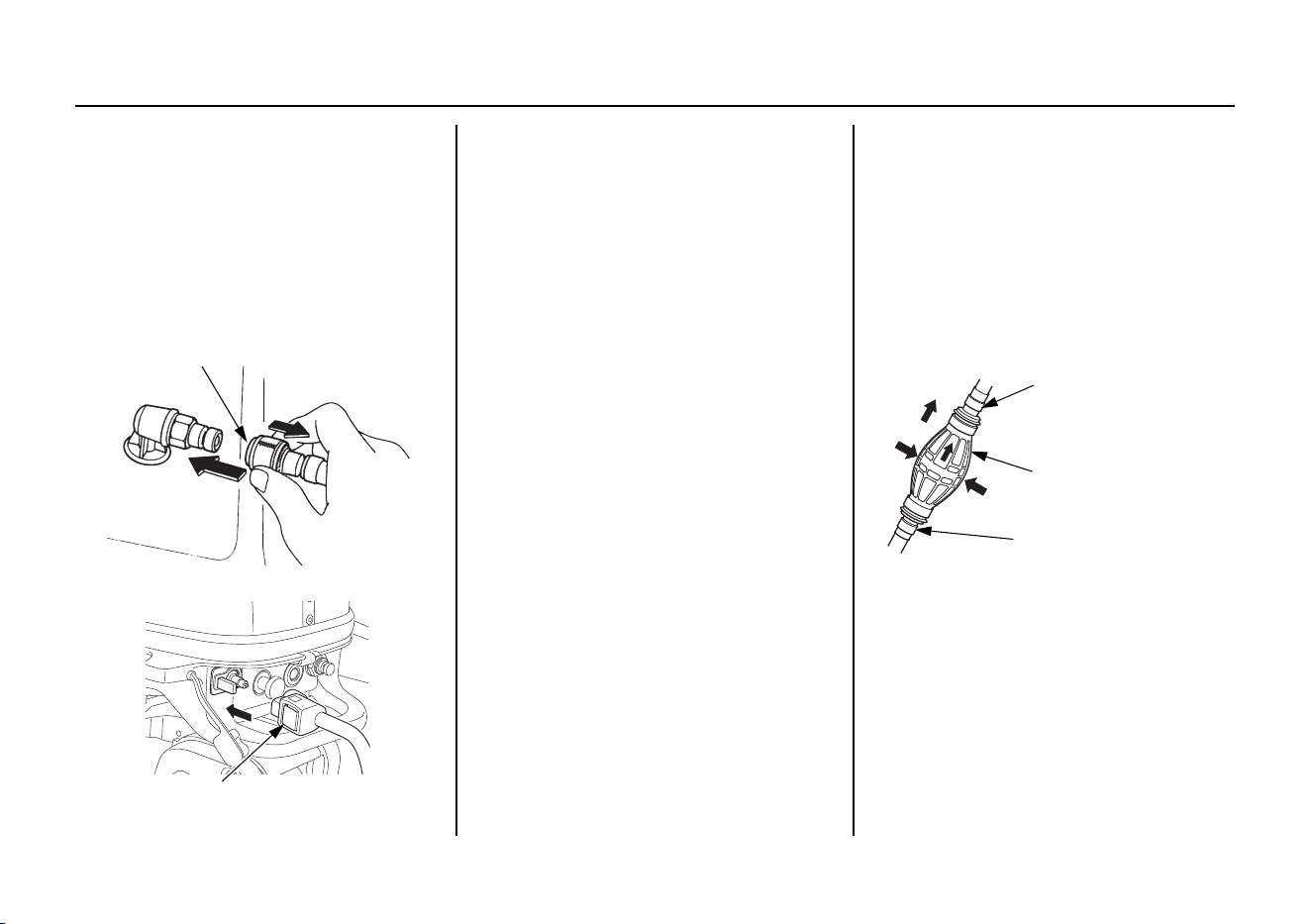

Fuel Hose Connector Cap and
Fuel Hose Connector
(Male) (BF5D and BF6A only)
Use the fuel hose connector (male) to
attach the portable fuel tank (standard
or optionally applicable equipment).
Always install the fuel hose
connector cap if the fuel hose
connector (female) is not connected.
Be sure the fuel hose connector cap is
securely installed.

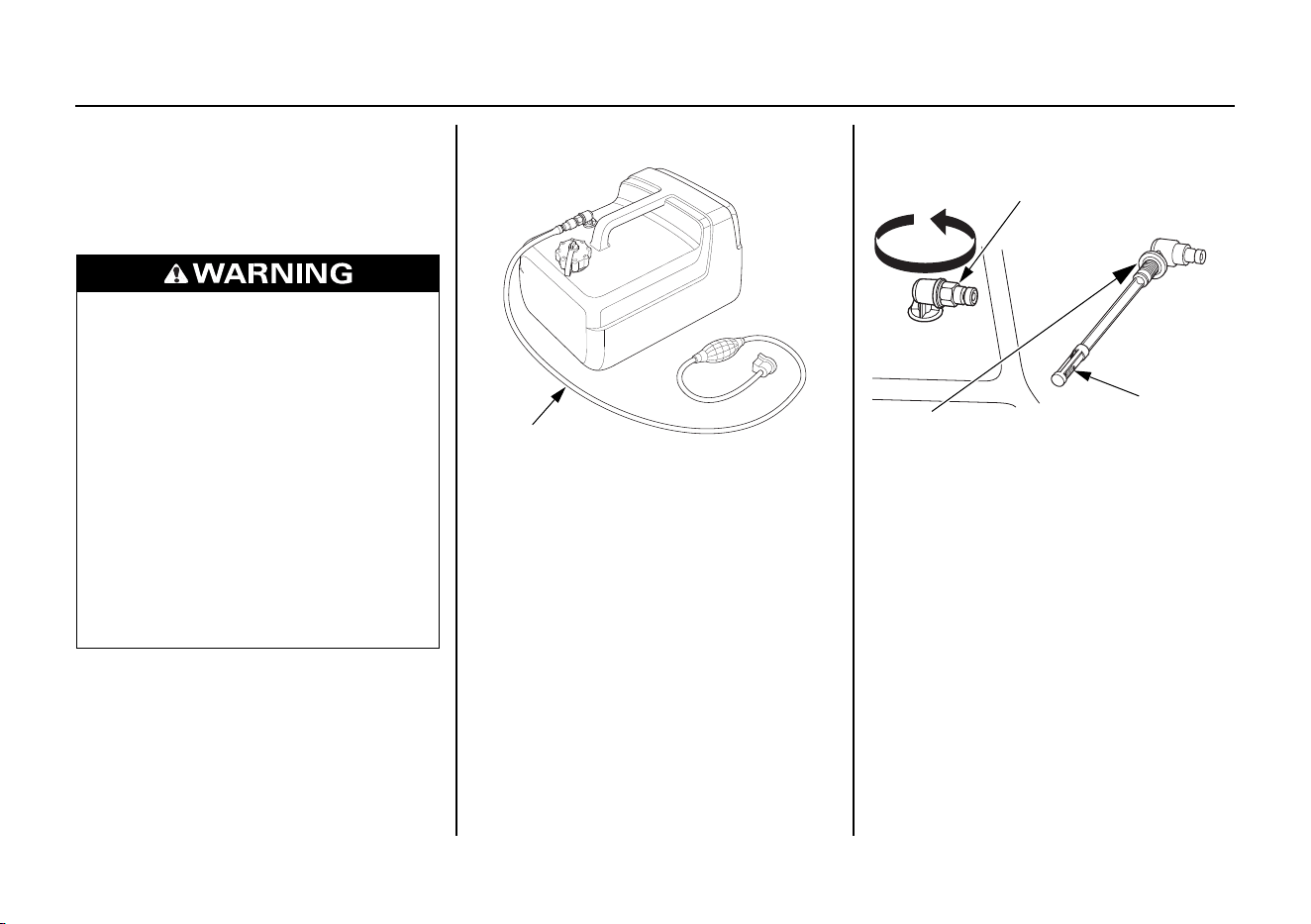

Portable Fuel Tank
(standard or optionally
applicable equipment)
The portable fuel tank has a capacity
of 3.2 US gal (12 L, 2.6 Imp gal).
Fuel Filler Cap Vent Knob
(standard or optionally
applicable equipment)
The fuel filler cap is provided with a
vent knob to seal the portable fuel
tank for carrying it to and from the
boat. Open the vent by turning the
vent knob counterclockwise all the
way before starting the engine. Close
the vent by turning the vent knob
clockwise all the way after stopping
the engine.
FUEL HOSE
CONNECTOR
(MALE)
FUEL HOSE
CONNECTOR
CAP
FUEL HOSE
(standard equipment)
FUEL FILLER CAP
CLOSE
OPEN
VENT KNOB
31ZVC6150.book Page 26 Friday, October 13, 2023 1:41 PM
27
CONTROLS AND FEATURES
Fuel Priming Bulb
(standard or optionally
applicable equipment)
A priming bulb is built into the fuel
hose that connects the portable fuel
tank to the outboard motor.
Before starting the engine, hold the
priming bulb up in the direction of the
arrow, then squeeze the priming bulb
until it feels firm. This will ensure
that fuel is supplied to the engine.

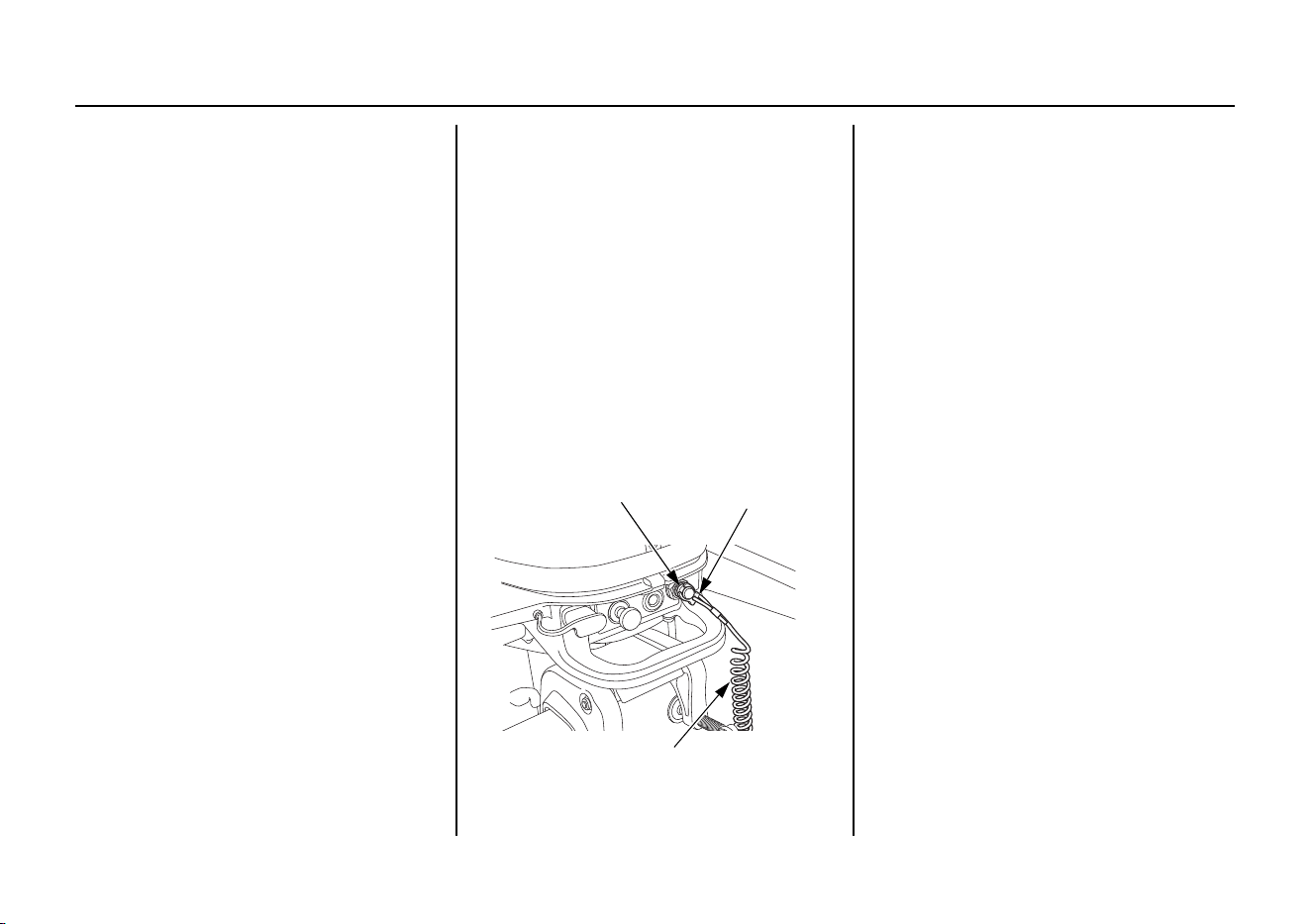

Battery Charge Cable
The battery charge cable is included
in the battery charge cable kit
(equipped type).
When removing the outboard motor
or storing it for long periods, you can
remove the battery charge cable from
the outboard motor.
If the battery charge cable kit is
attached, you must attach the battery.
(page 32)
INLET END
(portable fuel tank side)
PRIMING BULB
OUTLET END
(outboard motor side)
UP
BATTERY CHARGE
CABLE
31ZVC6150.book Page 27 Friday, October 13, 2023 1:41 PM
28
CONTROLS AND FEATURES

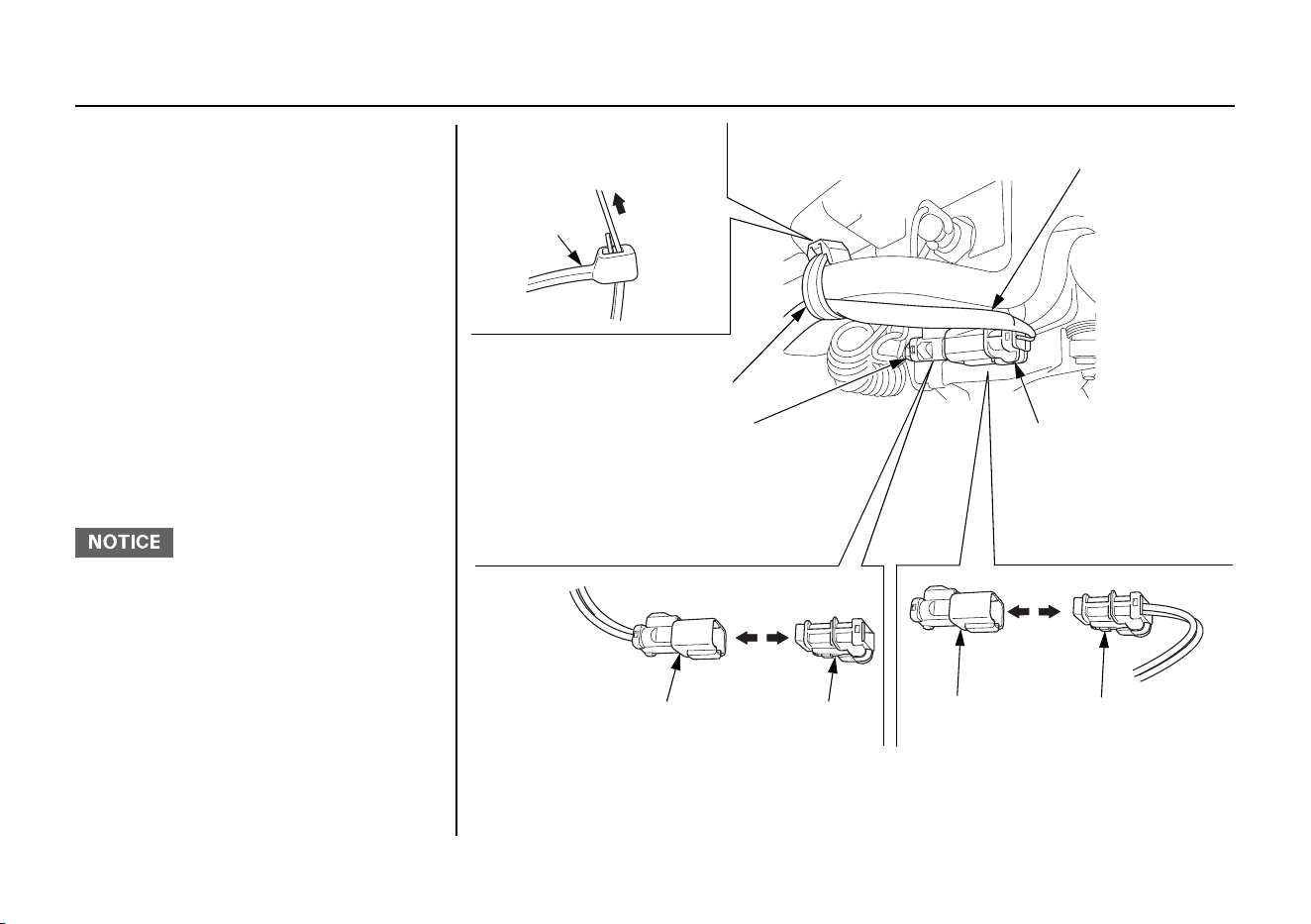

Battery Charge Cable Connection
1. Remove the covers off the charging
connector and the battery charge
cable connector, and save them in a
secure place for later use if
necessary.
2. Connect the battery charge cable
connector to the charging
receptacle connector.
3. Attach the wire band as shown in
the figure.
Starting the engine with the battery
charge cable not securely connected
to a battery may cause a spark if the
cable terminals touch one another or a
metal surface. Do not start the engine
if the battery charge cable is
connected to the outboard, but not
connected to a battery (p. 32).
BATTERY CHARGE
CABLE
BATTERY CHARGE
CABLE CONNECTOR
CHARGING RECEPTACLE
CONNECTOR
WIRE BAND
WIRE BAND
(1) PULL
BATTERY CHARGE
CABLE CONNECTOR
CHARGING RECEPTACLE
CONNECTOR
COVER COVER
31ZVC6150.book Page 28 Friday, October 13, 2023 1:41 PM
29
(1) PUSH
BATTERY CHARGE
CABLE CONNECTOR
BATTERY
CHARGE
CABLE
CONNECTOR
WIRE BAND
BATTERY
CHARGE CABLE
CONTROLS AND FEATURES

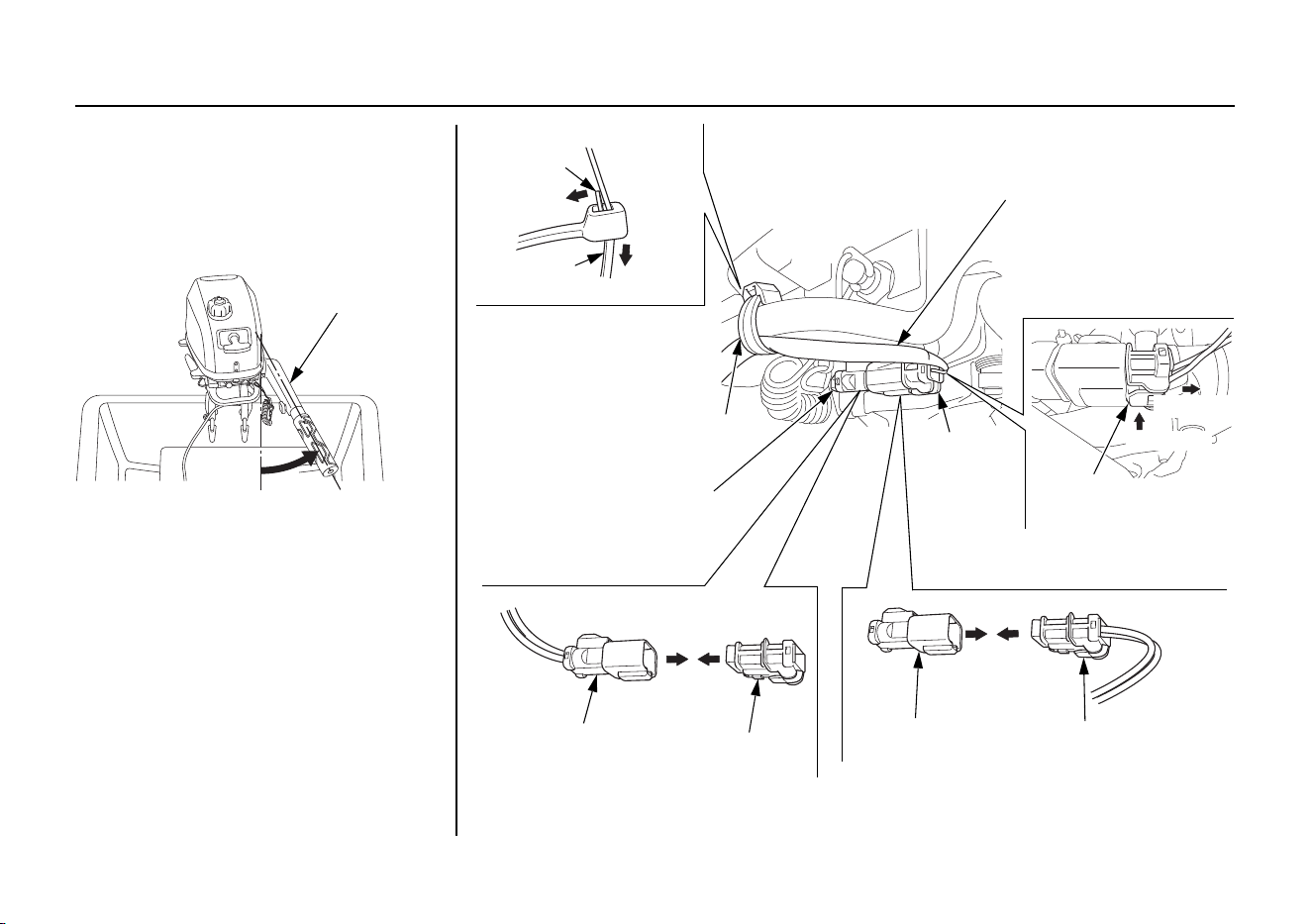

Disconnecting Battery Charge
Cable
1. Steer the tiller handle to the left
with respect to the boat.
2. Remove the wire band by pulling
the wire band tab in the direction
shown and remove the wire band.
3. While pressing the lock on the
connector, remove the battery
charge cable connector from the
charging receptacle connector.
4. Install the covers.
TILLER
HANDLE
WIRE
BAND TAB
(1) PULL
(2) PULL
WIRE
BAND
CHARGING RECEPTACLE
CONNECTOR
COVER
BATTERY CHARGE
CABLE CONNECTOR
COVER
(2) PULL
CHARGING RECEPTACLE
CONNECTOR
31ZVC6150.book Page 29 Friday, October 13, 2023 1:41 PM
30
INSTALLATION
Correct and secure installation is
essential for safe boating and good
performance. Follow the installation
instructions provided in this manual.
POWER REQUIREMENTS
Before installation, check to be sure
that the outboard motor does not
exceed the recommended maximum
horsepower for the boat on which it is
to be installed. Refer to the boat’s
certification plate for recommended
maximum horsepower. If the
certification plate information is not
available, contact the boat dealer or
manufacturer.
For most applications, the outboard
motor should have a horsepower
rating which provides 80% of the
maximum recommended horsepower
for the boat.

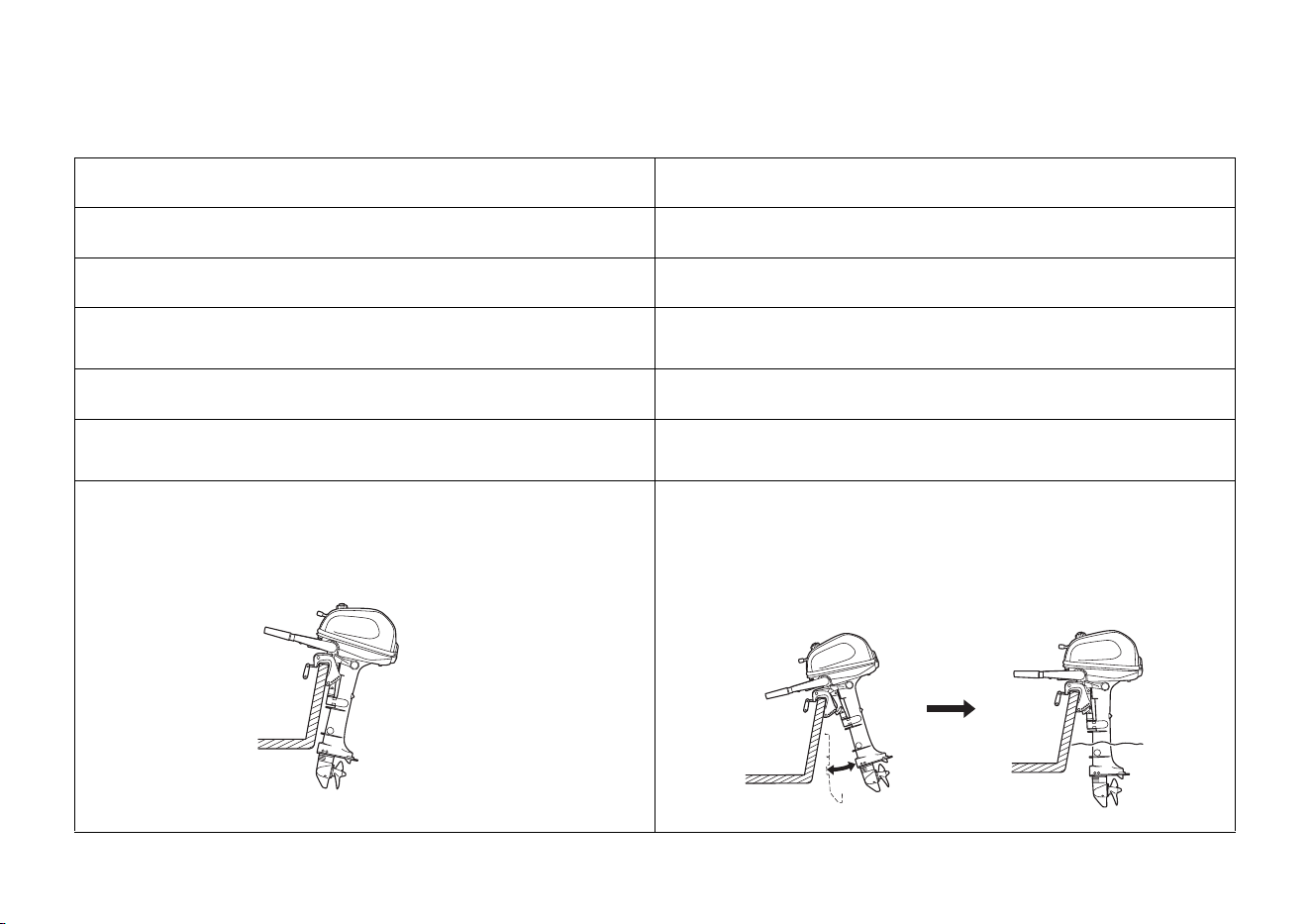

INSTALLATION POSITION
Install the outboard motor on the
center of the boat transom.
The antiventilation plate of the
outboard motor should be 0 – 2 in
(0 – 50 mm) below the bottom of the
boat.
The correct dimensions differ
according to the type of boat and the
configuration of the bottom of the
boat. Follow the manufacturer’s
recommended installation height.
When the outboard motor is installed
extremely low, the idle port may be
immersed and the engine may
become hard to start or may run
poorly. Check that the idle port is
high enough from the water level
when the engine is stopped with the
boat fully loaded.
CENTER LINE
Type: Outboard Motor
Transom Height
S: 17.1 in (434 mm)
L: 22.1 in (561 mm)
ANTIVENTILATION
PLATE
0 – 2 in
(0 – 50 mm)
IDLE
PORT
OUTBOARD
MOTOR
TRANSOM
HEIGHT
BOAT
TRANSOM
HEIGHT
31ZVC6150.book Page 30 Friday, October 13, 2023 1:41 PM
31
INSTALLATION
If the outboard motor is installed too
low, the boat will squat and be hard to
plane, and the outboard motor will
spray water that may enter the boat. It
will tend to bounce, and high-speed
stability will be reduced.
If the outboard motor is installed too
high, that will cause propeller
ventilation.
Optimum installation height varies
with boat type and bottom shape.
Contact the boat manufacturer for any
special recommendations that are
unique to a specific model of boat.
If the transom needs to be modified to
accommodate the outboard motor,
contact the boat manufacturer and
follow their recommendations for
corrective action.

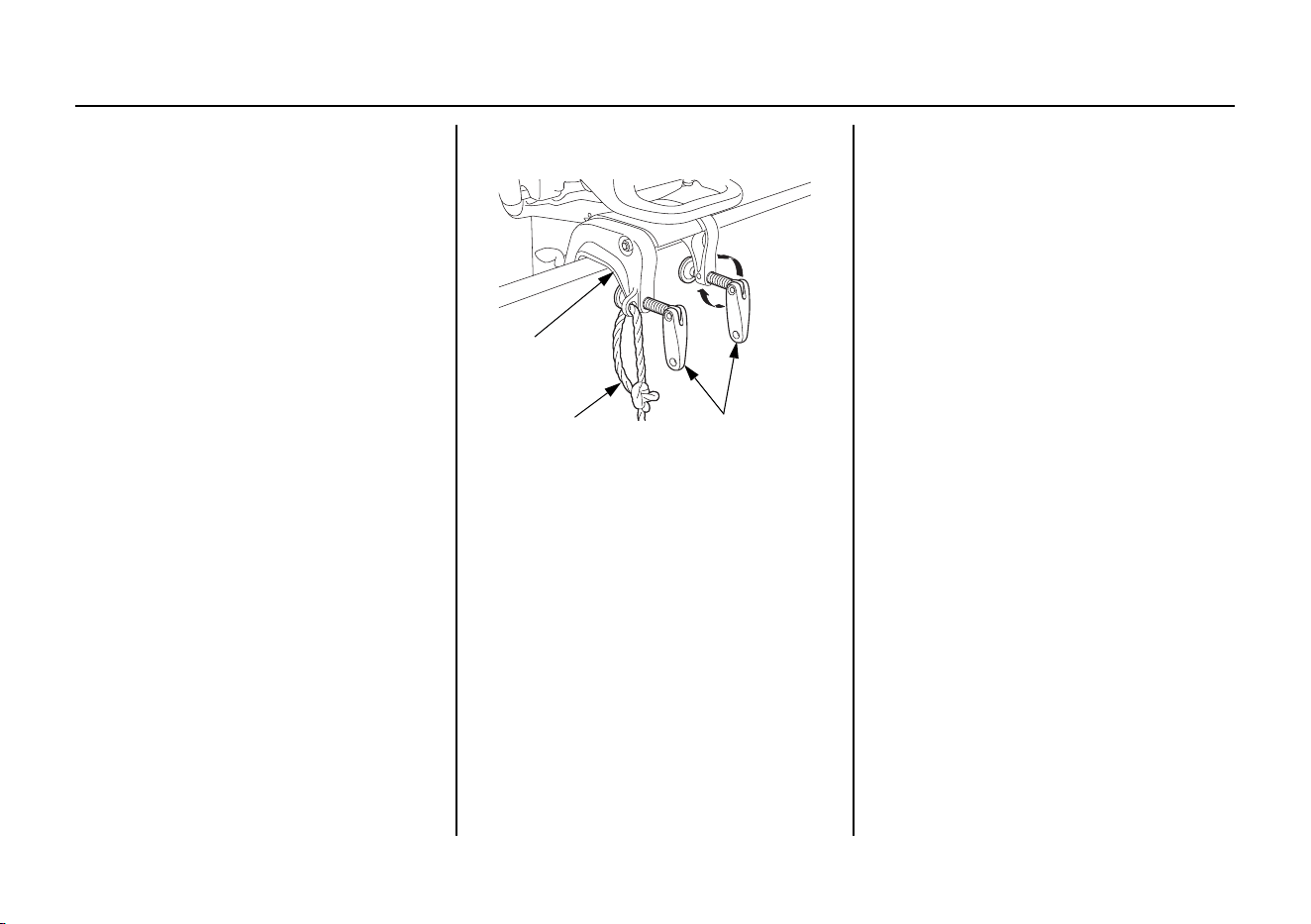

ATTACHMENT
Attach the stern bracket to the boat
transom by tightening the clamp
screws.
Attach a rope from the boat to the
hole in the stern bracket. This will
help to prevent accidental loss of the
outboard motor.
TRANSOM ANGLE
ADJUSTMENT
Use the transom angle adjusting rod
(p. 37) to adjust the angle of the
outboard motor so the propeller is
perpendicular to the surface of the
water.
SAFETY
ROPE
CLAMP SCREWS
STERN
BRACKET
31ZVC6150.book Page 31 Friday, October 13, 2023 1:41 PM
32
INSTALLATION
BATTERY CONNECTIONS
An optional accessory charging kit is
available for Honda BF4A, BF5D,
and BF6A outboard motors and can
produce a 12-volt, 6-ampere battery
charging current to charge a 12-volt
battery. The battery charging circuit is
protected by a 15-ampere fuse.
The outboard motor's optional
accessory 12-volt charge kit is
designed to charge a ‘‘starting or
cranking’’ type battery only. It is not
intended to charge a ‘‘deep-cycle’’
type battery. Lights and electrical
accessories for the boat should be
connected to the battery.
The battery should be kept in a
corrosion-resistant battery box that is
securely mounted in a location away
from the fuel tank and protected from
water and direct sunlight.
Battery
For complete information, refer to the
battery manufacturer's instructions.
Minimum Requirements
12V-28Ah/5HR (CCA 265)
The battery contains sulfuric acid
(electrolyte), which is highly
corrosive and poisonous.
Getting electrolyte in your eyes or on
your skin can cause serious burns.
Wear protective clothing and eye
protection when working near the
battery.
KEEP CHILDREN AWAY
FROM THE BATTERY.
BATTERY
- TO ACCESSORIES
BATTERY
CHARGE CABLE
31ZVC6150.book Page 32 Friday, October 13, 2023 1:41 PM
33
INSTALLATION
Battery Terminals
WARNING: Battery posts,
terminals, and related accessories
contain lead and lead compounds.
Wash hands after handling.
Connect the positive (+) battery cable
(red terminal cover) to the positive
(+) battery terminal, then connect the
negative (-) battery cable (black
terminal cover) to the negative (-)
battery terminal.
The negative (-) battery cable should
always be removed from the battery
before connecting or disconnecting
the positive (+) battery cable, so tools
cannot cause a short circuit if they
touch a grounded part while being
used on the positive (+) battery
terminal fitting.
• Be careful to avoid connecting the
battery in reverse polarity, as this
will damage the battery-charging
system in the outboard motor.
• Do not disconnect the battery
cables while the engine is running.
Disconnecting the cables while the
engine is running will damage the
outboard motor's electrical system.
• Battery cable extension: Extending
the original battery cable will
cause the battery voltage to drop
due to the increased length of the
cable and number of connections.
The outboard may not start if the
battery voltage reaching the engine
is too low.
RED
TERMINAL
COVER
(–) BATTERY
TERMINAL
(+) BATTERY TERMINAL
BLACK TERMINAL
COVER
31ZVC6150.book Page 33 Friday, October 13, 2023 1:41 PM
34
BEFORE OPERATION
ARE YOU READY TO GET
UNDERWAY?
Your safety is your responsibility. A
little time spent in preparation will
significantly reduce your risk of
injury.
Knowledge
Read and understand this manual.
Know what the controls do and how
to operate them.
Familiarize yourself with the
outboard motor and its operation
before you get underway. Know what
to do in case of an emergency.
Familiarize yourself with all laws and
regulations relating to boating and the
use of outboard motors.
Safety
Always wear a PFD (Personal
Flotation Device) while on the boat.
Attach the emergency stop switch
lanyard securely to the operator or to
the PFD worn by the operator.
IS YOUR OUTBOARD
MOTOR READY TO GO?
For your safety, and to maximize the
service life of your equipment, it is
very important to take a few moments
before you operate the outboard
motor to check its condition.
Be sure to take care of any problem
you find, or have your authorized
Marine dealer correct it, before you
operate the outboard motor.
Before beginning your pre-operation
checks, be sure the emergency stop
switch clip is removed from the
emergency stop switch.
Failure to properly maintain this
outboard motor, or failing to
correct a problem before
operation, could result in a
significant malfunction.
Some malfunctions can cause
serious injuries or death.
Always perform a pre-operation
inspection before each operation
and correct any problems.
31ZVC6150.book Page 34 Friday, October 13, 2023 1:41 PM
35
BEFORE OPERATION
Safety Inspection
• Before each use, look around and
underneath the engine for signs of
oil or gasoline leaks.
• If you are using the portable fuel
tank, make sure it is in good
condition and properly secured in
the boat (p. 39).
• If you are using the portable fuel
tank, check that the fuel hose is
undamaged and properly connected
(p. 39).
• Wipe up any spills before starting
the engine.
• Check the stern bracket to be sure
the outboard motor is securely
installed.
• Check that all controls are
operating properly.
• Replace any damaged parts.
• Check that all fasteners are in place
and securely tightened.
• Check the emergency stop switch
for proper operation (p. 17, 41).
Start the engine (p. 41). Make sure
the engine stops by pulling the
emergency stop switch clip from
the emergency stop switch (p. 51).
Maintenance Inspection
• Check the engine oil level (p. 64).
Running the engine with a low oil
level can cause engine damage.
• Check to be sure the propeller and
shear pin are undamaged (p. 79).
• Check that the anode is securely
attached to the antiventilation plate
(p. 78) and is not excessively worn.
The anode helps to protect the
outboard motor from corrosion.
• Make sure the tool kit and
emergency starter rope are onboard
(p. 60). Replace any missing items.
• Check the fuel level in the fuel tank
(p. 71).
• If you are using the battery, check
that the battery fluid is between the
upper and lower levels, and the
battery leads are connected
securely.
31ZVC6150.book Page 35 Friday, October 13, 2023 1:41 PM
36
OPERATION
SAFE OPERATING
PRECAUTIONS
To safely realize the full potential of
this outboard motor, you need a
complete understanding of its
operation and a certain amount of
practice with its controls.
Before operating the outboard motor
for the first time, please review the
IMPORTANT SAFETY
INFORMATION on page 6 and the
chapter titled BEFORE OPERATION.
For your safety, do not start or run the
engine in a confined or partly
enclosed area. Your engine’s exhaust
contains poisonous carbon monoxide,
a colorless, odorless gas that can
collect rapidly. Breathing carbon
monoxide can cause loss of
consciousness and may lead to death.
BREAK-IN PROCEDURE
Proper break-in procedure allows the
moving parts to wear in smoothly for
best performance and long service life.
• First 15 minutes: Run the outboard
motor at trolling speed. Use the
minimum amount of throttle
opening necessary to operate the
boat at a safe trolling speed.
• Next 45 minutes: Run the outboard
motor up to a maximum of 10% to
30% throttle opening.
• Next 60 minutes: Run the outboard
motor up to maximum of 50% to
80% throttle opening. Short bursts
of full throttle are acceptable but do
not operate the outboard motor
continuously at full throttle.
• Next 8 hours: Avoid continuous
full throttle operation (100%
throttle opening). Do not run the
outboard motor at full throttle for
more than 5 minutes at a time.
Exhaust contains poisonous
carbon monoxide gas that can
build up to dangerous levels in
closed areas.
Breathing carbon monoxide can
cause unconsciousness or death.
Never run this product's engine in
a closed, or even partially closed
area.
31ZVC6150.book Page 36 Friday, October 13, 2023 1:41 PM
37
OPERATION
TRANSOM ANGLE
ADJUSTMENT
The transom angle adjusting rod is
used to adjust the angle of the
outboard motor in the normal
operating position (p. 55).
1. To adjust, first tilt the outboard
motor so it is not resting on the rod.
2. Push the rod in and turn the end of
the rod up, so the latch will fall into
line with the rod.
3. Remove the rod and reinsert it in
the desired position.
4. Push the rod in and turn the end of
the rod down, so the latch will fall
to the locked position. Then release
the rod.
PRIMING THE
CARBURETOR WITH
GASOLINE (When using the
internal fuel tank)
When starting the engine for the first
time, or when starting the engine after
the carburetor has been drained, the
carburetor must be primed with
gasoline before the engine will start.
To prime the carburetor, remove the
emergency stop switch clip from the
outboard motor, and then pull the
starter grip about 10 times.
If you do not fill fuel to the upper
level of the internal fuel tank, fuel
loading to the carburetor may be
insufficient.
TO LOCK
LOCKED POSITION
UNLOCKED
POSITION
TRANSOM ANGLE
ADJUSTING ROD
TO CHANGE
31ZVC6150.book Page 37 Friday, October 13, 2023 1:41 PM
38
OPERATION
1. Fill the tank to the maximum fuel
level (p.71).
2. Turn the internal fuel tank vent
knob counterclockwise to the open
position (p. 21).
3. Turn the fuel valve lever to the ON
position (BF4A) or internal fuel
tank position (BF5D and BF6A)
(p. 19).
VENT KNOB
OPEN
ON (BF4A)
or
INTERNAL
FUEL TANK
POSITION
(BF5D and
BF6A)
FUEL VALVE
LEVER
[BF4A]
[BF5D and BF6A]
ON
INTERNAL
FUEL TANK
POSITION
N (neutral)
GEARSHIFT
LEVER
[USA model]
[Canadian model]
N (neutral)
N (neutral)
31ZVC6150.book Page 38 Friday, October 13, 2023 1:41 PM
39
OPERATION
4. Check the position of the gearshift
lever. It must be in the N (neutral)
position for starting.
The recoil starter will not operate if
the gearshift lever is in the F
(forward) or R (reverse) position.

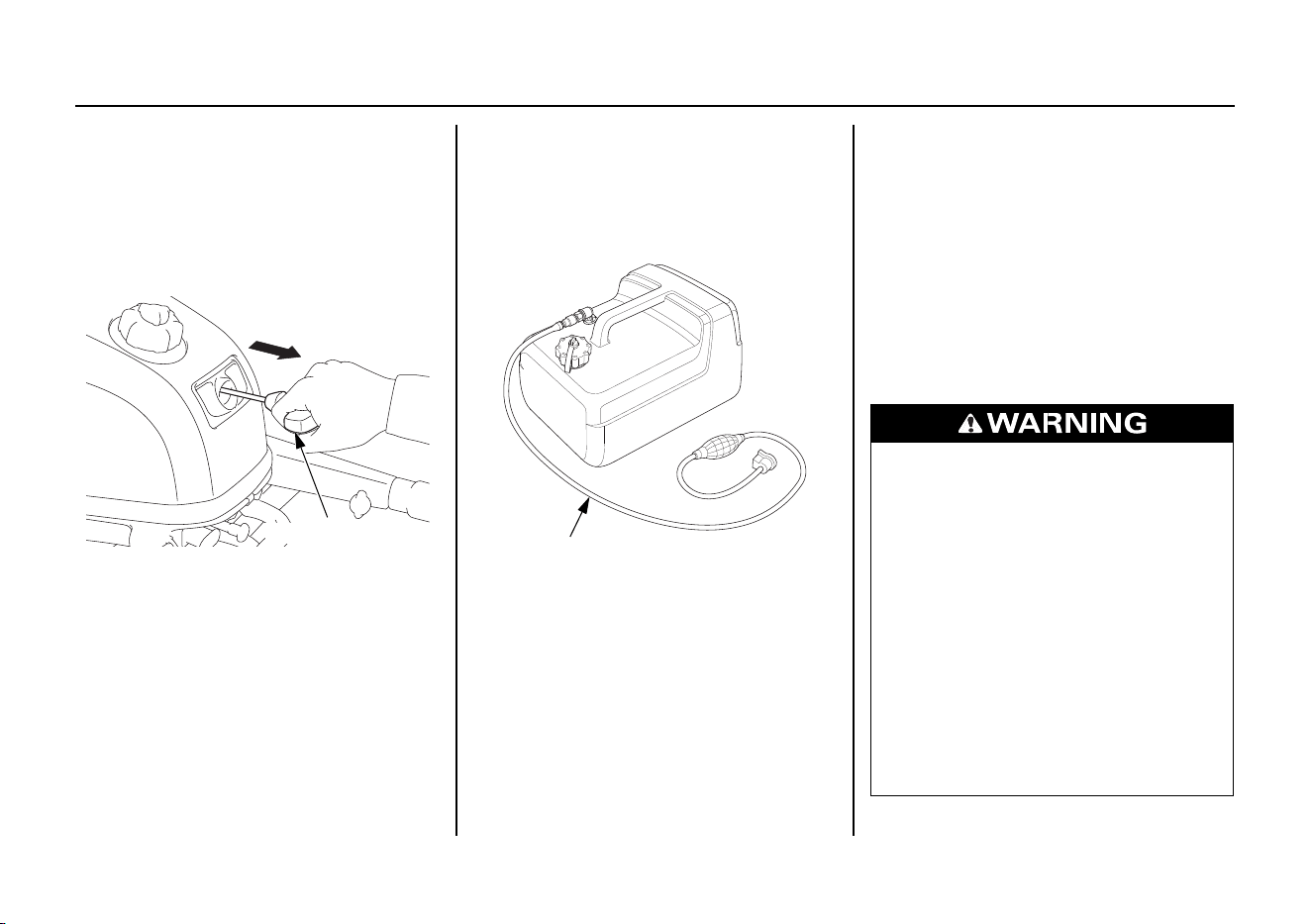

5. Pull the starter grip about 10 times.
Return the starter grip gently.
PORTABLE FUEL TANK
(standard or optionally
applicable equipment)
[When using the portable fuel tank]
Place the portable fuel tank in a
well-ventilated location, away from
direct sunlight, to reduce the
possibility of a gasoline vapor
explosion.
To ensure that the outboard motor
will be able to draw fuel from the
tank, place the tank within 6 feet
(2 m) of the outboard motor and not
more than 3 feet (1 m) below the fuel
connector on the outboard motor.
Secure the portable fuel tank in the
boat so that it won’t move around and
become damaged.
STARTER GRIP
Direction to pull
FUEL HOSE
(standard equipment)
Gasoline is highly flammable and
explosive.
You can be burned or seriously
injured when handling fuel.
• Stop the engine and let it cool
before handling fuel.
• Keep heat, sparks, and flame
away.
• Handle fuel only outdoors.
• Keep away from your vehicle.
• Wipe up spills immediately.
31ZVC6150.book Page 39 Friday, October 13, 2023 1:41 PM
40
OPERATION
FUEL HOSE CONNECTIONS
(standard or optionally
applicable equipment)
[When using the portable fuel tank]
Turn the portable fuel tank vent knob
counterclockwise to the open position
(p. 26) and remove the fuel hose
connector cap.
Connect the fuel hose to the portable
fuel tank and the outboard motor, as
shown. Be sure both connectors snap
securely into place. Always
disconnect the fuel hose and install
fuel inlet cap when tilting up the
outboard motor, storing or
transporting the outboard motor.
FUEL PRIMING
(standard or optionally
applicable equipment)
[When using the portable fuel tank]
Turn the portable fuel tank vent knob
counterclockwise to the open position
(p. 26) and turn the fuel valve lever to
the portable fuel tank position (p. 19).
Hold the priming bulb up in the
direction of the arrow; then squeeze
the priming bulb several times until it
feels firm, indicating that fuel has
reached the carburetor.
Check to be sure there are no fuel
leaks before starting the engine.
FUEL HOSE CONNECTOR (FEMALE)
FUEL HOSE CONNECTOR (FEMALE)
(OUTBOARD MOTOR SIDE)
(FUEL TANK SIDE)
OUTLET END
(outboard motor side)
PRIMING BULB
INLET END
(portable fuel tank side)
UP
31ZVC6150.book Page 40 Friday, October 13, 2023 1:41 PM
41
OPERATION
Do not touch the priming bulb with
the engine running or when tilting up
the outboard motor. The carburetor
could overflow.
INFREQUENT OR
OCCASIONAL USE
If your outboard motor will be used
on an infrequent or intermittent basis,
please refer to the fuel section of the
STORAGE chapter (p. 84) for
additional information regarding fuel
deterioration.
STARTING THE ENGINE
Prime the carburetor with gasoline.
(When using the internal fuel tank)
When starting the engine for the first
time after purchasing an outboard
motor, or when starting the engine
after draining the gasoline (p. 37).
(When using the portable fuel tank)
Connect the fuel line (p. 40) and
prime the engine using the priming
bulb (p. 40).

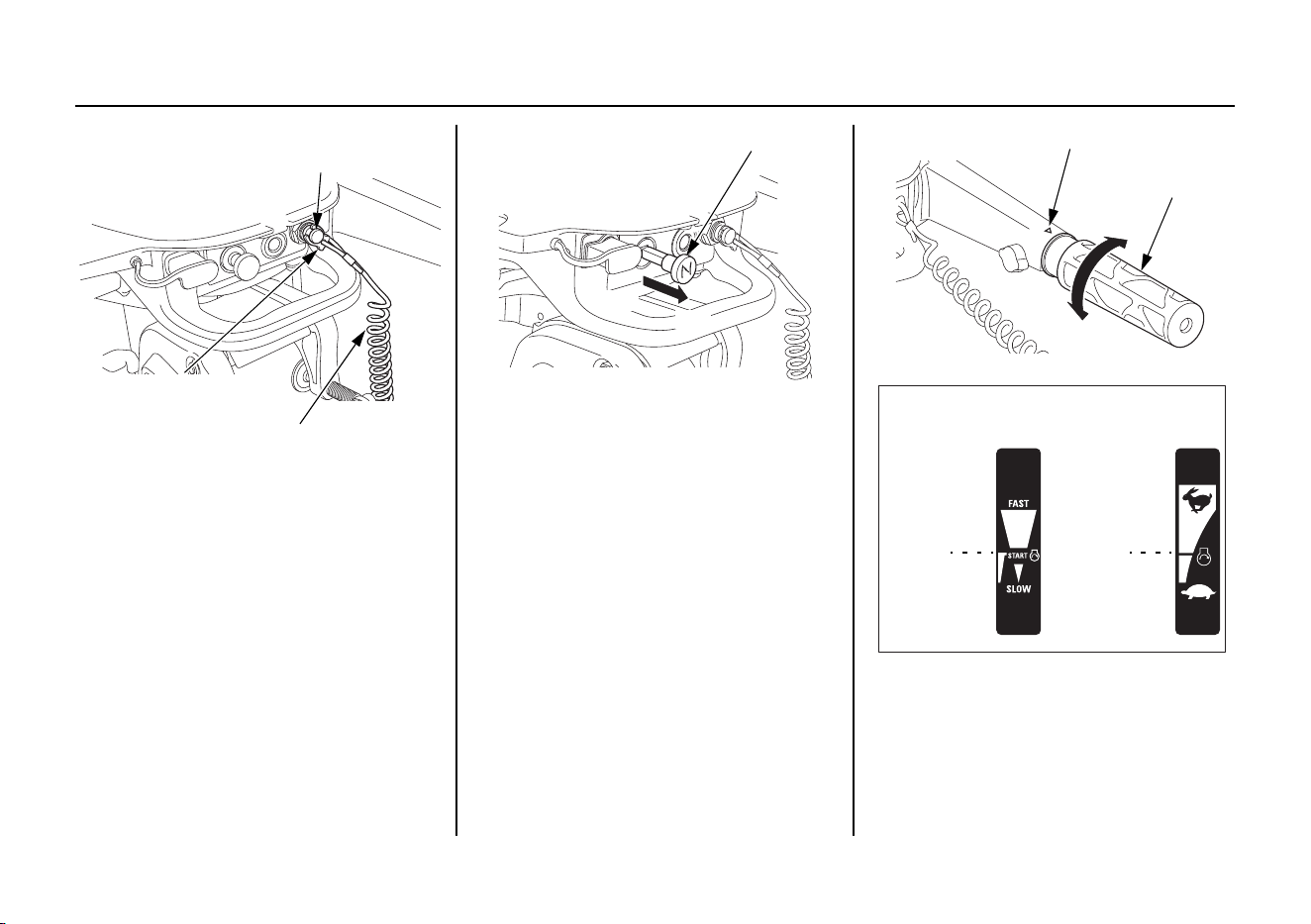

1. Put the emergency stop switch clip
in the emergency stop switch, and
attach the emergency stop switch
lanyard securely to the operator or
to the PFD (Personal Flotation
Device) equipped to an operator.
The engine will not start or run unless
the emergency stop switch clip is in
the emergency stop switch.
The emergency stop switch clip and
emergency stop switch lanyard
system is a safety device that will
stop the engine if you fall away from
the controls while operating the boat.
Always attach the emergency stop
switch lanyard securely to the
operator or to the PFD equipped to an
operator before starting the engine.
2. Connect the battery charge cable
(equipped type) (p. 28).
EMERGENCY
STOP SWITCH
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
31ZVC6150.book Page 41 Friday, October 13, 2023 1:41 PM
42
OPERATION

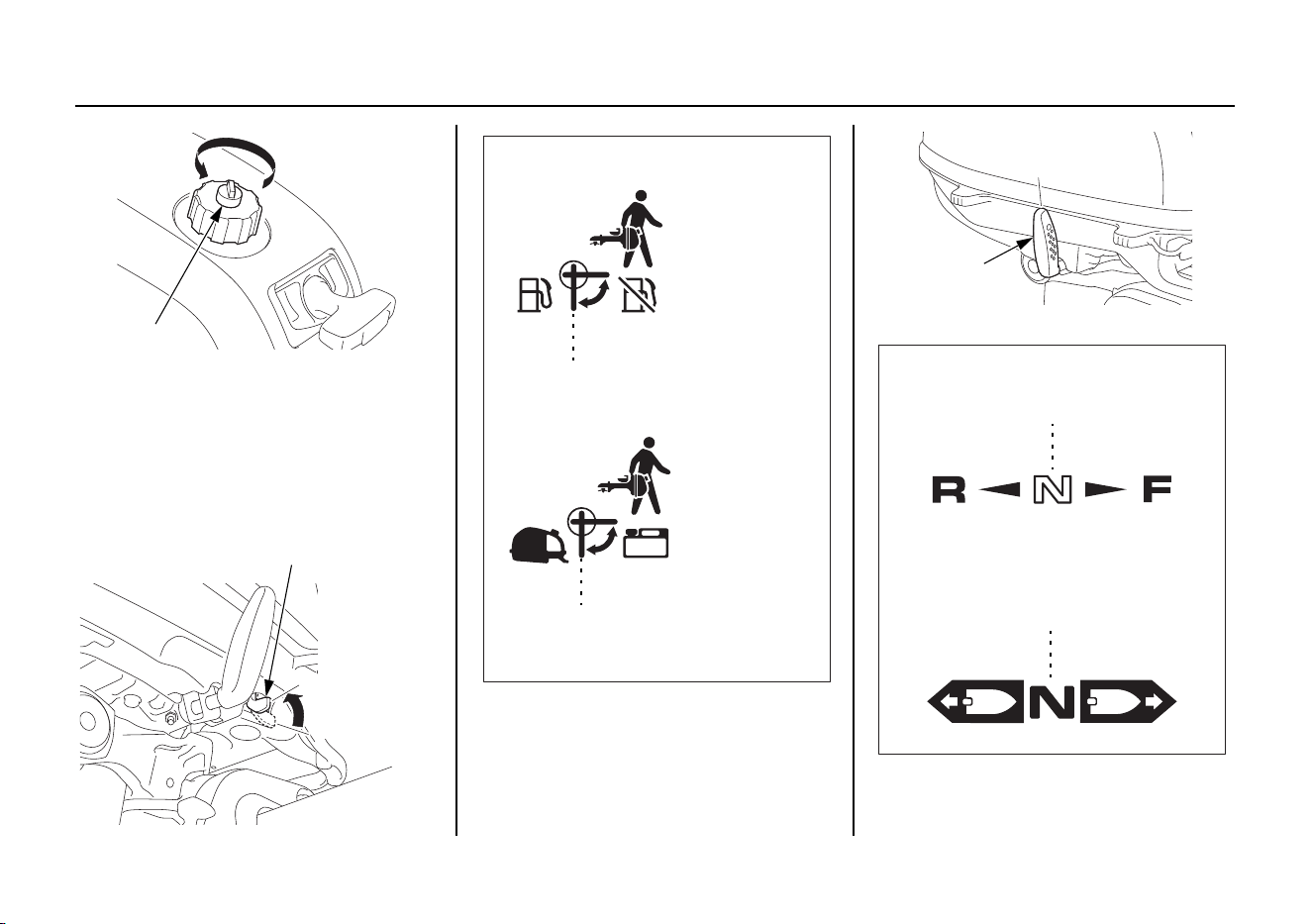

3. Turn the internal fuel tank vent
knob counterclockwise to the open
position (p. 21).
Always open the internal fuel filler
cap vent knob when using the
portable fuel tank.
OPEN
VENT KNOB
FUEL VALVE
LEVER
ON (BF4A)
or
INTERNAL
FUEL TANK
POSITION
(BF5D and
BF6A)
OFF (BF4A)
or
PORTABLE FUEL
TANK POSITION
(BF5D and BF6A)
[BF4A]
[BF5D and BF6A]
ON
OFF
INTERNAL
FUEL TANK
POSITION
PORTABLE
FUEL TANK
POSITION
31ZVC6150.book Page 42 Friday, October 13, 2023 1:41 PM
43
OPERATION
4. If you are using the internal fuel
tank, turn the fuel valve lever to the
ON position (BF4A) or internal
fuel tank position (BF5D and
BF6A) (p. 19).
If you are using the portable fuel
tank, turn the fuel valve lever to the
portable fuel tank position (BF5D
and BF6A) (p. 19).
5. Check the position of the gearshift
lever. It must be in the N (neutral)
position for starting.
The recoil starter will not operate if
the gearshift lever is in the F
(forward) or R (reverse) position.
N (neutral)
GEARSHIFT
LEVER
[Canadian model]
N (neutral)
N (neutral)
[USA model]
31ZVC6150.book Page 43 Friday, October 13, 2023 1:41 PM
44
OPERATION
6. Pull the choke knob when the
engine is in any of the following
conditions:
• When the engine is cold or the
outside temperature is low.
• When restarting the engine after
supplying fuel due to the internal
fuel tank running out of fuel.
In this case, when the engine
starts, immediately return the
choke knob to its original
position.
7. Align the START position with the
index mark for starting the engine.
8. Pull the starter grip lightly until
you feel resistance, then pull
briskly in the direction of the arrow
as shown above.
Return the starter grip gently.
CHOKE KNOB
OFF
ON
INDEX MARK
THROTTLE GRIP
[Canadian model]
START
POSITION
START
POSITION
[USA model]
STARTER GRIP
Direction to pull
31ZVC6150.book Page 44 Friday, October 13, 2023 1:41 PM
45
OPERATION
9. If the choke knob was pulled to the
ON position to start the engine,
gradually push it to the OFF
position as the engine warms up.
Also, as the engine warms up, the
throttle grip can be turned to the
SLOW position without stalling.
10.Before getting underway, allow
the engine to warm-up sufficiently
to ensure good performance.
During the warm-up period, check
the oil pressure indicator (p. 24)
and cooling system indicator
(p. 25).
If the indicators show any
abnormal condition, immediately
stop the engine and determine the
cause of the problem. Refer to
TAKING CARE OF
UNEXPECTED PROBLEMS on
p. 94 and 97.

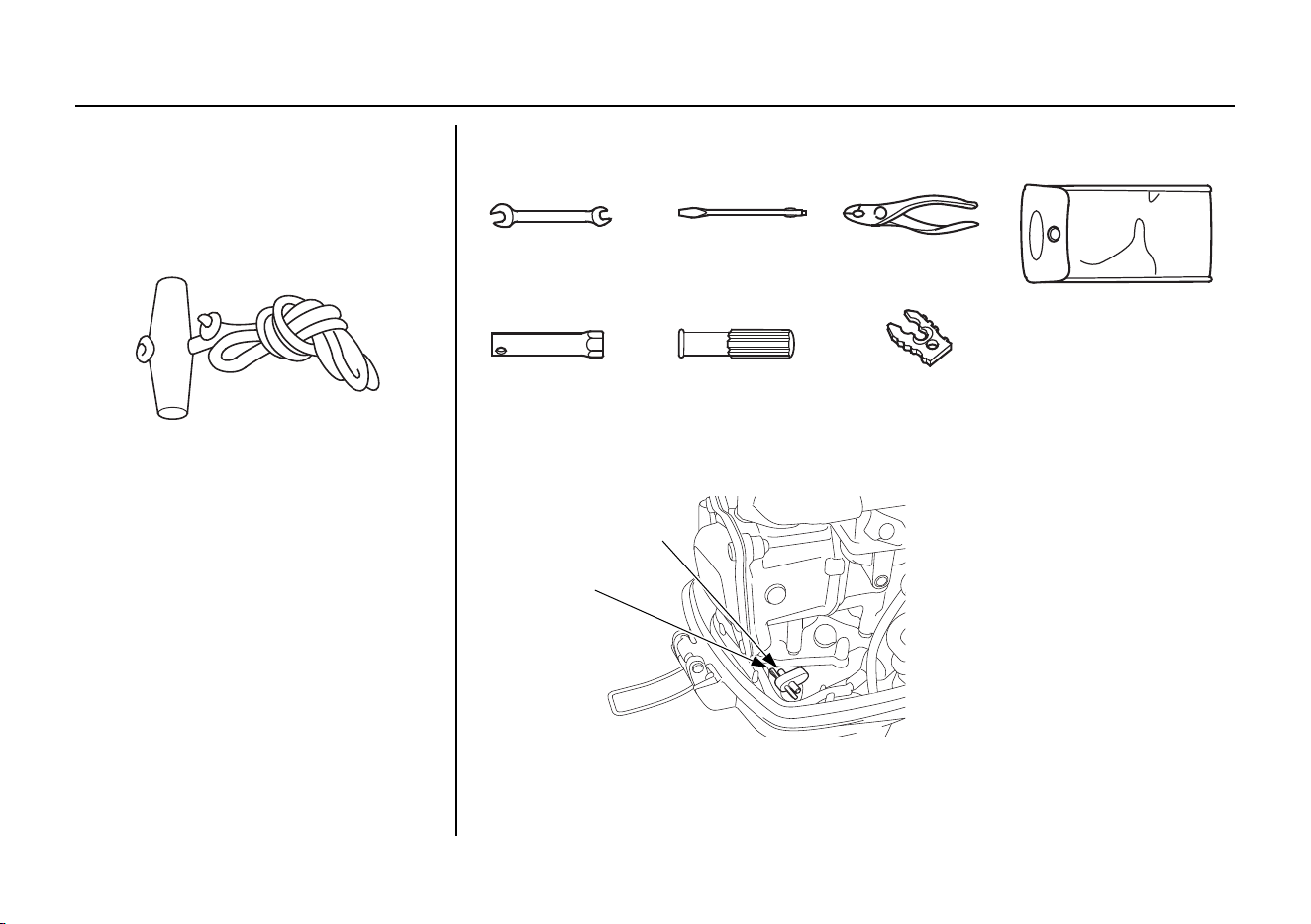

EMERGENCY STARTING
If the recoil starter is inoperative, you
can start the engine using the
emergency starter rope that came
with your outboard motor.
1. Connect the battery charge cable
(equipped type) (p. 28).
2. Turn the internal fuel tank vent
knob counterclockwise to the open
position (p. 21).
Always open the internal fuel filler
cap vent knob when using the
portable fuel tank.
FUEL VALVE
LEVER
ON (BF4A)
or
INTERNAL
FUEL TANK
POSITION
(BF5D and
BF6A)
OFF (BF4A)
or
PORTABLE FUEL
TANK POSITION
(BF5D and BF6A)
31ZVC6150.book Page 45 Friday, October 13, 2023 1:41 PM
46
OPERATION
3. If you are using the internal fuel
tank, turn the fuel valve lever to the
ON position (BF4A) or internal
fuel tank position (BF5D and
BF6A) (p. 19).
If you are using the portable fuel
tank, turn the fuel valve lever to the
portable fuel tank position (BF5D
and BF6A) (p. 19).
[BF4A]
[BF5D and BF6A]
ON
OFF
INTERNAL
FUEL TANK
POSITION
PORTABLE
FUEL TANK
POSITION
N (neutral)
GEARSHIFT
LEVER
31ZVC6150.book Page 46 Friday, October 13, 2023 1:41 PM
47
OPERATION
4. Move the shift lever to the N
(neutral) position.
5. Unlock and remove the engine
cover (p. 63).
6. Release the throttle cables from the
cover hook.
7. Release the neutral start cable
from the cover hook.
8. Disconnect the neutral start cable
from recoil case.
[Canadian model]
N (neutral)
N (neutral)
[USA model]
THROTTLE CABLES
COVER HOOK
COVER HOOK
NEUTRAL START CABLE
NEUTRAL START CABLE
RECOIL CASE
31ZVC6150.book Page 47 Friday, October 13, 2023 1:41 PM
48
OPERATION

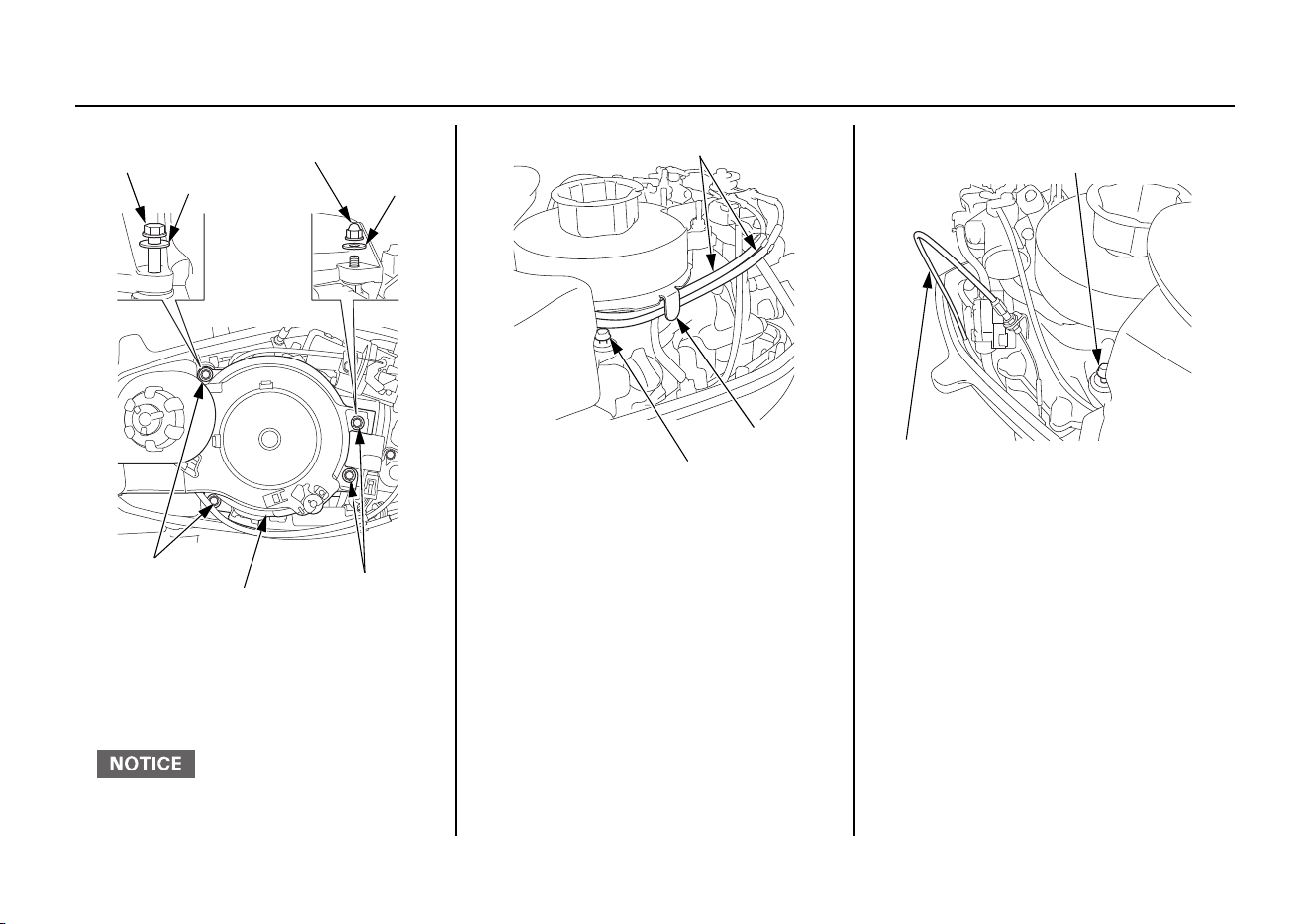

9. Remove the two 6 mm cap nuts,
two washers, two 6 mm flange
bolts and two washers, and remove
the recoil case.
Take care not to lose the bolts, nuts
and washers.
10.Install and tighten the 6 mm flange
bolts by hand.
11.Hook the throttle cables to the
cord hook.
12.Hook the neutral start cable to the
under case.
13.Make sure the shift lever in the N
(neutral) position.
The ‘‘Neutral Starting System’’ will not
work in emergency starting.
Be sure to set the shift lever into N
(neutral) position to prevent start-in-gear
when starting the engine in emergency.
Sudden unexpected acceleration could
result in serious injury or death.
6 mm
FLANGE
BOLTS AND
WASHER S
WA SH ER
6 mm FLANGE
BOLT
WA SH ER
6 mm CAP NUT
RECOIL
CASE
6 mm CAP
NUTS AND
WA SH ER S
6 mm FLANGE BOLT
(tighten by hand)
THROTTLE CABLES
CORD HOOK
6 mm FLANGE BOLT
(tighten by hand)
NEUTRAL START
CABLE
31ZVC6150.book Page 48 Friday, October 13, 2023 1:41 PM
49
OPERATION
14.Put the emergency stop switch clip
in the emergency stop switch, and
attach the emergency stop switch
lanyard securely to the operator or
to the PFD (Personal Flotation
Device) worn by the operator.
15.To start a cold engine, pull the
choke knob to the ON position. To
restart a warm engine, leave the
choke knob in the OFF position.
16.Align the START position with the
index mark for starting the engine.
EMERGENCY STOP
SWITCH
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP SWITCH LANYARD
CHOKE KNOB
OFF
ON
INDEX MARK
THROTTLE GRIP
[Canadian model]
START
POSITION
START
POSITION
[USA model]
31ZVC6150.book Page 49 Friday, October 13, 2023 1:41 PM
50
OPERATION
17.Set the knotted end of the
emergency starter rope (provided
with the engine) in the notch in the
starter pulley. Wind the rope
clockwise around the starter pulley.
18.Pull the emergency starter rope
slowly until resistance is felt, then
pull briskly.
Keep away from moving parts
while pulling the rope.
If necessary, rewind the rope and
pull again. If the engine does not
start after several attempts, refer to
TAKING CARE OF
UNEXPECTED PROBLEMS,
p. 91.
19.If the choke control was used to
start the engine, return the control
to the normal operating position as
the engine warms up.
During the warm-up period, check
the oil pressure indicator (p. 24),
and cooling system indicator
(p. 25).
20.Install the engine cover (p. 63),
and lock it in place by locking the
engine cover lock lever.
21.If it was necessary to remove the
emergency stop switch lanyard
from you to perform the
emergency starting procedure, be
sure the lanyard is attached
securely to the operator before
operating the outboard motor.
22.Have your closest authorized
Marine dealer check your system
and correct the problem, so you
can use the recoil starter.
NOTCH
STARTER PULLEY
STARTER ROPE
KNOTTED END
Exposed moving parts can cause
injury.
• Do not operate the outboard
motor without the engine
cover.
• Use extreme care when
installing the engine cover.
31ZVC6150.book Page 50 Friday, October 13, 2023 1:41 PM
51
OPERATION
STOPPING THE ENGINE
Emergency Engine Stopping
To stop the engine in an emergency,
pull the emergency stop switch clip
out of the emergency stop switch by
pulling the emergency stop switch
lanyard.
If the emergency stop switch is
activated while the engine is running,
the engine will shut down abruptly
and the boat will quickly decelerate,
potentially causing occupants and
objects to be thrown forward and/or
overboard.
If the emergency stop switch is
activated, the emergency stop switch
clip must be reinserted before the
engine can be restarted.
We suggest that you stop the engine
this way occasionally to verify that
the engine and emergency stop switch
are operating properly.
Normal Engine Stopping
EMERGENCY STOP SWITCH
EMERGENCY
STOP SWITCH
LANYARD
PULL
EMERGENCY STOP
SWITCH CLIP
THROTTLE GRIP
SLOW
[Canadian model]
SLOW
[USA model]
SLOW
31ZVC6150.book Page 51 Friday, October 13, 2023 1:41 PM
52
OPERATION
1. Move the throttle grip to the
slowest speed and gearshift lever to
the N (neutral) position.
After cruising at full throttle, cool
down the engine by idling for a few
minutes before stopping the engine.
2. Press the emergency stop switch
once to stop the engine.
3. Disconnect the battery charge cable
(equipped type) (p. 29).
4. When the boat is not in use, remove
and store the emergency stop switch
clip and lanyard.
If you are using the internal fuel tank,
turn the fuel valve lever to the OFF
position (BF4A) or portable fuel tank
position (BF5D and BF6A) (p.
19
)
and close the internal fuel tank vent
by turning the vent knob clockwise
all the way (p.
21
).
If you are using a portable fuel tank,
close the internal fuel tank vent by
turning the vent knob clockwise all
the way (p.
21
) and close the portable
fuel tank vent by turning the vent
knob clockwise all the way (p.
26
).
If you will be tilting up the outboard
motor, storing or transporting the
outboard motor, disconnect the fuel
hose connectors from the outboard
motor and portable fuel tank (p.
40
),
install fuel hose connector cap, close
the internal fuel tank vent by turning
the vent knob clockwise all the way
(p.
21
) and close the portable fuel
tank vent by turning the vent knob
clockwise all the way (p.
26
).
N (neutral)
GEARSHIFT LEVER
[Canadian model]
N (neutral)
N (neutral)
[USA model]
EMERGENCY
STOP SWITCH
PUSH
31ZVC6150.book Page 52 Friday, October 13, 2023 1:41 PM
53
OPERATION
GEARSHIFTING AND
THROTTLE OPERATION
To shift gears, turn the throttle grip to
the SLOW position; then move the
gearshift lever to select the F
(forward), N (neutral), or R (reverse)
gears.
Do not turn the throttle grip in the
FAST direction in R (reverse) and N
(neutral) gears.
The recoil starter can be operated
with the gearshift lever in the N
(neutral) position only.
THROTTLE GRIP
SLOW
[Canadian model]
SLOW
[USA model]
SLOW
R (reverse)
N (neutral)
F (forward)
GEARSHIFT LEVER
[USA model]
[Canadian model]
N (neutral)
R (reverse)
F (forward)
N (neutral)
R (reverse)
F (forward)
31ZVC6150.book Page 53 Friday, October 13, 2023 1:41 PM
54
OPERATION
Use the throttle friction knob to help
hold a constant throttle setting while
cruising.
Turn the knob clockwise to increase
throttle grip friction for holding a
constant speed.
Turn the knob counterclockwise to
decrease friction for easy grip
rotation.
STEERING
Steer by moving the tiller handle
opposite the direction you want the
boat to turn.
Use the steering friction bolt to help
hold a steady course while cruising.
Turn the bolt clockwise to increase
steering friction for holding a steady
course.
Turn the bolt counterclockwise to
decrease friction for easy turning.
THROTTLE
FRICTION KNOB
TO DECREASE
FRICTION
TO INCREASE
FRICTION
RIGHT TURN
LEFT TURN
STEERING FRICTION BOLT
TO DECREASE
FRICTION
TO INCREASE
FRICTION
31ZVC6150.book Page 54 Friday, October 13, 2023 1:41 PM
55
OPERATION
CRUISING
Engine Speed
For best fuel economy, limit the
throttle opening to 80%. Use the
throttle friction control (p. 53) to help
you hold a steady speed.
For rough water conditions or large
waves, slow down to prevent the
propeller from rising out of the water.
Transom Angle
Install the outboard motor at the best
transom angle for stable cruising and
maximum power.
Transom angle too large: Causes boat
to ‘‘squat.’’
Transom angle too small: Causes boat
to ‘‘bow steer.’’
It is necessary to adjust the transom
angle of the outboard motor to
compensate for changes in boat load,
weight distribution, water conditions,
or propeller selection.
Under normal running conditions, the
boat will perform best when the
antiventilation plate is level with the
water surface.
When cruising into a high wind,
adjust the outboard motor down
slightly to level the boat and improve
stability. With a tail wind, adjust the
outboard motor up slightly (p. 37).
Excessive transom angle during operation
can cause propeller ventilation,
overheating, and water pump damage.
This type of damage is not covered by the
Distributor’s Limited Warranty (U.S.) /
Distributor’s Warranty (CA.) (p. 112).
OUTBOARD
MOTOR ANGLE
ADJUSTED TOO
LOW
Transom Angle (Cruising)
OUTBOARD
MOTOR ANGLE
ADJUSTED TOO
HIGH
OUTBOARD MOTOR
ANGLE ADJUSTED
CORRECTLY
CORRECT
GIVES MAXIMUM PERFORMANCE
ROUGH
WAVE S
31ZVC6150.book Page 55 Friday, October 13, 2023 1:41 PM
56
OPERATION
SHALLOW WATER
OPERATION
When operating in shallow water, tilt
the outboard motor, using the tilt
lever, so the propeller and gear case
won’t hit the bottom.
To tilt the outboard motor, raise the
outboard motor to the 18° position by
pulling on the engine cover grip.
Do not use the tiller handle as a lever
to raise the outboard motor. Applying
excessive force to the tiller handle
can damage it.
While the outboard motor is tilted,
proceed at a low speed, and do not
operate the outboard motor in
reverse. The outboard motor will rise
suddenly if operated in reverse.
Monitor water flow from the cooling
system indicator (p. 25) to be sure the
outboard motor is not tilted so high
that the water intakes are out of the
water.
An excessive tilt angle during
operation can cause propeller
ventilation, overheating, and water
pump damage. This type of damage is
not covered by the
Distributor’s
Limited Warranty (U.S.) / Distributor’s
Warranty (CA.) (p. 112).
ENGINE COVER GRIP
18°
31ZVC6150.book Page 56 Friday, October 13, 2023 1:41 PM
57
OPERATION
To return the outboard motor to the
normal operating position, raise the
outboard slightly by pulling on the
engine cover grip, then pull the tilt
lever to release the outboard, and then
slowly lower the outboard motor.
MOORING, BEACHING,
LAUNCHING
Before tilting up, leave the outboard
motor in the running position for one
minute after stopping the engine to
drain the water from inside the
engine.
1. Move the shift lever to the N (neutral)
position and stop the engine.
2. Turn the fuel valve lever to the OFF
position (BF4A) or portable fuel tank
position (BF5D and BF6A) (p.
19
).
3. When using the portable fuel tank
(BF5D and BF6A), disconnect the
fuel hose connectors from the
outboard motor and portable fuel
tank (p. 40), install fuel hose
connector cap and close the portable
fuel tank vent by turning the vent
knob clockwise all the way (p. 26).
4. Close the internal fuel tank vent by
turning the vent knob clockwise all
the way (p. 21).

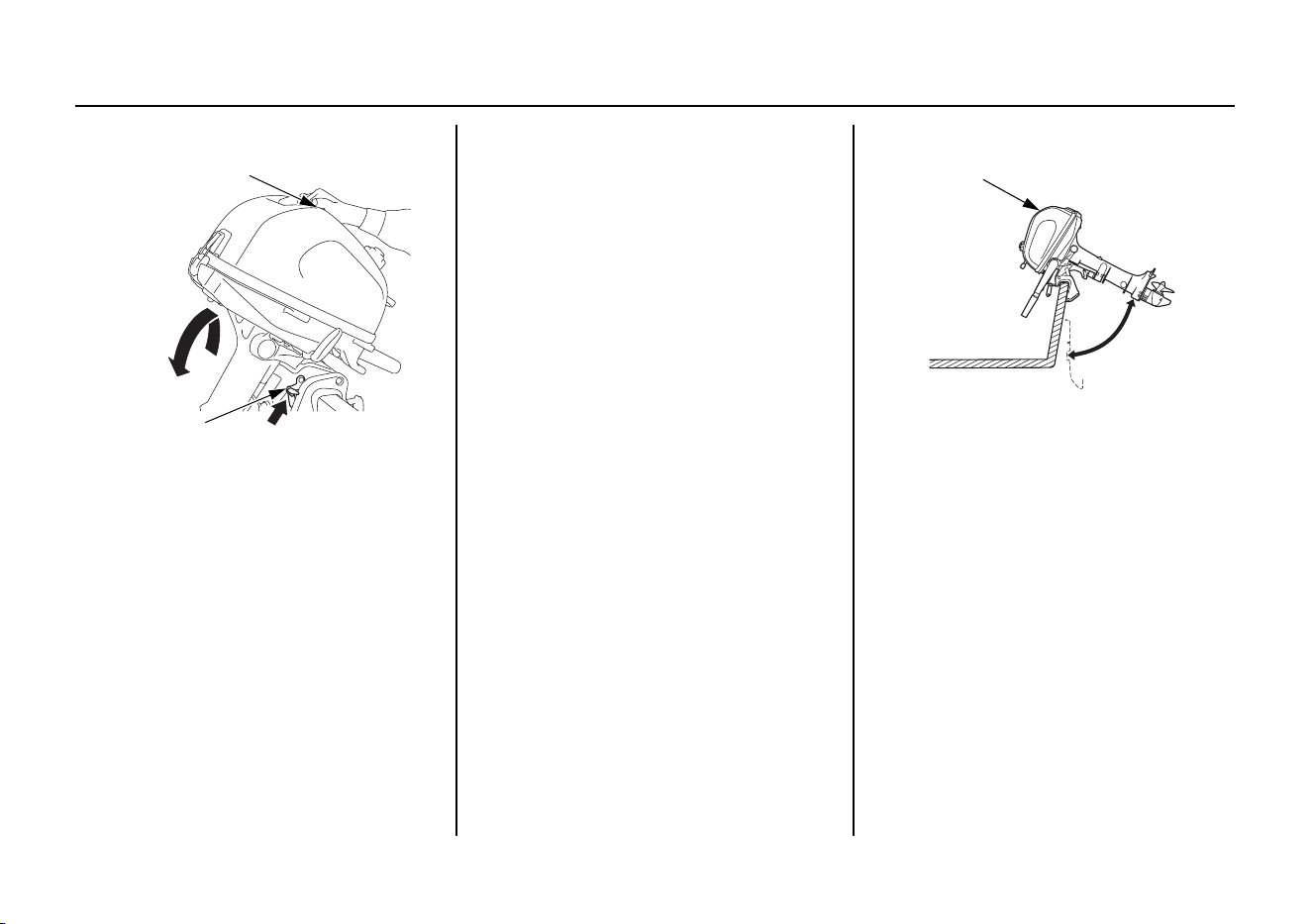

To raise the outboard motor out of the
water while the boat is moored, or for
maximum clearance when beaching
or launching, tilt the outboard motor
to the 34° or 58° position.
Stop the engine before tilting the
outboard motor. The 34° or 58°
position is not an operating position.
Raise and lower the outboard motor
as described on p. 56.
TILT LEVER
ENGINE COVER GRIP
ENGINE COVER GRIP
34°, 58° (when mooring)
31ZVC6150.book Page 57 Friday, October 13, 2023 1:41 PM
58
SERVICING YOUR OUTBOARD MOTOR
THE IMPORTANCE OF
MAINTENANCE
Proper maintenance is essential for
safe, economical, and trouble-free
operation. It will also help reduce air
pollution.
To help you properly care for your
outboard motor, the following pages
include a maintenance schedule,
routine inspection procedures, and
simple maintenance procedures using
basic hand tools. Other service tasks
that are more difficult or require
special tools are best handled by
professionals and are normally
performed by a Honda technician or
other qualified mechanic.
The maintenance schedule applies to
normal operating conditions. If you
operate your outboard motor under
unusual conditions, consult an
authorized Honda Marine dealer for
recommendations applicable to your
individual needs and use.
Remember that your authorized
Honda Marine dealer knows your
outboard motor best and is fully
equipped to maintain and repair it.
To ensure the best quality and
reliability, use only new, Honda
Genuine parts or their equivalents for
repair and replacement.
Maintenance, replacement, or
repair of the emission control
devices and systems may be
performed by any marine engine
repair establishment or individual,
using parts that are ‘‘certified’’ to
EPA standards.
Failure to properly maintain this
outboard motor, or failing to
correct a problem before
operation, could result in a
significant malfunction.
Some malfunctions can cause
serious injuries or death.
Always follow the inspection and
maintenance recommendations
and schedules in this owner's
manual.
31ZVC6150.book Page 58 Friday, October 13, 2023 1:41 PM
59
SERVICING YOUR OUTBOARD MOTOR
MAINTENANCE SAFETY
Some of the most important safety
precautions follow. However, we
cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide
whether or not you should perform a
given task.
Safety Precautions
• Make sure the engine is off before
you begin any maintenance or
repairs. This will eliminate several
potential hazards:
─ Carbon monoxide poisoning
from engine exhaust.
Do not start or run the engine in
a confined or partly enclosed
area.
─ Burns from hot parts.
Let the engine and exhaust
system cool before touching.
─ Injury from moving parts.
Do not run the engine unless
instructed to do so.
• Read the instructions before you
begin, and make sure you have the
tools and skills required.
• To reduce the possibility of fire or
explosion, be careful when
working around gasoline. Use only
a nonflammable solvent, not
gasoline, to clean parts. Keep
cigarettes, sparks, and flames away
from all fuel-related parts.
• Wear gloves when handling the
propeller to protect your hands
from sharp edges.
Improper maintenance can cause
an unsafe condition.
Failure to properly follow
maintenance instructions and
precautions can cause serious
injuries or death.
Always follow the procedures
and precautions in this owner’s
manual.
31ZVC6150.book Page 59 Friday, October 13, 2023 1:41 PM
60
SERVICING YOUR OUTBOARD MOTOR
TOOL KIT AND
EMERGENCY STARTER
ROPE
The following tools are supplied with
the outboard motor for simple
maintenance procedures and
emergency repairs. An emergency
starter rope is also supplied. Keep
these items on the boat so that they
will always be available if you need
them.
If your tool kit needs replacement, it
is not available as a kit and each item
must be ordered individually.
EMERGENCY STARTER ROPE
10 × 12 mm WRENCH
SHEAR PIN
SPARK PLUG
WRENCH
COTTER PIN
SPARE EMERGENCY
STOP SWITCH CLIP
GRIP
FLAT SCREWDRIVER
PLIERS
TOOL BAG
31ZVC6150.book Page 60 Friday, October 13, 2023 1:41 PM
61
SERVICING YOUR OUTBOARD MOTOR
MAINTENANCE SCHEDULE
Follow the MAINTENANCE SCHEDULE table and service your outboard motor accordingly. Please note, a claim for
warranty coverage will not be denied simply because the maintenance schedule for your outboard motor was not
followed. However, any part(s) that fails specifically due to lack of maintenance, or improperly performed maintenance,
would not be covered under the Distributor’s Limited Warranty (U.S.) / Distributor’s Warranty (CA.).
(1) Lubricate more frequently when used in salt water.
(2) These items should be serviced by your servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the
Honda shop manual for service procedures. See “Honda Publications” on page 109 for ordering information.
(3) For professional commercial use, log hours of operation to determine proper maintenance intervals.
(8) When there is 1/3 or more consumption, please exchange.
Each use After use
First month
or
20 hrs.
Every
6 months
or
100 hrs.
Every year
or
200 hrs.
Refer to
page
Engine oil Check level o 64
Change o o 65
Gear case oil Change o o 67
Starter rope Check o78
Carburetor linkage Check-adjust o (2) o (2) -
Valve clearance Check-adjust o (2) o (2) -
Spark plug Check-adjust o
70
Replace o
Propeller and cotter pin Check o 79
Anode Check o (8) 35
Idling speed Check-adjust o (2) o (2) -
Lubrication Grease o (1) o (1) 69
REGULAR SERVICE PERIOD (3)
Perform at every indicated month or
operating hour interval, whichever
comes first.
ITEM
31ZVC6150.book Page 61 Friday, October 13, 2023 1:41 PM
62
SERVICING YOUR OUTBOARD MOTOR
(2) These items should be serviced by your servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the
Honda shop manual for service procedures. See “Honda Publications” on page 109 for ordering information.
(3) For professional commercial use, log hours of operation to determine proper maintenance intervals.
(4) When operating in salt water, turbid or muddy water, the engine should be flushed with clean water after each use.
(5) Check the fuel line for leaks, cracks or damage. If it is leaking, cracked or damaged, take it to your servicing dealer for replacement before
using your outboard motor.
(6) Check the fuel line for leaks, cracks or damage. Replace the fuel line if there are signs of leaks, cracks or damage.
(7) Upon starting, check for unusual engine sounds and cooling water flowing freely from the check hole.
Each use After use
First month
or
20 hrs.
Every
6 months
or
100 hrs.
Every year
or
200 hrs.
Refer to
page
Fuel tank and tank filter (Internal) Clean o (2) -
Fuel tank and tank filter (Portable) Clean o77
Thermostat Check o (2) -
Fuel filter Check o
75
Replace o
Fuel line Check o (5) 35
Replace Every 2 years (If necessary) (2) (6) -
Bolts and nuts Check-tightness o (2) o (2) 35
Breather tube Check o (2) -
Cooling water passages Clean o (4) 81
Water pump Check o (2) -
Emergency stop switch Check o 35
Engine oil leak Check o -
Each operation part Check o -
Engine condition (7) Check o -
REGULAR SERVICE PERIOD (3)
Perform at every indicated month or
operating hour interval, whichever
comes first.
ITEM
31ZVC6150.book Page 62 Friday, October 13, 2023 1:41 PM
63
SERVICING YOUR OUTBOARD MOTOR

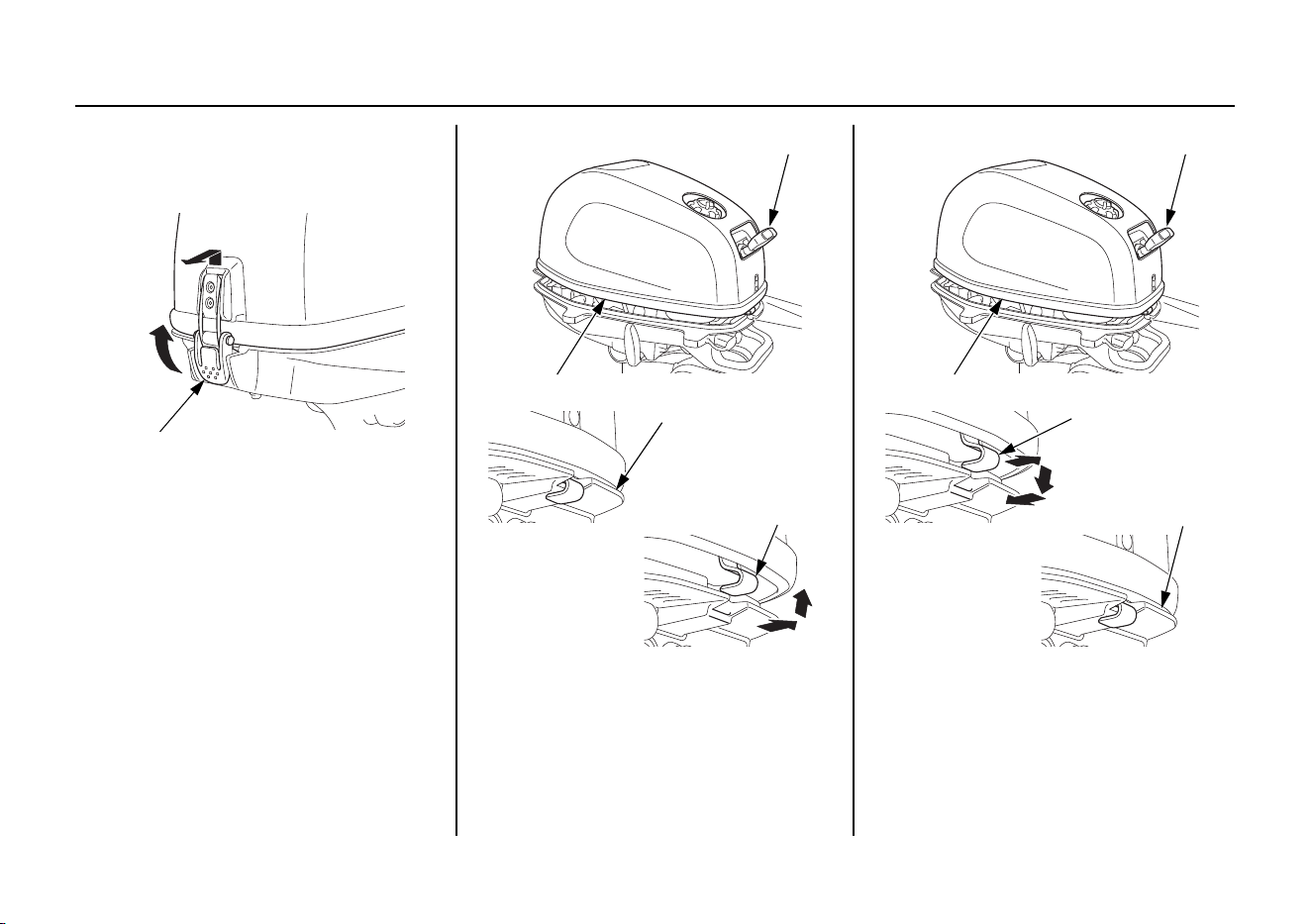

ENGINE COVER REMOVAL
AND INSTALLATION
To remove, unlatch the engine cover
latch and slide the engine cover
forward. Unhook the engine cover
hook as shown. Remove the engine
cover while turning a starter grip to
the upward.
To install, lower the engine cover
while turning a starter grip to the
upward. Hook the engine cover hook
as shown, and latch the engine cover
latch.
ENGINE COVER LATCH
UNLOCK
ENGINE COVER
STARTER GRIP
ENGINE
UNDER
COVER
ENGINE
COVER
HOOK
ENGINE COVER
STARTER GRIP
ENGINE
COVER
HOOK
ENGINE
UNDER
COVER
31ZVC6150.book Page 63 Friday, October 13, 2023 1:41 PM
64
SERVICING YOUR OUTBOARD MOTOR

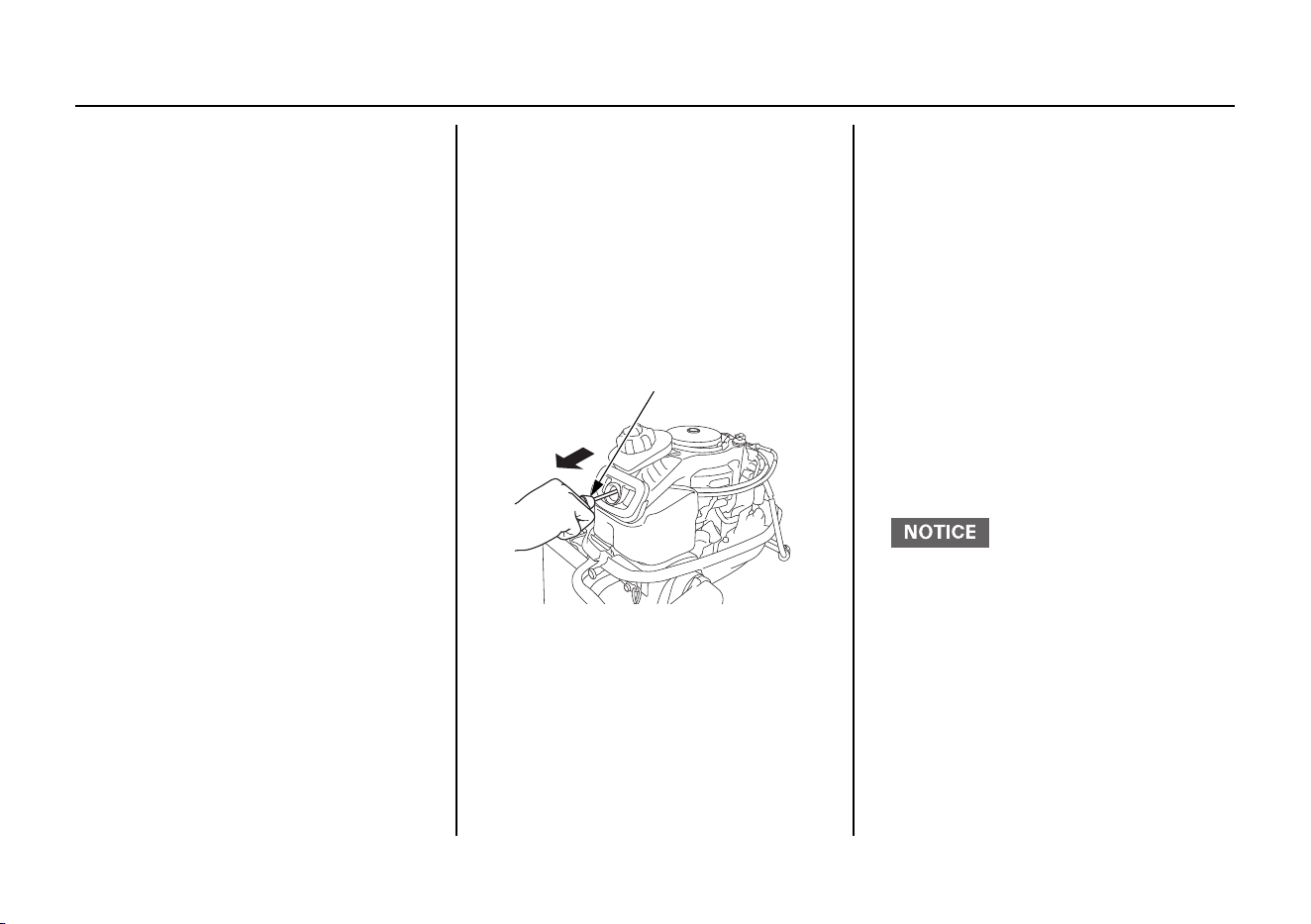

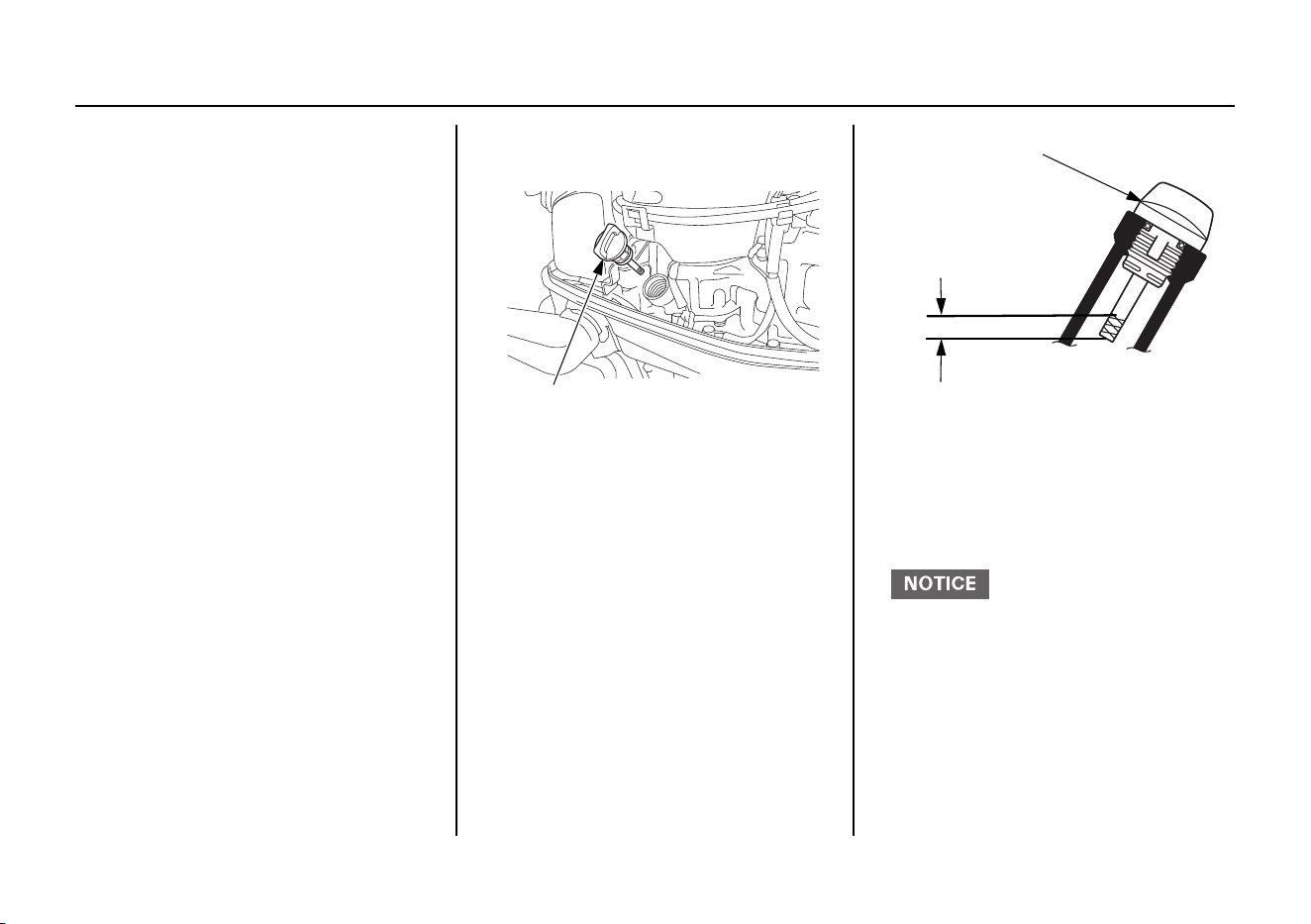

Engine Oil Level Check
Check the engine oil level with the
engine stopped and the outboard
motor in the vertical position.
To avoid incorrect gauging of the
engine oil level, inspect the oil level
when the engine has cooled.
1. Unlock and remove the engine
cover (p. 63).
2. Remove the oil filler cap/dipstick
and wipe it clean.
3. Insert the dipstick and screw it in,
then remove it and check the oil
level shown on the dipstick.
4. If the oil level is low, add oil to
reach the upper limit mark shown
on the dipstick. Use the oil
recommended on p. 67.
Running the engine with a low oil
level can cause engine damage.
5. Install the oil filler cap/dipstick and
tighten it securely.
6. Install the engine cover (p. 63), and
lock it in place by locking the
engine cover latch.
OIL FILLER CAP/
DIPSTICK
OIL FILLER CAP/
DIPSTICK
UPPER LIMIT
LOWER LIMIT
31ZVC6150.book Page 64 Friday, October 13, 2023 1:41 PM
65
SERVICING YOUR OUTBOARD MOTOR
When you check the oil level with the dipstick, you might notice the engine oil
appears milky or the oil level has increased. If you notice either condition,
change the engine oil. See the following table for an explanation of these
conditions
Operating Method Result Effect
Running the engine below
3,000 rpm for more than
30% of the time so the
engine does not warm up.
• Water condenses in the
engine and mixes with the
oil, resulting in a milky
appearance.
The engine oil deteriorates,
becomes less efficient as a
lubricant, and causes an
engine malfunction.
Frequent starting and
stopping without allowing
the engine to warm up.
• Unburned fuel mixes with
the oil, increasing the
volume of oil.
Engine Oil Change
An engine oil evacuation device may
be used to remove the engine oil.
Drain the used oil into a suitable
container while the engine is warm.
Warm oil drains quickly and
completely.
1. Unlock and remove the engine
cover (p. 63).
31ZVC6150.book Page 65 Friday, October 13, 2023 1:41 PM
66
SERVICING YOUR OUTBOARD MOTOR

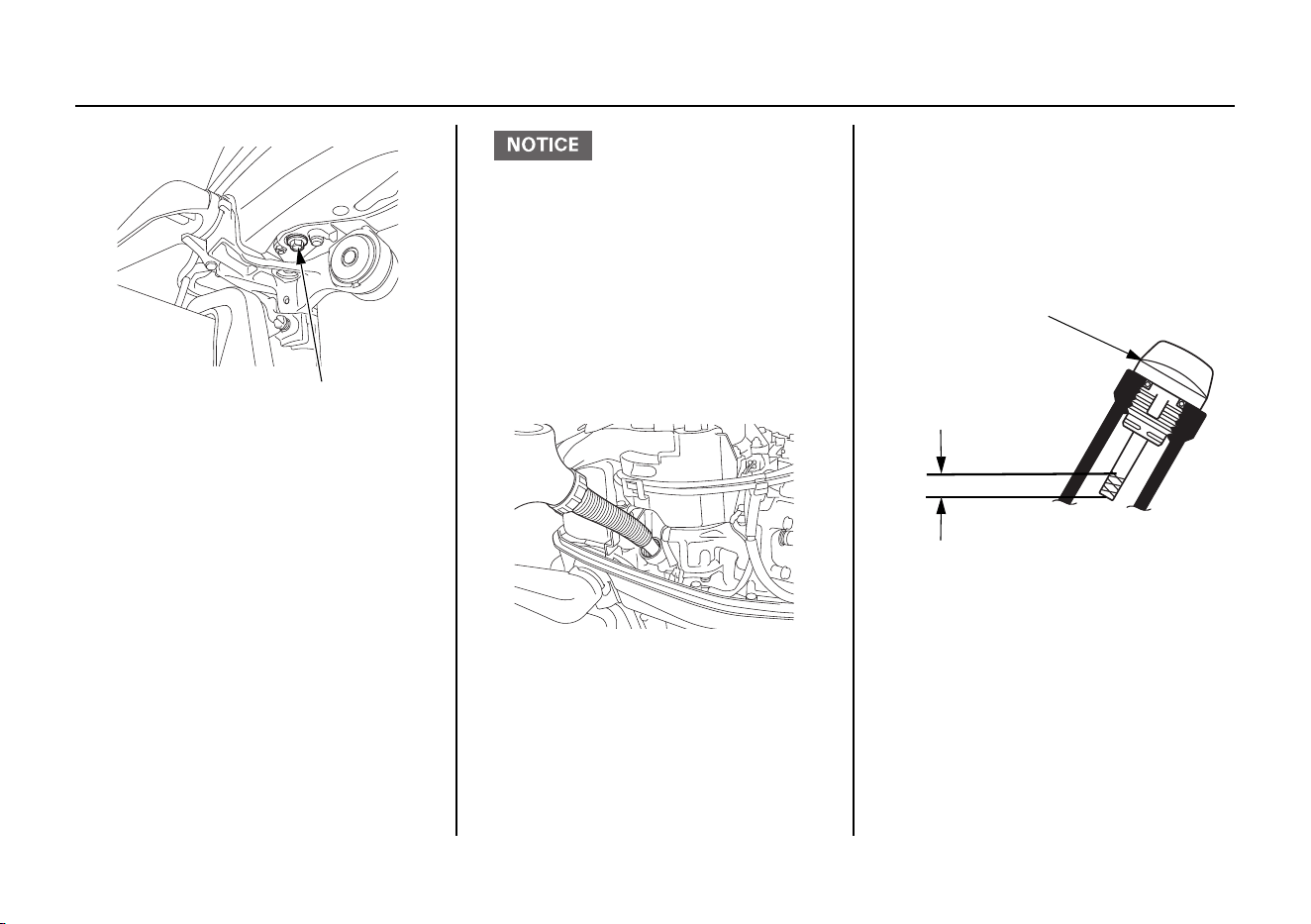

2. Remove the oil filler cap, and
remove the engine oil drain bolt
and washer.
3. Allow the used oil to drain
completely, then reinstall the
engine oil drain bolt and a new
washer, and tighten it securely.
ENGINE OIL DRAIN BOLT
TORQUE:
24 lbf·ft (33 N·m, 3.4 kgf·m)
Improper disposal of engine oil can
be harmful to the environment. If
you change your own oil, please
dispose of the used oil properly. Put
it in a sealed container, and take it
to a recycling center. Do not
discard it in a trash bin, dump it on
the ground, or pour it down a
drain.
4. With the outboard in a vertical
position, using the recommended
oil, fill to the upper limit mark on
the dipstick.
Insert the dipstick and screw it in,
then remove it and check that oil
level is shown on the dipstick
upper limit mark.
ENGINE OIL CAPACITY:
18 US oz (0.55 L, 0.48 Imp qt)
5. Install the oil filler cap and tighten
it securely.
6. Install the engine cover (p. 63), and
lock it in place by locking the
engine cover latch.
DRAIN BOLT
DIPSTICK
UPPER LIMIT
LOWER LIMIT
31ZVC6150.book Page 66 Friday, October 13, 2023 1:41 PM
67
SERVICING YOUR OUTBOARD MOTOR
Engine Oil Recommendations
Oil is a major factor affecting
performance and service life.
Honda 10W-30 FC-W
®
outboard motor
oil is recommended for general use.
FC-W
®
is a registered trademark of
the National Marine Manufacturers
Association.
If Honda 10W-30 FC-W oil is not
available, Honda recommends that
you use API service category SG , SH
or SJ oil. The SAE oil viscosity and
service category are written in the
API label on the oil container.

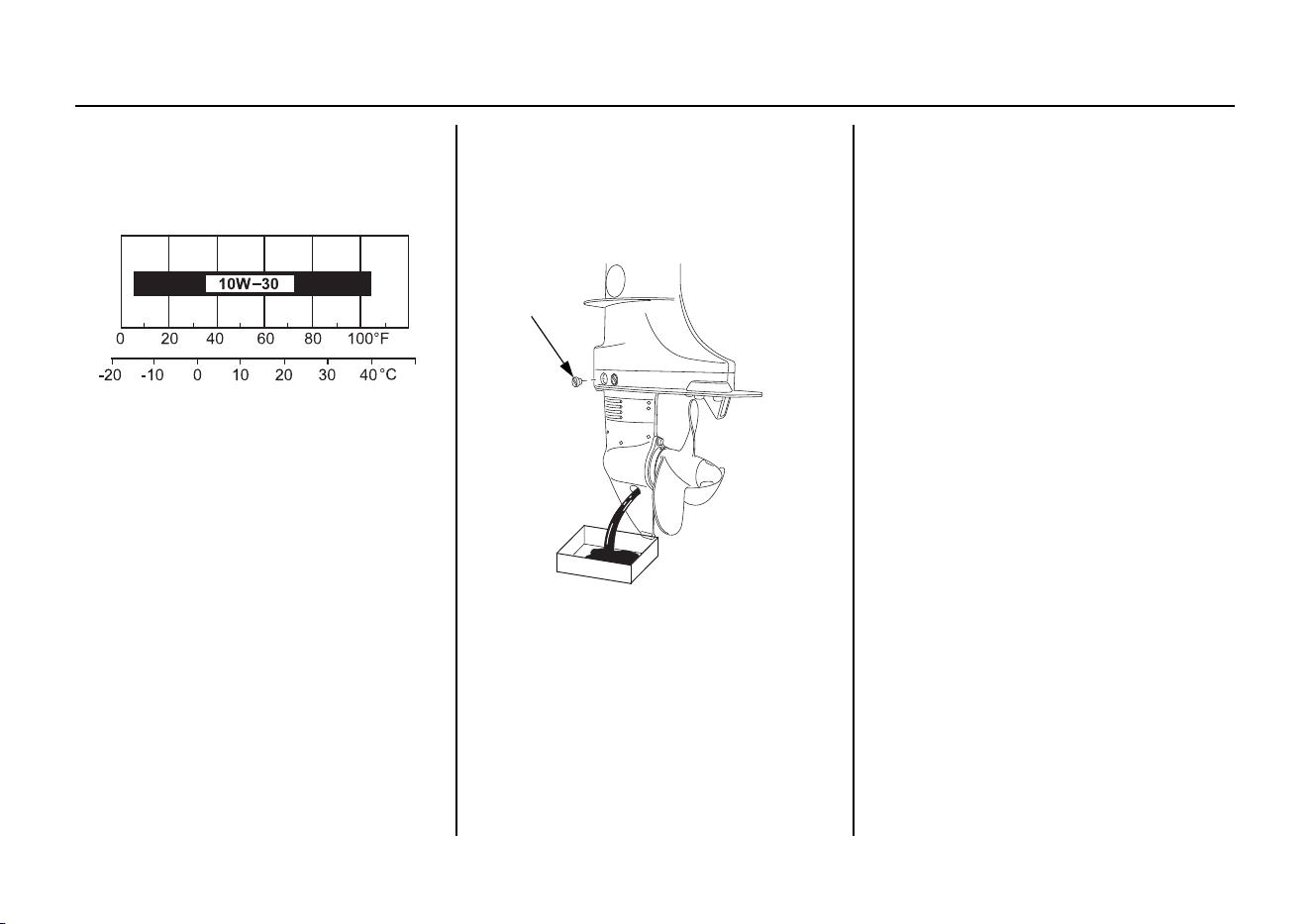

Gear Case Oil Change
Change the gear case oil with the
engine stopped and the outboard
motor in the vertical position.
1. Place a suitable container below the
oil drain hole to catch the used oil,
then remove the oil level screw and
oil drain/fill screw.
2. Allow the used oil to drain
completely, then install an oil pump
adapter in the oil drain hole.
If water or contaminated
(milky-colored) oil flows out the
drain hole when the screw is
removed, have the outboard motor
checked by an authorized Marine
dealer.
AMBIENT TEMPERATURE
OIL LEVEL
SCREW
31ZVC6150.book Page 67 Friday, October 13, 2023 1:41 PM
68
SERVICING YOUR OUTBOARD MOTOR
3. Add oil through the oil drain hole
until it flows out the oil level hole,
and then install the oil level screw.
Remove the pump adapter and
install the oil drain/fill screw.
GEAR OIL CAPACITY:
3 US oz (0.10 L, 0.09 Imp qt)
Outboard motor SAE 75W-90 or
90 hypoid gear oil API Service
category (GL-4)
OIL LEVEL SCREW TORQUE:
2.6 lbf·ft (3.5 N·m, 0.36 kgf·m)
Avoid losing more than 1 fl oz
(30 cm
3
) while reinstalling the
drain/ fill screw.
OIL DRAIN SCREW TORQUE:
2.6 lbf·ft (3.5 N·m, 0.36 kgf·m)
GEAR OIL BOTTLE
OIL LEVEL
SCREW
31ZVC6150.book Page 68 Friday, October 13, 2023 1:41 PM
69
SERVICING YOUR OUTBOARD MOTOR
Apply Honda Marine Corrosion Inhibitor (or equivalent) to all areas under the engine cover and any exposed metal surfaces.

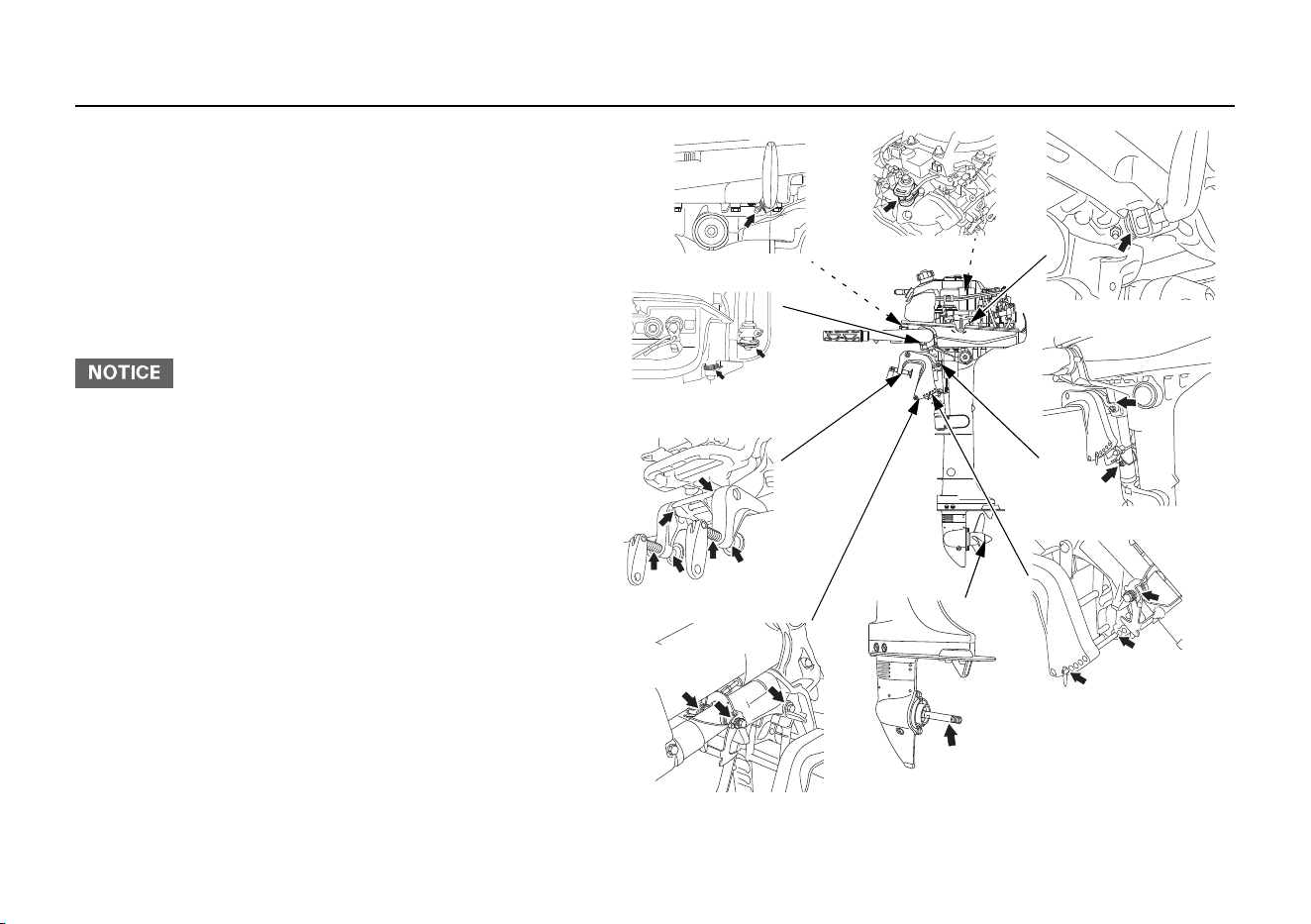

Lubrication Points
Apply Honda Marine waterproof grease to the parts
shown below:
Lubrication interval:
20 operating hours or one month after the date of
purchase or the initial use, then every 100 operating
hours or 6 months (refer to the maintenance schedule on
page 61).
To prevent corrosion, apply anticorrosion oil to pivot
surfaces where grease cannot penetrate.
SHIFT SHAFT
TILLER
HANDLE PIVOT
CLAMP SCREWS
TILT RELEASE
LEVER AND
REVERSE LOCK
ROD
PROPELLER SHAFT
TRANSOM ANGLE
ADJUSTING ROD
SWIVEL CASE
THROTTLE LINK
(LEFT AND RIGHT
INSERTION SECTIONS OF
THE TRANSOM ANGLE
ADJUSTING ROD)
EXTENSION CASE
31ZVC6150.book Page 69 Friday, October 13, 2023 1:41 PM
70
SERVICING YOUR OUTBOARD MOTOR

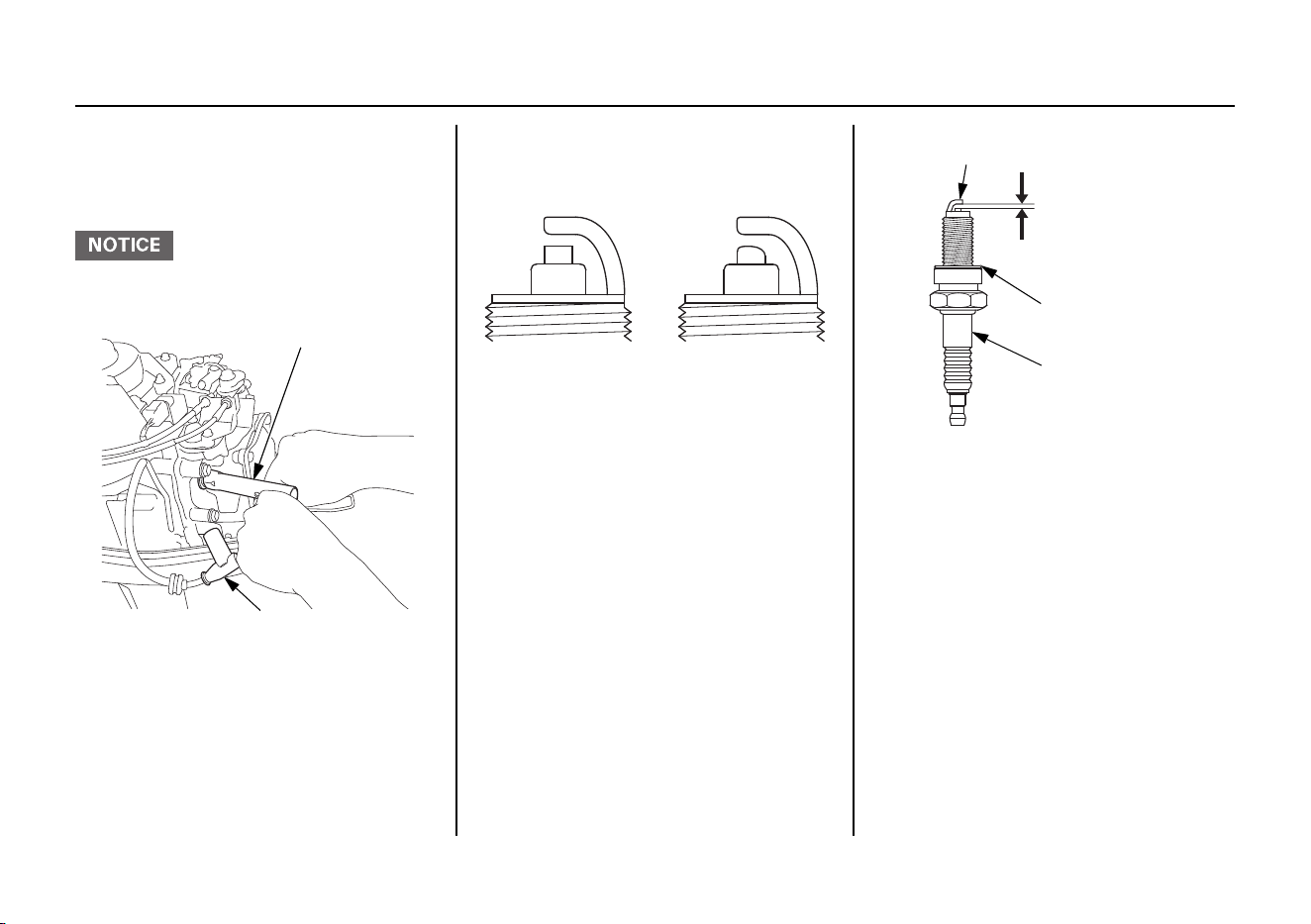

Spark Plug Service
RECOMMENDED SPARK PLUG:
BKR6E-E (NGK)
Incorrect spark plug can cause
engine damage.
1. Unlock and remove the engine
cover (p. 63).
2. Disconnect the spark plug cap from
the spark plug.
3. Remove the spark plug with a
spark plug wrench and screwdriver
provided in the tool kit.
4. Inspect the spark plug. Replace it if
the electrode is worn, or if the
insulator is cracked or chipped.
5. Measure the spark plug electrode
gap with a wire-type feeler gauge.
Correct the gap, if necessary, by
carefully bending the side
electrode.
The gap should be:
0.024 - 0.028 in (0.6 - 0.7 mm)
SPARK PLUG WRENCH
SPARK PLUG CAP
New plug Plug needing
replacement
SIDE ELECTRODE
SEALING WASHER
INSULATOR
0.024 - 0.028 in
(0.6 - 0.7 mm)
31ZVC6150.book Page 70 Friday, October 13, 2023 1:41 PM
71
SERVICING YOUR OUTBOARD MOTOR
6. Install the spark plug carefully, by
hand, to avoid cross-threading.
7. After the spark plug seats, tighten
with a spark plug wrench to
compress the sealing washer.
SPARK PLUG TORQUE:
13 lbf·ft (18 N·m, 1.8 kgf·m)
If reinstalling the used spark plug,
tighten 1/8 – 1/4 turn after the
spark plug seats.
If installing new spark plug, tighten
1/2 turn after the spark plug seats.
A loose spark plug can overheat
and damage the engine.
Overtightening the spark plug can
damage the threads in the cylinder
head.
8. Attach the spark plug cap.
9. Install the engine cover (p. 63), and
lock it in place by locking the
engine cover latch.

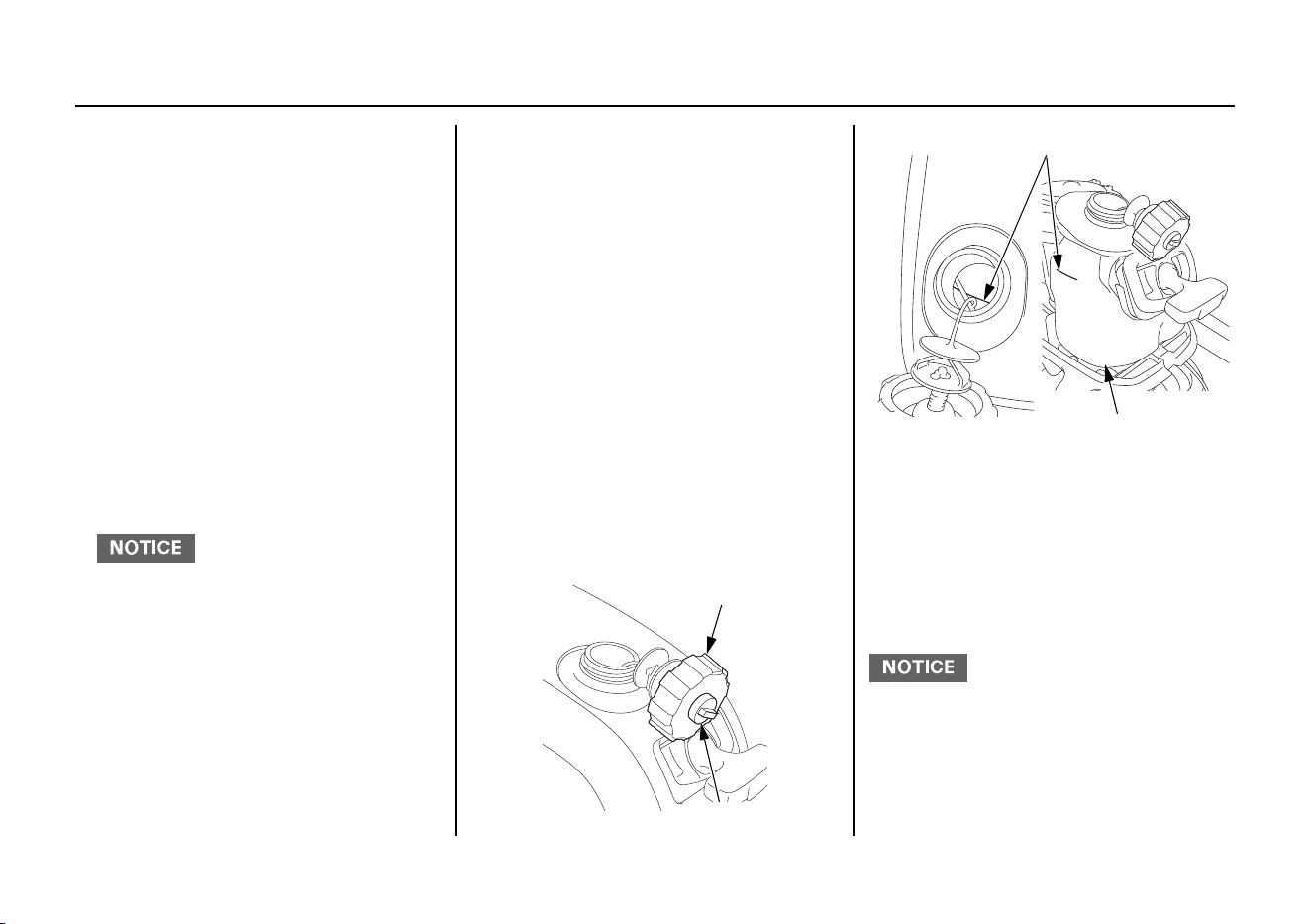

REFUELING
If you do not anticipate using at least
one complete tank of fuel within a 30
day period, we recommend adding
Honda Marine Fuel Stabilizer or
equivalent each time you refuel.
Internal Fuel Tank
FUEL TANK CAPACITY:
0.40 US gal (1.5 L, 0.33 Imp gal)
With the engine stopped, turn the internal
fuel tank vent knob counterclockwise to
the open position (p. 21), and then
remove the fuel filler cap.
Refill the fuel tank if the fuel level is
low.
Refuel in a well-ventilated area. Fill
the tank to the maximum fuel level.
After refueling, install the fuel filler cap
and tighten it securely. Close the
internal fuel tank vent by turning the
vent knob clockwise all the way (p. 21).
Fuel can damage paint and plastic. Be
careful not to spill fuel when filling
your fuel tank. Damage caused by
spilled fuel is not covered under the
Distributor’s Limited Warranty (U.S.) /
Distributor’s Warranty (CA.).
FUEL FILLER CAP
VENT KNOB
MAXIMUM FUEL LEVEL
FUEL TANK
31ZVC6150.book Page 71 Friday, October 13, 2023 1:41 PM
72
SERVICING YOUR OUTBOARD MOTOR
Never refill the fuel tank inside a
building where gasoline fumes may
reach flames or sparks. Keep gasoline
away from appliance pilot lights,
barbecues, electric appliances, power
tools, etc.
Spilled fuel is not only a fire hazard,
it causes environmental damage.
Wipe up spills immediately.
Portable Fuel Tank
FUEL TANK CAPACITY:
3.2 US gal (12 L, 2.6 Imp gal)
Check the fuel level. Refill the fuel
tank if the fuel level is low.
Remove the fuel tank from the boat
for refueling.
1. Turn the vent knob
counterclockwise all the way to
open the vent.
2. Turn the fuel filler cap
counterclockwise so that it touches
the pressure relief tab.
Gasoline is highly flammable and
explosive.
You can be burned or seriously
injured when handling fuel.
• Stop the engine and let it cool
before handling fuel.
• Keep heat, sparks, and flame
away.
• Handle fuel only outdoors.
• Keep away from your vehicle.
• Wipe up spills immediately.
VENT KNOB
OPEN
FUEL FILLER CAP
PRESSURE RELIEF TAB
31ZVC6150.book Page 72 Friday, October 13, 2023 1:41 PM
73
SERVICING YOUR OUTBOARD MOTOR
3. Press down the pressure relief tab,
and then turn the fuel filler cap 1/4
counterclockwise. Release the
pressure relief tab. Wait to relieve
pressure.
4. The fuel filler cap will lock again.
Press down the pressure relief tab,
and turn counterclockwise to
remove the fuel filler cap.
Refuel in a well-ventilated area. Fill
the tank to the SAFE FILL LEVEL
line.
After refueling, install the cap and
tighten it until you hear it click. Close
the vent by turning the vent knob
clockwise all the way, and return the
fuel tank to the boat.
Fuel can damage paint and plastic. Be careful
not to spill fuel when filling your fuel tank.
Damage caused by spilled fuel is not covered
under the Distributor’s Limited Warranty
(U.S.) / Distributor’s Warranty (CA.).
Never refill the fuel tank inside a
building where gasoline fumes may
reach flames or sparks. Keep gasoline
away from appliance pilot lights,
barbecues, electric appliances, power
tools, etc.
Spilled fuel is not only a fire hazard,
it causes environmental damage.
Wipe up spills immediately.
FUEL FILLER CAP
PRESSURE RELIEF TAB
PRESS
SAFE FILL LEVEL
FUEL FILLER CAP
VENT KNOB
CLOSE
Gasoline is highly flammable and
explosive.
You can be burned or seriously
injured when handling fuel.
• Stop the engine and let it cool
before handling fuel.
• Keep heat, sparks, and flame
away.
• Handle fuel only outdoors.
• Keep away from your vehicle.
• Wipe up spills immediately.
31ZVC6150.book Page 73 Friday, October 13, 2023 1:41 PM
74
SERVICING YOUR OUTBOARD MOTOR
FUEL RECOMMENDATIONS
Use unleaded gasoline with a pump
octane rating of 86 or higher.
Your outboard motor is certified to
operate on unleaded gasoline.
Unleaded gasoline produces fewer
engine and spark plug deposits and
extends exhaust system life.
Never use gasoline that is stale,
contaminated, or mixed with oil.
Avoid getting dirt or water in the fuel
tank.
You may use unleaded gasoline
containing no more than 10% ethanol
(E10) or 5% methanol by volume. In
addition, methanol must contain
cosolvents and corrosion inhibitors.
Use of fuels with content of ethanol
or methanol greater than shown
above may cause starting and/or
performance problems. It may also
damage metal, rubber, and plastic
parts of the fuel system.
Engine damage or performance
problems that result from using a fuel
with percentages of ethanol or
methanol greater than shown above
are not covered under warranty.
If your outboard motor will be used
on an infrequent or intermittent basis,
please refer to the fuel section of the
STORAGE chapter (p. 84) for
additional information regarding fuel
deterioration.
31ZVC6150.book Page 74 Friday, October 13, 2023 1:41 PM
75
SERVICING YOUR OUTBOARD MOTOR
Fuel Filter Inspection and
Replacement
The fuel filter is located under the
engine cover, on the right side of the
engine.
Water or sediment accumulation in
the filter can cause loss of power or
hard starting. To prevent engine
malfunction, inspect the filter and
replace when necessary.
1. Unlock and remove the engine
cover (p. 63).
2. Inspect the fuel filter for water and/
or sediment accumulation.
If the fuel filter is OK, reinstall it.
If water and/or sediment are
present, replace the fuel filter as
described in the following steps.
Always replace the fuel filter at the
scheduled replacement interval (p.
62).
3. Turn the fuel valve lever to the
OFF position (BF4A) or portable
fuel tank position (BF5D and
BF6A) (p. 19).
4. When using the portable fuel tank
(BF5D and BF6A), turn the
portable fuel tank vent knob
counterclockwise to the open
position (p. 26), disconnect the fuel
hose connectors from the outboard
motor and portable fuel tank (p.
40), install fuel hose connector cap
and close the portable fuel tank
vent by turning the vent knob
clockwise all the way (p. 26).
5. Close the internal fuel tank vent by
turning the vent knob clockwise all
the way (p. 21).
Gasoline is highly flammable and
explosive.
You can be burned or seriously
injured when handling fuel.
• Stop the engine and let it cool
before handling fuel.
• Keep heat, sparks, and flame
away.
• Handle fuel only outdoors.
• Keep away from your vehicle.
• Wipe up spills immediately.
UNLOCK
ENGINE COVER LATCH
31ZVC6150.book Page 75 Friday, October 13, 2023 1:41 PM
76
SERVICING YOUR OUTBOARD MOTOR
6. Place commercially available hose
clips on the fuel hoses on each side
of the fuel filter to prevent fuel
leakage when the fuel hoses are
disconnected.
7. Remove the fuel hoses from the
used filter, and discard the filter.
To ease hose removal, release the
hose clamps by squeezing the
clamp ends together with pliers
while pulling off the hoses.
8. Install the new fuel filter on the
fuel hoses, with the fuel flow arrow
pointing toward the fuel pump as
shown. Fuel flow will be impeded
if the fuel filter is installed
backward.
9. Connect the fuel hoses to the fuel
filter securely with the hose
clamps.
10.Remove the fuel hose clips used to
close the fuel hoses.
11.When using the internal fuel tank,
prime the carburetor with gasoline
(p. 37).
When using the portable fuel tank,
connect the fuel line (p. 39) and
prime the engine using the priming
bulb (p. 40).
12.Check for fuel leaks. Repair any
fuel leaks if necessary.
13.Install the engine cover (p. 63),
and lock it in place by locking the
engine cover latch.
If loss of power or hard starting are
found to be caused by excessive
water or sediment accumulation in
the fuel filter, inspect the fuel tank.
Clean the fuel tank and tank filter if
necessary. It may be necessary to
drain the fuel tank completely and
refill with fresh gasoline.
FUEL FILTER
FUEL HOSE
HOSE CLAMPS
ARROW
(Fuel Flow Direction)
FUEL HOSE
CLIPS
FUEL PUMP
31ZVC6150.book Page 76 Friday, October 13, 2023 1:41 PM
77
SERVICING YOUR OUTBOARD MOTOR
Portable Fuel Tank and Tank
Filter Cleaning
(standard or optionally applicable
equipment)
Fuel Tank
Empty the portable fuel tank into an
approved gasoline container. Use a
funnel to avoid spilling fuel. Rinse
the fuel tank with nonflammable
solvent to remove any accumulated
sediment.
Fuel Tank Filter
1. Turn the fuel tank filter joint
counterclockwise and remove the
fuel tank filter.
2. Clean the fuel tank filter in
nonflammable solvent. Inspect the
fuel tank filter and the connector
gasket. Replace them if damaged.
3. After cleaning, reinstall the fuel
tank filter and fuel tank filter joint
securely.
Gasoline is highly flammable and
explosive.
You can be burned or seriously
injured when handling fuel.
• Stop the engine and let it cool
before handling fuel.
• Keep heat, sparks, and flame
away.
• Handle fuel only outdoors.
• Keep away from your vehicle.
• Wipe up spills immediately.
FUEL HOSE
(standard equipment)
CONNECTOR
GASKET
FUEL TANK FILTER JOINT
(Fuel Hose Connector)
FUEL TANK
FILTER
31ZVC6150.book Page 77 Friday, October 13, 2023 1:41 PM
78
SERVICING YOUR OUTBOARD MOTOR

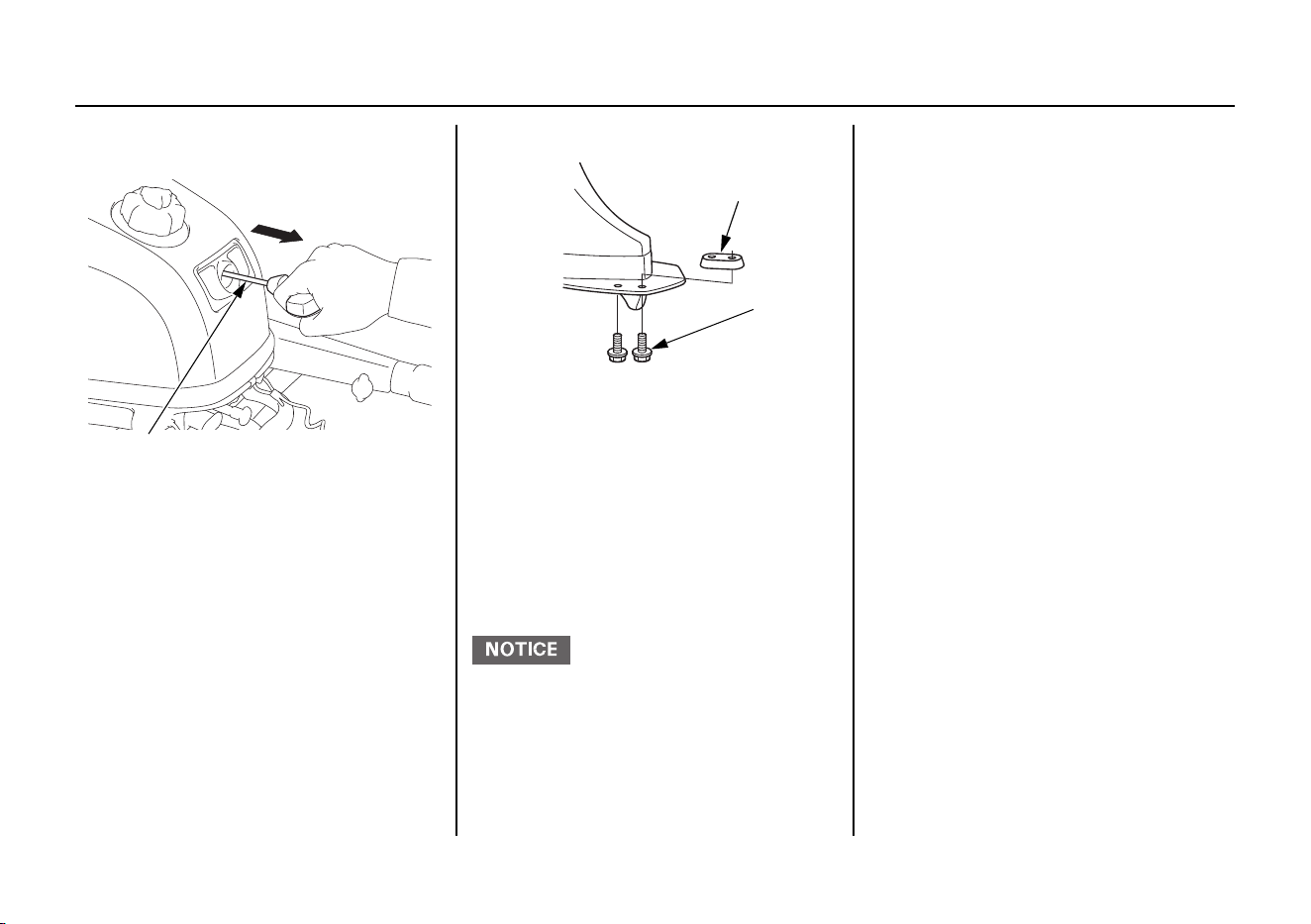

Recoil Starter Rope Inspection
Inspect the recoil starter rope, and
replace it if it becomes frayed.
Always keep the emergency starter
rope on the boat in case the recoil
starter rope fails.
Anode Replacement
The anode is located on the
antiventilation plate. It is made of a
sacrificial material that helps to
protect the outboard motor from
corrosion.
Replace the anode when it has been
reduced to about two-thirds of the
original size, or if it is crumbling.
Painting or coating the anode will
defeat its purpose and will lead to
rust and corrosion damage to the
outboard motor. The anode must be
exposed to the water in order to
protect the outboard motor.
RECOIL STARTER ROPE
BOLT
ANODE
31ZVC6150.book Page 78 Friday, October 13, 2023 1:41 PM
79
SERVICING YOUR OUTBOARD MOTOR
Propeller and Shear Pin
Replacement
A shear pin is used to protect the
propeller and drive mechanism from
damage when the propeller strikes an
obstruction.
If the propeller is damaged by
striking a rock, or other obstacle,
replace the propeller.
Before replacing the propeller or the
shear pin, remove the emergency stop
switch clip from the emergency stop
switch to prevent any possibility of
the engine being started while you are
working with the propeller.
The propeller blades may have sharp
edges, so wear heavy gloves to
protect your hands.
Operating the outboard motor at
higher altitudes will reduce available
power. This may require decreasing
the propeller pitch to maintain correct
engine RPM.

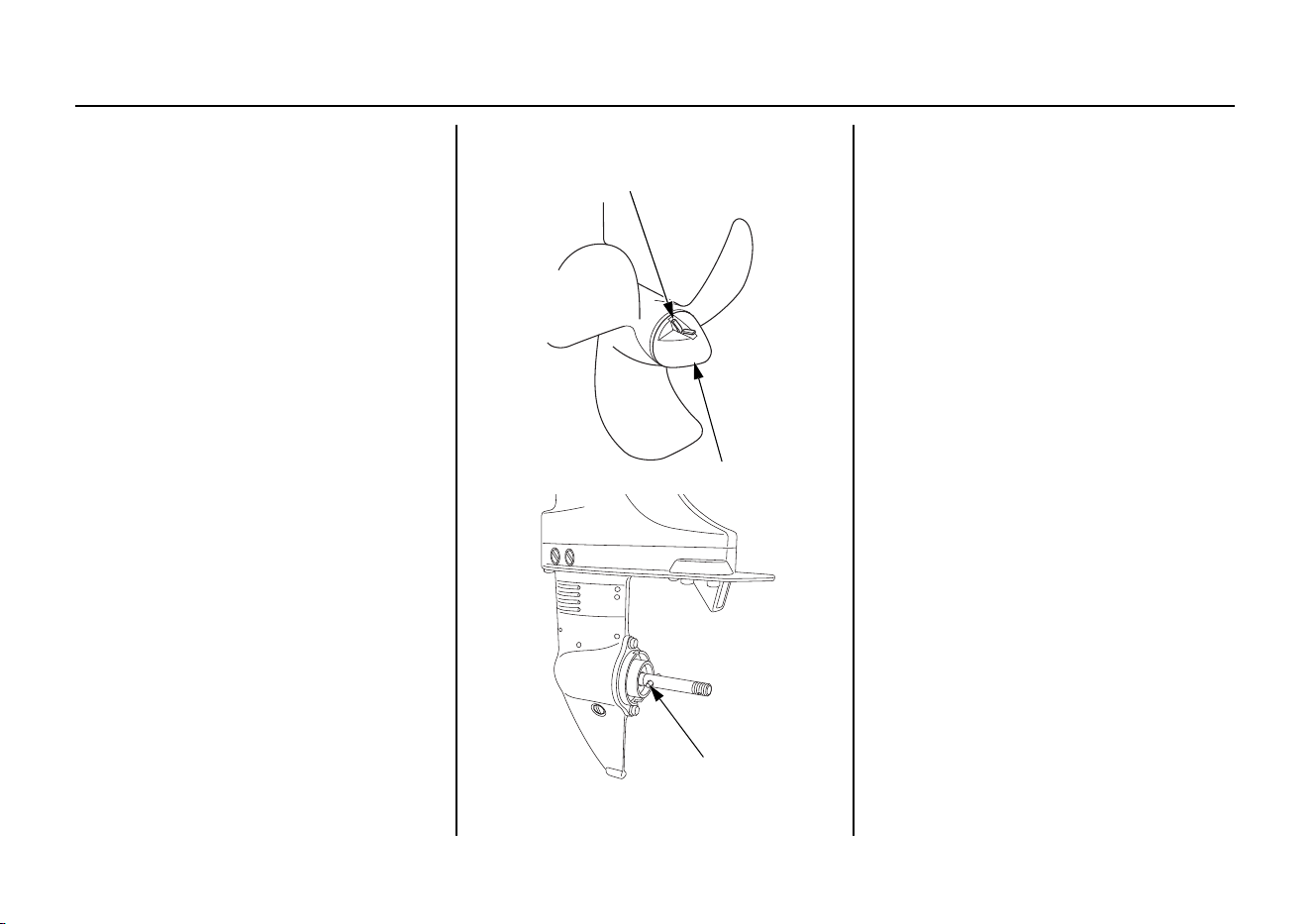

Removal
1. Remove the cotter pin, the
propeller cap, and the propeller.
2. Remove the broken shear pin and
replace it with a new one.
PROPELLER CAP
COTTER PIN
SHEAR PIN
31ZVC6150.book Page 79 Friday, October 13, 2023 1:41 PM
80
SERVICING YOUR OUTBOARD MOTOR
Installation
1. Install the shear pin and the
propeller, then install the propeller
cap finger tight.
2. Be sure to replace the cotter pin
with a new one.
• Use a Honda Genuine stainless
steel cotter pin or equivalent cotter
pin and bend the pin ends as
shown.
Spare shear pin and cotter pin are
provided in the engine compartment
(p. 60).
COTTER PIN
31ZVC6150.book Page 80 Friday, October 13, 2023 1:41 PM
81
CLEANING AND FLUSHING
Cleaning and Flushing
After each use in salt water or dirty
water, thoroughly clean and flush the
outboard motor with fresh water.
Disengage the emergency stop switch
clip from the emergency stop switch,
and pull the recoil starter rope several
times to expel any water remaining in
the water pump.
Touch up any damaged paint, and
coat areas that may rust with Honda
Corrosion Inhibitor, or equivalent.
Lubricate controls with a silicone
spray lubricant.
Cleaning
Wash the outside of the outboard
motor with clean, fresh water to
remove mud, salt, seaweed, etc.
Cleaning of the outside of the
outboard motor should be performed
with the engine cover installed.
Be careful not to spray water into the
air intake. If water penetrates inside
the engine cover from the air intake,
it may cause malfunction.
Flushing With the Honda Water
Hose Connector
1. Tilt down the outboard motor
(p. 56).
2. Remove the flush screw from the
WASH screw hole and install the
water hose connector.
3. Attach a hose from a fresh water
faucet to the water hose connector
of the flush kit.
AIR INTAKE
FLUSH KIT
(Optional Equipment)
WATER MOUTH
NUT
WATER HOSE
CONNECTOR
WATER
MOUTH
SEAT
31ZVC6150.book Page 81 Friday, October 13, 2023 1:41 PM
82
CLEANING AND FLUSHING
4. Remove the propeller (p. 79).
5. Turn on the fresh water supply to
hose.
6. Start the engine and run in N
(neutral) for 10 minutes.
Check that water is draining from
the cooling system indicator, the
water intake port and the exhaust
port.
7. After flushing, when using the
internal fuel tank, close the internal
fuel tank vent by turning the vent
knob clockwise all the way (p. 21),
turn the fuel valve lever to the OFF
position (BF4A) or portable fuel
tank position (BF5D and BF6A) (p.
19) and leave the outboard motor in
the running position for one minute
to drain the water from inside the
engine.
After flushing, when using the
portable fuel tank (BF5D and
BF6A), turn the portable fuel tank
vent knob counterclockwise to the
open position (p. 26), disconnect
the fuel hose connectors from the
outboard motor and portable fuel
tank (p. 40), install fuel hose
connector cap, close the internal
fuel tank vent by turning the vent
knob clockwise all the way (p. 21),
close the portable fuel tank vent by
turning the vent knob clockwise all
the way (p. 26) and leave the
outboard motor in the running
position for one minute to drain the
water from inside the engine.
8. Reinstall the flush screw and the
propeller (p. 80).
9. Tilt up the outboard motor (p. 57).

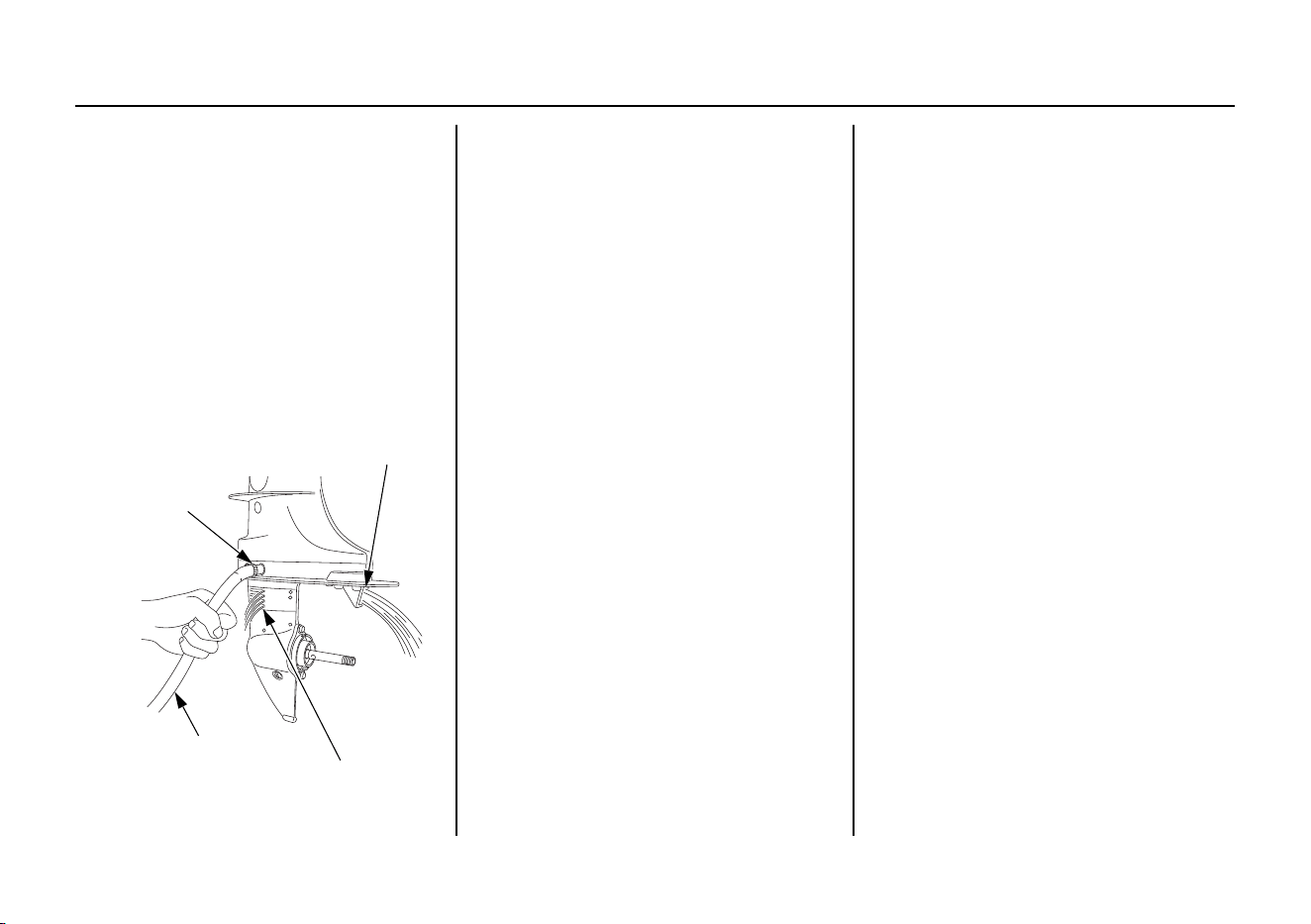

WATER HOSE
WATER HOSE
CONNECTOR
EXHAUST PORT
WATER INTAKE PORT
31ZVC6150.book Page 82 Friday, October 13, 2023 1:41 PM
83
CLEANING AND FLUSHING
Flushing Without the Honda
Water Hose Connector
It is necessary to run the engine
during the flushing procedure. For
safety, remove the propeller from the
outboard motor (p. 79).
1. Tilt down the outboard motor
(p. 56).
2. Place a container under the
outboard motor, and fill it with
clean, fresh water. The water level
must be at least 2 inches (5 cm)
above the antiventilation plate.
Running the engine without good
water circulation can cause
overheating and water pump
damage.
Damage caused by running the
outboard motor without sufficient
cooling water is not covered by the
Distributor’s Limited Warranty (U.S.) /
Distributor’s Warranty (CA.)
(p. 112).
3. Start the engine and run in the N
(neutral) position at low speed for
at least 10 minutes.
4. After flushing, when using the
internal fuel tank, close the internal
fuel tank vent by turning the vent
knob clockwise all the way (p. 21),
turn the fuel valve lever to the OFF
position (BF4A) or portable fuel
tank position (BF5D and BF6A) (p.
19) and leave the outboard motor in
the running position for one minute
to drain the water from inside the
engine.
After flushing, when using the
portable fuel tank (BF5D and
BF6A), turn the portable fuel tank
vent knob counterclockwise to the
open position (p. 26), disconnect
the fuel hose connectors from the
outboard motor and portable fuel
tank (p. 40), install fuel hose
connector cap, close the internal
fuel tank vent by turning the vent
knob clockwise all the way (p. 21),
close the portable fuel tank vent by
turning the vent knob clockwise all
the way (p. 26) and leave the
outboard motor in the running
position for one minute to drain the
water from inside the engine.
5. Reinstall the propeller (p. 80).
6. Tilt up the outboard motor (p. 57).
ANTIVENTILATION PLATE
31ZVC6150.book Page 83 Friday, October 13, 2023 1:41 PM
84
STORAGE
Fuel
Depending on the region where you
operate your outboard, fuel
formulations may deteriorate and
oxidize rapidly. Fuel deterioration
and oxidation can occur in as little as
15 days and may cause damage to the
carburetor and fuel system.
Please check with your servicing
dealer for local storage
recommendations.
Gasoline will oxidize and deteriorate
in storage. Deteriorated gasoline will
cause hard starting, and it leaves gum
deposits that clog the fuel system. If
the gasoline in your fuel tank and
carburetor deteriorates during
storage, you may need to have the
carburetor and other fuel system
components serviced or replaced.
The length of time that gasoline can
be left in your fuel tank and
carburetor without causing functional
problems will vary with such factors
as gasoline blend, your storage
temperatures, and whether the fuel
tank is partially or completely filled.
The air in a partially filled fuel tank
promotes fuel deterioration. Very
warm storage temperatures accelerate
fuel deterioration. Fuel deterioration
problems may occur in less than 15
days, if the gasoline was not fresh
when you filled the fuel tank.
You can extend fuel storage life by
adding a gasoline stabilizer that is
formulated for that purpose, or you
can avoid fuel deterioration problems
by draining all the fuel from the fuel
tank and carburetor.
The
Distributor’s Limited Warranty (U.S.)
/ Distributor’s Warranty (CA.)
(p. 112)
does not cover fuel system damage or
engine performance problems resulting
from neglected storage preparation.
Adding a Fuel Stabilizer
When adding a fuel stabilizer, fill the
internal fuel tank with fresh gasoline.
If only partially filled, air in the
internal fuel tank will promote fuel
deterioration during storage. If you
keep an additional container of
gasoline for refueling, be sure that it
contains only fresh gasoline.
1. Add Honda Marine fuel stabilizer
or equivalent following the
instructions on the label.
2. After adding a fuel stabilizer, run
the engine in water for 10 minutes
to be sure that the treated gasoline
has replaced the untreated gasoline
in the carburetor.
3. Stop the engine (p. 51).
31ZVC6150.book Page 84 Friday, October 13, 2023 1:41 PM
85
STORAGE
Draining the Fuel System
You can avoid fuel deterioration
problems by draining the fuel tank
and carburetor.
1. When using the portable fuel tank
(BF5D and BF6A), turn the portable
fuel tank vent knob
counterclockwise to the open
position (p. 26), disconnect the fuel
hose connectors from the outboard
motor and portable fuel tank (p. 40),
install fuel hose connector cap,
remove the portable fuel filler cap,
drain the gasoline from the portable
fuel tank into a suitable container,
install the portable fuel filler cap
and close the portable fuel tank vent
by turning the vent knob clockwise
all the way (p. 26).
2. Turn the internal fuel tank vent
knob counterclockwise to the open
position (p.
21
), remove the fuel
filler cap, and drain the gasoline
from the internal fuel tank into a
suitable container.
3. Install the fuel filler cap.
4. Turn the fuel valve lever to the
OFF position (BF4A) or portable
fuel tank position (BF5D and
BF6A) (p.
19
).
5. Unlock and remove the engine
cover (p.
63
).

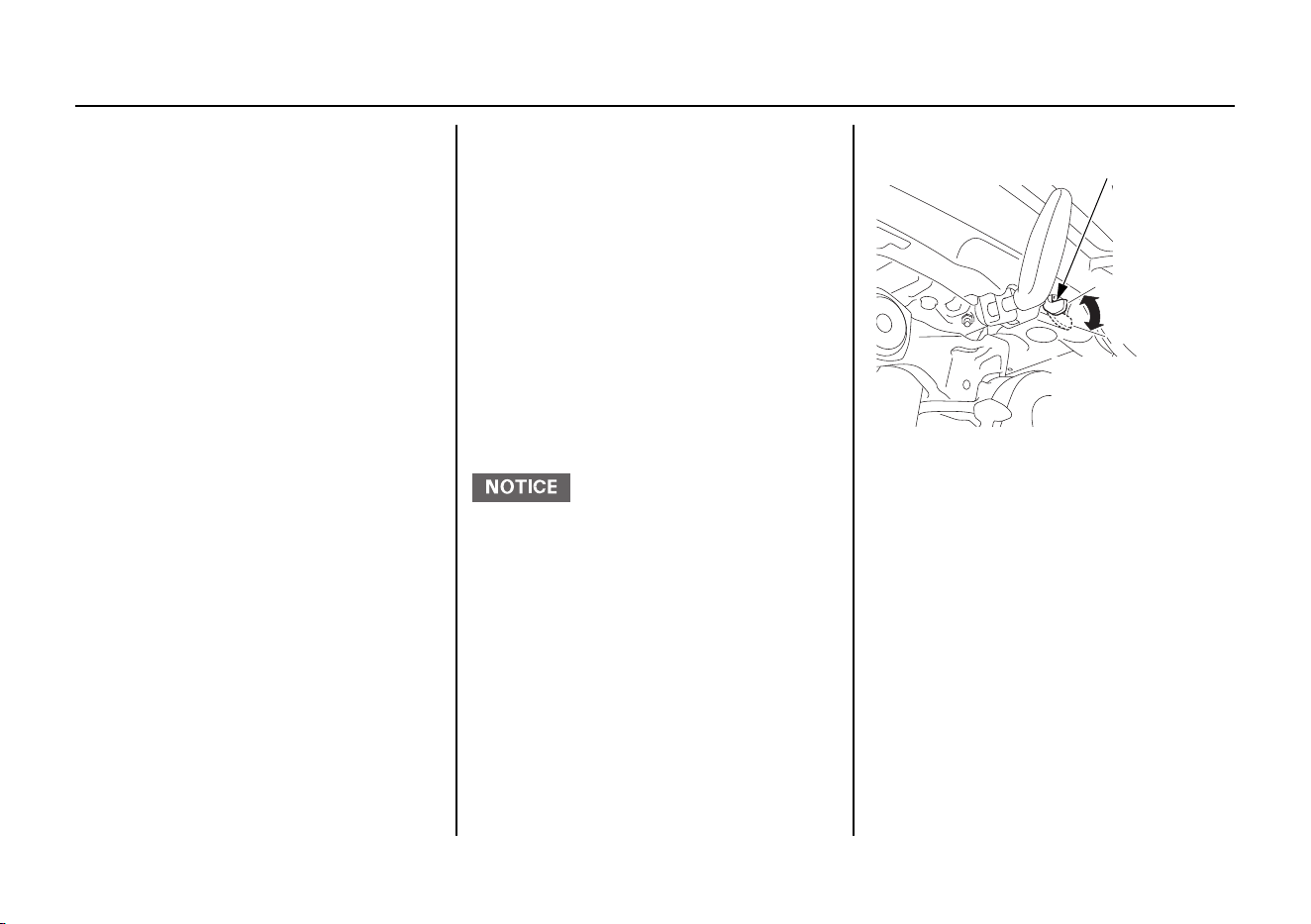

6. Disconnect the drain tube from the
air guide, then connect it to the
carburetor drain port as shown.
7. With the outboard motor in a
vertical position, place an approved
gasoline container below the fuel
drain outlet, and use a funnel to
avoid spilling fuel.
Loosen the drain screw to drain
fuel from the carburetor.
Gasoline is highly flammable and
explosive.
You can be burned or seriously
injured when handling fuel.
• Stop the engine and let it cool
before handling fuel.
• Keep heat, sparks, and flame
away.
• Handle fuel only outdoors.
• Keep away from your vehicle.
• Wipe up spills immediately.
CARBURETOR
DRAIN PORT
AIR GUIDE
DRAIN
SCREW
DRAIN
TUBE
ENGINE UNDER COVER
31ZVC6150.book Page 85 Friday, October 13, 2023 1:41 PM
86
STORAGE
8. After the fuel has drained from the
carburetor, tighten the drain screw
securely.
9. Reconnect the drain tube to the air
guide and the engine under cover.
10.Close the internal fuel tank vent
by turning the vent knob
clockwise all the way (p.
21
).
11.Turn the fuel valve lever to the
OFF position (BF4A) or portable
fuel tank position (BF5D and
BF6A) (p.
19
).
12.If you need to store fuel in the fuel
tank, you can extend fuel storage
life by filling the fuel tank with
fresh gasoline and adding Honda
Marine fuel stabilizer or
equivalent following the directions
on the container (p.
84
).
Store the portable fuel tank in a cool
dry place out of direct sunlight.
(When using the internal fuel
tank)
When starting the engine after
draining the gasoline, prime the
carburetor with gasoline (p.
37
).
Engine Oil
Change the engine oil (p. 65).
Engine Cylinder
1. Remove the spark plug (p. 70), and
remove the emergency stop switch
clip from the emergency stop switch.
2. Pour 1 – 2 teaspoons (5 – 10 cm
3
) of
clean engine oil into the cylinder.
3. Pull the starter grip several times to
distribute the oil in the cylinder.
When cranking the engine with an open
ignition circuit (spark plug removed
from the ignition circuit), remove the
emergency stop switch clip from the
emergency stop switch to prevent
possible damage to the ignition system.
4. Reinstall the spark plug and
connect the spark plug cap (p. 71).
5. Install the engine cover (p. 63), and
lock it in place by locking the
engine cover latch.
31ZVC6150.book Page 86 Friday, October 13, 2023 1:41 PM
87
STORAGE
STORAGE PRECAUTIONS
Select a well-ventilated storage area.
If possible, avoid storage areas with
high humidity.
Disconnect the battery charge cable
(equipped type) (p. 29).

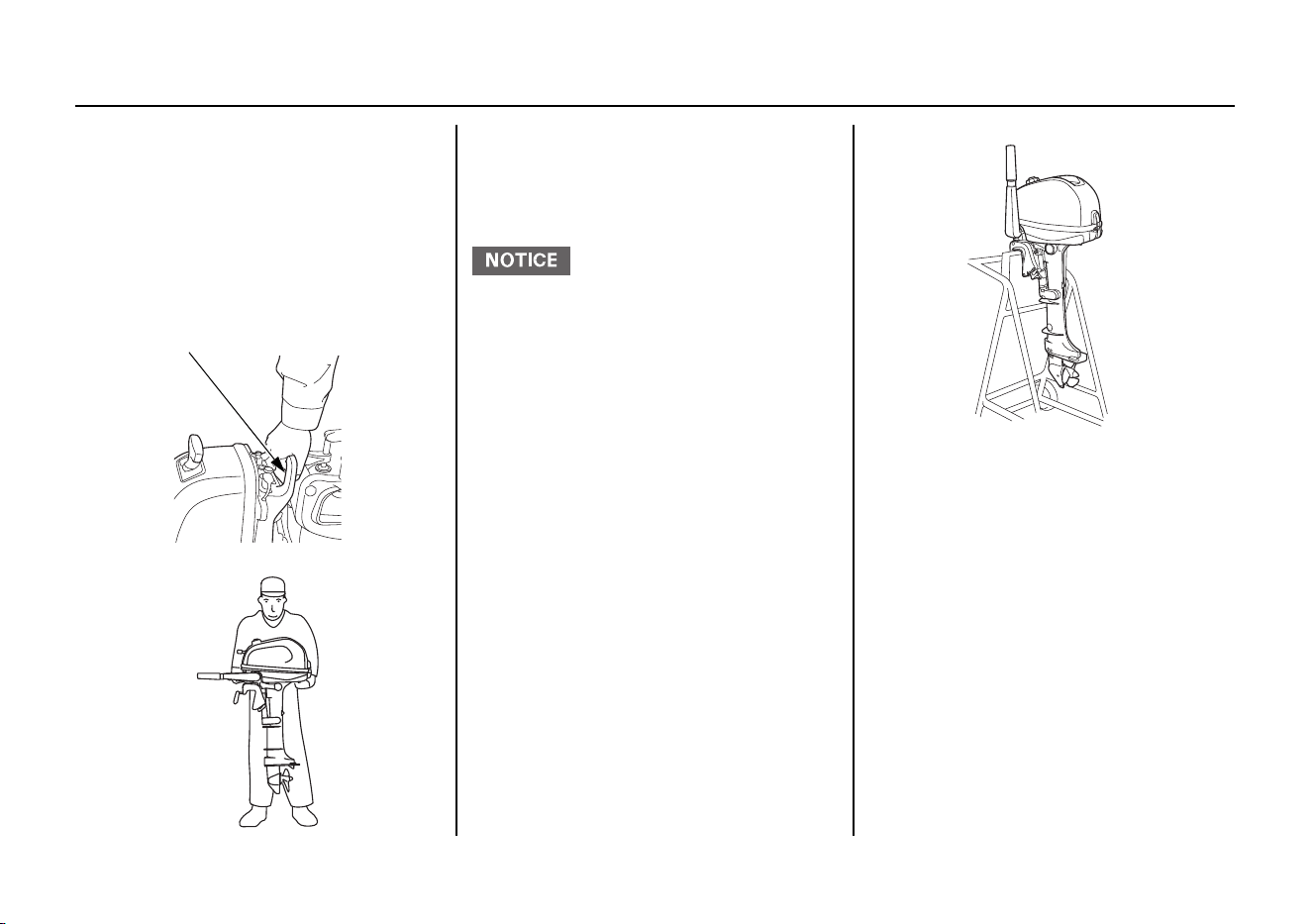

To carry the outboard motor, hold it
by the carrying handle, or hold by the
carrying handle and the lug beneath
the engine under cover, as shown.
Lifting the outboard motor by the
engine cover, or using the installed
outboard motor as a handle or lever
to move the boat, can damage the
outboard motor.
If your internal fuel tank and portable
fuel tank contains gasoline, store it
away from any appliance that
operates with a flame, such as a
furnace, water heater, or clothes
dryer. Also avoid any area with a
spark-producing electric motor, or
where power tools are operated.
Store the outboard motor either
vertically or horizontally with the
tiller handle side up and move the
shift lever to the R (reverse) position
to lock the tilt system.
CARRYING HANDLE
31ZVC6150.book Page 87 Friday, October 13, 2023 1:41 PM
88
STORAGE
If storing horizontally, be sure to fold
the tiller handle, and rest the outboard
motor on its case protectors.
Be sure all water has drained from the
outboard motor before placing it on
its side, so no residual water can enter
the engine exhaust port.
• Any other horizontal storage
position may cause damage to the
outboard motor or oil leakage.
• Position the outboard motor so that
the engine side is higher than the
propeller side. Failure to do so may
cause engine oil leakage.
Cover the outboard motor to keep out
dust. Do not use a plastic sheet as a
dust cover. A nonporous cover will
trap moisture, promoting rust and
corrosion.
REMOVAL FROM STORAGE
Check your outboard motor as
described in the BEFORE
OPERATION chapter of this manual.
If the cylinder was coated with oil
during storage preparation, the engine
may smoke briefly at startup.
This is normal.
CASE PROTECTORS
31ZVC6150.book Page 88 Friday, October 13, 2023 1:41 PM
89
TRANSPORTING
WITH OUTBOARD MOTOR
INSTALLED ON BOAT
When using the portable fuel tank
(BF5D and BF6A), turn the portable
fuel tank vent knob counterclockwise
to the open position (p. 26),
disconnect the fuel hose connectors
from the outboard motor and portable
fuel tank (p. 40), install fuel hose
connector cap and close the portable
fuel tank vent by turning the vent
knob clockwise all the way (p. 26).
Drain the internal fuel tank and
carburetor as described on p. 85, turn
the fuel valve lever to the OFF
position (BF4A) or portable fuel tank
position (BF5D and BF6A) (p. 19),
close the internal fuel tank vent by
turning the vent knob clockwise all
the way (p. 21), move the shift lever
to the R (reverse) position to lock the
tilt system and tighten the steering
friction bolt securely (p. 54).
The preferred method is to leave the
engine in the normal running
position, but if there is insufficient
road clearance, you can tilt the
outboard motor using a commercially
available outboard motor support bar
available through your dealer. Refer
to the manufacturer’s instructions for
using an outboard motor support bar.
OUTBOARD MOTOR SUPPORT BAR
(commercially available)
31ZVC6150.book Page 89 Friday, October 13, 2023 1:41 PM
90
TRANSPORTING
WITH OUTBOARD MOTOR
REMOVED FROM BOAT
Disconnect the battery charge cable
(equipped type) (p. 29).
When using the portable fuel tank
(BF5D and BF6A), turn the portable
fuel tank vent knob counterclockwise
to the open position (p. 26),
disconnect the fuel hose connectors
from the outboard motor and portable
fuel tank (p. 40), install fuel hose
connector cap and turn the portable
fuel tank vent knob clockwise all the
way (p. 26).
Drain the internal fuel tank and
carburetor as described on p. 85, turn
the fuel valve lever to the OFF
position (BF4A) or portable fuel tank
position (BF5D and BF6A) (p. 19),
close the internal fuel tank vent by
turning the vent knob clockwise all
the way (p. 21), move the shift lever
to the R (reverse) position to lock the
tilt system and tighten the steering
friction bolt securely (p. 54).
Remove the outboard motor from the
boat and secure the outboard motor in
either the vertical or horizontal
position shown on p. 88.

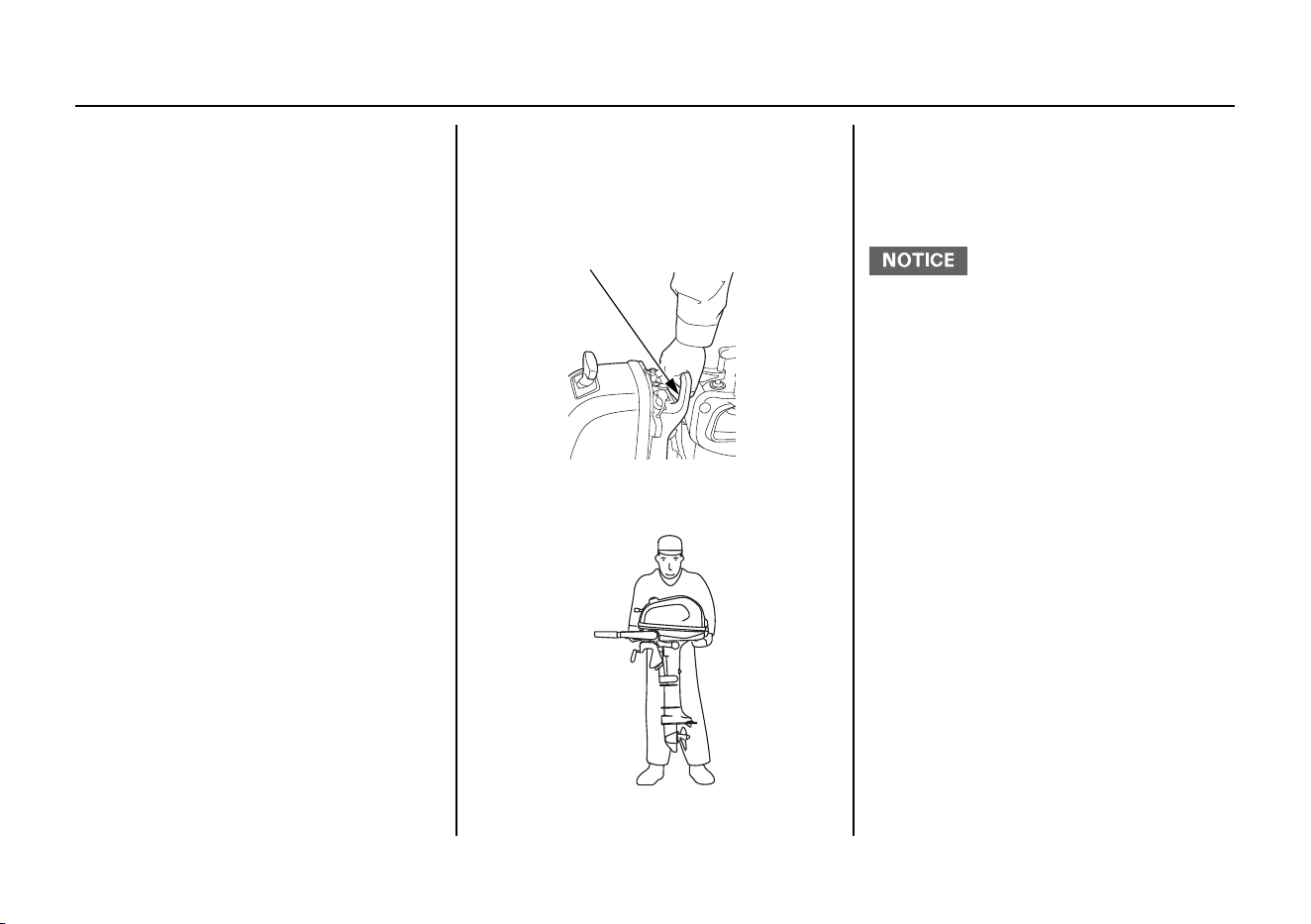

To carry, hold the outboard motor by
the carrying handle, or hold by the
carrying handle and the lug beneath
the engine under cover, as shown.
Lifting the outboard motor by the
engine cover, or using the installed
outboard motor as a handle or lever
to move the boat, can damage the
outboard motor.
CARRYING HANDLE
31ZVC6150.book Page 90 Friday, October 13, 2023 1:41 PM
91
TAKING CARE OF UNEXPECTED PROBLEMS
ENGINE WILL NOT START
Possible Cause Correction
Clip not inserted in emergency stop switch. Insert clip in emergency stop switch.
Gearshift lever not in neutral position. Shift to neutral (p. 41).
Choke OFF. Pull choke knob to ON position, unless engine is warm
(p. 44).
Throttle grip not in START position. Turn throttle grip to START position (p. 44).
Engine ran out of fuel. Refill fuel tank (p. 71). Perform the priming procedure
after refilling the tank (p. 37). Pull choke knob (p. 44).
Engine is at negative trim angle. Tilt the engine up to the first shallow water drive position
(p. 56).
Return engine to normal operating position after starting
(p. 57).
Starting After Starting
18°
31ZVC6150.book Page 91 Friday, October 13, 2023 1:41 PM
92
TAKING CARE OF UNEXPECTED PROBLEMS
ENGINE WILL NOT START
Possible Cause Correction
Out of fuel. Refuel (p. 71).
Fuel valve lever is not turned to the appropriate position.
Turn the fuel valve lever to the appropriate position
(p. 19).
Fuel vent closed (internal fuel tank).
Turn the internal fuel tank vent knob counterclockwise to
the open position (p. 21).
When using the portable fuel tank (BF5D and BF6A), fuel
vent closed (portable fuel tank).
Turn the portable fuel tank vent knob counterclockwise to
the open position (p. 26).
When using the portable fuel tank (BF5D and BF6A), fuel
hose not primed.
Squeeze priming bulb (p. 40).
Fuel filter or fuel tank filter restricted. Replace restricted f ilters (p. 75 or 77).
Bad fuel; outboard motor stored without treating or
draining gasoline, or refueled with bad gasoline.
Drain fuel tank and carburetor (p. 85). Refill with fresh
gasoline (p. 71).
Spark plug faulty, fouled, or improperly gapped.
Adjust the spark plug electrode gap or replace spark plug
(p. 70).
Spark plug wet with fuel (flooded engine). Dry and reinstall spark plug. Start engine with choke and
throttle open.
Carburetor malfunction, fuel pump failure, ignition
malfunction, stuck valves, etc.
Take outboard motor to an authorized Marine dealer, or
refer to the shop manual.
31ZVC6150.book Page 92 Friday, October 13, 2023 1:41 PM
93
TAKING CARE OF UNEXPECTED PROBLEMS
HARD STARTING OR STALLS AFTER STARTING
Possible Cause Correction
Choke OFF. Pull choke knob to ON position, unless engine is warm
(p. 44).
Throttle grip not in START position. Turn throttle grip to START position (p. 44).
Fuel valve lever is not turned to the appropriate position.
Turn the fuel valve lever to the appropriate position
(p. 19).
Fuel vent closed (internal fuel tank).
Turn the internal fuel tank vent knob counterclockwise to
the open position (p. 21).
When using the portable fuel tank (BF5D and BF6A), fuel
vent closed (portable fuel tank).
Turn the portable fuel tank vent knob counterclockwise to
the open position (p. 26).
When using the portable fuel tank (BF5D and BF6A), fuel
hose not primed.
Squeeze priming bulb (p. 40).
Fuel filter or fuel tank filter restricted. Replace restricted f ilters (p. 75 or 77).
Bad fuel; outboard motor stored without treating or
draining gasoline, or refueled with bad fuel.
Drain fuel tank and carburetor (p. 85). Refill with fresh
gasoline (p. 71).
31ZVC6150.book Page 93 Friday, October 13, 2023 1:41 PM
94
TAKING CARE OF UNEXPECTED PROBLEMS
HARD STARTING OR STALLS AFTER STARTING
ENGINE OVERHEATS
Possible Cause Correction
Spark plug faulty, fouled, or improperly gapped.
Adjust the spark plug electrode gap or replace spark plug
(p. 70).
Carburetor malfunction, fuel pump failure, ignition
malfunction, etc.
Take outboard motor to an authorized Marine dealer, or
refer to the shop manual.
Possible Cause Correction
Water intakes clogged. Clean water intakes.
Faulty thermostat or water pump. Take outboard motor to an authorized Marine dealer, or
refer to the shop manual.
31ZVC6150.book Page 94 Friday, October 13, 2023 1:41 PM
95
TAKING CARE OF UNEXPECTED PROBLEMS
ENGINE WILL NOT DRIVE THE PROPELLER
Possible Cause Correction
Broken shear pin. Replace shear pin (p. 79).
Damaged gearshift mechanism. Take outboard motor to an authorized Marine dealer, or
refer to the shop manual.
31ZVC6150.book Page 95 Friday, October 13, 2023 1:41 PM
96
TAKING CARE OF UNEXPECTED PROBLEMS
BATTERY WILL NOT
CHARGE (Equipped type)
The battery-charging circuit is
protected by the 15-ampere fuse.
Fuse Replacement
1. Stop the engine.
2. Remove and inspect the fuse. If a fuse
is burnt out, install a replacement fuse
of the specified rating. The outboard
motor is supplied with a spare fuse in
fuse holder.
DESIGNATED FUSE RATING:
15A
Never use a fuse with a rating greater
than specified. Serious damage to the
electrical system could result.
3. Reinstall the fuse case lid.
Before further operation, try to
determine and correct the electrical
problem that caused the fuse to burn
out. An uncorrected electrical
problem may cause the fuse to burn
out again.
SPARE FUSE
FUSE HOLDER
FUSE
FUSE CASE LID
BLOWN FUSE
31ZVC6150.book Page 96 Friday, October 13, 2023 1:41 PM
97
TAKING CARE OF UNEXPECTED PROBLEMS
OIL PRESSURE INDICATOR
GOES OFF AND ENGINE
SPEED IS LIMITED
If oil pressure becomes low, the green
indicator will go off. If you are at
cruising speed, engine speed will
decrease gradually.
Low oil pressure may be the result of
a low engine oil level, or there may
be a problem with the engine
lubrication system.
If the throttle is closed suddenly after
full throttle operation, engine speed
may drop below the specified idle
rpm, and that could activate the
engine protection system
momentarily.
If low oil pressure activates the
engine protection system, stop the
engine, check the engine oil level
(p. 64), and add oil if needed.
With the engine oil at the
recommended level, restart the
engine. If the lubrication system is
OK, the green indicator should come
on within 30 seconds, and the engine
will respond normally to throttle grip
operation.
If the engine protection system
remains activated after 30 seconds,
return to the nearest boat landing, and
have the outboard motor inspected by
an authorized Marine dealer.
OIL PRESSURE
INDICATOR
31ZVC6150.book Page 97 Friday, October 13, 2023 1:41 PM
98
TAKING CARE OF UNEXPECTED PROBLEMS
SUBMERGED OUTBOARD
MOTOR
A submerged outboard motor must be
serviced immediately after it is
recovered from the water in order to
minimize corrosion.
If there is a Honda Marine dealership
nearby, take the outboard motor to the
dealer immediately. If you are far
from a dealer, proceed as follows:
1. Unlock and remove the engine
cover (p. 63), and rinse the
outboard motor with fresh water to
remove salt water, sand, mud, etc.
2. Drain the internal fuel tank and
carburetor as described on p. 85.
3. Change the engine oil as described
on p. 65. If there was water in the
engine crankcase, or if the used
engine oil showed signs of water
contamination, then a second
engine oil change should be
performed after running the engine
for half an hour.
4. Remove the spark plug (p. 70), and
remove the emergency stop switch
clip from the emergency stop
switch. Pull the starter grip, rotate
the flywheel a few revolutions to
completely expel any water from
the cylinder.
If the engine was running when it
submerged, there may be
mechanical damage, such as a bent
connecting rod. If the engine binds
when cranked, do not attempt to
run the engine until it has been
repaired.
When cranking the engine with an
open ignition circuit (spark plug
removed from the ignition circuit),
remove the emergency stop switch
clip from the emergency stop switch
to prevent possible damage to the
ignition system.
STARTER GRIP
31ZVC6150.book Page 98 Friday, October 13, 2023 1:41 PM
99
TAKING CARE OF UNEXPECTED PROBLEMS

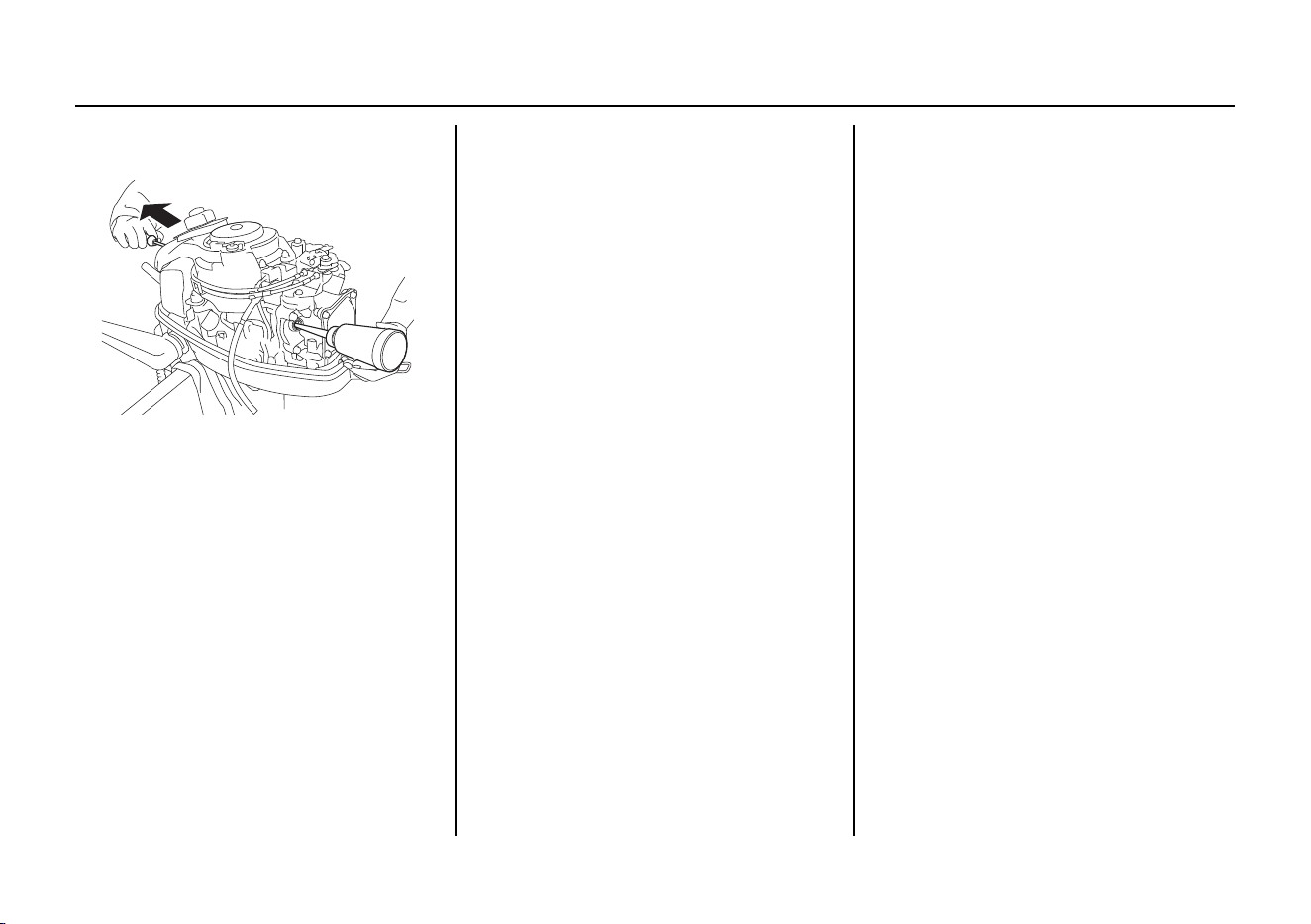

5. Pour a teaspoon (5 - 10 cm
3
) of
engine oil into the spark plug hole,
and then pull the starter grip
several times to lubricate the inside
of the cylinder.
6. Reinstall the spark plug, and put
the emergency stop switch clip into
the emergency stop switch.
7. Attempt to start the engine. Be sure
the water level is at least 2 inches
(5 cm) above the antiventilation
plate.
If the engine fails to start, remove
the spark plug, clean and dry it,
then reinstall the spark plug and
attempt to start the engine again.
If the engine starts, and no
mechanical damage is evident,
continue to run the engine for a half
hour or longer. Be sure the water
level is at least 2 inches (5 cm)
above the antiventilation plate to
avoid overheating and water pump
damage.
8. As soon as possible, take the
outboard motor to an authorized
Marine dealer for inspection and
service.
31ZVC6150.book Page 99 Friday, October 13, 2023 1:41 PM
100
TECHNICAL INFORMATION
Serial Number Locations
Record the frame serial number, the
engine serial number, and the date of
purchase in the space provided on this
page. You will need these numbers
when ordering parts, and when
making technical or warranty
inquiries (p. 110).
The frame serial number is stamped
on a plate attached on the left side of
the stern bracket.
The engine serial number is located
on the left side of the engine.
Frame serial number:
Date of purchase:
Engine serial number:
FRAME SERIAL
NUMBER
ENGINE SERIAL
NUMBER
31ZVC6150.book Page 100 Friday, October 13, 2023 1:41 PM
101
TECHNICAL INFORMATION
Carburetor Modification for
High Altitude Operation
At altitudes above 3,000 feet
(900 meters), the standard carburetor
air-fuel mixture will be too rich.
Performance will decrease, and fuel
consumption will increase. A very
rich mixture will also foul the spark
plug and cause hard starting.
Operation at an altitude that differs
from that at which this engine was
certified, for extended periods of
time, may increase emissions.
High altitude operation can be
improved by specific modifications
to the carburetor. If you usually
operate your outboard motor at 3,000
feet (900 meters) or above, consult
with your authorized Honda Marine
dealer.
Your dealer can determine the
appropriate carburetor settings for the
altitude at which you operate your
outboard motor.
Even with carburetor modification,
engine horsepower will decrease
about 3.5% for each 1,000-foot
(300-meter) increase in altitude. The
effect of altitude on horsepower will
be greater than this if no carburetor
modification is made.
When the carburetor has been
modified for operation at one of the
higher altitude ranges, the air-fuel
mixture will be too lean for operation
at a lower altitude.
Operation at altitudes below the
range for which the carburetor is set
may cause the engine to overheat and
result in serious engine damage.
For use at lower altitudes, have an
authorized Marine dealer modify the
carburetor for the correct altitude
range.
Battery
(Equipped type)
For complete information, refer to the
battery manufacturer's instructions.
Minimum Requirements
12V-28Ah/5HR (CCA 265)
31ZVC6150.book Page 101 Friday, October 13, 2023 1:41 PM
102
TECHNICAL INFORMATION
Emission Control System
Information
Source of Emissions
The combustion process produces
carbon monoxide, oxides of nitrogen,
and hydrocarbons. Control of
hydrocarbons and oxides of nitrogen
is very important because, under
certain conditions, they react to form
photochemical smog when subjected
to sunlight. Carbon monoxide does
not react in the same way, but it is
toxic.
Honda utilizes appropriate air/fuel
ratios and other emissions control
systems to reduce the emissions of
carbon monoxide, oxides of nitrogen,
and hydrocarbons.
The U.S., California Clean Air
Acts, and Canadian
Environmental Protection Act
EPA, California, and Canadian
regulations require all manufacturers
to furnish written instructions
describing the operation and
maintenance of emission control
systems.
The following instructions and
procedures must be followed in order
to keep the emissions from your
Honda engine within the emission
standards.
Tampering and Altering
Tampering is a violation of Federal
and California law.
Tampering with or altering the
emission control system may increase
emissions beyond the legal limit.
Among those acts that constitute
tampering are:
• Removal or alteration of any part
of the intake, fuel, or exhaust
systems.
• Alterations that would cause the
engine to operate outside its design
parameters.
31ZVC6150.book Page 102 Friday, October 13, 2023 1:41 PM
103
TECHNICAL INFORMATION
Problems That May Affect
Emissions
If you are aware of any of the
following symptoms, have your
engine inspected and repaired by your
servicing dealer.
• Hard starting or stalling after
starting.
• Rough idle.
• Misfiring or backfiring under load.
• Afterburning (backfiring).
• Black exhaust smoke or high fuel
consumption.
Replacement Parts
The emission control systems on your
Honda engine were designed, built,
and certified to conform with EPA
and California emission regulations.
To ensure the best quality and
reliability, use only new, Honda
Genuine parts or their equivalents for
repair and replacement.
Maintenance, replacement, or repair
of the emission control devices and
systems may be performed by any
marine engine repair establishment or
individual, using parts that are
‘‘certified’’ to EPA standards.
A manufacturer of an aftermarket part
assumes the responsibility that the
part will not adversely affect
emission performance. The
manufacturer or rebuilder of the part
must certify that use of the part will
not result in a failure of the engine to
comply with emission regulations.
Maintenance
Follow the maintenance schedule on
(p. 61 and 62). Remember that this
schedule is based on the assumption
that your machine will be used for its
designed purpose. Sustained
high-load operation, or use in unusual
conditions, will require more frequent
service.
31ZVC6150.book Page 103 Friday, October 13, 2023 1:41 PM
104
TECHNICAL INFORMATION
Star Label
US, Puerto Rico, and US Virgin
Islands
A Star label was applied to this
outboard motor in accordance with
the requirements of the California Air
Resources Board.
The Star Label means Cleaner Marine Engine
The Symbol for Cleaner Marine Engines:
Cleaner Air and Water - for healthier lifestyle and environment.
Better Fuel Economy - burns up to 30 - 40 percent less gas and oil than
conventional carbureted two-stroke engines, saving money and resources.
Longer Emission Warranty -
protects consumer for worry-free operation.

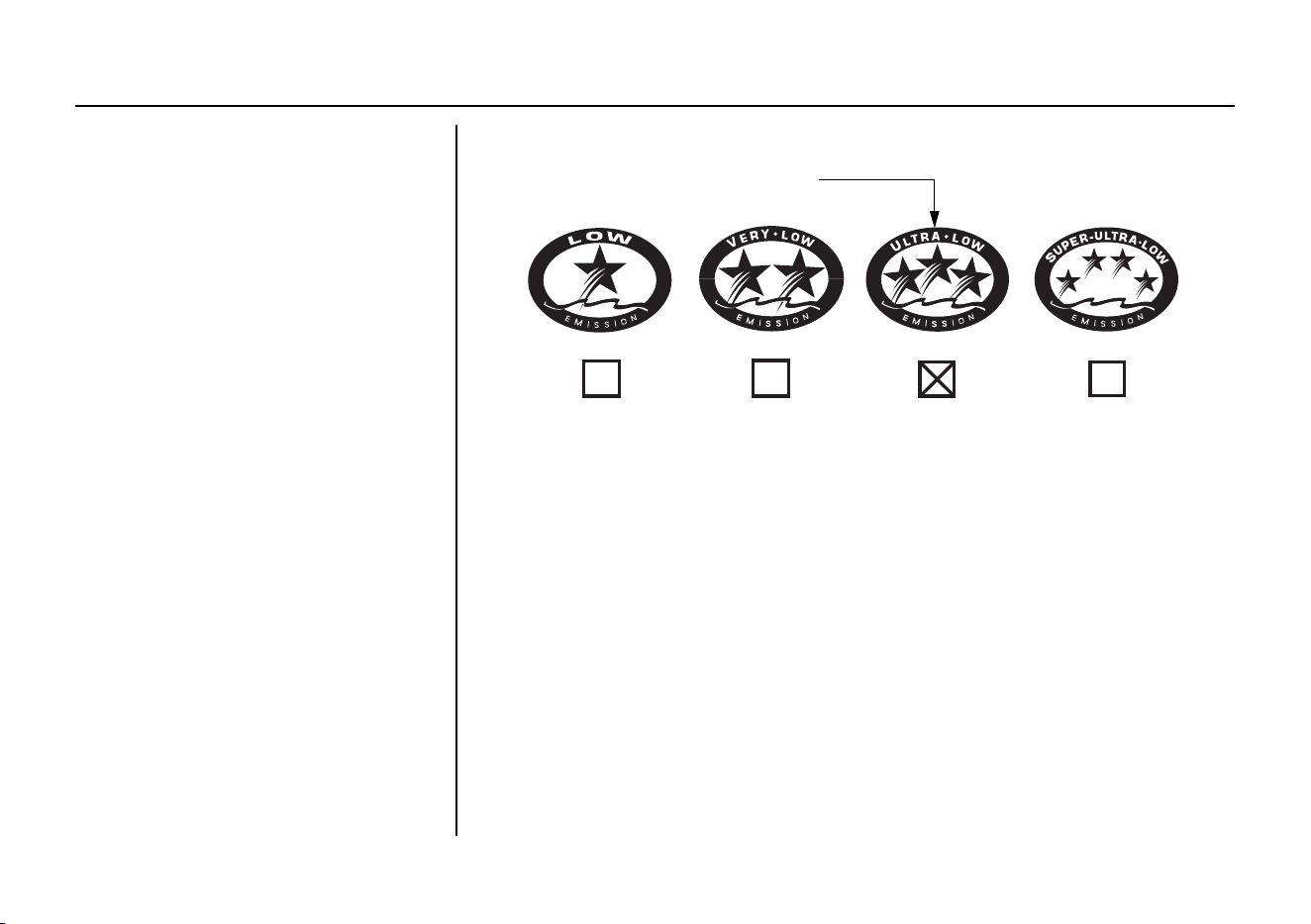

This engine has been certified as a:
31ZVC6150.book Page 104 Friday, October 13, 2023 1:41 PM
105
TECHNICAL INFORMATION

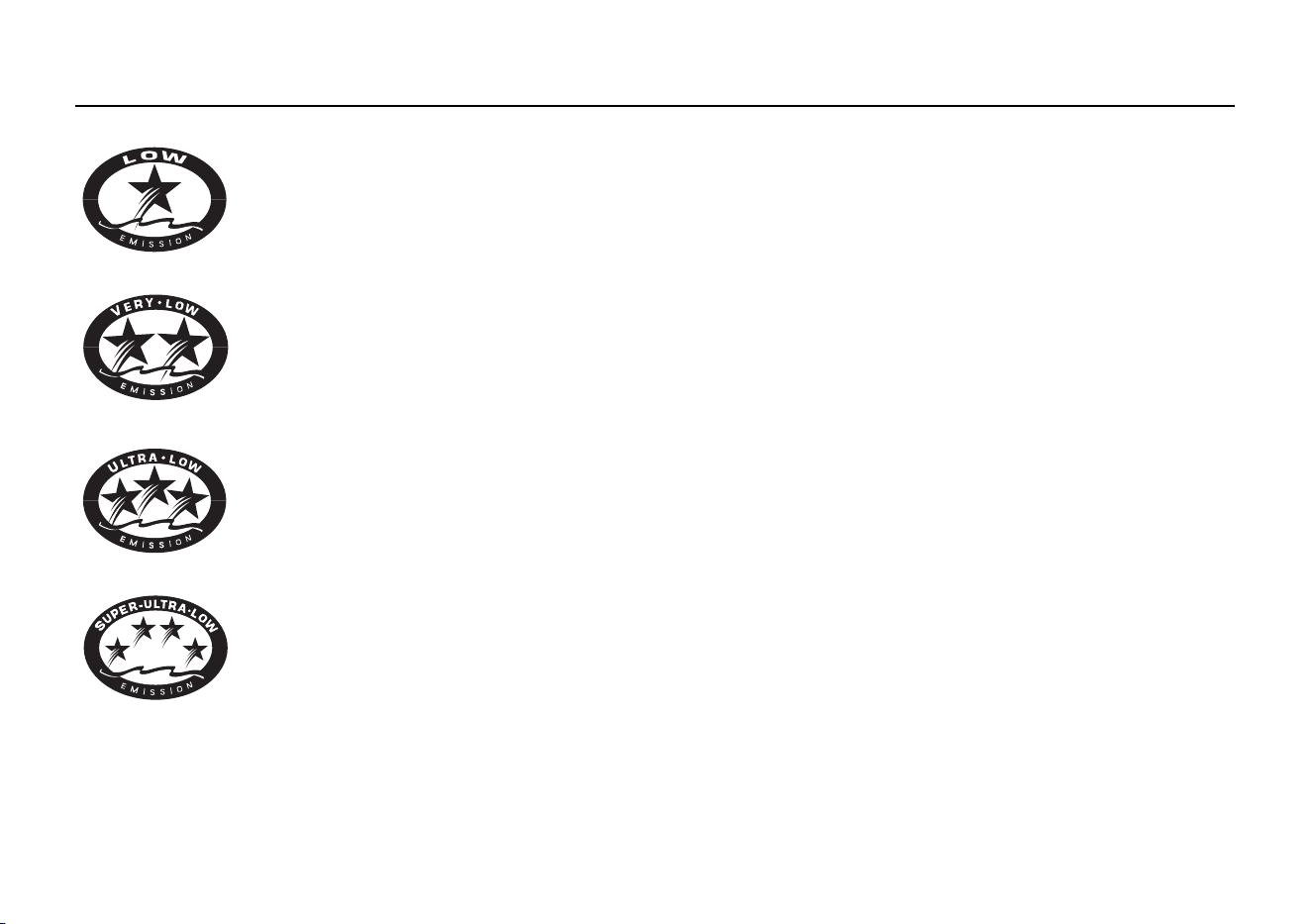

One Star
Low
Emission
The one-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2001 exhaust emission
standards. Engines meeting these standards have 75% lower emissions than
conventional carbureted two-stroke engines. These engines are equivalent to
the U.S. EPA’s 2006 standards for marine engines.
Two Stars
Very Low
Emission
The two-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2004 exhaust emission
standards. Engines meeting these standards have 20% lower emissions than
One Star-Low Emission engines.
Three Stars
Ultra Low
Emission
The three-star label identifies engines that meet the Air Resources Board’s
Personal Watercraft and Outboard marine engine 2008 exhaust emission
standards or the Sterndrive and Inboard marine engine 2003-2008 exhaust
emission standards. Engines meeting these standards have 65% lower
emissions than One Star-Low Emission engines.
Four Stars
Super Ultra
Low Emission
The four-star label identifies engines that meet the Air Resources Board’s
Sterndrive and Inboard marine engine 2009 exhaust emission standards.
Personal Watercraft and Outboard marine engines may also comply with these
standards. Engines meeting these standards have 90% lower emissions than
One Star-Low Emission engines.
Cleaner Watercraft - Get the Facts
1-800-END-SMOG
www.arb.ca.gov
31ZVC6150.book Page 105 Friday, October 13, 2023 1:41 PM
106
TECHNICAL INFORMATION
Specifications
Tuneup
MODEL BF4AH
Description code BACC
Type SHNA LHNA SHNC LHNC
Overall length 20.6 in (524 mm)
Overall width 13.7 in (347 mm)
Overall height
40.7 in
(1,033 mm)
45.7 in
(1,160 mm)
40.7 in
(1,033 mm)
45.7 in
(1,160 mm)
Transom height
(when transom
angle at 14°)
17.1 in
(434 mm)
22.1 in
(561 mm)
17.1 in
(434 mm)
22.1 in
(561 mm)
Dry mass [weight]
*1
59.5 lbs
(27.0 kg)
60.6 lbs
(27.5 kg)
59.5 lbs
(27.0 kg)
60.6 lbs
(27.5 kg)
Rated power 3.0 kW (4 HP)
Full throttle range 4,500 – 5,500 rpm
Engine type 4 stroke OHV 1 cylinder, water-cooled
Displacement
7.7 cu-in (127 cm
3
)
Spark plug gap 0.024 - 0.028 in (0.6 - 0.7 mm)
Starter system Recoil starter
Ignition system C.D.I.
Lubrication system Trochoid pump pressure lubrication
Specified oil Engine: API standard (SG, SH or SJ oil)
SAE 10W-30
Gear case: API standard (GL-4)
SAE 75W-90 or 90 Hypoid gear oil
Oil capacity Engine: 18 US oz (0.55 L, 0.48 Imp qt)
Gear case: 3 US oz (0.10 L, 0.09 Imp qt)
CARB star label ULTRA LOW EMISSION
Cooling system Water cooling with thermostat
Exhaust system Underwater exhaust
D.C. output
*2
12V - 6A
Spark plug BKR6E-E (NGK)
Fuel pump Mechanical type fuel pump
Fuel Unleaded gasoline
(86 pump octane or higher)
Tank capacity 0.40 US gal (1.5 L, 0.33 Imp gal)
Gear change Forward-Neutral-Reverse (dog type)
Steering angle 45° right and left
Transom angle 5 stages (4°,8°,12°,16°,20°)
Tilt up angle
(when transom angle
at 12°)
3 stages adjustment (18°, 34° and 58°)
Standard propeller
(No. of blades – diameter ×
pitch)
3 – 200 × 150 mm (3 – 7-7/8 × 5-7/8 in)
Spark plug gap 0.024 - 0.028 in
(0.6 - 0.7 mm)
See page 70
Idle speed 1,550 +
100 rpm See shop
manual
Valve clearance
(cold)
Intake: 0.10 +
0.04 mm
Exhaust: 0.15 +
0.04 mm
See shop
manual
Other specifications No other adjustment is needed
*1 Without charge coil, with propeller
*2 Optional Equipment
Honda outboard motors are power rated in accordance with NMMA procedures and using the ICOMIA standard 28/23.
31ZVC6150.book Page 106 Friday, October 13, 2023 1:41 PM
107
TECHNICAL INFORMATION
Specifications
Tuneup
MODEL BF5DH
Description code BADC
Type SHNA
LHNA
SHNC LHNC SHC LHC
Overall length 20.6 in (524 mm)
Overall width 13.7 in (347 mm)
Overall height
40.7 in
(1,033 mm)
45.7 in
(1,160 mm)
40.7 in
(1,033 mm)
45.7 in
(1,160 mm)
40.7 in
(1,033 mm)
45.7 in
(1,160 mm)
Transom height
(when transom
angle at 14°)
17.1 in
(434 mm)
22.1 in
(561 mm)
17.1 in
(434 mm)
22.1 in
(561 mm)
17.1 in
(434 mm)
22.1 in
(561 mm)
Dry mass [weight]
59.5 lbs
*1
(27.0 kg)
60.6 lbs
*1
(27.5 kg)
59.5 lbs
*1
(27.0 kg)
60.6 lbs
*1
(27.5 kg)
61.3 lbs
*2
(27.8 kg)
62.4 lbs
*2
(28.3 kg)
Rated power 3.7 kW (5 HP)
Full throttle range 4,500 – 5,500 rpm
Engine type 4 stroke OHV 1 cylinder, water-cooled
Displacement
7.7 cu-in (127 cm
3
)
Spark plug gap 0.024 - 0.028 in (0.6 - 0.7 mm)
Starter system Recoil starter
Ignition system C.D.I.
Lubrication system Trochoid pump pressure lubrication
Specified oil Engine: API standard (SG, SH or SJ oil)
SAE 10W-30
Gear case: API standard (GL-4)
SAE 75W-90 or 90 Hypoid gear oil
Oil capacity Engine: 18 US oz (0.55 L, 0.48 Imp qt)
Gear case: 3 US oz (0.10 L, 0.09 Imp qt)
CARB star label ULTRA LOW EMISSION
Cooling system Water cooling with thermostat
Exhaust system Underwater exhaust
D.C. output
*3
12V - 6A
Spark plug BKR6E-E (NGK)
Fuel pump Mechanical type fuel pump
Fuel Unleaded gasoline
(86 pump octane or higher)
Tank capacity
Internal fuel tank:
0.40 US gal (1.5 L, 0.33 Imp gal)
Portable fuel tank:
3.2 US gal (12 L, 2.6 Imp gal)
Gear change Forward-Neutral-Reverse (dog type)
Steering angle 45° right and left
Transom angle 5 stages (4°,8°,12°,16°,20°)
Tilt up angle
(when transom angle at 12°)
3 stages adjustment (18°, 34° and 58°)
Standard propeller
(No. of blades – diameter × pitch)
3 – 200 × 170 mm (3 – 7-7/8 × 6-3/4 in)
Spark plug gap 0.024 - 0.028 in
(0.6 - 0.7 mm)
See page 70
Idle speed 1,550 +
100 rpm See shop
manual
Valve clearance
(cold)
Intake: 0.10 +
0.04 mm
Exhaust: 0.15 +
0.04 mm
See shop
manual
Other specifications No other adjustment is needed
*1 Without charge coil, with propeller
*2 With charge coil and propeller
*3 SHNA, LHNA, SHNC and LHNC types are Optional Equipment
Honda outboard motors are power rated in accordance with NMMA procedures and using the ICOMIA standard 28/23.
31ZVC6150.book Page 107 Friday, October 13, 2023 1:41 PM
108
TECHNICAL INFORMATION
Specifications
Tuneup
MODEL BF6AH
Description code BAEC
Type SHNA LHNA SHC LHC
Overall length 20.6 in (524 mm)
Overall width 13.7 in (347 mm)
Overall height
40.7 in
(1,033 mm)
45.7 in
(1,160 mm)
40.7 in
(1,033 mm)
45.7 in
(1,160 mm)
Transom height
(when transom
angle at 14°)
17.1 in
(434 mm)
22.1 in
(561 mm)
17.1 in
(434 mm)
22.1 in
(561 mm)
Dry mass [weight]
59.5 lbs
*1
(27.0 kg)
60.6 lbs
*1
(27.5 kg)
61.3 lbs
*2
(27.8 kg)
62.4 lbs
*2
(28.3 kg)
Rated power 4.5 kW (6 HP)
Full throttle range 5,000 – 6,000 rpm
Engine type 4 stroke OHV 1 cylinder, water-cooled
Displacement
7.7 cu-in (127 cm
3
)
Spark plug gap 0.024 - 0.028 in (0.6 - 0.7 mm)
Starter system Recoil starter
Ignition system C.D.I.
Lubrication system Trochoid pump pressure lubrication
Specified oil Engine: API standard (SG, SH or SJ oil)
SAE 10W-30
Gear case: API standard (GL-4)
SAE 75W-90 or 90 Hypoid gear oil
Oil capacity Engine: 18 US oz (0.55 L, 0.48 Imp qt)
Gear case: 3 US oz (0.10 L, 0.09 Imp qt)
CARB star label ULTRA LOW EMISSION
Cooling system Water cooling with thermostat
Exhaust system Underwater exhaust
D.C. output
*3
12V - 6A
Spark plug BKR6E-E (NGK)
Fuel pump Mechanical type fuel pump
Fuel Unleaded gasoline
(86 pump octane or higher)
Tank capacity
Internal fuel tank:
0.40 US gal (1.5 L, 0.33 Imp gal)
Portable fuel tank:
3.2 US gal (12 L, 2.6 Imp gal)
Gear change Forward-Neutral-Reverse (dog type)
Steering angle 45° right and left
Transom angle 5 stages (4°,8°,12°,16°,20°)
Tilt up angle
(when transom angle at 12°)
3 stages adjustment (18°, 34° and 58°)
Standard propeller
(No. of blades – diameter × pitch)
3 – 200 × 150 mm (3 – 7-7/8 × 5-7/8 in)
Spark plug gap 0.024 - 0.028 in
(0.6 - 0.7 mm)
See page 70
Idle speed 1,550 +
100 rpm See shop
manual
Valve clearance
(cold)
Intake: 0.10 +
0.04 mm
Exhaust: 0.15 +
0.04 mm
See shop
manual
Other specifications No other adjustment is needed
*1 Without charge coil, with propeller
*2 With charge coil and propeller
*3 SHNA and LHNA types are Optional Equipment
Honda outboard motors are power rated in accordance with NMMA procedures and using the ICOMIA standard 28/23.
31ZVC6150.book Page 108 Friday, October 13, 2023 1:41 PM
109
CONSUMER INFORMATION
Dealer Locator Information
To find an authorized Honda
Servicing Dealer
For USA:
Visit our website:
http://marine.honda.com and click on
Find a Dealer
For Canada:
Call 1-888-946-6329 or visit our
website:
English
http://marine.honda.ca/dealerlocator
French
http://marine.honda.ca/
trouver-concessionaire
Honda Publications
These publications will give you
additional information for
maintaining and repairing your
outboard motor.
Shop Manual
This manual covers complete
maintenance and overhaul procedures.
It is intended to be used by a skilled
technician.
For USA:
Shop manuals are available through
your Honda Marine dealer or visit
http://marine.honda.com /Service &
Support and click on Shop Manuals
For Canada:
Contact your dealer for information
on the Shop Manual.
Parts Catalog
For USA:
This manual provides complete,
illustrated parts lists.
The catalog is available through your
Honda Marine dealer or visit
http://marine.honda.com/Parts &
Accessories and click on Look Up
Parts
For Canada:
Contact your dealer for information
on Parts.
Accessory Catalog
Your authorized Honda Marine dealer
offers a wide selection of accessories
(optional equipment, oils, and
lubricants) to enhance your boating
experience.
For USA:
Visit http://marine.honda.com and
click on PARTS & ACCESSORIES
to see the entire catalog of
accessories.
For Canada:
Check with your dealer or visit
www.honda.ca and select the Parts
and Accessories tab under the Honda
Marine segment to view the range of
accessories available.
31ZVC6150.book Page 109 Friday, October 13, 2023 1:41 PM
110
CONSUMER INFORMATION
Customer Service Information
Contacting Honda
Your Owner’s Manual was written to
cover most of the questions you
might ask about your Honda. Any
questions not answered in the
Owner’s Manual can be answered by
your Honda dealer. If your dealer
doesn’t have an immediate answer,
they should be able to get it for you.
If you have a difference of opinion
with your dealer, please remember
that each dealership is independently
owned and operated. That’s why it’s
important to work to resolve any
differences at the dealership level. If
the service personnel are unable to
assist you, please discuss your
concerns with the dealer management
such as the Service Manager or the
dealership’s owner.
If you need to contact Honda
regarding your experiences with your
Honda product or with your dealer,
please contact the Honda office in
your region:
American Honda Motor Co., Inc.
Marine Division
Customer Relations Office
4900 Marconi Drive
Alpharetta, GA 30005-8847
Telephone (770) 497 – 6400
M-F 9:00 am-7:30 pm (Eastern Time
Zone)
In Canada:
Honda Canada Inc.
Customer Relations Department
180 Honda Boulevard
Markham, Ontario L6C 0H9
Tel: 1-888-946-6329 (Toll free)
Fax: 1-877-939-0909 (Toll free)
Please include the following
information in your communication:
• Your name, address and telephone
number (complete with area code)
• Model and complete serial number
• Date of purchase
• Name and location of selling dealer
• Name and location of servicing
dealer (if different)
• A detailed description of your
concerns
We will likely ask your Honda dealer
to respond, or possibly acknowledge
your comments directly.
Warranty Coverage
Your new Honda is covered by the
following warranties:
• Distributor’s Limited Warranty
• Emission Control System Warranty
Please read the warranty statements
contained in this manual. There are
responsibilities, restrictions, and
exclusions that apply to these
warranties.
31ZVC6150.book Page 110 Friday, October 13, 2023 1:41 PM
111
CONSUMER INFORMATION
To obtain warranty service you must
take your Honda outboard motor,
together with proof of original retail
purchase date, at your expense, to a
Honda engine dealer or distributor
authorized to sell that product in the
United States, Puerto Rico, the U.S.
Virgin Islands or Canada.
It is important to realize that your
warranty applies to defects in
material or workmanship of your
Honda. Your warranty coverage does
not apply to normal wear or
deterioration associated with using
your Honda outboard motor.
Your warranty coverage will not be
voided if you choose to perform your
own maintenance. However, you
should have the proper tools and
service information and be
mechanically qualified. Failures that
occur due to modifications, improper
maintenance, or service are not
covered.
Warranty Service
Please remember that recommended
maintenance interval servicing is not
included in your warranty coverage.
Additionally, your warranty does not
apply to the normal wear of items
(such as spark plug(s), water pump,
etc.).
As the owner of a Honda product,
your servicing dealer may ask you to
authorize an inspection. If the
problem is covered under warranty,
your dealer will perform any
warranty repairs for you at no cost.
However, you may be responsible for
additional non-warranty charges.
If you have questions about warranty
coverage or the nature of the repair, it
is best to talk to the service manager
of your Honda dealer.
Sometimes, in spite of the best
intentions of all concerned, a
misunderstanding may occur. If you
aren’t satisfied with your dealer’s
handling of the situation, we suggest
you discuss your problem with the
appropriate member of the
dealership’s management team. If the
problem has already been reviewed
with the appropriate manager of the
Service, Parts, or Sales department,
contact the owner of the dealership or
their designated representative.
31ZVC6150.book Page 111 Friday, October 13, 2023 1:41 PM
112
CONSUMER INFORMATION
Warranty Statements
The American Honda Distributor’s Limited Warranty applies to outboards purchased in the United States, Puerto Rico,
or the U.S. Virgin Islands. The Honda Canada Distributor’s Warranty applies to outboards purchased in Canada.
The product warranty is only valid in the country where the product was purchased.
United States, Puerto Rico and U.S. Virgin Islands
Distributor’s Limited Warranty
This warranty is limited to Honda Outboard Motors and related original equipment distributed by American Honda
Motor Co., Inc., Power Sports and Products Division, 4900 Marconi Drive, Alpharetta, Georgia 30005-8847.
(1) Models purchased prior to July 1, 2008 (unless previously purchased with True-5 warranty from a participating dealer).
(2) 40, 65, & 105 Jet models: Jet pump assembly is a dealer installed option. Jet pump warranty is provided by Specialty Manufacturing Co. (Outboard Jets).
(3) Portable fuel tanks: 24 months or the same duration as the outboard they were purchased with, whichever is longer.
Products Covered by Warranty: Length of Warranty: (from date of original retail purchase)
NON-COMMERCIAL/
NON-RENTAL
COMMERCIAL/RENTAL STATE/LOCAL/FEDERAL
GOVERNMENT
All models purchased on or after Jan. 1, 2016
(2)
60 months 24 months 36 months
All models purchased between July 1, 2008 and
December 31, 2015
(2)
60 months 12 months 24 months
All models purchased on or before June 30,
2008
(1)(2)
36 months 12 months 24 months
Related original equipment items:
BF5 through BF20 models: Portable fuel tank
and original propeller.
All models: Primer bulb/fuel line assembly and
tiller handle.
The same duration as the outboard with which they were purchased.
(3)
31ZVC6150.book Page 112 Friday, October 13, 2023 1:41 PM
113
CONSUMER INFORMATION
To Qualify for This Warranty:
The Honda Outboard Motor must be purchased from
American Honda or a dealer authorized by American
Honda to sell Honda Outboard Motors in the United
States, Puerto Rico, or the U.S. Virgin Islands. This
limited warranty applies to the f irst retail purchaser and
each subsequent owner during the applicable warranty
time period.
What American Honda Will Repair or Replace Under
Warranty:
American Honda will repair or replace, at its option, any
part that is proven to be defective in material or
workmanship under normal use during the applicable
warranty time period. Warranty repairs and replacements
will be made without charge for parts or labor. Anything
replaced under warranty becomes the property of
American Honda Motor Co., Inc.
All parts replaced under warranty will be considered as
part of the original product and any warranty on those
parts will expire coincidentally with the original product
warranty.
To Obtain Warranty Service:
You must, at your expense, take your Honda Outboard
Motor and proof of the original purchase date to any
dealer who is authorized to service Honda Outboard
Motors in the United States, Puerto Rico, or the U.S.
Virgin Islands, during the dealer’s normal business hours.
If you are unable to obtain warranty service, or are
dissatisfied with the warranty service you receive, take the
following steps: First, contact the owner of the dealership
involved; normally this should resolve the problem.
However, if you should require further assistance, write or
call the Honda Marine Customer Relations Department of
American Honda Motor Co., Inc. Please see Contacting
Honda on page 110.
31ZVC6150.book Page 113 Friday, October 13, 2023 1:41 PM
114
CONSUMER INFORMATION
Exclusions:
This warranty does not extend to the following:
• Conditions caused by lack of routine maintenance or
improper storage (as outlined in the owner’s manual)
• Conditions caused by the use of propeller (s) that do not
allow the outboard motor to run in its recommended full
throttle rpm range
• Operation inconsistent with the recommended
operation/duty cycle (as outlined in the owner’s manual)
• Parts affected or damaged by an abuse, submersion
and/or collision
• Fuel contamination and water entering the engine
through the fuel intake, air intake or exhaust system
• Operation with fuels, oils, additives and lubricants
which are not suitable for use in the product
• Use in an application for which the outboard motor was
not designed, such as racing or competitive use or any
other misuse or neglect
• Normal wear and tear
• Incorporation of unsuitable attachments or parts
• The unauthorized alteration, improper installation
and/or rigging, or any causes other than defects in
material or workmanship
• Corrosion to steering system or electrical components,
corrosion due to electrolysis, water born foreign
chemicals, improper service or corrosion caused by
damage or abuse
• Reimbursement for towing charges, in and out of water
charges, or technician travel time
• Growth of marine organisms on motor surfaces,
external or internal
• Any product that has ever been declared a total loss or
sold for salvage by a financial institution or insurer, or
that has been issued a ‘‘salvage’’ or similar title under
any state’s law.
Disclaimer of consequential damage and limitation of
implied warranties:
American Honda disclaims any responsibility for loss of
time or use of the outboard, revenue, or the equipment in
which the outboard is installed, transportation,
commercial loss, or any other incidental or consequential
damage. Any implied warranties are limited to the
duration of this written limited warranty.
Some states do not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion
or limitation of incidental or consequential damages, so
the above exclusions and limitations may not apply to you.
This warranty gives you specif ic legal rights, and you may
also have other rights which vary from state to state.
31ZVC6150.book Page 114 Friday, October 13, 2023 1:41 PM
115
CONSUMER INFORMATION
Products Covered by Warranty: Length of Warranty: (from date of original retail purchase)
NON-COMMERCIAL COMMERCIAL/RENTAL
STATE/LOCAL/FEDERAL
GOVERNMENT
Accessories other than noted below
12 months 3 months 3 months
Emission related accessories:
Portable fuel tanks, fuel line assemblies, and
water/fuel separators
24 months 24 months 24 months
Replacement Parts
6 months 3 months 3 months
Accessories and Replacement Parts
This warranty is limited to Honda Marine parts, accessories and apparel when distributed by American Honda Motor
Co., Inc., 4900 Marconi Drive, Alpharetta, Georgia 30005-8847.
To Qualify for This Warranty:
1. The accessories or replacement parts must be purchased
from American Honda or a dealer, distributor, or
distributor’s dealer authorized by American Honda to
sell those products in the United States, Puerto Rico,
and the U.S. Virgin Islands. Parts and Accessories must
be purchased for installation on original Honda
equipment or engines to be eligible for warranty
coverage. Installing Parts and Accessories on non-
Honda products or engines voids this warranty.
2. You must be the first retail purchaser. This warranty is
not transferable to subsequent owners.
What American Honda Will Repair or Replace Under
Warranty:
American Honda will repair or replace, at its option, any
marine product accessories or replacement parts that are
proven to be defective in material or workmanship under
normal use during the applicable warranty time period.
Anything replaced under warranty becomes the property
of American Honda Motor Co., Inc. All parts replaced
under warranty will be considered as part of the original
product and any warranty on those parts will expire
coincidentally with the original product warranty.
Accessories and replacement parts, installed by a dealer
who is authorized by American Honda to sell them, will
be repaired or replaced under warranty without charge for
parts or labor. If installed by anyone else, accessories and
replacement parts will be repaired or replaced under
warranty without charge for parts, but any labor charges
will be the responsibility of the purchaser.
31ZVC6150.book Page 115 Friday, October 13, 2023 1:41 PM
116
CONSUMER INFORMATION
To Obtain Warranty Service:
You must, at your expense, take the Honda Outboard
Motor product accessory or replacement part or the
outboard motor or boat on which the accessory or
replacement part is installed, and proof of purchase to any
Honda Marine authorized service facility or dealer in the
United States, Puerto Rico, or the U.S. Virgin Islands,
during normal business hours.
Exclusions:
This warranty does not extend to accessories or parts
affected or damaged by collision, normal wear, use in an
application for which the product was not designed or any
other misuse, neglect, incorporation or use of unsuitable
attachments or parts, unauthorized alteration, improper
installation, or any causes other than defects in material or
workmanship of the product.
Installing parts and accessories on non-Honda products or
engines voids this warranty.
Disclaimer of consequential damage and limitation of
implied warranties:
American Honda disclaims any responsibility for loss of
time or use of the outboard motor, or the boat on which the
product is installed, transportation, commercial loss, or
any other incidental or consequential damage. Any
implied warranties are limited to the duration of this
written warranty. Some states do not allow limitations on
how long an implied warranty lasts and/or do not allow
the exclusion or limitation of incidental or consequential
damages, so the above exclusions and limitations may not
apply to you. This warranty gives you specific legal
rights, and you may also have other rights, which vary
from state to state.
31ZVC6150.book Page 116 Friday, October 13, 2023 1:41 PM
117
CONSUMER INFORMATION
Emission Control System Warranty
Your new Honda outboard engine complies with both the
U.S. EPA and State of California emission regulations.
American Honda provides the same emission warranty
coverage for outboard engines sold in all 50 states. In all
areas of the United States your outboard engine must be
designed, built, and equipped to meet the U.S. EPA and
California Air Resources Board emission standard for
spark ignited marine engines.
CALIFORNIA EMISSIONS CONTROL SYSTEM
WARRANTY STATEMENT YOUR WARRANTY
RIGHTS AND OBLIGATIONS
The California Air Resources Board (CARB) and
American Honda Motor Co., Inc. are pleased to explain
the emission control system warranty on your 2024 Honda
outboard engine. In California, new outboard engines
must be designed, built, and equipped to meet the state’s
stringent anti-smog standards.
American Honda Motor Co., Inc. must warrant the
emission control system on your outboard engine for the
periods of time listed below provided there has been no
abuse, neglect, or improper maintenance of your outboard
engine.
Your emission control system may include parts such as
the carburetor or fuel injection system, the ignition
system, catalytic converter, canisters, clamps, filters, fuel
caps, fuel lines, fuel tanks, valves, and vapor hoses. Also
included may be hoses, belts, connectors, and other
emission-related assemblies.
Where a warrantable condition exists, American Honda
Motor Co., Inc. will repair your outboard engine at no cost
to you including diagnosis, parts, and labor.
31ZVC6150.book Page 117 Friday, October 13, 2023 1:41 PM
118
CONSUMER INFORMATION
MANUFACTURER’S WARRANTY
COVERAGE:
Select emission control parts from model year 2010 and
later outboard engines are warranted for five years or 250
hours of use, whichever first occurs;
or the length of the Honda Marine Distributor’s Limited
Warranty, whichever is longer. The evaporative emission
control system from model year 2010 and later outboard
engines are warranted for two years with no limit on hours
of use, or the length of the Honda Marine Distributor’s
Limited Warranty, whichever is longer, from the date of
delivery to the retail purchaser. However, warranty
coverage based on the hourly period is only permitted for
engines equipped with hour meters as defined in
§ 2441(a)(13)* or their equivalent. If any emission-related
part on your engine is defective under warranty, the part
will be repaired or replaced by American Honda Motor
Co., Inc. See the Emission Control System Warranty Parts
table on page 121 for parts description.
* California Code of Regulations.
OWNER’S WARRANTY RESPONSIBILITIES:
As the outboard engine owner, you are responsible for the
performance of the required maintenance listed in your
owner’s manual. American Honda Motor Co., Inc.
recommends that you retain all receipts covering
maintenance on your outboard engine, but American
Honda Motor Co., Inc. cannot deny warranty solely for the
lack of receipts or your failure to ensure the performance
of all scheduled maintenance.
As the outboard engine owner, you should, however, be
aware that American Honda Motor Co., Inc. may deny
you warranty coverage if your outboard engine or a part
has failed due to abuse, neglect, improper maintenance, or
unapproved modifications.
You are responsible for presenting your outboard engine
to a Honda Marine dealer as soon as a problem exists. The
warranty repairs will be completed in a reasonable amount
of time, not to exceed 30 days.
If you have any questions regarding your warranty rights
and responsibilities, you should contact
American Honda Motor Co., Inc.
Marine Division Customer Relations Office
4900 Marconi Drive
Alpharetta, Georgia 30005-8847
Telephone: (770) 497-6400
31ZVC6150.book Page 118 Friday, October 13, 2023 1:41 PM
119
CONSUMER INFORMATION
WARRANTY COVERAGE:
See Manufacturer’s Warranty Coverage above for
warranty coverage terms. This warranty is transferred to
each subsequent purchaser for the duration of the warranty
period.
Warranty repairs will be made without charge for
diagnosis, parts, and labor. All defective parts replaced
under this warranty become the property of American
Honda Motor Co., Inc. A list of warranty parts is on page
121. Normal maintenance items, such as spark plugs and
filters, that are on the warranted parts list are warranted up
to their required replacement interval only.
American Honda Motor Co., Inc. is also liable for
damages to other engine components caused by a failure
of any warranted part during the warranty period.
Only Honda approved replacement parts will be used in
the performance of any warranty repairs, and they will be
provided without charge to the owner. You may use any
replacement part as defined in § 1900(b)(20)* in the
performance of any maintenance or repairs. Honda cannot
deny coverage under the emission warranty solely for use
of non-Honda replacement parts or service performed at a
location other than an authorized Honda dealership;
however, use of a part that is not functionally identical to
the original equipment part in any respect that may in any
way affect emissions (including durability) could result in
denial of coverage. If a non-Honda replacement part is
used in the repair or maintenance of your engine, and an
authorized Honda Marine dealer determines it causes the
failure of a warranted part, your warranty claim may be
denied. If the part in question is not related to the reason
that your engine requires repair, your claim will not be
denied.
* California Code of Regulations
31ZVC6150.book Page 119 Friday, October 13, 2023 1:41 PM
120
CONSUMER INFORMATION
TO OBTAIN WARRANTY SERVICE:
You must take your Honda outboard engine, along with
your sales registration card or other proof of original
purchase date, at your expense, to any Honda Marine
dealer that is authorized by American Honda Motor Co.,
Inc. to sell and service that Honda marine product during
its normal business hours. Claims for repair or adjustment
found to be caused solely by defects in material or
workmanship will not be denied because the engine was
not properly maintained and used.
If you are unable to obtain warranty service, or are
dissatisfied with the warranty service you received,
contact the owner of the dealership involved.
Normally this should resolve your problem. However, if
you require further assistance, write or call the Honda
Marine Customer Relations Office of American Honda
Motor Co., Inc.
EXCLUSIONS:
Failures other than those resulting from defects in material
or workmanship are not covered by this warranty. This
warranty does not extend to emission control systems or
parts which are affected or damaged by owner abuse,
neglect, improper maintenance, misuse, misfueling,
improper storage, and/or collision, the incorporation of, or
use of, unsuitable attachments, or the unauthorized
alteration of any part. This warranty does not cover
replacement of expendable maintenance items made in
connection with required maintenance service after the
items first scheduled replacement as listed in the
maintenance section of the product owner’s manual, such
as: spark plugs and filters.
DISCLAIMER OF CONSEQUENTIAL DAMAGE
AND LIMITATION OF IMPLIED WARRANTIES:
American Honda Motor Co., Inc. disclaims any
responsibility for incidental or consequential damages
such as loss of time or the use of outboard engine, or any
commercial loss due to the failure of the equipment; and
any implied warranties are limited to the duration of this
written warranty. This warranty is applicable only where
the California or U.S. EPA emission control system
warranty regulation is in effect.
31ZVC6150.book Page 120 Friday, October 13, 2023 1:41 PM
121
CONSUMER INFORMATION
EMISSION CONTROL SYSTEM WARRANTY PARTS:
SYSTEMS COVERED
BY THIS WARRANTY:
PARTS DESCRIPTION: LENGTH OF WARRANTY:
Evaporative
Portable fuel tank, Outboard internal fuel tank, Fuel cap, Fuel hoses, Primer
bulb, Fuel hose joint, Vapor separator, and Carbon canister,
All other parts not listed that may affect the evaporative
emissions control system
Two years, no limit on hours of
use; or the length of the Honda
Distributor’s Limited Warranty,
whichever is longer.
Fuel Metering
Carburetor assembly, Throttle body, Fuel injector, Fuel pump, Fuel pressure
regulator, Throttle position sensor, Intake air temperature sensor, Engine
temperature sensor, Manifold absolute pressure sensor, Idle air control valve,
Barometric pressure sensor, Fuel line solenoid valve, Intake manifold, Intake
valves, and Oxygen sensor or Air fuel ratio sensor
Five years or 250 hours of use,
whichever first occurs; or the
length of the
Honda Distributor’s
Limited Warranty
, whichever is
longer.
Air Induction
Air intake duct, Intake manifold tuning valve (Intake air bypass control valve)
Ignition
Flywheel magneto, Ignition pulse generator, Ignition coil assembly, Ignition
control module, Engine control module, Crankshaft position sensor, Spark
plug cap, Spark plug*, Knock sensor, and Camshaft position sensor
Lubrication System Oil pump and internal parts
Crankcase Emission Control Crankcase breather tube, Positive crankcase ventilation valve, Oil filler cap
Exhaust Exhaust manifold and Exhaust valves
Valve Control System Rocker arm oil control valve
Miscellaneous Parts
Tubing, fittings, seals, gaskets, and clamps associated with these listed systems.
* Covered up to the first required replacement only. See the Maintenance Schedule on page 61 and 62.
31ZVC6150.book Page 121 Friday, October 13, 2023 1:41 PM
122
CONSUMER INFORMATION
Canada
Distributor’s Warranty
HONDA CANADA INC., for and on behalf of Honda
Motor Co. Ltd., Tokyo, Japan, gives the following written
warranty on each new marine product manufactured by
Honda Motor Co. Ltd., Japan, distributed in Canada by
Honda Canada Inc. and sold by authorized Honda Marine
dealers.
Whenever used herein, the word ‘‘Honda’’ refers to Honda
Canada Inc. and/or Honda Motor Co. Ltd., as appropriate
from the context.
HONDA WARRANTS THAT each new Honda marine
product will be free, under normal use and maintenance,
from any defects in material or workmanship for the
relevant warranty period set forth below. If any defects
should be found in a Honda marine product within the
relevant warranty period, necessary repairs and
replacements with a new part or the Honda equivalent
shall be made at no cost to the consumer for parts and
labour, when Honda acknowledges that such defects are
attributable to faulty material or workmanship at the time
of manufacture.
WARRANTY PERIOD RETAILED ON OR
AFTER APRIL 1, 2005:
THIS WARRANTY COVERS
a) Any Honda marine product purchased in Canada from
an authorized Honda dealer which has been registered at
the time of purchase on a form provided by Honda,
which has had set-up and pre-delivery service
performed by an authorized Honda dealer and which is
normally operated in Canada;
b)Any factory installed part (except normal maintenance
parts referred to in ‘‘THIS WARRANTY DOES NOT
COVER’’); and
c) Any marine product on which required maintenance
services have been performed as prescribed in the
Owner’s Manual.
Non-commercial
use
Commercial
use
All Honda Outboard
Models
36 Months 12 Months
31ZVC6150.book Page 122 Friday, October 13, 2023 1:41 PM
123
CONSUMER INFORMATION
THIS WARRANTY DOES NOT COVER
a) Any repairs required as a result of collision, accident,
striking any object, misuse or lack of required
maintenance;
b)Any repairs required as a result of any attachments,
parts or devices installed by or repairs done by a party
other than an authorized Honda dealer;
c) Any outboard that has been operated out of water, (Run
Dry) damaging the water pump and or engine
components due to insufficient cooling water.
d)Any marine products modif ied, altered, disassembled or
remodelled;
e) Normal maintenance services, including tightening of
nuts, bolts and fittings and engine tune-up and the
replacement of parts made in connection with normal
maintenance services including filters, spark plugs and
wires, fuses, belts, lubricants and other expendables
susceptible to natural wear;
f) Outboard propeller or shear pin.
g)All accessories or attachments.
THE OWNER’S OBLIGATION
In order to maintain the validity of this DISTRIBUTORS
WARRANTY, the required maintenance services as set
forth in the Owner’s Manual must be performed at the
proper intervals and detailed receipts and records retained
as proof.
TO OBTAIN WARRANTY SERVICE
You must take your Honda marine product, at your
expense, during normal service hours, to any authorized
Honda Marine dealership. If you are unable to obtain or
are dissatisfied with the warranty service you receive,
first contact the owner of the dealership involved; this
should resolve the problem. If you require further
assistance, contact Honda Canada’s Customer Relations
Department at:
HONDA CANADA INC.
Customer Relations Department
180 Honda Boulevard
Markham, Ontario L6C 0H9
Tel: 1-888-946-6329 (Toll free)
Fax: 1-877-939-0909 (Toll free)
E-mai: [email protected]
31ZVC6150.book Page 123 Friday, October 13, 2023 1:41 PM
124
CONSUMER INFORMATION
REPLACEMENT PARTS AND ACCESSORY
WARRANTY
New genuine Honda replacement parts or accessories sold
to a consumer or installed by an authorized Honda Marine
dealer which are not covered by the DISTRIBUTORS
WARRANTY are warranted for a period of one year from
date of purchase, provided, however, that this
Replacement Parts and Accessory Warranty does not
apply to any replacement parts modified, used with, or
installed on a marine product for which the replacement
parts were not intended. Electrical components that are not
installed by the dealer (sold over the counter) are not
covered by warranty.
ENTIRE WRITTEN WARRANTY
This DISTRIBUTORS WARRANTY and the
REPLACEMENT PARTS AND ACCESSORY
WARRANTY are the only and the entire written
warranties given by Honda for Marine engines. No dealer
or his agent or employee is authorized to extend or enlarge
on these warranties on behalf of Honda by any written or
verbal statement or advertisement.
DISCLAIMER
To the extent the law permits, Honda disclaims any
responsibility for loss of time or use of the product,
transportation or towing costs or any other indirect,
incidental or consequential damage, inconvenience or
commercial loss.
NOTICE TO CONSUMER
The provisions contained in these written warranties are
not intended to limit, modify, take away from, disclaim or
exclude any warranties set forth in or the operation of The
Consumer Products Warranties Act, 1977 (Saskatchewan),
The Consumer Product Warranty and Liability Act (New
Brunswick), The Consumer Protection Act (Quebec), or
any other similar provincial or federal legislation.
31ZVC6150.book Page 124 Friday, October 13, 2023 1:41 PM
125
INDEX
Anode ........................................................................... 25
Replacement ........................................................ 78
ARE YOU READY TO GET UNDERWAY? .............. 34
ATTACHMENT ........................................................... 31
Battery .................................................................. 101
CONNECTIONS.................................................. 32
Terminals .................................................................. 33
WILL NOT CHARGE .......................................... 96
BEFORE OPERATION................................................ 34
BREAK-IN PROCEDURE .......................................... 36
Carburetor Modification for High Altitude
Operation
........................................................... 101
Choke Knob.................................................................. 17
CLEANING AND FLUSHING................................. 81
COMPONENT AND CONTROL LOCATIONS ........ 15
CONSUMER INFORMATION............................... 109
CONTROL AND FEATURE IDENTIFICATION
CODES
............................................................... 14
CONTROLS............................................................ 17
CONTROLS AND FEATURES ................................ 14
Cooling System Indicator ............................................. 25
CRUISING.............................................................. 55
Customer Service Information................................. 110
Dealer Locator Information .................................... 109
Distributor’s Limited Warranty ............................... 112
Distributor’s Warranty............................................ 122
EMERGENCY STARTING...................................... 45
Emergency Stop Switch Clip and Emergency
Stop Switch
......................................................... 17
Emission Control System Information ..................... 102
Emission Control System Warranty ......................... 117
Engine
Cover
Latch
............................................................... 22
REMOVAL AND INSTALLATION .................. 63
Oil
Change
............................................................ 65
Level Check..................................................... 64
Recommendations ............................................ 67
ENGINE OVERHEATS ........................................... 94
ENGINE WILL NOT DRIVE THE PROPELLER ..... 95
ENGINE WILL NOT START ................................... 91
31ZVC6150.book Page 125 Friday, October 13, 2023 1:41 PM
126
INDEX
Fuel
Filler Cap Vent Knob..........................................
21, 26
Filter Inspection and Replacement ........................... 75
HOSE CONNECTIONS ....................................... 40
Hose Connector Cap and Fuel Hose Connector
(Male) ...................................................................
26
PRIMING............................................................ 40
Priming Bulb........................................................ 27
RECOMMENDATIONS....................................... 74
Fuse
Replacement
........................................................ 96
Gear Case Oil
Change......................................................................
67
Gearshift Lever ........................................................ 19
GEARSHIFTING AND THROTTLE OPERATION
.... 53
Handle Stopper ........................................................ 23
HARD STARTING OR STALLS AFTER
STARTING
.......................................................... 93
Honda Publications..................................................... 109
IMPORTANT SAFETY INFORMATION ..................... 6
INDICATORS ......................................................... 24
INFREQUENT OR OCCASIONAL USE.................. 41
INSTALLATION ..................................................... 30
INSTALLATION POSITION ................................... 30
IS YOUR OUTBOARD MOTOR READY
TO GO?
.............................................................. 34
Lubrication Points.................................................... 69
MAINTENANCE SAFETY ......................................... 59
MAINTENANCE SCHEDULE ................................ 61
MOORING, BEACHING, LAUNCHING ................. 57
Oil Pressure Indicator ................................................... 24
OIL PRESSURE INDICATOR GOES OFF AND
ENGINE SPEED IS LIMITED
............................. 97
OPERATION........................................................... 36
OTHER FEATURES................................................ 25
OUTBOARD MOTOR SAFETY................................ 6
31ZVC6150.book Page 126 Friday, October 13, 2023 1:41 PM
127
INDEX
Portable Fuel Tank ............................................. 26, 39
Portable Fuel Tank and Tank Filter Cleaning .............. 77
POWER REQUIREMENTS ..................................... 30
Propeller and Shear Pin Replacement ........................ 79
Recoil Starter Rope Inspection .................................. 78
REFUELING........................................................... 71
REMOVAL FROM STORAGE................................. 88
Rev Limiter ............................................................. 25
SAFE OPERATING PRECAUTIONS....................... 36
SAFETY LABEL LOCATIONS.................................. 8
Serial Number Locations ........................................ 100
SERVICING YOUR OUTBOARD MOTOR ............. 58
SHALLOW WATER OPERATION ........................... 56
Spark Plug Service ................................................... 70
Specifications ........................................ 106, 107, 108
Star Label .............................................................. 104
Starter Grip.............................................................. 22
STARTING THE ENGINE ....................................... 41
STEERING ............................................................. 54
Steering Friction Bolt ............................................... 23
STOPPING THE ENGINE ....................................... 51
Emergency Engine Stopping ................................. 51
Normal Engine Stopping....................................... 51
