F7N Pro User Manual
1
Content
Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Product Specications . . . . . . . . . . . . . . . . . . . . .
3
Package Contents . . . . . . . . . . . . . . . . . . . . . . .
4
Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Buttons and Functions . . . . . . . . . . . . . . . . . . . .
6
User Inteace Oveiew . . . . . . . . . . . . . . . . . . . .
8
Function Oveiew . . . . . . . . . . . . . . . . . . . . . .
11
App and Wi-Fi Function . . . . . . . . . . . . . . . . . . .
14
How to Play Video on Computer . . . . . . . . . . . . . .
16
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . .
22
Customer Seice Center . . . . . . . . . . . . . . . . . .
24
2
Notice
• Please read this manual carefully before operation and keep it
for future reference. It will be helpful should you encounter any
operational problems.
• Improper installation will void the manufacturer's warranty.
The installation instructions do not apply to all types of vehicles
and are written as guidelines to assist in installing the system.
• Consult with an experienced technician if you are not
comfoable installing the device on your own.
• Please make sure to read and understand local laws and
regulations regarding cameras and their use in a vehicle. Laws
may va by state.
• Do not obscure the view of the road ahead or obstruct the
deployment of any airbags in the event of an accident.
• When not in use, please disconnect the car adapter from both
the 12/24V DC outlet in your vehicle and the device itself.
• Only clean the device with a soft d cloth, for tough di, apply
some neutral detergent diluted in 5 to 6 pas water on a soft
cloth.
• Note that alcohol, thinner, benzene, etc
.
could cause damage to
the paint or coatings on the device.
• Avoid making contact with the lens as this may cause damage.
• The video recordings made by this device are intended for
personal use only.
• While driving, do not adjust the controls of your device, as
it may draw your attention from your surroundings.
3
Product Specications
Item Name F7N Pro Dash Cam Video Format MP4
Screen Size 3.18" IPS Screen Photo Format JPG
Recording
Resolution
Front 2160P @30fps / Front 1440P @60fps
Front 1080P @120fps / Front 2160P+Rear1080P
Front 1440P+Rear1080P
Input DC 5V-2.5A
Lens
Front cam F1.55
Rear camera F2.0
Operating
Temperature
-4°F~158°F
Memo Card 32GB-256GB
Warranty
Period
18 months
Note:
If you have any problems during use, we will provide free device
replacement within 18 months of purchase, in addition to lifetime
technical suppo.
Extended Warranty Seice:
You may also receive an additional 6 months of extended
warranty seice by registering your device on our website.
URL: https://www.redtigercam.com/pages/warranty-form
4
Package Contents
• F7N Pro 4K Dash Cam • 1080P Rear Camera
• GPS Mount
• User Manual • Tool
• Power Supply Cable
with Car Charger
• Electrostatic
Sticker *2
• Rear Cam Cable
• Cable Clips*5
•Adhesive
5
Appearance
4
1
11
12
5
8
9
10
13
6
7
Front Camera Lens
Adhesive
GPS Mount
Screen
USB Type-C Po
Power Button
Up Button
Mode Button
Down Button
Reset Button
Rear Cam Slot
Status light
blue light means power on,
red light ashing means recording
Memo Card
Slot
3
2
6
Buttons and Functions
Power Button
Recording Mode:
• Sho press-to Switch screen
• Long press-to Turn o the Camera
Setup Mode:
• Sho press-to Return to the previous screen
Playback Mode:
• Sho press-to Return to the previous screen
Menu Button
Recording Mode:
• Sho press to Enter main menu
Setup Mode:
• Sho press-to Enter/Conrm specic settings
Playback Mode:
• Sho press-to Select and play the specic le
• Long press-to Delete/Lock/Unlock the specic le
Up Button
Recording Mode:
• Sho press-to Lock the recording le
• Long press-to Turn on or o Wi-Fi
Setup Mode:
• Sho press-to Select the previous function
Playback Mode:
• Sho press-to Select the previous le
• Sho press-to Fast rewind (while video is playing)
M
7
Down Button
Recording Mode:
• Sho press-to Take a snapshot
• Long press-to Stop recording
Setup Mode:
• Sho press-to Select the next function
Playback Mode:
• Sho press-to Select the next le
• Sho press-to Fast forward (while video is playing)
8
Icon Description
Generates in 1 min/3 mins/5 mins per le
Display when fatigue driving function is on
Displays the recording status and recording time
Display the date and time of the machine
Display recording resolution
Show Memo Card status
User Inteace Oveiew
• Recording Mode
9
Icon Description
Display GPS status
Display voice recording status
Indicates that the rear camera is connected
G-Sensor sensitivity display
Wi-Fi status
Emergency Video Lock
Photograph function
Enter the menu
Power on
Red led blinking: Recording Video/No Red led:Not Recording Video
WiFi
10
• Playback Mode
Press the M button to enter Playback mode.
Press the Up or Down button to select the folder you want
to play, then press the M button to enter.
Press the M button to watch the recorded video.
Long press the M button for 3 seconds to edit your recorded
videos.
1
3
2
4
11
icon Function Option/Description
Audio Sound Recording ON/OFF
Resolution 2160P+1080P, 1440P+1080P
Date Stamp Stamp ON/OFF
Loop recording 1/3/5mins
G-sensor O/Low/Medium/High
Fatigue Driving
A Reminder Will be Made During
1h/2h/3h/4h/OFF
Speed Stamp Stamp ON/OFF
GPS Stamp ON/OFF
Speed Units KMH/MPH
GPS Info Display GPS signal strength
Function Oveiew
Sho press the M button to enter the settings menu, where you
can adjust various functions and parameters of the camera.
12
icon Function Option/Description
Rear Cam Flip Veical Flip Your Rear View
Mirror Flip Horizontal Flip Your Rear View
App A QR Code for Redtiger app
Wi-Fi ON/OFF
Language Choose Your Prefered Language
Time Format 12h/24h
Date / Time Update With GPS
Time Zone Choose Your Time Zone
DST Daylight Saving Time ON/OFF
Frequency 60Hz/50Hz
Click Tone ON/OFF
Screen Saver
OFF/10s/30s/2mins,
Screen goes o after the set time
13
icon Function Option/Description
Parking Mode Please connect the ACC hardwire kit
Format Reminder Reminder to Clear Data
Format
Format Memo Card. All data will be
deleted
Card Speed Card Speed Detection
Default Setting Reset All Settings
Version Software Version
Help Center Scan the QR code to contact us
Note:
• In order to ensure a smooth user experience, it is suggested
that you format your memo card once a month.
• When you change the Click Tone setting to OFF, the staup and
shutdown sounds will also be turned o.
14
App and Wi-Fi Function
• How to connect Wi-Fi?
1. Download the app
You can download the app from:
-- Ocial Website: https://www.
redtigercam.com/pages/app
-- QR Code located on your dash cam
(may be located on the right side)
-- Search “Redtiger” in the Apple App
Store or Google Play Store
2. Turn on the Wi-Fi on the dash cam, the Wi-Fi and SSID and
password will appear on the display.
3. Open Redtiger App> jump to the Wi-Fi connection inteace
according to the steps> nd the Wi-Fi of the dash cam> enter
the password to connect.
(The default password is 12345678)
4. After successfully connecting to Wi-Fi, return to the App to
use it.
• View/Download/Delete/Share Video
1. Click the icon on the main inteace to view video and image
les.
2. Long press the video le to select it, then choose whether
you would like to download or delete it.
3. Return to the App home page and select the Album> Open
and watch/share it.
15
• App Home
1
7
2
8
Native Wi-Fi Name
Rotate the video screen left and right
Turn on/o recorded sound
Map
3
9
4
10
Switch recording screen
Dash cam le
GPS information
Pause/sta recording
5
11
6
12
Video play window
Take pictures
Mirror Flip
Dash cam settings
1
2
6
5
7
8
3
4
9 10 11 12
16
• Over-The-Air Updates
Note: Please update the Redtiger App to the latest version to use
this function.
1. To peorm an over-the-air update, disconnect your phone
from the dash cam’s Wi-Fi network. Connect your phone to
LAN (not the dash cam’s Wi-Fi) for 5 seconds, then
disconnect. Reconnect to the dash cam’s Wi-Fi network.
2. Once Wi-Fi connection is successful, open the Redtiger App
to stausing it. If new software is detected, the App page will
indicate the availability of an update.
3. To peorm the update, click on “Upgrade Now”. The Redtiger
app will prompt you to download the update package.
4. Connect the dash cam to send the update package. Do not
power o the dash cam during the upgrade process. Once
the upgrade is completed, the app will display the upgrade
success message, and the dash cam will automatically resta.
How to Play Video on Computer
We recommend using REDTIGER Player as the correct video player
to watch/play videos. It can also view Google Maps.
You can Download it for free on Mac or Windows from the
following link: https://www.redtigercam.com/pages/gps-player
You can choose dierent playback modes in Settings > Video
Playback Mode. You can set playback speed, language, map,
and various other functions.
17
1 2
4 65
3
1 2
Video play window (Front) Video play window (Rear)
3 4
Map and track display Play control panel
5 6
Speed and driving state indication Play list
Note:
If the video les of front and rear road tracks are recorded
synchronously and loaded into the playing list at the same time,
they can be played separately in split left and right screens.
When you nd the desired video le, hold down the left mouse
button and drag the desired les to the video play window to
play it.
18
Installation
• Inse Memo Card
Inse the memo card into the dash cam, ensuring that it is
oriented correctly so that the gold contacts are facing towards
the screen of the dash cam. Push the memo card until it clicks
into the slot.
64
GB
Please make sure to connect all cameras
and wires before powering on the camera
screen,otherwise the camera will not work
properly.Please follow the instructions
below for the rst-time installation of the
Redtiger dash cam.
Scan the QR code on the right to view the
installation tutorial video.
WARNING
19

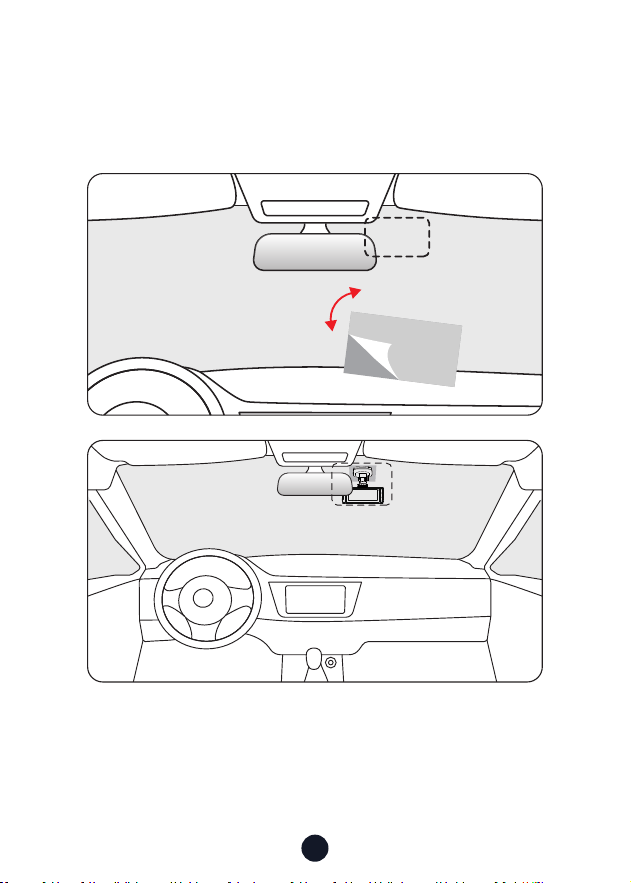

• Front Camera Installation
Peel o the electrostatic sticker on the cellophane and transfer
it to where you want to stick it. Attach the front camera to the
electrostatic sticker and rmly press to secure it.
20
• Mount The Rear Camera
• Wire Layout In The Vehicle
Use a clean cloth to wipe the rear windshield where the rear
camera needs to be installed.
Peel o the electrostatic sticker, transfer it to the place you
want to stick it.
Drain the air bubbles on the electrostatic sticker.
Peel o the adhesive on the rear camera and stick it on the
electrostatic sticker.
The car charger is connected to the cigar socket.
Connect the other end of the car charger to the dash cam.
Use the crowbar to run the power cable along the front
windshield and the roof, and hide the cable down the A-pillar,
so as not to block the driver's sight and cause danger.
1
3
1
2
2
3
4
21
Connect the inteace of the rear cable with the inteace of the
rear cam cable.
Hide the rear cam cable along the gaps between the front
windshield and the ceiling, between the car body and the
ceiling on the side of the passenger seat, and between the rear
seats and the ceiling.
4
5
Pillar A
22
Troubleshooting
・Why is there no GPS signal?
1. Disconnect and clean the cable and po of any dust that
may have accumulated around the dash cam. Check for any
inteerence in your car, like metal lm on the windshield, a
radio antenna, or radar detector.
2. Move your car to an open area. Obsee if the GPS icon on
the screen turns green and displays GPS information.
3. Once the GPS locks on to a signal, a satellite icon will appear
at the bottom left of the screen. Green indicates positioning,
while white indicates no positioning.
・How to turn o the on/o music of dash cam?
Please go to Settings > Click Tone > O.
When the click tone is turned o, the power on and o music
will also be turned o.
・Why does my dash cam prompt “Card Error” or “Please
Format Memo Card” occasionally?
Please follow the steps below to check:
1. Please go to Settings > Format Reminder to check whether
the regular format reminder is enabled.
2. Format the Memo Card.
3. Restore facto settings and resta the dash cam.
4. Update the rmware.
・Device restas repeatedly/no boot?
1. Ensure you’re using the included charger/cables.
2. Remove the memo card, camera cable, and car charger
and reinstall them. Check if an issue was caused by the
accessories.
3. Reset the device using the button at the bottom of the
23
camera.
4. If the issue persists, connect the dash cam to a computer
using a USB cable. If the device powers on, the issue may
be caused by the car charger cable. If it does not power on
while connected, there may be an issue with the dash cam
itself.
5. Please go to the ocial website to update the rmware.
6. If it is not resolved, please contact our dedicated customer
seice for a replacement.
・Why "Mass storage" appears on the screen?
"Mass storage" happens when you use a USB cable with data
transfer mode causing the dash cam to enter transfer mode.
In this mode, data can only be transferred; no other functions
work. For best results, use the original car charger or a USB
cable without data transfer mode.
・Why can't I connect to Wi-Fi?
1. Check the working distance of Wi-Fi, about 15ft.
2. Check the SSID and password of the Wi-Fi, or whether there
are other devices connected to the Wi-Fi.
3. Turn o mobile data, security software, and VPN on your
phone.
4. If the issue persists, please contact customer suppo for
assistance.
・Why is the time setting incorrect?
The dash cam features built-in GPS. It automatically adjusts
time based on your location and time zone, eliminating the
need for manual time changes. And you can adjust the time
through Settings > Time Zone/DST.
Help Center WhatsApp
redtiger_dashcam
For more information:
After Sales: help@redtigercam.com
Business Cooperation: contact@redtigercam.com
Customer Phone Seice: +1 888 966 8028 (US)
Customer Seice Center
If you have any problems with the function or installation of your
dash cam, please feel free to reach out to us.
24
Check us out here.
Product and seice are the foundation of Redtiger.
www.redtigercam.com
Instagram: @redtiger_dashcam
Facebook: Redtiger Dash Cam
