F7N Elite User Manual
1
Content
Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Product Specications . . . . . . . . . . . . . . . . . . . . .
3
Package Contents . . . . . . . . . . . . . . . . . . . . . . .
4
Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Buttons and Functions . . . . . . . . . . . . . . . . . . . .
6
User Inteace Oveiew . . . . . . . . . . . . . . . . . . . .
8
Function Oveiew . . . . . . . . . . . . . . . . . . . . . .
11
APP and Wi-Fi Function . . . . . . . . . . . . . . . . . . .
14
How to Play Using on Computer . . . . . . . . . . . . . .
16
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . .
22
Customer Seice Center . . . . . . . . . . . . . . . . . .
24
2
Notice
• Please read this manual carefully before operation and keep it
for future reference. It will be helpful should you encounter any
operational problem.
• Improper installation will void the manufacturer's warranty.
The installation instructions do not apply to all types of vehicles
and are written as guidelines to assist in installing the system.
• Consult an experienced technician if you are not comfoable
installing the product.
• Please make sure to read and understand local laws and
regulations regarding cameras and their use in a vehicle. Laws
va by state.
• Do not obscure the view of the road ahead or impede the
deployment of any airbags in the event of an accident.
• When not in use, please disconnect the car adapter from both
the 12/24V DC outlet in your vehicle and the device itself.
• Only clean the device with a soft d cloth, for tough di, apply
some neutral detergent diluted in 5 to 6 pas water on a soft
cloth.
• Note that alcohol, thinner, benzene, etc could cause damage to
the paint or coatings.
• Avoid making contact with the lens as this may cause damage.
• The video recordings made by this Digital Video Recorder are
intended for personal use only.
• While driving, do not adjust the controls of your device as this
is a distraction to driving.
3
Product Specications
Item Name F7N Elite Dash Cam Video Format MP4
Screen Size 3.18" IPS Screen Photo Format JPG
Recording
Resolution
Front 2160P @30fps / Front 1440P @60fps
Front 1080P @120fps / Front 2160P+Rear1080P
Front 1440P+Rear1080P
Input DC 5V-2.5A
Lens
Front cam F1.55
Rear camera F2.0
Operating
Temperature
-4°F~158°F
Memo Card 32GB-256GB
Warranty
Period
18 Months
Note:
If you have any problems during use, we will provide 18 months
free replacement and lifetime technical suppo.
*The specic warranty period is subject to local laws.
Extended Warranty Seice:
You can also get an additional 6 months of extended warranty
seice by registering on our website.
URL: https://www.redtigercam.com/pages/warranty-form
4
Package Contents
• F7N Elite 4K Dash Cam
• User Manual • Tool
• Power Supply Cable
with Car Charger
• Electrostatic
Sticker *2
• Rear Cam Cable
• Cable Clips*5 • Adhesive
• 1080P Rear Camera
• GPS Mount
5
Appearance
4
1
11
12
5
8
9
10
13
6
7
Adhesive
GPS Mount
Screen
USB Type-C Po
Power Button
Up Button
Mode Button
Down Button
Reset Button
Rear Cam Slot
Status Light
blue light means power on,
red light ashing means recording
Memo Card
Slot
3
2
Front Camera Lens
6
Buttons and Functions
Power Button
Recording Mode:
• Sho press-to Switch screen
• Long press-to Turn o the Camera
Setup Mode:
• Sho press-to Return to the previous screen
Playback Mode:
• Sho press-to Return to the previous screen
Menu Button
Recording Mode:
• Sho press to Enter main menu
Setup Mode:
• Sho press-to Enter/Conrm specic settings
Playback Mode:
• Sho press-to Select and play the specic le
• Long press-to Delete/Lock/Unlock the specic le
Up Button
Recording Mode:
• Sho press-to Lock the recording le
• Long press-to Turn on or o Wi-Fi
Setup Mode:
• Sho press-to Select the previous function
Playback Mode:
• Sho press-to Select the previous le
• Sho press-to Fast rewind while video being played
M
7
Down Button
Recording Mode:
• Sho press-to Take a snapshot
• Long press-to Stop recording
Setup Mode:
• Sho press-to Select the next function
Playback Mode:
• Sho press-to Select the next le
• Sho press-to Fast forward while video is being
played
8
• Video Mode
You can manually click the icon at the top of the screen to
choose whether to record audio during video recording.
You can manually click the icon at the top of the screen to
choose whether to turn on Wi-Fi.
You can manually click the icon at the top of the screen to
choose whether to turn on the key sound.
You can manually click the icon at the top of the screen to
choose whether to turn on the Voice control
.
9
Voice Control Function
Fast control through simple voice commands
If the icon is white , it means the function can be used
normally.
You have two ways to enable this feature.
Tap on the icon to turn the feature on or o
.
Enter the setting mode-vioce control-on/o.
1
2
Note:
you can see the specic commands in setting-vioce control.
lock the video
take picture
turn on Audio turn o Audio
turn on screen turn o screen
turn on wi turn o wi
turn on recording turn o recording
show front camera show rear camera
10
User Inteace Oveiew
• Recording Mode
Icon Description
GPS status
Recording resolution
Whether to connect the hardwired kit and set up parking
monitoring
Voice control
Wi-Fi status
Camera system sound status
Voice recording statusd
11
Icon Description
Indicates the current video perspective displayed on the screen
Recording status and recording time
Emergency recording is on
Date and time of the camera
Emergency Video Lock
Enter the menu
Photograph function
Power Indicator
Red led blinking: Recording Video
No Red led: Not Recording Video
12
• Playback Mode
Access the Playback Folder from the Main Menu.
Press the Up or Down button to select the folder you want to
play, then press the M button to enter.
Press the M button to watch the recorded video.
Long press the M button for 3 seconds to edit your recorded
videos.
1
3
2
4
Note:
All of the above functions can be done via the touch screen
.
13
Icon Function Option/Description
Resolution
Front 2160P @30fps / Front 1440P
@60fps / Front 1080P @120fps
/ Front 2160P+Rear1080P / Front
1440P+Rear1080P
Audio ON/OFF
Recording duration 1/3/5mins
G-sensor O/Low/Medium/High
Fatigue reminder
A Reminder Will be Made During
1h/2h/3h/4h/OFF
Wi-Fi ON/OFF
Click Tone ON/OFF
Screen Saver
OFF/10s/30s/2mins,
Screen goes o after the set time
Voice control ON/OFF/Voice Command
Mirror Flip
Horizontal Flip Your Rear View
*
Need to connect rear camera
Function Oveiew
Sho press M button to enter settings menu, where you can
adjust various functions and parameters of the entire machine.
14
Icon Function Option/Description
Rear Cam Flip
Veical Flip Your Rear View
*
Need to connect rear camera
Parking Monitor Please connect the ACC hardwire kit
GPS Display GPS signal strength
TimeWatermark ON/OFF
Speed Stamp ON/OFF
GPS Stamp ON/OFF
Speed Units KM/H / MPH
Language Choose Your Preferred Language
Clock Settings Update With GPS
Time Format 12h/24h
Time Zone Choose Your Time Zone
DST Daylight Saving Time ON/OFF
12
24
15
Icon Function Option/Description
Flicker 60Hz/50Hz
Format Reminder Reminder to Clear Data
Format Format SD card. All data will be deleted
Card Speed Card Speed Detection
Default Setting Reset All Settings
APP A QR Code for Redtiger app
Version Software Version
Help Center Scan the QR code to contact us
Note:
• In order to a Clean, Smooth, Comfoable using experience, we
suggest you format your Memo Card once a month.
• When you turn o Click Tone, the staup and shutdown sounds
will also be turned o.
16
APP and Wi-Fi Function
• How to connect Wi-Fi?
1. Download the APP
You can download the APP from:
-- Ocial website: https://www.
redtigercam.com/pages/app
-- QR Code from your dash cam or on
the right side.
-- Apple APP Store or Google Play Store
search "Redtiger".
2. Turn on the Wi-Fi on the dash cam, the Wi-Fi and SSID and
password will appear on the screen.
3. Open Redtiger APP> jump to the Wi-Fi connection inteace
according to the steps> nd the Wi-Fi of the dash cam> enter
the password to connect.
(The default password is 12345678)
4. After successfully connecting to Wi-Fi, return to the APP to
use it.
• View/Download/Delete/Share Video
1. Click the icon on the main inteace to view video and picture
les.
2. Long press the video le and select it, then choose to
download or delete.
3. Return to the APP home page and select the Album> Open
and watch/share it.
17
• App Home
1
7
2
8
Native Wi-Fi Name
Rotate the video screen left and right
Turn on/o recorded sound
Map
3
9
4
10
Switch recording screen
Dash cam le
GPS information
Pause/sta recording
5
11
6
12
Video play window
Take pictures
Mirror Flip
Dash cam settings
1
2
6
5
7
8
3
4
9 10 11 12
18
• OTA(Over the air) Update
Note: Please update the Redtiger APP to the latest version to use
this function.
1. Disconnect the mobile phone and dash cam Wi-Fi.
Connect the phone to lan for 5 seconds, then disconnect.
Finally, connect the dash cam Wi-Fi.
2. Once Wi-Fi connection is successful, open the Redtiger APP
to stausing it. If new software is detected, the APP page will
indicate the availability of an update.
3. To upgrade, cick on "Upgrade Now". The Redtiger APP will
prompt you to download the upgrade package.
Please note that the actual rmware should prevail over the
upgrade package.
4. Connect the dash cam to send the upgrade package.
Do not power o the dash cam during the upgrade process.
Once the upgrade is completed, the APP will display the
upgrade success message, andthe dash cam will automatically
reste.
How to Play Using on Computer
We recommend using REDTIGER Player as the right video Player
to watch/play Videos. It can also view Google Maps.
You can Download it for free on Mac or Windows from the
following link: https://www.redtigercam.com/pages/gps-player
You can choose dierent playback modes in Settings>video
playback mode. And you can set playback speed, language, map
and other functions.
19
1 2
4 65
3
1 2
Video play window (Front) Video play window (Rear)
3 4
Map and track display Play control panel
5 6
Speed and driving state indication Play list
Note:
If the video les of front and rear road tracks are recorded
synchronously and loaded into the playing list at the same time,
they can be played separately in split left and right screens.
When you nd the desired video le, hold down the left mouse
button and drag the desired les to the video play window to
play it.
20
Installation
• Inse Memo Card
Inse the Memo Card into the dash cam, taking care that the
gold contacts are facing towards the screen of the dash cam.
Push the memo card until it clicks into the slot.
64
GB
Please make sure to connect all cameras
and wires before power on the cam
screen, otherwise, the camera cannot work
properly. Please follow the instructions
below for the rst-time installation of the
redtiger dash cam.
Scan the QR code on the right to view the
installation tutorial video.
WARNING
21

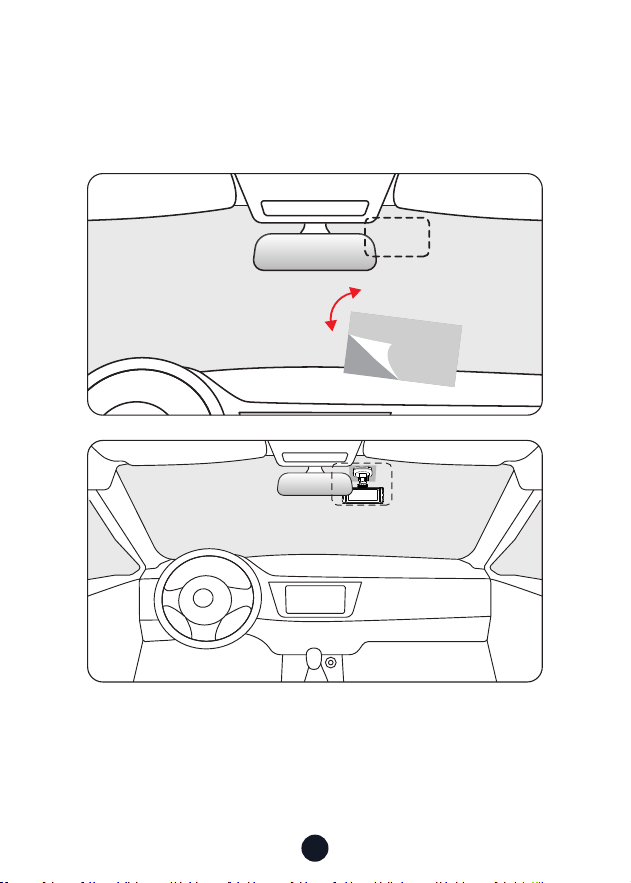

• Front Camera Installation
Peel o the electrostatic sticker on the cellophane and transfer
it to where you want to stick it. Attach the front camera to the
electrostatic sticker and rmly press to secure it.
22
• Mount The Rear Camera
• Wire Layout In The Vehicle
Open the trunk of the vehicle, remove the screws, remove the
plastic panel.
P open the license plate light and pass the rear camera cable
through the hole where the license plate light is located.
The car charger is connected to the cigar socket.
Connect the other end of the car charger to the dash cam.
1
1
2
2
Note:
This rear camera is specially designed to tolerate a variety of
environmental conditions, and is better suited installed on the
outside of the vehicle. The lens parameters are set with the
assumption that the camera will be used outside, therefore it is
recommended that you install the camera on top of the license
plate frame. If this is not possible, we have a license plate frame
bracket to solve this issue.
23
Connect the rear camera cable to the po on the dash cam.
Hide the rear camera cable along the gaps between the
front windshield and the ceiling, between the car body and
the ceiling on the side of the passenger seat, and between
the rear seats and the ceiling.
4
5
Pillar A
Use the crowbar to run the power cable along the front
windshield and the roof, and hide the cable down the A-pillar,
so as not to block the driver's sight and cause danger.
3
24
Trouble Shooting
・Why is there no GPS signal?
1. Clean and reconnect the probe on the main unit and bracket.
Check for any inteerence in your car, like metal lm on the
windshield, radio antenna, or radar detector.
2. Move your car to an open area. Obsee if the GPS icon on
the screen turns green and displays GPS info.
3. Once GPS locks onto a signal, a satellite icon will appear at
the bottom left of the screen. Green indicates positioning,
while white indicates no positioning.
・How to turn o the on/o music of dash cam?
Please go to Settings > Click Tone > O.
When the click tone is turned o, the power on and o music
will also be turned o.
・Why does my dash cam prompt card error or please format
Memo Card eve once in a while?
Please follow the steps below to check:
1. Please go to Settings > Format Reminder to check whether
the regular format reminder is enabled.
2. Format the Memo Card.
3. Restore facto settings and resta the dash cam.
4. Update the rmware.
・Dash cam repeated resta/no boot?
1. Make sure you are using the original car charger.
2. Unplug the Memo Card, rear camera cable, and car charger
in turn, and reinstall them. Check whether the sho circuit is
caused by accessories.
3. Reset the machine through the small hole at the bottom of
the driving recorder.
25
4. If none of the above can solve the problem, please t to
power on the USB cable to conrm whether the host can be
used normally.
5. Please go to the ocial website to update the rmware.
6. If it is not resolved, please contact your dedicated customer
seice for a replacement.
・Why "Mass storage" appears on the screen?
"Mass storage" happens when you use a USB cable with data
transfer mode causing the dash cam to enter transfer mode.
In this mode, data can only be transferred; no other functions
work. For best results, use the original car charger or a USB
cable without data transfer mode.
・Why can't I connect to Wi-Fi?
1. Check the working distance of Wi-Fi, about 15ft.
2. Check the SSID and password of the Wi-Fi, or whether there
are other devices connected to the Wi-Fi.
3. Turn o mobile data, security software, and VPN on your
phone.
4. If the issue persists, please contact customer suppo for
assistance.
・Why is the time setting incorrect?
The dash cam features built-in GPS. It automatically adjusts
time based on your location and time zone, eliminating the
need for manual time changes. And you can adjust the time
through Settings > Time Zone/DST.
Help Center WhatsApp
Redtiger
For more information:
After sales: help@redtigercam.com
Business Cooperation: contact@redtigercam.com
Customer Phone Seice: +1 888 966 8028 (US)
Customer Seice Center
If you have any problems with the function or installation, please
feel free to reach us.
26
Check us out here.
Product and seice are the foundation of Redtiger.
www.redtigercam.com
Instagram: @redtiger_dashcam
Facebook: Redtiger Dash Cam
