Full HD
Portable Monitor
K5-3
User Guide
Note: Any technical problem pls contact support team
Service
12-MONTH WARRANTY
plus online responsive customer service
provides
Please Contact:
Not Satisfied?
Monitor Damaged?
Can’t Connect?
We apologize for any inconveniences,
if the monitor you received damaged or can’t connect
the monitor successfully with your devices,
Package List .........................................................1
Introduction .........................................................2
Smart Cover .........................................................5
Connect with Devices ............................................7
Mode Settings ....................................................13
Supported Devices and Models ...........................19
Specifications .....................................................21
Notices ...............................................................22
Troubleshooting .................................................23
Content
The terms HDMI, HDMI High‐Definition Multimedia Interface, HDMI trade dress
and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
1
14
"
Portable Monitor Magnetic Smart Cover
USB-C to
USB-C Cable
(Power Supply,
Video Transmission)
Mini HDMI to
HDMI Cable
(Video Transmission)
USB-C to USB-A
Cable (Power Supply)
5V/2.4 A Power
Adapter

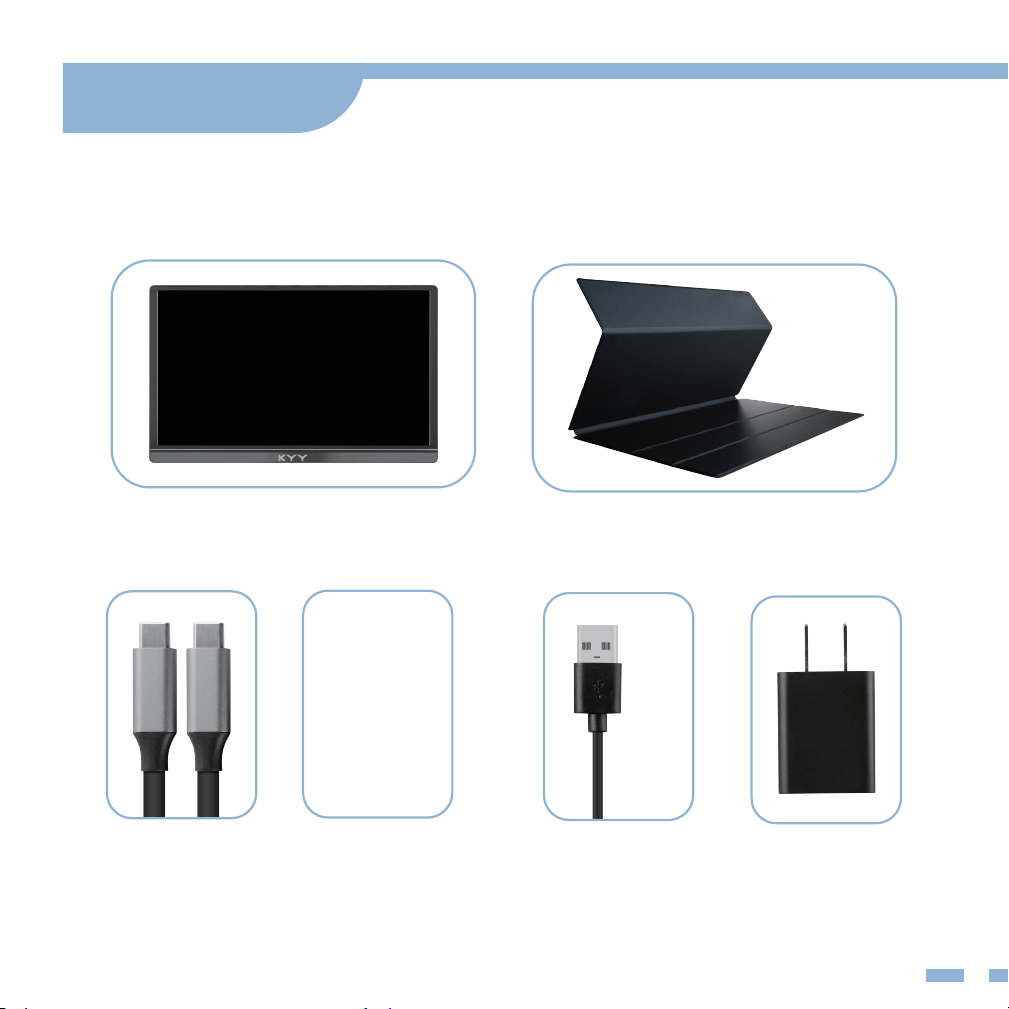

Package List
32
1
2
3
4

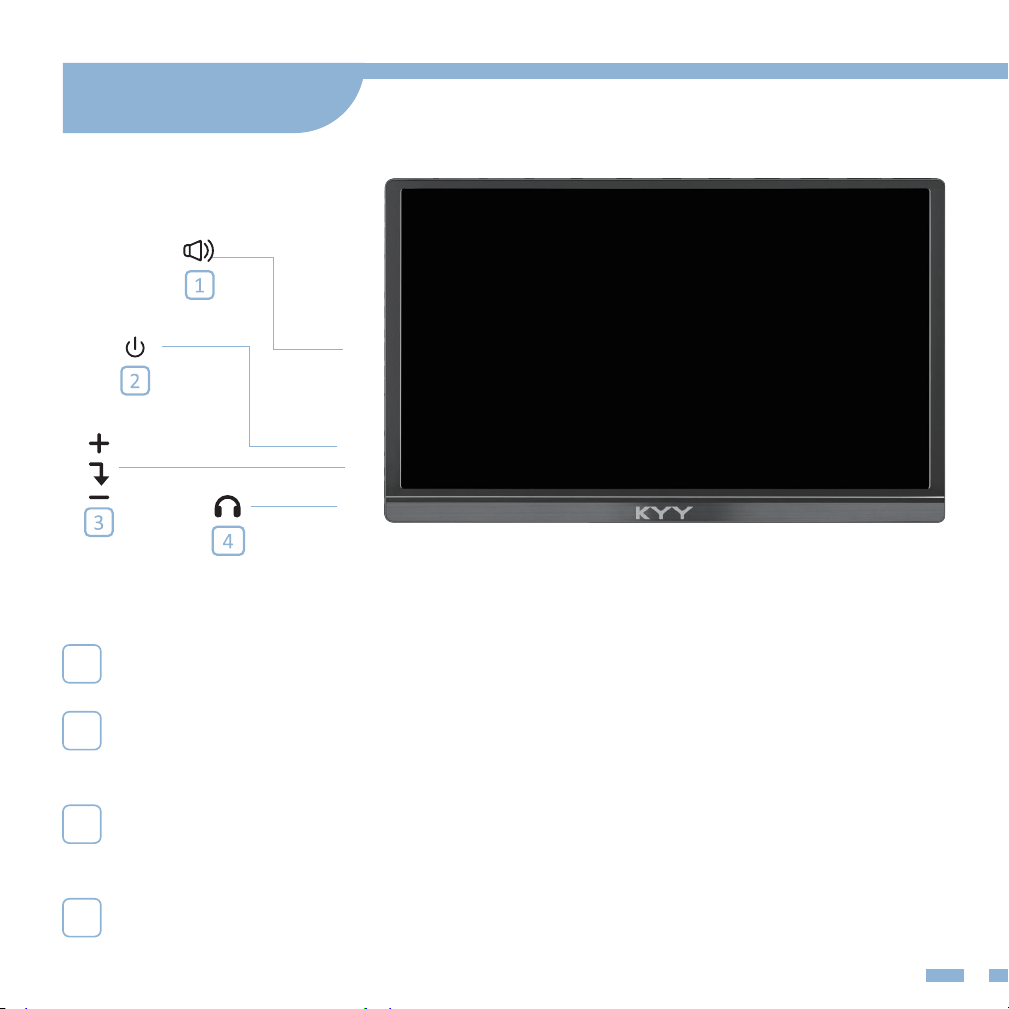

Dual Speakers
Listen to music, movies, games, and multimedia files.
Power Button/Back Button
Long press for 3s to turn the screen on/off. Short press to back to the previous page.
Trackwheel
• Press the trackwheel to turn to the OSD menu. Scroll the trackwheel to control
the cursor on the menu, and press to confirm;
• In the main interface, scroll up to open the adjust shortcut menu.
3.5mm Audio Outport
Headsets, speakers or digital audio equipment extension interface.
Introduction
3
6

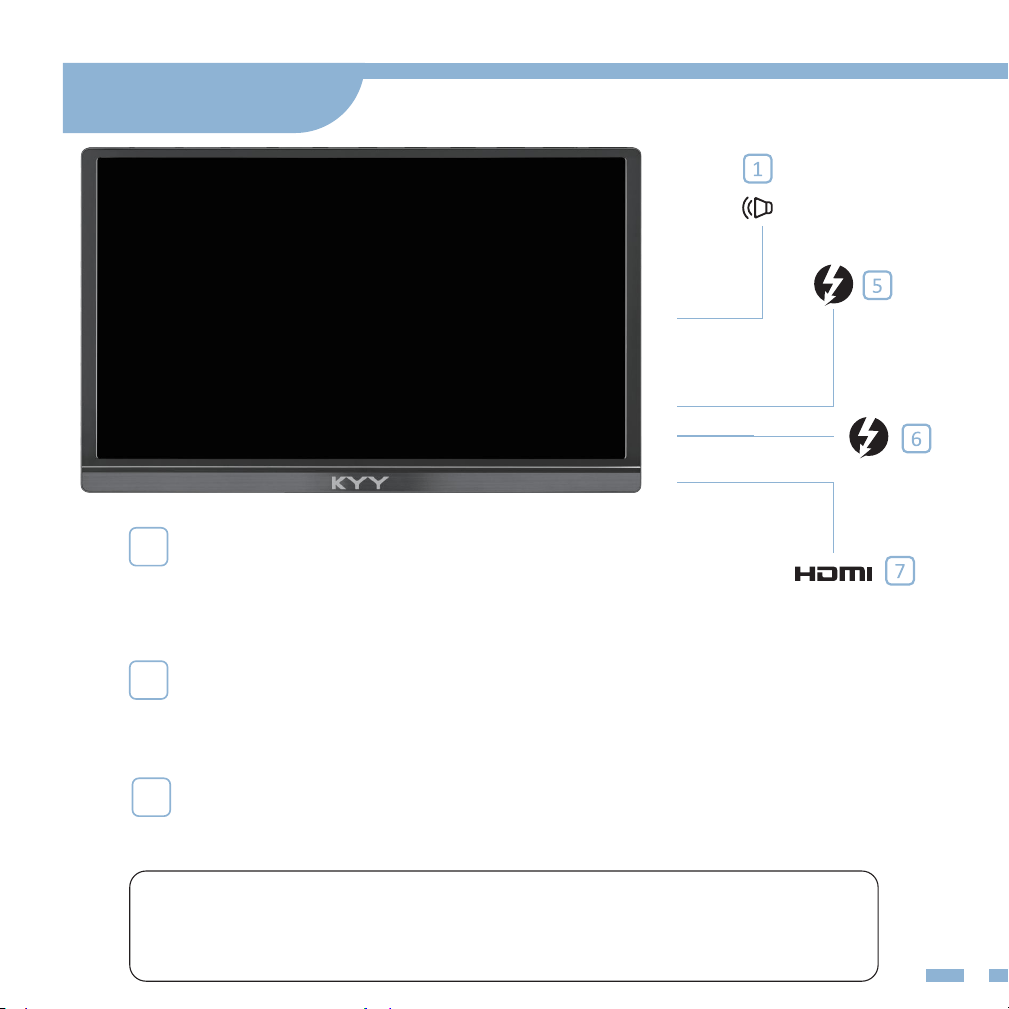

Type-C Full Function Port
• USB-C 3.1
• Supply power;
• Transmit the audio, video signal.
5
Type-C Full Function Port
• USB-C 3.1
• Supply power;
• Transmit the audio, video signal.
7
Mini HDMI Port
• HDMI 2.0;
• Audio and video signal transmission.
Introduction
Note: The Mini-HDMI port only support audio and video signal
transmission, does not support power supply, pls plug in the
included power supply cable when using HDMI connection.
4

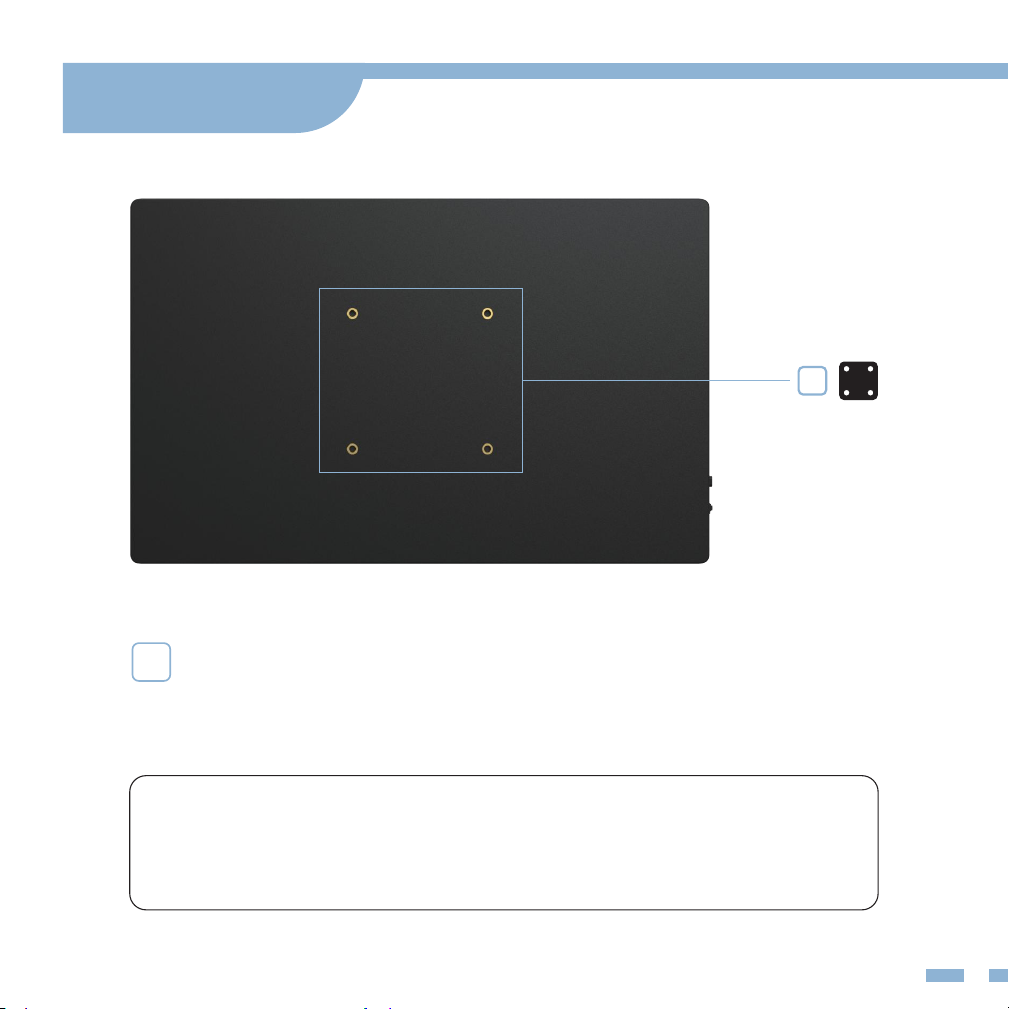

With the 4 VESA Holes, you can easily mount the monitor to a stand
for landscape or portrait mode vewing.
* VESA Stand is not included.
Introduction
8
4* VESA Holes
• VESA size: 75 x 75 mm
• Screw Size: M4x6mm
8
5
Smart Cover
Place the screen on
the backside of the
smart cover.
Cover the screen
side of the smart
cover on the screen
for protection.
Back Side Screen Side
6

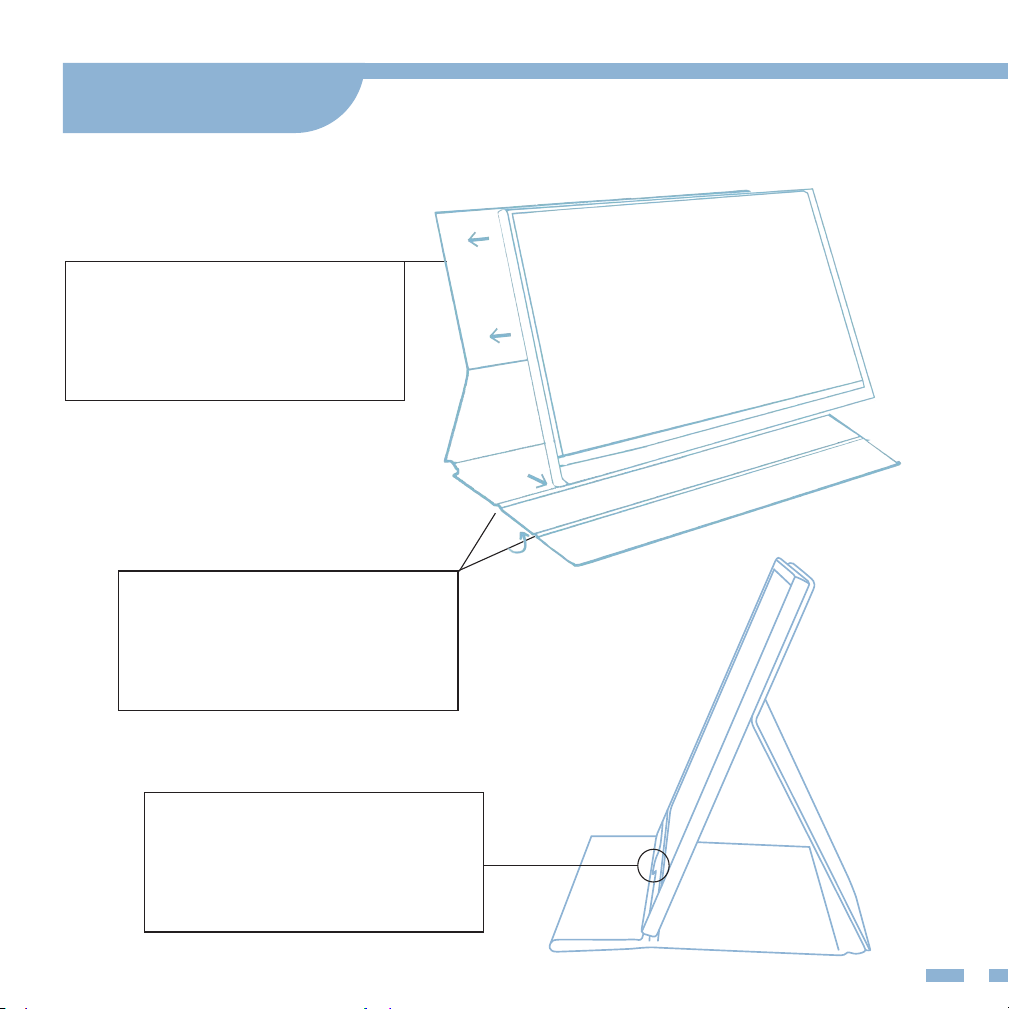

Smart Stand
Use the smart cover to make the monitor stands
at a proper viewing angle.
Fold the screen side of the
smart cover back to support
the screen's bottom.
There are two grooves in the
base to give you two choices
of comfortable viewing
The backside of the smart
cover is Magnetic, it can
stabilize and support the
monitor as a stand.
7
Connect with Devices
2
Connect without External Power Supply
Only works with full-function USB-C port.
Please plug in the [usb-c to usb-c cable] to the USB-C
full-function port and make sure the USB-C port
of your device is full-function.
Note: The monitor does not have an internal battery.
Before using, please make sure the connected devices
or power adapter can supply at least 5V/2.4A power.
1
Connect with External Power Supply
Connect your monitor to the power supply
with the [usb-c to usb-a cable] and the Adapter provided,
plug in the [usb-c to usb-c cable] OR [mini HDMI to
HDMI cable] for video output.
USB-C Devices
8
Note: Please check if the USB-C port of your laptop
is compatible with audio and video signal transmission.
If not, it would need a corresponding adapter to connect.
External Power Supply Needed Conditions
1. When the brightness or volume of the monitor is adjusted to more
than 80%.
2. When the connected device is in a low battery state.
Connect with Devices
USB-C to USB-C
iPhone 15 Series
Android Devices
USB-C to USB-C
USB-C
Phone
9
Note: Only works with phones with full-function USB-c port.
(for iPhone needs a Lightning to HDMI Adapter.)
Connect with Devices
1
If there is no external power supply, the phone would
supply power to the monitor. Then the monitor would
turn to energy-saving mode (30% brightness).
2
If plugin a 5V/2.4A (or above) external power,
the monitor can reversely charge the phone.
10
Connect with Devices
IOS Devices
1
Connecting your iOS device with KYY requires a Lightning to HDMI
adapter (not included).
2
Before connecting, pls make sure your Lightning to
HDMI adapter works.
3
The lightning to HDMI adapter and the monitor both need a
power supply.
Mini HDMI to
HDMI Cable
Lightning to HDMI Adapter
(not included)
USB-C to USB-A Cable
(external
power supply)
OR
USB-C to USB-A
Computer
HD to Mini HD
USB-A to USB-C
Computer
HD to Mini HD
11
Note: HDMI port does not supply power. The monitor needs an external
power supply (5V/2.4A or above) or USB-A to USB-C cable to supply.
Connect with Devices
HDMI PC/Laptop
（external power supply)
OR
HD to Mini HD
USB-A to USB-C
12
Note: Please connect the external power supply first then
the mini HDMI to HDMI cable to ensure smooth transmission.
Connect with Devices
HDMI Other Devices
USB-C to USB-A
HD to Mini HD
（external power supply)
13

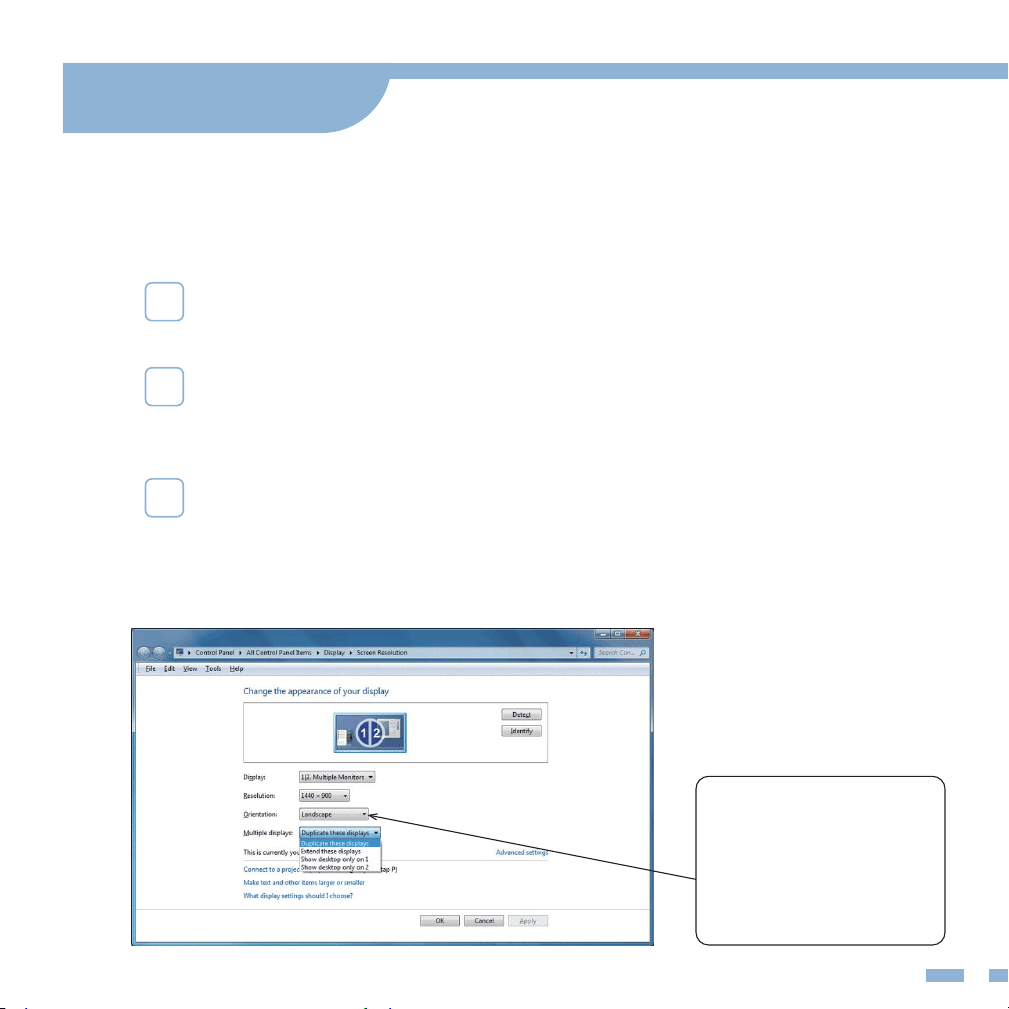

Right-click the desktop and select either Screen
Resolution (Windows 7/8) or Display Settings (Windows 10)
1
Screen Rotate Setting: Click the Orientation drop-down list, and
then select Landscape or Portrait.
2
Duplicate & Extend Mode Setting: Click the Multiple displays
drop-down list, and then select Extend/Duplicate these displays.
Note: If you cannot see the additional monitor listed, click Detect.
If does not work, try restarting your computer and do steps again.
3
Note: If you cannot
find the Orientation
option, please check
if your laptop/PC has
this function.
Mode Settings
Multiple-Display Setting for Windows
14

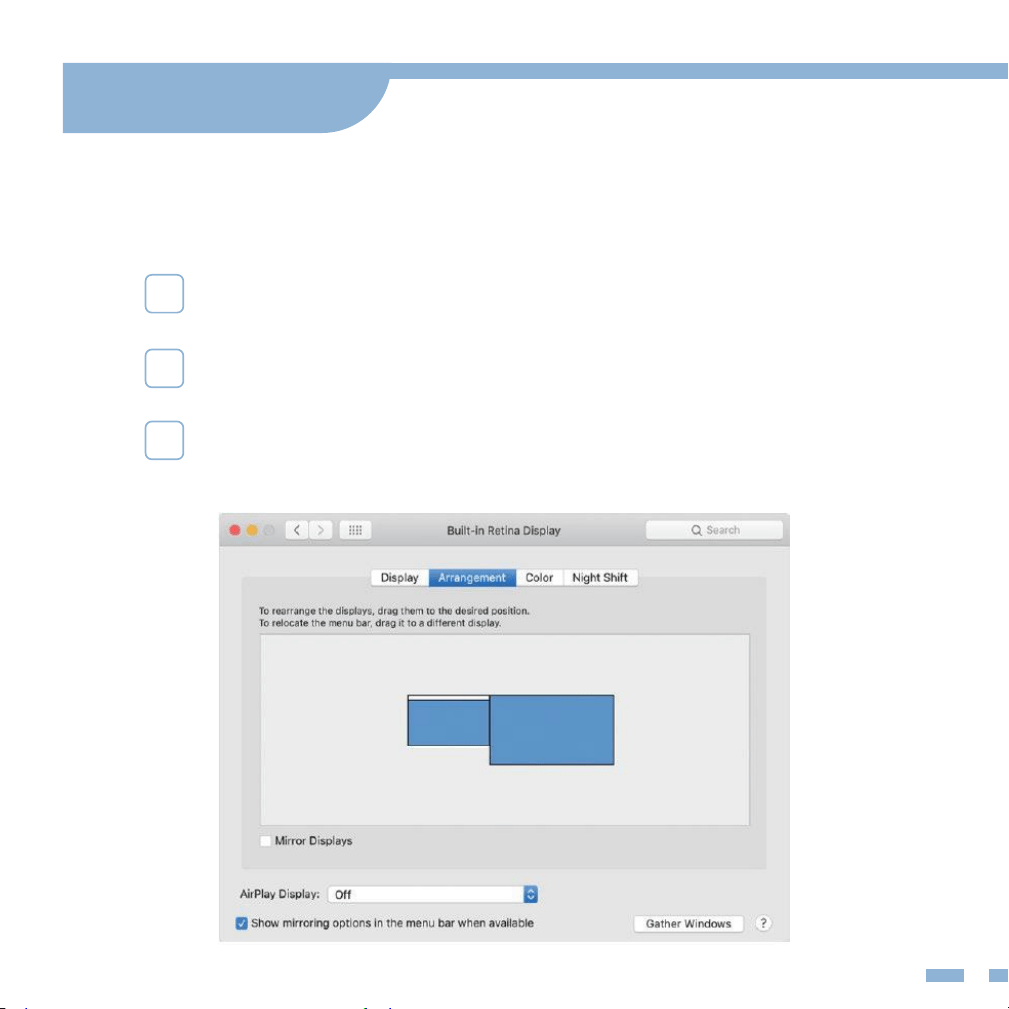

Choose Apple menu > System Preferences, then click Displays.
1
Multiple-Display Setting for Mac
Click the Arrangement tab.
To change the position of a display, drag it to the desired
position. A red border appears around the display as
it's movable.
2
3
Mode Settings
15
Press the trackwheel to turn on the OSD menu.
1
Scroll the trackwheel to control the cursor on the menu.
2
Press the trackwheel to confirm.
3
Short press the back button to back to the upper page.
4
Mode Settings
OSD (On Screen Display) Menu
16
BRIGHTNESS
BRIGHTNESS
Adjust the brightness of display.
CONTRAST
Adjust the difference in color and light
between parts of an image.
BLACK
LEVEL
Adjust the level of brightness at the
darkest part of a visual image.
SHARPNESS
Adjust the sharpness of graphics.
ECO
Adjust the applicable scene: such as TEXT
mode, increase the contrast and reduce
the brightness to protect the eyes.
DCR
Dynamic Contrast Ratio. Adjust the
brightness according to the display to
better display the color contrast.
ASPECT
Adjust the proportional relationship
between the width and height of the
display. Such as 4:3.
Mode Settings
OSD (On Screen Display) Menu
17
COLOR
TEMP.
COLOR TEMP.
Adjust the screen
color temperature.
RED
Adjust the brightness
of the RGB colors.
GREEN
BLUE
OSD SETTING
LANGUAGE
Modify the OSD Menu
interface language,
default is English.
OSD TIMER
OSD TIMER
Adjust the time to
OSD Menu display
remains on the screen.
TRANSPARENCY
Adjust the
transparency of the
OSD menu.
Mode Settings
OSD (On Screen Display) Menu
18
RESET
RESET
Reset all the items to factory defaults.
MUTE
Mute the display.
VOLUME
Adjust the display volume.
MISC
SIGNAL SOURCE
Switch signal sources such as HDMI or
Type-C.
LOW BLUE LIGHT
Filters out harmful blue light, which can
cause eye fatigue.
HDR MODE
Enables the monitor to display a wider
range of colors and contrast.
Mode Settings
OSD (On Screen Display) Menu
19
Supported Devices
and Models
Phone
Brand
Model
SAMSUNG
DEX,S8/S9/S9+/S10/S10e/S10+/S20/S21/S22；Note 8/Note 9/
Note 10/Note 20
Apple iPhone 15; iPhone 15 Pro; iPhone 15 Pro Max
HUAWEI
Mate 10/Mate 10 Pro/Mate 20/Mate 20 Pro/Mate 20X/Mate 20 RS/
Mate30/Mate30 Pro/Mate 40/Mate 40 Pro/Mate RS; P20/P20 Pro/
P30/P40/P40 Pro
HONOR Note 10,Magic 2,V20(Only for V20),V30
OPPO R17 Pro,one plus 7pro,OPPO Reno,OPPO Reno5 Pro, Find
Razer Razer Phone
Xiaomi Xiaomi 10
HTC U Ultra
HTC
SONY XPERIA(J9110),Xperia 10 III （A102SO）
SONY G5, G6, G7
ASUS ROG gaming phone,ROGgaming phone2
More Brands Updating
Note: If you are not sure whether the device is compatible or you meet
some problem when connecting, please contact the KYY support team
with your device detailed model ID for consultation: [email protected]om
20
Laptop
Brand Model
Apple
MacBook 12 in, MacBook Pro 2016/2017/2018
MacBook Air 2018, iPad Pro 2018
Google Chromebook Pixels, Pixelbook Pen
Lenovo
Savior Y7000, Savior Y7000P, Savior Y9000K, YOGA 6 Pro,
ThinkPad X1 Carbon, Yoga 5 Pro, Miix 720
DELL
G3 Series, G5 Series, G7 Series, Inspiron 5000,
Inspiron 7000, XPS13, XPS15
HP EliteBook 1050G1, EliteBook Folio G1, Omen 4 Pro, Pavilion X2
Microsoft Surface Book 2
ASUS Lingyao 3, U306, U321 Series, U4100, ROG Series
HUAWEI MateBook D,
Razer Blade Stealth
More Brands Updating
Supported Devices
and Models
14 inch
323.8mm
204.4mm
21
Product: KYY K5-3 Portable Monitor
Visible Area: 310*175mm
Panel Type: IPS LCD
Contrast Ratio: 1500: 1
Resolution: 1920*1080
Color Temperature: 6500K
Brightness: 350cd/m²
Aspect Ratio: 16:9
Display Color: 16.7M
Speaker: Built-in Speaker (1W*2)
Visual Angle: H 89°/89°Min V 89°/89°Min
Product Dimensions: 323.8*204.4*8.2mm
Output Interface: 3.5mm Headphone Interface
Input Interface: Mini HD (Video signal), Dual Type-C Full
Function (Video data, Power supply).
System Requirement: Devices with HD output interface.
Computers or mobile phones with Type-C Fully Functional port.
Specifications
22
• Before setting up the monitor, carefully read all the
instructions with the package.
• To prevent fire or shock hazards never expose the monitor to
rain or moisture.
• Never attempt to open the monitor cabinet.
• Before using, make sure all the cables are correctly connected
and power cable is not damaged.
• Avoid dust, humidity, and temperature extremes. Do not place
in any area where it may be wet.
• Place the monitor on a stable surface.
• Never push objects or spill liquid of any kind into the slots on
the monitor cabinet.
Notices
23
Troubleshooting
Problem Possible Solution
Power LED is not ON.
• Press the power button to check if the monitor is
in the ON mode.
• Check if the USB cable is properly connected
to the monitor and the power outlet.
Can't connect
• Check if the monitor and the computer are in the
"ON" mode.
• Make sure the cable is properly connected between
the KYY monitor and the computer.
• Please make sure that the monitor has been charged
by the connected device or by the included 5V/2.4A
power adapter.
• Inspect the signal cable and make sure none of the
pins are bent.
• Connect the monitor with other available devices to
check.
• (Note: The monitor doesn't have an internal battery,
and the HDMI port does not supply power.
• If still can’t connect, pls contact
[[email protected]] to consult.
Screen image is too
light or dark.
• Adjust the Brightness settings via OSD.
24
Problem Possible Solution
The screen flickers in
various colors when
starting up.
• Long press the power button for 3s to turn off the
monitor and restart it again.
• Please make sure that HDR mode is turned off and
Scene(ECO) Mode is not adjusted
(Stay"Standard Mode").
Screen image bounces
or a wave pattern is
present in the image.
• Make sure the USB cable is properly connected
between the USB monitor and the computer.
• Move electrical devices that may cause
electrical interference.
Screen image has
color defects.
• Inspect the USB cable and make sure that none
of the pins are bent.
Brightness/Volume
shows grey and can't
be adjusted.
12-MONTH WARRANTY
plus online responsive customer service
provides
lf you encounter any technical problem,
Please Contact:
