Accessories Content
fan cable
Motherboard
Standoffs
2.5" Device
brackets
Mounting PSU
screws
Mounting
PSU bracket
screws
Mounting 2.5"
screws. Riser card,
mounting bracket
screws
Motherboard/2.5"
Device /3.5" Device
mounting screws
Slide rail screws
GM400
1U Redundant
PSU bracket
Default System Configuration Diagram
1. Top cover
2. Bottom chassis
3. Rack handles (Left)
4. Rack handles (Right)
5. Front IO panel
6. 3.5" HDD bracket cover
7. Fan bracket / 4cm fan x3
8. 3.5” HDD cage
9. Flex PSU bracket
10. Rear IO shield
11. Expansion slot bracket
1
2
5
6
7
3
4
8
9
10
11
Front Panel Switch / LED / USB Indicator Diagram
1 2 3 4 5 6 7 8 9
1. USB 3 TYPE-A x2 ports
2. Power switch
3. Reset switch
4. Power on LED
5. HDD Activity LED
6. LAN1 LED
7. LAN2 LED
8. System Alarm LED
9. UID LED
Component Limitations
27mm
Cooler
CPU Cooler Height < 27mm
ADD-ON card
270mm
Remove 2.5"cage =
355mm
PSU
180mm
Remove 3.5" cage = 300mm
www.silverstonetek.com
User manual
RM100
1U Rackmount Server Chassis with ATX Motherboard
Support and Reversible I/O Module Design

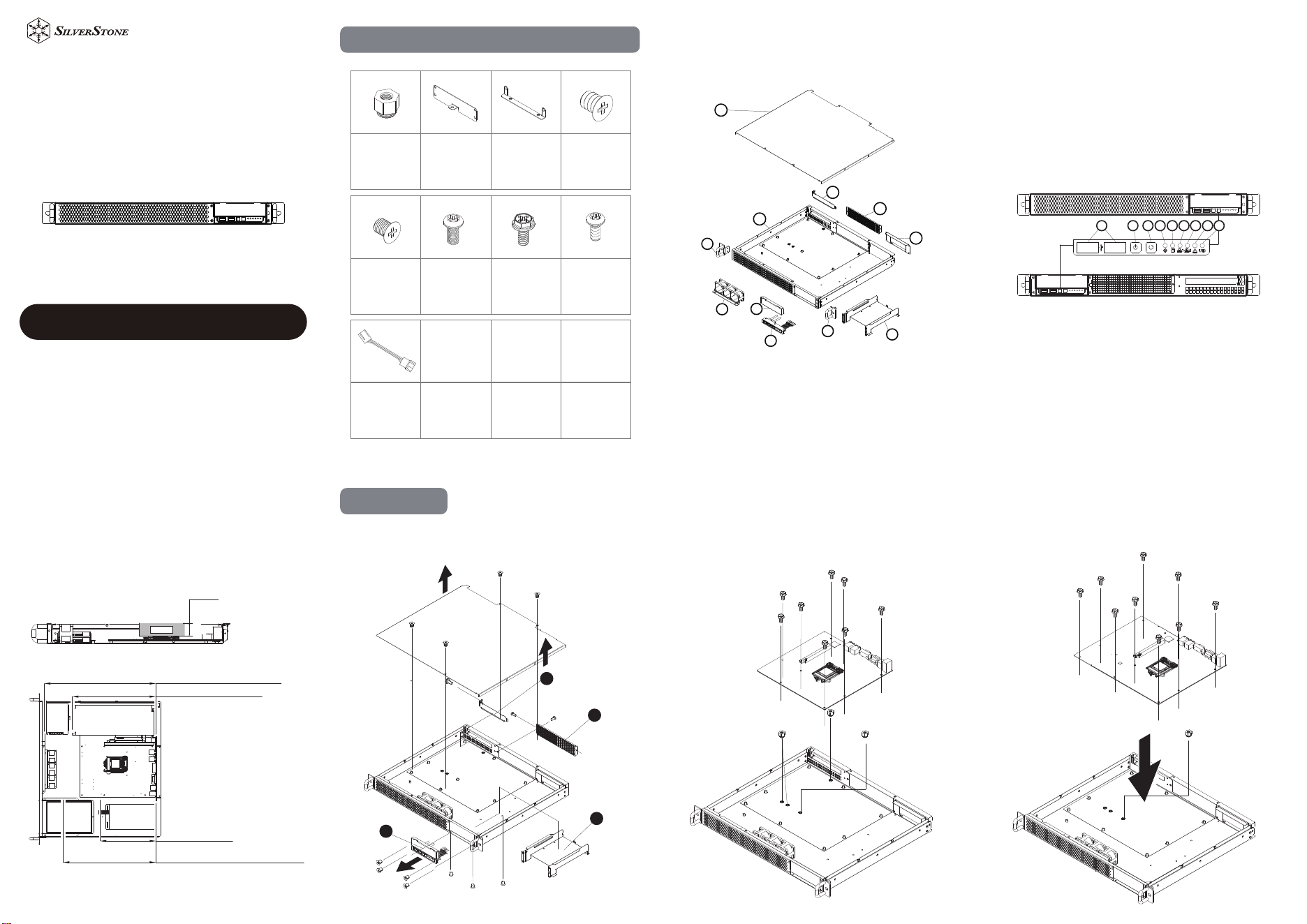

2-1 Open the top cover and remove the 3.5" HDD cage,
rear I/O bracket, and expansion slot bracket.
Installation
1
2
3
4
2-2 Install the M-ATX standoffs,
then install the M-ATX motherboard.
*If you are using an ATX motherboard, proceed directly to steps 2–3.
2-3 Install the motherboard.
5-2 Remove the 3.5" HDD bracket cover
2-4 Cut out the appropriate opening based on the rear
I/O layout, then install the rear I/O bracket.
2-5 Install the 2.5" HDD. 2-6 Install the 3.5" HDD and FLEX PSU:
*For reverse (back-to-front) installation, proceed to Step 3-1
*For standard 1U redundant PSU installation, proceed to Step 4-1
1
2
3
2-7 Reinstall the top cover.

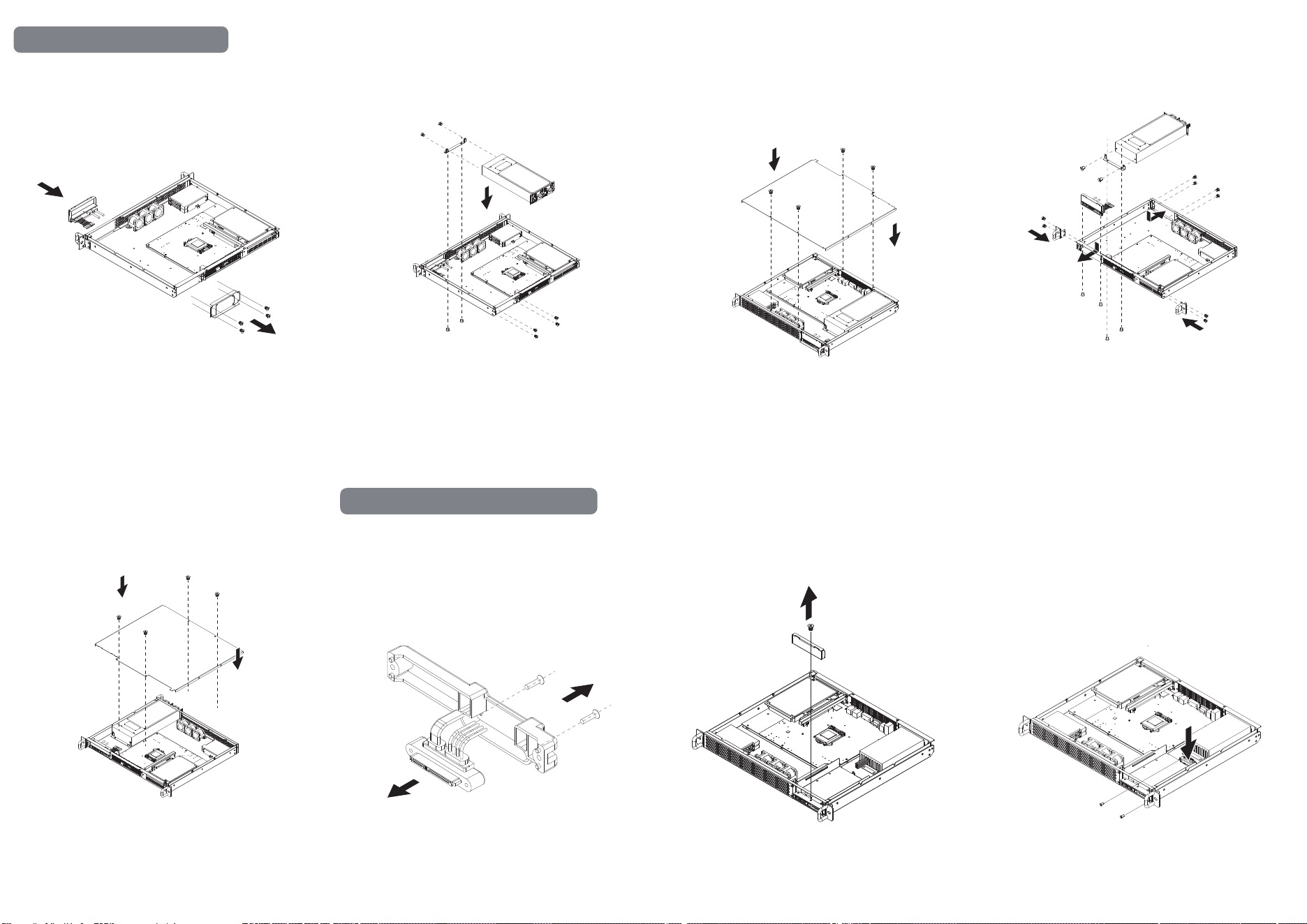

3-1 Reverse Installation Preparation:
*If installing a 1U redundant PSU, proceed to Step 4-4.
Front and Rear Panel Interchange

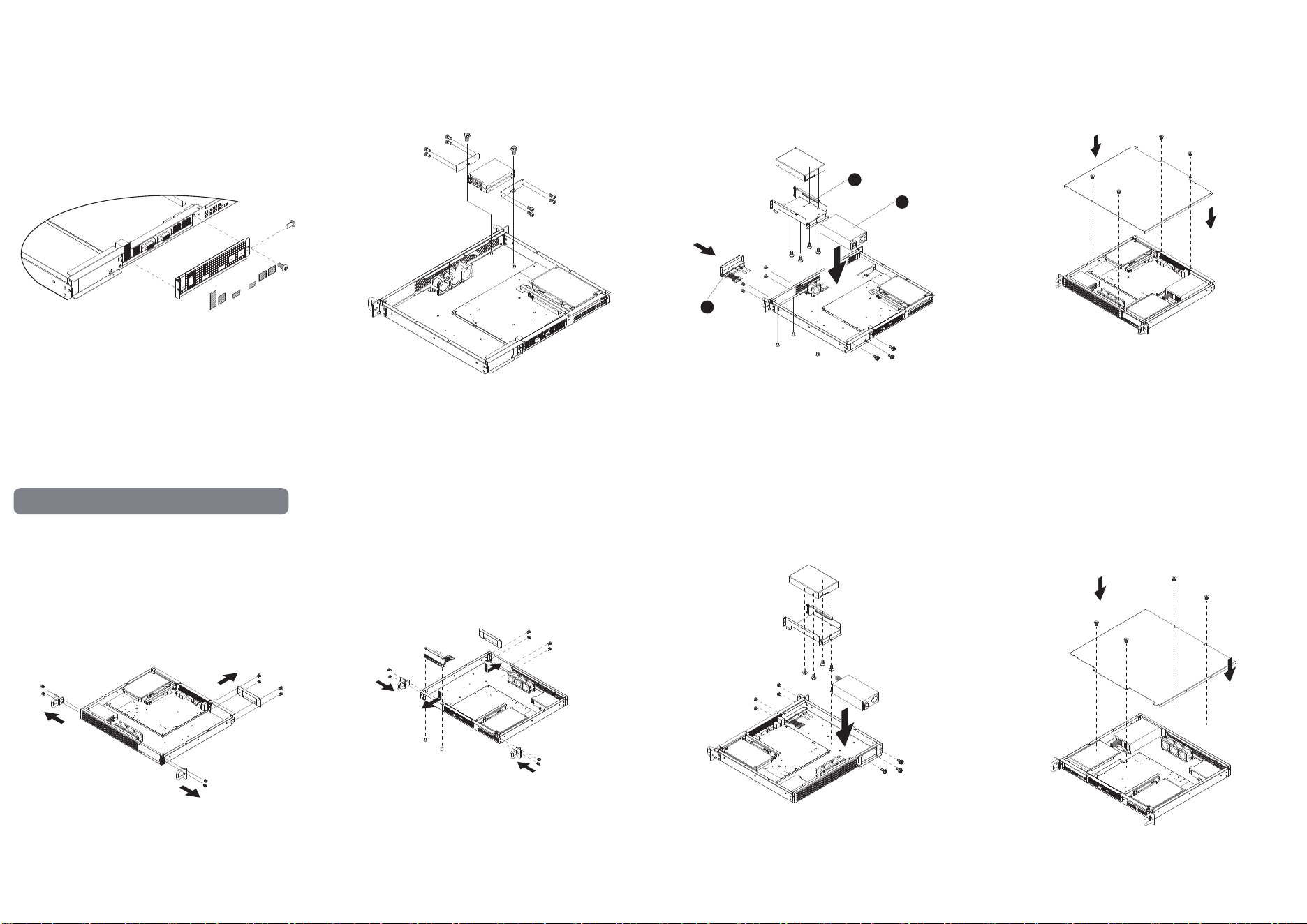

3-2 Install the front control panel, rack ears,
and FLEX PSU bracket.
3-3 Install the 3.5" HDD and FLEX PSU. 3-4 Reinstall the top cover.
4-1 Remove the FLEX PSU bracket.
Power Supply Installation
4-2 Install the 1U redundant PSU. 4-3 Reinstall the top cover. 4-4 For reverse installation, reinstall the front I/O panel,
rack ears, and 1U redundant PSU.
4-5 Reinstall the top cover. 5-1 Remove the CP05 plastic cover
Optional Accessory Installation
With the optional CP05 and G11908000-RT, the 3.5" HDD can be
upgraded to hot-swap functionality.
5-2 Remove the 3.5" HDD bracket cover5-2 Remove the 3.5" HDD bracket cover 5-3 Secure the SATA molding cable onto
the 3.5" HDD cage
5-4 Remove the plastic frame from the drive tray and
install the 3.5" HDD
5-5 Release the handle, insert the tray into the chassis
fully, and close the handle

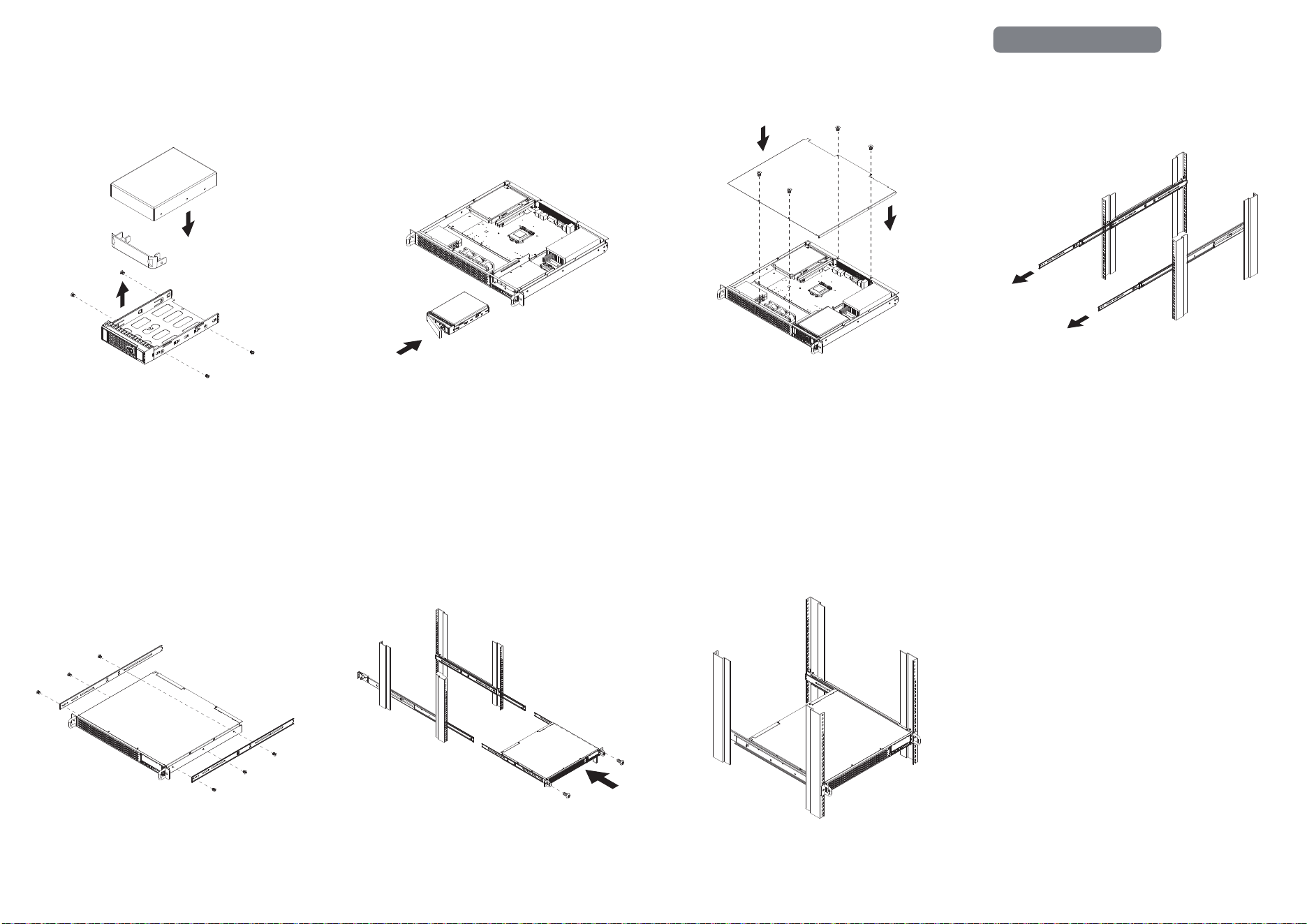

5-6 Reinstall the top cover 6-1 Install the rails onto the rack and pull out the
inner rails
Rail Kit Installation
6-2 Attach the inner rails to the corresponding mounting
holes on the chassis
6-3 Slide the chassis back into the rack 6-4 Completed installation
