User Guide
Smart Wi-Fi Light Switch
Tapo S500
©2023 TP-Link 1910013327 REV1.0.0
Contents
About This Guide ··························································································1
Introduction ·····································································································2
Appearance ·····································································································3
Wire Your Switch····························································································4
Set Up Your Switch ······················································································7
Main Device Controls ·················································································8
Schedule ········································································································10
Away Mode ····································································································12
Timer ················································································································· 14
Check Runtime····························································································16
Device Sharing ····························································································17
Smart Actions ······························································································18
Device Settings ·························································································23
How to Reset Your Switch ·····································································24
Authentication ·····························································································26
1
About This Guide
This guide provides a brief introduction to the Smart Wi-Fi Light Switch and the Tapo app, as well as regulatory information.
Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and
descriptions in this guide are only examples and may not reect your actual Tapo experience.
Conventions
In this guide, the following convention is used:
Convention Description
Blue
Key information appears in blue, including management page text such as menus, items, buttons and so on.
Underline
Hyperlinks are in blue and underlined. You can click to redirect to a website.
Note:
Ignoring this type of note might result in a malfunction or damage to the device.
More Info
• Specications can be found on the product page at https://www.tapo.com.
• Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
2
Introduction
Make your traditional lighting smart with the Tapo Smart Wi-Fi Light Switch. Turn your lights on and o with your voice, or control them from your phone.
Smarter with Sensor
• Voice Control – Manage your smart switch with simple voice commands via Amazon Alexa, Google Assistant, or Samsung Bixby.
• Remote Control – Instantly turn connected devices on/o from wherever you are through the Tapo app.
• Schedule – Preset a schedule to automatically manage devices.
• Auto-O – Automatically turns o a connected device after the device is left on for a set time.
• Away Mode – Randomly turns devices on and o at dierent times to give the appearance that someone is home.
• Easy Installation – Interchangeable Load and Line terminals guarantee hassle-free installation
• Smarter with Sensors – Create Smart Actions triggered by Tapo smart sensors for greater automation.
3
Appearance
On/O
Button
Restart
LED
Reset
Button Explanations
Restart
Reset
Press and hold for about 5s to reset
Wi-Fi while keeping other settings.
Press to restart your switch.
Press and hold for about 10s to restore
your switch to factory default settings.
LED Status
Starting up; disconnected
from cloud.
Solid amber
Blinking amber
Blinking green
White
Solid red
Stay green for 30s
Blinking amber & green
Connecting to Wi-Fi.
Ready for setup.
Device resetting.
Light fixture is off.
Disconnected from Wi-Fi.
Connected to Wi-Fi.
Blinking green slowly
Firmware upgrading.
4
Wire Your Switch
Follow the steps below to wire your Smart Wi-Fi Light Switch. If you are not familiar with basic electronical wiring, please consult an electrician.
Before You Start
1. Prepare Baisc knowledge of Wiring
• Ground: Usually green or copper.
• Neutral: Usually white, not connected to the dumb switch.
• Line: Usually black and coming from the circuit breaker.
• Load: Usually black. One end is connected to the light.
Note: If you are unsure, consult a qualied electrician.
2. Prepare Your Tools
Prepare a philips and slotted screwdriver, pliers, wire strippers and a voltage detector.
3. Check Wi-Fi Strength
Make sure your switch is in a area with strong Wi-Fi signal.
5
Step 1. Turn O Power and Remove the Wallplate
Turn o the circuit breaker. Then remove the old wallplate of the wall
switch and label the wires.
Step 3. Label and Connect the Wires
Label the wires. Use the wire nuts to connect your smart switch to the
wall box as shown below.
Wire Your Switch
Step 2. Expose Your Switch Wiring
Remove the screws securing your old switch to the wall box. Gently
pull the switch out and disconnect wires from the old switch.
Note: No need to distinguish between Line and Load wires.
MISE EN GARDE
Risque d'électrocution - Haute tension. Débrancher l'alimentation électrique avant d'utiliser.
CAUTION
Risk of Electric Shocks - High Voltage - Disconnect power supply before servicing.
6
Step 4. Install Smart Light Switch
Gently fold all of the wires back into the wall box. Line up the switch
with the mounting holes. Secure it with screws.

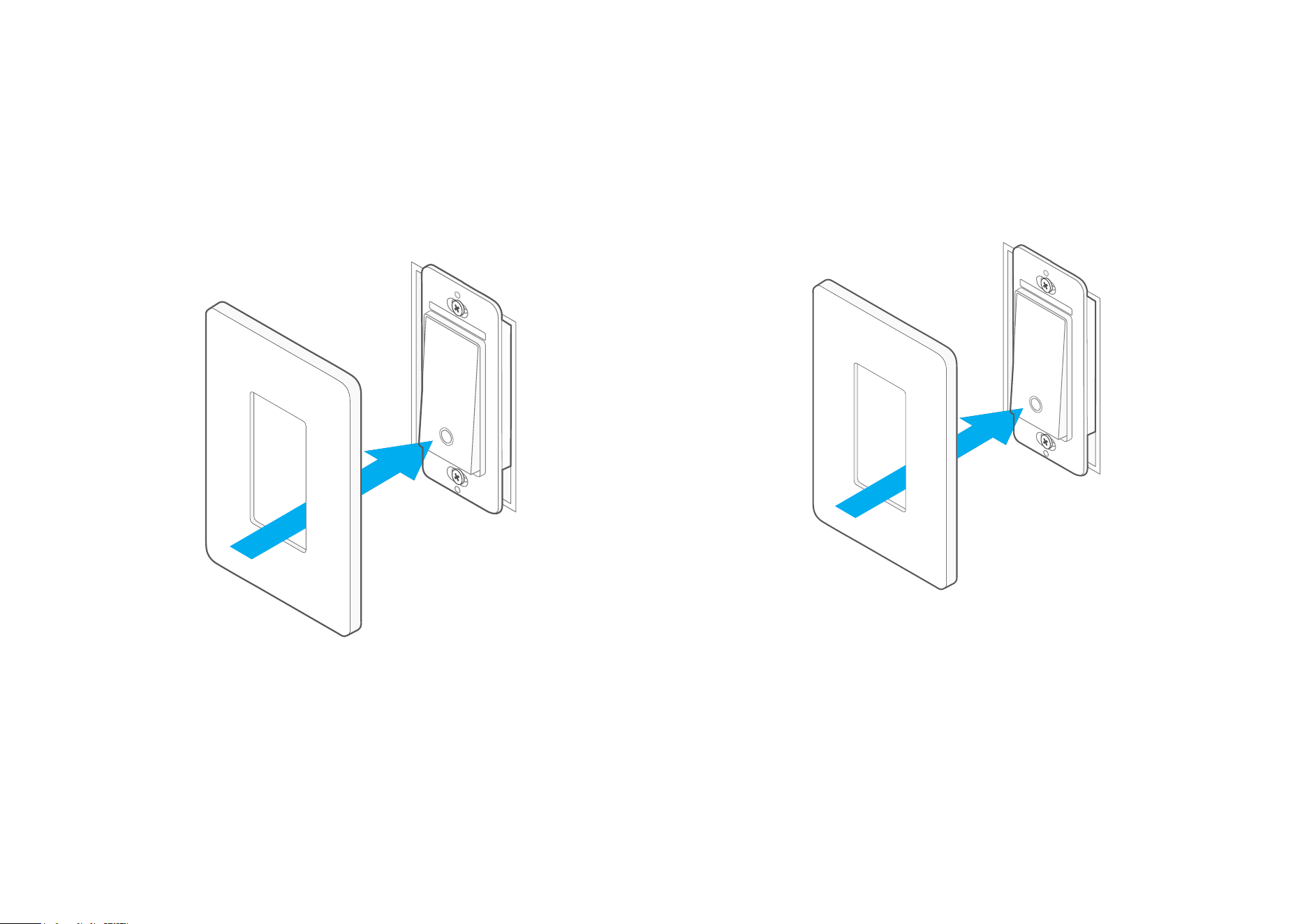

Step 5. Attach the Wallplate and Turn on Power
Attach the wallplate and turn on the circuit breaker. Then the wiring is
nished.
7

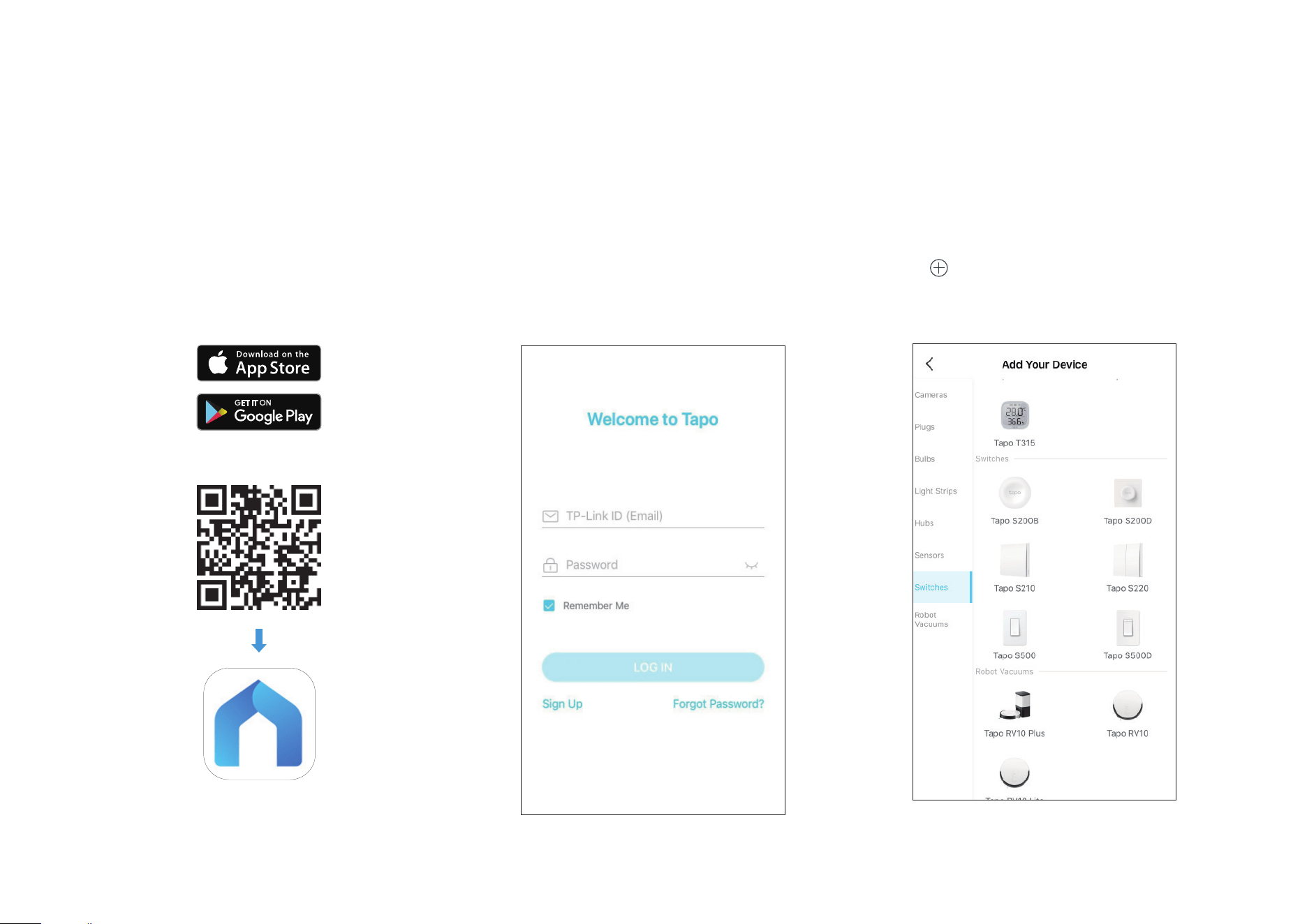

Set Up Your Switch
Follow the steps below to set up your switch.
Step 1. Download Tapo App
Get the Tapo app from the App Store or
Google Play, or by scanning the QR code
below.
OR
Step 2. Log In
Open the app, and log in with your TP-Link ID.
If you don't have an account, create one rst.
Step 3. Add Your Switch
Tap the button in the app and select your
switch. Then follow app instructions to set up
your switch.
8

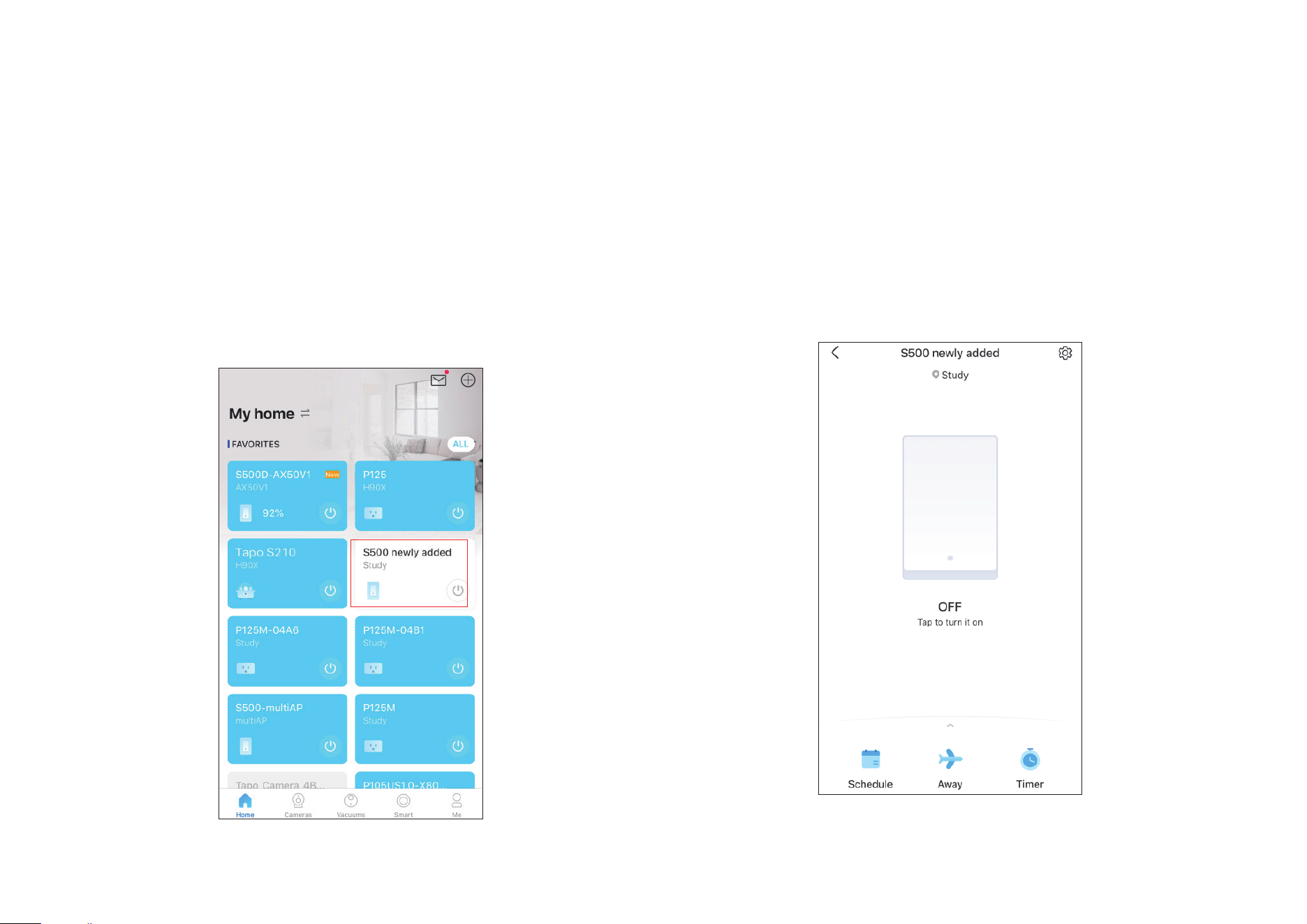

Home Page
This page lists all your devices you've added and you can view them
directly and manage them easily. Tap your switch to enter the Status
page.
Main Device Controls
After setting up your device successful, you will see your switch listed on the home page. You can manage it from anywhere at any time with the Tapo
app.
Status Page
You can turn on or o your device in this page. You can also congure
advanced features like Schedule, Away Mode, Timer to control your device
according to your daily rountine.
9
Switch Settings
On Status page, tap to enter the Device Settings page. You can
change your device name and icon, set Delayed Shut O, etc.
10

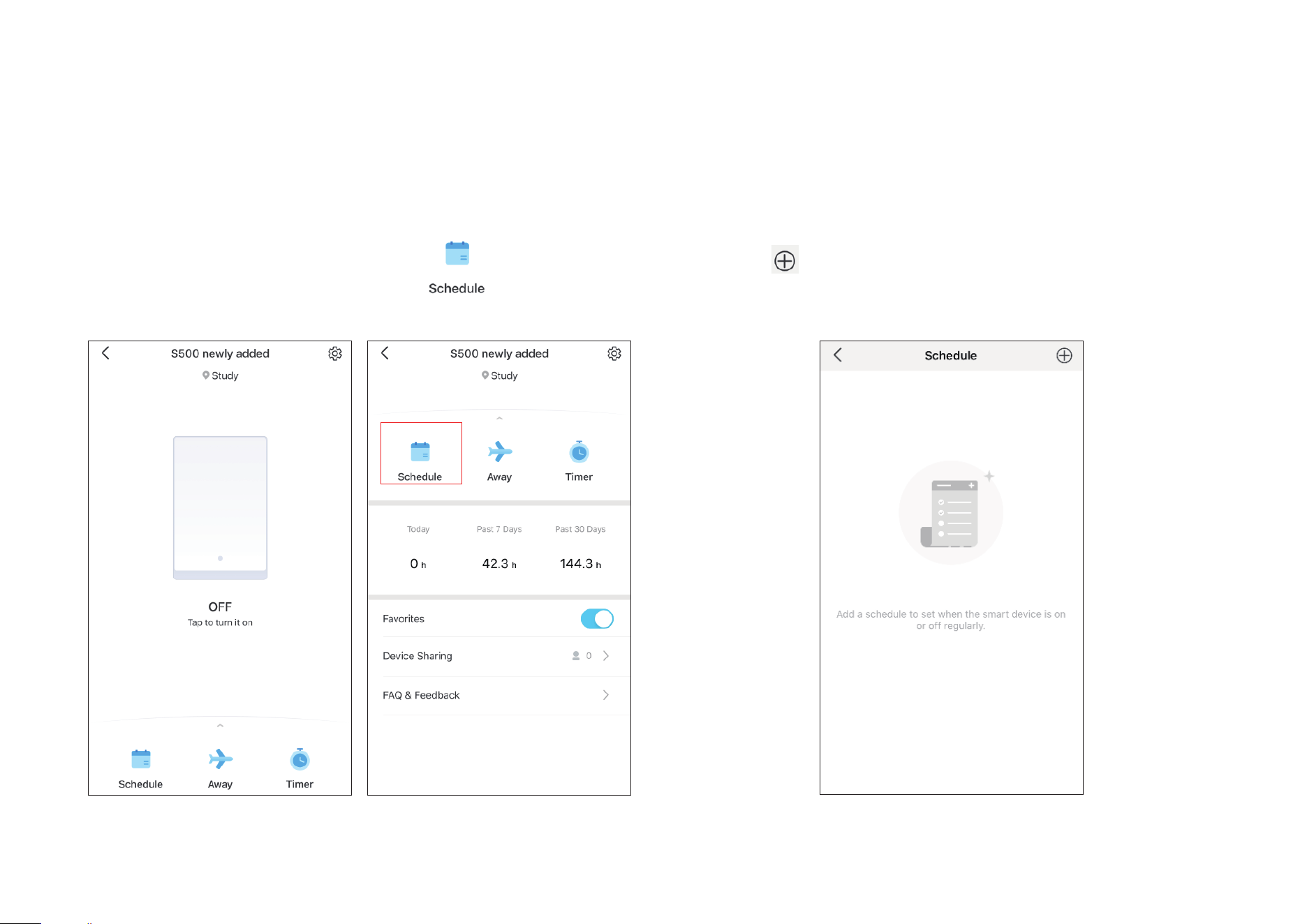

Step 1: Go to Status page and swipe up. Tap
to set a schedule.
Step 2: Tap
on the top right corner.
Schedule
Set schedules for your switch to automatically turn on/o at set times to simplify your daily routine.
11

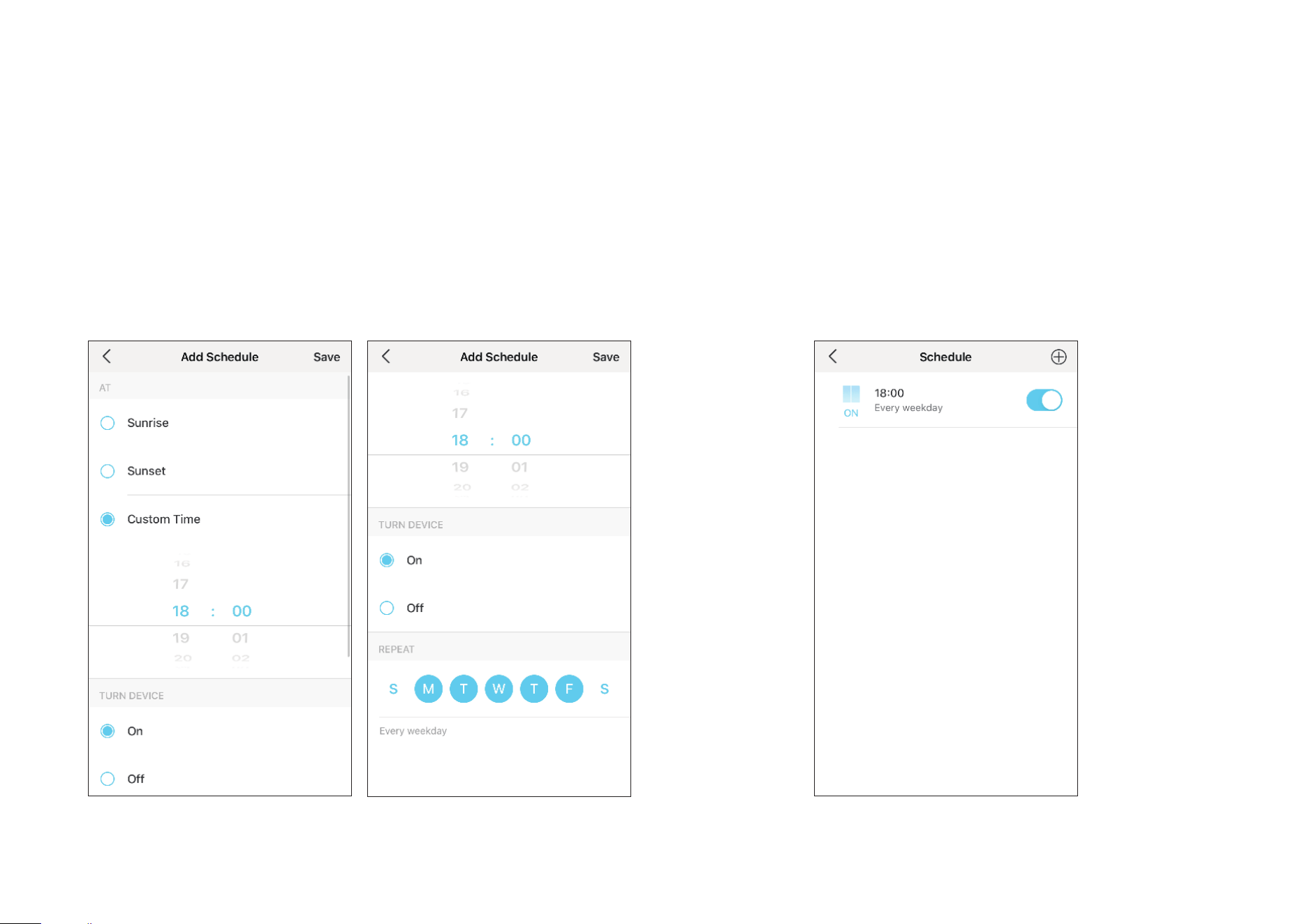

Step 3: Set the time and frequency to turn on/o your device
automatically.
Done!
You can see the set schedule listed in the Schedule page.
12

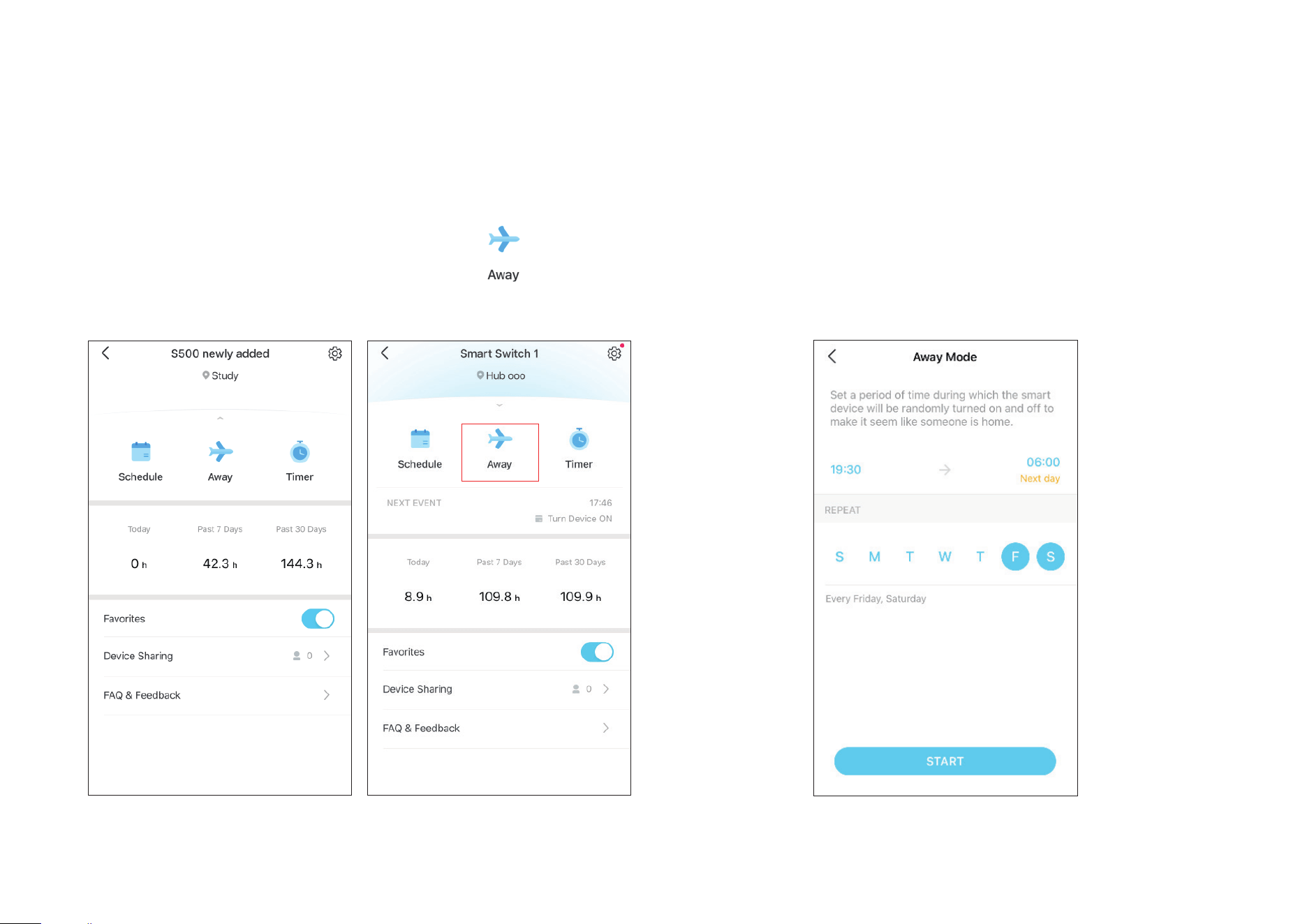

Step 1: Go to Status page and swipe upforward. Tap
to set Away
Mode.
Step 2: Set the time period and the repeating frequency.
Away Mode
Set your device to turn on and o randomly during a set time period to make the appearance that someone is at home.
13

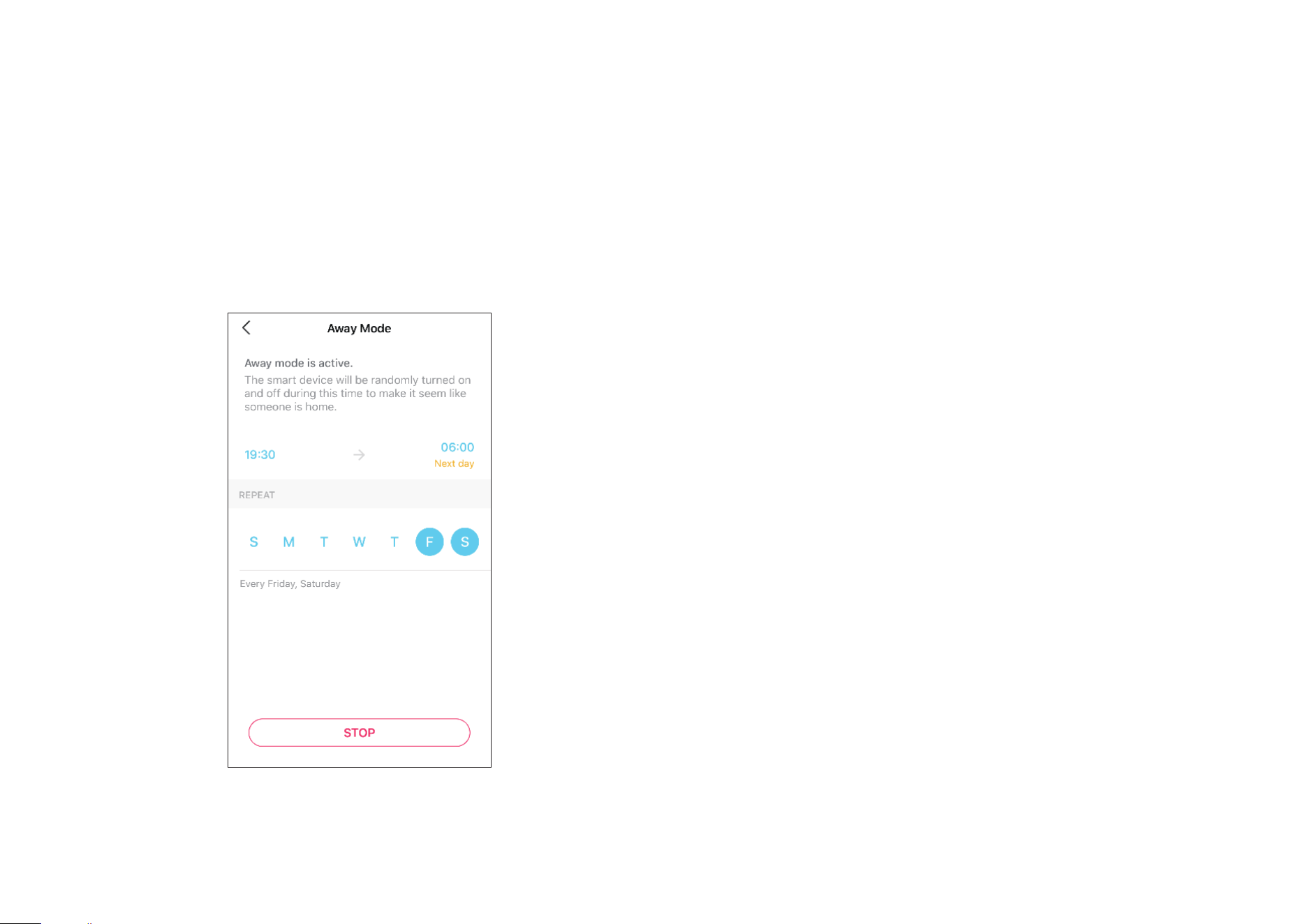

Done!
Away Mode is active. Your device will be turned on and o randomly
during the time period.
14

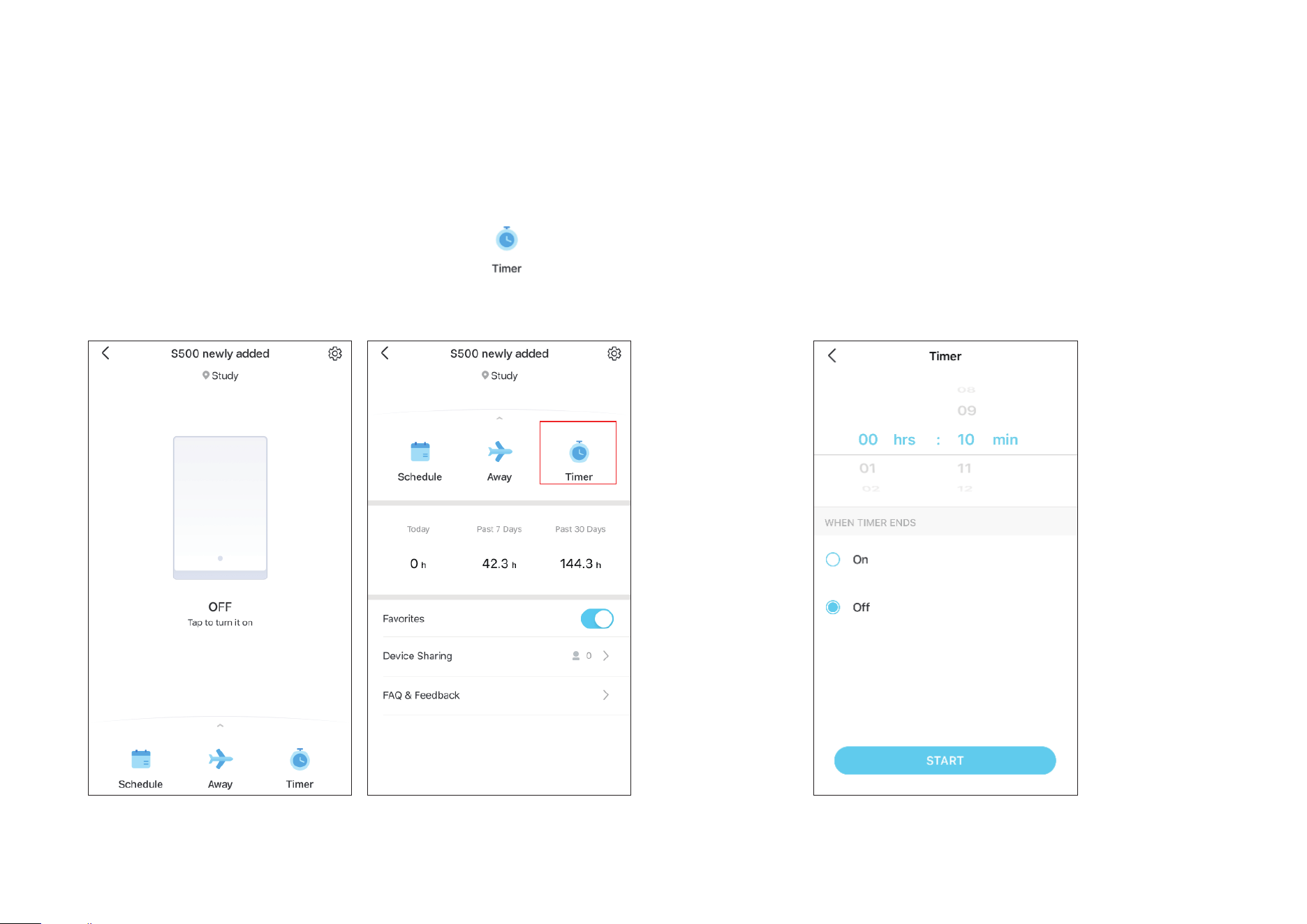

Step 1: Go to Status page and swipe upforward. Tap
to set a
countdown timer.
Step 2: Set the time period and whether to turn on or o the switch after
the time ends.
Timer
Set a countdown timer for your device to automatically turn on/o after the timer ends.
15

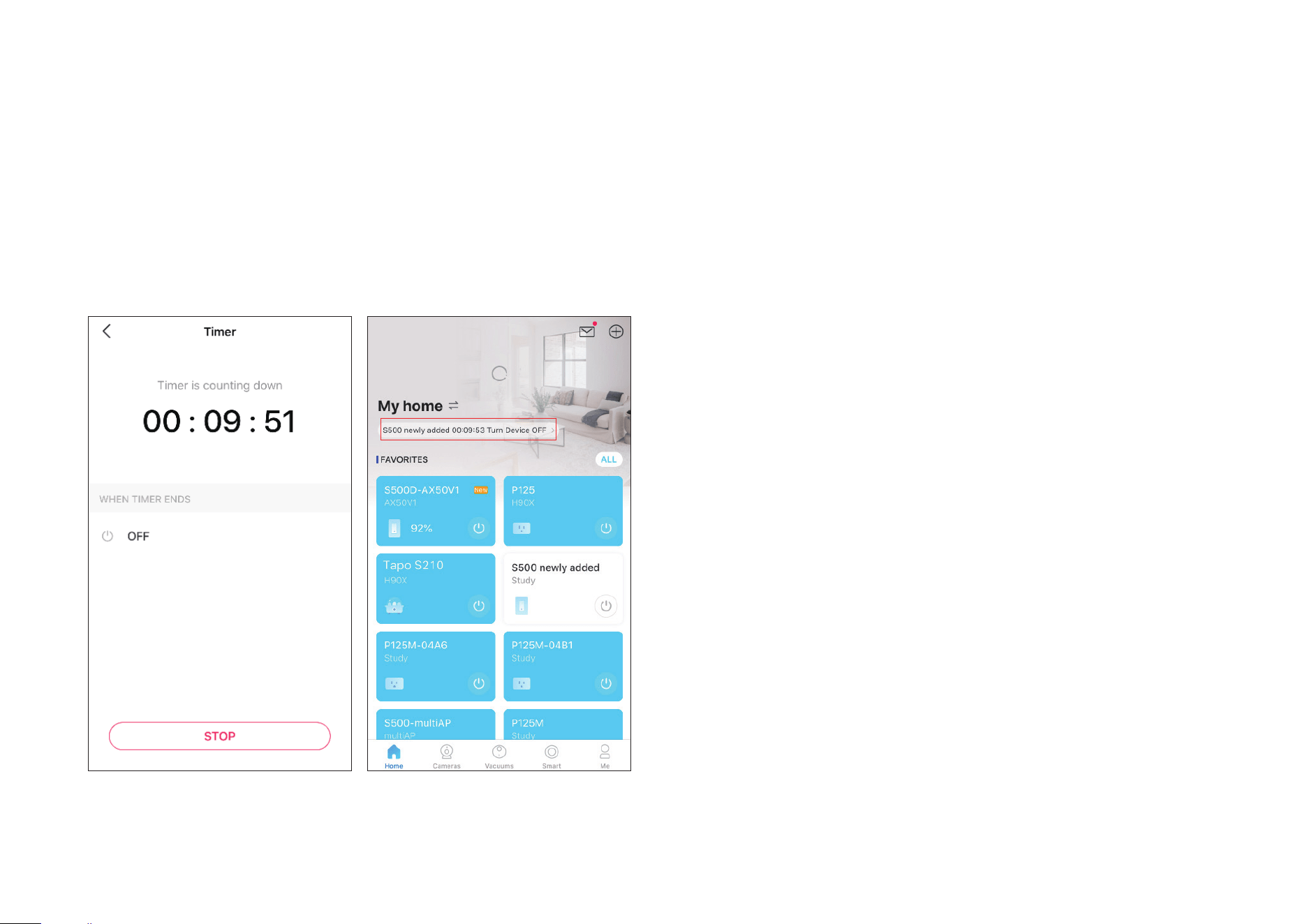

Done!
The timer is counting down. You can also see the time counting down in
the Home page.
16

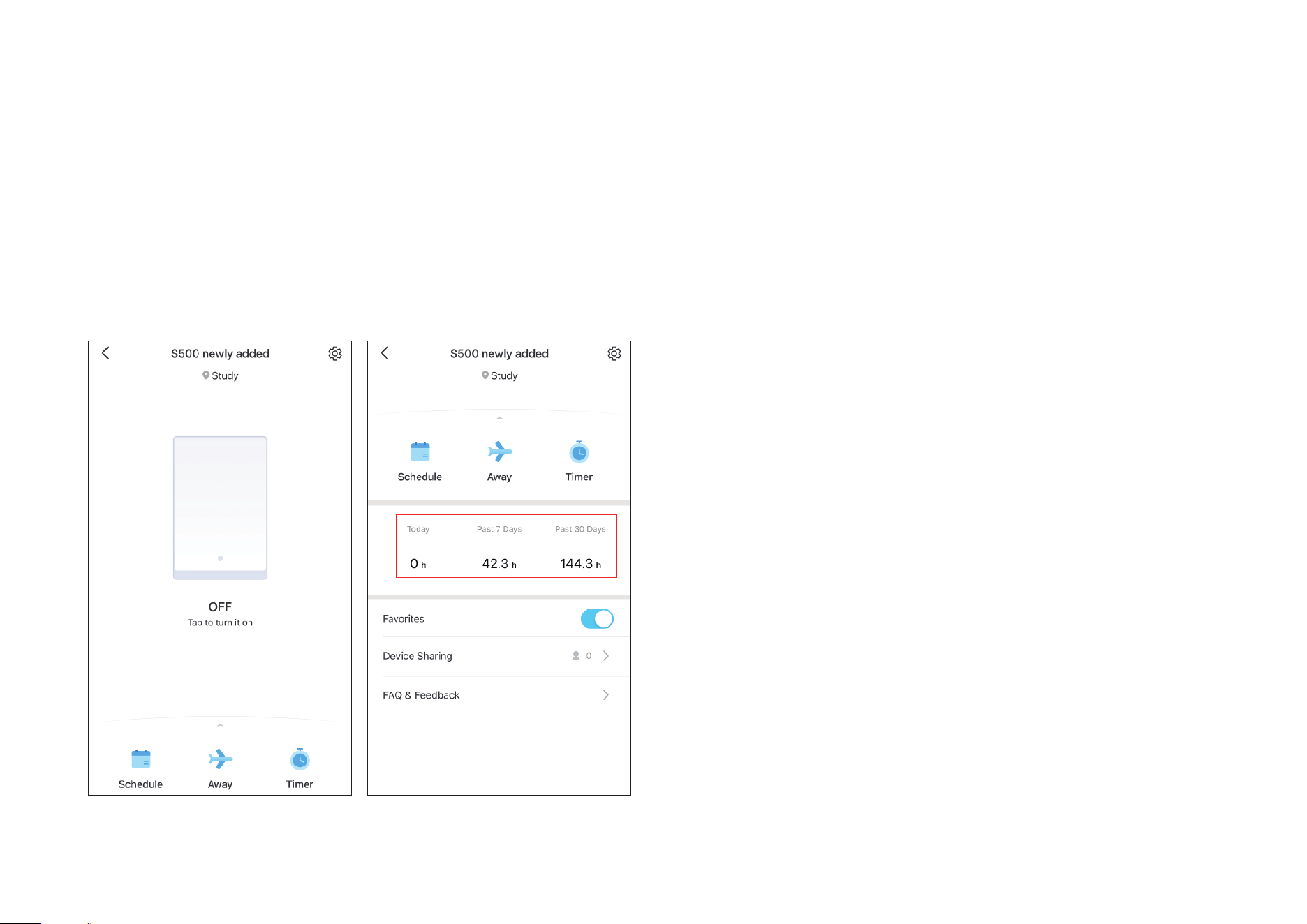

Go to Status page and swipe upforward. You can the runtime for today,
past 7 days and past 30 days.
Check Runtime
Check how long the switch has been running today, for the past 7 days, or for the past 30 days.
17

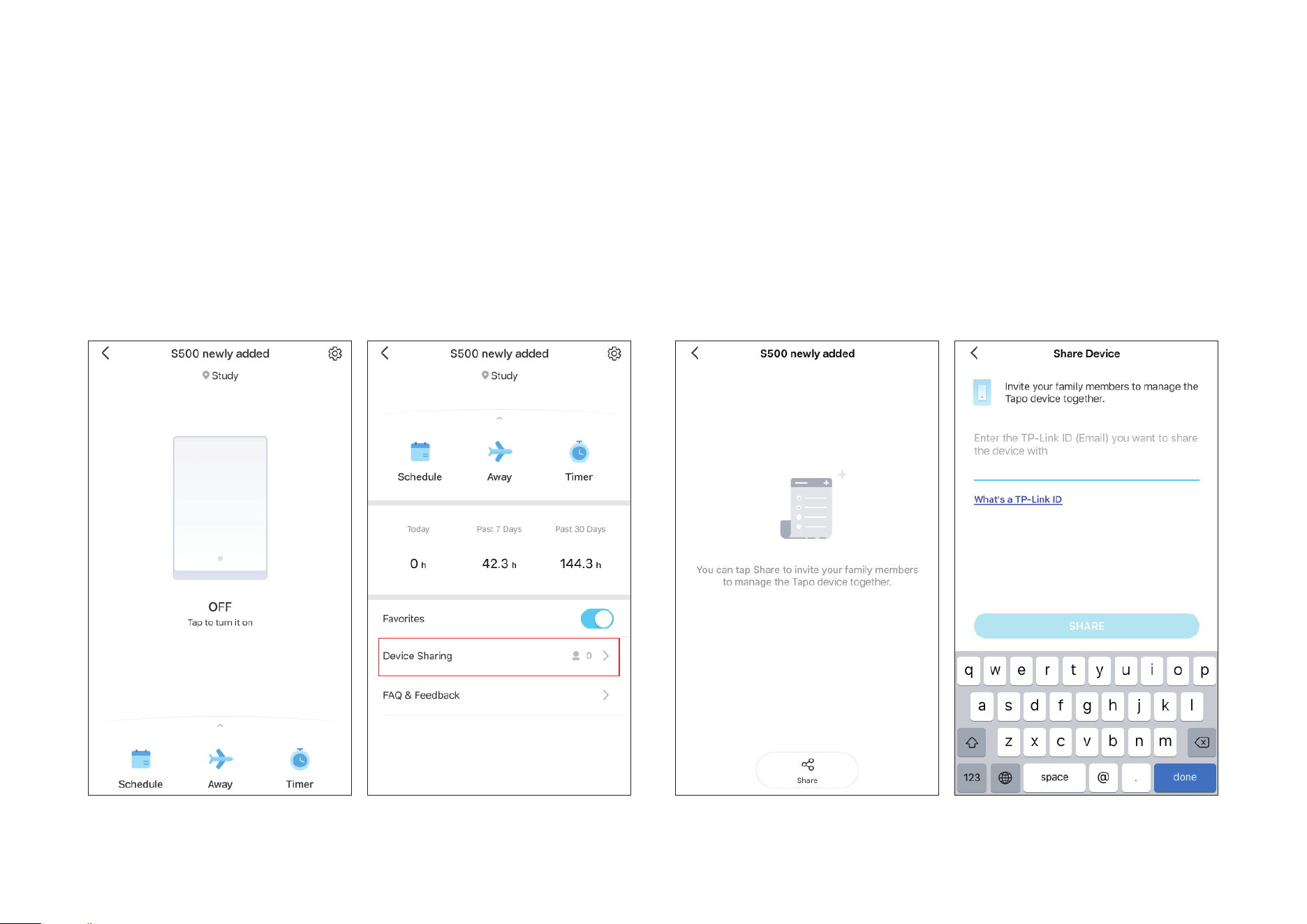

Go to Status page and swipe upforward. Then tap Device Sharing.
Tap Share and then enter the TP-Link ID of your family member.
Device Sharing
Share your device to your family by entering their TP-Link ID.
18

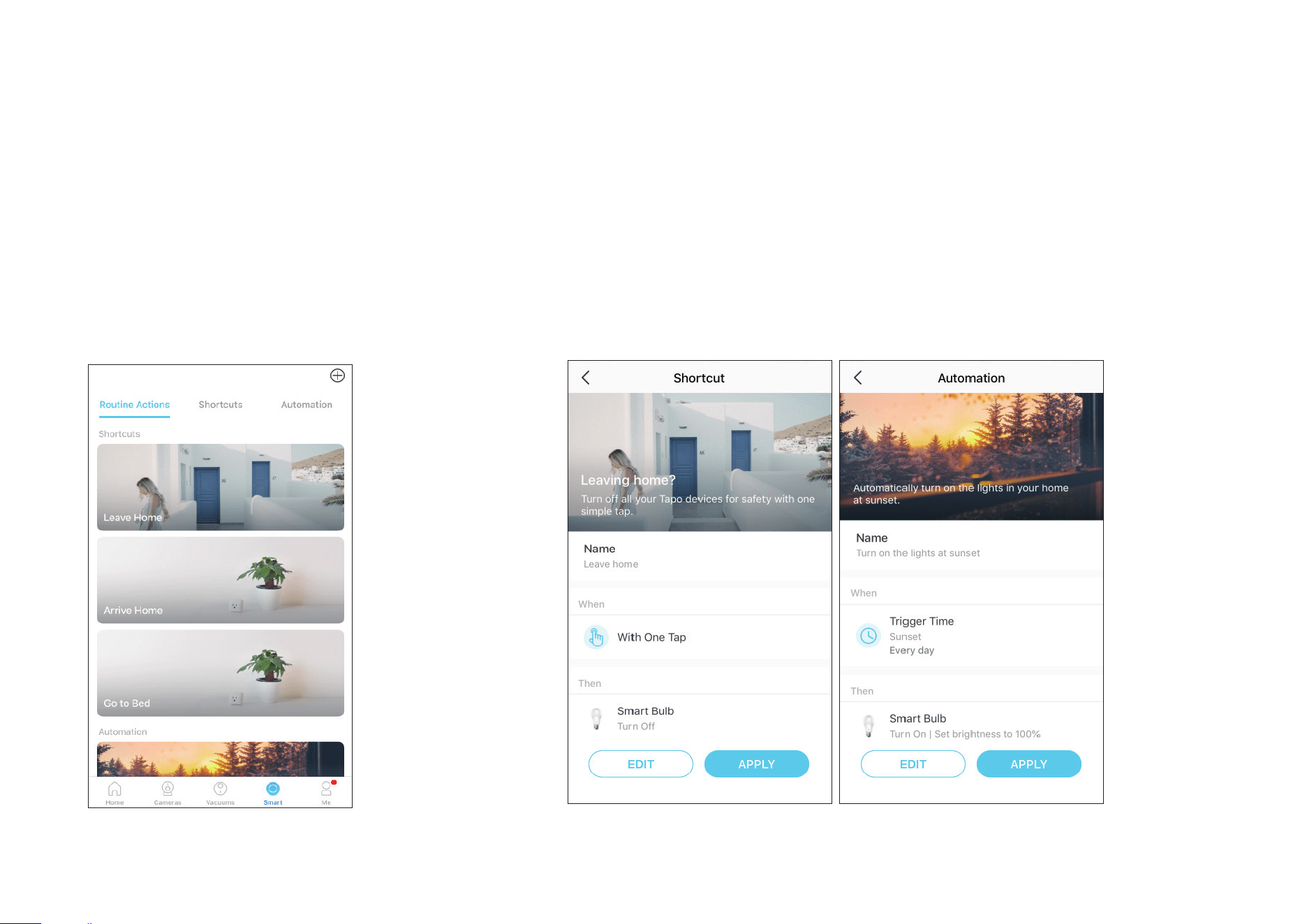

Option 1: Edit based on the routine actions
1. Go to the Smart Actions page and you will see the
Featured Actions (Shortcut or Automation).
2. Tap on a featured action. Tap EDIT to change the settings as needed and tap APPLY
to save changes.
Smart Actions
Smart Actions automate repetitive tasks, allowing you to blaze through tedium with utmost ease. Set everything up once and never have to worry about
it again. With Smart Actions, giving your home that level of intelligence is a snap. Shortcut lets you perform an action with a simple tap. Automation
allows you to automate tasks to be performed at a set time. e.g. The light will light on at sunset.
19

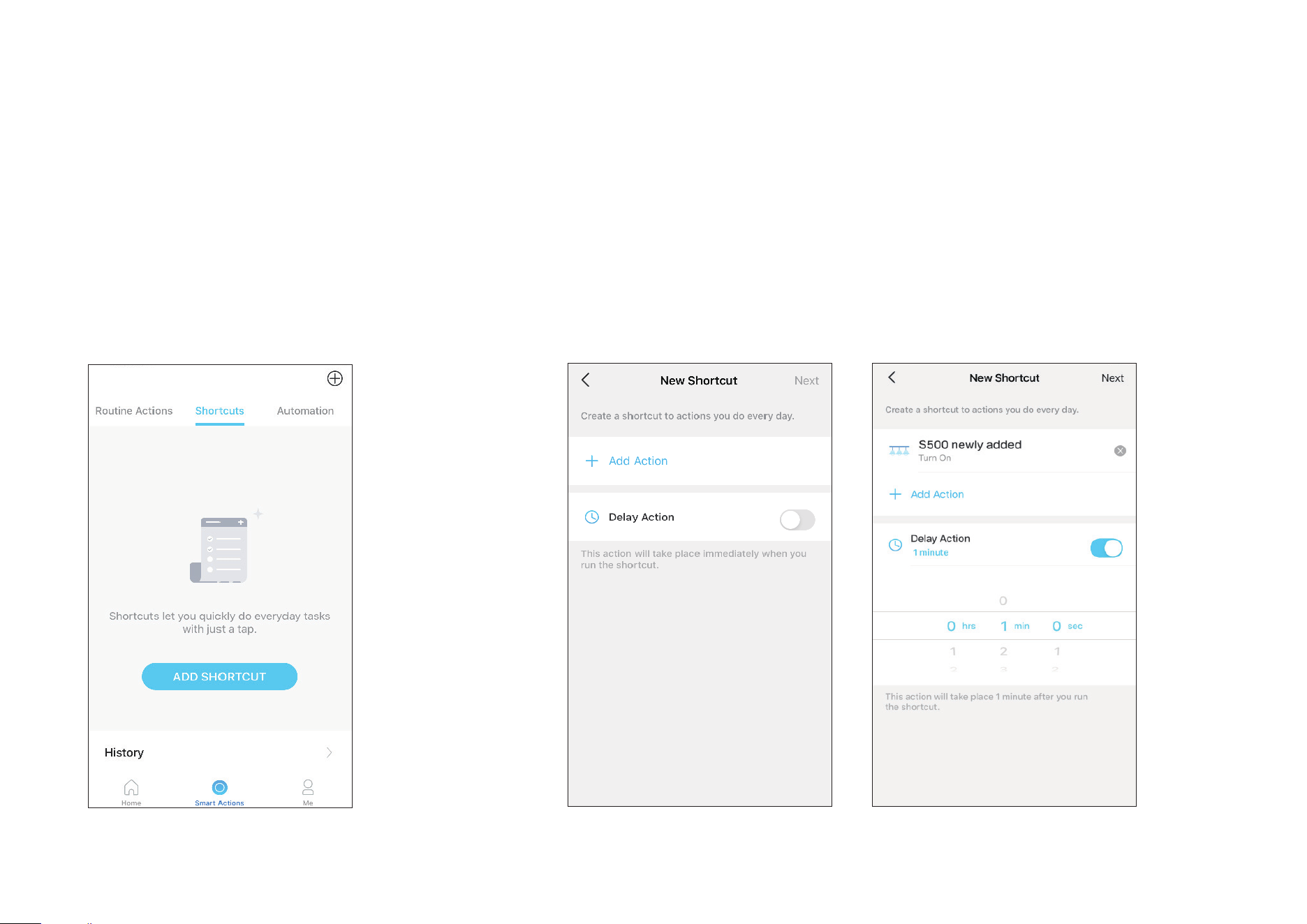

Option 2: Create your own shortcuts
1. Go to Shortcuts page. Tap + on the top right to add a
shortcut.
2. Add an action and choose whether to delay the action.
20

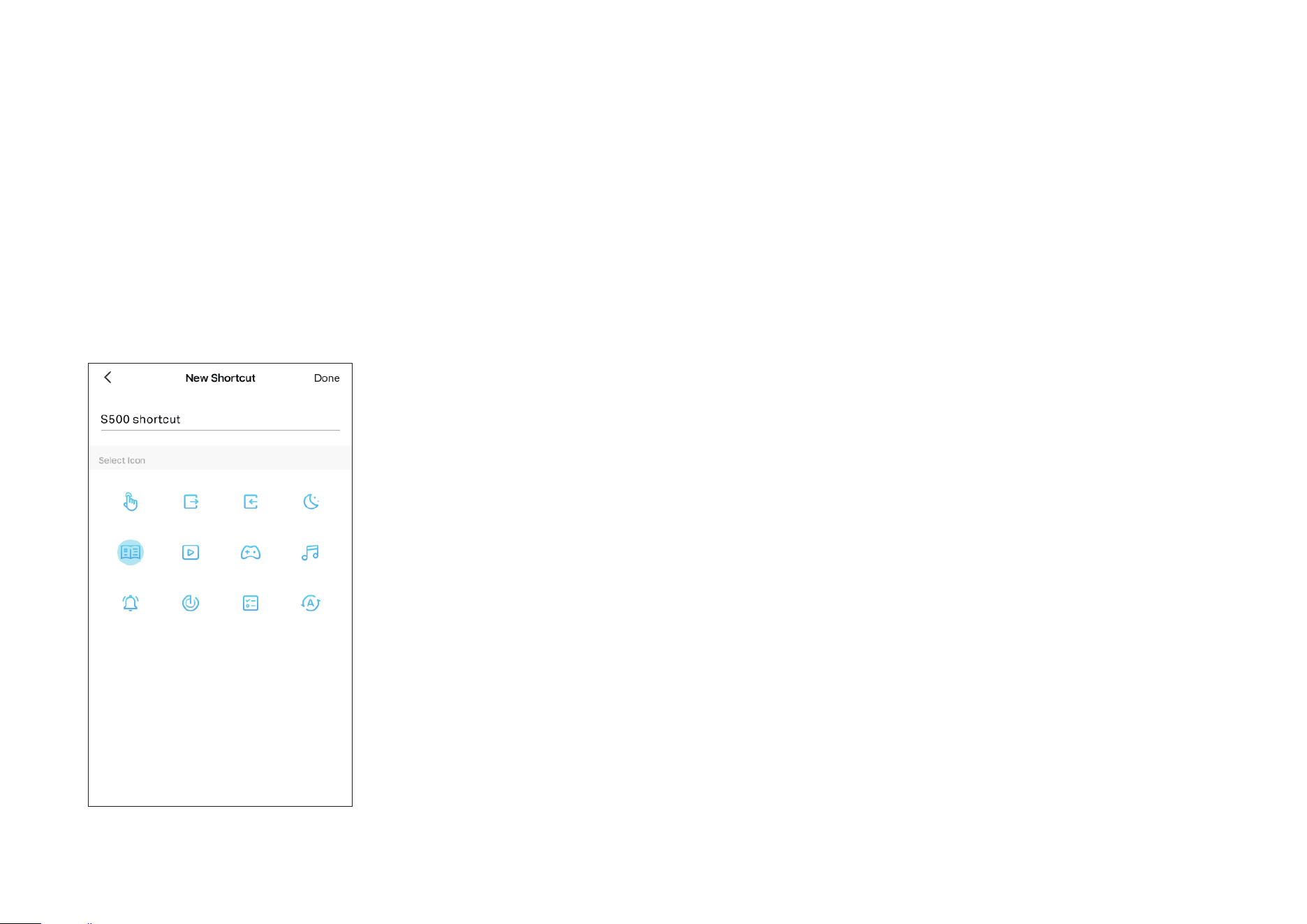

3. Name your shortcut and choose an icon and tap Done to
save all the settings.
21

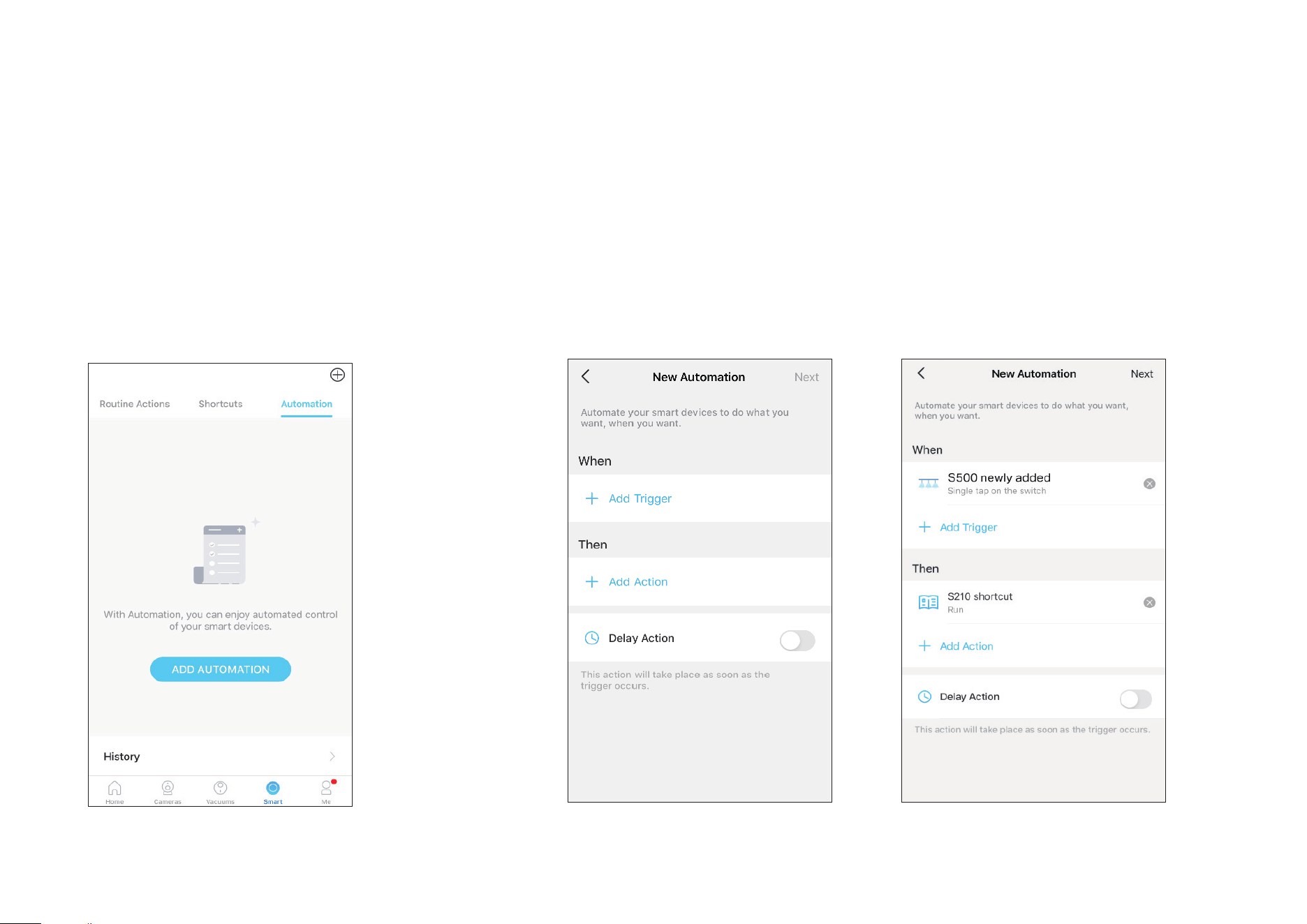

Option 3: Create your own actions
1. Go to Automation page. Tap + on the top right to add a
simple and smart action.
2. Name the new action. Tap + to add conditions (When) like the trigger time, and tap +
to add tasks (Then) like turning on the switch.
22
3. Name your automation and set the eective time for the
automation. Tap Done to save all the settings.
23

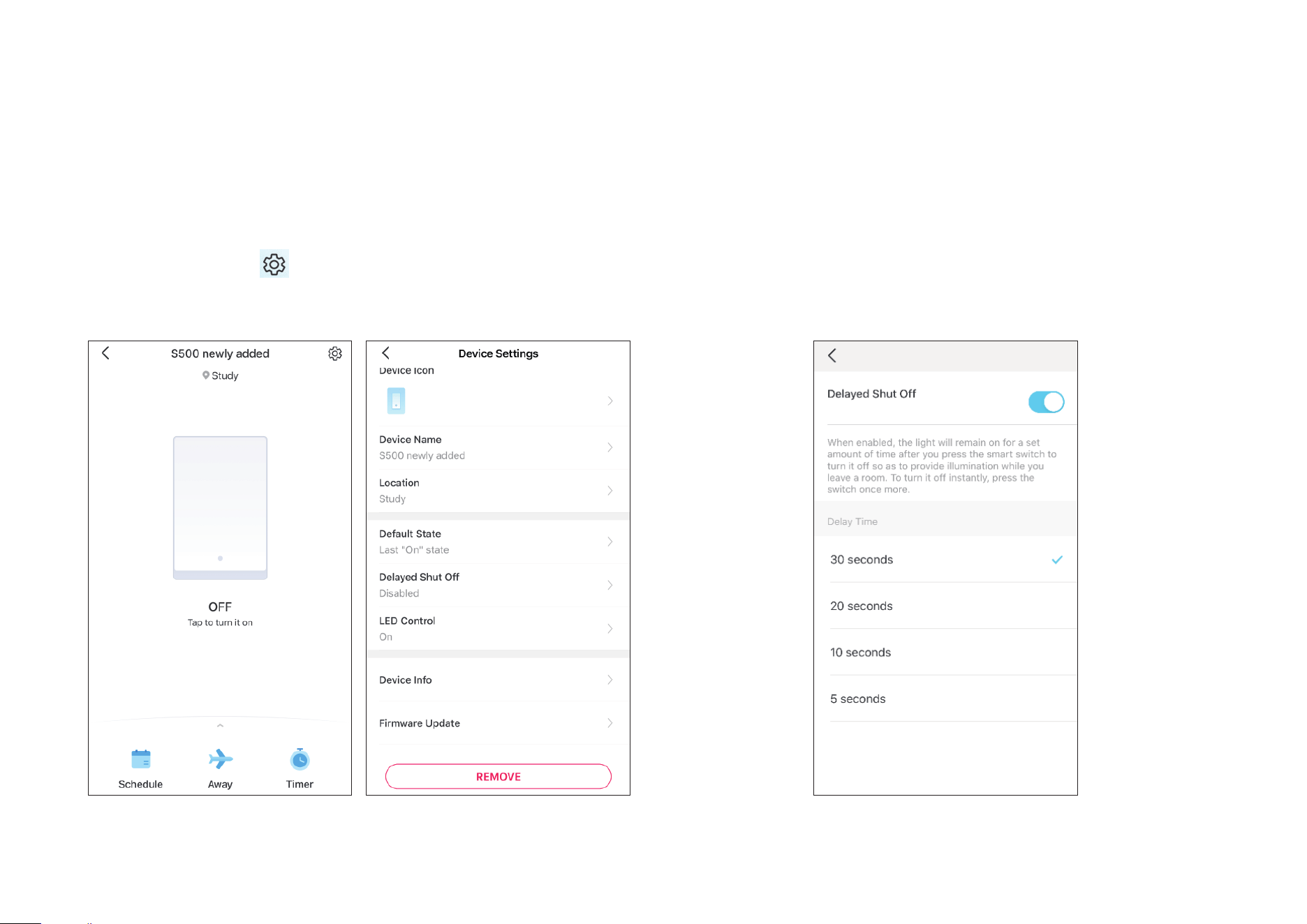

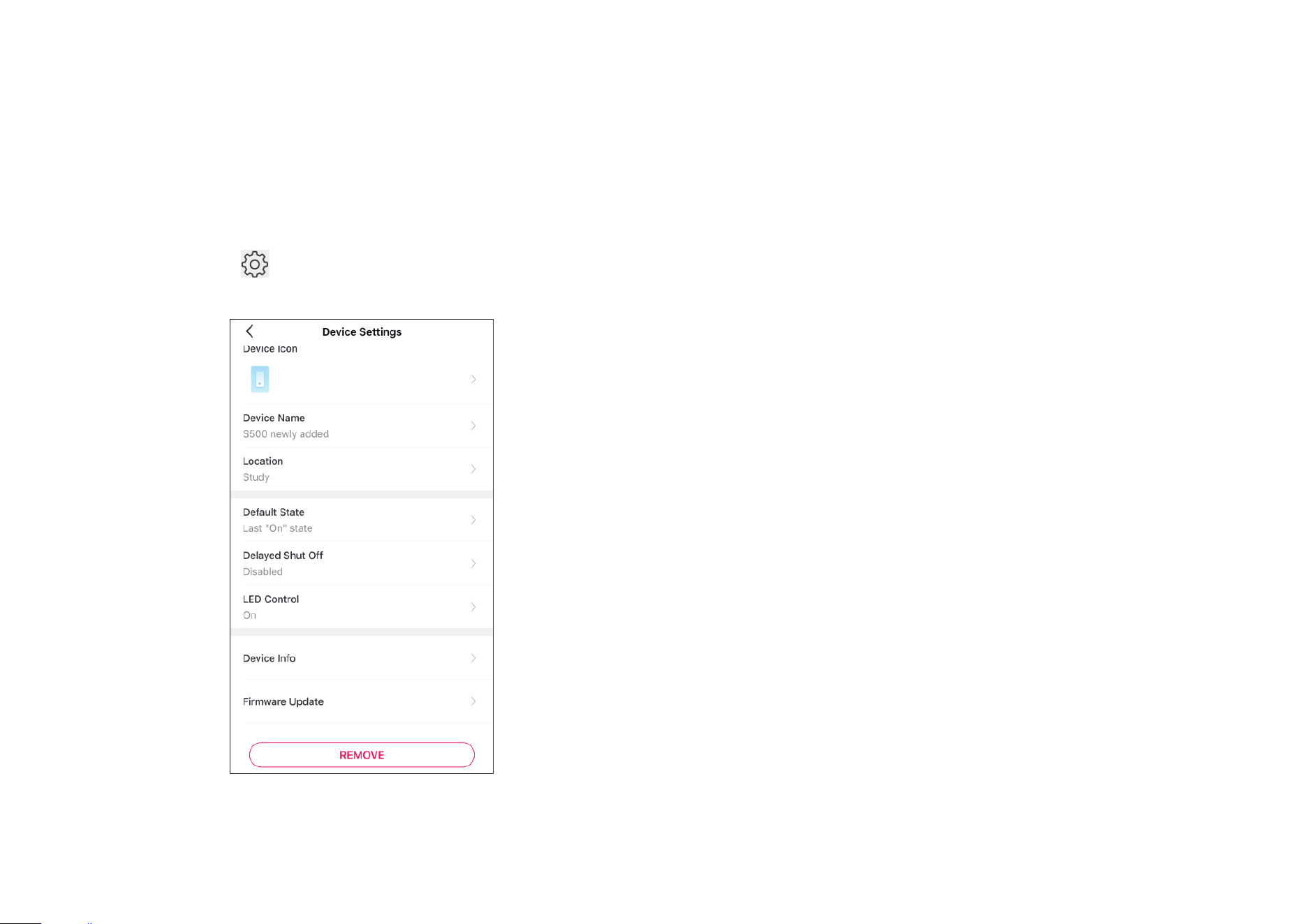

1: Change Device name, icon and location
In the Status page, tap
to go to the Device Settings page. Then you
can change the device icon, name, and its location.
2: Set Delayed Shut O
When Delayed Shut O is enabled, you can press the switch to make
your light remain on for a set amount of time before going o. To turn the
light o instantly, press the switch once more.
Device Settings
In the Device Settings page, you can edit the basic information, set delayed shut o and double tap eect, update rmware and more.
24
How to Reset Your Switch
There are two methods to reset your switch.
Method 1: Press the RESET button on the switch
Press and hold the RESET button for about 10 seconds until the LED blinks amber quickly.
Reset
25

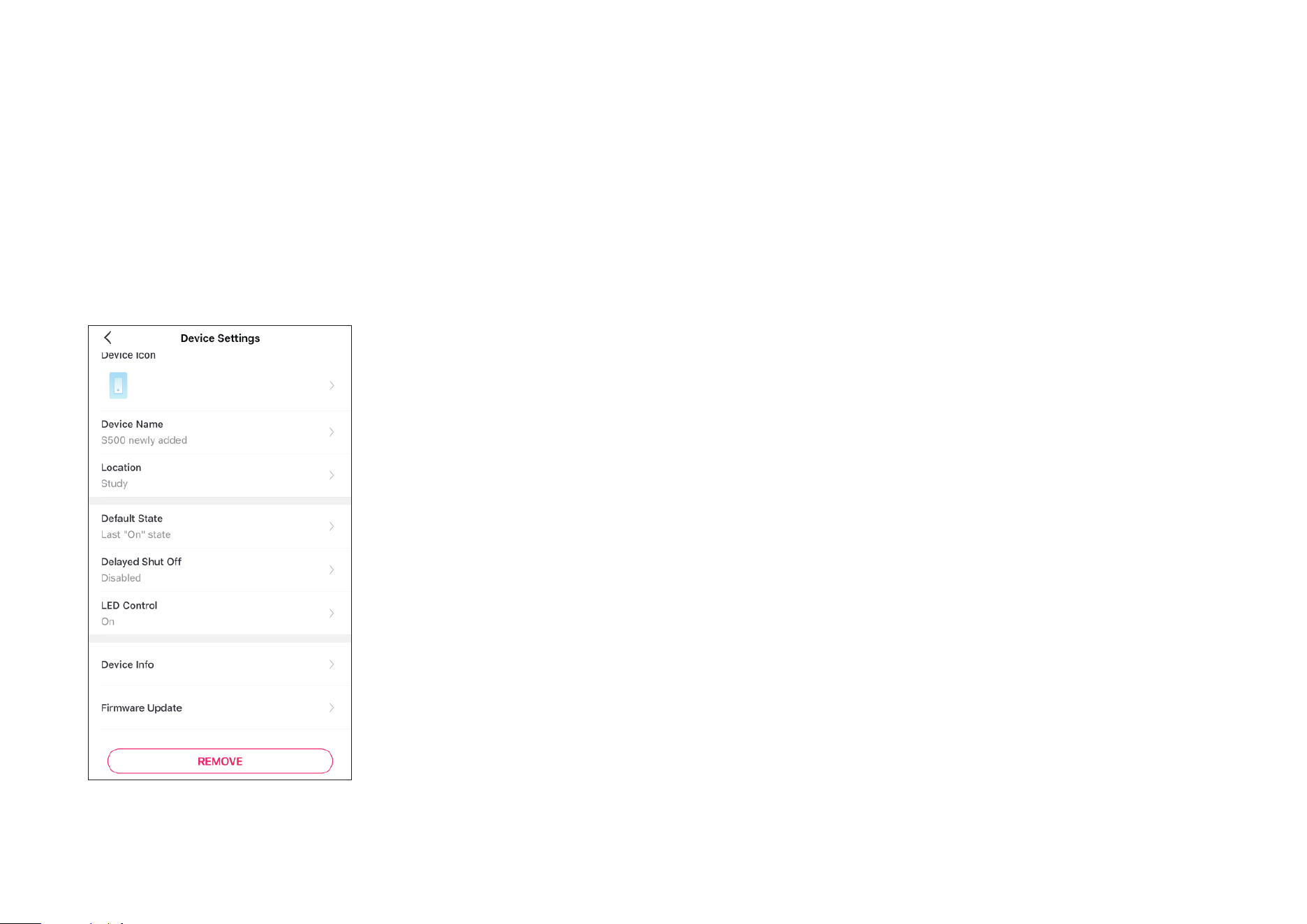

Method 2: Remove the device in the Settings page
Go to the Settings page of your switch. Tap REMOVE to remove your switch from Tapo.
26
Authentication
FCC compliance information statement
Product Name: Tapo Smart Wi-Fi Light Switch, Single Pole
Model Number: Tapo S500
Responsible party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
27
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,
FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2021.03.25
28
Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
NCC Notice
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
29
BSMI Notice
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
限用物質含有情況標示聲明書
設備名稱：
Equipment name
Kasa Smart Wi-Fi Light Switch, Single Pole
型號（型式）：Tapo S500
Type designation (Type)
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
PCB ○ ○ ○ ○ ○ ○
外殼 ○ ○ ○ ○ ○ ○
電源供應板 — ○ ○ ○ ○ ○
其他及其配件 − ○ ○ ○ ○ ○
30
備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance
exceeds the reference percentage value of presence condition.
備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：“ ○ ” indicates that the percentage content of the restricted substance does not exceed the percentage of reference
value of presence.
備考 3.〝−〞係指該項限用物質為排除項目。
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.
Safety Information
Before installing, servicing or removing the switch, read and follow all safety precautions including the following:
• Follow all national and local safety regulations and practices. If you are uncertain or uncomfortable when performing the installation, consult a
qualified electrician.
• CAUTION – Risk of Electric Shock – More than one disconnect switch may be required to de-energize the equipment and luminaire before servicing.
A circuit breaker which disconnects the Line and Neutral conductor simultaneously is suitable. Ensure power is off at the circuit breaker before
removing or installing any switch. Use a non-contact voltage tester to ensure the power is off.
• Do not install the Smart Switch with wet hands or when standing on wet or damp surfaces.
• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• Install only in a suitable UL Listed outlet box (suitable dimensions: H > 2.95 in./75 mm, W > 1.81 in./46 mm, D > 2 in./51 mm).
31
Explanation of the symbols on the product label
Symbol Explanation
Alternating current
Indoor use only
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
