REVISED BULLETIN
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

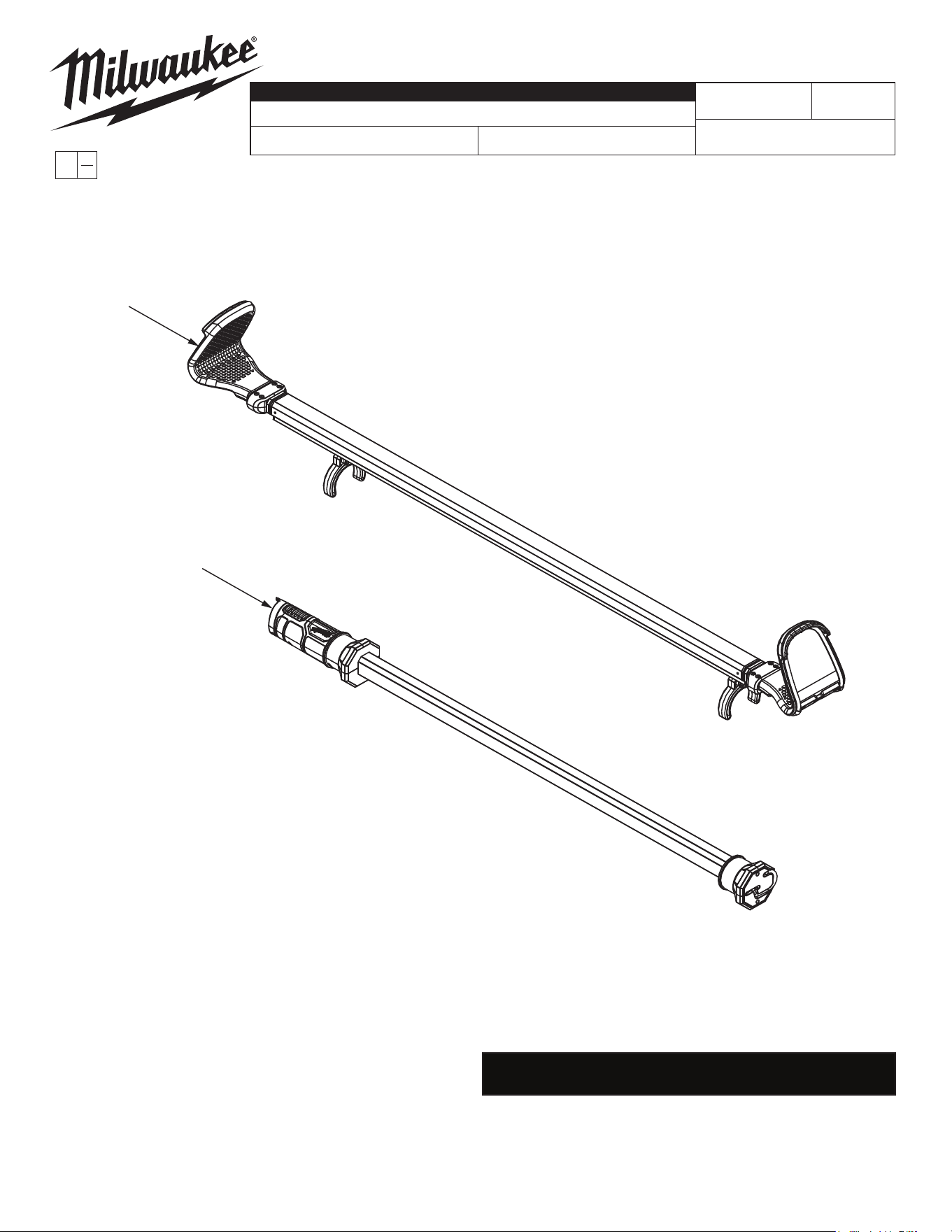

Drwg. 1
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.
54-06-2025
M12™ LED UNDERHOOD LIGHT
2125-20
J03A
Aug. 2017
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
2
1
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, Wisc. 53005

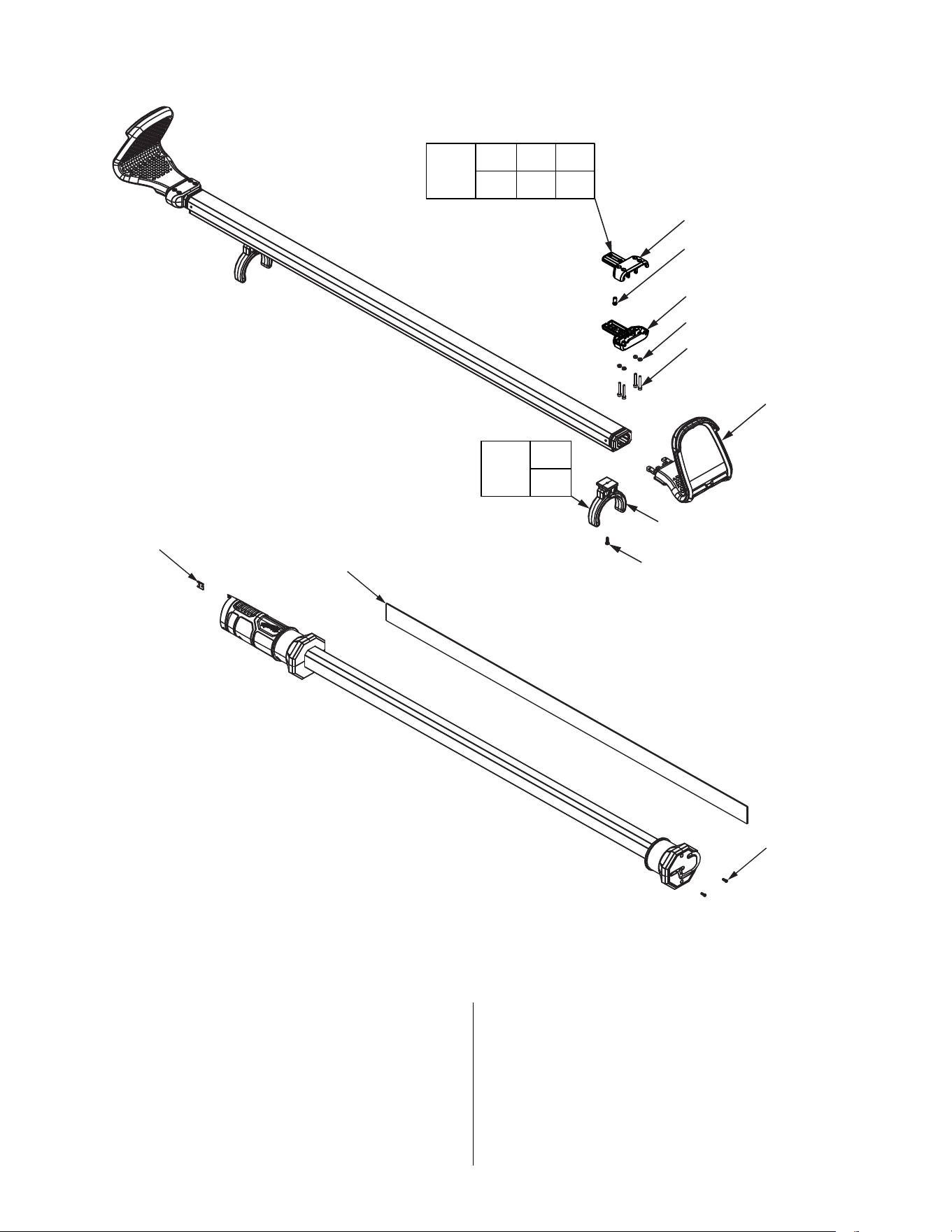

Drwg. 2
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-46-2150 Light Carrier Assembly (1)
2 14-46-2155 Light Assembly (1)
Page 2 Assembly breakdowns
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
3 14-38-0045 Carrier Hook Connector Kit (1)
4 --------------- Connector Top (1)
5 --------------- Fixing Pin (1)
6 --------------- Connector Bottom (1)
7 --------------- Nut (4)
8 --------------- 3 x 22 Hex Bolt (4)
9 14-36-0025 Carrier Hook (1)
10 42-70-0155 Fixing Hook with Screw (1)
11 --------------- Fixing Hook (1)
12 --------------- 3 x 10 Screw (1)
13 42-70-0058 Battery Clip (1)
14 44-06-0145 Lens (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
15 05-88-0085 2.6 x 10 Screw (2)
16 12-20-2165 Service Nameplate (Not Shown) (1)
FIG. NOTES
16 A clen, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any
adhesive label or nameplate must be prepared by cleaning with
isopropyl alcohol. The solvent is to be applied with a clean, lint
free applicator and the surface allowed to dry before applying the
label or nameplate.
3
4 5 6
7 8
4
6
7
8
9
10
11
12
11
12
5
13
14
15
