Service jack sold separately.
Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
64050
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 18c
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2017 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 64050

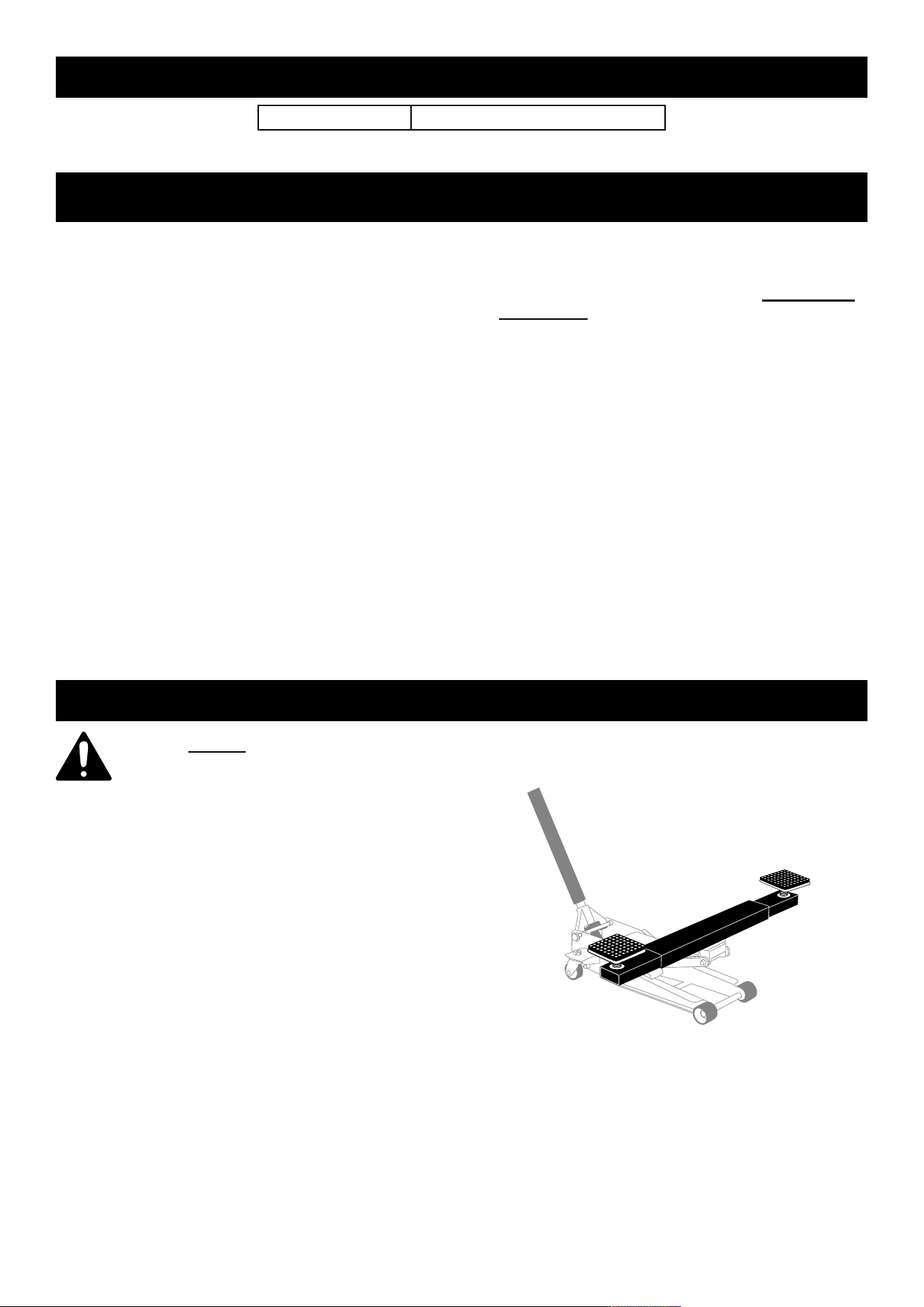

Specifications
Rated Capacity 4,000 lb.
IMPORTANT SAFETY INFORMATION
1. Study, understand, and follow all instructions
before operating this device.
2. Do not exceed 4,000 lb. rated capacity.
3. Ensure load is secured to the device.
4. To be used only with the following PASE (Portable
Automotive Service Equipment): Daytona™ service
jacks and Pittsburgh Automobile
®
service jacks,
except trolley-style jacks including, but not limited
to, (68783, 69306, 69468, 62117). Do not use this
Cross Beam on any jack that the Connection Bolt
does not attach to securely and tighten to completely.
5. No alterations shall be made to this product.
6. Center load over Service Jack’s saddle.
7. Adjust pads to keep bar level during lifting.
8. Only use with included safety chains properly
connected to prevent overextension.
9. Install and use aligned perpendicular
to service jack body only.
10. Also, study, understand, and follow all service jack
instructions before operating this device.
11. Wear ANSI-approved safety goggles and
heavy-duty work gloves during use.
12. Do not move or dolly the vehicle
while on the cross beam.
13. Use as intended only.
Do not use for lifting human weight. Keep clear
of raised load. Do not use for aircraft purposes.
14. Lift vehicle only at
manufacturer-recommended locations.
15. Inspect before every use;
do not use if parts loose or damaged.
16. Lifting device only. Immediately after lifting,
support the vehicle with appropriate means.
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
1. Remove Saddle Connection Bolt and Saddle
from Service Jack (sold separately).
2. Place Cross Beam on Service Jack.
3. For 2 or 2.5 ton service jacks, slide Spacer
onto Connection Bolt before installing it.
4. Install Cross Beam’s Connection Bolt and
tighten it securely in place while keeping Cross Beam
aligned perpendicular to Service Jack body.
Figure A
Page 3For technical questions, please call 1-888-866-5797.Item 64050
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
1. Lower both Saddle Pads completely.
2. Align each Saddle Pad under a vehicle lifting point.
Center the vehicle’s weight over the Service Jack.
WARNING! Lift vehicle only at
manufacturer-recommended locations.
WARNING! Make sure Cross Beam
is at 90° to the Service Jack.
3. Use Service Jack to raise Cross Beam
until one of the Saddle Pads is about to
contact one of the vehicle lifting points.
4. Turn the Saddle Pads to adjust each one
until they both contact the lifting points.
5. Stay clear of vehicle, Jack and Cross Beam
while slowly raising the vehicle until
it is at the desired height.
WARNING! While lifting, make sure that the
Cross Beam remains level and the load is
centered over the Service Jack.
6. Place two Jack Stands at manufacturer-
recommended support points and adjust until
they almost contact each support point.
7. Stay clear while lowering the vehicle onto the
Jack Stands. Lower the vehicle’s weight completely
onto Jack Stands before working under it.

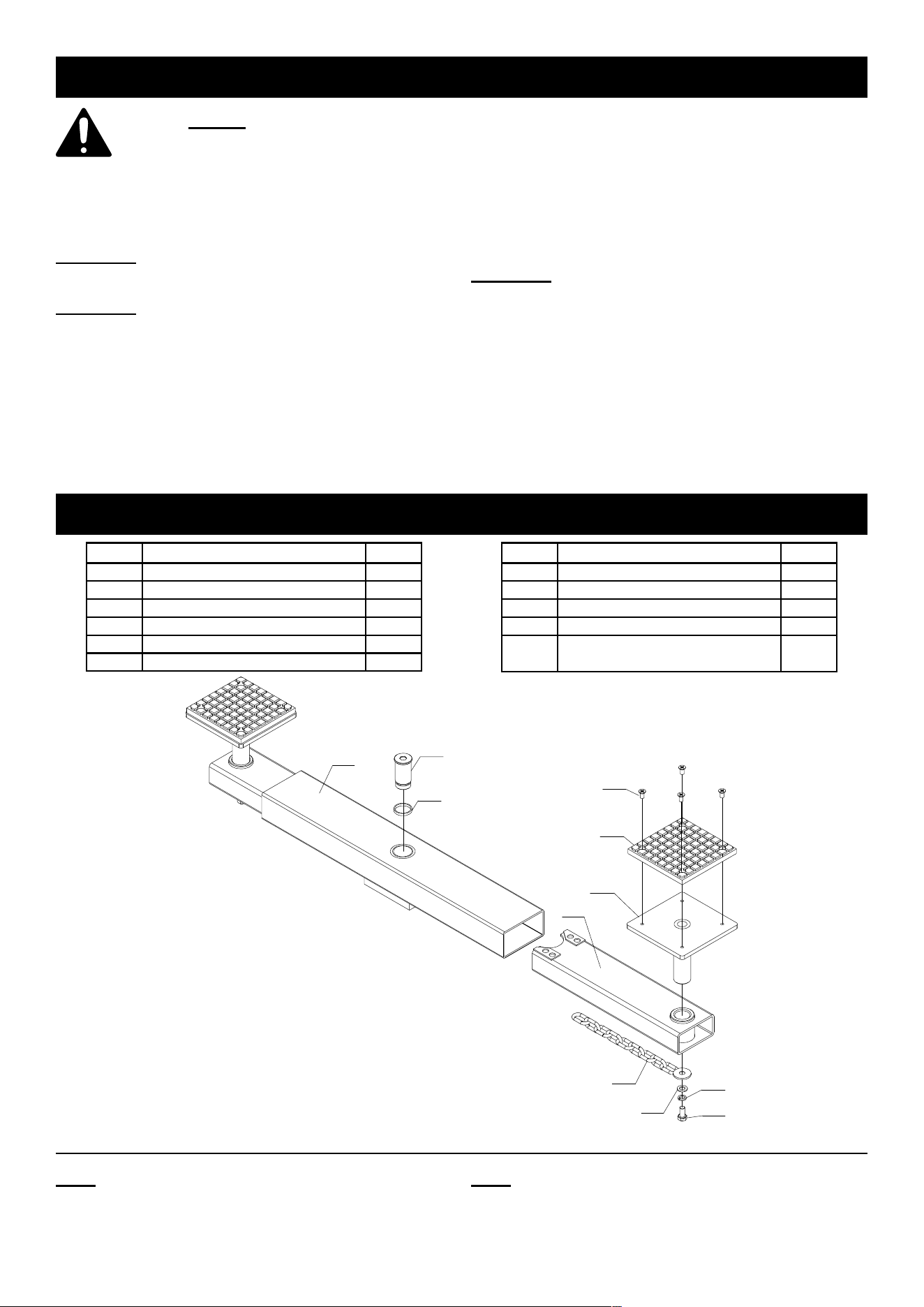

Parts List and Diagram
Part Description Qty
1 Beam 1
2 Extension Tube 2
3 Saddle 2
4 Rubber Pad 2
5 Screw 8
6 Chain Washer 2
Part Description Qty
7 Flat Washer 2
8 Lock Washer 2
9 Bolt 2
10 Connection Bolt 1
11 Spacer (for 2 and 2.5
ton jack mounting)
1
10
11
1
8
9
5
4
3
2
6
7
Record Serial Number Here:
Note: If product has no serial number, record
month and year of purchase instead.
Note: Some parts are listed and shown for
illustration purposes only, and are not available
individually as replacement parts.
