2313-20

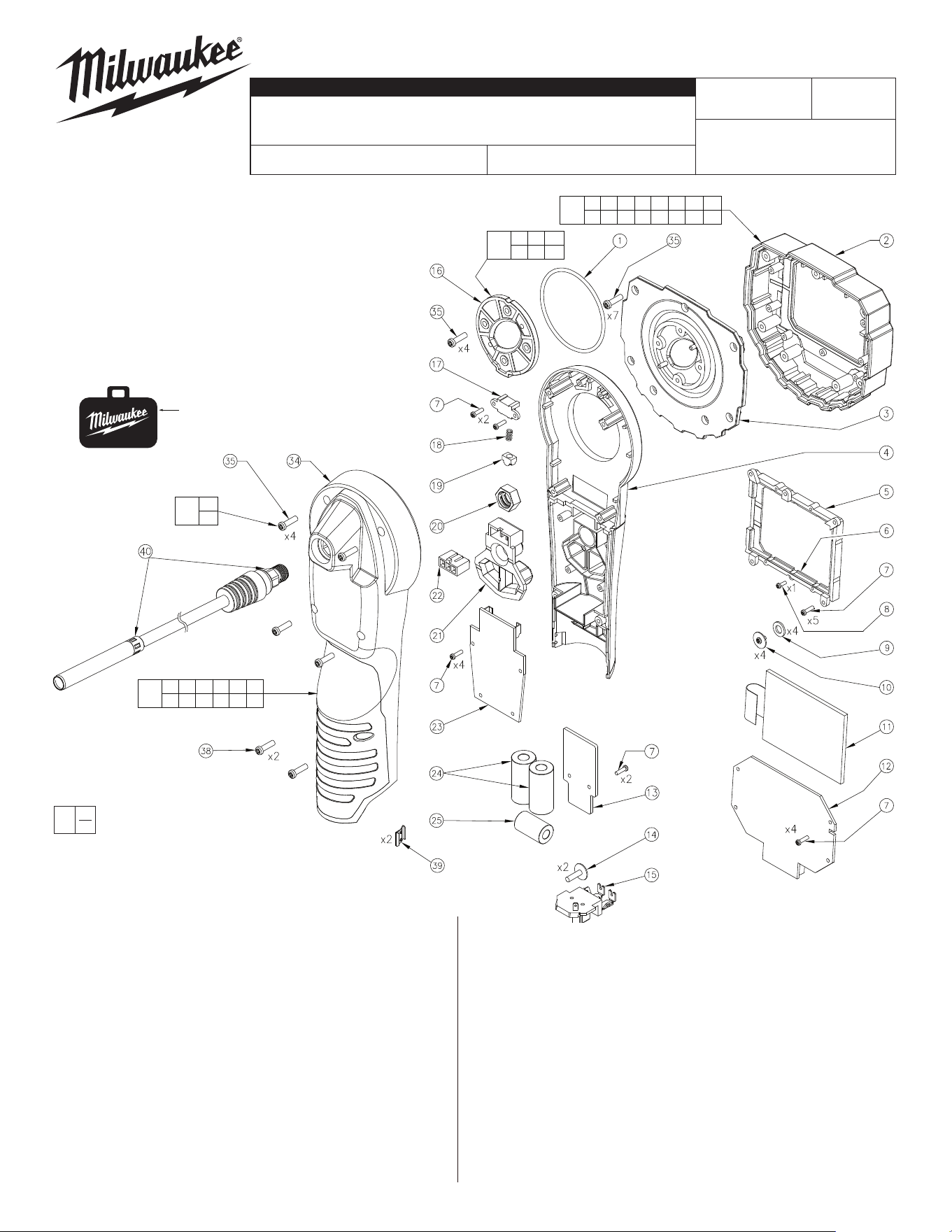

M-SPECTOR 360™ ROTATING INSPECTION SCOPE
(Digital Inspection Camera)
Oct. 2024
54-07-2340
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
D59A
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- O-Ring (1)
2 --------------- Upper Rotating Head (1)
3 --------------- Lower Rotating Head (1)
4 --------------- Top Housing (1)
5 --------------- LCD Lens (1)
6 --------------- LCD Cushion (1)
7 --------------- 2 x 6 Plastite Screw (17)
8 --------------- 1.7 x 5 Plastite Screw (1)
9 --------------- Rubber Washer (4)
10 --------------- 2 x 4 Washer Head Screw (4)
11 --------------- LCD (1)
12 --------------- Rotate Head PCB (1)
13 --------------- Ferrite Bar Holder (1)
14 --------------- 2 x 6 Washer Head Screw (2)
15 --------------- Battery Connector Block (1)
16 --------------- Rotary Stopper (1)
17 --------------- Detent Stud Holder (1)
18 --------------- Spring (1)
19 --------------- Detent Stud (1)
20 --------------- M10 Nut (1)
21 --------------- Key Pad (1)
22 --------------- Light Guide (1)
23 --------------- PCB (1)
24 --------------- Ferrite Bar (2)
25 --------------- Ferrite Bar (1)
34 --------------- Bottom Housing (1)
35 --------------- 3 x 8 Plastite Screw (15)
38 --------------- 2.6 x 8 Plastite Screw (2)
48
39 42-70-0250 Housing Clip (2)
40 --------------- 3' Camera Cable (1)
42 43-74-0600 Hook (Not Shown) (1)
43 44-26-0500 Magnet (Not Shown) (1)
44 44-79-0200 Mirror (Not Shown) (1)
45 48-53-0113 Pipe Guide Attachment (Not Shown) (1)
46 12-20-2350 Service Nameplate (Not Shown) (1)
48 42-55-2315 Carrying Case (1)
50 14-20-1500 Rotating Screen Detent Kit (1)
51 14-34-0925 Front Handle Assembly (1)
52 45-04-1125 Housing Screw Set (1)
53 14-34-0951 Rear Handle Assembly (2313-20) (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 3
SERIAL NO.
