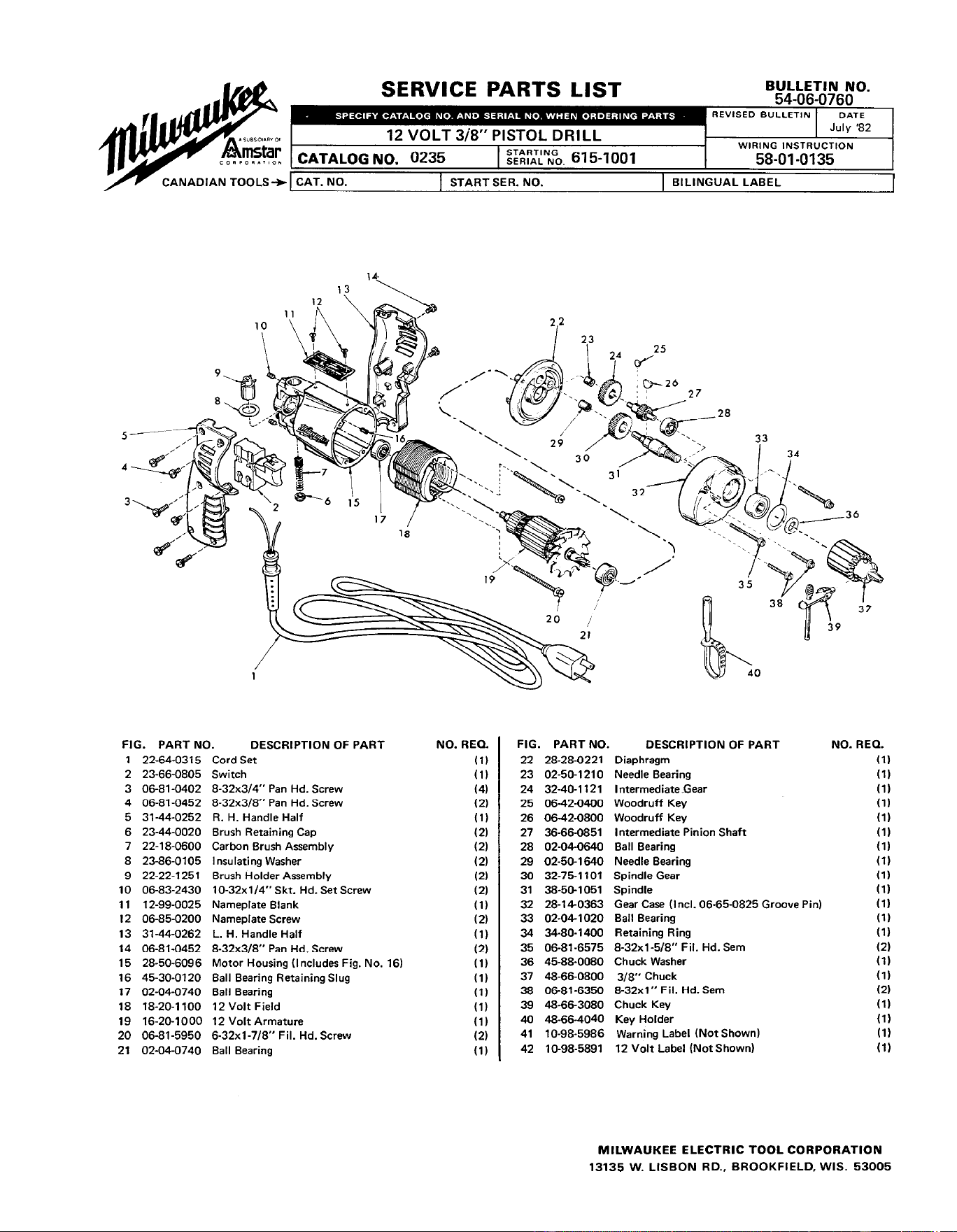

SERVICE PARTS LIST
BULLETIN NO.
1 CAT. NO.
1 START SER. NO.
1 BILINGUAL LABEL
7
FIG. PART NO.
DESCRIPTION OF PART
1 22-64-0315 Cord Set
2 23-66-0805 Switch
3 06-E l-0402 8-32~314” Pan Hd. Screw
4 06-81-0452 8-32x3/8” Pan Hd. Screw
5 31-44-0252
R. H. Handle Half
6 23-44-0020 Brush Retaining Cap
7 22-18-0600 Carbon Brush Assembly
8 23-86-0105 Insulating Washer
9 22-22-l 251
Brush Holder Assembly
10 06-83-2430
10-32x1/4” Skt. Hd. Set Screw
11 12-99-0025 Nameplate Blank
I2 06-85-0200
Nameplate Screw
13 31-44-0262
L. H. Handle Half
14 06-81-0452
8-32x3/8” Pan Hd. Screw
15 28-50-6096 Motor Housing (Includes Fig. No. 16)
16 45-30-0120
Ball Bearing Retaining Slug
17 02-04-0740 Ball Bearing
18 18-20-l 100 12 Volt Field
19 16-20-1000 12 Volt Armature
20 06-81-5950 6-32x1-7/8” Fil. Hd. Screw
21 02-04-0740 Ball Bearing
NO. REQ.
(1)
(11
(4)
(2)
(1)
(2)
(2)
(2)
(2)
(2)
(1)
(2)
(1)
(2)
(1)
(1)
(1)
(1)
(1)
(2)
(1)
FIG. PART NO.
DESCRIPTION OF PART NO. REQ.
22 28-28-0221 Diaphragm
(1)
23 02-50-l 210 Needle Searing
(1)
24 32-40-1121 Intermediate-Gear
(1)
25 06-42-0400
Woodruff Key
(11
26 06-42-0800 Woodruff Key
(1)
27 36-66-0851
Intermediate Pinion Shaft
(1)
28 02-04-0640
Ball Bearing
(1)
29 02-50-l 640
Needle Bearing
(1)
30 32-75-l 101
Spindle Gear
(1)
31 38-50-1051 Spindle
(1)
32 28-l 40363 Gear Case (Incl. 06-65-0825 Groove Pin)
(1)
33 02-04-l 020
Ball Bearing
(1)
34 34-80-l 400
Retaining Ring
(1)
35 06-81-6575
8-32x1-518” Fit. Hd. Sem
(2)
36 45-88-0080
Chuck Washer
(1)
37 48-66-0800 318” Chuck
(1)
38 06-81-6350
8-32~1” Fil. Hd. Sem
(2)
39 48-66-3080
Chuck Key
(1)
40 48-66-4040
Key Holder
(1)
41 1 O-98-5986
Warning Label (Not Shown)
(1)
42 1 O-98-5891
12 Volt Label (Not Shown)
(1)
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WIS. 53005
