MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
BULLETIN NO.
REVISED BULLETIN DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
STARTING
SERIAL NO.
Feb. 2008
* SEE NOTE
WIRING INSTRUCTION
598C
CATALOG NO.
ELECTROMAGNETIC DRILL STAND
4202
54-46-2228
* NOTE:
WIRING DETAILS
ALONG WITH A LISTING OF
COMPONENTS FOR (FIG. NO. 12)
PANEL ASSEMBLY ARE SHOWN ON
BULLETIN 54-30-0152.
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00

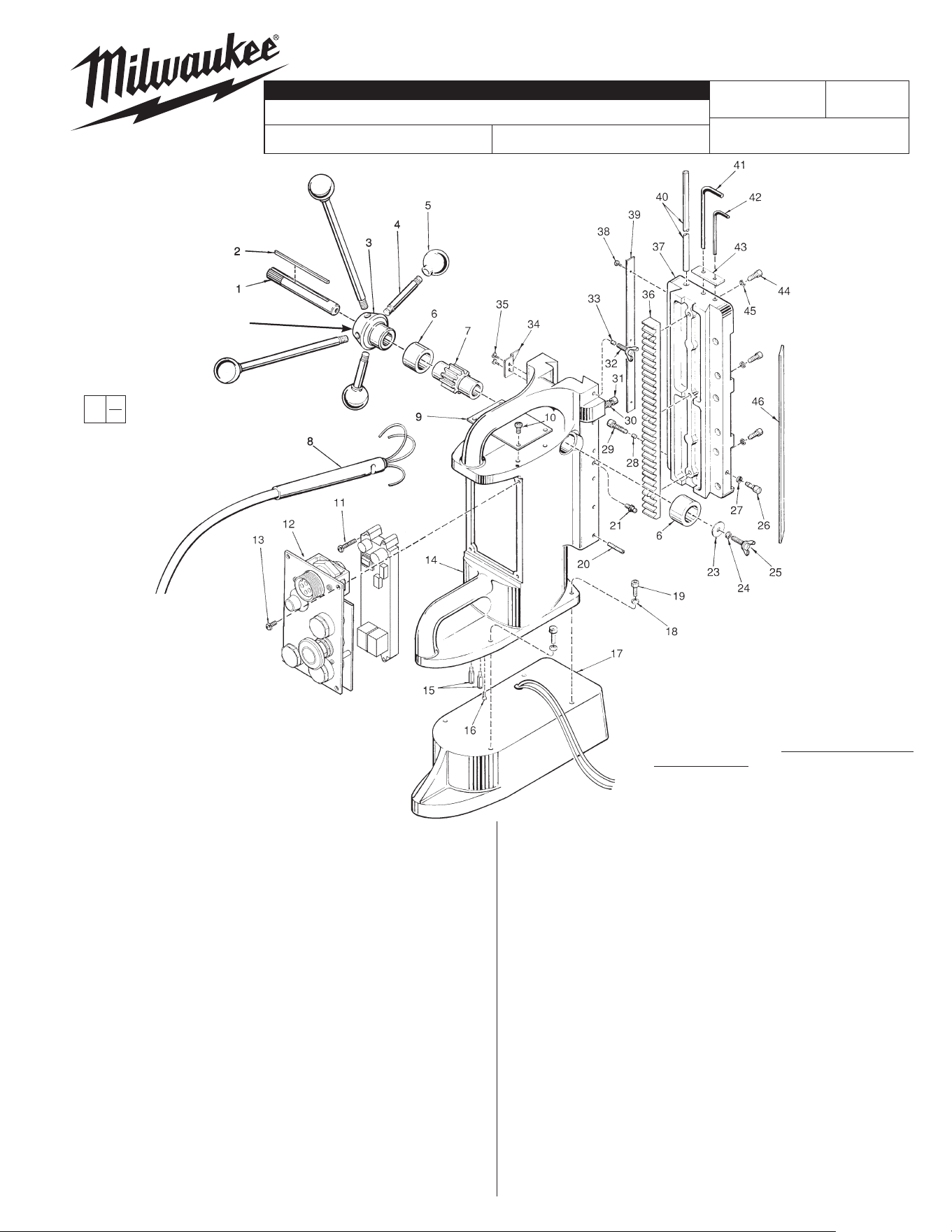

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 45-08-0160 Shaft (1)
2 06-42-3750 1/8 x 3-1/2" Square Key (1)
3 43-78-0260 Handle Hub (1)
4 43-62-0055 Feed Handle (4)
5 43-98-0050 Plastic Knob (4)
6 42-40-0060 Bushing (2)
7 32-60-2120 Pinion Gear (1)
8 22-64-0076 Cord Set (1)
9 12-99-1295 Service Nameplate (1)
10 06-95-0075 6-32 x 3/8" Truss Hd. Taptite Screw (4)
11 06-82-2390 8-32 x 1-1/2" Taptite T-20 (3)
12 --------------- Panel Assembly (See Note) (1)
13 06-82-7252 8-32 x 3/8" Pan Hd. Slt. Taptite T-20 (4)
14 28-50-7815 Support Housing (1)
15 45-04-0100 Cord Retaining Screw (2)
16 06-81-8820 Ground Screw (1)
17 42-20-0825 Magnetic Base Assembly (1)
18 06-97-4050 1/4" Split Ring Lock Washer (4)
19 06-75-3090 1/4-20 x 7/8" Socket Hd. Screw (4)
20 06-83-2525 10-32 x 3/4" Headless Socket Screw (5)
21 43-33-0150 Grease Fitting (2)
23 45-88-5247 Hub Washer (1)
24 06-97-4050 1/4" Split Ring Lock Washer (1)
25 06-88-0110 1/4-20 x 3/4" Wing Screw (1)
26 06-75-2900 1/4-20 x 3/8" Socket Hd. Screw (1)
27 06-97-4050 1/4" Split Ring Lock Washer (1)
28 45-30-0160 Brass Slug (2)
29 06-75-3090 1/4-20 x 7/8" Socket Hd. Screw (2)
SERVICE PARTS LIST 54-46-2229
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
30 06-97-4050 1/4" Split Ring Lock Washer (1)
31 06-75-2900 1/4-20 x 3/8" Socket Hd. Screw (1)
32 06-88-0110 1/4-20 x 3/4" Wing Screw (1)
33 45-30-0160 Brass Slug (1)
34 43-82-0080 Gauge Indicator (1)
35 06-82-7252 8-32 x 3/8" Pan Hd. Slt. Taptite T-20 (2)
36 44-80-0070 Rack (1)
37 30-84-0180 Slide (1)
38 06-85-0200 6 x 1/4" Rd. Hd. Type Z Screw (3)
39 43-46-0150 Graduated Gauge (1)
40 44-94-0165 Depth Gauge Rod (1)
41 49-96-0080 3/16" Hex Key (1)
42 49-96-0050 3/32" Hex Key (1)
43 43-94-0060 Wrench Keeper (1)
44 06-75-3005 1/4-20 x 5/8" Socket Hd. Screw (3)
45 06-97-4050 1/4" Split Ring Lock Washer (3)
46 43-48-0090 Gib (1)
48-58-0080 6' Safety Chain (Incld. 43-74-0080) (1)
43-74-0080 Chain Hook (1)
10-98-6095 Chain Label (1)
FOR MOUNTING DRILL MOTOR TO STAND USE:
06-97-4050 1/4" Split Ring Lock Washer (4)
06-75-3050 1/4-20 x 3/4" Socket Hd. Screw (4)
NOTE:
THE INITIAL STAND DESIGN UTILIZED
10-32 X 1" SOCKET SET SCREWS (20)
ALONG WITH LOCK NUTS.
NEW SERVICE REPLACEMENT PART
06-83-2525 IS A 10-32 X 3/4" SOCKET SET
SCREW AND HAS AN ADHESIVE PATCH ON
THE THREADS.
DISCARD OLD SOCKET SET SCREW AND
LOCK NUT.
NOTE: 4 Handle Hub is no
longer available. The service
replacement is a hub for 3
handles.
