mTS1000 Series Tripod Turnstile User Manual
Page | 1 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
For further details, please visit our Company’s website
www.zkteco.com.
User Manual
Mars-S100 Series
Applicable Model(s): Mars-100, Mars-S120
Date: July 2025
Doc Version: 1.4
English
Mars-S100 Series User Manual
Page | 2 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Copyright © 2025 ZKTECO CO., LTD. All rights reserved.
Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any
way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or
"ZKTeco").
Trademark
is a registered trademark of ZKTeco. Other trademarks involved in this manual are owned by
their respective owners.
Disclaimer
This manual contains information on the operation and maintenance of the ZKTeco equipment. The
copyright in all the documents, drawings, etc. in relation to the ZKTeco supplied equipment vests in and is
the property of ZKTeco. The contents hereof should not be used or shared by the receiver with any third
party without express written permission of ZKTeco.
The contents of this manual must be read as a whole before starting the operation and maintenance of the
supplied equipment. If any of the content(s) of the manual seems unclear or incomplete, please contact
ZKTeco before starting the operation and maintenance of the said equipment.
It is an essential pre-requisite for the satisfactory operation and maintenance that the operating and
maintenance personnel are fully familiar with the design and that the said personnel have received
thorough training in operating and maintaining the machine/unit/equipment. It is further essential for the
safe operation of the machine/unit/equipment that personnel has read, understood and followed the
safety instructions contained in the manual.
In case of any conflict between terms and conditions of this manual and the contract specifications,
drawings, instruction sheets or any other contract-related documents, the contract conditions/documents
shall prevail. The contract specific conditions/documents shall apply in priority.
ZKTeco offers no warranty, guarantee or representation regarding the completeness of any information
contained in this manual or any of the amendments made thereto. ZKTeco does not extend the warranty
of any kind, including, without limitation, any warranty of design, merchantability or fitness for a particular
purpose.
ZKTeco does not assume responsibility for any errors or omissions in the information or documents which
are referenced by or linked to this manual. The entire risk as to the results and performance obtained from
using the information is assumed by the user.
ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect,
special, or exemplary damages, including, without limitation, loss of business, loss of profits, business
interruption, loss of business information or any pecuniary loss, arising out of, in connection with, or
Mars-S100 Series User Manual
Page | 3 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been
advised of the possibility of such damages.
This manual and the information contained therein may include technical, other inaccuracies or
typographical errors. ZKTeco periodically changes the information herein which will be incorporated into
new additions/amendments to the manual. ZKTeco reserves the right to add, delete, amend or modify the
information contained in the manual from time to time in the form of circulars, letters, notes, etc. for better
operation and safety of the machine/unit/equipment. The said additions or amendments are meant for
improvement /better operations of the machine/unit/equipment and such amendments shall not give any
right to claim any compensation or damages under any circumstances.
ZKTeco shall in no way be responsible (I) in case the machine/unit/equipment malfunctions due to any
non-compliance of the instructions contained in this manual (ii) in case of operation of the
machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in
conditions different from the prescribed conditions of the manual.
The product will be updated from time to time without prior notice. The latest operation procedures and
relevant documents are available on http://www.zkteco.com
If there is any issue related to the product, please contact us.
ZKTeco Headquarters
Address ZKTeco Industrial Park, No. 32, Industrial Road,
Tangxia Town, Dongguan, China.
Phone +86 769 - 82109991
Fax +86 755 - 89602394
For business-related queries, please write to us at: sales@zkteco.com.
To know more about our global branches, visit www.zkteco.com.
Mars-S100 Series User Manual
Page | 4 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
About the Company
ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein)
readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition
Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and
Consumer products including battery-operated fingerprint and face-reader Door Locks. Our security
solutions are multi-lingual and localized in over 18 different languages. At the ZKTeco state-of-the-art
700,000 square foot ISO9001-certified manufacturing facility, we control manufacturing, product design,
component assembly, and logistics/shipping, all under one roof.
The founders of ZKTeco have been determined for independent research and development of biometric
verification procedures and the productization of biometric verification SDK, which was initially widely
applied in PC security and identity authentication fields. With the continuous enhancement of the
development and plenty of market applications, the team has gradually constructed an identity
authentication ecosystem and smart security ecosystem, which are based on biometric verification
techniques. With years of experience in the industrialization of biometric verifications, ZKTeco was
officially established in 2007 and now has been one of the globally leading enterprises in the biometric
verification industry owning various patents and being selected as the National High-tech Enterprise for 6
consecutive years. Its products are protected by intellectual property rights.
About the Manual
This manual introduces the operations of Mars-S100 Series.
All figures displayed are for illustration purposes only. Figures in this manual may not be exactly consistent
with the actual products.
Features and parameters with ★ are not available in all devices.
Mars-S100 Series User Manual
Page | 5 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Document Conventions
Conventions used in this manual are listed below:
GUI Conventions
For Software
Convention Description
Bold font Used to identify software interface names e.g. OK, Confirm, Cancel.
>
Multi-level menus are separated by these brackets. For example, File > Create >
Folder.
For Device
Convention Description
< >
Button or key names for devices. For example, press <OK>.
[ ]
Window names, menu items, data table, and field names are inside square
brackets. For example, pop up the [New User] window.
/
Multi-level menus are separated by forwarding
slashes. For example,
[File/Create/Folder].
Symbols
Convention Description
This represents a note that needs to pay more attention to.
The general information which helps in performing the operations faster.
The information which is significant.
Care taken to avoid danger or mistakes.
The statement or event that warns of something or that serves as a cautionary
example.
Mars-S100 Series User Manual
Page | 6 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Table of Contents
1 OVERVIEW ............................................................................................................................................ 7
Features ........................................................................................................................................................ 7 1.1
Appearance and System Components .................................................................................................... 8 1.2
1.2.1
Appearance ................................................................................................................................................................................................. 8
1.2.2 System Components ............................................................................................................................................................................. 9
Mechanical System ..................................................................................................................................... 9 1.3
Electronic Control System ....................................................................................................................... 10 1.4
Working Principle...................................................................................................................................... 10 1.5
System Composition ................................................................................................................................ 11 1.6
Technical Specifications ........................................................................................................................... 12 1.7
2
FUNCTIONS AND FEATURES ............................................................................................................. 15

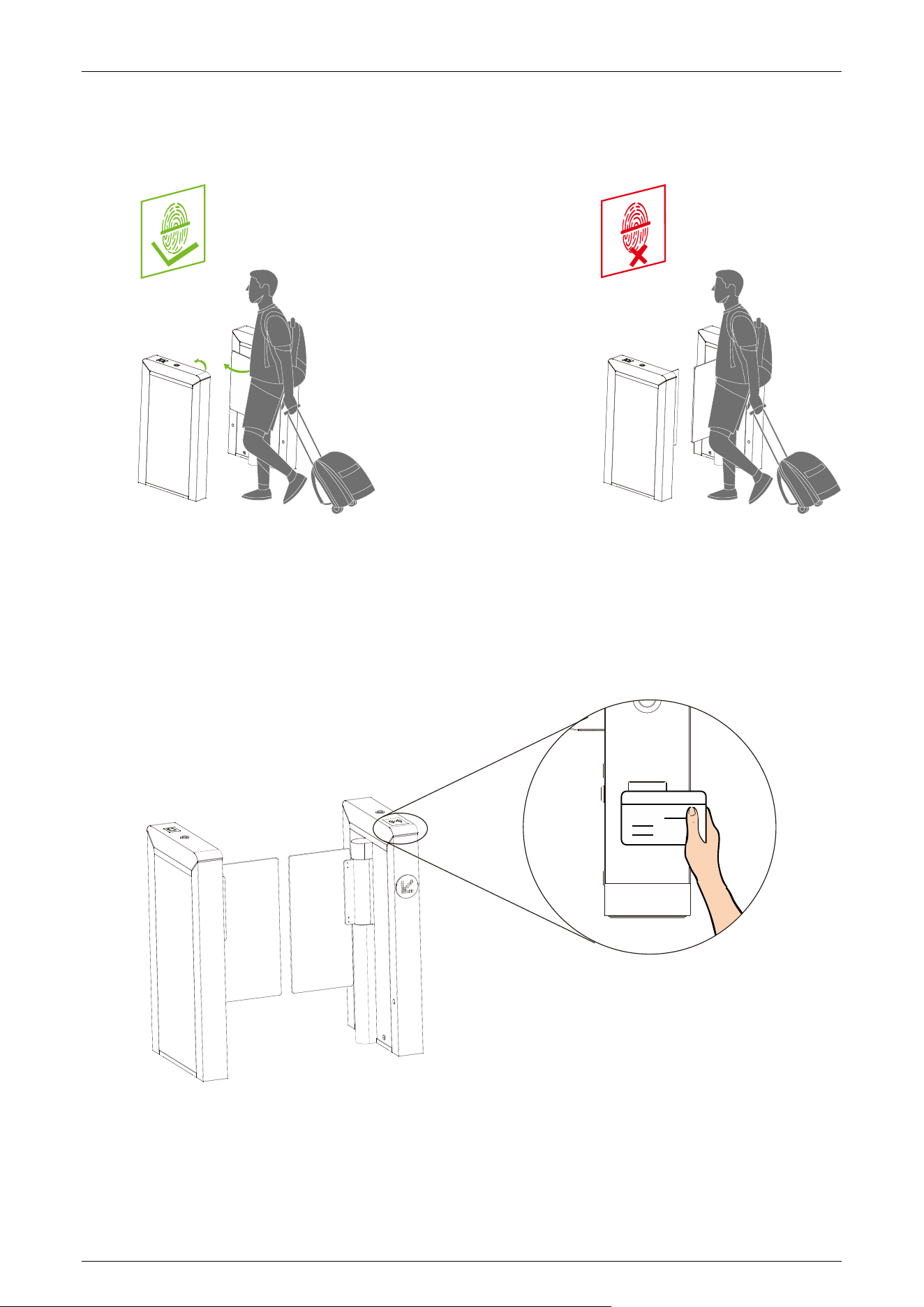

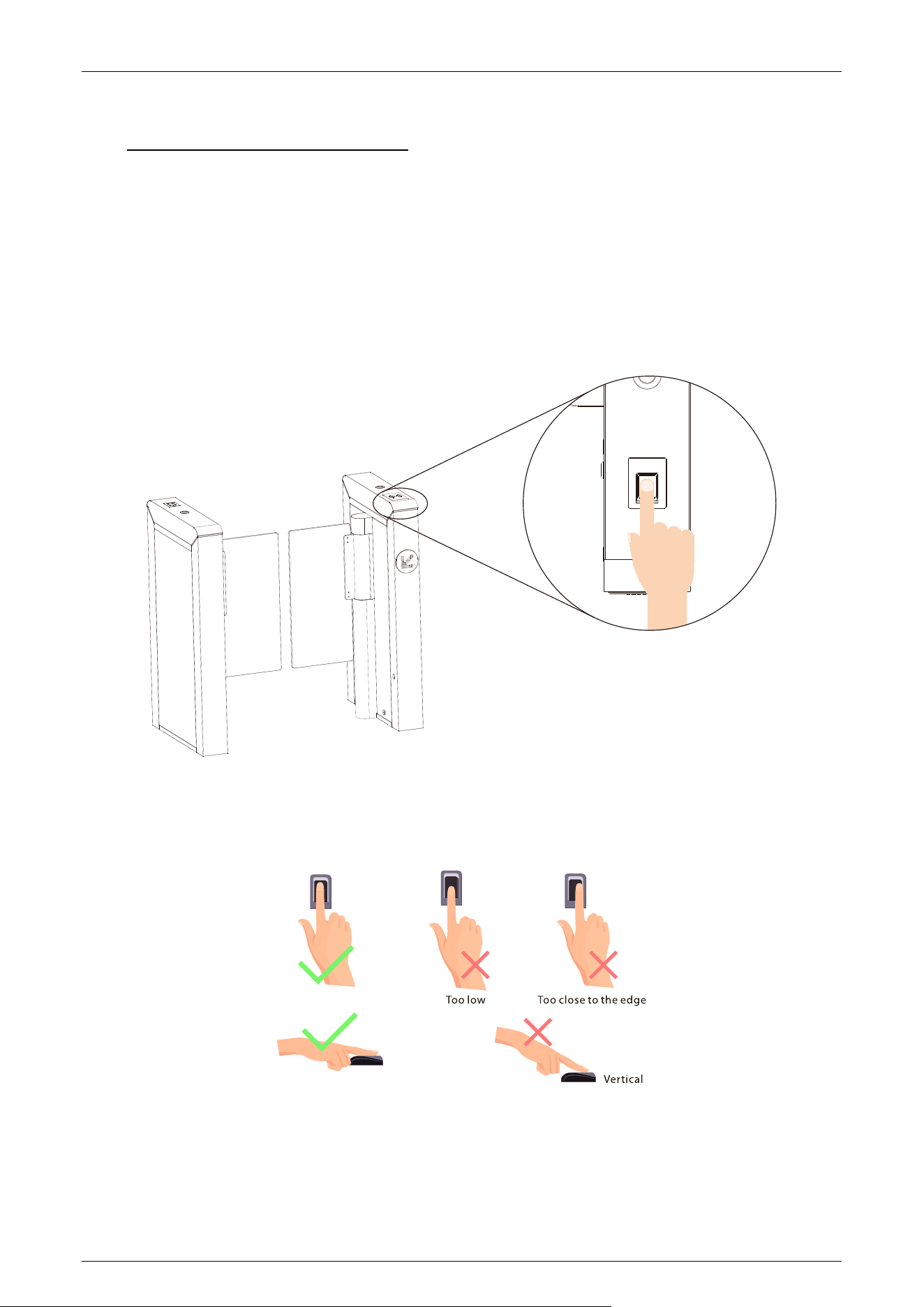

Fingerprint Verification★ ....................................................................................................................... 15 2.1
Card Verification★ ................................................................................................................................... 16 2.2
QR code Verification★ ............................................................................................................................. 17 2.3

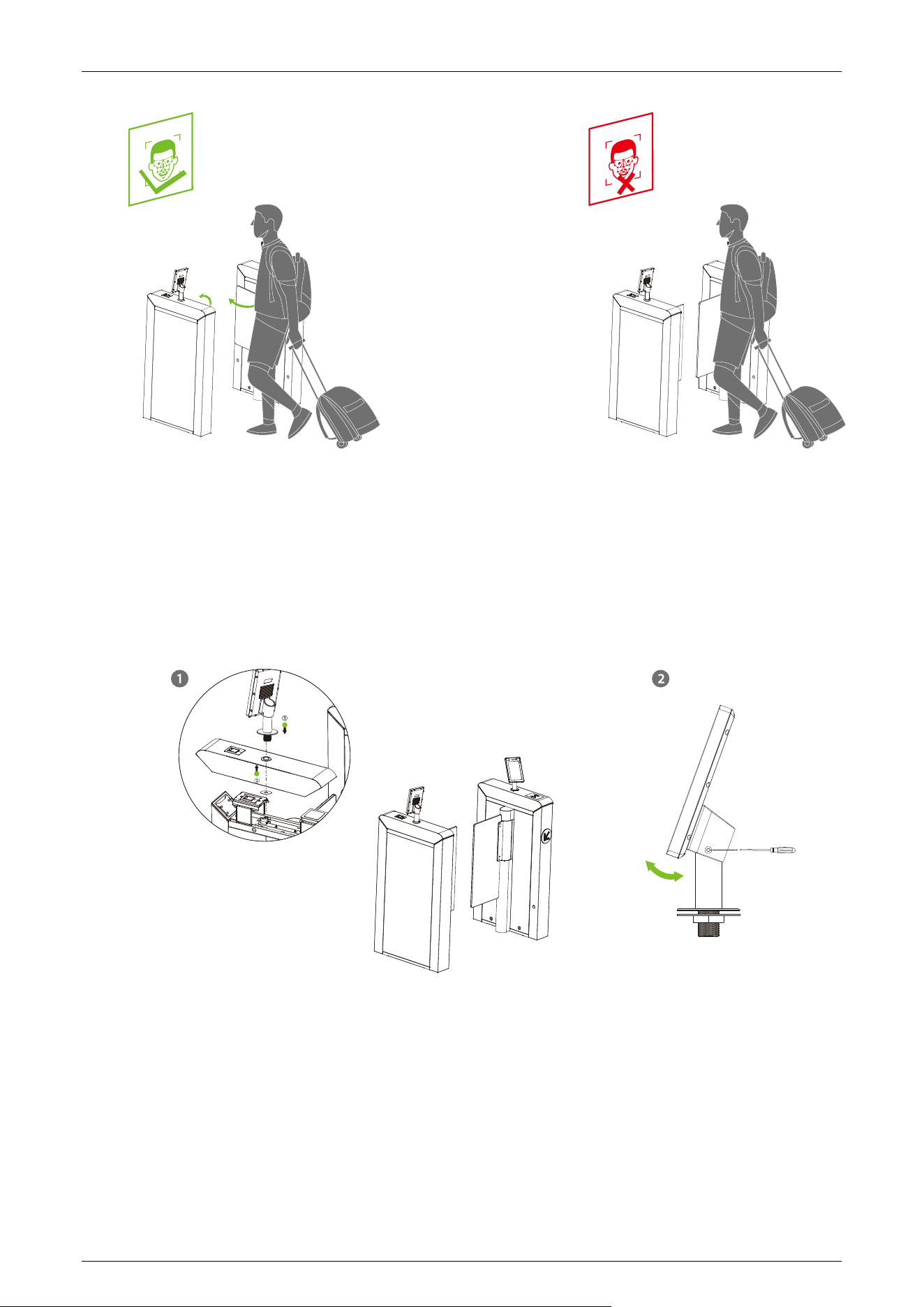

Facial Verification★ ................................................................................................................................. 18 2.4
3
CONTROL SYSTEM INTRODUCTION ................................................................................................. 20

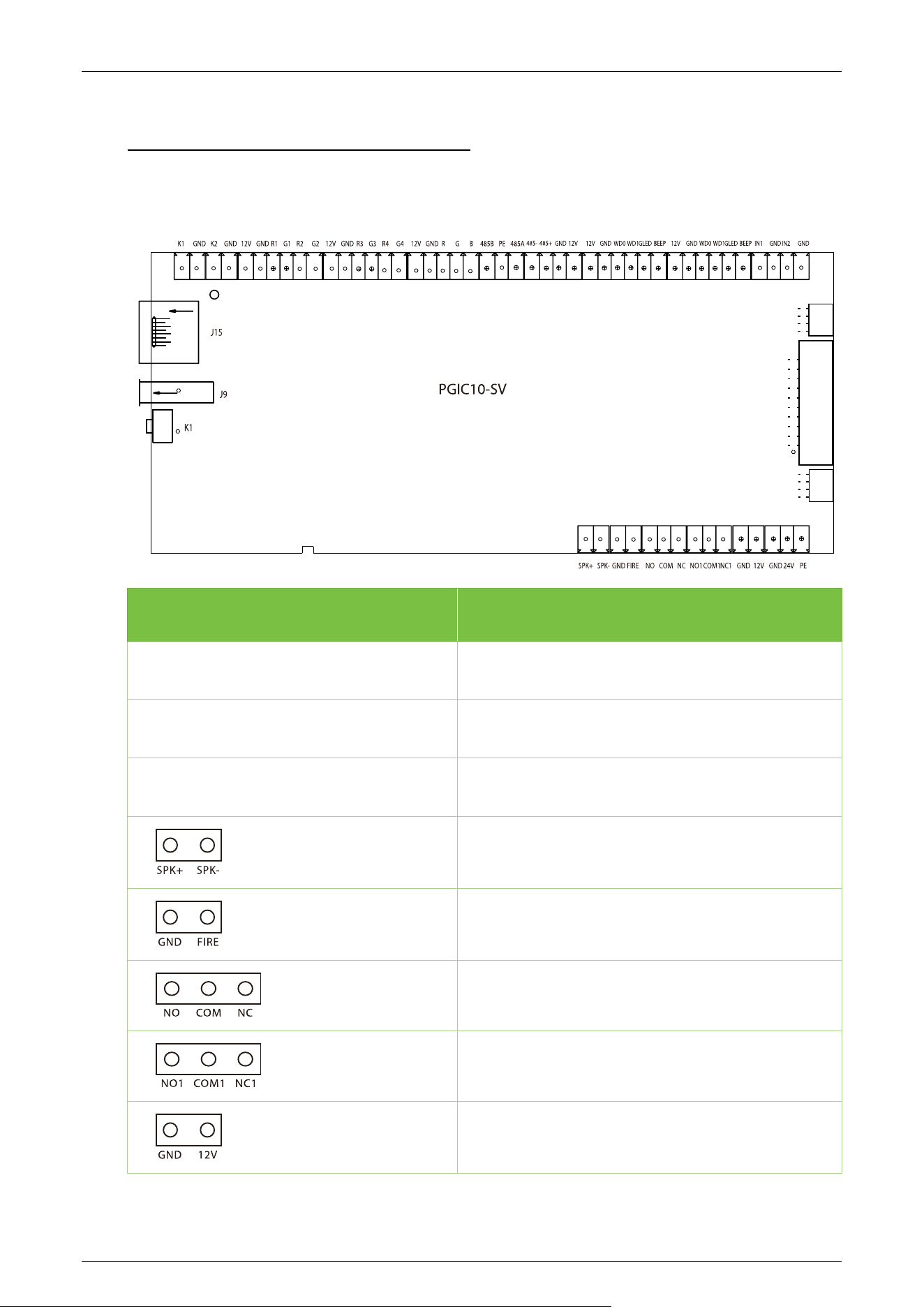

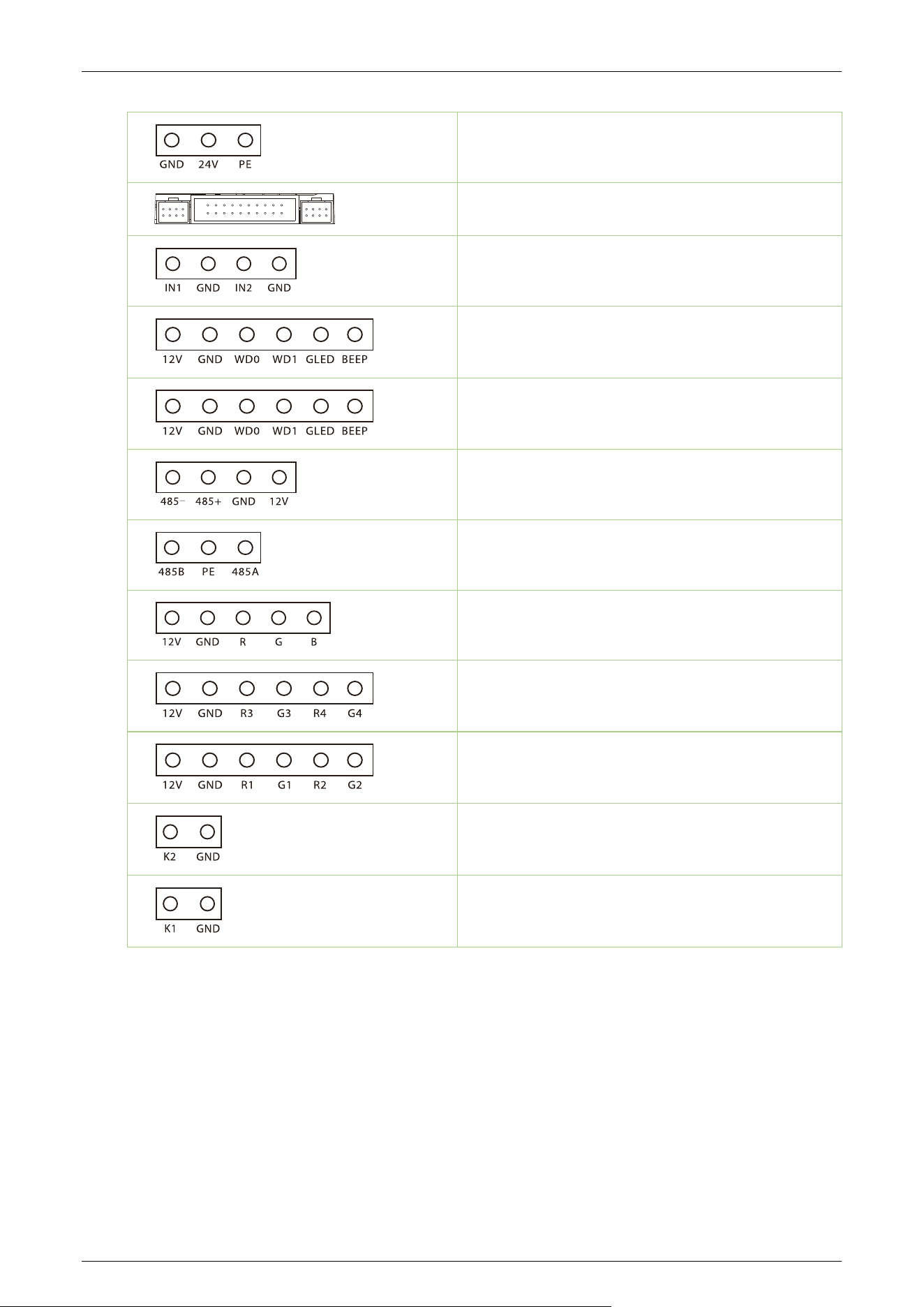

PGIC10-SV★ .............................................................................................................................................. 20 3.1

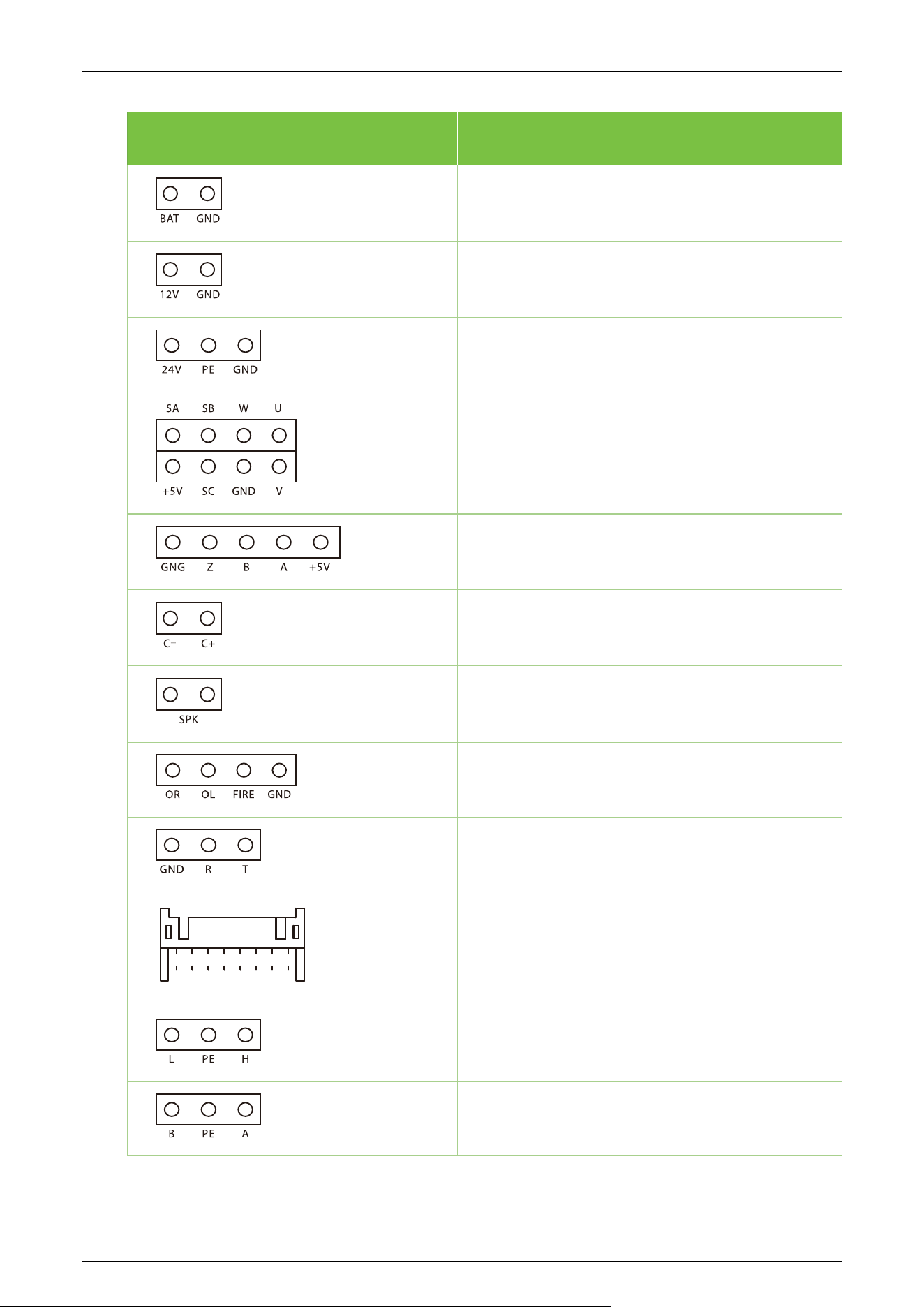

Main/Sub Motor Driving Controller ....................................................................................................... 22 3.2

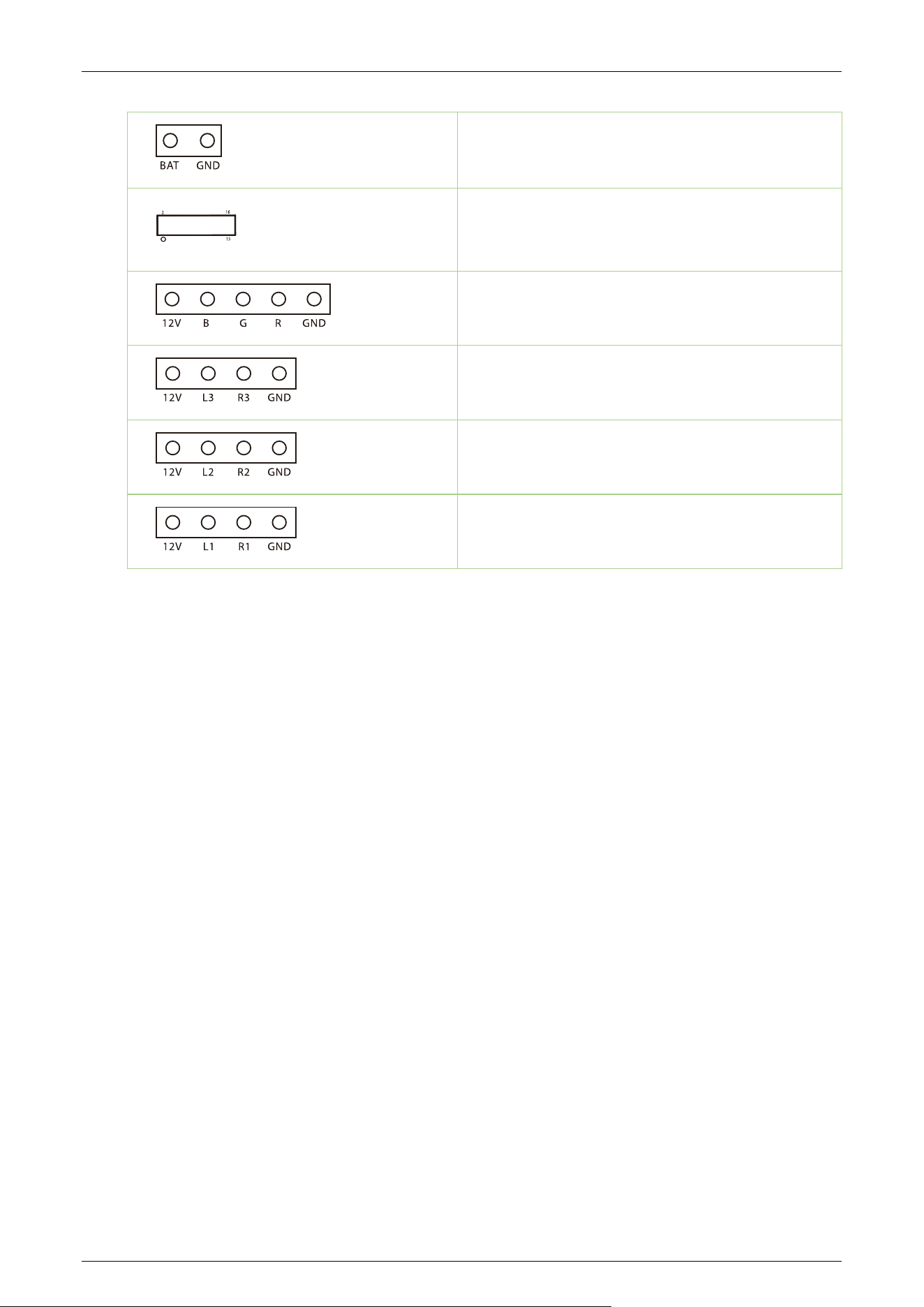

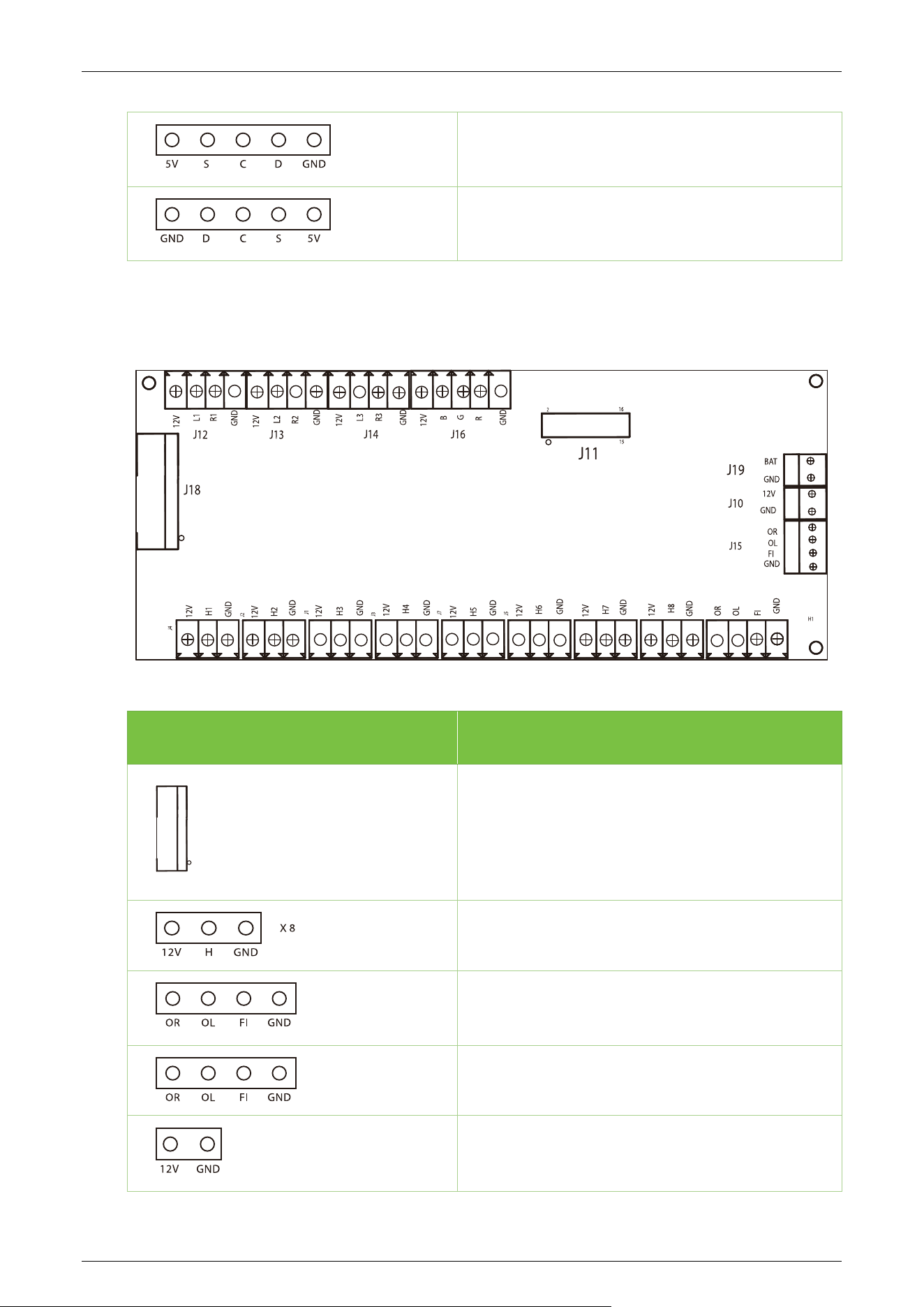

IR Board ....................................................................................................................................................... 24 3.3

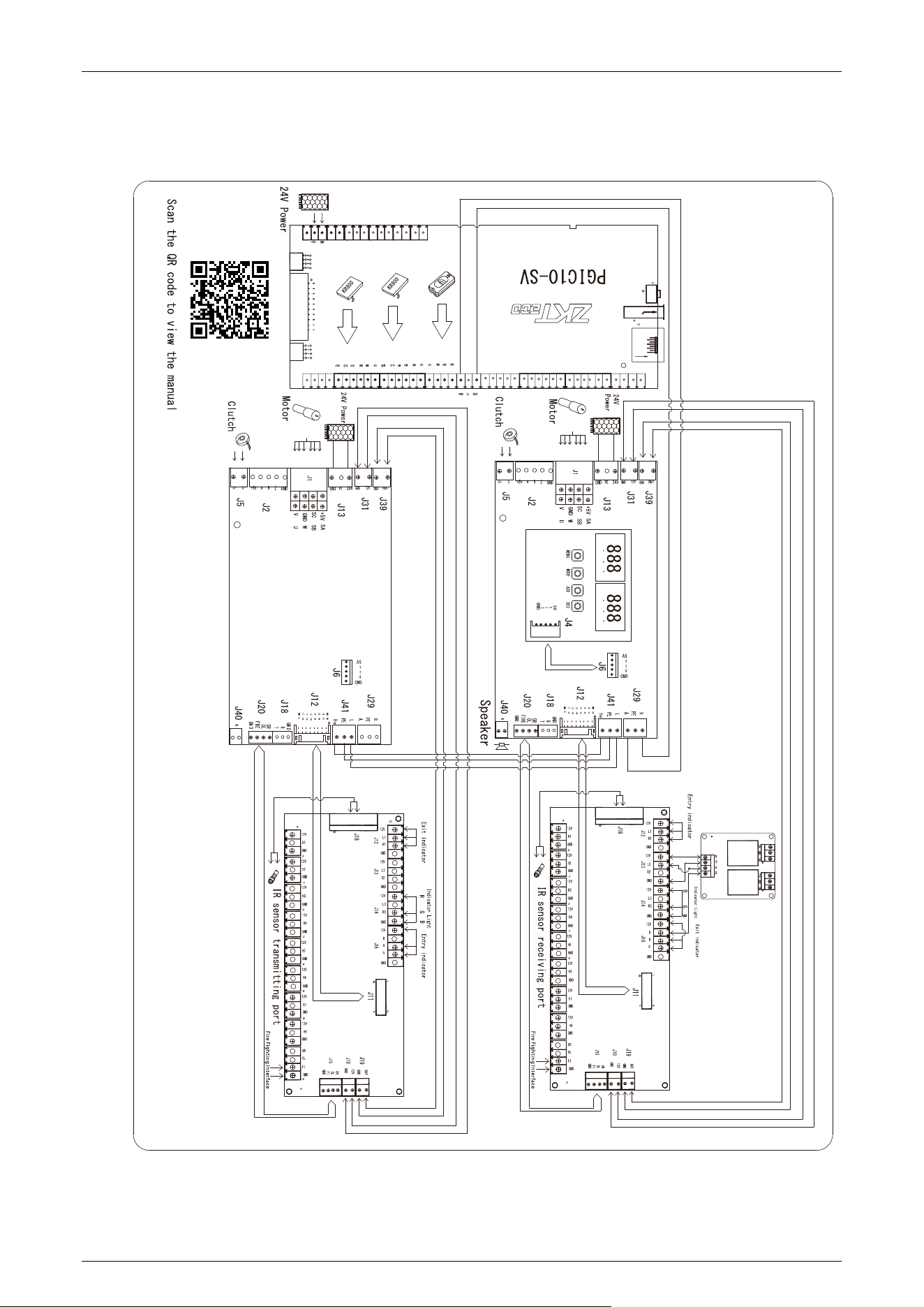

Wiring Diagram ......................................................................................................................................... 26 3.4

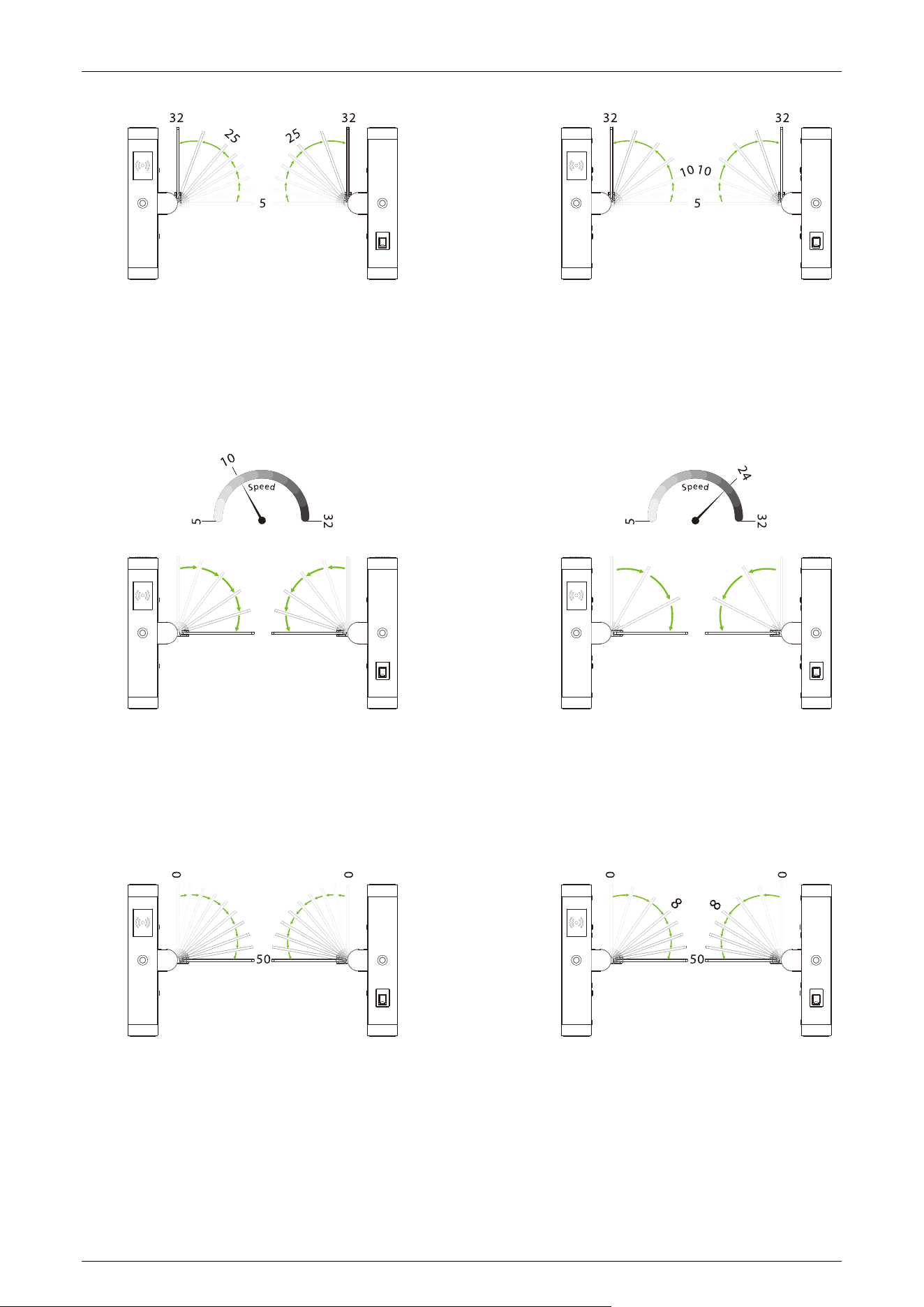

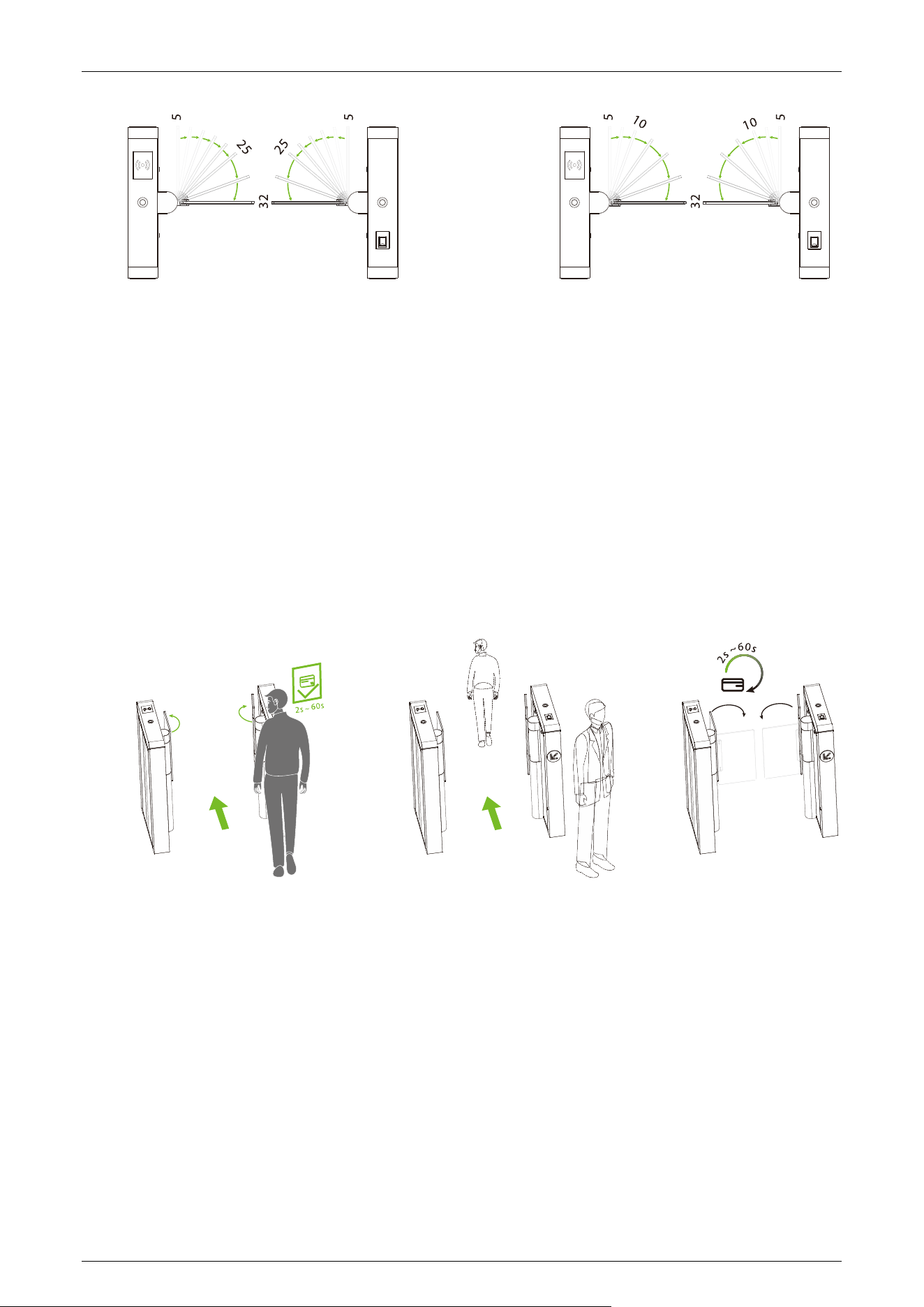

Menu of Speed Gate ................................................................................................................................. 27 3.5
Error Code for Turnstile ............................................................................................................................ 38 3.6
4
MAINTENANCE .................................................................................................................................. 39
Chassis Maintenance ................................................................................................................................ 39 4.1
Movement Maintenance .......................................................................................................................... 39 4.2

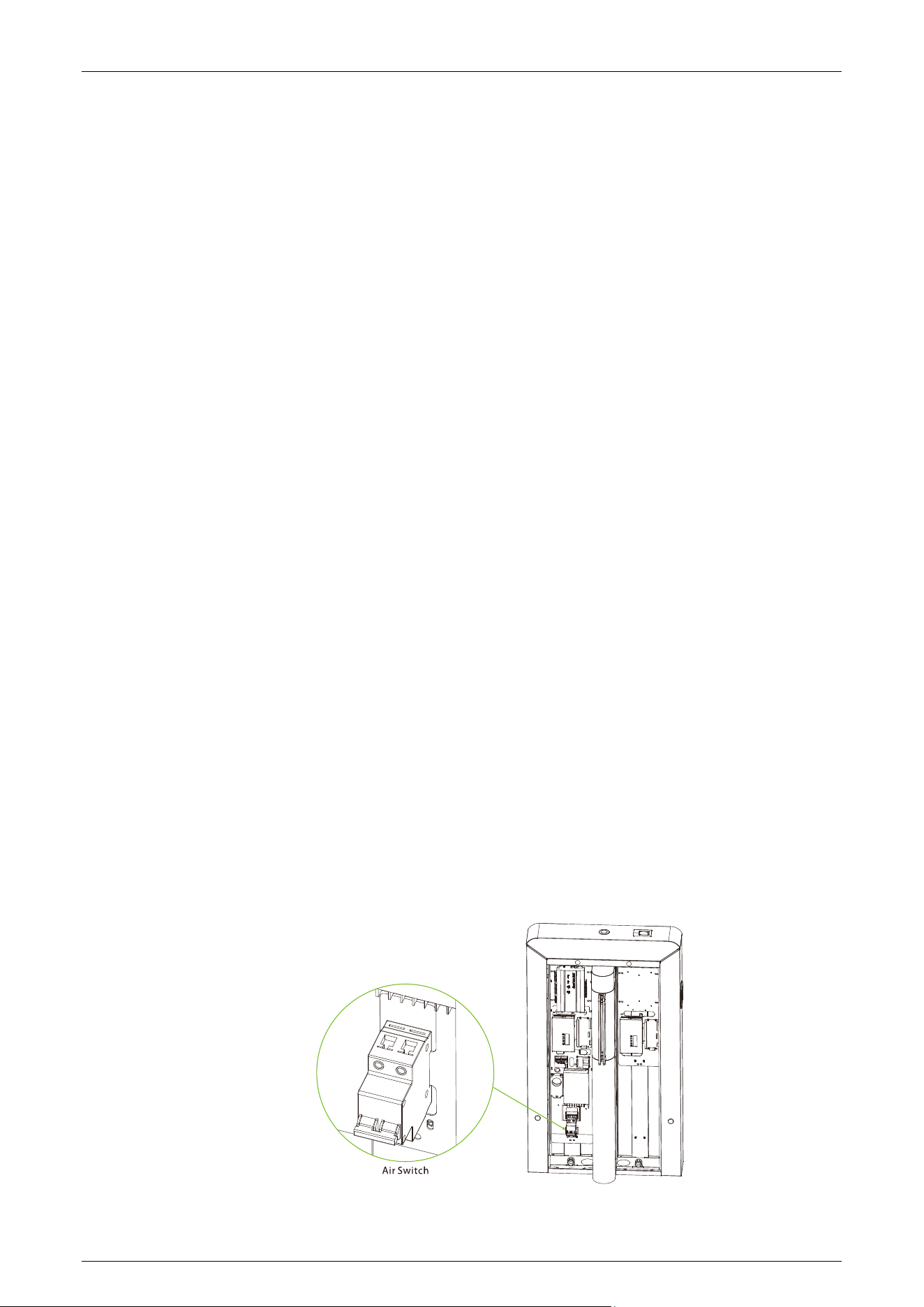

Power Supply Maintenance .................................................................................................................... 39 4.3
5
TROUBLESHOOTING.......................................................................................................................... 40

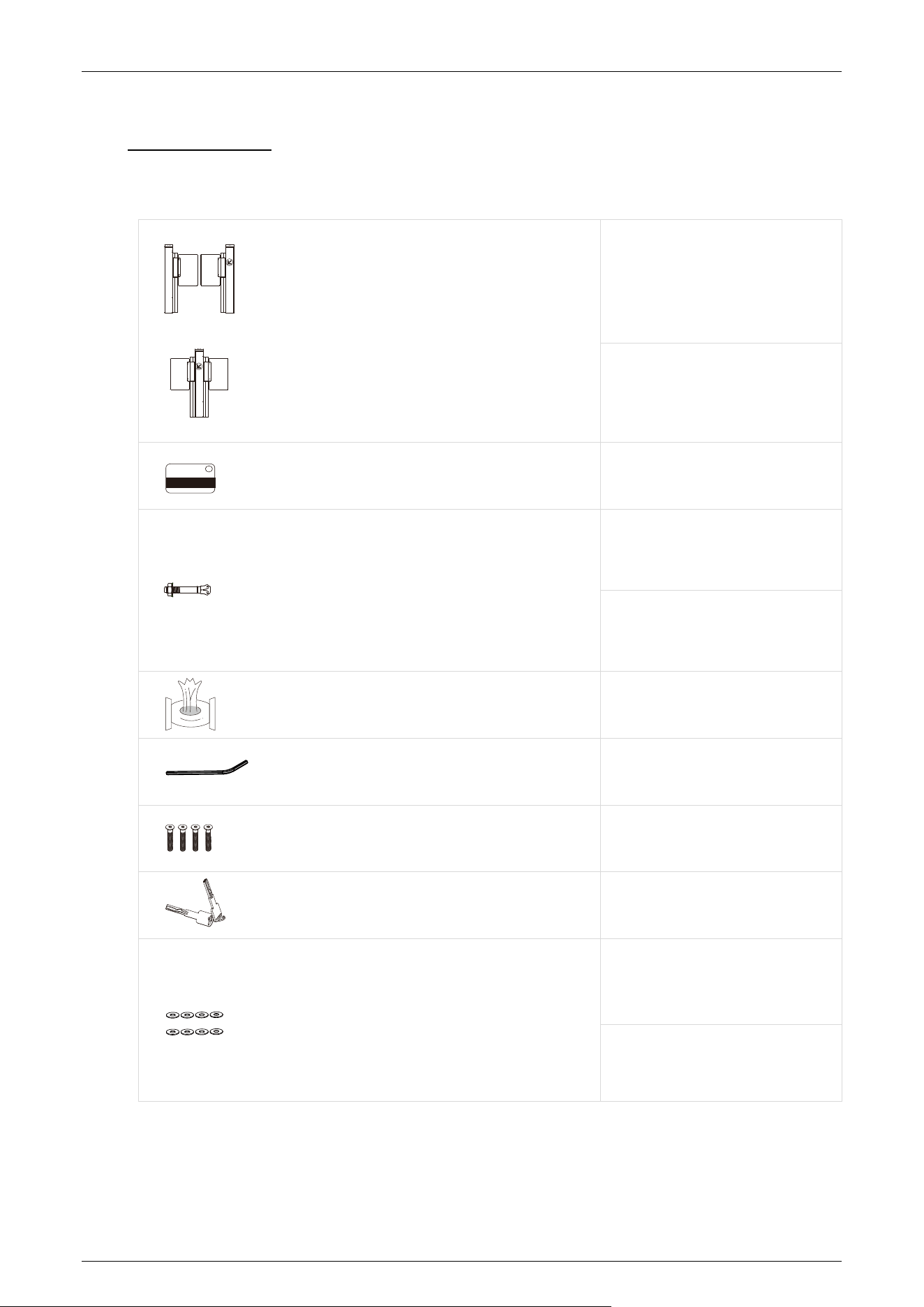

6 PACKING LIST .................................................................................................................................... 41
Mars-S100 Series User Manual
Page | 7 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
1 Overview
Mars-S100 swing barrier turnstile series from ZKTeco has two models: Mars-S100 and Mars-S120.
Mars-S100 series provides single lane or dual lane, and the lane which can be extended up to
900mm for very high-traffic areas such as bus terminals, government institutions and stadiums.
Mars-S100 series has installed four pairs of IR sensors for accurate people counting and to avoid
collisions with the barrier. The barriers can be locked in a closed position, and an integrated clutch
mechanism engages if the barrier is forced, protecting the turnstile from damage.
Additionally, this compact speed gate can integrate with access control system. Upon a valid
verification of user's credentials (Fingerprint / Face / Palm / RFID Card/ QR Code, the barriers
automatically swing to the open position, allowing passage.

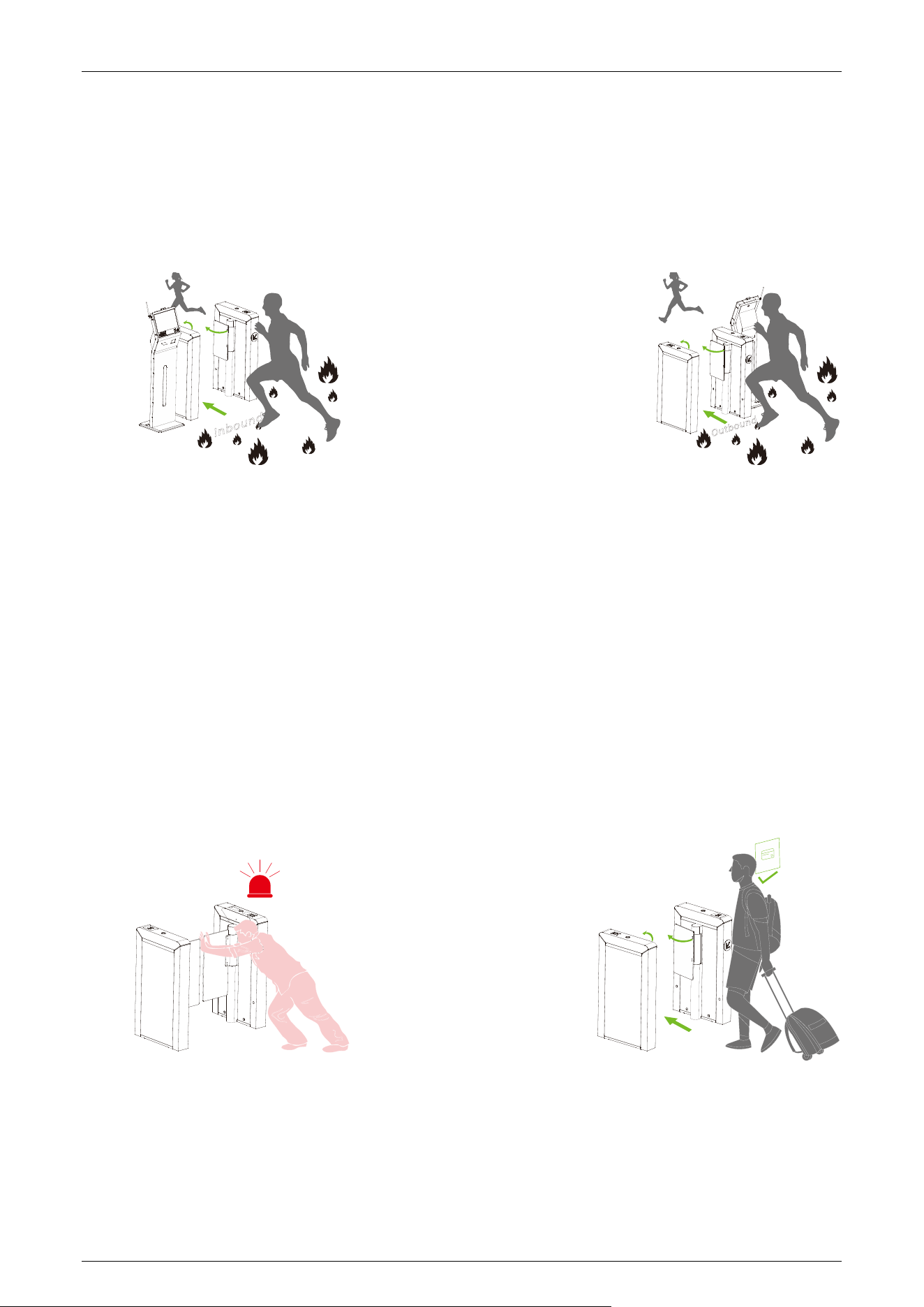

Essential safety functions include automatic barrier opening in the event of power loss or a fire
alarm signal activation, ensuring unimpeded egress in emergencies.
Features 1.1
Reliability
The powder coating provides a protective finish that helps to prevent the cabinet from rusting.
Adopt a high-quality DC brushless motor which extends the operation lifespan.
Mars-S100 Series User Manual
Page | 8 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Safety
Automatically door open during emergency.
Built-in clutch kit to prevent unauthorized users from forcibly opening the barrier.

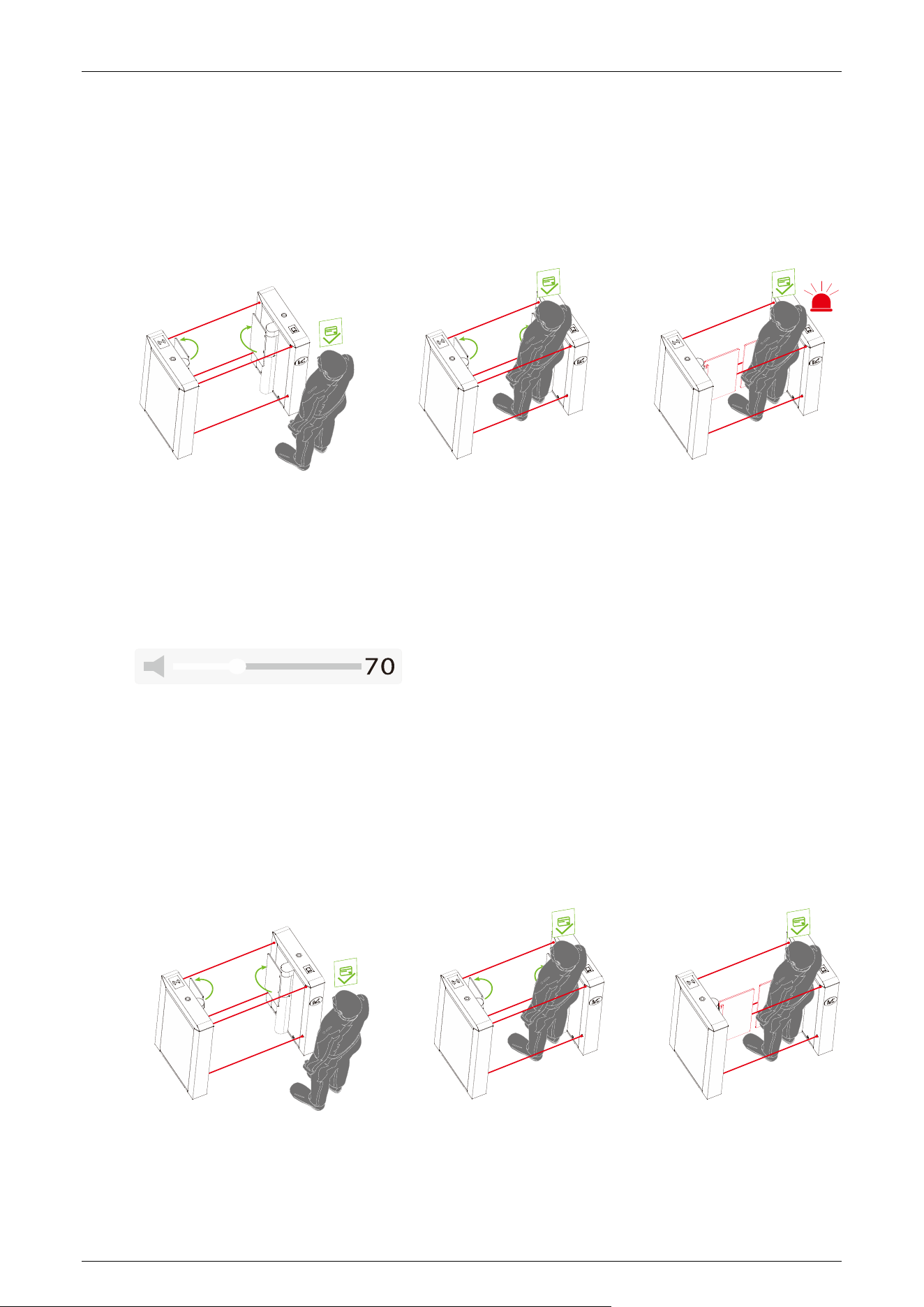

Comprises 4 pairs of infrared sensors that detect the pedestrians status.
(Optional) Support multiple biometric authentications, including facial recognition/ fingerprint/Palm/
QR code/ RFID card verification for controlled access.
An Ergonomic Design
Streamlined installation and maintenance.
Compact design with versatility.
Appearance and System Components 1.2

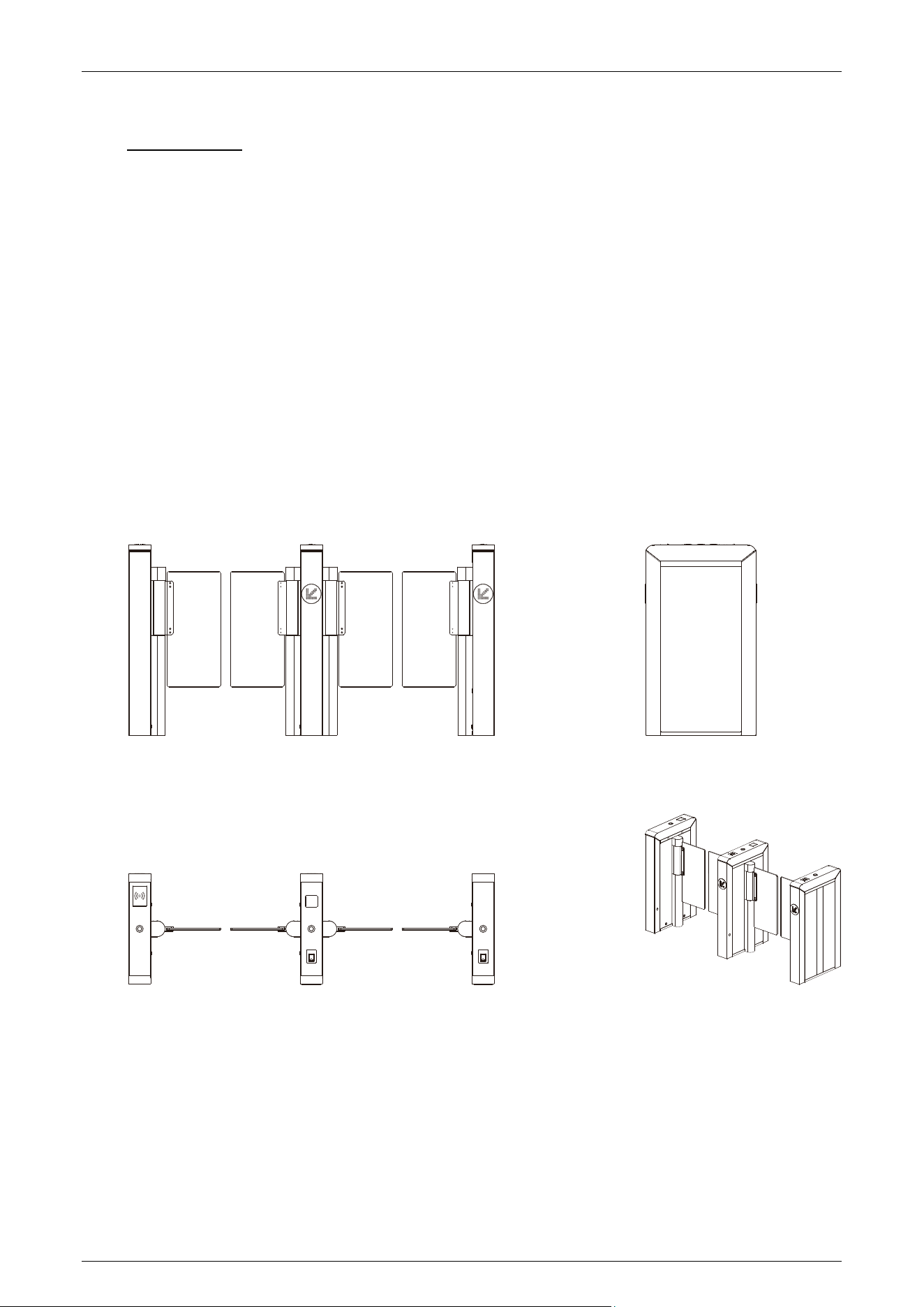

1.2.1 Appearance

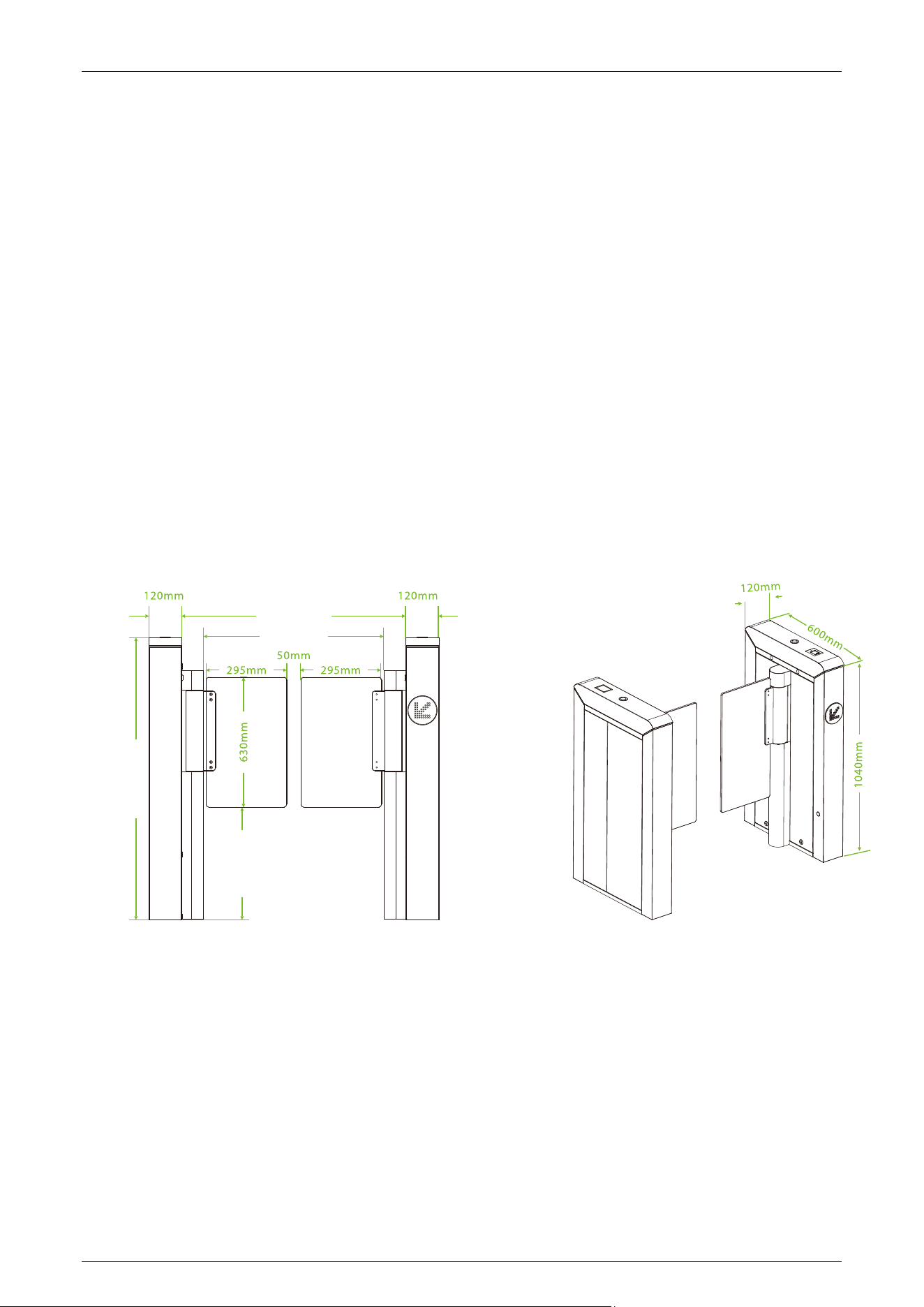

The appearance and dimensions of the Mars-S100 series are shown in the figure below:
820mm
660mm
1040mm
264mm
Mars-S100 Series User Manual
Page | 9 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.

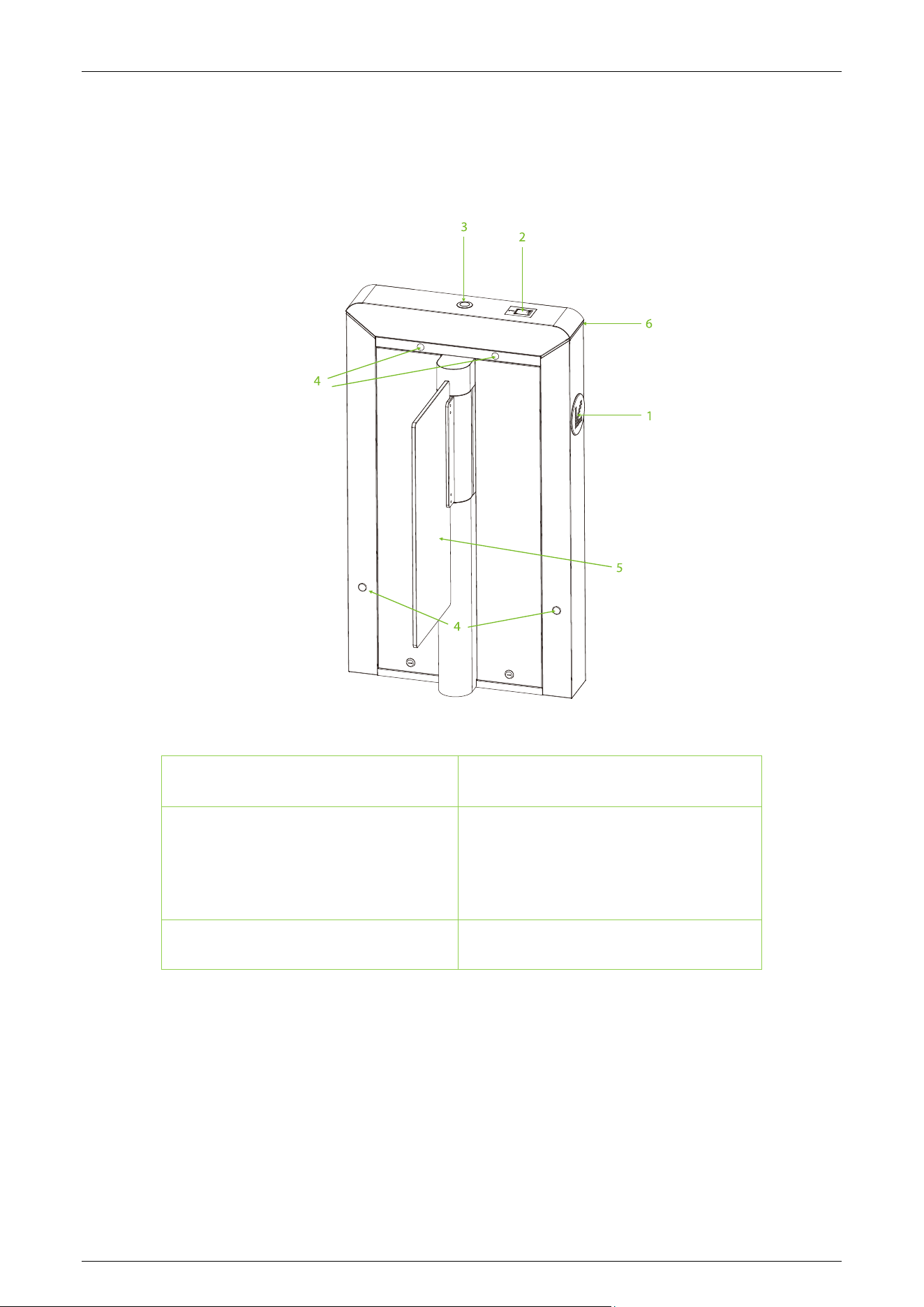

1.2.2 System Components
The system components of the Mars-S100 series are shown below:
1. Traffic indicator
2. Verification units★
3. Reserved hole for facial
authentication device
installation
4. Infrared sensor
5. Barrier 6. Pass through indicator
Mechanical System 1.3
The mechanical system of the turnstile consists of the chassis and the core component. The chassis
is a carrier where the Traffic Indicator, Reader★, QR code scanner★, Fingerprint reader★, Infrared
Sensor and the Door lock are installed. The core component mainly consists of the Motor, Frame,
Bearing and Swing Arm.
Mars-S100 Series User Manual
Page | 10 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Electronic Control System 1.4
The electronic control system of a turnstile is mainly composed of the Reader★/QR code scanner★
/Fingerprint reader★, Infrared Sensor, Turnstile Control Board, Traffic Indicator and Alarm.
Reader★: The reader reads the data on the card and transmits it to the Access Controller.
Fingerprint Reader★: The device compares the fingerprint that is being pressed onto the
fingerprint reader with all the fingerprint data and sends it to the Access Controller.
QR code Reader★: The device compares the acquired QR code with all QR code data registered in
the device and sends it to the Access Controller.
Infrared Sensor: It detects the position of the pedestrian and plays a role in ensuring safety and
protection.
Turnstile Control Board: The Turnstile control board is the system’s control center that receives
signals from the Card reader★/fingerprint reader★/QR code reader★. The IR performs logical
calculation and processing these signals and then sends executive commands to the Traffic
Indicator, Electric Motor, and alarm.
Traffic Indicator: When the gate is closed, the system will illuminate the red indicator. However,
when someone successfully passes the verification, the system will illuminate the green indicator.
Alarm: The alarm gives the voice and light alarm if the system detects any unauthorized entry to the
passage, false direction entry, anti-tailgate and other violations.
Working Principle 1.5
1. When the device is powered on, it undergoes a Power-On Self-Test (POST). If no issues are
detected during the test, the device will operate normally. If a failure is detected, the system will
display relevant error messages on the digital tube, allowing the user to quickly identify and
resolve the problem.
Mars-S100 Series User Manual
Page | 11 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
2. When a valid card★/fingerprint★/QR code★, the display will show whether it is successful or
not, the buzzer will give a positive audible prompt to the pedestrian, indicating that
successfully verified. And then, the card reader★/fingerprint reader★/QR code reader★ sends
signals to the Access Controller to request permission to pass through the passage. The Access
Controller will send the signal to the Turnstile Control Board.
3. After receiving the signal from the card★/fingerprint★/QR code★ and the Infrared Sensor, the
Turnstile Control Board will send valid control signals to the servo motor driver. At this time, if
the system is in forbidden passing mode, the mode indicator light will turn red, and the
Turnstile Control Board will not accept signals of card★/fingerprint★/QR code★.
4. Once the passenger passes through the channel in accordance with the opening direction of
the swing arm, the Infrared Sensor will continuously monitor the pedestrian's movement
throughout the passage. It will continue to send signals to the Turnstile Control Board until the
pedestrian completes the passage.
5. If the pedestrian enters the passage without verifying their identification or presents an invalid
card★/fingerprint★/QR code★ the system will sound an audible alarm to alert the pedestrian
to stop. The alarm signal will perist until the pedestrian retreats from the passage. Only after a
card★/fingerprint★/QR code★ is successfully verified can the pedestrian process through the
passage.
Note: Make sure the ground wire of the system is reliably connected to avoid personal injuries or
other accidents.
System Composition 1.6
The single-passage management system consists of two single-core speed gates. The multi-passage
management system consists of two single-core speed gates and multiple dual-core speed gates.
The single-lane management system:
Mars-S100 Series User Manual
Page | 12 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
The multi-lane management system:
Technical Specifications 1.7
Model Mars -S100 Mars -S120
Visual Indicator
Steady green: normal use
Steady red: door closed
Audio Indicator
Internal buzzer
Lane Type
Single lane
Dual Lane
(Consists of 2 single-core swing
barrier turnstile and 1 dual-core
swing barrier turnstile)
Lane Width
660mm (optional: 900mm)
Barrier Movement Type
Swing
Motor
DC brushless motor
Movement Speed
0.8s per movement (open/closing timing)
Movement Accuracy
±2 Degrees
Clutch
Mechanical clutch for anti-panic/anti-collision
Lid Material
Cold-rolled steel SPCC (GB700) (optional: SUS304 stainless steel)
Lid Options
Authentication Methods
Streamlined under mount options: Fingerprint/RFID
Chassis Material
Cold-rolled steel SPCC (GB700) (optional: SUS304 stainless steel)
(T=1.2mm)
Chassis Color
White (standard) / silver-grey (optional)
Mars-S100 Series User Manual
Page | 13 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Barrier Material
Acrylic, 295*630mm (standard)/Acrylic, 425*630mm (optional)
IR Sensors
4 Pairs (standard) (high&low position)
Motherboard Function
System configuration, access mode configuration, anti-pinch
configuration, anti-tailgate configuration, etc.
Motherboard
Communication
Fire alarm port (relay)*1, RS485 port*1
Controller
C3-200&InBio260 Pro (recommended)
other depends on dimensions fitting in (optional)
Credential Options
Under mount RFID reader: (support model: ProID Series, KR Series)
Under mount fingerprint reader: FR1200/FR1500
Facial Recognition: ProFace X, G4 Pro
Palm: OmniAC30
Flow Rate
RFID/QR code: 30 passengers per
minute
Fingerprint/Palm: 20 passengers per
minute
RFID/QR code: 30 passengers per
minute
Fingerprint/Palm: 20 passengers per
minute
Barrier Width
660mm (standard for single pedestrian access)
900mm (optional for trolley or pedestrian with luggage access)
Power Supply
110V / 220V AC@50 to 60 Hz, DC 24V
Power Rating
22VA (Standby)
50VA (Operation)
Fire Signal
Input for voltage free contact
Noise Level
Less than 60dB
MTTR
Less than 60 minutes
MCBF
5 million
Weight
Gross Weight 32kg (
±
5kg) (2 boxes)
Net Weight 25kg (
±
5kg) (2 boxes)
Gross Weight 40kg (
±
5kg) (1 box)
Net Weight 30kg (
±
5kg) (1 box)
Dimension
600*120*1040mm(L*W*H)
Operating Temperature
-20°C to 70°C
Operating Humidity
0% to 85% RH (Non-condensing)
Certifications
CE, FCC, ISO9001
Mars-S100 Series User Manual
Page | 14 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Supported Software
ZKBio CVAccess / ZKBio CVSecurity
(depends on equipped access controller)
Safety Features
Voltage free contact input for fire alarm fail state
Automatic drop arm during power off
Security Features
Infrared Anti-Clamping, Mechanical Anti-Clamping, Power-Off Fail-Safe,
Emergency Escape Function
Product Delivery
Pre-assembled
Application Environment
Indoor
Site Preparation
Flat & level finished floor (base plate in options for unfinished floor)
Dimensions With Packing
762*362*1215mm (L*W*H) (2
boxes)
762*362*1215mm (L*W*H) (1 box)
Security Level
Low
Emergency Mode
Support (barrier open automatically)
Packing Material
Wooden (standard)
Mars-S100 Series User Manual
Page | 15 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
2 Functions and Features
Fingerprint Verification
★
2.1
In this verification mode, the device compares the fingerprint that is being pressed onto the
fingerprint reader with all the fingerprint data sends and it to the Access Controller.
The device enters the fingerprint authentication mode when a user presses their finger onto the
fingerprint scanner.
Recommended fingers: It is recommended to use index, middle, or ring finger for registration and
avoid using the thumb or little finger, as they are difficult to accurately press onto the fingerprint
reader.
Note: Please ensure that you use the correct method when pressing your fingers onto the
fingerprint reader for registration and identification. It is important to follow the proper guidelines
to avoid any recognition issues. Please note that our company will not be liable for any recognition
Mars-S100 Series User Manual
Page | 16 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
issues that may arise from incorrect usage of the product. We reserve the right to make the final
interpretation and modifications regarding this matter.

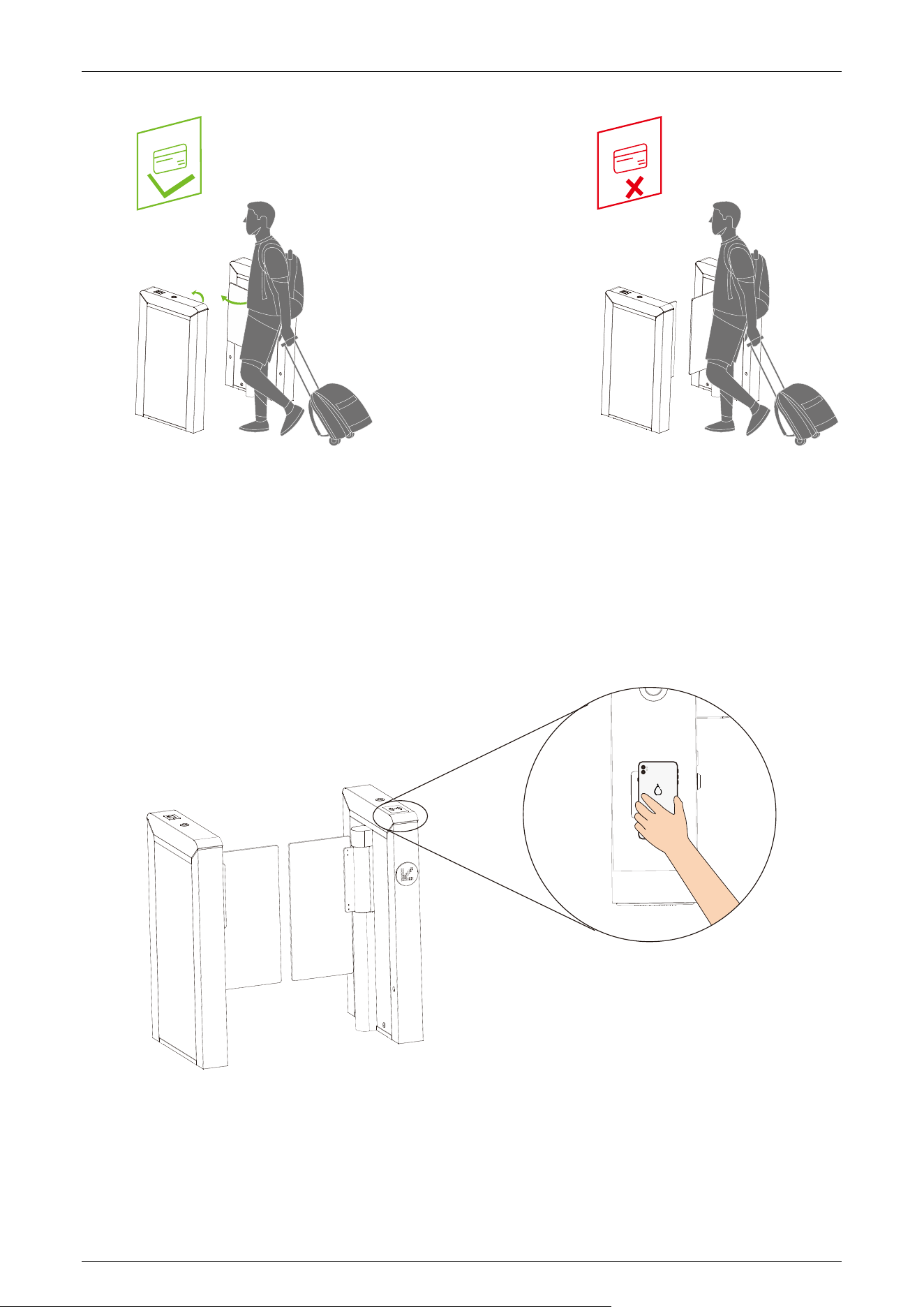

Card Verification
★
2.2
In the Card Verification mode, the device compares the card number in the card induction area with
all the card number data registered in the device and sends it to the Access Controller.
When a user presses their card on the card reading area, the device enters card authentication mode.
Mars-S100 Series User Manual
Page | 17 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.

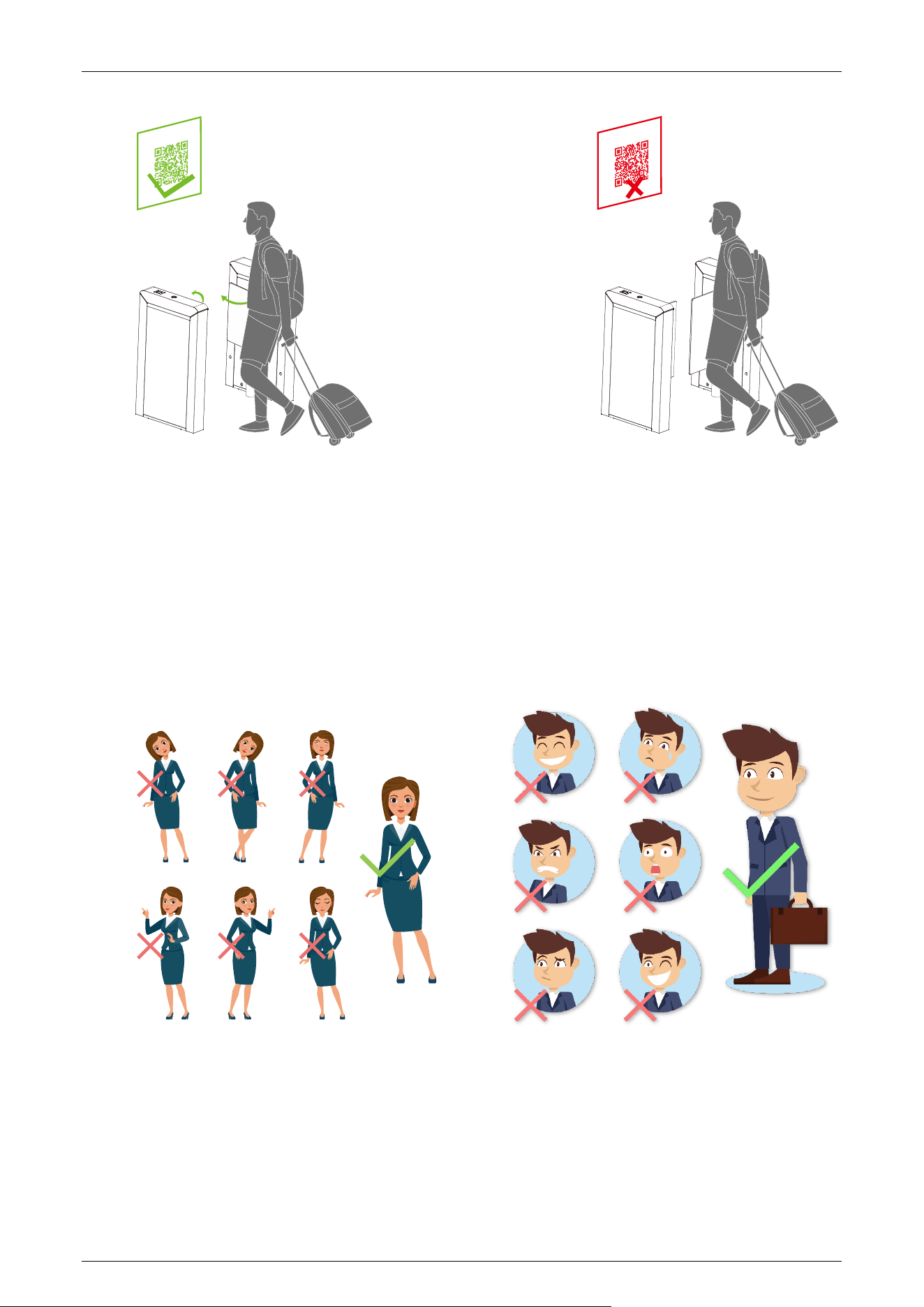

QR code Verification
★
2.3
In the QR code Verification mode, the device scans the QR code on the user's mobile phone using
the QR code scanner. It then compares the scanned data with the registered QR code and sends the
result to the Access Controller.
When the user places the mobile phone displaying the QR code on top of the QR code scanner, the
device enters the QR code authentication mode.
Mars-S100 Series User Manual
Page | 18 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Facial Verification
★
2.4
In this verification mode, the device compares the collected facial images with all registered face
data in the device and then sends it to the Access Controller.
Please try to keep your face centred on the screen during authentication. When registering your face,
ensure that you face towards the camera and remain still.
Recommended Standing Posture and Facial Expression:
Note: Please keep your facial expression and standing posture natural while enrollment or
verification.
Mars-S100 Series User Manual
Page | 19 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Installation on the speed gate:
1. Before installation, please pass the wire through the bracket.
2. Insert the bracket into the hole and fix it with a nut.
3. Adjust the angle of the device.
Mars-S100 Series User Manual
Page | 20 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
3 Control System Introduction
PGIC10-SV
★
3.1
Terminal Description
J15 Ethernet/PoE interface
J9 USB slot
K1 Reset
Speaker
Fire signal
Auxiliary output
Auxiliary output
12V DC power supply
Mars-S100 Series User Manual
Page | 21 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
24V DC power supply
IR sensor
Auxiliary input
Wiegand reader
Wiegand reader
Exit RS485
RS485
Status indicator
Exit or entry status indicator
Exit or entry status indicator
Door
Door
Embedded linux operating system. It has a 2.8-inch touch screen (the display screen) where the
parameters can be set via touch screen.
Mars-S100 Series User Manual
Page | 22 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.

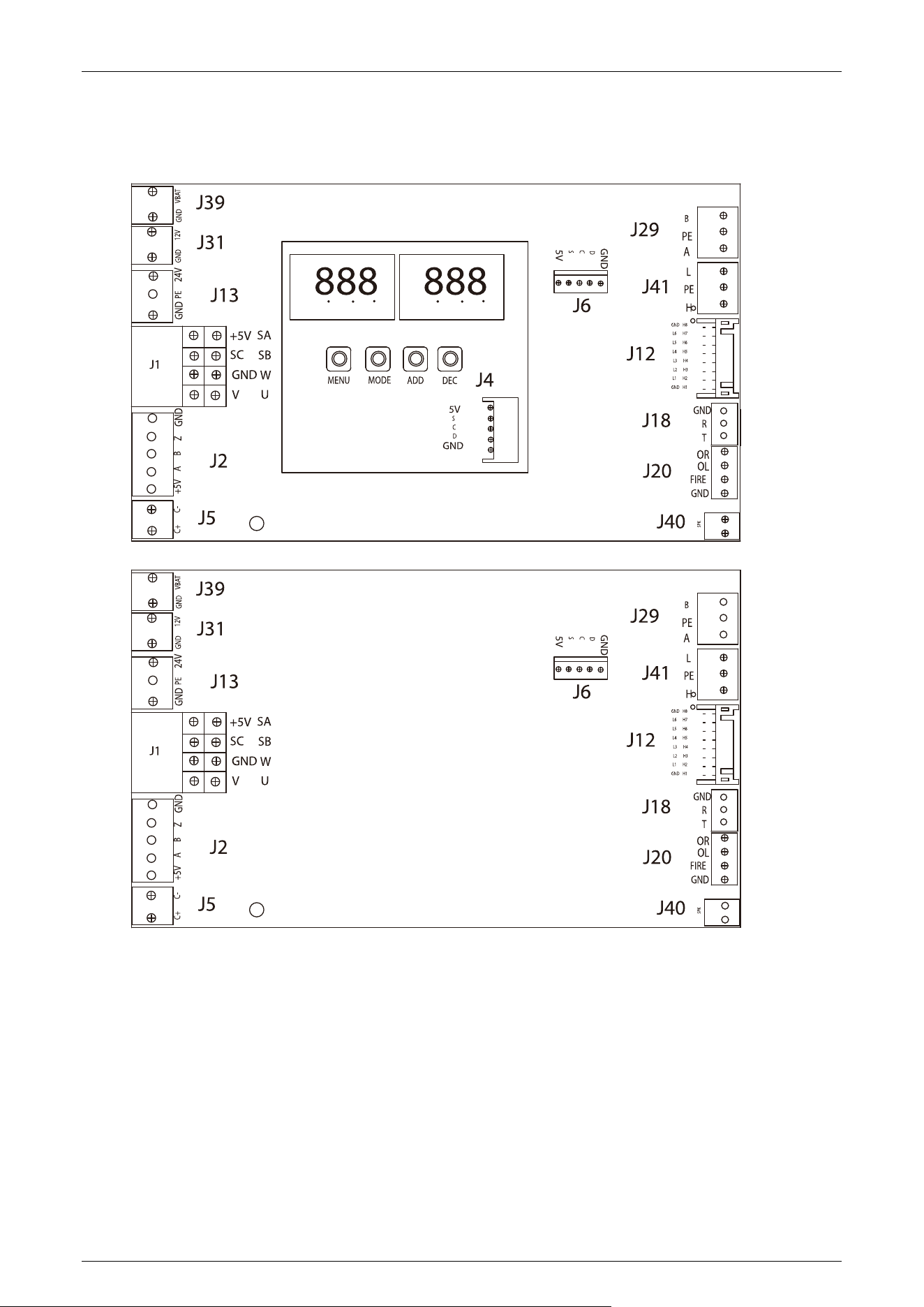

Main/Sub Motor Driving Controller 3.2
Main
Sub
There are 4 keys on the master motor driving controller, "MENU", "MODE", "ADD" and "DEC".
MENU: It is used for enter the Settings menu and to confirm the current modified value.
MODE: It is used to go back to the previous menu and discard the current operation.
ADD: It is used for navigating to the upper menu item and increasing the value.
DEC: It is used for navigating to the lower menu item and decreasing the value.
Mars-S100 Series User Manual
Page | 23 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Terminal Description
J39
Power out
J31
Power out
J13
24V DC power supply
J1
Motor
J2
Encoder for
speed gate
J5
Clutch
J40
Speaker
J20
Fire power supply for
speed gate
J18
RS232 communication between master and slave
drives
J12
Infrared sensor receiving port
J41
RS485 communication between master and slave
drives
J29
RS485 communication
Mars-S100 Series User Manual
Page | 24 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
J4
Power supply for master motor driving controller
display
J6
Power supply for master motor driving controller
display
IR Board 3.3
Terminal Description
J18
Connecting IR sensor receiving port
IR sensor receiving port
J15
Firefighting interface
Fire power supply for speed gate
J10
Power in
Mars-S100 Series User Manual
Page | 25 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
J19
Power in
J11
Infrared sensor transmitting port
J16
Entry indicator
J14
Indicator Light
J13
Reserved
J12
Entry indicator
Mars-S100 Series User Manual
Page | 26 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Wiring Diagram 3.4
Main
Sub
Mars-S100 Series User Manual
Page | 27 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Menu of Speed Gate 3.5
Display Mode (01EXXX)
(01E000) Displays current position of the gate.
(01E001) Infrared input signal.
(01E002) Controls input signal.
(01E003) Test mode (the digital LED displays "---" in the test mode).
(01E004) Version number. (Default)

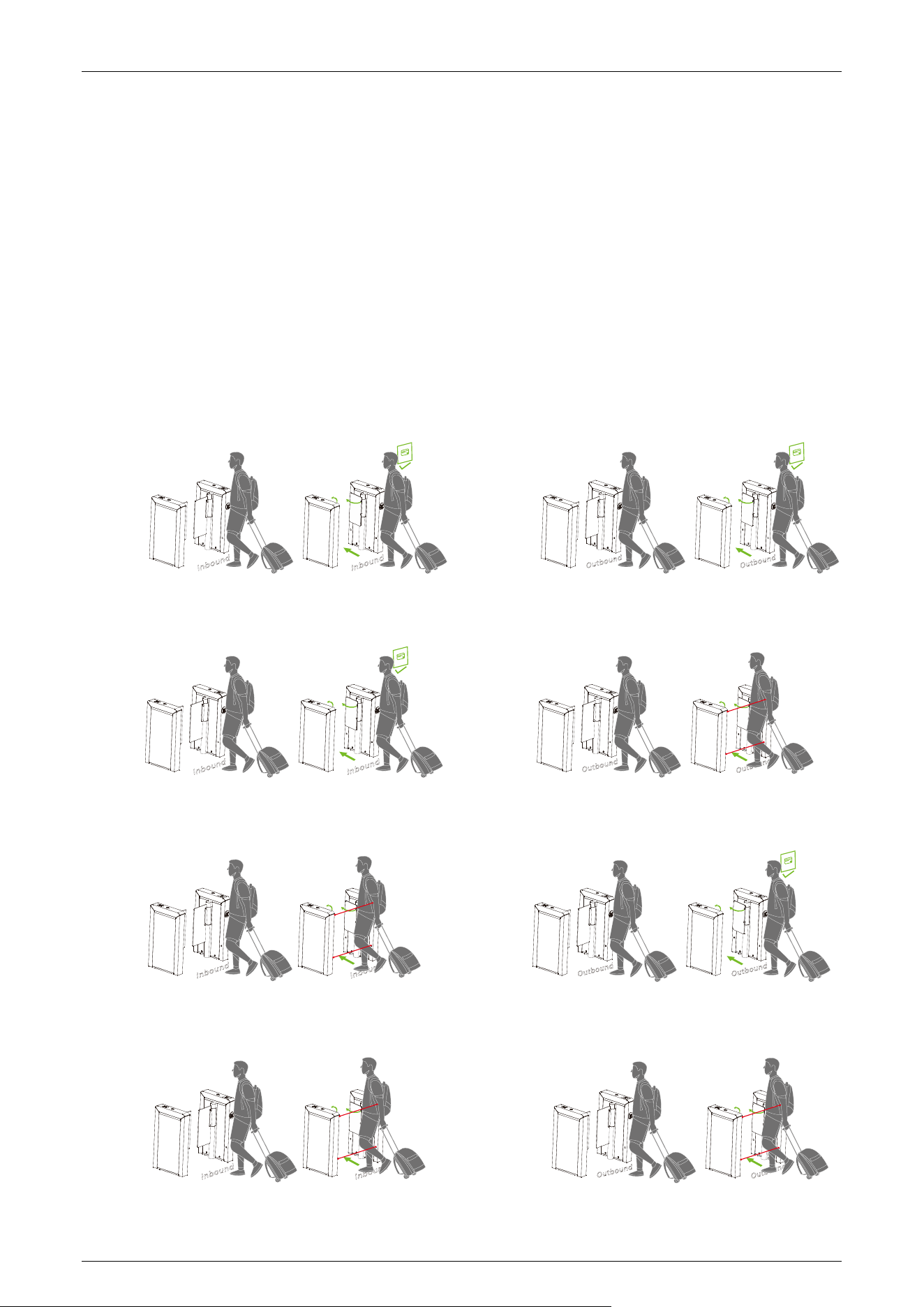

Access Control Mode Settings (02EXXX)
(02E001) Bidirectional Controlled Access. Entry and Exit requires valid verification (Default).
(02E002) Valid Verification for Entry / Free Exit.
(02E003) Free Entry / Valid Verification for Exit.
(02E004) Bidirectional Free Access.
Mars-S100 Series User Manual
Page | 28 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.

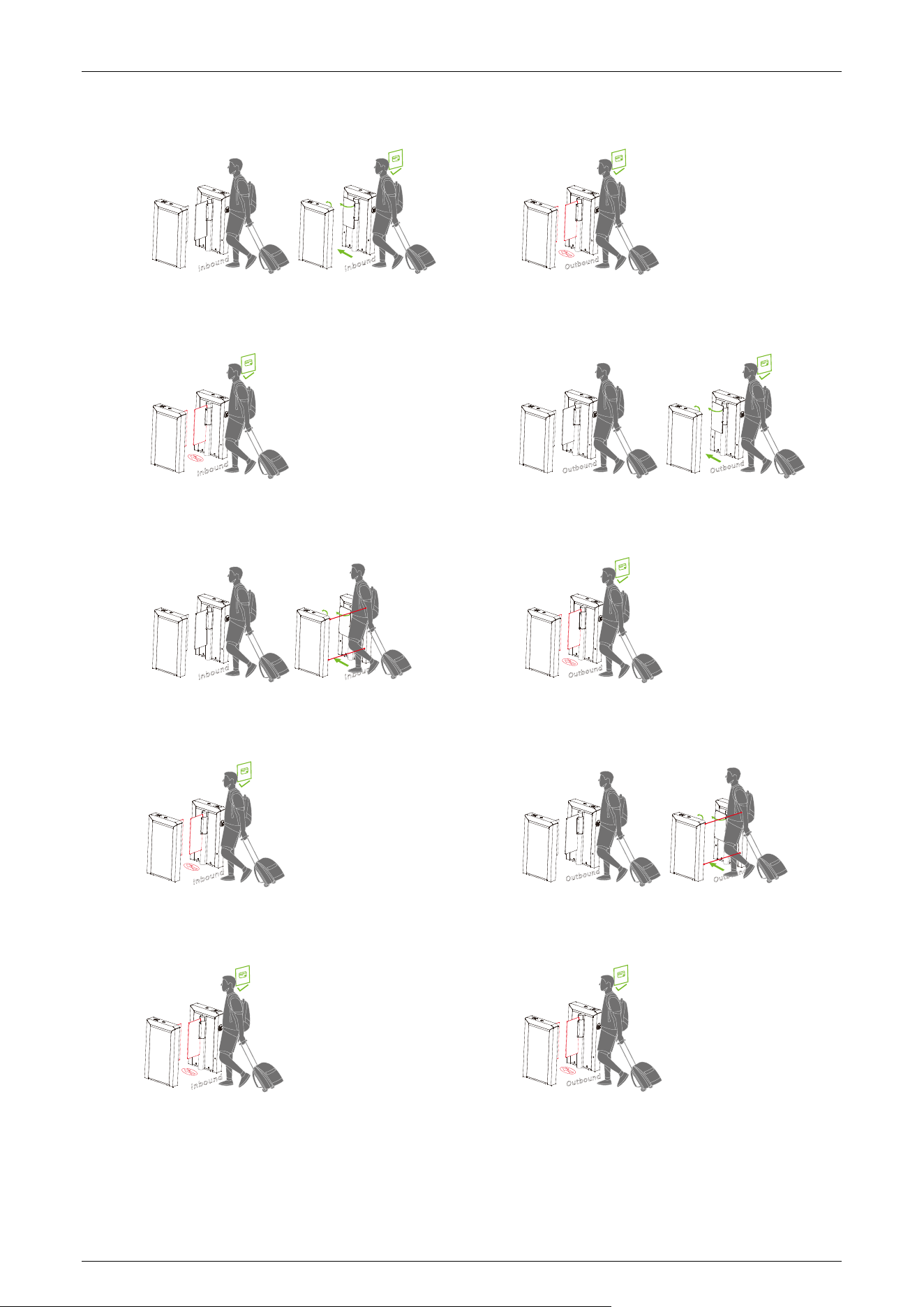

(02E005) Entry Controlled (Valid Verification Needed) / Exit Prohibited (No Access).
(02E006) Entry Prohibited (No Access) / Exit Controlled (Verification Needed).
(02E007) Entry Free / Exit Prohibited.
(02E008) Entry Prohibited / Exit Free.
(02E009) Bidirectional Prohibited.
Mars-S100 Series User Manual
Page | 29 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
(02E010) Bidirectional Always Open (Normally Open).

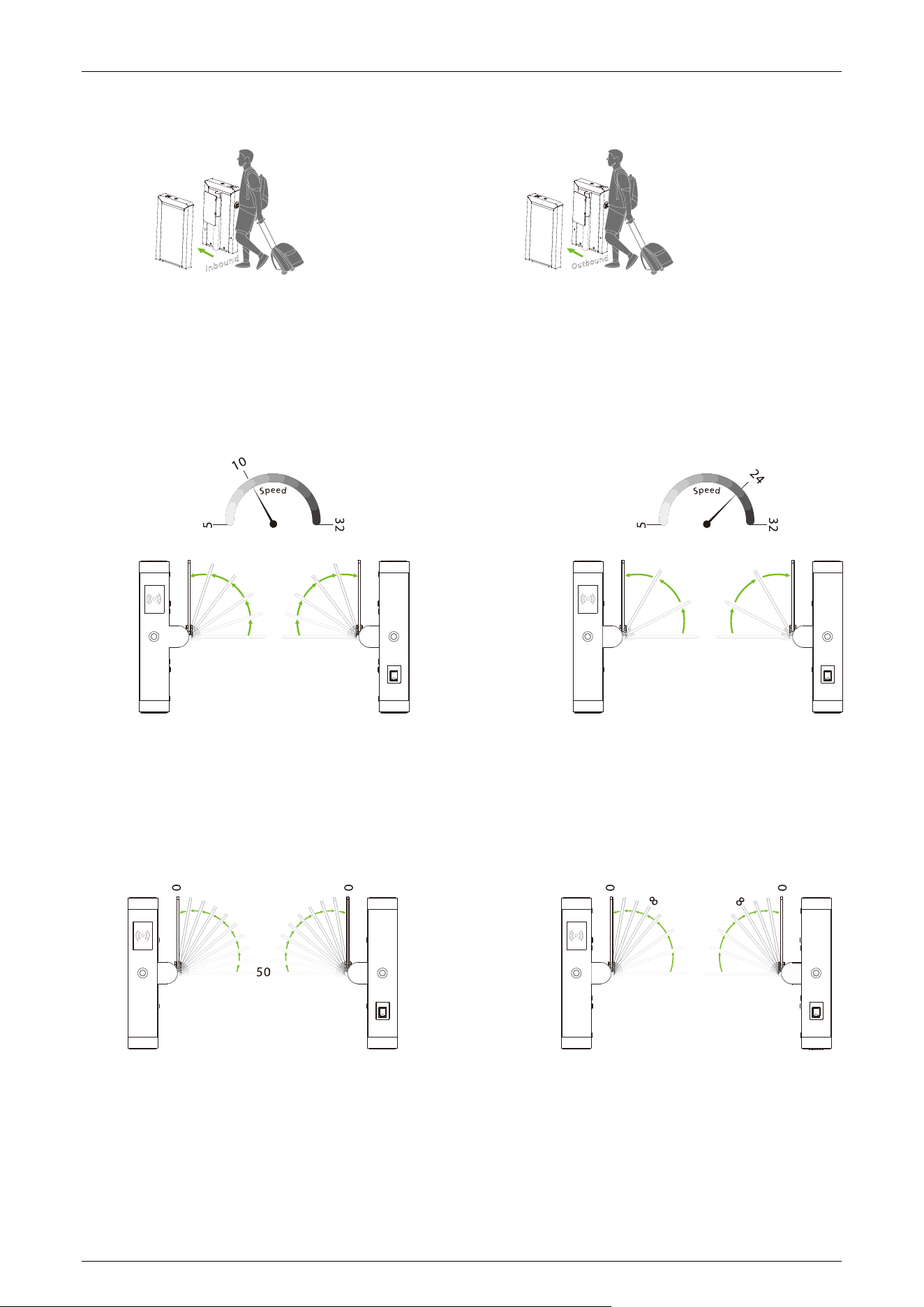

Gate Opening Speed (03EXXX)
To open the gate, you can adjust the gate opening speed. Setting a larger number will result in a
faster opening speed. The Gate Opening Speed value can be configured within the range of 5 to 32,
and the default value is 24.
Gate Opening Deceleration Distance (04EXXX)
The larger the number, the longer the deceleration time and the more stable the swing arm
operation. The Gate Opening Deceleration Distance can be set between 0 to 50 and the default
value is 8.
Gate Opening Compensation Speed (05EXXX)
It can be set when the swing arm cannot open to the limit or shakes. The larger the number is set,
the faster of the compensation speed. The Gate Opening compensation Speed value can be set
between 5 to 32 and the default value is 10.
Mars-S100 Series User Manual
Page | 30 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Gate Closing Speed (06EXXX)
Set the gate closing speed to close the gate. The larger the number is set, the faster the speed. The
Gate Closing Speed value can be set between 5 to 32 and the default value is 24.
Gate Closing Deceleration Distance (07EXXX)
The larger the number, the longer the deceleration time and the more stable the swing arm
operation. The Gate Closing Deceleration Distance value can be set between 0 to 50 and the default
value is 8.
Gate Closing Compensation Speed (08EXXX)
It can be set when the swing arm cannot close to the zero position or shakes. The larger the number
is set, the faster of the compensation speed. The Gate Closing compensation Speed value can be set
between 5 to 32 and the default value is 10.
Mars-S100 Series User Manual
Page | 31 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Main / Sub Setting (09EXXX)
(09E000) Main
(09E001) Sub (Default)
RS485 Address (10EXXX)
It can be set between 0 to 254 and the default value is 0.

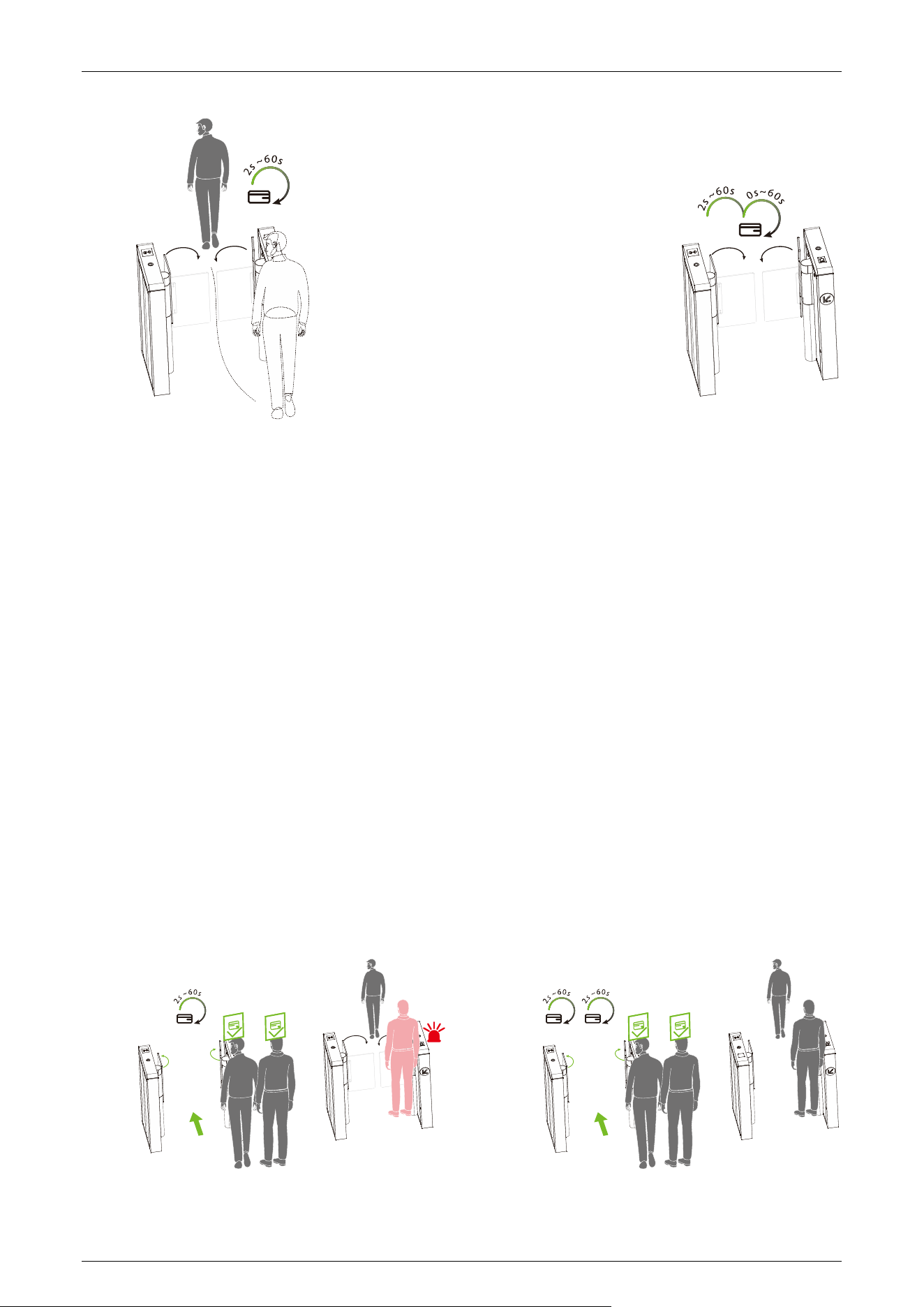

Open Duration Time (11EXXX)
The valid time period after a successful verification can be configured. Once the set time is reached,
the gate will automatically close. The longer the number set, the longer the valid time. The valid
value ranges from 2 to 60 seconds, with a default value of 5 seconds.
Gate Closing Delay Time (12EXXX)
Set the delay time of gate closing after passing. The valid value for gate closing delay time can be set
between 0 to 60s and the default value is 0s.
Mars-S100 Series User Manual
Page | 32 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Correct Barrier Position Adjustment (13EXXX)
(13E001) Zero position
(13E002) Right position
(13E003) Left position
(13E004) Sub position
1. Adjust the position only when Mars-S100 series is installed properly.
2. When setting the zero position, you can manually push the swing arm for fine-tuning. If the
barrier exceeds a certain angle, it will be invalid. (At this time, the digital LED displays 13E000).
Gate Opening Memory (14EXXX)
(14E000) Close (Default)
(14E001) Open
When more than two legal access signals are given at the same time (including the same direction
and the opposite direction), the system will remember all pass requests and complete each pass in
turn.
Mars-S100 Series User Manual
Page | 33 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Authentication in Lane (15EXXX)
It allows the pedestrian verification during IR sensor triggered.
(15E000) Allow (Default)
(15E001) Forbidden
Volume Setting (16EXXX)
Volume Setting is used for adjusting the volume of the device. The larger the number is set, the
louder the volume. The valid value for Volume Setting can be set between 1 to 100 and the default
value is 40.
Close Alarm Tone (17EXXX)
When the alarm tone is turned off, the Turnstile will not emit an alarm tone when encountering an
alarm situation. The following figure shows an example of the prohibition of authentication in lane:
(17E000) Close
(17E001) Open (Default)
Mars-S100 Series User Manual
Page | 34 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.

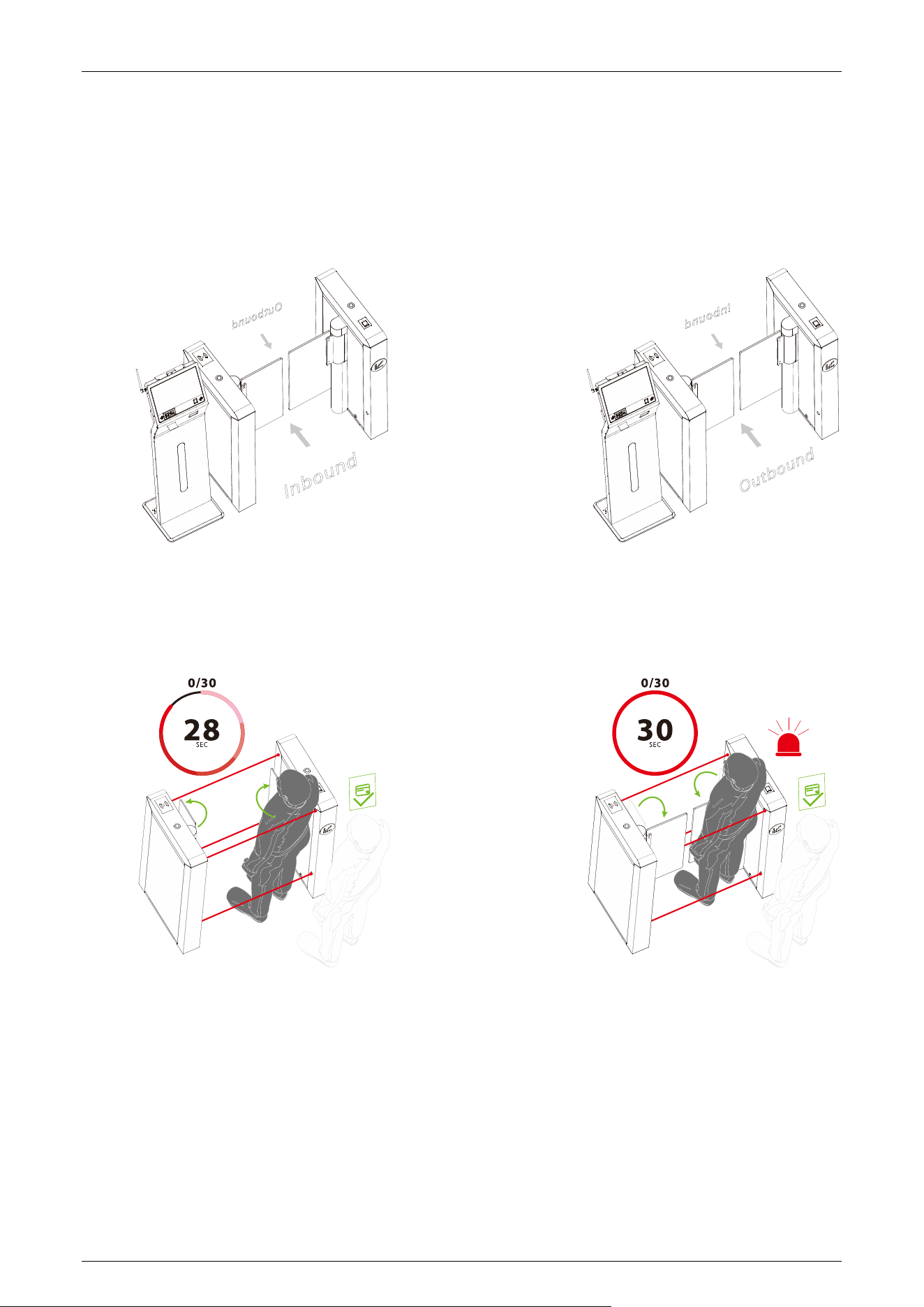

Exchange Entrance and Exit Voice (18EXXX)
Ordinary alarm sounds do not need to be exchanged.
(18E000) Right in, left out (Default)
(18E001) Right out, left in
Stay Duration Time (19EXXX)
Set the duration of stay in the channel after successful verification. The valid value for Stay Duration
Time can be set between 5 to 30 seconds and the default value is 10s.
Force Adjustment (20EXXX)
The larger the number, the greater the efficiency of the gate opening and closing force. The valid
value for Force Adjustment can be set between 10 to 100 and the default value is 50.
Mars-S100 Series User Manual
Page | 35 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Fire Alarm Response Mode (21EXXX)
Configure gate behavior when fire alarm is triggered:
(21E000) Gates remain open (Entrance) (Default)
(21E001) Gates remain open (Exit)
Clutch Start Angle (22EXXX)
Set the angle at which the clutch starts. The larger the number, the bigger the angle. The valid value
for Clutch Start Angle can be set between 0 to 99, and the default value is 10.
Clutch Alarm Setting (23EXXX)
When the gate is unlocked in an unauthorized way, the clutch gets locked automatically. The Clutch
Alarm Setting can be set as:
(23E000) Delayed unlock (Default)
(23E001) Authentication to unlock.
Factory Reset (24EXXX)
(24E001) Restore factory settings.
Mars-S100 Series User Manual
Page | 36 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.

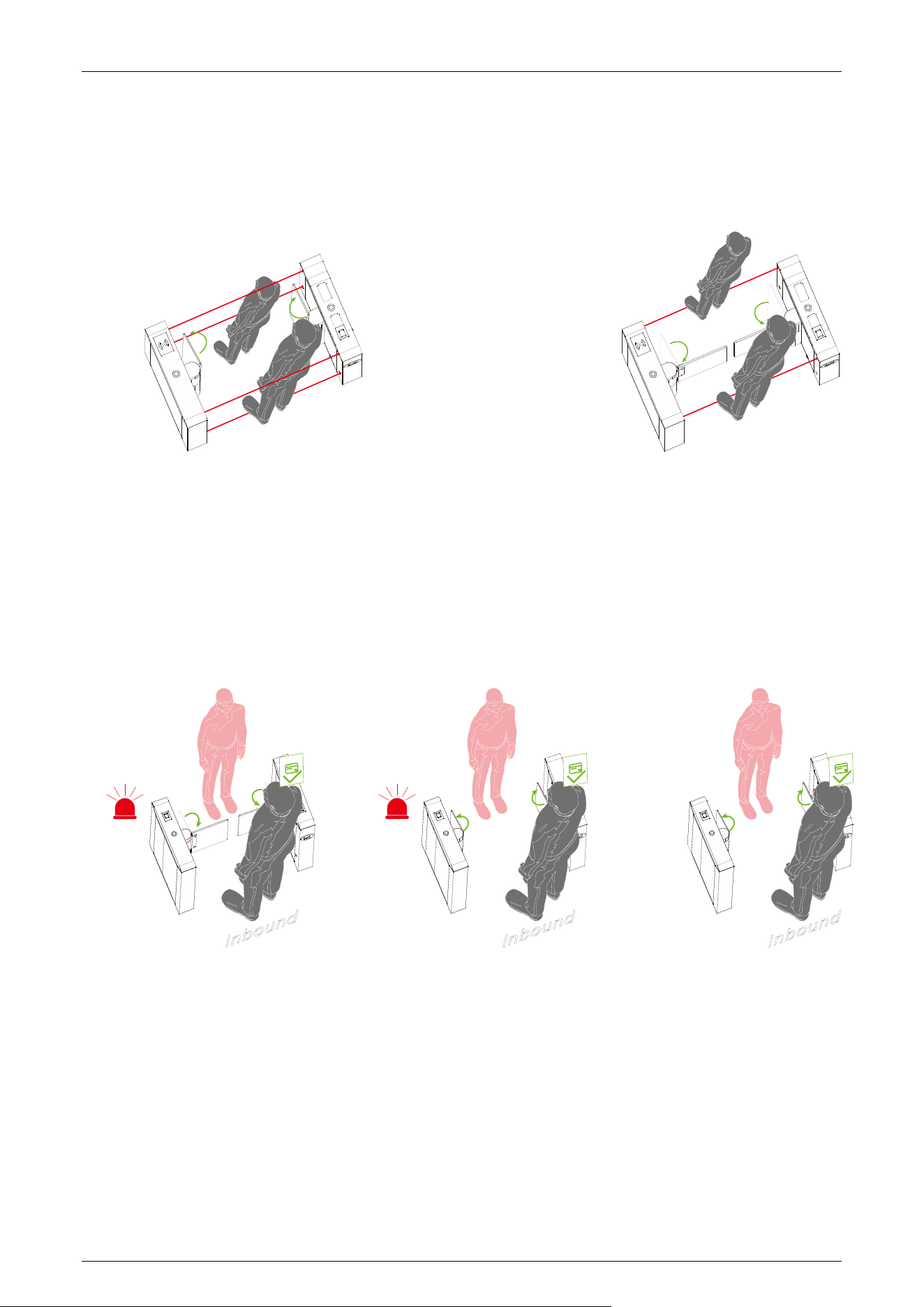

Anti-pinch Area Setting (25EXXX)
(25E000) All Infrared anti-pinch (Default)
(25E001) First and last pair are not anti-pinch.
False Direction Entry (26EXXX)
When the Anti-pinch Area Setting needs to be set to (25E001) only, the False Direction Entry (26E000)
is effective.
(26E000) Close
(26E001) Only alarm (Default)
(26E002) No detection

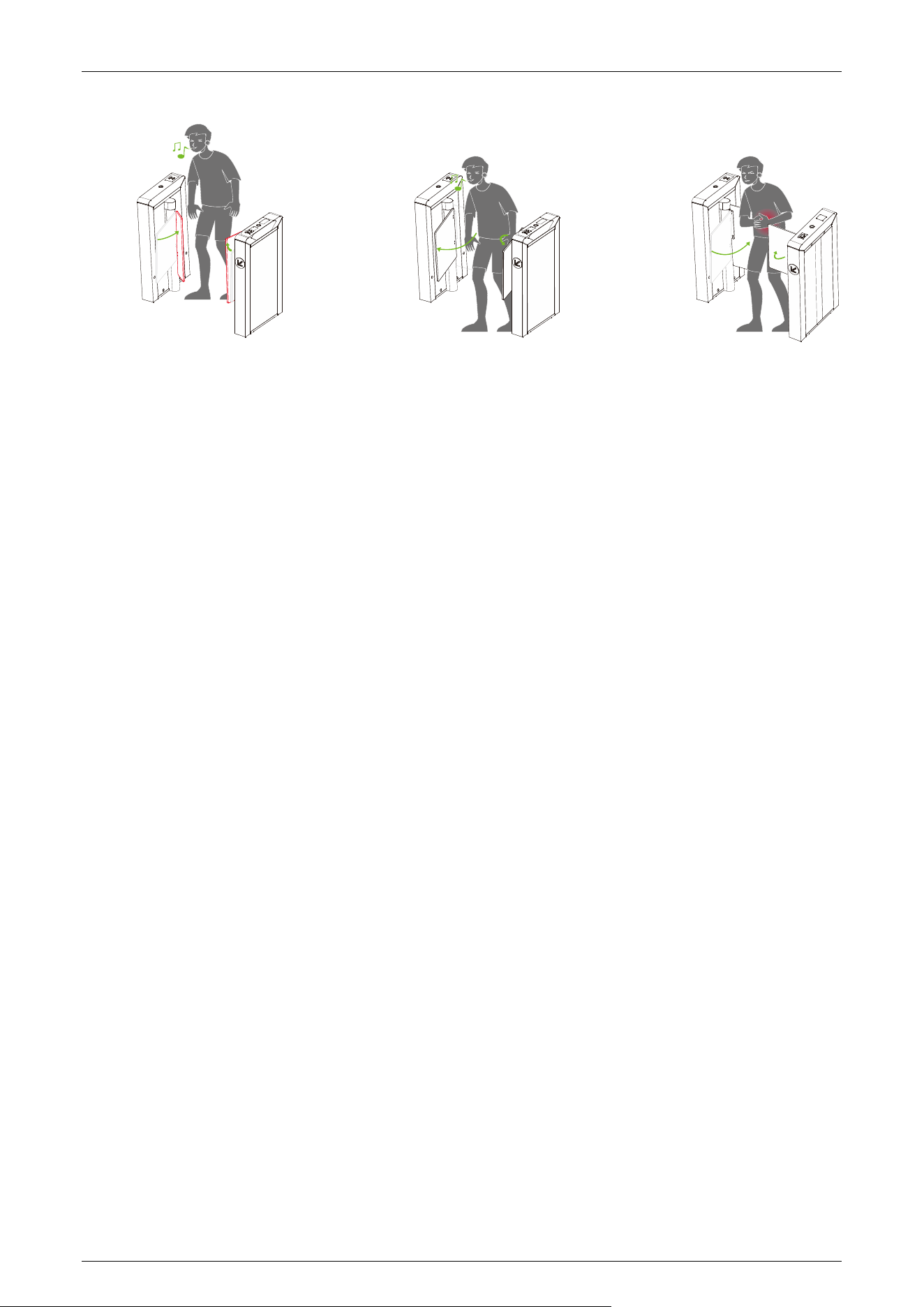

Anti-pinch Action Setting (27EXXX)
(27E000) Stop
(27E001) Open (Default)
(27E002) Close the function.
Mars-S100 Series User Manual
Page | 37 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Voice Tone Switching (28EXXX)
(28E000) Voice playback (Default)
(28E001) Alarm
Motor Installation Direction (29EXXX)
(29E000) Inverted
(29E001) Upright (Default)
Note: First power up is Inverted.
Swing Arm Type (30EXXX)
(30E000) Ordinary swing door (Default)
(30E001) Larger swing door
Right Synchronous Adjustment (31EXXX)
You can adjust the synchronization of the Main through this menu, the larger the value, the faster
the response of the Main to open the gate, the setting range lies between 30 to 200, and the default
value is 100.
Left Synchronous Adjustment (32EXXX)
You can adjust the synchronization of the Sub through this menu, the larger the value, the faster the
response of the Sub to open the gate, the setting range lies between 30 to 200, and the default
value is 100.
Entrance Direction Voice (33EXXX)
Select the voice to entrance the direction, there are 30 voices to choose from, and the default value
is 0. Only Chinese currently supported. Multi-language support planned for future updates.
Mars-S100 Series User Manual
Page | 38 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
Exit Direction Voice (34EXXX)
Select the voice to exit the direction, there are 30 voices to choose from, and the default value is 17.
Only Chinese currently supported. Multi-language support planned for future updates.
Error Code for Turnstile 3.6
Error Code Cause
ER0002
Power-on Self-test failure, Hall Limit Detection Error
ER0004
Run Timeout
ER0008
Clutch Locked
ER016
The code disk detection failed.
ER032
Electric Motor Shaft Lock Protection failure
Mars-S100 Series User Manual
Page | 39 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
4 Maintenance
Chassis Maintenance 4.1
The chassis is made of cold-rolled steel SPCC (GB700) or SUS304 stainless steel. If it has been used for
a long time, the surface may have rust stains. Clean the surface thoroughly with a clean cloth on a
regular basis. Coat the surface with anti-rust oil, but do not cover the infrared sensor.
Movement Maintenance 4.2
Before doing maintenance, turn off the power. Open the door, wipe the surface dust, and apply
lubricant for smooth movement.
Power Supply Maintenance 4.3
Switch off the power supply before maintenance.
Check the power plug connection, if found loose, fix it properly.
Do not change any connection position randomly.
Check the external power supply insulation periodically.
Do periodic check for any kind of leakage.
Check if the technical parameters of interface are normal.
Check the service life of the electronic components and replace accordingly.
Caution: All the above-mentioned maintenance methods for speed gates are must be carried out
by a professional technician, especially the movement and the electric control part. Operational
safety is crucial, therefore it is important to deactivate the power supply when the speed gate is not
in use.
Mars-S100 Series User Manual
Page | 40 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
5 Troubleshooting
No.
Failure Descriptions Analysis and Solution
1
The mode indicator light does not
respond or the indication is incorrect.
Check the control panel mode and the
indicator wiring connections.
2
After swiping the card, there is only a
speed gate unlocked.
Check the Main / Sub settings and the 8-
core, 2-core connection lines. See the wiring
diagram for the specific connection circuit.
3
The speed gate doesn’t close when the
opening delay time is ended.
Check to see if the opening delay time is
too long or whether the IR sensor is
blocked.
4
When the gate is self-tested, the swing
arm is not in the normal closing
position!
Please remove any obstacles and then
restart the self-test after powering on.
Mars-S100 Series User Manual
Page | 41 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
6 Packing List
The package consists of the following items:
Main: 1
Sub: 1
1
1
8 (Mars-S100)
4 (Mars-S120)
1
1
4
2
8 (Mars-S100)
4 (Mars-S120)
Card★
Stainless Steel Maintenance Wipes
Hex wrench
Allen Screw
Key
Expansion Screw M12*100
Washer
Mars-S100
Mars-S120
Page | 42 Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
ZKTeco Industrial Park, No. 32, Industrial Road,
Tangxia Town, Dongguan, China.
Phone : +86 769 - 82109991
Fax : +86 755 - 89602394
www.zkteco.com
Copyright © 2025 ZKTECO CO., LTD. All Rights Reserved.
