Electric, 25-Gallon Spot Sprayer
After Filling Tank:
NOTE: The use of liquid products only is recommended.
Connect power cord red cable to positive and black cable 1.
to negative 12 volt DC power source.
Turn pump power switch to “ON”.2.
Remove tank lid. Hold TriggerJet™ wand with nozzle 3.
pointing into fillwell. Squeeze wand trigger allowing spray
liquid to recirculate back into tank until air is purged from
hoses. Release pressure on trigger, remove wand from
fillwell and replace lid. You are now ready to spray.
Closing the 4. 1/4” Bypass Valve stops tank agitation. Opening
the valve allows tank agitation through the bypass hose.
The wand output can be regulated by adjusting the Bypass
Valve.
Adjusting Wand Tip:
The knurled body of the tip rotates a half turn to provide 1.
spray selection from a wide angle, finely atomized cone
spray to a straight stream spray.
Should Pump Fail to Run:
Check pump switch and power source connections.1.
Check 10 amp fuse in power cord.2.
Check internal pump parts for needed repairs.3.
Pump Runs — No Fluid:
Remove tank lid. Hold TiggerJet™ wand with nozzle 1.
pointing into fillwell. Squeeze wand trigger and hold until
pump primes. Allow spray liquid to recirculate into tank
until air is purged from hoses.
Check suction line inside tank and make certain it is not 2.
pinched or plugged.
Turn pump switch to “OFF” and check for clogged suction 3.
strainer at pump inlet. Remove swivel hose fitting from
strainer cap and remove strainer cap (one-quarter turn
counter-clockwise). Remove screen and clean.

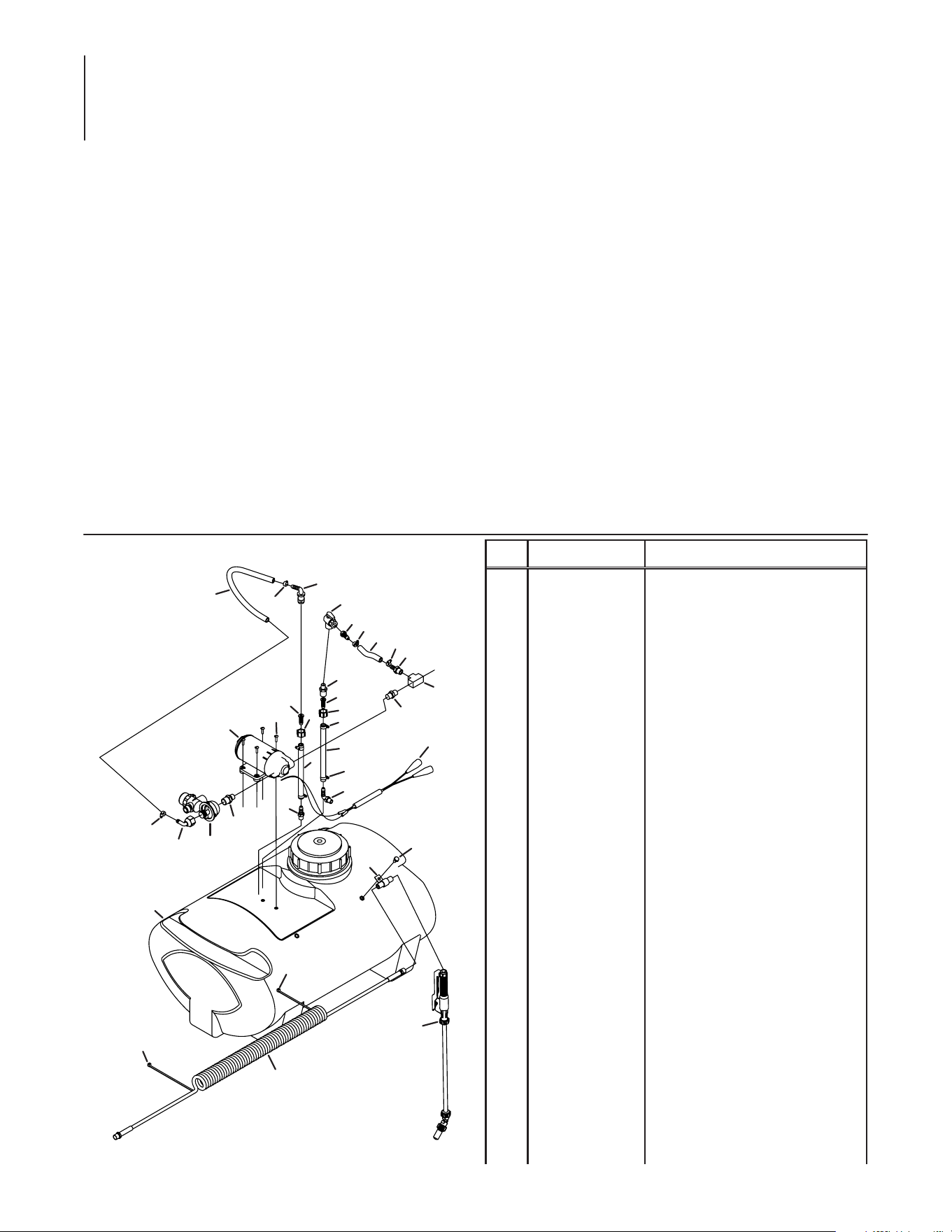

Ref.
Part Number Description
1 00012470 Cable Tie
2 00018283 Wire Harness
3 00018334 Trigger Jet Spray Gun
4 00020851 Flo-Jet Pump
5 00022284 Hose, 3/8-300 psi
6 00031247 90° Female Valve, 1/4
7 00032078 Nipple, 3/8
8 00032081 3/8 Tee Female
9 00032086 Nipple, 11/16 x 1/4
10 00032113 90° Elbow, 1/4 MPT x 3/8 Barb
11 00034947 Hex Screw, 5/16-18 x .500
12 00035599 Shur o Fitting, 8-145-00
13 00035600 Shur o Fitting, 8-060-01
14 00035601 Shur o Filter, 170-061-00
15 00035626 Male Elbow
16 00035627 Barb, 3/8
17 00035628 Nut, 11/16
18 00035631 Fitting, 3/8 MPT x 3/8 Barb
19 00035678 Machine Screw, #10-24 x .750
20 00035781 Straight Fitting, 1/4 MPT x 3/8 Barb
21 00035790 Conduit Strap, 1/2”
22 00035816 Hose Asembly, 1/4 x 25'
23 01000215 Hose Clamp, .250-.625
24 01006835 25 Gallon Poly Tank
NS 01000189 Te on Tape, 1/2 x 43.33’
5
15
23
8
7
18
23
5
23
20
6
14
13
12
4
19
17
16
5
10
23
5
23
17
16
9
2
21
11
20
23
1
1
22
3
24
Form No. 769-07117
(April 25 , 2011)
