TDQR01
Tabletop Dishwasher
User Manual
Please read the instruction manual carefully before installing and operating,
and keep it for future reference.
CONTENTS
Safety& Warning ............................................................................
Important Safety Instructions .........................................................
Product Introduction .......................................................................

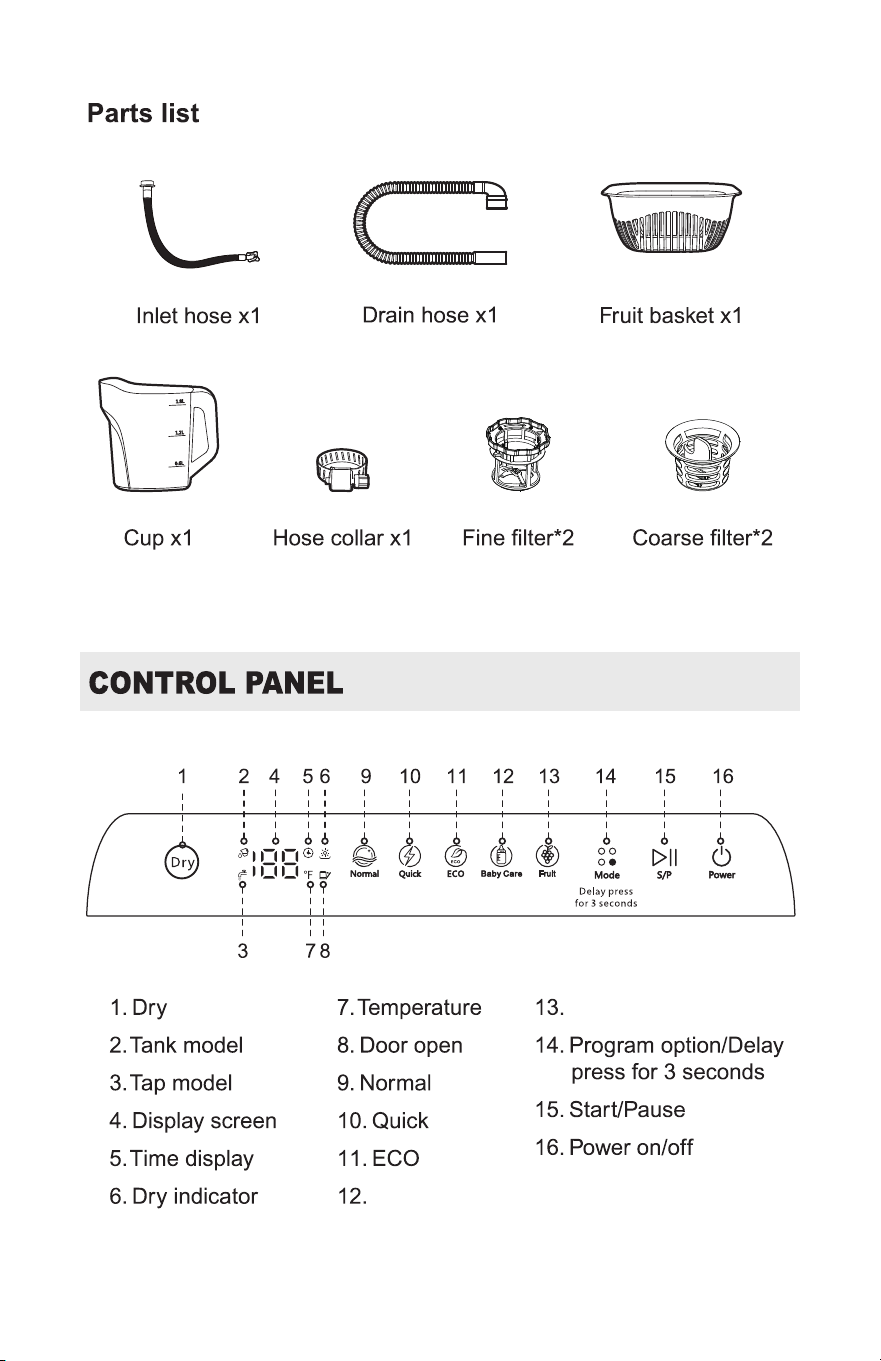

Control Panel ..................................................................................
Installation ......................................................................................
Tableware Loading .........................................................................
Operation .......................................................................................

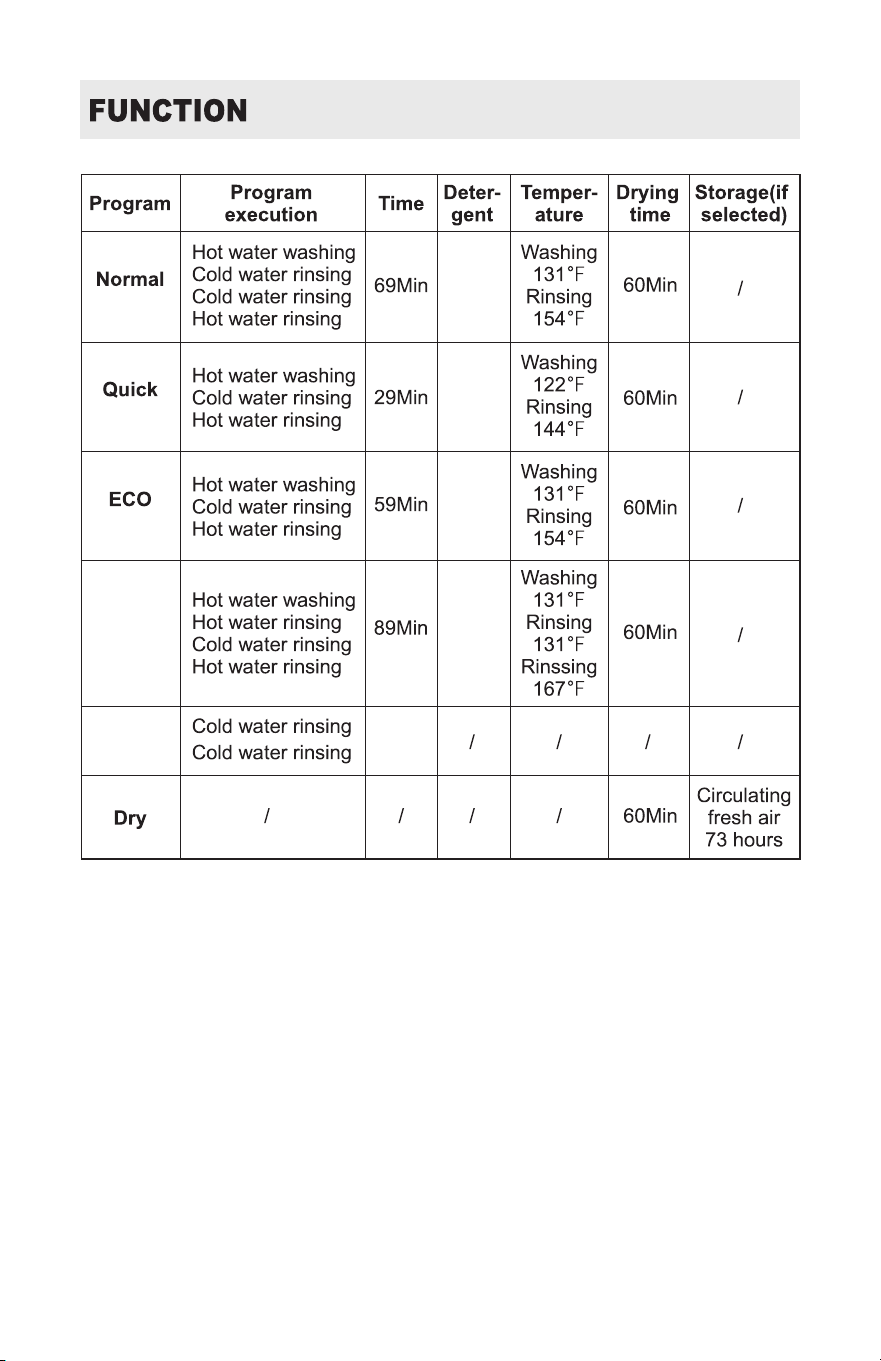

Function .........................................................................................
Maintain & Clean ............................................................................
Dishwasher Care and Maintenance ...............................................
Fault & Problem ..............................................................................
Specification ...................................................................................
01
02
04
05
06
07
09
12
13
15
17
19
SAFETY AND WARNING
1. Power socket must be grounded,avoiding to possible electric leakage
or shock;
2. Don't share one socket with other appliance avoiding to avoid fire;
3. Any of new parts or power line will be changed by service man after
damages;
4. Dispose of the machine in a environmentally friendly manner under
local regulations;
5. Do not place the machine in the environment under 32°F , like outside
door in cold weather;
6. Please use the salt and detergent which is special for dishwasher;
7. Don't place and use the machine in the platform which is not
stable,wet,smooth,inflammable avoiding to any damage;
8. Don't place and use the machine within 5 inch far from gas stoven or
heater;
9. Don't place any heavy object on the door when door open avoiding to
the machine turn over;
10. Don't splash water into the machine to electric shock or fire;
11. Don't drink the water in the machine;
12. Don't let children operate the machine independently avoiding to any
dangerness.
Warning
1. Don't open the door when washing avoiding hot water flying out
causing any hurts;
2. Don't touch or block the side air outlet;
3. Don't tilt or move the machine when washing;
4. Don't face person avoiding to any hurts when open door;
5. Please stop washing, power off, and close tap when any fault occur;
6. Please check and clean the machine time by time in order to the best
washing effect;
7. Please fix the drain hose avoiding to the stained water outflow;
8. Don't forcely pull power cord, drain hose, press cutlery tray avoiding
any damage;
9. Don't use wet hand to operate the machine avoiding electric shock;
10. Children shoud be far away from the chemical material such as salt,
detergent avoiding to any hurt.
Precaution
01
IMPORTANT SAFETY INSTRUCTIONS
Use only detergents or wetting agents recommended for use in a
dishwasher and keep them out of the reach of children.
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door
seal;
2) Load sharp knives with the handles up to reduce the risk of cut-type
injuries.
3) Do not wash plastic items unless they are marked "dishwasher safe"
or the equivalent. For plastic items not so marked, check the
manufacturer’s recommendations.
4) Do not touch the heating element during or immediately after use.
5) Do not operate your dishwasher unless all enclosure panels are
properly in place.
6) Do not tamper with controls.
7) Do not abuse, sit on, or stand on the door or dish rack of the
dishwasher.
8) To reduce the risk of injury, do not allow children to play in or on a
dishwasher.
9) Under certain conditions, hydrogen gas might be produced in a
hot-water system that has not been used for two weeks or more.
10) HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the dishwasher turn on all
hot-water faucets and let the water flow from each for several minutes.
This will release any accumulated hydrogen gas.
11) As the gas is flammable, do not smoke or use an open flame during
this time.
12) Remove the door to the washing compartment when removing an
old dishwasher from service or discarding it.
02
This appliance must be grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electric shock by providing
a path of least resistance for electric current. This appliance is equipped
with a cord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is installed
and grounded in accordance with all local codes and ordinances.
WARNING – Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with a qualified
electrician or service representative if you are in doubt whether the
appliance is properly grounded. Do not modify the plug provided with the
appliance, if it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
GROUNDING INSTRUCTIONS
03

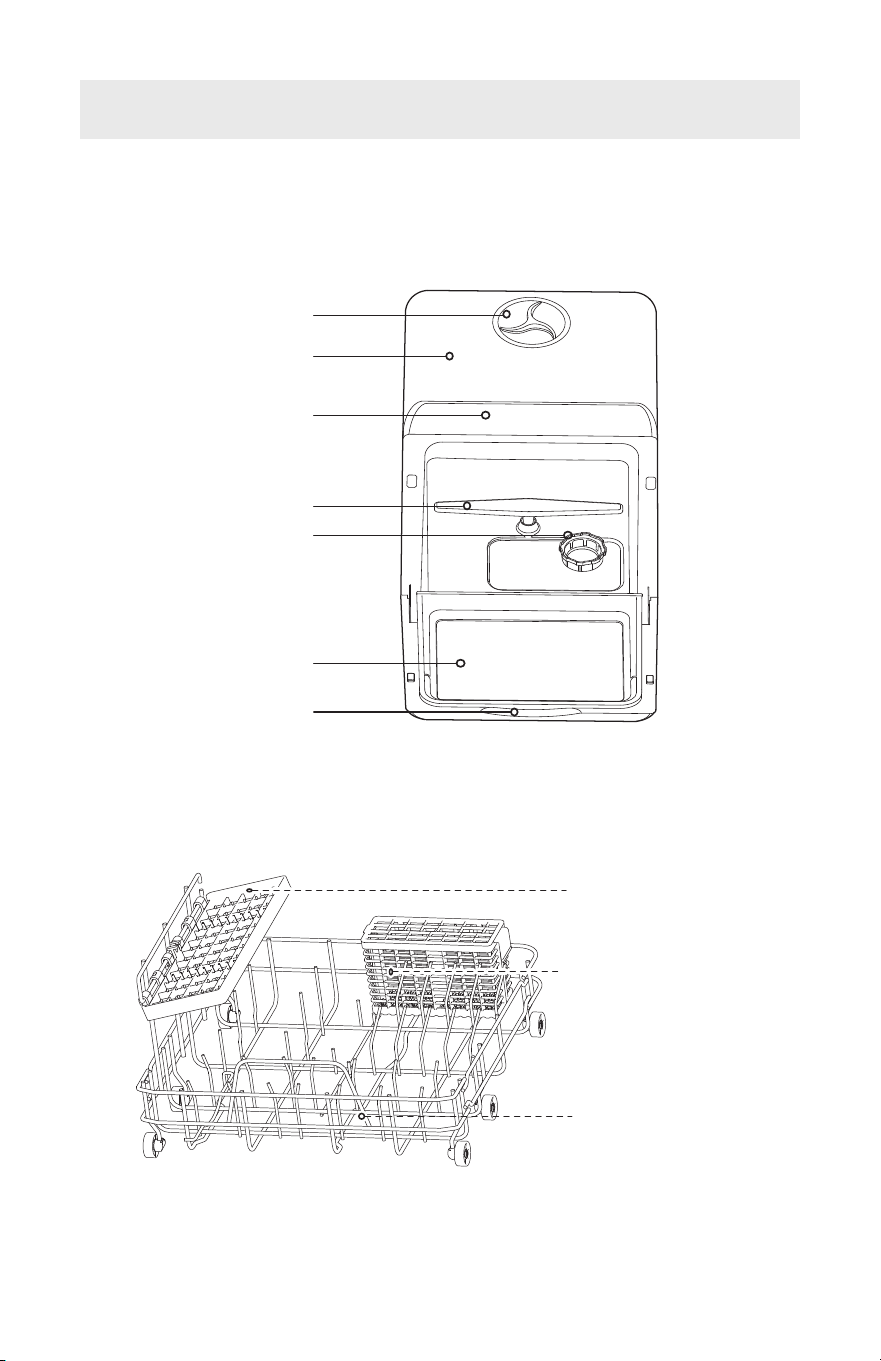

PRODUCT INTRODUCTION
Machine
Glassdoor
Filter
Spray arm
Door handle
Control panel
Top lid
Water inlet
Storage rack
Cutlery basket
Tableware basket
04
Fruit
Baby Care
05

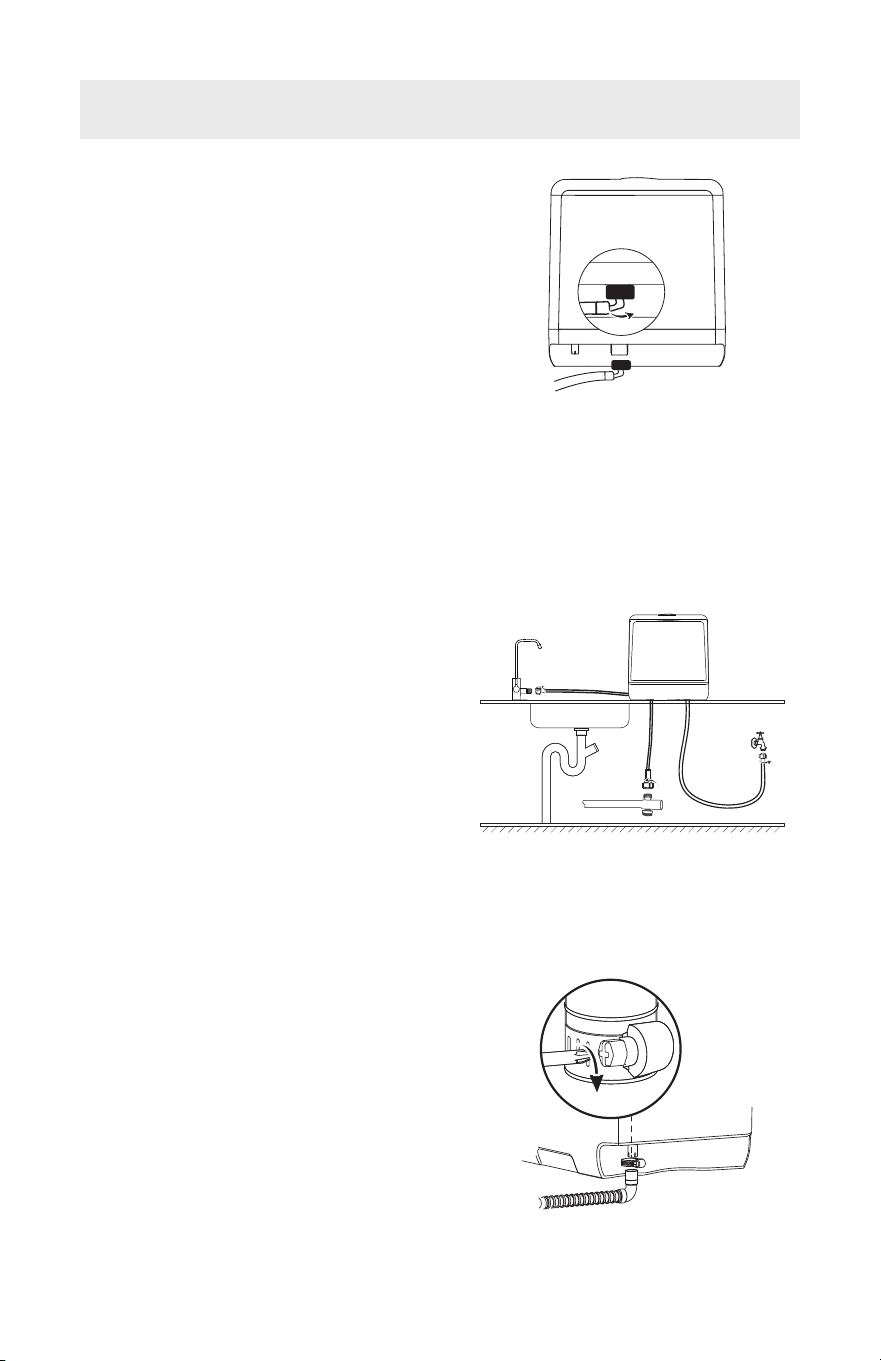

INSTALLATION
1) Connect machine
Insert the inlet hose elbow into
the water inlet behind machine
and tighten the screw.
2) Connect tap
A、B、C three options for tap connection, but B and C options need
make a hole on or behind cabinet in order the hose can go through
cabinet.
1. Inlet hose installation
1) Connect machine
Insert the drain hose elbow into
the water outlet behind the
machine and tighten the collar.
2. Drain hose installation
Connect machine
Connect tap
A Inlet hose
C Inlet hose
B�Inlet�hose
Connect machine
NOTE: the size of the inlet hose
elbow is 3/4' with internal thread,
the tap size must be 3/4' with
outer thread.
NOTE: If the included water inlet
hose does not fit your faucet, you
may need to buy a 3/4' GHT
threaded faucet adapter from a
plumbing supply manufacturer. If
you are unsure of what to do,
please feel free to contact our
after-sales service team.
06
2) Connect sewer
A,B,C three options for sewer connection, B and C options need to make
a hole on or under the cabinet in order the hose can go through the
cabinet.
1) Please get rid of large food
residue on tableware，
avoiding to block water hose.
2) Please make reference to right pictures for tableware display.
Note: Refer to the illustration when loading the dishwasher. All
tableware and cutlery should be tilted to improve cleaning performance,
with the dirty side facing toward the spray arm. Load tableware such
that they are leaning against each other, and load hollow items such as
cups. glasses, etc. with the opening facing downwards. Ladles should
face open side down. Improper placement of tableware and cutlery
may block the spray arm, which may affect the cleaning.
Cleaning Program: ECO
Under ECO washing program, add 0.56 oz(16g) detergent, then start
washing. When 18 minutes left before washing finish, pause washing,
open the door and add 0.1oz rinse aid, then close the door to continue
the washing till the washing finishes
A Drain hose
C Drain hose
B�Drain�hose
Connect sewer
TABLEWARE LOADING
Note: A hose that attaches to a sink
spray can burst if it is installed on the
same water line as the dishwasher.
If your sink has one, it is
recommended that the hose be
disconnected and the hole plugged.
07
• Scrape off any large food particles.
• Soften and/or soak remnants of burnt food in pans.
• It is not necessary to rinse all dishes under running water.
• Place objects in the dishwasher in the following way:
- Load hollow items such as cups, glasses, pans etc. with the opening
facing downwards.
- Curved items or items with recesses should be loaded at a slant so
that water can run off.
- All tableware and cutlery should be placed such that the spray arms
can rotate freely during washing.
• Knives and other utensils with sharp points should be loaded in the
storage rack or cutlery basket with their points down or placed in a
horizontal position so that they do not damage the inside of the
dishwasher.
• Very small items should not be washed in the dishwasher, as they
could fall out.
• Dishes and cutlery should not lie inside, be stacked with, or lie against
each other.
• To avoid damage to glasses, ensure they are not touching each other.
• Do not overload the dishwasher. Position the dishes and cookware
such that they will not be moved by the water spray.

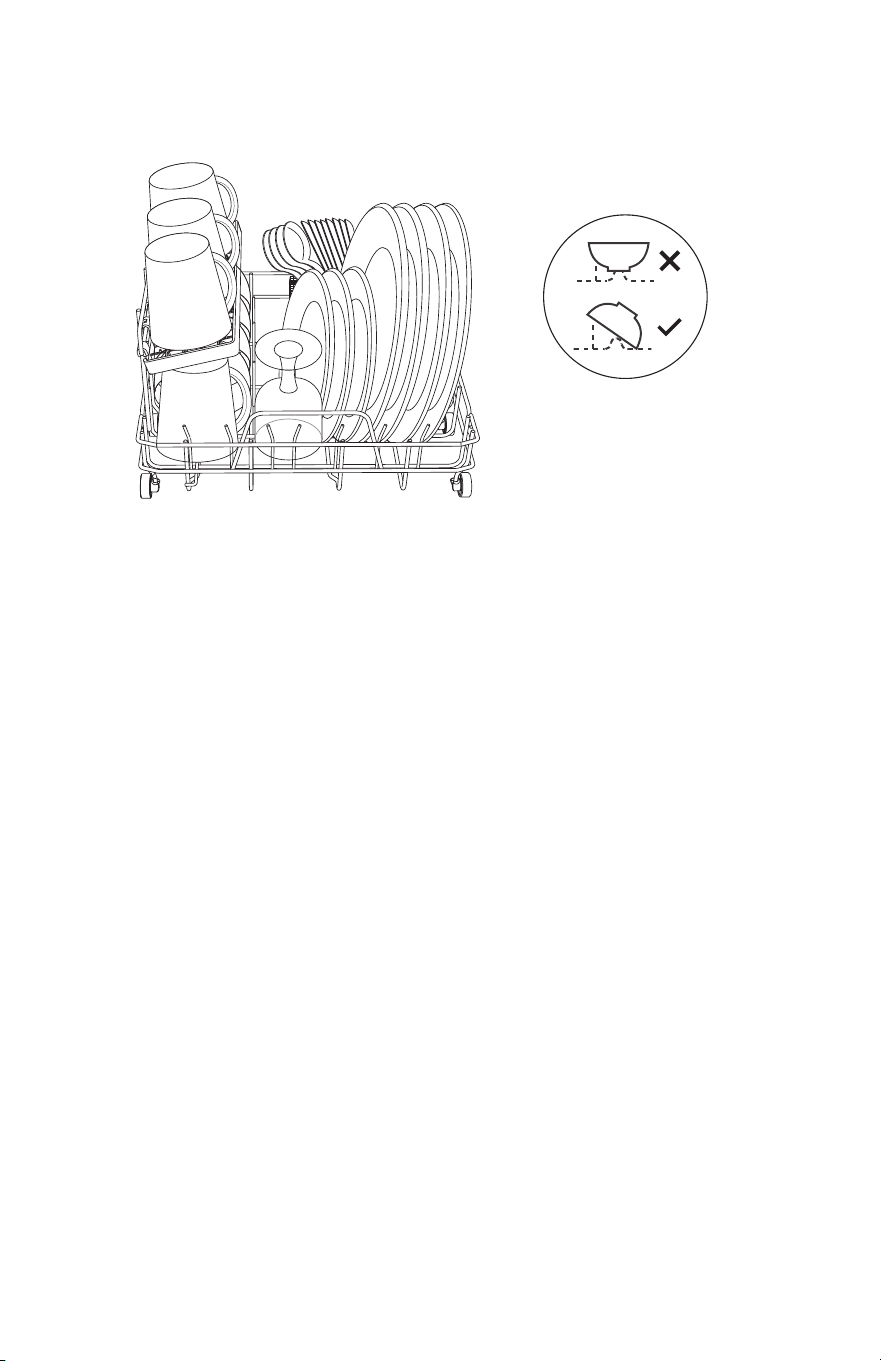

Try to leave the
dirty facing toward
the spray arm.
Recommended Layout
08
OPERATION
1) Power on
Plugin,touch“ ”,turn on the
machine.
Note: During washing program
running, touch " " for 3 seconds
to force the machine to turn off.
Not suitable for:
• Cutlery with wooden or mother-of-pearl handles
• Plastic items that are not heat-resistant
• Non-heat resistant bonded cutlery or china
• Pewter or copper items
• Delicate crystal
• Steel or silver items subject to rusting or discoloration
• Wooden items
• Glazed items that may fade
• Painted tableware
2) Add detergent
Open the door, add morderate
detergent powder,or 1pc
detergent block into the
machine, close the door.
WARNING: Only use detergent
made specifically for
dishwashers. Do not use rinse
aids. Dishwasher detergent is
corrosive! Keep away from
children.
S/PS/P
Power
09
4) Run program
Touch" ", run selected program, the machine will check water supply
automatically.
Note:
1. Check tap or tank model automatically after running program, if the
indicators" " " "become red, you need open tap or fill tank with water;
2. After 5 times checking, there is still no water supply, the machine will enter
standby;
3. Touch" "to force to pause machine to add tableware during washing;
4. Touch" "for 3 seconds to quit program,the machine will drain, then turn
off;
5. Touch" "to add 73 hours circular wind to keep air fresh inside the machine.
S/P
• DO NOT add detergent when using the Fruit mode.
• The use of normal washing mode in combination with low alkaline
concentrated detergents with natural enzymes reduces pollution and is
good for your dishes.
• The detergent must be refilled before the start of each wash cycle.
• Generally, only one tablespoon of detergent is needed for a normal
wash load.
• Always add the detergent just before starting the dishwasher. Other-
wise, it could become damp and will not dissolve properly

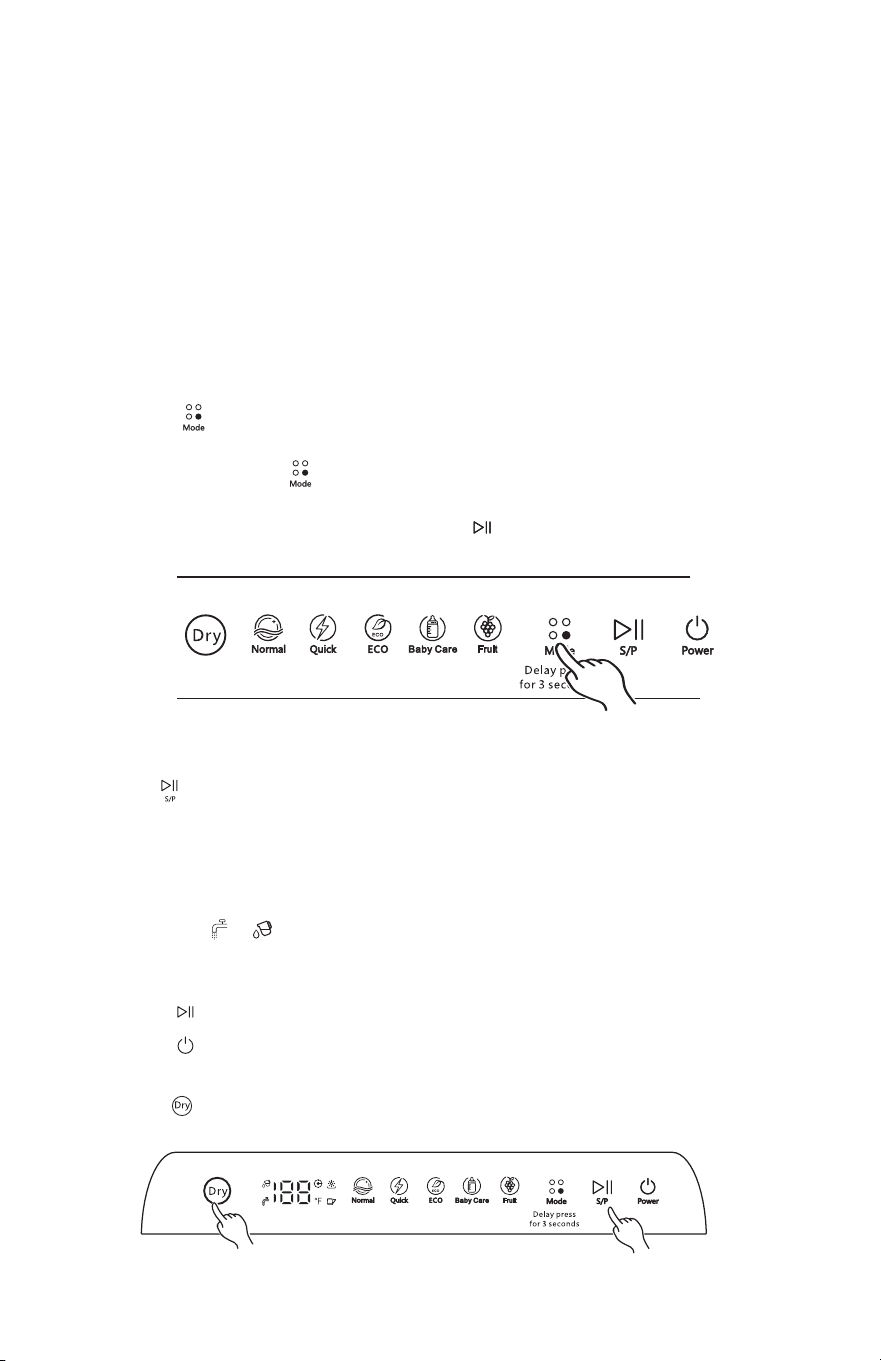

3) Program selection
1. Touch“ ”,each of program indicators will light one by one, select the
program you want.
2.Touch the button “ ”for 3 seconds into delay mode,then each touch
for one hour delay, delay time can be from 1 to 6 hours. After confirming
the time you want to delay, then press “ ” to start running the machine.
S/PS/P
10
Note:
Dry Mode: The Dry mode can be used with any washing mode other than
Fruit mode and can also be turned on separately.
1. To combine with a wash cycle: After choosing the wash cycle of Normal,
Quick, ECO, Baby Care/Heavy, add an extra air-drying time by pressing
the Dry button. To cancel, simply press the Dry button again if the drying
process does not start.
2. To use separately: Simply press the Mode button and then press the Dry
button to select the Dry mode. Then, press the Start/Pause button to start.
NOTE: The Dry mode cannot be paused or canceled during operation of
air-drying and intermittent circulation. If you want to cancel the Dry mode,
press and hold the Power button for 3 seconds to turn off the dishwasher.
How the Working Status Panel Displays the Air-Dry Function Air Dry in any
wash cycle (except Fruit mode): Power button, Start/Pause button, and
Mode button will stay illuminated with remaining time and on the working
status panel.
Air Dry in Dry mode: Dry button and Power button will stay illuminated and
on the working status panel.
5) Wash
The machine has two water supply models, tap model and tank model.
Note:
1. If the indicator “ ”is white, it means the program is tank model;
2. The indicator“ ”is white, means tap model;
3. If the tank is full, the maching will switch into tank model automatically;
4. Fill 3 cups of water into tank, Di,Di,Di will be sound if tank is full, the
indicator“ ”will become white;
5. If you use the tap model, please open the water tap.
Fill water by hand (For tank model) Connet tap (For tap model)
11
NOTES:
• For washing tableware in the water tank mode, add water with a
temperature below 104°F (40 °C). For washing fruits and vegetables, add
room temperature water. The default cleaning time is 19 minutes in Fruit
mode. You can stop the wash cycle in this mode to prevent the fruits from
becoming over-washed or damaged.
• The Dry mode can be used with any washing mode other than Fruit
mode.
Baby Care
Fruit
19Min
0.28 oz
(8g)
0.28 oz
(8g)
0.28 oz
(8g)
0.42 oz
(12g)
12
MAINTAIN & CLEAN
1) Disassamble
Rotate anticlockwise to
disassemble the filter set, Which
have 3 parts, filter mesh, main
filter and fine filter.
2) Clean
Use water to flush and brush
each of filter parts
3) Assemble
After cleanning,rotate clockwise
to close the filter set.
1. Clean Filter
13
2. Clean spray arms Disassemble
1) Disassemble
Open the door, take out the
basket, then pull out up and
down spay arm
2) Clean
Use water to flush and brush
each spray arm, use tools with
sharp point to clean holes if
needed, like needles.
3) Assemble
After cleanning,please press
each arm into position, make
sure the arms can move
smoothly.
14
DISHWASHER CARE AND MAINTENANCE
• The control panel and exterior should be cleaned by using a lightly
damp cloth. After cleaning, make sure to dry thoroughly. Never use
sharp objects, scouring pads, or harsh cleaners on any part of the
dishwasher. To remove spots or stains from the surface of the interior,
use a cloth dampened with water and a little vinegar.
• There may be some oil stains left on the edge of the dishwasher’s
interior wall or door after heavily soiled loads have been washed. To
clean the edge around the door, only use a soft, warm, damp cloth.
Avoid getting water inside the door lock and electrical components.
• Regularly clean the door seals with a damp sponge to prevent odors
from trapped food particles in the door seal.
WARNING: Never use a spray cleaner to clean the door panel, as it may
damage the door lock and electrical components. Abrasive agents or
paper towels should not be used due to risk of scratching or leaving
spots on the stainless-steel surface.
Protecting the Dishwasher from Freezing
Please take frost protection measures during the wintertime. After every
wash cycle, take the following steps:
1. Turn off the dishwasher. Cut off electrical power from the dishwasher.
2. Turn off the water supply and disconnect the water inlet hose from the
back of the unit.
3. Drain the water from the inlet hose and inlet port (Use a pan or bucket
to catch the water).
4. Reconnect the water inlet hose to the inlet port.
5. Remove the filter system and use a sponge to absorb the water that is
in the filter (sump) area.
If your dishwasher no longer works due to freezing or ice, please contact
our after-sales service team.
Daily Maintenance
15
In order to keep your dishwasher in good working order, the following
suggestions should be observed:
• Before cleaning or performing maintenance, always remove the plug.
• After every wash - Turn off the water supply to the appliance and
leave the door slightly ajar so that moisture and odors are not
trapped inside.
• If the dishwasher will not be used for an extended period of
time - It is recommended that you run a wash cycle with the
dishwasher empty, then power off the dishwasher, remove the plug
from the socket, turn off the water supply, force drain the water tank,
and leave the appliance door slightly open. This will help the door
seals to last longer and prevent odors.
• Moving the appliance - If the appliance must be moved, try to keep
it in a vertical position. Do not transport the unit on its side or upside
down.
• Water connection - Our water hose has a 3/4" GHT female
connector, so it matches with faucets with a 3/4" GHT male
connector. Connect the female connector to your faucet and make
sure it is fastened tightly in place. Please Note: If the supplied water
inlet hose does not fit your faucet, you may need to buy a 3/4" GHT
threaded faucet adapter from a plumbing supply manufacturer. If you
are unsure of what to do, please feel free to contact our after-sales
service team.
• Water drainage - The drain hose must be properly fitted to avoid
water leaks. Ensure that the water drain hose is not kinked or in any
way impeded. If the sink is higher than the surface where you have
placed your dishwasher, it will be necessary to drain excess water
into a bucket that is in a lower position than the dishwasher. If you
need a drain hose extension, be sure to use a similar drain hose,
and that it is no longer than 12 feet long. Otherwise, the cleaning
effect of the dishwasher could be reduced.
General Tips
16
Code How to deal with
“E2”
Cause
“E3”
Water is leaking from the bottom
of the machine and the water
leakage sensor probe is abnormal.
FAULT & PROBLEM
1. Fault codes
1. Check drain pipe, be sure the pipe
is straight, no bending;
2. Power off, check if anything block
filer or drain pipe;
3. Be sure all pipes are not blocked by
something.
Tilt the machine to 30~45 degree, let
water flow out from base of machine,
then restart machine, if still fault,
contact our serviceman.
“E4”
“E5”
“E6”
“E7”
NTC temperature sensor failure
No heating or overheating
Pressure sensing switch failure
Restart machine, if still fault,
please contact our customer
serivce.
Problem How to deal with
Tableware
is not
clean
be sure enough gap between
tableware.
Cause
Incorrect tableware
loading
Don’t start
the
machine
Add water till the indictator light off.
Water shortage
Can not
select
program
Re-select program after stop
in-progress program or wait
in-progress program finishing.
Be washing
Be sure nothing trap the spray arm.
spray arm trapped
Clean spray arm.
Blocked spray arm
Clean filter set.
Blocked filter
Correctly assamble filter set.
Incorrect filter installation
Select appropriate washing program.
Incorrect program selectio
Add detergent (block/powder/liquid).
No detergent
Check the door if anything stop
closing fully.
Door do not close fully
2. Problem(1)
No drainage, blocked
drainage, or slow drainage
Program failure or line
connection failure
17
Problem How to deal with
Tableware
is not dry
Select appropriate program
Cause
Inappropriate program
Discoloration of
plastic tableware
Select program with lower
temperature
Over high washing
temperature
Detergent left Be sure spray arm move
smoothly
Trapped spray arm, no
water flush detergent
Wipe to dry these plastic
tableware by hand
Poor dry effect for
plastic tableware
Correct tableware setting in
accordance
Incorrect tableware
loading
Wait the dry program finishing
Drying program no
finishing
Wipe to dry these wooden
tableware by hand
Wooden tableware
Use qualified detergent
Detergent with
poor quality
2. Problem(2)
Problem How to deal with
A mount of
foam in the
machine
1.Use special detergent for dishwasher;
2.Open machine, wipe out foam by hand;
3.Fill 0.52-0.8 gallons (2-3 L) water into
machine, select any program,after 1-2 min,
the foam will be drained, can repeat the
process if needed.
Cause
Use incorrect
detergent
A bnormal
sound in
the
machine
Correctly loading the tableware
Spray arm
knock tableware
Egg custard
left on the
tableware
wash the tableware with egg
custard by hand
Portein
solidification
Water drops
left inside of
machine
Selet “Dry”prorgram
Drying time is
not enough
Fix tableware before washing
Tableware
move slightly
2. Problem(3)
18
SPECIFICATION
Machine
Electrical Drawing
Manufacturer number
Input voltage
Frequency
Power
Inlet pressure
Water consumption
Place setting
Net weight
Machine size (WxDxH)
Dry
TDQR01
120V~
60Hz
950W
0.03~1MPa
1.3 gallons (5 L)
4sets
28.7 lb (13 kg)
16.86*16.75*18.05 in (428*425*458 mm)
Hot wind
Flowmeter
DC5V
Thermister
Pressure switch
Liquid level switch
Overflow switch
Door switch
DC12V
Heating
Pressure pump
Inlet valve
Drain pump
Washing pump
120V~ N
120V~ N
120V~ L
120V~ L
120V~
120V~
Draught Fan
19
Manufacturer: Shenzhen Foduosi Trading Co., Ltd.
Address: 1403, Block 4, Haixuan Plaza, No.89 Jinlong Road,
Luogang Community, Buji Street, Longgang District, Shenzhen
Facebook Page: http://www.facebook.com/foherehome
Email: service@fohere.com
Web: www.fohere.com
MADE IN CHINA
HOUSEHOLD USE ONLY
