USER MANUAL
PETKIT PUROBOT MAX PRO WITH CAMERA
SELF-CLEANING CAT LITTER BOX
Please read the user manual carefully
before use and keep it properly.
01
-3-
Main Unit
Trash Bag
User Manual
PACKAGE LIST
* Before installation and use, please check if all the accessories are complete according to
the following list :
Pet Odor Eliminator
N50 2.0
Honeycomb Fine
Litter Sier P99023
(Exclusive for mineral cat litter)
Magnetic Cat Litter Remover
Pet Odor Eliminator N60
(Used in the smart odor eliminator)
Power Adapter
RETURN TO
CONTENTS
-4-
PRODUCT DESCRIPTION
02
Cylinder
OLED Display
Screen
Fisheye Camera
Standard
Litter Sier
P99022
Handle
Wheel
Menu Button
OK Button
Non-detachable
(To move the device,
li the front side by the handle.)
Note: The actual productmay dier from the image shown due to continuous product improvements; the actual product
shall prevail.
(Exclusive for tofu
cat litter and mixed
cat litter)
RETURN TO
CONTENTS
RETURN TO
CONTENTS
-5-
Note: The actual productmay dier from the image shown due to continuous product improvements; the actual product
shall prevail.
Waste Bin
Power Port
Waste Bin Lid
Breezy Smart Odor
Eliminator
Position for Placing
N50 2.0
Waste Bin Door
Camera
Indicator Light
Microphone
Fill Light
Y-shaped Slot
Handle of Waste Bin
Proximity Sensor
(Press the back latch to
pull out the waste bin)
Magnetic
Side Cover
High Performance
Cat Litter Pad MAX
P9220
Air Inlet
RETURN TO
CONTENTS
-6-
Introduction to Component Functions
* High Performance Cat Litter Pad MAX P9220 is hereinaer referred to as litter pad.
* Pet Odor Eliminator N50 2.0 is hereinaer referred to as N50.
* Breezy Smart Odor Eliminator is hereinaer referred to as smart odor eliminator.
Component Name
Fisheye Camera
Litter Sier
High Performance
Cat Litter Pad MAX P9220*
Pet Odor Eliminator
N50 2.0*
Y-shaped Slot
Handle
Breezy Smart Odor
Eliminator*
Functional Description
Real-time monitoring of pet toileting
Eectively filter clumps without jamming or missing
Anti-stick, waterproof, scratch-resistant, and easy to clean
Decompose the odor in the waste bin to prevent the
odor from spreading
Used to secure the drawstring of trash bag. Pack the
trash bag without pulling out the waste bin
Easy to li and move the device
Non-irritating; Keep the air in cylinder fresh
03
-7-
❸ Remove the lid and place the trash bag in the waste bin, ensuring that the trash bag lies flat
at the bottom.
❶ Press the latch to the right to open the door. ❷ Press the back latch to pull out the waste
bin.
PRODUCT INSTALLATION
3.1 Install Trash Bag
Fold line
Note: Fold the trash bag along the dashed line, ensuring that the dashed line is on the edge of
the waste bin.
RETURN TO
CONTENTS
PRODUCT USAGE
04
-11-
* Note: The interface may be dierent due to
soware version update; the actual interface
shall prevail.
* Please connect the device with the app before first use. It can only be used aer a successful
connection.
4.1 Device Binding
❷ Open the PETKIT App, click “+” and select PETKIT PUROBOT MAX PRO WITH CAMERA
SELF-CLEANING CAT LITTER BOX.
9:41
PETKIT
RETURN TO
CONTENTS
❶ Download the App
Download the PETKIT App from
the App Store or Google Play.
Or scan the QR code to download and install.
Available on
Android
stores
TM
Download on the
App Store
-12-
❸ Start connection
Press the menu button on the device to switch to “Connect to the network”, then press the
OK button, and the screen will display “Connecting”. Please wait until the connection is
successful.
RETURN TO
CONTENTS
* Note: The interface may be dierent due to
soware version update; the actual interface
shall prevail.
-14-
4.2 Pour in Cat Litter
❶ Press to switch to “Maintenance Mode”, then press to execute this function, and the
cylinder begins to rotate.
❸ Double press and the device will
level cat litter automatically.
❷ When the cylinder stops with the opening
facing upward, pour in the cat litter. Then
press to exit “Maintenance Mode”.
Caution: The amount of cat litter
should not exceed the MAX line.
Maintenance M
Level cat litter
Note: The size of cat litter should not exceed 12 mm(0.47 in) in length and 3 mm(0.12 in) in
diameter.
RETURN TO
CONTENTS
-16-
RETURN TO
CONTENTS
05
APP FUNCTIONS
5.1 Homepage
* Note: The interface may be dierent due to
soware version update; the actual interface
shall prevail.
❶ Live
❷ Light
View pet’s activities in real-time.
Turn on/o the fill light of the camera.
Quickly find and replay saved videos by
the event category.
*For features such as full video playback,
please subscribe to the PETKIT Care+
cloud service. Please refer to PETKIT Care+
Service Agreement for details.
❸ Today’s timeline
❹
Main Functions
-17-
RETURN TO
CONTENTS
5.2 Status Indicator
Swipe le on the homepage to enter the label page, which displays the status of the N50,
N60, and the waste bin.
When the N60 label turns
red and displays “N60 has
expired”, please replace it
promptly. Aer replacing
the N60 with a new one,
click Reset, and when it
displays “Normal”, the N60
is installed in place.
❶ N60
When the N50 label turns
red and displays “N50
remaining 0 day”, please
replace it promptly. Aer
replacing the N50 with a
new one, click Reset, and
when it displays “Normal”,
the N50 is installed in place.
When it displays “Waste bin
not installed”, please check
the waste bin is installed
in place.
When it displays “Waste
bin full”, please replace the
trash bag with a new one.
When it displays “Normal”,
the waste bin is installed in
place.
❷ N50
❸ Waste bin
* Note: The interface may be dierent due to soware version update; the actual interface shall prevail.
-18-
RETURN TO
CONTENTS
❸ Empty
Click it to empty all cat litter in the Cylinder. If the waste bin is full during emptying, the
device will stop emptying and display “Emptying failure, Waste Bin full, please check”. Please
replace the trash bag with a new one, then follow the prompts to operate.
Caution: This function will empty all the cat litter in the Cylinder. To avoid waste overflow,
please replace with a new trash bag before emptying.
5.3 Description of Functions
❶ Scoop
Click it to clean out the clumps from the
Cylinder.
❷ Maintenance Mode
Aer clicking it, the Cylinder begins to rotate.
It will stop with the opening facing upward,
making it convenient to pour in cat litter.
* Note: The interface may be dierent due to
soware version update; the actual interface
shall prevail.
-19-

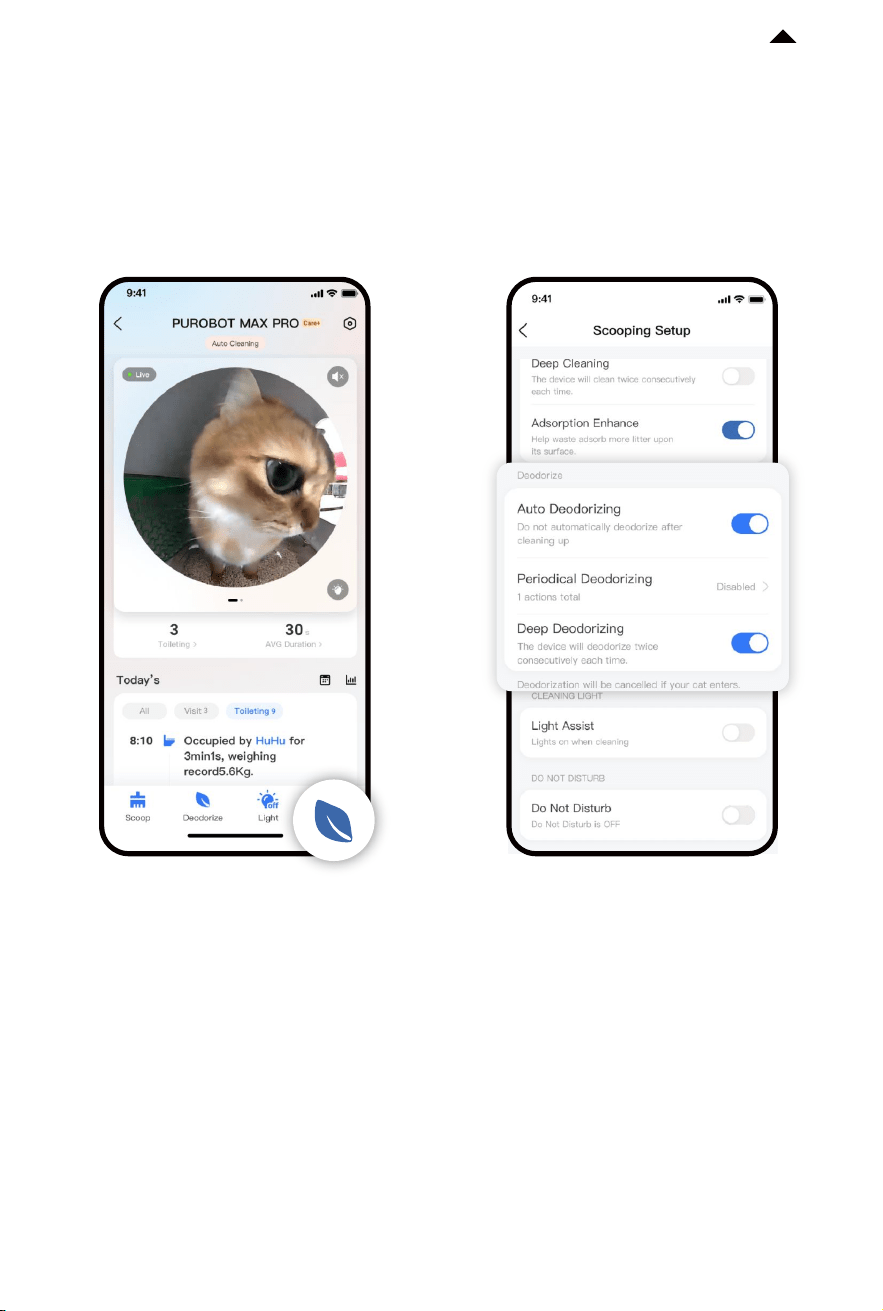

❹ Deodorize
Click it to remove odors.
Set the deodorization mode in the "Scooping Setup". There are three options: automatic
deodorization, scheduled deodorization, and deep deodorization.
* Note: The interface may be dierent due to
soware version update; the actual interface
shall prevail.
RETURN TO
CONTENTS
-20-

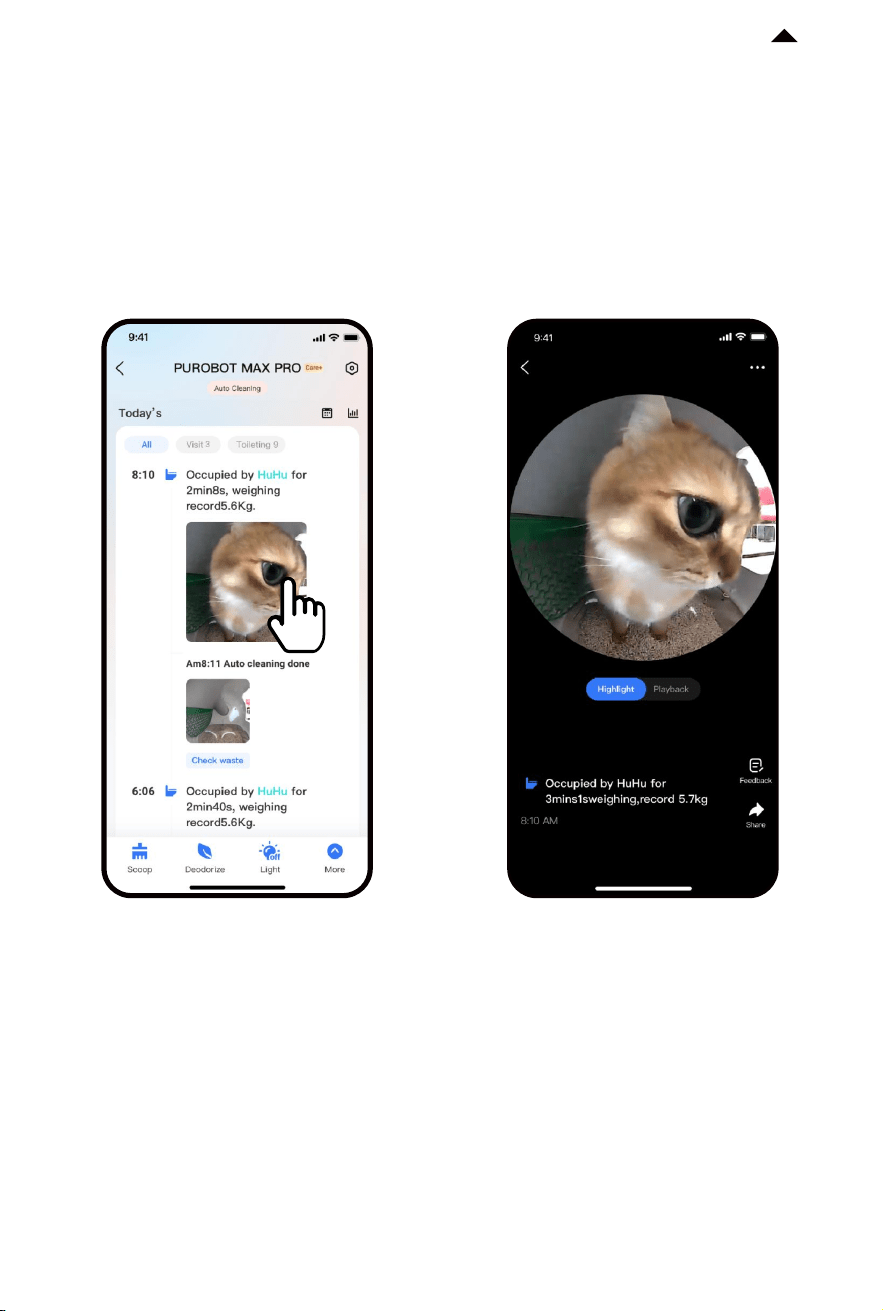

5.4 Play Videos
❶ Highlight playback
Click on the video in the timeline to view a sped-up 4-second preview version.
Aer subscribing to the PETKIT Care+ service, you can view the highlights and full video
playback.
* Note: The interface may be dierent due to
soware version update; the actual interface
shall prevail.
RETURN TO
CONTENTS
-21-

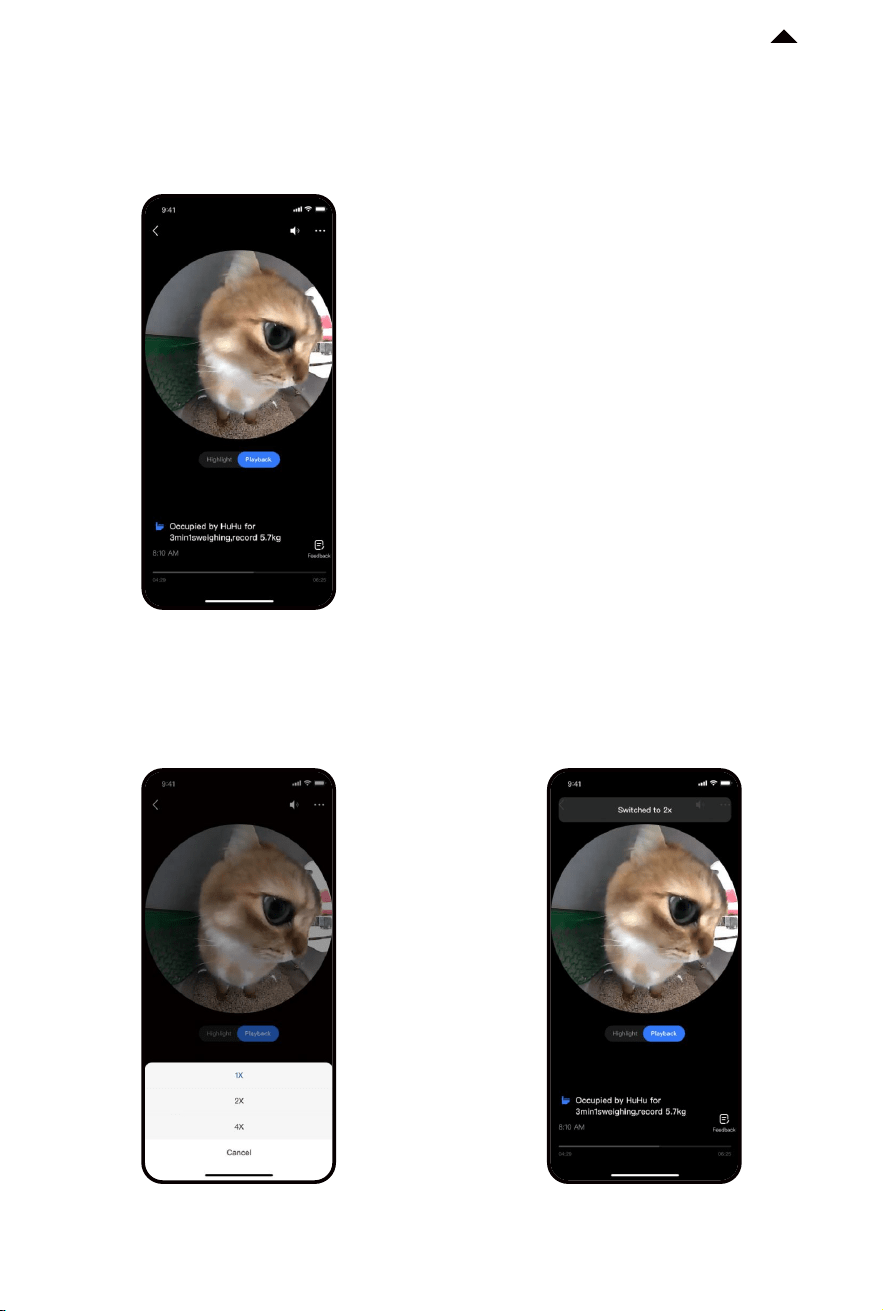

❷ Full clips playback
Click Playback to view the complete video footage.
❸ Speedup playback
In the Playback page, click “ ··· ” on the top right corner to choose the speed, or hold the
center of the screen to play in 2x speed.
* Note: The interface may be dierent due to soware version update; the actual interface shall prevail.
RETURN TO
CONTENTS
-22-

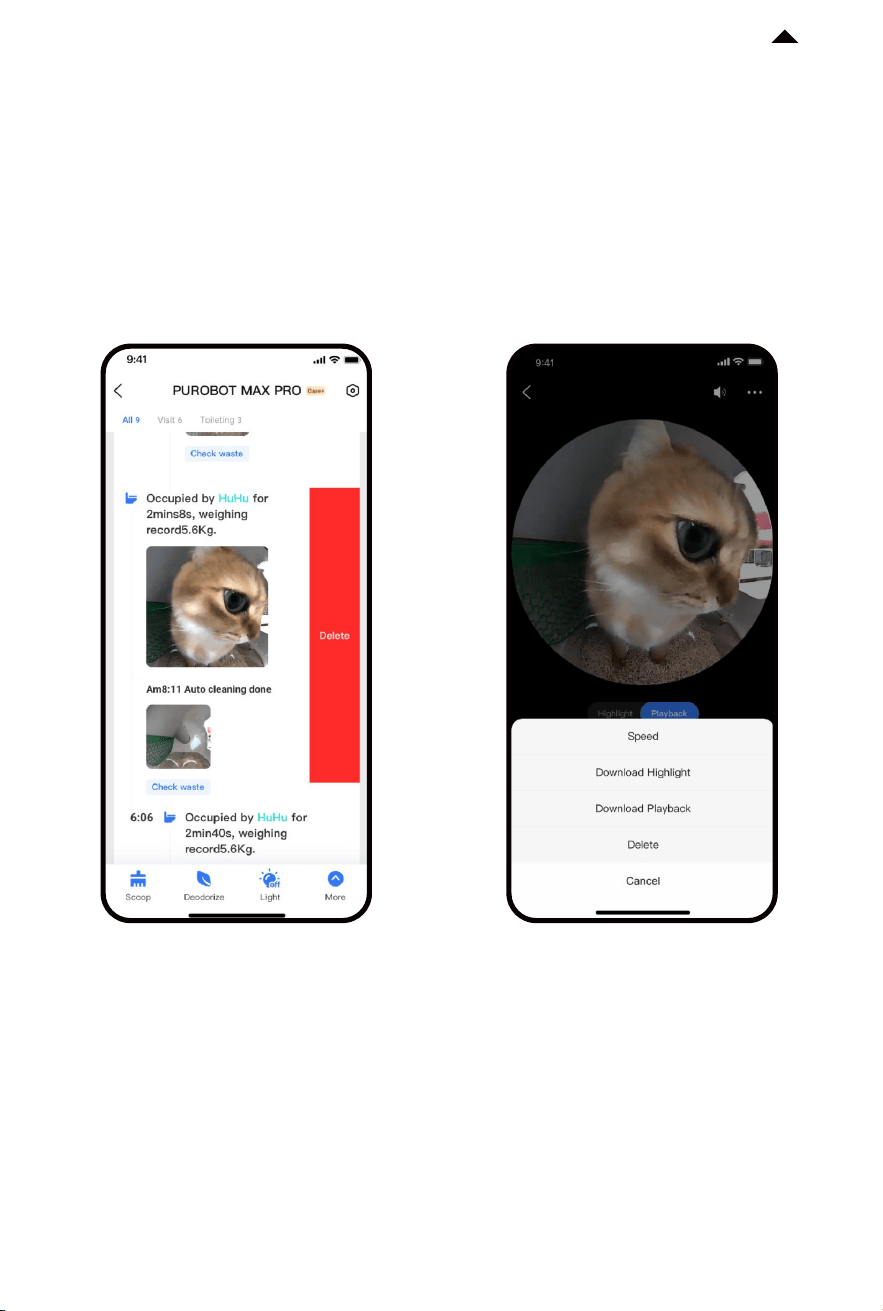

5.5 Delete video clips
Method 1: Swipe le in the timeline and
delete the video.
Method 2: Click on the video you want to
delete, switch to Playback, click “
··· ” on
the top right corner and delete the video.
You can delete recorded video clips as you need.
* Note: The interface may be dierent due to
soware version update; the actual interface
shall prevail.
RETURN TO
CONTENTS
-23-

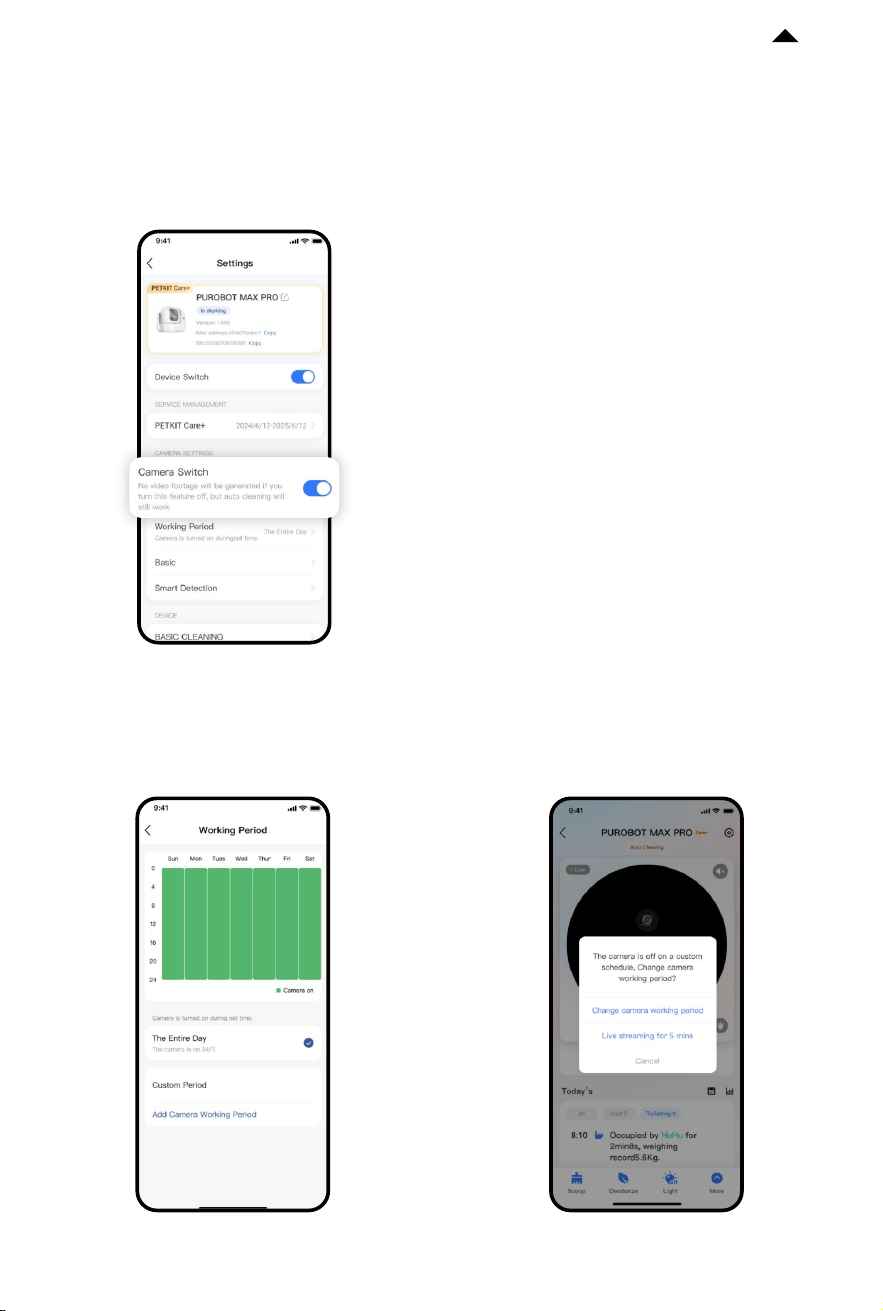

5.6 Privacy Protection
Note: Aer turning o the camera, it will no longer record any videos.
Note: Out of the customized periods, the camera will not record any videos. You can watch a
5-minute live stream.
You can turn on or turn o the camera as you need.
❷ Customize the camera working time period
You can customize time slots to turn on the camera. Beyond those time slots, the camera
will be automatically turned o.
❶ Activate or deactivate the camera
* Note: The interface may be dierent due to soware version update; the actual interface shall prevail.
RETURN TO
CONTENTS
-24-

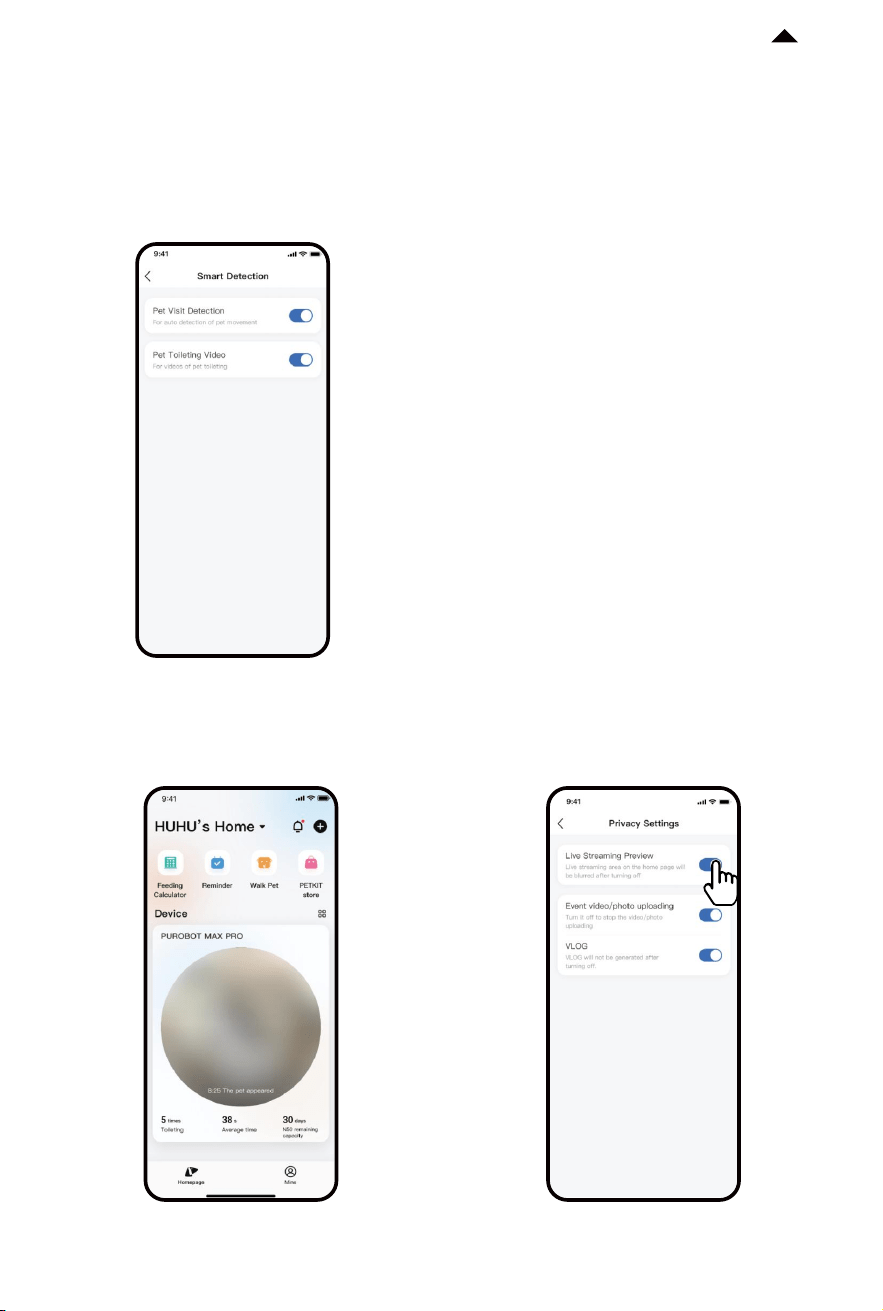

❸ Smart detection
When Pet Visit Detection is turned o, the camera won't record videos of the pet outside the
litter box, and events of the pet appearing outside the litter box won't be logged on the timeline.
When Pet Toileting Video is turned o, the camera won't record toileting videos inside the
litter box, but toileting logs will still be displayed on the timeline.
❹ Live area privacy protection
With this feature on, when you enter the device homepage, the live area will be blurred to
protect your privacy.
* Note: The interface may be dierent due to soware version update; the actual interface shall prevail.
RETURN TO
CONTENTS
-25-
5.7 Other Settings
Go to Settings > Scooping Setup and turn on Light Assist. Aer activating this function, the
light will automatically turn on during every scooping and turn o when the scooping is
complete.
❶ Make fecal pictures clearer
* Note: The interface may be dierent due to
soware version update; the actual interface
shall prevail.
RETURN TO
CONTENTS
Light Assist
Lights on when cleaning
-26-
❷ Cloud Storage
Videos are stored for a limited time, and stored videos exceeding the time will be
periodically cleared. All videos can be downloaded, and the downloaded videos can
be viewed in the local album of your phone and in the App album. (e.g., 7-day loop
means that videos or pictures from the last 7 days are retained, and content from
the eighth day forward is automatically cleared.)
❸ PETKIT Care+ service
After subscribing to the PETKIT Care+ service, HD video complete playback and
other privileges are available. The details are subject to the page description.
PETKIT Care+ service can be transferred to another PETKIT PUROBOT MAX PRO,
which is only once per year. PETKIT Care+ service is a virtual commodity and is
non-refundable once purchased.
RETURN TO
CONTENTS
Click here to view the PETKIT Care+ Service Agreement.
-27-
DESCRIPTION OF
CONTROL PANEL
❶ Press on the control panel to switch functions, and press to execute the selected
function.
Light
When there is not enough light, turn on the
fill light in the camera to check the cylinder
at night.
Press and hold
Turn on / Turn o
Press
Switch functions
The screen will display the selected function.
Press
Execute the selected function
Double press
Level cat litter in the cylinder
Description of Displayed Functions
Scoop
Automatically si out clumps from cat litter.
Deodorize
Turn on the smart odor eliminator to
remove odor.
Maintenance mode
Use it when adding cat litter or
cleaning the device.
Level cat litter
Make cat litter evenly distributed in the
cylinder. Use it aer adding cat litter.
Empty cat litter
Empty all cat litter in the cylinder.
Reset
Adjust the cylinder to the correct position.
Connect to the network
Use it when binding the App.
RETURN TO
CONTENTS
06
-28-
Total toilet
The cat enters while the device is in operation
(the device will automatically pause and alert).
The magnetic side cover is not installed.
Please check if it is in place.
Device failure, please check the details in the App.
The cat litter is insuicient. Please add in time.
The waste bin is full. Please empty in time.
Prompts
Description
❸ Description of other prompts
There will be scrolling text at the bottom of the screen to describe the current status.
❷ Description of displayed status
Network connected
Toilet times today
Child lock on
Insuicient
cat litter
Cat enters
Device failure
Full waste bin
Magnetic side
cover not installed
Camera on
RETURN TO
CONTENTS
-29-
07
CLEANING AND MAINTENANCE
For the cat's health, it is recommended to regularly clean or replace these parts.
Cylinder
Litter Sier
Base
Proximity Sensor
Fisheye Camera
Caution: Please disconnect the power or turn o the device.
Litter Pad
N50
Do not rinse or soak
Do not rinse or soak
Do not rinse or soak
Do not rinse or soak
N60
(Please replace it regularly)
(Please replace it
regularly)
Smart Odor Eliminator
RETURN TO
CONTENTS
-30-
7.1 Empty Cat Litter Before Cleaning

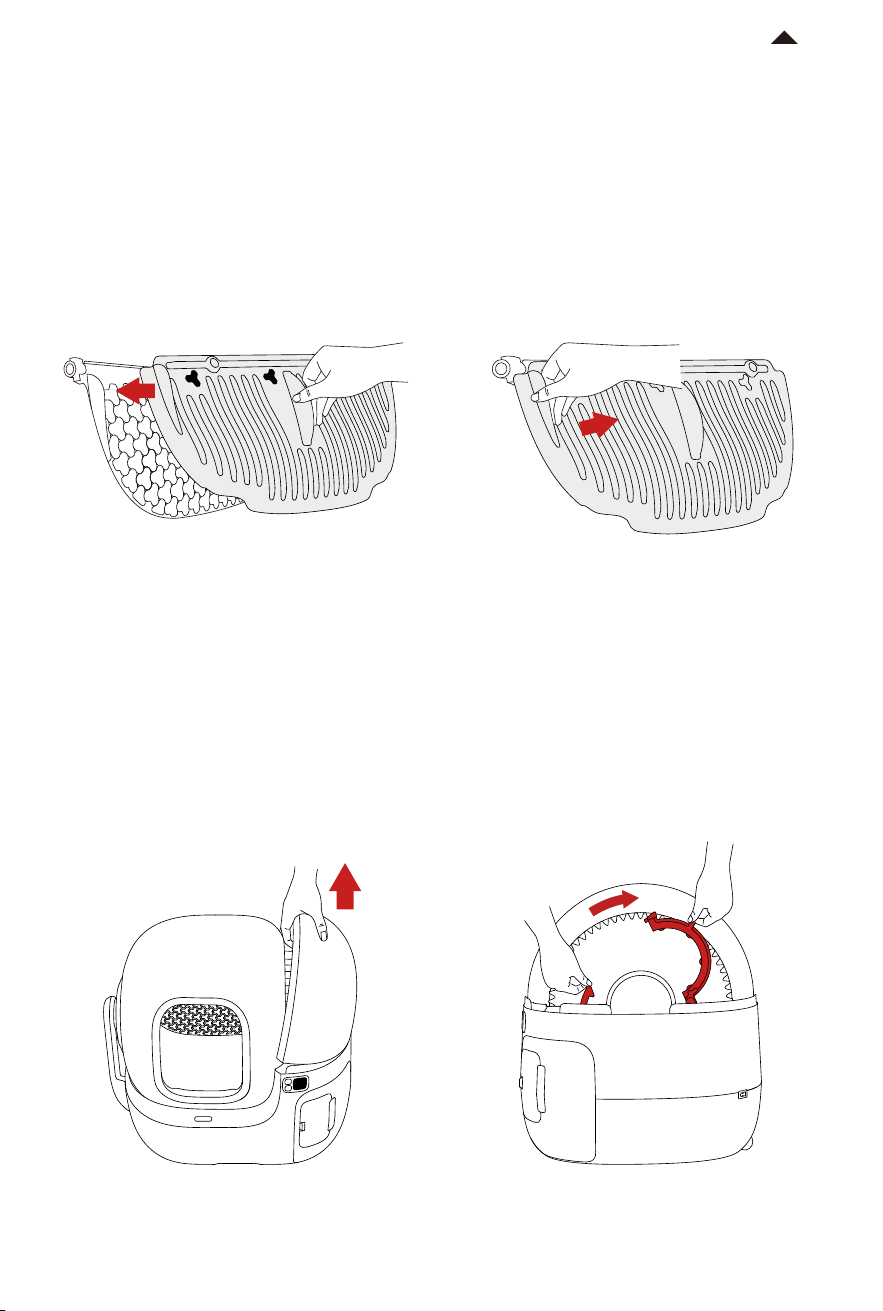

❶ Align the magnetic cat litter remover with
the litter sier. Once there is a "Click" sound,
the installation is successful.
❷ Click “Empty” in the App, and empty
the remaining cat litter in the cylinder according
to the guide.
❸ Aer use, pinch the raised part on the le
to remove the cat litter remover.
7.2 Detach Cylinder, Litter Sifter, and Litter Pad
❶ Remove the magnetic side cover.
Note: To avoid overflowing, please replace a new trash bag first.
Note: Before disassembly, please disconnect the power or turn o the device.
❷ Unlock the buckle.
RETURN TO
CONTENTS
-32-

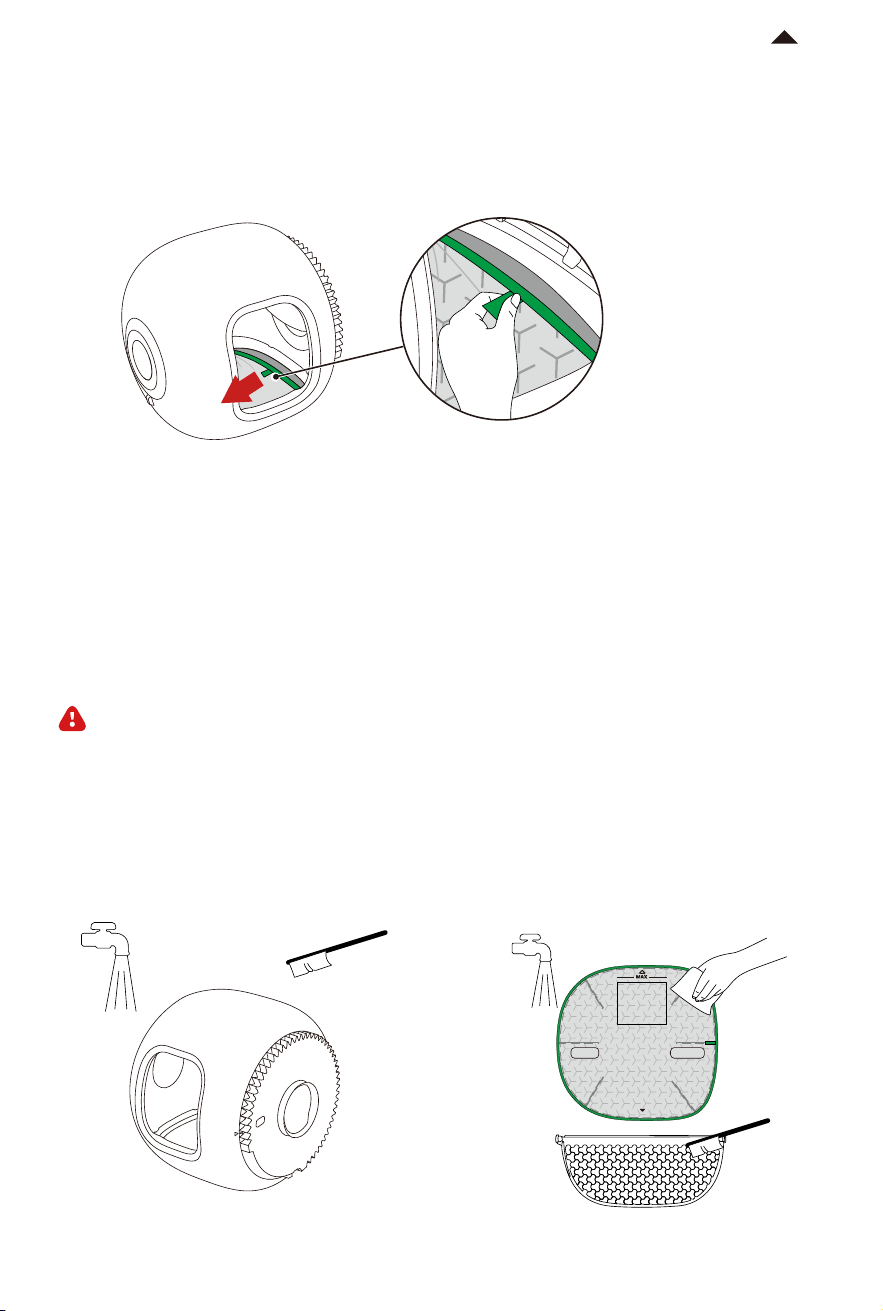

❶ Clean every corner of the cylinder with a
brush and rinse it.
❷ Clean the litter sier with a brush and rinse
it. Wipe the litter pad with
a wet towel.
7.3 Clean Main Unit and Parts
Caution: Do not rinse or soak the main unit; otherwise, the device will be damaged.
Only wipe it.
❼ Pinch the handle of the litter pad to pull out the litter pad.
Note: Do not vigorously scrub the litter pad
to avoid damaging the surface coating.
Do not clean with alcohol, disinfectant,
bleach, non-neutral detergent, etc.
LEFT RIGHT
RETURN TO
CONTENTS
-33-
❶ Hold the litter pad, insert the top of it into the groove (arrows need to be aligned), then
insert the bottom of it into the groove (arrows need to be aligned).
7.4 Install All Parts
Caution: Install all parts only when they are completely dry.
❸ Wipe the main unit with a wet tissue. Wipe the fisheye camera, smart odor eliminator,
and proximity sensor with a so cloth.
Fisheye camera
Proximity sensor
* Please regularly wipe the air inlet
with a so dry cloth to ensure it is
unobstructed.
Smart odor eliminator
RETURN TO
CONTENTS
-34-
Point A
❷ Press gently and release the litter pad; its two sides will be automatically inserted into the
groove.
❹ Grasp the litter sier and press it until it
is bent.
❸ Place the litter sier in the cylinder, and
insert it into point A.
Note: Please ensure that the green edge of the litter pad is fully stuck into the groove, and
that the arrows on both ends align with the indicated direction.
LEFT
RIGHT
RETURN TO
CONTENTS
-36-
Parts
Cylinder
Litter Sifter
Litter Pad
Base
When to Clean
Clean it
when the inner
surface is dirty.
Clean it in time
when pets have
loose stools.
Clean it
when it is dirty.
Clean it
aer detaching
the cylinder.
How to
Clean
Clean it with
a brush.
Clean it with
a brush.
Wipe it with a
so cloth and
water.
Do not scrub.
Wipe it with
a wet tissue.
When to
Replace
/
Replace it
when it is bent
or broken.
Replace it
when it sticks to
cat litter severely
or is broken.
/
How to
Detach
Caution
Refer to 5.2
- ①
Refer to 5.2
- ⑤
Refer to 5.2
- ⑦
/
Fisheye
Camera
Clean it
when the surface
is dusty or dirty.
Wipe it with
a so cloth.
/ /
Do not clean with
alcohol, disinfectant,
bleach, non-neutral
detergent, etc.
/
Avoid direct
exposure to
sunlight and do
not squeeze.
Do not rinse
or soak.
Do not rinse
or soak.
RETURN TO
CONTENTS
-37-
VIDEO GUIDE
08
09
Please copy the video URL and open it in your browser to watch the video.
https://youtu.be/o9GJbg5aUU4
Please copy the video URL and open it in your browser to watch the video.
https://youtu.be/GXyhOwtyciQ
8.1 Video of Installation and Use
8.2 Video of Cleaning and Maintenance
BASIC SPECIFICATIONS
Product Name
Product Model
Materials
Dimensions
PETKIT PUROBOT MAX PRO WITH CAMERA SELF-CLEANING CAT LITTER BOX
Weight
Rated Input
Connection
Range of Application
about 11 kg (24.25 lbs)
12V 2A
Wi-Fi
Cats older than 6 months
P9904
ABS, PP, TPE, Silicone
538 x 657 x 603 mm (21.18 x 25.86 x 23.74 in)
RETURN TO
CONTENTS
-38-
A MESSAGE TO OUR VALUED
CUSTOMERS
10
· Thank you for choosing the PETKIT PUROBOT MAX PRO WITH CAMERA SELF-CLEANING CAT LITTER BOX.
· Please read the user manual carefully before installing and using the product. Any installation or usage
indicates that you have read and accepted the safety guide below.
· PETKIT is not responsible for or legally liable for any accidents or injuries resulting from the improper
use of the product.
· PETKIT reserves the right to interpretation and revision.
SAFETY INSTRUCTIONS
11
* Failure to follow the safety guides below may result in product malfunction or other unforeseen losses.
·
Please install and use the device according to the user manual.
· Kittens younger than 6 months old are prohibited from using this device. Cats weighing less than 1.5 kg
are prohibited from using this device.
· Do not detach or drag the camera.
· Do not scratch the lens with sharp objects.
· Do not place the device in a high-temperature or high-humidity environment.
· Please use the device indoors. Avoid direct sunlight exposure and keep fire away.
· Although the device is powered by a low voltage, electric leakage may occur if the pet bites the power cable.
Please keep your pets from biting the power cable.
· Please use only the original power adapter to avoid device damage or safety hazards.
· Place the device on a firm, level surface, and avoid touching the wall.
· Do not tilt the device to avoid safety hazards.
· Do not rinse or soak the bottom of the device.
· There are weight sensors at the bottom of the device. Please handle it with care.
· Please unplug it if the device is not used for an extended period.
· Children should use this device under the supervision and guidance of adults.
· Repairs should only be performed with professionals’ guidance to avoid accidental damage.
· Do not place anything on the top of the device or press the top of it to avoid aecting the normal
operation of the device.
· Before leaving for an extended period, please ensure that there is suicient cat litter in the litter box and
enough space in the waste bin.
· If you have any problems with the product, please contact our customer service for assistance.
RETURN TO
CONTENTS
-39-
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
FCC warning:
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The
antenna(s) used for this equipment must be installed and used in a separation distance of at least 20 cm
from all persons.
IC warning
- English:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of
the device.
- French:
Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitationestautorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest
susceptible d'encompromettre le fonctionnement.
Disposal
The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment(WEEE), requires that old
household electrical appliances must not be disposed in the normal unsorted municipal waste stream.
Old appliances must be collected separately in order to optimize the recovery and recycling of the materials
theycontain and reduce the impact on human health and the environment. The crossed out "wheeled bin"
symbol on the product reminds you of your obligation,that when you dispose of the appliance it must be
separately collected. Consumers should contact their local authority or retailer for information concerning
the correct disposal of their old appliance.
RETURN TO
CONTENTS
