Chapter 1 Introduction
ank you for purchasing X600D5-P1 motherboard. In this documentation,
Chapter 1 and 2 contains the introduction of the motherboard and step-by-step
installation guides. Chapter 3 contains the operation guide of the soware and
utilities. Chapter 4 contains the conguration guide of the BIOS setup.
1.1 Package Contents
•
X600D5-P1 Motherboard
•
1 x Quick Installation Guide
•
1 x SATA Data with Power Cable (Optional)
•
2 x Screws for M.2 Sockets (Optional)
•
1 x Screw for WiFi Module (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.
English
2
1.2 Specications
Platform
•
6.7-in x 6.8-in, 17.0 cm x 17.2 cm
•
Solid Capacitor design
CPU
•
Supports AMD Socket AM5 Ryzen
TM
8000 and 7000 Series
Processors
Supports CPU up to 65W
4+1+1 Power Phase design
Chipset
•
AMD X600
Memory
•
Dual Channel DDR5 Memory Technology
•
2 x DDR5 SO-DIMM Slots
•
Supports DDR5 non-ECC, un-buered memory up to
6400+(OC)*
•
Max. capacity of system memory: 96GB
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
Expansion
Slot
•
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Graphics
•
Integrated AMD RDNA
TM
graphics (Actual support may
vary by CPU)
•
Four graphics output options: 1x HDMI, 2 x DisplayPort 1.4,
1 x Type-C
* Supports up to 4 displays simultaneously
•
1 x HDMI 2.1 TMDS 8G Compatible, supports HDR, HDCP
2.3 and max. resolution up to 4K 120Hz
•
2 x DisplayPort 1.4 with DSC (compressed), supports HDCP
2.3 and max. resolution up to 4K 120Hz
•
1 x Type-C with USB4 for Ryzen
TM
8000G Series Processors;
with DP Alt mode for Ryzen
TM
7000 Series Processors
Audio
•
Realtek ALC269 Audio Codec
•
1 x MIC IN
•
1 x Headset/Headphone
X600D5-P1
3
English
LAN
•
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
•
Dragon RTL8125BG
•
Supports Dragon 2.5G LAN Soware
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and
Streaming Modes
- User Customized Priority Control
Front
Panel I/O
•
1 x Power Button
•
1 x Headphone/Headset Jack
•
1 x USB 3.2 Gen1 Type-A Port
•
1 x USB 3.2 Gen1 Type-C Port
•
2 x USB 2.0 Ports
•
1 x Microphone Input Jack
Rear Panel
I/O
•
1 x DC Jack (Compatible with the 19V power adapter)*
* Please use 120W power adapter for 65W CPU and 90W power
adapter for 35W CPU.
•
1 x HDMI Port
•
2 x DisplayPort*
* (1 x DP co-lay D-SUB)
•
4 x USB 3.2 Gen1 Type-A Ports
•
1 x USB4 Type-C Port (40 Gb/s)*
•
1 x RJ-45 LAN Port
* USB4 for Ryzen
TM
8000G Series Processors; USB 3.2 Gen2
(supports DP Alt mode) for Ryzen
TM
7000 Series Processors
Storage
CPU:
•
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280
PCIe Gen4x4 (64 Gb/s) mode*
•
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280
PCIe Gen4x4 (64 Gb/s) mode*
ASMedia ASM1061:
•
1x SATA3 6.0 Gb/s Connector
* Supports NVMe SSD as boot disks
English
4
RAID
•
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Connector
•
SPI TPM 2.0 IC (NUVOTON NPCT750) (Optional)
•
1 x COM Port Header
•
1 x Chassis Intrusion Header
•
1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum 1A
(12W) fan power.
•
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
•
1 x Mono-Out Header
BIOS
Feature
•
AMI UEFI Legal BIOS with GUI support
Hardware
Monitor
•
Fan Tachometer: CPU, Chassis Fans
•
Quiet Fan (Auto adjust chassis fan speed by CPU temperature):
CPU, Chassis Fans
•
Fan Multi-Speed Control: CPU, Chassis Fans
•
CASE OPEN detection
•
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
•
Microso® Windows® 10 64-bit
Certica-
tions
•
FCC, CE
•
ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.
X600D5-P1
5
English
1.3 Motherboard Layout
6
DC Jack
HDMI1
X600D5-P1
RoHS
DDR5_B1
DDR5_A1
USB4/
USB 3.2 Gen2
USB4_1
8
2
BIOS
ROM
M2_3
M2_2
M2_1
M2_3_CT1_1
M2_2_CT1_1
M2_1_CT1_1
CPU_FAN1
CMOS
Battery
COM1
1
MONO1
CHA_FAN1
1
1
3
4
5
SATA1
Mic In
Power
Button
USB 3.2 Gen1
T: USB_1
B: USB_TC_1
USB 2.0
T: USB2_2
B: USB2_3
Headset
CLRMOS1
1
1
RJ-45
USB 3.2 Gen1
T: USB_6
B: USB_7
USB 3.2 Gen1
T: USB_4
B: USB_5
DP1
LAN
1
P305
7
DP2
English
6
No. Description
1 2 x 260-pin DDR5 SO-DIMM Slots (DDR5_A1, DDR5_B1)
2 CPU Fan Connector (CPU_FAN1)
3 Chassis Fan Connector (CHA_FAN1)
4 2.5W Mono Out Speaker Header (MONO1)
5 SATA3 Connector (SATA1)
6 Clear CMOS Jumper (CLRMOS1)
7 Chassis Intrusion Header (P305)
8 COM Port Header (COM1)
X600D5-P1
7
English
1.4 Front Panel
No. Description No. Description
1 Power Button (SW1) 4 USB 3.2 Gen1 Type-C Port (USB_TC_1)
2 USB 2.0 Ports (USB2_2_3) 5 Microphone Input
3 USB 3.2 Gen1 Type-A Port (USB_1) 6 Headphone/Headset Jack
6
2
4
1
3
5
English
8
1.5 Rear Panel
No. Description No. Description
1 Display Port (DP1) 5 USB 3.2 Gen1 Type-A Ports (USB_4_5)
2 Display Port (DP2)*(co-lay D-SUB) 6 2.5G LAN RJ-45 Port**
3 HDMI Port 7 USB 3.2 Gen1 Type-A Ports (USB_6_7)
4 USB4 Type-C Port* 8 DC Jack***
(USB4_1)
*
USB4 for Ryzen
TM
8000G Series Processors; USB 3.2 Gen2 (supports DP Alt mode) for Ryzen
TM
7000 Series
Processors
** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
*** Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of
2.5 mm and an outer diameter of 5.5 mm, where the inner contact is +19 (±10%) DC and the shell is (centre posi-
tive).
Please use a 90W adapter for the 35W CPU and a 120W adapter for the 65W CPU.
is motherboard is available with support for either 4-pin ATX 19V power or DC-in power supplies. Please do
not use two kinds of power supplies at the same time! Doing so may damage the motherboard components and
devices. When you use the DC-in power adapter, please use the onboard SATA power connector to get the power
for HDDs.
ACT/LINK LED
SPEED LED
LAN Port
1 3 4
65 7 8
2
X600D5-P1
9
English
is is a Proprietary form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
•
Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
•
In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
•
Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
•
When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation
English
10

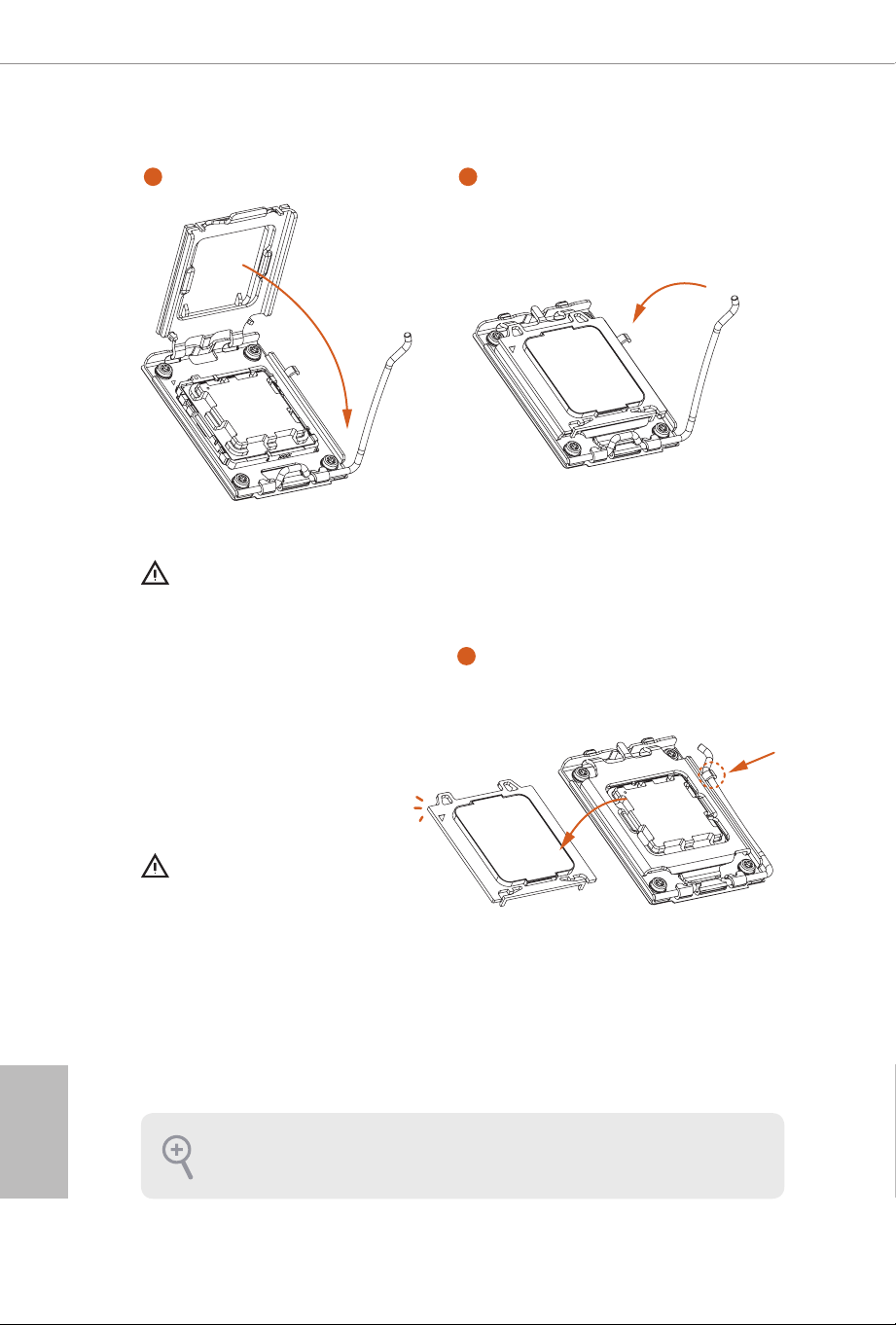

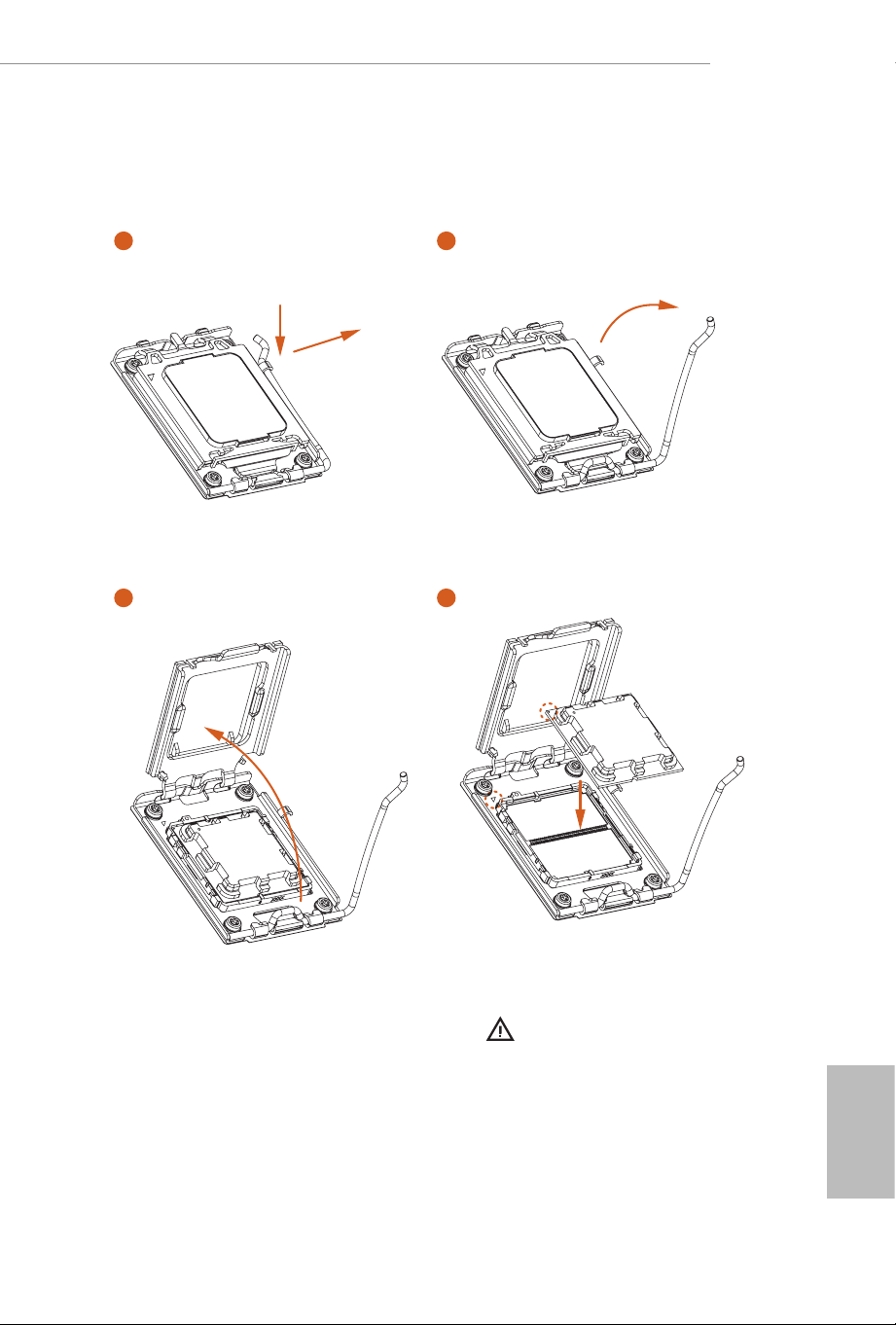

2.1 Installing the CPU

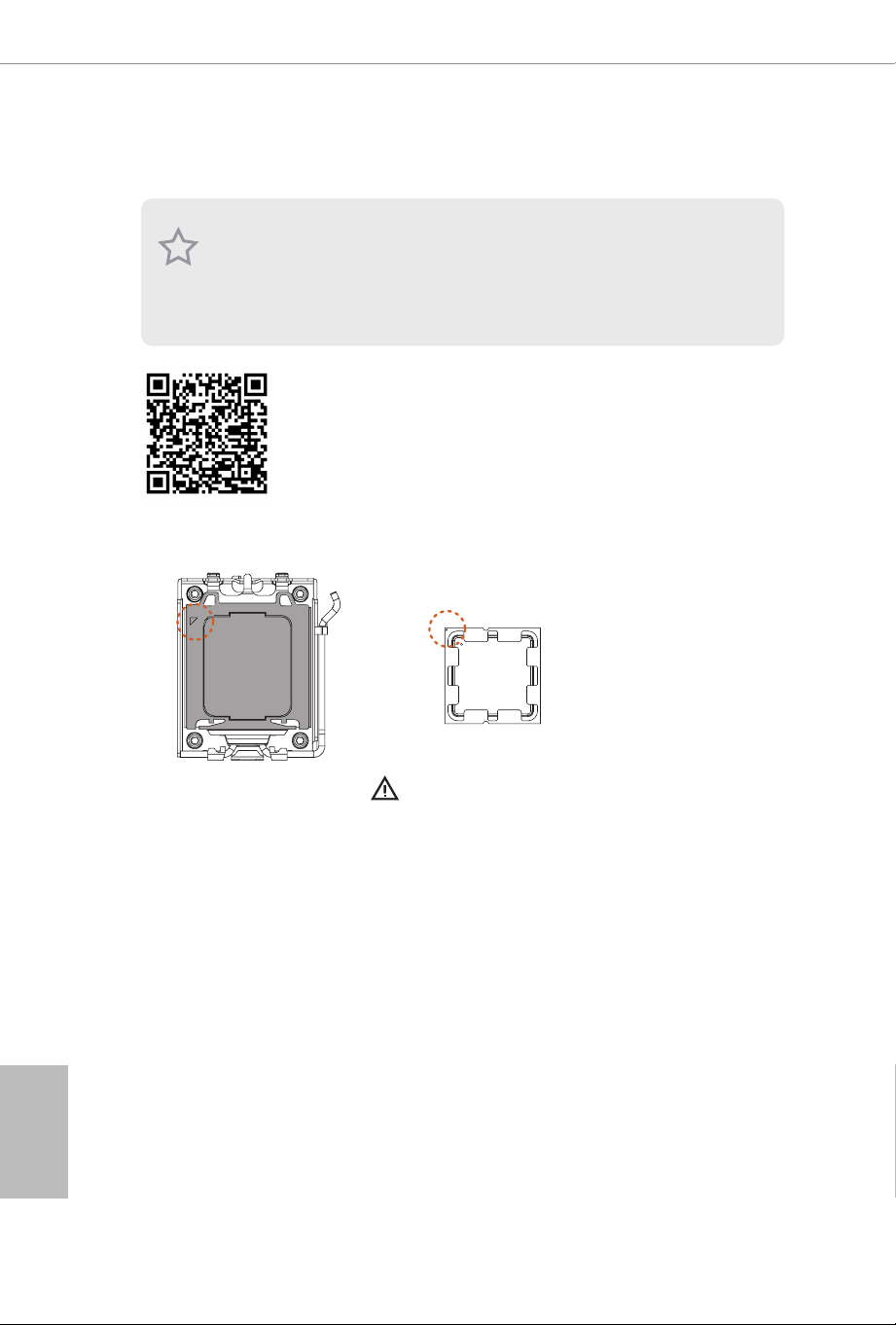

1. Before you insert the 1718-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
Tutorial Video
Turn your CPU to the correct orientation before opening
the CPU socket cover.
X600D5-P1
11
English
Turn your CPU to the correct orientation before opening
the CPU socket cover.
Carefully place the CPU in as at as
possible. Do not drop it.
4
1
2
A
B
3
English
12
6
7
5
Please save the cover if the processor is removed. e cover must be placed if you wish to
return the motherboard for aer service.
Make sure the black cover plate
is always in place until it pops o
when closing the socket lever.
Make sure the CPU is aligned with the
socket before locking it into place.
X600D5-P1
13
English

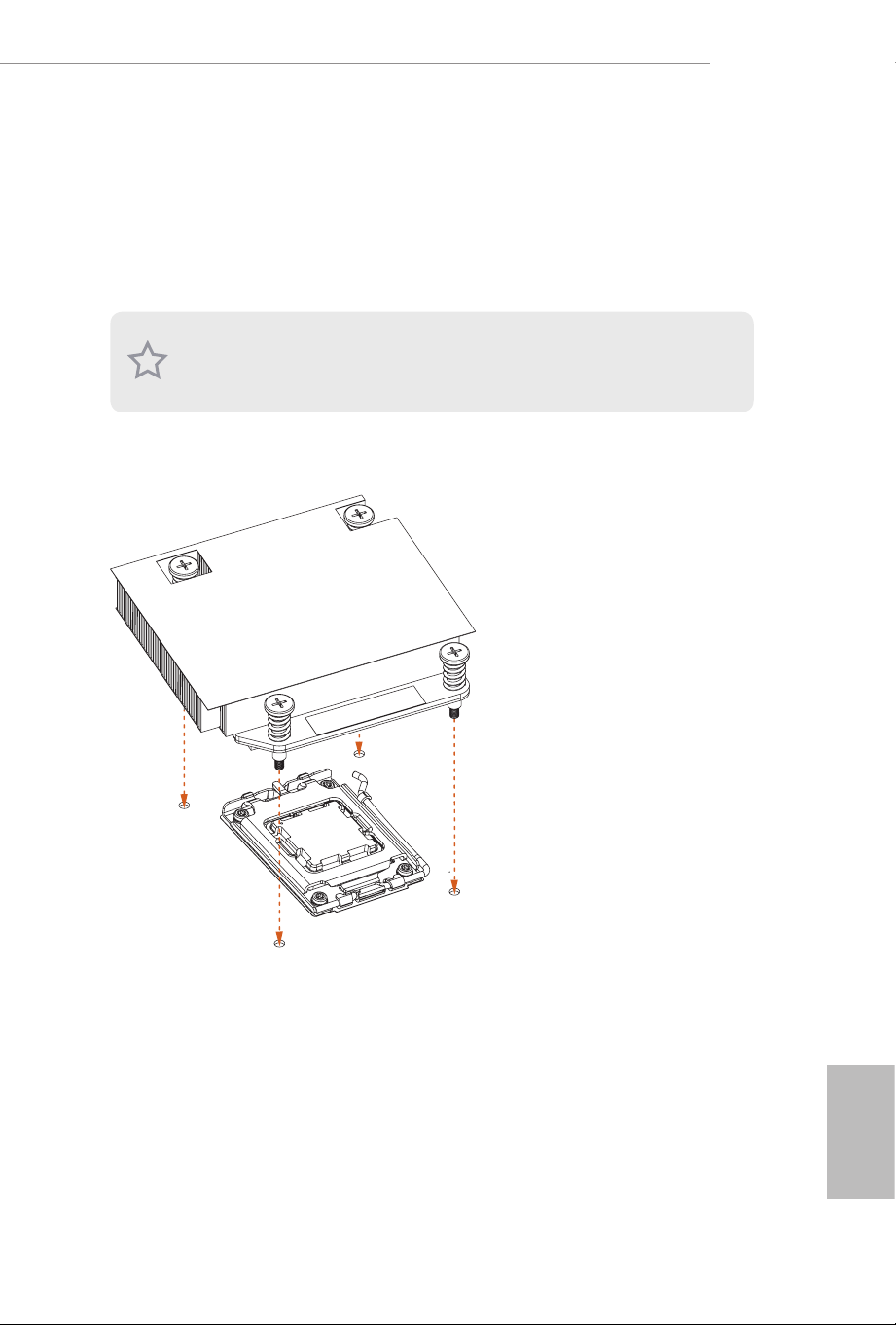

2.2 Installing the CPU Cooler
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Make sure that the
CPU and the heatsink are securely fastened and in good contact with each other.
Please turn o the power or remove the power cord before changing a CPU or heatsink.
English
14
2.3 Installing Memory Modules (SO-DIMM)
is motherboard provides two 260-pin DDR5 (Double Data Rate 5) SO-DIMM
slots, and supports Dual Channel Memory Technology.
Recommended Memory Conguration
1 DIMM
2 DIMMs
e rst boot may take some time.
Please be patient and refer to the following table for booting time.
*It may vary by dierent setups.
A1 B1
V
A1 B1
V V
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR5 SO-DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory
module installed.
3. It is not allowed to install a DDR, DDR2 , DDR3 or DDR4 memory module into a
DDR5 slot; otherwise, this motherboard and SO-DIMM may be damaged.
4. e SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
Memory 1st boot after clear CMOS
2 x 16GB 90 sec
2 x 32GB 150 sec
X600D5-P1
15
English

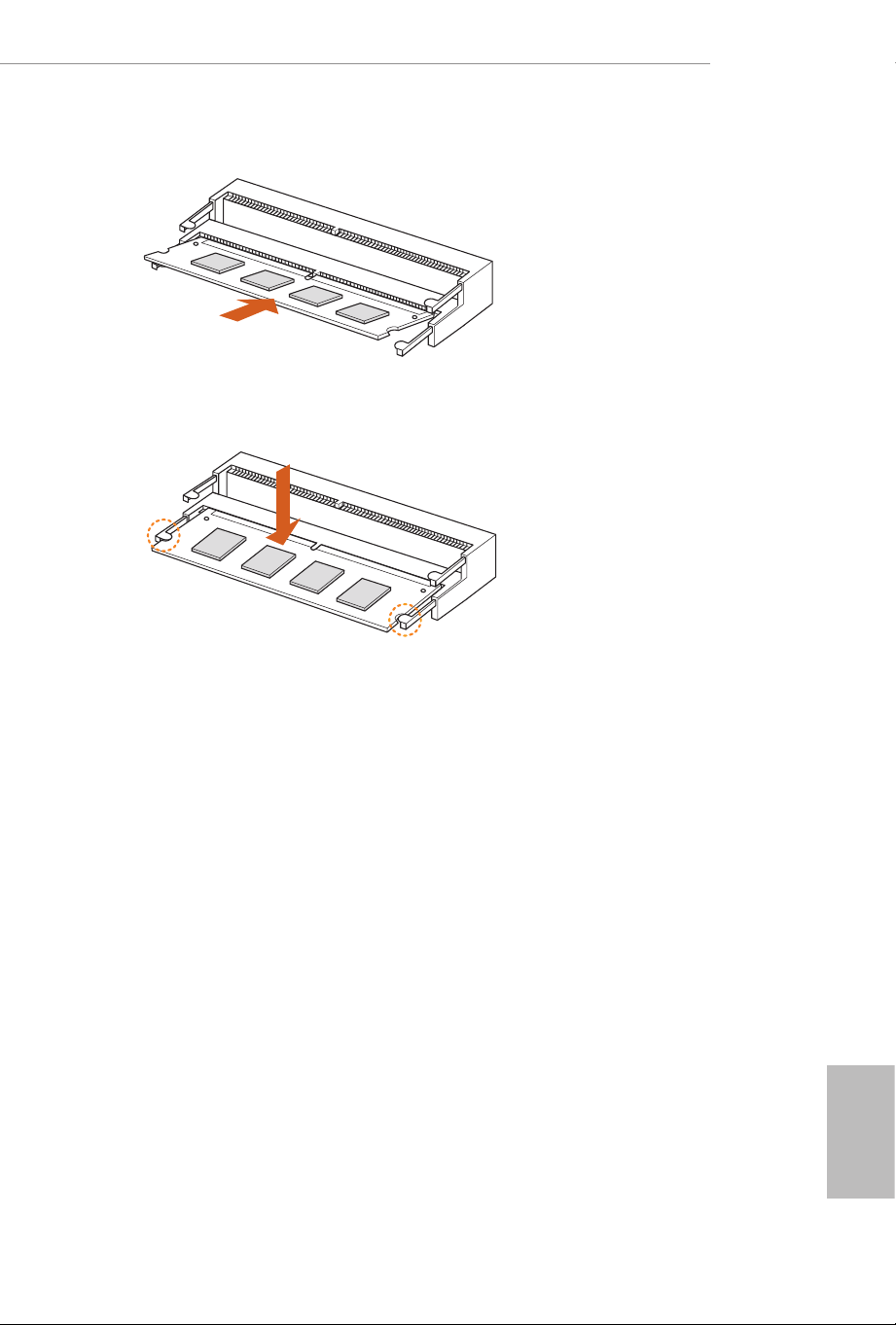

1. Carefully insert the SO-DIMM memory modules into the slot at a 30-degree angle.
2. Push down until the modules snap into place.
English
16
2.4 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is
“Open”.
Clear CMOS Jumper
(CLRCMOS1)
(see p.5, No. 6)
Short: Clear CMOS
Open: Default
CLRCMOS1 allows you to clear the data in CMOS. e data in CMOS includes
system setup information such as system password, date, time, and system setup
parameters. To clear and reset the system parameters to default setup, please
turn o the computer and unplug the power cord, then use a jumper cap to short
the pins on CLRCMOS1 for 3 seconds. Please remember to remove the jumper
cap aer clearing the CMOS. If you need to clear the CMOS when you just nish
updating the BIOS, you must boot up the system rst, and then shut it down
before you do the clear-CMOS action.
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear
Status” to clear the record of previous chassis intrusion status.
2-pin Jumper
X600D5-P1
17
English
2.5 Onboard Headers and Connectors
Serial ATA3 Connector
(SATA1:
see p.5, No. 5)
is SATA3 connector
supports SATA data cables
for internal storage devices
with up to 6.0 Gb/s data
transfer rate.
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.5, No. 2)
is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector. If
you plan to connect a 3-Pin
CPU fan, please connect it
to Pin 1-3.
Chassis Fan Connectors
(4-pin CHA_FAN1)
(see p.5, No. 3)
Please connect fan cables
to the fan connectors and
match the black wire to the
ground pin.
Serial Port Header
(9-pin COM1)
(see p.5, No.8)
is COM1 header supports
a serial port module.
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
CPU_F
FAN_VOLTAGE
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
1
RRI#1
CCTS#1
RRTS#1
DDSR#1
GND
DDTR#1
TTXD#1
RRXD#1
DDCD#
1
GND
+5V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4
3
2
1
English
18
Chassis Intrusion Header
(2-pin P305)
(see p.5, No. 7)
is motherboard supports
CASE OPEN detection
feature that detects if the
chassis cove has been
removed. is feature
requires a chassis with
chassis intrusion detection
design.
2.5W Audio Amp Output
Header
(2-pin MONO1)
(see p.5, No. 4)
Please connect the chassis
speaker to this header.
MONO_OUT+
MONO_OUT-
1
2
1
Signal
GND
X600D5-P1
19
English
2.6 M.2 WiFi/BT Module Installation Guide
e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and
mSATA. e M.2 Socket (Key E) supports type 2230 WiFi/BT module.
Installing the WiFi/BT module

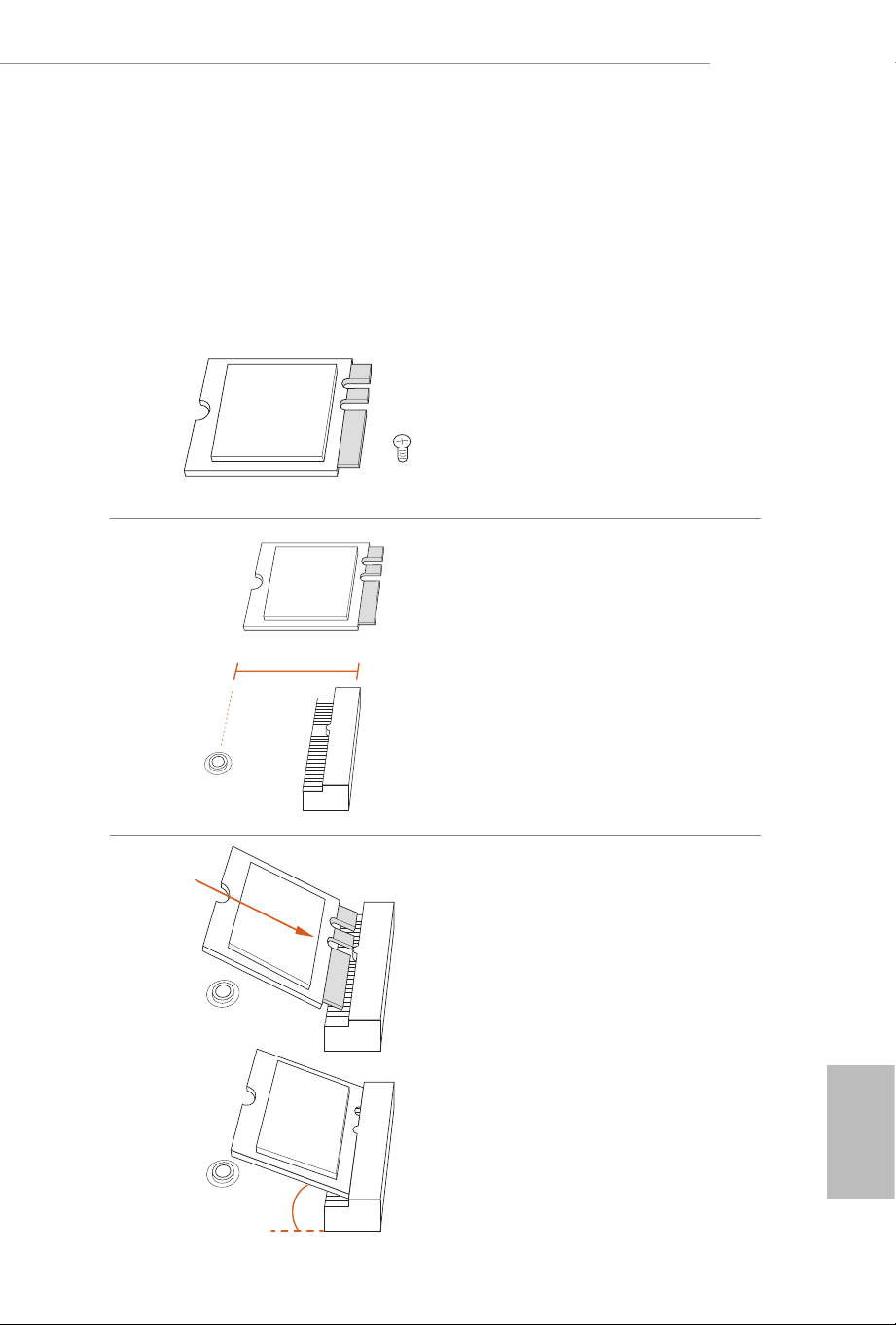

Step 1
Prepare a type 2230 WiFi/BT module
and the screw.
PCB Length: 3cm
Module Type: Type2230
A
Step 2
Find the nut location to be used.
A
A
20
o
Step 3
Gently insert the WiFi/BT module
into the M.2 slot. Please be aware
that the module only ts in one
orientation.
English
20
A
Step 4
Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw as
this might damage the module.
X600D5-P1
21
English
2.7 M.2 SSD Module Installation Guide
The M.2 is a small size and versatile card edge connector that aims to replace mPCIe
and mSATA. e Hyper M.2 Sockets (M2_1 and M2_2, Key M) support type 2280 PCIe
Gen4x4 (64 Gb/s) mode
.
Installing the M.2 SSD Module

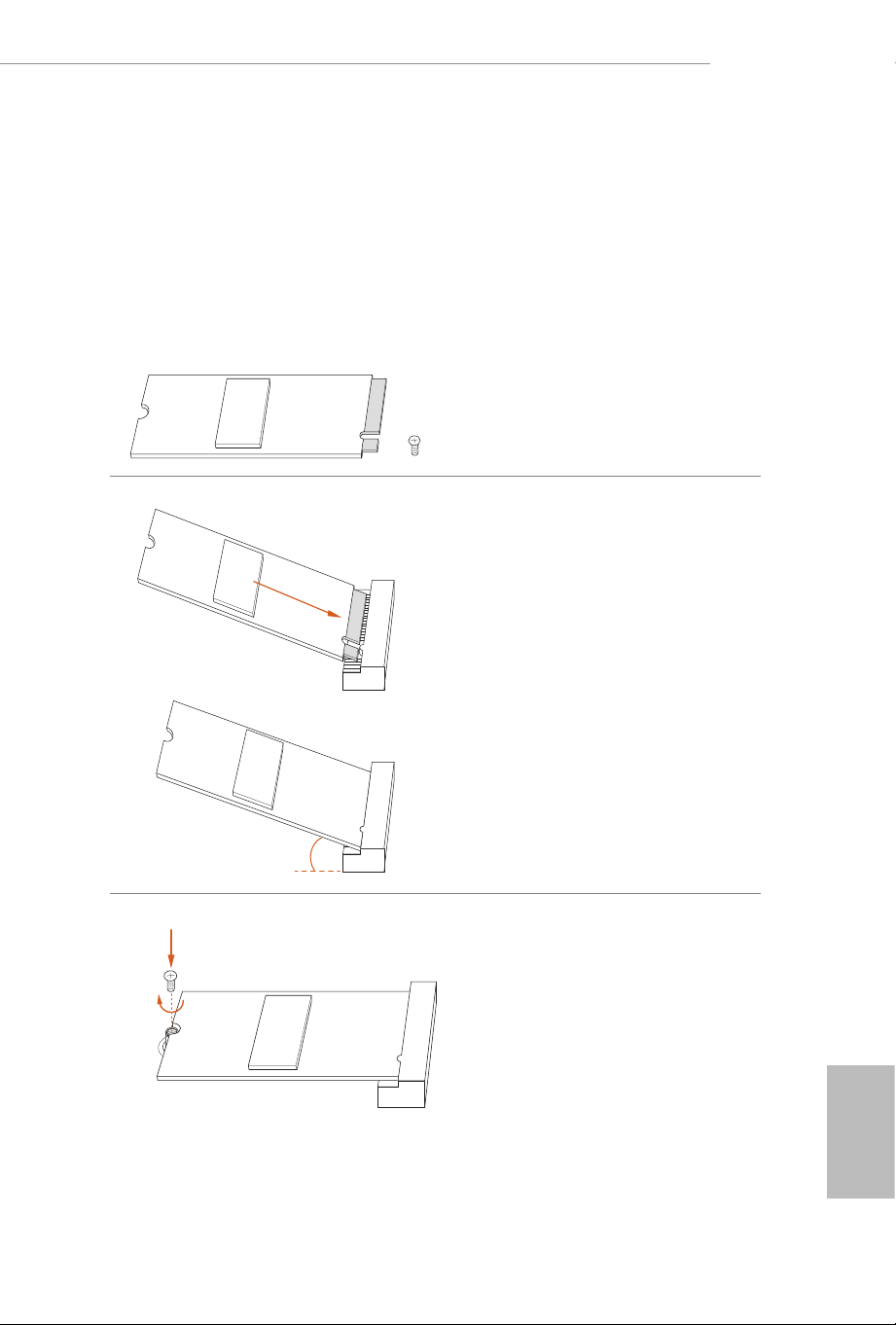

Step 1
Prepare a M.2 SSD Module and the
screw.
Step 2
Gently insert the M.2 SSD module
into the M.2 slot. Please be aware
that the M.2 SSD module only ts in
one orientation.
Step 3
Tighten the screw with a
screwdriver to secure the
module into place. Please do
not overtighten the screw as
this might damage the module.
20
o
NUT1NUT2
English
22
M.2 SSD Module Support List
Vendor Interface P/N
ADATA PCIe ADATA ASX7000NPC-512GT-C (XPG SX7000) (NVMe)
ADATA PCIe ADATA ASX8000NPC-512GM-C (XPG ASX8000) (NVMe)
Apacer PCIe Apacer Z280 AP240GZ280-240G (NVMe)
Intel PCIe Intel Optane Memory 32GB (MEMPEK1W032GA)(NVMe)
Intel PCIe Intel Optane Memory 16GB (MEMPEK1W016GA)(NVMe)
INTEL PCIe INTEL 600P-SSDPEKKW256G7-256GB (NVMe)
INTEL PCIe INTEL 600P-SSDPEKKW128G7-128GB (NVMe)
INTEL PCIe INTEL 6000P-SSDPEKKF256G7-256GB (NVMe)
INTEL PCIe INTEL 6000P-SSDPEKKF512G7-512GB (NVMe)
Kingston PCIe Kingston SHPM2280P2/240G
PATR IOT PCIe PATRIOT Hellre M2 (240G) (NVMe)
PLEXTOR PCIe PLEXTOR PX-256M8PeG (NVMe)
PLEXTOR PCIe PLEXTOR PX-256M8SeGN (NVMe)
Samsung PCIe Samsung XP941-512G (MZHPU512HCGL)
Samsung PCIe Samsung 950Pro-512G (NVMe)
Samsung PCIe Samsung 950Pro-256G (NVMe)
Samsung PCIe Samsung MZ-VLW1280 (PM961) (NVMe)
Samsung PCIe Samsung MZ-VPW1280 (SM961) (NVMe)
TOSHIBA PCIe TOSHIBA XG3-128G (NVMe)
TOSHIBA PCIe TOSHIBA OCZ RD400-256G (NVMe)
WD PCIe WD WDS512G1X0C-00ENX0 (NVMe)
WD PCIe WD WDS256G1X0C-00ENX0 (NVMe)
For the latest updates of M.2 SSD module support list, please visit our website for details.
X600D5-P1
23
English
Chapter 3 Auto Driver Installer

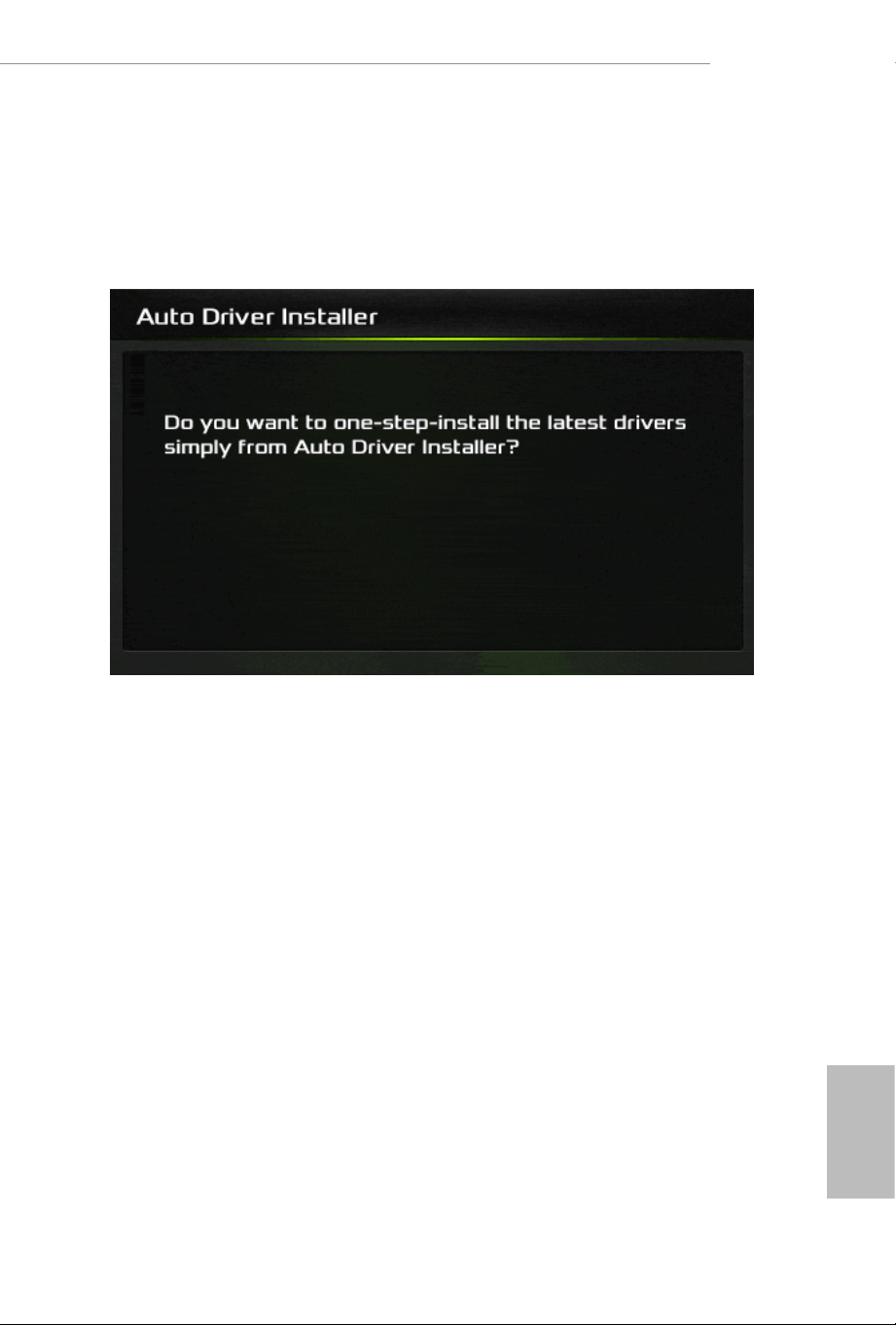

Aer you install the Windows OS and boot into the system, a notication will pop
up to help you to install and update required drivers.
English
24
Chapter 4 UEFI SETUP UTILITY
4.1 Introduction
is section explains how to use the UEFI SETUP UTILITY to congure your
system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right
aer you power on the computer, otherwise, the Power-On-Self-Test (POST) will
continue with its test routines. If you wish to enter the UEFI SETUP UTILITY aer
POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the
reset button on the system chassis. You may also restart by turning the system o
and then back on.
4.1.1 UEFI Menu Bar
e top of the screen has a menu bar with the following selections:
Main
For setting system time/date information
OC Tweaker
For overclocking congurations
Advanced
For advanced system congurations

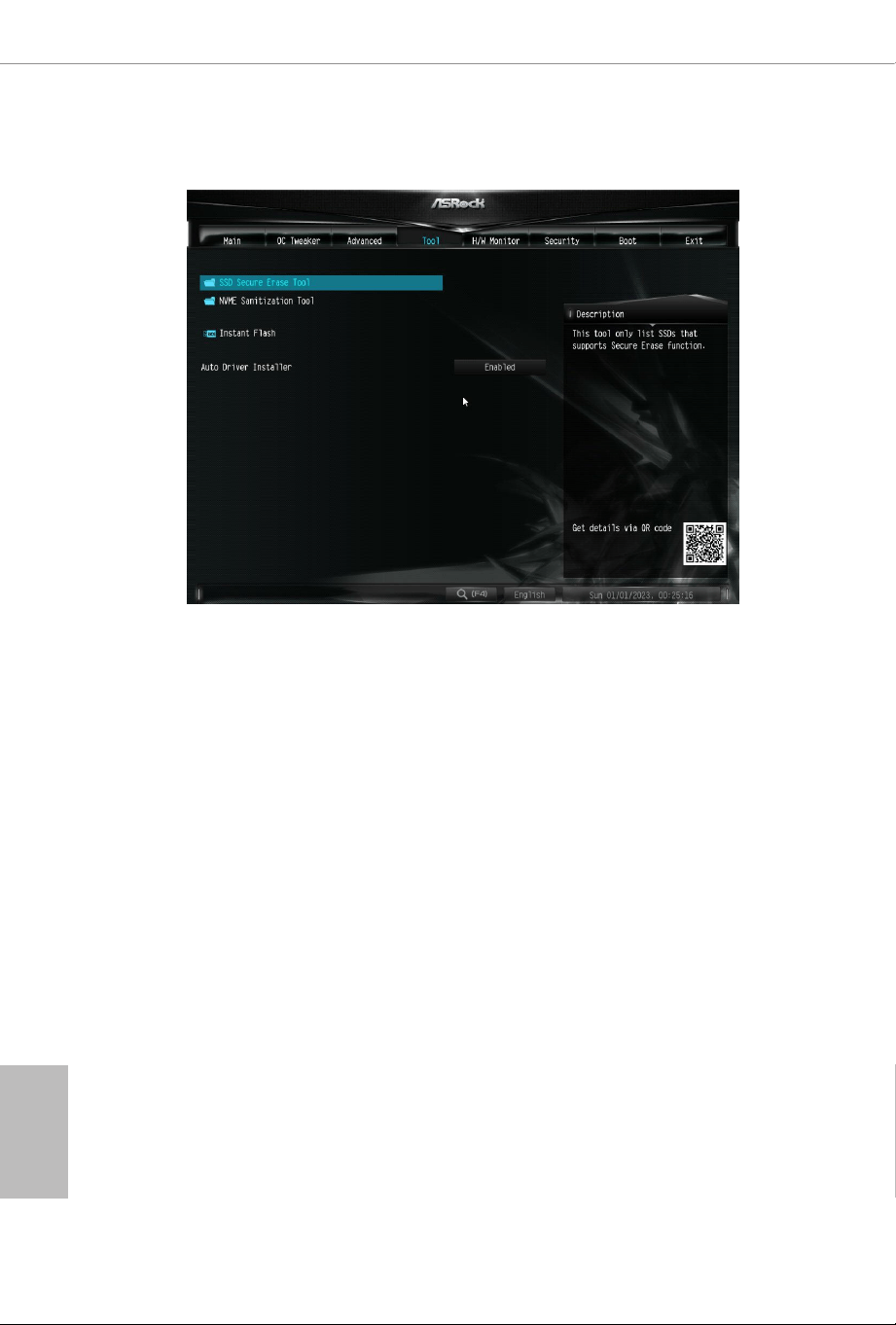

Tool
Useful tools
H/W Monitor
Displays current hardware status
Security
For security settings
Boot
For conguring boot settings and boot priority
Exit
Exit the current screen or the UEFI Setup Utility
Because the UEFI soware is constantly being updated, the following UEFI setup
screens and descriptions are for reference purpose only, and they may not exactly
match what you see on your screen.
X600D5-P1
25
English
4.1.2 Navigation Keys
Use < > key or < > key to choose among the selections on the menu bar, and
use < > key or < > key to move the cursor up or down to select items, then
press <Enter> to get into the sub screen. You can also use the mouse to click your
required item.
Please check the following table for the descriptions of each navigation key.
Navigation Key(s) Description
+ / -
To change option for the selected items
<Tab>
Switch to next function
<PGUP>
Go to the previous page
<PGDN>
Go to the next page
<HOME>
Go to the top of the screen
<END>
Go to the bottom of the screen
<F1>
To display the General Help Screen
<F7>
Discard changes and exit the SETUP UTILITY
<F9>
Load optimal default values for all the settings
<F10>
Save changes and exit the SETUP UTILITY
<F12>
Print screen
<ESC>
Jump to the Exit Screen or exit the current screen
English
26
4.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
X600D5-P1
27
English

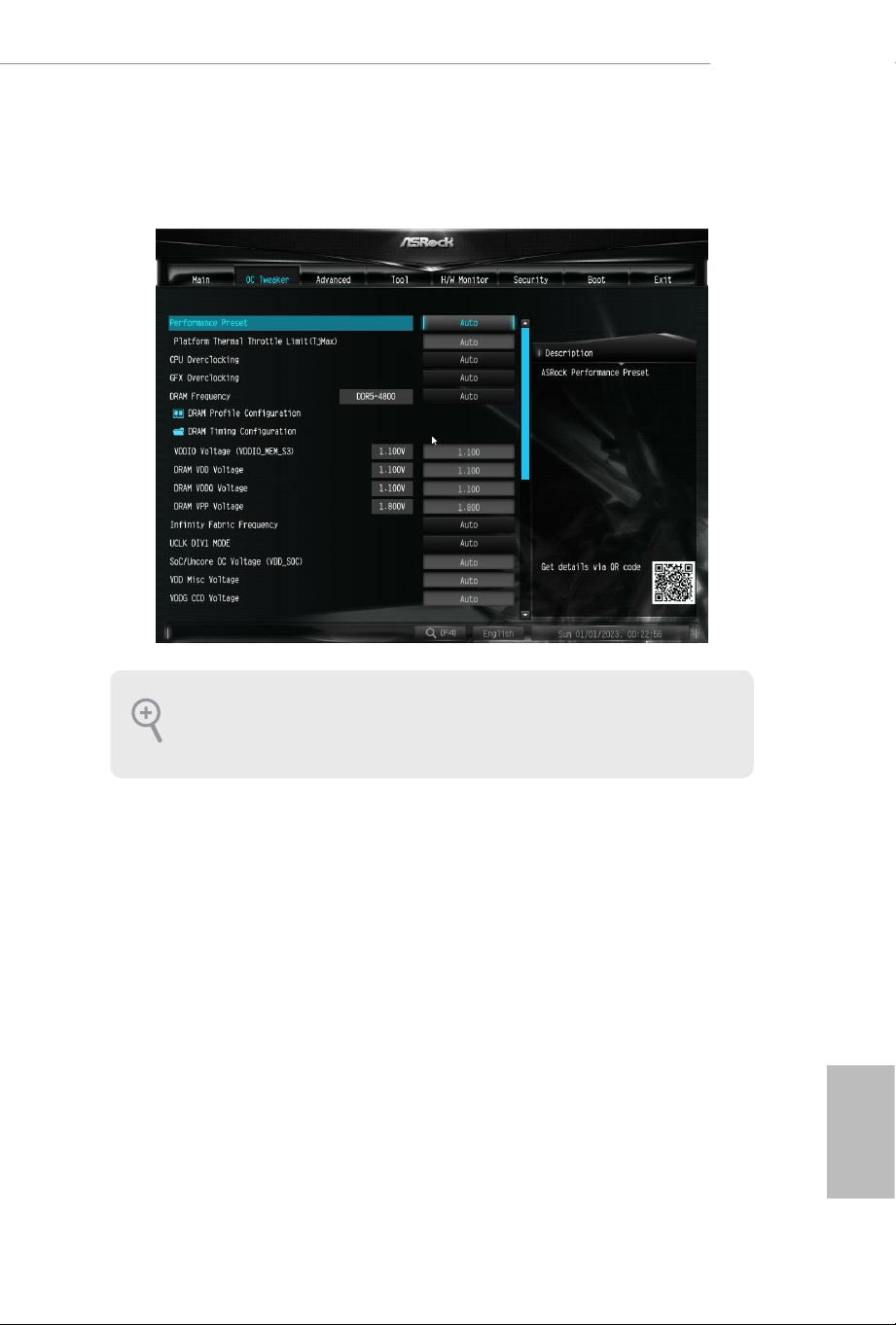

4.3 OC Tweaker Screen
In the OC Tweaker screen, you can set up overclocking features.
Performance Preset
Use the ASRock Performance Preset.
Platform Thermal Throttle Limit (TjMax)
Allows the user to decrease the maximum allowed processor temperature (celsius).
CPU Overclocking
Allows you to congure CPU overclocking settings.
[Auto] Select this item to apply the default BCLK Delay setting.
[Customize] Select this item to customize BCLK Delay setting.
GFX Overclocking
Allows you to congure GFX overclocking settings.
[Auto] Select this item to apply the default BCLK Delay setting.
[Customize] Select this item to customize BCLK Delay setting.
Because the UEFI soware is constantly being updated, the following UEFI setup
screens and descriptions are for reference purpose only, and they may not exactly
match what you see on your screen.
English
28
DRAM Frequency
If [Auto] is selected, the motherboard will detect the memory module(s) inserted
and assign the appropriate frequency automatically. Setting DRAM Frequency can
adjust DRAM Timing.
DRAM Prole Conguration
Load EXPO/XMP settings to overclock the DDR5 memory and perform beyond
standard specications.
DRAM Timing Conguration
VDDIO Voltage (VDDIO_MEM_S3)
DDR5 bus signaling (PHY) is derived from VDDIO_MEM_S3.
DRAM VDD Voltage
Use this item to congure the VDD Voltage supported by PMIC at DRAM side.
DRAM VDDQ Voltage
Use this item to congure the VDDQ Voltage supported by PMIC at DRAM side.
DRAM VPP Voltage
Use this item to congure the VPP Voltage supported by PMIC at DRAM side.
Innity Fabric Frequency and Dividers
AMD Overclocking Setup Set Innity Fabric frequency (FCLK). Auto: FCLK =
MCLK. Manual: FCLK must be less than or equal to MCLK for best performance in
most cases. Latency penalties are incurred if FCLK and MCLK are mismatched, but
suciently high MCLK can negate or overcome this penalty.
UCLK DIV1 MODE
Use this item to set UCLK DIV1 MODE.
SoC/Uncore OC Voltage(VDD_SOC)
Allows you to specify the SoC/Uncore voltage (VDD_SOC) to support memory and Innity
Fabric overclocking. VDD_SOC also determines the GPU voltage on processors with
integrated graphics.
VDD Misc Voltage
Allows you to congure the PCIe, DP Phy, PLL, ClkGen, and Pmux Supply.
X600D5-P1
29
English
VDDG CCD Voltage
VDDG CCD represents voltage for the data portion of the Innity Fabric. It is derived
from the CPU SoC/Uncore Voltage (VDD_SOC). VDDG can approach but not exceed
VDD_SOC.
VDDG IOD Voltage
VDDG IOD represents voltage for the data portion of the Innity Fabric. It is derived from
the CPU SoC/Uncore Voltage (VDD_SOC). VDDG can approach but not exceed VDD_
SOC.
VDDP Voltage
VDDP is a voltage for the DDR bus signaling (PHY), and it is derived from your DRAM
Voltage (VDDIO_Mem). As a result, VDDP voltage can approach but not exceed your
DRAM Voltage.
Overclock mode (Bus Speed)
Use this item to set overclock mode.
External Voltage Settings
Press [Enter] to congure the voltage options.
Save User Default
Type a prole name and press enter to save your settings as user default.
Load User Default
Load previously saved user defaults.
Save User UEFI Setup Prole to Disk
Save current UEFI settings as an user default prole to disk.
Load User UEFI Setup Prole to Disk
Load previously saved user defaults from the disk.
English
30

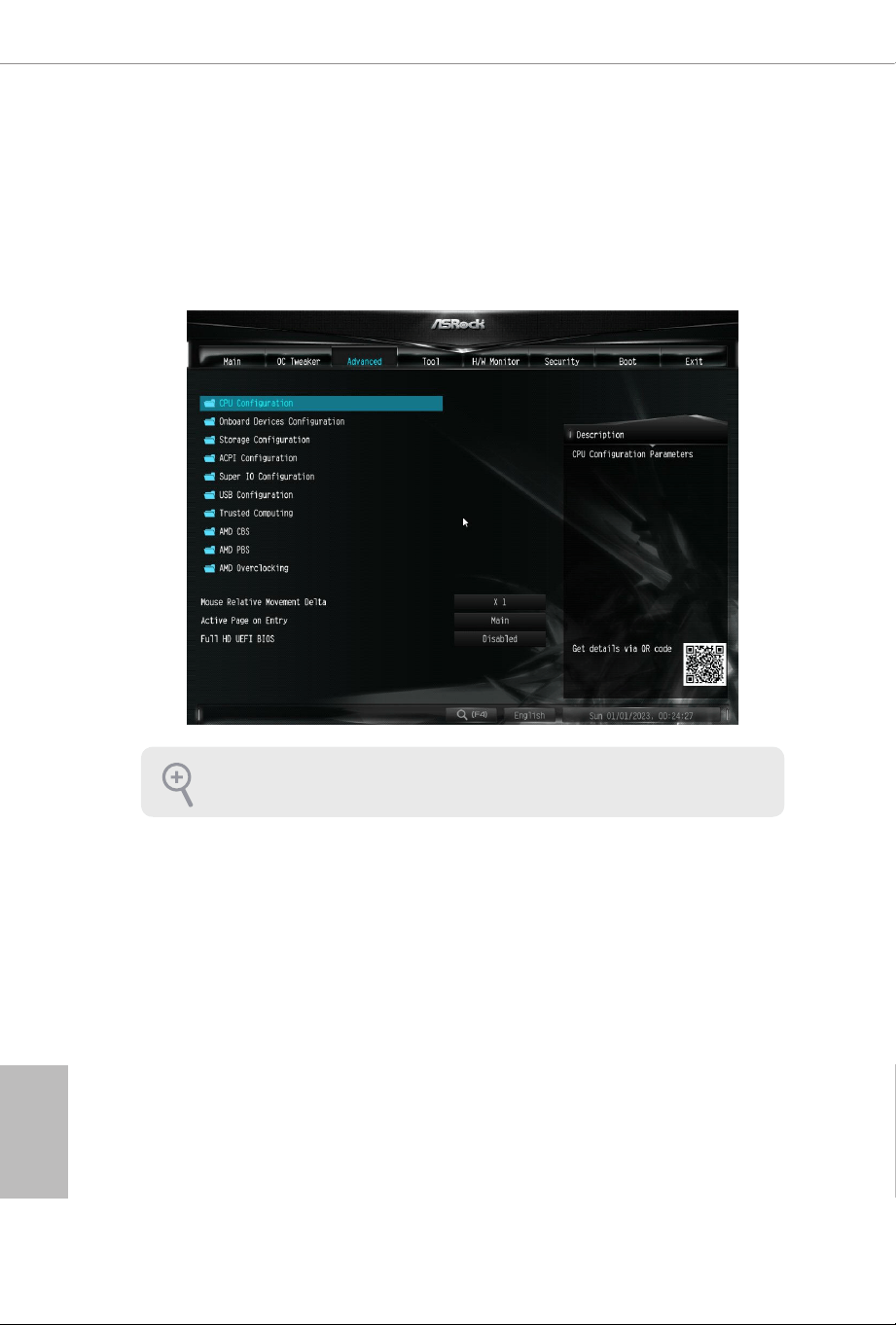

4.4 Advanced Screen
In this section, you may set the congurations for the following items: CPU
Conguration, Onboard Devices Conguration, Storage Conguration, ACPI Con-
guration, Super IO Conguration, USB Conguration, Trusted Computing, AMD
CBS, AMD PBS and AMD Overclocking.
UEFI Conguration
Mouse Relative Movement Delta
Allows you to set Mouse Relative Movement Delta. Relative Mouse is a method of
translating mouse movements as a delta from the last mouse position rather than a
move to an absolute position on the screen.
Active Page on Entry
Allows you to select the default page when entering the UEFI setup utility.
Conguration options: [Main] [OC Tweaker] [Advanced] [Tool] [H/W Monitor]
[Security] [Boot] [Exit]
Setting wrong values in this section may cause the system to malfunction.
X600D5-P1
31
English
Full HD UEFI
When [Auto] is selected, the resolution will be set to 1920 x 1080 if the monitor
supports Full HD resolution. If the monitor does not support Full HD resolution,
then the resolution will be set to 1024 x 768. When [Disable] is selected, the
resolution will be set to 1024 x 768 directly.
English
32
4.4.1 CPU Conguration
PSS Support
Use this to enable or disable the generation of ACPI_PPC, _PSS, and _PCT objects.
NX Mode
Use this to enable or disable NX mode.
SMT Mode
is item can be used to disable symmetric multithreading. To re-enable SMT, a
power cycle is needed aer selecting [Auto].
Warning: S3 is not supported on systems where SMT is disabled.
AVX512
Enable/Disable the AVX512 Instructions.
X600D5-P1
33
English

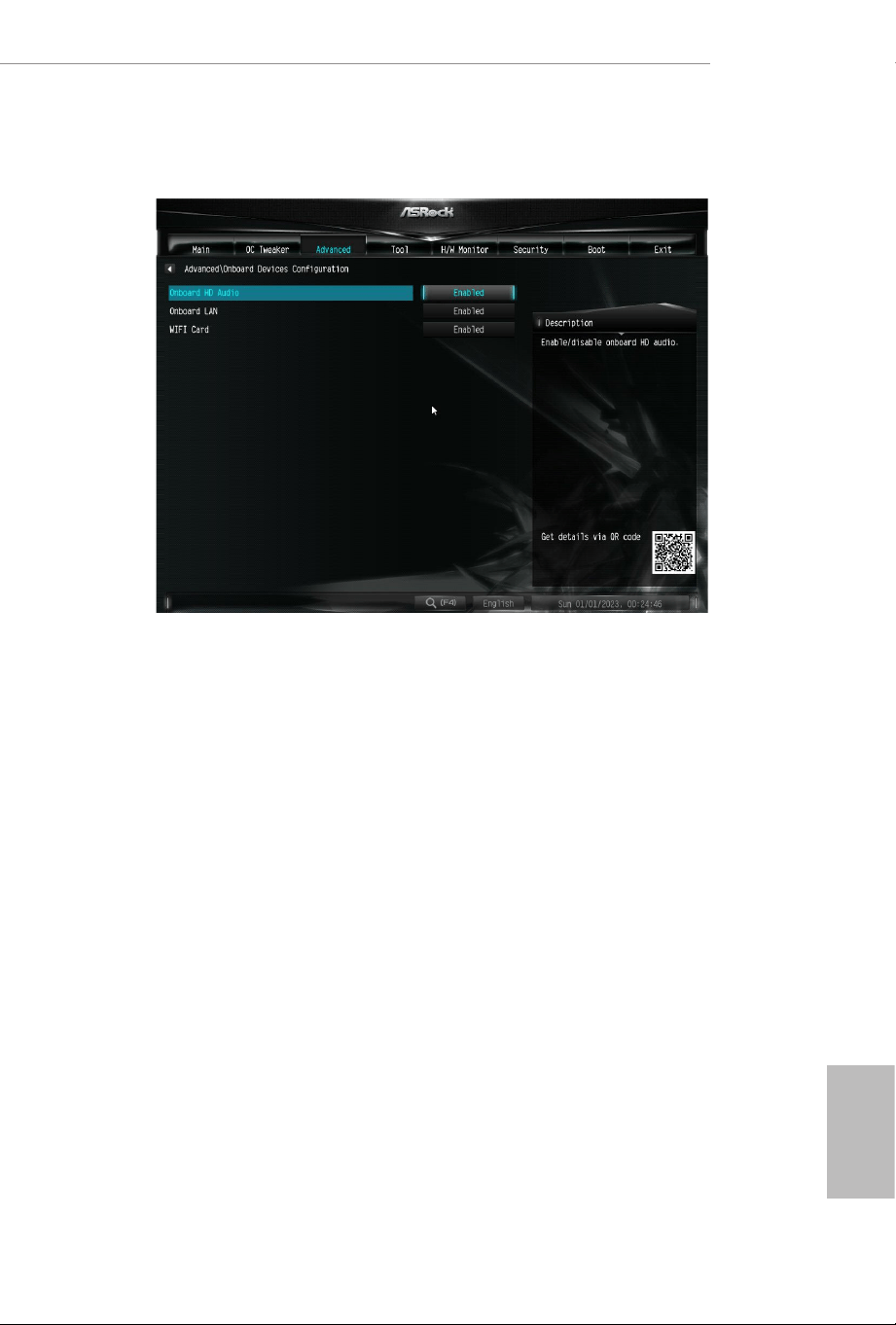

4.4.2 Onboard Devices Conguration
Onboard HD Audio
Enable/disable onboard HD audio.
Onboard LAN
Enable or disable the onboard network interface controller
WIFI Card
Enable/disable the WIFI Card.
English
34

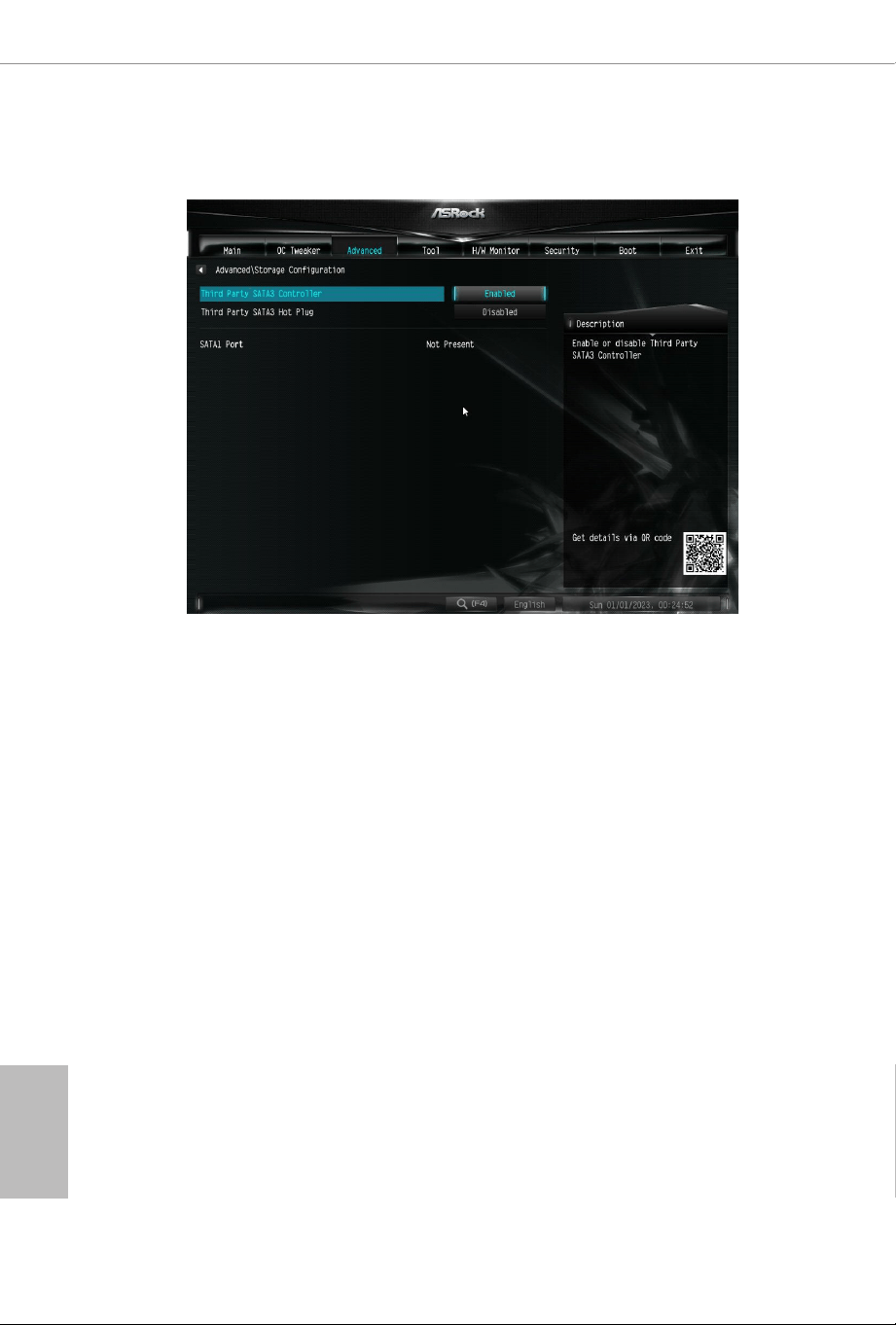

4.4.3 Storage Conguration
Third Party SATA 3 Controller
Enable or disable the third party SATA3 controller.
Third Party SATA3 Hot Plug
Enable or disable the third party SATA3 controller.
X600D5-P1
35
English

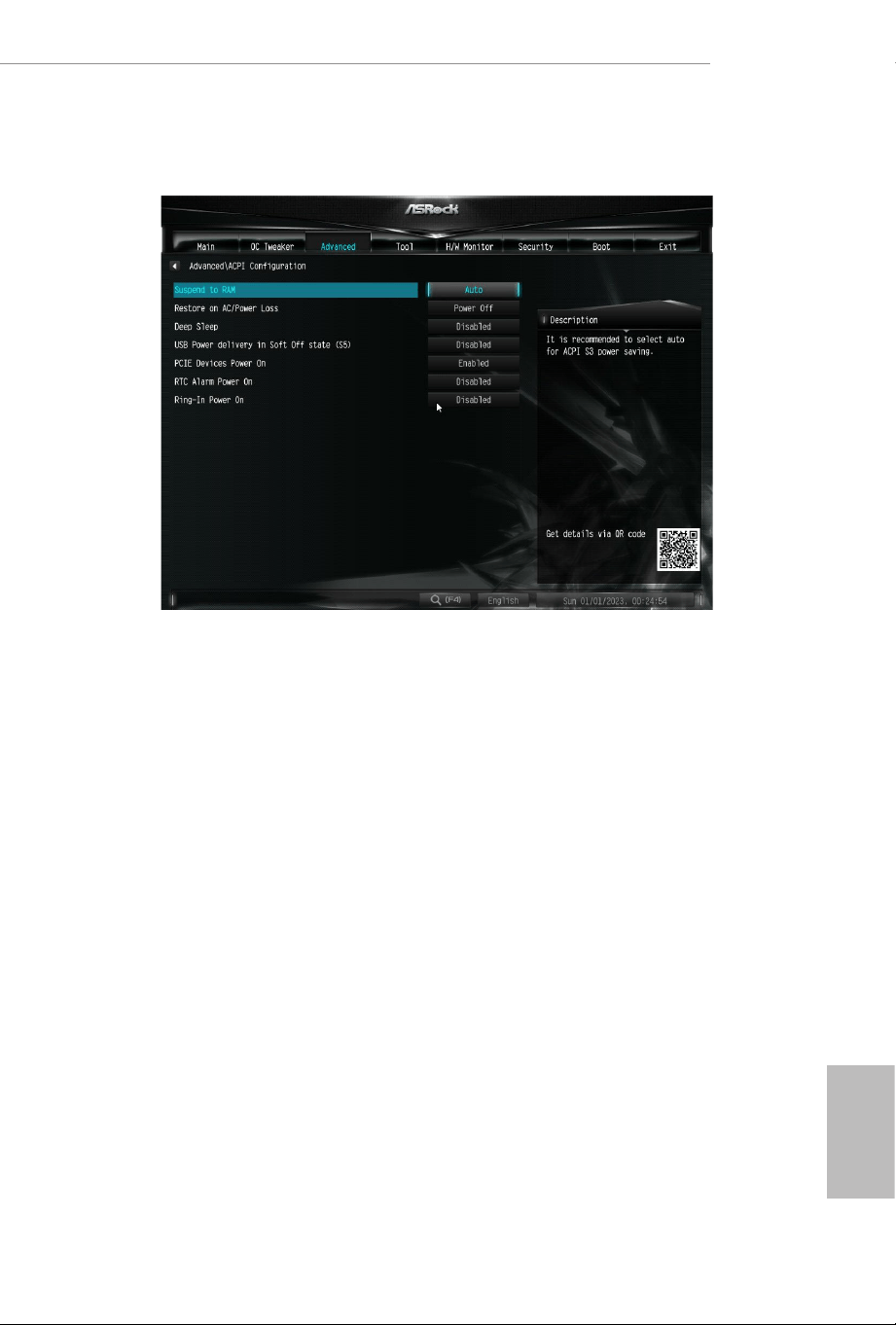

4.4.4 ACPI Conguration
Suspend to RAM
It is recommended to select auto for ACPI S3 power saving.
Conguration options: [Disabled] [Auto]
Restore on AC/Power Loss
Allows you to select the power state aer a power failure.
[Power O] Select this item and the power will remain o when the power recovers.
[Power On] Select this item and the system will start to boot up when the power
recovers.
Conguration options: [Power On] [Power O]
Deep Sleep
Allows you to congure deep sleep mode for power saving when the computer is
shut down. We recommend disabling Deep Sleep for better system compatibility
and stability.
Conguration options: [Disabled] [Enabled in S5] [Enabled in S4 & S5]
English
36
USB Power delivery in Soft O state (S5)
If this option is enabled, the USB port will provide power to your devices even when
the system is in Power State S5.
PCIE Devices Power On
[Enabled] Select this item to allow the system to be waked up by a PCIE device and
enable wake on LAN.
[Disabled] Select this item to disallow the system to be waked up by a PCIE device
and disable wake on LAN.
RTC Alarm Power On
[Enabled]
Select this item to allow the system to be waked up by the real time clock alarm.
[Disabled]
Select this item to disallow the system to be waked up by the real time clock alarm.
[By OS]
Select this item to let it be handled by your operating system.
Ring-In Power On
Allow the system to be waked up by onboard COM port modem Ring-In signals.
X600D5-P1
37
English

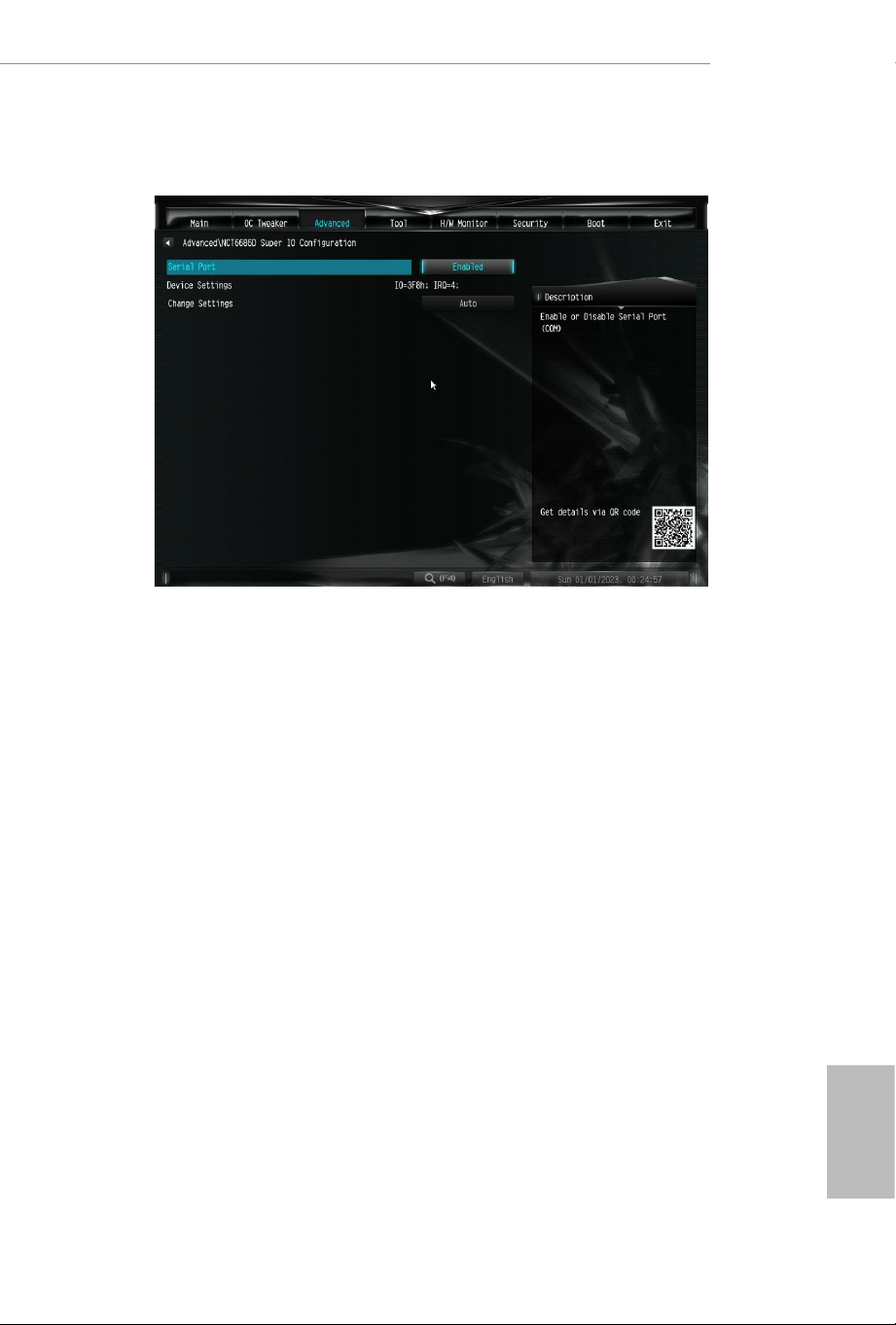

4.4.5 Super IO Conguration
Serial Port
Enable or disable the Serial port.
Device Settings
Select the device mode according to your connected device.
Change Settings
Select the address of the Parallel port.
English
38
4.6.6 USB Conguration
XHCI Hand-o
is is a workaround for OSes without XHCI hand-o support. e XHCI
ownership change should be claimed by XHCI driver.
X600D5-P1
39
English

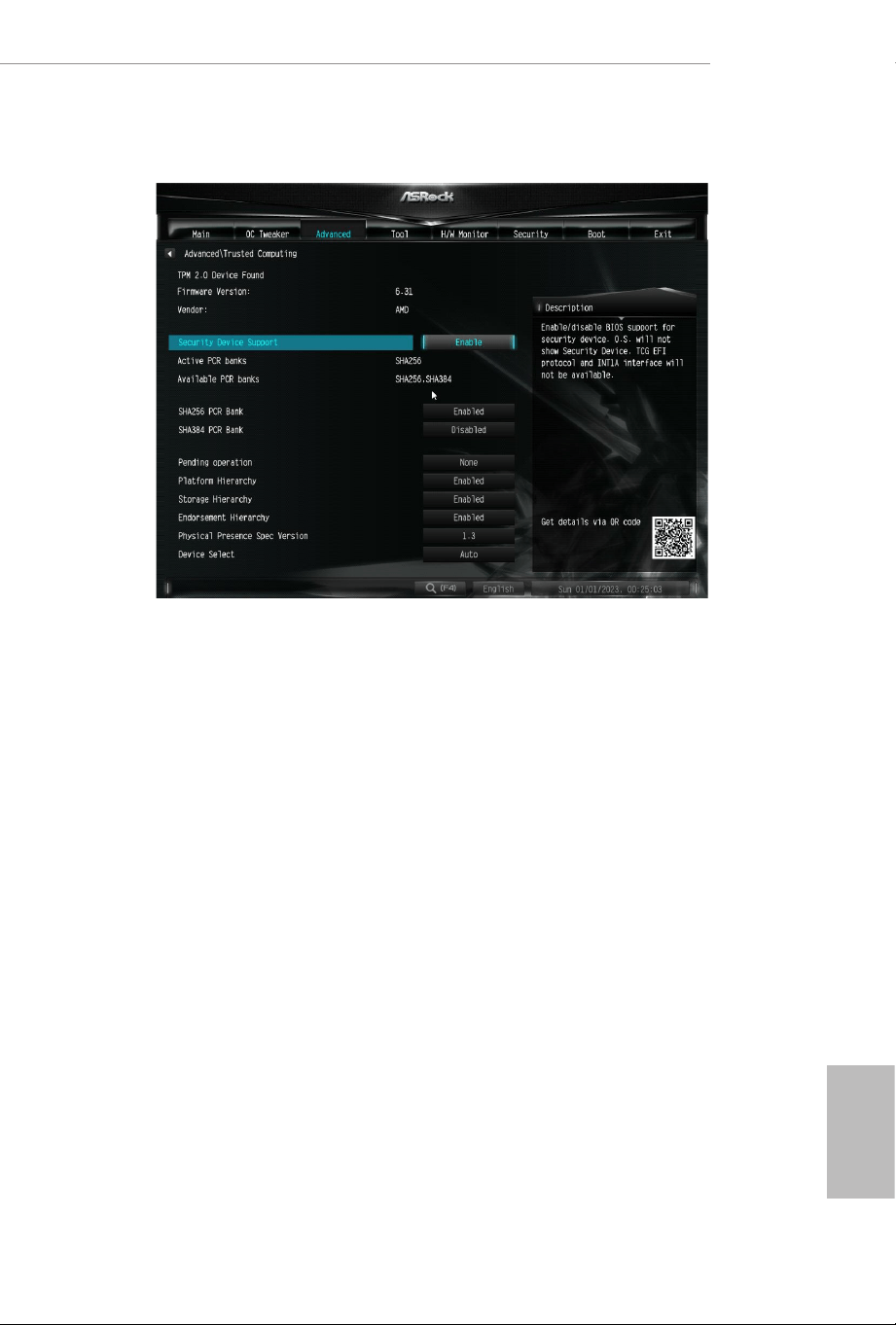

4.4.7 Trusted Computing
NOTE: Options vary depending on the version of your connected TPM module.
Security Device Support
Use this item to enable or disable BIOS support for security device. O.S. will not show
Security Device. TCG EFI protocol and INT1A interface will not be available.
SHA-1 PCR Bank
Use this item to enable or disable SHA-1 PCR Bank.
SHA256 PCR Bank
Use this item to enable or disable SHA256 PCR Bank.
Pending Operation
Schedule an Operation for the Security Device.
NOTE: Your computer will reboot during restart in order to change State of the Device.
Platform Hierarchy
Use this item to enable or disable Platform Hierarchy.
Storage Hierarchy
Use this item to enable or disable Storage Hierarchy.
Endorsement Hierarchy
Use this item to enable or disable Endorsement Hierarchy.
English
40
TPM2.0 UEFI Spec Version
Use this item to select the TCG2 spec. version supported.
e optional settings: [TCG_1_2]; [TCG_2].
[TCG_1_2]: compatible mode for Win8/Win10.
[TCG_2]: for TCG2 newer spec. compatible mode for Win10
Physical Presence Spec version
Select this item to tell OS to support PPI spec version 1.2 or 1.3. Please note that some HCK
tests might not support version 1.3.
Device Select
Use this item to select the TPM device to be supported. TPM 1.2 will restrict support to
TPM 1.2 devices. TPM 2.0 will restrict support to TPM 2.0 devices. Auto will support both
with the default set to TPM 2.0 devices. If TPM 2.0 devices are not found, TPM 1.2 devices
will be enumerated.
X600D5-P1
41
English

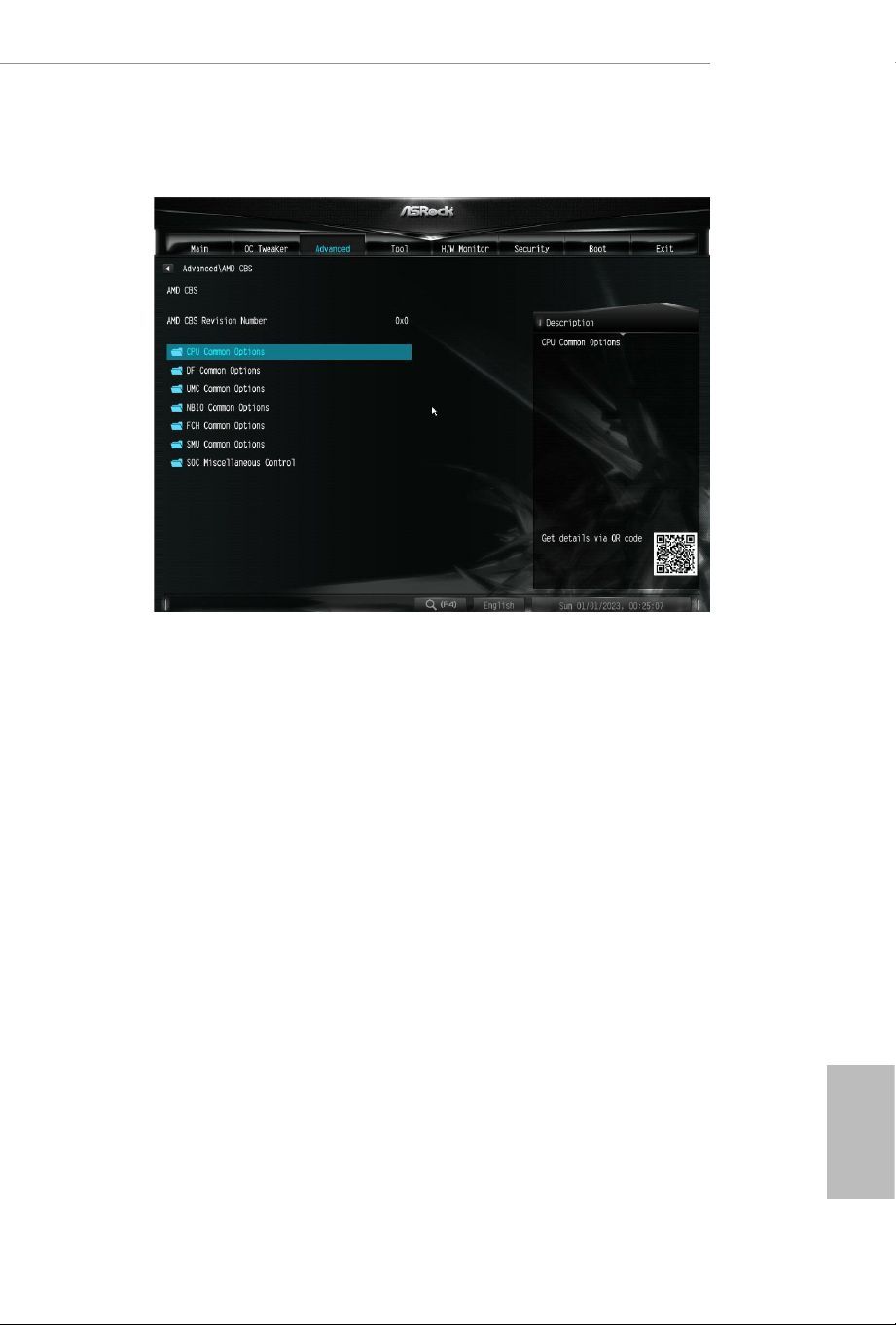

4.6.8 AMD CBS
e AMD CBS menu accesses AMD specic features.
English
42

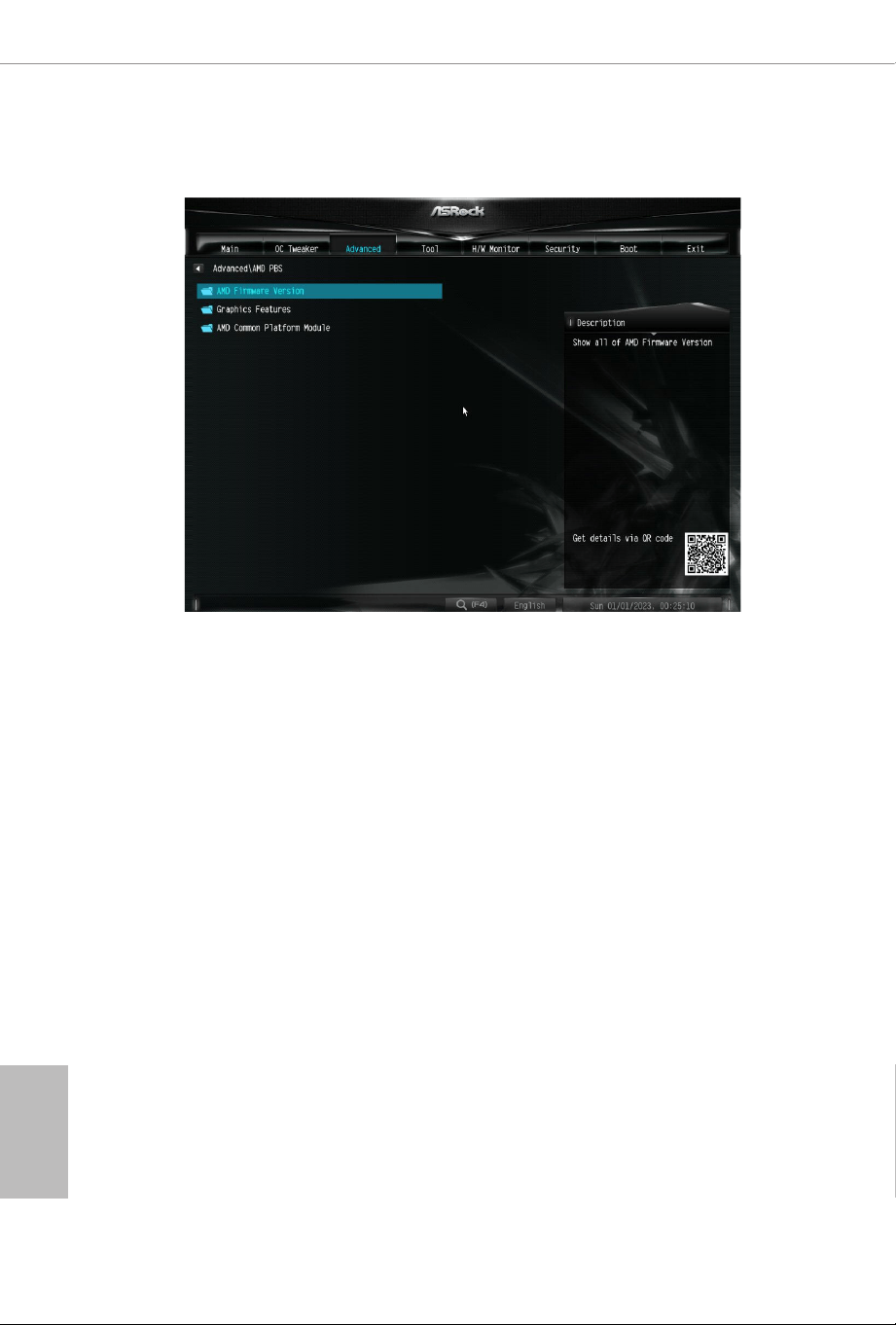

4.6.9 AMD PBS
e AMD PBS menu accesses AMD specic features.
X600D5-P1
43
English

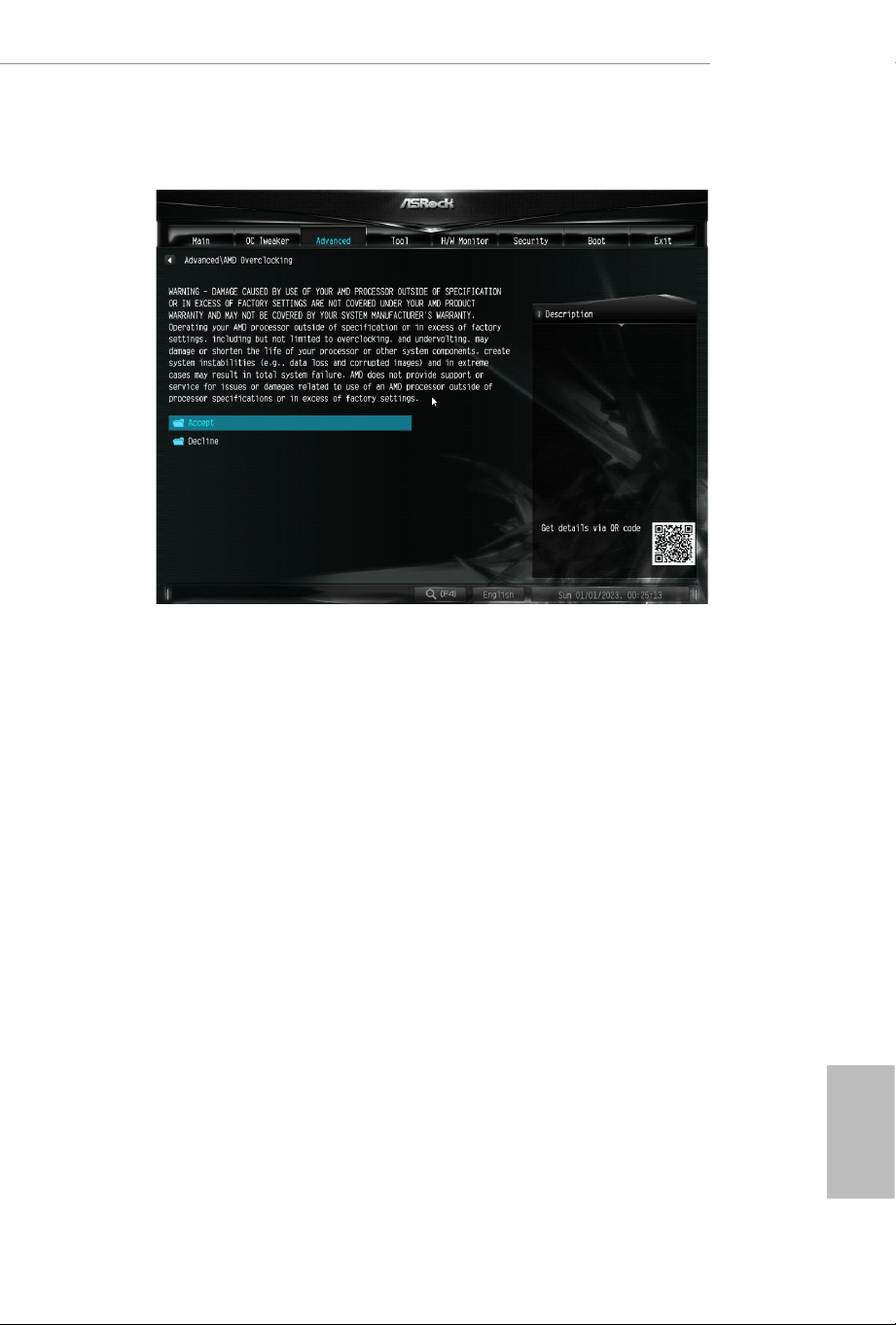

3.4.10 AMD Overclocking
e AMD Overclocking menu accesses options for conguring CPU frequency and
voltage.
English
44
4.5 Tools
SSD Secure Erase Tool
Use this tool to securely erase SSD. is tool only lists the SSDs that support the
Secure Erase function.
NVME Sanitization Tool
Aer you Sanitize SSD, all user data will be permanently destroyed on the SSD and cannot
be recovered.
Instant Flash
Save UEFI les in your USB storage device and run Instant Flash to update your
UEFI.
Auto Driver Installer
If Auto Driver Installer is enabled, a notication will pop up to help users to install
and update required drivers aer booting into the system.
X600D5-P1
45
English

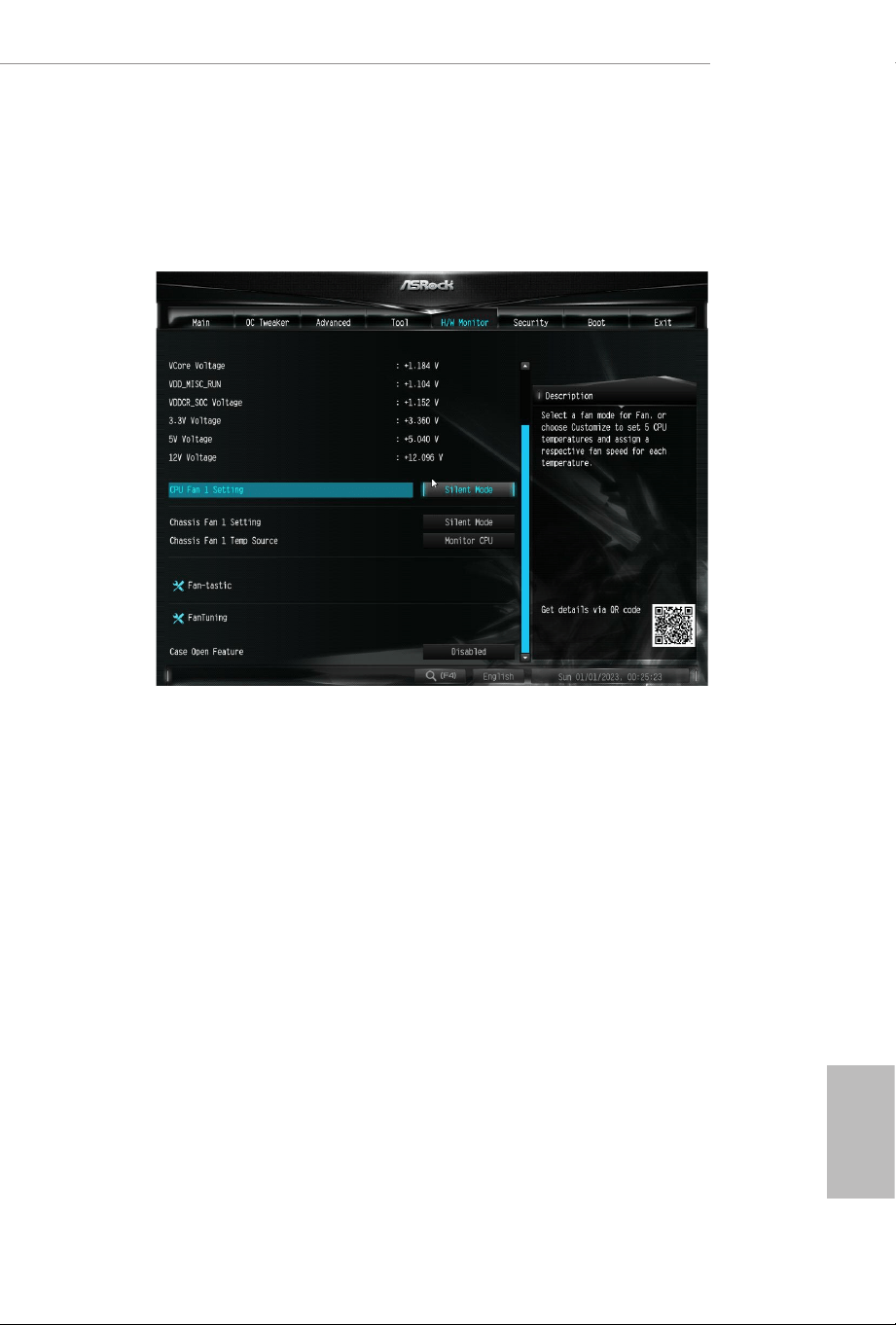

4.6 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
CPU Fan 1 Setting
Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
Chassis Fan 1 Setting
Select a fan mode for Chassis Fan 1, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
Chassis Fan 1 Temp Source
Select a fan temperature source for Chassis Fan 1.
Fan-Tastic
Allows you to select a fan mode for Fan, or choose [Customize] to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
FanTuning
When selected, the BIOS will proceed to detect the lowest fan speeds for fans connected to
the motherboard. is process will take a few minutes ro complete.
English
46
Note: Please note CAM settings applied within the OS will overwrite settings made within
the BIOS.
Case Open Feature
Enable or disable Case Open Feature to detect whether the chassis cover has been
removed.
X600D5-P1
47
English

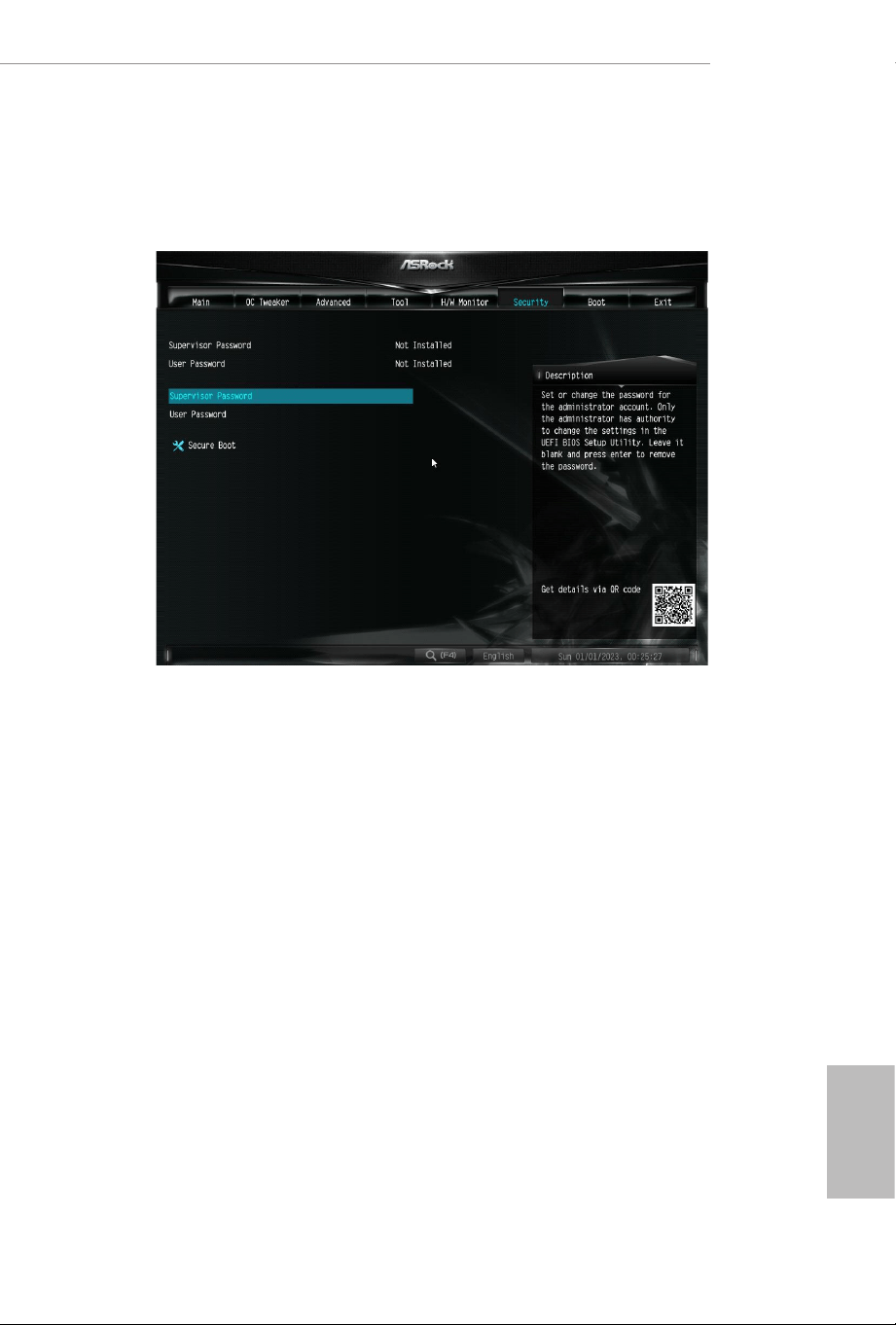

4.7 Security Screen
In this section you may set or change the supervisor/user password for the system.
You may also clear the user password.
Supervisor Password
Set or change the password for the administrator account. Only the administrator
has authority to change the settings in the UEFI Setup Utility. Leave it blank and
press enter to remove the password.
User Password
Set or change the password for the user account. Users are unable to change the
settings in the UEFI Setup Utility. Leave it blank and press enter to remove the
password.
Secure Boot
Enable to support Secure Boot.
English
48

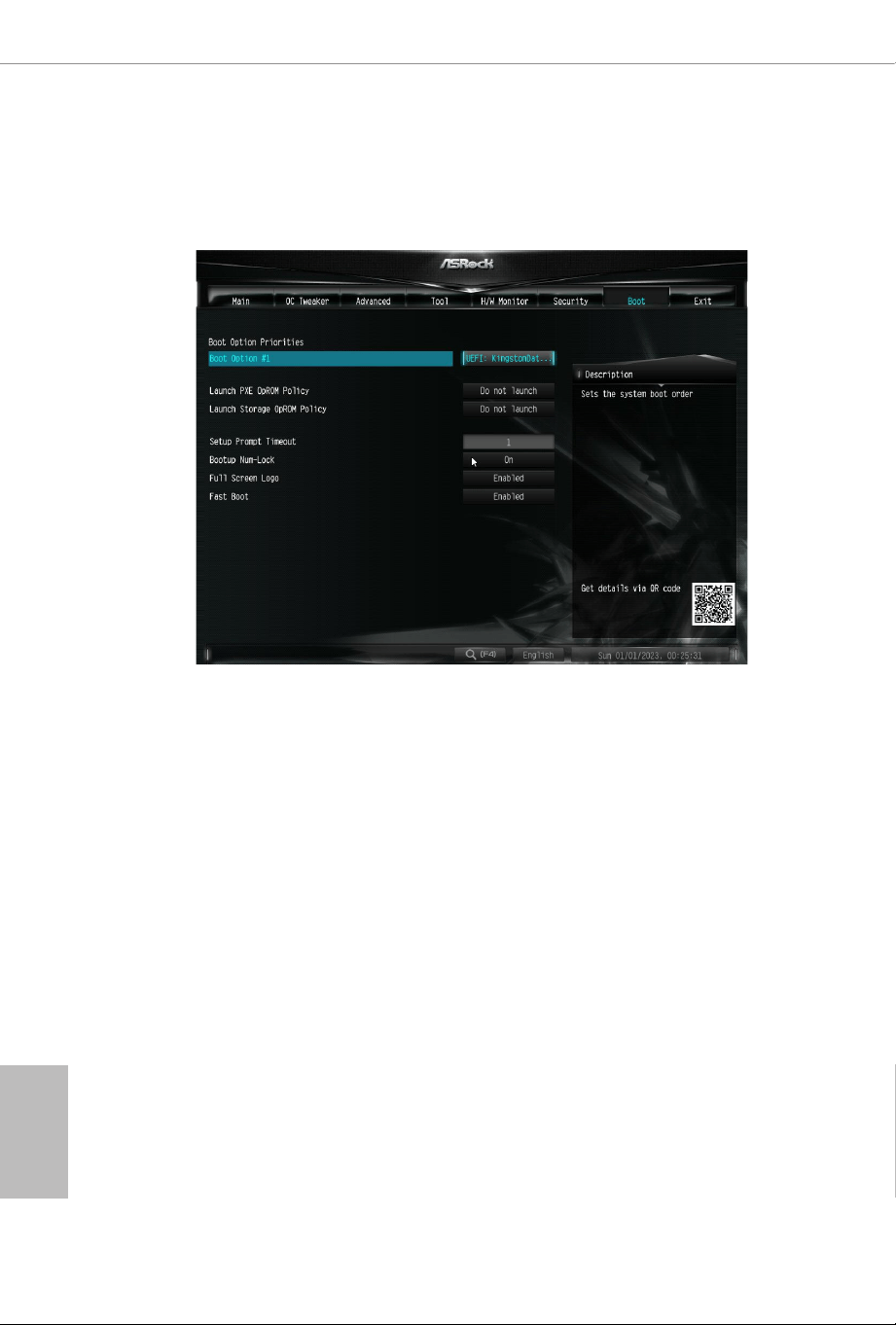

4.8 Boot Screen
is section displays the available devices on your system for you to congure the
boot settings and the boot priority.
CSM
Enable to launch the Compatibility Support Module. Please do not disable unless
you’re running a WHCK test.
Launch PXE OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only. Select Do not launch to not
execute both legacy and UEFI option ROM.
Launch Storage OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only. Select Do not launch to not
execute both legacy and UEFI option ROM.
Setup Prompt Timeout
Congure the number of seconds to wait for the setup hot key.
Bootup Num-Lock
Select whether Num Lock should be turned on or o when the system boots up.
X600D5-P1
49
English
Full Screen Logo
Enable to display the boot logo or disable to show normal POST messages.
Fast Boot
Fast Boot minimizes your computer's boot time. In fast mode you may not boot
from an USB storage device.
English
50

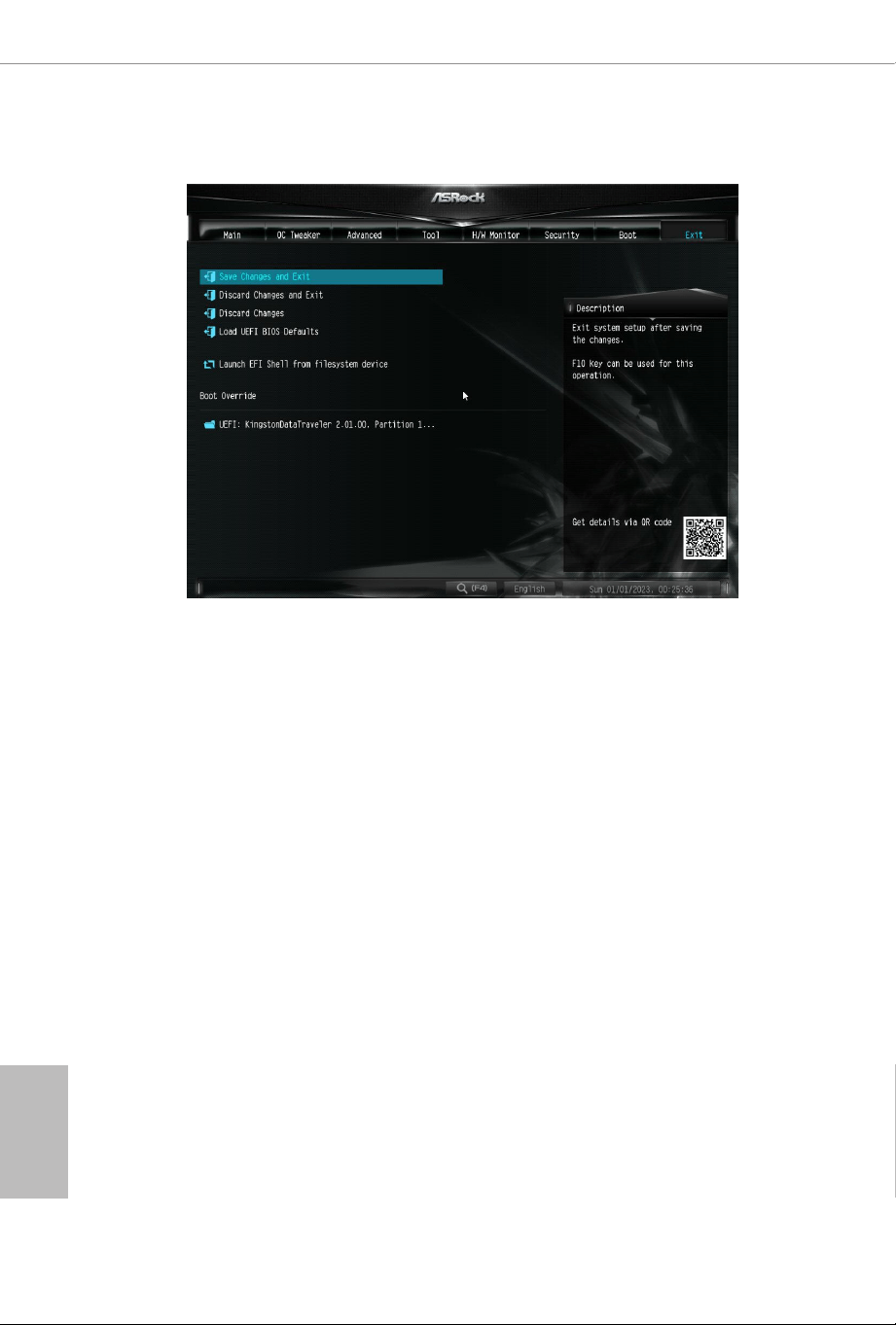

4.9 Exit Screen
Save Changes and Exit
When you select this option the following message, “Save conguration changes
and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP
UTILITY.
Discard Changes and Exit
When you select this option the following message, “Discard changes and exit
setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving
any changes.
Discard Changes
When you select this option the following message, “Discard changes?” will pop
out. Select [OK] to discard all changes.
Load UEFI Defaults
Load UEFI default values for all options. e F9 key can be used for this operation.
Launch EFI Shell from lesystem device
Copy shellx64.e to the root directory to launch EFI Shell.
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: ASRock Incorporation
Address:
13848 Magnolia Ave, Chino, CA91710
+1-909-590-8308/+1-909-590-1026
Phone/FaxNo:
hereby declares that the product
Product Name : Motherboard
Model Number :
Conforms to the following specications:
FCC Part 15, Subpart B, Unintentional Radiators
Supplementary Information:
is device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) is device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Representative Person’s Name:
Jason
Signature :
Date :
May 12, 2017
X600D5-P1
EU Declaration of Conformity
For the following equipment:
Motherboard
(Product Name)
X600D5-P1
(Model Designation / Trade Name)
EMC Directive – 2014/30/EU
EN 55032: 2015 / A11: 2020, EN 55035: 2017 / A11: 2020
EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013
RoHS Directive - 2011/65/EU
2015/863/EU, EN IEC 63000:2018
(EU conformity marking)
