A18FCS68
Original instructions
Important!
It is essential that you read the instructions in this manual before
assembling, operating and maintaining the product.
6XEMHFWWRWHFKQLFDOPRGL¿FDWLRQV

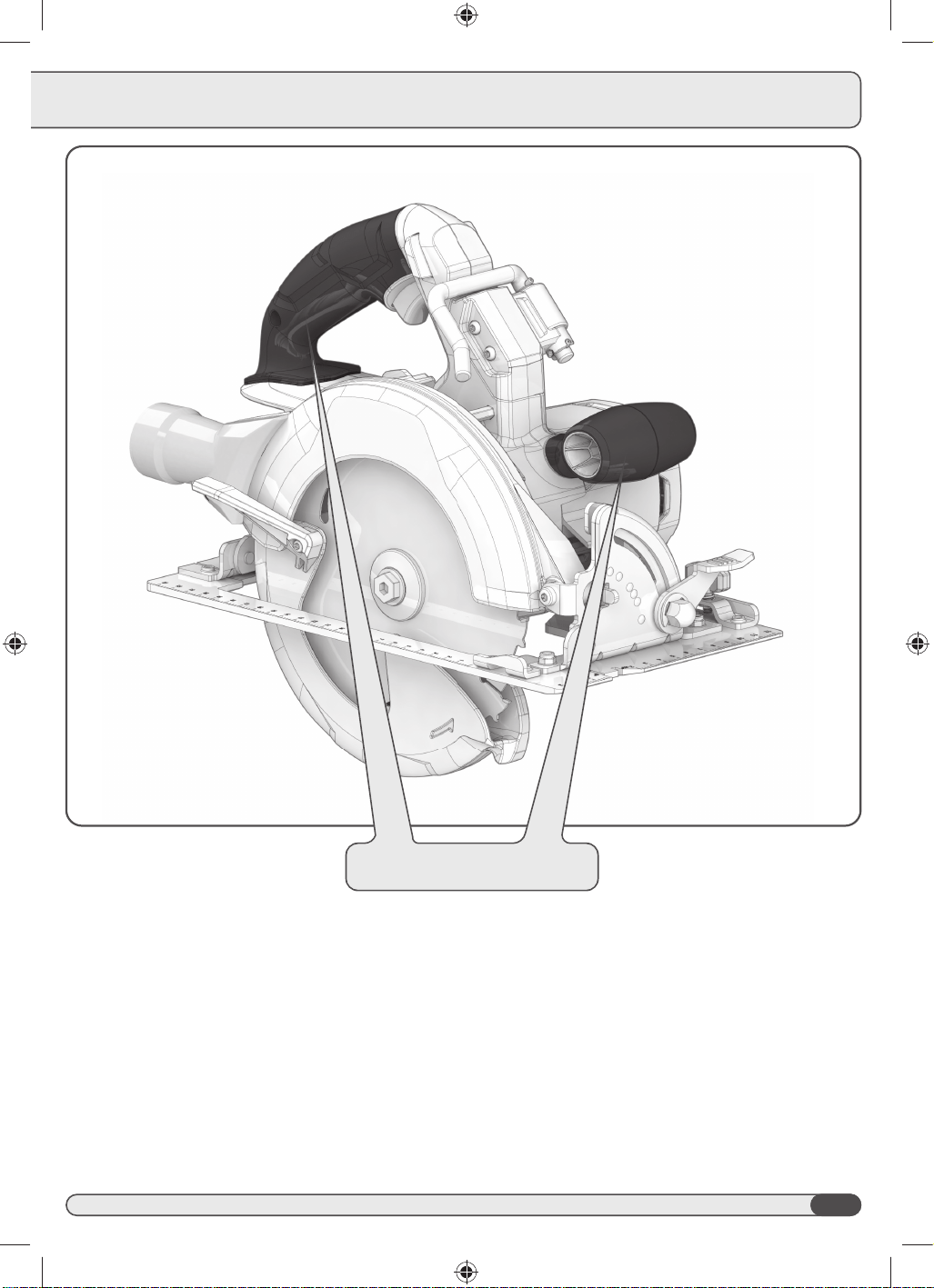

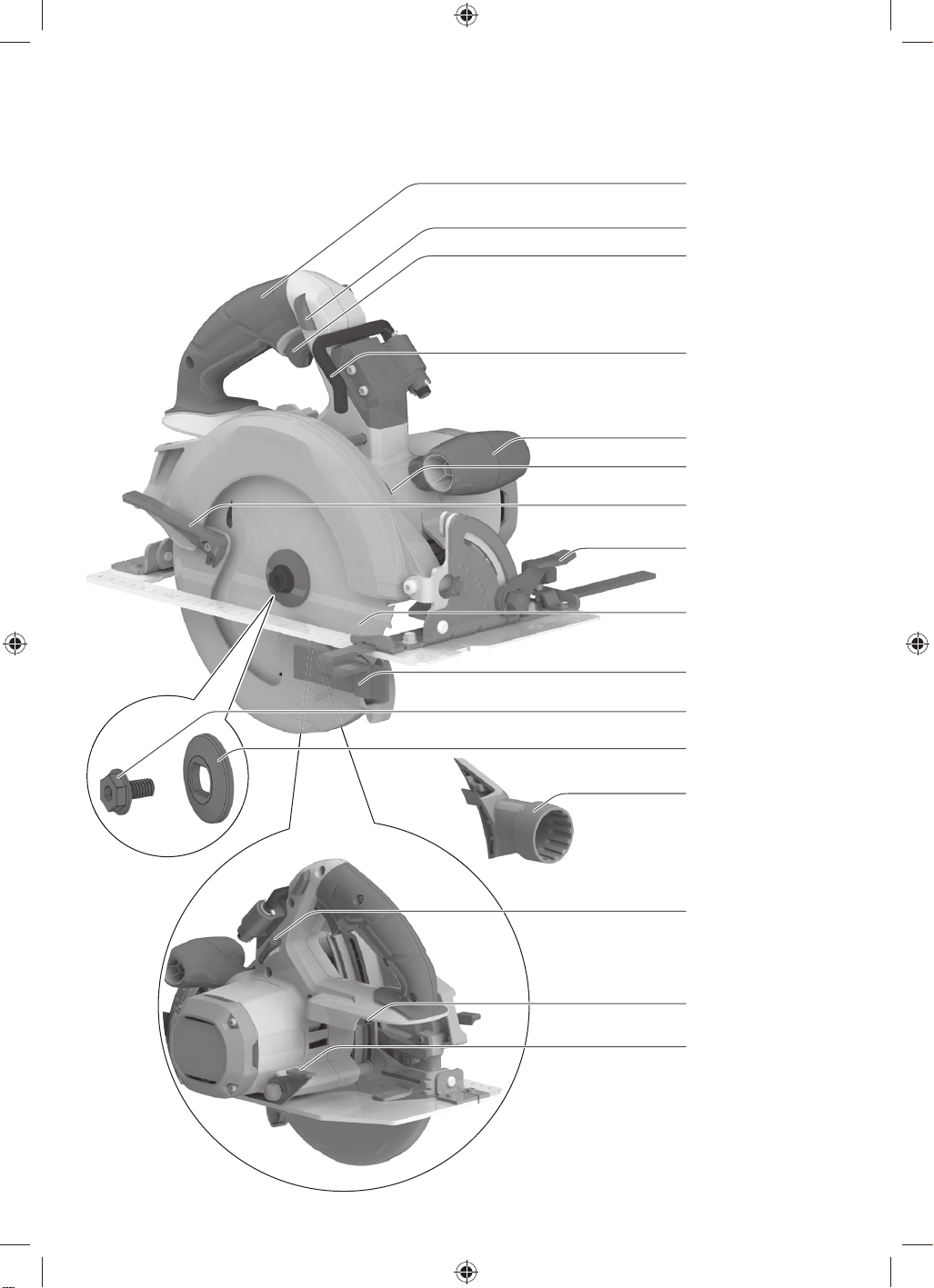

Lock-off button
Switch trigger
Rafter hook
Handle,
insulated gripping surface
Front handle
Spindle lock button
Dust pipe joint
Lower guard handle
Bevel adjustment knob
Edge guide fence
Outer flange
Blade screw
Blade
Depth adjustment lock lever
Battery port
Hex key

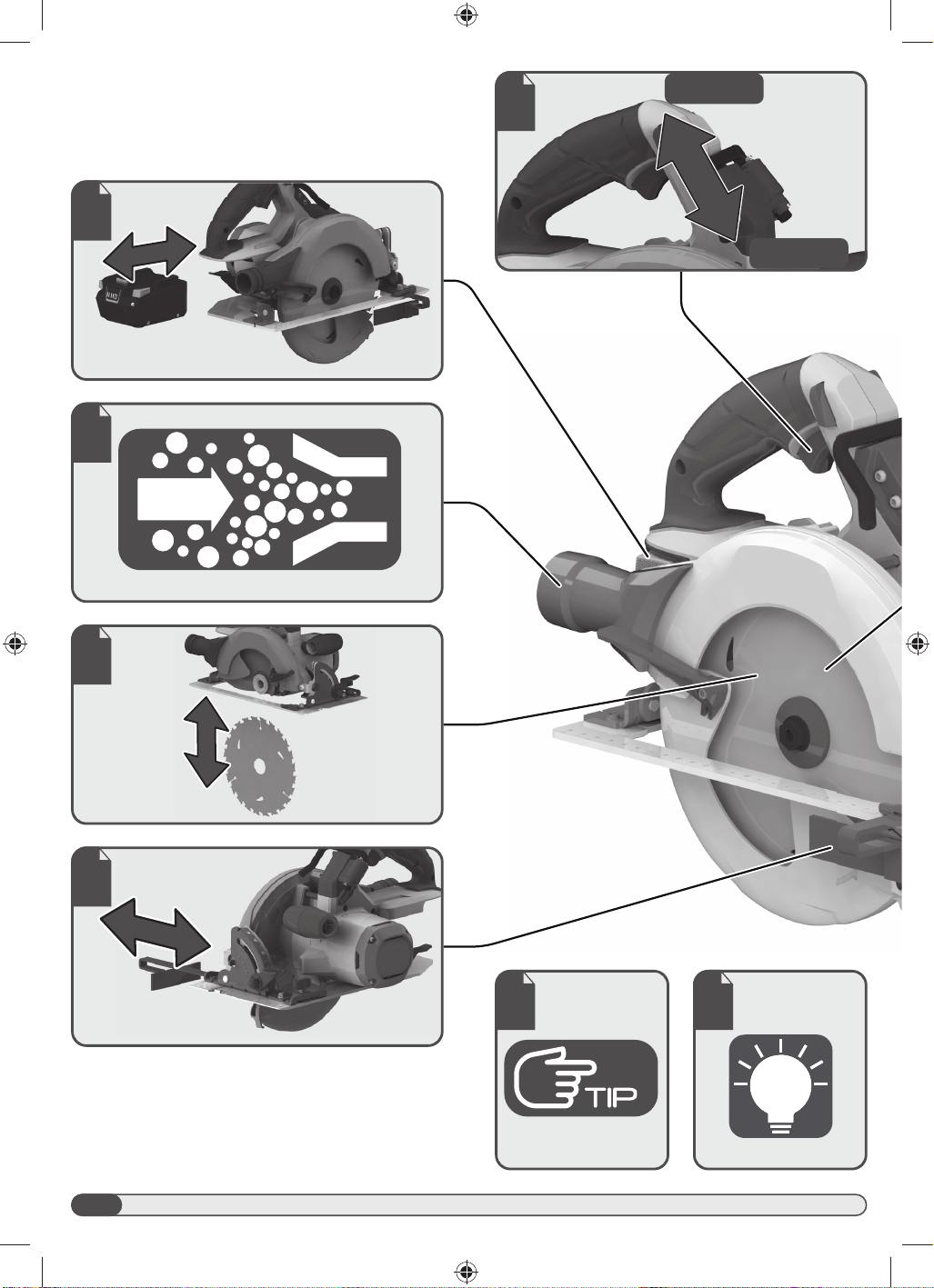

4
6
20
8
13
14
START
STOP
21
23

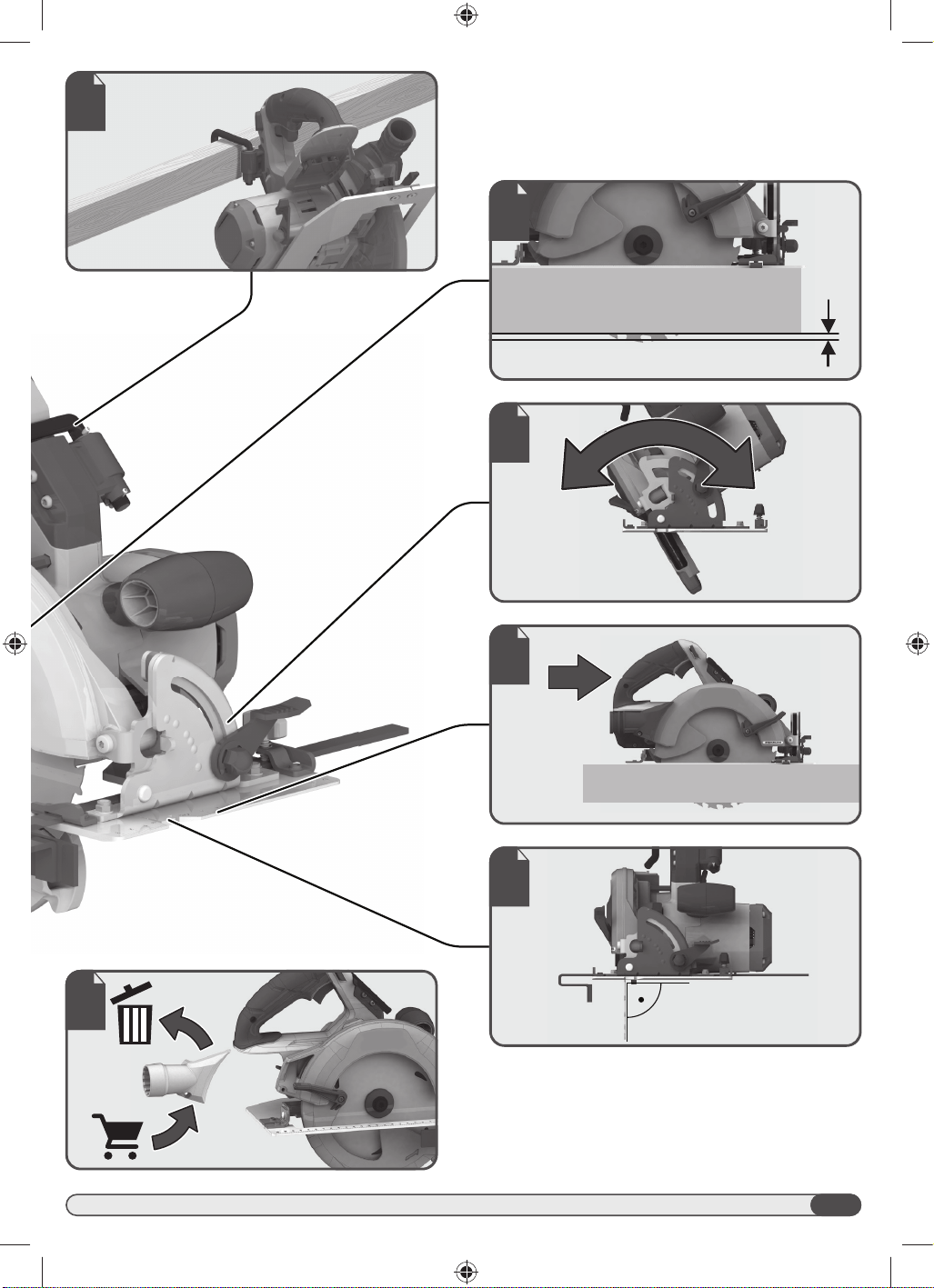

5
1824
10
12
16
18
90°
22
6
1
1
1
1
1
2
1
2
click
1

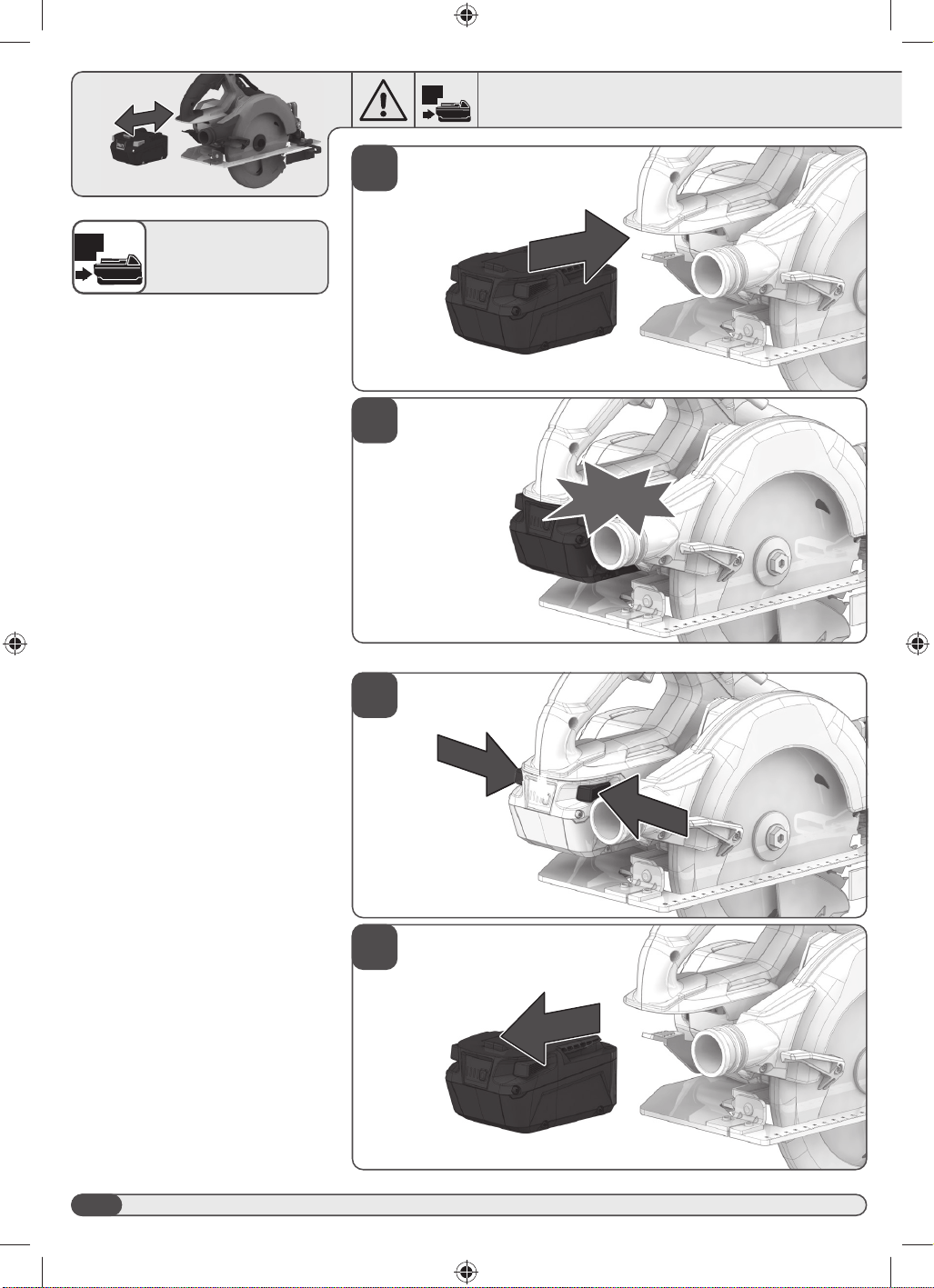

Remove the battery pack before
starting any work on the product.
7

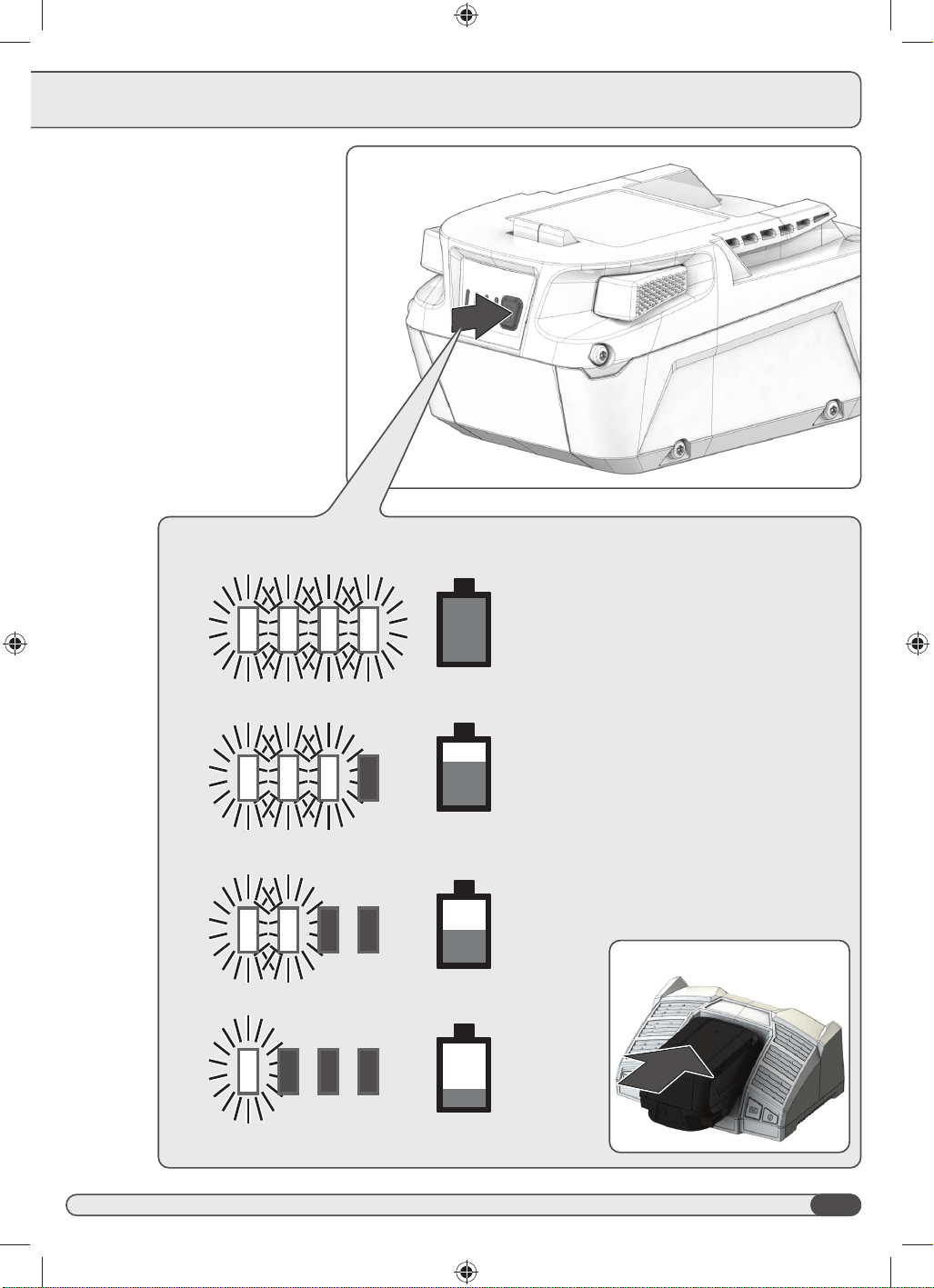

75-100 %
50-75 %
25-50 %
0-25 %

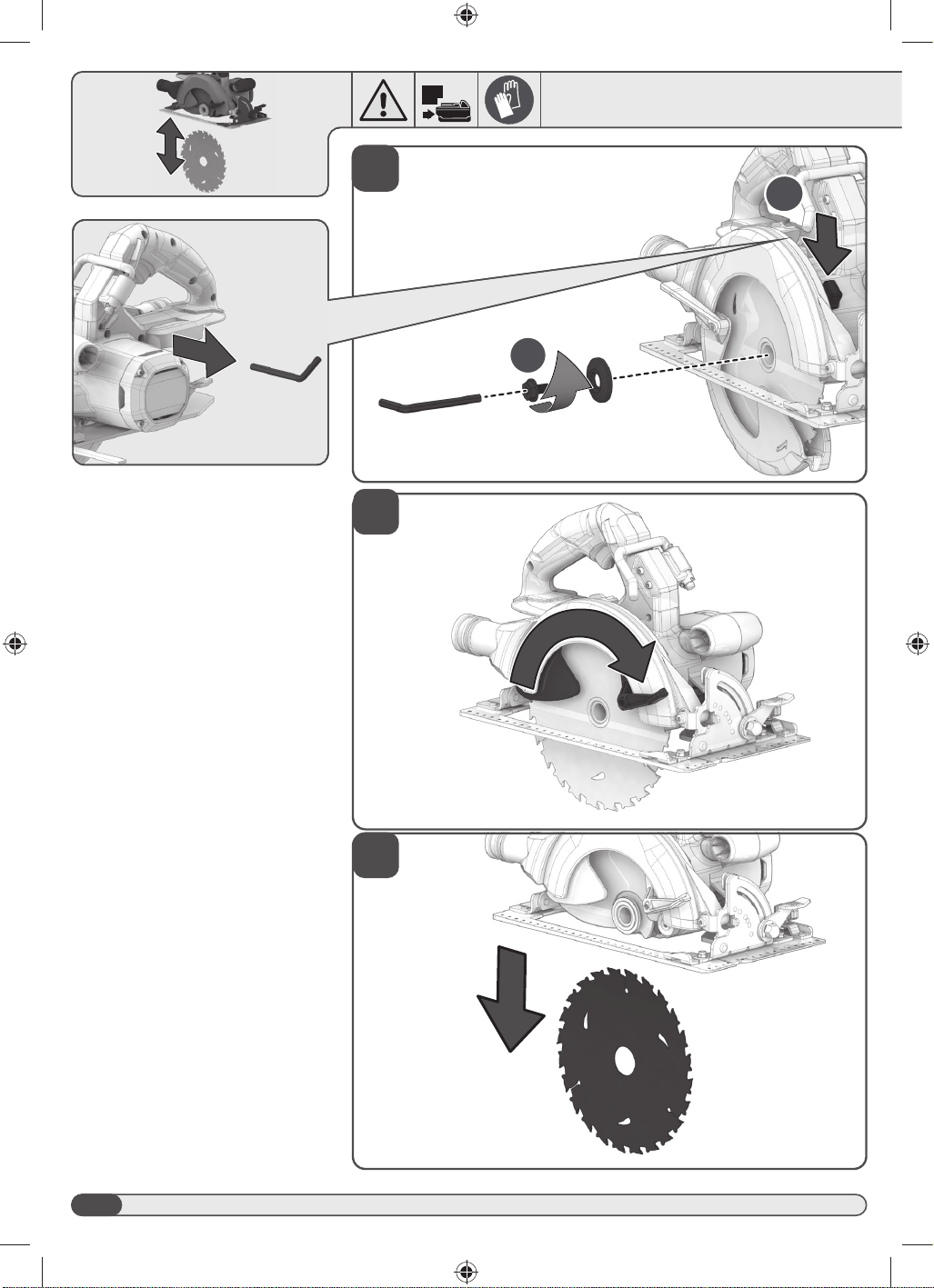

8
1
2
3
1
2
1

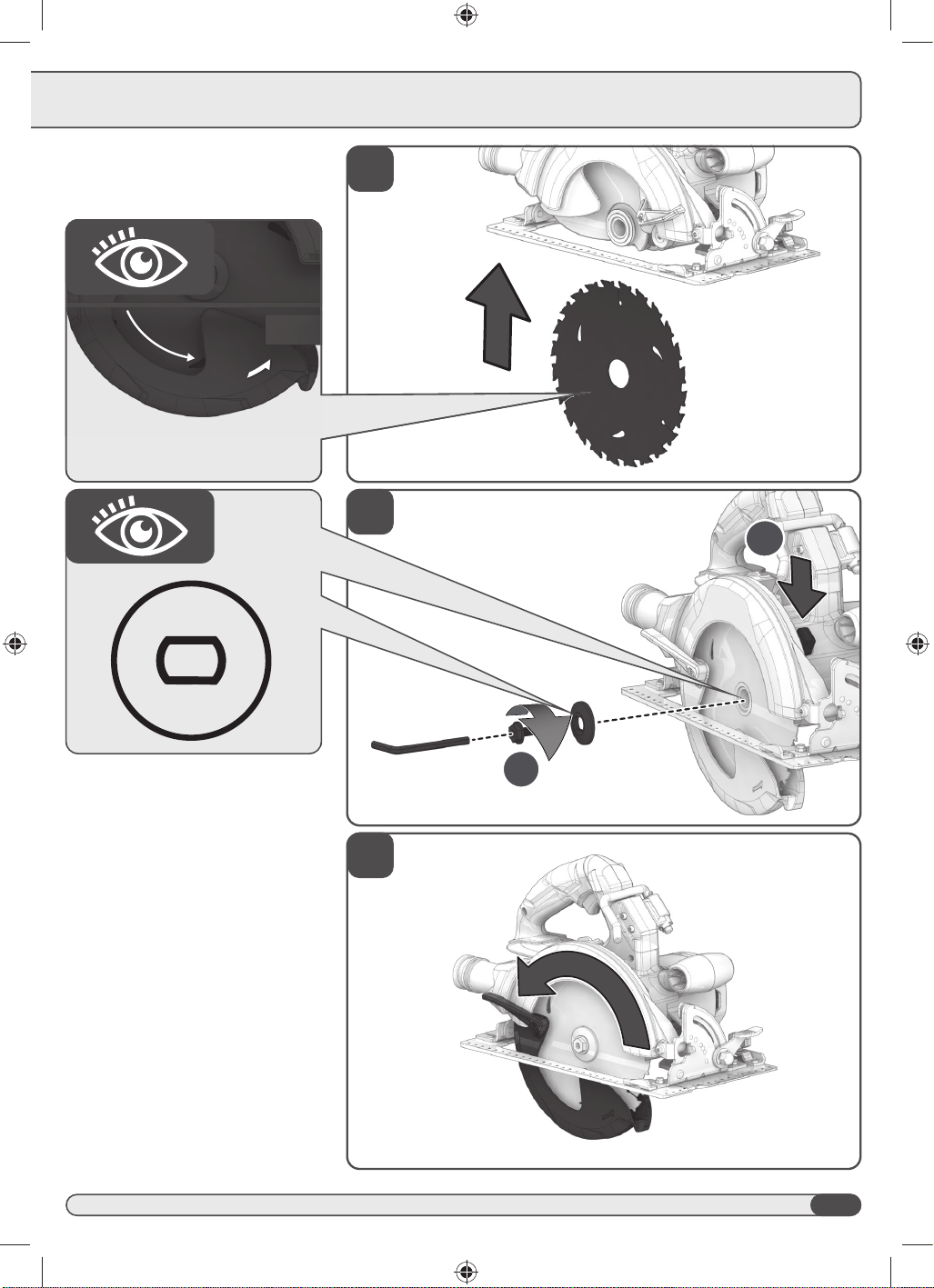

9
1
2
3
1
2
EN 847-1
10
1
2

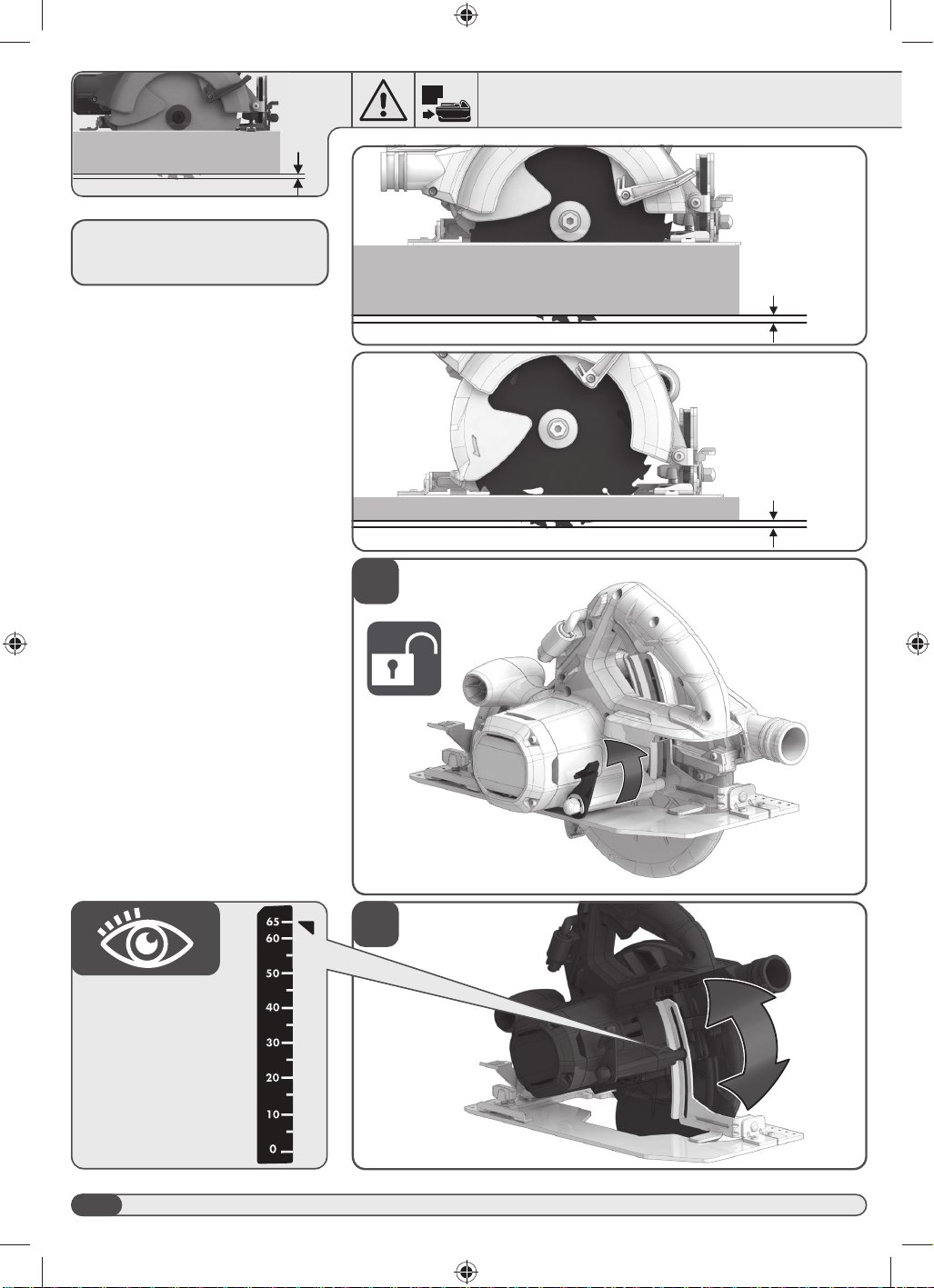

0 - 65 mm

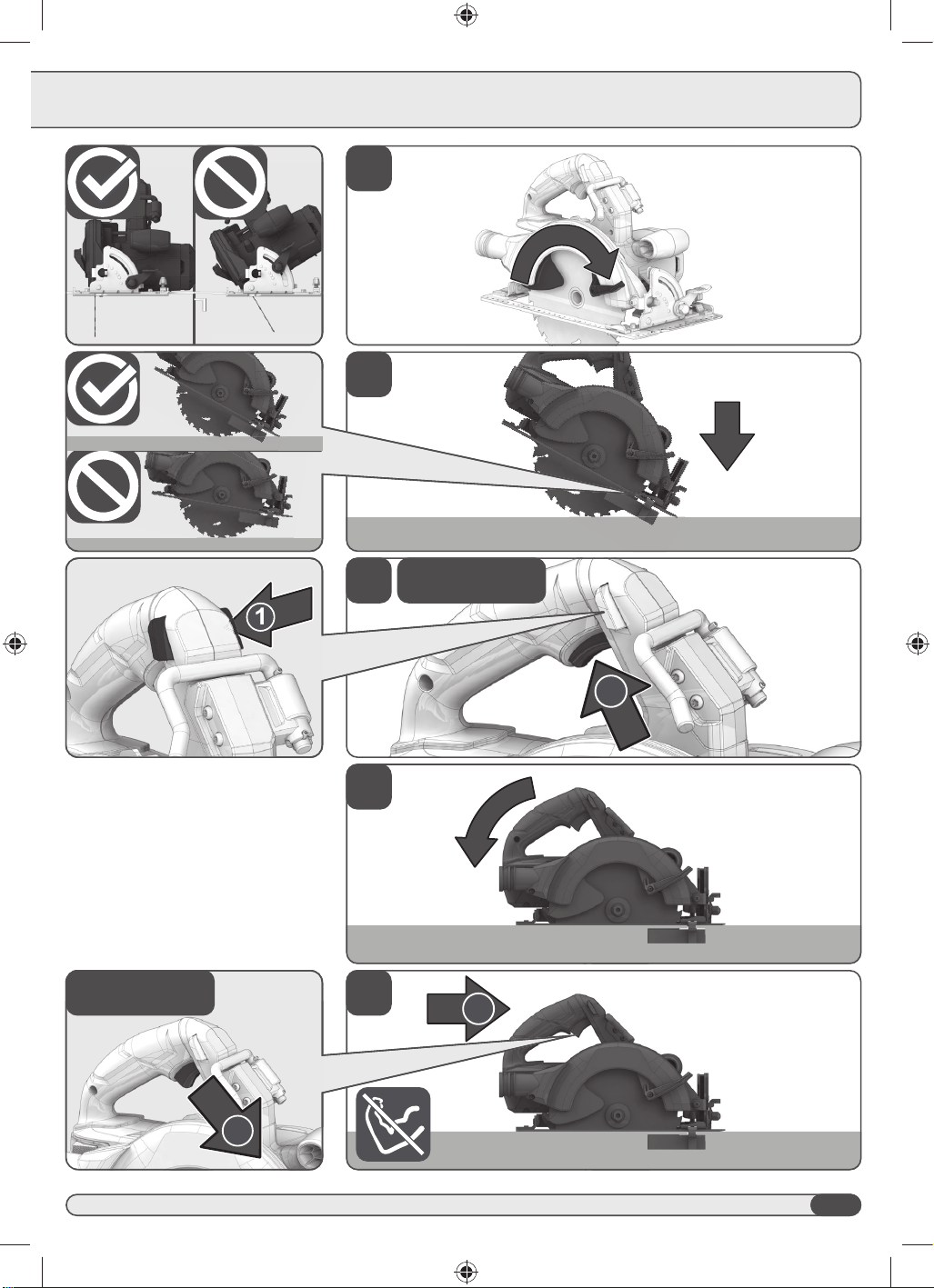

Adjust the cutting depth to the thickness of the
workpiece. Less than a full tooth of the blade
teeth should be visible below the workpiece.

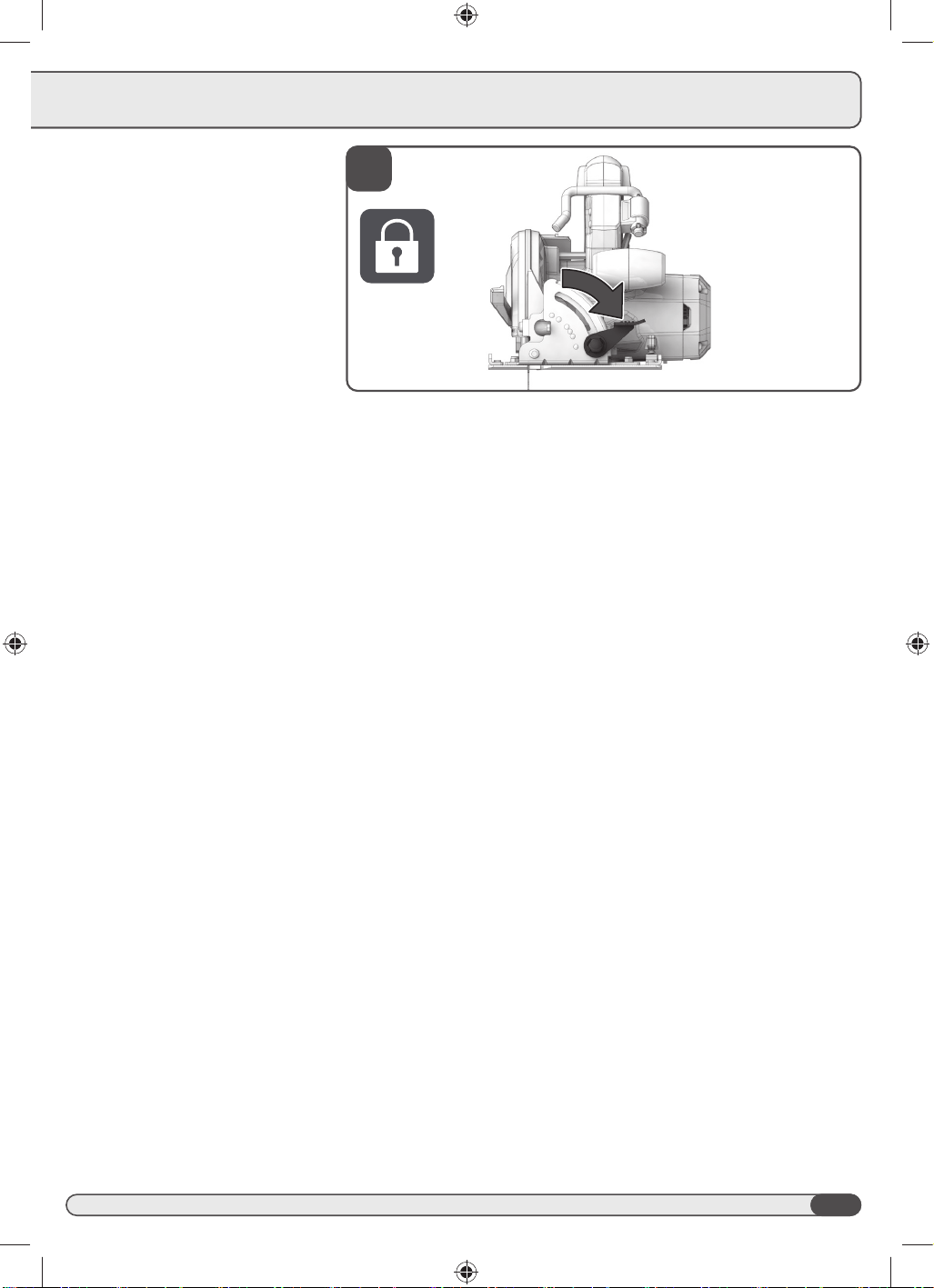

11

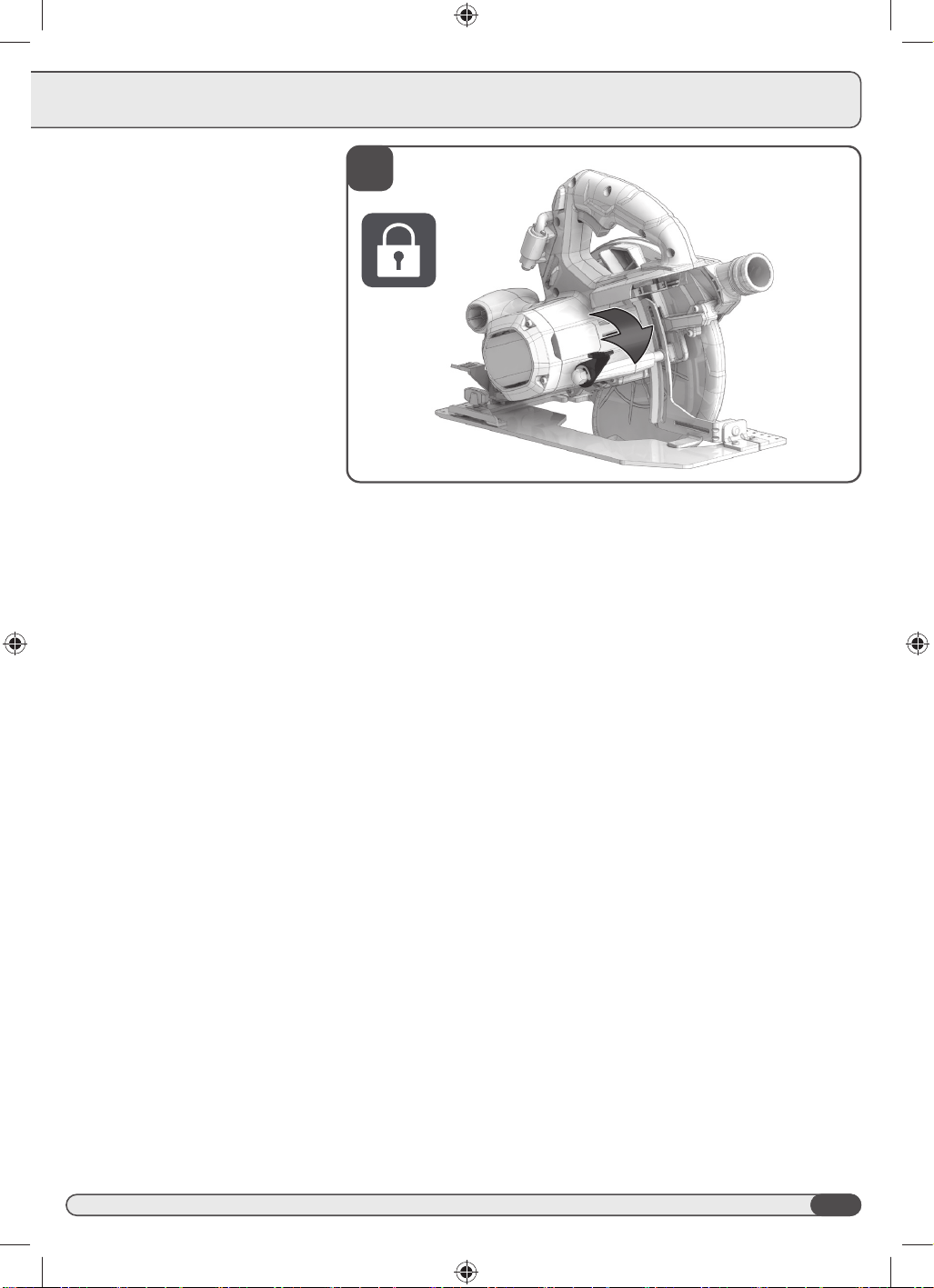

3

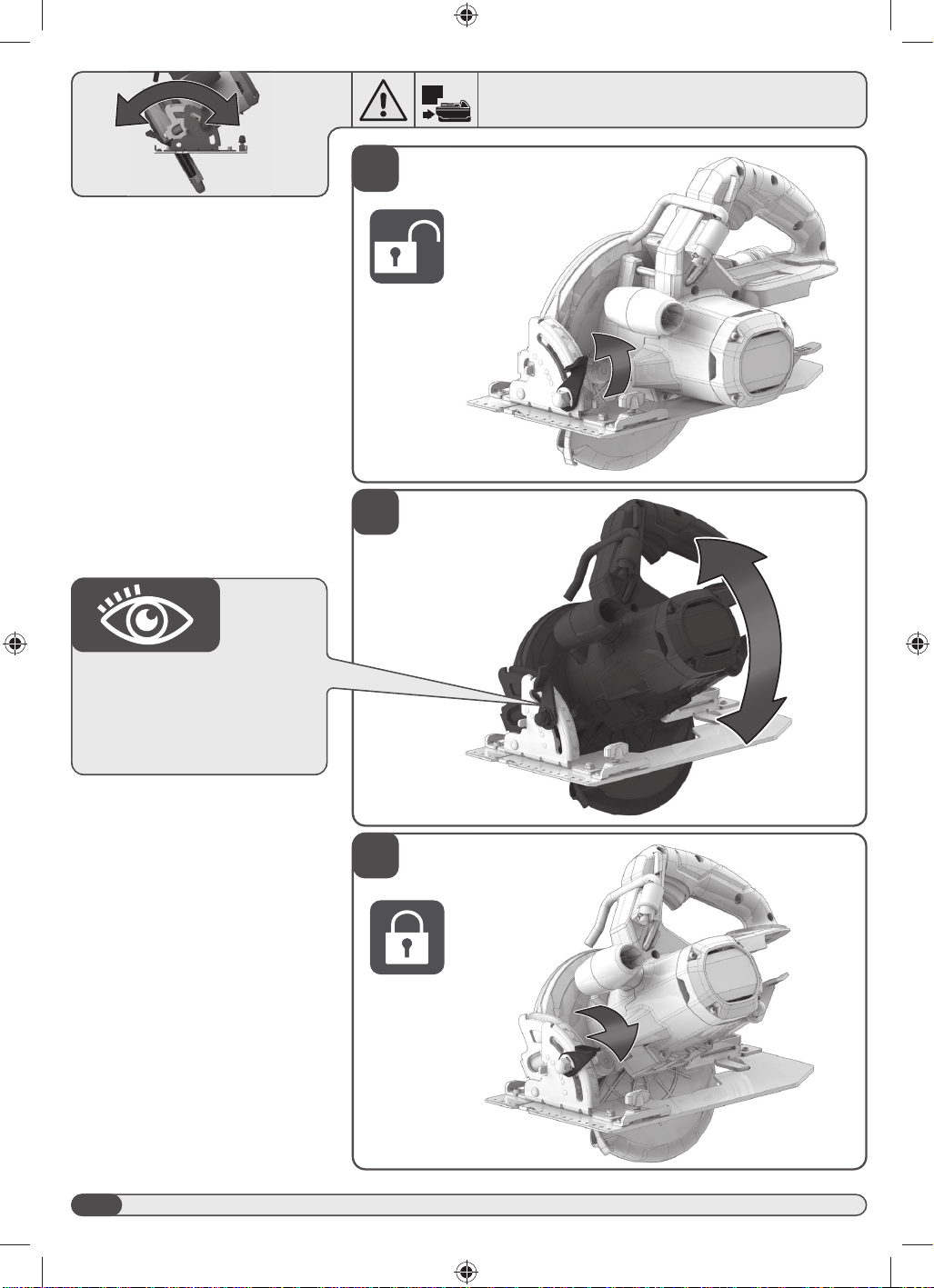

12
1
2
3
0 - 56°
1

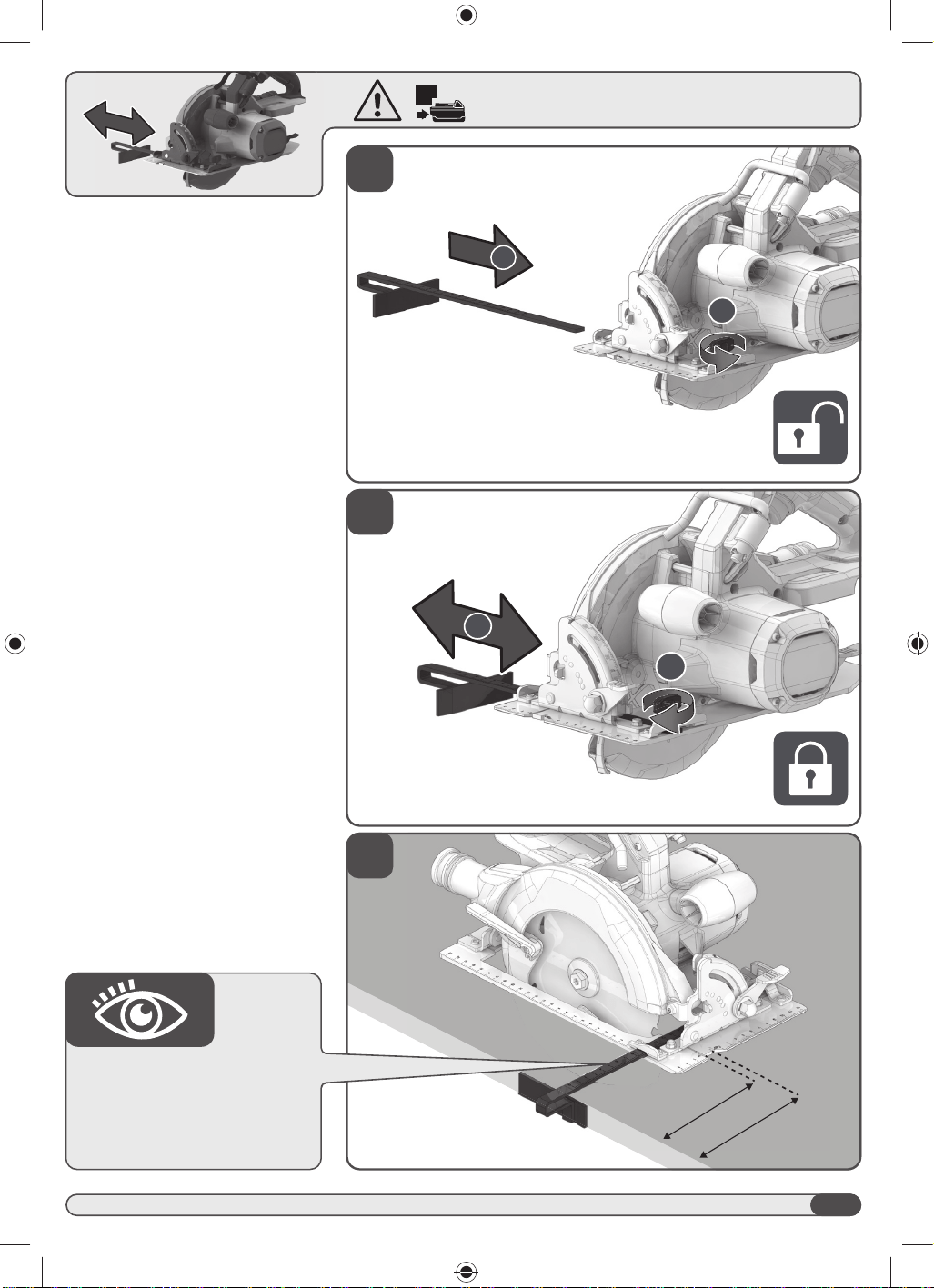

13
1
2
3
1
1
2
2
0 - 18 cm
45°
0°

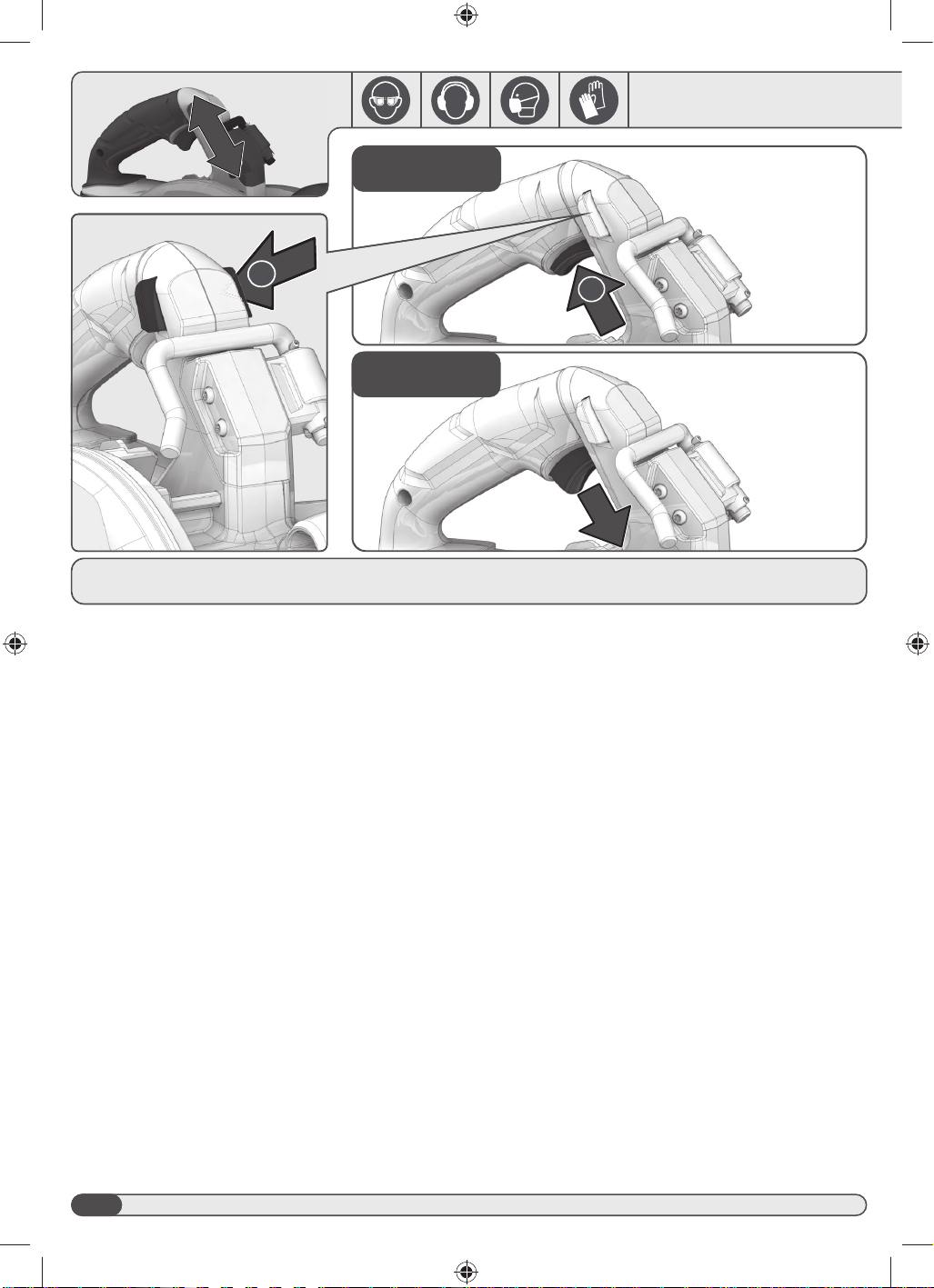

14
2
START
STOP
1
)RUVDIHW\UHDVRQVWKLVSRZHUWRROLV¿WWHGZLWKDVZLWFKORFNDQGWKH2Q2ႇVZLWFKFDQQRWEHORFNHGLQWKHÄ2Q³SRVLWLRQ
15
Handle (insulated gripping surface)
16

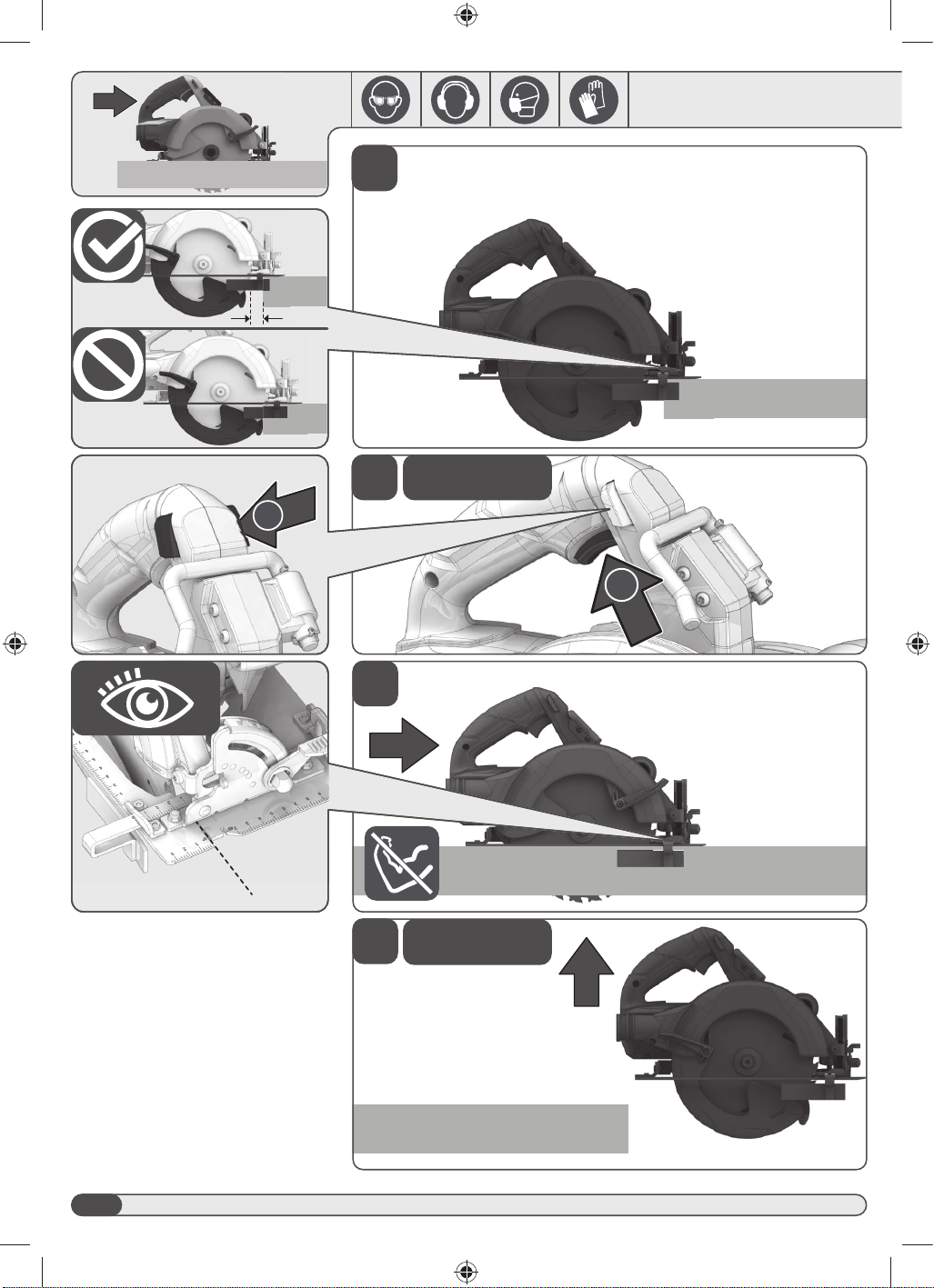

1
1
1
1
3
4
2
START
STOP
2
0°
1
1
17
1
2
4
5
3
START
2
1
0° > 0°
STOP
2
1
1
18

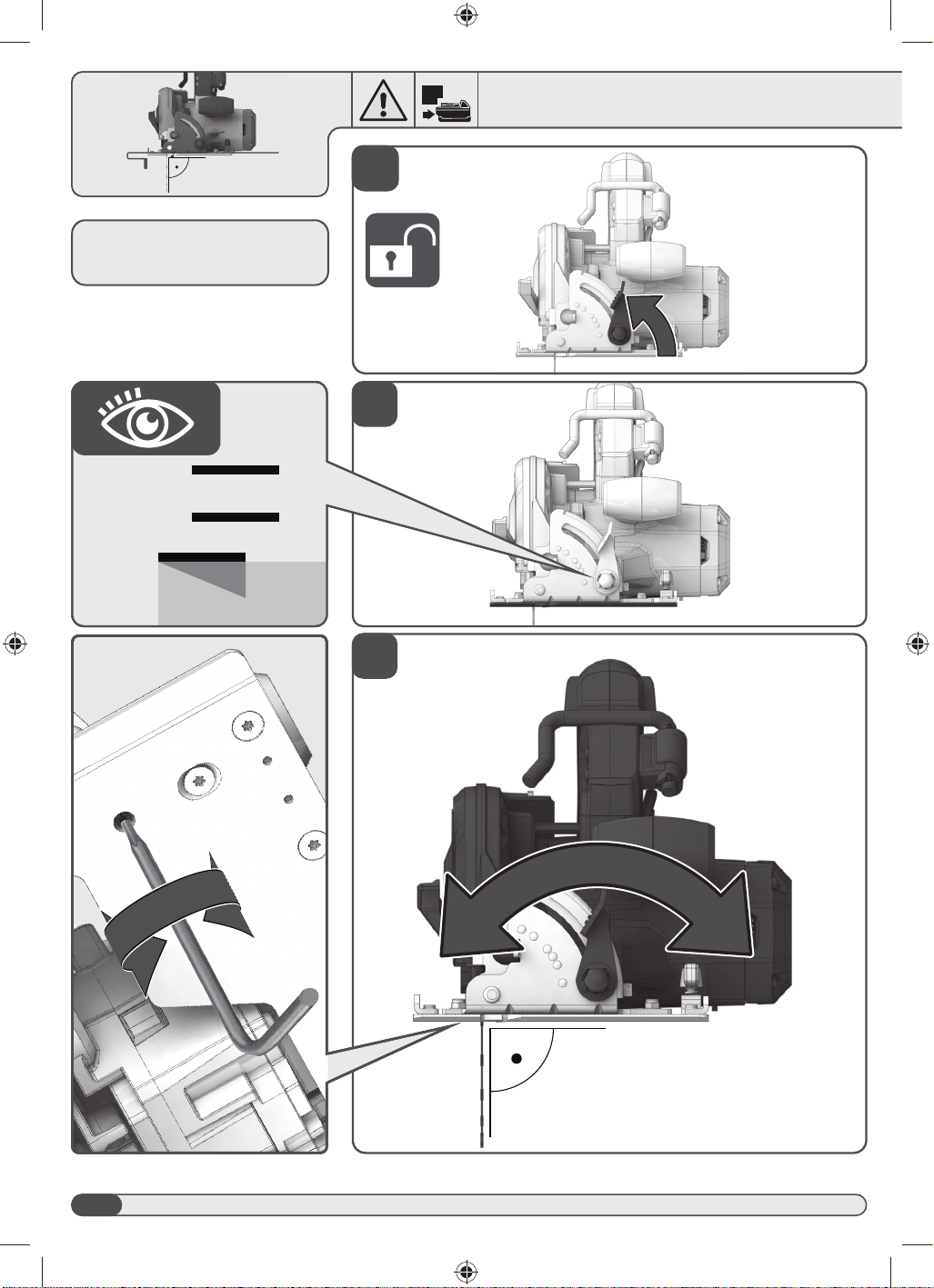

90°
1
1
2
3
+
-
90°
+
-
0°0°
1
,IDFRUUHFWLRQRIWKHDQJOHRIWKHJXLGHSODWH
to the saw blade is necessary, use the correction
screw.
19
1
4
20
1
2
2
1
3
ø 30 mm
1

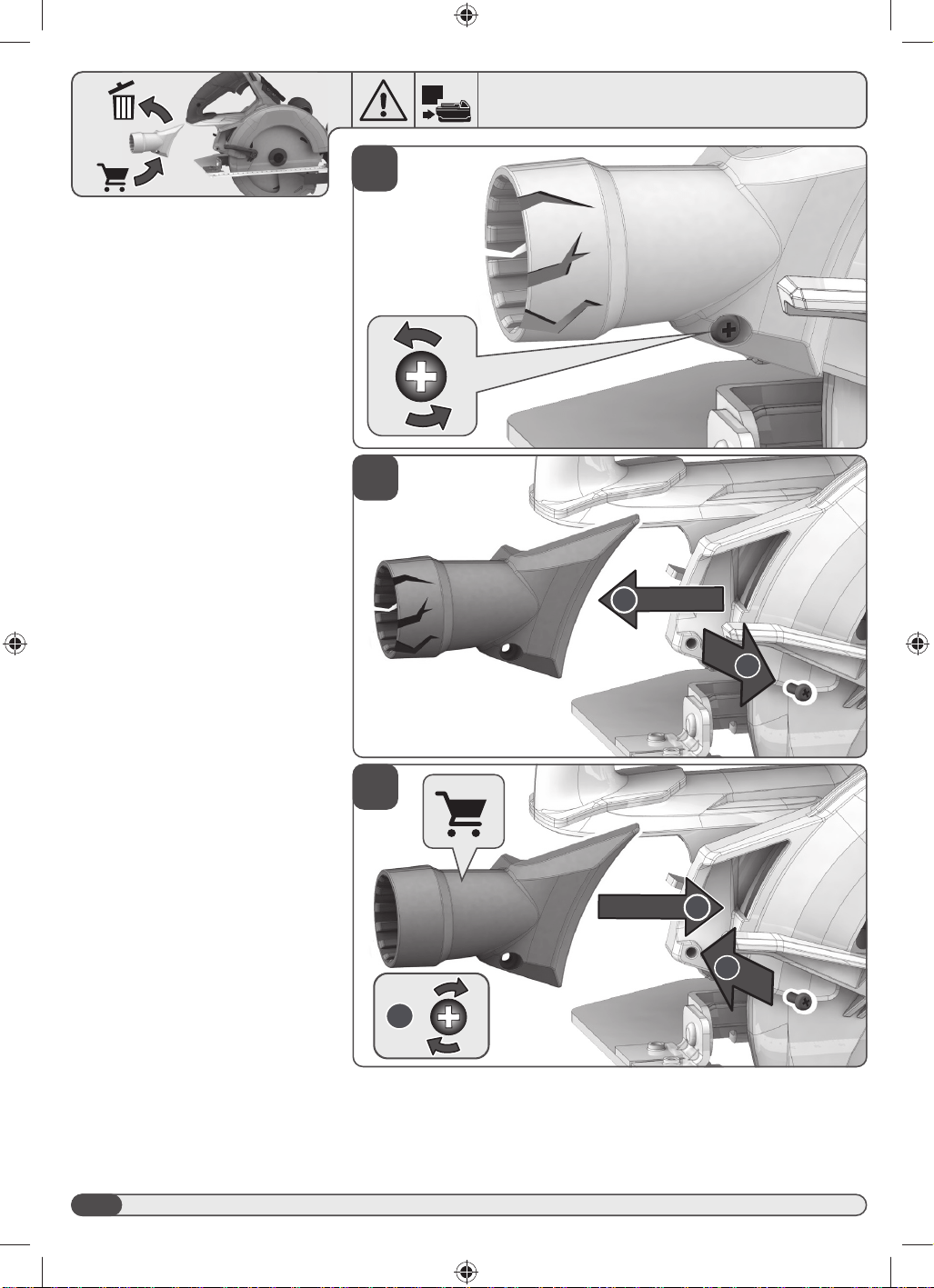

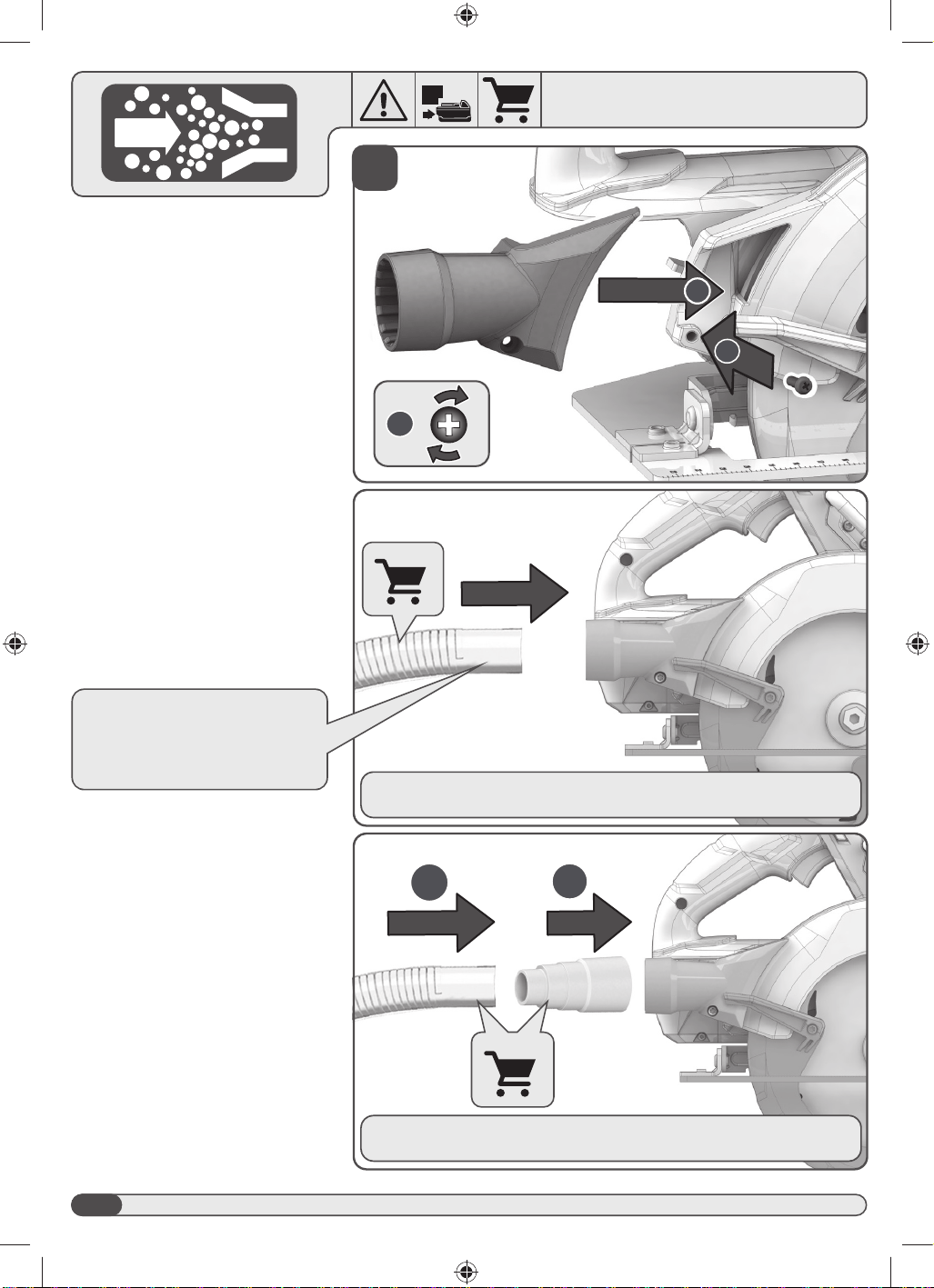

Always connect the dust pipe joint to the circular saw before using.
Always connect the vacuum attachment to a standard vacuum hose.
21

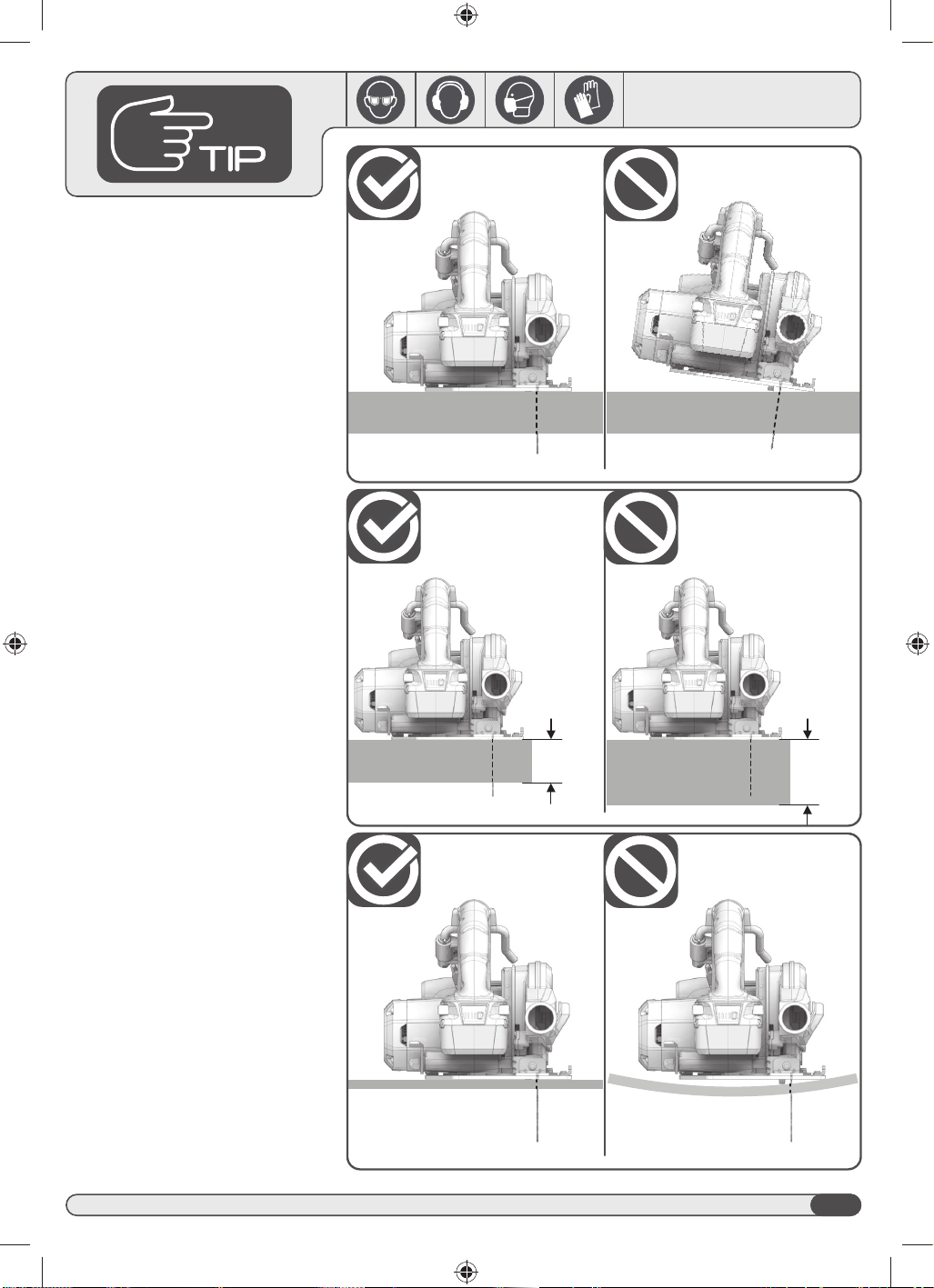

max.
65 mm
> 65 mm
22

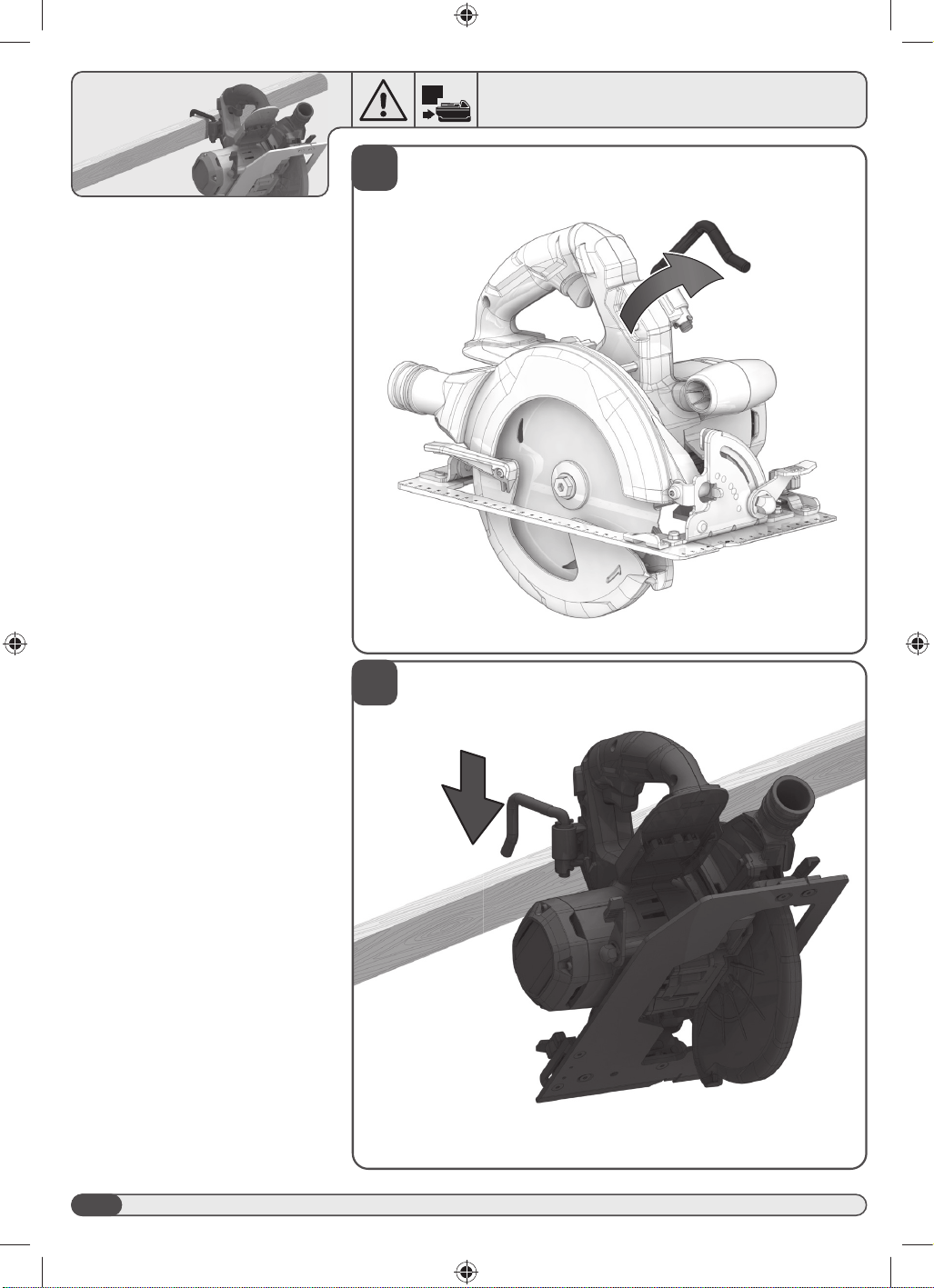

2
11

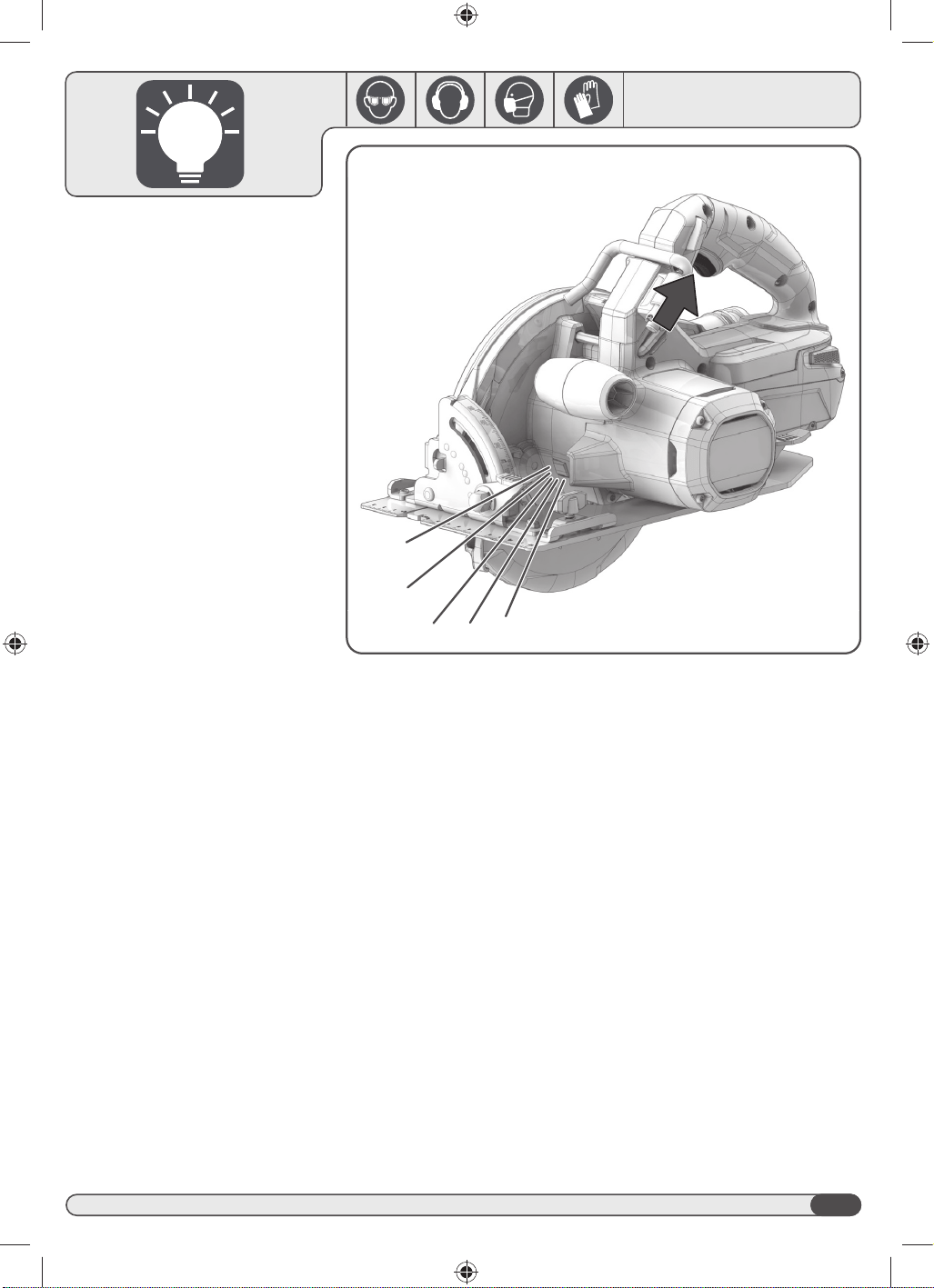

23
24
1
2
1
1
1
1
2
1
3
2
1
3
1
25
ENGLISH
TECHNICAL DATA A18FCS68
Type Circular saw
Battery voltage 18 V
1RORDGVSHHG PLQ
Saw blade dia. x hole dia. [PP
6DZEODGHWKLFNQHVVWRRWKWKLFNQHVV PP
Blade teeth
0D[&XWWLQJGHSWKDW PP
Weight without battery pack NJ
Noise Information
0HDVXUHGYDOXHVGHWHUPLQHGDFFRUGLQJWR(17\SLFDOO\WKH$ZHLJKWHGQRLVH
levels of the tool are:
6RXQGSUHVVXUHOHYHO8QFHUWDLQW\
6RXQGSRZHUOHYHO8QFHUWDLQW\
Wear ear protection!
L
pA
G%$.
pA
G%$
L
WA
G%$.
WA
G%$
Vibration Information
9LEUDWLRQWRWDOYDOXHVWULD[LDOYHFWRUVXPGHWHUPLQHGDFFRUGLQJWR(1
9LEUDWLRQHPLVVLRQYDOXH8QFHUWDLQW\
Cutting board a
h
=PV
. PV
WARNING!
The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in
accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of
exposure.
7KHGHFODUHGYLEUDWLRQDQGQRLVHHPLVVLRQYDOXHVUHSUHVHQWWKHPDLQDSSOLFDWLRQVRIWKHWRRO+RZHYHULIWKHWRROLVXVHGIRUGLႇHUHQW
DSSOLFDWLRQVXVHGZLWKGLႇHUHQWDFFHVVRULHVRUSRRUO\PDLQWDLQHGWKHYLEUDWLRQDQGQRLVHHPLVVLRQPD\GLႇHU7KHVHFRQGLWLRQVPD\
VLJQL¿FDQWO\LQFUHDVHWKHH[SRVXUHOHYHOVRYHUWKHWRWDOZRUNLQJSHULRG
$QHVWLPDWLRQRIWKHOHYHORIH[SRVXUHWRYLEUDWLRQDQGQRLVHVKRXOGWDNHLQWRDFFRXQWWKHWLPHVZKHQWKHWRROLVWXUQHGRႇRUZKHQLWLV
UXQQLQJLGOH7KHVHFRQGLWLRQVPD\VLJQL¿FDQWO\UHGXFHWKHH[SRVXUHOHYHORYHUWKHWRWDOZRUNLQJSHULRG
,GHQWLI\DGGLWLRQDOVDIHW\PHDVXUHVWRSURWHFWWKHRSHUDWRUIURPWKHHႇHFWVRIYLEUDWLRQDQGQRLVHVXFKDVPDLQWDLQLQJWKHWRRODQGWKH
accessories, keeping the hands warm (in case of vibration), and organising work patterns.
COMPATIBLE BATTERY PACKS (NOT INCLUDED)
/5
/6
$)%
/5
/5;
$%
/5
$)%
/5
$)%
/5
/5;
L1890R
8VH$(*9EDWWHU\DQGFKDUJHURQO\
WARNING! Read all safety warnings, instructions,
LOOXVWUDWLRQVDQGVSHFL¿FDWLRQVSURYLGHGZLWKWKLVSRZHUWRRO
Failure to follow all instructions listed below may result in electric
VKRFN¿UHDQGRUVHULRXVLQMXU\6DYHDOOZDUQLQJVDQGLQVWUXFWLRQ
for future reference.
CIRCULAR SAW SAFETY WARNINGS
Cutting procedures
'$1*(5.HHSKDQGVDZD\IURPFXWWLQJDUHDDQGWKHEODGH
.HHS\RXUVHFRQGKDQGRQDX[LOLDU\KDQGOHRUPRWRUKRXVLQJ If
both hands are holding the saw, they cannot be cut by the blade.
'RQRWUHDFKXQGHUQHDWKWKHZRUNSLHFH The guard cannot protect
you from the blade below the workpiece.
$GMXVWWKHFXWWLQJGHSWKWRWKHWKLFNQHVVRIWKHZRUNSLHFH
Less than a full tooth of the blade teeth should be visible below the
workpiece.
1HYHUKROGWKHZRUNSLHFHLQ\RXUKDQGVRUDFURVV\RXUOHJ
ZKLOHFXWWLQJ6HFXUHWKHZRUNSLHFHWRDVWDEOHSODWIRUP It is
important to support the work properly to minimise body exposure,
blade binding, or loss of control.
+ROGWKHSRZHUWRROE\LQVXODWHGJULSSLQJVXUIDFHVZKHQ
SHUIRUPLQJDQRSHUDWLRQZKHUHWKHFXWWLQJWRROPD\FRQWDFW
KLGGHQZLULQJ&RQWDFWZLWKD³OLYH´ZLUHZLOODOVRPDNHH[SRVHG
PHWDOSDUWVRIWKHSRZHUWRRO³OLYH´DQGFRXOGJLYHWKHRSHUDWRUDQ
electric shock.
:KHQULSSLQJDOZD\VXVHDULSIHQFHRUVWUDLJKWHGJHJXLGH
This improves the accuracy of cut and reduces the chance of blade
binding.
$OZD\VXVHEODGHVZLWKFRUUHFWVL]HDQGVKDSHGLDPRQG
YHUVXVURXQGRIDUERXUKROHV Blades that do not match the
PRXQWLQJKDUGZDUHRIWKHVDZZLOOUXQRႇFHQWUHFDXVLQJORVVRI
control.
1HYHUXVHGDPDJHGRULQFRUUHFWEODGHZDVKHUVRUEROW The
blade washers and bolt were specially designed for your saw, for
optimum performance and safety of operation.
.LFNEDFNFDXVHVDQGUHODWHGZDUQLQJV
• kickback is a sudden reaction to a pinched, jammed or misaligned
saw blade, causing an uncontrolled saw to lift up and out of the
workpiece toward the operator;
• when the blade is pinched or jammed tightly by the kerf closing
down, the blade stalls and the motor reaction drives the unit
rapidly back toward the operator;
• if the blade becomes twisted or misaligned in the cut, the teeth
at the back edge of the blade can dig into the top surface of the
wood causing the blade to climb out of the kerf and jump back
toward the operator.
.LFNEDFNLVWKHUHVXOWRIVDZPLVXVHDQGRULQFRUUHFWRSHUDWLQJ
procedures or conditions and can be avoided by taking proper
precautions as given below.
0DLQWDLQD¿UPJULSZLWKERWKKDQGVRQWKHVDZDQGSRVLWLRQ
\RXUDUPVWRUHVLVWNLFNEDFNIRUFHV3RVLWLRQ\RXUERG\WR
HLWKHUVLGHRIWKHEODGHEXWQRWLQOLQHZLWKWKHEODGH.LFNEDFN
could cause the saw to jump backwards, but kickback forces can be
controlled by the operator, if proper precautions are taken.
:KHQEODGHLVELQGLQJRUZKHQLQWHUUXSWLQJDFXWIRUDQ\
UHDVRQUHOHDVHWKHWULJJHUDQGKROGWKHVDZPRWLRQOHVVLQ
WKHPDWHULDOXQWLOWKHEODGHFRPHVWRDFRPSOHWHVWRS1HYHU
DWWHPSWWRUHPRYHWKHVDZIURPWKHZRUNRUSXOOWKHVDZ
EDFNZDUGZKLOHWKHEODGHLVLQPRWLRQRUNLFNEDFNPD\RFFXU
26
ENGLISH
Investigate and take corrective actions to eliminate the cause of
blade binding.
:KHQUHVWDUWLQJDVDZLQWKHZRUNSLHFHFHQWUHWKHVDZEODGHLQ
WKHNHUIVRWKDWWKHVDZWHHWKDUHQRWHQJDJHGLQWRWKHPDWHULDO
If a saw blade binds, it may walk up or kickback from the workpiece
as the saw is restarted.
6XSSRUWODUJHSDQHOVWRPLQLPLVHWKHULVNRIEODGHSLQFKLQJ
DQGNLFNEDFN Large panels tend to sag under their own weight.
Supports must be placed under the panel on both sides, near the
line of cut and near the edge of the panel.
'RQRWXVHGXOORUGDPDJHGEODGHV8QVKDUSHQHGRULPSURSHUO\
set blades produce narrow kerf causing excessive friction, blade
binding and kickback.
%ODGHGHSWKDQGEHYHODGMXVWLQJORFNLQJOHYHUVPXVWEHWLJKW
DQGVHFXUHEHIRUHPDNLQJWKHFXW If blade adjustment shifts while
cutting, it may cause binding and kickback.
8VHH[WUDFDXWLRQZKHQVDZLQJLQWRH[LVWLQJZDOOVRURWKHU
EOLQGDUHDV The protruding blade may cut objects that can cause
kickback.
Lower guard function
&KHFNWKHORZHUJXDUGIRUSURSHUFORVLQJEHIRUHHDFKXVH'R
QRWRSHUDWHWKHVDZLIWKHORZHUJXDUGGRHVQRWPRYHIUHHO\
DQGFORVHLQVWDQWO\1HYHUFODPSRUWLHWKHORZHUJXDUGLQWRWKH
RSHQSRVLWLRQ If the saw is accidentally dropped,the lower guard
may be bent. Raise the lower guard with the retracting handle and
make sure it moves freely and does not touch the blade or any other
part, in all angles and depths of cut.
&KHFNWKHRSHUDWLRQRIWKHORZHUJXDUGVSULQJ,IWKHJXDUGDQG
WKHVSULQJDUHQRWRSHUDWLQJSURSHUO\WKH\PXVWEHVHUYLFHG
EHIRUHXVH Lower guard may operate sluggishly due to damaged
SDUWVJXPP\GHSRVLWVRUDEXLOGXSRIGHEULV
7KHORZHUJXDUGPD\EHUHWUDFWHGPDQXDOO\RQO\IRUVSHFLDO
FXWVVXFKDV³SOXQJHFXWV´DQG³FRPSRXQGFXWV´5DLVHWKH
ORZHUJXDUGE\WKHUHWUDFWLQJKDQGOHDQGDVVRRQDVWKHEODGH
HQWHUVWKHPDWHULDOWKHORZHUJXDUGPXVWEHUHOHDVHG For all
other sawing, the lower guard should operate automatically.
$OZD\VREVHUYHWKDWWKHORZHUJXDUGLVFRYHULQJWKHEODGH
EHIRUHSODFLQJWKHVDZGRZQRQEHQFKRUÀRRU An unprotected,
coasting blade will cause the saw to walk backwards, cutting
whatever is in its path. Be aware of the time it takes for the blade to
stop after switch is released.
ADDITIONAL SAFETY AND WORKING INSTRUCTIONS
Do not use any abrasive wheels.
8VHRQO\EODGHGLDPHWHUVLQDFFRUGDQFHZLWKWKHPDUNLQJV
Identify the correct saw blade to be used for the material to be cut.
8VHRQO\VDZEODGHVWKDWDUHPDUNHGZLWKDVSHHGHTXDORUKLJKHU
than the speed marked on the tool.
8VHRQO\VDZEODGHVUHFRPPHQGHGE\WKHPDQXIDFWXUHUZKLFK
FRQIRUPWR(1LILQWHQGHGIRUZRRGDQGDQDORJRXVPDWHULDOV
Wear a dust mask.
&ODPSWKHZRUNSLHFHZLWKDFODPSLQJGHYLFH8QFODPSHG
workpieces can cause severe injury and damage.
Dirty blade guards may limit proper operation of the product,
resulting in serious personal injury. Clean the blade guards with
compressed air to ensure there is no accumulation of saw dust.
Wear proper eye and respiratory protection.
Raise the lower guard by the lever and ensure that the lower guard
returns to the original position. If the lower guard does not function
properly. Stop using the product and have it repaired.
7KHSURGXFWZLOOUHVWDUWDXWRPDWLFDOO\LIVWDOOHG7XUQRႇWKHSURGXFW
immediately if it stalls. Do not turn on the product again while it is
still stalled, as doing so could trigger a sudden recoil with a high
reactive force. Determine why the product stalled and rectify this,
paying heed to the safety instructions.
Remove the battery pack before starting any work on the product.
Ambient temperature range for tool during operation is between 0°C
DQG&
Ambient temperature range for tool storage is between 0°C and
&
The recommended ambient temperature range for the charging
V\VWHPGXULQJFKDUJLQJLVEHWZHHQ&DQG&
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING!7RUHGXFHWKHULVNRI¿UHSHUVRQDOLQMXU\DQG
product damage due to a short circuit, never immerse your tool,
EDWWHU\SDFNRUFKDUJHULQÀXLGRUDOORZDÀXLGWRÀRZLQVLGHWKHP
&RUURVLYHRUFRQGXFWLYHÀXLGVVXFKDVVHDZDWHUFHUWDLQLQGXVWULDO
chemicals, and bleach or bleach containing products, etc., can
cause a short circuit.
Do not dispose of used battery packs in the household refuse or
E\EXUQLQJWKHP$(*'LVWULEXWRUVRႇHUWRUHWULHYHROGEDWWHULHVWR
protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
8VHRQO\6\VWHP$(*FKDUJHUVIRUFKDUJLQJ6\VWHP$(*EDWWHU\
packs. Do not use battery packs from other systems.
No metal parts must be allowed to enter the battery section of the
charger (short circuit risk).
Never break open battery packs and chargers and store only in dry
URRPV.HHSGU\DWDOOWLPHV
Battery acid may leak from damaged batteries under extreme load
or extreme temperatures. In case of contact with battery acid wash
LWRႇLPPHGLDWHO\ZLWKVRDSDQGZDWHU,QFDVHRIH\HFRQWDFWULQVH
thoroughly for at least 10 minutes and immediately seek medical
attention.
Ambient temperature range for battery during use is between 0°C
DQG&
Ambient temperature range for battery storage is between 0°C and
&
SPECIFIED CONDITIONS OF USE
7KHFLUFXODUVDZLVLQWHQGHGIRUULSFXWWLQJDQGFURVVFXWWLQJRIZRRG
RUVLPLODUPDWHULDOVXSWRDPD[LPXPGHSWKRIPP7KHSURGXFW
FDQPDNHVWUDLJKWRUEHYHOOHGFXWVEHWZHHQDQGGHJUHHV
The product is to be used with the base of the tool in contact with
WKHZRUNSLHFH,WVKRXOGRQO\EHXVHGLQDGU\ZHOOOLWDQGZHOO
ventilated area.
The product is designed for handheld use. The product is not to be
mounted onto a workbench. Do not use the product for cutting metal
or masonry.
Do not use the product for any other purpose.
BATTERIES
Battery packs which have not been used for some time should be
recharged before use.
7HPSHUDWXUHVLQH[FHVVRI&)UHGXFHWKHSHUIRUPDQFHRI
the battery pack. Avoid extended exposure to heat or sunshine (risk
of overheating).
The contacts of chargers and battery packs must be kept clean.
)RUDQRSWLPXPOLIHWLPHWKHEDWWHU\SDFNVKDYHWREHIXOO\FKDUJHG
after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
)RUEDWWHU\SDFNVWRUDJHORQJHUWKDQGD\V
• 6WRUHWKHEDWWHU\SDFNZKHUHWKHWHPSHUDWXUHLVEHORZ&DQG
away from moisture.
• 6WRUHWKHEDWWHU\SDFNVLQDFKDUJHGFRQGLWLRQ
• Every six months of storage, charge the pack as normal.
TRANSPORTING LITHIUM BATTERIES
/LWKLXPLRQEDWWHULHVDUHVXEMHFWWRWKH'DQJHURXV*RRGV
/HJLVODWLRQUHTXLUHPHQWV
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
• The user can transport the batteries by road without further
UHTXLUHPHQWV
• &RPPHUFLDOWUDQVSRUWRI/LWKLXP,RQEDWWHULHVE\WKLUGSDUWLHVLV
VXEMHFWWR'DQJHURXV*RRGVUHJXODWLRQV7UDQVSRUWSUHSDUDWLRQ
and transport are exclusively to be carried out by appropriately
27
trained persons and the process has to be accompanied by
corresponding experts.
:KHQWUDQVSRUWLQJEDWWHULHV
• Ensure that battery contact terminals are protected and insulated
to prevent short circuit.
• Ensure that battery pack is secured against movement within
packaging.
• Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice.
BATTERY PACK PROTECTION LI-ION BATTERY
The battery pack has overload protection that protects it from being
RYHUORDGHGDQGKHOSVWRHQVXUHORQJOLIH8QGHUH[WUHPHVWUHVVWKH
battery electronics switch off the machine automatically. To restart,
switch the machine off and then on again. If the machine does not
start up again, the battery pack may have discharged completely. In
this case it must be recharged in the battery charger.
MAINTENANCE
Clean the product and guarding system with clean cloths or brushes.
The ventilation slots of the machine must be kept clear at all times.
8VHRQO\$(*DFFHVVRULHVDQG$(*VSDUHSDUWV6KRXOG
components need to be replaced which have not been described,
SOHDVHFRQWDFWRQHRIRXU$(*VHUYLFHDJHQWVVHHRXUOLVWRI
JXDUDQWHHVHUYLFHDGGUHVVHV
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label and
order the drawing at your local service agents or directly at:
7HFKWURQLF,QGXVWULHV$XVWUDOLD3W\/WG
32%R[
0RXQW:DYHUOH\9,&
7HOQR
Australia
7HFKWURQLF,QGXVWULHV1=/LPLWHG
32%R[
3HQURVH$8&./$1'
7HOQR$(*3:5
New Zealand
MAINTENANCE
8VHRQO\$(*DFFHVVRULHVDQGVSDUHSDUWV6KRXOGFRPSRQHQWV
that have not been described need to be replaced, contact one
RIRXU$(*VHUYLFHDJHQWVVHHRXUOLVWRIJXDUDQWHHVHUYLFH
addresses).
If needed, an exploded view of the product can be ordered. State
the product type and the serial number printed on the label,
and order the drawing at your local service agents or directly
DW7HFKWURQLF,QGXVWULHV*PE+0D[(\WK6WUDH
:LQQHQGHQ*HUPDQ\

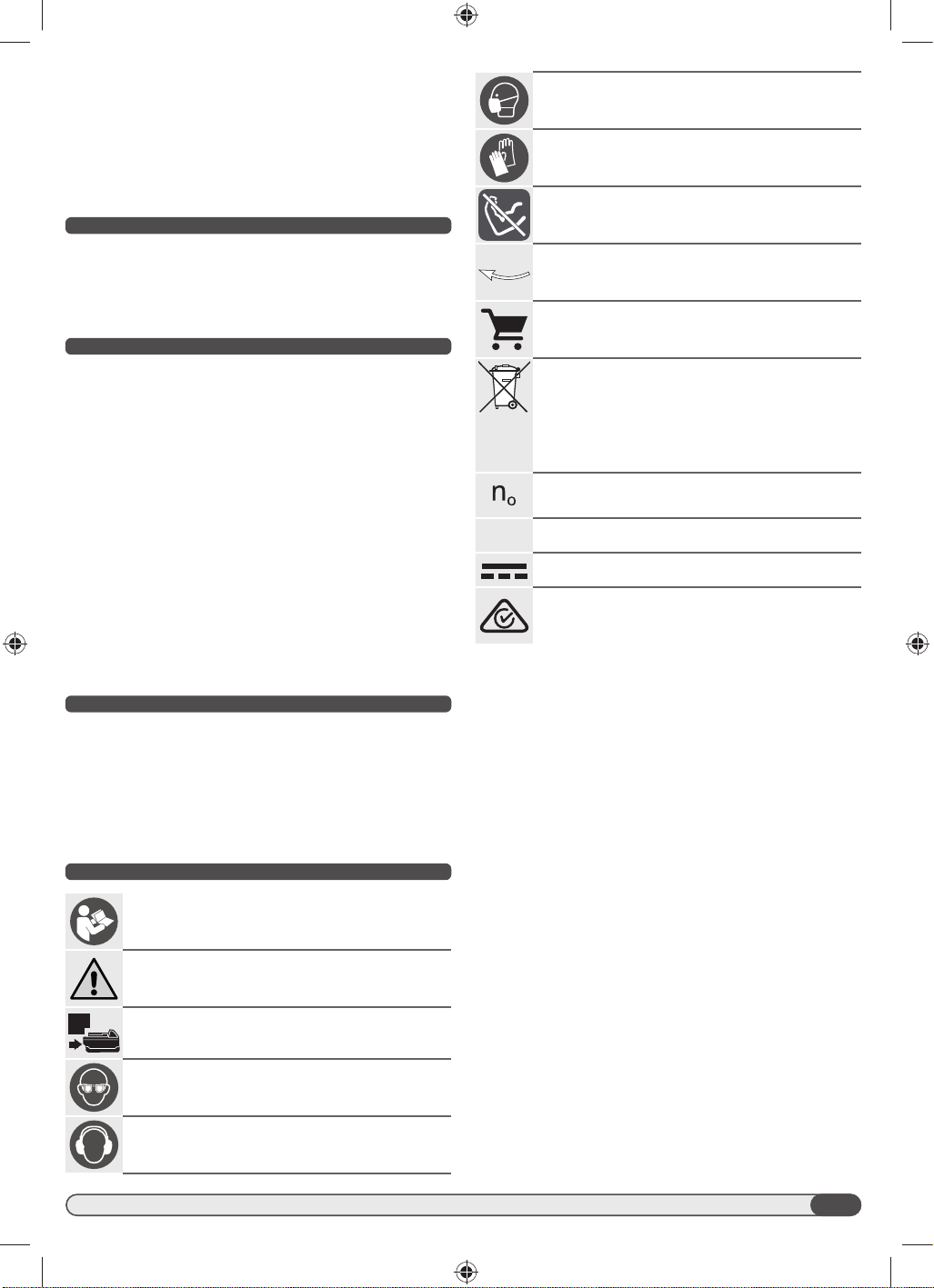

SYMBOLS
Read the instructions carefully before starting the
product.
&$87,21:$51,1*'$1*(5
Remove the battery pack before starting any work on
the product.
Wear eye protection.
Wear ear protectors.
Wear a suitable dust protection mask.
Wear protective gloves.
Do not use force.
Rotation direction
$FFHVVRU\1RWLQFOXGHGLQVWDQGDUGHTXLSPHQW
available as an accessory.
'RQRWGLVSRVHRIHOHFWULFWRROVEDWWHULHVUHFKDUJHDEOH
batteries together with household waste material.
Electric tools and batteries that have reached the end
of their life must be collected separately and returned
to an environmentally compatible recycling facility.
Check with your local authority or retailer for recycling
advice and collection point.
1RORDGVSHHG
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product
PHHWVDSSOLFDEOHUHJXODWRU\UHTXLUHPHQWV
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
AEG is a registered trade mark used under
license from AB Electrolux (publ).
961096824-01B
