ZKTeco EFACE10 User Manual

Product Name and Model Number User Manual

Thank you for choosing our product. Please read the instructions carefully

before operation. Follow these instructions to ensure that the product is

functioning properly. The images shown in this manual are for illustrative

purposes only.

For further details, please visit our Company’s website

www.zkteco.com.

User Manual

EFace10

Date: March 2021

Doc Version: 1.0

English

EFace10 User Manual

Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any

way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or

"ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this manual are owned by

their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco equipment. The

the property of ZKTeco. The contents hereof should not be used or shared by the receiver with any third

party without express written permission of ZKTeco.

The contents of this manual must be read as a whole before starting the operation and maintenance of the

supplied equipment. If any of the content(s) of the manual seems unclear or incomplete, please contact

ZKTeco before starting the operation and maintenance of the said equipment.

It is an essential pre-requisite for the satisfactory operation and maintenance that the operating and

maintenance personnel are fully familiar with the design and that the said personnel have received

thorough training in operating and maintaining the machine/unit/equipment. It is further essential for the

safe operation of the machine/unit/equipment that personnel has read, understood and followed the

safety instructions contained in the manual.

In case of any conflict between terms and conditions of this manual and the contract specifications,

drawings, instruction sheets or any other contract-related documents, the contract conditions/documents

shall prevail. The contract specific conditions/documents shall apply in priority.

ZKTeco offers no warranty, guarantee or representation regarding the completeness of any information

contained in this manual or any of the amendments made thereto. ZKTeco does not extend the warranty

of any kind, including, without limitation, any warranty of design, merchantability or fitness for a particular

purpose.

ZKTeco does not assume responsibility for any errors or omissions in the information or documents which

are referenced by or linked to this manual. The entire risk as to the results and performance obtained from

using the information is assumed by the user.

ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect,

special, or exemplary damages, including, without limitation, loss of business, loss of profits, business

interruption, loss of business information or any pecuniary loss, arising out of, in connection with, or

EFace10 User Manual

relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been

advised of the possibility of such damages.

This manual and the information contained therein may include technical, other inaccuracies or

typographical errors. ZKTeco periodically changes the information herein which will be incorporated into

new additions/amendments to the manual. ZKTeco reserves the right to add, delete, amend or modify the

information contained in the manual from time to time in the form of circulars, letters, notes, etc. for better

operation and safety of the machine/unit/equipment. The said additions or amendments are meant for

improvement /better operations of the machine/unit/equipment and such amendments shall not give any

right to claim any compensation or damages under any circumstances.

ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions due to any

non-compliance of the instructions contained in this manual (ii) in case of operation of the

machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in

conditions different from the prescribed conditions of the manual.

The product will be updated from time to time without prior notice. The latest operation procedures and

relevant documents are available on http://www.zkteco.com

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business related queries, please write to us at: sales@zkteco.com

To know more about our global branches, visit www.zkteco.com.

EFace10 User Manual

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein)

readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition

Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and

Consumer products including battery-operated fingerprint and face-reader Door Locks. Our security

solutions are multi-lingual and localized in over 18 different languages. At the ZKTeco state-of-the-art

700,000 square foot ISO9001-certified manufacturing facility, we control manufacturing, product design,

component assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and development of biometric

verification procedures and the productization of biometric verification SDK, which was initially widely

applied in PC security and identity authentication fields. With the continuous enhancement of the

development and plenty of market applications, the team has gradually constructed an identity

authentication ecosystem and smart security ecosystem, which are based on biometric verification

techniques. With years of experience in the industrialization of biometric verifications, ZKTeco was

officially established in 2007 and now has been one of the globally leading enterprises in the biometric

verification industry owning various patents and being selected as the National High-tech Enterprise for 6

consecutive years. Its products are protected by intellectual property rights.

About the Manual

This manual introduces the operations of EFace10 Product.

All figures displayed are for illustration purposes only. Figures in this manual may not be exactly consistent

with the actual products.

Features and parameters with ★ are not available in all devices.

EFace10 User Manual

Document Conventions

Conventions used in this manual are listed below:

GUI Conventions

For Software

Convention Description

Bold font Used to identify software interface names e.g., OK, Confirm, Cancel

Multi-level menus are separated by these brackets. For example, File > Create >

Folder.

For Device

Convention Description

< >

Button or key names for devices. For example, press <OK>

[ ]

Window names, menu items, data table, and field names are inside square

brackets. For example, pop up the [New User] window

Multi-

level menus are separated by forwarding slashes. For example,

[File/Create/Folder].

Symbols

Convention Description

This implies about the notice or pays attention to, in the manual

The general information which helps in performing the operations faster

The information which is significant

Care taken to avoid danger or mistakes

The statement or event that warns of something or that serves as a cautionary

example.

EFace10 User Manual

Table of Contents

SAFETY MEASURES ..................................................................................................................................... 7

1 INSTRUCTION FOR USE ....................................................................................................................... 8

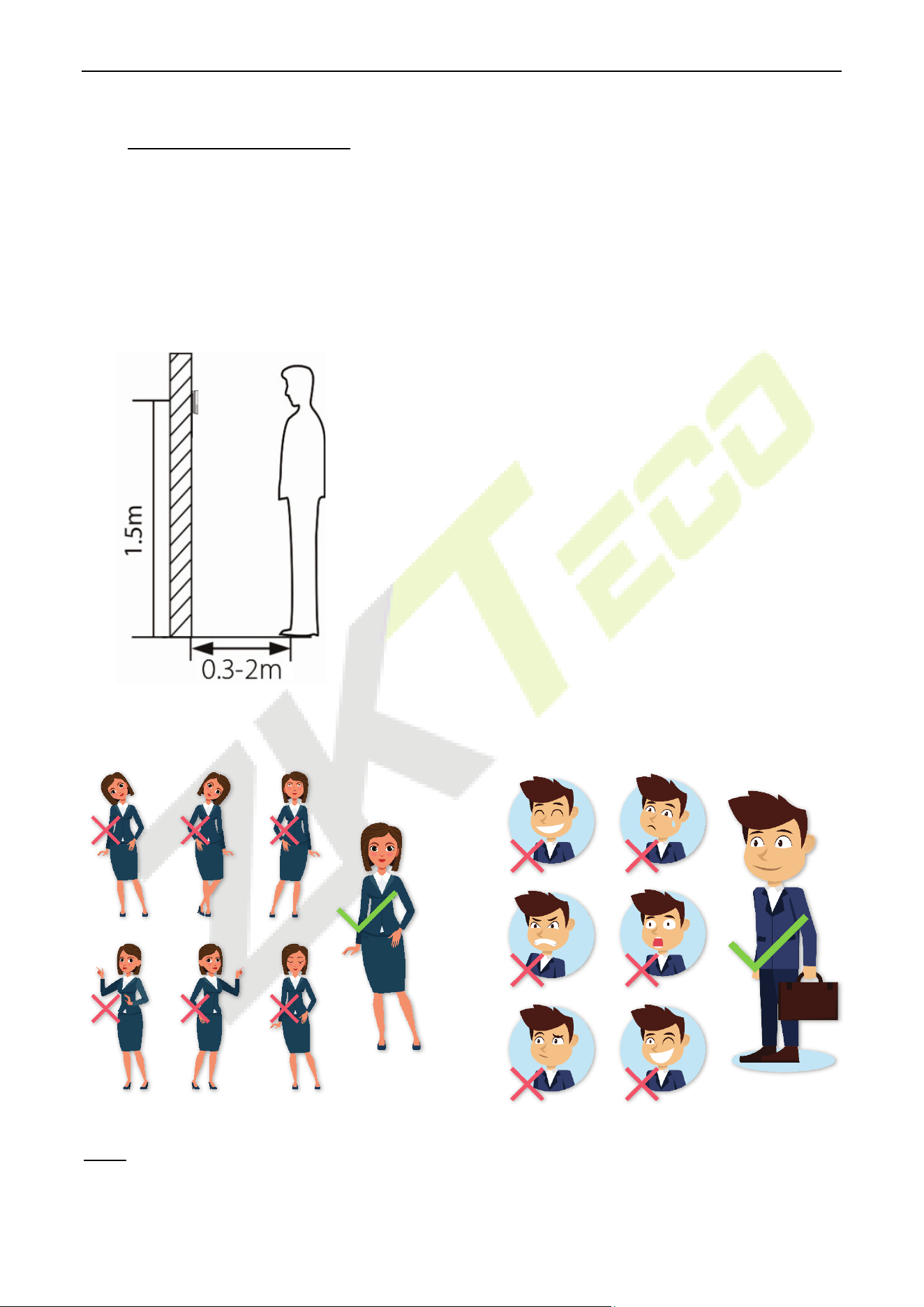

STANDING POSITION, FACIAL EXPRESSION AND STANDING POSTURE .................................................................................................... 8 1.1

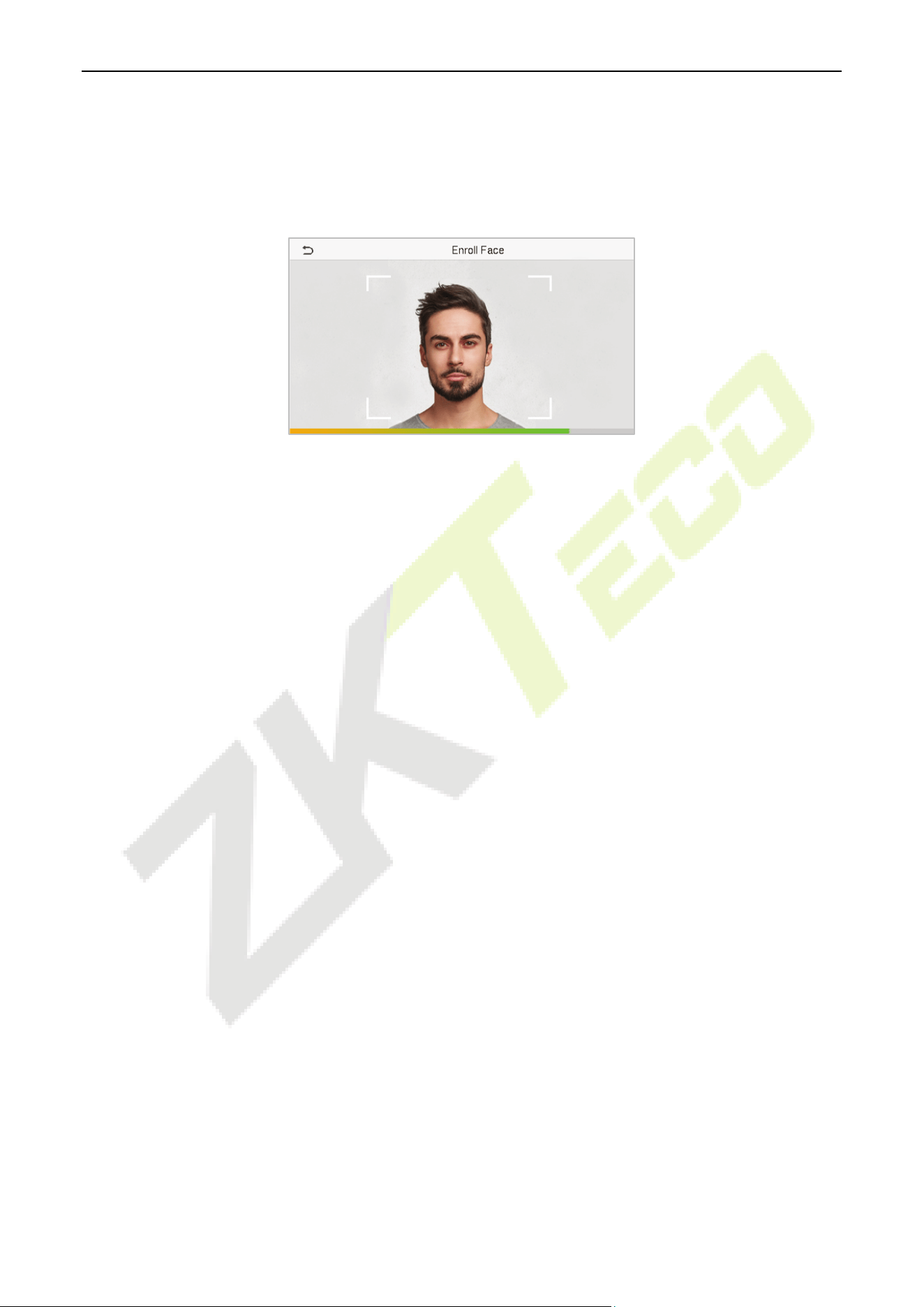

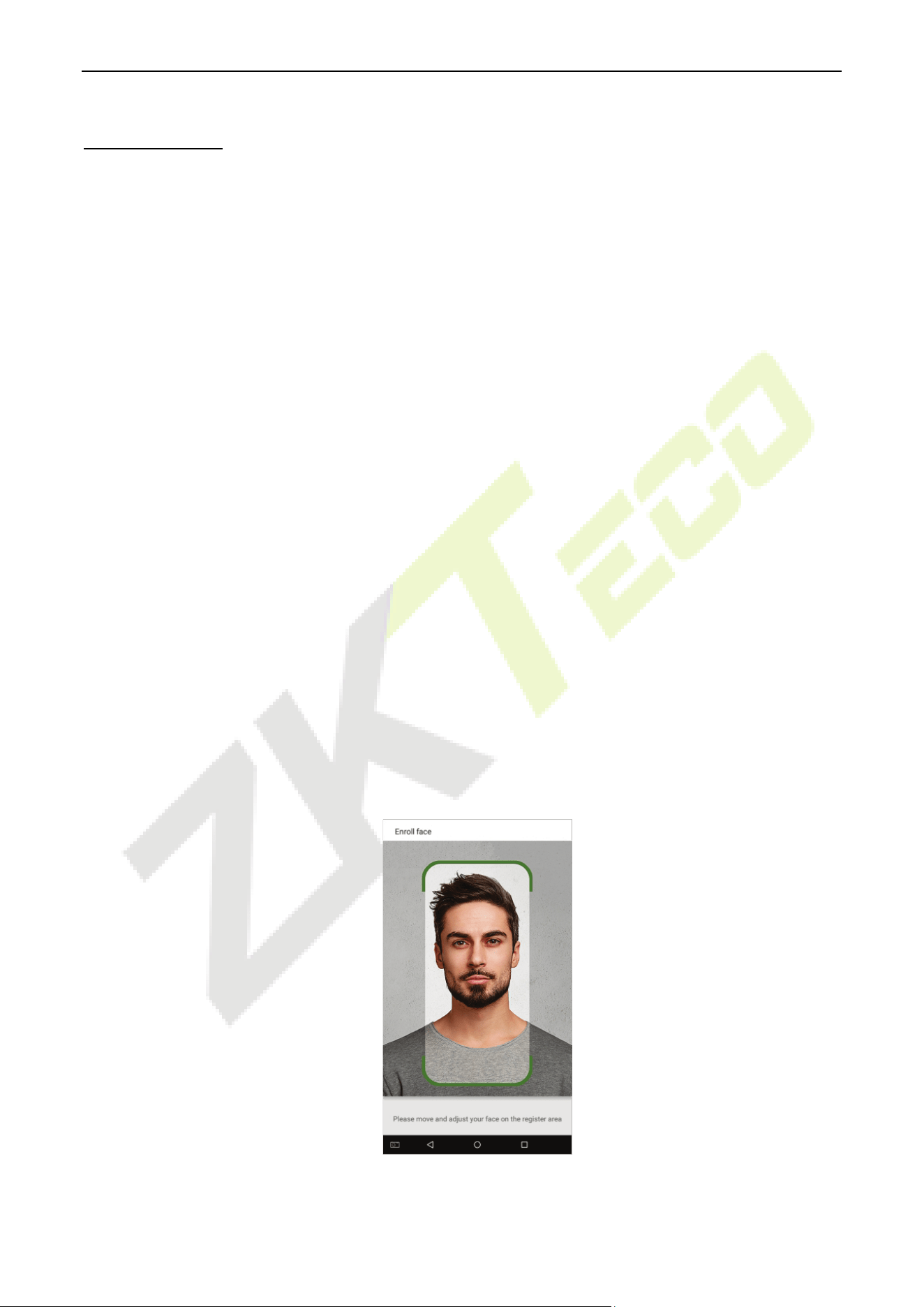

FACE REGISTRATION .................................................................................................................................................................................. 9 1.2

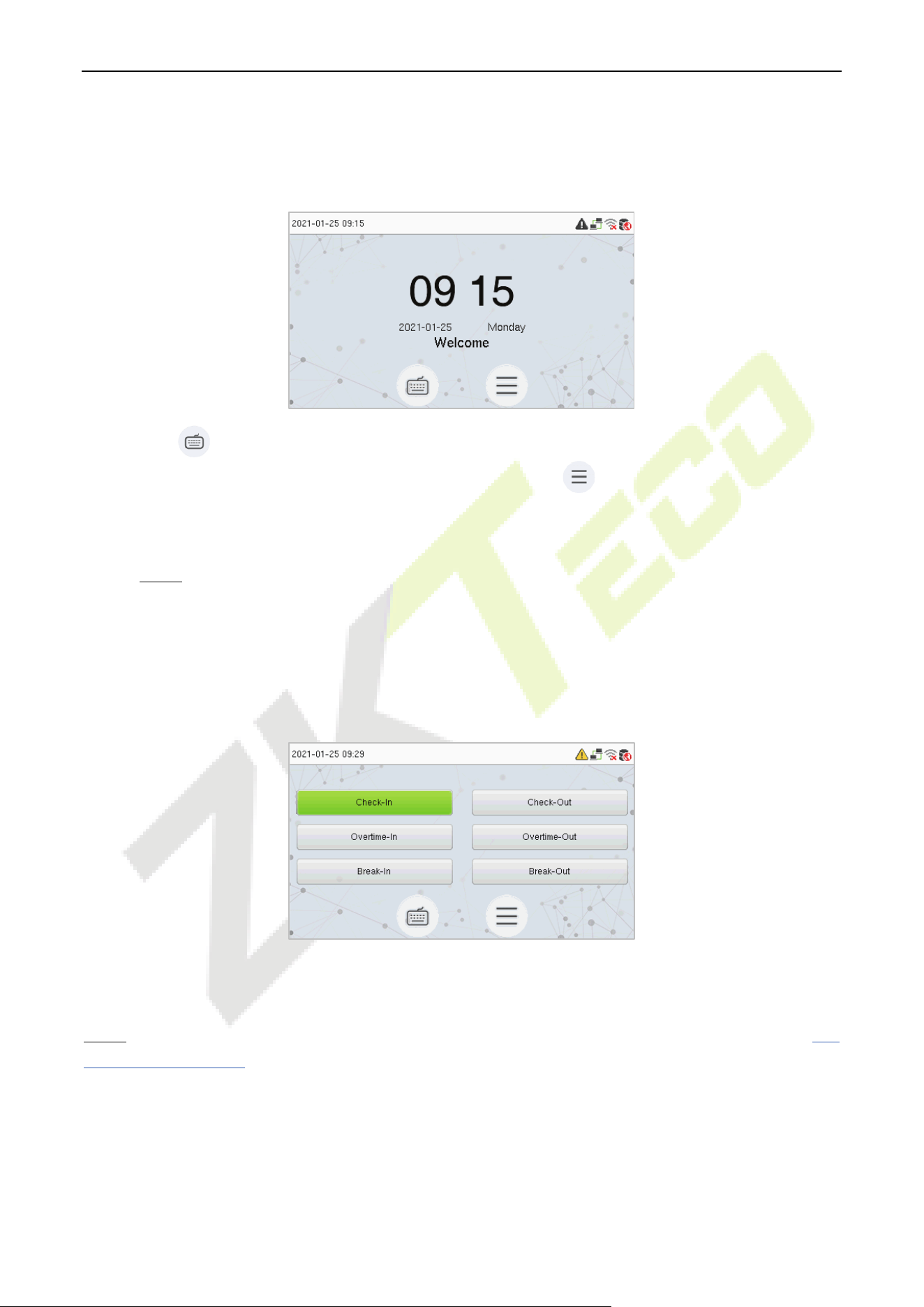

STANDBY INTERFACE ............................................................................................................................................................................... 10 1.3

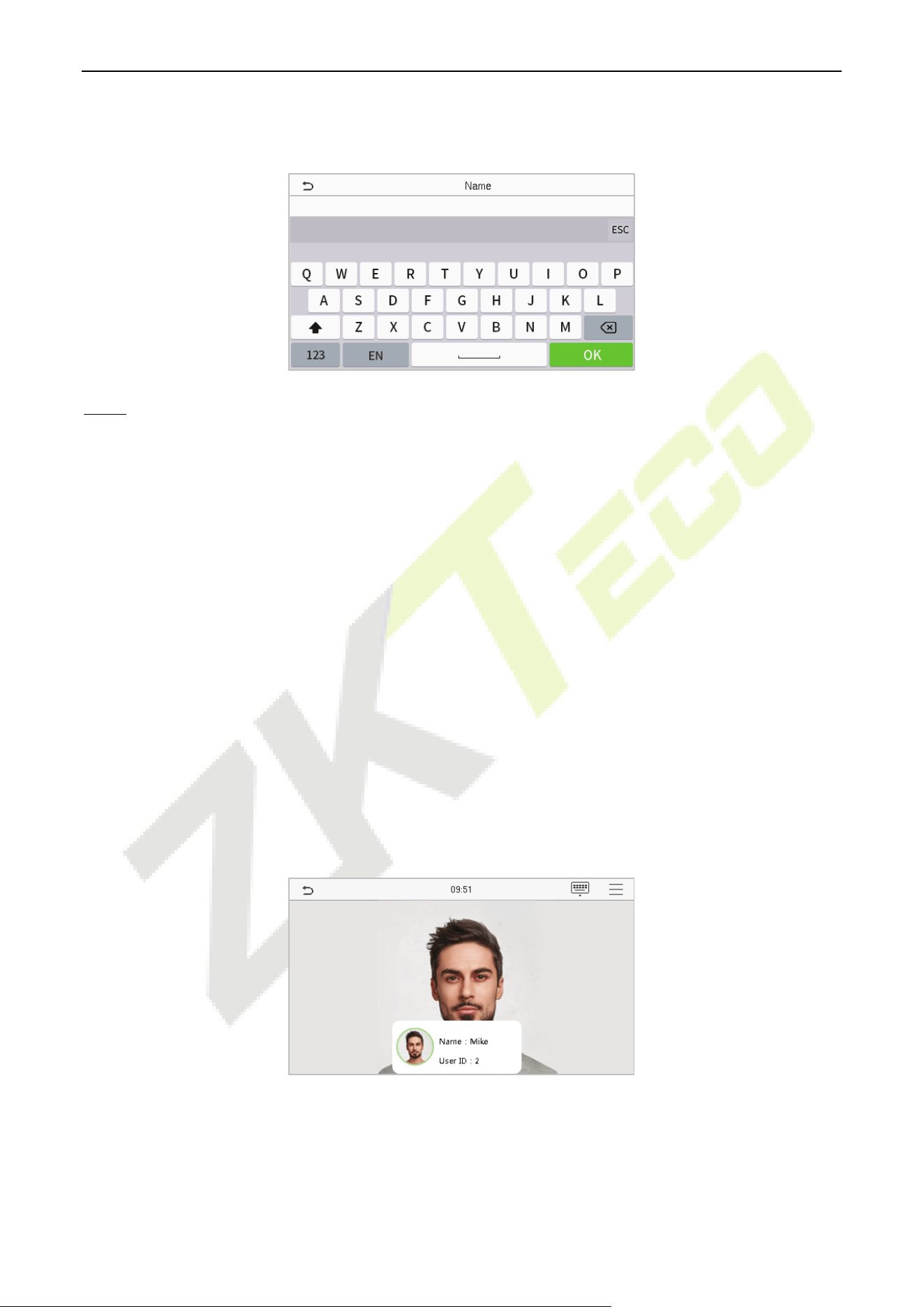

VIRTUAL KEYBOARD ................................................................................................................................................................................ 11 1.4

VERIFICATION MODE............................................................................................................................................................................... 11 1.5

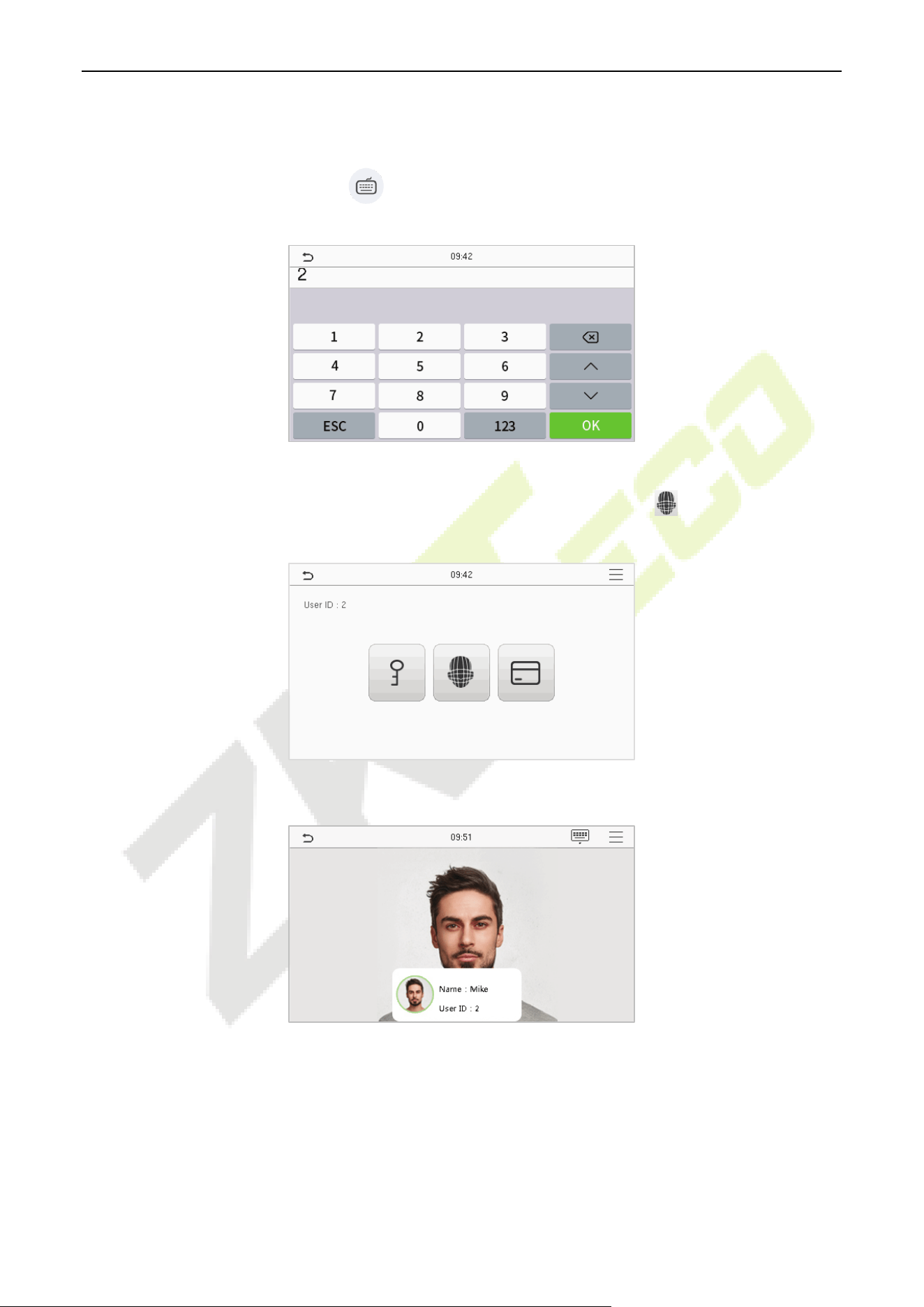

1.5.1 FACIAL VERIFICATION ...................................................................................................................................................................................... 11

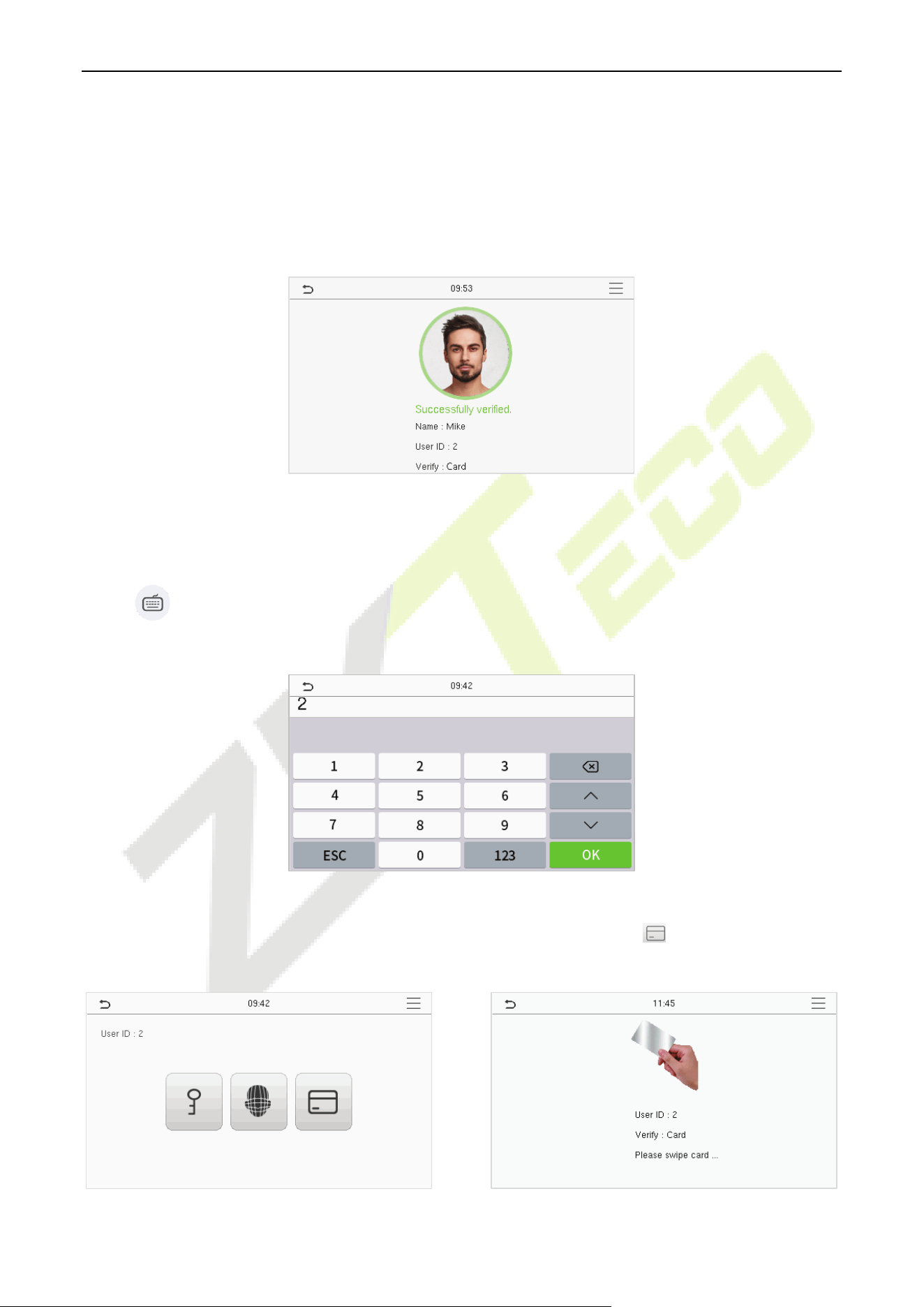

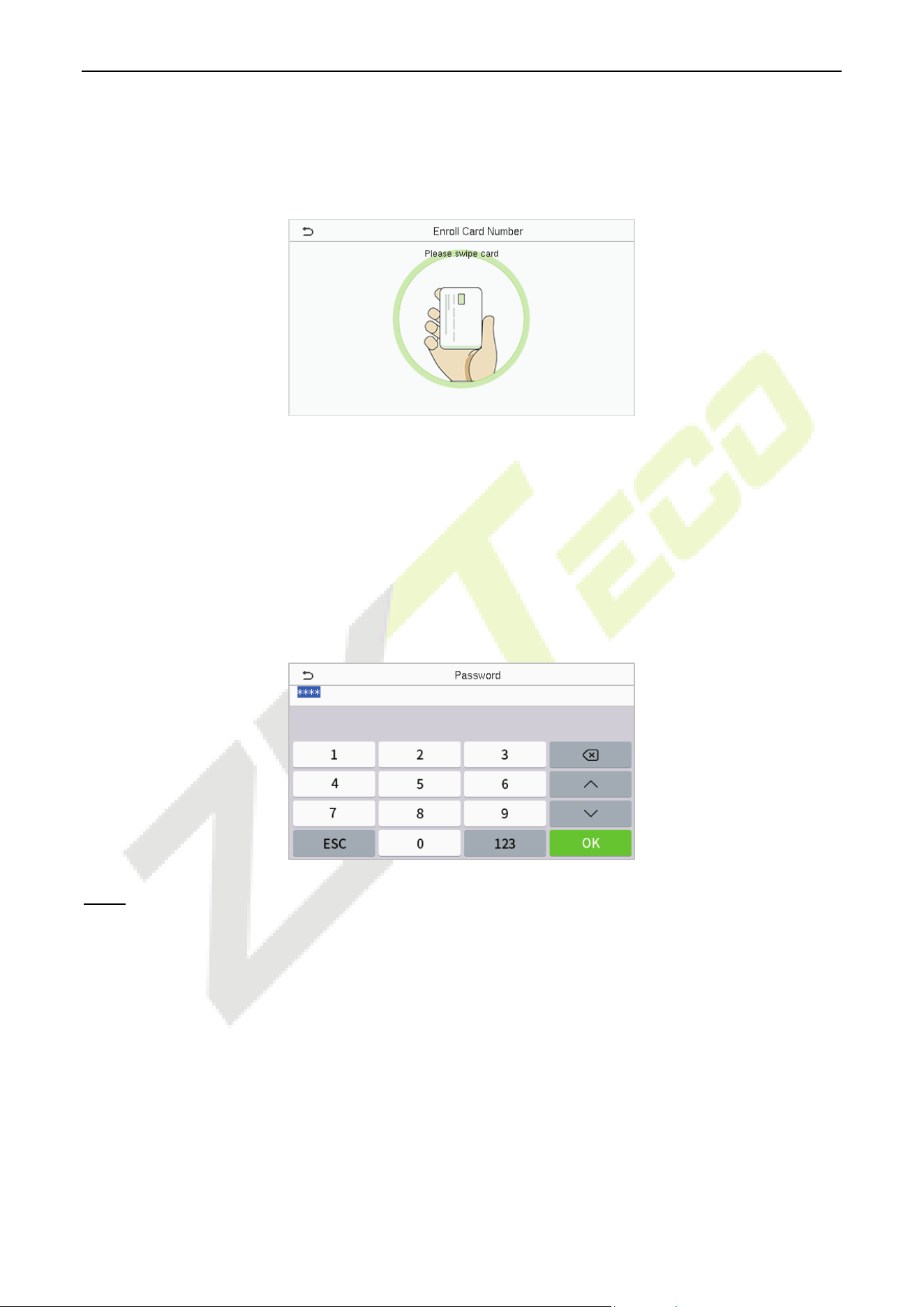

1.5.2 CARD VERIFICATION★ .................................................................................................................................................................................... 13

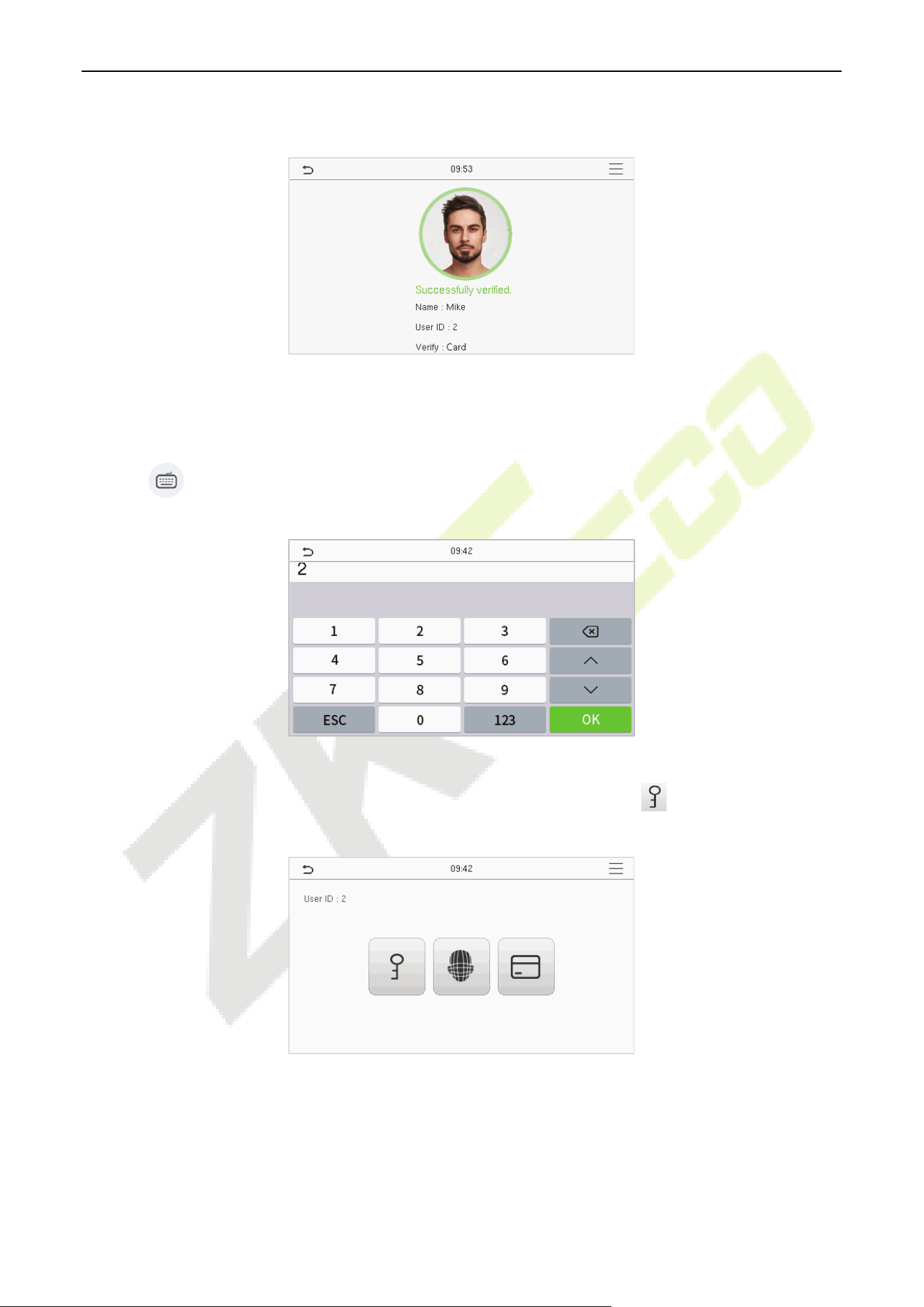

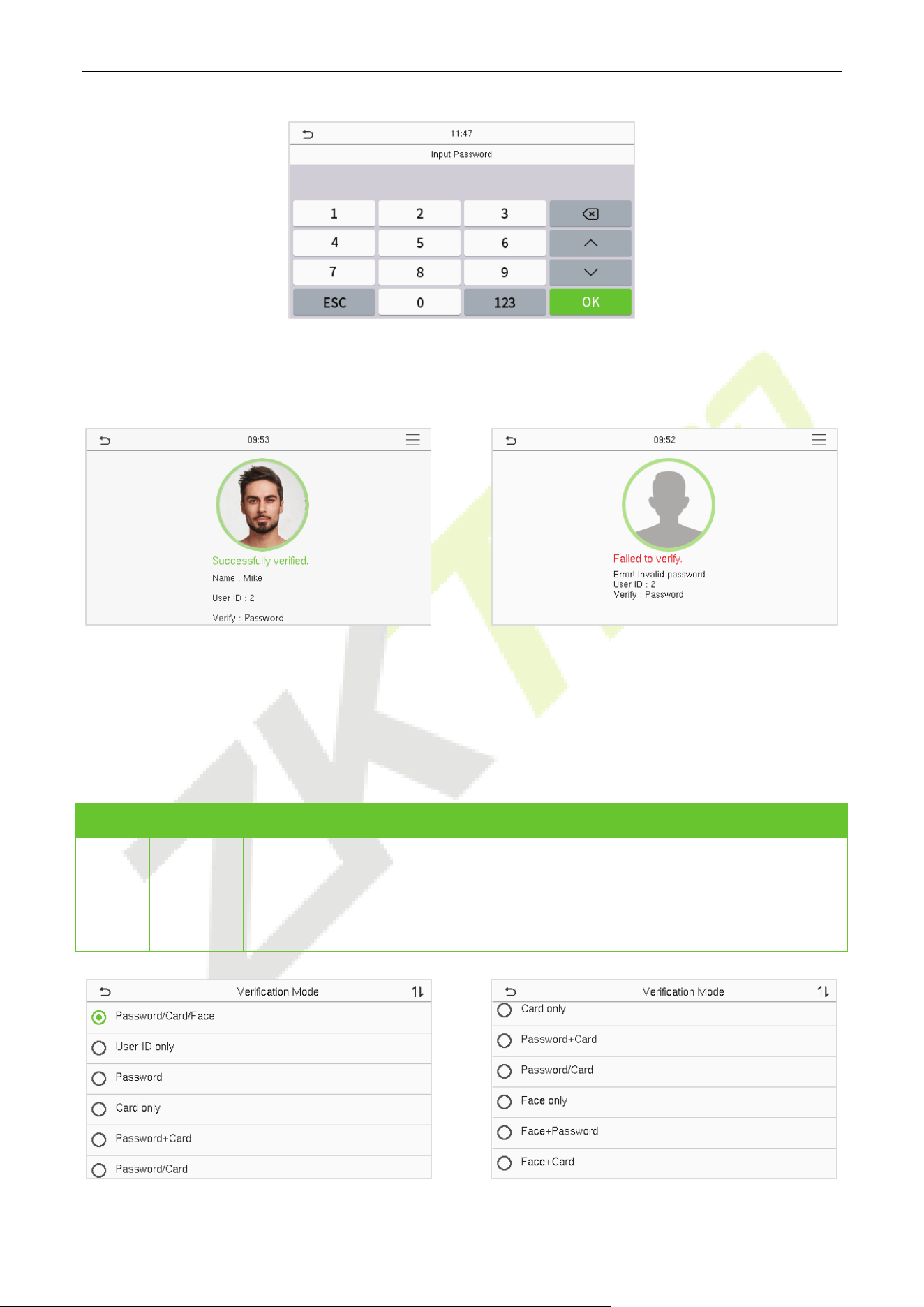

1.5.3 PASSWORD VERIFICATION ............................................................................................................................................................................. 14

1.5.4 COMBINED VERIFICATION .............................................................................................................................................................................. 15

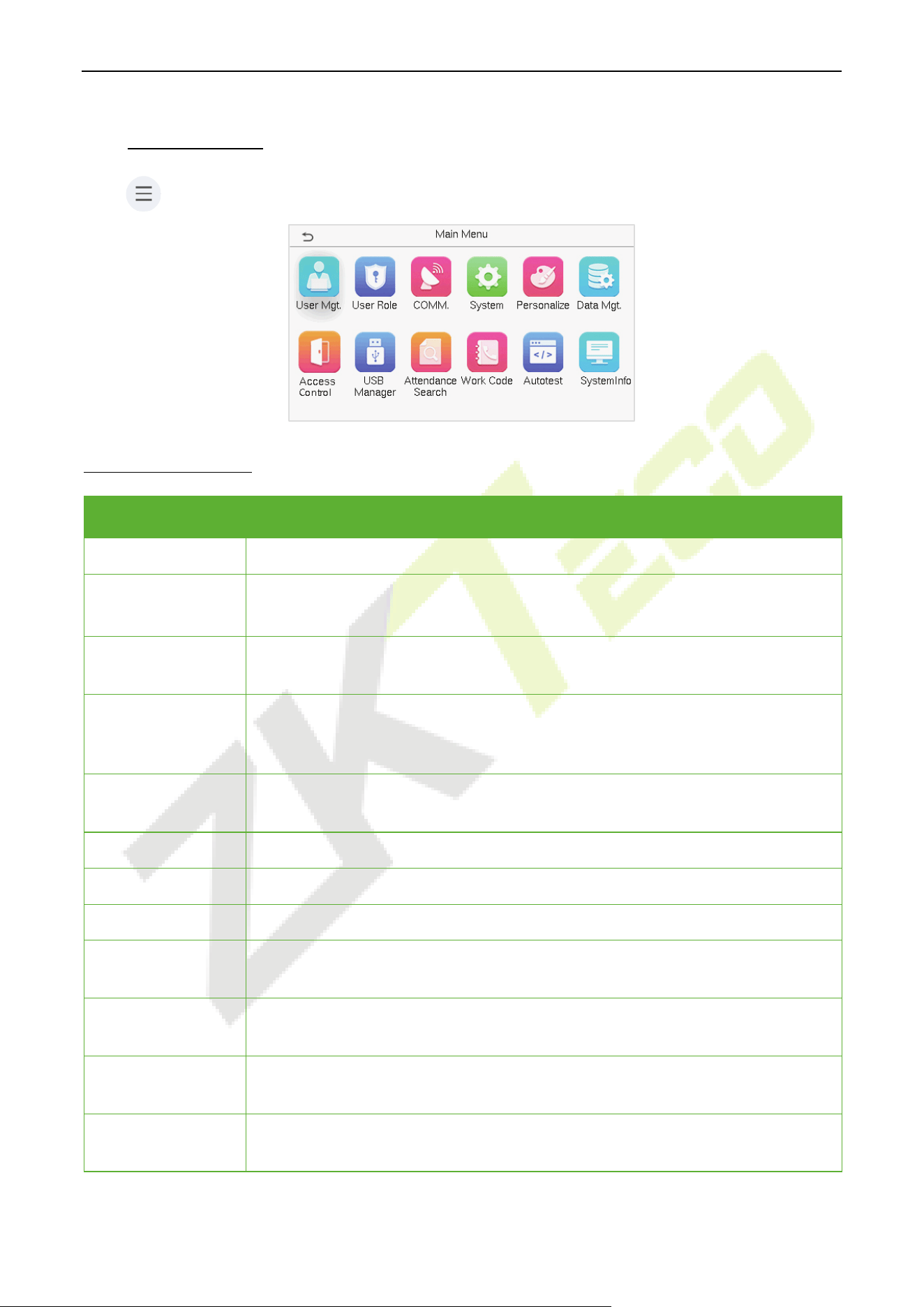

2 MAIN MENU ....................................................................................................................................... 17

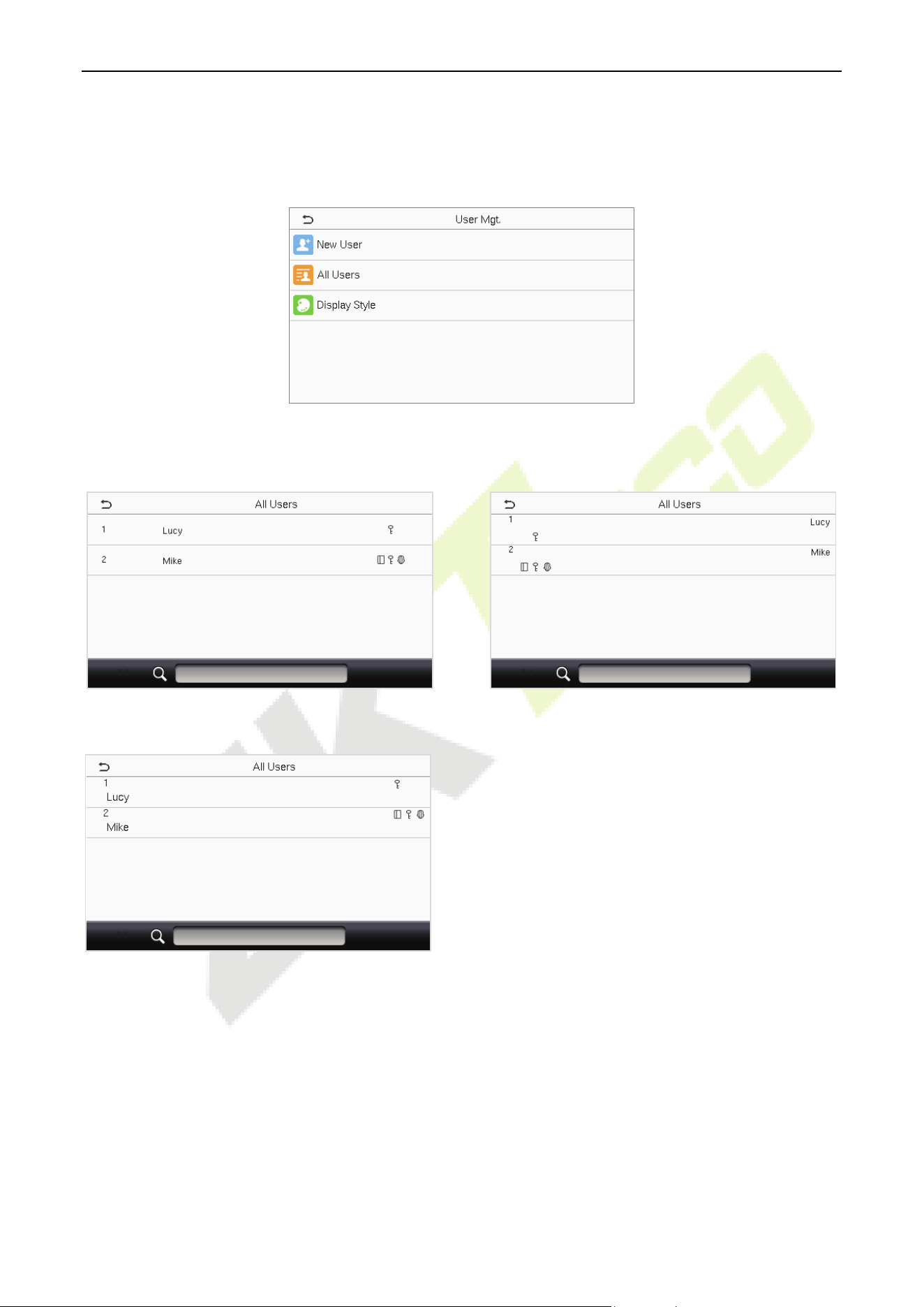

3 USER MANAGEMENT ......................................................................................................................... 18

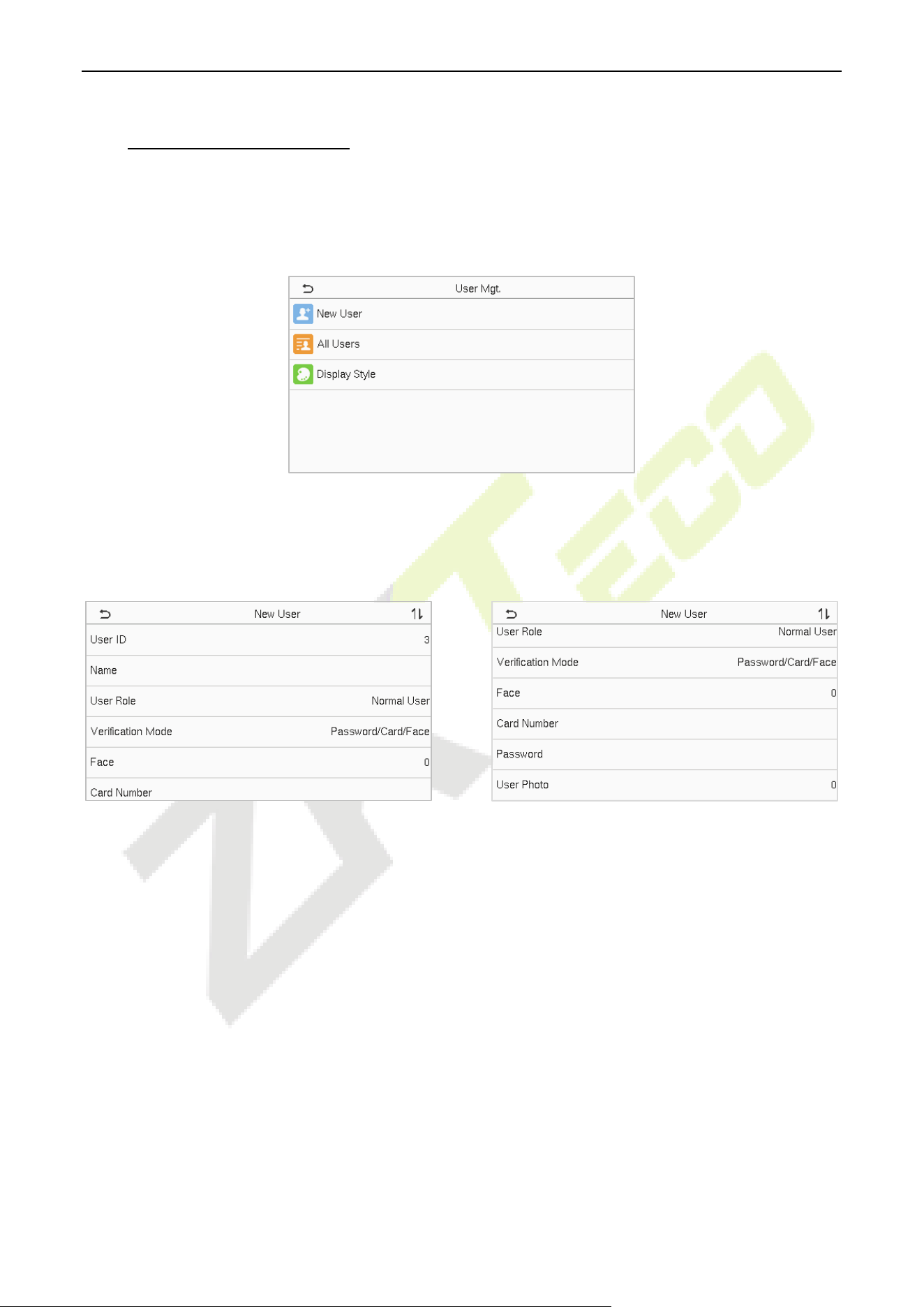

USER REGISTRATION ............................................................................................................................................................................... 18 3.1

3.1.1 USER ID AND NAME .......................................................................................................................................................................................... 18

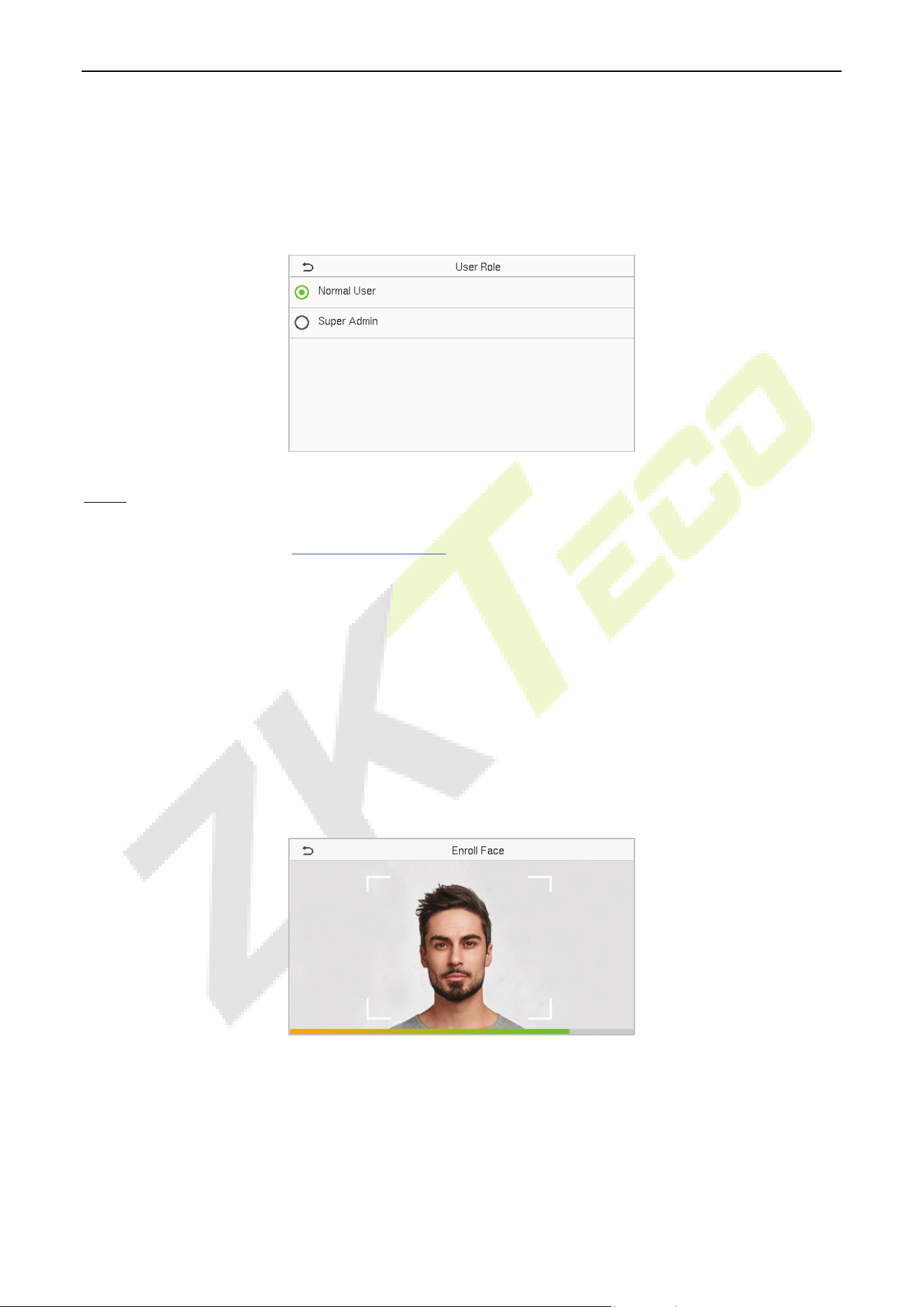

3.1.2 USER ROLE ............................................................................................................................................................................................................ 18

3.1.3 FACE ....................................................................................................................................................................................................................... 19

3.1.4 CARD★ ................................................................................................................................................................................................................. 19

3.1.5 PASSWORD .......................................................................................................................................................................................................... 20

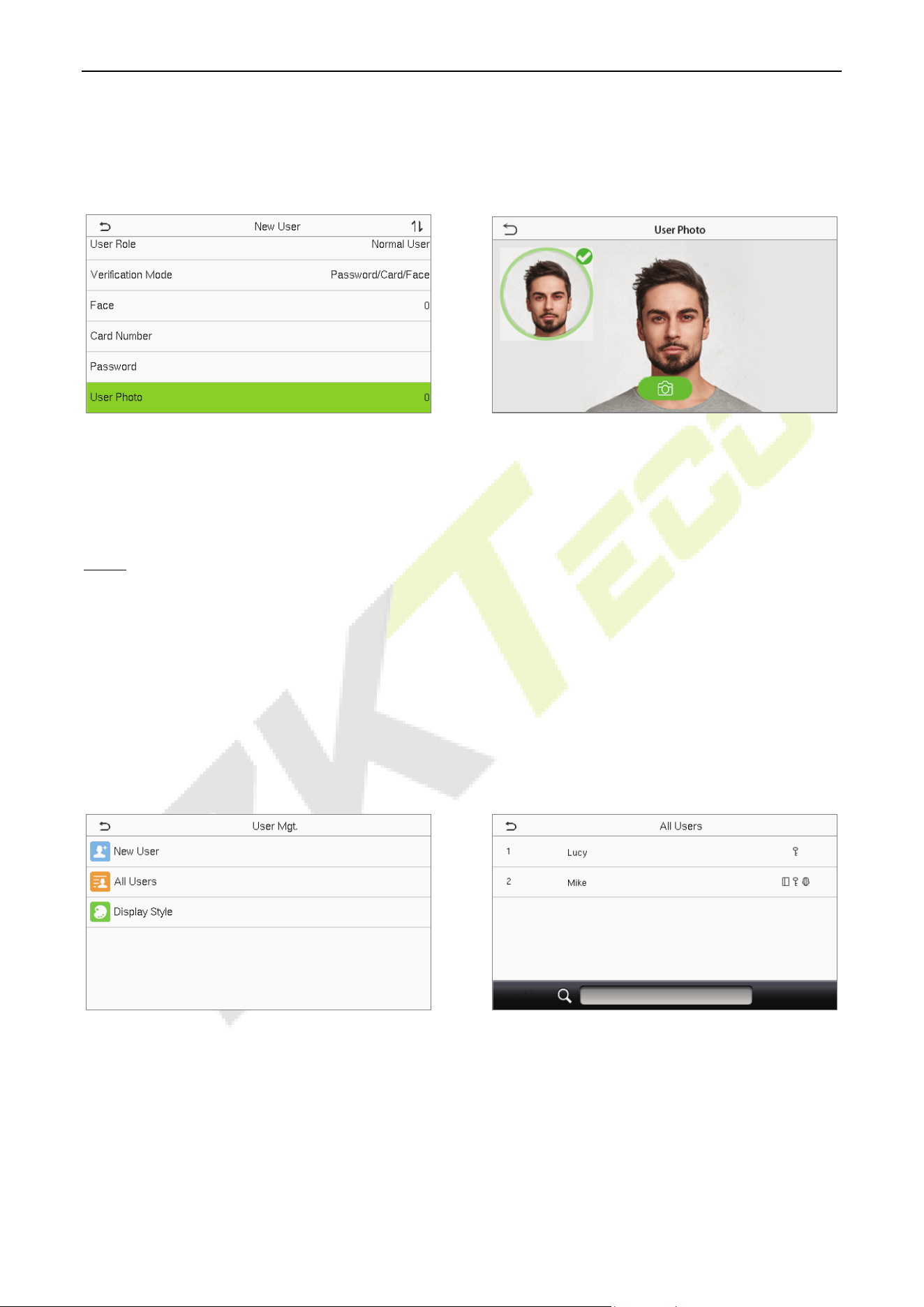

3.1.6 USER PHOTO ........................................................................................................................................................................................................ 21

SEARCH USER .......................................................................................................................................................................................... 21 3.2

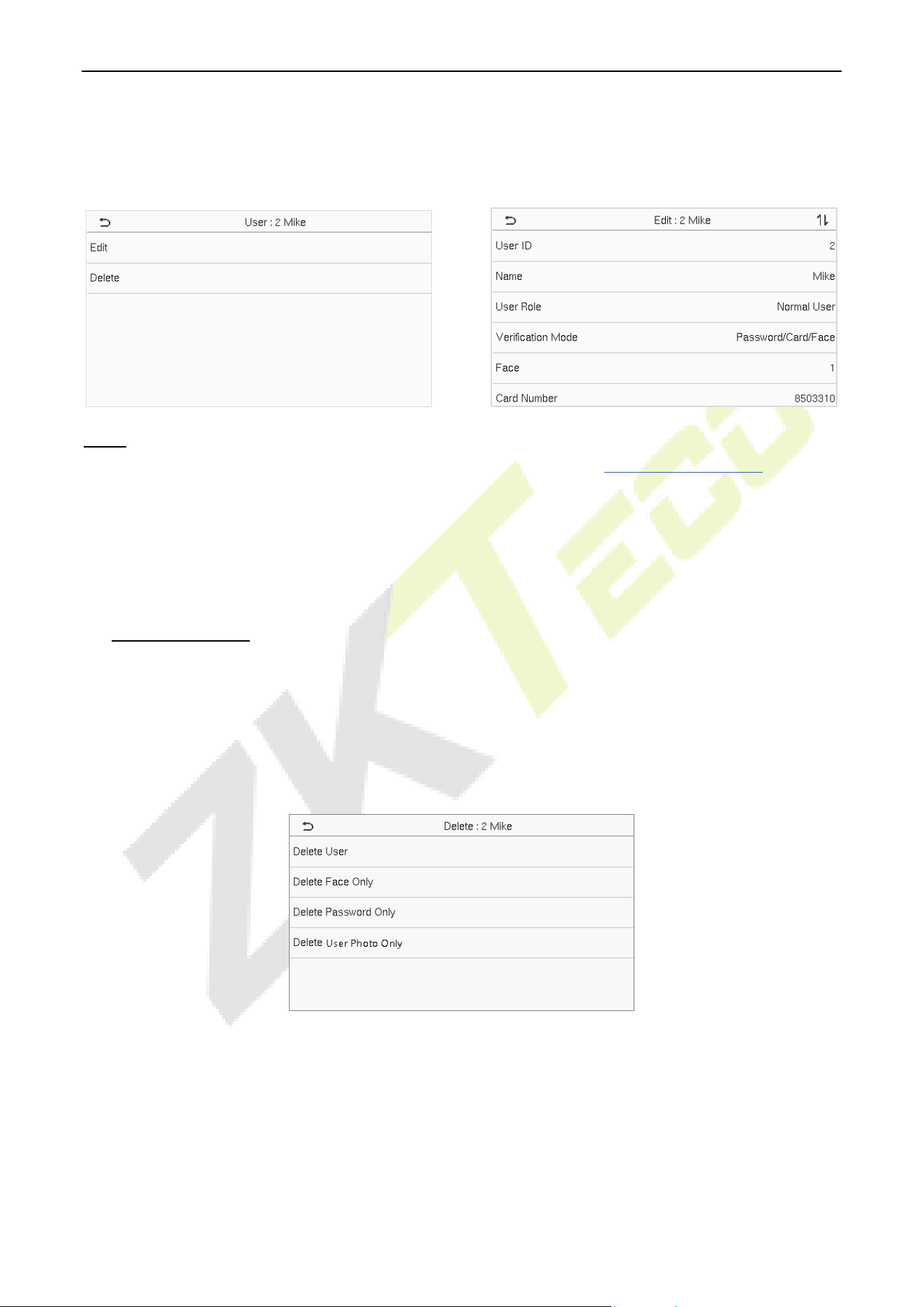

EDIT USER ................................................................................................................................................................................................ 22 3.3

DELETE USER ........................................................................................................................................................................................... 22 3.4

DISPLAY STYLE ........................................................................................................................................................................................ 23 3.5

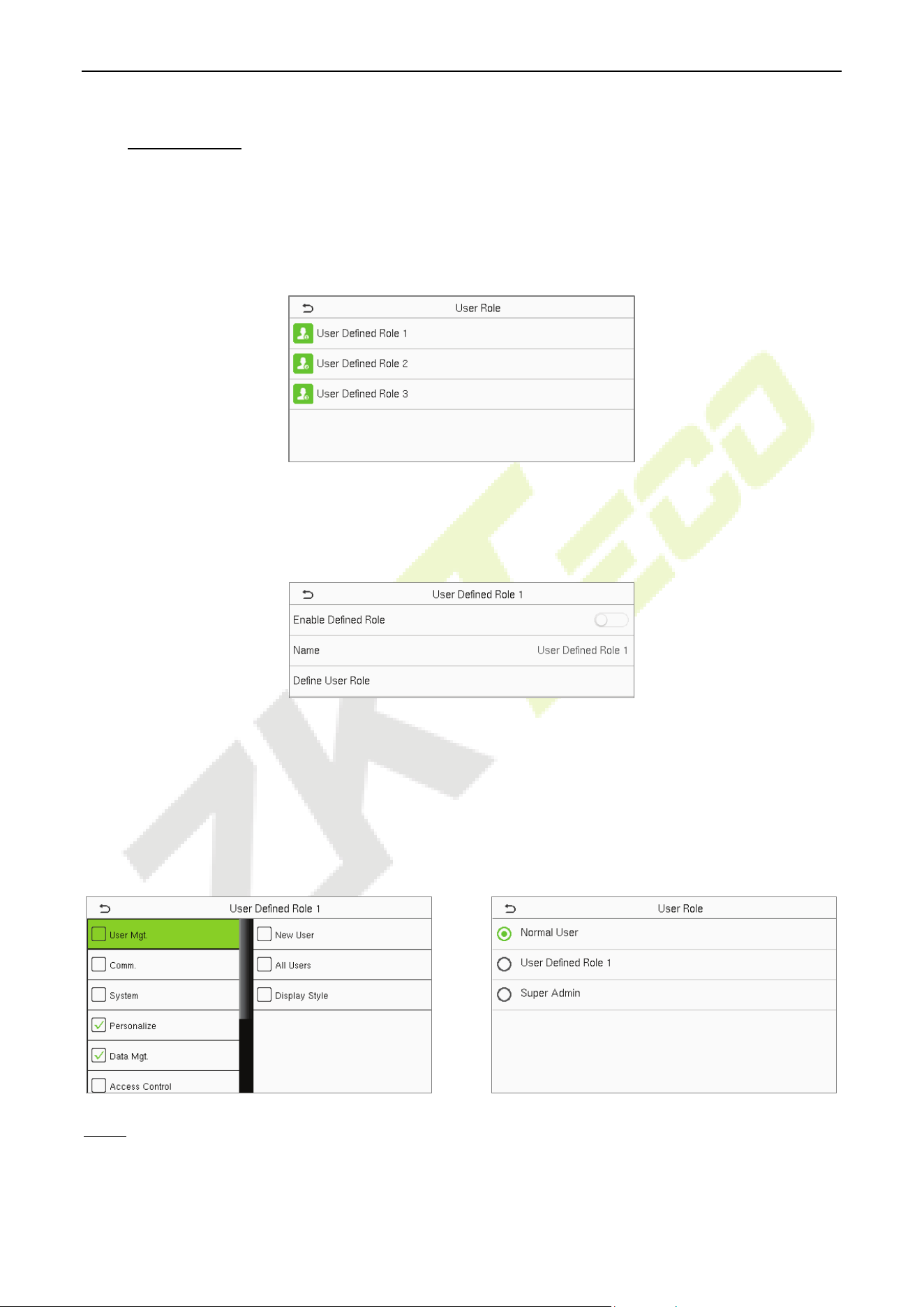

4 USER ROLE ......................................................................................................................................... 24

5 COMMUNICATION SETTINGS ........................................................................................................... 25

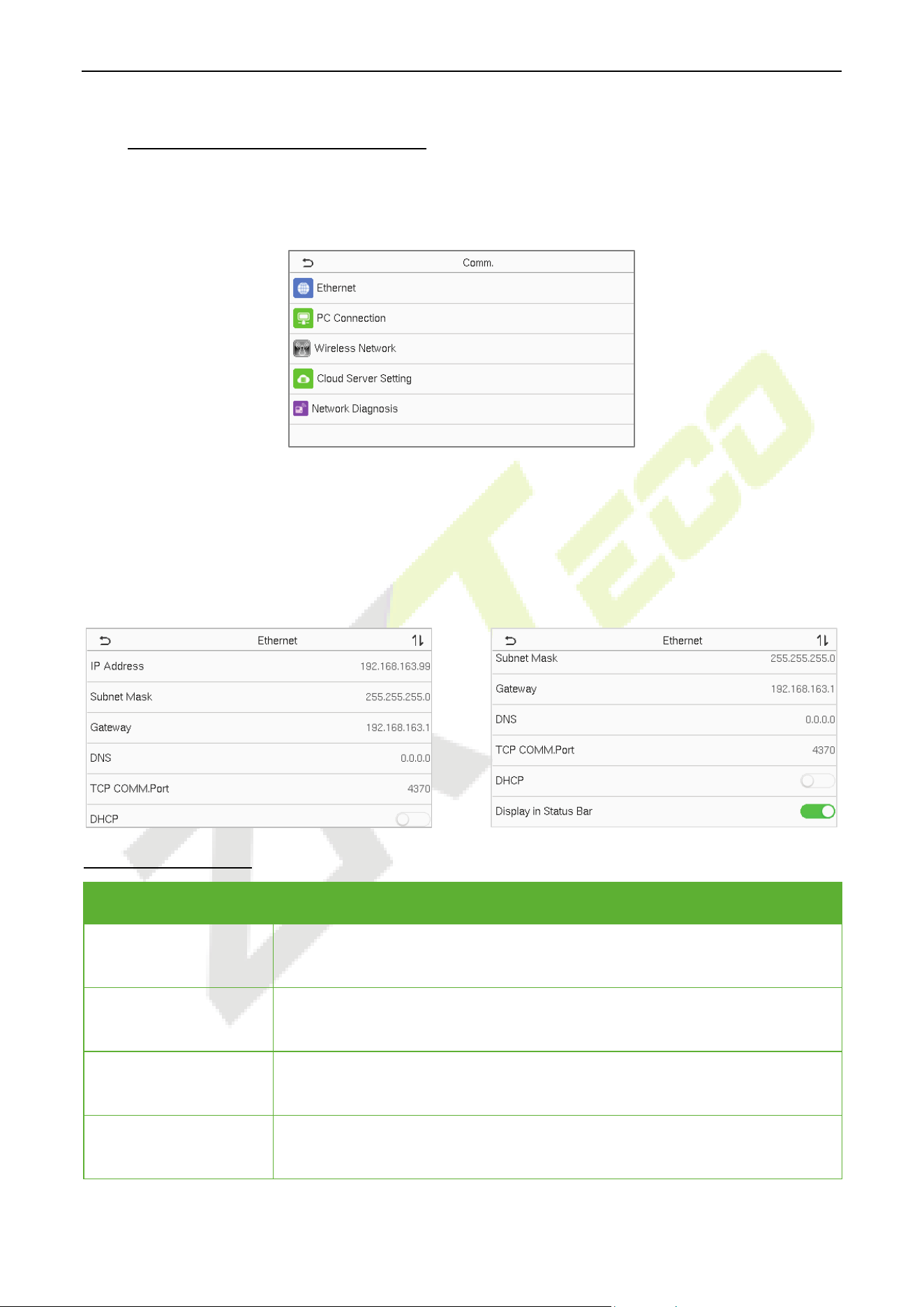

ETHERNET SETTINGS ............................................................................................................................................................................... 25 5.1

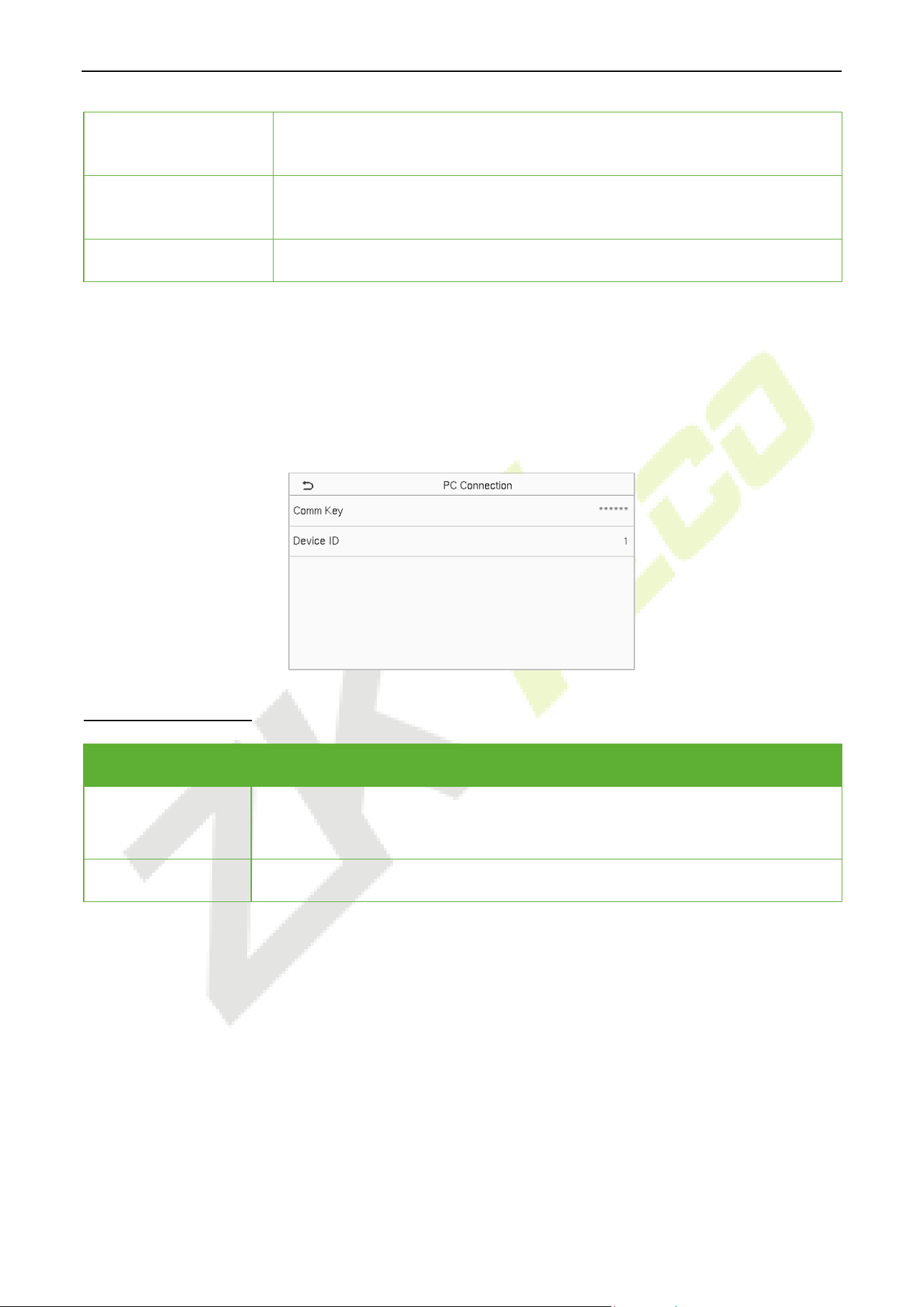

PC CONNECTION .................................................................................................................................................................................... 26 5.2

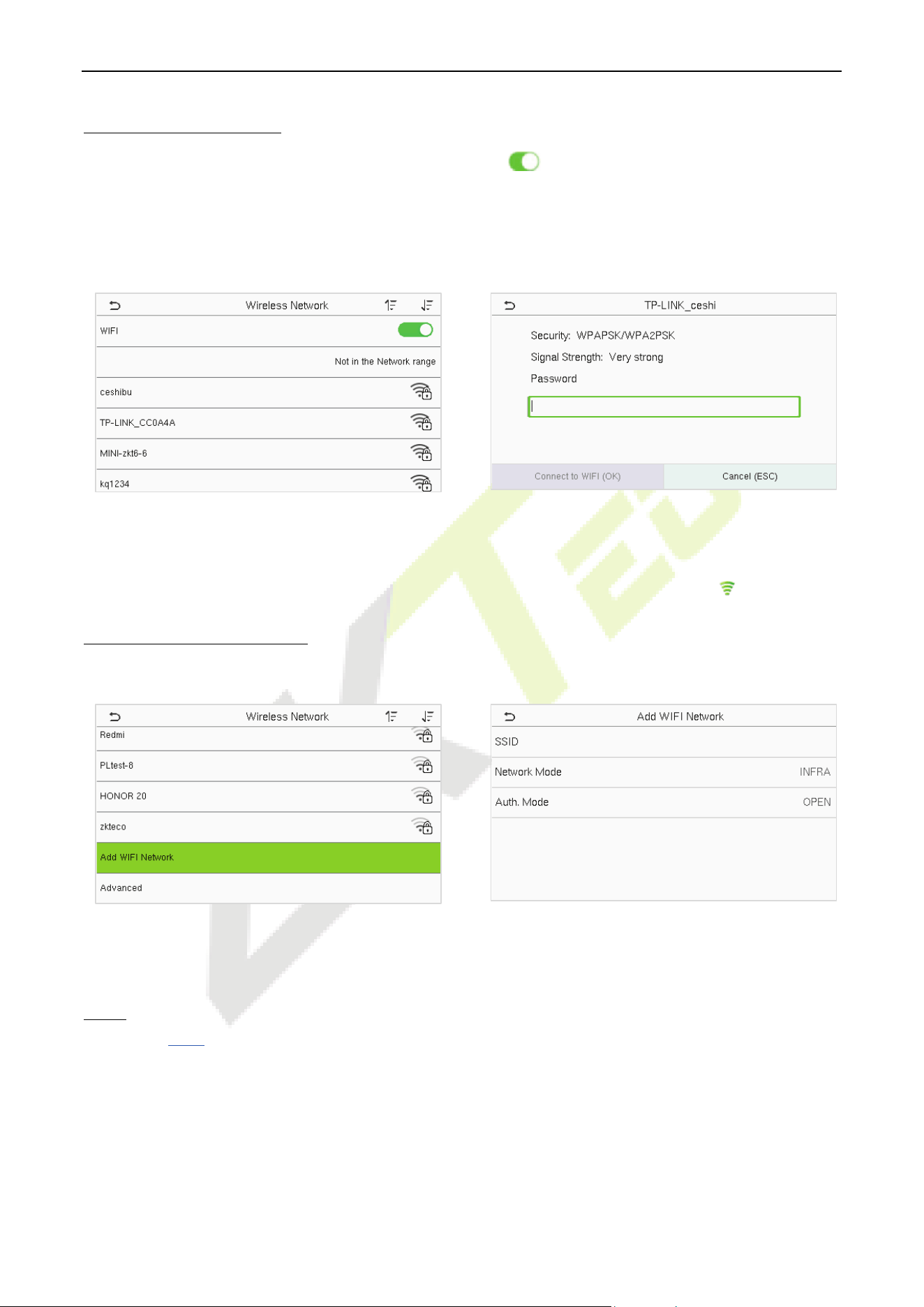

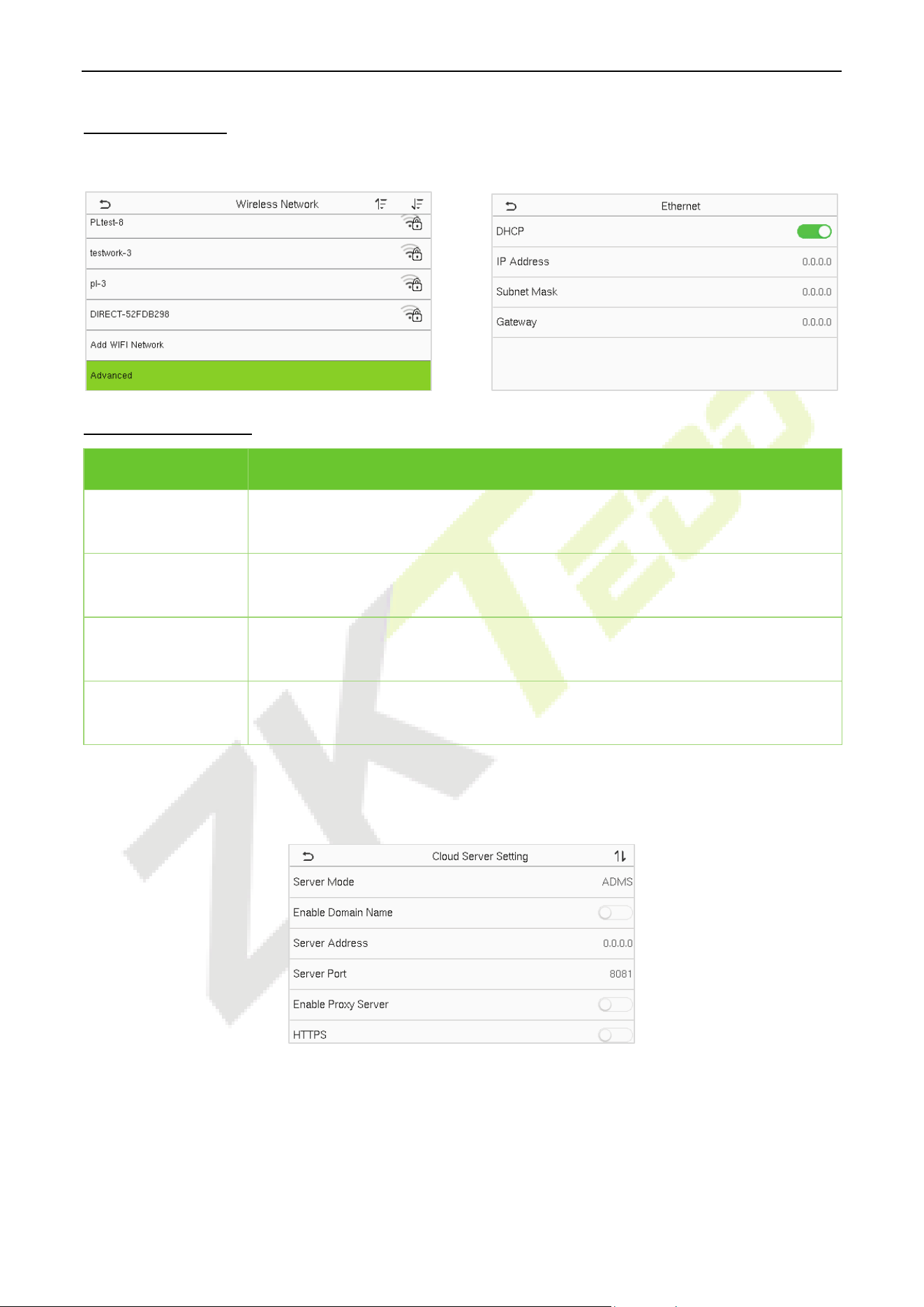

WIRELESS NETWORK ........................................................................................................................................................................... 26 5.3

CLOUD SERVER SETTING ......................................................................................................................................................................... 28 5.4

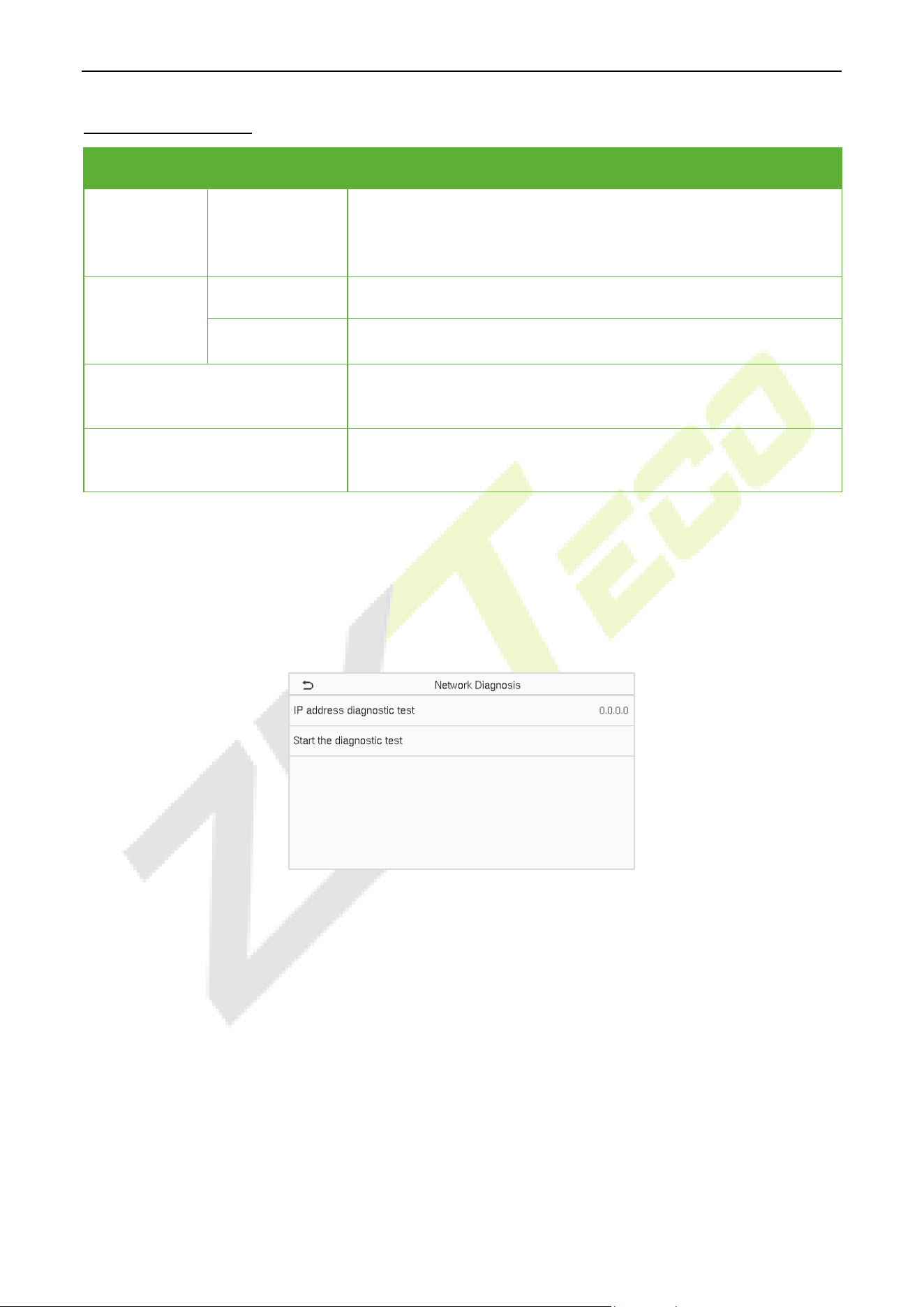

NETWORK DIAGNOSIS ............................................................................................................................................................................. 29 5.5

6 SYSTEM SETTINGS ............................................................................................................................. 30

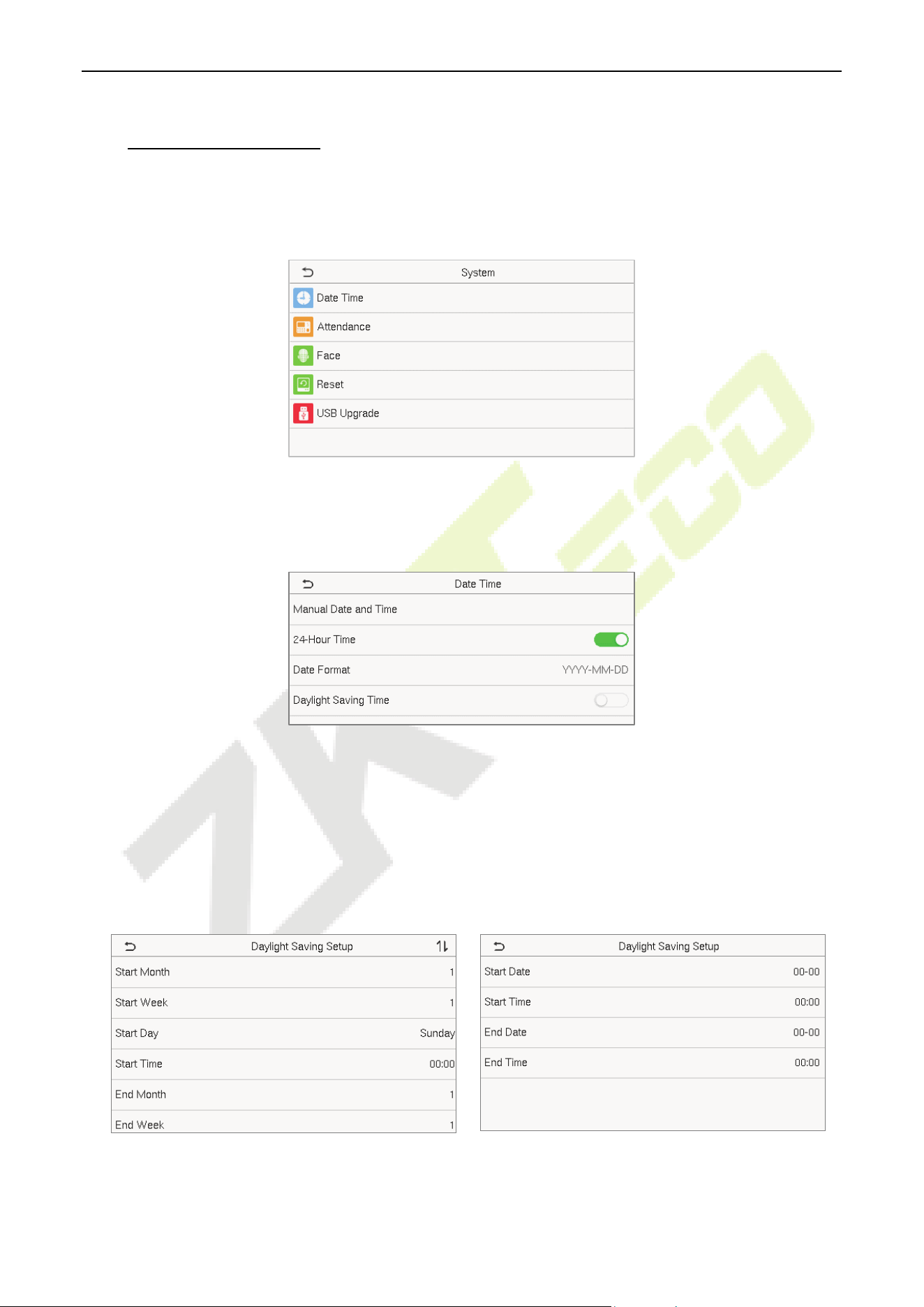

DATE TIME ............................................................................................................................................................................................... 30 6.1

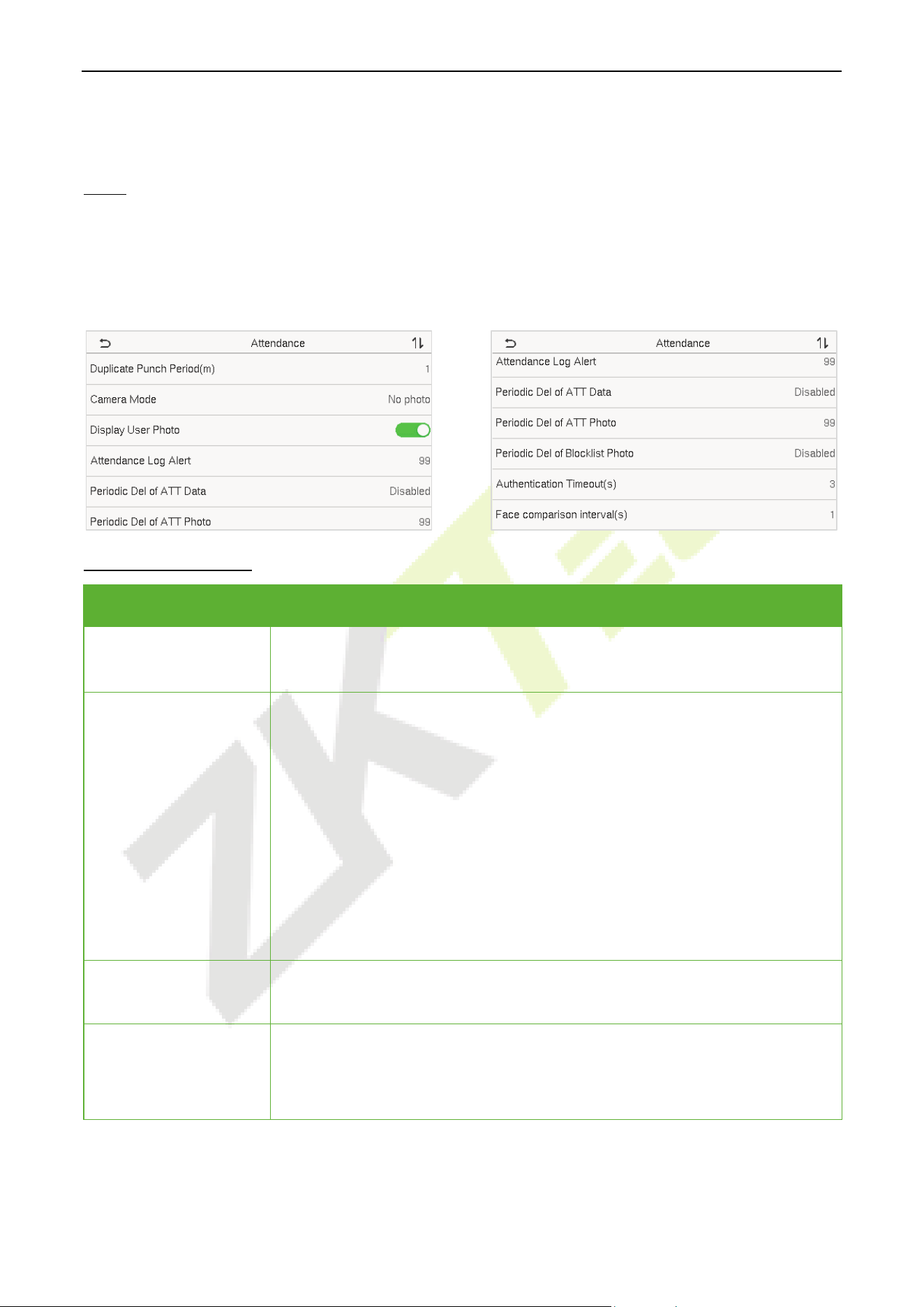

ATTENDANCE .......................................................................................................................................................................................... 31 6.2

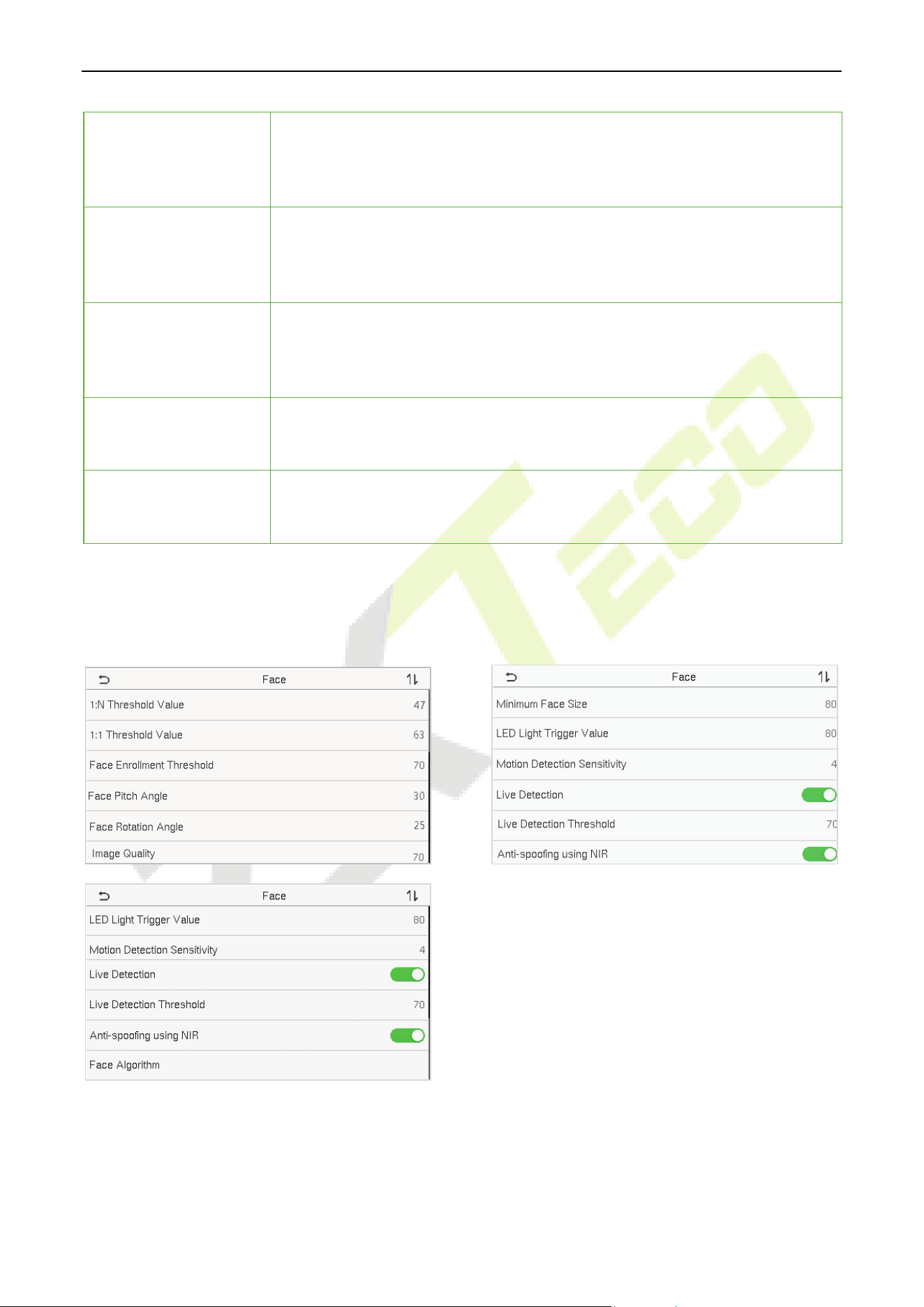

FACE PARAMETERS.................................................................................................................................................................................. 32 6.3

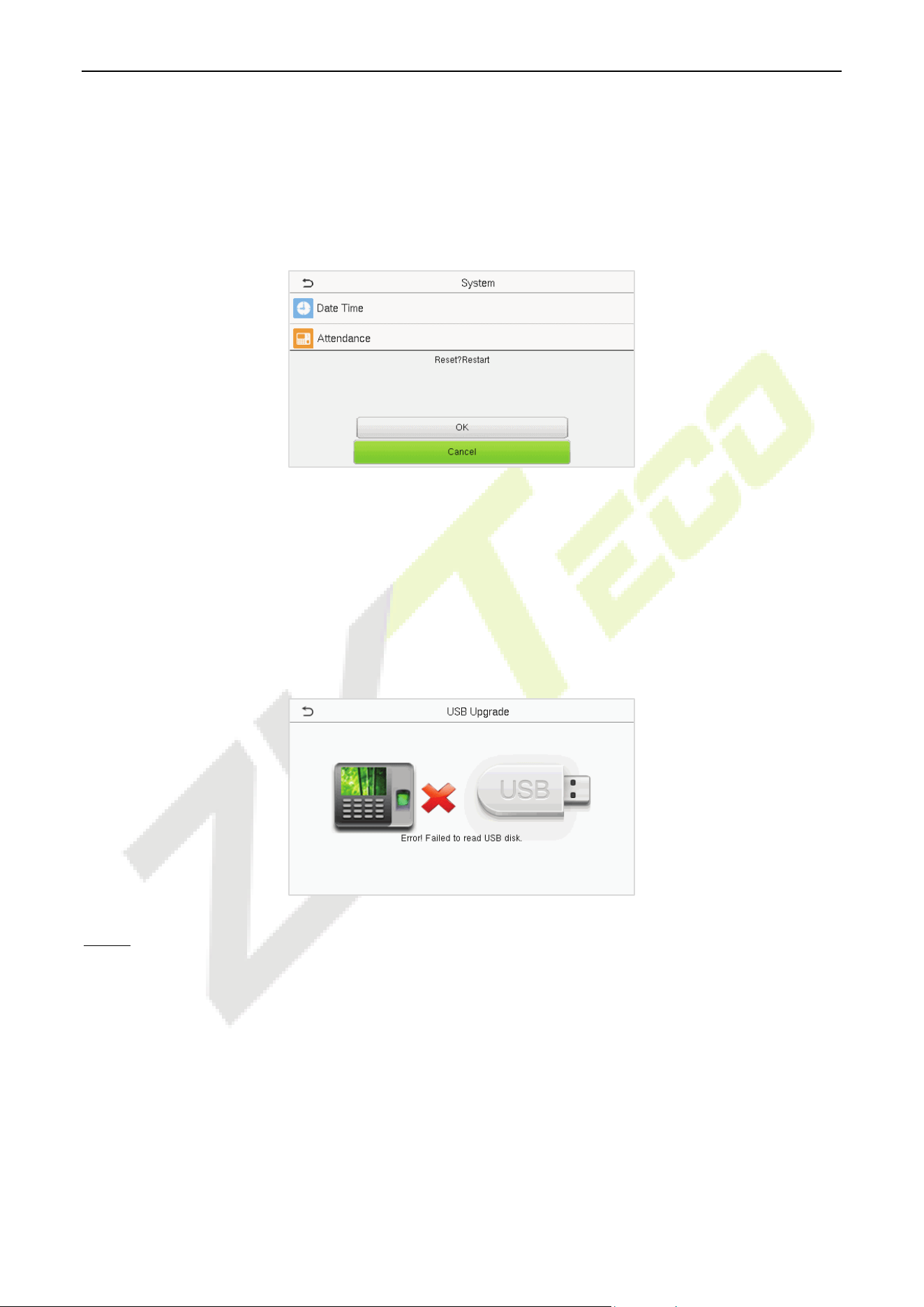

FACTORY RESET ....................................................................................................................................................................................... 35 6.4

USB UPGRADE ........................................................................................................................................................................................ 35 6.5

7 PERSONALIZE SETTINGS ................................................................................................................... 36

EFace10 User Manual

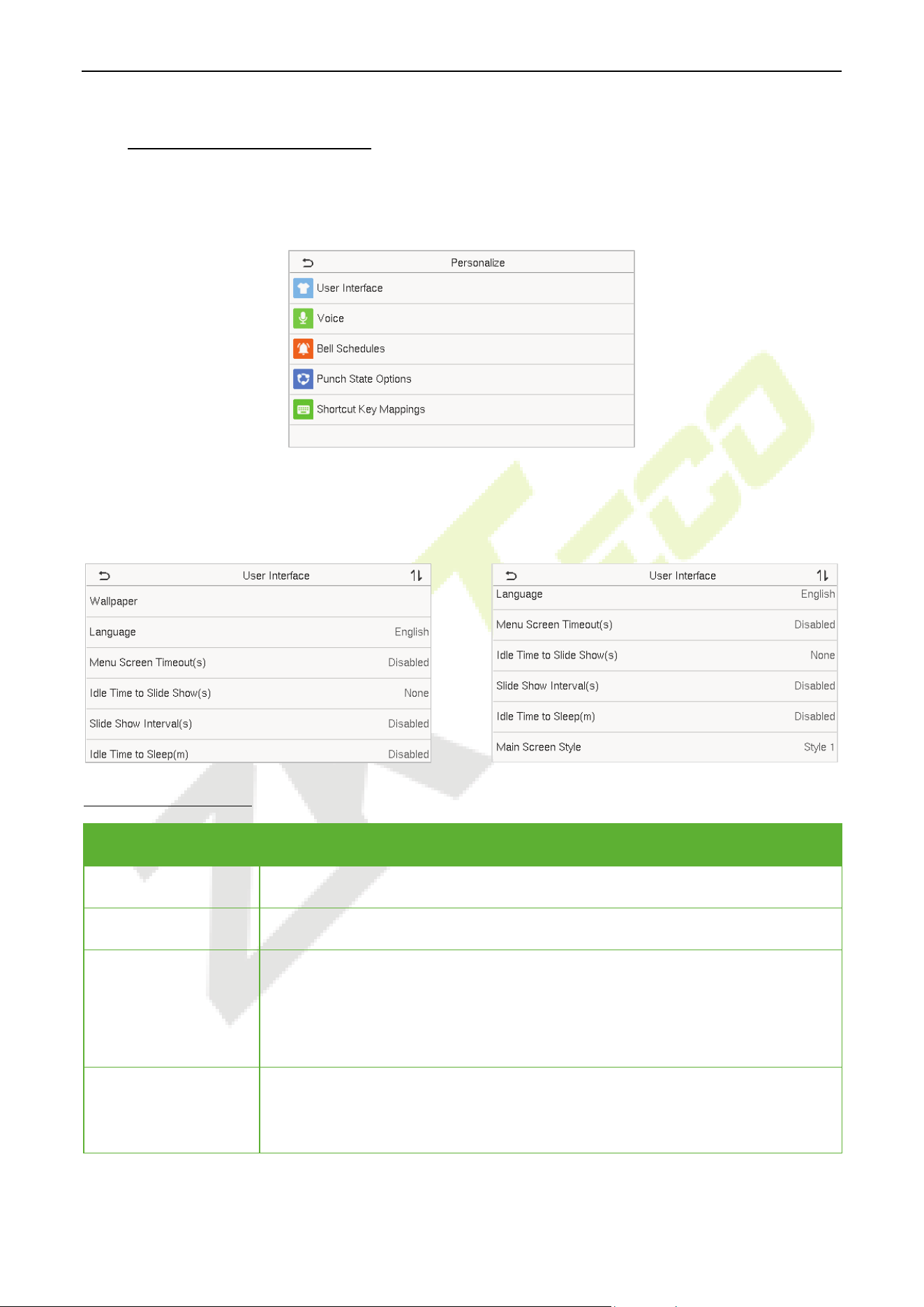

INTERFACE SETTINGS ............................................................................................................................................................................... 36 7.1

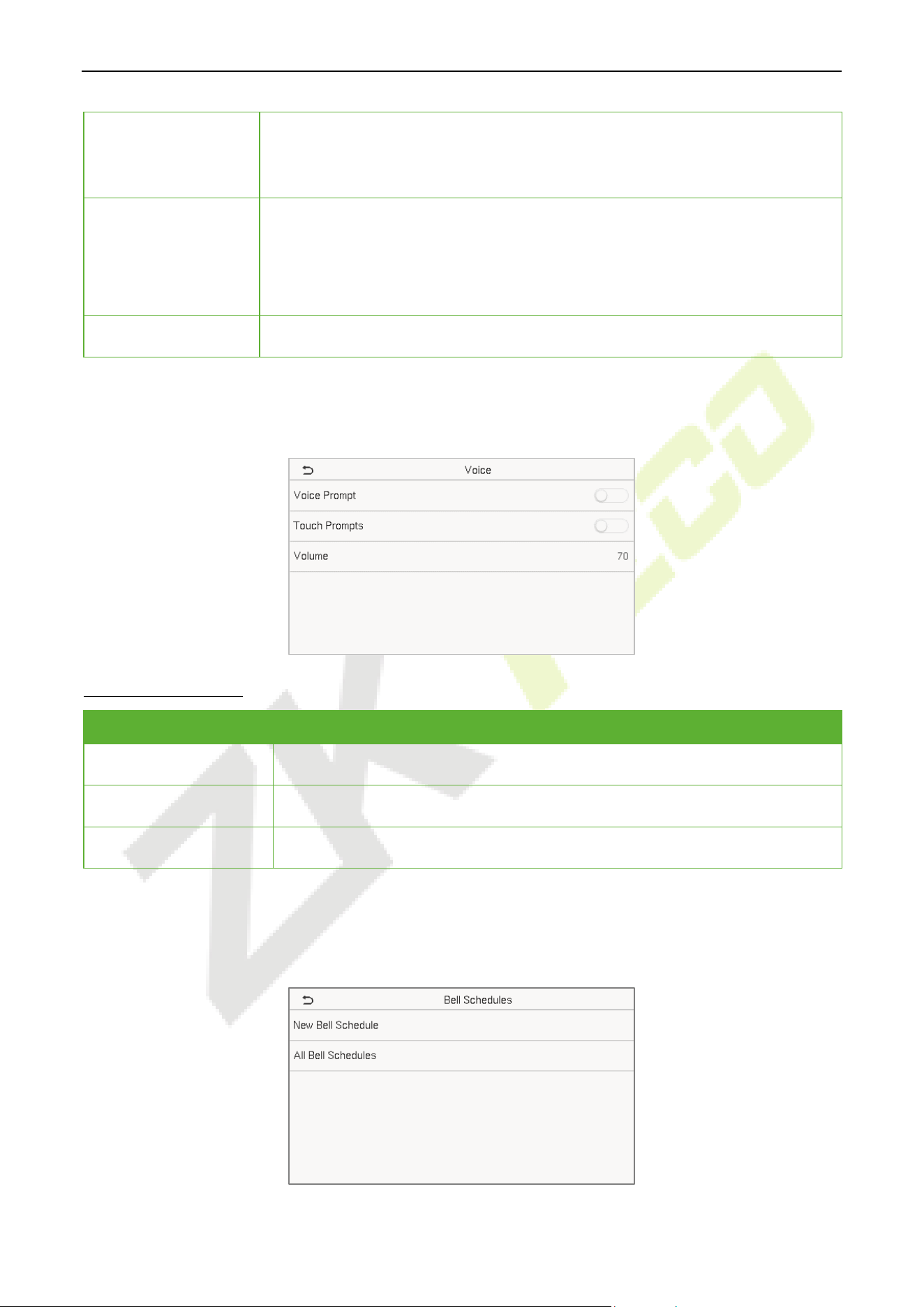

VOICE SETTINGS ...................................................................................................................................................................................... 37 7.2

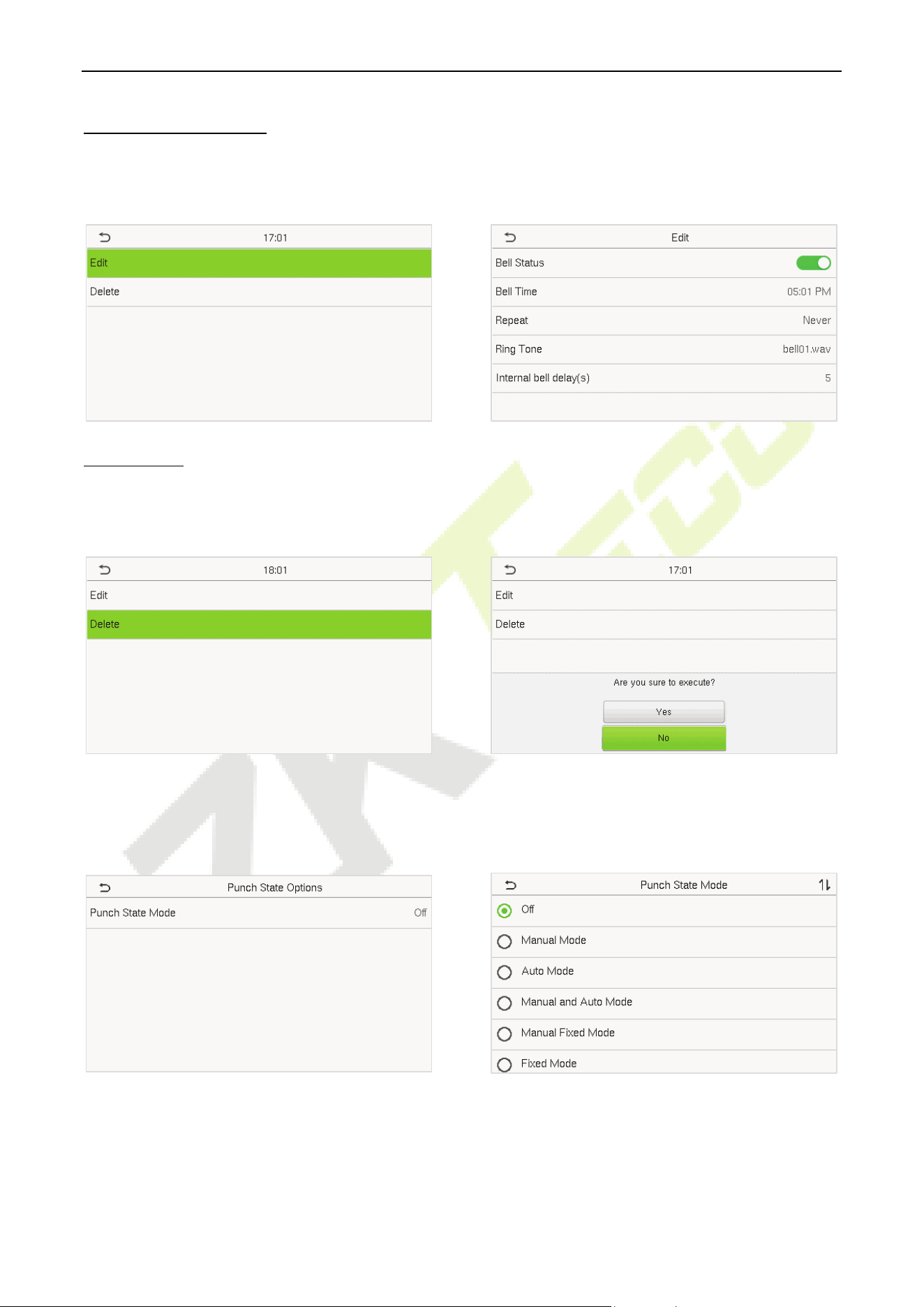

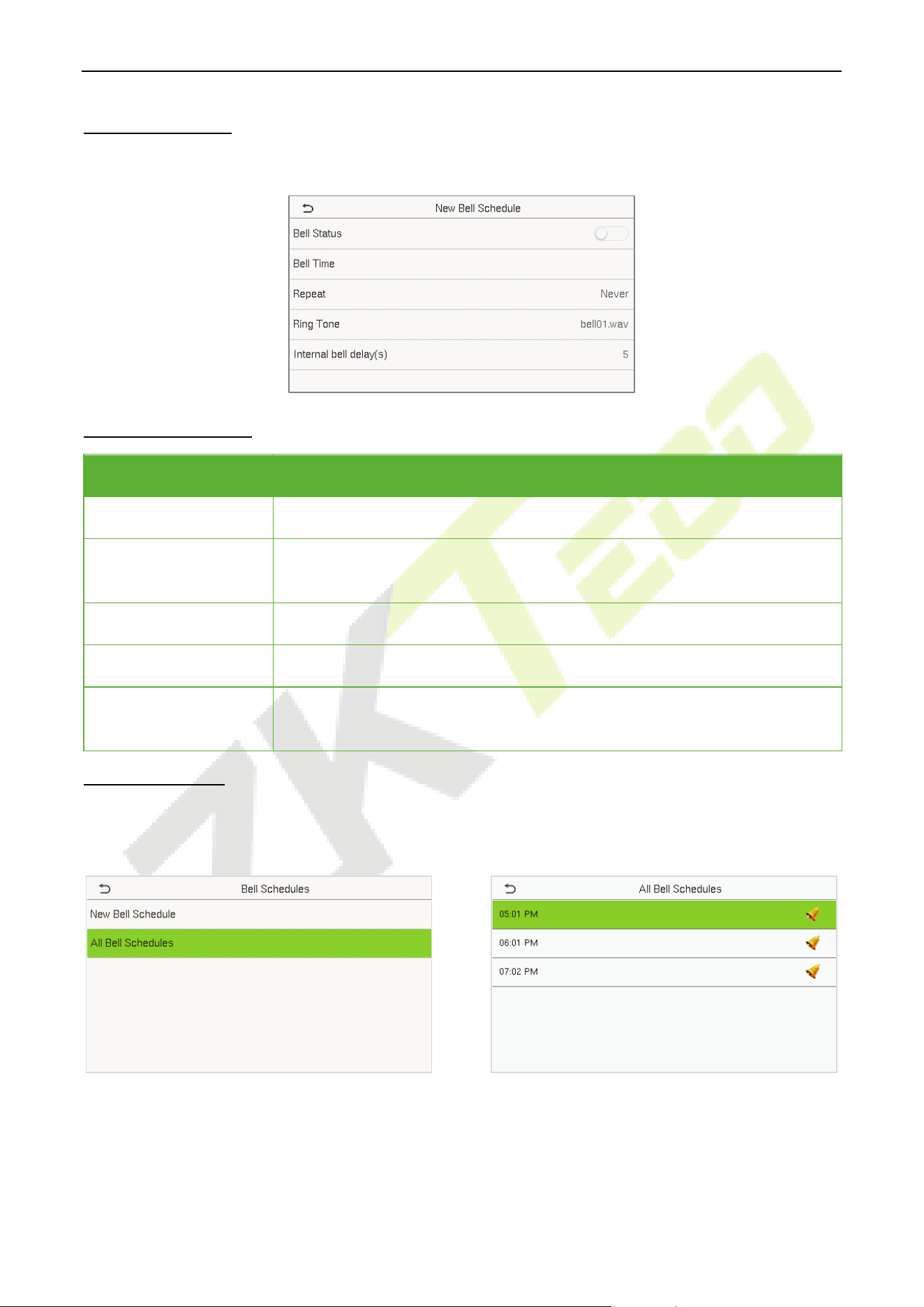

BELL SCHEDULES ..................................................................................................................................................................................... 37 7.3

PUNCH STATES OPTIONS ........................................................................................................................................................................ 39 7.4

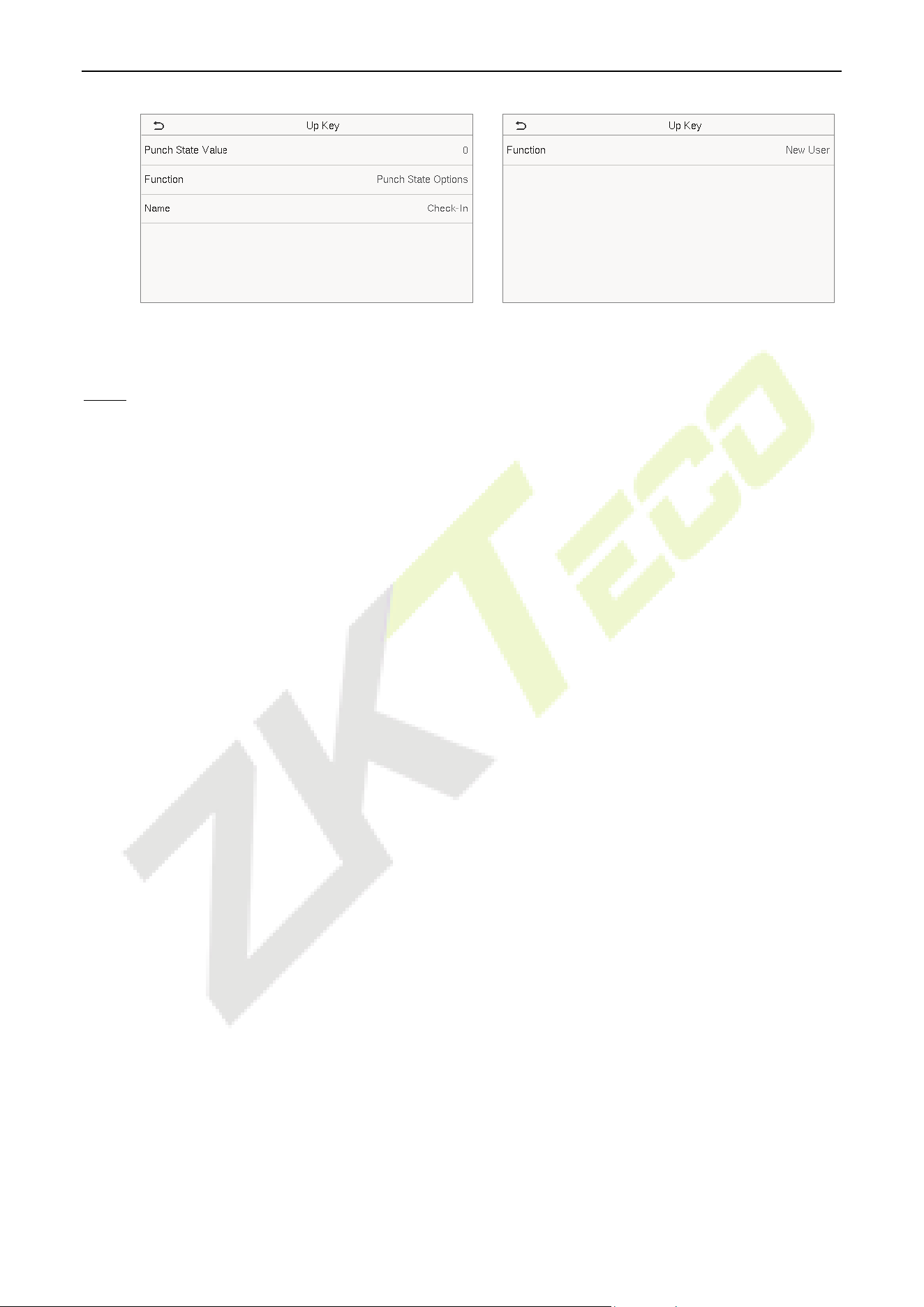

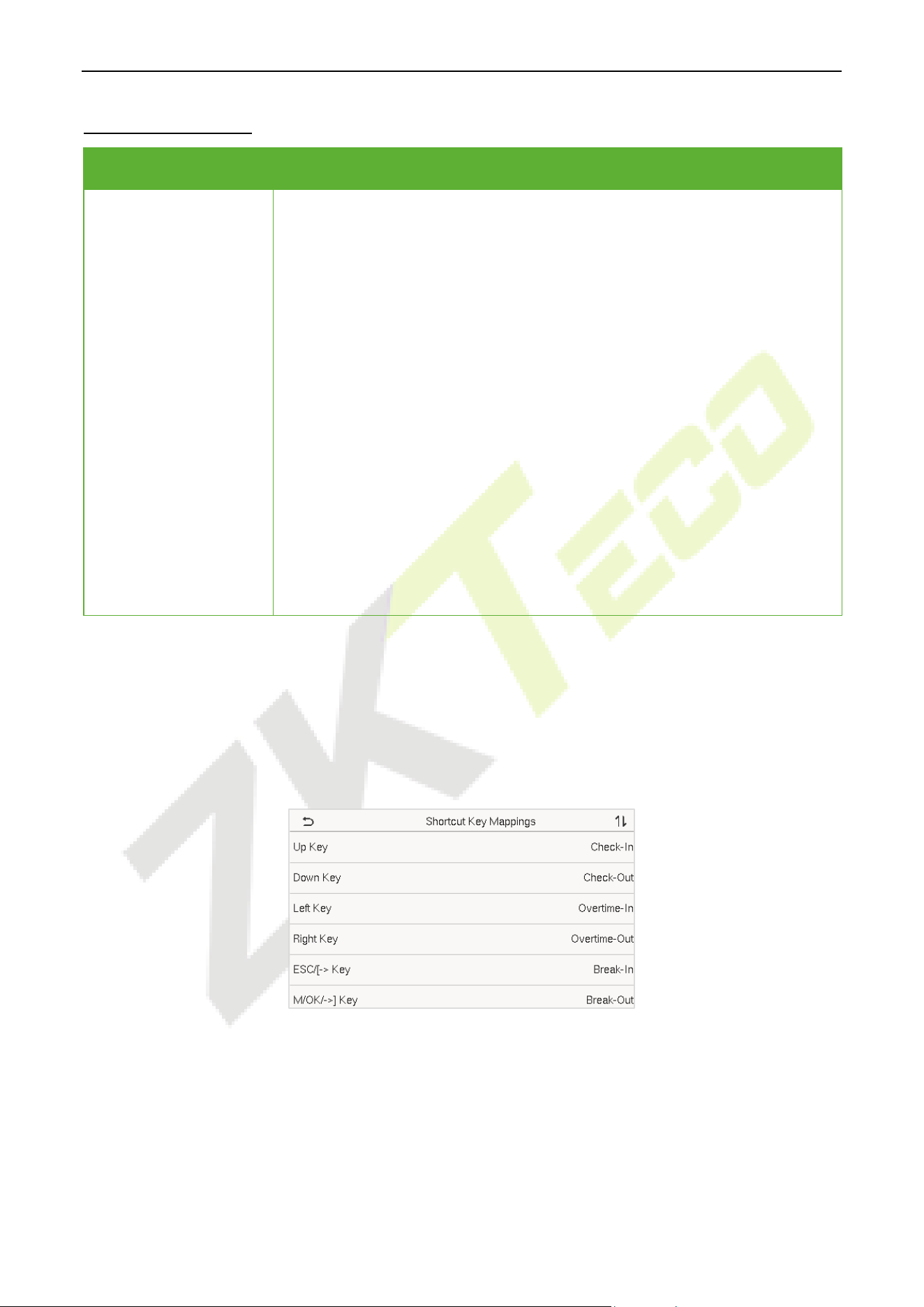

SHORTCUT KEY MAPPINGS ..................................................................................................................................................................... 40 7.5

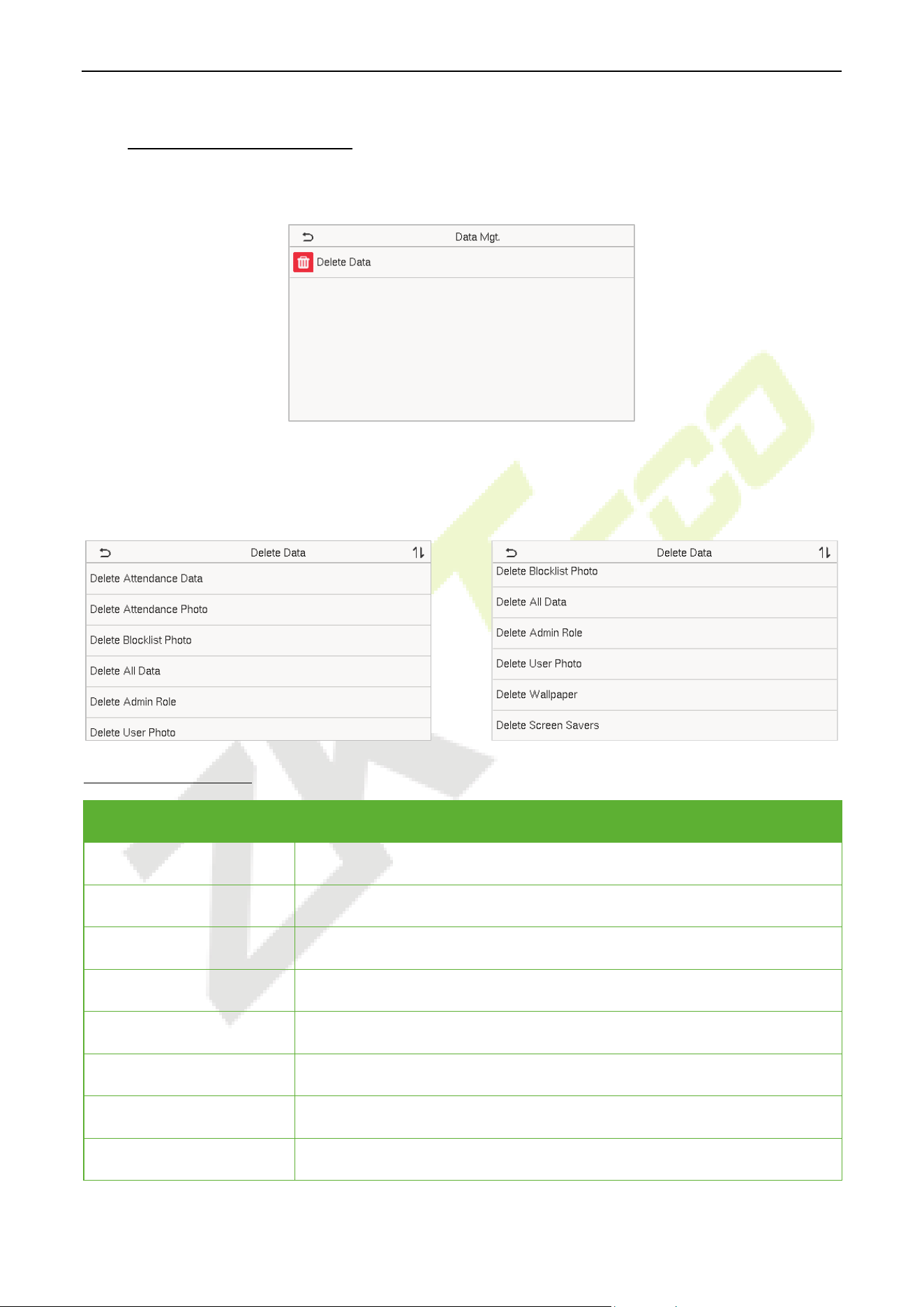

8 DATA MANAGEMENT ........................................................................................................................ 42

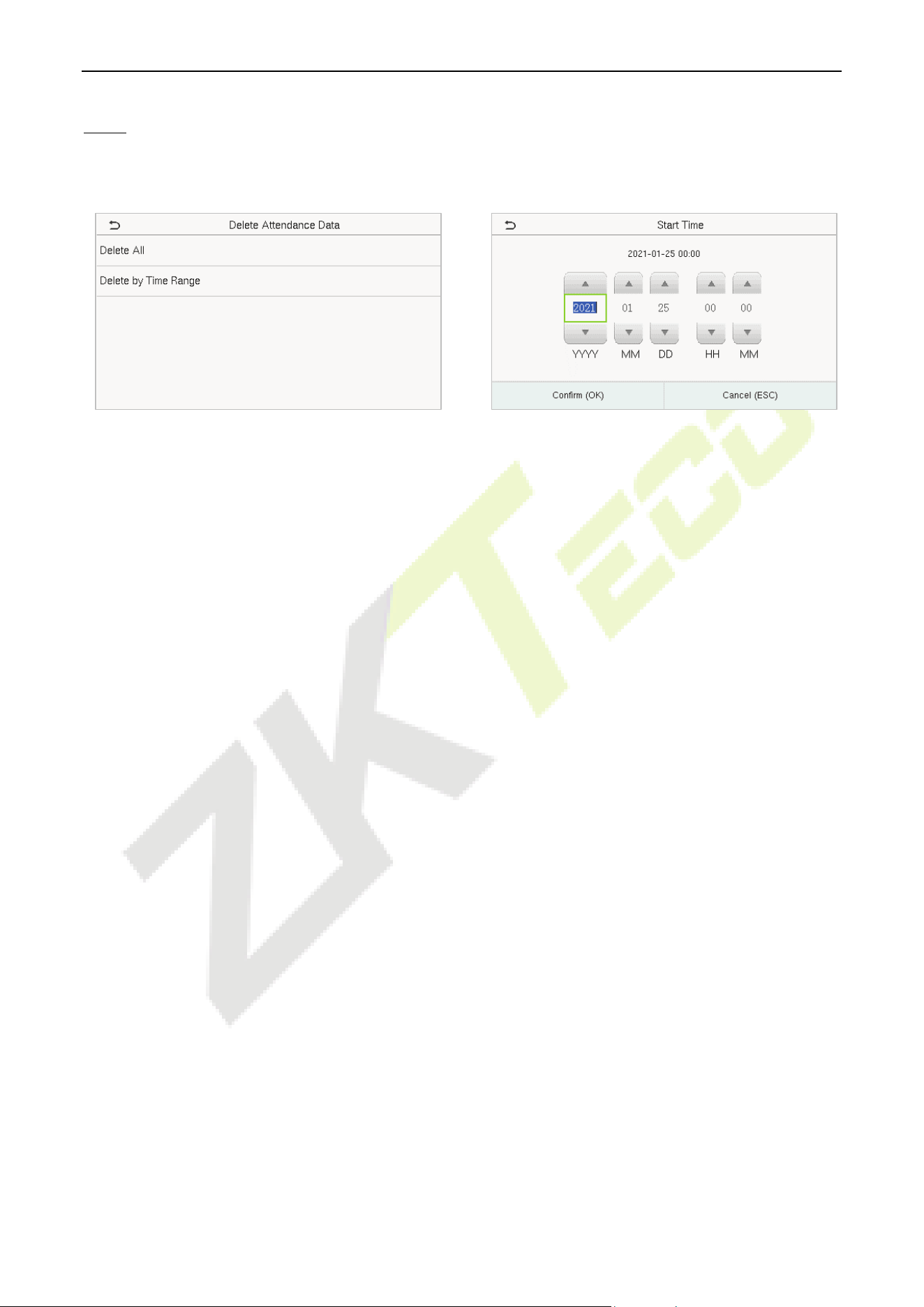

DELETE DATA .......................................................................................................................................................................................... 42 8.1

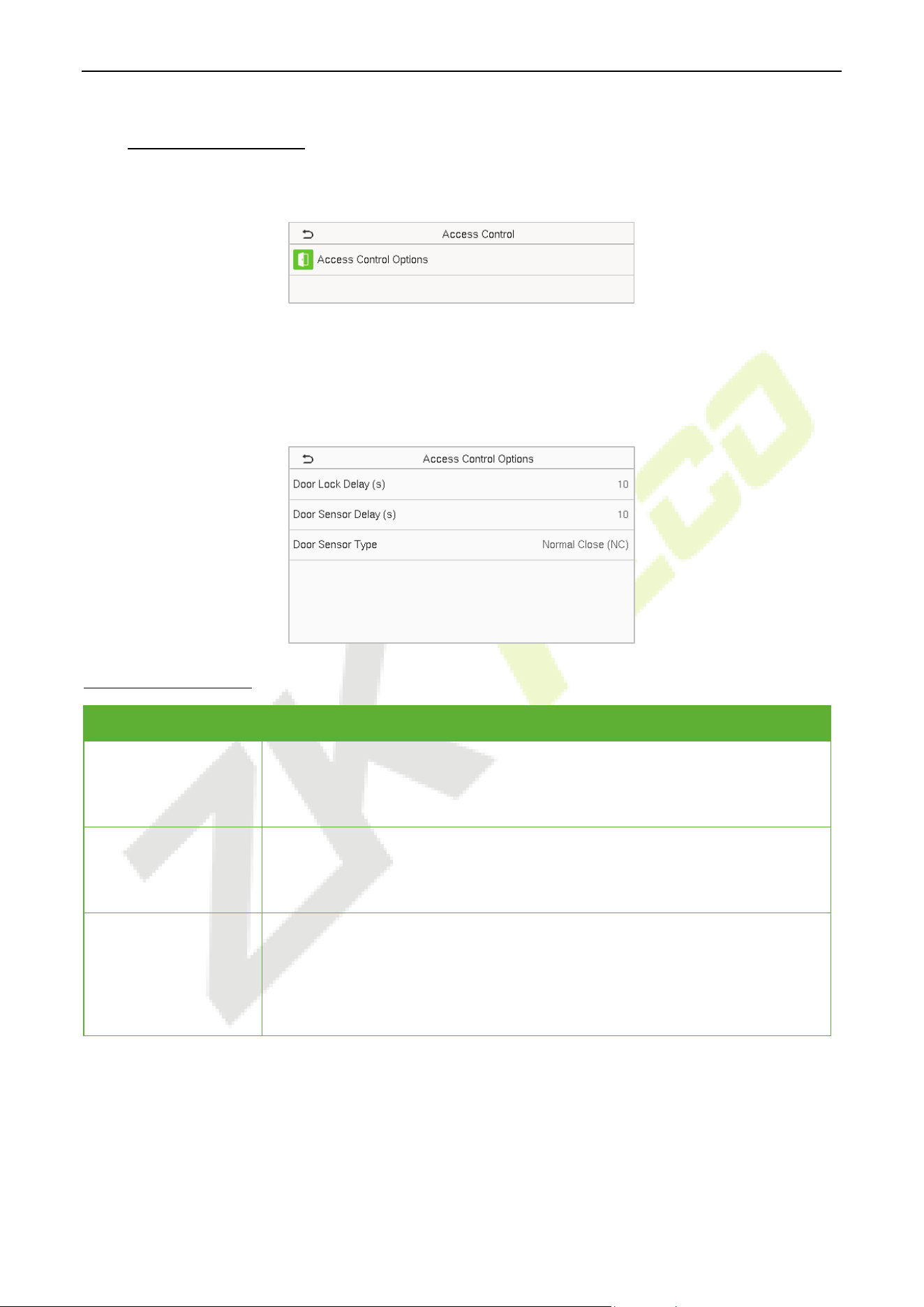

9 ACCESS CONTROL ............................................................................................................................. 44

ACCESS CONTROL OPTIONS ................................................................................................................................................................... 44 9.1

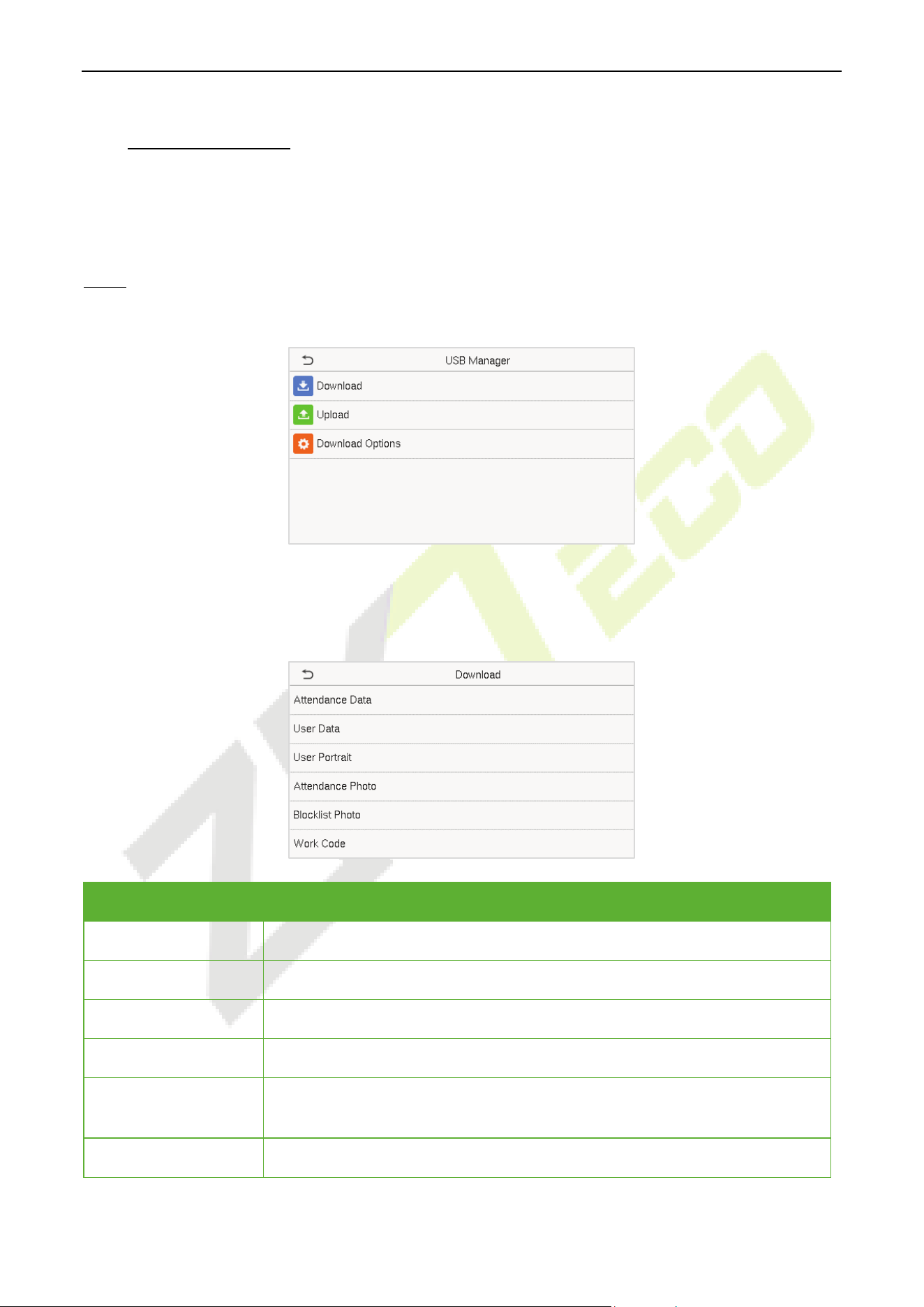

10 USB MANAGER ............................................................................................................................... 45

DOWNLOAD ............................................................................................................................................................................................ 45 10.1

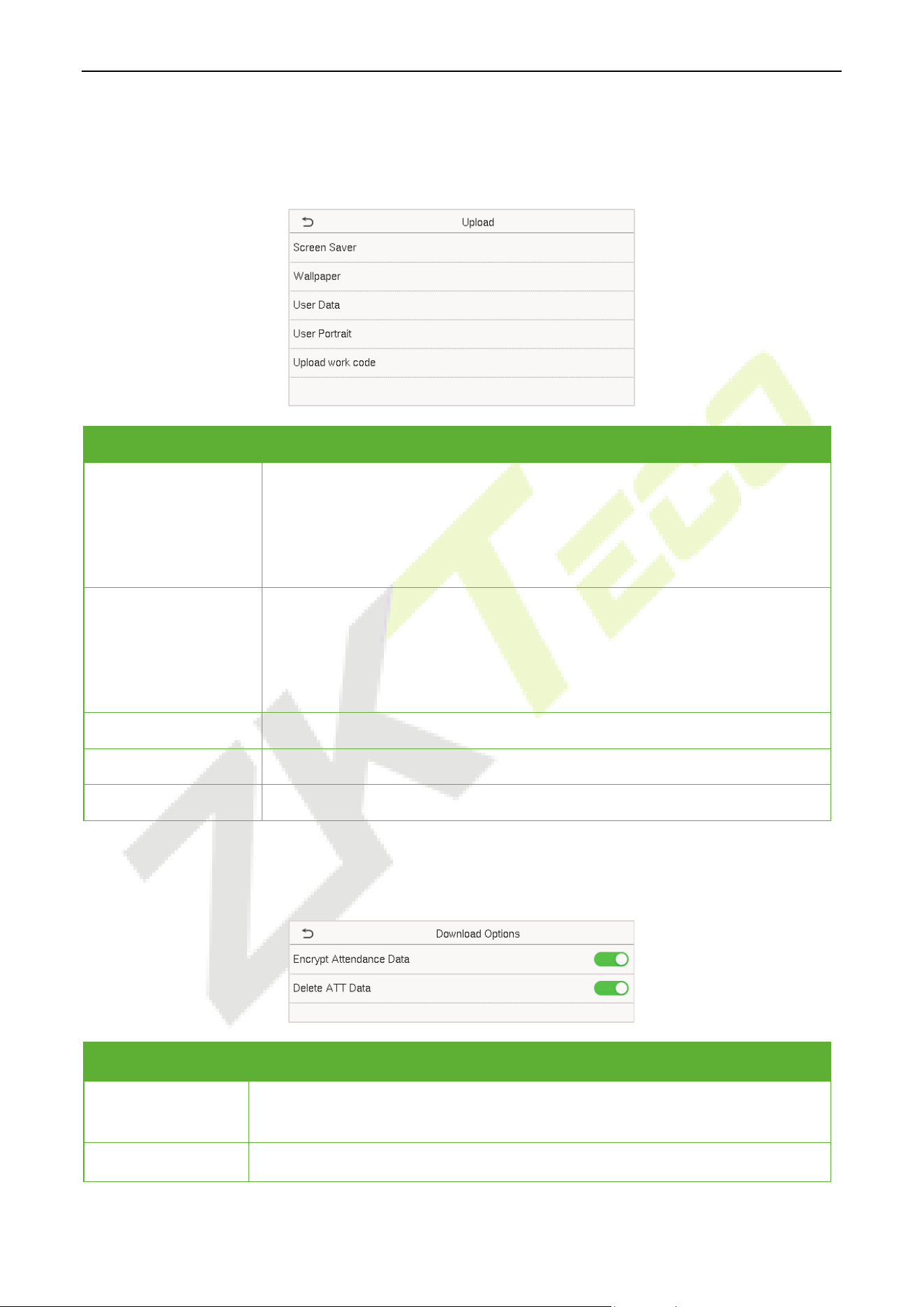

UPLOAD................................................................................................................................................................................................... 46 10.2

DOWNLOAD OPTIONS ............................................................................................................................................................................ 46 10.3

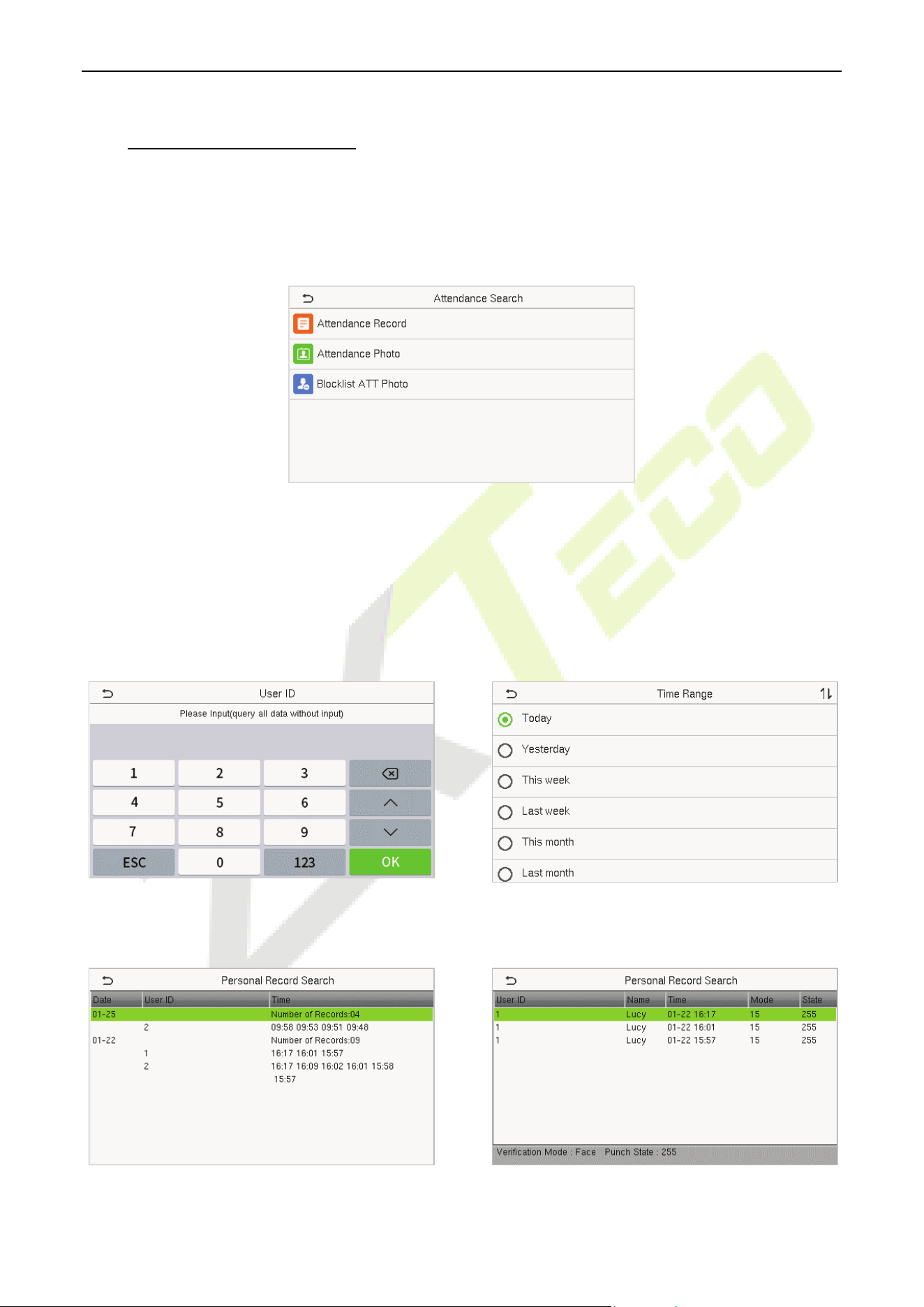

11 ATTENDANCE SEARCH .................................................................................................................. 47

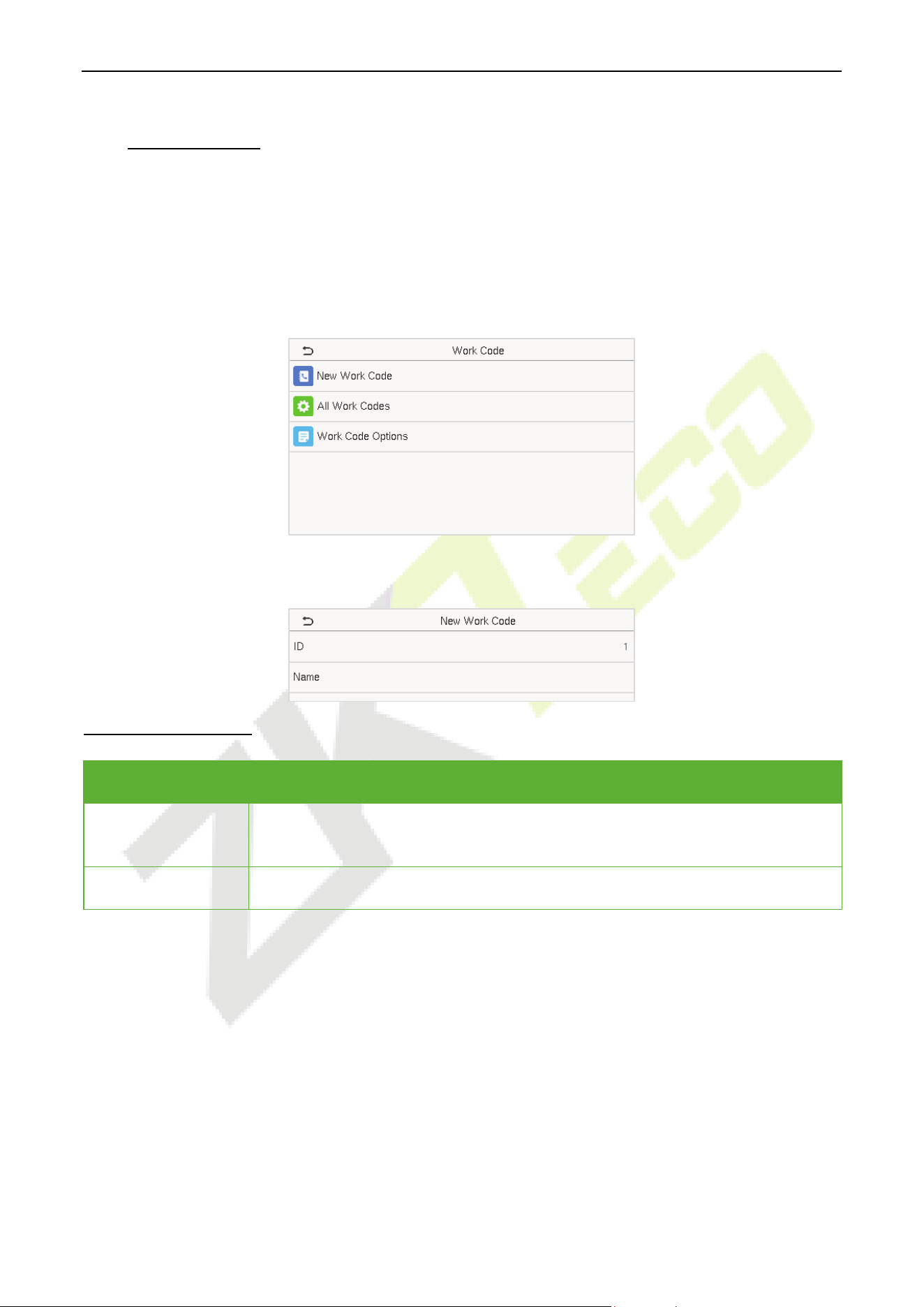

12 WORK CODE ................................................................................................................................... 48

ADD A WORK CODE ................................................................................................................................................................................ 48 12.1

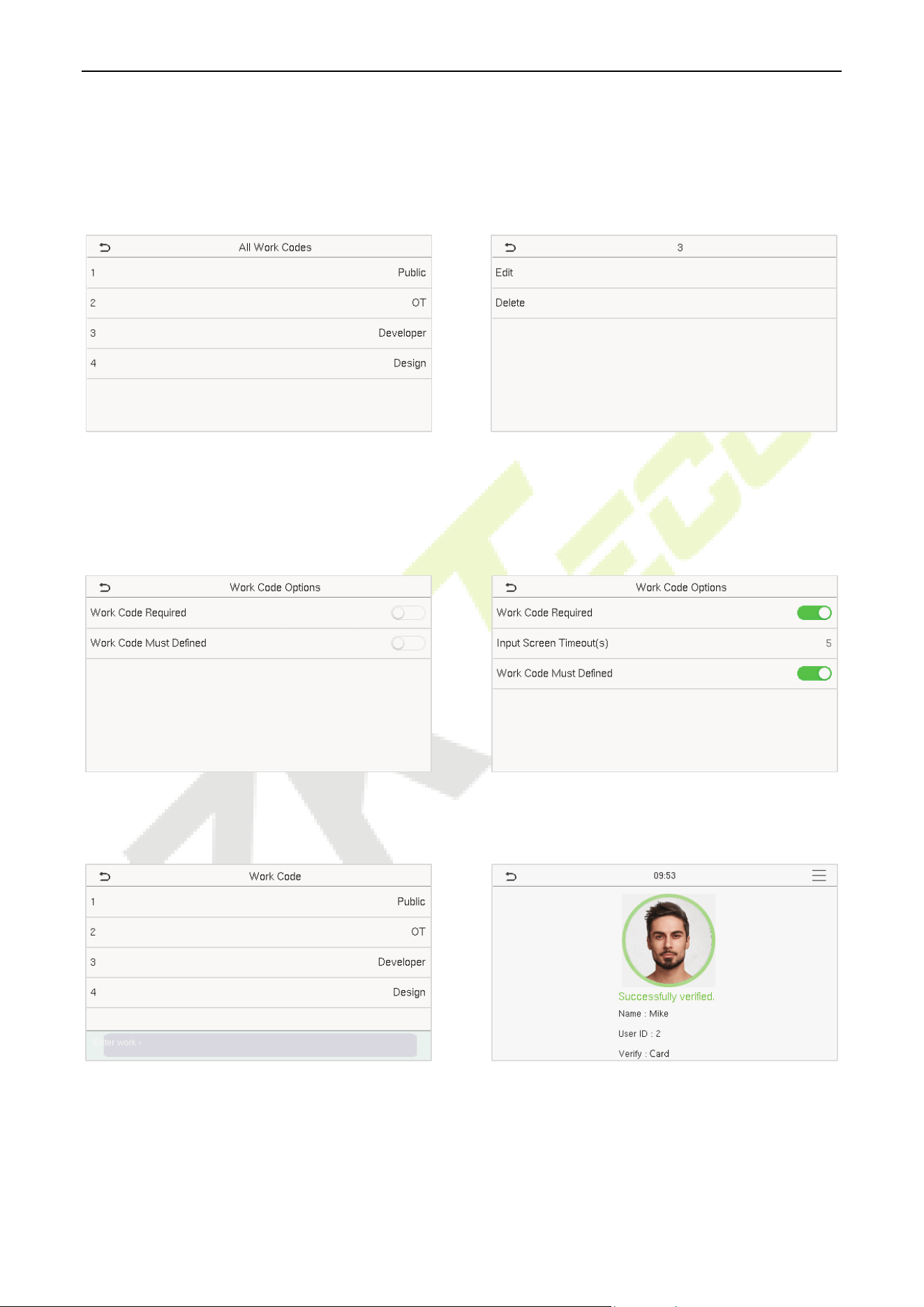

ALL WORK CODES .................................................................................................................................................................................. 49 12.2

WORK CODE OPTIONS ............................................................................................................................................................................ 49 12.3

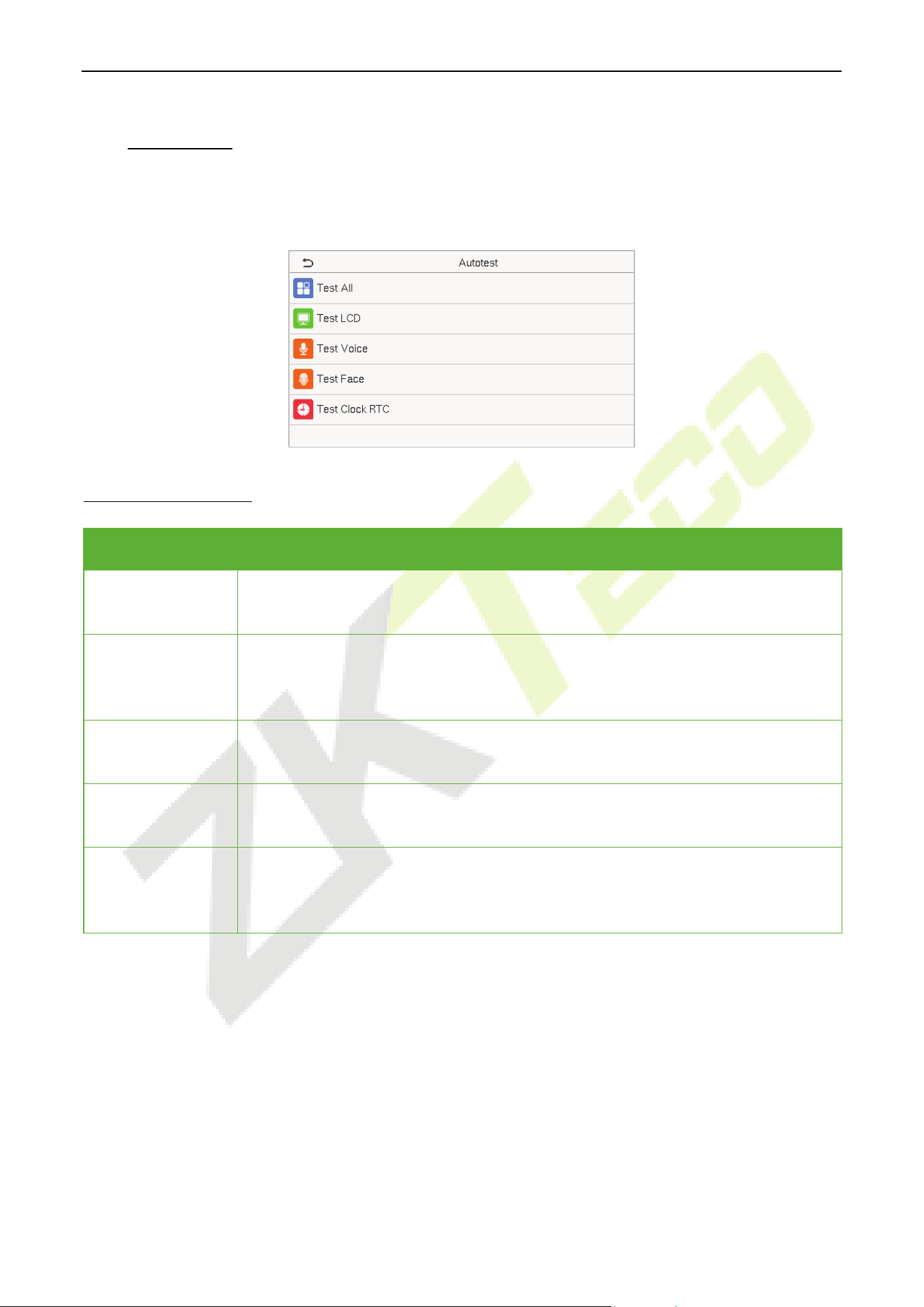

13 AUTOTEST ...................................................................................................................................... 50

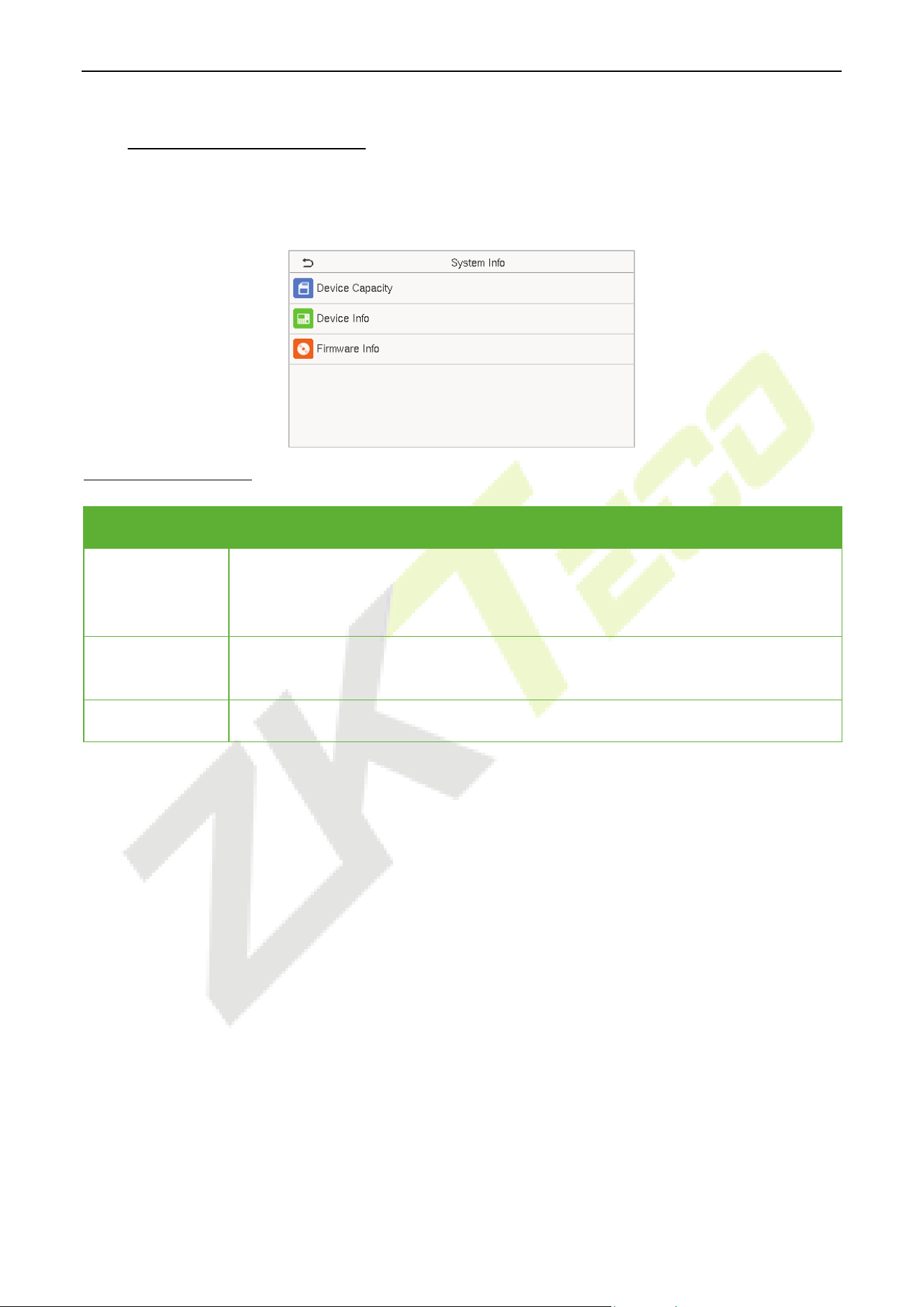

14 SYSTEM INFORMATION ................................................................................................................. 51

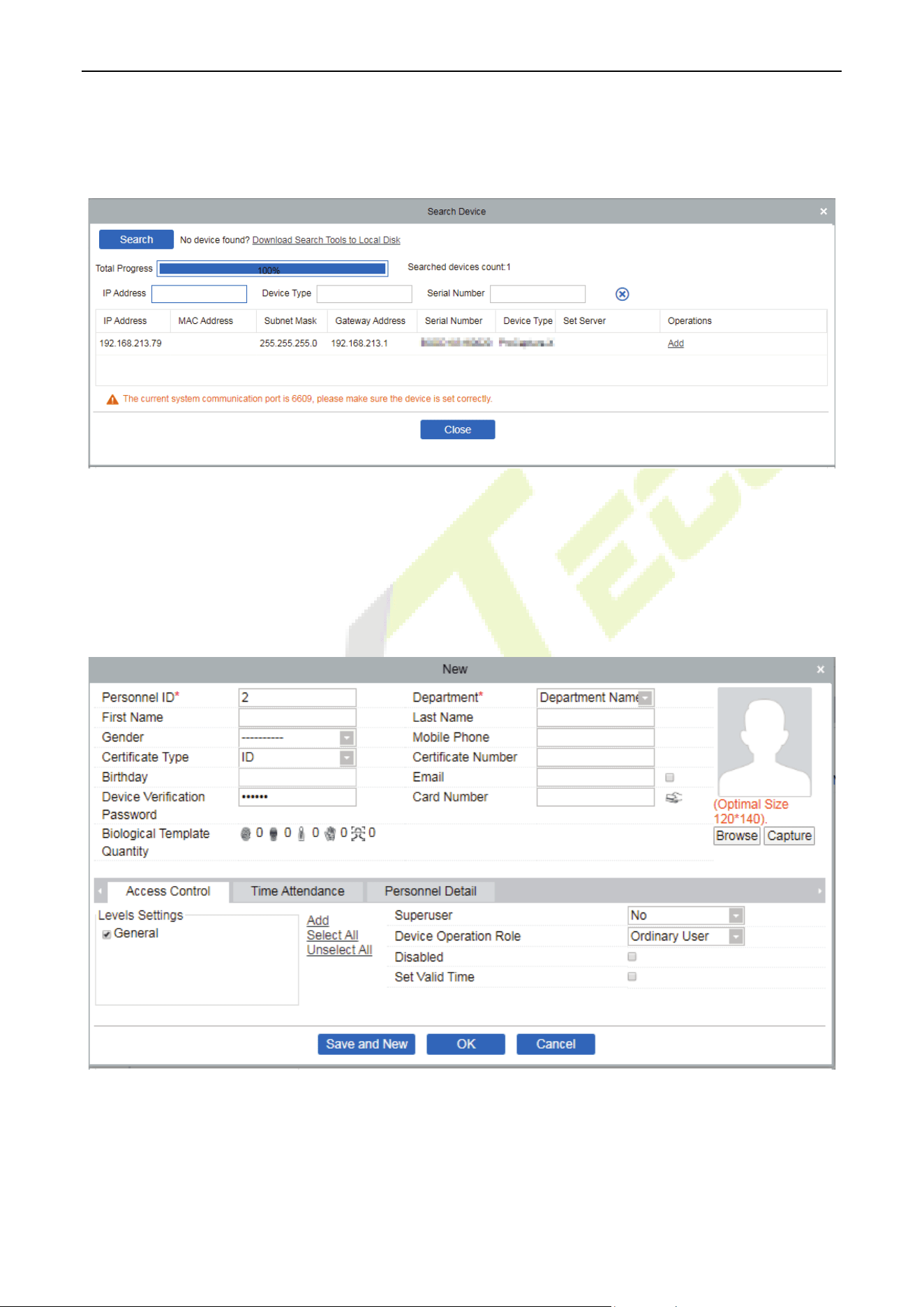

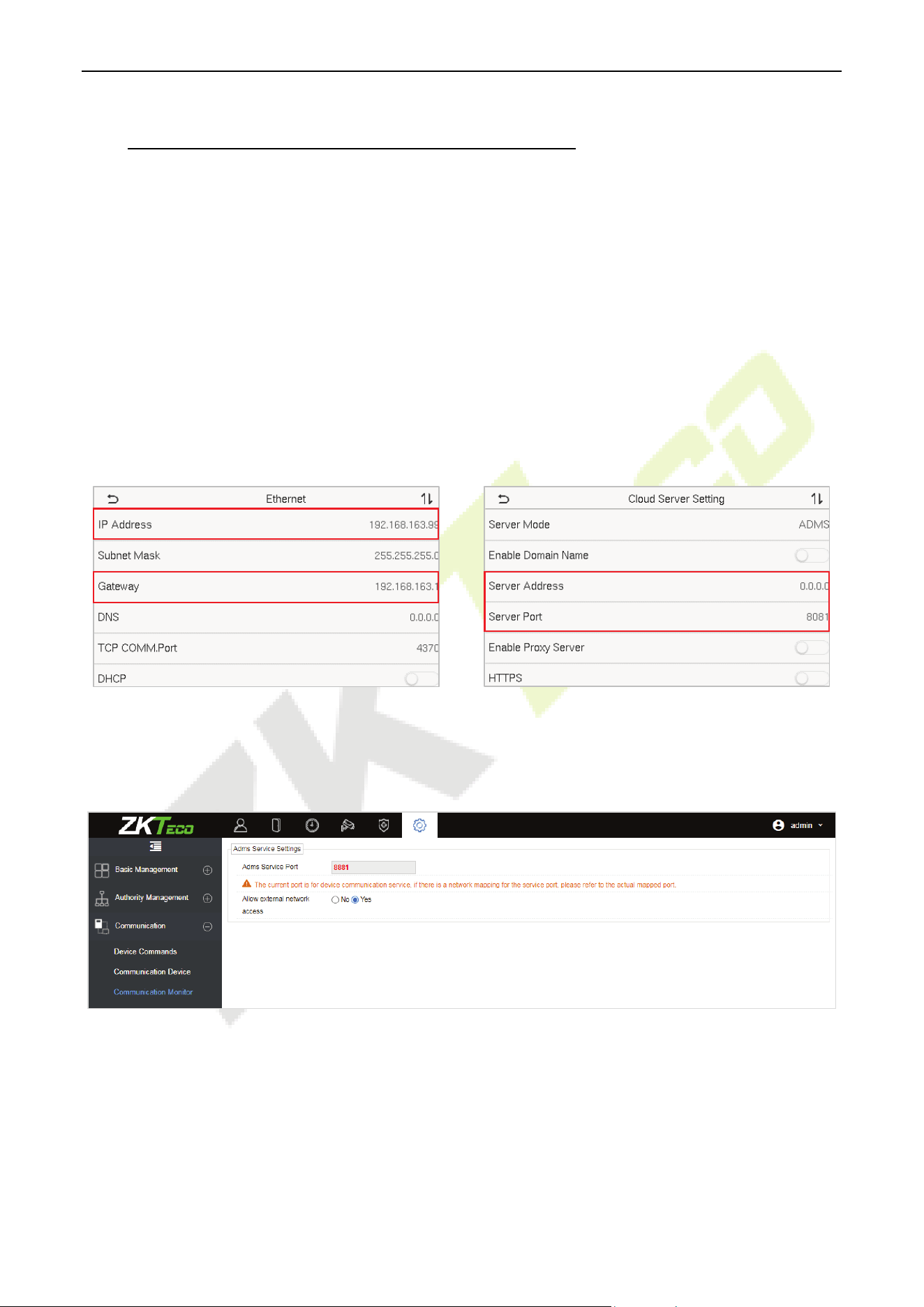

15 CONNECT TO ZKBIOACCESS IVS SOFTWARE ............................................................................... 52

SET THE COMMUNICATION ADDRESS ..................................................................................................................................................... 52 15.1

ADD DEVICE ON THE SOFTWARE ............................................................................................................................................................ 52 15.2

ADD PERSONNEL ON THE SOFTWARE .................................................................................................................................................... 53 15.3

APPENDIX 1 ............................................................................................................................................... 54

REQUIREMENTS OF LIVE COLLECTION AND REGISTRATION OF VISIBLE LIGHT FACE IMAGES ........................................................................... 54

REQUIREMENTS FOR VISIBLE LIGHT DIGITAL FACE IMAGE DATA ...................................................................................................................... 55

APPENDIX 2 ............................................................................................................................................... 56

STATEMENT ON THE RIGHT TO PRIVACY ............................................................................................................................................................ 56

ECO-FRIENDLY OPERATION ................................................................................................................................................................................ 57

EFace10 User Manual

Safety Measures

The below instructions intend to ensure that the user can use the product correctly to avoid danger or

property loss. The following precautions are to keep the user’s safety and prevent any damage. Please read

carefully before installation.

1. Read, follow, and retain instructions - All safety and operational instructions must be properly

read and followed before bringing the device into service.

2. Do not ignore warnings - Adhere to all warnings on the unit and in the operating instructions.

3. Accessories - Use only manufacturer-recommended or product-sold accessories. Please do not

use any other components other than manufacturer suggested materials.

4. Precautions for the installation – Do not place this device on an unstable stand or frame. It may

fall and cause serious injury to persons and damage to the device.

5. Service - Do not try to service this unit yourself. Opening or removing covers may expose you to

hazardous voltages or other hazards.

6. Damage requiring service - Disconnect the system from the main AC or DC power source and

refer service personnel under the following conditions:

 When cord or connection control is affected.

 When any liquid is spilled, or an item dropped into the system.

 If exposed to water and/or an inclement weather (rain, snow, and more).

 If the system is not operating normally under operating instructions.

Just change controls defined in operating instructions. Improper adjustment of the controls may

result in damage and involve a qualified technician to return the device to normal operation.

7. Replacement parts - When replacement parts are needed, service technicians must only use

replacement parts provided by the supplier. Unauthorized substitutes can result in a burn, shock,

or other hazards.

8. Safety check - On completion of service or repair work on the unit, ask the service technician to

perform safety checks to ensure proper operation of the unit.

9. Power sources - Operate the system only from the label's power source form. If the sort of power

supply to use is unclear, call your dealer.

10. Lightning - External lightning conductors can be installed to protect against electrical storms. It

stops power-ups from destroying the system.

NOTE: The devices should be installed in areas with limited access.

EFace10 User Manual

1 Instruction for Use

Before getting into the device features and its functions, it is recommended to be familiar to the below

fundamentals.

Standing Position, Facial Expression and Standing Posture 1.1

 The recommended distance

 Recommended Standing Posture and Facial Expression

Standing Posture Facial Expression

NOTE: During enrolment and verification, please maintain natural facial expression and standing posture.

It is recommended to have a 0.5m space

between the device and the user whose height

is in a range of 1.55m to 1.85m. Users may

slightly move forwards or backward to improve

the character recognition of facial images

EFace10 User Manual

Face Registration 1.2

Try to keep the face in the centre of the screen during registration. Please face towards the camera and

stay still during face registration. The screen should look like this:

Correct face registration and authentication method

 Recommendation for registering a face

 When registering a face, maintain a distance of 40cm to 80cm between the device and the

face.

 Be careful to keep your facial expression natural and not to change. (smiling, drawn face, wink,

etc.)

 If you do not follow the instructions on the screen, the face registration may take longer or

may fail.

 Be careful not to cover the eyes or eyebrows.

 Do not wear hats, masks, sunglasses, or eyeglasses.

 Be careful not to display two faces on the screen. Register one person at a time.

 It is recommended for a user wearing glasses to register both faces with and without glasses.

 Recommendation for authenticating a face

 Ensure that the face appears inside the guideline displayed on the screen of the device.

 Sometimes, authentication may fail due to the change in the wearing glasses then the one

used while registration. In such a case, you may require authenticating your face with the

previously worn glasses. If your face was registered without glasses, you should authenticate

your face without glasses further.

 If a part of the face is covered with a hat, a mask, an eye patch, or sunglasses, authentication

may fail. Do not cover the face, allow the device to recognize both the eyebrows and the

face.

EFace10 User Manual

Standby Interface 1.3

After connecting the power supply, the following standby interface is displayed:

 Click to enter the User ID input interface.

 When there is no Super Administrator set in the device, tap to go to the menu.

 After adding a Super Administrator on the device, it requires the Super Administrator’s verification

before entering the menu functions.

NOTE: For the security of the device, it is recommended to register super administrator the first

time you use the device.

 ★The punch state options can also be displayed and used directly on the standby interface. Tap

anywhere on the screen apart from the icons, and six shortcut keys appears on the screen, as

shown in the figure below:

 Press the corresponding punch state key to select your current punch state, which is displayed in

green.

NOTE: The punch state options are off by default and need to be changed to other option. Refer

"7.4

Punch States Options" in order to get the punch state options on the standby screen.

EFace10 User Manual

Virtual Keyboard 1.4

NOTE:

The device supports the input in Chinese language, English language, numbers, and symbols.

 Click [En] to switch to the English keyboard.

 Press [123] to switch to the numeric and symbolic keyboard.

 Tap [ABC] to return to the alphabetic keyboard.

 Tap the input box, virtual keyboard appears.

 Tap [ESC] to exit the virtual keyboard.

Verification Mode 1.5

1.5.1 Facial Verification

 1:N Facial Verification

In this verification mode, the device compares the collected facial images with all face data registered in

the device. The following is the pop-up prompt of a successful comparison result.

EFace10 User Manual

 1:1 Facial Verification

In this verification mode, the device compares the face captured by the camera with the facial template

related to the entered user ID. Press on the main interface and enter the 1:1 facial verification mode

and enter the user ID and tap [OK].

If the user has registered password and card in addition to his/her face, and the verification method is set

to password/face/card verification, the following screen will appear. Select the icon to enter the face

verification mode.

After successful verification, the prompt box displays "Successfully verified", as shown below:

If the verification is failed, it prompts “Please adjust your position!”.

EFace10 User Manual

1.5.2 Card Verification

★

 1:N Card Verification

The 1: N Card Verification mode compares the card number in the card induction area with all the card

number data registered in the device; The following is the card verification screen.

 1:1 Card Verification

The 1:1 Card Verification mode compares the card number in the card induction area with the number

associated with the employee's User ID registered in the device.

Press in the main interface to open the 1:1 card verification mode.

Enter the user ID and tap [OK].

If the user has registered password and face in addition to his/her card, and the verification method is set

to password/face/card verification, the following screen will appear. Select the icon to enter the card

verification mode.

EFace10 User Manual

After successful verification, the prompt box displays "Successfully verified", as shown below:

1.5.3 Password Verification

The device compares the entered password with the registered password by the given User ID.

Click the button on the main screen to enter the 1:1 password verification mode. Then, input the user

ID and press [OK].

If the user has registered face and card in addition to password, and the verification method is set to

password/face/card verification, the following screen will appear. Select the icon to enter password

verification mode.

Input the password and press [OK].

EFace10 User Manual

Following are the display screen after entering a correct password and a wrong password respectively.

Verification is successful: Verification is failed:

1.5.4 Combined Verification

For increased security and accessibility, the device offers the option of using multiple forms of verification

methods. A total of 9 different verification combinations can be used, as shown below:

Combined Verification Symbol Definition

Symbol Definition Explanation

This method compares the

entered verification of a person with the related

verification template previously stored to that Personnel ID in the Device.

and

This method compares the entered verification of a person with all the verification

template previously stored to that Personnel ID in the Device.

EFace10 User Manual

Procedure to set for Combined Verification Mode

 Combined verification requires personnel to register all the different verification method.

Otherwise, employees will not be able to successfully verify through the combined verification

process.

 For instance, when an employee has registered only the face data, but the device verification

mode is set as “Face + Password”, the employee will not be able to complete the verification

process successfully.

 This is because the device compares the scanned face template of the person with registered

verification template (both the Face and the Password) previously stored to that Personnel ID in

the Device.

 But as the employee has registered only the Face but not the Password, the verification will not

get completed and the Device displays “Verification Failed”.

EFace10 User Manual

2 Main Menu

Press on the Standby interface to enter the Main Menu, the following screen will be displayed:

Function Description

Menu Descriptions

User Mgt.

To Add, Edit, View, and Delete basic information of a User.

User Role

To set the permission scope of the custom role and enroller for the users, that is,

the rights to operate the system.

COMM.

To set the relevant parameters of Ethernet, PC Connection, Wireless Network,

Cloud Server Setting, and Network Diagnosis.

System

To set the parameters related to the system, including Date Time, Attendance,

Face Parameter, Reset to factory and USB Upgrade.

Personalize

To customize settings of

User Interface, Voice, Bell Schedules, Punch State

Options, and Shortcut Key Mappings settings.

Data Mgt.

To delete all relevant data in the device.

Access Control

To set the parameters of the lock.

USB Manager

To upload or download the specific data by a USB drive.

Attendance Search

To query the specified Attendance Record, check Attendance Photo, and Blocklist

ATT Photo.

Work Code

Set different type of work.

Autotest

To automatically test whether each module functions properly, including the LCD

Screen, Audio, Camera, and real-time clock.

System Info

To view Data Capacity and Device and Firmware information of the current

device.

EFace10 User Manual

3 User Management

User Registration 3.1

Click User Mgt. on the main menu.

3.1.1 User ID and Name

Tap New User. Enter the User ID and Name.

Notes:

1） A name can take up to 36 characters.

2） The user ID may contain 1-9 digits by default.

3） During the initial registration, you can modify your ID, which can’t be modified after registration.

4） If a message "Duplicated!" pops up, you must choose another ID as the enter User ID already

exists.

3.1.2 User Role

On the New User interface, tap User Role to set the role for the user as either Normal User or Super

Admin.

 Super Admin: The Super Administrator owns all management privileges in the device.

EFace10 User Manual

 Normal User: If the Super Admin is registered already in the device, then the Normal Users will not

have the privilege to manage the system and can only access authentication verifications.

 User Defined Roles: The Normal User can also be assigned custom roles with User Defined Role.

The user can be permitted to access several menu options as required.

NOTE: If the selected user role is the Super Admin, the user must pass the identity authentication to access

the main menu. The authentication is based on the authentication method(s) that the super administrator

has registered. Please refer to

1.5 Verification Mode.

3.1.3 Face

Tap Face in the New User interface to enter the face registration page.

 Please face towards the camera and position yourself such that your face image fits inside the

white guiding box and stay still during face registration.

 A progress bar shows up while registering the face and a “Enrolled Successfully” message is

displayed as the progress bar completes.

 If the face is registered already then, the “Duplicate Face” message shows up. The registration

interface is as follows:

3.1.4 Card

★

Tap Card in the New User interface to enter the card registration page.

 On the Card interface, swipe the card underneath the card reading area. The card registration will

EFace10 User Manual

be successful.

 If the card is registered already then, the “Duplicate Card” message shows up. The registration

interface is as follows:

3.1.5 Password

Tap Password in the New User interface to enter the password registration page.

 On the Password interface, enter the required password and re-enter to confirm it and tap OK.

 If the re-entered password is different from the initially entered password, then the device

prompts the message as "Password not match!", where the user needs to confirm the password

again.

NOTE: The password may contain 1 to 8 digits by default.

EFace10 User Manual

3.1.6 User Photo

Tap on User Photo in the New User interface to go to the User Photo registration page.

 When a user registered with a photo authenticates successfully, the registered photo is displayed.

 Tap User Photo to open the device’s camera, then tap the camera icon to take a photo. The

captured photo is displayed on the top left corner of the screen and the camera opens up again to

take a new photo, after taking the initial photo.

NOTE: While registering a face, the system automatically captures a photo as the user photo. If you do not

photo.

Search User 3.2

On the Main Menu, tap User Mgt., and then tap All Users to search for a User.

 On the All Users interface, tap on the search bar on the user’s list to enter the required retrieval

keyword (where the keyword may be the user ID, surname, or full name) and the system will search

for the related user information.

EFace10 User Manual

Edit User 3.3

On the All Users interface, tap on the required user from the list and tap Edit to edit the user information.

NOTE: The process of editing the user information is the same as adding a new user, except that the User

ID cannot be modified when editing a user. The process in detail refers to "3 User Management".

Delete User 3.4

On the All Users interface, tap on the required user from the list and tap Delete to delete the user or a

specific user information from the device. On the Delete interface, tap on the required operation and then

tap OK to confirm the deletion.

Delete Operations

Delete User: Deletes all the user information (deletes the selected User as a whole) from the device.

Delete Face Only: Deletes the face information of the selected user.

Delete Password Only: Deletes the password information of the selected user.

Delete User Photo Only: Deletes the photo of the selected user.

EFace10 User Manual

Display Style 3.5

On the Main Menu, tap User Mgt., and then tap Display Style to enter Display Style setting interface.

All the Display Styles are shown as below:

Single Line Style Multiple Line Style

Mixed Line Style

EFace10 User Manual

4 User Role

User Role facilitates assigning some specific permissions to certain users based on the requirement.

 On the Main menu, tap User Role > User Defined Role to set the user defined permissions.

 A total of 3 different custom roles can be added. It is the custom operating scope of a user.

 On the User Defined Role interface, toggle Enable Defined Role to enable or disable the user

defined role.

 Tap on Name and enter the custom name of the role.

 Then, tap on Define User Role and select the required privileges to assign to the new role, and

then tap on the Return button.

 During privilege assignment, the Main Menu function names are displayed on the left and its sub-

menus are listed on its right.

 First, tap on the required Main Menu function name, and then select its required sub-menus from

the list which the user can access.

NOTE: If the User Role is enabled for the device, tap on User Mgt. > New User > User Role to assign the

created roles to the required users. But if there is no super administrator registered in the device, then the

device will prompt "Please enroll super admin first!” when enabling the User Role function.

EFace10 User Manual

5 Communication Settings

Tap COMM. on the Main Menu to set the relevant parameters of Ethernet, PC Connection, Wireless

Network, Cloud Server, and Network Diagnosis.

Ethernet Settings 5.1

When the device needs to communicate with a PC over the Ethernet, you need to configure network

settings and ensure that the device and the PC are connect to the same network segment.

Tap Ethernet on the Comm. Settings interface to configure the settings.

Function Description

Function Name Descriptions

IP Address

The default IP address is 192.168.1.201. It can be modified according to the

network availability.

Subnet Mask

The default Subnet Mask is 255.255.255.0. It can be modified according to the

network availability.

Gateway

The default Gateway address is 0.0.0.0. It can be modified according to the

network availability.

DNS

The default DNS address is 0.0.0.0. It can be modified according to the

network availability.

EFace10 User Manual

TCP COMM. Port

The default TCP COMM Port value is 4370. It can be modified according to the

network availability.

DHCP

It stands for Dynamic Host Configuration Protocol. It dynamically allocates IP

addresses for clients via server.

Display in Status Bar

Toggle to set whether to display the network icon on the status bar.

PC Connection 5.2

Comm Key facilitates to improve the security of data by setting the communication between the device

and the PC. Once the Comm Key is set, a connection password is required to connect the device to the PC

software.

Tap PC Connection on the Comm. settings interface to configure the communication settings.

Function Description

Function Name Descriptions

Comm Key

The default password is 0 and can be changed later.

The Comm Key can contain1-6 digits.

Device ID

It is the identification number of the device, which ranges between 1 and 254.

Wireless Network



5.3

The device provides a Wi-Fi module, which can be built-in within the device module or can be externally

connected.

The Wi-Fi module enables data transmission via Wi-Fi (Wireless Fidelity) and establishes a wireless network

environment. Wi-Fi is enabled by default in the device. If you don't need to use the Wi-Fi network, you can

toggle the Wi-Fi to disable the button.

Tap Wireless Network on the Comm. settings interface to configure the Wi-Fi settings.

EFace10 User Manual

Search the WIFI Network

 WIFI is enabled in the device by default. Toggle the button to enable or disable WIFI.

 Once the Wi-Fi is turned on, the device searches for the available WIFI within the network range.

 Tap on the required Wi-Fi name from the available list and input the correct password in the

password interface, and then tap Connect to WIFI (OK).

WIFI Enabled: Tap on the required network from

the searched network list.

Tap on the password field to enter the password,

and then tap on Connect to WIFI (OK).

 When the WIFI is connected successfully, the initial interface will display the Wi-Fi logo.

Add WIFI Network Manually

The Wi-Fi can also be added manually if the required Wi-Fi does not show on the list.

Tap on Add WIFI Network to add the WIFI

manually.

On this interface, enter the WIFI network

parameters. (the added network must exist.)

NOTE: After successfully adding the WIFI manually, follow the same process to search for the added WIFI

name. Click here to view the process to search the WIFI network.

EFace10 User Manual

Advanced Setting

On the Wireless Network interface, tap on Advanced to set the relevant parameters as required.

Function Description

Function Name Description

DHCP

Dynamic Host Configuration Protocol (DHCP) dynamically allocates IP addresses

to network clients. If the DHCP is enabled, then the IP cannot be set manually.

IP Address

The

IP address for the WIFI network, the default is 0.0.0.0. It can be modified

according to the network availability.

Subnet Mask

The default Subnet Mask of the WIFI network is 255.255.255.0. It can be modified

according to the network availability.

Gateway

The default Gateway address is 0.0.0.0. It c

an be modified according to the

network availability.

Cloud Server Setting 5.4

Tap Cloud Server Setting on the Comm. settings interface to connect with the ADMS server.

EFace10 User Manual

Function Description

Function Name Description

Enable

Domain

Name

Server Address

Once this function is turned ON, the domain name mode “http://...”

will be used, such as http://www.XYZ.com, while “XYZ” denotes the

domain name.

Disable

Domain

Name

Server Address

The IP address of the ADMS server.

Server Port

Port used by the ADMS server.

Enable Proxy Server

The IP address and the port number of the proxy server is set

manually when the proxy is enabled.

HTTPS

Based on HTTP, transmission encryption and identity

authentication ensure the security of the transmission process.

Network Diagnosis 5.5

It helps to set the network diagnosis parameters.

Tap Network Diagnosis on the Comm. settings interface. Enter the IP address that needs to be diagnosed

and tap Start the diagnostic test to check whether the network can connect to the device.

EFace10 User Manual

6 System Settings

It helps to set related system parameters to optimize the accessibility of the device.

Tap System on the Main Menu interface to get to its menu options.

Date Time 6.1

Tap Date Time on the System interface to set the date and time.

 Tap Manual Date and Time to manually set date and time and tap Confirm to save.

 Tap 24-Hour Time to enable or disable this format. If enabled, then select the Date Format to set

the date format i.e., the way date should be displayed on the device.

 Tap Daylight Saving Time to enable or disable the function. If enabled, tap Daylight Saving

Mode to select a daylight-saving mode and then tap Daylight Saving Setup to set the switch

time.

Week Mode

Date Mode

EFace10 User Manual

 When restoring the factory settings, the time (24-hour) and date format (YYYY-MM-DD) can be

restored, but the device date and time cannot be restored.

NOTE: For example, the user sets the time of the device (18:35 on March 15, 2019) to 18:30 on January 1,

2020. After restoring the factory settings, the time of the equipment will remain 18:30 on January 1, 2020.

Attendance 6.2

Click Attendance on the System interface.

Function Description

Function Name Description

Duplicate Punch

Period(m)

Within a set time period (unit: minutes), the duplicated attendance record will

not be reserved (value ranges from 1 to 999999 minutes).

Camera Mode

Choose whether to capture and save the current snapshot image during

verification. There are 5 modes:

No Photo: No photo is taken during user verification.

Take photo, no save: Photo is taken but not saved during verification.

Take photo and save: Photo is taken and saved during verification.

Save on successful verification: Photo is taken and saved for each successful

verification.

Save on failed verification: Photo is taken and saved only for each failed

verification.

Display User Photo

Choose whether

to display the user photo when the user passes the

verification.

Attendance Log Alert

When the record space of the attendance reaches the maximum threshold

value, the device automatically displays the memory space warning.

Users may disable the function or set a valid value between 1 and 9999.

EFace10 User Manual

Periodic Del of ATT

Data

When attendance records reach its maximum storage

capacity, the device

automatically deletes a set of old attendance records.

Users may disable the function or set a valid value between 1 and 999.

Periodic Del of ATT


When attendance photos reach its maximum storage

capacity, the device

automatically deletes a set of old attendance photos.

Users may disable the function or set a valid value between 1 and 99.

Periodic Del of

Blocklist Photo

When block listed photos reach its maximum storage

capacity, the device

automatically deletes a set of old block listed photos.

Users may disable the function or set a valid value between 1 and 99.

Authentication

Timeout(s)

The amount of time taken to display a successful verification message.

Valid value: 1~9 seconds.

Face comparison

interval (s)

The amount of time required to compare facial templates.

Valid value: 0~9 seconds.

Face Parameters 6.3

Tap Face on the System interface to go to the face parameter settings.

EFace10 User Manual

Function Description

Function Name Description

1:N Threshold Value

Under 1:N verification mode, the verification will only be successful when the

similarity between the acquired facial image and all registered facial templates

is greater than the set value.

The valid value ranges from 0 to 100. The higher the thresholds, the lower the

misjudgement rate and the higher the rejection rate, and vice versa. It is

recommended to set the default value of 47.

1:1 Threshold Value

Under 1:1 verification mode, the verification will only be successful when the

similarity between the acquired facial image and the user’s facial templates

enrolled in the device is greater than the set value.

The valid value ranges from 0 to 100. The higher the thresholds, the lower the

misjudgement rate and the higher the rejection rate, and vice versa. It is

recommended to set the default value of 63.

Face

Enrollment Threshold

During face enrollment, 1:N comparison is used to determine whether the user

has already registered before.

When the similarity between the acquired facial image and all registered facial

templates is greater than the set threshold, it indicates that the face has already

been registered.

Face Pitch Angle

It is the pitch angle tolerance of a face for facial template registration and

comparison.

If a face’s pitch angle exceeds the set value, it will be filtered by the algorithm,

i.e., ignored by the terminal thus no registration and comparison interface will

be triggered.

Face Rotation Angle

It is the rotation angle tolerance of a face for facial template registration and

comparison.

If a face’s rotation angle exceeds the set value, it will be filtered by the

algorithm, i.e.,

ignored by the terminal thus no registration and comparison

interface will be triggered.

Image Quality

It is the image quality for facial registration and comparison. The higher the

value, the clearer image is required.

EFace10 User Manual

Minimum Face Size

It sets the minimum face size required for facial registration and comparison.

If the minimum size of the captured image is smaller than the set value, then it

will be filtered off and not recognized as a face.

This value can also be interpreted as the face comparison distance. The farther

the individual is, the smaller the face, and the smaller number of pixels of the

face obtained by the algorithm. Therefore, adjusting this parameter can adjust

the farthest comparison distance of faces. When the value i

s 0, the face

comparison distance is not limited.

LED Light Triggered

Value

This value controls the turning on and off of the LED light. The larger the value,

the LED light will turn on or off more frequently.

Motion Detection

Sensitivity

It sets the value for the amount of change in a camera’s field of view known as

potential motion detection that wakes up the terminal from standby to the

comparison interface.

The larger the value, the more sensitive the system would be, i.e., if a larger

value is set, the comparison interface activates with much ease, and the motion

detection is frequently triggered.

Live Detection

It detects the spoof attempt using visible light images to determine if the

provided biometric source sample is of a real person (a live human being) or a

false representation.

Live Detection

Threshold

It facilitates judging whether the captured visible image is a real person (a live

human being). The larger the value, the better the anti-spoofing performance

using visible light.

Anti-spoofing using

NIR

It uses near-

infrared spectra imaging to identify and prevent fake photos and

videos attack.

Face Algorithm It has facial algorithm related information and pause facial template update.

NOTE: Improper adjustment of the exposure and quality parameters may severely affect the performance

of the device. Please adjust the exposure parameter only under the guidance of the after-sales service

personnel of our company.

EFace10 User Manual

Factory Reset 6.4

The Factory Reset function restores the device settings such as communication settings and system

settings, to the default factory settings (this function does not clear registered user data).

Tap Reset on the System interface and then tap OK to restore the default factory settings.

USB Upgrade 6.5

With this option, the device firmware can be upgraded by using the upgrade file on a USB disk. Before

conducting this operation, ensure that the USB disk is properly inserted into the device and contains the

correct upgrade file.

If no USB disk is plugged in, the system gives the following prompt after you tap USB Upgrade on the

System interface.

NOTE: If an upgrade file is required, please contact our technical support. A firmware upgrade is not

recommenced under normal circumstances.

EFace10 User Manual

7 Personalize Settings

Tap Personalize on the Main Menu interface to customize interface settings, voice, bell, punch state

options, and shortcut key mappings.

Interface Settings 7.1

Tap User Interface on the Personalize interface to customize the display style of the main interface.

Function Description

Function Name Description

Wallpaper

It helps to select the main screen wallpaper according to the user preference.

Language

It helps to select the language of the device.

Menu Screen

Timeout (s)

When there is no operation, and the time exceeds the set value, the device

automatically goes back to the initial interface.

The function can either be disabled or set the required value between 60 and

99999 seconds.

Idle Time To Slide

Show (s)

When there is no operation, and the time exceeds the set value, a slide show is

displayed. The function can be disabled, or you may set the value between 3

and 999 seconds.

EFace10 User Manual

Slide Show

Interval (s)

It is the time interval in switching between different slide show pictures. The

function can be disabled, or you may set the interval between 3 and 999

seconds.

Idle Time to Sleep

(m)

If the sleep mode is activated, and when there is no operation in the device,

then the device will enter standby mode.

Press any key or finger to resume normal working mode. This function can be

disabled or set a value within 1-999 minutes.

Main Screen Style

It helps selecting the main screen style according to the user preference.

Voice Settings 7.2

Tap Voice on the Personalize interface to configure the voice settings.

Function Description

Function Name

Description

Voice Prompt

Toggle to enable or disable the voice prompts during function operations.

Touch Prompt

Toggle to enable or disable the keypad sounds.

Volume

Adjust the volume of the device which can be set between 0-100.

Bell Schedules 7.3

Tap Bell Schedules on the Personalize interface to configure the Bell settings.

EFace10 User Manual

New Bell Schedule

Tap New Bell Schedule on the Bell Schedule interface to add a new bell schedule.

Function Description

Function Name Description

Bell Status

Toggle to enable or disable the bell status.

Bell Time

Once the required time is set, the device will automatically trigger to ring the bell

during that time.

Repeat

Set the required number of counts to repeat the scheduled bell.

Ring Tone

Select a ring tone.

Internal bell delay(s)

Set the replay time of the internal bell. Valid values ranges from 1 to 999

seconds.

All Bell Schedules

Once the bell is scheduled, on the Bell Schedules interface, tap All Bell Schedules to view the newly

scheduled bell.

EFace10 User Manual

Edit the scheduled bell

On the All Bell Schedules interface, tap on the required bell schedule, and tap Edit to edit the selected

bell schedule. The editing method is the same as the operations of adding a new bell schedule.

Delete a bell

On the All Bell Schedules interface, tap the required bell schedule, and tap Delete, and then tap Yes to

delete the selected bell.

Punch States Options 7.4

Tap Punch States Options on the Personalize interface to configure the punch state settings.

EFace10 User Manual

Function Description

Function Name Description

Punch State Mode

Off:

It disables the punch state function. And the punch state key set under

the Shortcut Key Mappings menu becomes invalid.

Manual Mode: Switch the punch state key manually, and the punch state key

will disappear after Punch State Timeout.

Auto Mode: The punch state key will automatically switch to a specific punch

status according to the predefined schedule which can be set in the Shortcut

Key Mappings.

Manual and Auto Mode: The main interface will display the auto-switch

punch state key. However, the users will still be able to select an alternative

that is the manual attendance status. After timeout, the manual switching

punch state key will become auto-switch punch state key.

Manual Fixed Mode: After the punch state key is set manually to a particular

punch status, the function will remain unchanged until being manually

switched again.

Fixed Mode: Only the manually fixed punch state key is shown. Users cannot

change the status by pressing any other keys.

Shortcut Key Mappings 7.5

Users may define shortcut keys for attendance status and functional keys on the main interface. So, on the

main interface, when the shortcut keys are pressed, the corresponding attendance status or the function

interface displays directly.

Tap Shortcut Key Mappings on the Personalize interface to set the required shortcut keys.

 On the Shortcut Key Mappings interface, tap on the required shortcut key to configure the

shortcut key settings.

 On the Shortcut Key (that is “Up Key”) interface, tap function to set the functional process of the

shortcut key either as punch state key or function key.

 If the Shortcut key is defined as a function key (such as New user, All users, etc.), the configuration

is done as shown in the image below.

EFace10 User Manual

 If the Shortcut key is set as a punch state key (such as check in, check out, etc.), then it is required

to set the punch state value (valid value 0~250), name.

NOTE: When the function is set to Undefined, the device will not enable the punch state key.

EFace10 User Manual

8 Data Management

On the Main Menu, tap Data Mgt. to delete the relevant data in the device.

Delete Data 8.1

Tap Delete Data on the Data Mgt. interface to delete the required data.

Function Description

Function Name Description

Delete Attendance Data

To delete attendance records conditionally.

Delete Attendance Photo

To delete attendance photos of designated personnel.

Delete Blocklist Photo

To delete the photos taken during failed verifications.

Delete All Data

To delete information and attendance records of all registered users.

Delete Admin Role

To remove all administrator privileges.

Delete User Photo

To delete all user photos in the device.

Delete Wallpaper

To delete all wallpapers in the device.

Delete Screen Savers

To delete the screen savers in the device.

EFace10 User Manual

NOTE: The user may select Delete All or Delete by Time Range when deleting the attendance records,

attendance photos, or block listed photos. When selecting Delete by Time Range, you need to set a time

range to delete all data within the specified time.

Select Delete by Time Range

Set the time range and click OK.

EFace10 User Manual

9 Access Control

On the Main Menu, tap Access Control to set the schedule of lock.

Access Control Options 9.1

Tap Access Control Options on the Access Control interface to set the parameters of the control lock of

the terminal and related equipment.

Function Description

Function Name Description

Door Lock Delay (s)

The amount of time that the device controls the electric lock to be in unlock

state.

Valid value: 1~10 seconds; 0 seconds represents disabling the function.

Door Sensor Delay

(s)

An alarm is triggered if the door is not closed within a defined time (Door Sensor

Delay).

The valid value of Door Sensor Delay ranges from 1 to 255 seconds.

Door Sensor Type

There are three Sensor types: None, Normal Open, and Normal Closed.

None: It means the door sensor is not in use.

Normal Open: The door is always open when electric power is on.

Normal Closed: The door is always close when electric power is on.

EFace10 User Manual

10 USB Manager

You can import the user information, work code, and attendance data in the device to match the

attendance for processing by using a USB disk or import the user information and work code to other

fingerprint devices for backup.

NOTE: Before uploading/downloading data from/to the USB disk, insert the USB disk into the USB slot first.

Tap USB Manager on the main menu interface.

Download 10.1

Tap Download on the USB Manager interface.

Function Name Description

Attendance Data

To download attendance data in a specified time into a USB disk.

User Data

To download all user information from the device into a USB disk.

User Portrait

To download all user photos from the device into a USB disk.

Attendance Photo

To download all attendance photos from the device into a USB disk.

Blocklist Photo

To download all block listed photos (photos taken after failed verifications) from

the device into a USB disk.

Work Code

To save the work code in the device to a USB disk.

EFace10 User Manual

Upload 10.2

Tap Upload on the USB Manager interface.

Function Name Description

Screen Saver

To upload all screen savers from USB disk into the device. You can choose

Upload selected photo or Upload all photos. The images will be displayed

on the device's main interface once uploaded. Create a folder named

"advertise

" in the root directory of the USB disk and put the advertising

photos in this directory before uploading.

Wallpaper

To upload all wallpapers from USB disk into the device. You can choose

Upload selected photo or Upload all photos. The images will be displayed

on the screen once uploaded. Create a folder named "wallpaper" in the root

directory of the USB disk and put the

wallpaper photos in this directory

before uploading.

User Date

To upload all the user information from the USB disk into the device.

User Portrait

To upload all user photos from a USB disk into the device.

Upload Work Code

To upload work code from a USB disk into the device.

Download Options 10.3

Tap Download Options on the USB Manager interface.

Function Name Description

Encrypt

Attendance Date

The attendance data is encrypted during the uploading and downloading.

Delete ATT Data

After successful downloading, the attendance data on the device is deleted.

EFace10 User Manual

11 Attendance Search

Once the identity of a user is verified, the Attendance Record is saved in the device. This function enables

users to check their access records.

Click Attendance Search on the Main Menu interface to search for the required Attendance Record.

The process of searching for attendance and blocklist photos is similar to that of searching for Attendance

Record. The following is an example of searching for Attendance Record.

On the Attendance Search interface, tap Attendance Record to search for the required record.

1. Enter the user ID to be searched and click OK.

For the records of all users, click OK without

entering any user ID.

2. Select the time range within which the logs need

to be searched.

3. Once the log search succeeds, tap the record

highlighted in green to view its details.

4. The below figure shows the details of the

selected record.

EFace10 User Manual

12 Work Code

Employees’ salaries are subject to their attendance records. An employee can be engaged in more than

one type of work which may vary with time. As the pay varies according to the work types, the FFR

terminal provides a parameter to indicate the corresponding work type for every attendance record to

facilitate rapid understanding of different attendance situations during the handling of attendance data.

On the Main Menu, tap Work Code to set the work code.

Add a Work Code 12.1

Function Description

Function Name Description

It is the digital code of the work code. Users may set a valid value between 1 and

99999999.

Name

It is the naming of the work code.

EFace10 User Manual

All Work Codes 12.2

You can view, edit and delete work codes in All Work Codes. The process of editing a work code is the

same as adding a work code, except that the ID is not allowed to be modified.

Work Code Options 12.3

To set whether entering the work code is a must and whether the entered work code must exist during

authentication.

In 1: N or 1:1 verification, the system will automatically pop up the following window. Select the

corresponding Word Code manually to verify successfully.

EFace10 User Manual

13 Autotest

On the Main Menu, tap Autotest to automatically test whether all modules in the device function properly,

including the LCD, Voice, Camera, and Real-Time Clock (RTC).

Function Description

Function Name Description

Test All

automatically test whether the LCD, Audio, Camera and RTC are working

normally.

Test LCD

To automatically test the display of the LCD screen by displaying all the color

bands including pure white and pure black to check whether the screen displays

the colors accurately.

Test Voice

To automatically test whether the audio files stored in the device are complete

and the voice quality is good.

Test Face

To test if the camera functions properly it checks the photos taken and determines

if they are clear enough.

Test Clock RTC

To test the RTC. The device checks whether the clock works normally and

accurately with a stopwatch. Touch the screen to start counting and press it again

to stop counting.

EFace10 User Manual

14 System Information

On the Main Menu, tap System Info to view the storage status, the version information of the device, and

firmware information.

Function Description

Function Name Description

Device Capacity

Displays the current device's user storage, password, face and card★ storage,

administrators, attendance records, attendance and b

locklist photos, and user

photos.

Device Info

Displays the device's name, serial number, MAC address, face

algorithm, version

information, platform information, manufacturer, and manufacture date.

Firmware Info

Displays the firmware version and other version information of the device.

EFace10 User Manual

15 Connect to ZKBioAccess IVS Software

Set the Communication Address 15.1

 Device side

1. Tap COMM. > Ethernet in the main menu to set the IP address and gateway of the device.

(Note: The IP address should be able to communicate with the ZKBioAccess IVS server, preferably

in the same network segment with the server address)

2. In the main menu, click COMM. > Cloud Server Setting to set the server address and server port.

Server address: Set the IP address as of ZKBioAccess IVS server.

Server port: Set the server port as of ZKBioAccess IVS(The default is 8881).

 Software side

ADMS service port, as shown in the figure below:

Add Device on the Software 15.2

Add the device by searching. The process is as follows:

1. Click Attendance > Attendance Device > Device > Search, to open the Search interface in the

software.

EFace10 User Manual

2. Click Search, and it will prompt [Searching……].

3. After searching, the list and total number of access controllers will be displayed.

4. Click [Add] in operation column, a new window will pop-up. Select Icon type, Area, and Add to

Level from each dropdown and click [OK] to add the device.

Add Personnel on the Software 15.3

1. Click Personnel > Person > New:

2. Fill in all the required fields and click [OK] to register a new user.

3. Click Attendance > Attendance Device > Device > Control > Synchronize Software Data to

the Devices to synchronize all the data to the device including the new users.

EFace10 User Manual

Appendix 1

Requirements of Live Collection and Registration of Visible Light Face

Images

1） It is recommended to perform registration in an indoor environment with an appropriate light

source without underexposure or overexposure on the face.

2） Do not place the device towards outdoor light sources like door or window or other harsh light

sources.

3） Dark-color apparels other than the background color is recommended for registration.

4） Expose your face and forehead properly and do not cover your face and eyebrows with your hair.

5） It is recommended to show a normal facial expression. (A smile is acceptable, but do not close your

eyes, or incline your head to any orientation).

6） Two images are required for a person with eyeglasses, one image with eyeglasses and the other

without them.

7） Do not wear accessories like a scarf or mask that may cover your mouth or chin.

8） Please face right towards the capturing device and locate your face in the image capturing area as

shown in the image below.

9） Do not include more than one face in the capturing area.

10） A distance of 50cm to 80cm is recommended for capturing the image (the distance is adjustable,

subject to body height).

EFace10 User Manual

Requirements for Visible Light Digital Face Image Data

The digital photo should be straight-edged, colored, half-portrayed with only one person, and the person

should be uncharted and in casuals. Persons who wear eyeglasses should remain to put on eyeglasses for

getting photo captured.

 Eye Distance

200 pixels or above are recommended with no less than 115 pixels of distance.

 Facial Expression

A neutral face or smile with eyes naturally open are recommended.

 Gesture and Angel

The horizontal rotating angle should not exceed ±10°, elevation should not exceed ±10°, and depression

angle should not exceed ±10°.

 Accessories

Masks or coloured eyeglasses are not allowed. The frame of the eyeglasses should not cover the eyes and

should not reflect light. For persons with thick eyeglasses frames, it is recommended to capture two

images, one with eyeglasses and the other one without them.

 Face

Complete face with clear contour, real scale, evenly distributed light, and no shadow.

 Image Format

Should be in BMP, JPG or JPEG.

 Data Requirement

Should comply with the following requirements:

1） White background with dark-colored apparel.

2） 24bit true color mode.

3） JPG format compressed image with not more than 20kb size.

4） Resolution should be between 441 x 358 to 1920 x 1080.

5） The vertical scale of head and body should be in a ratio of 2:1.

6） The photo should include the captured person’s shoulders at the same horizontal level.

7） The captured person’s eyes should be open and with a clearly seen iris.

8） A neutral face or smile is preferred, showing teeth is not preferred.

9） The captured person should be easily visible, natural in color, no harsh shadow or light spot or

reflection in the face or background. The contrast and lightness level should be appropriate.

EFace10 User Manual

Appendix 2

Statement on the Right to Privacy

Dear Customers:

Thank you for choosing this hybrid biometric recognition product, which was designed and manufactured

by ZKTeco. As a world-renowned provider of core biometric recognition technologies, we are constantly

developing and researching new products, and strive to follow the privacy laws of each country in which

our products are sold.

We Declare That:

1. All of our user fingerprint recognition devices capture only characteristics, not fingerprint images, and

do not involve privacy protection.

2. None of the fingerprint characteristics that we capture can be used to reconstruct an image of the

original fingerprint, and do not involve privacy protection.

3. As the provider of this device, we will assume no direct or indirect responsibility for any consequences

that may result from your use of this device.

4. If you would like to dispute human rights or privacy issues concerning your use of our product, please

directly contact your dealer.

Our other law-enforcement fingerprint devices or development tools can capture the original images of

user’s fingerprints. As to whether or not this constitutes an infringement of your rights, please contact your

Government or the final supplier of the device. As the manufacturer of the device, we will assume no legal

liability.

Lastly, we would like to further emphasize that biometric recognition is an advanced technology that will

be certainly used in E-commerce, banking, insurance, judicial, and other sectors in the future. Every year

the world is subjected to major losses due to the insecure nature of passwords. The Biometric products

serve to protect your identity in high-security environments.

EFace10 User Manual

Eco-friendly Operation

The product's "eco-friendly operational period" refers to the time during which this

product will not discharge any toxic or hazardous substances when used in accordance

with the prerequisites in this manual.

The eco-friendly operational period specified for this product does not include batteries or

other components that are easily worn down and must be periodically replaced. The

battery's eco-friendly operational period is 5 years.

Hazardous or Toxic substances and their quantities

Component

Name

Hazardous/Toxic Substance/Element

Lead (Pb)

Mercury

(Hg)

Cadmiu

m (Cd)

Hexavalent

chromium

(Cr6+)

Polybrominate

d Biphenyls

(PBB)

Polybrominated

Diphenyl Ethers

(PBDE)

Chip Resistor

○ ○ ○ ○ ○

Chip Capacitor

○ ○ ○ ○ ○

Chip Inductor

○ ○ ○ ○ ○

Diode

○ ○ ○ ○ ○

ESD

component

○ ○ ○ ○ ○

Buzzer

○ ○ ○ ○ ○

Adapter

○ ○ ○ ○ ○

Screws

○

○ ○

○

indicates that the total amount of toxic content in all the homogeneous materials is below the

limit as specified in SJ/T 11363—2006.

× indicates that the total amount of toxic content in all the homogeneous materials exceeds the limit

as specified in SJ/T 11363—2006.

Note: 80% of this product’s components are manufactured using non-toxic and eco-friendly

materials. The components which contain toxins or harmful elements are included due to the

current economic or technical limitations which prevent their replacement with non-toxic materials

or elements.
