00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
WIRING INSTRUCTION
REVISED BULLETIN
54-06-1150
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.

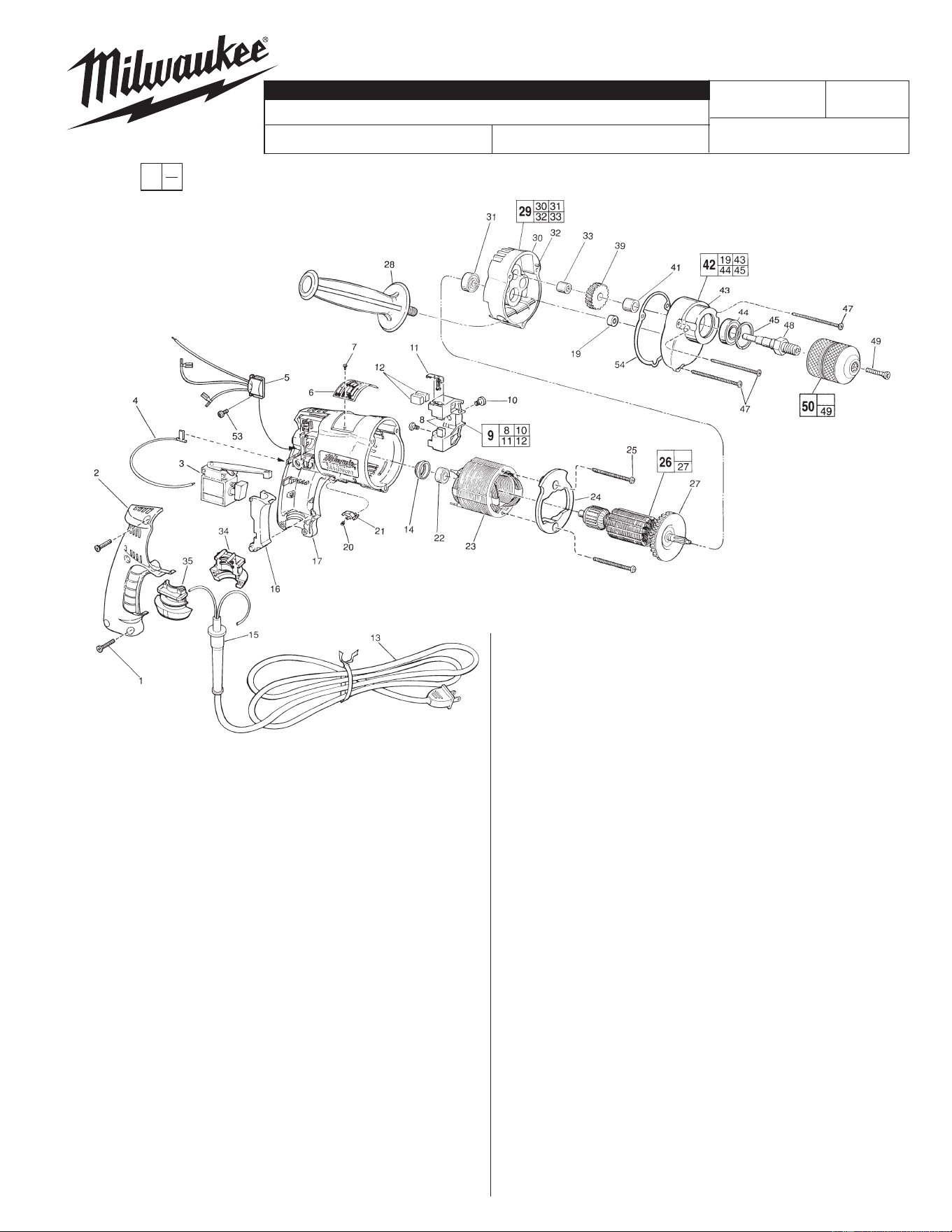

SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 3
BULLETIN NO.
STARTING
SERIAL NO.
58-01-1655
0233-02 or
0233-20
924B
54-06-1151
3/8" KEYLESS 2800 RPM MAGNUM HOLE-SHOOT-
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 06-82-7266 7-1/8 x 11/16" Pan Hd. Plastite T-20 (5)
2 31-15-0402 Handle Cover (1)
3 23-66-1666 Trigger Speed Control Reversing Switch (1)
4 23-94-6247 2-3/8" Lead Assembly (1)
5 14-20-0795 Remote Electronic Assembly (1)
6 12-99-0145 Nameplate Blank (1)
7 06-72-1720 Nameplate Rivet (2)
8 22-16-0275 Carbon Brush (2)
9 22-22-0351 Brush Holder Assembly (1)
10 31-75-0040 Brush Holder Screw (2)
11 22-20-0345 Brush Spring Assembly (2)
12 22-16-0275 Carbon Brush (Spares) (2)
13 22-64-0215 Cord Set (1)
14 22-72-0100 Bearing Cup (1)
15 44-76-0210 Cord Protector (1)
16 45-72-0081 Trigger (1)
17 14-38-0545 Motor Housing Assembly (1)
19 42-40-0050 Bushing (1)
20 40-50-0085 Lock Button Spring (1)
21 42-42-0460 Lock Button (1)
22 02-04-0645 Ball Bearing (1)
23 18-11-0075 120 Volt Field (1)
24 42-14-0395 Baffl e (1)
25 06-82-7398 7-18 x 2-1/16" Pan Hd. Plastite T-20 (2)
26 16-10-0805 120 Volt Armature Assembly (1)
0
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
27 22-84-0885 Fan Assembly (1)
28 43-62-0885 Side Handle (1)
29 14-13-0232 Diaphragm Assembly (1)
30 --------------- Diaphragm (1)
31 02-04-0851 Ball Bearing (1)
32 06-65-0825 1/8 x 1/2 Groove Pin No. 5 (1)
33 02-50-2020 Needle Bearing (1)
34 31-17-0260 Cord Clamp Half (1)
35 31-17-0270 Cord Clamp Half (1)
39 32-75-2915 Spindle Gear (1)
41 45-36-1105 Spacer (1)
42 14-30-0232 Gear Case Assembly (1)
43 --------------- Gear Case (1)
44 02-04-1229 Ball Bearing (1)
45 34-80-2300 Retaining Ring (1)
47 06-82-7380 7-18 x 1-7/8" Pan Hd. Plastite T-20 (3)
48 38-50-6100 Spindle - Single Reduction
(1)
49 45-04-0750 Chuck Retaining Screw (1)
50 48-66-1530 3/8" Keyless Chuck (1)
53 06-82-7212 4-20 x 1/4" Pan Hd. Plastite T-10 (1)
54 43-44-0913 Gasket (1)
23-94-6325 4-5/8" Lead Assembly (1)
23-94-6335 3-1/2" Lead Assembly (1)
23-94-6242 3-3/8" Lead Assembly (1)
10-98-5986 Warning Label (1)
10-98-5984 French/Spanish Warning Label (1)
FIG. LUBRICATION
30 Place In Diaphragm, 5/8 Oz. Type "L" Grease no. 49-08-4170,
Near Needle Bearing #33.
FIG. NOTES
22 Ball Bearing Seal Towards Armature.
May 2006
