Instruction Manual
Automatic Ice Maker
Model No.: HBZB-30N
Thank you for purchasing this product! Please read the instructions carefully before using
your ice maker. If you have any questions about the product, please contact us via
Amazon Message or customer ser vice number: 213-4467172 or 661-4358826.
CONTENTS
IMPORTANT SAFETY...............................................................................................................1
SPECIFICATIONS .....................................................................................................................3
DIMENSIONS/CONNECTIONS ..........................................................................................3
RATING...............................................................................................................................3
GENERAL INFORMATION....................................................................................................... 4
MAIN UNIT CONSTRUCTION ............................................................................................4
OPERATION YOUR UNIT .................................................................................................. 5
INSTALLATION & MAINTENANCE...........................................................................................7
UNPACKING YOUR ICE MAKER .......................................................................................7
INSTALL THE HANDLE ......................................................................................................7
INSTALLATION LOCATION REQUIREMENT....................................................................8
ELECTRICAL REQUIREMENT & CONNECTIONS ............................................................8
WATER CONNECTION FOR YOUR ICE MAKER ............................................................. 9
CLEAN & MAINTENANCE ...................................................................................................... 11
CLEANING TIPS ...............................................................................................................11
CLEAN THE PROCESS ................................................................................................... 12
INTERIOR CLEANING FOR ICE STORAGE BIN.............................................................13
CLEANING SUGGESTION ...............................................................................................13
NORMAL TROUBLE SHOOTING........................................................................................... 14
1
IMPORTANT SAFETY
1. When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire,
electric shock, and injury to persons or property. Read all instructions before using any appliance.
2. Use this appliance only for its intended purpose as described in this owner’s manual. This ice-maker
must be properly installed in accordance with the installation instructions before it is used.
3. This unit must be positioned so that the plug is accessible. Do not run cord over carpeting or other heat
insulators. Do not cover the cord. Keep cord away from traffic areas, and do not submerge in water. No
other appliance should be plugged into the same outlet, and be sure that the plug is fully inserted into
the receptacle.
4. We do not recommend the use of extension cord as it may overheat and cause a risk of fire. If you must
use an extension cord, use No.18AWG minimum size and rated no less than 1875 watts.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
6. Remove power plug or disconnect from the mains before cleaning or servicing the appliance. NOTE: If
for any reason this product requires service, we strongly recommend that a certified technician perform
the service.
7. Never unplug you unit by pulling on the power cord. Always grasp the plug firmly and pull straight out
from the outlet.
8. Do not use your unit outdoors. Keep the unit away from direct sunlight and make sure that.
9. there is at least 6 inches of space between the back of your unit and wall and keep the front free. Keep
ventilation opening in the appliance enclosure or in the built-in structure, clear of obstruction.
10. Do not tip over the unit which will cause abnormal noisy and make the ice-cube size abnormal. And
seriously, it may cause water leakage from the unit.
11. If the unit is brought in from outside in the winter season, give it a few hours to warm up to room
temperature before plugging it in.
12. Do not use other liquid to make the ice-cube other than water.
13. Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion.
WARNING: This appliance must be earthed. Use the proper power source according to the nameplate.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: Do not damage the refrigerant circuit.
WARNING: This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
2
WARNING: Children should be supervised to ensure that they do not play with the appliance.
WARNING: This appliance must be earthed. And use the 110-120V/60Hz earthed power supply.
WARNING: Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
DANGER – Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use
Mechanical Devices To Defrost Ice Maker. Do Not Puncture Refrigerant Tubing.
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Install or Service This Product. All Safety Precautions
Must be Followed.
CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or Local
Regulations. Flammable Refrigerant Used .
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing;Follow Handling
Instructions Carefully. Flammable Refrigerant Used.
The ice maker should be installed in accordance with the safety standard for Refrigeration Systems,
ASHRAE15. The ice maker shall not be installed in corridors or hallways of public buildings.
If the unit is with problem need to be maintained, that replacing with like components and that servicing
shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due
to incorrect parts or improper service.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING:This appliance is intended to be used in household and similar applications such as
E.g.staff kitchen areas in shops, offices and other working environments;
E.g.farm houses and by clients in hotels, motels and other residential type environments;
E.g.bed and breakfast type environments;
E.g.catering and similar non-retail applications.
To avoid a hazard due to instability of the appliance, it must be placed on an even or flat surface.
The wires in this mains lead are colored in accordance with the following code:
Green or Green with a strip of yellow
Grounding
Blue or White
Neutral
Brown or Black
Live
3
SPECIFICATIONS

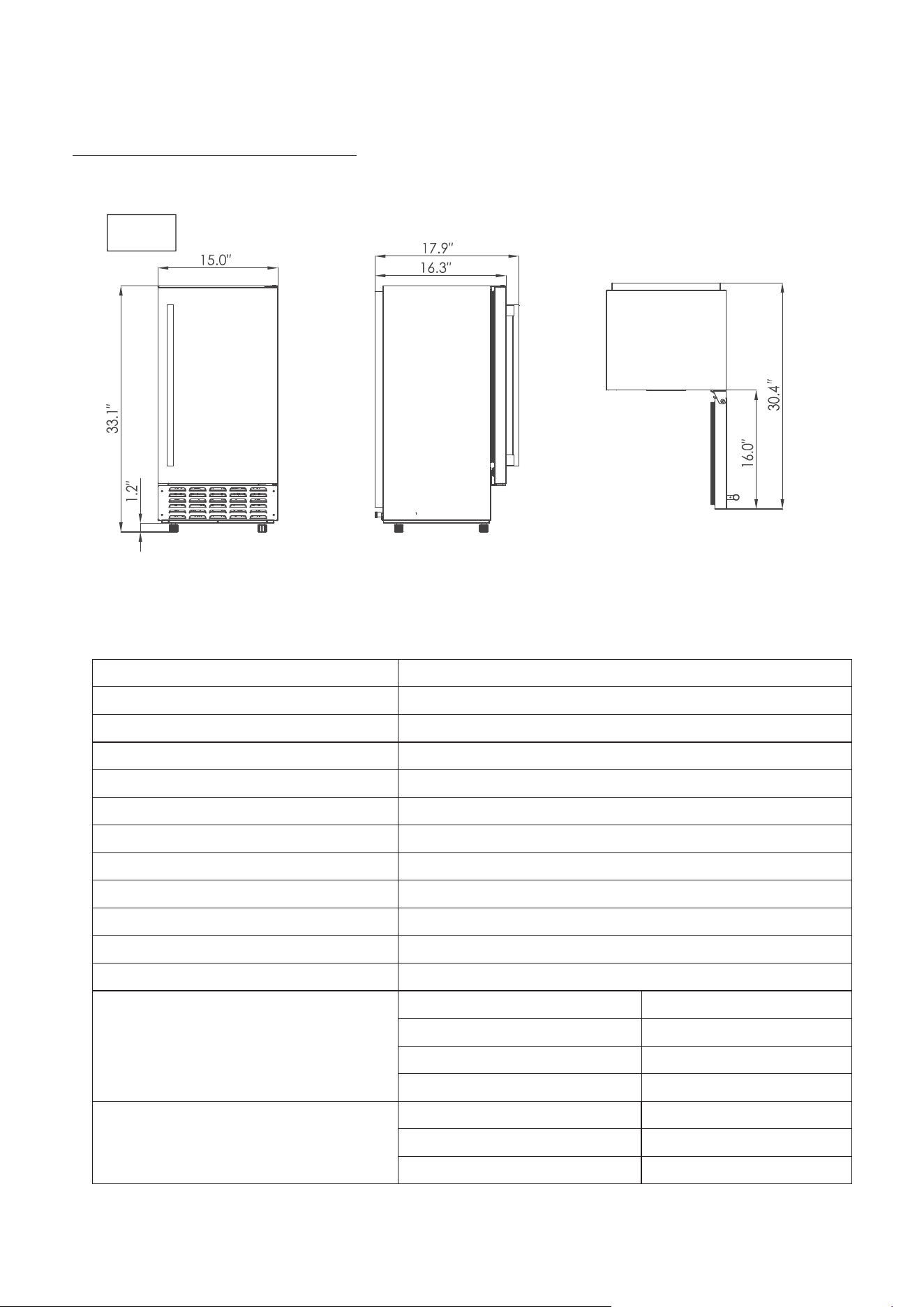

DIMENSIONS/CONNECTIONS
RATING
MODEL
HBZB-30N
POWER SUPPLY VOLTAGE 1Phase, 115V /60H z
CLAIMATE CLASS 10-40℃ (50℉- 104℉)
ELECTRICAL PROTECT IO N CLASS I
ICE MAKING RATING (Amps)
3.6
ICE MAKING CAPACITY (KG/24H) 30
REFRIGER ANT CHARGE R290 1.34Oz / 38g
NET WEIGHT(lbs) 62.5
VESICANT
C
5
H
10
UNIT DIMENSIO N S(W X D X H) (Inch )
15x17.9x33.1
MAX ICE STORAGE CAPACITY(lbs) 18
ACCESSORIES SHOVEL, INSTALLATION KITS，HANDLE
CONNECTION
POWER CORD 18AWG
WATER SUPPLY
6.35m m
DIAMETER D R AIN
Φ16 SYLPHON
BELLOWSS(REAR)
RUNNING CONDITIONS
ROOM TEMP 50-110 Fahrenheit
WATER SUPPLY TEMP 41-95 Fahrenhei t
WATER SUPPLY PRESSURE PRESSURE 0.04-0.6 MPa
Fig.1
4
GENERAL INFORMATION

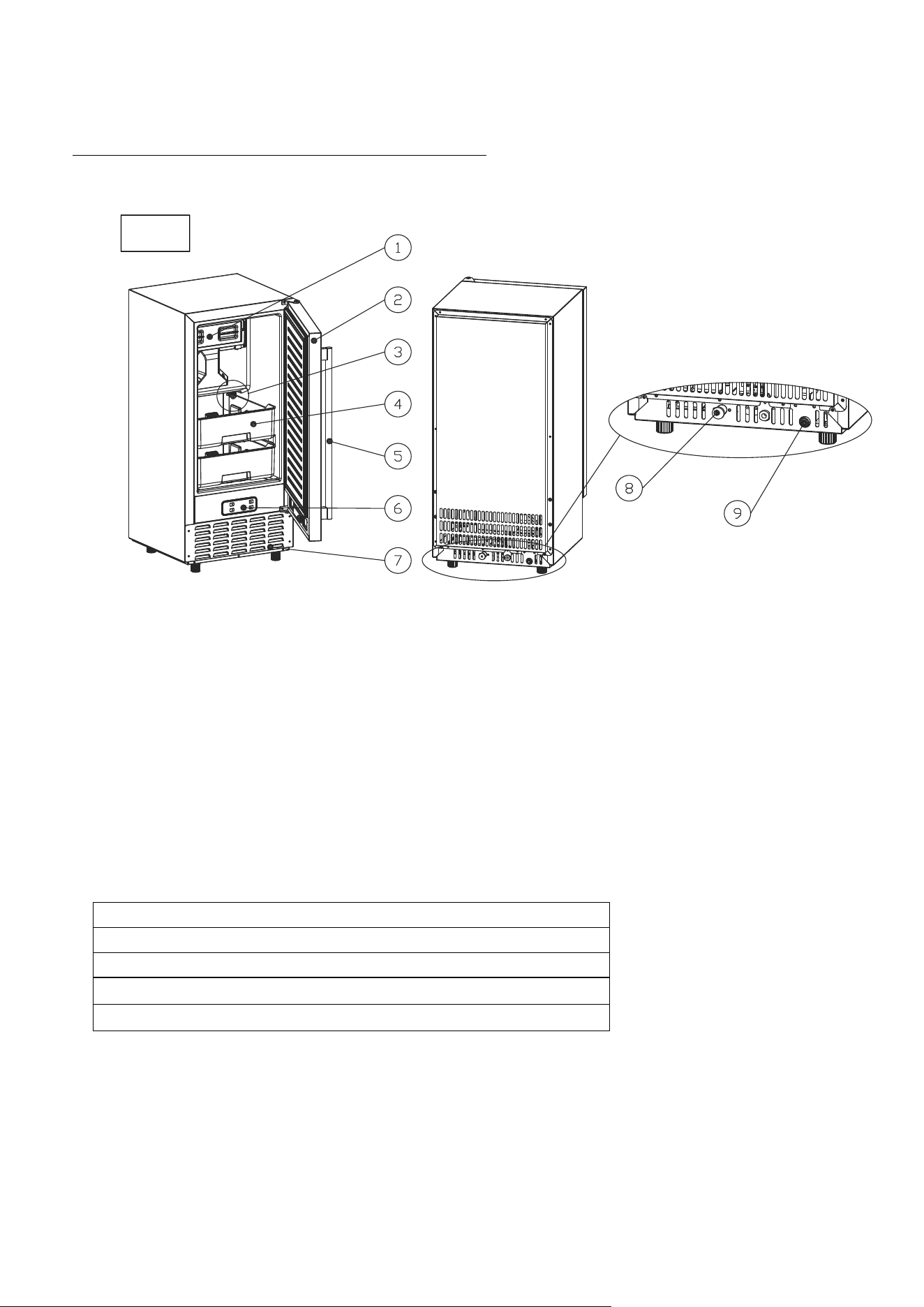

MAIN UNIT CONSTRUCTION
1.
Transparent waterproof cover
2.
Door
3.
Drainage plug
4.
Ice tank
5.
Handle
6.
Operation panel
7.
Air outlet: To keep the air circulating smoothly, and hot air will blow out when the unit runs.
8.
Water dr aining port
:
Normal plugged with the cap. When need to drain the water, unplug the cap
and connect to the white drain pipe.
9.
Water inlet port for water supply: Used to connect to the water supply pipe.
Accessory
2-meter dra in pipe
Quick conne ctor of the water faucet
¢6.35mm -diameter white color water supply pipe (3 meters）
Ice shovel
Fig.2
5
OPERATION YOUR UNIT

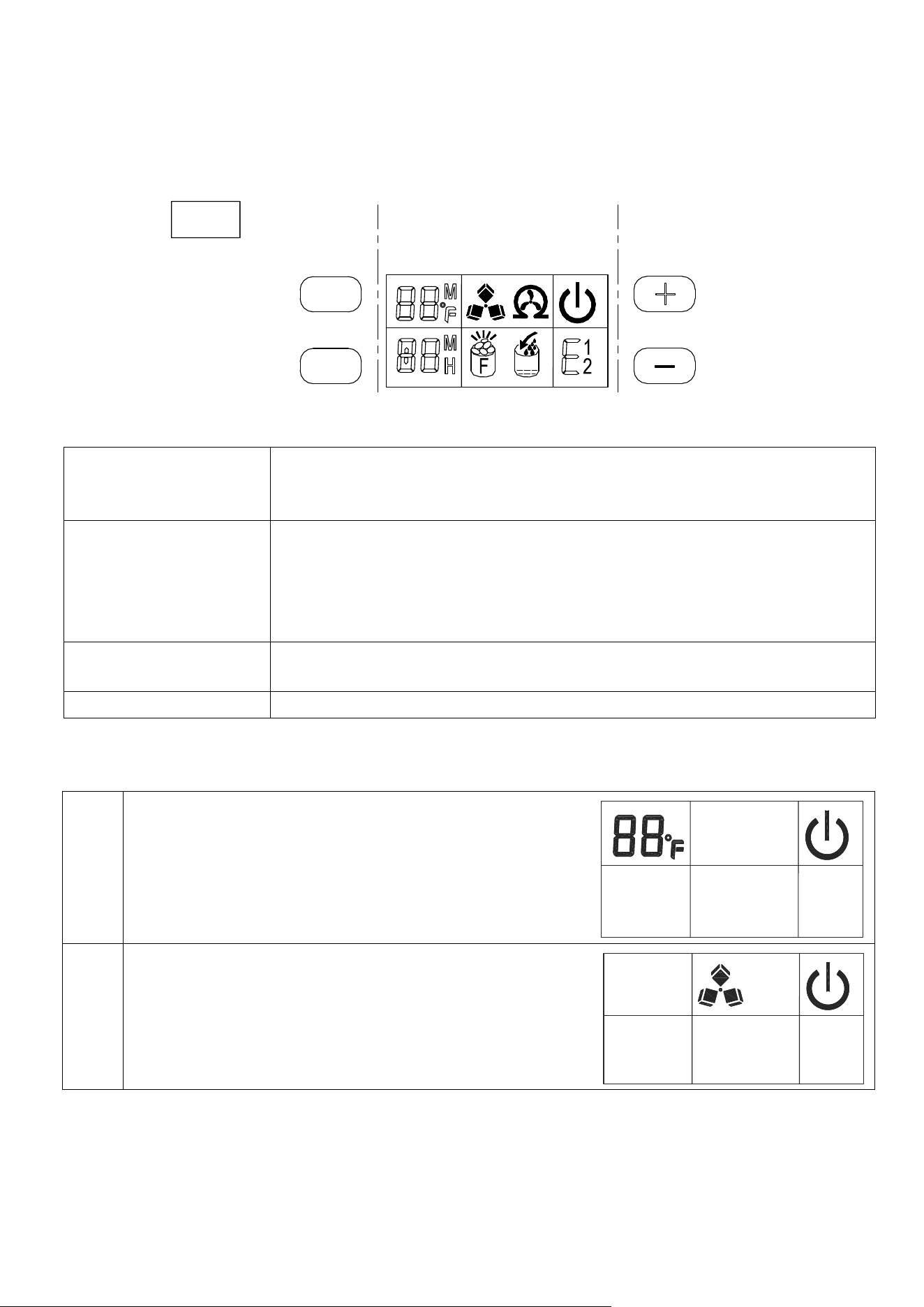

Operation button and display area diagram
OPERATION OF ICE M AKING PROCESS
Symbol Des cription
1
Environmental temperature display.
Press
“
+
”
button longer t han 5s, the unit will automaticall
y
switch between Fahrenheit(°F) and Celsius(°c).
2
Making ice and deice symbol display
1、The machine is making ice when the symbol rotates.
2
、
The machine is ice making abnormal when the symbo
l
flashes.
TIMER
CLEAN
Quickly press this button once, to enter the Timer,setting program; And press
this button for more than 5 seconds, to enter the Cleaning program.
ON/OFF
When the unit is of f, press this button to turn on the unit; And during the
Self-cleaning program,or normal ice-making state, press this button to turn off
the unit at once; And also if the unit is set with the Timer, press this button to
cancel the Timer setting.
LCD display window Function display panel
“+” “-” Time
r adjustment
OPERATION
AREA
OPERATION
AREA
DISPLAY
AREA
+
ON/OFF
TIMER
-
CLEAN
Fig.3
6

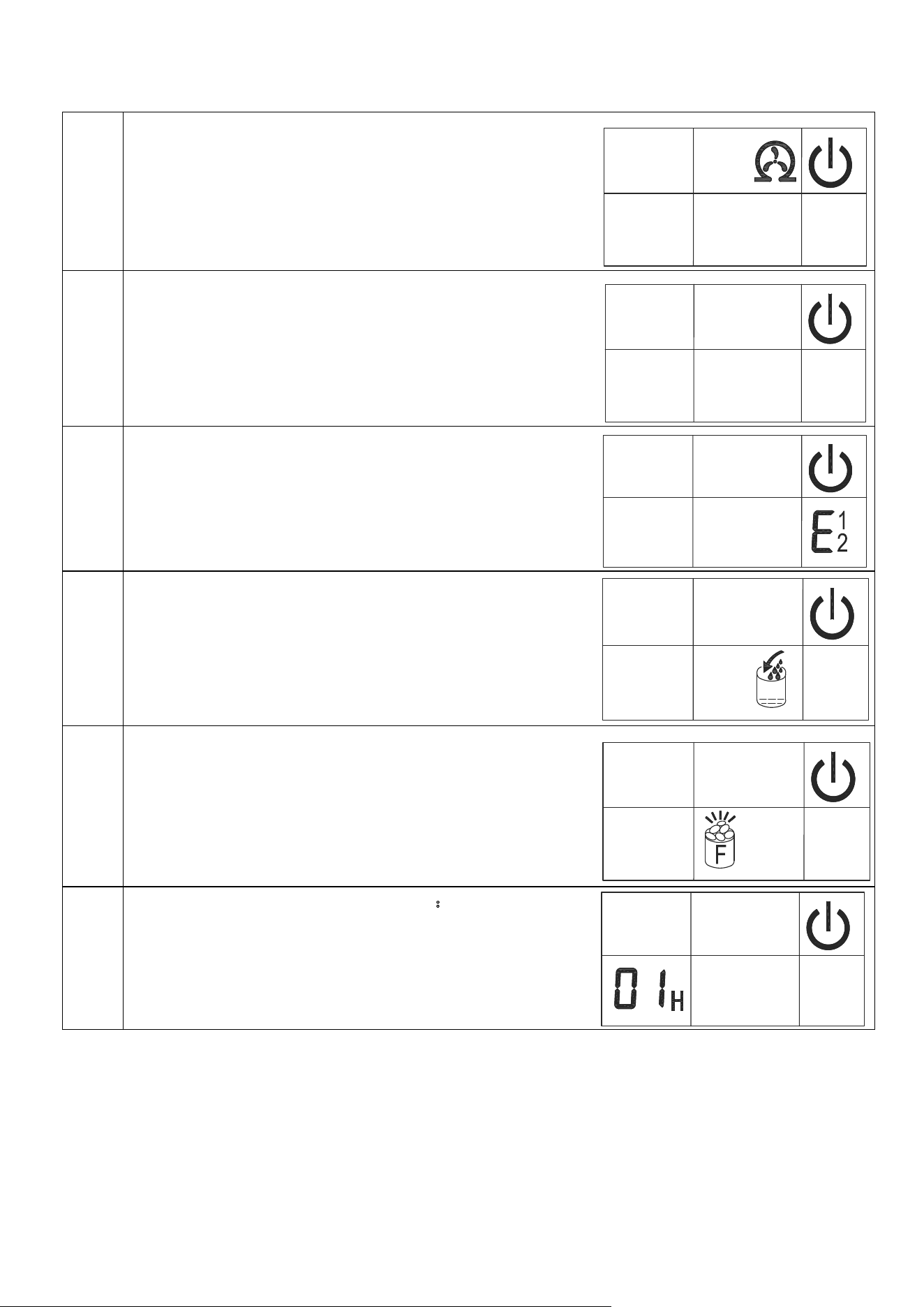

3
Automatic self-cleaning symbol display.
1 、 Press “TIMER CLEAN”button on the control panel fo
r
more than 5 seconds, to enter the self-cleaning pr ogram.
2
、
The default cleaning time is 15 minutes.
3、Press the “ON/OFF” button on the control panel to cance
l
the self-cleaning program by force.
4
On/off symbol display.
5
Error code display
E1 No water ingress for a long time
E2 means the environmental temperature sensor i
s
damaged.
E means drain pump does not work.
6
Water flow in and water shortage display
1
、
The arrow flashing indicates that the machine is addin
g
water.
2
、
The whole symbol is bright to indicate that t he m achine i
s
short of water.
7
Ice full alarm
1. The machine will make ice again when you take out th
e
ice.
2. When this symbol appears and cannot be eliminated
,
long press the power button to force it to make ice fo
r
80 minutes.
8
Setting di splay timed switch machine：
1-24 hours
1、When the machine is running, set it to shut down after 1
hour.
2
、
When the machine is on standby, set it to turn on after 1
hour
7
INSTALLATION & MAINTENANCE
UNPACKING YOUR ICE MAKER
1.
Remove the exterior and interior packaging. Check if all the accessories are inside or not including
the instruction manual, ice scoop, white water inlet pipe, the water dr aining pipe, the quick
connector (connecting a 1/4-inch connector with a 1/2-inch one), etc. If any parts are missing,
please contact our customer service.
2.
Remove the tapes for fixing the door and inner cabinet, ice scoop, etc. Roughly clean the inner
cabinet & ice scoop wit
h a wet cloth.
3.
Put the ice maker on a level & flat floor, without direct sunlight and other sources of heat (i.e.: stove,
furnace, radiator). Make sure that t here is at least a 50cm gap between the air outlet and the
obstacles, and at least 5 cm between the wall.
4.
Allow 4 hours for the refrigerant fluid to settle before plugging the ice maker in if the unit maybe fall
upside down during shipping or transportation.
5.
The appliance must be positioned so that the plug is accessible.
WARNING: connect to the potable water supply only. Only use drinking water.

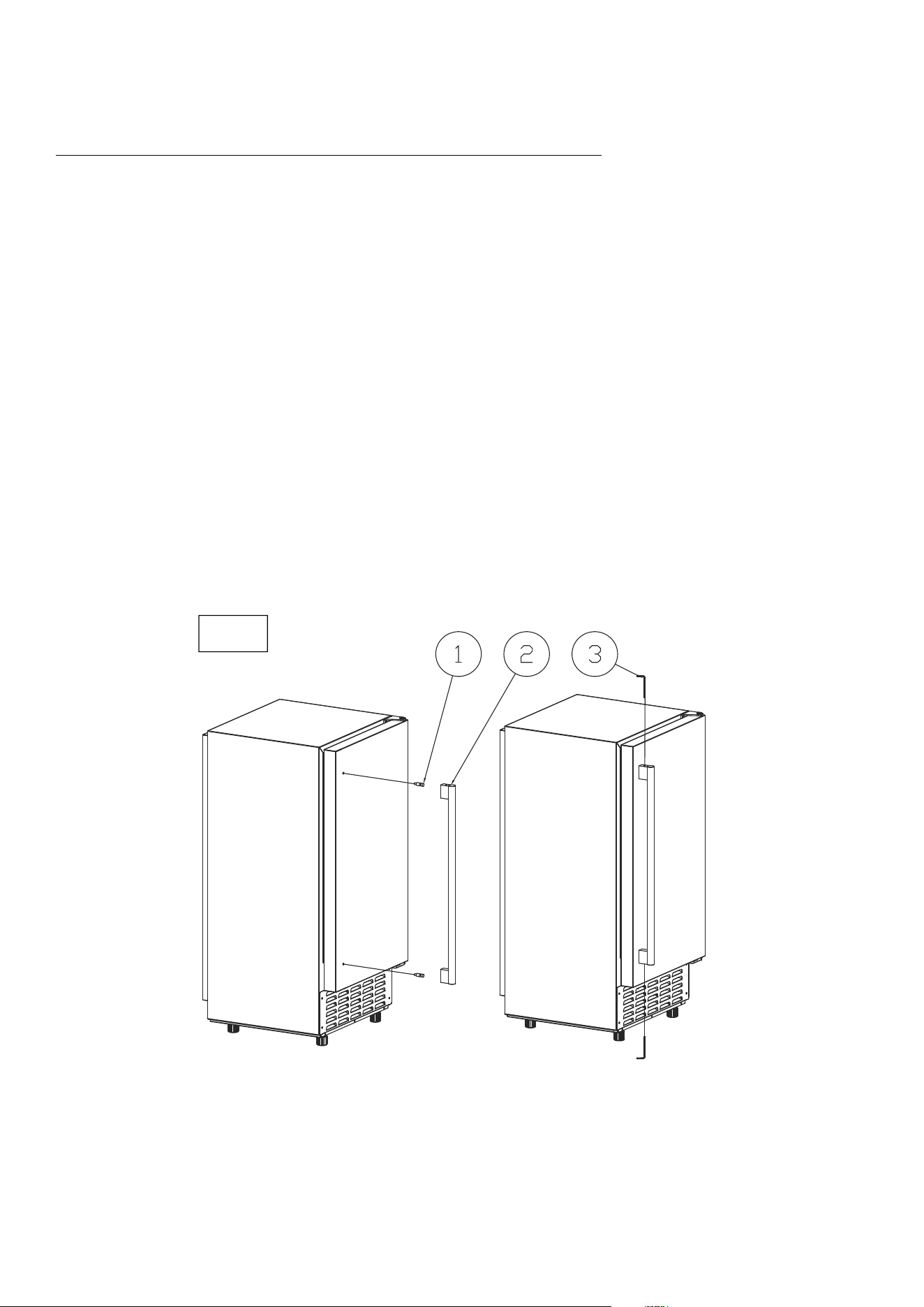

INSTALL THE HANDLE
1.
Open the attachment and locate the two screws,then screw in the screw hole.
2.
Find the door handle and align it with the screw hole.
3.
Find the hexagonal screw and tighten it in the specified position.
Fig.4
8

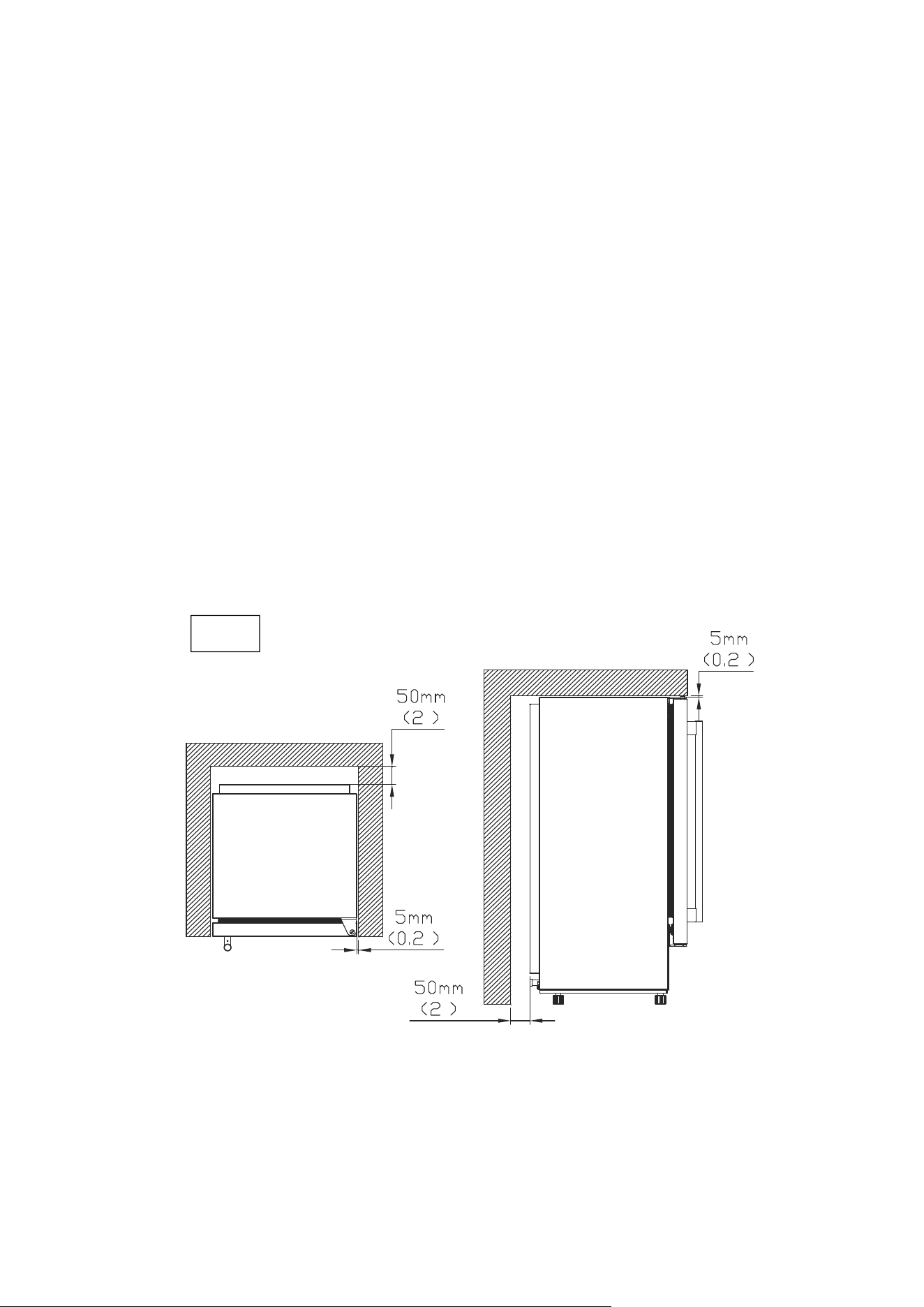

INSTALLATION LOCATION REQUIREMENT
1.
This unit is not for outdoor use. Keep the proper r oom temperature and inlet water temperature
according to above specification table. Otherwise it will affect the ice making performance.
2.
This unit should not be located near any he at resource.
3.
The unit should be located on a firm & level foundation at normal counter top height.
4.
There must be at least a 2-inch clearance at rear side for connection and a 10-inch clearance in the
fron
t to open the door and keep good air circulation.
5.
Do not put anything on the top of the ice maker.
6.
To ensure proper ventilation for your ice maker, the front of the unit must be completely
unobstructed (at least a 16-inch free space).Allow it about 0.2 inches clearance at rear, and 0.2
inches at top f or proper air circulation.
7.
When installing the ice maker under a counter, follow the recommended spacing dimensions shown
above. Place electrical and water supplies and drai
n fixtures in the recommended locations as
shown.
8.
Choose a well-ventilated area with temperatures above 50 °F and below 90 °F. This unit MUST be
installed in an area protected from the elements, such as wind, rain, water spray, or drips.
9.
The ice maker requires a continuous water supply with 1-8 bar pressure as r equired in the above
specification table. The t emperature of the water feeding into the ice maker should be between 41°F
and 77°F for proper operation.
ELECTRICAL REQUIREMENT & CONNECTIONS
WARNING: THIS UNIT MUST BE EARTHED.
Electrical Shock Hazard plug into a grounding wall outlet.
Never remove the ground prong.
″
″
″
″
Fig.5
9
Use a separate power supply or r eceptacle. Never use an adapter.
Never use an extension cord.
Failure to follow these instructions can resul t in death, fire, or electrical shock.
Before you move your ice maker into its final location, it is important to m ake sure you have the proper
electrical connection.
It is recommended that a separate circuit, serving only your ice maker, be pr ovided. Use receptacles
that cannot be turned off by a switch or pull chain. If the supply cor
d or plug to be replaced, it should be
done by a qualified service engineer.
This appliance requires a st andard 110-120Volt, 60Hz electrical outlet with good grounding means.
Recommended grounding met hod
For your personal safety, this appliance must be properly grounded. This appliance is equipped with a
power supply cord having a grounding plug. To minimize possible shock hazards, the cord must be
plugged into a mating grounding-type wall receptacle, grounded in acco
rdance with the National
Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the
personal responsibility of the customer to have a properly grounding wall r eceptacle installed by a
qualified electrician.
WATER CONNECTION FOR YOUR ICE MAKER
Important: Be sure to use the new hose-sets supplied with the appliance to connect to w ater
mains and that old hose-sets should not be reused.
STEP 1: Re move the
tape first
Water inlet port on
the unit back
STEP 2: Insert the
water hose
Then install
back the clipper
White water
hose(accessory)
First insert the
water hose inward
completely
Remove the
clipper first

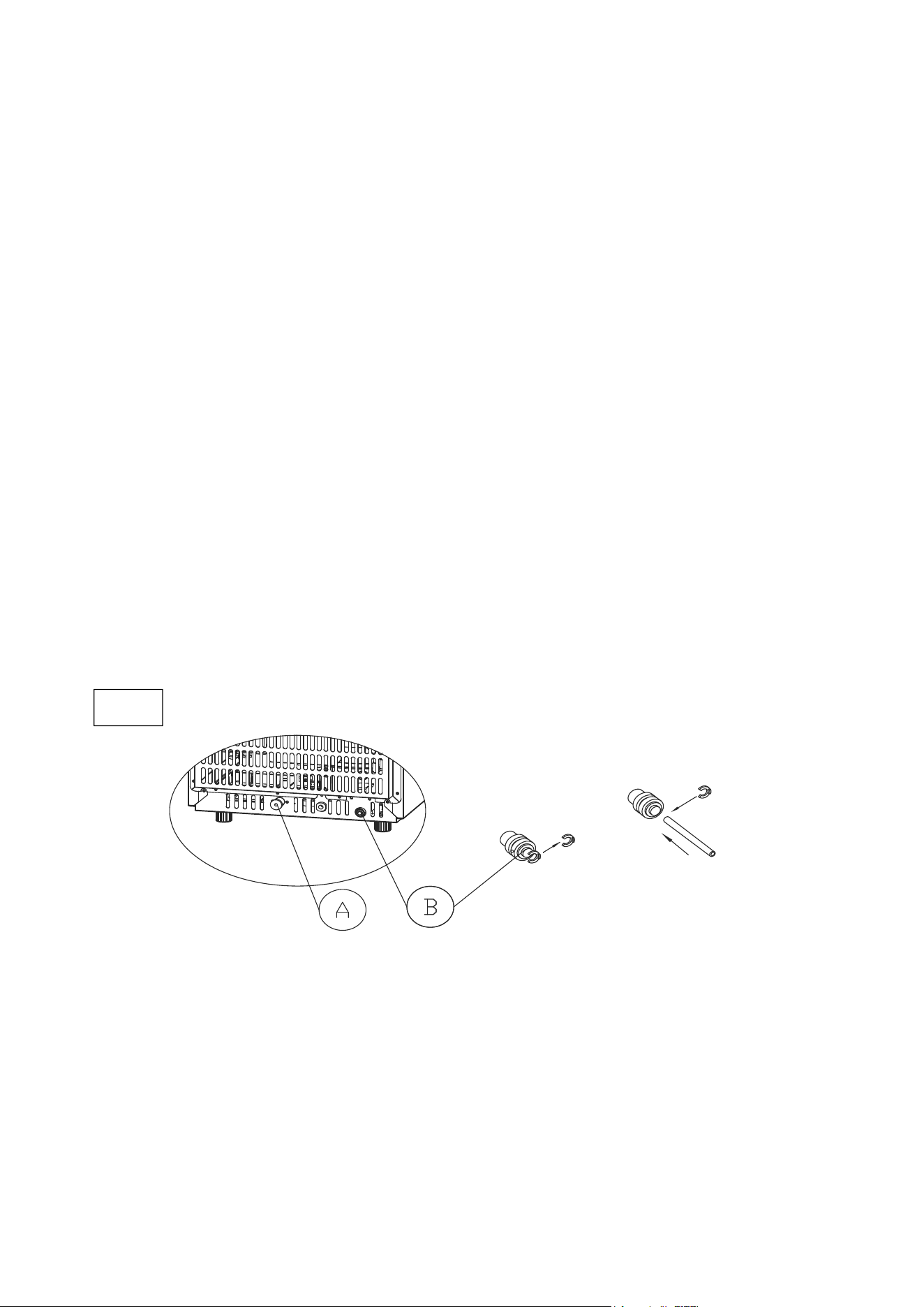

Connect t he water supplying hose to the unit
Step 1:Firstly, remove the tape on the water inlet port for water supply (indicated in the following
illustration “B”) located at unit back, then use your other hand’s finger to press the out circle.
Step 2: Insert the one end of the white water hose into the water inlet port, and push inward
completely, and install back the clipper, then water hose connection is completed.
Connecting the water drai n pipe
Pull out the black water drai
nage cap (indicated “A” in Fig.6), then connect the white drainage pipe
included in accessory, last connect the other end of t his drainage to the main water drainage
pipeline.
Fig.6
10

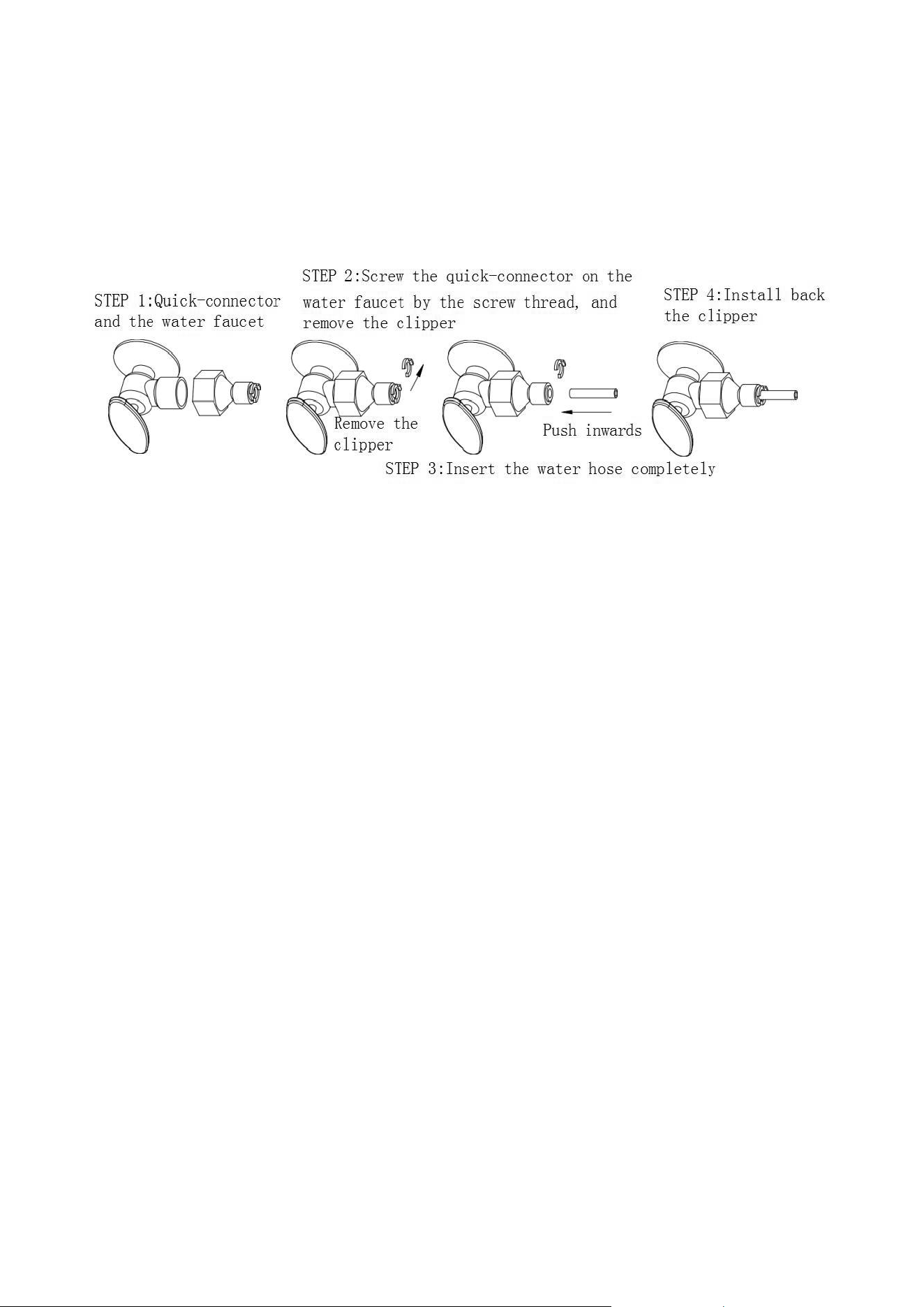

Connect the water hose to the water faucet of the water main supply system
First, install the supplied water quick-connector to the water faucet by screw thread; Second,
remove the clipper from the water quick-connector, insert the other end of the water hose into this
quick-connector port completely, then install back the clipper, also this step is completed. Note: The
water faucet should be supplied by the customer himself.
Important: The water pressure of main water supply system must be 0.04-0.6 MPa at least.
Normal Sounds
Your new ice maker may make sounds that are not familiar to you. Most of the new sounds are normal.
Hard surfaces like the floor, walls and cabinets can make the sounds seem louder than they actually are.
The following describes the kinds of sounds that might be new to you and what may be making them.
You will hear a swooshing sound when the water valve opens to fill the water tank for each cycle.
Rattling noises may come from the flow of the refrigerant or the water line. Items stored on top of the
ice maker can also make noises.
The high-efficiency compressor may make a pulsating or high-pitched sound.
Water running from the water tank to the evaporator plate may make a splashing sound.
Water running from the evaporator to the water tank may make a splashing sound.
As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your ice maker.
You may hear air being forced over the condenser by the condenser fan. During the harvest cycle,
you may hear the sound of ice cubes falling into the ice storage bin.
When you first start the ice maker, you may hear water running continuously. The ice maker is
programmed to run a rinse cycle before it begins to make ice.
Preparing the Ice Maker for Long Storage
If the ice maker will not be used for a long time, or is to be moved to another place, it will be necessary
to drain out all of the water in the system.
1. Allow all of the ice cubes to have been ejected from the evaporator of ice maker.
2. Turn off the unit, and unplug the power cord.
3. Shut off the water supply at the main water supply.
4. Disconnect the water supply hose from the water inlet valve.
5. Pull out the Water drain pipe of the water tank indicating “H” in the above illustration to drain out the
water in the water tank. When all of the water has been drained out, reinstall back the water drain
pipe of the water tank.
11
6. Then drain out all of the water from the water drain port located at unit back indicating “7”in above
illustration.
7. Disconnect t he water drain pipe from the main drain pipeline or floor dr ain, and plug on the drain cap
again.
8. Drop the door open to allow for circulation and prevent mold and mildew.
9. Leave the water supply hose and the power cord disconnected until reuse.
10. Dry the interior & wipe the outside of the unit.
11. Put a plastic bag on the unit to avoid dust & dirt.
CLEAN & MAINTENANCE
CLEANING TIPS
WARNING:
Before carrying out any cleaning or maintenance operations, unplug the ice maker from the main power
supply electricity. (EXCEPTION: Ice maker self-cleaning program).
Do not use any alcohol or fume for cleaning / sanitizing the ice maker. It may cause cracks on the
plastic parts.
Ask a trained service person to check and clean the condenser at least once a year, in order to let the
unit work properly.
This appliance must be cleaned by use of a water jet.
P
eriodic cleaning and proper maintenance will ensure efficiency, top performance, hygiene, and long
life. The maintenance intervals listed are based on normal conditions. You may want to shorten the
intervals if you have pets, or the unit is used outdoors, or there are other special considerations.
What shouldn't be done?
Never keep anything in the ice storage bin t hat is not ice: objects like wine and beer bottles are not only
unsanitary, but also their labels may slip off a
nd obstruct the drain pipe.
Exterior
Cleaning
The door and cabinet may be cleaned with a mild detergent and warm water solution such as 28g of
dish washing liquid mixed with 7.5L of warm water. Do not use solvent-based or abrasive cleaners. Use
a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spotting.
If the ice maker has been left unused for a long time, before t he
next use it must be thoroughly cleaned. Follow carefully any
instructions provided for cleaning or use of sanitizing solution. Do
not leave any solution inside the ice maker after cle aning.
12
Stainless steel models will discolor when exposed to chlorine gas and should be cleaned. Clean
stainless steel models with a m ild detergent and warm water solution and a damp cloth. Never use
abrasive cleaning agents.
NOTICE: St ainless steel models e xposed to chlorine gas and moistu re , such as in areas with
spas or swimming pools, may have some discoloration. Discoloration from chlorine gas is
normal.

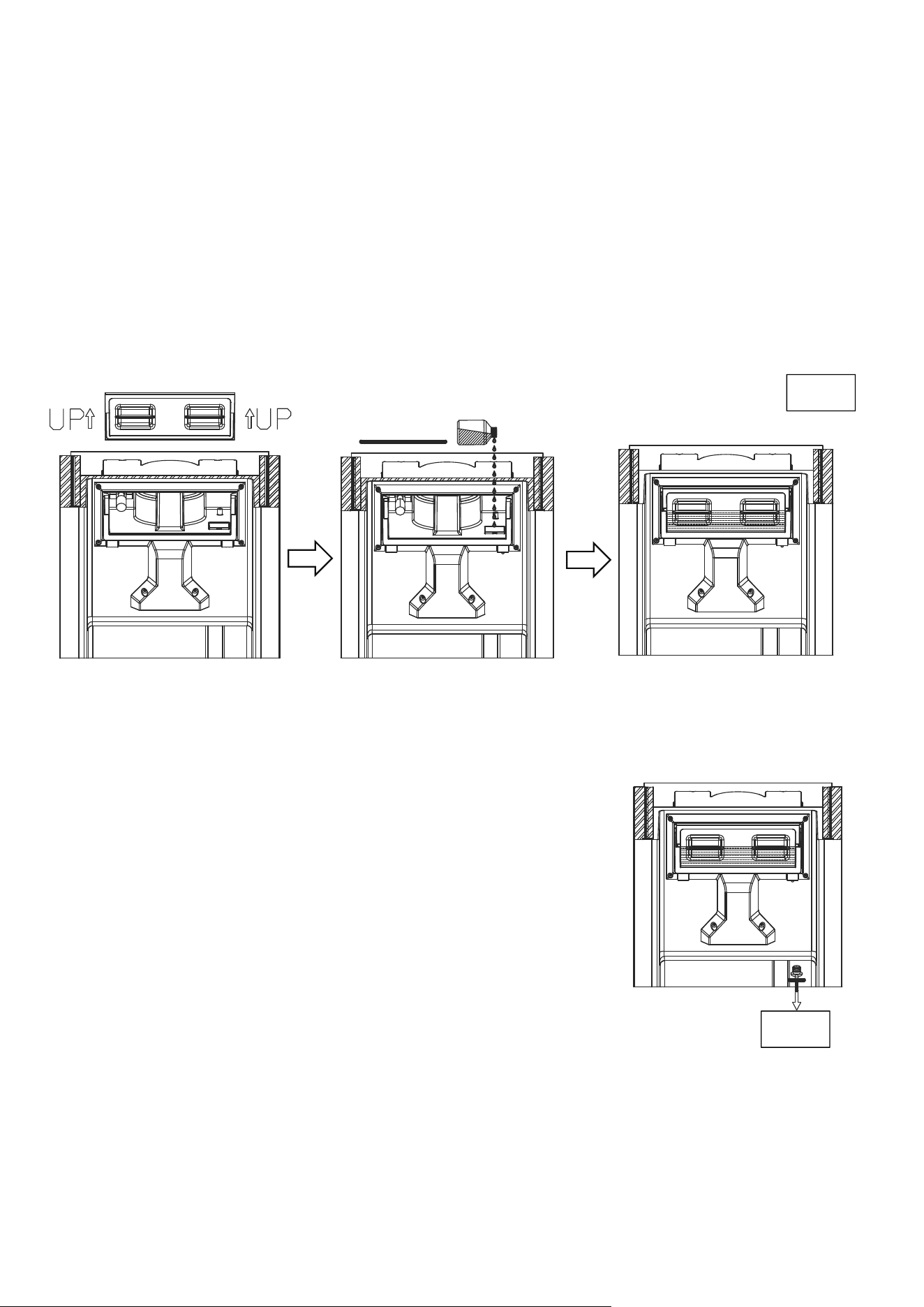

CLEAN THE PROCESS
Before using your ice maker, it is strongly recommended to clean it thoroughly.
acetic acid
1.
Use both thumbs to open the transparent window. (Fig.5)
2.
Repeatedly clean the water contacting inner parts.
3.
Appropriate amounts of acetic acid solution are added at the
indicated positions .(Fig.5)
4.
Reinstall the transparent windows to prevent water leakage,
please ensure proper installation.
5.
Press t he cleaning button on the operation panel for more
than 5 seconds to start the cleaning program, and the cleanin
g
will end after 15 minutes.
6.
You can pull the drain plug（Fig.6）,to drain the cleaned wate
r
in the water t ank .
Note1:This operation step is mainly to soak the ice-making
mechanism to dissolve the stubborn scale
7.
Then reinstall the drain plug.（Fig.6）
8.
Start the cleaning program again, end in fifteen minutes, then press the power button to start ice
making
9.
Ice produced within 15 minutes is not recommended for consumption
10.
The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm
water.
11.
Dry the interior and exterior with a clean soft cloth.
Fig.5
Fig.6
13
DO NOT use solvent cleaning agents or abrasives on the interior.
These cleaners may transmit taste to the ice cubes, or
damage or discolor the interior.
INTERIOR CLEANING FOR ICE STORAGE BIN
The ice storage bin should be sanitized occasionally. Clean the bin before the ice maker is used for the
first time and reused after stopping for an extended period of time. It is usually convenient to sanitize the
bin after the ice making system has been cleaned, and the storage bin is empty.
1. Disconnect power to the unit.
2. Open the door and with a clean cloth, wipe down the interior with a sanitizing solution made of 28g of
household bleach or chlorine and 7.5L of hot water(95℉ to 115℉) .
3. Rinse thoroughly with clear water. The waste water will be drained out through the drain pipe.
4. Reconnect power to the unit.
NOTICE: The ice scoop should be washed regularly. Wash it just like any other food container.
CLEANING SUGGESTION
1)
DAILY CLEANING
The ice shovel, door and the water dividing pipe should be cleaned by yourself each day. At the
end of every day, rinse the ice shovel and wipe both sides of the door with a clean cloth.
2)
SEMI-MONTHLY CLEANING
The ice shovel, ice bin, water tank, the ice-full detecting plate and the surface of the evaporator are
to be cleaned by yourself semi-monthly according to the interior cleaning program.
3)
SEMI-ANNUAL CLEANING
All the components & surfaces exposed to water or ice cubes, like ice storage bin, water tank, door,
evaporator, water pump, silicone tube, water dividing pipe, etc. should be cleaned by Using
Nu-Calgon Nickle Safe Ice-machine Cleaner per 6 months. They should be
cleaned by the serviceman according to ice making assembly system cleaning program.
14
NORMAL TROUBLE SHOOTING
Disposal
When the unit is not to be used again, disposal of this unit’s material shall be in accordance with
national regulations.
PROBLEM
POSSIBLE CAUSE
SOLUTION
“ ” symbol
is lightening on
and the arrow
flashes.
Lack of Water.
Stop the ice maker, fill water, and
press “ICE/CLEAN” button again to
restart the unit.
“ ” symbol is
lightening and
letter “F”
flashes.
There is too much ice.
Suggest you to obtain the ice-cube.
(No ice cube inside).
Remove the probable obstacle inside
or clean the inside wall of the ice
storage
Press “ICE/CLEAN” button for 5
seconds, then it will work for 80
minutes.
E1
Ambient temperature or water
temperature in inner tank is too high.
Please run the ice maker below 90
Fahrenheit degree ambient and pour
colder water into tank.
Refrigerant liquid leakage.
Press the ICE button twice, restart ice
making program, if this problem show
up again, verify by a qualified
technician.
Cover motor is broken
Pipe in the cooling system is
blocked.
Making Ice too
slowly
Hot Air outlet has been blocked by
something.
Hot Air outlet must be guaranteed to
have more than 15 CM of ventilation
distance.
Water temperature in inner tank is
too high.
Water temperature requirement
between 7
℃
-32
℃
(44
℉
-89
℉
).
Refrigeration system malfunctions.
Verify it by a qualified technician.
Water leakage
Drain plug not in place
Put the drain plug in place.
Pipe Joint in the appliance may be
loose.
Verify it by a qualified technician.
The seal has reached its service life.
Verify it by a qualified technician.
15
Thank you for purchasing this product! If you have a ny questions about
the product, such as missing parts, damaged products, product
assembling, and operation, please contact us via Amazon Message or
customer service number: 213-4467172 or 661-4358826.
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED P ROOF OF PURCHASE IS REQUIRED FOR WARRANTY
SERVICE.
AVIS
Veuillez appeler le service à la clien tèle pour toutes quest ions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE
GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o i
nquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA
SERVICIO B AJO GARANTÍA.
Address: ROWAN ELECTRIC APPLIANCE LLC
28407 Ascent W ay, Santa Clarita, CA 91350
Phone: 213-4467172 or 661-4358826
V1
