BG-EXD-150C
150m 4K60 DisplayPort HDBaseT Extender with USB KVM
User Manual
BZBGEAR BG-EXD-150C PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXD-150C PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 6
Operation Controls and Functions 8
IR Pin Definition 10
Connection Diagrams 11
Tech Support 12
Limited Product Warranty Terms 12
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXD-150C PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXD-150C PRODUCT MANUAL
Introduction
The BG-EXD-150C is a 4K60 DisplayPort (DP) range extender that can
transmit DP video, bi-directional IR and RS-232 control signals, and also USB KVM
signals. It can transmit DP signals at distances up to 328ft/100m for a 4K60 signal
and 492ft/150m for a 1080P signal using a single CAT6 cable.
The BG-EXD-150C converts the DP signal into a standard HDBaseT signal
and sends it via a LAN cable. Users can effortlessly control the signal source device
or the display device using a remote thanks to the bi-directional IR signal
pass-through feature. It supports video resolutions of up to 4K2K@60Hz YUV 4:4:4
and also offers a bi-directional POC function.
Furthermore, with support for DisplayPort 1.2, this extender facilitates the
transmission of visually lossless 4K Ultra HD resolutions, making it ideal for striking
digital signage or detailed content in medical settings. The extender is also
compatible with lossless audio formats, including Dolby TrueHD and DTS-HD,
enriching video content with powerful multi-channel sound, thus elevating the
viewer's experience. The USB KVM connectivity ensures full control of a DisplayPort
PC from a local console, which can be kept in a secure or temperature-controlled
environment, all while seamlessly delivering consistent video content to the display.
Features
● DisplayPort 1.2a and HDCP 2.2 compliant
● 21.6Gbps video bandwidth
● Video resolution up to 4K2K@60Hz YUV 4:4:4
● Signal transmission distance up to 328ft/100m for 4K60 signals or 492ft/150m
for 1080P signals via a single CAT6 cable
● LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH and DTS-HD Master 7.1CH
● Smart compression for visually lossless transmissions
● Control a remote DisplayPort PC via keyboard and mouse with the KVM
function
● Bi-directional Power Over Cable (POC), IR, RS-232, and USB KVM signal
pass-through
● Advanced EDID management
● Compact design for easy and flexible installation
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXD-150C PRODUCT MANUAL
Packing List
● 1x BG-EXD-150C Transmitter
● 1x BG-EXD-150C Receiver
● 1x 24V / 1A Locking Power Supply
● 1x IR Blaster Cable (1.5m)
● 1x IR Receiver Cable (1.5m)
● 2x 3-pin 3.81mm Phoenix connectors
● 4x Mounting ears
● 8x KM3*4 Machine Screws
● 1x 1.5m USB 2.0 Cable (A to B)
● 1x User Manual
Specifications
Technical Specifications
DP Compliance
DP 1.2a
HDCP Compliance
HDCP 2.2
Video Bandwidth
Up to 21.6Gbps
Video Resolution
Up to 4K@60Hz YUV 4:4:4
USB Compliance
USB 1.1
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space
RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12-bit
Audio Formats
LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH and
DTS-HD Master 7.1CH
IR Level
5Vp-p/12Vp-p
IR Bandwidth
20K - 60KHz
Transmission
Distance
1080P@60Hz – 492ft /150m, 4K@60Hz – 328ft / 100m
ESD Protection
Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connections
Transmitter
Input: 1 x DP IN [20-pin female]
Output:1 x HDBT OUT [RJ45, 8-pin female]
Control: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3 pin-3.81mm Phoenix jack]
1 x PC [USB-A]
1 x Service [Micro USB]
Receiver
Input: 1 x HDBT IN [RJ45, 8-pin female]
Output: 1 x DP OUT [20-pin female]
Control: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3 pin-3.81mm Phoenix jack]
2 x USB 1.1 [USB-A]
1 x Service [Micro-USB]
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXD-150C PRODUCT MANUAL
Mechanical
Housing
Enclosure - Metal Composite
Color
Black
Dimensions (L x W x H)
140mm x 65mm x 18mm
Weight
0.5 lbs (8 oz)
Power Supply
DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Bi-directional POC
Power Consumption
Total power consumption: 13.2w
Operating Temperature
32° - 104°F / 0° - 40°C
Storage Temperature
-4° - 140°F / -20° - 60°C
Relative Humidity
20 - 90% RH (no condensation)
Resolution
8K30
4K60
4K24
1080P60
Cable Length
9.8ft / 3m
16ft / 5m
32ft / 10m
66ft / 20m
NOTE: The use of “Premium High Speed” HDMI 2.1 cables is highly recommended.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXD-150C PRODUCT MANUAL
Operation Controls and Functions

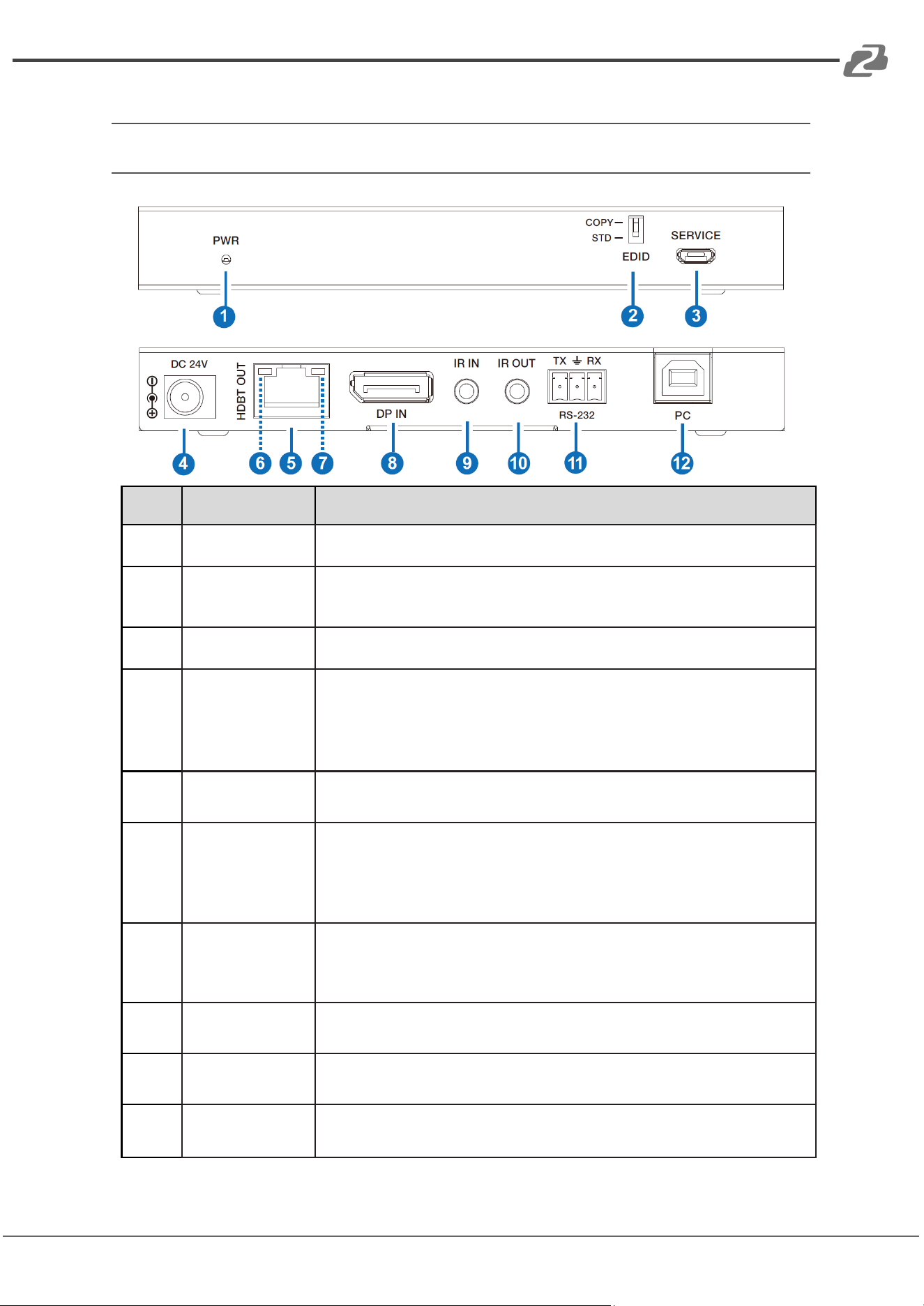

Transmitter
No
Name
Description
1
PWR LED
The red LED is on when the Transmitter is powered on.
2
EDID DIP
switch
Used for EDID setting (COPY by default). COPY: Copy the EDID
of the DP OUT port of Receiver. STD: Default 1080P 2CH
3
SERVICE
Micro USB port, used to update MCU firmware.
4
DC 24V
DC 24V/1A power input port.
Note: The extender supports POC functionality which means
that either Transmitter or Receiver is connected to 24V/1A
power supply, the other does not need a power supply.
5
HDBT OUT
HDBT output port, connected to the HDBT IN port of the
Receiver with CAT6 cable.
6
Link Signal
Indicator
(Green)
Solid: Transmitter and Receiver are in good connection status.
Flashing: Transmitter and Receiver are in poor connection
status.
Dark: Transmitter and Receiver are not connected.
7
Data Signal
Indicator
(Yellow)
Solid: DP signal with HDCP.
Flashing: DP signal without HDCP.
Dark: No DP signal.
8
DP IN
DP signal input port, connected to DP source device such as
computer host.
9
IR IN
Connected to IR receiver cable. The IR receive signal will emit
to the IR OUT port of the Receiver.
10
IR OUT
Connected to IR blaster cable. The IR emit signal is from the IR
IN port of the Receiver.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-EXD-150C PRODUCT MANUAL
11
RS-232
3-pin Phoenix connector, connected to a PC or control system
for RS-232 command transmission.
12
PC
USB-B port, connected to PC.

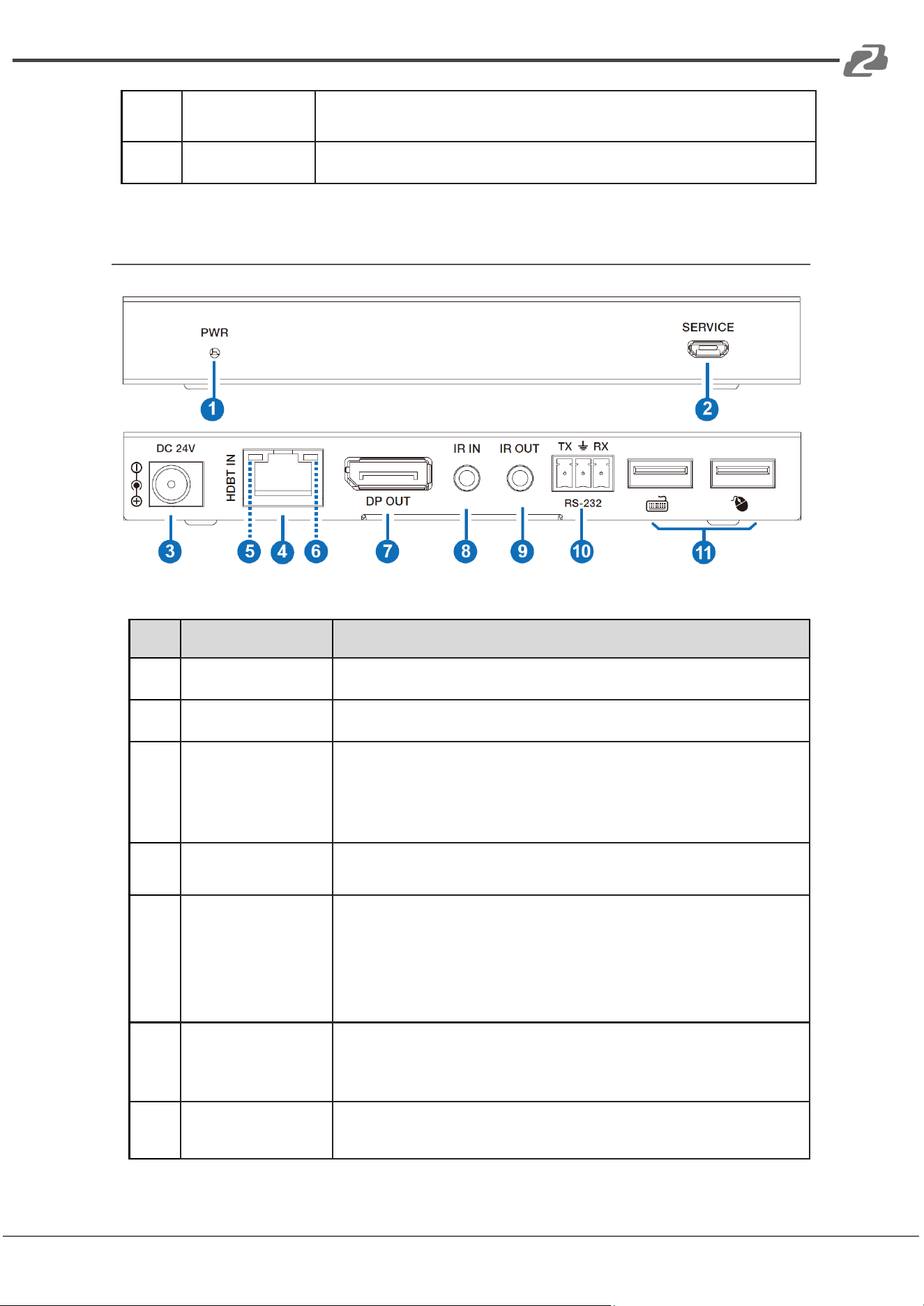

Receiver
No
Name
Description
1
PWR LED
The power LED is on when the Receiver is powered on.
2
SERVICE
Micro USB port, used to update MCU firmware.
3
DC 24V
DC 24V/1A power input port.
Note: The extender supports POC functionality which means
that either Transmitter or Receiver is connected to 24V/1A
power supply, the other does not need a power supply.
4
HDBT IN
HDBT input port, connected to the HDBT OUT port of the
Transmitter with CAT6 cable.
5
Link Signal
Indicator (Green)
Solid: Transmitter and Receiver are in good connection
status.
Flashing: Transmitter and Receiver are in poor connection
status.
Dark: Transmitter and Receiver are not connected.
6
Data Signal
Indicator (Yellow)
Solid: DP signal with HDCP.
Flashing: DP signal without HDCP.
Dark: No DP signal.
7
DP OUT
DP signal output port, connected to DP display device
such as TV or monitor.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-EXD-150C PRODUCT MANUAL
8
IR IN
Connected to the IR receiver cable. The IR receive signal
will emit to the IR OUT port of the Transmitter.
9
IR OUT
Connected to the IR blaster cable. The IR emit signal is
from the IR IN port of the Transmitter.
10
RS-232
3-pin Phoenix connector, connected to a PC or control
system for RS-232 command transmission.
11
USB-A
Two USB-A ports, connected to a keyboard or mouse.

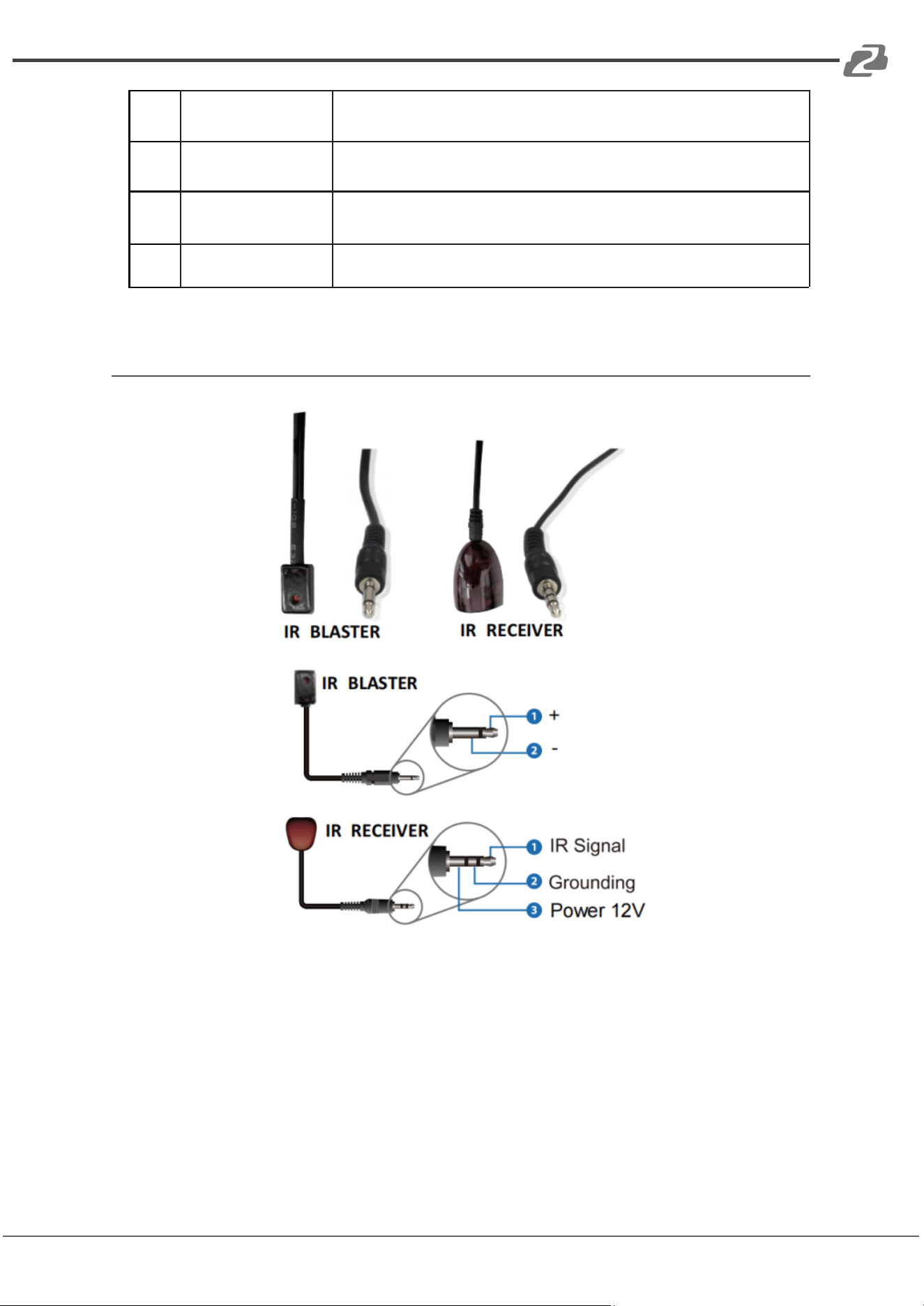

IR Pin Definition
Note: When the angle between the IR receiver and the remote control is ± 45°, the
transmission distance is 0-5 meters; when the angle between the IR receiver and
the remote control is ± 90°, the transmission distance is 0-8 meters.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXD-150C PRODUCT MANUAL

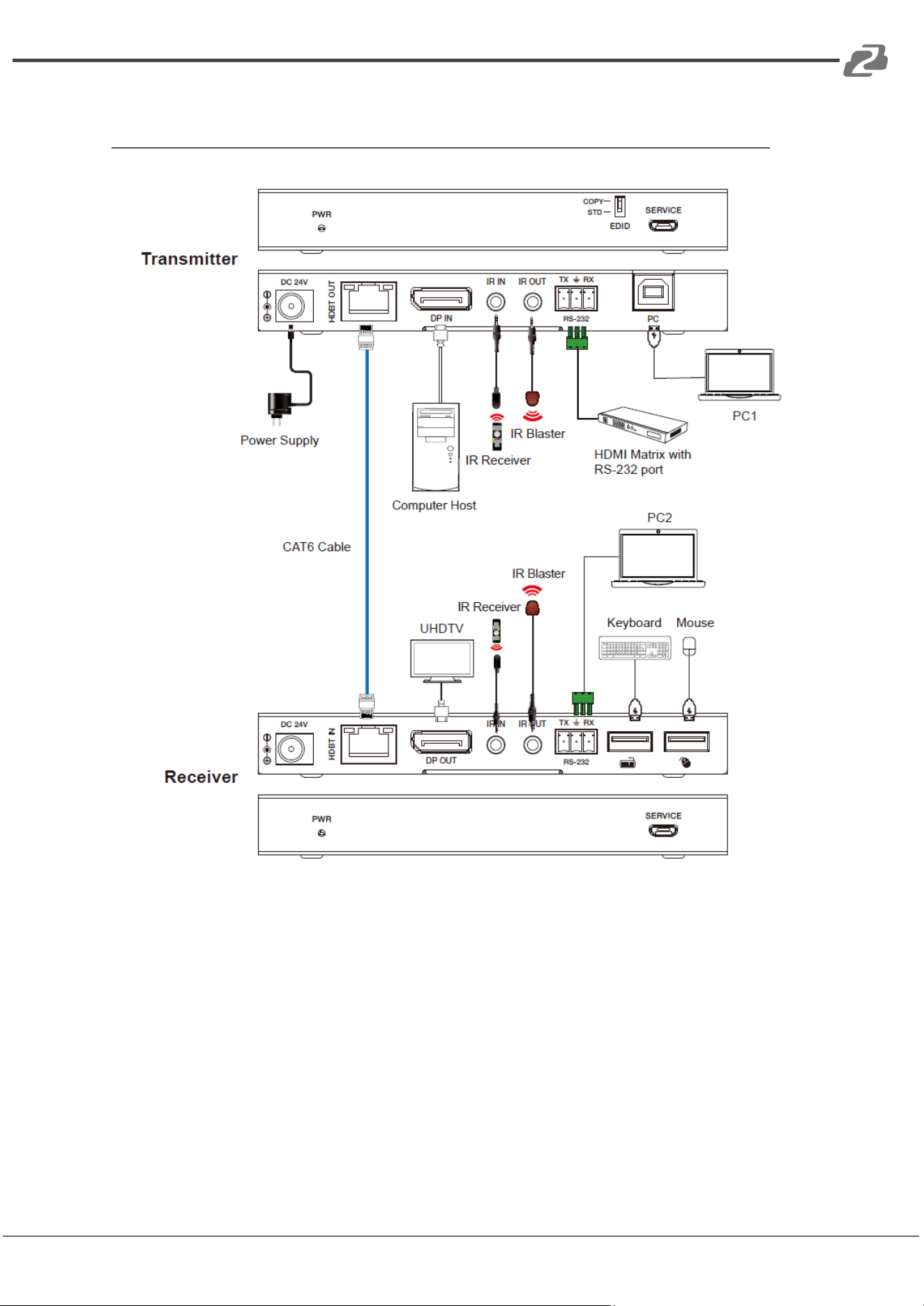

Connection Diagrams
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-EXD-150C PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
