Instruction Manual
Electric Patio Heater
Brand:pasapair
Model No.: ZHQ2566-RM-S
Power Supply: AC 120V/60Hz 1500W
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING THE APPLIANCE
1
CONTENTS
WARNING ...........................................................................................................2
IMPORTANT INSTRUCTIONS............................................................................3
ACCESSORIES...................................................................................................6
INSTALLATION INSTRUCTIONS.......................................................................7
OPERATING INSTRUCTIONS............................................................................9
MAINTENANCE..................................................................................................11
TROUBLE SHOOTING.......................................................................................11
TECHNICAL SPECIFICATION...........................................................................12
GROUNDING......................................................................................................12
WARRANTY........................................................................................................13
2
WARNING
This heater is not equipped with a device to control the room
temperature. Do not use this heater in small rooms when they are
occupied by persons not capable of leaving the room on their own,
unless constant supervision is provided.
Children of less than 3 years should be kept away unless
continuously supervised
Children should be supervised to ensure that they do not play with
the appliance.
Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed or
installed in its intended normal operating position and They have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
This appliance is not intended for use by persons (including
children) with reduced physical,sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical,sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
3
CAUTION — Some parts of this product can become very hot
and cause burns. Particular attention has to be given where
children and vulnerable people are present.
IMPORTANT INSTRUCTIONS
When using this electric unit, basic safety precautions should be
followed to reduce the risk of fire, electric shock, and injury to
persons, including the following:
1. Mount the heater outside or in a large open area and well
away from any obstructions such as branches or where
the heater is near any objects that can be affected by heat,
such as furniture, curtains or other inflammable objects
(minimum distance 1 meter).
2. Do not position immediately above or below an electrical
socket.
3. When the power supply cord is damaged, it must be
replaced by authorized agent or other professional people
to avoid danger.
4. This appliance is not intended for use by persons
(including children) with reduced physical. Sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
5. Children should be supervised to ensure that they do not
play with the appliance.
6. Read ALL instructions before using this unit.
7. CAUTION: Risk of Electric Shock. DO NOT open or try to
4
repair the heater yourself.
8. This heater may get hot when in use. To avoid burns, DO
NOT let bare skin touch hot surfaces. If provided, use
handles when moving this heater.
9. Keep combustible materials, such as furniture, pillows,
bedding, paper, clothes, and curtains at least 3 ft from the
front of the heater and keep them away from the sides, top,
and rear. DO NOT place towels or other objects on the
heater.
10. Extreme caution is necessary when any heater is used by
or near children or the disabled, or when the heater is left
operating and unattended.
11. DO NOT operate any heater with a damaged cord or after
the heater malfunctions, has been drooped or damaged in
any manner. Return heater to authorized service facility
for examination, electrical or mechanical adjustment, or
repair.
12. This heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. NEVER locate heater
where it may fall into a bathtub or other water container. To
protect against electrical hazards, DO NOT immerse in
water or other liquids.
13. DO NOT touch the control panel or plug with a wet hand.
14. DO NOT run cord under carpeting. DO NOT cover cord
with throw rugs, runners or similar coverings. Arrange cord
away from traffic area and where it will not be tripped over.
15. DO NOT insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the heater.
16. To prevent a possible fire, DO NOT block the air intakes or
exhaust in any manner. DO NOT use on soft surfaces, like
5
a bed, where openings may become blocked.
17. A heater has hot and arcing or sparking parts inside. DO
NOT use in areas where gasoline, paint, explosive and/or
flammable liquids are used or stored. Keep unit away from
heated surfaces and open flames.
18. Avoid the use of an extension cord because the extension
cord may overheat and cause a risk of fire. However, if
you have to use an extension cord, the cord shall be
2.5mm
2
minimum size
。
19. To avoid fire or shock hazard, plug the unit directly into a
120V and more than 13A electrical socket outlet.
20. To disconnect heater, turn controls to OFF, then remove
plug from outlet. Pull firmly on plug, DO NOT unplug by
pulling on the cord.
21. Always unplug the unit before moving or cleaning, or
whenever the heater is not in use.
22. Use only for intended household use as described in this
manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to
persons. The use of attachments not recommended or
sold by unauthorized dealers may cause hazards.
23. Always use on a dry, level surface.
24. WARNING: To reduce the risk of fire or electric shock, DO
NOT use this unit with any solid-state speed control
device.
25. DO NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void your
warranty. The inside of the unit contains no user
serviceable parts. Qualified personnel should perform all
servicing only.
26. Connect to properly grounded outlets only.
27. The heater must not be located in front of a socket outlet.
6
28. The fireguard of this heater is intended to prevent direct
access to heating elements and must be in place when
the heater is in use.
29. The fireguard does not give full protection for young
children and for infirm persons
30. Do not use the heater with a programmer, timer or any
other device that switches the heater on automatically

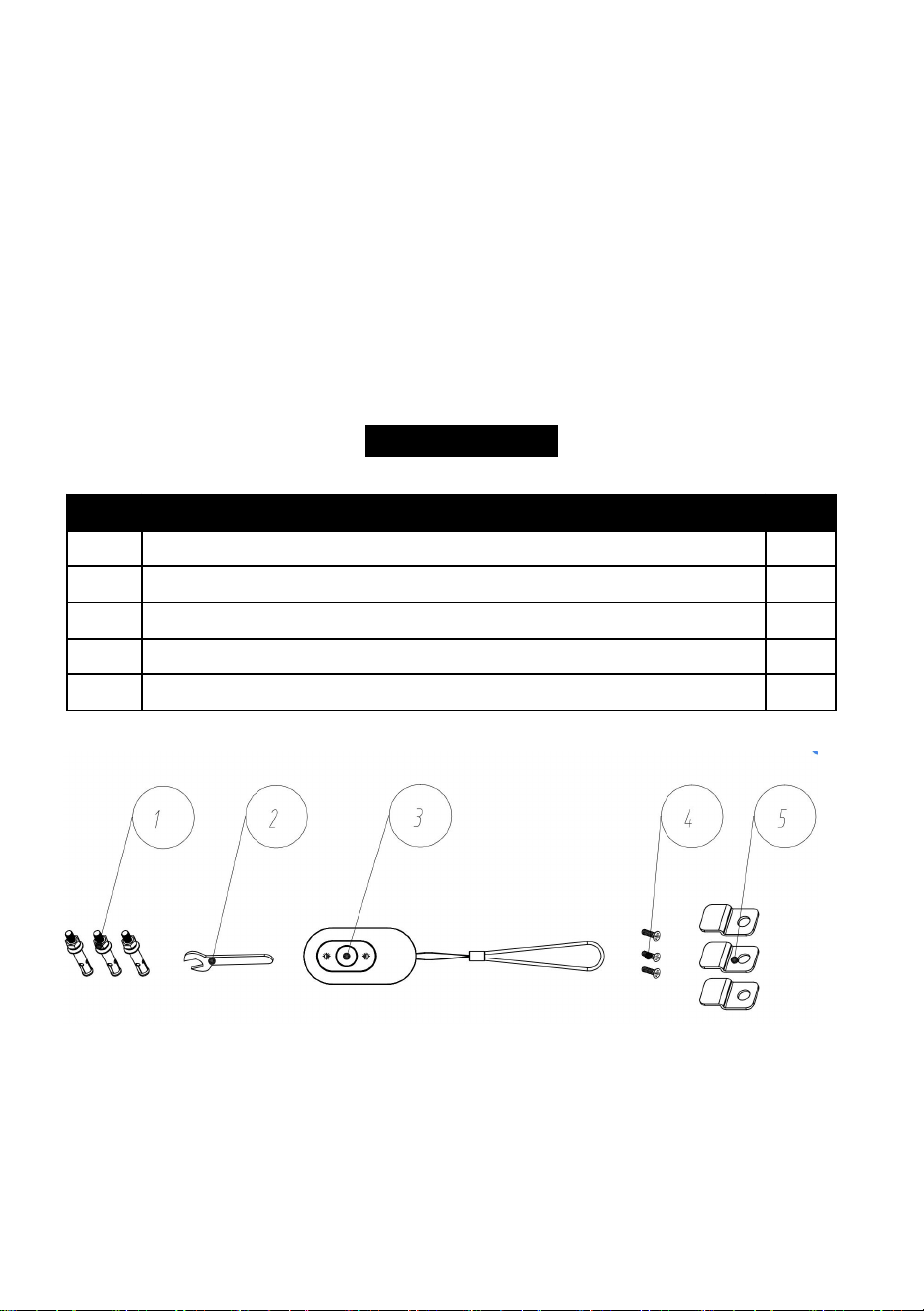

ACCESSORIES
Ref.
Name
Qty
1
Expansion screws
3
2
wrench
1
3
Remote control
1
4
Screws M4*14
3
5
fixing plate
3
7
INSTALLATION INSTRUCTIONS
Heater must be installed by a qualified electrician.

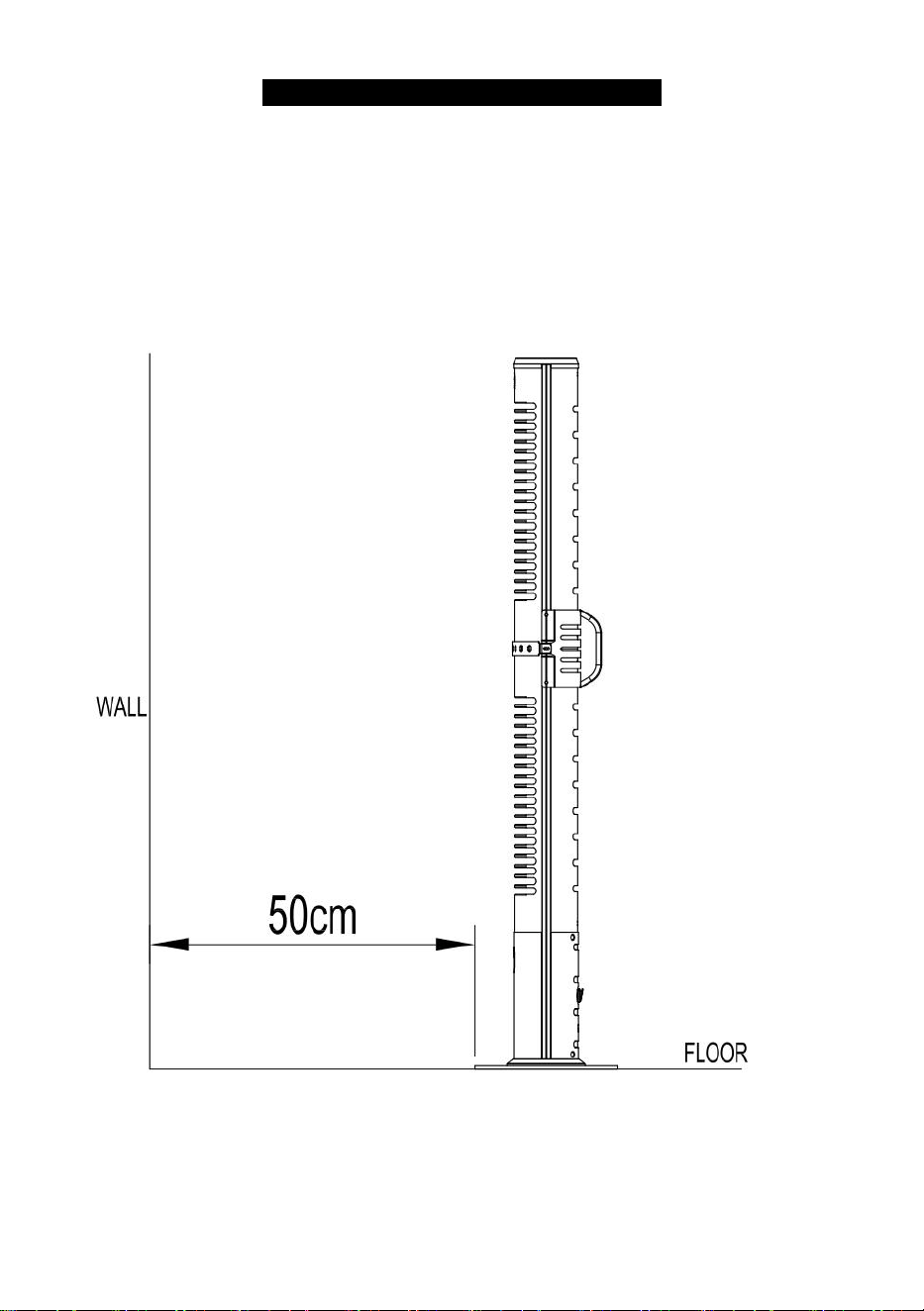

Minimum required distances:
a) 50cm from the side wall
b) At least 50cm from the ceiling
8

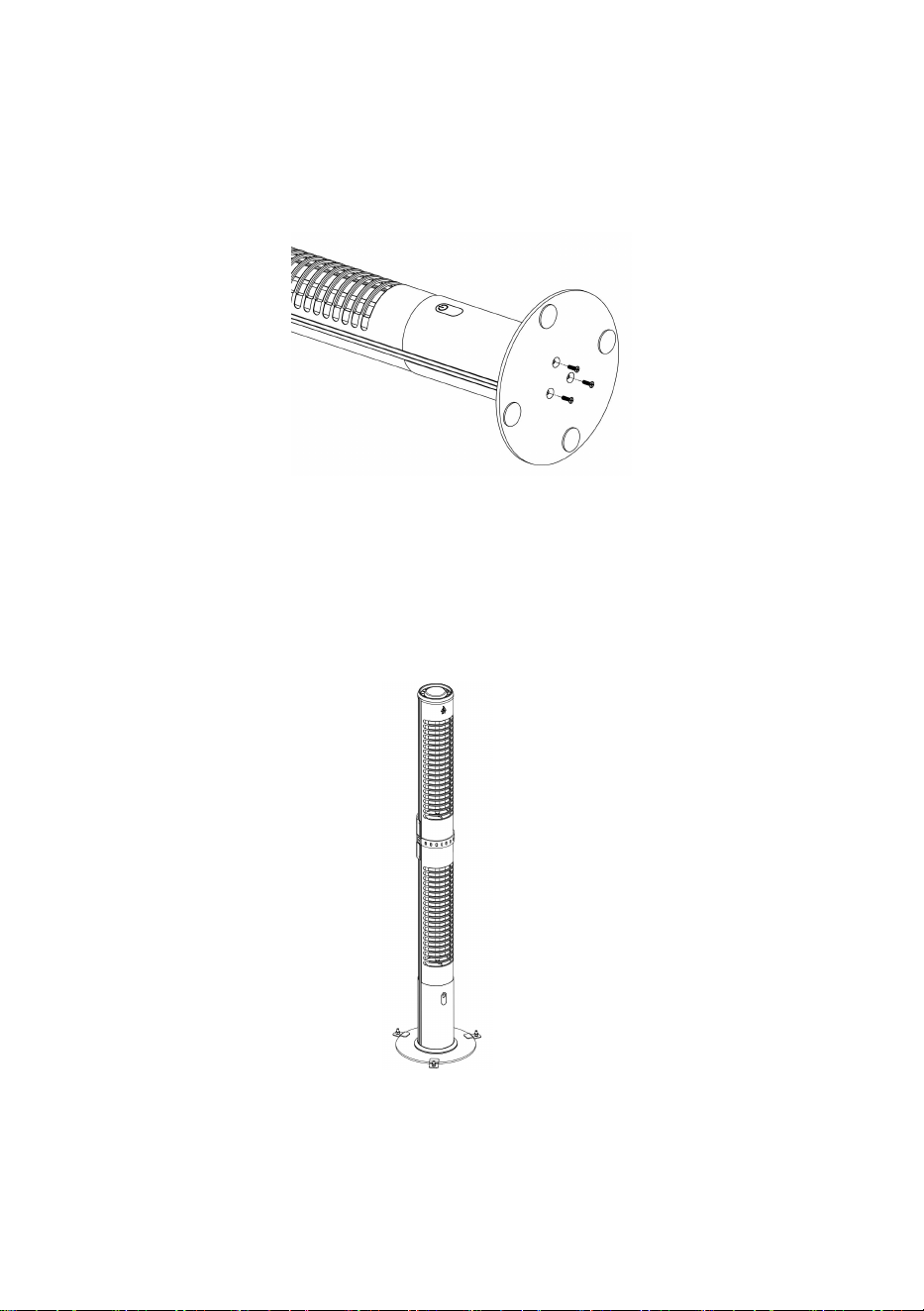

Follow the below steps to install the heater
Step 1: Fix the Heater Pole on the base by using the provided
3PCS of M4 *14mm screws.
Step 2: Please fixed the product on a suitable ground, place the 3
fixing pieces on the chassis and draw the drilling position.
Remove the product, drill 3 holes for the explosion screws, fasten
the explosion screws and fix the product with the explosion
screws.
A. Plug the Patio Heater into a 120V and more than 13A
electrical socket outlet.
9
OPERATING INSTRUCTIONS
WANRING: The heater must be properly installed before it is used
This unit is equipped with one heat setting On I Off.
Plug the Patio Heater into a grounded 120V 60Hz power
outlet.

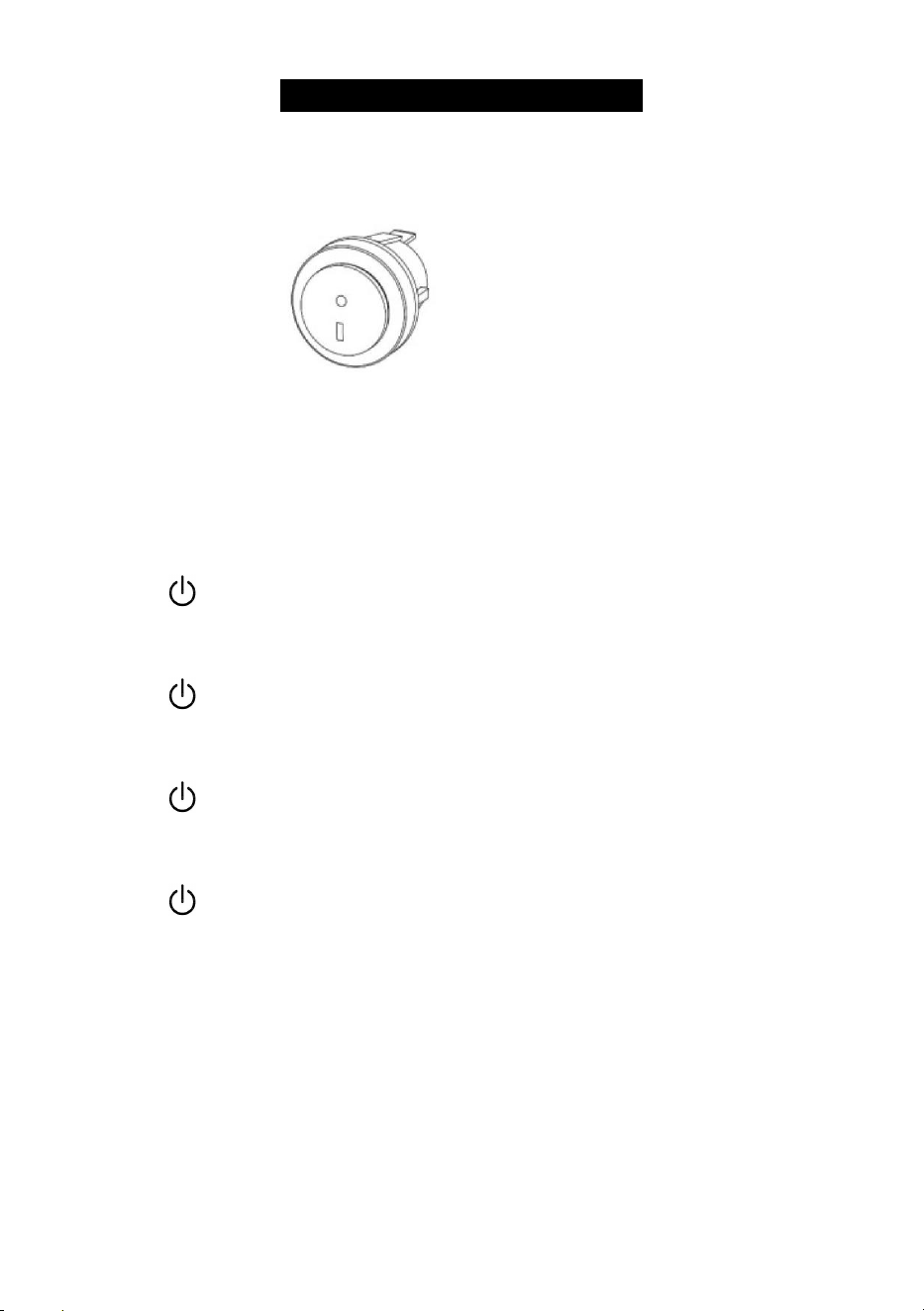

Press on the On/Off switch to the "I" position to activate the
heater.
Touch switch
Touch “ ” on the panel once, it’s 750W for the heating element
above
Touch “ ” on the panel twice, it’s 750W for the heating element
below.
Touch “ ” on the panel three times, it’s 1500W that it open two
the heating elements at same time.
Touch “ ” on the panel four times, turn off the heater
10

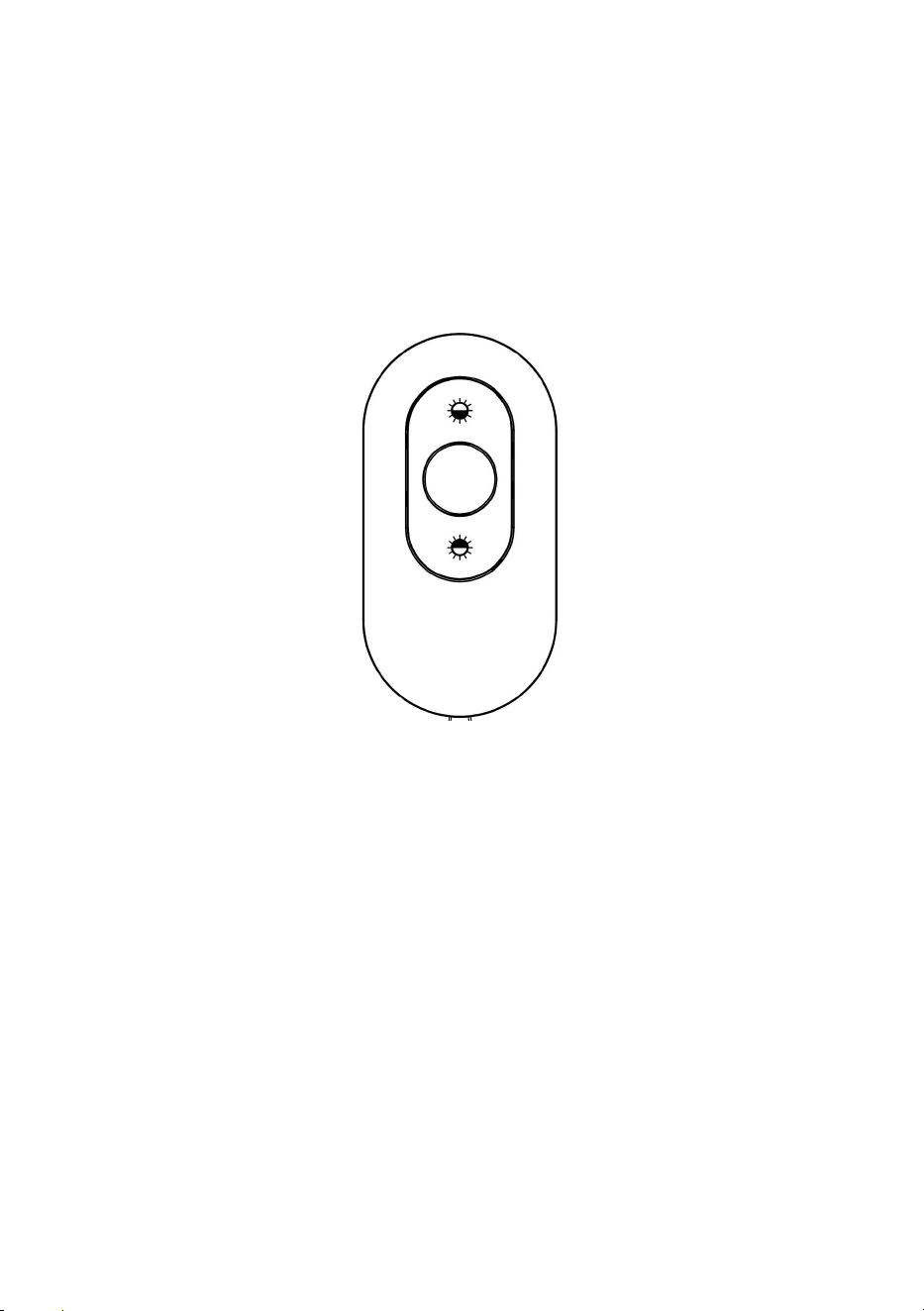

The remote control
Warning!
Please remove the PE bag before using!
Please take down the insulation sheet before use the Remote
Control.
The battery model of Remote Control is Lithium Cell CR2450.
1) Press the upper button, it’s 750W for the upper heating
element upper; touch it again, turn off the heater
2) Press the lower button, it’s 750W for the lower heating
element below; touch it again turn off the heater
3) Press the upper button and lower button at same time, the
heater will be 1500W.
11
MAINTENANCE
Unplug the unit and let it cool completely.
To keep the heater clean, the outer shell may be cleaned with
a soft, damp cloth. You may use a mild detergent if necessary.
After cleaning, dry the unit with a soft cloth.
DO NOT use alcohol, gasoline, abrasive powders, furniture
polish, or rough brushes to clean the heater. This may cause
damage or deterioration to the surface of the heater.
Although this heater is outdoor approved, DO NOT immerse
the heater in water for your safety.
The light source of this luminaire is not replaceable; when the
light source reaches its end of life the whole luminaire shall be
replaced.
Wait until the unit is completely dry before use.
STORAGE
If the heater will not be used for a long period of time, store it in a
cool, dry location when not in use. To prevent dust and dirt
build-up, use the original packaging to repack the unit.
TROUBLE SHOOTING
If the heater will not operate, please check the following before
seeking repair of service:
Check if the power cord is plugged into an electrical outlet, if
not plug in.
Check if electricity to the main fuse is working.
Make certain the power switches are turned on. If not, choose
a setting.
12
TECHNICAL SPECIFICATION
Power supply
120V~ 60Hz
Wattage
1500W
Insulation class
I
Gross product weight
4.7kg/10.4lb
Product size
22*22*110 cm
Protection class
IP55

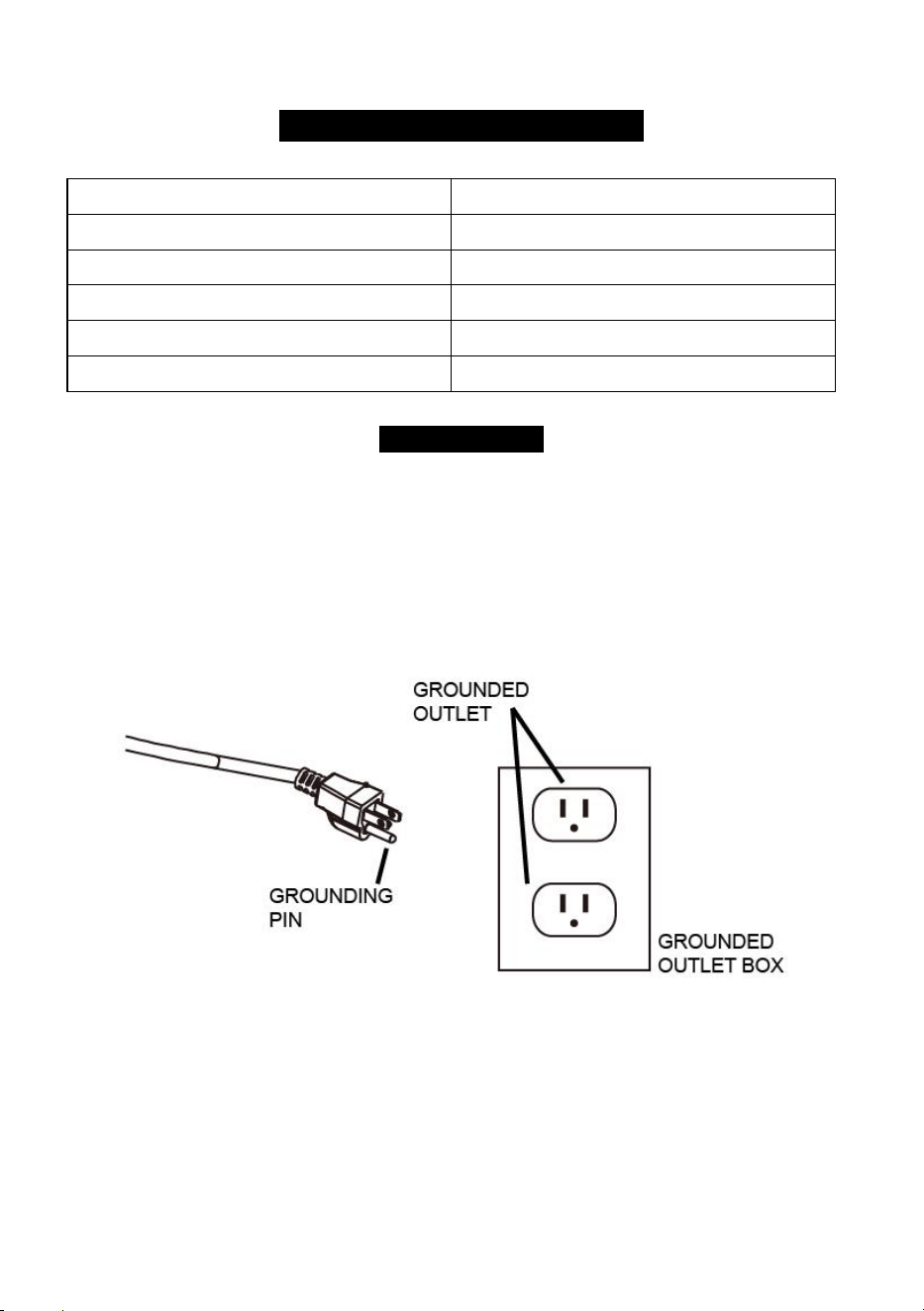

GROUNDING
This product is for use on a nominal 120V circuit with a grounding
plug that looks like the plug illustrated below. Make sure that the
product is connected to an outlet having the same configuration
as the plug. If you use an extension cord, make sure it also has a
grounding plug. No
adaptor should be used with this product.
Made in China
Manufacturer:Zhuhai Special Economic Zone Runwin Electric Co.,Ltd
Add.:Qinshi Road,No.33 Sanzao Town, Zhuhai, Guangdong Province,China
Contact: Joyce Email:info@pasapairhome.com
13
WARRANTY
Thank you for choosing PASAPAIR product. We sincerely hope that you are
satisfied with it.
The manufacturer's warranty covers the product for a period of 12 months from
the date of purchase against manufacturing faults. All warranties are
automatically kept track of in our system, so there is no need to register your
product.
Agent/Distributor is welcome to contact us. Email:info@pasapairhome.com.
Any help or questions during use, please contact us via website
www.pasapairhome.com, send email to info@pasapairhome.com, , we will
service you within 24 hours. We suggest to provide a warranty card, a photo or
a video if there’s broken spare part or not working machine so that we can be
much more clear about your problems and offer you the best solution.
Please fill in the table and email it within 10 days from the date of purchase.
