Infrared Smart Heater
Instruction Manual
Model No.: SUNMORE-H
Power Supply: AC 120V/60Hz 1500W
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING THE APPLIANCE
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.....................................1
INTRODUCTION..............................................................................3
INSTALLATION...............................................................................3
OPERATING.....................................................................................4
REMOTE CONTROL INSTRUCTIONS.......................................4
TROUBLESHOOTING....................................................................5
MAINTENANCE .............................................................................7
CLEANING........................................................................................7
WARRANTY......................................................................................9
1
Warning
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE,
We cannot be liable for any damages caused by failure to observe these instructions.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY-The infrared heater is designed for safe operation. Nevertheless, installation,
maintenance and operation of the heater can be dangerous. Observing the following procedures
will reduce the risk of fire, electric shock, injury to persons and keep installation time to a
minimum. Save these instructions for future use.
1. Read all instruction before using this heater.
2. Remove the unit from its packaging and check to make sure it is in good condition before using.
3. Do not let children play with parts of package (such as plastic bags).
4. Check the household voltage to ensure it matches the heater’s rated specification.
5. Check the power cord and plug carefully before use, to make sure that they are not damaged.
6. Before unplugging the power cord, be sure to turn off the power, when turning on the heater,
be sure your hands are dry to prevent from electric shock.
7. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater
and keep them away from the sides and rear.
8. Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
9. Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid.
10. To protect against electric shock, do not immerse cord or plug in water or any other liquid.
11. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may
cause an electric shock, fire or damage to the heater.
12. Always unplug the heater when not in use.
13. Connect to properly grounded outlets only.
14. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).
15. Do not allow cord to overhang the counter top where it can be easily pulled by children.
16. Do not put fingers or foreign objects into the grill while in operation.
2
17. Do not leave the appliance unattended when in use.
18. This heater is not intended for use in bathrooms, laundry and similar indoor locations, never
put heater where it may fall into a bathtub or other water container.
19. No liability can be accepted for any damage caused by non compliance with these instructions
or any other improper use or mishandling.
20. This appliance is not intended for use by persons (including children) with reduces physical,
sensory or mental capabilities or lack of experience and knowledge unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety. Children and vulnerable people should be supervised to ensure they do not play with the
appliance.
21. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
22. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has
been dropped or damaged in any manner. Disconnect power at service panel and have heater
inspected by a reputable electrician before reusing. If the supply cord is damaged in any way, it
must be replaced by the manufacturer or its service agent or a similarly qualified person in order
to avoid a hazard.
23. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area
and where it will not be tripped over.
24. To disconnect heater, turn controls to off, then remove plug from outlet.
25. To prevent overheating of this appliance, keep the air inlets and outlets clean and free of
anything that may cause blockage. Check all inlets and outlets from time to time to ensure it is
clear of any dirt or dust accumulation. DO NOT COVER.
26. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline,
paint, or flammable liquids are used or stored.
27. Parts of the heater may exceed 200℃ , contact with the heating tube, reflector, or metal parts
near the heating tube, may cause severe BURNS . To avoid burns, do not let bare skin touch hot
surface.
28. NEVER place hands under the heating elements. ALWAYS allow heating element to cool at
least 10 minutes before touching the heating tube or adjacent parts.
3
29. This product contains recyclable materials. Do not dispose this product as unsorted municipal
waste. Please contact your local municipality for the nearest collection point.
INTRODUCTION
The SUNMORE-H carbon infrared heaters produce instant and comfortable heat like the sun.
These robust and weatherproof heaters are designed for domestic and commercial heating
applications within indoor and outdoor areas.
This heater is for use on 120 volts. The cord has a plug as shown at A in Figure 68.1. An adapter as
shown at C is available for connecting three-blade grounding-type plugs to two-slot receptacles.
The green grounding lug extending from the adapter must be connected to a permanent ground
such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded
receptacle is available.
INSTALLATION
1. This heater should be installed by a competent person, i.e. a qualified electrician.
2. Always disconnected the heater from the electricity supply and allow it to cool before
installation.
3. Keep the supply cord away from the body of the heater which will get hot during use.
4. If the heater is to be used outside, a weatherproof outlet is recommended.
5. Fasten the heater securely on the baseplate using the screws supplied.
4
Installation Accessories:
ATTENTION: MUST ASSEMBLE THE PROTECTION BRACKET BEFORE PLUG-IN.
OPERATING
Product Key Function:
1. Turn on the power button, the product is in standby mode display (- -);
2. Press heating level button: select the heating level (L1-L2 standby - off)
3. Press timer button:To set the timer from 0H-24H, which is the number of hours it will run. 0H
will display and then adjust to the number of hours you would like to set.
REMOTE CONTROL INSTRUCTIONS
1. POWER BUTTON: Turn the heater off.
2. UP BUTTON: Increase timer or power level.
3. DOWN BUTTON: Decrease timer or power level.
4. LEVEL BUTTON: Use to adjust the heat levels(L1-L2). Press the Level
button then use the up and down buttons(buttons 2 and 3) to
increase or decrease the heating level.
5. TIMER BUTTON: To set the timer from 0H-24H, which is the number
of hours it will run. 0H will display and then adjust to the number of
hours you would like to set, using the up and down buttons(2 and 3).
Noted: All SUNMORE-H heaters and their remote controls have the
same frequency, so it is possible to control several heaters with just one remote.
Inserting Batteries(not included)
Insert 2 AAA/ Alkaline type batteries into your remote control
Noted: The heater has a tip-over protection function. When the heater exceeds a 45 ° angle,
it automatically stops working.
5
1. Flip the backside of your remote control and pull out battery cover. Insert the batteries in
accordance with the instructions and polarity the batteries.
2. Change the batteries in the same way depicted above.
NOTICE:
1. Replace the old batteries with the same type batteries. Otherwise, your heater may not
function well.
2. Pull out the batteries in case of long terms of disuse to prevent leakage which may impair your
remote control.
3. Do not allow water or liquid to get into the remote control.
Caution:
When the appliance is not operated for a long period of time, cleaning or maintenance is
conducted or when the location of the heater is changed, the heater should be turned to OFF and
unplugged from the electrical connection.
Periodic inspection and removal of dirt and contaminants will ensure that equipment can be
operated safely.
TROUBLESHOOTING
1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the main fuse is working
3. “ E1 “ Error on display OR the heating lamp off but with L1/L2 display（Over heat protection）
Step 1: pull the plug out
Step 2: wait 1 hour until heater cool down
Step 3: put the plug in and press the button
to restart the heater
6

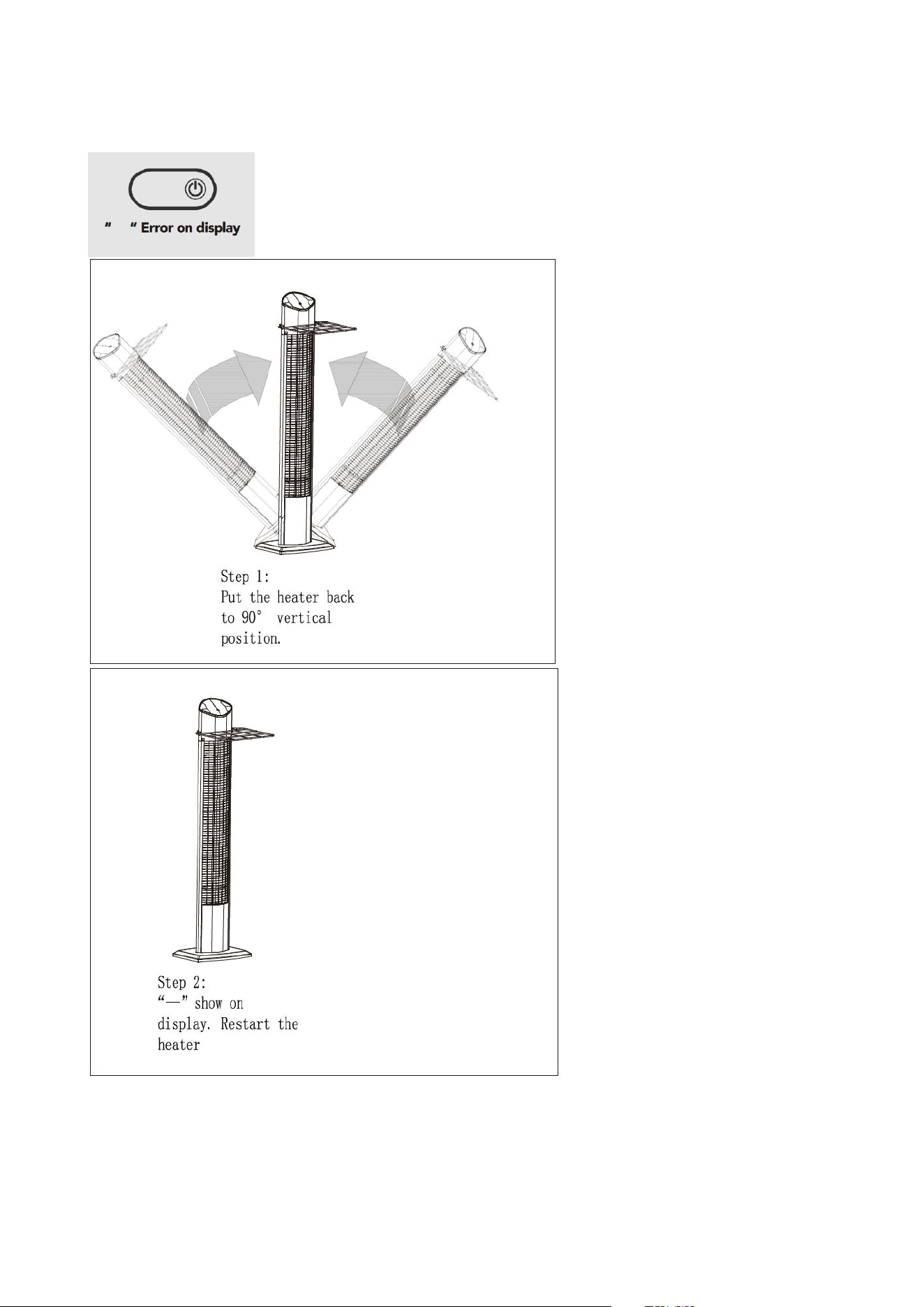

4. “ ” Error on Display: Tip over function,Make sure that the unit is leveled and restart heater.
5. L1, L2, shows in display, but no heat: Overheat protection or Bulb is damaged.
Follow above E1 error display solution’s step, if still no heat, arrange for
replacement bulb with local Dealer accordingly.
7
MAINTENANCE
Attention! Careful and regular maintenance of your heater considering our instructions assume
great importance so as to attain a long efficient operation of your appliance.
1. Check the filthiness of the Reflector and IR-Filament at least once a month. If necessary, apply
cleaning and maintenance instructions.
2. The number of checks may be increased considering the amount of the dust in the
environment.
3. Check the deformation of the Reflector, Wire and Frame visually while cleaning the appliance.
In case of deformation, consult to your technical service.
4. Check the Power Cord and Plug visually while cleaning the appliance. In case of deformation,
consult to your technical service.
CLEANING
Regular and careful cleaning helps your infrared heater operate efficiently for many trouble free
years. To clean your heater follow steps below:
1. Unplug the power cord for your safety before cleaning your appliance.
2. Make sure the heater is cool before continuing.
3. To keep the heater clean, the outer shell maybe cleaned with a soft, damp cloth. You may use a
mild detergent if necessary. After cleaning, dry the unit with a soft cloth. (CAUTION: DO NOT let
liquids enter the heater).
4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish or rough brushes to clean the
heater. This may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water
6. Wait until the heater is completely dry before use.
Storage: Store the heater in a cool, dry location when not in use to prevent dust and dirt build up.
Use packaging carton to store.
ATTENTION:
1. Always disconnect the heater from the electricity supply and allow it to cool before attempting
to work on it.
2. If the heater has collected dust or dirt inside the unit or around the heating element, have to
unit cleaned by a qualified service agent. Do not operate the heater in this condition.
3. The only maintenance required is cleaning of the external surfaces of the heater.
4. Do not touch the heating element with bare fingers, as residue from your hand could affect
the life of the lamp. If it is accidentally touched, remove the finger marks with a soft cloth
moistened with mentholated spirit or alcohol.
5. Do not attempt to repair or adjust any electrical or mechanical functions on this heater.
6. The heater contains no user serviceable parts. Should the product suffer damage or
breakdown, it must be returned to the manufacturer or its service agent.
7. Damaged supply cords to be replaced by the manufacturer, service agent or similarly qualified
person in order to avoid hazard.
RECYCLING
At the end of the electrical products useful life it should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice
in your country.
8
Manufacturer:HEYUAN XINDA QUARTZ ELECTRIC APPLIANCE CO., LTD.
Add.:Inside Linjiang Industry Park, Economy Development Zone, Jiangdong New Zone, Heyuan, G
uangdong, China
9
WARRANTY
Thank you for choosing PASAPAIR product. We sincerely hope that you are satisfied with it.
The manufacturer's warranty covers the product for a period of 12 months from the date of purchase
against manufacturing faults. All warranties are automatically kept track of in our system, so there
is no need to register your product.
Any help or questions during use, please contact us via website www.pasapairhome.com, send
warranty card, a photo or a video if there’s broken spare part or not working machine so that we can
be much more clear about your problems and offer you the best solution.
Please fill in the table and email it within 10 days from the date of purchase.
