Wall mounted electric heater (with flame)
User manual
Brand:pasapair
Model:SF713A
Power Supply: 120V-60Hz 1500w
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING THE APPLIANCE
DIRECTORY
TECHNICAL SPECIFICATION

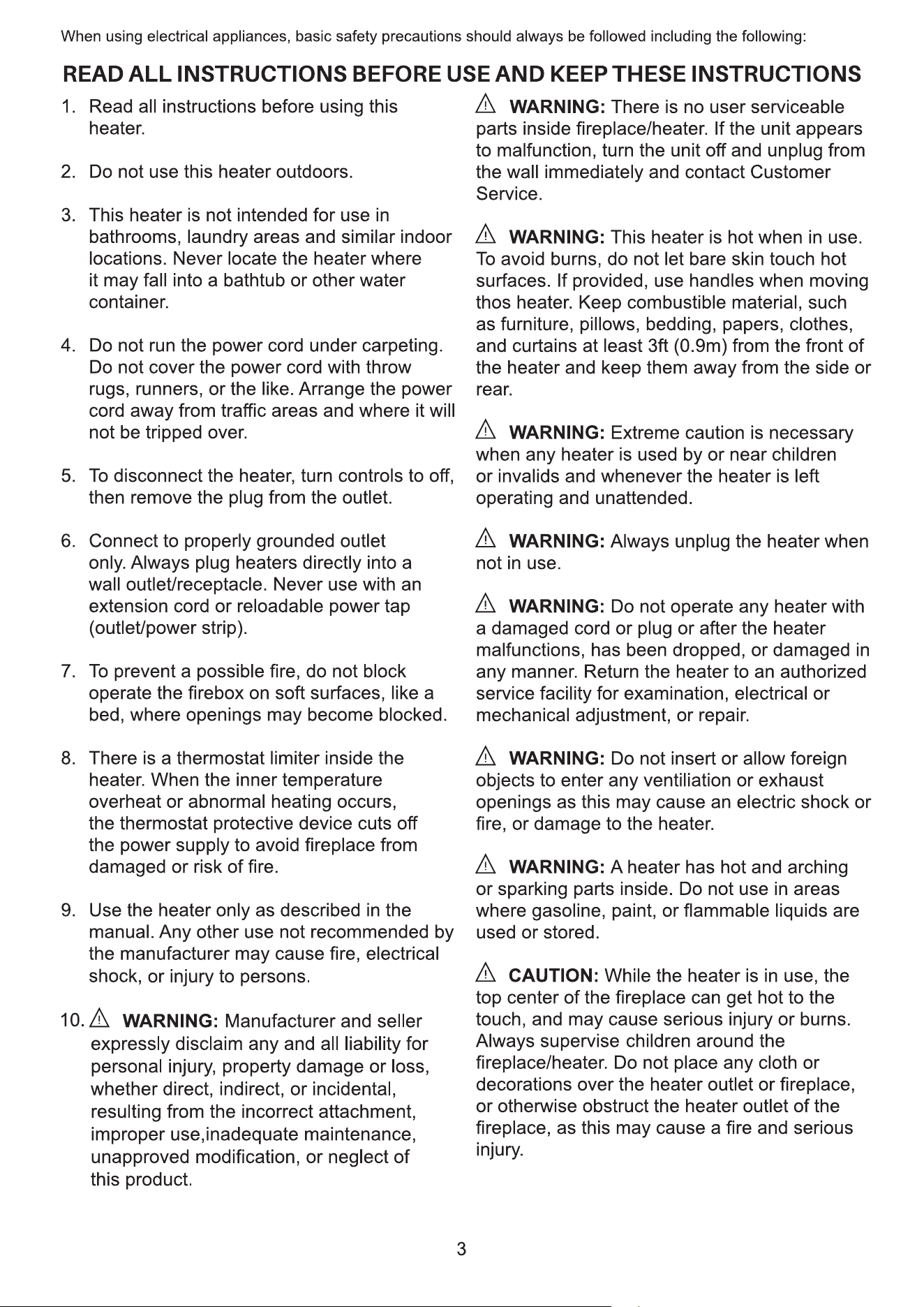

INSTALLATION WARNING

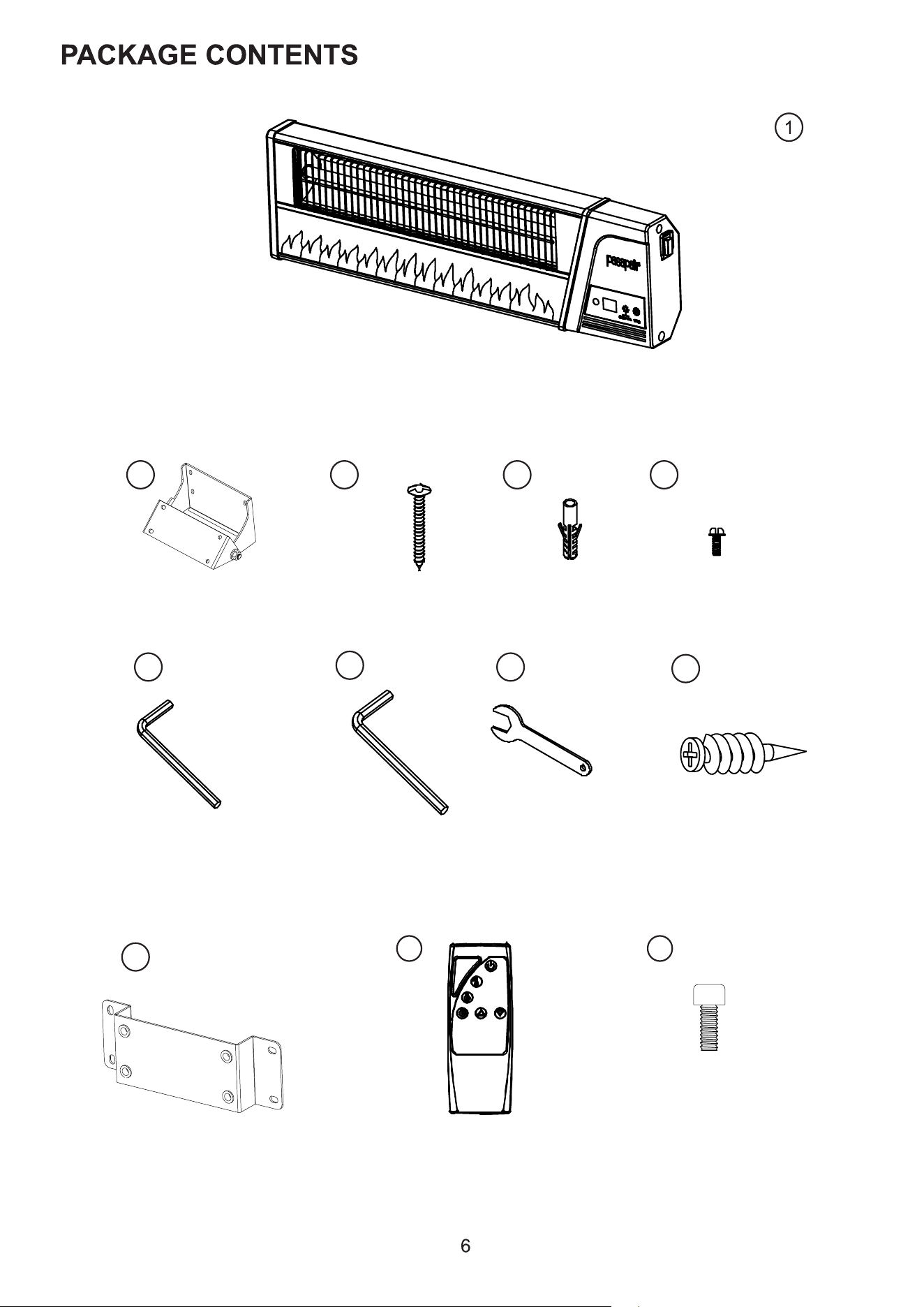

PACKAGE CONTENTS
PRODUCT NOTICE
ASSEMBLING
USER INSTRUCTION
WARRANTY
2
3
6
8
9
13
18
1
Product model SF713A
Rated voltage/frequency/power 120V / 60Hz /1500W (one carbon fiber
quartz heating tube)
Heating range
Secondgear heating:
Timing gear
1-24H
Safety protection
Flame
C
ontrol by remote control
Remote control distance
Waterproof
8 m/315inch
Rating
IP55
OptimalOperating Environment
-4°F-104°F（-20°C-40°C）
Humidity<85%
Tipping power failure protection,
overheating power failure protection
H gear/L gear

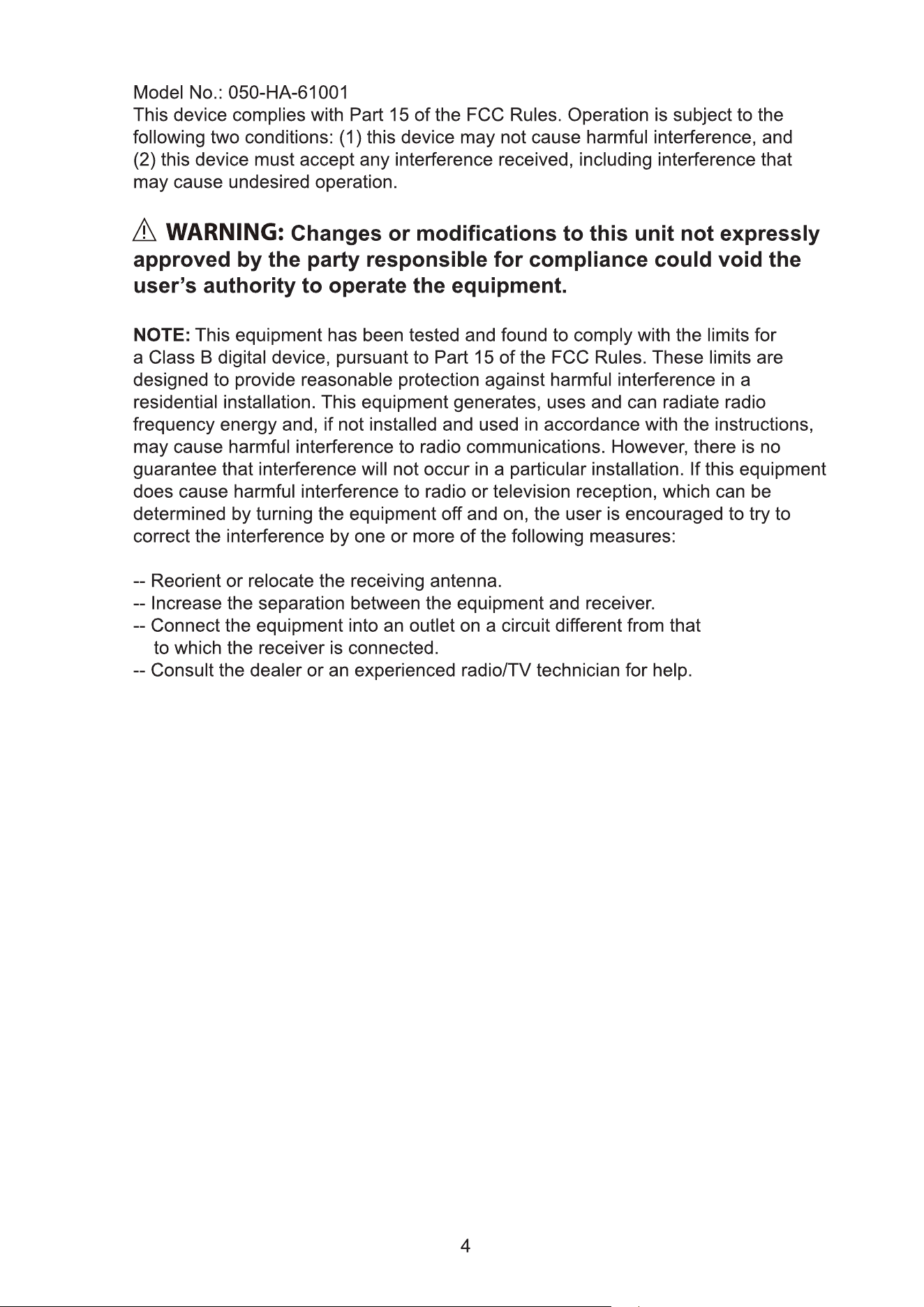

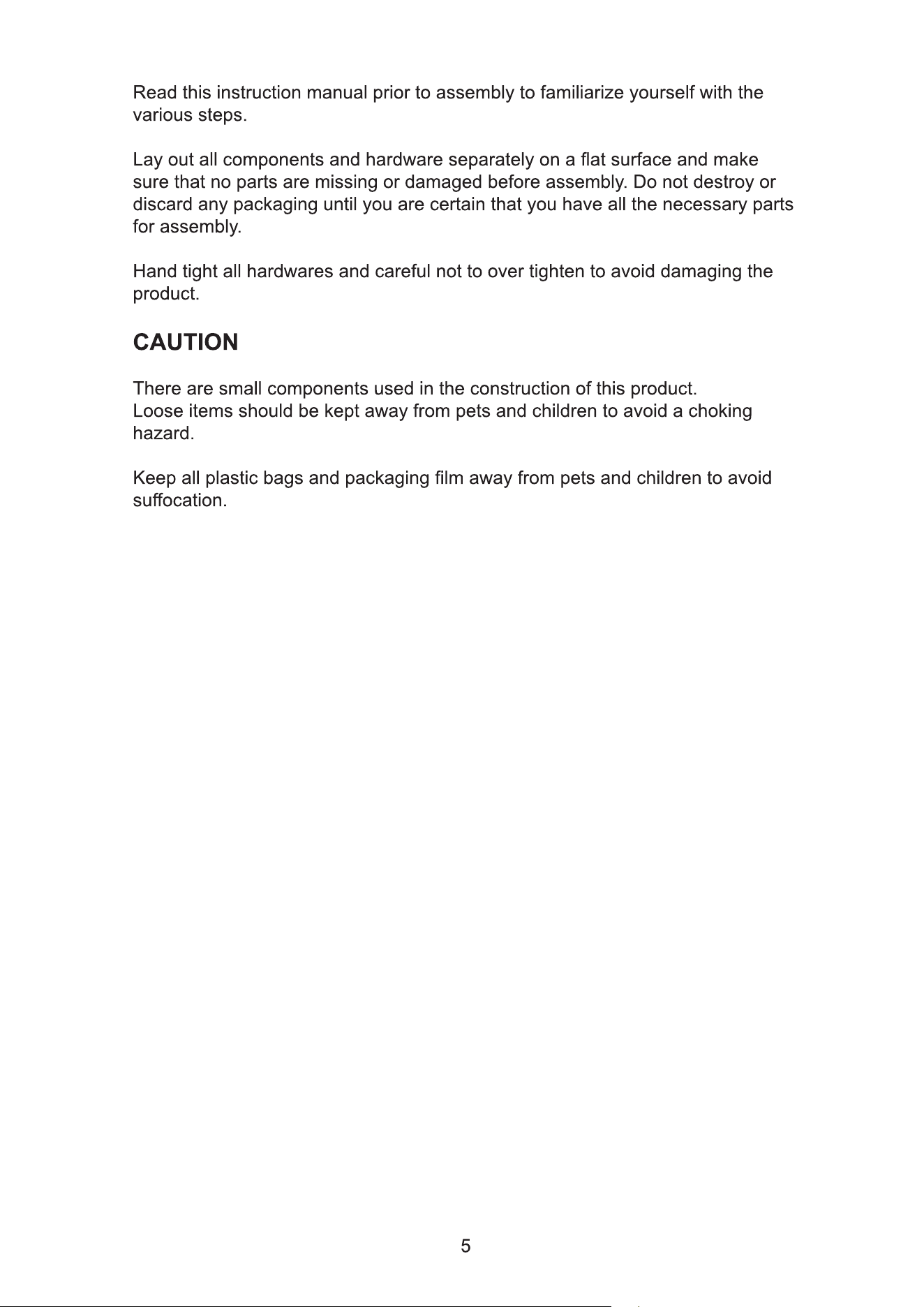

9
2 3 4 5
6
7
8
10
11
The Machine Bracket
1
M4*10 Screw
4
plastic Tube
4+2
ST3.9*30 Screw
4
Open End Wrench
1
M6 Allen Key Wrench
1
Remote Control
1
Wall Mounting Bracket
1
Heater
1
M5 Allen Key Wrench
1
4
4+2
12
Plastic screw
M5x16 Screws
(gypsum board)
1
4
5
6
7
8
9
10
Remote Control
Wall Mounting Bracket
Open End Wrench
M5 Allen Key Wrench
M4*10 Screw
plastic Tube
ST3.9*30 Screw
The Machine Bracket
1
4+2
1
11
4
4+2
4
12
M6 Allen Key Wrench
Plastic screw
M5x16 Screws
4
PRODUCT NOTICE
1. Mute, Fast heat
The machine is quiet without wind, 2 seconds fast heating, second gear heating
( H gear, L gear) is optional, 24 hours timing option.
2. Security protection
Tipping power outage protection ---- When the machine tilts more than 30° in any
direction, the anti-tipping protection function will start and the heating will stop, and
the display will blink "EE"; When the machine is put right, it will automatically resume
heating.
Abnormal overheat protection ---- When the machine is working abnormally
overheat, the temperature controller in the machine will automatically power o ffand
stop heating; After that, it is necessary to manually restart the main switch on the
machine or insert and remove the plug before heating again, so as to avoid frequent
automatic heating when overheating.
3. All-weather waterproof
The body is made of cold-rolled steel plate material, and the plastic shell on both sides
is flame-retardant engineering plastic, which is resistant to UV aging. The heating area
has stainless steel screen protection isolation, the machine IP55 waterproof design,
can withstand any direction of the rain, splashing water and sand particle intrusion.
8

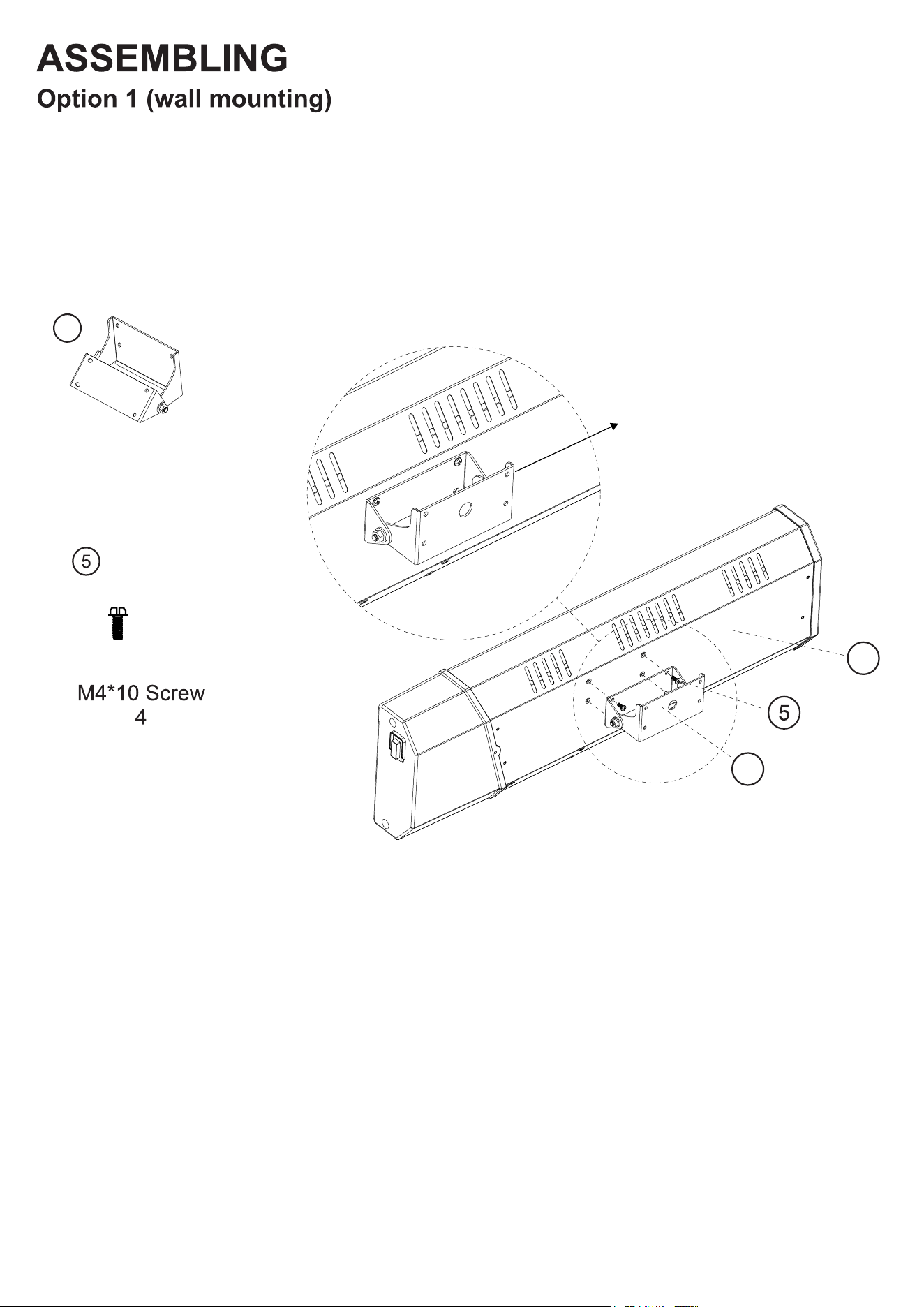

Place the machine bracket on the back of the heater and lock
it with 4 screws.
1
Place the wall mounting bracket on the back of the heater
and lock it with screw .
2
9
2
The Machine Bracket
1
2
1
This side faces down
10
2
10
Wall Mounting Bracket
1
4
plastic Tube
4+2
9
4+2
Plastic screw
Wall Mounting Bracket
Wall Holes
2M
/78.7inch
Ground
Wall Mounting Bracket
AboveGround
≥2M/78.7inch

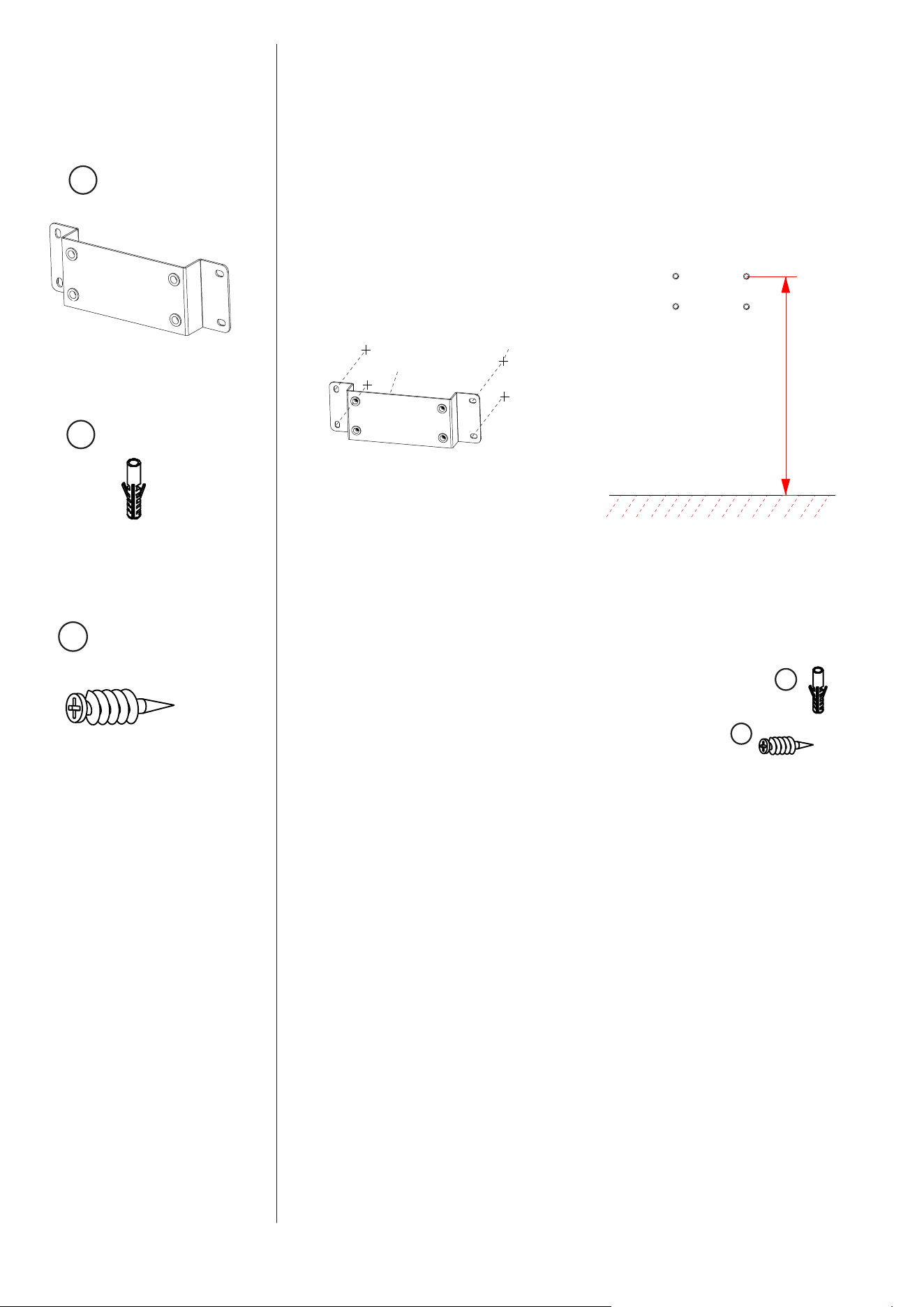

After drilling holes, nail the plastic tube.
* Brick wall, cement wall -- drilling Φ8mm hole, nail plastic tube.
* Gypsum board -- Drill hole Φ9mm, tightening the screws.
4
9
Drill holes and nail plastic tubes into the walls.
Drill holes on the wall according to the four holes on the
wall mounting bracket, and the holes are more than 2
meters away from the ground;
11
3
10
Wall Mounting Bracket
1
3
ST3.9*30 Screw
4

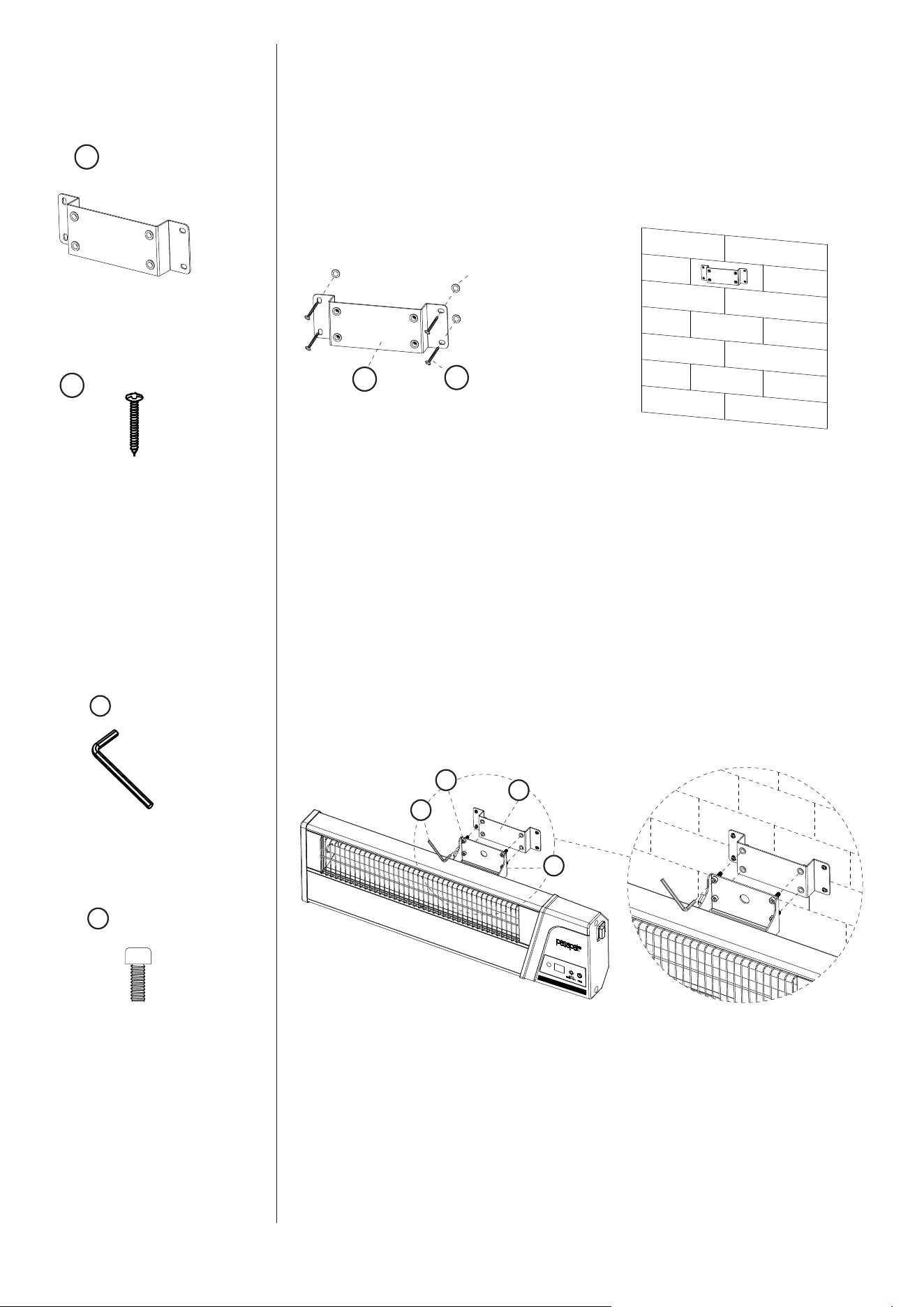

Install the wall mounting bracket
Attach the wall board to the wall with four screws,
Make sure the bracket is leveled.
10
3
Wall Holes
Install the heater
Align the four screw holes of the heater bracket on the back of the
machine with the screw holes of the wall mounting bracket, screw
in four screws respectively, and then tighten the screws with the
allen key wrench , and then the host machine is fixed on the wall.
4
6
M5 Allen Key Wrench
1
4
12
M5x16 Screws
6
12
10
2
5
12

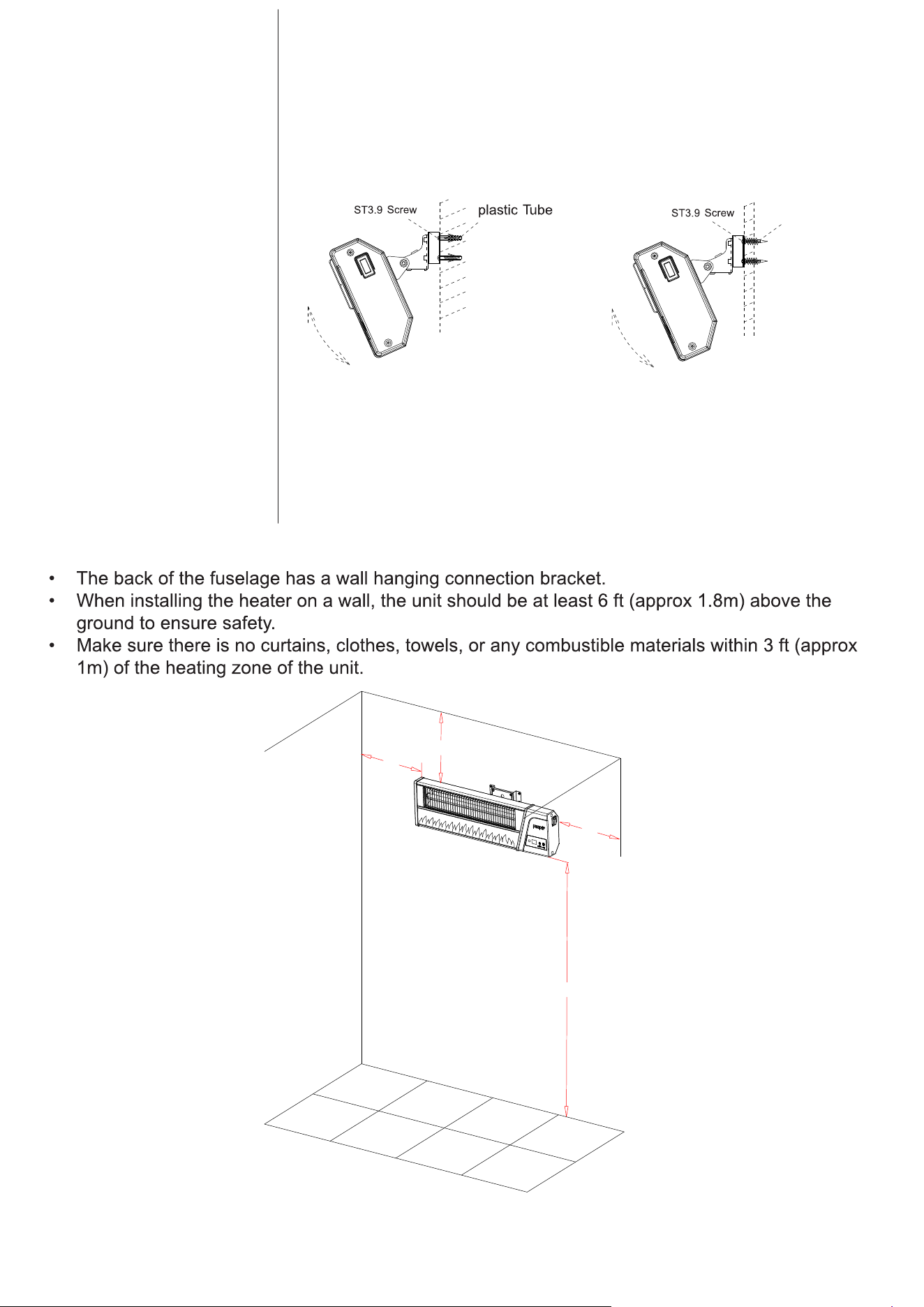

Adjust the machine Angle
After the machine is installed on the wall, the pitch Angle of the
machine, it can be adjusted to the most suitable heating position.
Plastic screw
Gypsum Board
Wall
1M/39in
1.8M/71in
1M/39in
1M/39in
13

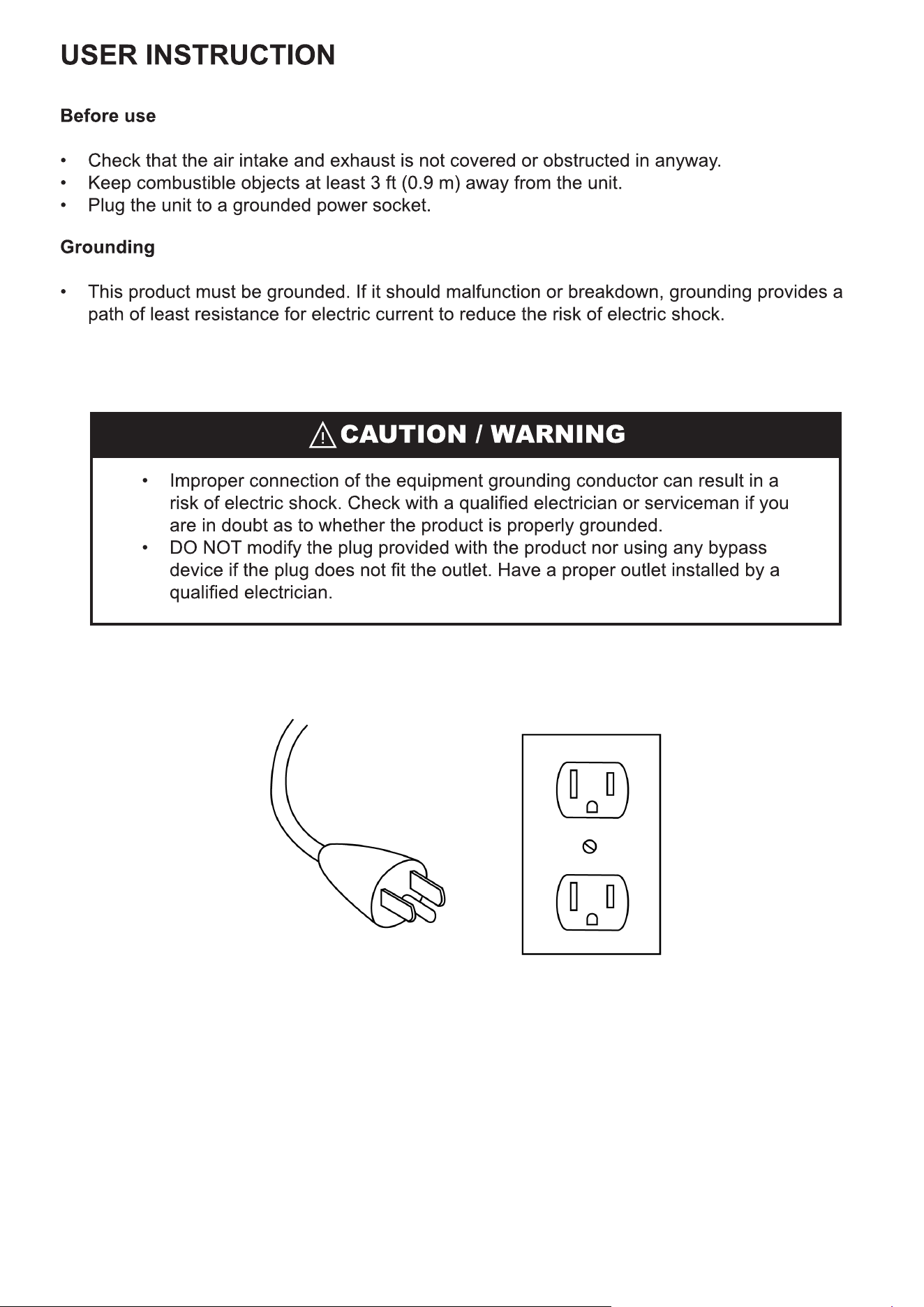

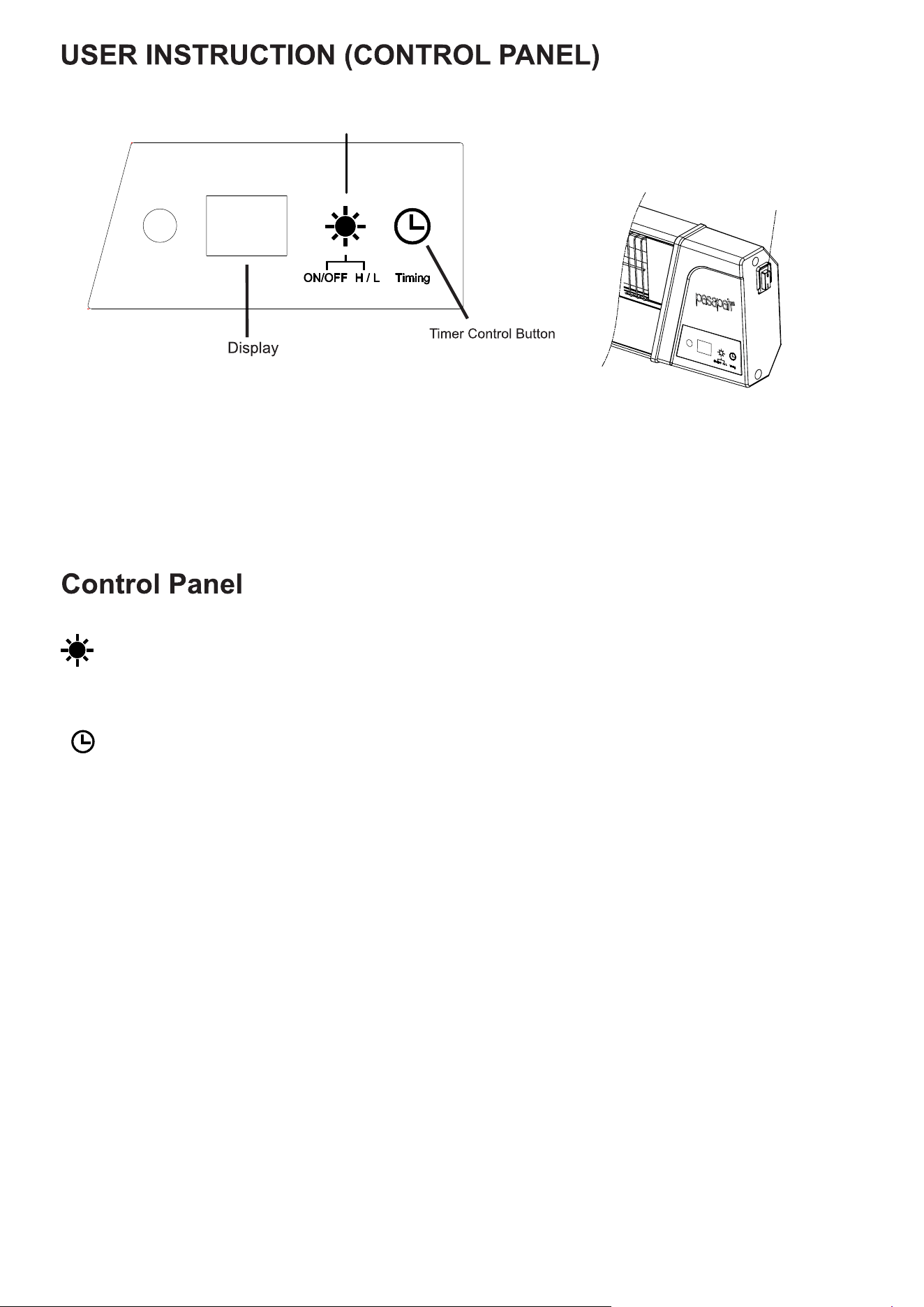

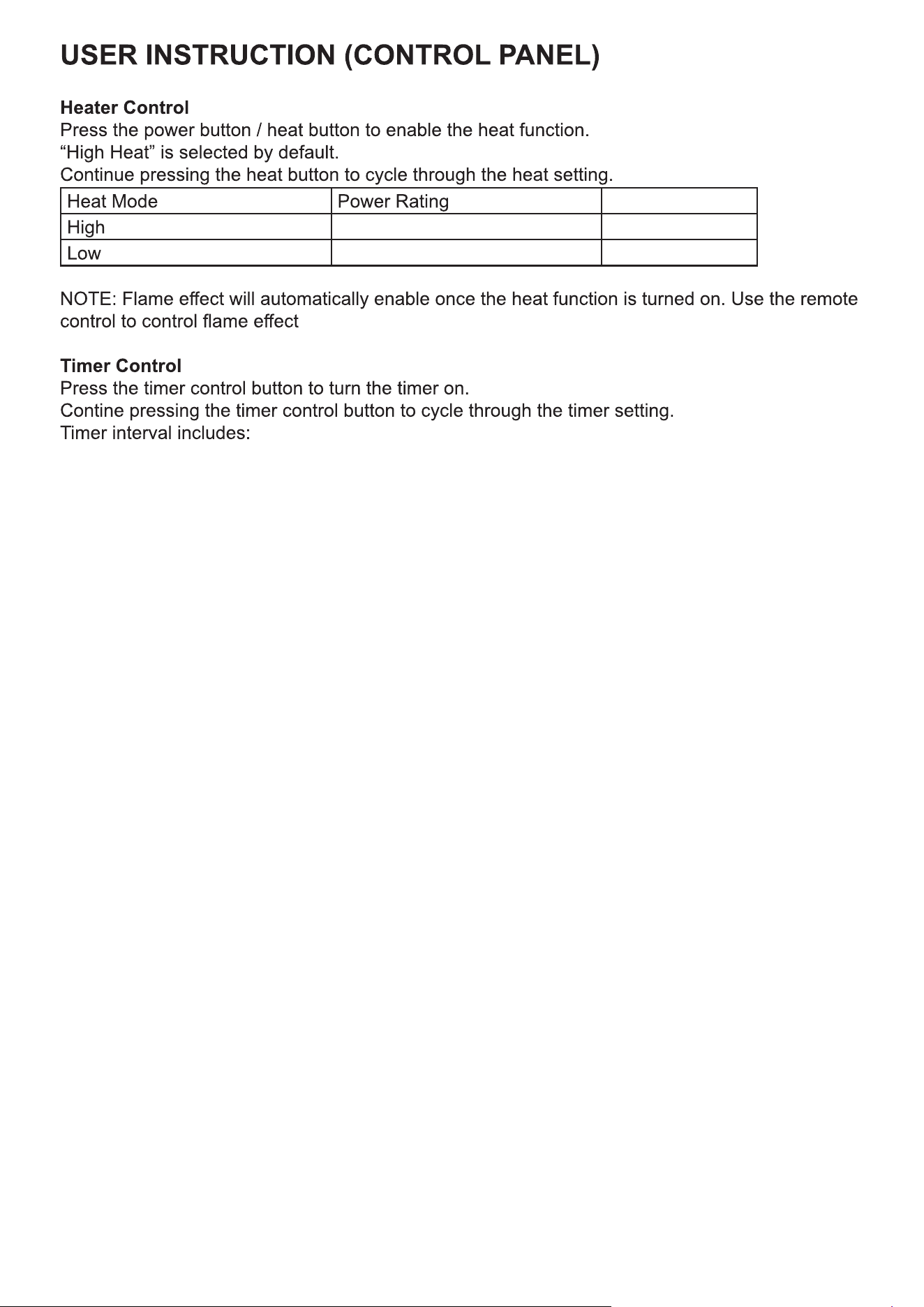

Water Proof Switch
Press the switch in the transparent cover on the right side of the machine to
the position of "I", then the machine will display "--" standby mode.
---Function key: This key has multiple functions, press this key to turn on
heating (default H gear) - Press again for L gear -- Press again to turn off,
so the cycle.
---Timing key: 24-hour working time can be set, which is displayed as:
1H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H, 10H, 11H, 12H, 13H, 14H, 15H,
16H, 17H, 18H,
19H, 20H, 21H, 22H, 23H, 24H, and so on.
Function key
14
0H,1H,2H,3H,4H,5H,6H,7H,8H,9H,10H,11H,12H,13H,
14H,15H,16H,17H,18H,19H,20H,21H,22H,23H,24H.
H
L
Screen Display
15
Full power
Half power
TimeAdjustment:Increase
TimeAdjustment:Decrease

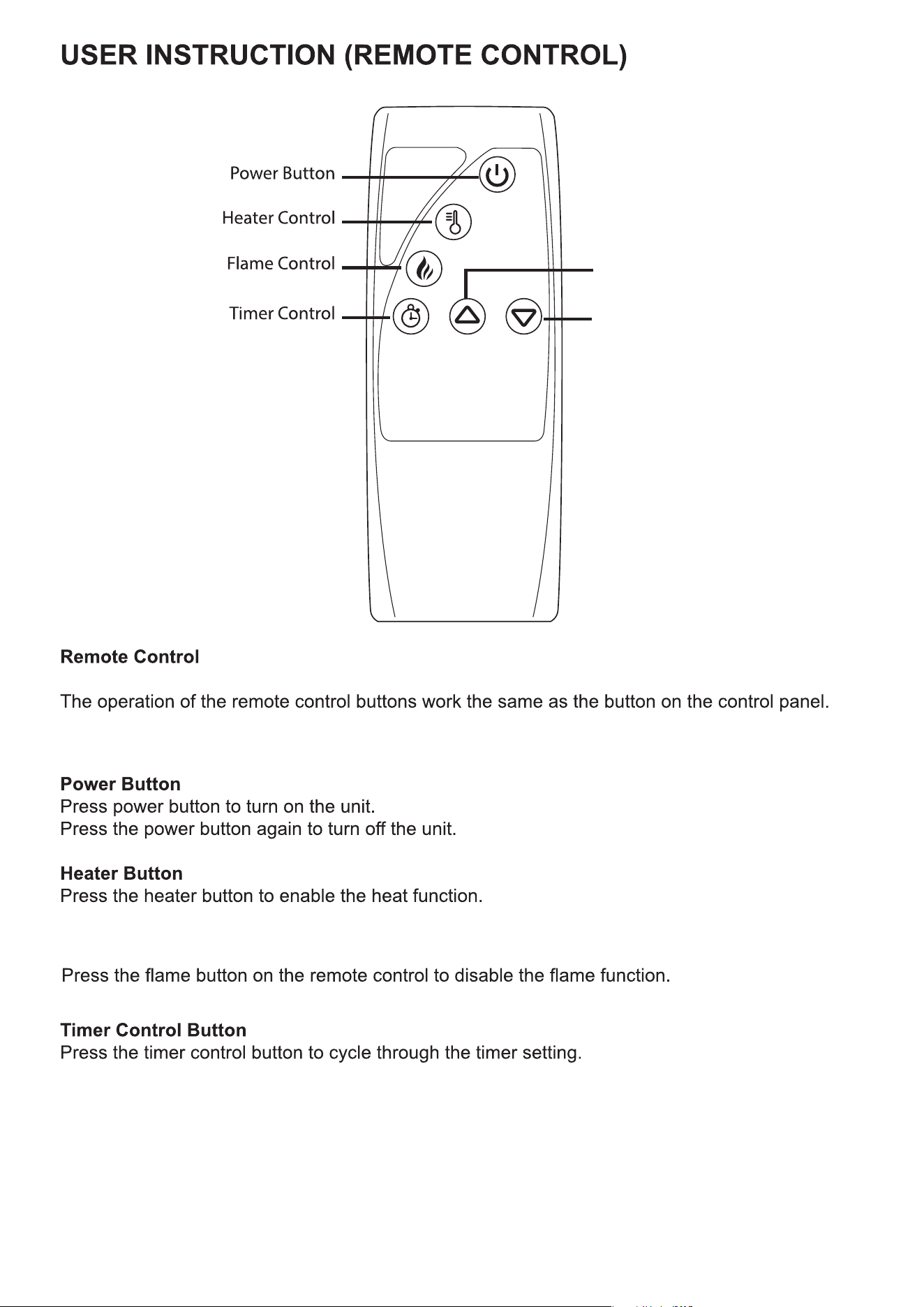

The remote control distance is 6ft from the front and 4ft from the sides of the unit.
Time Adjustment Increase / Decrease
Press the increase or decrease button to select different time setting.
16
Flame Button

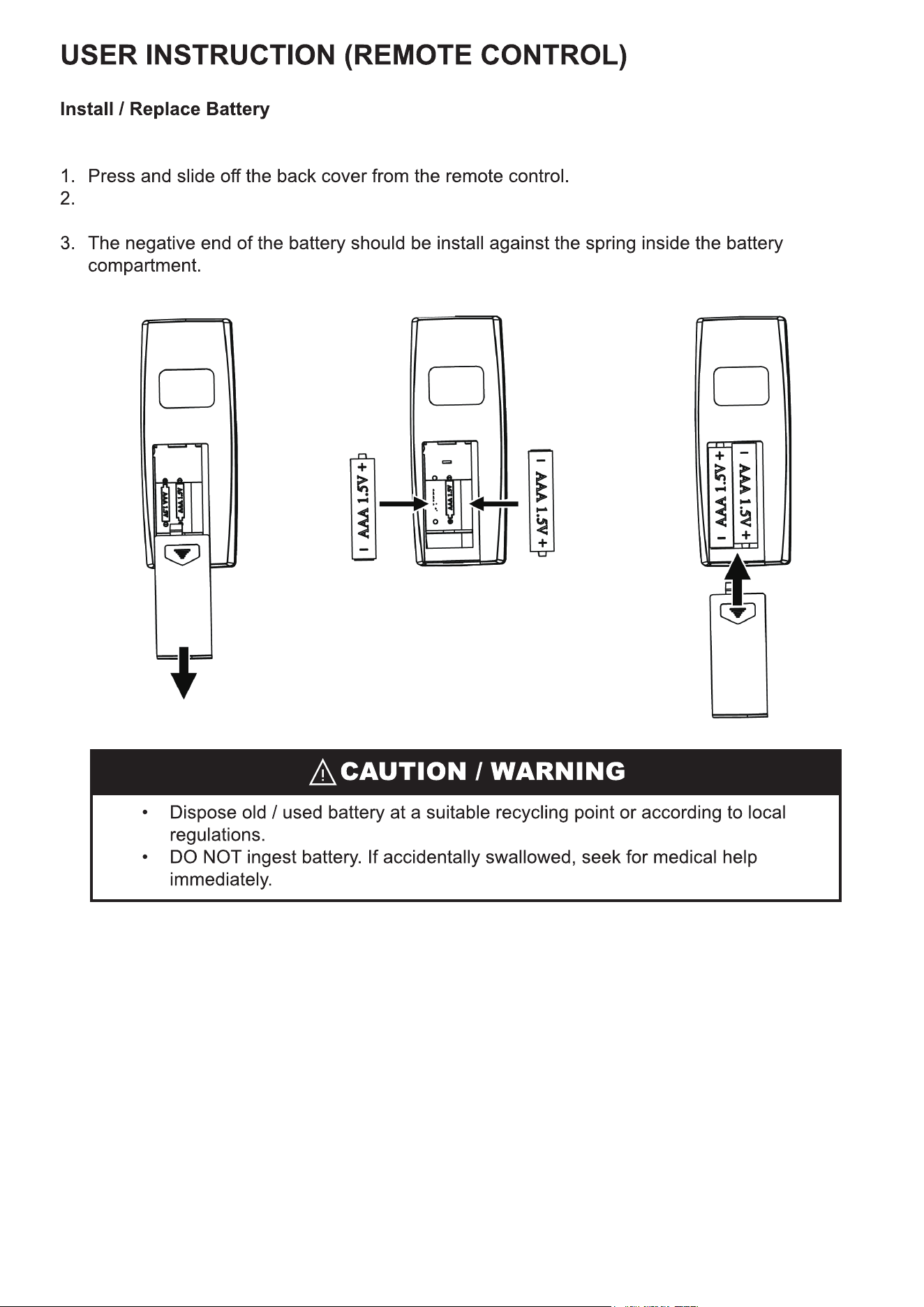

The remote control is provided with 1.5V AAA batteries.
Insert 1.5V AAA batteries into the battery compartment and
make sure to install batteries in the correct ploarity.
17
Manufacturer:Zhongshan Sunshine Electrical Appliance Tech Co., Ltd.
Add.:No.2, Yongyi Road 3, Heng lan Town, Zhongshan City Guangdong, China
Contact: Joyce Email:[email protected]
Thank you for choosing PASAPAIR product. We sincerely hope that you are satisfied with it.
The manufacturer's warranty covers the product for a period of 12 months from the date of
purchase against manufacturing faults. All warranties are automatically kept track of in our
system, so there is no need to register your product.
Agent/Distributor is welcome to contact us. Email:[email protected].
Any help or questions during use, please contact us via website www.pasapairhome.com,
send email to [email protected], , we will service you within 24 hours. We suggest to
provide a warranty card, a photo or a video if there’s broken spare part or not working machine
so that we can be much more clear about your problems and offer you the best solution.

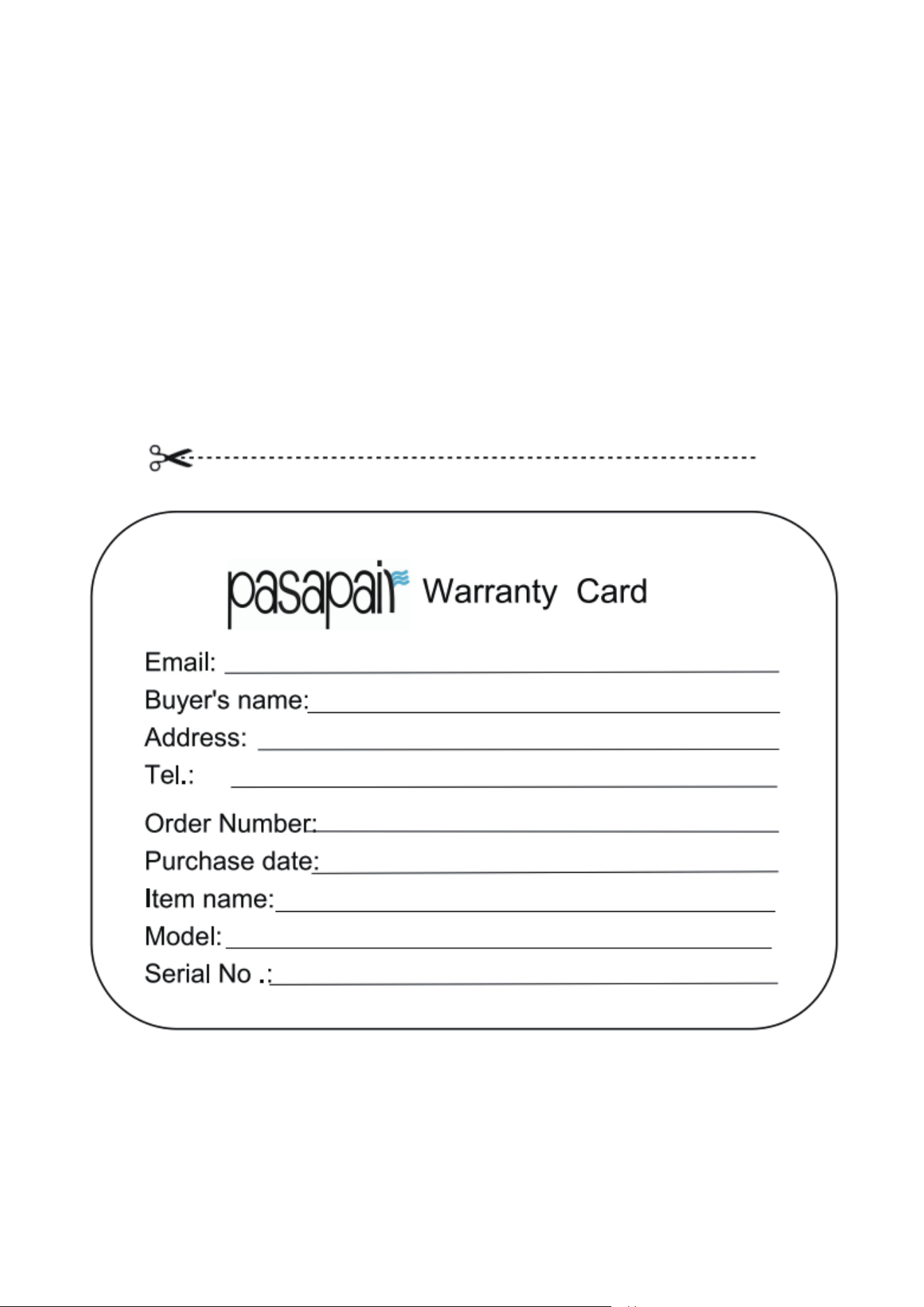

Please fill in the table and email it within 10 days from the date of purchase.
