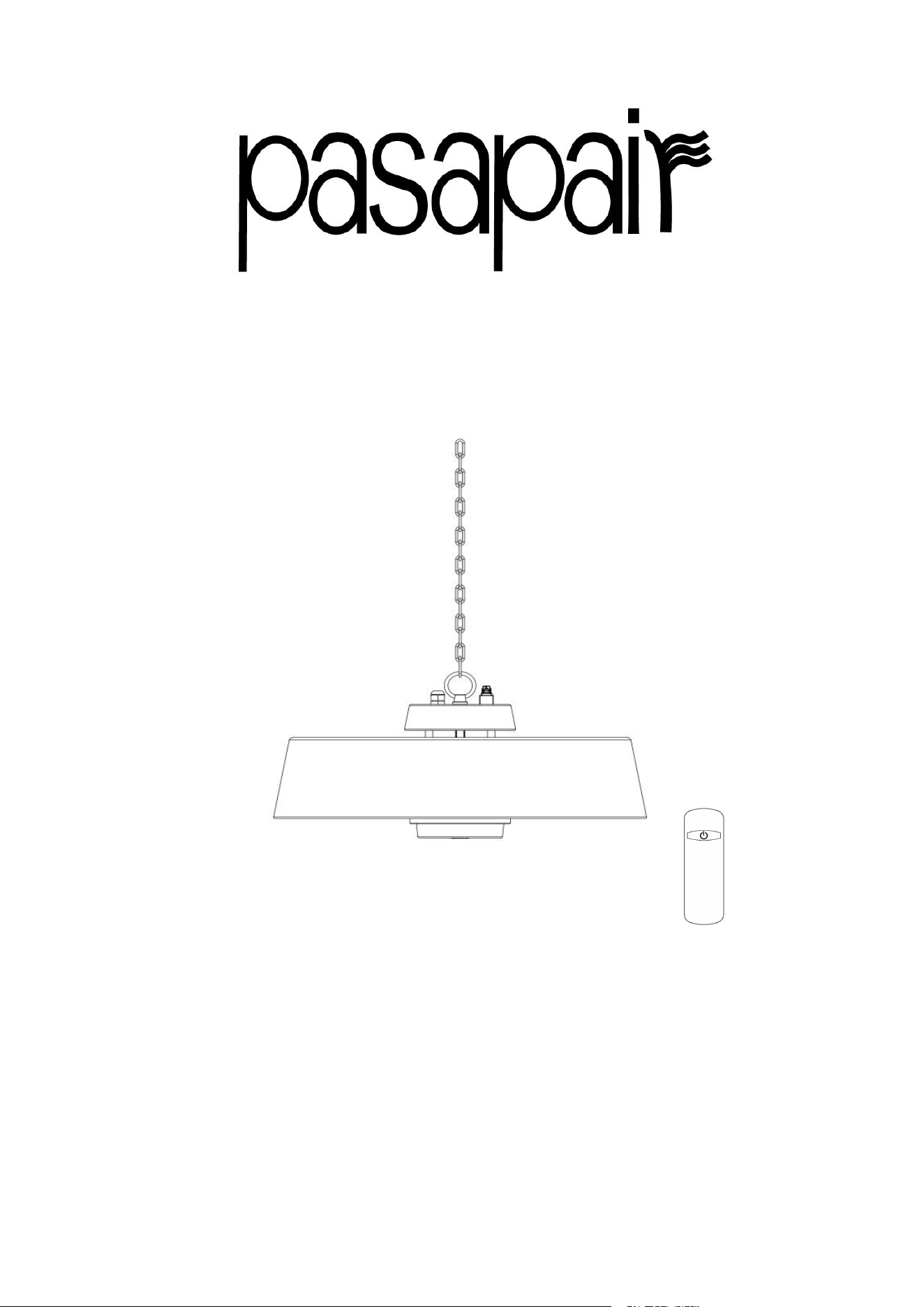

Infrared Smart Heater
Instruction Manual
Model No.: DS2000
Power Supply: AC 120V/60Hz 1500W
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING THE APPLIANCE
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.....................................1
INTRODUCTION..............................................................................3
GROUNDING INSTRUCTIONS.....................................................3
INSTALLATION...............................................................................3
REMOTE CONTROL INSTRUCTIONS.......................................5
TROUBLESHOOTING....................................................................5
CLEANING AND MAINTENANCE ..............................................5
WARRANTY......................................................................................7
1
Warning
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE.
We cannot be liable for any damages caused by failure to observe these instructions.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY-The infrared heater is designed for safe operation. Nevertheless,
installation, maintenance and operation of the heater can be dangerous. Observing the
following procedures will reduce the risk of fire, electric shock, injury to persons and keep
installation time to a minimum.
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1. Read all instruction before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided,
use handles when moving this heater. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes, and curtains at least 3 feet (0.9 m/35.4inch) from the front of the heater
and keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
4. Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been
dropped or damaged in any manner. Discard heater, or return to authorized service facility for
examination and/or repair.
6. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations.
Never locate heater where it may fall into a bathtub or other water container.
7. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and
where it will not be tripped over.
8. To disconnect heater, turn controls to off, then remove plug from outlet.
9. Connect to properly grounded outlets only.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may
cause an electric shock or fire, or damage the heater.
2
11. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft
surfaces, like a bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint,
or flammable liquids are used or stored.
13. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
14. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).
15. Remove the unit from it’s packaging and check to make sure it is in good condition before using.
16. Do not let children play with parts of package (such as plastic bags).
17. Check the household voltage to ensure it matches the heater’s rated specification.
18. Check the power cord and plug carefully before used, to make sure that they are not damaged.
19. Before unplugging the power cord, be sure to turn off the power, when energizing the unit, be
sure your hands are dry to prevent from electric shock.
20. To protect against electric shock, do not immerse cord or plug in water or any other liquid.
21. Do not allow cord to overhang the countertop where it can be easily pulled by children.
22. Do not put fingers or foreign objects into the grill while in operation.
23. Do not leave the appliance unattended when in use.
24. No liability can be accepted for any damage caused by non compliance with these instructions
or any other improper use or mishandling.
25. To prevent overheating of this appliance, keep the air inlets and outlets clean and free of
anything that may cause blockage. Check all inlets and outlets from time to time to ensure it is clear
of any dirt or dust accumulation. DO NOT COVER.
26. Parts of the heater may exceed 200℃, contact with the heating tube, reflector, or mental parts
near the heating tube, may cause severe BURNS. To avoid burns, do not let bare skin touch hot
surface.
27. NEVER place hands under the heating elements. ALWAYS allow heating element to cool at
least 10 minutes before touching the heating tube or adjacent parts.
28. This product contains recyclable materials. Do not dispose this product as unsorted municipal
waste. Please contact your local municipality for the nearest collection point.
29. CAUTION: MOUNT WITH BOTTOM OF HEATER AT LEAST 2.4 m ABOVE FLOOR OR
GRADE.
30. WARNING: RISK OF FIRE — KEEP COMBUSTIBLE MATERIAL AWAY FROM FRONT
OF HEATER.
3
INTRODUCTION
The infrared heaters produce instant and comfortable heat like the sun.
These robust and weatherproof heaters are designed for domestic and commercial heating
applications within indoor and outdoor areas.
GROUNDING INSTRUCTIONS
Model
DS 2000
Voltage(V)
AC120V/60Hz
Wattage(W)
1500W
Dimensions W×H×D
485*485*235mm
19.1*19.1*9.3inch
Weight
2.7KG/6.0LB
This heater is for use on 120 volts. The cord has a plug as shown at A in below Figure. An adapter
as shown at C is available for connecting three-blade grounding-type plugs to two-slot receptacles.
The green grounding lug extending from the adapter must be connected to a permanent ground such
as a properly grounded outlet box. The adapter should not be used if a three-slot grounded
receptacle is available.
INSTALLATION
Tools Needed:
*Level *Screw Driver *Power Drill and drill bits
4
Important: Ensure that the supply cable is well mounted and that it does not come into contact
with reflector of the heater or that does not trail into heated area.
1.This heater should be installed by a competent person, i.e. a qualified electrician.
2.Always disconnected the heater from the electricity supply and allow it to cool before installation.
3.This heater can be heat directly.
5.Keep the supply cord away from the body of the heater which will get hot during use.
6.Do not install the heater on an inflammable surface.
7.Observe the minimum safe distance between the heater body and the inflammable surfaces when
mounted.
8.If the heater is to be used outside, a weatherproof outlet is recommended.
Keep at least 500 mm/19.7inch distance between heater and surrounding. 3. Keep at least 2400
mm/94.5inch height from heater to ground.
Warning:
1.Before install the heater, make the support rail enough durable and firm, and make the hanging
chain always tautly and the supply cord will never be stressed.
2.Before using the heater, make it’s mounted tightly on the support rail.
（Ceiling）
350 mm
500 mm
2400 mm
70.9IN
94.5in
13.8in
19.7in
5
REMOTE CONTROL INSTRUCTIONS
1. POWER BUTTON: Turn the heater ON/OFF
Noted: All SUNDEAR heaters and their remote controls have the same frequency,
so it is possible to control several heaters with just one remote.
PUSH SWITCH: turn switch ON first, then operated the heater by remote control. If
you missing the remote control, contact local dealer for replacement .
Inserting Batteries(not included)
Insert 2 AAA/ Alkaline type batteries into your remote control
1. Flip the backside of your remote control and pull out battery cover. Insert the batteries in
accordance with the instructions and polarity the batteries.
2. Change the batteries in the same way depicted above.
TROUBLESHOOTING
1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the main fuse is working
3. Check to see if the switch on the heater to the ON position
CLEANING AND MAINTENANCE
Regular and careful cleaning helps your infrared heater operate efficiently for many trouble-free
years. To clean your heater, follow steps below:
1. Unplug the power cord for your safety before cleaning your appliance.
2. Make sure the heater is cool before continuing.
3. To keep the heater clean, the outer shell maybe cleaned with a soft, damp cloth. You may use a
mild detergent if necessary. After cleaning, dry the unit with a soft cloth. (CAUTION: DO NOT let
liquids enter the heater).
4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish or rough brushes to clean the
heater. This may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water
6. Wait until the heater is completely dry before use.
Storage: Store the heater in a cool, dry location when not in use to prevent dust and dirt build up.
Use packaging carton to store.
ATTENTION:
1. Always disconnect the heater from the electricity supply and allow it to cool before attempting
to work on it.
2. If the heater has collected dust or dirt inside the unit or around the heating element, have to unit
cleaned by a qualified service agent. Do not operate the heater in this condition.
3. The only maintenance required is cleaning of the external surfaces of the heater.
6
4. Do not touch the heating element with bare fingers, as residue from your hand could affect the
life of the lamp. If it is accidentally touched, remove the finger marks with a soft cloth
moistened with mentholated spirit or alcohol.
5. Do not attempt to repair or adjust any electrical or mechanical functions on this heater.
6. The heater contains no user serviceable parts. Should the product suffer damage or breakdown,
it must be returned to the manufacturer or its service agent.
7. Damaged supply cords to be replaced by the manufacturer, service agent or similarly qualified
person in order to avoid hazard.
RECYCLING
At the end of the electrical products useful life it should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice in your country.
Manufacturer:HEYUAN XINDA QUARTZ ELECTRIC APPLIANCE CO., LTD.
Add.:Inside Linjiang Industry Park, Economy Development Zone, Jiangdong New Zone, Heyuan, G
uangdong, China
7
WARRANTY
Thank you for choosing PASAPAIR product. We sincerely hope that you are satisfied with it.
The manufacturer's warranty covers the product for a period of 12 months from the date of purchase
against manufacturing faults. All warranties are automatically kept track of in our system, so there
is no need to register your product.
Any help or questions during use, please contact us via website www.pasapairhome.com, send
email to info@pasapairhome.com, , we will service you within 24 hours. We suggest to provide a
warranty card, a photo or a video if there’s broken spare part or not working machine so that we can
be much more clear about your problems and offer you the best solution.
Please fill in the table and email it within 10 days from the date of purchase.
