CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
OperatOr’s Manual
Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Three-Stage Snow Thrower Attachment — 19A40023100
Form No. 769-10181
(August 29, 2014)
Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
◊ Visit us on the web at www.cubcadet.com
◊ Call a Customer Support Representative at (800) 965-4CUB
◊ Locate your nearest Cub Cadet Dealer at (877) 282-8684
◊ Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019
Thank you for purchasing a snow thrower attachment
manufactured by Cub Cadet LLC. It was carefully engineered
to provide excellent performance when properly operated and
maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. Cub Cadet
LLC reserves the right to change product specifications, designs
and equipment without notice and without incurring obligation.
This product has met the rigid safety standards of the Outdoor
Power Equipment Institute and an independent testing
laboratory. If you have any problems or questions concerning
the machine, phone your local Cub Cadet dealer or contact us
directly. Cub Cadet’s Customer Support telephone numbers,
website address and mailing address can be found on this page.
We want to ensure your complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
The engine manufacturer is responsible for all engine-related
issues with regards to performance, power-rating, specifications,
warranty and service. Please refer to the engine manufacturer’s
Owner’s/Operator’s Manual, packed separately with your
machine, for more information.
Thank You
Record Product Information
Before setting up and operating your new equipment, please locate
the model plate on the equipment and record the information in
the provided area to the right. You can locate the model plate by
standing at the operator’s position and looking down at the rear
of the auger housing. This information will be necessary, should
you seek technical support via our web site, Customer Support
Department, or with a local authorized service dealer.
Model NuMber
Serial NuMber
To The Owner
1
2
Safe Operation Practices ........................................ 3
Assembly & Set-Up .................................................. 6
Controls ...................................................................16
Operation ................................................................ 17
Maintenance ...........................................................19

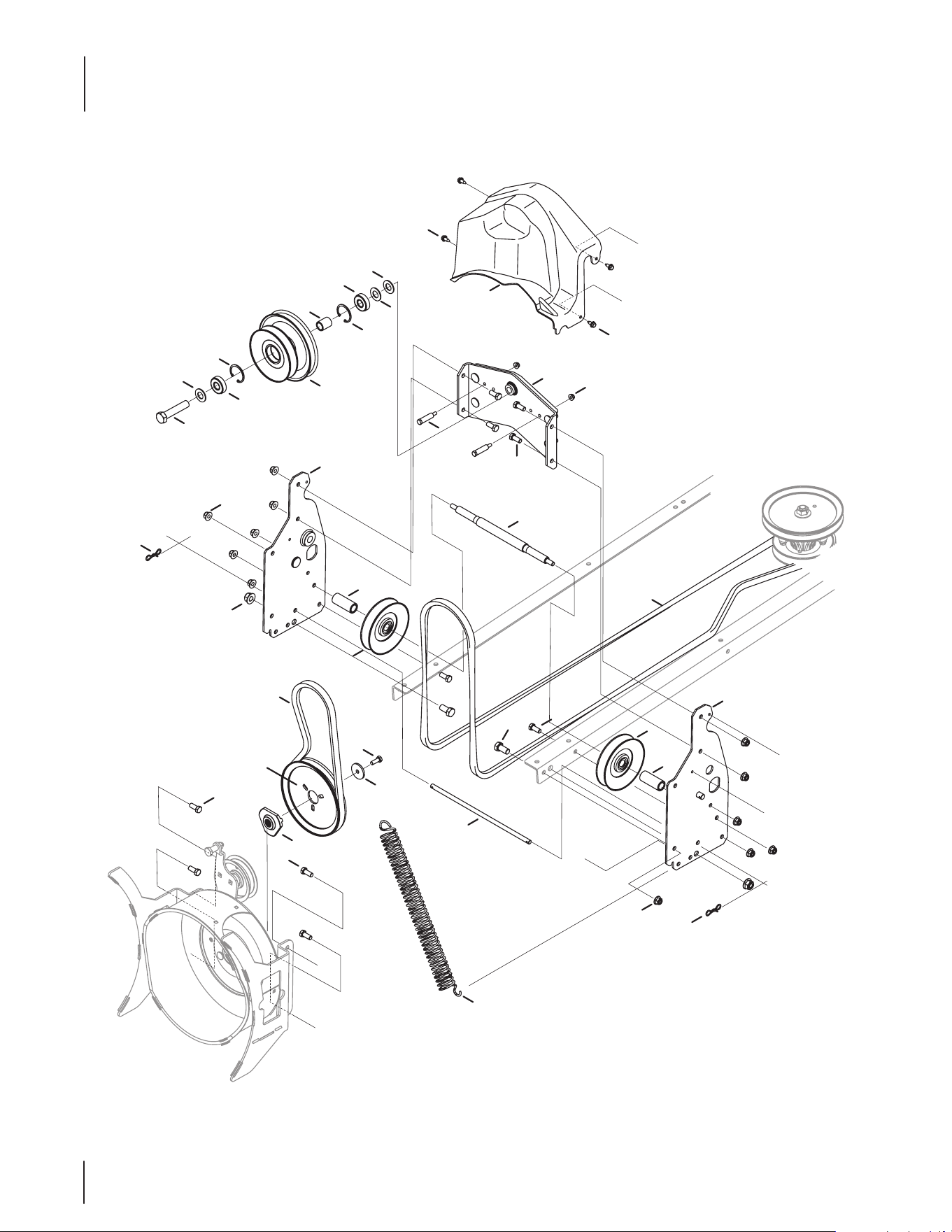

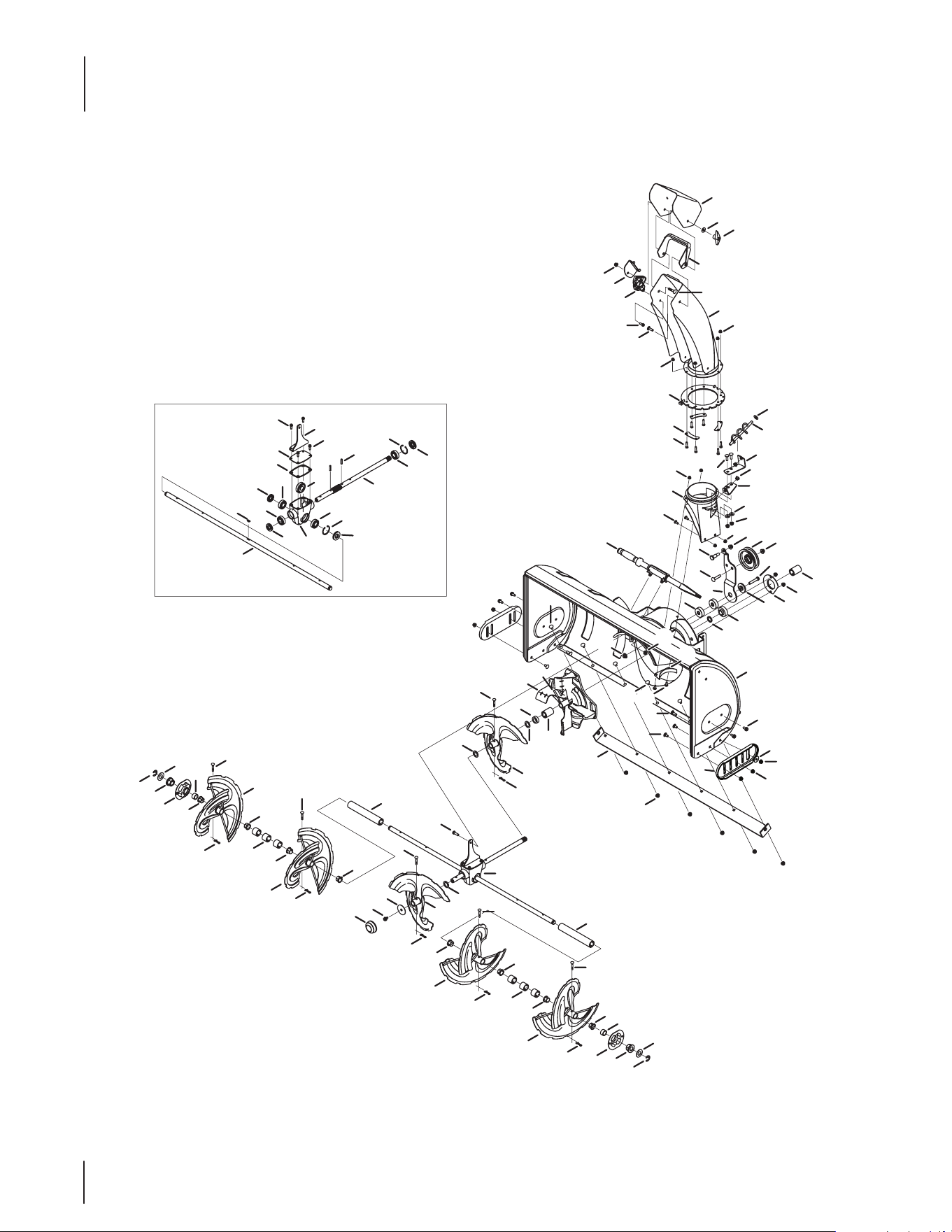

Illustrated Parts List .............................................. 22
Table of Contents
Important Safe Operation Practices
2
3
Training
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
4. Never allow adults to operate this machine without proper
instruction.
5. Thrown objects can cause serious personal injury. Plan
your snow throwing pattern to avoid discharge of material
toward roads, bystanders and the like.
6. Keep bystanders, pets and children at least 75 feet from the
machine while it is in operation. Stop machine if anyone
enters the area.
7. Exercise caution while operating tractor with this
attachment, especially when traveling in reverse.
Preparation
1. Thoroughly inspect the area where the equipment is to be
used. Remove all door mats, newspapers, sleds, boards, wires
and other foreign objects which could be thrown by the
auger/impeller.
2. Always wear safety glasses or eye shields during operation and
while performing an adjustment or repair to protect your eyes.
Thrown objects which ricochet can cause serious injury to the
eyes.
3. Do not operate without wearing adequate winter outer
garments. Do not wear jewelry, long scarves or other loose
clothing which could become entangled in moving parts. Wear
footwear which will improve footing on slippery surfaces.
4. Adjust collector housing height to clear gravel or crushed rock
surfaces.
5. Disengage all clutches and shift into neutral before starting the
engine.
6. Never attempt to make any adjustments while engine is
running, except where specifically recommended in the
operator’s manual(s).
7. Let tractor engine and attachment adjust to outdoor
temperature before starting to clear snow.
WARNING! This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing foreign objects. Failure to observe the following safety
instructions could result in serious injury or death.
CALIFORNIA PROPOSITION 65
WARNING! Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
4 Section 2 — important Safe operation practiceS
8. To avoid personal injury or property damage use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.
a. Use only an approved gasoline container.
b. Never fill containers inside a vehicle or on a truck or
trailer bed with a plastic liner. Always place containers on
the ground, away from your vehicle, before filling.
c. When practical, remove gas-powered equipment from
the truck or trailer and refuel it on the ground. If this is
not possible, then refuel such equipment on a trailer
with a portable container, rather than from a gasoline
dispenser nozzle.
d. Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times, until refueling is
complete. Do not use a nozzle lock-open device.
e. Extinguish all cigarettes, cigars, pipes and other sources
of ignition.
f. Never fuel machine indoors.
g. Never remove gas cap or add fuel while the engine is hot
or running.
h. Allow engine to cool at least two minutes before
refueling.
i. Never over fill fuel tank. Fill tank to no more than ½ inch
below bottom of filler neck to provide space for fuel
expansion.
j. Replace gasoline cap and tighten securely.
k. If gasoline is spilled, wipe it off the engine and
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
l. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light (e.g. furnace,
water heater, space heater, clothes dryer etc.).
m. Allow machine to cool at least 5 minutes before storing.
Operation
1. Do not put hands or feet near rotating parts, in the auger/
impeller housing or discharge chute. Contact with the
rotating parts can amputate hands and feet.
2. Never operate with a missing or damaged discharge chute.
Keep all safety devices in place and working.
3. When cleaning, repairing or inspecting the snow thrower,
make certain the collector/impeller and all moving
parts have stopped. Disconnect the spark plug wire and
keep the wire away from the plug to prevent someone
from accidentally starting the machine. Do not run the
engine indoors, except when starting the engine and for
transporting the snow thrower in or out of the building.
Open the outside doors; exhaust fumes are dangerous.
4. Do not operate machine while under the influence of
alcohol or drugs.
5. Muffler and engine become hot and can cause a burn. Do
not touch.
6. Exercise extreme caution when operating on or crossing
gravel surfaces. Stay alert for hidden hazards or traffic. Do
not carry passengers.
7. Exercise caution when changing direction and while
operating on slopes.
8. Do not clear snow across the face of slopes; go up and
down. Exercise extreme caution when operating on slopes.
Do not attempt to clear steep slopes.
9. Plan your snow throwing pattern to avoid discharge
towards windows, walls, cars etc. To avoid property
damage or personal injury caused by a ricochet.
10. Never direct discharge at children, bystanders and pets or
allow anyone in front of the machine.
11. Do not overload machine capacity by attempting to clear
snow at too fast of a rate.
12. Never operate this machine without good visibility or light.
13. Disengage power to the auger/impeller when transporting
or not in use.
14. Never operate machine at high transport speeds on
slippery surfaces. Look down and behind and use care
when in reverse.
15. If the machine should start to vibrate abnormally, stop
the engine, disengage the power take-off, lower the
attachment and set the parking brake. Inspect thoroughly
for damage. Repair any damage before starting and
operating.
16. After striking a foreign object, stop the engine (motor),
remove the wire from the spark plug, thoroughly inspect
the snow thrower for any damage, and repair the damage
before restarting and operating the snow thrower.
17. Disengage the power take-off, lower attachment, set
the parking brake and stop engine before you leave the
operating position. Wait until the auger/impeller comes to
a complete stop before unclogging the discharge chute,
making any adjustments, or inspections.
18. Do not carry passengers.
19. Use only attachments and accessories approved by the
manufacturer (e.g. wheel weights, tire chains, cabs etc.).
20. If situations occur which are not covered in this manual,
use care and good judgment. Contact your dealer or
telephone 1-800-800-7310 for assistance and the name of
your nearest servicing dealer.
5Section 2 — important Safe operation practiceS
Clearing A Clogged Discharge Chute
Hand contact with the rotating impeller inside the discharge
chute is the most common cause of injury associated with snow
throwers. Never use your hand to clean out the discharge chute.
To clear the chute:
1. SHUT THE ENGINE OFF!
2. Wait 10 seconds to be sure the impeller blades have
stopped rotating.
3. Always use a clean-out tool, not your hands
Maintenance And Storage
1. Never tamper with safety devices. Check their proper
operation regularly.
2. Disengage power take-off, lower the attachment, set the
parking brake, stop engine and remove key to prevent
unintended starting. Wait until the auger/impeller comes to a
complete stop before cleaning, repairing, or inspecting.
3. Check bolts, and screws for proper tightness at frequent
intervals to keep the machine in safe working condition. Also,
visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed the
engine. The governor controls the maximum safe operating
speed of the engine.
5. Snow thrower shave plates and skid shoes are subject to
wear and damage. For your safety protection, frequently
check all components and replace with original equipment
manufacturer’s (O.E.M.) parts only. “Use of parts which do
not meet the original equipment specifications may lead to
improper performance and compromise safety!”
6. Check clutch controls periodically to verify they engage and
disengage properly and adjust, if necessary. Refer to the PTO
and safety interlock system in your tractor’s operator’s manual
for instructions.
7. Maintain or replace safety and instruction labels, as necessary.
8. Observe proper disposal laws and regulations for gas, oil, etc.
to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow from
machine and prevent freeze up of auger/impeller.
10. Never store the machine or fuel container inside where there
is an open flame, spark or pilot light such as a water heater,
furnace ,clothes dryer etc.
11. Always refer to the operator’s manual for proper instructions
on off-season storage.
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!
Safety Symbols
The safety symbols below may appear on this product. Read, understand, and follow all instructions on the machine before
attempting to assemble and operate.
Symbol Description
WARNING— ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running. There are rotating
blades inside
WARNING— ROTATING AUGER
Do not put hands or feet near rotating parts, in the auger/impeller housing or chute
assembly. Contact with the rotating parts can amputate hands and feet.
Assembly & Set-Up
3
6
Model 19A40023100 three-stage snowthrower attachment is designed for use with select lawn tractors and garden tractors.
Refer to your tractor’s Operator’s Manual to assure compatibility.

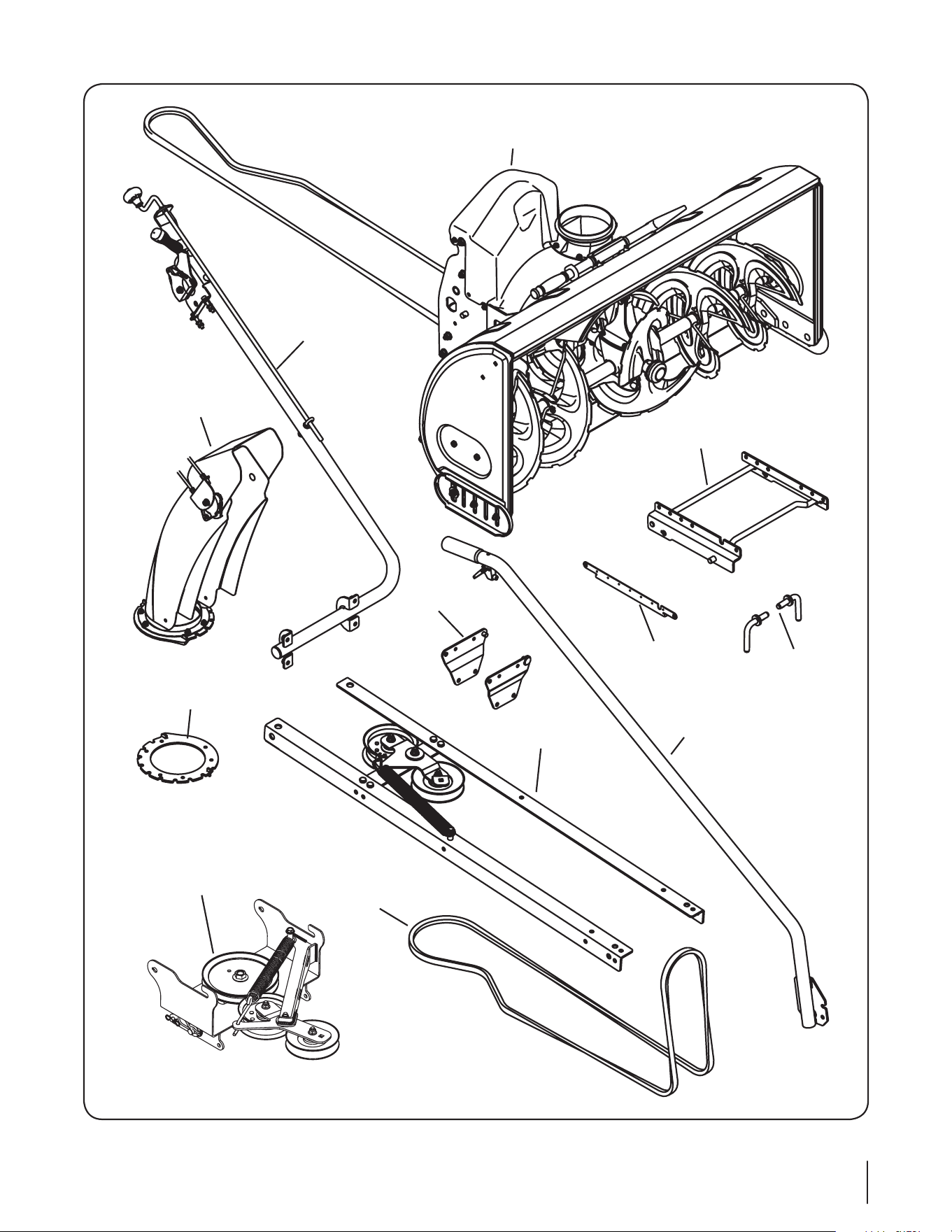

Carton Contents
Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are listed below
and shown on page 6 and 7. The hardware pack contains seven individual bags of hardware. Do NOT open the individual bags until
you reach the point in the assembly steps where the hardware is required.
• One Operator’s Manual • One Auger Housing Assembly • One Frame Rail Assembly
• One Lift Handle Assembly • One Carriage Assembly • One Hardware Pack
• One Carriage Hanger Brackets • One Chute Crank / Chute Assembly • One Chute Ring
• Two Lock Rods • Two Lift Hanger Brackets • One Frame Drill Template
• One PTO Belt
689-00353
689-00355
689-00356
689-00363
689-00364
689-00365
689-00350

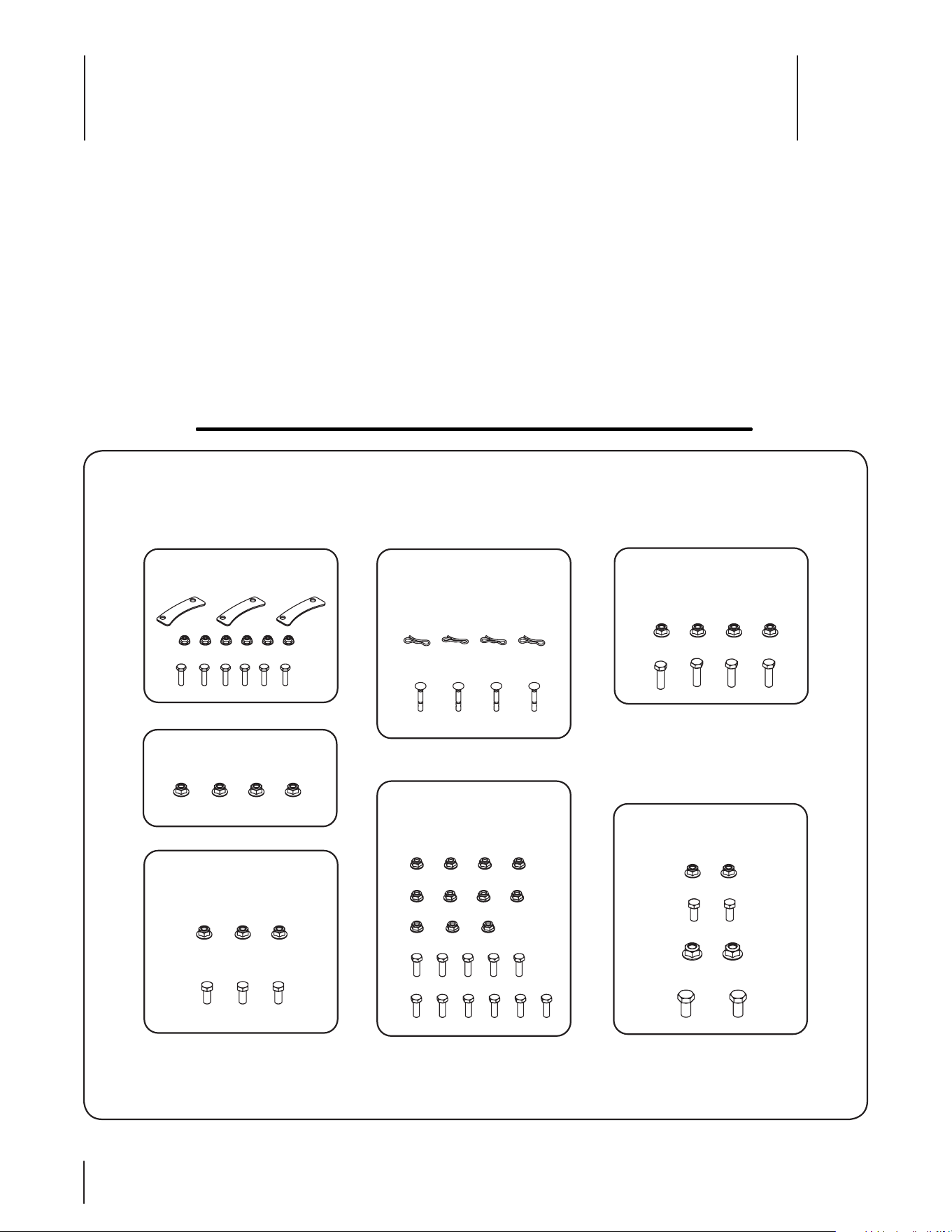

Hardware Pack
7Section 3 — ASSembly & Set-Up
Auger Housing Assembly
Chute Crank
Chute Assembly
Chute Ring
Carriage Assembly
Frame Drill Template
Carriage Hanger Bracket
Lock Rods
Lift Handle Assembly
PTO Belt
Frame Rail Assembly
Lift Hanger
Brackets
8 Section 3— ASSembly & Set-Up
2. Using the four hex screws and flange lock nuts, secure
the LH and RH lift hanger brackets and the bumper to the
frame as shown in Figure 3-2.
Figure 3-2
NOTE: The Lift Hanger Brackets can remain attached to the
frame when the mowing deck is remounted to tractor.
Attaching the Carriage Hanger Brackets
Use Hardware Bag 689-00363 to attach the rear carriage hanger
brackets.
1. To mount the rear carriage hanger brackets a template
is provided to drill additional holes. Using a hex screw
and flange lock nut from the hardware bag, mount the
template on the outside right of the frame as shown in
Figure 3-3.
Figure 3-3
NOTE: The tabs on the bracket should be touching the
bottom of the frame.
2. Using a 11⁄32” drill bit, drill the four 1⁄8” pilot holes shown in
Figure 3-3.
WARNING! Before installing the attachment, place
tractor on a firm and level surface. Place the PTO in
the disengaged (OFF) position, set the parking
brake, shut engine off and remove key to prevent
unintended starting.
NOTE: References to LEFT and RIGHT indicate the left and
right sides of the tractor when facing forward in the operator’s
position. Reference to the FRONT indicates the grille end; to the
REAR the drawbar end.
Several components on your tractor must be removed prior to
mounting the snow thrower attachment. Refer to Deck Removal
in your tractor’s Operator’s Manual for detailed instructions. If
your tractor is equipped with any front-end accessory (i.e. front
bumper kit), it must also be removed.
Having a second person assist with assembly is not necessary,
but will aid in completing some of the steps.
Assembly

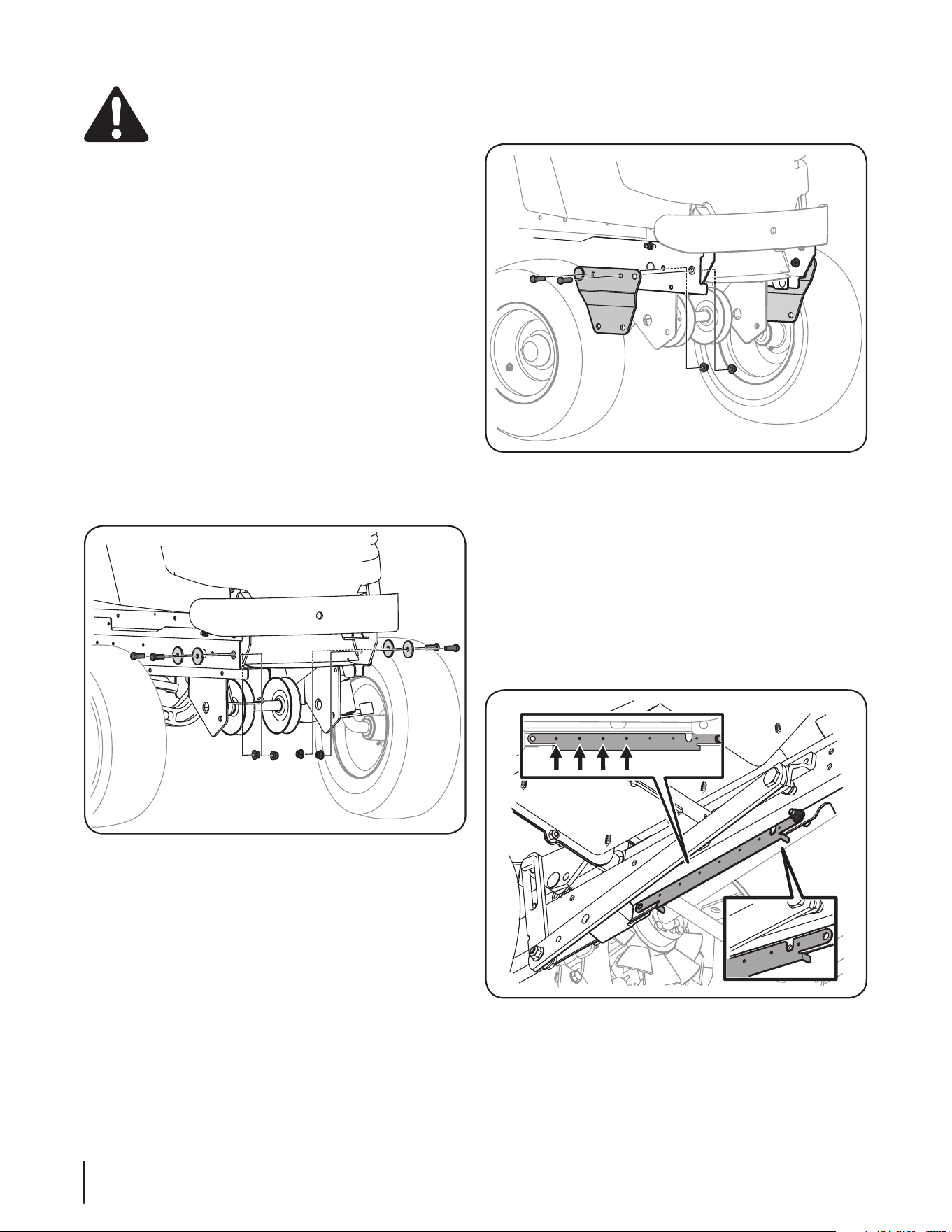

Mounting the Lift Hanger Brackets
Use Hardware Bag 689-00364 to mount the front lift hanger
brackets.
1. Using two 9⁄16” wrenches, remove the bumper hardware
securing it to the frame. See Figure 3-1.
Figure 3-1
9Section 3 — ASSembly & Set-Up
Mounting the Carriage Assembly

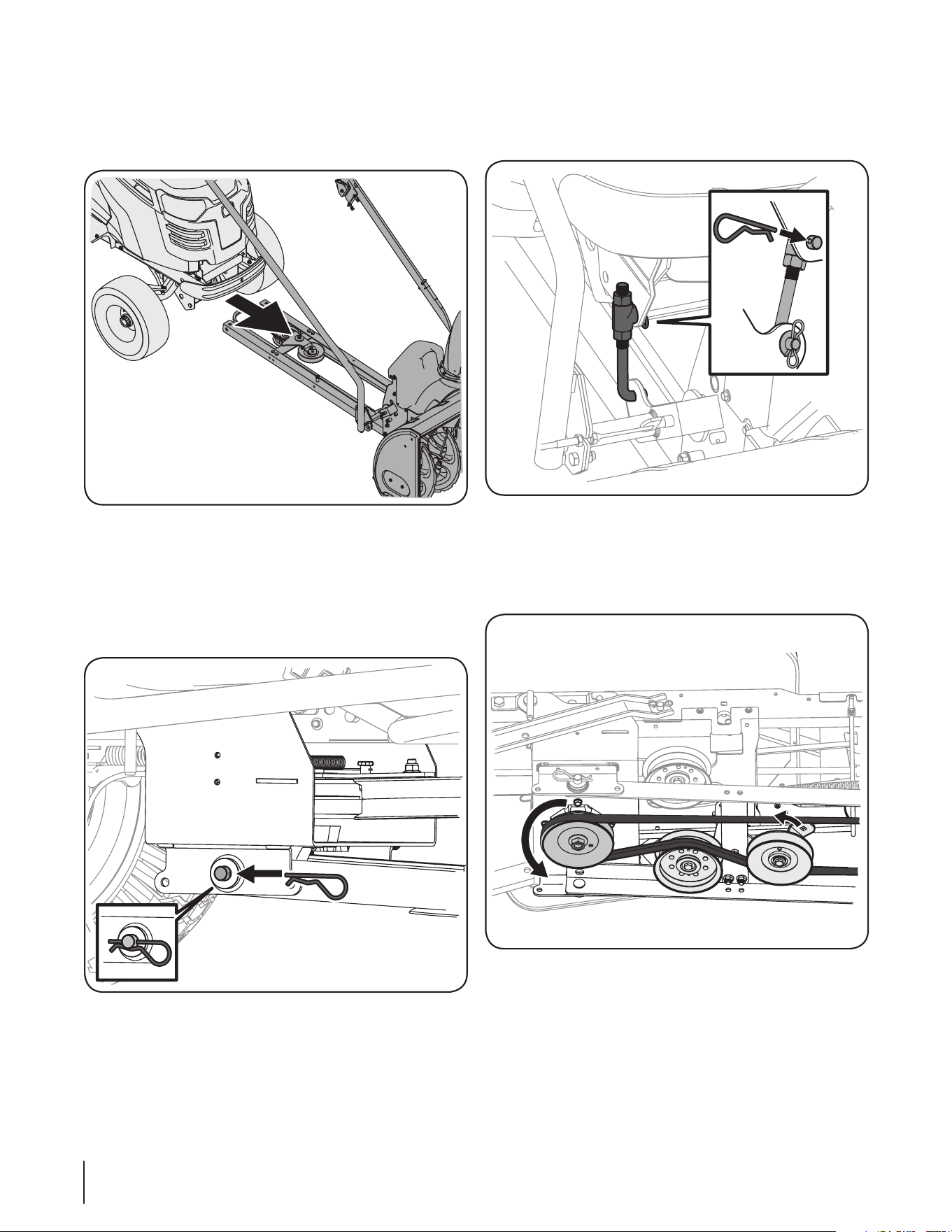

1. Remove the clevis pins and hairpin clips from the carriage
assembly. Retain the clips and pins, as they will be used to
attach components in later steps. See Figure 3-6.
Figure 3-6
2. Remove the rod from the rear of the carriage assembly.
Retain the clips and rod, as they will be reattached in later
steps. See Figure 3-7.
Figure 3-7
3. Place the deck lift lever in the highest setting.
4. Position the carriage beneath the tractor.

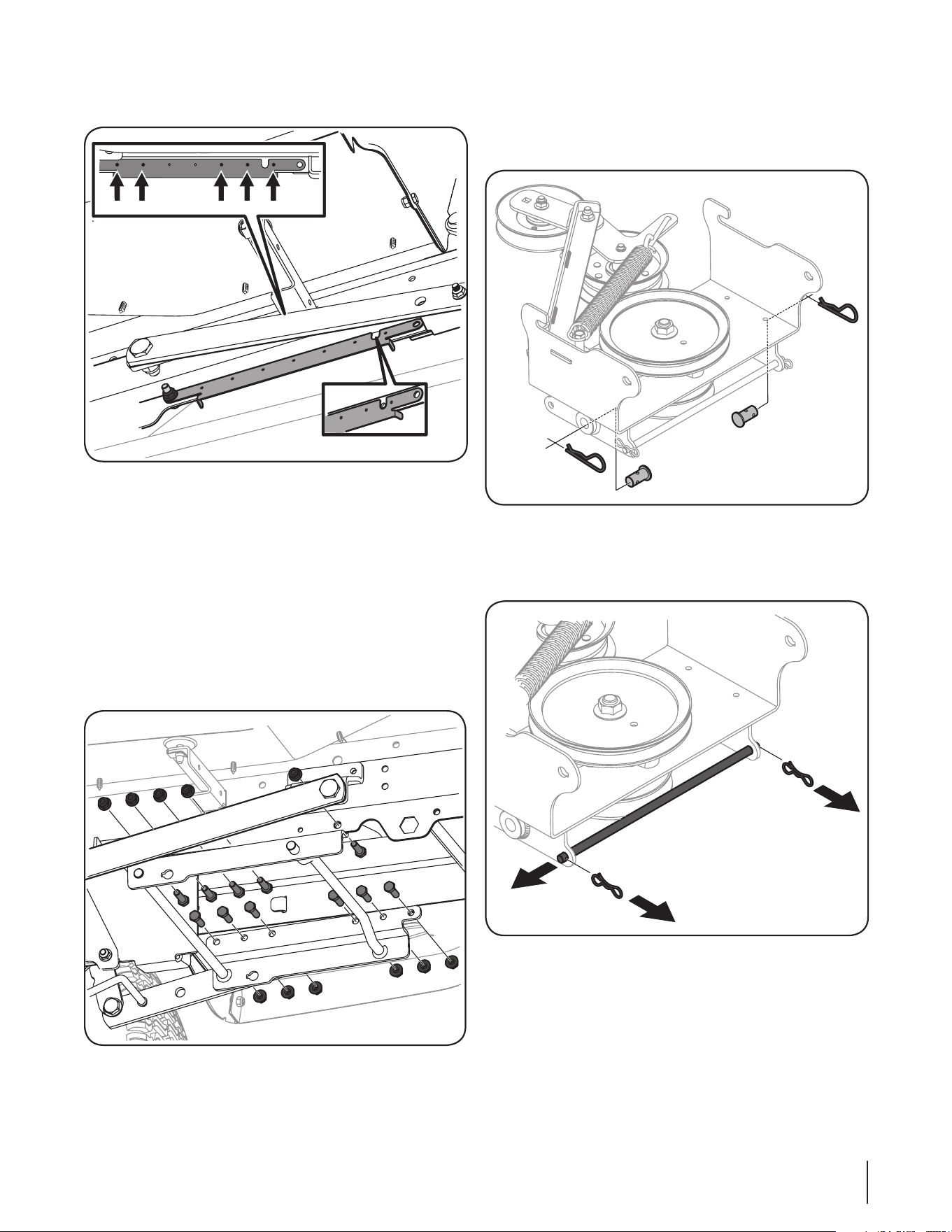

3. When the holes are drilled, remove the template and mount
on the outside left of the frame as shown in Figure 3-4.
Figure 3-4
NOTE: Removing the bolt from the deck lift arm will make
drilling the holes and mounting of the hanger bracket
easier.
NOTE: The tabs on the bracket should be touching the
bottom of the frame.
4. Using a 11⁄32” drill bit, drill the five 1⁄8” pilot holes marked in
Figure 3-4.
5. Remove the template from the frame and secure the carriage
hanger brackets to the tractor’s frame with 11 hex screws (five
on the right and six on the left) and flange lock nuts as shown
in Figure 3-5.
Figure 3-5
NOTE: The carriage support brackets can remain attached
to the frame when the mowing deck is remounted to
tractor.
10 Section 3— ASSembly & Set-Up

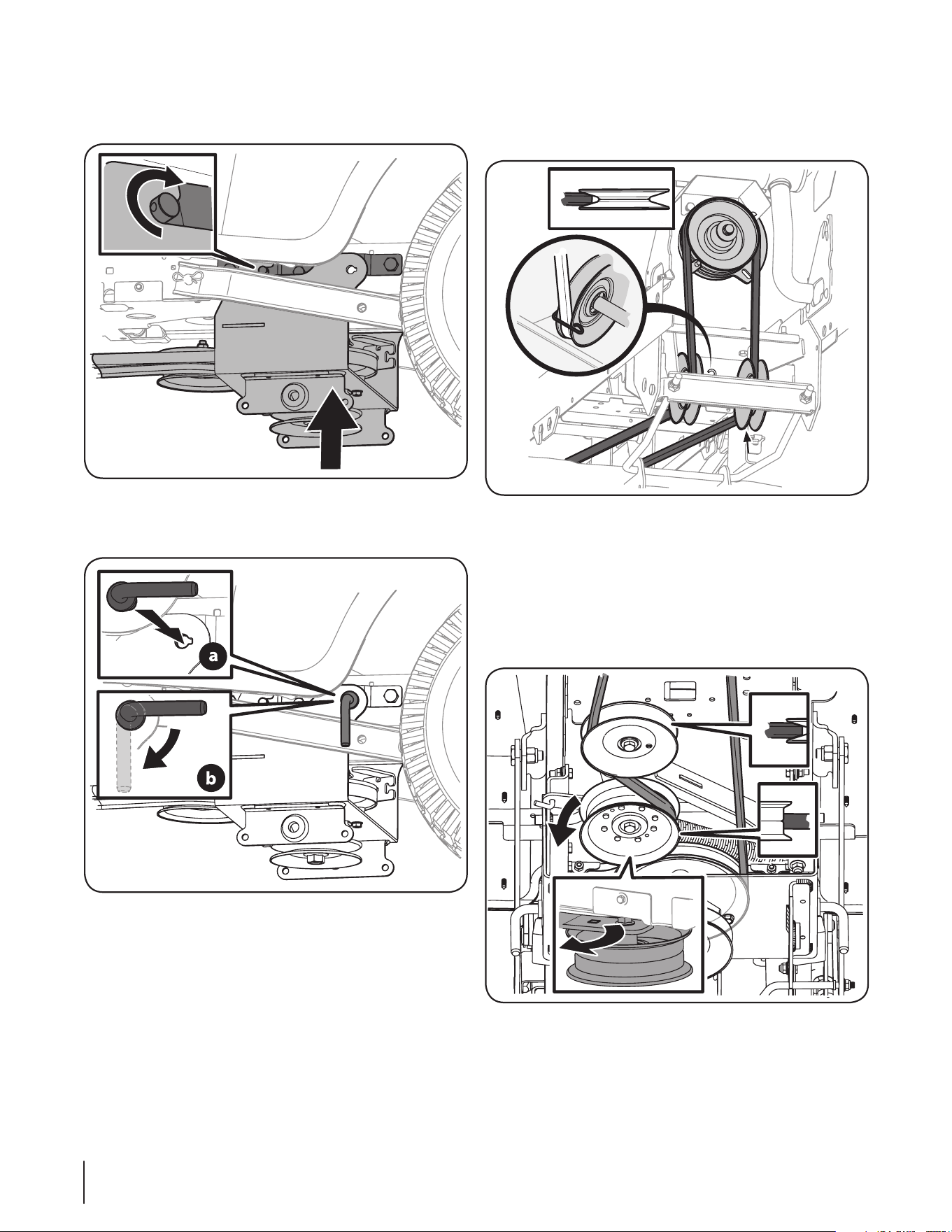

5. Carefully raise the carriage up and position the slots on the
rear of the carriage over the pins on the support brackets.
See Figure 3-8.
Figure 3-8
6. Secure the carriage in place with the two lock rods.
See Figure 3-9.
Figure 3-9
7. Working from the front of the tractor, route the belt around
the PTO clutch pulley, with the ‘V’ side of the belt seated in
the pulley. Carefully feed the belt downward and route it in
the two mule drive pulleys. See Figure 3-10.
Figure 3-10
NOTE: The small belt keeper found on the right-hand mule
drive pulley does not have to be removed in order to route
the belt. Simply bend the keeper outward slightly and slip
the belt past it and onto the pulley.
8. Feed the belt rearward, toward the carriage assembly.
9. Route the belt around the carriage assembly as shown in
Figure 3-11.
Figure 3-11
NOTE: To relieve tension on the idler pulley, insert a ratchet
with a 3⁄8” drive into the square hole on the idler bracket
and pivot the pulley outward.
IMPORTANT: Make certain that the flat side of the belt is
positioned on the flat pulley, and the V side of the belt is
positioned on the V-Pulleys.
11Section 3 — ASSembly & Set-Up

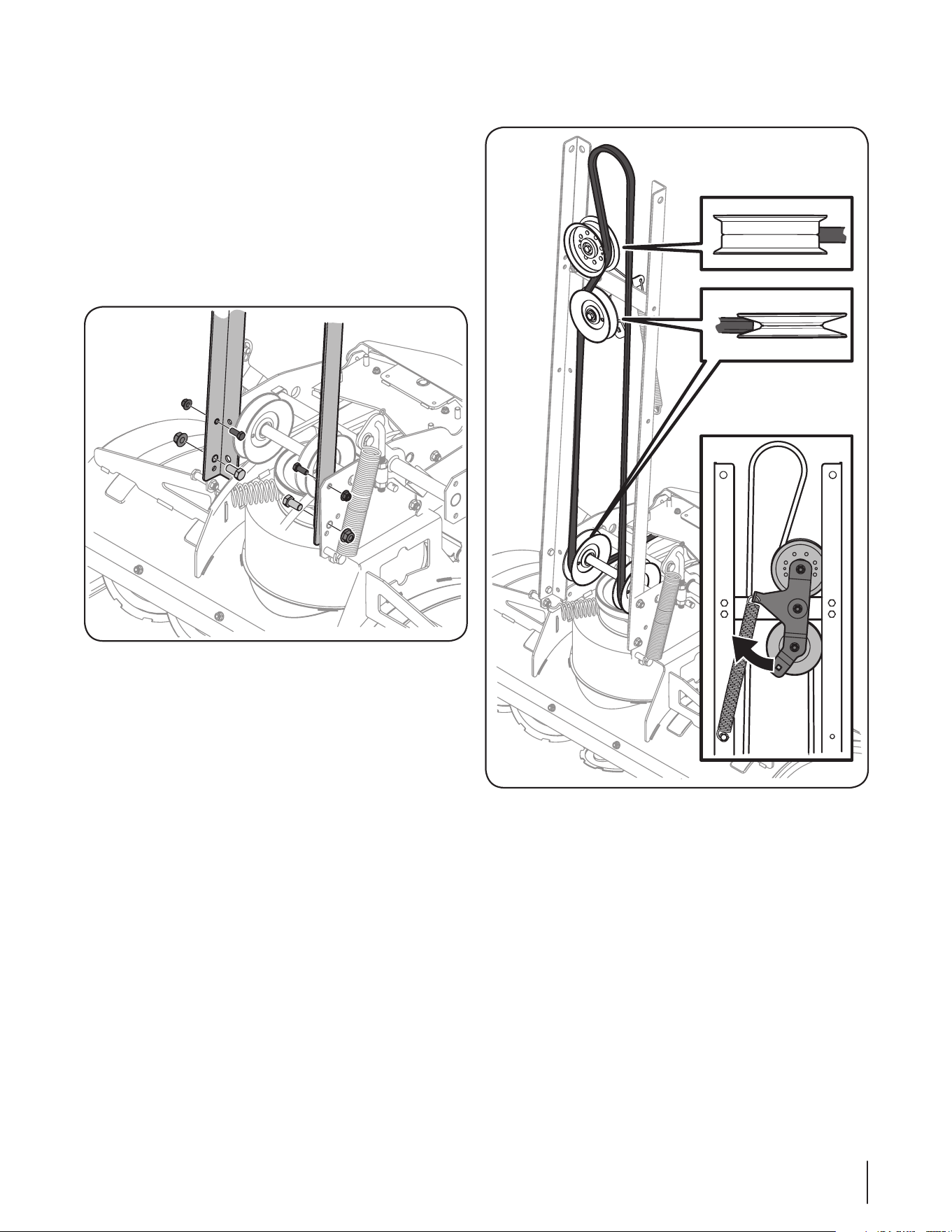

3. Route the auger assembly’s belt around the rail assembly’s
idler pulleys as shown in Figure 3-13.
Figure 3-13
IMPORTANT: Make certain that the flat side of the belt is
positioned on the flat pulley, and the V side of the belt is
positioned on the V-Pulleys.
NOTE: To relieve tension on the idler pulleys, insert a
ratchet with a 3⁄8-inch drive into the square hole on the idler
bracket and pivot it outward.
Attaching the Rail Assembly
Use Hardware Bag 689-00365 to attach the rail assembly.
NOTE: Having an assistant support and position the rail
assembly will aid in completing the following step.
1. Carefully pivot the auger housing up and forward until the
top front face of the housing is resting on the ground. Refer
to Figure 3-13 and Figure 3-12
2. Using two 9⁄16” wrenches for the smaller rear bolts and
flange lock nuts and two 3⁄4“ wrenches for the larger front
bolts and flange lock nuts, secure the rail assembly to the
auger housing assembly. See Figure 3-12.
Figure 3-12
12 Section 3— ASSembly & Set-Up

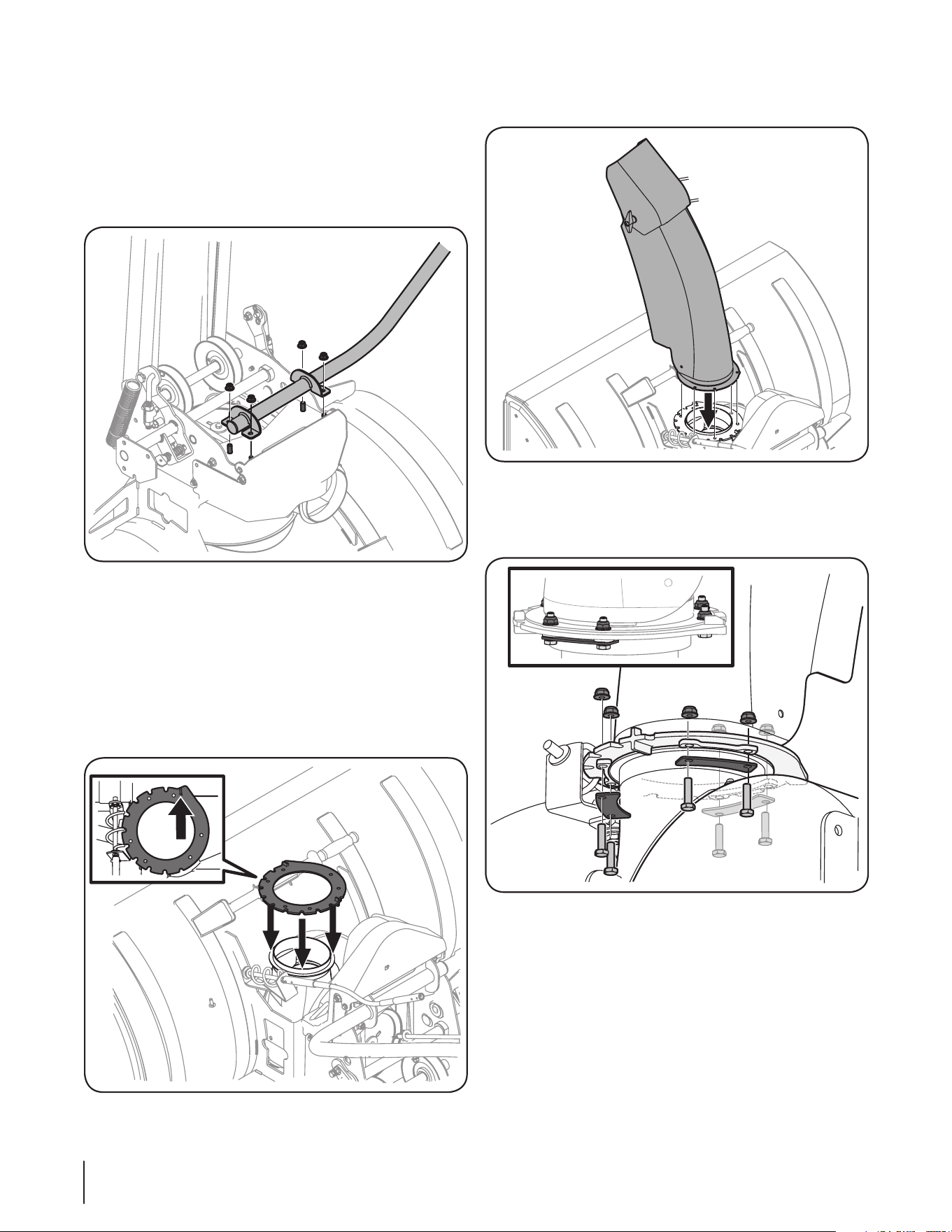

Attaching the Chute Crank Assembly
Use Hardware Bag 689-00353 to attach the chute crank assembly.
NOTE: Having an assistant support and position the chute
crank assembly will aid in completing the following step.
1. Using a 9⁄16” wrench, secure the chute crank assembly to
the auger housing assembly with four flange lock nuts. See
Figure 3-14.
Figure 3-14
Attaching the Chute Assembly
Use Hardware Bag 689-00350 to attach the chute assembly.
NOTE: Having an assistant will aid in completing the
following step.
1. While supporting the rail assembly, carefully pivot the auger
assembly downward and position it in front of the tractor.
2. Position the chute ring on top of the auger housing’s chute
adapter as show in Figure 3-15.
Figure 3-15
NOTE: Make sure the rib found in the chute ring is facing
forward.
3. Position the chute assembly (facing forward) on the chute
ring. See Figure 3-16.
Figure 3-16
4. Using two 7⁄16” wrenches, secure the chute assembly to the
chute ring with three flange keepers, six hex screws and
flange nuts as show in Figure 3-17.
Figure 3-17
IMPORTANT: Do not over-tighten the flange keeper
hardware. Doing so may result in the chute binding during
rotation.
NOTE: After installing the first flange keeper, rotate the
chute to more easily access the chute ring holes and install
the next flange keeper.
13Section 3 — ASSembly & Set-Up

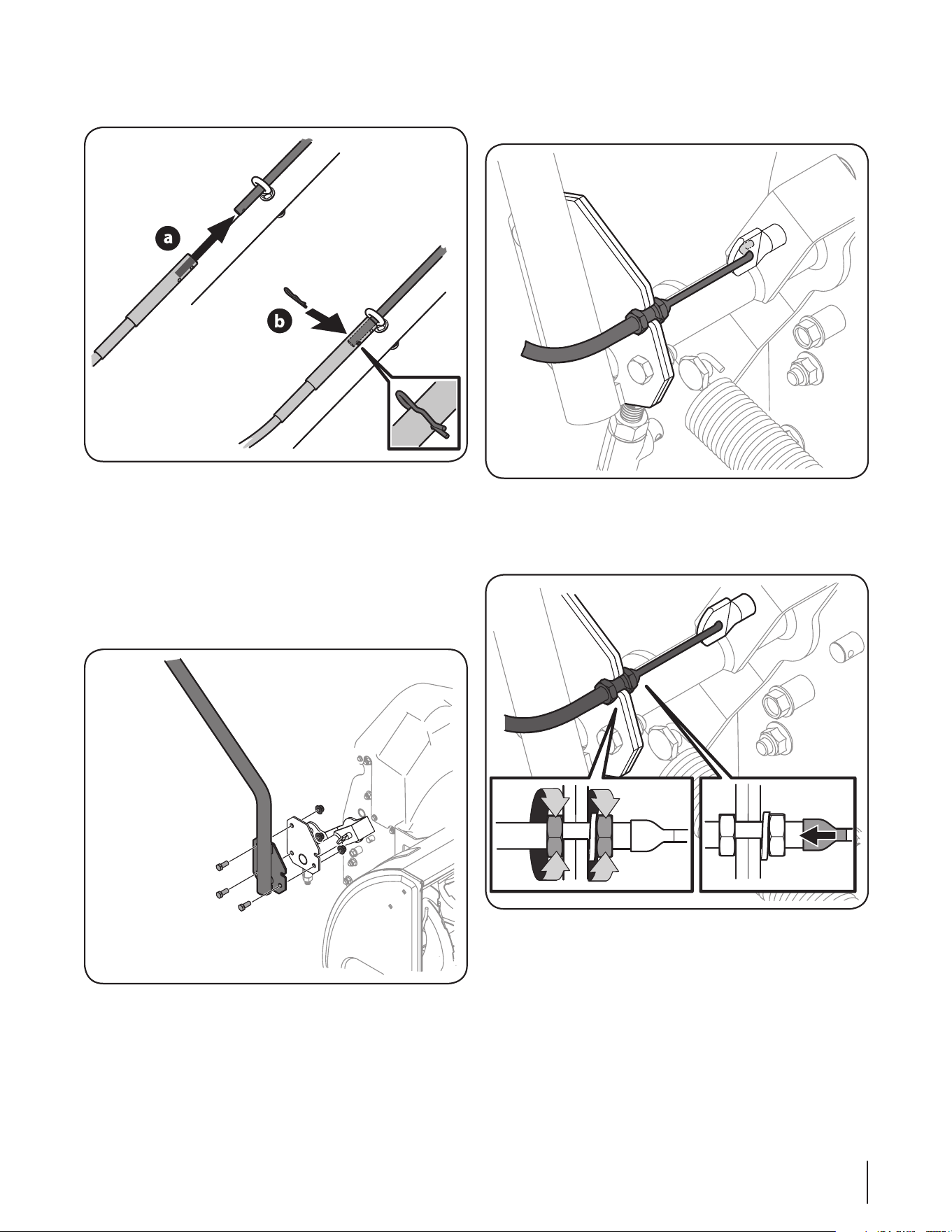

5. Secure the flex shaft to the upper chute crank with the hair
pin clip. See Figure 3-18.
Figure 3-18
Attaching the Lift Handle Assembly
Use Hardware Bag 689-00355 to attach the lift handle assembly.
NOTE: Having an assistant support and position the lift
handle assembly will aid in completing the following step.
1. Using two 9⁄16” wrenches, secure the lift handle to the auger
housing assembly with three hex screws and flange lock
nuts. See Figure 3-19.
Figure 3-19
2. Position the cable housing in the notch on the lift handle.
Attach the Z-fitting end of the lift cable to the lock rod
found on the lift shaft assembly. See Figure 3-20.
Figure 3-20
3. Pull the cable outward to take up slack, and tighten the
jam nuts to secure the cable housing to the lift handle. See
Figure 3-21.
Figure 3-21
14 Section 3— ASSembly & Set-Up
4. Remove the hair pin clip from the lift link ferrule. Insert the
lift link ferrule into the hole found on the front bottom area
of the RH lift hanger bracket and secure it with the hairpin
clip just removed. See Figure 3-24.
Figure 3-24
5. Repeat the previous step on the left side of the auger
housing.
6. Route the auger assembly’s belt around the carriage
spindle pulley as shown in Figure 3-25.
Figure 3-25
NOTE: To relieve tension on the idler pulleys, insert a
ratchet with a 3⁄8” drive into the square hole on the idler
bracket and pivot it outward.
Mounting the Assembled Components to the Tractor
1. Roll the tractor into position over the frame rail assembly,
aligning the frame rails with the carriage assembly.
See Figure 3-22.
Figure 3-22
NOTE: Supporting the end of rail assembly with a 4x4 block
of wood (beneath both rails) will aid in completing the
following step.
2. Pivot the rear of the frame rail assembly upward and secure
it to the inside of the carriage assembly with the clevis pins
and hairpin clips removed earlier. See Figure 3-23.
Figure 3-23
NOTE: Pushing up on the lift handle will assist in pivoting
the rear frame rail assembly into position.
3. Squeeze the trigger found near the grip on the lift handle
assembly and lift the handle up to align lift link ferrule and
the hole in the bumper.
15Section 3 — ASSembly & Set-Up

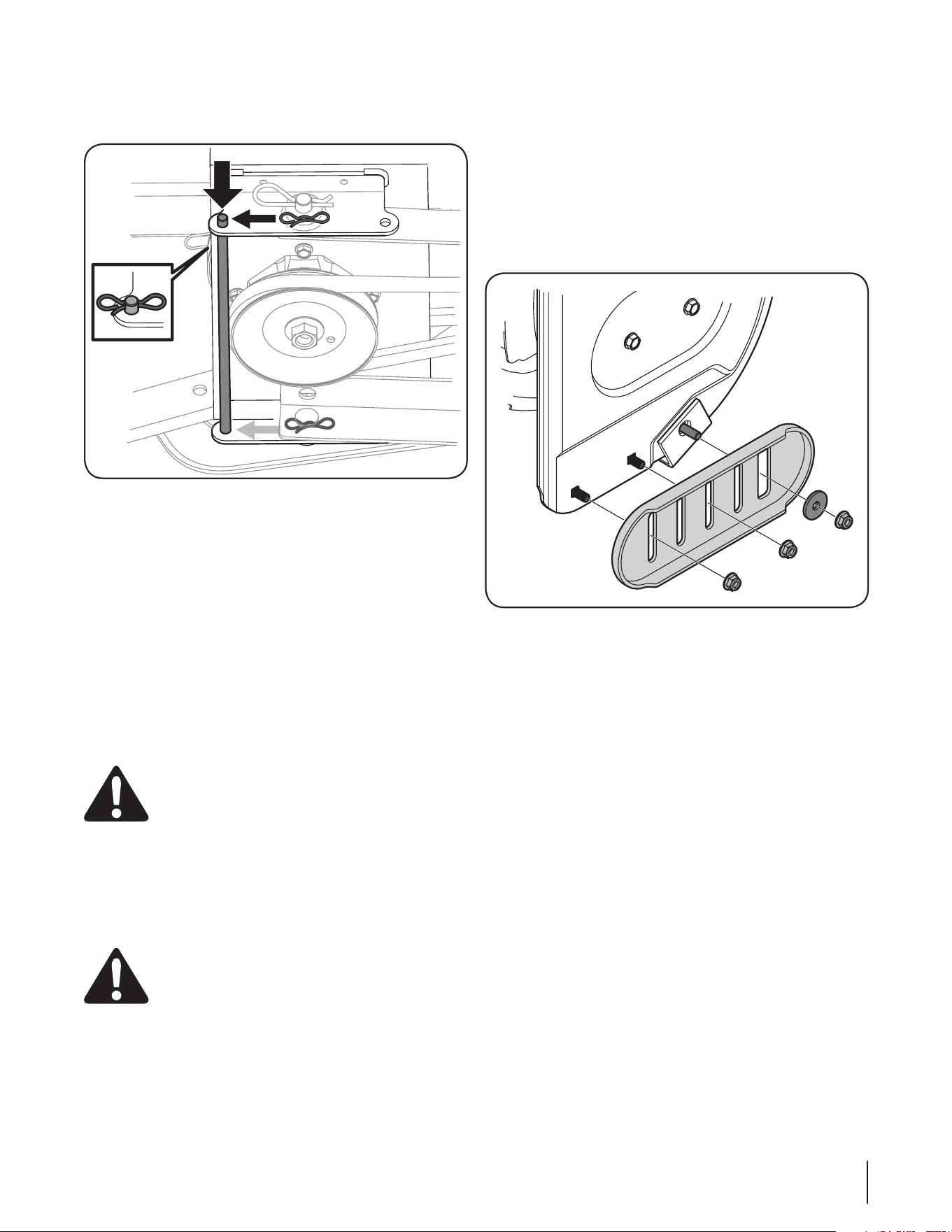

7. Reinsert the rod into the rear of the carriage assembly
and secure it in place with the two hair pin clips removed
earlier. See Figure 3-26.
Figure 3-26
Attaching Reflectors
Peel off the clear backing from each of the reflectors to expose the
adhesive surface. Adhere the reflectors to the rear of the tractor’s
fender (one on the left and one on the right) so that the reflectors
simulate taillights.
Set-Up
Shear Pins
Two pairs of replacement auger shear pins and bow tie cotter
pins are included with your snow thrower in Hardware Bag
689-00356. Store them in a safe place until needed.
Skid Shoe Adjustment
WARNING! Never attempt to make any
adjustments while the engine is running, except
where specified in the Operator’s Manual. Place
tractor on a firm and level surface. Place the PTO in
the disengaged (OFF) position, set the parking
brake, shut engine off, and remove key to prevent
unintended starting.
The snow thrower skid shoes are adjusted at the factory for
shipping purposes. Adjust them downward, if desired, prior to
operating the snow thrower.
CAUTION: It is not recommended that you operate
this snow thrower on gravel as it can easily pick up
and throw loose gravel, causing personal injury or
damage to the snow thrower and surrounding
property.
• For close snow removal on a smooth surface, raise skid
shoes higher on the auger housing.
• Use a middle or lower position when the area to be cleared
is uneven, such as a gravel driveway
NOTE: If you choose to operate the snow thrower on a
gravel surface, keep the skid shoes in position for maximum
clearance between the ground and the shave plate.
To adjust the skid shoes:
1. Using a 1⁄2” wrench, loosen the hex nuts. Move skid shoes to
desired position. See Figure 3-27.
2. Make certain the entire bottom surface of skid shoe is
against the ground to avoid uneven wear on the skid shoes.
3. Retighten nuts and bolts securely.
4. Repeat the previous steps on the other side of the auger
housing, making sure that both skid shoes are adjusted to
the same height.
Figure 3-27
Controls
4
16
Controls
WARNING! Be familiar with all controls and their
proper operation. Know how to stop the machine
and disengage them quickly.
Lift Handle
The lift handle is located on the right side of the tractor and is
used to raise and lower the snow thrower attachment.
1. To raise the snow thrower attachment off of the ground,
pull rearward and down on the lift handle until you feel
the lift latch on the right side of the snow thrower engage,
locking the snow thrower in a raised position.
2. To lower the snow thrower, push downward on the lift
handle until there is enough slack in the lift cable so that
you may squeeze the trigger control. With the trigger
control squeezed, gently allow the snow thrower to lower
until it reaches the ground.

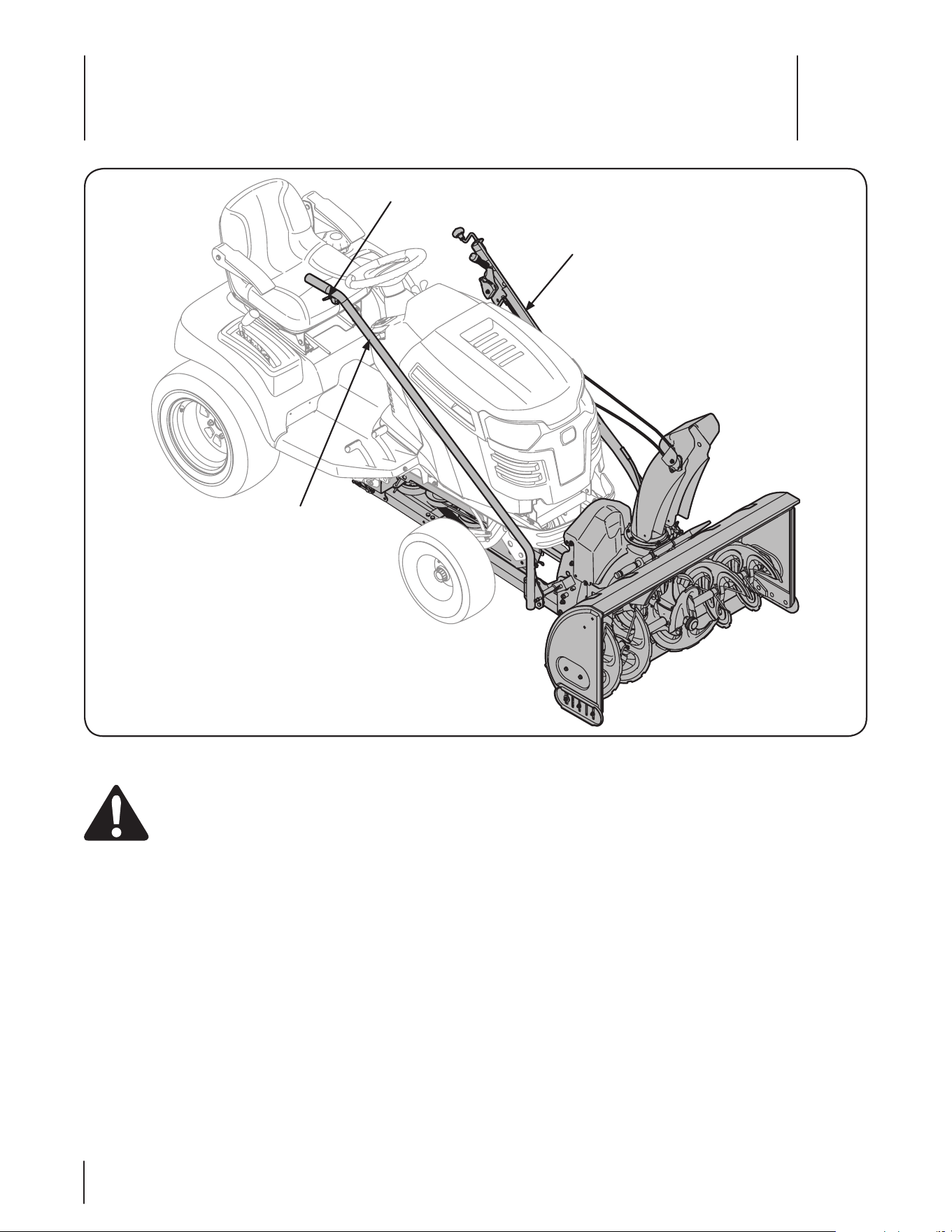

Chute Directional Control
The chute directional control assembly is found on the left side
of the tractor and includes both the chute tilt lever as well as the
chute crank. Both affect the direction that the discharged snow
is thrown.
To pivot the upper section of discharge chute, affecting the
distance and angle which the snow is thrown, move the chute tilt
lever forward or rearward into a desired position.
The direction which snow is thrown can be changed by rotating
the discharge chute with the chute crank. Turn the chute crank
clockwise to rotate the chute and discharge snow to the left.
Crank it counterclockwise to rotate the chute and discharge
snow to the right.
Chute Directional Control
Lift Handle
Trigger Control
Operation
5
17
Operation
WARNING! Read, understand, and follow all
instructions and warnings on the tractor, the
attachment, and in the operator’s manuals before
operating. Your snow thrower attachment is capable
of displacing snow and clearing a path a width of 42
inches.
Observe the following operating instructions for efficient snow
removal:
1. Become familiar with and comfortable using all of your
tractor’s controls as instructed in your tractor’s Operator’s
Manual before operating it with the snow thrower
attachment.
2. Make certain the correct weight (and volume) of motor
oil is in your tractor’s engine as instructed in the engine
Owners Guide packed with the tractor’s Operator Manual.
3. Always operate the snow thrower with the tractor’s engine
at maximum RPM (full throttle).
4. NEVER override any safety features on either your tractor or
the snow thrower attachment.
5. Make certain that all nuts, bolts, and hardware are fastened
securely and tight on both the tractor and the snow
thrower attachment prior to use.
6. Make certain the snow thrower attachment is assembled
properly and mounted to the tractor as instructed in this
manual.
7. Test all the controls (tractor PTO, snow thrower lift handle,
chute tilt lever & chute crank) for smooth operation prior to
operating the snow thrower.
8. Make all adjustments (i.e. skid shoes) before operating your
snow thrower attachment. Follow the instructions in the
Assembly and Setup section of this manual when doing so.
9. Engage the tractor’s PTO to activate power to the augers
and impeller BEFORE driving the tractor forward and into
snow.
10. Keep your tractor’s ground-speed slow. The slower your
tractor is traveling, the more effectively the snow thrower
attachment can displace snow.
11. Adjust ground speed for snow conditions and become
familiar with different snow applications. Your snow
thrower attachment will operate differently in wet heavy
snow than it will in light, fluffy snow.
12. Overlap a previously cleared path when necessary (deep
snow) so as not to overload the auger housing with snow.
13. NEVER drive the tractor into a snow bank. The snow
thrower attachment is not a dozer plow. The lift linkage
and/or the snow thrower drive system can be damaged as
a result of “plowing” with the snow thrower attachment.
14. If the augers become jammed with a chunk of ice or a
foreign object, move the PTO into the disengaged (OFF)
position immediately and turn off the tractor’s engine
and remove the ignition key. Examine the auger area
thoroughly for damage and do NOT operate the snow
thrower attachment until any damage is repaired.
IMPORTANT: The augers are secured to the spiral shafts
with six shear pins and cotter pins. If you hit a hard foreign
object or an ice jam, the snow thrower is designed so that
the pins may shear. Four replacement shear pins and cotter
pins are provided for your convenience. Store in a safe
place until needed. NEVER replace the auger shear pins
with standard hex bolts. Any damage to the auger gearbox
or other components as a result of doing so will NOT be
covered by your snow thrower’s warranty.
15. Whenever possible, discharge snow downwind.
16. Do NOT attempt to remove ice or hard-packed frozen
snow.
17. When the tractor (with the snow thrower attachment
mounted) is not in service, use the lift lever to lower the
auger housing assembly to the ground to relieve strain on
the tractor’s front end between uses.
18. Always use tire chains and a rear weight kit on your tractor
where extra traction is needed. Refer to the table in this
section to determine which kits will fit your tractor.
19. Use drift cutters to aid in displacing snow through deep,
drifted areas.
Engaging the Augers and Impeller
Power to the snow thrower attachment is activated by engaging
the tractor’s PTO.
1. Place the tractor’s throttle control in the FAST (rabbit)
position and allow it to remain there for efficient snow
removal.
2. Move the PTO into the “ON” position to engage the augers
and impeller.
3. Move the PTO into the “OFF” position to disengage the
augers and impeller.
NOTE: Refer to your tractor’s Operator’s Manual for more
information regarding your tractor’s PTO and safety
interlock system.
18 Section 5— operation

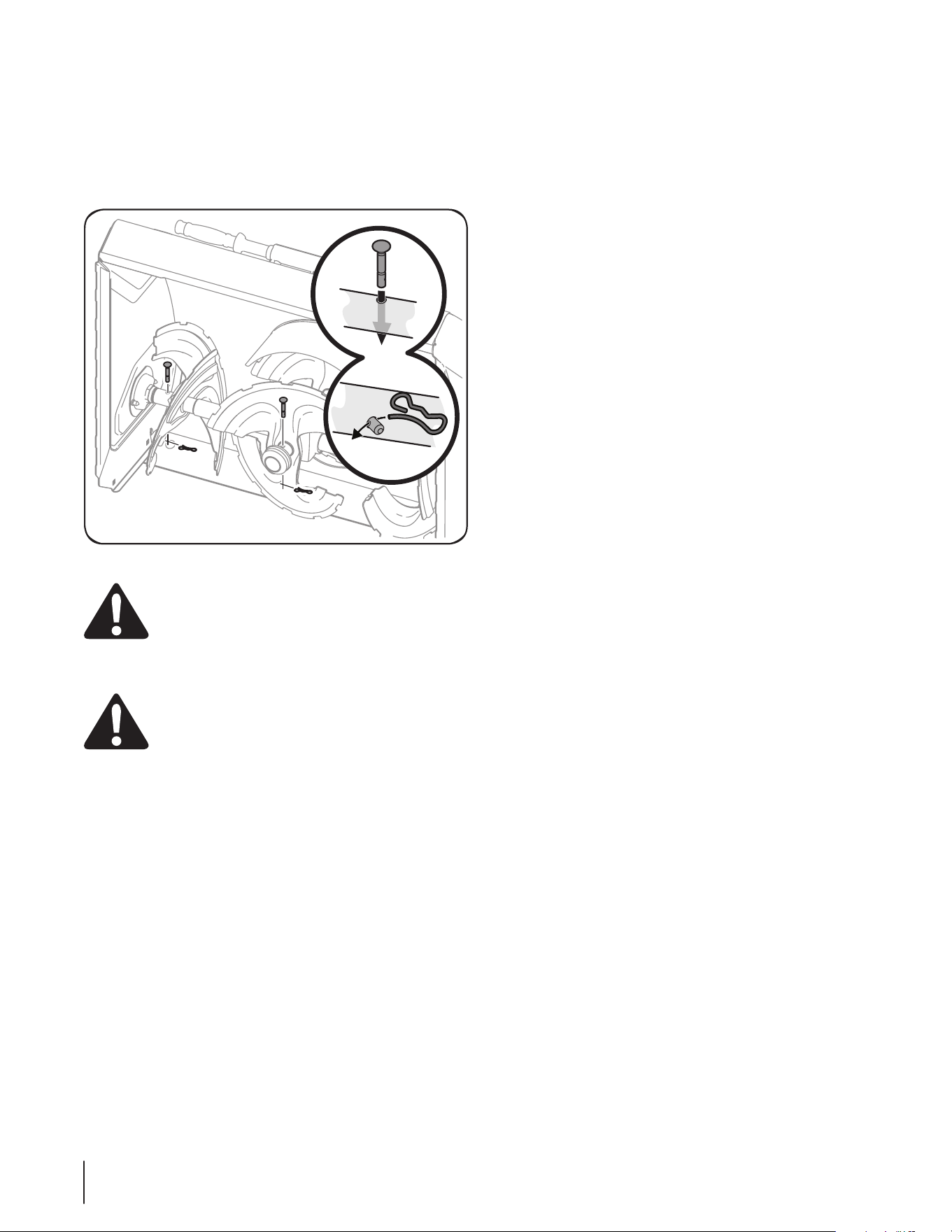

Replacing Shear Pins
The augers are secured to the spiral shafts with six shear pins and
cotter pins. If the auger should strike a foreign object or ice jam,
the snow thrower is designed so that the pins may shear. If the
augers will not turn, check to see if the pins have sheared. See
Figure 5-1.
Figure 5-1
CAUTION: NEVER replace the auger shear pins
with anything other than OEM Part No.738-04124A
replacement shear pins. Any damage to the auger
gearbox or other components as a result of failing to
do so will NOT be covered by your snow thrower’s
warranty.
WARNING! Always turn off the snow thrower’s
engine and remove the key prior to replacing shear
pins.
Tire Chain Kits
• 23” x 10.50” tires 490-241-0026
Rear Weights
• Suitcase Weight Bracket 190-307-100
• 42 lb. Suticase Weight 490-900-M059
Drift Cutters
• Drift Cutter Kit OEM-390-679
NOTE: None of the kits in the table are included as standard
equipment with snow thrower attachment19A40023100.
Contact the retailer or dealer where you purchased this
equipment, or refer to the contact information on page 2
of this manual for availability and information regarding
these kits.
Maintenance
6
19

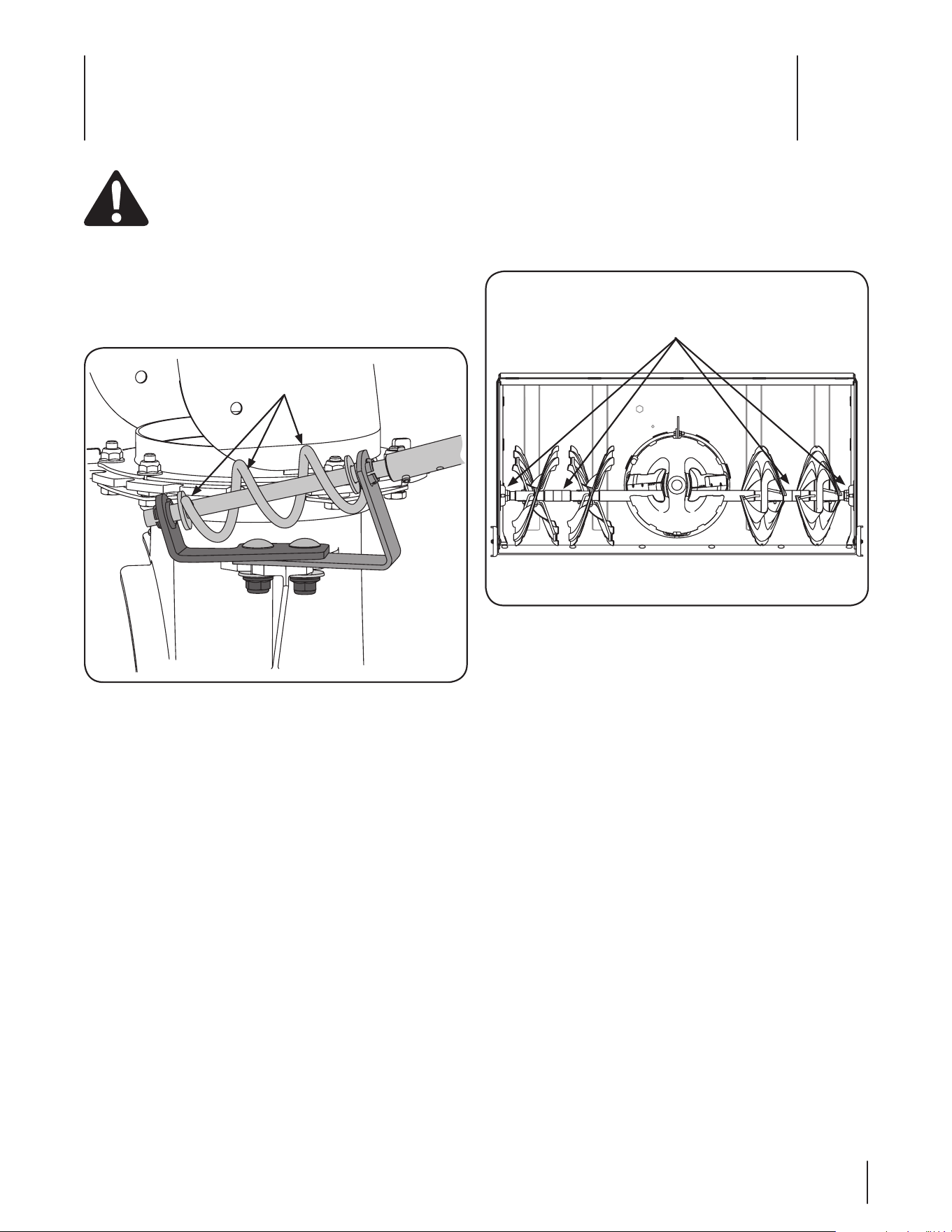

Lubricating the Auger Shaft
At least once a season, remove the shear bolts from the auger
shafts. Oil or spray lubricant inside and on the plastic bearings
and spacers on the shafts and near the holes where the shear
bolts were removed before reattaching them. See Figure 6-2.
Bearings and Spacers
Figure 6-2
WARNING: Before lubricating, repairing, or
inspecting, place tractor on a firm and level surface.
Place the PTO in the disengaged (OFF) position, set
the parking brake, shut engine off, and remove key
to prevent unintended starting.
Lubricating the Chute Directional Control
The spiral on the end of the chute crank flex shaft and the base
of the discharge chute itself should be lubed with multi-purpose
automotive grease once a season. See Figure 6-1.
Lube Spiral
and Chute Base
Figure 6-1
Adjusting Chute Directional Control Support Bracket
If the spiral at the base of the chute crank flex shaft isn’t fully
engaging with the notches in the lower chute assembly, the
support bracket can be adjusted inward or outward as follows:
1. Loosen, but do not remove the two flange nuts which
secure the support bracket to the snow thrower housing.
See Figure 6-1.
2. Adjust the support bracket inward or outward so that the
spiral is fully engaged in the notches on the chute before
retightening the hex nuts.
20 Section 6— Maintenance & adjuStMentS
Off-season Storage
To remove the snow thrower attachment from the tractor, refer
to the images found in the Set-up and Assembly section of this
manual and follow the steps below:
WARNING: Before removing the snow attachment,
place the tractor on a firm and level surface. Place
the PTO in the disengaged (off) position, set the
parking brake, shut engine off and remove key to
prevent unintended starting.
IMPORTANT: Store all hardware (e.g. clevis pins, hair pin
clips, etc.) in a safe place during the off-season.
1. Use the lift handle to lower the snow attachment so that
the auger housing is resting on the ground.
2. Remove the auger housing assembly from the bumper by
removing the pins from the lift link ferrules that secure it.
3. Remove the rod from the rear of the carriage assembly by
removing the two hair pin clips that secure it in place.
4. Remove the belt from the lower pulley on the carriage.
Insert a 3⁄8-inch drive into the idler bracket and pivot it
outward to relieve the tension.
5. Position a 4x4 block of wood under the rear of the rail
assembly (beneath both rails).
6. Position the deck lift lever into the highest cutting position.
7. Remove the rail assembly from the carriage by removing
the pins that secure it and carefully lower the rail assembly
onto the 4x4 wood block.
8. Remove the belt from the electric PTO clutch. Insert a
3⁄8-inch drive ratchet into the idler bracket and pivot it
outward to relieve tension from the belt.
9. Rotate the lock pins towards the rear of the tractor and
remove from both the right side and the left side of the
carriage.
10. Slide the carriage forward and pivot it downward to remove
it from the support brackets.
NOTE: The carriage support brackets secured to the frame
rails of the tractor can remain assembled to the tractor.
11. Disengaged the tractor’s parking brake and roll the tractor
rearward to expose the under carriage and rail assembly of
the snow attachment.
12. Store the snow thrower attachment with the auger housing
resting on the ground, in its operating position. Position a
4x4 block of wood to support the rear of the rail assembly.
No tes
7
21
22
21
36
35
25
31
43
26
31
24
24
11
6
17
40
64
63
47
62
54
46
49
60
55
65
17
61
53
54
16
18
2
4
35
35
19
70
76
73
79
69
72
81
74
22
35
4
19
54
50
56
66
53
52
23
28
19
5
16
29
38
14
33
51
54
45
57
83
82
58
34
32
1
16
39
15
16
39
28
5
13
30
31
10
67
31
77
71
78
80
69
2
75
79
73
76
79
79
77
37
7
28
19
3
19
35
35
25
26
31
22
3
16
8
51
18
8
9
12
41
19
43
36
21
35
35
59
50
44
27
42
20
31
68
Model 19A40023100
23

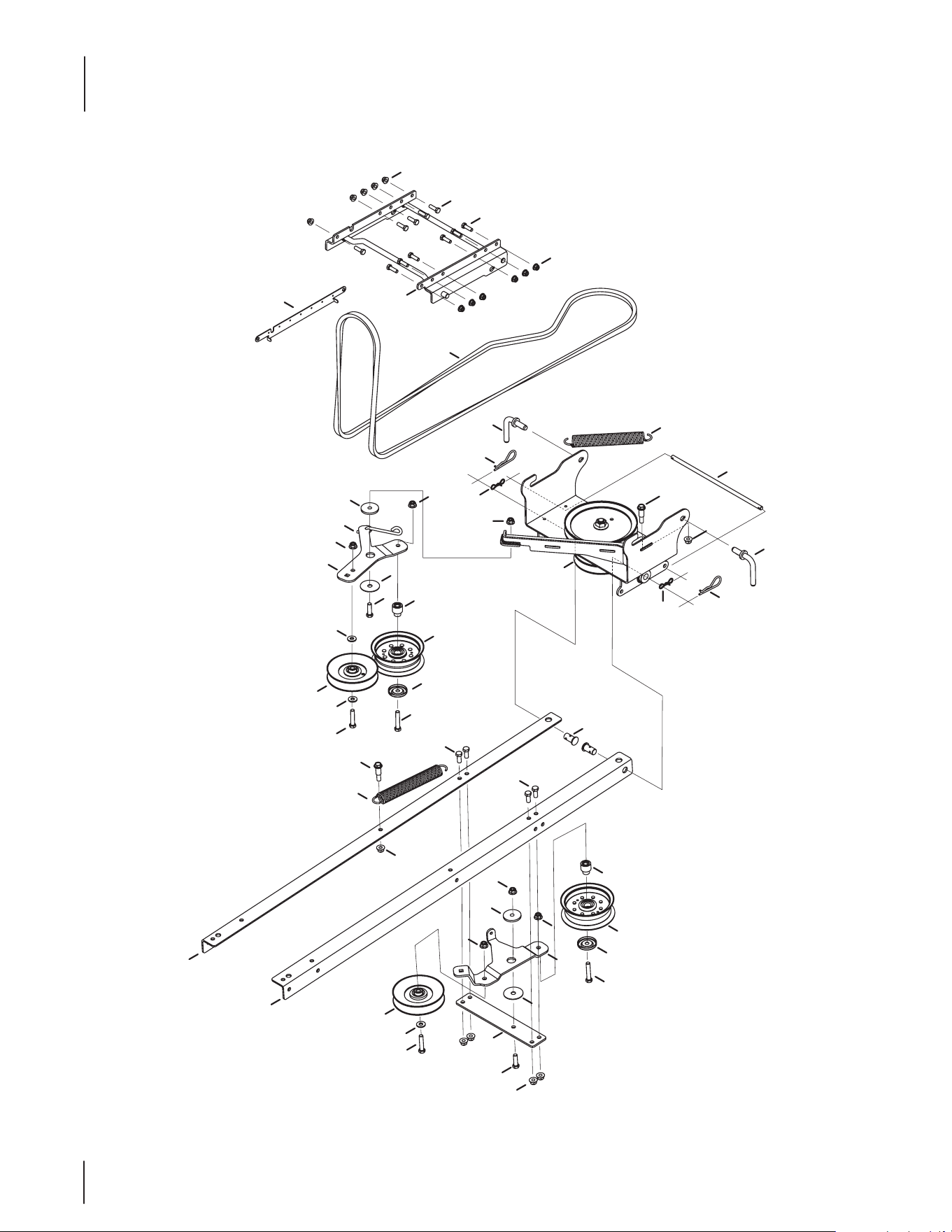

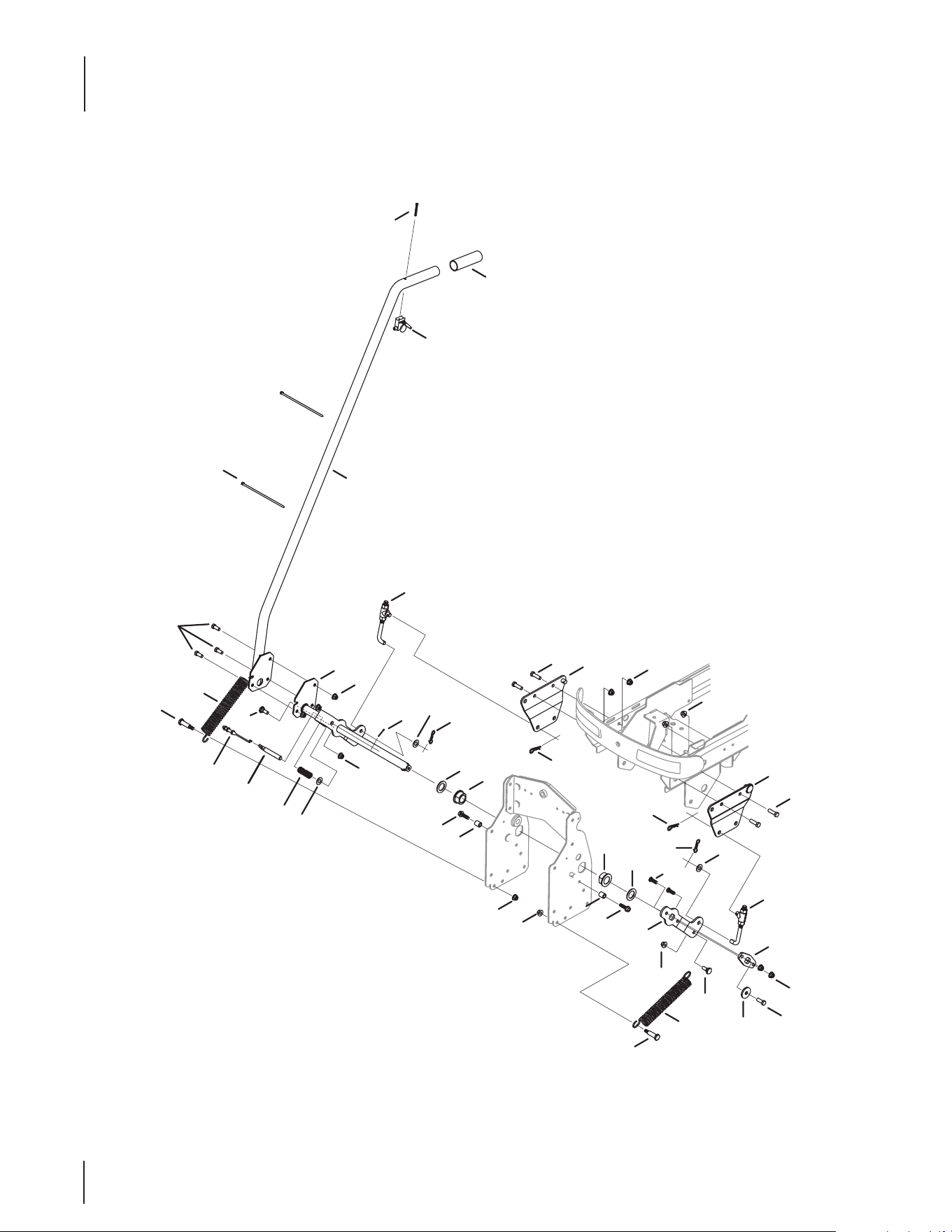

Model 19A40023100
Ref
No.
Part Number Description
1 05931A Bearing Housing, 1.85
2 918-07032 Auger Gearbox Assembly
3 684-04163-0637 LH Spiral Assembly
4 684-04164-0637 RH Spiral Assembly
5 684-05015A * Accelerator Assembly
6 684-05067 Auger Housing w/ Bae
7 684-05075-0637 Impeler Assembly
8 710-0260A Carriage Bolt, 5⁄16-18 x .62
9 710-0276 Carriage Screw, 5⁄16-18 x 1.00
10 710-0376 Hex Screw, 5⁄16-18 x 1.00
11 710-04484 Hex Washer Screw, 5⁄16-18 x .750
12 710-0451 Carriage Bolt, 5⁄16-18 x .750
13 710-0607 Hex Washer Screw, 5⁄16-18 x .500
14 710-0560 Carriage Screw, 3⁄8-16 x 1.75
15 710-3144 Hex Screw, 3⁄8-16 x 2.00
16 712-04063 Flange Lock Nut, 5⁄16-18
17 712-04065 Flange Lock Nut, 3⁄8-16
18 712- 04217 Flange Lock Nut, 3⁄8-16
19 714-04040 Cotter Pin
20 915 - 0114 Spiral Pin, .250 x 1.50
21 916-0231 E-Ring, .750
22 731-04870 Spacer, 1.25 x .75 x 1.00
23 731-08637A Shaft Cap
24 731-09558 Spacer, 1.25 x .75 x 7.805
25 731-10404 Sleeve, .758 x 1.00 x .555
26 736-0188 Flat Washer, .76 x 1.49 x .06
27 936-0231 Flat Washer, .344 x 1.125 x .12
28 936-0287 Flat Washer, .793 x 1.24 x .06
29 736-04624 Flat Washer, .75 x 1.13 x .10
30 736-3040 Flat Washer, .406 x 1.92 x .060
31 738-04124A Shear Pin, .25 x 1.50
32 738-04162C Shoulder Spacer, .8840 x .190
33 738-04518 Shoulder Screw, 3⁄8-16 x .500 .875
34 941-0309 Ball Bearing, .75 x 1.85
35 741-0493A Flange Bearing, .800 x .910
36 741-05041 Hex Flange Bearing, .75
37 750-05218 Spacer, .766 x 1.25 x .415
38 750-06184 Spacer, .385 x 1.75 x .585
39 750-06261 Spacer, .76 x 1.25 x 1.8165
40 756-0627D Idler Pulley, 3.50
41 784-0396C-0637 Skid Plate
42 784-5038B-0637 Slide Shoe
Ref
No.
Part Number Description
43 790-00534 * Bearing Housing, 1.1605
44 790-00636-0637 Idler Pivot Bracket
45 684-0061A Chute Crank Assembly, 6.25
46 684-05072-0637 Chute Assembly
47 703-2735A * Chute Crank Bracket
48 705-5226-0637 Chute Reinforcement
49 710-0262 Carriage Bolt, 5⁄16-18 x 1.50
50 710-0276 Carriage Screw, 5⁄16-18 x 1.00
51 710-0703 Carriage Screw, 1⁄4-20 x .75
52 710-0895 Hex Washer Screw, 1⁄4-15 x .750
53 712-04063 Flange Lock Nut, 5⁄16-18
54 712-04064 Flange Lock Nut, 1⁄4-20
55 920-0284 Wing Knob, 5⁄16-18
56 731-09535 Chute Tilt Cable Guide
57 731-09539A Upper Chute Adapter
58 731-10348 Chute Ring
59 731-1379D Chute Adapter
60 936-0159 Flat Washer, .349 x .879 x .063
61 736-0242 Bell Washer, .340 x .872 x .060
62 936-0300 Flat Washer, .406 x .875 x .059
63 941- 0475 Snap Flange Bearing, .385
64 784-5647-0637 Chute Crank Bracket
65 790-00529 * Upper Chute
66 790-00565-0637 Cable Bracket
67 684-04056 Snow Removal Tool
— 931-2643 Cleanout Tool
68 919-05029 Auger Housing, 500
69 710-0642 Hex Washer Screw, 1⁄4-20 x .750
70 711- 06278 Auger Axle, .75 x 41.62
71 914-0161 Hi-Pro Key, 3⁄16 X 5⁄8
72 715-04034 Roll Pin, .25 x 1.00
73 716-05001 Retainer Ring
74 917-04861 Worm Gear, 20T
75 917-05236 Worm Shaft, .75
76 721-04612 Seal, .75 x 40 mm X .25
77 721-04613 Seal, .75 x 1.375 x .25
78 921-04614 Gearbox Cover Gasket
79 941-05042 Ball Bearing, .750 x 40 x 12
80 783-08281 Gearbox Cover, 500
81 790-00603-0637 Gearbox Support Bracket
82 710-0597 Hex Screw, 1⁄4-20 x 1.00
83 790-00659 Chute Flange Keeper Bracket
* — Choose color when ordering
24
Model 19A40023100
19
11
5
6
18
8
7
24
16
23
6
20
3
22
15
10
21
4
1
6
13
13
21
2
9
17
17
14
12
25
Model 19A40023100
Ref
No.
Part Number Description
1 603-0302A-0637 Tilt Assembly
2 611-05064 Control Assembly
3 684-05094-0637 Bracket Assembly
4 710-0487 Carriage Screw, 5⁄16-18 x 2.00
5 710-05050 Eye Bolt, 5⁄16-18 x 3.25
6 712-04063 Flange Lock Nut, 5⁄16-18
7 912-3010 Hex Nut, 5⁄16-18
8 914-0101 Cotter Pin, .08 x 1.42
9 915-0138 Roll Pin, 1⁄8 x .63
10 715-04095 Spring Pin, .156 x .875
11 720-04049A Handle Grip, 3⁄8
12 720-04102 Shift Knob, .390
13 725-0157 Cable Tie, 3⁄16 x .05 x 7.4
14 926-0100 Push Cap, 3⁄8
15 731-07580 Plug, 1.250
16 731-1313C Chute Tile Cable Guide
17 936-0185 Flat Washer, .375 x .738 x .063
18 936-0275 Flat Washer, .344 x .688 x .065
19 936-0451 Saddle Washer, .320 x .930 x .060
20 941-0475 Snap Flange Bearing, .385
21 946-04332A Chute Deector Cable, 74.5
22 747-06436 Chute Crank, .375 x 34.63
23 790-00650-0637 Chute Tilt Bracket Handle
24 712-04065 Flange Lock Nut, 3⁄8-16
26
Model 19A40023100
8
22
25
26
17
19
23
30
16
3
15
25
2
1
29
4
11
11
5
29
14
19
11
11
13
20
24
7
10
11
11
22
7
10
24
20
6
11
18
12
12
23
21
9
11
28
1
27
19
13
18
27
Model 19A40023100
Ref
No.
Part Number Description
1 618-07034 Lift Link Assembly
— 711-06143A Ferrule, .510 x .496
— 747-06384 Lift Adjust Link
2 684-05084 Lift Shaft Assembly
3 684-05085-0637 Lift Handle Assembly
4 684-05106-0637 RH Hanger Bracket
5 684-05107-0637 LH Hanger Bracket
6 710-04095 Hex Screw, 3⁄8-16 x 1.00
7 710 -1315 Hex Washer Screw, 3⁄8-16 x 1.250
8 710-1625 Oval Screw, #10-24 x 1.75
9 710 -3118 Hex Lock Screw, 3⁄8-16 x 1.00
10 711-0396 Spacer, .385 x .623 x .750
11 712- 04065 Flange Lock Nut, 3⁄8-16
12 714-0147 Cotter Pin, .125 x 1.75
13 714-05005 Pin, 7⁄16-1⁄2
14 714-3004 Cotter Pin, 3⁄32 x 1.25
15 720-04083 Grip, 1.188 x 4.562
16 725- 0157 Cable Tie, 3⁄16 x .05 x 7.4
17 732-05216 Compression Spring, .772 x 1.95
18 732-05231 Extension Spring, 1.45 x 6.00
19 936-0272 Flat Washer, .510 x 1.00 x .060
20 736-0277 Flat Washer, 1.031 x 1.620 x .095
21 736-3082A Flat Washer, .45 x 1.5 x .172
22 738-0213 Shoulder Screw, .498 x 1.445
23 938-0380 Shoulder Bolt, 3⁄8-16 x .500 x .270
24 941- 0170 Flange Bearing
25 946-05201 Snowblower Lift Cable
26 747-06383 Lift Lock Rod
27 790-00649 Lift Bracket
28 790-00657 Link Lift Adapter
29 710-3005 Hex Screw, 3⁄8-16 x 1.25
30 710-3001 Hex Screw, 3⁄8-16 x .880
28
Model 19A40023100
3
13
22
24
3
13
22
11
1
24
5
26
9
7
8
12
9
16
17
30
29
30
2
29
6
23
21
19
9
14
5
6
25
9
9
14
9
16
13
9
18
15
20
28
27
10
9
17
12
4
4
15
9
23
21
19
11
10
29
Model 19A40023100
Ref
No.
Part Number Description
1 618-07072 Spindle Assembly, 7.25
— 918-07070 Spindle Housing Assembly
— 710 -1260A Hex Washer Screw, 5⁄16-18 x .750
— 712-0417A Flange Nut, 5⁄8-18
— 738-0976 Spindle Shaft, 4.1250
— 756-05080 Pulley, 7.25
— 756-05081 Pulley, 5.57
2 684-05105 Hanger Bracket
3 710-0347 Hex Screw, 3⁄8-16 x 1.75
4 710-3001 Hex Screw, 3⁄8-16 x .880
5 710-3005 Hex Screw, 3⁄8-16 x 1.25
6 710-3144 Hex Screw, 3⁄8-16 x 2.00
7 711- 030 9A Clevis Pin, .62
8 711- 06303 Shaft, .375 x 12.3450
9 712-04065 Flange Lock Nut, 3⁄8-16
10 714 - 0117 Cotter Pin, .148 x 3.00
11 714-05005 Pin, 7⁄16-1⁄2
12 732-04927 Extension Spring, 1.25 x 8.5
13 736-0262 Flat Washer, .385 x .870 x .092
14 736-0518 Thrust Washer, .445 x 1.92 x .060
15 738-04162C Shoulder Spacer, .8840 x .190
16 738-0966A Shoulder Bolt, 3⁄8-16 x .50 x .925
17 747- 06429 Lock Rod, .500
18 747-06483 Sprin Rod Hook
19 748-05037 Idler Pivot Shoulder Spacer
20 954-05076 V-Belt, 114.3
21 756-05034 Idler Pulley, 4.50
22 956-3045A Idler Pulley, 5.06
23 783-08389 Pulley Cap
24 790-00617-0637 Link Bracket
25 790-00629-0637 Idler Pivot Bracket
26 790-00630-0637 Bracket
27 790-00670-0637 Idler Pivot Bracket
28 790-00675 Hanger Bracket Template
29 710-0376 Hex Screw, 5⁄16-18 x 1.00
30 712-04063 Flange Lock Nut, 5⁄16-18
30
Model 19A40023100
A
B
B
B
B
A
8
9
8
8
11
3
1
2
21
12
10
28
29
27
15
27
21
12
13
16
20
18
4
17
7
14
25
19
5
6
24
14
17
22
19
17
7
13
23
8
26
31
Ref
No.
Part Number Description
1 603-05172-0637 Spindle Support Bracket
2 684-05080-0637 RH Frame Bracket
3 684-05081-0637 LH Frame Bracket
4 710-05023 Shoulder Bolt
5 710-0923 Hex Screw, 5⁄8-18 x 3.00
6 710-1245B Hex Screw, 5⁄16-24 x .875
7 710-1652 Hex Washer Screw, 1⁄4-20 x .625
8 710-3001 Hex Screw, 3⁄8-16 x .880
9 711- 06298 Idler Support
10 711-06303 Shaft, .375 x 12.3450
11 712- 04064 Flange Lock Nut, 1⁄4-20
12 712-04065 Flange Lock Nut, 3⁄8-16
13 714-05005 Pin, 7⁄16-1⁄2
14 916-3020 Retainer Ring
15 931-10414 Belt Cover
16 732-05205 Extension Spring, 1.6 x 7.584
17 736-0237 Flat Washer, .65 x 1.25 x .075
18 736-0505 Flat Washer, .34 x 1.50 x .150
19 941-0524A Ball Bearing, .625 x 40 x 12 x 6203
20 748- 04067A Adapter Pulley, .75
21 750-06246 Spacer, .65 x .96 x 2.31
22 750-06251 Spacer, .88 x .635 x 1.105
23 954-05062 V- Belt, 138.4
24 954-05063 V-Belt, 39.988
25 756-05079 Double Pulley
26 756-05082 Pulley, 7.25
27 756-05084 Idler Pulley, 5.06
28 710-3131 Hex Screw, 1⁄2-13 x 1.00
29 712-04150 Flange Lock Nut, 1⁄2-13
Model 19A40023100
IMPORTANT: To obtain warranty coverage owner may be required
to present an original proof of purchase and applicable maintenance
records to the servicing dealer. Please see the operator’s manual for
information on required maintenance and service intervals.
The limited warranty set forth below is given by Cub Cadet LLC with
respect to new merchandise purchased or leased and used in the
United States and/or its territories and possessions, and by MTD
Products Limited with respect to new merchandise purchased or
leased and used in Canada and/or its territories and possessions
(either entity respectively, “Cub Cadet”).
Cub Cadet warrants this product (excluding its Normal Wear Parts, as
described below) against defects in material and workmanship for
a period of two (2) years commencing on the date of original retail
purchase or lease and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.
Normal Wear Parts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days from the date of
original purchase or lease. Normal wear parts include, but are not
limited to items such as: belts, blades, blade adapters, grass bags,
rider deck wheels, seats, and tires.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator’s
Manual furnished with the product, and has not been subject to
misuse, abuse, neglect, accident, improper maintenance, alteration,
vandalism, theft, fire, water, or damage because of other peril or
natural disaster. Damage resulting from the installation or use of any
part, accessory or attachment not approved by Cub Cadet for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage. In addition, Cub Cadet may deny warranty
coverage if the hour meter, or any part thereof, is altered, modified,
disconnected or otherwise tampered with.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE AND APPLICABLE MAINTENANCE RECORDS,
through your local authorized service dealer. To locate the dealer in
your area:
In the U.S.A.
Check your Yellow Pages, or contact Cub Cadet LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, call 1-877-282- 8684
or log on to our website at www.cubcadet.com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, call 1-800-
668-1238 or log on to our website at www.mtdcanada.com.
Without limiting the foregoing, this limited warranty does not provide
coverage in the following cases:
a. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior
finish due to use or exposure.
b. Service completed by someone other than an authorized
service dealer.
c. Cub Cadet does not extend any warranty for products sold
or exported outside of the United States and/or Canada, and
their respective possessions and territories, except those sold
through Cub Cadet’s authorized channels of export distribution.
d. Replacement parts and\or accessories that are not genuine Cub
Cadet parts.
e. Transportation charges and service calls.
f. Commercial or Institutional Use.
There are no implied warranties, including without limitation
any implied warranty of merchantability or fitness for a
particular purpose. No warranties shall apply after the
applicable period of express written warranty above. No other
express warranties beyond those mentioned above, given by
any person or entity, including a dealer or retailer, with respect
to any product, shall bind Cub Cadet. The exclusive remedy is
repair or replacement of the product as set forth above.
The terms of this warranty provide the sole and exclusive
remedy arising from the sale and/or lease of the products
covered hereby. Cub Cadet shall not be liable for any incidental
or consequential loss or damage including, without limitation,
expenses incurred for substitute or replacement lawn care
services or for rental expenses to temporarily replace a
warranted product.
Some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on how long an
implied warranty lasts, so the above exclusions or limitations may not
apply to you.
In no event shall recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safety features
of the product shall void this warranty. You assume the risk and
liability for loss, damage, or injury to you and your property and/or to
others and their property arising out of the misuse or inability to use
the product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights that vary in different jurisdictions.
CUB CADET LLC
MANUFACTURER’S LIMITED WARRANTY
FOR SEPARATELY SOLD ATTACHMENTS AND ACCESSORIES
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019, Phone: 1-877-282-8684
MTD Products Limited, Kitchener, ON N2G 4J1, Phone: 1-800-668-1238
GDOC-100177 REV. A
