CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Illustrated Parts Manual
Two Stage Snow Thrower — 828 WE
Form No. 769-03485
(Sept., 2007)
2

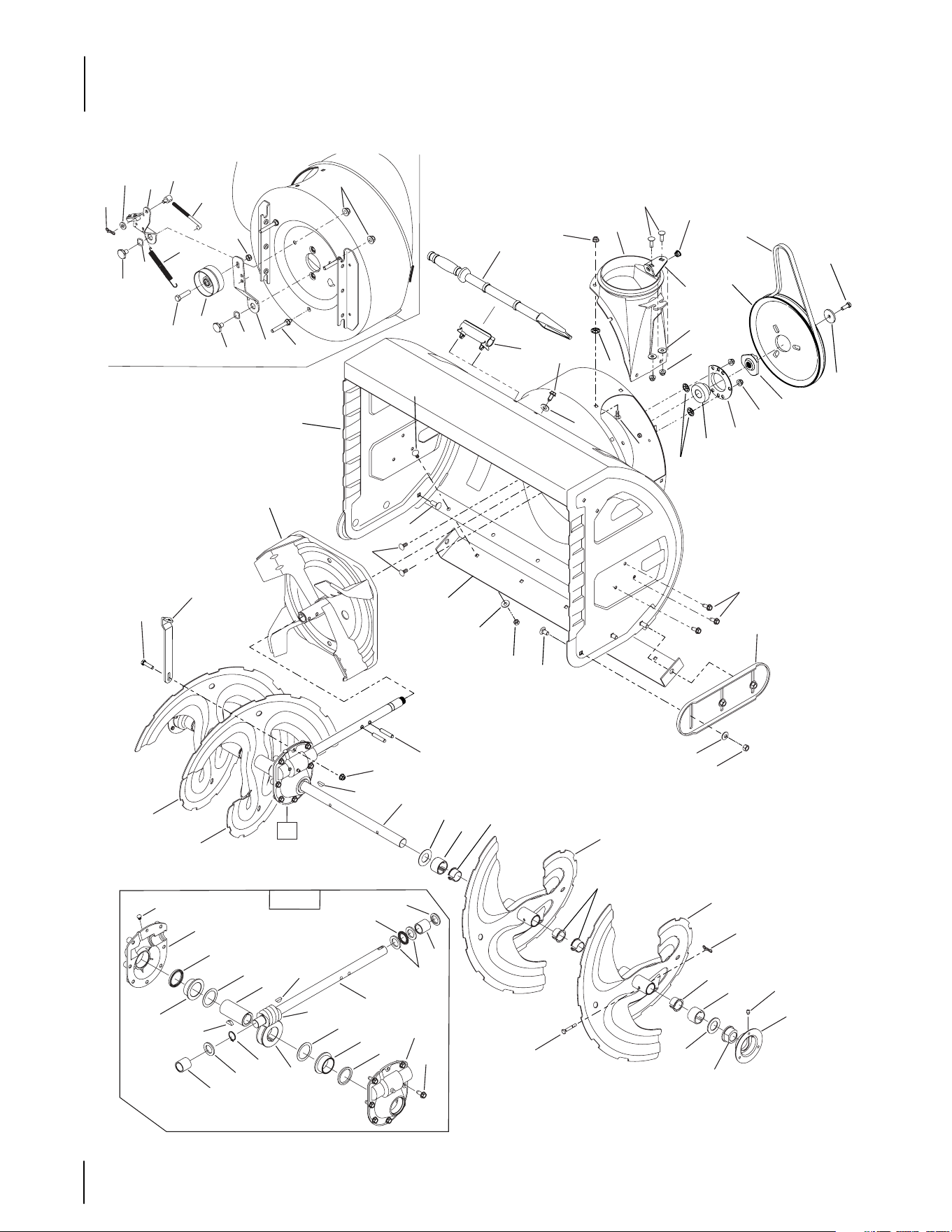

Augers, Auger Housing, and Gearbox
47
47
37
29
6
16
61
35
5
25
1
63
50
9
52
21
2
43
29
47
53
45
32
13
8
8
3
48
27
7
7
46
21
26
38
39
30
41
40
23
59
17
14
10
49
54
21
21
15
15
11
28
60
58
11
4
14
22
20
18
19
12
27
33
33
34
34
36
42
44
44
51
55
56
57
71
69
73
71
62
63
76
65
64
67
26
67
62
3
72
74
70
66
75
68
77
72
75
78
A
A
3
Augers, Auger Housing, and Gearbox
Ref.
Part Number Description
1 05244B
Housing, Bearing
2 784-0315A Housing, Bearing
3 618-04514 Gear Box Assembly
4 618-0281A Bracket Ass’y, Auger Brake
5 684-0090B Impellar , 16”
6 684-04231
777S32066
777D10448
Housing, Auger - 28”
Graphic, Danger
Graphic, Cub Cadet - 828“
7 684-04151 Spiral Ass’y, LH
8 684-04152 Spiral Ass’y, RH
9 710-1245B Screw, Hex Cap Lock, 5/16-24 x .875 Gr8
10 710-04527 Screw, Carriage, 3/8-16 x .75 Stainless
11 710-0451 Screw, Carr, 5/16-18 x .75
12 710-0459A Screw, Hex Cap, 3/8-24 x 1.5
13 710-0376 Screw, Hex Cap, 5/16-18 x 1.0 Gr5
14 710-04484 Screw, 5/16-18 x .750
15 726-04012 Nut, Push
16 710-04525 Screw, Carriage, 5/16-18 x .75 Stainless
17 710-04526 Screw, Carr,3/8-16 x 1.0 Stainless
18 710-04606 Screw w/Stud, 5/16-18 x .4300
19 711-0677 Ferrule
20 712-0116 Nut, Hex Lock, 3/8-24
21 712-04063 Nut, Hex Flange Lock, 5/16-18
22 712-04065 Nut, Hex Flange Lock, 3/8-16
23 712-04102 Nut, Hex Lock, 3/8-16 Stainless
25 736-0505 Washer, Flat, .34 x 1.5 x .15 HT
26 714-0135 Key, Woodruff, 1/4 x 3/4
27 714-04040 Pin, Bowtie Cotter
28 715-0118 Pin, Spirol, 5/16 x 1.75
29 731-05163 Spacer, 1.0 x 1.5 x 1.0Lg
30 731-1696B Adapter, Chute, 6”
32 732-0858 Spring, Extension
33 736-0159 Washer, Flat, .349 x .879 .063
34 736-0174 Washer, Wave, .625 x .885 x .015
35 736-04216 Washer, Bell., .34 x .872 x .06 Stainless
36 736-3008 Washer, .344 x .75 x .12
37 736-3046A Washer, 1.01 x 1.86 x .06
38 731-2635 Clip, Mounting
39 731-2643 Tool, Cleanout
40 736-04215 Washer, Bell., .375 x .87 x .063 Stainless
Ref.
Part Number Description
41 710-0276 Screw, Carriage, 5/16-18 x 1.0
42 712-04103 Nut, Hex, 5/16-18 Stainless
43 737-3000 Fitting, Lube
44 738-0281 Screw, Shoulder, .625 x .17
45 738-04155 Pin, Shear, .25 x 1.75
46
738-04156 Shaft, Spiral
47 741-0494 Bushing, Flange,
48 741-0192 Bearing, Flange w/Flats
49 741-04024 Bearing, Self Aligning
50 741-0475 Bushing, Plastic, .38 ID
51 747-0980A Rod, Auger Idler
52 748-04067A Adapter, Pulley w/Pins
53 750-04020 Spacer, 1.004 x 1.375 x .25
54 754-04131 Belt, V, 1/2 x 42
55 756-0178 Pulley, Flat Idler, 2.75 OD
56 756-04244A Pulley, Auger Drive, 10.0
57 784-0385B Bracket, Auger Idler
58 784-5123 Bracket, Chute Crank
59 790-00199 Shoe, Skid, Stainless
60 790-00264A Bracket, Gear Box Support
61 790-00197A Plate, Shave, Stainless
62 721-0146 Oil Seal
63 618-0246 Hsg, Ass’y, Auger, RH (Incl. Ref. # 62 & 67)
64
618-0435
737-3000
Hsg, Ass’y, Auger, LH (Incl. Ref. # 62 & 67)
Fitting, Lube
65 710-1260A Screw, LD, 5/16-18 x .750
66 711-04714 Shaft, Drive, Auger
67 741-0670 Flange Bearing
68 716-0111 External, Retaining, Ring
69 717-1425 Gear, Worm, LH
70 721-0145 Seal, Oil
71 736-0266 Wash, Flat, 1.52ID x 2.0 OD
72 736-0291 Wash, Flat, .88 ID x .38 OD
73 738-0275 Shaft, Gear, Worm
74 741-0184 Bearing, Thrust
75 741-0217 Sleeve
76 721-0325 Plug
77 717-0299 Gear, Worm
78 714-0126 Key, Hi Pro, 3/16 x 3/4
4

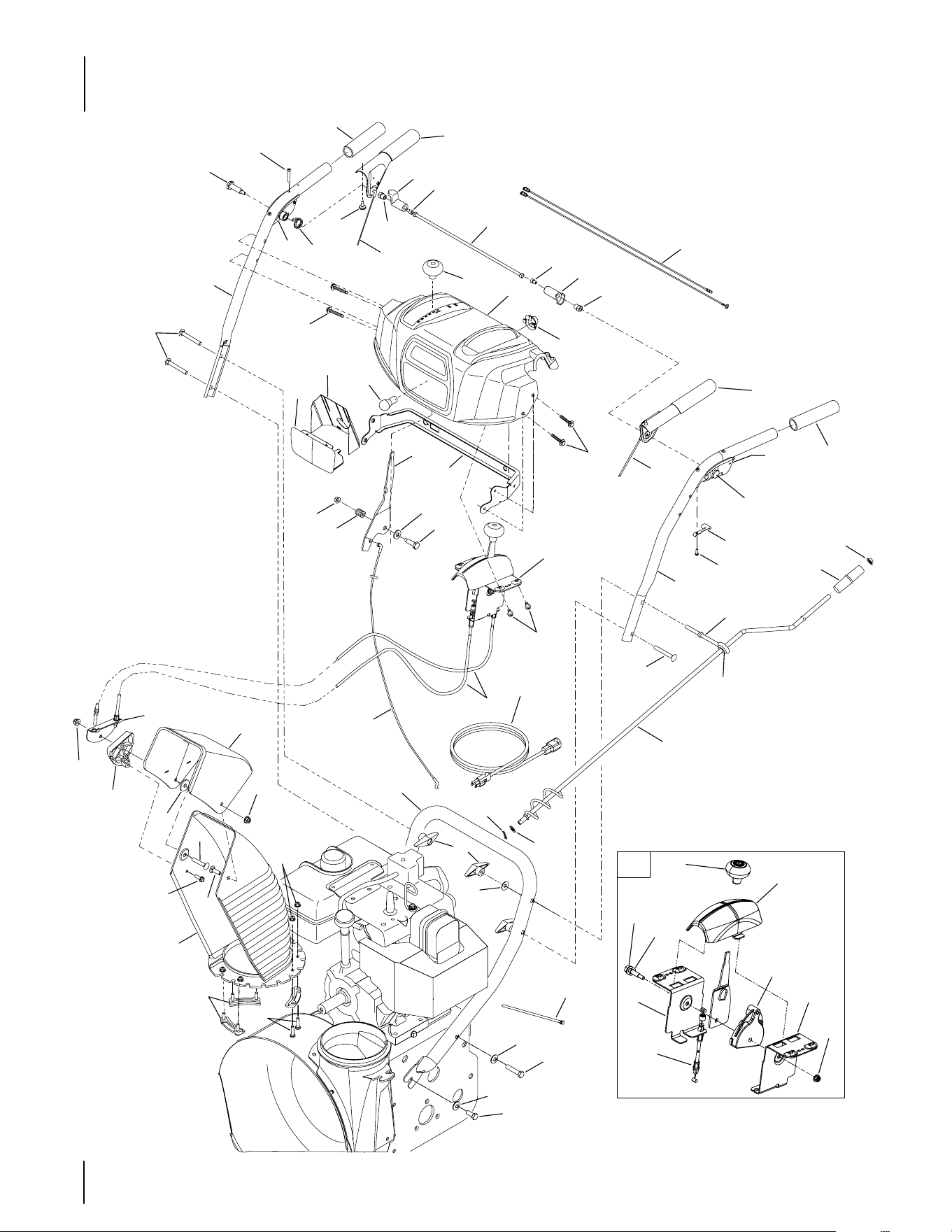

Handles, Handle Panel & Discharge Chute
51
62
56
8
25
66
6
40
14
10
1
14
45
39
9
25
46
53
24
16
61
55
17
42
12
2
57
65
16
30
7
13
43
7
4
28
48
26
58
17
52
22
44
28
33
27
34
3
5
67
3
68
69
70
71
71
64
24
38
30
52
24
49
15
19
23
35
59
47
21
63
32
60
38
20
37
23
64
36
11
29
50
18
47
5
Handles, Handle Panel & Discharge Chute
Ref.
Part Number Description
1 725-04214 Wire Harness
2 684-04104 Crank, Chute
3 684-04230 2-Way Chute Control™ Assy
4 631-04133A Handle Clutch Lock - LH
5 631-04134B Handle Clutch Lock - RH
6
731-05335
777I22341
777I22435
777D11353
Handle Panel
Graphic, Instruction
Graphic, Instruction
Graphic, 828WE
7 646-0012
746-0952
732-0184
Cable Assembly, Auger/Drive
Cable, Clutch
Spring, Extension
8 684-04105B Handle Engage Assy - LH
9
684-04106B
777I22363
Handle Engage Assy - RH
Graphic, Instruction
10 684-04250 Rod Ass’y, Clutch Lock Pivot
11 710-0276 Screw, Carriage, 5/16-18 x 1.0
12 710-04187 Hi-Lo Screw, 1/4-15 x 0.5
13 710-04326 Screw, #8-16 x 0.50
14 710-04354 Screw, 1/4-20 x.375
15 710-0458 Bolt, Carriage, 5/16-18 x 1.75
16 710-04586 Screw, 1/4-20 x 1.625
17 710-0572 Screw, Carriage, 5/16-18 x 2.5
18 710-04682 Screw, Hex, 3/8-16 x 2.00 Lock, Gr5
19 710-0597 Screw, 1/4-20 x 1.00
20 710-0895 Hi-Lo Screw, 1/4-15 x .75
21 710-3118 Screw, Hex, 3/8-16 x 1.0 Lock, Gr5
22 710-1233 Screw, #10-24 x 0.375
23 712-04063 Flange Lock Nut, 5/16-18
24 712-04064 Flange Lock Nut, 1/4-20
25 712-04081A Shoulder Nut, 1/4-20
26 714-0104 Pin, Internal Cotter Pin
27 720-0201A Knob, Crank
28 720-0274 Handle Grip
29 720-0284 Knob, Wing Nut, 5/16-18
30 720-04039 Shift Knob
32 725-0157 Cable Tie
33 725-1629 Lamp
Ref.
Part Number Description
34 726-0100 Cap, Push, 3/8
35
731-0846C
777S32280
Upper Chute
Graphic, Danger
36 731-0851A Chute, Flange Keeper
37 731-0903D Lower Chute
38 731-1313C Chute Tilt Cable Guide
39 731-04894C Lock Plate
40 731-04896B Clutch Lock Cam
42 732-0193 Compression Spring
43 732-04219A Clutch Lock Spring
44 732-04238 Torsion Spring
45 735-0199A Rubber Bumper
46 735-0234 Grommet, Rubber
47 736-0105 Washer, Bel, .375 x .87 x .063
48 736-0185 Washer, .375 x .738 x .063
49 736-0231 Flat Washer
50 736-0242 Washer, Belleville, .34 x .872 x .06
51 736-0267 Flat Washer
52 738-04122 Shoulder Screw, 1/4-20 x 1.345
53 738-04125 Shoulder Screw
55 746-04341 Speed Selector Cable
56 747-04263 Eye Bolt
57 749-04309 Handle, Upper - LH
58 749-04310 Handle, Upper - RH
59 749-0991 Handle, Lower
60 784-5594 Cable Bracket
61 790-00248A Panel Bracket
62 790-00281 Shift Lever
63 629-0071 Extension Cord, 110V
64 746-04338 Cable, Chute Tilt
65 725-1649 Light Socket
66 731-05324 Lens
67 777X41804 Reflector Label
68 731-05307 Cover, Tilt Cover
69 736-0413 Washer, Spring, .39 x .625 x .012
70 738-04185 Screw, Shoulder, .31 x .995:1/4-20
71 790-00200 Bracket, Mounting
6

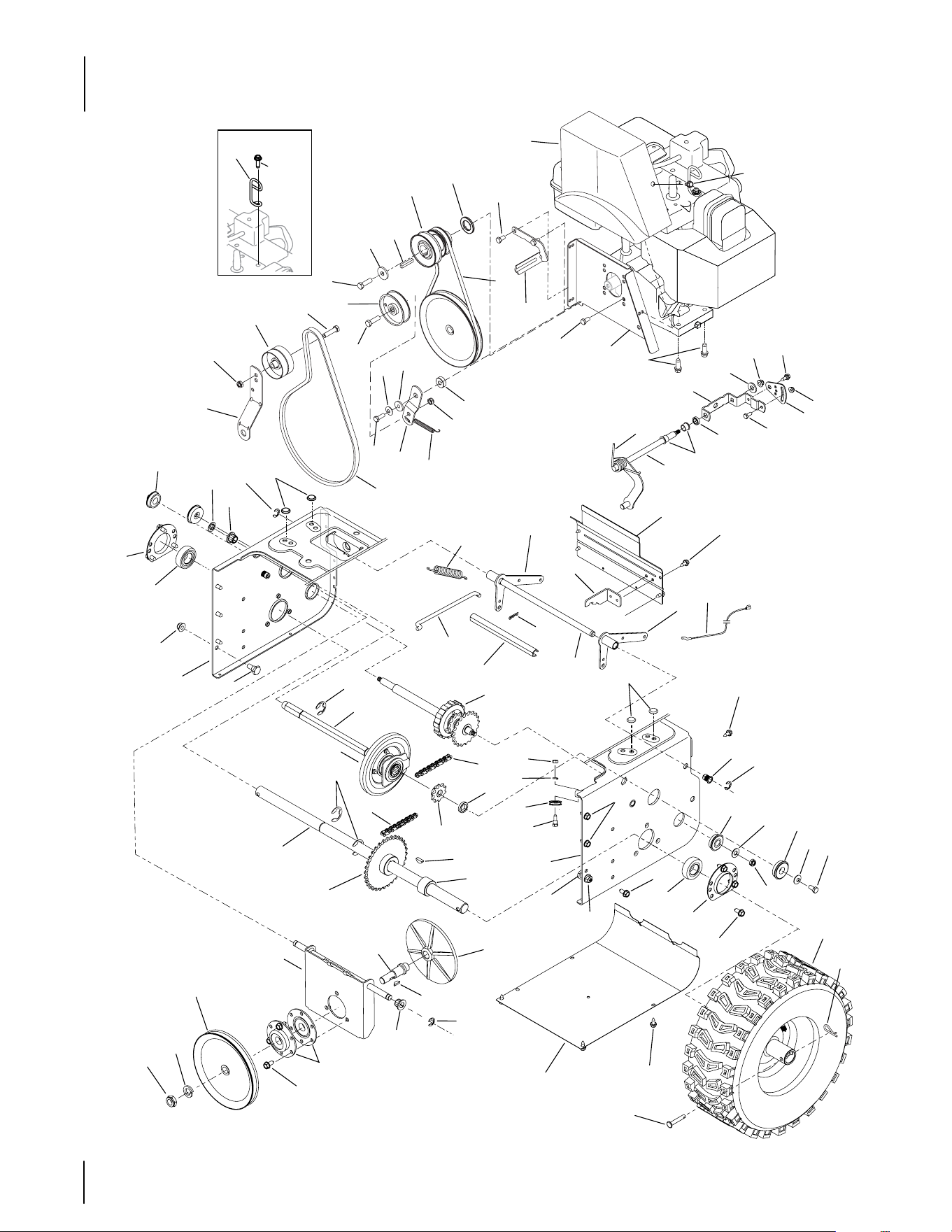

Snow Thrower Drive System
36
67
73
77
17
46
50
66
25
82
92
Engine
Bolt
1
11
11
10
40
48
48
61
87
60
23
79
54
69
19
31
91
62
60
52
25
50
14
24
19
61
20
38
1
20
34
29
59
81
87
43
37
42
57
53
26
72
21
2
45
54
91
4
90
22
41
91
78
89
20
8
19
64
88
63
7
35
39
32
65
70
58
30
49
55
6
25
75
13
76
51
33
3
74
20
29
59
9
47
18
85
80
27
56
84
68
71
28
12
12
86
16
44
15
83
7
Snow Thrower Drive System
Ref.
Part Number Description
1 05244B Housing, Bearing
2 618-0249E Shaft Assembly, Steering
3 618-04178
718-04034
710-0896
Assembly, Friction Wheel
Wheel, Friction, Bonded
Screw, Hex Wash
4 634-0225A
634-0226A
734-2031
734-0255
741-0246A
Wheel Ass’y. - LH
Wheel Ass’y. - RH
Tire
Valve
Bearing
6 684-0118B Bracket, Auger Actuator
7 684-0119B Bracket, Drive Actuator
8 684-04212 Brkt, Friction Drive Suprt.
9 684-04229 Arm, Shift
10 684-04235 Sprocket, 32T
11 710-0191 Screw, Hex Cap, 3/8-24 x 1.25 Gr8
12 710-0237 Screw, Hex Cap, 5/16-24 x .625 Gr5
13 710-0459A Screw, 3/8-24 x 1.50
14 710-0538 Screw, Hex Cap Lk, 5/16-18 x .625 Gr5
15 710-0607 Screw, Hex Tapp, 5/16-18 x .5
16 710-0654A Screw, Hex Sems Tapp, 3/8-16 x 1.0
17 710-0672 Scrw, Hx , 5/16-24 x 1.25 Gr5
18 710-0751 Screw, Hex, 1/4-20 x .620
19 710-1652 Screw, Hex Wash.
20 710-04484 TT Screw, 5/16-18 x .750
21 711-04279 Shaft, Hex Drive
22 711-04605 Shaft, Actuator
23 711-04610 Axle, Wheel
24
711-04615 Pin, Clevis
25 712-0116 Nut, Hex Insert Jam Lock
26 712-0138 Nut, Hex, 1/4-28 GR5
27 712-04063 Nut, Hx Flnge Insert Lk, 5/16-18 GrF
28 712-04064 Nut, Hx Flnge Insert Lk, 1/4-20 GrF
29 712-04065 Nut, Hx Flnge Insert Lk
30 712-0413 Nut, Hx Insert Jam Lk
31 712-0717 Nut, Insert 3/8-16
32 713-0284 Chain, Endless, #41 x 36L
33 713-0286 Chain, #420 x 40L
34 713-04015 Sprocket, #41 x 10T
35 714-0104 Pin, Internal Cotter
36 714-0118 Key, Square, 1/4 x 1.5
37 714-0135 Key, Woodruff
38
714-0149B Pin, Internal Cotter
39 714-0388 Key, Hi-Pro, 3/16 x 5/8
40 726-0221 Nut, Speed
41 716-0136 Ring, Retaining
42 716-04048 Ring, Retainer
43 717-0302 Plate, Drive
44 731-2531 Cover, Belt
Ref.
Part Number Description
45 732-0121 Spring, Extension
46 732-0303 Spring, Extension, .375 x 3.18
47 732-04385 Spring, Torsion
48 735-04099 Plug
49 736-0158 Washer, Lock, 5/8
50 736-0242 Washer, Belleville, .34 x .872 x .06
51 736-0247 Washer, Flat, .406 x 1.25 x .157 HT
52 736-0300 Wash, .406 x .875 x .059
53
736-0329 Washer, Lock, 1/4
54 738-0143 Screw, Shldr., .498 x .34
55 738-0279 Spindle, Drive Plate
56 738-04184A Screw, Shoulder, .368 x .113:1/4-20 TT
57 738-0924A Screw, Hex Shldr., 1/4-28
58 741-0163A Ass’y, Bearing/Housing
59 741-04025 Bearing, Self Aligning
60 741-04076 Bearing, Ball
61 741-04108 Bearing, Hex Flange
62 741-0563 Bearing, Ball
63 741-0748 Bush, Flg, .5 ID x .627 OD
64 746-0951 Cable, Auger Idler
65 747-0973 Rod, Drive Clutch
66 748-0234 Spacer, Shoulder
67 748-0418 Spacer, .331 x 1.01 x .36
68 750-1148A Spacer, 1.02 x 1.63 x .1425 - 30" ON
69 750-04703 Spcr., 1.0 ID x 1.50 OD
70 750-04717 Spcr., .51 ID x 7.895 Lg.
71 750-04719 Spacer, .5151 x .75 x .22
72 750-0997 Spacer, .675 x 1.0 x .23
73 754-0367 V-Belt, 3/8 x 34.4
74 754-04131 V-Belt, 1/2 x 42.0
75 756-0178 Idler, Flat, 2.75 OD
76 756-0240 Pulley, Flat Idler, 3.0 OD
77 756-0241B Pulley, Dbl, 3.25 OD
78 756-0344 Pulley, Drive
79 756-0625 Roller, Cable
80 736-3015 Washer, Flat, .469 x .875 x .105
81 784-0385B Brkt., Idler, Auger
82 784-5726 Bracket, Idler, Drive
83 790-00167A Bracket, Belt Keeper
84 790-00217A Bracket, Speed Selector Pivot
85 790-00218A Bracket, Speed Shift Selector
86 790-00254 Bracket, Belt Cover
87 790-00255A Frame, Transmission
88 790-00258 Cover, Upper Frame
89 790-00259 Cover, Lower Frame
90 790-00271 Bracket, Planetary Lock
91 716-0104 E-Ring
92 732-0705 Guide, Control Cable
