76CM CONTEMPORARY OVENS AND
COMPANIONS
PLANNING GUIDE
SERIES 9 & 11
PYROLYTIC OVEN | OB76SCPUDX3
PYROLYTIC STEAM ASSIST OVEN | OB76SCPSUDX3
COMPACT COMBI-STEAM | OS76NCUDX3
COMPACT COMBI-MICROWAVE | OM76NCUDX3
BUILT-IN COFFEE MAKER | EB60CSX3
TRIM KIT | TK7630NCX3
WARMING DRAWER | WB76SCX3, WB76SDEI3
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 290004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
DESIGN CHoICE
Styles 4
Contemporary Family 5
Installation Options 6
Overview 7
SPECIFICATIoN GUIDE
Pyrolytic Oven 9
Pyrolytic Steam Assist Oven 10
Compact Combi-Steam Oven 11
Compact Combi-Microwave Oven 12
Built-In Coee Maker with Trim Kit 13
Warming Drawer 14
Integrated Warming Drawer 15
Dimensions - Ovens 16
Dimensions - Companions 17
Services 18
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | 76CM OVENS AND COMPANIONS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
<< CONTENTS
CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 202590004610A
DESIGN CHOICE
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 490004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN CHOICE | 76CM OVENS AND COMPANIONS STYLES
MINIMAL STYLE MINIMAL STYLE - HANDLELESS CONTEMPORARY STYLE PROFESSIONAL STYLE
Distinctive and bold, Professional style ovens
are the perfect interpretation of the
commercial kitchen for the home chef.
Experience refined performance with
stainless steel construction that is built to
last.
This Planning Guide is for the Contemporary
Style featuring 76cm Ovens and Companions.
For information on other styles, please visit
the Fisher and Paykel website. To see what
models are available, head to the 'Overview'
section in this Planning Guide.
Celebrating a singular aesthetic to blend seamlessly into the kitchen, Minimal style ovens feature subtle
textural and tonal contrasts for a sense of refinement and purity.
Defined by clean lines and timeless design
cues, Contemporary style ovens bring a
sense of balance and refinement. A versatile
aesthetic that complements a range of
kitchen styles.
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

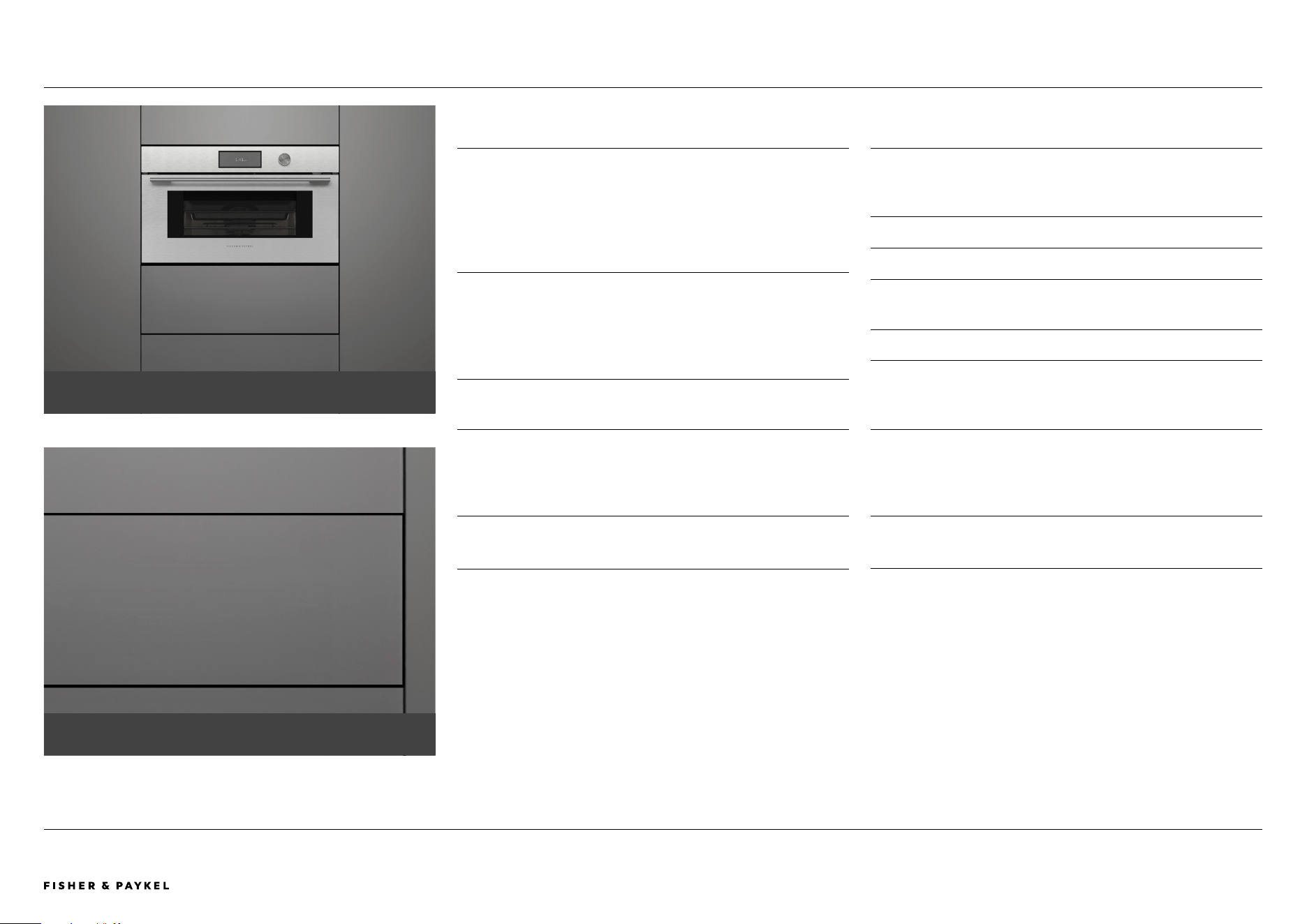

CONTEMPORARY FAMILYDESIGN CHOICE | 76CM OVENS AND COMPANIONS
FINISH OVENS COMPANIONS INSTALLATION OPTIONS
Brushed Silver Glass
Installation in wall
Installation under-bench
*Integrated model, panel ready for a custom front panel.
*
SELF-
CLEANING
SELF-
CLEANING
STEAM
ASSIST STEAM SPEED
COFFEE
MAKER
WARMING
DRAWERS
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 690004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

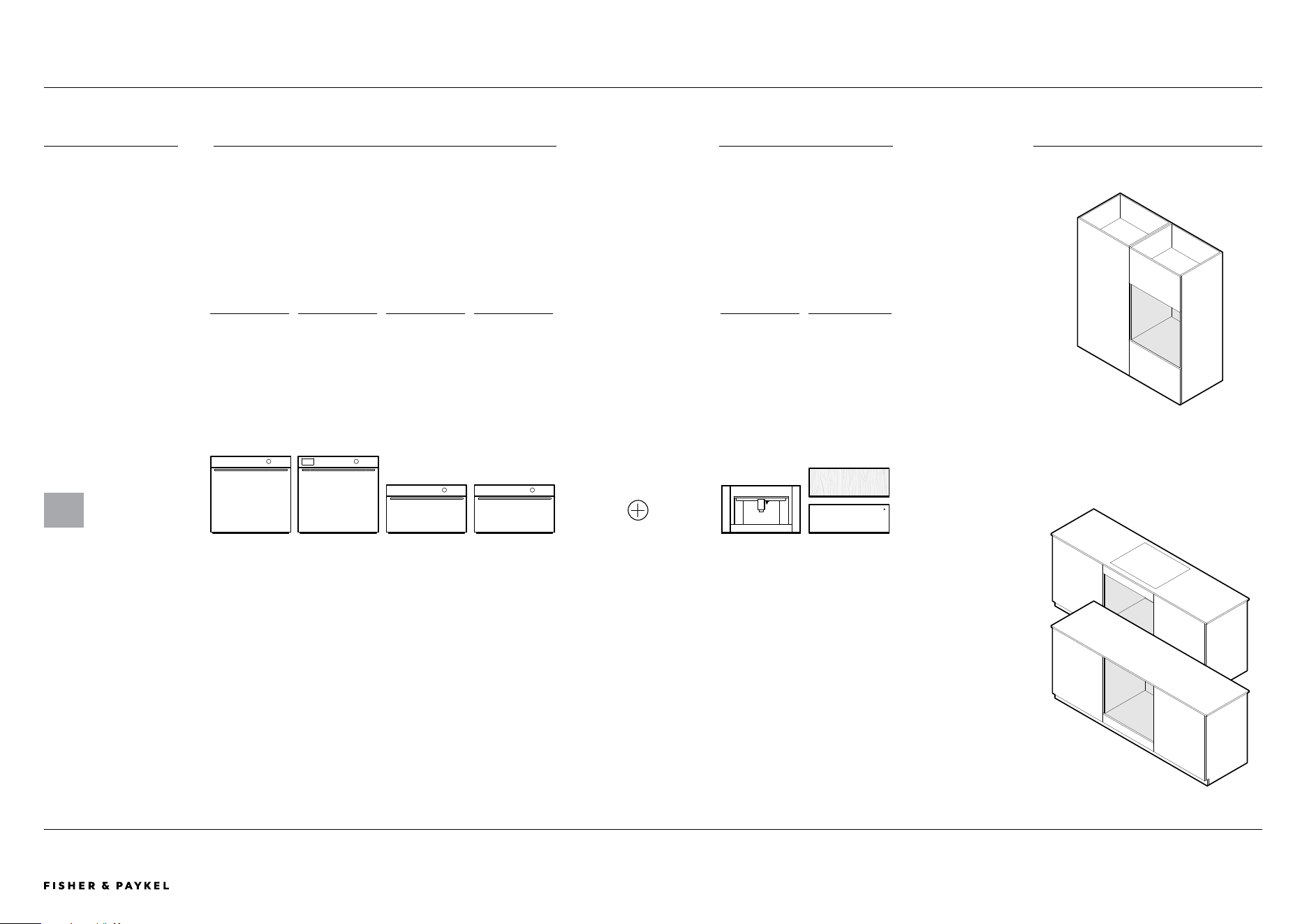

INSTALLATION OPTIONSDESIGN CHOICE | 76CM OVENS AND COMPANIONS
CONSIDERATIONS
Dierent configurations possible, consider
heights for grid and row installations.
STACK HEIGHT
Stack Height is overall product height with
minimum clearance above appliance front
panel to upper cabinetry front panel or
appliance.
STACKED INSTALLATION GRID INSTALLATION ROW INSTALLATION
Stack Height
1462mm
Stack Height
731mm
Stack Height
1191mm
Stack Height
731mm
Stack Height
731mm
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PYROLYTIC OVEN PYROLYTIC STEAM ASSIST
OVEN
COMPACT COMBI-STEAM
OVEN
COMPACT COMBI-
MICROWAVE OVEN
BUILT-IN COFFEE MAKER
WITH TRIM KIT
WARMING DRAWER
Series Series 9 Series 11 Series 9 Series 9 Series 9 Series 9
Brushed Silver Glass
Models
OB76SCPUDX3 OB76SCPSUDX3 OS76NCUDX3 OM76NCUDX3 EB60CSX3, TK7630NCX3 WB76SCX3
Integrated Models - - - - - WB76SDEI3
Interface 6.8" Touchscreen 6.8" Touchscreen 6.8" Touchscreen 6.8" Touchscreen 4.3" Touchscreen -
Overall Height 729mm 729mm 458mm 458mm 458mm 271mm
Front Panel Thickness 20mm 20mm 20mm 20mm 20mm 20mm
SIDE ELEVATION
FRONT ELEVATION
OVERVIEWDESIGN CHOICE | 76CM OVENS AND COMPANIONS
*
*Integrated models available.
<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 202590004610A
SPECIFICATION GUIDE
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 990004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OB76SCPUDX3SPECIFICATION GUIDE | PYROLYTIC OVEN, 76CM
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
oven matches with our Contemporary style family of appliances.
Pyrolytic self-cleaning simplifies maintenance, while intuitive
temperature and heat type recommendations accessed via the
large touch screen and SmartHQ™ support optimal cooking
results across a wide range of functions and food types.
PRODUCTS
oB76SCPUDX3
76cm Series 9 Contemporary Pyrolytic Oven
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Self-cleaning pyrolytic function breaks down food residue
for an easy clean
3 Premium soft-close door with advanced thermal
performance
4 Generous 130L useable capacity
5 Large 6.8" touchscreen is intuitive and easy to use
6 Achieve optimal results with temperature and heat type
recommendations
7 Twin vertical fans, perfect for multi-shelf cooking
8 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
9 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Pyro-proof Side Ladders
2 Full Extension Sliding Shelf (x3)
3 Air Fry Tray
4 Multi-functional Deep Roasting Dish
5 Wired Temperature Sensor
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1090004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | PYROLYTIC STEAM ASSIST OVEN, 76CM OB76SCPSUDX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
oven matches with our Contemporary style family of appliances.
Steam Assist enhances convection cooking, while pyrolytic
cleaning simplifies maintenance. Intuitive temperature and heat
type recommendations accessed via the large touch screen and
SmartHQ™ support optimal cooking results across a wide range
of functions and food types.
PRODUCTS
oB76SCPSUDX3
76cm Series 11 Contemporary Pyrolytic Steam Assist Oven
SERIES & STYLE
Series 11
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Steam Assist combines convection heat with steam to
enhance the cooking process
3 Self-cleaning pyrolytic function breaks down food residue
for an easy clean
4 Premium soft-close door with advanced thermal
performance
5 Generous 130L useable capacity
6 Large 6.8" touchscreen is intuitive and easy to use
7 Achieve optimal results with temperature and heat type
recommendations
8 Twin vertical fans, perfect for multi-shelf cooking
9 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
"0
Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Pyro-proof Side Ladders
2 Full Extension Sliding Shelf (x3)
3 Air Fry Tray
4 Multi-functional Deep Roasting Dish
5 Wired Temperature Sensor
6 Descale Solution - 2 sachets (Part 580925)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1190004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | COMPACT COMBI-STEAM OVEN, 76CM OS76NCUDX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
Combi-Steam oven matches with our Contemporary style family
of appliances. With versatile cooking options including steam or
convection, plus a Steam Clean function for easy maintenance.
Intuitive temperature and heat type recommendations can be
accessed via the large touch screen and SmartHQ™, to support
optimal cooking results across a wide range of functions and
food types.
PRODUCTS
oS76NCUDX3
76cm Series 9 Contemporary Compact Combi-Steam Oven
SERIES & STYLE
Series 11
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Versatile cooking options with steam or convection heat for
optimal results
3 Premium soft open and close door
4 45L useable capacity with four shelf positions
5 Large 6.8" touchscreen is intuitive and easy to use
6 Achieve optimal results with temperature and heat type
recommendations
7 Moisture control and even heat distribution thanks to
ActiveVent™ and AeroTech™ technology
8 Steam Clean function ensures a spotless oven with minimal
effort
9 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
"0
Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Chrome Side Ladders
2 Full Extension Sliding Shelf
3 Flat Wire Shelf
4 Flat Brushed Baking Tray
5 Roasting Dish
6 Grill Rack
ACCESSORIES
7 Large Perforated Steam Dish
8 Small Perforated Steam Dish
9 Large Steam Dish
"0
Wired Temperature Sensor
"1
Descale Solution - 2 sachets (Part 580925)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1290004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | COMPACT COMBI-MICROWAVE OVEN, 76CM OM76NCUDX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
Combi-Microwave oven matches with our Contemporary style
family of appliances. With versatile cooking options including
microwave or convection for ecient heating across a variety of
dishes. Intuitive temperature and heat type recommendations
can be accessed via the large touch screen and SmartHQ™, to
support optimal cooking results across a wide range of
functions and food types.
PRODUCTS
oM76NCUDX3
76cm Series 9 Contemporary Compact Combi-Microwave Oven
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Combines fast microwave cooking with even convection
heat for versatile, efficient heating across a variety of dishes
3 With soft open and close, the CoolTouch door is safe to
touch from the outside - protecting hands and surrounding
cabinetry
4 Generous 38L useable capacity with four shelf positions
5 Large 6.8" touchscreen is intuitive and easy to use
6 Achieve optimal results with temperature and heat type
recommendations
7 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
8 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
9 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Chrome Side Ladders
2 Wire Shelf
3 Step Down Wire Shelf
4 Grill Rack
5 Glass Tray
6 Wired Temperature Sensor
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1390004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | BUILT-IN COFFEE MAKER WITH TRIM KIT, 60CM EB60CSX3, TK7630NCX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
Coee Maker matches with our Contemporary style family of
appliances. It remembers your favourite brews over time,
oering personalized coee at the touch of a button. With
precise grinding, creamy milk frothing, and eortless self-
cleaning, it brings barista-quality coee home.
PRODUCTS
EB60CSX3
60cm Series 9 Contemporary Built-in Coee Maker
TK7630NCX3
76cm Series 9 Contemporary Trim Kit
Note: Trim Kit purchased separately.
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Intuitive touch display brews a perfect cup of coffee at the
touch of a button
3 Programmable timer turns on the Coffee Maker at the ideal
time each day
4 Personalised coffee and smart self-learning menu
preferences with 13 functions to suit any taste
5 Allows you to prepare hot milk or creamy froth in seconds
6 Stainless steel conical burr grinder with 13 coarseness
positions
7 15 bar pump pressure
8 Self-cleaning function and easy to empty coffee grounds
container and drip tray
9 2.4L water tank capacity
Built-In Coee Maker EB60CSX3 with Trim Kit TK7630NCX3
Built-In Coee Maker EB60CSX3 with Trim Kit TK7630NCX3
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1490004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | WARMING DRAWER, 76CM WB76SCX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
Warming Drawer matches with our Contemporary style family
of appliances. Featuring a push-to-open mechanism, intuitive
touch controls, and a smooth glass base for easy cleaning. With
six tailored programmes and space for 16 place settings, it
keeps meals ready to serve.
PRODUCTS
WB76SCX3
76cm Series 9 Contemporary Warming Drawer
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Automatic switch-off and delayed start functionality to help
keep dishes warm until it is time to serve
6 Room for 16 standard-sized place settings
7 Six tailored programmes for Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and
flexibility
ACCESSORIES
1 Accessory rack for optimising space
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1590004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | INTEGRATED WARMING DRAWER, 76CM WB76SDEI3
OVERVIEW
Panel ready design allows for seamless integration and
customisation of this Warming Drawer with kitchen cabinetry
for a cohesive kitchen look. Featuring a push-to-open
mechanism, intuitive touch controls, and a smooth glass base
for easy cleaning. With six tailored programmes and space for
16 place settings, it keeps meals ready to serve.
PRODUCTS
WB76SDEI3*
76cm Series 9 Integrated Warming Drawer
*Panel ready.
SERIES & STYLE
Series 9
Integrated
FEATURES
1 Panel ready design allows for seamless integration and
customisation with kitchen cabinetry for a cohesive kitchen
look
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Automatic switch-off and delayed start functionality to help
keep dishes warm until it is time to serve
5 Room for 16 standard-sized place settings
6 Six tailored programmes for Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and
flexibility
ACCESSORIES
1 Accessory rack for optimising space
Integrated Warming Drawer WB76SDEI3 with Compact
Combi-Steam Oven OS30NCUDX3
Integrated Warming Drawer WB76SDEI3
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1690004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OB76SCPUDX3, OB76SCPSUDX3,
OS76NCUDX3, OM76NCUDX3 SPECIFICATION GUIDE | 76CM OVENS AND COMPANIONS
PYROLYTIC OVEN
OB76SCPUDX3
PYROLYTIC STEAM ASSIST OVEN
OB76SCPSUDX3
COMPACT COMBI-STEAM OVEN
OS76NCUDX3
COMPACT COMBI-MICROWAVE OVEN
OM76NCUDX3

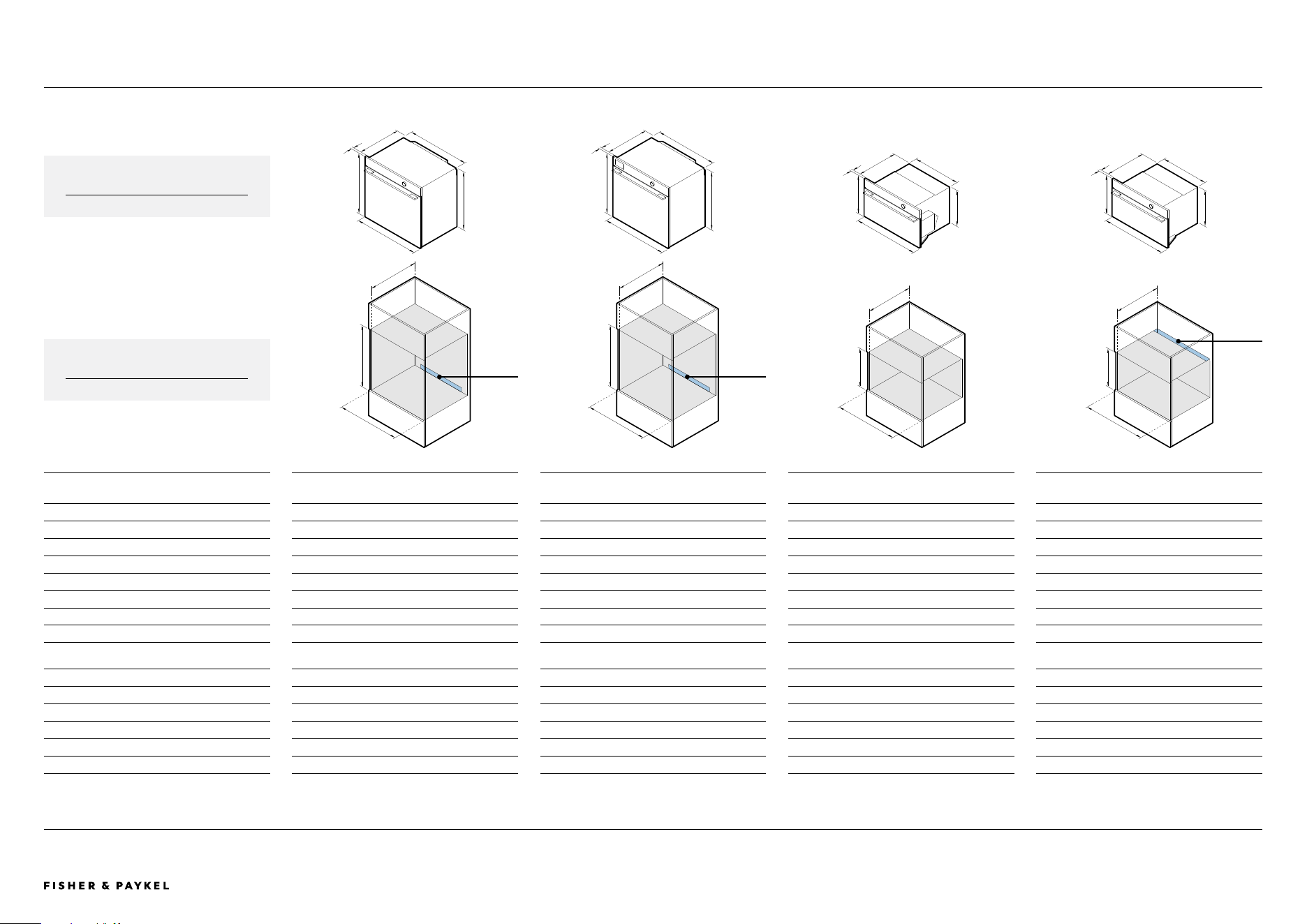

PRODUCT DIMENSIONS mm mm mm mm
A Overall height 729 729 458 458
B Overall width 758 758 758 758
C Chassis height 708 708 435 435
D Chassis width 720 720 720 720
E Chassis depth 575 575 545 545
F Control panel thickness 20 20 20 20
Depth with door fully open* 594 594 320 320
*Measured from front of control panel.
CAVITY DIMENSIONS mm mm mm mm
G Minimum inside height of cavity 712 712 440 440
H Minimum inside width of cavity 724 724 724 724
I Minimum inside depth of cavity* 597** 597** 550 550**
Recommened cabinet height 731 731 460 460
Recommened cabinet width 762 762 762 762
*Measured from front of chassis. **Requires ventilation at the rear of the cavity.
A
B
C
D
E
F
g
h
i
CAVITY DIMENSIONS
PRODUCT DIMENSIONS
Ventilation
required
Ventilation
required
Ventilation
required
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1790004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
EB60CSX3, TK7630NCX3, WB76SCX3, WB76SDEI3SPECIFICATION GUIDE | 76CM OVENS AND COMPANIONS
BUILT-IN COFFEE MAKER WITH TRIM KIT
EB60CSX3, TK7630NCX3,
WARMING DRAWER
WB76SCX3
INTEGRATED WARMING DRAWER
WB76SDEI3
PRODUCT DIMENSIONS mm mm mm
A Overall height 458* 271 271
B Overall width 758* 758 758
C Chassis height 445 271 271
D Chassis width 560 704 704
E Chassis depth 460 547** 547**
F Control panel/front panel thickness 20* 20 min 16***
Front panel height - 267 267
Front panel width - 758 758
*Measurements with trim kit. **Including power plug. ***A clearance of 2mm between the cabinet and the custom panel is required for the push-to-open mechanism (spacer included). Maximum custom panel weight 5kg.
CAVITY DIMENSIONS mm mm mm
G Minimum inside height of cavity 450 273 273
H Minimum inside width of cavity 560* 724 724
I Minimum inside depth of cavity** 545*** 580 580
Recommened cabinet height 460 273 273
Recommened cabinet width 762 762 762
*Cabinetry requires additional vertical sidewalls to secure the product. **Measured from front of chassis. ***Requires ventilation at the rear of the cavity.
Note: Drawers can fully support 76cm Fisher & Paykel oven, without adding shelf in between.
CAVITY DIMENSIONS
PRODUCT DIMENSIONS
Ventilation
required
A
B
C
D
E
F
A
B
C
D
E
F
A
B
C
D
E
F
g
h
i
g
h
i
g
h
i
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1890004610A PLANNING GUIDE 76CM ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
ALL MODELS
PYROLYTIC OVEN
OB76SCPUDX3
PYROLYTIC STEAM ASSIST OVEN
OB76SCPSUDX3
COMPACT COMBI-STEAM OVEN
OS76NCUDX3
COMPACT COMBI-MICROWAVE
OVEN
OM76NCUDX3
BUILT-IN COFFEE MAKER WITH
TRIM KIT
EB60CSX3, TK7630NCX3
WARMING DRAWER
WB76SCX3, WB76SDEI3
PRODUCT REQUIREMENTS
Supply 220-240 V, 50 Hz 220-240 V, 50 Hz 220-240 V, 50 Hz 220-240 V, 50 Hz 220-240 V, 50 Hz 220-240 V, 50 Hz
Service 20 A 20 A 20 A 20 A 10 A 10 A
Connection
Hard wired
Minimum 1500mm*
Hard wired
Minimum 1500mm*
Hard wired
Minimum 1500mm*
Hard wired
Minimum 1500mm*
Plug with flex cord
1700mm
Plug with flex cord
1800mm
CAPACITY
Total Oven capacity 137L 137L 55L 49L - -
Total water tank capacity - 0.67L 1.4L - 2.4L -
*The electrician provides sucient free length of power supply cable to reach from the bottom rear of the cavity to at least 1.5m in front of the bottom edge of the opening.
Note: All Coee Makers and Steam Ovens have internal water tanks which need to be filled manually. No external water supply is required.
SERVICES | 76CM OVENS AND COMPANIONS
ISOMETRIC VIEW
<< CONTENTS
