30" CONTEMPORARY OVENS AND
COMPANIONS
PLANNING GUIDE
SERIES 9 & 11
SELF-CLEANING OVEN | OB30SCPUDX3
SELF-CLEANING STEAM ASSIST OVEN | OB30SCPSUDX3
COMBI-STEAM | OS30SCUDX3
COMPACT COMBI-STEAM | OS30NCUDX3
COMPACT CONVECTION-SPEED | OM30NCUDX3
WARMING DRAWER | WB30SCX3, WB30SDEI3
VACUUM DRAWER | VB30SCX3, VB30SDEI3
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 290004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
DESIGN CHoICE
Styles 4
Contemporary Family 5
Installation Options 6
Overview 7
SPECIFICATIoN GUIDE
Self-Cleaning Oven 9
Self-Cleaning Steam Assist Oven 10
Combi-Steam Oven 11
Compact Combi-Steam Oven 12
Compact Convection-Speed Oven 13
Warming Drawer 14
Integrated Warming Drawer 15
Vacuum Seal Drawer 16
Integrated Vacuum Seal Drawer 17
Dimensions - Ovens 18
Dimensions - Compact Ovens 19
Dimensions - Drawers 20
Services 21
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | 30" OVENS AND COMPANIONS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
<< CONTENTS
CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 202590004606A
DESIGN CHOICE
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 490004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

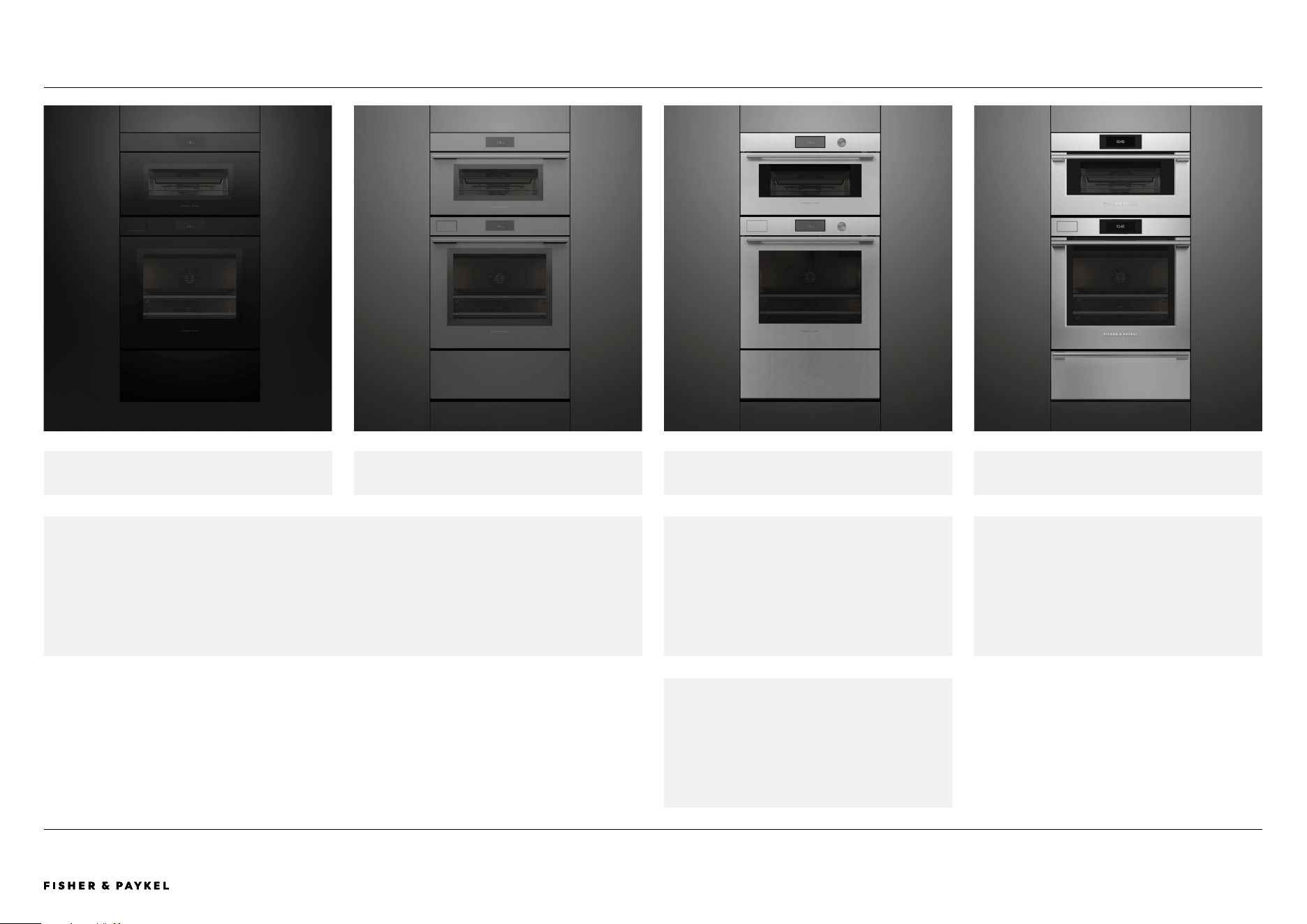

DESIGN CHOICE | 30" OVENS AND COMPANIONS STYLES
MINIMAL STYLEMINIMAL STYLE - HANDLELESS CONTEMPORARY STYLE PROFESSIONAL STYLE
Distinctive and bold, Professional style ovens
are the perfect interpretation of the
commercial kitchen for the home chef.
Experience refined performance with
stainless steel construction that is built to
last.
This Planning Guide is for the Contemporary
style featuring 30" Ovens and Companions.
For information on other styles, please visit
the Fisher and Paykel website. To see what
models are available, head to the 'Overview'
section in this Planning Guide.
Celebrating a singular aesthetic to blend seamlessly into the kitchen, Minimal style ovens feature subtle
textural and tonal contrasts for a sense of refinement and purity.
Defined by clean lines and timeless design
cues, Contemporary style ovens bring a
sense of balance and refinement. A versatile
aesthetic that complements a range of
kitchen styles.
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

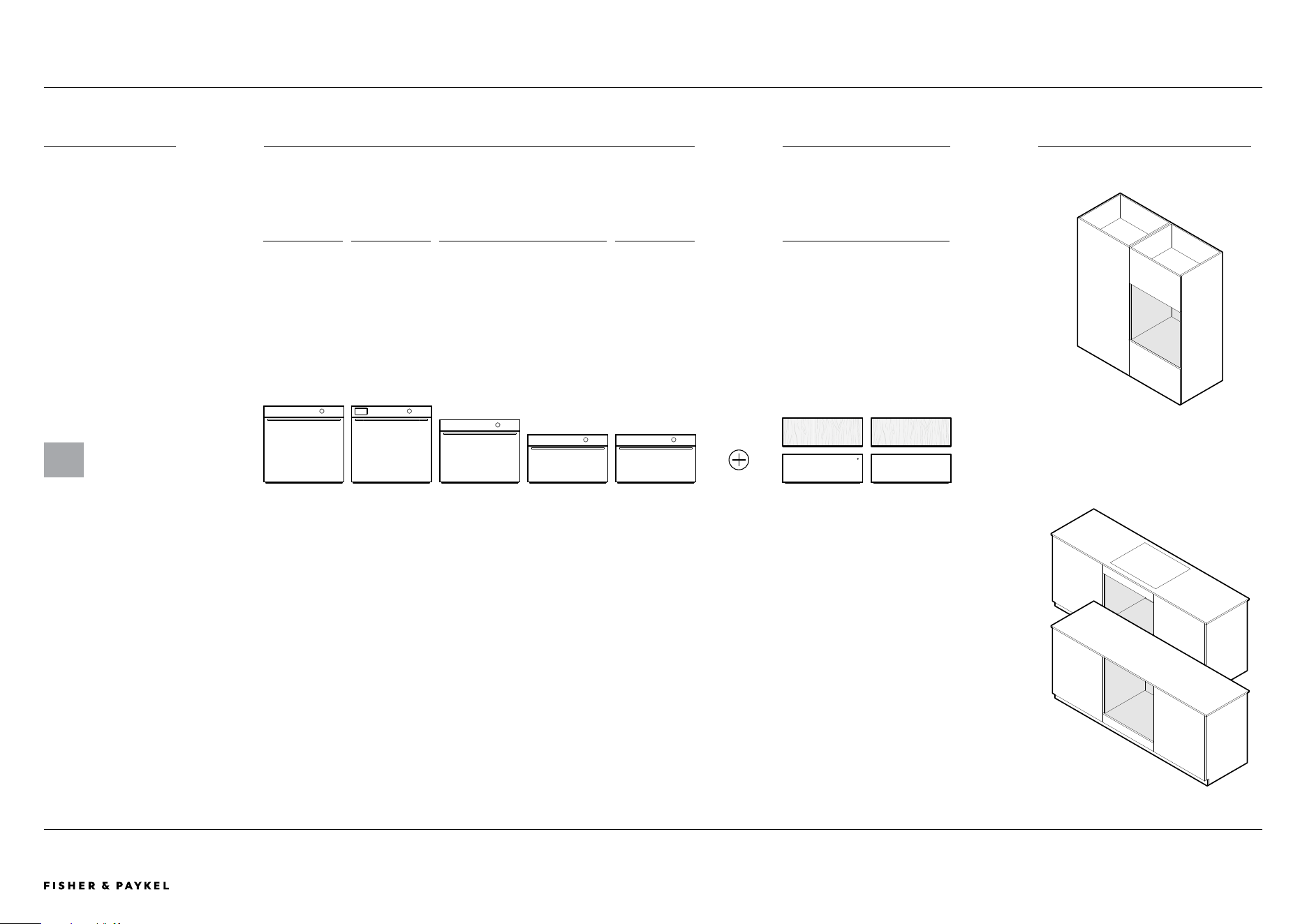

FINISH OVENS COMPANIONS INSTALLATION OPTIONS
CONTEMPORARY FAMILYDESIGN CHOICE | 30" OVENS AND COMPANIONS
Brushed Silver Glass
Installation in wall
Installation under-bench
*Integrated model, panel ready for a custom front panel.
* *
SELF-
CLEANING
SELF-
CLEANING
STEAM
ASSIST STEAM SPEED
WARMING DRAWERS
VACUUM SEAL DRAWERS
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 690004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
INSTALLATION OPTIONSDESIGN CHOICE | 30" OVENS AND COMPANIONS
CONSIDERATIONS
Dierent configurations possible, consider
heights for grid and row installations.
STACK HEIGHT
Stack Height is overall product height with
minimum clearance above appliance front
panel to upper cabinetry front panel or
appliance.
STACKED INSTALLATION GRID INSTALLATION ROW INSTALLATION
Stack Height
57 9/16" (1462mm)
Stack Height
28 3/4" (731mm)
Stack Height
46 7/8" (1191mm)
Stack Height
28 3/4" (731mm)
Stack Height
28 3/4" (731mm)
Stack Height
52 3/8" (1331mm)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SELF-CLEANING OVEN SELF-CLEANING
STEAM ASSIST OVEN
COMBI-STEAM OVEN COMPACT COMBI-
STEAM OVEN
COMPACT
CONVECTION-SPEED
OVEN
WARMING DRAWER VACUUM SEAL
DRAWER
Series Series 9 Series 11 Series 11 Series 9 Series 9 Series 9 Series 9
Brushed Silver Glass
Models
OB30SCPUDX3 OB30SCPSUDX3 OS30SCUDX3 OS30NCUDX3 OM30NCUDX3 WB30SCX3 VB30SCX3
Integrated Models - - - - - WB30SDEI3 VB30SDEI3
Interface 6.8" Touchscreen 6.8" Touchscreen 6.8" Touchscreen 6.8" Touchscreen 6.8" Touchscreen - -
Overall Height 28 11/16" (729mm) 28 11/16" (729mm) 23 9/16" (598mm) 18 " (458mm) 18 " (458mm) 10 11/16" (271mm) 10 11/16" (271mm)
Front Panel Thickness 13/16" (20mm) 13/16" (20mm) 13/16" (20mm) 13/16" (20mm) 13/16" (20mm) 13/16" (20mm) 13/16" (20mm)
*Integrated models available.
OVERVIEWDESIGN CHOICE | 30" OVENS AND COMPANIONS
SIDE
ELEVATION
FRONT
ELEVATION
* *
<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 202590004606A
SPECIFICATION GUIDE
SERIES 11 & 9
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 990004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

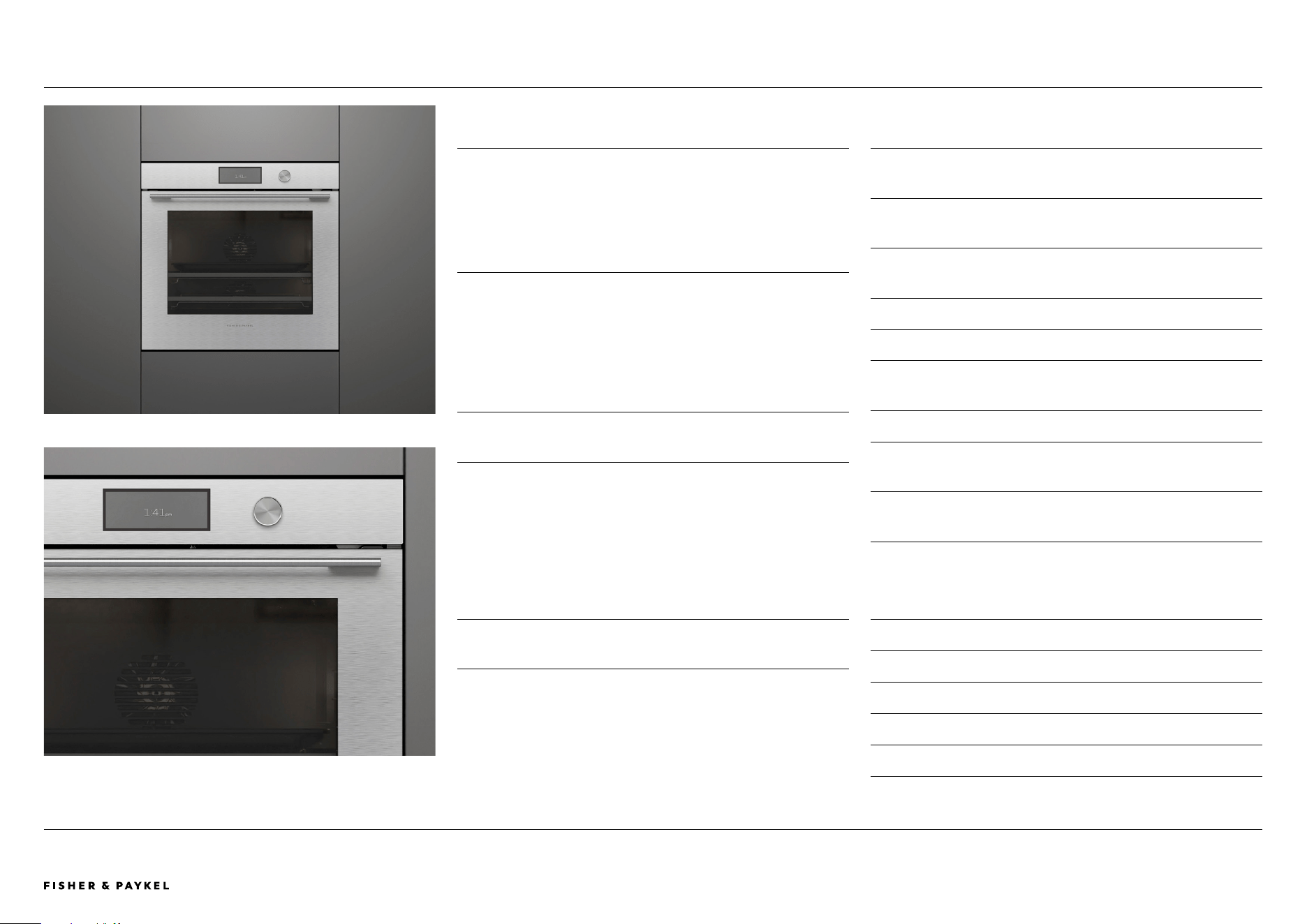

OB30SCPUDX3SPECIFICATION GUIDE | SELF-CLEANING OVEN, 30"
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
oven matches with our Contemporary style family of appliances.
Pyrolytic self-cleaning simplifies maintenance, while intuitive
temperature and heat type recommendations accessed via the
large touch screen and SmartHQ™ support optimal cooking
results across a wide range of functions and food types.
PRODUCTS
oB30SCPUDX3
30" Series 9 Contemporary Self-Cleaning Oven
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Self-cleaning pyrolytic function breaks down food residue
for an easy clean
3 Premium soft-close door with advanced thermal
performance
4 Generous 4.6 cu ft useable capacity
5 Large 6.8" touchscreen is intuitive and easy to use
6 Achieve optimal results with temperature and heat type
recommendations
7 Twin vertical fans, perfect for multi-shelf cooking
8 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
9 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Self-cleaning-proof Side Ladders
2 Full Extension Sliding Shelf (x3)
3 Air Fry Tray
4 Multi-functional Deep Roasting Dish
5 Wired Temperature Sensor
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1090004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | SELF-CLEANING STEAM ASSIST OVEN, 30" OB30SCPSUDX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
oven matches with our Contemporary style family of appliances.
Steam Assist enhances convection cooking, while pyrolytic
cleaning simplifies maintenance. Intuitive temperature and heat
type recommendations accessed via the large touch screen and
SmartHQ™ support optimal cooking results across a wide range
of functions and food types.
PRODUCTS
oB30SCPSUDX3
30" Series 11 Contemporary Self-Cleaning Steam Assist Oven
SERIES & STYLE
Series 11
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Steam Assist combines convection heat with steam to
enhance the cooking process
3 Self-cleaning pyrolytic function breaks down food residue
for an easy clean
4 Premium soft-close door with advanced thermal
performance
5 Generous 4.6 cu ft useable capacity
6 Large 6.8" touchscreen is intuitive and easy to use.
7 Achieve optimal results with temperature and heat type
recommendations
8 Twin vertical fans, perfect for multi-shelf cooking
9 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
"0
Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Self-cleaning-proof Side Ladders
2 Full Extension Sliding Shelf (x3)
3 Air Fry Tray
4 Multi-functional Deep Roasting Dish
5 Wired Temperature Sensor
6 Descale Solution - 2 sachets (Part 580925)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1190004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

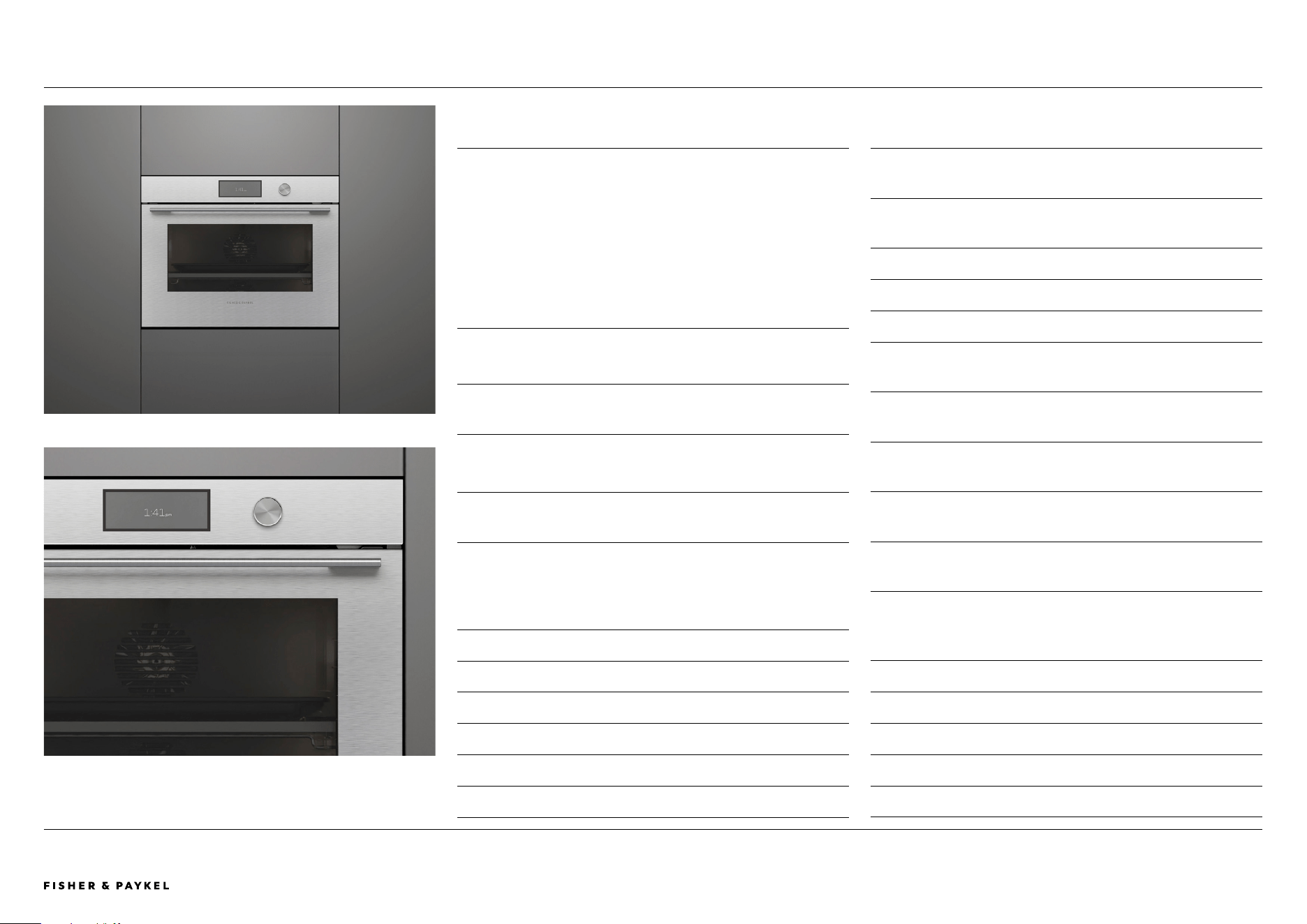

SPECIFICATION GUIDE | COMBI-STEAM OVEN, 30" OS30SCUDX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
Combi-Steam oven matches with our Contemporary style family
of appliances. Featuring a larger cavity ideal for cooking larger
dishes and multiple trays simultaneously. With versatile cooking
options including steam or convection, plus a Steam Clean
function for easy maintenance. Intuitive temperature and heat
type recommendations can be accessed via the large touch
screen and SmartHQ™, to support optimal cooking results
across a wide range of functions and food types.
PRODUCTS
oS30SCUDX3
30" Series 11 Contemporary Combi-Steam Oven
SERIES & STYLE
Series 11
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Versatile cooking options with steam or convection heat for
optimal results
3 Premium soft open and close door
4 Generous 2.5 cu ft useable capacity with four shelf positions
5 Large 6.8" touchscreen is intuitive and easy to use
6 Achieve optimal results with temperature and heat type
recommendations
7 Moisture control and even heat distribution thanks to
ActiveVent™ and AeroTech™ technology
8 Steam Clean function ensures a spotless oven with minimal
effort
9 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
"0
Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Chrome Side Ladders
2 Full Extension Sliding Shelf (x2)
3 Step Down Wire Shelf
4 Roasting Dish
5 Broil Rack
6 Smokeless Broil Tray
ACCESSORIES
7 Large Perforated Steam Dish
8 Small Perforated Steam Dish
9 Large Steam Dish
"0
Wired Temperature Sensor
"1
Descale Solution - 2 sachets (Part 580925)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1290004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

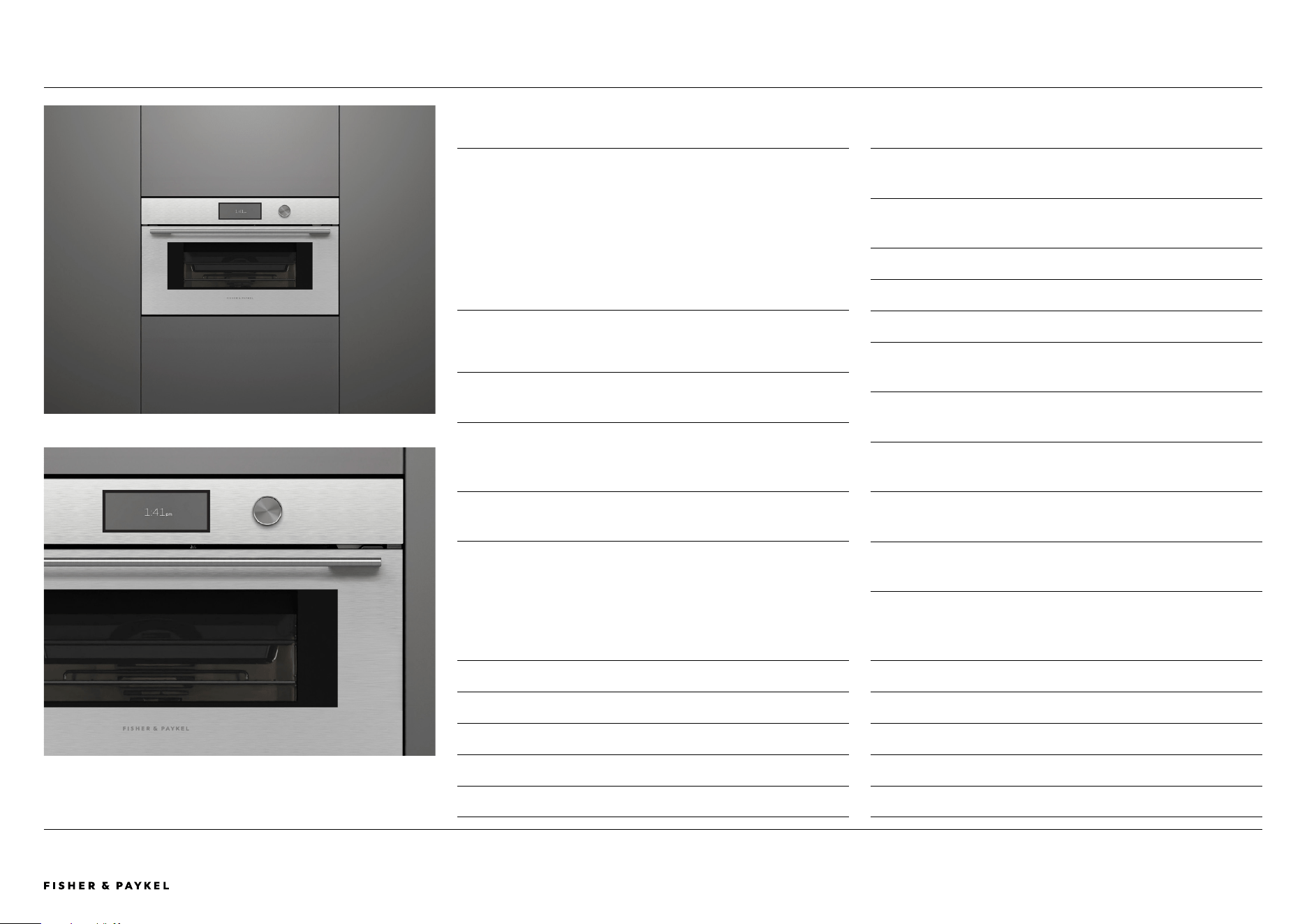

SPECIFICATION GUIDE | COMPACT COMBI-STEAM OVEN, 30" OS30NCUDX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
Combi-Steam oven matches with our Contemporary style family
of appliances. With versatile cooking options including steam or
convection, plus a Steam Clean function for easy maintenance.
Intuitive temperature and heat type recommendations can be
accessed via the large touch screen and SmartHQ™, to support
optimal cooking results across a wide range of functions and
food types.
PRODUCTS
oS30NCUDX3
30" Series 9 Contemporary Compact Combi-Steam Oven
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Versatile cooking options with steam or convection heat for
optimal results
3 Premium soft open and close door
4 1.6 cu ft useable capacity with four shelf positions
5 Large 6.8" touchscreen is intuitive and easy to use
6 Achieve optimal results with temperature and heat type
recommendations
7 Moisture control and even heat distribution thanks to
ActiveVent™ and AeroTech™ technology
8 Steam Clean function ensures a spotless oven with minimal
effort
9 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
"0
Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Chrome Side Ladders
2 Full Extension Sliding Shelf
3 Flat Wire Shelf
4 Roasting Dish
5 Broil Rack
ACCESSORIES
6 Large Perforated Steam Dish
7 Small Perforated Steam Dish
8 Large Steam Dish
9 Wired Temperature Sensor
"0
Descale Solution - 2 sachets (Part 580925)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1390004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

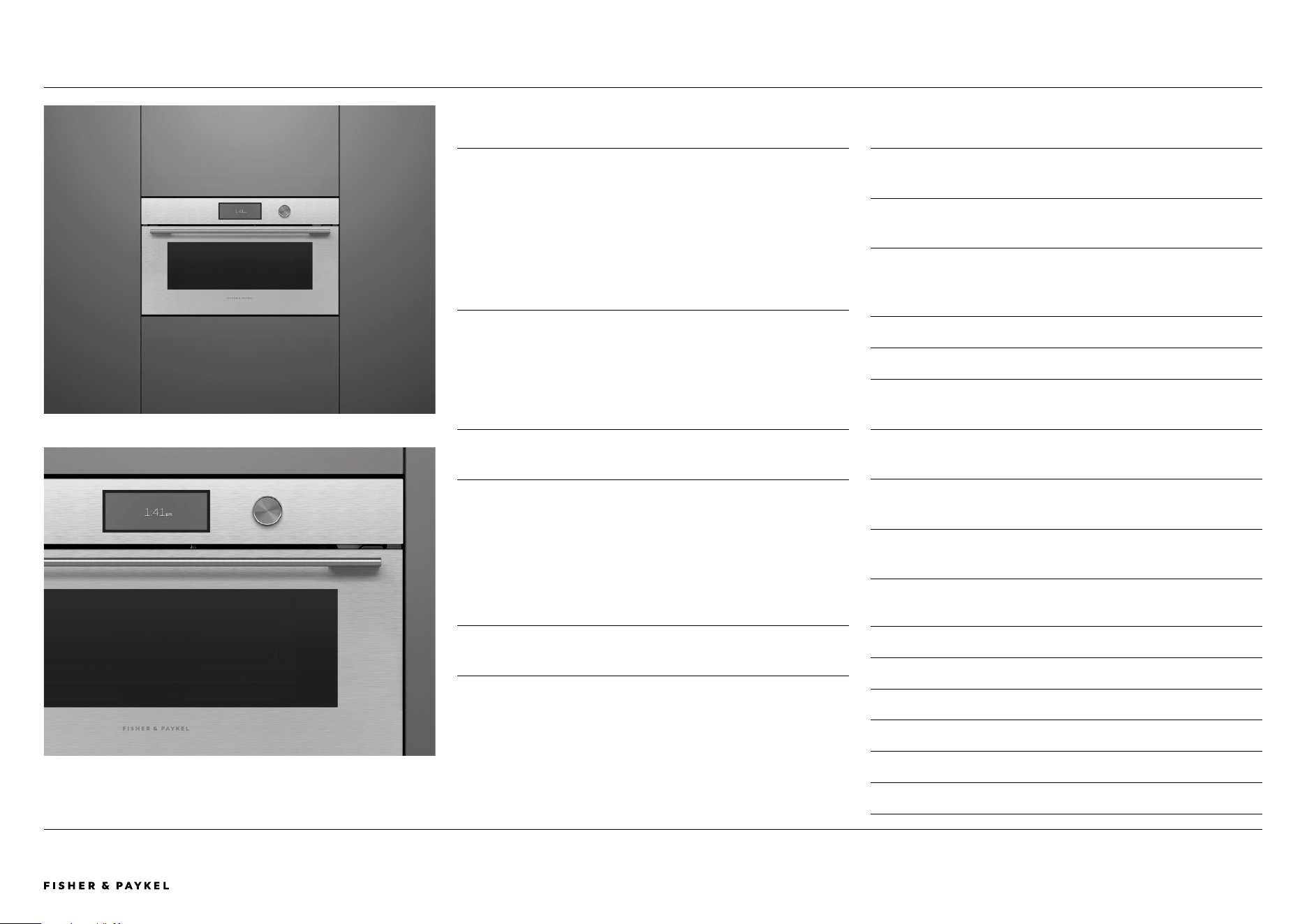

SPECIFICATION GUIDE | COMPACT CONVECTION-SPEED OVEN, 30" OM30NCUDX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
Convection-Speed oven matches with our Contemporary style
family of appliances. With versatile cooking options including
microwave or convection for ecient heating across a variety of
dishes. Intuitive temperature and heat type recommendations
can be accessed via the large touch screen and SmartHQ™, to
support optimal cooking results across a wide range of
functions and food types.
PRODUCTS
oM30NCUDX3
30" Series 9 Contemporary Compact Convection-Speed Oven
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Combines fast microwave cooking with even convection
heat for versatile, efficient heating across a variety of dishes
3 With soft open and close, the CoolTouch door is safe to
touch from the outside - protecting hands and surrounding
cabinetry
4 Generous 38L useable capacity with four shelf positions
5 Large 6.8" touchscreen is intuitive and easy to use
6 Achieve optimal results with temperature and heat type
recommendations
7 28 functions, including four microwave-only, 14 traditional
oven and four combination settings
8 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
9 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Chrome Side Ladders
2 Wire Shelf
3 Step Down Wire Shelf
4 Broil Rack
5 Glass Tray
6 Wired Temperature Sensor
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1490004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

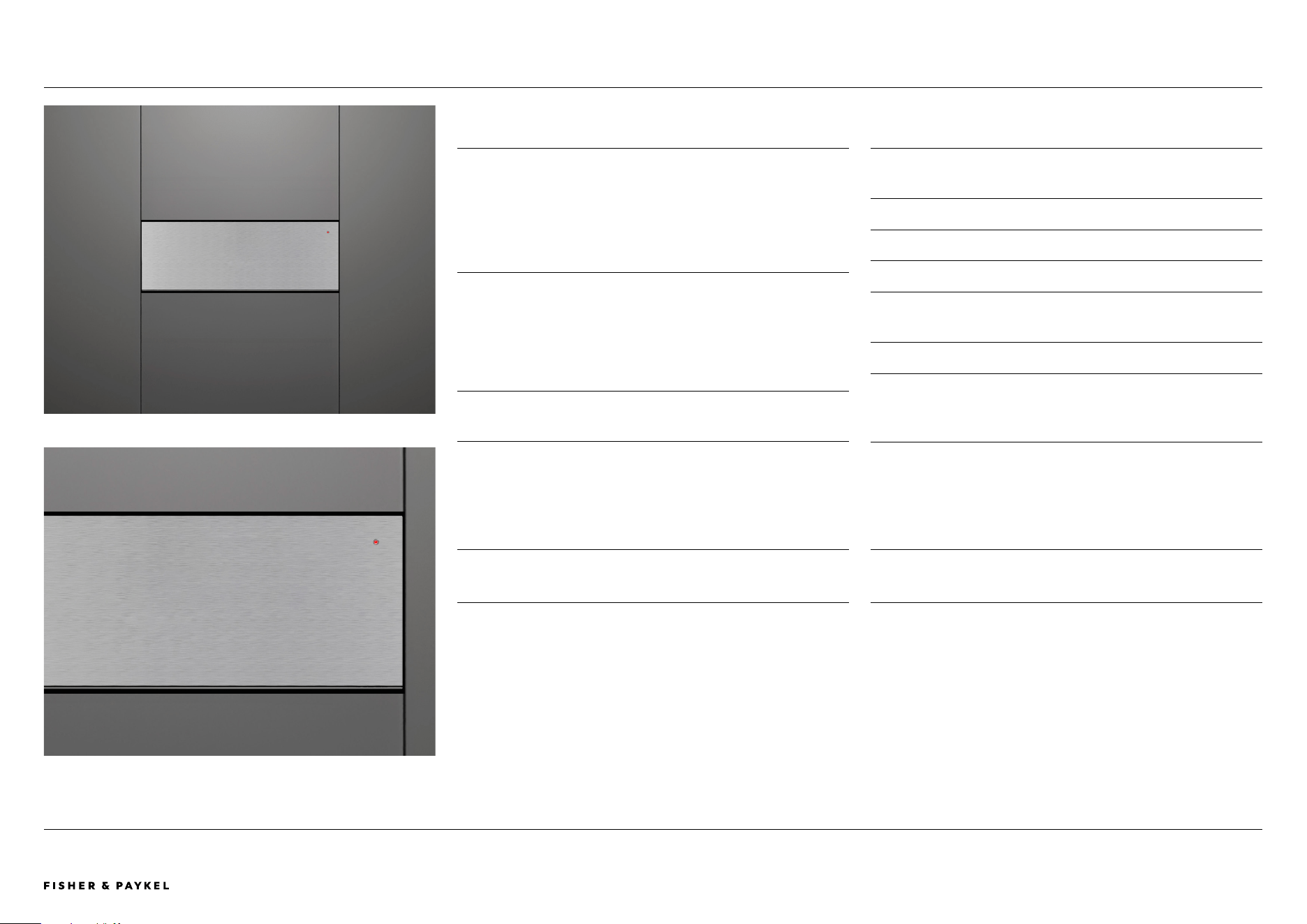

SPECIFICATION GUIDE | WARMING DRAWER, 30" WB30SCX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
Warming Drawer matches with our Contemporary style family
of appliances. Featuring a push-to-open mechanism, intuitive
touch controls, and a smooth glass base for easy cleaning. With
six tailored programmes and space for 16 place settings, it
keeps meals ready to serve.
PRODUCTS
WB30SCX3
30" Series 9 Contemporary Warming Drawer
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Automatic switch-off and delayed start functionality to help
keep dishes warm until it is time to serve
6 Room for 16 standard-sized place settings
7 Six tailored programmes for Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and
flexibility
ACCESSORIES
1 Accessory rack for optimising space
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1590004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | INTEGRATED WARMING DRAWER, 30" WB30SDEI3
OVERVIEW
Panel ready design allows for seamless integration and
customisation of this Warming Drawer with kitchen cabinetry
for a cohesive kitchen look. Featuring a push-to-open
mechanism, intuitive touch controls, and a smooth glass base
for easy cleaning. With six tailored programmes and space for
16 place settings, it keeps meals ready to serve.
PRODUCTS
WB30SDEI3*
30" Series 9 Integrated Warming Drawer
*Panel ready.
SERIES & STYLE
Series 9
Integrated
FEATURES
1 Panel ready design allows for seamless integration and
customisation with kitchen cabinetry for a cohesive kitchen
look
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Automatic switch-off and delayed start functionality, to help
keep dishes warm until it is time to serve
5 Room for 16 standard-sized place settings
6 Six tailored programmes for Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and
flexibility
7 Six tailored programmes for Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and
flexibility
ACCESSORIES
1 Accessory rack for optimising space

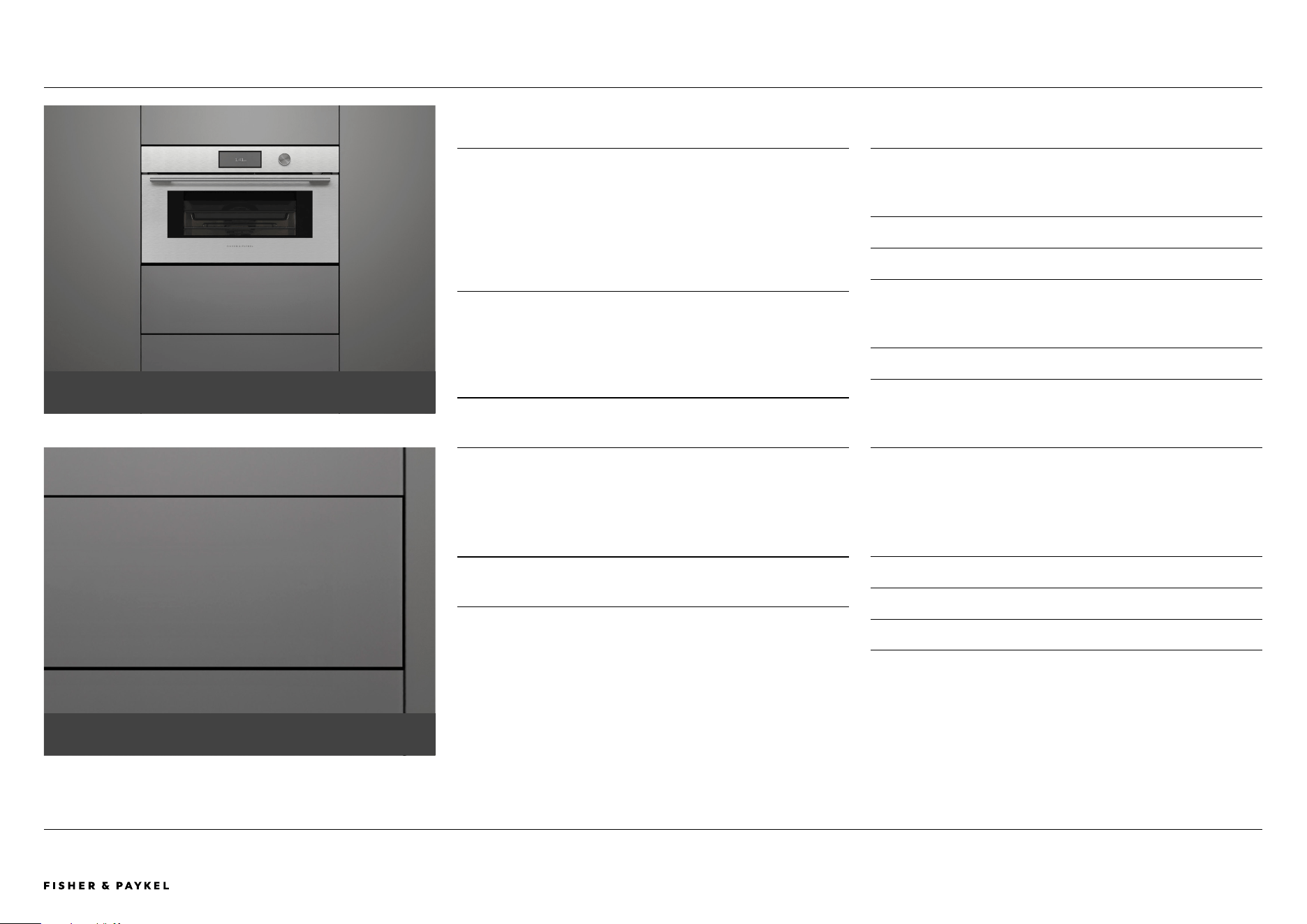

Integrated Warming Drawer WB30SDEI3 with Compact
Combi-Steam Oven OS30NCUDX3
Integrated Warming Drawer WB30SDEI3
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1690004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | VACUUM SEAL DRAWER, 30" VB30SCX3
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
Vacuum Drawer matches with our Contemporary style family of
appliances. A push-to-open mechanism and intuitive touch
controls oer eortless use, while three vacuum and heat
sealing levels support sous vide preparation, marinating, and
food storage, using reusable and BPA-free food-grade bags.
PRODUCTS
vB30SCX3
30" Series 9 Contemporary Vacuum Seal Drawer
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Three levels of vacuum and heat sealing - for easy re-
sealing, food portioning, marinating, storage and extending
shelf life
6 Allows effortless preparation for sous vide cooking
7 Our food-grade, BPA-free bags are an excellent storage
option — these can be re-used if sealed and cut
appropriately
ACCESSORIES
1 Large BPA-free Vacuum Bags - 50 bags (Part 793034)
2 Small BPA-free Vacuum Bags - 50 bags (Part 793033)
3 External Vacuuming Accessory Kit
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1790004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | INTEGRATED VACUUM SEAL DRAWER, 30" VB30SDEI3
OVERVIEW
Panel ready design allows for seamless integration and
customisation of this Vacuum Seal Drawer with kitchen
cabinetry for a cohesive kitchen look. A push-to-open
mechanism and intuitive touch controls oer eortless use,
while three vacuum and heat sealing levels support sous vide
preparation, marinating, and food storage, using reusable and
BPA-free food-grade bags.
PRODUCTS
vB30SDEI3*
30" Series 9 Integrated Vacuum Seal Drawer
*Panel ready.
SERIES & STYLE
Series 9
Integrated
FEATURES
1 Panel ready design allows for seamless integration and
customisation with kitchen cabinetry for a cohesive kitchen
look
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Three levels of vacuum and heat sealing - for easy re-
sealing, food portioning, marinating, storage and extending
shelf life
5 Allows effortless preparation for sous vide cooking
6 Our food-grade, BPA-free bags are an excellent storage
option — these can be re-used if sealed and cut
appropriately
ACCESSORIES
1 Large BPA-free Vacuum Bags - 50 bags (Part 793034)
2 Small BPA-free Vacuum Bags - 50 bags (Part 793033)
3 External Vacuuming Accessory Kit
Integrated Vacuum Seal Drawer VB30SDEI3 with Compact
Combi-Steam Oven OS30NCUDX3
Integrated Vacuum Seal Drawer VB30SDEI3
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1890004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OB30SCPUDX3, OB30SCPSUDX3, OS30SCUDX3SPECIFICATION GUIDE | 30" OVENS AND COMPANIONS

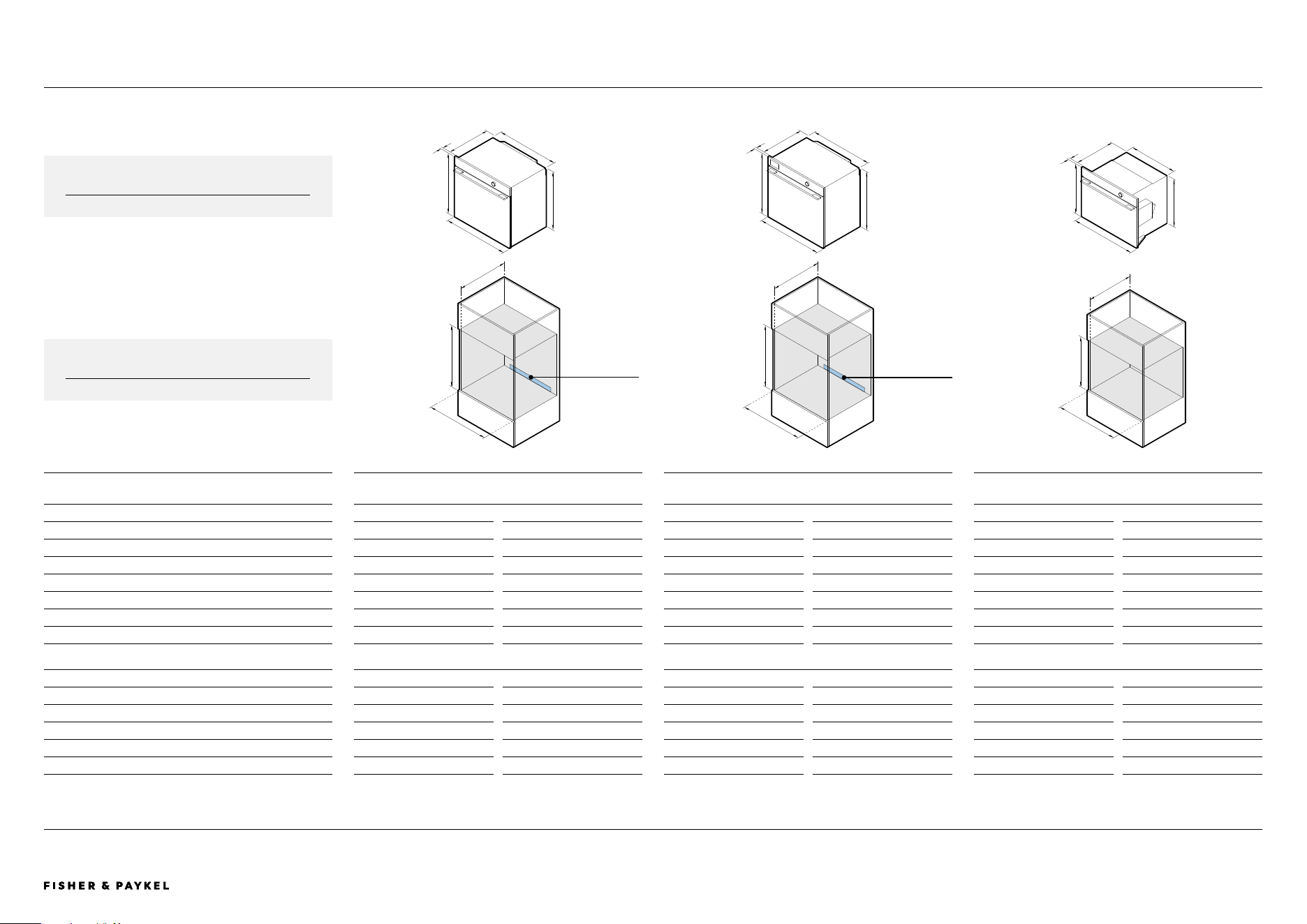

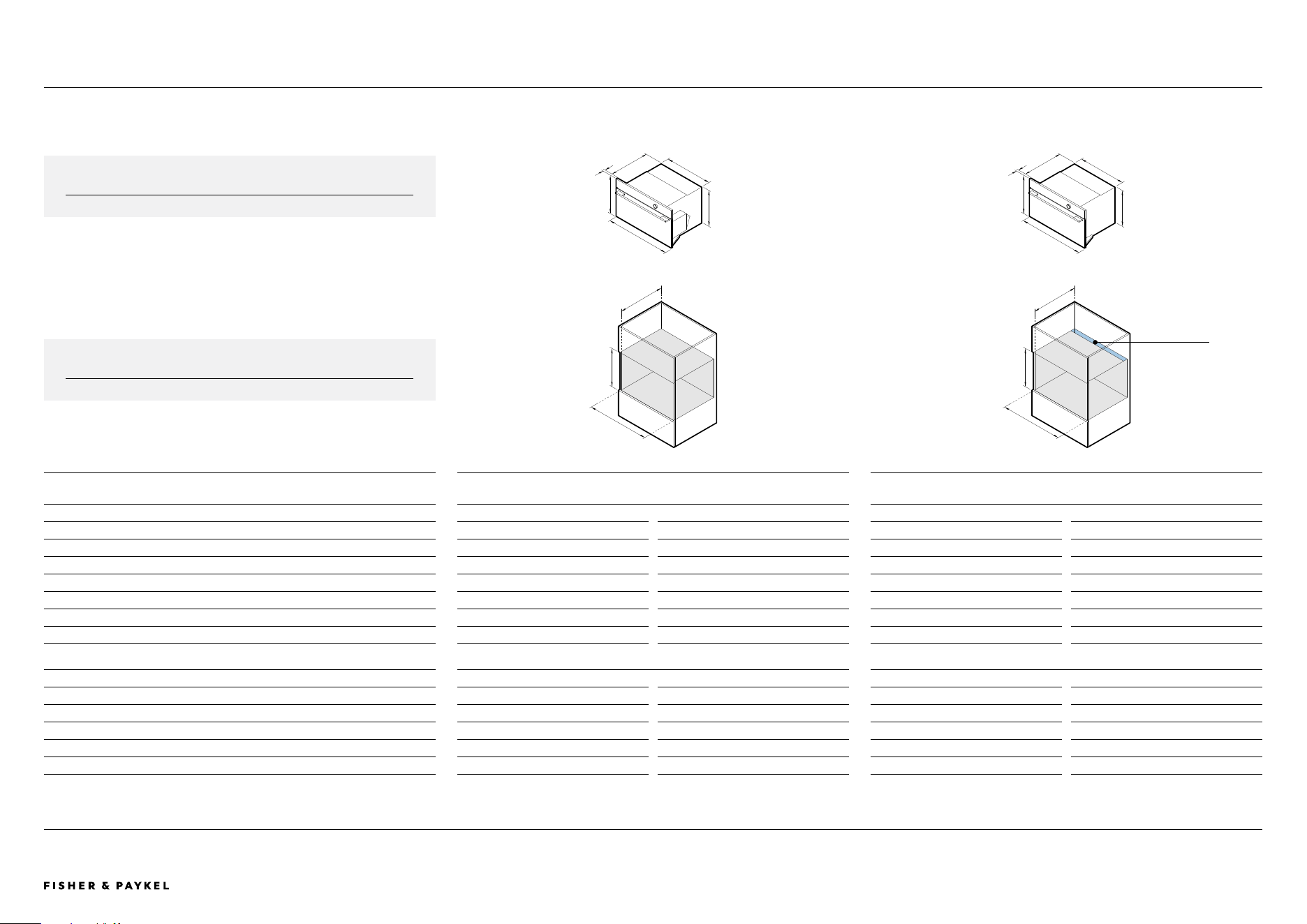

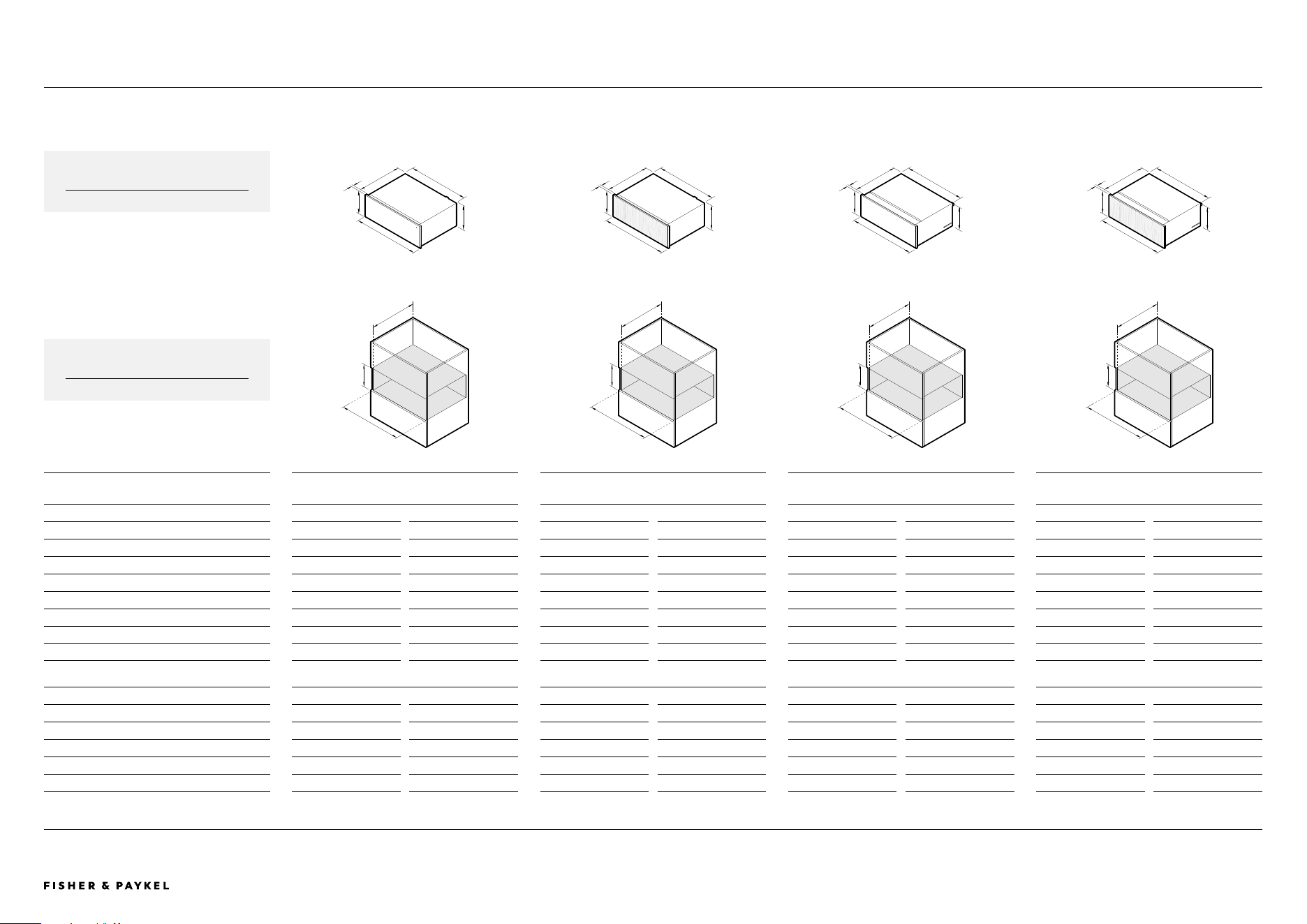

CAVITY DIMENSIONS
PRODUCT DIMENSIONS
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
Ventilation
required
SELF-CLEANING OVEN
OB30SCPUDX3
SELF-CLEANING STEAM ASSIST OVEN
OB30SCPSUDX3
COMBI-STEAM OVEN
OS30SCUDX3
PRODUCT DIMENSIONS inch mm inch mm inch mm
A Overall height 28 11/16 729 28 11/16 729 23 9/16 598
B Overall width 29 7/8 758 29 7/8 758 29 7/8 758
C Chassis height 27 7/8 708 27 7/8 708 22 5/8 575
D Chassis width 28 3/8 720 28 3/8 720 28 3/8 720
E Chassis depth 22 5/8 575 22 5/8 575 22 7/1 6 545
F Control panel thickness 13/16 20 13/16 20 13/16 20
Depth with door fully open* 23 3/8 594 23 3/8 594 18 1/8 460
*Measured from front of control panel.
CAVITY DIMENSIONS inch mm inch mm inch mm
G Minimum inside height of cavity 28 1/32 712 28 1/32 712 22 13/16 580
H Minimum inside width of cavity 28 1/2 724 28 1/2 724 28 1/2 724
I Minimum inside depth of cavity* 23 1/2** 597** 23 1/2** 597** 21 5/8 550
Recommened cabinet height 28 3/4 731 28 3/4 731 24 600
Recommened cabinet width 30 762 30 762 30 762
*Measured from front of chassis.**Requires ventilation at the rear of the cavity.
Ventilation
required
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1990004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OS30NCUDX3, OM30NCUDX3 SPECIFICATION GUIDE | 30" OVENS AND COMPANIONS
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
CAVITY DIMENSIONS
PRODUCT DIMENSIONS
Ventilation
required
COMPACT COMBI-STEAM OVEN
OS30NCUDX3
COMPACT CONVECTION-SPEED OVEN
OM30NCUDX3
PRODUCT DIMENSIONS inch mm inch mm
A Overall height 18 458 18 458
B Overall width 29 7/8 758 29 7/8 758
C Chassis height 17 1/8 435 17 1/8 435
D Chassis width 28 3/8 720 28 3/8 720
E Chassis depth 21 7/16 545 21 7/16 545
F Control panel thickness 13/16 20 13/16 20
Depth with door fully open* 12 5/8 320 12 5/8 320
*Measured from front of control panel.
CAVITY DIMENSIONS inch mm inch mm
G Minimum inside height of cavity 17 5/16 440 17 5/16 440
H Minimum inside width of cavity 28 1/2 724 28 1/2 724
I Minimum inside depth of cavity* 21 5/8 550 21 5/8** 550**
Recommened cabinet height 18 1/8 460 18 1/8 460
Recommened cabinet width 30 762 30 762
*Measured from front of chassis. **Requires ventilation at the rear of the cavity.
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 2090004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
WB30SCX3, WB30SDEI3, VB30SDEI3, VB30SCX3 SPECIFICATION GUIDE | 30" OVENS AND COMPANIONS
A
B
C
D
E
F
g
h
i
WARMING DRAWER
WB30SCX3
INTEGRATED WARMING DRAWER
WB30SDEI3
VACUUM SEAL DRAWER
VB30SDEI3
INTEGRATED VACUUM SEAL DRAWER
VB30SCX3
PRODUCT DIMENSIONS inch mm inch mm inch mm inch mm
A Overall height 10 11/16 271 10 11/16 271 10 11/16 271 10 11/16 271
B Overall width 29 7/8 758 29 7/8 758 29 7/8 758 29 7/8 758
C Chassis height 10 11/16 271 10 11/16 271 10 11/16 271 10 11/16 271
D Chassis width 27 3/4 704 27 3/4 704 28 1/2** 724** 28 1/2** 724**
E Chassis depth* 21 9/16 547 21 9/16 547 21 11/16 551 21 11/16 551
F Front panel thickness 13/16 20 min 5/8*** min 16*** 13/16 20 min 5/8*** min 16***
Front panel height 10 1/2 267 10 1/2 267 10 1/2 267 10 1/2 267
Front panel width 29 7/8 758 29 7/8 758 29 7/8 758 29 7/8 758
*Including power plug. **Including side brackets. ***A clearance of 1/16" (2mm) between the cabinet and the custom panel is required for the push-to-open mechanism (spacer included). Maximum custom panel weight 11 lb (5kg).
CAVITY DIMENSIONS inch mm inch mm inch mm inch mm
G Minimum inside height of cavity 10 3/4 273 10 3/4 273 10 3/4 273 10 3/4 273
H Minimum inside width of cavity 28 1/2 724 28 1/2 724 28 1/2 724 28 1/2 724
I Minimum inside depth of cavity* 22 13/16 580 22 13/16 580 22 13/16 580 22 13/16 580
Recommened cabinet height 10 3/4 273 10 3/4 273 10 3/4 273 10 3/4 273
Recommened cabinet width 30 762 30 762 30 762 30 762
*Measured from front of chassis.
Note: Drawers can fully support 30inch Fisher & Paykel ovens, without adding shelf in between.
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
CAVITY DIMENSIONS
PRODUCT DIMENSIONS
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 2190004606A PLANNING GUIDE 30" ovENS AND CoMPANIoNS vERSIoN A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
ALL MODELS
SELF-CLEANING OVEN
OB30SCPUDX3
SELF-CLEANING STEAM
ASSIST OVEN
OB30SCPSUDX3
COMBI-STEAM OVEN
OS30SCUDX3
COMPACT COMBI-STEAM
OVEN
OS30NCUDX3
COMPACT CONVECTION-
SPEED OVEN
OM30NCUDX3
WARMING DRAWER
WB30SCX3, WB30SDEI3
VACUUM SEAL DRAWER
VB30SCX3, VB30SDEI3
PRODUCT REQUIREMENTS
Supply 208 or 240 V, 60 Hz 208 or 240 V, 60 Hz 208 or 240 V, 60 Hz 208 or 240 V, 60 Hz 208 or 240 V, 60 Hz 120 V, 60 Hz 120 V, 60 Hz
Service 20 A 20 A 20 A 20 A 20 A 10 A 10 A
Connection
Hard wired
78 3/4"(2000mm)
Hard wired
78 3/4"(2000mm)
Hard wired
78 3/4"(2000mm)
Hard wired
78 3/4"(2000mm)
Hard wired
78 3/4"(2000mm)
Plug with flex cord
70 7/8" (1800mm)
Plug with flex cord
70 7/8" (1800mm)
CAPACITY
Total Oven capacity 4.9cu ft (137L) 4.9cu ft (137L) 3cu ft (85L) 1.9cu ft (55L) 1.7cu ft (49L) - -
Total water tank capacity - 22.65fl oz (0.67L) 47.3fl oz (1.4L) 47.3fl oz (1.4L) - - -
Note: Steam Ovens have internal water tanks which need to be filled manually. No external water supply is required.
SERVICES | 30" OVENS AND COMPANIONS

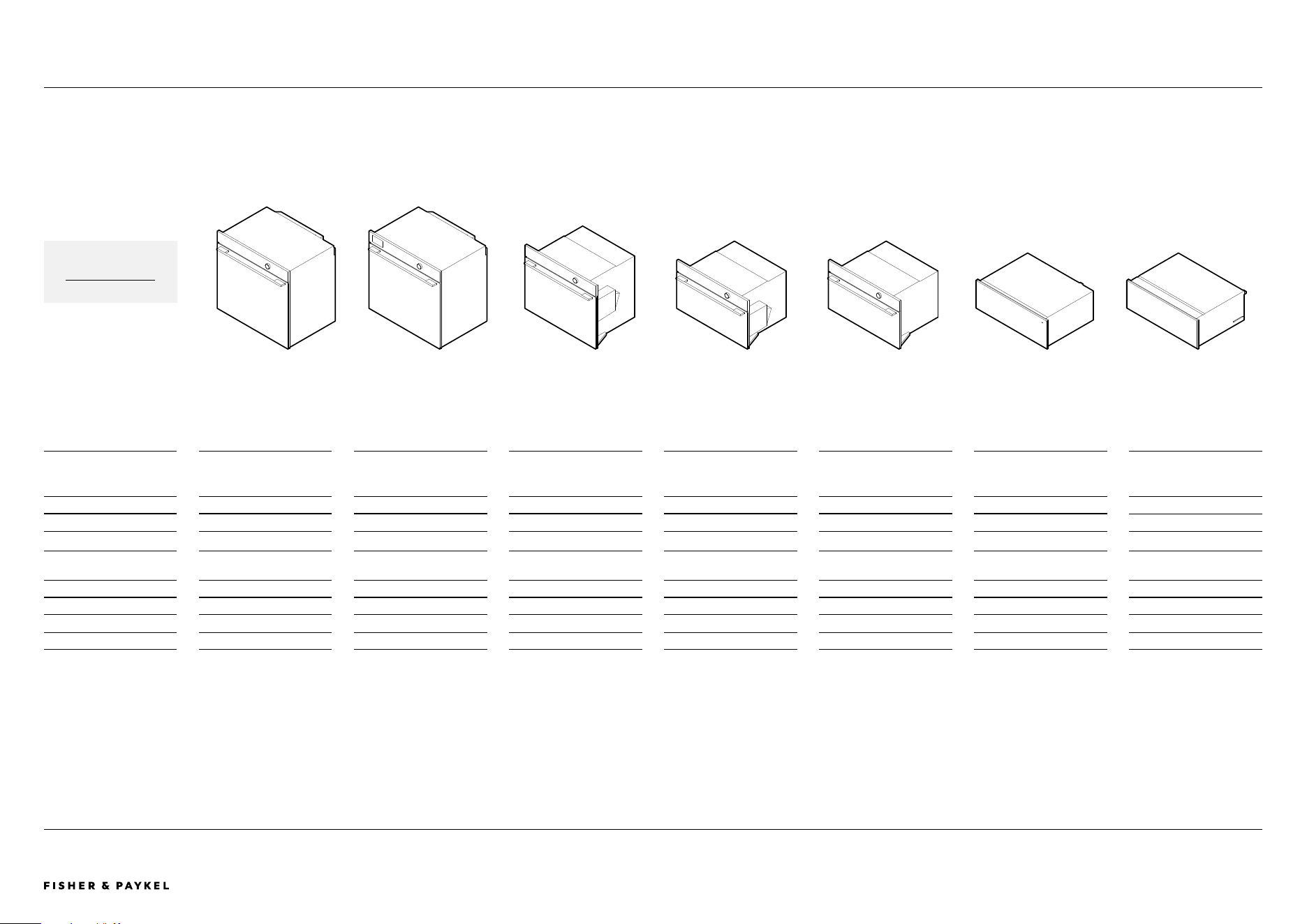

ISOMETRIC VIEW
<< CONTENTS
