4 INCH x 6 INCH
METAL BANDSAW
Instruction Manual
MODEL BA4664
2
CONTENTS
WELCOME 3
Introduction ......................................................................................................3
Specifications ................................................................................................... 3
SAFETY 4
General Safety Rules ........................................................................................ 4
Specific Rules for Your Metal Band Saw .......................................................... 6
Electrical Information ....................................................................................... 8
BEFORE OPERATING 9
Unpacking & Transportation ............................................................................ 9
Know Your Metal Band Saw ........................................................................... 10
Assembly & Adjustments ............................................................................... 11
OPERATION & MAINTENANCE 15
Operation ....................................................................................................... 15
Maintenance ....................................................................................................16
Troubleshooting Guide ................................................................................... 19
Exploded View & Parts List ............................................................................ 21
Warranty Statement ....................................................................................... 25
To purchase accessories for your tool, visit WENPRODUCTS.COM
Replacement Blades (Part No. 3970-044 or BB6450)
INTRODUCTION
Thanks for purchasing the WEN Metal Bandsaw. We know you are excited to put your tool to work, but first, please
take a moment to read through the manual. Safe operation of this tool requires that you read and understand this
operator’s manual and all the labels affixed to the tool. This manual provides information regarding potential safety
concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-800-232-1195.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. The safety symbols and the explanations
with them deserve your careful attention and understanding. Always follow the safety precautions to reduce the
risk of fire, electric shock or personal injury. However, please note that these instructions and warnings are not
substitutes for proper accident prevention measures.
SPECIFICATIONS
Model Number BA4664
Motor 120V, 60 Hz, 4.6A
Saw Blade 64-1/2 in. x 1/2 in. x 0.025 in., 14 TPI, Bimetal
Square Cutting Capacity
At 90°: 4 in. x 6 in.
At 45°: 3-1/2 in. x 3 in.
Round Cutting Capacity
At 90°: ø 4-1/2 in.
At 45°: ø 3 in.
Cutting Angle Adjustment 0° to 45°
Blade Speed 80, 120, 180 FPM
Oil Type L-CKE gear oil, ISO VG 220 (SAE 90, AGMA 5)
Oil Quantity 3 fl oz. (90 mL)
Weight 109 pounds
Product Dimensions 37 in. x 20-1/2 in. x 38 in.
3
GENERAL SAFETY RULES
4 5
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liq-
uids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
3. Keep children and bystanders away while operat-
ing a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodi-
fied plugs and matching outlets will reduce risk of elec-
tric shock.
2. Avoid body contact with earthed or grounded sur-
faces such as pipes, radiators, ranges and refrigera-
tors. There is an increased risk of electric shock if your
body is earthed or grounded.
3. Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the risk
of electric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of elec-
tric shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk
of electric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respi-
ratory mask, non-skid safety shoes and hearing protec-
tion used for appropriate conditions will reduce the risk
of personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
GENERAL SAFETY RULES
4 5
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
SAW BLADE SAFETY
1. Always wear protective gloves when handling saw
blades.
2. Only use blades with correct size and type for both
your Metal Bandsaw and your workpiece.
• The size of the saw blade is 64-1/2 x 1/2 inches.
• The blade material is bimetal with 14 TPI.
3. Never use damaged or deformed saw blades. Only
use sharp blades.
4. Install the saw blade in the correct orientation indi-
cated in the instructions (see “Changing the Saw Blade”,
page 16).
5. Keep hands out of path of saw blade. Never use your
hands to remove metal chips by hangd. Use a brush at
all times.
6. Never reach around saw blade or reach in back of the
saw blade.
7. The use of accessories or attachments not recom-
mended by the manufacturer may result in a risk of per-
sonal injury.
PERSONAL SAFETY
1. Operate in a well ventilated area. Keep the floor area
around the Metal Bandsaw level and free of slippery
substances or other tripping hazards.
2. Wear ANSI-approved safety goggles to protect your
eyes from sparks and metal chips. Use hearing protec-
tion to protect yourself from hearing loss.
3. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in close
proximity to pacemakers could cause pacemaker inter-
ference or pacemaker failure.
4. Wear work gloves when handling saw blades. DO
NOT wear gloves, neckties, jewelry, or loose clothing
while operating the saw.
5. Metal chips are harmful to your health. Use NIOSH-
approved dust masks or other respiratory protection
during operation and cleaning.
6. Always turn off and unplug the Metal Bandsaw before
making any adjustments or repair tasks. Never adjust
the Metal Bandsaw or the workpiece while the saw is
running.
7. Only use the Metal Bandsaw to cut metal.
PREPARING THE METAL BANDSAW
When transporting the Metal Bandsaw, use the trans-
portation handle and roll the assembled saw with the
wheels. Never carry the device by its guards or its
accessories.
1. Examine the Metal Bandsaw for any damaged or
missing parts. Replace or repair damaged parts before
operation. Periodically check that all nuts, bolts and
other fasteners are properly tightened.
SECURE YOUR WORKPIECE
1. To avoid blade binding or loss of control, always se-
cure the workpiece to a stable platform, ensuring that
body exposure is minimized. Use clamps to secure the
workpiece. Never perform any operation freehand.
SPECIFIC RULES FOR YOUR METAL BANDSAW
WARNING! Do not operate the power tool until you have read and understood the following instructions
and the warning labels.
6
2. Ensure that work is correctly supported. Supports
must be placed under the workpiece on both sides,
close to the line of cut and near the edge of the work-
piece.
3. For accuracy of cut, and to avoid blade binding, al-
ways use a rip fence or straight edge guide.
4. Never hand-hold a workpiece that is too small to be
clamped, as it can be launched away and cause inju-
ry. Use proper support and guides to secure the small
workpiece.
DURING CUTTING OPERATIONS
1. Always stand to one side when operating the saw.
Never have any part of the body in line with the path of
the saw. Never hold a workpiece in your hand or across
your legs while cutting.
2. Ensure hands are away from the cutting area and
blade. Keep one hand on the rear handle, and the other
on the front grip. If both hands are holding the tool they
cannot be cut by the blade.
3. Feed work into the blade against the direction of rota-
tion of the blade only.
4. If you are interrupted when operating the saw, com-
plete the process and switch the saw off before looking
up.
5. Power tools must always be held by the insulated
gripping surfaces when performing an operation, en-
suring protection if the cutting tool makes contact with
its own cord or hidden wiring. Contact with a ‘live’ wire
will make exposed metal parts of the power tool ‘live’
and shock the operator if the insulated gripping surfac-
es are not used.
6. Do not use the Metal Bandsaw unless all guards are
in place. Do not operate with any guard disabled, dam-
aged, or removed. Moving guards must move freely and
close instantly.
7. Turn on the Metal Bandsaw and let it reach full speed,
then slowly slide the saw into the workpiece. This will
help produce safer and cleaner cuts.
8. Never cut more than one piece at a time. Do not stack
workpieces together. Do not attempt to cut material
thicker than specified on page 2 of this manual. Adjust
the cutting depth to the thickness of the workpiece.
9. If a cut does not extend to the edge of the workpiece,
or if the blade binds in the cut, allow the blade to come
to a complete stop and lift the saw out of the workpiece.
10. Turn off tool and wait for saw blade to stop before
moving workpiece or changing settings. Do not slow
or stop a blade with a piece of wood or by hand. Let
the blade come to rest naturally. Do not attempt to free
a jammed blade while the machine is still running and
connected to power.
11. Always raise the blade to be covered by the blade
guard after use.
SPECIFIC RULES FOR YOUR METAL BANDSAW
WARNING! Do not operate the power tool until you have read and understood the following instructions
and the warning labels.
7
ELECTRICAL INFORMATION
8
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
4.6A 18 gauge 16 gauge 14 gauge 14 gauge
3. Check
with a licensed electrician or service personnel if you do not completely
understand the grounding instructions or whether the tool is properly grounded.
4. Use only three-wire extension cords
that have three-pronged plugs and outlets
that accept the tool’s plug (INSERT CR). Repair or replace a damaged or worn
cord immediately.
CAUTION!
In all cases, make certain the outlet in question is properly grounded. If
you are not sure, have a licensed electrician check the outlet.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown
, grounding provides the path of least resistance for an electric
current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an
equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching outlet
that is properly installed and grounded in accordance with ALL local codes and ordinances.
1. Do not modify the plug provided.
If it will not fit the outlet, have the proper outlet installed by a licensed
electrician.
2. Improper connection
of the equipment grounding conductor can result in electric shock. The conductor
with the green insulation (with or without yellow stripes) is the equipment grounding conductor. If repair or
replacement of the electric cord or plug is necessary, DO NOT connect the equipment grounding conductor
to a live terminal.
1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling
on plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension
cord. Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should
be protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch
is in the OFF position and the electric current is rated the same as the current stamped on the motor nameplate.
Running at a lower voltage will damage the motor.
Fig. 1
When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table below shows
the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
UNPACKING
With the help of a friend or trustworthy foe, carefully remove the Metal Bandsaw from the packaging. Make sure to
take out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing
list below to make sure you have all of the parts and accessories. If any part is missing or broken, please contact
our customer service at 1-800-232-1195 (M-F 8-5 CST), or email [email protected].
PACKING LIST (NOTE: The key is tied to the motor shaft. Hardware bag included but not shown below.)
ASSEMBLY/ADJUSTMENT TOOLS
The tools listed below are not included but are required for either assembly or adjustment:
• 14mm open end wrench (2)
• 10mm open end wrench (2)
TRANSPORTING
When transporting the Metal Bandsaw, use the transportation handle and roll the assembled saw with the
wheels. Never carry the saw by its guards or its accessories.
UNPACKING & TRANSPORTATION
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure
to follow the safety instructions may result in serious personal injury.
9

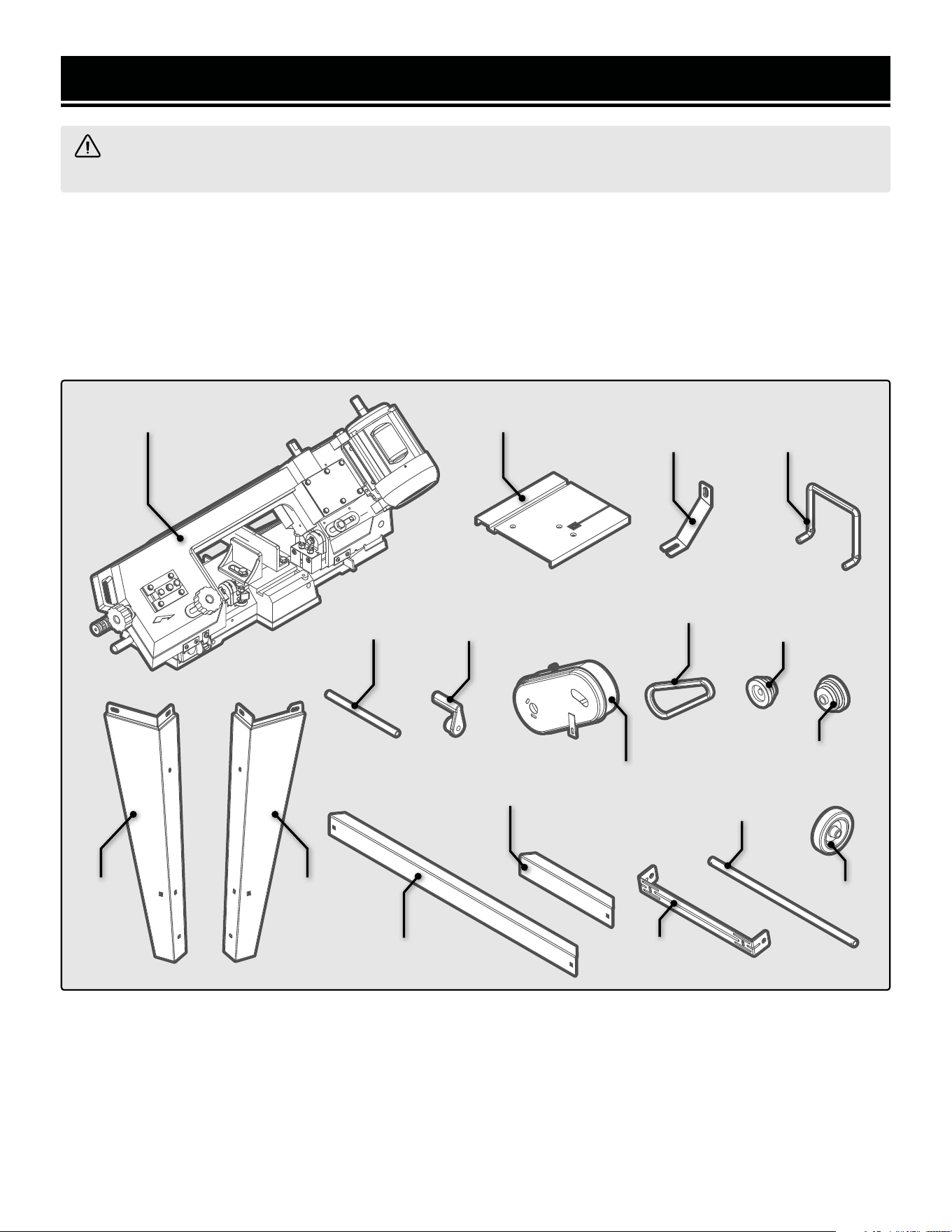

Band Saw (1)
Stand
Leg A
(2)
Stand
Leg B
(2)
Long Brace
(2)
Short
Brace (2)
Table (1)
Work Stop
Rod (1)
Work Stop
(1)
Belt
Housing (1)
V-Belt (1) Motor
Pulley (1)
Work Gear
Pulley (1)
Wheel (2)
Shaft (1)
Whell Mounting
Bracket (1)
Table
Support (1)
Transportation
Handle (1)
10
KNOW YOUR METAL BANDSAW
TOOL PURPOSE
Metal Bandsaws are used to cut flat and round pieces of metal. Refer to the following diagrams to become familiar-
ized with all the parts and controls of your Metal Bandsaw. The components will be referred to later in the manual
for assembly and operation instructions.

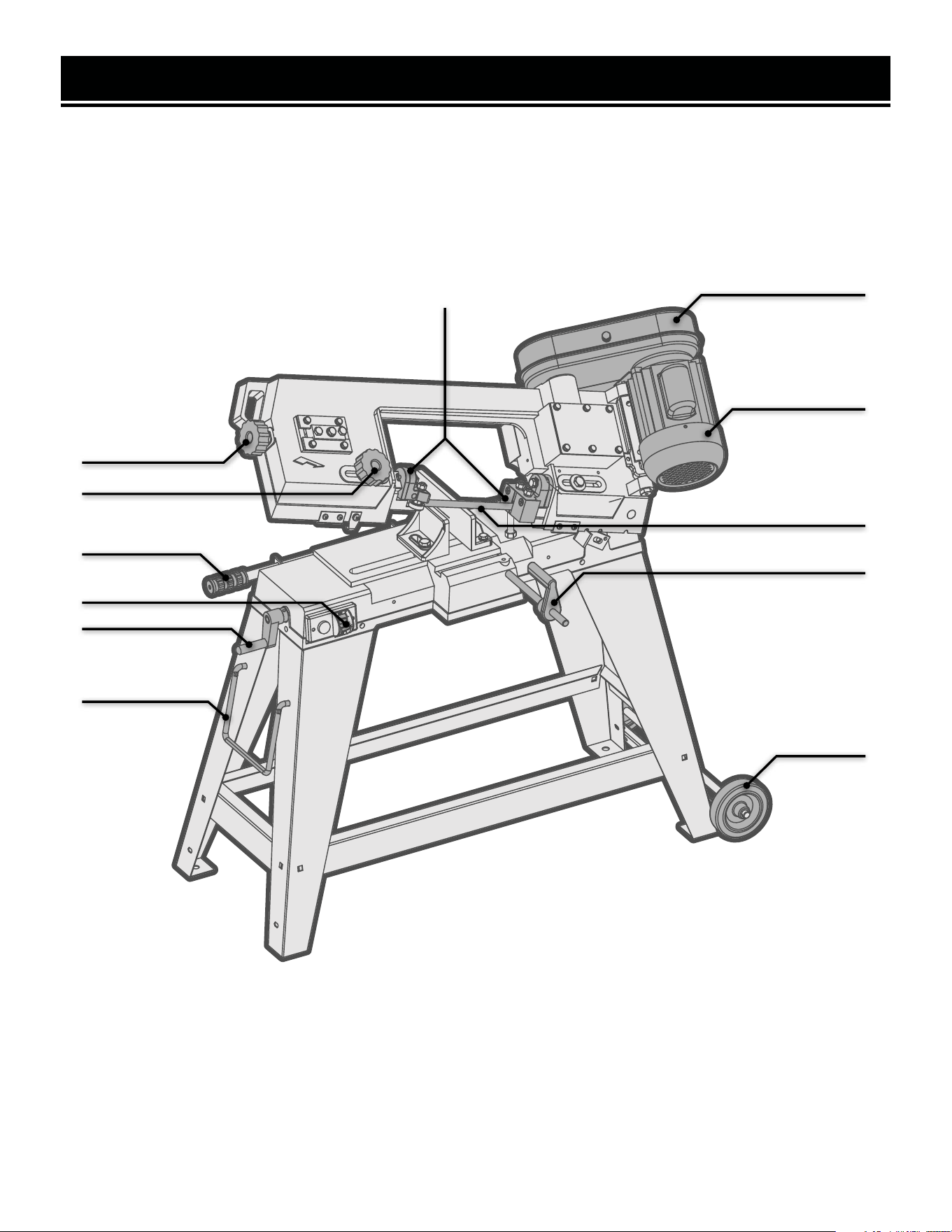

A. Blade Guides
B. Blade Tension & Adjustment Knob
C. Blade Guard Adjustment Knob
D. Feed Rate Adjustment Handle
E. Power Switch
F. Vise Adjustment Handle
G. Transportation Handle
H. Wheel
I. Work Stop Assembly
J. Blade
K. Motor
L. Belt Housing
10
D
F
G
H
B
A
K
L
C
E
I
J
ASSEMBLY & ADJUSTMENTS
11
ASSEMBLING THE STAND

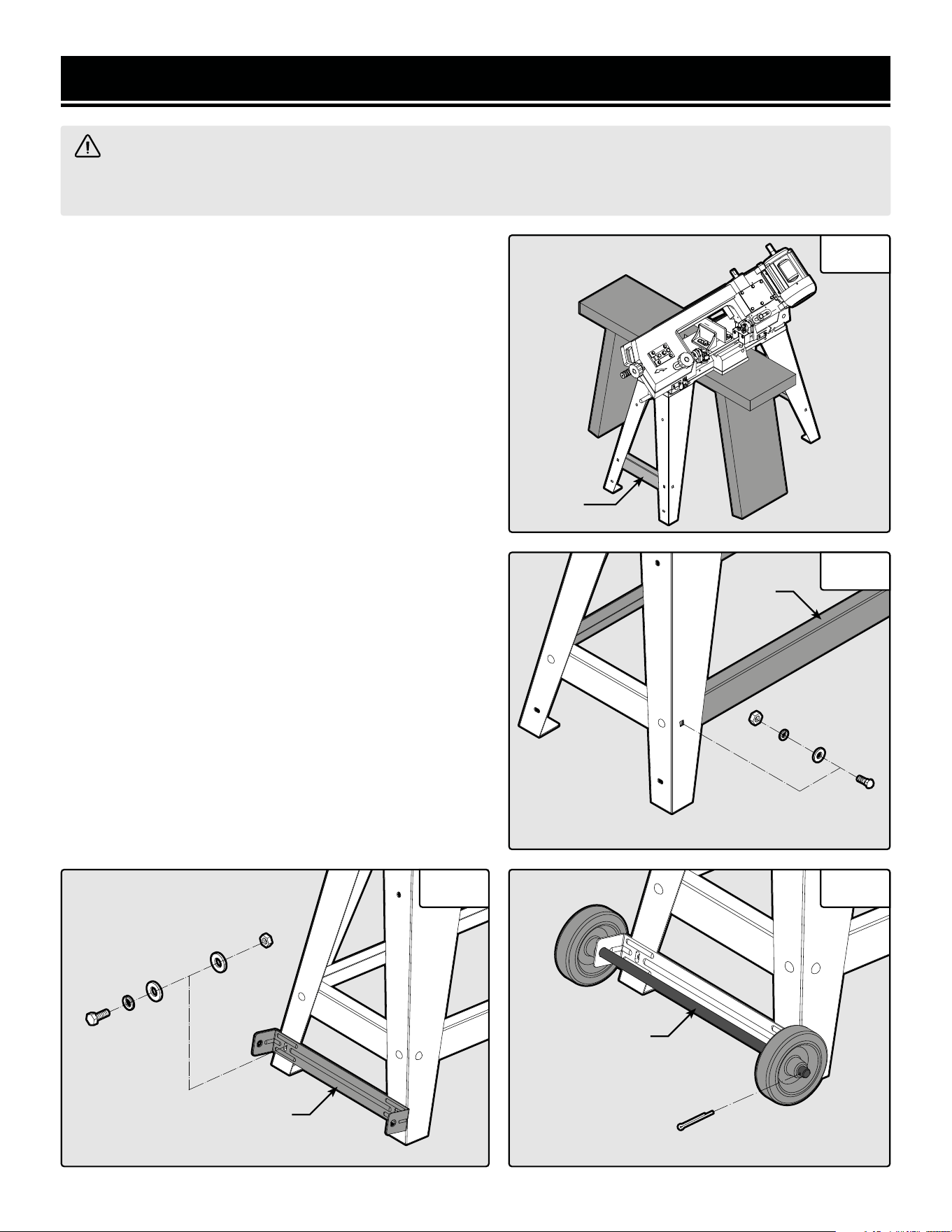

1. With the help of an assistant, lift the bandsaw onto a
suitable support (Fig. 2).
2. Attach the legs to the bandsaw with the M8-1.25x25 hex
bolts, 8mm flat washers, 8mm lock washers, and the M8-
1.25 hex nuts. Hand tighten.
3. Attach the short braces (Fig. 2) to the legs with the M6-
1.0x16 carriage bolts, 6mm flat washers, 6mm lock wash-
ers, and M6-1.0 hex nuts. Hand tighten.
4. Lift the bandsaw off of the support and onto the floor.
Attach the long braces (Fig. 3) to the legs with M6-1.0x16
carriage bolts, 6mm flat washers, 6mm lock washers, and
M6-1.0 hex nuts. Hand tighten.
5. Use the M6-1x12 hex bolts, M6-1 hex nuts, 6mm lock
washers, and the 6mm flat washers to install the wheel
mounting brackets (Fig. 4) onto the legs. Hand tighten.
6. Slide the shaft through the holes in the wheel mounting
bracket. Slide the wheels onto the shaft on the outside of
the mounting bracket and secure them with the cotter pins.
See Fig. 5.
7. Check to see if the bandsaw is relatively level, then the
tighten all of the nuts using the proper wrenches.
Instructions continue on the next page.
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.
Fig. 2
Short
Brace
Long
Brace
Wheel
Mounting Bracket
Shaft
Fig. 3
Fig. 4 Fig. 5
ASSEMBLING THE STAND (CONTINUED)

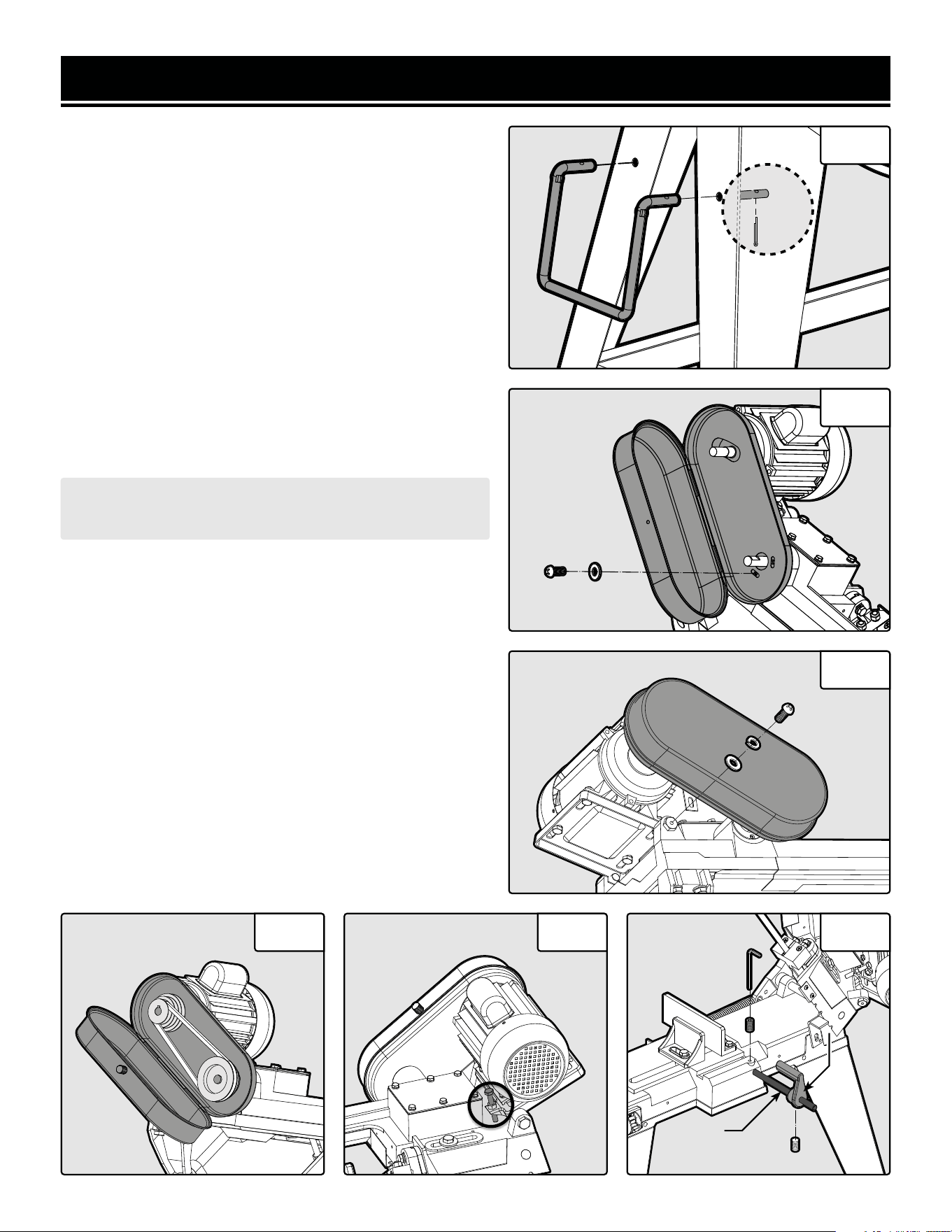

8. Locate the holes on the legs opposite the wheels. Insert
the transportation handle into the holes and secure it with
the cotter pins (Fig. 6).
9. Remove the screws and washers from where the belt
housing needs to be mounted. Place the belt housing over
the motor and gear shafts. Secure it with the removed
screws and washers (Fig. 7 & Fig. 8).
10. Open the pulley cover. Remove the key from the motor
shaft and clean the motor shaft. Install the key and motor
pulley to the motor shaft (Fig. 9).
11. Install the worm gear pulley on the shaft closest to the
gear box, opposite of the motor (Fig. 9).
ASSEMBLY & ADJUSTMENTS
NOTE: Make sure to pay attention to the direction of the
pulley’s installation.
12
12. Use a straight edge to check the alignment of the pulley
wheels and adjust them as needed (Fig. 9).
13. When the pulley wheels are aligned, tighten the set
screws on both pulleys and install the V-belt. The belt ten-
sion can be adjusted with the motor lock bolt (Fig. 10).
14. Slide the work stop shaft into the side of the bandsaw.
Lock it into place by tightening the upper set screw. See
Fig. 11.
15. Slide the work stop onto the end of the work stop shaft
and lock it into place with the lower set screw.
Fig. 6
Fig. 7
Fig. 8
Fig. 9 Fig. 10 Fig. 11
Shaft
Work StopWork Stop

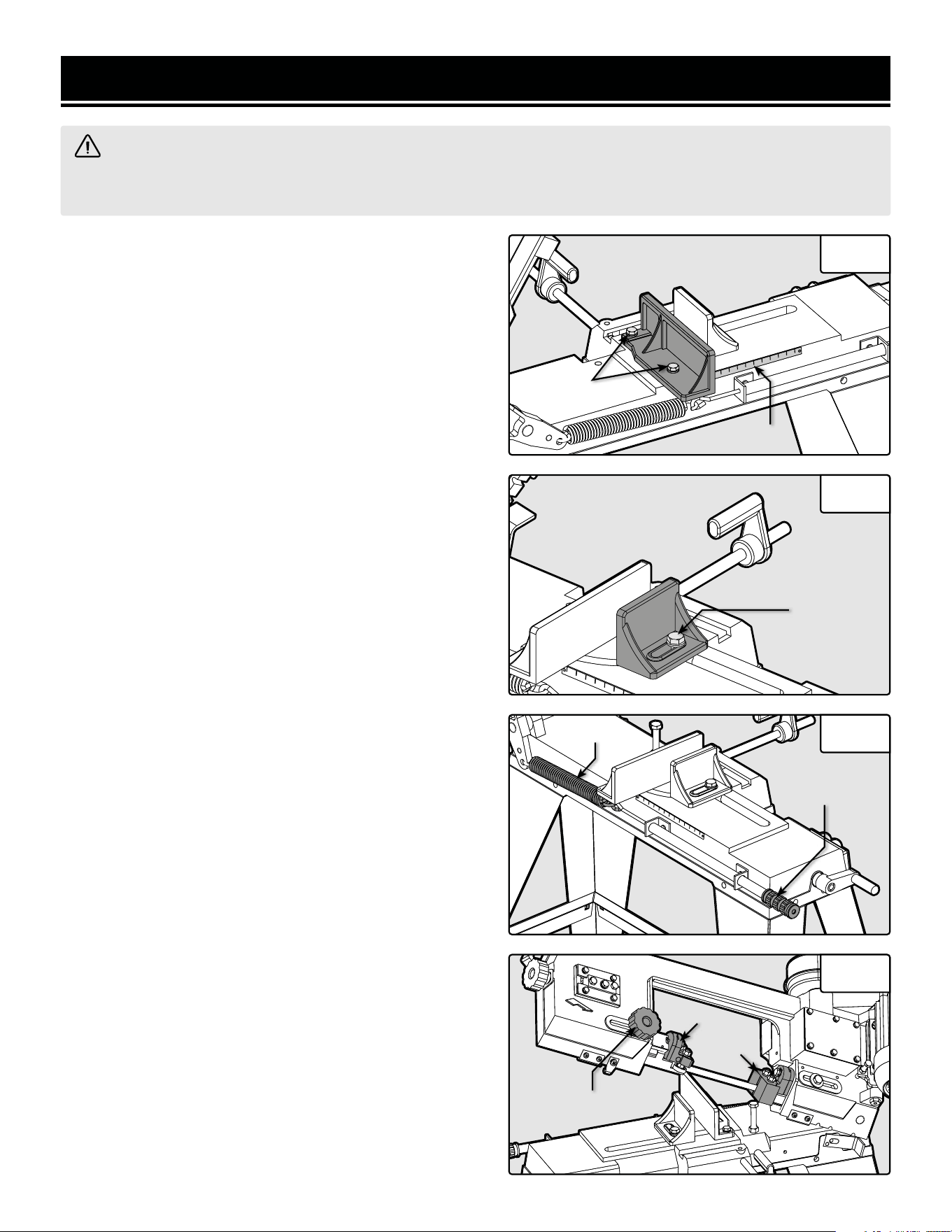

ADJUSTING THE VISE
1. Loosen the two hex bolts on the large jaw. Use the scale
as a guide to set your angle. Retighten the hex bolts. See
Fig. 12.
2. Loosen the hex bolt on the small jaw. Match the angle of
the workpiece. Retighten the hex bolt. See Fig. 13.
3. Use the handle (Fig. 14) to open or close the jaws. Tight-
en the vise against the workpiece.
ADJUSTING THE BLADE GUIDE
Loosen the knob and slide the blade guide as close to the
workpiece as possible, then re-tighten the knob. See Fig.
15.
ADJUSTING THE FEED RATE
The feed rate has been set at the factory and should not
need any adjustment. If adjustment is necessary follow the
steps below.

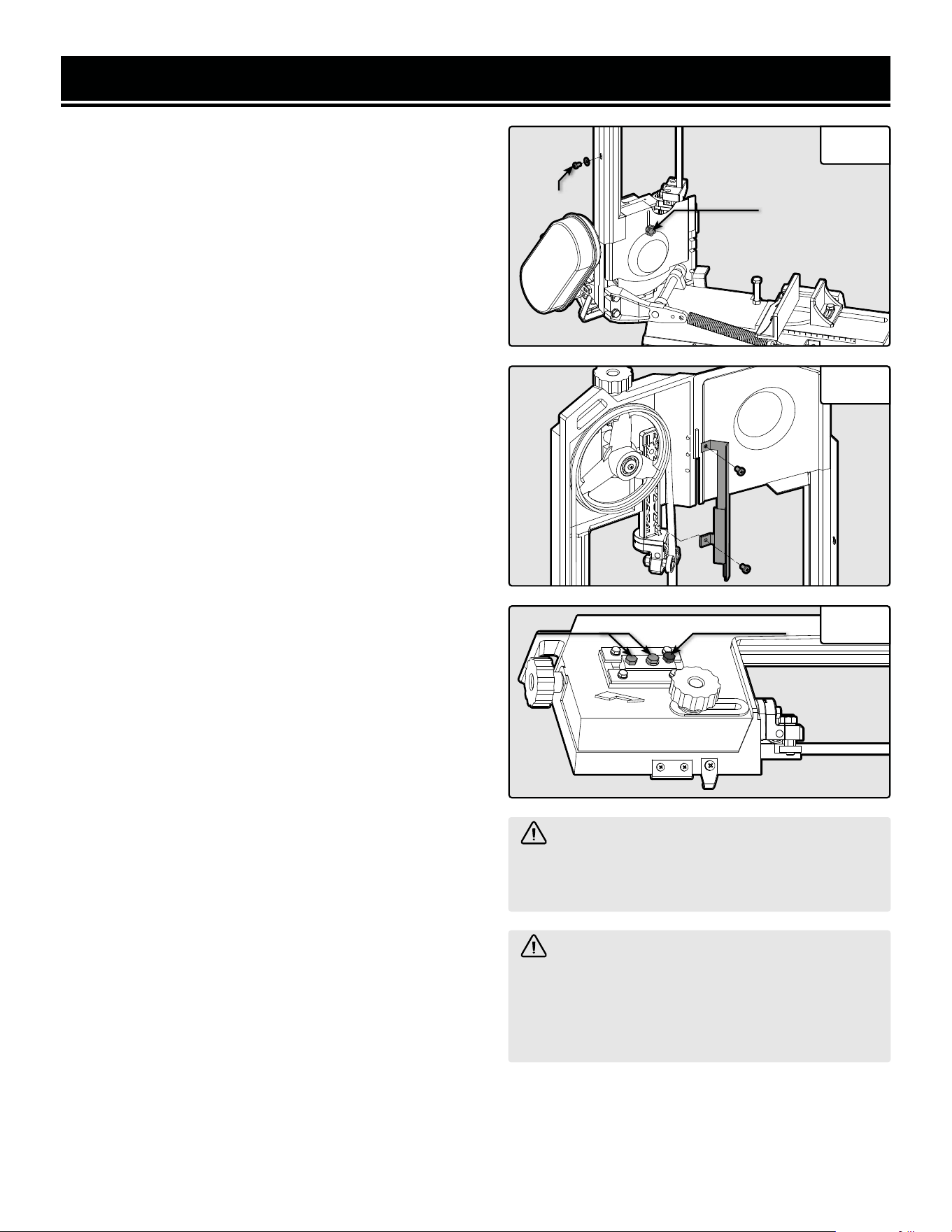

1. The feed rate is controlled by the spring and handle. See
Fig. 14
• Twist the handle clockwise to add tension to the spring
and decrease the feed rate.
• Twist the handle counterclockwise to remove the ten-
sion from the spring and increase the feed rate.
ASSEMBLY & ADJUSTMENTS
13
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.
Fig. 12
Fig. 13
Fig. 14
Hex
Bolts
Scale
Hex Bolt
Handle
Spring
Fig. 15
Knob
Blade
Guides

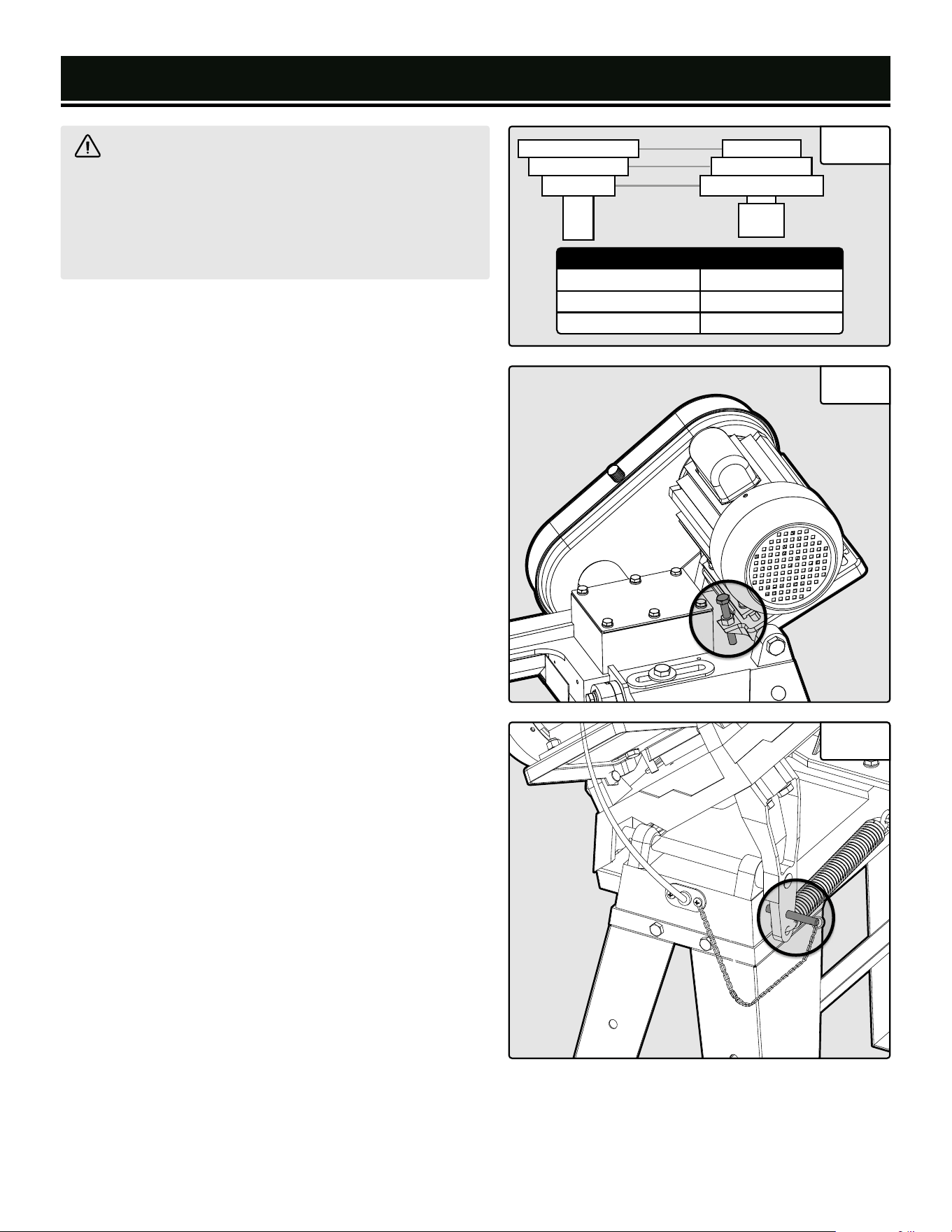

ADJUSTING THE BLADE SPEED
The bandsaw is capable of operating at 80, 120 or 180
FPM. The speed can easily be adjusted by changing the V-
belt placement (Fig. 16).
To change the blade’s speed:
1. Loosen the motor lock bolt (Fig. 17) to allow the motor
to pivot freely.
2. Raise the motor to relieve the belt tension and position
the belt into the desired pulley alignment.
3. Release the motor and let its weight tension the belt.
4. Tighten the motor lock bolt back against the frame of the
band saw. Tighten the nut against the motor plate.
USING THE HEAD LOCK PIN
The head locking pin (Fig. 18) safely secures the head in
the down position. To ensure the head does not unexpect-
edly spring up and tip the bandsaw over, this locking pin
must be properly inserted when the band saw is not in use
or before moving it.
To use the head locking pin:
1. Fully lower the head down.
Insert the locking pin through the holes in the head pivot
arm and base, locking the head into the down position
(Fig. 18).
ASSEMBLY & ADJUSTMENTS
14
WARNING! Do not plug in or turn on the tool until
it is fully assembled according to the instructions. Read
through and become familiarized with the following
procedures of handling and adjusting your tool. Failure
to follow the safety instructions may result in serious
personal injury.
A
B
C
SPEED
A
B
C
FPM
80
120
180
Fig. 16
Fig. 17
Fig. 18
OPERATION
15

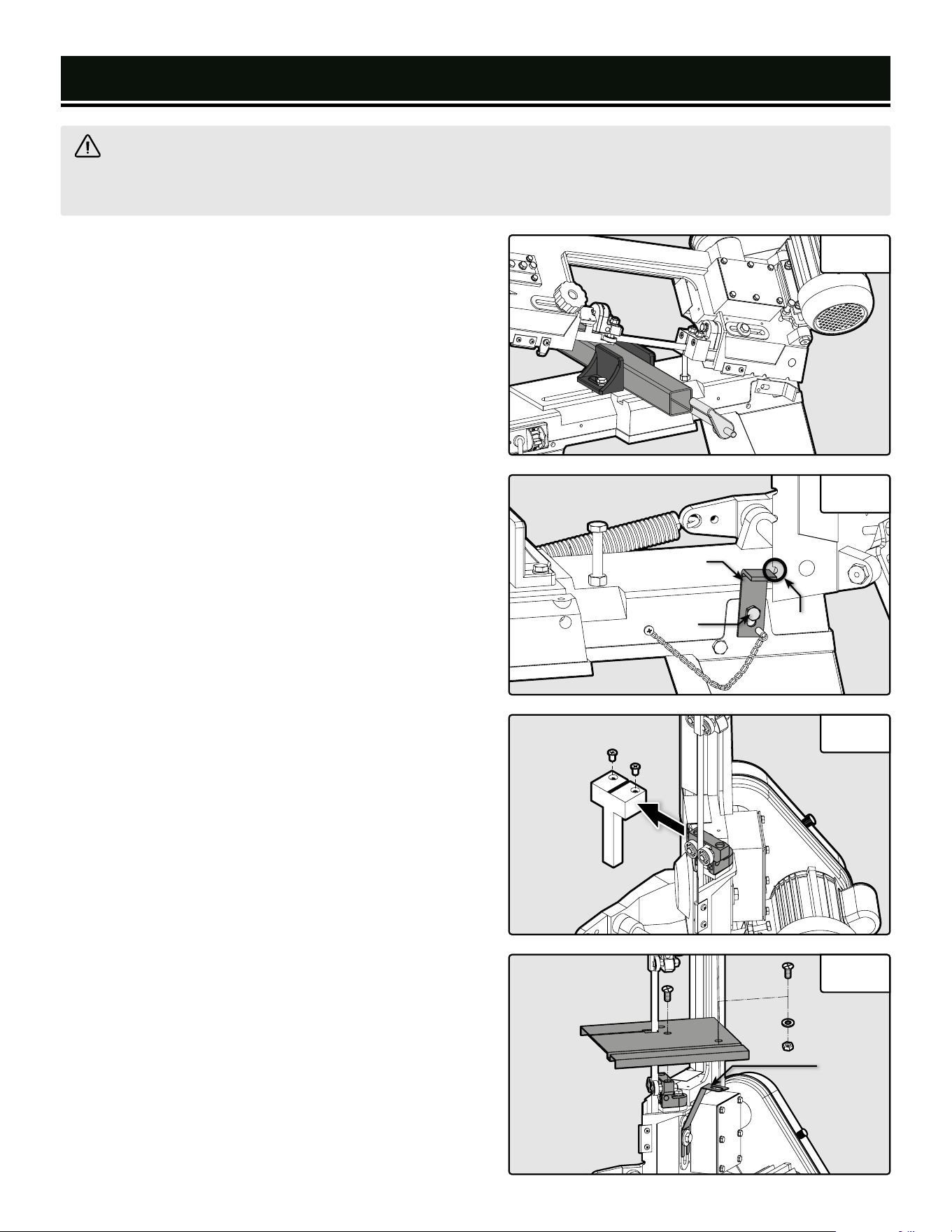

HORIZONTAL CUTTING (FIG. 19)
Use the work stop to quickly and accurately cut multiple
pieces of stock to the same length.
1. Clamp the material firmly in the vise jaws to ensure a
straight cut through the material.
2. Let the blade reach full speed before engaging the work-
piece. Never start a cut with the blade in contact with the
workpiece. NOTE: Chips should be curled and silvery. If the
chips are thin and powder-like, increase your feed rate. If
the chips are burned, reduce the blade speed.
3. Wait until the blade has completely stopped before re-
moving the workpiece from the vise. Avoid touching the cut
ends, as they could be very hot.
VERTICAL CUTTING
Workpieces that cannot be properly supported or stab-
alized without a vise should not be cut in the vertical posi-
tion. Make sure that the vertical table assembly is securely
fastened to the band saw frame so it will adequately sup-
port the workpiece.
Always keep your fingers away from the blade. Adjust the
blade guides as close as possible to the workpiece to mini-
mize side-to-side blade movement.
To assemble the bandsaw for vertical cutting:
1. Disconnect the bandsaw from the power supply.
2. Install the safety bracket and lock it into place with the
pin to keep the saw from falling. The bracket should catch
on the notch. See Fig. 20.
3. Remove the two flat head screws and the blade guide
cover. See Fig. 21.
4. Install the table and replace the two screws that you re-
moved in step 3. See Fig. 22.
5. Install the table support (Fig. 22) with the pre-installed
hex bolt, the flat head screw, and the hex nut.
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.
Fig. 19
Fig. 21
Fig. 22
Fig. 20
Safety
Bracket
Pin Notch
Table
Support
ROUTINE INSPECTION
Before each use, inspect the general condition of the
tool. If any of these following conditions exist, do not
use until parts are replaced or the saw is properly re-
paired.
Check for:
• Loose hardware,
• Damaged or dull blades,
• Misalignment or binding of moving parts,
• Damaged cord/electrical wiring,
• Cracked or broken parts, and
• Any other condition that may affect its safe operation.
CLEANING & STORAGE
1. Keep the ventilation openings free from dust and de-
bris to prevent the motor from overheating.
2. Use a brush and a shop vacuum to remove chips and
other debris from the machine.
3. Wipe the tool surfaces clean with a clean cloth. Make
sure water does not get into the tool.
CAUTION! Most plastics are susceptible to damage
from various types of commercial solvents. Do not use
any solvents or cleaning products that could damage
the plastic parts. Some of these include but are not
limited to: gasoline, carbon tetrachloride, chlorinated
cleaning solvents, and household detergents that con-
tain ammonia.
4. Store the tool in a clean and dry place away from the
reach of children. Store in temperatures between 41° to
86°F. If you do not intend to use the sawing machine for
a long time, remove the blade entirely (recommended)
or relieve tension on the blade. This will prevent warp-
ing and prolong your blade's life.
MAINTENANCE
WARNING! To avoid accidents, turn OFF and unplug the tool from the electrical outlet before cleaning,
adjusting, or performing any maintenance work.
WARNING! Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the
tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts.
Use of other parts may be hazardous or induce product failure.
16

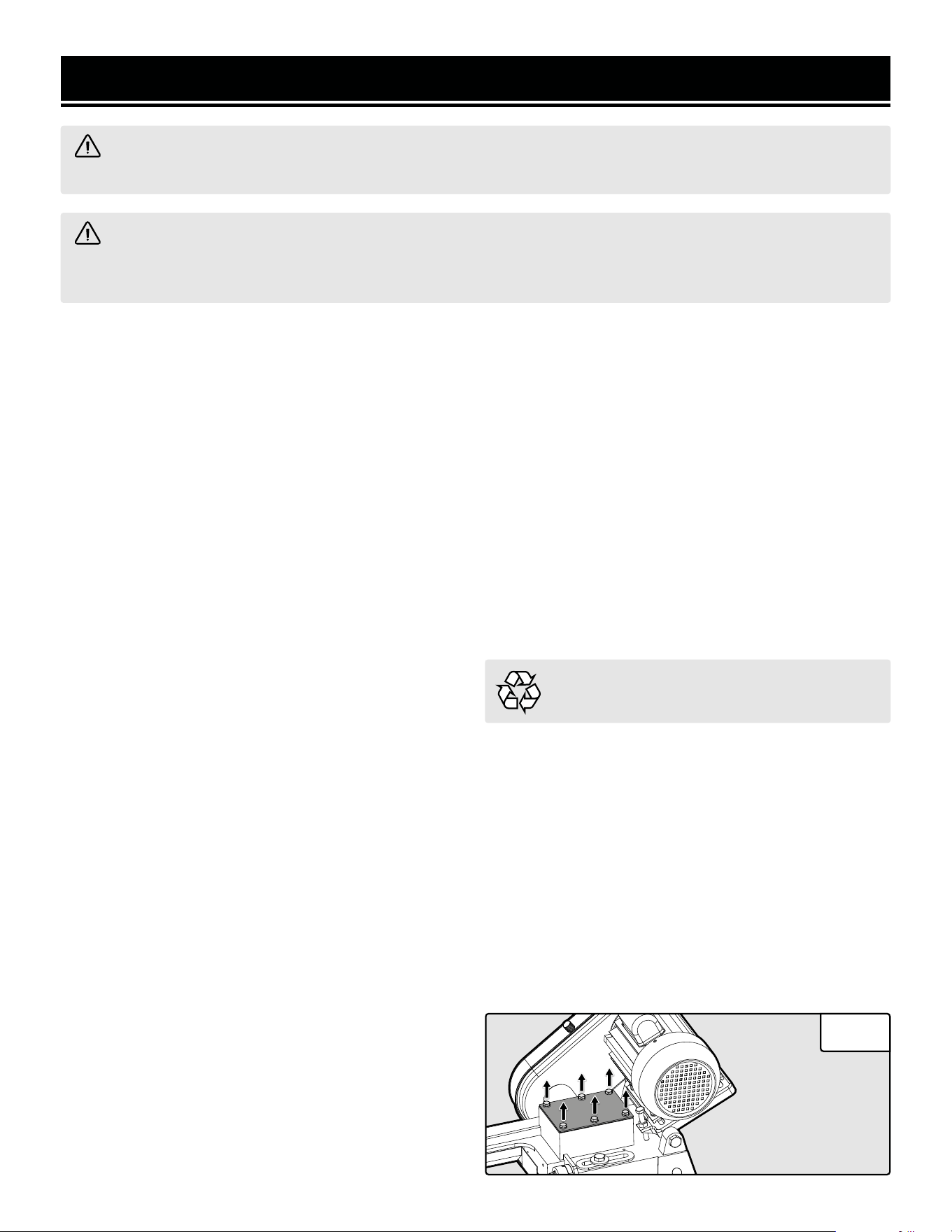

REPLACING THE OIL
If undergoing normal usage, replace the oil approxi-
mately once every year. The oil quantity is 3 fl oz. (90
mL). For professional or industrial use, replace more
often.
1. Open the gear box by removing the 6 screws (Fig.
23).
2. Drain the oil and replace it. The oil type used with
your bandsaw is L-CKE gear oil, ISO VG 220 (SAE 90,
AGMA 5).
5. Cover the bandsaw in order to protect it from dust
and moisture. It is preferable to store it in its original
packaging with the instruction manual and all accesso-
ries.
LUBRICATION
The bearings of your bandsaw are permanently sealed
and require no extra lubrication.
PRODUCT DISPOSAL
Used power tools should not be disposed of together
with household waste. This product contains electronic
components that should be recycled. Please take this
product to your local recycling facility for responsible
disposal and to minimize its environmental impact.
Please recycle the packaging and electronic
components where facilities exist.
Fig. 23
MAINTENANCE
CHANGING THE SAW BLADE
1. Use the head locking pin to lock the saw in the vertical posi-
tion. Remove the blade cover screw and loosen the blade cover
lock knob. See Fig. 24. Open the blade cover.
2. Move the motor-side blade guide as far as it will go toward
the motor.
3. Remove the two screws holding the red blade guard onto the
blade guide, then remove the blade guide. See Fig. 25.
4. Loosen the tension knob and slip the blade off the wheels.
5. Install the new blade through both blade guide bearings and
around the bottom wheel in the same orientation as the old blade.
6. Hold the blade around the bottom wheel with one hand and
slip it around the top wheel with the other hand, keeping the
blade between the blade guide bearings.
7. Tighten the tension knob so the blade will not slip on the
wheels upon startup. Re-install the red safety guard.
ADJUSTING THE BLADE TRACKING
Blade tracking has been set at the factory and should not require
adjustment on your existing blade. If a tracking problem occurs,
before making any tracking adjustments, try replacing with a
new blade (see “Changing the Saw Blade” section above) and
see if the tracking issue is resolved. Warped or worn blades will
not track properly.
If the problem persists, adjust the machine as follows:
1. Use the head locking pin to lock the saw in the vertical posi-
tion. Remove the blade cover screw and loosen the blade cover
lock knob. See Fig. 24. Open the blade cover.
2. Confirm that the blade tension is set properly. Using a gloved
finger, lightly press on the side of the saw blade. The blade
should flex about 1/8 inch if properly tensioned. Adjust tension
if necessary.
3. Run the saw and observe the blade. The blade should run next
to but not tightly against the wheel flange.
4. To adjust the blade tracking, loosen the two shaft locking
bolts. Slowly and carefully turn the shaft tracking bolt with a
wrench, while observing the blade tracking on the wheel. See
Fig. 26.
• Turn the tracking bolt clockwise to track the blade closer to
the wheel flange.
• Turn the tracking bolt counterclockwise to track the blade
away from the wheel flange.
WARNING! Blade tracking adjustment requires
running the saw with the back cover open. This ad-
justment must only be completed by a qualified per-
son. Failure to comply may cause serious injury.
WARNING! If the blade tension or tracking is
improper, the blade can spring off, causing serious
injury. Stand behind the saw and cover at all times
when adjusting blade tracking to minimize the risk of
injury. Make sure to wear safety glasses, work gloves,
long work pants and a long sleeve shirt.
17
5. Once the blade tracking is complete, tighten the two
shaft locking bolts. See Fig. 26.
6. Close the blade cover door. Tighten drive wheel cover
screws. See Fig. 26.
Fig. 24
Fig. 25
Fig. 26
Lock
Knob
Screw
Locking BoltsLocking Bolts Tracking BoltTracking Bolt
18
MAINTENANCE
BLADE ALIGNMENT
Check Blade tension:
1. Remove the black back cover and make sure the blade is
properly aligned on both wheels.
2. Adjust the blade tension until the blade sits properly cen-
tered (or does not move) on both wheels during operation
Check Blade Guard:
Without the left blade guard, there is a twist on the blade
due to the way it sits on the two wheels and how it is as-
sembled. This is unavoidable (Fig. 27).
Blade Guard:
Arrows show the direction the bearings can be adjusted.
Using the Blade Guard to Straighten the Blade:
1. Loosen the nut on the left blade guard (Fig. 29).
2. Adjust the blade guard (Fig. 30).
The rear bearing will be in contact with the blade (Fig. 31).
NOTE: It is important to twist/adjust the blade guard in the
direction as shown in figure 30. Because of how the blade
is positioned on the wheels, this will help prevent the blade
from sliding off of the wheel during operation.
3. Adjust the thrust bearing so that it is in contact with the
blade (Fig. 32).
NOTE: If the blade still continues to slip off the wheels,
check if the right blade guard is causing any unnecessary
twist on the blade.
Fig. 27
Fig. 28
THRUST BEARINGTHRUST BEARINGTHRUST BEARING
SIDE
SIDE
BEARINGBEARING
SIDE
BEARING
Fig. 29
Fig. 30 Fig. 31 Fig. 32
19
TROUBLESHOOTING GUIDE
WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replacements
should only be performed by an authorized technician. For any questions, please contact our customer service
at (800) 232-1195, M-F 8-5 CST or email us at [email protected].
Troubleshooting guide continues on the next page.
PROBLEM POSSIBLE CAUSE SOLUTION
Motor does not start.
1. Unit is not plugged in. 1. Plug unit in.
2. Defective power switch.
2. Contact customer service at 1-800-232-1195
for assistance.
3. Defective power cord.
3. Contact customer service at 1-800-232-1195
for assistance.
4. Defective start capacitor.
4. Contact customer service at 1-800-232-1195
for assistance.
5. Defective motor.
5. Contact customer service at 1-800-232-1195
for assistance.
Machine stalls or is
underpowered.
1. Wrong blade for workpiece
material.
1. Use a different blade more suited to the
material type.
2. V-belt is worn or loose. 2. Inspect belt or replace as need be.
3. Pulley is loose. 3. Re-align pulleys; tighten set screws.
Machine vibrates or
operates noisily.
1. V-belt is hitting belt cover. 1. Verify that belt cover was installed properly.
2. V-belt is worn or loose. 2. Inspect belt or replace as need be.
3. Pulley is loose. 3. Re-align pulleys; tighten set screws.
4. Worn bearing(s).
4. Contact customer service at 1-800-232-1195
for assistance.
Teeth are ripping from
the blade.
1. Feed rate too high, blade
speed too slow, or blade too
coarse for workpiece.
1. Decrease feed rate, adjust blade speed, or
replace blade.
2. Workpiece not clamped
securely.
2. Re-clamp workpiece. Use a jig if need be.
3. Blade teeth gullets loading
up with chips.
3. Use a coarser-tooth blade.
20
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
Inaccurate cut squaring.
1. Excessive cutting pressure
(incorrect choice of feed rate).
1. Decrease feed rate.
2. Incorrect choice of blade
tooth count.
2. Use a different blade more suited to the
material type.
3. Incorrect adjustment of
sliding blade guides.
3. Check blade guide adjustment - they should
be as close to the workpiece as possible.
4. Incorrect choice of cutting
speeds.
4. Adjust cutting speed.
5. Workpiece not securely
clamped in vise, or improperly
positioned in vise.
5. Re-clamp or re-position the workpiece in the
vise.
6. Poor blade tension. 6. Check blade tension.
7. Warped blade.
7. Contact customer service at 1-800-232-1195
for assistance.
Blade tends to protrude
from guide bearings.
1. Excessive blade tension. 1. Check blade tension.
2. Incorrect tracking
adjustment.
2. Adjust blade tracking.
3. Blade is slipping on guide
bearings (cutting oil has been
used).
3. We do not recommend using lubricant or
coolant with this bandsaw. Contact customer
service at 1-800-232-1195 for assistance.
WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replacements
should only be performed by an authorized technician. For any questions, please contact our customer service
at (800) 232-1195, M-F 8-5 CST or email us at [email protected].
21

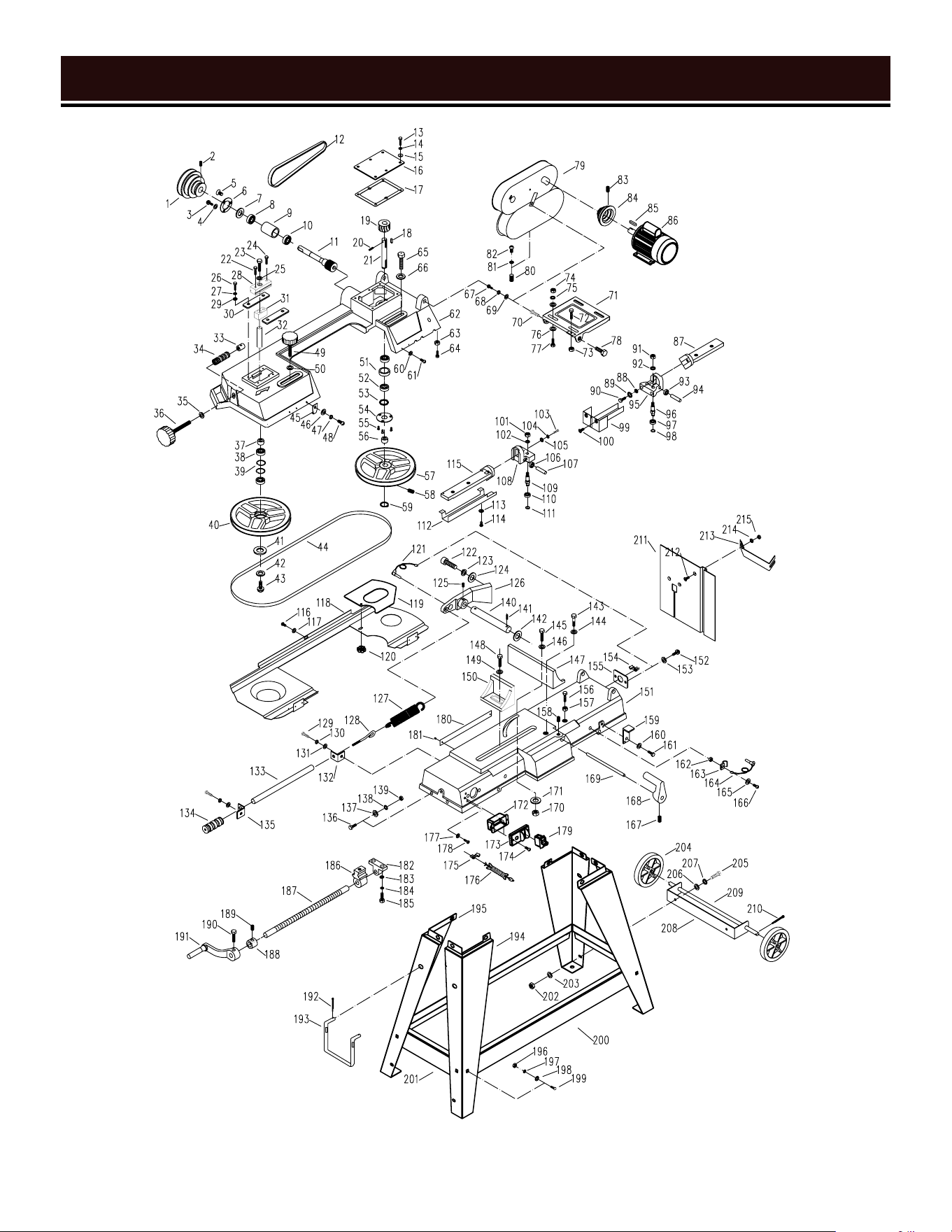

EXPLODED VIEW & PARTS LIST
21
NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of
normal use are not covered under the warranty.
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 3970-001 Worm Gear Pulley 1
2 3970-002 Set Screw, M8x8 1
3 3970-003 Pan Head Screw, M4x8 1
4 3970-004 Flat Washer, 4mm 1
5 3970-005 Flat Head Screw, M4x8 2
6 3970-006 Bearing Cover 1
7 3970-007 Oil Seal 1
8 3970-008 Ball Bearing, 6202ZZ 2
9 3970-009 Bearing Bushing 1
10 3970-008 Ball Bearing, 6202ZZ 2
11 3970-011 Worm Gear 1
12 3970-012 V Belt 1
13 3970-013 Hex Head Bolt, M6x16 6
14 3970-014 Lock Washer, 6mm 6
15 3970-015 Flat Washer, 6mm 6
16 3970-016 Gear Box Cover 1
17 3970-017 Gear Box Gasket 1
18 3970-018 Key, 5x5x28mm 2
19 3970-019B Worm Assembly 1
20 3970-020 Spring Pin, 5x26mm 1
21 3970-021 Worm Gear 1
22 3970-022 Hex Head Bolt, M8x30 2
23 3970-023 Hex Head Bolt, M8x16 1
24 3970-022 Hex Head Bolt, M8x30 2
25 3970-025 Flat Washer, 8mm 1
26 3970-026 Hex Head Bolt, M6x12 4
27 3970-027 Lock Washer, 6mm 4
28 3970-028 Sliding Block 1
29 3970-029 Flat Washer, 6mm 4
30 3970-030 Guide Plate 2
31 3970-031 Shaft Block 1
32 3970-032 Shaft 1
33 3970-033 Blade Tension Nut 1
34 3970-034 Spring 1
35 3970-035 Flat Washer, 10mm 1
36 3970-036 Blade Tension Knob 1
37 3970-037 Bushing 1
No. Part No. Description Qty.
38 3970-038 Ball Bearing, 6202ZZ 2
39 3970-039 Retaining Ring, 35mm 2
40 3970-040 Rear Blade Wheel 1
41 3970-041 Flat Washer 1
42 3970-042 Flat Washer, 5mm 1
43 3970-043 Socket Head Screw, M5x16 1
44 3970-044 Blade 1
45 3970-045 Cut Off Switch Bracket 1
46 3970-046 Flat Washer, 6mm 1
47 3970-047 Lock Washer, 6mm 1
48 3970-048 Pan Head Screw, M6x12 1
49 3970-049 Rear Guide Knob 1
50 3970-050 Flat Washer, 10mm 1
51 3970-051 Bushing 1
52 3970-052 Ball Bearing, 6202ZZ 2
53 3970-053 Oil Seal 1
54 3970-054 Bearing Cover 1
55 3970-055 Flat Head Screw, M4x8 3
56 3970-056 Bushing 1
57 3970-057 Front Blade Wheel 1
58 3970-058 Set Screw, M8x8 1
59 3970-059 Retaining Ring, 15mm 1
60 3970-060 Flat Washer, 4mm 4
61 3970-061 Pan Head Screw, M4x6 4
62 3970-062 Frame 1
63 3970-063 Hex Head Bolt, M6x25 1
64 3970-064 Nut, M6 1
65 3970-065 Hex Head Bolt, M10x30 1
66 3970-066 Flat Washer, 10mm 1
67 3970-067 Pan Head Screw, M6x10 1
68 3970-068 Lock Washer, 6mm 1
69 3970-069 Flat Washer, 6mm 1
70 3970-070 Hex Head Bolt 1
71 3970-071 Motor Support Plate 1
72 3970-072 Hex Head Bolt, M8x55 1
73 3970-073 Hex Nut, M8 1
74 3970-074 Hex Nut, M8 4
22
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
75 3970-075 Lock Washer, 8mm 4
76 3970-076 Flat Washer, 8mm 4
77 3970-077 Hex Head Bolt, M8x20 4
78 3970-078 Hex Head Bolt, M12x35 1
79 3970-079 Belt Cover 1
80 3970-080 Knob 1
81 3970-081 Flat Washer, 4mm 1
82 3970-082 Pan Head Screw, M4x8 1
83 3970-083 Set Screw, M8x8 1
84 3970-084 Motor Pulley 1
85 3970-018 Key, 5x5x28mm 1
86 3970-086 Motor 1
87 3970-087 Front Guide Base 1
88 3970-088 Flat Washer, 8mm 1
89 3970-089 Lock Washer, 8mm 1
90 3970-090 Hex Head Bolt, M8x30 1
91 3970-091 Nut, M8 2
92 3970-092 Lock Washer, 8mm 2
93 3970-093 Ball Bearing, 629ZZ 1
94 3970-094 Shaft 1
95 3970-095 Front Blade Guide 1
96 3970-096 Bearing Mount 2
97 3970-093 Ball Bearing, 629ZZ 2
98 3970-098 Retaining Ring, 9mm 2
99 3970-099 Front Blade Guard 1
100 3970-100 Flat Head Screw, M6x16 2
101 3970-101 Nut, M8 2
102 3970-102 Lock Washer, M8 2
103 3970-103 Hex Head Bolt, M8x30 1
104 3970-104 Lock Washer, 8mm 1
105 3970-105 Flat Washer, 8mm 1
106 3970-093 Ball Bearing, 629ZZ 1
107 3970-094 Shaft 1
108 3970-108 Rear Blade Guide 1
109 3970-096 Bearing Mount 2
110 3970-093 Ball Bearing, 629ZZ 2
111 3970-098 Retaining Ring, 9mm 2
No. Part No. Description Qty.
112 3970-112 Rear Blade Guard 1
113 3970-113 Flat Washer, 4mm 2
114 3970-114 Pan Head Screw, M4x6 2
115 3970-115 Rear Guide Base 1
116 3970-116 Pan Head Screw, M6x10 1
117 3970-117 Flat Washer, 6mm 1
118 3970-118 Frame Guard 1
119 3970-119 Extension Guard 1
120 3970-120 Knob 1
121 3970-121 Pin With Chain 1
122 3970-122 Socket Head Screw, M10x35 2
123 3970-123 Lock Washer, 10m 2
124 3970-124 Flat Washer, 10mm 2
125 3970-125 Set Screw, M8x8 1
126 3970-126 Pivot Block 1
127 3970-127 Spring 1
128 3970-128 Spring Adjusting Screw 1
129 3970-129 Hex Head Bolt, M6x12 2
130 3970-130 Lock Washer, 6mm 2
131 3970-131 Flat Washer, 6mm 2
132 3970-132 Screw Support Plate 1
133 3970-133 Adjusting Rod 1
134 3970-134 Knob 1
135 3970-135 Adjusting Rod Support 1
136 3970-136 Hex Head Bolt, M8x20 8
137 3970-137 Flat Washer, 8mm 8
138 3970-138 Lock Washer, 8mm 8
139 3970-139 Nut, M8 8
140 3970-140 Pivoting Rod 1
141 3970-141 Spring Pin, 4x25mm 1
142 3970-142 Flat Washer, 6mm 1
143 3970-143 Hex Head Bolt 1
144 3970-144 Flat Washer, 8mm 1
145 3970-145 Hex Head Bolt, M8x40 1
143 3970-143 Hex Head Bolt 1
144 3970-144 Flat Washer 1
145 3970-145 Hex Head Bolt 1
23
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
146 3970-144 Flat Washer, 8mm 1
147 3970-147 Vise Jaw 1
148 3970-148 Hex Head Bolt, M10x25 1
149 3970-149 Flat Washer, 10mm 1
150 3970-150 Movable 1
151 3970-151 Base 1
152 3970-152 Pan Head Screw, M5x8 2
153 3970-153 Flat Washer, 5mm 2
154 3970-154 Strain Relief 1
155 3970-155 Strain Relief Mounting Plate 1
156 3970-156 Hex Head Bolt, M12x70 1
157 3970-157 Nut, M12 1
158 3970-158 Set Screw, M8x12 1
159 3970-159 Safety Bracket 1
160 3970-160 Flat Washer, 8mm 1
161 3970-161 Hex Head Bolt, M8x16 1
162 3970-162 Nut, M5 2
163 3970-163 Cord Clamp 2
164 3970-164 Pin With Chain 1
165 3970-165 Flat Washer, 5mm 2
166 3970-166 Pan Head Screw, M5x16 2
167 3970-167 Set Screw, M8x8 1
168 3970-168 Work Stop 1
169 3970-169 Work Stop Rod 1
170 3970-170 Nut, M8 1
171 3970-171 Flat Washer, 8mm 1
172 3970-172 Switch Box 1
173 3970-173 Switch Mounting Plate 1
174 3970-174 Thread Forming Screw 2
175 3970-175 Strain Relief 2
176 3970-176 Power Cord 1
177 3970-177 Toothed Washer, 5mm 2
178 3970-178 Pan Head Screw, M5 2
179 3970-179 Switch 1
180 3970-180 Angle Scale 1
181 3970-181 Rivet 2
182 3970-182 Screw Support Block 1
No. Part No. Description Qty.
183 3970-183 Flat Washer, 6mm 2
184 3970-184 Lock Washer, 6mm 2
185 3970-185 Hex Head Bolt, M6x18 2
186 3970-186 Vise Nut 1
187 3970-187 Lead Screw 1
188 3970-188 Bushing 1
189 3970-189 Set Screw, M6x6 1
190 3970-190 Hex Head Bolt, M6x12 1
191 3970-191 Crank Handle 1
192 3970-192 Cotter Pin 2
193 3970-193 Transport Handle 1
194 3970-194 Leg A 2
195 3970-195 Leg B 2
196 3970-196 Nut, M8 8
197 3970-197 Lock Washer, 8mm 8
198 3970-198 Flat Washer, 8mm 8
199 3970-199 Carriage Bolt, M8x16 8
200 3970-200 Long Brace 2
201 3970-201 Short Brace 2
202 3970-202 Hex Nut, M6 2
203 3970-203 Flat Washer, 6mm 2
204 3970-204 Wheel 2
205 3970-205 Hex Head Bolt, M6x12 2
206 3970-206 Flat Washer, 6mm 2
207 3970-207 Lock Washer, 6mm 2
208 3970-208 Wheel Bracket 1
209 3970-209 Axle 1
210 3970-210 Cotter Pin 2
211 3970-211 Table 1
212 3970-212 Flat Head Screw, M6x16 1
213 3970-213 Table Support 1
214 3970-214 Flat Washer, 6mm 1
215 3970-215 Nut, M6 1
24
NOTE: Not all parts may be available for purchase.
Parts and accessories that wear down over the course
of normal use are not covered under the warranty.
WARRANTY
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to quality.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power
tools will be free from defects in material or workmanship during personal use for a period of two (2) years from date
of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for pro-
fessional or commercial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are
defective in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepair, abuse, neglect, normal wear and tear, improper maintenance, or other conditions adversely affecting the
Product or the component of the Product, whether by accident or intentionally, by persons other than Seller. To make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that clearly defines
the Date of Purchase (month and year) and the Place of Purchase. Place of Purchase must be a direct vendor of Great
Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage sales, pawn
shops, resale shops, or any other secondhand merchant, voids the warranty included with this product. Contact tech-
[email protected] or 1-800-232-1195 with the following information to make arrangements: your shipping
address, phone number, serial number, required part numbers, and proof of purchase. Damaged or defective parts
and products may need to be sent to WEN before the replacements can be shipped out.
Upon the confirmation of a WEN representative, your product may qualify for repairs and service work. When re-
turning a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must
be shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of the
problem in order to help our repairs department diagnose and fix the issue. Repairs will be made and the product
will be returned and shipped back to the purchaser at no charge for addresses within the contiguous United States.
THIS LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DU-
RATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN PROV-
INCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION
MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME
STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN-
CIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO
COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CON-
TACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WARRAN-
TY SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING CHARGES
MAY APPLY.
25
26
NOTES
27
NOTES
THANKS FOR
REMEMBERING
V. 2021.12.03
