Usage Restrictions

Safety Information



This product should not be used by children younger than 8 years old nor

persons with physical, sensory, intellectual deficiencies, or limited experience

or knowledge without the supervision of a parent or guardian to ensure safe

operation and to avoid any risks. Cleaning and maintenance shall not be

performed by children without supervision.



The appliance is only to be used with the power supply unit provided with the

appliance.



This appliance contains batteries that are only replaceable by skilled persons.



Clear the area to be cleaned. Children shall not play with the appliance.

Ensure children and pets are kept at a safe distance from the robot while it is

operating.



Do not install, charge or use the appliance in the bathrooms or around the

pools.



This product is for floor cleaning in a home environment only. Do not use it

outdoors, on non-floor surfaces, or in a commercial or industrial setting.



Ensure that the appliance operates correctly in a proper environment.

Otherwise, do not use the appliance.



If the power cord is damaged, it must be replaced by a special cord or

assembly available from the manufacturer or its service agent.



Do not use the robot in an area suspended above ground level without a

protective barrier.

To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual carefully before using the

appliance and keep it for future reference.

Usage Restrictions

Safety Information



Do not place the robot upside down. Do not use the LDS cover, robot cover, or

bumper as a handle for the robot.



Use the robot in environments with an ambient temperature above 0°C and

below 40°C. Make sure there is no liquid or sticky substance on the floor.



To prevent damage or harm from dragging, clear any loose objects from the

floor, and remove cables or power cords on the cleaning path before operating

the appliance.



Remove fragile or small items from the floor to prevent the robot from bumping

into and damaging them.



Keep hair, fingers, and other body parts away from the suction opening of the

robot.



Keep the cleaning tool out of reach of children.



Do not operate the appliance in a room where an infant or child is sleeping.



Do not place children, pets, or any item on top of the robot regardless of

whether it is stationary or moving.



Only clean water and the officially-approved cleaning solution can be added

to the clean water tank. Do not add any other liquid such as alcohol or

disinfectant. The ratio of the cleaning solution to clean water can be checked

on the cleaning solution bottle. Keep the cleaning solution out of reach of

children.



Do not use the robot to clean any burning objects. Do not use the robot to pick

up flammable or combustible liquids, corrosive gases, or undiluted acids or

solvents.

Safety Information

Batteries and

Charging



Do not use any third-party battery or base station. The robot can only be used

with the model RCDE0302 base station.



Do not attempt to disassemble, repair, or modify the battery or the base station

on your own.



Do not place the base station near a heat source.



Do not use a wet cloth or wet hands to wipe or clean the base station's

charging contacts.



Do not improperly dispose of old batteries. Unneeded batteries should be

discarded at an appropriate recycling facility.



If the power cord becomes damaged or broken, stop using it immediately and

contact after-sales service.



Do not vacuum hard or sharp objects. Do not use the appliance to pick up

objects such as stones, large pieces of paper or any item that may clog the

appliance.



Plug must be removed from the socket-outlet before cleaning or maintaining

the appliance.



Do not wipe the robot or the base station with a wet cloth or rinse them with

any liquid. After cleaning washable parts, fully dry the parts before reinstalling

and using them.



Please use this product in accordance with the instructions in the User Manual.

Users are responsible for any loss or damage that arise from improper use of

this product.

Usage Restrictions



The laser sensor in this product meets the IEC 60825-1:2014/EN 60825-1:2014/

A11:2021 Standard for Class 1 laser products. Please avoid direct eye contact

with it during use.

CLASS 1 LASER PRODUCT

CONSUMER LASER PRODUCT

EN 50689:2021

Batteries and

Charging

Laser Safety

Information

Safety Information

Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RLD52SE is in compliance with Directive 2014/53/EU. The full

text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com

For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs



Make sure the robot is turned off when being transported and kept in its

original packaging if possible.



If the robot will not be used for an extended period of time, fully charge it, then

turn it off and store it in a cool, dry place. Recharge the robot at least once

every 3 months to avoid over-discharging the battery.

For indoor use only

Read operator's manual

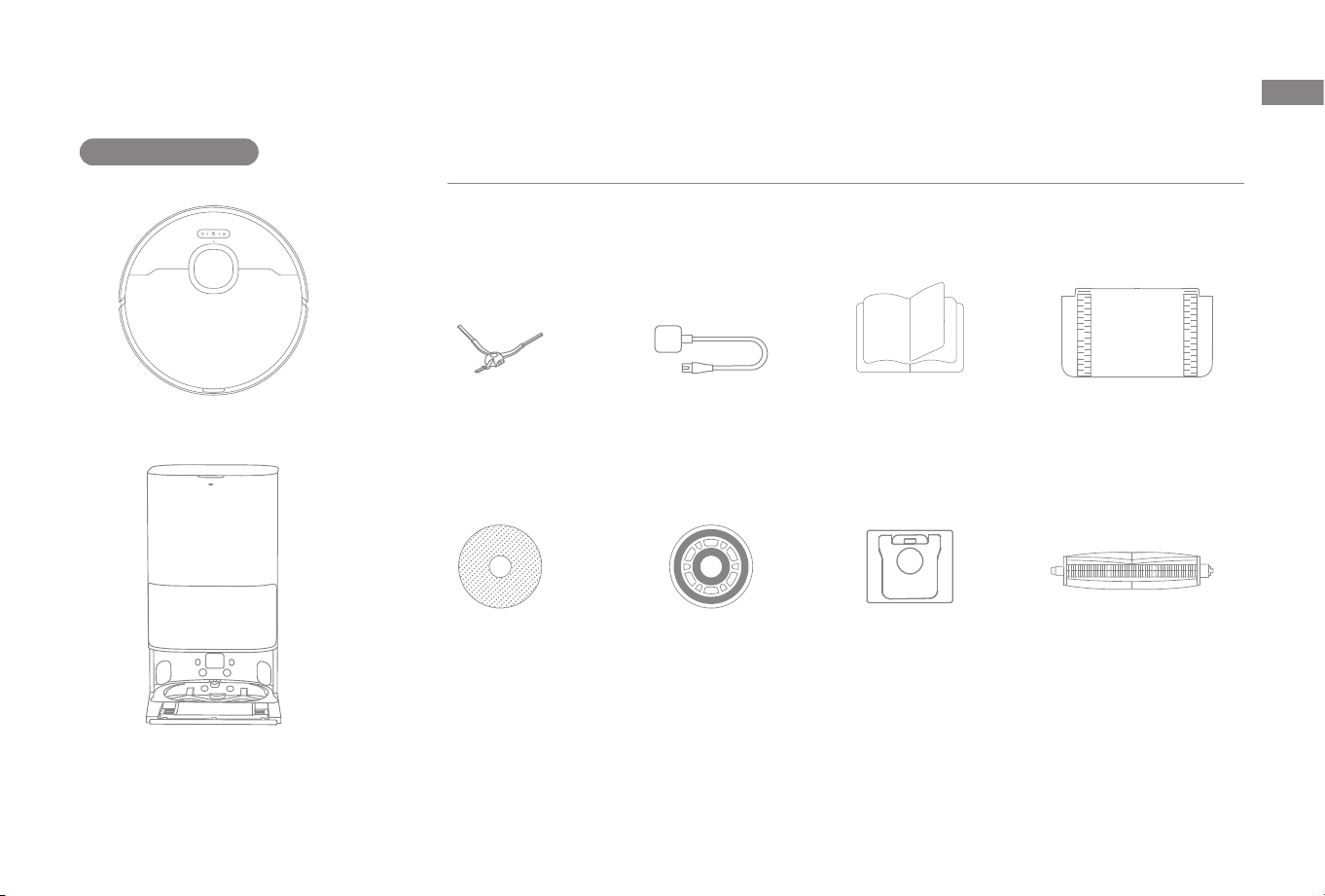

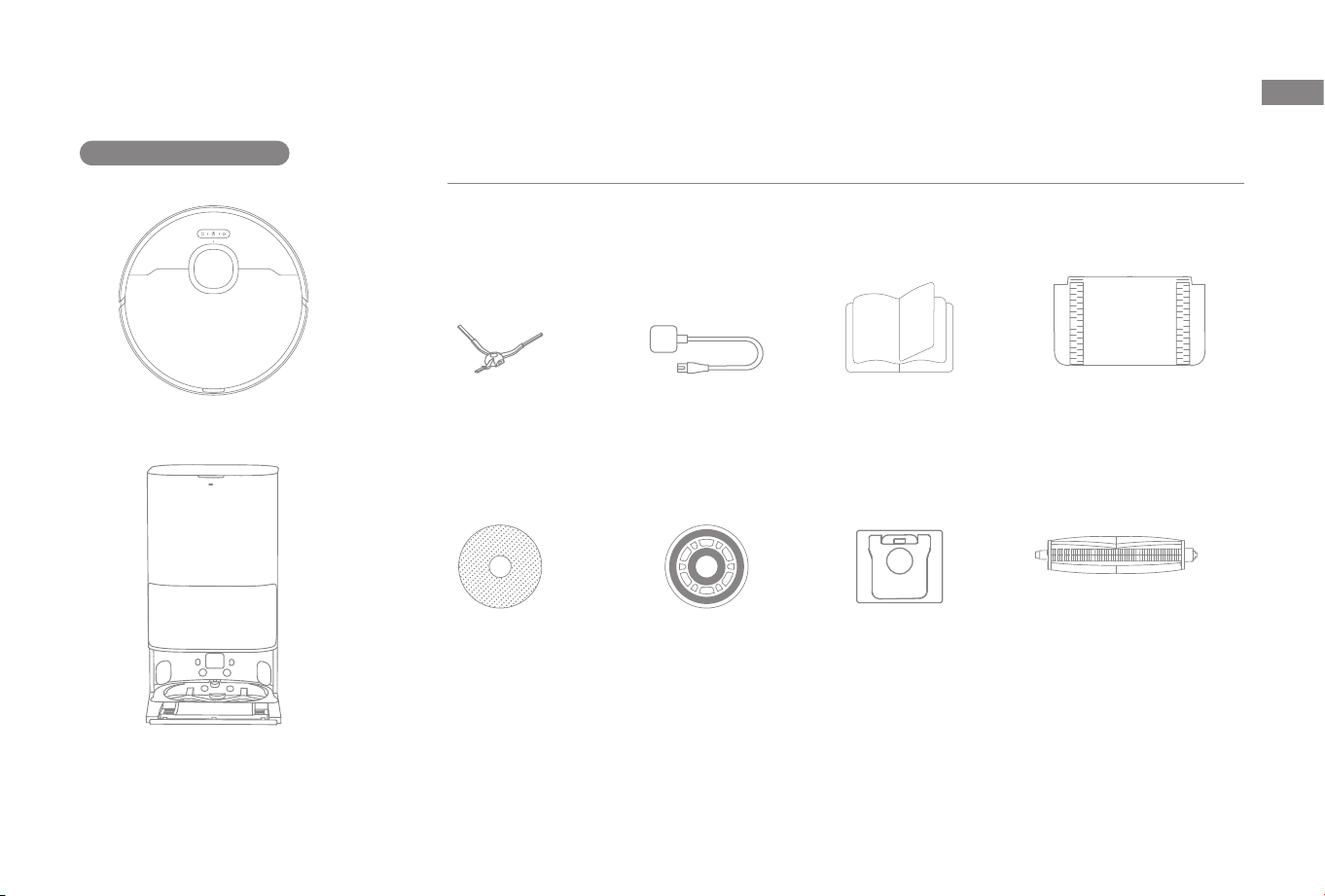

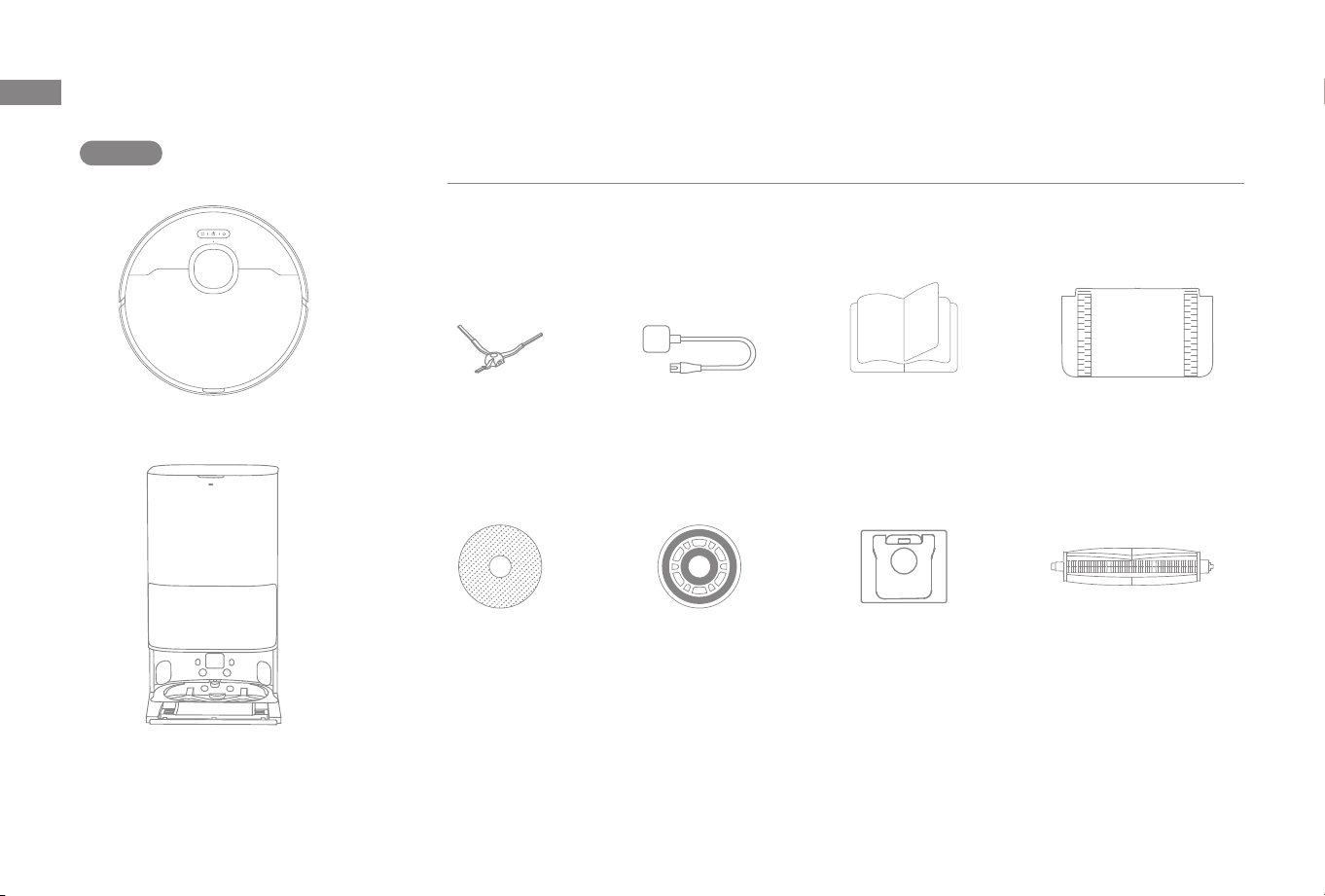

Package Contents

Other Accessories

Product Overview

Robot

Base Station

Mop Pad × 2

(pre-installed)

Mop Pad

Holder × 2

User ManualPower Cord

Base Station Ramp

Extension Plate

Dust Bag × 2

(1 pre-installed)

Side Brush

TriCut Brush

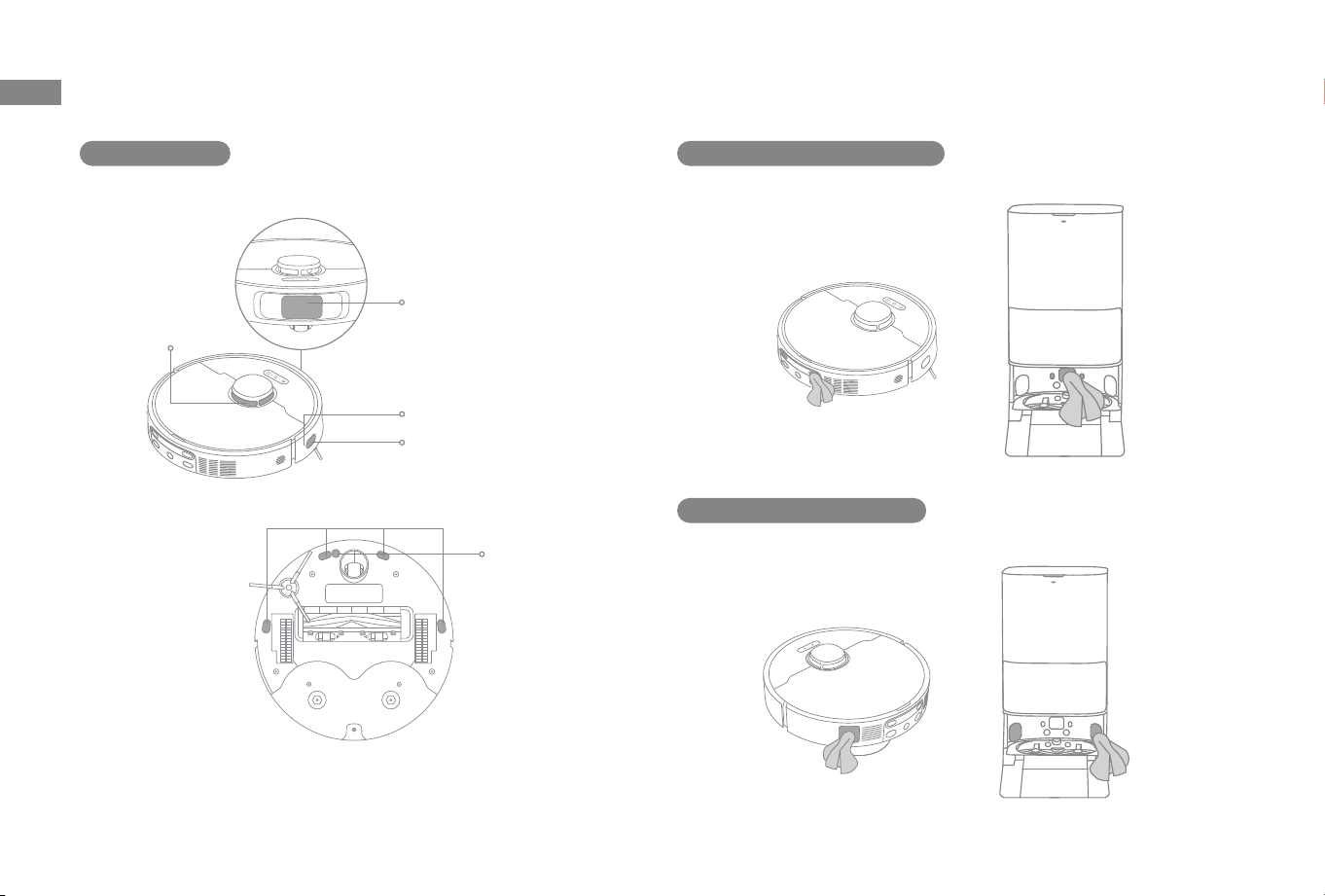

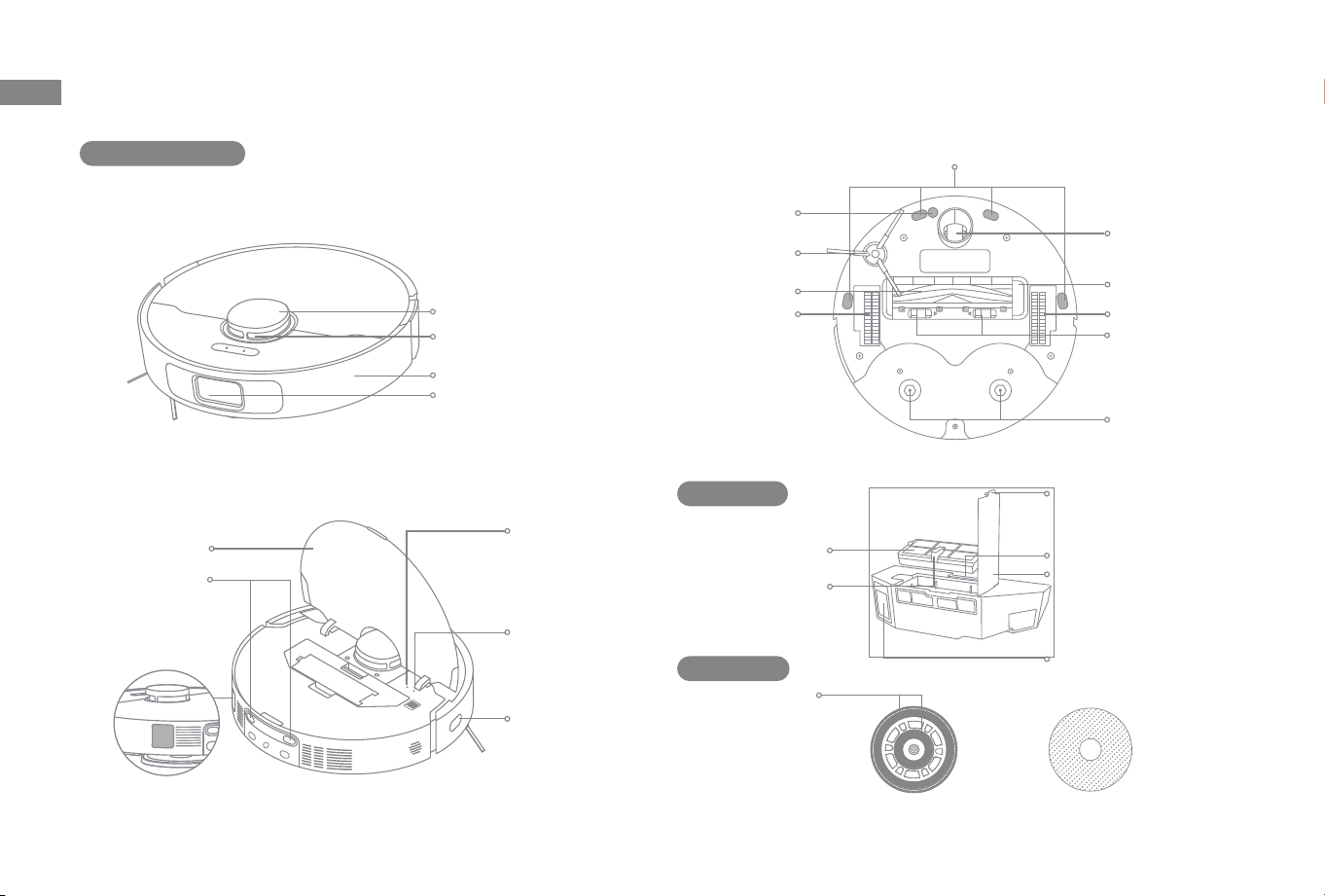

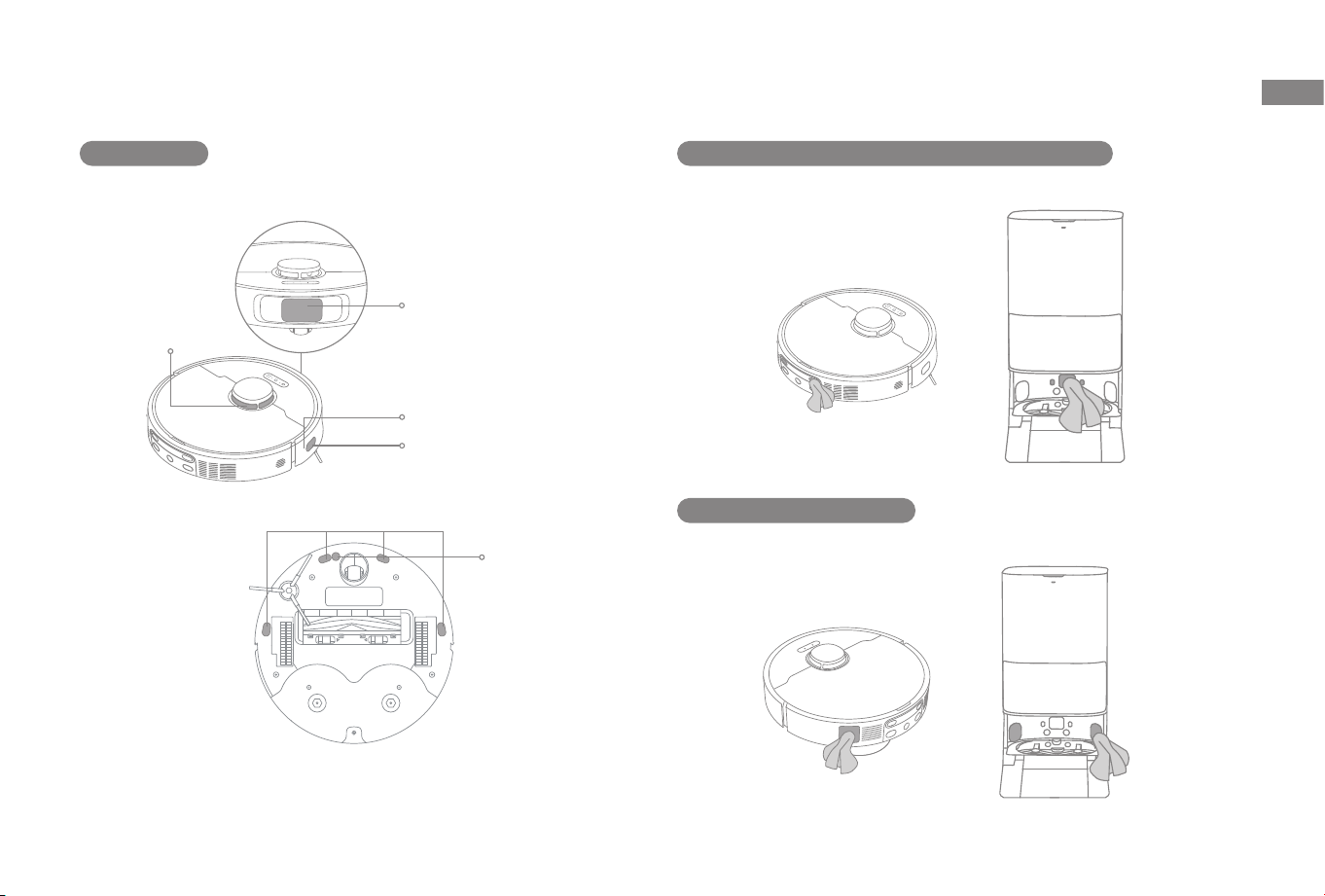

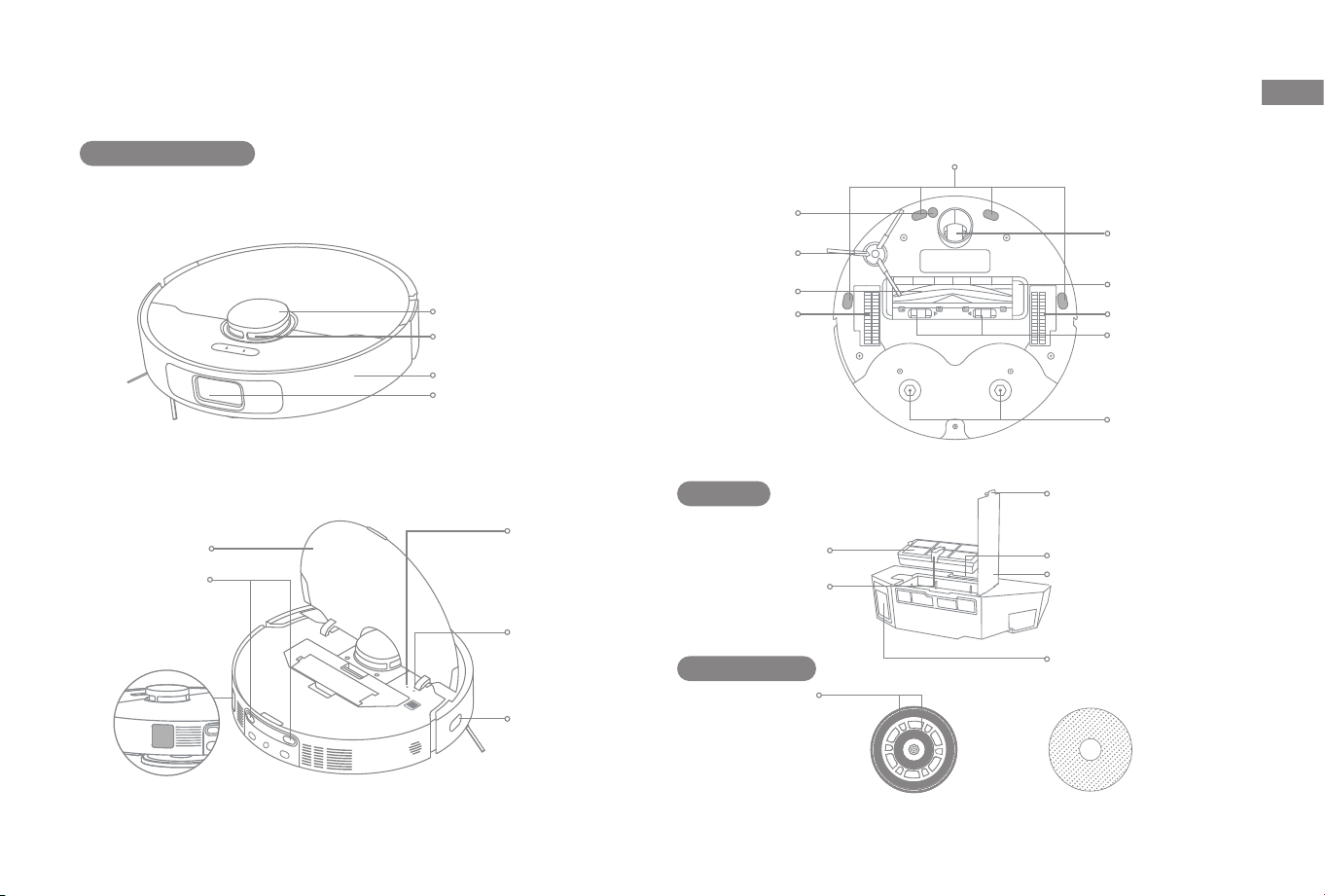

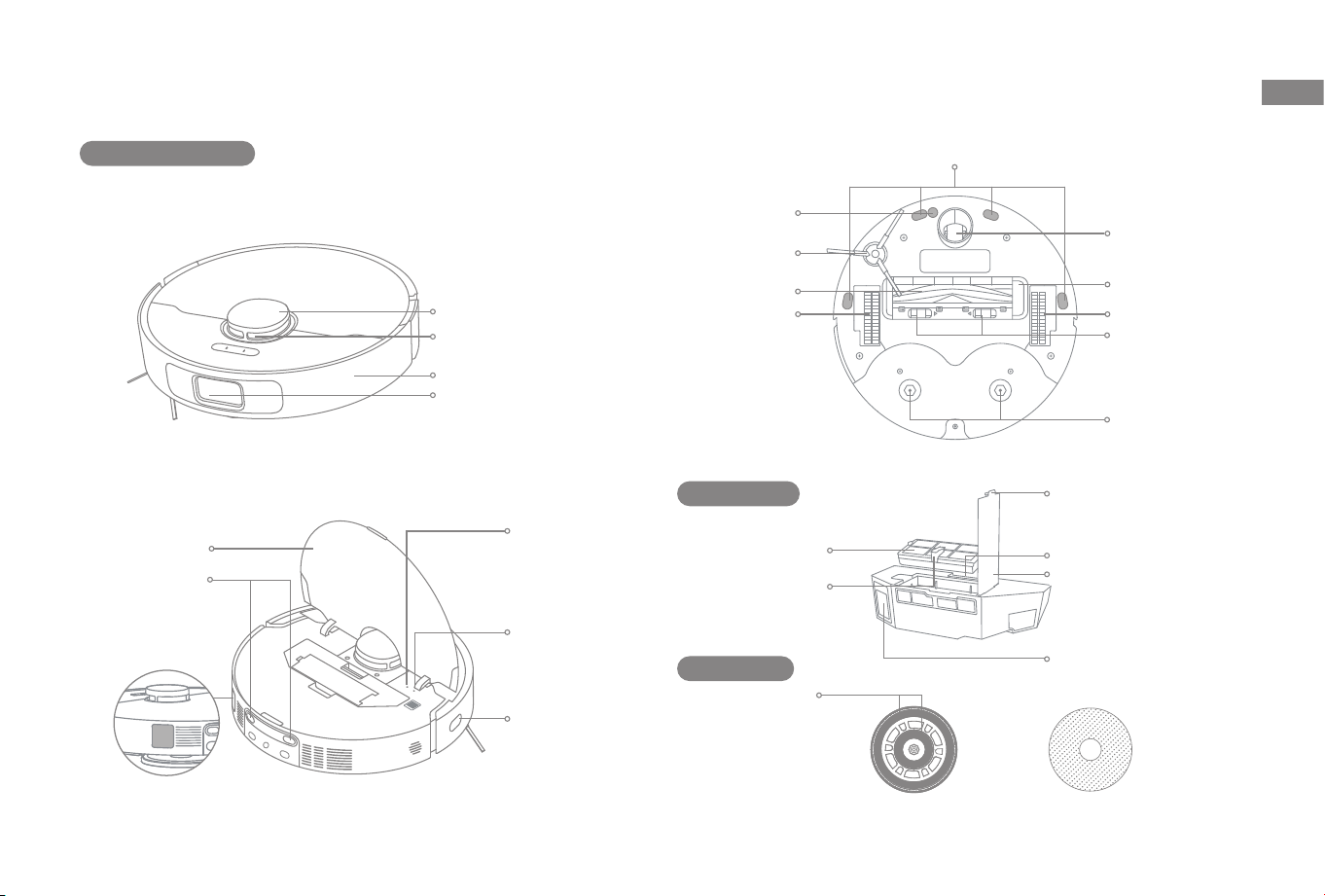

Robot

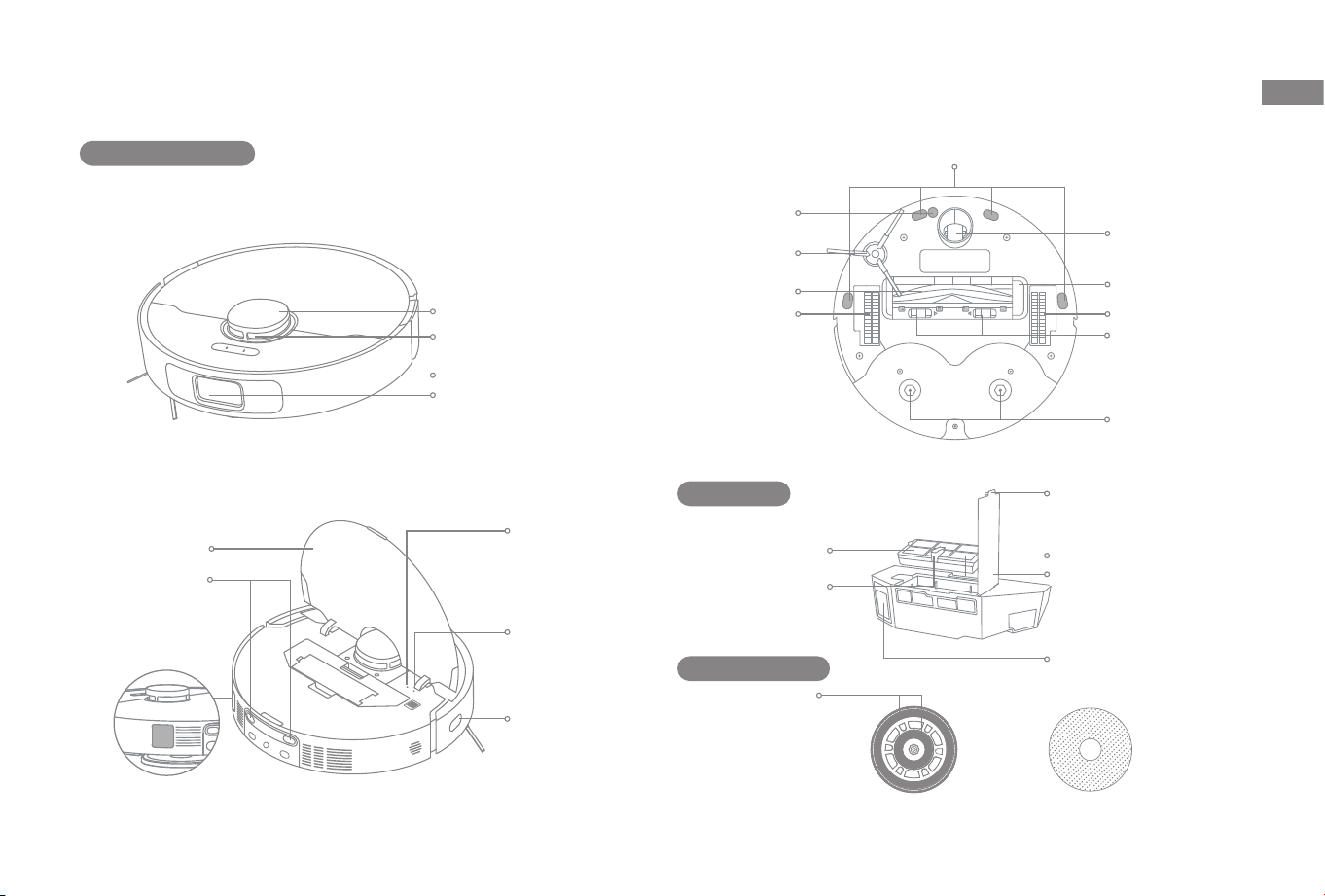

Product Overview

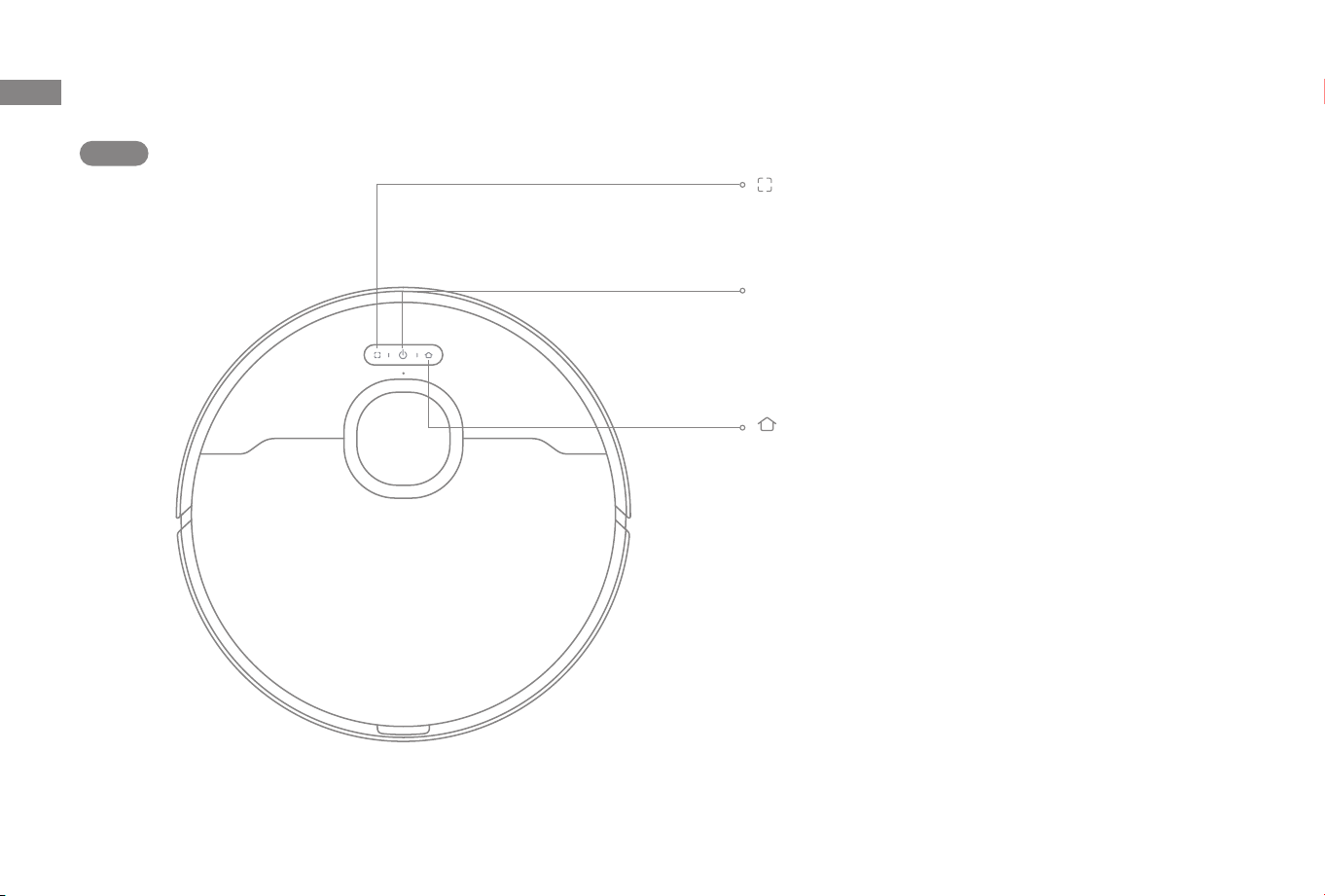

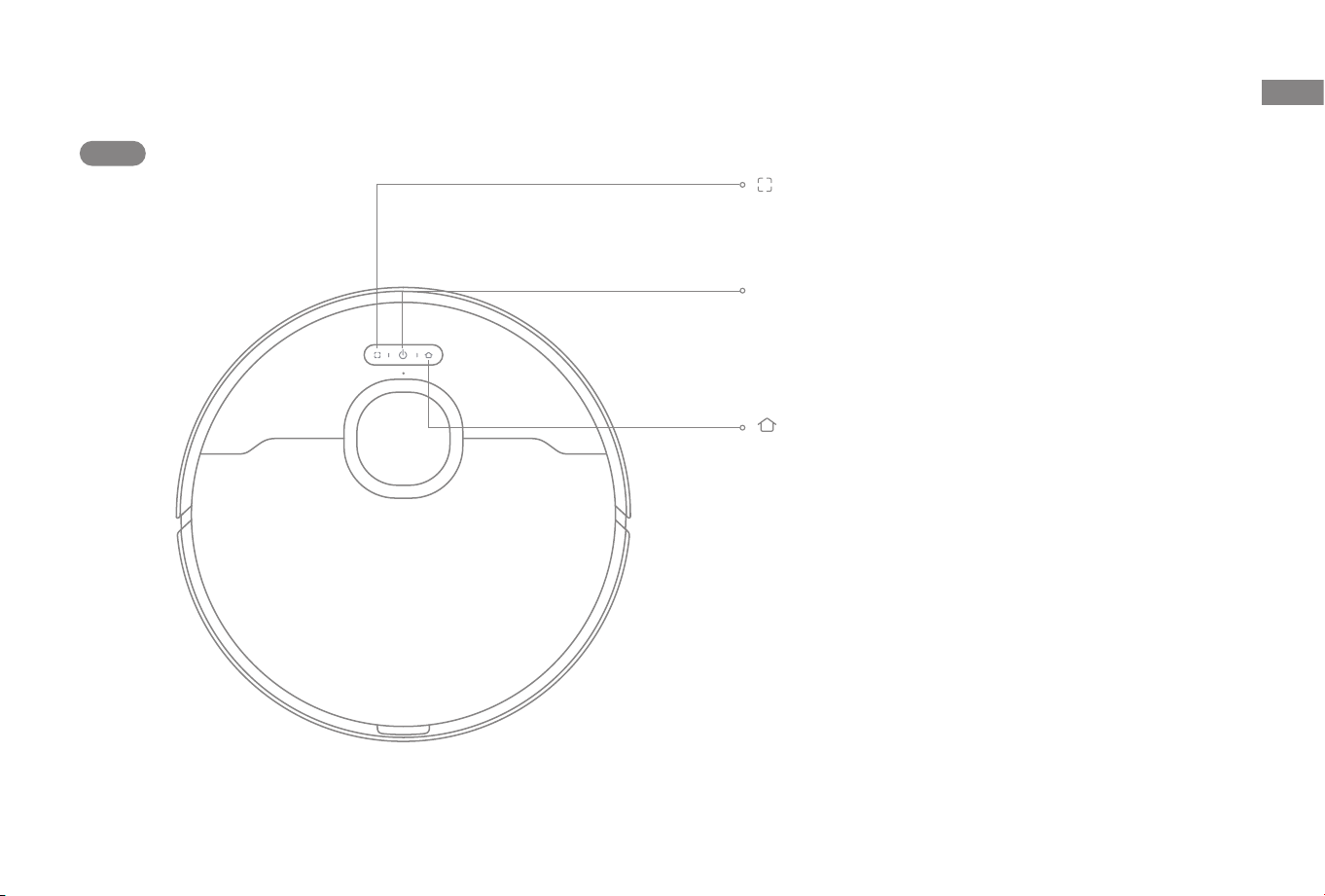

Spot Cleaning Button

· Press to start spot cleaning

Power / Clean Button

· Press and hold for 3 seconds to turn on or off

· Press to start cleaning after the robot is turned on

Dock Button

· Press to send the robot back to the base station

· Press and hold for 3 seconds to disable Child Lock

Status Indicator

· Solid White: Cleaning or cleanup completed

· Breathing White: Charging (not low battery)

· Solid Orange: Awaiting at low battery or paused at low battery

· Breathing Orange: Charging (low battery)

· Blinking Orange: Error

Note:

· Press any button on the robot to pause while the robot is cleaning

or returning to charge.

· Child Lock can be enabled/disabled through the App.

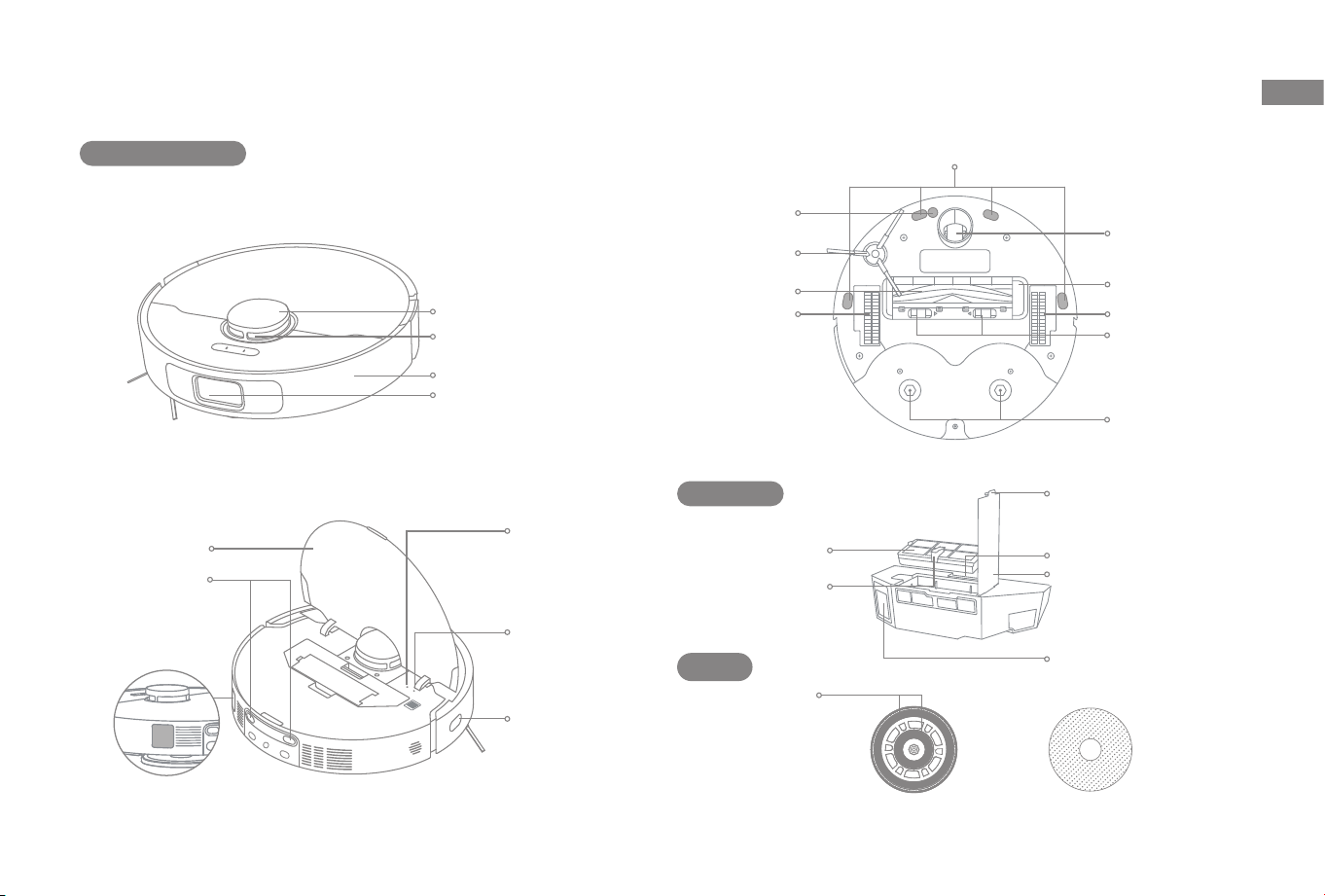

Robot and Sensors

Product Overview

Dust Box

Mop Assembly

Mop Pad

Attachment Area

Mop Pad Holder Mop Pad

Cover

Charging

Contacts

Auto-empty Vent

Reset Button

· Press and hold for 3

seconds to restore to

factory settings

Wi-Fi Indicator

Edge Sensor

Cli Sensors

Main Wheel

Main Brush

Omnidirectional

Wheel

Brush Guard

Main Wheel

Brush Guard

Clips

Mop Pad Holder

Mounting Holes

Side Brush

Carpet Sensor

Filter

Filter Handle

Auto-empty Vent

Dust Box Cover Clip

Dust Box Clip

Dust Box Cover

LDS Cover

Laser Distance

Sensor (LDS)

3D Line Laser Sensor

Bumper

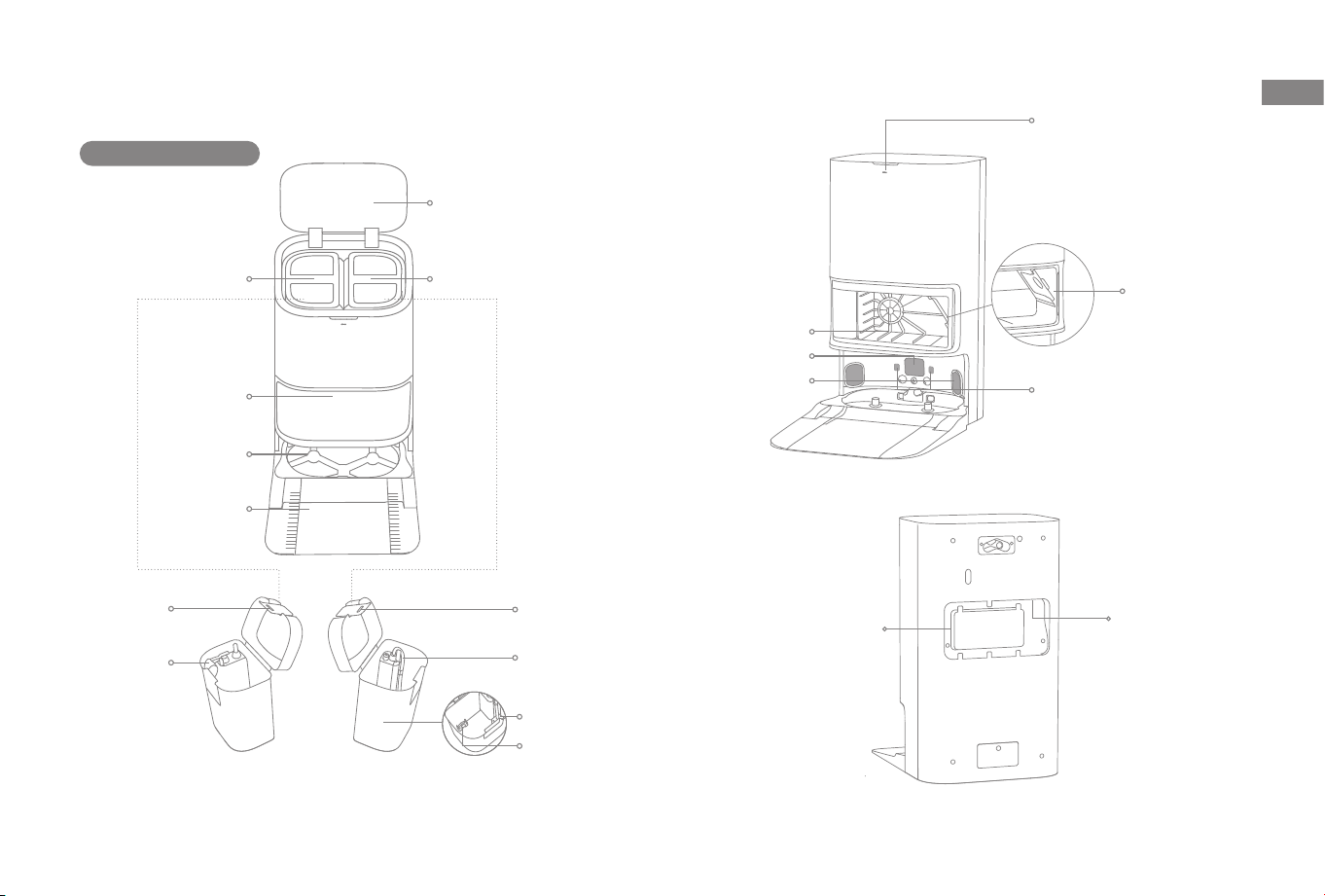

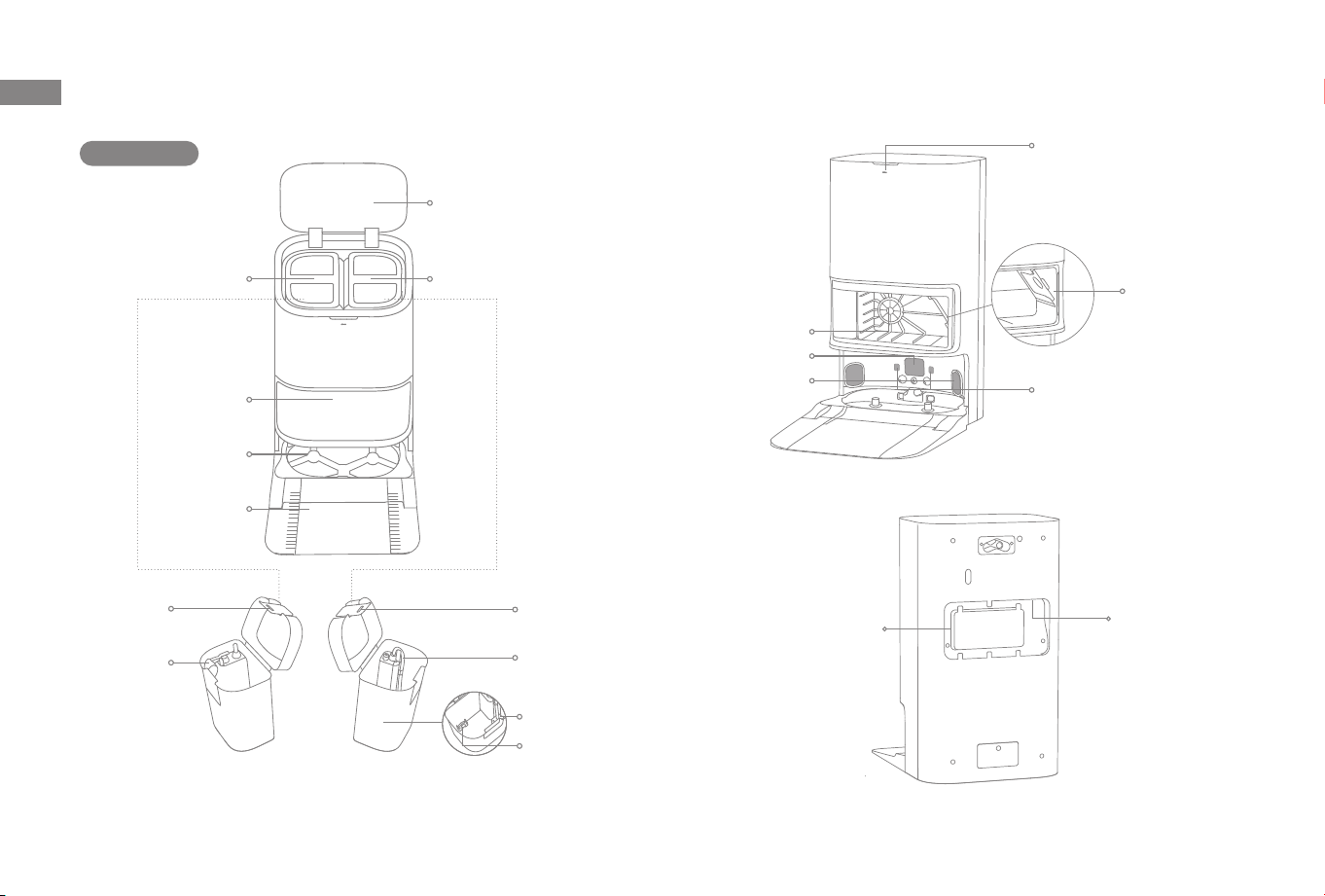

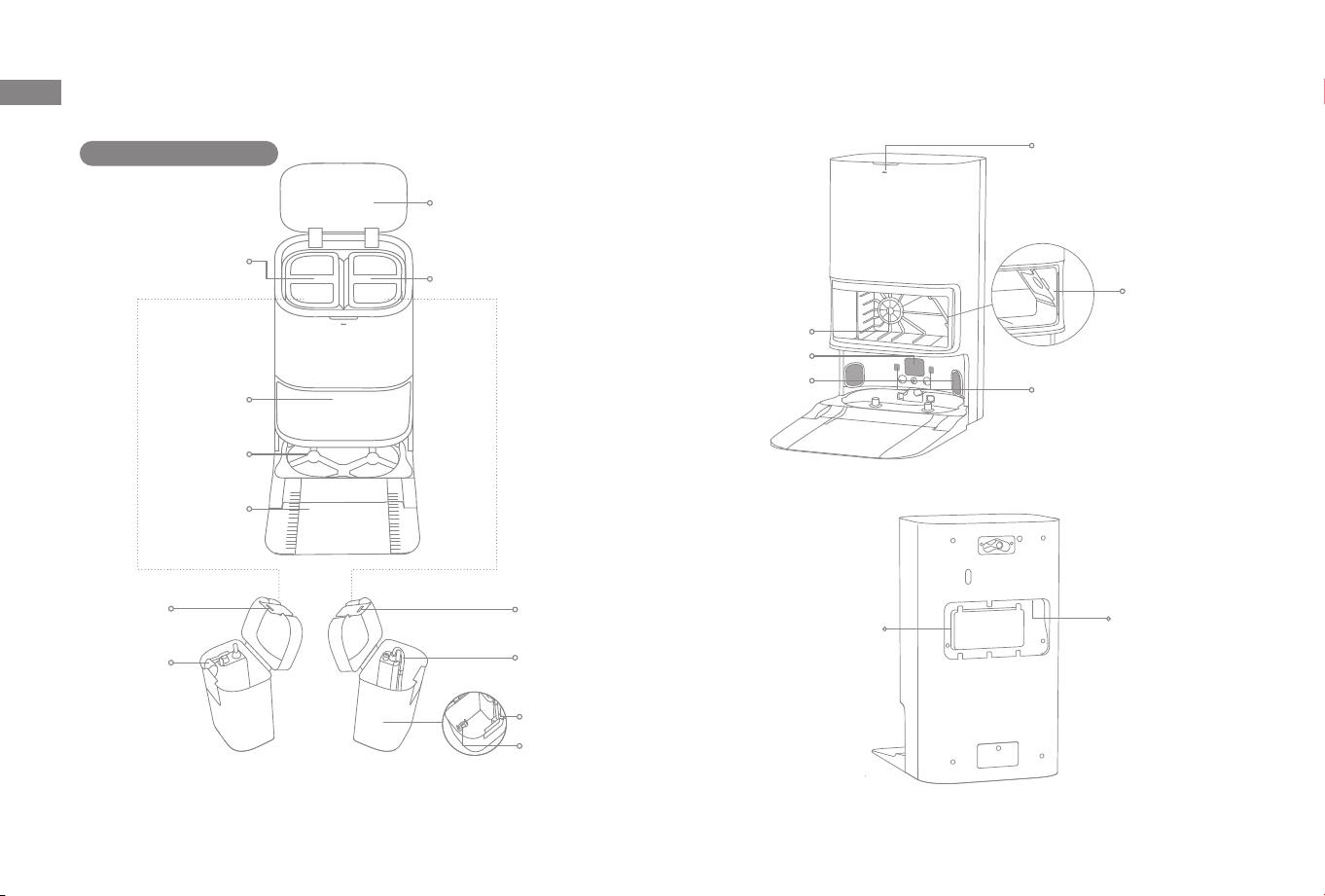

Base Station

Product Overview

Filter

Dust Bag Slot

Washboard

Ramp

Extension

Plate

Upper Cover

Clean Water Tank

Used Water Tank

Auto-empty Vents

Water Tank Clip

Water Tank

Clip

Float Ball

Water Pipe

Filter

Used Water Tank Clean Water Tank

Floater

Dust Tank

Cover

Status Indicator

· Solid White: The base station

is connected to power

· Solid Orange: The base

station has an error

Signaling Area

Charging Contacts

Power Cord Storage Slot

Power Port

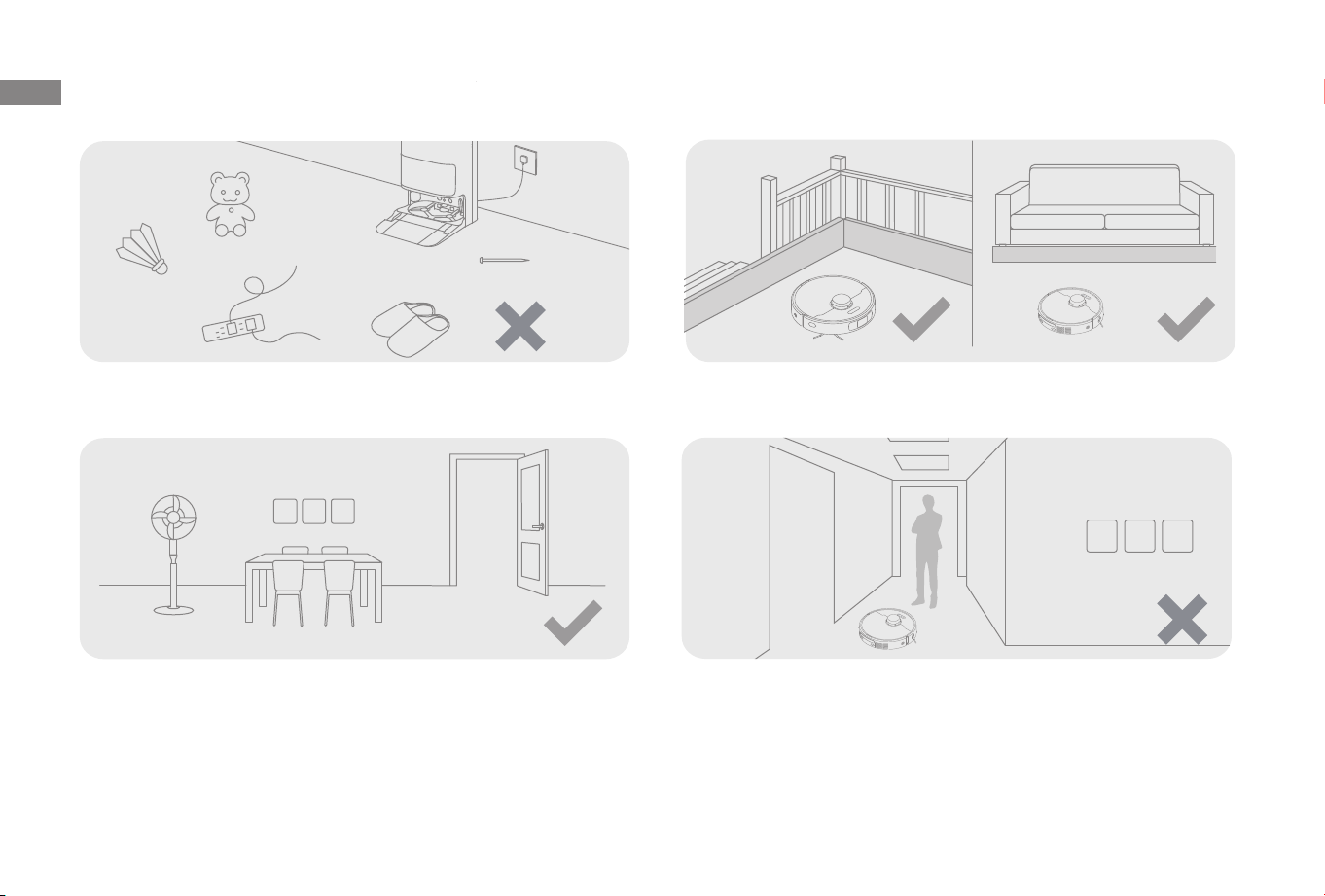

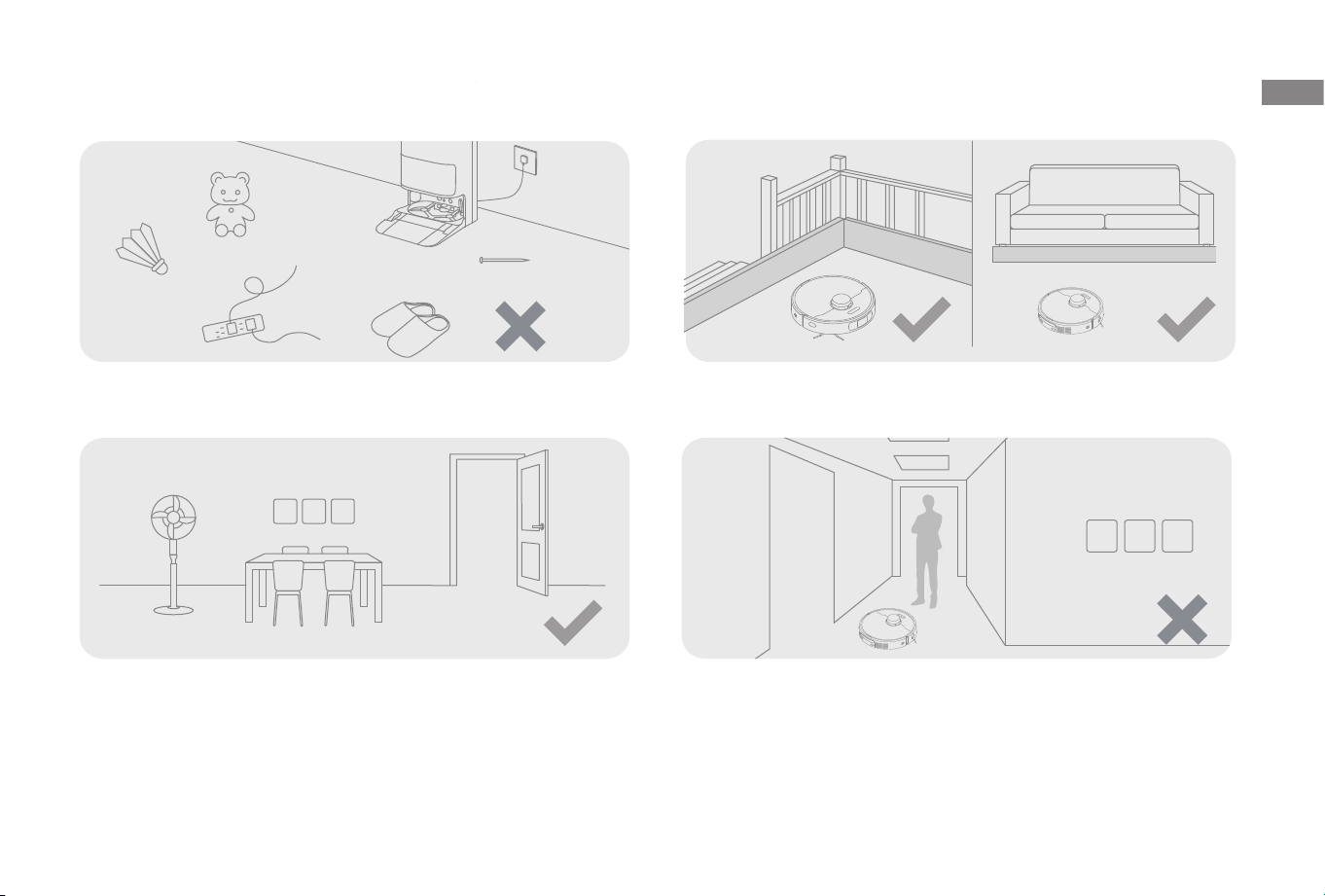

Preparing Your Home

Before cleaning, please move away unstable, fragile, valuable or dangerous

items, and clean up cables, cloths, toys, hard objects and sharp objects on

the ground to avoid being entangled, scratched or knocked over by the robot

and causing losses.

Open the door of the room to be cleaned, and put the furniture in its proper

place to leave more space.

To prevent the robot from not recognizing areas that need to be cleaned, do

not stand in front of the robot, threshold, hallway, or narrow places.

Before cleaning, place a physical barrier at the edge of the stairs and sofa to

ensure the secure and smooth operations of the robot.

Note:

· When operating the robot for the first time, follow it around while cleaning to remove any potential obstacles in time.

· Do not vacuum hard objects like stones, steel balls and toy parts, or sharp objects like construction waste, broken glass and nails, otherwise the ground may be

scratched.

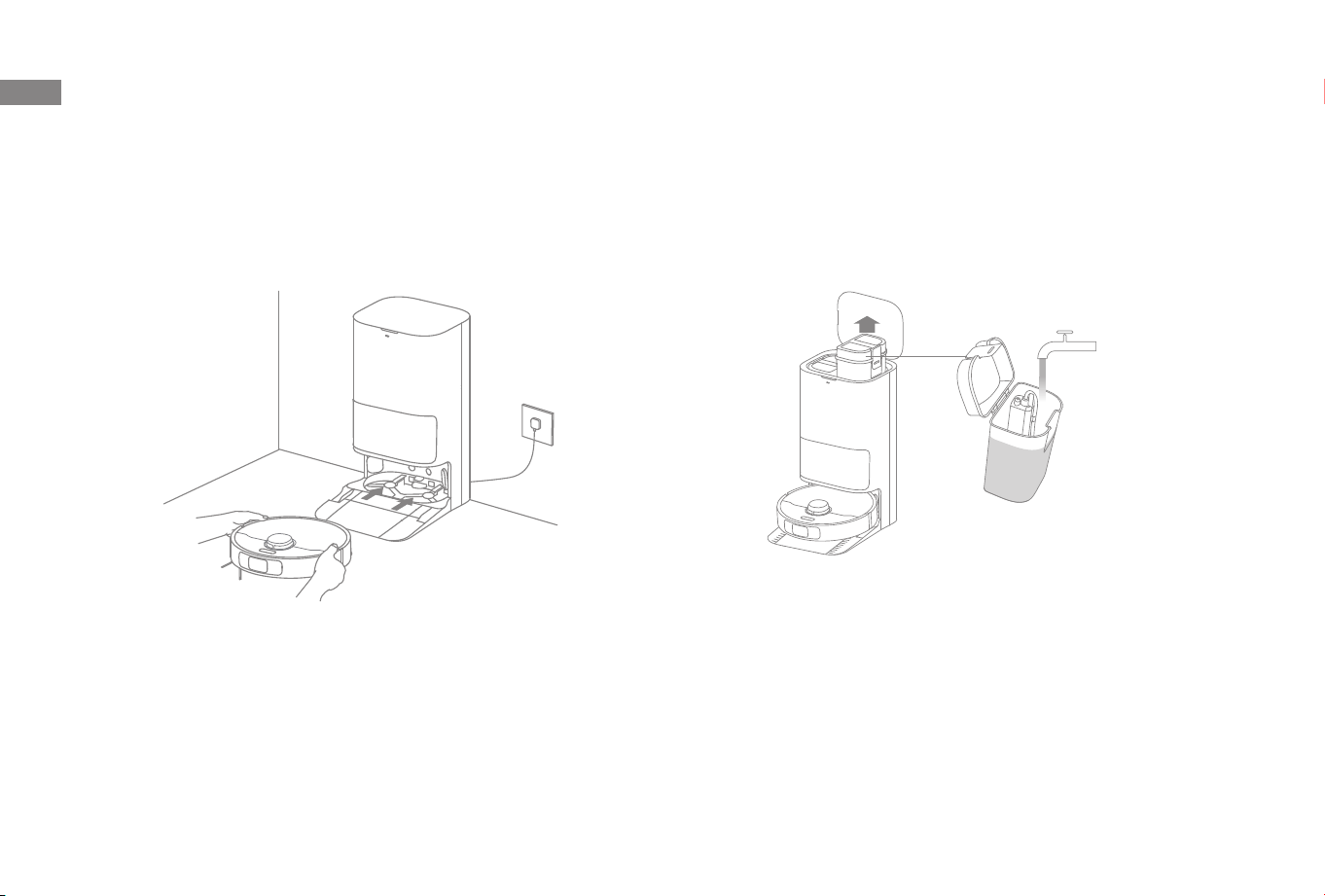

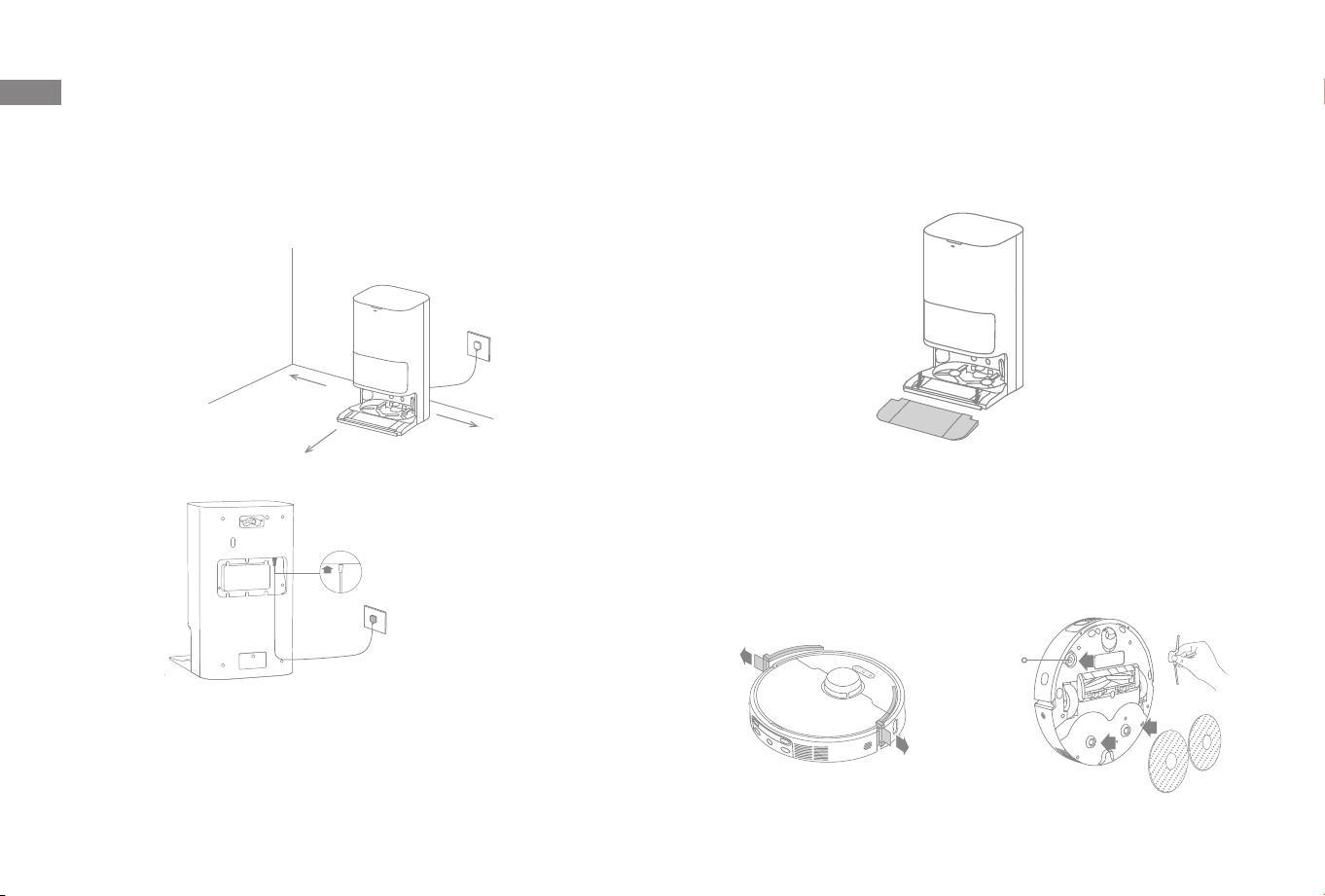

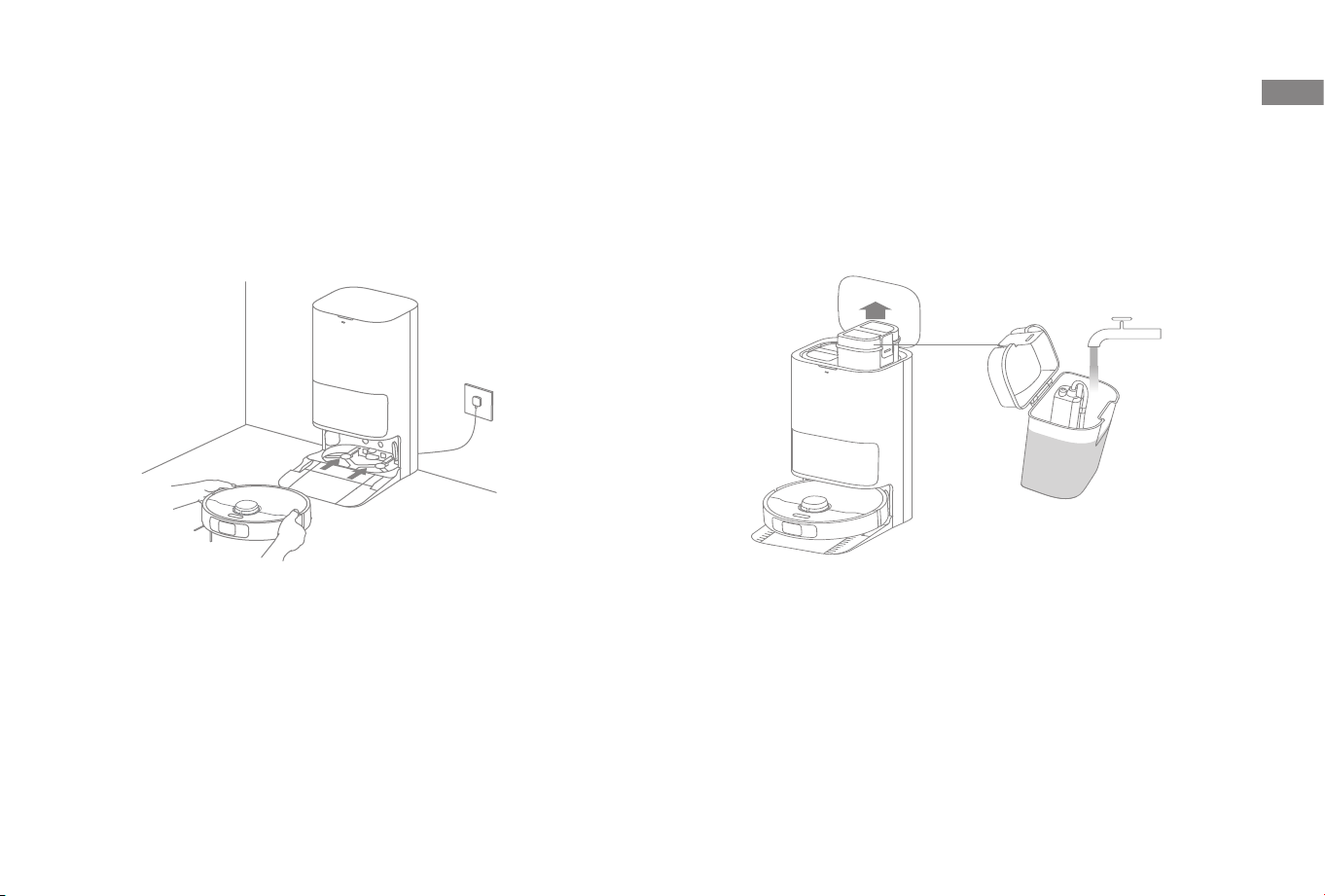

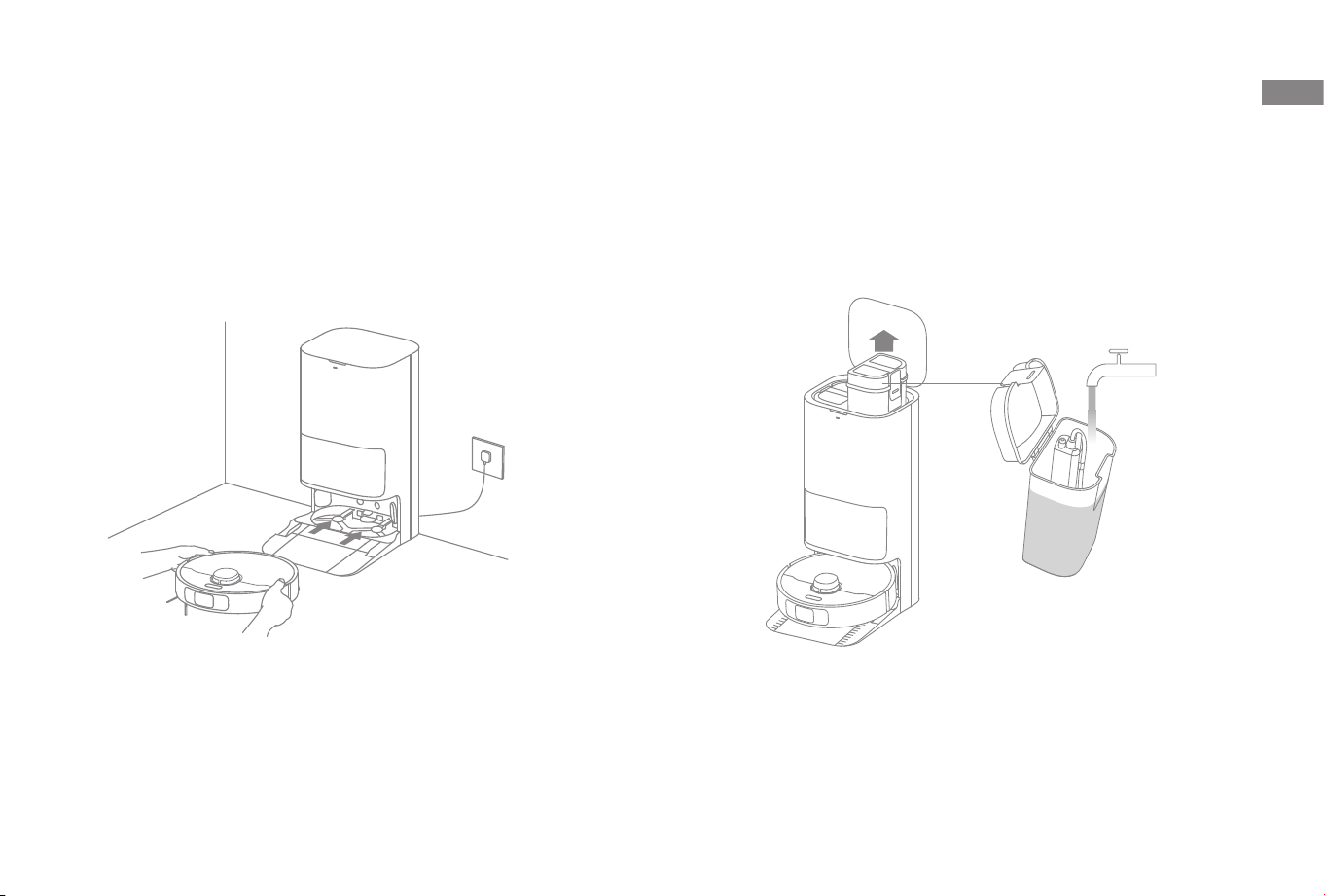

1. Place the Base Station and Connect to an Electrical Outlet

Place the base station in a location that is as open as possible with a good

Wi-Fi signal. Remove any objects that are closer than 1.5 m from the front and

5 cm from either side of the base station. Insert the power cord into the base

station and plug it into the socket.

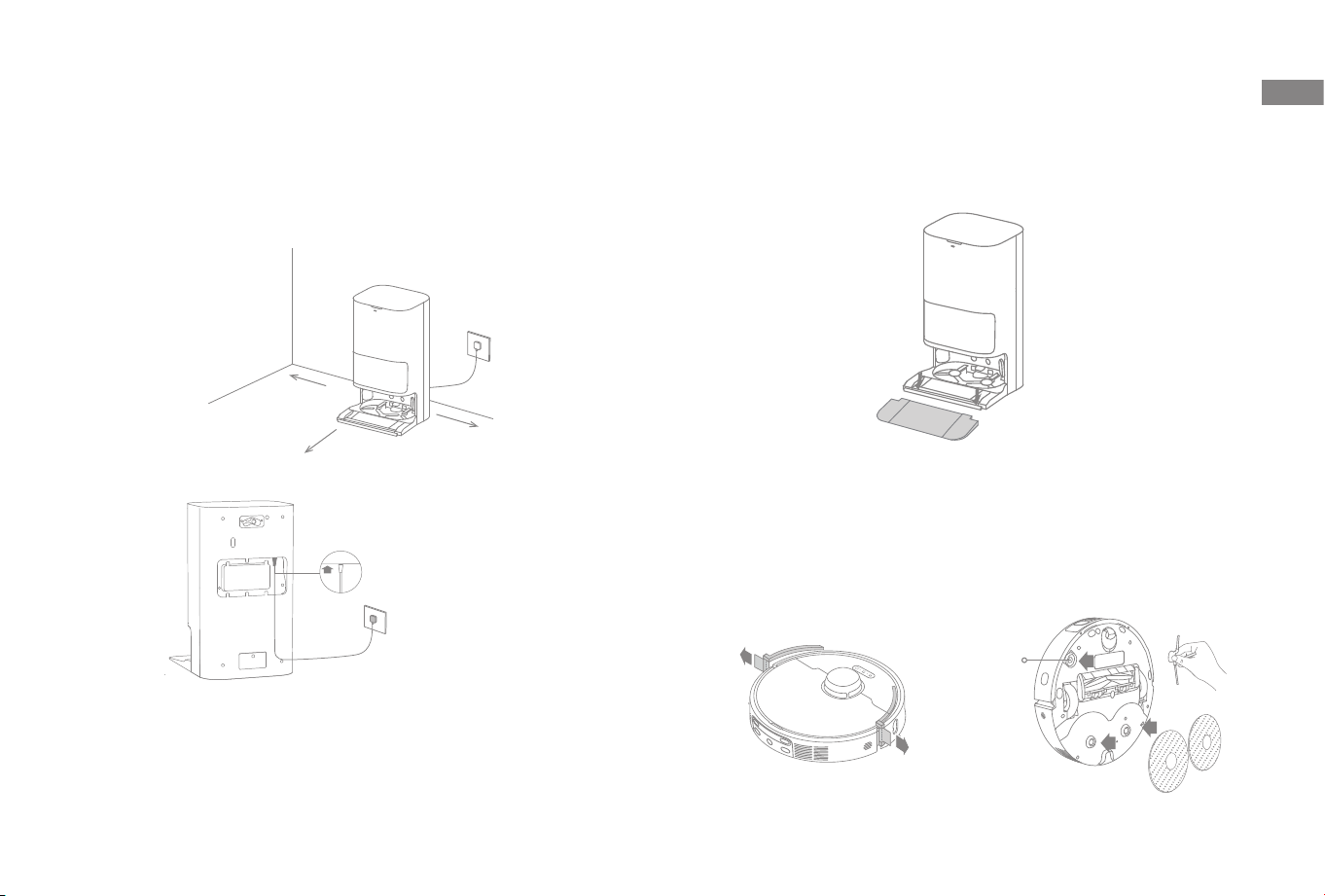

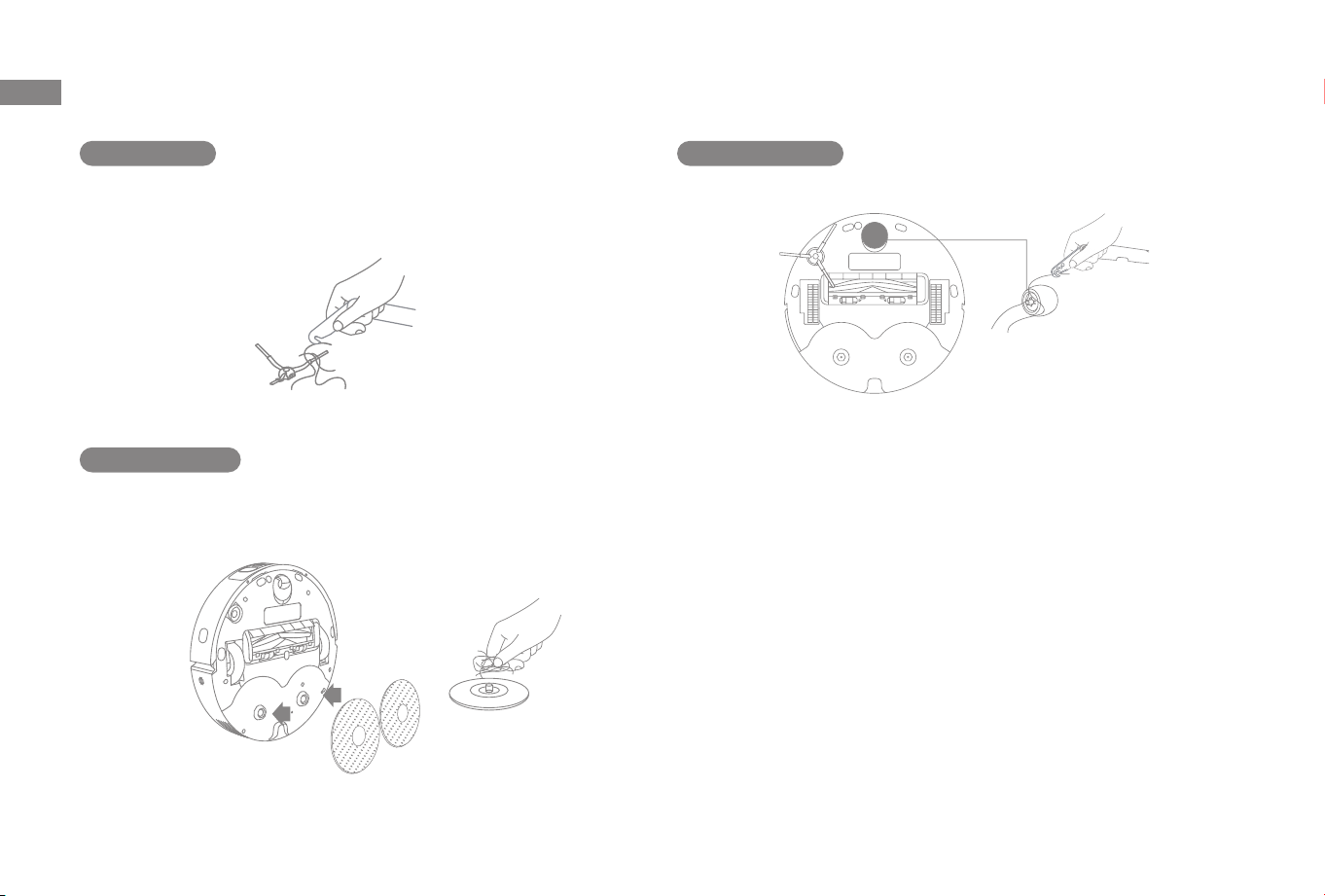

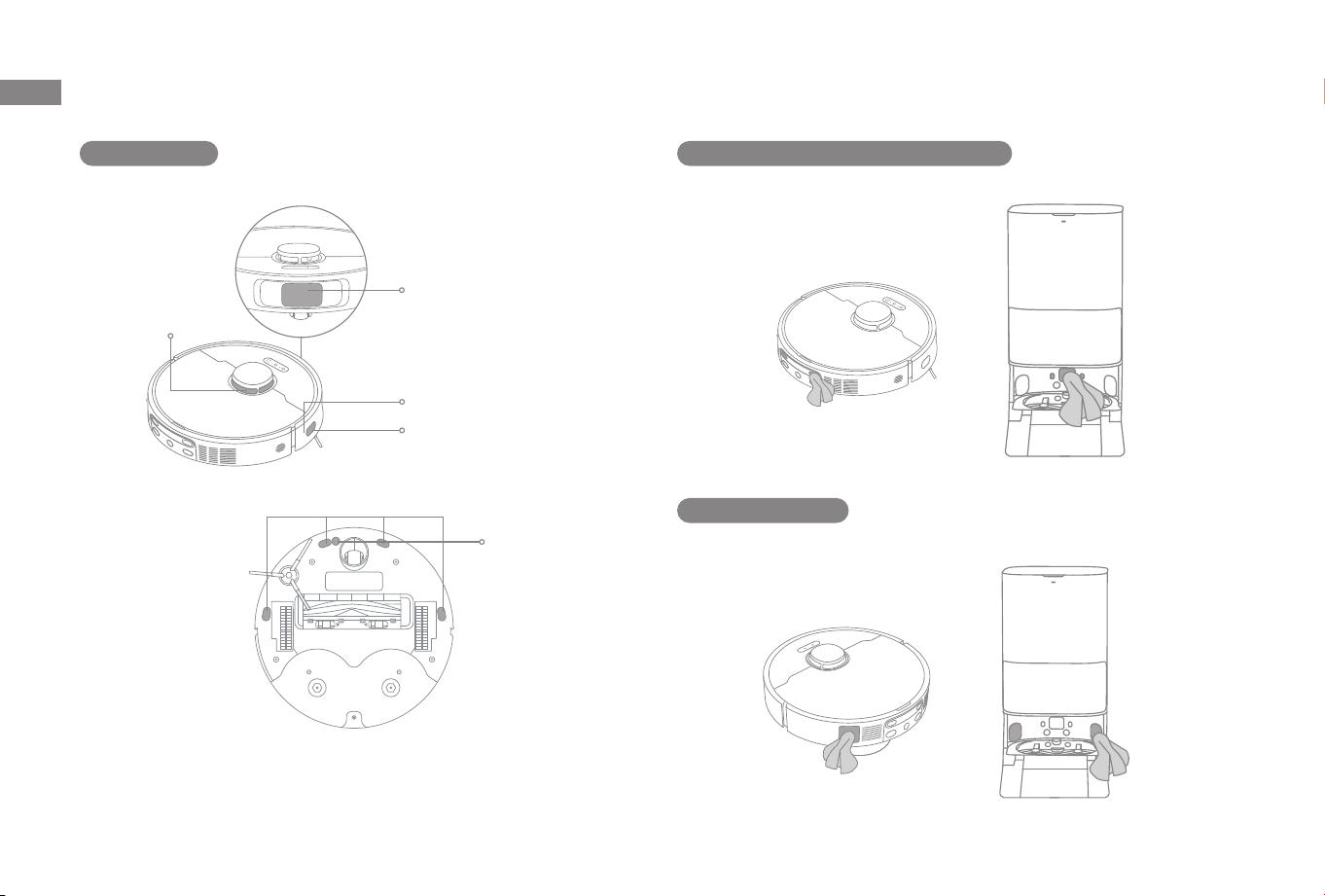

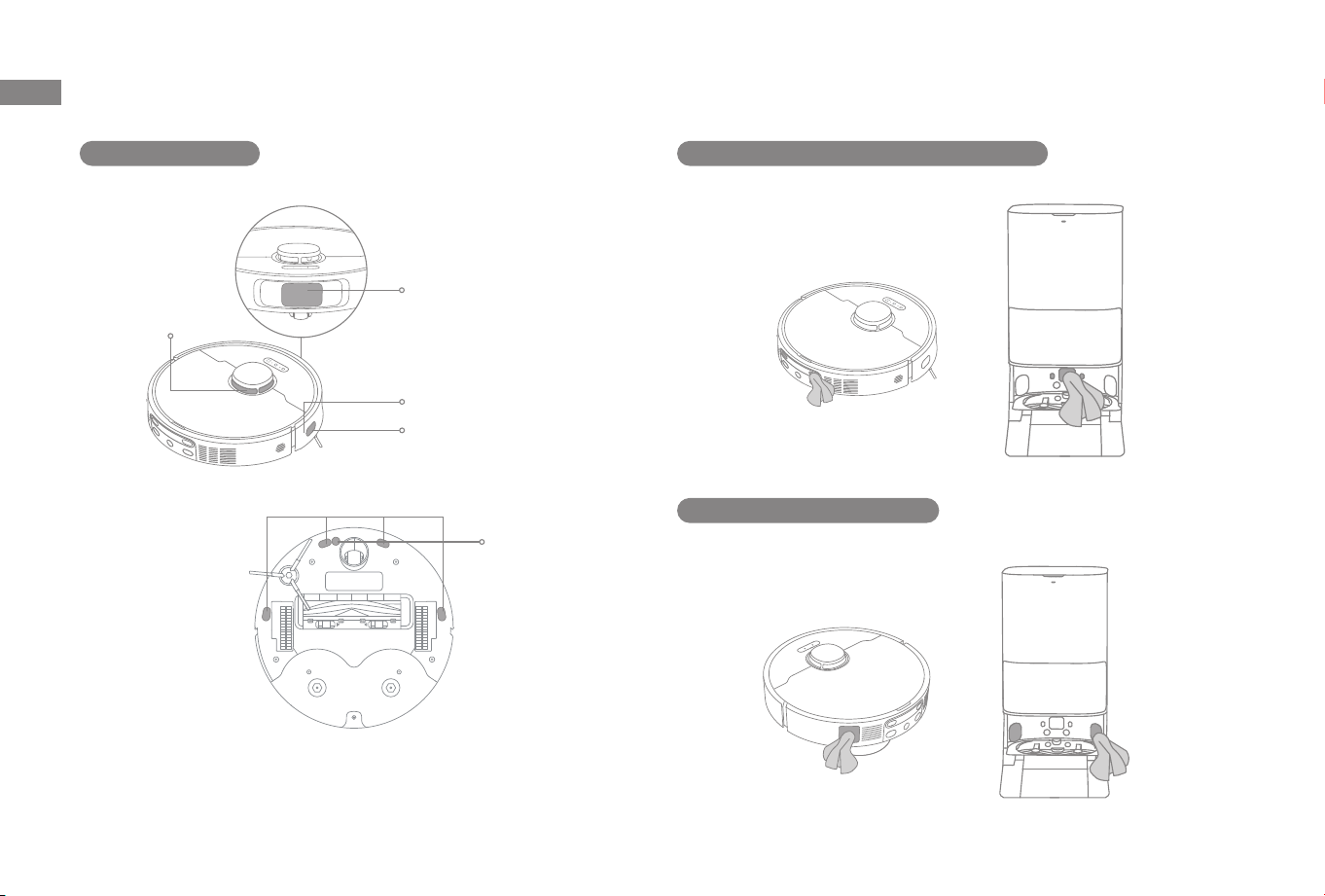

3. Remove Robot Protections, and Install the Side Brush and Mop

Assembly

2. Install the Ramp Extension Plate

Before Use

Note:

· Make sure that no objects might block the signaling area.

· To prevent water stains from wetting wood floors or carpets, placing the

base station on tile floors or marble floors is recommended.

②

①

＞1.5 m

＞5 cm

Firmly insert the power cord

upwards until the indicator turns

on.

Side Brush Clip

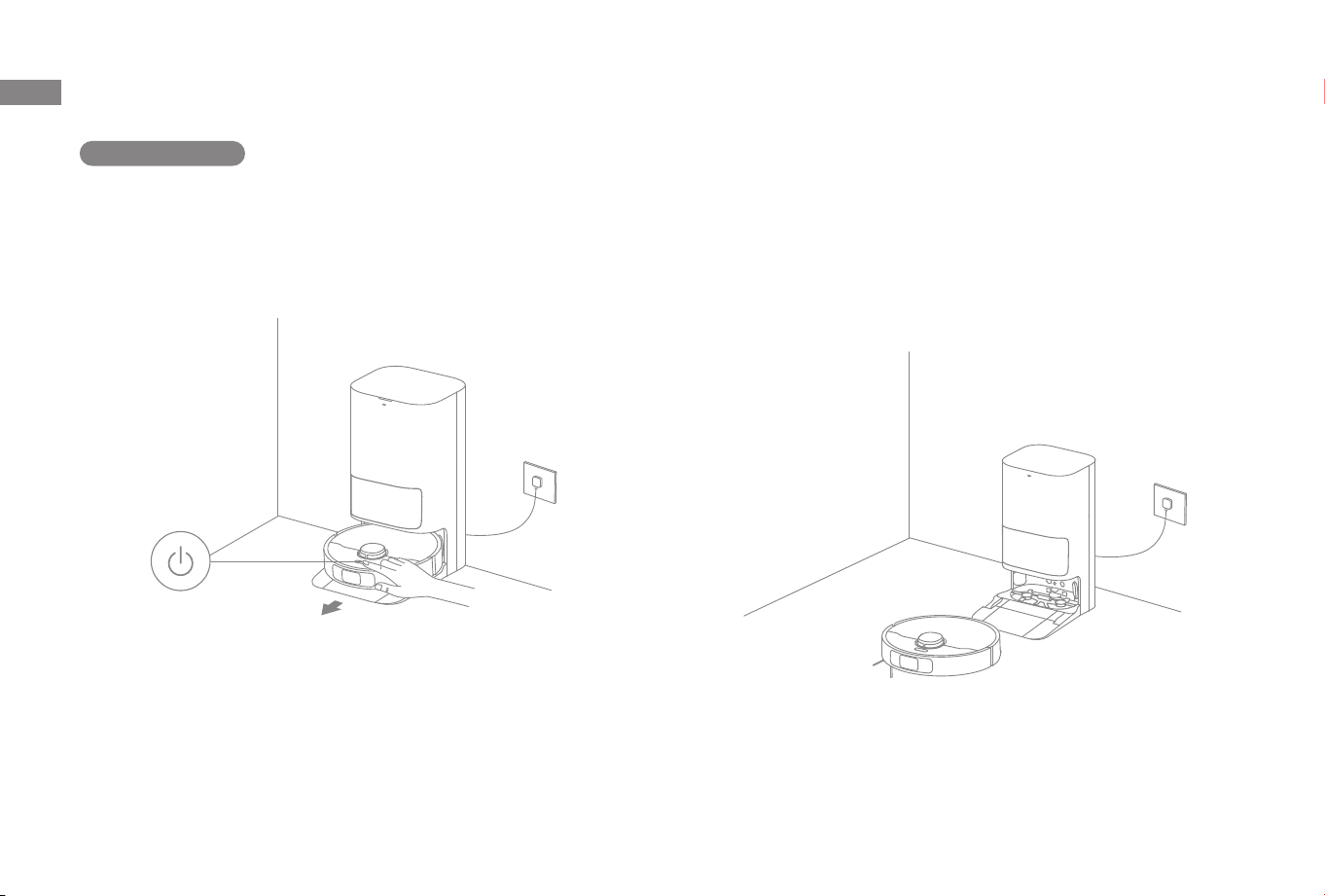

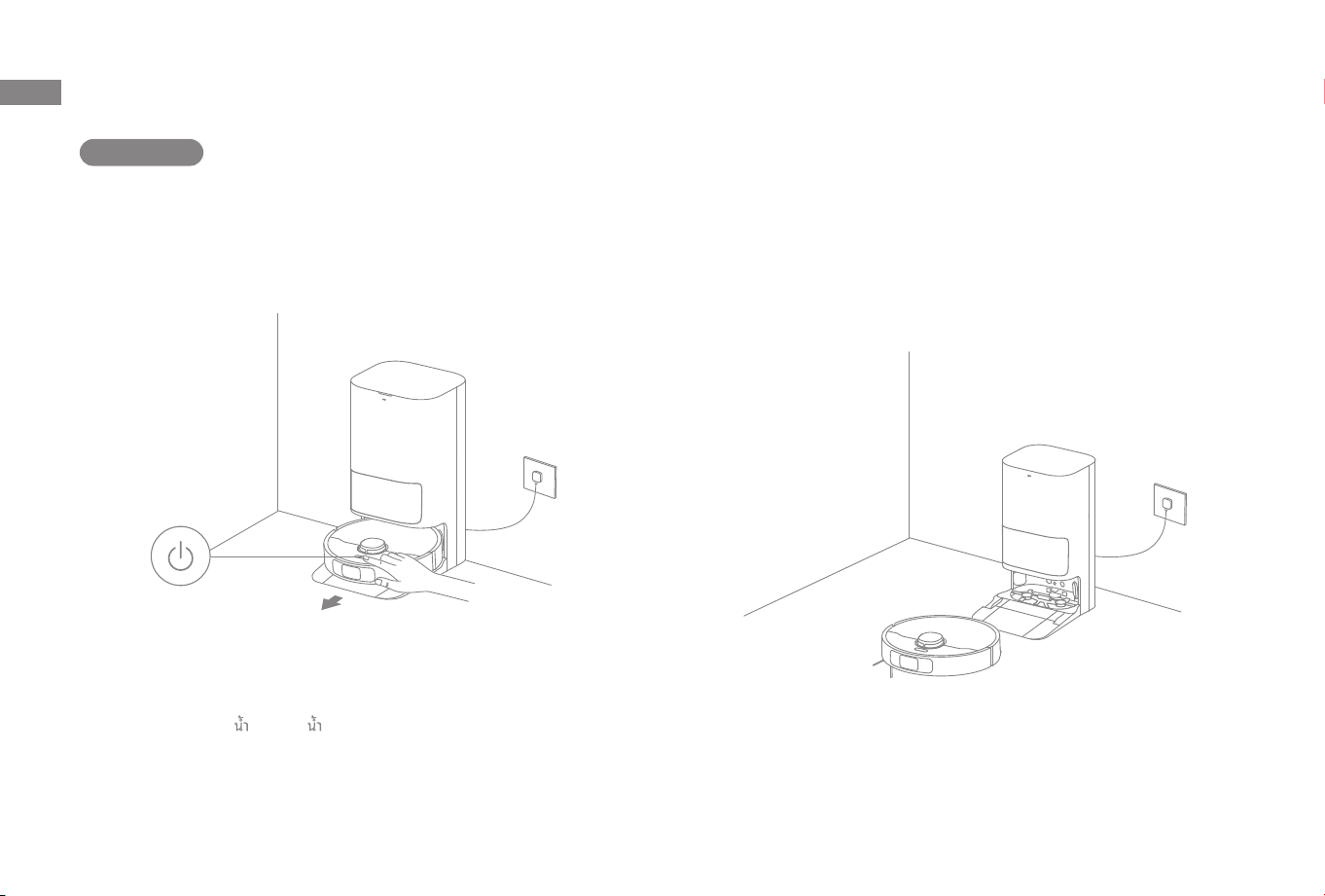

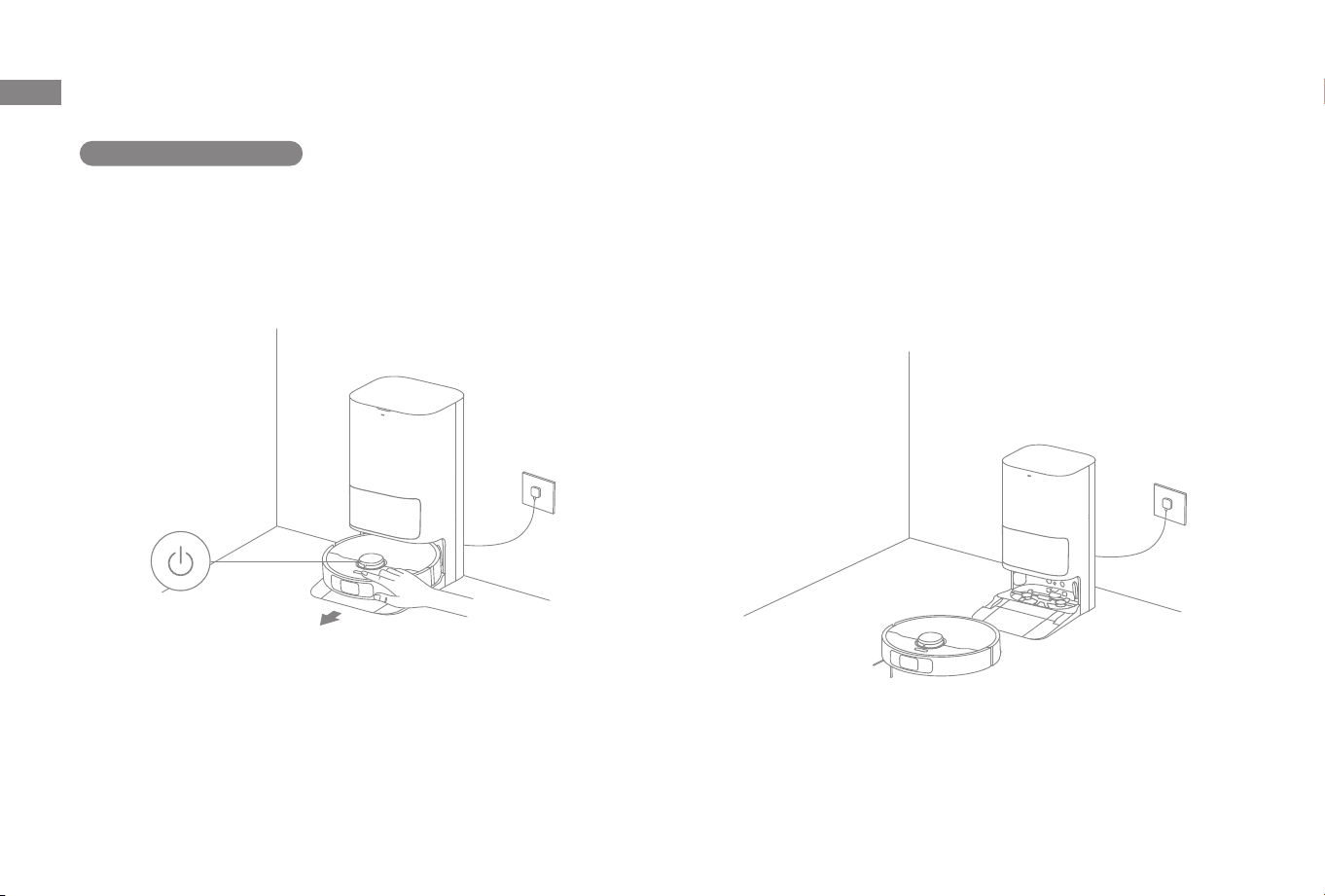

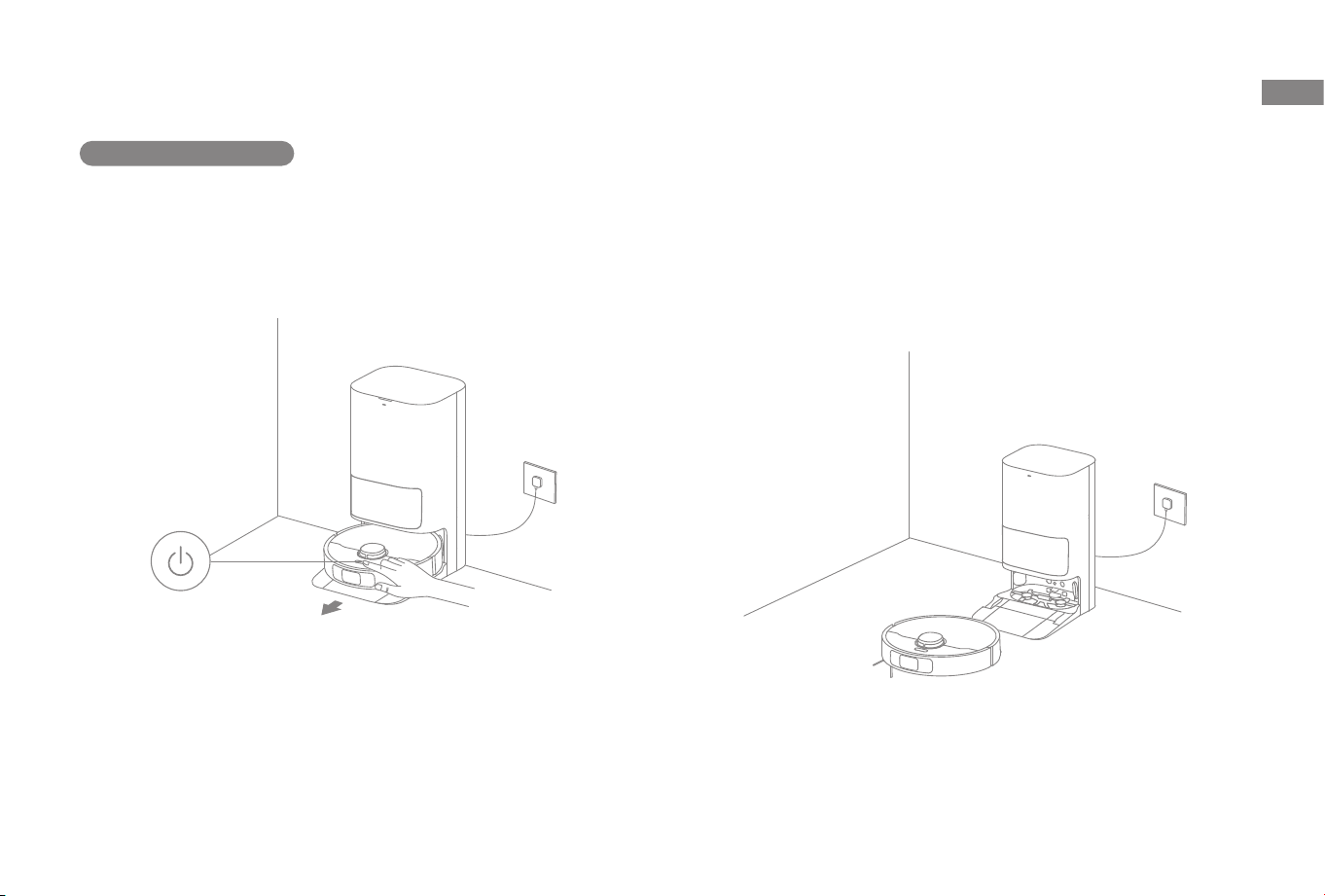

4. Connect the Robot to the Base Station

Press and hold the power button on the robot for 3 seconds to turn it on. Place

the robot onto the base station with the mop assembly facing toward the

washboard. Then you will hear a voice notification when the robot successfully

connects to the base station.

Before Use

Note: It is recommended to fully charge the robot before its first use. When

the robot cannot be turned on after the battery is depleted, manually connect

the robot with the station to charge it.

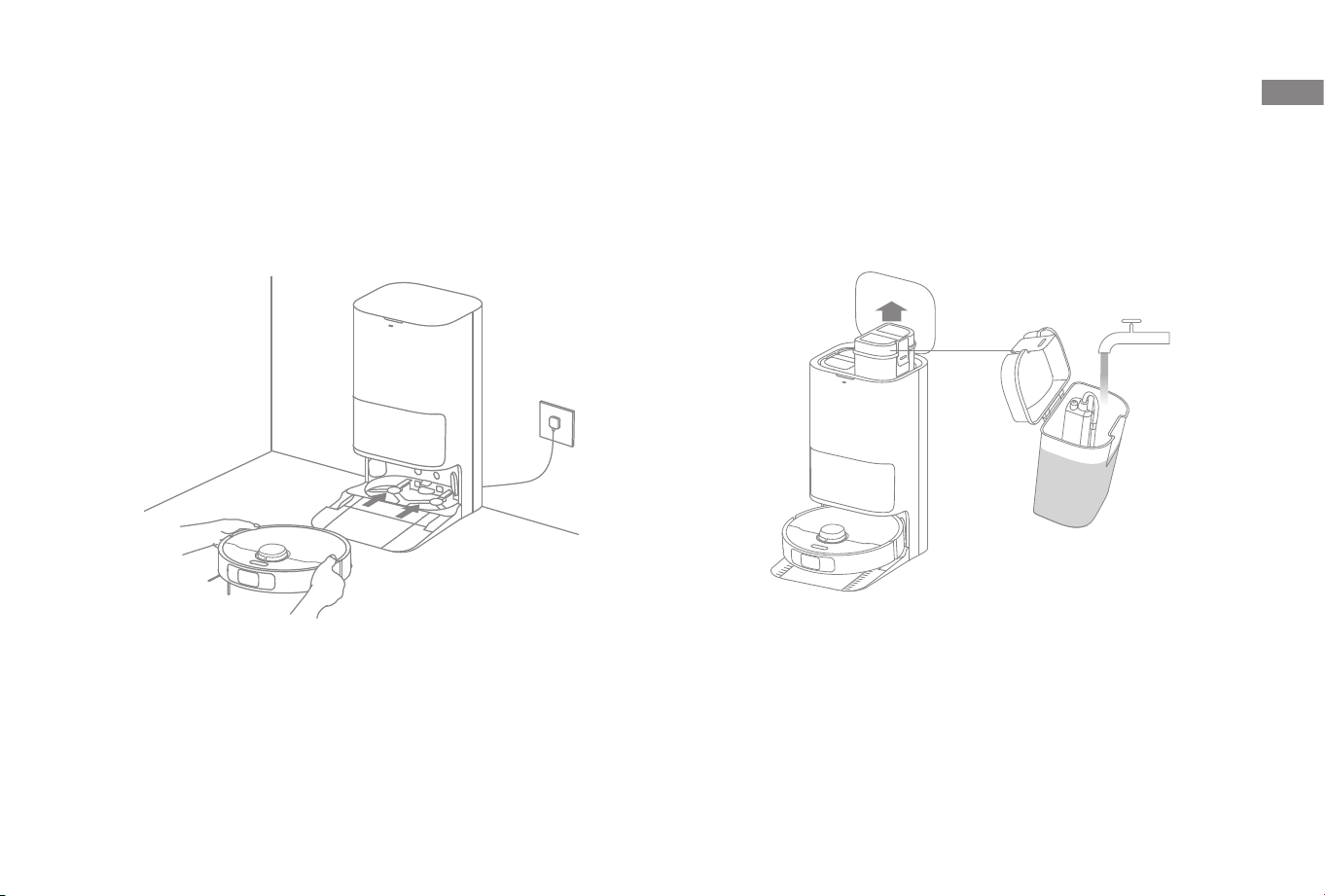

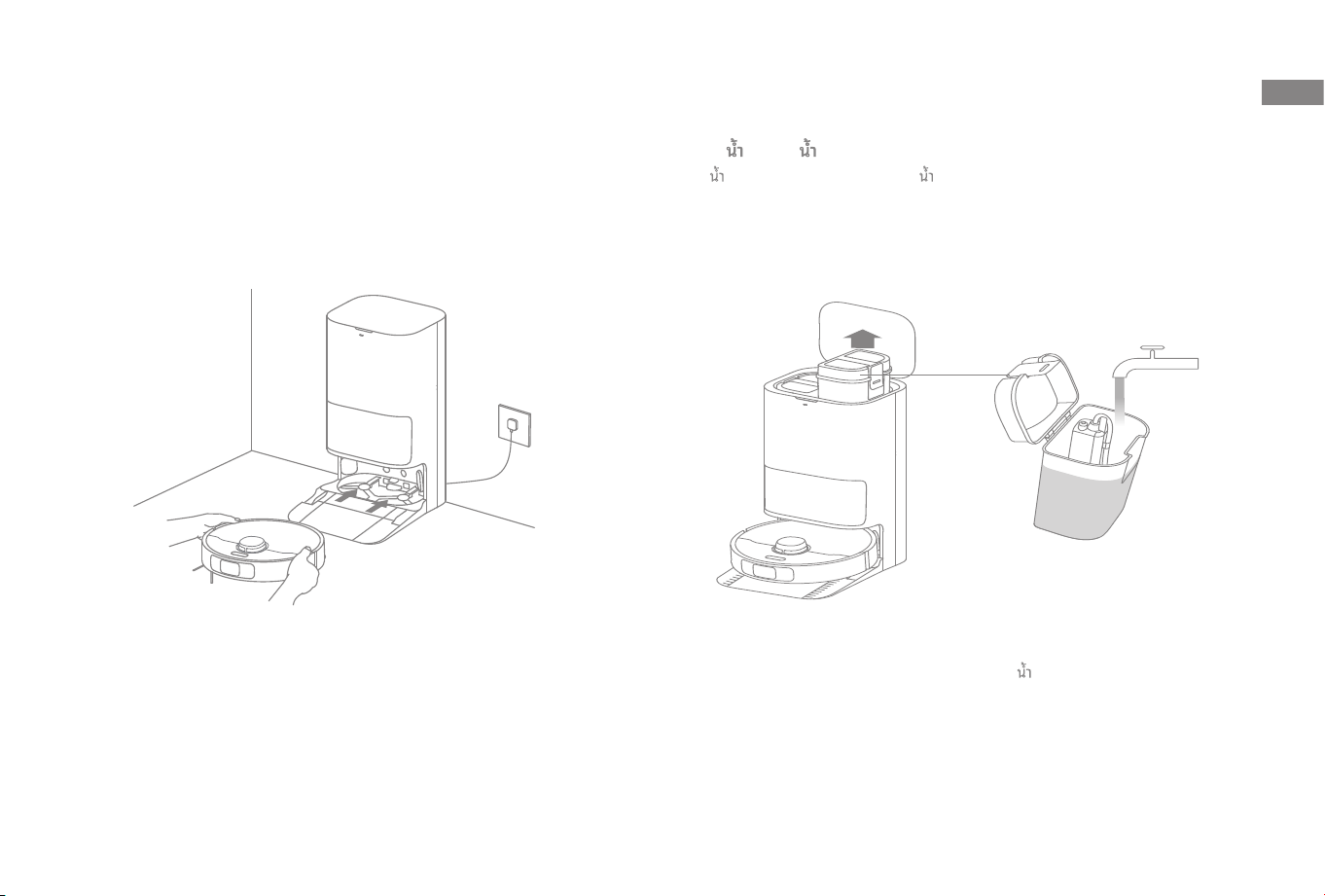

5. Add Water to the Clean Water Tank

Take out the clean water tank from the base station and fill up the tank with

clean water. Then install it back into the base station.

Note: Do not add hot water into the water tank, as this may cause the tank to

become deformed.

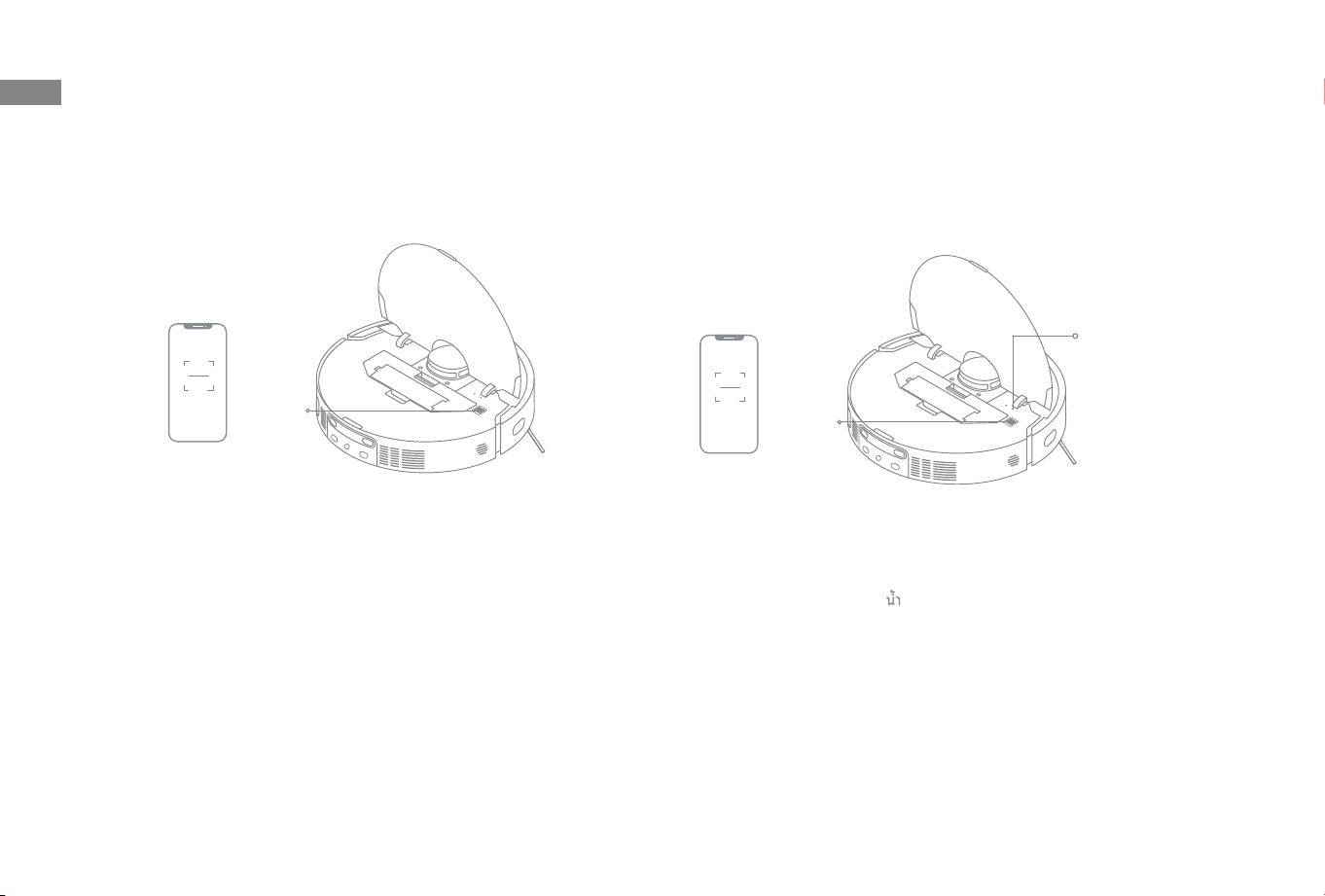

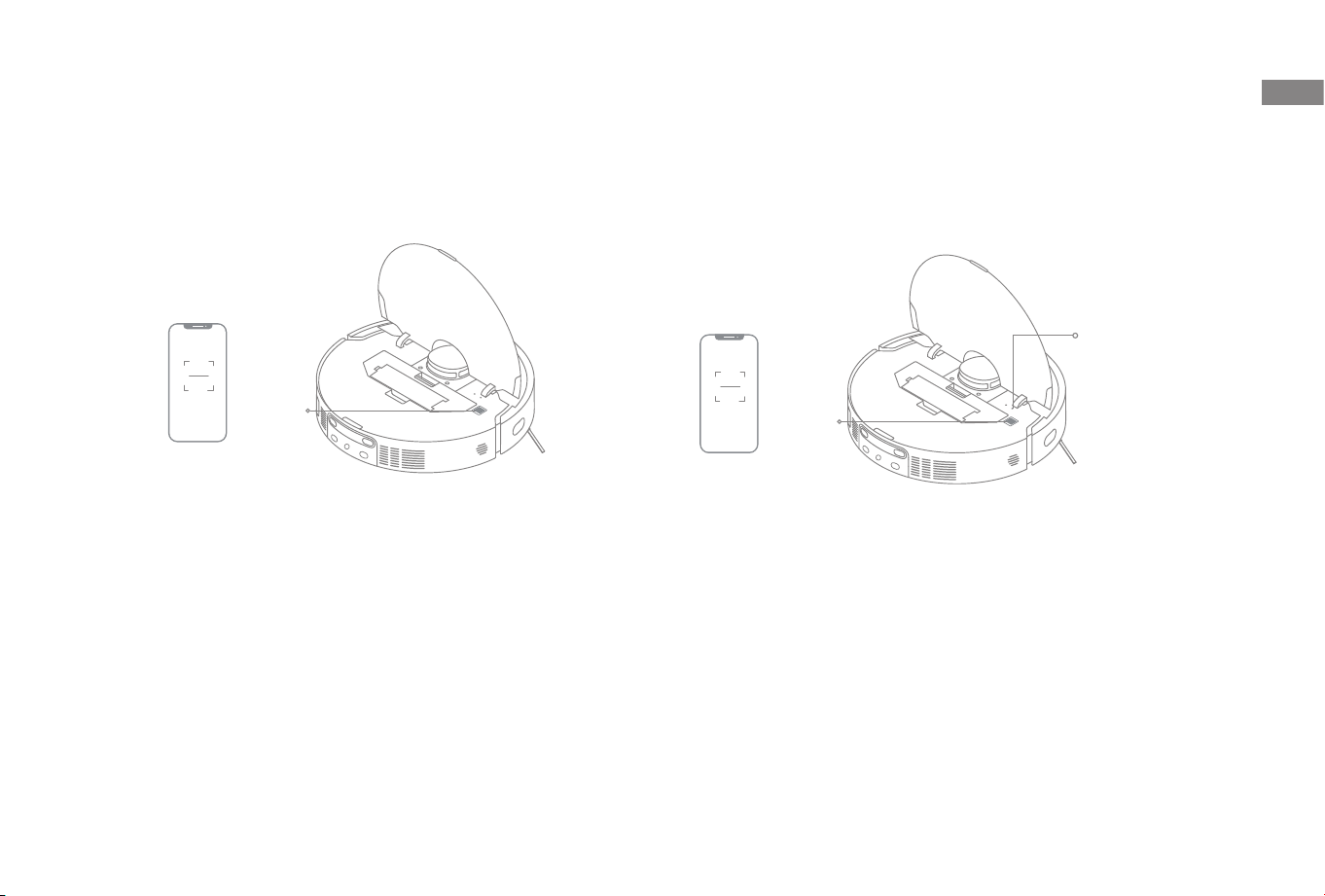

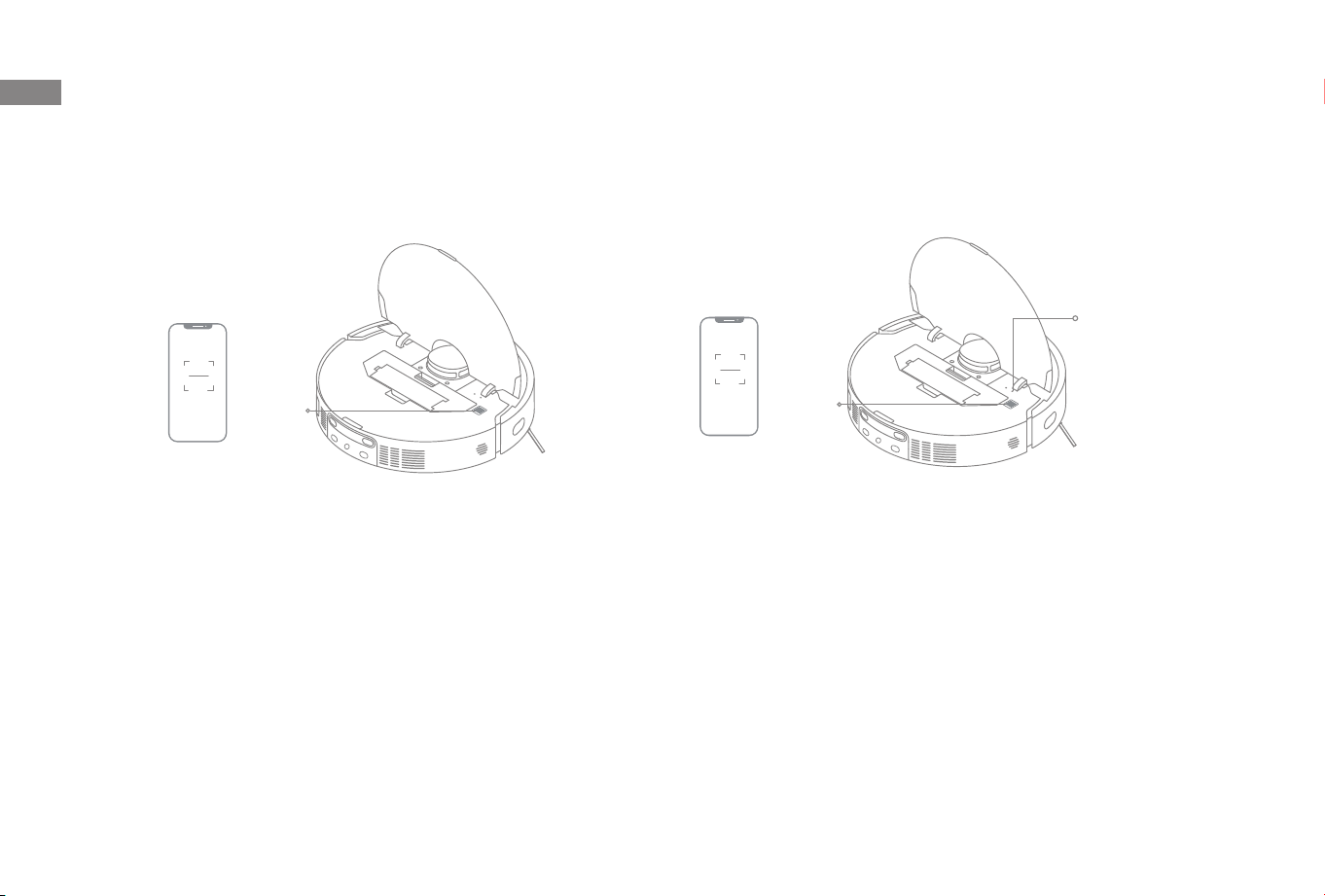

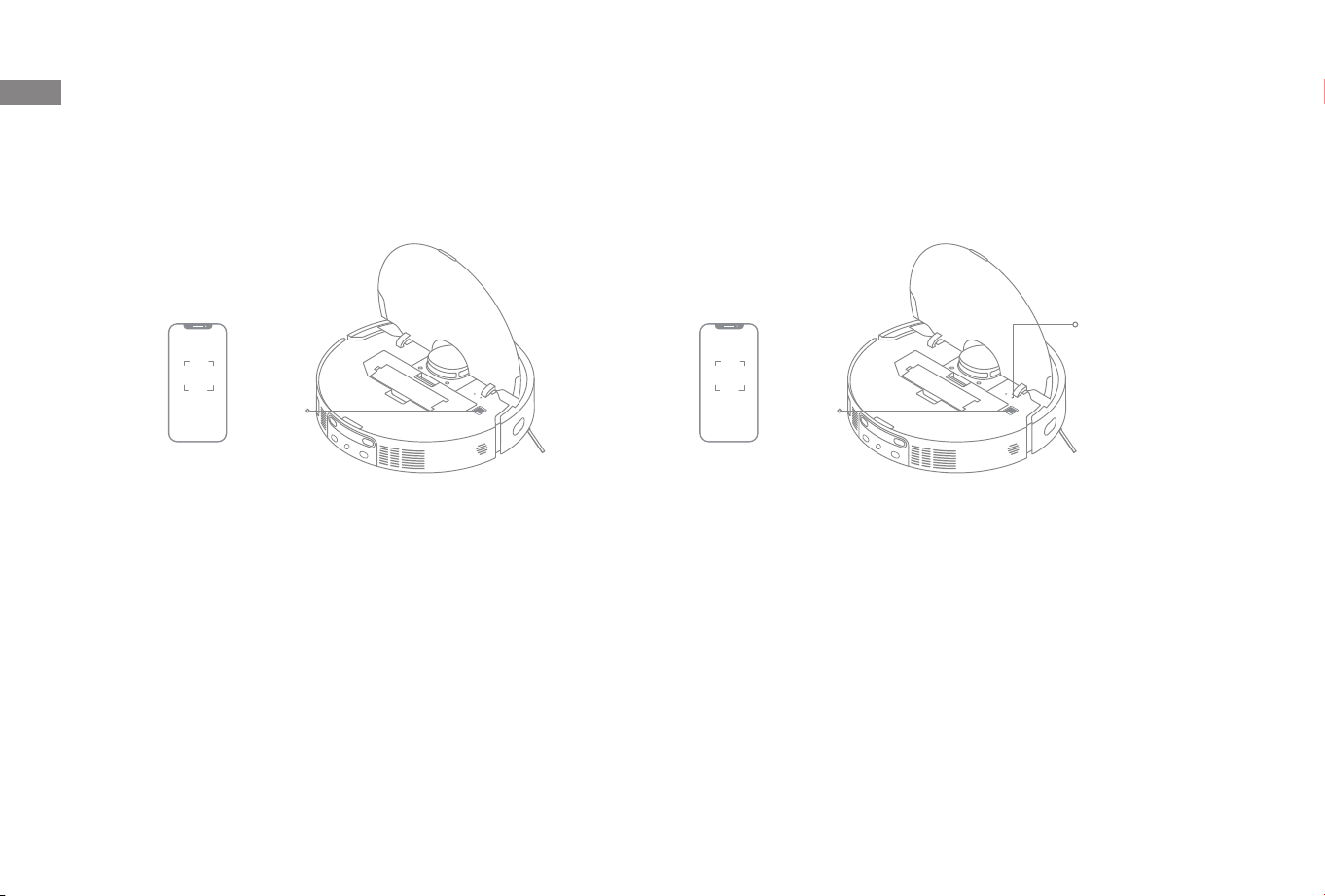

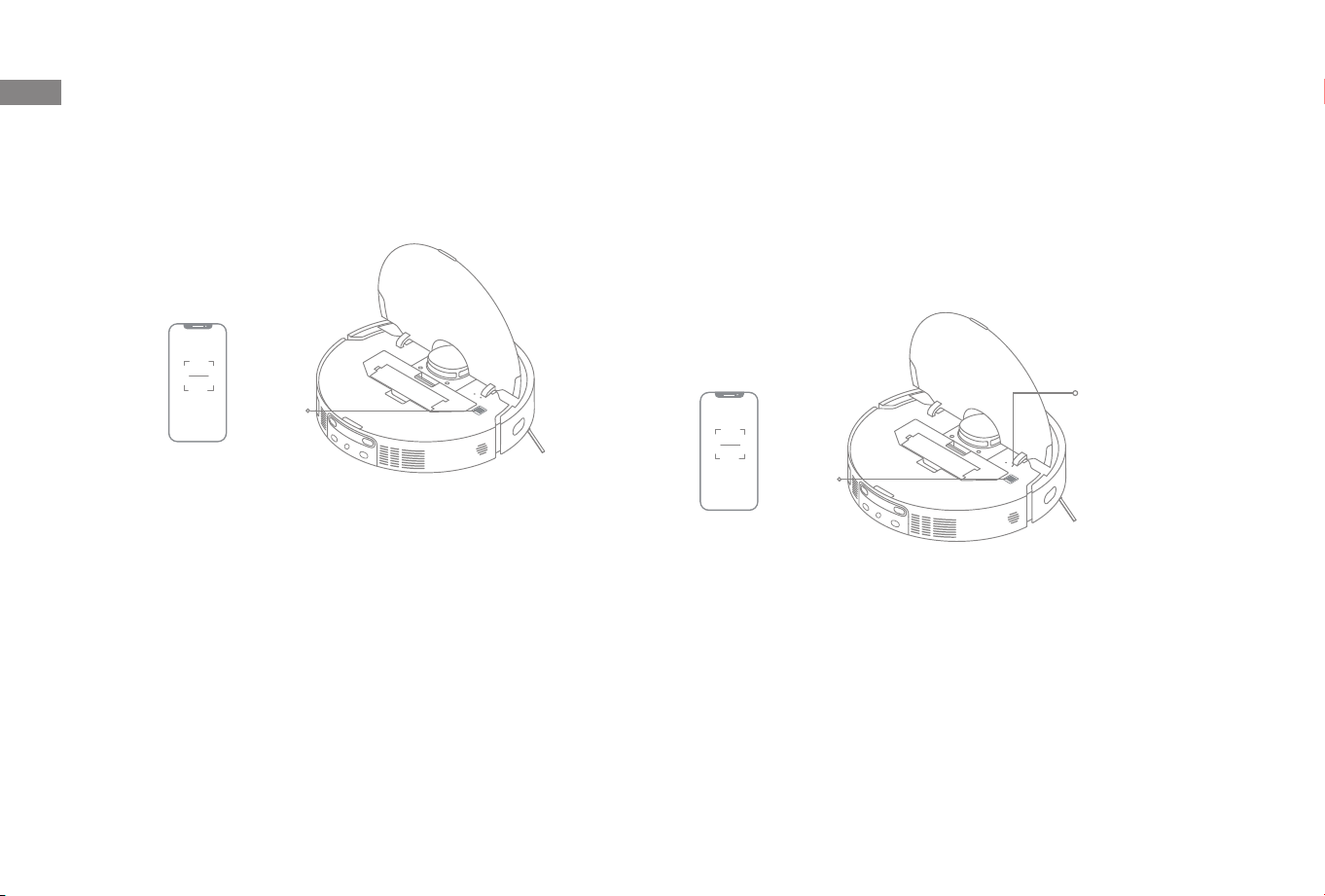

2. Add Device

Open the Dreamehome app, tap "Scan QR code to connect", and scan the same

QR code on the robot again to add the device. Please follow the prompts to finish

the Wi-Fi connection.

Connecting with the Dreamehome App

1. Download the Dreamehome App

Scan the QR code on the robot, or search "Dreamehome" in the app store to

download and install the app.

Wi-Fi Indicator

· Blinking slowly:

To be connected

· Blinking quickly:

Connecting

· On: Connected

Note:



Only 2.4 GHz Wi-Fi is supported.



Due to upgrades in the app software, the actual operations may differ from

the directions in this manual. Please follow the instructions based on the

current app version.

QR Code

Note:



If you want to reset Wi-Fi, repeat step 2 and then follow the prompts to finish

the Wi-Fi connection.



To disconnect the device from Wi-Fi network, press and hold the Reset

button on the robot for 3 seconds.

How to Use

Turn On/O

Press and hold the power button for 3 seconds to turn on the robot. The

power indicator should be illuminated. Place the robot onto the base station,

the robot should turn on automatically and begin charging. To turn o the

robot, move the robot away from the base station and press and hold the

power button for 3 seconds.

Fast Mapping

After configuring the network for the first time, follow the instructions in the

app to quickly create a map. The robot will start mapping without cleaning.

When the robot returns to the base station, the mapping process has been

completed and the map will be saved automatically.

Pause/Sleep

When the robot is running, press any button to pause it. If the robot is paused

for more than 10 minutes, it automatically enters sleep mode. All indicators

on the robot will turn o. Press any button on the robot, or use the app to

wake up the robot.

Note: If the robot is paused and placed onto the base station, the current

cleaning process will end.

Auto Resume Cleaning

If the battery is too low, the robot will automatically return to the base station

to charge. After charging to the appropriate battery level, it will resume

unfinished cleaning tasks.

Note: To use this function, please enable it in the app.

Do Not Disturb (DND) Mode

When the robot is set to the Do Not Disturb (DND) mode, the robot will be

prevented from resuming cleaning and the power indicator goes out. The DND

mode is disabled by default at the factory. You can use the app to enable the

DND mode or modify the DND period. The DND period is 22:00-8:00 by default.

Note:



The scheduled cleaning tasks will be performed as usual during the DND

period.



The robot will resume cleanup where it left off after the DND period expires.

Spot Cleaning

When the robot is awaiting, press briefly the button to enable the spot

cleaning mode. In this mode, the robot cleans a square-shaped area of 1.5 x

1.5 meters around it and returns to its starting point once the spot cleaning is

completed.

Robot Restarting

If the robot stops responding or cannot be turned o, press and hold the

power button for 10 seconds to forcefully turn it o. Then, press and hold the

power button for 3 seconds to turn the robot on.

How to Use

Vacuum and Mop

Note: When using the mop assembly for the first time, the robot performs the

"Vacuum and Mop" task by default.

1. Start cleaning

Press the power button on the robot, or use the app to make the robot start

from the base station. Then the robot will plan the optimal cleaning route

and perform the cleaning task based on the created map.

2. Auto mop washing

When cleaning, the robot will automatically return to the base station to wash

mop pads based on the mop pad cleaning frequency specified in the app.

Note:



To ensure the robot easily returns to the base station after cleaning, it is

recommended to make the robot start from the base station.



The mop pads will be cleaned before the robot starts mopping, please wait

patiently.



Do not move the base station, the clean water tank, the used water tank, or

the washboard during operation.

How to Use

3. Automatically empty the dust box and wash and dry the mop

pads

After the robot finishes a cleaning task and returns to the base station to

charge, the base station will automatically start emptying the dust box. Then

it will wash and dry the mop pads.

4. Clean the used water tank

After the robot has completed its task, please clean the used water tank to

prevent any odor.

Note:



If the auto-empty function is turned off in the app, the base station will not

automatically empty the dust box.



The base station will empty the dust box according to the setting in the app.

Vacuum Only

Enable the vacuuming function in the app, and the robot will automatically lift

the mop assembly and start vacuuming.

Mop after Vacuuming

Enable the mopping after vacuuming function in the app, and the robot will

automatically lift the mop assembly to vacuum the floor. After vacuuming

is completed, the robot will return to empty the dust box, and then start

mopping after automatically lowering the mop assembly.

Mop Only

Enable the mopping function in the app, and the robot will check if the mop

assembly is installed. If not, manually install the mop assembly, and then the

robot will automatically start mopping.

Routine Maintenance

Part Maintenance Frequency Replacement Period

Used water tank After each use

Clean water tank

Once every 2 weeks

Main brush Every 6 to 12 months

Dust box's filter

Every 3 to 6 months

Side brush

Mop pad holder /

Washboard

Once every month /

Base station's

signaling area

Charging contacts

Auto-empty vents

Omnidirectional

wheel

Edge sensor

Laser Distance

Sensor (LDS)

3D line laser

sensor

Part Maintenance Frequency Replacement Period

Carpet sensor

Once every month

Cli sensors

Bumper

Bottom of the robot

Dust box Clean it as needed

Dust bag

Every 2 to 4 months

Mop pad Every 1 to 3 months

Note: The replacement frequency will depend on your usage of the robot.

If an exception occurs due to special circumstances, the parts should be

replaced.

Parts

To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine maintenance.

Routine Maintenance

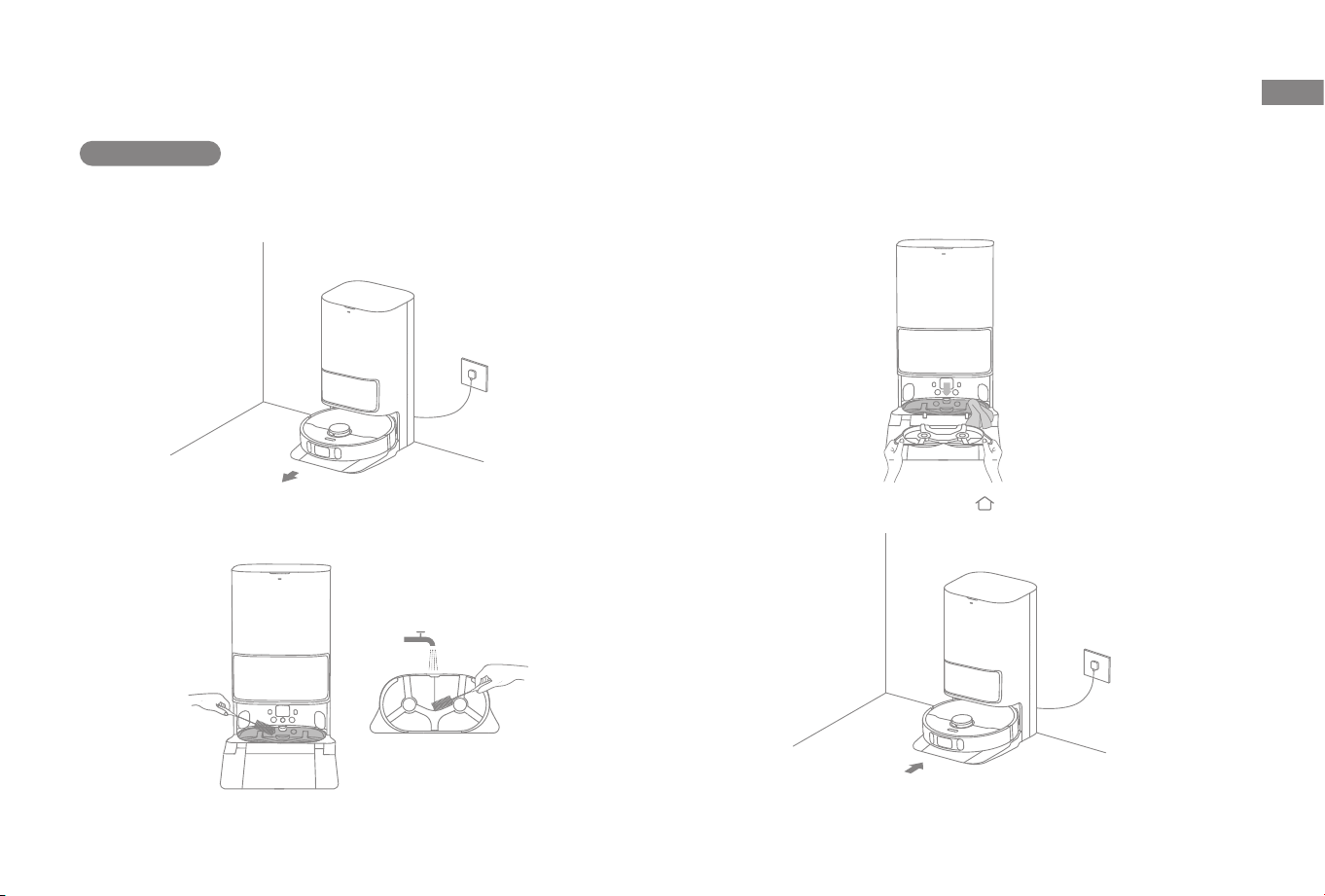

Washboard Base

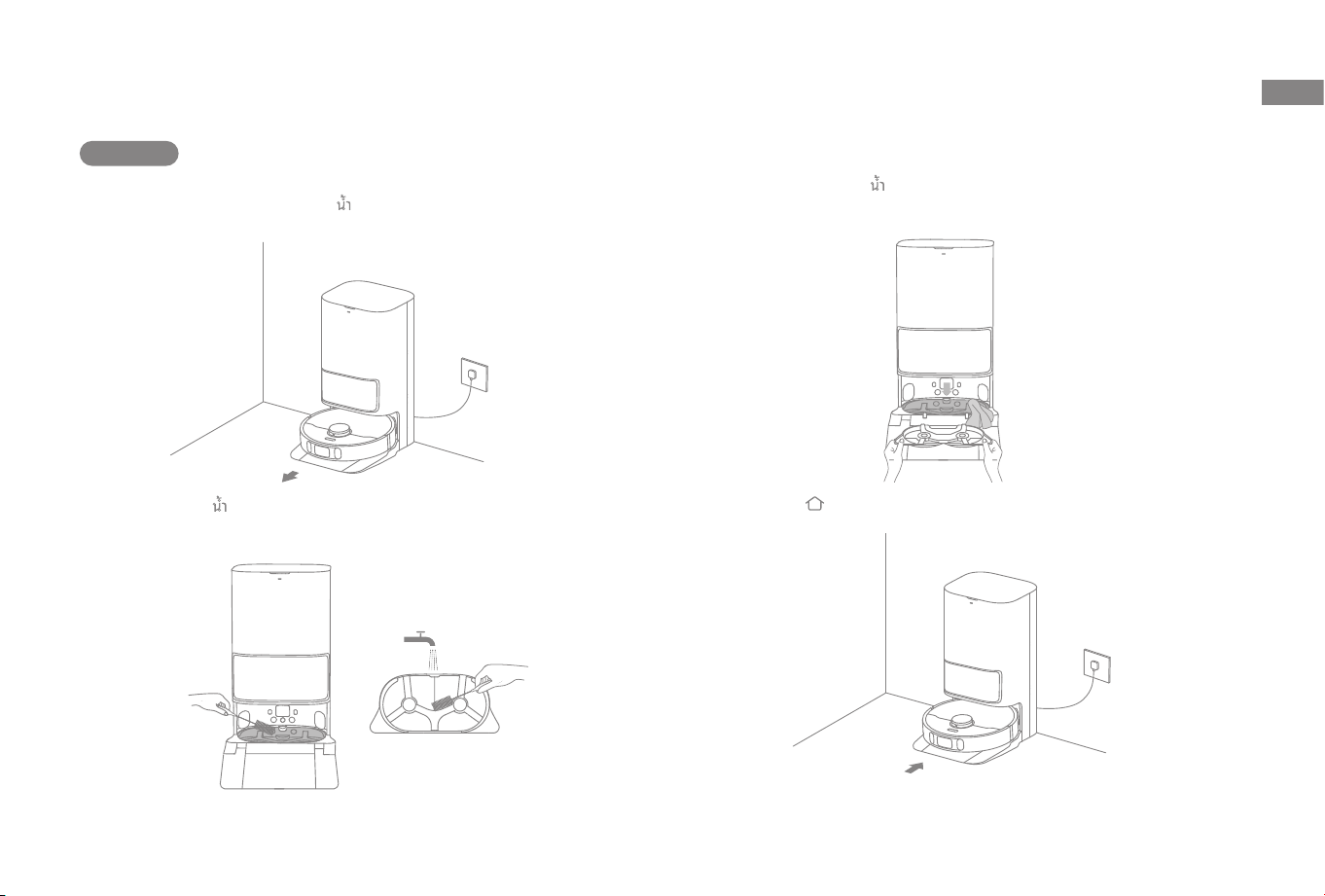

1. Enable the washboard base cleaning function in the app, and the robot

will exit the base station automatically. Take out the washboard and wait for

water to fill the bottom of the base station.

3. After a moment, the base station will automatically pump out the used

water. Then dry it with a soft and dry cloth, and put the washboard back into

place.

2. Rinse the washboard with clean water, and use the provided cleaning tool

to clean the bottom of the base station.

4. Use the app or briefly press the button on the robot to make it return to

the base station.

Note: During cleaning, do not make the robot return to the base station.

3. Install a new dust bag.

4. Reinstall the dust tank cover.2. Remove the dust and debris from the filter with a dry cloth.

Note: Pulling upwards on the handle will seal the bag to prevent the dust and

debris from accidentally falling out.

Routine Maintenance

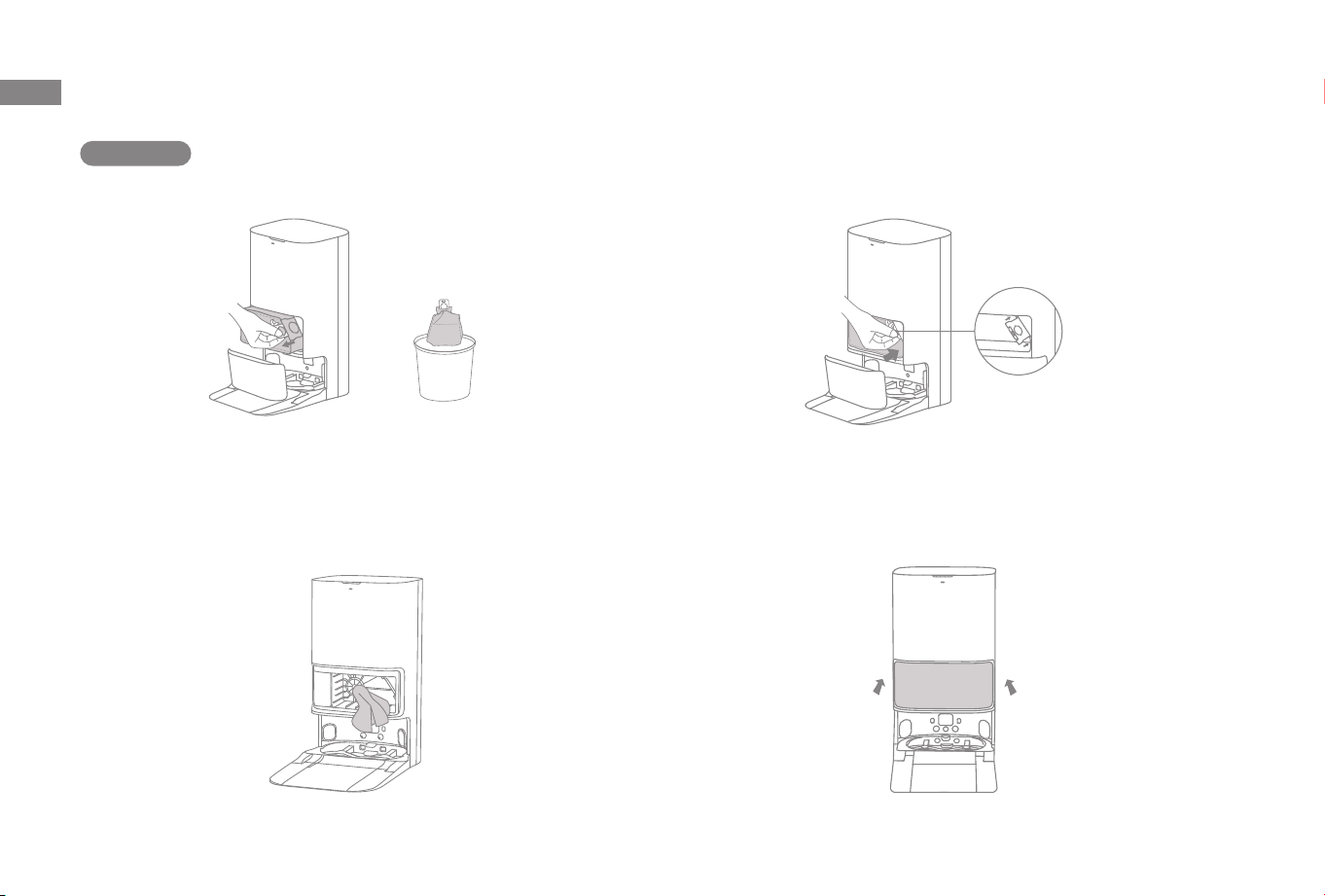

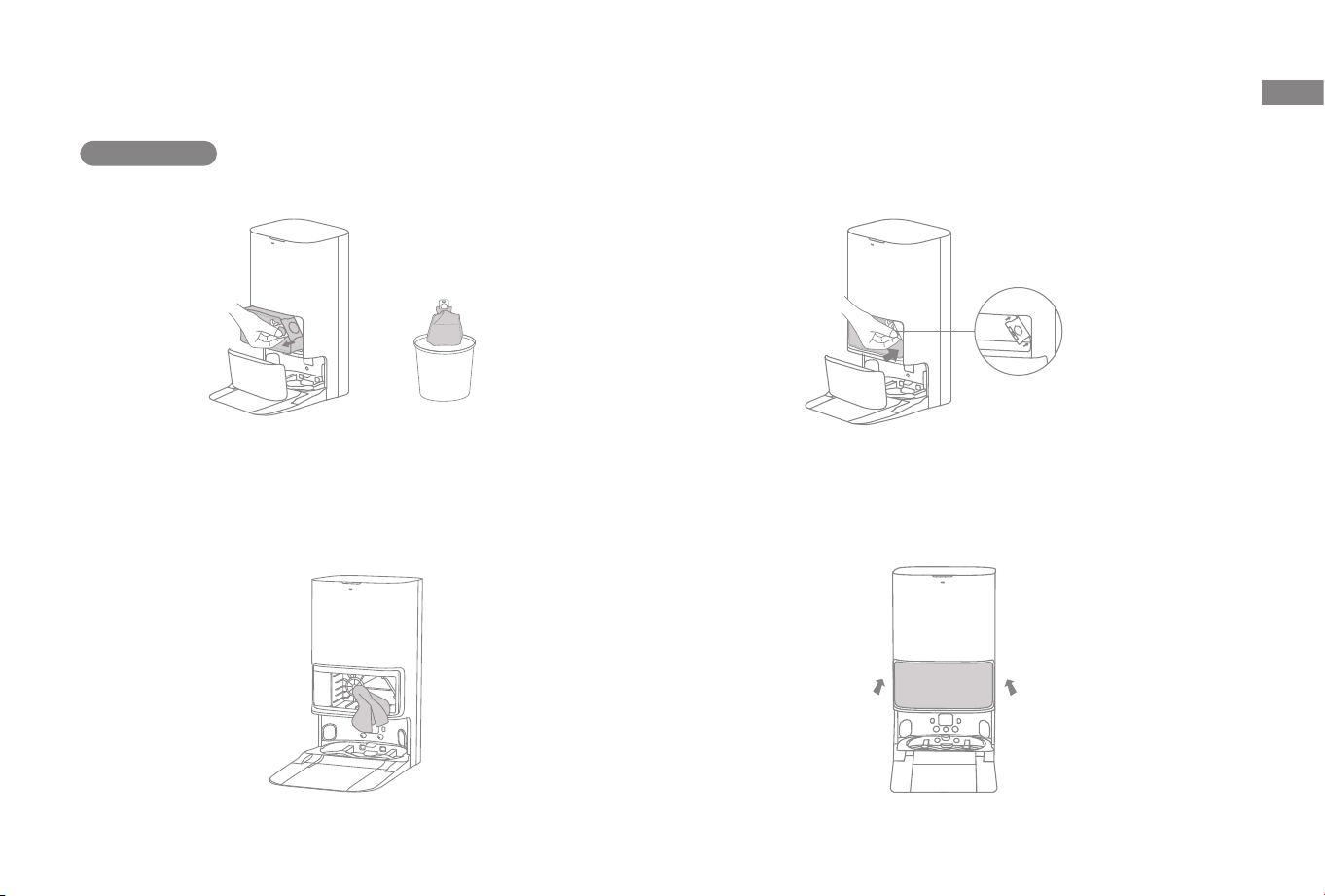

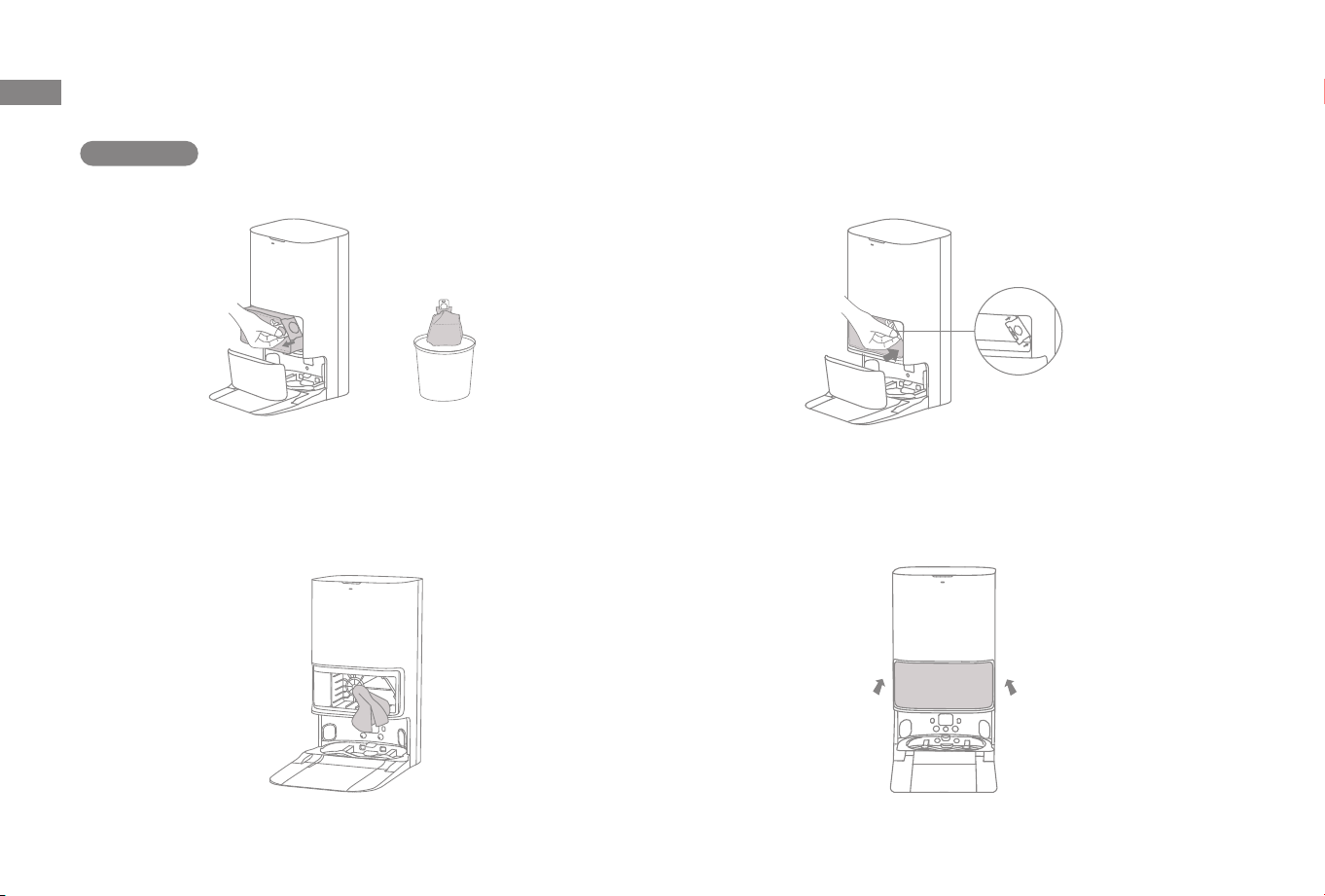

Dust Bag

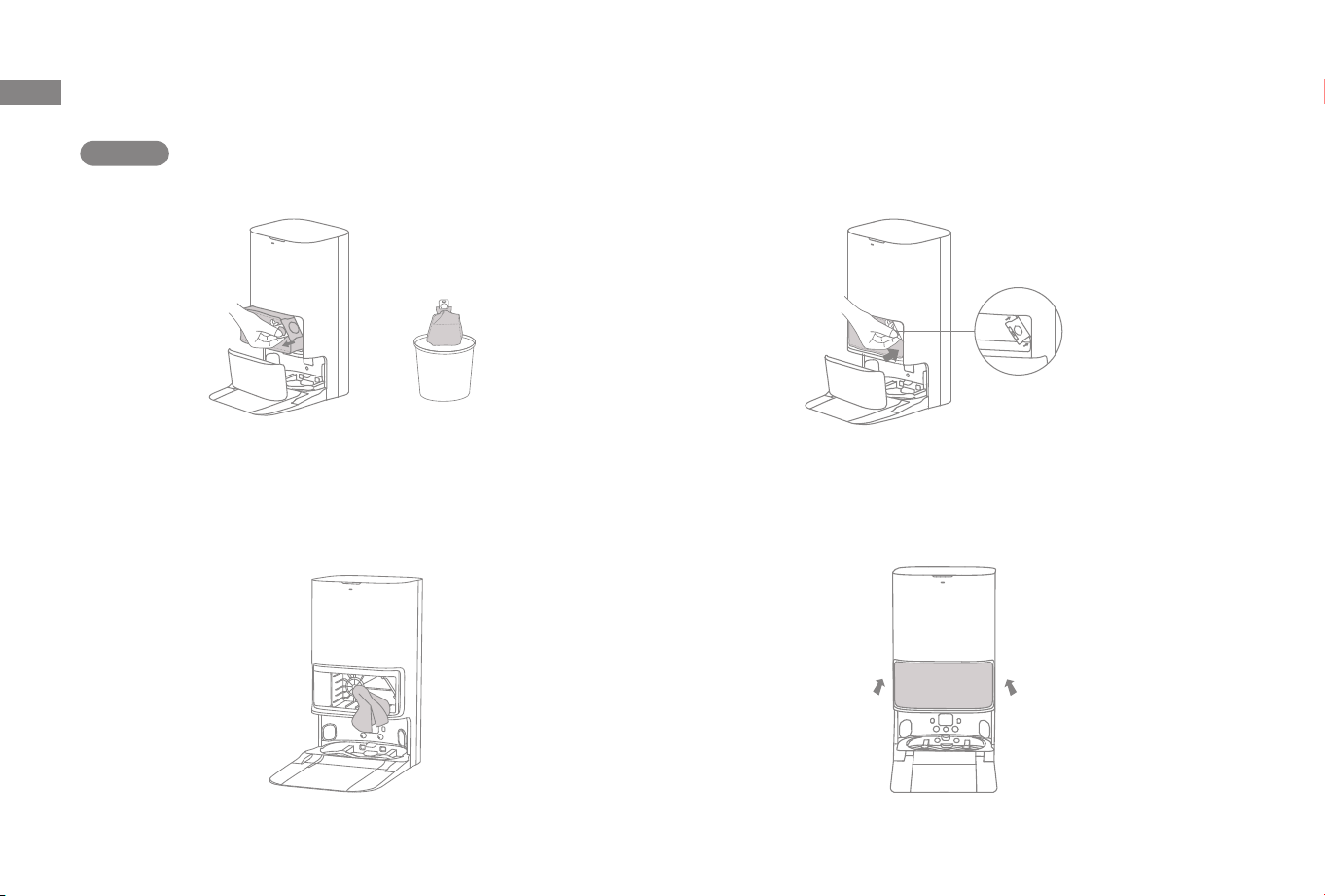

1. Remove the dust tank cover and discard the dust bag.

Routine Maintenance

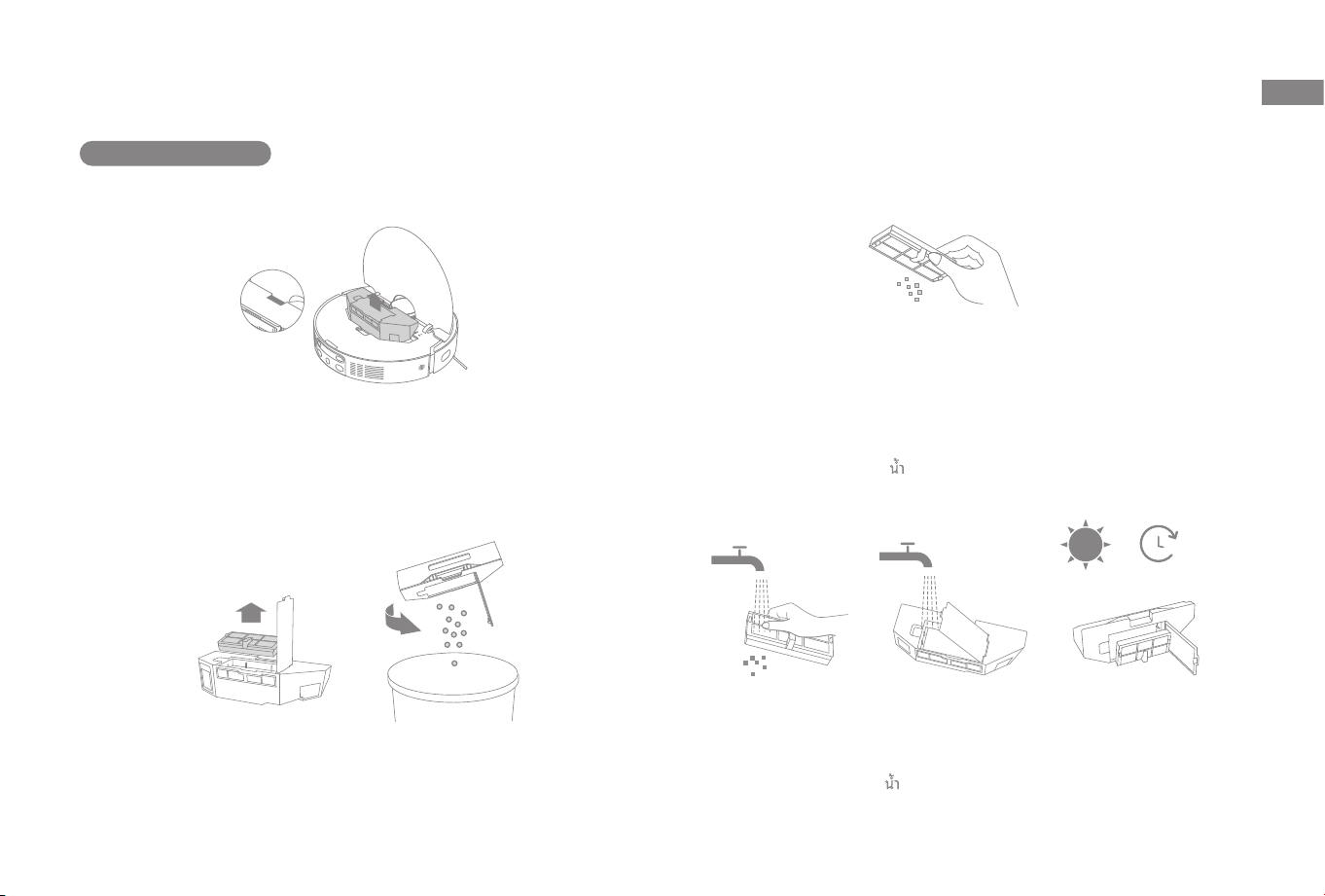

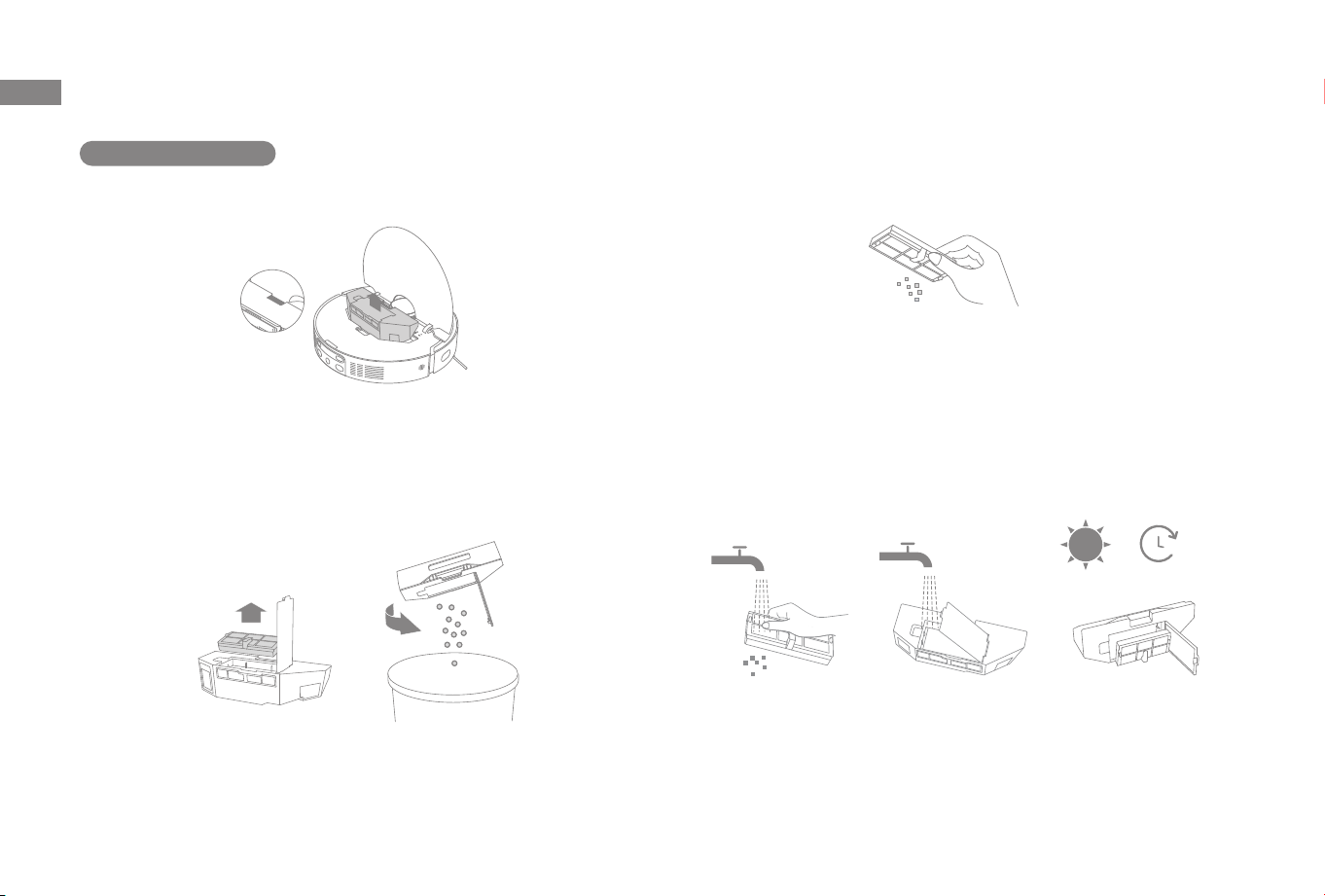

2. Open the dust box cover, remove the filter, and then empty the dust box as

shown in the diagram.

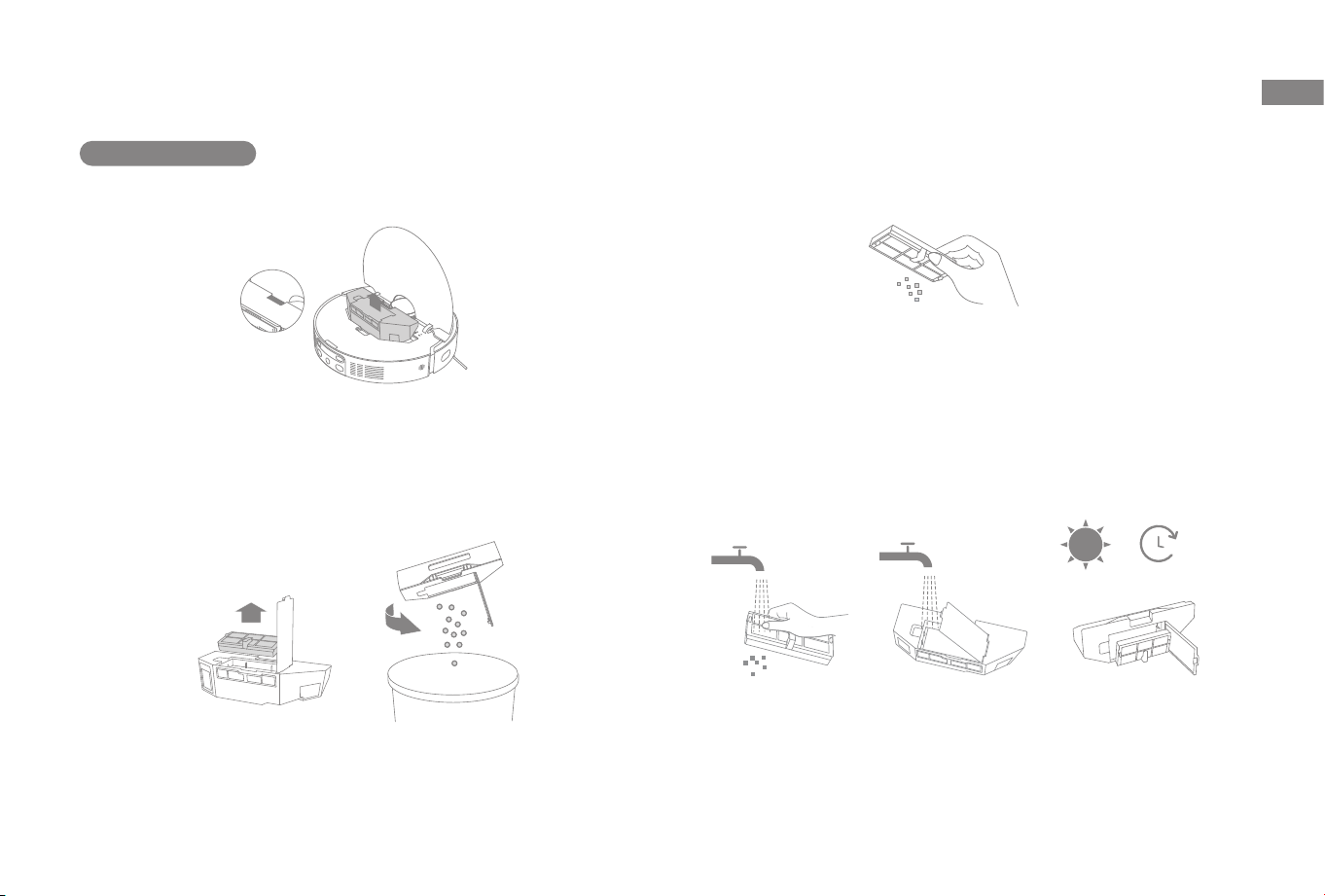

Dust Box and Filter

1. Open the robot cover and press the dust box clip to remove the dust box.

3. Gently tap the basket of the filter to remove the dirt.

4. Rinse the dust box and filter with water and dry them completely before

reinstalling.

Note: Do not attempt to clean the filter with a brush, a finger or sharp objects

to prevent damage.

Note:



Rinse the dust box and filter with clean water only. Do not use any detergent.



Use the dust box and filter only when they are completely dry.

24h

2. Pull out the brush covers at both ends of the brush as shown in the figure.

Use the provided cleaning tool to remove any hair tangled in the brush.

Reinstall the brush covers on both ends of the brush, and then reinstall the

brush. Press on the brush guard to lock it in place.

Routine Maintenance

Main Brush

1. Press the brush guard clips inwards to remove the brush guard and lift the

brush out of the robot.

Note: The float ball in the used water tank is a movable part. Do not apply

too much force when cleaning it to avoid damaging it.

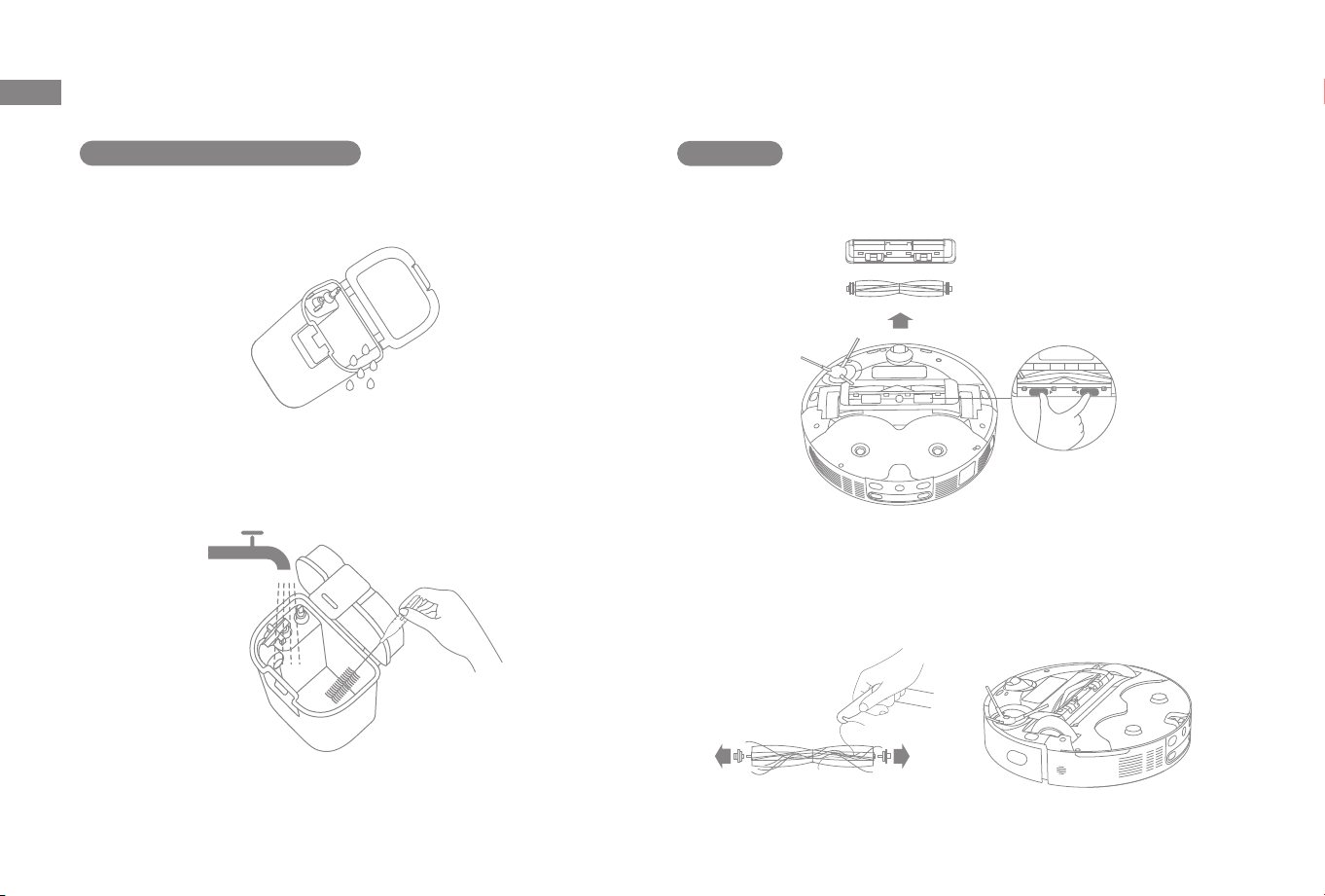

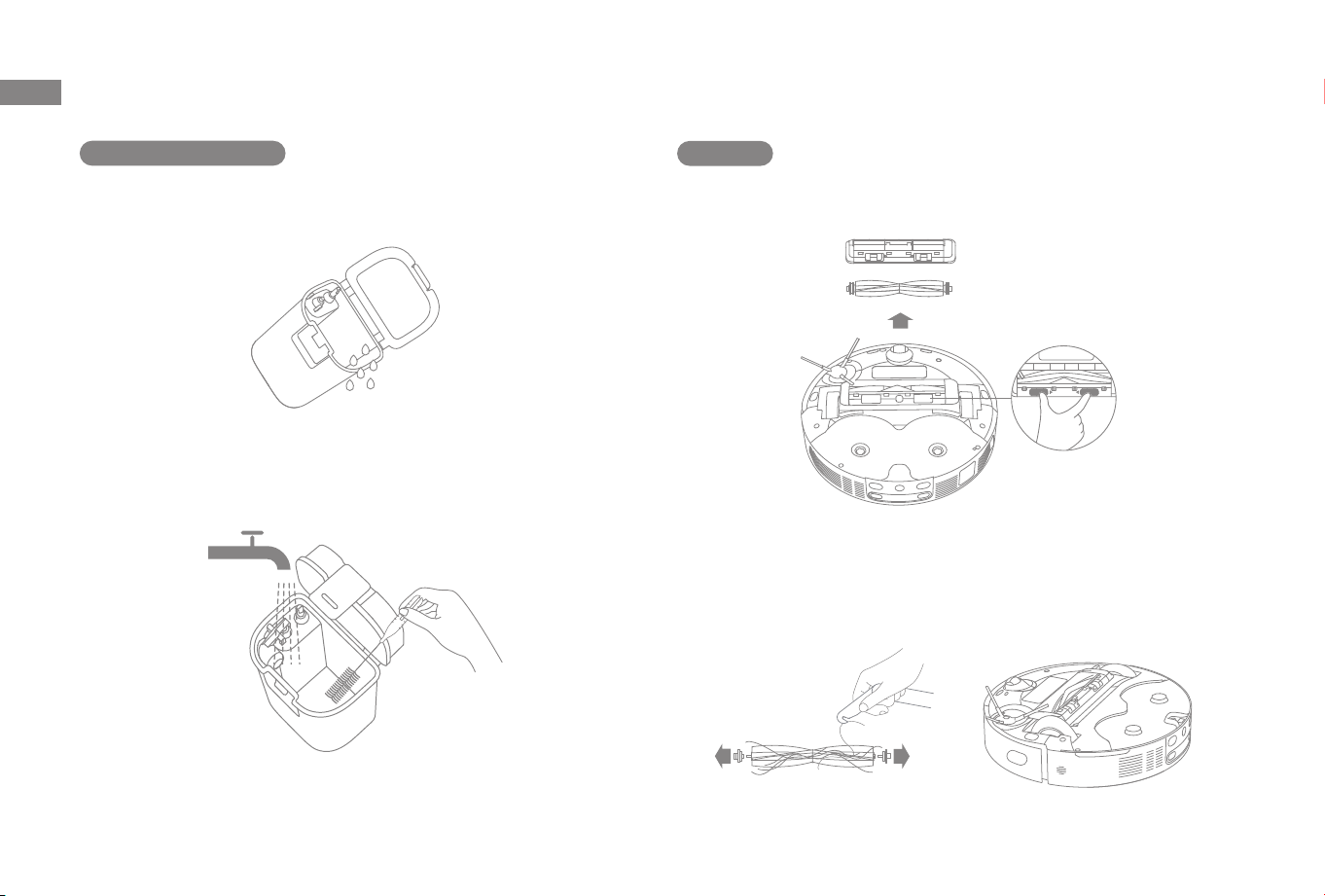

2. Rinse the used water tank with clean water, and use the provided

cleaning tool to clean the inner wall of the used water tank.

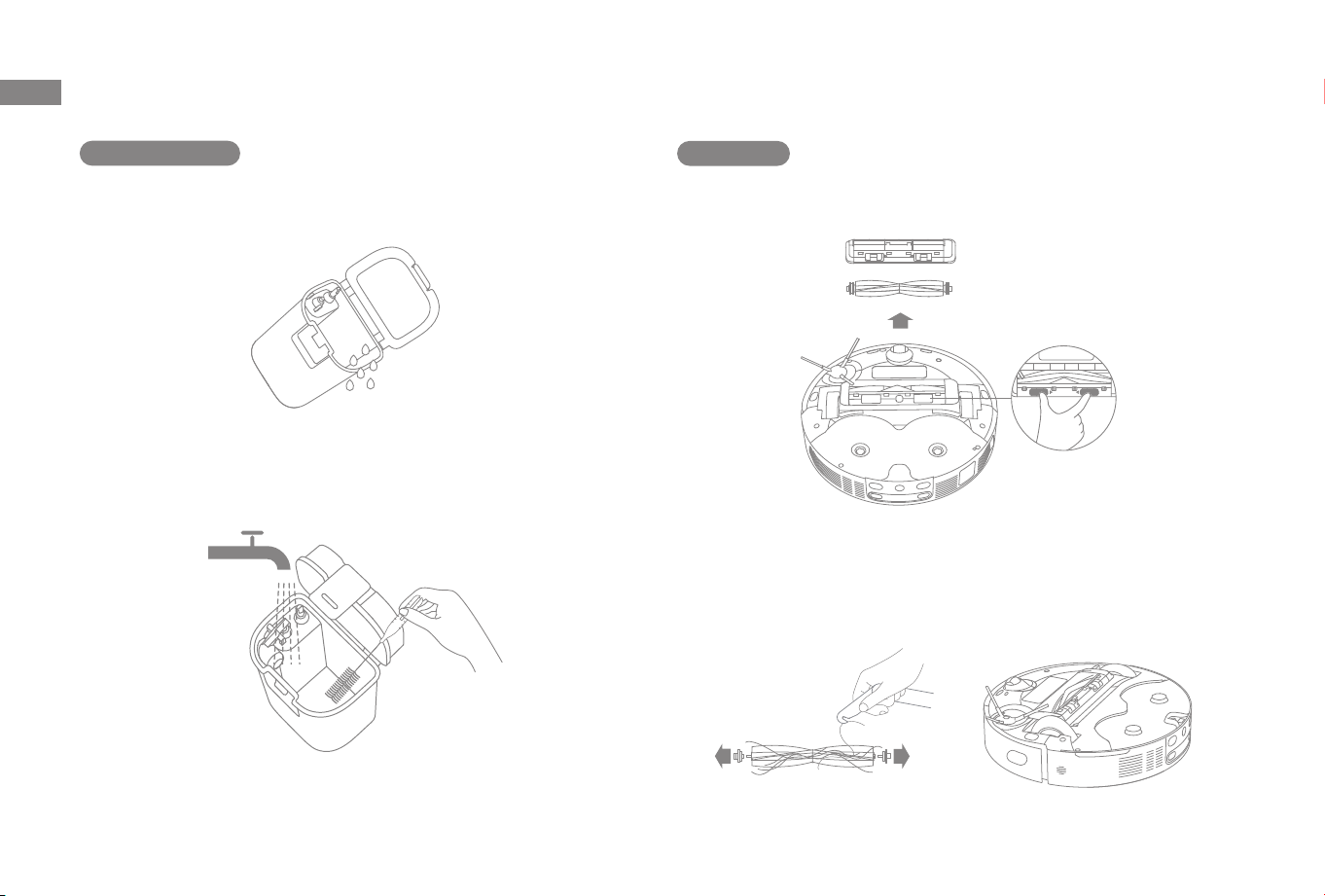

Used Water Tank

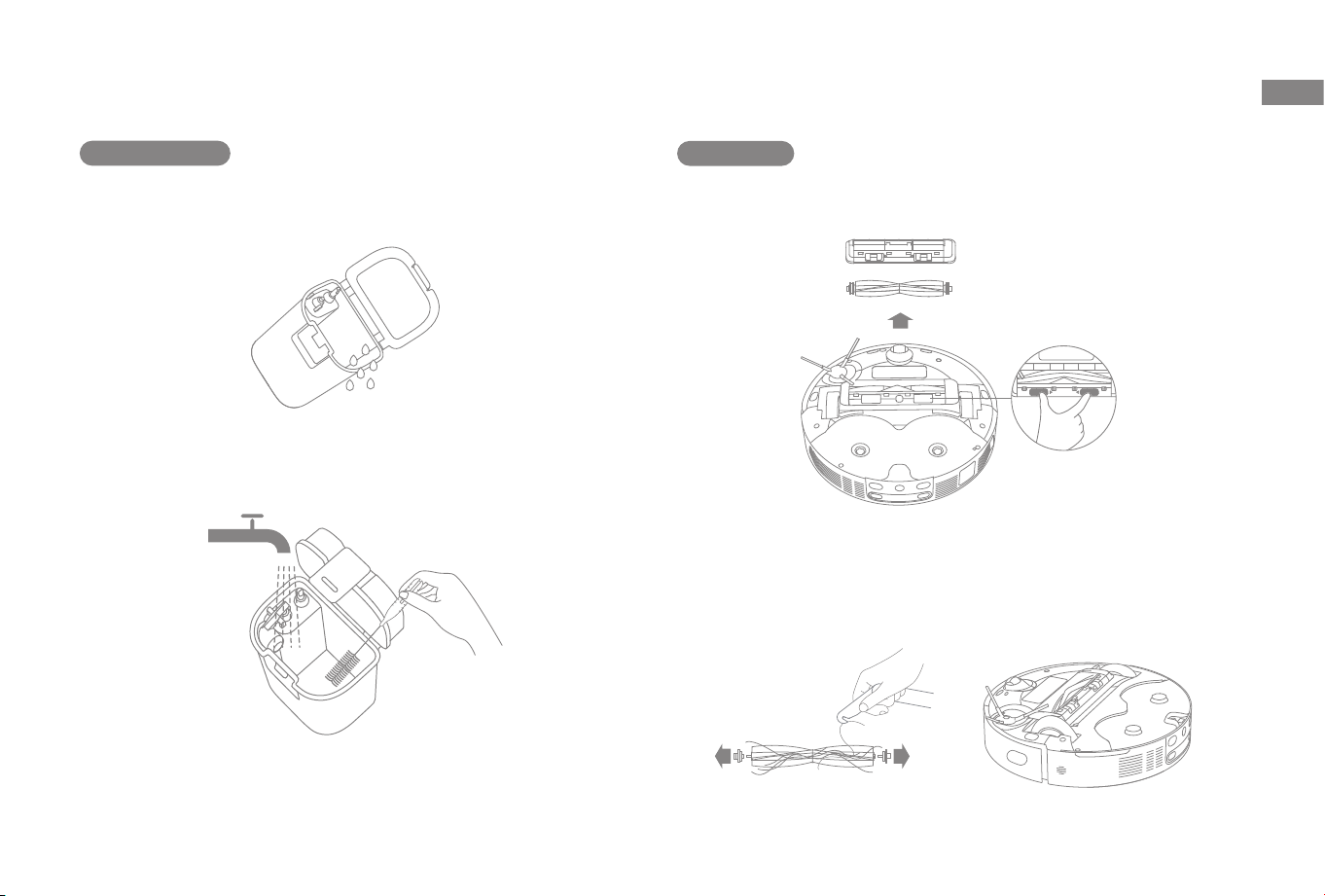

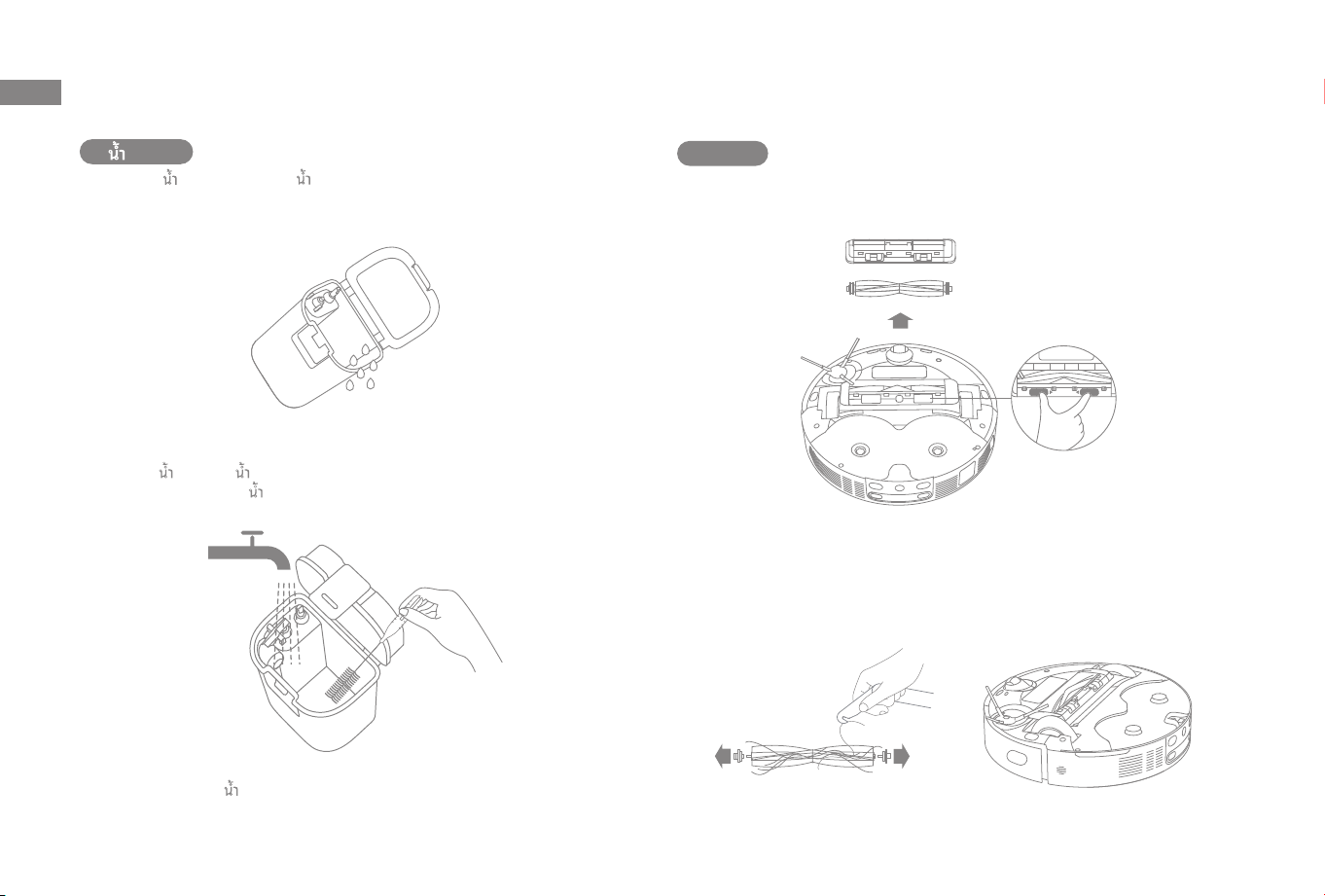

1. Remove the used water tank, open its cover and pour out the used water.

Routine Maintenance

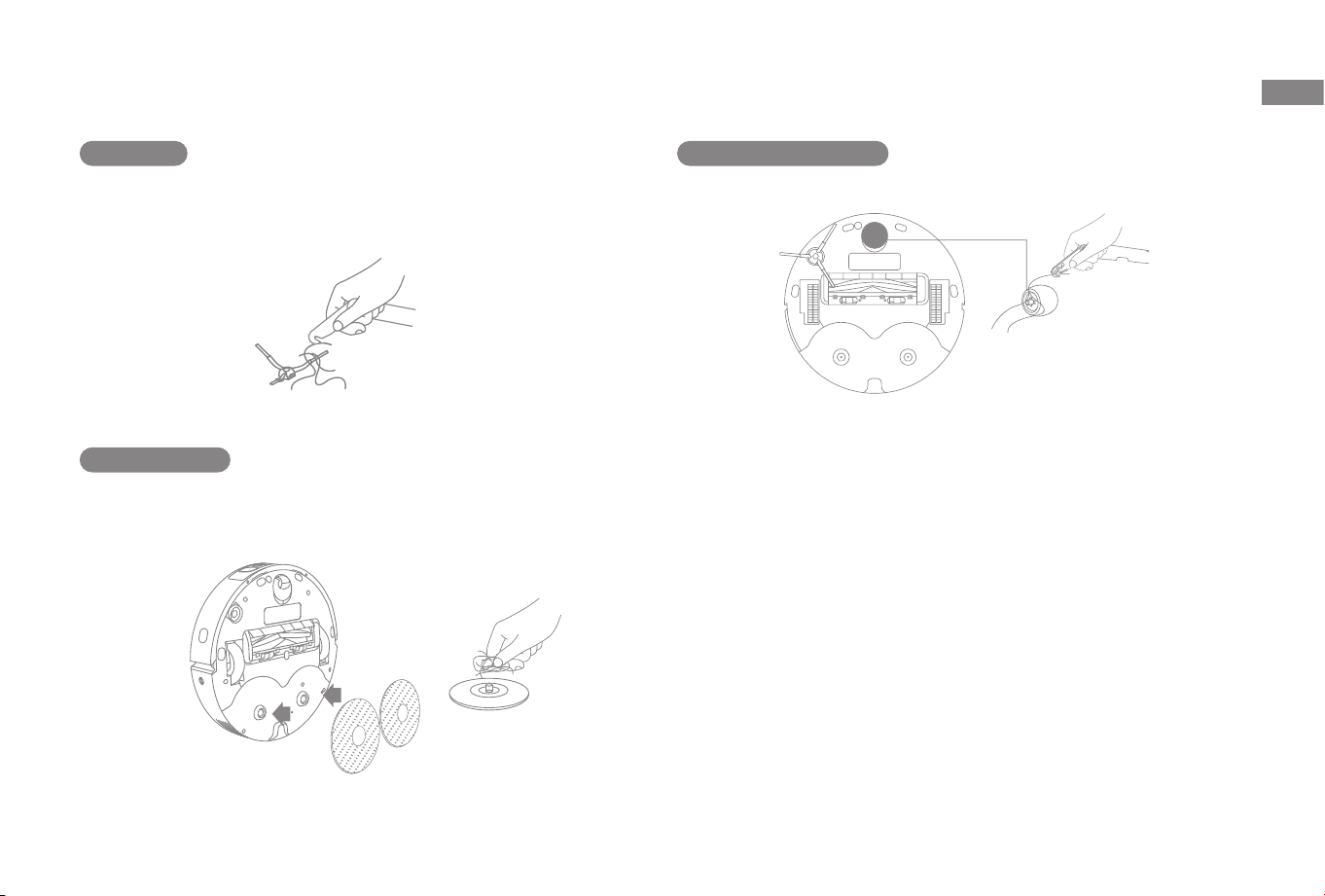

Side Brush

Remove and clean the side brush.

Omnidirectional Wheel

Note:



Use a tool such as a small screwdriver to separate the axle and tire of the

omnidirectional wheel. Do not use excessive force.



Rinse the omnidirectional wheel under the running water and put it back

after drying it completely.

Mop Pad Holder

Remove and clean the mop pad holder.

Charging Contacts and Signaling Area

Clean the charging contacts and the signaling area with a soft and dry cloth.

Auto-empty Vents

Clean the auto-empty vents of the robot and the base station with a soft and

dry cloth.

Routine Maintenance

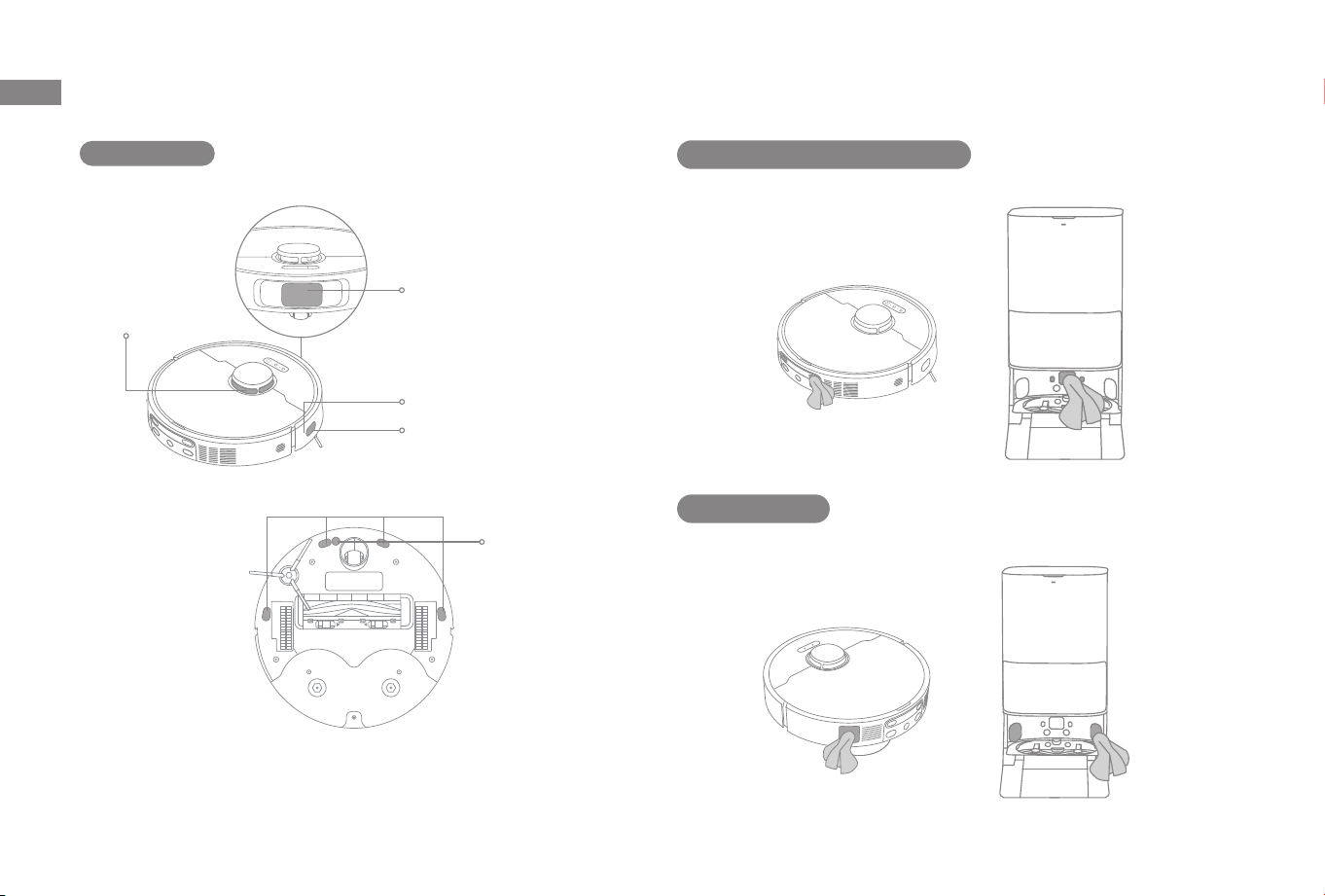

Robot Sensors

Wipe robot sensors by using a soft and dry cloth, as shown in the below figure:

Note: A wet cloth can damage sensitive elements within the robot and the

base station. Please use a dry cloth for cleaning.

Carpet Sensor

Cli Sensors

Bumper

Edge Sensor

Laser Distance

Sensor (LDS)

3D Line Laser Sensor

Routine Maintenance

Mop Pad

Remove the mop pad from the mop pad holder to replace it.

Battery

The robot contains a high-performance lithium-ion battery pack. Make sure

that the battery remains well-charged for daily use to maintain optimal

battery performance. If the robot is not used for an extended period of time,

turn it o and put it away. To prevent damage from over-discharging, charge

the robot at least once every three months.

Problem Solution

The robot will not turn on.

The battery is low. Recharge the robot on the base and try again.

The temperature of the battery is too low or too high. It is recommended to operate the appliance at a temperature

between 32°F (0°C) and 104°F (40°C).

The robot will not charge.

The base station is not connected to power, please make sure both ends of its power cord are correctly plugged in.

The contact between the charging contacts on the base station and the robot is poor, please clean the charging contacts.

Check whether there is any foreign object at the connector of the robot and remove the foreign object if any.

The robot fails to connect

to Wi-Fi.

The Wi-Fi network password is incorrect. Make sure the password used to connect to your Wi-Fi network is correct.

The robot does not support a 5 GHz Wi-Fi connection. Make sure the robot is connected to a 2.4 GHz Wi-Fi connection.

The Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.

The robot may not be ready to be configured. Please exit and re-enter the app, and then try again as instructed.

The robot cannot find and

return to the base station.

The base station is disconnected from power or moved when the robot is not on it. Please connect the base station to the

power supply or place the robot onto the base station to charge.

There are too many obstructions around the base station. Place the base station in a more open area.

Moving the robot may cause it to re-position itself, and it will recreate a map if re-positioning fails. If the robot is too far

from the base station, it might not be able to automatically return on its own, in which case you will need to manually

place the robot onto the base station.

Wipe the signaling area on the base station to remove dust or debris.

The robot gets stuck in

front of the base station

and cannot return to it.

Clear any obstruction within 5 cm on the left and right sides or within 1.5 m in front of the base station to prevent the robot

from being blocked.

The route for returning to charge is blocked, e.g. the door is closed.

The robot may slip if the floor in front of the base station is overly wet. If so, clean the excess water before trying again.

It is recommended to move the base station to a dierent place and try again.

Make sure the ramp extension plate is installed properly.

The robot will not turn o.

The robot cannot be turned o when it is charging. It is recommended to move the robot from the base station, and then

press and hold the power button for 3 seconds to turn it o.

If the robot cannot be turned o by performing step 1, press and hold the power button for 10 seconds to forcibly turn o

the robot. If the problem persists, please contact after-sales service.

Troubleshooting

Problem Solution

The charging speed is

slow.

It takes about 3.5 hours to fully charge the robot when its battery is low.

If you operate the robot at temperatures outside of the specified range, the charging speed will automatically slow

down to extend the battery life.

The charging contacts on both the robot and the base may be dirty, please wipe them with a dry cloth.

The noise increases

while the robot is

operating.

Check whether the dust box filter is clogged. If so, clean it or replace it.

A hard object may be caught in the main brush or the dust box. Check and remove any hard object.

The main brush or the side brush may become tangled. Check and remove any foreign objects.

Switch the suction mode to Standard or Quiet.

The robot moves

without following the

set route.

Objects such as power cords and slippers should be organized before using the robot.

Working on wet slippery surfaces causes the main wheel to slip. It is recommended to dry the wet places before using

the robot.

Wipe the 3D line laser sensor on the robot with a clean, soft cloth to keep it clean and unobstructed.

The robot misses the

rooms to be cleaned.

Make sure that the doors of the rooms to be cleaned are open.

Check whether there is a threshold higher than about 2 cm at the door of the room. The robot cannot climb over high

thresholds or steps.

The place in front of the room to be cleaned may be wet and slippery, causing the robot to slip and work abnormally.

Please try drying the floor before using the robot.

The robot will not

resume cleaning after

charging.

Make sure that the robot is not set to the Do Not Disturb (DND) mode, which will prevent it from resuming cleaning.

The robot will not resume cleaning after you manually place the robot on the base station or send the robot to charge

via the app or the button .

Troubleshooting

Problem Solution

The station cannot

automatically empty

the dust box.

Check whether the dust bag in the dust tank is full.

If the dust bag is not full, check whether there is any obstruction at the auto-empty vents of the robot, the base station,

or the dust box. If any, clean the blocked part in time.

The water level in

the washboard is

abnormal.

Check whether the seal on the used water tank is loose or not correctly installed, and manually reset it if so. If the

problem persists, please contact the after-sales service team.

Gently press down on the used water tank to make sure it is installed correctly.

Remove the washboard and check whether the sewage drain is blocked and clean it.

Check the cleaning solution. Do not add any liquid other than the ocially-approved cleaning solution.

The mop pad holder is

raised abnormally.

Please remove the mop pad holder to check if there is any foreign object stuck in it, and try to restart the robot. If the

problem persists, please contact the after-sales service team.

There is water under

the clean water tank or

around the seal.

When taking out the clean water tank, some water in the pipe may be left under the tank or around the seal. This is

normal. Please wipe with a dry cloth.

For more support, contact us via https://global.dreametech.com

Specifications

Robot

Base Station/Charging Dock

Robot&Base Station/Charging Dock

Model RLD52SE

Charging Time Approx. 3.5 hours

Rated Voltage 14.4 V

Rated Power 75 W

Operation Frequency 2400–2483.5 MHz

Maximum Output Power <20 dBm

Note: Rated Power (during charging and drying) is determined by the

power value during full load period.

Model RCDE0302

Rated Input 220-240 V 50-60 Hz

Rated Output 20 V 2 A

Rated Power (during dust emptying) 700 W

Rated Power (during cleaning) 40 W

Rated Power (during charging and

drying)

87 W

Under normal use of condition, this equipment should be kept a separation

distance of at least 20 cm between the antenna and the body of the user.

Power consumption in standby mode: ≤0.5W (within 15 minutes after the robot

leaves the base station/charging dock)

The equipment does not have a standby mode or other equivalent states in

terms of standby requirements, power management function, or the ability to

deactivate wireless network connections due to battery maintenance needs.

The power consumption of the equipment is likely to be higher than other

equipment models meeting these functional requirements.

Base Station

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed

with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a

designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.

Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the

installer or local authorities for more information about the location as well as terms and conditions of such collection points.

WEEE Information

CAUTION:

Removal Guide:

Battery Disposal and Removal

The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed

by qualified technicians and discarded at an appropriate recycling facility.

– the battery must be removed from the appliance before it is scrapped;

– the appliance must be disconnected from the supply mains when removing the battery;

– the battery is to be disposed of safely.

Before removing the battery, disconnect the power and run out the battery as much as possible.

Unneeded batteries should be discarded at an appropriate recycling facility.

Do not expose to high temperature environment to avoid risks of explosion.

Under abusive conditions, liquid may be ejected from the battery. If contact occurs, flush with water and seek medical help.

1. Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.

2. Unplug the terminals between the battery and PCB board to remove the battery.

Kullanım

Sınırlamaları

Güvenlik Bilgileri

Bu ürün, güvenli kullanımı sağlamak ve risklerden kaçınmak üzere, 8 yaşından

küçük çocuklar ve fiziksel, duyusal, zihinsel engelli kişiler veya sınırlı deneyime

veya bilgiye sahip kişiler tarafından bir ebeveyn veya vasinin gözetimi olmadan

kullanılmamalıdır. Temizlik ve bakım, gözetim olmaksızın çocuklar tarafından

yapılmamalıdır.

Cihaz, yalnızca cihazla birlikte verilen güç kaynağı ünitesi ile kullanılmalıdır.

Bu cihaz, yalnızca yetkin kişiler tarafından değiştirilebilecek piller içerir.

Temizlenecek alanı toplayın. Çocuklar bu cihazla oynamamalıdır. Robot

çalışırken çocukların ve evcil hayvanların robotla aralarında güvenli bir mesafe

bulunduğundan emin olun.

Cihazı banyoya veya havuz etrafına kurmayın, buralarda şarj etmeyin veya

kullanmayın.

Bu ürün yalnızca ev ortamındaki zemin temizliği içindir. Dış mekânlarda, zemin

harici yüzeylerde veya ticari ya da endüstriyel ortamlarda kullanmayın.

Cihazın düzgün bir ortamda doğru bir şekilde çalıştığından emin olun. Aksi

halde, cihazı kullanmayın.

Güç kablosu hasar gördüğü takdirde, üreticiden veya servis bayisinden temin

edilebilecek özel bir kablo veya teçhizatla değiştirilmelidir.

Robotu, koruyucu bariyeri olmayan zemin üzeri asma alanlarda kullanmayın.

Robotu baş aşağı çevirip koymayın. LMS kapağını, robot kapağını veya

tamponu robot tutup taşımak için kullanmayın.

Cihazın uygunsuz kullanımının yol açtığı elektrik çarpması, yangın veya yaralanmadan kaçınmak için cihazı kullanmadan önce kullanım

kılavuzunu dikkatlice okuyun ve ileride başvurmak üzere saklayın.

Kullanım

Sınırlamaları

Güvenlik Bilgileri

Robotu 0°C’den yüksek ve 40°C’den düşük sıcaklıklardaki ortamlarda kullanın.

Zeminde sıvı ya da yapışkan madde bulunmadığından emin olun.

Bir nesneye takılıp sürüklenmenin verebileceği zarardan kaçınmak için cihazı

çalıştırmadan önce bir yere sabit olmayan nesneleri yerden kaldırın ve temizlik

güzergâhı üzerindeki kabloları veya elektrik kablolarını toplayın.

Robotun çarparak zarar vermesini önlemek için kırılgan ve küçük nesneleri

yerden kaldırın.

Saç, parmak ve diğer vücut bölgelerini robotun emici ağzından uzak tutun.

Temizlik gerecini çocukların erişemeyeceği bir yerde saklayın.

Cihazı bir bebeğin ya da çocuğun uyuduğu bir ortamda çalıştırmayın.

Gerek durduğu, gerek hareket ettiği sırada çocukları, evcil hayvanları ve diğer

nesneleri robotun üzerine bindirmeyin/koymayın.

Temiz su haznesine yalnızca su ve resmi olarak onaylanmış temizlik solüsyonu

eklenebilir. Alkol veya dezenfektan gibi başka sıvılar eklemeyin. Temizlik

solüsyonu ile temiz su oranına temizlik solüsyonu şişesi üzerinden bakılabilir.

Temizlik solüsyonunu çocukların erişemeyeceği bir yerde saklayın.

Robotu yanan nesneleri temizlemek için kullanmayın. Robotu yanıcı veya kolay

tutuşabilen sıvıları, aşındırıcı gazları veya seyreltilmemiş asit ya da çözücü

maddeleri toplamak için kullanmayın.

Sert veya keskin nesneleri süpürmeyin. Cihazı taş, büyük kâğıt parçaları

veya cihazı tıkayabilecek diğer malzemeler gibi nesneleri toplamak için

kullanmayın.

Temizlik veya bakım işlemi yapılmadan önce cihazın fişi prizden çıkarılmalıdır.

Güvenlik Bilgileri

Piller ve Şarj

Üçüncü taraflara ait herhangi bir pil veya ana istasyon kullanmayın. Robot

sadece RCDE0302 model ana istasyon ile kullanılabilir.

Pili veya ana istasyonu kendi başınıza sökmeye, onarmaya veya modifiye

etmeye çalışmayın.

Ana istasyonu bir ısı kaynağının yakınına koymayın.

Ana istasyonun şarj kontaklarını silmek veya temizlemek için ıslak bez veya

ıslak ellerinizi kullanmayın.

Kullanılmış pilleri uygun olmayan bir şekilde imha etmeyin. İhtiyaç fazlası piller

uygun bir geri dönüşüm tesisinde imha edilmelidir.

Güç kablosu zarar görür veya koparsa kabloyu kullanmayı derhal bırakın ve

satış sonrası servisle iletişime geçin.

Robot nakledilirken kapalı olduğundan ve mümkünse orijinal paketinde

tutulduğundan emin olun.

Robot uzun süre kullanılmayacaksa tamamen şarj edin, ardından kapatın ve

serin, kuru bir yerde saklayın. Pilin aşırı derecede boşalmasını önlemek için

robotu en az her 3 ayda bir tekrar şarj edin.

Robotu veya ana istasyonu ıslak bir bezle silmeyin veya herhangi bir sıvı ile

durulamayın. Yıkanabilir parçaları temizledikten sonra, yerlerine takmadan ve

kullanmadan önce iyice kurutun.

Lütfen bu ürünü Kullanıcı Kılavuzundaki talimatlara uygun bir şekilde kullanın.

Bu ürünün uygunsuz kullanımından kaynaklanan kayıp veya zararlardan

kullanıcılar sorumludur.

Kullanım

Sınırlamaları

Bu üründeki lazer sensör, Sınıf 1 lazer ürünleri için IEC 60825-1:2014/EN 60825-

1:2014/A11:2021 Standardına uygundur. Kullanım sırasında lütfen doğrudan

gözle temasından kaçının.

SINIF 1 LAZER ÜRÜNÜ

TÜKETİCİ LAZER ÜRÜNÜ

EN 50689:2021

Lazer Güvenlik

Bilgileri

Güvenlik Bilgileri

Bu belgeyle, Dreame Trading (Tianjin) Co., Ltd. RLD52SE telsiz ekipman türünün 2014/53/AB sayılı Direktif ile uyumlu olduğunu beyan eder. AB uygunluk beyanının tam metnini şu internet

adresinde bulabilirsiniz:https://global.dreametech.com

Ayrıntılı e-kılavuz için lütfen https://global.dreametech.com/pages/user-manuals-and-faqs

Yalnızca iç mekânlarda kullanım içindir

Kullanıcı kılavuzunu okuyun

Paket İçerikleri

Diğer Aksesuarlar

Ürün Genel Bilgileri

Robot

Ana İstasyon

Paspas Pedi, 2 adet

(önceden takılı)

Paspas Pedi

Tutucusu, 2 adet

Kullanıcı

Kılavuzu

Güç Kablosu Ana İstasyon Rampa

Uzatma Plakası

2 adet Toz Torbası

(1 adet Yerleşik)

Yan Fırça

TriCut Fırçası

Bu belgeyle, Dreame Trading (Tianjin) Co., Ltd. RLD52SE telsiz ekipman türünün 2014/53/AB sayılı Direktif ile uyumlu olduğunu beyan eder. AB uygunluk beyanının tam metnini şu internet

adresinde bulabilirsiniz:https://global.dreametech.com

Ayrıntılı e-kılavuz için lütfen https://global.dreametech.com/pages/user-manuals-and-faqs

Robot

Ürün Genel Bilgileri

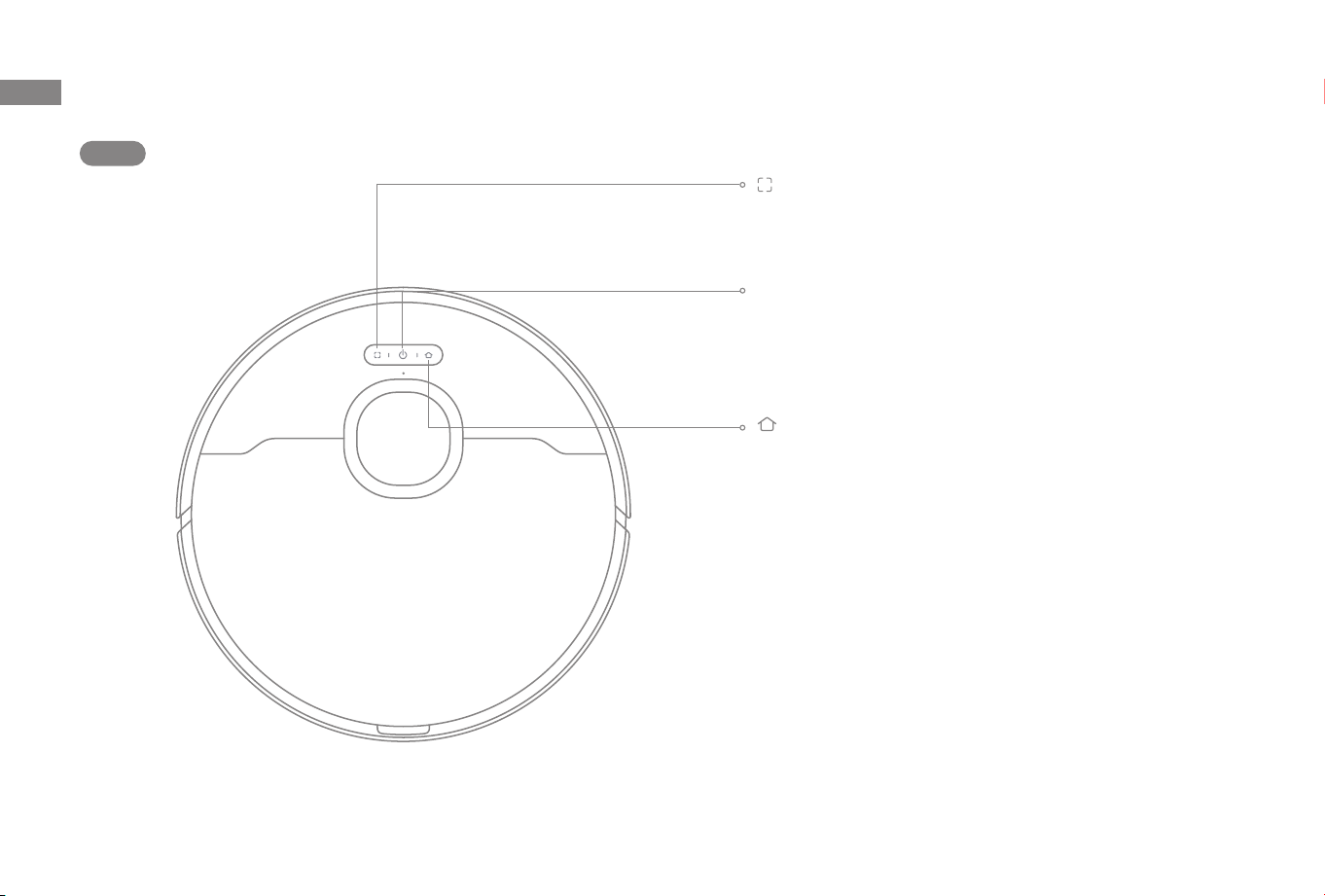

Nokta Temizliği Düğmesi

· Nokta temizliği başlatmak için basın

Güç / Temizleme Düğmesi

· Açmak veya kapatmak için 3 saniye basılı tutun

· Robot açıldıktan sonra temizliğe başlamak için basın

Yanaşma Düğmesi

· Robotu ana istasyona geri göndermek için basın

· Çocuk Kilidini devre dışı bırakmak için 3 saniye basılı tutun

Durum Göstergesi

· Sabit Beyaz: Temizlik tamamlandı

· Yavaş Yanıp Sönen Beyaz: Şarj oluyor (düşük pil değil)

· Sabit Turuncu: Düşük pil seviyesinde bekleme veya düşük pil

seviyesinde duraklama

· Yavaş Yanıp Sönen Turuncu: Şarj oluyor (düşük pil)

· Yanıp Sönen Turuncu: Hata

Not:

· Robot temizlik yaparken veya şarj olmak üzere geri

dönerken, üzerindeki herhangi bir düğmeye basarak robotu

duraklatabilirsiniz.

· Çocuk Kilidi, Uygulama üzerinden etkinleştirilebilir/devre dışı

bırakılabilir.

Robot ve Sensörler

Ürün Genel Bilgileri

Toz Kutusu

Paspas Tertibatı

Paspas Pedi

Eklenti Alanı

Paspas Pedi Tutucusu Paspas Pedi

Kapak

Şarj

Kontakları

Otomatik Boşaltma Ağzı

Sıfırlama Düğmesi

· Fabrika ayarlarını

geri yüklemek için

3 saniye basılı tutun

Kablosuz İnternet

Göstergesi

Kenar Sensörü

Uçurum Sensörleri

Ana Tekerlek

Ana Fırça

Çok Yönlü Tekerlek

Fırça Muhafazası

Ana Tekerlek

Fırça Muhafazası

Klipsleri

Paspas Bezi

Tutucusu Montaj

Delikleri

Yan Fırça

Halı Sensörü

Filtre

Filtre Kolu

Otomatik Boşaltma Ağzı

Toz Kutusu Kapağı Klipsi

Toz Kutusu Klipsi

Toz Kutusu Kapağı

LMS Kapağı

Lazer Mesafe

Sensörü (LMS)

3 Boyutlu Hat Lazer

Sensörü

Tampon

Ana İstasyon

Ürün Genel Bilgileri

Filtre

Toz Torbası

Yuvası

Su Siperi

Rampa

Uzatma

Plakası

Üst Kapak

Temiz Su Haznesi

Kullanılmış Su Haznesi

Otomatik

Boşaltma Ağızları

Su Haznesi

Klipsi

Su Haznesi

Klipsi

Şamandıra

Su Borusu

Filtre

Kullanılmış

Su Haznesi

Temiz Su

Haznesi

Flatör

Toz Haznesi

Kapağı

Durum Göstergesi

· Sabit Beyaz: Ana istasyon

güç kaynağına bağlı

· Sabit Turuncu: Ana

istasyonda bir hata var

Sinyal Alanı

Şarj Kontakları

Güç Kablosu

Saklama Yuvası

Güç Bağlantı

Noktası

Evinizin Hazırlanması

Temizliğe başlamadan önce lütfen sabit durmayan, kırılabilir, değerli veya

tehlikeli eşyaları ortadan kaldırın, robotun takılarak, çizerek veya vurarak

hasar vermemesi için yerdeki kabloları, giysileri, oyuncakları, sert nesneleri

veya keskin nesneleri kaldırın/düzenleyin.

Temizlenecek odanın kapısını açın ve mobilyaları kendi yerlerine koyarak

daha fazla alan açın.

Robotun temizlenmesi gereken alanları kaçırmasının önüne geçmek için

robotun önünde, bir eşikte, koridorda veya dar yerlerde durmayın.

Temizliğe başlamadan önce, robotun güvenli ve sorunsuz bir şekilde

çalışması için merdivenlerin ve koltukların kenarlarına fiziksel bir engel koyun.

Not:

· Robotu ilk kez çalıştırdığınızda engel çıkarabilecek şeyleri zamanında kaldırmak için temizlik yaparken robotu takip edin.

· Taş, çelik bilye ve oyuncak parçaları gibi sert nesneleri veya inşaat atığı, cam kırığı veya çivi gibi keskin nesneleri süpürmeyin, aksi takdirde zemin çizilebilir.

1. Ana İstasyonu Yerleştirin ve bir Elektrik Prizine Bağlayın

Ana istasyonu etrafı mümkün olduğunca açık ve kablosuz internet sinyalini iyi

çeken bir yere yerleştirin. Ana istasyona önden 1,5 metreden ve her iki yandan

5 cm’den yakın olan nesneleri kaldırın. Güç kablosunu ana istasyona bağlayıp

prize takın.

3. Robot Korumalarını Çıkarın ve Yan Fırçayı ve Paspas Tertibatını

Takın

2. Rampa Uzatma Plakasını Takın

Kullanmadan Önce

Not:

· Sinyal alanını engelleyebilecek bir nesne bulunmadığından emin olun.

· Su lekelerinin ahşap zeminleri veya halıları ıslatmasını engellemek için ana

istasyonun seramik veya mermer zeminlere yerleştirilmesi önerilir.

②

①

> 1,5 m

> 5 cm

5 cm

Güç kablosunu yukarı yönde

sıkıca takarak göstergenin

açıldığını kontrol edin.

Yan Fırça Klipsi

4. Robotu Ana İstasyona Bağlayın

Robotu açmak için robot üzerindeki güç düğmesini 3 saniye süreyle basılı

tutun. Robotu, paspas ekipmanları su siperine doğru bakacak şekilde ana

istasyona yerleştirin. Ardından, robot ana istasyona başarılı bir şekilde

bağlandığında sesli bir bildirim duyacaksınız.

Kullanmadan Önce

Not: Robotu ilk kez kullanmadan önce tamamen şarj etmeniz önerilir. Pil

tükendiği için robot açılamadığı takdirde robotu şarj etmek üzere istasyona

kendiniz bağlayın.

5. Temiz Su Haznesine Su Ekleyin

Temiz su haznesini ana istasyondan çıkarın ve hazneyi temiz suyla doldurun.

Ardından ana istasyona geri takın.

Not: Haznenin deforme olmasına neden olabileceğinden su haznesine sıcak

su koymayın.

2. Cihazı ekleyin

Dreamehome uygulamasını açın, "Bağlanmak için QR kodunu tara"ya

dokunun ve cihazı eklemek için aynı QR kodunu robotta tekrar tarayın.

Kablosuz internet bağlantısını tamamlamak için lütfen talimatları izleyin.

1. Dreamehome Uygulamasını İndirin

Uygulamayı indirmek ve yüklemek için robot üzerindeki QR kodunu taratın

veya uygulama mağazasında "Dreamehome"u arayın.

Kablosuz İnternet

Göstergesi

· Yavaş yanıp

sönme:

Bağlanabilir

· Hızlı yanıp

sönme:

Bağlanıyor

· Açık: Bağlandı

Not:



Yalnızca 2.4 GHz kablosuz internet desteklenir.



Uygulama yazılımındaki güncellemeler nedeniyle, gerçek işlemler

kılavuzdaki yönergelerden farklı olabilir. Lütfen güncel uygulama sürümüne

dayalı olarak talimatları izleyin.

QR KoduQR Kodu

Dreamehome Uygulamasıile Bağlantı

Not:



Kablosuz interneti sıfırlamak istiyorsanız 2. adımı tekrarlayın ve ardından

kablosuz internet bağlantısını tamamlamak için ekrandaki talimatları



Cihazı kablosuz internet ağından ayırmak için robot süpürgenin üzerindeki

Sıfırlama Düğmesini 3 saniye basılı tutun.

Kullanım

Aç / Kapat

Robotu açmak için güç düğmesini 3 saniye süreyle basılı tutun. Robotu

ana istasyona yerleştirin. Robot otomatik olarak açılmalı ve şarj olmaya

başlamalıdır. Robotu kapatmak için robotu ana istasyondan uzaklaştırın ve

güç düğmesini 3 saniye süreyle basılı tutun.

Hızlı Harita Çıkarma

Ağı ilk kez yapılandırdıktan sonra, hızlı bir şekilde bir harita oluşturmak

için uygulamadaki talimatları izleyin. Robot, temizliğe başlamadan harita

çıkarmaya başlayacaktır. Robot ana istasyona döndüğünde, haritalandırma

işlemi tamamlanmış olup harita otomatik olarak kaydedilir.

Duraklatma/Uyku

Robot çalışırken herhangi bir düğmeye basarak robotu duraklatabilirsiniz.

Robotun duraklama süresi 10 dakikayı aştığı takdirde otomatik olarak uyku

moduna geçer. Robot üzerindeki tüm göstergeler kapanır. Robot üzerindeki

herhangi bir düğmeye basarak ya da uygulamayı kullanarak robotu

uyandırabilirsiniz.

Not: Robot duraklatılıp ana istasyona yerleştirildiği takdirde geçerli temizlik

işlemi sona erer.

Temizliğe Otomatik Olarak Devam Etme

Pil çok azaldığı takdirde robot şarj olmak için otomatik olarak ana

istasyona döner. Uygun pil seviyesine kadar şarj olduktan sonra, henüz

tamamlanmamış olan temizlik görevlerine kaldığı yerden devam eder.

Not: Bu işlevi kullanmak için lütfen uygulama içinde etkinleştirin.

Rahatsız Etmeyin (DND) Modu

Robot Rahatsız Etmeyin (DND) moduna ayarlandığında robotun temizliğe

kaldığı yerden devam etmesi engellenir ve güç göstergesi kapanır. DND modu,

fabrika ayarlarında varsayılan olarak devre dışıdır. Uygulama üzerinden DND

modunu etkinleştirebilir veya DND süresini değiştirebilirsiniz. DND süresi,

varsayılan olarak 22:00–8:00 olarak ayarlanmıştır.

Not:



Programlanmış temizlik görevleri DND süresi boyunca normal bir şekilde

yerine getirilir.



DND süresi sona erdikten sonra robot temizliğe kaldığı yerden devam eder.

Nokta Temizliği

Robot bekleme durumundayken düğmesine kısa süre basarak nokta

temizliği modunu etkinleştirebilirsiniz. Bu modda, robot etrafındaki 1,5 × 1,5

metrekarelik alanı temizler ve nokta temizliği tamamlandığında başlangıç

noktasına geri döner.

Robotu Tekrar Başlatmak

Robot yanıt vermeyi durdurursa veya kapatılamazsa cihazı zorla kapatmak

için güç düğmesini 10 saniye basılı tutun. Ardından robotu açmak için güç

düğmesini 3 saniye basılı tutun.

Kullanım

Süpürme ve Paspaslama

Not: Paspas ekipmanlarını ilk kez kullanıyorsanız, robot varsayılan olarak

“Süpürme ve Paspaslama” görevini yerine getirir.

1. Temizliği başlatma

Robot üzerindeki güç düğmesine basarak veya uygulamayı kullanarak robotu

ana istasyondan başlatın. Robot en uygun temizlik rotasını planlayacak ve

oluşturulan haritaya göre temizlik görevini uygulayacaktır.

2. Otomatik paspas yıkama

Temizlik sırasında, robot uygulamada belirlenen paspas pedi temizleme

sıklığına göre paspas pedlerini yıkamak için otomatik olarak ana istasyona

döner.

Not:



Robotun temizlikten sonra ana istasyona kolayca dönebilmesi için robotun

ana istasyondan başlatılması önerilir.



Robot paspaslamaya başlamadan önce paspas pedleri temizlenecektir,

lütfen biraz bekleyin.



Çalışma sürdüğü sırada ana istasyonu, temiz su haznesini, kullanılmış su

haznesini veya su siperini yerinden oynatmayın.

Kullanım

3. Toz kutusunun otomatik olarak boşaltılması ve paspas

pedlerinin yıkanıp kurutulması

Robot bir temizlik görevini tamamladıktan ve şarj olmak için ana istasyona

döndükten sonra, ana istasyon otomatik olarak toz kutusunu boşaltmaya

başlar. Ardından paspas pedlerini yıkayıp kurutur.

4. Kullanılmış su haznesini temizleme

Robot görevini tamamladıktan sonra, herhangi bir koku oluşmasını önlemek

için lütfen kullanılmış su haznesini temizleyin.

Not:



Otomatik boşaltma işlevi uygulamada kapalı olduğu takdirde ana istasyon

toz kutusunu otomatik olarak boşaltmaz.



Ana istasyon, toz kutusunu uygulamadaki ayara göre boşaltır.

Yalnızca Süpür

Uygulamada süpürme fonksiyonunu etkinleştirin. Robot paspas ekipmanlarını

otomatik olarak kaldırır ve süpürme işlemine başlar.

Süpürdükten sonra Paspasla

Uygulamada süpürdükten sonra paspaslama fonksiyonunu etkinleştirin.

Robot, yerleri süpürmek için paspas ekipmanlarını otomatik olarak kaldırır.

Süpürme işlemi tamamlandıktan sonra, robot toz kutusunu boşaltmak için

döner ve ardından paspas ekipmanlarını otomatik olarak alçalttıktan sonra

paspaslamaya başlar.

Yalnızca Paspasla

Uygulamada paspaslama fonksiyonunu etkinleştirin. Robot paspas

ekipmanlarının takılı olup olmadığını kontrol eder. Değilse paspas

ekipmanlarını manuel olarak takın, ardından robot otomatik olarak

paspaslamaya başlar.

Rutin Bakım

Parça Bakım Sıklığı Değiştirme Süresi

Kullanılmış su

haznesi

Her kullanımdan sonra

Temiz su haznesi

2 haftada bir

Ana fırça Her 6 ila 12 ayda bir

Toz kutusu filtresi

Her 3 ila 6 ayda bir

Yan fırça

Paspas pedi

tutucusu

Su Siperi

Ayda bir kez /

Ana istasyon

sinyal alanı

Şarj kontakları

Otomatik

boşaltma ağızları

Çok yönlü tekerlek

Kenar sensörü

Lazer Mesafe

Sensörü (LMS)

3 boyutlu hat

lazer sensörü

Parça Bakım Sıklığı Değiştirme Süresi

Halı sensörü

Ayda bir kez

Uçurum sensörleri

Tampon

Robotun alt kısmı

Toz kutusu

Gereken sıklıkta

temizleyin

Toz torbası

Her 2 ila 4 ayda bir

Paspas pedi Her 1 ila 3 ayda bir

Not: Değiştirme sıklığı, robotu kullanımınıza bağlı olacaktır. Özel

koşullar nedeniyle istisnai bir durum meydana geldiği takdirde parçalar

değiştirilmelidir.

Parçalar

Robotun düzgün çalışmaya devam etmesi amacıyla rutin bakım için uygulamadaki aksesuar kullanımı bölümüne veya aşağıdaki tabloya bakılması önerilir.

Rutin Bakım

Su Siperi Tabanı

1. Uygulamada su siperi tabanı temizleme fonksiyonunu etkinleştirin. Robot,

ana istasyondan otomatik olarak çıkar. Siperi çıkarın ve ana istasyonun en alt

kısmının suyla dolmasını bekleyin.

3. Bir süre sonra, ana istasyon kullanılmış suyu otomatik olarak dışarıya

pompalar. Bu aşamadan sonra yumuşak ve kuru bir bezle kurulayın ve su

siperini geri takın.

2. Su siperini temiz suyla durulayın, verilen temizlik gereciyle ana istasyonun

altını temizleyin.

4. Robotun ana istasyona dönmesi için uygulamayı kullanın ya da robotun

üzerindeki düğmesine kısaca basın.

Not: Temizlik sırasında robotu ana istasyona döndürmeyin.

3. Yeni bir toz torbası takın.

4. Toz haznesi kapağını yerine takın.2. Filtredeki toz ve kalıntıları kuru bir bezle temizleyin.

Not: Sapı yukarı doğru çektiğinizde torba kapanarak toz ve artıkların kazara

dökülmesini önler.

Rutin Bakım

Toz Torbası

1. Toz haznesi kapağını çıkarın ve toz torbasını çıkarıp atın.

Rutin Bakım

2. Toz kutusu kapağını açın, filtreyi çıkarın ve toz kutusunu şemada

gösterildiği gibi boşaltın.

Toz Kutusu ve Filtre

1. Robot kapağını açın ve toz kutusu klipsine basarak toz kutusunu çıkarın.

3. Kirleri çıkarmak için filtrenin sepetine hafifçe vurun.

4. Toz kutusunu ve filtreyi yerlerine takmadan önce suyla yıkayın ve tamamen

kurutun.

Not: Hasar görmemesi için, filtreyi bir fırçayla, parmakla veya keskin

nesnelerle temizlemeye çalışmayın.

Not:



Toz kutusunu ve filtreyi yalnızca temiz suyla yıkayın. Deterjan kullanmayın.



Toz kutusunu ve filtreyi tamamen kuruduktan sonra kullanın.

24h

2. Şekilde gösterildiği gibi, fırçanın her iki ucundaki fırça kapaklarını dışa

doğru çekin. Ürünle birlikte verilen temizlik aracıyla fırçaya takılmış saçları

temizleyin. Fırça kapaklarını fırçanın her iki ucuna tekrar takın ve fırçayı tekrar

yerine takın. Fırça muhafazasına bastırarak fırçayı yerine oturtun.

Rutin Bakım

Ana Fırça

1. Fırça muhafazası klipslerini içe doğru bastırarak fırça muhafazasını çıkarın

ve fırçayı kaldırarak robottan çıkarın.

Not: Kullanılmış su haznesindeki küresel şamandıra hareketli bir parçadır.

Zarar vermemek için temizlerken çok fazla kuvvet kullanmayın.

2. Kullanılmış su haznesini temiz suyla durulayın ve ürünle birlikte verilen

temizlik aracını kullanarak kullanılmış su haznesinin iç duvarını temizleyin.

Kullanılmış Su Haznesi

1. Kullanılmış su haznesini çıkarın, kapağını açın ve kullanılmış suyu dökün.

Rutin Bakım

Yan Fırça

Yan fırçayı çıkarıp temizleyin.

Çok Yönlü Tekerlek

Not:



Ufak tornavida gibi bir aletle çok yönlü tekerleğin aksını ve lastiğini ayırın.

Aşırı güç kullanmayın.



Çok yönlü tekerleği akan suyun altında yıkayıp tamamen kuruduktan sonra

geri takın.

Paspas Pedi Tutucusu

Paspas pedi tutucusunu çıkarın ve temizleyin.

Şarj Kontakları ve Sinyal Alanı

Şarj kontaklarını ve sinyal alanını yumuşak ve kuru bir bezle temizleyin.

Otomatik Boşaltma Ağızları

Robotun ve ana istasyonun otomatik boşaltma ağızlarını yumuşak ve kuru bir

bezle temizleyin.

Rutin Bakım

Robot Sensörler

Robot sensörlerini, aşağıdaki şekilde gösterildiği gibi yumuşak ve kuru bir bezle

silin.

Not: Nemli bez, robot içindeki ve ana istasyondaki hassas parçalara zarar

verebilir. Temizlik sırasında lütfen kuru bir bez kullanın.

Halı Sensörü

Uçurum Sensörleri

Tampon

Kenar Sensörü

Lazer Mesafe

Sensörü (LMS)

3 Boyutlu Hat Lazer

Sensörü

Rutin Bakım

Paspas Pedi

Paspas pedini değiştirmek için paspas pedi tutucusundan çıkarın.

Pil

Robot, yüksek performanslı lityum iyon pil takımı içerir. En uygun pil

performansını muhafaza etmek üzere lütfen günlük kullanım için şarjın

yeterli olduğundan emin olun. Robot uzun süre kullanılmayacaksa kapatın ve

kaldırın. Şarjın aşırı boşalmasından kaynaklanacak zararı önlemek için robotu

en az her üç ayda bir yeniden şarj edin.

Sorun Çözüm

Robot açılmıyor.

Pil azalmış. Robotu istasyonda yeniden şarj edip tekrar deneyin.

Pilin sıcaklığı çok düşük veya çok yüksek. Cihazın 32°F (0°C) ile 104°F (40°C) arası bir sıcaklıkta çalıştırılması önerilir.

Robot şarj olmuyor.

Ana istasyon güce bağlı olmayabilir, lütfen güç kablosunun her iki ucunun da doğru şekilde takılı olduğundan emin olun.

Ana istasyon üzerindeki şarj kontakları ve robot arasındaki temas zayıf olabilir, lütfen şarj kontaklarını temizleyin.

Robotun konnektöründe herhangi bir yabancı cisim olup olmadığını kontrol edip varsa çıkarın.

Robot kablosuz internete

bağlanamıyor.

Kablosuz internet ağ şifresi yanlış olabilir. Kablosuz internet ağınıza bağlanmak için kullanılan şifrenin doğru olduğunu kontrol

edin.

Robot 5 GHz kablosuz internet bağlantısını desteklemez. Robotun 2.4 GHz kablosuz internete bağlı olduğunu kontrol edin.

Kablosuz internet sinyali zayıf. Robotun, kablosuz internet kapsamı iyi olan bir alanda olduğundan emin olun.

Robot yapılandırılmaya hazır olmayabilir. Lütfen uygulamadan çıkıp yeniden giriş yapın ve talimatları takip ederek tekrar deneyin.

Robot ana istasyonu

bulamıyor ve geri

dönemiyor.

Ana istasyonun güç bağlantısı kesilmiş veya istasyon robot orada değilken yerinden oynatılmış olabilir. Lütfen ana istasyonu

güç kaynağına bağlayın veya robotu şarj olması için ana istasyonunun üzerine yerleştirin.

Ana istasyonun etrafında çok sayıda engel var. Ana istasyonu daha açık bir alana yerleştirin.

Robotu yerinden oynatmak kendini yeniden konumlandırmasına neden olabilir, yeniden konumlandırma başarısız olursa tekrar

bir harita oluşturacaktır. Robot ana istasyondan çok uzaktaysa kendi başına otomatik olarak geri dönemeyebilir, bu durumda

robotu ana istasyona manuel olarak yerleştirmeniz gerekmektedir.

Ana istasyonun sinyal alanını silerek toz veya kalıntıları giderin.

Robot ana istasyonun

önünde takılı kalıyor

ve istasyona geri

dönemiyor.

Robotun takılmasını önlemek için ana istasyonun sol ve sağ tarafındaki 5 cm veya önündeki 1,5 m mesafede bulunan engelleri

kaldırın.

Şarj olmak için döndüğü yolda engel olabilir, örneğin kapı kapalı olabilir.

Ana istasyonun önündeki zemin aşırı ıslak ise robot kayabilir. Aşırı ıslaksa tekrar denemeden önce fazla suyu temizleyin.

Ana istasyonun farklı bir yere taşınması ve tekrar denenmesi önerilir.

Rampa uzatma plakasının doğru takıldığından emin olun.

Robot kapanmıyor.

Robot şarj olurken kapatılamaz. Robotu ana istasyondan uzaklaştırmanız ve ardından kapatmak için güç düğmesini 3 saniye

basılı tutmanız önerilir.

Robot 1. adım uygulanarak kapatılamadığı takdirde robotu zorla kapatmak için güç düğmesini 10 saniye basılı tutun. Sorun

devam ederse lütfen satış sonrası servis ile iletişime geçin.

Sorun giderme

Sorun Çözüm

Şarj hızı düşük.

Pil azaldığında robotun tamamen şarj olması yaklaşık 3,5 saat sürer.

Robotu belirtilen aralığın dışındaki sıcaklıklarda çalıştırırsanız şarj hızı otomatik olarak yavaşlayarak pil ömrünü uzatır.

Hem robotun hem de istasyonun şarj kontakları kirli olabilir, lütfen kuru bir bezle silin.

Robot çalışırken gürültü

artıyor.

Toz kutusu filtresinin tıkalı olup olmadığını kontrol edin. Tıkalıysa temizleyin veya değiştirin.

Ana fırçaya veya toz kutusuna sert bir nesne takılmış olabilir. Sert nesne olup olmadığını kontrol edin ve varsa çıkarın.

Ana fırça veya yan fırçaya bir şeyler takılmış olabilir. Yabancı nesne olup olmadığını kontrol edin ve varsa çıkarın.

Emme modunu Standart veya Sessiz’e getirin.

Robot, belirlenen rotayı

takip etmeden hareket

ediyor.

Robot kullanılmadan önce güç kabloları ve terlikler gibi nesneler düzenlenmelidir.

Islak kaygan yüzeylerde çalışma ana tekerleğin kaymasına yol açar. Robotu kullanmadan önce ıslak yerlerin kurutulması

önerilir.

Robot üzerindeki 3 boyutlu hat lazer sensörünü temiz ve engellenmemiş halde tutmak için temiz, yumuşak bir bezle silin.

Robot, temizlenmesi

gereken odaları atlıyor.

Temizlenecek odaların kapılarının açık olduğunu kontrol edin.

Odanın kapısında yaklaşık 2 cm'den yüksek bir eşik olup olmadığını kontrol edin. Robot yüksek eşiklere veya basamaklara

tırmanamaz.

Temizlenecek odanın önündeki alan ıslak veya kaygan olup robotun kaymasına ve anormal çalışmasına neden olabilir. Lütfen

robotu kullanmadan önce yeri kurutmaya çalışın.

Robot şarj olduktan

sonra temizliğe kaldığı

yerden devam etmiyor.

Robotun Rahatsız Etmeyin (DND) moduna ayarlanmadığından emin olun, bu, temizliğin kaldığı yerden başlatılmasını engeller.

Siz robotu manuel olarak ana istasyona yerleştirdikten veya uygulama ya da düğmesi üzerinden robotu şarj olmaya

gönderdikten sonra robot temizliğe kaldığı yerden devam etmez.

Sorun giderme

Sorun Çözüm

İstasyon toz kutusunu

otomatik olarak

boşaltamıyor.

Toz haznesindeki toz torbasının dolu olup olmadığını kontrol edin.

Toz torbası dolu değilse robotun, ana istasyonun veya toz kutusunun otomatik boşaltma ağızlarında herhangi bir tıkanıklık olup

olmadığını kontrol edin. Tıkanıklık varsa gecikmeden temizleyin.

Su siperindeki su

anormal seviyede.

Kullanılmış su haznesi üzerindeki contanın gevşek veya yanlış takılmış olup olmadığını kontrol edin ve yanlışlık varsa kendiniz

düzeltin. Sorun devam ederse lütfen satış sonrası servis ekibiyle iletişime geçin.

Kullanılmış su haznesine nazikçe bastırarak doğru takılı olduğundan emin olun.

Su siperini çıkarıp atık su drenajın tıkanmış olup olmadığını kontrol edin ve tıkanmışsa temizleyin.

Temizlik solüsyonunu kontrol edin. Resmi olarak onaylı temizlik solüsyonundan başka bir sıvı kullanmayın.

Paspas pedi tutucusu

anormal bir şekilde

kalkmış.

Lütfen paspas pedi tutucusunu çıkarıp içine herhangi bir yabancı nesnenin takılı olup olmadığını kontrol edin ve robotu yeniden

başlatmayı deneyin. Sorun devam ederse lütfen satış sonrası servis ekibiyle iletişime geçin.

Temiz su tankının

altında veya

sızdırmazlık elemanının

etrafında su var.

Temiz su haznesini çıkarırken tankın altındaki veya sızdırmazlık elemanının etrafındaki boruda bir miktar su kalmış olabilir. Bu

normaldir. Lütfen kuru bir bezle silin.

Daha fazla destek için bizimle https://global.dreametech.com üzerinden iletişime geçebilirsiniz.

Teknik özellikler

Robot

Ana İstasyon/Şarj Yanaşma Noktası

Robot Süpürge ve Ana İstasyon/Şarj Yanaşma Noktası

Model RLD52SE

Şarj Süresi Yaklaşık 3,5 saat

Nominal Voltaj 14,4 V

Nominal Güç 75 W

Çalışma Frekansı 2400–2483,5 MHz

Maksimum Çıkış Gücü <20 dBm

Not: Nominal Güç (şarj etme ve kurutma sırasında), tam yük süresindeki

güç değerine göre belirlenir.

Model RCDE0302

Nominal Giriş 220-240 V 50-60 Hz

Nominal Çıkış 20 V 2 A

Nominal Güç (toz boşaltma

sırasında)

700 W

Nominal Güç (temizlik sırasında) 40 W

Nominal Güç (şarj etme ve kurutma

sırasında)

87 W

Bu ekipmanda, normal kullanım koşulları altında anten ile kullanıcının vücudu

arasında en az 20 cm’lik mesafe olmalıdır.

Bekleme modunda güç tüketimi: ≤0,5 W (robot süpürge ana istasyondan/şarj

yanaşma noktasından ayrıldıktan sonra 15 dakika içinde)

Ekipmanın, bekleme gereksinimleri, güç yönetimi işlevi veya pil bakım

ihtiyaçları nedeniyle kablosuz ağ bağlantılarını devre dışı bırakma özelliği

açısından bir bekleme modu veya diğer eşdeğer bir durumu yoktur. Ekipmanın

güç tüketiminin, bu işlevsel gereksinimleri karşılayan diğer ekipman

modellerinden daha yüksek olması muhtemeldir.

Ana İstasyon

Bu sembolü taşıyan tüm ürünler elektrikli ve elektronik cihaz atığı (2012/19/AB sayılı direktifteki anlamıyla WEEE) kapsamında olup

sınıflandırılmamış ev atıklarıyla karıştırılmamalıdır. Bunun yerine, atık cihazınızı, atık elektrikli ve elektronik cihazların geri dönüştürülmesi için

hükümet veya yerel yetkililer tarafından belirlenmiş olan toplama noktasına teslim ederek insan sağlığını ve çevreyi korumalısınız. Doğru imha

ve geri dönüşüm, çevre ve insan sağlığı üzerindeki olası olumsuz sonuçların engellenmesine yardımcı olacaktır. Bu tür toplama noktalarının

konumu, şartları ve koşulları hakkında daha fazla bilgi almak için lütfen montaj yetkilisiyle veya yerel yetkililerle iletişime geçin.

WEEE Bilgileri

DİKKAT:

Çıkarma Kılavuzu:

Pillerin Çıkarılması ve İmhası

Üründeki lityum-iyon pil, çevreye zararlı maddeler içerir. Pili atmadan önce, yetkin teknisyenler tarafından çıkarılmasını sağlayın ve uygun bir geri dönüşüm

tesisinde imha edileceğinden emin olun.

– cihaz ıskartaya çıkarılmadan önce pilleri çıkarılmalıdır;

– piller çıkarılırken cihaz şebeke elektriğinden ayrılmış olmalıdır;

– pil, güvenli bir şekilde imha edilmelidir.

Pili çıkarmadan önce, güç kablosunu ayırın ve pili olabildiğince fazla tüketin.

İhtiyaç fazlası piller uygun bir geri dönüşüm tesisinde imha edilmelidir.

Patlama risklerinin önüne geçmek için yüksek sıcaklıklı ortamlara maruz bırakmayın.

Kötü koşullar altında, pilden sıvı sızabilir. Temas meydana gelirse ilgili bölgeyi suyla yıkayın ve tıbbi yardım alın.

1. Robotu ters çevirin, uygun bir aletle robotun arkasındaki vidaları sökün ve ardından kapağı çıkarın.

2. Pili çıkarmak için pil ile PCB kartı arasındaki bağlantı uçlarını çıkarın.

Hạn chế sử dụng

Thông tin an toàn

Không để trẻ em dưới 8 tuổi cũng như những người có khiếm khuyết về thể chất,

giác quan, trí tuệ hoặc hạn chế về kinh nghiệm hoặc kiến thức sử dụng sản phẩm

này mà không có sự giám sát của cha mẹ hoặc người giám hộ để đảm bảo vận

hành an toàn và tránh mọi rủi ro. Không để trẻ em thực hiện công việc vệ sinh và

bảo trì mà không có sự giám sát.

Chỉ sử dụng thiết bị với bộ nguồn đi kèm với thiết bị.

Chỉ người có chuyên môn mới được thay thế pin trong thiết bị này.

Dọn dẹp khu vực cần làm sạch. Không để trẻ em nghịch thiết bị. Giữ khoảng cách

an toàn giữa trẻ em và vật nuôi với rô-bốt trong quá trình rô-bốt hoạt động.

Không lắp đặt, sạc hoặc sử dụng thiết bị trong phòng tắm hoặc xung quanh hồ bơi.

Sản phẩm này chỉ dùng để lau sàn trong môi trường gia đình. Không sử dụng sản

phẩm này ngoài trời, trên các bề mặt không phải sàn hoặc trong môi trường thương

mại hoặc công nghiệp.

Đảm bảo thiết bị hoạt động bình thường trong môi trường thích hợp. Nếu không,

không được sử dụng thiết bị.

Nếu dây nguồn bị hỏng thì phải thay thế bằng dây hoặc bộ phận lắp ráp đặc biệt do

nhà sản xuất hoặc đại lý dịch vụ của nhà sản xuất cung cấp.

Không sử dụng rô-bốt ở khu vực cao hơn mặt đất mà không có hàng rào bảo vệ.

Không đặt rô-bốt ở tư thế lộn ngược. Không sử dụng vỏ bọc LDS, vỏ bọc rô-bốt

Để tránh bị điện giật, hỏa hoạn hoặc thương tích do sử dụng thiết bị sai quy cách, vui lòng đọc kỹ hướng dẫn sử dụng trước khi sử dụng thiết bị và

giữ lại để tham khảo sau này.

Hạn chế sử dụng

Thông tin an toàn

hoặc bộ giảm chấn làm tay cầm cho rô-bốt.

Sử dụng rô-bốt trong môi trường có nhiệt độ môi trường trên 0°C và dưới 40°C.

Đảm bảo không có chất lỏng hoặc chất dính trên sàn.

Để tránh bị kéo lê làm hư hỏng hoặc tổn hại, hãy dọn sạch mọi vật không cố định

khỏi sàn và tháo dây cáp hoặc dây nguồn nằm trong lộ trình lau dọn trước khi vận

hành thiết bị.

Loại bỏ các vật dụng nhỏ hoặc dễ vỡ khỏi sàn nhà để rô-bốt không va vào và làm

hỏng các vật dụng đó.

Không để tóc, ngón tay và các bộ phận cơ thể gần lỗ hút của rô-bốt.

Để công cụ làm sạch ngoài tầm với của trẻ em.

Không vận hành thiết bị trong phòng có trẻ sơ sinh hoặc trẻ em đang ngủ.

Không đặt trẻ em, vật nuôi hoặc bất kỳ vật dụng nào lên trên rô-bốt bất kể rô-bốt

đang đứng yên hay di chuyển.

Chỉ được đổ nước sạch và dung dịch vệ sinh được phê duyệt chính thức vào ngăn

chứa nước sạch. Không thêm bất kỳ dung dịch nào như cồn hoặc chất khử trùng.

Có thể kiểm tra tỉ lệ nước lau và nước sạch trên vỏ chai nước lau. Để nước lau cách

xa tầm tay trẻ em.

Không sử dụng rô-bốt để vệ sinh bất kỳ đồ vật đang cháy nào. Không sử dụng rô-

bốt để hút chất lỏng dễ cháy hoặc dễ bắt lửa, khí ăn mòn hoặc axit hoặc dung môi

chưa pha loãng.

Không sử dụng thiết bị để hút các vật cứng hoặc sắc nhọn. Không sử dụng thiết bị

để hút các vật như đá, mảnh giấy lớn hoặc bất kỳ vật dụng nào có thể làm tắc máy.

Thông tin an toàn

Pin và Sạc

Không sử dụng bất kỳ trạm sạc đa chức năng hoặc pin nào của bên thứ ba. Rô-bốt

chỉ có thể hoạt động với mẫu trạm sạc

RCDE0302

Không tự ý tháo rời, sửa chữa hoặc thay đổi pin hoặc trạm sạc đa chức năng.

Không đặt trạm sạc đa chức năng gần nguồn nhiệt.

Không sử dụng khăn ướt hoặc tay ướt để lau hoặc vệ sinh các điểm tiếp xúc sạc

của trạm sạc đa chức năng.

Không thải bỏ pin cũ sai cách. Nên thải bỏ pin không dùng nữa tại cơ sở tái chế

thích hợp.

Nếu dây nguồn bị hỏng hoặc đứt, hãy ngừng sử dụng ngay lập tức và liên hệ với bộ

phận dịch vụ hậu mãi.

Đảm bảo tắt rô-bốt khi vận chuyển và để trong bao bì đóng gói ban đầu nếu còn.

Nếu không sử dụng rô-bốt trong một thời gian dài, hãy sạc đầy pin, sau đó tắt và cất

ở nơi khô ráo, thoáng mát. Sạc lại rô-bốt ít nhất 3 tháng một lần để tránh hết pin quá

lâu.

Phải rút phích cắm ra khỏi ổ điện trước khi vệ sinh hoặc bảo trì thiết bị.

Không lau rô-bốt hoặc trạm sạc đa chức năng bằng khăn ướt hoặc rửa bằng bất kỳ

dung dịch gì. Sau khi vệ sinh các bộ phận có thể rửa được, hãy làm khô hoàn toàn

trước khi lắp lại và sử dụng.

Vui lòng sử dụng sản phẩm này theo hướng dẫn trong Hướng dẫn sử dụng. Người

dùng tự chịu trách nhiệm nếu có bất kỳ tổn thất hoặc hư hỏng nào phát sinh do sử

dụng sản phẩm sai cách.

Hạn chế sử dụng

Cảm biến laser trong sản phẩm này đáp ứng Tiêu chuẩn IEC 60825-1:2014/EN

60825-1:2014/A11:2021 dành cho sản phẩm laser Loại 1. Vui lòng tránh tiếp xúc

trực tiếp bằng mắt với cảm biến trong quá trình sử dụng.

SẢN PHẨM LASER LOẠI 1

SẢN PHẨM LASER DÀNH CHO NGƯỜI TIÊU DÙNG

Tiêu chuẩn EN 50689:2021

Thông tin an toàn

laser

Thông tin an toàn

ằ

ng văn b

ả

n này, Dreame Trading (Tianjin) Co., Ltd. tuyên b

ố

ạ

i thi

ế

t b

ị

vô tuy

ế

n RLD52SE tuân th

ủ

ỉ

ị

2014/53/EU. Xem toàn văn tuyên

ố

tuân th

ủ

EU theo đ

ị

a ch

ỉ

:https://global.dreametech.com

ể

ế

t h

ướ

ng d

ẫ

n s

ử

ụ

ng đi

ệ

n t

ử

chi ti

ế

t, vui lòng truy c

ậ

p https://global.dreametech.com/pages/user-manuals-and-faqs

Chỉ sử dụng trong nhà

Đọc hướng dẫn vận hành

Thành phần trong bao bì

Các phụ kiện khác

Tổng quan về sản phẩm

Rô-bốt

Trạm sạc đa chức năng

Miếng lau × 2

(được lắp sẵn)

Khay giữ

miếng lau × 2

Hướng dẫn sử dụngDây nguồn

Tấm tạo dốc cho trạm

sạc đa chức năng

Túi đựng bụi × 2

(1 được lắp sẵn)

Chổi phụ

Chổi chính

TriCut

Rô-bốt

Tổng quan về sản phẩm

Nút lau dọn tập trung

Nhấn để bắt đầu lau dọn một khu vực nhất định

Nút Nguồn / Lau dọn

Nhấn giữ trong 3 giây để bật hoặc tắt

Nhấn để bắt đầu lau dọn sau khi bật rô-bốt

Nút Trạm sạc

Nhấn để gửi rô-bốt trở lại trạm sạc

Nhấn giữ trong 3 giây để tắt Khóa trẻ em

Đèn báo trạng thái

Màu trắng: Đã vệ sinh hoặc dọn dẹp xong

Màu trắng nháy chậm: Đang sạc (không phải pin yếu)

Màu cam sáng đều: Trạng thái đợi khi pin yếu hoặc tạm dừng khi pin

yếu

Màu cam nháy chậm: Đang sạc (pin yếu)

Màu cam nhấp nháy: Lỗi

Lưu ý:

Nhấn bất kỳ nút nào trên rô-bốt để tạm dừng khi rô-bốt đang lau dọn

hoặc quay lại để sạc.

Có thể bật/tắt Khóa trẻ em trên Ứng dụng.

Rô-bốt và Cảm biến

Tổng quan về sản phẩm

Hộp chứa bụi

Cụm lau nhà

Mặt gắn

miếng lau

Khay giữ miếng lau Miếng lau

Nắp

Điểm tiếp xúc sạc

Lỗ thông hơi tự thu bụi

Nút đặt lại

· Nhấn giữ trong

3 giây để khôi

phục cài đặt gốc

Đèn báo Wi-Fi

Cảm biến cạnh bên

Cảm biến chống rơi

Bánh xe chính

Chổi chính

Bánh xe đa hướng

Khung bảo vệ chổi

Bánh xe chính

Chốt khoá khay

bảo vệ chổi

Lỗ gắn Khay giữ

miếng lau

Chổi phụ

Cảm biến nhận

diện thảm

Bộ lọc

Tay cầm bộ lọc

Lỗ thông hơi tự

động đổ bụi

Kẹp vỏ hộp chứa bụi

Chốt gắn hộp chứa bụi

Nắp hộp chứa bụi

Nắp LDS

Cảm biến khoảng

cách laser (LDS)

Cảm biến laser vạch 3D

Bộ giảm chấn

Trạm sạc đa chức năng

Tổng quan về sản phẩm

Bộ lọc

Khe gắn túi đựng

bụi

Khay giặt giẻ

Tấm tạo dốc

Nắp trên

Ngăn chứa nước sạch

Ngăn chứa nước

đã qua sử dụng

Lỗ thông hơi tự thu bụi

Chốt ngăn

chứa nước

Chốt ngăn

chứa nước

Phao nổi

Ống nước

Bộ lọc

Ngăn chứa nước

đã qua sử dụng

Ngăn chứa

nước sạch

Phao

Nắp ngăn

chứa bụi

Đèn báo trạng thái

Màu trắng: Trạm sạc đa chức

năng đã được cắm điện

Màu cam sáng đều: Trạm sạc

đa chức năng bị lỗi

Khu vực truyền tín hiệu

Điểm tiếp xúc sạc

Khe trữ dây nguồn

Cổng nguồn

Thu dọn nhà cửa

Trước khi lau sàn, vui lòng cất những món đồ rải rác trên sàn, hàng dễ vỡ, đồ vật

giá trị hoặc có khả năng gây nguy hiểm. Đồng thời thu dọn dây cáp, đồ chơi, vật

cứng và các vật sắc nhọn ra khỏi mặt đất để tránh làm vướng robot hoặc bị va

chạm gây trầy xước, va đập, hư hỏng sản phẩm.

Mở cửa phòng cần lau dọn và xếp đồ đạc vào đúng chỗ để có nhiều không gian

hơn.

Không đứng phía trước rô-bốt, bậc cửa, hành lang hoặc những nơi chật hẹp để

tránh việc rô-bốt không nhận diện được khu vực cần lau dọn.

Trước khi lau dọn, hãy đặt một tấm chắn ở mép cầu thang và ghế sofa để đảm bảo

rô-bốt hoạt động an toàn và trơn tru.

Lưu ý:

Khi vận hành rô-bốt lần đầu tiên, hãy đi theo khi rô-bốt làm sạch để kịp thời loại bỏ mọi chướng ngại vật.

Không để rô-bốt hút các vật cứng như đá, bi thép, các mảnh đồ chơi hoặc các vật sắc nhọn như phế thải xây dựng, mảnh kính vỡ và đinh, nếu không có thể làm trầy xước

sàn nhà

1. Đặt trạm sạc đa chức năng và Kết nối với ổ cắm điện

Đặt trạm sạc đa chức năng ở vị trí thoáng nhất và có tín hiệu Wi-Fi tốt. Đảm bảo

khoảng cách 1,5 m phía trước và 5 cm hai bên trạm sạc đa chức năng không có

vật cản. Cắm dây nguồn vào trạm sạc đa chức năng và cắm vào ổ điện.

3. Tháo Vỏ bọc rô-bốt, Lắp Chổi phụ và Cụm lau nhà

2. Lắp Tấm tạo dốc

Trước khi sử dụng

Lưu ý:

Đảm bảo không để vật cản ở khu vực truyền tín hiệu.

Đặt trạm sạc đa chức năng trên sàn gạch hoặc sàn đá cẩm thạch để tránh vết

nước làm ướt sàn gỗ hoặc thảm.

②

①

> 1,5 m

> 5 cm

5 cm

Cắm chặt dây nguồn lên phía trên

đến khi thấy đèn báo sáng.

Chốt giữ

chổi phụ

4. Kết nối rô-bốt với trạm sạc đa chức năng

Nhấn và giữ nút nguồn trên rô-bốt trong 3 giây để bật máy. Đặt rô-bốt lên trạm sạc

đa chức năng sao cho cụm lau nhà hướng về phía ván giặt. Sau đó, bạn sẽ nghe

thấy thông báo bằng giọng nói khi rô-bốt kết nối thành công với trạm sạc.

Trước khi sử dụng

Lưu ý: Bạn nên sạc đầy rô-bốt ở lần đầu sử dụng. Khi không thể bật rô-bốt sau khi

hết pin, hãy tự kết nối rô-bốt với trạm sạc.

5. Thêm nước vào Ngăn chứa nước sạch

Lấy ngăn chứa nước sạch ra khỏi trạm sạc đa chức năng và đổ đầy bằng nước sạch.

Sau đó lắp lại vào trạm sạc đa chức năng.

Lưu ý: Không thêm nước nóng vào ngăn chứa nước vì có thể làm ngăn chứa nước

bị biến dạng.

2. Thêm thiết bị

Mở ứng dụng Dreamehome, chọn "Quét mã QR để kết nối" và quét lại mã QR đó

trên rô-bốt để thêm thiết bị. Vui lòng làm theo lời nhắc để hoàn tất kết nối Wi-Fi.

Kết nối với ứng dụng Dreamehome

1. Tải ứng dụng Dreamehome

Quét mã QR trên rô-bốt hoặc tìm kiếm "Dreamehome" trong cửa hàng ứng dụng

để tải và cài đặt ứng dụng.

Đèn báo Wi-Fi

· Nhấp nháy chậm:

Sắp được kết nối

· Nhấp nháy nhanh:

Đang kết nối

· Bật: Đã kết nối

Lưu ý:

Chỉ hỗ trợ Wi-Fi 2.4 GHz.

Do phần mềm ứng dụng có các bản nâng cấp nên hoạt động thực tế có thể khác

với hướng dẫn trong hướng dẫn sử dụng này. Vui lòng làm theo hướng dẫn theo

phiên bản ứng dụng hiện tại.

Mã QR

Lưu ý:

Nếu bạn muốn đặt lại Wi-Fi, hãy lặp lại bước 2 rồi làm theo lời nhắc để hoàn tất

kết nối.

Để ngắt kết nối thiết bị khỏi mạng Wi-Fi, nhấn và giữ nút Reset trên rô-bốt trong 3

giây.

Cách sử dụng

Bật/Tắt

Nhấn và giữ nút nguồn trong 3 giây để bật rô-bốt. Đặt rô-bốt vào trạm sạc đa chức

năng để rô-bốt tự động bật và bắt đầu sạc. Để tắt rô-bốt, hãy đưa rô-bốt ra khỏi

trạm sạc đa chức năng rồi nhấn và giữ nút nguồn trong 3 giây.

Thiết lập bản đồ nhanh

Sau khi định cấu hình mạng lần đầu tiên, hãy làm theo hướng dẫn trên ứng dụng

để nhanh chóng thiết lập bản đồ. Rô-bốt sẽ bắt đầu lập bản đồ mà không lau dọn.

Khi rô-bốt quay trở lại trạm sạc đa chức năng, quá trình lập bản đồ đã hoàn tất và

bản đồ sẽ được lưu tự động.

Tạm dừng/Ngủ

Khi rô-bốt đang chạy, nhấn nút bất kỳ để tạm dừng. Nếu rô-bốt bị tạm dừng hơn 10

phút sẽ tự động chuyển sang chế độ ngủ. Tất cả đèn báo trên rô-bốt sẽ tắt. Nhấn

nút bất kỳ trên rô-bốt hoặc sử dụng ứng dụng để đánh thức rô-bốt.

Lưu ý: Nếu rô-bốt đang tạm dừng, khi đưa về trạm sạc đa chức năng thì tiến trình

lau dọn gần nhất sẽ kết thúc.

Tự động tiếp tục lau dọn

Nếu pin quá yếu, rô-bốt sẽ tự động quay trở lại trạm sạc đa chức năng để sạc. Sau

khi sạc đến mức pin thích hợp, rô-bốt sẽ tiếp tục các công việc lau dọn dang dở.

Lưu ý: Để sử dụng chức năng này, vui lòng cho phép trong ứng dụng.

Chế độ Không làm phiền (DND)

Khi ở chế độ Không làm phiền (DND), rô-bốt sẽ không thể vệ sinh tiếp và đèn báo

nguồn sẽ tắt. Chế độ DND bị tắt theo mặc định. Bạn có thể sử dụng ứng dụng để

bật chế độ DND hoặc chỉnh sửa khung giờ DND. Khung giờ DND mặc định từ 22:00

giờ đêm-8:00 giờ sáng.

Lưu ý:

Các nhiệm vụ dọn dẹp đã lên lịch vẫn sẽ được thực hiện như thường trong khung

giờ bật chế độ DND.

Rô-bốt sẽ tiếp tục lau dọn từ vị trí đã dừng lại sau khi kết thúc chế độ DND.

Chế độ lau dọn tập trung

Khi rô-bốt đang ở trạng thái đợi, hãy nhấn nhanh nút để kích hoạt chế độ làm

sạch theo điểm. Ở chế độ này, rô-bốt làm sạch khu vực hình vuông xung quanh có

diện tích 1,5 x 1,5 mét và quay trở lại điểm xuất phát sau khi hoàn tất tiến trình làm

sạch theo điểm.

Khởi động lại rô-bốt

Nếu rô-bốt ngừng phản hồi hoặc không thể tắt, nhấn và giữ nút nguồn trong 10 giây

để buộc rô-bốt phải tắt. Sau đó, nhấn và giữ nút nguồn trong 3 giây để bật rô-bốt.

Cách sử dụng

Hút bụi và Lau nhà

Lưu ý: Khi lần đầu tiên sử dụng cụm lau nhà, rô-bốt sẽ thực hiện nhiệm vụ “Quét

và Lau nhà” theo mặc định.

1. Bắt đầu lau dọn

Nhấn nút nguồn trên rô-bốt hoặc sử dụng ứng dụng để rô-bốt khởi động từ trạm

sạc đa chức năng. Sau đó, rô-bốt sẽ lập lộ trình lau dọn tối ưu và thực hiện nhiệm

vụ vệ sinh theo bản đồ đã tạo.

2. Tự động giặt miếng lau

Khi lau dọn, rô-bốt sẽ tự động quay trở lại trạm sạc đa chức năng để giặt miếng lau

theo tần suất làm sạch được cài đặt trên ứng dụng.

Lưu ý:

Để đảm bảo rô-bốt dễ dàng quay trở lại trạm sạc đa chức năng sau khi lau dọn,

bạn nên để rô-bốt khởi động từ trạm sạc đa chức năng.

Các miếng lau sẽ được vệ sinh trước khi rô-bốt bắt đầu lau, vui lòng kiên nhẫn

chờ đợi.

Không di chuyển trạm sạc đa chức năng, ngăn chứa nước sạch, ngăn chứa

nước đã qua sử dụng hoặc khay giặt giẻ khi rô-bốt đang hoạt động.

Cách sử dụng

3. Tự động đổ hộp chứa bụi, sau đó giặt và sấy khô miếng lau nhà

Sau khi rô-bốt hoàn thành nhiệm vụ lau dọn và quay trở lại trạm sạc đa chức năng

để sạc, trạm sạc đa chức năng sẽ bắt đầu tự động đổ bụi trong hộp chứa bụi. Sau

đó giặt và sấy khô miếng lau.

4. Vệ sinh ngăn chứa nước đã qua sử dụng

Sau khi rô-bốt hoàn thành nhiệm vụ, vui lòng vệ sinh ngăn chứa nước đã qua sử

dụng để tránh gây mùi hôi.

Lưu ý:

Nếu tắt chức năng tự động đổ bụi trong ứng dụng, trạm sạc đa chức năng sẽ

không tự động đổ bụi trong hộp chứa bụi.

Trạm sạc đa chức năng sẽ đổ bụi trong hộp chứa bụi theo cài đặt trong ứng

dụng.

Chỉ hút bụi

Bật chức năng hút bụi trong ứng dụng và rô-bốt sẽ tự động nhấc cụm lau nhà lên và

bắt đầu hút bụi.

Lau sàn sau khi Hút bụi

Bật chức năng lau sau khi hút bụi trong ứng dụng và rô-bốt sẽ tự động nhấc cụm lau

nhà lên để hút bụi trên sàn. Sau khi hút bụi xong, rô-bốt sẽ quay lại để đổ bụi khỏi

hộp chứa bụi, sau đó bắt đầu lau nhà sau khi tự động hạ cụm lau nhà xuống.

Chỉ lau nhà

Bật chức năng lau nhà trong ứng dụng và rô-bốt sẽ tự động kiểm tra xem cụm lau

nhà đã được lắp chưa. Nếu chưa, lắp thủ công cụm lau nhà, sau đó rô-bốt sẽ bắt

đầu tự động lau.

Bảo dưỡng định kỳ

Bộ phận Tần suất bảo trì Thời gian thay thế

Ngăn chứa nước đã

qua sử dụng

Sau mỗi lần sử dụng

Ngăn chứa nước sạch

2 tuần một lần

Chổi chính Cách 6 đến 12 tháng

Bộ lọc hộp chứa bụi

Cách 3 đến 6 tháng

Chổi phụ

Khay giữ miếng lau /

Khay giặt giẻ

Mỗi tháng một lần /

Khu vực truyền tín

hiệu trên trạm sạc đa

chức năng

Điểm tiếp xúc sạc

Lỗ thông hơi tự thu

bụi

Bánh xe đa hướng

Cảm biến cạnh

Cảm biến khoảng

cách laser (LDS)

Cảm biến laser vạch

Bộ phận Tần suất bảo trì Thời gian thay thế

Cảm biến nhận diện

thảm

Mỗi tháng một lần

Cảm biến chống rơi

Bộ giảm chấn

Mặt bên dưới của

rô-bốt

Hộp chứa bụi Vệ sinh khi cần thiết

Túi đựng bụi

Cách 2 đến 4 tháng

Miếng lau Cách 1 đến 3 tháng

Lưu ý: Tần suất thay thế sẽ tuỳ theo cách bạn sử dụng rô-bốt. Nếu xảy ra trường

hợp ngoại lệ do hoàn cảnh đặc biệt thì bạn nên thay thế các bộ phận.

Các bộ phận

Để đảm bảo rô-bốt luôn ở tình trạng tốt, bạn nên tham khảo cách sử dụng phụ kiện trong ứng dụng hoặc bảng sau để bảo dưỡng định kỳ.

Bảo dưỡng định kỳ

Đế khay giặt giẻ

1. Bật chức năng vệ sinh đế khay giặt giẻ trong ứng dụng và rô-bốt sẽ tự động

rời khỏi trạm sạc đa chức năng. Lấy khay giặt giẻ ra và đợi cho nước đổ vào đáy

trạm sạc đa chức năng.

3. Sau một lúc, trạm sạc đa chức năng sẽ tự động bơm nước đã qua sử dụng ra

ngoài. Sau đó lau khô bằng vải mềm và để khô, rồi đặt khay giặt giẻ vào vị trí cũ.

2. Rửa sạch khay giặt giẻ bằng nước sạch và dùng công cụ làm sạch để vệ sinh

phần đáy trạm sạc đa chức năng.

4. Sử dụng ứng dụng hoặc nhấn nhanh nút trên rô-bốt để đưa rô-bốt quay trở

lại trạm sạc đa chức năng.

Lưu ý: Trong quá trình lau dọn, không bắt rô-bốt quay trở lại trạm sạc đa chức năng.

3. Lắp túi đựng bụi mới.

4. Lắp lại nắp ngăn chứa bụi.2. Loại bỏ bụi và mảnh vụn ra khỏi bộ lọc bằng vải khô.

Lưu ý: Kéo tay cầm lên trên để buộc kín túi nhằm ngăn bụi và mảnh vụn vô tình rơi

ra ngoài.

Bảo dưỡng định kỳ

Túi đựng bụi

1. Tháo nắp ngăn chứa bụi và loại bỏ túi đựng tụi.

Bảo dưỡng định kỳ

2. Mở nắp hộp chứa bụi, tháo bộ lọc rồi đổ bụi trong hộp chứa bụi đi như minh họa

trong sơ đồ.

Hộp chứa bụi và bộ lọc

1. Mở nắp rô-bốt và nhấn chốt để tháo hộp chứa bụi.

3. Gõ nhẹ vào phần hộc chứa bụi của bộ lọc để loại bỏ bụi bẩn.

4. Rửa hộp chứa bụi và bộ lọc bằng nước rồi để khô hoàn toàn trước khi lắp lại.

Lưu ý: Không cố làm sạch bộ lọc bằng bàn chải, ngón tay hoặc vật sắc nhọn để

tránh hư hỏng.

Lưu ý:

Chỉ rửa hộp chứa bụi và bộ lọc bằng nước sạch. Không sử dụng bất kỳ chất tẩy

rửa gì.

Chỉ sử dụng hộp chứa bụi và bộ lọc khi đã khô hoàn toàn.

24h

2. Kéo hai đầu của nắp chổi như trong hình. Sử dụng công cụ làm sạch đi kèm để

gỡ tất cả tóc rối dính trong chổi. Lắp lại hai đầu nắp chổi, sau đó lắp lại chổi. Nhấn

vào khung bảo vệ chổi để chốt lại.

Bảo dưỡng định kỳ

Chổi chính

1. Nhấn chốt khoá khay bảo vệ chổi vào trong để tháo khay bảo vệ chổi và nhấc

chổi ra khỏi rô-bốt.

Lưu ý: Phao nổi trong ngăn chứa nước đã qua sử dụng là bộ phận có thể tháo rời

được. Không dùng lực quá mạnh khi vệ sinh máy để tránh hư hỏng.

2. Rửa ngăn chứa nước đã qua sử dụng bằng nước sạch và dùng công cụ làm

sạch đi kèm để vệ sinh thành trong của ngăn chứa nước đã qua sử dụng.

Ngăn chứa nước đã qua sử dụng

1. Tháo ngăn chứa nước đã qua sử dụng, mở nắp và đổ nước đã qua sử dụng ra

ngoài.

Bảo dưỡng định kỳ

Chổi phụ

Tháo và vệ sinh chổi phụ.

Bánh xe đa hướng

Lưu ý:

Sử dụng dụng cụ như tuốc nơ vít nhỏ để tách trục và lốp của bánh xe đa hướng.

Không dùng lực quá mạnh.

Vệ sinh bánh xe đa hướng dưới vòi nước chảy và lắp lại sau khi khô hoàn toàn.

Khay giữ miếng lau

Tháo và vệ sinh khay giữ miếng lau.

Điểm tiếp xúc sạc và Khu vực truyền tín hiệu

Làm sạch các điểm tiếp xúc sạc và khu vực truyền tín hiệu bằng vải khô mềm.

Làm sạch lỗ thông hơi tự động

Làm sạch lỗ thông hơi tự động đổ bụi của rô-bốt và trạm sạc đa chức năng bằng

vải khô mềm.

Bảo dưỡng định kỳ

Cảm biến của rô-bốt

Lau cảm biến của rô-bốt bằng vải mềm khô như trong hình dưới đây:

Lưu ý: Vải ướt có thể làm hỏng các bộ phận nhạy cảm bên trong rô-bốt và trạm

sạc đa chức năng. Vui lòng sử dụng vải khô để vệ sinh.

Cảm biến nhận

diện thảm

Cảm biến chống rơi

Bộ giảm chấn

Cảm biến cạnh

Cảm biến khoảng

cách laser (LDS)

Cảm biến laser vạch 3D

Bảo dưỡng định kỳ

Miếng lau

Tháo miếng lau ra khỏi khay giữ để thay mới.

Rô-bốt sử dụng bộ pin lithium-ion hiệu suất cao. Đảm bảo sạc đầy pin để sử dụng

hàng ngày nhằm duy trì hiệu suất tối ưu của pin. Nếu không sử dụng trong thời

gian dài, hãy tắt nguồn và cất rô-bốt ở nơi thoáng mát. Để tránh gây hư hỏng do

hết pin quá lâu, hãy sạc rô-bốt ít nhất ba tháng một lần.

Vấn đề Giải pháp

Không bật được rô-bốt.

Pin yếu. Sạc pin cho rô-bốt trên đế và thử lại.

Nhiệt độ pin quá thấp hoặc quá cao. Nên vận hành thiết bị ở nhiệt độ từ 32℉ (0°C) and 104℉ (40°C).

Sạc rô-bốt không vào.

Trạm sạc đa chức năng chưa được cắm điện, vui lòng đảm bảo cắm cả hai đầu dây nguồn của trạm sạc đa chức năng đúng cách.

Nếu tiếp xúc giữa các điểm tiếp xúc sạc trên trạm sạc đa chức năng và rô-bốt kém, vui lòng vệ sinh các điểm tiếp xúc sạc.

Kiểm tra dị vật trên đầu nối rô-bốt và loại bỏ nếu có.

Rô-bốt không kết nối được

với Wi-Fi.

Mật khẩu mạng Wi-Fi không chính xác. Đảm bảo nhập đúng mật khẩu sử dụng để kết nối với mạng Wi-Fi.

Rô-bốt không hỗ trợ kết nối Wi-Fi 5 GHz. Đảm bảo đã kết nối rô-bốt với mạng Wi-Fi 2,4 GHz.

Tín hiệu Wi-Fi yếu. Đảm bảo rô-bốt đang ở trong khu vực có vùng phủ sóng Wi-Fi tốt.

Rô-bốt có thể chưa sẵn sàng để thiết lập cấu hình. Vui lòng thoát ra và vào lại ứng dụng, sau đó thử lại theo hướng dẫn.

Rô-bốt không xác định

được vị trí và quay lại trạm

sạc đa chức năng.

Trạm sạc đa chức năng bị ngắt điện hoặc bị di chuyển khi rô-bốt không có ở đó. Vui lòng kết nối trạm sạc đa chức năng với nguồn

điện hoặc đặt rô-bốt lên trạm sạc đa chức năng để sạc.

Có quá nhiều chướng ngại vật xung quanh trạm sạc đa chức năng. Đặt trạm sạc đa chức năng ở khu vực thoáng hơn.

Di chuyển rô-bốt có thể khiến rô-bốt phải tự định vị lại và tạo lại bản đồ nếu định vị không thành công. Rô-bốt có thể không tự động

quay lại nếu ở quá xa trạm sạc đa chức năng, trong trường hợp đó, bạn sẽ cần tự đặt rô-bốt trở lại.

Lau khu vực truyền tín hiệu trên trạm sạc đa chức năng để loại bỏ bụi hoặc mảnh vụn.

Rô-bốt bị kẹt trước trạm

sạc đa chức năng và không

quay lại được trạm sạc đa

chức năng.

Loại bỏ tất cả chướng ngại vật trong phạm vi 5 cm bên trái và bên phải hoặc trong phạm vi 1,5 m phía trước trạm sạc đa chức

năng để rô-bốt không bị cản trở.

Lối đi quay lại để sạc bị chặn, ví dụ: cửa đóng.

Rô-bốt có thể bị trượt nếu khu vực sàn phía trước trạm sạc đa chức năng quá ẩm ướt. Nếu vậy, hãy làm sạch nước thừa trước khi

thử lại.

Bạn nên di chuyển trạm sạc đa chức năng đến một nơi khác và thử lại.

Đảm bảo tấm tạo dốc được lắp đặt đúng cách.

Không tắt được rô-bốt.

Không thể tắt rô-bốt khi đang sạc. Bạn nên di chuyển rô-bốt ra khỏi trạm sạc đa chức năng, sau đó nhấn và giữ nút nguồn trong 3

giây để tắt rô-bốt.

Nếu không thể tắt rô-bốt bằng cách thực hiện bước 1, nhấn và giữ nút nguồn trong 10 giây để buộc rô-bốt phải tắt. Nếu vẫn không

tắt được, vui lòng liên hệ với dịch vụ hỗ trợ sau bán hàng.

Xử lý sự cố

Vấn đề Giải pháp

Tốc độ sạc chậm.

Mất khoảng 3,5 giờ để sạc đầy rô-bốt khi pin yếu.

Nếu vận hành rô-bốt ở khoảng nhiệt độ ngoài mức quy định, tốc độ sạc sẽ tự động chậm lại để kéo dài tuổi thọ của pin.

Các điểm tiếp xúc sạc trên cả rô-bốt và đế có thể bị bẩn, vui lòng lau bằng vải khô.

Rô-bốt ngày một ồn khi

đang hoạt động.

Kiểm tra xem bộ lọc hộp chứa bụi có bị tắc không. Nếu có, hãy vệ sinh hoặc thay bộ lọc.

Vật cứng có thể mắc vào chổi chính hoặc hộp chứa bụi. Kiểm tra và loại bỏ mọi vật cứng.

Chổi chính hoặc chổi phụ có thể bị rối. Kiểm tra và loại bỏ mọi vật lạ

Chuyển chế độ hút sang Tiêu chuẩn hoặc Yên tĩnh.

Rô-bốt di chuyển không

theo lộ trình đã định.

Nên thu dọn các đồ vật như dây nguồn và dép đi trong nhà trước khi sử dụng rô-bốt.

Bề mặt trơn ướt khiến bánh xe chính bị trơn trượt. Nên làm khô những nơi ẩm ướt trước khi sử dụng rô-bốt.

Lau các cảm biến laser vạch 3D trên rô-bốt bằng vải mềm sạch và khô để chúng luôn sạch sẽ và không bị cản trở.

Rô-bốt bỏ qua các phòng

cần lau dọn.

Hãy đảm bảo mở cửa các phòng cần lau dọn.

Kiểm tra xem bậc cửa có cao hơn khoảng 2 cm hay không. Rô-bốt không thể trèo qua bậc cửa hoặc bậc thang cao.

Vị trí trước cửa phòng cần vệ sinh có thể ẩm ướt, trơn trượt khiến rô-bốt trượt bánh và hoạt động không bình thường. Vui lòng làm

khô sàn nhà trước khi sử dụng rô-bốt.

Rô-bốt không tiếp tục dọn

dẹp sau khi sạc.

Đảm bảo không đặt rô-bốt ở chế độ Không làm phiền (DND) để tránh rô-bốt không thể tiếp tục lau dọn.

Rô-bốt sẽ không tiếp tục lau dọn sau khi bạn tự đưa rô-bốt vào trạm sạc hay điều khiển rô-bốt để sạc thông qua ứng dụng hoặc

nút .

Xử lý sự cố

Vấn đề Giải pháp

Trạm không tự động làm

sạch hộp chứa bụi.

Kiểm tra xem túi đựng bụi trong ngăn chứa bụi đã đầy chưa.

Nếu túi đựng bụi chưa đầy, hãy kiểm tra xem có vật cản nào trên lỗ thông hơi tự động đổ bụi của rô-bốt, trạm sạc đa chức năng

hoặc hộp chứa bụi hay không. Nếu có, nhanh chóng vệ sinh phần bị kẹt.

Mực nước trong khay giặt

giẻ không bình thường.

Kiểm tra xem nắp bịt trên ngăn chứa nước đã qua sử dụng có bị lỏng hoặc bị lắp sai hay không và lắp lại cho đúng. Nếu vẫn bị lỗi,

vui lòng liên hệ với đội ngũ hỗ trợ sau bán hàng.

Ấn nhẹ ngăn chứa nước đã qua sử dụng xuống để đảm bảo lắp đúng vị trí.

Tháo khay giặt giẻ và kiểm tra xem lỗ thoát nước thải có bị tắc hay không và vệ sinh.

Kiểm tra nước lau. Không thêm bất kỳ dung dịch nào khác ngoài nước lau được nhà sản xuất cho phép.

Lỗ gắn khay giữ miếng lau

bị nhô lên một cách không

bình thường.

Vui lòng tháo lỗ gắn khay giữ miếng lau để kiểm tra xem liệu có bất kỳ vật thể bên ngoài bị kẹt trong đó hay không, và thử khởi

động lại rô-bốt. Nếu vẫn bị lỗi, vui lòng liên hệ với đội ngũ hỗ trợ sau bán hàng.

Có nước bên dưới ngăn

chứa nước sạch hoặc xung

quang phần nắp.

Khi lấy ngăn chứa nước sạch, có thể sẽ còn một ít nước trong phần ống còn đọng lại dưới ngăn chứa hoặc quanh phần nắp. Đây

là điều bình thường. Vui lòng lau bằng vải khô.

Để đểểc hể trể thêm, hãy liên hể vểi chúng tôi qua https://global.dreametech.com

Thông số kỹ thuật

Rô-bốt

Trạm sạc đa chức năng/đế sạc

Rô-bốt và trạm sạc đa chức năng/đế sạc

Mẫu máy RLD52SE

Thời gian sạc Khoảng 3,5 tiếng

Điện áp định mức 14,4 V

Công suất định mức 75 W

Tần suất hoạt động 2400– 2483,5 MHz

Công suất đầu ra tối đa < 20 dBm

Lưu ý: Công suất định mức (trong quá trình sạc và sấy) được xác định bởi

giá trị công suất trong quá trình hoạt động tối đa.

Mẫu máy RCDE0302

Đầu vào định mức 220-240 V 50-60 Hz

Đầu ra định mức 20 V 2 A

Công suất định mức (trong lúc đổ bụi) 700 W

Công suất định mức (trong quá trình

lau dọn)

40 W

Công suất định mức (trong quá trình

sạc và sấy)

87 W

Trong điều kiện sử dụng bình thường, cần để thiết bị này cách ăng-ten và cơ thể

người dùng ít nhất 20 cm.

Tiêu thụ điện năng ở chế độ chờ: ≤ 0,5 W (trong vòng 15 phút sau khi rô-bốt rời trạm

sạc đa chức năng/đế sạc)

Do nhu cầu bảo trì pin, thiết bị không có chế độ chờ hoặc trạng thái tương đương

khác từ góc độ các yêu cầu chờ, chức năng quản lý điện năng hoặc khả năng hủy

kích hoạt chế độ kết nối mạng không dây. Mức tiêu thụ điện năng của thiết bị có thể

cao hơn các mẫu thiết bị khác đáp ứng các yêu cầu chức năng này.

Trạm sạc đa chức năng

Tất cả các sản phẩm có biểu tượng này đều là rác thải điện và điện tử (WEEE theo chỉ thị 2012/19/EU) không được thải bỏ chung với rác thải sinh hoạt

chưa được phân loại. Thay vào đó, bạn nên bảo vệ sức khỏe con người và môi trường bằng cách gửi thiết bị thải bỏ tới điểm thu gom được chỉ định để

tái chế rác thải điện và điện tử theo chỉ định của chính phủ hoặc chính quyền địa phương. Thải bỏ và tái chế đúng cách sẽ giúp ngăn ngừa những hậu quả

tiêu cực tiềm ẩn đối với môi trường và sức khỏe con người. Vui lòng liên hệ với đơn vị lắp đặt hoặc chính quyền địa phương để biết thêm thông tin về địa

điểm cũng như các điều khoản và điều kiện của các điểm thu gom đó.

Thông tin về WEEE

Thận trọng:

Hướng dẫn tháo:

Tháo pin và thải bỏ

Pin lithium-ion tích hợp có chứa các chất nguy hiểm cho môi trường. Trước khi thải bỏ pin, hãy đảm bảo việc tháo pin do các kỹ thuật viên có trình độ thực hiện và thải

bỏ tại một cơ sở tái chế thích hợp.

– Bạn cần tháo pin ra khỏi thiết bị trước khi vứt bỏ;

– Thiết bị phải được ngắt khỏi nguồn điện chính khi tháo pin;

– Pin phải được xử lý an toàn.

Trước khi tháo pin, hãy ngắt nguồn điện và sử dụng càng nhiều pin càng tốt.

Nên thải bỏ pin không dùng nữa tại cơ sở tái chế thích hợp.

Không tiếp xúc với môi trường có nhiệt độ cao để tránh nguy cơ cháy nổ.

Nếu quá lạm dụng, chất lỏng có thể bị rò ra khỏi pin. Nếu không may tiếp xúc, xả dưới nước và điều trị y tế.

1. Lật ngược rô-bốt, sử dụng dụng cụ thích hợp để tháo các vít ở mặt sau của rô-bốt rồi tháo nắp.

2. Rút phích cắm các cực giữa pin và bo mạch PCB để tháo pin.

ข้อจำ�กัดในก�รใช้ง�น

ข้อมูลด้�นคว�มปลอดภัย

เด็กอายุ กว่า 8 ปี หรือบุคคลที

่

มีความบกพร่องทางร่างกาย ประสาทสัมผัส สติปั ญญา หรือ

ประสบการณ์หรือความรู้จำากัดไม่ควรใช้ผลิตภัณฑ์นี

้

โดยไม่ได้รับการดูแลจากพ่อแม่หรือผู้ปกครอง

เพื

่

อให้แน่ใจว่าการทำางานปลอดภัยและเพื

่

อหลีกเลี

่

ยงความเสี

่

ยงใด ๆ ที

่

อาจเกิดขึ

้

น ห้ามเด็กทำาความ

สะอาดและบำารุงรักษาโดยไม่มีผู้ดูแล

เครื

่

องนี

้

ใช้กับเครื

่

องจ่ายไฟที

่

ให้มาพร้อมกับเครื

่

องเท่านั

้

น

หุ่นยนต์นี

้

มีแบตเตอรี

่

ที

่

ต้องเปลี

่

ยนโดยผู้ที

่

มีความชำานาญเท่านั

้

น

เคลียร์พื

้

นที

่

ที

่

จะทำาความสะอาด ห้ามเด็กเล่นกับผลิตภัณฑ์นี

้

ตรวจสอบให้แน่ใจว่าเด็กและสัตว์เลี

้

ยง

อยู่ห่างจากหุ่นยนต์ในระยะที

่

ปลอดภัยในขณะที

่

หุ่นยนต์กำาลังทำางาน

ห้ามติดตั

้

ง ชาร์จ หรือใช้เครื

่

องในห้อง หรือรอบ ๆ สระว่าย

ผลิตภัณฑ์นี

้

ใช้สำาหรับการทำาความสะอาดพื

้

นในบ้านเท่านั

้

น ห้ามใช้งานกลางแจ้ง บนพื

้

นผิวที

่

ไม่ใช่พื

้

น

หรือในเชิงพาณิชย์หรืออุตสาหกรรม

ตรวจสอบให้แน่ใจว่าหุ่นยนต์ทำางานได้อย่างถูกต้องในสภาพแวดล้อมที

่

เหมาะสม มิฉะนั

้

น

จะไม่สามารถใช้งานหุ่นยนต์นี

้

ได้

หากสายไฟเสียหาย ต้องเปลี

่

ยนด้วยสายไฟพิเศษหรือชุดประกอบที

่

มีจำาหน่ายจากผู้ผลิตหรือ

ตัวแทนบริการ

ห้ามใช้หุ่นยนต์ในบริเวณที

่

อยู่เหนือระดับพื

้

นดินโดยไม่มีสิ

่

งกีดขวางป้ องกันเอาไว้

ห้ามวางหุ่นยนต์กลับด้าน ห้ามใช้ฝาปิ ด LDS ฝาปิ ดหุ่นยนต์ หรือกันชนเป็ นที

่

จับสำาหรับหุ่นยนต์

ใช้หุ่นยนต์ในสภาพแวดล้อมที

่

มีอุณหภูมิแวดล้อมสูงกว่า 0°C และ กว่า 40°C ตรวจสอบให้แน่ใจ

ว่าไม่มีของเหลวหรือสารเหนียวบนพื

้

น

เพื

่

อหลีกเลี

่

ยงก�รเกิดไฟฟ้ �ช็อต ไฟไหม้ หรือก�รบ�ดเจ็บที

่

เกิดจ�กก�รใช้เครื

่

องอย่�งไม่เหม�ะสม โปรดอ่�นคู่มือผู้ใช้อย่�งละเอียดก่อนใช้เครื

่

อง และเก็บไว้เพื

่

อใช้ดูในอน�คต

ข้อจำ�กัดในก�รใช้ง�น

ข้อมูลด้�นคว�มปลอดภัย

เพื

่

อป้ องกันความเสียหายหรืออันตรายจากการลาก ให้นำาสิ

่

งกีดขวางออกจากพื

้

น และถอดสายเคเบิล

หรือสายไฟบนพื

้

นที

่

ทำาความสะอาดก่อนเปิ ดใช้งาน

นำาสิ

่

งของที

่

เปราะบางหรือมีขนาดเล็กออกจากพื

้

นเพื

่

อป้ องกันไม่ให้หุ่นยนต์ชนและสร้างความเสียหาย

เก็บเส้นผม นิ

้

วมือ และส่วนอื

่

น ๆ ของร่างกายให้ห่างจากช่องดูดของหุ่นยนต์

เก็บเครื

่

องมือทำาความสะอาดให้พ้นมือเด็ก

ห้ามใช้งานหุ่นยนต์ในห้องที

่

มีทารกหรือเด็กนอนหลับอยู่

ห้ามวางเด็ก สัตว์เลี

้

ยง หรือสิ

่

งของใด ๆ ไว้บนหุ่นยนต์ ไม่ว่าหุ่นยนต์จะอยู่นิ

่

งหรือเคลื

่

อนที

่

ก็ตาม

สามารถเติมได้เฉพาะ สะอาดและ ยาทำาความสะอาดที

่

ได้รับการรับรองอย่างเป็ นทางการลงใน

ถังเก็บ สะอาดเท่านั

้

น ห้ามเติมของเหลวอื

่

นใด เช่น แอลกอฮอล์หรือ ยาฆ่าเชื

้

อ สามารถตรวจสอบ

ถังอัตราส่วนของ ยาทำาความสะอาดต่อ สะอาดได้จากขวด ยาทำาความสะอาด เก็บ ยาทำาความ

สะอาดให้พ้นมือเด็ก

ห้ามใช้หุ่นยนต์เพื

่

อทำาความสะอาดวัตถุที

่

กำาลังไหม้ ห้ามใช้หุ่นยนต์หยิบของเหลวที

่

ไวไฟหรือติดไฟได้

ก๊าซที

่

มีฤทธิ

์

กัดกร่อน หรือกรดหรือตัวทำาละลายที

่

ไม่มีการเจือปน

ห้ามดูดวัตถุแข็งหรือมีคม ห้ามใช้อุปกรณ์ในการหยิบวัตถุ เช่น ก้อนหิน กระดาษชิ

้

นใหญ่ หรือ

สิ

่

งของใด ๆ ที

่

อาจทำาให้อุปกรณ์อุดตัน

ต้องถอดปลั

๊

กออกจากเต้ารับก่อนทำาความสะอาดหรือบำารุงรักษาเครื

่

อง

อย่าเช็ดหุ่นยนต์หรือแท่นด้วยผ้าเปี ยกหรือล้างด้วยของเหลวใดก็ตาม หลังจาก

หลังจากหลังจากล้างทำาความสะอาดชิ

้

นส่วนแล้ว ให้เช็ดชิ

้

นส่วนให้แห้งก่อนติดตั

้

งใหม่และใช้งาน

โปรดใช้ผลิตภัณฑ์นี

้

ตามคำาแนะนำาในคู่มือผู้ใช้ ผู้ใช้ต้องรับผิดชอบต่อความสูญเสียหรือความ

เสียหายใด ๆ ที

่

เกิดขึ

้

นจากการใช้ผลิตภัณฑ์นี

้

อย่างไม่เหมาะสม

ข้อมูลด้�นคว�มปลอดภัย

แบตเตอรี

่

และก�รช�ร์จ

ห้ามใช้แบตเตอรี

่

หรือแท่นอื

่

น หุ่นยนต์สามารถใช้ได้กับแท่นชาร์จรุ่น RCDE0302 เท่านั

้

น

ห้ามแยกชิ

้

นส่วน ซ่อมแซม หรือดัดแปลงแบตเตอรี

่

หรือแท่นด้วยตัวคุณเอง

ห้ามวางแท่นใกล้กับแหล่งความร้อน

ห้ามใช้ผ้าเปี ยกหรือมือเปียกเช็ดหรือทำาความสะอาดจุดเชื

่

อมต่อการชาร์จของแท่น

ห้ามทิ

้

งแบตเตอรี

่

เก่าอย่างไม่เหมาะสม ควรทิ

้

งแบตเตอรี

่

ที

่

ไม่ต้องการที

่

โรงงานรีไซเคิลที

่

เหมาะสม

หากสายไฟเสียหายหรือขาด ให้หยุดใช้งานทันทีและติดต่อฝ่ ายบริการหลังการขาย

ตรวจสอบให้แน่ใจว่าหุ่นยนต์ปิ ดอยู่ในขณะที

่

ทำาการขนส่งและหากเป็ นไปได้เก็บไว้ในบรรจุภัณฑ์เดิม

หากไม่ได้ใช้งานหุ่นยนต์เป็ นระยะเวลานาน ให้ชาร์จแบตเตอรี

่

ให้เต็ม จากนั

้

น ปิ ดเครื

่

องและเก็บใน

ที

่

แห้งและเย็น ชาร์จหุ่นยนต์อย่างน้อยทุก ๆ 3 เดือนเพื

่

อหลีกเลี

่

ยงการคายประจุแบตเตอรี

่

มากเกินไป

เซ็นเซอร์เลเซอร์ในผลิตภัณฑ์นี

้

ตรงตามมาตรฐาน IEC 60825-1:2014/

EN 60825-1:2014/A11:2021 สำาหรับผลิตภัณฑ์เลเซอร์คลาส 1

โปรดหลีกเลี

่

ยงการสัมผัสกับดวงตาโดยตรงระหว่างการใช้งาน

ผลิตภัณฑ์เลเซอร์คลาส 1

ผลิตภัณฑ์เลเซอร์สำาหรับผู้บริโภค

EN 50689:2021

ข้อมูลคว�มปลอดภัยของ

เลเซอร์

ข้อมูลด้�นคว�มปลอดภัย

ด้วยเหตุนี

้

Dreame Trading (Tianjin) Co., Ltd. ขอประกาศว่าอุปกรณ์วิทยุประเภท RLD52SE เป็นไปตามข้อบังคับที

่

2014/53/EU

ข้อความฉบับสมบูรณ์ของประกาศความสอดคล้องของสหภาพยุโรปมีอยู่ตามที

่

อยู่อินเทอร์เน็ตต่อไปนี

้

:https://global.dreametech.com

สำาหรับรายละเอียดเพิ

่

มเติมของคู่มืออิเล็กทรอนิกส์ โปรดไปที

่

https://global.dreametech.com/pages/user-manuals-and-faqs

สำาหรับใช้ในที

่

ร่มเท่านั

้

น

อ่านคู่มือการใช้งาน

สิ

่

งที

่

บรรจุอยู่ในแพ็กเกจ

อุปกรณ์เสริมอื

่

น ๆ

ภ�พรวมผลิตภัณฑ์

หุ่นยนต์

แท่นชาร์จ

ผ้าถูพื

้

น × 2

(ติดตั

้

งไว้ล่วงหน้า)

ที

่

ยึดผ้าถูพื

้

น × 2

คู่มือการใช้งานสายไฟ แผ่นทางลาด

ถุงเก็บฝุ่ น × 2

(ติดตั

้

งไว้ล่วงหน้า 1 ชิ

้

น)

แปรงด้านข้าง

แปรง TriCut

หุ่นยนต์

ภ�พรวมผลิตภัณฑ์

ปุ่ มทำ�คว�มสะอ�ดเฉพ�ะจุด

· กดเพื

่

อเริ

่

มการทำาความสะอาดเฉพาะจุด

ปุ่ มเปิ ด/ปิ ด / ทำ�คว�มสะอ�ด

· กดค้างไว้ 3 วินาทีเพื

่

อเปิ ดหรือปิ ด

· กดเพื

่

อเริ

่

มทำาความสะอาดหลังจากเปิ ดหุ่นยนต์

ปุ่ มกลับไปที

่

แท่น

· กดเพื

่

อส่งหุ่นยนต์กลับไปยังแท่น

· กดค้างไว้ 3 วินาทีเพื

่

อปิ ดฟังก์ชันล็อกการป้ องกันเด็ก

ไฟแสดงสถ�นะ

· สีขาวสว่างค้าง: การทำาความสะอาดหรือการทำางานเสร็จสิ

้

นแล้ว

· สีขาวกะพริบเป็ นจังหวะ: กำาลังชาร์จ (ไม่ได้มีแบตเตอรี

่

)

· สีส้มสว่างค้าง: กำาลังรอ

เมื

่

อแบตเตอรี

่

เหลือน้อยหรือหยุดชั

่

วคราวเมื

่

อแบตเตอรี

่

เหลือน้อย

· สีส้มกะพริบเป็ นจังหวะ: กำาลังชาร์จ (แบตเตอร )

· สีส้มกะพริบ: เกิดข้อผิดพลาด

หม�ยเหตุ:

· กดปุ่ มใดก็ได้บนหุ่นยนต์เพื

่

อหยุดชั

่

วคราวในขณะที

่

หุ่นยนต์กำาลัง

ทำาความสะอาดหรือกลับไปชาร์จ

· ระบบล็อกป้ องกันเด็กสามารถเปิดและปิ ดผ่านทางแอป ได้

หุ่นยนต์และเซ็นเซอร์

ภ�พรวมผลิตภัณฑ์

กล่องเก็บฝุ่ น

ชุดถูพื

้

น

พื

้

นที

่

ติดผ้าถูพื

้

น

ที

่

ยึดผ้าถูพื

้

น ผ้าถูพื

้

น

ฝาปิ ด

หน้าสัมผัสการชาร์จ

ช่องทิ

้

งฝุ่ นอัตโนมัติ

ปุ่มรีเซ็ต

· กดค้างไว้ 3 วินาทีเพื

่

อ

คืนค่าเป็ นการตั

้

งค่า

จากโรงงาน

ไฟแสดงสถานะ Wi-Fi

เซ็นเซอร์ตรวจจับขอบ

เซ็นเซอร์กันตก

ล้อหลัก

แปรงหลัก

ล้อแบบหมุนรอบทิศทาง

ที

่

ครอบแปรงหลัก

ล้อหลัก

ตัวล็อคที

่

ครอบแปรง

รูยึดผ้าถูพื

้

น

แปรงด้านข้าง

เซ็นเซอร์ตรวจจับพรม

แผ่นกรอง

ด้ามจับตัวกรอง

ช่องทิ

้

งฝุ่ นอัตโนมัติ

คลิปหนีบฝาปิ ดกล่องเก็บฝุ่น

ตัวล็อคกล่องเก็บฝุ่ น

ฝาปิ ดกล่องเก็บฝุ่น

ฝาครอบ LDS

เซ็นเซอร์เลเซอร์วัดระยะ (LDS)

เซ็นเซอร์เลเซอร์แบบเส้นสามมิติ

กันชน

หม�ยเหตุ:

· กดปุ่ มใดก็ได้บนหุ่นยนต์เพื

่

อหยุดชั

่

วคราวในขณะที

่

หุ่นยนต์กำาลัง

ทำาความสะอาดหรือกลับไปชาร์จ

· ระบบล็อกป้ องกันเด็กสามารถเปิดและปิ ดผ่านทางแอป ได้

แท่น

ภ�พรวมผลิตภัณฑ์

แผ่นกรอง

ช่องถุงเก็บฝุ่ น

กระดานล้าง

แผ่นทางลาด

ฝาปิ ดด้านบน

ถังเก็บ สะอาด

ถังเก็บ ทิ

้

ง

ช่องทิ

้

งฝุ่ นอัตโนมัติ

คลิปถังเก็บ

ลูกลอย

ท่อ

แผ่นกรอง

ถัง ที

่

ใช้แล้ว ถังเก็บ สะอาด

ฝุ่ นตะกอน

ฝาปิ ดถังเก็บฝุ่น

ไฟแสดงสถานะ

· สีขาวสว่างค้าง:

ต่อแท่นเข้ากับไฟฟ้ าแล้ว

· สีส้มสว่างค้าง: แท่นเกิดข้อผิดพลาด

พื

้

นที

่

รับส่งสัญญาณ

หน้าสัมผัสการชาร์จ

ช่องเก็บสายไฟ

พอร์ตชาร์จ

ก�รจัดเตรียมบ้�นของคุณ

ก่อนทำาความสะอาด โปรดย้ายสิ

่

งของที

่

ไม่มั

่

นคง เปราะบาง มีมูลค่า หรือเป็ นอันตรายออก

และจัดเก็บสายเคเบิล ผ้า ของเล่น วัตถุของแข็ง และของมีคมบนพื

้

นเพื

่

อหลีกเลี

่

ยงการพันกัน ขีดข่วน

หรือกระแทกโดยหุ่นยนต์และทำาให้เกิดการสูญเสีย

เปิ ดประตูห้องที

่

จะทำาความสะอาดและวางเฟอร์นิเจอร์ให้เข้าที

่

เพื

่

อให้มีพื

้

นที

่

ว่างมากขึ

้

น เพื

่

อป้ องกันไม่ให้หุ่นยนต์สับสนพื

้

นที

่

ที

่

ต้องทำาความสะอาด อย่ายืนขวางหน้าหุ่นยนต์ ธรณีประตู

โถงทางเดิน หรือที

่

แคบ ๆ

ก่อนการทำาความสะอาด ให้วางแผงกั

้

นที

่

ขอบบันไดและโซฟาเพื

่

อให้หุ่นยนต์ทำางานได้อย่าง

ปลอดภัยและราบรื

่

น

หม�ยเหตุ:

· เมื

่

อใช้งานหุ่นยนต์เป็ นครั

้

งแรก ให้เดินตามหุ่นยนต์ไปรอบ ๆ ขณะทำาความสะอาดเพื

่

อให้สามารถเก็บสิ

่

งกีดขวางที

่

อาจเกิดขึ

้

นได้ทันเวลา

· ห้ามดูดวัตถุที

่

เป็ นของแข็ง เช่น ก้อนหิน ลูกเหล็ก และชิ

้

นส่วนของเล่น หรือของมีคม เช่น ขยะก่อสร้าง เศษแก้ว และตะปู มิฉะนั

้

นอาจทำาให้พื

้

นเป็ นรอยได้

1. ว�งแท่นและเชื

่

อมต่อกับเต้�รับไฟฟ้ �

วางแท่นในตำาแหน่งที

่

เปิ ดกว้างที

่

สุดเท่าที

่

จะเป็ นไปได้ซึ

่

งมีสัญญาณ Wi-Fi ที

่

ดี เก็บวัตถใดก็ตาม

ที

่

อยู่ด้านหน้าในระยะ 1.5 ม. และ 5 ซม. จากด้านข้างของแท่นไม่ว่าจะเป็ นด้านใดก็ตามออกไป

เสียบสายไฟเข้ากับแท่นแล้วเสียบเข้ากับเต้ารับ

3. ถอดแผ่นป้ องกันหุ่นยนต์และติดตั

้

งชุดแปรงด้�นข้�งและชุดถูพื

้

น

2. ติดตั

้

งแผ่นท�งล�ด

ก่อนใช้ง�น

หม�ยเหตุ:

· ตรวจสอบให้แน่ใจว่าไม่มีวัตถุใดขวางกั

้

นพื

้

นที

่

รับส่งสัญญาณ

· เพื

่

อป้ องกันไม่ให้มีคราบ บนพื

้

นไม้หรือไม่ให้พรมเปี ยก

แนะนำาให้วางแท่นบนพื

้

นกระเบื

้

องหรือพื

้

นหินอ่อน

②

①

＞1.5 m

＞5 cm

เสียบสายไฟด้านบนให้แน่นจนกระทั

่

งไฟ

แสดงสถานะสว่างขึ

้

น

คลิปแปรงด้านข้าง

4. เชื

่

อมต่อหุ่นยนต์เข้�กับแท่น

กดปุ่ มเปิด/ปิ ดบนหุ่นยนต์ค้างไว้ 3 วินาทีเพื

่

อเปิ ดหุ่นยนต์

์

วางหุ่นยนต์ลงบนแท่นโดยให้ชุดถูพื

้

นหัน

ไปทางกระดานล้าง จากนั

้

นคุณจะได้ยินเสียงการแจ้งเตือนเมื

่

อหุ่นยนต์เชื

่

อมต่อกับแท่นได้สำาเร็จ

ก่อนใช้ง�น

หม�ยเหตุ: ขอแนะนำาให้ชาร์จหุ่นยนต์ให้เต็มก่อนที

่

จะเริ

่

มใช้งานเป็ นครั

้

งแรก เมื

่

อแบตเตอรี

่

หมด

และไม่สามารถใช้งานหุ่นยนต์ได้ โปรดเชื

่

อมต่อหุ่นยนต์กับแท่นด้วยตนเองเพื

่

อชาร์จแบตเตอรี

่

5. เติม ลงในถัง สะอ�ด

นำาถัง สะอาดออกจากสถานีฐาน และเติม สะอาดลงในถัง จากนั

้

น ติดตั

้

งกลับเข้าไปในแท่น

หม�ยเหตุ: ห้ามเติมร้อนลงในถังเก็บเพราะอาจทำาให้ถังเก็บ เสียรูปทรงได้

2. เพิ

่

มอุปกรณ์

เปิ ดแอป Dreamehome แตะ

"สแกนคิวอาร์โค้ดเพื

่

อเชื

่

อมต่อ" และสแกนคิวอาร์โค้ดเดียวกันบนหุ่นยนต์อีกครั

้

งเพื

่

อเพิ

่

มอุปกรณ์

โปรดปฏิบัติตามคำาแนะนำาเพื

่

อสิ

้

นสุดการเชอื

่

มต่อ Wi-Fi

ก�รเชื

่

อมต่อกับแอป Dreamehome

1. ด�วน์โหลดแอป Dreamehome

สแกนคิวอาร์โค้ดบนหุ่นยนต์ หรอื ค้นหา "Dreamehome" ใน App Storeเพื

่

อดาวน์โหลดและ

ติดตั

้

งแอป

ไฟแสดงสถ�นะ Wi-Fi

· กะพริบช้� ๆ:

กำาลังรอการเชื

่

อมต่อ

· กะพริบอย่�งรวดเร็ว:

กำาลังเชื

่

อมต่อ

· เปิ ด: เชื

่

อมต่อแล้ว

หม�ยเหตุ:

รองรับ Wi-Fi 2.4 GHz เท่านั

้

น

เนื

่

องจากการอัปเกรดในซอฟต์แวร์แอป การดำาเนินการจริงอาจแตกต่างจากคำาแนะนำาในคู่มือนี

้

โปรดทำาตามคำาแนะนำาของแอปเวอร์ชันปั จจุบัน

คิวอาร์โค้ด

หม�ยเหตุ:

หากคุณต้องการรีเซ็ต Wi-Fi ให้ทำา ขั

้

นตอนที

่

2 จากนั

้

น ทำาตามคำาแนะนำาเพื

่

อสิ

้

นสุด

การเชื

่

อมต่อ Wi-Fi

หากต้องการตัดการเชื

่

อมต่ออุปกรณ์จากเครือข่าย Wi-Fi ให้กดปุ่ มรีเซ็ตบนหุ่นยนต์ค้างไว้ 3

วินาที

วิธีก�รใช้ง�น

เปิ ด/ปิ ด

กดปุ่ มเปิด/ปิ ดค้างไว้ 3 วินาทีเพื

่

อเปิ ดหุ่นยนต์

์

ไฟแสดงสถานะการทำางานควรจะสว่างขึ

้

น

วางหุ่นยนต์ลงบนแท่น หุ่นยนต์จะเปิ ดโดยอัตโนมัติและเริ

่

มการชาร์จ หากต้องการปิ ดหุ่นยนต์

ให้นำาหุ่นยนต์ออกจากสถานีแท่น แล้วกดปุ่ มเปิด/ปิ ดค้างไว้ 3 วินาที

ก�รสร้�งแผนที

่

แบบรวดเร็ว

หลังจากกำาหนดค่าเครือข่ายในครั

้

งแรก ให้ทำาตามคำาแนะนำาในแอปเพื

่

อสร้างแผนที

่

อย่างรวดเร็ว

หุ่นยนต์จะเริ

่

มทำาแผนที

่

โดยไม่ทำาความสะอาด เมื

่

อหุ่นยนต์กลับไปที

่

แท่น กระบวนการสร้างแผนที

่

จะเสร็จสมบูรณ์และแผนที

่

จะถูกบันทึกโดยอัตโนมัติ

หยุดชั

่

วคร�ว/พักเครื

่

อง

เมื

่

อหุ่นยนต์กำาลังทำางาน ให้กดปุ่ มใดก็ได้เพื

่

อหยุดชั

่

วคราว หากหุ่นยนต์หยุดชั

่

วคราวนานกว่า

10 นาที หุ่นยนต์จะเข้าสู่โหมดพักเครื

่

องโดยอัตโนมัติ ไฟแสดงสถานะทั

้

งหมดบนหุ่นยนต์จะปิ ดลง

กดปุ่ มใดก็ได้บนหุ่นยนต์หรือใช้แอปเพื

่

อเปิ ดใช้งานหุ่นยนต์

หม�ยเหตุ: หากหุ่นยนต์หยุดทำางานชั

่

วคราวและวางลงบนแท่น กระบวนการทำาความสะอาดใน

ปั จจุบันจะสิ

้

นสุดลง

ทำ�คว�มสะอ�ดต่ออัตโนมัติ

หากแบตเตอรี

่

เหลือน้อยเกินไป หุ่นยนต์จะกลับไปที

่

แท่นโดยอัตโนมัติเพื

่

อทำาการชาร์จ หลังจาก

ชาร์จถึงระดับแบตเตอรี

่

ที

่

เหมาะสมแล้ว หุ่นยนต์จะกลับมาทำาความสะอาดต่อ

หม�ยเหตุ: หากต้องการใช้ฟั งก์ชันนี

้

โปรดเปิ ดในแอป

โหมดห้�มรบกวน (Do Not Disturb : DND)

เมื

่

อหุ่นยนต์ถูกตั

้

งค่าเป็ นโหมดห้ามรบกวน (DND) หุ่นยนต์จะถูกป้องกันไม่ให้กลับมาทำาความ

สะอาดต่อและไฟแสดงสถานะจะดับลง โหมด DND จะถูกปิ ดใช้งานตามค่าเริ

่

มต้นจากโรงงาน

คุณสามารถใช้แอปเพื

่

อเปิ ดใช้งานโหมด DND หรือแก้ไขช่วงเวลาของโหมด DND ได้

ตามค่าเริ

่

มต้นช่วงเวลา DND คือ 22:00 – 8:00 น.

หม�ยเหตุ:

แผนทำาความสะอาดตามกำาหนดเวลาจะดำาเนินไปตามปกติในช่วงระยะเวลา DND

หุ่นยนต์จะดำาเนินการทำาความสะอาดต่อจากที

่

ค้างไว้หลังจากช่วงเวลา DND สิ

้

นสุดลงุ

ก�รทำ�คว�มสะอ�ดเฉพ�ะจุด

เมื

่

อหุ่นยนต์กำาลังรอ ให้กดปุ่ ม สั

้

นๆ เพื

่

อเปิ ดใช้งานโหมดทำาความสะอาดเฉพาะจุด

ในโหมดนี

้

หุ่นยนต์จะทำาความสะอาดพื

้

นที

่

รูปทรงสี

่

เหลี

่

ยมจัตุรัสขนาด 1.5 x 1.5 เมตร

บริเวณโดยรอบของหุ่นยนต์และกลับสู่จุดเริ

่

มต้นเมื

่

อการทำาความสะอาดเฉพาะจุดเสร็จสิ

้

นแล้ว

ก�รรีสต�ร์ตหุ่นยนต์

หากหุ่นยนต์หยุดตอบสนองหรือไม่สามารถปิ ดได้ ให้กดปุ่มเปิ ด/ปิดค้างไว้ 10

วินาทีเพื

่

อบังคับให้หุ่นยนต์ปิ ดการทำางาน จากนั

้

น กดปุ่ มเปิด/ปิ ดค้างไว้ 3 วินาทีเพื

่

อเปิ ดหุ่นยนต์

ก�รเชื

่

อมต่อกับแอป

ดูดฝุ่ นและถูพื

้

น

หม�ยเหตุ: เมื

่

อใช้ชุดถูพื

้

นเป็ นครั

้

งแรก หุ่นยนต์จะทำางาน "ดูดฝุ่ นและถูพื

้

น" ตามค่าเริ

่

มต้น

1. เริ

่

มต้นก�รทำ�คว�มสะอ�ด

กดปุ่ มเปิด/ปิ ดบนหุ่นยนต์ หรือใช้แอปเพื

่

อให้หุ่นยนต์เริ

่

มทำางานตั

้

งแต่สถานีแท่น จากนั

้

น

หุ่นยนต์จะวางแผนเส้นทางการทำาความสะอาดที

่

เหมาะสมที

่

สุดและดำาเนินการทำาความสะอาด

ตามแผนที

่

ที

่

สร้างขึ

้

น

2. ล้�งผ้�ถูพื

้

นอัตโนมัติ

เมื

่

อทำาความสะอาด หุ่นยนต์จะกลับไปที

่

แท่นโดยอัตโนมัติเพื

่

อล้างผ้าถูพื

้

นตามความถี

่

ในการ

ทำาความสะอาดผ้าถูพื

้

นที

่

ระบุไว้ในแอป

หม�ยเหตุ:

เพื

่

อให้แน่ใจว่าหุ่นยนต์สามารถกลับไปยังแท่นได้อย่างง่ายดายหลังจากทำาความสะอาด

ขอแนะนำาให้เริ

่

มต้นหุ่นยนต์จากแท่น

ผ้าถูพื

้

นจะทำาความสะอาดก่อนที

่

หุ่นยนต์จะเริ

่

มถู โปรดรอสักครู่

ห้ามเคลื

่

อนย้ายแท่น ถังเ สะอาด ถัง ทิ

้

ง หรือกระดานล้างในระหว่างการทำางาน

2. ล้�งผ้�ถูพื

้

นอัตโนมัติ

เมื

่

อทำาความสะอาด หุ่นยนต์จะกลับไปที

่

แท่นโดยอัตโนมัติเพื

่

อล้างผ้าถูพื

้

นตามความถี

่

ในการ

ทำาความสะอาดผ้าถูพื

้

นที

่

ระบุไว้ในแอป

วิธีก�รใช้ง�น

3. ล้�งกล่องเก็บฝุ่ นโดยอัตโนมัติ และล้�งผ้�ถูพื

้

นให้แห้ง

หลังจากหุ่นยนต์ทำาความสะอาดเสร็จและกลับไปที

่

แท่นเพื

่

อทำาการชาร์จ

แท่นจะเริ

่

มเทกล่องเก็บฝุ่ นโดยอัตโนมัติ จากนั

้

น ล้างผ้าถูพื

้

นให้แห้ง

4. ก�รทำ�คว�มสะอ�ดถัง ทิ

้

ง

หลังจากหุ่นยนต์ทำางานเสร็จแล้ว โปรดทำาความสะอาดถังถัง ทิ

้

งเพื

่

อป้ องกันกลิ

่

นไม่พึงประสงค์

หม�ยเหตุ:

หากปิ ดฟังก์ชันทำาความสะอาดอัตโนมัติในแอป แท่นจะไม่ล้างกล่องเก็บฝุ่ นโดยอัตโนมัติ

แท่นจะล้างกล่องเก็บฝุ่ นตามการตั

้

งค่าที

่

กำาหนดไว้ในแอป

ดูดฝุ่ นเท่�นั

้

น

เปิ ดใช้งานฟั งก์ชันดูดฝุ่นในแอป และหุ่นยนต์จะยกชุดถูพื

้

นโดยอัตโนมัติและเริ

่

มดูดฝุ่ น

ถูพื

้

นหลังจ�กดูดฝุ่ น

เปิ ดใช้งานฟั งก์ชันถูพื

้

นหลังจากดูดฝุ่ นในแอป

และหุ่นยนต์จะยกชุดถูพื

้

นขึ

้

นโดยอัตโนมัติเพื

่

อดูดฝุ่ นบนพื

้

น หลังจากดูดฝุ่ นเสร็จแล้ว

หุ่นยนต์จะกลับไปที

่

แท่นเพื

่

อเทขยะทิ

้

ง จากนั

้

นจะเริ

่

มถูพื

้

นหลังจากลดชุดถูพื

้

น

ถูพื

้

นเท่�นั

้

น

เปิ ดใช้งานฟั งก์ชันถูพื

้

นเท่านั

้

นในแอป แล้วหุ่นยนต์จะตรวจสอบว่ามีการติดตั

้

งชุดถูพื

้

นหรือไม่

หากไม่มี โปรดติดตั

้

งชุดถูพื

้

นด้วยตนเอง จากนั

้

นหุ่นยนต์จะเริ

่

มถูพื

้

น

100

ก�รบำ�รุงรักษ�ต�มรอบปกติ

ชิ

้

นส่วน คว�มถี

่

ในก�รบำ�รุงรักษ� ระยะเวล�ก�รเปลี

่

ยน

ถัง ทิ

้

ง หลังการใช้งานแต่ละครั

้

ง

ถัง สะอาด

ทุก 2 สัปดาห์

แปรงหลัก ทุก 6 ถึง 12 เดือน

ตัวกรองของกล่องเก็บฝุ่ น

ทุก 3 ถึง 6 เดือน

แปรงด้านข้าง

ที

่

ยึดผ้าถูพื

้

น /

กระดานล้าง

เดือนละครั

้

ง /

พื

้

นที

่

ส่งสัญญาณของแท่น

หน้าสัมผัสการชาร์จ

ช่องทิ

้

งฝุ่ นอัตโนมัติ

ล้อแบบหมุนรอบทิศทาง

เซ็นเซอร์ตรวจจับขอบ

เซ็นเซอร์เลเซอร์วัดระยะ (LDS)

เซ็นเซอร์เลเซอร์แบบเส้นสามมิติ

ชิ

้

นส่วน คว�มถี

่

ในก�รบำ�รุงรักษ� ระยะเวล�ก�รเปลี

่

ยน

เซ็นเซอร์ตรวจจับพรม

เดือนละครั

้

ง

เซ็นเซอร์กันตก

กันชน

ด้านล่างของหุ่นยนต์

กล่องเก็บฝุ่ น ทำาความสะอาดเท่าที

่

จำาเป็ น

ถุงเก็บฝุ่ น

ทุก 2 ถึง 4 เดือน

ผ้าถูพื

้

น ทุก 1 ถึง 3 เดือน

หม�ยเหตุ:

ระยะเวลาการเปลี

่

ยนอะไหล่ขึ

้

นอยู่กับความเหมาะสมของสถานการณ์และการใช้งานจริงเป็นหลัก

ชิ

้

นส่วน

เพื

่

อให้หุ่นยนต์อยู่ในสภาพดี ขอแนะนำาให้อ้างอิงถึงการใช้อุปกรณ์เสริมในแอปหรือตารางต่อไปนี

้

สำาหรับการบำารุงรักษาตามปกติ

101

ก�รบำ�รุงรักษ�ต�มรอบปกติ

กระด�นล้�ง

1. เปิดใช้งานฟังก์ชันการทำาความสะอาดกระดานล้างในแอป และหุ่นยนต์จะออกจากแท่น

โดยอัตโนมัติ ถอดกระดานล้างออกและรอให้ เต็มด้านล่างของแท่น

3. หลังจากนั

้

นครู่หนึ

่

ง แท่นจะสูบ ที

่

ใช้แล้วออกโดยอัตโนมัติ จากนั

้

นเช็ดให้แห้งด้วยผ้าขนหนูแห้ง

แล้วใส่กระดานล้างกลับเข้าที

่

2. ล้างกระดานล้างด้วย สะอาด และใช้เครื

่

องมือทำาความสะอาดที

่

ให้มาด้วยเพื

่

อทำาความสะอาด

ด้านล่างของแท่น

4. ใช้แอปหรือกดปุ่ ม บนหุ่นยนต์ เพื

่

อให้หุ่นยนต์กลับไปที

่

แท่น

หม�ยเหตุ: ระหว่างการทำาความสะอาด ห้ามสั

่

งหุ่นยนต์กลับไปที

่

แท่นโดยเด็ดขาด

102

3. ติดตั

้

งถุงเก็บฝุ่ นอันใหม่

4. ติดตั

้

งฝาปิ ดถังเก็บฝุ่นกลับเข้าที

่

2. นำาฝุ่ นและเศษผงออกจากตัวกรองด้วยผ้าขนหนูแห้ง

หม�ยเหตุ:

การดึงด้ามจับขึ

้

นด้านบนจะเป็ นการปิดปากถุงเพื

่

อป้ องกันไม่ให้ฝุ่นและเศษขยะหลุดออกมาโดยไม่ตั

้

งใจ

ก�รบำ�รุงรักษ�ต�มรอบปกติ

ถุงเก็บฝุ่ น

1. ถอดฝาปิ ดถังเก็บฝุ่ นออกและทิ

้

งถุงเก็บฝุ่ น

103

ก�รบำ�รุงรักษ�ต�มรอบปกติ

2. เปิ ดฝาปิดกล่องเก็บฝุ่ นและถอดตัวกรองออก จากนั

้

นเทฝุ่ นออกจากกล่องเก็บฝุ่นตามที

่

แสดงในแผนภาพ

ตัวกรองและกล่องเก็บฝุ่ น

1. เปิดฝาปิดหุ่นยนต์ และกดคลิปกล่องเก็บฝุ่ นเพื

่

อถอดกล่องเก็บฝุ่ นออกมา

3. ค่อยๆเขย่าตัวกรองเพื

่

อขจัดสิ

่

งสกปรก

4. ล้างกล่องเก็บฝุ่ นและตัวกรองด้วย สะอาดแล้วเช็ดให้แห้งก่อนติดตั

้

งใหม่

หม�ยเหตุ: อย่าพยายามทำาความสะอาดตัวกรองด้วยแปรง นิ

้

วมือ หรือของมีคม เพื

่

อป้ องกันการ

เกิดความเสียหาย

หม�ยเหตุ:

ล้างกล่องเก็บฝุ่ นและตัวกรองด้วย สะอาดเท่านั

้

น ห้ามใช้ผงซักฟอกทุกประเภท

ใช้กล่องเก็บฝุ่ นและตัวกรองก็ต่อเมื

่

ออุปกรณ์เหล่านี

้

แห้งสนิทแล้วเท่านั

้

น

24h

104

2. ดึงปลายที

่

ครอบแปรงทั

้

งสองด้านออกดังภาพตัวอย่าง

ใช้แปรงปั ดฝุ่นที

่

ให้มาเพื

่

อกำาจัดเส้นผมที

่

พันกันอยู่ในแปรง

ติดตั

้

งฝาครอบแปรงกลับเข้าที

่

ปลายทั

้

งสองด้านของแปรง จากนั

้

น ติดตั

้

งแปรงกลับเข้าไปใหม่

กดที

่

ครอบนแปรงเพื

่

อล็อกให้เข้าที

่

ก�รบำ�รุงรักษ�ต�มรอบปกติ

แปรงหลัก

1. กดที

่

ล็อคฝาครอบแปรงเข้าด้านในเพื

่

อถอดที

่

ครอบแปรงออกและดึงแปรงออกจากหุ่นยนต์

หม�ยเหตุ: ลูกลอยในถัง ทิ

้

งเป็ นส่วนที

่

สามารถถอดออกได้ อย่าใช้แรงมากเกินไปเมื

่

อทำา

ความสะอาดเพื

่

อหลีกเลี

่

ยงการเกิดความเสียหาย

2. ล้างถังเก็บ ใช้แล้วด้วย สะอาด และใช้เครื

่

องมือทำาความสะอาดที

่

ให้มาเพื

่

อทำาความ

สะอาดผนังด้านในของถังเก็บ ใช้แล้ว

ถัง ที

่

ใช้แล้ว

1. ถอดถังเก็บ ใช้แล้ว เปิ ดฝาแล้วเท ที

่

ใช้แล้วออก

105

ก�รบำ�รุงรักษ�ต�มรอบปกติ

แปรงด้�นข้�ง

ถอดและทำาความสะอาดแปรงด้านข้าง

ล้อแบบหมุนรอบทิศท�ง

หม�ยเหตุ:

ใช้เครื

่

องมือ เช่น ไขควงขนาดเล็ก เพื

่

อแยกเพลาและยางของล้อแบบรอบทิศทาง

โปรดระมัดระวังอย่าออกแรงมากเกินไป

ล้างล้อแบบรอบทิศทางด้วย สะอาด แล้วใส่กลับเข้าไปใหม่หลังจากที

่

ทำาให้แห้งสนิทแล้ว

ที

่

ยึดผ้�ถูพื

้

น

ถอดและทำาความสะอาดที

่

ยึดผ้าถูพื

้

น

106

หน้�สัมผัสก�รช�ร์จและพื

้

นที

่

ส่งสัญญ�ณ

ทำาความสะอาดหน้าสัมผัสการชาร์จและพื

้

นที

่

ส่งสัญญาณด้วยผ้าขนหนูแห้ง

ช่องทิ

้

งฝุ่ นอัตโนมัติ

ทำาความสะอาดช่องเทฝุ่ นอัตโนมัติของหุ่นยนต์และแท่นด้วยผ้าขนหนูแห้ง

ก�รบำ�รุงรักษ�ต�มรอบปกติ

เซ็นเซอร์หุ่นยนต์

เช็ดเซ็นเซอร์ของหุ่นยนต์โดยใช้ผ้าขนหนูแห้ง ดังภาพตัวอย่าง:

หม�ยเหตุ:

ผ้าเปี ยกสามารถสร้างความเสียหายให้แก่ส่วนประกอบที

่

ละเอียดอ่อนภายในหุ่นยนต์และแท่นได้

โปรดใช้ผ้าขนหนูแห้งในการทำาความสะอาด

เซ็นเซอร์ตรวจจับพรม

เซ็นเซอร์กันตก

กันชน

เซ็นเซอร์ตรวจจับขอบ

เซ็นเซอร์เลเซอร์วัดระยะ

(LDS)

เซ็นเซอร์เลเซอร์แบบเส้นสามมิติ

107

ก�รบำ�รุงรักษ�ต�มรอบปกติ

ผ้�ถูพื

้

น

ถอดผ้าถูพื

้

นออกจากที

่

ยึดผ้าถูพื

้

นเพื

่

อเปลี

่

ยนใหม่

แบตเตอรี

่

หุ่นยนต์มีชุดแบตเตอรี

่

ลิเทียมไอออนประสิทธิภาพสูงบรรจุอยู่ภายใน

ตรวจสอบให้แน่ใจว่าแบตเตอรี

่

ยังคงชาร์จไว้อย่างดีสำาหรับการใช้งานทุกวันเพื

่

อรักษาประสิทธิภาพ

แบตเตอรี

่

ที

่

ดีที

่

สุด หากไม่ได้ใช้งานหุ่นยนต์เป็ นระยะเวลานาน ให้ปิดและนำาไปเก็บ

เพื

่

อป้ องกันความเสียหายจากการคายประจุมากเกินไป โปรดชาร์จหุ่นยนต์อย่างน้อยทุก ๆ สามเดือน

108

ปั ญห� วิธีก�รแก้ไข

ไม่สามารถเปิ ดใช้งานหุ่นยนต์ได้

แบตเตอรี

่

ชาร์จหุ่นยนต์บนแท่น จากนั

้

น ลองอีกครั

้

ง

อุณหภูมิของแบตเตอรี

่

หรือสูงเกินไป ขอแนะนำาให้ใช้งานหุ่นยนต์ที

่

อุณหภูมิระหว่าง 32°F (0°C) ถึง 104°F (40°C)

ไม่สามารถชาร์จหุ่นยนต์ได้

แท่นไม่ได้เชื

่

อมต่อกับแหล่งจ่ายไฟ โปรดตรวจสอบให้แน่ใจว่าได้เสียบปลายสายไฟทั

้

งสองด้านอย่างถูกต้องแล้ว

จุดเชื

่

อมต่อระหว่างจุดเชื

่

อมต่อการชาร์จบนแท่นและหุ่นยนต์ไม่ดี โปรดทำาความสะอาดหน้าจุดเชื

่

อมต่อการชาร์จ

ตรวจสอบว่ามีสิ

่

งแปลกปลอมอยู่ที

่

ขั

้

วต่อของหุ่นยนต์หรือไม่ เพื

่

อกำาจัดออกไป

หุ่นยนต์เชื

่

อมต่อกับ Wi-Fi ล้มเหลว

รหัสผ่านเครือข่าย Wi-Fi ไม่ถูกต้อง ตรวจสอบให้แน่ใจว่ารหัสผ่านที

่

ใช้เชื

่

อมต่อกับเครือข่าย Wi-Fi ของคุณถูกต้อง

หุ่นยนต์ไม่รองรับการเชื

่

อมต่อ Wi-Fi 5 GHz ตรวจสอบให้แน่ใจว่าหุ่นยนต์เชื

่

อมต่อกับการเชื

่

อมต่อ Wi-Fi 2.4 GHz

สัญญาณ Wi-Fi ไม่เสถียร ตรวจสอบให้แน่ใจว่าหุ่นยนต์อยู่ในพื

้

นที

่

ที

่

มีสัญญาณ Wi-Fi เสถียรและราบรื

่

น

หุ่นยนต์อาจไม่พร้อมสำาหรับการการตั

้

งค่า โปรดออกและเข้าแอปใหม่ จากนั

้

น ลองอีกครั

้

งตามคำาแนะนำา

หุ่นยนต์ไม่สามารถค้นหาและกลับไปที

่

แท่นได้

แท่นถูกตัดการเชื

่

อมต่อจากไฟฟ้ าหรือถูกเคลื

่

อนย้ายเมื

่

อหุ่นยนต์ไม่ได้อยู่บนแท่นแล้ว

โปรดเชื

่

อมต่อแท่นกับแหล่งจ่ายไฟหรือวางหุ่นยนต์บนแท่นเพื

่

อทำาการชาร์จ

มีสิ

่

งกีดขวางรอบ ๆ แท่นมากเกินไป โปรดวางแท่นในพื

้

นที

่

โล่ง

การเคลื

่

อนย้ายหุ่นยนต์อาจทำาให้หุ่นยนต์เปลี

่

ยนตำาแหน่งตัวเอง

และจะสร้างแผนที

่

ใหม่หากการวางตำาแหน่งใหม่ล้มเหลว หากหุ่นยนต์อยู่ห่างจากแท่นมากเกินไป

หุ่นยนต์อาจไม่สามารถกลับมาได้เองโดยอัตโนมัติ ซึ

่

งในกรณีนี

้

คุณต้องวางหุ่นยนต์ลงบนแท่นด้วยตนเอง

เช็ดพื

้

นที

่

รับส่งสัญญาณบนแท่นเพื

่

อขจัดฝุ่ นหรือสิ

่

งสกปรก

หุ่นยนต์ติดอยู่หน้าแท่นและไม่สามารถกลับเข้าแท่นได้

นำาสิ

่

งกีดขวางภายในระยะ 5 ซม. ทางด้านซ้ายและขวา หรือภายในระยะ 1.5 ม. ที

่

ด้านหน้าของแท่นออก

เพื

่

อป้องกันสิ

่

งกีดขวางรบกวนการทำางานของหุ่นยนต์

เส้นทางสำาหรับการกลับสู่การชาร์จถูกปิ ดกั

้

น เช่น ประตูถูกปิ ดอยู่

หุ่นยนต์อาจลื

่

นไถลได้หากพื

้

นด้านหน้าแท่นเปี ยกมากเกินไป หากเป็นเช่นนั

้

น ให้เช็ดคราบ ออกก่อนแล้วลองอีกครั

้

ง

ขอแนะนำาให้ย้ายแท่นไปที

่

อื

่

นแล้วลองอีกครั

้

ง

ตรวจสอบให้แน่ใจว่าแผ่นทางลาดได้รับการติดตั

้

งอย่างถูกวิธี

ก�รแก้ไขปั ญห�

109

ก�รแก้ไขปั ญห�

หุ่นยนตไม่ปิ ดเครื

่

องขณะชาร์จ

ไม่สามารถปิ ดหุ่นยนต์ในขณะที

่

กำาลังชาร์จ ขอแนะนำาให้ย้ายหุ่นยนต์ออกจากสถานีแท่น จากนั

้

น กดปุ่ มเปิด/ปิ ดค้างไว้เป็นเวลา 3

วินาทีเพื

่

อปิ ดหุ่นยนต์

หากไม่สามารถปิ ดหุ่นยนต์ตามขั

้

นตอนที

่

1 ได้ ให้กด ปุ่ มเปิด/ปิ ดค้างไว้ 10 วินาทีเพื

่

อบังคับปิ ดหุ่นยนต์ หากยังคงพบปัญหา

โปรดติดต่อฝ่ ายบริการหลังการขาย

ปั ญห�

วิธีก�รแก้ไข

ชาร์จช้า

เมื

่

อแบตเตอรี

่

เหลือน้อยจะใช้เวลาประมาณ 3.5 ชั

่

วโมงในการชาร์จหุ่นยนต์จนเต็ม

หากคุณใช้งานหุ่นยนต์ที

่

อุณหภูมินอกเหนือจากช่วงที

่

กำาหนด

ความเร็วในการชาร์จจะช้าลงโดยอัตโนมัติเพื

่

อยืดอายุการใช้งานแบตเตอรี

่

หน้าสัมผัสการชาร์จของทั

้

งหุ่นยนต์และแท่นอาจสกปรก โปรดเช็ดด้วยผ้าขนหนูแห้ง

เกิดเสียงดังในขณะที

่

หุ่นยนต์กำาลังทำางาน

ตรวจสอบว่าตัวกรองกล่องเก็บฝุ่ นอุดตันหรือไม่ หากใช่ โปรดทำาความสะอาดหรือเปลี

่

ยนใหม่

วัตถุที

่

เป็ นของแข็งอาจติดอยู่ในแปรงหลักหรือกล่องเก็บฝุ่ น ตรวจสอบและนำาวัตถุแข็งออก

แปรงหลักหรือแปรงด้านข้างอาจพันกันได้ ตรวจสอบและนำาวัตถุแปลกปลอมออก

เปลี

่

ยนโหมดการดูดเป็ นมาตรฐานหรือเงียบ

หุ่นยนต์ไม่เคลื

่

อนที

่

ตาม

เส้นทางที

่

กำาหนดไว้

ควรเก็บวัตถุต่าง ๆ เช่น สายไฟและรองเท้าแตะก่อนใช้งานหุ่นยนต์

การทำางานบนพื

้

นผิวที

่

เปี ยกลื

่

นอาจทำาให้ล้อหลักลื

่

นไถลได้ ขอแนะนำาให้เช็ดบริเวณที

่

เปี ยกชื

้

นให้แห้งก่อนใช้งานหุ่นยนต์

เช็ดหน้าต่างกันชนบนหุ่นยนต์ด้วยผ้าขนหนูเพื

่

อรักษาความสะอาดและป้ องกันการอุดตัน

หุ่นยนต์ไม่ทำาความสะอาด

ห้องที

่

กำาหนดไว้

ตรวจสอบให้แน่ใจว่าประตูห้องที

่

จะทำาความสะอาดเปิ ดอยู่

ตรวจสอบว่ามีธรณีประตูที

่

ประตูห้องสูงกว่าประมาณ 2 ซม. หรือไม่

หุ่นยนต์ไม่สามารถข้ามธรณีประตูหรือขั

้

นบันไดที

่

สูงกว่าที

่

กำาหนดได้

บริเวณหน้าห้องที

่

จะทำาความสะอาดอาจเปี ยกและลื

่

น ทำาให้หุ่นยนต์ลื

่

นไถลและทำางานผิดปกติได้

โปรดเช็ดพื

้

นให้แห้งก่อนใช้งานหุ่นยนต์

110

ก�รแก้ไขปั ญห�

หุ่นยนต์ไม่ทำาความสะอาด

ต่อหลังชาร์จแบตเตอรี

่

ตรวจสอบให้แน่ใจว่าไม่ได้ตั

้

งค่าหุ่นยนต์เป็ นโหมดห้ามรบกวน (Do Not Disturb: DND) ซึ

่

งจะทำาให้ไม่สามารถทำาความสะอาดต่อได้

หุ่นยนต์จะไม่กลับมาทำาความสะอาดหลังจากที

่

คุณวางหุ่นยนต์ด้วยตนเองบนแท่นหรือส่งหุ่นยนต์ไปชาร์ตผ่านแอปหรือปุ่ ม

ปั ญห� วิธีก�รแก้ไข

แท่นไม่สามารถล้างกล่องเก็บฝุ่ นได้โดยอัตโนมัติ

ตรวจสอบว่าถุงเก็บฝุ่ นในถังเก็บฝุ่นเต็มหรือไม่

หากถุงเก็บฝุ่ นไม่เต็ม ให้ตรวจสอบว่ามีสิ

่

งกีดขวางที

่

ช่องเทฝุ่ นอัตโนมัติของหุ่นยนต์ แท่น หรือกล่องเก็บฝุ่ นหรือไม่

หากมีให้เก็บสิ

่

งกีดขวางออก

ระดับ ในกระดานล้างผิดปกติ

ตรวจสอบว่าซีลบนถังเก็บ ที

่

ใช้แล้วหลวมหรือติดตั

้

งไม่ถูกต้องหรือไม่ หากเป็ นเช่นนั

้

นให้รีเซ็ตด้วยตนเอง หากยังคงพบปั ญหา

โปรดติดต่อทีมบริการหลังการขาย

กดถัง ที

่

ใช้แล้วเบา ๆ เพื

่

อให้แน่ใจว่าติดตั

้

งถูกต้อง

นำากระดานล้างออกและตรวจสอบว่าท่อระบาย เสียอุดตันหรือไม่และทำาความสะอาด

ตรวจสอบ ยาทำาความสะอาด ห้ามเติมของเหลวอื

่

นใดนอกเหนือจาก ยาทำาความสะอาดที

่

ได้รับการรับรองอย่างเป็ นทางการ

ที

่

ยึดผ้าถูพื

้

นยกขึ

้

นอย่างผิดปกติ

โปรดถอดที

่

ยึดผ้าถูพื

้

นออกเพื

่

อตรวจสอบว่ามีสิ

่

งแปลกปลอมติดอยู่หรือไม่ และลองรีสตาร์ทหุ่นยนต์ หากยังคงพบปั ญหา

โปรดติดต่อทีมบริการหลังการขาย

มี อยู่ใต้ถังเก็บ สะอาดหรือบริเวณซีล เมื

่

อนำาถังเก็บ สะอาดออกมาแล้ว อาจมี ในท่อบางส่วนเหลืออยู่ใต้ถังหรือรอบ ๆ ซีล นี

่

เป็ นเรื

่

องปกติ โปรดใช้ผ้าแห้งเช็ด

เสำาหรับการสนับสนุนเพิ

่

มเติม โปรดติดต่อเราทาง https://global.dreametech.com

111

ข้อมูลจำ�เพ�ะ

หุ่นยนต์

แท่น/แท่นช�ร์จไฟ

หุ่นยนต์และแท่น/แท่นช�ร์จไฟ

รุ่น RLD52SE

เวลาในการชาร์จ ประมาณ 3.5 ชั

่

วโมง

อัตราแรงดันไฟฟ้ า 14.4 V

อัตรากำาลังไฟ 75 W

ความถี

่

ในการทำางาน 2400 – 2483.5 MHz

กำาลังเอาต์พุตสูงสุด < 20 dBm

หม�ยเหตุ: อัตรากำาลังไฟ (ระหว่างการชาร์จทำาให้แห้ง)

ถูกกำาหนดโดยค่ากำาลังไฟฟ้ าในช่วงที

่

โหลดเต็ม

รุ่น RCDE0302

อัตราอินพุต 220 - 240 V 50 - 60 Hz

อัตราเอาต์พุต 20V 2A

อัตรากำาลังไฟ (ระหว่างการเทฝุ่ น) 700 W

อัตรากำาลังไฟ (ระหว่างการทำาความสะอาด) 40 W

อัตรากำาลังไฟ (ระหว่างการชาร์จทำาให้แห้ง) 87 W

ภายใต้สภาพการใช้งานปกติ ควรแยกอุปกรณ์นี

้

ออกจากกัน โดยมีระยะห่างระหว่างเสาอากาศกับ

ร่างกายของผู้ใช้อย่างน้อย 20 ซม.

การใช้พลังงานในโหมดสแตนด์บาย: ≤0.5 W (ภายใน 15 นาทีหลังจากที

่

หุ่นยนต์ออกจากสถานีแ

ท่น/แท่นชาร์จไฟ)

อุปกรณ์ไม่มีโหมดสแตนด์บายหรือสถานะอื

่

นๆ ที

่

เทียบเท่าในแง่ของข้อกำาหนดการสแตนด์บาย

ฟั งก์ชันการจัดการพลังงาน หรือความสามารถในการปิ ดการใช้งานการเชื

่

อมต่อเครือข่ายไร้สายเนื

่

อง

จากความต้องการการบำารุงรักษาแบตเตอรี

่

การใช้พลังงานของอุปกรณ์มีแนวโน้มว่าจะสูงกว่าอุป

กรณ์รุ่นอื

่

นๆ ที

่

ตอบสนองความต้องการของฟั งก์ชันเหล่านี

้

แท่น

112

ผลิตภัณฑ์ทั

้

งหมดที

่

มีสัญลักษณ์นี

้

เป็ นขยะอิเล็กทรอนิกส์ (WEEE ตามข้อบังคับที

่

2012/19/EU)

ซึ

่

งไม่ควรปะปนกับขยะในครัวเรือนที

่

ไม่ได้แยกประเภท กรุณานำาอุปกรณ์ของคุณไปยังจุดรวบรวมขยะุอิเล็กทรอนิกส์ที

่

กำาหนด

ซึ

่

งตั

้

งโดยรัฐบาลหรือหน่วยงานท้องถิ

่

น การกำาจัดและการรีไซเคิลที

่

ถูกต้องจะช่วยป้ องกันผลเสียที

่

อาจเกิดขึ

้

นกับสิ

่

งแวดล้อมและสุขภาพของมนุษย์

โปรดติดต่อผู้ติดตั

้

งหรือเจ้าหน้าที

่

ท้องถิ

่

นเพื

่

อขอข้อมูลเพิ

่

มเติมเกี

่

ยวกับสถานที

่

ตลอดจนข้อกำาหนดและเงื

่

อนไขของจุดรวบรวมดังกล่าว

ข้อมูล WEEE

ข้อควรระวัง:

คู่มือก�รถอด:

ก�รทิ

้

งและก�รถอดแบตเตอรี

่

แบตเตอรี

่

ลิเทียมไอออนในตัวมีสารที

่

เป็ นอันตรายต่อสิ

่

งแวดล้อม ก่อนทิ

้

งแบตเตอรี

่

ตรวจสอบให้แน่ใจว่าช่างผู้ชำานาญการได้ถอดแบตเตอรี

่

ออกแล้วนำาไปทิ

้

งที

่

โรงงานรีไซเคิลที

่

เหมาะสม

– ต้องถอดแบตเตอรี

่

ออกจากเครื

่

องก่อนที

่

จะทิ

้

ง

– ต้องถอดอุปกรณ์ออกจากแหล่งจ่ายไฟหลักเมื

่

อถอดแบตเตอรี

่

ออก

– ควรทิ

้

งแบตเตอรี

่

อย่างปลอดภัย

ก่อนถอดแบตเตอรี

่

ให้ถอดสายไฟออกและปล่อยให้แบตเตอรี

่

หมดให้มากที

่

สุด

ควรทิ

้

งแบตเตอรี

่

ที

่

ไม่ต้องการที

่

โรงงานรีไซเคิลที

่

เหมาะสม

อย่าให้อยู่ในสภาพแวดล้อมที

่

มีอุณหภูมิสูงเพื

่

อหลีกเลี

่

ยงความเสี

่

ยงจากการระเบิด

ภายใต้สภาวะที

่

ไม่เอื

้

ออำานวย ของเหลวอาจรั

่

วไหลออกมาจากแบตเตอรี

่

หากมีการสัมผัสเกิดขึ

้

น ให้ล้างออกด้วย และขอความช่วยเหลือจากแพทย์

1. พลิกหุ่นยนต์ ใช้เครื

่

องมือที

่

เหมาะสมเพื

่

อถอดสกรูที

่

ด้านหลังของหุ่นยนต์ จากนั

้

น ถอดฝาปิ ดออก

2. ถอดขั

้

วระหว่างแบตเตอรี

่

และบอร์ด PCB เพื

่

อถอดแบตเตอรี

่

ออก

113

Pembatasan

Penggunaan

Informasi Keamanan

Sebaiknya produk ini tidak digunakan oleh anak-anak di bawah umur 8 tahun

atau orang yang mengidap kelainan fisik, indra, intelektual, atau kurangnya

pengalaman atau pengetahuan tanpa pengawasan dari orang tua atau wali

untuk memastikan pengoperasian yang aman dan menghindari risiko apa

pun. Pembersihan atau pemeliharaan sebaiknya tidak dilakukan oleh anak-

anak tanpa pengawasan.

Hanya gunakan alat dengan unit catu daya yang tersedia dengan alat.

Alat ini berisi baterai yang hanya dapat diganti oleh orang yang ahli.

Pastikan area yang ingin dibersihkan aman. Anak-anak tidak boleh bermain

dengan alat ini. Pastikan anak-anak dan hewan peliharaan berada dalam

jarak yang aman saat robot beroperasi.

Jangan memasang, mengisi daya, atau menggunakan alat di kamar mandi

atau di sekitar kolam.

Produk ini digunakan khusus untuk membersihkan lantai di lingkungan rumah.

Jangan digunakan di luar ruangan, atau di permukaan yang bukan lantai, atau

di lingkungan industri atau komersial.

Pastikan alat beroperasi dengan benar di lingkungan yang tepat. Jika tidak,

jangan gunakan alat ini.

Jika rusak, kabel daya harus diganti dengan kabel atau rakitan khusus yang

tersedia dari produsen atau agen layanan.

Untuk menghindari sengatan listrik, kebakaran, atau cedera yang disebabkan oleh penggunaan alat yang tidak sesuai, baca panduan

pengguna dengan cermat sebelum menggunakan alat dan gunakan sebagai referensi untuk masa mendatang.

114

Pembatasan

Penggunaan

Informasi Keamanan

Jangan gunakan robot di area yang digantung di atas permukaan tanah tanpa

penghalang sebagai pengaman.

Jangan letakkan robot secara terbalik. Jangan gunakan penutup LDS, penutup

robot, atau bumper sebagai pegangan robot.

Gunakan robot di lingkungan dengan suhu sekitar di atas 0° C dan di bawah

40° C. Pastikan tidak ada cairan atau benda lengket di lantai.

Untuk mencegah kerusakan atau bahaya yang disebabkan dari alat yang

menyeret, bersihkan benda yang kendor dari lantai, dan lepaskan kabel atau

kabel daya di jalur pembersihan sebelum mengoperasikan alat.

Pindahkan barang yang mudah pecah dan barang kecil dari lantai agar robot

tidak menabraknya dan mengakibatkan kerusakan.

Jauhkan rambut, jari, dan bagian tubuh lainnya dari lubang penyedot pada

robot.

Jauhkan alat pembersih dari jangkauan anak-anak.

Jangan operasikan alat di ruangan tempat bayi atau anak-anak tidur.

Jangan letakkan anak-anak, hewan peliharaan, atau barang apa pun di atas

robot, baik saat robot sedang diam maupun bergerak.

Hanya air bersih dan larutan pembersih yang disetujui secara resmi yang

boleh dimasukkan ke dalam tangki air bersih. Jangan tambahkan cairan lain

apa pun seperti alkohol atau disinfektan. Rasio larutan pembersih dengan air

bersih dapat dilihat di botol larutan pembersih. Jauhkan larutan pembersih

dari jangkauan anak-anak.

115

Informasi Keamanan

Baterai dan

Pengisian Daya

Jangan gunakan baterai atau dok pengisian daya pihak ketiga. Robot hanya

dapat digunakan dengan dok pengisian daya model RCDE0302.

Jangan mencoba membongkar, memperbaiki, atau mengubah baterai atau

dok pengisian daya dengan tangan Anda sendiri.

Jangan letakkan dok pengisian daya di dekat sumber panas.

Jangan gunakan kain basah atau tangan basah untuk menyeka atau

membersihkan kontak dok pengisian daya.

Jangan gunakan robot untuk membersihkan benda yang terbakar. Jangan

gunakan robot untuk mengambil cairan yang mudah terbakar, gas korosif,

atau asam pelarut murni.

Jangan menyedot objek yang keras atau tajam. Jangan menggunakan alat

untuk mengambil objek seperti batu, lembaran kertas yang besar, atau barang

apa pun yang dapat menyumbat alat.

Steker harus dilepas dari stopkontak sebelum membersihkan atau melakukan

pemeliharaan pada alat.

Jangan seka robot atau dok pengisian daya dengan kain basah atau membilas

dengan cairan apa pun. Setelah membersihkan bagian yang dapat dicuci,

keringkan sepenuhnya sebelum memasang kembali dan menggunakannya.

Gunakan produk ini sesuai dengan petunjuk di Panduan Pengguna.

Pengguna bertanggung jawab atas kerusakan atau kerugian yang timbul dari

penggunaan produk ini yang tidak sesuai.

Pembatasan

Penggunaan

116

Sensor laser dalam produk ini memenuhi Standar IEC 60825-1:2014/EN 60825-

1:2014/A11:2021 untuk produk laser Kelas 1. Hindari kontak mata langsung

dengan laser ini selama penggunaan.

PRODUK LASER KELAS 1

PRODUK LASER KONSUMEN

EN 50689:2021

Baterai dan

Pengisian Daya

Informasi

Keamanan Laser

Informasi Keamanan

Jangan buang baterai lama dengan cara yang tidak sesuai aturan. Baterai

yang tidak diperlukan harus dibuang di fasilitas daur ulang yang sesuai.

Jika kabel daya rusak, segera hentikan penggunaan dan hubungi layanan

purnajual.

Pastikan robot dimatikan saat diangkut dan dimasukkan ke kemasan aslinya

jika memungkinkan.

Jika robot tidak akan digunakan dalam waktu lama, isi dayanya hingga penuh,

lalu nonaktifkan dan simpan di tempat yang sejuk dan kering. Isi ulang daya

robot setidaknya sekali setiap 3 bulan untuk menghindari pengisian daya

baterai yang berlebihan.

117

Hanya untuk penggunaan dalam ruangan

Baca manual operator

Informasi Keamanan

Dengan ini, Dreame Trading (Tianjin) Co., Ltd. menyatakan bahwa perlengkapan radio jenis RLD52SE memenuhi Pedoman 2014/53/EU. Teks

lengkap deklarasi kesesuaian Uni Eropa tersedia di alamat internet berikut:https://global.dreametech.com

Untuk perincian panduan elektroniknya, buka https://global.dreametech.com/pages/user-manuals-and-faqs

118

Isi Paket

Aksesori Lainnya

Ikhtisar Produk

Robot

Dok Pengisian Daya

Kain Pel × 2

(sudah

terpasang)

Penjepit

Kain Pel × 2

Panduan

Pengguna

Kabel Daya Pelat Ekstensi

Undakan Dok

Pengisian Daya

Kantong Debu × 2

(1 sudah terpasang)

Sikat

Samping

Sikat TriCut

119

Robot

Ikhtisar Produk

Tombol Pembersihan Spot

· Tekan untuk memulai pembersihan spot

Tombol Daya/Bersihkan

· Tekan dan tahan selama 3 detik untuk menyalakan atau

mematikan

· Tekan untuk memulai pembersihan setelah robot dinyalakan

Tombol Dok

· Tekan untuk mengirim robot kembali ke dok pengisian daya

· Tekan dan tahan selama 3 detik untuk menonaktifkan Kunci

Pengaman Anak

Indikator Status

· Putih Menyala: Pembersihan selesai

· Putih Bernapas: Mengisi daya (baterai belum lemah)

· Oranye Menyala: Robot sedang dalam mode menunggu atau

terjeda saat baterai lemah

· Oranye Bernapas: Mengisi daya (baterai lemah)

· Oranye Berkedip: Kesalahan

Catatan:

· Tekan tombol mana saja pada robot untuk menjeda saat robot

sedang melakukan pembersihan atau mengembalikan ke

pengisian daya.

· Kunci Pengaman Anak dapat diaktifkan/dinonaktifkan melalui

Aplikasi.

120

Robot dan Sensor

Ikhtisar Produk

Kotak debu

Rakitan Pel

Area

Pemasangan

Kain Pel

Penjepit Kain Pel Kain Pel

Penutup

Kontak

Pengisian

Daya

Ventilasi Pengosongan

Otomatis

Tombol Atur Ulang

· Tekan dan tahan

selama 3 detik untuk

memulihkan ke

pengaturan pabrik

Indikator Wi-Fi

Sensor Tepi

Sensor Antijatuh

Roda Utama

Sikat Utama

Roda Segala Arah

Pelindung Sikat

Roda Utama

Klip Pelindung

Sikat

Lubang

Pemasangan

Penjepit Kain Pel

Sikat Samping

Sensor Karpet

Filter

Pegangan Filter

Ventilasi Pengosongan

Otomatis

Klip Penutup Kotak

Debu

Klip Kotak Debu

Penutup Kotak Debu

Penutup LDS

Sensor Jarak

Laser (LDS)

Sensor Laser Garis 3D

Bumper

121

Dok Pengisian Daya

Ikhtisar Produk

Filter

Slot Kantong

Debu

Papan

pencucian

Pelat

Ekstensi

Undakan

Penutup Atas

Tangki Air Bersih

Tangki Air Kotor

Ventilasi Kosong

Otomatis

Klip Tangki Air

Klip Tangki

Air

Bola

Pelampung

Pipa Air

Filter

Tangki Air Kotor Tangki Air Bersih

Alat

Pengambang

Penutup

Penampung

Debu

Indikator Status

· Putih Menyala: Dok pengisian

daya tersambung ke listrik

· Oranye Menyala: Terjadi

kesalahan pada dok pengisian

daya

Area Pemancar Sinyal

Kontak Pengisian Daya

Slot Penyimpanan

Kabel Daya

Stopkontak

122

Menyiapkan Rumah Anda

Sebelum pembersihan, singkirkan barang yang mudah jatuh, rapuh,

berharga, atau berbahaya, dan rapikan kabel, pakaian, mainan, benda

keras, dan benda tajam di permukaan lantai agar tidak tersangkut, tergores,

atau terjatuh karena robot sehingga menyebabkan kerugian.

Buka pintu ruangan yang akan dibersihkan, dan letakkan perabot sesuai

tempatnya untuk memberikan ruang yang lebih luas.

Agar robot tidak melewatkan area yang perlu dibersihkan, jangan berdiri di

depan robot, depan pintu, lorong, atau ruangan sempit.

Sebelum membersihkan, letakkan penghalang fisik di sudut tangga dan sofa

untuk memastikan robot beroperasi dengan lancar dan aman.

Catatan:

· Saat mengoperasikan robot untuk pertama kali, ikuti robot saat membersihkan untuk menyingkirkan rintangan tepat waktu.

· Jangan menyedot benda yang keras seperti batu, bola baja, dan komponen mainan, ataupun benda tajam seperti sampah konstruksi, pecahan kaca, dan kuku

karena dapat menyebabkan permukaan lantai tergores.

123

1. Letakkan Dok Pengisian Daya dan Sambungkan ke Stopkontak

Letakkan dok pengisian daya di lokasi terbuka dengan sinyal Wi-Fi yang

bagus. Singkirkan objek yang berjarak 1,5 m dari bagian depan dan 5 cm

dari masing-masing sisi dok pengisian daya. Masukkan kabel listrik ke dok

pengisian daya dan tancapkan ke soket.

3. Lepas Pelindung Robot, dan Pasang Rakitan Sikat Samping dan

Pel

2. Pasang Pelat Ekstensi Undakan

Sebelum Digunakan

Catatan:

· Pastikan tidak ada objek yang mungkin menghalangi area pemancar

sinyal.

· Untuk mencegah noda air mengotori lantai kayu atau karpet, disarankan

untuk meletakkan dok pengisian daya di lantai keramik atau marmer.

②

①

＞1.5 m

＞5 cm

Masukkan kabel daya dengan

kencang ke atas hingga indikator

menyala.

Klip Sikat

samping

124

4. Sambungkan Robot ke Dok Pengisian Daya

Tekan dan tahan tombol daya pada robot selama 3 detik untuk

menyalakannya. Letakkan robot pada dok pengisian daya dengan posisi alat

pel mengarah ke papan cuci. Kemudian Anda akan mendengar notifikasi suara

saat robot berhasil tersambung ke dok pengisian daya.

Sebelum Digunakan

Catatan: Sebaiknya isi penuh daya robot sebelum digunakan untuk pertama

kali. Saat robot tidak dapat dinyalakan setelah baterai habis, sambungkan

robot ke dok pengisian daya secara manual untuk mengisi daya.

5. Masukkan Air ke Tangki Air Bersih

Keluarkan tangki air bersih dari dok pengisian daya dan isi tangki dengan air

bersih. Kemudian, pasang kembali pada dok pengisian daya.

Catatan: Jangan masukkan air panas ke dalam tangki air karena dapat

menyebabkan tangki air berubah bentuk.

125

2. Tambahkan Perangkat

Buka aplikasi Dreamehome, ketuk "Pindai kode QR untuk menghubungkan",

dan pindai lagi kode QR yang sama pada robot untuk menambahkan

perangkat. Harap ikuti arahan untuk menyelesaikan penyambungan Wi-Fi.

Menyambungkan dengan Aplikasi Dreamehome

1. Unduh Aplikasi Dreamehome

Pindai kode QR pada robot, atau telusuri "Dreamehome" di app store untuk

mengunduh dan menginstal aplikasi.

Indikator Wi-Fi

· Berkedip

pelan: Akan

dihubungkan

· Berkedip

cepat: Sedang

menghubungkan

· Aktif: Terhubung

Catatan:



Hanya mendukung Wi-Fi 2,4 GHz.



Adanya peningkatan pada perangkat lunak aplikasi, pengoperasian

sebenarnya mungkin berbeda dengan arahan dalam manual ini. Harap

ikuti petunjuk berdasarkan versi aplikasi saat ini.

Kode QR

Catatan:



Jika ingin mengatur ulang Wi-Fi, ulangi langkah 2, kemudian ikuti arahan

untuk menyelesaikan penyambungan Wi-Fi.



Untuk memutuskan sambungan perangkat dari jaringan Wi-Fi, tekan dan

tahan tombol Atur Ulang pada robot selama 3 detik.

126

Cara Penggunaan

Menyalakan/Mematikan

Tekan dan tahan tombol daya selama 3 detik untuk menyalakan robot.

Indikator daya akan menyala. Letakkan robot di dok pengisian daya. Robot

akan menyala secara otomatis dan mulai mengisi daya. Untuk mematikan

robot, jauhkan robot dari dok pengisian daya, lalu tekan dan tahan tombol

daya selama 3 detik.

Pemetaan Cepat

Setelah mengonfigurasi jaringan untuk pertama kali, ikuti instruksi di aplikasi

untuk membuat peta dengan cepat. Robot akan mulai memetakan tanpa

membersihkan. Saat robot kembali ke dok pengisian daya, proses pemetaan

telah selesai dan peta akan disimpan secara otomatis.

Jeda/Tidur

Saat robot bekerja, tekan tombol apa pun untuk menjeda. Jika robot dijeda

selama lebih dari 10 menit, robot akan otomatis memasuki mode tidur.

Semua indikator pada robot akan mati. Tekan tombol apa pun pada robot,

atau gunakan aplikasi untuk membangunkan robot.

Catatan: Jika robot dijeda dan diletakkan pada dok pengisian daya, proses

pembersihan saat ini akan berakhir.

Melanjutkan Pembersihan Otomatis

Jika baterai terlalu rendah, robot akan secara otomatis kembali ke dok

pengisian daya untuk mengisi daya. Pembersihan yang belum selesai akan

dilanjutkan setelah mengisi daya hingga tingkat baterai yang sesuai.

Catatan: Untuk menggunakan fungsi ini, aktifkan di aplikasi.

Mode Jangan Ganggu (DND)

Saat robot diatur ke mode Jangan Ganggu (DND), robot tidak akan melanjutkan

pembersihan dan indikator daya akan mati. Mode DND dinonaktifkan secara

default pada pengaturan pabrik. Anda dapat menggunakan aplikasi untuk

mengaktifkan mode DND atau mengubah periode DND. Periode DND adalah

pukul 22:00–8:00 secara default.

Catatan:



Pembersihan terjadwal akan dijalankan seperti biasa selama periode DND.



Robot akan melanjutkan pembersihan yang belum selesai setelah periode

DND berakhir.

Pembersihan Spot

Saat robot sedang dalam mode menunggu, tekan sebentar tombol untuk

mengaktifkan mode pembersihan spot. Dalam mode ini, robot membersihkan

area berbentuk persegi seluas 1,5 x 1,5 meter di sekitarnya, lalu kembali ke titik

awal setelah pembersihan spot selesai.

Memulai Ulang Robot

Jika robot berhenti merespons atau tidak dapat dimatikan, tekan dan tahan

tombol daya selama 10 detik untuk mematikannya secara paksa. Setelah itu,

tekan dan tahan tombol daya selama 3 detik untuk menyalakan robot.

127

Cara Penggunaan

Penyedot Debu dan Pel

Catatan: Saat pertama kali menggunakan alat pel, robot akan menjalankan

tugas "Penyedot Debu dan Pel" secara default.

1. Mulai pembersihan

Tekan tombol daya di robot, atau gunakan aplikasi untuk mulai menjalankan

robot dari dok pengisian daya. Lalu robot akan membuat rute pembersihan

optimal dan menjalankan tugas pembersihan sesuai peta yang telah dibuat.

2. Cuci pel secara otomatis

Saat membersihkan, robot akan otomatis kembali ke dok pengisian daya

untuk mencuci kain pel sesuai dengan frekuensi pembersihan kain pel yang

telah ditentukan dalam aplikasi.

Catatan:



Untuk memastikan robot kembali ke dok pengisian daya dengan mudah

setelah melakukan pembersihan, sebaiknya mulai jalankan robot dari dok

pengisian daya.



Kain pel akan dibersihkan sebelum robot mulai mengepel, harap tunggu

dengan sabar.



Jangan pindahkan dok pengisian daya, tangki air bersih, tangki air kotor,

atau papan cuci selama mesin berjalan.

128

Cara Penggunaan

3. Kosongkan kotak debu secara otomatis serta cuci dan keringkan

kain pel

Setelah robot selesai menjalankan tugas pembersihan dan kembali ke dok

pengisian daya untuk mengisi daya, dok pengisian daya akan otomatis

mengosongkan kotak debu. Lalu mencuci dan mengeringkan kain pel.

4. Bersihkan tangki air kotor

Setelah robot selesai membersihkan, harap bersihkan tangki air kotor untuk

mencegah bau apa pun.

Catatan:



Jika fungsi kosong otomatis dimatikan di aplikasi, dok pengisian daya tidak

akan otomatis mengosongkan kotak debu.



Dok pengisian daya akan mengosongkan kotak debu sesuai pengaturan

dalam aplikasi.

Hanya Menyedot Debu

Aktifkan fungsi menyedot debu di aplikasi, dan robot akan otomatis

mengangkat rakitan pel dan mulai menyedot debu.

Mengepel Setelah Menyedot Debu

Aktifkan fungsi mengepel setelah menyedot debu di aplikasi, dan robot akan

otomatis mengangkat rakitan pel untuk menyedot debu di lantai. Setelah

penyedotan debu selesai, robot akan kembali untuk mengosongkan kotak

debu, lalu mulai mengepel setelah otomatis menurunkan alat pel.

Hanya Mengepel

Aktifkan fungsi mengepel di aplikasi, dan robot akan memeriksa apakah

rakitan pel terpasang. Jika belum terpasang, pasang alat pel secara manual,

lalu robot akan otomatis mulai mengepel.

129

Perawatan Rutin

Bagian Frekuensi Perawatan Periode Penggantian

Tangki air kotor

Setelah setiap kali

penggunaan

Tangki air bersih

Setiap 2 minggu

sekali

Sikat utama

Setiap 6 sampai

12 bulan

Filter kotak debu

Setiap 3 sampai

6 bulan

Sikat samping

Penjepit kain pel /

Papan pencucian

Sekali setiap bulan /

Area pemancar sinyal

dok pengisian daya

Kontak pengisian

daya

Ventilasi Kosong

Otomatis

Roda segala arah

Sensor tepi

Sensor Jarak Laser

(LDS)

Sensor laser garis 3D

Bagian Frekuensi Perawatan

Periode

Penggantian

Sensor karpet

Sekali setiap bulan

Sensor antijatuh

Bumper

Bagian bawah robot

Kotak debu

Bersihkan sesuai

kebutuhan

Kantong debu

Setiap 2 sampai

4 bulan

Kain pel

Setiap 1 sampai

3 bulan

Catatan: Frekuensi penggantian bergantung pada penggunaan robot Anda.

Jika kerusakan terjadi karena keadaan tertentu, bagian-bagian mesin harus

diganti.

Bagian-bagian

Agar robot tetap dalam kondisi baik, sebaiknya lihat panduan penggunaan aksesori di aplikasi atau tabel berikut untuk perawatan rutin.

130

Perawatan Rutin

Dok Papan pencucian

1. Aktifkan fungsi pembersihan papan pencucian di aplikasi, dan robot akan

otomatis keluar dari dok pengisian daya. Ambil papan cuci dan tunggu

bagian bawah dok pengisian daya terisi air.

3. Setelah beberapa saat, dok pengisian daya akan otomatis memompa

air kotor keluar. Lalu keringkan dengan kain yang bersih dan lembut, dan

letakkan kembali papan cuci ke tempatnya.

2. Bilas papan cuci dengan air bersih, dan gunakan alat pembersih yang

disediakan untuk membersihkan bagian bawah dok pengisian daya.

4. Gunakan aplikasi atau tekan sebentar tombol pada robot agar robot

kembali ke dok pengisian daya.

Catatan: Selama pembersihan, jangan buat robot kembali ke dok pengisian daya.

131

3. Pasang kantong debu baru.

4. Pasang ulang penutup tangki debu.2. Bersihkan debu dan kotoran dalam filter menggunakan kain kering.

Catatan: Menarik pegangan ke atas akan menyegel kantong untuk mencegah

debu dan kotoran jatuh secara tidak sengaja.

Perawatan Rutin

Kantong Debu

1. Lepas penutup tangki debu, lalu buang kantong debu.

132

Perawatan Rutin

2. Buka penutup kotak debu, lepas filter, lalu kosongkan kotak debu seperti

yang ditunjukkan pada gambar.

Kotak Debu dan Filter

1. Buka penutup robot dan tekan klip kotak debu untuk mencopot kotak debu.

3. Ketuk pelan wadah filter untuk menghilangkan kotoran.

4. Bilas kotak debu dan filter dengan air, lalu keringkan keduanya sampai

benar-benar kering sebelum dipasang kembali.

Catatan: Jangan bersihkan filter dengan sikat, jari, atau benda tajam untuk

mencegah kerusakan.

Catatan:



Bilas kotak debu dan filter menggunakan air bersih saja. Jangan gunakan

detergen apa pun.



Gunakan kotak debu dan filter saat keduanya benar-benar kering.

24h

133

2. Tarik kedua ujung penutup sikat seperti yang ditunjukkan pada gambar.

Gunakan alat pembersih yang disediakan untuk membuang rambut yang

tersangkut di sikat. Pasang kembali kedua ujung penutup sikat, lalu pasang

kembali sikat. Tekan pelindung sikat untuk menguncinya.

Perawatan Rutin

Sikat Utama

1. Tekan klip pelindung sikat ke dalam untuk melepas pelindung sikat, dan

keluarkan sikat dari robot.

Catatan: Bola pelampung dalam tangki air kotor adalah bagian yang dapat

digerakkan. Jangan terlalu keras saat membersihkannya agar bola pelampung

tidak rusak.

2. Bilas tangki air kotor dengan air bersih, dan gunakan alat pembersih

yang disediakan untuk membersihkan sisi bagian dalam tangki air kotor.

Tangki Air Kotor

1. Copot tangki air kotor, buka penutupnya, dan buang air kotor.

134

Perawatan Rutin

Sikat Samping

Copot dan bersihkan sikat samping.

Roda Segala Arah

Catatan:



Gunakan alat semacam obeng kecil untuk melepaskan poros dan roda

segala arah. Jangan terlalu keras saat melepaskannya.



Bilas roda segala arah dengan air mengalir dan pasang kembali setelah

benar-benar kering.

Penjepit Kain Pel

Copot dan bersihkan penjepit kain pel.

135

Kontak Pengisian Daya dan Area Pemancar Sinyal

Bersihkan kontak pengisian daya dan area pemancar sinyal menggunakan

kain yang lembut dan kering.

Ventilasi Kosong Otomatis

Bersihkan ventilasi pengosongan otomatis robot dan dok pengisian daya

menggunakan kain yang lembut dan kering.

Perawatan Rutin

Sensor Robot

Usap sensor robot menggunakan kain lembut dan kering, seperti yang

ditunjukkan pada gambar di bawah ini:

Catatan: Kain yang basah dapat merusak elemen sensitif yang ada di dalam

robot dan dok pengisian daya. Bersihkan menggunakan kain kering.

Sensor Karpet

Sensor Antijatuh

Bumper

Sensor Tepi

Sensor Jarak

Laser (LDS)

Sensor Laser Garis 3D

136

Perawatan Rutin

Kain Pel

Lepaskan kain pel dari penjepit kain pel untuk menggantinya.

Baterai

Robot menggunakan paket baterai litium-ion berkinerja tinggi. Pastikan

baterai terisi daya dengan cukup untuk penggunaan sehari-hari agar kinerja

baterai tetap optimal. Jika robot tidak akan digunakan dalam waktu lama,

matikan dan simpan. Untuk mencegah kerusakan akibat pelepasan daya

berlebih, isi daya robot setidaknya tiga bulan sekali.

137

Masalah Solusi

Robot tidak menyala.

Baterai lemah. Isi daya baterai di dok pengisian daya dan coba sekali lagi.

Suhu baterai terlalu rendah atau tinggi. Sebaiknya, gunakan alat ini pada suhu antara 32 °F (0 °C) dan 104 °F (40 °C).

Robot tidak mengisi daya.

Dok pengisian daya tidak tersambung ke sumber listrik, pastikan kedua ujung kabel menancap dengan benar.

Kontak antara kontak pengisian daya pada dok dan robot kotor, bersihkan kontak pengisian daya.

Periksa apakah ada benda asing di konektor robot dan bersihkan jika ada.

Robot gagal terhubung ke

Wi-Fi.

Kata sandi jaringan Wi-Fi salah. Pastikan kata sandi yang digunakan untuk terhubung ke jaringan Wi-Fi Anda benar.

Robot tidak mendukung koneksi Wi-Fi 5 GHz. Pastikan robot terhubung ke koneksi Wi-Fi 2,4 GHz.

Sinyal Wi-Fi lemah. Pastikan robot berada di area dengan cakupan Wi-Fi yang baik.

Robot mungkin belum siap untuk dikonfigurasi. Keluar dan masuk kembali ke aplikasi, lalu coba kembali sesuai instruksi.

Robot tidak dapat

menemukan dan kembali

ke dok pengisian daya.

Dok pengisian daya terputus dari sumber listrik atau dipindahkan saat robot tidak ada di dalamnya. Sambungkan dok

pengisian daya ke catu daya atau letakkan robot ke dalam dok pengisian daya untuk mengisi daya.

Ada terlalu banyak halangan di sekitar dok pengisian daya. Letakkan dok pengisian daya di tempat yang lebih terbuka.

Memindahkan robot akan membuat robot memposisikan ulang dirinya sendiri dan akan membuat kembali peta jika proses

tersebut gagal. Jika robot berada terlalu jauh dari dok pengisian daya, robot tidak akan bisa kembali ke dalam dok secara

otomatis, dalam hal ini Anda harus mengembalikan robot ke dok pengisian daya secara manual.

Seka area pemancar sinyal pada dok pengisian daya untuk menghilangkan debu atau serpihan.

Robot macet di depan dok

pengisian daya dan tidak

dapat kembali.

Bersihkan penghalang apa pun dalam jarak 5 cm di sisi kiri dan kanan dok atau 1,5 meter di depan dok pengisian daya agar

robot tidak terhalang.

Rute kembali untuk mengisi daya terhalang, misalnya pintu tertutup.

Robot mungkin selip jika lantai di depan dok pengisian daya terlalu basah. Jika demikian, keringkan lantai sebelum

mencoba kembali.

Sebaiknya, pindahkan dok pengisian daya ke tempat lain dan coba kembali.

Pastikan pelat ekstensi undangan dipasang dengan benar.

Robot tetap menyala.

Robot tidak bisa dimatikan saat sedang mengisi daya. Sebaiknya keluarkan robot dari dok pengisian daya, lalu tekan dan

tahan tombol daya selama 3 detik untuk mematikannya.

Jika langkah 1 tidak berhasil, tekan dan tahan tombol daya selama 10 detik untuk mematikan robot secara paksa. Jika masih

belum berhasil, hubungi layanan purnajual.

Penyelesaian Masalah

138

Penyelesaian Masalah

Masalah Solusi

Laju pengisian daya

lambat.

Saat baterai lemah, pengisian daya membutuhkan waktu sekitar 3,5 jam hingga penuh.

Jika menggunakan robot pada suhu di luar rentang yang ditentukan, laju pengisian daya akan otomatis melambat guna

memperpanjang masa pakai baterai.

Kontak pengisian daya baik pada robot dan dok mungkin kotor, seka dengan kain kering.

Suara yang dihasilkan

robot saat beroperasi

makin bising.

Periksa apakah filter kotak debu tersumbat. Jika tersumbat, bersihkan atau ganti dengan yang baru.

Benda tajam mungkin tersangkut di sikat utama atau kotak debu. Periksa dan singkirkan benda tajam yang ada.

Sikat utama atau sikat samping mungkin kusut. Periksa dan singkirkan benda asing yang ada.

Alihkan mode hisap ke Standar atau Senyap.

Robot bergerak tanpa

mengikuti rute yang telah

ditentukan.

Benda seperti kabel listrik dan sandal harus dirapikan sebelum menggunakan robot.

Pengoperasian di permukaan yang basah dan licin menyebabkan selip pada roda utama. Sebaiknya, keringkan tempat

yang basah sebelum menggunakan robot.

Seka sensor laser garis 3D pada robot dengan kain bersih dan lembut agar tetap bersih dan tidak terhalang.

Robot melewatkan

ruangan yang seharusnya

dibersihkan.

Pastikan pintu ruangan yang akan dibersihkan terbuka.

Periksa apakah ada ambang pintu ruangan yang melebihi sekitar 2 cm. Robot tidak dapat memanjat ambang pintu atau

anak tangga yang tinggi.

Area di depan ruangan yang akan dibersihkan mungkin basah dan licin, sehingga robot selip dan bekerja tidak normal.

Coba keringkan lantai sebelum menggunakan robot.

Robot tidak melanjutkan

pembersihan setelah

mengisi daya.

Pastikan robot tidak sedang dalam mode Jangan Ganggu (DND), yang mana akan mencegah robot melanjutkan

pembersihan.

Robot tidak akan melanjutkan pembersihan setelah Anda meletakkan robot secara manual ke dok pengisian daya atau

mengirim robot untuk mengisi daya melalui aplikasi atau tombol .

139

Penyelesaian Masalah

Masalah Solusi

Dok pengisian daya tidak

dapat membersihkan kotak

debu secara otomatis.

Periksa apakah kantong debu di dalam tangki penuh.

Jika kantong debu belum penuh, periksa apakah ada penghalang di ventilasi otomatis kosong pada robot, dok pengisian

daya, atau kotak debu. Jika ada yang menghalangi, bersihkan segera.

Level air di papan cuci

tidak normal.

Periksa apakah segel pada tangki air kotor kendur atau tidak terpasang dengan benar dan atur ulang secara manual jika

demikian. Jika masalah berlanjut, hubungi tim layanan purnajual.

Tekan perlahan tangki air kotor untuk memastikan tangki terpasang dengan benar.

Lepaskan papan cuci dan periksa apakah saluran pembuangan limbah tersumbat, lalu bersihkan.

Periksa larutan pembersih. Jangan menambahkan larutan apa pun kecuali larutan pembersih yang resmi disetujui.

Penjepit kain pel terangkat

secara tidak normal.

Copot penjepit kain pel untuk memeriksa apakah ada objek asing tersangkut di dalam, lalu coba memulai ulang robot. Jika

masalah berlanjut, hubungi tim layanan purnajual.

Jika ada air di bawah tangki

air bersih atau sekitar seal.

Saat mengeluarkan tangki air bersih, air di pipa mungkin masih ada di bawah tangki atau sekitar segel. Ini wajar. Tolong

seka dengan kain kering.

Untuk dukungan lebih lanjut, hubungi kami melalui https://global.dreametech.com

140

Dok Pengisian Daya

Robot & Dok Pengisian Daya

Spesifikasi

Robot

Model RLD52SE

Waktu Pengisian Daya Sekitar 3,5 jam

Tegangan Terukur 14,4 V

Daya Terukur 75 W

Frekuensi Pengoperasian 2.400–2.483,5 MHz

Daya Output Maksimum <20 dBm

Catatan: Daya Terukur (saat pengisian daya dan pengeringan)

ditentukan oleh nilai daya selama periode muatan penuh.

Model RCDE0302

Nilai Input 220-240 V 50-60 Hz

Nilai Output 20 V 2 A

Daya Terukur (selama pengosongan

debu)

700 W

Nilai Daya (saat pembersihan) 40 W

Daya Terukur (selama pengisian

daya dan pengeringan)

87 W

Dalam kondisi penggunaan normal, alat ini harus berada dalam jarak minimal

20 cm antara antena dan badan pengguna.

Konsumsi daya dalam mode siaga: ≤0,5 W (dalam waktu 15 menit setelah

robot meninggalkan dok pengisian daya)

Peralatan ini tidak memiliki mode siaga atau status lainnya yang setara dalam

segi persyaratan siaga, fungsi manajemen daya, atau kemampuan untuk

menonaktifkan koneksi jaringan nirkabel karena kebutuhan pemeliharaan

baterai. Konsumsi daya pada peralatan ini mungkin akan lebih tinggi

dibandingkan model peralatan lain yang memenuhi persyaratan fungsional

ini.

Dok Pengisian Daya

141

Semua produk dengan simbol ini adalah limbah peralatan listrik dan elektronik (WEEE sesuai arahan 2012/19/EU) yang mana tidak boleh

dicampur dengan sampah rumah tangga yang tidak tersortir. Anda harus melindungi kesehatan manusia dan lingkungan dengan cara

menyerahkan limbah peralatan ke titik pengumpulan yang ditugaskan untuk mendaur ulang limbah peralatan listrik dan elektronik, yang

ditunjuk oleh pemerintah atau otoritas setempat. Pembuangan dan daur ulang yang tepat akan membantu mencegah potensi dampak negatif

terhadap lingkungan dan kesehatan manusia. Hubungi instansi setempat untuk informasi lebih lanjut tentang lokasi serta syarat dan ketentuan

titik pengumpulan tersebut.

Informasi WEEE

PERINGATAN:

Panduan Pelepasan:

Pembuangan dan Pelepasan Baterai

Baterai litium-ion bawaan mengandung unsur yang membahayakan lingkungan. Sebelum membuang baterai, pastikan baterai dilepas oleh teknisi yang

memenuhi syarat dan dibuang di fasilitas daur ulang yang sesuai.

– baterai harus dilepaskan dari alat sebelum dibuang;

– alat harus terputus dari sumber listrik saat melepas baterai;

– baterai harus dibuang dengan aman.

Sebelum melepaskan baterai, putus sambungan listrik dan kosongkan baterai hingga sehabis mungkin.

Baterai yang tidak diperlukan harus dibuang di fasilitas daur ulang yang sesuai.

Jangan buang baterai di tempat bersuhu tinggi untuk mencegah terjadinya ledakan.

Dalam kondisi buruk, baterai dapat mengeluarkan cairan. Jika terjadi kontak, siram dengan air dan dapatkan bantuan medis.

1. Balik robot, gunakan obeng untuk melepas baut yang ada di belakang robot, lalu buka penutupnya.

2. Cabut terminal antara baterai dengan papan PCB untuk melepas baterai.

142

Warranty

Garanti

1. Dreame is liable to the consumer for any lack of conformity in material or workmanship not detectable at the time of the purchase.

2. Warranty period: please refer to the customer service oce for more information. If the territory where the consumer is located has dierent regulations, local

regulations prevail.

3. The warranty will not be applicable in the following cases:

a) Issues due to carelessness, use, or installation that does not comply with the instructions provided by Dreame.

b) Tampering and/or modifications of the product by entities or individuals not expressly authorized by Dreame.

c) Damage due to accidental causes and/or negligence on the part of the consumer, with particular reference to external parts.

d) Parts subject to wear that do not have manufacturing defects.

e) No valid purchasing document (receipt, invoice, or other) is provided to certify the date the product was purchased.

f) The model and/or numbers of the product on the purchase certificate is not consistent with the model and/or numbers shown on the product.

4. Please scan the QR code to get after-sales contact information.

5. The after-sales service (including quality warranty) in diverse regions is solely applicable to the local version of Dreame products. Please contact the after-sales

service in the region where your product version originates for support.

1. Dreame, satın alım sırasında tespit edilemeyen malzeme ve isçilik kusurlarından tüketiciye karsı sorumludur.

2. Garanti süresi: daha fazla bilgi için lütfen müsteri hizmetleri ile iletisime geçin. Tüketicinin bulundugu bölgede farklı düzenlemeler oldugu takdirde yerel

düzenlemeler geçerlidir.

3. Asagıdaki durumlarda garanti geçerli degildir:

a) Dreame tarafından saglanan talimatlara uygun olmayan kullanım, kurulum veya dikkatsizlik nedeniyle ortaya çıkan sorunlar.

b) Dreame tarafından açıkça yetki verilmemis kuruluslar veya kisiler tarafından ürün üzerinde onaysız degisiklikler yapılması ve/veya ürünün modifiye edilmesi.

c) Belirli harici parçalar önde olmak üzere, kaza nedenlerinden ve/veya tüketici ihmalkarlıgından dogan hasarlar gerçeklestiginde.

d) Imalat kusurlarına sahip olmayıp yıpranmaya tabi olan parçalar.

e) Ürünün satın alındıgı tarihi belgelemek için hiçbir geçerli satın alma belgesinin (makbuz, fatura ve diger) saglanmaması.

f) Satın alma belgesi üzerindeki ürün modeli ve/veya numaralarının ürün üzerinde gösterilen model ve/veya numaralarla tutarlı olmaması.

4. Satış sonrası hizmet iletişim bilgilerine ulaşmak için lütfen QR kodunu taratın.

5. Farklı bölgelerdeki satıs sonrası hizmetler (kalite garantisi dâhil) yalnızca Dreame ürünlerinin yerel sürümü için geçerlidir. Destek için lütfen ürün sürümünüzün

ilk satın alındıgı bölgedeki satıs sonrası hizmetler ile iletisime geçin.

143

Bảo hành

การรับประกัน

1. Dreame tuyên bố chịu trách nhiệm với khách hàng về vật liệu chưa đạt tiêu chuẩn hoặc lỗi lắp ráp mà không thể phát hiện tại thời điểm mua hàng.

2. Thời hạn bảo hành: vui lòng tham khảo phòng dịch vụ khách hàng để biết thêm chi tiết. Nếu tại quốc gia người tiêu dùng sinh sống có quy định khác, vui lòng ưu tiên áp

dụng quy định của quốc gia đó.

3. Không áp dụng bảo hành trong các trường hợp sau:

a) Các sự cố do bất cẩn, sử dụng hoặc cài đặt không đúng theo hướng dẫn do Dreame cung cấp.

b) Giả mạo và/hoặc sửa đổi sản phẩm bởi các tổ chức hoặc cá nhân không được Dreame ủy quyền rõ ràng.

c) Hư hỏng do nguyên nhân ngẫu nhiên và/hoặc sơ suất của người tiêu dùng, đặc biệt liên quan đến các bộ phận bên ngoài.

d) Những bộ phận bị mài mòn không do lỗi sản xuất.

e) Không cung cấp được chứng từ mua hàng hợp lệ (biên nhận, hóa đơn hoặc chứng từ khác) để xác nhận ngày sản phẩm được mua.

f) Mẫu và/hoặc mã số của sản phẩm trên giấy chứng nhận mua hàng không khớp với mẫu và/hoặc mã số được thể hiện trên sản phẩm.

4. Vui lòng quét mã QR để biết thông tin liên hệ sau bán hàng.

5. Dịch vụ sau bán hàng (bao gồm bảo hành chất lượng) ở các khu vực khác nhau chỉ áp dụng cho phiên bản sản phẩm Dreame tại địa phương. Vui lòng liên hệ với dịch vụ

sau bán hàng tại khu vực có phiên bản sản phẩm của bạn để được hỗ trợ.

1. Dreame รับผิดชอบต่อผู้บริโภคในกรณีที

่

วัสดุหรือการผลิตไม่เป็ นไปตามมาตรฐานที

่

ไม่สามารถตรวจพบได้ในขณะซื

้

อ

2. ระยะเวลาการรับประกัน: โปรดดูข้อมูลเพิ

่

มเติมที

่

สำานักงานบริการลูกค้า หากเขตแดนที

่

ผู้บริโภคตั

้

งอยู่มีข้อบังคับที

่

ต่างกัน ให้ถือตามข้อบังคับท้องถิ

่

น

3. ไม่สามารถใช้การรับประกันได้ในกรณีต่อไปนี

้

a) ปั ญหาที

่

เกิดจากความประมาท การใช้งาน หรือการติดตั

้

งที

่

ไม่เป็ นไปตามคำาแนะนำาของ Dreame

b) การดัดแปลงและ/หรือการแก้ไขผลิตภัณฑ์โดยหน่วยงานหรือบุคคลที

่

ไม่ได้รับอนุญาตอย่างชัดแจ้งจาก Dreame

c) ความเสียหายอันเกิดจากอุบัติเหตุและ/หรือความประมาทเลินเล่อของผู้บริโภค โดยเฉพาะอย่างยิ

่

งกับชิ

้

นส่วนภายนอก

d) ชิ

้

นส่วนที

่

เกิดการสึกหรอซึ

่

งไม่ได้บกพร่องจากการผลิต

e) ไม่มีเอกสารการจัดซื

้

อที

่

ถูกต้อง (ใบเสร็จรับเงิน ใบแจ้งหนี

้

หรืออื

่

น ๆ) เพื

่

อใช้ยืนยันวันที

่

ซื

้

อผลิตภัณฑ์

f) รุ่นและ/หรือหมายเลขของผลิตภัณฑ์ในใบสั

่

งซื

้

อไม่ตรงกับรุ่นและ/หรือหมายเลขที

่

แสดงบนผลิตภัณฑ์

4.โปรดสแกนคิวอาร์โค้ดเพื

่

อรับข้อมูลติดต่อหลังการขาย

5. บริการหลังการขาย (รวมถึงการรับประกันคุณภาพ) ในภูมิภาคต่างๆ ใช้ได้เฉพาะกับผลิตภัณฑ์ Dreame เวอร์ชันท้องถิ

่

นเท่านั

้

น โปรดติดต่อฝ่ ายบริการหลังการขายในภูมิภาคที

่

คุณซื

้

อผลิตภัณฑ์รุ่นขอ

งคุณเพื

่

อรับการสนับสนุน

144

Garansi

1. Dreame bertanggung jawab kepada konsumen atas setiap kurangnya kesesuaian pada bahan atau pengerjaan yang tidak terdeteksi pada waktu pembelian.

2. Masa garansi: harap kunjungi kantor layanan pelanggan untuk mendapatkan informasi selengkapnya. Jika di wilayah tempat konsumen tinggal memiliki

regulasi yang berbeda, regulasi setempatlah yang berlaku.

3. Garansi tidak akan berlaku pada kasus berikut:

a) Bermasalah karena kecerobohan, penggunaan, atau pemasangan yang tidak mematuhi petunjuk yang diberikan oleh Dreame.

b) Mengubah dan/atau modifikasi produk oleh entitas atau individu yang secara tidak jelas diizinkan oleh Dreame.

c) Kerusakan karena penyebab yang tidak disengaja dan/atau kelalaian yang sebagian disebabkan oleh pelanggan, khususnya pada komponen eksternal.

d) Komponen yang dapat aus yang tidak memiliki kecatatan produksi.

e) Tidak memiliki dokumen pembelian yang valid (tanda terima, faktur, atau lainnya) untuk mengonfirmasi tanggal pembelian produk.

f) Model dan/atau nomor produk pada sertifikat pembelian tidak sama dengan model dan/atau nomor yang tertera di produk.

4. Pindai kode QR untuk memperoleh informasi kontak purnajual.

5. Layanan purnajual (termasuk garansi kualitas) di berbagai wilayah hanya berlaku ke produk Dreame versi lokal. Harap menghubungi layanan purnajual di

wilayah tempat versi produk berasal untuk mendapatkan bantuan.

https://global.dreametech.com

Website:

EU-A00

For more support, contact us via https://global.dreametech.com

Manufactured by: Dreame Trading (Tianjin) Co., Ltd.

Made in China

Theword"dreame"istheabbreviationofDreameTechnologyCo.,Ltd.andits subsidiaries inChina.Itisthetransliterationofthecompany'sChinesename" 追觅 ", which

meansstrivingforexcellenceineveryendeavorandreectsthecompany's visionofcontinuouspursuit,explorationandsearchintechnology.

Dreame L40 ULTRA CE Robot Vacuums

Product's Documents

User manual

Specifications

Dreame L40 ULTRA CE Questions and Answers
