OUTDOOR SPOTLIGHT
MODEL: JS-CDD002
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: JS-CDD002
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
OUTDOOR SPOTLIGHT
- 2 -
IMPORTANT SAFEGUARDS
Please read and understand this entire manual before attempting to
assemble, operate or install the product.
WARNING:
● Be careful to open the carton, contact us if there is any damage.
●Non-professional technicians, please do not repair or modify this product
without authorization.
● To ensure the lifetime of the product, please do not use it in a place with
strong acid mist.
● The luminaire should be positioned so that prolonged staring into the
luminaire at a distance closer than 0.5m is not expected
To reduce the risk of fire, electric shock, or injury:
● Turn off the circuit breaker before installing this fixture.
● This product should be installed by someone familiar with the
construction and operation of the product and the hazards involved. Safety
eyeglasses and gloves are recommended.
● Abide by related regional and local laws or regulations.
● Proper grounding is required to ensure safety.
● This fixture was designed for daisy chains only. Using it for other
purposes will void the warranty.
● Check for shipping damage before installing. If the product is damaged,
do not use it.
● Keep the fixture away from corrosive substances.
● Suitable for damp locations at temperatures ranging from 4°F to 113°F.
Not for use where directly exposed to water.
● Clean the fixture regularly to ensure proper operation. Do not clean with
harsh solvents.
● Use safety precautions and abide by regional and local laws or
regulations.
SAVE THESE INSTRUCTIONS
- 3 -
FCC INFORMATION
CAUTION: Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to
operate the equipment!
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1) This product may cause harmful interference.
2)This product must accept any interference received, including
interference that may cause undesired operation.
WARNING: Changes or modifications to this product are not
expressly approved by the party. Responsible for compliance could
void the user's authority to operate the product.
Note: This product has been tested and found to comply with the limits for
a Class B digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This product generates, uses and can radiate radio frequency energy, and
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television
reception,which can be determined by turning the product off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures.
Reorient or relocate the receiving antenna.
Increase the distance between the product and receiver.
Connect the product to an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
assistance.
- 4 -
PACKING LIST
Product Parameter
Product model
JS-CD002
Size
Material
Aluminum die-casting
Input Voltage
AC/DC12-24V
Power
6W
CCT
3000K
Ambient temperature
4°F to 113°F
Power cables
White+ /Black-
PURCHASING INSTRUCTIONS
1, outdoor installation must use waterproof power supply
2, be sure to use with 12 or 24V power supply
3, white positive, black negative, shall not be reversed
4, do not directly connect 220V electricity, otherwise it will directly burn the
drive and light source
5, lighting equipment must be disassembled, connected and tested by
qualified technicians
6, the light source of this lamp is not replaceable, when the light source to
its end, should replace the entire lamp
7, such as misuse or not in accordance with the use of specifications, the
result is not within the scope of warranty returns
(AC or DC power supply must be purchased separately)
- 5 -

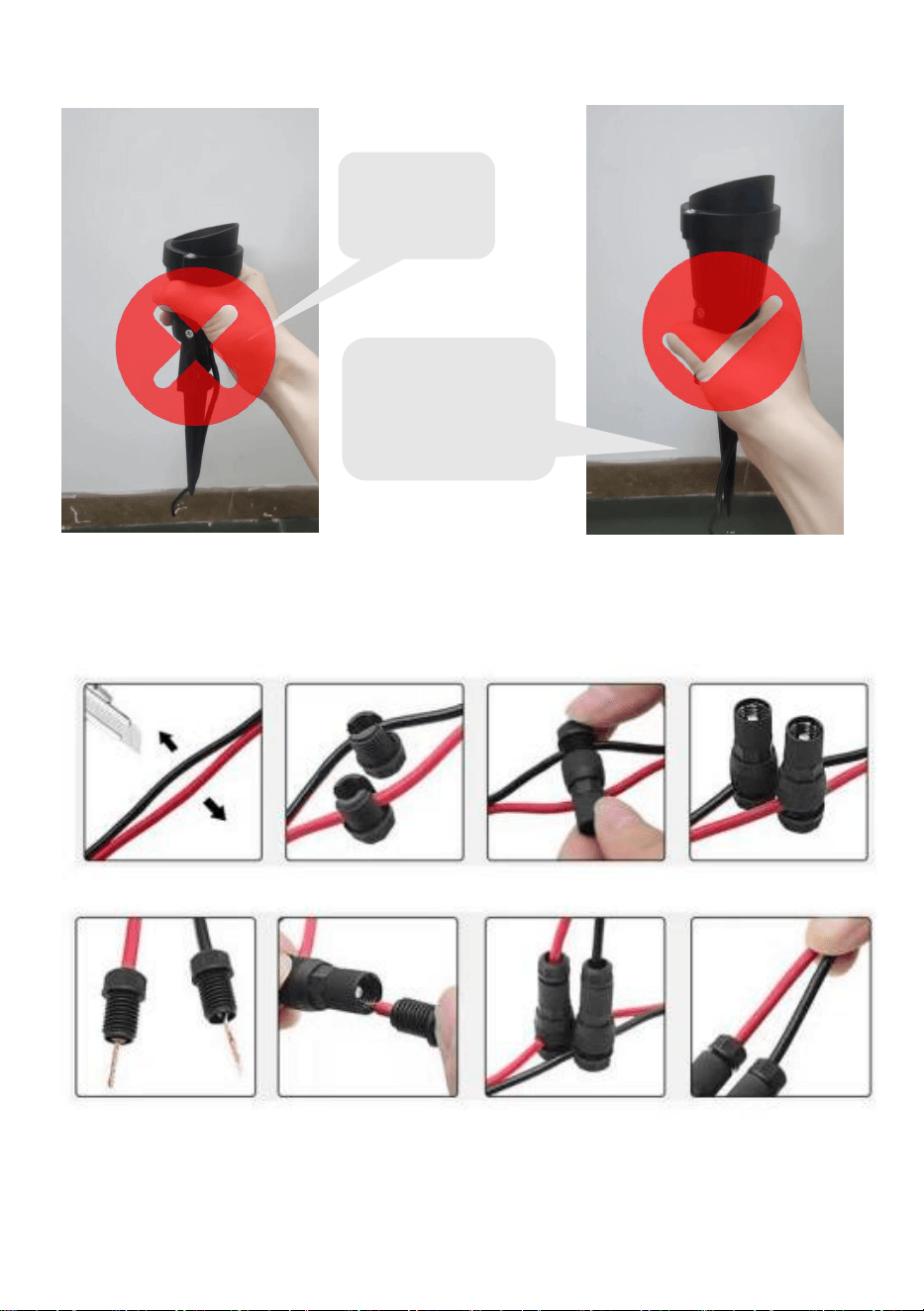

Installation diagram:
Wiring diagram:
Incorrect
installation
mode
The right way to
install, hold the
support to the
ground
- 6 -

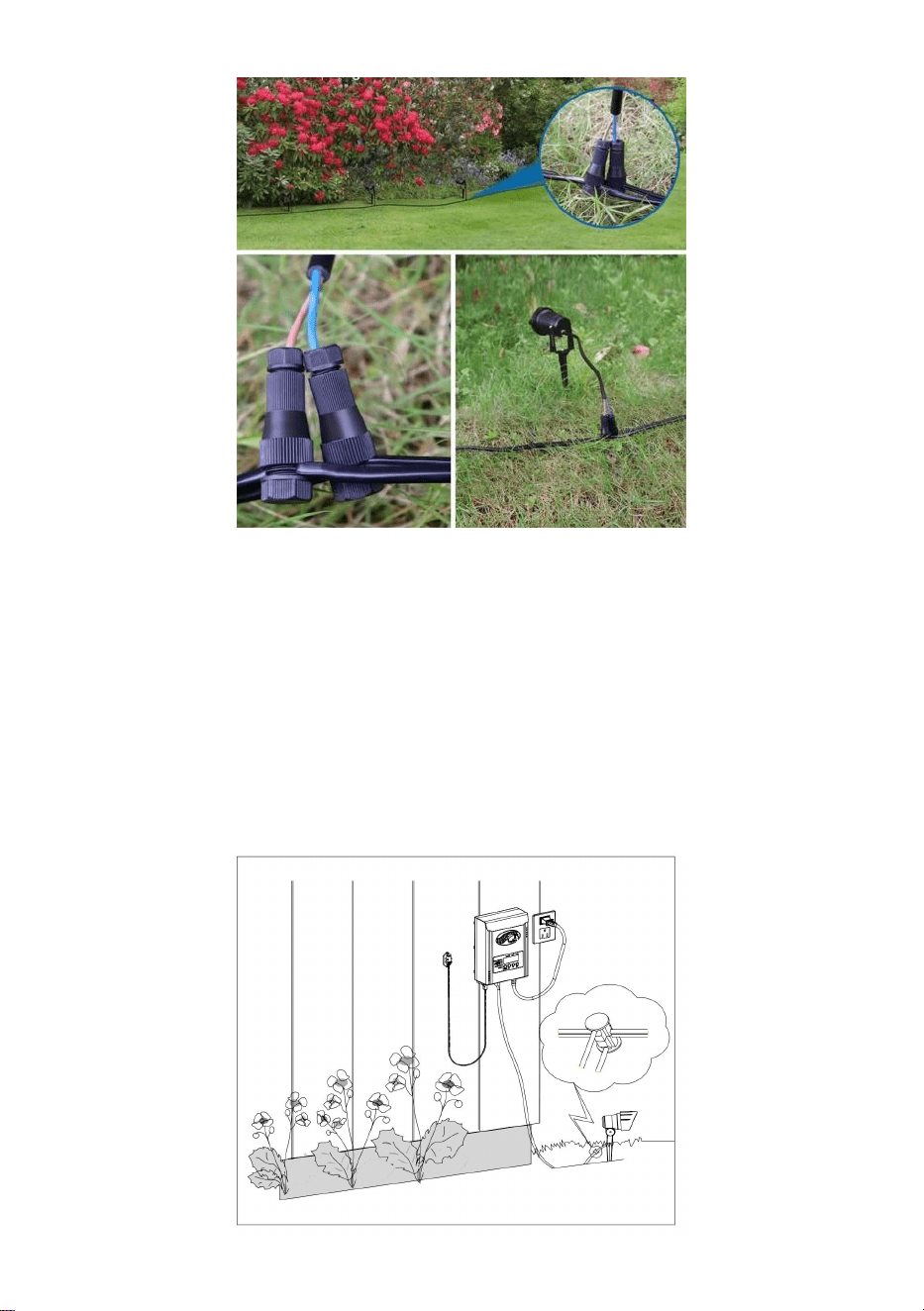

Attaching Your Fixtures
Turn the transformer on. Attach your fixtures to the cable to using cable
connectors as shown. Place one connector on each side of the cable, then
press together to lock. Prongs will pierce the cable to make contact and
your fixtures should light up.Turn the transformer on. Attach your fixtures to
the cable using the cable connectors as shown. Press the connector tight
onto the cable until the prongs pierce the cable insulation. The fixture
should light on.
