OPERATING MANUAL
ATF Series
MK2
5260_Multi_Platinum_manual_aw4.indd 15260_Multi_Platinum_manual_aw4.indd 1 05/01/2023 16:2405/01/2023 16:24
2
IMPORTANT SAFEGUARDS:
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Do not use in rain or leave outdoors whilst raining.
WARNING: Basic safety precautions should always be observed when us-
ing an electrical appliance, including the following to reduce the risk of fire,
electrical shock, or injury:
Personal Safety:
• Store indoors in a dry place out of the
reach of children.
• Always use responsibly. This appliance
can be used by children aged from 8 years
and above and persons with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe
way and understand the hazards involved.
• Don’t let children play with the appliance;
supervise children using or maintaining
the appliance.
• Use only manufacturer’s recommended
attachments as described in this
manual; misuse or use of any accessory
or attachment other than those
recommended, may present a risk of
personal injury.
• Take extra care when cleaning stairs.
• Keep the appliance and accessories away
from hot surfaces.
• Do not block the appliances openings
or hinder air flow; keep openings free of
any objects including dust, lint, clothing,
fingers (and all parts of the body).
• Particularly keep hair away from the brush
bar and other moving parts.
Electrical safety:
• Only use batteries and chargers supplied
by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a
specific voltage. Always check that the
mains voltage is the same as that stated on
the rating plate.
• A charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack; never
use the charger with another appliance
or attempt to charge this product with
another charger.
• Before use, check the charger cord for
signs of damage or ageing. A damaged or
entangled charger cord increases the risk
of fire and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from
a socket; grasp the plug and pull to
disconnect.
• Don’t wrap the cord around the charger
when storing.
• Keep the charger cord away from hot
surfaces and sharp edges.
• The supply cord cannot be replaced. If the
cord is damaged the charger should be
discarded and replaced.
• Do not handle the charger or the
appliance with wet hands.
• Do not store or charge the appliance
outdoors.
• The charger must be removed from the
socket before removing the battery,
cleaning or maintaining the appliance.
• Ensure the appliance is off before
connecting or disconnecting the
motorised brush bar.
Battery safety:
• This appliance includes Li-Ion batteries; do
not incinerate batteries or expose to
high temperatures, as they may explode.
• Liquid ejected from the battery may cause
irritation or burns.
5260_Multi_Platinum_manual_aw4.indd 25260_Multi_Platinum_manual_aw4.indd 2 05/01/2023 16:2405/01/2023 16:24
3
• In an emergency situation contact
professional help immediately!
• Leaks from the battery cells can occur under
extreme conditions. Do not touch any liquid
that leaks from the battery. If the liquid gets
on the skin wash immediately with soap and
water. If the liquid gets into the eyes, flush
them immediately with clean water for a
minimum of 10 minutes and seek medical
attention. Wear gloves to handle the battery
and dispose of immediately in accordance
with local regulations.
• Shorting the battery terminals may cause
burns or fire.
• When the battery pack is not in use, keep
it away from paper clips, coins, keys, nails,
screws or other small metal objects that
could make a connection from one terminal
to another.
• Store the battery away from any liquids and
chemicals that may damage the battery and
cause a risk of fire.
• Store the battery in clean, dry conditions,
within a recommended temperature range
of 0 - 25°C
• Do not store the battery in areas of high
temperature above 25°C. Do not store near
a source of heat or where exposed to direct
sunlight.
• When you dispose of the appliance remove
the battery and dispose of the battery safely
in accordance with local regulations.
Service:
• Before using the appliance and aer any
impact, check for signs of wear or damage
and repair as necessary.
• Do not use the appliance if any part is
damaged or defective.
• Repairs should be carried out by a service
agent or a suitably qualified person in
accordance with relevant safety regulations.
Repairs by unqualified persons could be
dangerous.
• Never modify the appliance in any way as
this may increase the risk of personal injury.
• Only use replacement parts or accessories
provided or recommended by Gtech.
Intended use:
• This appliance has been designed for
domestic dry vacuum cleaning only.
• Do not pick up liquids or use on wet surfaces.
• Do not pick up anything that is flammable,
burning or smoking.
• Use only as described in this manual.
• Don’t use on concrete, tarmacadam
or other rough surfaces.
• The brush bar may damage certain surfaces.
Before vacuuming flooring, upholstery,
rugs, carpets or any other surfaces, check
the manufacturer’s recommended cleaning
instructions.
• The product may damage delicate fabrics or
upholstery. Care should be taken on loose-
weave carpets and coverings or where there
are loose threads. It is advised to test on an
inconspicuous area first before use.
• The product has been designed to clean
a wide variety of floor surfaces without the
need to change settings. However some
surfaces such as delicate loose-pile rugs or
carpets, tasselled rug edges or damaged
carpets with exposed threads are not
suitable for cleaning with a rotary brush.
• The product has a constantly rotating brush
bar. Never leave the Power Brush in one
spot for an extended period of time as this
may damage the area being cleaned.
• Particularly for hard flooring, before
vacuuming check the area being cleaned is
free of any hard debris or objects that could
damage the flooring if caught underneath
the product, and that the underside of the
product is free from foreign objects that
could mark the surface.
WARNING:
• Do not use water, solvents, or polishes
to clean the outside of the appliance;
wipe clean with a dry cloth.
• Never immerse the unit in water and do
not clean in a dish washer.
• Never use the appliance without the
filter fitted.
• Ensure the battery is removed before
changing tools.
5260_Multi_Platinum_manual_aw4.indd 35260_Multi_Platinum_manual_aw4.indd 3 05/01/2023 16:2405/01/2023 16:24
4
Make a note of your product serial number code for future reference. You can find this on
the underside of the product once the battery has been removed.
_ - _ _ - _ _ _ ~
_ _ _ _ _ ~
_ _ _ _ ~
_ _ ~ _ _ _ _ _ _ _
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
Thank you for choosing Gtech
“Welcome to the Gtech family. I started Gtech to create sensible, easy
to use products that do a great job, and hope you get many years of
trouble-free performance from your new product.”
Nick Grey – Inventor, owner of Gtech
What’s in the box
4
4
Power brush
7
7
Charger
8
8
4 x spare scented cartridges
9
9
2
2
Gtech Multi Platinum
vacuum cleaner
1
1
Dusting brush
5
5
3
3
Crevice tool
(stored inside the handle)
6
6
Extension tube
10
10
Spare filter x 1
Hair removal tool
So dusting brush
AVAILABLE SEPERATELY
Upholstery tool
Flexible extension tube
Accessories bag
11
11
12
13
12
13
5260_Multi_Platinum_manual_aw4.indd 45260_Multi_Platinum_manual_aw4.indd 4 05/01/2023 16:2405/01/2023 16:24
5
An active nozzle is built into your product. The dusting brush, crevice tool, extension tube and
power brush all attach to the active nozzle.
The dusting brush can be slotted onto the
active nozzle. The crevice tool is stored on
board the product for easy access.
Operation
Press the button above the handle to turn the
product on and off.
5260_Multi_Platinum_manual_aw4.indd 55260_Multi_Platinum_manual_aw4.indd 5 05/01/2023 16:2405/01/2023 16:24
6
Gently pull the Power Brush from the product
to remove. The battery should be removed
when changing attachments.
To clean the brush bar, first remove the power
brush. Rotate the latch from the lock to the
unlock position and pull out the brush bar.
Make sure the terminals on the Power Brush
and Active nozzle are correctly lined up and
gently push the Power brush onto the Active
nozzle. The battery should be removed when
changing attachments.
To remove hair from the brush bar, run the hair
removal tool down the groove to cut the hair,
then pull it out with the comb. Never operate
the power head without the brush bar in.
Power brush
5260_Multi_Platinum_manual_aw4.indd 65260_Multi_Platinum_manual_aw4.indd 6 05/01/2023 16:2405/01/2023 16:24
7
When a single green light flashes, recharge
the battery.
Aer 3 hours, the LEDs turn solid green and
charging is complete.
The battery can be charged on or off the main
unit.
It is OK to charge for 1 hour for a burst
of cleaning.
Battery charging
3
hours
1
hour
boost
5260_Multi_Platinum_manual_aw4.indd 75260_Multi_Platinum_manual_aw4.indd 7 05/01/2023 16:2405/01/2023 16:24
8
There’s no latch, the bin just pulls off.
It’s easier if you wiggle it as you pull it.
Hold the bin over a rubbish bin and release the
latch to empty the dirt. A gentle tap will help.
Remove the filter and tap off the excess debris
each time you empty the bin.
Emptying the bin
State of Charge
The battery state of charge indicator shows
how much charge the product has. As you use
the product, the green lights will turn off in a
downwards direction.
While the battery is on charge, the LEDs will
pulsate and in turn illuminate. When the battery is
fully charged all of the LEDs will be solid green.
100% - 75% 75% - 50%
50% - 25% 25% - 1%
5260_Multi_Platinum_manual_aw4.indd 85260_Multi_Platinum_manual_aw4.indd 8 05/01/2023 16:2405/01/2023 16:24
9

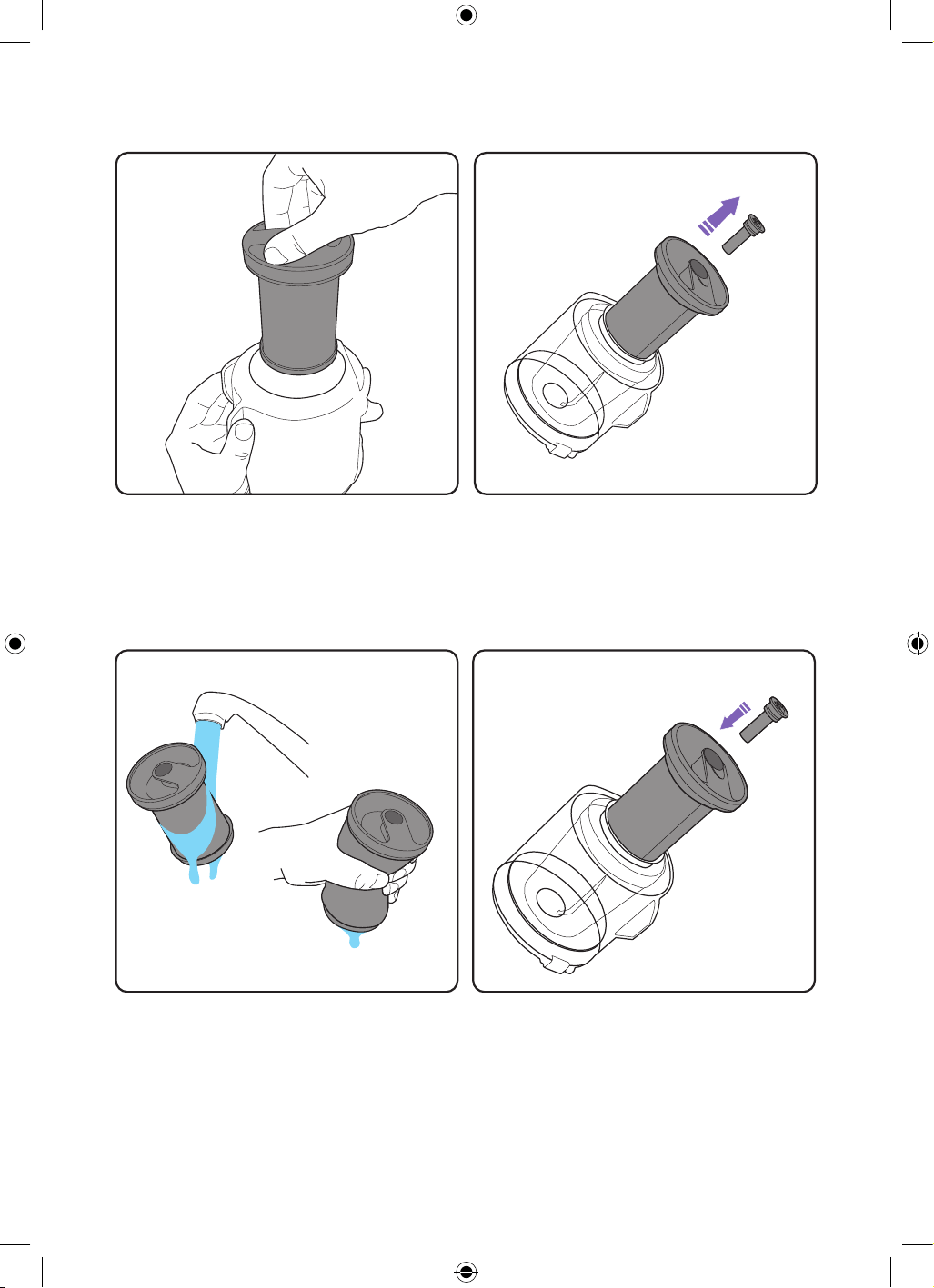

Remove the filter by pulling it from the top of
the bin. Tap the dirt from the filter and tip any
dirt from the filter housing. Wash the filter if
necessary.
Wash the filter under a tap, squeeze it out
then let it dry completely before using it.
Recommended water temperature 40ºC.
Do not use any detergent or soaps.
Use your spare filter while it dries.
(You can get more at www.gtech.co.uk)
Never operate the product without the
filter inside the bin. You could damage the
motor.
Ensure a cartridge is fitted onto the filter before
using.
Cleaning the filter
Before washing the filter, you will need to
remove the scented cartridge by pulling it out
from the scented cartridge housing at the top
of the filter.
5260_Multi_Platinum_manual_aw4.indd 95260_Multi_Platinum_manual_aw4.indd 9 05/01/2023 16:2405/01/2023 16:24
10
Place the new scented cartridge into the top of
the filter.
Never operate the product without the
scented cartridge fitted.
Replacing the scented cartridge
Remove a scented cartridge from the bag then
slide the plastic sleeve off.
Scented Cartridge
Scented cartridge refills: Keep out of the reach of children. People suffering from perfume sensitivities should be
cautious when using this product as it may produce an allergic reaction or cause sensitisation by skin contact. If
swallowed, seek medical advice immediately and show this container or label. Toxic to aquatic organisms, may cause
long-term adverse effects in the aquatic environment. Scented refills contain: Linalyl acetate, Limonene, Linalool, Lilial,
Lavender oil, Vanillin, Borneol, Polysorbate 20
Scented cartridges are available from Gtech:
Go to www.gtech.co.uk
or call 08000 308 794 .
Remove the old scented cartridge by pulling it
out from the housing at the top of the filter.
5260_Multi_Platinum_manual_aw4.indd 105260_Multi_Platinum_manual_aw4.indd 10 05/01/2023 16:2405/01/2023 16:24
11
If the suction is low when the bin is empty and filter is clean... you
have a blockage.
Remove the battery & bin and look through both
ends of the tube. Remove any blockages.
Press the purple buttons and pull to remove
the battery. The battery can be charged on or
off the main unit. If you want to buy a spare
battery go to www.gtech.co.uk
or call 08000 308 794.
The tools can block too, sometimes.
Removing the battery
5260_Multi_Platinum_manual_aw4.indd 115260_Multi_Platinum_manual_aw4.indd 11 05/01/2023 16:2405/01/2023 16:24
12
Product Care
Troubleshooting
Your product doesn’t need much maintenance: keep the filter clean, check for
blockages, remove hair from the brushbar and charge the battery. Wipe it with a dry
cloth if it gets dirty, including the area under the bin. Never wash it with liquid, run it
under a tap or use it without the filter.
To maintain optimum battery life store the battery in clean, dry conditions, within a
recommended temperature range of 0 - 25°C. Do not store the battery in areas of high
temperature above 25°C. Do not store near a source of heat or where exposed to
direct sunlight.
Product is not cleaning well 1. Empty the bin.
2. Clean the holes in the filter housing.
3. Wash the filter.
4. Check for blockages.
5. Remove hair from brushbar.
Product has stopped or won’t work 6. Charge the battery (check the socket
works and is turned on).
7. It might be blocked
– check items 1 to 4 above.
4 Red lights displayed on battery 8. Brush bar jammed.
9. Turn off product, remove the battery
and clear the blockage.
support@gtech.co.ukLive chat supportOnline How to Videos
Product support
If these initial tips do not solve your problem we please visit our support area where you can find
troubleshooting help including online manuals, FAQs and how-to-videos, as well as genuine
spares and replacement parts compatible with your product.
Visit: www.gtech.co.uk/support
5260_Multi_Platinum_manual_aw4.indd 125260_Multi_Platinum_manual_aw4.indd 12 05/01/2023 16:2405/01/2023 16:24
13
TECHNICAL SPECIFICATION
Battery model 113A1003-C
Battery 22V Li-Ion
Charging period 3 hours
Battery charger output 27V DC 1.2A
Weight (with standard nozzle) 1.5kg
Many of the electrical items that are thrown away can
be repaired or recycled, saving natural resources and
helping to protect the environment.
Gtech products are marked with the symbol
indicating they can be recycled, and are covered by
legislation for Waste Electrical and Electronic Products
(2012/19/EU)
When the product has reached the end of its life both it
and the Li-Ion battery it contains should not be disposed
of with general household waste. The battery should
be removed from the product and and both should be
disposed of separately at a recognised recycling centre.
Recycling electrical products and batteries is free at
your local recycling centre.
To find your nearest centre and discover how
easy it is to recycle electrical products visit
www.recycle-more.co.uk
Alternatively contact your local council or civic
amenity site.
Product Recycling
FOR HOUSEHOLD USE ONLY
5260_Multi_Platinum_manual_aw4.indd 135260_Multi_Platinum_manual_aw4.indd 13 05/01/2023 16:2405/01/2023 16:24
14
Visit www.gtech.co.uk/warrantyregistration to register your product to ensure that we have all
the information required to provide you with quick and efficient support.
You will need your product’s serial code.
WARRANTY – REGISTRATION
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
If your product is within its warranty and has a fault that cannot be resolved from the
troubleshooting section or online support, please do the following:
• Contact our Gtech Customer Care Helpline on UK: 08000 308 794, who will go through any
troubleshooting with you to identify the fault.
• If your fault can be resolved by a replacement part, this will be sent to you free of charge.
• Following troubleshooting, if your product needs to be replaced, we will arrange collection of
your faulty product for inspection, and delivery of a replacement product free of charge.
Your product is guaranteed against material or manufacturing faults for 2 years from the date of
purchase (or the delivery date if this is later) subject to the following terms and conditions:
WHAT ISN’T COVEREDSUMMARY
The guarantee becomes effective at
the date of purchase (or the date of
delivery if this is later). If a product
is repaired or replaced during the
warranty period, the warranty period
is not started again.
• You must provide proof of delivery/
purchase before any work can be
carried out on the product. Without
this proof, any work carried out will be
chargeable. Please keep your receipt or
delivery note.
• All work will be carried out by Gtech or
its authorised agents.
• Any parts which are replaced will
become the property of Gtech.
• The repair or replacement of your
product is under guarantee and will not
extend the period of guarantee.
• The guarantee provides benefits which
are additional to and do not affect your
statutory rights as a consumer.
Gtech does not guarantee the repair or
replacement of a product as a result of:
• Normal wear and tear (e.g. drive belt, brush bar, batteries) .
• Use of consumables (e.g dust bags and cartridges)
• Accidental damage, faults caused by negligent use or lack of care
and maintenance, misuse, neglect, careless operation or handling of
the product which is not in accordance with operating manual.
• Blockages. Please refer to the operating manual for details of how to
unblock your product.
• Use of the product for anything other than the normal domestic
household purposes.
• Use of parts and accessories which are not Gtech genuine
components.
• Faulty installation (except where installed by Gtech)
• If it is modified in any way.
• Repairs or alterations carried out by parties other than Gtech or its
authorised agents.
• Purchasing your product from an unofficial third party (i.e not from
Gtech or an official Gtech retailer.
• If you are in doubt as to what is covered by your guarantee, please
call the Gtech Customer Care Helpline on UK: 08000 308 794
International orders are subject to a delivery charge for both faulty and
non faulty products.
WARRANTY – TERMS AND CONDITIONS
If you purchased directly from Gtech, your
details are already registered and your 2-year
warranty will start automatically.
If you purchased from an authorised Gtech
retailer, please register your warranty within
3 months. You will need to provide proof of
purchase to support any claim(s) against your
warranty.
5260_Multi_Platinum_manual_aw4.indd 145260_Multi_Platinum_manual_aw4.indd 14 05/01/2023 16:2405/01/2023 16:24
15
Notes
5260_Multi_Platinum_manual_aw4.indd 155260_Multi_Platinum_manual_aw4.indd 15 05/01/2023 16:2405/01/2023 16:24
CPN5260
Grey Technology Limited
Brindley Road, Warndon, Worcester WR4 9FB UK
email: support@gtech.co.uk
telephone: 08000 308 794
www.gtech.co.uk
5260_Multi_Platinum_manual_aw4.indd 165260_Multi_Platinum_manual_aw4.indd 16 05/01/2023 16:2405/01/2023 16:24
