INSTRUCTION MANUAL
HYDROH1 2-in-1 Cordless Hard Floor Cleaner
Back/Red
EW3060
Ewbank has a British heritage to be proud of. It’s a household favourite and much loved brand that has been providing innovative cleaning solutions for over 140 years.
2
CONTENTS
Safety Instructions .............................................................................................3-7
Appliance Overview ........................................................................................8-9
Product Assembly ..............................................................................................10
Operating Instructions ...................................................................................11-14
Cleaning & Maintenance ..............................................................................15-18
Troubleshooting ...........................................................................................19-20
Specifications ...................................................................................................21
Fuse Replacement..............................................................................................22
Disposal of the Appliance ..................................................................................22
Warranty Terms & Conditions .............................................................................23
3
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Household use only.
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE, Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
WARNING–To reduce the risk of fire, electric shock, or
injury:
1. Use only indoors, on non-carpeted floor surfaces such as
vinyl, tile, sealed wood, etc. Be careful not to run over
loose objects or edges of area rugs. Stalling the brush
may result in premature belt failure.
2. Do not allow to be used as a toy. Close attention is
necessary when used by or near children, pets or plants.
3. Use only as described in this manual. Use only
manufacturer’s recommended attachments.
4. Do not use with damaged cord or plug. If appliance is
not working as it should, has been dropped, damaged,
left outdoors, or dropped into water, return it to a service
center.
5. Do not handle charger, including charger plug, and
charger terminals with wet hands.
6. Do not put any object into openings. Do not use with
any opening blocked; keep free of dust, lint, hair, and
anything that may reduce air flow.
7. Keep hair, loose clothing, fingers, and all parts of body
away from openings and moving parts.
8. Use extra care when cleaning on stairs.
9. Do not use to pick up flammable or combustible liquids,
such as gasoline, or use in areas where they may be
present.
4
10. Do not pick up anything that is burning or smoking, such
as cigarettes, matches, or hot ashes.
11. Do not use without filter.
12. Prevent unintentional starting. Ensure the switch is in the
off-position before picking up or carrying the appliance.
Carrying the appliance with your finger on the switch
or energizing appliance that have the switch on invites
accidents.
13. Always switch off the appliance before making any
adjustments, changing accessories, or storing appliance.
Such preventive safety measures reduce the risk of
starting the appliance accidentally.
14. Recharge only with the charger specified by Ewbank. A
charger that is suitable for one type of battery pack may
create a risk of fire when used with another battery pack.
15. Use appliances only with specifically designated Ewbank
battery packs. Use of any other battery packs may create
a risk of injury and fire.
16. Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
17. Do not use a battery pack or appliance that is damaged
or modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk
of injury.
18. Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above 130°C may cause explosion.
19. Follow all charging instructions and do not charge the
battery pack or appliance outside of the temperature
range specified in the instructions. Charging improperly
or at temperatures outside of the specified range may
SAFETY INSTRUCTIONS
5
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
SAFETY INSTRUCTIONS
damage the battery and increase the risk of fire.
20. Have servicing performed by a qualified repair person
using only identical replacement parts. This will ensure
that the safety of the product is maintained.
21. Do not modify or attempt to repair the appliance or the
battery pack except as indicated in the instructions for
use and care.
22. Always turn off this appliance before connecting or
disconnecting motorized nozzle.
23. Do not charge or store the appliance outdoors or inside
the car. Only charge, store or use the battery in a dry
indoor area where the temperature is higher than 4°C
but lower than 40°C. The charger is for indoor use only.
24. Do not use to pick up ultrafine particles, such as lime,
cement, sawdust, gypsum powder, or ashes.
25. Do not use to pick up sharp objects, such as metallic
nails, pieces of glass, metal paper clips, or pins.
26. Do not use to pick up hazardous material and chemicals,
such as solvent, drain cleaner, strong acids or strong
alkali.
27. Stop using immediately if the machine is overheating,
making unusual noises, issuing unusual odor, performing
low suction, or leaks electricity.
28. Turn cleaner OFF and disconnect from electrical outlet in
case of long-term storage.
29. Always clean dirty water tank after each use to avoid
potential blockage, which may result to low suction
power, motor overheating or reduce the service life.
30. Store appropriately indoors in a dry place after use.
31. Do not place or submerge machine in standing water or
try to clean flooded areas.
32. All date and technical instruction of this manual based
on results from lab tests of Ewbank or designated
third party. The company reserves all rights for final
explanation.
6
33. Do not use the appliance when the water depth is more
than 5mm above the surface.
Range of Usage
• The HYDROH1 2-in-1 cordless hard floor cleaner is to
be used on indoors hard floor, such as vinyl, tile, sealed
wood, etc. Use on a rough surface may not get the best
performance.
• Keep your appliance away from heat sources, such as
fireplace or heater, to avoid casing deformation.
• Do not use to pick up flammable or combustible liquids,
ultrafine particles, sharp objects, hazardous material,
chemicals or anything that is burning or smoking, as
described above.
About Cleaning Solution
• A large amount of cleaning solution entering into the
motor may cause danger.
• Add solution as instructed on page 12. Do not use the
product with acidic, alkaline solution or any substances
harmful to the environment.
• Keep out of reach of children. If any solution gets into
the eyes, immediately flush them with clean water. If any
solution be swallowed by accident, seek medical care
immediately.
• Dirty water and solution disposal should comply with
local environmental regulations.
About the Cleaner
• Do not modify or attempt to repair the cleaner except as
indicated in the instructions for operating and cleaning.
• Charge the machine with Ewbank HYDROH1 adaptor.
Input Voltage: AC 100-240V. Both high and low
voltages can damage the adaptor or the machine, even
cause danger to the user.
• Use extra care when cleaning on stairs.
SAFETY INSTRUCTIONS
7
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
SAFETY INSTRUCTIONS
• Ensure that the Power Switch is in the OFF-position
before picking up or carrying the machine. Do not lay
flat or lean down the machine to prevent dirty water
from entering into the motor.
• To avoid being accidentally tripping over the appliance,
please put the unit on the storage tray near wall.
• Always install the tanks rightly before use.
• Do not allow the appliance or charger to get wet to
avoid risk of fire or injury caused by short circuit.
READ AND SAVE THESE INSTRUCTIONS
This hard floor cleaner is intended for household use only.
Read the safety and operating instructions through carefully
before using the floor washer. This is the only way to ensure
safe and reliable use of the device. If the appliance is sold or
passed on, ensure it is equipped with this instruction manual.
You will also need these operating instructions for ordering
spare parts and accessories. Please keep this booklet in a
safe place.
8

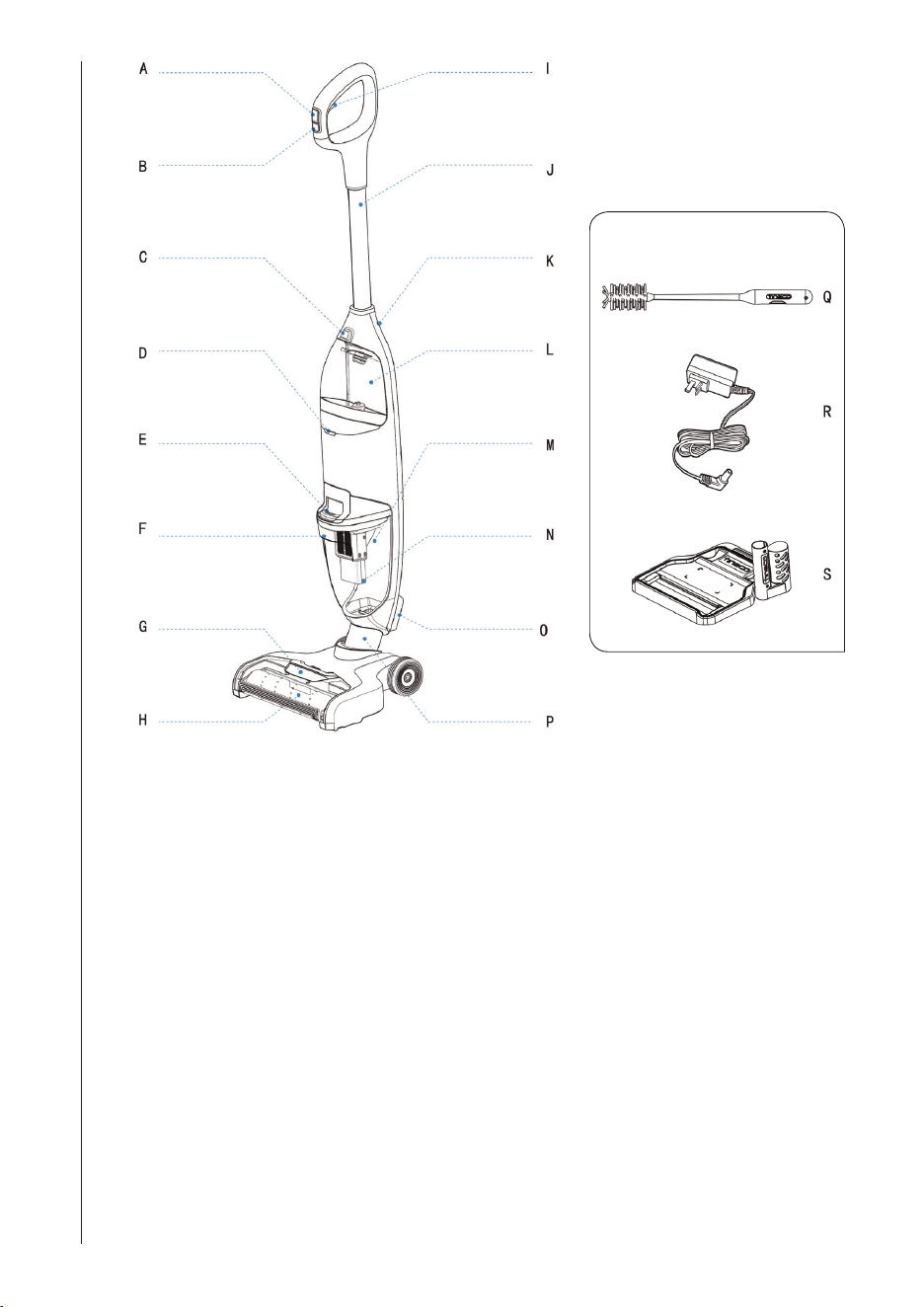

APPLIANCE OVERVIEW
Accessories
A. Switch button
B. Boost button
C. Clean water tank release button
D. Indicator light
E. Dirty water tank release button
F. Dirty water tank handle
G. Brush roll cover
H. Brush roll
I. Solution trigger
J. Handle
K. Handle fix screw
L. Clean water tank (CWT)
M. Dirty water tank (DWT)
N. Filter and floater
O. Air outlet cover
P. Brush rotator
Q. 2-in-1 cleaning tool
R. Charger adaptor
S. Self-cleaning storage tray
9
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
APPLIANCE OVERVIEW
ACCESSORIES

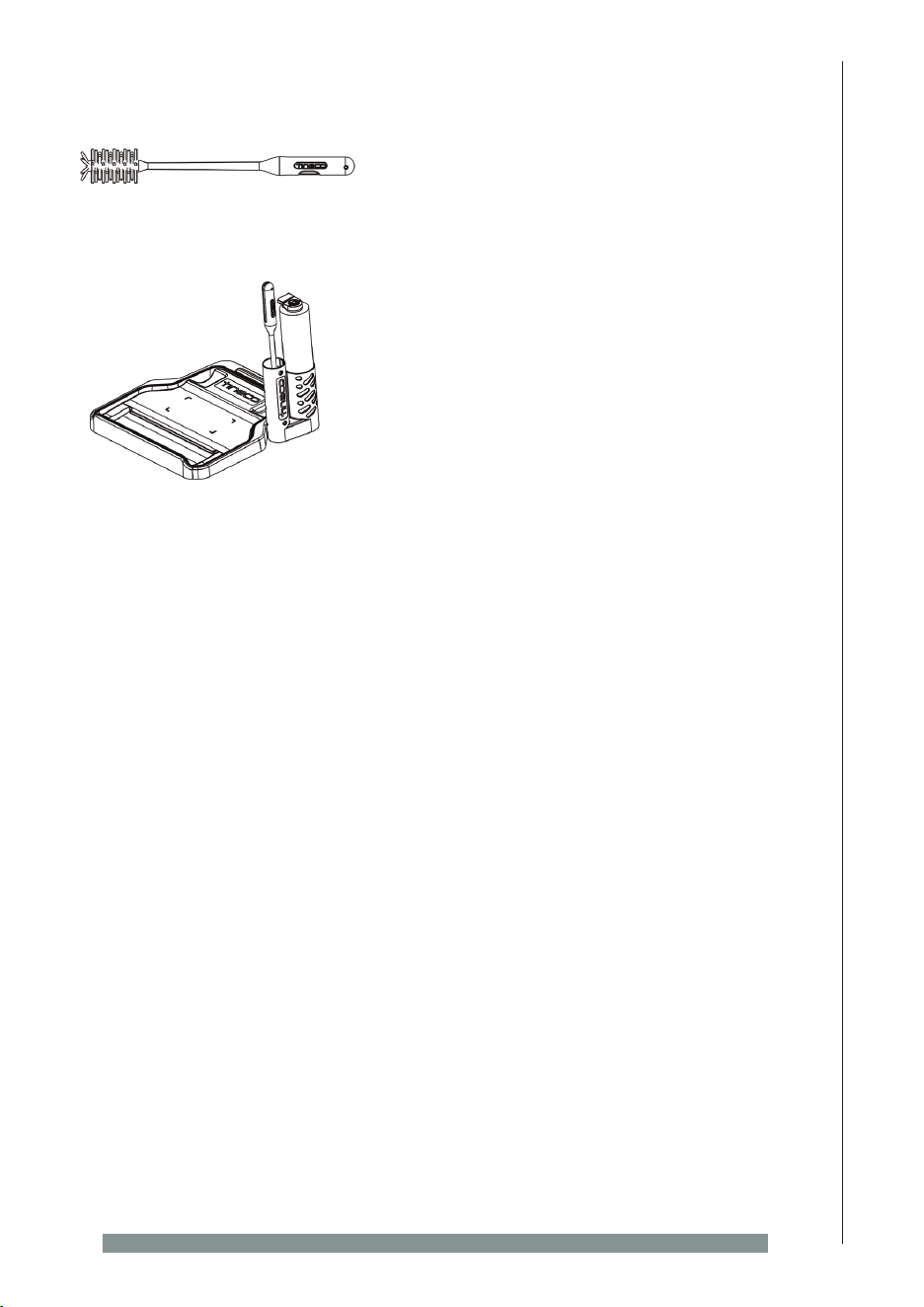

2-in-1 cleaning tool
A full brush to clean DWT, brush chamber and
the opening; the end with bristle to remove dirt
and mud on the roller and DWT; the end with
small blade to remove hair and debris wrapped
around the roller.
Self-cleaning Storage Tray
Place the appliance on the storage tray
vertically. Store the 3-in-1 cleaning tool and the
brush roll in the tool caddy.
* Actual accessories may vary from shown or change without notice, available
accesories may vary by market
10
PRODUCT ASSEMBLY

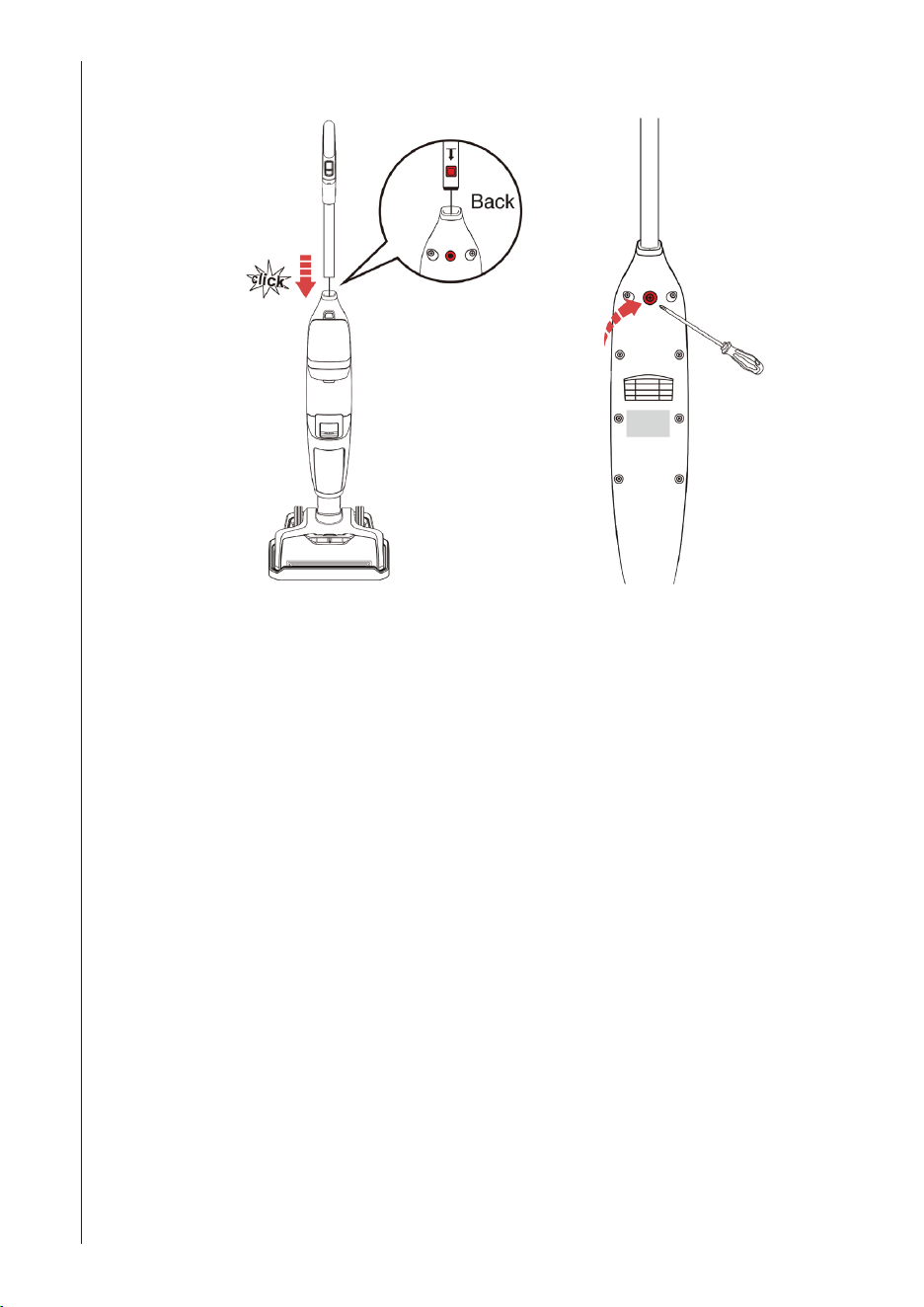

To assemble the handle, insert it into
the unit base until you hear a click.
To disassemble the handle, first remove
the screw with screwdriver, then press
the spring located with a tool to release
the handle. Lift the released handle
from the unit.
HANDLE ASSEMBLY / DISASSEMBLY
11
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
OPERATING INSTRUCTIONS

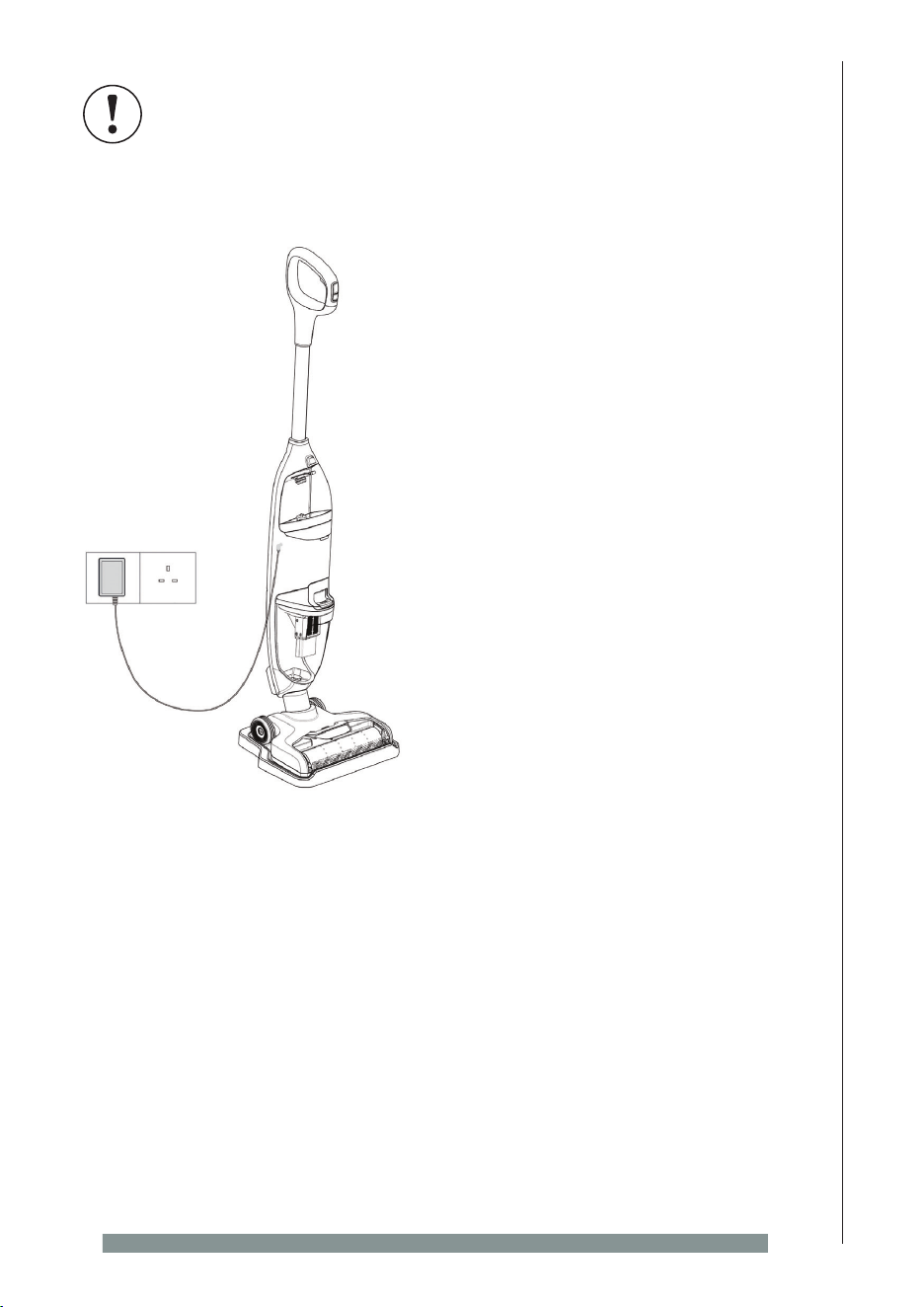

Note: Before the first use, please charge the appliance for 3-4 hours (refer to
“Charging Instructions” for details).
Use directly when you just need to absorb water; add water/solution when you need
to deep clean the floor (refer to “FILLING CLEAN WATER TANK” for details).

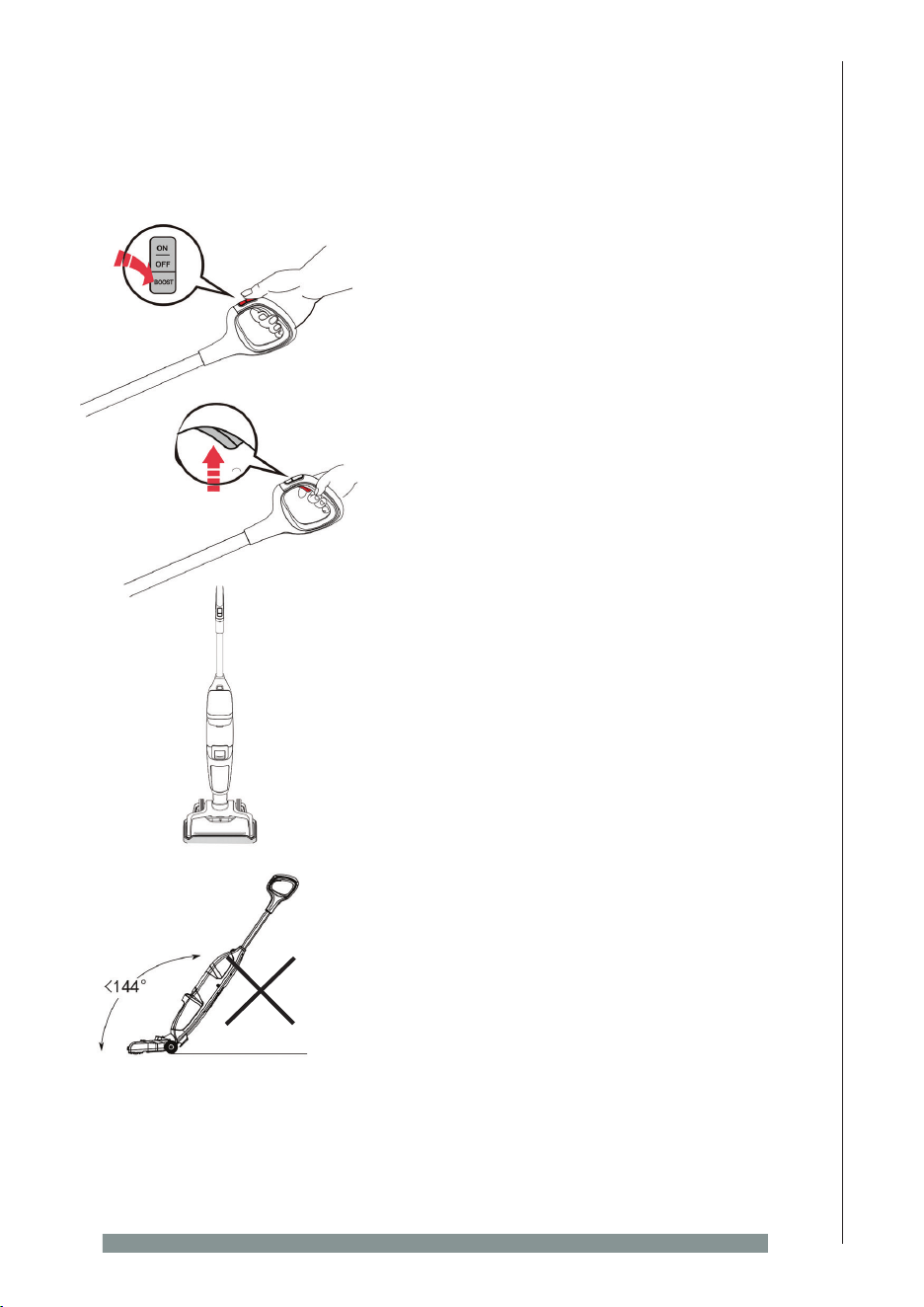

Switch ON to start the machine.
Press Boost button for Boost mode to remove
tough dirt and stains with higher speed and
stronger spray.
Squeeze the Solution trigger when moving
backward to spray liquid as needed.
Place the appliance on the storage tray vertically
after use.
Note: Do not recline the appliance over 144° to
prevent water leakage.
Note:
*Do not use for absorbing foam liquid.
*When cleaning excessively dirty, press Boost button for Boost mode.
12
OPERATING INSTRUCTIONS
Press clean water tank release
button to remove it from the unit.
Open the tank cap, fill the tank with warm
tap water (60°C MAX). When deep cleaning,
add one bottle cap of floor cleaning solution
(not included) to the water, then close the cap
tightly.
Place back the tank until you hear a click.
FILLING CLEAN WATER TANK
EMPTY DIRTY WATER TANK
Press dirty water tank
release button to remove
it from the unit.
Pour dirty water and
debris out.
Place the tank back in
place until you hear
a click.
IMPORTANT NOTE: To prevent leakage during operation DO NOT fill
Clean Water Tank to the MAX line
13
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
CHARGING
OPERATING INSTRUCTIONS
The indicator light will flash red when it’s
power is low.
Please charge it.
1. Before charging the unit, please ensure
that all water has been removed from the
clean and dirty water tanks and the
machine is dry.
2. To charge the unit, connect the external
charger cord to the unit and plug into the
wall outlet.
3. To avoid tripping accidentally, please
put the unit on the storage tray near the
wall during charging.
Charge the unit only with the adaptor from Ewbank.
• For optimal performance, the unit must be charged every 3 months. It may take
3-4 hours for a full charge.
• Store appropriately indoors in a dry place. Do not expose machine to sunlight or
freezing temperature. Recommended temperature range: 4°C ~ 40°C.
IMPORTANT NOTE: To prevent leakage during operation DO NOT fill Clean
Water Tank to the MAX line
IMPORTANT NOTE: When you hear a tone change in the sound of the
motor you need to turn off the appliance immediatedly and
empty the DWT to prevent water leakage. If you are using
the appliance for large jobs then ensure you empty the DWT
regularly
14
OPERATING INSTRUCTIONS
INDICATOR LIGHT
Working
Solid blue light: Normal mode
Flashing blue light: Boost mode
Flashing red light: The appliance/brush roll is blocked,
or out of power
During Charging
Breathing blue light.
Charging Complete
Solid blue light for 2 minutes then turns off.
Battery Disposal Warning:
• Remove the built-in battery before disposing.
• Switch OFF and disconnect plug from electrical outlet before removing
the battery.
• Dispose of batteries properly and safely. DO NOT dispose of battery in fire,
water, soil or trash compactor.
• Leaks from battery cells can occur under extreme conditions. If any liquid gets on the
skin wash quickly with soap and water. If any liquid gets into the eyes, do not rub
eyes, immediately flush them with clean water continuously for a minimum of
15 minutes. Seek medical attention immediately.
15
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
CLEANING AND MAINTENANCE
Note:
• In order to maintain performance, it is recommended that you clean the
components regularly.
• For optimal performance and preventing odors, always clean and dry the DWT,
floater, filters, pre-filter, brush roll, brush roll cover after each use.
MAIN BODY
Use cloth to clean the surface with neutral
detergent. The cloth should be dry to prevent
water from entering the appliance.
Note:
After performing maintenance, place the appliance back on the storage tray vertically.
Do not expose machine to direct sunlight, and store it appropriately indoors in a dry
place.
To reduce the risk of injury, switch off and
disconnect plug from electrical outlet before
operating.
16
CLEANING AND MAINTENANCE
DIRTY WATER TANK
Note:
When dirty water reaches MAX line, the floater will block off your DWT creating a
high pitched sound indicating it’s time to switch OFF the appliance.
Switch OFF then pull up the tank lid to empty the DWT. Use 2-in-1 cleaning tool to
remove remaining debris. Rinse the inside of the dirty water tank.
FILTER & FLOATER
Note:
If the filter and the floater have been blocked, rinse with water. Take off the filter
from the tank lid, pull out the floater, and rinse them with water.
PRE-FILTER
Grasp recessed area on each side of the pre-filter and pull upward to remove, then
rinse with water. Let it dry out before placing back into the lid of the dirty water tank.
17
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
CLEANING AND MAINTENANCE
BRUSH ROLL SELF-CLEANING
hold the switch button for 3 sec
Note:
• For optimal performance, use quick self-cleaning fuction as
often as needed.
• Please empty the dirty water tank before and after
self-cleaning.
Place unit on storage tray. The clean water tank should be
at least 1/3 full of water. Press and hold the ON button
for 3 seconds to start the brush roll self-cleaning mode.
The appliance will automatically shut off once finished.
The entire self-cleaning process takes about 40 seconds.
BRUSH ROLL COVER
Note:
For optimal performance, please clean the brush roll cover periodically.
Grab the front handle while
pressing the button and pull
upward to remove.
Rinse with water
Press hook A into the lock hole
A, then press hook B into the lock
hole B.
Always latch brush cover into
right place to avoid suction loss
or water leakage.
18
BRUSH ROLL
Note:
For optimal performance, please clean the brush roll after each use.
Remove the brush roll by grabbing the
brush roll tab and pulling upward.
Take off the brush roll tab. Remove the
hair and debris wrapped around the
roller with included 2-in-1 cleaning tool.
Rinse with water. Put the brush roll back
into the tool caddy and let it dry out
before reinstalling.
Remove hair and debris from the brush
roll chamber and the opening with
tissue or cloth.
Put back brush roll by inserting the
brush roll end into the left side of the
foot, then lock the pull tab into place
by pressing downward.
CLEANING AND MAINTENANCE
19
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
TROUBLESHOOTING
If you experience difficulties with the appliance, please check the suggestions below
before contacting customer services on 01473 271272:
PROBLEM POSSIBLE CAUSES
SOLUTIONS/TIPS
Solid red right Device overheating Let your device cool
down before using
Defective product
Please contact our customer
service team
The light flashes
alternatively blue and
red
Make sure brush roll and
brush roll cover installed
correctly, clean brush roll
and debris channel
Loss of suction power
The sponge for pre-filter
is dirty
Clean the pre-filter
The DWT has picked up
maximum amount of dirty
water and has reached
MAX line
Empty the dirty water then
reinstall the DWT
The debris channel or the
airway is blocked
Empty the dirty water then
reinstall the DWT
Brush malfunction
Brush cover is not latched
in place
Reinstall brush cover
The debris channel or the
airway is blocked
Remove blockages
Machine makes
unusual noises during
normal usage
Remove blockages
The DWT has picked up
maximum amount of dirty
water and has reached
MAX line
Machine won’t
charge
The external charger cord
not correctly plugged
Unplug the charger,
then plug again into the
machine and then into the
wall outlet
Machine won’t spray
The CWT may be empty Refill CWT
The CWT may not be
installed correctly
Install the CWT correctly
20
PROBLEM POSSIBLE CAUSES
SOLUTIONS/TIPS
TROUBLESHOOTING
Air outlet cover is
leaking water
Then floater or the sponge
for pre-filter may not be
installed
The DWT has picked up
maximum amount of dirty
water and has reached
MAX line
Install the floater and the
sponge correctly
Empty the dirty water then
reinstall the DWT
Danger!
Never try to repair a defective appliance yourself. You can put yourself and/
or future users in danger. Repairs must only be done by a service engineer.
The sponge for Pre-filter
is moist
Let the sponge dry out
The floater is blocked Remove blockages
21
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
SPECIFICATION
Charging Time 3-4hrs
22mins
Rated Power 120W
Voltage 22.2V 2500mAH Li-ion
Charging Input 100-240V
Model EW3060 HYDROH1
Running Time
Waterproof IPX4
400ml
CWT Capacity 550ml
Water Flow Rate Normal: about 40ml/min
Boost: 220ml/min
DWT Capacity
22
Disposal Information
The European Directive 2012/19/EU on Waste Electrical and Electronic
Equipment (WEEE), requires that old household electrical appliances must
not be disposed of in normal unsorted municipal waste.
Old appliances must be collected separately in order to optimise the
recovery and recycling of the materials they contain and reduce the impact on human
health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation,
that when you dispose of the appliance it must be separately collected. Consumers
should contact their local authority or retailer for information concerning the correct
disposal of their old appliance.
Fuse Cover
Fuse Replacement (Class II)
Remove the fuse cover with a small flat head screw driver. Take
out the fuse and replace with a new fuse of the same Amp.
Replace the fuse cover and push back into place.
MAINS PLUG FUSE REPLACEMENT & DISPOSAL INFORMATION
23
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. 01473 271 272
Ewbank Warranty Terms & Conditions
This product is guaranteed for a period of 24 months as standard from the date of
purchase against mechanical and electrical defects.
To qualify for the warranty, the product must be used for domestic household use
only and in accordance with the instructions in the user manual. Any misuse of the
product will result in the warranty being void.
The warranty does not cover accidental damage, misuse, neglect, tampering or
incorrect adjustment or installation.
The warranty will be rendered invalid if the product is resold, has had its serial
number removed (or has an invalid serial number), or if an unauthorised person
has carried out any repairs or alterations.
The warranty does not cover accessories or consumable parts that require
replacement under normal use. This includes shelving, dials, filters, belts and trays
etc.
In the unlikely event of a breakdown please refer to the Troubleshooting guide in
your user manual and check all plugs, fuses and the electricity supply.
If you still require assistance please contact our Customer Service department on
01473 271 272 or write to us at the following address:
Customer Service Department
Ewbank, 38 Bluestem Road,
Ipswich, Suffolk, IP3 9RR
Please quote the Product Code and the PO Number on the rating label and give
details of the exact fault. We will then decide whether to repair or replace the
item.
Before we arrange the repair or replacement you will be required to return a copy
of your proof of purchase. Please retain your original.
If an item is replaced within the agreed warranty period, the warranty for the
replacement item will be calculated from the purchase date of the original.
In the event that the product is inspected and no fault is found or the product is not
within the warranty period you will be charged for the repair and any carriage
costs.
WARRANTY TERMS & CONDITIONS
Disclaimer: Ewbank operate a policy of continual improvement and development.
We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice.
All diagrams and images shown in this manual are for illustration purposes only.
Your Guarantee
This product is covered by a 2 year guarantee.
This does not cover normal wear and tear or abuse.
For guarantee purposes, please retain your original receipt as proof of purchase.
This guarantee does not affect your statuatory rights.
For spares, service and further information please contact;
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR
Tel: 01473 271 272
