Blackstone 6831 Select 16 Inch Pizza Oven Dual Side User Manual

BLACKSTONEPRODUCTS.COM/SUPPORT

ENGLISH

SAFETY ALERT KEY

 dANGeR

Indicates a hazardous situation

that, if not avoided, will result in

death or serious injury�



CAUTIoN

Indicates a hazardous situation

that, if not avoided, could result

in minor or moderate injury�

 WARNING

Indicates a hazardous situation

that, if not avoided, could result

in death or serious injury�

NOTICE

Indicates information considered

important, but not hazard-

related (e�g� messages related to

property damage)�

oWNeR’S MANUAl

IMPORTANT:

This instruction manual contains important

information necessary for the proper assembly and safe

use of the appliance.

Read and follow all warnings and instructions before

assembling and using the appliance.

Follow all warnings and instructions when using

the appliance.

Keep this manual for future reference.

Installer/Assembler: leave these instructions with the consumer�

For the latest version of this manual,

scan this code or visit

BlackstoneProducts.com/support

| CoNTACT CUSToMeR SUPPoRT BeFoRe ReTURNING APPlIANCe To ReTAIleR�

Model: 6831

v05

PIZZA OVEN

WITH MOBILE CART & SIDE SHELVES

TABLE OF CONTENTS

IMPoRTANT SAFeTY INFoRMATIoN � � � � � � � � � � � � � � � � � � � � � � �02

CUSToMeR SUPPoRT � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 03

ASSeMBlY GUIde � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 04

USING YoUR BlACKSToNe � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13

TRoUBleSHooTING � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19

01

ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | IMPORTANT SAFETY INFORMATION

GAS APPLIANCE SAFETY

• The use of alcohol, prescription, or non-prescription drugs may

impair the consumer’s ability to properly assemble or safely

operate the appliance�

• Keep children and pets away from the appliance at all times�

• Have a type BC or ABC fire extinguisher readily available�

DO NOT USE FOR PURPOSES OTHER THAN INTENDED.

• For outdoor domestic use only, not for commercial use�

• do NoT use this appliance as a heater�



WARNING

Improper installation, use, adjustment, alteration, service,

modification, or maintenance can cause injury or property

damage. Refer to this manual.

INSTALLATION MUST CONFORM WITH LOCAL CODES.

In the absence of local codes, installation must conform with

either

ANSI Z223�1/NFPA 54, CSA B149�1, or CSA B149�2�

 WARNING

• do NoT store or use gasoline or other flammable liquids

or vapors in the vicinity of this or any other appliance.

• An lPG cylinder not connected for use shall not be

stored in the vicinity of this or any other appliance.

 dANGeR

If you smell gas:

• Shut oﬀ gas to the appliance.

• extinguish any open flame.

• open hood (if applicable).

• If odor continues, keep away from the appliance

and immediately call your gas supplier or your fire

department.

Failure to follow these instructions could result in fire or

property damage, personal injury or death.

 dANGeR

• NeVeR operate this appliance unattended.

• If a fire should occur, keep away from the appliance and

immediately call your fire department. do NoT attempt

to extinguish an oil or a grease fire with water.

Failure to follow these instructions could result in fire or

property damage, personal injury or death.

ELECTRIC APPLIANCE SAFETY

TO PROTECT AGAINST ELECTRIC SHOCK:

• do NoT immerse cord or plugs in water or other liquid�

• Unplug from the outlet when not in use and before cleaning� Allow

to cool before putting on or taking o parts�

• do NoT operate this appliance with a damaged cord, plug, or after

the appliance malfunctions or has been damaged in any manner�

Contact the manufacturer for repair�

• do NoT let the cord hang over the edge of a table or touch

hot surfaces�

• Keep any electrical supply cord and the fuel supply hose away from

heated surfaces�

• When connecting, first connect plug to the appliance then into

the outlet�

Model: 6831

IMPORTANT SAFETY INFORMATION

02

BLACKSTONEPRODUCTS.COM/SUPPORT

ENGLISH

| OWNER’S MANUALCUSTOMER SUPPORT

In no event shall North Atlantic Imports, llC be liable for consequen-

tial, indirect or incidental damages resulting from the installation,

use or failure of the product�

This warranty doeS NoT cover:

• Inspection costs or labor for replacement of any defective part(s);

• Cosmetic defects which do NoT aect product performance or

integrity;

• Normal wear and tear;

• damage due to vandalism; acts of nature, including but not limited

to wind, storms, hail, floods;

• Improper assembly, installation, or use;

• discoloration or fading of the finish as a result of exposure to chem-

icals, spills, pool or salt water;

• Corrosion/ rust�

This product has been designed for safety and quality� Any modifica-

tions made to the original product could compromise its structural

integrity or function and could lead to product failure or personal

injury� As such, modifying this product voids all warranties�

This product is for ReSIdeNTIAl USe oNlY, and is not for commercial,

contract or other non-residential purposes� North Atlantic Imports,

llC disclaims all other representations and warranties of any kind,

express or implied�

The warranty applies to the original purchaser and is non-trans-

ferable� It does not apply to accessories or parts not supplied with

the product, to purchases of display models, or to product that is

sold on clearance or “as is”� You may, however, have other specific

legal rights based on the laws of your specific state or country of

residence�

To activate your warranty, register your product at

North Atlantic Imports, llC reserves the right to change or modify

this warranty at any time�

CONTACT US THREE YEAR WARRANTY

North Atlantic Imports, llC warrants this product against defects

in materials and workmanship for a period of three (3) years from

the original date of purchase under normal use� To the extent any

such defects occur, North Atlantic Imports, llC, in its discretion, will

provide the appropriate replacement part(s) at no charge�

Visit us online at BlackstoneProducts.com/support

for assistance concerning appliance use, replacement parts, or

your warranty�

CUSTOMER SUPPORT HOURS:



Monday – Friday

7:00 am – 5:00 pm (Mountain Time Zone)

BlackstoneProducts.com/register

FRee

e-CooKBooK

WHeN YoU ReGISTeR



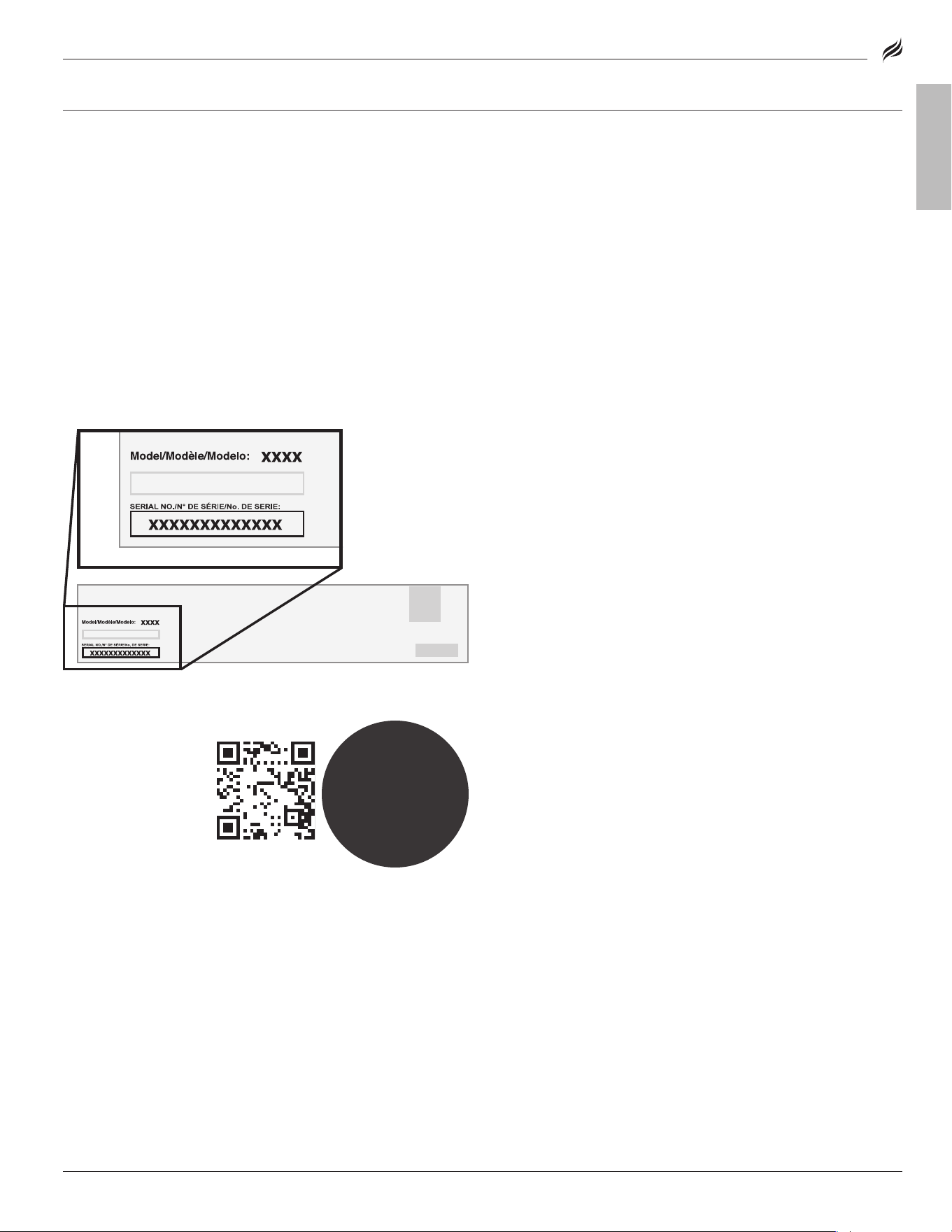

SERIAL NUMBER LOCATION

To enable your warranty, you will need to provide your appliance’s

Serial Number�

The Serial Number can be found on your appliance’s

Manufacturer label�

(The Manufacturer label is a large silver sticker found on the body of your

appliance.)

��

☞

Model: 6831

CUSTOMER SUPPORT

03

ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | ASSEMBLY GUIDE Model: 6831

ASSEMBLY GUIDE

PARTS

QTY

1.1a

Control panel 1

1.1b

Nameplate

1

1.1c

Control knob bezels

2

1.1d

Control knobs

2

1.2a

Burner box surround

panel

1

1.2b

Burner connecting

plates

2

1.3a

Burner box bottom

panel

1

PARTS

QTY

1.3b

Burner base panel 1

1.3c

Burner insulation

panel

1

1.3d

Burner bottom panel

plate

1

1.4a

oven body surround

panel

1

1.4b

oven door seat

1

1.4c

Thermometer

1

PARTS

QTY

1.4d

Thermometer heat

shield

1

1.5a

oven body bottom

panel

1

1.5b

Burner head support

1

1.6a

Upper pizza chamber

1

1.6b

lower pizza

chamber

1

1.6c

Fire bale panel

1

1.7a

Ignitor

1

PARTS

QTY

1.7b

Motor button 1

1.8a

Burner A

1

1.8b

Burner B

1

1.9a

Gas line and regu-

lator assembly

1

1.9b

Safety valve thermo-

couple

1

1.9c

Ignition needle A

1

1.9d

Ignition needle B

1

3.1

Wing screw

1

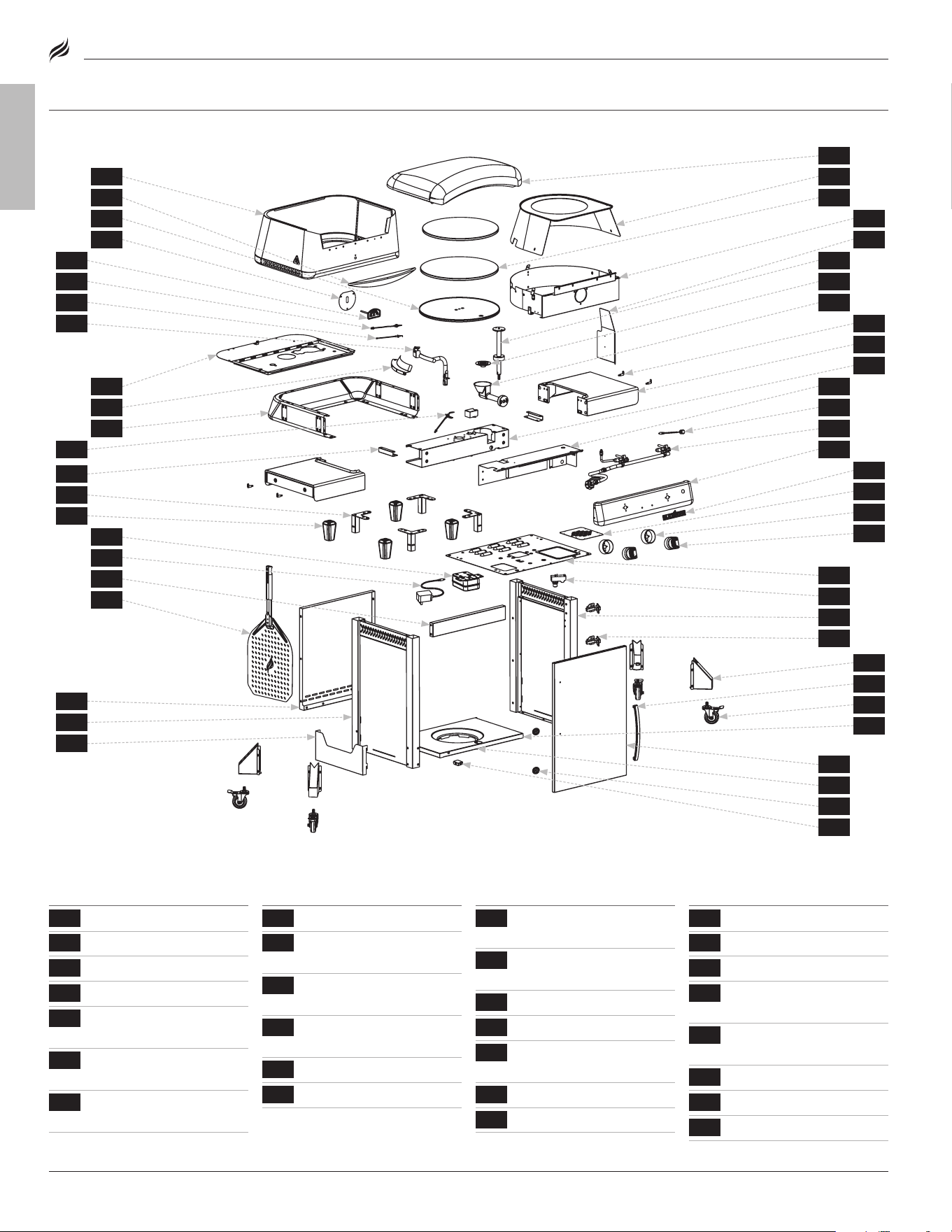

ExPLODED VIEW

PARTS LIST

1.6c

25

13

7

19

4

16

10

22

2

26

14

8

20

5

17

11

23

3

15

9

21

6

18

12

24

1.1a

1.9b

1.4d

1.5a

1.7a

1.1d

3.1

1.6a1.4a

1.8b

1.1b

1.9c

1.3a

1.3b

1.7b

1.2a

1.6b

1.4b

1.5b

1.1c

1.9d

1.3b

1.3c

1.8a

1.2b

1.4c

1.9a

04

BLACKSTONEPRODUCTS.COM/SUPPORT

ENGLISH

| OWNER’S MANUALASSEMBLY GUIDEModel: 6831

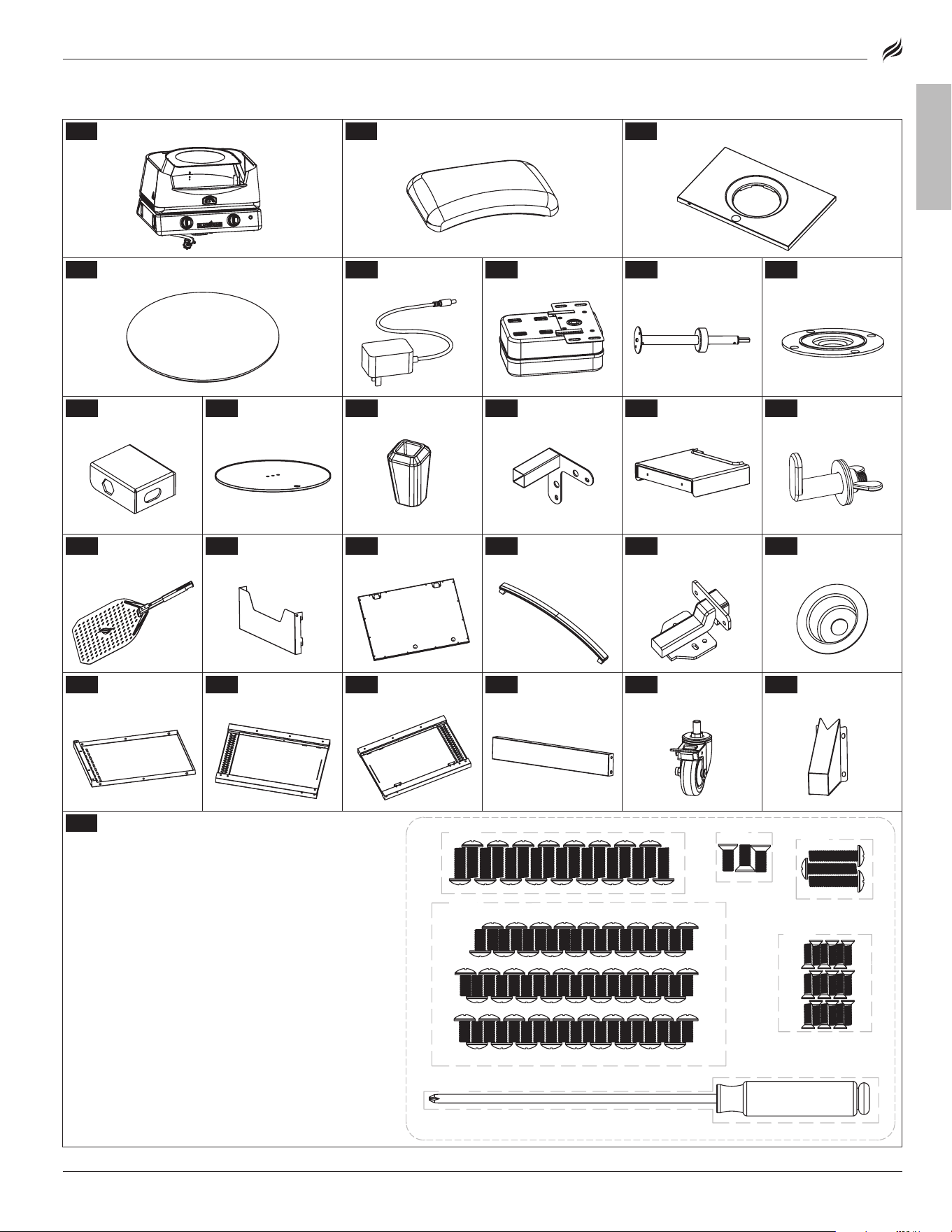

1

oven body (1 piece)

2

oven lid (1 piece)

3

Cart base (1 piece)

4

Pizza stones (2 pieces)

5

Power cord

(1 piece)

6

Motor (1 piece)

7

Rotating shaft

(1 piece)

8

Bearing bracket

(1 piece)

9

limiter (1 piece)

10

Turntable

(1 piece)

11

Feet (4 pieces)

12

legs (4 pieces)

13

Side shelves

(2 pieces)

14

Side shelf hooks

(4 pieces)

15

Pizza peel

(1 piece)

16

Pizza peel

holder (1 piece)

17

door panel

(1 piece)

18

door handle

(1 piece)

19

Hinges

(2 pieces)

20

Handle sleeves

(2 pieces)

21

Rear cart panel

(1 piece)

22

left cart panel

(1 piece)

23

Right cart panel

(1 piece)

24

Front cart panel

(1 piece)

25

Caster wheels

(4 pieces)

26

Wheel brackets

(4 pieces)

27

Hardware pack (1 piece)

a. M6x14 black screws (17 pieces)

b. M6x12 screws (56 pieces)

c. M6x12 countersunk screws (3 pieces)

d. M6x18 screws (3 pieces)

e. M4x12 countersunk screws (18 pieces)

f. Phillips head screwdriver (1 piece)

[a.]

[b.]

[f.]

[e.]

[c.]

[d.]

05

ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | ASSEMBLY GUIDE

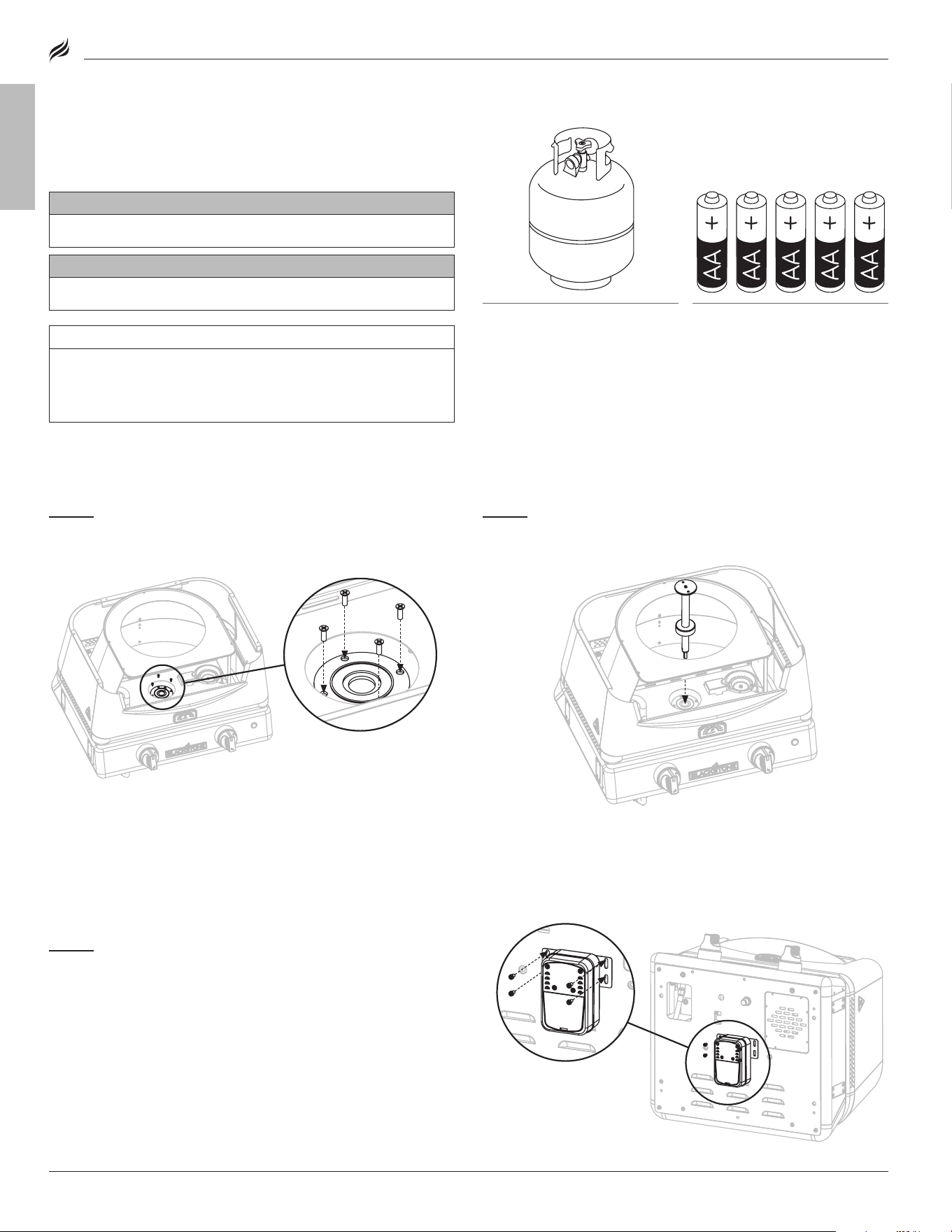

ASSeMBlY INSTRUCTIoNS

Find a large, clean area to assemble your appliance�

Remove all packing material before assembling�

 CAUTIoN

Sharp edges. Wear gloves while assembling.

NOT INCLUDED (OPTIONAL):

Two (2) d batteries

ELECTRIC REQUIREMENTS:

120V 60Hz

 CAUTIoN

Heavy pieces. Two people should assemble this appliance.

NOTICE

Place appliance on a heat-resistant and flame-resistant

surface while in use.

 CAUTIoN

Hot appliance. The cover/lid/hood (as applicable) MUST be

open/removed when the appliance is in use.

NOTICE

• DO NOT mix old and new batteries.

• DO NOT mix alkaline, standard (carbon-zinc) or rechargeable

(ni-cad, ni-mh, etc.) batteries.

NOTICE

DO NOT place items on stabilizing shelf during use.

TOOLS NEEDED:

#3 Phillips head screwdriver &

Adjustable wrench

TOOL NEEDED:

#3 Phillips head screwdriver

TOOL NEEDED:

Adjustable wrench

TOOL NEEDED:

5mm Allen wrench

NOT INCLUDED:

lPG cylinder

Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)

lPG cylinder must include collar to

protect lPG cylinder valve.

NOT INCLUDED:

17" griddle base

NOT INCLUDED:

22" griddle base

NOT INCLUDED:

AA battery

NOT INCLUDED:

lPG cylinder

Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)

NOT INCLUDED:

one (1) AA battery (for ignition)

optional four (4) AA batteries

(for the motor)

TOOLS NEEDED:

#3 Phillips head screwdriver &

Adjustable wrench

TOOL NEEDED:

#3 Phillips head screwdriver

TOOL NEEDED:

Adjustable wrench

TOOL NEEDED:

5mm Allen wrench

NOT INCLUDED:

lPG cylinder

Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)

lPG cylinder must include collar to lPG cylinder must include collar to

protect lPG cylinder valve. protect lPG cylinder valve.

NOT INCLUDED:

17" griddle base

NOT INCLUDED:

22" griddle base

NOT INCLUDED:

AA battery

NOT INCLUDED:

lPG cylinder

Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)

NOT INCLUDED:

one (1) AA battery (for ignition)

optional four (4) AA batteries

(for the motor)

 CAUTIoN

Heavy pieces. Two people should assemble this appliance.

NOTICE

Place appliance on a heat-resistant and flame-resistant

surface while in use.

 CAUTIoN

Hot appliance. The cover/lid/hood (as applicable) MUST be

open/removed when the appliance is in use.

NOTICE

• DO NOT mix old and new batteries.

• DO NOT mix alkaline, standard (carbon-zinc) or rechargeable

(ni-cad, ni-mh, etc.) batteries.

NOTICE

DO NOT place items on stabilizing shelf during use.

Model: 6831

STEP 03

Use four (4) M6x14 black screws [a.] to attach the motor to

the underside of the burner box�

Note: ensure that the rotating shaft is aligned before tight-

ening screws�

STEP 01

Place the oven base on a smooth flat surface�

Use four (4) M4x12 countersunk screws [e.] to attach the bearing

bracket to the oven floor�

STEP 02

Insert the rotating shaft through the bronze sleeve and into

the bearing bracket�

06

BLACKSTONEPRODUCTS.COM/SUPPORT

ENGLISH

| OWNER’S MANUALASSEMBLY GUIDEModel: 6831

STEP 07

Use eight (8) M6x14 black screws [a.] to attach the four (4)

legs to the underside of the burner box�

STEP 06

Remove the feet from the legs�

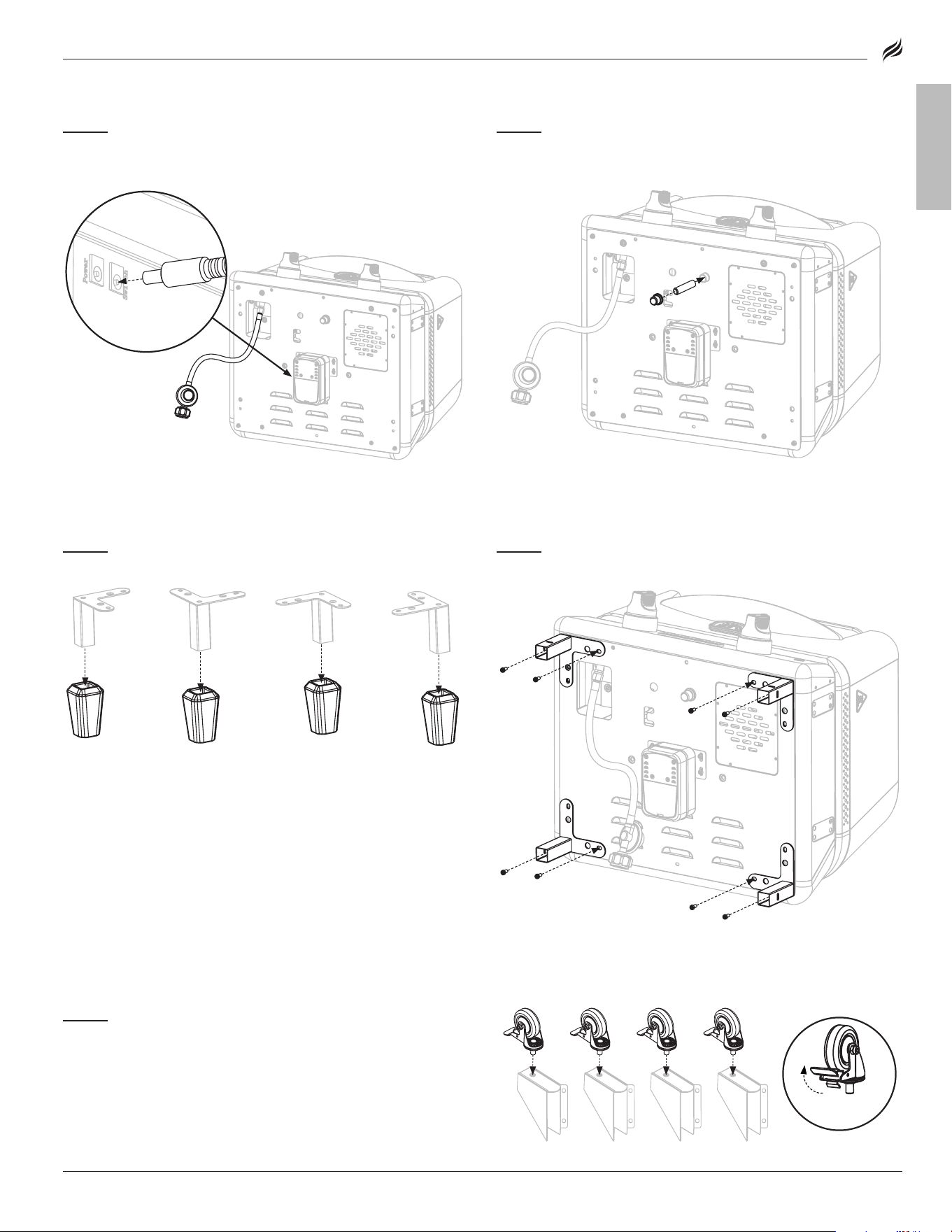

STEP 04

Pull the regulator and switch cable out of the base

(cut zipties)�

Plug the switch cable into the motor�

STEP 05

Insert one (1) AA battery (not included) under the

battery cap�

Screw the cap into place over the positive terminal�

STEP 08

Screw the four (4) caster wheels into the bottom of the four

(4) wheel brackets� (ensure that the wheels are locked�)

Push to lockPush to lock

07

ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | ASSEMBLY GUIDE Model: 6831

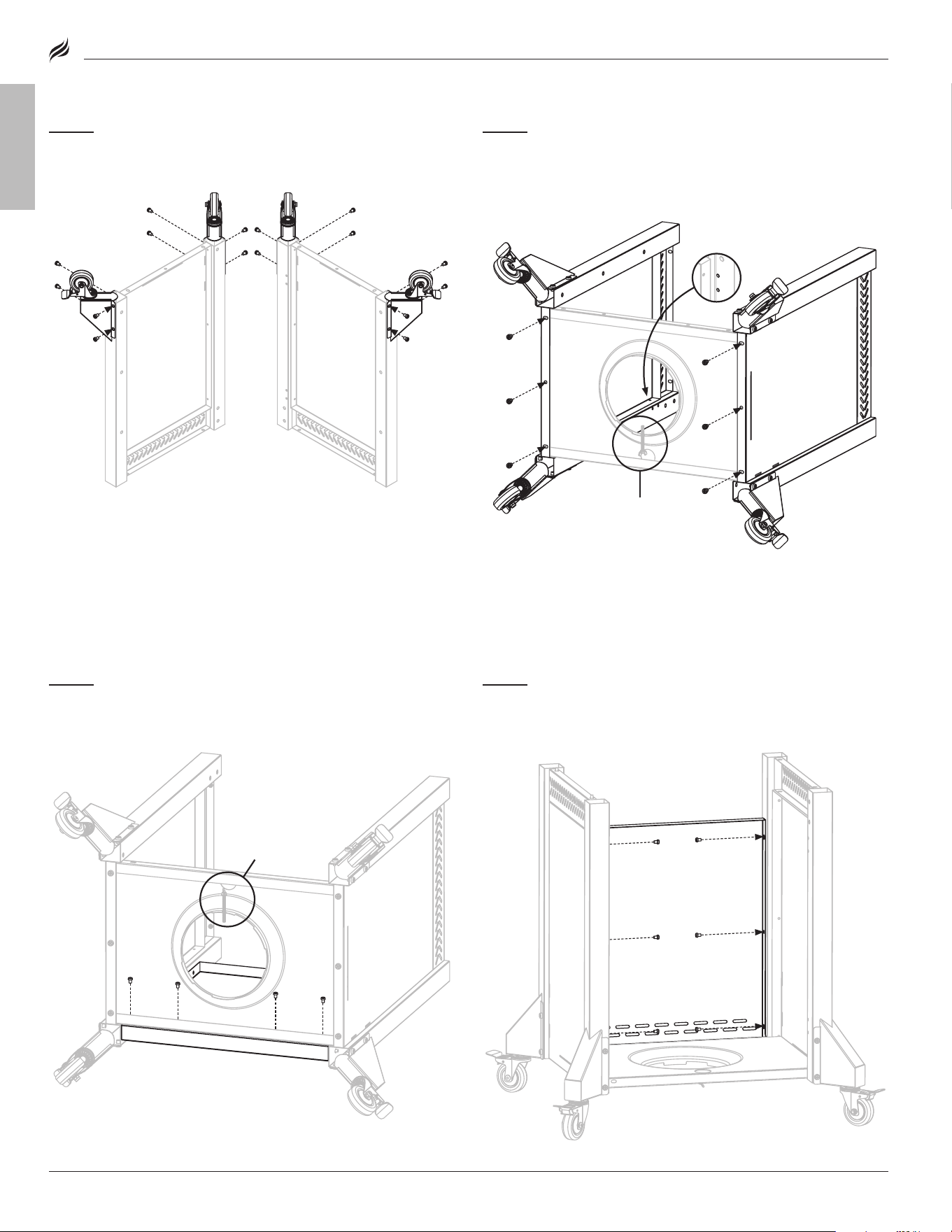

STEP 09

Use eight (8) M6x12 screws [b.] to attach two (2) wheel

assemblies to the left cart panel�

Repeat with the right cart panel�

STEP 10

Use three (3) M6x12 screws [b.] to attach the right cart panel

to the cart base�

Repeat with the left cart panel�

Note: do NoT fully tighten screws yet�

STEP 11

Use four (4) M6x12 screws [b.] to attach the rear cart panel to

the cart base�

Note: do NoT fully tighten screws yet�

STEP 12

Use six (6) M6x12 screws [b.] to attach the rear cart panel to

the left and right cart panels�

Note: do NoT fully tighten screws yet�

Front of the cart

Front right hinge

holes

08

BLACKSTONEPRODUCTS.COM/SUPPORT

ENGLISH

| OWNER’S MANUALASSEMBLY GUIDEModel: 6831

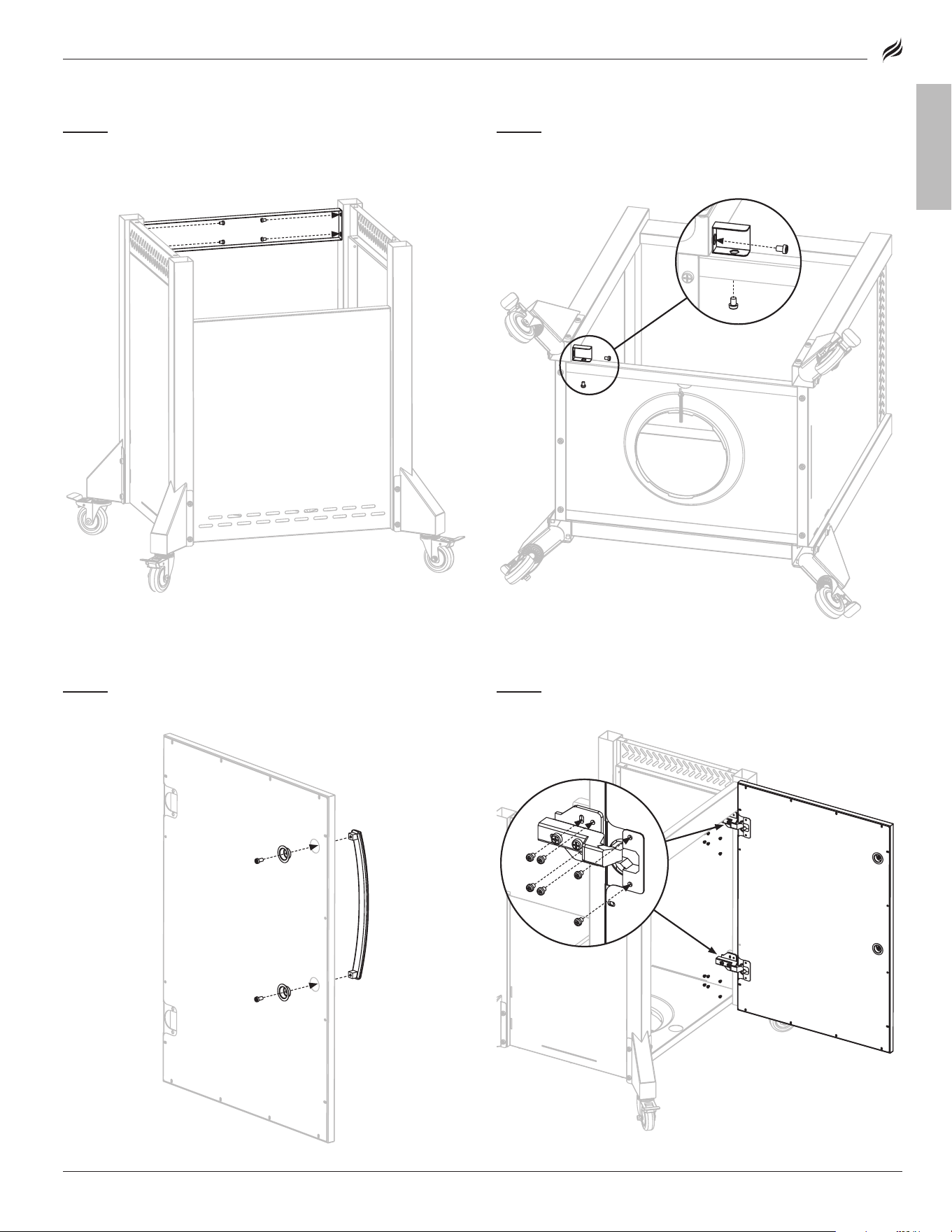

STEP 13

Use four (4) M6x12 screws [b.] to attach the front panel to the

left and right cart panels�

Note: do NoT fully tighten screws yet�

STEP 14

Use two (2) M6x12 screws [b.] to attach the limiter to the left

cart panel and the cart base�

Note: Tighten all screws from the previous four steps�

STEP 15

Use two (2) M6x18 screws [d.] to attach the two (2) handle

sleeves and door handle to the cart door�

STEP 16

Use twelve (12) M4x12 countersunk screws [e.] to attach the

two (2) hinges to the door and cart�

09

ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | ASSEMBLY GUIDE Model: 6831

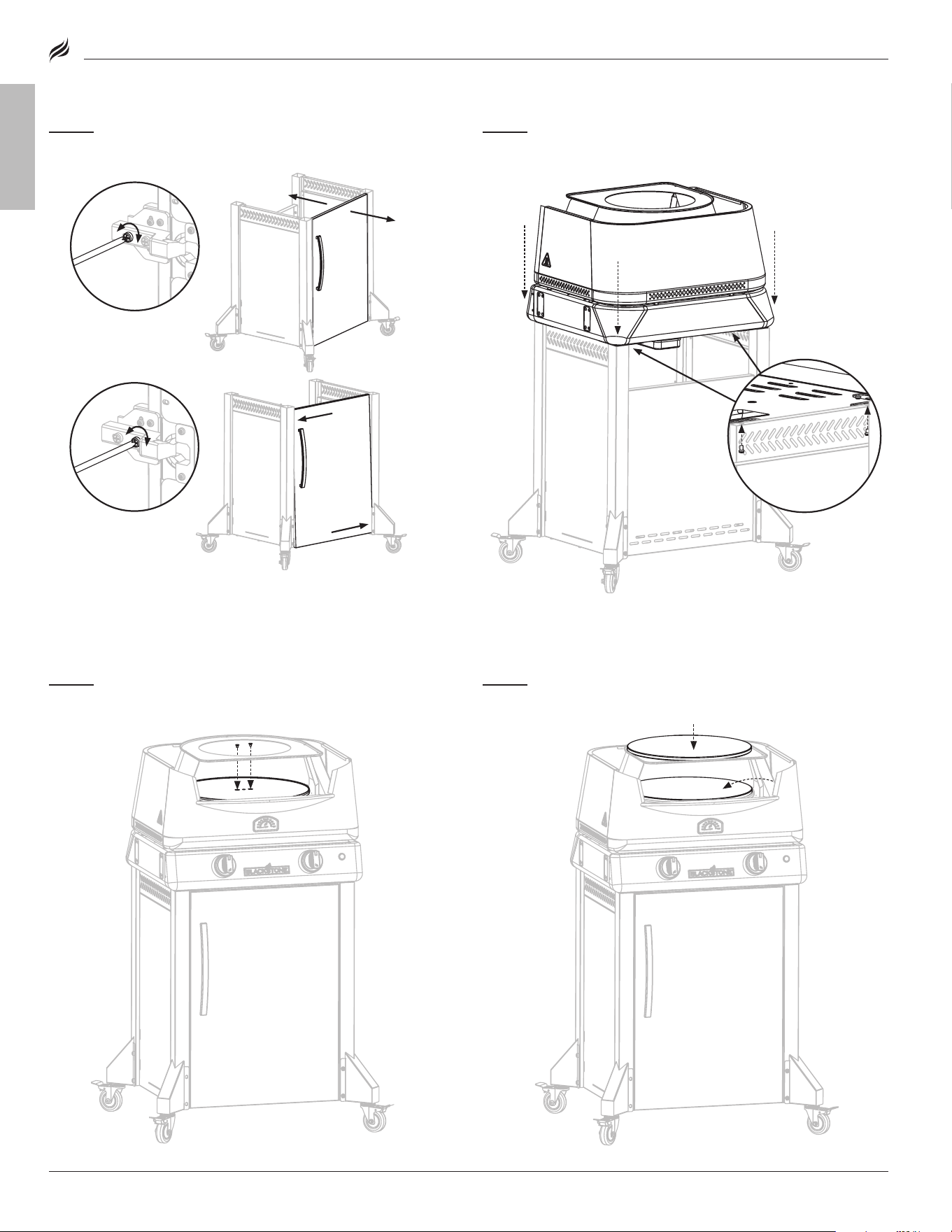

STEP 20

Set one (1) pizza stone on the cast iron turntable� Place one

(1) pizza stone on the upper pizza chamber�

STEP 18

With the help of another person, set the oven body on the

cart� Use four (4) M6x14 black screws [a.] to secure�

STEP 17

Adjust screws (A) and (B) on the door hinges to align the

door in the cart frame�

STEP 19

Use two (2) M6x12 countersunk screws [c.] to attach the

turntable to the rotating shaft�

A

B

10

BLACKSTONEPRODUCTS.COM/SUPPORT

ENGLISH

| OWNER’S MANUALASSEMBLY GUIDEModel: 6831

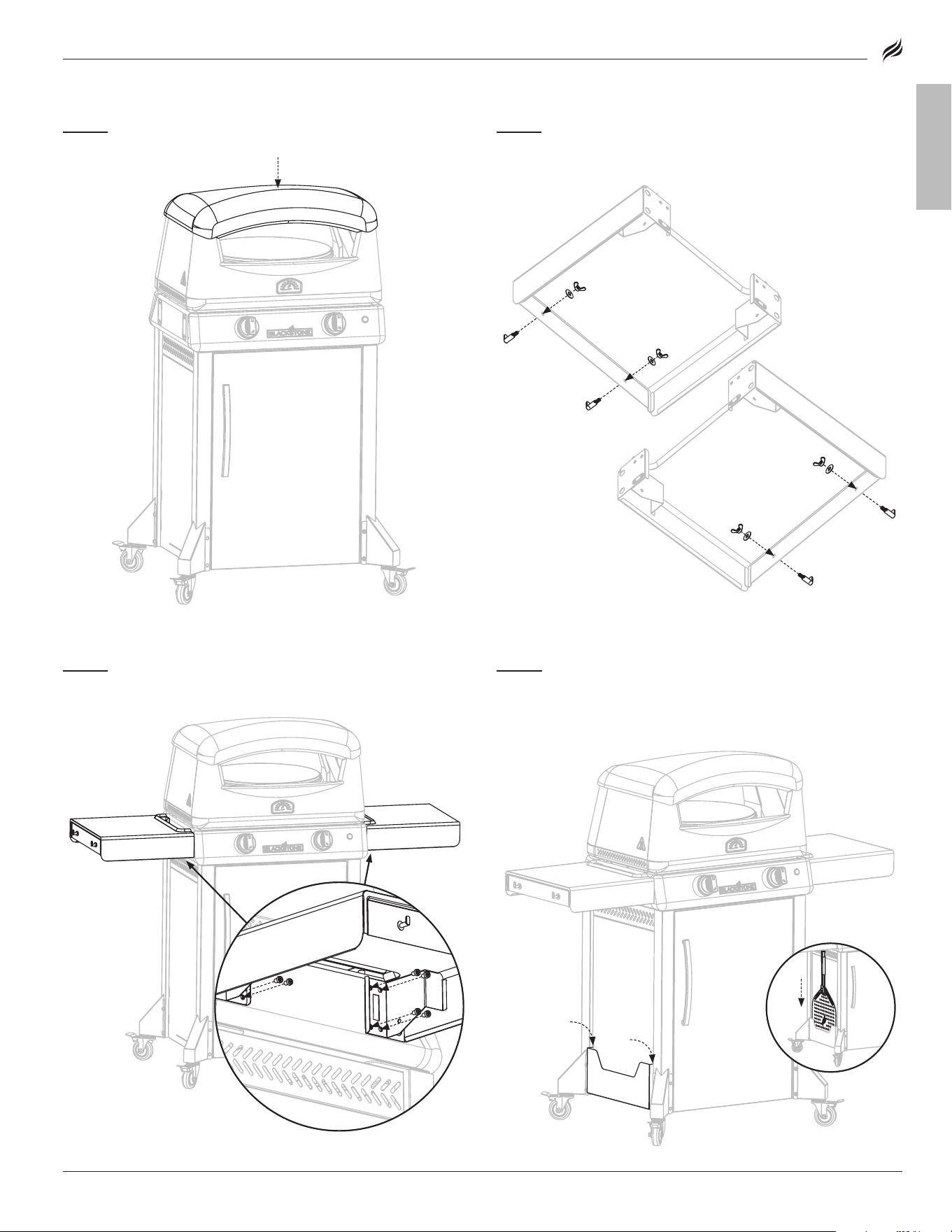

STEP 21

Set the oven lid on the oven body�

STEP 22

Screw two (2) side shelf hooks into one (1) side shelf�

Repeat with the other shelf�

STEP 23

Use sixteen (16) M6x12 screws [b.] to attach the two (2) side

shelves to the oven body�

STEP 24

If you are right handed, slide the pizza peel holder into the

slots on the right cart panel� If you are left handed, slide the pizza

peel holder into the left cart panel�

The pizza peel can be kept in the pizza peel holder when not in use�

11

ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | ASSEMBLY GUIDE Model: 6831

STEP 27

Proceed to USING YOUR BLACKSTONE�

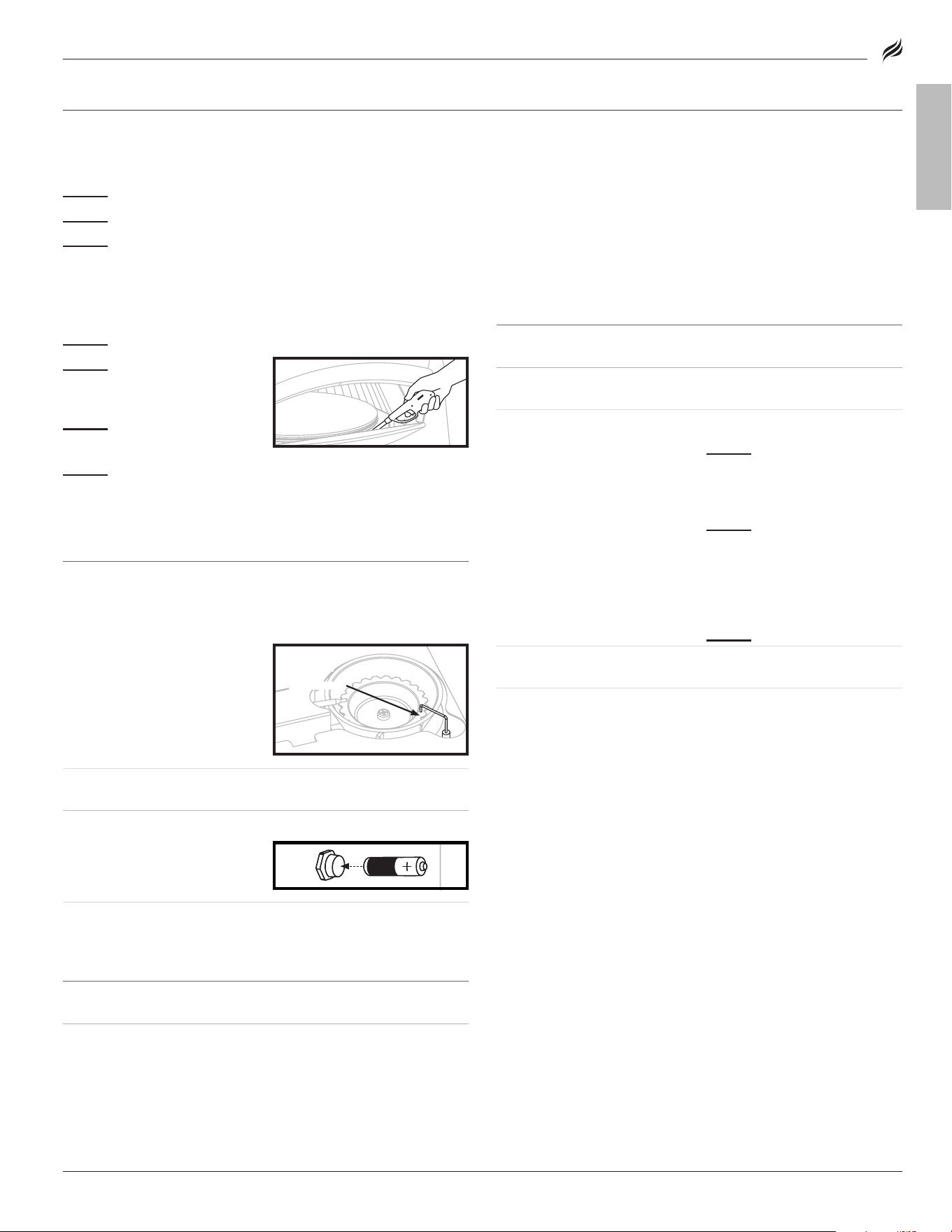

FOR TABLETOP USE:

STEP 01

Remove the four (4)

M6x14 black screws that are

securing the oven body to the

cart, and the screw attaching the

regulator to the left panel�

STEP 02

Thread the four M6x14

black screws back into the

oven body�

STEP 03

Slide the four (4) feet

onto the legs�

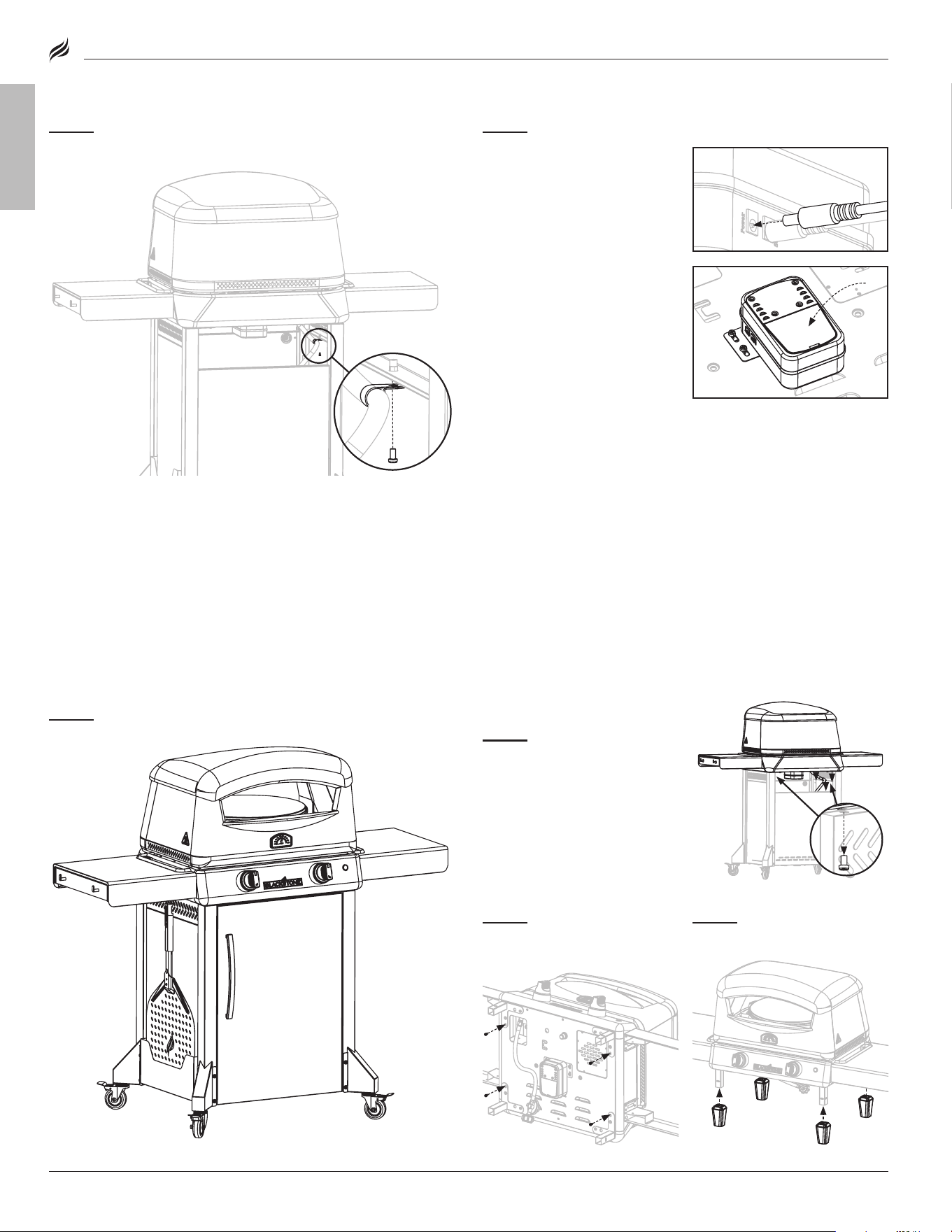

STEP 25

Use one (1) M4x12 countersunk screw [e.] to attach the regu-

lator hose fixing sleeve to the left cart panel�

OPTION A: Plug the power cord

into the motor�

OPTION B: Insert four (4) AA

batteries into the motor�

(do NoT use the batteries and

the AC power supply at the

same time�)

STEP 26

To power the motor:

12

BLACKSTONEPRODUCTS.COM/SUPPORT

ENGLISH

| OWNER’S MANUALUSING YOUR BLACKSTONE

SETTING UP YOUR OUTDOOR SPACE

THIS APPLIANCE MUST ONLY BE USED OUTDOORS.

• do NoT use this appliance inside buildings, garages, or any other

enclosed area�

• do NoT install this appliance in or on a boat�

• do NoT install this appliance in or on a recreational vehicle�

c. Within a partial enclosure that

includes an overhead cover

and three sidewalls, as long as

30% or more of the horizontal

periphery of the enclosure is

permanently open�

b. Within a partial enclosure that

includes an overhead cover

and no more than two side-

walls� The sidewalls may be

parallel, as in a breezeway, or

at right angles to each other�

a. With walls on three sides, but

with no overhead cover�

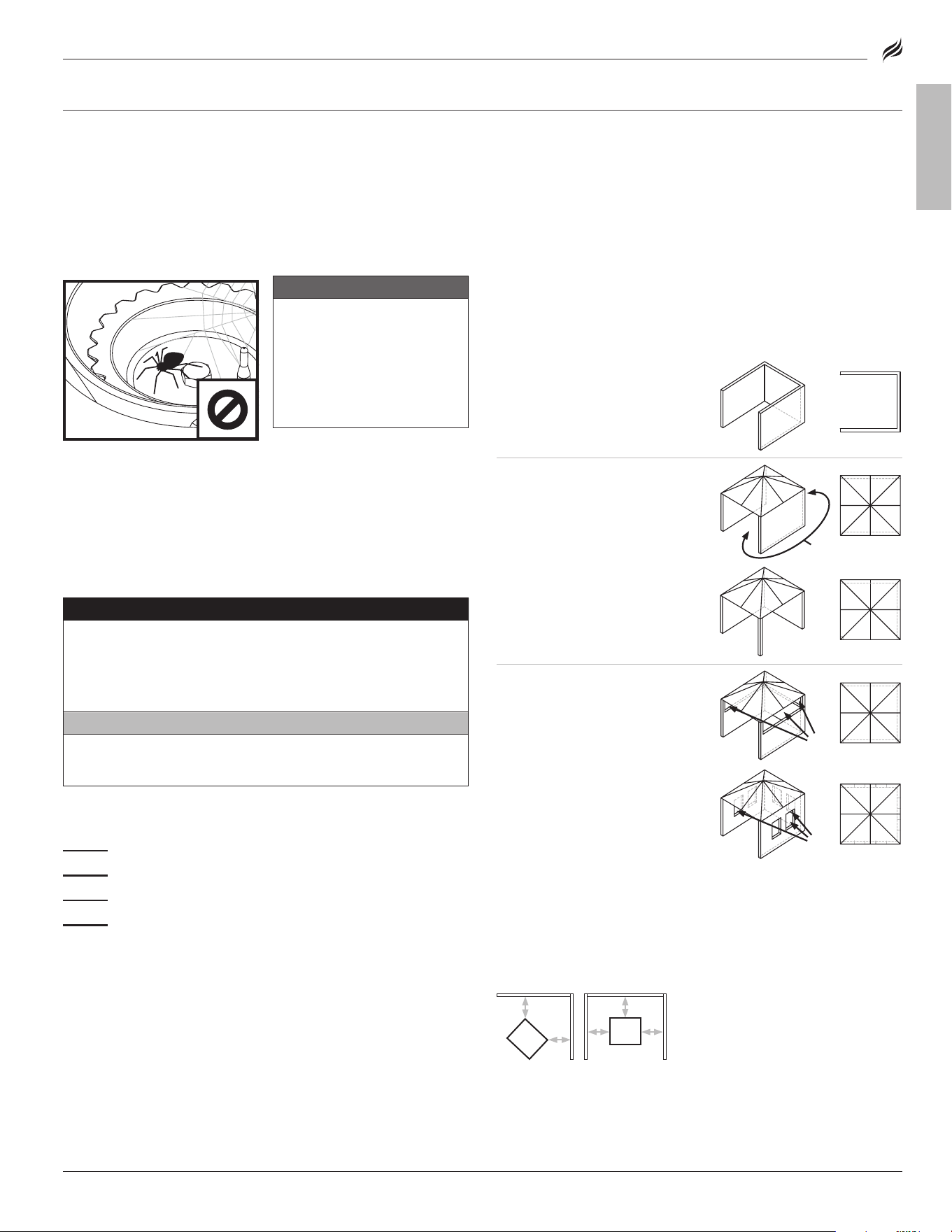

SHELTERED OUTDOOR AREAS:

All openings must be permanently open; sliding doors, garage doors,

windows or screened openings are not considered as permanent

openings�

An appliance is considered to be outdoors if installed with shelter no

more inclusive than:

MAINTAIN PROPER CLEARANCES FROM COMBUSTIBLE MATERIAL.

• do NoT use this appliance on or under any apartment or condo-

minium balcony or deck�

• do NoT obstruct the flow of combustion and ventilation air�

• do NoT operate this appliance any closer than 36 in (1 m) from the

sides and back of the appliance to combustible construction�

A = 36 in (1 m)

• do NoT use this appliance under overhead combustible

construction�

BeFoRe CooKING

CHECK BURNERS

Prior to connection and use, ensure that there is no debris caught in,

or damage to, the head of the gas cylinder, regulator, hose, burner

and burner ports�

Spiders and insects can nest within and clog the burner/venturi tube

at the orifice�

 WARNING

A clogged burner can

lead to a fire beneath the

appliance.

Burner should be removed

and cleaned whenever

blockages are found.

THE MINIMUM AMBIENT OPERATING TEMPERATURE IS 0°F (-18°C).

 dANGeR

Flammable items can combust if placed near the appliance.

Keep the appliance area clear and free from combustible

materials, aerosol containers, gasoline and other flammable

vapors and liquids.

 CAUTIoN

If the appliance is fitted with a paper towel holder, the arm

must be in the open position while the appliance is in use.

IF GREASE OR OTHER HOT MATERIAL DRIPS ONTO VALVE, HOSE OR

REGULATOR:

STEP 01

Turn o gas supply immediately�

STEP 02

determine the cause and correct it�

STEP 03

Clean and inspect valve, hose and regulator�

STEP 04

Perform a leak test� (Please reference the leak Test

Instructions)



ensure that the gas

rail fuel nozzle orifice is

correctly engaged within the

burner opening�

A

Both ends open

30%

Venturi

Air intake

Blocked burner

Fuel nozzle

Burner opening

Model: 6831

USING YOUR BLACKSTONE

13

ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | USING YOUR BLACKSTONE

THE LPG CYLINDER VALVE MUST HAVE:

• Type 1 valve outlet (thread on the outside)�

• Safety relief valve�

• Ul listed overfill Protection device (oPd)� This oPd safety feature is

identified by a unique triangular hand wheel�

• dust cap�

LEAK TEST INSTRUCTIONS

• leak test new and exchanged lPG cylinders BeFoRe connecting

to griddle�

• do NoT smoke during leak test�

• do NoT use an open flame to check for gas leaks�

• Appliance must be leak tested outdoors in a well-ventilated

area, away from ignition sources such as gas fired or electrical

appliances�

• during leak test, keep appliance away from open flames or sparks�

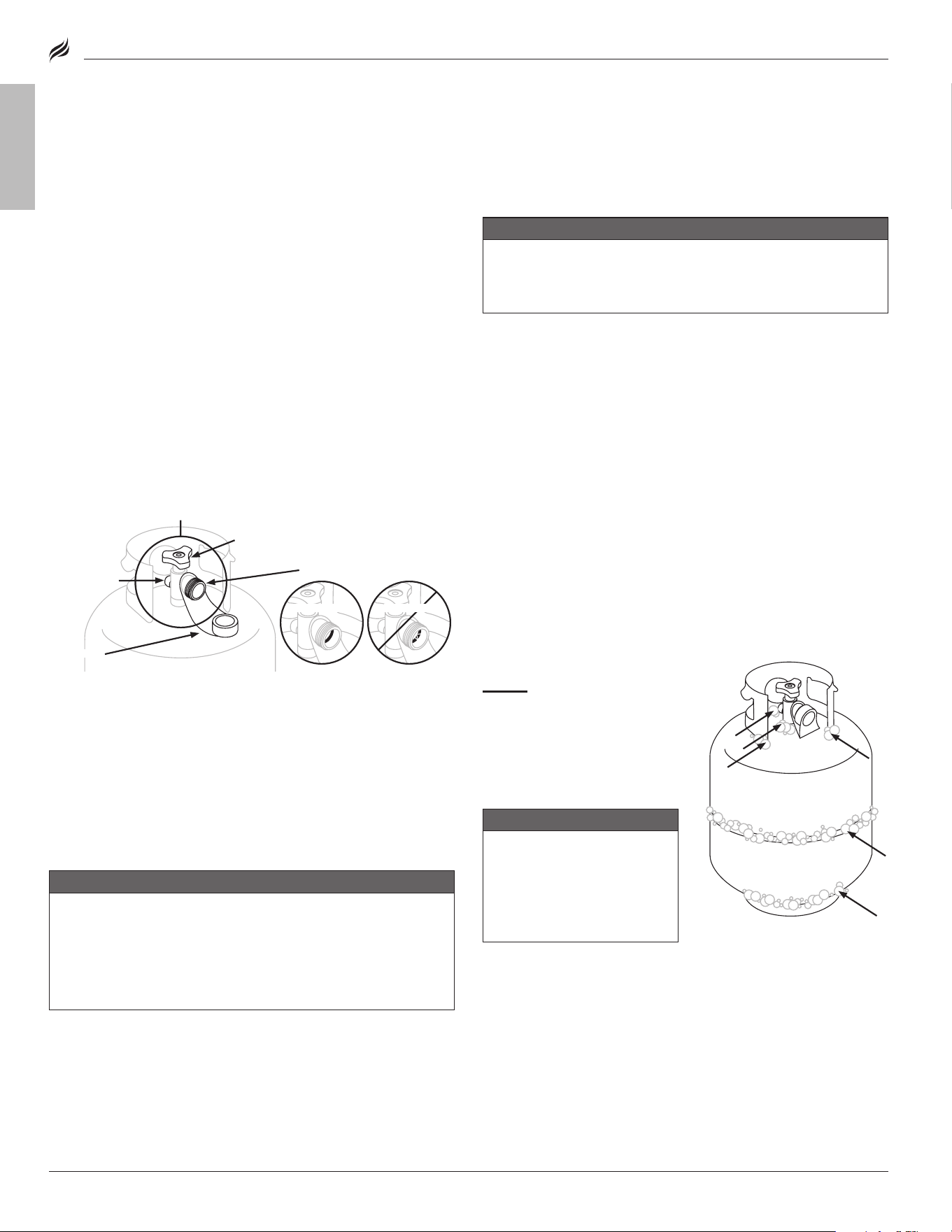

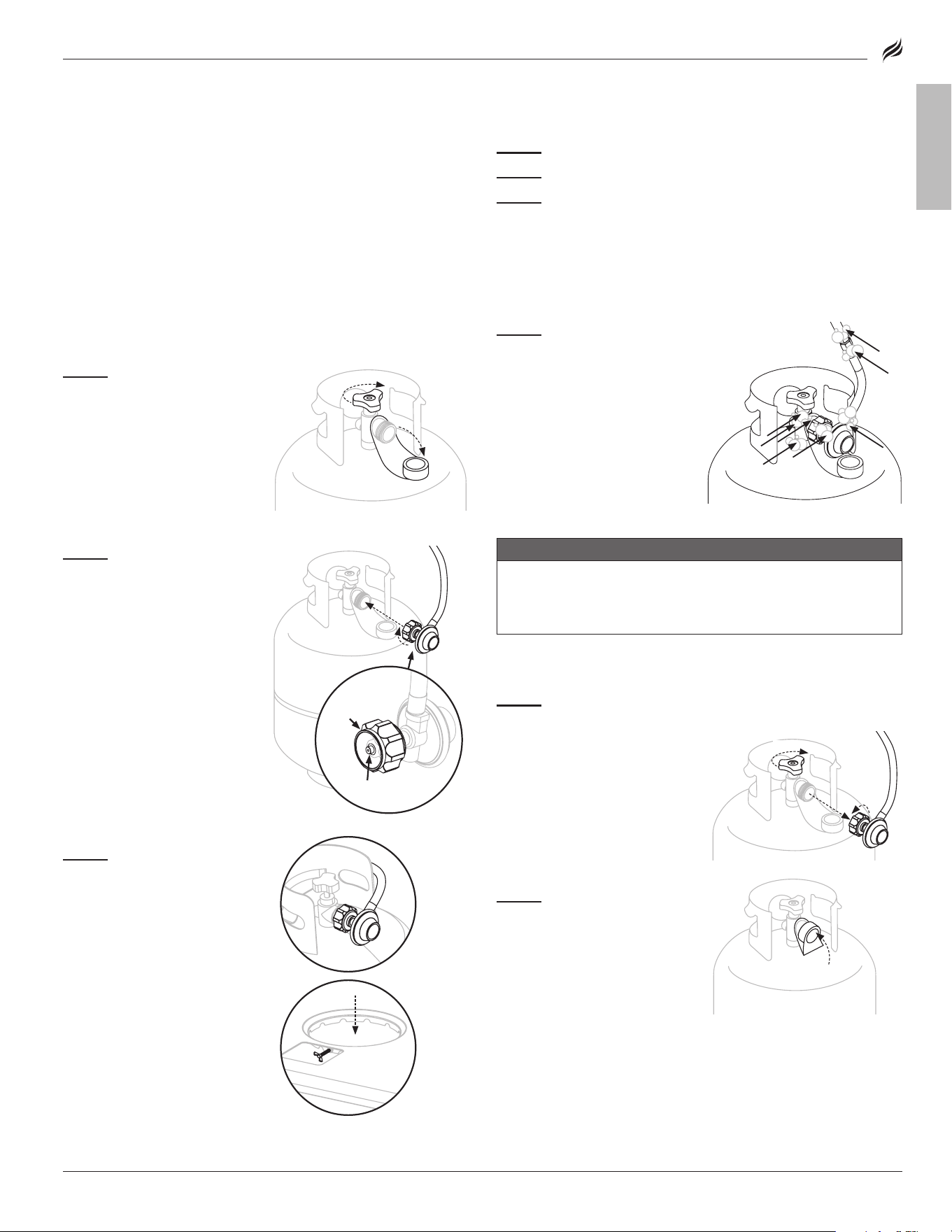

LEAK TEST: LPG CYLINDER

STEP 01

Use a clean paintbrush

to brush a 10�90 mild soap and

water solution onto joint areas of

the lPG cylinder�

(Indicated by arrows in figure 01.)

• leaks are indicated by

growing bubbles�



WARNING

If growing bubbles appear

during leak test, DO NOT use

or move the LPG cylinder.

Immediately contact an LPG

supplier or fire department.

FILLING & ExCHANGE

• Use only those reputable exchange companies that inspect, preci-

sion fill, test and certify their cylinders� lPG dealer must purge new

cylinder before filling�

• Volume of propane in cylinder will vary by temperature�



WARNING

A frosty regulator indicates gas overfill.

Immediately close LPG cylinder valve and call local LPG

dealer for assistance.

• do NoT release liquid petroleum gas (lPG) into the atmosphere�

• To remove gas from lPG cylinder, contact a certified lPG dealer or

local fire department for assistance�

• exchange cylinder only for an oPd safety feature-equipped

cylinder�

Your retailer can help you match a replacement lPG cylinder to your appliance.

lPG CYlINdeR ReQUIReMeNTS

FOR 20 LB (9 KG CYLINDERS)

• The lPG supply cylinder to be used must be constructed and

marked in accordance with the specifications for lP gas cylin-

ders, U�S� department of Transportation (doT) or the Standard for

Cylinders, Spheres and Tubes for the Transportation of dangerous

Goods, CAN/CSA-B339�

• only lPG cylinders marked “propane” shall be used�

• The lPG cylinder supply system must be arranged for vapor

withdrawal�

•

Always keep new lPG cylinders in upright position during use, transit or

storage.

•

Always keep the ventilation opening(s) of the cylinder enclosure free and

clear from debris.

STORING LPG CYLINDERS

 WARNING

• DO NOT store a spare LPG cylinder under, near, or in this

appliance.

• DO NOT fill an LPG cylinder beyond 80% full.

If the information above is not followed exactly, a fire causing

death or serious injury may occur.

• The lPG cylinder must be turned oFF when the appliance is

not in use�

• lPG cylinders must be stored outdoors and out of the reach

of children�

• do NoT store an lPG cylinder inside a building, garage, or any other

enclosed area�

The seal on the type 1 valve outlet could, over time, show marked and

visible damage or deterioration that might cause a leak even with

the connection tightened�

• A visual inspection for the seal must be carried out every time a

lPG cylinder is replace or refilled�

• Any lPG cylinder showing signs of damage or deterioration as

those illustrated including visible cracks and pitting, must be

returned unused to the seller�

FITTINGS & HOSES

• Annual checking and tightening of metal fittings is recommended�

• Keep the fuel supply hose away from any heated surfaces�

• Before each use, check to see if hoses are cut or worn�

• Replace damaged hose before using appliance�

(Use only Blackstone approved valve, hose, or regulator. Failure to comply will

void the warranty.)

lPG cylinder valvelPG cylinder valve

Safety relief

valve

oPd hand wheel

Type 1 valve outlet

(check seal before use)

GOOD SEALGOOD SEAL

BAD SEALBAD SEAL

dust cap

figure 01

Model: 6831

14

BLACKSTONEPRODUCTS.COM/SUPPORT

ENGLISH

| OWNER’S MANUALUSING YOUR BLACKSTONE

CONNECT THE LPG CYLINDER

ONLY USE A 20 LB (9 KG) CYLINDER

STEP 01

Turn the control

knobs to oFF�

❶

ensure that the lPG cylinder

is oFF by turning the oPd hand

wheel clockwise to a full stop�

❷

Remove the safety cap from

the Type 1 valve outlet�

STEP 02

Hold the regulator in a

straight line with the Type 1 valve

outlet so as not to cross thread

the connection�

Center and insert the regu-

lator nipple into the Type 1

valve outlet�

Hand-tighten the coupling nut in

a clockwise direction�

(do NoT use tools to connect�)

If connection cannot be completed,

disconnect regulator and repeat this

step.

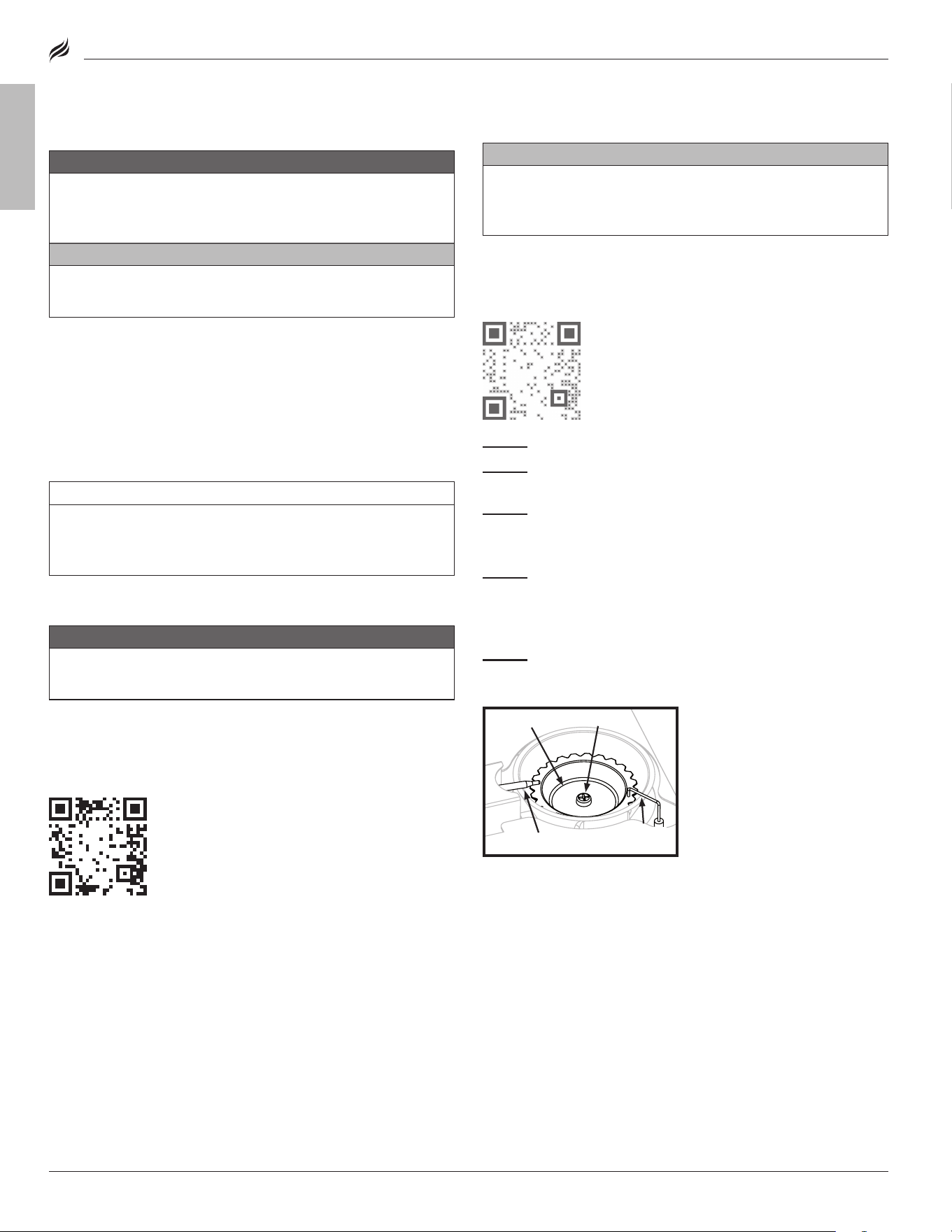

LEAK TEST: VALVES, HOSE & REGULATOR

STEP 01

Turn the control knobs to oFF�

STEP 02

Connect the regulator to the lPG cylinder�

STEP 03

Completely open the lPG tank by turning the oPd hand

wheel counterclockwise�

• If you hear a rushing sound, turn gas o immediately� There is a

major leak at the connection�

• Immediately close the lPG cylinder by turning the oPd hand wheel

clockwise and re-tighten connections� If leaks cannot be stopped

do NoT TRY To RePAIR�

STEP 04

Use a clean paintbrush

to brush a 10�90 mild soap and

water solutionn onto joint areas

of valves and regulator�

(Indicated by arrows in figure 02.)

• leaks are indicated by

growing bubbles�

• Immediately close the lPG

cylinder by turning the oPd

hand wheel clockwise and

re-tighten connections�

 WARNING

If leaks cannot be stopped, DO NOT try to repair.

Regulator must be replaced with a Blackstone approved

model by a professionally licensed, authorized dealer.

The safety relief valve must face

away from the user while the

appliance is in use�

DISCONNECTING THE LPG CYLINDER

STEP 01

ensure that the control knobs are turned to oFF�

❶

ensure that the lPG cylinder

is oFF by turning the oPd hand

wheel clockwise to a full stop�

❷

Turn the coupling nut count-

er-clockwise by hand to remove

the regulator� (do NoT use tools

to disconnect�)

STEP 02

Place dust cap on lPG

cylinder valve outlet whenever

cylinder is not in use�

only install the type of dust cap on

cylinder valve outlet that is provided

with the cylinder valve. other types of

caps or plugs may result in leakage of

propane.

REGULATOR SAFETY

• Use this appliance, as purchased, only with gas and regulator/

valve assembly supplied� do NoT use quick connect fittings or

other add-ons�

• do NoT cross thread (force at an improper angle) the connection

between your lPG cylinder and regulator�

• If you can not connect the regulator, do NoT use the regulator�

Regulator must be replaced with a Blackstone approved model by a profession-

ally licensed, authorized dealer.

❶❶

❷

Coupling nutCoupling nut

Regulator nippleRegulator nipple

figure 02

❶❶

❷

STEP 03

Set the lPG cylinder on

the cart base� Tighten the cart

base wing screw to secure it to

the appliance�

Model: 6831

15

ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | USING YOUR BLACKSTONE

❸

❸❸

❷

❷❷

❶

❶❶

❹

❹❹

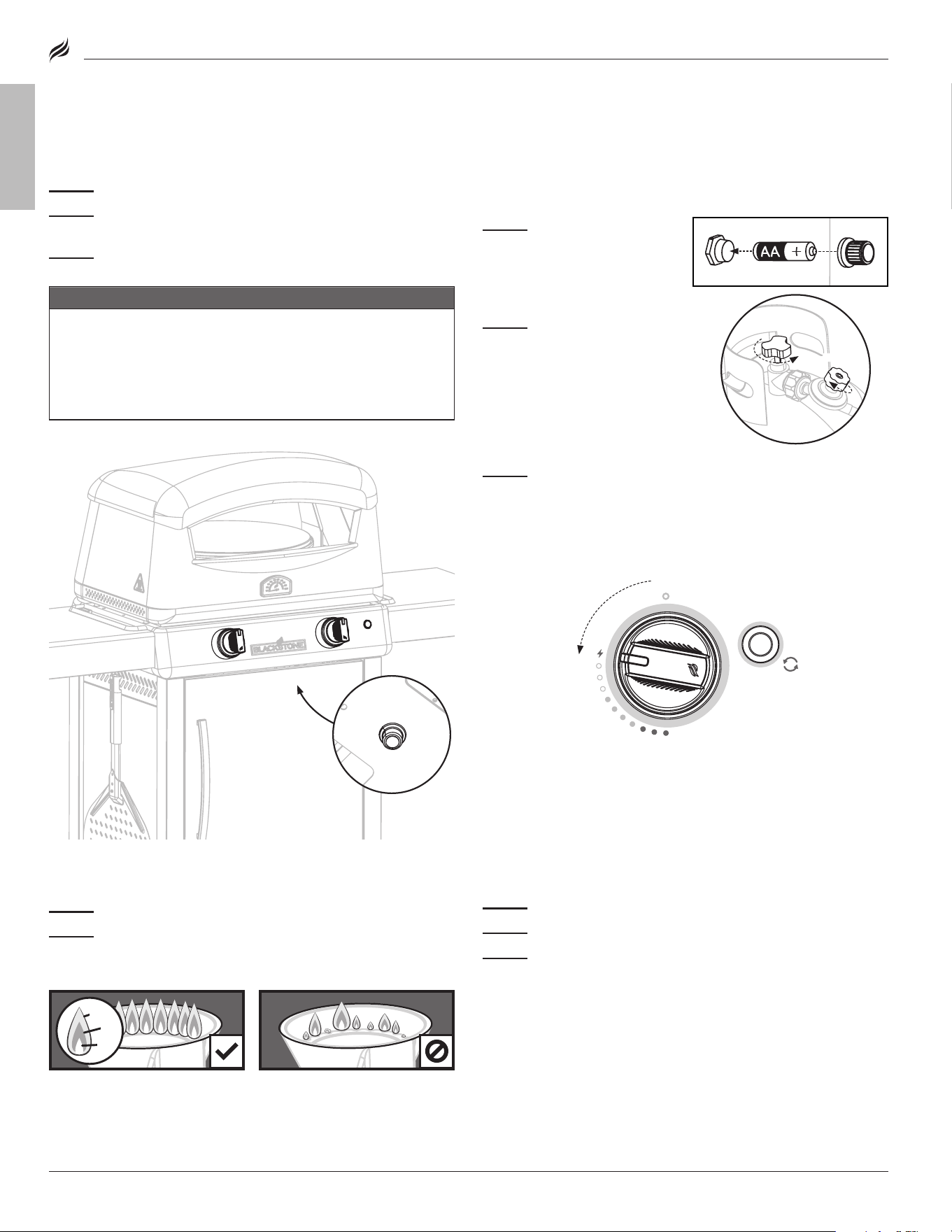

2. THERMOCOUPLE SURE-START IGNITION



Remove the oven door� do NoT use the oven door at any time

while the oven is in use�

2. THERMOCOUPLE SURE-START IGNITION



Keep the oven door closed as much as possible to reach and

maintain temperature�

STEP 01

Insert one (1) AA

battery (not included) under the

battery cap�

Screw the cap into place over the

positive terminal�

STEP 02

Turn gas oN at the lPG

cylinder by slowly turning the

oPd hand wheel counterclock-

wise 1 to 3 turns�

Tighten the red knob on the

regulator clockwise to its HIGH

position, then loosen 1 and a

half turns�

STEP 02

❶❶

Turn the Pizza oven control knob to oFF�

❷❷

Turn on the motor�

❸❸

Push in the control knob and turn counterclockwise a quarter

turn to loW� Hold in for 10~20 seconds until thermocouple heats

up� You should hear the igniter clicking the entire time� (When you

release the knob, the oven should remain lit�)

STEP 03

once the flame is consistent, adjust to desired

temperature

❹.❹.

STEP 03

❶

Turn the Pizza oven control knob to oFF�

❷

Turn on the

motor�

❸

Push in the control knob and turn counterclockwise a

quarter turn to loW� Hold in for 10~20 seconds until thermocouple

heats up� You should hear the igniter clicking the entire time� (When

you release the knob, the oven should remain lit�) once the flame is

consistent, adjust to desired temperature

❹.

For precision control of your temperature, use the control knob and the red

knob on the adjustable regulator to control the temperature of your Pizza oven.

Before first use, run the oven for 15-20 minutes on HIGH to burn oﬀ manufac-Before first use, run the oven for 15-20 minutes on HIGH to burn oﬀ manufac-

turing remnants.turing remnants.

STEP 01

ensure there is one (1)

AA battery (not included) under

the battery cap�

tightentighten

1 to 3 turns1 to 3 turns

•

Turn both knobs to HIGH to preheat.

•

While cooking, the left knob should always be on loW.

•

At the end of cooking, adjust the left knob towards HIGH to finish browning

the crust, if desired.

Note: The right control knob is the main cooking knob� The left

should be used for pre-heating and finishing�

STEP 02

Turn gas oN by turning

the gas cylinder handwheel

counterclockwise 1 to 3 turns�

2. BATTERY POWERED IGNITION



Before starting ensure all knobs are turned to oFF�

❶❶

STEP 01

Insert one (1) AA

battery (not included) under the

ignitor button�

Screw the button into place over

the positive terminal�

STEP 03

❷❷

Push and hold the ignitor button�

❸❸

Push and turn the control knob counter-clockwise to HIGH�

(Release the ignitor button when the burner lights�)

❹❹

Adjust the temperature to desired level�

IGNITIoN INSTRUCTIoNS

1. CHECK VALVES

STEP 01

Turn knob to oFF position�

STEP 02

Push in knob and release� Knob should spring back�

If knobs

do NoT

spring back, replace valve assembly before using appliance.

STEP 03

Rotate knob to loW then turn back to oFF� Knob should

turn smoothly�



WARNING

If burner does not ignite with open gas supply valve, gas

will continue to flow out of burner and could accidentally/

inadvertently ignite with risk of injury.

Ensure gas is o at the supply shut o valve before checking

appliance valves.

❷❷

❸❸

❶❶

❹❹

1 to 3 turns1 to 3 turns

❶❶

❷❷

❸❸

❶

❷

❸

HEALTHY FLAME PATTERN YELLOW OR IRREGULAR

3. ALWAYS CHECK BURNER FLAME BEFORE USE.

STEP 01

light burners and rotate knobs from HIGH to loW�

STEP 02

look below the cooking surface to view burners� When knob

is at HIGH, flames should be larger than when knob is at loW�

3. ALWAYS CHECK BURNER FLAME BEFORE USE.

STEP 01

light burner and rotate knob from loW to HIGH�

STEP 02

look below the turntable to view burner� When knob is at

HIGH, flames should be larger than when knob is at loW�

❶❶

Flickers of yellow color. Flickers of yellow color.

❷❷

dark blue color. dark blue color.

❸❸

Vibrant blue. Vibrant blue.

If there is a sudden drop or low If there is a sudden drop or low

flame issue, please reference the flame issue, please reference the

Troubleshooting chapter. Troubleshooting chapter.

IF IGNITION DOES NOT OCCUR IN 5 SECONDS:

STEP 01

Turn the burner control knob oFF�

STEP 02

Wait 5 minutes�

STEP 03

Repeat the lighting procedure�

If burner does not ignite, please reference the Troubleshooting chapter. If burner does not ignite, please reference the Troubleshooting chapter.

IF IGNITION DOES NOT OCCUR IN 5 SECONDS:

STEP 01

Turn the burner control knob oFF�

STEP 02

Wait 5 minutes�

STEP 03

Repeat the lighting procedure�

If burner does not ignite, please reference the Troubleshooting chapter.

HEALTHY FLAME PATTERN YELLOW OR IRREGULAR

❶

Flickers of yellow color.

❷

dark blue color.

❸

Vibrant blue.

If there is a sudden drop or low

flame issue, please reference the

Troubleshooting chapter.

Model: 6831

16

BLACKSTONEPRODUCTS.COM/SUPPORT

ENGLISH

| OWNER’S MANUALUSING YOUR BLACKSTONE

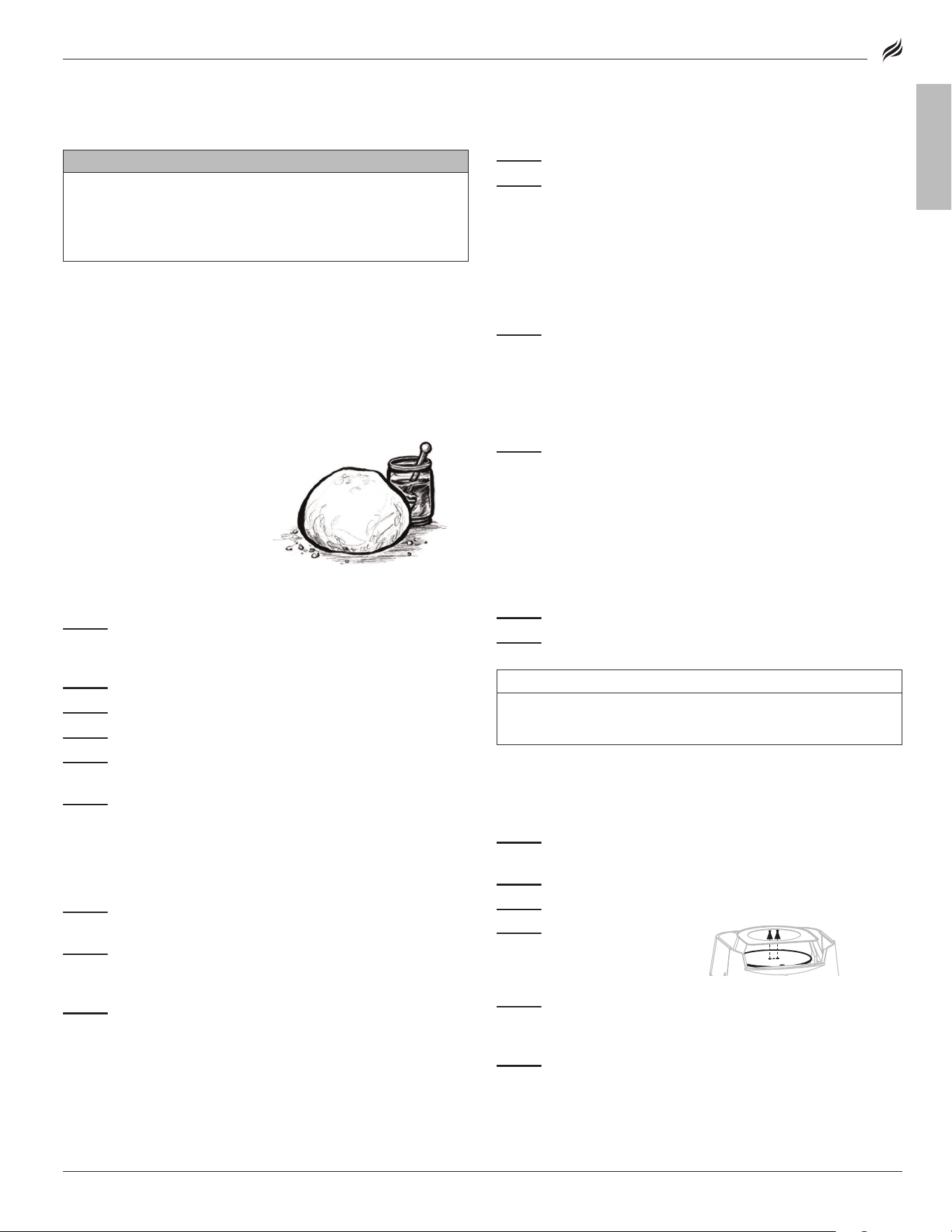

NEW YORK STYLE PIZZA DOUGH



1 hour 30 min�

STEP 01

Add water, flour, yeast, honey together in a large bowl� (don’t

add the oil and salt yet� You want the flour to hydrate first before

adding oil�)

STEP 02

Mix the dough until most of the flour is incorporated�

STEP 03

Add the oil and salt and knead your dough for 5-10 minutes�

STEP 04

Cover dough and let it rest for 10-15 minutes�

STEP 05

divide the dough into 3 pieces and round into balls� Wipe the

dough balls with oil or cooking spray�

STEP 06

Cover dough balls and let rise for about an hour�

HOW TO STRETCH PIZZA DOUGH

Important: Having your dough at room temp will make stretching it

much easier� Cold dough is very diicult to work with�

STEP 01

Generously flour your prep surface to prevent dough

from sticking�

STEP 02

Flatten the dough with the palm of your hand, starting

from the center out� Using a rolling pin is fine but won’t give you a

puy crust�

STEP 03

Pick up the dough and put it on the back of your hands�

Rotate the dough from hand to hand letting gravity do most of the

work stretching it out�

Note: Use a small amount of flour, semolina, or cornmeal on your

pizza peel to prevent sticking�

INGREDIENTS

• 4 cups of bread flour

• 1 and 1�2 cups of warm water

• 1 teaspoon of instant dry yeast

• 3 teaspoons of honey

• 2 teaspoons of salt

• 4 teaspoons of olive oil

CLASSIC MARGHERITA

• • Tomato sauceTomato sauce

• • Grated parmesan cheeseGrated parmesan cheese

• • Basil leavesBasil leaves

• • Fresh mozzarellaFresh mozzarella

• • light drizzle of olive oillight drizzle of olive oil

THAI SWEET CHILI

• • Sweet Thai chili sauceSweet Thai chili sauce

• • Chopped cooked chickenChopped cooked chicken

• • Thinly sliced red onionThinly sliced red onion

• • Chopped fresh cilantroChopped fresh cilantro

• • Shredded mozzarella cheeseShredded mozzarella cheese

BBQ CHICKEN

• • Your favorite BBQ sauceYour favorite BBQ sauce

• • Chopped cooked chickenChopped cooked chicken

• • Thinly sliced red onionThinly sliced red onion

• • Shredded mozzarella cheeseShredded mozzarella cheese

CooKING oN YoUR BlACKSToNe

 CAUTIoN

This appliance will be hot during and after use. Use long-

handled utensils and oven mitts/ protective gloves when

handling potentially hot parts, including handles close to the

appliance body, to protect against burns and splatters.

HOW TO USE YOUR PIZZA OVEN

FRESH PIZZA

STEP 01

Preheat your oven on high for about 20-25 minutes�

STEP 02

once the desired stone temperature is reached (650°-750°F

(340°- 400°C) for fresh dough pizza), turn the control knob to low�

depending on what you are cooking, you may adjust the temperature

while cooking to achieve desired results�

Note: The thermometer only measures the air temperature in the

oven, NoT the stone temperature� Use an infrared thermometer (not

included) to measure the bottom stone temperature� Proper stone

temperature is critical for consistent results.

STEP 03

Pizza cooking time is about 2-4 minutes depending on the

size and thickness of the pizza�

• Thinner foods should be cooked at a higher temperature for a

shorter time�

• Thicker or denser foods should be cooked at a lower temperature

for a longer time�

STEP 04

Pull the pizza out when the crust has reached your desired

readiness, or when the edges of the pizza crust are golden-brown�

FOR BEST RESULTS:

• Wait to put a new pizza in until the temperature of the bottom stone

is back to your desired temperature�

• Set the temperature to HIGH between cooks and loW during cooks�

• Keep the door closed as much as possible to retain heat�

• experiment with pieces of dough beforehand to determine the

optimal stone temperature for your pizza�

FROZEN PIZZAS, COOKIES, ETC.

Follow the food manufacturer’s directions� let frozen food thaw a

little before putting it into the hot oven� This will prevent your pizza

stone from cracking�

CLEANING YOUR OVEN INTERIOR

STEP 01

Apply a strong solution of detergent and water, or use an

oven cleaner with scrub brush on insides of oven lid and floor� Rinse

and allow to completely air dry�

STEP 02

Reference the Troubleshooting chapter for instructions on

cleaning the burner�

VIDEO RECIPES

Find recipes and cooking tips at:



BlackstoneProducts.com/recipes

 youtube.com/BlackstoneGriddles

   @blackstoneproducts

STRAWBERRIES AND CREAM

PANCAKES

BreakfastBreakfast

TACOS BORRACHOS

dinnerdinner

OKLAHOMA FRIED ONION BURGER

lunchlunch

CLEANING YOUR GRIDDLE TOP

Clean griddle top after each use, while still warm�

• do NoT use soap on the griddle top� This will destroy the griddle’s

seasoning�

STEP 01

Push loose food debris

into the grease cup with spatula

or straight metal scraper�

STEP 02

Wipe down griddle top

with paper towel�

STEP 03

Apply a few tablespoons

of water to the griddle surface,

then scrape the water and debris

into the grease cup�

(For stuck-on food residue, use a

bit of coarse salt�)

STEP 04

Wipe again with a paper

towel and dry completely�

STEP 05

Apply thin coat

of cooking oil to maintain

seasoning and protect the

griddle top�

VIDEO TUTORIAL

How to Clean your Blackstone Griddle

 youtube.com/watch?v=-Iedu9z6NPY

HOW TO USE YOUR PIZZA OVEN

FRESH PIZZA

STEP 01

Preheat your oven on high for about 12-15 minutes�

STEP 02

once the desired stone temperature is reached (650°-750°F

(340°- 400°C) for fresh dough pizza), turn the control knob to low�

depending on what you are cooking, you may adjust the temperature

while cooking to achieve desired results�

Note: The thermometer only measures the air temperature in the

oven, NoT the stone temperature� Use an infrared thermometer (not

included) to measure the bottom stone temperature� Proper stone

temperature is critical for consistent results.

STEP 03

Pizza cooking time is about 2-4 minutes depending on the

size and thickness of the pizza�

• Thinner foods should be cooked at a higher temperature for a

shorter time�

• Thicker or denser foods should be cooked at a lower temperature

for a longer time�

STEP 04

Pull the pizza out when the crust has reached your desired

readiness, or when the edges of the pizza crust are golden-brown�

FROZEN PIZZAS, COOKIES, ETC.

Follow the food manufacturer’s directions� let frozen food thaw a

little before putting it into the hot oven� This will prevent your pizza

stone from cracking�

CLEANING YOUR OVEN INTERIOR

If the pizza falls o the rotating stone and catches on fire:

STEP 01

Turn oFF the control knob, turn oFF the lPG cylinder, turn

oFF the rotating motor�

STEP 02

Allow the oven to completely cool�

STEP 03

Remove the oven lid, the top stone, and the lower stone�

STEP 05

Use a spatula to scrape and remove debris from cooking

cavity floor� Wipe cooking cavity with a damp cloth� do NoT use

detergent�

STEP 06

Use a vacuum if necessary to clean out food debris inside

cooking chamber�

If necessary, reference the Troubleshooting chapter for instructions on

cleaning the burner.

STEP 04

Remove the turntable

by removing the two (2) bolts

that attach the turntable to the

rotating shaft�

CLEANING YOUR PIZZA STONE

STEP 01

Set your oven to HIGH for 15~20 min to burn o residue�

STEP 02

once your oven has cooled completely, flip the stone over

and use the cleaner side�

NOTICE

DO NOT use soap on the cooking stone. This will leave a soap

taste in food.

EMPTY YOUR GREASE CUP

The grease cup must be removed and emptied after each use�



CAUTIoN

Grease cup will be hot during and after use. DO NOT remove

the grease cup until the griddle has completely cooled.

Model: 6831

17

ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

OWNER’S MANUAL | USING YOUR BLACKSTONE

APPLIANCE STORAGE

 WARNING

DO NOT move the appliance when in use. Allow the appliance

to cool to 115°F (45°C) before moving or storing.

Storage of an appliance indoors is only permissible if the gas supply

is disconnected and removed from the appliance�

COVER FIT GUIDE

Always cover your appliance when stored outdoors�

To find a cover that will fit your appliance, visit

BlackstoneProducts.com/support�

CARe ANd MAINTeNANCe

 WARNING

Grease build up can cause a fire. Clean any part of the

appliance that gets hot and experiences grease build up after

each use.

 CAUTIoN

All cleaning and maintenance should be carried out when the

appliance is cool and everything is turned OFF.

• do NoT use abrasive pad on areas with graphics�

• If a bristle brush is used to clean any of the cooking surfaces,

ensure no loose bristles remain on cooking surfaces prior

to cooking�

APPLIANCE BODY:

Wash with warm soapy water and immediately wipe dry with a

non-abrasive cloth� (do NoT allow cleaning agents to rest on any

porous surface for a prolonged amount of time�)

NOTICE

DO NOT use Citrisol, abrasive cleaners, or a concentrated

cleaner on the appliance. This may result in damage to and

failure of parts.

STEP 01

Remove the turntable�

STEP 02

Use compressed air to blow out the burner scallops� (Wear

eye protection)

STEP 03

Remove the bolt and burner cap�

Note: do NoT disturb the ignitor needle or thermocouple

while cleaning�

STEP 04

Clean the inside of the burner:

• Run a narrow bottle brush through the burner several times� (do

NoT use wire brushes)

• Use compressed air to blow out the burner� (Wear eye protection)

STEP 05

Replace burner cap and bolt�

If problems persist, contact customer support�

STEP 02

❶❶

Remove the base panel cover

from the base of the unit�

❷❷

disconnect the orifice

nozzle and gas line from the

burner tube�

STEP 03

Use compressed air to

clear the burner tubes�

Note: once reinstalled, the

gas line should be leak tested

to ensure there are no holes

in the line�

VIDEO TUTORIAL

Pizza oven Troubleshooting

CLEANING THE BURNER ASSEMBLY

 CAUTIoN

All cleaning and maintenance should be carried out when

the appliance is cool and with the fuel supply turned OFF at

the gas cylinder.

To reduce chance of “flash-back” the procedure below should be

followed at least once a month when spiders are most active or

when your appliance has not been used for a period of time�

CLEANING THE BURNER ASSEMBLY

 CAUTIoN

All cleaning and maintenance should be carried out when the

appliance is cool and with the fuel supply turned OFF at the

gas cylinder.

STEP 01

Run a nylon brush over

the outer surface of the burner to

remove grime�

❶❶

❷❷

Bolt

Burner cap

Ignitor

needle

Thermocouple

Model: 6831

18

BLACKSTONEPRODUCTS.COM/SUPPORT

ENGLISH

| OWNER’S MANUALTROUBLESHOOTING

POSSIBLE CAUSES SOLUTION

Something is blocking the

venturi in the burner�

Clean the burner assembly to

remove the obstruction�

POSSIBLE CAUSES SOLUTION

obstructions in the burner, gas

jets, or fuel rail�

Clean the burner, jets, and gas

hose�

Gas cylinder is empty or low�

Refill or replace the gas

cylinder�

The regulator’s flow limiting

device was triggered�

Reset the safety system:

STEP 01

Turn oFF the appliance,

close the gas cylinder valve, and

disconnect the regulator from

the gas cylinder�

STEP 02

Wait five minutes to

allow the pressure to dissipate,

then reconnect the regulator to

the gas cylinder and slowly open

the gas cylinder hand wheel one

to three turns�

STEP 03

Ignite your appliance�

Regulator stuck in safety

position�

Contact customer support for

replacement parts�

GAS FLOW TROUBLESHOOTING

APPLIANCE WILL NOT ACHIEVE A HIGH HEAT OR HEATS UNEVENLY:

• A flame is coming out of

the air gate:

• Burner flames are yellow or irregular�

• Burner flames start strong, then immediately drop to low even

when burner is set to high position�

• Flame height drops when a second burner is lit�

• Flames do NoT extend the full length of the burner, or only run on

one side of the burner�

• Burner flames are inconsistent�

IGNITION TROUBLESHOOTING

BURNER WILL NOT IGNITE:

If ignition does not occur in 5 seconds:

STEP 01

Turn the burner control knob oFF�

STEP 02

Wait 5 minutes�

STEP 03

Repeat the lighting procedure�

If this does not work, to determine the cause, please try to ignite your appli-

ance with a match.

MATCH LIGHTING INSTRUCTIONS

Before beginning, check for gas leaks. open hood (if applicable).

STEP 01

Turn control knob to oFF position�

STEP 04

Push in and turn the control knob to start gas flowing�

ensure burner lights and stays lit�

STEP 02

light a match (or long

lighter) no shorter than 11

inches long�

STEP 03

Place the flame next to

the burner�

IF YOU CAN IGNITE YOUR APPLIANCE WITH A MATCH:

POSSIBLE CAUSES SOLUTION

Ignitor wire misaligned�

ensure that the ignitor needle

is positioned 3-7mm (1/8-1/4

inch) away from the burner, and

aligned with the burner holes�

damage to the ignition system�

Contact customer support for

replacement parts�

IF YOU CAN NOT IGNITE YOUR APPLIANCE WITH A MATCH:

POSSIBLE CAUSES SOLUTION

Burner tubes are not receiving

fuel�

Clean the burner assembly to

remove the obstruction�

burner

air gate

gas rail & valves

3-7mm

(1�8-1�4 inch)

dead / improperly installed

battery�

Replace with new battery�

3-7mm

(1�8-1�4 inch)

Model: 6831

TROUBLESHOOTING

19

ENGLISH

BLACKSTONEPRODUCTS.COM/SUPPORT

This product may be covered by one or more issued U�S� and/or

international patents and may include patent applications pending�

For more information, please visit: BlackstoneProducts�com/patents

dISTRIBUTed BY NoRTH ATlANTIC IMPoRTS, llC 1073 W 1700 N loGAN, UT 84321 USA | BlACKSToNe IS A ReGISTeRed TRAdeMARK oF NoRTH ATlANTIC IMPoRTS, llC

20

Blackstone 6831 Select 16 Inch Pizza Oven Dual Side Shelves, Tri-Heat Technology, and Stainless Steel Design

Product's Documents

Owner Guide

Specifications

Blackstone 6831 Questions and Answers
