PINK ADJUSTABLE TWIST STEPPER
P8000
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk, or
prevent you from using the equipment properly. Your physician’s advice is essential if you are
taking medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness or nauseous feeling. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 4 feet (1.2 M) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/ or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
1
2

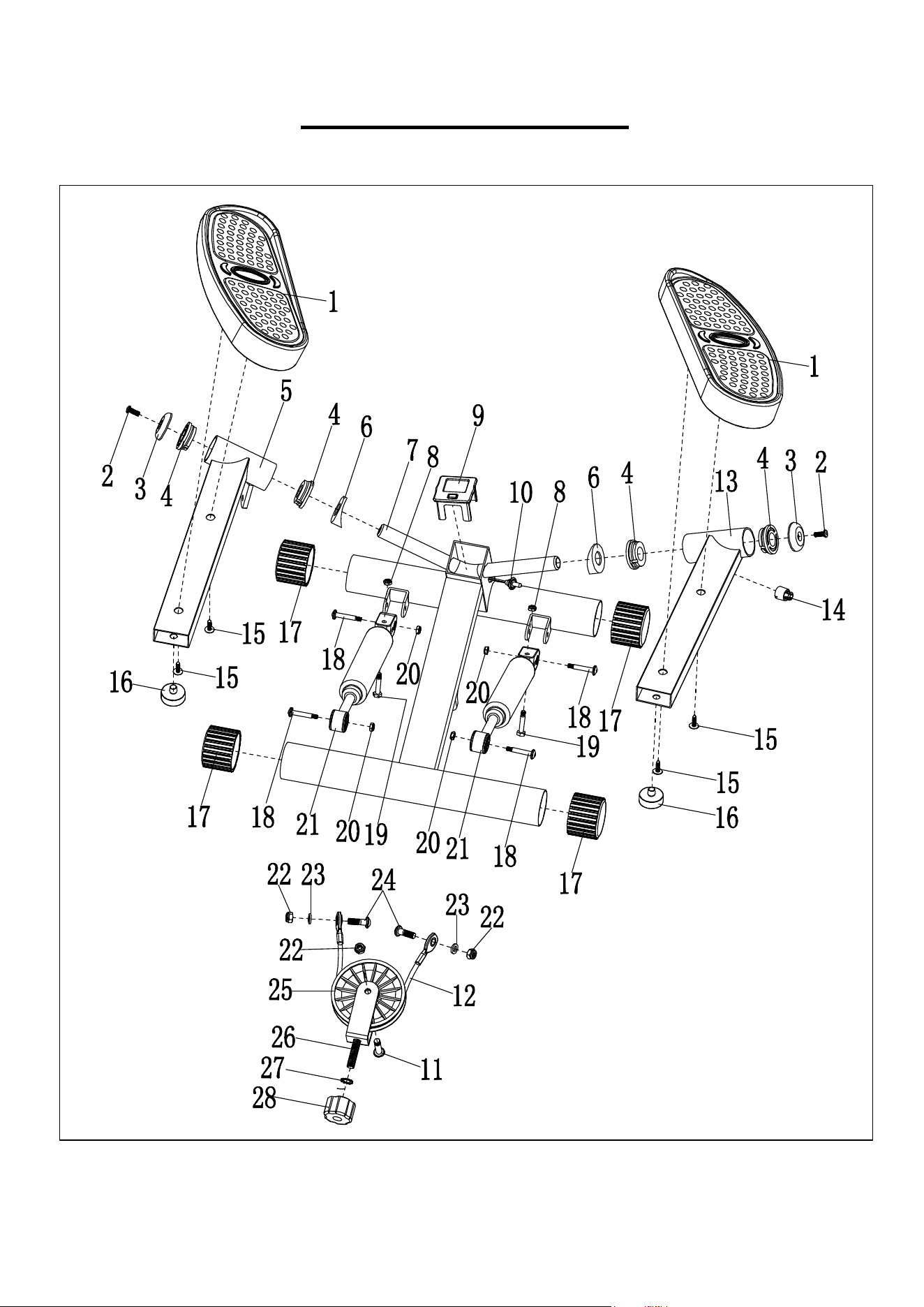

EXPLODED DIAGRAM
PARTS LIST
3
6
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the
front of the manual)
Please contact us at support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
3
No.
Description
Spec.
Qty.
15
Screw
M5
4
16
Bolt
2
17
Cap
4
18
Bolt
M6
4
19
Bolt
M6
2
20
Nut
M6
4
21
Hydraulic Cylinder
2
22
Nut
M8
3
23
Washer
2
24
Bolt
M8
2
25
Pulley
1
26
Pulley Bracket
1
27
Washer
1
28
Knob
1
No.
Description
Spec.
Qty.
1
Pedal (R&L)
2
2
Bolt
M6
2
3
Bearing Cap
2
4
Bearing Sleeve
4
5
Pedal Tube (L)
1
6
Internal Ring
2
7
Main Frame
1
8
Nut
M6
2
9
Meter
1
10
Sensor
1
11
Bolt
M8
1
12
Cable
1
13
Pedal Tube (R)
1
14
Magnet
1
4
ASSEMBLY INSTRUCTIONS
Turn the Knob (No. 28
Cable (No. 12)
Pulley (No. 25)
) clockwise "+" all the way
until it reaches its furthest point.
Cable (No. 12)
Pulley (No. 25)
Knob (No. 28)
STEP 1:
STEP 2:
28
TO ADJUST TENSION & STEPPING HEIGHT:
1. Turn the Knob (No. 28) counter-clockwise (to the left) to lessen the stepping range and tension
2. Turn the Knob (No. 28) clockwise
(to the right) to increase tension and widen the stepping range.
Remove the main frame from the box.
Lift one pedal up with your hands.
Ensure the is secured around the
as shown in the picture below.
The assembly is complete!
MAINTENANCE AND CARE
Regular maintenance requires you to wipe the stepper clean after each use. Only use a dry
cloth when doing so. Always store your stepper in a dry, cool area. Do not leave outdoors
as prolonged exposure to weather/temperatures will cause damage to parts and functions
of the machine over.
NOTE: It's normal for sound to come from the cylinder as the cylinder gets hot during use.
Do NOT touch the cylinder during or after use to avoid burn injuries.
IF THE
STEPPER STARTS TO SCREECH DURING EXERCISE:
1. Loosen the screw of the U-shaped bracket and cable
2. Lubricate the U-shaped bracket and the cable to improve the sliding condition (as seen
in the picture below).
3. After lubricating with oil, secure the U-shaped bracket and cable by tightening the screw.
NOTE: We recommend using a silicone-based lubricant.
U-Shaped
Bracket
Cable
5
EXERCISE COMPUTER
KEY FUNCTIONS:
MODE: Press the red MODE button to select function (Time,
Rep/Min, Count, Calorie and Scan).
OPERATIONAL FUNCTIONS:
1. AUTO ON/OFF: If the stepper is put into motion or the MODE button is pressed, the meter
will activate and will remain active during use. If there is no activities for approximately 4
minutes, the meter will turn off automatically.
2. RESET: The meter can be reset by pressing and holding the MODE button for three
seconds. Removing the
batteries will also reset the meter and return all function settings
back to zero.
3. MODE: To select the LOCK MODE setting, press the MODE key when the pointer is on the
function you wish to lock. Once locked, only the selected function will be displayed.
FUNCTIONS:
TIME: Counts total time of an exercise from start to finish.
CALORIES: Counts total calories burned during an exercise from start to finish.
COUNT: Automatically accumulates step counts taken during sessions.
Meter counts 1 step
for every step on each foot.
REPS/MIN: Displays count of steps per minute.
SCAN: Press the MODE button until the arrow points to SCAN. Once on SCAN, the display
will scan through each of the functions in sequence.
NOTE:
1. If you have an inaccurate reading on the monitor, replace the battery immediately.
2. Use (1) LR44, 1.5V battery.
3. The monitor is auto-powered. It turns on when exercise begins, and it turns off when there
is no movement made in 4 minutes.
4.All functions will stop calculating when STOP appears in the upper left corner of the
display monitor. This occurs when there is no signal for a period of 4 seconds. Once the
exercise begins, the meter will start recalculating and the STOP will disappear.
NOTE:
An additional LR44 battery is included with your manual. Replace the battery if your new
meter is not functioning due to battery drainage. See next page for instructions on changing
your battery.
6
COUNT
REPS
/MIN
TIME
SCAN
CAL
7

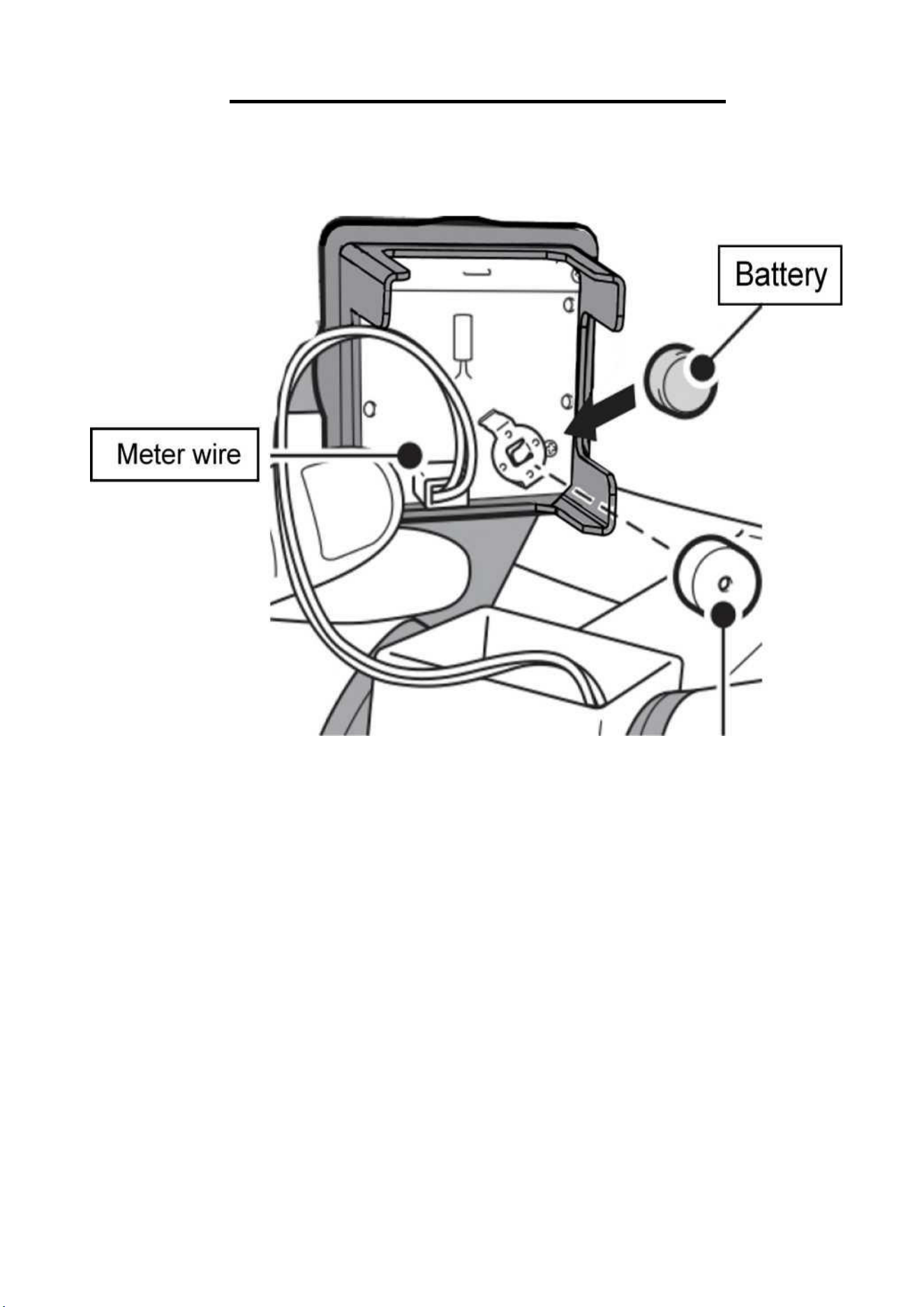

HOW TO CHANGE THE BATTERY
Plastic cap
1) Remove the plastic cap from the battery.
2) Remove the battery using your hand or the tool provided.
3) Insert the new battery using your hand or the tool provided. Ensure that the positive side of the
battery (labeled with a + sign) is facing upward.
4) Place the plastic cap back onto the battery.
5) Connect the wire into the meter.
6) Attach the meter on Main Frame.
Version 1.7
