SMART MOTORIZED MINI EXERCISE BIKE
WITH 18 SPEED LEVELS
SF-B024041
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
Thank you for purchasing the Smart Motorized Mini machine with 18-levels Speed. Please read the
operating instructions carefully before use. Safe and effective use can only be achieved if the
equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all
users of the equipment are informed of all warnings and precautions.
When using an electrical appliance, basic precautions should always be followed, including the
following:
DANGER – To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to person(s):
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. The equipment is not suitable for therapeutic use.
4. Keep children and pet away from this machine. The equipment is designed for adult use only.
5. Do not place fingers or objects into the moving parts of the equipment.
6. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 cm) of free space all around it.
7. An appliance should never be left unattended when plugged in. Unplug from outlet when not in
use, cleaning and before putting on or taking off parts.
8. Do not stand on the machine, only use the machine while sitting.
9. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, damages or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
10. Never operate the appliance with the air openings blocked. Keep the air openings free of lint,
hair, and other objects.
11. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
12. Keep the appliance dry. Do not expose appliance to wet, moisture and humid environment.
13. Use this appliance only for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer. If a product is modified or altered, it may void the
warranty.
SAVE THESE INSTRUCTIONS
2

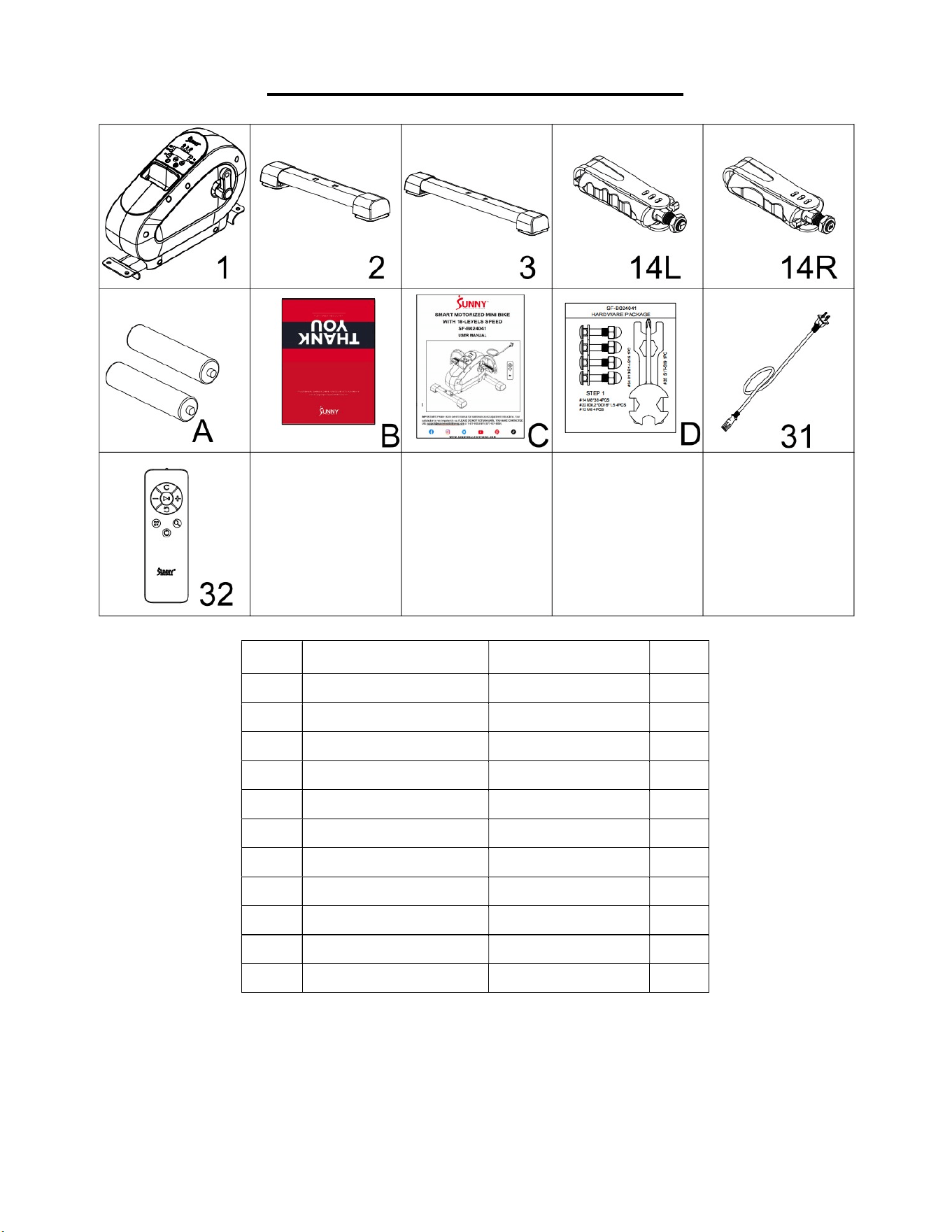

PRE-ASSEMBLY CHECK LIST
No. Description Spec Qty.
1 Main Frame 1
2 Rear Stabilizer 1
3 Front Stabilizer 1
14L Left Pedal 1
14R Right Pedal 1
A Battery AAA, 1.5V 2
B Thank You Card 1
C Manual 1
D Hardware Package 1
31 Power Cord 1
32 Remote Control 1
3

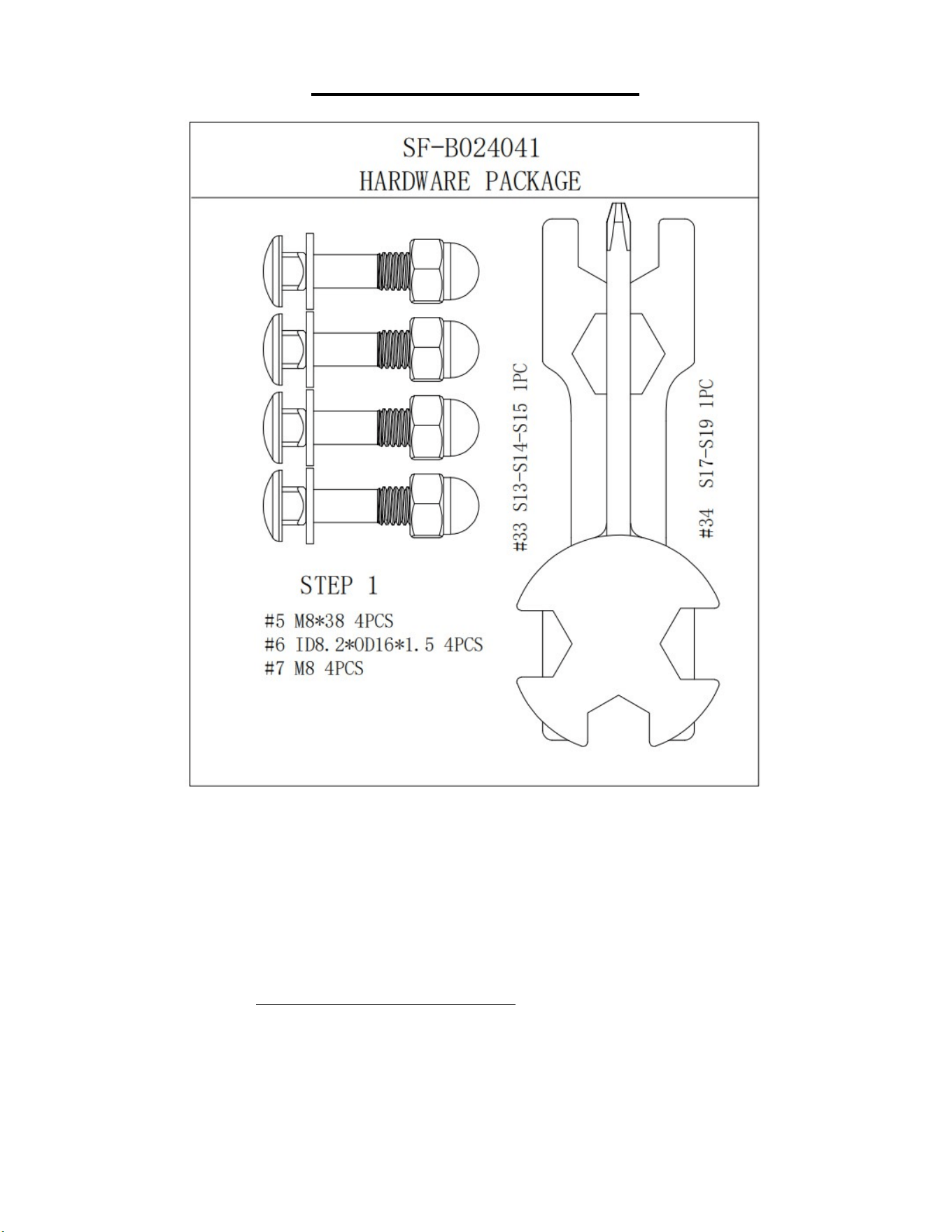

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)

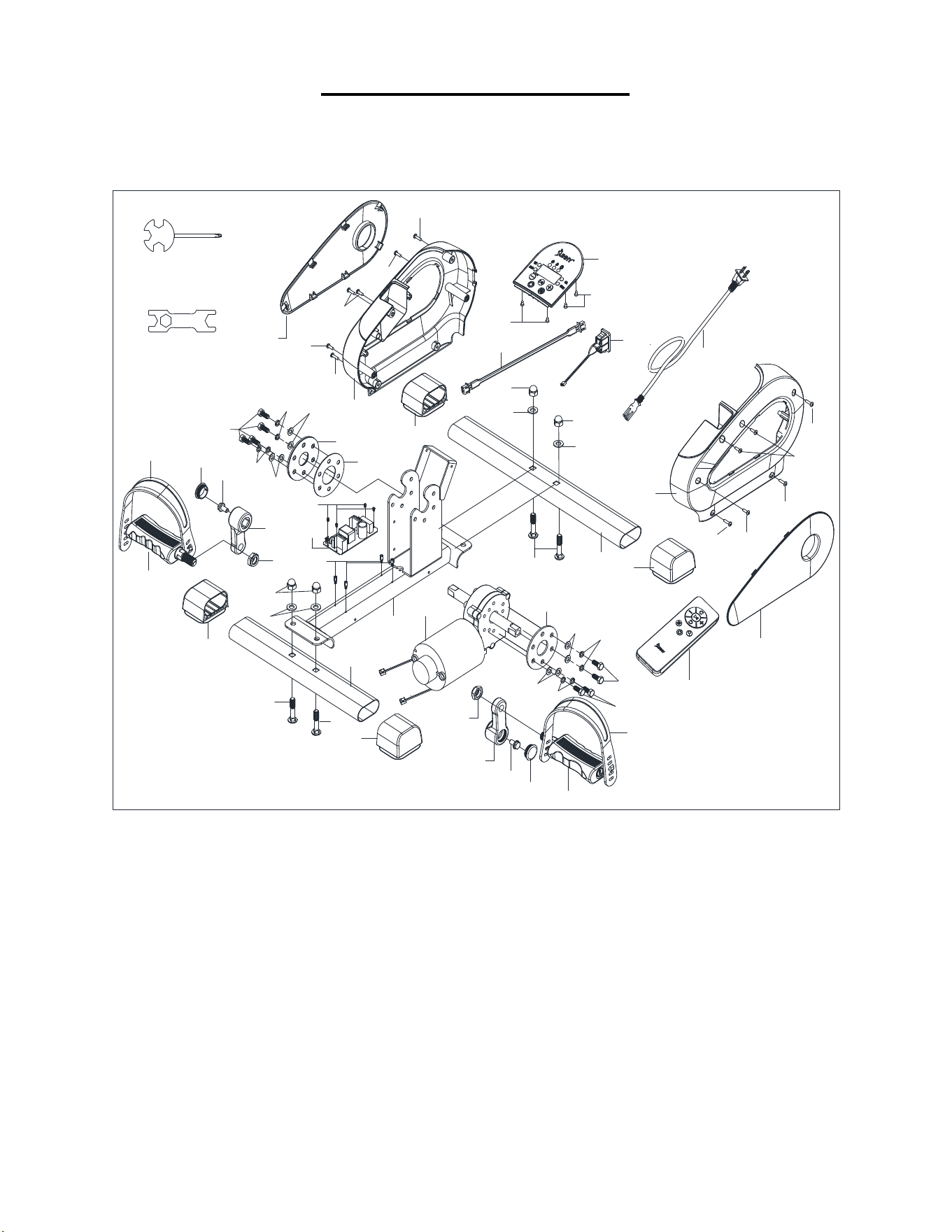

The part number found on the “EXPLODED DIAGRAM” (page 16) and “PARTS LIST” (page
15).
Please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

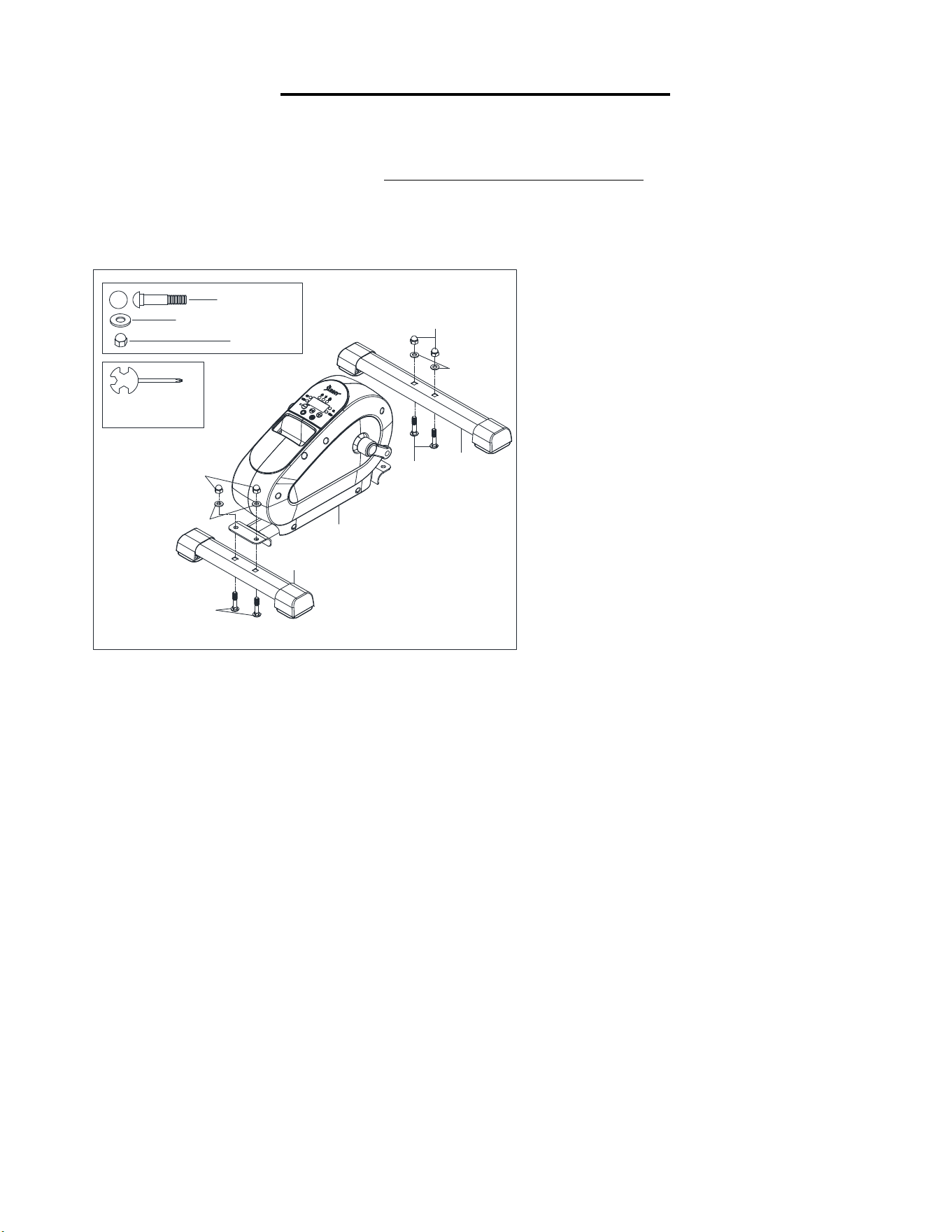

STEP 1:
Attach Rear Stabilizer (No. 2) to the
Main Frame (No. 1) with 2 Carriage
Bolts (No. 5), 2 Flat Washers (No. 6),
and 2 High Cap Nuts (No. 7). Tighten
and secure with Spanner (No. 33).
Attach Front Stabilizer (No. 3) to the
Main Frame (No. 1) with 2 Carriage
Bolts (No. 5), 2 Flat Washers (No. 6),
and 2 High Cap Nuts (No. 7). Tighten
and secure with Spanner (No. 33).
#33
S13-S14-S15
#6 ID8.2*OD16*1.5 4PCS
#7 M8 4PCS
#5 M8*38 4PCS
1
2
3
5
6
7
7
6
5
5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

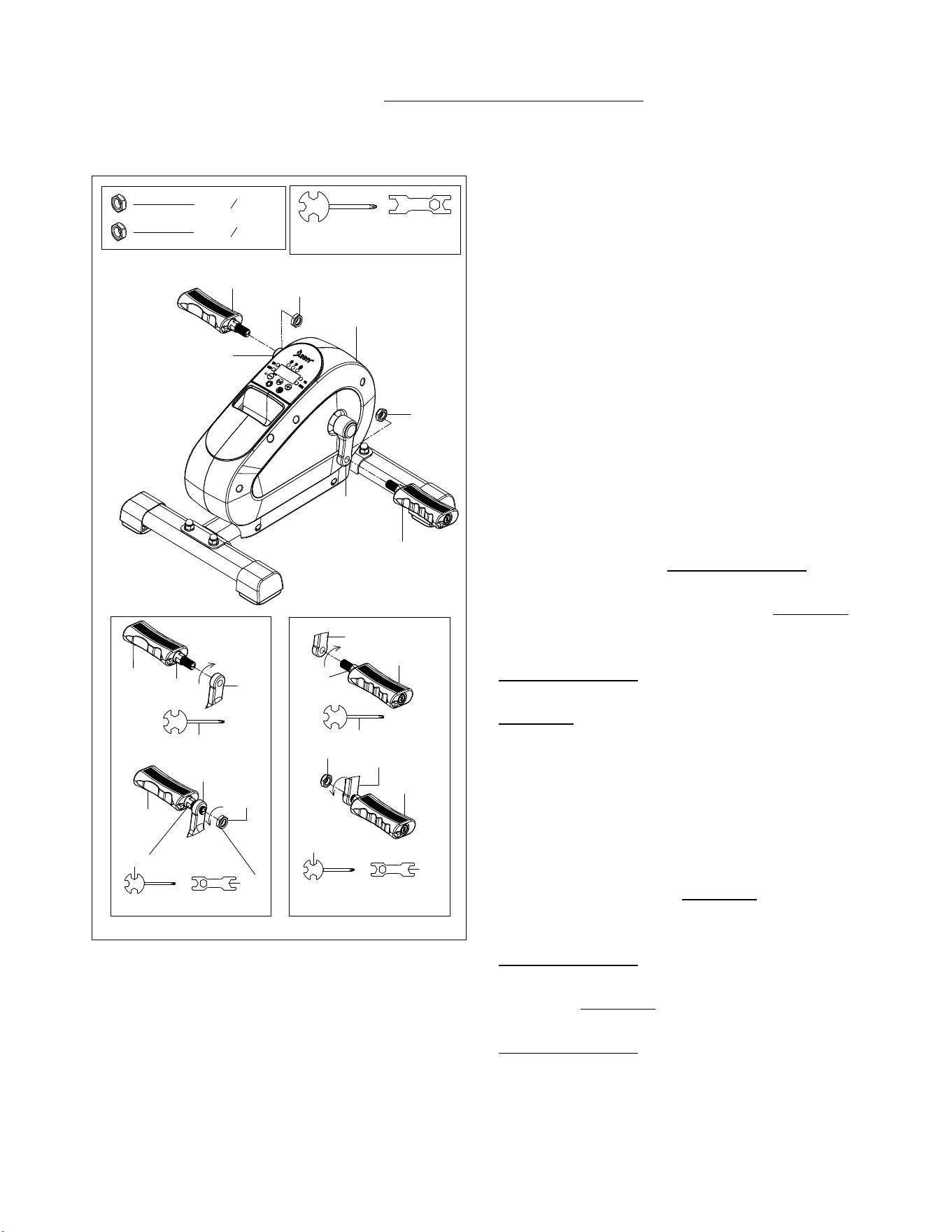

STEP 2:
NOTE: The Left & Right Pedals (No. 14L &
No. 14R) are marked “L” and “R” for Left and
Right.
WARNING! Read instructions carefully as
improper assembly may cause permanent
damage to your bike.
Remove the Left & Right Nylon Nuts (No.
18L & No. 18R) located on the Left & Right
Pedals (No. 14L & No. 14R).
Align the Left Pedal (No. 14L) with the left
side of Left Crank Arm (No. 17L) at 90°.
Gently insert the Left Pedal (No. 14L) into
the Left Crank Arm (No. 17L) and turn the
Left Pedal (No. 14L) counter-clockwise to
pre-lock on the Left Crank Arm (No. 17L).
Turn the Left Nylon Nut (No. 18L) clockwise
with your hand to fix on the Left Pedal (No.
14L). Turn the Left Pedal (No. 14L)
counter-clockwise by using Spanner (No. 33)
and turn the Left Nylon Nut (No. 18L)
clockwise by using the Spanner (No. 34) at
the same time, until it is tightened onto the
Left Crank Arm (No. 17L).
Align the Right Pedal (No. 14R) with the right
side of Right Crank Arm (No. 17R) at 90°.
Gently insert the Right Pedal (No. 14R) into
the Right Crank Arm (No. 17R) and turn the
Right Pedal (No. 14R) clockwise to pre-lock
on the Right Crank Arm (No. 17R). Turn the
Right Nylon Nut (No. 18R)
counter-clockwise with your hand to fix on the
Right Pedal (No. 14R). Turn the Right Pedal
(No. 14R) clockwise by using Spanner (No.
33) and turn the Right Nylon Nut (No. 18R)
counter-clockwise by using the Spanner (No.
34) at the same time, until it is tightened onto
the Right Crank Arm (No. 17R).
#33
S13-S14-S15
#34
S17-S19
#18R
1
2
"-20 1PC
#18L
1
2
"-20 1PC
14L
18L
1
14R
17R
17L
18R
14L
17L
S15
33
14L
17L
18L
S15
S19
33
34
17R
14R
S15
33
14R
18R
17R
S15
S19
33
34
6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
14L
13
14L
13
14L-1
13-1
14L
13
14L
14L-2
13-2
13

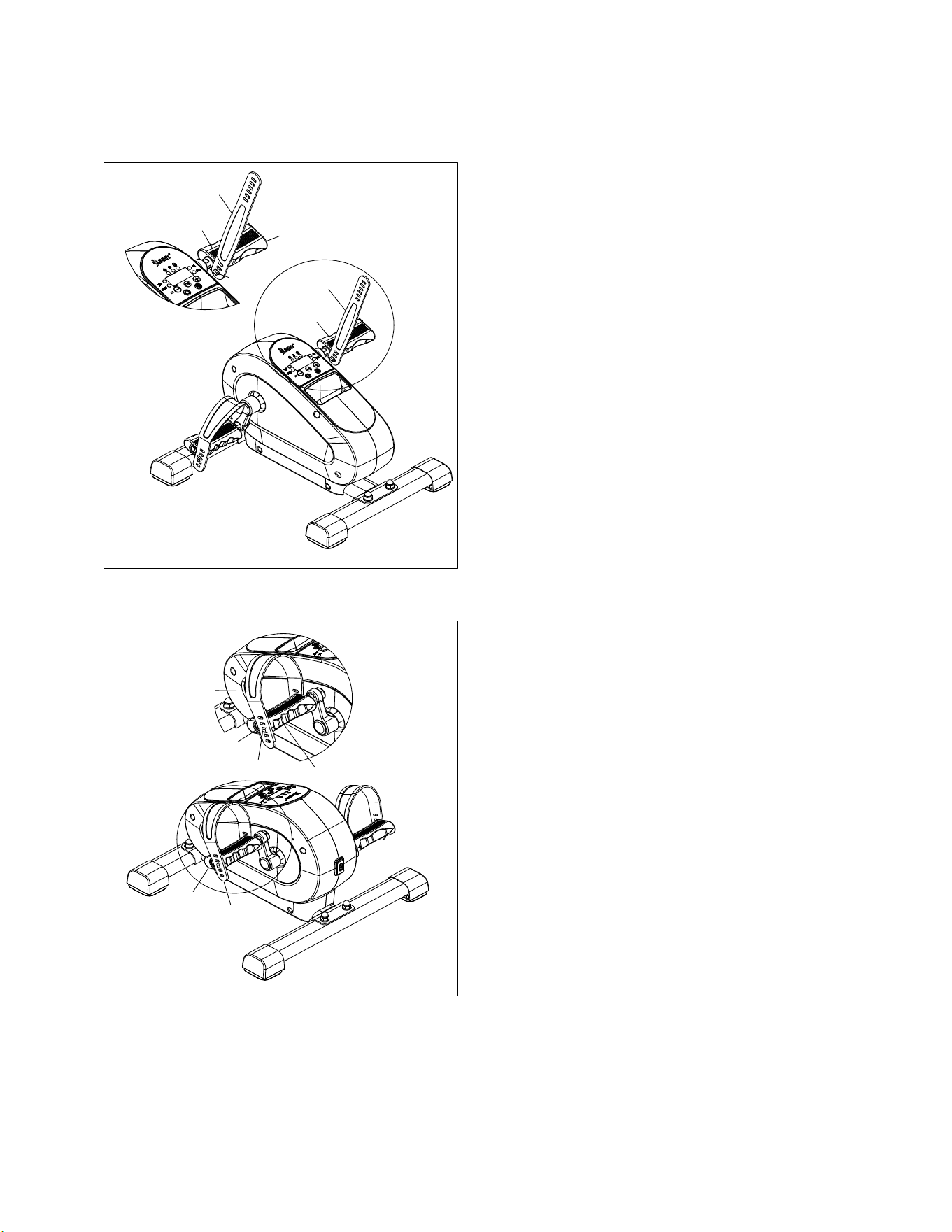

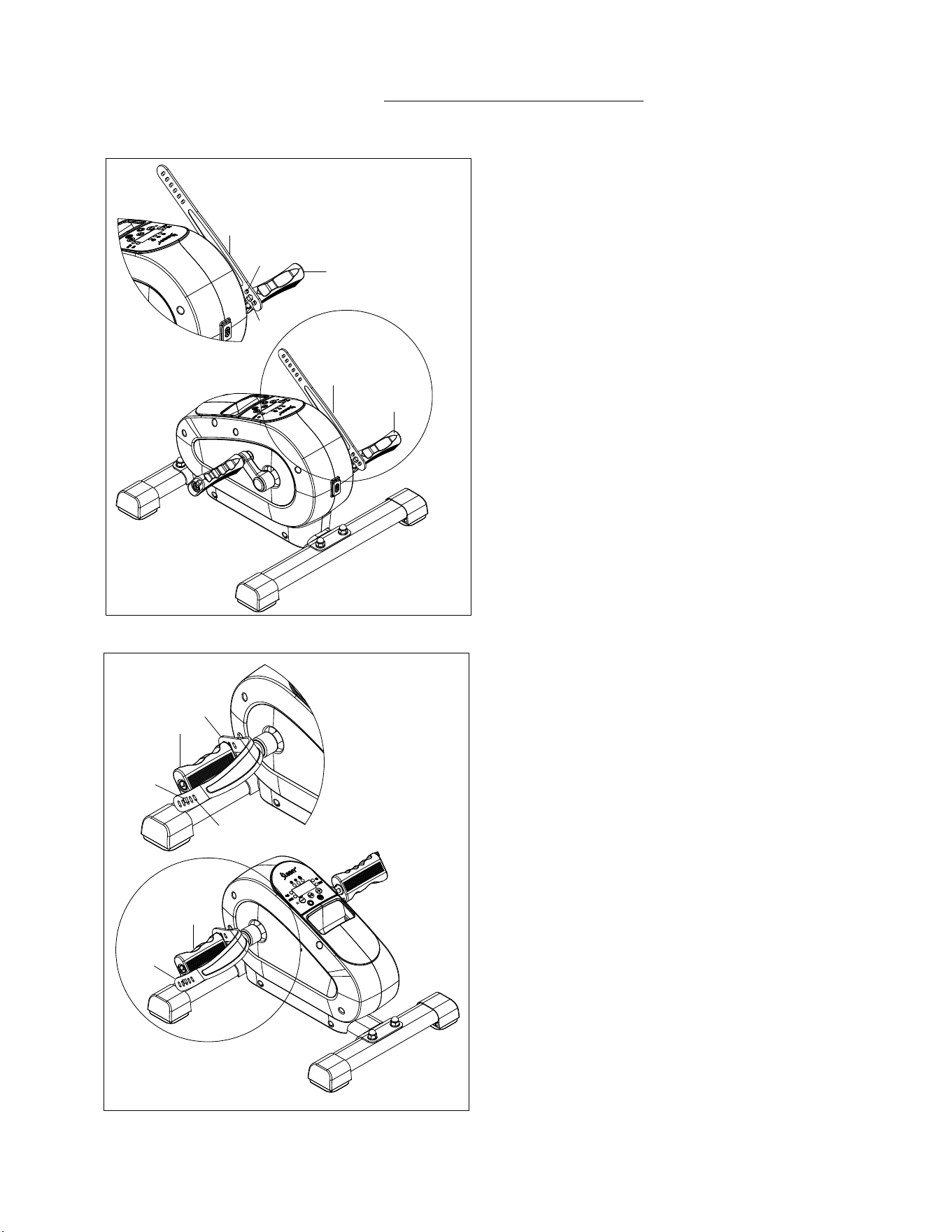

STEP 3:
Insert the fixing hole (13-1) of the Pedal
Strap (No. 13) into the groove (14L-1) of the
Left Pedal (No. 14L).
Insert the fixing hole (13-2) of the Pedal
Strap (No. 13) into the groove (14L-2) of the
Left Pedal (No. 14L).
NOTE: The position of fixing holes and
groove can be adjusted according to the size
of your feet.
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
14R
13
14R
14R-1
13-1
13
14R
13
13-2
14R-2
13
14R
STEP 4:
Insert the fixing hole (13-1) of the Pedal
Strap (No. 13) into the groove (14R-1) of the
Right Pedal (No. 14R).
Insert the fixing hole (13-2) of the Pedal
Strap (No. 13) into the groove (14R-2) of the
Right Pedal (No. 14R).
NOTE：The position of fixing holes and
groove can be adjusted according to the size
of your feet.
The assembly is complete!
8
BATTERY INSTALLATION & REPLACEMENT
32
1
Battery Cover
a
32
3
Battery Cover
Battery Holder
2
Battery Holder
Battery
b
32

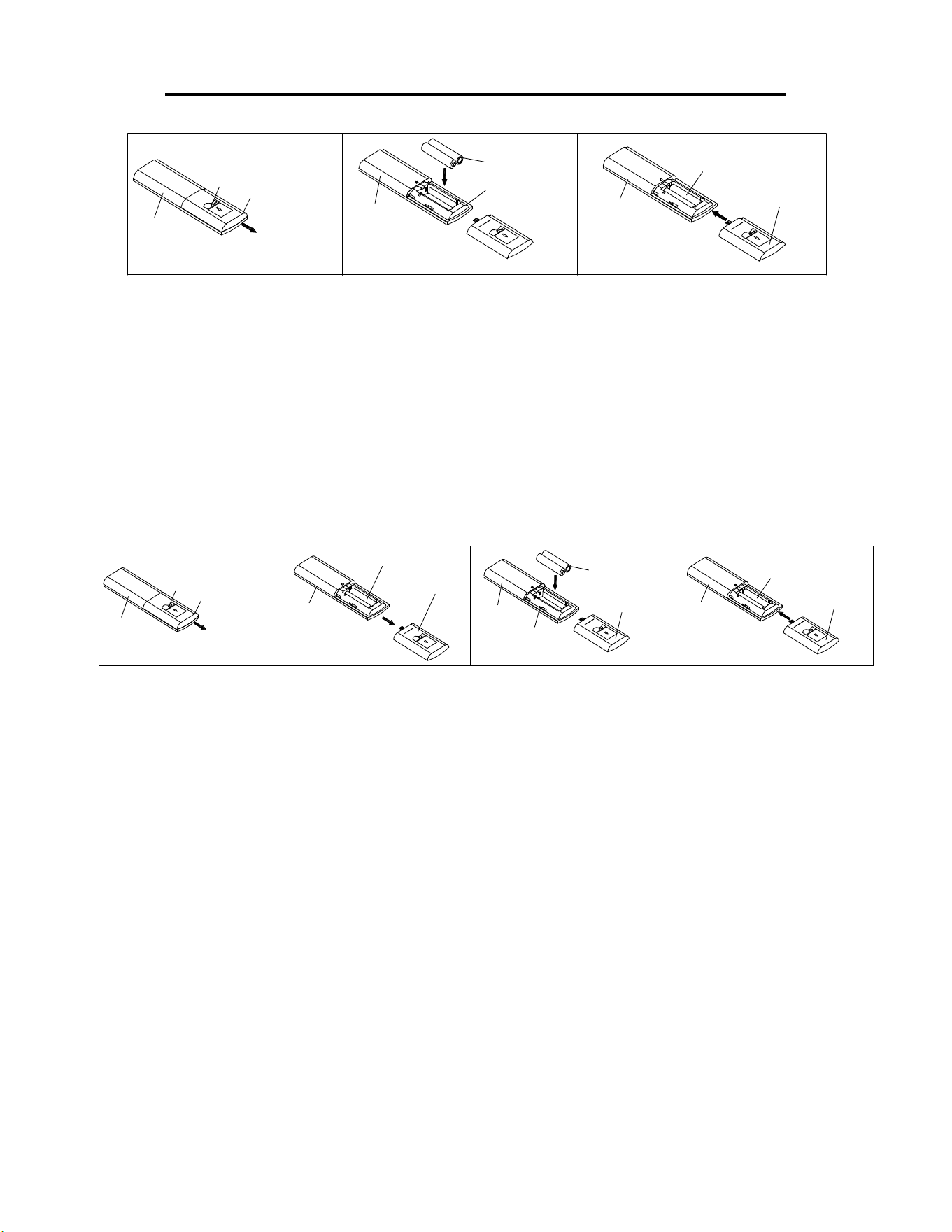

BATTERY INSTALLATION:
1. Press point a, then push down the battery cover on the back of the Remote Control (No. 32) to
remove the battery cover. (as shown by the arrow b)
2. Take out 2 AAA batteries from the manual bag. Install 2 AAA batteries into the battery holder on
the back of the Remote Control (No. 32). Pay attention to the battery + and – ends before
installing.
3. Put the battery cover back to the Remote Control (No. 32) and push the cover up to tighten it
on the back of the Remote Control (No. 32) (show as arrow c).
The installation is complete!
32
1
①
②
Battery Cover
a
32
4
①
②
Battery Cover
Battery Holder
3
①
②
Battery Cover
New Battery
32
2
①
②
Battery Cover
Old Battery
b
32
Battery Holder
BATTERY REPLACEMENT:
1. Press point a, then push down the battery cover on the back of the Remote Control (No. 32) to
remove the battery cover. (as shown by the arrow b)
2. Take out the old batteries from the battery seat.
3. Install 2 AAA batteries into the battery holder on the back of the Remote Control (No. 32).
Pay attention to the battery + and – ends before installing.
4. Put the battery cover back to the Remote Control (No. 32) and push the cover up to tighten it
on the back of the Remote Control (No. 32) (show as arrow c).
The replacement is complete!
Dispose the old battery according to your regional guidelines.
C
C
9

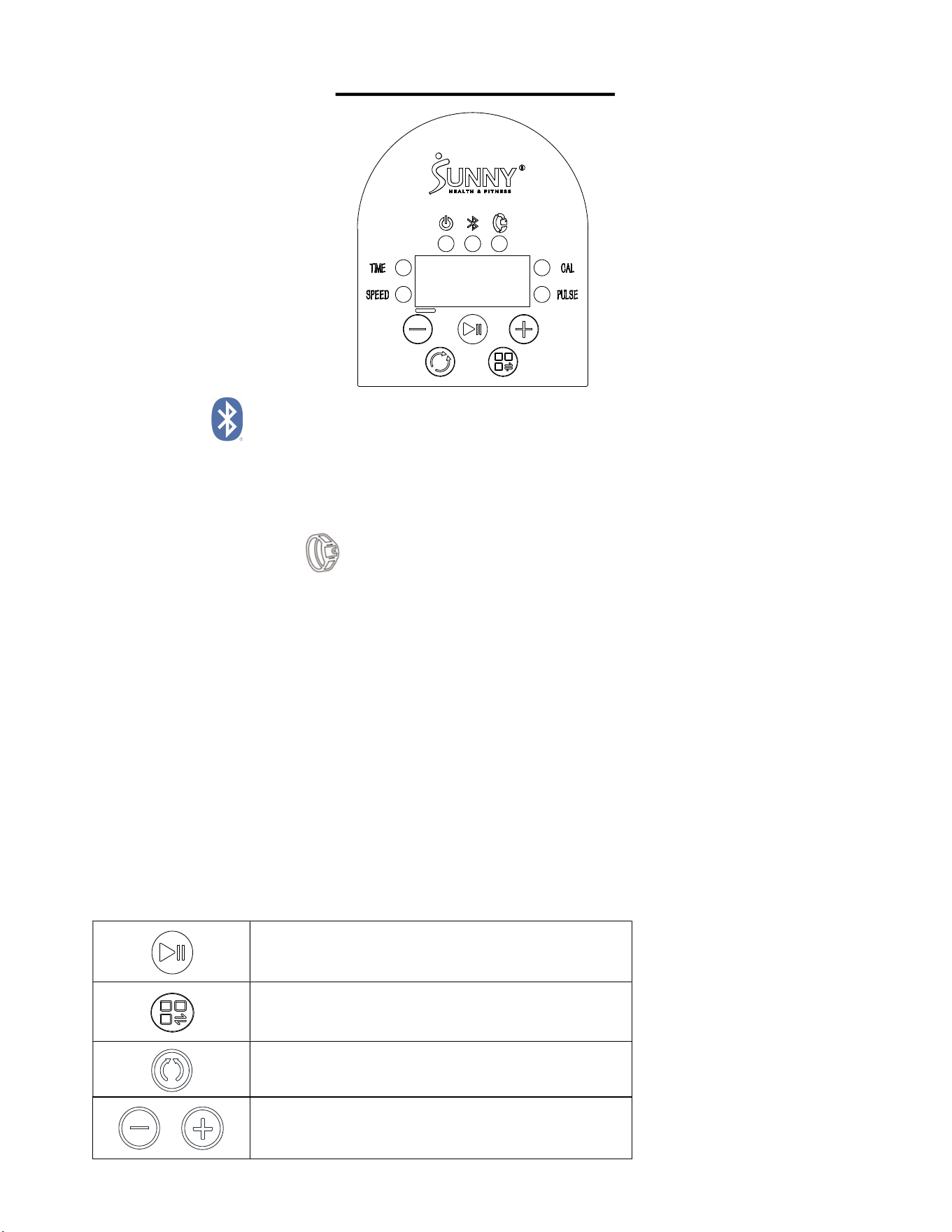

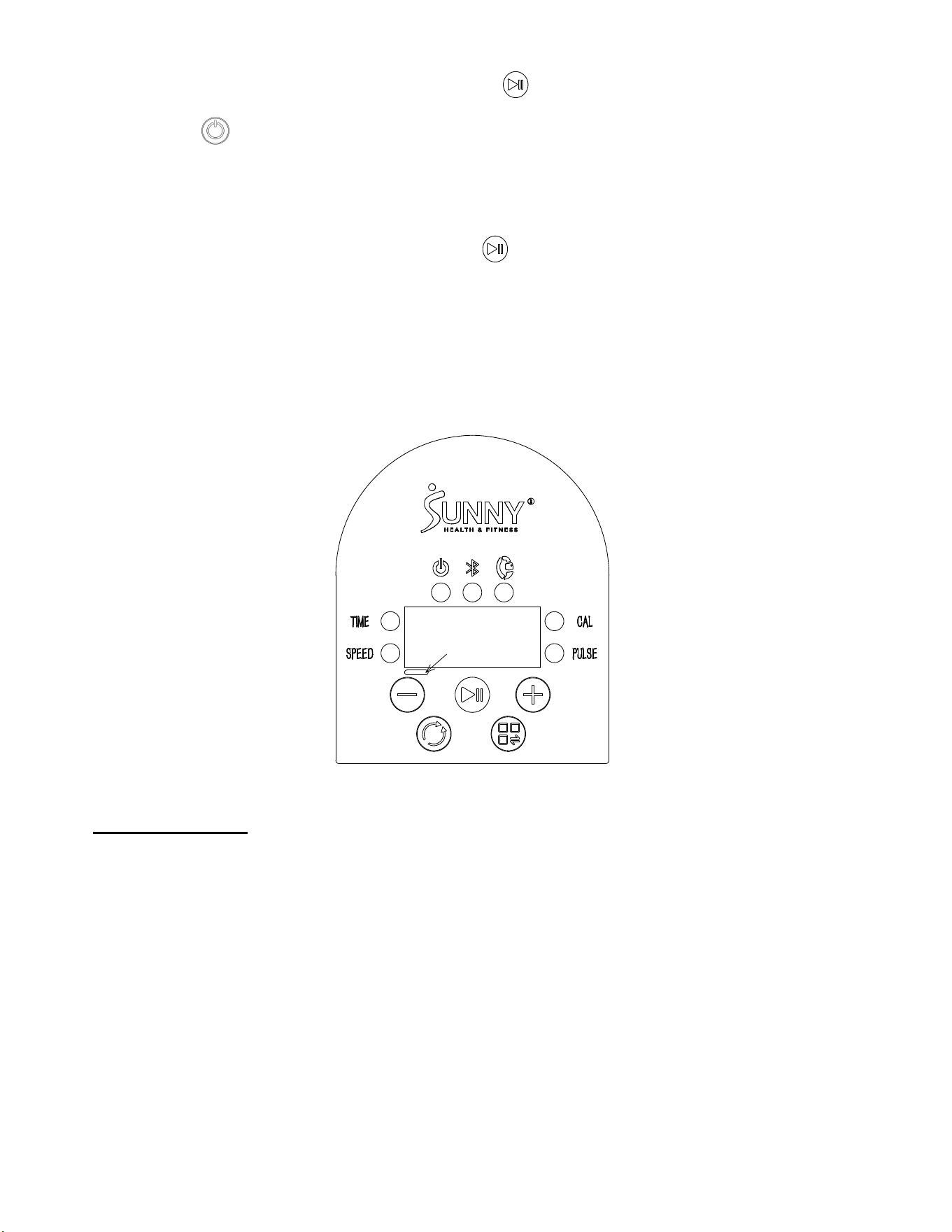

DISPLAY CONSOLE
BLUETOOTH
1. The Bluetooth icon will flash when the console is on. If no Bluetooth connection is established
within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE
1. The wireless heart rate icon will always light up when the heart rate monitor is connected.
2. The wireless heart rate icon will flash when the console is on. If the heart rate monitor is not
connected within 3 minutes, the wireless heart rate icon will turn off. But the heart rate monitor
can also be connected.
3. The heart rate monitor will disconnect when the console power off. The heart rate icon will turn
off and the heart rate function will temporary failure.
4. The heart rate monitor and Bluetooth will disconnect with the console when press and hold the
‘START/PAUSE’ button for 3 seconds or more. The heart rate icon will turn off and the heart
rate function will temporary failure.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit
Heart Rate Monitor HR200.

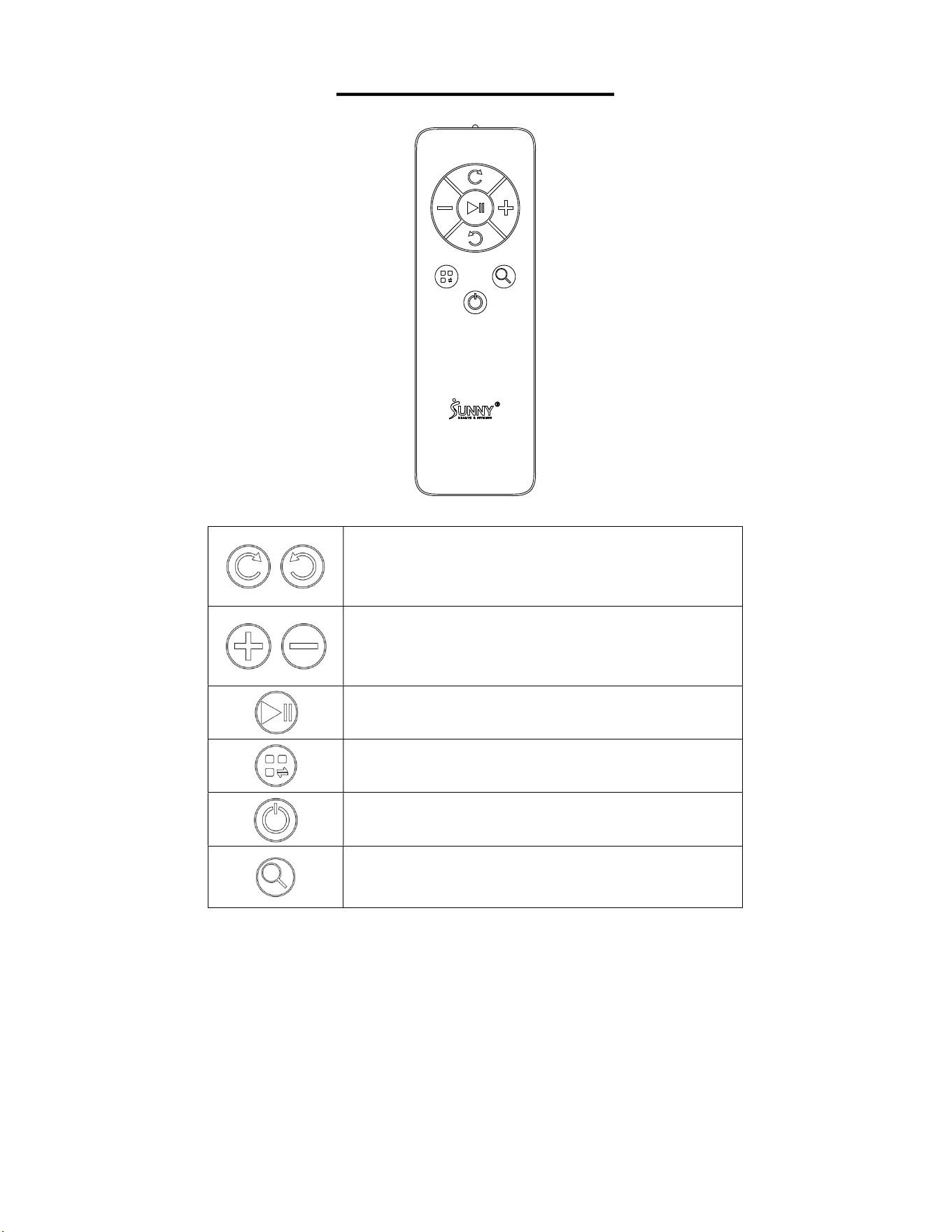

CONSOLE FUNCTION KEYS
Start/Pause: Start or pause machine (Press 3
Seconds to turn on or turn off the machine)
MODE: Changes between automatic and
manual
Direction: Changes the direction forward or
backward
Speed: Select + key for increasing or – key for
decreasing speed (18 speed levels)
10

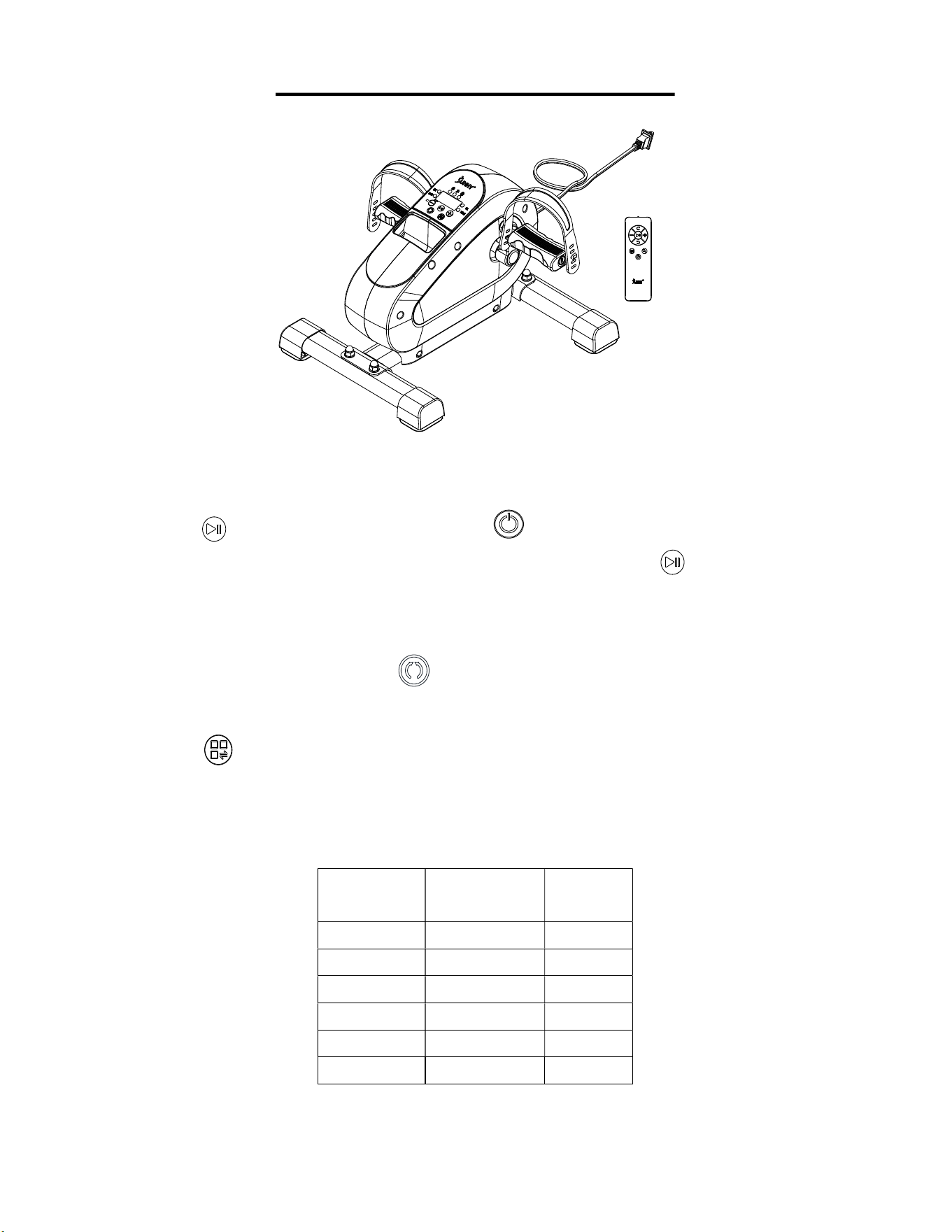

WARNINGS AND INSTRUCTIONS
1. After the machine is powered on, you need press key on the console for 3 seconds or
press the on the remote control to turn on the machine, then you can use the machine.

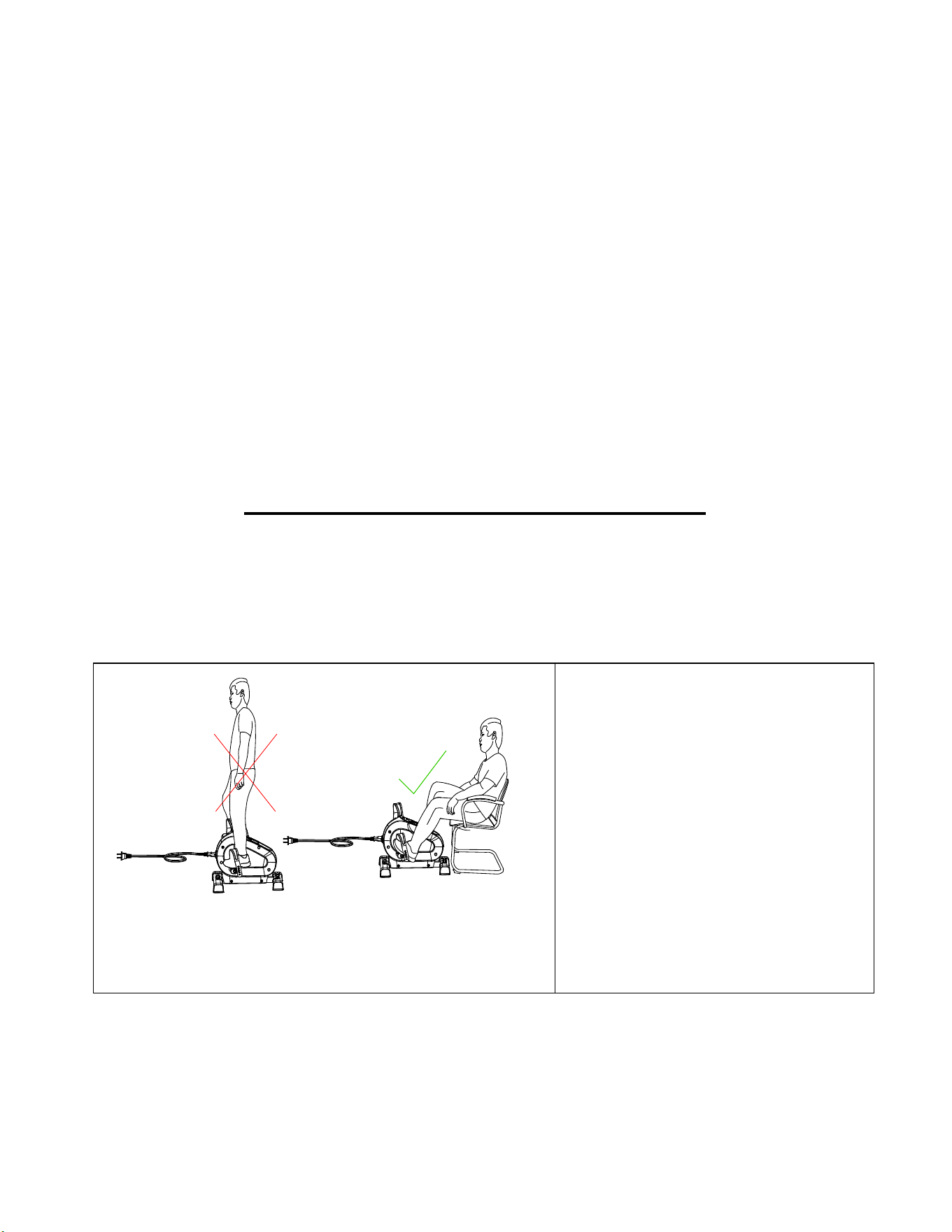

2. Do not stand on the machine. Only use it while seated in a chair.
3. If machine detects problems during exercise, it will automatically stop within 10 seconds.
When the display console shows “ERR”, press the button to reset automatically. If the “ERR” no
longer appears, continue to use normally. If the code continues to appear, please contact customer
service.
NOTE: When using the remote control, aim it at the receiver on the machine (a) and keep it within a
maximum distance of 16 inches.
a
TECHNICAL DATA
Connectivity: Bluetooth LE
Frequency Range:
2400~2483.5Mhz
Transmitting Power: 0dBm
11
OPERATING INSTRUCTIONS
1. Plug in the Power Cable (No. 31). The machine will beep and LED display will show “----“. LED
will turn on for 1 second then turn off. This is standby mode.
2. Press the key on the console 3 seconds or key on the remote control to turn on the
machine, the machine will beep and the LED shows “-U-“, now press key to start the
machine. LED shows L1.
3. Under the manual mode, press the Speed “+” button to increase the speed from L1 to L18. Or
press the Speed “–” button to decrease the speed from L18 to L1.
4. Under the manual mode, press the button to change the direction forward or backward.
5. Under the manual mode, the LED display will alternate display between TIME, SPEED, CAL,
and PULSE.
6. Press the button on the console or the remote control to change the mode from manual
mode to pre-program mode P1. Mode P1-P2-P3-P4-P5-P6-U (manual mode)
7. They are 6 pre-program modes, P1.P2.P3.P4.P5.P6. Different modes have different speeds
and working directions, see below details. It can’t be changed speeds or working directions
under mode.
PROGRAM
TIME (MIN)
SPEED
LEVEL
P1 30 10-18
P2 30 10-18
P3 60 01-18
P4 60 01-09
P5 60 01-09
P6 120 01-18
NOTE: After finishing use, please turn off the machine and disconnect the power cable.
12
REMOTE CONTROL
Direction: Changes the direction forward or
backward
Speed: Select + key for increasing or – for
decreasing speed (18 speed levels)
Start/Pause
MODE: Changes between automatic and manual
Power on/off key
SCAN: TIME, SPEED, CAL, PULSE, SPEED
LEVEL, DISTANCE, ODO, MODE, DIRECTION.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
13
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
USER MAINTENANCE INSTRUCTION
Caution: There are no serviceable parts in the appliance, any service should be performed by an
authorized service person.
When the appliance is not in use, disconnect the power supply, store the power cable and the total
appliance in a dry location where children cannot touch or in play area(s).
USE ONLY WHILE SITTING.
DO NOT STAND ON THE MACHINE!
WARNING
This machine is intended to use in a
sitting position only, do not stand on
the machine.
Failure to follow all warnings and
instructions could result in serious
injury or death.
14
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for
your free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session,
and recorded in your account profile!
Troubleshooting:
If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or
scan the QR code below:
If you require additional support, please contact [email protected].
15
PARTS LIST
No. Description Spec. Qty.
No. Description Spec. Qty.
1 Main Frame 1 21 Screw M3*5 4
2 Rear Stabilizer 1 22 Big Washer φ70*φ30*1.0 1
3 Front Stabilizer 1 23L Left Belt Cover 1
4 End Cap 4 23R Right Belt Cover 1
5 Carriage Bolt M8*38 4 24 Screw ST4.2*19 6
6 Flat Washer φ8.2*φ16*1.5 4 25 Screw ST4.2*16 6
7 High Cap Nut M8 4 26L Plastic Cover 1
8 Motor DC24V 110RPM 1 26R Plastic Cover 1
9 Rubber Washer φ70*φ30*2.5 2 27 Console 1
10 Flat Washer φ6.4*φ12*1.2 8 28 Screw ST2.6*6 4
11 Spring Washer D6 8 29 Data Line Line: 500mm 1
12 Screw M6*15 8 30 Outlet Line: 250mm 1
13 Pedal Strap 2 31 Power Cord Line: 1800mm 1
14L Left Pedal 1 32 Remote Control 1
14R Right Pedal 1 33 Spanner S13-14-15 1
15 Hole Plug 2 34 Spanner S17-S19 1
16 Hex Bolt M8*16 2
17L Left Crank
2 inches length;
1/2" hole teeth
1
17R Right Crank
2 inches length;
1/2" hole teeth
1
18L Left Nylon Nut 1/2"*20 1
18R Right Nylon Nut 1/2"*20 1
19 Fixing Bolt M3 4
20 Controller 1
16
EXPLODED DIAGRAM
Version
1.0
1
2
3
5
6
7
5
4
6
7
4
4
5
4
6
7
8
9
10
11
12
13
14R
15
16
17R
18R
14L
13
15
16
17L
18L
19
20
21
22
9
10
11
12
23L
24
25
26L
24
25
24
24
24
25
23R
27
28
28
29
30
31
32
#33
S13-S14-S15
#34
S17-S19
26R
24
10
11
10
11
12
25
