IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use
this equipment correctly. It is important to read this entire manual before assembling
and using the equipment. Safe and effective use can only be achieved if the
equipment is assembled, maintained and used properly. It is your responsibility to
ensure that all users of the equipment are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to
determine if you have any medical or physical conditions that could put your
health and safety at risk, or prevent you from using the equipment properly. Your
physician’s advice is essential if you are taking medication that affects your heart
rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage
your health. Stop exercising if you experience any of the following symptoms:
pain, tightness in your chest, irregular heartbeat, shortness of breath,
lightheadedness, dizziness or feelings of nausea. If you do experience any of
these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for
adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your
floor or carpet. To ensure safety, the equipment should have at least 2 feet(60
CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment.
The safety of the equipment can only be maintained if it is regularly examined for
damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components
while assembling or checking the equipment, or if you hear any unusual noises
coming from the equipment during exercise, discontinue use of the equipment
immediately and do not use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing
that may become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and
moving is required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage
in extreme cold, hot or damp areas as this may lead to corrosion and other
related problems.
13. This equipment is designed for indoor and home use only, it is not intended for
commercial use!
2

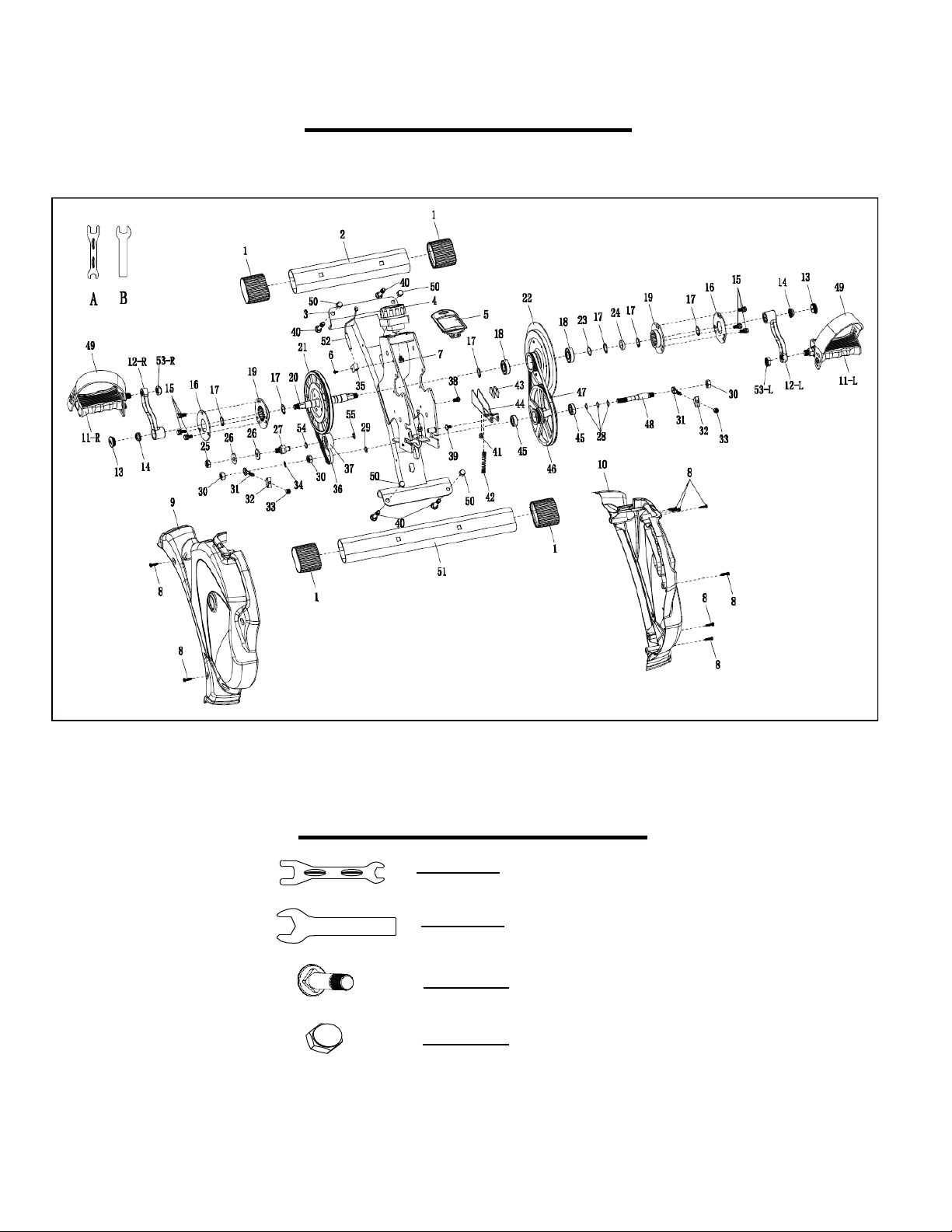

EXPLODED DIAGRAM
HARDWARE PACKAGE
#A Spanner 1pc
#B Spanner 1pc
#40 Bolt 4pcs
#50 Nut 4pcs
3
PARTS LIST
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s)
needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)
✓ The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST”
(found near the front of the manual)
Please contact us at support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-
8669).
No.
Description
Spec.
Qty
29
Circlip
1
30
Nut
M10
3
31
Bolt
2
32
Iron Sheet
2
33
Nut
M6
2
34
Washer
1
35
Spaced Ring
1
36
Belt
1
37
Idler
1
38
Bolt
M6
1
39
Bolt
M6
1
40
Bolt
M8
4
41
Plug
1
42
Spring
1
43
Magnet
4
44
Iron Sheet
1
45
Bearing
2
46
Alum Plate
1
47
Belt
1
48
Ferrite Core 1
1
49
Pedal Strap
2
50
Nut
M8
4
51
Front Stabilizer
1
52
Sensor
1
53-L
Nut
1
53-R
Nut
1
54
Washer
1
55
Circlip
1
A
Spanner
1
B
Spanner
1
No.
Description
Spec.
Qty
1
Cap
4
2
Rear Stabilizer
1
3
Main Frame
1
4
Tension Knob
1
5
Meter
1
6
Bolt
M4
1
7
Bolt
M5
1
8
Bolt
M4
8
9
Cover(R)
1
10
Cover(L)
1
11-L
Left Pedal
1
11-R
Right Pedal
1
12-L
Left Crank Arm
1
12-R
Right Crank
Arm
1
13
Crank Cover
2
14
Nut
M10
2
15
Bolt
M6
6
16
Iron Sheet
2
17
Circlip
6
18
Bearing
2
19
Bearing Saddle
2
20
Middle Axle
1
21
Wheel
1
22
Iron Wheel
1
23
Washer
1
24
Washer
1
25
Nut
M10
1
26
Washer
2
27
Ferrite Core 2
1
28
Washer
3
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
STEP 1:
Attach the Front and Rear Stabilizers (No. 51 and No. 2) to
the Main Frame (No. 3) using 4 Bolts (No. 40) and 4 Nuts
(No. 50) and secure with Spanner (No. A).
STEP 2:
Connect the Left and Right Pedals (No. 11-L and No. 11-R)
onto the Left and Right Crank Arms (No. 12-L and No. 12-
R).
NOTE: The Left and Right Pedals (No. 11-L and No. 11-R)
are marked L for Left Pedal (No. 11-L) and R for Right Pedal
(No. 11-R). Remove the 2 Nuts (No. 53-L and 53-R) located on
the Pedals (No. 11-L and No. 11-R). The Left Nut (No. 53-L)
is black inside, and the Right Nut (No. 53-R) is white
inside.
Left Pedal (No. 11-L): Align Left Pedal (No. 11-L) with
the
Left Crank Arm (No. 12-L) at 90 degrees.
Gently insert
the Pedal (No. 11-L) into the Crank Arm (
12-L), turn the Pedal (No. 11-L) counter-clockwise as tightly
as you can with your hand.Once screwed in place, use Spanner
(No. A) to hold the bolt of the pedal then screw 1 Nut
(No. 53
-L) clockwise into thread end of the Left Pedal (No. 11L).
Secure with Spanner (No. B).
Right
Pedal (No. 11-R): Align the Right Pedal (No. 11-R)
with the Right Crank Arm (No. 12-R) at 90 degrees.Gently
insert the Pedal (No. 11-R) into the Crank Arm (No. 12-R),
turn the Pedal (No. 11-R) clockwise as tightly as you can with
your hand. Once screwed in place, use Spanner (No. A) to
hold the bolt of the pedal then screw 1 Nut (No. 53-R) counter
-clockwise into thread end of the Right Pedal (No. 11-R).
Secure with Spanner (No. B). Attach the Pedal Straps (No.
49) to the Pedals (No. 11-L and No. 11-R).
The assembly is now complete!
A
3
5
4
50
50
2
51
40
40
A
B
49
53-L
4
11-L
12-L
A
B
53-R
49
12-
R
11-R
4
5
DIST CAL ODO RPM SCAN TIME
EXERCISE COMPUTER
Our exercise computer on the Sunny Magnetic Mini Exercise Bike allows the user to tailor a
personalized workout by monitoring their progress. During a workout, the exercise computer will
alternately and repeatedly display your Time, Speed, Distance, Odometer, Calories, RPM, and
Scan (all of the above). With our easy-to-use computer, the user can efficiently track their fitness
improvements from one workout to the next.
FUNCTION KEY:
1. MODE: To select your specification mode and/or turn on exercise computer
FUNCTIONS AND SPECIFICATIONS:
1.
SCAN
–
Repeatedly displays all functions alternately (in the
following order)
2. TIME -- Counts the total time elapsed (counts up to 99:59 MIN.)
3. SPEED -- Displays your current pedaling speed (00.00 up to 999.9MPH)
4. DISTANCE -- Measures the total distance traveled (0.00-999.99Miles)
5. CALORIES -- The number of calories burned (0.0-999.9 KCAL)
6. ODOMETER -- Counts the total accumulated distance.
7. RPM -- Displays the amount of rotations per minute.
Speed is displayed at the top of the meter in miles per hour. The display on the bottom of
the meter is changed by pressing the MODE key. An arrow will point to the function being
displayed. If meter is in SCAN mode, one arrow will point to SCAN, and a flashing arrow
will point to the function being displayed.
HOW TO USE:
1. AUTO ON/OFF:
Begin pedaling or press the MODE button to turn on the computer . Once the exercise
computer
is on, it will remain active while in motion. The
exercise computer
will
automatically turn off when it has reached approximately 4 minutes without any motion.
2. RESET:
To reset the exercise computer, hold down the MODE button for 3 seconds. You can
alsoreset the computer by removing the batteries.
3. DISPLAY:
The top of the meter displays SPEED in miles per hour. The function displayed at the
bottom of the meter is changed by pressing the MODE key. An arrow will point to the
function being displayed. When you want a specific function displayed on the bottom,
press MODE until arrow points to the function. Meter will keep displaying that function
until you press the MODE key.When you want the meter to automatically rotate the
display on the bottom, press MODE until arrow points to SCAN. If meter is in SCAN
mode, one arrow will point to SCAN, and a flashing arrow will point to the function being
displayed.
4 . BATTERY/TROUBLESHOOT: The exercise computer uses two AAA batteries, which
are included. If the display appears improper or becomes difficult to read, please try
installing new batteries before contacting our customer service.
computer
computer
OPERATION & MAINTENANCE
WARNING: Do not reverse pedal on this bike. Reverse pedaling will damage the bike.
1. Please read all instructions before assembling the equipment. During assembly and
use, please make sure to follow all instructions carefully as any improper techniques of
use or assembly may result in injury or damage to the equipment.
2. The suggested exercise regimen for optimal results is 10-15 minutes per day, at least
three times a week.
3. Before beginning exercise, always inspect the equipment to ensure that all moving
parts, as well as hardware, are secured properly and are in good condition.

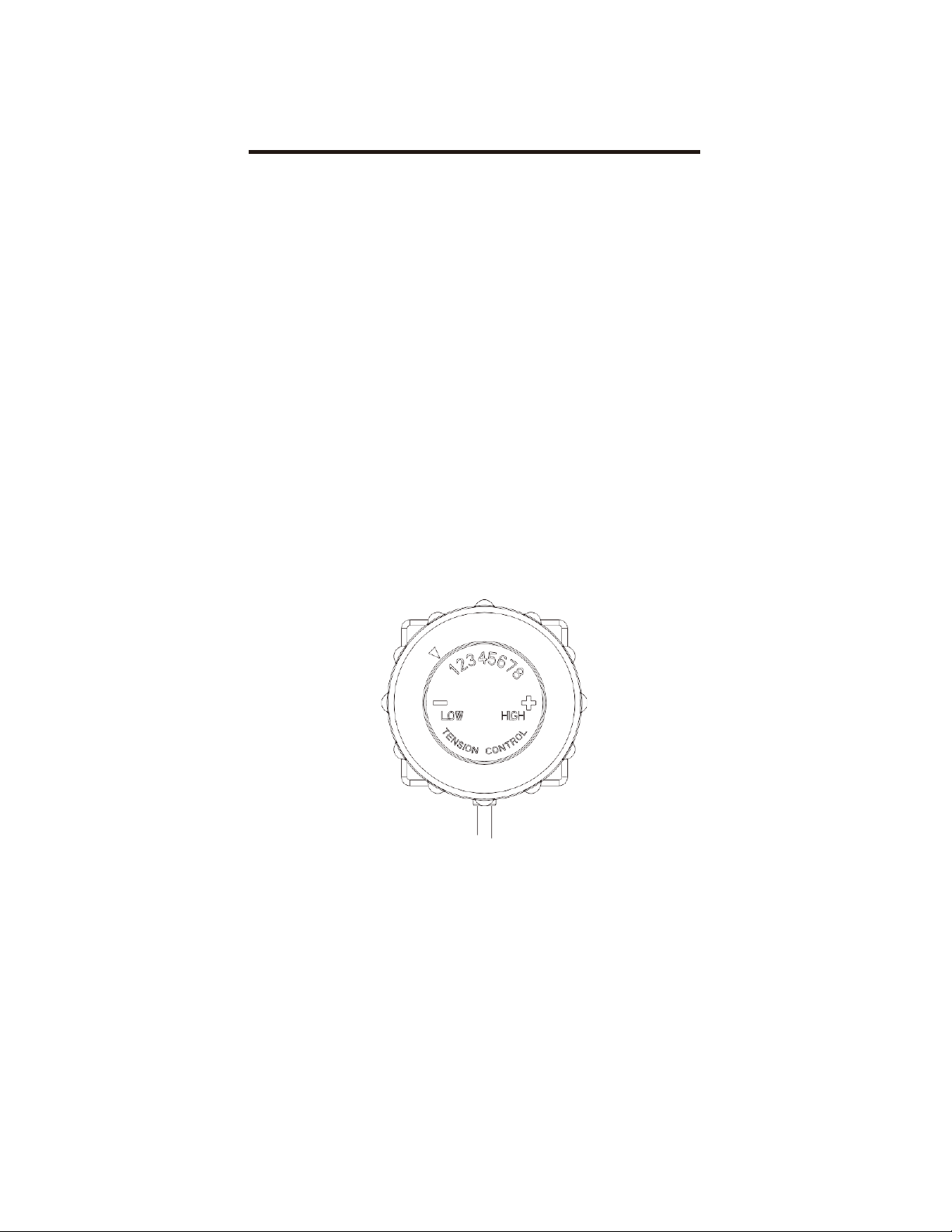

4. To adjust the level of tension, turn the Tension Knob (No. 4) to the left or right and
align the arrow to the preferred tension level as shown below. This machine contains 8
different levels of tension, with Level 1 being the lowest and Level 8 being the highest.
Turn the Tension Knob (No. 4) to the left to decrease the level of tension, turn the
Tension Knob (No. 4) to the right to increase the level of tension.
MAINTENANCE:
Only use a dry cloth to gently wipe the bike. It is recommended that you clean the bike
after each use. Store the bike in a dry area; do not leave the bike outdoors as prolonged
exposure to the extreme weather will cause damage to the parts and affect the function.
6 Version 2.6
