SMART MOTORIZED MINI
EXERCISE BIKE
SF-B020029 SMART
USER MANUAL
DO NOT STAND ON THE UNIT!
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
Thank you for purchasing the Motorized Smart Electromagnetic Mini Exercise Bike. Please
read the operating instructions carefully before use. Safe and effective use can only be
achieved if the equipment is assembled, maintained, and used properly. It is your responsibility
to ensure that all users of the equipment are informed of all warnings and precautions.
When using an electrical appliance, basic precautions should always be followed, including the
following:
DANGER – To reduce the risk of electric shock:
This product’s rated voltage is 120V, rated power is 220W.
Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to person(s):
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. The equipment is not suitable for therapeutic use.
4. Keep children and pet away from this machine. The equipment is designed for adult use only.
5. Do not place fingers or objects into the moving parts of the equipment.
6. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 cm) of free space all around it.
7. An appliance should never be left unattended when plugged in. Unplug from outlet when not in
use, cleaning and before putting on or taking off parts.

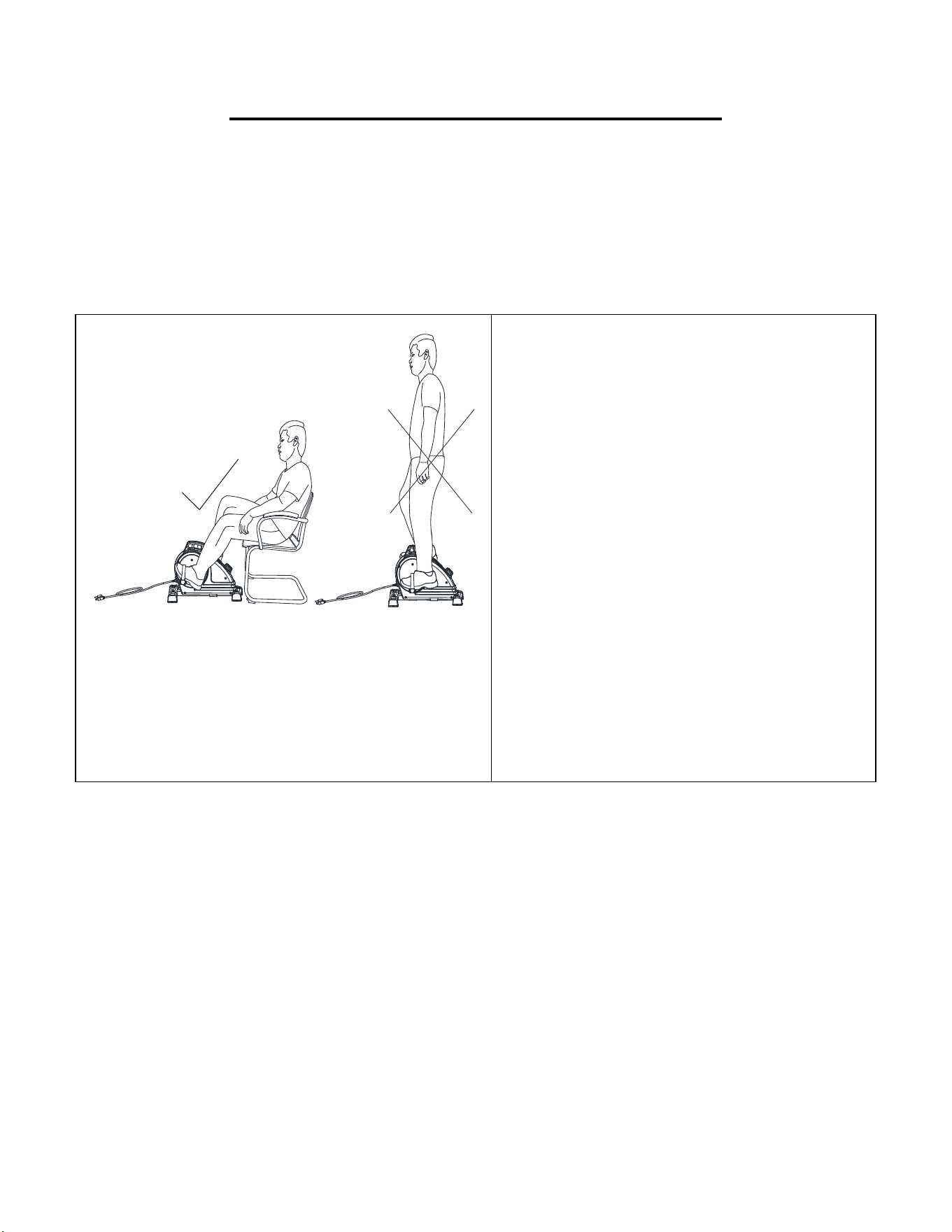

8. Do not stand on the elliptical, only use the elliptical while sitting.
9. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, damages or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
10. Never operate the appliance with the air openings blocked. Keep the air openings free of lint,
hair, and other objects.
11. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
12. Keep the appliance dry. Do not expose appliance to wet, moisture and humid environment.
13. Use this appliance only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer. If a product is modified or altered, it may
void the warranty.
SAVE THESE INSTRUCTIONS
2

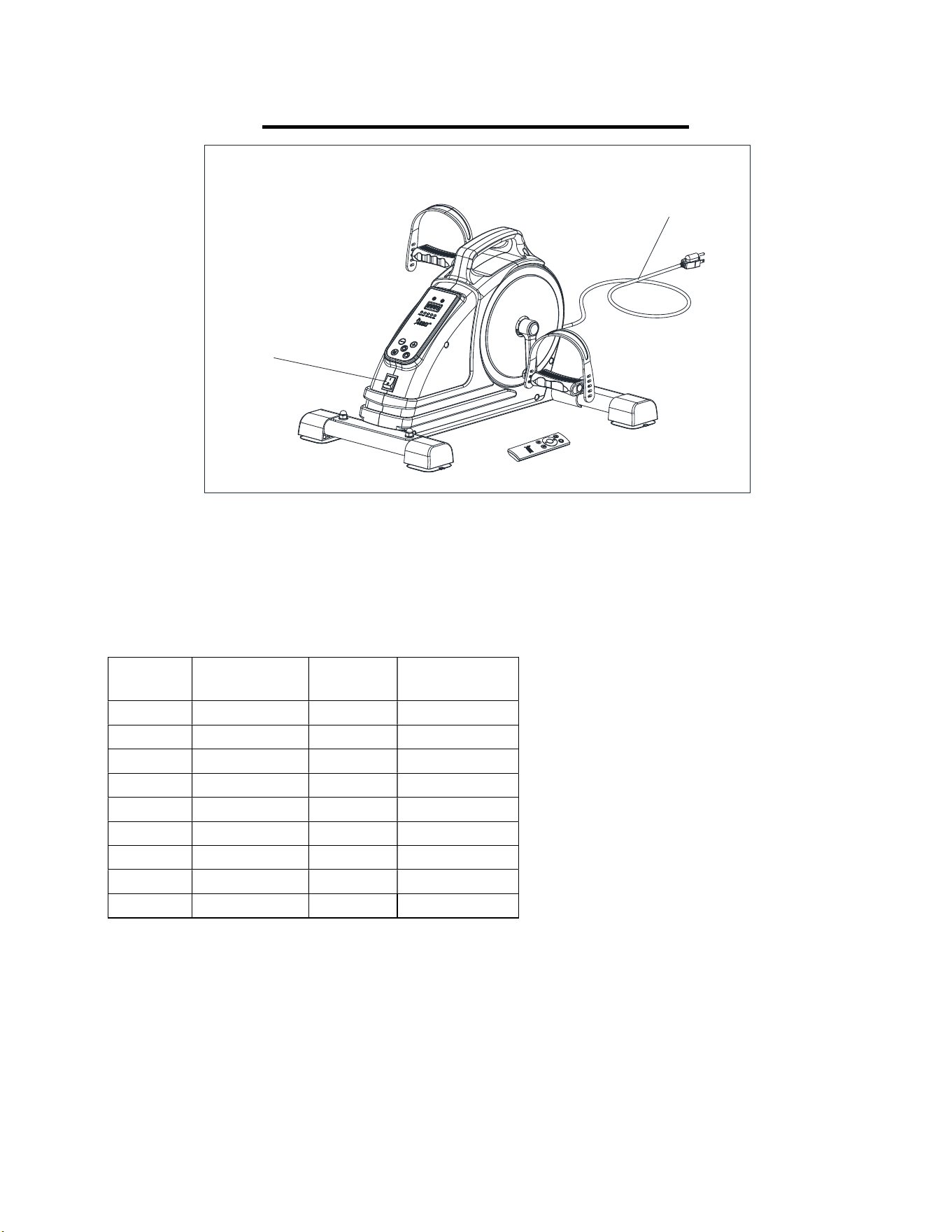

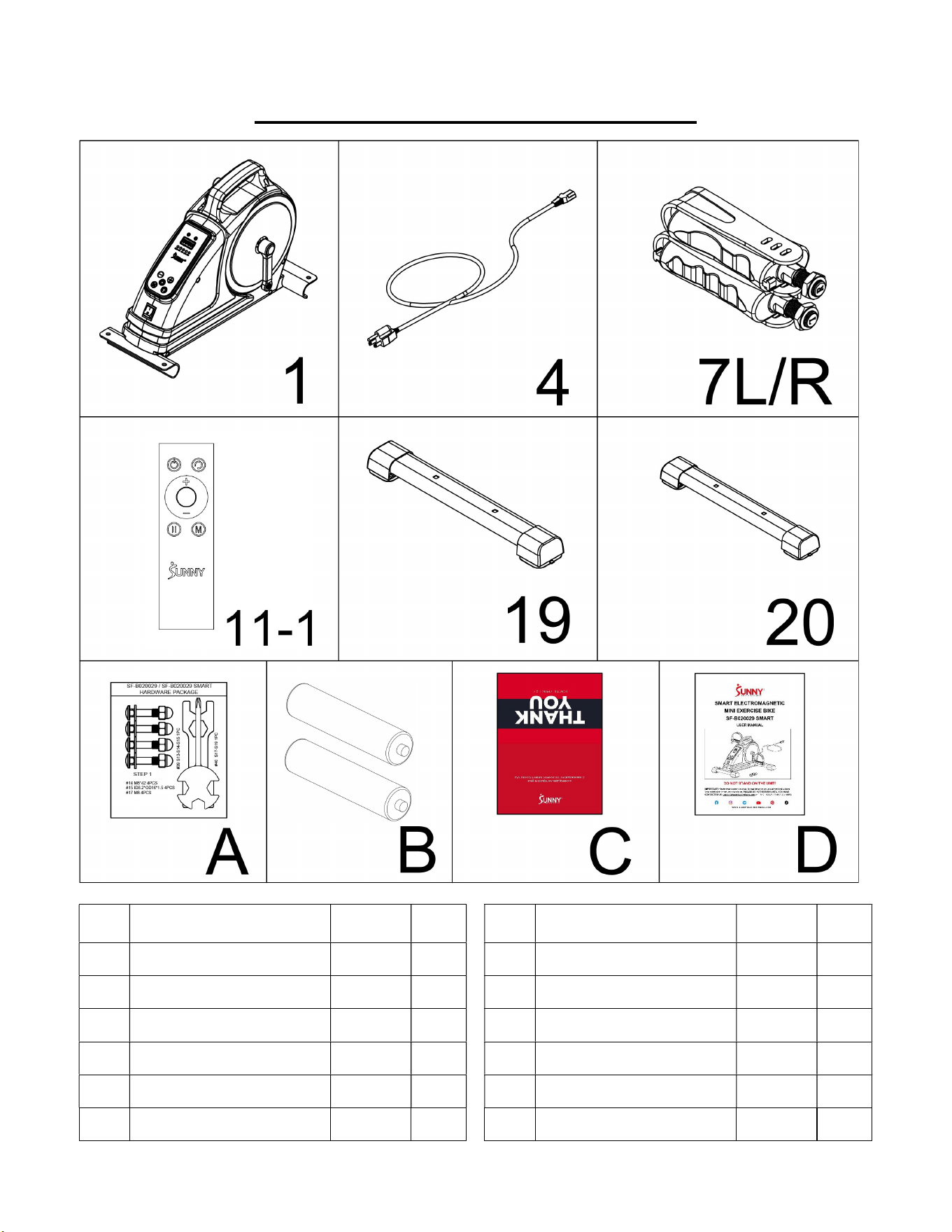

PRE-ASSEMBLY CHECK LIST
No.
Description Spec. Qty.
No.
Description Spec. Qty.
1 Main Frame 1 20 Rear Stabilizer 1
4 Power Cord 1 A Hardware Package
1
7L
Left Pedal
1
B
Battery AAA 2
7R
Right Pedal
1
C Thank You Card
1
11-1 Remote Control 1
D
User Manual
1
19 Front Stabilizer 1
3
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)

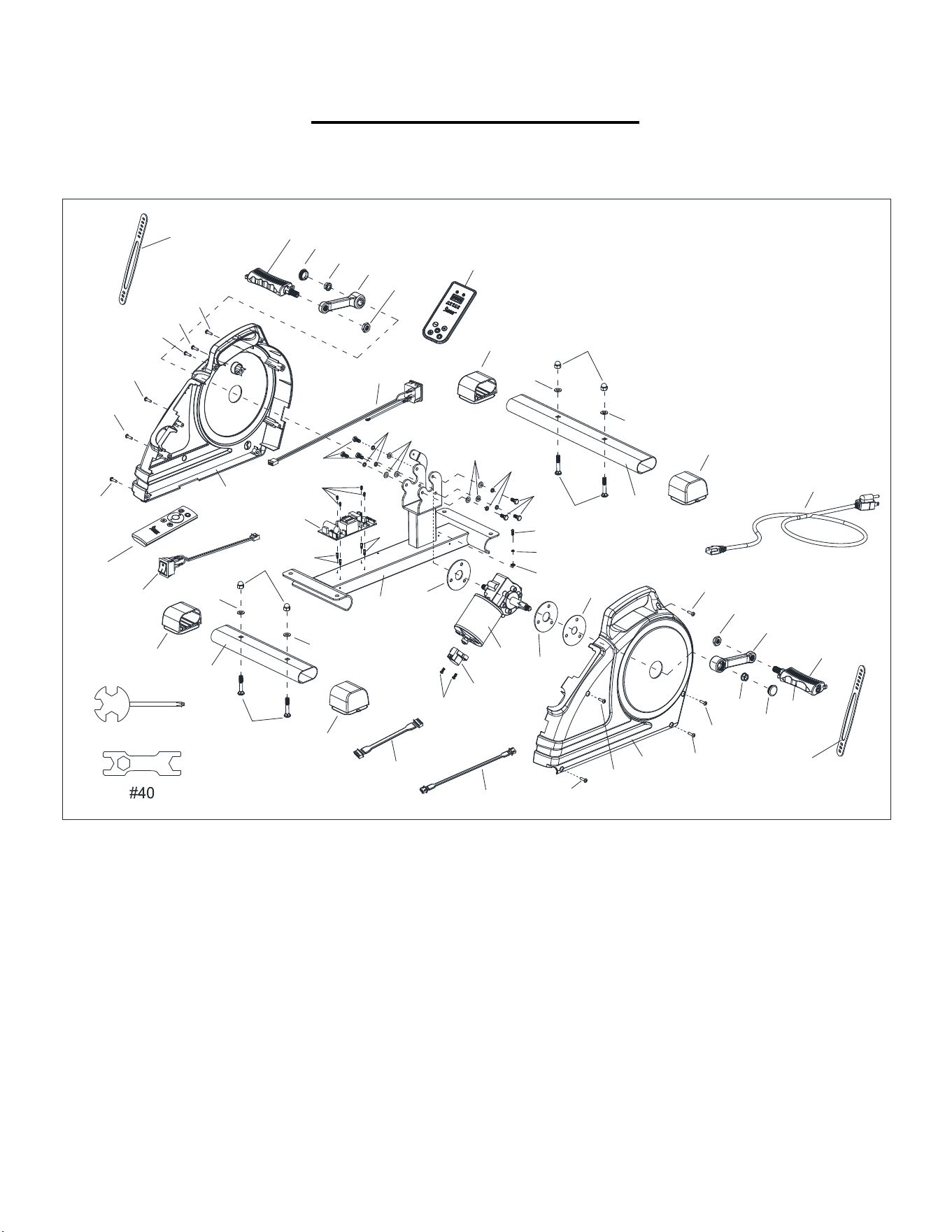

The part number found on the “EXPLODED DIAGRAM” (page 20) and “PARTS LIST” (page
19).
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).
#15 ID8.2*OD16*1.5 4PCS
#17 M8 4PCS
#14 M8*42 4PCS
#39 S13-S14-S15 1PC
#40 S17-S19 1PC
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts
or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

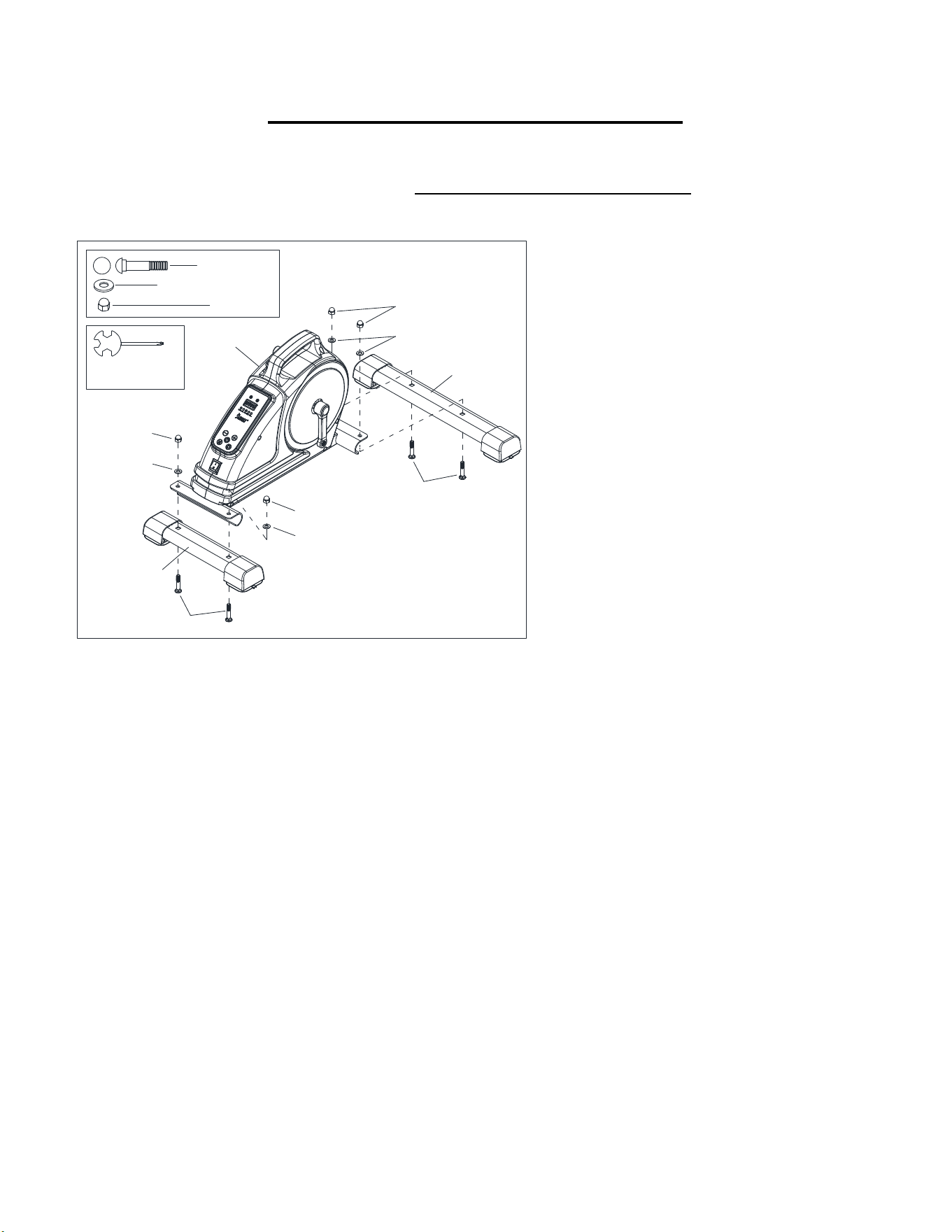

STEP 1:
Attach Front Stabilizer (No. 19) to the
Main Frame (No. 1) with 2 Carriage Bolts
(No. 14), 2 Washers (No. 15), and 2 High
Cap Nuts (No. 17). Tighten and secure
with Spanner (No. 39).
Attach Rear Stabilizer (No. 20) to the
Main Frame (No. 1) with 2 Carriage Bolts
(No. 14), 2 Washers (No. 15), and 2 High
Cap Nuts (No. 17). Tighten and secure
with Spanner (No. 39).
20
14
15
17
15
17
14
15
17
19
1
#39
S13-S14-S15
#15 ID8.2*OD16*1.5 4PCS
#17 M8 4PCS
#14 M8*42 4PCS
5
We value your experience using Sunny Health and Fitness products. For assistance with parts
or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

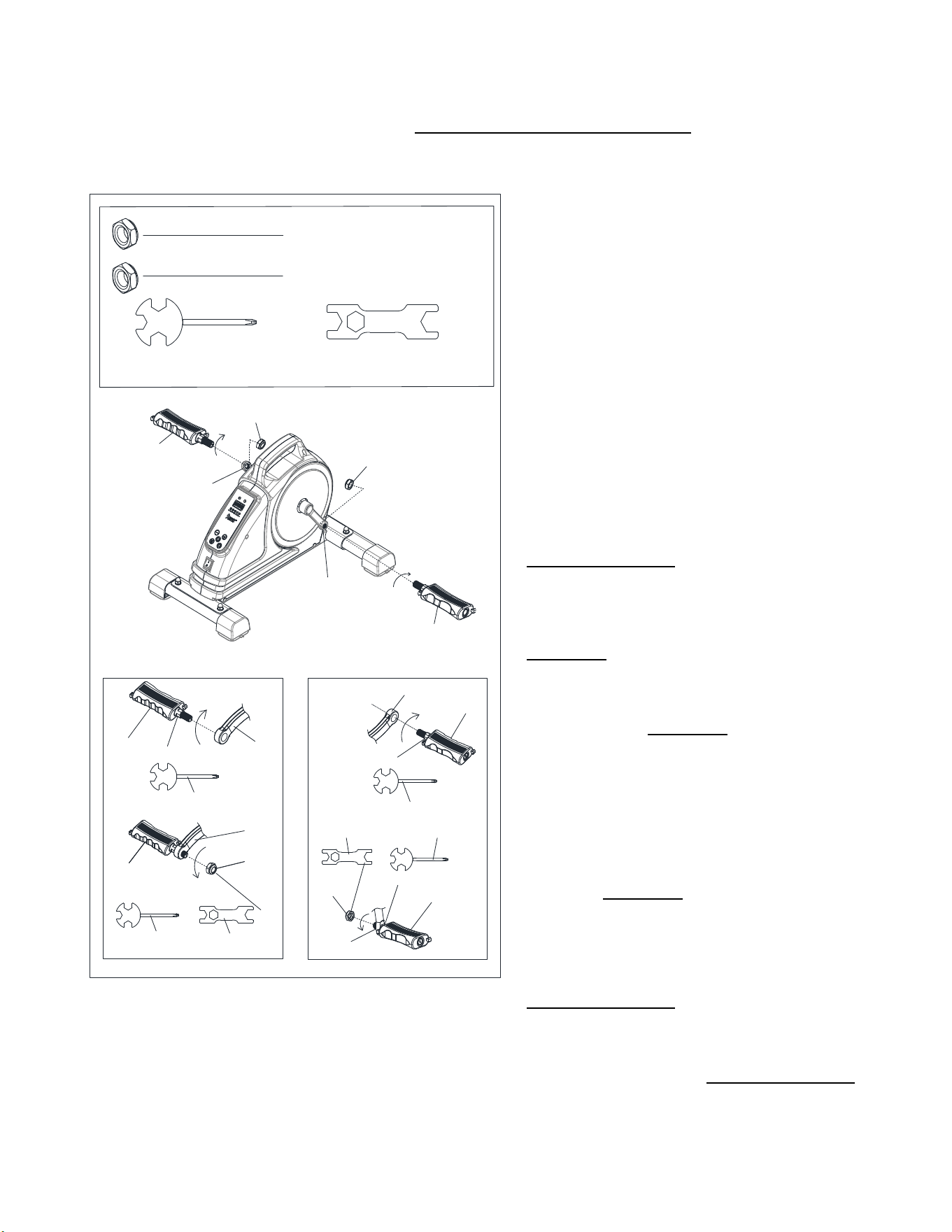

STEP 2:
NOTE: The Left & Right Pedals (No. 7L &
No. 7R) are marked “L” and “R” for Left and
Right.
WARNING! Read instructions carefully as
improper assembly may cause permanent
damage to your bike.
Remove the 2 Left & Right Nylon Nuts
(No. 21L & No. 21R) located on the Left &
Right Pedals (No. 7L & No. 7R).
Align the Left Pedal (No. 7L) with the Left
Crank (No. 3L) at 90°. Gently insert the
Left Pedal (No. 7L) into the Left Crank
(No. 3L) and turn the Left Pedal (No. 7L)
counter-clockwise as tightly as you can
with your hand. Use Spanner (No. 39) to
tighten and secure.
Turn the Left Nylon Nut (No. 21L)
clockwise as tightly as you can with your
hand. Use Spanner (No. 39) to hold the
pedal bolt on the Left Pedal (No. 7L) and
use Spanner (No. 40) to turn the Left Nylon
Nut (No. 21L) clockwise at the same time,
until it is tightened on to the Left Crank (No.
3L).
Align the Right Pedal (No. 7R) with the
Right Crank (No. 3R) at 90°. Gently insert
the Right Pedal (No. 7R) into the Right
Crank (No. 3R) and turn the Right Pedal
(No. 7R) clockwise as tightly as you can with
your hand. Use Spanner (No. 39) to tighten
and secure.
Turn the Right Nylon Nut (No. 21R)
counter-clockwise as tightly as you can with
your hand. Use Spanner (No. 39) to hold
the pedal bolt on the Right Pedal (No. 7R)
and use Spanner (No. 40) to turn the Right
Nylon Nut (No. 21R) counter-clockwise at
the same time, until it is tightened on to the
Right Crank (No. 3R).
#39 S13-S14-S15 1PC
#40 S17-S19 1PC
S19
3L
21L
39
3L
7L
39
40
3R
7R
39
3R
7R
21R
39
40
S15
S15
S19
S15
S15
S19
7
7L
#21R 1/2"-20 1PC
#21L 1/2"-20 1PC
7R
3R
21R
21L
3L
7L
6
We value your experience using Sunny Health and Fitness products. For assistance with parts
or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

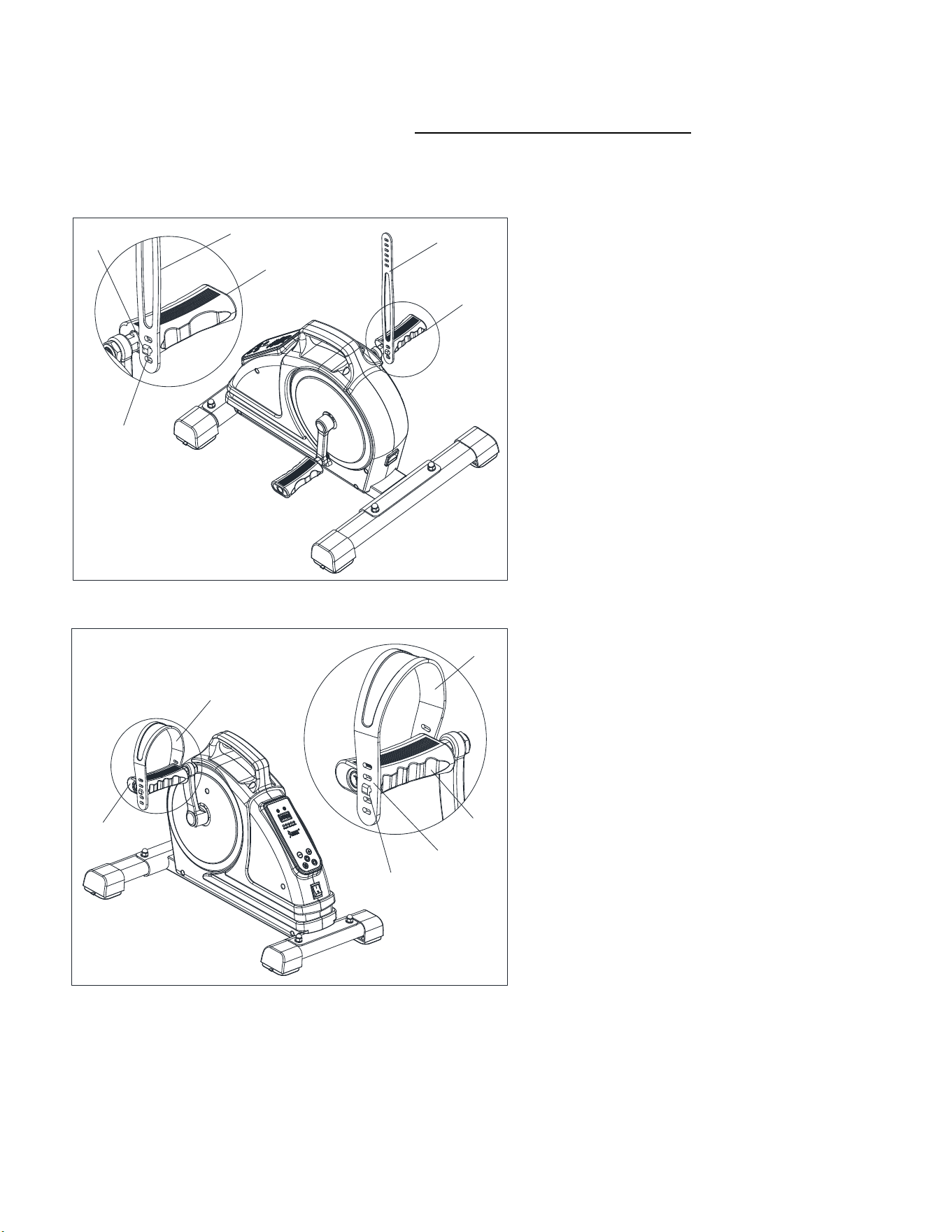

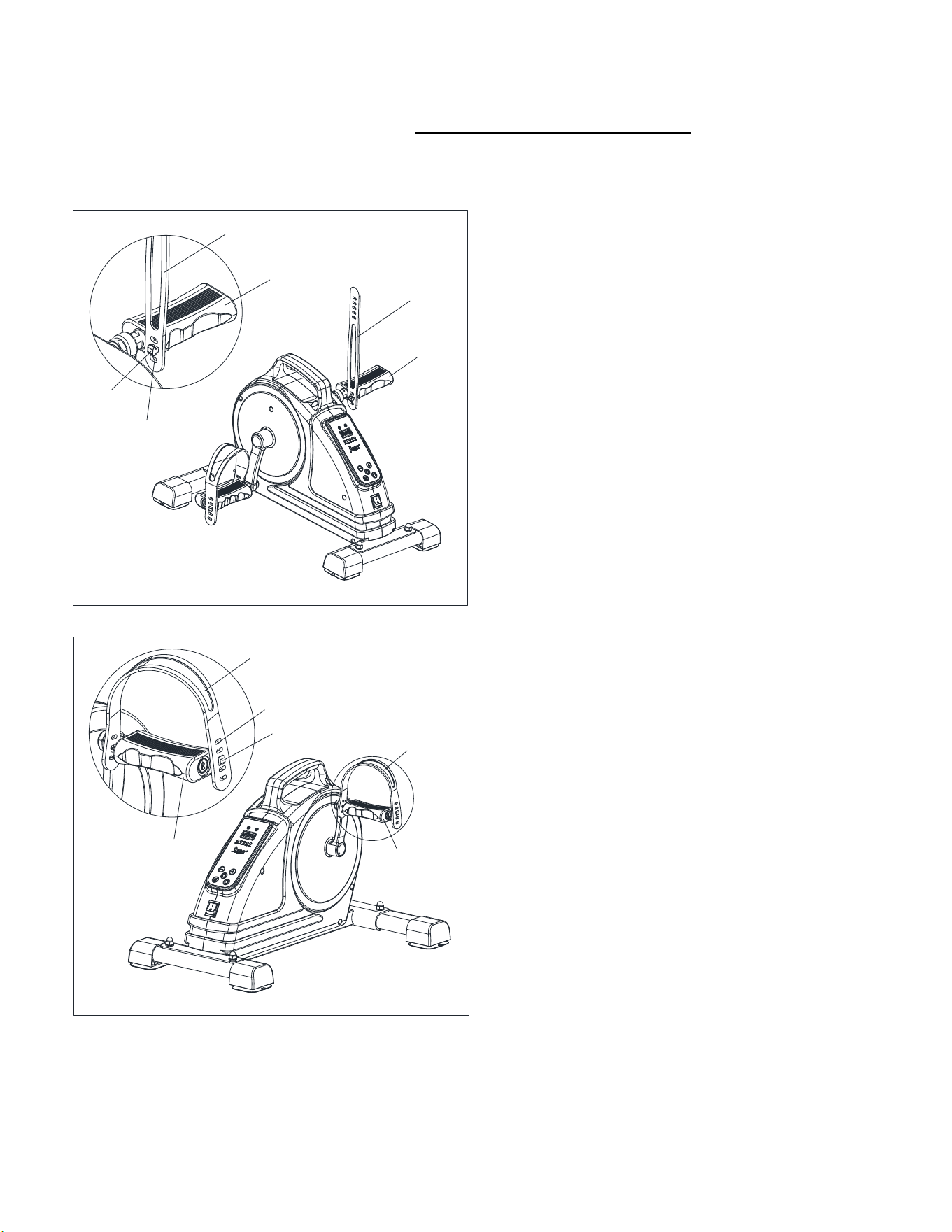

STEP 3:
Insert the fixing hole (#A) of the Pedal
Strap (No. 41-1) into the card slot (#7L-1)
of the Left Pedal (No. 7L).
Insert the fixing hole (#B) of the Pedal
Strap (No. 41-1) into the card slot (#7L-2)
of the Left Pedal (No. 7L).
NOTE: The position of fixing holes and
card slots can be adjusted according to
the size of your feet.
41-1
7L
7L-1
A
41-1
7L
41-1
7L
B
7L-2
7L
41-1
7
We value your experience using Sunny Health and Fitness products. For assistance with parts
or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
STEP 4:
Insert the fixing hole (#A) of the Pedal Strap
(No. 41-1) into the card slot (#7R-1) of the
Right Pedal (No. 7R).
Insert the fixing hole (#B) of the Pedal Strap
(No. 41-1) into the card slot (#7R-2) of the
Right Pedal (No. 7R).
NOTE: The position of fixing holes and card
slots can be adjusted according to the size of
your feet.
7R
41-1
A
7R-1
7R
41-1
41-1
7R
B
7R-2
7R
41-1
8
We value your experience using Sunny Health and Fitness products. For assistance with parts
or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
13
1
4

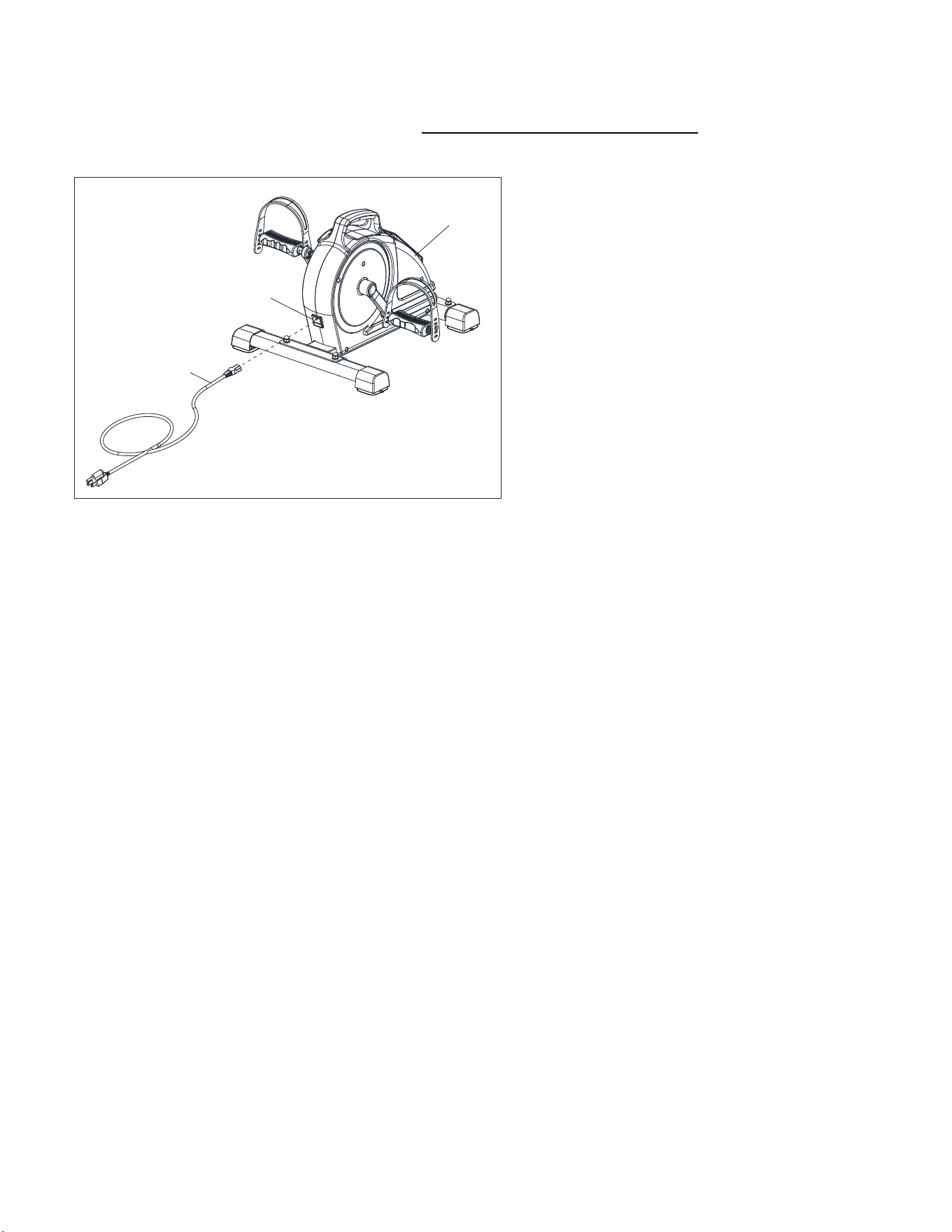

STEP 5:
Plug the Power Cord (No. 4) into the
Outlet (No. 13) on the Main Frame (No.
1).
The assembly is complete!
9

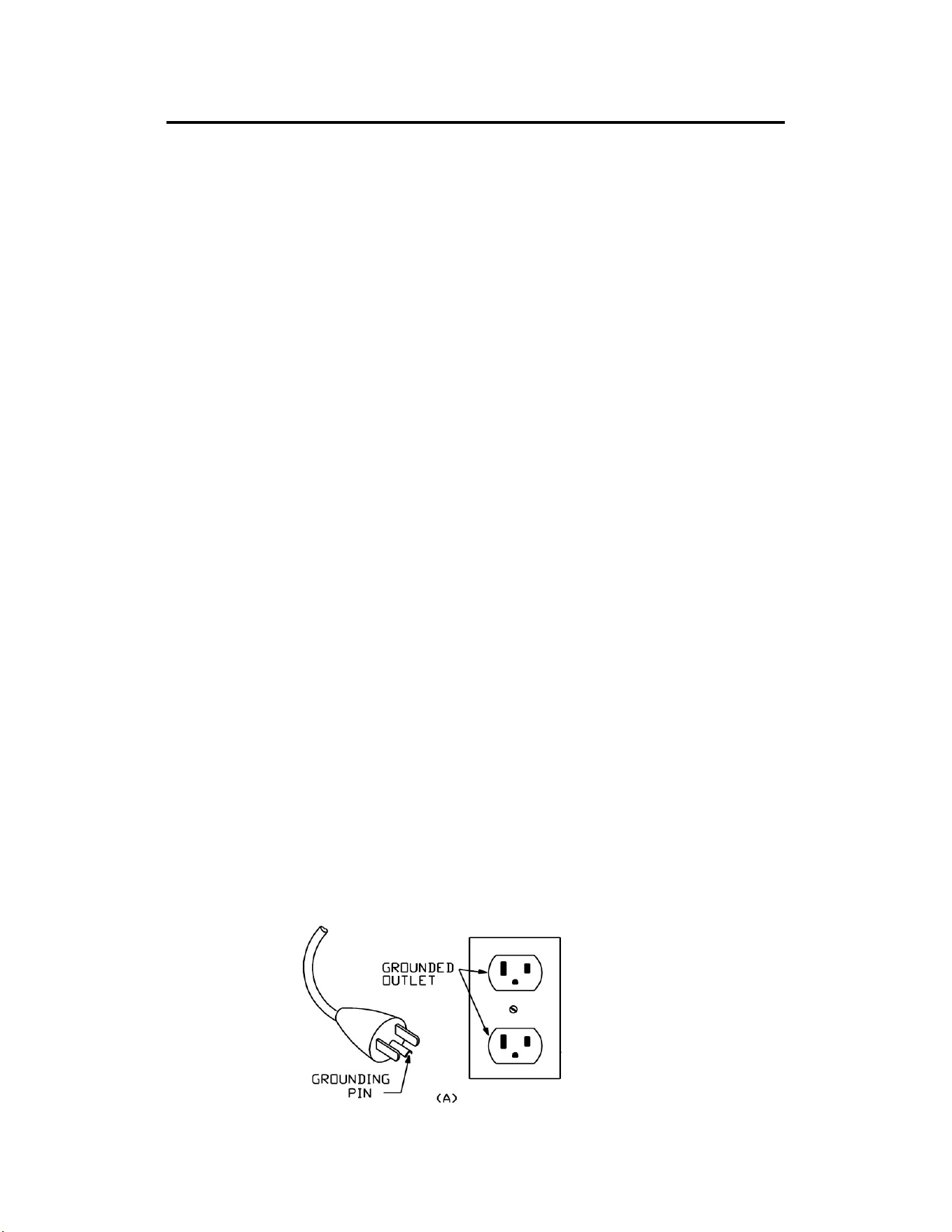

IMPORTANT ELECTRICAL INFORMATION
WARNING:
This cycle requires a power source of 120V in order to properly operate. For your safety as
well as the safety of others, please verify that the power source is correct before powering in
the equipment. Any power supply source above or below this level could cause significant
damage to the equipment and/or user.
GROUNDING METHODS:
This cycle must be grounded. Should the cycle malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a plug that has an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
This cycle is for use on a nominal 120V circuit and has a grounding plug that looks like the
plug illustrated in sketch A. Ensure that the cycle is connected to an outlet with the same
configuration as the plug. Do not use an adaptor for this product.
DANGER:
Improper connection of the equipment can result in risk of electric shock. Check with a
qualified electrician or serviceman if you are unsure whether the product has been properly
grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this cycle.
2. NEVER operate the cycle using a generator or UPS power supply.
3. NEVER remove any cover on this cycle without first disconnecting the Power Cord (No. 4).
4. NEVER expose the cycle to rain or moisture. This cycle is not designed for outdoor use or
use in any high humidity environment.
GROUNDING METHOD
10

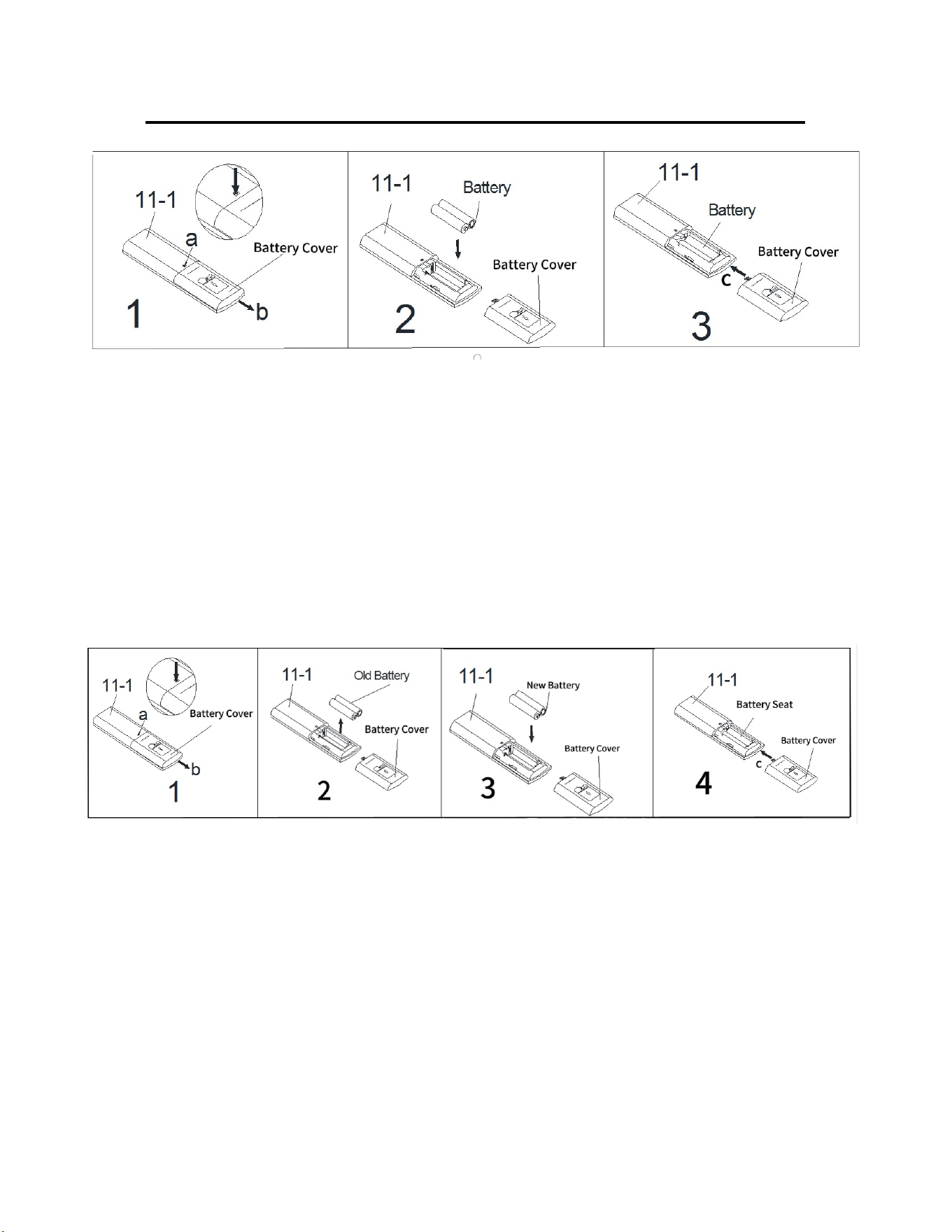

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION:
1. Press point a with a pen or other something sharp, then push down the battery cover on
the back of the Remote Control (No. 11-1) to remove the battery cover. (as shown by the
arrow b)
2. Take out 2 AAA batteries from the manual bag. Install 2 AAA batteries into the battery seat
on the back of the Remote Control (No. 11-1). Pay attention to the battery + and – ends
before installing.
3. Put the battery cover back to the Remote Control (No. 11-1) and push the cover up to
tighten it on the back of the Remote Control (No. 11-1) (as shown by the arrow c).
The installation is complete!
BATTERY REPLACEMENT:
1. Press point a with a pen or other something sharp, then push down the battery cover on
the back of the Remote Control (No. 11-1) to remove the battery cover. (as shown by the
arrow b).
2. Take out the old batteries from the battery seat.
3. Install 2 AAA batteries into the battery seat on the back of the Remote Control (No. 11-1).
Pay attention to the battery + and – ends before installing.
4. Put the battery cover back to the Remote Control (No. 11-1) and push the cover up to
tighten it on the back of the Remote Control (No. 11-1) (as shown by the arrow c).
The replacement is complete!
Dispose the old battery according to your regional guidelines.
11

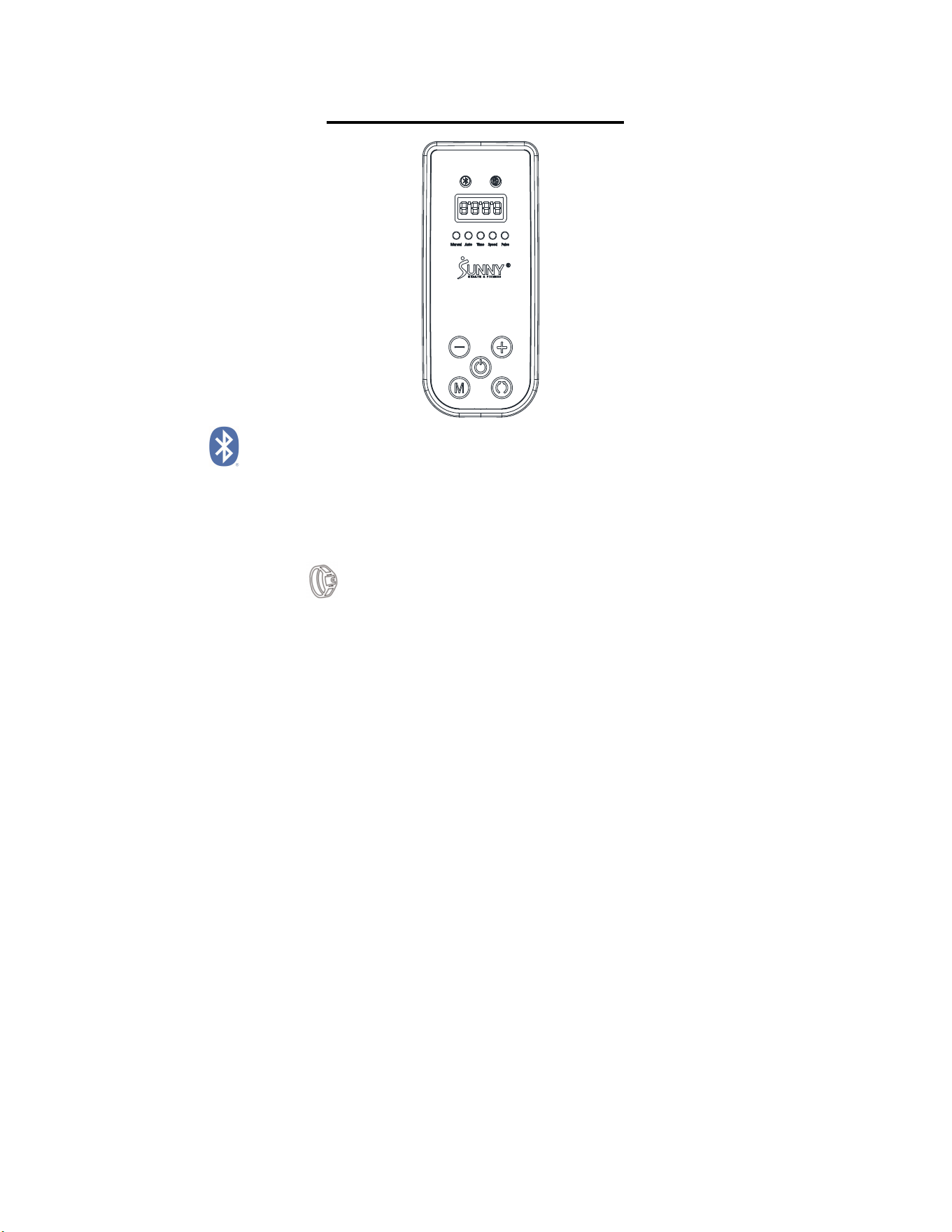

DISPLAY CONSOLE
BLUETOOTH :
1. The Bluetooth icon will flash when the console is on. If no Bluetooth connection is established
within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE :
1. The wireless heart rate icon will flash when the console is on. If the heart rate monitor is not
connected within 3 minutes, the wireless heart rate icon will turn off. But the heart rate monitor
can also be connected.
2. The wireless heart rate icon will always light up when the heart rate monitor is connected.
3. The heart rate monitor will disconnect when the console power off. The heart rate icon will turn
off and the heart rate function will temporary failure.
4. The heart rate monitor will disconnect when press and hold the START/PAUSE button for 6
seconds or more. The heart rate icon will turn off and the heart rate function will temporary
failure.
NOTE: It needs to reawaken the heart rate icon to re-connect the heart rate monitor when the
heart rate function temporary failure.
Ways to wake up the heart rate icon: A. Press the START button when the console is in
paused or stopped state; B. The APP is successfully connected and the sports interface is
entered when the meter is in suspended or stopped state; C. Press the MODE button or switch
the MODE in the APP when the meter is in running state.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit
Heart Rate Monitor HR200.
ELECTRICAL INFORMATION
Rated Voltage: 120V
12
FUNCTION KEYS
Start/Pause
Start and pause bike
Mode
Changes between automatic and manual
Direction
Changes the direction forward or backward
Speed+/-
Select key for increasing or decreasing speed
(18 speed levels)
WARNINGS AND INSTRUCTIONS
Do not stand on the bike. Only use while seated in a chair.
If bike is tilted over 45 degrees, it will auto stop.
If bike detects problems during exercise, it will auto stop within 10 seconds.
Failure to follow above all warnings and instructions could result in serious injury or death, and
cause the machine to stop and make an alarm sound. When the display console shows “ERR”,
press the Start/Pause button to reset automatically. If the “ERR” no longer appears, continue
to use normally. If the code continues to appear, please contact customer service.
13
OPERATING INSTRUCTIONS
1. Plug in the Power Cable (No. 4). Turn on the Power Switch (No. 5). The bike will beep and
LED display will show “OFF”. This is standby mode.
2. Press the Start/Pause button on the console or the remote control to start the bike, it will begin
in manual mode. Display will show L1.
3. Under the manual mode, press the Speed “+” button to increase the speed from L1 to L18. Or
press the Speed “–” button to decrease the speed from L18 to L1.
Level
Speed
(MPH)
Level
Speed
(MPH)
L1 0.674 L10 1.412
L2 0.737 L11 1.496
L3 0.843 L12 1.559
L4 0.948 L13 1.622
L5 1.032 L14 1.685
L6 1.074 L15 1.749
L7 1.180 L16 1.791
L8 1.285 L17 1.854
L9 1.369 L18 1.896
1. Under the manual mode, press the Direction button to change the direction forward or
backward.
2. Under the manual mode, the LED display will alternate display between speed level, speed,
time and pulse (pulse only occurs when the heart rate is detected).
3. Press the Mode button on the console or the remote control to change the mode from manual
mode to auto mode P1, press again from P1 to P2 mode, press again from P2 to P3, then
press again from P3 back to the manual mode.
4. Under the automatic mode, there are P1/P2/P3 modes included. Different modes have
different speeds and working directions, see below details.
4
5
14
P1 MODE: Based on speed Level 1, the pedals move 13 times forward, 13 times backwards,
13 times forward based, 13 times backwards and so on.
P2 MODE: The pedals move forward first then the speed will be increasing from Level 1 to
Level 9 gradually. When the speed reaches Level 9, the speed will be decreasing from Level 9
to Level 1. When the speed reaches Level 1, the pedals change to move backwards and the
speed will be increasing from Level 1 to Level 9 gradually. When the speed reaches Level 9,
the speed will be decreasing from Level 9 to Level 1. When the speed reaches Level 1, the
pedals change to move forward and repeats the operation.
P3 MODE: The pedals move forward first then the speed will be increasing from Level 1 to
Level 18 gradually. When the speed reaches Level 18, the speed will be decreasing from Level
18 to Level 1. When the speed reaches Level 1, the pedals change to move backwards and
the speed will increasing from Level 1 to Level 18 gradually, when the speed reaches Level 18,
the speed will be decreasing from Level 18 to Level 1. When the speed reaches Level 1, the
pedals change to move forward and repeats the operation.
5. The machine will stop automatically after working continuously for 30 minutes. At the stop
moment, the LED display will show “OFF” then show the exercise mode and dates.
NOTE: After finish using, please turn off the switch and disconnect the power.
TECHNICAL DATA
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5Mhz
Transmitting Power: 0dBm
15

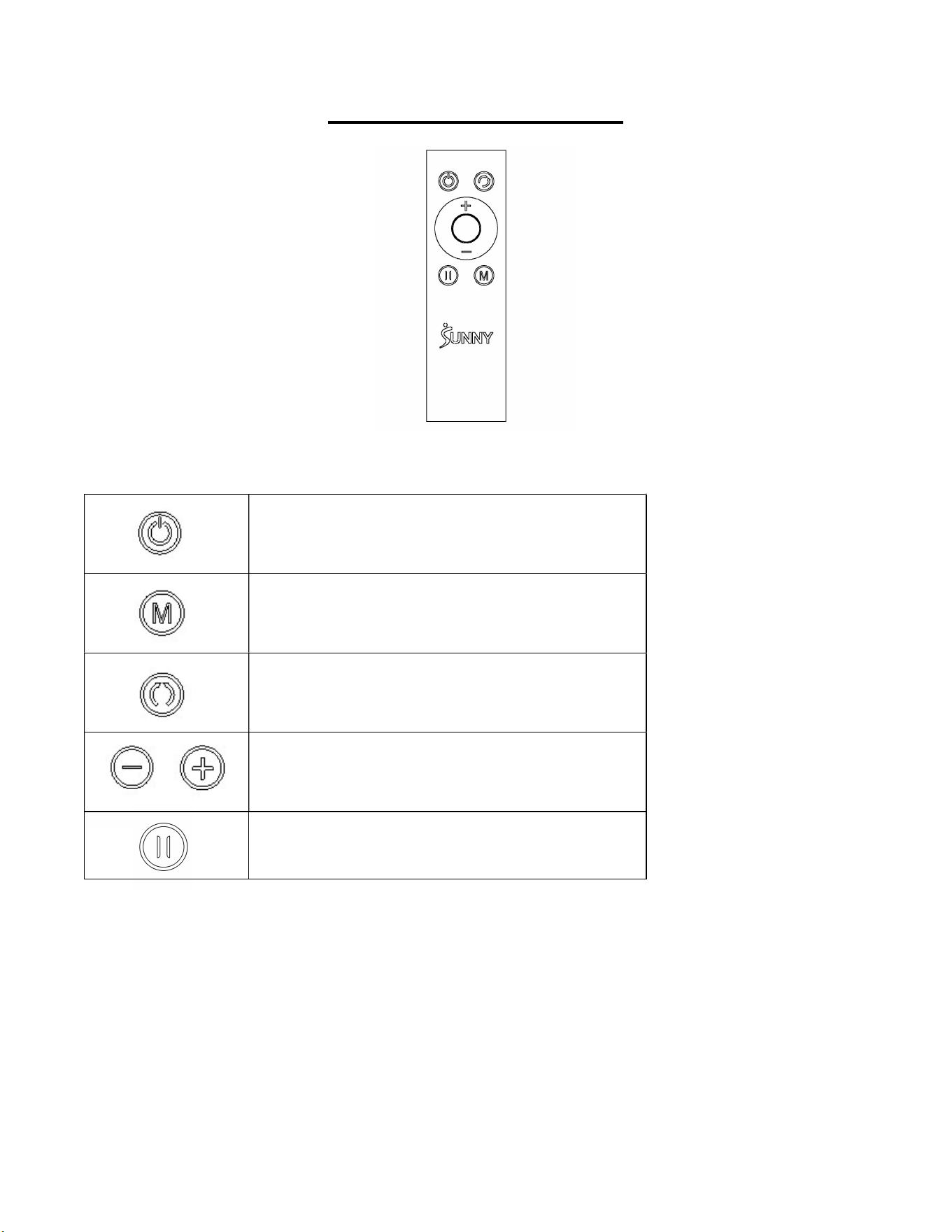

REMOTE CONTROL
FUNCTION KEYS
Start/Pause: Start and pause elliptical
MODE: Changes between automatic and
manual
Direction: Changes the direction forward or
backward
Speed: Select + key for increasing or – for
decreasing speed (18 speed levels)
Pause
REMOTE CONTROL PAIRING METHOD:
1. Restart the elliptical, press and hold down the Mode button and Direction button at the
same time, you will hear three “beep” sounds.
2. Press and hold down the Mode button on the Remote Control (No. 11-1) immediately for
about 3 seconds. Hearing a "Beep" indicates that the pairing is successful. During the
pairing, the Remote Control (No. 11-1) should be as close to the elliptical as possible.
16
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
17
USER-MAINTENANCE INSTRUCTION
Caution：There are no serviceable parts in the appliance, any servicing should be performed
by an authorized service person.
When the appliance is not in use, disconnect the power supply, storage of the power cord and
the total appliance in a dry location where children cannot touch or in play area(s).
USE ONLY WHILE SITTING.
DO NOT STAND ON THE
BIKE!
WARNING
The machine is intended to use in a sitting
position only. When using the machine,
keep the feet flat to avoid rubbing against
the floor. Do not stand on the machine.
Failure to follow all warnings and
instructions could result in serious injury or
death.
18
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for
your free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/
session, and recorded in your account profile!
Troubleshooting:
If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or
scan the QR code below:
If you require additional support, please contact [email protected].
19
PARTS LIST
No. Description Spec. Qty
No. Description Spec. Qty
1 Main Frame
1 21L Left Nylon Nut 1/2”-20 1
2
N/A
21R Right Nylon Nut 1/2”-20 1
3L Left Crank
1 22 Screw ST3.5*15 6
3R Right Crank
1 23
Toothed Lock
Washer
D4 1
4 Power Cord
1 24 Screw ST4.2*19 5
5 Power Switch
1 25 Flange Nut M10 2
6 Rubber Pad
2 26 End Cap 2
7L Left Pedal
1 27 Spring Washer D4 1
7R Right Pedal
1 28 3P Data Line 1
8L Left Belt Cover
1 29 Sensor 1
8R Right Belt cover
1 30 Screw M3*8 2
9 Motor
1 31 Fixing Bolt 4
10 Console
1 32 6P Data Line 1
11-1 Remote Control
1 33 Screw M6*15 6
12 Controller
1 34 Spring Washer D6 6
13 Outlet
1 35 Flat Washer Φ6.4*Φ12*1.2 6
14 Carriage Bolt M8*42 4 36 Screw M4*10 1
15 Washer ID8.2*OD16*1.5 4 37 Screw M3*6 4
16 End Cap
4 38 Washer Φ17*Φ70*1.0 1
17 High Cap Nut M8 4 39 Spanner S13-S14-S15 1
18
N/A
40 Spanner S17-S19 1
19 Front Stabilizer
1 41-1 Pedal Strap 277mm 2
20 Rear Stabilizer 1
20
EXPLODED DIAGRAM
Version 1.1
29
30
#39
1
3L
3R
4
5
6
6
7L
7R
8L
8R
9
10
12
13
14
14
15
15
17
17
15
15
16
16
16
16
21L
21R
24
24
24
24
24
22
22
22
22
22
22
25
26
25
26
27
28
31
31
32
33
34
35
33
34
35
36
37
38
23
19
20
41-1
41-1
11-1
