918002 – IKON 42
(SN 000101 +)
918003 – IKON 48
(SN 000101 +)
918004 – IKON 52
(SN 000101 +)
918005 – IKON 52
(SN 000101 +)
918006 – IKON 60
(SN 000101 +)
918026 – IKON 52
(SN 000101 +)
918027 – IKON 42
(SN 030000+)
918028 – IKON 52
(SN 030000 +)
09690500C
• 8/23
Printed in USA
IKON
Models
Operator’s Manual
Manuel du Utilisateur
ENGLISH
FRANÇAIS
E10
™
WELCOME . . . . . . . . . . . . . . . . . . . . . . 1
Register Your Product!. . . . . . . . . . . . . . 1
SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . 2
Practices & Laws . . . . . . . . . . . . . . . . . . 2
Emission Control System. . . . . . . . . . . . 2
Required Operator Training . . . . . . . . . . 2
Safety Alert Symbol . . . . . . . . . . . . . . . . 2
Signal Words . . . . . . . . . . . . . . . . . . . . . 2
Safety Decals. . . . . . . . . . . . . . . . . . . . . 3
Safety Instructions . . . . . . . . . . . . . . . . . 6

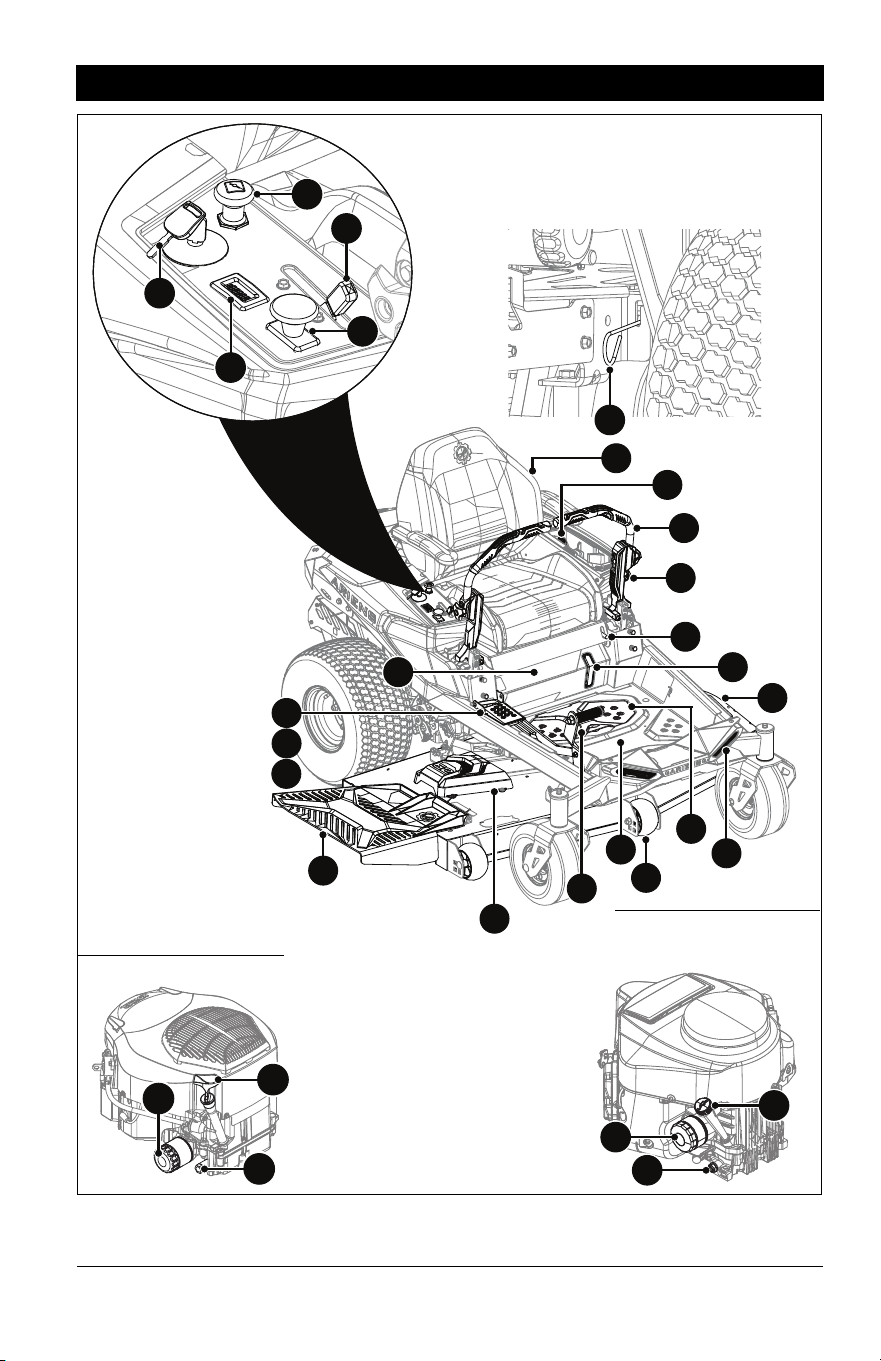

CONTROLS AND FEATURES . . . . . . . 9
Ignition Key . . . . . . . . . . . . . . . . . . . . . . 11
Choke Control Knob. . . . . . . . . . . . . . . . 11
Throttle Control Lever . . . . . . . . . . . . . . 11
Power-Take-Off (PTO) Knob . . . . . . . . . 11
Hour Meter . . . . . . . . . . . . . . . . . . . . . . . 11
Height-of-Cut Adjustment System . . . . . 12
Transport Lock. . . . . . . . . . . . . . . . . . . . 12
Deck Lift Pedal. . . . . . . . . . . . . . . . . . . . 12
Seat Adjustment Lever. . . . . . . . . . . . . . 12
Steering Levers . . . . . . . . . . . . . . . . . . . 12
Safety Interlock System . . . . . . . . . . . . . 12
Transaxle Bypass Levers. . . . . . . . . . . . 12
Anti-Scalp Wheels . . . . . . . . . . . . . . . . . 12
OPERATION . . . . . . . . . . . . . . . . . . . . . 13
Emergency Stopping . . . . . . . . . . . . . . . 13
Before Operating Unit . . . . . . . . . . . . . . 13
Start the Engine . . . . . . . . . . . . . . . . . . . 13
Operate Unit. . . . . . . . . . . . . . . . . . . . . . 14
Stop the Engine . . . . . . . . . . . . . . . . . . . 14
Move Unit Manually . . . . . . . . . . . . . . . . 14
Transport Unit . . . . . . . . . . . . . . . . . . . . 15
MAINTENANCE . . . . . . . . . . . . . . . . . . 15
Maintenance Schedule . . . . . . . . . . . . . 15
Service Parts . . . . . . . . . . . . . . . . . . . . . 16
Service Position. . . . . . . . . . . . . . . . . . . 16
Check Safety Interlock System . . . . . . . 17
Check Parking Brake. . . . . . . . . . . . . . . 17
Check Engine Oil . . . . . . . . . . . . . . . . . . 17
Check Tire Pressure . . . . . . . . . . . . . . . 17
Check Fasteners . . . . . . . . . . . . . . . . . . 17
Lubricate Unit. . . . . . . . . . . . . . . . . . . . . 17
Check Mower Blades. . . . . . . . . . . . . . . 18
Check Battery . . . . . . . . . . . . . . . . . . . . 19
Check Mower Belts . . . . . . . . . . . . . . . . 19
ADJUSTMENTS . . . . . . . . . . . . . . . . . . 19
Position Seat . . . . . . . . . . . . . . . . . . . . . 19
Adjust Steering Levers. . . . . . . . . . . . . . 19
ELECTRICAL SERVICE . . . . . . . . . . . . 21
TROUBLESHOOTING . . . . . . . . . . . . . 22
STORAGE . . . . . . . . . . . . . . . . . . . . . . . 24
Short-Term Storage . . . . . . . . . . . . . . . . 24
Long-Term Storage . . . . . . . . . . . . . . . . 24
Start-of-Season Preparation . . . . . . . . . 24
ACCESSORIES. . . . . . . . . . . . . . . . . . . 25
SPECIFICATIONS. . . . . . . . . . . . . . . . . 26
SPECIFICATIONS. . . . . . . . . . . . . . . . . 27
WARRANTY . . . . . . . . . . . . . . . . . . . . . 28
TABLE OF CONTENTS
EN - 1
© 2023 • AriensCo • Brillion, WI 54110
WELCOME
Congratulations on your purchase and welcome to the Ariens family! Every machine in the
Ariens lineup is designed for long-lasting and unsurpassed performance. We are confident
your machine will be part of your family for many years to come.
REGISTER YOUR PRODUCT!
It is extremely important to register your
product at time of purchase. Product
registration activates the warranty and
establishes a communication link from
AriensCo.
Locate the model and serial number decal on
your unit and register those numbers online
at www.ariens.com. See Figure 1 for decal
location. Be aware that the original selling
dealer may have already completed product
registration on behalf of the original
purchaser.
Record model number here.
Record serial number here.
MANUALS
Before operating the unit, carefully and
completely read the owner’s manual
provided with the unit. They contain safety
instructions and important information about
unit controls.
The engine on this unit is covered by a
separate manual. Refer to the engine manual
for engine service recommendations.
Contact the engine manufacturer for a
replacement manual if necessary.
It is your responsibility to read and
understand all safety precautions and
instructions in the manuals. If you do not
understand or have difficulty following the
instructions, contact your Ariens dealer for
assistance. To locate your nearest dealer, go
to www.ariens.com.
DISCLAIMER
Ariens reserves the right to discontinue,
make changes to, and add improvements
upon its products at any time without public
notice or obligation. The descriptions and
specifications contained in this manual were
in effect at printing. Equipment described in
this manual may be optional. Some
illustrations may not be applicable to your
unit.

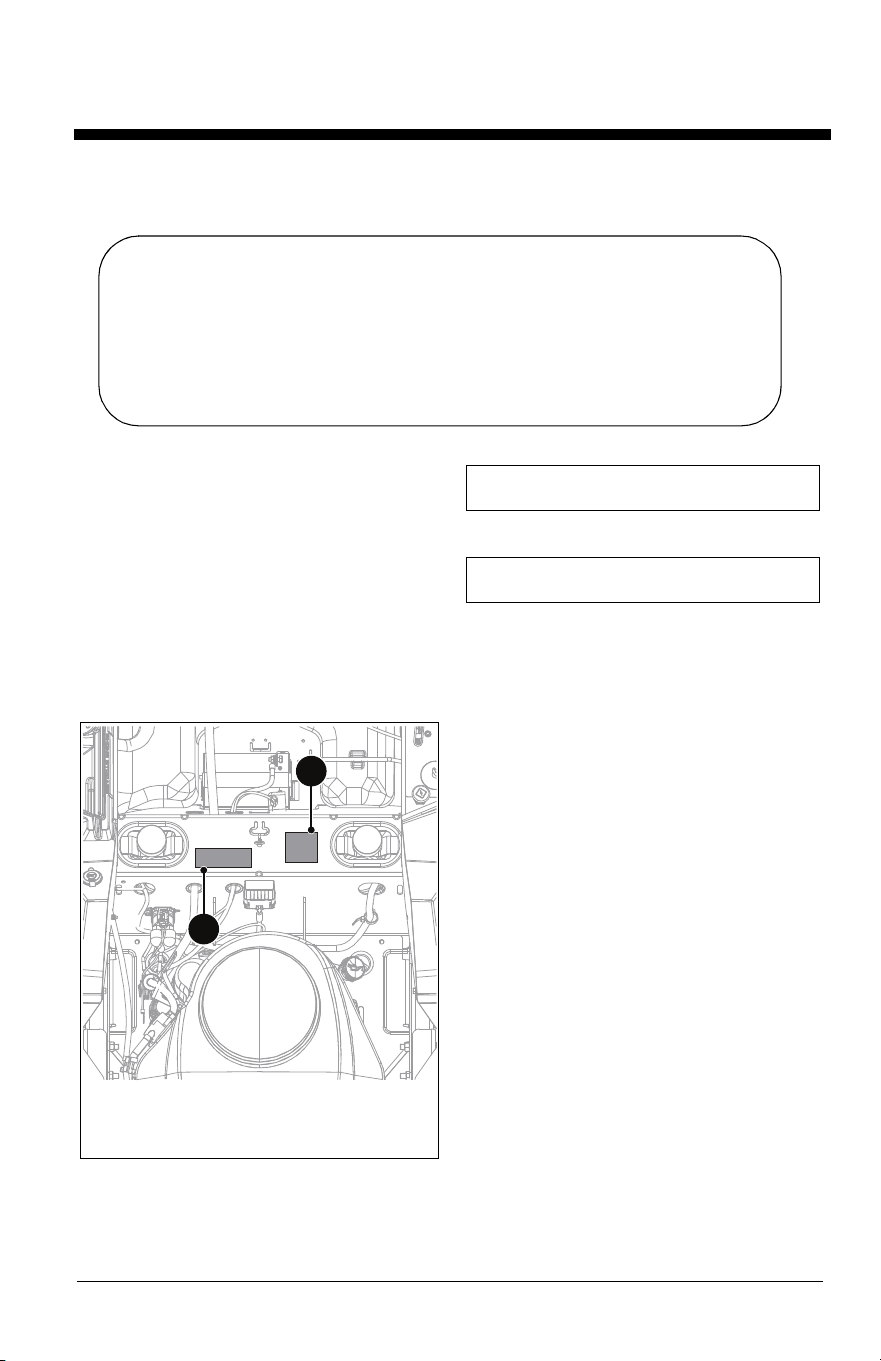

Figure 1
1. Model & Serial Number Label
2. EPA Label
1
2
Have Questions or Need Assistance?
www.ariens.com
A parts manual for your unit is available for free download
or purchase at www.ariens.com.
EN - 2
Read these safety rules and follow them
closely. Failure to follow these rules could
lead to loss of control of unit, severe personal
injury or death to you or bystanders, or result
in damage to property or the machine.
PRACTICES & LAWS
Practice usual and customary safe working
precautions. Learn applicable rules and laws
in your area. Always follow the practices set
forth in this manual.
EMISSION CONTROL SYSTEM
This equipment and/or its engine may include
exhaust and evaporative emissions control
system components required to meet U.S.
Environmental Protection Agency (EPA)
and/or California Air Resources Board
(CARB) regulations. Tampering with emission
controls and components by unauthorized
personnel may result in severe fines or
penalties. Emission controls and components
can only be adjusted by an Ariens dealer or
an authorized engine manufacturer’s service
center. Contact your Ariens Equipment
Retailer concerning emission controls and
component questions.
REQUIRED OPERATOR
TRAINING
Read and understand the
Operator’s Manual and decals
on the unit. This information is
for your safety and the proper
use of your equipment.
Failure to follow these
instructions and warnings may cause death
or serious injury. If you have purchased this
product from an Ariens dealer, the dealer can
provide you with training.
Familiarize yourself and any other operators
with all controls and the safe use of the
features of this unit. If you loan, rent or sell
this product to others, provide them with all
manuals.
If you have any questions, please call our
customer support line at 920-756-4688 or
contact us at www.ariens.com. Do not use
this equipment if, after reading the Operator’s
Manual and the on-board decals, you have
any questions about the safe use of this
product.
SAFETY ALERT SYMBOL
SIGNAL WORDS
The safety alert symbol above and signal
words below are used on decals and in this
manual. Read and understand all safety
messages.
1. Danger
2. Warning
3. Caution
4. Notice
NOTICE: Indicates information or procedures
that are considered important but not hazard
related. If not avoided property damage could
result.
SAFETY
WARNING: AVOID INJURY.
This cutting machine is capable
of amputating hands and feet
and throwing objects. Failure to
observe the safety instructions
in the manuals and on decals
could result in serious injury or
death.
This is the safety alert symbol. It
means:
• ATTENTION!
• YOUR SAFETY IS
INVOLVED!
When you see this symbol:
• BECOME ALERT!
• OBEY THE MESSAGE!
DANGER: Indicates an
IMMINENTLY HAZARDOUS
SITUATION! If not avoided,
WILL RESULT in death or
serious injury.
WARNING: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided,
COULD RESULT in death or
serious injury.
CAUTION: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided, MAY
RESULT in minor or moderate in-
jury. It may also be used to alert
against unsafe practices.
EN - 3
5. Important
IMPORTANT: Indicates general reference
information worthy of special attention.
SAFETY DECALS
The safety decals on your machine are visual
reminders of the important safety information
in this manual. All messages on your unit
must be fully understood and carefully
followed. Safety decals on the machine are
explained below.
ALWAYS replace missing or damaged safety
decals. Replacement decal part numbers are
found in the parts manual for your machine
and may be ordered from your dealer.

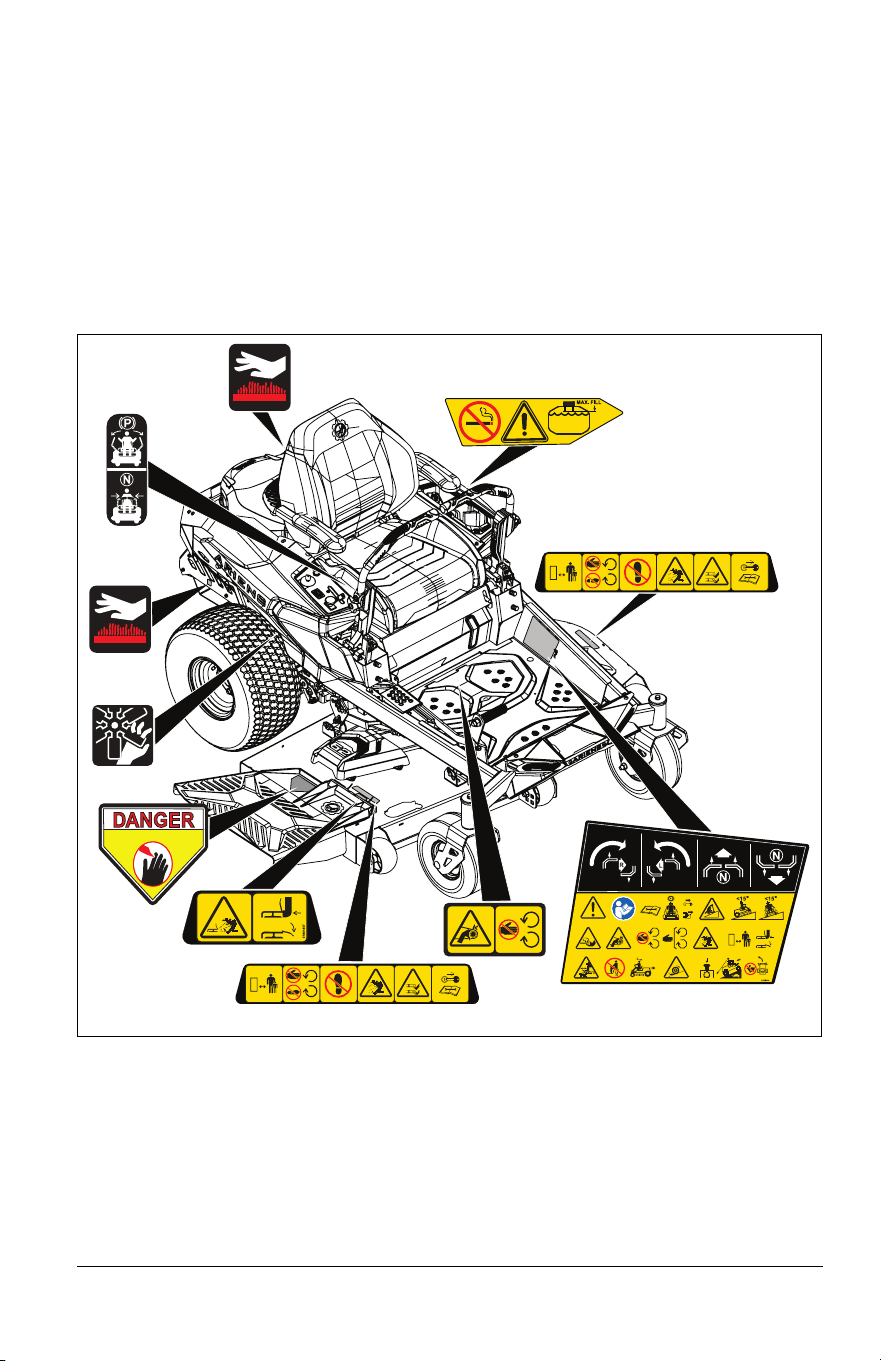

See Figure 2 for safety decal locations.
Safety Decal Locations
07801735
KEEP HANDS and FEET AWAY
0
2
9
8
8
1
0
0
07801735
07801836
07801836
07801737
078001834
07800401
Figure 2
1
3
4
5
7
6
2
5
2
2
9
8
EN - 4

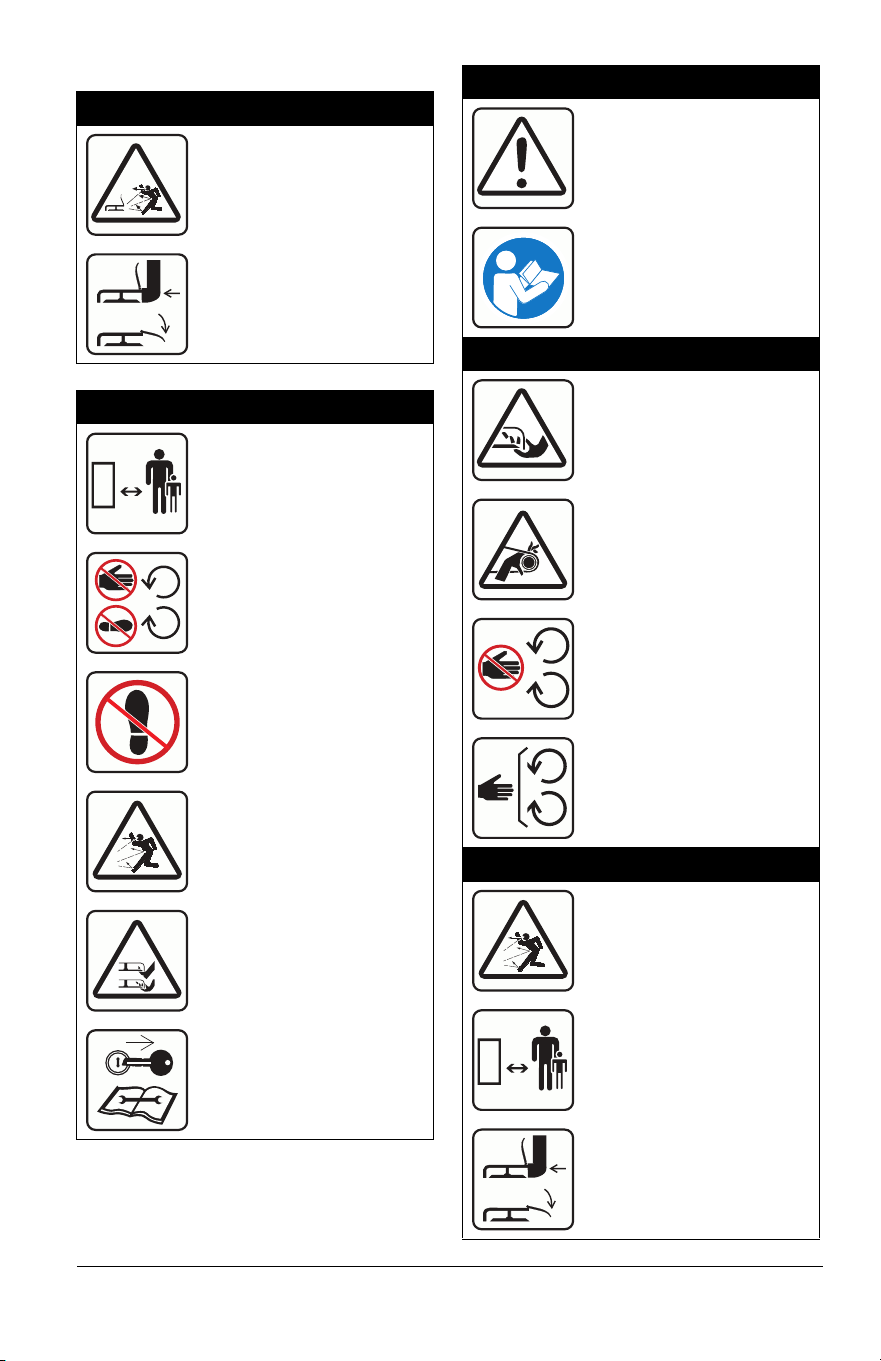

Safety Decal Descriptions
1. DANGER!
Discharge Hazard - NEVER
operate unit without
discharge chute in operating
position. Thrown objects can
cause injury or damage.
DO NOT operate mower
unless all guards are in
operating position or bagger
is attached.
2. DANGER!
Keep children and others
away from unit while unit is
in operation.
Keep feet and hands away
from all rotating or moving
parts.
DO NOT step or stand in
this area.
Discharge Hazard - NEVER
direct discharge toward
people, pets or property.
Thrown objects can cause
injury or damage.
Amputation Hazard -
NEVER stick hands or feet
under deck or shielded
areas.
Shut off engine, remove key,
and read manual before
servicing or making
adjustments to unit.
3. DANGER!
DANGER!
Read and understand the
operator’s manual before
operating unit.
3. AMPUTATION HAZARD
To avoid amputation hazard
DO NOT put hands near
rotating blades.
To avoid amputation hazard
DO NOT put hands near
moving belts.
Keep hands away from all
rotating or moving parts.
Keep all guards and shields
in place.
3. DISCHARGE HAZARD
Discharge Hazard - NEVER
direct discharge toward
people, pets or property.
Thrown objects can cause
injury or damage.
Keep children and people
away from unit during
operation.
DO NOT operate mower
unless all guards are in
operating position or bagger
is attached.
EN - 5

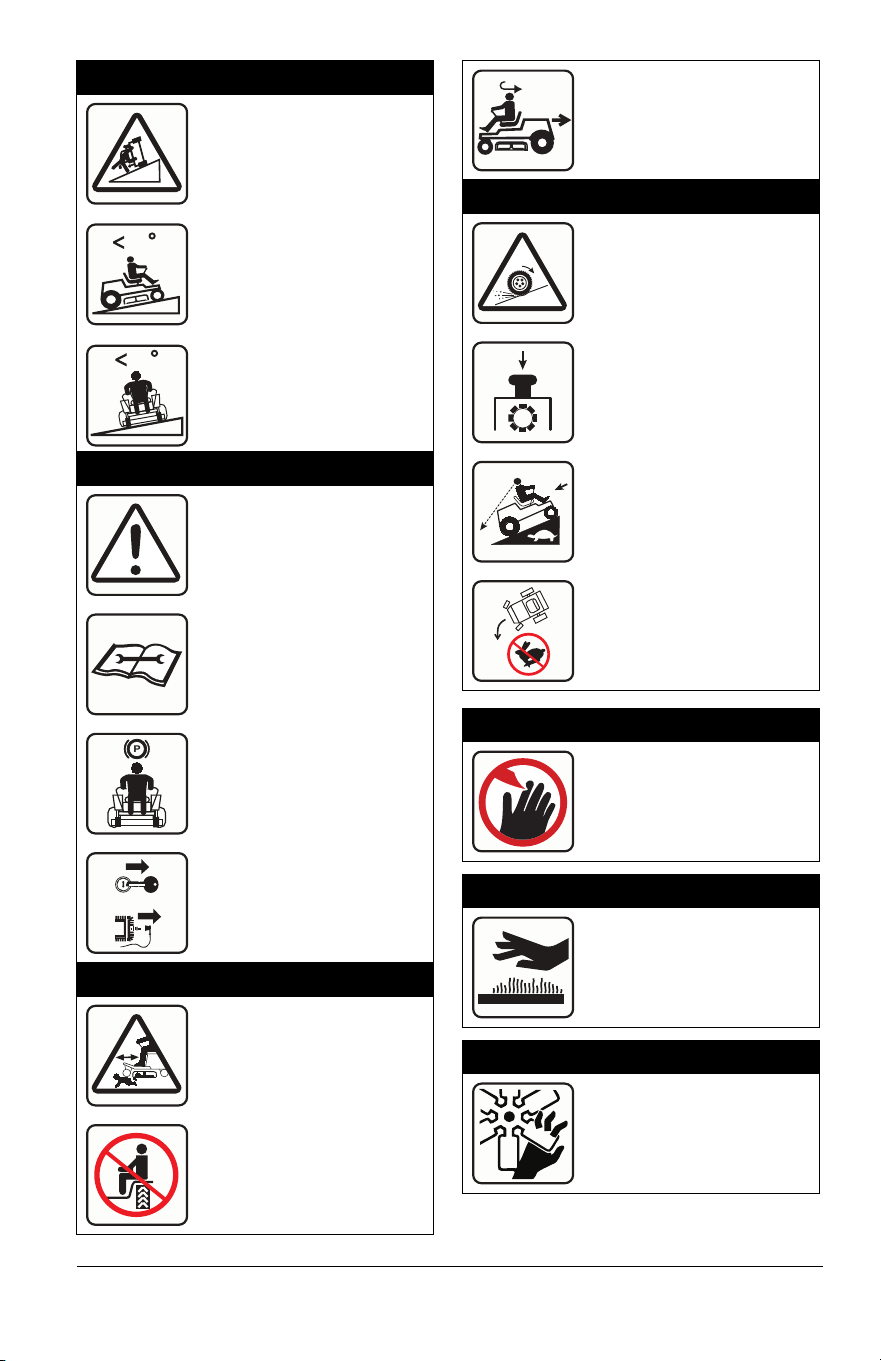

3. TIPPING HAZARD
Avoid tipping hazard.
DO NOT operate on slopes
over 15°.
DO NOT operate on slopes
over 15°.
3. SERVICE HAZARD
Before servicing unit do the
following:
Read owners manual before
servicing or making
adjustments to unit.
Set parking brake.
Remove key and disconnect
spark plug before servicing
or making adjustments to
unit.
3. BYSTANDER HAZARD
DO NOT operate the unit in
the presence of bystanders.
DO NOT carry passengers.
15
15
P
Look behind when operating
the unit in reverse.
3. LOSS OF TRACTION HAZARD
If loss of traction is
experienced do the
following:
Disengage PTO.
Proceed off slope slowly.
DO NOT try to turn or speed
up.
4. DANGER!
ALWAYS keep hands and
feet away from discharge
chute.
5. HOT PARTS!
DO NOT touch parts which
are hot from operation.
ALWAYS allow parts to cool.
6. ROTATING PARTS!
AVOID INJURY. Stay clear
of rotating parts.
EN - 6
SAFETY INSTRUCTIONS
The following safety instructions are based
on B71.1, B71.4 specifications of the
American National Standards Institute and
ISO 5395 in effect at the time of production.
Safe Practices for Ride-On Mowers
If used improperly, this machine is capable of
amputating hands and feet and throwing
objects. Failure to observe the following
safety instructions could result in serious
injury or death. Use only for purposes
intended as set forth in the Operator’s
Manual. Other use is improper and may
cause serious injury or death.

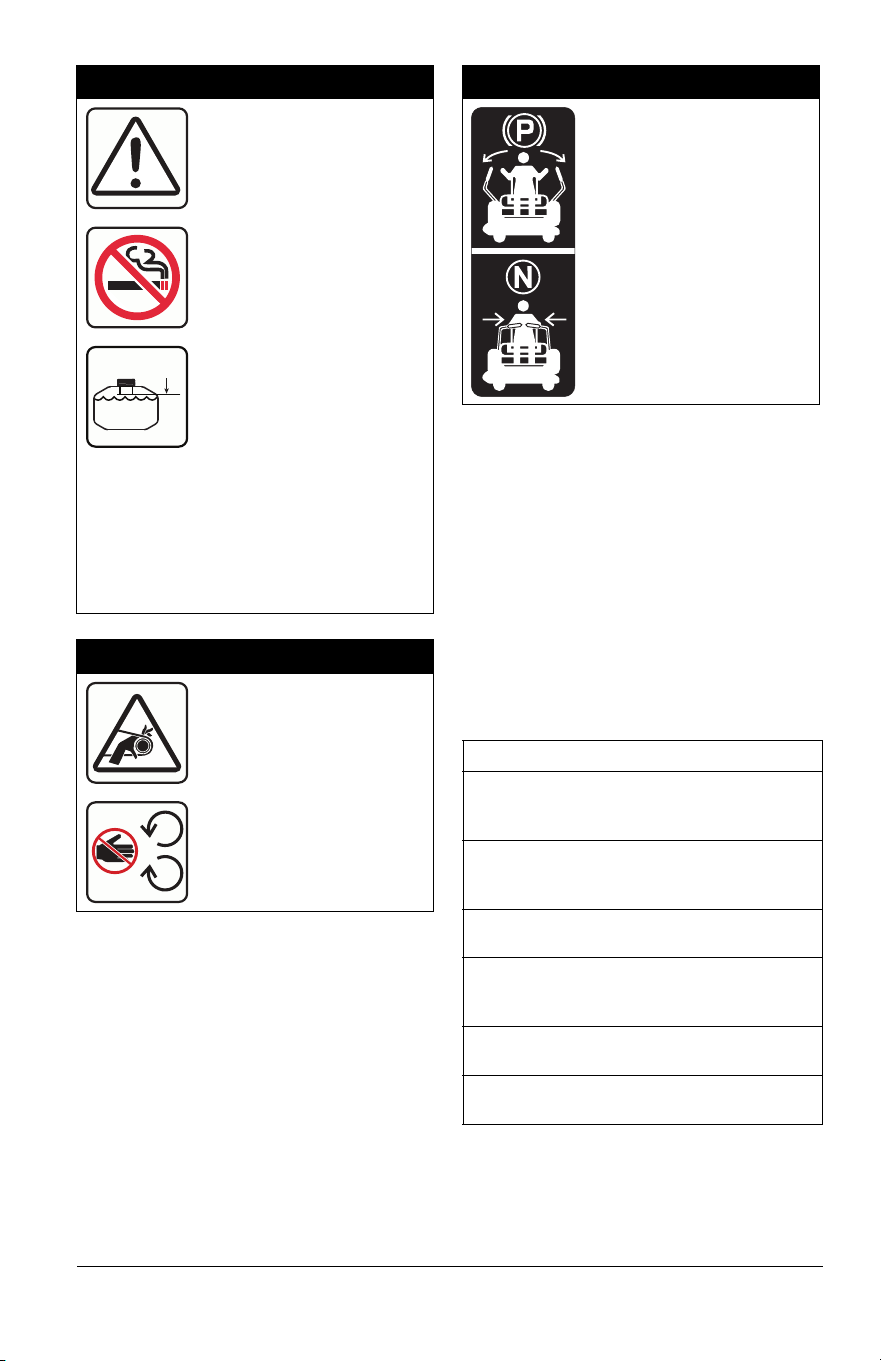

7. DANGER!
DANGER!
No smoking.
IMPORTANT: DO NOT
overfill. Fill fuel tank to
below bottom of filler neck.
WARNING: Overfilling may cause severe
damage to evaporative system!
• NEVER fill fuel tank when engine is
running, hot or unit is indoors. NEVER
overfill fuel tank.
• Replace fuel cap securely and clean up
spilled fuel.
8. AMPUTATION HAZARD
To avoid amputation hazard
DO NOT put hands near
moving belts.
Keep hands away from all
rotating or moving parts.
MAX. FILL
9. IMPORTANT
IMPORTANT: Steering
controls
General Information
Read, understand, and follow instructions
and warnings in this manual and on the
machine, engine and attachments.
Only allow operators, who are responsible,
trained, familiar with the instructions, and
physically capable to operate the machine.
DO NOT carry passengers and keep people
or pets away from the mowing area.
DO NOT operate the machine while
physically or mentally impaired, feeling tired,
ill or under the influence of alcohol or drugs.
Follow the manufacturer’s recommendation
for wheel weights or counterweights.
DO NOT touch parts which are hot. Allow
parts to cool.
078001834
EN - 7
Preparation Before Operating
Inspect unit before each use for missing or
damaged decals and shields, correctly
operating safety interlock system, ROPS
and deterioration of grass catchers. Replace
or repair as needed.
Clear the operating area of all objects which
could be thrown by or interfere with
operation of the machine.
Keep the area of operation clear of all
bystanders, particularly small children. Stop
the machine and attachment(s) if anyone
enters the area.
DO NOT operate the machine without the
entire grass catcher, discharge chute, or
other safety devices in place and functioning
properly. Check frequently for signs of
damage, wear or deterioration and replace
as needed.
NEVER tamper with safety devices. Check
their proper operation regularly. NEVER do
anything to interfere with the intended
function of a safety device or to reduce the
protection provided by the safety device.
Check parking brake operation frequently.
Adjust and service as required.
Wear appropriate personal protective
equipment such as safety glasses, hearing
protection, and substantial footwear. DO
NOT mow barefoot or while wearing
sandals.
Operating
Improper use of power equipment can cause
serious permanent injury or death to the
operator or a bystander. Understand:
• How to operate all controls
• The functions of all controls
• How to STOP in an emergency
• Braking and steering characteristics
• Turning radius and clearances
If the operator or the mechanic cannot read
the manual, it is the owner’s responsibility to
explain it to them. Manuals are available in
other languages at www.ariens.com.
Only run the engine in well ventilated areas.
Exhaust gases contain carbon monoxide, an
odorless deadly poison.
Only operate the machine in daylight or
good artificial light.
Avoid holes, ruts, bumps, rocks and other
hazards. Uneven terrain could overturn the
machine, or cause operator to lose their
balance, footing and/or control of the mower.
DO NOT put hands or feet near rotating
parts or under the machine. Keep clear of
the discharge opening at all times.
Avoid slippery surfaces. ALWAYS be sure of
your footing.
Stop engine before removing grass catcher
or unclogging chute.
DO NOT direct discharge material toward
anyone. Avoid discharging material against
a wall or obstruction. Material may ricochet
back toward the operator. Stop the blade(s)
when crossing gravel surfaces. DO NOT
mow into roads or across sidewalks.
DO NOT leave a running machine
unattended. ALWAYS park on level ground,
disengage the attachment, set parking
brake, stop engine and remove key (if
applicable) before leaving the operator’s
position.
DO NOT mow in reverse unless absolutely
necessary. ALWAYS look down and behind
before and while backing.
Lightning can cause severe injury or death.
If lightning is seen or thunder is heard in the
area, DO NOT operate the machine; seek
shelter.
If you strike a foreign object, stop and
inspect the machine. Repair, if necessary,
before restarting.
ALWAYS check overhead and side
clearances carefully before operation. Keep
in mind that your mower deck may be wider
than your track width.
Children Specific
Tragic accidents can occur if the operator is
not alert to the presence of children.
Children are often attracted to the machine
and the mowing activity. NEVER assume
that children will remain where you last saw
them.
Keep children out of the operating area and
under the watchful care of a responsible
adult other than the operator.
EN - 8
DO NOT carry children, even with the
blade(s) shut off. Children could fall off and
be seriously injured or interfere with safe
machine operation. Children who have been
given rides in the past could suddenly
appear in the mowing area for another ride
and be run over or backed over.
DO NOT allow children under the age of 18
to operate any outdoor power equipment.
Slope Specific
Slopes are a major factor related to
accidents. Operation on slopes requires
extra caution. If you feel uneasy on a slope
DO NOT mow it. Use the parking brake for
emergency stops.
DO NOT operate on slopes of more than
15°.
DO NOT mow within 1.2 M (4 feet) of a drop
off. DO NOT mow within 1.2 M (4 feet) of a
pond or other waterway.
The primary hazard of slope operation is
loss of control and/or roll over.
Mow up and down slopes, NEVER across.
Exercise caution when changing direction
on slopes. Use caution while operating near
dropoffs.
Avoid mowing wet grass. Wet surfaces can
cause a loss of traction and control.
DO NOT operate machine under any
condition where traction, steering, or stability
is in question. Tires could slide even if the
wheels are stopped.
Always keep the machine in gear when
going down slopes. DO NOT coast downhill.
Avoid starting and stopping on slopes. Avoid
making sudden changes in speed or
direction. Make turns slowly and gradually.
Use extra care while operating machine with
a grass catcher or other attachment(s). They
can affect the stability of the machine.
Fire and Fuel Specific
Extinguish all cigarettes, cigars, pipes and
other sources of ignition.
Use only an approved fuel container.
DO NOT remove fuel cap or add fuel with
the engine running or while hot.
DO NOT refuel indoors or in enclosed
spaces.
DO NOT store the machine or fuel container,
or refuel, where there is an open flame,
spark, or pilot light such as on a water
heater or other appliance.
If fuel is spilled, DO NOT attempt to start the
engine and avoid creating any source of
ignition until fuel vapors have dissipated.
To help prevent fires: keep machine free of
grass, leaves, or other debris build up; clean
up oil or fuel spillage and remove any fuel
soaked debris; allow engine to cool before
storing.
Use extra care in handling gasoline and
other fuels. They are flammable and vapors
are explosive.
Hauling
Use a single full-width ramp for loading and
unloading a machine for transport. Secure
with appropriate straps.
Towing
Follow the manufacturer’s recommendation
for weight limits for towed equipment and
towing on slopes.
Service
Keep machine in good working order.
Replace worn or damaged parts.
Use caution when servicing blades. Wrap
the blade(s) or wear gloves. Replace
damaged blades. DO NOT repair or alter
blade(s).
Disconnect spark plug wire(s) and the
negative battery cable before making any
repairs.
Use only attachments recommended by
AriensCo that are appropriate to your use
and can be used safely in your application.
The use of non-genuine replacement parts
or accessories could adversely affect
machine operation and safety.
DO NOT change engine governor setting or
overspeed the engine.
EN - 10
1. Fuel Tank and Cap
2. Oil Filter
3. Oil Drain
4. Engine Oil Dipstick
5. Ignition Key
6. Choke Control Knob
7. Throttle Control Lever
8. Power Take-off (PTO) Knob
9. Hour Meter
10. Height-of-Cut Adjustment System
11. Deck Lift Pedal
12. Seat Adjustment Lever
13. Belt Guard (2)
14. Mower Deck
15. Steering Lever (2)
16. Discharge Chute
17. Anti-Scalp Wheel
18. Transaxle Bypass Lever (2)
19. Battery (Under Seat)
20. Fuel Level Window
21. Fuse Box (Behind Seat)
22. USB Port
23. Deck Access Panel (and Storage Tray
918026, 918027, 918028 only)
24. Floormat (Models 918026, 918027,
918028)
25. Headlights
26. Transport Lock Lever (Models 918026,
918027, 918028)
27. Lift Assist Spring (Models 918006,
918026, 918027, 918028)
EN - 11
See Figure 3 for all controls and features
locations.

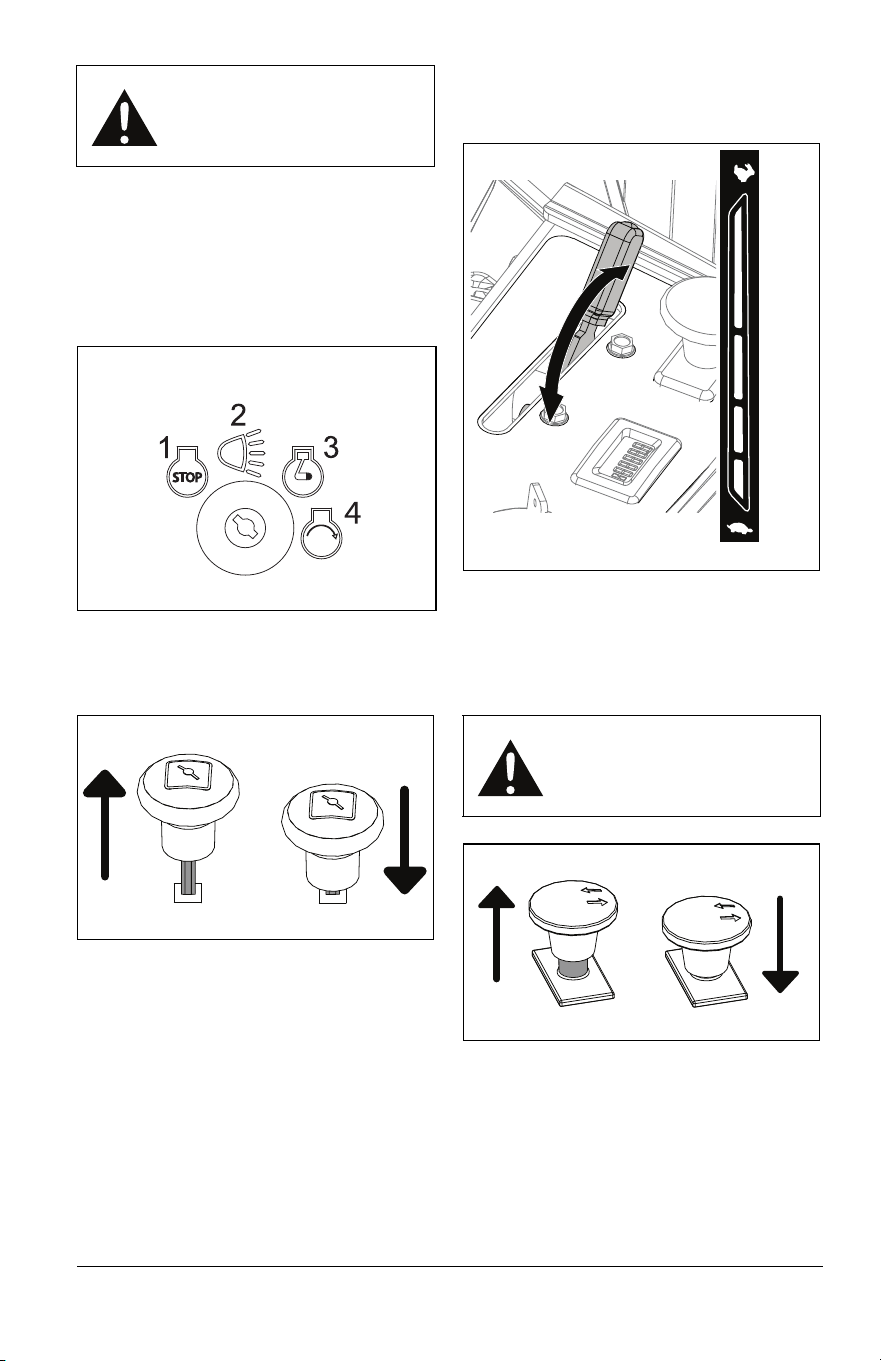

IGNITION KEY
See Figure 4.
Controls power to the engine. The key cannot
be removed when in run position.
CHOKE CONTROL KNOB
See Figure 5.
Controls airflow to the engine.
THROTTLE CONTROL LEVER
See Figure 6.
Controls engine speed.
POWER-TAKE-OFF (PTO) KNOB
See Figure 7.
Controls power to mower blades. The engine
will not start with the PTO knob in the on
position.
HOUR METER
Hour meter measures engine runtime and
cannot be reset.
WARNING: AVOID INJURY.
Read and understand the
entire Safety section before
proceeding.
Figure 4
Off
On
Start
On With
Headlights
Headlights
Figure 5
Choke On
Choke Off
WARNING: AVOID INJURY.
Blades will not immediately
stop after pushing PTO knob
down to off position.
Figure 6
Fast
Slow
Figure 7
Blades Off
Blades On
EN - 12
HEIGHT-OF-CUT ADJUSTMENT
SYSTEM
Sets the mower height of cut. See Figure 8.
TRANSPORT LOCK
Models 918026, 918027, 918028
Locks mower deck in the highest position for
transporting or moving unit from one work
area to another. See Figure 8.
DECK LIFT PEDAL
Raises or lowers mower deck.
SEAT ADJUSTMENT LEVER
Unlocks seat to allow operator to move seat
forward or backward and then lock in desired
position.
STEERING LEVERS
See Figure 9.
Control direction and speed of unit. To stop
unit, return both levers to neutral. Once
controls are in neutral, moving the steering
levers will apply the parking brake. Engine
will not start unless both levers are in neutral
and folded out in the braked position.
SAFETY INTERLOCK SYSTEM
Monitors the interaction of various unit
features for operator safety.
TRANSAXLE BYPASS LEVERS
Control the transaxles so unit may be moved
with the engine off.
ANTI-SCALP WHEELS
Help prevent the deck from contacting the
ground and scalping the lawn when passing
over a high spot.

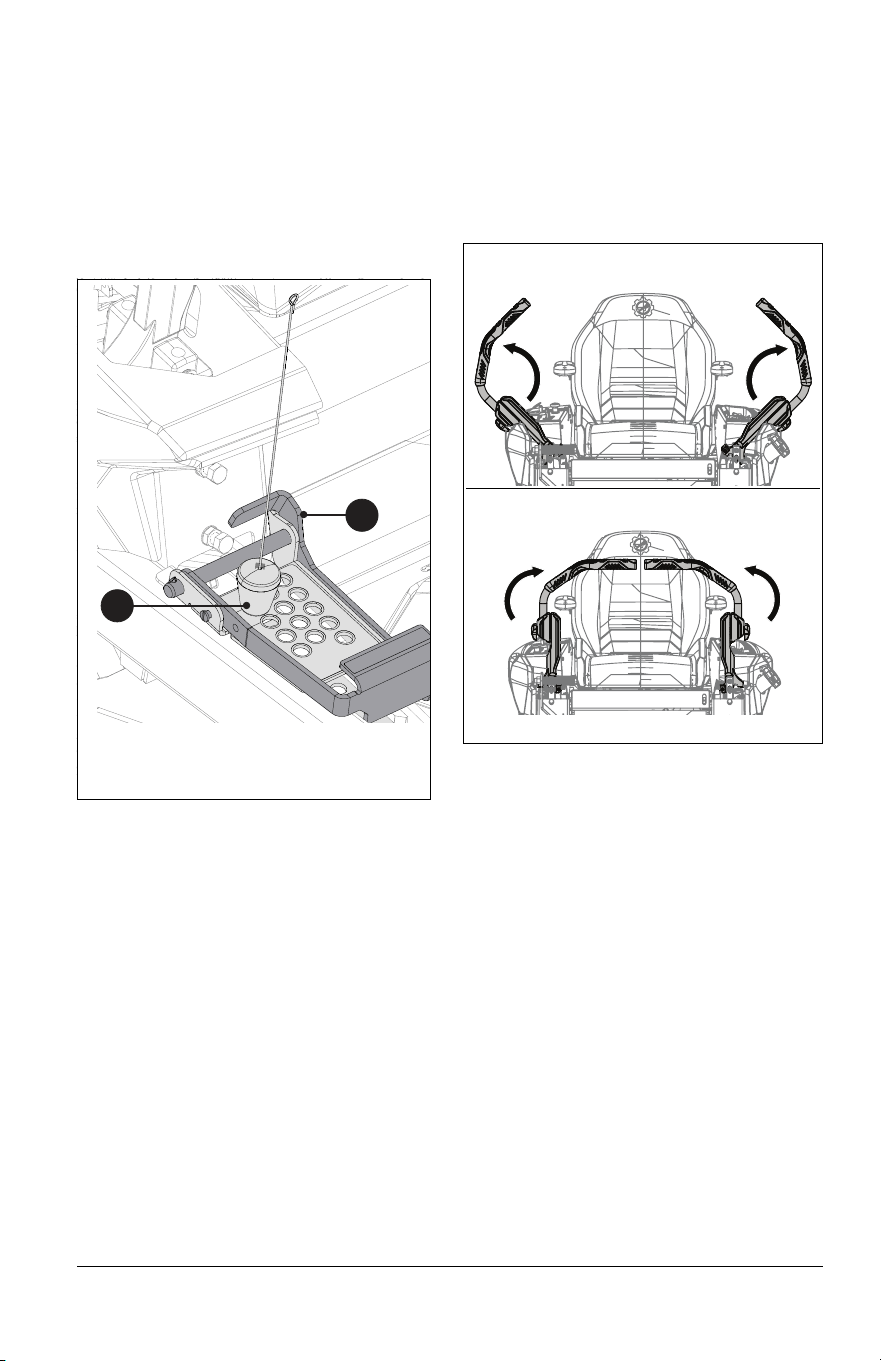

1. Transport Lock
2. Height of Cut Adjustment Pin
Figure 8
2
1
Figure 9
Parking Brake
Engaged (On)
Brake Released
(Off)
EN - 13
IMPORTANT: All references to left, right, front
or rear are given from the perspective of
operator in operator’s position, facing the
direction of forward travel.
EMERGENCY STOPPING
1. Move steering levers to neutral position.
2. Move steering levers outward to engage
parking brake.
3. Push PTO knob down to off position.
4. Turn ignition key to off position and
remove key from ignition.
BEFORE OPERATING UNIT
1. Check fuel level and add fuel if needed.
IMPORTANT: Use fresh unleaded fuel with
an octane rating of at least 87. DO NOT use
E85 blended fuels; the engine is not E20 /
E30 / E85 compatible. The maximum
recommended ethanol content is 10%. Ariens
recommends using a quality fuel stabilizer in
all fuel. See Short-Term Storage on page 24.
2. Check engine oil level and add oil if
needed. Refer to engine manual.
3. Check condition of air cleaner. Refer to
engine manual.
4. Check function of the Safety Interlock
System by performing the tests in Check
Safety Interlock System on page 17.
Contact your Ariens dealer for repair if
any of the tests fail.

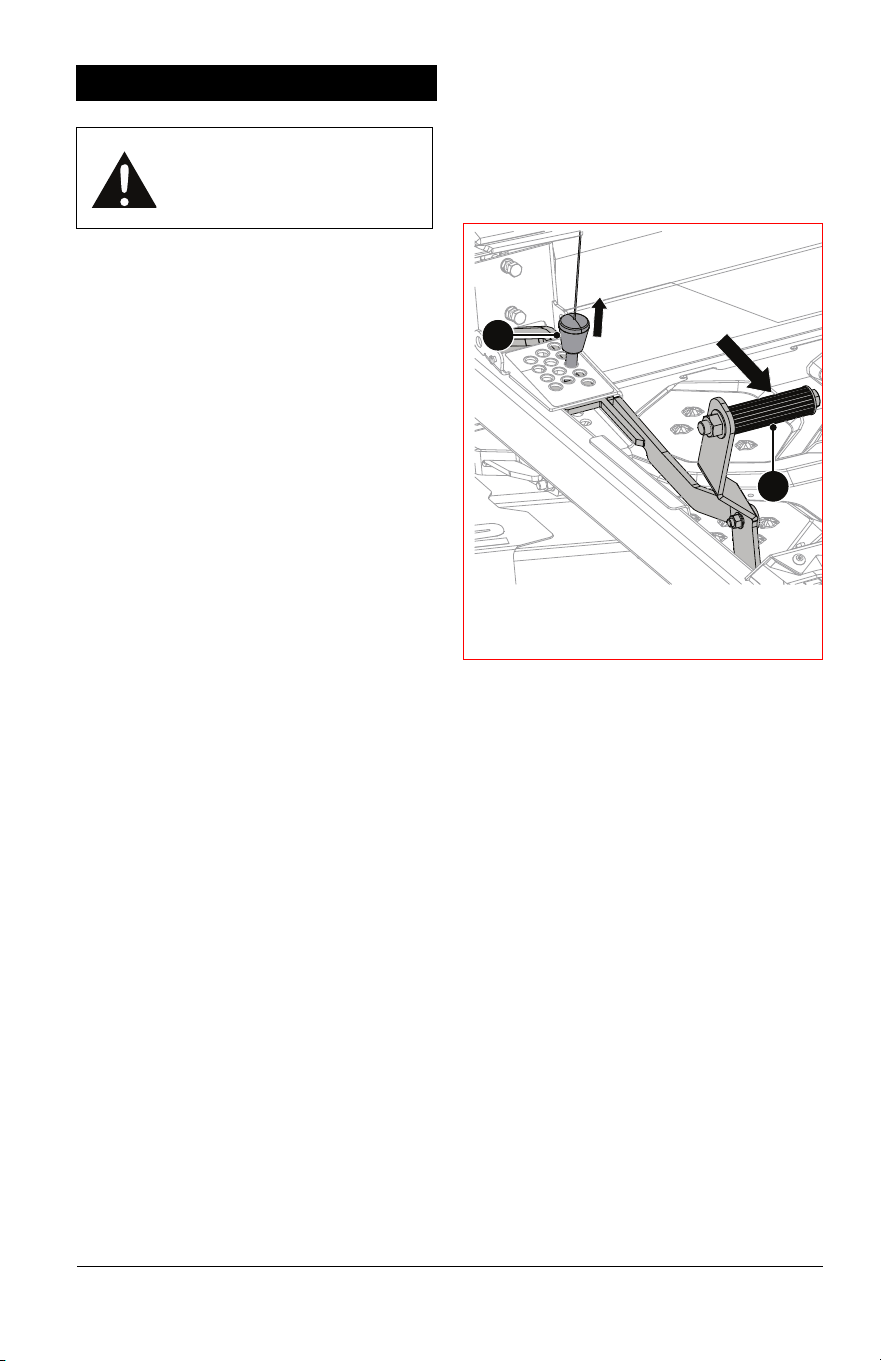

5. Set cutting height. See Figure 10.
a. Depress and hold deck lift pedal in
forward position.
b. Move height-of-cut magnetic pin to
desired setting.
c. Slowly return deck lift pedal to resting
position.
START THE ENGINE
1. Push PTO knob down to off position.
2. Move steering levers to neutral position.
3. Engage parking brake (steering levers
folded outward).
4. If engine is cold, pull choke knob up to on
position. If engine is warm or hot, turn
choke off.
5. Set throttle to slow speed.
6. Insert ignition key and turn to start
position. Release key when engine starts.
IMPORTANT: Do not operate the starter for
more than 10 seconds at a time. If the engine
does not start, allow a 60-second cool down
period between starting attempts.
7. If choke is on, wait a few seconds after
engine starts and then push choke knob
down to off position.
IMPORTANT: Make sure choke is completely
off. Engine will not run smoothly using partial
choke.
OPERATION
WARNING: AVOID INJURY.
Read and understand the
Safety section before
proceeding.
Figure 10
1. Deck Lift Pedal
2. Height-of-Cut Adjustment System
1
2
EN - 14
OPERATE UNIT
1. Release parking brake.
2. Set throttle control lever to fast position.
IMPORTANT: Engaging the PTO knob with
the throttle lever set lower than fast position
can cause excessive belt wear. ALWAYS use
fast position when engaging the PTO.
3. Pull PTO knob up to on position.
IMPORTANT: Never engage the PTO if the
mower is plugged with grass or other
material. This may cause damage to the
electric clutch.
4. Move steering levers to begin mowing.
IMPORTANT: Aggressive turning can scuff or
damage lawns. Always keep both wheels
rotating when making sharp turns. DO NOT
make turns with inside wheel completely
stopped. For minimum turning radius, slowly
reverse inside wheel while moving outside
wheel slowly forward.
For Best Mowing Results
• Cut grass when it is dry.
• Keep mower blades sharp.
• Keep mower deck properly leveled.
• Do not set height of cut too low. For very
tall grass, mow twice.
• Do not travel too fast.
• Mow with the engine set at full throttle.
• When mulching, only remove 1/3 of grass
length per cutting. Do not cut more than
2.5 cm (1") at any one time.
• Discharge clippings into areas already cut.
• Vary cutting pattern with each mowing.
• Do not allow grass or debris to collect
inside of mower deck. Clean after each
use.
STOP THE ENGINE
1. Move steering levers to neutral position.
2. Move steering levers outward to engage
parking brake.
3. Push PTO knob down to off position.
4. Set throttle to slow speed.
5. Turn ignition key to off position and
remove key from ignition.

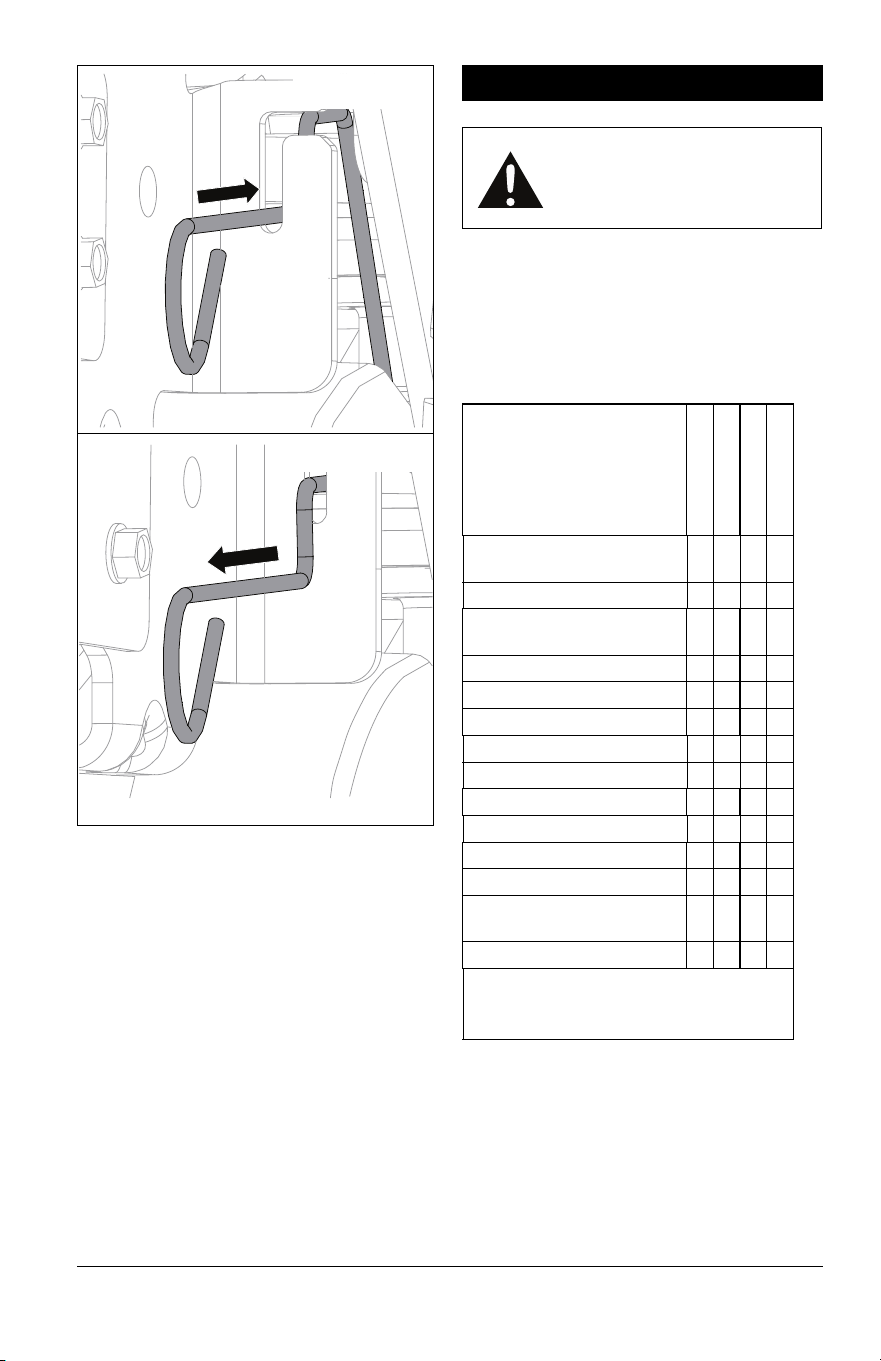

MOVE UNIT MANUALLY
See Figure 11.
IMPORTANT: There is one transaxle bypass
lever on each side of unit. Ensure that both
levers are fully engaged or disengaged.
NOTICE: Parking brake must be disengaged.
Place steering levers in operating position.
• To disengage the transaxles and move unit
with the engine off, place both bypass
levers in the rearward position.
• To engage transaxles and operate unit
normally, place both bypass levers in the
forward position.
WARNING: AVOID INJURY.
Move the steering levers
slowly and keep the throttle at
slow speed until you learn how
to operate the unit.
Direction
of Travel
Lever Position
Forward Push both levers
forward from
neutral position.
Reverse Pull both levers
backward from
neutral position.
Right Turn Push left lever
farther forward
than the right
lever.
Left Turn Push right lever
farther forward
than the left lever.
Stop Return both
levers to neutral
position.
WARNING: AVOID INJURY.
Wait for all moving parts to
stop before leaving operator’s
position.
EN - 15
TRANSPORT UNIT
1. Stop engine, set parking brake and
remove key from ignition.
2. Secure unit chassis to transport vehicle.
NOTICE: NEVER secure from rods or
linkages that could be damaged.
Your Ariens dealer can provide service and
adjustments to keep your unit operating at
peak efficiency.
Contact an authorized engine manufacturer’s
service center for engine service.
MAINTENANCE SCHEDULE
Rear Position
Front Position
Figure 11
MAINTENANCE
WARNING: AVOID INJURY.
Read and understand the
Safety section before
proceeding.
Service Performed
Each Use
Every 25 hrs.
Every 50 hrs.
Every 100 hrs.
Check Safety Interlock
System
•
Check Parking Brake •
Clean Engine of any Grass
and Debris
•
Check Engine Oil * •
Change Engine Oil *+
Check Tire Pressure •
Check Mower Blades •
Check Battery •
Clean Battery •
Check Air Filter *
Check Fasteners •
Lubricate Unit •
Clean Engine Cooling
System*
•
Check Belts •
* Refer to engine manual for instructions
+ Use tubing included in literature pack
to drain engine oil.
EN - 16
SERVICE PARTS
See your Ariens dealer to purchase service
parts for your unit.
Common Service Parts
Models 918002, 918027
Model 918003
Model 918004
Models 918005, 918026, 918028
Model 918006

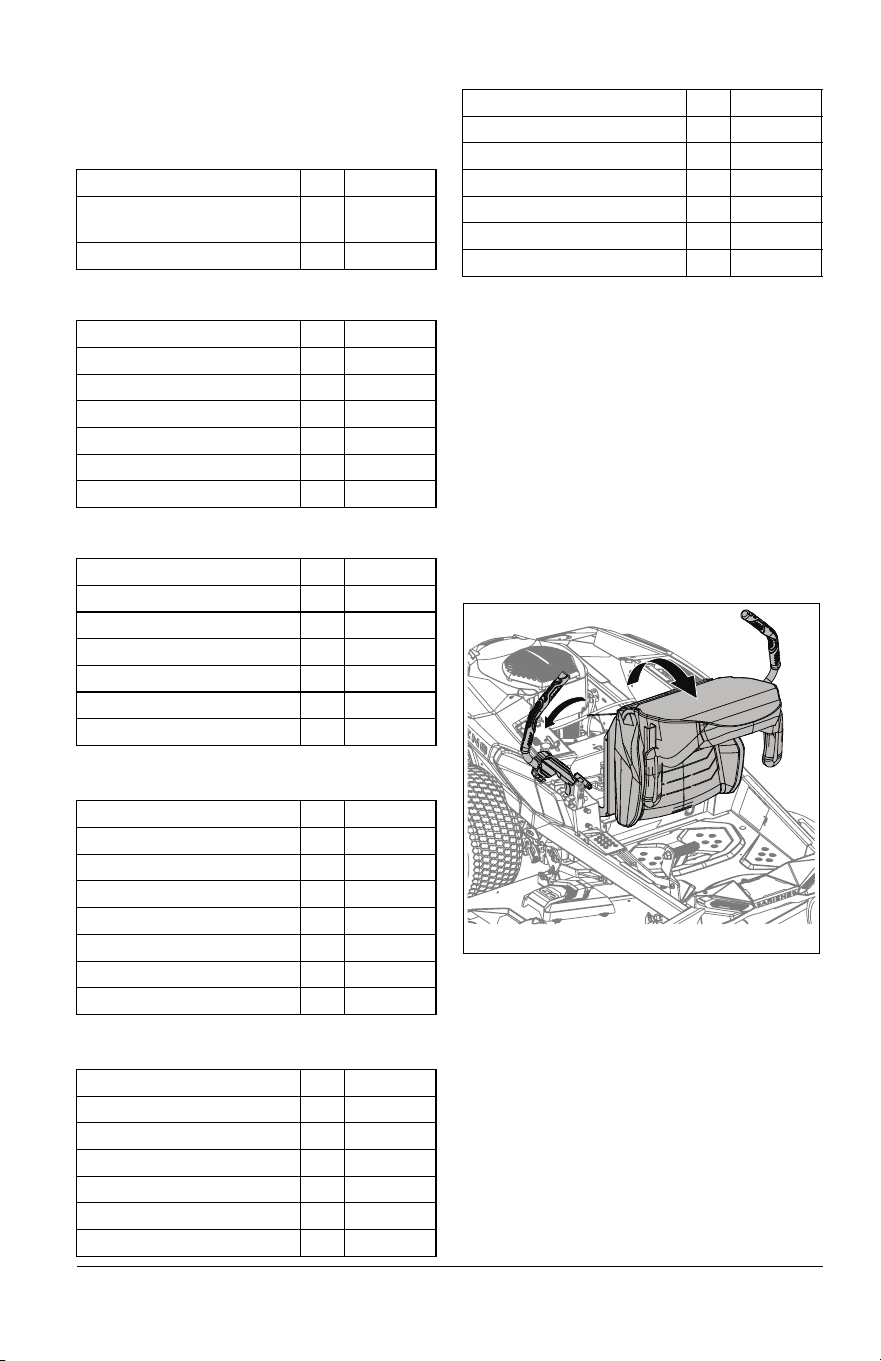

SERVICE POSITION
See Figure 12.
Before starting any of the following
maintenance procedures:
1. Park unit on a flat, level surface.
2. Stop engine, remove key and wait for all
moving parts to stop and for hot parts to
cool.
3. Move steering levers to neutral position
and rotate handles outward to engage the
brake.
4. Disconnect spark plug wires from engine.
5. Tip seat forward.
IMPORTANT: Reconnect spark plug wires
after maintenance.
Description Qty. Part No.
Fuel Stabilizer – 118 ml
(4 oz)
AR 04730400
Seat Switch 1 02754100
Description Qty. Part No.
Transaxle Drive Belt 1 07200726
Mower Belt 1 07200436
Mower Blade 1 09658900
Fuel Filter 1 21548101
Oil Filter 1 21548100
Air Filter 1 21548000
Description Qty. Part No.
Transaxle Drive Belt 1 07200726
Mower Belt 1 07200920
Mower Blade 1 09659000
Fuel Filter 1 21548101
Oil Filter 1 21548100
Air Filter 1 21548000
Description Qty. Part No.
Transaxle Drive Belt 1 07200726
Mower Belt 1 07200921
Mower Blade 1 09659100
Fuel Filter 1 21541500
Oil Filter 1 21397200
Air Filter 1 21548000
Pre-Cleaner 1 21564900
Description Qty. Part No.
Transaxle Drive Belt 1 07200726
Mower Belt 1 07200921
Mower Blade 1 09659100
Fuel Filter 1 21548101
Oil Filter 1 21548100
Air Filter 1 21548000
Description Qty. Part No.
Transaxle Drive Belt 1 07200726
Mower Belt 1 07200922
Mower Blade 1 09659200
Fuel Filter 1 21548101
Oil Filter 1 21548100
Air Filter 1 21548000
Figure 12
EN - 17

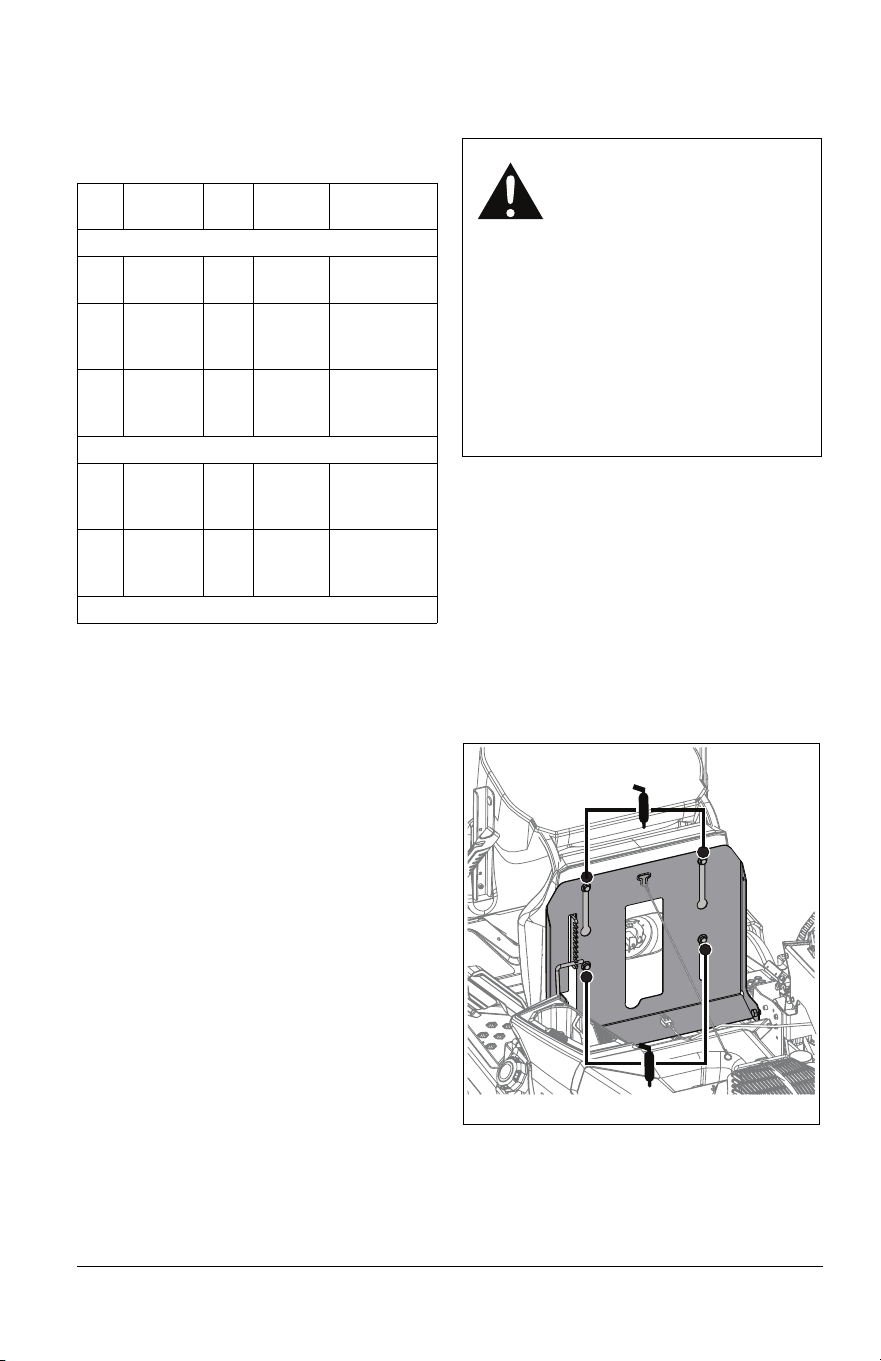

CHECK SAFETY INTERLOCK
SYSTEM
Check function of the Safety Interlock System
by performing the tests below. Contact your
Ariens dealer for repair if any of the tests fail.
CHECK PARKING BRAKE
1. Place unit in service position. See
Service Position on page 16.
2. Set both transaxle bypass levers in the
rear position. See Move Unit Manually on
page 14.
3. Push unit forward.
• If unit does not move forward, no further
action is needed.
• If unit easily moves forward, adjust the
brake cable. Refer to your unit’s service
manual.
CHECK ENGINE OIL
NOTICE: Engine oil level must be maintained
at correct level or engine damage may occur.
Refer to engine manual.
CHECK TIRE PRESSURE
See Specifications on page 26 for
recommended tire pressure.
CHECK FASTENERS
Check for loose or missing hardware.
LUBRICATE UNIT
Models 918002, 918003, 918004,
918005, 918006
See Figures 13 and 14.
1. Place unit in service position. See
Service Position on page 16.
2. Apply grease to seat tracks through slots
under seat plate.
Test
Steering
Levers
PTO
Parking
Brake
Result
Starting Interlock
1 Neutral Off On
Engine
starts.
2
Forward,
Neutral,
Reverse
On
On or
Off
Engine does
not start.
3
Forward,
Neutral,
Reverse
On
or
Off
Off
Engine does
not start.
Operating Interlock (Engine On)
4 *
Forward,
Neutral,
Reverse
On
On or
Off
Engine
shuts off.
5 *
Forward,
Neutral,
Reverse
On
or
Off
Off
Engine
shuts off.
* When operator lifts off seat.
WARNING: AVOID INJURY.
Explosive separation of tire
and rim parts is possible.
• DO NOT inflate tires above
the recommended pressure.
• DO NOT inflate tires with a
compressor; use a hand
pump.
• DO NOT stand in front of
tire assembly when
inflating. Use a clip-on
chuck and extension hose
long enough to allow you to
stand to one side.
Figure 13
EN - 18
Models 918026, 918027, 918028
1. Return seat to operating position and
slide seat back and forth to spread
grease along tracks.

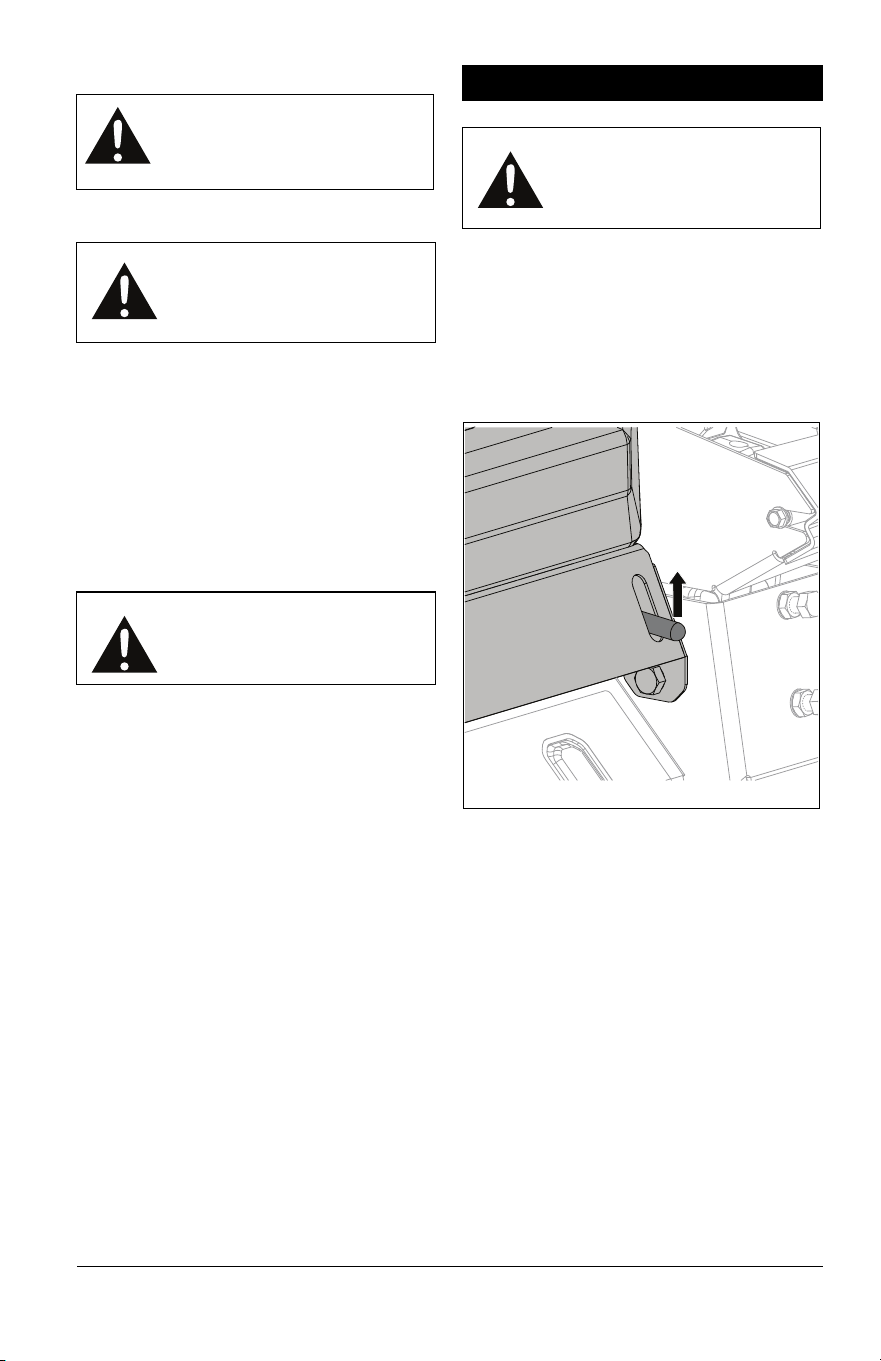

CHECK MOWER BLADES
Check blades for wear or damage. Replace
or sharpen as needed. See Figure 15.
CAUTION: AVOID INJURY. Use
sturdy gloves or padding to
protect hands when working with
mower blades.
Rotation of one blade rotates the
other blades.
CAUTION: DO NOT sharpen
blades while attached to unit.

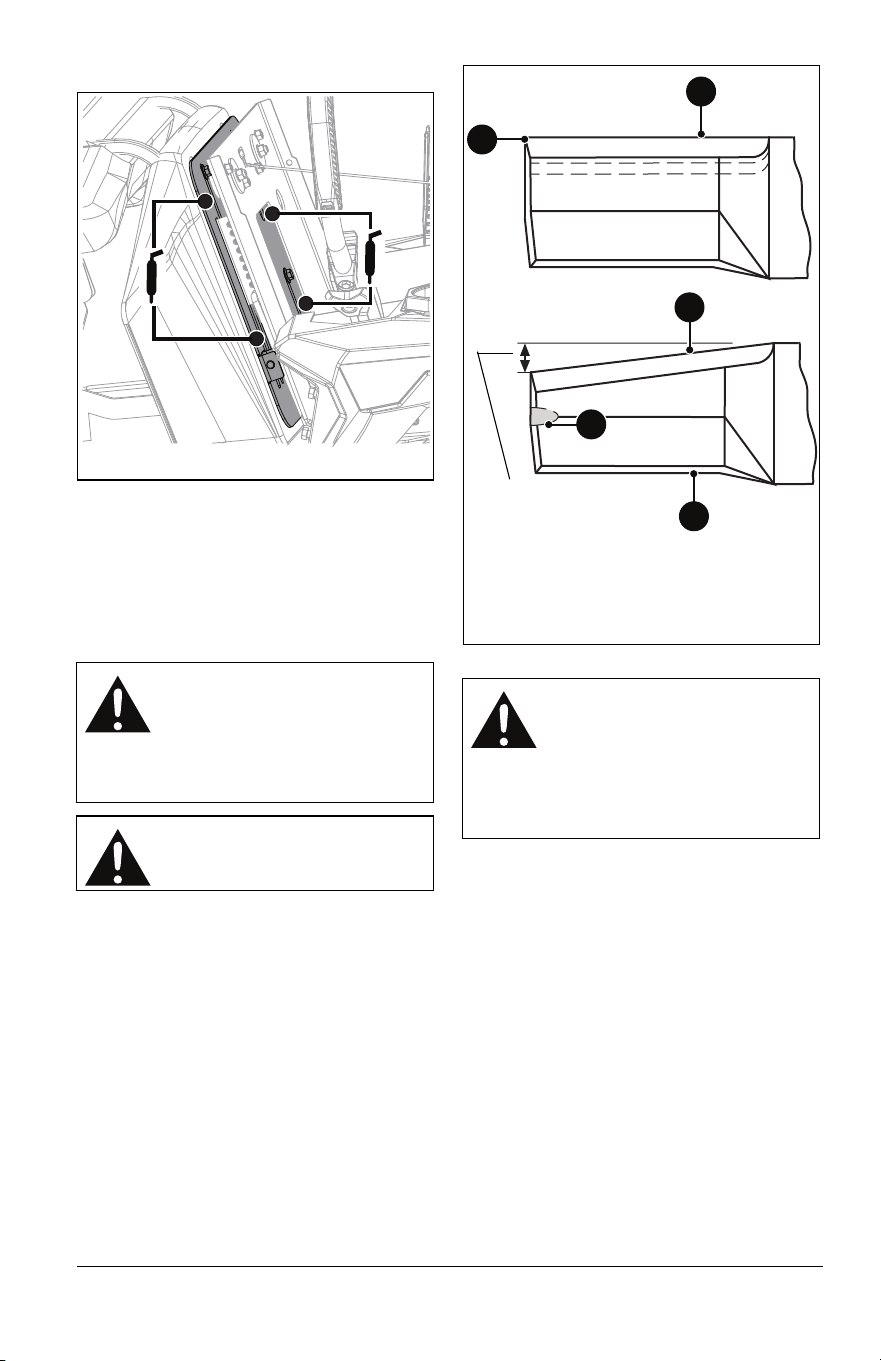

Figure 14
CAUTION: Unbalanced blades
cause excessive vibration and
eventual damage to unit.
Balance blades before
reinstalling on unit.
NEVER weld or straighten
blades.
Figure 15
1. Cutting Edge
2. Square Corner
3. Air Lift Erosion
4. Air Lift
2
1
1
3
4
DISCARD if more than
1.3 cm (1/2")
DO NOT sharpen to this
pattern.
Sharpen to this pattern.
EN - 19
CHECK BATTERY
Clean Battery
1. Disconnect battery cables, negative cable
first.
2. Clean terminals and battery cable ends
with a wire brush.
3. Coat terminals with dielectric grease or
petroleum jelly.
4. Reinstall battery cables, positive first.
CHECK MOWER BELTS
Check belts for wear and replace as needed.
POSITION SEAT
See Figure 16.
1. Pull seat adjustment lever up to unlock
seat.
2. Move seat to desired position.
3. Release seat adjustment lever to lock
seat in place.
ADJUST STEERING LEVERS
Adjust Steering Lever Height
See Figure 17.
1. Loosen knob securing steering lever to
upper control arm.
2. Place steering lever in desired adjusting
position with hirth joint teeth aligned.
• Use upper hirth joint for highest lever
position.
• Use lower hirth joint for lowest lever
position.
3. Tighten knob in upper control arm.
4. Align levers side to side. See Adjust
Steering Level Reach on page 20.
WARNING: Battery posts,
terminals and related
accessories contain lead. Wash
hands after handling.
CAUTION: AVOID DAMAGE.
DO NOT allow tools to contact
metal surfaces when removing
positive battery cable.
CAUTION: Keep body parts
away from idler when
releasing idler spring tension.
ADJUSTMENTS
WARNING: AVOID INJURY.
Read and understand the
Safety section before
proceeding.
Figure 16
EN - 20

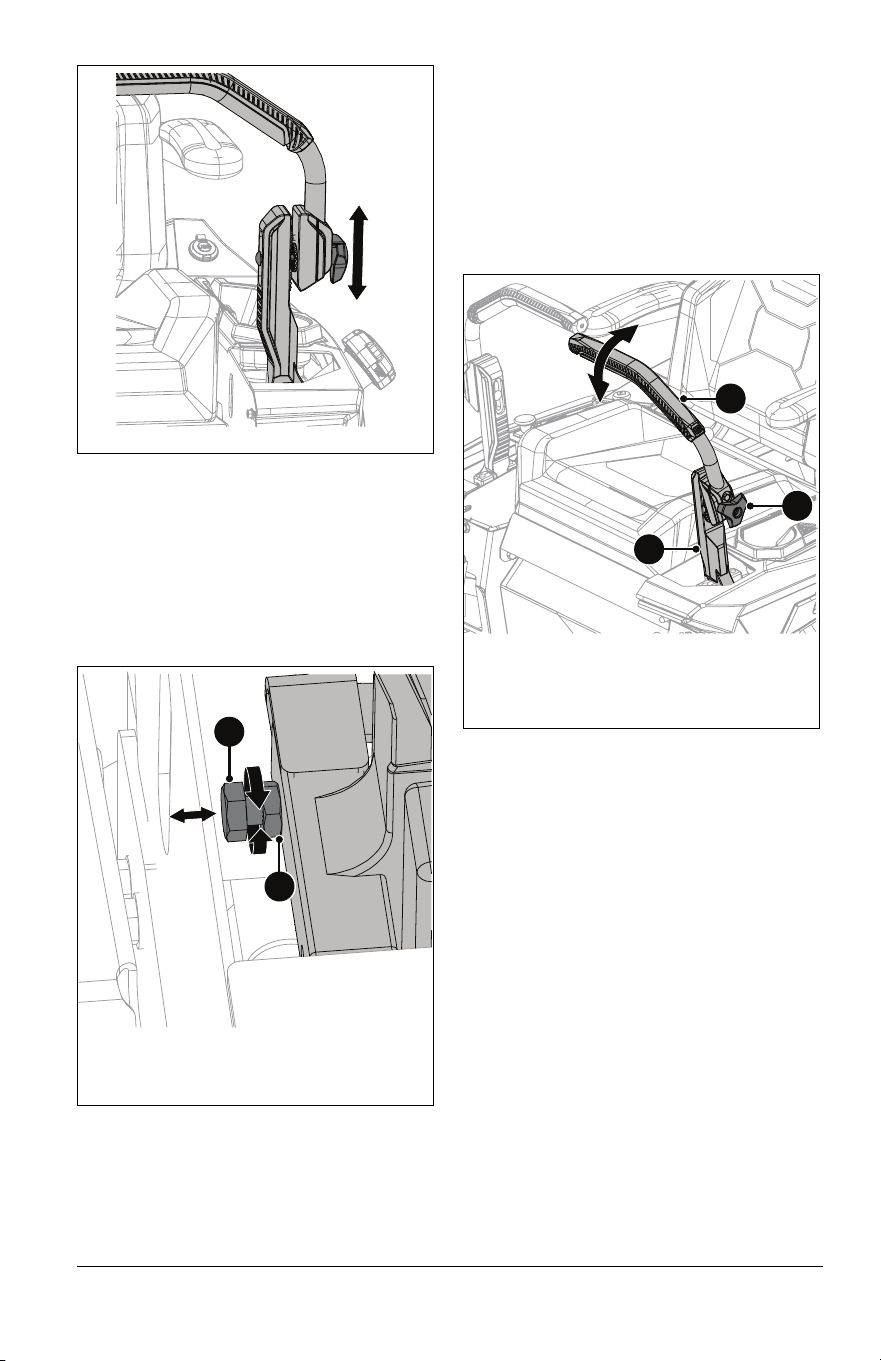

Adjust Steering Lever Pitch
See Figure 18.
1. Loosen lock nut on height-adjustment
bolt.
2. Turn bolt in or out until levers are at the
same height and to provide clearance
between ends of controls.
3. Tighten jam nut.
Adjust Steering Level Reach
See Figure 19.
1. Loosen knob securing steering lever to
upper control arm.
2. Pivot steering lever to desired position
with hirth joint teeth aligned.
3. Ensure levers are aligned with each
other.
4. Tighten knob.
Figure 17
Figure 18
1. Jam Nut
2. Height-adjustment Bolt
1
2
Figure 19
1. Steering Lever
2. Upper Control Arm
3. Knob
1
3
2
EN - 21

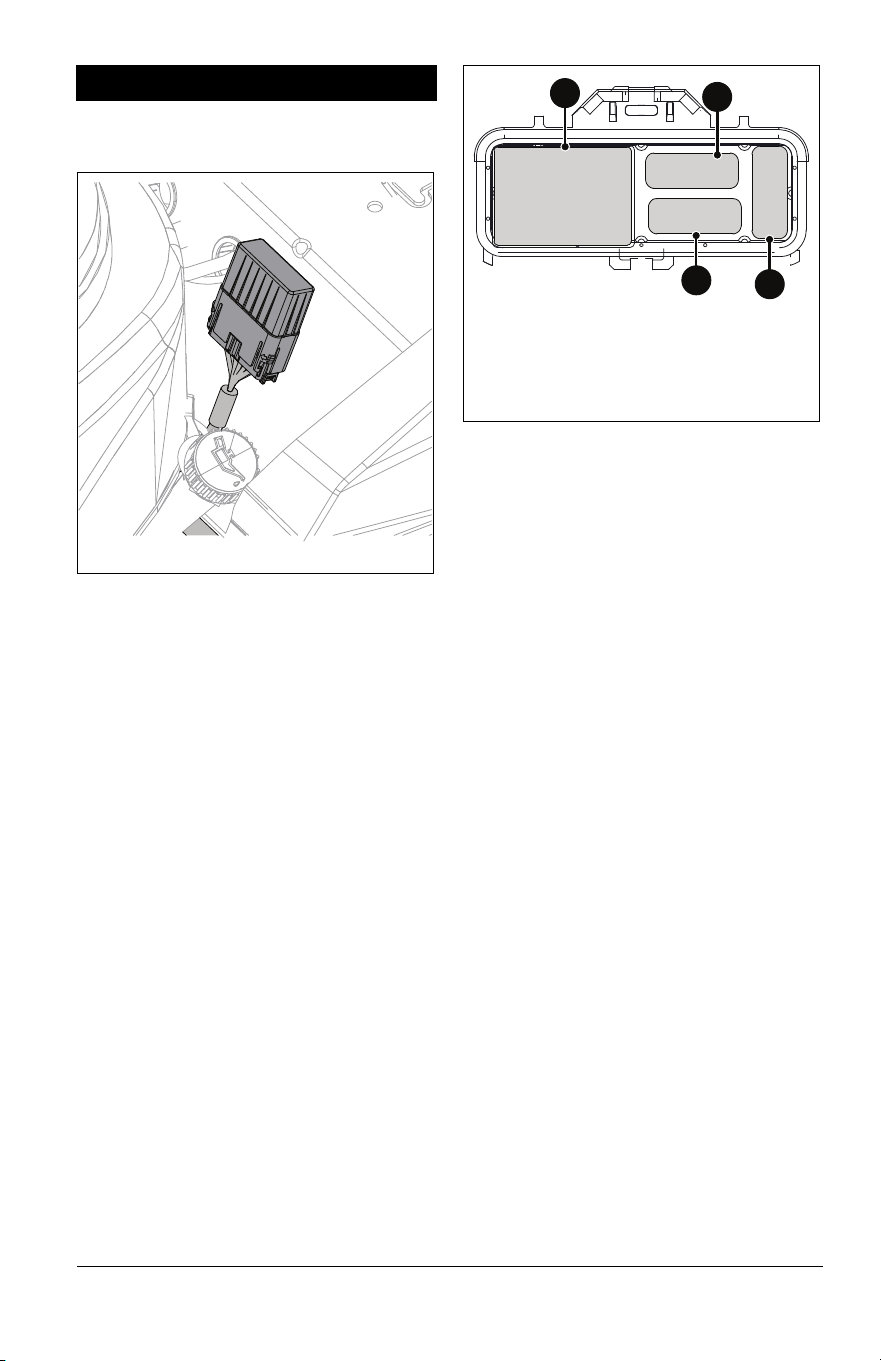

See Controls and Features on page 9 and
Figure 20 for fuse box location.
Replace Fuse
IMPORTANT: To avoid damaging the circuit,
replace fuses with fuses of the same
amperage rating. Determine the cause of
electrical failure and repair before replacing
failed electrical components.
1. Place unit in service position. See
Service Position on page 16.
2. Remove fuse box cover.
3. Remove defective fuse.
4. Determine cause of fuse failure and
repair condition.
5. Install new fuse.
6. Replace fuse box cover. Ensure cover
snaps tightly in position.
Replace Relay
NOTICE: Relays are interchangeable. Use
only quality replacement parts. See Service
Parts on page 16.
1. Place unit in service position. See
Service Position on page 16.
2. Remove fuse box cover.
3. Remove defective relay.
4. Determine cause of relay failure and
repair condition.
5. Install new relay.
6. Replace fuse box cover. Ensure cover
snaps tightly in position.
ELECTRICAL SERVICE
Figure 20
20
15
10
Figure 21
1. Clutch Relay
2. Key Power Fuse 20A
3. Accessory Fuse 10A
4. Operation Fuse 15A
2
3
1
4
EN - 22
TROUBLESHOOTING
Problem Probable Cause Correction
Engine does
not start.
Safety Interlock System is not
engaged or is faulty.
Check Safety Interlock System. See
Check Safety Interlock System on
page 17.
Fuel tank is empty.
Fill fuel tank. See Before Operating Unit
on page 13.
Fuel supply is contaminated. Replace with clean fuel.
Battery is discharged.
Charge battery. Refer to your unit’s
service manual.
Connection between battery and
battery cables is poor.
Tighten and/or clean battery and battery
cables. See Clean Battery on page 19.
Spark plug wire(s) are loose or
spark plug(s) are faulty.
Connect spark plug wire(s) or replace
spark plug(s). Refer to engine manual.
Electrical system is faulty. Contact your Ariens dealer.
Engine is faulty. Contact your Ariens dealer.
Engine runs
rough.
Choke control knob is in on
position
Move knob to off position.
Air filter cartridge is plugged.
Clean or replace air filter cartridge. Refer
to engine manual.
Engine is faulty. Contact your Ariens dealer.
Engine
overheats.
Engine oil level is low. Add engine oil. Refer to engine manual.
Cooling fins are plugged. Clean engine. Refer to engine manual.
Engine is faulty. Contact your Ariens dealer.
Unit does not
drive.
The transaxles are bypassed. Engage levers. See Move Unit Manually
on page 14.
Ground drive belt is faulty. Contact your Ariens dealer.
Transaxles are faulty. Contact your Ariens dealer.
PTO
malfunctions.
Operator presence switch is not
engaged.
Activate switch by sitting on operator seat.
Operator presence switch is
faulty.
Contact your Ariens dealer.
Deck drive belt is faulty. Replace deck drive belt. Refer to your
unit’s service manual.
PTO switch, wiring, connectors
or clutch are faulty.
Contact your Ariens dealer.
Unit moves
with engine off
and parking
brake engaged.
Parking cables need adjustment. Adjust parking brake cables. Refer to your
unit’s service manual.
Parking brake is faulty. Contact your Ariens dealer.
Unit does not
track straight.
Tire pressure is incorrect. Check tire pressure. See Specifications
on page 26.
Steering levers need adjustment. Adjust steering levers. See Adjust
Steering Levers on page 19.
Transaxles and/or linkages need
adjustment.
Contact your Ariens dealer.
Unit creeps
when steering
levers are in
neutral
position.
Transmission and/or linkage
need adjustment.
Contact your Ariens dealer.
EN - 23
Poor cutting
quality.
Mower blades not level or mower
deck pitch is incorrect.
Level and adjust pitch of mower deck.
Refer to your unit’s service manual.
Mower blades are dull or faulty.
Sharpen or replace mower blades. Refer
to your unit’s service manual.
Mowing speed is too fast. Drive slower when cutting grass.
Belt tension or condition is poor.
Replace deck drive belt. Refer to your
unit’s service manual.
Cutting height is too low.
Do not set height of cut too low. For very
tall grass, mow twice.
TROUBLESHOOTING
Problem Probable Cause Correction
EN - 24
SHORT-TERM STORAGE
IMPORTANT: NEVER wash unit with high-
pressure water or store outdoors.
1. Allow unit to cool and clean with mild
soap and water.
2. Tighten all hardware to correct
specifications.
3. Inspect unit for visible signs of wear or
damage. Repair as needed.
4. Prepare fuel system for storage.
NOTICE: Ariens recommends using a quality
fuel stabilizer in all fuel. Gasoline left in the
fuel system without a stabilizer, even for short
periods of time, deteriorates and leaves
gummy deposits in the system that may
damage the carburetor and fuel hoses, filter
and tank. For the best effectiveness, add
stabilizer to all fuel containers whenever
purchasing fuel. Add the stabilizer to the
container before adding fuel.
a. Add fuel stabilizer (see Service Parts
on page 16) or equivalent according
to manufacturer’s instructions to the
fuel tank and any fuel containers with
remaining fuel.
b. Run engine outdoors for at least
5 minutes to allow stabilizer to reach
the carburetor.
5. Turn ignition key to off position and
remove from ignition.
6. Store unit in a cool, dry, protected area.
DO NOT store unit outdoors.
LONG-TERM STORAGE
1. Perform short-term storage procedures.
2. Lubricate as directed in Maintenance on
page 15.
3. Touch-up all scratched painted surfaces.
4. Remove and charge battery as directed
in Check Mower Belts on page 19. Store
battery in a cool, dry, protected area.
5. Store unit in a cool, dry, protected area.
Do not store unit outdoors.
START-OF-SEASON
PREPARATION
1. Before adding fuel for the first time after
long-term storage, add fresh, stabilizer-
treated fuel to fuel tank and any fuel
containers with remaining fuel.
2. Charge and install the battery.
STORAGE
EN - 25
See your Ariens dealer for a complete list of
compatible accessories and attachments for
your unit.
ACCESSORIES
Description Part No.
Mulch Kit – 42" 71800100
Mulch Kit – 48" 71800200
Mulch Kit – 52" 71800300
Mulch Kit – 60" 71800400
Bagger Kit – Non Powered 81800100
Bagger Kit – 42/48" Blower
Upfit
71800900
Bagger Kit – 52" Blower Upfit 71801000
Bagger Kit – 60" Blower Upfit 71801100
Rear Hitch 71801300
IKON Floor Mat (Models
918002, 918003, 918004,
918005, 918006)
71801400
Storage Kit (Models 918002,
918003, 918004, 918005,
918006)
71800700
Striping Kit (Models 918002,
918003, 918004, 918005,
918006)
71800500
Seat Isolator Kit (Models
918002, 918003, 918004,
918005, 918006)
71801900
Deck Lift Assist Spring Kit
(Models 918002, 918003,
918004, 918005, 918006)
71801600
Transport Lock (Models
918002, 918003, 918004,
918005, 918006)
71800600
EN - 26
SPECIFICATIONS
Model Number 918002 918003 918004 918005
Model IKON 42 IKON 48 IKON 52 IKON 52
Engine
Kawasaki
FR651
Kawasaki
FR651
Kohler KT
730
Kawasaki
FR691
Engine Displacement – cm
3
(in
3
)
726.0 (44.3) 725.0 (44.2) 726.0 (44.3)
Maximum RPM – No Load 3600 ± 75
Oil Capacity Refer to Engine Manual
Drive
Forward Maximum – km/h (mph) 11.3 (7.0)
Reverse Maximum – km/h (mph) 4.8 (3.0)
Turning Radius Zero
Brakes Internal Transmission
Electrical
Starter Electric
Battery 12V Maintenance-Free 190CCA (U1 Replaceable)
PTO (Power Take-off) Electric
Fuel
Fuel Tank Capacity – Liter (gal) 13.2 (3.5)
Size and Weight
Length – cm (in) 189.2 (74.5)
Width Operating with Chute Down –
cm (in)
141.2 (55.6) 156.5 (61.6) 167.9 (66.1) 167.9 (66.1)
Weight – kg (lbs) 296.6 (654) 300.3 (662) 307.5 (678) 309.4 (682)
Height – cm (in) 116.2 (45.75)
Tires
Front Tire Size – in 11 x 6-5
Rear Tire Size – in 20 x 8-8 20 x 10-8 20 x 10-8 20 x 10-8
Recommended Front Tire Pressure –
kPa (psi)
186 – 228 (27 – 33)
Recommended Rear Tire Pressure –
kPa (psi)
62 – 76 (9 – 11)
Mower Deck
Cutting Height – cm (in) 3.8 – 11.4 (1.5 – 4.5)
Cutting Width – cm (in) 106.7 (42) 121.9 (48) 132.1 (52) 132.1 (52)
Mower Deck Lift Foot Operated
Transmission
Type
Maintenance-Free Hydro-Gear
®
EZT
®
Transaxles
EN - 27
SPECIFICATIONS
Model Number 918006 918026 918027 918028
Model IKON 60 IKON 52 IKON 42 IKON 52
Engine
Kawasaki
FR691
Kawasaki
FR691
Kawasaki
FR651
Kawasaki
FR691
Engine Displacement – cm
3
(in
3
)
726.0 (44.3)
Maximum RPM – No Load 3600 ± 75
Oil Capacity Refer to Engine Manual
Drive
Forward Maximum – km/h (mph) 10.5 (6.5)
Reverse Maximum – km/h (mph) 4.8 (3.0)
Turning Radius Zero
Brakes Internal Transmission
Electrical
Starter Electric
Battery 12V Maintenance-Free 190CCA (U1 Replaceable)
PTO (Power Take-off) Electric
Fuel
Fuel Tank Capacity – Liter (gal) 13.2 (3.5)
Size and Weight
Length – cm (in) 189.2 (74.5)
Width Operating with Chute Down –
cm (in)
186.9 (73.6) 167.9 (66.1) 141.2 (55.6) 167.9 (66.1)
Weight – kg (lbs) 318.4 (702) 309.4 (682) 296.2 (653) 300.7 (663)
Height – cm (in) 116.2 (45.75)
Tires
Front Tire Size – in 11 x 6-5
Rear Tire Size – in 20 x 10-8 20 x 10-8 20 x 8-8 20 x 10-8
Recommended Front Tire Pressure –
kPa (psi)
186 – 228 (27 – 33)
Recommended Rear Tire Pressure –
kPa (psi)
62 – 76 (9 – 11)
Mower Deck
Cutting Height – cm (in) 3.8 – 11.4 (1.5 – 4.5)
Cutting Width – cm (in) 152.4 (60) 132.1 (52) 106.7 (42) 132.1 (52)
Mower Deck Lift Foot Operated
Transmission
Type
Maintenance-Free Hydro-Gear
®
EZT
®
Transaxles
8/23 • 05299800K
EN - 28
AriensCo warrants to the original purchaser that Ariens brand products purchased on or after 09/01/2022
will be free from defects in material and workmanship for the time period noted in the chart below. Equipment
put to personal use around a single household or residence is considered “Residential Use.” Equipment put
to any business use (agricultural, commercial, or industrial) or used at multiple locations is considered
“Commercial Use.” If any product is rented or leased, then the duration of these warranties shall be 90 days
after the date of purchase.
An authorized Ariens dealer will repair any defect in material or workmanship, and repair or replace any
defective part, subject to the conditions, limitations and exclusions set forth herein. Such repair or
replacement will be free of charge (labor and parts) to the original purchaser; except as noted below. Pick-up
and delivery are at the owner’s expense.
The warranty code is found on the model and serial number identification label on the unit.
* Whichever comes first.
Special Extensions
The chart below details special extensions to warranty terms. Warranty terms are total time periods
covered. If any product is rented or leased, there are no extensions to the 90-day warranty.
Outdoor Power
Equipment
Limited Warranty
Warranty
Code
Product Group Warranty Period
AA Serialized Attachments 1 Year.
CH, CQ Zenith Mowers 4 Years or 750 Hours.*
HD Razor Walk-Behind Mowers 3 Years Residential Use. 90 Days Commercial Use.
HE Edge Mowers 2 Years or 150 Hours.*
HF Ikon Mowers 3 Years or 300 Hours.*
HH Apex Mowers 4 Years or 500 Hours.*
HI Razor Walk-Behind Mowers 4 Years Residential Use. 90 Days Commercial Use.
PA 921-Series Brushes 3 Years Residential Use. 90 Days Commercial Use.
PB 926-Series Brushes 3 Years Residential Use. 1 Year Commercial Use.
SA Professional Sno-Thro 3 Years Residential Use. 1 Year Commercial Use.
SB
Compact, Deluxe and Platinum Sno-Thro
and Path-Pro
3 Years Residential Use. 90 Days Commercial Use.
SC S18 2 Years Residential Use. 90 Days Commercial Use.
SD Deluxe and Platinum EFI Sno-Thro 3 Years Residential Use. 90 Days Commercial Use.
SE 920-Series Classic Sno-Thro, Crossover 3 Years Residential Use. 90 Days Commercial Use.
SF Mammoth Tractor 2 Years or 500 Hours.*
Warranty
Code
Warranty Term Extension Warranty Period
SA Cast Iron Auger Gear Case 5 Years.
SB, SD Cast Iron Auger Gear Case
5 Years Residential Use.
1 Year Commercial Use.
Warran
ty
8/23 • 05299800K
EN - 29
Exclusions and Limitations
The charts below detail special exclusions and limitations to this warranty.
Exclusions – Items Not Covered by This Warranty
• Parts that are not genuine Ariens service parts are not covered by this warranty and may void the war-
ranty if the parts result in premature wear or damage to the product.
• Damages resulting from the installation or use of any part, accessory, or attachment which is not approved
by AriensCo for use with product(s) identified herein are not covered by this warranty.
• Any misuse, alteration, improper assembly, improper adjustment, neglect, or accident which requires
repair is not covered by this warranty.
• Repairs or adjustments required due to failure to use fresh fuel or failure to properly prepare the unit for
periods of non-use.
• Use of gasoline blends exceeding 10% ethanol voids any and all warranties.
• Any tampering with the hour meter voids any and all warranties.
• Products are designed to the specifications in the area that the product was originally distributed. Differ-
ent areas may have significantly different legal and design requirements. This warranty is limited to the
requirements in the area in which the unit was originally distributed. AriensCo does not warrant this prod-
uct to the requirements of any other area. Warranty service is limited to service within the area originally
distributed.
• In countries other than the United States and Canada, contact the AriensCo dealer for
warranty policies that govern within your country. Rights may vary from country to country and within any
one country.
Evaporative Emissions Control Warranty Exception
As required by the California Air Resources Board (CARB) and the US Environmental Protection Agency
(EPA) the evaporative emissions control system is warranted to the ultimate purchaser, and any subsequent
owner, for two years.
The CARB and EPA evaporative emissions control system warranty is described in a separate evaporative
emission control warranty statement.
Battery Warranty
Battery warranty is one year. Units used for rental or lease have no exceptions to the 90-day warranty. Total
battery claim reimbursement will not exceed 45.00 USD.
Warranty Term Exclusions Warranty Period
Air filters, auger paddles, brake arms, brake linings, brake shoes,
brushes, cutters, fuel filters, halogen headlights, knives, halogen light
bulbs, lubricants, mower blades, oil, oil filters, spark plugs, scraper
blades, shear bolts and skid shoes.
Components are not covered
under warranty.
Hydro-Gear Transaxle Limitation
See Hydro-Gear warranty. The warranty is administrated by AriensCo. Refer to www.ariens.com for
warranty statement.
Warranty Term Limitations Warranty Period
Cloth, Plastic and Rubber Components.
Mufflers, Tires and Belts.
Components are covered for manufacturer’s defect only, not
wear.
Parker Actuators 1 Year.
8/23 • 05299800K
EN - 30
Transmissions
The chart below details transmission warranty information. Transmission warranty terms may vary from the
specific terms of this warranty. If inconsistent, the terms of the transmission warranty shall apply to the
transmission and its component parts.
* Parker Actuators see Limitations chart above.
Engines
The chart below details engine warranty information. Engine warranty terms may vary from the specific terms
of this warranty. If inconsistent, the terms of the engine warranty shall apply to the engine and its component
parts.
Parts and Accessories
Service replacement parts and non-serialized accessories are warranted for 90 days from date of purchase.
Labor is not included.
Customer Responsibilities
Register the product immediately at the time of sale. If the dealer does not register the product, the
customer must register the unit on-line at www.ariens.com.
To obtain warranty service, the original purchaser must:
• Ensure that the maintenance and adjustments explained in the Operator’s Manual are routinely
completed.
• Promptly notify AriensCo or an authorized Ariens service representative of the need for warranty service.
• Transport the product to and from the place of warranty service at owner’s expense.
• Have the warranty service performed by an authorized Ariens service representative.
To find an authorized dealer use the dealer locator on our websites, or contact us by mail or phone.
Transmission
Manufacturer
Detail
Hydro-Gear
Transaxle
See Hydro-Gear warranty. The warranty is administrated by AriensCo. Refer to
www.ariens.com for warranty statement.
Parker Hannifin
Drive & Valve
Systems
Parker Transaxles, Pumps, Wheel Motors and Valves* are warranted for the length of
equipment warranty period. Refer to Warranty Code chart above.
Warranty is administered by AriensCo.
Engine Manufacturer Detail
Ariens AX
Ariens-branded engines are warranted by the manufacturer
and the warranty is administrated by AriensCo. Refer to the
engine manual or www.ariens.com for warranty statements.
Briggs & Stratton, Kawasaki, Kohler
Covered by the engine manufacturer’s warranty.
Refer to the engine manufacturer’s warranty statements.
Globally (Except Australia or
New Zealand):
Australia: New Zealand:
AriensCo
655 W. Ryan Street
Brillion, WI 54110
Phone: (920) 756 - 4688
www.ariens.com
Roy Gripske & Sons Pty Ltd
11 Sodium Street
Narangba
Queensland 4504
Australia
Phone: (61130) 036 3004
www.rgs.com.au
Masport Ltd
320 Ti Rakau Drive
East Tamaki
Auckland 2013
New Zealand
Phone: 0800 627 7678
www.masport.co.nz
8/23 • 05299800K
EN - 31
Disclaimer
AriensCo may from time to time change the design of its products. Nothing contained in this warranty shall be
construed as obligating the AriensCo to incorporate such design changes into previously manufactured
products, nor shall such changes be construed as an admission that previous designs were defective.
Limitation of Remedy and Damages
AriensCo liability under this warranty, and under any implied warranty that may exist, is limited to repair of
any defect in workmanship, and repair or replacement of any defective part. AriensCo shall not be liable for
incidental, special, or consequential damages (including lost profits). Some states do not allow the exclusion
of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
AriensCo shall not be held liable for damages, including premature wear and tear, or injuries caused by
installation of unauthorized parts and accessories or for parts and accessories not installed by an authorized
Ariens dealer.
Australian Consumer Law
The following applies solely to warranties subject to Subsection 102(1) of the Australian Consumer Law: Our
goods come with guarantees that cannot be excluded by the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and failure does not amount to a major failure.
Disclaimer of Further Warranty
AriensCo makes no warranty, express or implied, other than what is expressly made in this warranty. If the
law of your state provides that an implied warranty of merchantability, or an implied warranty of fitness for
particular purpose, or any other implied warranty, applies to AriensCo, then any such implied warranty is
limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from region to
region.
655 West Ryan Street
Brillion, WI 54110
www.ariens.com
parts.ariens.com
P
R
I
N
T
E
D
