Model: ACE
Item no - 33290
MANUAL
Wet & Dry Vacuum Cleaner
W
a
r
r
a
n
t
y
1
Year
W
a
r
r
a
n
t
y
Know your product
You can choose suitable accessories as per the requirement:
• Floor Brush: For cleaning the dust on hard floor or the carpet
• Absorbing Brush: For cleaning the water on hard floor or the carpet
• Crevice Brush: For cleaning corner edge or �ght spots
Switch
Suction Inlet
Blower Outlet
ON
OFF
Extendable Tube
Floor Brush
Crevice Tool
Hose Pipe
Dust Bag
Absorbing Brush
Handle
Swivel Wheel
Base
Dust Barrel
Lock Button
Power Plug
Supply Cord
Top Cover
Cau�on
• This appliance is for domes�c use only
• Before using the appliance, check that the mains power voltage
corresponds to the voltage shown on the ra�ng plate

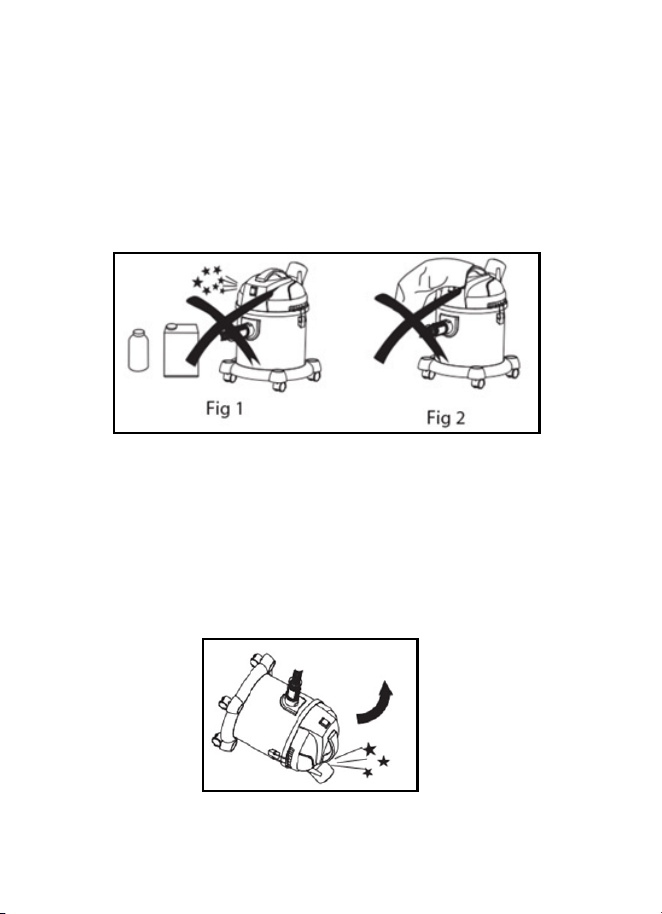

• Do not use it near any flammable and explosive place. (Fig 1)
• Do not block the flow of air. Blocking the air suc�on or exit may
damage the motor. (Fig 2)
• Do not use to suck ashes, lighted cigare�es or any combus�ble
material
• Do not use against any sharp materials
• Do not turn over the vacuum cleaner otherwise the water/dirt may
damage the motor (Refer: Fig-3)
Fig-3
• Always remove the plug from the power socket when the appliance is
not in use and before carrying out any cleaning or maintenance
opera�on
• Check the hose periodically. Replace it in �me if there is any way
damaged
• If the supply cord is damaged, it must be replaced immediately
• Never use methylated spirits or other solvents to clean the appliance
• Never leave the appliance una�ended when it is switched on
• This appliance should not be used by children and persons with
reduced physical, sensory and mental capabili�es or lack of
experience and knowledge un�l they are given supervision or
instruc�on concerning use of the appliance in a safe way and
understand the hazards involved
How to use
Connec�ng the accessories
Insert the flexible hose in to the air intake duct. To do this, slide the
intake duct cover, insert the hose and press un�l it clicks into the
posi�on. (Fig 4)
To remove it, press down the bu�on and pull out the hose. (Fig 5)
Fig-4 Fig-5

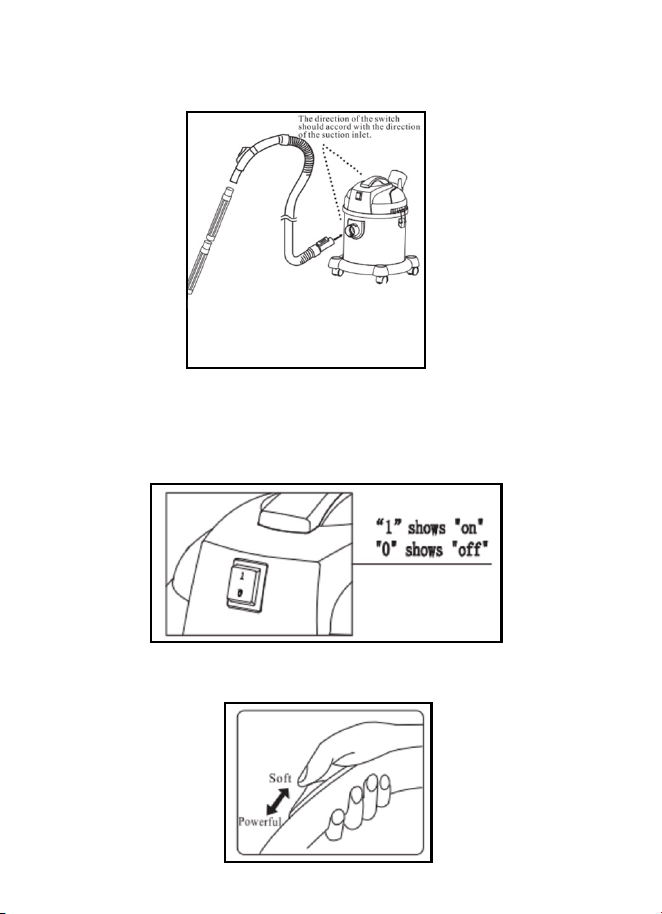

To use the blow func�on, just need plug the hose into blowing port.
Connect the flexible tube, extension tube and accessories correctly
(Fig6)
Switch on the vacuum cleaner
Before use please check the dust bag is installed
Press the ON/OFF bu�on to switch the appliance on (fig 7)
Adjust the air power control knob on handle to adjust the suc�on.
(Fig 8)
Fig-6
Fig-7
Fig-8
..........
..........
Insert accessories here
Note: Please take out the dust bag when used against water (Fig 9)

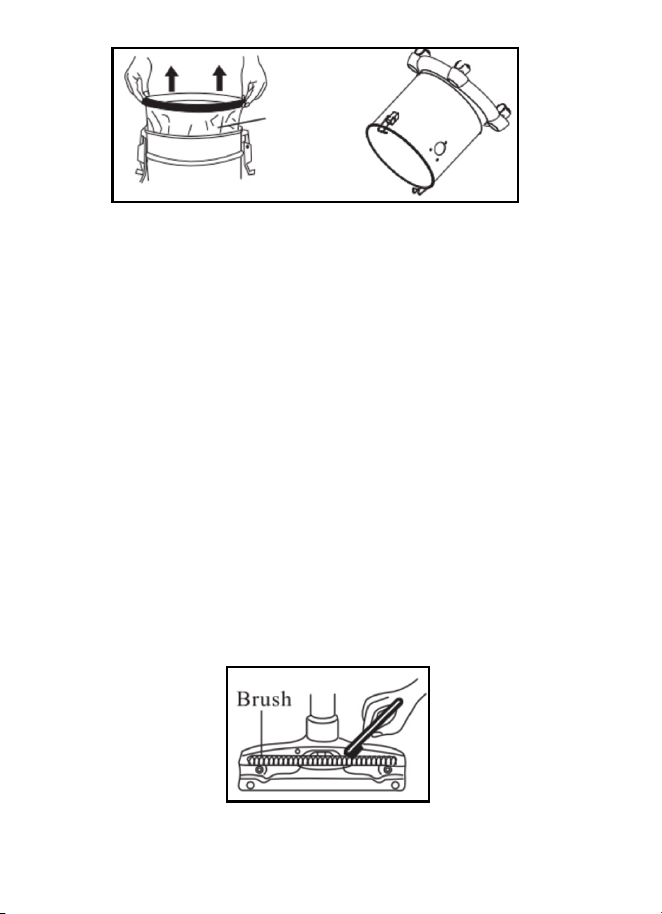

Remove the dust bag and clean the dust from the barrel (Fig 11)
Safety device
• When there is full of water in the barrel, the float will be rise and
the appliance would stop working. In addi�on you will hear an
abnormal sound. Cut off¬the power supply immediately. Spill out
the water from the barrel. Then restart the machine.
• If the vacuum cleaner gets overturned, the float will rise. In that case,
cut off the power supply immediately and upturn the vacuum.
• If you run the vacuum or leave it alone while the float is risen, it may
damage the motor and lead to fire.
Maintenance
Clean the dust barrel
When the suc�on pressure decreases, cut off the power supply and
empty the barrel in �me.

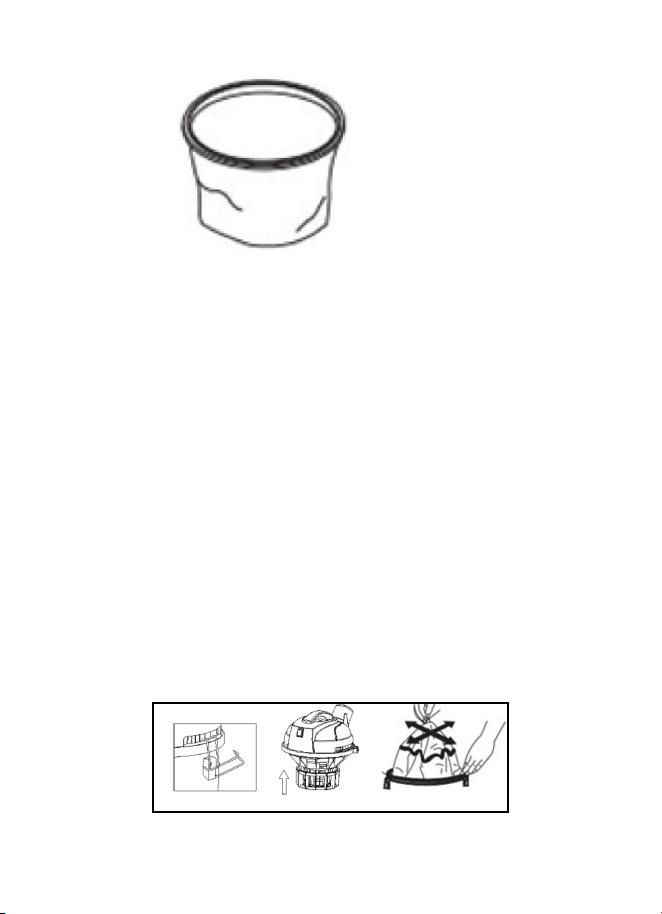

Refer to the following steps (Fig 10)
(1) Release the lock bu�on and li� the top cover.
(2) Before remove the dust bag, hold the center edge of the bag and
shake it around 20 �me up and down.
Fig-10
Fig-9
Dust Bag
If you do not empty the barrel �mely, the dust in the barrel will emit
smell. So please clean the barrel periodically. Before use again, dry it
Clean the dust bag
1. If the dust bag gets blocked, clean it with water.
2. Remove the dust bag. Clean it. Dry it.
Note: Do not use boiled water to clean it or dry near fire.
Clean the vacuum cleaner and the accessories
1. Clean the accessories and the vacuum with so� wet cloth or
neutrality cleanser.
2. Do not clean the body of vacuum cleaner with petrol or oil-like
liquid. Please wipe it with water or neutral detergent.
When you wipe the appliance, please dry with so� cloth.
3. Remove the sun-dries adhering to the floor brush with old tooth
brush every month. (Fig12)
Fig-11
Fig-12
Dust Bag
Dust bag
