WIRING INSTRUCTION
REVISED BULLETIN DATE
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

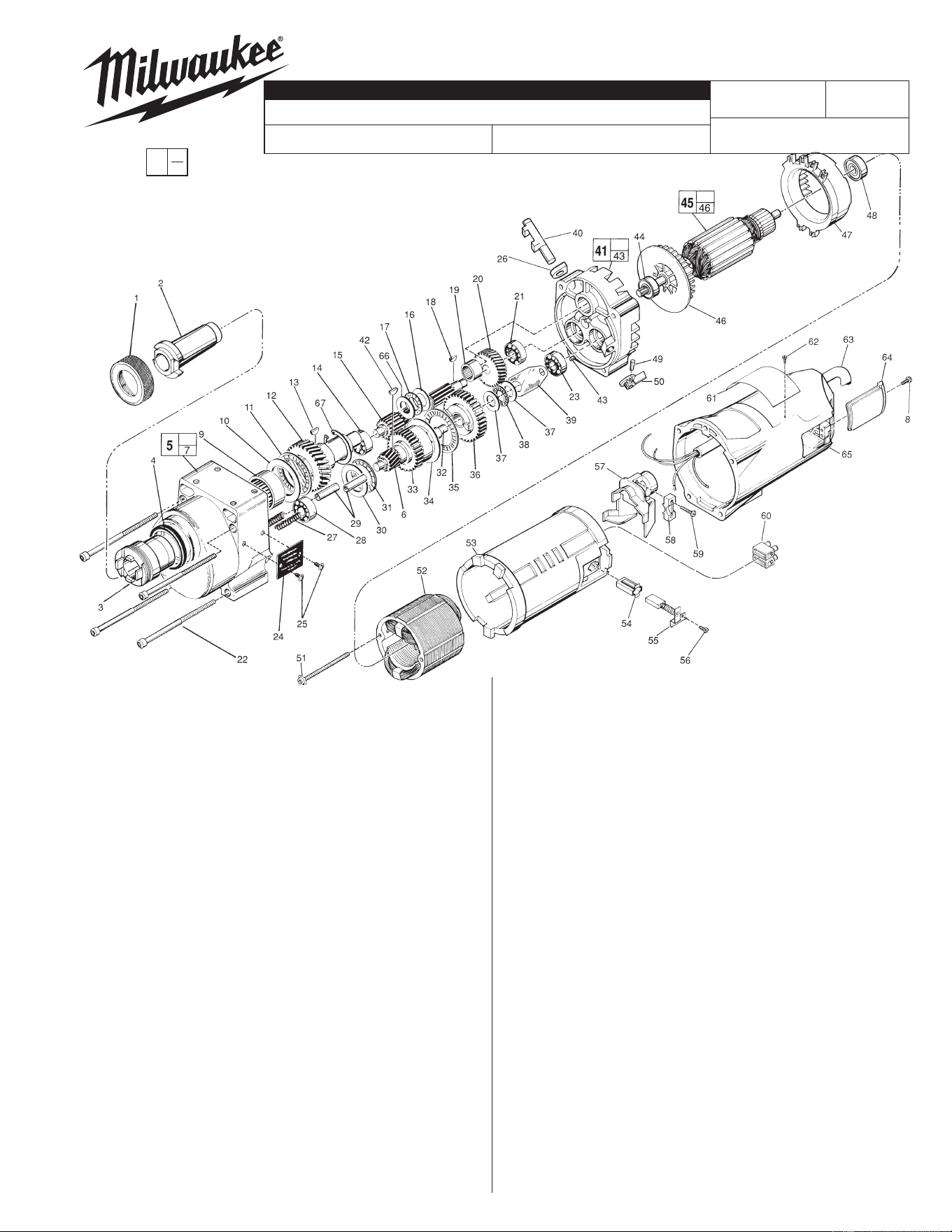

Drwg. 4
BULLETIN NO.
1-1/4" TWO SPEED DRILL
54-14-4207
1 42-52-0050 Taper Socket Cap (1)
2 45-34-0115 No. 3 Taper Socket - Service (1)
3 38-50-5490 Reversing Spindle (1)
4 45-06-0380 Oil Seal (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
41 14-13-0210 Diaphragm Assembly (1)
42 06-42-2000 Woodruff Key (1)
43 06-65-1155 Groove Pin (1)
44 02-04-1229 Ball Bearing (1)
45 16-70-0375 120 V. D. I. Armature (1)
46 22-84-0790 Fan (1)
47 42-14-0291 Baffl e (1)
48 02-04-1041 Ball Bearing (1)
49 06-65-0840 1/8 x 3/4 Groove Pin (1)
50 25-60-0056 Shifting Knob (1)
51 06-82-9072 10-24 x 2-1/8" Pan Hd. T-25 Sems (2)
52 18-70-0320 120 V. Field (1)
53 23-16-1410 Insulating Housing (1)
54 22-20-0680 Brush Tube (2)
55 22-18-0701 Carbon Brush Assembly (2)
56 06-82-8835 8-32 x 5/16" Pan Hd. T-20 Sems (2)
57 22-38-0140 Wire Clamp (1)
58 31-17-0200 Cord Clamp (1)
59 06-82-7326 8-16 x 1" Pan Hd. Slt. Plast. T-20 (2)
60 22-56-0470 Terminal Block (1)
61 12-99-1300 Service Nameplate (1)
62 06-72-1720 Nameplate Rivet (2)
63 22-64-3050 120 V. Cord and Plug (1)
64 22-32-0350 Brush Cover (2)
65 28-50-6360 Motor Housing (1)
66 45-88-1080 Thrust Washer (1)
67 34-60-0320 Snap Ring (1)
5 28-14-1880 Gear Case Assembly (1)
6 32-60-1041 Pinion Gear (1)
7 06-65-1535 Roll Pin (Not Shown) (1)
8 06-82-5316 8-32 x 1/2" Pan Hd. Slt. Taptite T-20 (2)
9 02-50-9976 Needle Bearing (1)
10 45-88-0530 Thrust Bearing Washer (1)
11 02-80-5000 Thrust Bearing (1)
12 32-75-2561 Spindle Gear (1)
13 06-42-2400 Woodruff Key (1)
14 02-04-1205 Ball Bearing (1)
15 36-66-3751 Pinion Shaft Assembly (1)
16 45-88-1090 Thrust Washer (1)
17 02-80-1525 Thrust Bearing (1)
18 06-42-1600 Woodruff Key (1)
19 02-50-4830 Needle Bearing (1)
20 32-40-1581 Intermediate Gear (1)
21 02-04-1205 Ball Bearing (1)
22 06-82-9202 1/4-20 x 4-1/4" Fillister Taptite T-30 (4)
23 02-04-1205 Ball Bearing (1)
24 12-98-2105 Instruction Plate (1)
25 06-82-5266 4-40 x 1/4" Pan Hd. Taptite T-10 Screw (2)
26 43-44-0580 Foam Gasket (1)
27 40-50-6300 Shifting Spring (2)
28 02-04-1205 Ball Bearing (1)
29 44-70-0100 Shifting Plunger (2)
30 45-88-0520 Thrust Bearing Washer (1)
31 02-80-1800 Thrust Bearing (1)
32 36-14-0061 Pinion Clutch Shaft (1)
33 14-29-0055 Gear Kit (Contains Gear and Spacer) (1)
34 45-88-0530 Thrust Bearing Washer (1)
35 02-80-5000 Thrust Bearing (1)
36 32-10-0051 Clutch Gear Assembly (1)
37 45-88-0510 Thrust Bearing Washer (1)
38 02-80-1200 Thrust Bearing (1)
39 45-98-0090 Shifting Yoke (1)
40 30-15-0056 Shifting Cam (1)
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
54-14-4206
July 2011
STARTING
SERIAL NO.
4292-1
504B
58-01-0376
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
00
0
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
FIG. LUBRICATION
5 17 Oz. Type "J" Grease, No. 49-08-4220.
FIG. NOTES
22 Apply Blue Loctite To Threads.
