5 28-14-1880
7 06-65-l 535
*8 06-82-5316
*9 02-50-9976
10 45-88-0530
11 02-80-5000
12 32-75-2581
13 06-42-2400
14 02-04-l 205
15 36-66-3751
16 45-88-t 090
17 02-80-l 525
18 06-42-l 600
19 02-50-4830
20 32-40-l 581
21 02-04-l 205
22 06-82-9202
23 02-04-l 205
24 12-98-2105
25
06-82-5266
26 45-06-0350
27 40-50-6300
28 02-04-l 205
29 44-70-O 100
30 45-88-0520
31
02-80-l 800
32 36-14-0720
33 32-l O-0061
34 45-88-0530
35 02-80-5000
36 32-l O-0051
37 45-88-0510
38 02-80-l 200
39 45-98-0090

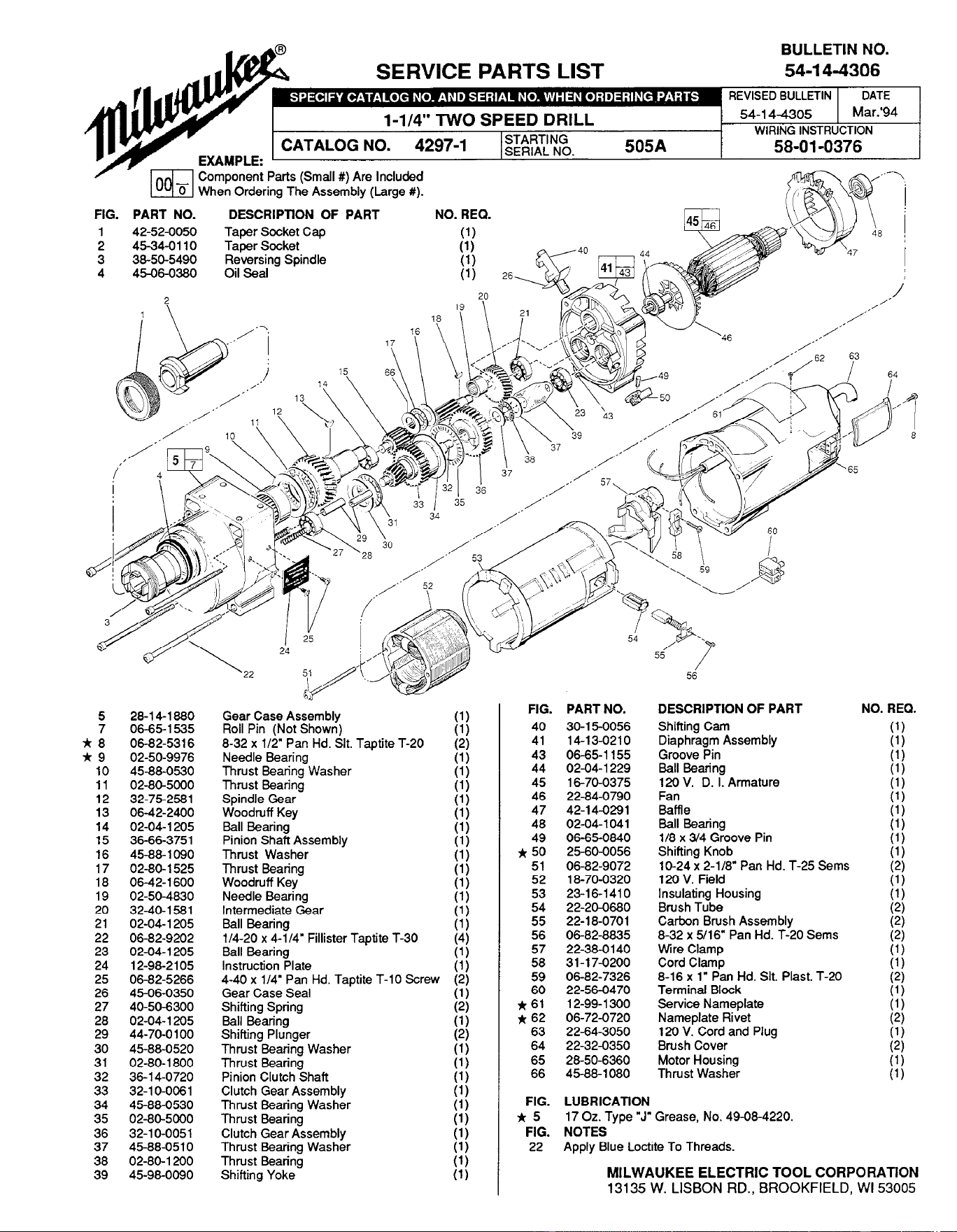

Gear Case Assembly
Roil Pin (Not Shown)
8-32 x l/2” Pan Hd. Sk. Taptite T-20
Needle Bearing
Thrust Bearing Washer
Thrust Bearing
Spindle Gear
Woodruff Key
Ball Bearing
Pinion Shaft Assembly
Thrust Washer
Thrust Bearing
Woodruff Key
Needle Bearing
Intermediate Gear
Ball Bearing
l/4-20 x 4-i/4” Fillister Taptite T-30
Ball Bearing
Instruction Plate
4-40 x l/4” Pan Hd. Taptite T-10 Screw
Gear Case Seal
Shifting Spring
Ball Bearing -
Shifting Plunger
Thrust Bearing Washer
Thrust Bearing
Pinion Clutch Shaft
Clutch Gear Assembly
Thrust Bearing Washer
Thrust Bearing
Clutch Gear Assembly
Thrust Bearing Washer
Thrust Bearing
Shifting Yoke
FIG.
40
41
43
44
45
46
47
48
49
* 50
51
z:
54
55
56
57
58
59
60
* 61
* 62
63
64
65
66
FIG.
*5
FIG.
22
PART NO.
30-l 50056
14-13-0210
06-65-l 155
02-04-i 229
16-70-0375
22-84-0790
42-14-0291
02-04-1041
06-65-0840
25-60-0056
06-82-9072
1 B-70-0320
23-16-1410
22-20-0680
22-18-0701
06-82-8835
22-38-0140
31-17-0200
06-82-7326
22-56-0470
12-99- 1300
06-72-0720
22-64-3050
22-32-0350
28-50-6360
45-88-l 080
DESCRIPTION OF PART NO. REQ.
Shifting Cam
Diaphragm Assembly
Groove Pin
Ball Bearing
120 V. D. I. Armature
Fan
Baffle
Ball Bearing
l/8 x 3l4 Groove Pin
Shifting Knob
10-24 x 2-l/8” Pan Hd. T-25 Sems
120 V. Field
Insulating Housing
Brush Tube
Carbon Brush Assembly
8-32 x 5116” Pan Hd. T-20 Sems
Wire Clamp
Cord Clamp
B-16 x 1” Pan Hd. Slt. Plast. T-20
Terminal Block
Service Nameplate
Nameplate Rivet
120 V. Cord and Plug
Brush Cover
Motor Housing
Thrust Washer
LUBRICATION
17 Oz. Type “J” Grease, No. 49-08-4220.
NOTES
Apply Blue Loctite To Threads.
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
