EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
WIRING INSTRUCTION
REVISED BULLETIN DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 3
BULLETIN NO.
STARTING
SERIAL NO.
58-01-0402
54-14-1122
Mar. 2018
54-14-1123
CATALOG NO.

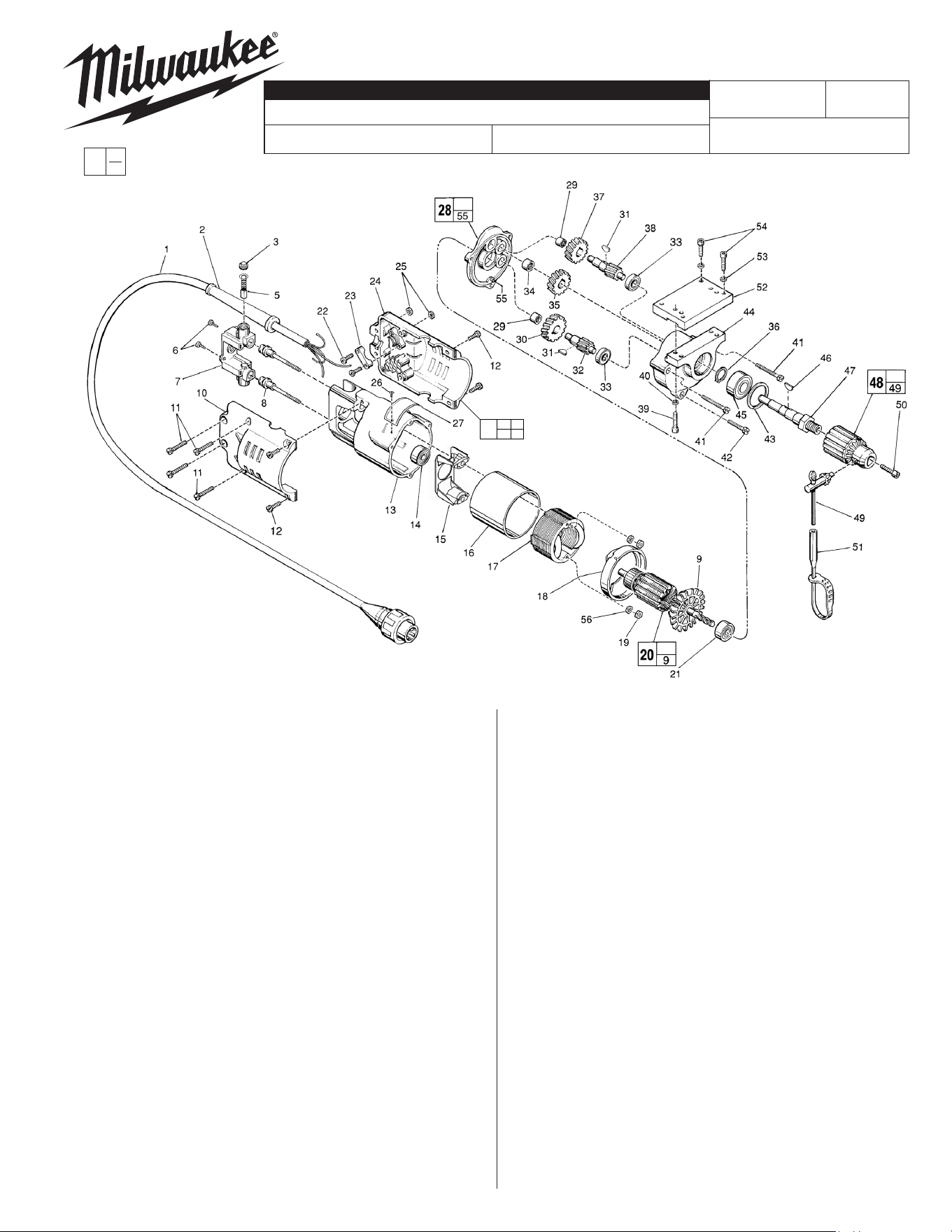

1/2" POWER PACK DRILL MOTOR
587A4253-1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 22-64-0760 Cord Set (1)
2 44-76-0050 Cord Protector (1)
3 23-44-0190 Brush Retaining Screw (2)
5 22-18-0910 Carbon Brush Assembly (2)
6 06-95-0075 6-32 x 3/8" Truss Hd. Taptite Screw (2)
7 22-22-1380 Brush Holder Assembly (1)
8 06-81-1060 Insulated Field Bolt (2)
9 22-84-0531 Fan (1)
10 31-15-0120 Cover Half (1)
11 06-81-0425 8-32 x 7/8" Pan Hd. Screw (4)
12 06-82-5316 8-32 x 1/2" Pan Hd. Slt. Taptite T-20 (4)
13 28-50-6220 Motor Housing (1)
14 02-04-0845 Ball Bearing (1)
15 31-55-0190 Coil Shield (1)
16 23-16-0456 Field Insulator (1)
17 18-30-0100 120 Volt Field (1)
18 31-05-0055 Bae (1)
19 06-55-0825 8-32 UNC-2B Hex Nut (2)
20 16-30-0225 120 Volt Armature (1)
21 02-04-0911 Ball Bearing (1)
22 --------------- 6-32 x 3/4" Pan Hd. Phillips Mach. Scr. (2)
23 --------------- Cord Clamp (1)
24 --------------- Cover Half Assembly (1)
25 06-55-0825 8-32 Hex Nut (4)
26 06-72-1720 Nameplate Rivet (2)
27 12-99-1305 Service Nameplate (1)
28 28-28-0611 Diaphragm (1)
29 02-50-1640 Needle Bearing (2)
30 32-40-1241 Intermediate Gear (1)
31 06-42-0800 WoodruKey (2)
32 36-66-2801 Intermediate Shaft (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
33 02-04-0640 Ball Bearing (2)
34 02-50-2440 Needle Bearing (1)
35 32-75-2061 Spindle Gear (1)
36 34-60-1200 Retaining Ring (1)
37 32-75-2041 Spindle Gear (1)
38 36-66-2901 Intermediate Shaft (1)
39 06-75-3090 1/4-20 x 7/8" Socket Hd. Screw (4)
40 06-97-4050 1/4" Lockwasher (4)
41 06-82-3210 8-32 x 1-7/8" Fil. Hd. Taptite T-20 (2)
42 06-95-5250 8-32 x 1-1/8" Fil. Hd. Sems (1)
43 34-80-2500 Retaining Ring (1)
44 28-14-0761 Gear Case (1)
45 02-04-1536 Ball Bearing (1)
46 06-42-1600 WoodruKey (1)
47 38-50-5470 Spindle (1)
48 48-66-1360 1/2" Chuck (1)
49 48-66-3280 Chuck Key (1)
50 06-75-3150 1/4-20 x 1" L.H. Skt.Hd. Cap Screw (1)
51 48-66-4040 Key Holder (1)
52 42-04-0580 Adaptor Plate (1)
53 06-97-4050 1/4" Lockwasher (4)
54 06-75-3050 1/4-20 x 3/4" Socket Hd. Screw (4)
55 06-65-0825 Groove Pin (1)
56 45-88-0765 Nord-Lock Washer (2)
60 14-46-4400 Cover/Clamp Kit (1)
FIG. LUBRICATION
44 3-1/4 Oz. Type "A" Grease, No. 49-08-0800
22 23
24
60
