FIG. PART NO. DESCRIPTION OF PART NO REQ.
1 06-81-3100 5/16-18 x 1" Skt. Hd. Screw (1)
2 48-66-2085 3/4" Chuck (1)
3 48-66-3160 Chuck Key (1)
4 34-80-3800 Retaining Ring (1)
5 38-50-5480 Reversing Spindle (1)
6 06-42-2400 Woodruff Key (1)
7 02-04-2200 Ball Bearing (1)
8 45-36-0080 Spindle Spacer (1)
9 06-82-8550 1/4-20 x 3-1/8" Fil. Taptite T-30 Sems (2)
10 06-82-9202 1/4-20 x 4-1/4" Fil. Taptite T-30 Sems (2)
11 28-14-0091 Gear Case Assembly (1)
12 02-04-1210 Ball Bearing (1)
13 36-66-1302 Intermediate Shaft (1)
14 06-42-2000 Woodruff Key (1)
15 32-44-1141 Intermediate Gear (1)
16 02-04-0910 Ball Bearing (1)
17 32-75-1261 Spindle Gear (1)
18 02-50-4820 Needle Bearing (1)
19 02-04-0910 Ball Bearing (1)
20 36-66-1251 Intermediate Shaft (1)
21 06-42-1200 Woodruff Key (1)
22 32-42-1201 Intermediate Gear (1)
23 02-04-0910 Ball Bearing (1)
24 14-13-0250 Diaphragm Assembly (1)
WIRING INSTRUCTION
REVISED BULLETIN DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
BULLETIN NO.
STARTING
SERIAL NO.
3/4" ELECTRIC DRILL
58-01-0376
4262-1
54-14-2404
Oct. 2000
54-14-2403
CATALOG NO.
FIG. LUBRICATION
11 9-1/2 Oz. Type "J" Grease, No. 49-08-4220.
FIG. NOTE
9,10 Apply Blue Loctite To Threads.
502A or 502-35638
FIG. PART NO. DESCRIPTION OF PART NO REQ.
25 06-82-5316 8-32 x 1/2" Pan Hd. Slt. Tap. T-20 (2)
26 06-65-1155 Groove Pin (1)
27 45-30-0070 Ball Bearing Retaining Slug (Not Shown) (2)
28 02-04-1229 Ball Bearing (1)
29 16-70-0360 120 V. Armature (1)
FIG. PART NO. DESCRIPTION OF PART NO REQ.
30 22-84-0790 Fan (1)
31 42-14-0291 Baffle (1)
32 02-04-1041 Ball Bearing (1)
33 06-82-9072 10-24 x 2-1/8" Pan Hd. T-25 Sems (2)
34 18-70-0320 120 V. Field (1)
35 23-16-1410 Insulating Housing (1)
36 22-20-0680 Brush Tube (2)
37 22-18-0701 Carbon Brush Assembly (2)
38 06-82-8835 8-32 x 5/16" Pan Hd. Slt.T-20 Sems (2)
39 22-38-0140 Wire Trap (1)
40 31-17-0200 Cord Clamp (1)
41 06-82-7326 8-16 x 1" Pan Hd. Plast. Slt. T-20 (2)
42 22-56-0470 Terminal Block (1)
43 12-99-1300 Service Nameplate (1)
44 06-85-0200 Service Nameplate Screw (2)
45 22-64-3050 120 V. Cord Set (1)
46 28-50-6360 Motor Housing (1)
47 22-32-0350 Brush Cover (2)

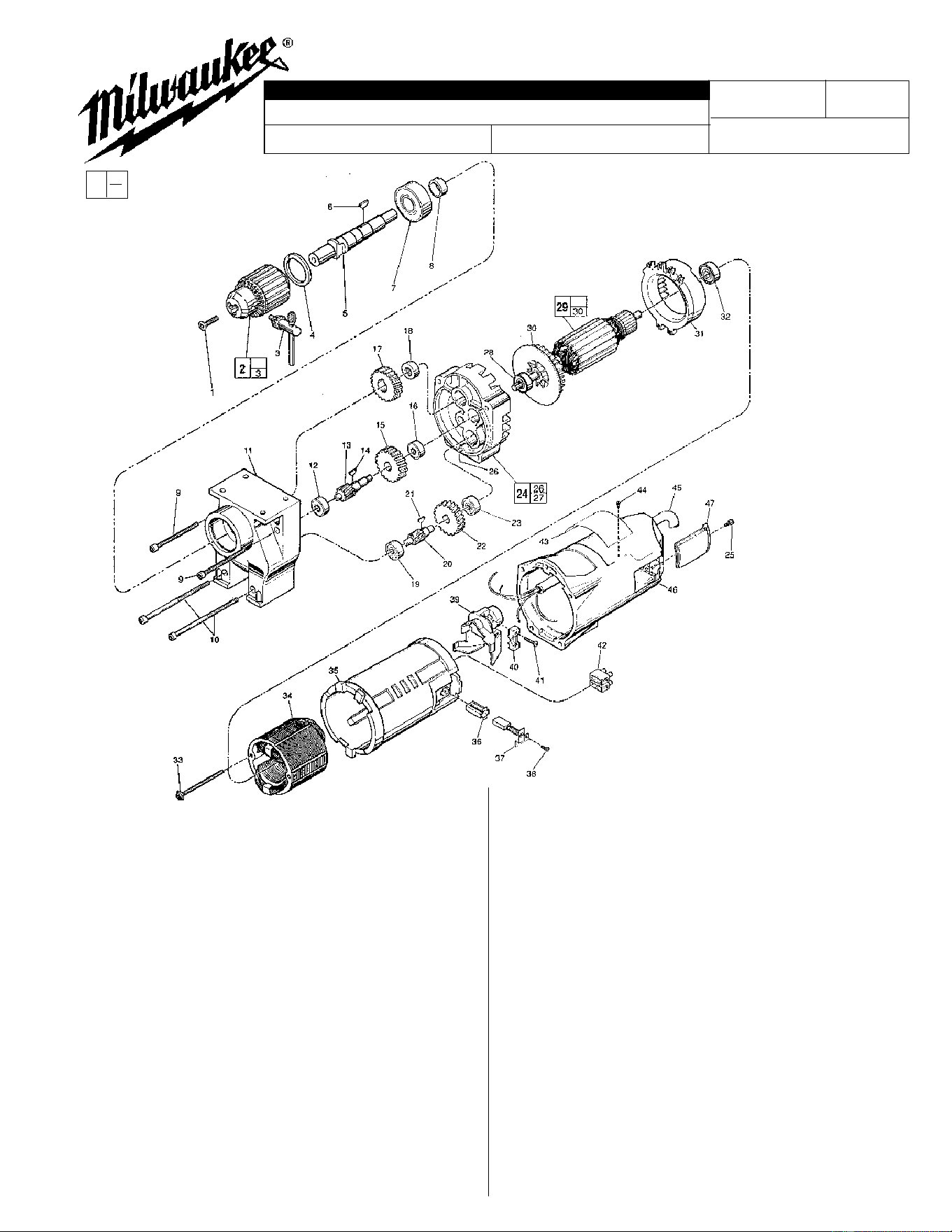

Drwg. 1
«
«
«
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
00
0
