ZKTeco SPEEDPALM-V5L User Manual

Product Name and Model Number User Manual

Thank you for choosing our product. Please read the instructions carefully

before operation. Follow these instructions to ensure that the product is

functioning properly. The images shown in this manual are for illustrative

purposes only.

For further details, please visit our Company’s website

www.zkteco.com.

User Manual

SpeedPalm-V5L

Date: July 2024

Doc Version: 1.0

English

SpeedPalm-V5L User Manual

Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any

way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or

"ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this manual are owned by

their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco equipment. The

the property of ZKTeco. The contents hereof should not be used or shared by the receiver with any third

party without express written permission of ZKTeco.

The contents of this manual must be read as a whole before starting the operation and maintenance of the

supplied equipment. If any of the content(s) of the manual seems unclear or incomplete, please contact

ZKTeco before starting the operation and maintenance of the said equipment.

It is an essential pre-requisite for the satisfactory operation and maintenance that the operating and

maintenance personnel are fully familiar with the design and that the said personnel have received

thorough training in operating and maintaining the machine/unit/equipment. It is further essential for the

safe operation of the machine/unit/equipment that personnel has read, understood and followed the

safety instructions contained in the manual.

In case of any conflict between terms and conditions of this manual and the contract specifications,

drawings, instruction sheets or any other contract-related documents, the contract conditions/documents

shall prevail. The contract specific conditions/documents shall apply in priority.

ZKTeco offers no warranty, guarantee or representation regarding the completeness of any information

contained in this manual or any of the amendments made thereto. ZKTeco does not extend the warranty

of any kind, including, without limitation, any warranty of design, merchantability or fitness for a particular

purpose.

ZKTeco does not assume responsibility for any errors or omissions in the information or documents which

are referenced by or linked to this manual. The entire risk as to the results and performance obtained from

using the information is assumed by the user.

ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect,

special, or exemplary damages, including, without limitation, loss of business, loss of profits, business

interruption, loss of business information or any pecuniary loss, arising out of, in connection with, or

relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been

advised of the possibility of such damages.

SpeedPalm-V5L User Manual

This manual and the information contained therein may include technical, other inaccuracies or

typographical errors. ZKTeco periodically changes the information herein which will be incorporated into

new additions/amendments to the manual. ZKTeco reserves the right to add, delete, amend or modify the

information contained in the manual from time to time in the form of circulars, letters, notes, etc. for better

operation and safety of the machine/unit/equipment. The said additions or amendments are meant for

improvement /better operations of the machine/unit/equipment and such amendments shall not give any

right to claim any compensation or damages under any circumstances.

ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions due to any

non-compliance of the instructions contained in this manual (ii) in case of operation of the

machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in

conditions different from the prescribed conditions of the manual.

The product will be updated from time to time without prior notice. The latest operation procedures and

relevant documents are available on http://www.zkteco.com.

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business related queries, please write to us at: sales@zkteco.com.

To know more about our global branches, visit www.zkteco.com.

SpeedPalm-V5L User Manual

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein)

readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition

Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and

Consumer products including battery-operated fingerprint and face-reader Door Locks. Our security

solutions are multi-lingual and localized in over 18 different languages. At the ZKTeco state-of-the-art

700,000 square foot ISO9001-certified manufacturing facility, we control manufacturing, product design,

component assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and development of biometric

verification procedures and the productization of biometric verification SDK, which was initially widely

applied in PC security and identity authentication fields. With the continuous enhancement of the

development and plenty of market applications, the team has gradually constructed an identity

authentication ecosystem and smart security ecosystem, which are based on biometric verification

techniques. With years of experience in the industrialization of biometric verifications, ZKTeco was

officially established in 2007 and now has been one of the globally leading enterprises in the biometric

verification industry owning various patents and being selected as the National High-tech Enterprise for 6

consecutive years. Its products are protected by intellectual property rights.

About the Manual

This manual introduces the operations of SpeedPalm-V5L.

All figures displayed are for illustration purposes only. Figures in this manual may not be exactly consistent

with the actual products.

Features and parameters with

★ are not available in all devices.

SpeedPalm-V5L User Manual

Document Conventions

Conventions used in this manual are listed below:

GUI Conventions

For Software

Convention Description

Bold font Used to identify software interface names e.g., OK, Confirm, Cancel.

Multi-level menus are separated by these brackets. For example, File > Create >

Folder.

For Device

Convention Description

< >

Button or key names for devices. For example, press <OK>.

[ ]

Window names, menu items, data table, and field names are inside square

brackets. For example, pop up the [New User] window.

Multi-level menus are separated by forwarding

slashes. For example,

[File/Create/Folder].

Symbols

Convention Description

This represents a note that needs to pay more attention to.

The general information which helps in performing the operations faster.

The information which is significant.

Care taken to avoid danger or mistakes.

The statement or event that warns of something or that serves as a cautionary

example.

SpeedPalm-V5L User Manual

Table of Contents

1 INSTRUCTION FOR USE ....................................................................................................................... 8

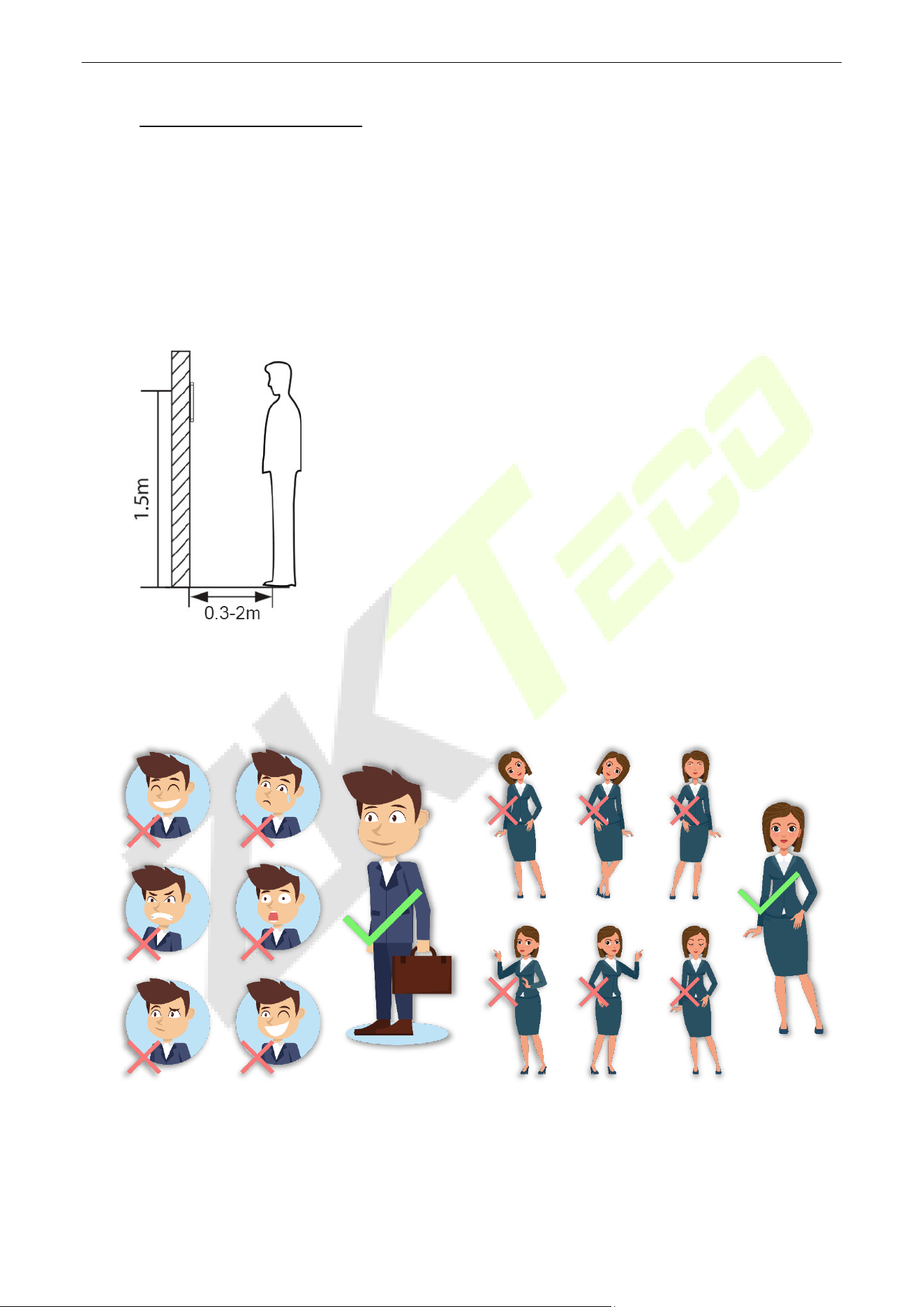

STANDING POSITION, FACIAL EXPRESSION AND STANDING POSTURE .............................................................................. 8 1.1

FACE TEMPLATE REGISTRATION ......................................................................................................................................................... 9 1.2

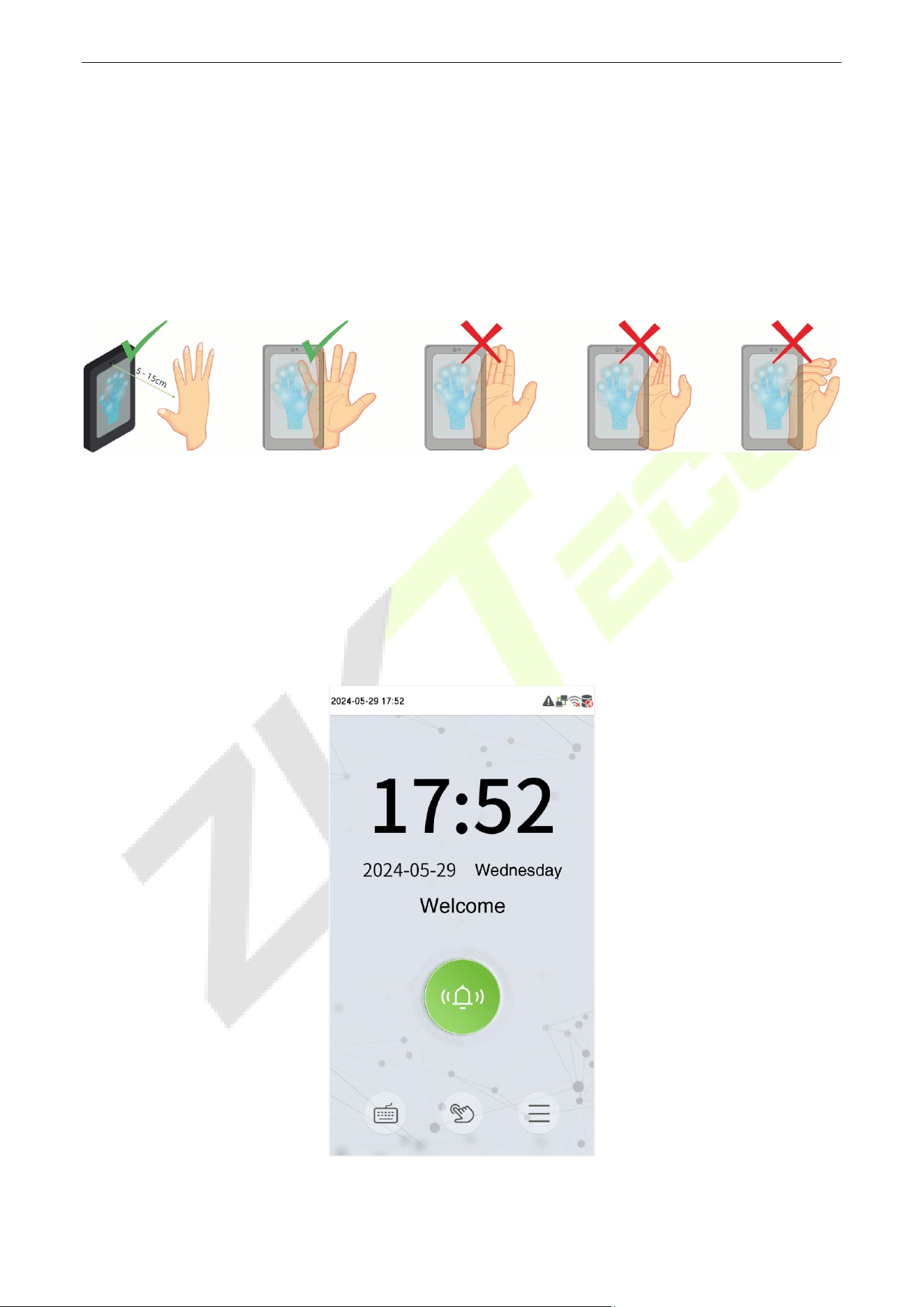

PALM REGISTRATION .............................................................................................................................................................................10 1.3

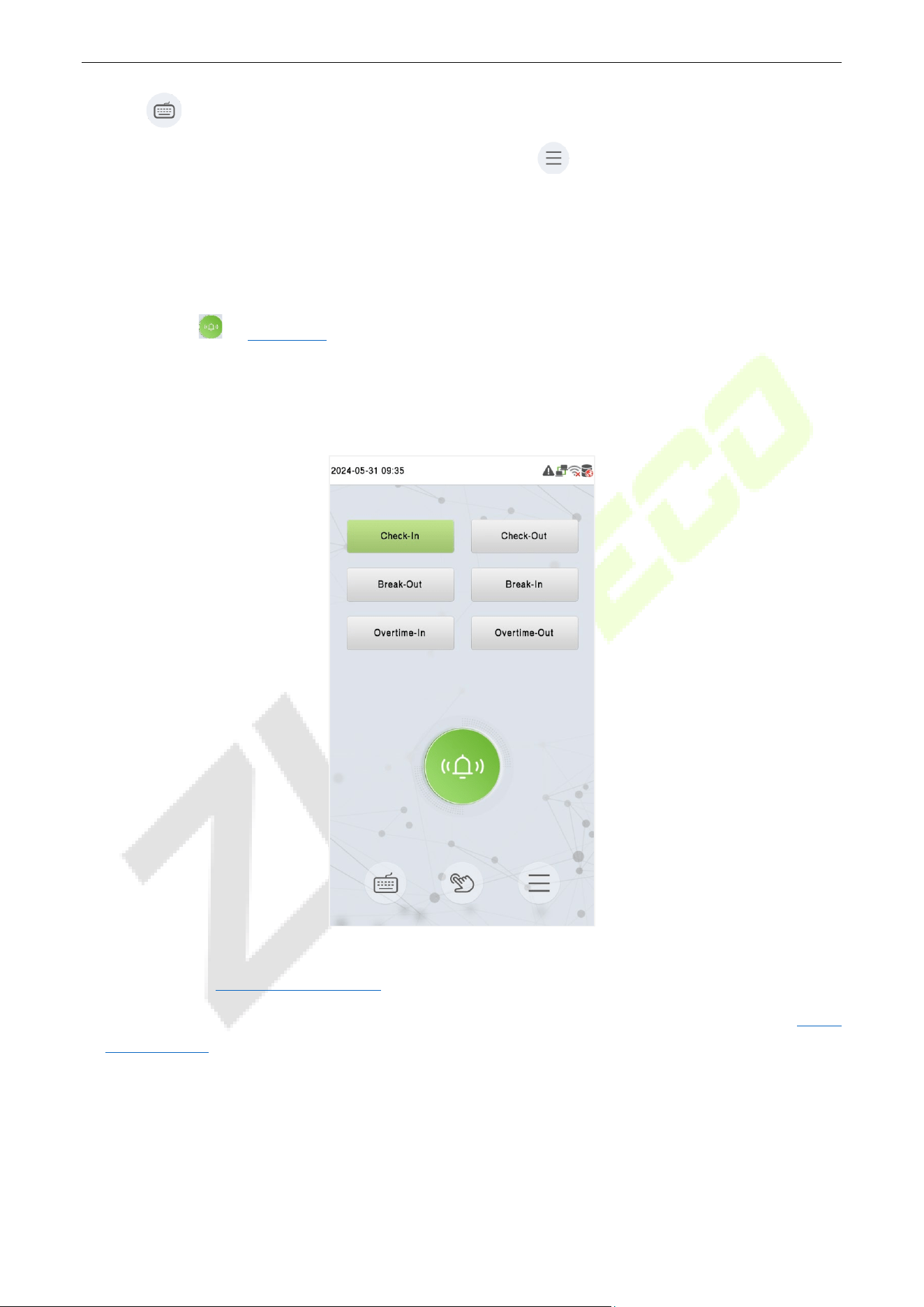

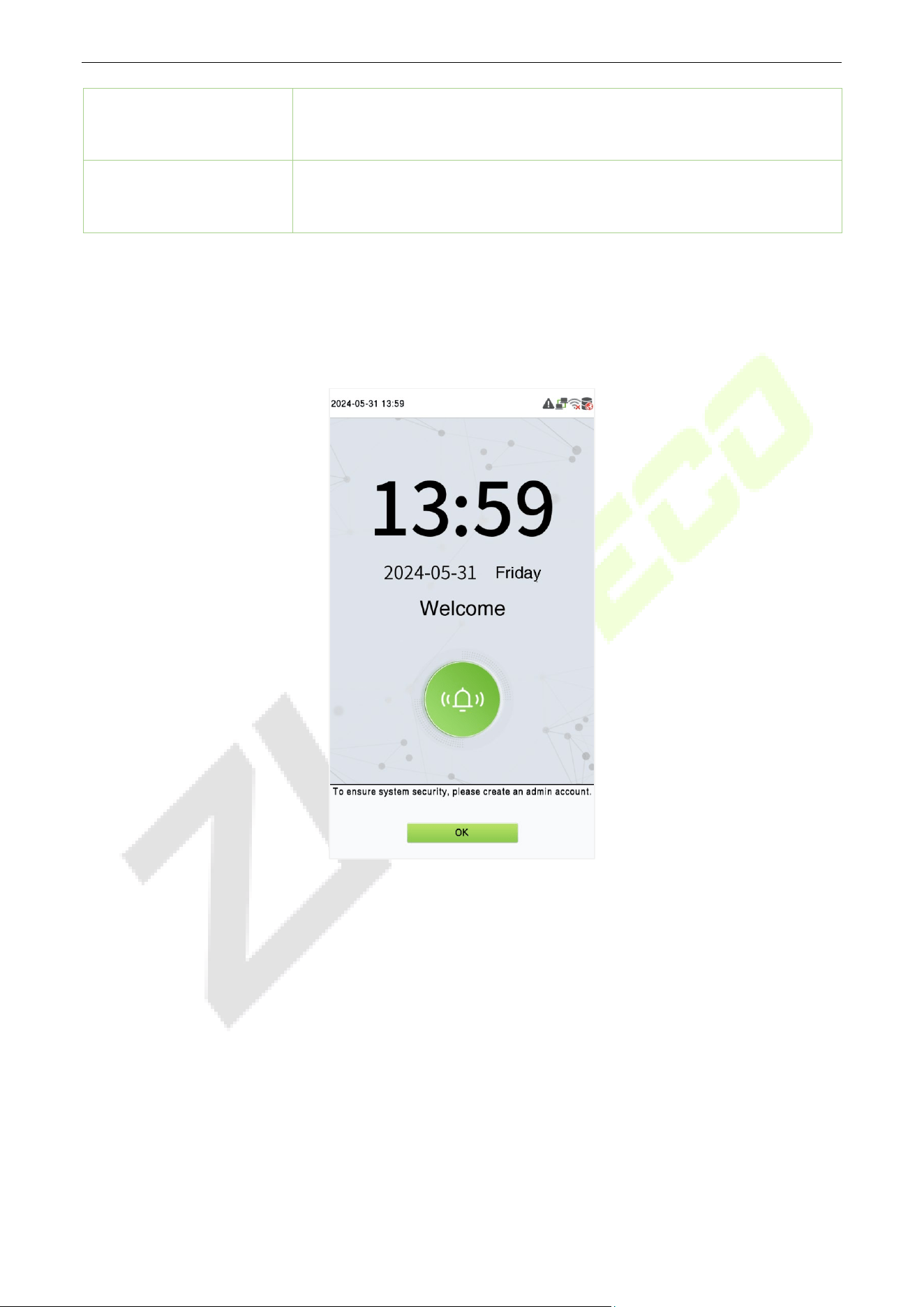

STANDBY INTERFACE.............................................................................................................................................................................10 1.4

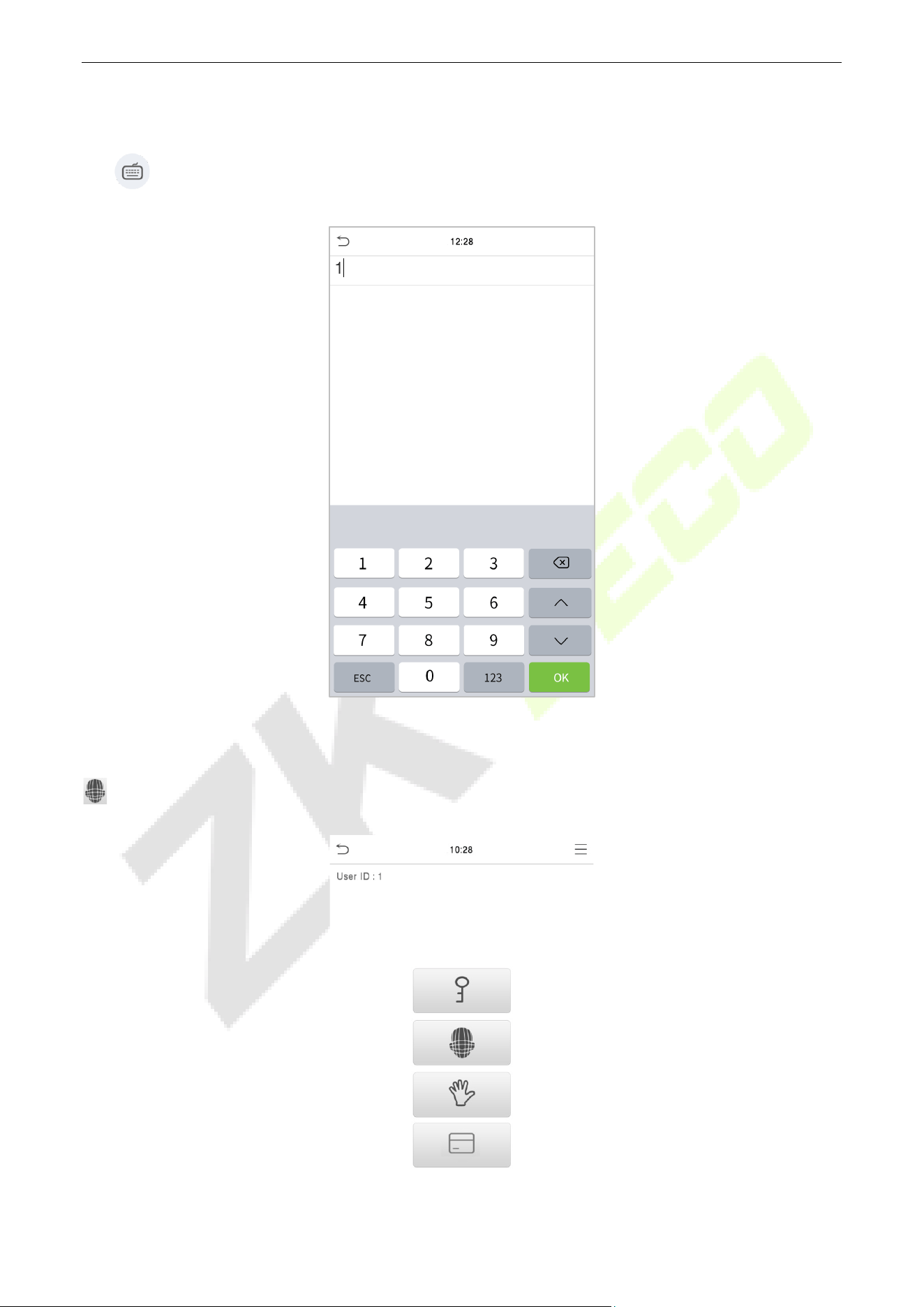

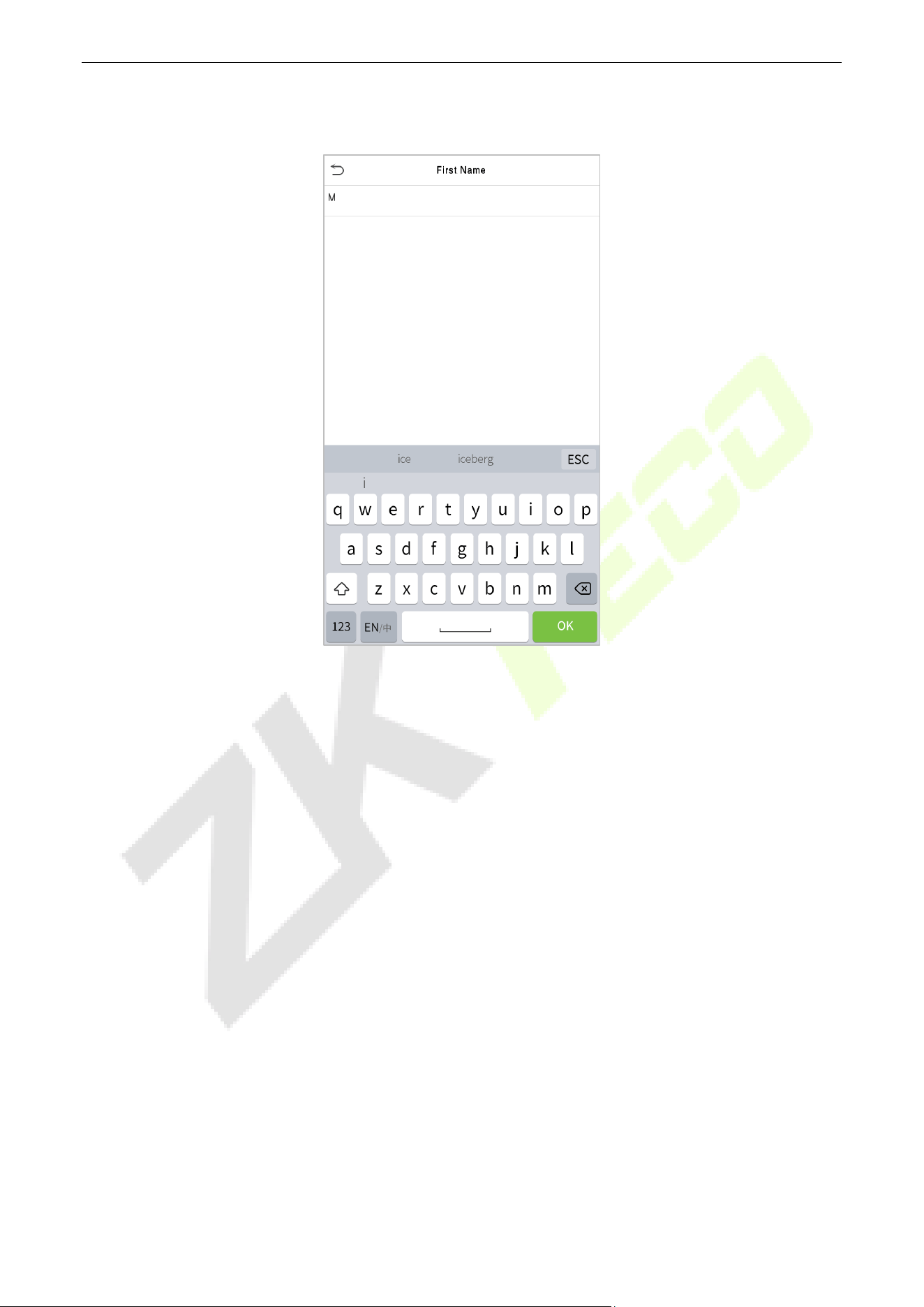

VIRTUAL KEYBOARD ...............................................................................................................................................................................12 1.5

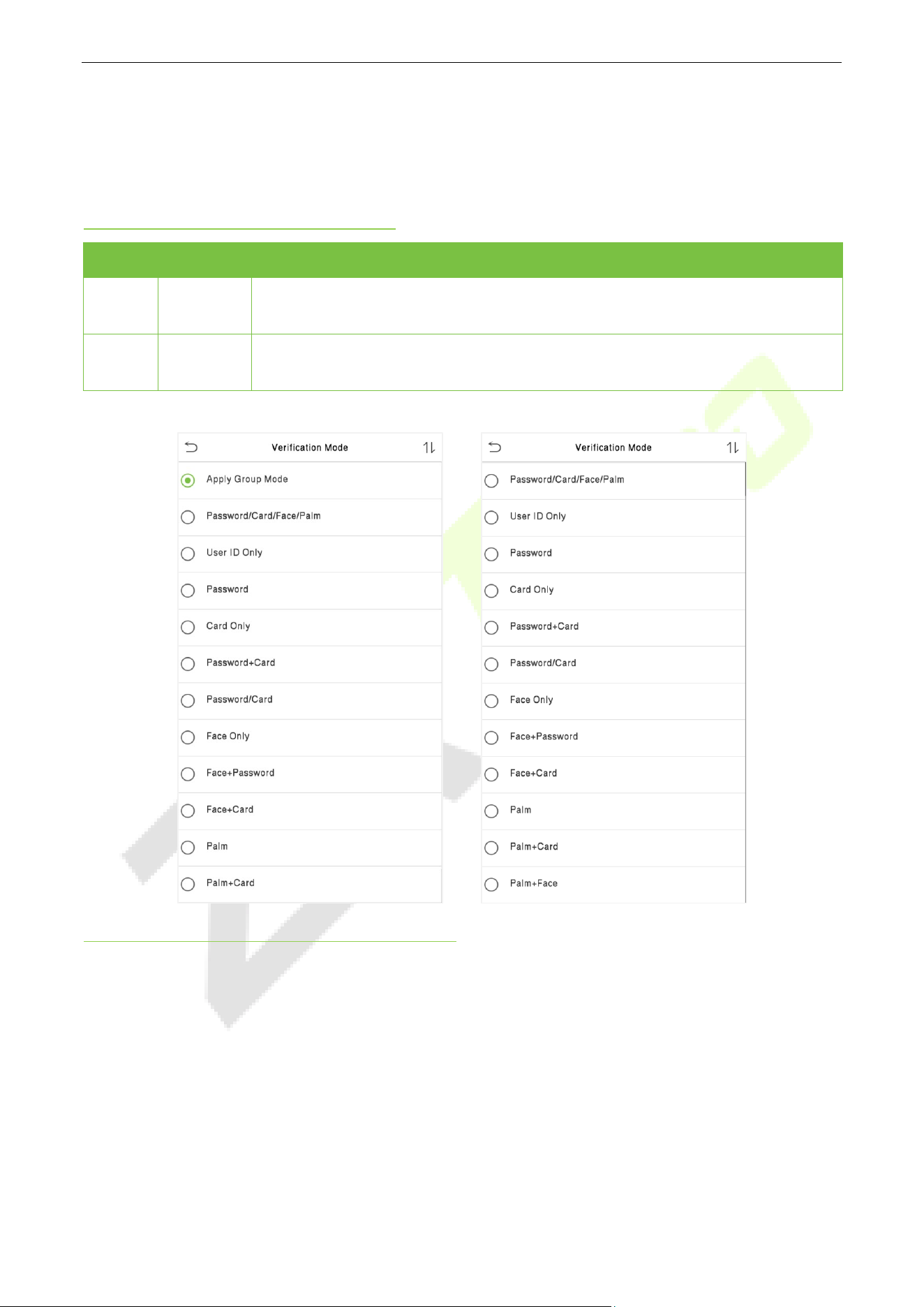

VERIFICATION MODE .............................................................................................................................................................................13 1.6

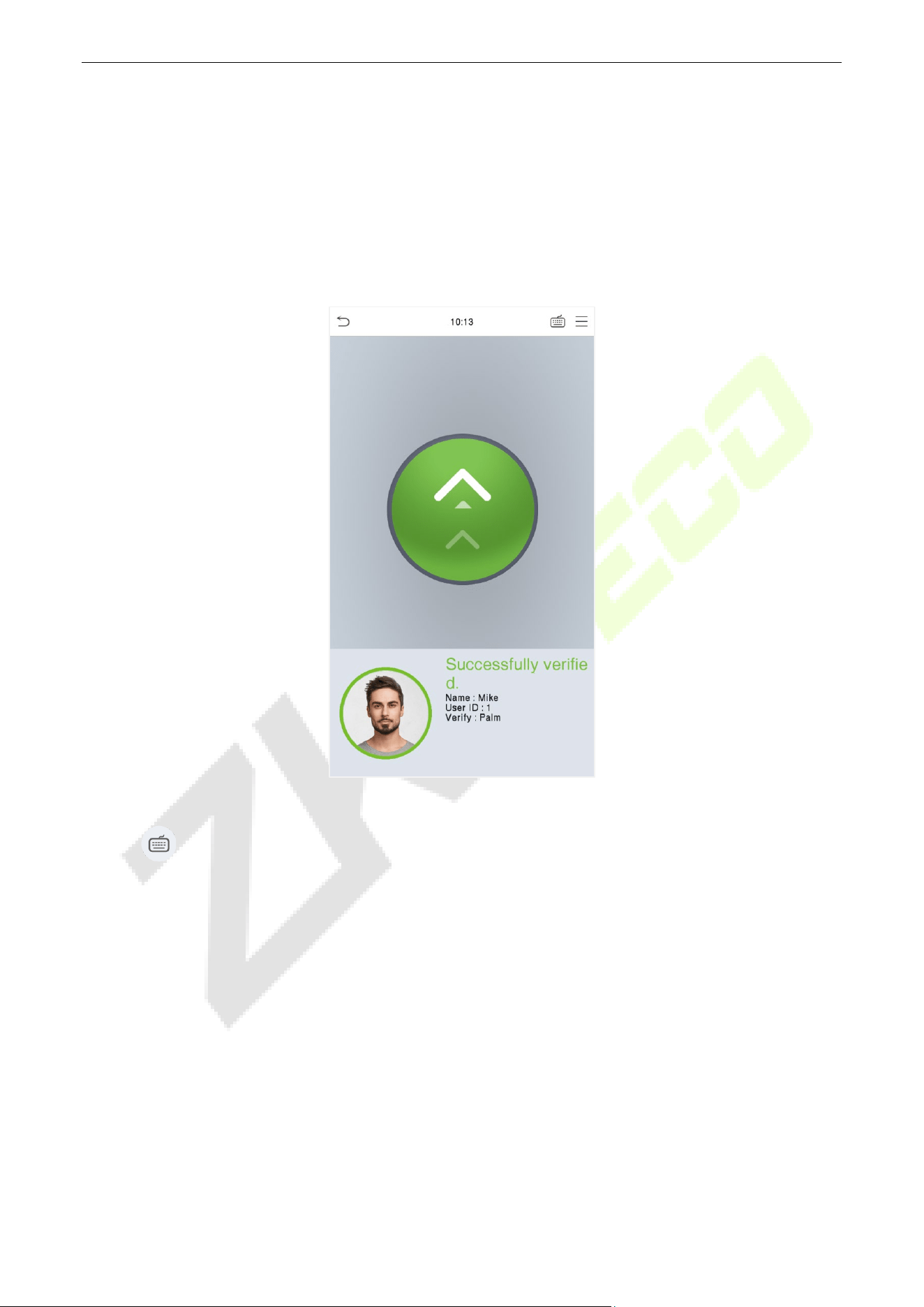

1.6.1 PALM VERIFICATION ................................................................................................................................................................................... 13

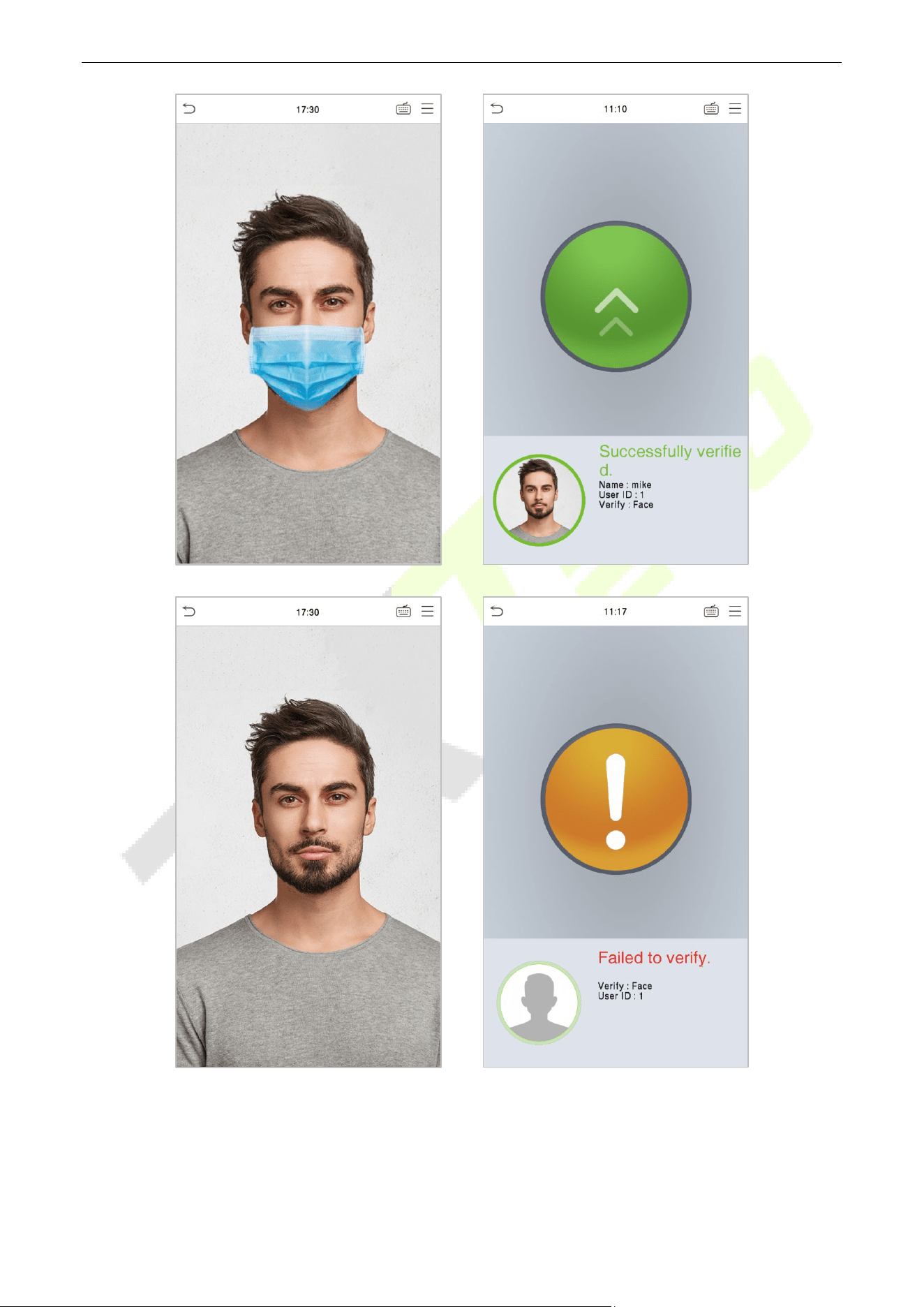

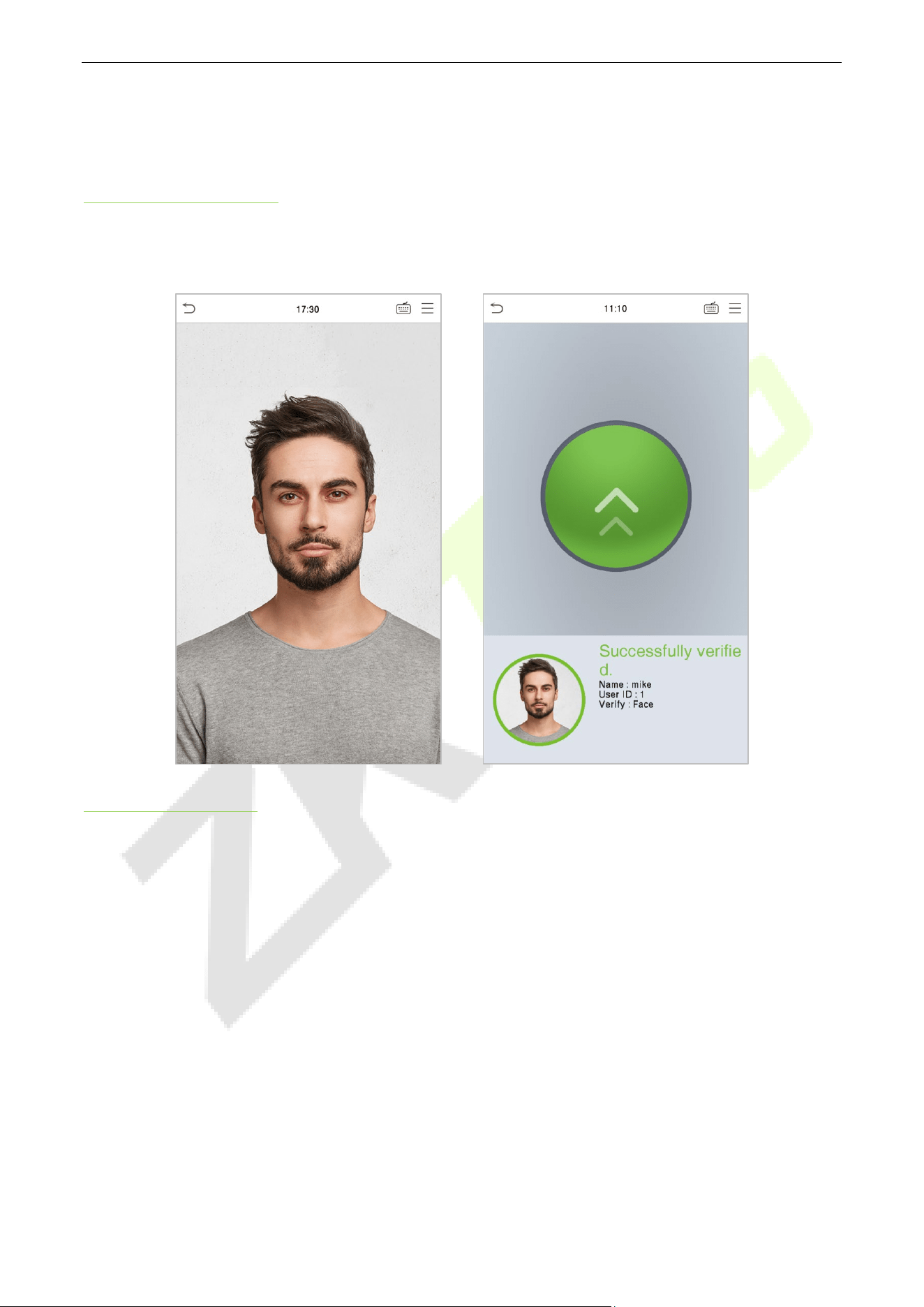

1.6.2 FACIAL VERIFICATION ................................................................................................................................................................................ 15

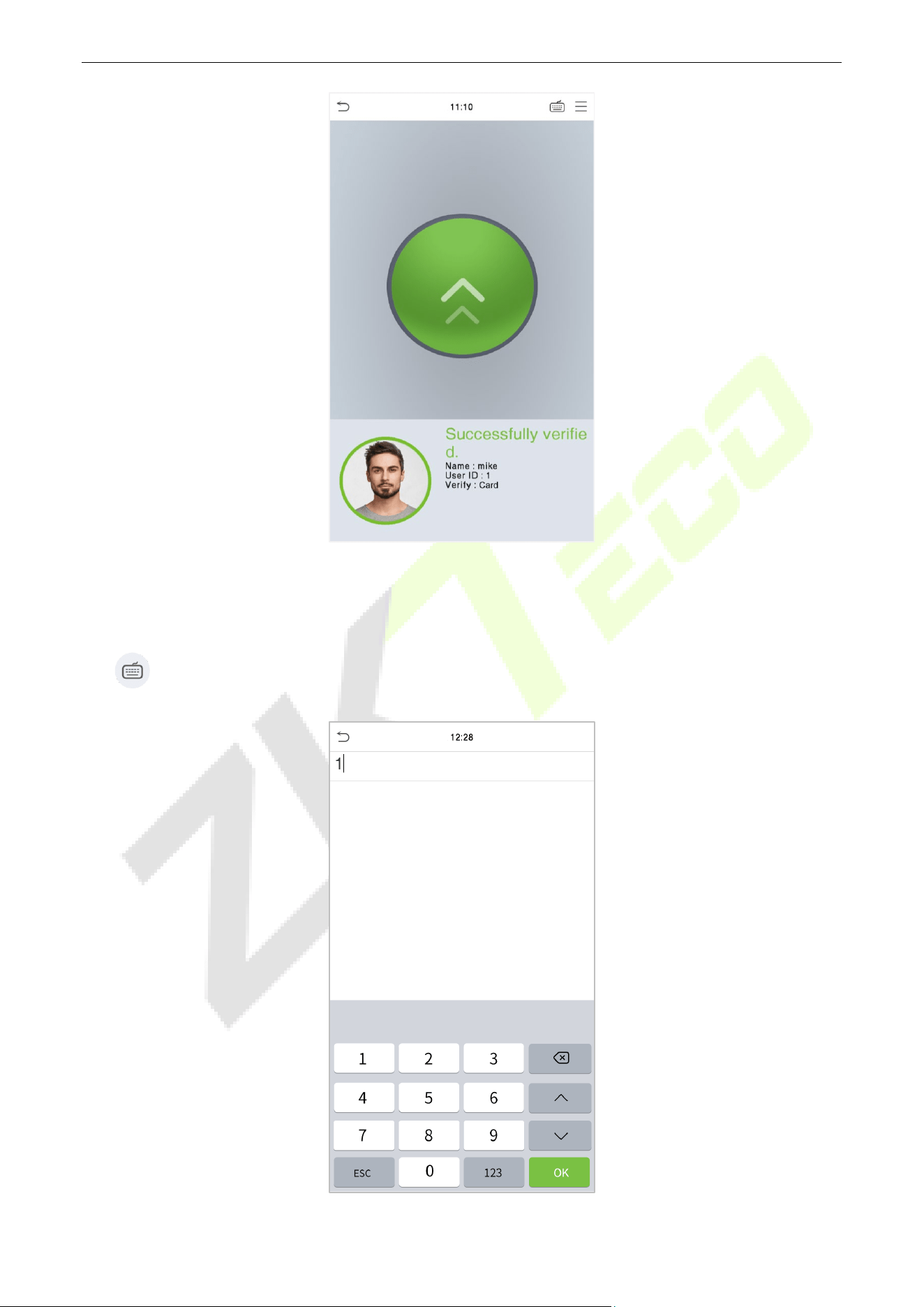

1.6.3 CARD VERIFICATION ................................................................................................................................................................................... 18

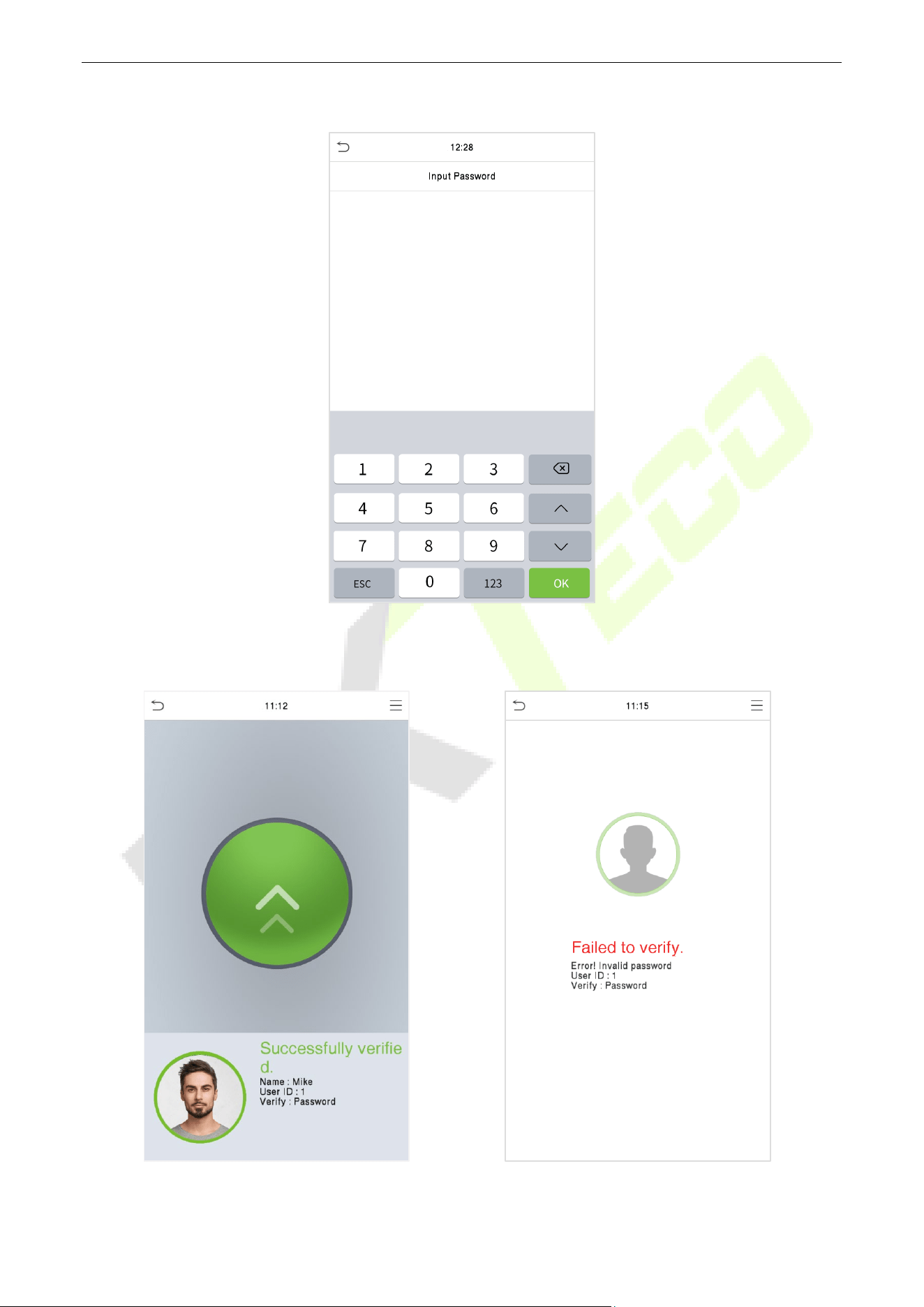

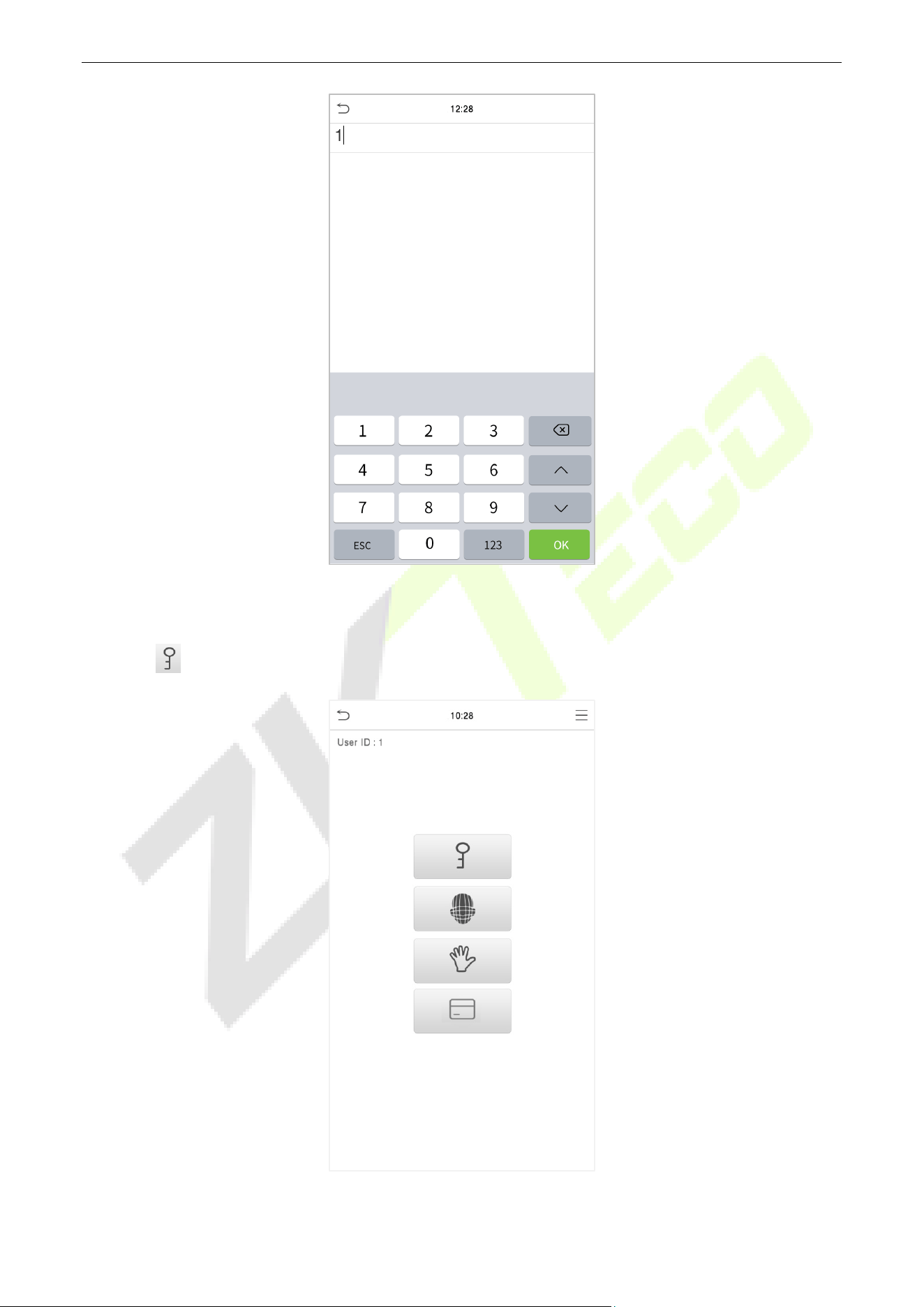

1.6.4 PASSWORD VERIFICATION ........................................................................................................................................................................ 20

1.6.5 COMBINED VERIFICATION ......................................................................................................................................................................... 23

2 OVERVIEW .......................................................................................................................................... 24

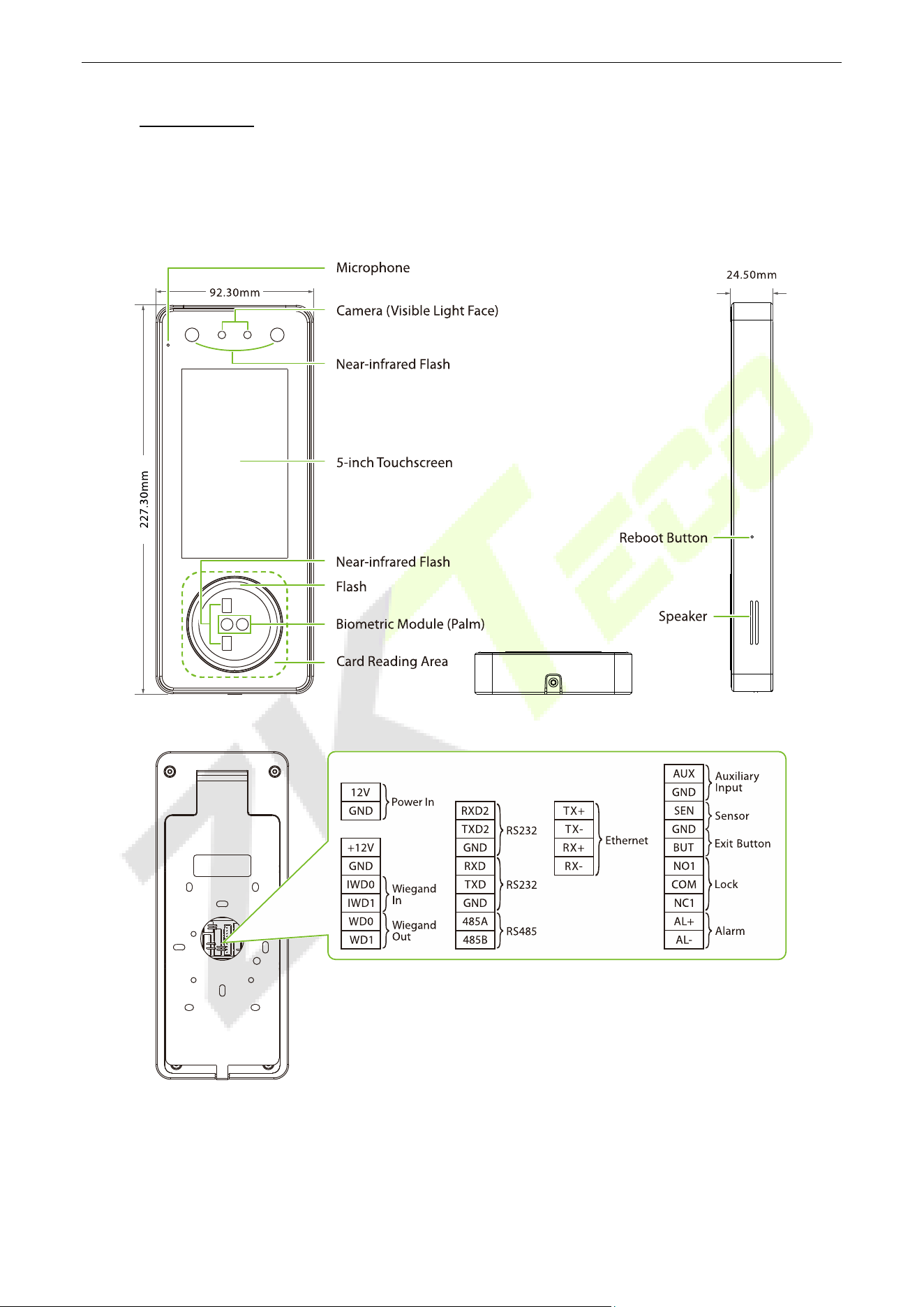

APPEARANCE ............................................................................................................................................................................................24 2.1

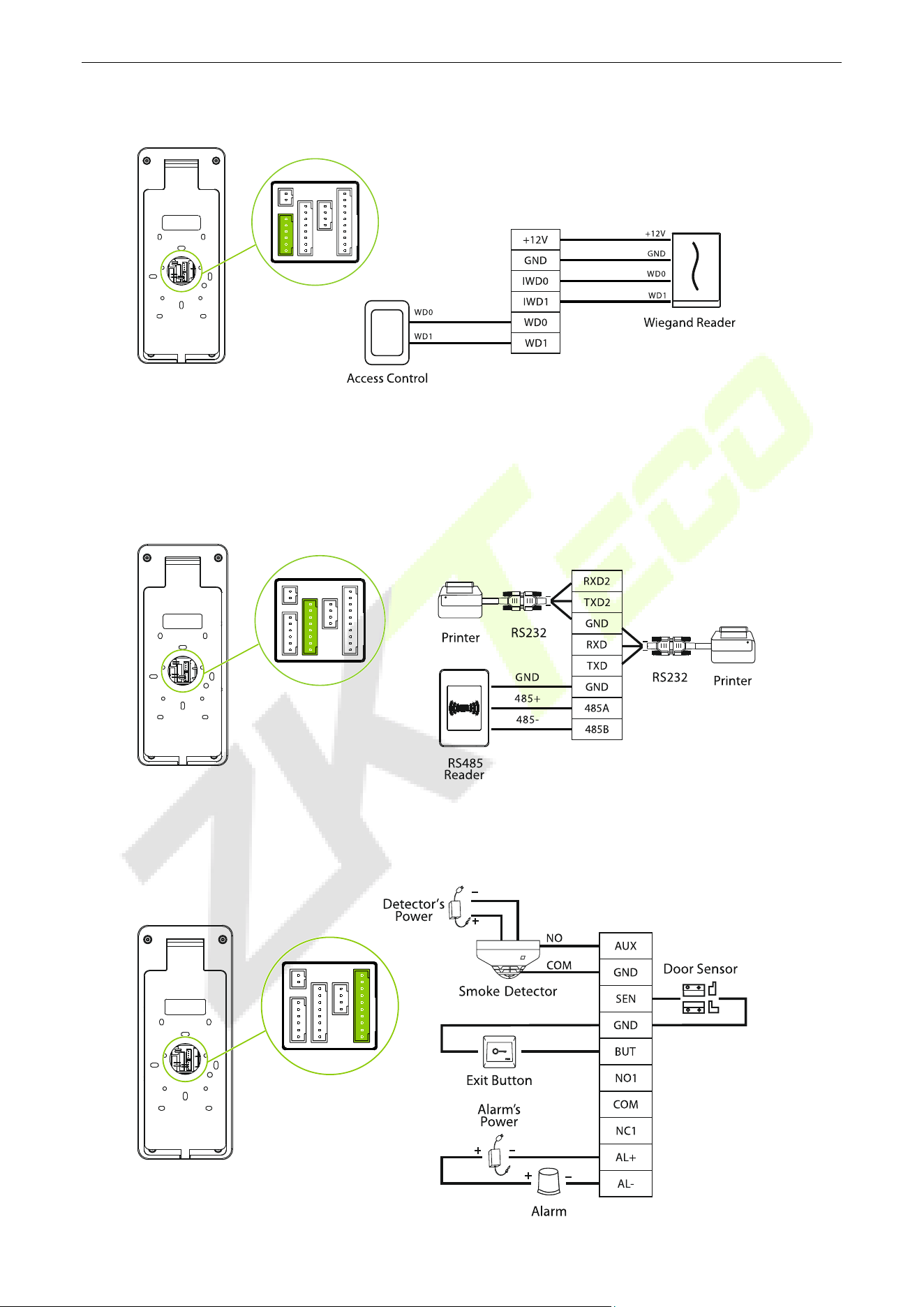

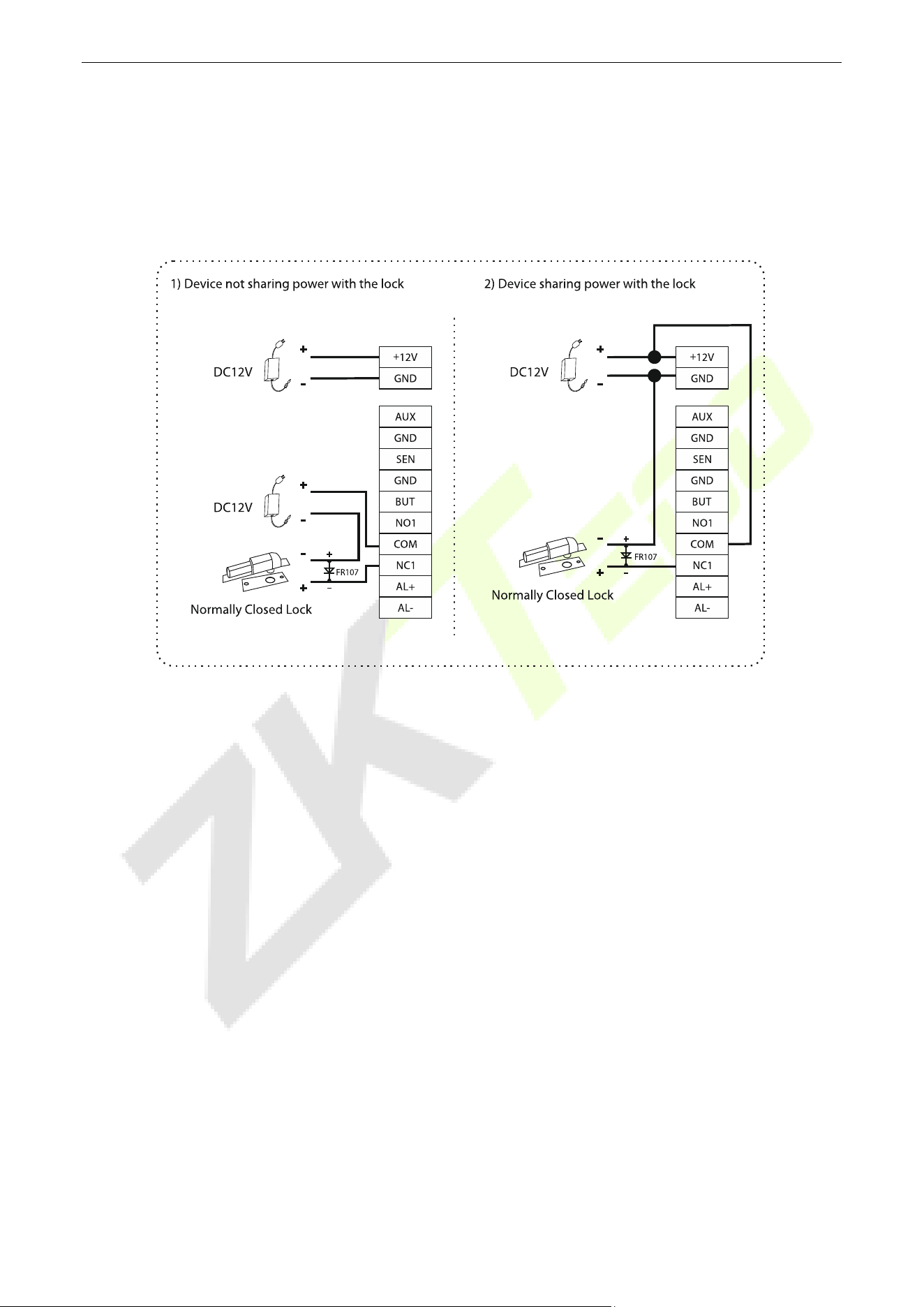

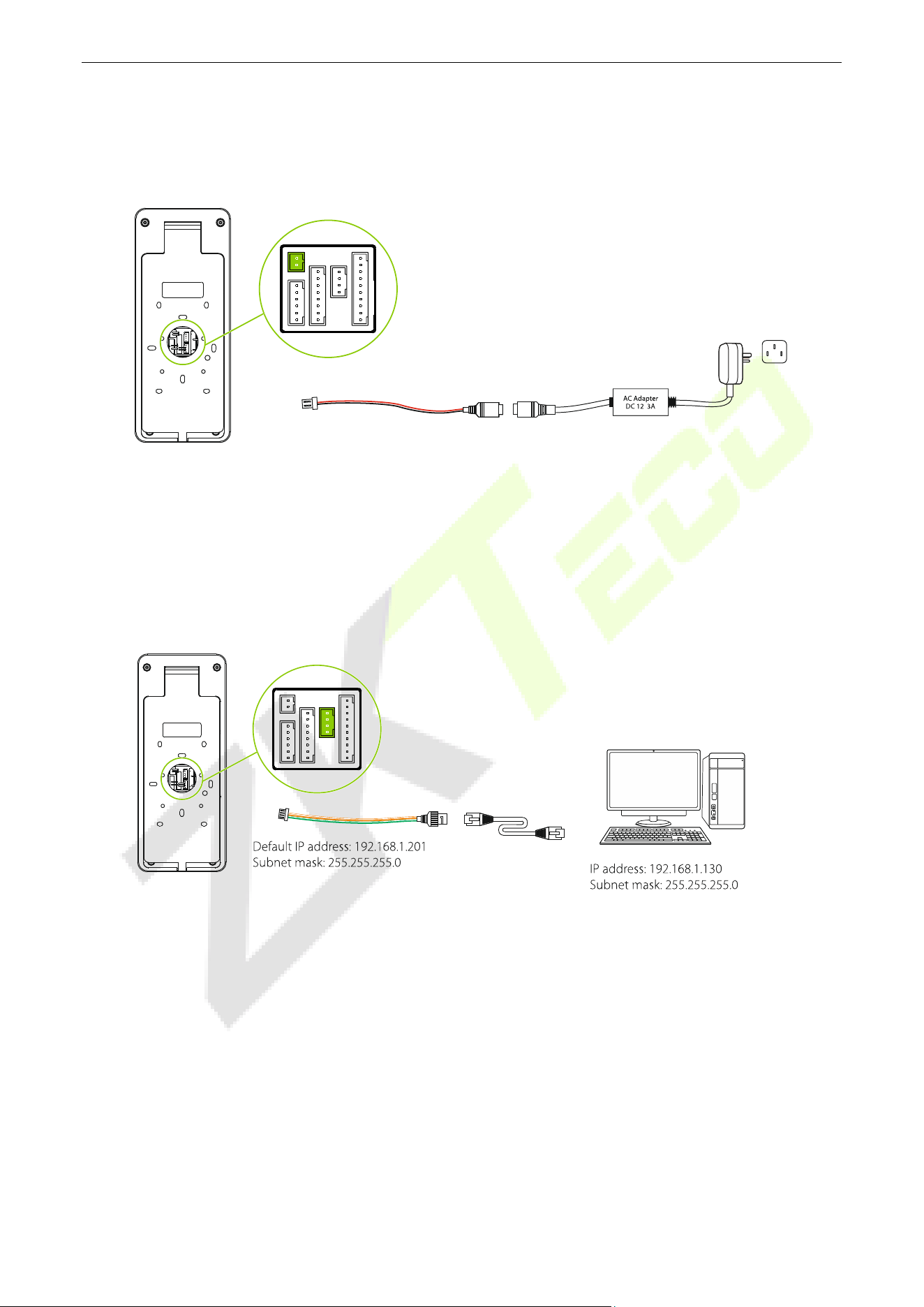

WIRING DESCRIPTION ............................................................................................................................................................................25 2.2

3 INSTALLATION ................................................................................................................................... 28

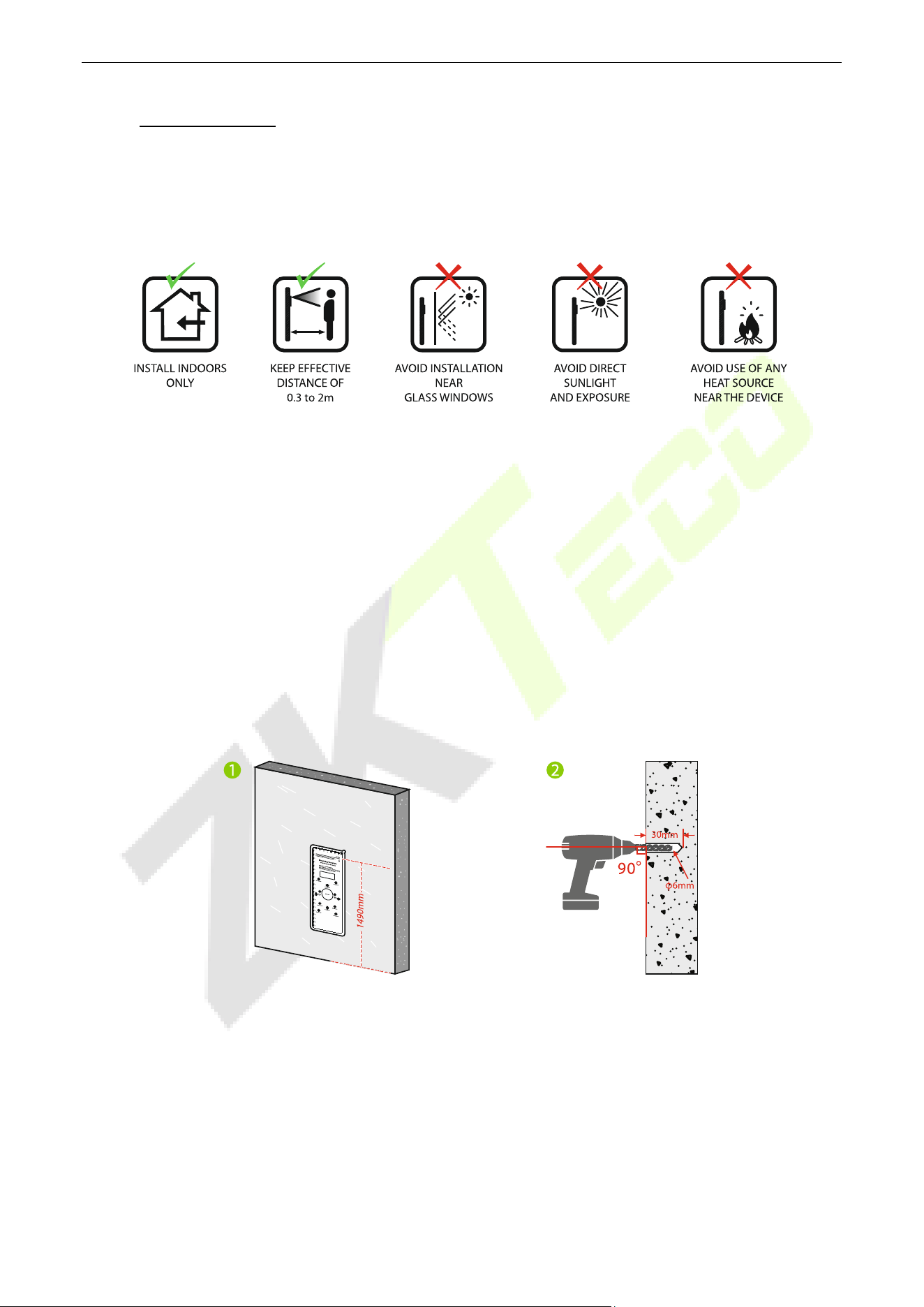

INSTALLATION ENVIRONMENT ..........................................................................................................................................................28 3.1

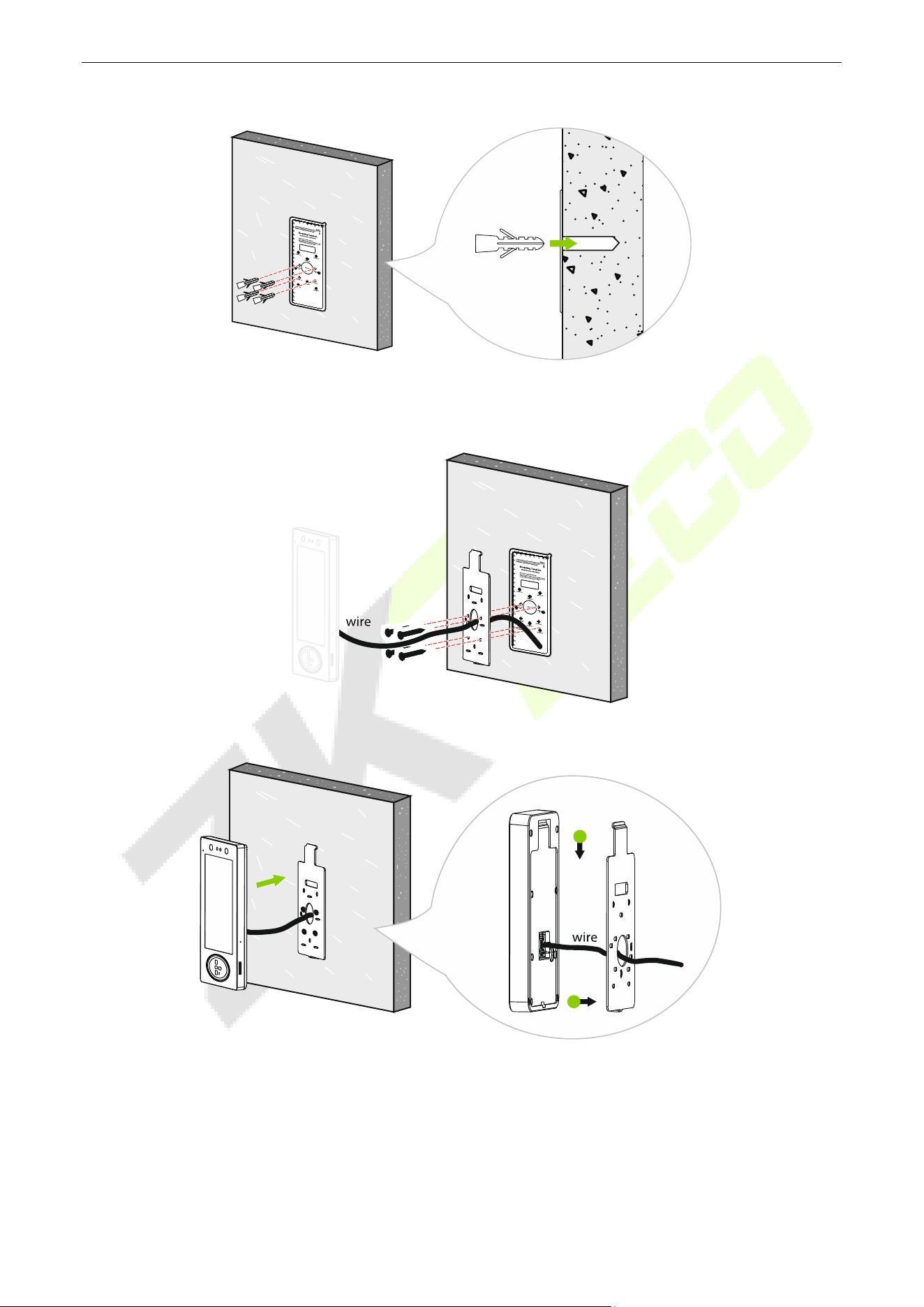

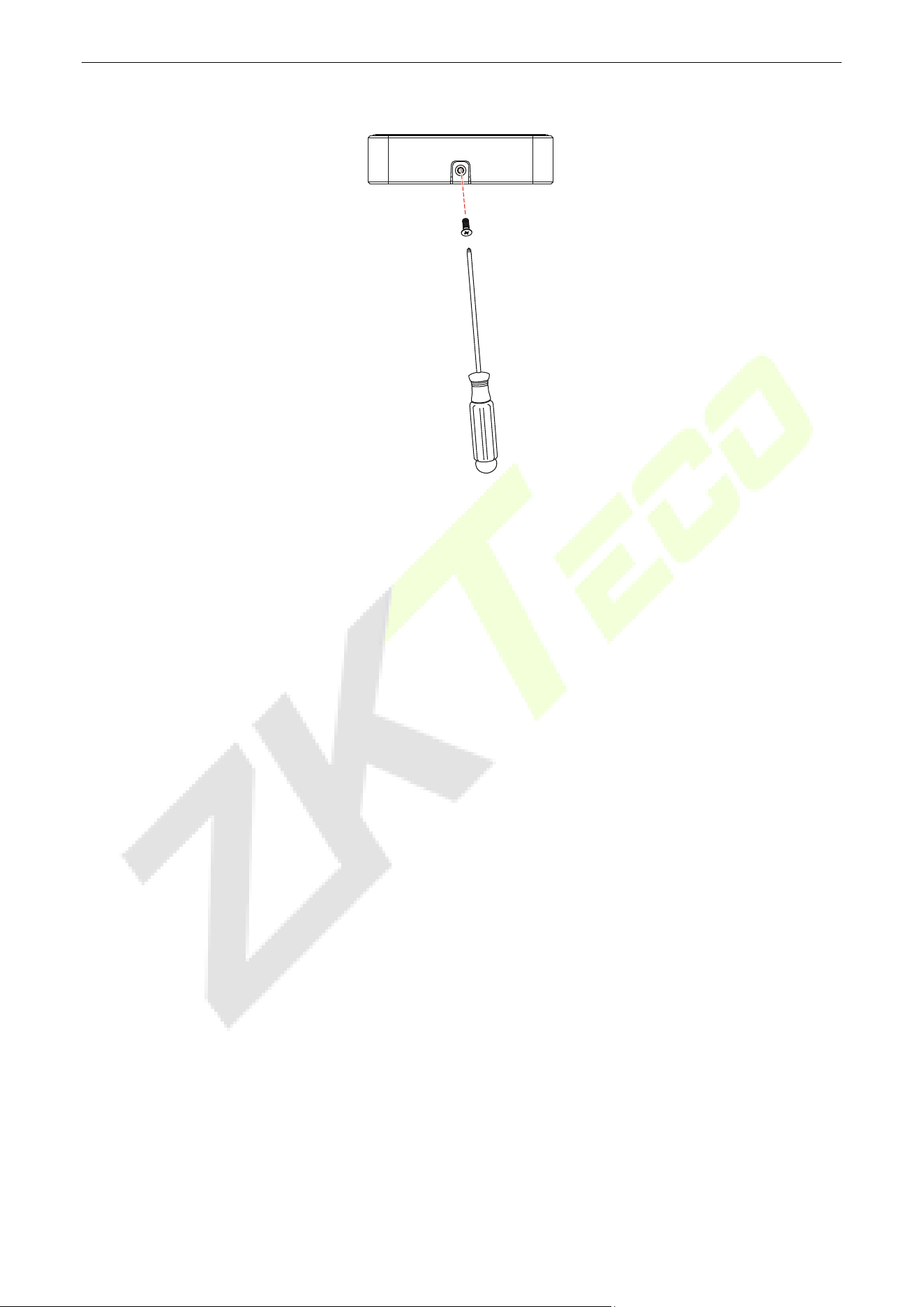

HOW TO INSTALL THE DEVICE ON THE WALL? ............................................................................................................................28 3.2

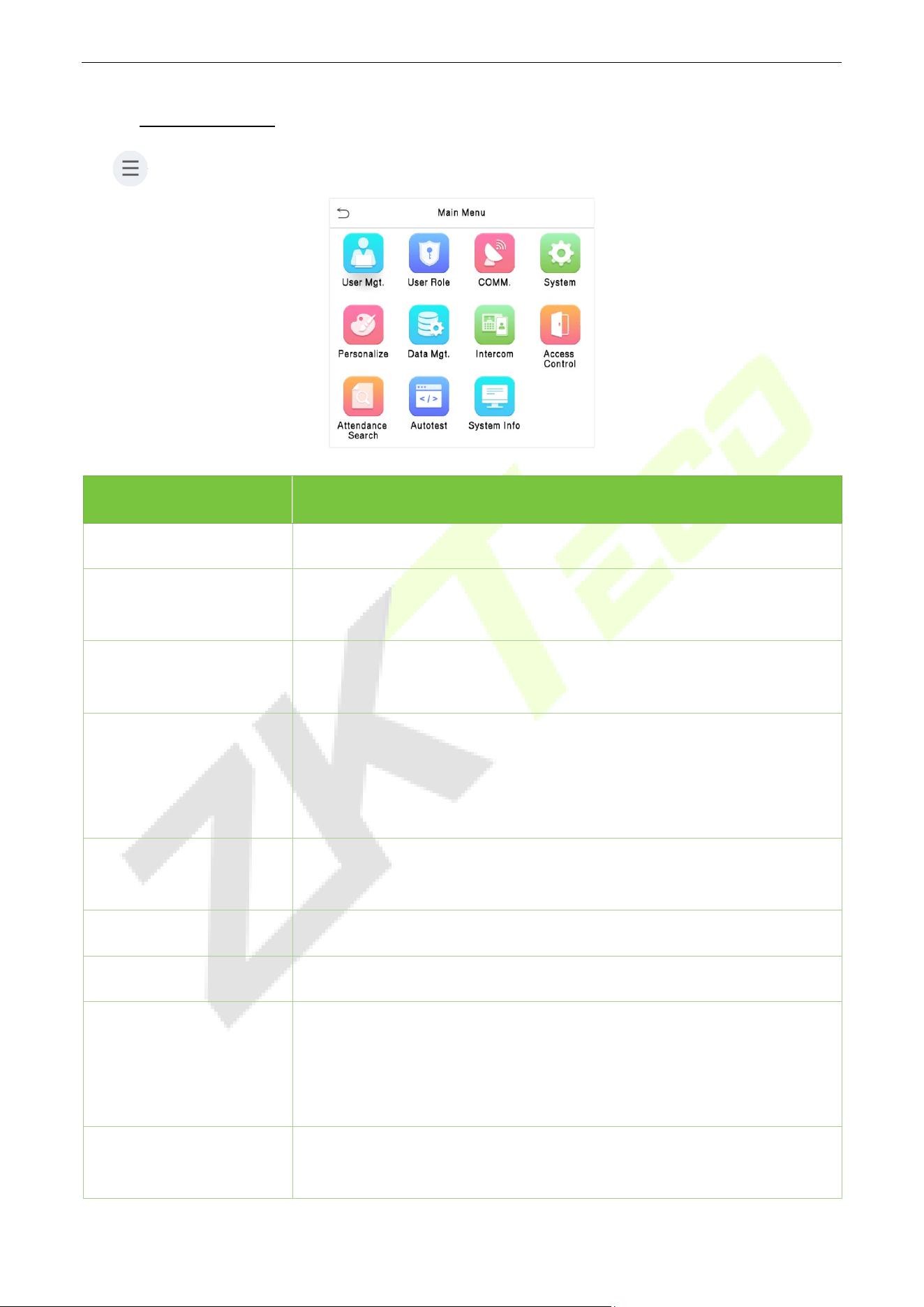

4 MAIN MENU ....................................................................................................................................... 31

5 USER MANAGEMENT ......................................................................................................................... 33

USER REGISTRATION ..............................................................................................................................................................................33 5.1

5.1.1 REGISTER A USER ID AND NAME ............................................................................................................................................................. 33

5.1.2 SETTING THE USER ROLE ........................................................................................................................................................................... 34

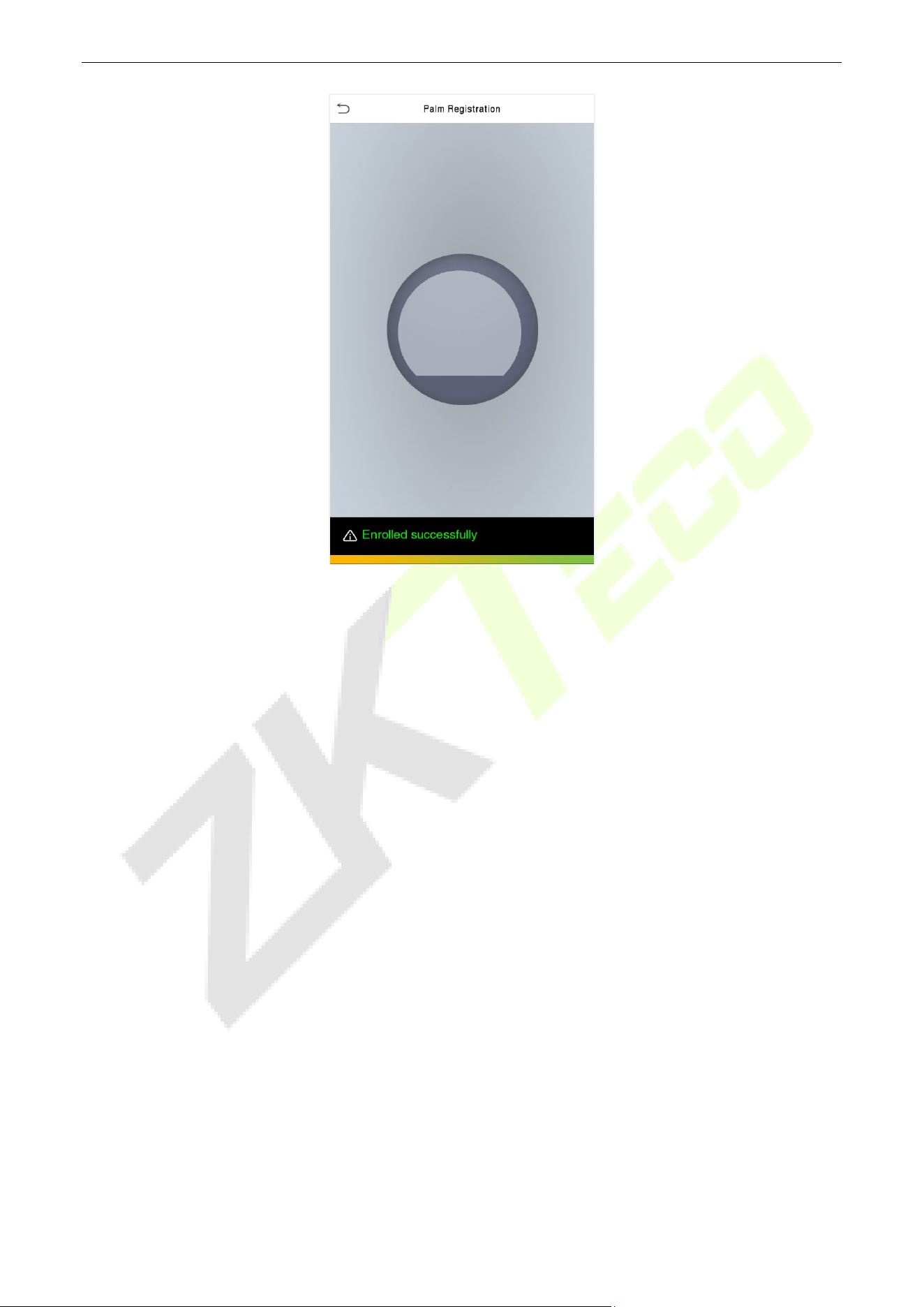

5.1.3 REGISTER PALM ............................................................................................................................................................................................ 34

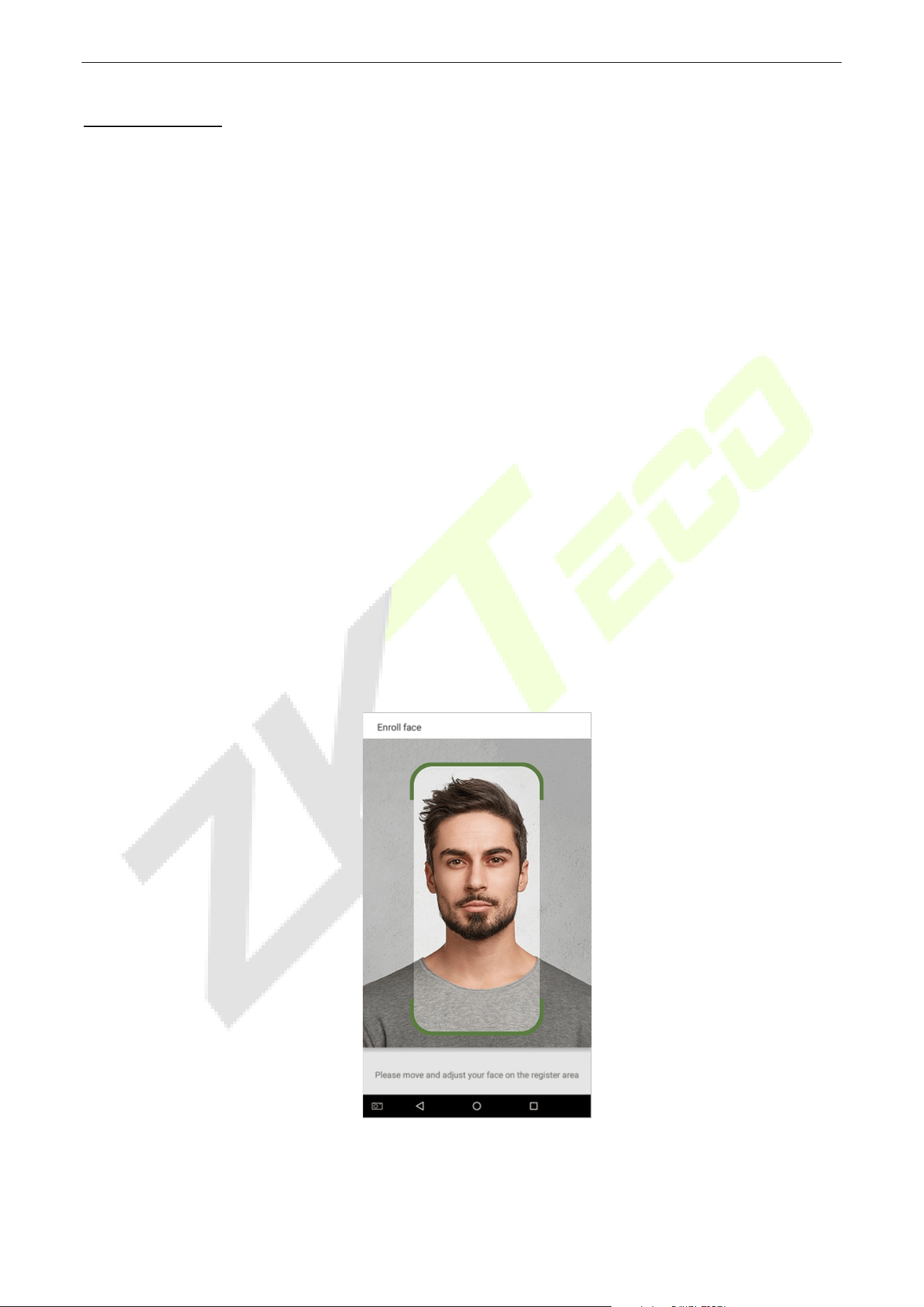

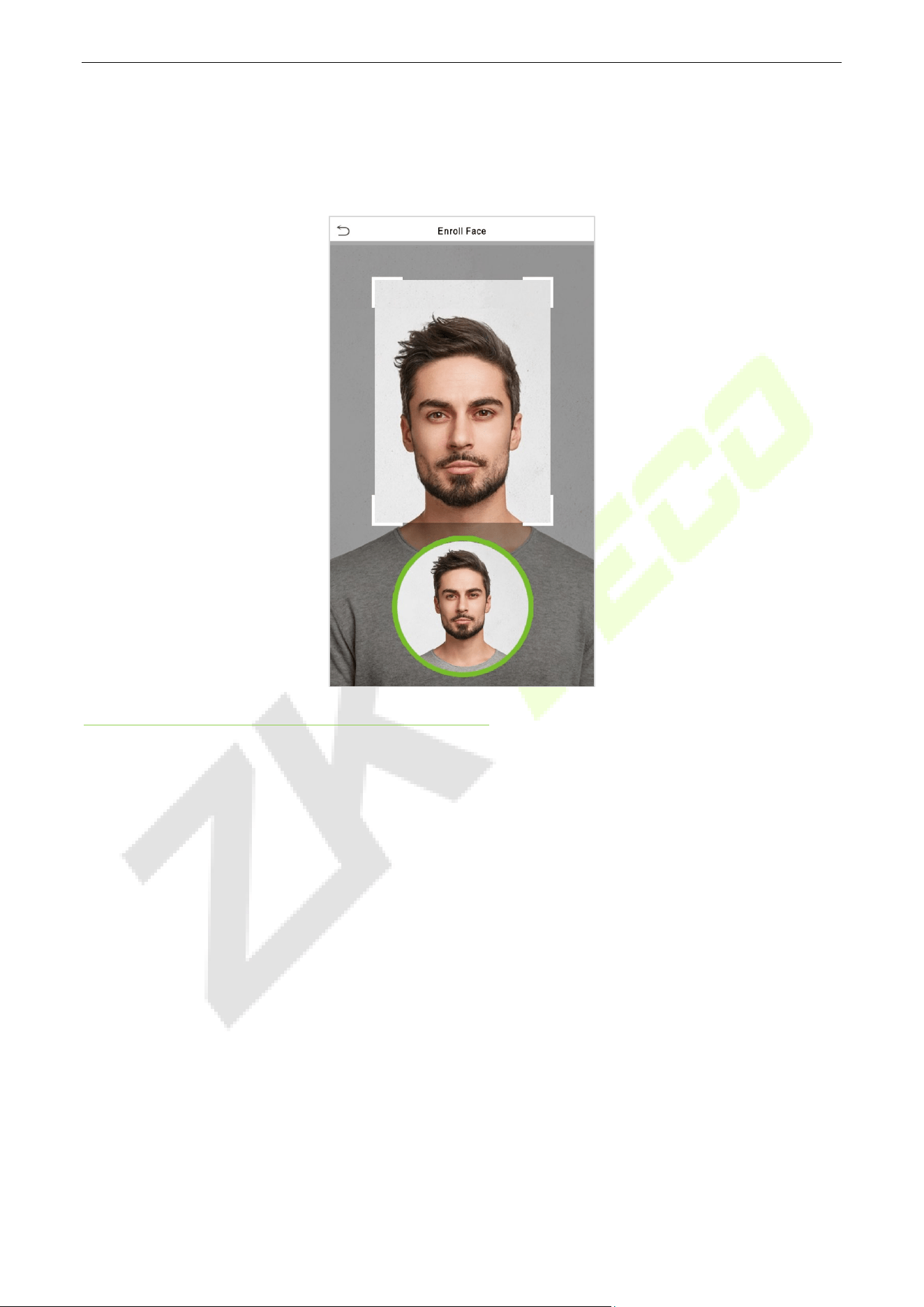

5.1.4 REGISTER FACE TEMPLATE ........................................................................................................................................................................ 35

5.1.5 REGISTER CARD NUMBER .......................................................................................................................................................................... 36

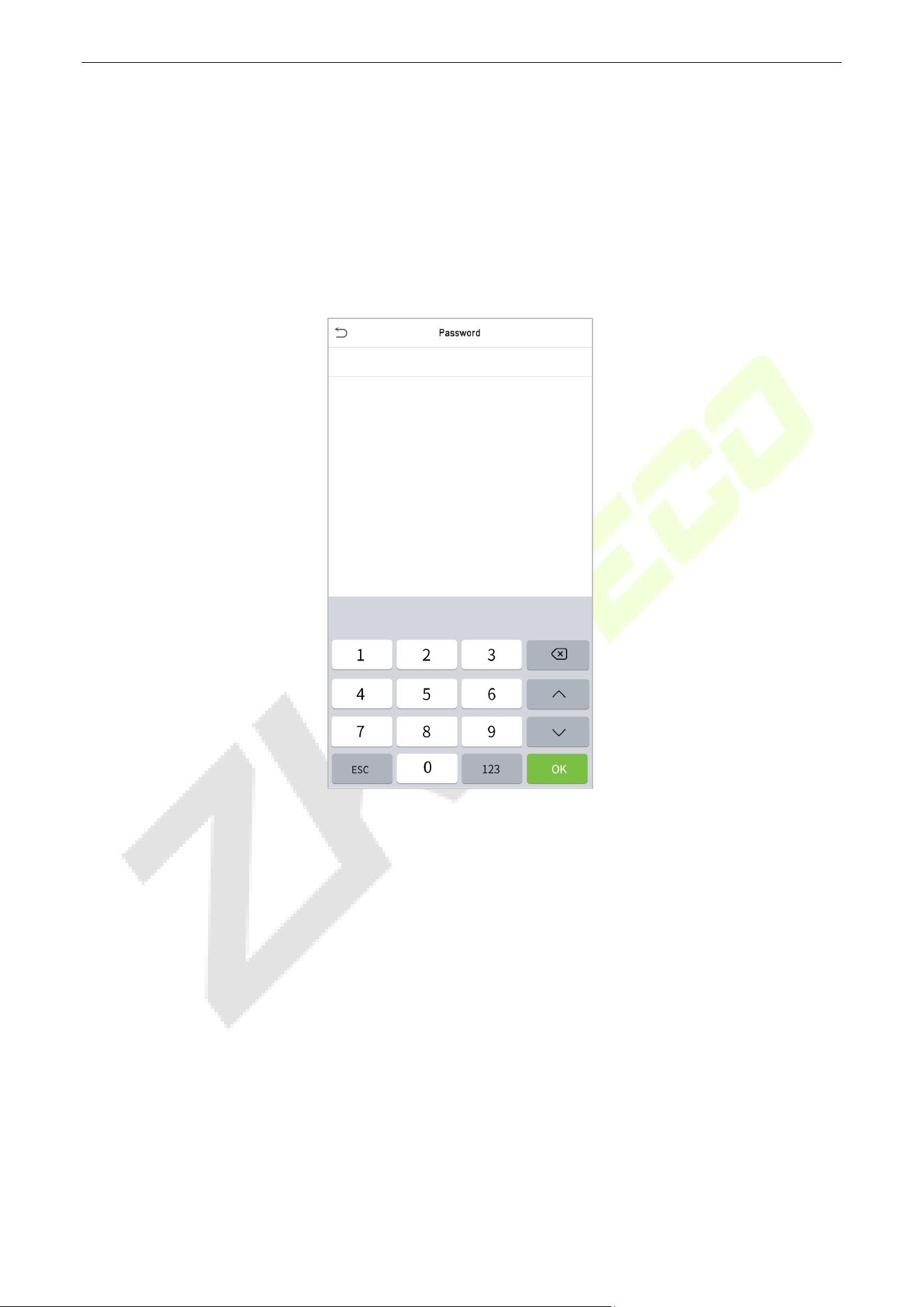

5.1.6 REGISTER PASSWORD ................................................................................................................................................................................. 37

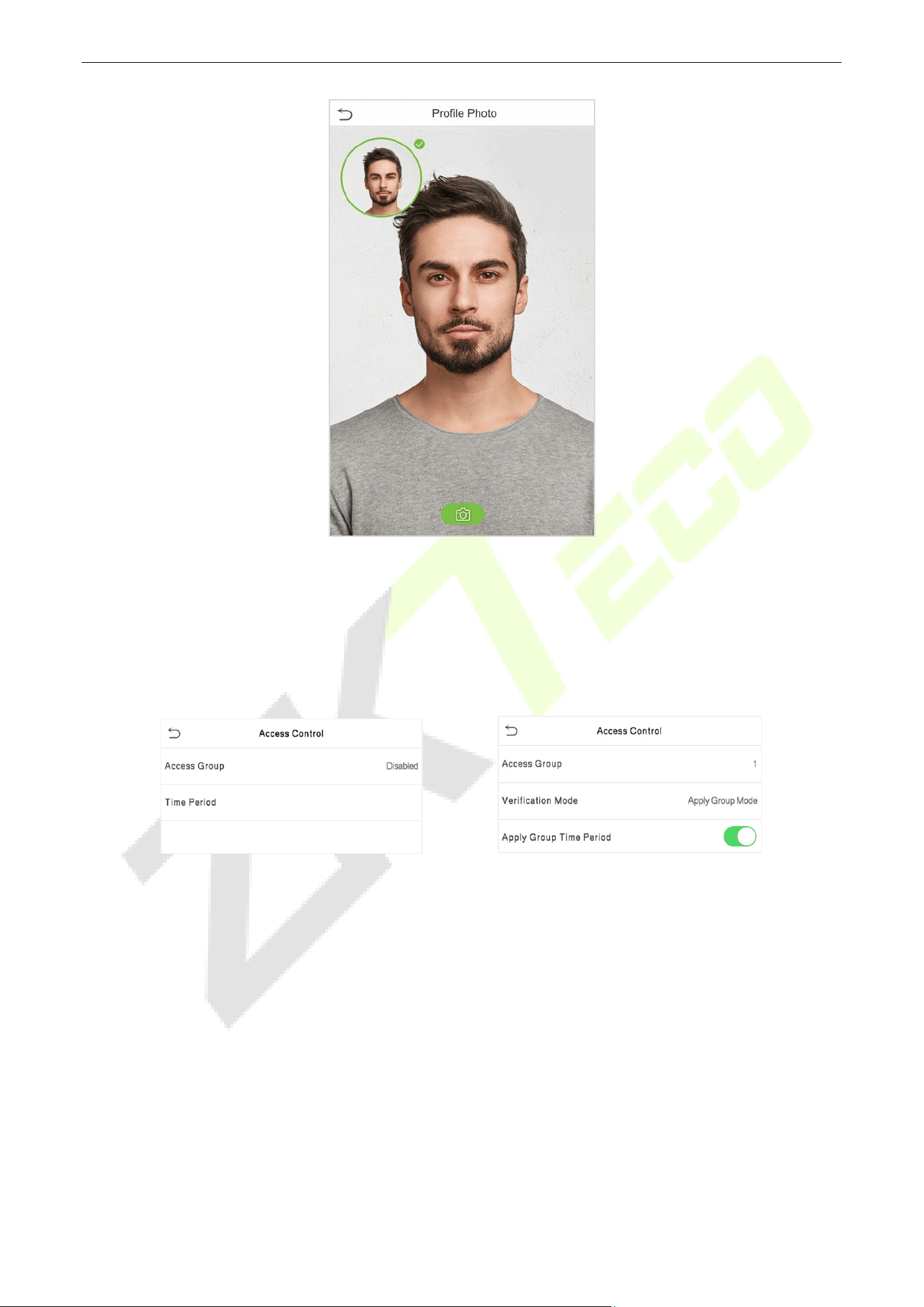

5.1.7 REGISTER PROFILE PHOTO ........................................................................................................................................................................ 37

5.1.8 ACCESS CONTROL ROLE ............................................................................................................................................................................ 38

SEARCH USER ............................................................................................................................................................................................39 5.2

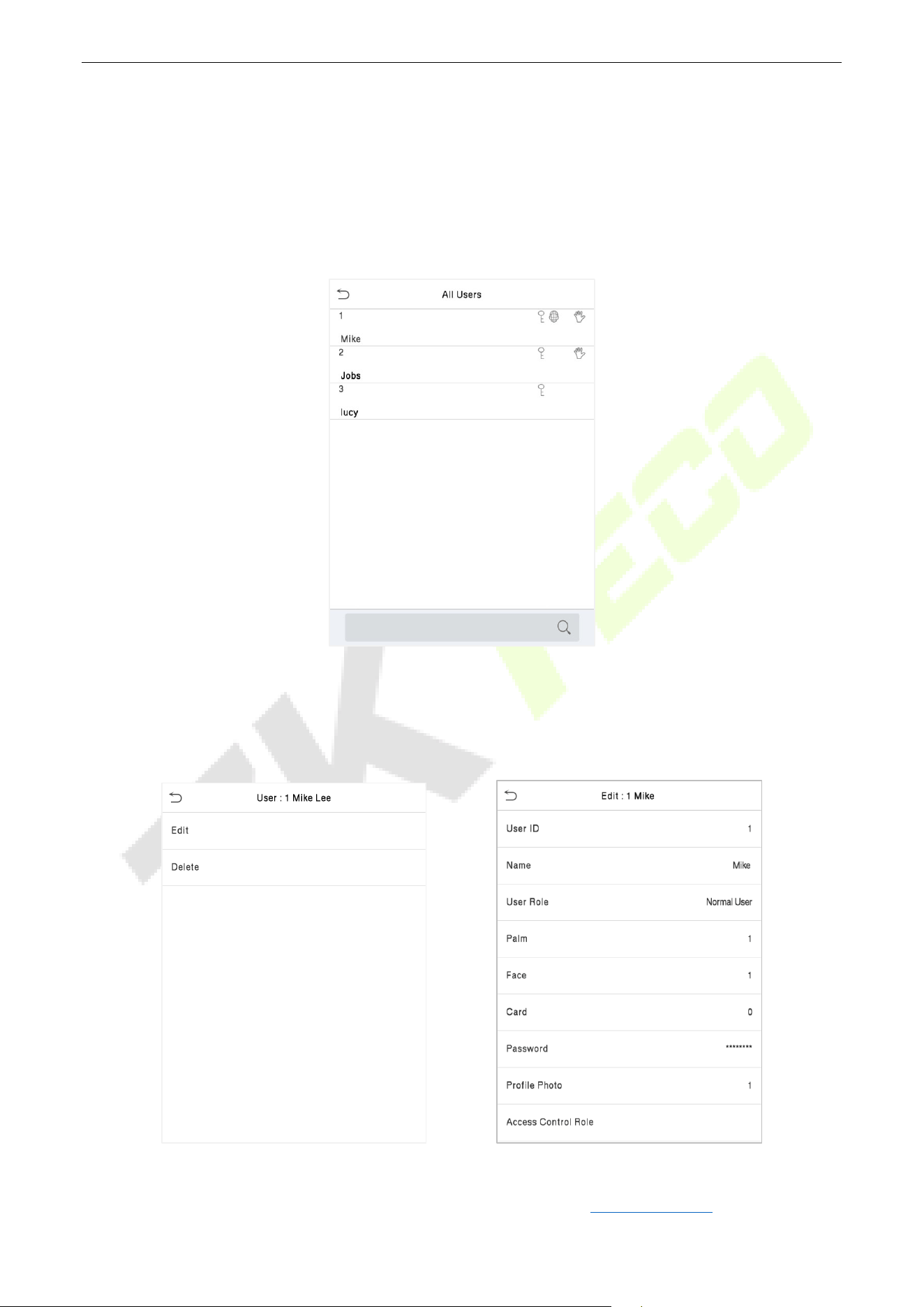

EDIT USER ...................................................................................................................................................................................................39 5.3

DELETING USER ........................................................................................................................................................................................40 5.4

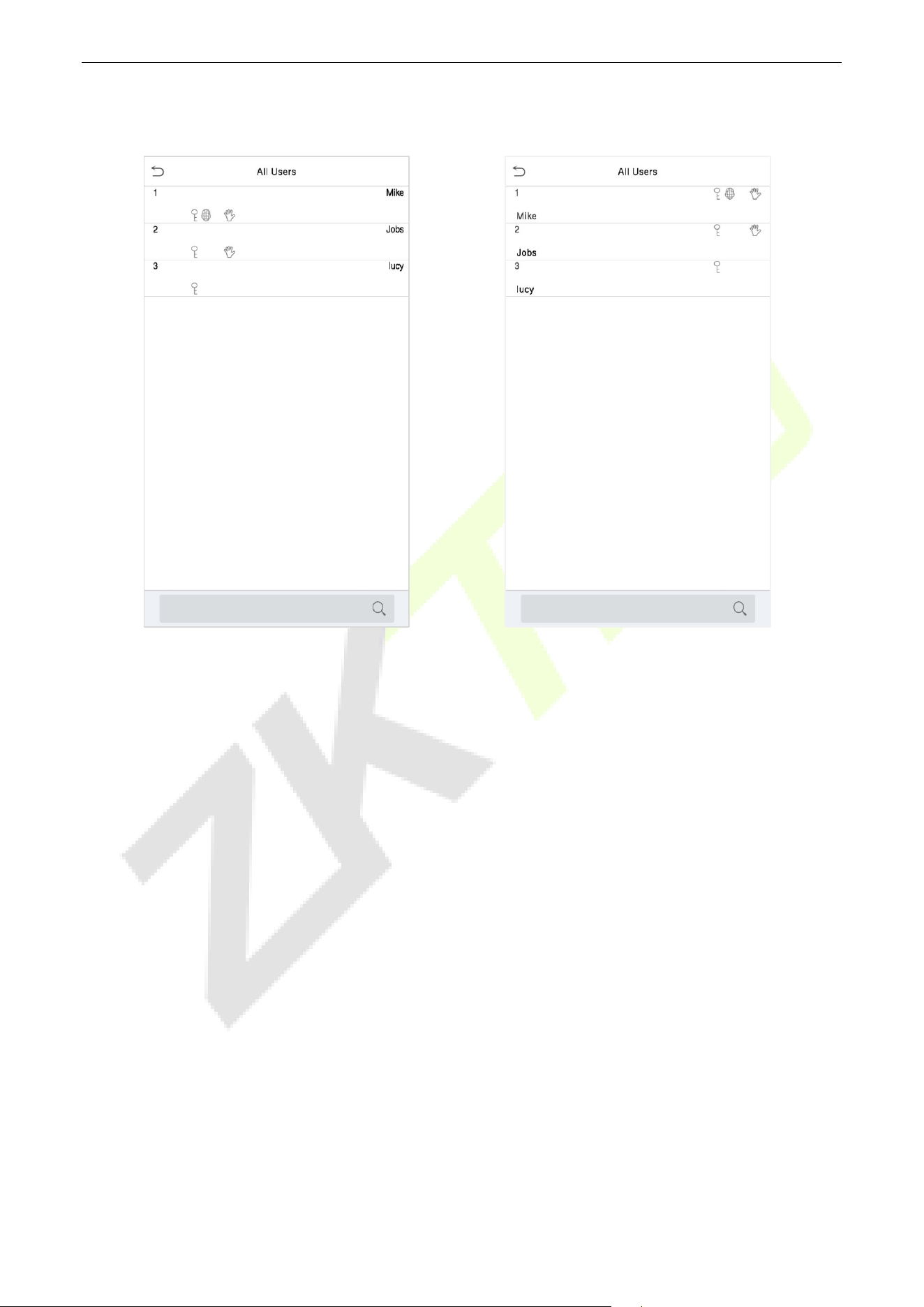

DISPLAY STYLE .........................................................................................................................................................................................40 5.5

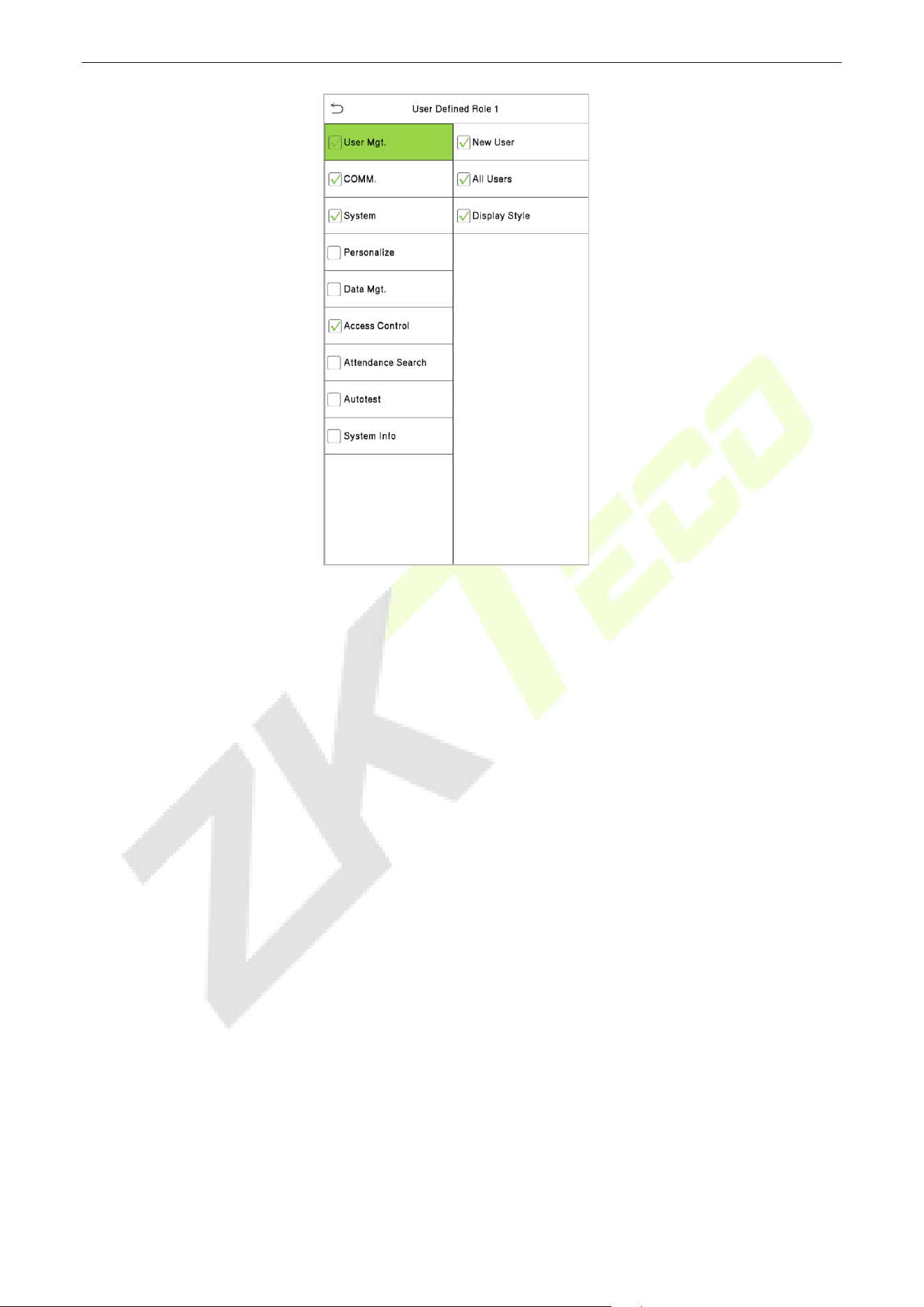

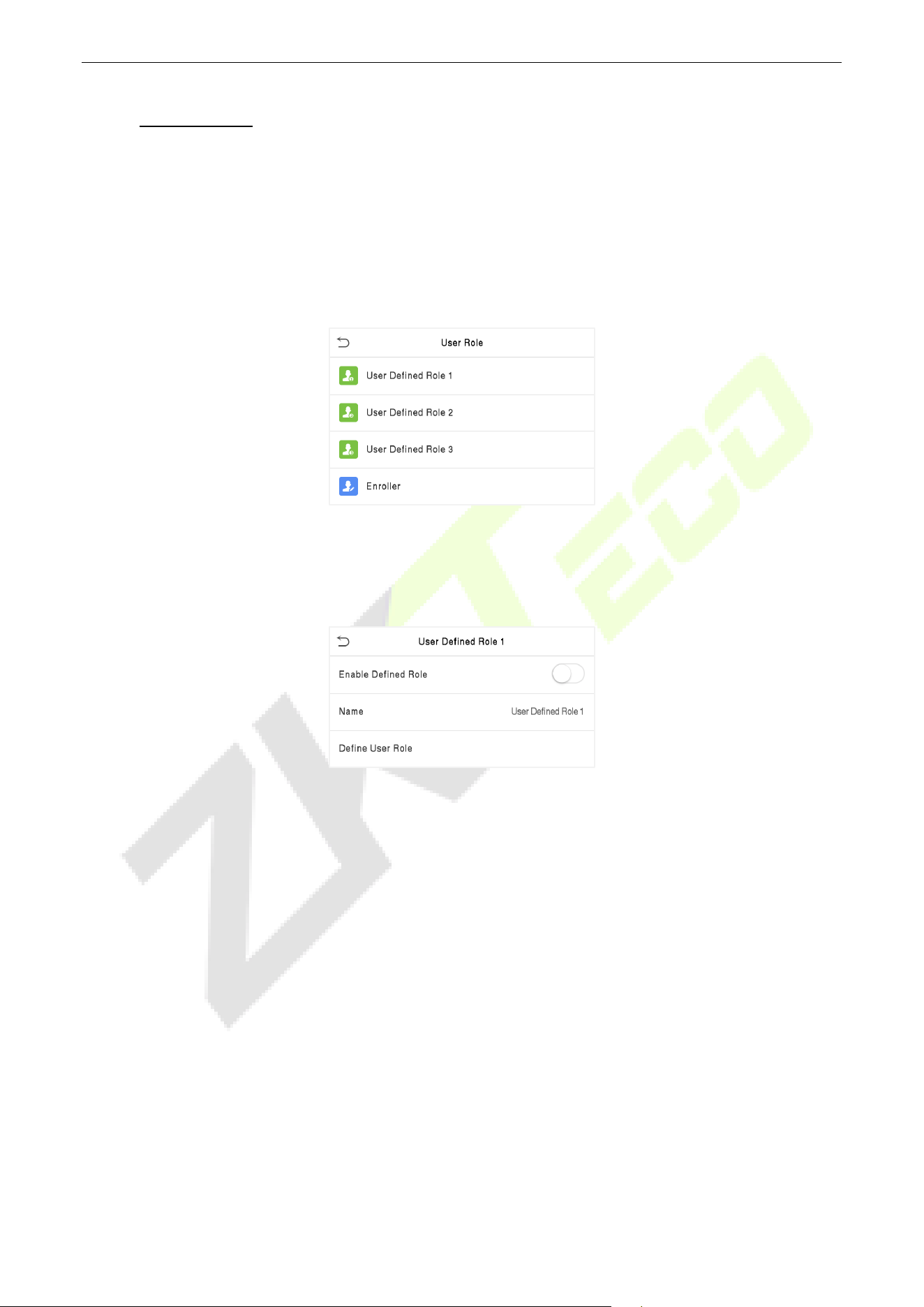

6 USER ROLE ......................................................................................................................................... 42

7 COMMUNICATION SETTINGS ............................................................................................................ 44

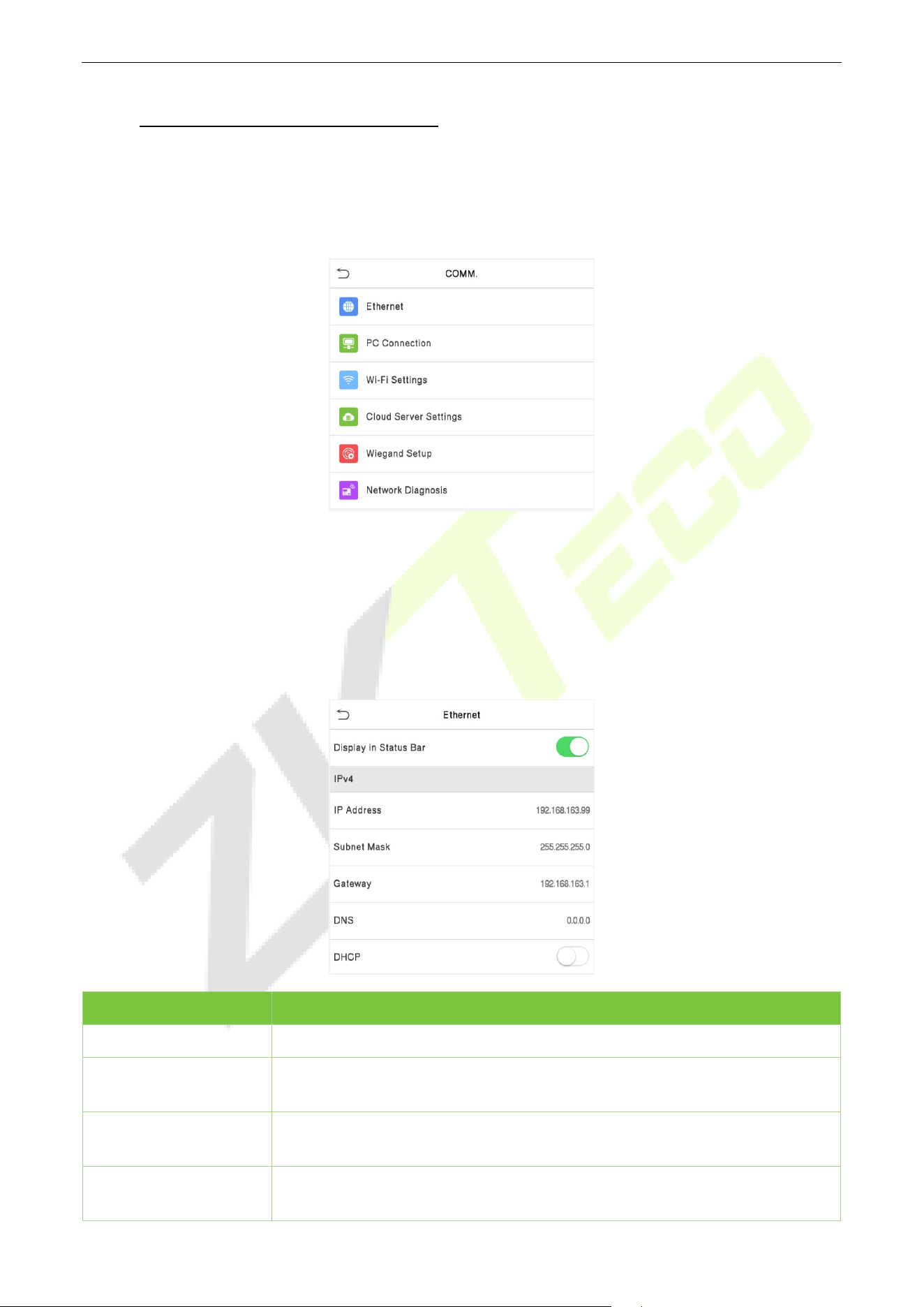

NETWORK SETTINGS ..............................................................................................................................................................................44 7.1

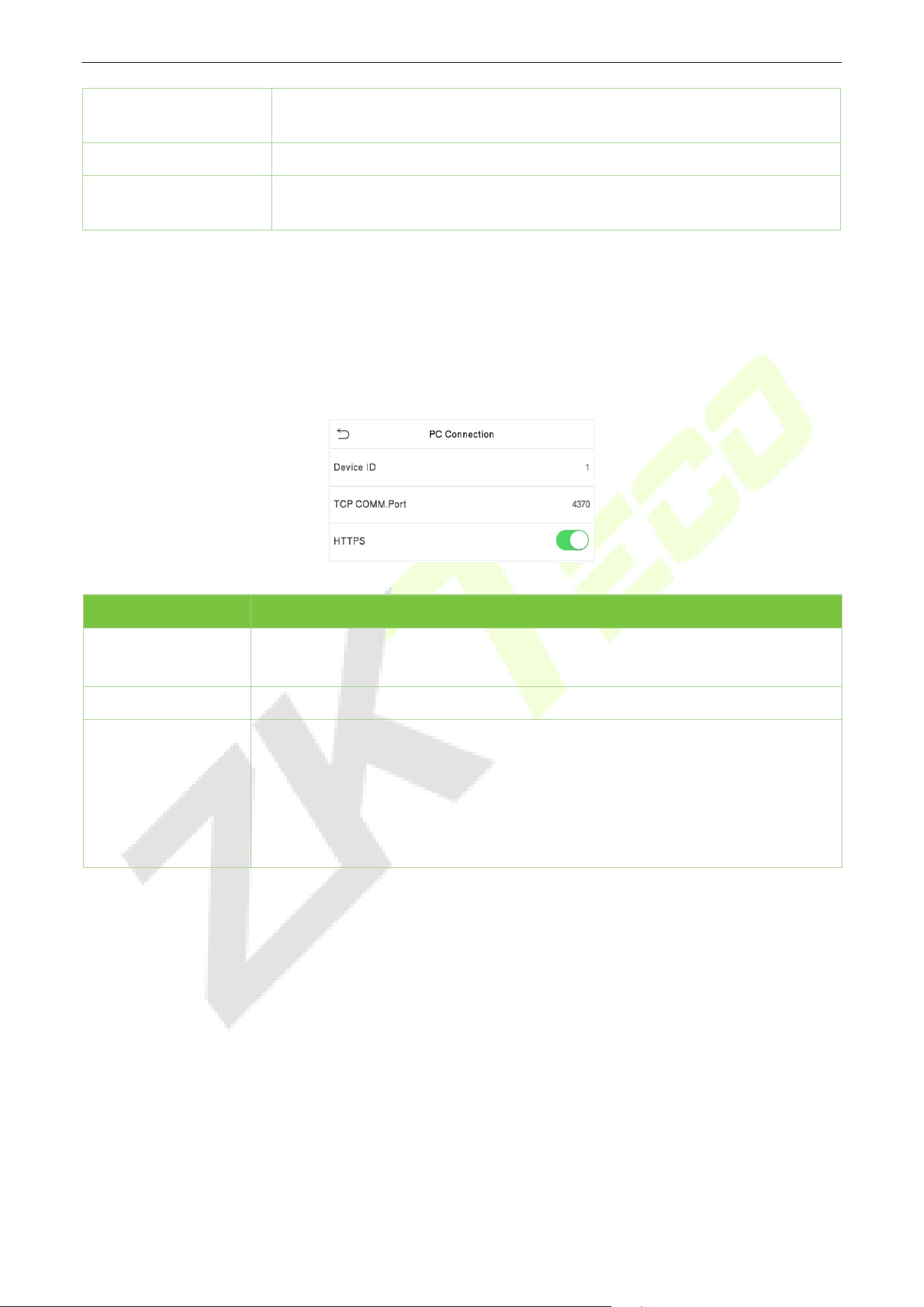

PC CONNECTION .....................................................................................................................................................................................45 7.2

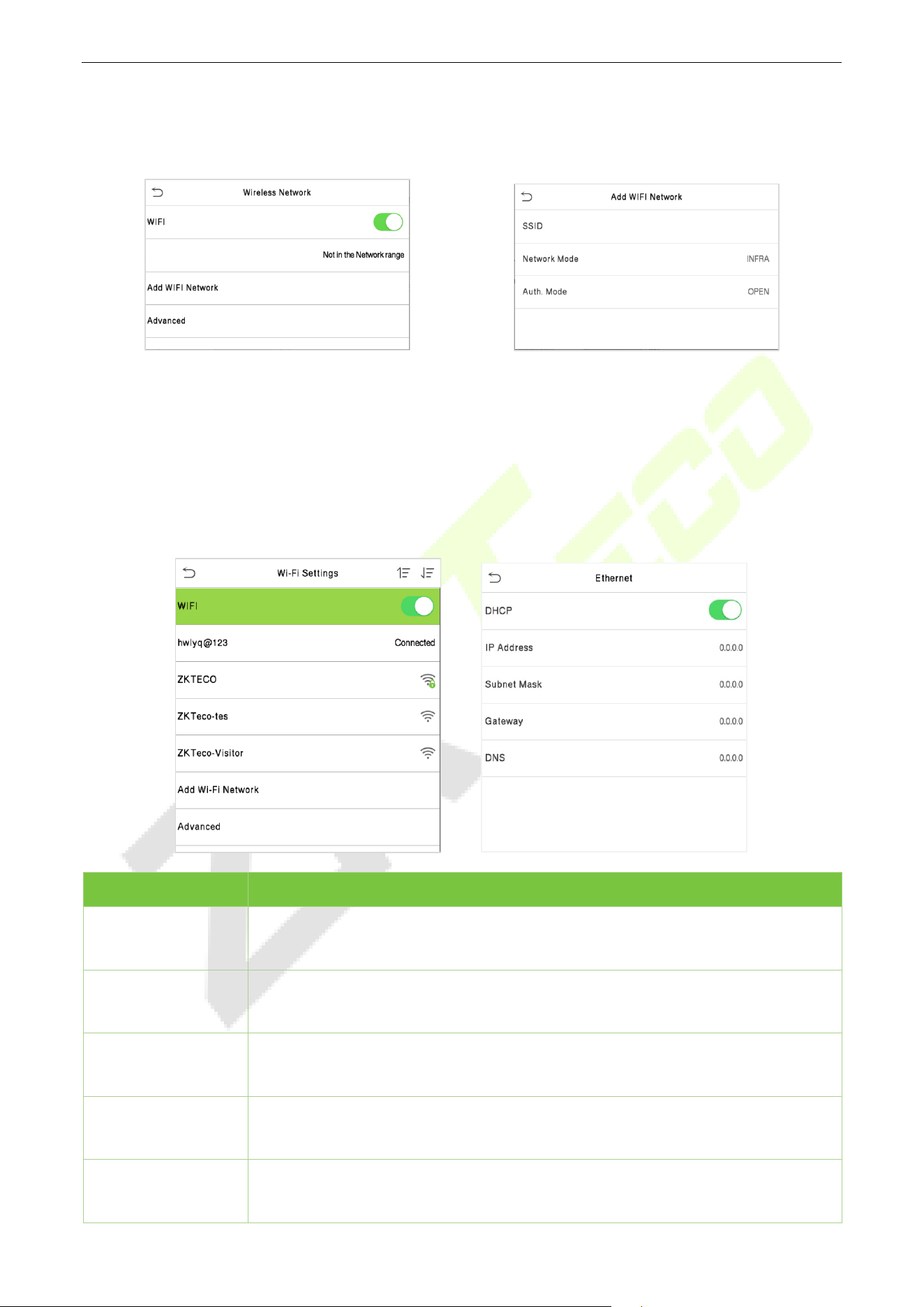

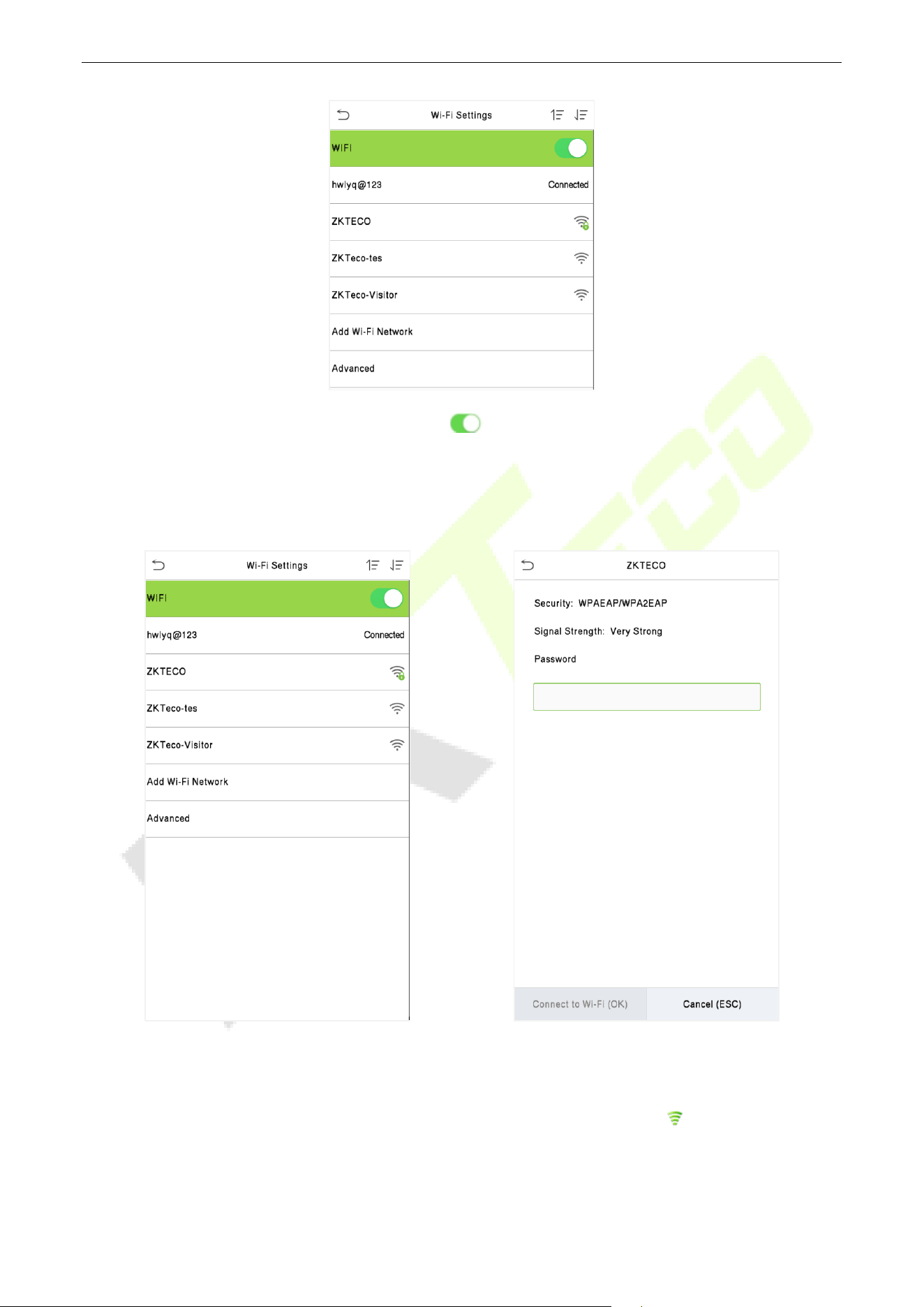

WIRELESS NETWORK ..............................................................................................................................................................................45 7.3

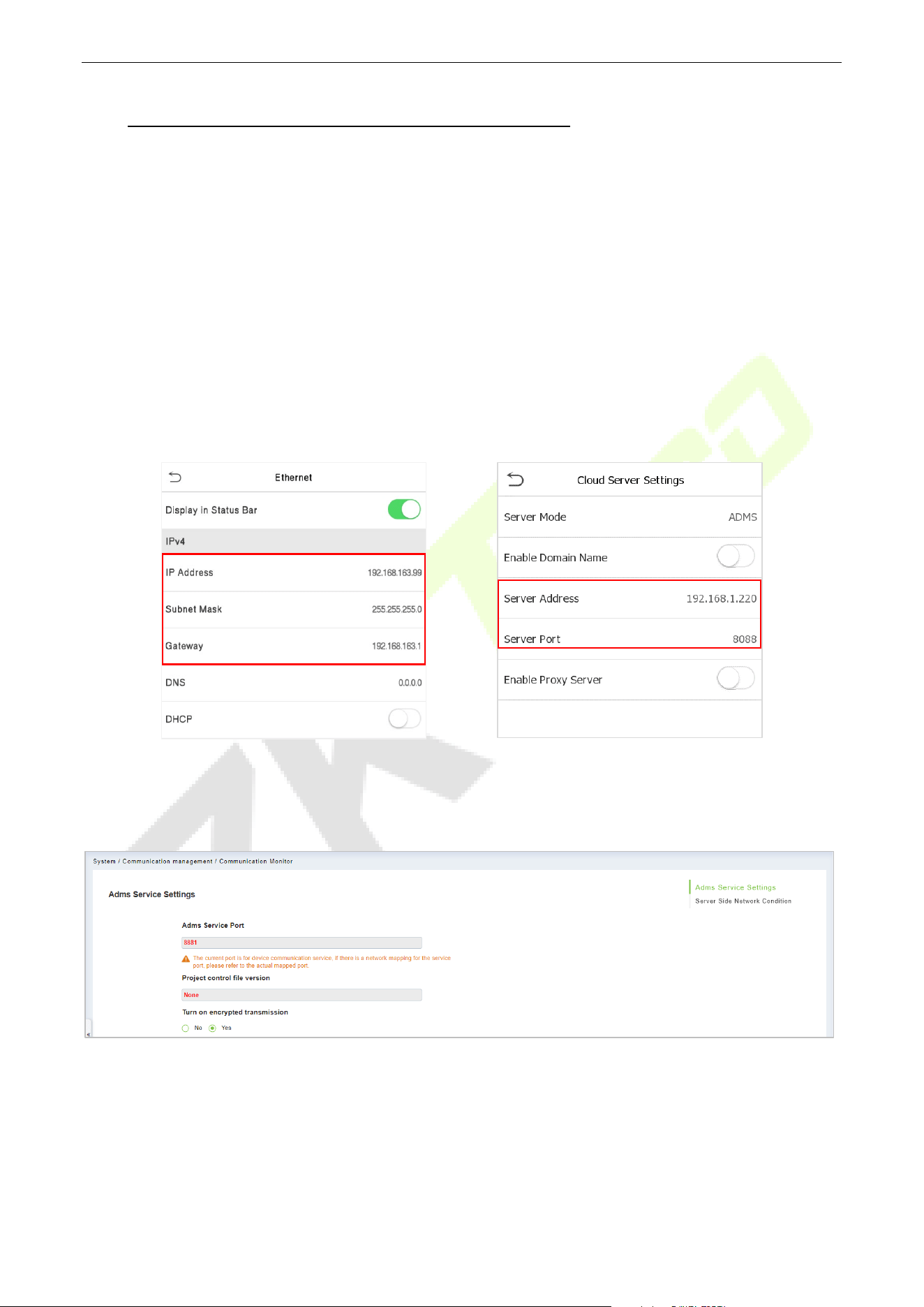

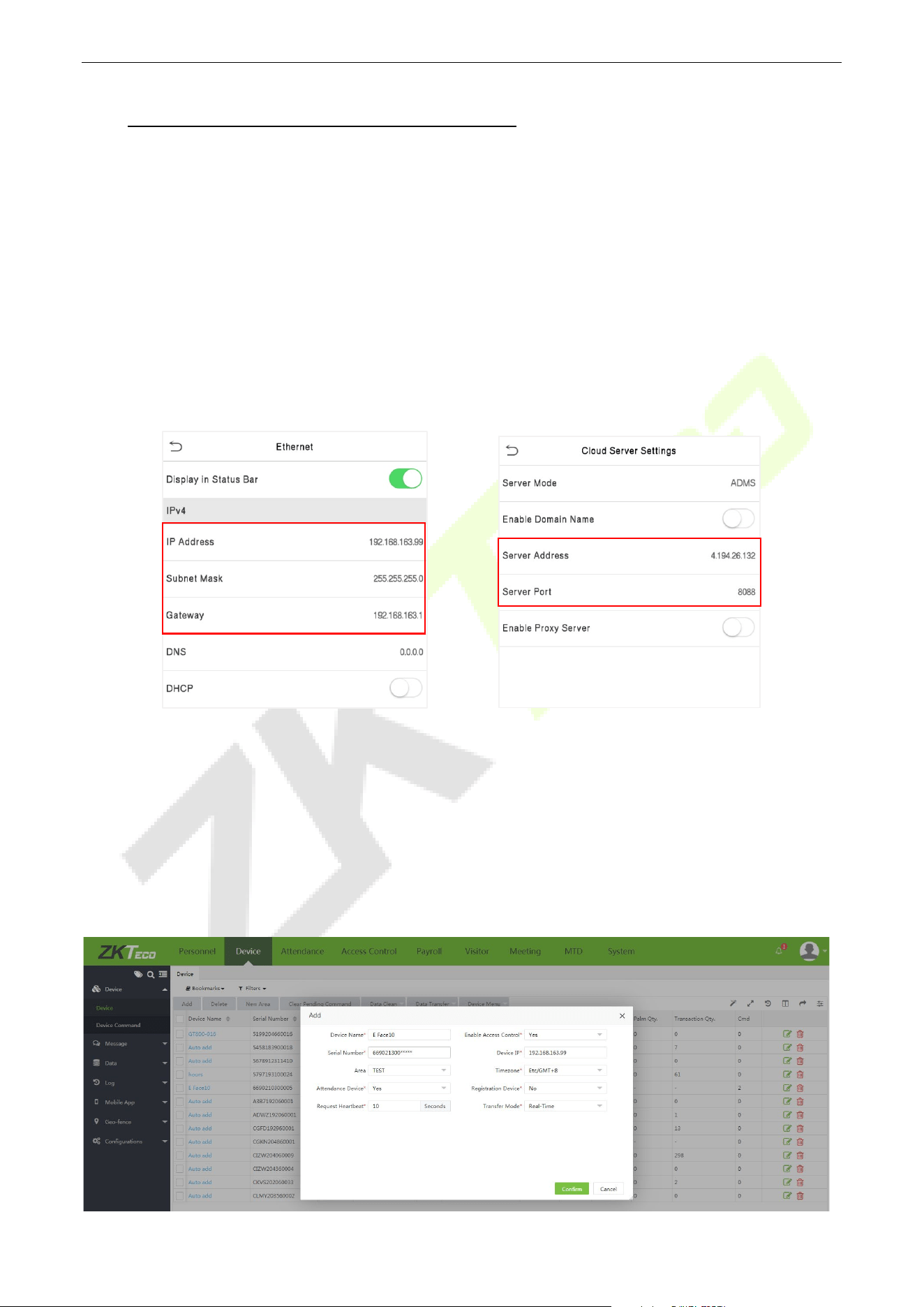

CLOUD SERVER SETTING ......................................................................................................................................................................48 7.4

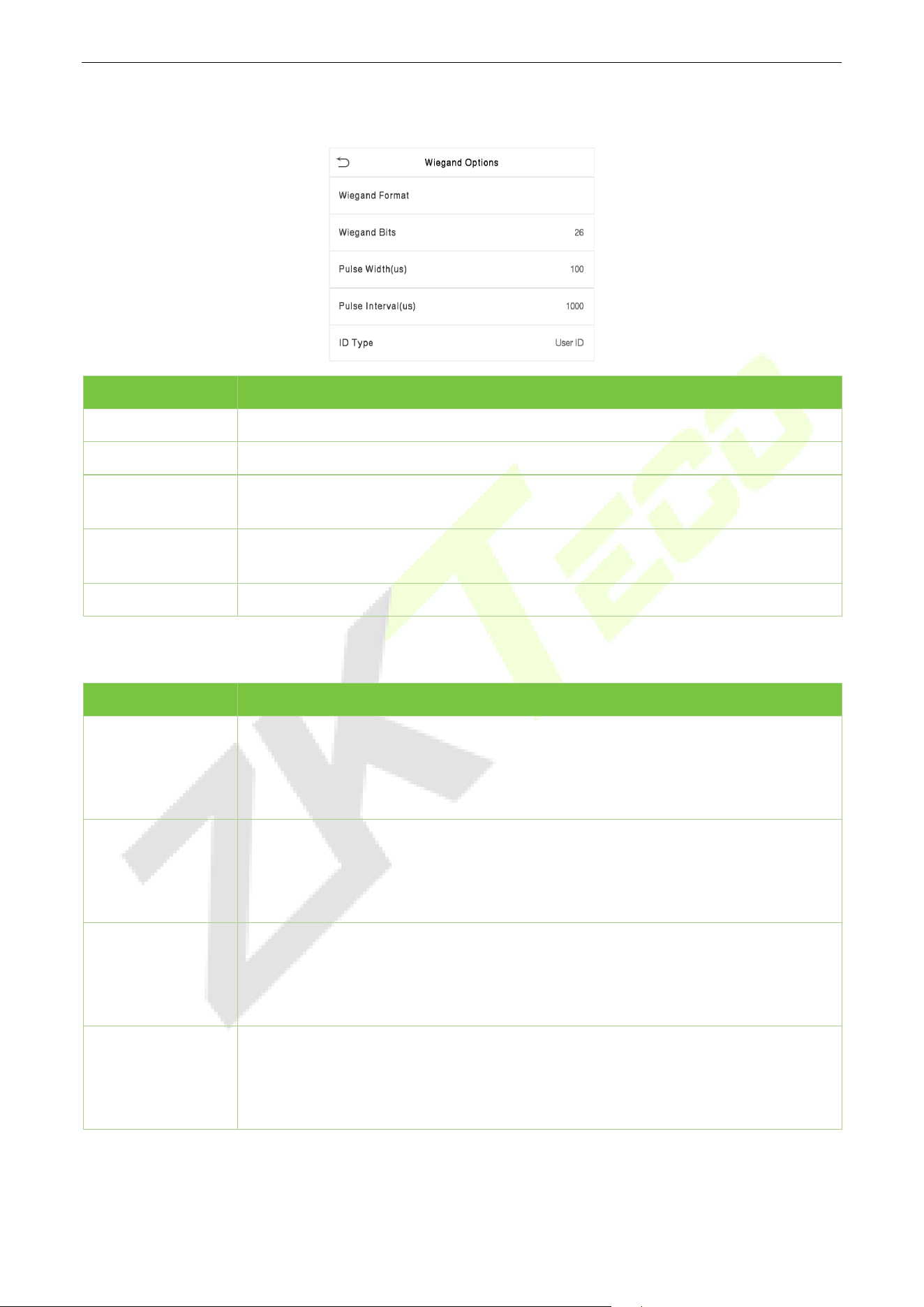

WIEGAND SETUP .....................................................................................................................................................................................48 7.5

SpeedPalm-V5L User Manual

7.5.1

WIEGAND INPUT .......................................................................................................................................................................................... 49

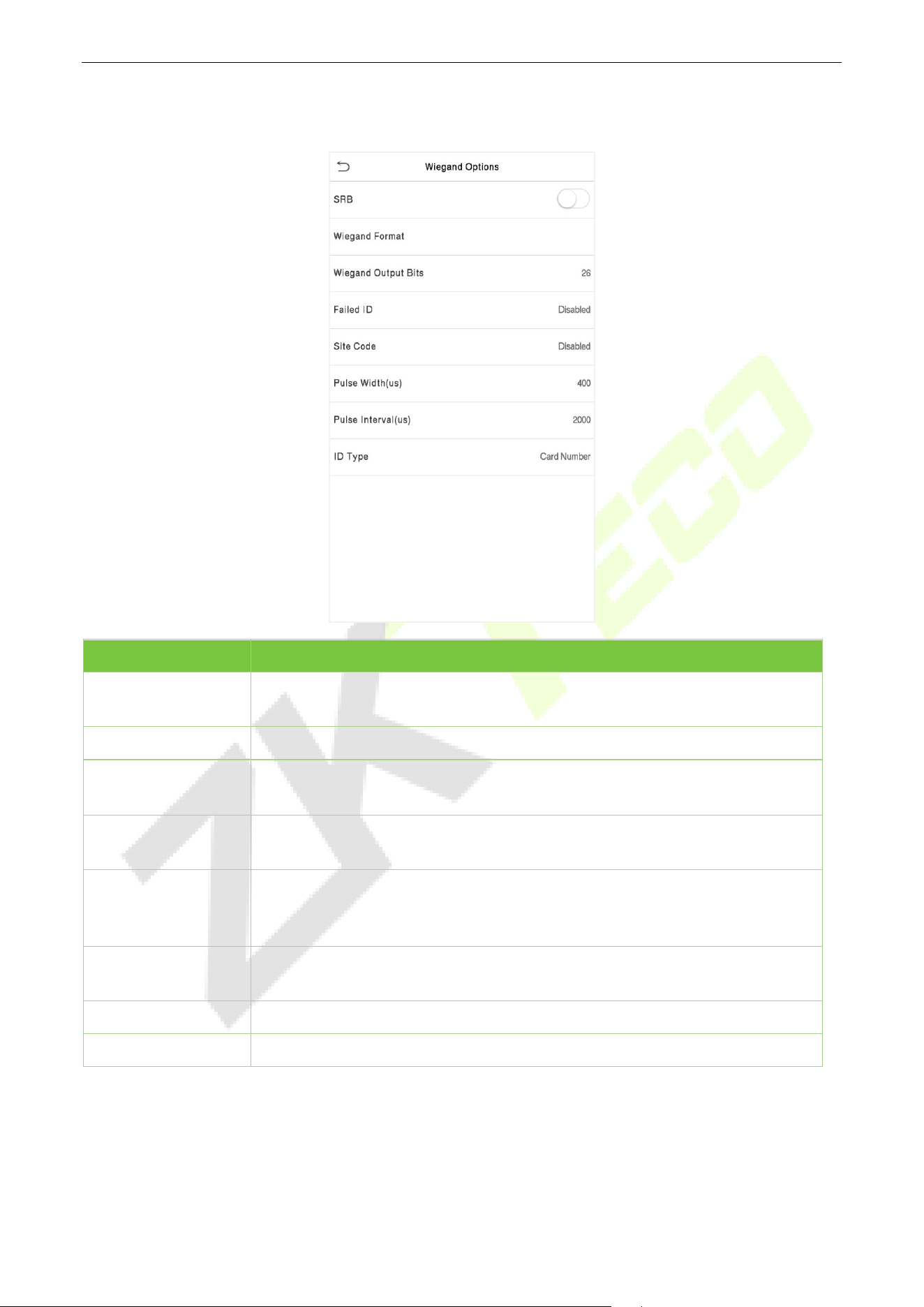

7.5.2 WIEGAND OUTPUT ...................................................................................................................................................................................... 51

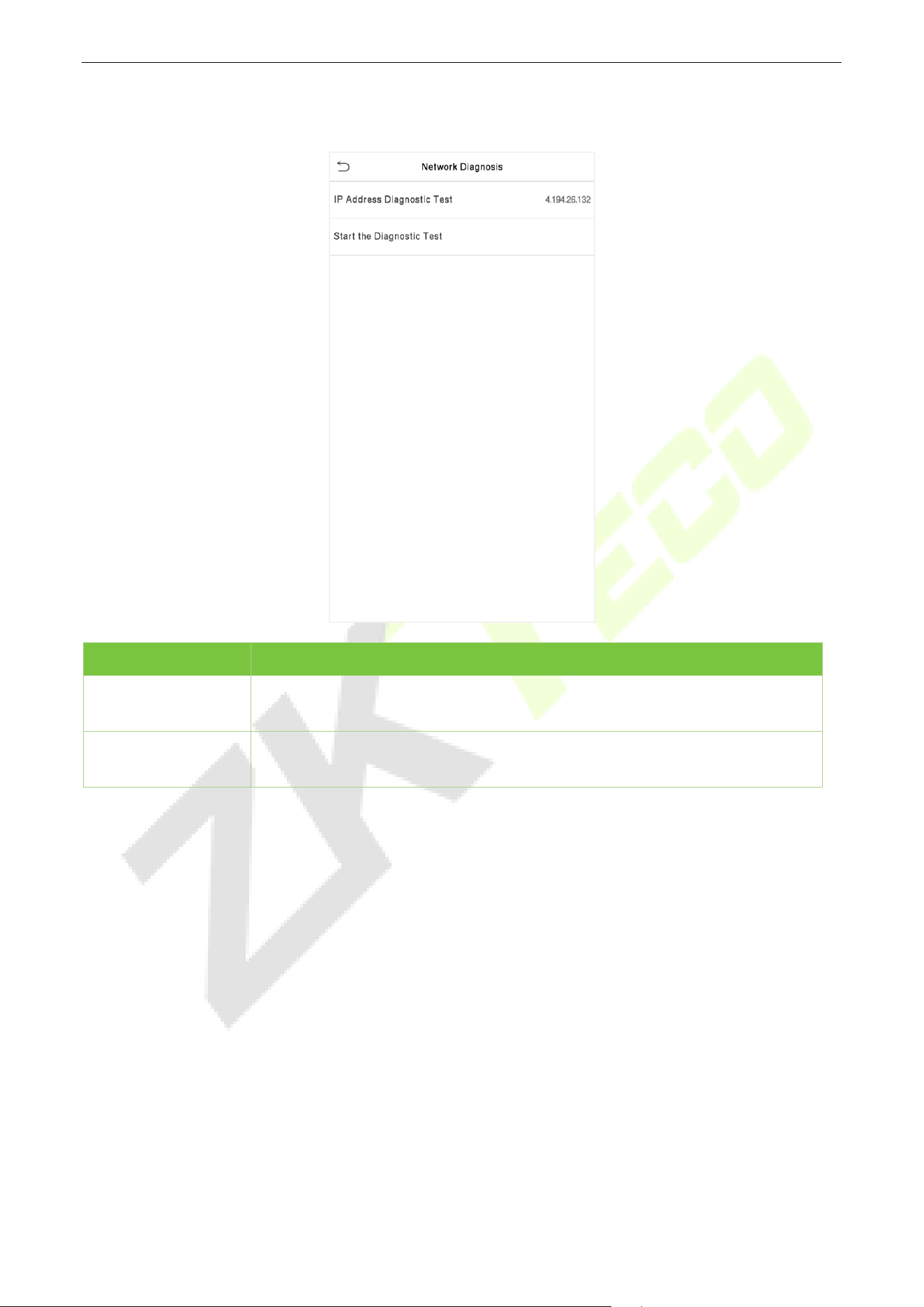

NETWORK DIAGNOSIS ...........................................................................................................................................................................52 7.6

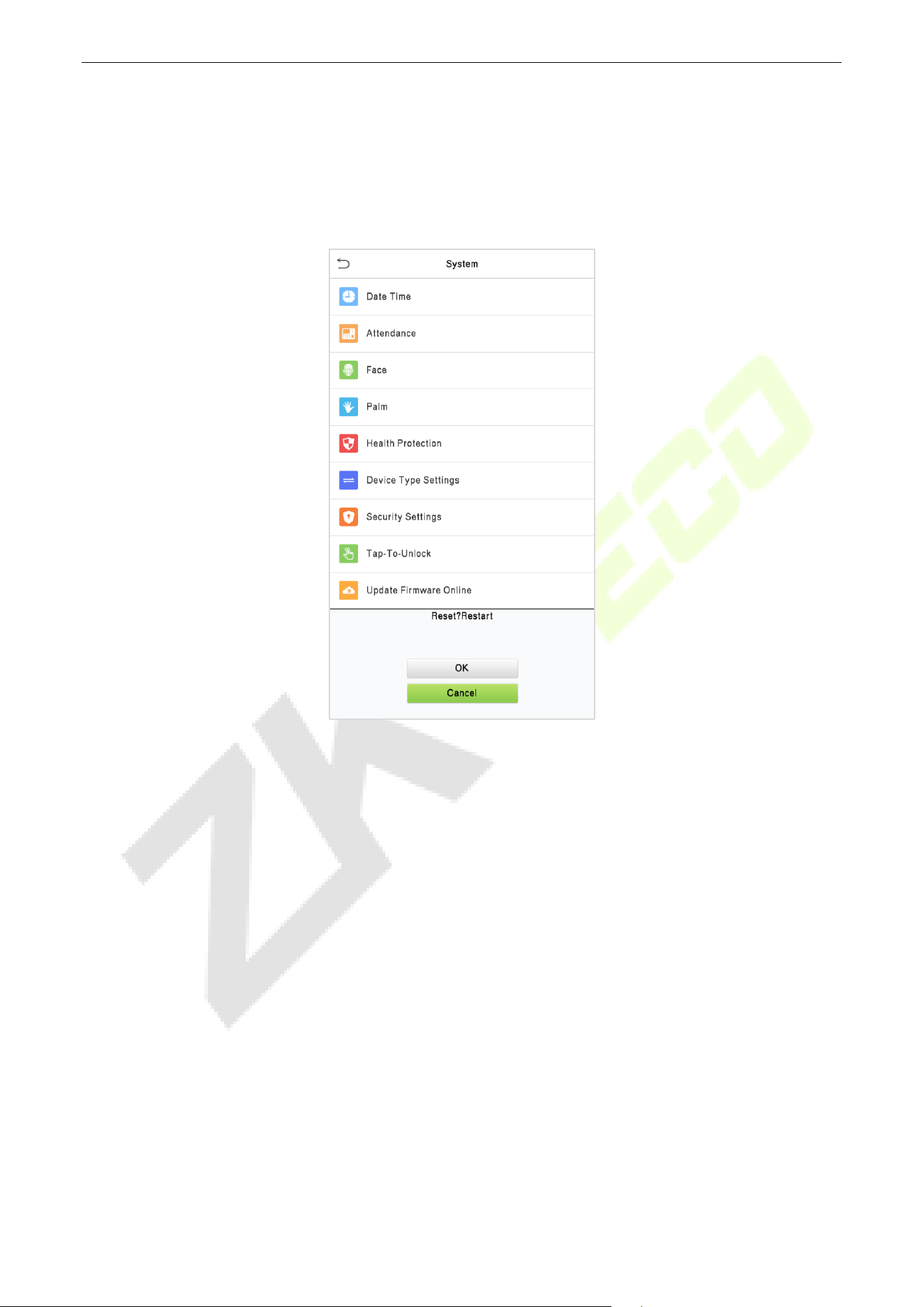

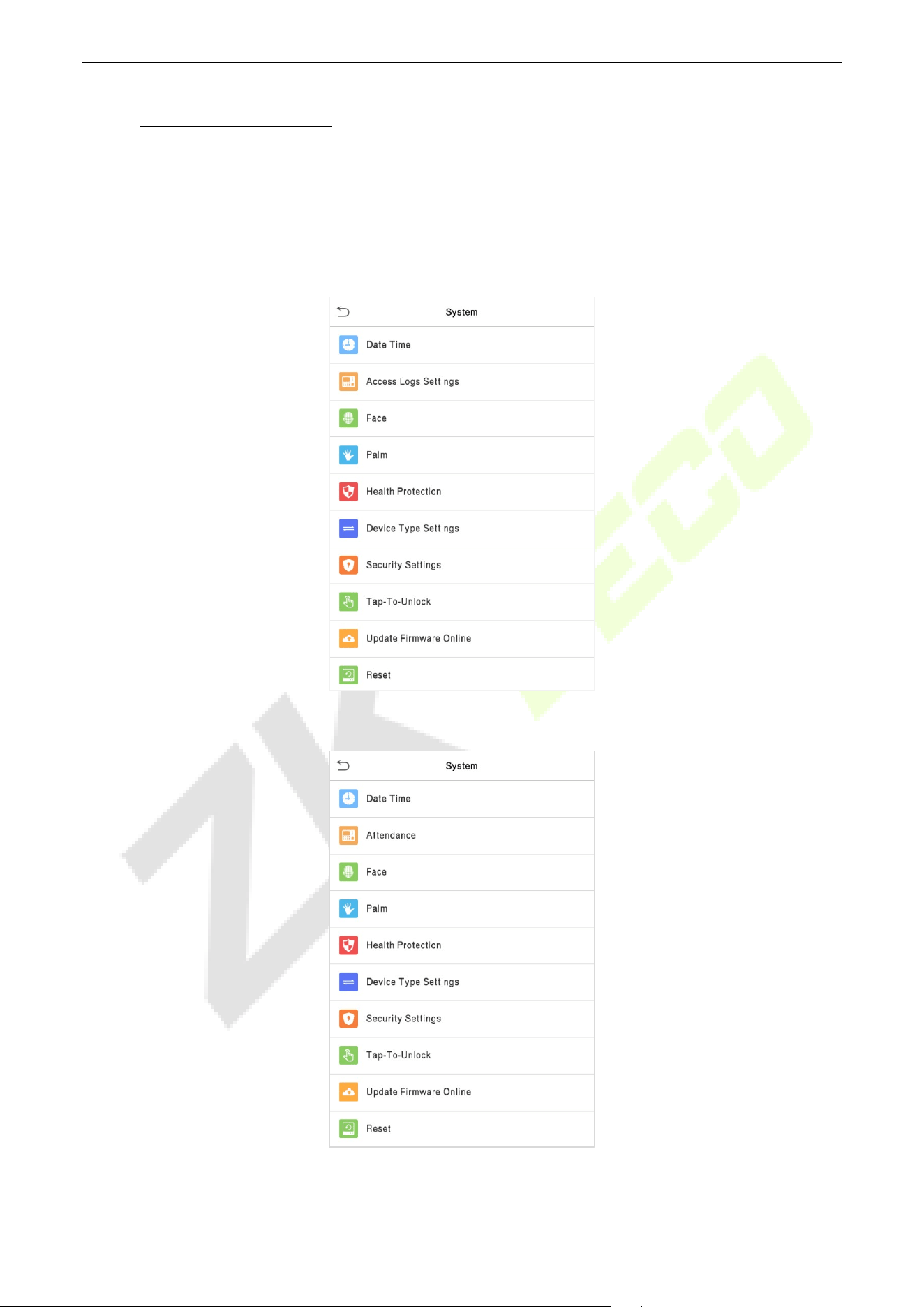

8 SYSTEM SETTINGS ............................................................................................................................. 53

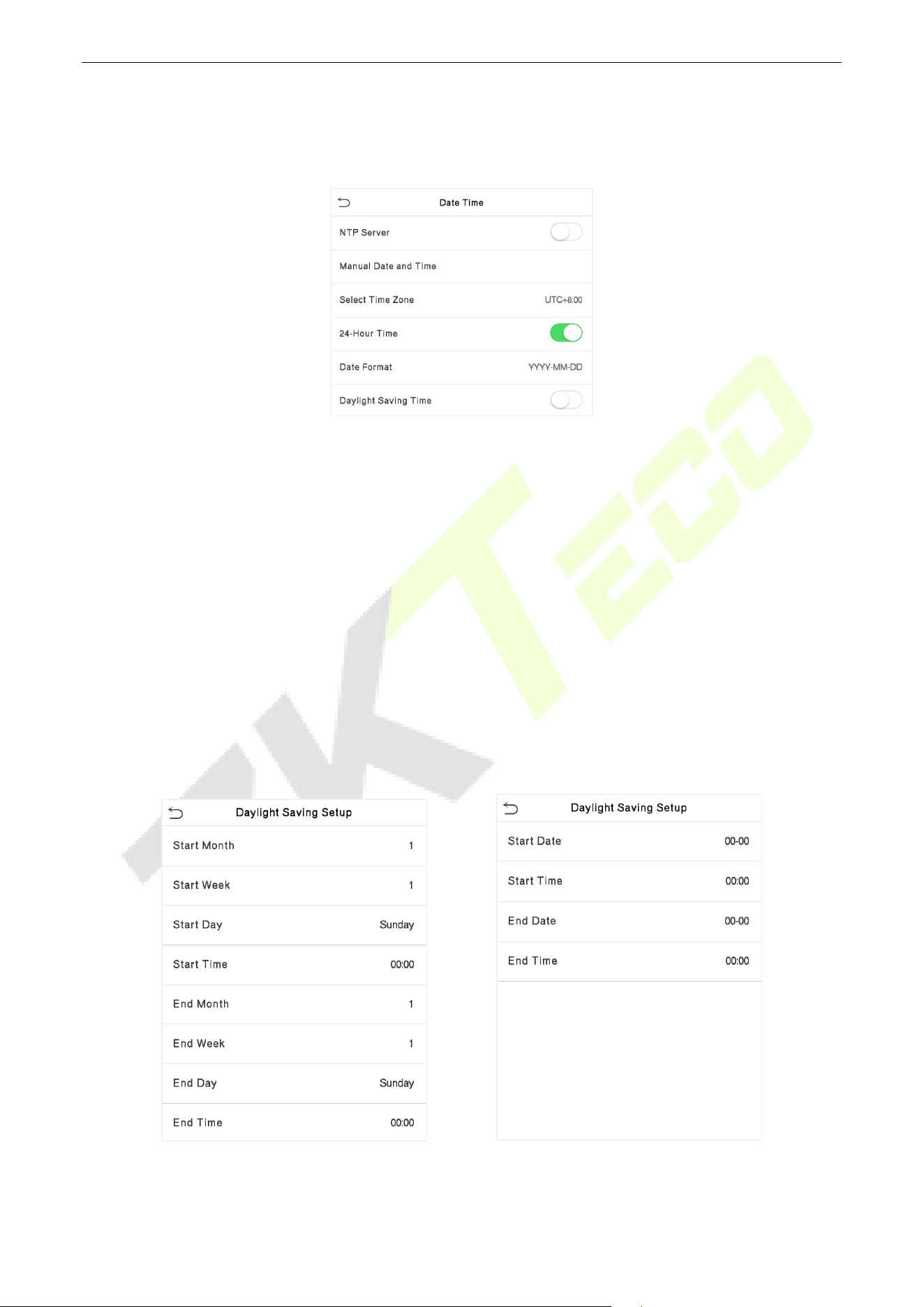

DATE AND TIME .......................................................................................................................................................................................54 8.1

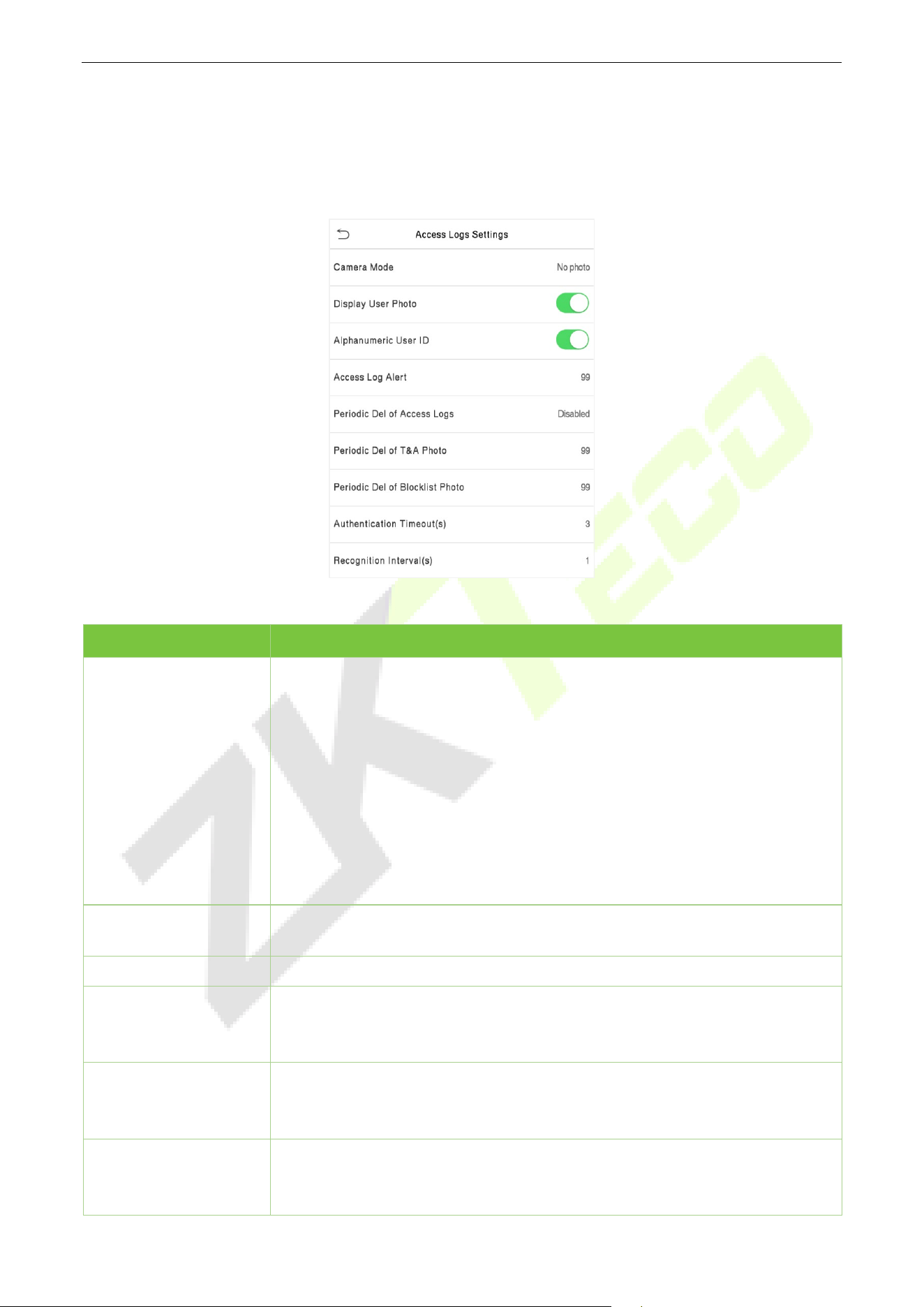

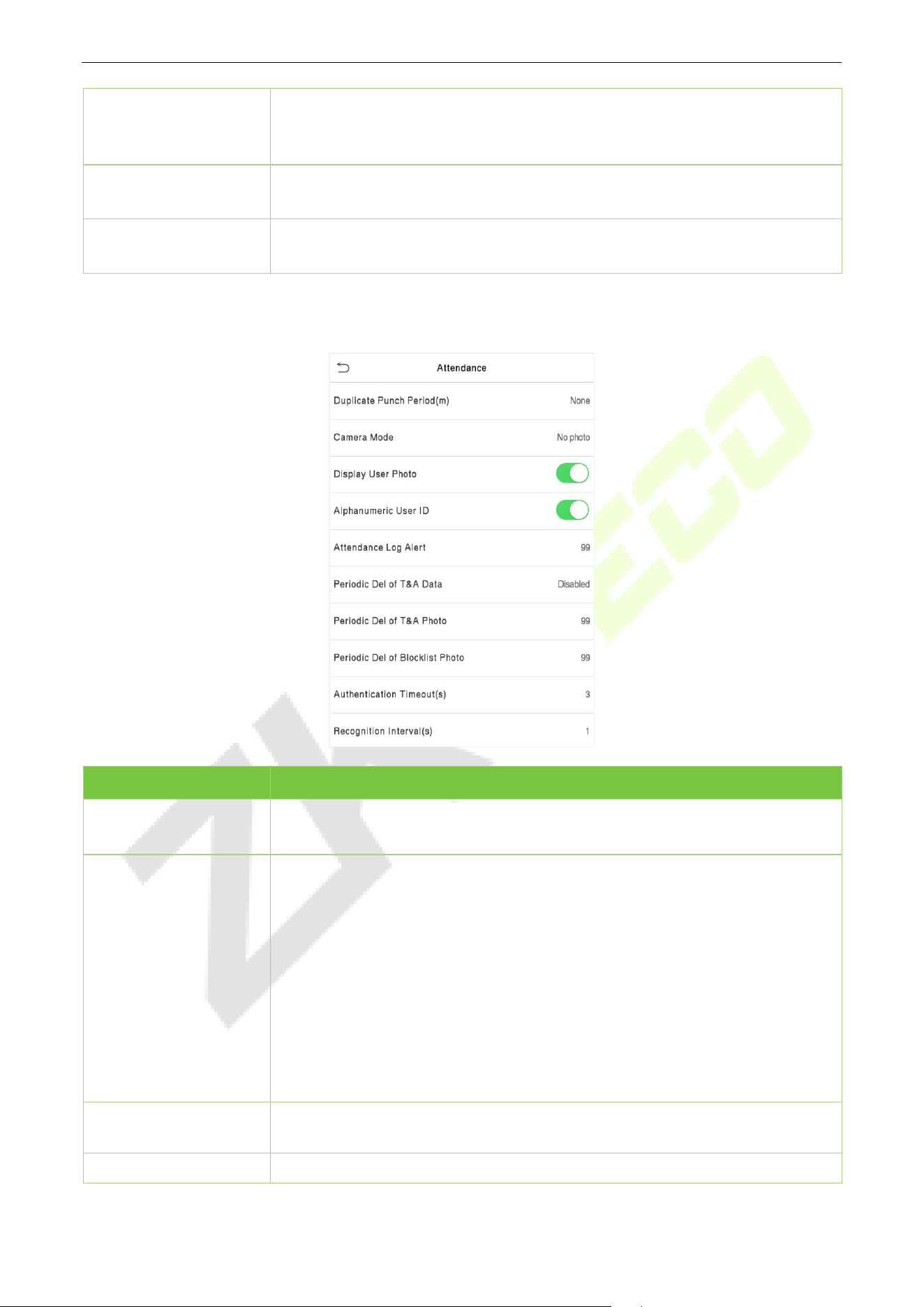

ACCESS LOGS SETTING/ATTENDANCE ...........................................................................................................................................55 8.2

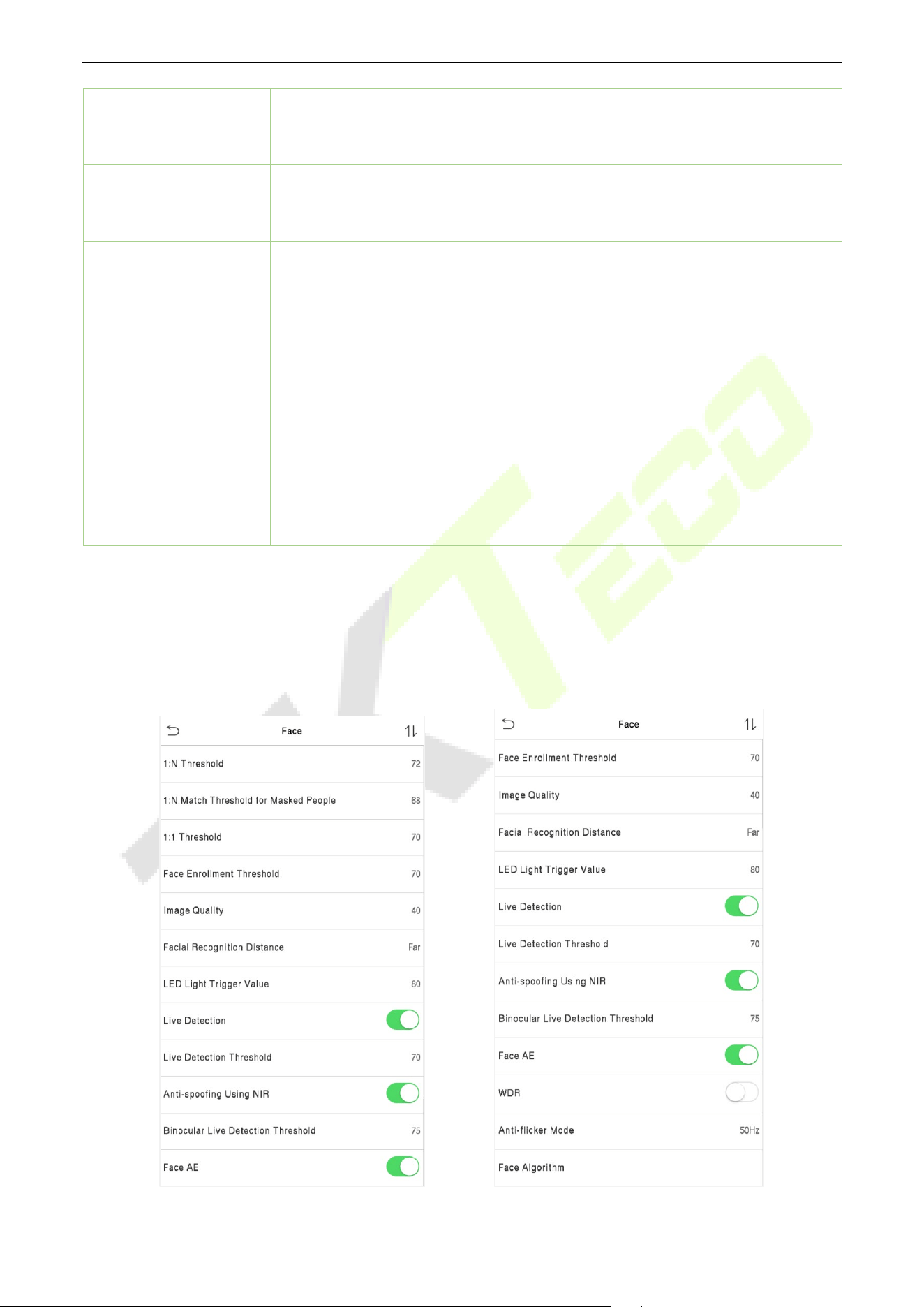

FACE PARAMETERS .................................................................................................................................................................................57 8.3

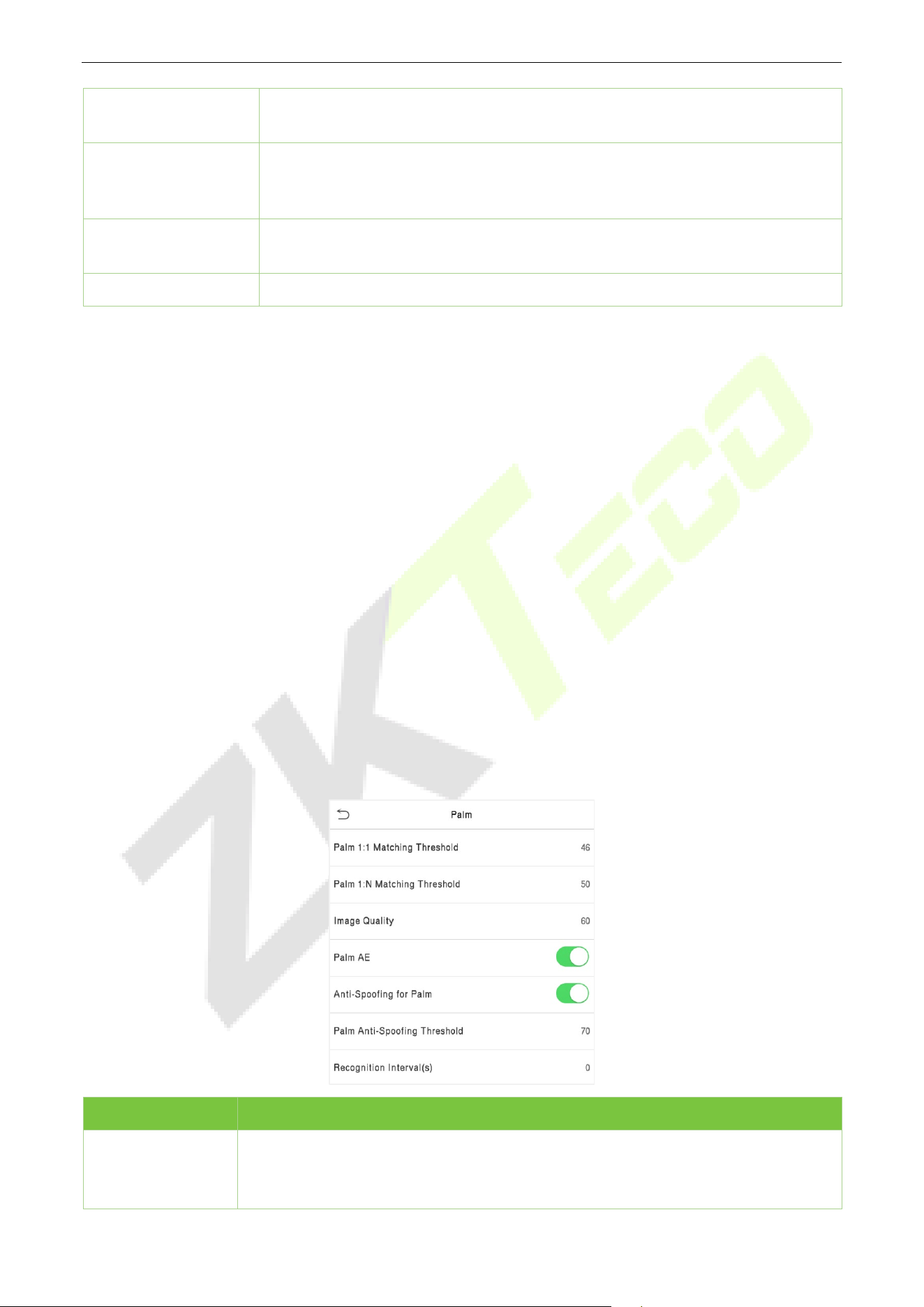

PALM PARAMETERS ...............................................................................................................................................................................59 8.4

HEALTH PROTECTION ............................................................................................................................................................................60 8.5

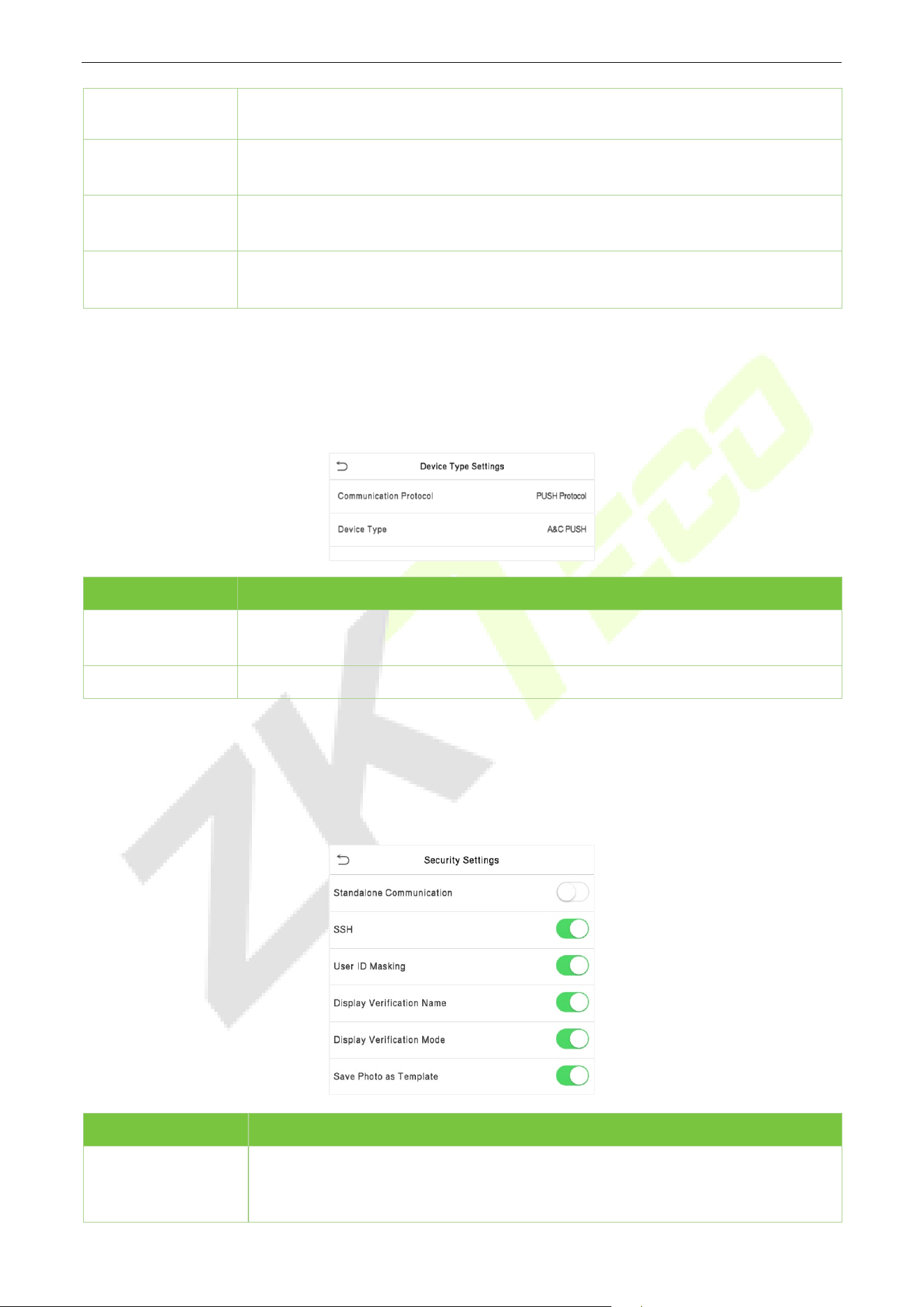

DEVICE TYPE SETTINGS .........................................................................................................................................................................61 8.6

SECURITY SETTINGS ...............................................................................................................................................................................61 8.7

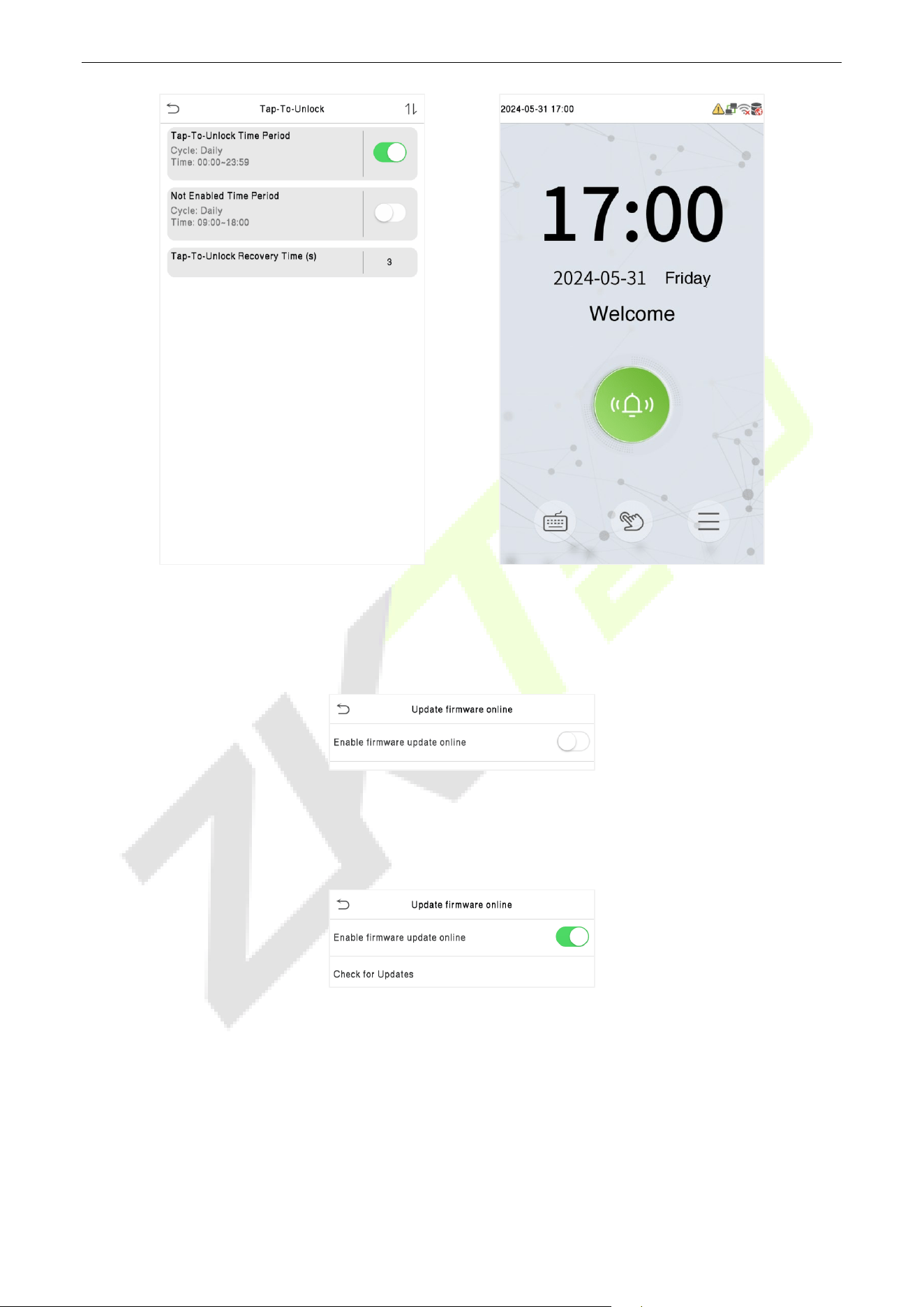

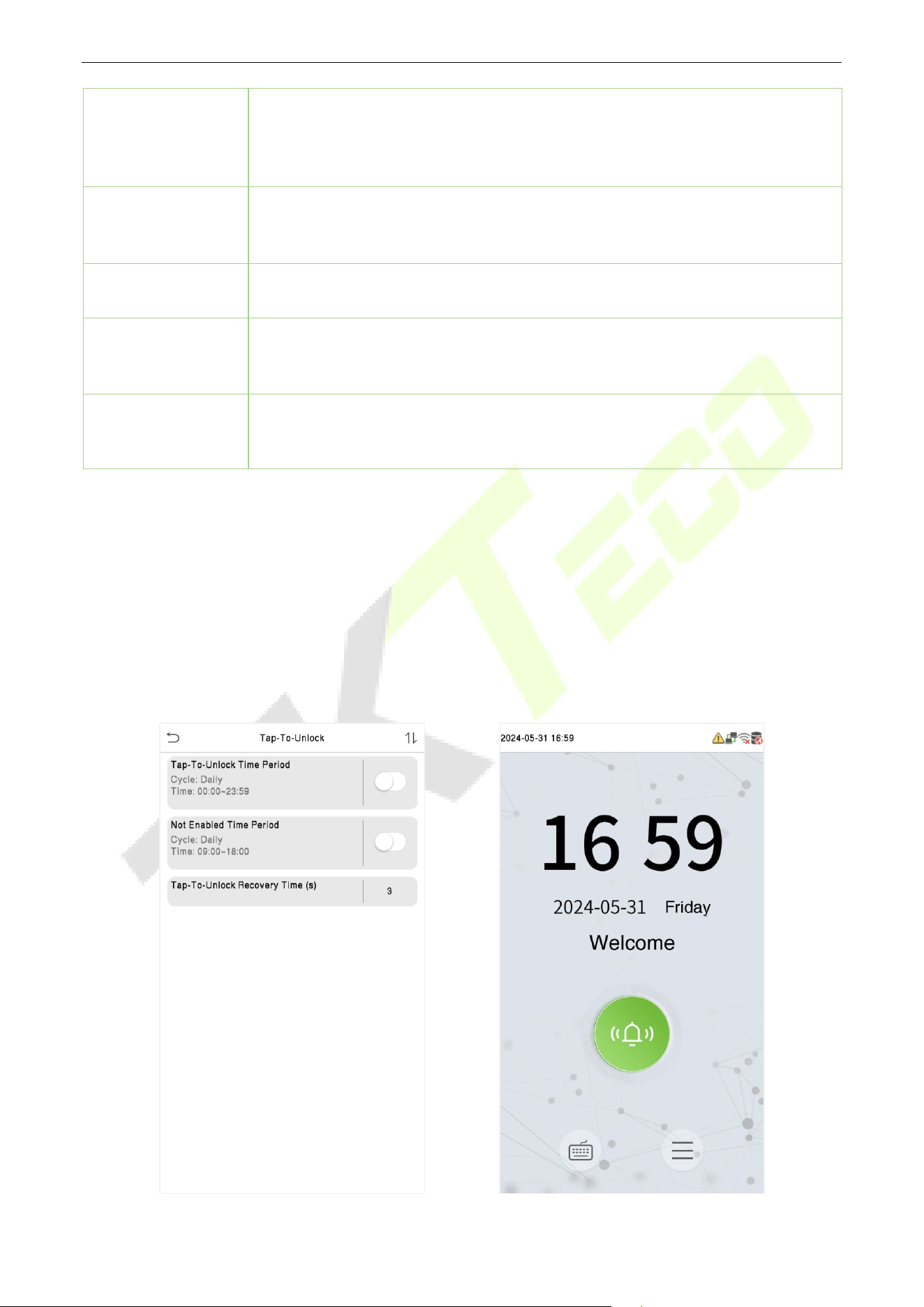

TAP-TO UNLOCK ......................................................................................................................................................................................62 8.8

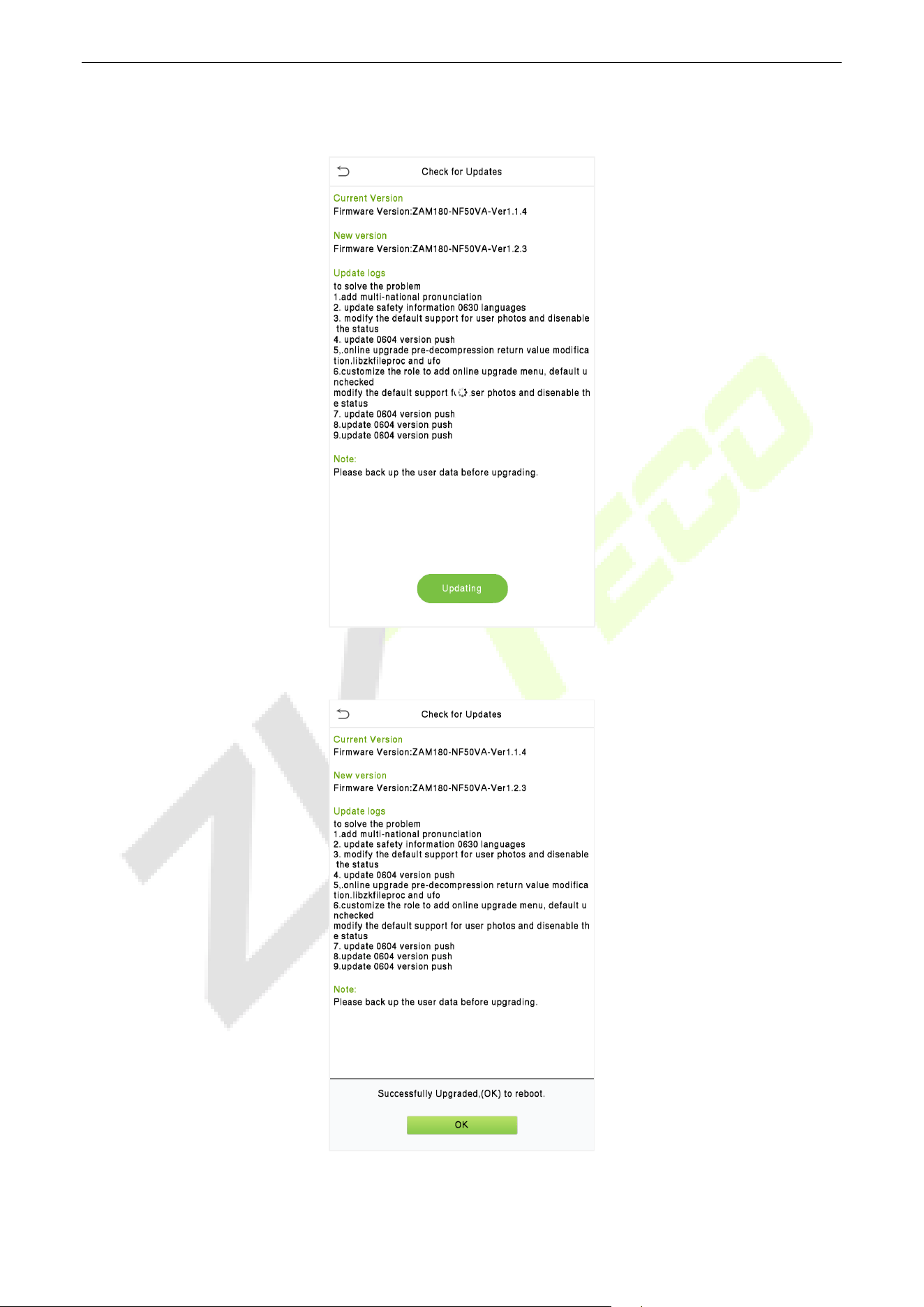

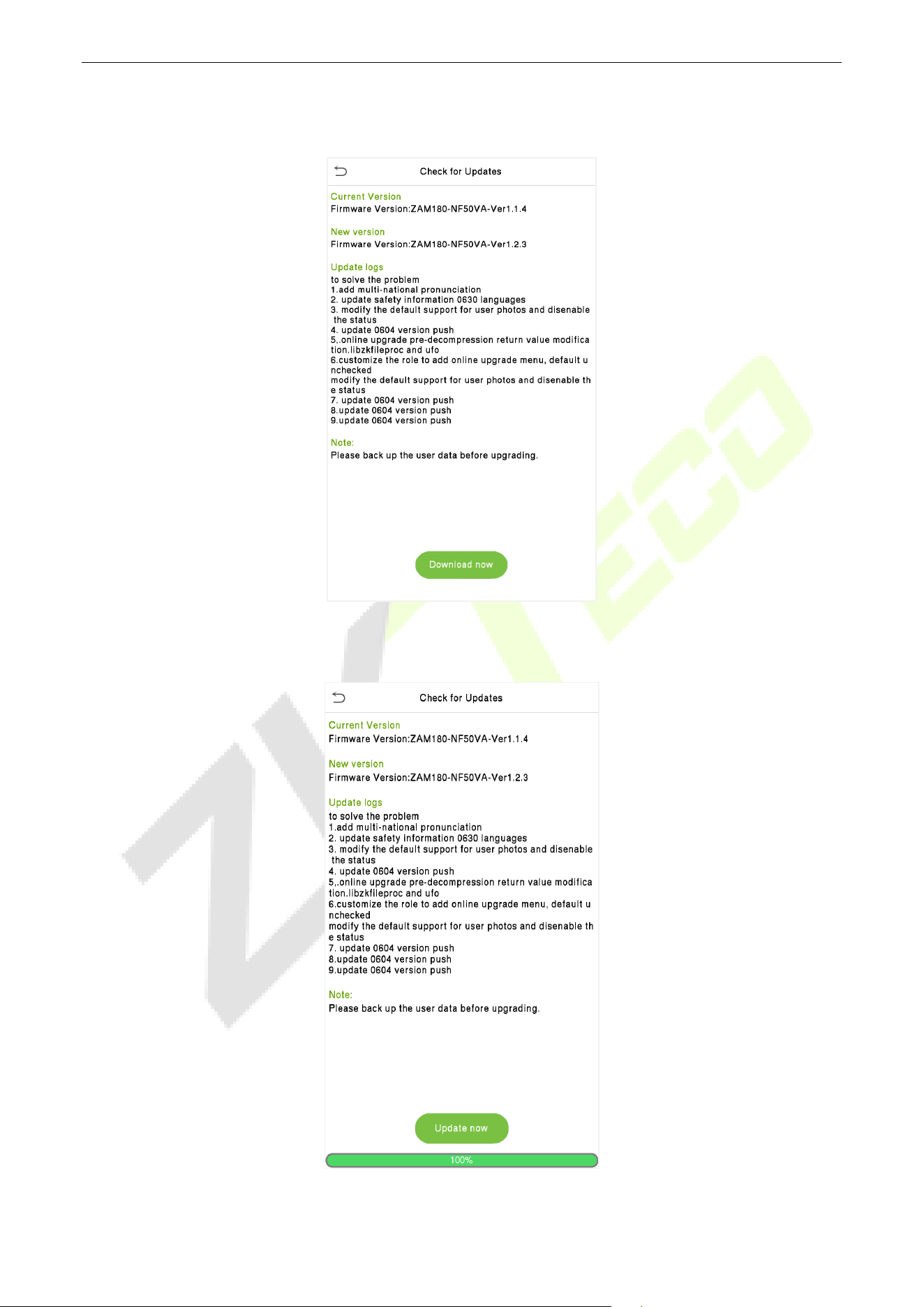

UPDATE FIRMWARE ONLINE ...............................................................................................................................................................63 8.9

FACTORY RESET .......................................................................................................................................................................................66 8.10

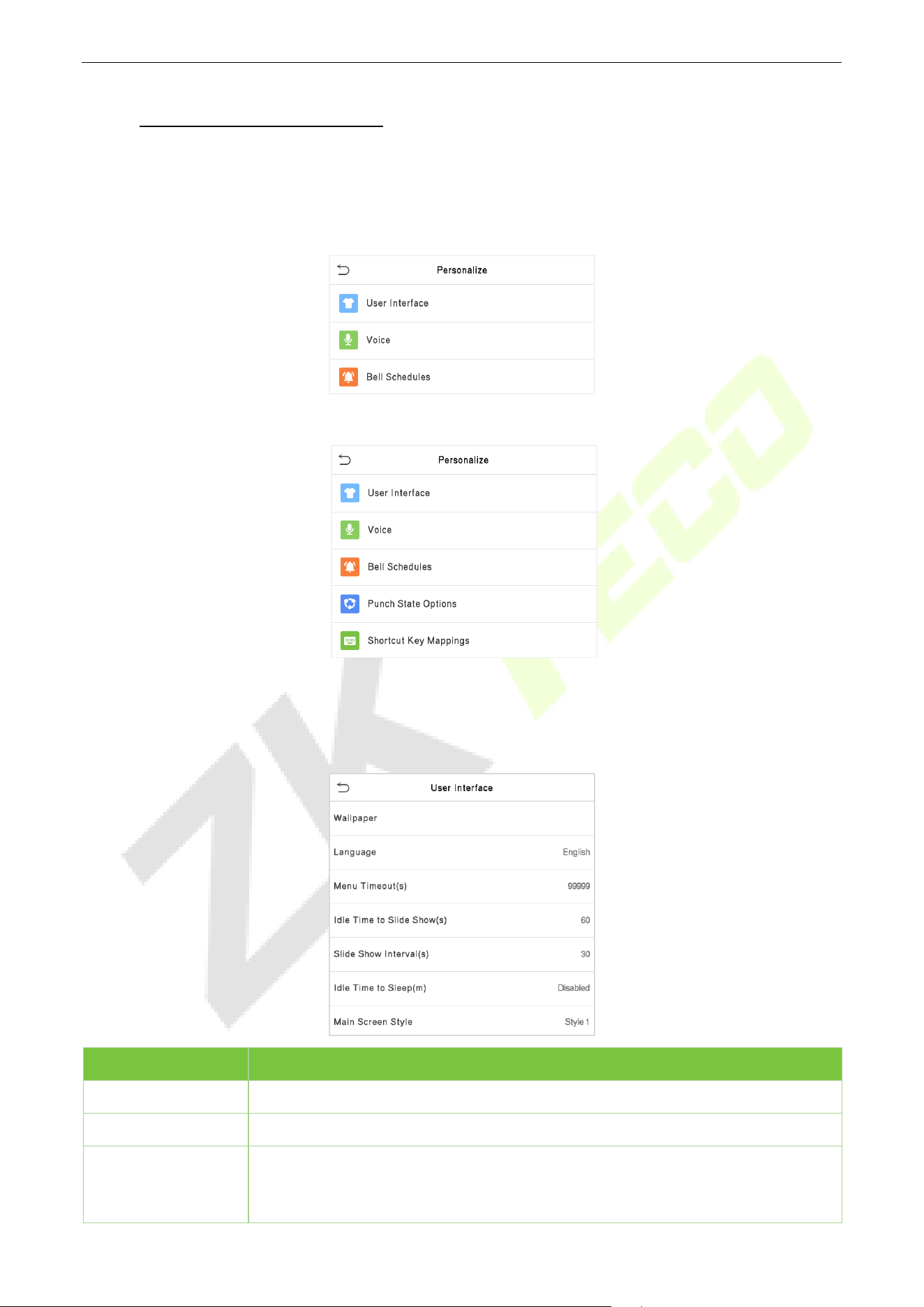

9 PERSONALIZE SETTINGS ................................................................................................................... 67

INTERFACE SETTINGS.............................................................................................................................................................................67 9.1

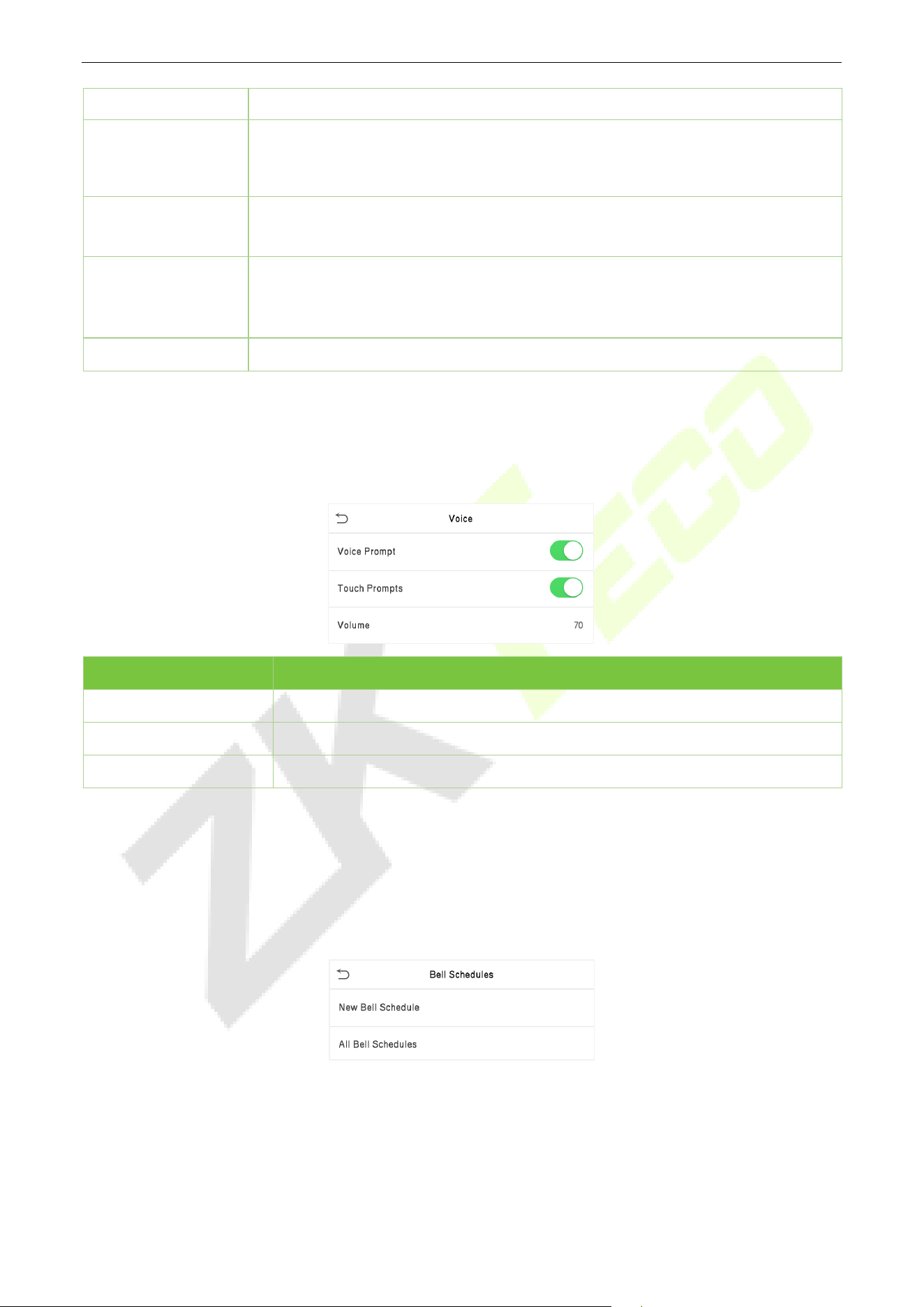

VOICE SETTINGS.......................................................................................................................................................................................68 9.2

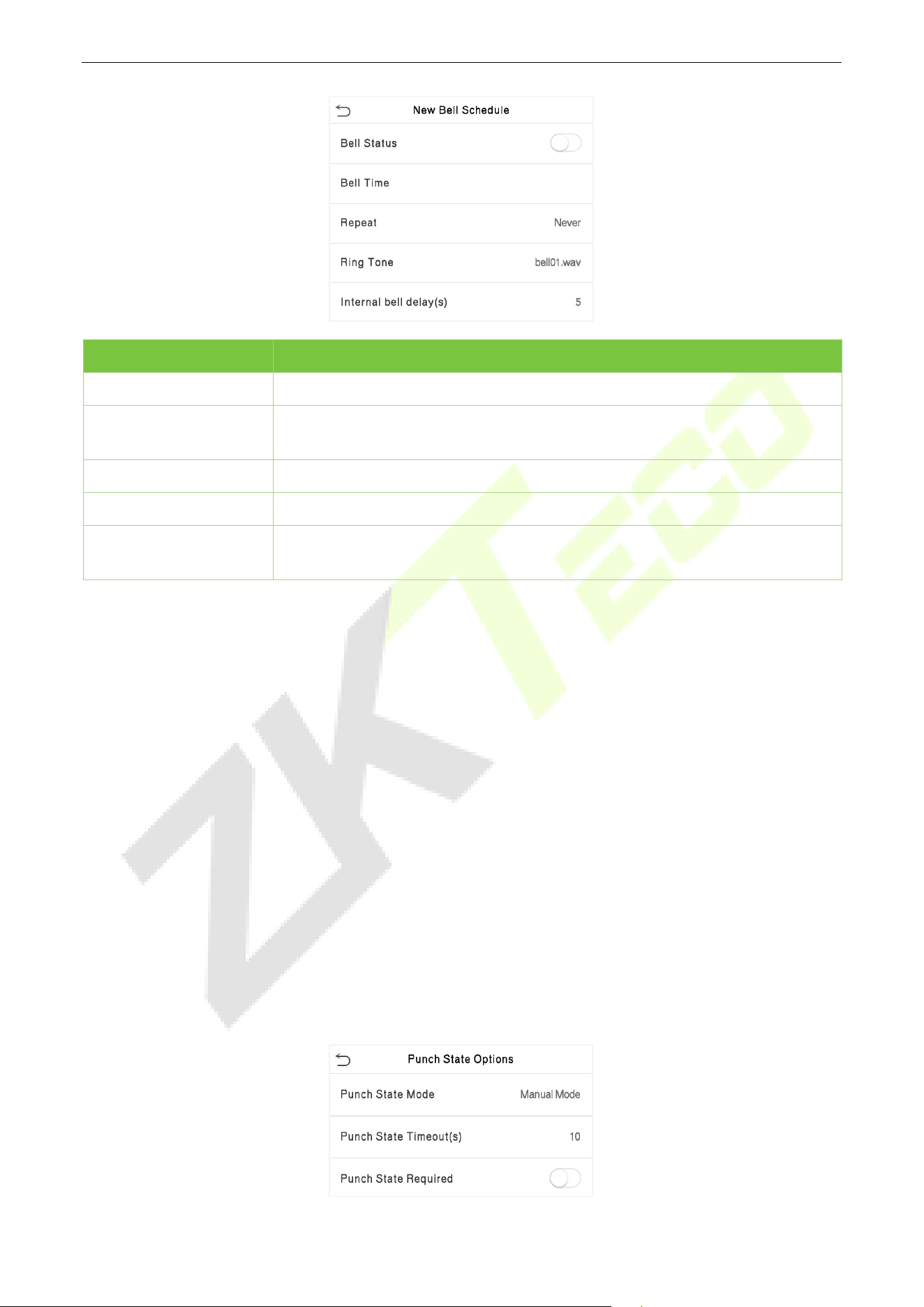

BELL SCHEDULES .....................................................................................................................................................................................68 9.3

PUNCH STATES OPTIONS .....................................................................................................................................................................69 9.4

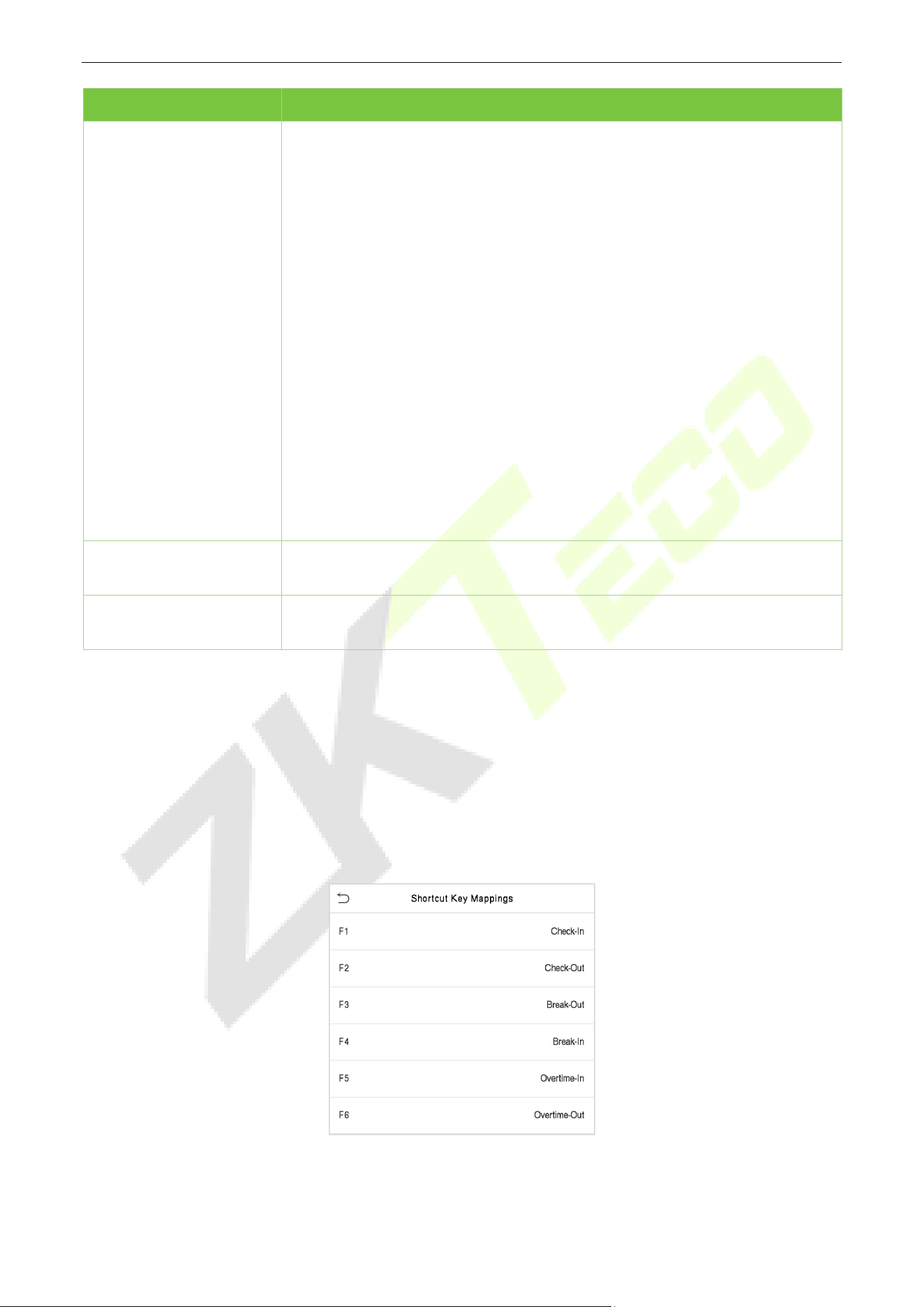

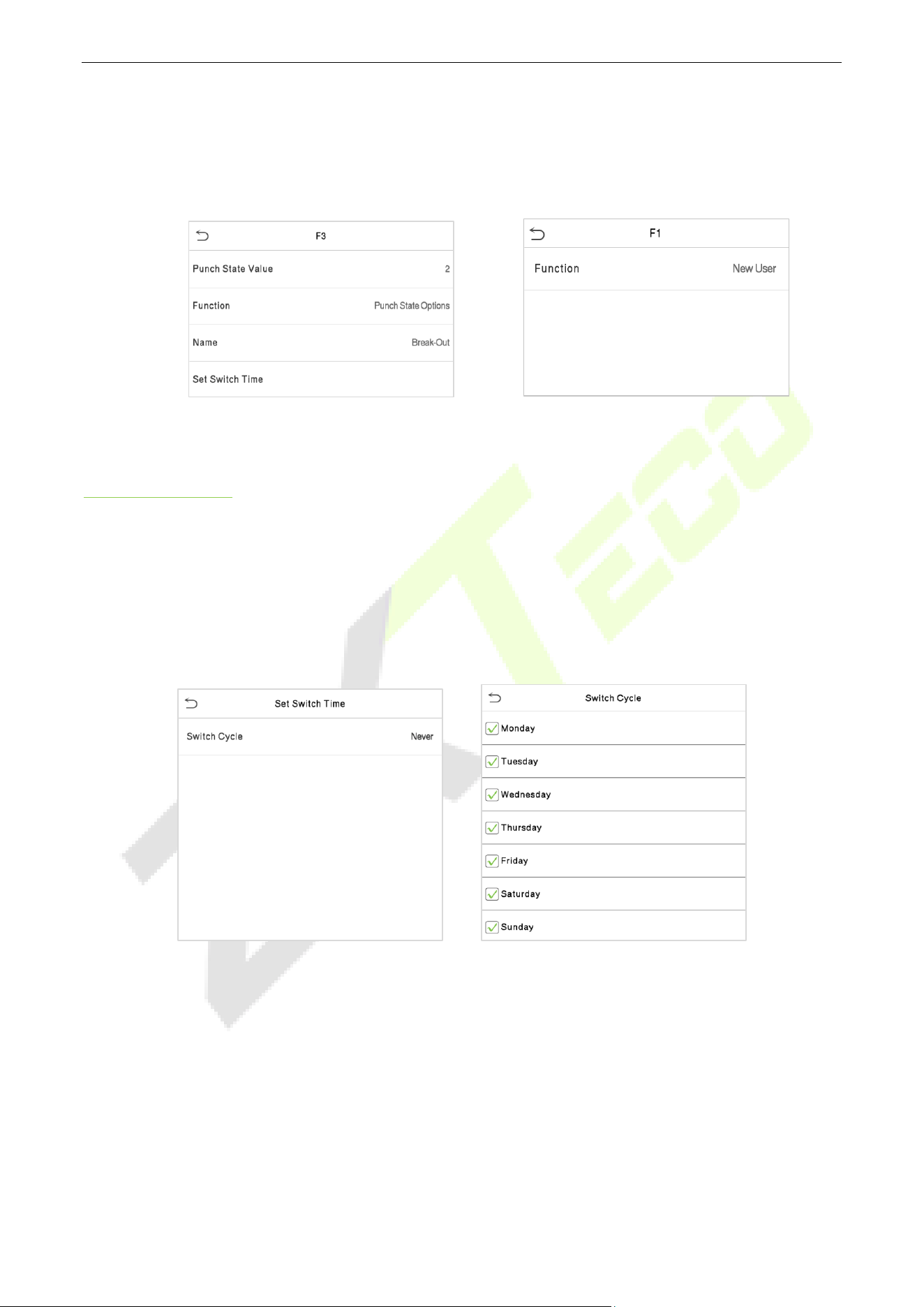

SHORTCUT KEYS MAPPINGS ...............................................................................................................................................................70 9.5

10 DATA MANAGEMENT .................................................................................................................... 72

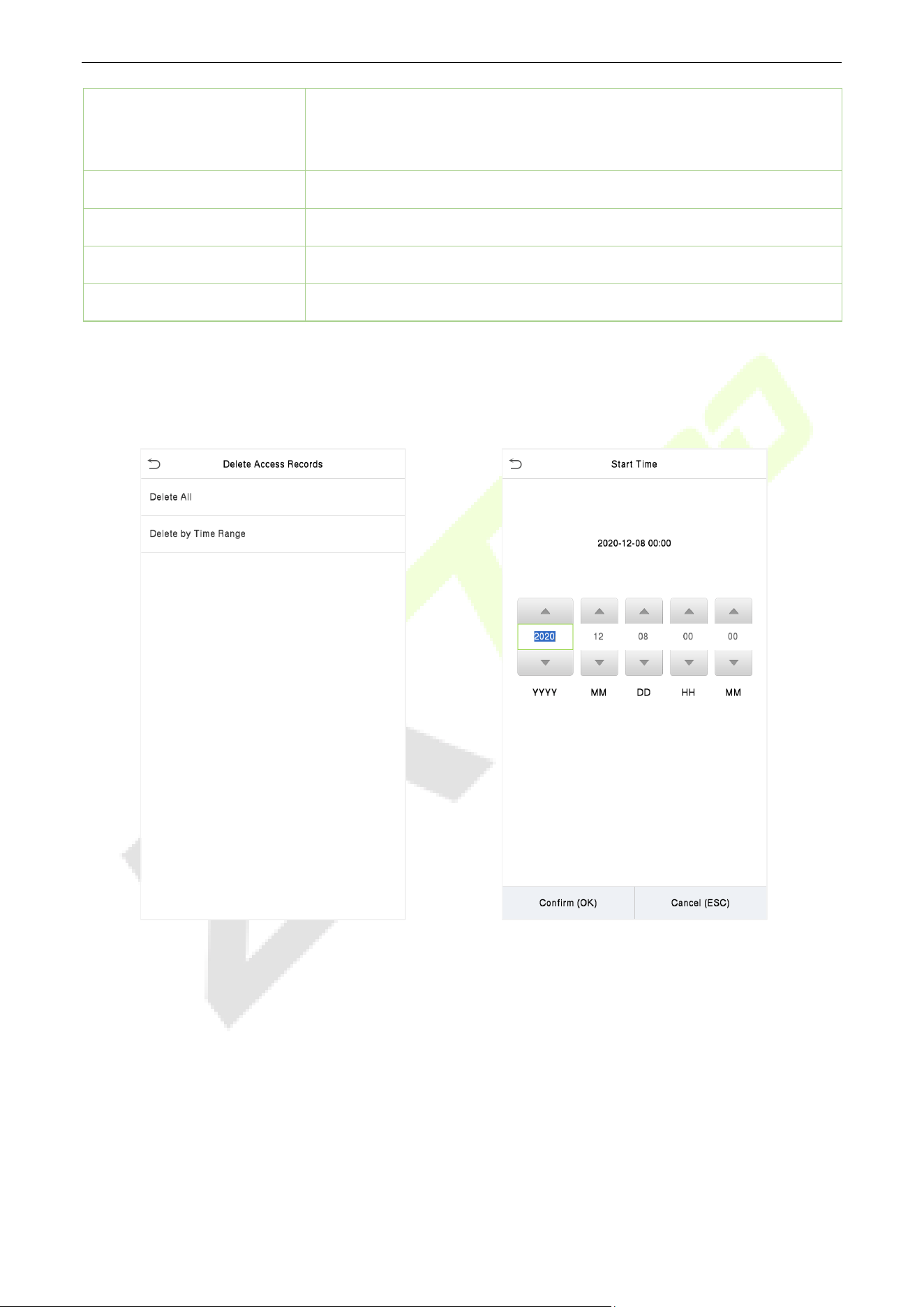

DELETE DATA ............................................................................................................................................................................................72 10.1

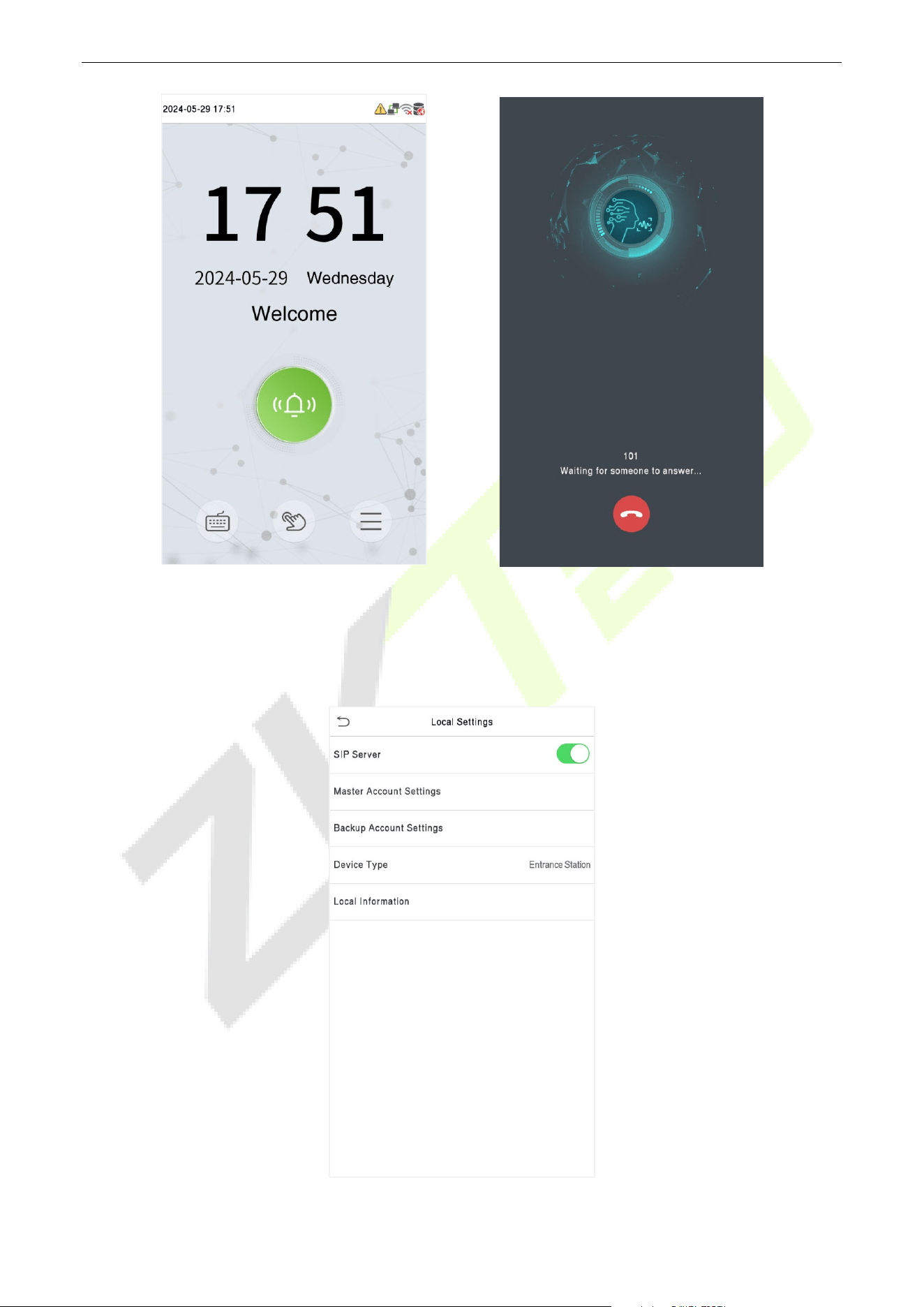

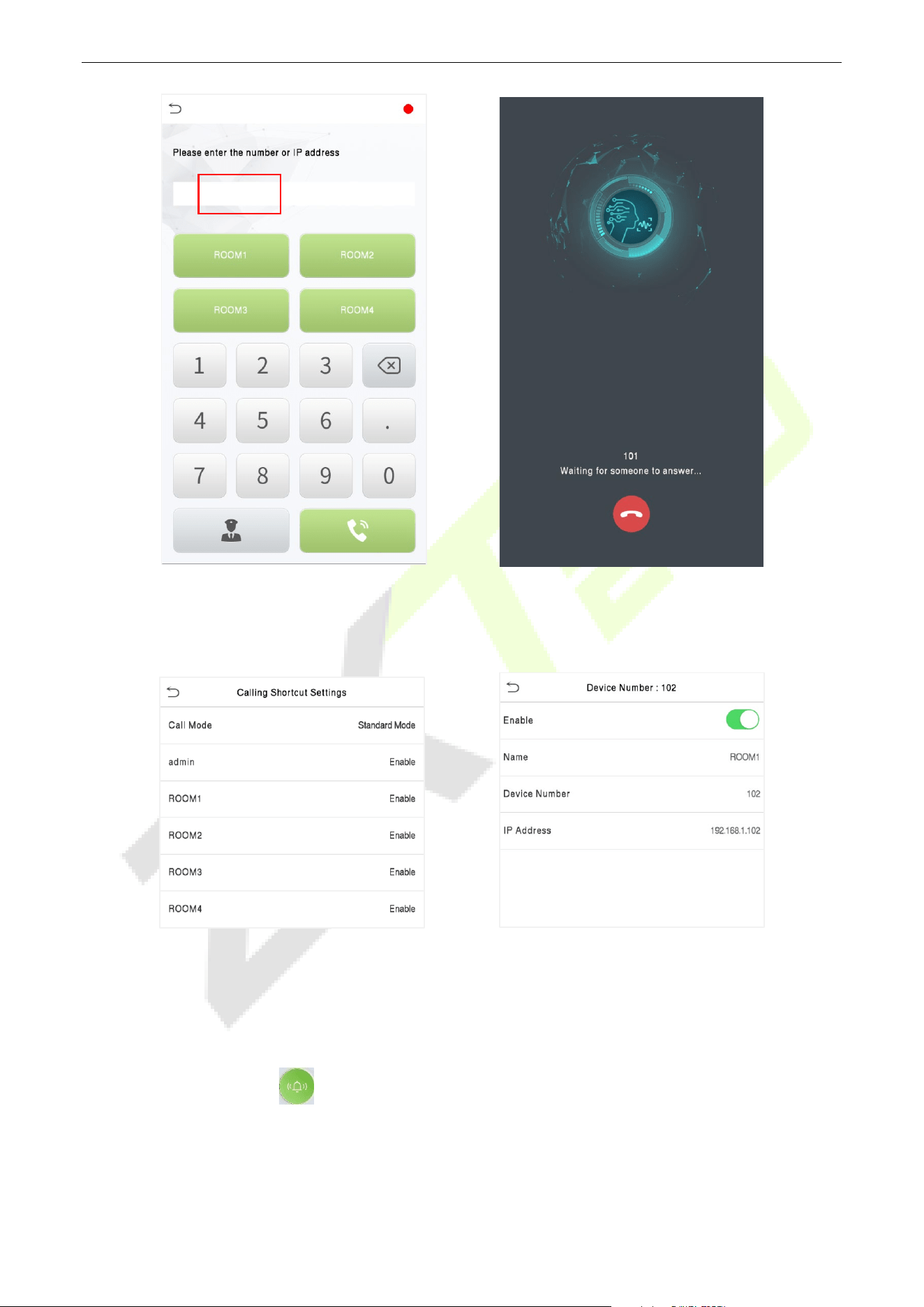

11 INTERCOM ...................................................................................................................................... 74

11.1.1 LOCAL AREA NETWORK USE .................................................................................................................................................................... 76

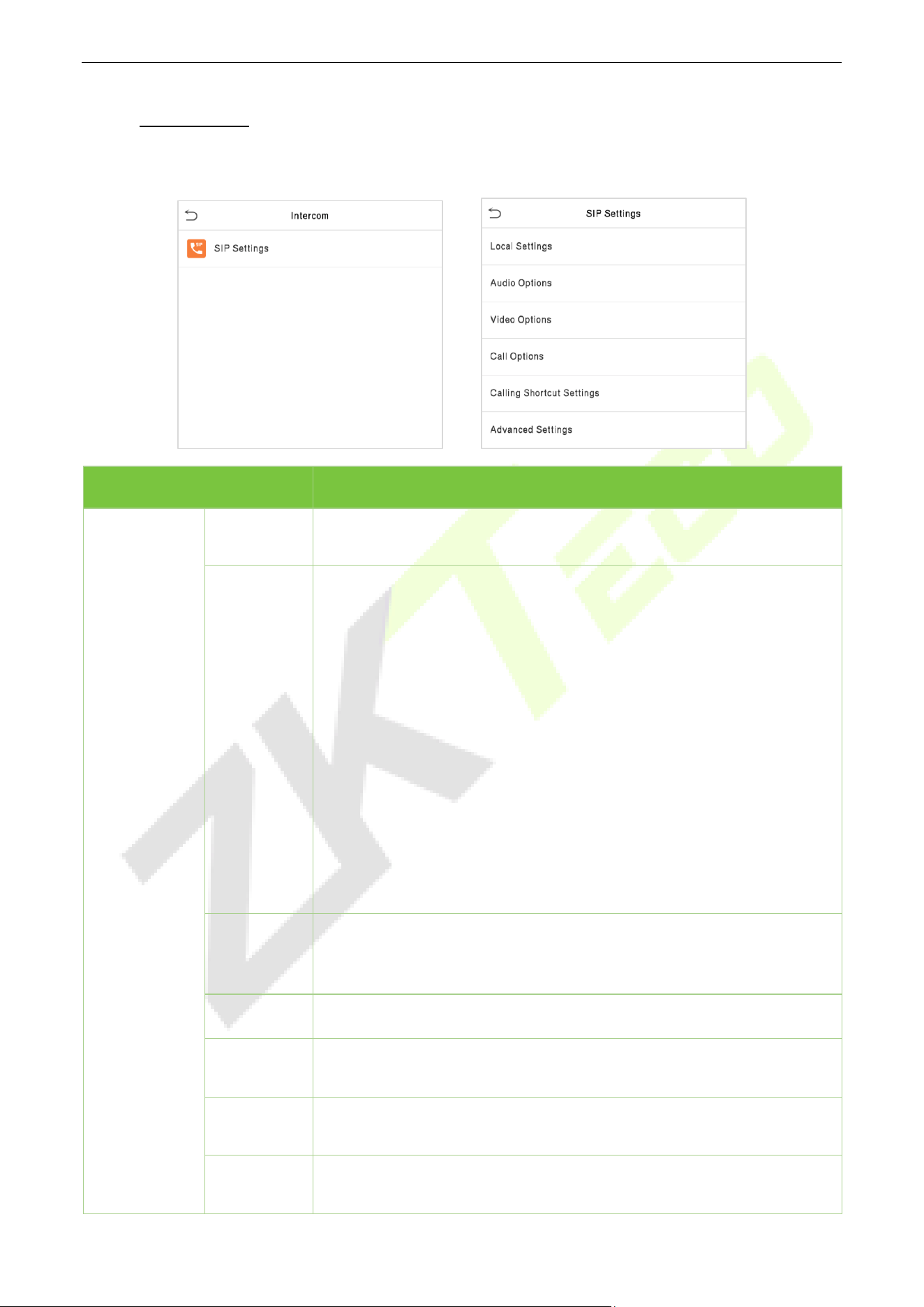

11.1.2 SIP SERVER ..................................................................................................................................................................................................... 79

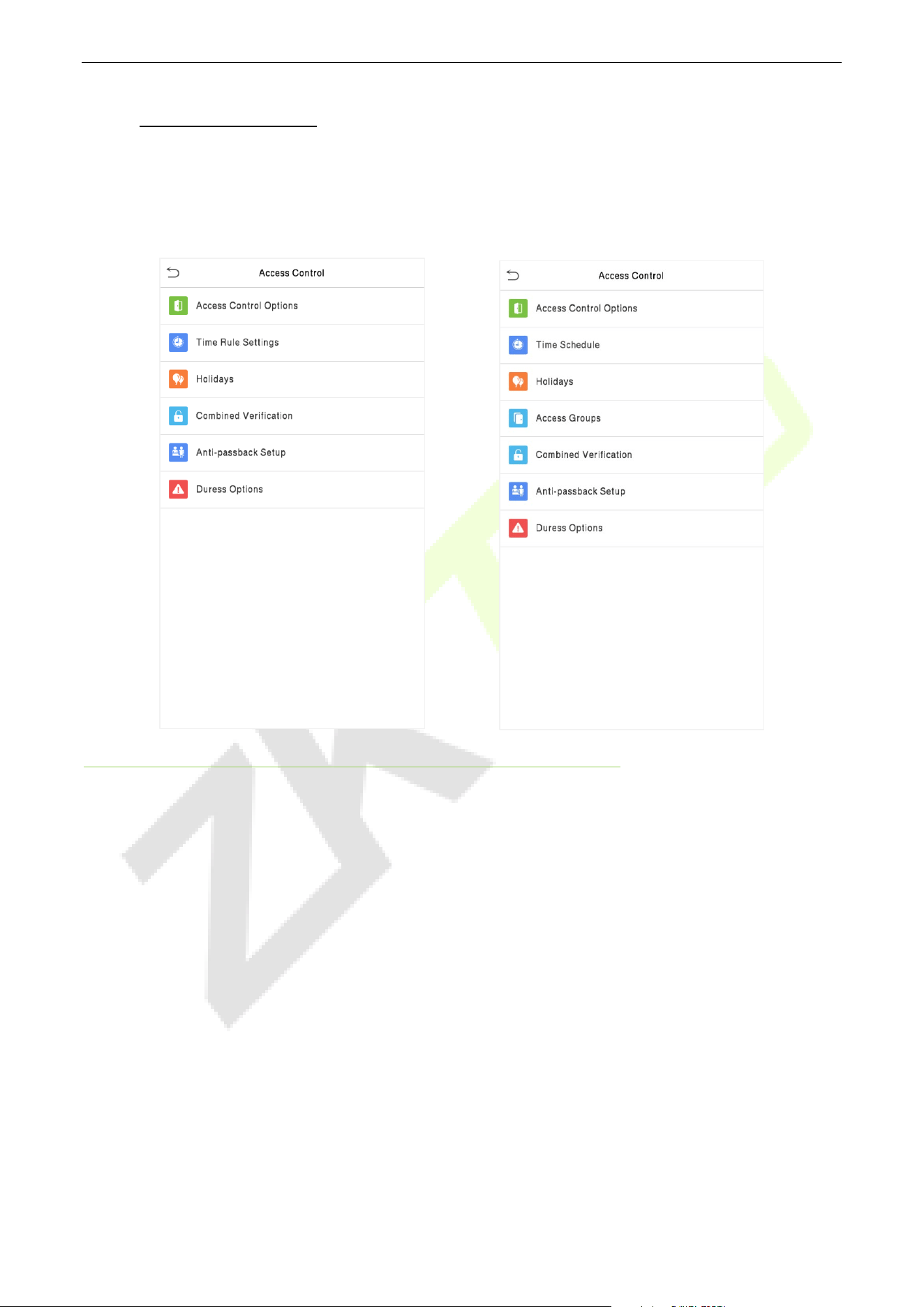

12 ACCESS CONTROL .......................................................................................................................... 81

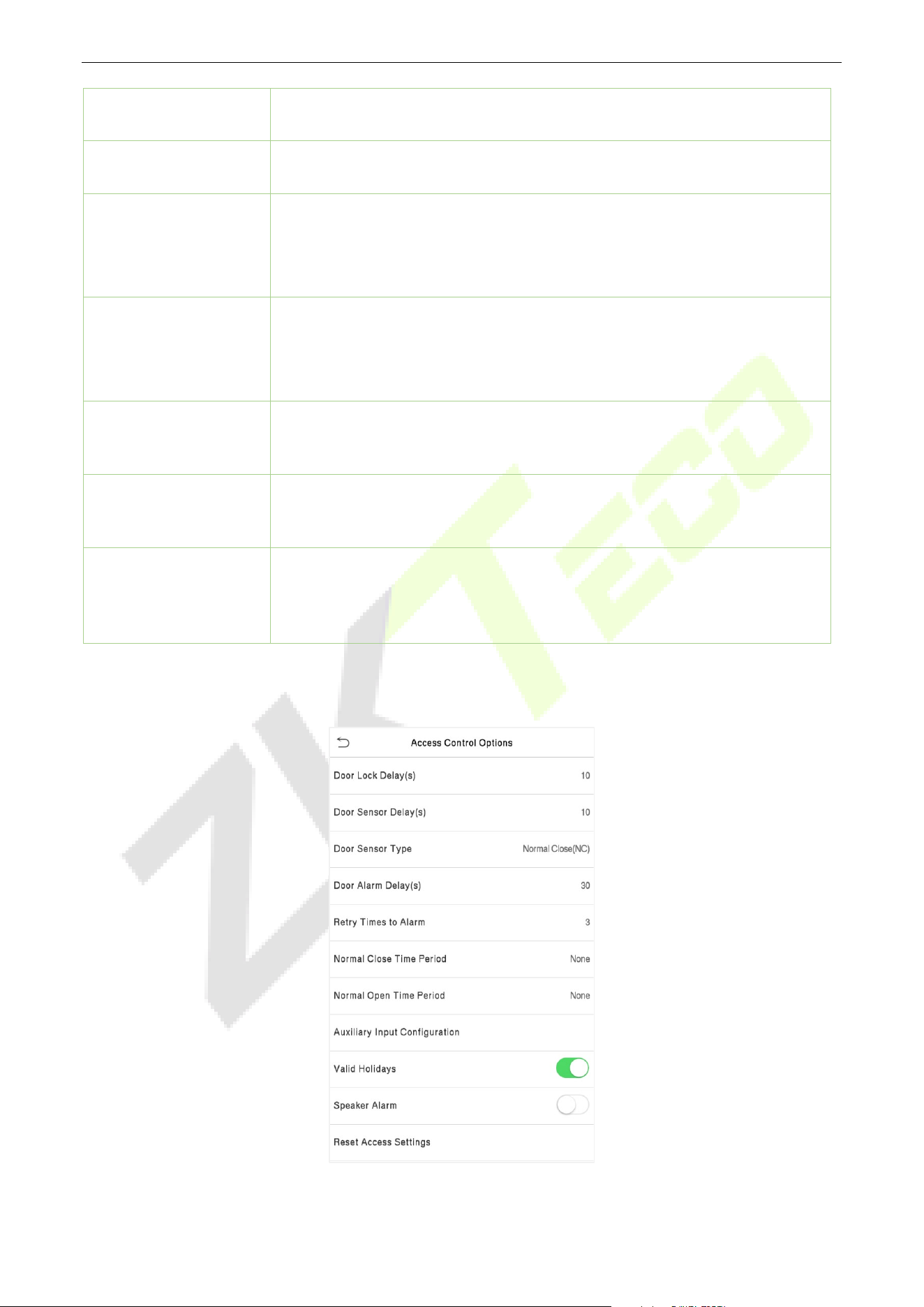

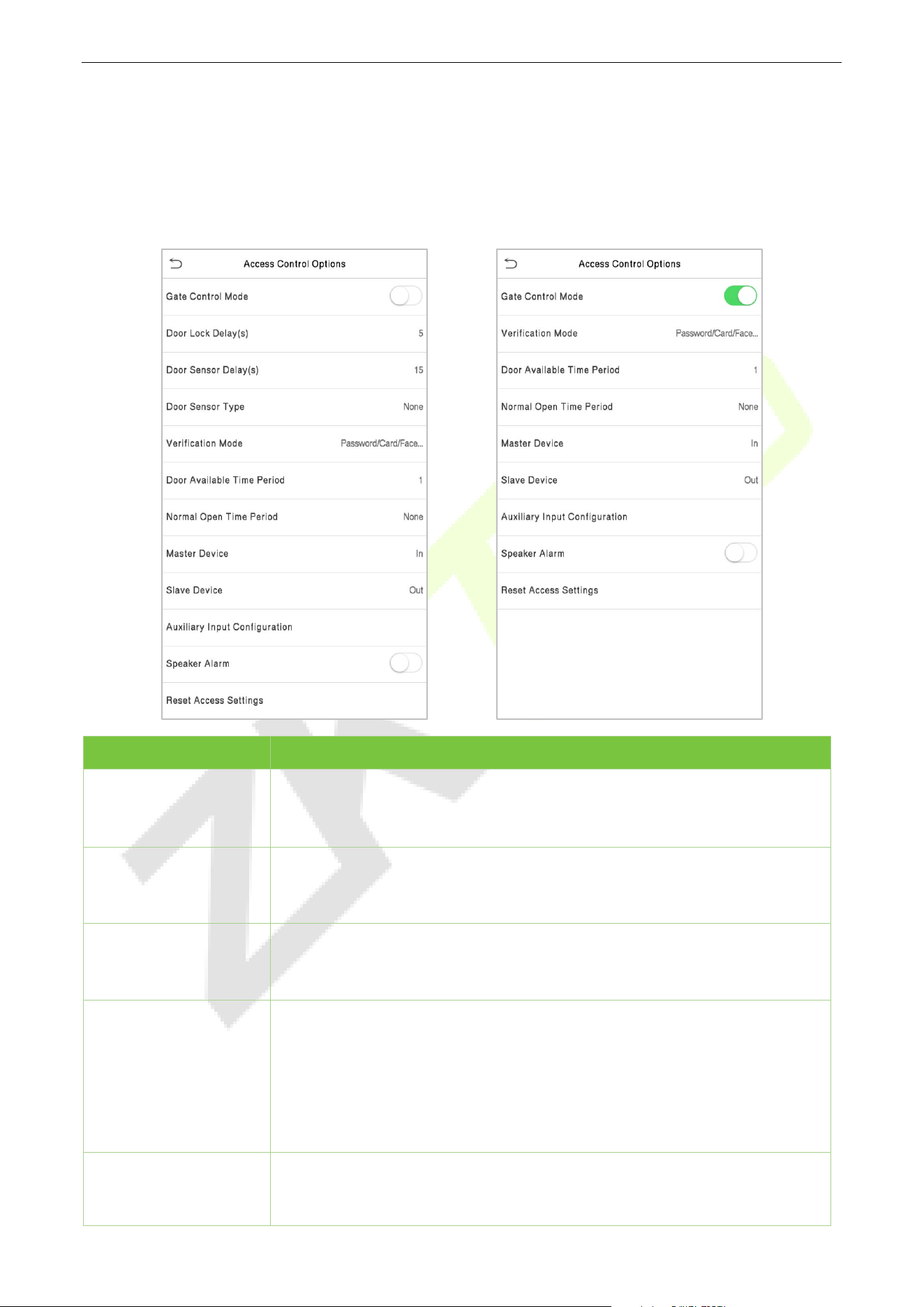

ACCESS CONTROL OPTIONS ...............................................................................................................................................................82 12.1

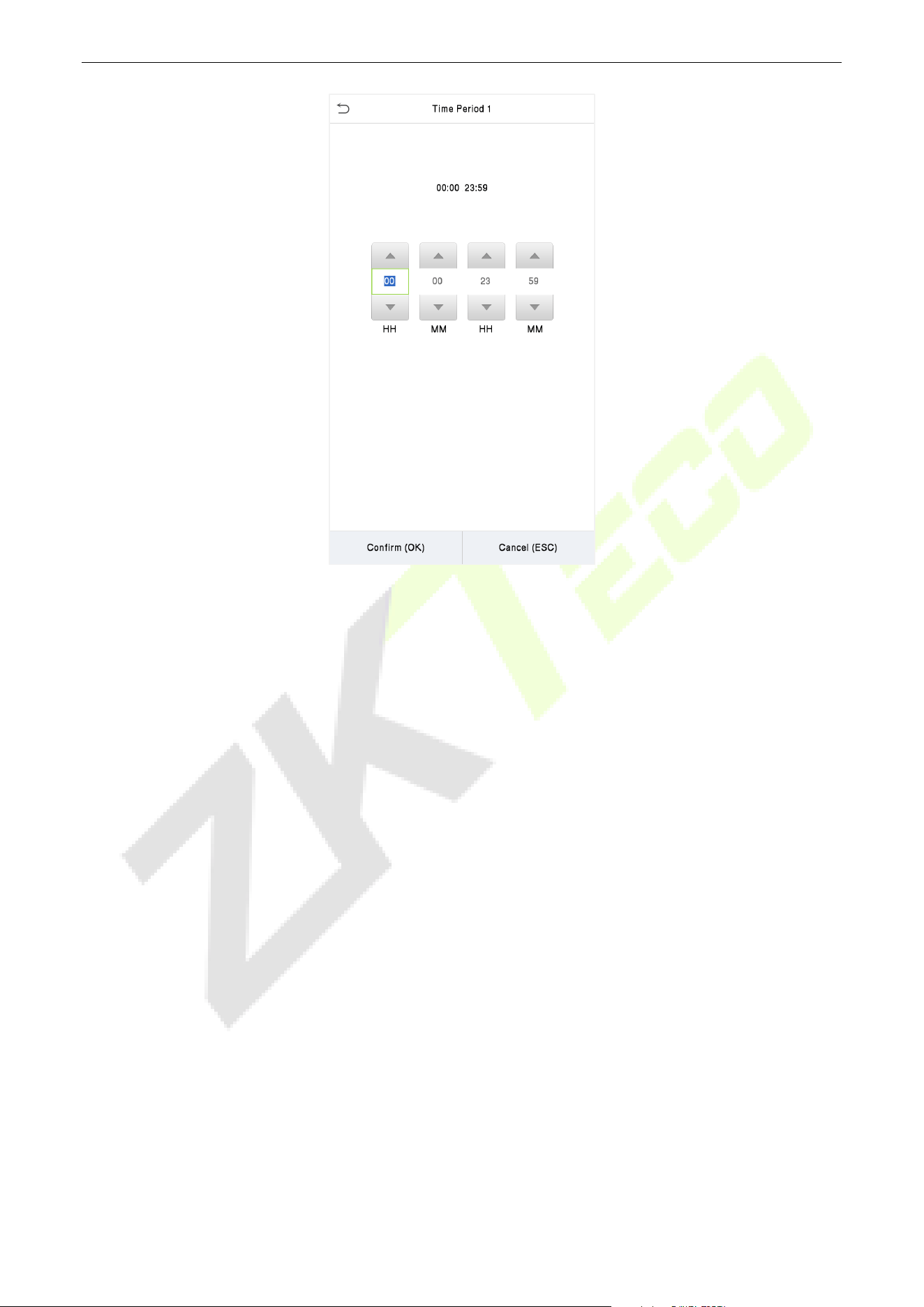

TIME RULE SETTINGS/ TIME SCHEDULE ..........................................................................................................................................85 12.2

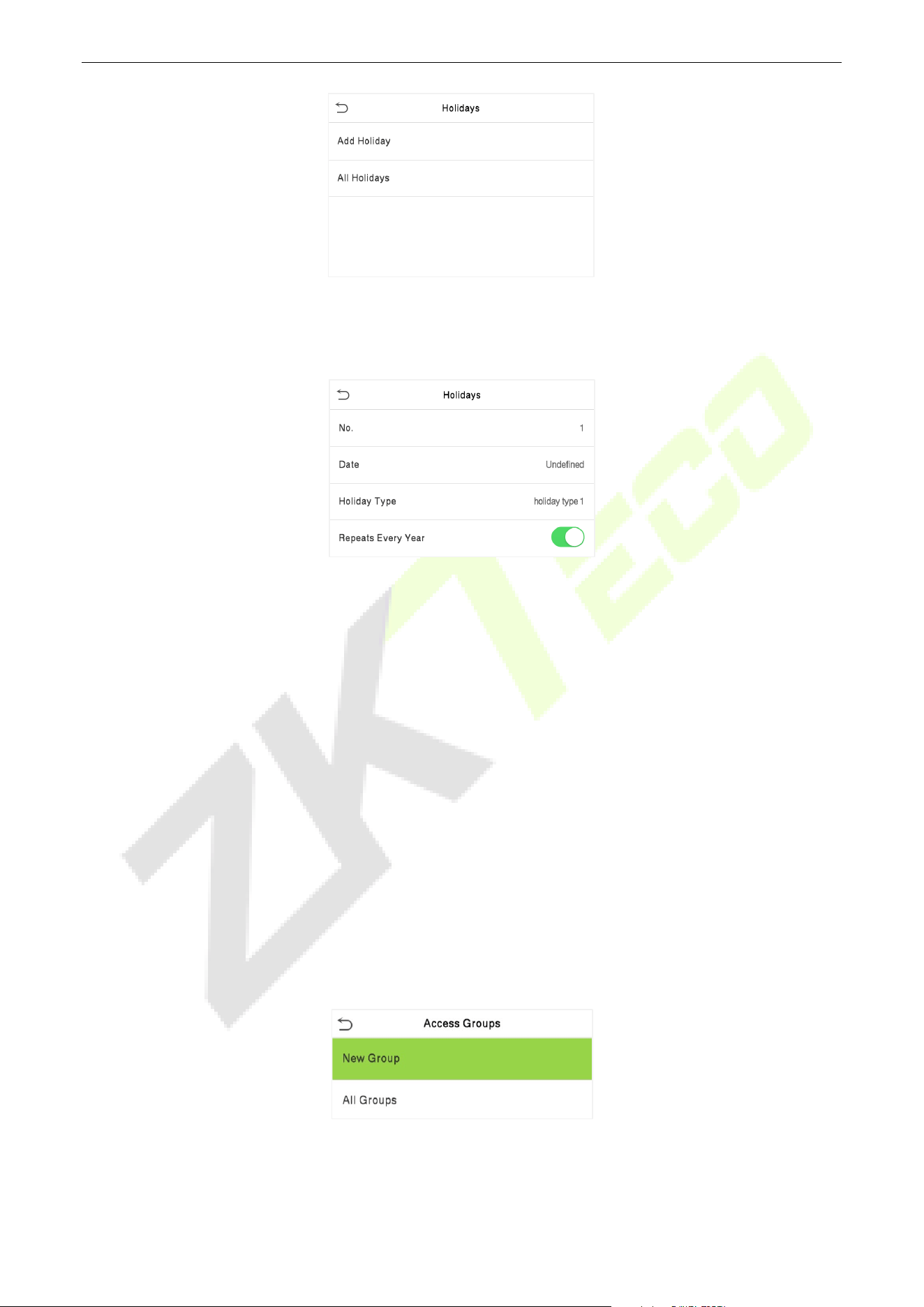

HOLIDAYS ..................................................................................................................................................................................................86 12.3

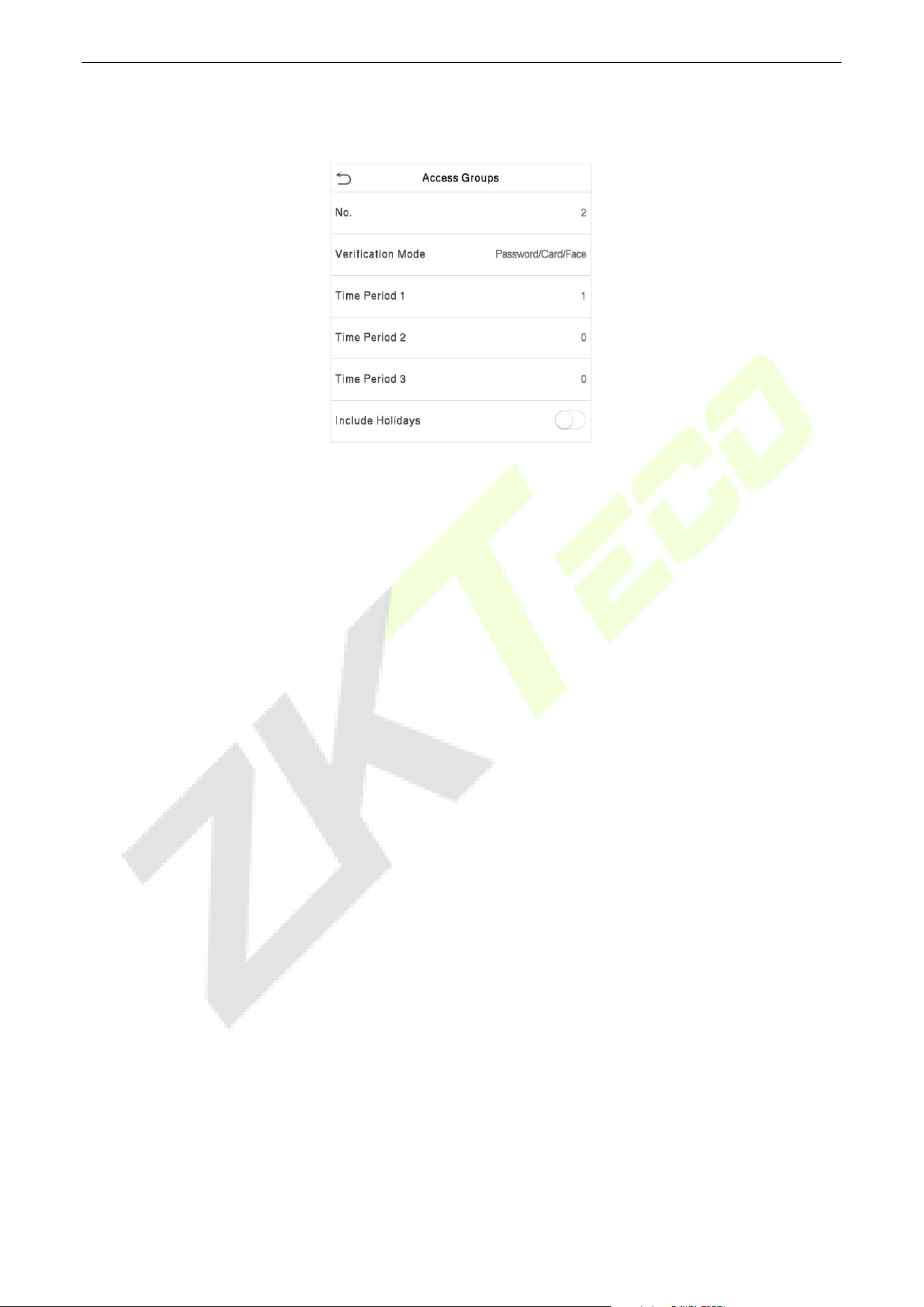

ACCESS GROUPS .....................................................................................................................................................................................87 12.4

COMBINED VERIFICATION ...................................................................................................................................................................88 12.5

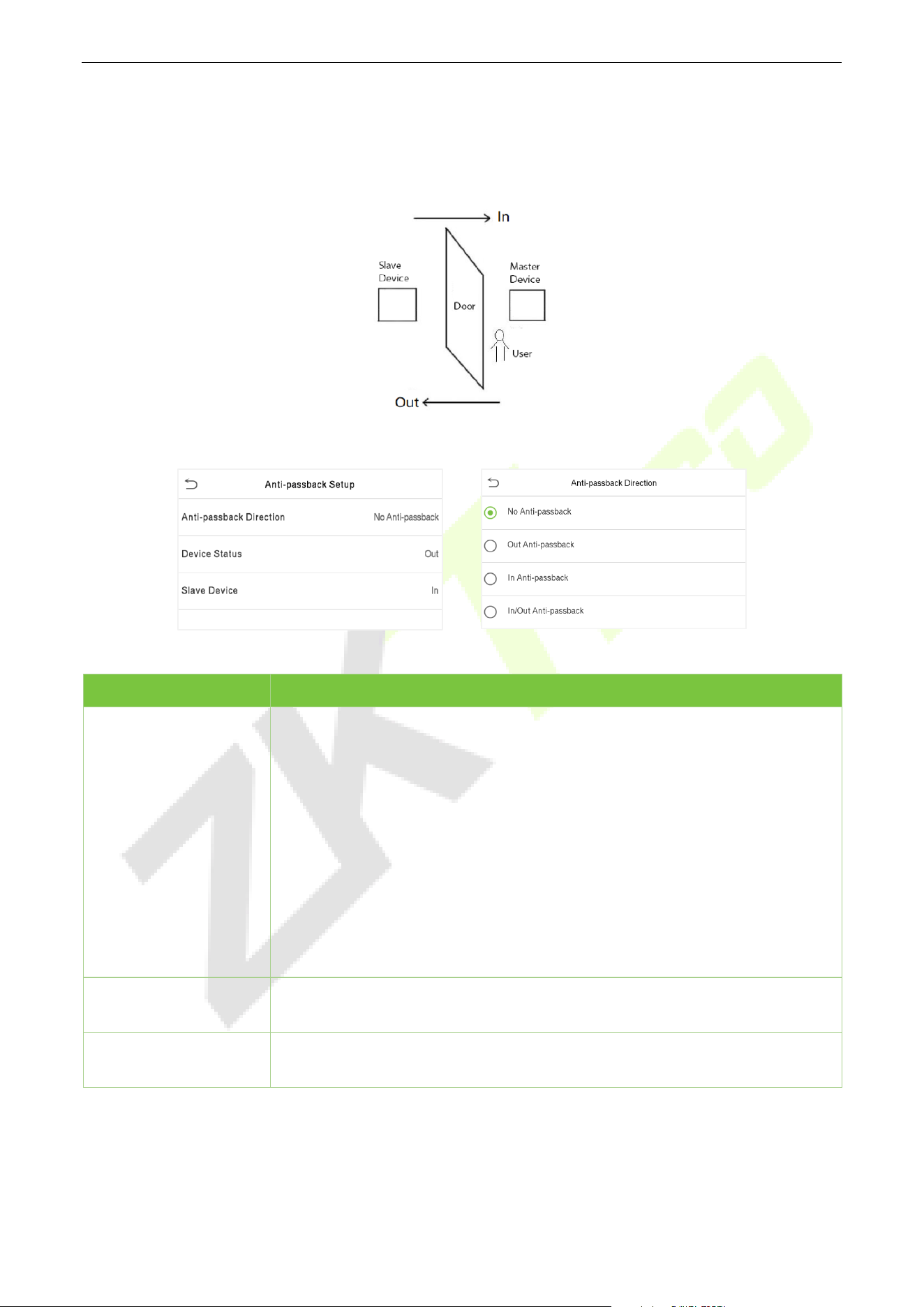

ANTI-PASSBACK SETUP .........................................................................................................................................................................89 12.6

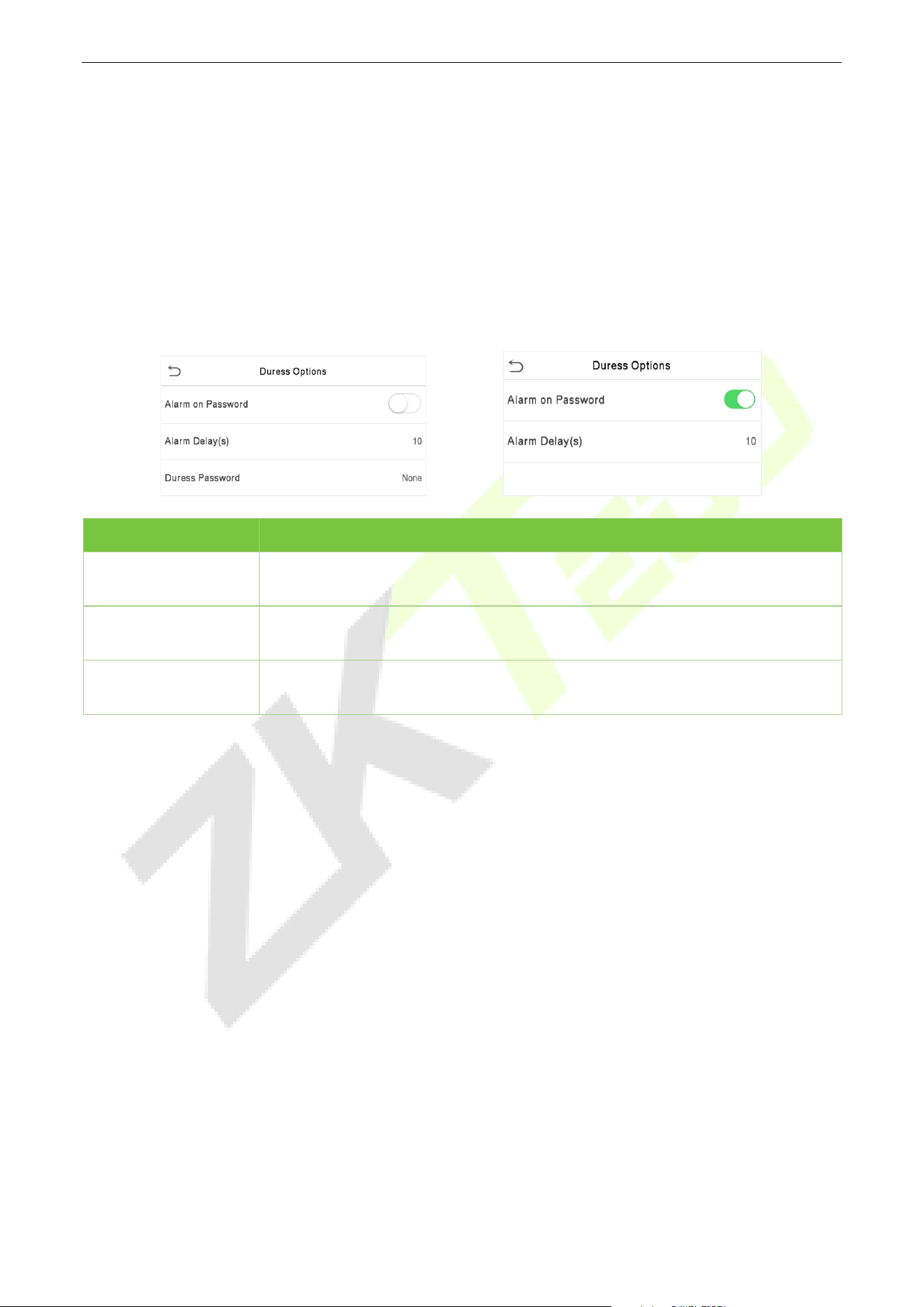

DURESS OPTIONS SETTINGS ...............................................................................................................................................................91 12.7

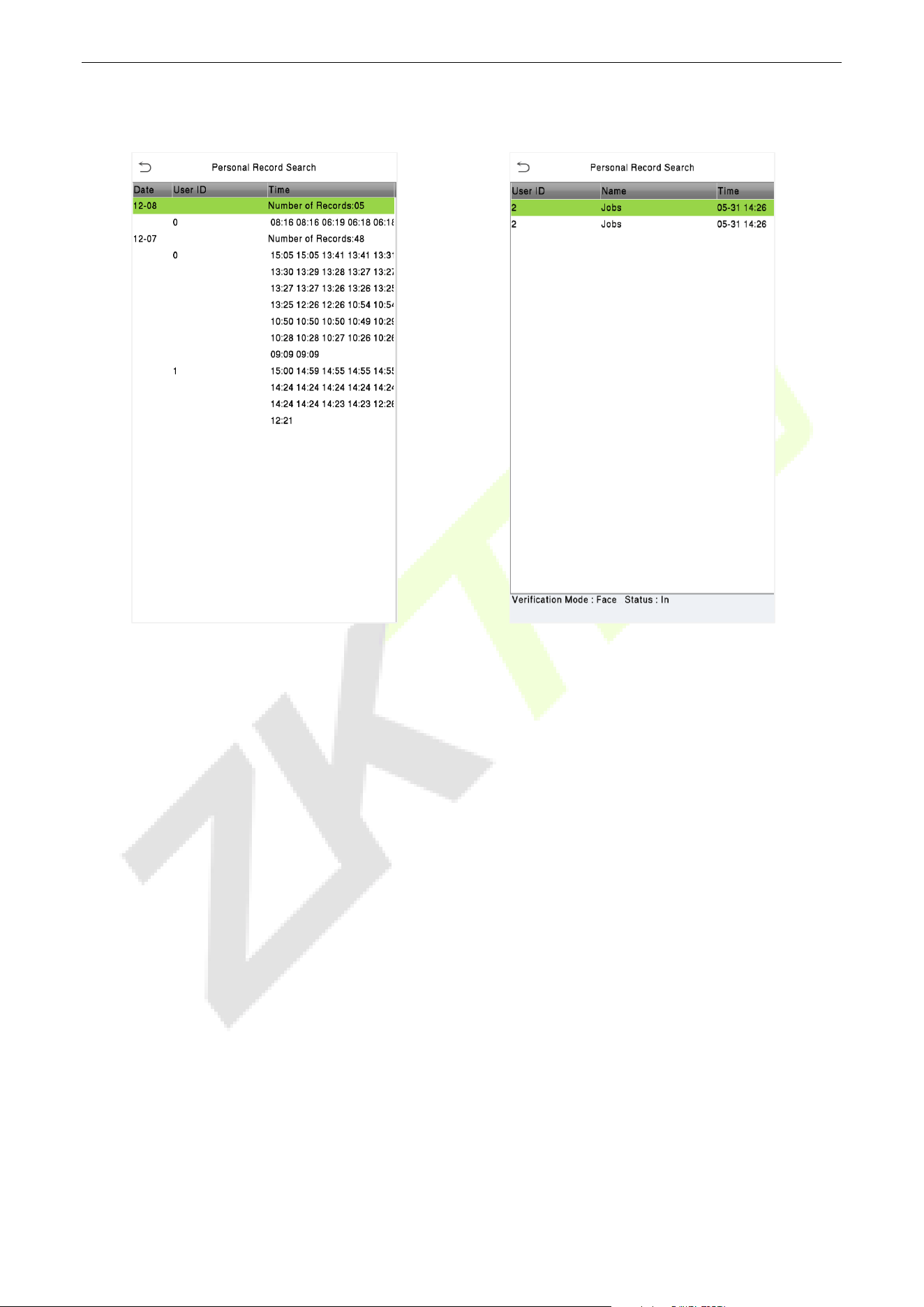

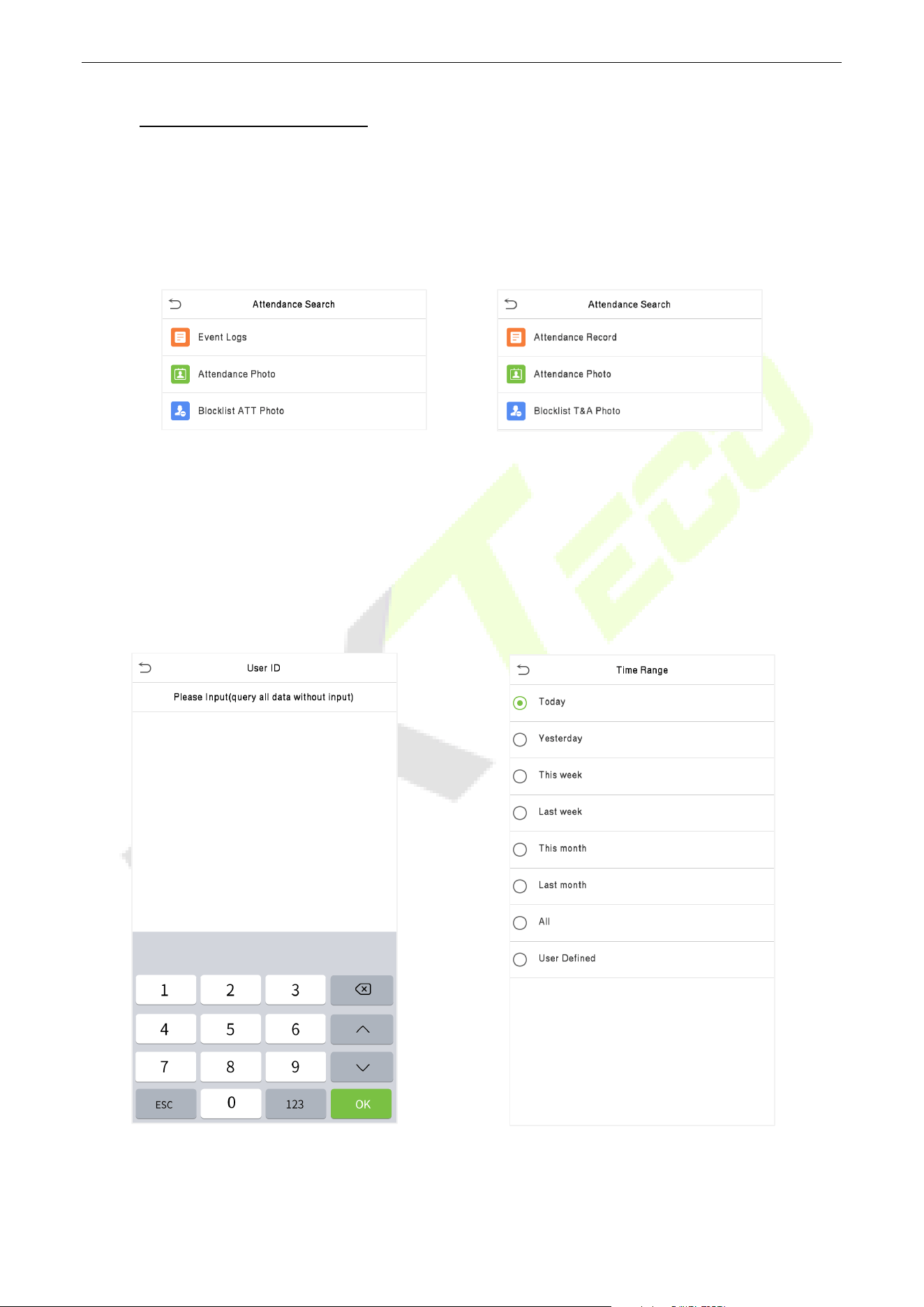

13 ATTENDANCE SEARCH .................................................................................................................. 92

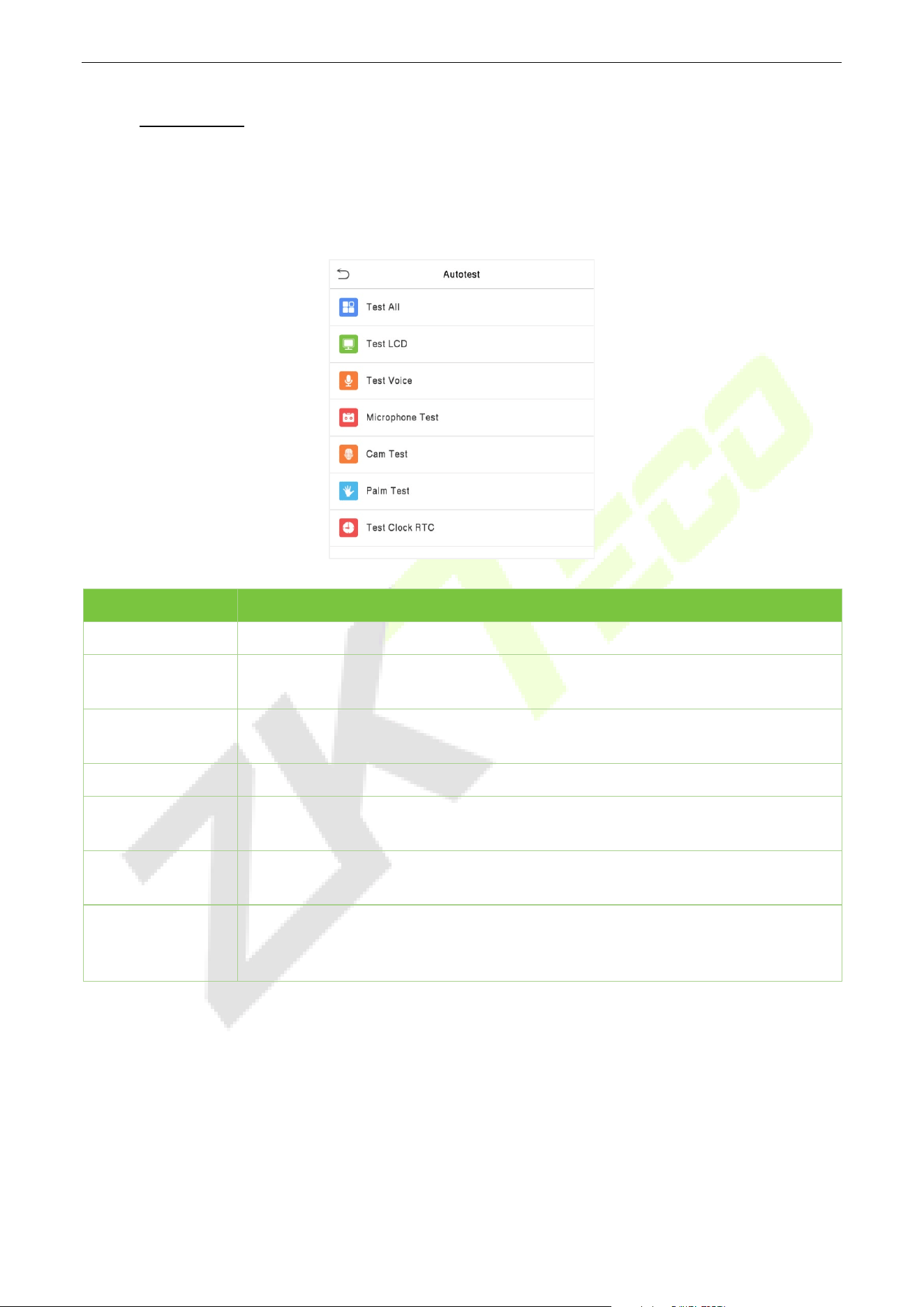

14 AUTOTEST ...................................................................................................................................... 94

15 SYSTEM INFORMATION ................................................................................................................. 95

16 CONNECT TO ZKBIO TIME SOFTWARE.......................................................................................... 96

SET THE COMMUNICATION ADDRESS ............................................................................................................................................96 16.1

ADD DEVICE ON THE SOFTWARE ......................................................................................................................................................96 16.2

ADD PERSONNEL TO THE SOFTWARE .............................................................................................................................................97 16.3

SpeedPalm-V5L User Manual

17 CONNECT TO ZKBIO CVACCESS SOFTWARE ................................................................................ 98

SET THE COMMUNICATION ADDRESS ............................................................................................................................................98 17.1

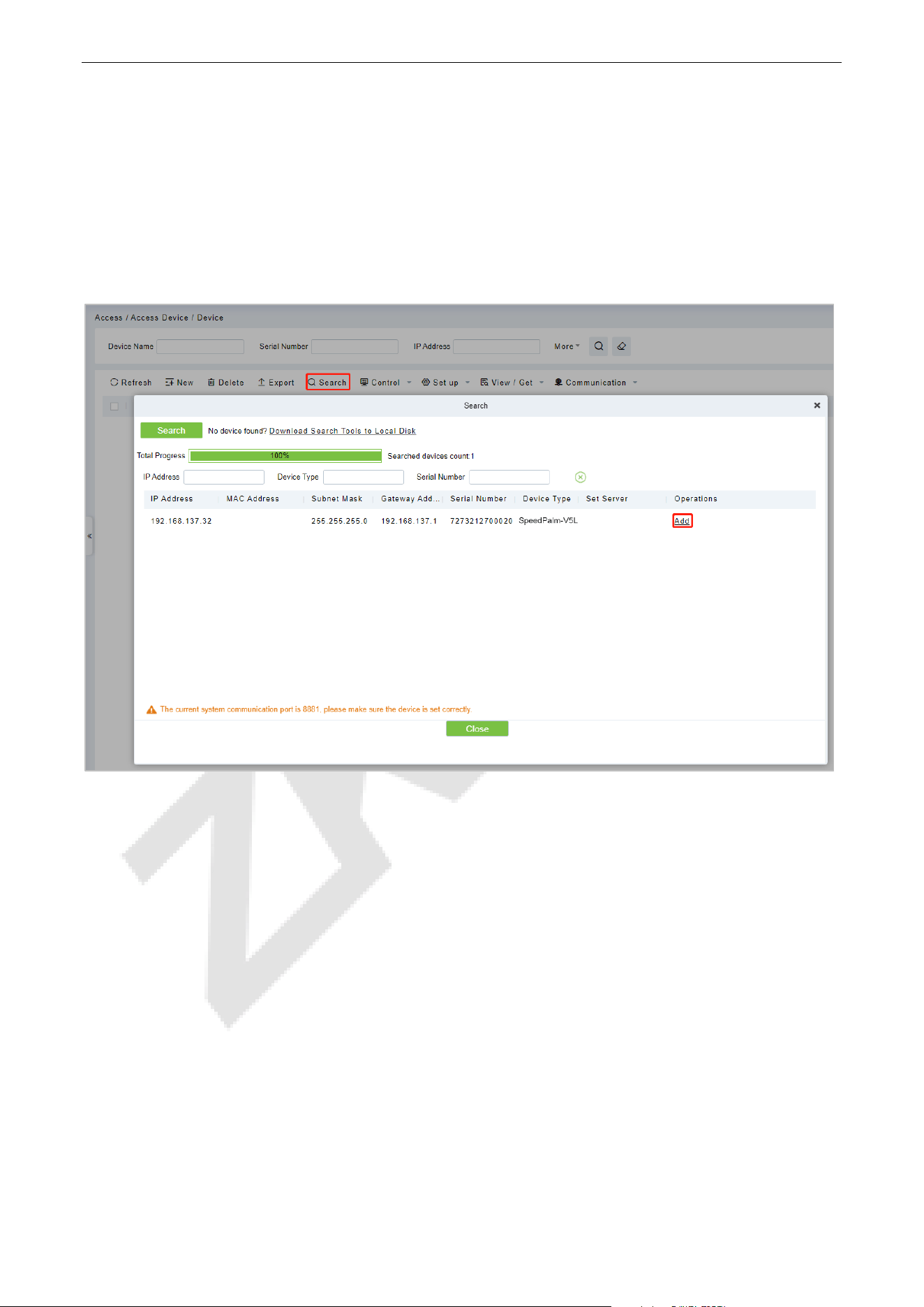

ADD DEVICE ON THE SOFTWARE ......................................................................................................................................................99 17.2

ADD PERSONNEL TO THE SOFTWARE .......................................................................................................................................... 100 17.3

18 CONNECT TO ZKBIO CVSECURITY SOFTWARE........................................................................... 101

SET THE COMMUNICATION ADDRESS ......................................................................................................................................... 101 18.1

ADD DEVICE ON THE SOFTWARE ................................................................................................................................................... 102 18.2

ADD PERSONNEL TO THE SOFTWARE .......................................................................................................................................... 103 18.3

APPENDIX 1 ............................................................................................................................................. 104

REQUIREMENTS OF LIVE COLLECTION AND REGISTRATION OF VISIBLE LIGHT FACE TEMPLATES .................................. 104

REQUIREMENTS FOR VISIBLE LIGHT DIGITAL FACE TEMPLATE DATA ......................................................................................... 105

APPENDIX 2 ............................................................................................................................................. 106

PRIVACY POLICY ............................................................................................................................................................................................... 106

ECO-FRIENDLY OPERATION ......................................................................................................................................................................... 109

SpeedPalm-V5L User Manual

1 Instruction for Use

Before getting into the device features and functions, it is recommended to be familiar with the below

fundamentals.

Standing Position, Facial Expression and Standing Posture 1.1

 The Recommended Distance

 Recommended Standing Posture and Facial Expression

Facial Expression

Standing Posture

Note: Please keep your facial expression and standing posture natural while enrolment or verification.

The distance between the device and a user whose height is

in a range of 1.55m to 1.85m is recommended to be 0.3 to

2.5m. Users may slightly move forward or backward to

improve the character of facial images captured.

SpeedPalm-V5L User Manual

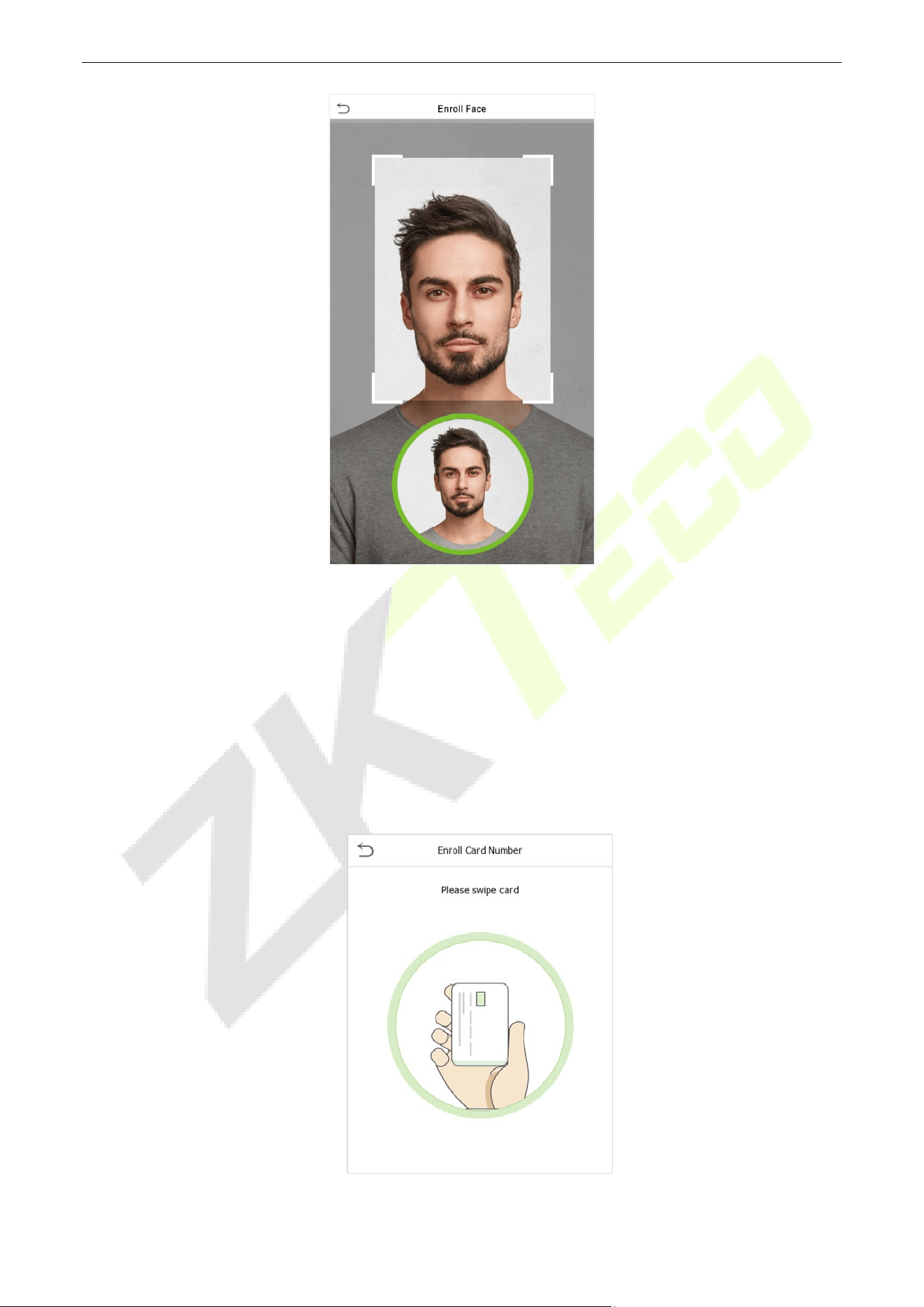

Face Template Registration 1.2

Try to keep the face in the centre of the screen during registration. Please face towards the camera and

stay still during face template registration. The screen should look like this:

Correct Face Registration and Authentication Method

 Recommendation for Registering a Face Template

 When registering a face template, maintain a distance of 40cm to 80cm between the

device and the face.

 Be careful not to change your facial expression. (Smiling face, drawn face, wink, etc.)

 If you do not follow the instructions on the screen, the face template registration may

take longer or may fail.

 Be careful not to cover the eyes or eyebrows.

 Do not wear hats, masks, sunglasses, or eyeglasses.

 Be careful not to display two faces on the screen. Register one person at a time.

 It is recommended for a user wearing glasses to register both faces with and without

glasses.

 Recommendation for Authenticating a Face Template

 Ensure that the face appears inside the guideline displayed on the screen of the device.

 If the glasses have been changed, authentication may fail. If the face without glasses has

been registered, authenticate the face template without glasses further. If the face with

glasses has been registered, authenticate the face with the previously worn glasses.

SpeedPalm-V5L User Manual

 If a part of the face is covered with a hat, a mask, an eye patch, or sunglasses,

authentication may fail. Do not cover the face, allow the device to recognize both the

eyebrows and the face.

Palm Registration 1.3

Place your palm in the palm collection area, such that the palm is placed parallel to the device.

Make sure to keep space between your fingers.

1. Place your palm within 5 to 15 cm of the device.

2. Place your palm in front of the biometric module, such that the palm is placed parallel to the device.

3. Make sure to keep space between your fingers.

Standby Interface 1.4

After connecting the power supply, the following standby interface is displayed:

SpeedPalm-V5L User Manual

 Tap to enter the User ID input interface.

 When there is no Super Administrator set in the device, tap to go to the menu.

 After adding a Super Administrator on the device, it requires the Super Administrator’s verification

before opening the menu functions.

Note: For the security of the device, it is recommended to register a super administrator the first time

you use the device.

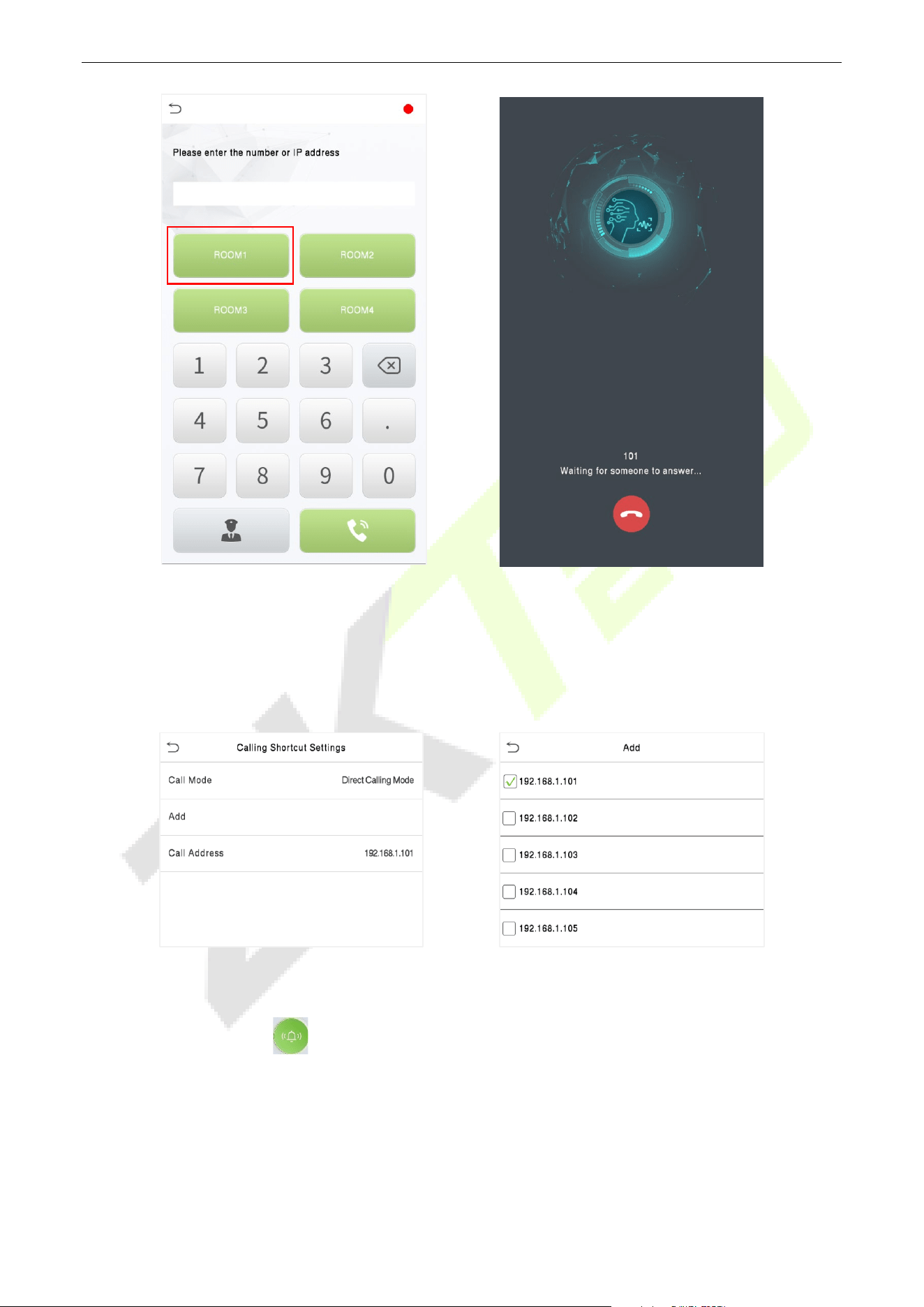

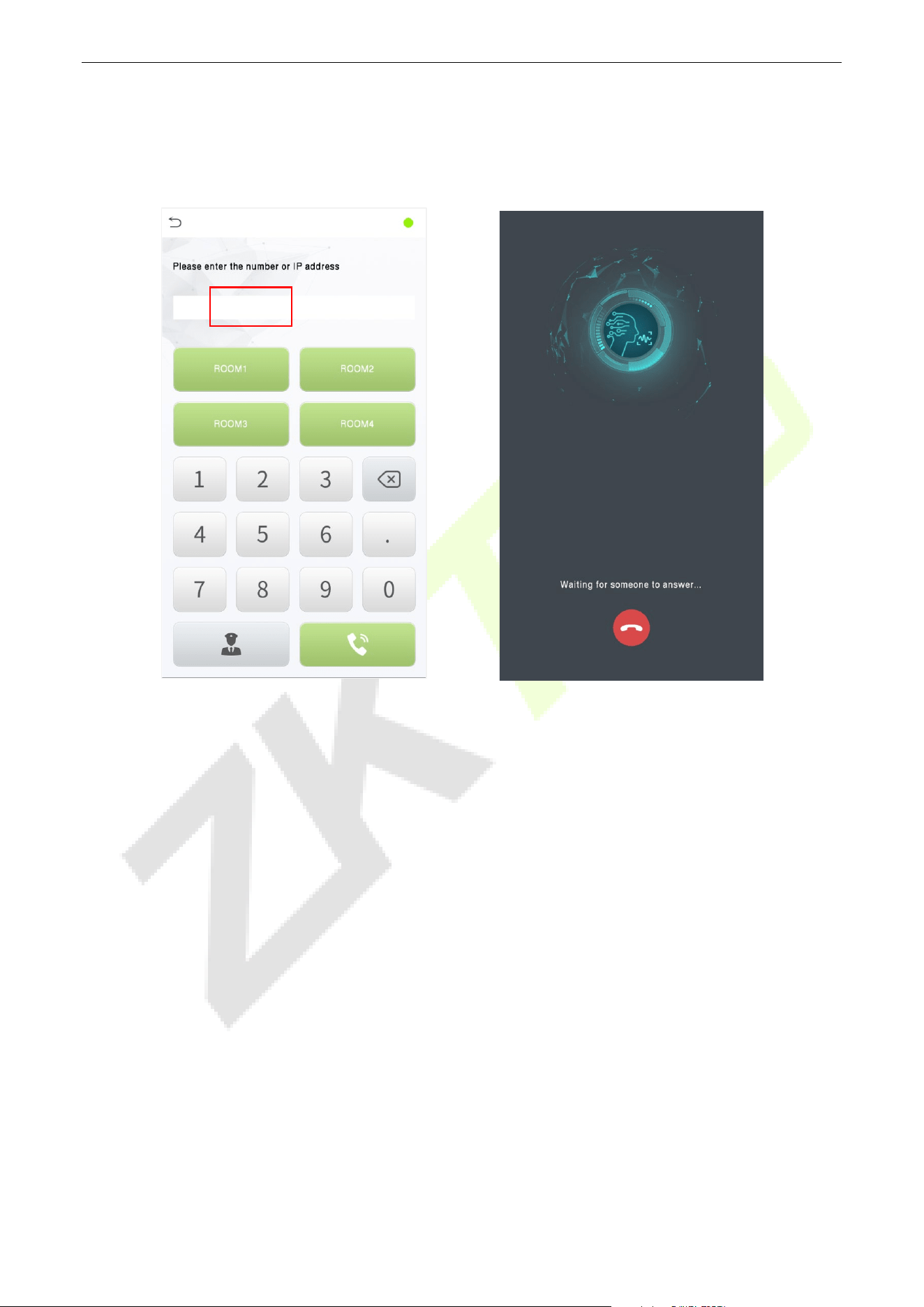

 Visitors tap to make a call and the phone will ring.

 The punch state options can also be displayed and used directly on the standby interface. Tap

anywhere on the screen apart from the icons, and six shortcut keys appears on the screen, as shown in

the figure below:

 Press the corresponding punch state key to select your current punch state, which is displayed in green.

Please refer to "Shortcut Key Mappings" for the specific operation method.

Note: The punch state options are off by default and need to select other mode options in the "Punch

States Options" to get the punch state options on the standby screen.

SpeedPalm-V5L User Manual

Virtual Keyboard 1.5

Note: The device supports the input in English language, numbers, and symbols.

 Tap [123] to switch to the numeric and symbolic keyboard.

 Tap [ABC] to return to the alphabetic keyboard.

 Tap the input box, a virtual keyboard appears.

 Tap [ESC] to exit the virtual keyboard.

SpeedPalm-V5L User Manual

Verification Mode 1.6

1.6.1 Palm Verification

 1: N Palm Verification Mode

In this verification mode, the device compares the palm image collected by the biometric module with all

the palm data in the device.

 1: 1 Palm Verification Mode

Tap the button on the main screen to enter 1:1 palm verification mode.

Input the user ID and tap [OK].

SpeedPalm-V5L User Manual

If the user has registered face template, password and card in addition to his/her palm and the verification

method is set to Password/Face/Palm/Card verification, the following screen will appear. Select the palm

icon to enter palm verification mode.

SpeedPalm-V5L User Manual

1.6.2 Facial Verification

 1:N Facial Verification

Conventional Verification

In this verification mode, the device compares the collected facial images with all face template data

registered in the device. The following is the pop-up prompt of a successful comparison result.

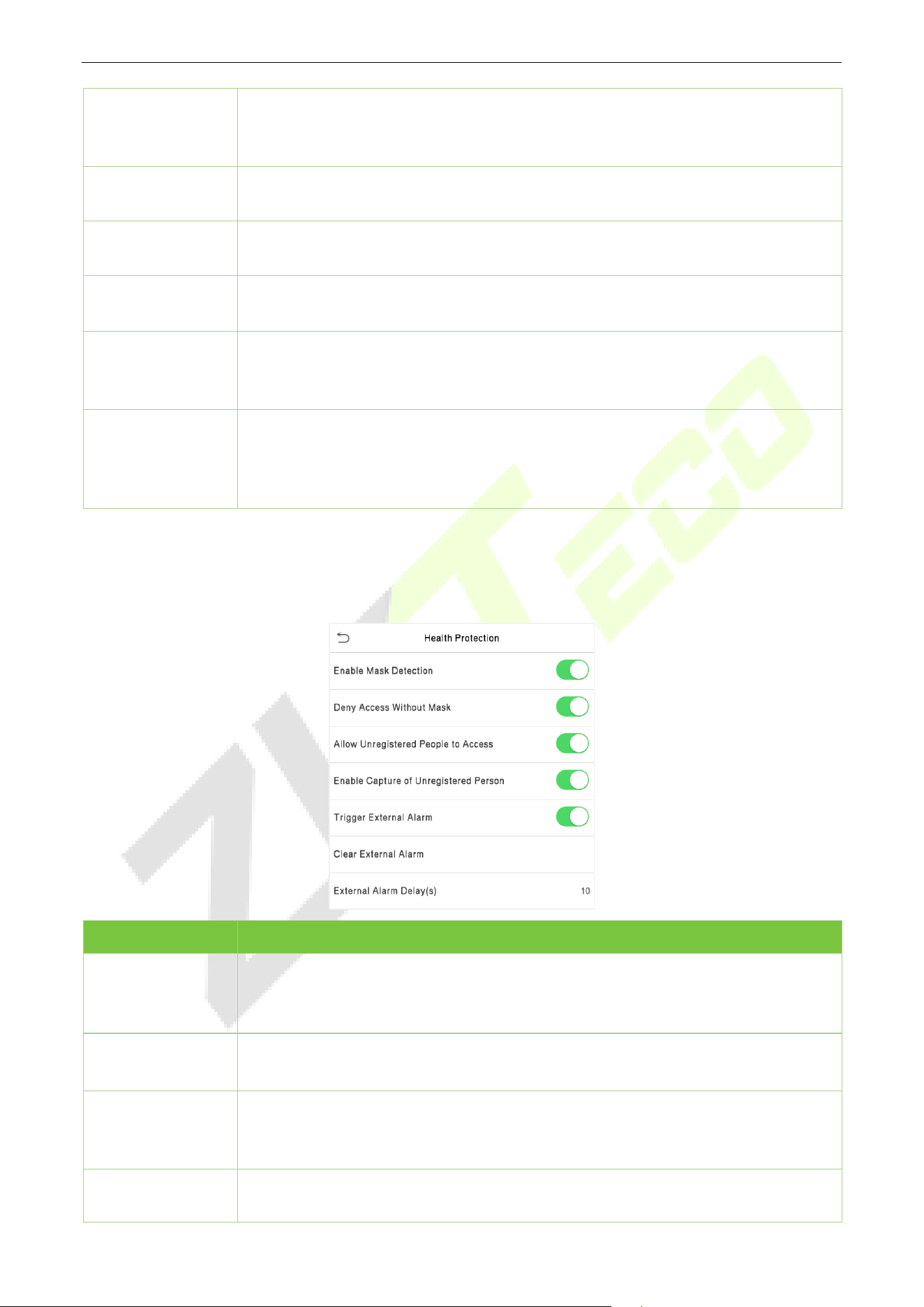

Enable Mask Detection

When the user enables the Enable mask detection function, the device will identify whether the user is

wearing a mask or not while verification. The following are the popups of the comparison result prompt

interface.

SpeedPalm-V5L User Manual

 1:1 Facial Verification

Compare the face captured by the camera with the facial template related to the entered user ID.

Tap on the main interface and enter the 1:1 facial verification mode.

Enter the user ID and tap [OK].

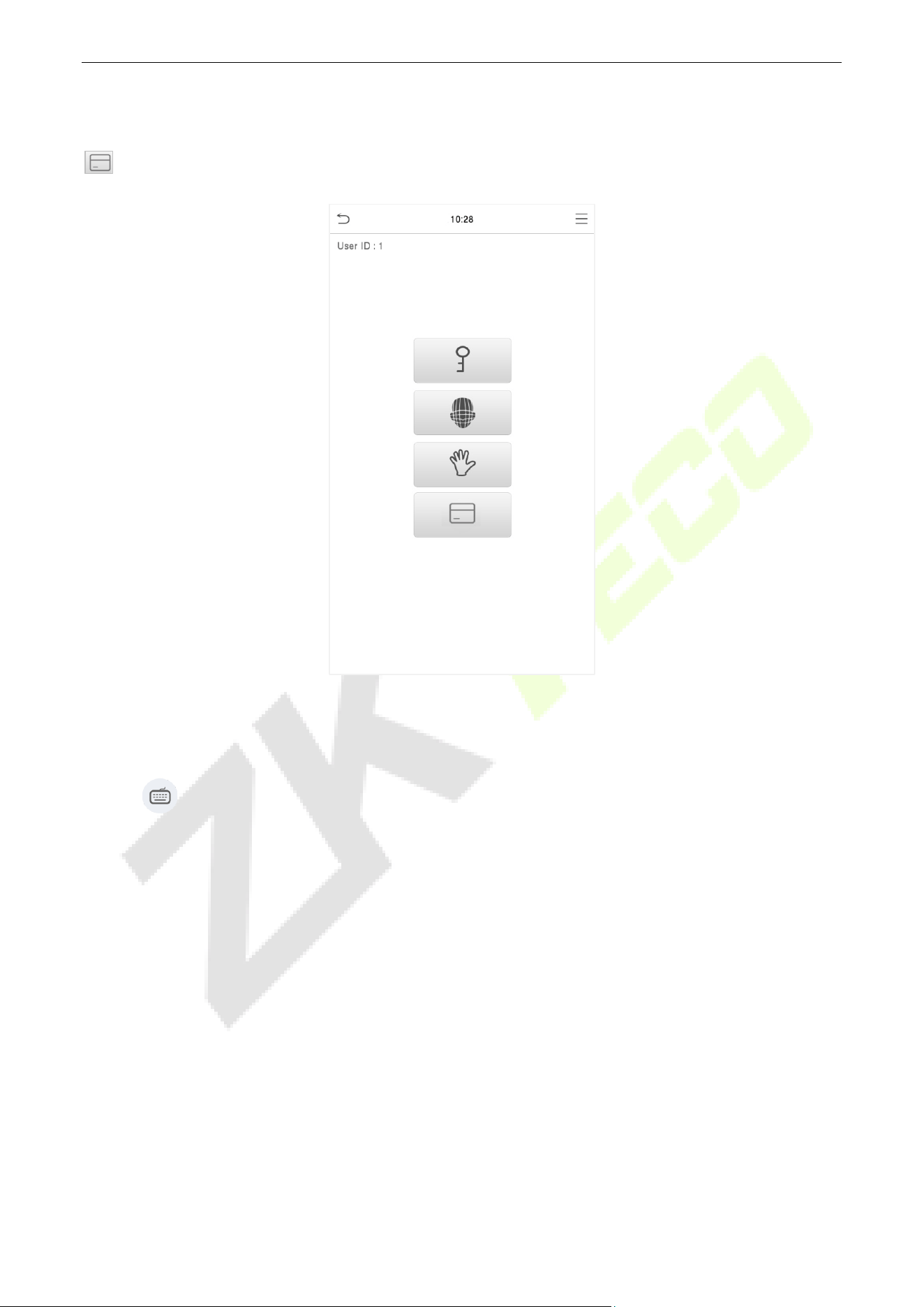

If the user has registered password, palm and card in addition to his/her face template and the verification

method is set to Password/Face/Palm/Card verification, the following screen will appear. Select the face

icon to enter face verification mode.

SpeedPalm-V5L User Manual

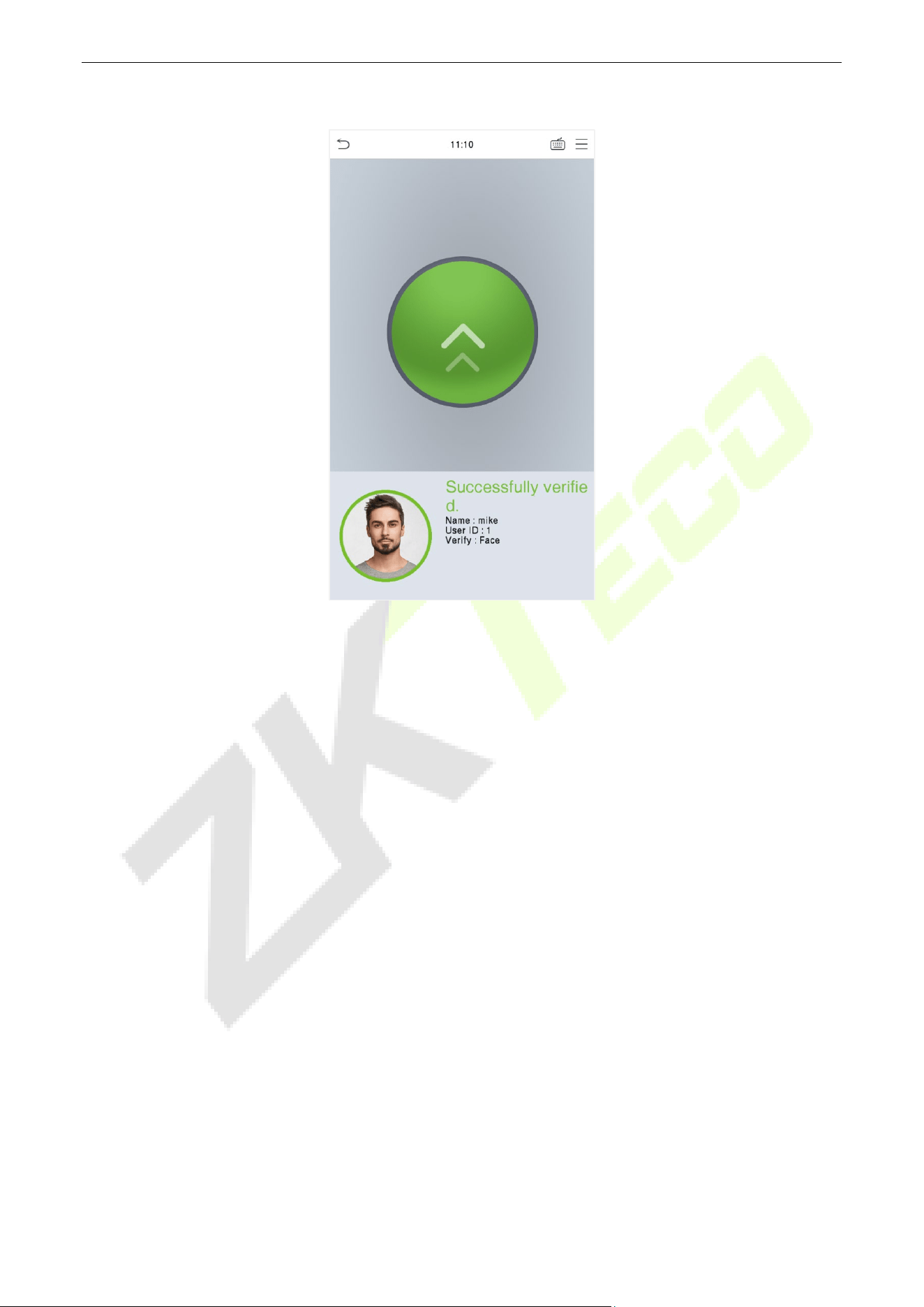

After successful verification, the prompt box displays "Successfully Verified", as shown below:

If the verification is failed, it prompts "Please adjust your position!".

1.6.3 Card Verification

 1:N Card Verification

The 1: N Card Verification mode compares the card number in the card induction area with all the card

number data registered in the device; The following is the card verification screen.

SpeedPalm-V5L User Manual

 1:1 Card Verification

The 1:1 Card Verification mode compares the card number in the card induction area with the number

associated with the employee's User ID registered in the device.

Tap on the main interface and enter the 1:1 card verification mode.

Enter the user ID and tap [OK].

SpeedPalm-V5L User Manual

If the user has registered face template, password and palm in addition to his/her card and the verification

method is set to Password/Face/Palm/Card verification, the following screen will appear. Select the card

icon to enter card verification mode.

1.6.4 Password Verification

The device compares the entered password with the registered password of the given User ID.

Tap the button on the main screen to enter the 1:1 password verification mode. Then, input the user

ID and tap [OK].

SpeedPalm-V5L User Manual

If the user has registered face template, palm and card in addition to his/her password and the verification

method is set to Password/Face/Palm/Card verification, the following screen will appear. Select the

password icon to enter password verification mode.

SpeedPalm-V5L User Manual

Input the password and tap [OK].

Following are the display screen after entering a correct password and a wrong password respectively.

Verification is successful:

Verification is failed:

SpeedPalm-V5L User Manual

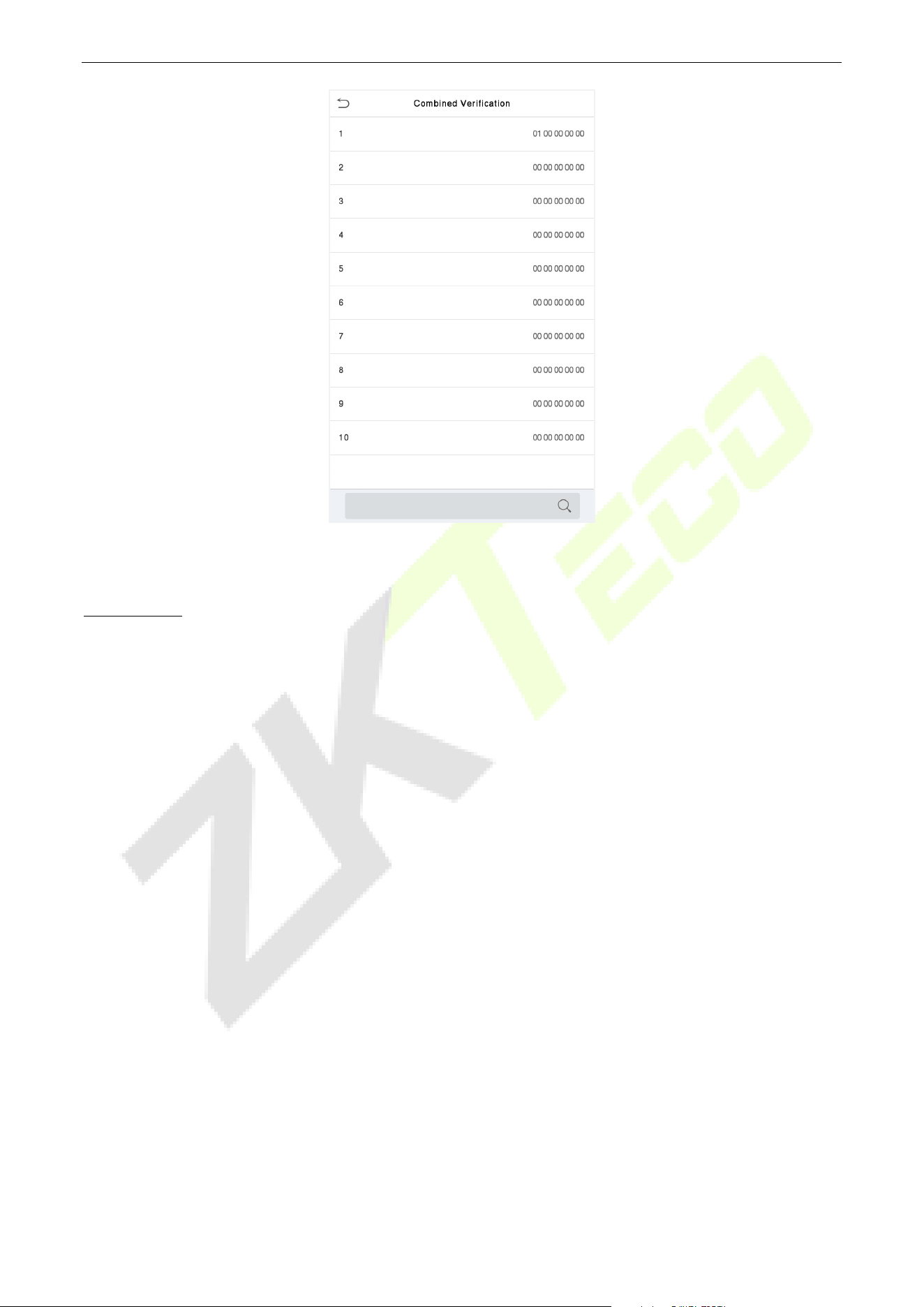

1.6.5 Combined Verification

This device allows you to use a variety of verification methods to increase security. There are a total of 13

distinct verification combinations that can be implemented, as listed below:

Combined Verification Symbol Definition

Symbol Definition Explanation

This method compares the entered verification of a person with the related

verification template previously stored to that Personnel ID in the Device.

and

This method compares the entered verification of a person with all the

verification templates previously stored to that Personnel ID in the Device.

Procedure to Set for Combined Verification Mode

 Combined verification requires personnel to register all the different verification methods. Otherwise,

employees will not be able to successfully verify the combined verification process.

 For instance, when an employee has registered only for the face template data, but the Device

verification mode is set as “Face + Password”, the employee will not be able to complete the

verification process successfully.

 This is because the Device compares the face template of the person with the registered verification

template (both the Face and the Password) previously stored to that Personnel ID in the Device.

 But as the employee has registered only the face template but not the Password, the verification will

not get completed and the Device displays “Verification Failed”.

SpeedPalm-V5L User Manual

2 Overview

Appearance 2.1

SpeedPalm-V5L User Manual

Wiring Description 2.2

 Power Connection

Recommended power supply

 Rating of 12V and 3A

 To share the power with other devices, use an AC Adapter with higher current ratings.

 Ethernet Connection

Connect the device and computer software over an Ethernet cable. As shown in the example below:

Tap on [COMM.] > [Ethernet] > [IP Address], input the IP address and tap on [OK].

Note: In LAN, the IP addresses of the server (PC) and the device must be in the same network segment

when connecting to the ZKBio CVAccess/ZKBio Time /ZKBio CVSecurity software.

SpeedPalm-V5L User Manual

 Wiegand Reader Connection

 RS485 and RS232 Connection

★

The RS485 and the RS232 lets user connect to multiple readers to the device. The RS232 and RS485 can be

connected to the terminal, as shown in the figure below.

 Door Sensor, Exit Button & Auxiliary Connection

SpeedPalm-V5L User Manual

 Lock Relay Connection

The system supports both Normally Opened Lock and Normally Closed Lock. The NO Lock (normally

opened when powered) is connected with 'NO1' and 'COM' terminals, and the NC Lock (normally closed

when powered) is connected with 'NC1' and 'COM' terminals. The power can be shared with the lock or

can be used separately for the lock, as shown in the example with NC Lock below:

SpeedPalm-V5L User Manual

3 Installation

Installation Environment 3.1

Please refer to the following recommendations for installation.

 Avoid direct contact to sunlight for a long time.

 Protect the device from moisture, water, and rain.

 Handle the device with care.

 Ensure that the device is not installed near the sea or in other locations where metal

oxidation and rust may develop if the device is exposed for an extended period.

 Protect the device from lightning.

 Avoid using the device in acidic or alkaline environments for extended periods.

How to Install the Device on the Wall? 3.2

1. Stick the mounting template to the wall and drill holes according to the mounting template.

SpeedPalm-V5L User Manual

2. Insert the expansion tubes into the mounting holes.

3. Attach the backplate on the wall using the wall mounting screws.

4. Attach the terminal to the backplate.

SpeedPalm-V5L User Manual

5. Fasten the terminal to the backplate with a security screw.

SpeedPalm-V5L User Manual

4 Main Menu

Tap on the initial interface to enter the main menu, as shown below:

Menu Description

User Mgt. To add, edit, view, and delete the basic information about a user.

User Role

To set the permission scope

of the custom role, that is, the rights to

operate the system.

COMM.

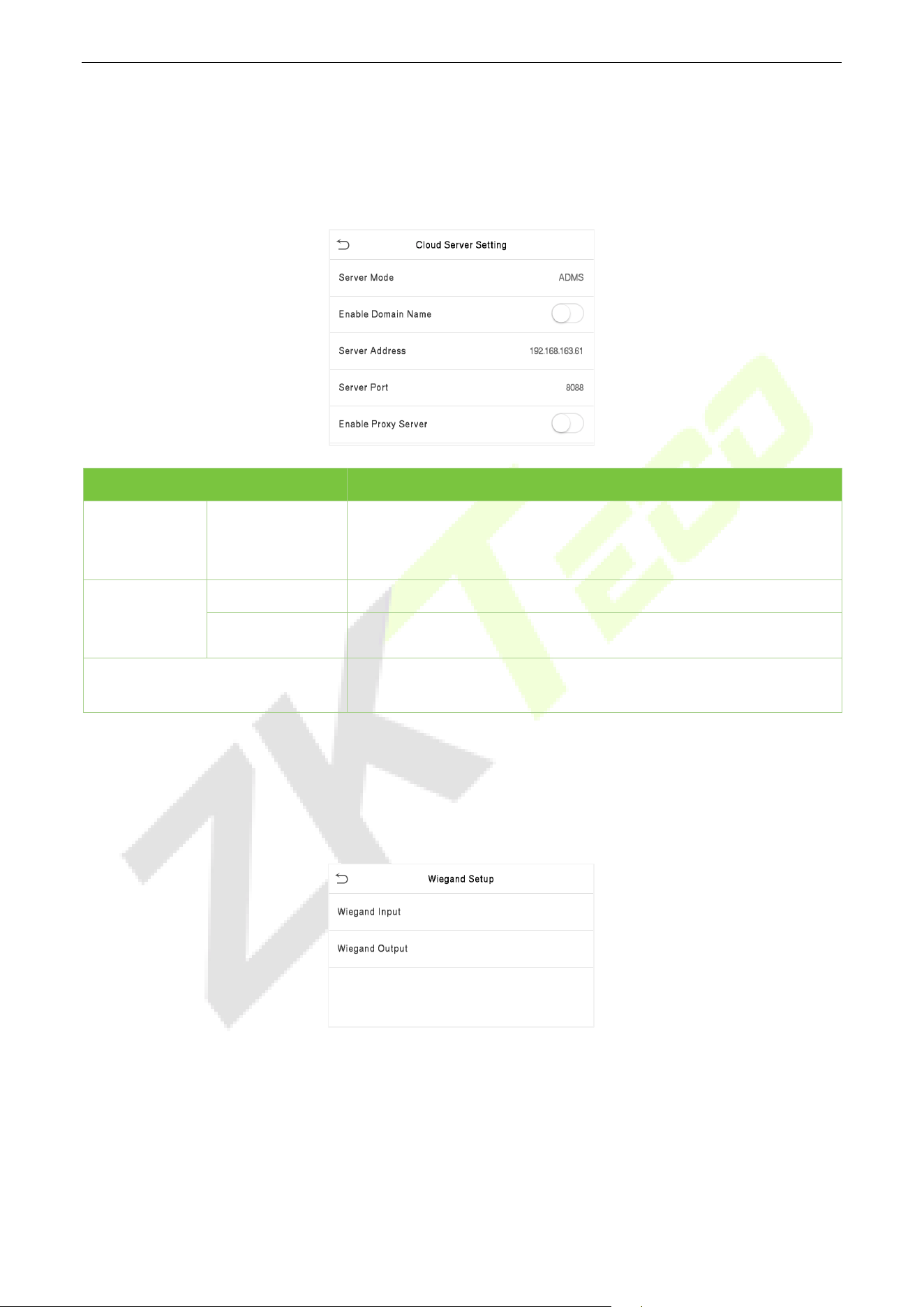

To set the relevant parameters of the network, PC Connection, Wi-Fi, Cloud

Server, Wiegand and Network Diagnosis.

System

To set the parameters related to the system, including Date Time, Tap-To-

Unlock, Attendance/Access Logs, Facial and Palm templates, Resetting to

factory settings, Security Settings, Update Firmware Online, Device Type

Setting and Health Protection.

Personalize

To customize settings of User Interface, Voice, Bell Schedules, Punch State

Options and Shortcut Key Mappings settings.

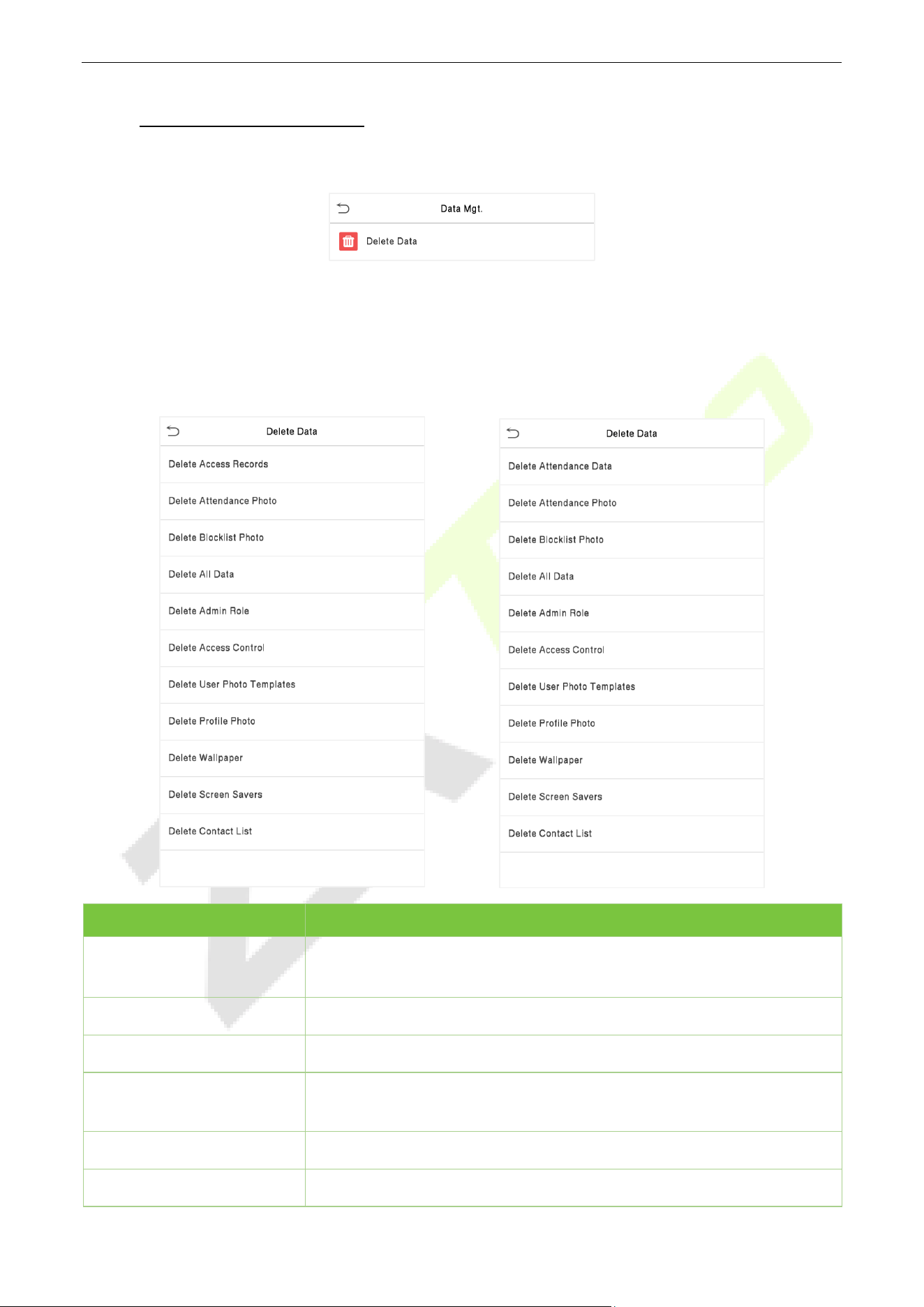

Data Mgt. To delete all the relevant data in the device.

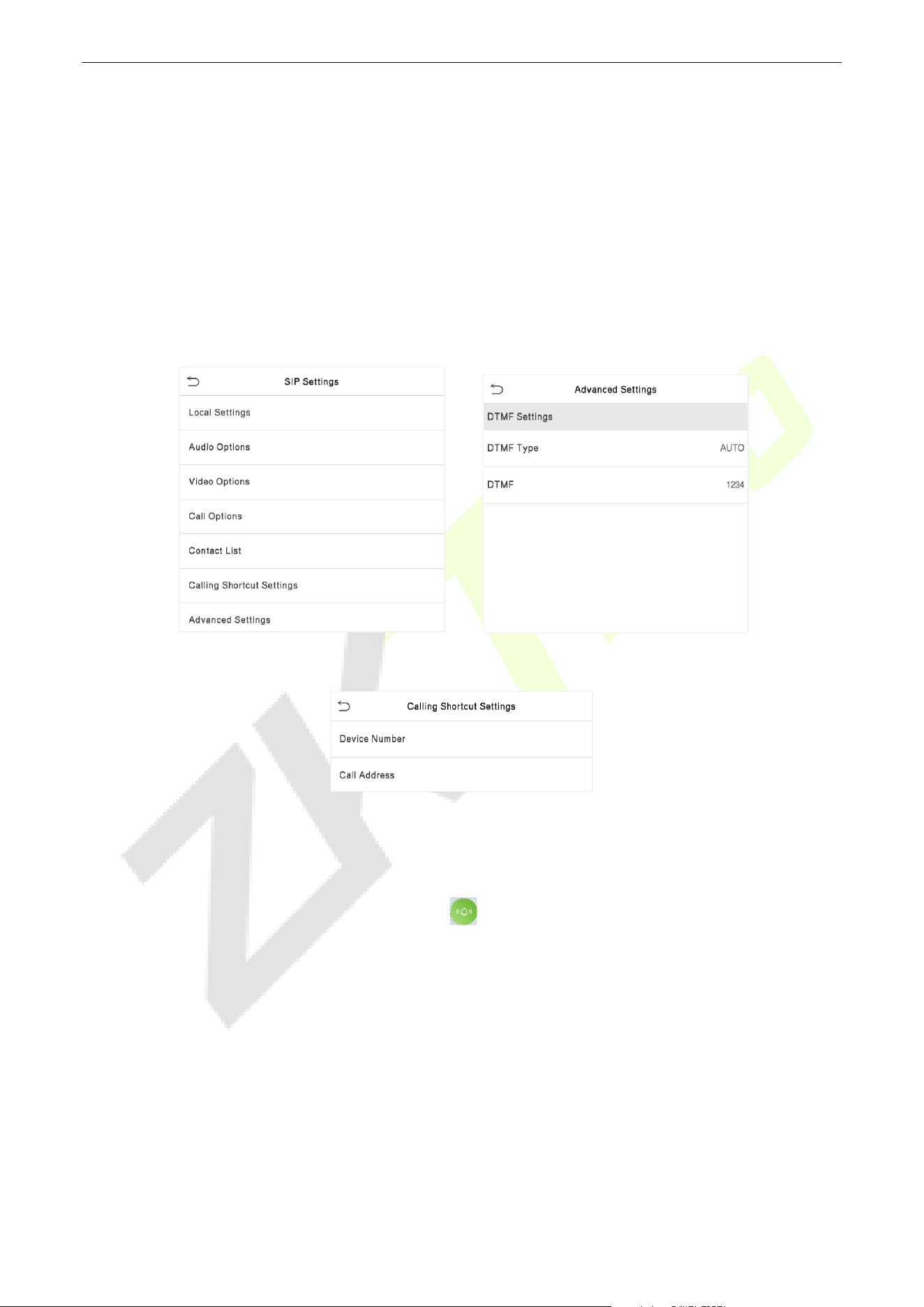

Intercom To set the parameters related to the SIP.

Access Control

To set the parameters of the lock and the relevant access control device

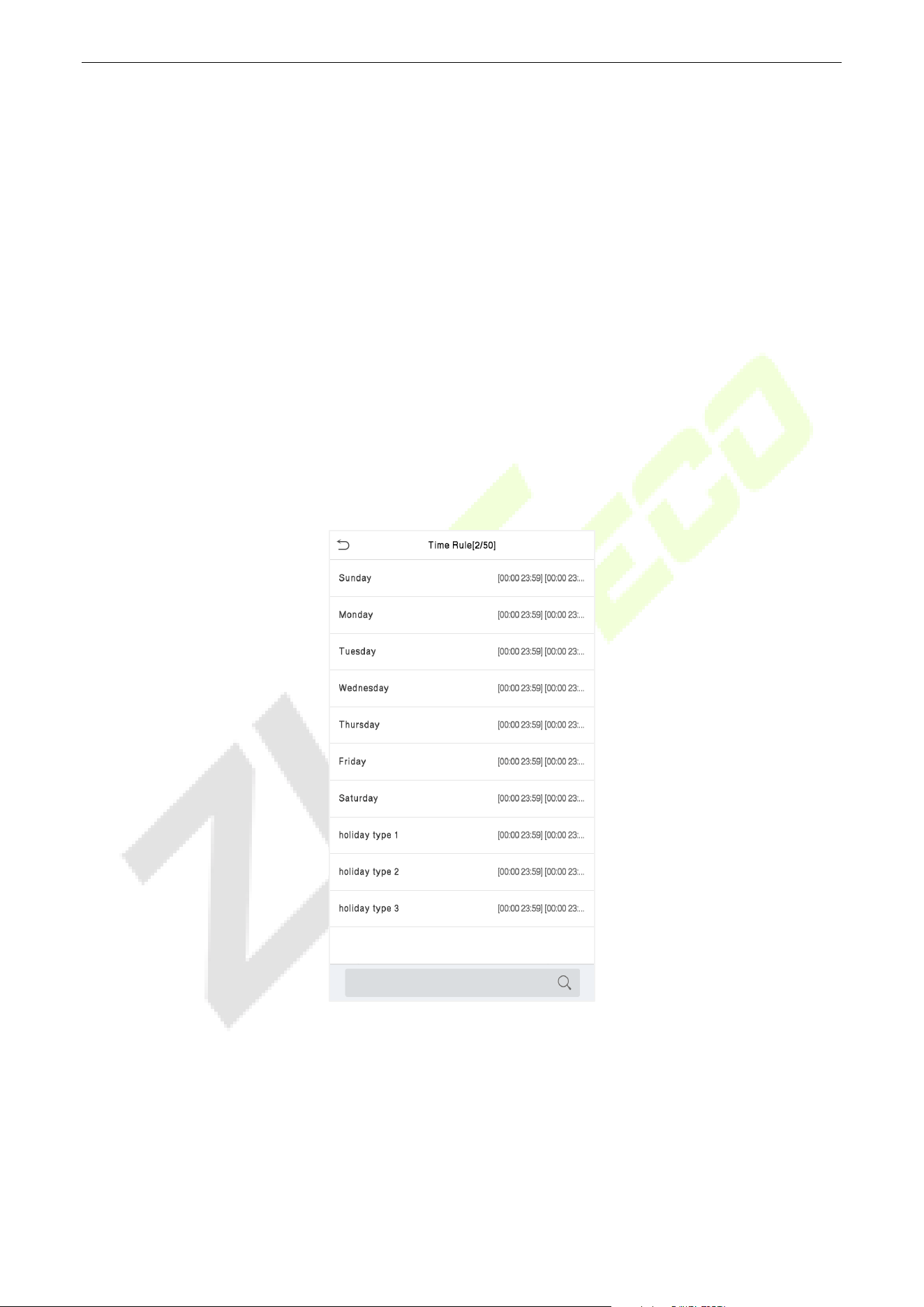

including options like Time Rule Setting/Time Schedule, Holiday Settings,

Access Groups, Combine Verification, Anti-

passback Setup and Duress

Option Settings.

Attendance Search

To query the specified attendance record, check Attendance Photos and

Blocklist attendance photos.

SpeedPalm-V5L User Manual

Autotest

To automatically test whether each module functions properly, including

the screen, audio, microphone, camera, palm and real-time clock.

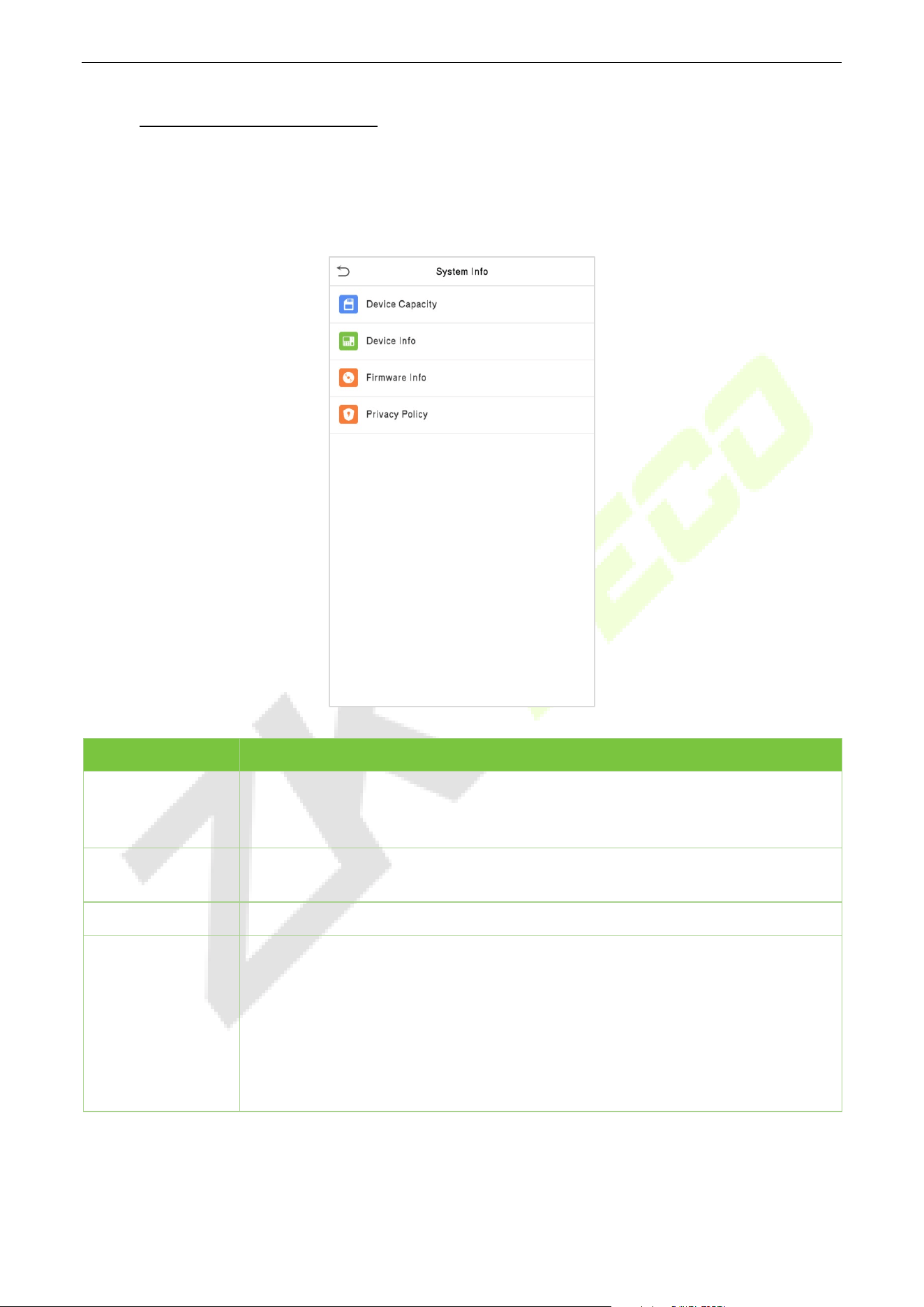

System Info

To view the data capacity, device and firmware information and privacy

policy of the device.

Note: When users use the product for the first time, they should operate it after setting administrator

privileges. Tap User Mgt. to add an administrator or edit user permissions as a super administrator. If the

product does not have an administrator setting, the system will show an administrator setting command

prompt every time you enter the device menu.

SpeedPalm-V5L User Manual

5 User Management

User Registration 5.1

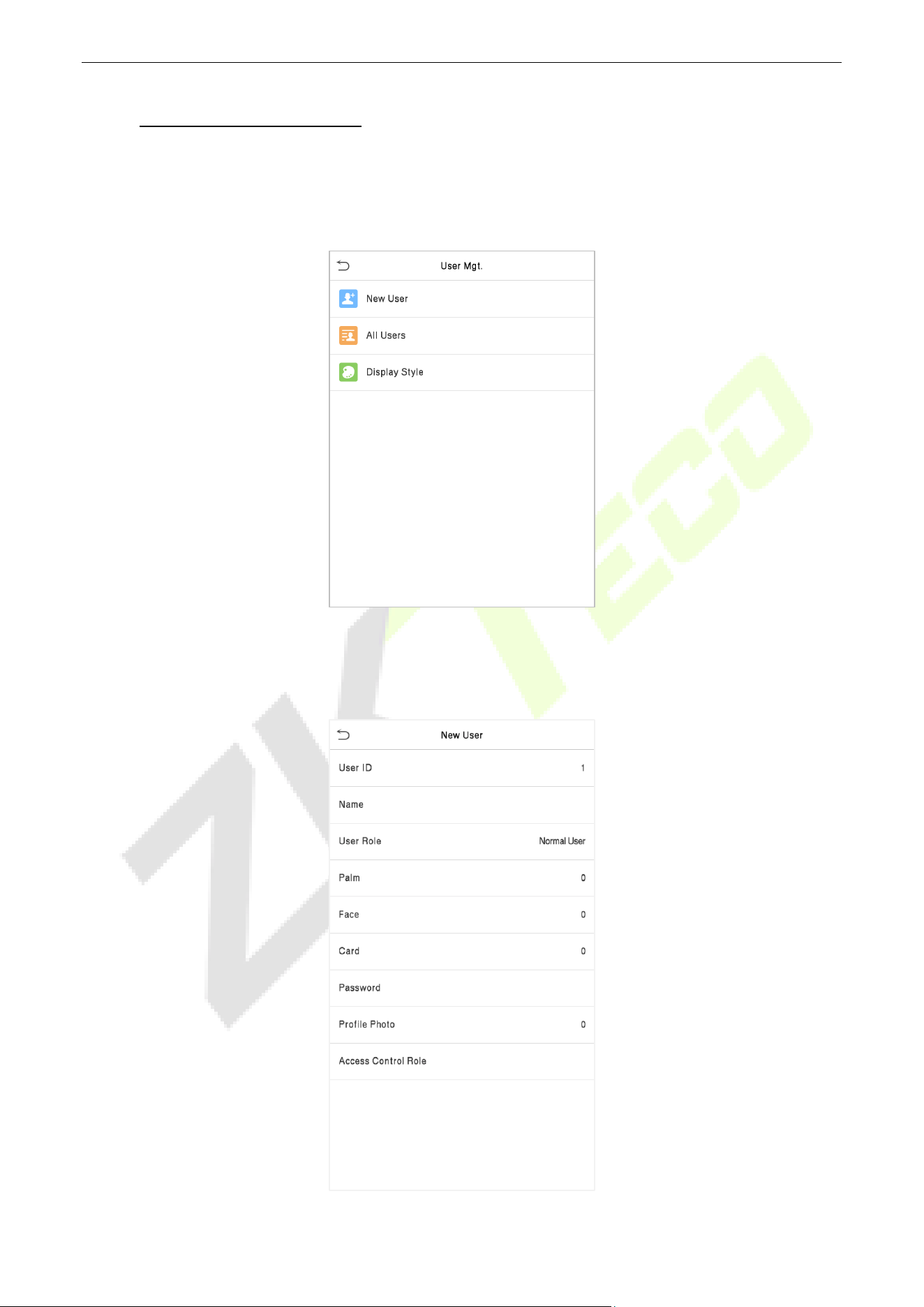

Tap [User Mgt.] on the Main Menu interface.

5.1.1 Register a User ID and Name

Tap [New User] and enter the User ID and Name.

SpeedPalm-V5L User Manual

Note:

 A name can take up to 34characters.

 The user ID may contain 1-14 digits by default, supporting both numbers and alphabetic characters.

 You can modify your ID during the initial registration but not after registration.

 If a message "Duplicated!" pops up, you must choose another ID as the entered User ID already exists.

5.1.2 Setting the User Role

On the New User interface, tap on [User Role] to set the user’s duty as either Normal User or Super

Admin.

Tap [User Role] to select Normal User or Super Admin.

 Super Admin: The Super Administrator owns all management privileges in the Device.

 Normal User: If the Super Admin is registered already in the device, then the Normal Users will not

have the privilege to manage the system and can only access authentic verifications.

 User Defined Roles: The Normal User can also be assigned custom roles with User Defined Role. The

user can be permitted to access several menu options as required.

Note: If the selected user role is the Super Admin, the user must pass the identity authentication to access

the main menu. The authentication is based on the authentication method(s) that the super administrator

has registered. Please refer to "Verification Mode".

5.1.3 Register Palm

Tap [Palm] in the New User interface to enter the palm registration page.

 Please place your palm inside the guiding box and keep it still while registering.

 A progress bar shows up while registering the palm and a “Enrolled Successfully” is displayed as the

progress bar completes.

If the palm is registered already then, the “Palm repeated” message shows up. The registration interface is

as follows:

SpeedPalm-V5L User Manual

5.1.4 Register Face Template

Tap [Face] in the New User interface to enter the face registration page.

 Please face towards the camera and place yourself in such a way that your face image fits inside the

white guiding box and stays still during face registration.

 A progress bar shows up while registering the face and then "Enrolled Successfully" message is

displayed as the progress bar completes.

 If the face is registered already then, the "Duplicated Face" message shows up. The registration

interface is as follows:

SpeedPalm-V5L User Manual

5.1.5 Register Card Number

Tap [Card] in the New User interface to enter the card registration page.

 On the Card interface, swiping card underneath the card reading area. The card registration will be

successful.

 If the card is registered already then the “Duplicate Card” message shows up. The registration interface

is as follows:

SpeedPalm-V5L User Manual

5.1.6 Register Password

Tap [Password] in the New User interface to enter the password registration page.

 On the Password interface, enter the required password and re-enter to confirm it and tap [OK].

 If the re-entered password is different from the initially entered password, then the device prompts the

message as "Password does not match!", where the user needs to re-confirm the password again.

 The password may contain 1 to 8 digits by default.

5.1.7 Register Profile Photo

Tap [Profile Photo] in the New User interface to enter the profile photo registration page.

 When a user registered with a photo passes the authentication, the registered photo will be displayed.

 Tap [Profile Photo], the device’s camera will open, then tap the camera icon to take a photo. The

captured photo is displayed on the top left corner of the screen and the camera opens up again to take

a new photo, after taking the initial photo.

Note: While registering a face, the system automatically captures a photo as the user photo. If you do not

photo.

SpeedPalm-V5L User Manual

5.1.8 Access Control Role

The [Access Control Role] sets the door access privilege for each user. It includes the access group,

verification mode and it facilitates setting the group access time period.

Access Control Terminal: Time Attendance Terminal:

 Tap [Access Control Role] > [Access Group] to assign the registered users to different groups for

better management. New users belong to Group 1 by default and can be reassigned to other groups.

The device supports up to 99 Access Control groups.

 Tap [Time Period], to select the time to use.

 Select verification mode for the user, tap [Access Control Role] > [Verification Mode].

 Select whether to apply the group time period for this user. It is enabled by default. If the group time

period is not applied, you need to set the unlocking time for this user. The time period of this user does

not affect the time period of any other member in this group. To set the unlocking time for this user,

tap [Apply Group Time Period] > [Time Period 1]. Enter the Time Period number and tap [OK]. 50

time periods can be set in the device and three time periods can be set for each user. For details, see

Time Schedule Settings.

SpeedPalm-V5L User Manual

Search User 5.2

On the Main Menu, tap [User Mgt.], and then tap [All Users] to search a User.

 On the All Users interface, tap on the search bar on the user’s list to enter the required retrieval

keyword (where the keyword may be the user ID, surname, or full name) and the system will search for

the related user information.

Edit User 5.3

On the All-Users interface, tap on the required user from the list and tap [Edit] to edit the user information.

Note: The process of editing the user information is the same as adding a new user, except that the User ID

cannot be modified when editing a user. The process in detail refers to "User Registration".

SpeedPalm-V5L User Manual

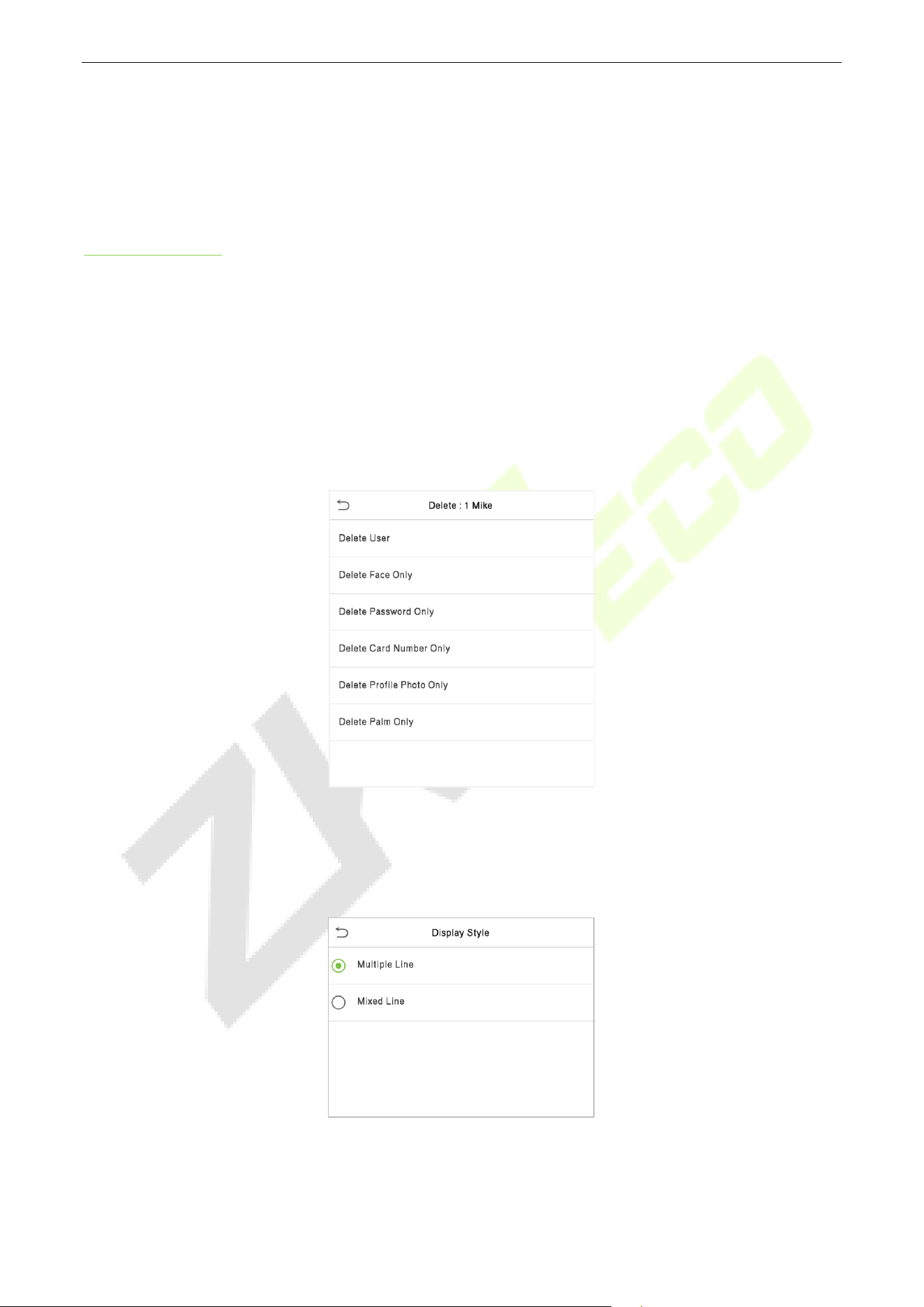

Deleting User 5.4

On the All-Users interface, tap on the required user from the list and tap [Delete] to delete the user or

specific user information from the device. On the Delete interface, tap on the required operation, and then

tap [OK] to confirm the deletion.

Delete Operations

 Delete User: Deletes all the user information (deletes the selected User as a whole) from the Device.

 Delete Face Only: Deletes the face information of the selected user.

 Delete Password Only: Deletes the password information of the selected user.

 Delete Card Only: Deletes the card information of the selected user.

 Delete Profile Photo Only: Deletes the profile photo of the selected user.

 Delete Palm Only: Deletes the palm information of the selected user.

Display Style 5.5

On the Main Menu, tap [User Mgt.], and then tap [Display Style] to enter Display Style setting interface.

SpeedPalm-V5L User Manual

All the Display Styles are shown as below:

Multiple Line:

Mixed Line:

SpeedPalm-V5L User Manual

6 User Role

User Role facilitates to assign some specific permissions to certain users, based on the requirement.

 On the Main menu, tap [User Role], and then tap on the User Defined Role to set the user defined

permissions.

 The permission scope of the custom role can be set up into 3 roles, that is, the custom operating

scope of the menu functions of the user.

 On the User Defined Role interface, toggle Enable Defined Role to enable or disable the user

defined role.

 Tap on [Name] and enter the custom name of the role.

 Then, by tapping on Define User Role, select the required privileges for the new role, and then tap

the Return button.

 During privilege assignment, the main menu function names will be displayed on the left and its sub-

menus will be listed on the right.

 First tap on the required Main Menu function name, and then select its required sub-menus from the

list.

SpeedPalm-V5L User Manual

Note: If the User Role is enabled for the device, tap on [User Mgt.] > [New User] > [User Role] to assign

the created roles to the required users. But if there is no super administrator registered in the device, then

the device will prompt "Please enroll super admin first!" when enabling the User Role function.

SpeedPalm-V5L User Manual

7 Communication Settings

Communication Settings are used to set the parameters of the Network, PC Connection, Wi-Fi, Cloud server,

Wiegand and Network Diagnosis.

Tap [COMM.] on the Main Menu.

Network Settings 7.1

When the device needs to communicate with a PC over the Ethernet, you need to configure network

settings and ensure that the device and the PC are connecting to the same network segment.

Tap [Ethernet] on the Comm. Settings interface to configure the settings.

Function Name Descriptions

Display in Status Bar

To set whether to display the network icon on the status bar.

IP Address

The factory default value is 192.168.1.201. Please set the IP Address as per the

requirements.

Subnet Mask

The factory

default value is 255.255.255.0. Please set the value as per the

requirements.

Gateway

The factory default address is 0.0.0.0. Please set the value as per the

requirements.

SpeedPalm-V5L User Manual

DNS

The factory default address is 0.0.0.0. Please set the value as per the

requirements.

TCP COMM. Port

The factory default value is 4370. Please set the value as per the requirements.

DHCP

Dynamic Host Configuration Protocol, which is to dynamically allocate IP

addresses for clients via server.

PC Connection 7.2

Comm Key facilitates to improve the security of data by setting the communication between the device

and the PC. Once the Comm Key is set, a password is required to connect the device to the PC software.

Tap [PC Connection] on the Comm. Settings interface to configure the communication settings.

Function Name Descriptions

Device ID

The default password is 0 and can be changed.

The Comm Key can contain 1-6 digits.

TCP COMM. Port

The factory default value is 4370. Please set the value as per the requirements.

HTTPS

To increase the security of software access, users can enable the HTTPS protocol

to create a secure and encrypted network transmission and assure the security of

sent data through identity authentication and encrypted communication.

This function is enabled by default. This function can be enabled or disabled

through the menu interface, and when changing the HTTPS status, the device

will pop up a security prompt, and restart after confirmation.

Wireless Network 7.3

The device provides a Wi-Fi module, which can be built-in within the device mould or can be externally

connected.

The Wi-Fi module enables data transmission via Wi-Fi (Wireless Fidelity) and establishes a wireless network

environment. Wi-Fi is enabled by default in the device. If you don't need to use the Wi-Fi network, you can

toggle the Wi-Fi to disable button.

Tap [Wi-Fi Settings] on the Comm. Settings interface to configure the Wi-Fi settings.

SpeedPalm-V5L User Manual

Wi-Fi is enabled in the Device by default. Toggle on button to enable or disable Wi-Fi.

Once the Wi-Fi is turned on, the device will search for the available Wi-Fi within the network range.

Tap on the appropriate Wi-Fi name from the available list, and input the correct password in the password

interface, and then tap [Connect to Wi-Fi (OK)].

When the Wi-Fi is connected successfully, the initial interface will display the Wi-Fi logo.

WIFI Enabled: Tap on the required network

from the searched network list.

Tap on the password field to enter the password,

and then tap on Connect to Wi-Fi (OK).

SpeedPalm-V5L User Manual

 Add Wi-Fi Network Manually

The Wi-Fi can also be added manually if the required Wi-Fi is not displayed on the list.

Note: After successfully adding the Wi-Fi manually, follow the same process to search for the added Wi-Fi

name.

 Advanced Setting

On the Wireless Network interface, tap on Advanced to set the relevant parameters as required.

Function Name Description

DHCP

Dynamic Host Configuration Protocol (DHCP) dynamically allocates IP addresses

to network clients. If the DHCP is enabled, then the IP cannot be set manually.

IP Address

IP address for the Wi-Fi

network, the default is 0.0.0.0. It can be modified

according to the network availability.

Subnet Mask

The default Subnet Mask of the Wi-Fi network is 255.255.255.0. It can be modified

according to the network availability.

Gateway

The default Gateway address is 0.0.0.0. Can be modified according to the network

availability.

DNS

The default DNS address is 0.0.0.0. It can be modified according to the network

availability.

Tap on Add WIFI Network to add the Wi-Fi

manually.

On this interface, enter the Wi-Fi network

parameters. (The added network must exist.)

SpeedPalm-V5L User Manual

Cloud Server Setting 7.4

This represents the settings used for connecting the ADMS server.

Tap [Cloud Server Setting] on the Comm. Settings interface.

Function Name

Description

Enable

Domain

Name

Server Address

Once this mode is turned ON, the domain name mode "http://..."

will be used, such as http://www.XYZ.com, while "XYZ" denotes the

domain name.

Disable

Domain

Name

Server Address

The IP address of the ADMS server.

Server Port

Port used by the ADMS server.

Enable Proxy Server

The IP address and the port number of the proxy server is set

manually when the proxy is enabled.

Wiegand Setup 7.5

It is used to set the Wiegand input and output parameters.

Tap [Wiegand Setup] on the Comm. Settings interface to set the Wiegand input and output parameters.

SpeedPalm-V5L User Manual

7.5.1 Wiegand Input

Function Name Descriptions

Wiegand Format

Its value can be 26 bits, 34 bits, 36 bits, 37 bits, 50 bits and 64 bits.

Wiegand Bits

The number of bits of the Wiegand data.

Pulse Width (us)

The value of the pulse width sent by Wiegand is 100 microseconds by default,

which can be adjusted within the range of 20 to 400 microseconds.

Pulse Interval (us)

The default value is 1000 microseconds and can be adjusted within the range of

200 to 20000 microseconds.

ID Type

Select between the User ID and card number.

Various Common Wiegand Format Description

Wiegand Format Description

Wiegand26

ECCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 26 bits of binary code. The 1

bit is the even parity bit of the 2

to 13

bits, while the 26

bit is the odd parity bit of the 14

to 25

bits. The 2

to 25

bits

is the card numbers.

Wiegand26a

ESSSSSSSSCCCCCCCCCCCCCCCCO

It consists of 26 bits of binary code. The 1

bit is the even parity bit of the 2

to 13

bits, while the 26

bit is the odd parity bit of the 14

to 25

bits. The 2

to 9

bits

is the site codes, while the 10

to 25

bits are the card numbers.

Wiegand34

ECCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 34 bits of binary code. The 1

bit is the even parity bit of the 2

to 17

bits, while the 34

bit is the odd parity bit of the 18

to 33

bits. The 2

to 25

bits

is the card numbers.

Wiegand34a

ESSSSSSSSCCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 34 bits of binary code. The 1

bit is the even parity bit of the 2

to 17

bits, while the 34

bit is the odd parity bit of the 18

to 33

bits. The 2

to 9

bits

is the site codes, while the 10

to 25

bits are the card numbers.

SpeedPalm-V5L User Manual

Wiegand36

OFFFFFFFFFFFFFFFFCCCCCCCCCCCCCCCCMME

It consists of 36 bits of binary code. The 1

bit is the odd parity bit of the 2

to 18

bits, while the 36

bit is the even parity bit of the 19

to 35

bits. The 2

to 17

bits is the device codes. The 18

to 33

bits is the card numbers, and the 34

bits are the manufacturer codes.

Wiegand36a

EFFFFFFFFFFFFFFFFFFCCCCCCCCCCCCCCCCO

It consists of 36 bits of binary code. The 1

bit is the even parity bit of the 2

to 18

bits, while the 36

bit is the odd parity bit of the 19

to 35

bits. The 2

to 19

bits

is the device codes, and the 20

to 35

bits are the card numbers.

Wiegand37

OMMMMSSSSSSSSSSSSCCCCCCCCCCCCCCCCCCCE

It consists of 37 bits of binary code. The 1

bit is the odd parity bit of the 2

to 18

bits, while the 37

bit is the even parity bit of the 19

to 36

bits. The 2

to 4

bits

is the manufacturer codes. The 5

to 16

bits is the site codes, and the 21

to 36

bits are the card numbers.

Wiegand37a

EMMMFFFFFFFFFFSSSSSSCCCCCCCCCCCCCCCCO

It consists of 37 bits of binary code. The 1

bit is the even parity bit of the 2

to 18

bits, while the 37

bit is the odd parity bit of the 19

to 36

bits. The 2

to 4

bits

is the manufacturer codes. The 5

to 14

bits is the device codes, and15

to 20

bits are the site codes, and the 21

to 36

bits are the card numbers.

Wiegand50

ESSSSSSSSSSSSSSSSCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 50 bits of binary code. The 1

bit is the even parity bit of the 2

to 25

bits, while the 50

bit is the odd parity bit of the 26

to 49

bits. The 2

to 17

bits

is the site codes, and the 18

to 49

bits are the card numbers.

"C" denotes the card number; "E" denotes the even parity bit; "O" denotes the odd parity bit; "F"

denotes the facility code; "M" denotes the manufacturer code; "P" denotes the parity bit; and "S"

denotes the site code.

SpeedPalm-V5L User Manual

7.5.2 Wiegand Output

Function Name Descriptions

SRB

When SRB is enabled, the lock is controlled by the SRB to prevent the lock

from opening due to device removal.

Wiegand Format

Its value can be 26 bits, 34 bits, 36 bits, 37 bits, 50 bits and 64 bits.

Wiegand Output

Bits

After selecting the required Wiegand format, select the corresponding output bit

digits of the Wiegand format.

Failed ID

If the verification fails, the system will send the failed ID to the device and replace

the card number or personnel ID with the new one.

Site Code

It is similar to the device ID. The difference is that a site code can be set manually

and is repeatable on a different device. The valid value ranges from 0 to 256 by

default.

Pulse Width(us)

The time width represents the changes in the quantity of electric charge with

regular high-frequency capacitance within a specified time.

Pulse Interval(us)

The time interval between pulses.

ID Type

Select the ID types as either User ID or card number.

SpeedPalm-V5L User Manual

Network Diagnosis 7.6

Function Name Descriptions

IP Address

Diagnostic Test

The

factory default address is 0.0.0.0. Please set the value as per the

requirements.

Start the

Diagnostic Test

Tap start to automatically diagnose the network.

SpeedPalm-V5L User Manual

8 System Settings

The System Settings is used to set the related system parameters to optimize the performance of the

device.

Tap [System] on the Main Menu interface to get into its menu options.

Access Control Terminal:

Time Attendance Terminal:

SpeedPalm-V5L User Manual

Date and Time 8.1

Tap [Date Time] on the System interface to set the date and time.

 Tap [NTP Server] to enable automatic time synchronization based on the service address you enter.

 Tap [Manual Date and Time] to manually set the date and time and then tap to [Confirm] and save.

 Tap [Select Time Zone] to manually select the time zone where the device is located.

 Enable or disable this format by tapping 24-Hour Time. If enabled, then select the Date Format to set

the date.

 Tap [Daylight Saving Time] to enable or disable the function. If enabled, tap [Daylight Saving Mode]

to select a daylight-saving mode and then tap [Daylight Saving Setup] to set the switch time.

 When restoring the factory settings, the time (24-hour) and date format (YYYY-MM-DD) can be restored,

but the device date and time cannot be restored.

Note: For example, the user sets the time of the device (18:35 on March 15, 2020) to 18:30 on January 1,

2021. After restoring the factory settings, the time of the device will change to 18:30, January 1, 2021.

Week Mode Date Mode

SpeedPalm-V5L User Manual

Access Logs Setting/Attendance 8.2

Tap [Access Logs Settings] / [Attendance] on the System interface.

Access Control Terminal:

Function Name Description

Camera Mode

This function is disabled by default. When enabled, a security prompt will

pop-

up and the sound of shutter in the camera will turn on mandatorily.

There are 5 modes:

No photo: No photo is taken during user verification.

Take photo, no save: Photo is taken but not saved during verification.

Take photo and save: All the photos taken during verification is saved.

Save on successful verification: Photo is taken and saved for each successful

verification.

Save on failed verification: Photo is taken and saved only for each failed

verification.

Display User Photo

This function is disabled by default.

When enabled, a security prompt will

pop-up.

Alphanumeric User ID

Enable/Disable the alphanumeric as User ID.

Access Log Alert

When the record space of the attendance access reaches the maximum

threshold value, the device automatically displays the memory space warning.

Users may disable the function or set a valid value between 1 and 9999.

Periodic Del of Access

Logs

When access log

s reach its maximum capacity, the device automatically

deletes a set of old access logs.

Users may disable the function or set a valid value between 1 and 999.

Periodic Del of T&A


When attendance photos reach its maximum capacity, the device

automatically deletes a set of old attendance photos.

Users may disable the function or set a valid value between 1 and 99.

SpeedPalm-V5L User Manual

Periodic Del of

Blocklist Photo

When block listed photos reach its maximum capacity, the device

automatically deletes a set of old block listed photos.

Users may disable the function or set a valid value between 1 and 99.

Authentication

Timeout (s)

The amount of time taken to display a successful verification message.

Valid value: 1~9 seconds.

Recognition

Interval(s)

The amount of time required to compare facial templates.

Valid value: 0~9 seconds.

Time Attendance Terminal:

Function Name Description

Duplicate Punch

Period(m)

Within a set time period (unit: minutes), the duplicated attendance record will

not be reserved (value ranges from 1 to 999999 minutes).

Camera Mode

This function is disabled by default. When enabled, a security prompt will

pop-

up and the sound of shutter in the camera will turn on mandatorily.

There are 5 modes:

No photo: No photo is taken during user verification.

Take photo, no save: Photo is taken but not saved during verification.

Take photo and save: All the photos taken during verification is saved.

Save on successful verification: Photo is taken and saved for each successful

verification.

Save on failed verification: Photo is taken and saved only for each failed

verification.

Display User Photo

This function is disabled by default. When enabled, a security prompt will

pop-up.

Alphanumeric User ID

Enable/Disable the alphanumeric as User ID.

SpeedPalm-V5L User Manual

Attendance Log Alert

When the record space of the attendance reaches the maximum threshold

value, the device automatically displays the memory space warning.

Users may disable the function or set a valid value between 1 and 9999.

Periodic Del of T&A

Data

When attendance records reach its maximum storage capacity, the device

automatically deletes a set of old attendance records.

Users may disable the function or set a valid value between 1 and 999.

Periodic Del of T&A


When attendance photos reach its maximum storage capacity, the device

automatically deletes a set of old attendance photos.

Users may disable the function or set a valid value between 1 and 99.

Periodic Del of

Blocklist Photo

When blocklisted photos reach its maximum storage capacity, the device

automatically deletes a set of old block listed photos.

Users may disable the function or set a valid value between 1 and 99.

Authentication

Timeout(s)

The amount of time taken to display a successful verification message.

Valid value: 1~9 seconds.

Recognition

Interval(s)

After the interval identifying is clicked (selected), for example, if the

comparison interval is set to 5 seconds, then the face recognition will verify

the face every 5 seconds. Valid value: 0 to 9 seconds. 0 means continuous

identifying, 1 to 9 means identifying at intervals.

Face Parameters 8.3

Tap [Face] on the System interface to go to the face parameter settings.

SpeedPalm-V5L User Manual

Function Name Description

1:N Threshold

Under 1:N verification mode, the verification will only be successful when the

similarity between the acquired facial image and all registered facial templates

is greater than the set value.

The valid value ranges from 0 to 100. The higher the thresholds, the lower the

misjudgement rate and the higher the rejection rate, and vice versa. It is

recommended to set the default value of 72.

1:1 Match Threshold

of Masked People

During face enrolment, 1: N comparison is used to determine whether the user

has already registered before.

When the similarity between the acquired facial image and all registered facial

templates is greater than the set threshold, it indicates that the face has already

been registered.

1:1 Threshold

Under 1:1 verification mode, the verification will only be successful when the

similarity between the acquired facial image and the user’s facial templates

enrolled in the device is greater than the set value.

The valid value ranges from 0 to 100. The higher the thresholds, the lower the

misjudgement rate and the higher the rejection rate, and vice versa. It is

recommended to set the default value of 70.

Face Enrollment

Threshold

During face enrollment, 1:N comparison is used to determine whether the user

has already registered before.

When the similarity between the acquired facial image and all registered facial

templates is greater than the set threshold, it indicates that the face has already

been registered.

Image Quality

It is the image quality for facial registration and comparison. The higher the

value, the clearer image is required.

Facial Recognition

Distance

Face template recognition of the maximum distance, greater than this value

will be filtered. The parameter value can be understood as the face template

size required for registration and comparison. The farther the distance from

people, the smaller the face template pixels obtained by the algorithm. When

the value is 0, it means that the face template comparison distance is not

limited.

LED Light Trigger

Value

This value controls the turning on and off of the LED light. The larger the value,

the LED light will turn on or off more frequently.

Live Detection

It detects the spoof attempt using visible light images to determine if the

provided biometric source sample is of a real person (a live human being) or a

false representation.

Live Detection

Threshold

It facilitates judging whether the captured visible image is a real person (a live

human being). The larger the value, the better the anti-spoofing performance

using visible light.

Anti-spoofing Using

NIR

Using near-infrared spectra imaging to identify and prevent fake photos and

videos attack.

Binocular Live

Detection Threshold

It is convenient to judge whether the near-

infrared spectral imaging is fake

photo and video. The larger the value, the better the anti-spoofing

performance of near-infrared spectral imaging.

SpeedPalm-V5L User Manual

Face AE

When the face is in front of the camera in Face AE mode, the brightness of the

face area increases, while the other areas become darker.

WDR

Wide Dynamic Range (WDR) balances light and extends image visibility for

surveillance videos under high contrast lighting scenes and improves object

identification under bright and dark environments.

Anti-flicker Mode

It is used when WDR is turned off. It helps to reduce flicker when the device’s

screen flashes at the same frequency as the light.

Face Algorithm

It has facial algorithm related information and pause facial template update.

Note: Improper adjustment of the exposure and quality parameters may severely affect the performance

of the device. Please adjust the exposure parameter only under the guidance of the after-sales service

personnel of our company.

 Process to modify the Face Recognition Accuracy

 On the System interface, tap on [Face] and then toggle to enable [Anti-Spoofing using NIR] to set

the anti-spoofing.

 Then, on the Main Menu, tap [Autotest] > [Test Face] and perform the face test.

 Tap three times for the scores on the right upper corner of the screen, and the red rectangular box appears

to start adjusting the mode.

 Keep one arm distance between the device and the face. It is recommended not to move the face in a wide

range.

Palm Parameters 8.4

Tap [Palm] on the System interface.

Function Name Descriptions

Palm 1:1

Matching

Threshold

In 1:1 Verification Method, only when the similarity between the verifying palm

and the user’s registered palm

is greater than this value can the verification

succeed.

SpeedPalm-V5L User Manual

Palm 1:N

Matching

Threshold

In 1: N Verification Method, only when the similarity between the verifying palm

and all the registered palm is greater than this value can the verification succeed.

Image Quality

Image quality for palm registration and comparison. The higher the value, the

clearer the image requires.

Palm AE

When the palm is in front of the camera in Palm AE mode, the brightness of the

palm area increases, while other areas become darker.

Anti-Spoofing for

palm

Using near-infrared spectra imaging to identify and prevent fake

photos and

videos attack.

Palm Anti-

Spoofing

Threshold

It is convenient to judge whether the near-infrared spectral imaging is fake photo

and video. The larger the value, the better the anti-spoofing performance of near-

infrared spectral imaging.

Recognition

Interval(s)

After the interval identifying is clicked (selected), for example, if the comparison

interval is set to 5 seconds, then the palm recognition will verify the palm every 5

seconds. Valid value: 0 to 9 seconds. 0 means continuous identifying, 1 to 9 means

identifying at intervals.

Health Protection 8.5

Tap [Health Protection] on the System interface to configure the health protection settings.

Function Name Descriptions

Enable Mask

Detection

It enables or disables the mask detection function.

When enabled, the device identifies whether the user is wearing a mask or not

during verification.

Deny Access

Without Mask

It enables or disables the access of a person without a mask.

When enabled, the device denies access of a person, if not wearing a mask.

Allow

Unregistered

People to Access

It enables or disables the access of an unregistered person.

When enabled, the device allows the person to enter without registration.

Enable Capture of

Unregistered

To enable or disable capturing the unregistered person.

When enabled, the device will automatically capture the photo of the unregistered

SpeedPalm-V5L User Manual

Person

person, enabling this feature requires to enable Allow Unregistered People to

Access.

Trigger External

Alarm

When enabled, if the user is not wearing a mask, the system will trigger an alarm.

Clear External

Alarm

It clears the triggered alarm records of the device.

External Alarm

Delay(s)

It is the delay(s) time for triggering an external alarm. It can be set in seconds.

Users may disable the function or set a value between 1 to 255.

Device Type Settings 8.6

Tap [Device Type Settings] on the System interface to configure the Device Type Setting settings.

Function Name Descriptions

Communication

Protocol

Set the PUSH protocol.

Device Type

Set the device as an access control terminal or attendance terminal.

Security Settings 8.7

Tap Security Settings on the System interface.

Function Name Description

Standalone

Communication

By default, this function is disabled. This function can be enabled or disabled via

the menu interface. When it is switched on, a security prompt appears, and the

device will restart after you confirm.

SpeedPalm-V5L User Manual

SSH

The device does not support the Telnet feature, hence SSH is typically used for

remote debugging. By default, SSH is enabled. The menu interface allows you to

enable and disable SSH. When enabled, there will be a security prompt, but the

device will not need to be restarted after confirmation.

User ID Masking

After

enabled, the User ID will be partially displayed after the personnel

verification result (only the User ID with more than 2 digits supports the masking

display), and it is enabled by default.

Display

Verification Name

After enabled, the user's name will be displayed after the personnel verification

result. The verification result will not show the name after disabling it.

Display

Verification Mode

After enabled, the personnel verification result will show the user's verification

mode. The verification re

sult will not show the verification mode after you

disable it.

Save Photo as

Template

After disable this function, face re-registration is required after an algorithm

upgrade.

Tap-To Unlock 8.8

Enable Tap-To-Unlock, and it will take effect after the device restarts. Once enabled, the camera's auto-

identification sensing function will be disabled. Only touching the device screen can wake up the camera

for auto-identification.

Tap [Tap-To-Unlock] on the System interface to enable this function.

SpeedPalm-V5L User Manual

Update Firmware Online 8.9

Tap [Update Firmware Online] on the System interface.

Tap [Enable firmware Update Online] function, the device will prompt that the update may bring some

data security risks, which requires manual confirmation by the user (If the security setting function is

turned off, the risk warning will not be displayed when the online update is turned on).

Tap [Check for Updates] it may have the following 3 scenarios:

 If the query fails, the interface will prompt "Query failed".

 If the firmware version of the device is latest, it will prompt that the current firmware version is already

the latest.

 If the firmware version of the device is not the latest, the version number and change log of the latest

version will be displayed. Users can choose whether to update to the latest firmware version.

SpeedPalm-V5L User Manual

1. Tap [Download now] to start the download. After the download is complete, you can choose whether

to update immediately.

2. During the download process, you can press the back button to go to other menus, and then return to

this menu to update after the download is complete.

SpeedPalm-V5L User Manual

3. The download speed is related to the user's network environment, and it may take about 10 minutes to

complete the download. The update may take about 3 minutes.

4. After the update is complete, the device will prompt to restart. After restarting, you can enter the

System Information to view the latest firmware version after the update.

SpeedPalm-V5L User Manual

Factory Reset 8.10

The Factory Reset function restores the device settings such as communication settings and system

settings, to the default factory settings (this function does not clear registered user data).

Tap [Reset] on the System interface and then tap [OK] to restore the default factory settings.

SpeedPalm-V5L User Manual

9 Personalize Settings

Tap [Personalize] on the Main Menu interface to customize interface settings, voice, bell, punch state

options, and shortcut key mappings.

Access Control Terminal:

Time Attendance Terminal:

Interface Settings 9.1

Tap [User Interface] on the Personalize interface to customize the display style of the main interface.

Function Name Description

Wallpaper

It helps to select the main screen wallpaper according to the user preference.

Language

It helps to select the language of the device.

Menu Timeout(s)

When there is no operation, and the time exceeds the set value, the device

automatically goes back to the initial interface.

The function can either be disabled or set the required value between 60 and

SpeedPalm-V5L User Manual

99999 seconds.

Idle Time to

Slide Show(s)

When there is no operation, and the time exceeds the set value, a slide show is

displayed. The function can be disabled, or you may set the value between 3 and

999 seconds.

Slide Show

Interval(s)

It is the time interval in switching between different slide show pictures. The

function can be disabled, or you may set the interval between 3 and 999 seconds.

Idle Time to

Sleep(m)

If the sleep mode is activated, and when there is no operation in the device, then

the device will enter standby mode.

This function can be disabled or set a value within 1-999 minutes.

Main Screen Style

The style of the main screen can be selected according to the user preference.

Voice Settings 9.2

Tap [Voice] on the Personalize interface to configure the voice settings.

Function Name Description

Voice Prompt

Select whether to enable voice prompts during operating.

Touch Prompt

Select whether to enable keypad sounds.

Volume

Adjust the volume of the device; valid value: 0-100.

Bell Schedules 9.3

Tap [Bell Schedules] on the Personalize interface to configure the Bell settings.

 New Bell Schedule

Tap [New Bell Schedule] on the Bell Schedule interface to add a new bell schedule.

SpeedPalm-V5L User Manual

Function Name Description

Bell Status

Toggle to enable or disable the bell status.

Bell Time

Once the required time is set, the device automatically triggers to ring the bell

during that time.

Repeat

Set the required number of counts to repeat the scheduled bell.

Ring Tone

Select a ringtone.

Internal Bell Delay(s)

Set the replay time of the internal bell. Valid values range from 1 to 999

seconds.

 All Bell Schedules

Once the bell is scheduled, on the Bell Schedules interface, tap [All Bell Schedules] to view the newly

scheduled bell.

 Edit the Scheduled Bell

On the All Bell Schedules interface, tap on the required bell schedule, and tap [Edit] to edit the selected

bell schedule. The editing method is the same as the operations of adding a new bell schedule.

 Delete a Bell

On the All Bell Schedules interface, tap the required bell schedule, and tap [Delete], and then tap [Yes] to

delete the selected bell.

Punch States Options 9.4

Tap [Punch States Options] on the Personalize interface to configure the punch state settings.

Note: This function only for Time Attendance Terminal.

SpeedPalm-V5L User Manual

Function Name Description

Punch State Mode

Select a punch state mode, which can be:

Off: It disables the punch state function. And the punch state key set under

the Shortcut Key Mappings menu becomes invalid.

Manual Mode: Switch the punch state key manually, and the punch state

key will disappear after Punch State Timeout.

Auto Mode:

The punch state key will automatically switch to a specific

punch status according to the predefined schedule which can be set in the

Shortcut Key Mappings.

Manual and Auto Mode: The main interface will display the auto-switch

punch state key. However, the users will still be able to select an alternative

that is the manual attendance status. After the timeout, the manual

switching punch state key will become an auto-switch punch state key.

Manual Fixed Mode:

After the punch state key is set manually to a

particular punch status, the function will remain unchanged until manually

switched again.

Fixed Mode: Only the manually fixed punch state key

is shown. Users

cannot change the status by pressing any other keys.

Punch State Timeout (s)

It is the amount of time for which the punch state is displayed. The value

ranges from 5~999 seconds.

Punch State Required

To choose whether an attendance state

needs to be selected during

verification.

Shortcut Keys Mappings 9.5

Users may define shortcut keys for attendance status and functional keys on the main interface. So, on the

main interface, when the shortcut keys are pressed, the corresponding attendance status or the function

interface displays directly. Note: This function only for Time Attendance Terminal.

Tap Shortcut Key Mappings on the Personalize interface to set the required shortcut keys.

 On the Shortcut Key Mappings interface, tap on the required shortcut key to configure the shortcut

key settings.

SpeedPalm-V5L User Manual

 On the Shortcut Key ("F1") interface, tap function to set the functional process of the shortcut key

either as punch state key or function key.

 If the Shortcut key is defined as a function key (such as New user, All users, etc.), the configuration is

done as shown in the image below.

 If the Shortcut key is set as a punch state key (such as check-in, check-out, etc.), then it is required to

set the punch state value (valid value 0~250), name, and switch time.

Set the Switch Time

 The switch time is set in accordance with the punch state options.

 When the Punch State Mode is set to Auto Mode, the switch time should be set.

 On the Shortcut Key interface, tap Set Switch Time to set the switch time.

 On the Switch Cycle interface, select the switch cycle (Monday,Tuesday, etc.) as shown in the image

below.

SpeedPalm-V5L User Manual

10 Data Management

On the Main Menu, tap [Data Mgt.] to delete the relevant data in the device.

Delete Data 10.1

Tap [Delete Data] on the Data Mgt. interface to delete the required data.

Access Control Terminal: Time Attendance Terminal:

Function Name Description

Delete Access Records /

Delete Attendance Data

To delete attendance data/access records conditionally.

Delete Attendance Photo

To delete attendance photos of designated personnel.

Delete Blocklist Photo

To delete the photos taken during failed verifications.

Delete All Data

To delete information and attendance logs/access records of all

registered users.

Delete Admin Role

To remove all administrator privileges.

Delete Access Control

To delete all access data.

SpeedPalm-V5L User Manual

Delete User Photo

Templates

To delete user photo templates in the device. When deleting template

photos, there is a risk reminder: “Face re-registration is required after

an algorithm upgrade.”

Delete Profile Photo

To delete all user photos in the device.

Delete Wallpaper

To delete all wallpapers in the device.

Delete Screen Savers

To delete the screen savers in the device.

Delete Contact List

To delete the contact list in the device.

The user may select [Delete All] or [Delete by Time Range] when deleting the attendance data/access

records, attendance photos or block listed photos. Selecting [Delete by Time Range], you need to set a

specific time range to delete all data within a specific period.

Select Delete by Time Range

Set the time range and tap [OK]

SpeedPalm-V5L User Manual

11 Intercom

Tap [Intercom] on the Main Menu interface to get into its menu options.

Function Name Description

Local

Settings

SIP Server

Select whether to enable the SIP server. When it is enabled, the server

account needs to be set.

Master

Account

Settings

Select whether to enable the master account settings. After enabling, it

is necessary to set the server address, server port, display name, user

name, verify ID, password and transport protocol. (Note: Turning off this

feature will disable the SIP server function.)

Enable Domain Name: Select whether to enable the

domain name

mode.

Server Address: Enter the server address.

Server Port: Enter the server port.

Display Name: Enter the display name of server.

User Name: Enter the username of server.

Verify ID: Enter the verify ID of server.

Password: Enter the password of server.

STUN Server: Set up STUN server docking.

Transport Protocol: Set the transport protocol between the device and

indoor station.

Backup

Account

Settings

Select whether to enable the backup account settings.

Device Port

When using the LAN for visual intercom, enter the network port number

of the LAN.

Device

Type

Can be set as

Entrance Station, Access Control Terminal or Fence

Terminal.

Local

Information

Set specific location information of the device, including the block, unit,

floor and door number.

Transport

Protocol

Set the transport protocol between the device and indoor station.

SpeedPalm-V5L User Manual

Audio

Options

Select the audio encoder for intercom. Both PCMU and PCMA provide better voice

quality, but they take up more bandwidth, requiring 64kbps.

Video

Options

General

Video Resolution:

Select the video resolution of the intercom.

Video Code Stream: Select the video code stream of the intercom, the

larger the value, the higher the picture and sound quality of the video,

and the greater the network requirements.

Video Frame Rate: Refers to the number of frames per second of the

intercom video display, the larger the value the smoother, the device

defaults to 25Hz, does not support modification.

Encoder

Whether to enable H264 Encoder.

Call Options

Calling

Delay(s)

Set the time of call, valid value 30 to 60 seconds.

Talking

Delay(s)

Set the time of intercom, valid value 60 to 120 seconds.

Call Volume

Settings

Adjust the volume of the intercom; valid value: 0-100.

Call Type Set the call type to Voice only or Voice+Video.

Call Button

Style

Change the visual intercom call button on the standby interface of the

device, optional doorbell label or phone label .

Auto

Answer

Settings

When the indoor unit dials the device successfully, it is automatically

connected within the set answer time.

Verification

Timeout

Sets the verification timeout for intercom, valid values are 1to 60 seconds.

Encryption Whether to enable intercom call encryption function.

Contact List

When the SIP server is disabled, the device number and call address of the indoor

stations can be added here.

Calling

Shortcut

Settings

Set the quick call shortcuts in the call interface of visual intercom, the system defaults 5

shortcuts, including a management center and 4 customizable shortcuts. After

enabling the shortcuts, customize the name, enter the device number set in the

Contact List, then automatically match the IP address, after the operation is

completed, then click on the generated customized name (shortcut) in the call

interface of the visual intercom to call directly.

Support standard mode and direct calling mode, in direct calling mode, users can call

multiple indoor units at the same time.

Note: When the SIP server is enabled, Direct Calling Mode can only call the Management

Center

Advanced

Settings

Set the DTMF type and DTMF value of the device, the value should be set to the same

as the DTMF value of the indoor unit.

SpeedPalm-V5L User Manual

The SpeedPalm-V5L and the indoor station to achieve video intercom there are two modes, respectively,

the LAN and SIP server.

11.1.1 Local Area Network Use

 Enter the IP Address/Device Number of the Indoor Station

1. Set the indoor station to the same network segment as the device.

2. On the SIP Settings interface, tap on [Advanced Settings] > [Dtmf] to set the value as same as the

value of DTMF in the indoor station.

3. On the SIP Settings interface, tap on [Contact List] > [Add] to add the connected indoor station.

Device Number: Customize the number of the indoor station, you can enter this number on the

device to call the indoor station quickly for video intercom.

Call Address: It is the IP Address of the indoor station.

4. To enable the video intercom function, tap the icon on the SpeedPalm-V5L and enter the IP

address or device number of the indoor station in the provided interface.

SpeedPalm-V5L User Manual

 Custom the Calling Shortcut Keys

1. On the SIP Settings interface, tap [Calling Shortcut Settings] to define the shortcut keys.

Name: Customize the name of the shortcut keys.

Device Number: It is the device number that set in the Contact List Menu.

IP Address: Once the device number is set, it will be automatically displayed.

2. Then you can tap the icon on the SpeedPalm-V5L and tap the calling shortcut keys to call the

indoor station.

101

SpeedPalm-V5L User Manual

 Direct Calling

1. On the SIP Settings interface, tap on [Calling Shortcut Settings] > [Call Mode] > [Direct Calling

Mode] > [Add]. Select the IP addresses of the indoor stations that you want to call, then the indoor

stations will be displayed in the list.

2. Then you can tap the icon on the SpeedPalm-V5L to call the indoor stations at the same time.

SpeedPalm-V5L User Manual

11.1.2 SIP Server

1. On the SIP Settings interface, tap on [Local Settings] > [SIP Server] to enable it, enter the server-

related parameters, as shown below:

SpeedPalm-V5L User Manual

2. After correctly setting up the SIP, a green dot will appear in the upper right corner of the call page,

indicating that the SpeedPalm-V5L is connected to the server. You can then initiate a call to the

account name of the indoor station."

Note: Customers create their own SIP server.

101

SpeedPalm-V5L User Manual

12 Access Control

On the Main Menu, tap [Access Control] to set the schedule of the door opening, locks control and to

configure other parameters settings related to access control.

Access Control Terminal: Time Attendance Terminal:

To gain access, the registered user must meet the following conditions:

 The relevant door’s current unlock time should be within any valid time zone of the user’s time period.

 The corresponding user’s group must be already set in the door unlock combination (and if there are

other groups, being set in the same access combo, then the verification of those group’s members is

also required to unlock the door).

 In default settings, new users are allocated into the first group with the default group time zone,

where the access combo is "1" and is set in unlock state by default.

SpeedPalm-V5L User Manual

Access Control Options 12.1

Tap [Access Control Options] on the Access Control interface to set the parameters of the control lock of

the terminal and related equipment.

Access Control Terminal:

Function Name Description

Gate Control Mode

It toggles between ON or OFF switch to get into gate control mode or not.

When set to ON, the interface removes the Door lock relay, Door sensor

relay, and Door sensor type options.

Door Lock Delay (s)

The length of time that the device controls the electric lock to be in unlock

state.

Valid value: 1~99 seconds; 0 seconds represents disabling the function.

Door Sensor Delay (s)

If the door is not locked and is left open for a certain duration (Door Sensor Delay),

an alarm will be triggered.

The valid value of Door Sensor Delay ranges from 1 to 255 seconds.

Door Sensor Type

There are three Sensor types: None, Normal Open(NO), and Normal Closed(NC).

None: It means the door sensor is not in use.

Normally Open(NO): It means the door is always left open when electric power is

on.

Normally Closed(NC):

It means the door is always left closed when electric

power is on.

Verification Mode

The supported verification mode includes Password/Card/Face/Palm, User

ID Only, Password, Card Only, Password+Card, Password/Card, Face Only,

Face+Password, Face+Card, Palm, Palm+Card, Palm+Face.

SpeedPalm-V5L User Manual

Door Available Time

Period

It sets the timing for the door so that the door is accessible only during that

period.

Normal Open Time

Period

It is the scheduled time-period for "Normal Open" mode so that the door is

always open during this period.

Master Device

While configuring the master and slave devices, you may set the state of the

master as Out or In.

Out: A record of verification on the master device is a check-out record.

In: A record of verification on the master device is a check-in record.

Slave Device

While configuring the master and slave devices, you may set the state of the

slave as Out or In.

Out: A record of verification on the slave device is a check-out record.

In: A record of verification on the slave device is a check-in record.

Auxiliary Input

Configuration

Sets the door unlock time period and auxiliary output type of the auxiliary

terminal device. Auxiliary output types include None, Trigger door open,

Trigger Alarm, Trigger door open and Alarm.

Speaker Alarm

It transmits a sound alarm or disassembly alarm from the local. When the

door is closed or the verification is successful, the system cancels the alarm

from the local.

Reset Access Setting

The access control reset parameters include door lock delay, door sensor

delay, door sensor type, verification mode, door available time period,

normal open time period, master device, and alarm. However, erased access

control data in Data Mgt. is excluded.

Time Attendance Terminal:

SpeedPalm-V5L User Manual

Function Name Description

Door Lock Delay (s)

The length of time that the device controls the electric lock to be in unlock

state.

Valid value: 1~10 seconds; 0 seconds represents disabling the function.

Door Sensor Delay (s)

If the door is not locked and is left open for a certain duration (Door Sensor Delay),

an alarm will be triggered.

The valid value of Door Sensor Delay ranges from 1 to 255 seconds.

Door Sensor Type

There are three Sensor types: None, Normal Open(NO), and Normal Closed(NC).

None: It means the door sensor is not in use.

Normally Open(NO): It means the door is always left open when electric power is

on.

Normally Closed(NC):

It means the door is always left closed when electric

power is on.

Door Alarm Delay(s)

When the state of the door sensor is inconsistent with that of the door

sensor type, alarm will be triggered after a time period; this time period is

the Door Alarm Delay (the value ranges from 1 to 999 seconds).

Retry Times to Alarm

When the number of failed verification reaches the set value (value ranges

from 1 to 9 times), the alarm will be triggered. If the set value is None, the

alarm will not be triggered after failed verification.

Normal Close Time

Period

It is the scheduled time-period for “Normal Close” mode so that the door is

always close during this period.

Normal Open Time

Period

It is the scheduled time-period for “Normal Open” mode so that the door is

always open during this period.

Auxiliary Input

Configuration

Sets the door unlock time period and auxiliary output type of the auxiliary

terminal device. Auxiliary output types include None, Trigger door open,

Trigger Alarm, Trigger door open and Alarm.

Valid Holidays

To set if Normal Close Time Period or Normal Open Time Period settings

are valid in set holiday time period. Choose [ON] to enable the set NC or NO

time period in holiday.

Speaker Alarm

It transmits a sound alarm or disassembly alarm from the local. When the

door is closed or the verification is successful, the system cancels the alarm

from the local.

Reset Access Setting

The access control reset parameters include door lock delay, door sensor

delay, door sensor type, verification mode, door available time period,

normal open time period, master device, and alarm. However, erased access

control data in Data Mgt. is excluded.

SpeedPalm-V5L User Manual

Time Rule Settings/ Time Schedule 12.2

Tap [Time Rule Settings] / [Time Schedule] on the Access Control interface to configure the time

settings.

 The entire system can define up to 50 Time Periods.

 Each time-period represents 10 Time Zones, i.e., 1 week and 3 holidays, and each time zone is a

standard 24 hour period per day and the user can only verify within the valid time-period.

 One can set a maximum of 3 time periods for every time zone. The relationship among these time-

periods is "OR". Thus, when the verification time falls in any one of these time-periods, the verification

is valid.

 The Time Zone format of each time-period is HH MM-HH MM, which is accurate to minutes according

to the 24-hour clock.

Tap the grey box to search the required Time Zone and specify the required Time Zone number (maximum

up to 50 zones).

On the selected Time Zone number interface, tap on the required day (that is Monday, Tuesday, etc.) to set

the time.

SpeedPalm-V5L User Manual

Specify the start and the end time, and then tap [OK].

Note:

 The door is inaccessible for the whole day when the End Time occurs before the Start Time (such as

23:57~23:56).

 It is the time interval for valid access when the End Time occurs after the Start Time (such as

08:00~23:59).

 The door is accessible for the whole day when the End Time occurs after the Start Time (such that

Start Time is 00:00 and End Time is 23:59).

 The default Time Zone 1 indicates that the door is open all day long.

Holidays 12.3

Whenever there is a holiday, you may need a distinct access time; but changing everyone's access time

one by one is extremely cumbersome, so a holiday access time can be set that applies to all employees

and the user will be able to open the door during the holidays.

Tap [Holidays] on the Access Control interface to set the Holiday access.

SpeedPalm-V5L User Manual

 Add a New Holiday

Tap [Add Holiday] on the Holidays interface and set the holiday parameters.

 Edit a Holiday

On the Holidays interface, select a holiday item to be modified. Tap [Edit] to modify holiday parameters.

 Delete a Holiday

On the Holidays interface, select a holiday item to be deleted and tap [Delete]. Tap [OK] to confirm the

deletion. After deletion, this holiday does not display on the All Holidays interface.

Access Groups 12.4

Grouping is to manage users in groups, only for time attendance terminal.

The default time zone for group members is the group time zone, while users can set their personal time

zone. When the group verification mode and the user verification mode overlap, the user verification

mode takes priority. Each group can set a maximum of 3 time zones; as long as one of them is valid, the

group can be successfully verified. The newly enrolled user is assigned to Access Group 1 by default, but

can be assigned to another access group.

Tap [Access Groups] on the Access Control interface.

SpeedPalm-V5L User Manual

 Add a New Holiday

Tap [New Group] on the Access Group interface.

1. The system has a default access group numbered 1, which cannot be deleted but can be modified.

2. A number cannot be modified again after being set.

3. When the holiday is set to be valid, the personnel in a group can open the door only when group time

period overlaps with the holiday time period.

4. When the holiday is set to be invalid, the access control time of the personnel in this group is not

affected by holidays.

 Edit Group

On the All Group interface, tap to select the access group item to be modified. Tap [Edit] to modify group

parameters.

 Delete a Group

On the All Group interface, select a access group item to be deleted and tap [Delete]. After deletion, this

group does not display on the All Group interface.

Combined Verification 12.5

Access groups are arranged into different door-unlocking combinations to achieve multiple verifications

and strengthen security.

In a door-unlocking combination, the range of the combined number N is 0 ≤ N ≤ 5 and the number of

members N may all belong to one access group or may belong to five different access groups.

Tap [Combined Verification] on the Access Control interface to configure the combined verification

setting.

SpeedPalm-V5L User Manual

On the combined verification interface, tap the Door-unlock combination to be set, and tap the [up] and

[down] arrows to input the combination number, and then tap [OK].

For Example:

 If the Door-unlock combination 1 is set as (01 03 05 06 08). It indicates that the unlock combination

1 consists of 5 people and all the 5 individuals are from 5 groups, namely, AC Group 1, AC Group 3, AC

Group 5, AC Group 6, and AC Group 8, respectively.

 If the Door-unlock combination 2 is set as (02 02 04 04 07). It indicates that the unlock combination

2 consists of 5 people; the first two are from AC Group 2, the next two are from AC Group 4, and the

last person is from AC Group 7.

 If the Door-unlock combination 3 is set as (09 09 09 09 09). It indicates that there are 5 people in

this combination; all of which are from AC Group 9.

 If the Door-unlock combination 4 is set as (03 05 08 00 00). It indicates that the unlock combination

4 consists of only three people. The first person is from AC Group 3, the second person is from AC

Group 5, and the third person is from AC Group 8.

Note: To delete the door-unlock combination, set all Door-unlock combinations to 0.

Anti-passback Setup 12.6

A user may be followed by some person(s) to enter the door without verification, resulting in a security

breach. So, to avoid such situations, the Anti-Passback option was developed. Once it is enabled, the

check-in and check-out record must occur alternatively to open the door to represent a consistent pattern.

This function requires two devices to work together:

SpeedPalm-V5L User Manual

One device is installed on the indoor side of the door (master device), and the other one is installed on the

outdoor side of the door (the slave device). The two devices communicate via the Wiegand signal. The

Wiegand format and Output type (User ID / Card Number) adopted by the master device and slave device

must be consistent.

Tap [Anti-Passback Setup] on the Access Control interface.

Function Name Description

Anti-passback

Direction

No Anti-passback: The Anti-Passback

function is disabled, which means

successful verification through either the master device or slave device can

unlock the door. The attendance state is not saved in this option.

Out Anti-passback: The user can check-out only if the last record is a check-in

record otherwise an alarm is raised. However, the user can check-in freely.

In Anti-passback: The user can check-

in again only if the last record is a

check-out record otherwise an alarm is raised. However, the user can check-

out freely.

In/Out Anti-passback: In this case, a user can check-in only if the last record is

a check-out or the user can check-out only if the last record is a check-in

otherwise the alarm is triggered.

Device Status

Set the device to in/out/none. Note: This function only for Time Attendance

Terminal.

Slave Device

Set the slave device to in/out/none. Note:

This function only for Time

Attendance Terminal.

SpeedPalm-V5L User Manual

Duress Options Settings 12.7

Once a user activates the duress verification function with a specific authentication method(s), and when

he/she is under coercion and authenticates using duress verification, the device unlocks the door as usual.

At the same time, a signal is sent to trigger the alarm as well.

On the Access Control interface, tap [Duress Options] to configure the duress settings.

Access Control Terminal: Time Attendance Terminal:

Function Name Description

Alarm on Password

When a user uses the password verification method, an alarm signal will be

generated, otherwise there will be no alarm signal.

Alarm Delay (s)

Alarm signal will not be transmitted until the alarm delay time is elapsed. The

value ranges from 1 to 999 seconds.

Duress Password

Set the 6-digit duress password. When the user enters this duress password for

verification, an alarm signal will be generated.

SpeedPalm-V5L User Manual

13 Attendance Search

Once the identity of a user is verified, the access record is saved in the device. This function enables users

to check their event logs.

Select [Attendance Search] on the Main Menu interface to search for the required event Logs.

Access Control Terminal: Time Attendance Terminal:

The process of searching for attendance and blocklist photos is similar to that of searching for event logs.

The following is an example of searching for event logs.

On the Attendance Search interface, tap [Event Logs] / [Attendance Record] to search for the required

record.

1. Enter the user ID to be searched and tap [OK].

If you want to search for records of all users,

tap [OK] without entering any user ID.

2. Select the time range in which the records

need to be searched.

SpeedPalm-V5L User Manual

3. Once the record search completes. Tap the

record highlighted in green to view its details.

4. The below figure shows the details of the

selected record.

SpeedPalm-V5L User Manual

14 Autotest

To automatically test whether all modules in the device function properly, which include the LCD, Audio,

Microphone, Camera, Palm and real-time clock (RTC).

Tap [Autotest] on the Main Menu interface.

Function Name Description

Test All

To automatically test whether the LCD, audio, camera and RTC are normal.

Test LCD

To automatically test the display effect of LCD screen by displaying full-color, pure

white, and pure black to check whether the screen displays colors normally.

Test Voice

To automatically test whether the audio files stored in the device are complete

and the voice quality is good.

Microphone Test

To test if the microphone is working properly by speaking into the microphone.

Camera Test

To test if the camera functions properly by checking the pictures taken to see if

they are clear enough.

Palm Test

To test if the camera functions properly by checking the pictures taken to see if

they are clear enough.

Test Clock RTC

To test the RTC. The device tests whether the clock works normally and accurately

with a stopwatch. Touch the screen to start counting and press it again to stop

counting.

SpeedPalm-V5L User Manual

15 System Information

With the system information option, you can view the storage status, the version information of the device,

and so on.

Tap [System Info] on the Main Menu interface.

Function Name Description

Device Capacity

Displays the current device's user storage, password, palm, face and card storage,

administrators, T&A Record/attendance records, T&A Photo/

attendance and

blocklist photos, and Profile photos.

Device Info

Displays the device's name, serial number, MAC address, face algorithm, platform

information, and manufacturer and manufacture date.

Firmware Info

Displays the firmware version and other version information of the device.

The privacy policy control will appear when the gadget turns on for the first time.

After taping "I have read it," the customer can use the product regularly. Tap

System Info -> Privacy Policy

to view the content of the privacy policy. The

Note: The current privacy policy's text is only available in Simplified

Chinese/English. However, translation of other multi-language content is

underway, with more iterations.

SpeedPalm-V5L User Manual

16 Connect to ZKBio Time Software

Set the Communication Address 16.1

1. Tap [COMM.] > [Ethernet] in the Main Menu to set the IP address and gateway of the device.

(Note: The IP address should be able to communicate with the ZKBio Time server, preferably in the

same network segment with the server address)

2. In the Main Menu, tap [COMM.] > [Cloud Server Settings] to set the server address and server port.

Server Address: Set the IP address as of ZKBio Time server.

Server Port: Set the server port as of ZKBio Time (The default is 8088).

Add Device on the Software 16.2

Add the device by searching. The process is as follows:

1. Click [Device] > [Device] > [Add], to add the device on the software.

2. A new window pops-up on clicking [Add]. Enter the required information about the device and click

[Confirm], then the added devices are displayed automatically.

SpeedPalm-V5L User Manual

Add Personnel to the Software 16.3

1. Click [Personnel] > [Employee] > [Add]:

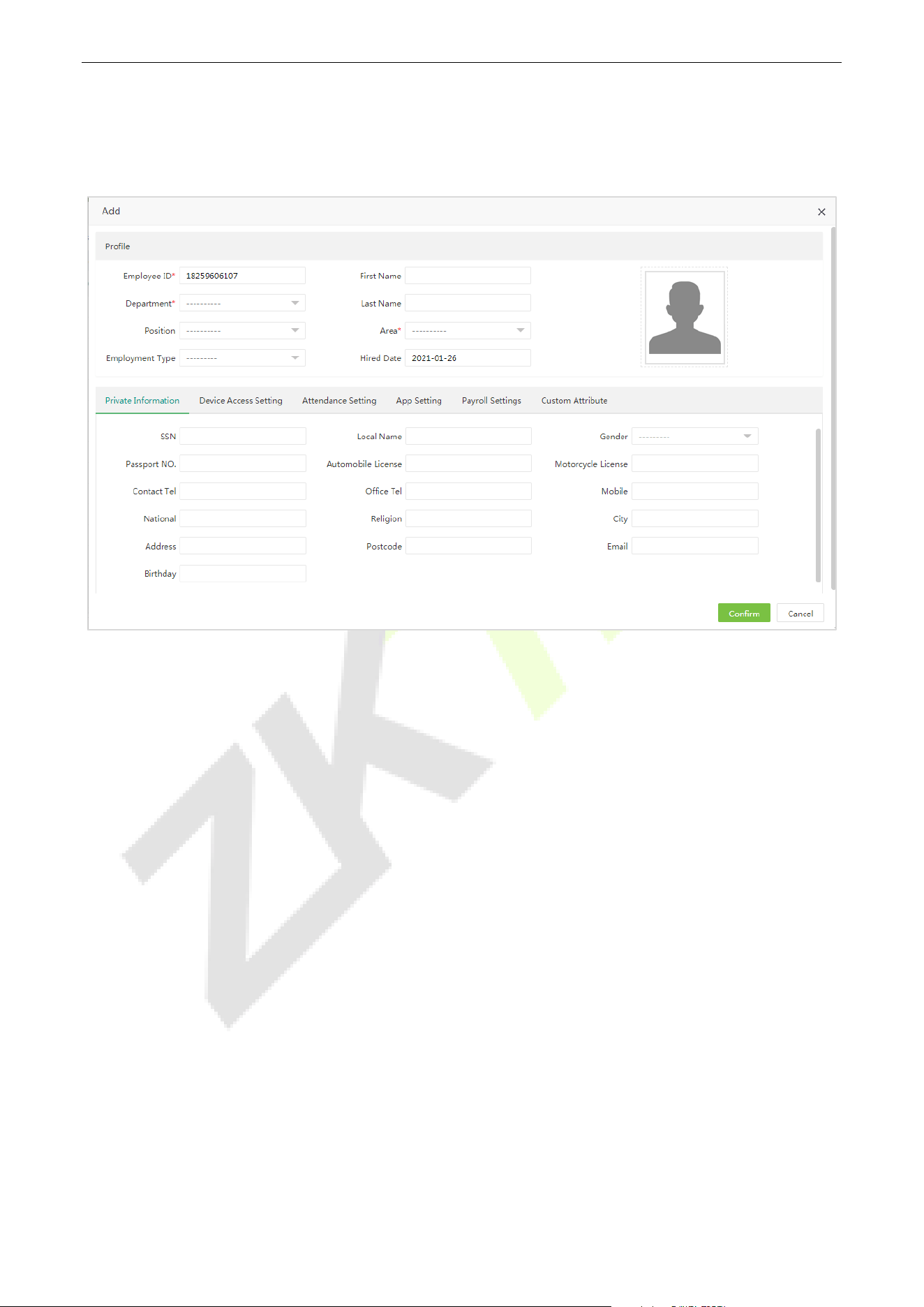

2. Fill in all the required fields and click [Confirm] to register a new user.

3. Click [Device] > [Device] > [Data Transfer] > [Sync Data to Device] to synchronize all the data to the

device including the new users.

Note: For other specific operations, please refer to ZKBio Time User Manual.

SpeedPalm-V5L User Manual

17 Connect to ZKBio CVAccess Software

Set the Communication Address 17.1

 Device Side

1. Tap [COMM.] > [Ethernet] in the Main Menu to set the IP address and gateway of the device.

(Note: The IP address should be able to communicate with the ZKBio CVAccess server, preferably in the

same network segment with the server address)

2. In the Main Menu, tap [COMM.] > [Cloud Server Settings] to set the server address and server port.

Server Address: Set the IP address as of ZKBio CVAccess server.

Server Port: Set the server port as of ZKBio CVAccess (The default is 8088).

 Software Side

the ADMS service port, as shown in the figure below:

SpeedPalm-V5L User Manual

Add Device on the Software 17.2

Add the device by searching. The process is as follows:

1. Click [Access] > [Device] > [Search Device], to open the Search interface in the software.

2. Click [Search], and it will prompt Searching…….

3. After searching, the list and total number of access controllers will be displayed.

4. Click [Add] in the operation column, and a new window will pop-up. Select Icon type, Area, and Add to

Level from each dropdown and click [OK] to add the device.

SpeedPalm-V5L User Manual

Add Personnel to the Software 17.3

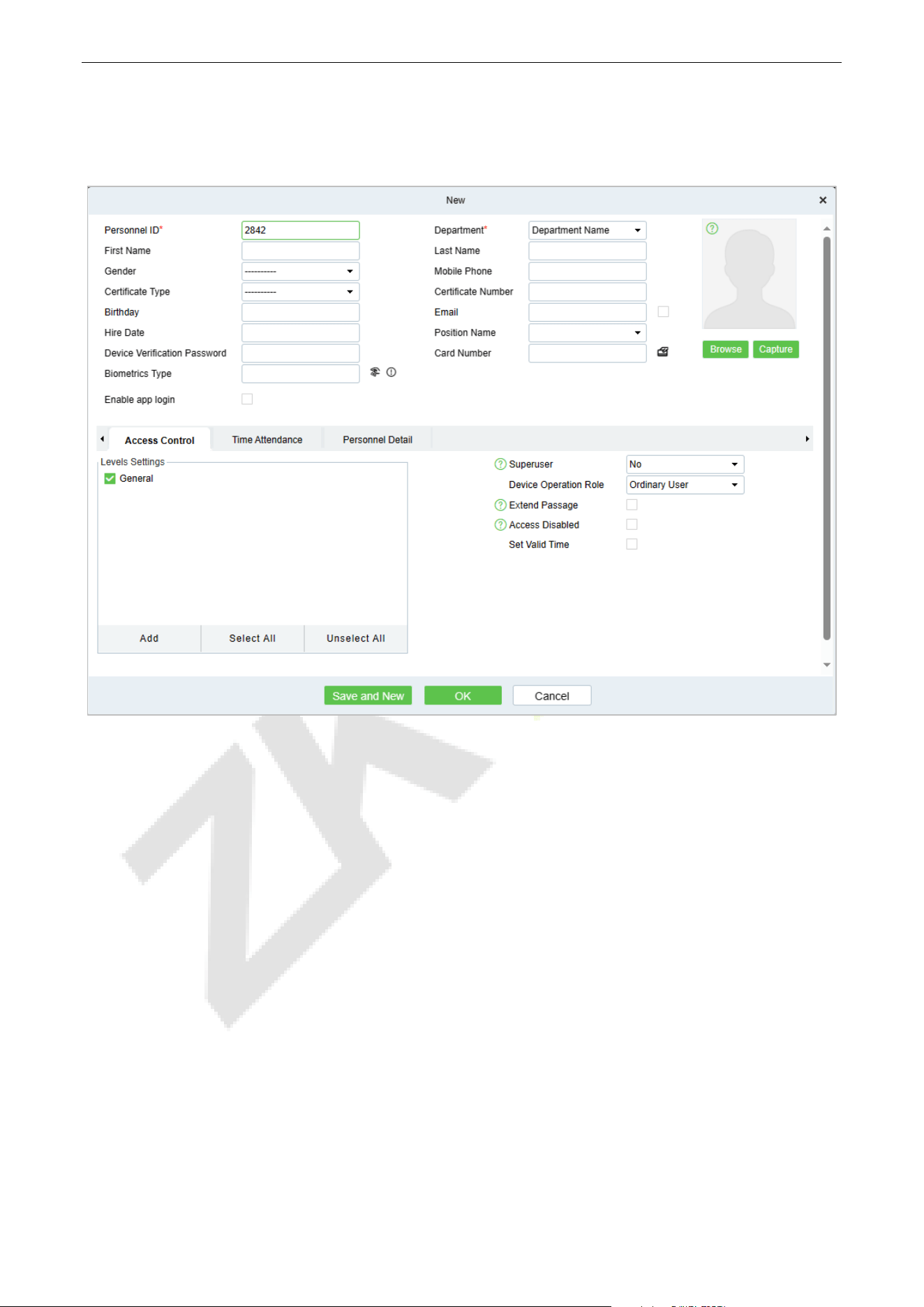

1. Click [Personnel] > [Person] > [New]:

2. Fill in all the required fields and click [OK] to register a new user.

3. Click [Attendance] > [Attendance Device] > [Device Control] > [Synchronize All Data to Devices]

to synchronize all the data to the device including the new users.

Note: For other specific operations, please refer to ZKBio CVAccess User Manual.

SpeedPalm-V5L User Manual

18 Connect to ZKBio CVSecurity Software

Set the Communication Address 18.1

 Device Side

1. Tap [COMM.] > [Ethernet] in the Main Menu to set the IP address and gateway of the device.

(Note: The IP address should be able to communicate with the ZKBio CVSecurity server, preferably in

the same network segment with the server address)

2. In the Main Menu, tap [COMM.] > [Cloud Server Settings] to set the server address and server port.

Server Address: Set the IP address as of ZKBio CVSecurity server.

Server Port: Set the server port as of ZKBio CVSecurity (The default is 8088).

 Software Side

Monitor] to set the ADMS service port, as shown in the figure below:

SpeedPalm-V5L User Manual

Add Device on the Software 18.2

Add the device by searching. The process is as follows:

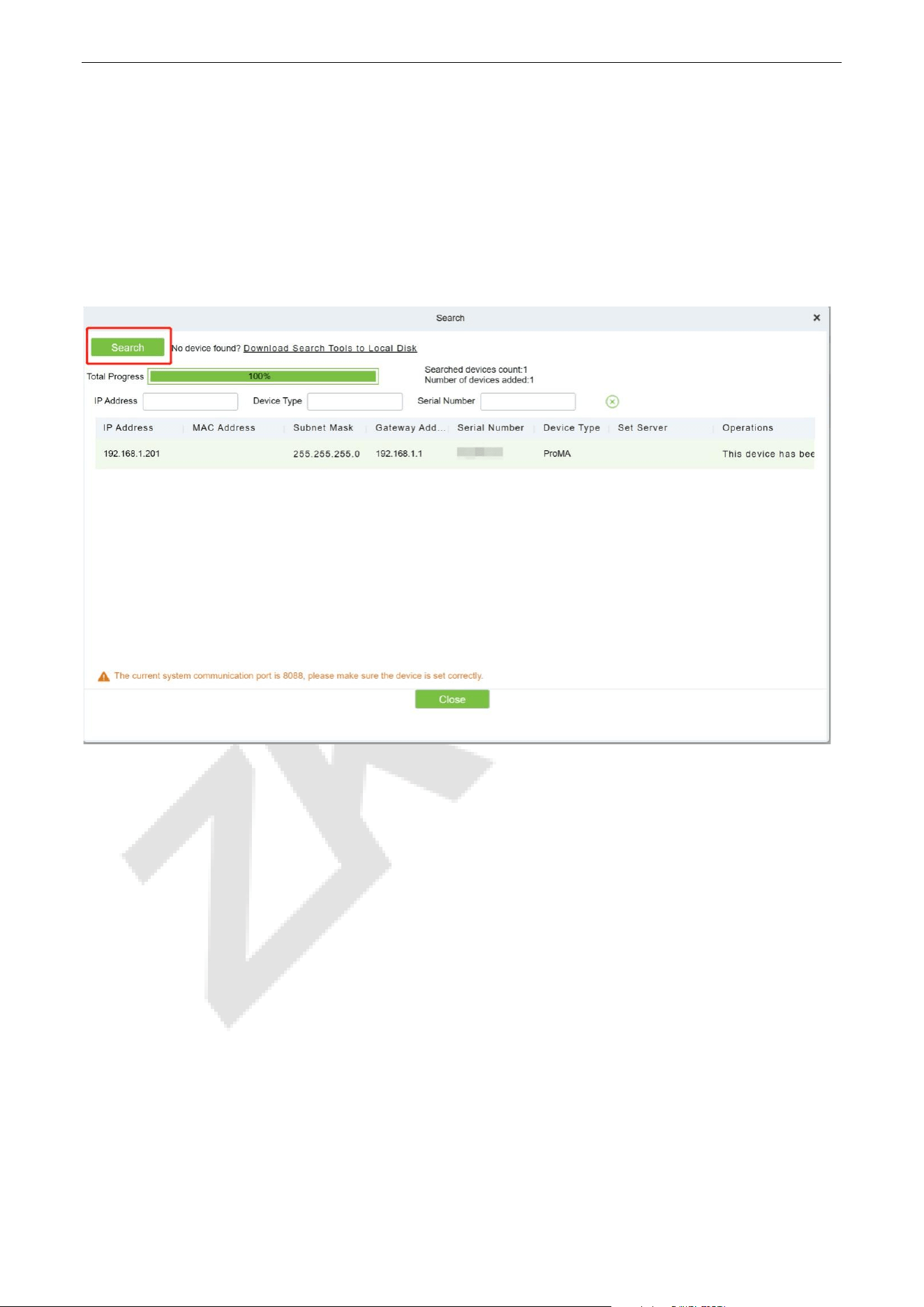

1. Click [Access] > [Device] > [Search Device], to open the Search interface in the software.

2. Click [Search], and it will prompt Searching…….

3. After searching, the list and total number of access controllers will be displayed.

4. Click [Add] in the operation column, and a new window will pop-up. Select Icon type, Area, and Add to

Level from each dropdown and click [OK] to add the device.

SpeedPalm-V5L User Manual

Add Personnel to the Software 18.3

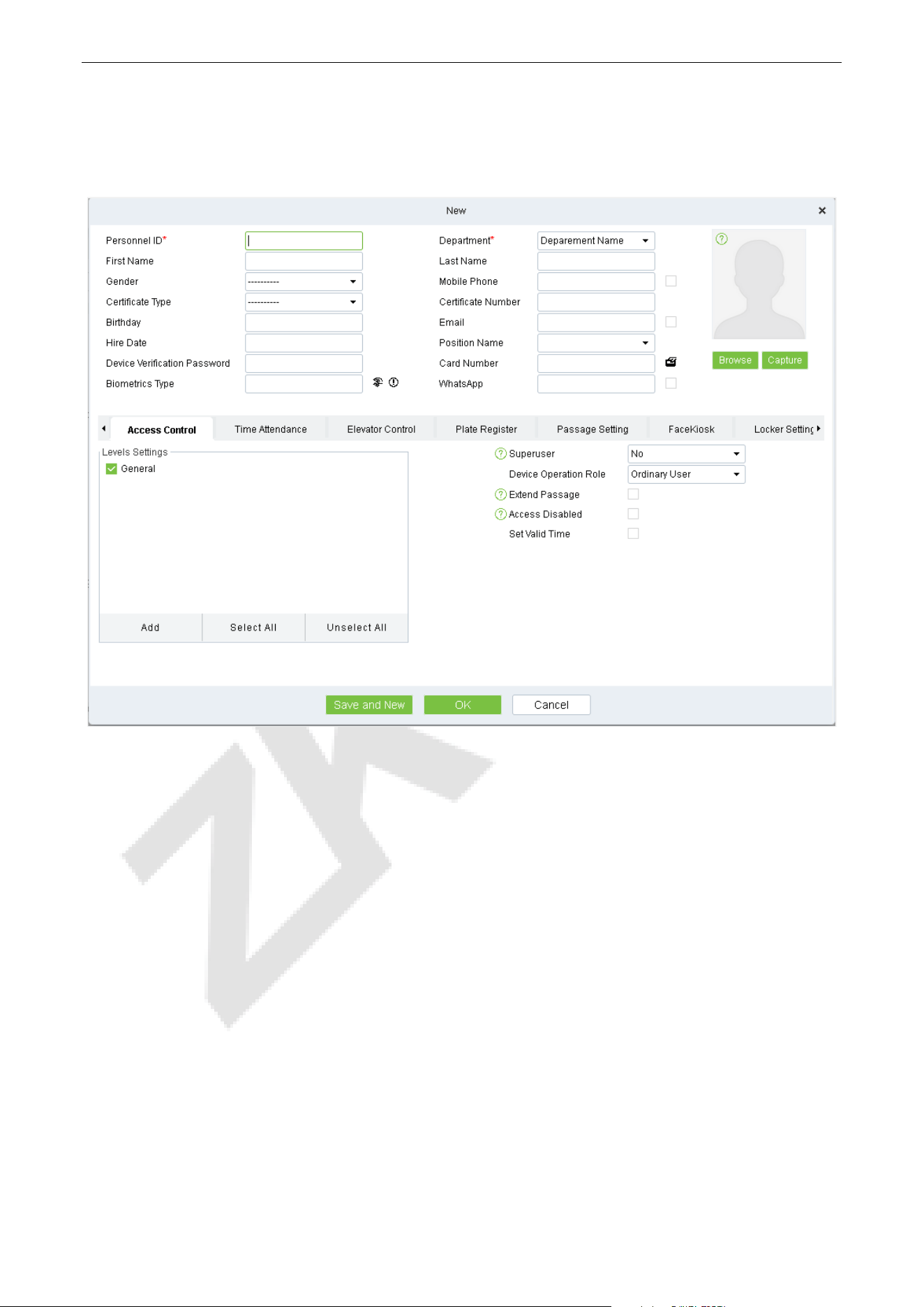

1. Click [Personnel] > [Person] > [New]:

2. Fill in all the required fields and click [OK] to register a new user.

3. Click [Access] > [Access Device] > [Device Control] > [Synchronize All Data to Devices] to

synchronize all the data to the device including the new users.

Note: For other specific operations, please refer to ZKBio CVSecurity User Manual.

SpeedPalm-V5L User Manual

Appendix 1

Requirements of Live Collection and Registration of Visible Light Face

Templates

1) It is recommended to perform registration in an indoor environment with an appropriate light

source without underexposure or overexposure.

2) Do not shoot towards outdoor light sources like door or window or other strong light sources.

3) Dark-color apparels which are different from the background color are recommended for

registration.

4) Please show your face and forehead, and do not cover your face and eyebrows with your hair.

5) It is recommended to show a plain facial expression. Smile is acceptable, but do not close your

eyes, or incline your head to any orientation. Two images are required for persons with eyeglasses,

one image with eyeglasses and one other without.

6) Do not wear accessories like scarf or mask that may cover your mouth or chin.

7) Please face right towards the capturing device, and locate your face in the image capturing area as

shown in Image 1.

8) Do not include more than one face in the capturing area.

9) 50cm - 80cm is recommended for capturing distance adjustable subject to body height.

Image1 Face Capture Area

SpeedPalm-V5L User Manual

Requirements for Visible Light Digital Face Template Data

Digital photo should be straightly edged, colored, half-portrayed with only one person, and the person

should be uncharted and not in uniform. Persons who wear eyeglasses should remain to put on eyeglasses

for photo capturing.

 Eye Distance

200 pixels or above are recommended with no less than 115 pixels of distance.

 Facial Expression

Plain face or smile with eyes naturally open are recommended.

 Gesture and Angel

Horizontal rotating angle should not exceed ±10°, elevation should not exceed ±10°, and depression angle

should not exceed ±10°.

 Accessories

Masks and colored eyeglasses are not allowed. The frame of the eyeglasses should not shield eyes and

should not reflect light. For persons with thick eyeglasses frame, it is recommended to capture two images,

one with eyeglasses and the other one without.

 Face

Complete face with clear contour, real scale, evenly distributed light, and no shadow.

 Image Format

Should be in BMP, JPG or JPEG.

 Data Requirement

Should comply with the following requirements:

1) White background with dark-colored apparel.

2) 24bit true color mode.

3) JPG format compressed image with not more than 20kb size.

4) Definition rate between 358 x 441 to 1080 x 1920.

5) The vertical scale of head and body should be 2:1.

6) The photo should include the captured person’s shoulders at the same horizontal level.

7) The captured person should be eyes-open and with clearly seen iris.

8) Plain face or smile is preferred, showing teeth is not preferred.

9) The captured person should be clearly seen, natural in color, and without image obvious twist, no

shadow, light spot or reflection in face or background, and appropriate contrast and lightness level.

SpeedPalm-V5L User Manual

Appendix 2

Notice:

To help you better use the products and services of ZKTeco and its affiliates, hereinafter referred as

"we", "our", or "us", the smart service provider, we consistently collect your personal information. Since

we understand the importance of your personal information, we took your privacy sincerely and we

have formulated this privacy policy to protect your personal information. We have listed the privacy

policies below to precisely understand the data and privacy protection measures related to our smart

products and services.

Before using our products and services, please read carefully and understand all the rules and

provisions of this Privacy Policy. If you do not agree to the relevant agreement or any of its

terms, you must stop using our products and services.

I. Collected Information

To ensure the normal product operation and help the service improvement, we will collect the

information voluntarily provided by you or provided as authorized by you during registration and

use or generated as a result of your use of services.

1. User Registration Information: At your first registration, the feature template (Fingerprint

template/Face template/Palm template) will be saved on the device according to the

device type you have selected to verify the unique similarity between you and the User ID

you have registered. You can optionally enter your Name and Code. The above information is

necessary for you to use our products. If you do not provide such information, you cannot use

some features of the product regularly.

2. Product information: According to the product model and your granted permission when

you install and use our services, the related information of the product on which our services

are used will be collected when the product is connected to the software, including the

Product Model, Firmware Version Number, Product Serial Number, and Product Capacity

Information. When you connect your product to the software, please carefully read the

II. Product Security and Management

1. When you use our products for the first time, you shall set the Administrator privilege before

performing specific operations. Otherwise, you will be frequently reminded to set the

Administrator privilege when you enter the main menu interface. If you still do not set the

Administrator privilege after receiving the system prompt, you should be aware of the

possible security risk (for example, the data may be manually modified).

SpeedPalm-V5L User Manual

2. All the functions of displaying the biometric information are disabled in our products by

default. You can choose Menu > System Settings to set whether to display the biometric

information. If you enable these functions, we assume that you are aware of the personal

privacy security risks specified in the privacy policy.

3. Only your user ID is displayed by default. You can set whether to display other user

verification information (such as Name, Department, Photo, etc.) under the Administrator

privilege. If you choose to display such information, we assume that you are aware of

the potential security risks (for example, your photo will be displayed on the device

interface).

4. The camera function is disabled in our products by default. If you want to enable this

function to take pictures of yourself for attendance recording or take pictures of strangers for

access control, the product will enable the prompt tone of the camera. Once you enable

this function, we assume that you are aware of the potential security risks.

5. All the data collected by our products is encrypted using the AES 256 algorithm. All the data

uploaded by the Administrator to our products are automatically encrypted using the AES

256 algorithm and stored securely. If the Administrator downloads data from our products,

we assume that you need to process the data and you have known the potential security risk.

In such a case, you shall take the responsibility for storing the data. You shall know that some

data cannot be downloaded for sake of data security.

6. All the personal information in our products can be queried, modified, or deleted. If you no

longer use our products, please clear your personal data.

III. How we handle personal information of minors

Our products, website and services are mainly designed for adults. Without consent of parents or

guardians, minors shall not create their own account. If you are a minor, it is recommended that

you ask your parents or guardian to read this Policy carefully, and only use our services or

information provided by us with consent of your parents or guardian.

We will only use or disclose personal information of minors collected with their parents' or

guardians' consent if and to the extent that such use or disclosure is permitted by law or we have

obtained their parents' or guardians' explicit consent, and such use or disclosure is for the purpose

of protecting minors.

Upon noticing that we have collected personal information of minors without the prior consent

from verifiable parents, we will delete such information as soon as possible.

SpeedPalm-V5L User Manual

IV. Others

You can visit https://www.zkteco.com/cn/index/Index/privacy_protection.html to learn more

about how we collect, use, and securely store your personal information. To keep pace with the

rapid development of technology, adjustment of business operations, and to cope with customer

needs, we will constantly deliberate and optimize our privacy protection measures and policies.

Welcome to visit our official website at any time to learn our latest privacy policy.

SpeedPalm-V5L User Manual

Eco-friendly Operation

The product's "eco-friendly operational period" refers to the time during which this product

will not discharge any toxic or hazardous substances when used in accordance with the

prerequisites in this manual.

The eco-friendly operational period specified for this product does not include batteries or

other components that are easily worn down and must be periodically replaced. The

battery's eco-friendly operational period is 5 years.

Hazardous or Toxic substances and their quantities

Component

Name

Hazardous/Toxic Substance/Element

Lead (Pb)

Mercury

(Hg)

Cadmium

(Cd)

Hexavalent

Chromium

(Cr6+)

Polybrominated

Biphenyls (PBB)

Polybrominated

Diphenyl Ethers

(PBDE)

Chip Resistor ×

○ ○ ○ ○ ○

Chip Capacitor ×

○ ○ ○ ○ ○

Chip Inductor ×

○ ○ ○ ○ ○

Diode ×

○ ○ ○ ○ ○

ESD

component

○ ○ ○ ○ ○

Buzzer ×

○ ○ ○ ○ ○

Adapter ×

○ ○ ○ ○ ○

Screws

○ ○ ○

○ ○

○ indicates that the total amount of toxic content in all the homogeneous materials is below the limit

as specified in SJ/T 11363—2006.

× indicates that the total amount of toxic content in all the homogeneous materials exceeds the limit

as specified in SJ/T 11363—2006.

Note: 80% of this product’s components are manufactured using non-toxic and eco-friendly

materials. The components which contain toxins or harmful elements are included due to the current

economic or technical limitations which prevent their replacement with non-

toxic materials or

elements.
