CORDLESS VACUUM CLEANER
USER MANUAL
Elite 7
If you have any questions, please email to [email protected]
2EN
CONTENTS
1.IMPORTANT SAFETY WARNING 4
1.1 Precautions When Using - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4
1.2 Notes on the Battery Pack - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -5
1.3 Notes on Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -6
1.4 Storage and Maintenance Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - -7
2.PACKAGE CONTENT 9
3.OVERVIEW 11
3.1 Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -11
3.2 Animated Screen Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -12
4.ASSEMBLING & USE 13
4.1 Product Assembling and Use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -13
4.2 How to Use- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -14
4.3 Abnormal Indicator - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -15
5.CHARGING METHODS 16
If you have any questions, please email to [email protected]
3 EN
5.1 Charging Methods - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -16
5.2 Wall Mount- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -17
6.MAINTENANCE 18
6.1 Main Body Cleaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -18
6.2 Empty the Dust Cup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -18
6.3 Clean the Filter- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -19
6.4 Brush Roller Cleaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -20
7.SPECIFICATION 20
8.TROUBLESHOOTING 21
9.WARRANTY 22
If you have any questions, please email to [email protected]
4EN
1.IMPORTANT SAFETY WARNING
ATTENTION: Before using this machine, please read all instructions in the manual and
cautionary markings on the machine carefully.
1.1 Precautions When Using
01. This Laresar machine is not intended for use by persons (including children) with reduced physical, sensory or
reasoning capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the machine by a person responsible for their safety.
02. Use only as described in this Laresar User Manual. If the machine is not working as it should, if it has received a
sharp blow, if it has been dropped, damaged, left outdoors, or dropped into water, do not use and contact the Laresar
Support Team.
03. Suitable for dry locations ONLY. Do not install, charge or use this machine outdoors, in a bathroom or within 10 feet (3
meters) of a pool. Do not use on wet surfaces and do not expose to moisture, rain or snow.
04. When using this machine, please keep hair, loose clothing, ngers, and all parts of the body away from openings
and moving parts. Do not point the hose, aluminium alloy tube or other accessories at your eyes or ears or put them in
your mouth.
05. Do not use to pick up hard objects, such as glass slag, needles,nails, etc.
06. Do not touch the charger with wet hands to avoid electric shock.
07. Use only Laresar recommended accessories and replacement parts.
08. Do not use without the dust cup and lter(s) in place.
If you have any questions, please email to [email protected]
5 EN
1.2 Notes on the Battery Pack
09. When removing or replacing a motorized brush bar, be careful not to pull the power button until the cleaner head
has been reassembled.
10. Do not water or spill liquid onto the vacuum cleaner. If that happens, it will increase the risk of electric shock.
11. Use extra care when cleaning on stairs.
12. Please do not use the vacuum cleaner to suck the detergent, kerosene, soot, wet dust, water, sewage, matches and
other items.
13. Please do not use a vacuum cleaner to suck up small particles such as cement, gypsum powder, wall powder, or
large objects such as toy paper balls, otherwise it will cause the vacuum cleaner to block and the motor to burn out.
01. Do not throw the battery pack away, and it should be safely disposed in accordance with local regulations.
02. Do not use a battery pack or machine that is damaged or modied. Damaged or modied batteries may exhibit
unpredictable behavior resulting in re, explosion or risk of injury.
03. Do not incinerate batteries or expose to high temperatures, as they may explode.
04. The battery is a sealed unit and under normal circumstances poses no safety concerns. In the unlikely event that
liquid leaks from the battery, do not touch the liquid as it may cause irritation or burns, and observe the following
precautions
：
Skin contact – can cause irritation. Wash with soap and water.
Inhalation – can cause respiratory irritation. Expose to fresh air and seek medical advice.
Eye contact – can cause irritation. Immediately ush eyes thoroughly with water for at least 15 minutes. Seek medical
attention.
If you have any questions, please email to [email protected]
6EN
Disposal – wear gloves to handle the battery and dispose of immediately, following local ordinances or regulations.
05. When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal
objects that could make a connection from one terminal to another.
1.3 Notes on Charging
01. Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases
the risk of re and electric shock.
02. Never modify the charger in any way.
03. The charger has been designed for a specic voltage. Always check that the mains voltage is the same as that
stated on the rating plate
04. Unplug the charger when not in use for extended periods.
05. When your vacuum cleaner is fully charged , needs to be cleaned or repaired, please unplug the charger in time
and do not pull the power cord directly.
06. Do not pull the cord to disconnect from a socket, grasp the plug and pull to disconnect.
07. Don’t wrap the cord around the charger when storing.
08. Please fully recharge the battery, when rst used or used after long time storage. If the product is not used for long
time, please make sure the battery is recharged and used each three months at least.
09. If smoke or re occurs during charging, unplug the charger immediately, and use a re extinguisher to put out the
re . Do not use water to extinguish the re, it will increase the risk of electric shock.
10. Follow all charging instructions and do not charge the battery pack or the machine outside of the temperature
range specified in the instructions. Charging improperly or at a temperature outside of the specified range may
If you have any questions, please email to [email protected]
7 EN
damage the battery and increase the risk of re.To ensure maximum battery life, Laresar recommends the following
:
When not in use the machine should be stored at room temperature. Recommended range: 64°F (18°C) to 82°F (28°C).
The ambient temperature range for operation and charging should be 50°F (8°C) to 86°F (35°C).
1.4 Storage and Maintenance Precautions
01. Please store the product under cool and dry environment. Please avoid long-time sunshine on the product.
02. The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.
03. Please use dry cloth to clean the vacuum cleaner. Please do not use gas or liquid that can make the surface cracked
or color faded.
04. Do not apply any fragrance or scented product to the lter(s) of this machine. The chemicals in such products are
known to be ammable and can cause the machine to catch re.
05. Do not carry out any maintenance other than that shown in this manual, or advised by the Laresar Support Team.
06. Do not disassemble the machine as incorrect reassembly may result in an electric shock or re. Contact the Laresar
Support Team when a service or repair is required.
If you have any questions, please email to [email protected]
8EN

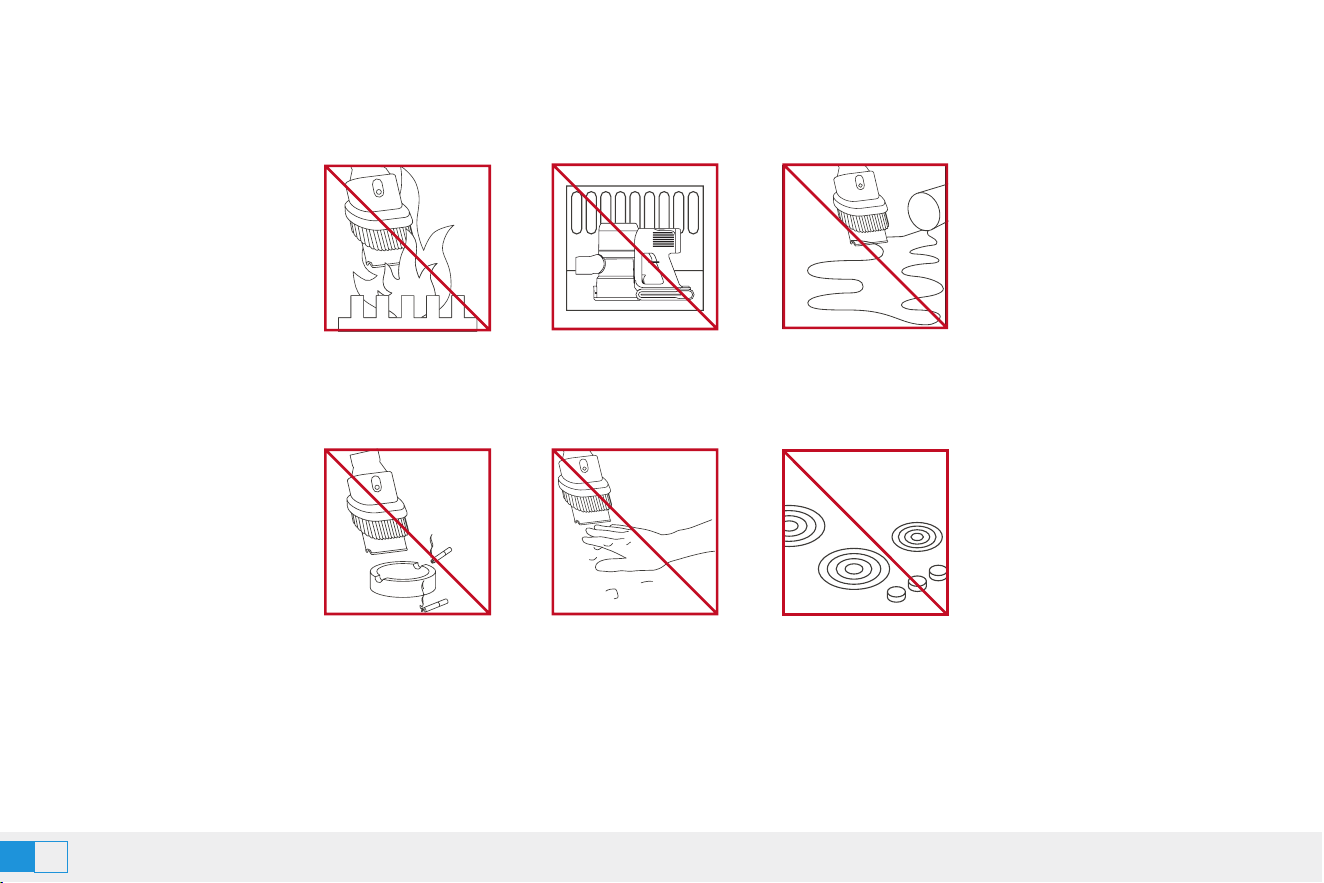

SAVE THESE INSTRUCTIONS
Do not use near
open ames.
Do not pick up
burning objects.
Do not store near
heat sources.
Do not put hands
near the brush bar
when the machine
is in use.
Do not pick up
water or liquids.
Do not place on or
near the cooker.
If you have any questions, please email to [email protected]
9 EN
2.PACKAGE CONTENT
Please check and conrm the accessories and parts according to the following sheet before using.
Main Body Retractable Tube Motorized Brush Head Wall Mount (Screw*5,
Expansion Nails*5)
Sofa Brush 2 in 1 Upholstery Brush Long Crevice Nozzle Battery Pack
Charger HEPA lter and Sponge Mini Cleaning Brush User Manual
If you have any questions, please email to [email protected]
10EN
3.OVERVIEW
3.1 Overview
Introduction of components:
①
②
③
④
⑤
⑥
⑦
⑧
⑨
01. Air Outlet HEPA Filter
02. Touch Screen
03. Main Body Removal Button
04. Battery Removal Button
05. Switch Button
06. Dust Tank Release
07. Dust Release Button
08. Retractable Tube Adjustment Button
09. Electric Floor Brush Removal Button
If you have any questions, please email to [email protected]
11 EN
01. Touch to Adjust Speed
02. Suction Level Display
03. Battery Display
04. Ground Brush Stall Prompt
05. Dust Cup Cleaning Tips
06. Ambient Light
3.2 Touch Screen Indicators
①
②
③
④
⑤
⑥
If you have any questions, please email to [email protected]
12EN
4.ASSEMBLING & USE
4.1 Product Assembling and Use
4.1.1 Install the Battery Pack
4.1.2 Install Cleaning Accessory
If you have any questions, please email to [email protected]
13 EN
4.2 How to Use
Before use, make sure that
• The battery is fully charged, and xed in place.
• The dust cup and lters are cleaned, dried, and xed in place.
4.2.1 Start to Work
4.2.2 Select Cleaning Mode
Switch button
Press the switch button, the appliance will start to work. Press the button again to shut down the appliance.
• Boot into “Eco” Mode
• Touch to “Standard” Mode
• Touch Again to “Boost” Mode
If you have any questions, please email to [email protected]
14EN
4.3 Abnormal Indicator
When the battery level is under 10%, the battery indicator on the screen will start to ash in red. The vacuum cleaner
should be charged as soon as possible.
When the brush roller is blocked, the LED light on the motorized brush goes out, and the red brush roller indicator light
keeps ashing until it is manually turned off.
When the host is blocked, the red cup full reminder ashes for 10 seconds and then goes out.
If you have any questions, please email to [email protected]
15 EN
5.CHARGING METHODS

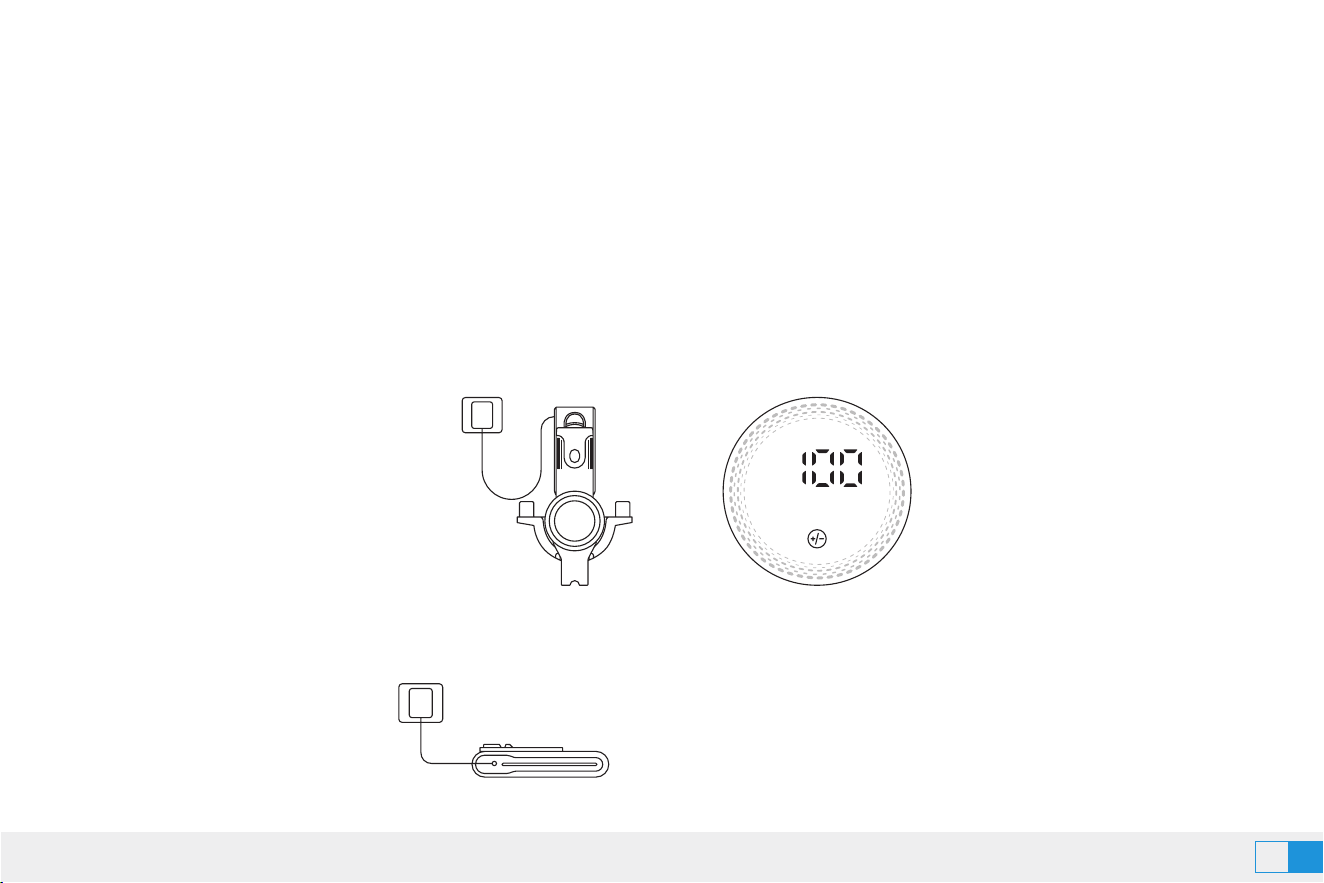

5.1 Charging Methods
During the work of the machine, when the power display is only 10%, the power display number will ash. This is a
reminder that the battery is low and should be charged in time to avoid affecting the use.
Method 1:
The product can be charged on the storage wall-mount. The digital screen will be showed the charging process ,when
at 100% ,the battery is full.
Method 2:
The battery package can be pulled out and charged separately. The battery indicator light will be ashing in blue, When
the battery is fully charged, the blue light is always on.
• Blue light ashing (Charging)
• Blue light (Fully Charged)
If you have any questions, please email to [email protected]
16EN
5.2 Wall Mount
Warning
• Please make sure there is no gas, water or electrical cables
and wires behind the mounting area.
• To avoid the dock dropping down, please make sure it must
be installed rmly.
Hold the charging wall mount against the wall through the two xing screw holes and x it onto the wall with screws,
and then hang the vacuum cleaner on the wall.
If you have any questions, please email to [email protected]
17 EN
6.MAINTENANCE
6.1 Main Body Cleaning
6.2 Empty the Dust Cup
Please clean it regularly to prolong the service life of the vacuum cleaner.
• Turn off the power before cleaning the body.
• Please use a neutral detergent, wipe the body with half-wet cloth.
• Please avoid sun exposure and store in a cool and dry place.
• Press the dust cup release button to empty the dust.
• When using, if the garbage in the dust cup exceeds MAX line, please empty it in time.
MAX
If you have any questions, please email to [email protected]
18EN
6.3 Clean the Filter
The dust cup release lever is pulled back and the dust cup can be disengaged and unlocked for cleaning.
Note
• The lter case and HEPA lter have to be cleaned once in two
weeks. The HEPA lter has to be replaced Every two months if
necessary. Please ensure the filters are completely dry before
reassembly.
① ②
③
④
If you have any questions, please email to [email protected]
19 EN
6.4 Brush Roller Cleaning
Note: After long periods of use, the bristle may be jammed by hair or similar build-up. It's recommended to clean the
brush roller periodically to ensure efcient operation and maintain suction.
7.SPECIFICATION
Product Cordless Vacuum Cleaner
Model Elite 7
Rated Voltage 22.2V
⎓
Adapter Output 26.5V
⎓
550 mA
Adapter Input 100-240 V~50/60Hz
Cleaning Modes Low/Middle/High
If you have any questions, please email to [email protected]
20EN
8.TROUBLESHOOTING
ISSUE CAUSE SOLUTION
Weak suction
power
①
Filter element blocked/deformed
②
The expansion tube is blocked by foreign
objects
③
Air leakage from broken brush hose
①
Clean/replace the lter
②
Clean the telescopic tube
③
Contact customer service to replace the oor
brush
Cannot be turned
on
①
The switch of vacuum cleaner is not working
②
The lter system is blocked and the main unit
is blocked to trigger automatic protection
③
Battery damage/short circuit in other parts
①
Contact customer service to replace the
switch
②
Clean/replace the lter
③
Contact customer service for investigation
The brush does not
rotate
①
The brush is entangled with hair
②
The electric oor brush is damaged/short-
circuited
③
Metal tube short circuit failure
①
Clean the hair on the roller
②
Contact customer service to replace the
brush
③
Contact customer service to replace the
metal tube
Battery cannot be
charged
①
Loose charging port
②
Wrong adapter
③
Adapter/battery damaged
①
Reconnect charging
②
Use the correct adapter
③
Contact customer service to replace the
adapter/battery
Auto shutdown
after power on
①
Battery is not fully charged (wrong adapter/
loose charging port)
②
The lter system is blocked, the host blockage
triggers automatic protection
③
Short circuit of the telescopic tube/folding
tube/electric oor brush
①
Reconnect charging / use the correct adapter
②
Clean/replace the lter
③
Contact customer service for replacement
If you have any questions, please email to [email protected]
21 EN
9.WARRANTY
The 2-Year Limited Warranty
WHAT IS COVERED?
WHAT IS NOT COVERED?
• Your Laresar machine has a 2-year warranty against original defects in material and workmanship, when used for private
household purposes in accordance with the Laresar Instruction Manual.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your machine is in proper
operating condition during the warranty period.
According to the requirements outlined in this instruction manual, subject to the following conditions and exclusions.
Only applies to purchases made from authorized retailers of Laresar.
This warranty will only be valid if the machine is used in the country in which it was sold.
Laresar shall not be liable for costs, damages or repairs incurred as a result of:
• Machines purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Laresar
Instruction Manual.
• The machines are used for commercial or rental purposes in addition to normal domestic use.
• Use of parts not in accordance with the Laresar Instruction Manual.
• Use of parts and accessories other than those produced or recommended by Laresar.
If you have any questions, please email to [email protected]
22EN
HOW TO CLAIM?
Please keep your proof of purchase. To make a claim under our Limited Warranty, you need to provide your original
purchase receipt with the purchase date and order number on it.
All work will be carried out by Laresar or its authorized agency.
Any replaced defective parts will become the property of Laresar.
Service under this warranty will not extend the period of this warranty.
If your machine is not functioning properly, or you still have any questions after reading this manual carefully, please feel
free to contact us, we will try ou r best to provide you with a satisfactory solution.
• External factors unrelated to product quality and use, like accidental water damage.
• Repairs or alterations carried out by unauthorized parties or agents.
• Normal wear and tear, including Dust Cup, Belt, Filter, HEPA, Brush Roller, and Power Cord (or where external damage
or abuse is diagnosed), carpet or oor damage due to use not in accordance with manufacturer's instructions or failure to
turn the brush roller off when necessary.
• Reduction in battery discharge time due to battery age or use.
E-mail our Customer Service:
Laresar is here to help and we
are glad to serve you.
US CA
This marking indicates that this product should not be disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To return your used device, please use
the return and collection systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Correct Disposal of This Product
FCC STATEMENT:
Declaration of Conformity
We (EU based importer is responsible for this declaration)
Prolinx GmbH
(Company name)
Brehmstr.56, 40239 Duesseldorf, Germany
(Company address)
declare under our sole responsibility that the product
Trade name: Laresar
Equipment: Vacuum Cleaner
Model No. : Elite 7
to which this declaration relates is in conformity with the essential requirement set out in the Council Directive on the Approximation
of the laws of the Member States relating to LVD Directive(2014/35/EU) & EMC Directive(2014/30/EU) & RoHS(2011/65/EU) product is
responsible to afx CE marking, the following standards were applied:
EN 60335-2-2:2010+A11:2012+A1:2013
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019
EN 62233:2008
EN 55014-1:2021
EN 55014-2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A2019
IEC62321-3-1:2013
IEC62321-4:2013
IEC62321-5:2013
IEC62321-6:2015
IEC62321-7-1:2015
IEC62321-7-2:2017
IEC62321-8:2017
Full Name: George.wang Position: Approbation Manager
Signature: Place/Date: Shenzhen,China/Jun.28-2023
